Hydrogen from Renewables: A Case Study of Glycerol Reforming

Abstract

Biomass is an interesting candidate raw material for the production of renewable hydrogen. The conversion of biomass into hydrogen can be achieved by several processes. In particular, this short review focuses on the recent advances in glycerol reforming to hydrogen, highlighting the development of new and active catalysts, the optimization of reaction conditions, and the use of non-innocent supports as advanced materials for supported catalysts. Different processes for hydrogen production from glycerol, especially aqueous phase reforming (APR) and steam reforming (SR), are described in brief. Thermodynamic analyses, which enable comparison with experimental studies, are also considered. In addition, research advances in terms of life cycle perspective applied to support R&D activities in the synthesis of renewable H₂ from biomass are presented. Lastly, also featured is an evaluation of the studies published, as evidence of the increased interest of both academic research and the industrial community in biomass conversion to energy sources.

1. Introduction

Due to the continuous increase in industrialization, urbanization, and population outgrowth, the demand for energy and its resources is constantly rising. Over the last decades, fossil fuels and their derivatives have remained the most widely exploited energy source for the world, with 97.6 million barrels/day in 2018 and an expected increase up to 112.2 million barrels/day by 2035 [1]. Environmental apprehension over global warming and the search for new sustainable alternatives to fossil energy have recently given rise to a sector of huge impact from the economic, scientific, and industrial standpoints, based on the use of biomass as feedstocks [2,3,4,5]. This sector, which bases itself on the 12 Principles of Green Chemistry [6], considers it imperative to develop eco-friendly and energy-efficient processes for the sustainable production of fuels and chemicals [7,8]. Everything suggests that second-to-fourth generation biomass materials could be the major emerging potential sources of organic carbon; moreover, they would be strongly preferable because the fuels resulting from their processing are the only real alternative to fossil fuels. The total amount of energy obtainable from biomass in 2050 will be in the range of 150–450 exajoule/year, corresponding to ~76 × 10⁹ barrels of oil energy equivalent [9]. One of the major fuels that could be used because of its abundance via the processing of biomass is surely H₂. Hydrogen (H₂) is a clean energy carrier that can be used in several technologies such as fuel cells to produce electricity [10].

Today, great effort has been put into producing hydrogen from renewables because they are considered to be carbon-neutral, since the net amount of CO₂ released from their combustion is used by plants during photosynthesis. However, biomass conversion technologies such as gasification and pyrolysis show some limitations and are energy-consuming [11]. Among all waste conversion technologies, the thermochemical conversion process is surely the most known; it includes several subcategories: pyrolysis, hydropyrolysis, reforming, gasification, and liquefaction [12]. While pyrolysis and liquefaction produce bio-oils, gases, and char from biomass by using high temperatures, gasification produces more higher hydrocarbons and syngas from biomass. In this context, an example of extraordinary impact is lignocellulosic (second-generation) biomass, obtainable from agriculture, forestry, industrial, and urban waste residues as a nonedible raw material [13,14,15]. All these organic residues are useful tools for biofuel production using physiochemical, thermochemical, or biochemical processes, which are fully serviceable for hydrogen production and carbon neutralization. Indeed, lignocellulosic biomasses could be a potential resource for bio-H₂ production, because of their low costs, abundance, and worldwide availability [16].

In this review, the conversion of biomass-derived compounds, especially glycerol, to achieve a sustainable H₂ production from renewables will be discussed in detail. In particular, the state of the art of the several processes involved in hydrogen production will be analysed with a special focus on the improvements made in the last two decades in the design of both the catalytic systems and the reaction conditions or reactors applied, which have ensured both high conversion of the substrate and an enhanced selectivity in H₂.

2. Glycerol Reforming Processes

2.1. H₂ from Glycerol: An Overview

Glycerol (1,2,3-propanetriol) is the main by-product of biodiesel preparation (about 10 wt% of the final mixture); it is mainly produced by the transesterification of triglycerides using methanol and by the saponification of vegetable oils. In recent years, the growing demand for biodiesel has led to the parallel rapid increase in glycerol production, which is expected to arrive at up to 2.5 Mt/y in 2020 [17]. This forecast is supported by the greater worldwide availability of glycerol and its consequent price collapse, which has stimulated the interest of industries and research in finding new uses and applications [18,19,20,21]. Moreover, in the past few years, the production data of glycerol all over the world confirm this trend. As a matter of fact, in 2013, EU and US biodiesel production facilities produced 1.6 Mt and 1.04 Mt of glycerol respectively. In 2018 the glycerol market was estimated at around $2.1 billion. Glycerol will play an important role in the production of chemicals, as demonstrated by Solvay since 2011 with the preparation of bio-based epichlorohydrin (ECH), an epoxide and organochlorine compound useful for epoxy resins, via glycerol chlorination [22]. In the glycerol obtained as a co-product from biodiesel industrial plants (crude glycerol) several impurities (mainly methanol, salts, water, and free fatty acids) are present, thus requiring treatments and purification to render it suitable for pharmaceutical and food applications. On the other hand, crude glycerol can be used directly for H₂ production, and this approach can enhance the economic feasibility of biodiesel and promote the use of glycerol [23].

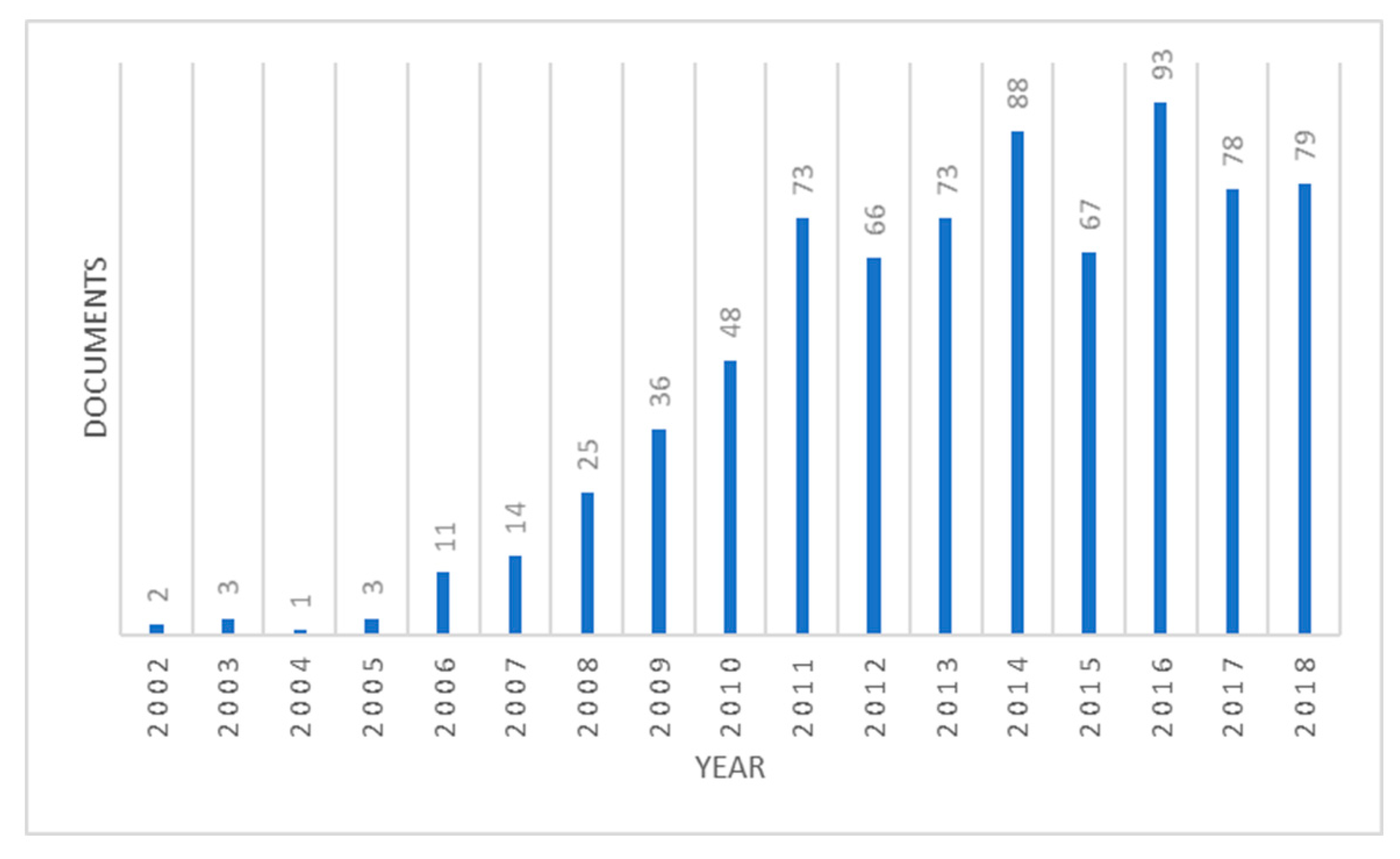

The important role played by the use of glycerol as a starting material for hydrogen production is also confirmed by the publication trend: according to the Scopus^® database, there has been a significant increase in the number of publications on this research field over the last 10 years as showed in Figure 1.

From this standpoint, APR and SR are two reasonable valorisation processes. Glycerol reforming is an endothermic reaction and can be summarized as follows [25]:

C₃H₈O₃ + xH₂O + yO₂ → aH₂ + bCO₂ + cCO + dH₂O + eCH₄

(1)

SR occurs at high temperatures (e.g., 800 °C) and, generally, low pressure, and is a vapor phase catalytic process where y = 0 and x > 0. The main drawbacks of the investigated reaction pathway are catalyst deactivation and high energy consumption.

C₃H₈O₃ + 3H₂O → 7H₂ + 3CO₂

(2)

Conversely, glycerol APR is performed under mild reaction conditions (220–250 °C and 2 MPa) with a reduced energy consumption, while its limitations include lower H₂ selectivity and a higher pressure requirement. In literature, only a few studies focusing on the thermodynamic aspects of glycerol reforming [26] can be found. The overall process comprises several reactions with, according to recently published works, the primary reactions being [27]

C₃H₈O₃ → 4H₂ + 3CO (∆H = 251 kJ/mol) glycerol decomposition

(3)

CO + H₂O ⇌ H₂ + CO₂ (∆H = −41 kJ/mol) water gas-shift reaction

(4)

The sum of Equations (3) and (4) corresponds to Equation (2). As previously described, glycerol reforming is an endothermic process (∆H = 128 kJ/mol) facilitated by high temperature, low pressure, and high water/glycerol ratio in the feed. Methane formation is facilitated by side reactions at high pressures [27]:

CO + 3H₂ ⇌ CH₄ + H₂O (∆H = −206 kJ/mol)

(5)

CO₂ + 4H₂ ⇌ CH₄ + 2H₂O (∆H = −165 kJ/mol),

(6)

whereas the increase of both the water:glycerol ratio (increasing glycerol dilution) and temperature makes it possible to decrease methane yield. Coke deposition on the catalyst surface can also affect the reaction [27].

2CO ⇌ CO₂ + C (∆H = −171.5 kJ/mol)

(7)

CH₄ ⇌ C + 2H₂ (∆H= 75 kJ/mol)

(8)

CO + H₂ ⇌ H₂O + C (∆H = −131 kJ/mol)

(9)

CO₂ + 2H₂ ⇌ 2H₂O + C

(10)

Based on the above-mentioned reactions, the hydrogen yield is maximized at temperatures higher than 627 °C, at a pressure of 0.1 MPa, and in the presence of a water:glycerol molar ratio of 9. This approach makes it possible to inhibit carbon deposition, while methane formation is drastically reduced [28].

2.2. Aqueous Phase Reforming of Glycerol

Aqueous phase reforming (APR) of glycerol Equation (2) is an alternative to gas phase glycerol reforming, especially when glycerol is already produced dissolved in water in the upstream process from biomasses.

The APR process was developed by Dumesic et al. [29,30,31] and may be applied to different oxygenated substrates [29,32,33]. In APR, the liquid solution containing glycerol is heated up in the presence of a catalyst in a one-pot process to produce hydrogen. Lower temperatures than those in glycerol steam reforming are usually used—around 200–250 °C. By working in a closed environment, relatively high autogenic pressures are developed due to the partial water evaporation. However, the reaction takes place in the liquid phase thanks to the low temperature used and the autogenous pressure developed. Thus lower energy is required for reagent vaporization in the APR process, making it a less energy-intensive process than steam reforming. Moreover, unwanted reactions, such as thermal degradation, are minimized thanks to the lower temperatures used. In addition, the presence of aqueous solutions increases the safety of the process and makes it possible to use crude glycerol, thus drastically reducing both the purification steps and the cost of the initial raw material.

Finally, the water–gas shift reaction is facilitated in these conditions of low temperature and high water concentration and occurs after APR, avoiding the need for a separate water–gas shift reactor after the reformer. This leads to the production of a gas stream with low amounts of CO, the presence of which is undesired for certain downstream uses of hydrogen (e.g., fuel cells). In addition, the production of pressurized gas paves the way to the coupling of the APR process with a membrane separation step, a process that is driven by hydrogen partial pressure. However, even CO hydrogenation is facilitated at low temperature and can consume the hydrogen produced to yield methane (methanation) or higher hydrocarbons. In general, glycerol APR leads to the formation of H₂, low amounts of CO, CO₂, methane, and low-chain alkanes (C₂–C₃) in the gas phase. Conversely, oxygenated compounds such as alcohols, aldehydes, carboxylic acids, and diols are formed in the liquid phase. In particular, the main liquid products are hydroxyacetone, glyceraldehyde, propylene and ethylene glycols, propanaldehyde, acetaldehyde, 2-propanol, 1-propanol, 2-methyl propylene, acetic, propanoic and lactic acids, methanol, and ethanol.

The wide product distribution is due to the complexity of glycerol compared to low-chain hydrocarbons or alcohols and to the numerous reactions involved in the reforming process (Scheme 1). In particular, APR involves dehydration, dehydrogenation, hydrogenation, hydrogenolysis, and C–C cleavage reactions [29]. For these reasons, it is not easy to determine the optimal conditions for APR, as different parameters are involved and can affect one another. In general, gas production is facilitated at high temperature and low pressure [34,35,36,37]. The optimum temperature for hydrogen production was found by Özgür et al. [38] to be around 230 °C in a continuous flow reactor. Reaction rates increase with increasing glycerol concentration [39]. However, glycerol conversion and hydrogen production decreased with increasing glycerol concentration in the studies by Manfro et al. and Luo et al. [35,37]. Indeed, hydrogen production was maximized at short reaction times and low glycerol concentrations by Seretic and Tsiacars [40,41]. High catalyst amounts facilitated C–C cleavage and the formation of methanol, ethanol, and ethylene glycol [40,41].

2.2.1. Catalyst for Glycerol Aqueous Phase Reforming

The role of the catalyst is fundamental in APR reaction. Firstly, glycerol is adsorbed over the active metal sites of the catalyst, then it can follow different routes leading to the formation of different intermediates. In particular, C–C cleavage leads to the formation of lower carbon chain molecules (e.g., ethylene glycol). Conversely, C–O bond breaking usually uses up hydrogen and leads to alkane formation, whose reforming is thermodynamically hindered at the relatively low temperatures used in APR. For this reason, Dumesic et al. suggested that an APR catalyst should possess C–C cleavage and WGS activity, while being barely active in the C–O cleavage, Fischer-Tropsch synthesis, and hydrogenation reactions such as methanation [29,33,42,43,44]. Thus VIII group metals are usually used in APR reaction, and Pt is that which most meets the requirements of high activity in C–C cleavage and water gas shift (WGS) [29,43,45]. Ni is a cheaper alternative to Pt, but it’s also active in methanation, which can lead to hydrogen depletion. Nevertheless, catalytic activity can be increased by doping the active metal or using bimetallic catalysts. For example, Sn-modified Ni Raney catalyst provided a good activity in APR of glycerol and other oxygenated compounds [31,46]. The addition of boron also seemed to increase the Ni Raney activity [47]. Moreover, the support properties can highly influence APR reactivity by affecting the dispersion of the active phase, interacting with it, or providing co-catalytic sites. The most-used supports for glycerol APR are shown with their main features in Figure 2. The effect of different supports on the product distribution obtainable in glycerol APR will be discussed extensively in the next paragraphs.

APR Catalysts Supported on Alumina

Among the catalytic supports used in the APR of glycerol, alumina and silica are the materials investigated the most. In particular, a 5 wt% Pt supported on Al₂O₃ was used to investigate the effect of operational conditions on the reaction in a closed batch reactor [40]. At 200 °C, hydrogen yield was found to decrease with increasing time, thus indicating that methanation and hydrogenation increase considerably at high reaction times, producing alcohol and alkanes. Hydrogen selectivity decreased at high temperatures due to the higher conversion obtained [31], while CO₂ and CH₄ selectivity rose, indicating that hydrogen is used up to produce methane. However, the conversion to gaseous products increased when time and temperature were raised. Similar results were obtained on Ni supported on silica-alumina. [41] Morales-Marìn et al. studied the effect of reduction temperature (300–850 °C) on a spinel-derived nickel aluminate [48]. The spinel phase made possible the formation of small (around 14 nm diameter) stable Ni particles which provided glycerol conversion up to 93%, conversion into gaseous product of 57%, and 67% gas selectivity for the catalyst reduced at the highest temperature (850 °C). The reduction temperature especially affected the liquid product distribution: the dehydrogenation mechanism was facilitated above 700 °C, while dehydration/hydrogenation was more pronounced for the catalysts reduced below 600 °C.

The morphology and surface area of such supports can influence the catalytic activity, metal dispersion, and gas transport from the bulk liquid phase to the metallic active phase. For instance, Doukkali et al. [49] tested PtNi, PtCo, PtFe, Pt, and Ni supported on γ-alumina by a sol-gel synthetic procedure in acid conditions. This method makes it possible to generate catalysts characterized by a high surface area, micro/meso porosity, and high metal dispersion, which proved to be more active than in the analogous catalysts prepared by impregnation. Pt presence facilitated the reduction of the other metallic active phase thanks to hydrogen spillover during reduction. The catalysts containing Fe and Co were outperformed by the others due to the higher methanation and lower C–C cleavage properties of the former. PtNi resulted more active than the single metal Pt and Ni catalysts, albeit due to a higher metal loading. However, a synergy between Pt and Ni was observed. This catalyst was particularly active in the formation of gaseous products, namely hydrogen, methane, and ethylene; while methanol, acetaldehyde, ethylene glycol, and other alcohols were found in the liquid phase.

Another study evidenced the effect of the average pore diameter of the support: different Pt precursors were deposited on γ-alumina, Puralox^® (mixture of γ, δ, and θ alumina phases), and Catapal B^® (bohemite modification) supports to provide a catalyst with Pt metal loading of 3 wt%, and tested in a continuous flow reactor [50]. The reaction rate increased together with the average pore diameter of the support, with the Puralox^®-based catalyst providing a glycerol conversion of 57% and a turnover frequency of 89 (mol H₂)/(moles of surface metal*min) associated with an average pore diameter of 33.6 nm. An intermediate activity (26% of glycerol conversion) was obtained by Catapal B^®, which was characterized by a smaller pore diameter (7.4 nm); while the lowest conversion (8%) was obtained with γ-alumina, which has an average pore diameter of 3.4 nm. Therefore, it was suggested that the occurrence of substrate transport limitations through the catalyst porosity must be avoided in order to increase both conversion and selectivity. Interestingly, the Puralox^®-supported catalyst was tested with a crude glycerol mixture but provided low conversion and faster deactivation, in this case due to the poisoning of the active sites of the catalyst by the impurities of the crude mixture (e.g., NaCl).

Alumina-containing samples, however, may undergo a phase transition to bohemite in APR conditions when reaction time increases. In fact, Cifcti et al. [51] investigated the catalytic activity of Pt deposited on γ-alumina, silica, and amorphous silica–alumina with different Al content. Al-containing samples underwent bohemite formation, which provided an increased surface acidity that resulted in enhanced glycerol dehydration into hydroxyacetone and hydrogenation to obtain 1,2-propanediol. Finally, the interaction between the support and the active phase can affect the selectivity of the process, as hydrogen spillover from Pt to alumina can lead to a higher alkane concentration [45].

APR Catalysts Supported on Carbon

Carbon-based supports are a valid alternative to inorganic oxides for developing an active APR catalyst. Their main advantage is the large surface area they can provide, together with custom porosity, thermal conductivity, and stability. Carbon supports have various forms, but the most used ones in glycerol APR are respectively active carbons, nanotubes, carbon black, and mesoporous carbon. For example, Wen et al. used Pt over an active carbon catalyst with a large surface area (721.3 m²/g), which proved to be stable under reaction conditions and provided a hydrogen rich gas phase with a conversion to gaseous products of 17.2% [45].

Carbon-based supports can be useful when comparing the activity of different active phases due to the low intrinsic activity of these supports. For example, Kunkes et al. studied the effect of Re addition to Pt over carbon black, evidencing that the presence of Re increased the production of H₂, CO, CO₂, and light alkanes [52]. Moreover, Re promoted the WGS reaction, decreasing the CO:CO₂ ratio and increasing the H₂:CO one. The faster CO removal by enhanced WGS is correlated with the increased activity [53,54]. This is due to the formation of Pt-Re nanoparticles in which Re lowers the Pt-CO binding energy and slows down sintering, as also confirmed by TEM and X-ray absorption spectroscopy [55]. The interaction between Pt and Re was further studied on active carbon showing that the catalyst undergoes oxidation under hydrothermal condition, suggesting that the active phase is actually a partially oxidized Pt-Re species, in which Re provides both metal and acid sites [56,57]. The latter facilitates dehydration reactions, increasing selectivity toward alkanes and liquid products at the expense of hydrogen selectivity. H₂ production, however, can be increased by the addition of KOH which reduces the occurrence of acid-catalysed pathways [58]. Re promotion was also evidenced on carbon-supported Rh catalysts [59]. Interestingly, the catalytic activity of Rh-Re catalysts outperformed an analogous Pt-Re, even though only Pt is more active than Rh in APR; nevertheless, the higher cost of the Rh-Re catalyst could be a decisive drawback for its application at a higher scale. Lastly, Mo doping on Pt on carbon black also increases the turnover rate and selectivity because Mo also reduces the Pt-CO binding energy [60]. However, an accurate comparison between the promoting effect of both Mo and Re is not feasible due to the different reaction conditions employed in the reported investigations.

Three dimensionally mesoporous carbons were also used in the APR of glycerol after impregnation with Pt [61]. The unique mesoporous structure of these catalysts provided a synergic effect at high reaction temperatures and pressures, giving increased carbon conversion to gas and hydrogen production. Also, nano-sized and micro-sized mesoporous carbons were screened and the dimension of particles proved to influence the catalytic activity; in fact, nano-sized catalysts provided better APR activity thanks to their more efficient mass transfer and diffusion of products and reactants.

Carbon nanotubes are another good option for supported APR catalysts. For example, Cu and Ni or mixtures of them were deposited on multiwalled carbon nanotubes (MWCN) with a surface area of 296 m²/g, to study the effect and synergy of these two active phases on glycerol APR [62]. Cu addition resulted in the suppression of methanation and enhanced WGS reaction. The best results, namely 84% glycerol conversion and 86% hydrogen selectivity, were obtained with a MWCN with 1% of Cu and 12% of Ni. These high values were assigned to the large surface area of the support and the high support-metal interaction. Carbon nanotubes with added CaO were also used in a sorption-enhanced glycerol APR. In such a process, CO₂ was removed from the reaction environment to form CaCO₃. CO₂ removal enhanced hydrogen selectivity by decreasing methanation [63].

APR Catalysts Supported on Ce and Zr Oxides

CeO₂ and Ce-Zr oxides have been widely used in the heterogeneous catalysis as promoters or bare supports thanks to their excellent thermal and mechanical resistance and redox properties of Ce, which is able to easily switch between Ce³⁺ and Ce⁴⁺ oxidation states [64,65,66]. This peculiar behaviour is enhanced by the deposition of metals over Ce-based supports and when Zr is added to Ce, forming a mixed oxide solution. These properties can boost the catalytic activity toward both WGS reaction and/or the oxidation of carbonaceous deposits over the active phase, resulting in a limitation of the catalyst deactivation [67,68,69,70]. Ce and Zr oxides can be used as supports or as doping agents, usually added together with the metallic active phases over alumina supports. In this way, an enhanced catalytic activity can be obtained thanks to the interaction between the Ce or Zr oxide and the active phase. Iriondo et al. found that the addition of Ce and Zr to Ni-Al₂O₃-based catalysts enhances the initial glycerol conversion and hydrogen selectivity thanks to the decoration effect of Ce over Ni or the strong interaction between Ni and Zr [71]. α-Al₂O₃ modified with Ce and Zr (atomic ratio: Ce₄Zr₁) led to the formation of smaller Pt particles and contributed to WGS activity increasing glycerol conversion [72]. This was also observed on non-noble metal active phases such as Ni-Co. [73] Ce-doped Pt-Al₂O₃ makes it possible to increase glycerol conversion up to 95%, with a parallel carbon conversion to gas of 85% and hydrogen yield (80%), thanks to an improved metal dispersion made possible by the presence of Ce [74]. Similarly, the addition of 3%wt of cerium oxide to Pt-Al₂O₃ and PtNi-Al₂O₃ catalysts enhanced their activity and selectivity [75]. Interestingly, the catalysts were tested for 30 h and showed good stability.

Ce- or Zr-containing supports can be synthesized by different techniques that affect active phase dispersion and metal support interaction. Manfro et al. obtained high glycerol conversion for a Ni-based catalyst deposited on CeO₂ synthesized by combustion (30%) compared to wet impregnation or co-precipitation synthesis due to the formation of smaller Ni crystallites [35]. Re addition on Pt was also studied on a Ce/Zr-based support: it confirmed the enhancing effect of Re, together with an increased WGS activity given by the support [76].

Lastly, a parameter affecting the performances of Ce/Zr oxide is the Ce:Zr ratio. An activity order of Ce_0.3Zr_0.7O₂ > Ce_0.5Zr_0.5O₂ > Ce_0.7Zr_0.3O₂ > ZrO₂ > CeO₂ was reported for Ni-supported catalysts [77]. Conversely, an optimal Ce:Zr ratio of 1 was found for Pt-supported catalysts, giving hydrogen yields of up to 93% [78]. In this case, the order of reactivity was as follows: Pt_0.05Ce_0.475Zr_0.475O₂ > Pt_0.05Ce_0.29Zr_0.66O₂ > Pt_0.05Zr_0.95O₂ > Pt_0.05Ce_0.66Zr_0.29O₂ > Pt_0.05Ce_0.95O₂.

APR Catalysts Supported on Mg and Mg/Al Oxides

MgO addition to Al-based supports or as a bare support is used to provide basic sites to the catalytic systems. The electro-donating behaviour of a basic support such as MgO enhances hydrogen formation while limiting hydrocarbon production [79]. These aspects can influence the catalytic activity in the APR reaction [45]. The basicity effect was studied by Guo et al. by comparing the activity of Pt over MgO, Al₂O₃, CeO₂, TiO₂, and SiO₂ [80]. The order of activity was Pt/MgO > Pt/Al₂O₃ > Pt/CeO₂ > Pt/TiO₂ > Pt/SiO₂ and was correlated with WGS activity which is facilitated by basic sites. Similarly, also when Cu was used as an active phase, MgO still outperformed alumina and silica, thanks to the support basicity which stabilized copper nanoparticles [81]. The basic feature of MgO can be modulated by the introduction of other metals, especially Al, inside the periclase structure. An easy method for obtaining supports with a defined Mg:Al ratio is the ex-hydrotalcite route. In fact, Mg/Al mixed oxides were obtained by the calcination of a suitable precursor (hydrotalcites) at a relatively high temperature (400–500 °C). Also in this case, however, the catalytic results showed that hydrogen production is increased by increasing the Mg:Al ratio [82]. Nevertheless, this parameter was found to be significant in the case of MgO–Al₂O₃ supports prepared by coprecipitation and loaded with Ni. Both Ni/MgO and Ni/Al₂O₃ were outperformed by the mixed supports, with Ni/Al₂Mg₁ providing the best results at 92% glycerol conversion and 76% hydrogen selectivity [83].

Finally, titanium oxide has been used as a catalytic support for the APR process [80,84]. In particular, Pt/TiO₂ was able to achieve a 27% carbon conversion to gas and a hydrogen yield of 14.8% [80].

In general, glycerol APR has been studied in different conditions and has been proven to be able to provide good to excellent hydrogen yields at high glycerol conversions.

Table 1. APR results in terms of glycerol conversion, hydrogen yield, and carbon conversion to gas shown for different supported metal-based catalysts.

Catalyst	T (°C)	Time (h)	Process	Conversion	H2 Yield	Conv. to Gas	Ref
Pt5%/Al2O3	240	4	Batch	84	41	14.1	[40]
Ni65%/SiO2–Al2O3	240	4	Batch	76	n.a.	48 ***	[41]
Ni/Al2O3	250	/	Fixed bed	93	n.a.	53	[48]
PtNiAl	230	/	Fixed bed	97	n.a.	58	[49]
Pt3%/Al2O3	250	/	Fixed bed	45	83 *	n.a.	[50]
Pt3%Re3%/C	225	/	Fixed bed	68.2	n.a.	n.a.	[56]
Pt3%Re3%/C	225	/	Fixed bed	88.7	24.5 *	58.5 ***	[59]
Pt5%Mo (1:1)/C	230	/	Fixed bed	26	n.a.	n.a.	[60]
Pt7%/CMK-9	260	/	Fixed bed	n.a.	98.7	94.7	[61]
1Cu–12Ni/MWNT	240	/	Fixed bed	84	86 *	n.a.	[62]
Pt5%Ni (1.5:1)/CNT	230	4	Batch	81.2	n.a.	15.3	[63]
Pt/AC	230	/	Fixed Bed	n.a.	69.6 **	17.2	[45]
Ni/CeO2-Al2O3	225	/	Fixed bed	36	32 **	n.a.	[71]
Pt1%/Al2O3-CeO2-ZrO2	250	2	Batch	29	81 *	n.a.	[72]
Ni1Co3-2Ce/Al2O3	220	/	Fixed bed	55	55	n.a.	[73]
Pt3%Ce3%/Al2O3	240	/	Fixed bed	95	80	85	[74]
Pt1%Ni6%Ce3%/Al2O3	240	/	Fixed bed	96	96	94	[75]
Ni10%/Ce0.3Zr0.7O2	250	/	Fixed bed	90	45 *	99	[77]
PtRh/MgO	250	/	Fixed bed	62	97 *	52	[79]
Pt/MgO	225	/	Fixed bed	n.a.	28	48	[80]
Cu/MgO	200	6	Batch	55	n.a.	n.a.	[81]
Pt/Mg(Al)O	225	30	Batch	n.a.	64 *	n.a.	[82]
				n.a.	n.a.	n.a.
Pt/TiO2	225	/	Fixed Bed	n.a.	27	14.8	[80]

* Hydrogen selectivity; ** % in the gas products; *** Selectivity to gas products, n.a. not available.

summarizes some of the most promising results reported in literature in terms of glycerol conversion, hydrogen yield, and carbon conversion to gas.

Furthermore, the product distribution can be tuned by using different conditions and catalysts, obtaining in some way a hydrogen-enriched gaseous mixture (low CO, CO₂, and other light compound content). However, only a few of the studies mentioned in this work used crude glycerol as the starting feed [34,50,85,86]. In a perspective of industrial applications and integration with biorefineries, greater effort in this direction is essential in order to strongly limit the cost of the raw material and make the overall process economically feasible. Moreover, some studies have focused on catalyst stability, which is a very important parameter for the application of these materials. Evaluating catalyst stability under real conditions is another fundamental step toward the implementation of glycerol APR. Finally, the use of cheap active phases and supports, which can be easily produced in large quantities, would enhance the spreading of this process.

2.3. Glycerol Steam Reforming (SR)

Glycerol SR is the most investigated industrial process for producing hydrogen from this polyol. It takes place at high temperatures (in the range of 400–700 °C) and atmospheric pressure over a suitable catalyst. In most cases, an acqueous glycerol solution is continuously fed into an evaporator and then introduced into a continuous-flow fixed-bed reactor by an inert flow (usually nitrogen or helium). During SR, the hydrogen thus obtained is released from the reaction mixture with a consequently increased reaction yield. Furthermore, the use of SR technology would not require significant adjustments in the current industrial process for H₂ production [87]. The main advantages of SR over other reforming processes include operations at moderate pressures and production of higher H₂ concentrations with high substrate conversion. The overall reaction is represented by Equation N.2., whereas the potential benefit of obtaining large amounts of H₂ on the basis of a hydrogen:glycerol molar ratio of 7 is very evident. According to several studies, the best results for SR are obtained in the temperature range of 525–575 °C; conversely, a decreased selectivity toward H₂ is observed at lower temperatures with the formation of methane and carbon dioxide [88]. Generally speaking, SR proceeds at 1 atm, but vacuum pressures (which would permit lower temperatures) might be preferred, in order to reduce the sintering of the catalyst and energy costs. The yield and selectivity of the reaction toward the production of hydrogen is strongly affected by water/glycerol feed rate, while at ratios above 9 the H₂ yields are maximized [89]. On the other hand, the water amount must be limited to reduce the volume of the evaporator, to limit vaporization costs, and to increase productivity. In recent years, several interesting works have been published about the preparation, characterization, use, and deactivation of solid catalysts for glycerol SR [28]. In particular, several authors have reported on the possible use of metal-based supported material as suitable catalysts for the target reaction. In particular, Ni, Pt, Co, and Ru are active metal catalysts, whereas the nature of the support strongly affects the stability and activities of the materials due to the different metal-support interactions [90,91,92]. As already stated, however, glycerol SR is a high-energy-intensive process and new strategies to overcome this limitation have been recently investigated. As a matter of fact, as reported by many researchers [93,94], a possible solution is to feed a small amount of oxygen to promote the partial oxidation of glycerol (Equation (11)), following combined oxidative reforming strategies:

C₃H₈O₃ + 7/2 O₂ → 3CO₂ + 4H₂O (∆H = −1565 kJ/mol)

(11)

Oxy-reforming undergoes with the simultaneous occurrence of pyrolysis (Equation (3)), WGS (Equation (4)) and combustion (Equation (11)):

C₃H₈O₃ + 3/2 H₂O + 3/4 O₂ → 11/2 H₂ + 3CO₂ (∆H= −240 kJ/mol)

(12)

Moreover, operating conditions can be optimized in order to perform this reaction without the need for external energy inputs. This way, oxy-reforming can produce 5.5 mol of hydrogen from 1 mol of glycerol, while producing the necessary heat for the process. In this scenario, several catalysts have been used and some interesting results are reported by Dauenhauer and co-workers [95] in the presence of Rh-Ce/Al₂O₃ catalysts (hydrogen selectivity is 79%) and by Wang [96] using Ni-based catalysts characterized by high activity, stability, and resistance to carbon deposition. Chang and co-workers [97] reported on glycerol autothermal steam reforming over Ni/CeO₂/Al₂O₃ catalyst in a packed bed reactor. Results show that the glycerol conversion of 99.56% was achieved at a temperature of 973 K. The most significant and promising results in glycerol SR are discussed in the following sections, with a special emphasis on the effect of the different supports used. Below, the most used supports for glycerol SR are shown in Figure 3.

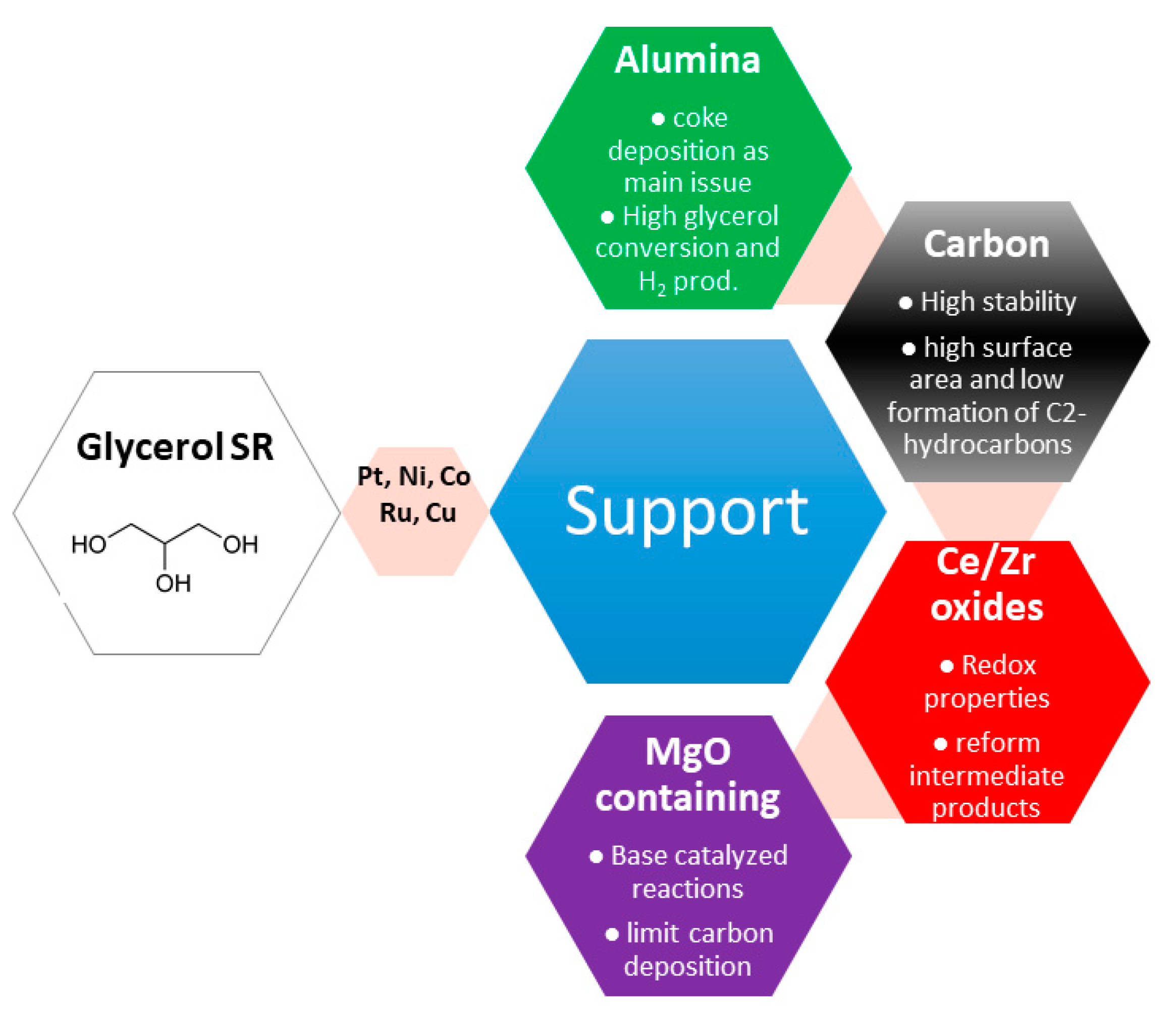

2.3.1. Catalyst for Glycerol Steam Reforming

SR Catalysts Supported on Alumina

Ni-based catalysts have been extensively investigated for glycerol SR. Different research groups have analysed the catalytic performance of Ni/Al₂O₃. Iriondo et al. reported the total conversion of glycerol using 12.6 wt% Ni/γ-Al₂O₃ with a good selectivity to hydrogen (yield = 50%, 500 °C, 4 atm, WHSV= 7.7 h⁻¹ and 10 wt% glycerol, 8 h) [98]. The deactivation of alumina-based catalysts seems to be strongly influenced by carbonaceous deposition after 8 h time on stream at 600 and 650 °C as highlighted by Sanchez et coworkers [98,99,100]. These experimental results have been further and clearly described by many studies in which the formation of coke deposits is related to dehydration, cracking, and polymerization reactions on the acid sites of Al₂O₃ [101]. Pant et al. [102] also reported that Ni/Al₂O₃ catalysts showed higher catalyst sintering than Ni-ceria. The Authors demonstrated that the sintering of the Ni active phase is related to a transition of Ni aluminate crystalline phase [100,101,102,103,104,105]. In this context, the use of a promoter is claimed to improve catalytic performances by delaying deactivation phenomena. Interesting results are reported by Iriondo et al. in the presence of 8.4 wt%Ni/γ-Al₂O₃/6 wt% La₂O₃ with a quantitative glycerol conversion after 8 h of reaction at 500 °C, 4 atm and a WHSV (weight hourly space velocity) of 7.7 h⁻¹ [99]. The use of alumina as the support was also reported for Co active phase by Cheng et coworkers [106], whereas the presence of basic and acid sites on the catalyst surface affect the catalytic performance and, as evidenced for Ni/Al₂O₃ catalyst, the deactivation mechanism is related to carbon deposition which can be removed in the presence of oxygen.

SR Catalysts Supported on Carbon

The use of metal-based catalysts supported on carbon has been explored, and outstanding results are reported by Dumesic and coworkers [107,108]. In these works, Pt/C shows higher stability than other Pt-based catalysts characterized by the use of different supports (MgO/ZrO₂, ZrO₂, CeO₂/ZrO₂, and Al₂O₃). These results are related to the very low formation of C2-hydrocarbons. Very recently, Liu [109] reported the use of Ni on carbon nanotubes (CNTs) prepared by impregnation. Results show that both the surface area and the dispersion of active metallic Ni nanoparticle co-affected catalytic performances, achieving a high gaseous products yield (86.4%) with high hydrogen selectivity (72.9%) when the reaction was conducted at a temperature as low as 375 °C.

SR Catalysts Supported on Ce and Zr Oxides

The prominent role of CeO₂ as the support for glycerol SR has been recently discussed [110,111]. In this context, the interaction between the active phase and ceria strongly influenced hydrogen yield [111]. Wang reported the preparation of Ni/CeO₂ using the glow discharge plasma technique for glycerol SR. Results show that glow discharge plasma treatment enhances nickel dispersion and Ni–Ce interaction with the formation of a Ni-O-Ce composite. The catalyst thus obtained shows enhanced H₂ selectivity (44.7%) and reaction stability, in comparison to the calcined counterparts.

ZrO₂ has also been efficiently used as a promoter despite the fact that it is not active by itself [112]. As a matter of fact, the addition of ZrO₂ to Ni/Al₂O₃ enhanced the H₂ yield and the ability of the catalyst to reform intermediate products at 500 °C. This process is enhanced by the ZrO₂ capacity to activate water through the formation of ZrO₂-Al₂O₃ species, which facilitates the reduction of Ni²⁺ to the metallic state [113].

SR Catalysts Supported on Mg Oxides

The use of MgO as a support is described only in a few works [114]. Adhikari et al. [115] reported on a glycerol conversion of 100% and a hydrogen yield of 57% over Ni/MgO catalysts at high temperature (650 °C). Ru/MgO shows very low glycerol conversion to gaseous products compared to other samples. This behaviour is probably ascribable to the lower reducibility of the dispersed ruthenium species to metallic ruthenium, with a drastic drop in the number of active sites [116]. Nevertheless, the use of MgO is reported to limit carbon deposition by facilitating its gasification, so its role as a promoter deserves further investigations [117,118]. Some relevant results in the presence of supported catalysts are shown in

Table 2. Glycerol steam reforming, conversion, and H₂ yield using the most promising metal-supported catalysts.

Catalyst	T (°C)	Time (h)	Conversion	H2 Yield	Ref
Ni12.6%/γ-Al2O3	500	8	100	50	[98]
Ni8.4%/La2O36%-γ-Al2O3	500	8	100	99.7	[99]
Ni15%/CNT	450	-	80.7	83.6	[109]
Pt5%/C	400	3	60	37	[108]
Ni9.6%/MgO	650	-	100	57	[115]

.

3. Life Cycle Assessment (LCA) Approach for A Sustainable Hydrogen Production from Glycerol

Life cycle perspective aims to evaluate environmentally friendly solutions by considering all the flows (energy, materials, wastes, by-products, etc.) involved in the stages which represent the entire process or part of it. LCA (Life Cycle Assessment) is a standardized [119,120] and well-known method for assessing several sectors of bioeconomy, such as bio-based chemicals [121], bioenergy [122], and bio-waste [123]. In general, LCA is helpful as a support in decision-making during R&D stages, since it may drive choices in the selection of materials for catalysis. On the other hand, a life cycle approach can be used to compare two or more processes in terms of different feedstocks and reaction conditions, to select the better alternative from an environmental standpoint. Literature collects some examples of LCA applied to H₂ production through the reforming of renewables sources. They are briefly described below. Susmozas et al. [124] studied the environmental and energy performances of biohydrogen produced in the EU via the steam reforming of glycerol (GSR) and bio-oil (BSR), counterposing their results with those achieved by conventional H₂ from the steam reforming of methane. In this study, LCA was combined with process simulation: Aspen Plus^® software was selected to design and simulate the processing plants; this helped researchers during data collection for LCA inventory. In this simulation, glycerol is obtained (i) as by-product from rapeseed biodiesel and (ii) from bio-oil produced through the fast pyrolysis of poplar biomass. The assessment was carried out by considering several environmental impact indexes, including the global warming potential (GWP)—to address implications on climate change—and the cumulative energy demand (CED) to estimate total energy requirements and the non-renewable fraction. Results proved to be strongly affected by the choice of feedstock. Bio-oil fast pyrolysis of poplar biomass seems to be a better feedstock for steam reforming, reducing CED (−30%) from non-renewables and GWP (−70%) compared to glycerol from biodiesel production. The use of renewable resources, however, does not necessarily guarantee better performances: traditional steam reforming still seems competitive thanks to the gaseous nature of methane feedstock.

Nevertheless, in the past few years great effort has been made to evaluate both the techno-economic and environmental performances of glycerol reforming for hydrogen and power production. In particular, Hilmioglu et al. [125] modelled and simulated different glycerol SR processes, by changing both the reactor design and the reaction conditions, in order to optimize key plant performance indicators. On the other hand, Cormos et al. [126] compared the conventional glycerol SR (with heat provided by an external burner fed with hydrogen purification tail gas) with the oxygen autothermal reforming approach. In both cases the effect of the addition of a CO₂-dedicated sequestration setup (using methyl diethanolamine as the chemical absorbent) was also taken into consideration. Interestingly, the technical, economic, and environmental analyses underlined that conventional SR has a slightly higher energy and cost efficiency than autothermal reforming with or without carbon capture apparatus (which leads to a cost penalty, expressed as production costs, of around 25% for hydrogen and 33% for power, compared to cases without carbon capture).

Another extremely innovative and interesting approach is the supercritical water reforming of glycerol (SCWR). In this case, glycerol is continuously fed with water at high temperature and pressure (e.g., 450 °C, 240 atm) obtaining interesting hydrogen yields and selectivity, also by feeding crude glycerol (80 wt% glycerol, 20 wt% of water and methanol) to the reactor [127].

This approach was techno-economically assessed considering future states of technology, because there is no demo plant using this technology (using both Aspen Plus (V11, Aspen Technology, Bedford, MA, USA) and CAPCOST software) [128,129]. Again, glycerol SCWR was compared with autothermal supercritical water reforming (ASCWR) by co-feeding oxygen to the reformer. Interestingly, working in supercritical conditions, ASCWR performs better than SCWR in terms of energy efficiency (thermal self-sufficient conditions). Nevertheless, the capital investment and operational difficulties of ASCWR process leads to relatively high hydrogen production costs (5.75 $/kg). This value is still too high compared to conventional technologies (e.g., methane SR); in a future scenario, however, some possible improvements in supercritical water (SCW) reforming performance may lead to a decrease in the estimated renewable hydrogen price [130,131].

As mentioned above, LCA is easily adaptable during R&D activities. Its powerfulness is totally expressed when combined with process design (Aspen Plus^®) and DoE (design of experiment). Khila et al. [132] adopted this strategy to investigate the best reaction condition for the production of H₂ from raw bioethanol ATR (autothermal reforming). The use of a non-purified bio-alcohol ensures the minimization of heat consumption during distillation procedures. In such a case, LCA analysis was used first to estimate all the stages which contribute most to the entire impact per selected category, and then to compare alternative routes to H₂ in order to identify the greener one. In this case, the electricity generation and ethanol production from sugar beet molasses seem to affect all environmental impact categories the most. Nevertheless, the comparison with a conventional H₂ production system (SMR) shows that ATR emits about half of the SMR life cycle Greenhouse gases (GHGs). DoE was then applied to examine the simultaneous influence of the reformer temperature and the S:C ratio on the process energetic, exergetic, and environmental performances. Experiments found S:C = 4 and T = 800 °C to be the best and most accurate parameters for the entire bioethanol-to-hydrogen process. This enabled researchers to identify the recommended configuration with best performances and productivity.

Therefore, these examples confirm how the integration of iterative and holistic approaches may help designers, working in the field of H₂ production from bio-sources, identify the best combination of technological solutions to help companies and research centres save money and pursue better alternatives for a future low-carbon society.

4. Conclusions

Over the past few years, significant progress has been made in the development of active heterogeneous catalytic systems capable of promoting hydrogen production through glycerol reforming processes. In particular, two main approaches have been discussed in detail: glycerol steam reforming (SR), and glycerol aqueous phase reforming (APR). A preliminary thermodynamic study has been described in order to better contextualize the reactions involved in these processes. In both cases, the uses of the most active metal catalysts (mainly Ni and Pt) have been discussed, with a special focus on the investigation of the effects of different promoters and supports on hydrogen selectivity and catalyst stability. Indeed, in many cases, catalyst deactivation processes, due to coking, leaching, or sintering effects, constitute one of the main problems of these approaches. Nevertheless, the optimization of reaction conditions and reactor design makes it possible to achieve very good results in both batch and continuous flow conditions. In particular, in the latter cases, catalyst stability needs to be further investigated under real conditions and longer reaction times, in order to better understand the scalability of the process.

In spite of the fact that a direct comparison between the catalytic systems is not easy because of different operative conditions and synthesis routes employed, some outstanding results in terms of glycerol conversion and hydrogen yields have been reported. Just to mention a few, Ni supported over lanthanum oxide-modified alumina permitted achieving a 100% conversion and 99.7% hydrogen yield in glycerol SR [41]. In the aqueous phase, good results were obtained by Pt-Ni-Ce impregnated on alumina in a continuous flow (96% conversion and 96% hydrogen yield) [72], while Pt over alumina gave an 84% glycerol conversion and a 41% hydrogen yield in batch conditions [40].

Nevertheless, the great majority of the works presented in literature have focused only on the upgrading of purified glycerol. It is worthy of note that the possibility to use crude glycerol as a raw material, derived directly from the bio-diesel manufacturing plant, would boost the applications of these technologies at the industrial scale. Indeed, crude glycerol is a cheaper raw material, actually making the overall process economically feasible and competitive with the technologies existing today.

Finally, the LCA approach was discussed in order to suggest the adoption of green metrics capable of improving the sustainability of these processes and enhancing a short-term development at the industrial scale.
