Completion of Crystallographic Data for the Series of 4-Halogenated-1H-pyrazoles: Crystal Structure Determination of 4-Iodo-1H-pyrazole and Spectroscopic Comparison

Abstract

Prior to 2021, 4-bromo-1H-pyrazole (published in 1999) was the only structurally characterized 4-halogenated-1H-pyrazole in the Cambridge Crystallographic Data Center (CCDC). The structures of 4-chloro-1H-pyrazole and 4-fluoro-1H-pyrazole were published in 2021 and 2023, respectively. Herein, we report the crystal structure for 4-iodo-1H-pyrazole, completing the crystallographic data for the series of 4-halogenated-1H-pyrazoles. The bromo and chloro analogs are isostructural, forming trimeric H-bonding motifs, whereas the fluoro and iodo analogs form non-isostructural catemers. We also compare the experimental and theoretical (by DFT calculations) IR and ¹H NMR spectroscopic data of the four halogenated 4-X-pzH compounds and unsubstituted pyrazole (pzH). An explanation is offered for some counterintuitive structural, infrared, and ¹H-NMR spectroscopic data.

1. Introduction

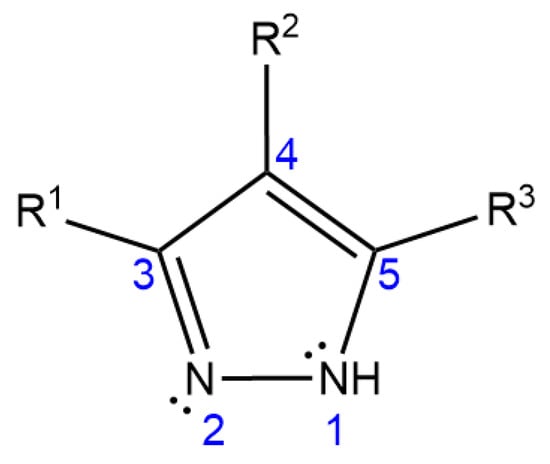

Pyrazoles are five-membered, π-excess heterocycles consisting of three carbon atoms and two adjacent nitrogen atoms (Figure 1). One nitrogen atom (N1) is pyrrole-like while the other (N2) is pyridine-like, allowing for both proton donor and acceptor properties. When N1 is protonated, pyrazole coordinates to metals through N2 as a monodentate ligand; however, N1 is readily deprotonated to form the pyrazolide ion, which can coordinate to metals in an exo- or endo-bidentate fashion in addition to monodentate coordination. The Lewis base tunability (via peripheral substitution) and structural rigidity of the pyrazole ligand led to its extensive applications in coordination chemistry [1,2,3], while the existence of both donor and acceptor sites in the same molecule enabled its role in supramolecular chemistry [4,5,6,7,8].

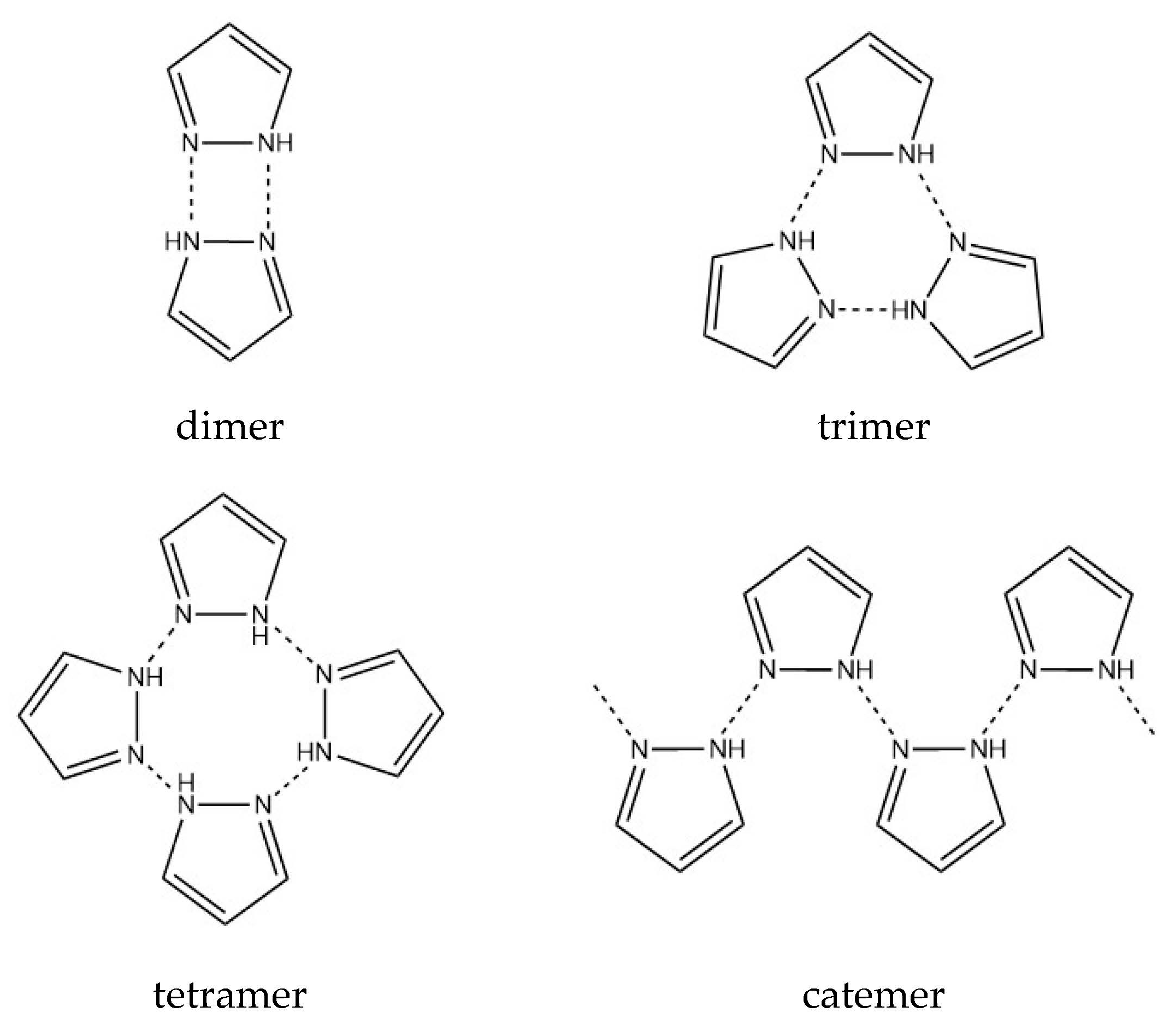

Pyrazoles can be substituted in the 3-, 4-, and 5-positions while maintaining the ability to form an N(H)…N hydrogen bonding network involving two or more molecules. The nature (e.g., electronic and steric properties) and position of the substituents leads to the formation of various H-bonding motifs, such as dimers, trimers, tetramers, and catemers (Figure 2). Attempts were made to derive an empirical rule to predict H-bonding motifs of substituted pyrazoles [9,10,11], as understanding H-bonding is pertinent for drug design and pyrazoles serve as scaffolds for many biologically active compounds [12,13,14,15]. Thus far, it is agreed upon that the four common H-bonding motifs can be classified into two groups—dimers/tetramers and trimers/catemers. Infantes and Motherwell successfully predicted the H-bonding motif of substituted pyrazoles into one of the groups based on the accessible surface of the nitrogen atoms [9]; however, further prediction within each group is still not possible, largely due to limited crystallographic data.

The crystal structure of 4-bromo-1H-pyrazole (4-Br-pzH) was published in 1999 [16], 4-chloro-1H-pyrazole (4-Cl-pzH) in 2021 [17], and, most recently, 4-fluoro-1H-pyrazole (4-F-pzH) in 2023 [18]. The bromo and chloro analogs are isostructural and form trimeric H-bonding motifs; however, the fluoro analog forms catemeric chains. Herein, we report the crystal structure for 4-iodo-1H-pyrazole (4-I-pzH), completing the crystallographic data for the series of 4-X-1H-pyrazoles (4-X-pzH, where X = F, Cl, Br, I). Like 4-F-pzH, the iodo analog forms a catemeric H-bonded motif but, unlike the chloro and bromo analogs, 4-F-pzH and 4-I-pzH are not isostructural. We also compare experimental and computational spectroscopic data of the halogenated 4-X-pzH analogs and the unsubstituted pyrazole (pzH).

2. Materials and Methods

2.1. Materials

All pyrazoles, except for 4-F-pzH, were obtained commercially; 4-F-pzH was received as a gift from Prof. Gellert Mezei, University of Western Michigan. Crystals of 4-I-pzH were present in the commercial bottle via sublimation. ¹H NMR and solid state infrared spectra were recorded on a 400 MHz Bruker Avance NMR spectrometer and an Agilent Advanced Cary-660 FT-IR spectrometer, respectively.

2.2. DFT Calculations

Geometry optimization of the structures of pyrazole and its halogen-substituted analogues in the gas phase was carried out within density functional theory (DFT) using the ωB97XD [19] hybrid density functional with Dunning’s correlation-consistent cc-pVTZ basis set for H, C, N, F, Cl, and Br [20] employing the Gaussian 16 [21] software package. For I, the dhf-ECP small core effective core potential was employed in conjunction with the cc-pVTZ-PP basis set [22]. Calculations of vibrational frequencies were performed at the same level of theory. To ensure a more appropriate comparison with N-H stretching frequencies measured in solids, geometries of H-bonded dimers, as shown in Figure 2, were optimized and their vibrational frequencies were also computed. ¹H NMR chemical shifts for the monomers in solution were carried out using the GIAO approach [23] within the second order Møller–Plessett perturbation theory MP2 [24] with the cc-pVTZ basis set. The dielectric continuum SCRF/PCM approach [25] was used to take solvent effect into account using parameters of dichloromethane as the solvent.

2.3. X-ray Crystallography and Data Collection

A suitable crystal of 4-I-pzH, obtained through sublimation, was selected and mounted on a Bruker D8 Quest diffractometer equipped with a PHOTON II detector operating at T = 172 K. Data were collected with the shutterless ω-scan technique using graphite monochromated Mo-Kα radiation (λ = 0.71073 Å). Structure solution was obtained via intrinsic phasing with SHELXT [26] using the APEX 3 suite [27]. Data were then refined, using the Olex2 [28] interface, by least-squares method in SHELXL [29]. Multiscan absorption corrections were applied and hydrogen atoms were added using the AFIX command. Crystal data and structure refinement parameters are listed in

Table 1. Crystal data and structure refinement parameters for 4-I-pzH.

	4-I-pzH
Formula	C3H3IN2
Dcalc./g cm−3	2.571
μ/mm−1	6.23
Formula Weight	193.97
T/K	172
Crystal System	Orthorhombic
Space group	Cmme (No. 67)
a/Å	6.9383 (6)
b/Å	5.5231 (5)
c/Å	13.077 (2)
α, β, γ/°	90, 90, 90
V/Å3	501.13 (8)
Z	4
Wavelength/Å	0.71073
Radiation Type	Mo Kα
θmin, θmax/°	3.1, 31.1
Measured Refl.	5294
Independent Refl.	483
Rint	0.039
Parameters	55
a GooF, b wR2, c R1	1.20, 0.068, 0.030

^a GooF = ${\left[\sum \left[w{\left(F_o^2-F_c^2\right)}^2\right]/\left(N_o-N_v\right)\right]}^{1/2}\left(N_o=number of observations,N_v=number of variables\right)$. ^b wR₂ = $\sum \left|\left|F_o\right|-\left|F_c\right|\right|/\sum \left|F_o\right|$. ^c R₁ = ${\left[\left(\sum w{\left(F_o^2-F_c^2\right)}^2/\sum {\left|F_o\right|}^2\right)\right]}^{1/2}$.

. Geometric parameters were calculated using Mercury [30] software and the Olex2 suite. CCDC 2271964 contains the supplementary crystallographic data and can be obtained free of charge from the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk/data_request/cif.

3. Results and Discussion

3.1. Crystal Structure Description

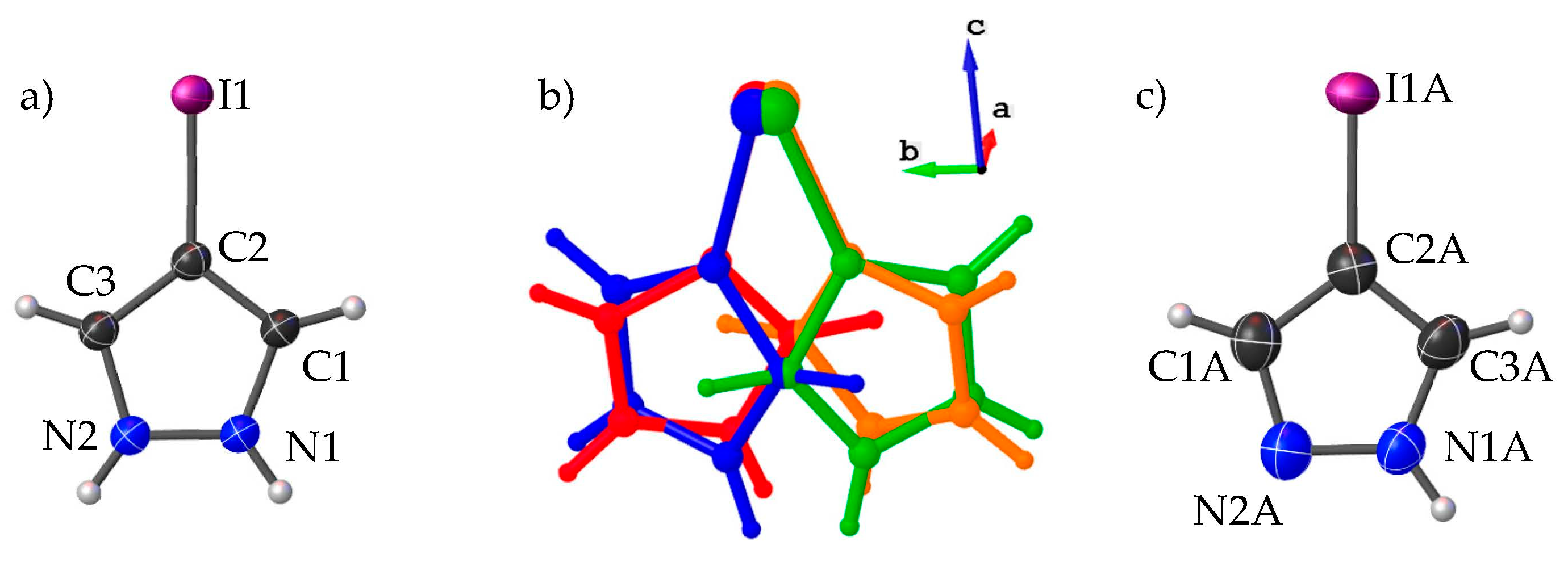

Crystals of 4-I-pzH were obtained through sublimation and found to belong in the orthorhombic Cmme space group with one-fourth of the molecule in the asymmetric unit (Figure 3a) disordered equally over four positions (Figure 3b) related by a two-fold rotation parallel to the c-axis and a mirror plane perpendicular to the b-axis. Whereas PLATON did not suggest a different unit cell, solutions with unit cells with double the a- and b-axes, which would eliminate the disorder, were nevertheless attempted unsuccessfully. The use of different crystallization methods and solvents did not afford a crystal structure free of crystallographic disorder. Additionally, the N-H proton is tautomerically disordered over two positions. Of the 4-X-pzH series, the crystal structure of 4-I-pzH is the only one with disorder (aside from N-H tautomerization) and, hence, Z’ = 0.25 (Z’ = 2 and 1.5 for X = F and Cl/Br, respectively). In the Cmme space group, the symmetry and proton disorder make determining the H-bonding network crystallographically impossible; therefore, the structure was solved again in lower symmetry space groups. The P2₁ab space group yielded the best refinement that eliminates disorder and allows for discussion of the supramolecular structure; thus, the following structural description of 4-I-pzH refers to the P2₁ab space group solution. Figure 3c shows the thermal ellipsoid plot and numbering scheme of the P2₁ab structure and refinement details can be found in the Supplemental information (Table S1).

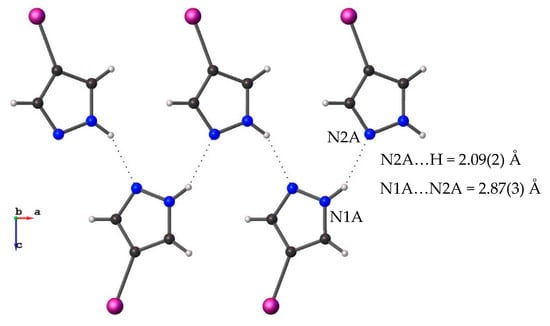

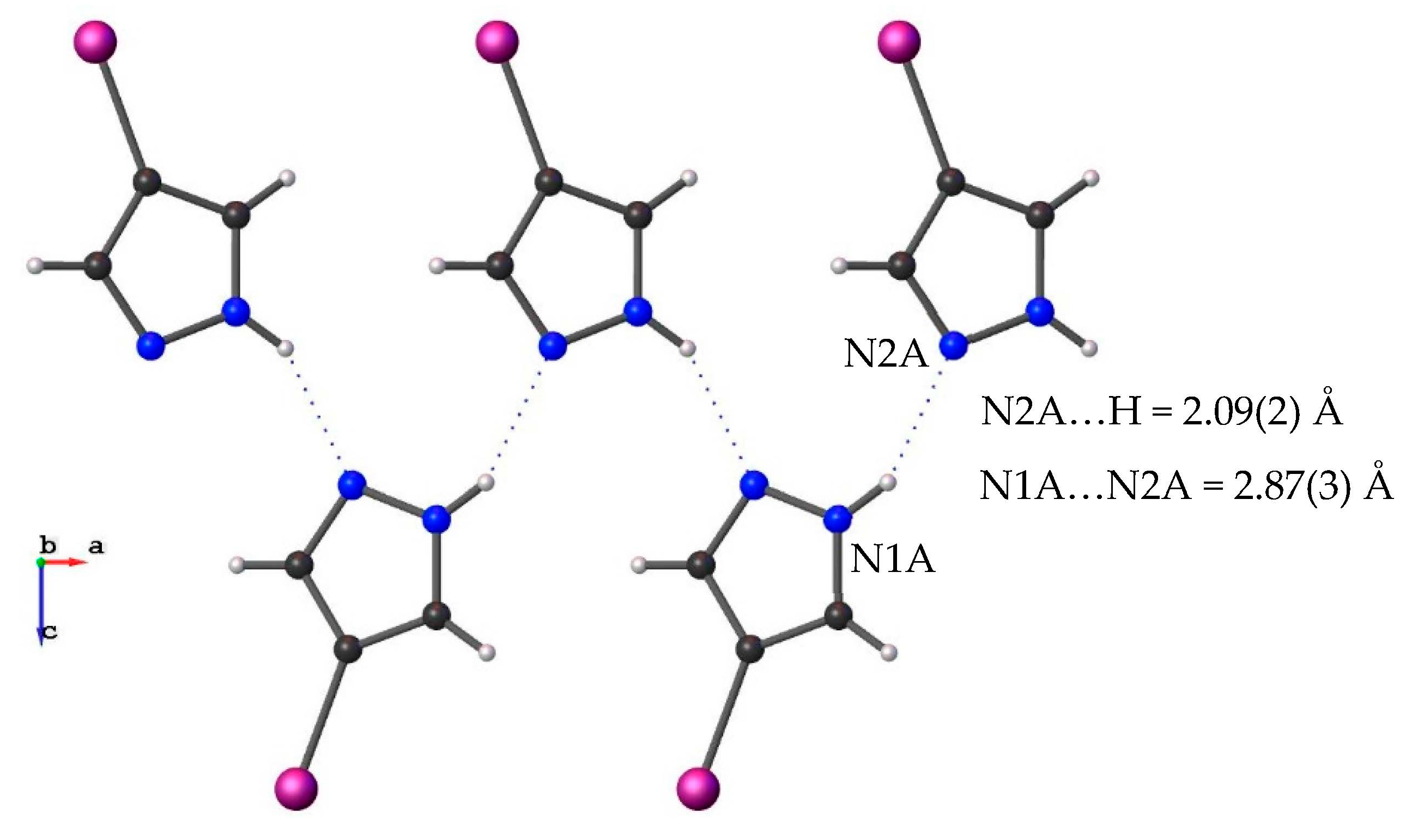

Like 4-F-pzH [18], 4-I-pzH forms a catemeric H-bonded network that extends along the a-axis (Figure 4). However, the fluoro and iodo analogs are not isostructural as the trimeric motifs of 4-Br-pzH [16] and 4-Cl-pzH [17] are. Whereas the 4-I-pzH contains one quarter molecule in the asymmetric unit, 4-F-pzH contains two crystallographically independent molecules free of disorder in the asymmetric unit; yet, both lead to similar supramolecular catemeric motif structures. It should be noted that the parent pyrazole (1H-pyrazole, pzH) also forms a catemeric motif; however, it is vastly dissimilar to the fluoro and iodo analogs and was described in the literature as a helical arrangement [31,32]. The N(H)…N distance of 2.87 (3) in 4-I-pzH (N1A(H)…N2A) is comparable to the average corresponding distance of 2.889 (1) Å in 4-F-pzH (N1_1(H)…N2_2 = 2.876 (1) Å and N1_2(H)…N2_1 = 2.902 (1) Å). Counter to chemical intuition, the electronegativity differences among the halogen substituents are not reflected in the H-bonded N(H)…N distances in the solid state structures of pyrazole and the set of its 4-halogenated derivatives (

Table 2. N(H)…N distances (Å) and calculated dipole moments (D) for pzH and 4-X-pzH (X = F, Cl, Br, I) in relation to crystallographic H-bonding motifs. The average values are given when more than one crystallographically independent N(H)…N bond exists.

	N(H)…N	Dipole Moment	Motif	Reference
pzH	2.908 (2)	2.2923	Catemer	[33]
4-F-pzH	2.889 (1)	2.3995	Catemer	[18]
4-Cl-pzH	2.867 (3)	2.5421	Trimer	[17]
4-Br-pzH	2.89 (2)	2.5158	Trimer	[16]
4-I-pzH	2.87 (3)	2.4155	Catemer	This work

). However, the calculated dipole moments of each pyrazole show a correlation to catemer or trimer formation with the former having a dipole moment greater than 2.5 and the latter less than 2.5.

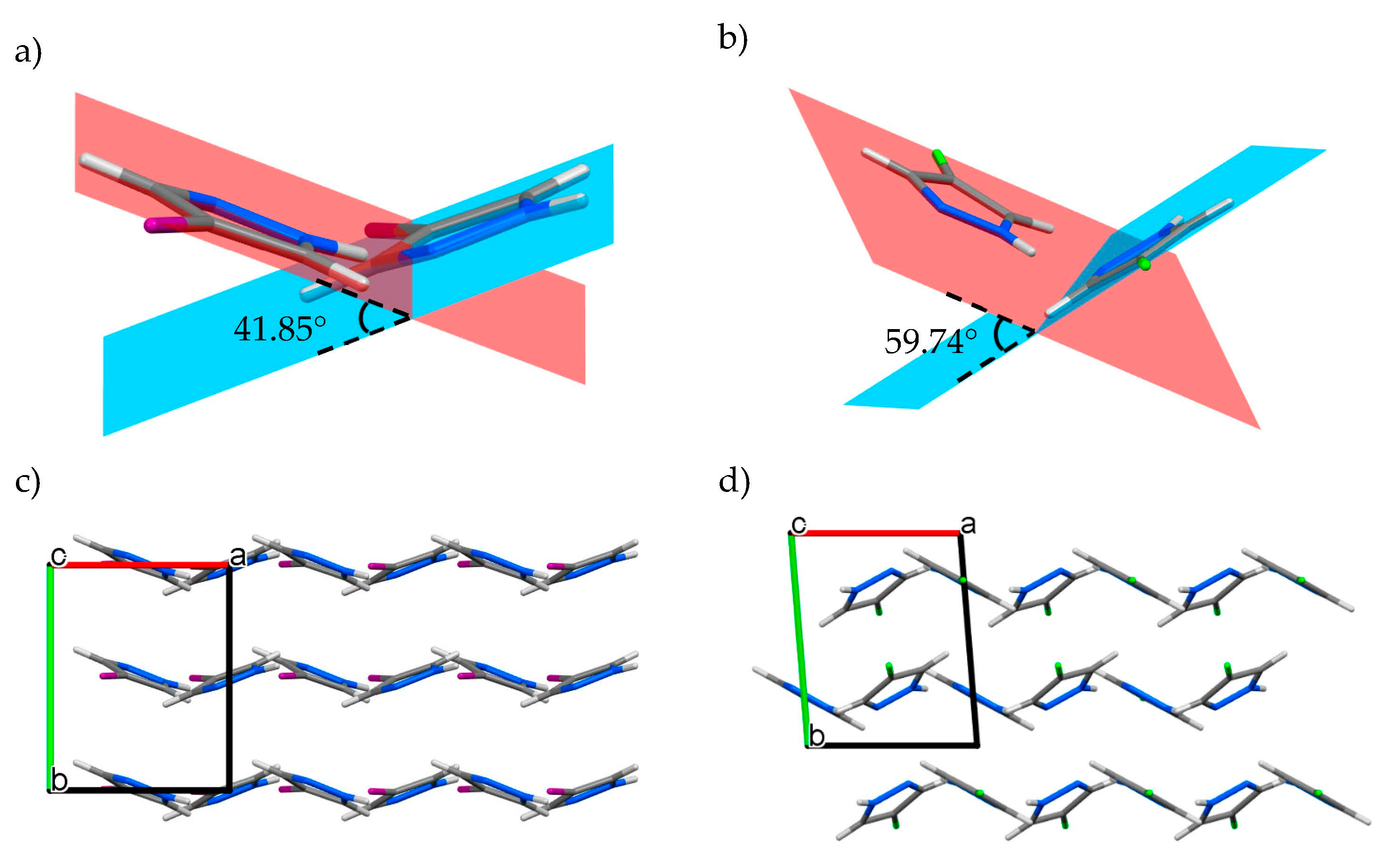

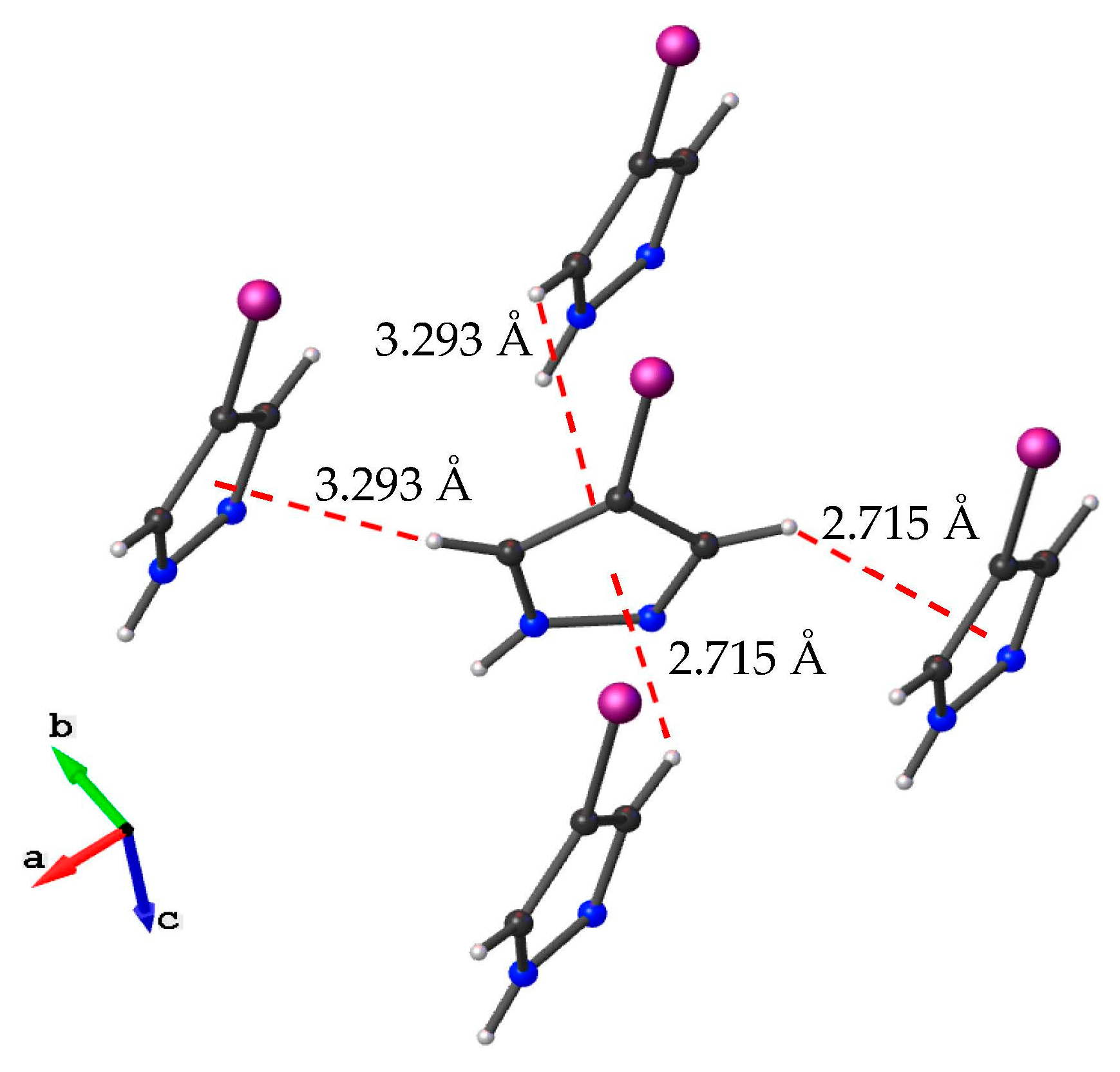

The dihedral angle between H-bonded 4-I-pzH planes of 41.85 (7)° is smaller than the dihedral angle of 59.74 (3)° reported for 4-F-pzH; the herringbone motifs of 4-F-pzH and 4-I-pzH, viewed along the c-axis, show that the kinks of the former are sharper (Figure 5). While there are C-H–π interactions with H…centroid distances of 2.72 (1) Å and 3.29 (1) Å, the structure of 4-I-pzH has no significant π–π interactions (Figure 6).

Halogen bonding interactions exert weak intermolecular forces that often determine supramolecular structure with implications manifested in medicinal chemistry, luminescence, gas sorption, crystal engineering, and organic synthesis. Research into the nature of these interactions has been of recent interest [34]. It has been shown that the importance of halogen bonding increases with increasing polarizability of the halogen (i.e., F < Cl < Br < I) [35]. This is illustrated by the shortest X…X distances of the 4-F-pzH and 4-I-pzH crystal structures: while the I…I closest distance (3.9671 (15) Å) is roughly twice the van der Waals radius (1.98 Å [36]), the closest F…F interaction (3.0270 (9) Å) is significantly longer than twice the van der Waals radius (1.47 Å [36]). X…X interactions are also present in the 4-Cl-pzH and 4-Br-pzH structures with the shortest Cl…Cl distance of 3.7937 (4) Å and Br…Br distance of 3.9103 (9) Å, each of which is slightly larger than twice the van der Waals radius reported by Bondi [36].

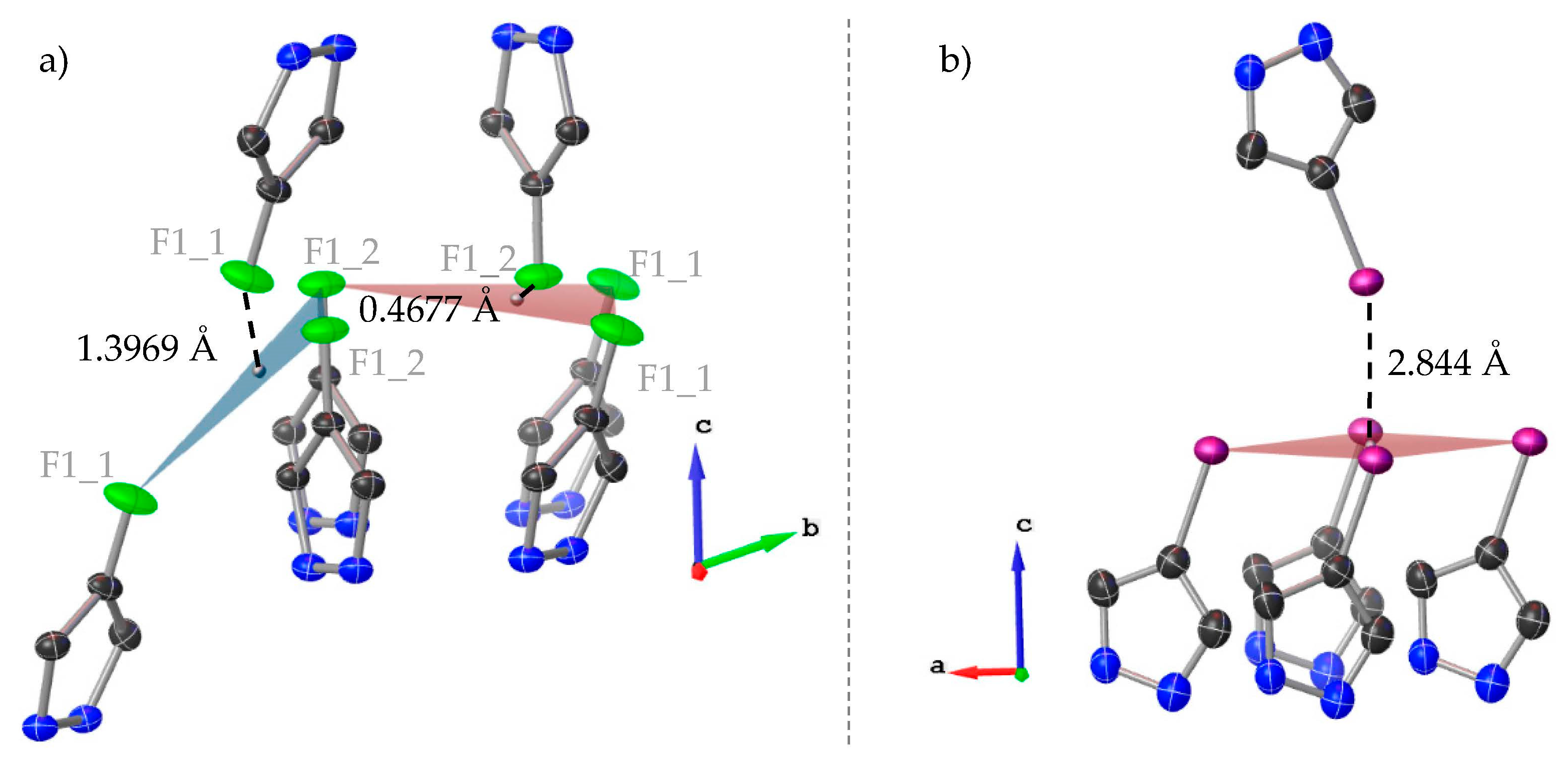

The F…F distances between neighboring molecules of the 4-F-pzH range from 3.0270 (9) Å to 5.6045 (2) Å (Figure S1a), while the corresponding I…I distances of 4-I-pzH range from 3.9671 (15) Å to 5.5309 (6) Å (Figure S1b). Figure 7 shows differences in I…I and F…F interactions viewed perpendicularly to the c-axis. In 4-I-pzH, the I atom of one molecule is exactly centered among the four I atoms of four adjacent molecules with I-to-plane distance of 2.844 (2) Å. Similarly, each F atom of one 4-F-pzH molecule is approximately centered among the F atoms of three neighboring molecules. The distance between F1_1 and plane [F1_1 F1_2 F1_2] is 1.0881 (8) Å, while the distance between F1_1 and the centroid of the same plane is 1.394 (1) Å, giving an off-center distance of 0.871 (1) Å. The distance between F1_2 and plane [F1_1 F1_1 F1_2] is 0.362 (1) Å, while the distance between F1_2 and the centroid of the same plane is 0.468 (1) Å, giving an off-center distance of 0.296 (1) Å.

C–X bond lengths were analyzed for the series of 4-halogenated pyrazoles and compared with the sum of covalent radii [37] for the respective C-X bonds (

Table 3. Sum of covalent radii and average C–X bond lengths taken from crystal data.

	C-X Bond Length (Å)	Sum of C-X Covalent Radii (Å) [37]	Difference (Experimental—cov. Radii, Å)
4-F-pzH	1.341(2)	1.30(4)	0.04
4-Cl-pzH	1.717(3)	1.75(4)	−0.02
4-Br-pzH	1.874(11)	1.93(4)	−0.06
4-I-pzH	2.039(9)	2.12(4)	−0.08

). The C–F bond is statistically longer than the sum of covalent radii, while the C-Cl, C-Br, and C-I bond lengths are increasingly shorter, suggesting a partial C–X double bond for X = Cl, Br, and I, resulting from the overlap of filled halogen p-orbitals with vacant π*-pzH.

3.2. Spectroscopy and DFT Calculations

Substituents on the pyrazole ring can be used to modulate the acidity of the pyrrole-like NH group [38]. Counterintuitively, it has been shown that electron-donating peripheral substituents increase the N-H acidity of pyrazoles [39,40] corresponding to a decrease in infrared N-H stretching frequency and a downfield shift in ¹H-NMR. The series of 4-halogenated pyrazoles follow this trend with the most electronegative substituent, F, exhibiting the highest N-H stretching frequency in IR and the most upfield chemical shift in NMR; the least electronegative substituent, I, exhibited the opposite effect. While the substituent effect of aromatics have been studied (with benzene having been studied most extensively), the focus of papers has been on how halogens (usually represented by only Cl or Br) relate to other electron donating substituents, or how changing the position of a halide in relation to another substituent on the ring affects aromaticity [41,42,43,44,45,46]. To the best of our knowledge, the spectroscopy for a full series of halogenated pyrazoles has not been studied.

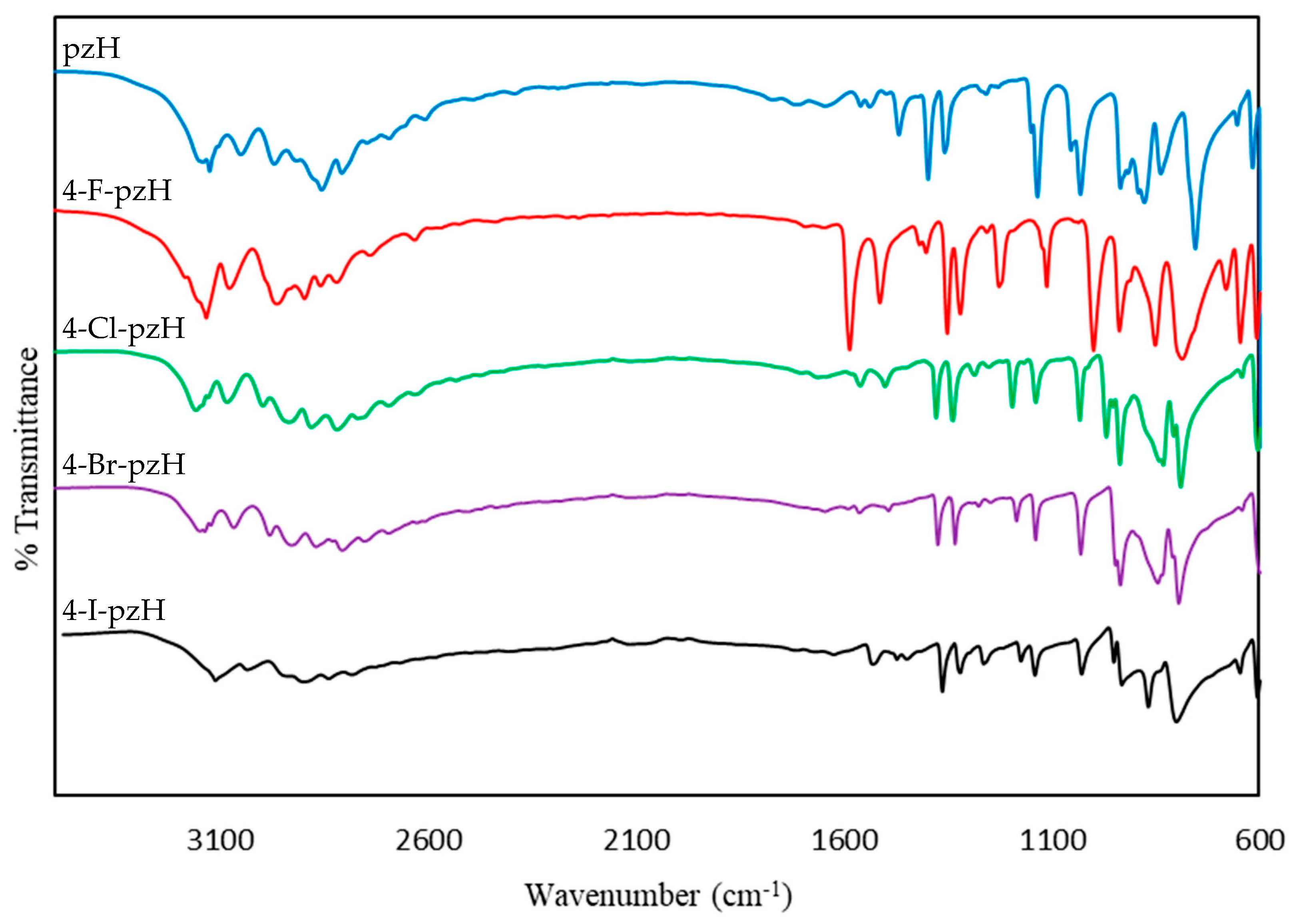

The infrared spectra of pzH and the series of 4-X-pzH (Figure 8 and Table 3) feature a complex region between 2600 and 3200 cm⁻¹ (Figure S2 shows the spectra with all peaks labeled). While calculations of pyrazole monomers show the NH stretching frequency to be ca. 3400–3500 cm⁻¹, the presence of H-bonding decreases the frequency of this vibration and gives rise to Fermi resonance interactions and overlap with C–H stretching frequencies [47,48,49]. The N–H vibrations for H-bonded pyrazole trimers appear at lower energies than those of dimers, which in turn appear at lower energies than those of monomers. IR spectra were recorded in the 4000–600 cm⁻¹ range and the highest stretching frequency seen was a small, barely perceptible, shoulder at 3293, 3288, 3284, 3255, and 3235 cm⁻¹ for the H, F, Cl, Br, and I substituents, respectively. There is a three-component band between 3100 and 3180 cm⁻¹ associated with N-H stretching for each pyrazole (except 4-I-pzH, where the spectrum is not as resolved) as presented in

Table 4. Experimental and calculated values for pure N-H solid state stretching modes for pzH and 4-X-pzH. Calculations were carried out using dimeric models; therefore, two distinct stretching frequencies are present.

	Experimental N-H Stretching Modes (cm−1)			Calculated N-H Stretching Modes (cm−1)
pzH	3153.04	3126.05	3104.83	3286.3	3265.4
4-F-pzH	3187.76	3154.97	3133.76	3291.2	3270.3
4-Cl-pzH	3156.90	3143.40	3127.97	3286.7	3266.9
4-Br-pzH	3153.04	3137.62	3122.19	3284.9	3265.4
4-I-pzH	-	-	3110.62	3283.2	3264.2

. Interestingly, the band shape in this region is distinct between trimeric and catemeric motifs. A sharp feature is observed for the pyrazoles that form catemers at 3126, 3133, and 3110 cm⁻¹ for pzH, 4-F-pzH, and 4-I-pzH, respectively.

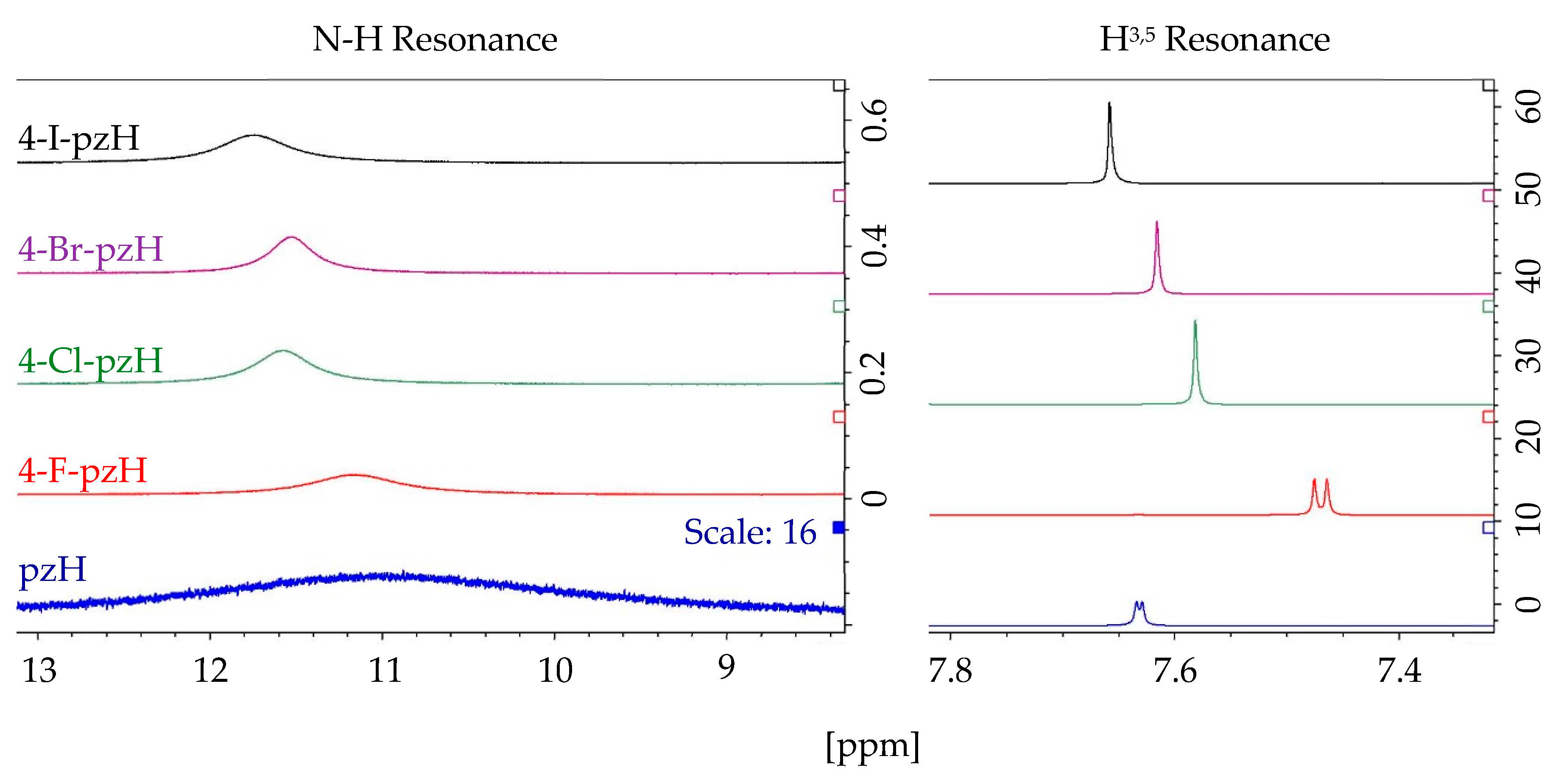

DFT calculations for ¹H NMR show that the resonances of the N-H proton shift downfield with decreasing electronegativity of the halogen substituent (i.e., fluoro is the further upfield) with values of 9.47 (F), 9.78 (Cl), 9.88 (Br), and 10.00 ppm (I). This trend is observed also in the experimental data (with the exception of a small inversion between 4-Br-pzH and 4-Cl-pzH) with resonances corresponding to the N-H proton at 11.1370 (F), 11.5699 (Cl), 11.5303 (Br), and 11.7549 ppm (I). However, the experimental and theoretical shifts differed by 1.20–1.75 ppm, with the difference attributed to tautomerization, which cannot be modeled by computational methods and imperfect modeling of solvent effects. Tautomerization in solution involving the N-H protons, along with unresolved coupling to quadrupolar N-atom, is responsible also for the broadening of these resonances. DFT calculations predict that the 3,5-protons for 4-F-pzH should be the most upfield, matching the experimental results. Calculations also predict that the Cl, Br, and I analogs should exhibit approximately the same chemical shift (7.63, 7.64, and 7.64 ppm, respectively). However, a small downfield shift was experimentally determined from 4-Cl-pzH to 4-I-pzH. Lastly, DFT predicts that the 3,5-protons of simple pyrazole will be the most downfield; however, it is observed to be ca. 0.03 ppm upfield of 4-I-pzH. The ¹H NMR spectra of five compounds are compiled in Figure 9, while experimental and calculated ¹H NMR data are listed in

Table 5. ¹H NMR experimental data for pzH and 4-X-pzH. Calculated chemical shifts for solutions using the mp2/cc-pVTZ basis set are shown in parentheses.

		N-H	H3,5 a	H4
pzH	Chemical Shift (ppm)	11.087 (9.89)	7.631 (7.74)	6.358 (6.56)
	Multiplicity	s	d	t
	J (Hz)	-	2.1	2.1
	Integration	- b	2H	1H
4-F-pzH	Chemical Shift (ppm)	11.137 (9.47)	7.469 (7.52)	-
	Multiplicity	s	d	-
	J (Hz)	-	4.5	-
	Integration	1H	2H	-
4-Cl-pzH	Chemical Shift (ppm)	11.570 (9.78)	7.581 (7.63)	-
	Multiplicity	s	s	-
	J (Hz)	-	-	-
	Integration	1H	2H	-
4-Br-pzH	Chemical Shift (ppm)	11.530 (9.88)	7.615 (7.64)	-
	Multiplicity	s	s	-
	J (Hz)	-	-	-
	Integration	1H	2H	-
4-I-pzH	Chemical Shift (ppm)	11.755 (10.00)	7.658 (7.64)	-
	Multiplicity	s	s	-
	J (Hz)	-	-	-
	Integration	1H	2H	-

^a Calculated chemical shift is an average of values for protons in the 3 and 5 positions; at room temperature, these protons are equivalent due to tautomerization. ^b Integration for the N-H proton in pzH is not accurate as this proton undergoes fast exchange and is broadened more than the halogenated pyrazoles.

. The NMR data are in agreement with those previously published for 4-halopyrazoles [50,51,52]. Full NMR spectra for each pyrazole can be viewed in the Supplementary information (Figures S3–S7).

4. Conclusions

With the crystal structure determination of 4-I-pzH, the crystallographic data of the series of 4-halo-1H-pyrazoles is now complete. The packing motifs of 4-Cl-pzH and 4-Br-pzH are isostructural and form trimeric units; however, 4-F-pzH and 4-I-pzH both form catemeric structures, but are not isostructural. In spite of the electronegativity difference between 4-F and 4-I substituents, the intermolecular H-bonded N…N distances are indistinguishable within experimental error. The acidity increased from 4-F-pzH to 4-I-pzH, observed in both the trend of infrared N-H stretching modes and ¹H-NMR shifts, are also counterintuitive, but nevertheless modeled by DFT calculations. We propose that these trends are attributed to a partial C–X double bond formation of increasing importance for the heavier halogens, which increases the sp² rather than sp³ hybridization of the N-atom, thus increasing its acidity.
