Article

NiTi-Layered Double Hydroxide@Carbon Nanotube as a Cathode Material for Chloride-Ion Batteries

1
State Key Laboratory of Materials-Oriented Chemical Engineering, College of Materials Science and Engineering, Nanjing Tech University, Nanjing 211816, China
2
Jiangsu Collaborative Innovation Center for Advanced Inorganic Functional Composites, Nanjing Tech University, 30 Puzhu South Road, Nanjing 211816, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(20), 2779; https://doi.org/10.3390/nano13202779
Submission received: 16 August 2023 / Revised: 10 October 2023 / Accepted: 12 October 2023 / Published: 17 October 2023
(This article belongs to the Special Issue Nanostructure-Based Energy Electrocatalysis)

Abstract

:
Chloride-ion batteries (CIBs) are one of the promising candidates for energy storage due to their low cost, high theoretical energy density and high safety. However, the limited types of cathode materials in CIBs have hindered their development. In this work, a NiTi-LDH@CNT composite is prepared using a reverse microemulsion method and applied in CIBs for the first time. The specific surface area and the pore volume of the obtained NiTi-LDH@CNT composites can reach 266 m2 g−1 and 0.42 cm3 g−1, respectively. Electrochemical tests indicate that the composite electrode delivers a reversible specific capacity of 69 mAh g−1 after 150 cycles at a current density of 100 mA g−1 in 0.5 M PP14Cl/PC electrolyte. Ni2+/Ni3+ and Ti3+/Ti4+ valence changes during electrochemical cycling are demonstrated by X-ray photoelectron spectroscopy (XPS), while reversible migration of Cl is revealed by ex-situ EDS and ex-situ XRD. The stable layered structure and abundant valence changes of the NiTi-LDH@CNT composite make it an exceptional candidate as a cathode material for CIBs.

1. Introduction

Anode :   M + x C l   M C l x + x e
Cathode :   M C l x + x e M + x C l
Due to the increasing demand for various energy resources, how to efficiently store and convert energy is the key to achieving sustainable development [1,2]. However, the large-scale development of lithium-ion batteries, which are still the mainstream batteries for commercialization, is hindered by high cost and the uneven distribution of lithium metal resources [3,4]. To overcome these limitations, chloride-ion batteries (CIBs) have been proposed as a potential alternative to lithium-ion batteries. The working principle of the rechargeable CIBs can be described as follows:
The basic working principle of the CIBs involves the use of the chloride ion as a shuttle between cathode and anode in a chloride-containing electrolyte. During discharge, chloride ions migrate from the cathode and are transported to the anode through the electrolyte. Upon charging, the reverse process occurs. CIBs are characterized by low cost due to abundant chloride resources and a high theoretical volumetric energy density of 2500 Wh L−1 [5,6]. Moreover, CIBs offer significant advantages in terms of safety due to their unique dendritic-free nature. These features make them highly suitable for large-scale energy storage applications [7]. However, the practical application of CIBs has been hindered by the lack of suitable high-performance cathode materials. Thus, the development of cathode materials that can efficiently store and release Cl is essential for the development of high-performance CIBs [8,9,10,11].
Many materials including metal chlorides, metal oxychlorides, chloride ion-doped conductive polymers, layered double hydroxides (LDHs) and organic electrode material have been developed as cathode materials for CIBs. In the first study, commercial CoCl2, VCl3, and BiCl3 [5] materials were used to demonstrate proof of principle for CIBs. The capacity loss of the batteries is very serious due to the easy dissolution of metal chlorides in the electrolyte. Later, metal oxychlorides such as BiOCl [12], FeOCl [13,14], VOCl [6], and Sb4O5Cl2 [15] with stable structure were explored as cathode materials for CIBs. Compared with metal chloride, metal oxychlorides exhibited excellent cycle stability and long cycle life. Subsequently, conductive polymer cathode materials (PPyCl0.33 [16], PANICl0.25 [17]) attracted significant attention. Due to the low volume change during discharging and charging, the capacity retention of the conductive polymer cathodes was excellent. However, the theoretical capacity of conductive polymer cathodes was generally low.
Layered double hydroxide (LDH) is an inorganic two-dimensional material that contains anions and has a structural formula of [ M 1 x II M x III (OH)2]z+(An−)z/n·yH2O (where MII and MIII represent divalent and trivalent metals, respectively. An− represents interlaminar anions that compensate for positively charged octahedral metal layers) [18]. The LDH has a 2D diffusion channel that allows for stable insertion/deinsertion of Cl during electrochemical cycling without significant volume change. Several LDHs with interlayer spacing between 0.761 nm and 0.783 nm (much larger than the ionic radius of Cl 0.181 nm), including CoFe-Cl LDH [19], NiMn-Cl LDH [20], Ni2V0.9Al0.1-Cl LDH [21], NiFe-Cl LDH [22], CoNi-Cl LDH [23] and NiTi-Cl LDH [24], have been investigated as cathode materials for CIBs (Table 1). In 2019, CoFe-Cl LDH [19] was prepared by a co-precipitation method and reported for the first time as a CIB cathode material. At a current density of 100 mA g−1, a reversible specific capacity of 160 mAh g−1 was maintained after 100 cycles in 0.5 M Bpy14Cl-PP14TFSI-PC electrolyte. In 2020, NiMn-Cl LDH [20] was also synthesized by a co-precipitation method and employed in a CIB system. At a current density of 50 mA g−1, a reversible specific capacity of 130 mAh g−1 was obtained after 150 cycles in 0.5 M Bpy14Cl-PC electrolyte. Soon after, Ni2V0.9Al0.1-Cl LDH [21] was synthesized by a hydrothermal method followed by an ion-exchange process. At a current density of 200 mAg−1, Ni2V0.9Al0.1-Cl LDH cathode delivered a reversible specific capacity of 113.8 mAh g−1 after 1000 cycles in 1 M Bpy14Cl-PP14TFSI-PC electrolyte. In the same year, NiFe-Cl LDH [22] was also synthesized by a hydrothermal method combined with an anion-exchange process. At a current density of 100 mA g−1, the NiFe-Cl LDH cathode exhibited a reversible specific capacity of 130 mAh g−1 after 100 cycles in 0.5 M Bpy14Cl-PC electrolyte. Additionally in 2020, CoNi-Cl LDH [23] was synthesized by ion-exchange of as-prepared CoNi-Br LDH. A reversible specific capacity of 83 mAh g−1 remained after 50 cycles in 0.5 M Bpy14Cl-PC/[PP14][NTf2] electrolyte. In 2023, Han et al. [24] performed high-throughput screening computation of layered double hydroxides as cathodes for chloride ion batteries. They found that Ti-containing LDHs were screened as the most promising cathodes through the theoretical voltage calculation. Although some progress has been made in LDHs, the current LDHs for CIBs usually possess much larger particle size (micro size) and consist of multilayers. Additionally, the preparation process for LDHs is usually complicated, N2 gas protection is usually mandatory for the conventional co-precipitation method.
Moreover, to the best of our knowledge, all the reported cathode materials contain elemental chlorine. Herein, a new chlorine-free cathode material, NiTi-LDH@CNT, was prepared by a facile reverse microemulsion method and developed as a cathode material for CIBs. Unlike the conventional co-precipitation method, the preparation of LDH by the reverse microemulsion method does not require the passage of N2 gas throughout the experiment. The specific surface area and pore volume of the NiTi-LDH@CNTs prepared by the reverse microemulsion method are as high as 266 m2 g−1 and 0.42 cm3 g−1, respectively, which is beneficial for sufficient contact between the electrode and electrolyte and promotes the electrochemical performance. In the following, we will discuss the synthesis, characterization, and electrochemical performance of NiTi-LDH@CNTs as a CIB electrode material.

2. Experimental

2.1. Synthesis of NiTi-LDH and NiTi-LDH@CNTs

To prepare NiTi-LDH, a reverse microemulsion method was used [25,26,27]. A mixture of 1.1 mL water, 50 mL iso-octane, and 1.80 g SDS was added to a three-mouth flask with constant stirring. This was followed by the addition of 1.5 mL 1-butanol until a transparent reverse microemulsion was formed. Ni(NO3)2·6H2O (0.004 mol) and TiCl4 (0.001 mol) were then added to the above microemulsion, followed by adding 1.2 g urea to form a blue-green solution. The mixture was heated in an oil bath at 110 °C and continuously stirred for 27 h. The resulting product was then centrifuged and washed several times using a mixed solvent of ethanol and water (volume ratio of 1:1), and dried in a vacuum oven at 60 °C for 24 h.
To synthesize NiTi-LDH@CNTs, the same reverse microemulsion method was used with the addition of 50 mg carbon nanotubes to the microemulsion. The mixture was sonicated for 1 h before the addition of urea.

2.2. Materials Characterization

X-ray diffraction (XRD) data were acquired from a Rigaku SmartLab diffractometer with Cu Kα radiation (λ = 0.15418 nm). The Fourier transform infrared spectroscopy (FTIR) was carried out using a Thermo Scientific Nicolet iS20 Spectrometer in the wave number range from 400 to 4000 cm−1. Thermogravimetric analyses (TGA) were carried out at a ramp rate of 10 °C min−1 under an air atmosphere using the NETZSCH STA449F3 instrument. The morphologies of the samples were monitored using a field-emission scanning electron microscope (ZEISS Ultra 55) at an accelerating voltage of 5 kV, the compositions of the samples were explored by an energy dispersive X-ray spectrometer attachment (Oxford Instrument). Nitrogen adsorption/desorption measurements were performed on a Micromeritics 3Flex surface characterization analyzer. The carbon content in the NiTi-LDH@CNTs was determined by an Elementar unicube elemental analyzer. X-ray photoelectron spectroscopy (XPS) measurements were carried out on a Thermo Scientific K-Alpha spectrometer with Al Kα X-rays as the excitation source.

2.3. Preparation of the Anode

Since the NiTi-LDH herein is a Cl¯ free material, the LiCl/Li anode must be prepared prior to electrochemical characterization. For the preparation of LiCl/Li anode, the Li‖FeOCl battery was first assembled with a mixture of 0.5 M PP14Cl in PP14TFSI as electrolyte. The FeOCl material was prepared by a thermal decomposition method previously reported [28]. The FeOCl electrode was prepared by mixing 80 wt% FeOCl, 10 wt% acetylene black and 10 wt% polyvinylidene fluoride (PVDF) in N-methyl-2-pyrrolidone (NMP). The obtained slurry was cast onto a graphite foil current collector with a thickness of 150 μm. After drying under vacuum at 80 °C for 12 h, a round electrode with a diameter of 19 mm was punched out. The load weight of FeOCl is ~3 mg. Then the assembled Li‖FeOCl battery was subjected to full discharge to 1.6 V at 10 mA g−1. After the discharge is completed, the battery was disassembled and the lithium foil was wiped with clean glass fiber to remove the residual electrolyte.

2.4. Electrochemical Measurements

CR2032 coin cells were assembled with the as-prepared NiTi-LDH or NiTi-LDH@CNT as the cathode material, Celgard 2400 membrane as the separator, and the as-prepared LiCl/Li as the anode. The cathode was prepared by mixing 60 wt% NiTi-LDH or NiTi-LDH@CNTs, 30 wt% Super P, and 10 wt% PVDF in NMP. The obtained slurry was spread onto a stainless-steel foil current collector with a thickness of 150 μm. After drying under vacuum, a round electrode with a diameter of 12 mm was punched out. The electrolyte was a mixture of 0.5 M PP14Cl in PC. The specific capacity was calculated based on the mass of NiTi-LDH.
Electrochemical impedance spectroscopy (EIS, 100 kHz to 10 mHz, 10 mV) and cyclic voltammetry (CV, 1.2 to 3 V, 0.1 mV s−1) measurements were performed on the BioLogic (VMP3) electrochemical workstation. The EIS data was fitted with Zview software. Galvanostatic discharge and charge measurements were conducted on the Neware battery test system in a voltage range of 1.2–3 V.

3. Results

3.1. Structural Characterization and Compositional Analysis of NiTi-LDH and NiTi-LDH@CNT Materials

The XRD patterns of NiTi-LDH, NiTi-LDH@CNTs and CNTs are shown in Figure 1a. The diffraction peaks of NiTi-LDH and NiTi-LDH@CNT samples prepared through the reverse microemulsion method are notably broad and weak, indicating the poor crystallinity of the synthesized material. The NiTi-LDH sample herein prepared following the procedure described by Zhao et al. [25,26,27], was supposed to be composed of a monolayer or fewer layers. There are two characteristic peaks at 2θ = 34° and 2θ = 60°, which correspond to (012) and (110) crystal planes of NiTi-LDH, respectively [29,30]. The characteristic peak of CNTs at 26° is retained for the NiTi-LDH@CNT material, indicating successful synthesis of the composite material.
Fourier transform infrared spectroscopy of NiTi-LDH, NiTi-LDH@CNTs and CNTs are shown in Figure 1b. The characteristic peaks at around 3435 cm−1 and 1631 cm−1 correspond to the stretching vibration of O−H bonds caused by surface adsorption of water and interlaminar crystalline water. The peak at 1386 cm−1 is attributed to the symmetric stretching vibration of C O 3 2 ions in the NiTi-LDH interlayer [29,30]. The broad band at around 700 cm−1 corresponds to the M–O (metal–oxygen) stretching and bending vibrations, proving the formation of NiTi-LDH@CNT materials [19,20,21,22,23,24]. The M–O stretching and bending vibrations can be more easily discerned in the Raman spectrum of NiTi-LDH@CNT with an obvious absorption band at 689 cm−1 (Figure S1). Meanwhile, the weak peaks observed at 2923 cm−1 and 2850 cm−1 are associated with the stretching vibrations of CH2 and CH3. These two peaks should be related to the adsorption of some dodecyl sulfate anion (sodium dodecyl sulfate was used as surfactant in this work) on the surface of NiTi-LDH [26,27].
Thermogravimetric analyses were conducted on NiTi-LDH, CNTs, and NiTi-LDH@CNTs, and the results are presented in Figure 2. The water contents for the NiTi-LDH and NiTi-LDH@CNTs are determined by the mass loss at 200 °C to be 14.5 wt% and 13.9 wt%, respectively [20]. The weight loss at around 350 °C for the NiTi-LDH is attributed to the removal of the hydroxyl group on the NiTi-LDH layer plate, as well as the interlayer cyanate and carbonate anions [31]. The content of CNTs in the NiTi-LDH@CNT composite was calculated by the mass loss in the temperature range of 550–650 °C to be approximately 15 wt%. The carbon content is consistent with the result obtained from the elemental analysis (Table S1).
Field-emission scanning electron microscopy (FE-SEM) was used to observe the morphology of the prepared NiTi-LDH, CNT, and NiTi-LDH@CNT composites. The CNTs with a diameter less than 50 nm and a length of several micrometers are entangled with each other (Figure 3a). The FE-SEM image of NiTi-LDH (Figure 3b) shows that many nanoparticles assembled with each other to form an agglomerate morphology. NiTi-LDH nanoflake with thickness of around 10 nm was also discerned. By comparing the FE-SEM image of blank CNTs and the FE-SEM images of NiTi-LDH@CNT composite (Figure 3c,d), it can be seen that NiTi-LDH nanoparticles are attached to CNTs and compound well with CNTs.
The nitrogen adsorption/desorption isotherms and pore size distributions of the prepared NiTi-LDH and NiTi-LDH@CNTs are shown in Figure 4. Both samples display typical type-IV isotherms (Figure 4a,c), demonstrating a mesoporous structure. The detailed parameters are listed in Table 2. The specific surface area and pore volume of the NiTi-LDH sample are 118 m2 g−1 and 0.12 cm3 g−1, respectively. When NiTi-LDH was compounded with CNTs, the specific surface area and pore volume of the composite increased to 266 m2 g−1 and 0.42 cm3 g−1, respectively. Based on the pore size distribution curves (Figure 4b,d), the average pore size of the NiTi-LDH@CNT composite and NiTi-LDH are 6.3 nm and 4.6 nm, respectively.

3.2. Electrochemical Performances

The Cl¯ ion storage performance of NiTi-LDH and NiTi-LDH@CNTs were investigated with LiCl/Li as anode and 0.5 mol L−1 PP14Cl/PC as electrolyte. LiCl/Li anode was prepared by fully discharging the assembled Li‖FeOCl coin cell. During this process, Cl ions migrate from FeOCl throughout the electrolyte to the metallic Li and react with the metallic Li to form LiCl. Since metallic Li is in excess, the LiCl/Li anode was therefore obtained. Figure S2 displays XRD and EDS maps of the as-prepared FeOCl, which are in agreement with our previous reports [16,32]. Moreover, Figure S3 displays the flower-like morphology of FeOCl. The successful preparation of LiCl/Li anode was confirmed by the XRD pattern as displayed in Figure S4b. Figure 5a,b depicts the CV curves of NiTi-LDH and NiTi-LDH@CNT electrodes in the voltage range of 1.2–3 V at 100 mA g−1. The CV curves of both electrodes exhibit an almost rectangular shape with no obvious redox peaks, implying a dominant capacitive storage mechanism [33]. The oxidation peak at 2.3 V corresponds to Cl entering the LDH interlayer, and the reduction peak at 1.4 V corresponds to Cl coming out of the LDH interlayer. Consistent with the CV curves, the galvanostatic charge and discharge curves for both electrodes (Figure 5c,d) displayed no obvious charge–discharge plateaus. The initial discharge specific capacity for NiTi-LDH and NiTi-LDH@CNT composites are 288 mAh g−1 and 498 mAh g−1, respectively. The addition of CNTs in the composites resulted in a higher reversible specific capacity of 69 mAh g−1 after 150 cycles, compared to 28 mAh g−1 of pure NiTi-LDH (Figure 5e). The NiTi-LDH@CNT electrode has a larger specific surface area and higher electronic conductivity, which makes it render a higher discharge capacity. In addition, the rapid capacity decay during the first 20 cycles for the NiTi-LDH@CNT electrode may be ascribed to its large surface area, which facilitates the formation of more SEI layer due to the increased side reaction with the electrolyte during continuous cycling. Furthermore, Coulombic efficiency of NiTi-LDH@CNT electrodes can reach 99%. It is worth noting that the capacity contribution from CNTs can be negligible (Figure S5).
In order to study the electrochemical kinetics of pure NiTi-LDH and NiTi-LDH@CNT electrodes, EIS measurements were performed. The resulting Nyquist curves (Figure 6a) display arcs and straight lines at high and low frequencies, respectively. The arc at high frequency represents the combined contribution from the contact resistance and the charge transfer resistance. The equivalent circuit model shown in the inset of Figure 6a was used to fit the EIS plots. The fitting results are listed in Table 3. Rc and Rct are contact resistance and charge transfer resistance, respectively. CPE1 and CPE2 are constant phase elements, W1 is Warburg impedance, and RS is solution resistance. The Rct value of the pure NiTi-LDH electrode was 136 Ω, while the Rct value of NiTi-LDH@CNTs was 95 Ω. The smaller Rct value of NiTi-LDH@CNTs indicates a faster charge transfer. Moreover, the higher the slope of the straight line at low frequency is, the smaller the diffusion resistance is. Compared with NiTi-LDH, a higher slope of the straight line for the NiTi-LDH@CNT electrode signifies an enhanced ion diffusion rate.
The rate performance of pure NiTi-LDH and NiTi-LDH@CNT electrodes were further studied. As shown in Figure 6b, the reversible specific capacities of NiTi-LDH@CNT composites at 100, 200, 300, 400 and 500 mA g−1 are 191, 74, 54, 42 and 33 mAh g−1, respectively, which are higher than 81, 31, 15, 11 and 9 mAh g−1 of pure NiTi-LDH. When the current density returns to 100 mA g−1 again, the average discharge specific capacity of the NiTi-LDH@CNT cathode is 94 mAh g−1, while the average discharge specific capacity of pure NiTi-LDH is 43 mAh g−1. The enhancement of rate performance for the NiTi-LDH@CNT cathode could be attributed to the improved conductivity caused by the introduction of carbon nanotubes.

3.3. Analysis of Chlorine Storage Mechanism

X-ray photoelectron spectra (XPS) were performed to investigate the chlorine storage mechanism during the charging and discharging process of NiTi-LDH@CNT composite electrodes. In Figure 7a, a distinct pair of Ni 2p1/2 and Ni 2p3/2 peaks in the Ni 2p XPS spectrum of the as-prepared electrode appeared, along with the satellite peaks at 880.4 eV and 861.8 eV. [20,22]. Upon charging, a new Ni 2p peak doublet located at higher binding energies of 877.1 and 858.4 eV emerged, which can be assigned to Ni3+ species [27,34,35,36]. Upon the following discharge, the Ni 2p signals belonging to the Ni3+ species disappeared. In Figure 7b, two pairs of distinct Ti 2p1/2 and Ti 2p3/2 peaks are visible in the Ti 2p XPS spectrum. Deconvolution peaks of Ti 2p3/2 at 459.5 eV and 458.7 eV are assigned to Ti4+ and Ti3+ states, respectively [24]. During the charging process, the signals of Ti4+ intensified while the signals of Ti3+ weakened, indicating that the average valence of Ti increased [37,38]. During the discharging process, the relative intensity of Ti3+ and Ti4+ signals were restored to the original state. In Figure 7c, the Cl 2p peak doublet at 198.7 (Cl 2p3/2) and 200.5 eV (Cl 2p1/2) came out during the charge process, providing proof for the Cl¯ entering the LDH layer [16,39]. The reversal of this change demonstrates the excellent oxidation/reduction reversibility of NiTi-LDH@CNTs as a CIB cathode material.
Figure 8 depicts the FE-SEM images and the corresponding energy-dispersive X-ray spectroscopy (EDS) results of the NiTi-LDH@CNT cathode during the 10th cycle. The EDS data (Figure 8b,e) reveals that there is an increase in the Cl element content during charging, indicating that chloride ions are inserted into the LDH gallery. During discharge, the Cl element content decreases, suggesting that the Cl¯ ions are extracted from the LDH gallery. The higher brightness of Cl mapping for the charged sample over the discharged sample further verified the insertion/extraction of Cl into/from the LDH interlayers.
In addition, we have conducted ex-situ XRD studies on the anode side during the 10th cycle and the results are presented in Figure 9. Upon fully charging to 3 V, the characteristic diffraction peak of LiCl disappeared, indicating the release of Cl¯ from Li metal [20]. Upon fully discharging to 1.2 V, the characteristic diffraction peak of LiCl appeared, signifying the migration of Cl¯ back to the anode side to form LiCl. These findings confirm the reversible shuttle of chloride ions between cathode and anode.

4. Conclusions

CIBs have been regarded as one of the alternatives to conventional lithium-ion batteries due to the natural abundance of chloride resources in seawater, dendrite-free anodes upon cycling and high theoretical volumetric energy density. In this work, NiTi-LDH@CNT composite has been prepared by a reverse microemulsion method. We preliminarily investigated its chloride ion storage performance. When coupled with LiCl/Li anode, the NiTi-LDH@CNT composite cathode in PP14Cl/PC electrolyte delivered a reversible specific capacity of 69 mAh g−1 after 150 cycles at a current density of 100 mA g−1. The incorporation of CNTs significantly improved the electronic conductivity and dispersity of electroactive material, resulting in better electrochemical performance. The electrochemical mechanism was comprehensively revealed by ex-situ XPS, EDS and ex-situ XRD. This work provides an innovative avenue for the design of CIB cathode materials. Finally, although CIBs are one of the promising energy storage devices, it should be mentioned that there is still a potential risk of release of toxic chlorine gas upon overcharge from the practical point of view.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13202779/s1, Figure S1: Raman spectra; Figure S2 and Figure S3: XRD, EDS spectrum and FESEM images of FeOCl. Figure S4: XRD pattern of the as-prepared LiCl anode; Figure S5: (a) The charge and discharge curves of the blank CNTs and (b) the corresponding cycling performance at 100 mA g−1; Table S1: elemental analysis.

Author Contributions

L.Z.: Investigation, Methodology, Writing-original draft. S.S.: Writing—review, editing, Supervision. C.Z.: Investigation, Methodology. X.Z.: Writing—review, editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (grant no. 51602150), the Natural Science Foundation of Jiangsu Province (grant no. BK20161005), the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dunn, B.; Kamath, H.; Tarascon, J.M. Electrical energy storage for the grid: A battery of choices. Science 2011, 334, 928–935. [Google Scholar] [CrossRef] [PubMed]
  2. Armand, M.; Tarascon, J.M. Building better batteries. Nature 2008, 451, 652–657. [Google Scholar] [CrossRef] [PubMed]
  3. Goodenough, J.B. Evolution of strategies for modern rechargeable batteries. Acc. Chem. Res. 2013, 46, 1053–1061. [Google Scholar] [CrossRef] [PubMed]
  4. Li, M.; Lu, J.; Chen, Z.; Amine, K. 30 years of lithium-ion batteries. Adv. Mater. 2018, 30, 1800561. [Google Scholar] [CrossRef] [PubMed]
  5. Sandstrom, S.; Chen, X.; Ji, X. A review of halide charge carriers for rocking-chair and dual-ion batteries. Carbon Energy 2021, 3, 627–653. [Google Scholar] [CrossRef]
  6. Gao, P.; Reddy, M.A.; Mu, X.; Diemant, T.; Zhang, L.; Zhao-Karger, Z.; Chakravadhanula, V.S.K.; Clemens, O.; Behm, R.J.; Fichtner, M. VOCl as a cathode for rechargeable chloride ion batteries. Angew. Chem. Int. Ed. 2016, 128, 4357–4362. [Google Scholar] [CrossRef]
  7. Liu, Q.; Wang, Y.; Yang, X.; Zhou, D.; Wang, X.; Jaumaux, P.; Kang, F.; Li, B.; Ji, X.; Wang, G. Rechargeable anion-shuttle batteries for low-cost energy storage. Chem 2021, 7, 1–29. [Google Scholar] [CrossRef]
  8. Gschwind, F.; Euchner, H.; Rodriguez-Garcia, G. Chloride ion battery review: Theoretical calculations, state of the art, safety, toxicity, and an outlook towards future developments. Eur. J. Inorg. Chem. 2017, 2017, 2784–2799. [Google Scholar] [CrossRef]
  9. Li, H.; Li, M.; Zhao, H.; Li, T.; Fang, Z. A novel type of chloride ion battery that can change the structure of electric vehicle. J. Power Sources 2021, 512, 230507. [Google Scholar] [CrossRef]
  10. Karkera, G.; Reddy, M.A.; Fichtner, M. Recent developments and future perspectives of anionic batteries. J. Power Sources 2021, 481, 228877. [Google Scholar] [CrossRef]
  11. Yang, J.; Liu, Y.; Zhang, Y.; Wang, G.; Shi, X.; Zhang, H.; Li, J.; Deng, P.; Tian, X. Recent advances and future perspectives of rechargeable chloride-based batteries. Nano Energy 2023, 110, 108364. [Google Scholar] [CrossRef]
  12. Zhao, X.; Zhao-Karger, Z.; Wang, D.; Fichtner, M. Metal oxychlorides as cathode materials for chloride ion batteries. Angew. Chem. Int. Ed. 2013, 52, 13621–13624. [Google Scholar] [CrossRef] [PubMed]
  13. Yu, T.; Zhao, X.; Ma, L.; Shen, X. Intercalation and electrochemical behaviors of layered FeOCl cathode material in chloride ion battery. Mater. Res. Bull. 2017, 96, 485–490. [Google Scholar] [CrossRef]
  14. Yang, R.; Yu, T.; Zhao, X. Polypyrrole-coated iron oxychloride cathode material with improved cycling stability for chloride ion batteries. J. Alloys Compd. 2019, 788, 407–412. [Google Scholar] [CrossRef]
  15. Lakshmi, K.P.; Janas, K.J.; Shaijumon, M.M. Antimony oxychloride embedded graphene nanocomposite as efficient cathode material for chloride ion batteries. J. Power Sources 2019, 433, 126685. [Google Scholar] [CrossRef]
  16. Chen, S.; Wu, L.; Liu, Y.; Zhou, P.; An, Q.; Mai, L. Chloride ion battery: A new emerged electrochemical system for next-generation energy storage. J. Energy Chem. 2023, in press. [Google Scholar] [CrossRef]
  17. Zhao, Z.; Yu, T.; Miao, Y.; Zhao, X. Chloride ion-doped polyaniline/carbon nanotube nanocomposite materials as new cathodes for chloride ion battery. Electrochim. Acta 2018, 270, 30–36. [Google Scholar] [CrossRef]
  18. Shao, M.; Zhang, R.; Li, Z.; Wei, M.; Evans, D.G.; Duan, X. Layered double hydroxides toward electrochemical energy storage and conversion: Design, synthesis and applications. Chem. Commn. 2015, 51, 15880–15893. [Google Scholar] [CrossRef]
  19. Yin, Q.; Rao, D.; Zhang, G.; Zhao, Y.; Han, J.; Lin, K.; Zheng, L.; Zhang, J.; Zhou, J.; Wei, M. CoFe–Cl layered double hydroxide: A new cathode material for high-Performance chloride ion batteries. Adv. Funct. Mater. 2019, 29, 1900983. [Google Scholar] [CrossRef]
  20. Luo, J.; Yin, Q.; Zhang, J.; Zhang, S.; Zheng, L.; Han, J. NiMn-Cl layered double hydroxide/carbon nanotube networks for high-performance chloride ion batteries. ACS Appl. Energy Mater. 2020, 3, 4559–4568. [Google Scholar] [CrossRef]
  21. Yin, Q.; Luo, J.; Zhang, J.; Zhang, S.; Han, J.; Lin, Y.; Zhou, J.; Zheng, L.; Wei, M. Ultralong-life chloride ion batteries achieved by the synergistic contribution of intralayer metals in layered double hydroxides. Adv. Funct. Mater. 2020, 30, 1907448. [Google Scholar] [CrossRef]
  22. Yin, Q.; Luo, J.; Zhang, J.; Zheng, L.; Cui, G.; Han, J.; O’hare, D. High-performance, long lifetime chloride ion battery using a NiFe–Cl layered double hydroxide cathode. J. Mater. Chem. A 2020, 8, 12548–12555. [Google Scholar] [CrossRef]
  23. Yin, Q.; Zhang, J.; Luo, J.; Han, J.; Shao, M.; Wei, M. A new family of rechargeable batteries based on halide ions shuttling. Chem. Eng. J. 2020, 389, 124376. [Google Scholar] [CrossRef]
  24. Yin, Q.; Wang, T.; Song, Z.; Yang, S.; Miao, Y.; Wu, Y.; Sui, Y.; Qi, J.; Li, Y.; Zhao, D.; et al. Computational high-throughput screening of layered double hydroxides as cathodes for chloride ion batteries. Chem. Eng. J. 2023, 459, 141545. [Google Scholar] [CrossRef]
  25. Zhao, Y.; Jia, X.; Chen, G.; Shang, L.; Waterhouse, G.I.N.; Wu, L.; Tung, C.; O’hare, D.; Zhang, T. Ultrafine NiO nanosheets stabilized by TiO2 from monolayer NiTi-LDH precursors: An active water oxidation electrocatalyst. J. Am. Chem. Soc. 2016, 138, 6517–6524. [Google Scholar] [CrossRef] [PubMed]
  26. Zhao, Y.; Li, B.; Wang, Q.; Gao, W.; Wang, C.J.; Wei, M.; Evans, D.G.; Duan, X.; O’hare, D. NiTi-layered double hydroxides nanosheets as efficient photocatalysts for oxygen evolution from water using visible light. Chem. Sci. 2014, 5, 951–958. [Google Scholar] [CrossRef]
  27. Zhao, Y.; Wang, Q.; Bian, T.; Yu, H.; Fan, H.; Zhou, C.; Wu, L.; Tung, C.; O’hare, D.; Zhang, T. Ni3+ doped monolayer layered double hydroxide nanosheets as efficient electrodes for supercapacitors. Nanoscale 2015, 7, 7168–7173. [Google Scholar] [CrossRef]
  28. Yang, X.; Tian, P.; Zhang, X.; Yu, X.; Wu, T.; Xu, J.; Han, Y. The generation of hydroxyl radicals by hydrogen peroxide decomposition on FeOCl/SBA-15 catalysts for phenol degradation. AICHE J. 2015, 61, 166–176. [Google Scholar] [CrossRef]
  29. Lin, G.; Zhu, L.; Duan, T.; Zhang, L.; Liu, B.; Lei, J. Efficient capture of iodine by a polysulfide-inserted inorganic NiTi-layered double hydroxides. Chem. Eng. J. 2019, 378, 122181. [Google Scholar] [CrossRef]
  30. Li, B.; Zhao, Y.; Zhang, S.; Gao, W.; Wei, M. Visible-light-responsive photocatalysts toward water oxidation based on NiTi-layered double hydroxide/reduced graphene oxide composite materials. ACS Appl. Mater. Interfaces 2013, 5, 10233–10239. [Google Scholar] [CrossRef]
  31. Labajos, F.M.; Rives, V. Thermal evolution of chromium (III) ions in hydrotalcite-like compounds. Inorg. Chem. 1996, 35, 5313–5318. [Google Scholar] [CrossRef]
  32. Yu, T.; Li, Q.; Zhao, X.; Xia, H.; Ma, L.; Wang, J.; Meng, Y.S.; Shen, X. Nanoconfined iron oxychloride material as a high-performance cathode for rechargeable chloride ion batteries. ACS Energy Lett. 2017, 2, 2341–2348. [Google Scholar] [CrossRef]
  33. Yang, H.; Wu, X.L.; Cao, M.H.; Guo, Y.G. Solvothermal synthesis of LiFePO4 hierarchically dumbbell-like microstructures by nanoplate self-assembly and their application as a cathode material in lithium-ion batteries. J. Phys. Chem. C 2009, 113, 3345–3351. [Google Scholar] [CrossRef]
  34. Wang, D.; Peng, F.; Li, J.; Qiao, Y.; Li, Q.; Liu, X. Butyrate-inserted Ni–Ti layered double hydroxide film for H2O2-mediated tumor and bacteria killing. Mater. Today 2017, 20, 238–257. [Google Scholar] [CrossRef]
  35. Samuei, S.; Akbari, S.S.; Ülker, E.; Karadas, F. Effect of cobalt doping on photocatalytic water splitting activity of NiTi-layered double hydroxide. Catal. Sci. Technol. 2022, 12, 3044–3053. [Google Scholar] [CrossRef]
  36. Ge, N.; Wang, D.; Peng, F.; Li, J.; Qiao, Y.; Liu, X. Poly (styrenesulfonate)-modified Ni–Ti layered double hydroxide film: A smart drug-eluting platform. ACS Appl. Mater. Interfaces 2016, 8, 24491–24501. [Google Scholar] [CrossRef] [PubMed]
  37. Xu, M.; He, S.; Chen, H.; Cui, G.; Zheng, L.; Wang, B.; Wei, M. TiO2–x-modified Ni nanocatalyst with tunable metal–support interaction for water–gas shift reaction. ACS Catal. 2017, 7, 7600–7609. [Google Scholar] [CrossRef]
  38. Dong, C.; Liu, X.; Wang, X.; Yuan, X.; Xu, Z.; Dong, W.; Riaz, M.S.; Li, G.; Huang, F. Hierarchical Ni/NiTiO3 derived from NiTi LDHs: A bifunctional electrocatalyst for overall water splitting. J. Mater. Chem. A 2017, 5, 24767–24774. [Google Scholar] [CrossRef]
  39. Wang, F.; Wang, J.; Li, G.; Guo, Z.; Chu, J.; Ai, X.; Song, Z. A high-energy dual-ion battery based on chloride-inserted polyviologen cathode and LiCl/DMSO electrolyte. Energy Stor. Mater. 2022, 50, 658–667. [Google Scholar] [CrossRef]

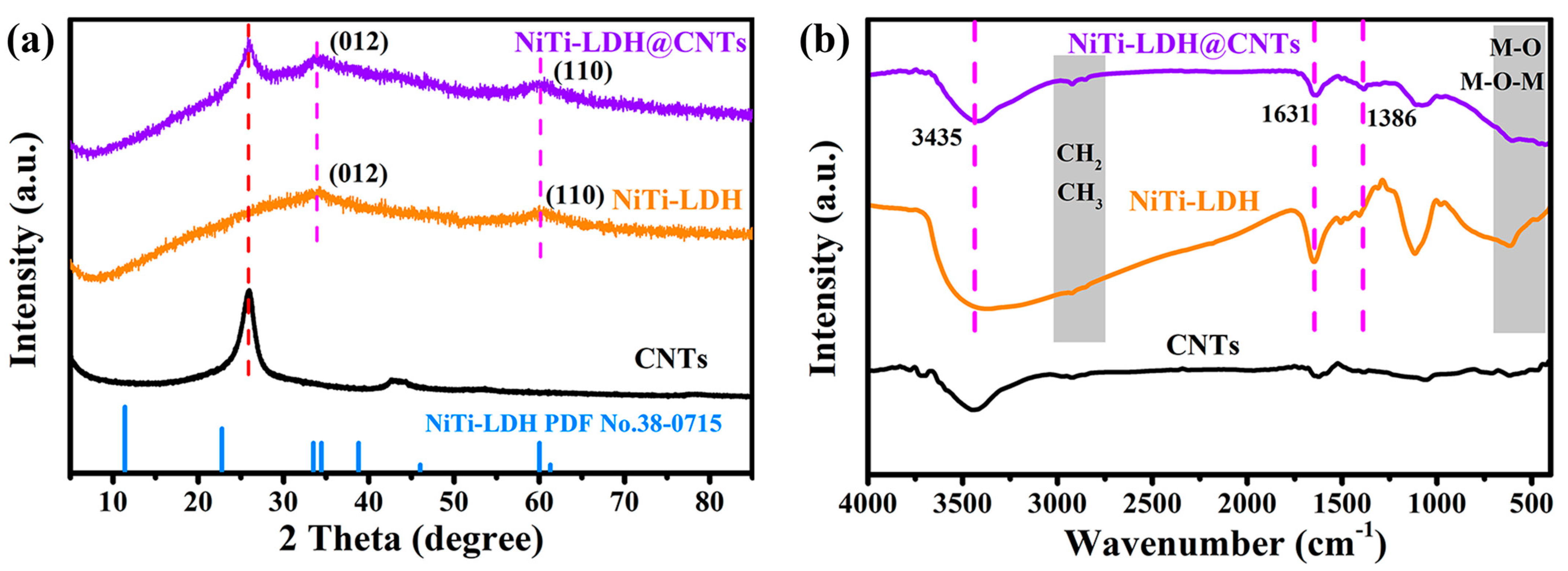

Figure 1. (a) XRD patterns and (b) FT-IR spectra of the CNT, NiTi-LDH and NiTi-LDH@CNT materials.
Figure 1. (a) XRD patterns and (b) FT-IR spectra of the CNT, NiTi-LDH and NiTi-LDH@CNT materials.
Nanomaterials 13 02779 g001

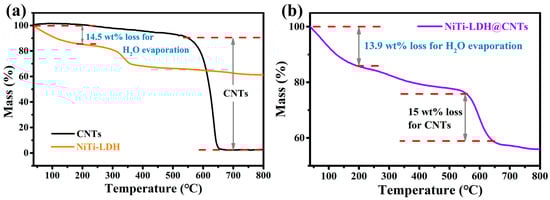

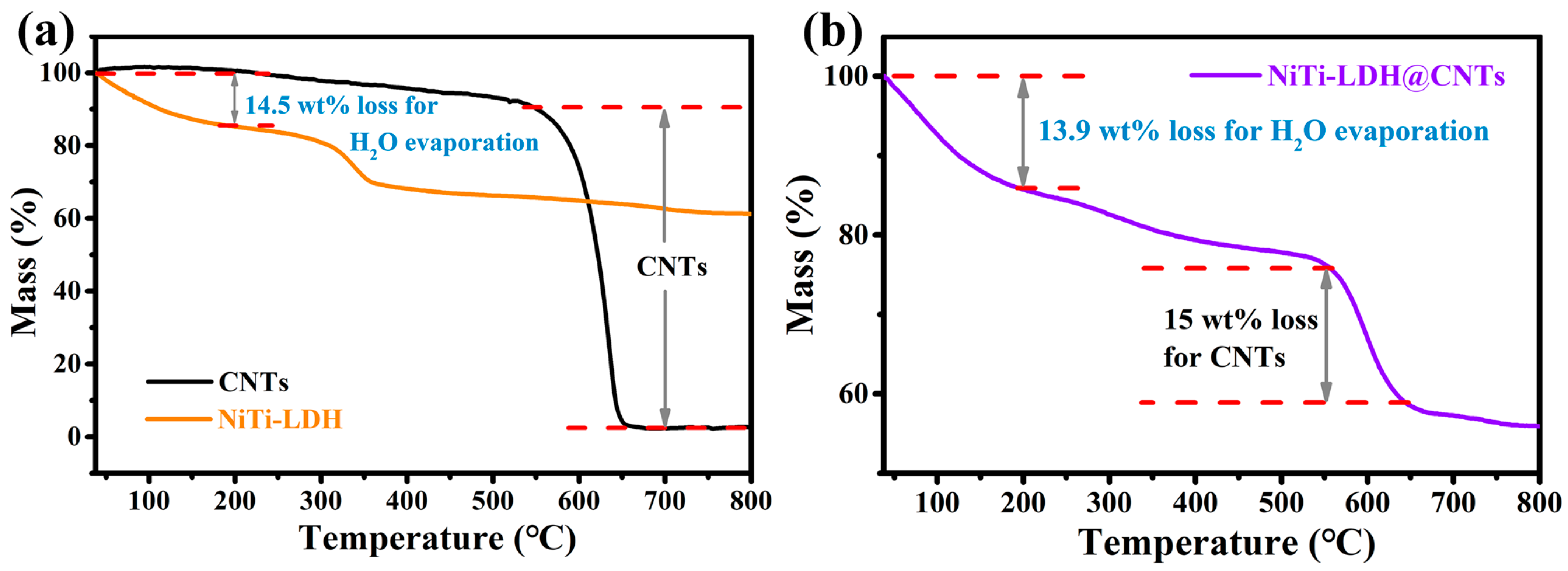

Figure 2. Thermogravimetric analysis (TGA) for (a) CNT, NiTi-LDH, and (b) NiTi-LDH@CNT composite samples.
Figure 2. Thermogravimetric analysis (TGA) for (a) CNT, NiTi-LDH, and (b) NiTi-LDH@CNT composite samples.
Nanomaterials 13 02779 g002
Figure 3. FESEM images of (a) CNTs, (b) NiTi-LDH and (c,d) NiTi-LDH@CNT composite samples.
Figure 3. FESEM images of (a) CNTs, (b) NiTi-LDH and (c,d) NiTi-LDH@CNT composite samples.
Nanomaterials 13 02779 g003

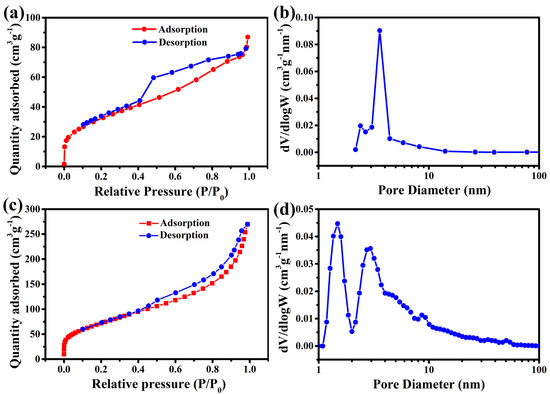

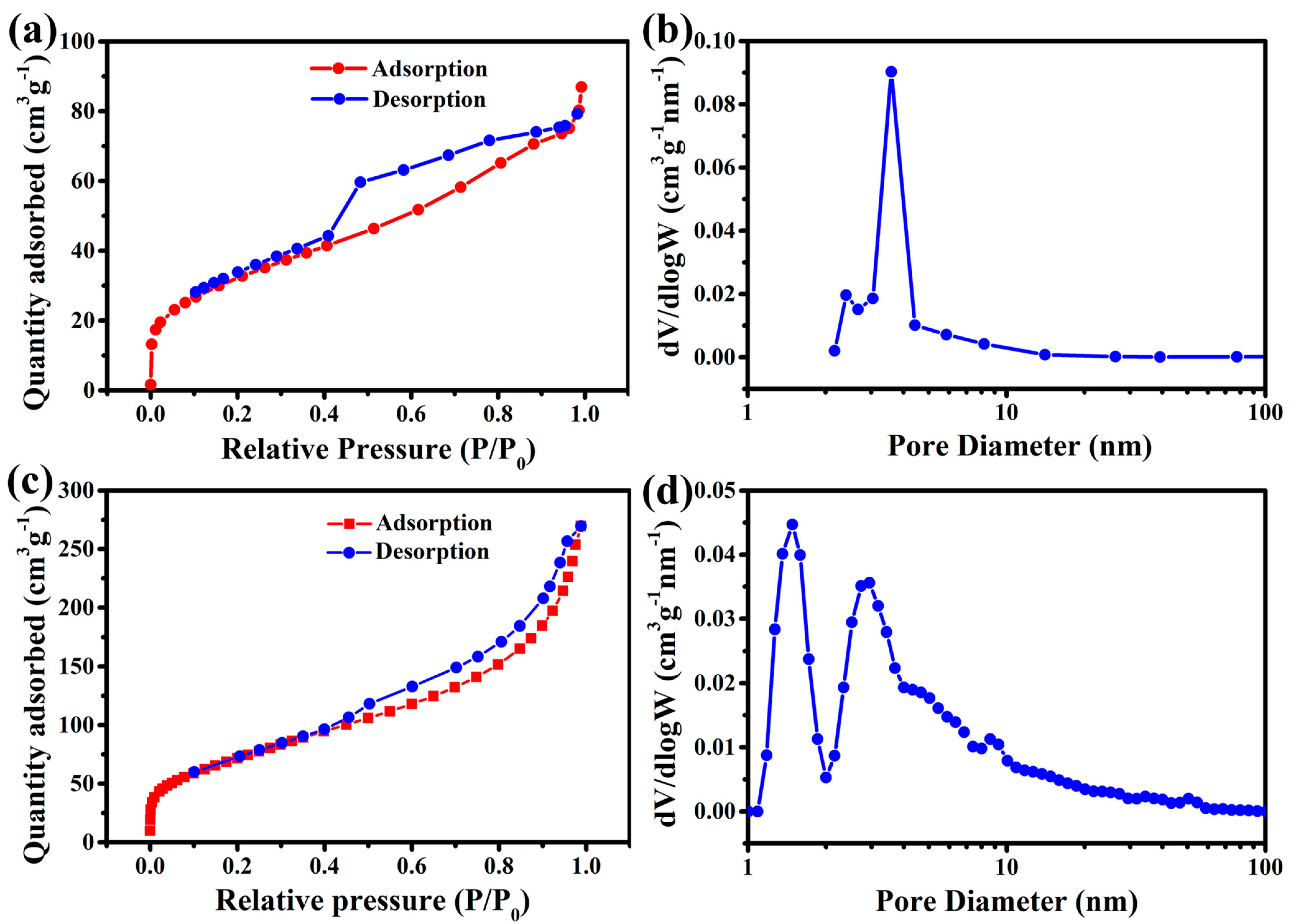

Figure 4. Nitrogen adsorption/desorption isotherms and the corresponding pore size distributions of as-prepared of (a,b) NiTi-LDH and (c,d) NiTi-LDH@CNT materials.
Figure 4. Nitrogen adsorption/desorption isotherms and the corresponding pore size distributions of as-prepared of (a,b) NiTi-LDH and (c,d) NiTi-LDH@CNT materials.
Nanomaterials 13 02779 g004

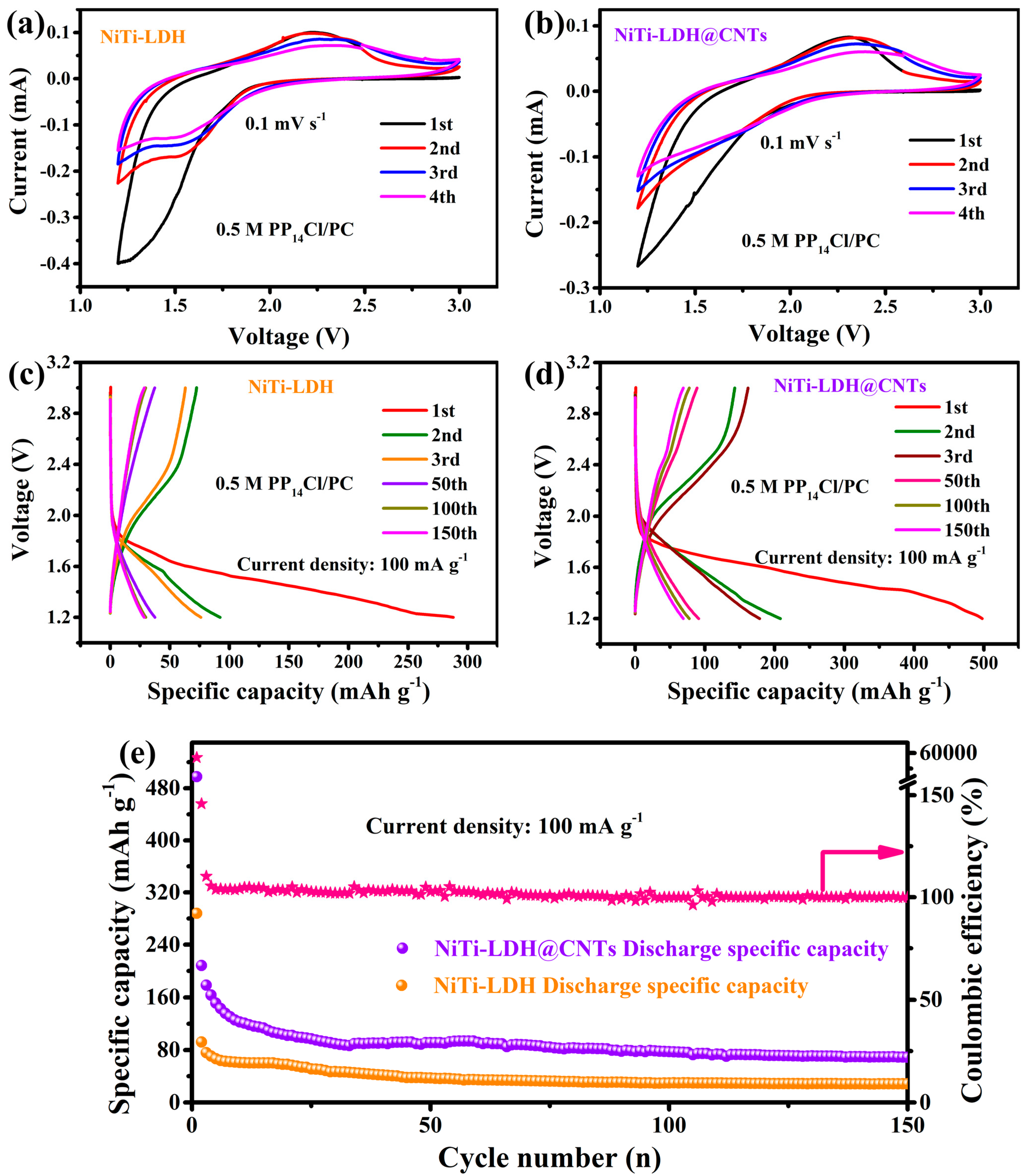

Figure 5. Cl¯ storage properties of NiTi-LDH and NiTi-LDH@CNT cathodes. (a,b) CV curves for the first four cycles at a scan rate of 0.1 mV s−1; (c,d) Discharge and charge curves at 100 mA g−1; (e) Coulombic efficiency and cycling performance at 100 mA g−1.
Figure 5. Cl¯ storage properties of NiTi-LDH and NiTi-LDH@CNT cathodes. (a,b) CV curves for the first four cycles at a scan rate of 0.1 mV s−1; (c,d) Discharge and charge curves at 100 mA g−1; (e) Coulombic efficiency and cycling performance at 100 mA g−1.
Nanomaterials 13 02779 g005

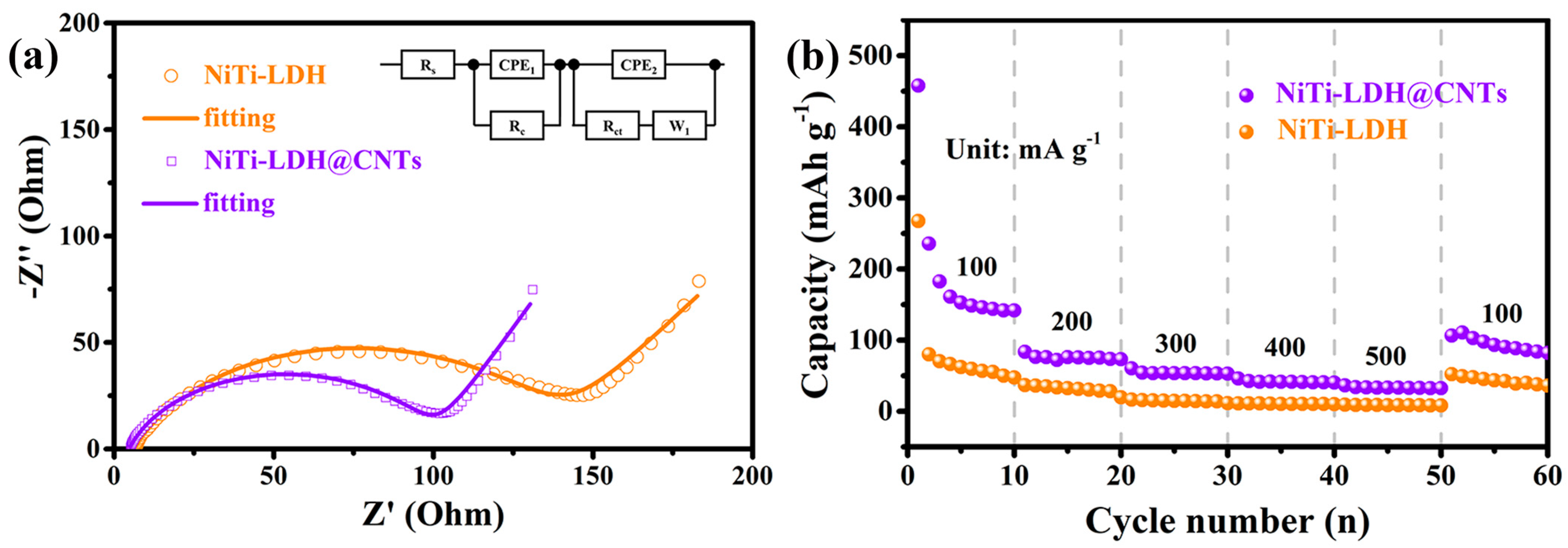

Figure 6. (a) Nyquist plots of the as-prepared NiTi-LDH and NiTi-LDH@CNT cathodes; (b) Comparison of rate capability between NiTi-LDH and NiTi-LDH@CNTs.
Figure 6. (a) Nyquist plots of the as-prepared NiTi-LDH and NiTi-LDH@CNT cathodes; (b) Comparison of rate capability between NiTi-LDH and NiTi-LDH@CNTs.
Nanomaterials 13 02779 g006

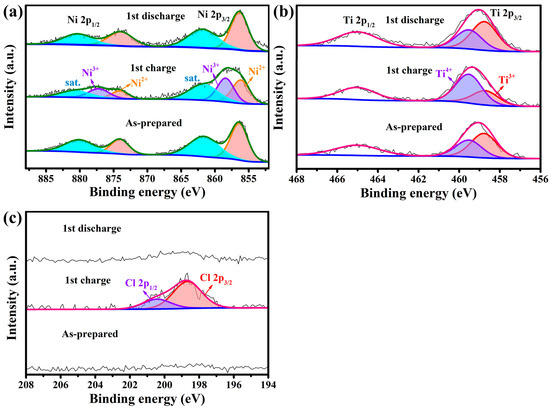

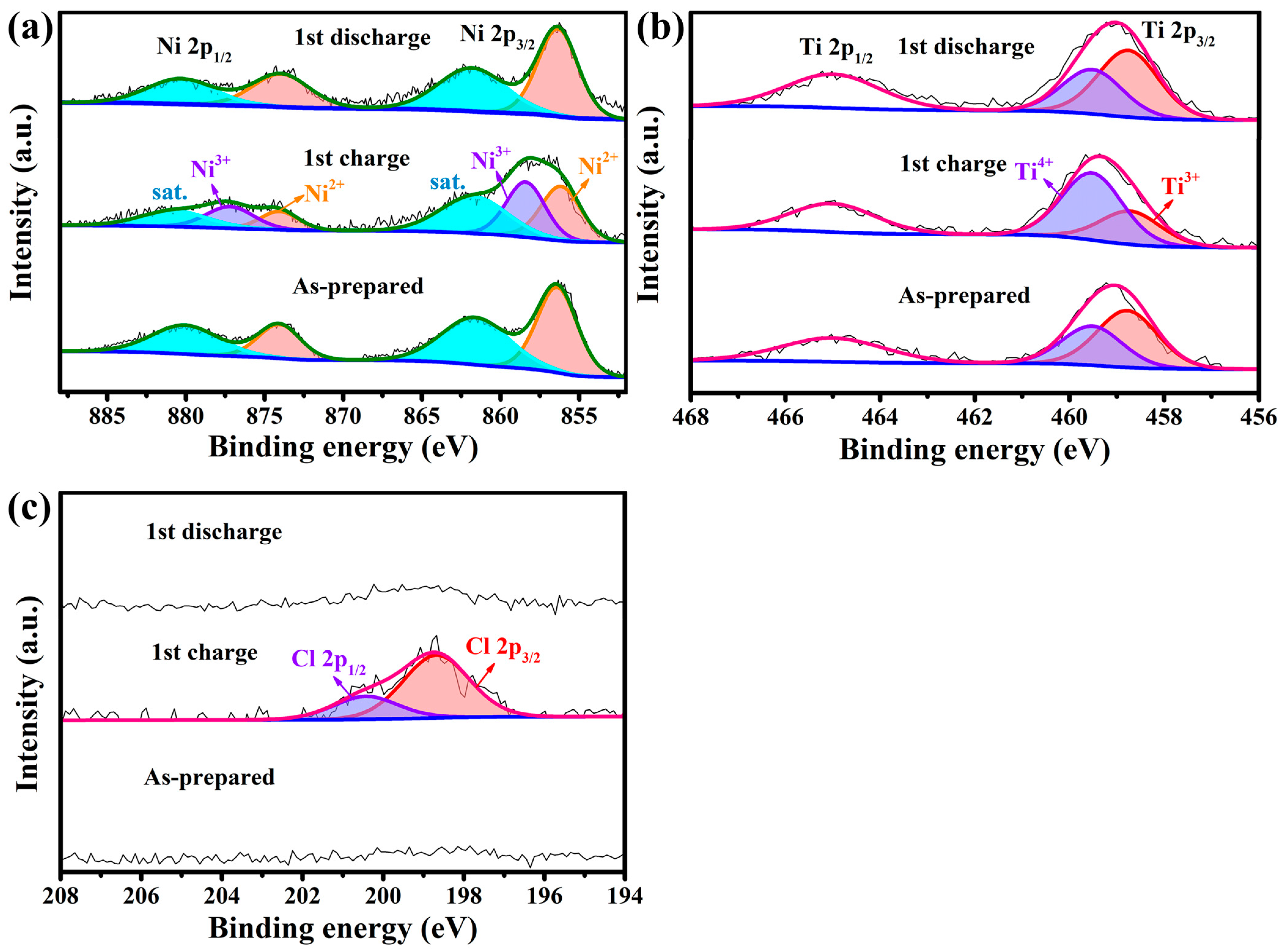

Figure 7. XPS spectra of Ni 2p (a), Ti 2p (b), and Cl 2p (c) for NiTi-LDH@CNT electrodes in various electrochemical states.
Figure 7. XPS spectra of Ni 2p (a), Ti 2p (b), and Cl 2p (c) for NiTi-LDH@CNT electrodes in various electrochemical states.
Nanomaterials 13 02779 g007

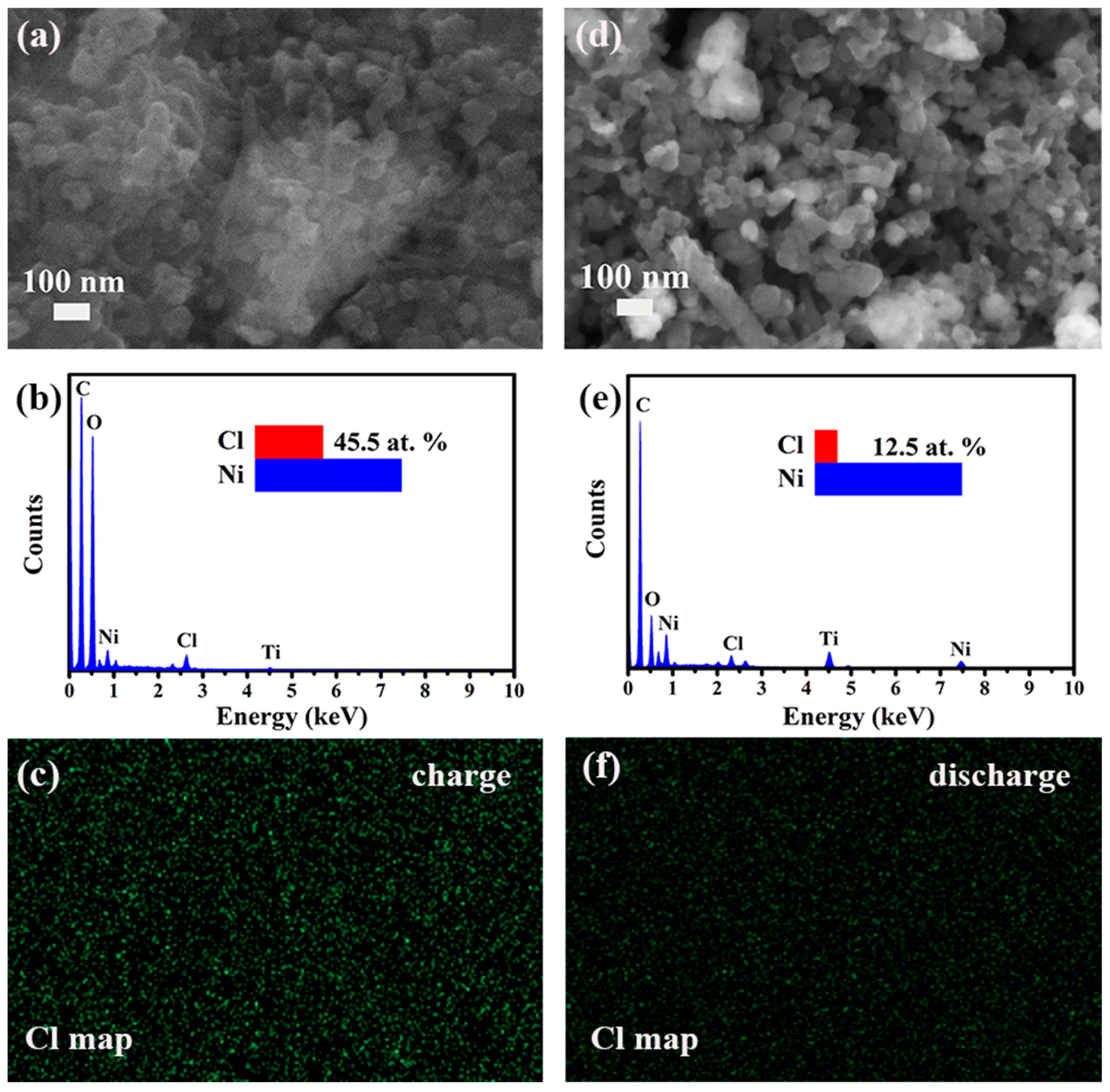

Figure 8. FE-SEM images and the corresponding EDS results of the NiTi-LDH@CNT cathodes: (ac) 10th charge and (df) 10th discharge. The inset in (b,e) is the atomic ratio of Cl/Ni.
Figure 8. FE-SEM images and the corresponding EDS results of the NiTi-LDH@CNT cathodes: (ac) 10th charge and (df) 10th discharge. The inset in (b,e) is the atomic ratio of Cl/Ni.
Nanomaterials 13 02779 g008

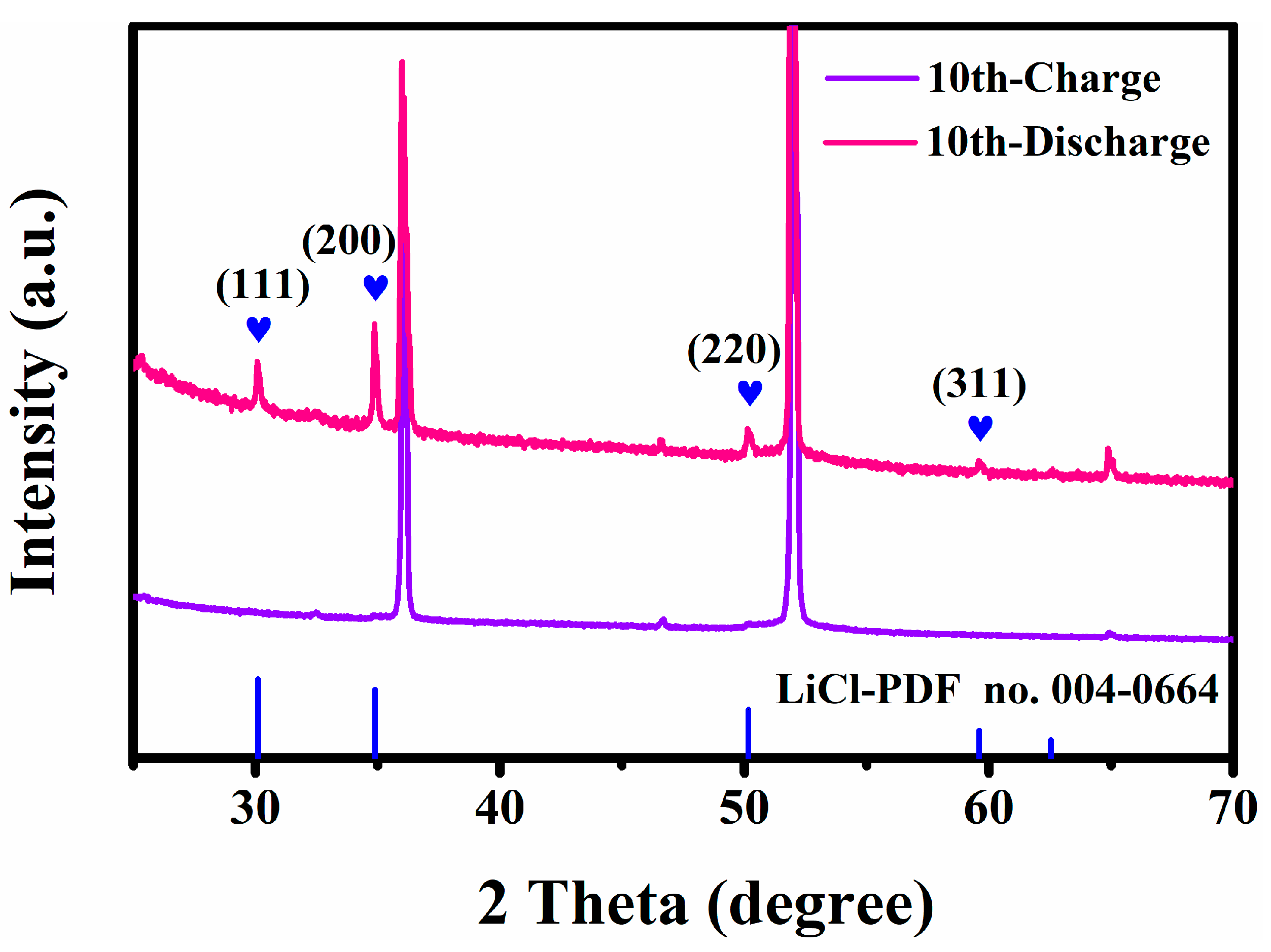

Figure 9. XRD patterns of anode side at 100 mA g−1 in the 10th cycle.
Figure 9. XRD patterns of anode side at 100 mA g−1 in the 10th cycle.
Nanomaterials 13 02779 g009
Table 1. Electrochemical performance of reported LDHs as a Cl storage electrode in CIB.
Table 1. Electrochemical performance of reported LDHs as a Cl storage electrode in CIB.
Cathode MaterialsElectrolyteCurrent DensityCycling PerformanceReferences
CoFe-Cl LDH0.5 M BpyCl-PP14TFSI-PC100 mA g−1160 mAh g−1 after 100 cycles[19]
NiMn-Cl LDH0.5 M Bpy14Cl-PC50 mA g−1130 mAh g−1 after 150 cycles[20]
Ni2V0.9Al0.1-Cl LDH1 M Bpy14Cl-PP14TFSI-PC200 mA g−1113.8 mAh g−1 after 1000 cycles[21]
NiFe-Cl LDH0.5 M Bpy14Cl-PC100 mA g−1130 mAh g−1 after 100 cycles[22]
CoNi-Cl LDH0.5 M Bpy14Cl-PC/[PP14][NTf2]200 mA g−183 mAh g−1 after 50 cycles[23]
NiTi-Cl LDH0.5 M PP14Cl in PC200 mA g−1131.8 mAh g−1 after 200 cycles[24]
This work0.5 M PP14Cl in PC100 mA g−169 mAh g−1 after 150 cycles
Table 2. Physical data for the as-prepared NiTi-LDH and NiTi-LDH@CNT materials.
Table 2. Physical data for the as-prepared NiTi-LDH and NiTi-LDH@CNT materials.
SamplesTotal Pore Volume
(cm3 g−1)
Average Pore
Diameter (nm)
BET Specific
Surface Area
(m2 g−1)
NiTi-LDH0.124.6118
NiTi-LDH@CNTs0.426.3266
Table 3. Fitted impedance parameters for the as-prepared NiTi-LDH and NiTi-LDH@CNT cathodes.
Table 3. Fitted impedance parameters for the as-prepared NiTi-LDH and NiTi-LDH@CNT cathodes.
SampleRs (Ω)Rc (Ω)Rct (Ω)CPE1-TCPE1-PCPE2-TCPE2-PW1-RW1-TW1-P
NiTi-LDH6.5522.821362.03 × 10−50.862.50 × 10−50.81749.24.020.65
NiTi-LDH@CNTs4.917.37951.71 × 10−50.921.61 × 10−50.851420.420.64
