Application of Solution Plasma Surface Modification Technology to the Formation of Thin Hydroxyapatite Film on Titanium Implants

Abstract

Hydroxyapatite (HA) coatings on titanium implants enhance rapid bone formation around the implant due to their osteoconductive property. The present study aimed to achieve a thin and uniform HA film coating on titanium implants by solution plasma treatment (SPT). Commercially pure titanium and porous titanium disks were employed. A pulse plasma generator was used on the disks for 30 min. Morphologic and crystallographic features of the deposited films were examined by scanning electron microscopy (SEM) and X-ray diffractometry (XRD). To evaluate the wettability of the disks, water droplet (20 µL) surfaces were measured using a contact angle analyzer. The initial attachment of osteoblast-like cells (MC3T3E1) on the titanium substrates before and after solution plasma treatment was evaluated by counting the number of attached cells after incubation for 4 h. After immersion in the mineralizing solution for up to seven days, no crystals were observed on the polished-Ti surface. A more uniform and dense precipitation of round and grown crystals with diameters of approximately 1–5 µm was observed on Ti-SPT. XRD clearly showed that the precipitated crystals on titanium disks were HA. The contact angle of the polished-Ti increased with time (θ = 37°–51°). The surface of the Ti-SPT remained hydrophilic (θ ˂ 5°) after up to 30 days of aging. The number of attached cells on the Ti-SPT after aging for 30 days remained above 85% of that on the Ti-SPT without aging. SPT in a mineralizing solution can be used to acquire a homogenous precipitation of HA on porous-surfaced titanium implants.

1. Introduction

The use of dental implants has revolutionized the current treatment of partially and fully edentulous patients given their high level of predictability and wide variety of treatment options. In 2006, the estimated number of dental titanium implants placed in the United States was over five million [1]. A major consideration in designing dental implants is the production of surfaces that promote desirable responses in the cells and tissues.

Hydroxyapatite (HA) coatings on titanium implants facilitate rapid bone formation due to their excellent osteoconductive property. HA-coated implants have been reported to stimulate bone healing, which enhances improvement in the rate and strength of the initial implant integration. For enhanced implant stability and bio-integration to bone tissue, various methods have been applied to coat the titanium implant with HA, for example, plasma spraying [2], electrophoretic co-deposition [3], ion-beam-sputter deposition [4], dip coating in a simulated body fluid [5], electrochemical deposition [6], blast coating [7], and thermally induced liquid-phase deposition [8,9]. Among these methods, titanium implant bodies coated with HA in dry processes, such as the plasma spraying and ion-beam-sputter deposition methods, have already been used clinically. The HA coating methods in dry processes, however, cannot be applied to titanium implant bodies with porous surface structures. To coat titanium implants with a three-dimensional porous surface structure with HA film, Kuroda et al. and Tamura et al. developed the titanium substrate heating method in a liquid [8,9]. Since the solubility product of HA decreases with an increase in temperature above 16 °C, they electrically heated the titanium substrate by applying a large current with an AC or DC power source to the substrate in calcium phosphate solutions to precipitate HA crystals on the titanium surface. These two studies demonstrated that the precipitated HA crystals were needle-like or plate-like in shape and that the formation of a uniform and dense HA film consisting of fine and spherical HA crystals could not be achieved. Another shortcoming of the titanium substrate heating method is that it requires a large electric power source exceeding 1000 V for the deposition of HA crystals on the surface of the dental implant body by Joule heating.

The solution plasma technique is an entirely new technology to coat an implant surface with HA spherical particles. To date, this solution plasma technique has been used in the fields of chemistry and applied physics [10]. When a pulsed voltage is applied between the two electrodes, a glowing discharge takes place in the liquid, which generates plasma in the gas phase. This plasma produces thermal energy and light, along with reactive chemical species such as hydrogen and hydroxide (OH) ions. With this novel surface modification technique, the temperature of the solution in contact with the titanium surface can easily be increased with the thermal energy generated by the solution plasma. In this case, a thin and uniform HA layer is expected to be formed on a porous-surfaced titanium implant, which will induce rapid bone growth into the pore space of the implant body, and also enhance the biological anchorage of the implant with bone.

The present study aimed to achieve a thin and uniform HA layer covering titanium with a porous surface structure by using solution plasma technology. The mechanism of HA precipitation on the titanium during solution plasma treatment was elucidated.

2. Materials and Methods

2.1. Substrate

Commercially pure titanium and porous titanium with 69.7% porosity were employed in this study.

Group A: Non-porous-Ti (Ti) (JIS Type-2, J. Morita Corp., Tokyo, Japan); spherical shape; specimen size was 14 mm in diameter and 2 mm in thickness.

Group B: Porous-Ti (powder sintering product with 69.7% porosity; Nagamine Manufacturing Company, Kagawa, Japan); specimen size was 14 mm², 1 mm in thickness, and the pore size was 287 ± 87 µm².

The Ti disks were polished with silicon carbide abrasive papers (#240, then #600). The polished groups were named “Polished-Ti”. “Porous-Ti” was used without polishing for the experiments.

Half of the polished-Ti and porous-Ti substrates were subjected to alkaline treatment prior to the solution plasma treatment (SPT). The disks were immersed in 5 M NaOH solution at 60 °C for 24 h [11]. The alkaline treatment formed a micrometric network layer of sodium titanate hydrogel on the titanium surface, which enhanced the apetite nucleation in mineralizing solution.

After alkaline treatment, the polished titanium (Ti) group was named “Ti-AT” and the porous titanium substrate (porous-Ti) group was named “Porous-Ti-AT”.

2.2. Preparation of the Mineralizing Solution

A metastable calcium phosphate solution was used in this study [12]. The composition of the solution is shown in

Table 1. Composition of the mineralizing solution.

Component	Concentration (mM)
CaCl2	2.24
K2HPO4	1.04
KH2PO4	0.30
HEPES	10.00
KCl	150.00
C/P	1.67
pH	7.40
Degree of supersaturation with respect to HA	3.85 × 107

. The Ca/P molar ratio of the mineralizing solution was 1.67, and it also contained 10 mM HEPES (N-2-Hydroxyethylpiperazine-N′-2-Ethanesulfonic acid) KOH (potassium hydroxide) for buffering at pH 7.4. The final ionic strength of this solution was adjusted to 0.16 by adding 150 mM KCl (potassium chloride). The preparation of the solution was completed by dissolving reagent grade CaCl₂ (calcium chloride), KH₂PO₄ (potassium phosphate), KCl (potassium chloride), and HEPES (N-2-Hydroxyethylpiperazine-N′-2-Ethanesulfonic acid) into deionized distilled water. The degree of supersaturation with respect to hydroxyapatite was 3.85 × 10⁷ at 37 °C.

2.3. Solution Plasma Treatment

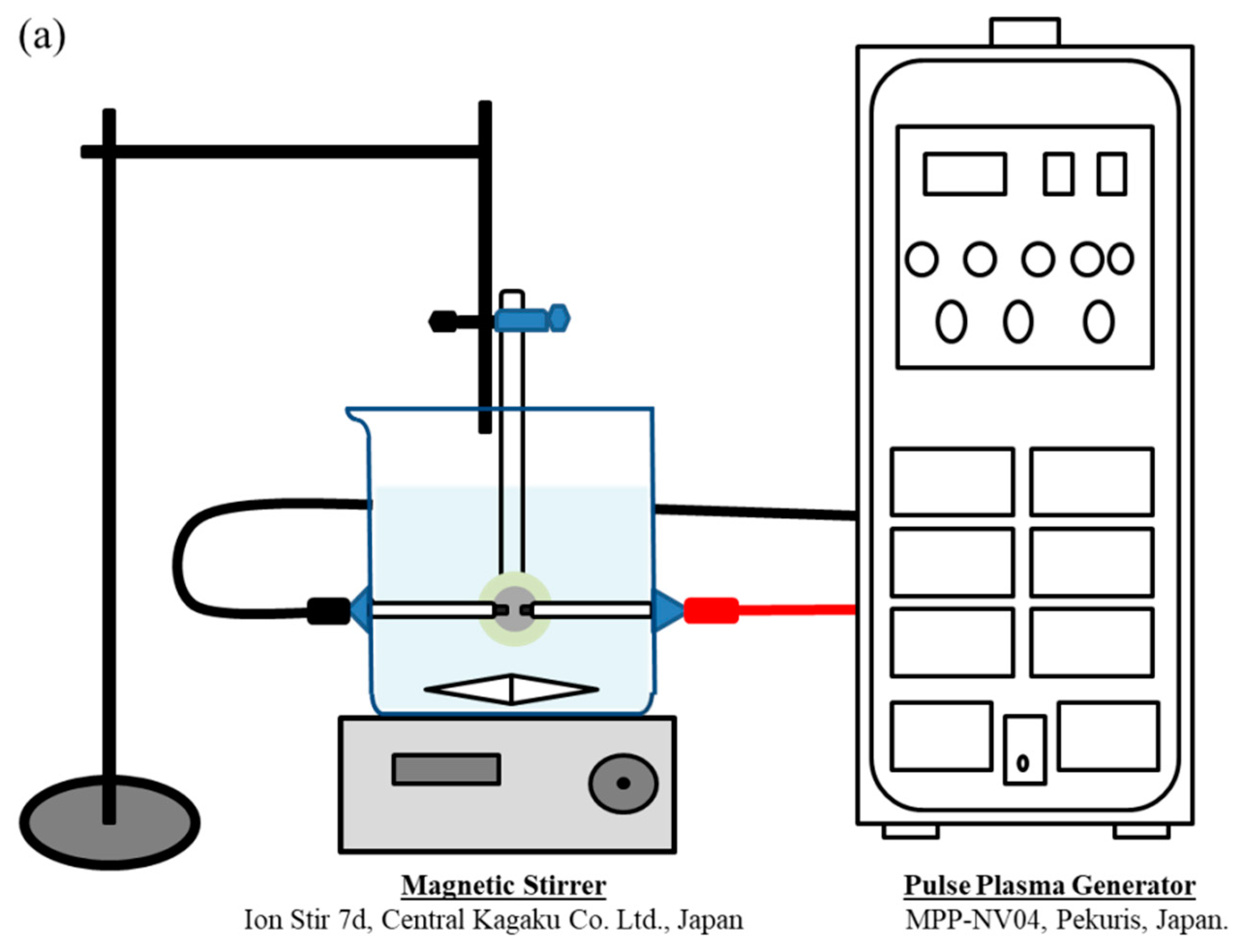

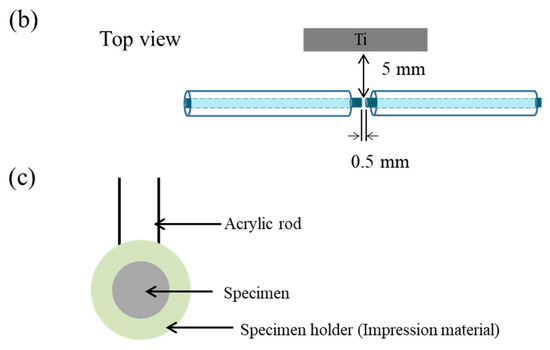

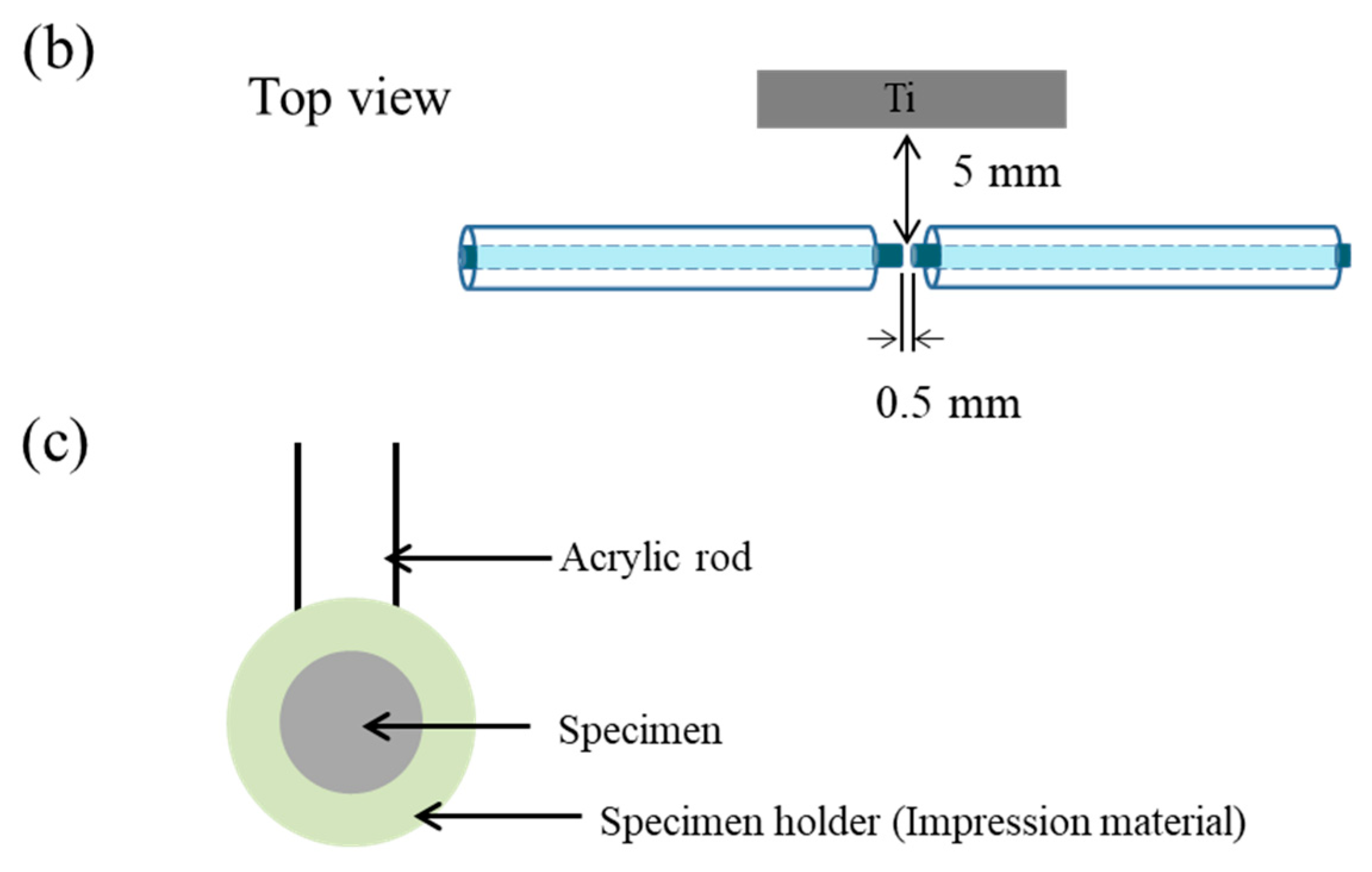

A solution plasma treatment was performed in 150 mL of the mineralizing solution at 29 °C. A pulse plasma generator (MPP-NV04, Pekuris, Tokyo, Japan) was used and the polished-Ti and porous-Ti substrates were placed at a distance of 5 mm from the electrodes within a glass vial (Figure 1). Plasma was generated at a voltage of 5 V and pulse width of 3 µs for 30 min. The mineralizing solution was stirred using a magnetic stirrer (Ion Stir 7d, Central Kagaku Co., Ltd., Tokyo, Japan) at a rotational speed of 240 rpm. The duration of the solution plasma treatment was 30 min.

When the solution plasma surface modification technique was applied to “Ti-AT” and on “Porous-Ti-AT”, they were named “Ti-AT-SPT” and “Porous-Ti-AT-SPT”, respectively.

2.4. Characterization of the HA Layer Formed on Various Substrates

The morphologic and crystallographic features of deposited films were examined by SEM and XRD. The contact angle of the water droplets (20 µL) on the titanium surfaces was measured by a contact angle analyzer after each surface treatment.

2.4.1. SEM Observation

The morphology of the titanium surface after SPT and the immersion treatments was examined using a scanning electron microscope (SSX-550, Shimadzu Corporation, Kyoto, Japan) with an acceleration voltage of 10 kV, after the samples were coated with gold.

2.4.2. X-ray Diffraction

The crystallographic features of the deposited films were examined using an X-ray diffractometer (JDX-3500, JEOL Ltd., Tokyo, Japan) with Cu Kα radiation (λ = 0.1541 nm) at room temperature. The 2θ range was 20–80°, and the XRD profile was recorded at step-scan intervals of 0.02° at a scanning speed of 8.0°/min at 40 kV and 150 mA.

2.4.3. Measurement of the Contact Angle of Water Droplets on the Surfaces

To evaluate the wettability of the titanium disks before and after surface treatment, the contact angle of the water droplets (20 µL) on the surfaces was measured using a contact angle analyzer (Phoenix Alpha, Seoul, Korea) at 0, 3, 7, and 14 days after each surface treatment.

2.5. Evaluation of Cytocompatibility

2.5.1. Cell Line

The MC3T3E1 cell line was used in this study to evaluate the cell attachment of the titanium samples before and after SPT.

2.5.2. Attachment of Cells on Differently Modified Titanium Surfaces after Four Hours of Incubation

There were 6 groups for each experiment, that is, 30-day aged (“Polished-Ti” and “Ti-AT-SPT”), 7-day aged (“Polished-Ti” and “Ti-AT-SPT”), fresh “Polished-Ti”, and fresh “Ti-AT-SPT”. Four specimens from each group were placed on a 24-well plate, disinfected with 1 mL of 70% ethanol for 10 min and washed with sterilized distilled water for 10 min. The number of MC3T3E1 cells was adjusted to be 5 × 10⁴ cells/mL in a regular medium consisting of α-modified minimum essential medium (α-MEM; with L-glutamine and phenol red, Wako Pure Chemical Industries Ltd., Osaka, Japan) supplemented with 10% heat-inactivated fetal bovine serum. Adjusted cells were seeded on a sample with 1 mL per well. After 4 h of incubation under a humidified atmosphere of 5% CO₂ at 37 °C, the cells were detached by trypsin-EDTA (0.25% Trypsin/0.53 mM EDTA in Hanks Balanced Salt Solution without calcium or magnesium) and the number of cells was counted by a hemocytometer.

2.5.3. Statistical Analysis

Statistical analysis was performed using one-way analysis of variance (ANOVA), and the Games–Howell post hoc test with the significance level of p < 0.05.

3. Results

3.1. Variation of Solution Temperature in the Vicinity of the Sample with Time during SPT

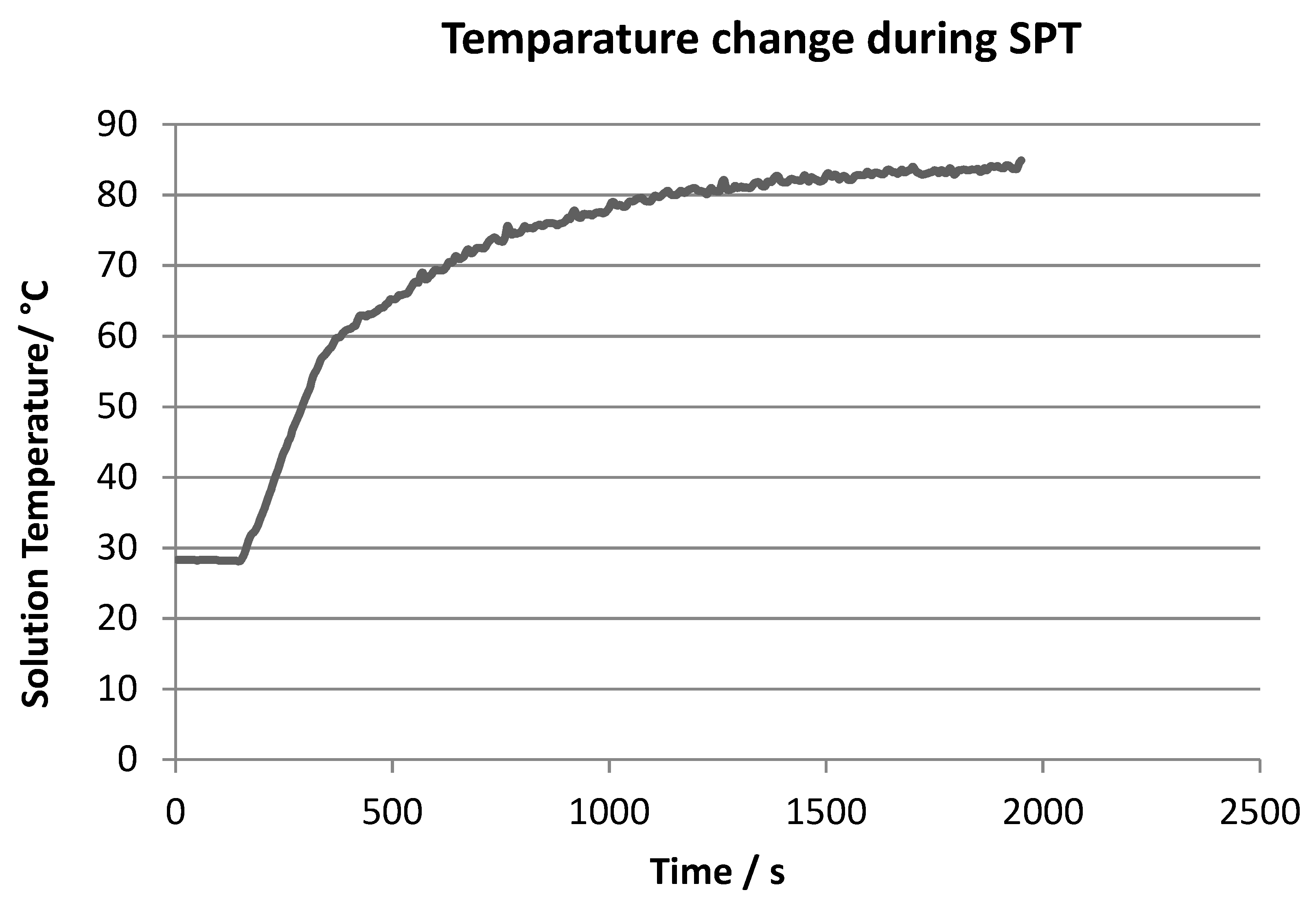

Figure 2 shows the variation of the solution temperature with time during SPT measured by a thermocouple placed in the vicinity of the sample. The temperature increased rapidly and exceeded 60 °C within 3 min after starting SPT, and then increased slowly and reached an almost constant value of 80 °C at 30 min. After 30 min of SPT, crystals were precipitated due to heterogeneous nucleation both on the sample surface and in the solution.

3.2. Characterization of Titanium Surfaces Subjected to SPT and IT in the Calcium Phosphate Solution

3.2.1. SEM Observation

Figure 3 shows the SEM photographs of the polished titanium surface after SPT (Ti-SPT) (Figure 3a) and after 5 M NaOH treatment and subsequent SPT (Ti-AT-SPT) (Figure 3b). Crystals formed on both the Ti-SPT and the Ti-AT-SPT. Crystals with diameters between 5 and 20 μm precipitated sparsely and did not cover the whole surface of the Ti-SPT, while fine spherical crystals with a diameter of 5 μm precipitated and covered the whole surface of the Ti-AT-SPT.

Figure 4 shows the SEM photographs of the porous titanium surface after 5 M NaOH treatment and subsequent SPT (Porous-Ti-AT-SPT). Fine spherical HA particles were uniformly precipitated over the entire surface (Figure 4a) including the areas recessed in the shape of the porous structure (Figure 4b) as well as the inner surface of the pores (Figure 4c).

3.2.2. Analysis of Precipitated Particles on Ti-AT-SPT and Ti-AT-IT60° by XRD and EDX

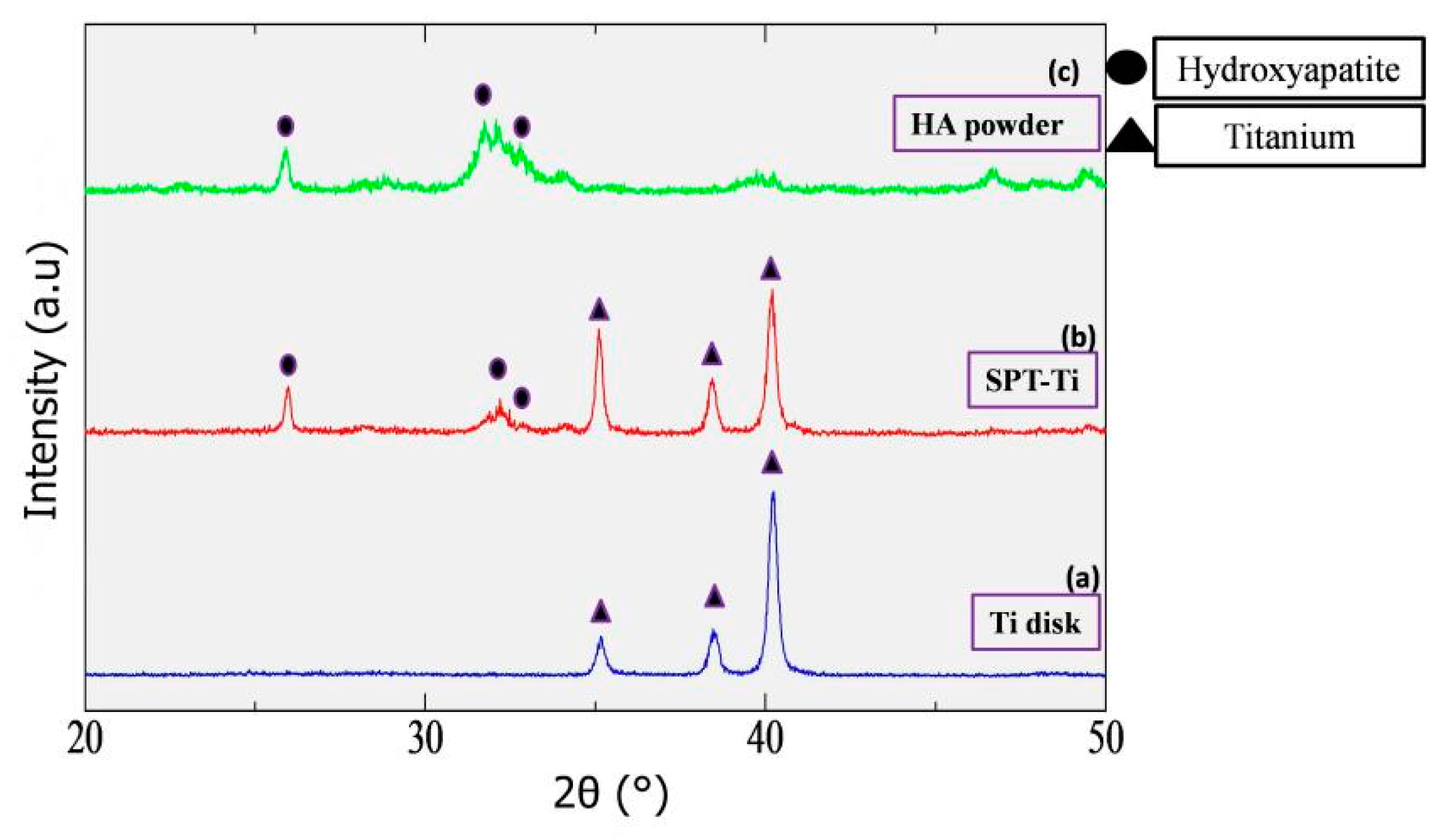

Figure 5 shows the X-ray diffractogram obtained from Polished-Ti (Figure 5a), Ti-AT-SPT (Figure 5b), and synthetic HA powder (Figure 5c). The synthetic HA powder was obtained from the dried-out mineralizing solution which was subjected to SPT.

All of the diffraction peaks were assigned to HA or the titanium substrate under the deposited film. For Ti-AT-SPT (Figure 5b), the diffraction peak of the deposited HA crystals at 25.9° (2θ) that corresponded to the (002) lattice plane was relatively higher than the other diffraction peaks at around 32°, unlike that observed for the synthetic HA powder. This indicated that the spherical HA crystals that precipitated on Ti-AT-SPT were slightly oriented with the c-axis perpendicular to the titanium substrate. These results clearly demonstrated that 5 M NaOH treatment and subsequent SPT for 30 min in the calcium phosphate solution were effective in coating the entire surface of titanium with an HA film composed of fine crystals in a relatively short treatment time.

3.3. Crystals on the Titanium Surfaces after Immersion in the Calcium Phosphate Solution

Figure 6 shows the SEM photographs of the polished titanium after immersion in the calcium phosphate solution at 37 °C (Ti-IT37°) and after 5 M NaOH treatment and subsequent immersion in the calcium phosphate solution at 37 °C (Ti-AT-IT37°). No crystals were deposited on the Ti-IT37° for up to 7 days of immersion. In contrast, spherical particles consisting of plate-like HA crystals were deposited on part of the Ti-AT-IT37° after 1 day of immersion. These crystals grew with time and covered almost all of the surface of the titanium after immersion for 7 days. These results were consistent with those reported previously [5].

Figure 7 shows the SEM photographs of the polished titanium after immersion in the calcium phosphate solution at 60 °C (Ti-IT60°) and after 5 M NaOH treatment and subsequent immersion in the calcium phosphate solution at 60 °C (Ti-AT-IT60°). No spherical particle precipitation was observed on the Ti-IT60° after immersion in the solution for 30 min. Precipitated crystals between 5 and 40 μm in diameter were found on the Ti-IT 60° after immersion for 6 h, and these HA spherical particles grew into large size spherical particles between 40 and 100 μm in diameter after immersion for 24 h. On the Ti-AT-IT60°, small crystals precipitated after immersion for 30 min. The density of the crystals increased due to the growth of crystals with time. From the results shown in Figure 6 and Figure 7, it was observed that the crystal formation and its growth rate were markedly enhanced with 5 M NaOH treatment as well as an increase in the temperature of the calcium phosphate solution.

3.4. Change in the Contact Angle of Water Droplets on Polished-Ti and Ti-AT-SPT with Aging Time

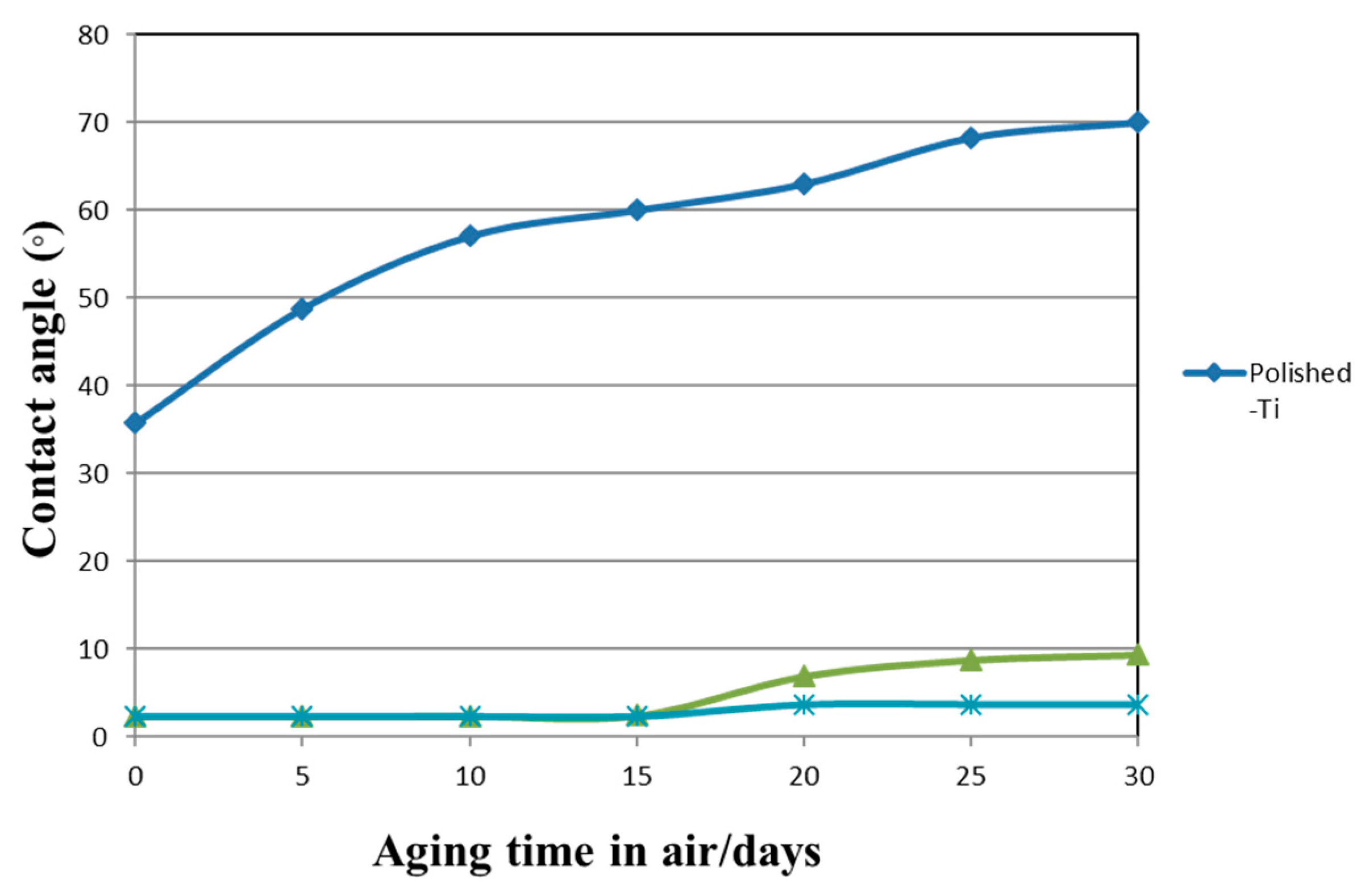

Figure 8 shows the changes in the contact angle of 20 μL water droplets on Ti, Ti-AT, and Ti-AT-SPT with aging time. The contact angle value for Ti increased as the Ti disk aged, suggesting that the surface property changed from being hydrophilic to hydrophobic. This phenomenon is well known as the time-dependent degradation in biological capability or biological degradation, which arises from the absorption of hydrocarbon contaminants in air. In contrast, the contact angles for Ti-AT and Ti-AT-SPT were much lower than that for Ti throughout the aging period. The initial super hydrophilic surface remained almost unchanged up to 30 days of aging in air, although the tough hydrophilicity significantly decreased.

3.5. Bioactivity Analysis

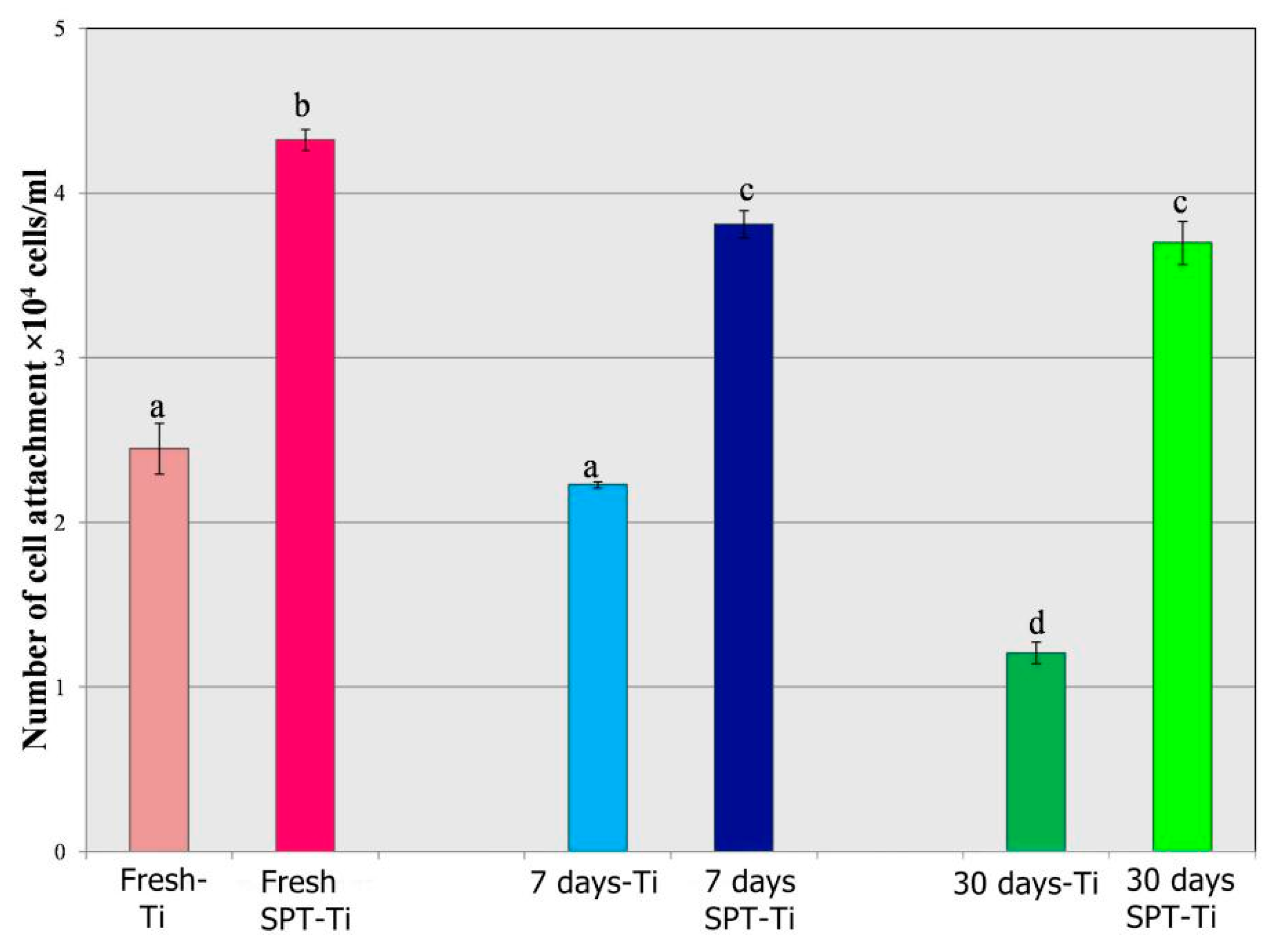

Figure 9 shows the number of cells attached to the Polished-Ti and Ti-AT-SPT, which were subjected to aging in air for 0, 7, and 30 days, as measured with the hemocytometer. The number of MC3T3E1 cells attached to Ti-AT-SPT was approximately 50% more than the amount attached to Ti at each aging period, which suggested that the HA coating by solution plasma treatment significantly improved the initial cell attachment (p < 0.05). The number of cells that attached to the Polished-Ti with 30 days of aging in air was approximately 50% of that for the Polished-Ti without aging. In contrast, the number of attached cells on the Ti-AT-SPT after aging for 30 days remained above 85% of that for the SPT-Ti without aging.

Figure 10 shows the SEM photographs of the cells attached to Porous-Ti-AT-SPT after incubation for 4 h. The attached cells indicated by the arrows were located not only on the outer surface (Figure 10a) but also on the surface of the concavity (Figure 10b), which indicated that the induction of bone tissue on the entire porous surface was going to occur successfully and that bone tissue growth could be expected.

4. Discussion

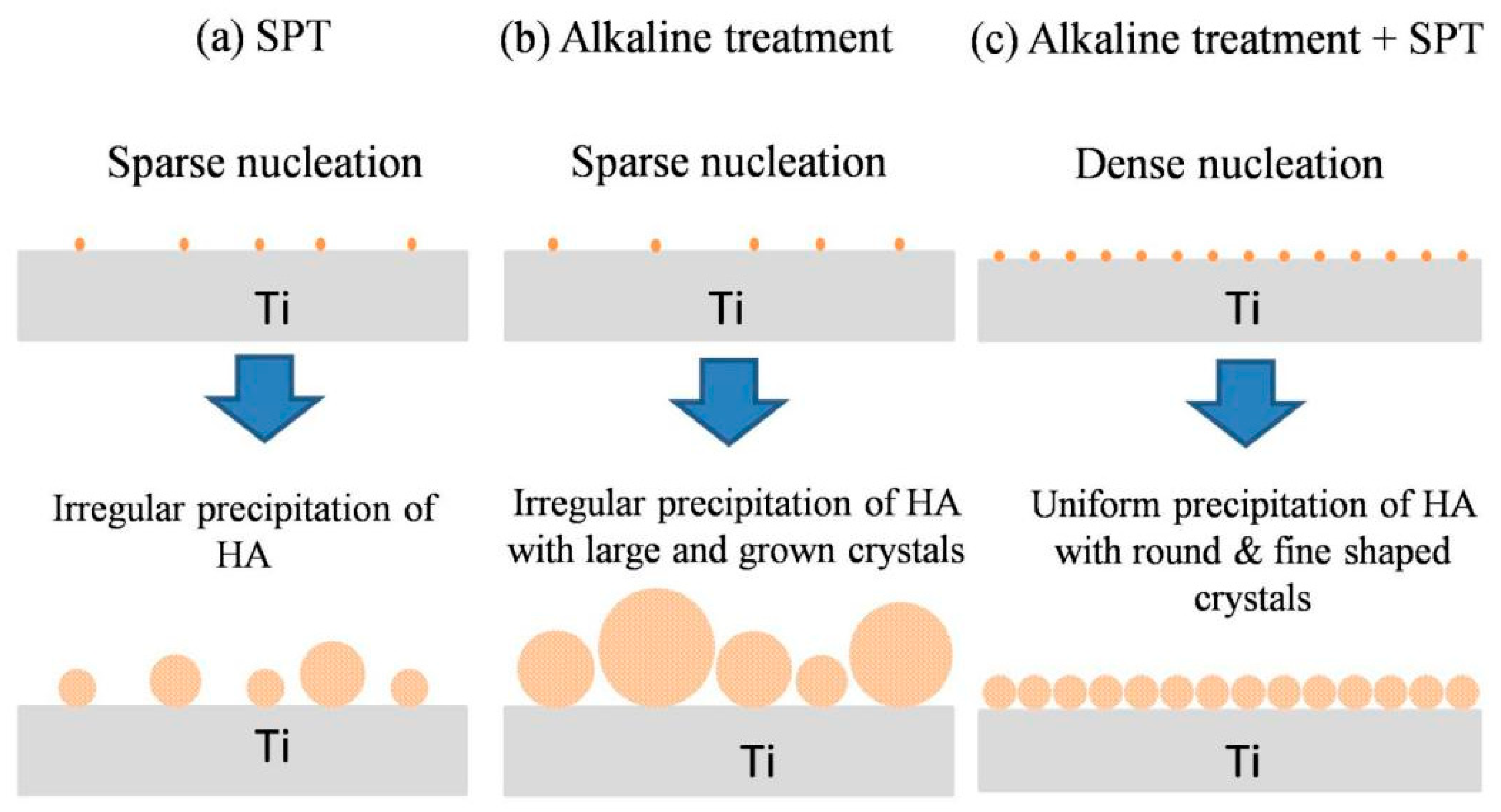

4.1. Process of Rapid Formation of Thin and Uniform HA Film Consisting of Fine Spherical Particles on Ti-AT-SPT

With SPT in the calcium phosphate solution, HA spherical particles were precipitated on the Polished-Ti surface, but the size of the spherical particles was 5–20 μm in diameter. The density of the HA crystals was too low to form an HA film (Figure 3a). However, it was demonstrated that a thin and uniform HA film consisting of fine spherical HA particles with a diameter of 5 μm formed on Ti-AT-SPT (Figure 3b). This rapid formation of the uniform HA film was attributed to the synergistic effect obtained by combining an alkaline treatment with SPT in a calcium phosphate solution.

The driving force for the formation of the HA film from a supersaturated solution was the change in Gibbs free energy, ∆G, for transfer from a supersaturated solution to an equilibrium solution with HA crystals:

$$\Delta G=-RT\ln S$$

(1)

where R is the gas constant; T is the absolute temperature; and S is the degree of supersaturation, which is expressed as:

$$S=IP/K_{\mathrm{sp}}$$

(2)

where IP is the ionic activity and K_sp is the thermodynamic solubility product. Since the solubility product of HA, K_sp, decreases with increasing temperature, it is apparent that an increase in the degree of supersaturation, S, together with a decrease in the K_sp value as a result of SPT was responsible for the precipitation of HA crystals on Polished-Ti. SPT for 30 min without alkaline treatment, however, was insufficient for the formation of a dense and uniform HA film. This probably arose from the fact that the SPT was not sufficient to lower the activation energy to enhance the formation of HA crystals (Figure 11a) and a few critical and supercritical HA nuclei were induced by SPT, as shown in Figure 12a.

With 5 M NaOH treatment, a sodium titanate hydrogel layer formed on the polished titanium [5]. It was also found that the hydrogel layer quickly released sodium ions with the uptake of calcium ions when alkaline-treated Ti was soaked in calcium phosphate solution. This ion exchange reaction was proposed to take place very quickly to maintain the electrical neutrality of the hydrogel and increased the calcium ion concentration at the hydrogel surface. Increase in IP, as a result of a higher calcium ion concentration, also increased the degree of supersaturation with respect to HA, which enhanced the apatite nucleation in a mineralizing solution [13]. In this case, the activation energy required for HA nucleation was also insufficiently lowered by the increased concentration of Ca ions (Figure 11b) to induce a few nuclei (Figure 12b). The HA crystals grew larger with an increase in soaking time in a calcium phosphate solution, and a thick HA film consisting of coarse HA spherical particles was formed after soaking for 1 day at 60 °C (Figure 11b).

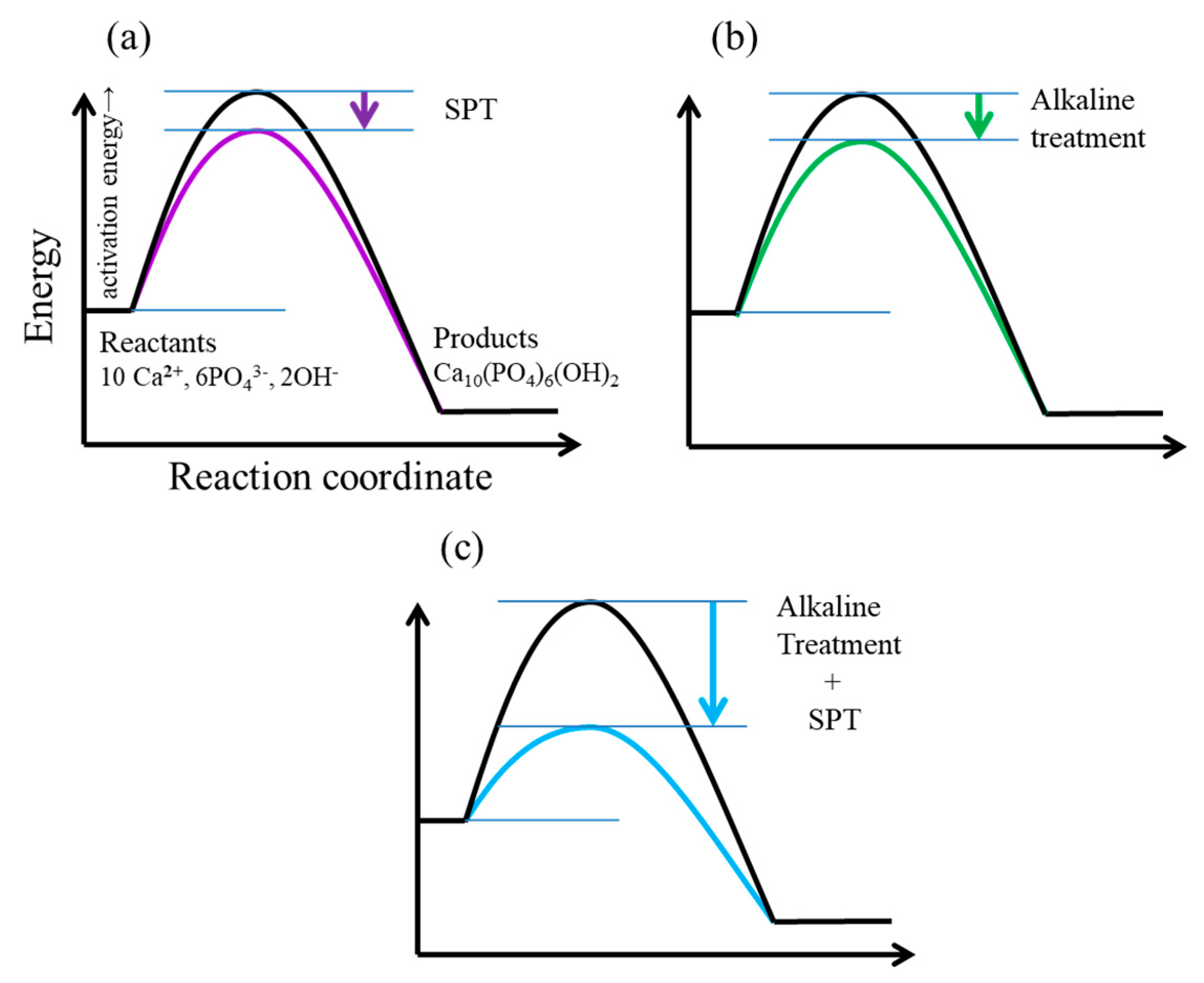

With the combination of alkaline treatment and SPT, the degree of supersaturation, S, was markedly increased with both an increase in IP and a decrease in K_sp. The activation energy required for HA nucleation was probably lowered sufficiently (Figure 11c) to induce a large number of HA nuclei as shown in Figure 12c. As a result, a thin and uniform HA film consisting of fine spherical particles could be obtained (Figure 12c). As it is a uniform precipitation with fine and round HA particles, the height of the precipitation is equal to the height of HA crystal, which is 1 µm.

4.2. Chemical and Biological Properties of HA Film Formed by SPT

Previous studies have revealed that titanium undergoes a time-dependent degradation in biological capability due to the unavoidable contamination of the titanium surfaces by hydrocarbons in air [14]. Contact angle measurements of the water droplets demonstrated that the titanium surface changed from being hydrophilic to hydrophobic with an increase in aging time (Figure 8). This study demonstrated that the contact angle value for a HA-coated titanium disk (Ti-AT-SPT) was significantly lower than that for polished titanium throughout the aging periods. In addition to this, the initial super hydrophilicity of the HA-coated titanium surface by SPT was found to be maintained after 30-day aging in air (Figure 8). Unlike titanium, the HA-coated titanium did not show age-related impaired bioactivity, which is defined as biological aging [15]. The reason for the highly hydrophilic nature of HA-coated titanium can be attributed to the characteristic of HA crystals as HA is an ionic crystal with an abundance of ionic sites that attract water molecules.

The number of MC3T3E1 cells attached to Ti-AT-SPT was approximately 50% larger than that of Polished-Ti at each aging period, suggesting that the HA coating by solution plasma treatment significantly improved the initial cell attachment. This may be one of the reasons why HA-coated titanium implants possess better cytocompatibility and facilitate rapid bone formation due to their excellent osteoconductive property.

These results suggest that an osteoconductive porous-surfaced titanium implant can be developed with a HA coating by solution plasma treatment in a calcium phosphate solution in a short time.

4.3. HA Film Coating on Titanium by SPT to Develop an Osteoconductive Porous-Surfaced Dental Implant Body

A HA film coating was achieved when Ti-AT was soaked in calcium phosphate solution at 37 °C for seven days and at 60 °C for one day (Figure 6 and Figure 7).

In a 37 °C immersion treatment, a HA film coating was achieved when polished-Ti and Ti-AT were soaked in calcium phosphate solution for seven days. The approximate size of the precipitated HA spherical particles on Ti-AT was 40–50 µm. In a 60 °C immersion treatment, an HA film coating was achieved when the Polished-Ti and Ti-AT were soaked in the calcium phosphate solution for 24 h. The approximate size of the precipitated HA spherical particles on Polished-Ti was more than 40 µm, and was 20 µm on Ti-AT.

These results suggest that the size of the HA spherical particles precipitated during the immersion treatments in the calcium phosphate solution was too large to coat the titanium implant with a porous surface structure. Furthermore, in the 37 °C immersion, there was less precipitation compared to the 60 °C immersion. For a dense precipitation of HA, the temperature must be 60 °C or more. Temperature of the mineralizing solution must be 37 °C during the initializing of the solution plasma treatment.

With 5 M NaOH treatment and subsequent SPT in the calcium phosphate solution, dense nucleation with critical size nuclei was successfully precipitated on the sample (Figure 12c) and a thin and dense HA layer consisting of fine spherical crystals was formed on the titanium disk surface after SPT for 30 min (Figure 3b).

The solution plasma surface modification for coating HA onto titanium proceeds in a wet process unlike other HA surface methods using a dry process. Therefore, the coating of a HA film consisting of fine crystals on the entire surface of titanium implant bodies with porous surface structures can be achieved. MC3T3E1 cells were observed not only on the outer surface, but also on the surface of the concavity (Figure 10), indicating that the induction of bone tissue on the entire porous surface would occur successfully and that bone tissue ingrowth could be expected. To enhance the growth of mineralized tissue into the pore spaces and to keep the vascular system interconnected by the pores for continued bone development, the porous structure of a titanium implant provides a unique biological bone anchorage to the titanium implants. Enhancement of bone/implant mechanical bonding can allow dentists to use dental implant bodies with a short length, which can greatly contribute to an increase in the ability of dental implants to be used for a wide variety of treatment options, especially for patients with low bone quality and with advanced maxillary/mandibular residual ridge resorption.

4.4. Features of the SPT for HA Film Coating

A HA film coating on titanium was achieved by combining a simple chemical treatment (5 M NaOH treatment) with SPT in a calcium phosphate solution. One of the striking features of this proposed method was that the rate of HA film formation during SPT was faster than that in most wet processes. For example, Kim et al. reported that a bone-like apatite layer formed on the 5 M NaOH treated titanium substrate when the substrate had been soaked in simulated body fluid (SBF) for more than one day [5]. In contrast, a uniform HA film was observed to form on the 5 M NaOH treated titanium by SPT for only 30 min (Figure 3b). As stated before, the thermal energy produced during SPT increased the degree of solution supersaturation with respect to HA, and thus greatly increased the growth rate of the HA crystals.

The substrate heating method in liquid with the application of a large current can be applied to electrically conducting materials such as metals and alloys. For SPT, the solution in contact with titanium is heated with the thermal energy generated by plasma, suggesting that this HA coating method can be applied to materials without electrical conductivity such as ceramics.

5. Conclusions

The present study demonstrated that it is possible to acquire a homogenous precipitation of hydroxyapatite over the entire surface of a smooth and porous titanium disk by the implementation of a solution plasma surface modification treatment in a mineralizing solution. The solution plasma-treated samples showed significantly better cyto-compatibility than the other specimens.
