Annealing-Driven Microstructural Evolution and Its Effects on the Surface and Nanomechanical Properties of Cu-Doped NiO Thin Films

1
Department of Materials Science and Engineering, I-Shou University, Kaohsiung 840, Taiwan
2
Department of Electrophysics, National Chiao Tung University, Hsinchu 300, Taiwan
*
Authors to whom correspondence should be addressed.
Coatings 2019, 9(2), 107; https://doi.org/10.3390/coatings9020107
Submission received: 2 January 2019 / Revised: 31 January 2019 / Accepted: 4 February 2019 / Published: 9 February 2019
(This article belongs to the Special Issue Advanced Thin Films Deposited by Magnetron Sputtering)

Abstract

:
The effects of annealing temperature on the structural, surface morphological and nanomechanical properties of Cu-doped (Cu-10 at %) NiO thin films grown on glass substrates by radio-frequency magnetron sputtering are investigated in this study. The X-ray diffraction (XRD) results indicated that the as-deposited Cu-doped NiO (CNO) thin films predominantly consisted of highly defective (200)-oriented grains, as revealed by the broadened diffraction peaks. Progressively increasing the annealing temperature from 300 to 500 °C appeared to drive the films into a more equiaxed polycrystalline structure with enhanced film crystallinity, as manifested by the increased intensities and narrower peak widths of (111), (200) and even (220) diffraction peaks. The changes in the film microstructure appeared to result in significant effects on the surface energy, in particular the wettability of the films as revealed by the X-ray photoelectron spectroscopy and the contact angle of the water droplets on the film surface. The nanoindentation tests further revealed that both the hardness and Young’s modulus of the CNO thin films increased with the annealing temperature, suggesting that the strain state and/or grain boundaries may have played a prominent role in determining the film’s nanomechanical characterizations.

1. Introduction

NiO is a p-type semitransparent conducting oxide with reported bandgap ranging from 3.6 to 4.0 eV [1]. Combining with its excellent chemical stability and optoelectronic properties, NiO films have been considered as a promising candidate for various applications, such as solar cell [2,3], electrochromic display devices [4], sensors [5,6], and a wide variety of electronic devices [7,8]. Although stoichiometric NiO is an insulator with a high resistivity of ~1013 Ω-cm at room temperature, its resistivity can be significantly reduced via creating substantial concentrations of nickel vacancies and forming interstitial oxygen atoms in NiO crystallites [9]. Recently, it was demonstrated that by doping metallic elements, such as Li [10,11], Na [12], K [13,14] and Cu [15,16,17], the optical and electrical properties of the obtained NiO thin films could be enhanced/improved substantially. Namely, enhanced transparency, significantly lower resistivity and sufficiently large carrier concentrations were successfully achieved. In addition to improving the optoelectronic properties of NiO-based thin films, the mechanical properties are also of critical importance when designing and fabricating the practical devices. Therefore, understanding the correlations between the mechanical properties and microstructure of NiO-based films has been of great interest. In particular, it has been widely conceived that the wide variety of methods used for fabricating NiO thin films often resulted in very different film microstructures or even stoichiometries.
In this respect, nanoindentation has been widely used as a depth-sensing technique to measure fundamental mechanical properties such as the hardness, elastic modulus and the plasticity behaviors of various nanostructured materials [18,19,20,21] and thin films [22,23,24,25,26], due to its high sensitivity and excellent resolution. For instance, Fasaki et al. [27] recently investigated the effects of substrate temperature (Ts) on the microstructure and nanomechanical properties of NiO thin films deposited on thermally oxidized Si substrates by using pulsed laser deposition. They found that the film microstructure evolved from (200)-texturing dominant at Ts = 100 °C, to (111)-texturing dominant at Ts = 300 °C, and finally turned into a mixture comprising both (111)- and (200)-oriented crystallites at Ts = 400 °C. Interestingly, an accompanied increase in both film hardness and elastic modulus with reduced surface roughness was also observed [27]. However, reports on how the film microstructure and nanomechanical properties are affected by metallic doping are largely lacking. On the other hand, surfaces with low free energy can reduce adhesion of the airborne contaminants, which then is effectively removed by the rolling drops due to hydrophobic behaviors [28]. Such a hydrophobic surface characteristic can potentially improve environmental durability, and hence has become one of the critical necessitated factors in many optoelectronic devices applications [29,30].
The present work aims at investigating how the nanomechanical properties and the surface wettability of the CNO thin films deposited on glass substrates by radio-frequency magnetron sputtering change with the post-deposition annealing temperatures. In particular, the effects of annealing temperature on the evolution of films microstructure and the associated surface energy modification and nanomechanical properties of the CNO thin films revealed by the wettability and nanoindentation tests are discussed.

2. Materials and Methods

2.1. Thin Films Deposition

The Cu-doped NiO (CNO) films used in the present study were deposited on glass substrates at ambient temperature by radio frequency magnetron sputtering (rf-sputtering) method. The substrates were cleaned by immersing them sequentially in ultrasonic baths of ethanol, acetone, and D.I. water for 20 min each. Prior to loading onto the substrate holder (home-made), the substrates were purged dry by pure nitrogen gas. The CNO targets (home-made) were prepared by blending copper oxide and nickel oxide powders with the molar ratio of 1:9. The mixed powder was then ball-milled with alcohol for 12 h and calcined at 900 °C for 6 h. The calcined powder was pressed into a disk of about 2” in diameter and 2 mm in thickness to be used as the target for subsequent rf-sputtering process. However, in order to obtain more complete solid-state reaction, the pressed disks were further sintered at 900 °C for additional 24 h followed by slow cooling to room temperature at a cooling rate of 1 °C/min. The CNO films were deposited on glass substrates (Eagle XG, Corning, NY, USA) with rf-power of 100 W at the ambient temperature. Prior to deposition, the base pressure of the deposition chamber was pumped down to about 5 × 10−6 torr. During sputtering 4 m Torr of pure Ar was charged into the sputtering chamber to serve as the working gas. The thic`kness of the obtained CNO thin films was about 200 nm. The films were then annealed at various temperatures, ranging from 300 to 500 °C, for 20 min.

2.2. Characterization Techniques-XRD, AFM, XPS and SEM

Crystal structures of the samples were examined by glancing incident X-ray diffraction (GIXRD) at an incident angle of 1° using a PANalytical (Malvern, UK) X’PERT PRO apparatus and Cu-Kα radiation. The surface roughness and morphological features of CNO thin films were analyzed by atomic force microscopy (AFM; Topometrix-Accures-II, Topometrix Corporation, Santa Clara, CA, USA) and scanning electron microscopy (SEM, Hitachi S-4700, Tokyo, Japan). In addition, the chemical state in CNO thin films was investigated by using X-ray photoelectron spectroscopy (XPS) using a PHI (Chanhassen, MN, USA) Quantum 2000 Scanning ESCA Microscopy instrument.

2.3. Nanoindentation

All the nanoindentation measurements were conducted at room temperature using the MTS NanoXP® system (MTS Corporation, Nano Instruments Innovation Center, Oak Ridge, TN, USA). The resolutions of the loading force and displacement are 50 nN and 0.1 nm, respectively. A Berkovich diamond indenter was pressed into CNO thin films up to a depth of 60 nm. The strain rate was varied from 0.01 to 1 s−1. An additional harmonic movement, with amplitude and frequency being set at 2 nm and 45 Hz, respectively, was simultaneously applied on the indenter to perform the continuous stiffness measurements (CSM) [31]. Prior to conducting each test, it is important to make sure that the thermal drift is maintained to below 0.01 nm/s. In order to obtain statistical significance, at least 20 indents were conducted on each sample.
In nanoindentation experiments, the hardness is defined as H = Pm/Ap, with Ap being the projected contact area between the indenter and the films surface and Pm being the maximum indentation load at which Ap is determined. For a perfectly sharp Berkovich indenter tip, the projected area is given by A p = 24.56 h c 2 with hc being the contact depth. The elastic modulus of the sample is calculated using the Sneddon [32] relation: S = 2 β E r A p / π . Wherein, S is the contact stiffness of the material and β is a geometric constant (β ≈ 1 for a Berkovich indenter tip), respectively. The reduced elastic modulus (Er) is determined by the following Equation:
E r = ( 1 v f 2 E f + 1 v i 2 E i ) 1
where v is the Poisson’s ratio and the subscripts, i and f, are denoted the parameters for the indenter and measured thin films, respectively. For diamond indenter tip used in the present study, Ei, vi, and vf are taken as Ei = 1141 GPa, vi = 0.07 and, vf = 0.25, respectively.

2.4. Wettability and Surface Energy

The contact angles were measured using a Ramehart (Succasunna, NJ, USA) Model 200 goniometer with deionized water as the liquid at room temperature. In addition, the surface wettability experiment often serves as the most convenient measure of surface energy and is commonly quantified by relating the surface energies with the obtained θCA (contact angle) via Young’s equation: γsv = γsl + γlv cosθCA, with γsv, γsl, and γlv being the surface tension between solid-vapor, solid-liquid, and liquid-vapor, respectively [33]. By considering that the critical interaction is the dispersive force or the van der Waals force across the interface existing between the water droplet and the solid surface, the surface energy for CNO thin films was calculated using the Fowkes-Girifalco-Good (FGG) theory [33] in combination with Young’s equation. The FGG equation is given as: γ l s = γ s + γ l 2 γ s d γ l d , with γ l d and γ s d being denoted as the dispersive portions of the surface tension for the liquid and solid surfaces, respectively. By substituting the FGG relation into the Young’s equation and employing nonpolar liquid deionized water (72.8 mJ/m2) as the testing liquid, γ l d is equal to γ l , the equation becomes as following:
γ s d = 1 4 γ l ( cos θ CA + 1 )
with γ s d being the surface energy of calculated materials.

3. Results

Figure 1 shows the XRD results obtained for the as-deposited CNO thin films and those annealed at 300, 400 and 500 °C, respectively. The positions of the three major diffraction peaks seen in all samples do not show noticeable shifts with increasing annealing temperature and can be unambiguously indexed as the diffraction peaks of (111), (200) and (220) planes of the rock-salt structured NiO (JCPDS 47-1049 [34]). The calculated lattice constant a ≈ 0.4199 nm is slightly larger than the value of 0.4168 nm obtained for pure NiO by Rooksby [35], which presumably is due to the fact that the ionic size of either Cu2+ (~73 pm) or Cu+ (~77 pm) is substantially larger than that of Ni2+ (~69 pm) [36]. In contrast, it is rather apparent from Figure 1 that the annealing temperature does have a substantial influence on the film microstructure and crystallinity. The as-deposited CNO film is more dominantly (200)-oriented with relatively broadened diffraction peaks, indicative of poorer crystallinity and/or smaller grain size. Increasing annealing temperature, nevertheless, appears to drive the microstructure of the CNO films to become more equiaxial (i.e., the intensity of the three major diffraction peaks, (111), (200), and (220), is comparable) with much improved crystalline qualities. This observation is to compare with that reported by Jang et al. [37], where the predominant growth orientation of NiO films deposited on Si(100) substrates by rf-sputtering was found to switch from (111)- to (200)-oriented as the substrate temperature (Ts) was raised from 200 to 300 °C. The driving force for the change has been attributed to the fact that NiO(200) surface is non-polar and has the lowest surface energy of ~1.74 J/m2, compared with ~4.28 J/m2 for polar (111)-terminated NiO surface [38]. On the other hand, Fasaki et al. [27] reported that NiO films deposited on thermally oxidized Si substrates by pulsed laser deposition method were (200)-oriented dominant at Ts = 100 °C, which turned into (111)-oriented dominant at Ts = 300 °C and finally became mixture texturing of (200)- and (111)-oriented at Ts = 400 °C. Thus, it appears that texturing change due to different growth temperatures is not an unusual phenomenon. Especially, when the film is growing at elevated substrate temperatures, simultaneous annealing might also be taking place. Consequently, the eventual film orientation should be a result of complicated self-optimization among parameters such as substrate, temperature, surface energy associated with respective crystallographic orientation, grain size, strain, and etc. In our case here, since the driving force is mainly the annealing temperature, thus, the reduction of grain boundary area, relief of defect-related strain, and the surface energy associated with respective crystallographic orientation are believed to be the more relevant parameters. In this respect, Cu-doping might have introduced additional strain effects in the CNO films, which in turn may change the surface and mechanical properties manifested in the resultant films. In order to explore the possible effects resulted from Cu-doping, more quantitative analyses of the data are conducted and discussed below.
Assuming a homogenous strain across all CNO thin films, the average crystalline size (DS) can be estimated from the full-width at half-maximum (FWHM) of the (200) diffraction peak by the Scherrer’s equation [39], DS = 0.9λ/(βcosθ). Here λ is the wavelength of the X-ray radiation (Cu Kα, λ = 1.5406 Å), θ is the Bragg angle and β is the angle span of the FWHM of (200) peak. In the Scherrer’s equation, the crystalline size is determined by assuming no lattice distortion. However, as indicated above, in the present CNO films, the lattice parameter is slightly larger than the value obtained for bulk pure NiO [34,35]. The slight peak shift due to the local strain reflecting the atomic displacements with respect to their reference positions in ideal crystal has been incorporated into the Sherrer’s equation using the Williamson-Hall (W-H) analysis [40,41] to take into account both crystalline size (DWH) and microstrain (ε).
The W-H equation can be depicted in the following expression [40,41]:
β cos θ = 0.9 λ D WH + 4 ε sin θ
In Figure 2, the (β cosθ)/λ versus (sinθ)/λ plots based on Equation (3) are presented. The y-intercept and the slope of the each curve give the values of reciprocal DWH and ε of each film, respectively. The obtained values of grain sizes using Scherrer’s original equation and W-H equation (Equation (3)) are denoted as DS and DWH, respectively, and are listed in Table 1 together with the obtained microstrain.
It is noted from Table 1 that the incorporation of microstrain effect has evidently resulted in significant differences in the values of grain size. The grain size calculated using the original Scherrer’s equation systematically gives values smaller than those calculated using Equation (3), suggesting that the microstrain is indeed significantly affecting the XRD results. Moreover, the results also showed that both the values of DS and DWH increase with increased annealing temperature, indicating that the overall crystallinity of CNO thin films were substantially improved, presumably due to higher thermal energy provided.
The morphological features of all CNO thin films are observed by SEM, as shown in Figure 3. It is evident that all films have uniformly distributed spherical granular microstructures. The feature of granular surface morphology, nevertheless, is enhanced significantly when annealing temperature is increased from 300 to 500 °C, manifested by the increased diameter of the spherical grains. The average grain size is estimated to range from 10 nm to 40 nm, which is in good agreement with the XRD analysis.
To further elucidate whether Cu-doping is homogeneous, we also performed XPS measurements to examine the valence state of Ni and Cu elements. Figure 4 shows the XPS spectra of Ni 2p3/2, O 1s and Cu 2p3/2 of as-deposited and annealed CNO thin films, respectively. Although at the first glance of the obtained Ni 2p3/2 spectra, it appears that the general features of the spectra are not influenced noticeably by annealing; more detailed analyses and comparisons with previous studies are, nevertheless, necessary. According to Kitakatsu et al. [42], the first peak centering around 852 ± 0.1 eV with its satellite at 858.5 ± 0.1 eV is ascribed to metallic Ni; a doublet at 854.1 ± 0.1 and 855.9 ± 0.1 eV with a satellite at 861.1 ± 0.1 eV are assigned to Ni2+ state in NiO; a third small, but necessary contribution at 856.0 ± 0.1 eV with a satellite at 862.1 ± 0.1 eV is arising from the hydroxylated Ni2+. Several subsequent studies [43,44,45,46] had similarly assigned the peak around 853.8–854.5 eV to Ni2+ state in the standard Ni-O octahedral bonding configuration in the cubic rocksalt NiO structures. Another peak around at 855.7–857.4 eV was ascribed to Ni3+ (Ni2O3) or nickel hydroxides. In addition, the satellite peaks of the binding energies of NiO and Ni2O3 [45]) were also found to locate around 860–862 eV, which were in very good agreement with the assignments given by Kitakatsu et al. [42].
For the O 1s XPS spectra in NiO, the signals could in general be decomposed into two (low and high energy) components: namely, 529.6 ± 0.1 and 531.4 ± 0.1 eV for O2− in NiO and hydroxyl (OH–) groups, respectively. Additional peak centering around 533.2 ± 0.4 eV is often assigned to the existence of H2O at the sample surface [41]. By comparing the XPS spectra of Ni 2p3/2 (left column of Figure 4) and O 1s (middle column of Figure 4) obtained from the present study with those described above, it is evident that the hydroxylation of Ni is much more pronounced when the annealing temperature was raised to 400 °C and above.
On the other hand, as pointed out by Martin et al. [44], it is much more difficult to differentiate the valence state of Cu and Cu+ by simply resorting to the core position of Cu 2p3/2 owing to the very close peak positions located at 932.6 and 932.8 eV for Cu and Cu+, respectively. Nevertheless, for Cu2O (Cu+), a very weak satellite peak at higher binding energies, between 942.0 and 948.0 eV, can be detected, which is absent for metallic Cu. For CuO samples, the main 2p3/2 peak consists of two components, the main one located at 933.6 eV and the low intensity one located at 932.8 eV (corresponds to Cu+) [44].
As shown in the right column of Figure 4, the Cu 2p3/2 XPS for the present samples, nevertheless, are relatively noisy, presumably due to the much smaller concentration as compared to Ni and oxygen. Thus, it is not very conclusive as to whether or not there exist satellite peaks at higher binding energies (between 942.0 and 948.0 eV). The main peak, however, can be de-convolved into two peaks at 932.7 and 934.8 eV, respectively, which can be approximately assigned to the binding energies of Cu+ and Cu2+ peaks. It is noted that the peaks remained essentially unaffected by the annealing temperature. Moreover, from the relative intensities of the de-convolved peaks, it is suggestive that the ratio of Cu+/(Cu+ + Cu2+) is over 80%, indicating that the incorporated Cu in the present thin films is largely existing as Cu+. The observed ratio of Cu+/(Cu+ + Cu2+) is in contrast to that reported by Sato et al. [45], wherein Cu+/(Cu+ + Cu2+) ≈ 35% was obtained in dc-sputtered NiO films with similar Cu doping (~9.6%). These results, however, are consistent with the expanded lattice constant and significant strain effects obtained from the XRD analyses discussed above.
To further explore how the structural change originated from Cu-doping and thermal annealing affects the film surface morphology and associated properties, the surface features of CNO thin films are examined by AFM; the results are displayed in Figure 4. It is evident from the AFM images that all CNO films exhibit homogenous microstructures, albeit the root-mean-square surface roughness (Rrms) appears to increase progressively with increasing annealing temperatures. The Rrms values are 0.7, 1.4, 2.9 and 3.8 nm for the as-deposited CNO film and those annealed at 300, 400 and 500 °C, respectively. This observation is also in line with the increased grain size and, perhaps, texturing switching phenomena induced by increasing the annealing temperature discussed above. It is interesting to note that, as displayed in the insets of Figure 5a–d, the wettability behavior of the surface is also strongly affected by the morphologies of the sample surface. As a result, it is expected that water droplets on the surface with rougher Rrms should have larger θCA [46]. Indeed, as displayed in the insets of Figure 5a–d, the wettability experiments evidently give the θCA values of 45.7°, 55.8°, 80.4°, and 97.5° for the as-deposited CNO film and those annealed at 300, 400 and 500 °C, respectively. The corresponding Rrms are 0.7, 1.4, 2.9 and 3.8 nm, respectively. Alternatively, as mentioned above, since the film texturing orientation was also found to change with the annealing temperature, the corresponding surface energy might play a role, as well.
Further, by straightforward analyzes, the values of surface energy obtained for as-deposited CNO and those annealed at 300, 400 and 500 °C are 30.9, 28.4, 21.2 and 15.8 mJ/m2, respectively. We note that these values are much smaller than the intrinsic surface energy of the non-polar NiO(200) surface (~1.74 J/m2) [38], presumably due to the substantial modification of the surface condition, such as the hydroxylation revealed in the XPS data discussed above. As a consequence, it is conceived that the annealing-driven changes in crystallographic orientation texturing might not be a relevant factor for the observed surface property changes. Nevertheless, the annealing-induced trend of driving the film to become more hydrophobic is clearly evident. Extrinsically, in addition to the effect of surface hierarchical modification (namely the increased surface roughness), described above [47], the improved crystallinity, and hence reduction of the defect concentration, may also play a role, as well. Indeed, as pointed out by Bayati et al. [48], point defects, such as oxygen vacancies, were mainly responsible for the significant hydrophilicity (contact angle ~22°) observed in their laser pulses irradiated yttria stablilized zirconia films. In our case here, the removal of the grown-in defects during deposition by annealing, thus, is expected to result in increasing surface hydrophobicity.
Next, we turn to discuss the effects of annealing temperature on the mechanical properties of the CNO films revealed by nanoindentation measurements. The typical CSM load-displacement curves of the CNO thin films annealed at the various temperatures are shown in Figure 6.
The inset of Figure 6 shows the load-displacement curve of the as-deposited CNO film for comparison. In general, the nanoindentation curves can provide rich information about the elastic and plastic deformation behaviors of the materials, and prominent parameters such as hardness and the Young’s modulus can be readily obtained [49,50]. Moreover, it is suggested that, when performing the nanoindentation tests, the nanoindentation depth should never exceed 30% of the films’ thickness or the size of nanostructures [51]. Here, the total penetration depth into the CNO thin film was approximately 60 nm, compared to the film thickness of ~200 nm, which is well within the abovementioned criterion for reliable nanoindentation tests. Following the analytical procedures described previously [22,50], the values of hardness (and Young’s modulus) obtained from the load-displacement curves of the as-deposited and the post-annealed CNO thin films displayed in Figure 6 are 16.2 ± 0.4 (154.8 ± 10.4), 15.4 ± 0.2 (149.6 ± 11.2), 21.5 ± 0.3 (165.8 ± 12.5) and 25.2 ± 0.6 (206.5 ± 11.9) GPa, respectively. The above results are plotted as a function of annealing temperature in Figure 7. A clear increasing tendency of both hardness and elastic modulus with increasing annealing temperature is evident, except for the as-deposited film. Compared to the obtained changing tendency of grain size listed in Table 1, the results appear to follow the notion of the inverse Hall-Petch effect [52]. In contrast to the conventional Hall-Petch effect, where the activities of dislocations play the primary role, in the inverse Hall-Petch effect regime, the grain boundary sliding is the prominent mechanism in determining film hardness and mechanical strength [53]. It is not surprising if one considers that the grain sizes of the present CNO films are all in the order of few tens of nanometers, while for most metals, where the conventional Hall-Petch relations are ubiquitously applicable, the grain sizes are all well above order of micrometers. Finally, it is noted that the film’s internal strain also shows a similar trend with increasing annealing temperature (see Table 1), and may also partially contribute to the observed increased film hardness and elastic modulus. Annealing could have thermally assisted the doped Cu ions to occupy the Ni sites, and the ionic size difference, in turn, gives rise to the internal lattice strain. Within the context of this scenario, the slight decrease of the hardness between the as-deposited and 300 °C-annealed CNO thin films may be explained by the relaxation of residual stress via recrystallization and crystallite reorientation during the early stage of the annealing process [49].

4. Conclusions

In summary, we conducted a comprehensive investigation on the effects of post-annealing on the microstructure, surface, and nanomechanical properties of CNO thin films deposited on glass substrates by the rf-sputtering method. The main findings are briefly summarized as following:
  • The XRD, AFM and SEM results consistently indicated that the crystalline size (DS and DWH), surface roughness, and internal strain of the CNO films are significantly increased with increasing annealing temperature.
  • The Ni 2p3/2 and O 1s XPS spectra indicated that the films might have substantial hydroxylation during the annealing processes. On the other hand, Cu 2p3/2 suggested that the chemical bonding state of Cu ions in CNO thin films is largely of Cu+ characteristics, resulting in significant internal strain due to a larger ionic size difference between Cu+ (77 pm) and Ni2+ (69 pm).
  • The contact angle (θCA) is increased from 45.7° for the as-deposited films to 97.5° for films annealed at 500 °C. In addition, the obtained surface energies at various states (~few tens of mJ/m2), however, are order of magnitude smaller than that of the intrinsic (200)-NiO surface (~1.74 J/m2), indicating that the surface properties are more relevant to the extrinsic morphological factors.
  • The hardness (Young’s modulus) of CNO thin films are increased from 15.4 ± 0.2 (149.6 ± 11.2) GPa to 25.2 ± 0.6 (206.5 ± 11.9) GPa by increasing the annealing temperature from 300 °C to 500 °C from the nanoindentation results, indicating that the primary deformation mechanism in these films is grain boundary sliding instead of dominated by the dislocation-glidings.

Author Contributions

Conceptualization, S.-H.W. and S.-R.J.; Methodology, S.-H.W., G.-J.C. and H.-Z.C.; Formal Analysis, S.-H.W., G.-J.C. and H.-Z.C.; Investigation, S.-H.W.; Writing—Original Draft Preparation, S.-R.J.; Writing—Review & Editing, S.-R.J. and J.-Y.J.

Funding

The authors are thankful for the financial support of the Ministry of Science and Technology, Taiwan under Contract Nos. MOST 106-2112-M009-013-MY3, MOST 107-2112-M-214-001, MOST 106-2112-M-214-001, MOST 105-2112-M-214-001, MOST 106-2221-E-214-014 and MOST 104-2221-E-214-003.

Acknowledgments

The authors like to thank W.-J. Hsieh and C.-F. Yang for their technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sato, H.; Minami, T.; Takata, S.; Yamada, T. Transparent conducting p-type NiO thin films prepared by magnetron sputtering. Thin Solid Films 1993, 236, 27–31. [Google Scholar] [CrossRef]
  2. Patel, D.B.; Kim, H.S.; Patel, M.; Chauhan, K.R.; Park, J.E.; Lim, D.; Kim, J. Front surface field formation for majority carriers by functional p-NiO layer employed Si solar cell. Appl. Phys. Lett. 2016, 109, 133902. [Google Scholar] [CrossRef]
  3. D’Amario, L.; Jiang, R.; Cappel, U.B.; Gibson, E.A.; Boschloo, G.; Rensmo, H.; Sun, L.; Hammarström, L.; Tian, H. Chemical and physical reduction of high valence Ni states in mesoporous NiO film for solar cell application. ACS Appl. Mater. Interfaces 2017, 9, 33470–33477. [Google Scholar] [CrossRef] [PubMed]
  4. Bulja, S.; Kopf, R.; Tate, A.; Hu, T. High frequency dielectric characteristics of electrochromic, WO3 and NiO films with LiNbO3 electrolyte. Sci. Rep. 2016, 6, 28839. [Google Scholar] [CrossRef] [PubMed]
  5. Garduno-Wilches, I.; Alonso, J.C. Hydrogen sensors fabricated with sprayed NiO, NiO: Li and NiO: Li, Pt thin films. Int. J. Hydrog. Energy 2013, 38, 4213–4219. [Google Scholar] [CrossRef]
  6. Zappa, D.; Bertuna, A.; Comini, E.; Kaur, N.; Poli, N.; Sberveglieri, V.; Sberveglieri, G. Metal oxide nanostructures: Preparation, characterization and functional applications as chemical sensors. Beilstein J. Nanotechnol. 2017, 8, 1205. [Google Scholar] [CrossRef] [PubMed]
  7. Becker, M.; Polity, A.; Klar, P.J. NiO films on sapphire as potential antiferromagnetic pinning layers. J. Appl. Phys. 2017, 122, 175303. [Google Scholar] [CrossRef]
  8. Zeng, Y.; Meng, Y.; Lai, Z.; Zhang, X.; Yu, M.; Fang, P.; Wu, M.; Tong, Y.; Lu, X. An ultrastable and high-performance flexible fiber-shaped Ni–Zn battery based on a Ni–NiO heterostructured nanosheet cathode. Adv. Mater. 2017, 29, 1702698. [Google Scholar] [CrossRef] [PubMed]
  9. Matsumiya, M.; Qiu, F.; Shin, W.; Izu, N.; Murayama, N.; Kanzaki, S. Thin-film Li-doped NiO for thermoelectric hydrogen gas sensor. Thin Solid Films 2002, 419, 213–217. [Google Scholar] [CrossRef]
  10. Dutta, T.; Gupta, P.; Gupta, A.; Narayan, J. Effect of Li doping in NiO thin films on its transparent and conducting properties and its application in heteroepitaxial pn junctions. J. Appl. Phys. 2010, 108, 083715. [Google Scholar] [CrossRef]
  11. Wu, C.C.; Shih, W.C. Development of a highly transparent, low-resistance lithium-doped nickel oxide triple-layer film deposited by magnetron sputtering. Chem. Commun. 2017, 53, 1634–1637. [Google Scholar] [CrossRef]
  12. Denny, Y.R.; Lee, K.; Park, C.; Oh, S.K.; Kang, H.J.; Yang, D.S.; Seo, S. Electronic, electrical and optical properties of undoped and Na-doped NiO thin films. Thin Solid Films 2015, 591, 255–260. [Google Scholar] [CrossRef]
  13. Yang, M.; Pu, H.; Zhou, Q.; Zhang, Q. Transparent p-type conducting K-doped NiO films deposited by pulsed plasma deposition. Thin Solid Films 2012, 520, 5884–5888. [Google Scholar] [CrossRef]
  14. Wang, N.; Liu, C.Q.; Wen, C.L.B.; Wang, H.L.; Liu, S.M.; Jiang, W.W.; Ding, W.Y.; Chai, W.P. Structural, electrical and optical properties of K-doped NiO films prepared by rapid pyrolysis sol-gel technique. Thin Solid Films 2016, 616, 587–593. [Google Scholar] [CrossRef]
  15. Li, J.C.; Hou, X.Y.; Cao, Q. Effect of Cu doping on the resistive switching of NiO thin films. J. Appl. Phys. 2014, 115, 164507. [Google Scholar] [CrossRef]
  16. Gupta, R.K.; Hendi, A.A.; Cavas, M.; Al-Ghamdi, A.A.; Al-Hartomy, O.A.; Aloraini, R.H.; El-Tantawy, F.; Yakuphanoglu, F. Improvement of photoresponse properties of NiO/p-Si photodiodes by copper dopant. Phys. E Low-Dimens. Syst. Nanostruct. 2014, 56, 288–295. [Google Scholar] [CrossRef]
  17. Liu, A.; Zhu, H.; Guo, Z.; Meng, Y.; Liu, G.; Fortunato, E.; Martins, R.; Shan, F. Solution Combustion Synthesis: Low-Temperature Processing for p-Type Cu: NiO Thin Films for Transparent Electronics. Adv. Mater. 2017, 29, 1701599. [Google Scholar] [CrossRef]
  18. Tao, X.; Li, X. Catalyst-free synthesis, structural, and mechanical characterization of twinned Mg2B2O5 nanowires. Nano lett. 2008, 8, 505–510. [Google Scholar] [CrossRef]
  19. Bao, L.; Xu, Z.H.; Li, R.; Li, X. Catalyst-free synthesis and structural and mechanical characterization of single crystalline Ca2B2O5·H2O nanobelts and stacking faulted Ca2B2O5 nanogrooves. Nano lett. 2009, 10, 255–262. [Google Scholar] [CrossRef]
  20. Jian, S.R.; Sung, T.H.; Huang, J.C.; Juang, J.Y. Deformation behaviors of InP pillars under uniaxial compression. Appl. Phys. Lett. 2012, 101, 151905. [Google Scholar] [CrossRef]
  21. Sun, Y.; Liu, J.; Blom, D.; Koley, G.; Duan, Z.; Wang, G.; Li, X. Atomic-scale imaging correlation on the deformation and sensing mechanisms of SnO2 nanowires. Appl. Phys. Lett. 2014, 105, 243105. [Google Scholar] [CrossRef]
  22. Jian, S.R.; Juang, J.Y.; Lai, Y.S. Cross-sectional transmission electron microscopy observations of structural damage in Al0.16Ga0.84N thin film under contact loading. J. Appl. Phys. 2008, 103, 033503. [Google Scholar] [CrossRef]
  23. Yang, Y.; He, Y.; Zhao, Y.; Li, X. Mechanically robust Si nanorod arrays on Cu/Ti bilayer film coated Si substrate for high performance lithium-ion battery anodes. J. Appl. Phys. 2012, 112, 103502. [Google Scholar] [CrossRef]
  24. Jian, S.R.; Chen, G.J.; Lee, J.W. Effects of annealing temperature on nanomechanical and microstructural properties of Cu-doped In2O3 thin films. Appl. Phys. A 2017, 123, 726. [Google Scholar] [CrossRef]
  25. Chen, G.J.; Jian, S.R. Effects of Cu doping on the structural and nanomechanical properties of ZnO thin films. Appl. Phys. A 2018, 124, 575. [Google Scholar] [CrossRef]
  26. Lai, H.D.; Jian, S.R.; Tuyen, L.; Le, P.; Luo, C.W.; Juang, J.Y. Nanoindentation of Bi2Se3 thin films. Micromachines 2018, 9, 518. [Google Scholar] [CrossRef] [PubMed]
  27. Fasaki, I.; Koutoulaki, A.; Kompitsas, M.; Charitidis, C. Structural, electrical and mechanical properties of NiO thin films grown by pulsed laser deposition. Appl. Surf. Sci. 2010, 257, 429–433. [Google Scholar] [CrossRef]
  28. Zimmermann, J.; Reifler, F.A.; Schrade, U.; Artus, G.R.; Seeger, S. Long term environmental durability of a superhydrophobic silicone nanofilament coating. Colloids Surf. A Physicochem. Eng. Aspects 2007, 302, 234–240. [Google Scholar] [CrossRef]
  29. Lee, Y.; You, E.A.; Ha, Y.G. Transparent, self-cleaning and waterproof surfaces with tunable micro/nano dual-scale structures. Nanotechnology 2016, 27, 355701. [Google Scholar] [CrossRef]
  30. Peng, L.; Zhang, C.; Wu, H.; Yi, P.; Lai, X.; Ni, J. Continuous fabrication of multiscale compound eyes arrays with antireflection and hydrophobic properties. IEEE Trans. Nanotechnol. 2016, 15, 971–976. [Google Scholar] [CrossRef]
  31. Li, X.; Bhushan, B. A review of nanoindentation continuous stiffness measurement technique and its applications. Mater. Charact. 2002, 48, 11–36. [Google Scholar] [CrossRef]
  32. Sneddon, I.N. The relation between load and penetration in the axisymmetric Boussinesq problem for a punch of arbitrary profile. Int. J. Eng. Sci. 1965, 3, 47–57. [Google Scholar] [CrossRef]
  33. Ottone, C.; Lamberti, A.; Fontana, M.; Cauda, V. Wetting behavior of hierarchical oxide nanostructures: TiO2 nanotubes from anodic oxidation decorated with ZnO nanostructures. J. Electrochem. Soc. 2014, 161, D484–D488. [Google Scholar] [CrossRef]
  34. Yang, D.; Wang, R.; He, M.; Zhang, J.; Liu, Z. Ribbon-and boardlike nanostructures of nickel hydroxide: Synthesis, characterization, and electrochemical properties. J. Phys. Chem. B 2005, 109, 7654–7658. [Google Scholar] [CrossRef] [PubMed]
  35. Rooksby, H.P. Structure of nickel oxide. Nature 1943, 152, 304. [Google Scholar] [CrossRef]
  36. Shannon, R.D. Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Cryst. 1976, A32, 751–767. [Google Scholar] [CrossRef]
  37. Jang, W.L.; Lu, Y.M.; Hwang, W.S.; Hsiung, T.L.; Wang, H.P. Effect of substrate temperature on the electrically conductive stability of sputtered NiO films. Surf. Coat. Technol. 2008, 202, 5444–5447. [Google Scholar] [CrossRef]
  38. Wolf, D. Reconstruction of NaCl surfaces from a dipolar solution to the Madelung problem. Phys. Rev. Lett. 1992, 68, 3315. [Google Scholar] [CrossRef] [PubMed]
  39. Cullity, B.D.; Stock, S.R. Element of X-ray Diffraction; Prentice Hall: Upper Saddle River, NJ, USA, 2001; p. 170. [Google Scholar]
  40. Venkateswarlu, K.; Bose, A.C.; Rameshbabu, N. X-ray peak broadening studies of nanocrystalline hydroxyapatite by Williamson–Hall analysis. Phys. B Condens. Matter 2010, 405, 4256–4261. [Google Scholar] [CrossRef]
  41. Goh, K.H.; Haseeb, A.S.M.A.; Wong, Y.H. Physical and electrical properties of thermal oxidized Sm2O3 gate oxide thin film on Si substrate: Influence of oxidation durations. Thin Solid Films 2016, 606, 80–86. [Google Scholar] [CrossRef]
  42. Kitakatsu, N.; Maurice, V.; Hinnen, C.; Marcus, P. Surface hydroxylation and local structure of NiO thin films formed on Ni (111). Surf. Sci. 1998, 407, 36–58. [Google Scholar] [CrossRef]
  43. Zhao, B.; Ke, X.K.; Bao, J.H.; Wang, C.L.; Dong, L.; Chen, Y.W.; Chen, H.L. Synthesis of flower-like NiO and effects of morphology on its catalytic properties. J. Phys. Chem. C 2009, 113, 14440–14447. [Google Scholar] [CrossRef]
  44. Martin, L.; Martinez, H.; Poinot, D.; Pecquenard, B.; Le Cras, F. Comprehensive X-ray photoelectron spectroscopy study of the conversion reaction mechanism of CuO in lithiated thin film electrodes. J. Phys. Chem. C 2013, 117, 4421–4430. [Google Scholar] [CrossRef]
  45. Sato, K.; Kim, S.; Komuro, S.; Zhao, X. Characteristics of Cu-doped amorphous NiO thin films formed by RF magnetron sputtering. Jpn. J. Appl. Phys. 2016, 55, 06GJ10. [Google Scholar] [CrossRef]
  46. Wang, M.; Thimont, Y.; Presmanes, L.; Diao, X.; Barnabé, A. The effect of the oxygen ratio control of DC reactive magnetron sputtering on as-deposited non stoichiometric NiO thin films. Appl. Surf. Sci. 2017, 419, 795–801. [Google Scholar] [CrossRef]
  47. Angelo, M.S.; McCandless, B.E.; Birkmire, R.W.; Rykov, S.A.; Chen, J.G. Contact wetting angle as a characterization technique for processing CdTe/CdS solar cells. Prog. Photovolt. Res. Appl. 2007, 15, 93–111. [Google Scholar] [CrossRef]
  48. Bayati, R.; Molaei, R.; Richmond, A.; Nori, S.; Wu, F.; Kumar, D.; Narayan, J.; Reynolds, J.G.; Reynolds, C.L., Jr. Modification of properties of yttria stabilized zirconia epitaxial thin films by excimer laser annealing. ACS Appl. Mater. Interfaces 2014, 6, 22316–22325. [Google Scholar] [CrossRef] [PubMed]
  49. Mahadik, D.B.; Venkateswara Rao, A.; Parale, V.G.; Kavale, M.S.; Wagh, P.B.; Ingale, S.V.; Gupta, S.C. Effect of surface composition and roughness on the apparent surface free energy of silica aerogel materials. Appl. Phys. Lett. 2011, 99, 104104. [Google Scholar] [CrossRef]
  50. Wang, S.K.; Lin, T.C.; Jian, S.R.; Juang, J.Y.; Jang, J.S.C.; Tseng, J.Y. Effects of post-annealing on the structural and nanomechanical properties of Ga-doped ZnO thin films deposited on glass substrate by rf-magnetron sputtering. Appl. Surf. Sci. 2011, 258, 1261–1266. [Google Scholar] [CrossRef]
  51. Li, X.; Gao, H.; Murphy, C.J.; Gou, L. Nanoindentation of Cu2O nanocubes. Nano Lett. 2004, 4, 1903–1907. [Google Scholar] [CrossRef]
  52. Greer, J.R.; De Hosson, J.T.M. Plasticity in small-sized metallic systems: Intrinsic versus extrinsic size effect. Prog. Mater. Sci. 2011, 56, 654–724. [Google Scholar] [CrossRef]
  53. Van Swygenhoven, H. Grain boundaries and dislocations. Science 2002, 296, 66–67. [Google Scholar] [CrossRef] [PubMed]

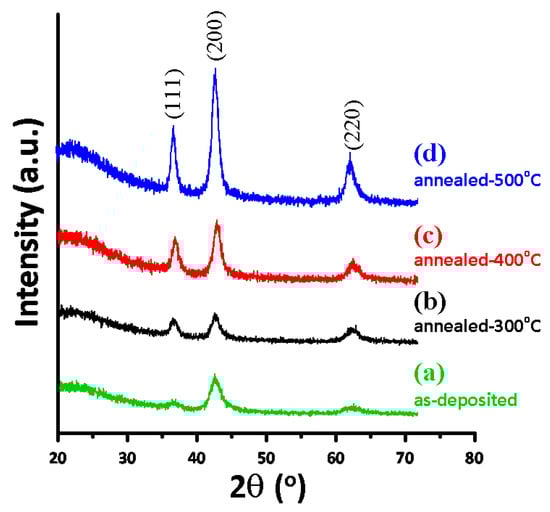

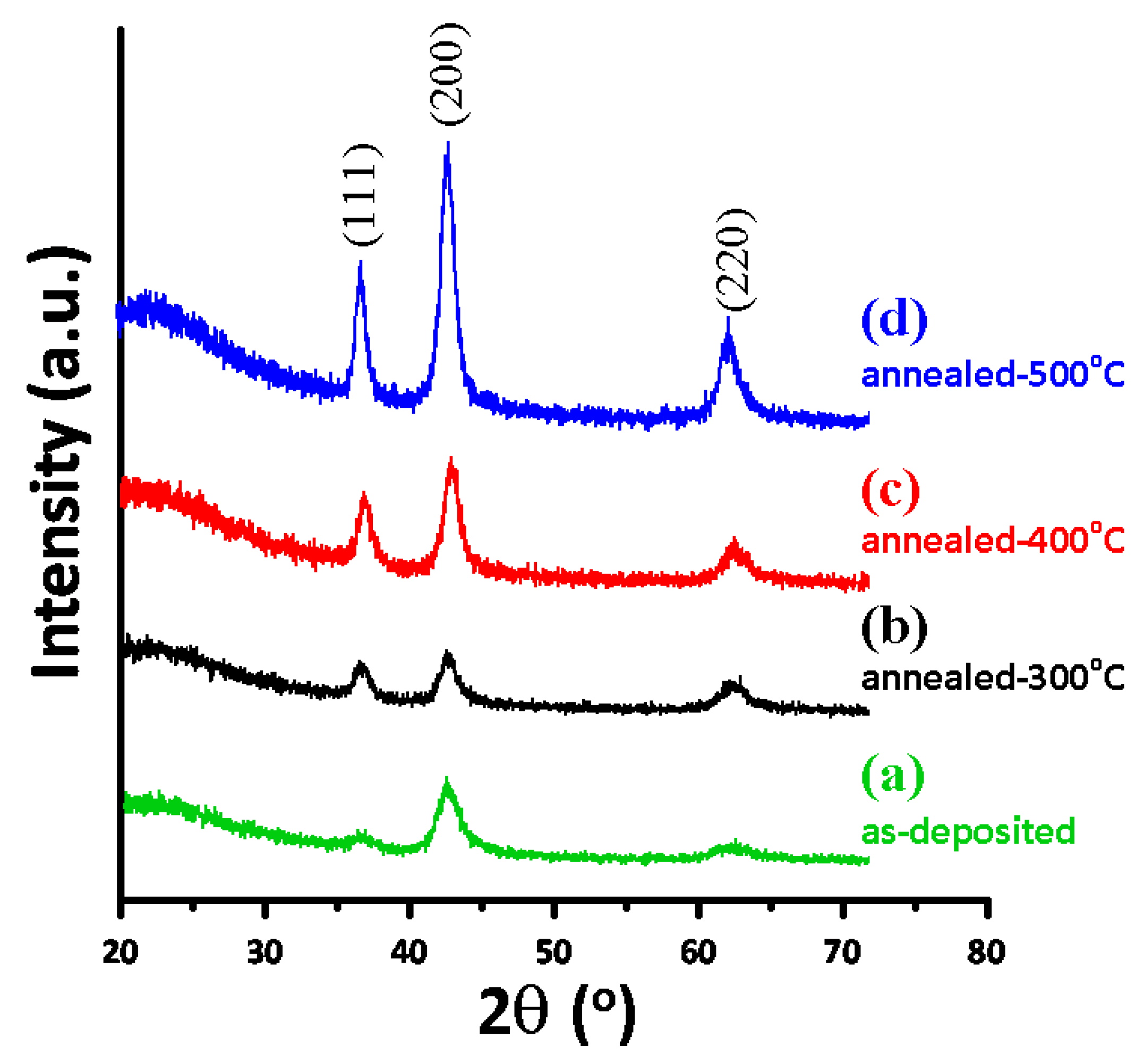

Figure 1. XRD patterns of CNO thin films with various annealing temperatures: (a) as-deposited, (b) 300 °C, (c) 400 °C and (d) 500 °C.
Figure 1. XRD patterns of CNO thin films with various annealing temperatures: (a) as-deposited, (b) 300 °C, (c) 400 °C and (d) 500 °C.
Coatings 09 00107 g001

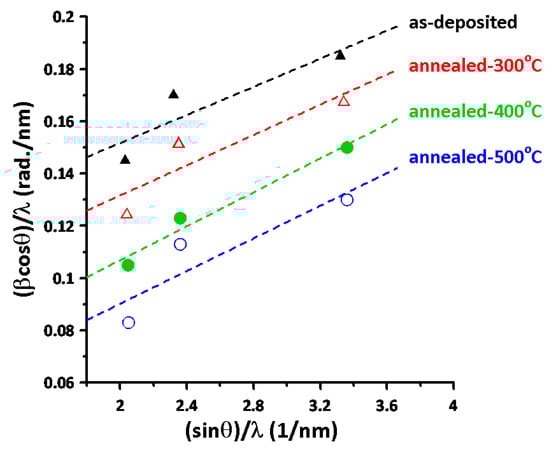

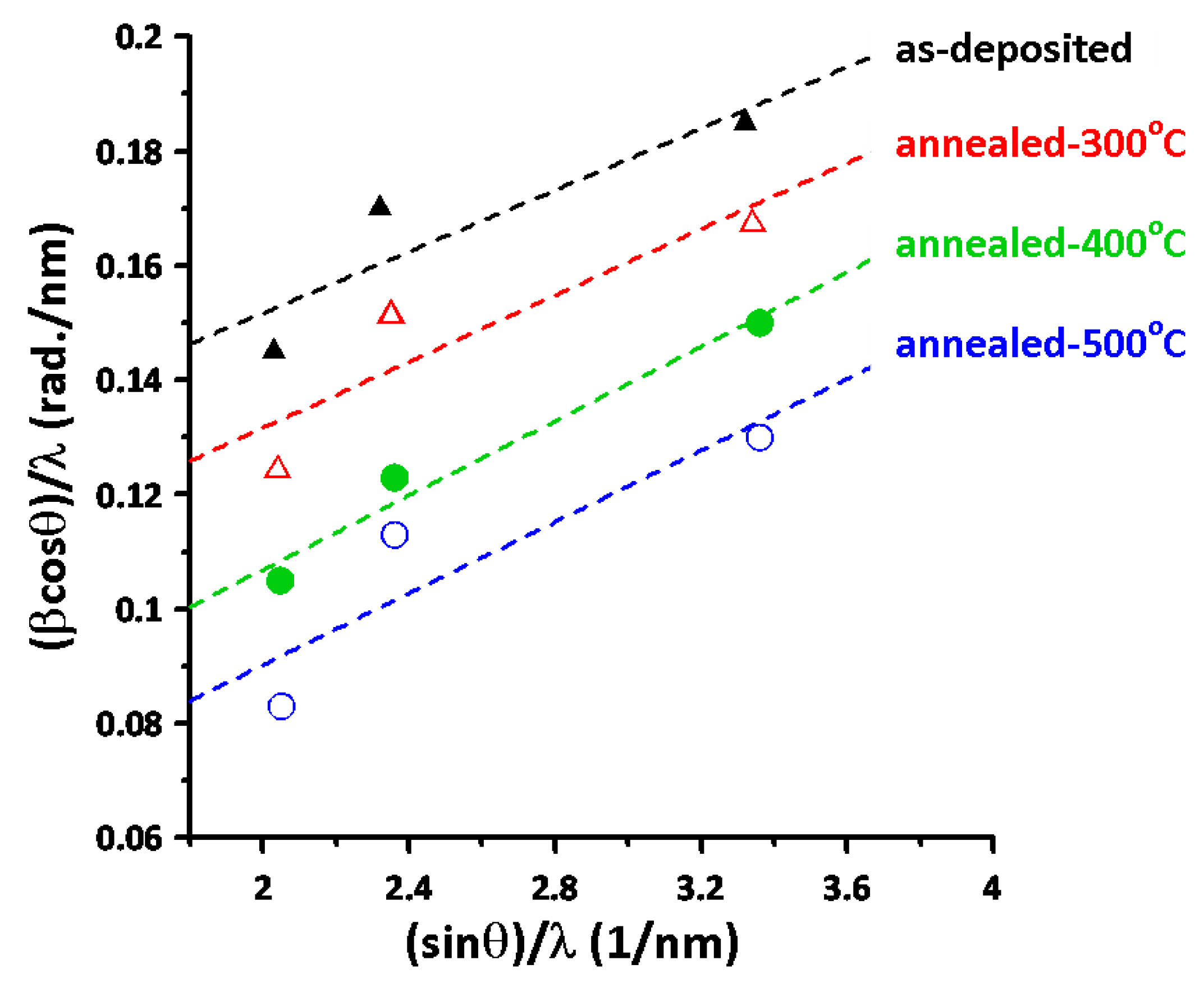

Figure 2. Williamson-Hall plots for measured XRD data of as-deposited and annealed CNO thin films.
Figure 2. Williamson-Hall plots for measured XRD data of as-deposited and annealed CNO thin films.
Coatings 09 00107 g002

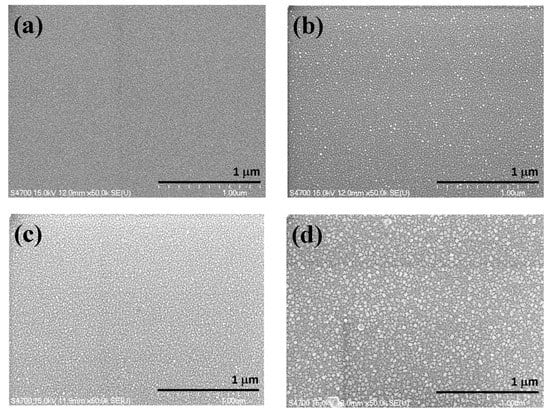

Figure 3. SEM images of: (a) as-deposited CNO thin film and, annealed at (b) 300 °C, (c) 400 °C and (d) 500 °C CNO thin films.
Figure 3. SEM images of: (a) as-deposited CNO thin film and, annealed at (b) 300 °C, (c) 400 °C and (d) 500 °C CNO thin films.
Coatings 09 00107 g003

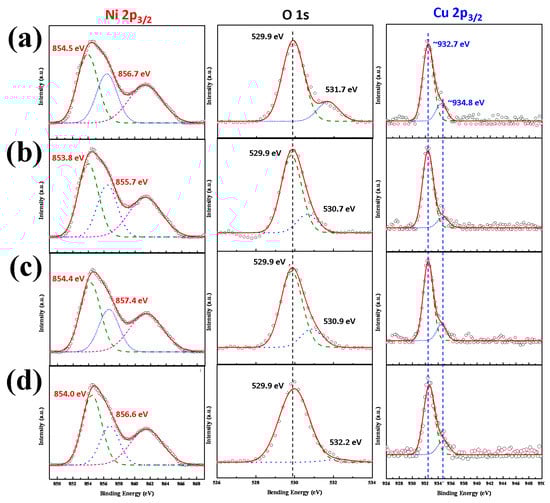

Figure 4. XPS spectra of Ni 2p3/2 (left column), O 1s (middle column) and Cu 2p3/2 (right column) of as-deposited and annealed CNO thin films, respectively. Conditions: (a) as-deposited, (b) annealed-300 °C, (c) annealed-400 °C and (d) annealed-500 °C.
Figure 4. XPS spectra of Ni 2p3/2 (left column), O 1s (middle column) and Cu 2p3/2 (right column) of as-deposited and annealed CNO thin films, respectively. Conditions: (a) as-deposited, (b) annealed-300 °C, (c) annealed-400 °C and (d) annealed-500 °C.
Coatings 09 00107 g004

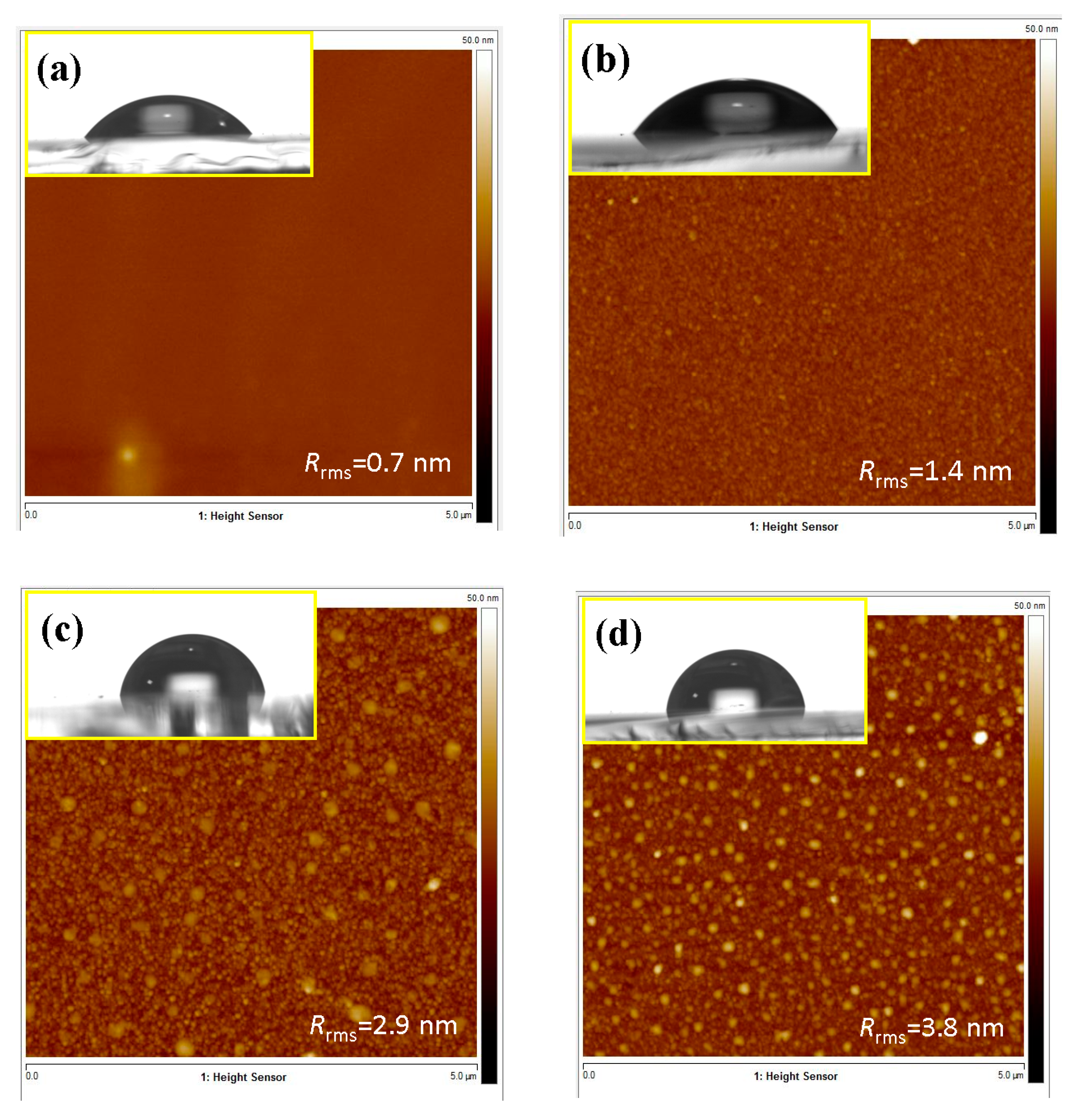

Figure 5. AFM images of: (a) as-deposited, (b) 300 °C, (c) 400 °C and (d) 500 °C, CNO thin films. Insert: the corresponding contact angle of 45.7°, 55.8°, 80.4° and 97.5°, respectively.
Figure 5. AFM images of: (a) as-deposited, (b) 300 °C, (c) 400 °C and (d) 500 °C, CNO thin films. Insert: the corresponding contact angle of 45.7°, 55.8°, 80.4° and 97.5°, respectively.
Coatings 09 00107 g005

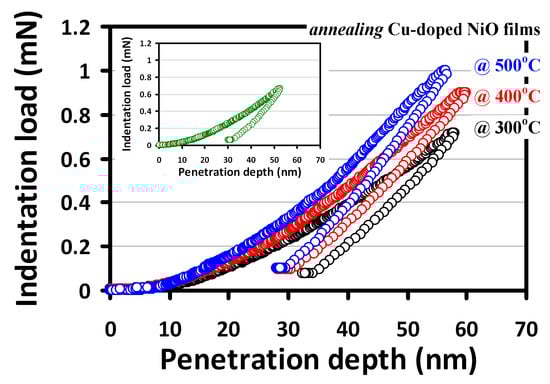

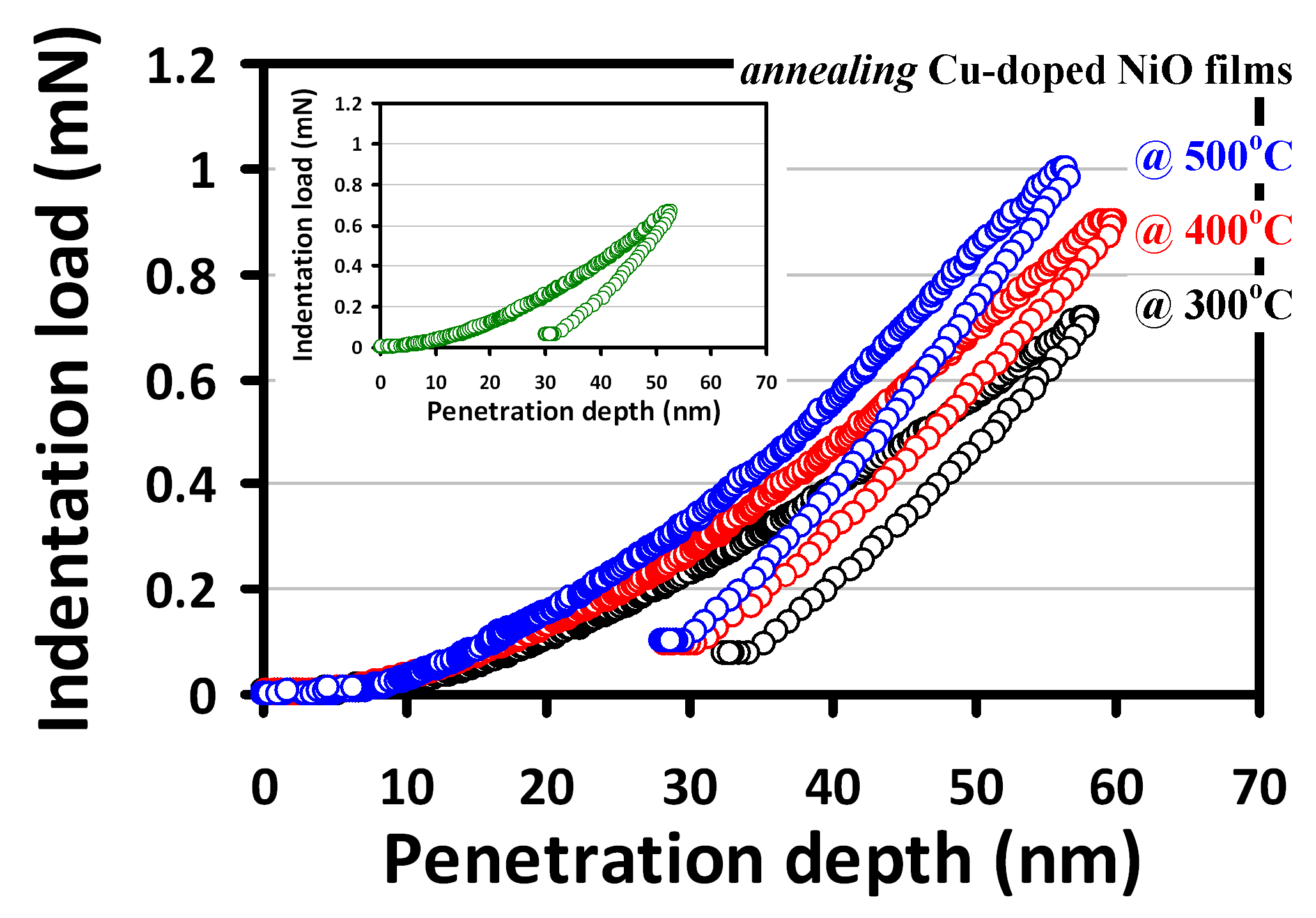

Figure 6. The load-displacement curves of CNO thin films with various annealing temperatures. Insert: the load-displacement curve of as-deposited CNO film.
Figure 6. The load-displacement curves of CNO thin films with various annealing temperatures. Insert: the load-displacement curve of as-deposited CNO film.
Coatings 09 00107 g006

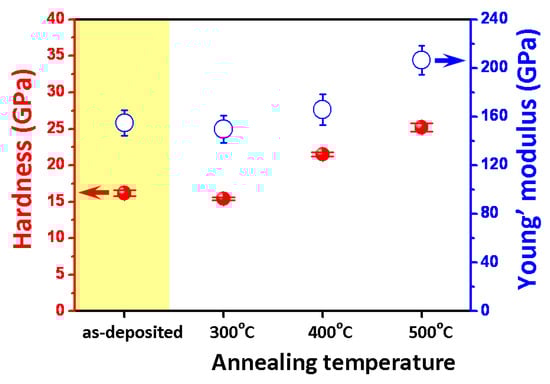

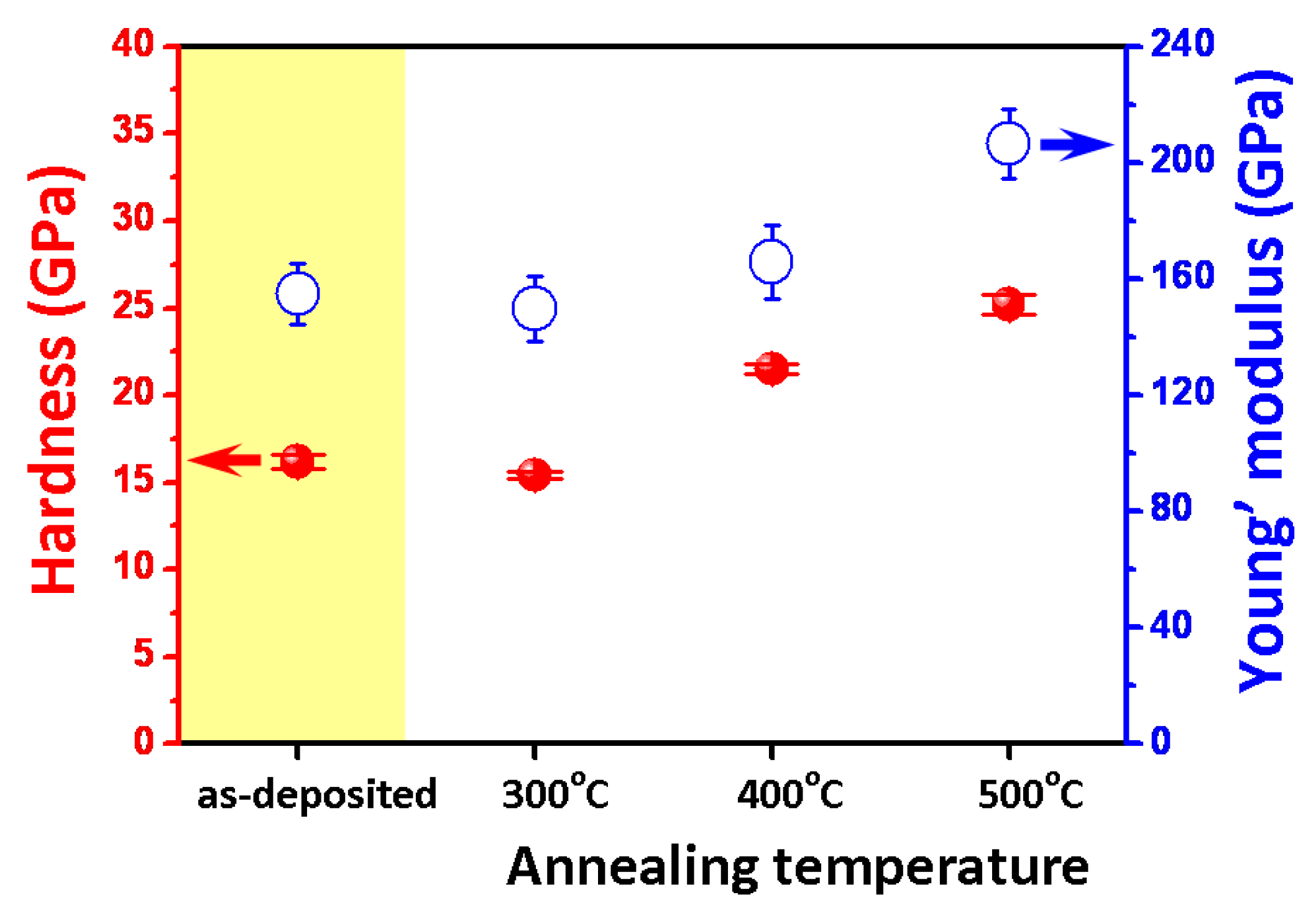

Figure 7. Hardness and Young’s modulus of CNO thin films with various conditions.
Figure 7. Hardness and Young’s modulus of CNO thin films with various conditions.
Coatings 09 00107 g007
Table 1. The microstructural parameters of CNO thin films evaluated from XRD results.
Table 1. The microstructural parameters of CNO thin films evaluated from XRD results.
SampleDS (nm)DWH (nm)ε (%)
as-deposited CNO film5.710.30.65
annealed-300 °C CNO film8.413.60.70
annealed-400 °C CNO film11.223.80.77
annealed-500 °C CNO film18.638.50.80
