Experiences with Thermal Spray Zinc Duplex Coatings on Road Bridges

Abstract

Road bridges are typically designed with a 100-year lifetime, so protective coatings with very long durability are desired. Thermal spray zinc (TSZ) duplex coatings have proven to be very durable. The Norwegian Public Roads Administration (NPRA) has specified TSZ duplex coatings for protection of steel bridges since 1965. In this study, the performance of TSZ duplex coatings on 61 steel bridges has been analyzed. Based on corrosivity measurements on five bridges, a corrosivity category was estimated for each bridge in the study. Coating performance was evaluated from pictures taken by the NPRA during routine inspections of the bridges. The results show that very long lifetimes can be achieved with TSZ duplex coatings. There are examples of 50-year old bridges with duplex coatings in good condition. Even in very corrosive environments, more than 40-year old coatings are still in good condition. While there are a few bridges in this study where the coating failed after only about 20 years, the typical coating failures are due to application errors, low paint film thickness and saponification of the paint. Modern bridge designs and improved coating systems are assumed to increase the duplex coating lifetime on bridges even further.

1. Introduction

Road bridges are typically designed with a lifetime of 100 years. However, lifetime extensions are normal and there are many bridges that are older than 100 years. Bridges are most likely to be replaced or decommissioned due to increased traffic capacity or the closing of the road than for exceeding the design lifetime. With such long lifetimes, the maintenance of the protective coating is a major contributor to the operational expenses. Hence, coating systems with very long durability are of great interest. Multi-layer paint coating systems are specified in many countries, but such coating systems have limited lifetime, especially in corrosive environments. According to the ISO 12944-1 coating selection standard, a very long lifetime is defined as more than 25 years [1]. In a 100 years construction life perspective (or more than 100 years), 25 years is relatively short and implies that the coating must be maintained several times.

In order to increase the coating lifetime and reduce the coating maintenance costs, The Norwegian Public Roads Administration (NPRA) introduced thermally sprayed zinc (TSZ) duplex coatings for coastal steel bridges in 1965 and for all bridges in 1977, replacing red lead coatings. Klinge published a study of the TSZ duplex coating on the Rombak Bridge in Norway, documenting almost 40-year coating lifetimes [2,3]. The bridge was coated in the field with a duplex coating consisting of a pure zinc TSZ coating of 100 µm and two layers of alkyd paint at 100 µm each. The bridge was opened to traffic in 1965 and for various reasons left partly uncoated until 1970, when the duplex coating was applied. The bridge is a 750 m long suspension bridge with a bolted truss work under the bridgeway. The large numbers of overlapping joints in the truss work are typical corrosion traps, but the duplex coating even protected these from corrosion. In 2012, preventive coating maintenance was performed by washing and the application of a new topcoat due to the partial flaking of the old topcoat.

There is a long history of corrosion protection of steel bridges with TSZ coatings. The Ridge Avenue Bridge in Philadelphia was metalized with zinc already in 1938 [4]. In the UK, the Forth Road Bridge was installed with zinc metalized and painted steel in 1964, which was the largest metalized steel bridge at the time [5]. The coating performed very well in contrast to the parallel Forth Railway Bridge that was painted, probably with red lead. The experiences with the Forth Road Bridge were important when the NPRA started to specify TSZ duplex coatings in 1965. TSZ duplex coatings have later been extensively used in the Scandinavian countries, UK, France and, to some extent, in the USA and Canada. However, no extensive review of their performance has been published to our knowledge.

Duplex coatings consist of a metal coating, typically hot-dip galvanizing, electroplated zinc or TSZ, painted with a protective organic coating. TSZ with a sealer is usually not regarded as a duplex coating. Duplex coatings are now very common across many industry sectors. For example, in the automotive industry, duplex coatings are the norm for the manufacturing of about 50 million car bodies per year. TSZ duplex coatings for steel structures were already documented to perform well in the 19-year field test by the American Welding Society that was terminated in 1974 [6]. In his book from 1994, van Eijnsbergen published a comprehensive study of duplex coatings consisting of hot-dip galvanized steel and paint [7]. Based on his findings, he claimed that the durability of a duplex coating is longer than the sum of the durability of the metallic and the paint coatings:

D_duplex = K · (D_zinc + D_paint)

(1)

where D is the durability or lifetime of the coats and K is a synergy factor, ranging from 1.5 in aggressive climates to 2.3 in less aggressive climates.

The objective of the present work has been to investigate the performance of zinc duplex coatings on 61 steel bridges in Norway as a function of corrosivity on site and the type of paint coating applied. Corrosivity was measured on four coastal bridges and one inland bridge in order to help estimate corrosivity on all the bridges. Typical coating failures and their causes are also discussed.

2. Materials and Methods

2.1. Corrosivity

Corrosivity was measured as material loss on steel panels according to ISO 9226 [8] on five road bridges, described in

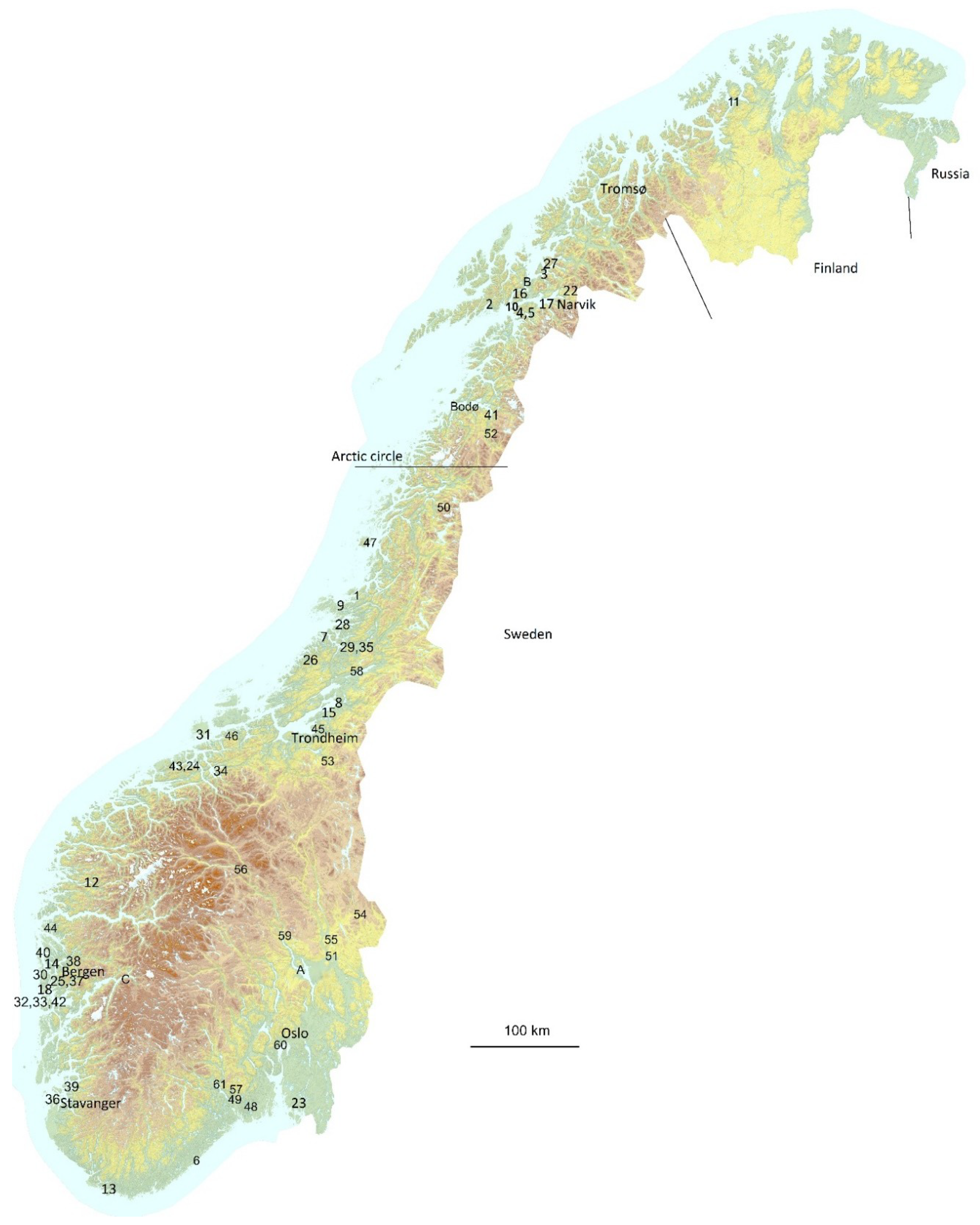

Table 1. The description of the bridges where corrosivity was measured. The location of the bridges is shown in Figure 1, labeled A, B, 43, 14 and C as given in the table.

Bridge	Climatic Conditions			Sailing Clearance (m)
	Geography	Temperature Avg. (°C)	Precipitation Avg. (mm/year)
Nessundet (A)	Inland lake	3	700	10
Tjeldsund (B)	Shielded coast	3	1000	41
Gjemnessund (43)	Shielded coast	7	1300	43
Sotra (14)	Exposed coast	8	1900	50
Hardanger (C)	Shielded fjord	6	1100	55

. The bridges were selected based on climatic conditions, height and availability for the deployment of samples. Gjemnessund and Sotra (43 and 14) are part of the coating condition study, while Nessundet, Tjeldsund and Hardanger are not because they have other coatings than investigated in this study. Annual temperature and precipitation averages and sailing clearance are given for each bridge in the table. Wind strength and direction will also affect corrosivity, but such data are not available and have not been measured in this study.

Panels of cold rolled mild steel, 150 mm × 100 mm × 2 mm in dimensions, were exposed for one year. Corrosivity was measured at the level of the bridgeway on all the bridges. For Gjemnessund, Sotra and Hardanger, corrosivity was also measured on one tower at various heights between 5 and 70 m above sea level. After retrieval, the samples were cleaned in a solution of 500 mL 37% HCl and 3.5 g hexamethylene-tetraamine diluted to 1000 mL. The samples were kept in the solution for 10 min at room temperature. The corrosivity at the various sites was evaluated according to weight loss and labeled with a corrosion category according to ISO 12944-2 [9]. A corrosion depth of 1.3–25 µm/y is category C2, 25–50 µm/y is C3, 50–80 µm/y is C4 and 80–200 µm/y is C5. Corrosion in the range 200–700 µm/y is category CX, but such a high corrosivity was not measured in this study. Each corrosivity measurement was assessed from three replicate samples.

The results from the corrosivity measurements were used to estimate corrosivity on all the 61 bridges in the study.

2.2. Bridges and Coatings

Steel bridges longer than 100 m built between 1967 and 1995 were included in the study, 61 bridges in total. For C4 and C5 environments, shorter steel bridges were included to increase the number of bridges in these categories of corrosivity. The duplex coatings were specified from 1965, but assuming that it took some time to implement, only bridges from 1967 are included in this study. Bridges built after 1995 were not included due to the insufficient exposure time so far. The location of the 61 bridges is shown in Figure 1. For each bridge, corrosivity was estimated based on the corrosivity measurements on the five bridges described in Table 1. The estimates were based on the geographical location and sailing clearance. Average daily traffic was not assumed to affect the corrosivity significantly since the coated steel construction is located under the bridgeway on all the bridges in the study.

Two coating specifications were used in this period, as shown in

Table 2. The coating specifications between 1965 and 1995.

Coat No.	1965		1977
1	TSZ, pure Zn	100 µm	TSZ, pure Zn	100 µm
2	Phosphoric acid wash primer	−	Phosphoric acid wash primer	−
3	Alkyd with zinc chromate	50 µm	Alkyd with zinc phosphate	50 µm
4	Alkyd with zinc chromate	50 µm	Alkyd with zinc phosphate	50 µm
5	Alkyd	50 µm	Alkyd	50 µm
6	Alkyd	50 µm	Alkyd	50 µm

. The only difference between the two specifications is that the zinc chromate in the two first alkyd coats was replaced with zinc phosphate in 1977.

2.3. Coating Performance Data

Coating condition has been assessed based on pictures from routine bridge inspections performed by NPRA personnel. A thorough coating inspection is performed every 5 years and the results are documented in the NPRA bridge management database. The database also contains information about coating maintenance. In addition, information about the extent and scope of maintenance has been collected from the NPRA personnel responsible for the specific maintenance operations. The coating condition on the various bridges have been assessed according to four categories defined for this study:

• Good: The paint coating is in good condition and little or no degradation can be seen;
• Fair: There is some paint degradation, and zinc corrosion products (white) can be found locally;
• Poor: The steel has started to corrode and red rust is found;
• Repaired: Coating maintenance has been performed; in most cases, patch repair with a full topcoat.

The coating condition can vary across steel structures and typically overlapping joints, edges, welds and bolts are attacked by corrosion before the flat surfaces. Older truss construction bridges have more of these corrosion traps, while on modern box beam bridges these are, to a large extent, avoided. This has not been considered in the assessment. However, various coating application errors were found, which will be discussed.

2.4. Coating Performance Indicator

To enable a quantitative comparison of coating performance on the various bridges, a coating performance indicator (CPI) has been defined for this study:

$$CPI=L+L·\frac{S}{C}$$

(2)

where L is the coating lifetime for a repaired coating or present coating age for not repaired coatings, C is the corrosivity category number (category 2–5) and S is the assessment of condition described above, but numerical. The coating condition has been assessed as either good, fair, poor or repaired, which have been given the values 3, 2, 1 and 0 respectively. For repaired coatings, CPI will then be the coating lifetime. For not repaired coatings, the CPI will be the current age of the coating, with an additional expected life proportional to current age and condition, and inversely proportional to corrosivity. Though CPI may be regarded as an expected lifetime of not repaired coatings, such a claim cannot be made without further investigation into coating performance and maintenance, which is beyond the scope of this work. Here, the CPI is only used for estimating an indicator for coating performance to enable comparison.

3. Results

3.1. Corrosivity

Corrosivity at the level of the bridgeway on the five bridges is shown in

Table 3. The description of the bridges where corrosivity was measured and the corrosivity found at the level of the bridgeway.

Bridge. Measurement Site	Climatic Conditions			Sailing Clearance (m)	Corrosivity
	Geography	Temp. Avg. (°C)	Precipitation Avg. (mm/y)		µm/year Category
Nessundet (A) Truss, west side Truss, middle Truss, east side	Inland lake	3	700	10	26 6 13	C3 C2 C2
Tjeldsund (B) Truss, south side Truss, middle Truss, north side	Shielded coast	3	1000	41	12 13 18	C2 C2 C2
Gjemnessund (43) Pylon, west side Bridgeway fence Under bridgeway	Shielded coast	7	1300	43	11 28 48	C2 C3 C3
Sotra (14) Pylon, west side	Exposed coast	8	1900	50	27	C3
Hardanger (C) Pylon, west side	Shielded fjord	6	1100	55	9	C2

. Hardanger bridge and Gjemnessund bridge are modern box beam bridges, while the others are older truss constructions. Nessundet bridge is an arch bridge, while the rest are suspension bridges. The samples were placed at different locations on the bridges, as shown in the table.

The relative standard deviation for the measurements was 4% on average and ranging between 2% and 6% for the individual sets of three parallels. All measurements were performed during the 12 months in 2016–2017. Hence, variations from year to year are not accounted for.

The dominant wind direction is from the west on all the bridges. The Gjemnessund and Tjeldsund bridges are located behind larger islands and, therefore, somewhat shielded. Hardanger bridge is located deep inside a fjord and even more shielded. Freshwater from rivers reduce the salinity in the fjord to 3.1% at the bridge location, compared to 3.5% in the open sea, but this difference is assumed to be insignificant. Sotra bridge is quite exposed. Nessundet bridge is also somewhat exposed but crossing a strait in an inland lake where the only salt exposure is from winter deicing salt.

Annual precipitation varies significantly between the locations of the five bridges. The precipitation may have two opposite effects on corrosivity. Primarily, increasing precipitation will increase the time of wetness on the steel and thereby increase corrosion. However, in marine environments, precipitation may also decrease corrosion by washing off salt deposits. This effect is typically found under the bridgeway, where salt accumulates but never or rarely is washed away by rain [10]. Hence, in an inland environment, corrosivity will normally increase with annual precipitation, while in a coastal environment, the effect of precipitation may vary from place to place on the construction.

As Table 3 shows, the corrosivities measured at the level of the bridgeway are all within categories C2 and C3. On Nessundet bridge, the west side is more corrosive, probably because western winds are dominating. Under the bridgeway, the samples were shielded from rain, which resulted in a much lower corrosion rate than on the sides. Tjeldsund bridge is going east-west, so the difference between the directions are smaller, but the north side is slightly more exposed. On Gjemnessund, the corrosivity was highest under the bridgeway, where the samples were mounted on a vortex shedding blade. This is probably explained by the deposition of sea salt and shielding from rain that would wash the salt off the surface. The sailing clearance is 43 m, but salt deposits are nevertheless found under the bridgeway. In general, coastal bridges are more susceptible to coating degradation and corrosion on the underside of the bridgeway due to this effect. On Sotra bridge, C3 corrosivity was found on the pylon at the level of the bridgeway. No measurements were performed on the bridgeway, which may have shown higher corrosivity, as found on Gjemnessund. Hardanger bridge, which is the most shielded of the five bridges showed low corrosivity. As for Gjemnessund, the corrosivity may have been somewhat higher on the bridgeway, but due to the high sailing clearance and wind shielding, the corrosivity is assumed to be low even here. Figure 2 shows corrosivity as a function of the height along one pylon on three of the bridges, measured from 5 m above the sea level. On Gjemnessund and Hardanger, the corrosivity was generally low all the way. For both bridges, this was somewhat surprising since the pylons are located near the sea. Airflow patterns around the massive concrete pylons may partly explain the difference, but the lower annual precipitation at these two sites may also have contributed, decreasing the time of wetness on the samples. For the Sotra bridge, it is interesting to see how the corrosivity decreases as a function of height. Up to about 12 m, the corrosivity was category C5. Further up the corrosivity gradually decreased and reached almost category C2 from 45 m.

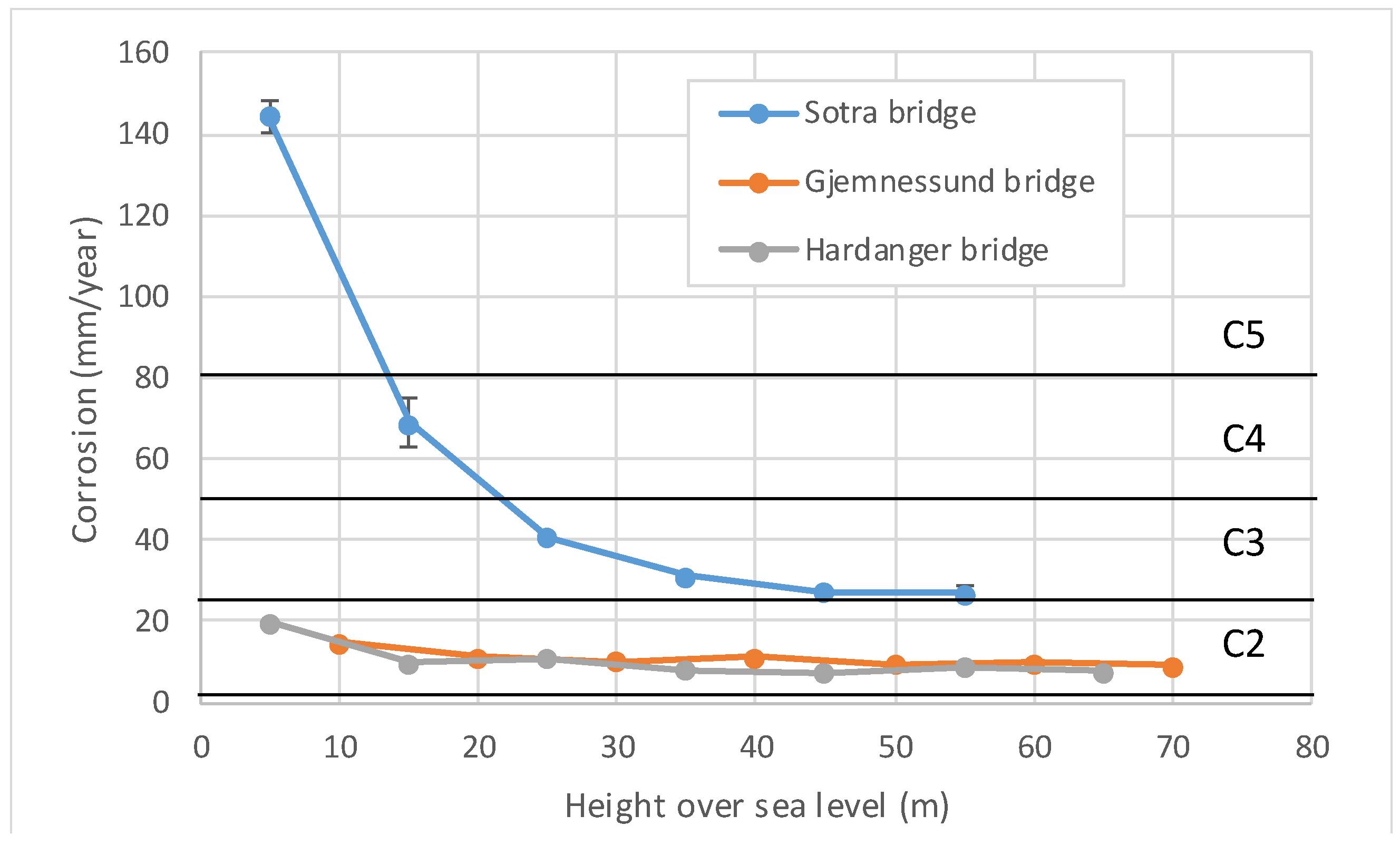

From the corrosivity measurements, it is evident that the height above sea level has a large influence on corrosivity. Annual precipitation also seems to be an important parameter. Wind conditions are expected to contribute, but wind measurements on the investigated bridges have not been performed and cannot be discussed in this study.

3.2. Coating Lifetimes

Table 4. The coating lifetime on coastal bridges built between 1967 and 1977. CPI is the coating performance indicator.

	Name	Corrosiv. (C)	Built	Clearance (m)	Condition (S)	Maintenance	Lifetime (years)	CPI
1	Madsøybrua	C5	1975	6	Repaired	2000	25	25
2	Erikstadstrøm		1975	3	Repaired	2017	42	42
3	Grov	C4	1968	7	Repaired	1996	28	28
4	Kjerringstraum		1969	15	Repaired	1998	29	29
5	Sørstraumen		1969	3	Repaired	1998	29	29
6	Strømsund		1970	4	Repaired	2017	47	47
7	Stamnes		1970	6	Repaired	2006	36	36
8	Verdal		1972	2	Repaired	1995	23	23
9	Kvalpsundet		1974	10	Repaired	1995	21	21
10	Slottvikstraumen		1974	6	Fair	−	>45	68
11	Kvalsundbrua		1977	26	Repaired	2001	24	24
12	Naustdal Bru	C3	1970	2	Good	−	>49	90
13	Revøysund		1971	20	Good	−	>48	96
14	Sotrabrua		1971	50	Repaired	2011	40	40
15	Sundbrua		1971	3	Good	−	>48	96
16	Kjærfjorden		1972	5	Repaired	2010	38	38
17	Skjomen		1972	35	Repaired	2000	28	28
18	Tofterøy		1975	20	Repaired	2011	36	36
19	Kjellingstraumen		1975	29	Good	−	>44	88
20	Randøy		1976	24	Fair	−	>43	72
21	Lokkarbrua		1977	30	Repaired	2005	28	28
22	Rombaksbrua	C2	1970	40	Repaired	2011	41	82
23	Rolvsøysund		1970	5	Good	−	49	123

and

Table 5. The coating lifetime on bridges built between 1978 and 1995. CPI is coating performance indicator.

	Name	Corrosiv. (C)	Built	Clearance (m)	Condition (S)	Maintenance	Lifetime (years)	CPI
24	Bergsøysundbrua	C5	1992	5	Repaired	2011	19	19
25	Nordhordlandsbrua		1994	5	Repaired	2017	23	23
26	Store Holmsund	C4	1978	4	Repaired	2007	29	29
27	Åndervåg		1980	3	Repaired	2001	21	21
28	Nærøysund		1981	41	Repaired	2011	30	30
29	Ytterbystrømmen		1982	4	Good	−	>37	65
30	Torvsundet		1984	5	Fair	−	>35	53
31	Kulisvabrua		1988	16	Fair	−	>31	47
32	Klubbasund		1989	20	Fair	−	>30	45
33	Djupasund		1990	20	Poor	−	>29	36
34	Bøfjordbrua		1992	2	Poor	−	>27	34
35	Høyknesbrua	C3	1978	5	Fair	−	>41	68
36	Stavanger Bybru		1978	26	Poor	−	>41	55
37	Haglesundbrua		1982	50	Fair	−	>37	62
38	Eikanger I		1987	5	Good	−	>32	64
39	Helgøysund		1988	14	Fair	−	>31	52
40	Bukkholmstraum		1988	16	Fair	2012	24	52
41	Botn Bru		1991	2	Good	−	>28	56
42	Brandasund		1991	24	Fair	−	>28	47
43	Gjemnessundbrua		1991	43	Fair	−	>28	47
44	Mjåsund		1993	30	Fair	−	>26	43
45	Sandfærhus		1995	5	Fair	−	>24	40
46	Dromnessundbrua		1995	16	Good	−	>24	48
47	Grimsøy Bru		1995	10	Good	−	>24	48
48	Hvåra	C2	1978	−	Good	−	>41	103
49	Ulefossbrua		1978	−	Fair	−	>41	82
50	Korgen Bru		1978	−	Good	−	>41	103
51	Glåmbrua Elverum		1979	−	Good	−	>40	100
52	Pothus		1979	−	Good	−	>40	100
53	Moslett		1980	−	Good	−	>39	98
54	Jordet bru		1981	−	Good	−	>38	95
55	Åmot bru		1981	−	Good	−	>38	95
56	Sundbru Ny		1981	−	Good	−	>38	95
57	Akkerhaugen		1981	−	Good	−	>38	95
58	Nødalsbrua		1982	−	Good	−	>37	93
59	Lillehammer		1984	−	Good	−	>35	88
60	Grinienga		1986	−	Good	−	>33	83
61	Nautesund		1986	−	Good	−	>33	83

show the lifetime of duplex coatings on 23 steel bridges built between 1967 and 1977 and 38 bridges built between 1978 and 1995, respectively, 61 bridges in total. As shown in Table 2, the coating specification was changed during 1977 and the zinc chromate in the two first paint coats was replaced with zinc phosphate. Corrosivity is estimated for each bridge based on the geographical location and sailing clearance, relative to the five bridges where corrosivity was measured. Sailing clearance is given for all the coastal bridges. All the inland bridges are assumed to be in C2 environments. Winter salting of roads is assumed not to affect the corrosivity since the load bearing steel construction is located under the bridgeway for all the bridges in this study. There are few bridges in C2 environments in Table 4 since duplex coatings were not specified for inland bridges before 1977.

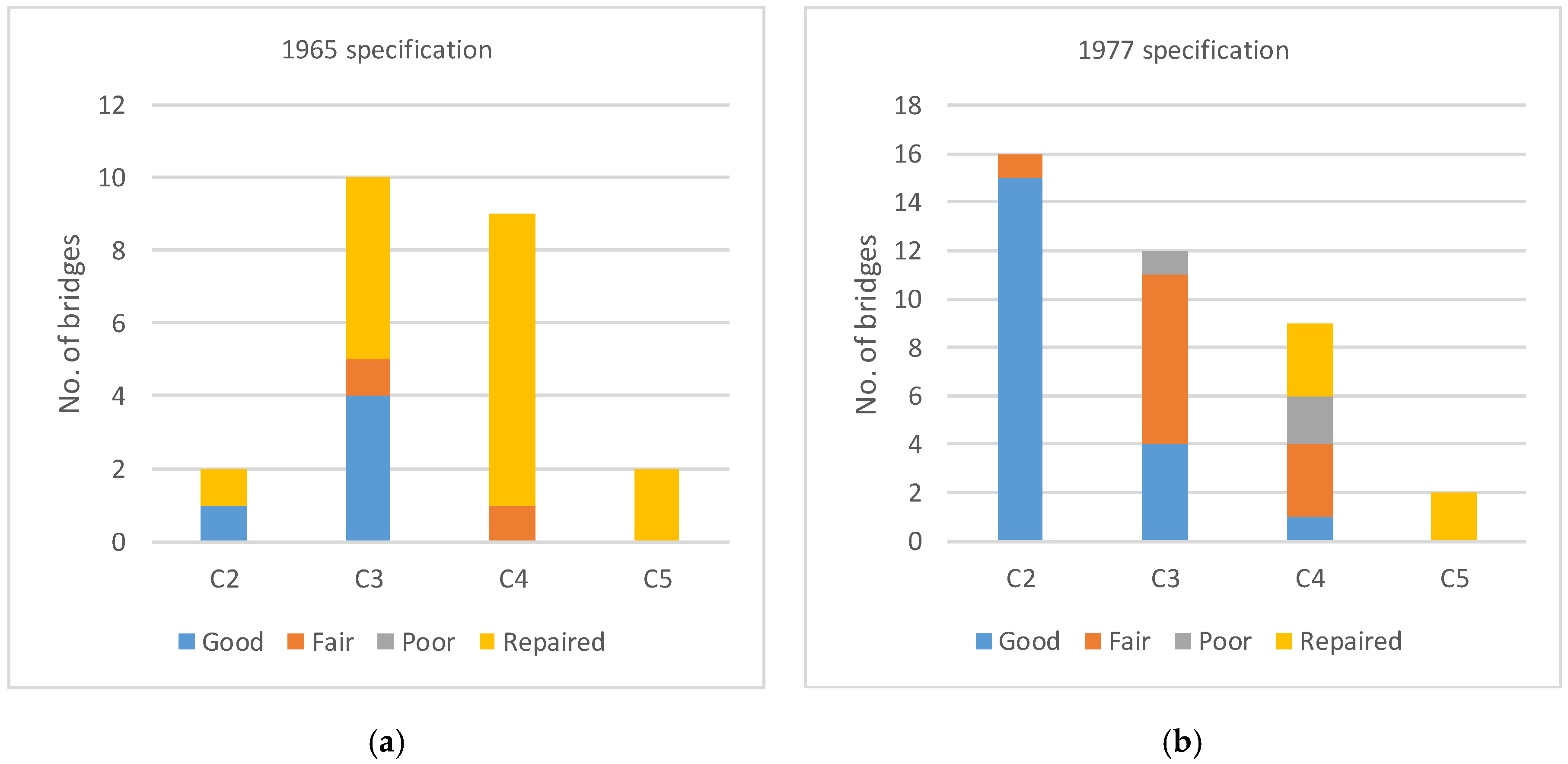

A graphical summary of the coating performance on the bridges in Table 4 is given in Figure 3a. Of the 23 bridges, 16 have received coating maintenance, i.e., about 70%. Of these, eight are in C4 environments, five in C3 environments a one in a C2 environment. The repair of the C2 bridge was preventive maintenance due to topcoat flaking and not corrosion. Both the two bridges in the C5 environment have received maintenance. Of the remaining bridges, two are in a fair condition and five are in good condition.

The coating performance of bridges in Table 5 is shown graphically in Figure 3b for the 38 bridges built between 1978 and 1995. Of the 38 bridges, only five have received coating maintenance so far, i.e., about 13%. These five bridges are all exposed in C4 or C5 environments. Not surprising, the duplex coatings are performing very well in C2 environments. Contrary to Figure 3a, Figure 3b does show a correlation between corrosivity and coating performance.

The performance of the coatings in the C5 environment is similar for bridges coated with the 1965 specification and with the 1977 specification. The Madsøybrua and Erikstadstrøm bridges listed in Table 4 were repaired after 25 and 42 years, respectively. The Bergsøysundbrua and Nordhordlandsbrua bridges listed in Table 5 were repaired after only 19 and 23 years. A close inspection of the coatings reveals that application errors led to the failures on Bergsøysundbrua and Nordhordlandsbrua. Both bridges are floating bridges and may be regarded as mainly exposed in the marine splash zone. In the offshore industry, the corrosion rate in the marine splash zone is assumed to be 400 µm/y, i.e., corrosivity category CX [9]. Hence, to classify these bridges as category C5 may be too low. The coatings were mainly degraded on the underside of the bridgeway, where marine salt deposits will never be washed off by rain. Hence, a concentrated and very aggressive brine is formed on the coating surface. For Bergsøysundbrua, the maintenance started too early. Even though the organic coating had partly failed, the zinc coating was still protecting the steel. For Nordhordlandsbrua, the degradation was more severe and the steel had started to corrode in some areas.

3.3. Coating Performance versus Corrosivity

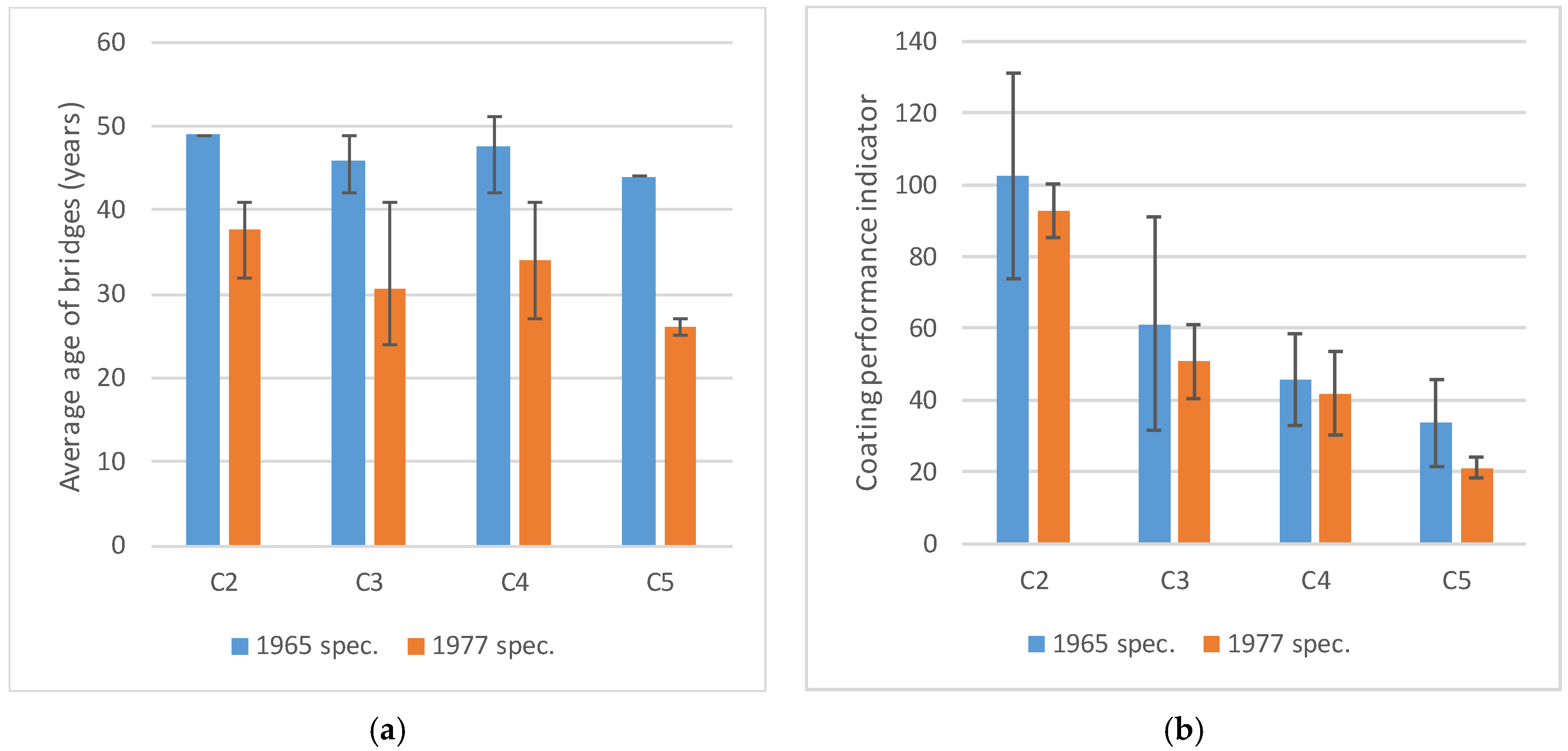

Figure 4a shows the average age and age span of the bridges in the study, illustrating the difference in exposure time for the two coating specifications. Since only 21 of the 61 bridges has received coating maintenance so far, the average coating lifetimes as defined by time to first major coating maintenance (ISO 12944-1 [11]) cannot be calculated. Only the result for the C5 exposures represents actual lifetime since all bridges have had coating maintenance. In order to enable a quantitative comparison of coating performance, the coating performance indicator (CPI) was defined, as described above. The average CPI as a function of corrosivity is shown in Figure 4b, while the CPI for each bridge is given in Table 4 and Table 5. The error bars show the standard deviation. Figure 4b shows that the coating performance increases with decreasing corrosivity for both coating specifications, as expected. There are only two bridges in both the C2 and C5 environments for the 1965 specification though, which gives a rather weak statistical base for making conclusions. Additionally, the standard deviation is rather high for several of the categories, but the trend in the results is evident.

3.4. Coating Failure Mechanisms

Four different coating failure mechanisms have been identified in this study, of which two are specific to TSZ duplex coatings, and two are generally found in paint coatings. The most common failure mechanism was an insufficient barrier due to low paint film thickness. In many cases, this was found at steel edges, e.g., flanges on H-beams. This is typical for all paint coatings that are applied as a wet film. Due to surface tension, the paint will retract from sharp edges in order to reduce surface area, resulting in an inferior film thickness. Poor edge retention being a typical failure mode for paint has been subject to investigation, e.g., by Yun et al. [12].

Another reason for low film thickness that is specific to TSZ duplex coatings is the lack of an instrument that can measure paint film thickness over TSZ. The commonly used magnetic film thickness gauges will measure the total duplex film thickness, i.e., both TSZ and paint. The eddy current thickness gauges that will measure thickness over the first electrically conducting layer, i.e., the zinc coating, does not work well with TSZ due to its rough microstructure and porosity (see Figure 5). This makes large variations in conductivity and unstable measurements. The magnetic thickness gauge is, therefore, presently the only option. Ideally, each coating thickness should be measured as applied to ensure the coatings meet specifications.

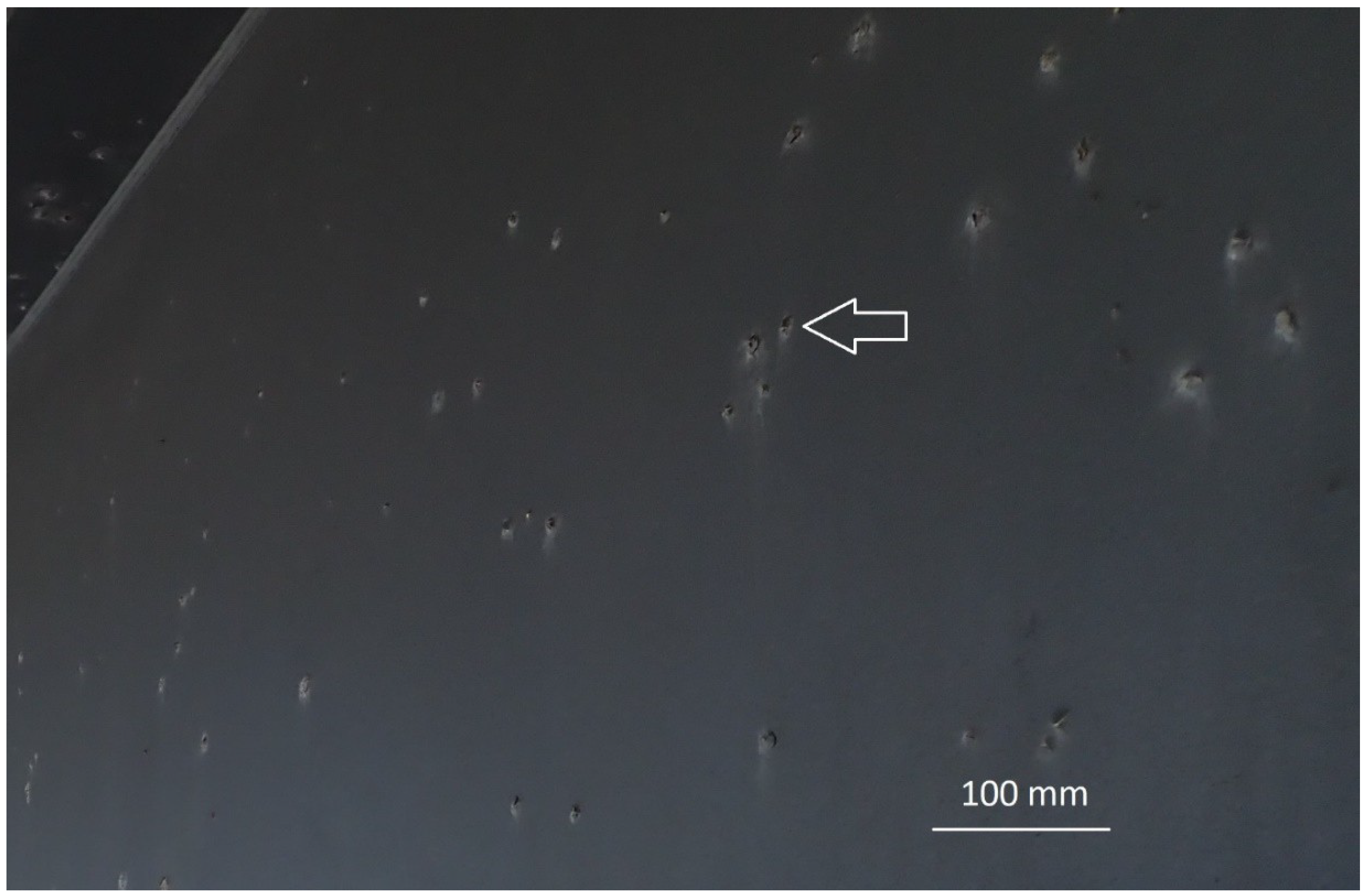

The second failure mechanism is the formation of pinholes in the paint film [13]. When applying paint on TSZ, bubbles of trapped air and evaporating solvent are easily formed inside the film, probably due to the rough surface structure of the TSZ. As the bubbles grow, they attract paint from around and the wet film thickness grows locally. When the paint dries, the bubbles crack open, but if the opening is too narrow, it will not be filled by the subsequent coats. Thus, a pinhole is formed in the paint where the zinc will start to corrode at an early stage.

The third failure mechanism found was “spitting” during thermal spraying. If the arc spray gun is not properly adjusted, there will be incomplete melting of the zinc wire. These pieces of solid zinc will be sprayed along with the melted zinc but may protrude from the surface as tall peaks. When the paint is applied, the film thickness will be too low over these peaks and the paint will fail during exposure. A typical example is shown in Figure 6.

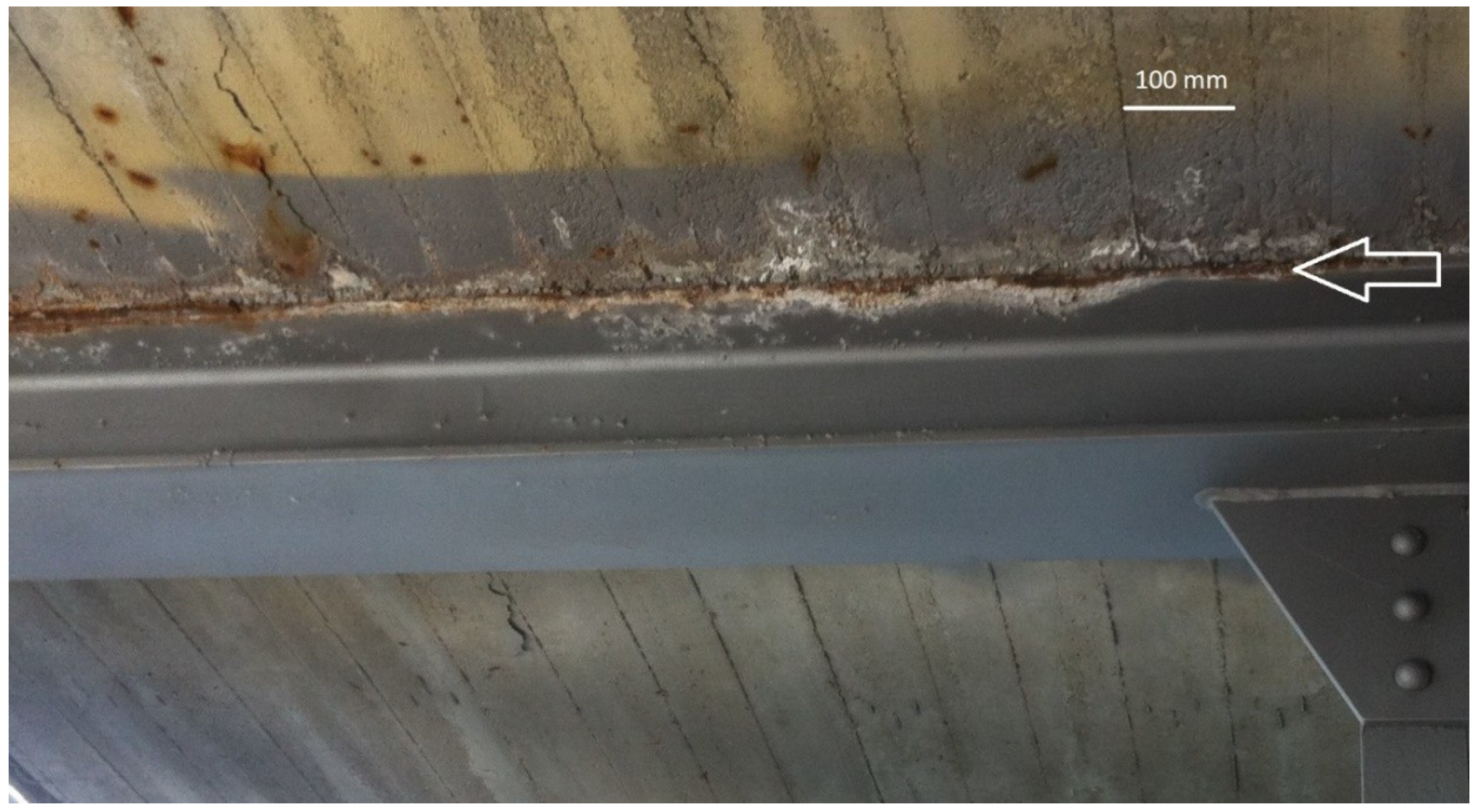

The fourth failure mechanism is the hydrolysis of the alkyd paint in contact with concrete. The ester bonds in the alkyd binder are broken when exposed to an alkaline environment. This is also called saponification and is a well-known degradation mechanism for alkyds [14]. This was typically found on the upper flange of H-beams carrying a concrete bridgeway, see Figure 7.

4. Discussion

4.1. TSZ Duplex Coating Failure Mechanisms

The coating failure mechanisms that were identified have different origins. Pinholes and spitting are typical application errors with TSZ duplex coatings. When coating a large bridge, such errors are likely to appear occasionally. By adjusting the application parameters immediately to prevent further formation of such errors, and light grinding with sandpaper before application of the next coat, the quality of the coating will improve significantly. Mainly pinholes and spitting were responsible for the degradation at Bergsøysundbrua and large amounts of pinholes were also found at Nordhordlandsbrua. In the very corrosive C5 environment, the TSZ started to corrode locally shortly after the bridge was built. The TSZ was protecting the steel, but the TSZ has a certain capacity for protection and when it is consumed, the steel starts to corrode.

Low film thickness results in coating failure due to the penetration of ions. Studies have shown that a protective coating should have a resistivity of more than 10⁹ Ohm·cm² [15]. The film thickness required to reach this resistivity depends on the generic type of coating. The thickness specification given by the coating supplier will normally provide the required barrier. Low film thickness over edges due to low edge retention is a general problem with paint. TSZ duplex coatings will give longer lifetimes than pure paint coating systems since the TSZ coat is not susceptible to this. The TSZ film thickness will be the same over sharp edges as on flat surfaces. However, if the paint film degrades early, the TSZ will start to corrode, and depending on the corrosivity, it will eventually be consumed. Grinding and stripe-coating of edges are routinely performed to reduce this problem, but it will not be eliminated. On modern box beam bridges, the amount of edges is significantly reduced, compared to a truss bridge.

Low paint film thickness on flat surfaces was one of the main degradation mechanisms on Nordhordlandsbrua. The zinc started to corrode under the paint after a few years due to a combination of low film thickness and formation of a very aggressive brine under the bridgeway, where rain never could wash deposited sea salt away. Inspections and control during painting seem to have been insufficient. This problem may be negligible with modern epoxy coatings. The old alkyd paints were applied in thin coats specified at 50 µm each. High build epoxy mastic coatings typically must be applied in thicker coats in order to form a continuous film. Hence, the painter will see when enough paint has been applied, i.e., an inherent “smartness” in the paint.

The saponification problem was found on most bridges where a concrete bridgeway was resting on a coated H-beam. This problem was eliminated when the NPRA paint specification was changed from alkyds to epoxies. Epoxies are very tolerant to the alkaline conditions in concrete.

4.2. The Durability of TSZ Duplex Coatings

Coating maintenance constitutes the main operational cost for most steel bridges. Given the long lifetime of bridges, coating durability is a key factor for reducing life cycle costs. The TSZ duplex coatings investigated in this study provide very long lifetimes and, for most bridges, significantly longer than 25 years, which is defined as a “very high” lifetime in ISO 12944-1. Since only about 70% of the bridges with the 1965 coating specification and about 13% of the bridges with the 1977 coating specification have been repaired, and many of the bridges still have coatings in good or fair condition, even longer lifetimes will be achieved. For the less corrosive environments at least, it is likely that duplex coatings may last for the lifetime of the bridge.

There are several sources of variation that complicate the comparison of coating performances. Most important is the sample size. As stated earlier, the study includes few bridges in C5 environments, which constitute a weak statistical base for comparison. Geographical location plays a role. Bridges with the same sailing clearance may have different orientations or see different weather patterns leading to variable coating performance. Criteria for coating maintenance will affect the calculated performance indicator. Decisions about coating maintenance are made by different people and no firm criteria have been set by the NPRA. For example, the coating maintenance on Rombak bridge in 2011 was initiated as a preventive action. There was no corrosion on the bridge, but the topcoat had flaked off from parts of the bridge and the topcoat was renewed to prevent a more expensive maintenance operation in the future. The maintenance of the Nordhordland bridge, however, was initiated due to extensive coating degradation under the bridgeway and corrosion of the steel. In addition, non-technical factors affect the decision, like the available maintenance budget. Corrosion is a slow process and coating maintenance can often be postponed for many years without compromising the load carrying capacity of the bridge.

Both the 1965 and the 1977 coating specifications show a correlation between coating performance and corrosivity. The coatings have performed very well in mild conditions and failed earlier in corrosive conditions. Though the coating failures in C5 environments, at least partly, was due to coating application errors; this suggests that a stronger paint coating is required in corrosive environments. When the paint fails, the zinc coating will first act as a barrier, and later as a sacrificial anode when bare steel is exposed. Zinc is an active metal and even the 15% aluminum alloy that is used mainly today will have a certain corrosion rate. Hence, when the zinc is exposed, the remaining lifetime of the coating will be limited by its corrosion rate, which again is determined by the local corrosivity. The durability of a TSZ duplex coating in a corrosive environment is, therefore, very dependent on the performance of the paint coating.

5. Conclusions

Thermal spray zinc duplex coatings have provided long term corrosion protection to steel bridges in Norway. Considering the present coating age and condition, it is reasonable to assume that the duplex coating may last the entire 100-year bridge design life for many of the bridges in this investigation. For very corrosive environments, the two paint coating specifications appear to have been too weak.

Application quality has the strongest impact on coating life. Application errors like pinholes, spitting and low paint film thickness caused most coating failures found in this study. These errors decrease the protective properties of the paint film. The zinc coating provides active corrosion protection, but will have a definite lifetime, depending on the corrosivity. Hence, such application errors will reduce the coating lifetime more in corrosive environments than in mild environments.

Some of the coating degradation mechanisms found in this study will be significantly reduced or eliminated with modern bridge designs and modern paint systems, which probably will increase TSZ duplex coating durability in the future. The most important improvements being

• Box beam bridge designs with fewer edges, reducing the edge retention problem
• Using epoxy coatings with high tolerance to alkaline environments
• Coatings with an inherent “smartness”, that tell the painter when enough paint is applied
• Awareness of the spitting and pinhole problems so that adequate measures can be made during the application
