Efficient Global Aerodynamic Shape Optimization of a Full Aircraft Configuration Considering Trimming

Abstract

Most existing aerodynamic shape optimization (ASO) studies do not take the balanced pitching moment into account and thus the optimized configuration has to be trimmed to ensure zero pitching moment, which causes additional drag and reduces the benefit of ASO remarkably. This article proposes an efficient global ASO method that directly enforces a zero pitching moment constraint. A free-form deformation (FFD) parameterization combing Laplacian smoothing method is implemented to parameterize a full aircraft configuration and ensure sufficiently smooth aerodynamic shapes. Reynolds-averaged Navier–Stokes (RANS) equations are solved to simulate transonic viscous flows. A surrogate-based multi-round optimization strategy is used to drive ASO towards the global optimum. To verify the effectiveness of the proposed method, we adopt two design optimization strategies for the NASA Common Research Model (CRM) wing–body–tail configuration. The first strategy is to optimize the configuration without considering balance of pitching moment, and then manually trim the optimized configuration by deflecting the horizontal tail. The second one is to directly enforce the zero pitching moment constraint in the optimization model and take the deflection angle of the horizontal tail as an additional design variable. Results show that: (1) for the first strategy, about 4-count drag-reducing benefits would be lost when manually trimming the optimal configuration; (2) the second strategy can achieve 3.2-count more drag-reducing benefits than the first strategy; (3) compared with gradient-based optimization (GBO), surrogate-based optimization (SBO) is more efficient than GBO for ASO problems with around 80 design variables, and the benefit of ASO achieved by SBO is comparable to that obtained by GBO.

1. Introduction

Following the continuous advancement of computer performance and numerical computation methods, computational fluid dynamics (CFD) has been developed to an extent that it has become an important tool to predict the aerodynamic performance of a full aircraft configuration and replace expensive wind tunnel experiments partially. As a result, CFD-driven aerodynamic shape optimization (ASO) has partly replaced the traditional “cut and try” method and inverse design method, and is becoming the important way to improve the aerodynamic performance of an aircraft. However, it is still difficult to perform ASO of complex aircraft configurations such as the wing–body–tail configuration, since high-fidelity CFD simulation methods such as the Reynolds-averaged Navier–Stokes (RANS) equations are computationally expensive, and a large number of design variables and constraints can cause the optimization algorithm to suffer from numerical difficulties.

Surrogate-based optimization (SBO) has become one of the most attractive methods for ASO with high-fidelity flow simulations. The solution of expensive cost functions can be approximated by cheap-to-evaluate surrogate models to drive the addition and evaluation of new sample point(s) towards the global optimum [1,2,3]. SBO requires much less expensive function evaluations to reach the global optimum compared with a genetic algorithm (GA), especially when expensive high-fidelity CFD is employed [4,5]. It is free of gradient information and can be used to solve problems with highly nonlinear and multi-modal design space [6,7,8]. Therefore, SBO has gained much attention in the area of engineering design optimization. Despite the popularity of SBO, it is still suffering from the difficulty associated with the “curse of dimensionality”, which means that the computational cost grows exponentially as the number of design variables increases. To improve the SBO efficiency, some advanced technologies have been proposed, such as evaluating the responses of the samples in parallel [9], variable-fidelity surrogate modeling [10,11,12,13,14,15,16], surrogate modeling incorporating cheap gradients [17,18,19,20], deep-learning-based optimal sampling [21], and applying dimension reduction [22,23] and constraint aggregation during optimization [24,25].

However, the design optimization of complex aircraft configurations such as the wing–body–tail configuration brings a large challenge to SBO. First, both design of experiment (DoE) and sub-optimization within the framework of SBO are pure numerical methods designed to generate samples without considering feasibility. Thus, many samples associated with unsmooth aerodynamic shapes would be generated via DoE and sub-optimization during optimization, which results in an unpractical optimal aerodynamic shape [22]. Second, the size of the design space directly affects the optimization results, and an inappropriate design space makes it difficult for SBO to obtain the global optimal solution [26,27]. Third, although fast design can be achieved by using a low-fidelity CFD solver in the optimization, the benefit of drag reduction cannot be realized completely when verifying the optimal solution by the high-fidelity CFD simulation such as solving the RANS equations [28]. Finally, it is unsuitable to design the wing of a complex aircraft configuration only since the benefit of drag reduction achieved would decrease significantly due to the trim drag induced by trimming the full aircraft configuration [29]. Recently, some design works considering trimming have been performed via the gradient-based optimization (GBO) [30,31,32,33,34]; however, the adjoint equations for solving the derivatives of the added constraints, such as the zero pitching moment constraint, must be derived, and solving the added adjoint equations can be expected to increase the computational cost of GBO significantly.

This article aims to propose an efficient global ASO method using surrogate models to design complex aircraft configurations, in which trimming is considered by adding a zero pitching moment constraint during optimization. The multi-round optimization strategy is used to drive SBO towards the global optimum by adjusting the design space in each round according to the optimum from the previous round. The Laplacian smoothing method is conducted to avoid obtaining unsmooth optimal aerodynamic shapes. To validate the proposed method, two optimization strategies are applied to design the NASA CRM wing–body–tail configuration. The first strategy is to optimize the wing only and then manually trim the optimal configuration by deflecting the horizontal tail as a solid body. The second strategy is to consider trimming during optimization. Then, all optimization results obtained via SBO are compared with those obtained via GBO. Two goals are involved in this work; one is to validate SBO for solving ASO of a complex aircraft configuration, since there is hardly any research focus on high-fidelity surrogate-based ASO of such a complex aircraft configuration. The other one is to compare the optimization results achieved through different optimization strategies, thus providing some useful guidance for future work.

This article proceeds with Section 2, where the numerical tools employed in this study are described. Section 3 illustrates the problem formulation, while Section 4 presents ASO of the NASA CRM wing–body–tail configuration and corresponding results. In Section 5, conclusions are presented.

2. Methodology

2.1. Geometric Parametrization

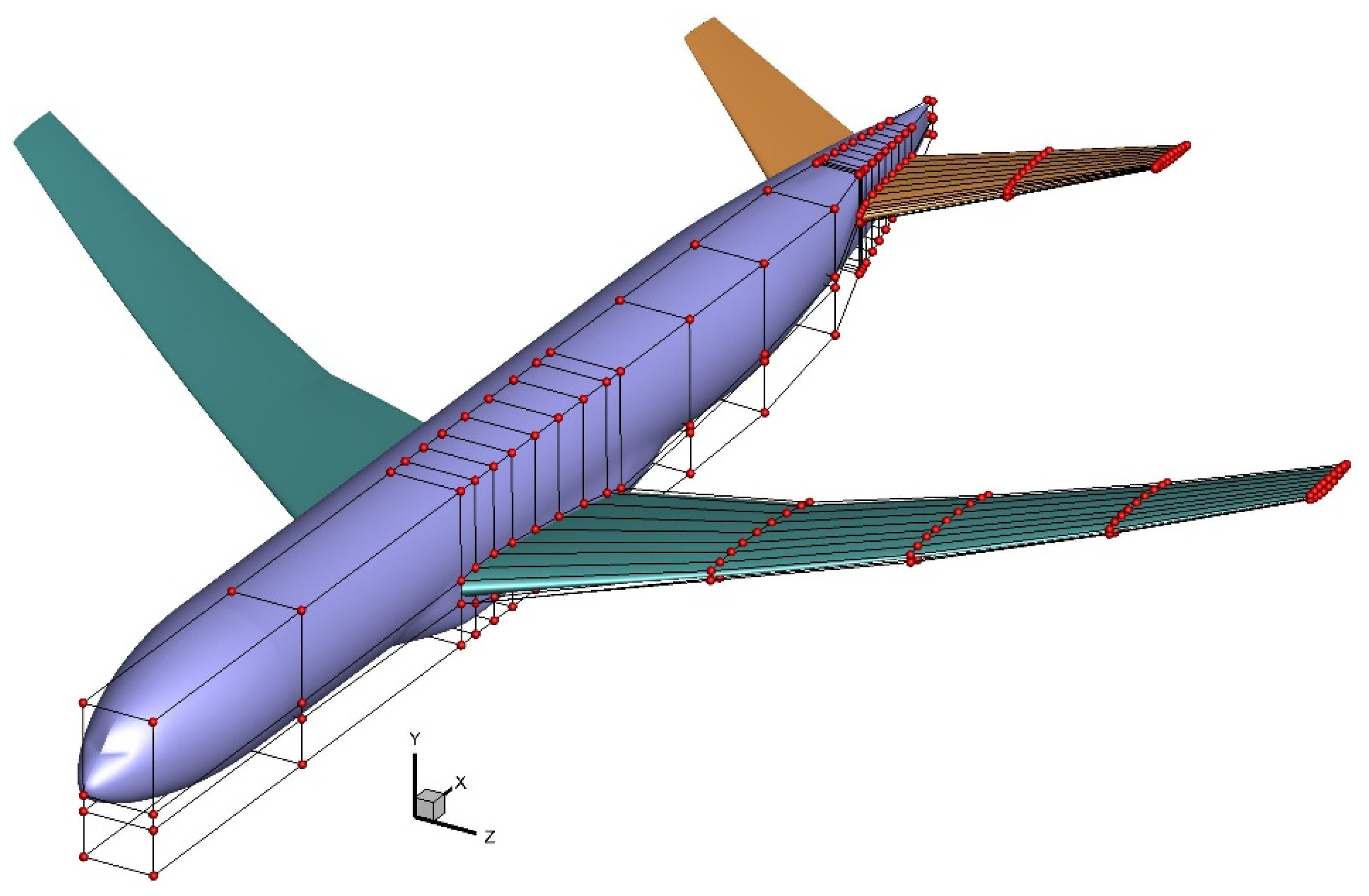

The free-form deformation (FFD) method [35] based on the non-uniform rational B-spline (NURBS) is applied to parametrize the NASA CRM wing–body–tail configuration, which can change the geometry by perturbing the FFD control point. As shown in Figure 1, the FFD volume has a total of 25 FFD volumetric blocks, one FFD volumetric block with 90 control points is used to parametrize the wing, and another one with 66 control points is used to parametrize the horizontal tail.

2.2. Laplacian Smoothing of Aerodynamic Shape

In a typical progression of surrogate-based ASO, a DoE method such as Latin hypercube sampling (LHS) [36] is used to generate initial sample points, and the sub-optimization defined by a certain infill-sampling criteria is used to select new samples in each SBO iteration. However, both DoE and sub-optimization are pure numerical methods designed to generate samples without considering feasibility. As a result, an increasing number of samples associated with unsmooth aerodynamic shapes are generated during optimization, which results in an unpractical optimal aerodynamic shape.

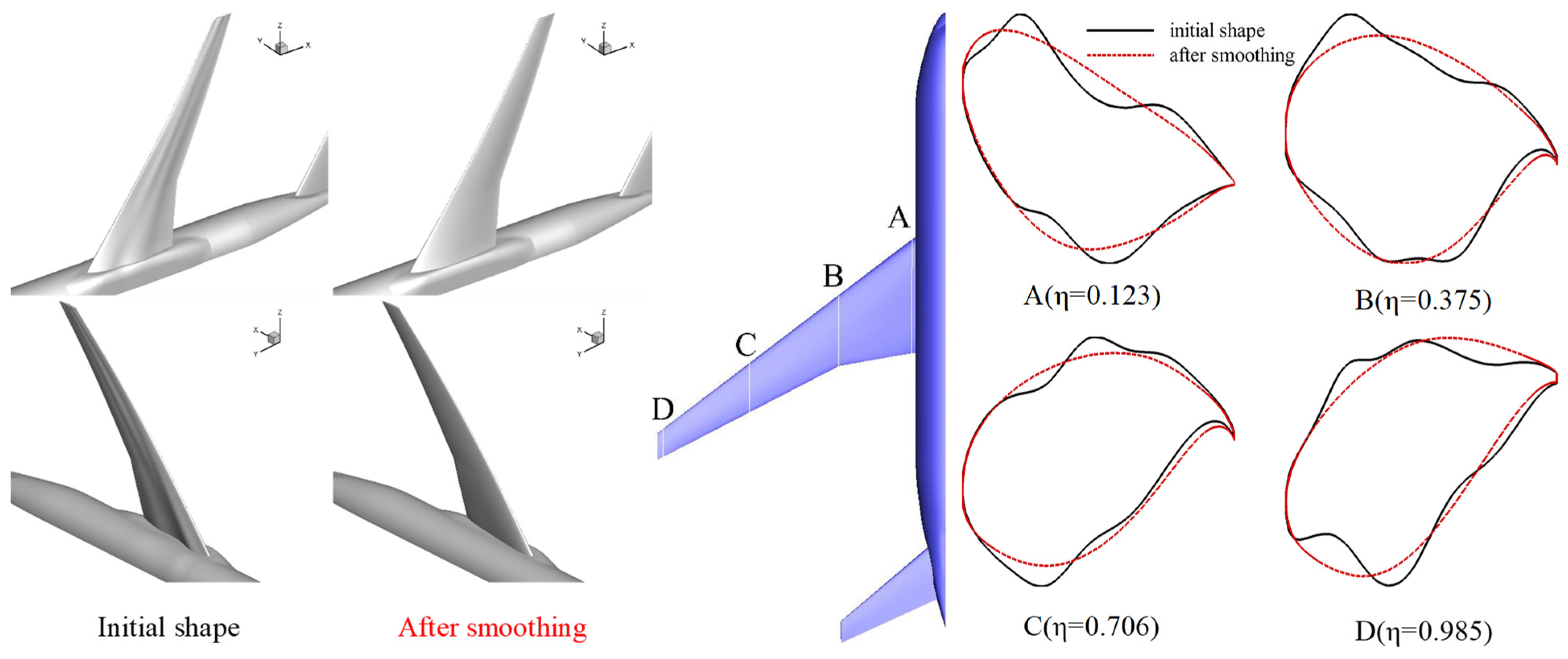

To address this issue, the Laplacian smoothing method is introduced in SBO to smooth the aerodynamic shapes corresponding to the samples generated by DoE and sub-optimization. The Laplacian smoothing method is defined as

$$y_{}^i=\theta y_{}^i+\frac{1-\theta }{n_{neighbor}}{\displaystyle {\sum }_{j=1}^{n_{neighbor}}{y}_{}^j},$$

(1)

where yⁱ denotes the y-direction deformation of the i-th FFD control point used to parameterize the wing and where θ is used as a weight coefficient, which can influence the smoothing operation speed. Li et al. found that a practical aerodynamic shape can be obtained via an efficient smoothing operation when θ = 0.5 [22]. Therefore, θ is set as 0.5 in this article. In addition, n_neighbor denotes the number of FFD control points adjacent to the i-th control point, and it is set as 4 for our studies.

The pseudo code of the Laplacian smoothing method is given in Algorithm 1, which describes the smoothing progress in detail. As shown in Figure 2, the aerodynamic shape of a typical sample obtained randomly via DoE is smoothed by using the Laplacian smoothing method, resulting in a smooth and practical aerodynamic shape.

Algorithm 1 Laplacian smoothing algorithm

Input yinitial /*initial y-axis direction deformations of FFD control point* / Output ysmoothing /*y-axis direction deformations of FFD control points obtained via Laplacian smoothing* / Procedure Smoothing (yinitial) ysmoothing = yinitial ${\epsilon }_g=0.035$ /*convergence criterion is set as 0.035* / ${\epsilon }_g=0$ vsmoothing = FED(yinitial) / * perform FFD parameterization and get initial y - axis deirection coordinates of the wing surface mesh * / while $\epsilon <{\epsilon }_g$ do    for each FFD control point i do      $y_{smoothing}^i={\theta y}_{smoothing}^i+\frac{1-\theta }{n_{neighbor}}{\sum }_{j=1}^{n_{neighbor}}{y}_{smoothing}^j$ / *Laplacian smoothing function * / *θ = 0.5 in this article, nneighbor = 4 for the wing* /    end for    Vsmoothing = FFD(ysmoothing) / *update the y - axis direction coordinates of the wing surface mesh * /    $ϵ=\frac{‖V_{smoothing}-V_{initial}‖}{‖V_{initial}‖}$ / * calculate the relative error * / end while end Procedure

2.3. Flow Solver

We use the open-source code “Adflow” as the flow solver [37]. It is a finite-volume, cell-centered multi-block solver for RANS equations, and can be employed to calculate the gradients required for the optimizations by using the discrete adjoint method.

2.3.1. Governing Equation of Flow and Discretization Scheme

For the control volume V and surface element dS, Navier–Stokes equations in integral form can be defined as

$${\displaystyle \underset{\Omega }{\iiint }\frac{\partial Q}{\partial t}dV}+{\displaystyle \underset{\partial \Omega }{\iint }\mathit{F}•\mathit{n}dS}={\displaystyle \underset{\partial \Omega }{\iint }{\mathit{F}}_{\mathit{v}}•\mathit{n}dS},$$

(2)

where $\mathit{Q}={\left[\rho ,\hspace{0.33em}\rho u,\hspace{0.33em}\rho v,\hspace{0.33em}\rho w,\hspace{0.33em}\rho E\right]}^T$ denotes the conservation variables. $\partial \Omega$ denotes the control volume boundary, n is the surface normal of $\partial \Omega$. $\mathit{q}={(u,v,w)}^T$ is the Cartesian velocity vector. $\rho$ is the density. $E$ is the specific total energy. $\mathit{F},{\mathit{F}}_{\mathit{v}}$ denote the inviscid and viscous flux vector, respectively.

The Jameson–Schmidt–Turkel (JST) scheme with second-order accuracy [38] is used for the spatial discretization. The spatial discretization of Equation (2) for each grid cell i can be expressed as

$$\frac{\partial \left({\mathit{Q}}_i{V}_i\right)}{\partial t}+\hspace{0.33em}{\overline{\mathit{R}}}_i=\mathbf{0},$$

(3)

where $V_i$ is the volume of current grid cell i. ${\overline{\mathit{R}}}_i={\mathit{R}}_i{}^c-{\mathit{R}}_i{}^v-{\mathit{D}}_i$ is the total residual of Equation (3), ${\mathit{R}}_i,{\mathit{R}}_i{}^v$ denote the residual of the inviscid and the viscous flux respectively, and ${\mathit{D}}_i$ is the artificial dissipation term added to prevent non-physical oscillations.

The first-order backward difference is performed on the time derivative term, Equation (3) can be written into the following implicit form

$$\frac{V_i\left({\mathit{Q}}_i{}^{k+1}-{\mathit{Q}}_i{}^k\right)}{\Delta t}+{\overline{\mathit{R}}}_i^{k+1}\hspace{0.33em}=\mathbf{0},$$

(4)

where ${\overline{\mathit{R}}}_i^{k+1}$ can be written as

$${\overline{\mathit{R}}}_i^{k+1}={\mathit{R}}_i^{c,k+1}-{\mathit{R}}_i^{v,k}-{\mathit{D}}_i^k,$$

(5)

where the superscript k represents the number of the time step. The diagonally dominant alternating direction implicit (DD-ADI) method [39] is employed for the implicit solution. Furthermore, the Spalart–Allmaras (SA) one-equation turbulence model is used to compute turbulence viscosity coefficient.

2.3.2. Discrete Adjoint Method

For ASO problems, derivatives of the cost functions F with respect to the design variables x can be obtained by

$$\frac{d\mathit{F}}{d\mathit{x}}=\frac{\partial \mathit{F}}{\partial \mathit{x}}+{\mathit{\psi }}^T\frac{\partial \mathit{R}}{\partial \mathit{x}},$$

(6)

where $\mathit{\psi }$ denotes the adjoint variables, and $\partial \mathit{R}/\partial \mathit{x}$ represents partial derivatives of the residual of the governing equations with respect to the design variables. $\mathit{\psi }$ can be achieved by solving adjoint equations.

$${\left[\frac{\partial \mathit{R}}{\partial \mathit{w}}\right]}^T\mathit{\psi }={\left[\frac{\partial \mathit{F}}{\partial \mathit{w}}\right]}^T,$$

(7)

where $\mathit{w}$ denotes flowfield variables, such as $\rho$ and $u,\hspace{0.33em}v,w$. The preconditioned generalized minimal residual (GMRES) [40] solver from PETSc [41] is used for solving the adjoint equations.

2.4. Mesh Perturbation Method

Since the deformations of the FFD control volumes can change the embedded geometry during optimization, an in-house mesh perturbation code “GridDeform” is used to perturb the CFD mesh according to the new geometry. The core idea of the mesh perturbation method used in this article is to interpolate the deformation of the surface mesh to the far field by using the radial basis function (RBF). In addition, the Intel Math Kernel Library (MKL) is used to solve large linear systems under the parallel computing environment, which makes the in-house mesh perturbation code capable of perturbing the CFD mesh with large-scale cells efficiently in parallel.

2.5. SBO Algorithm

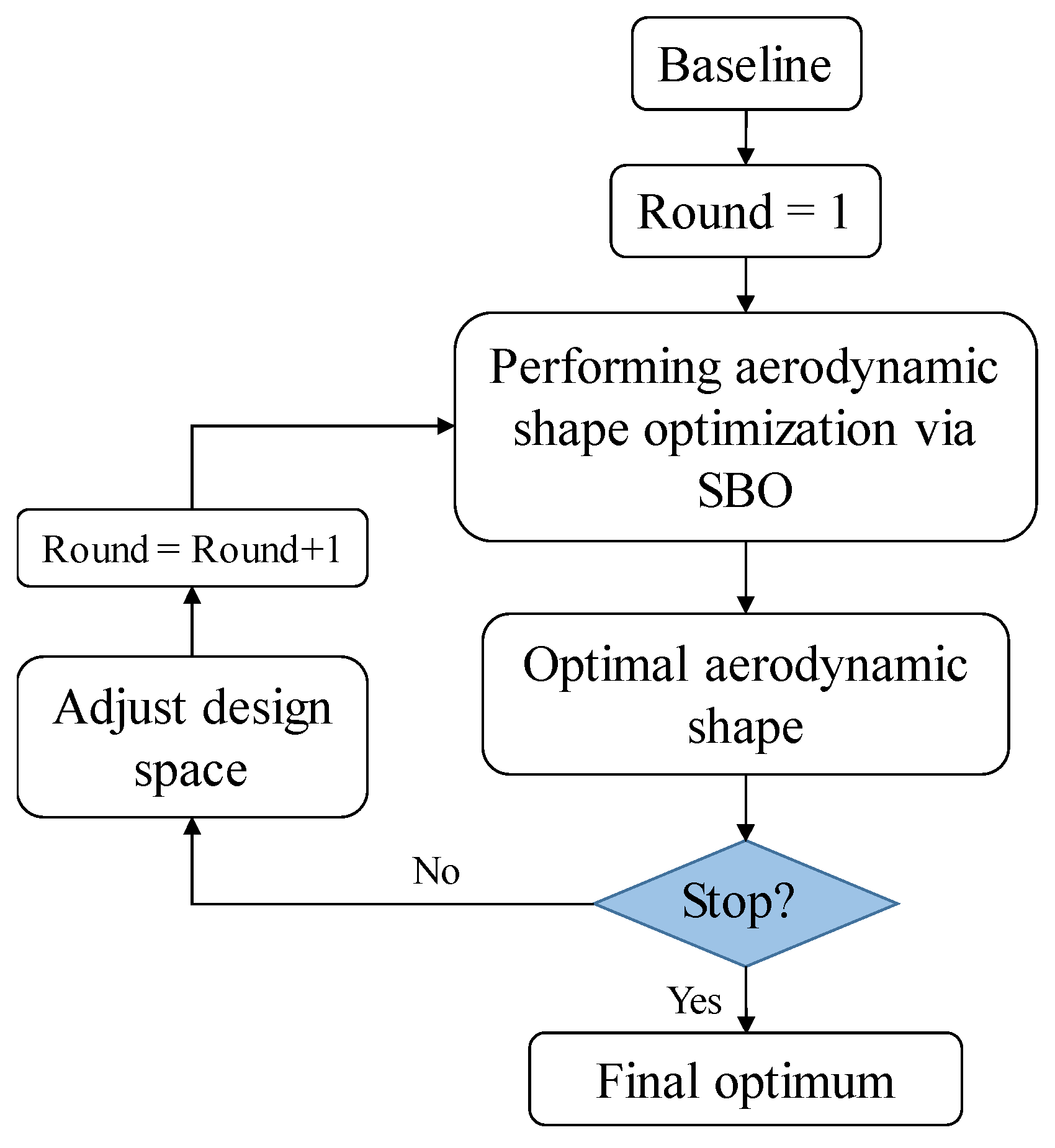

To find the global optimum, a surrogate-based multi-round optimization strategy is introduced into our study. The main loop of this method is shown in Figure 3. Its core idea is to adjust the design space in each round according to the optimal aerodynamic shape obtained from the previous round.

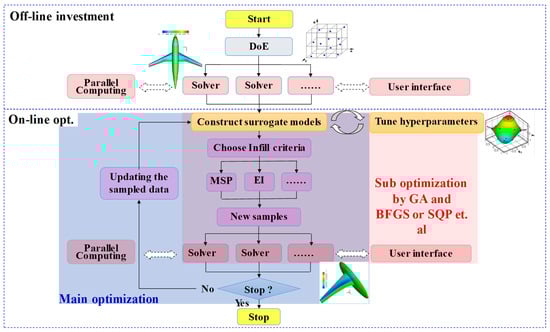

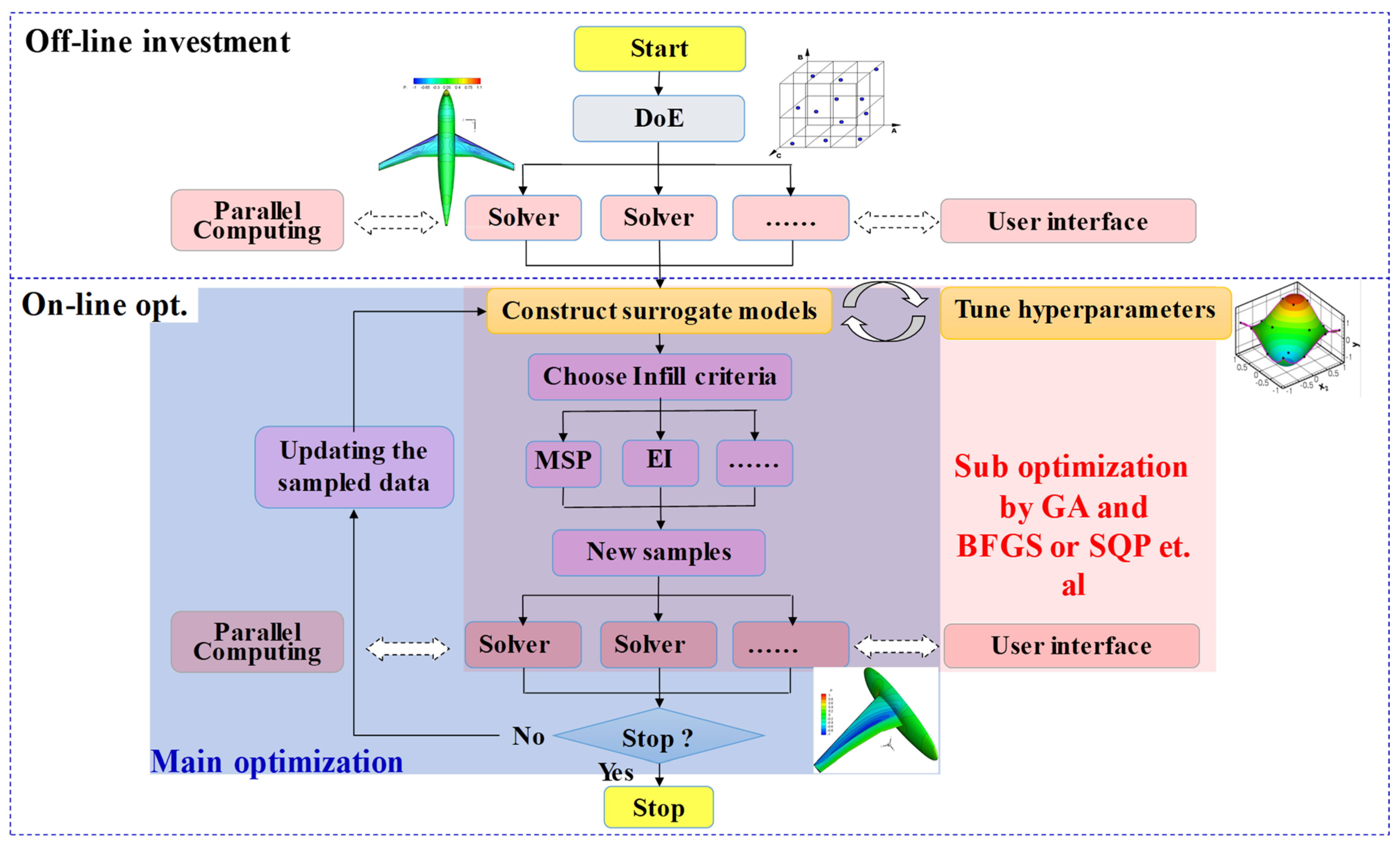

The in-house SBO code “SurroOpt” [8,42,43,44] is used in our studies. Figure 4 sketches the optimization framework of SurroOpt. The optimization progress can be described as

(1)

LHS is selected to generate 100 initial samples. Then, the aerodynamic shapes generated by these samples are smoothed by using the Laplacian smoothing method, and corresponding responses are solved by Adflow;

(2)

Initial kriging models are built based on the samples and corresponding responses;

(3)

The parallel infill-sampling criteria, combining the expected improvement (EI) and minimizing surrogate prediction (MSP), are used to generate two new samples. The new aerodynamic shapes are smoothed by using the Laplacian smoothing method, and corresponding responses are solved by Adflow;

(4)

Kriging models are updated based on these smoothed samples and their responses.

(5)

Steps 3 and 4 are repeated until one of the termination conditions is satisfied.

3. Problem Formulation

3.1. Baseline Geometry

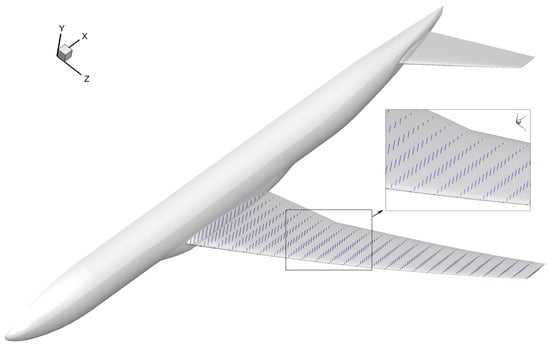

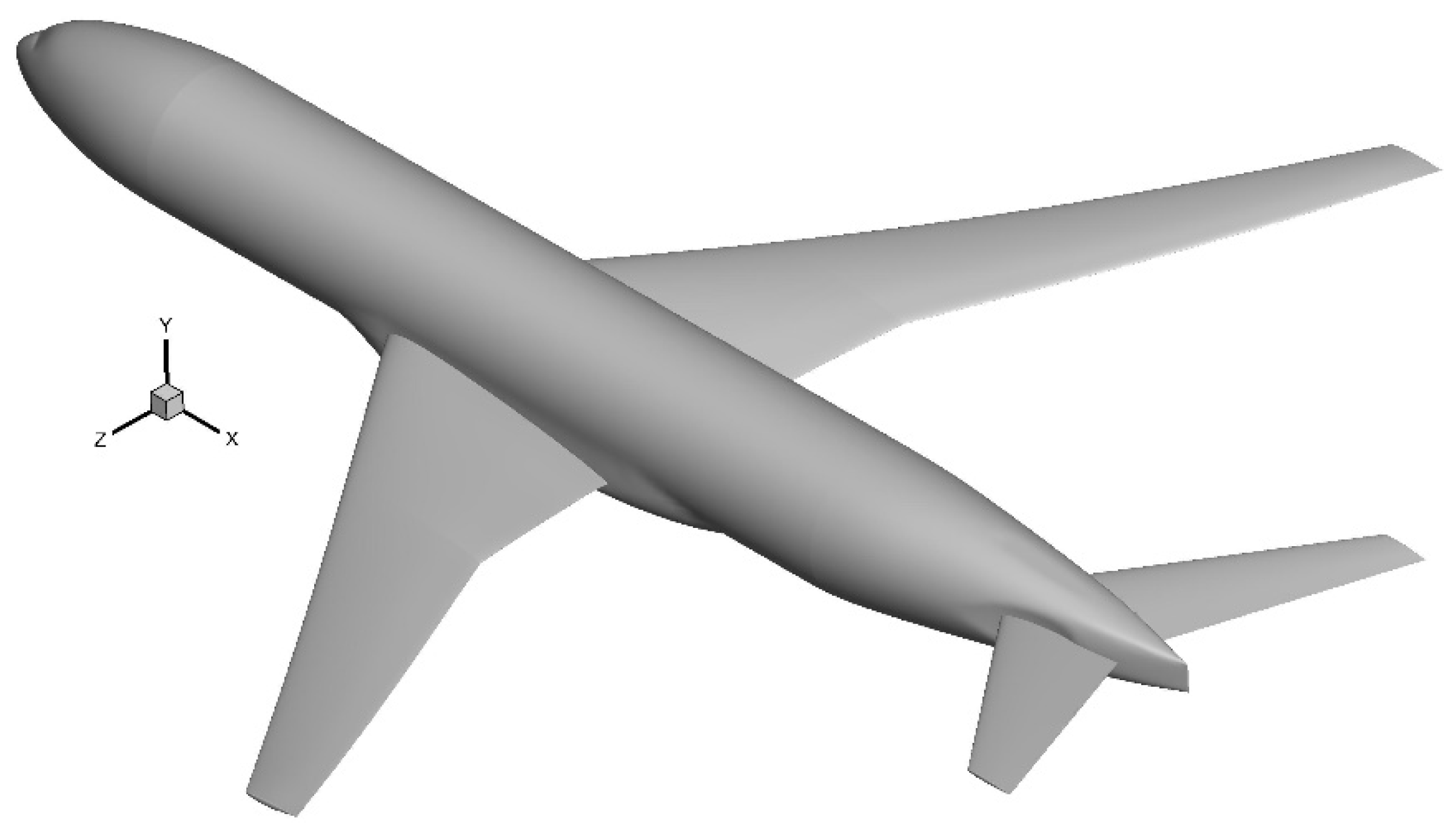

The NASA CRM wing–body–tail configuration is treated as the baseline geometry, as shown in Figure 5. The reference point is located at 25% of mean aerodynamic chord. The nose is located at the origin of coordinates and the span-wise direction is set parallel to the z-axis direction. The reference point is located at (x, y, z) = (31.32972, −0.50934, 0.007669) m. The reference length is 7.00532 m, and the reference area is 191.8448 m².

3.2. Mesh Convergence Study

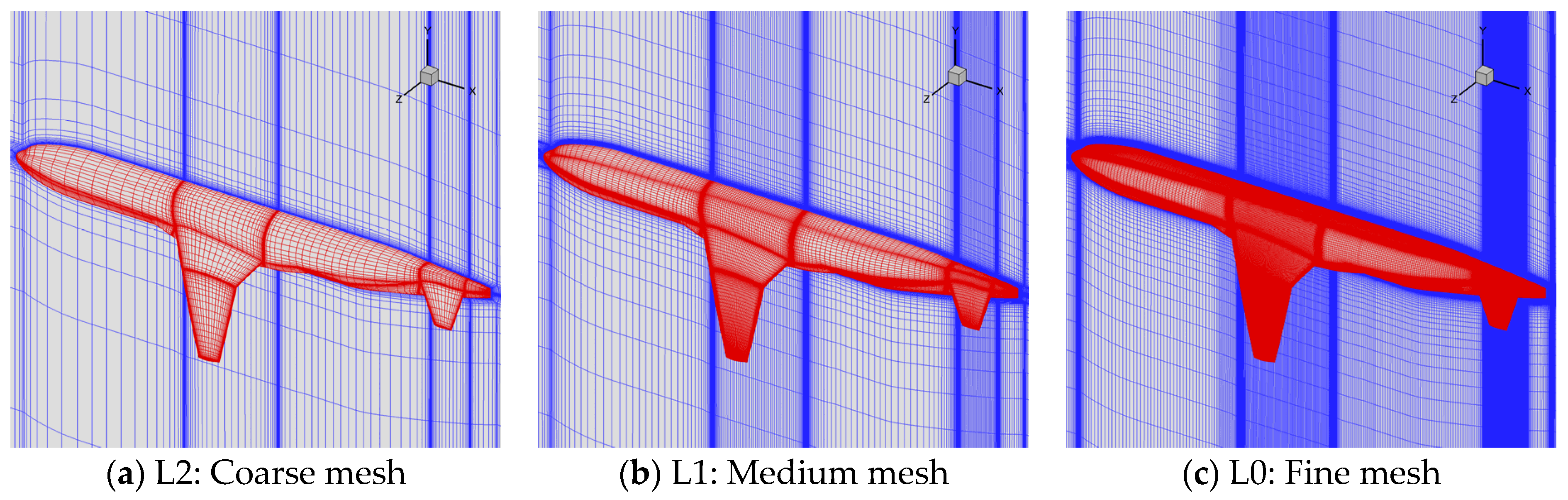

Three coarsening levels of multi-block CFD structured grids are generated by ANSYS ICEM CFD and shown in Figure 6. L2, L1, and L0 represent the coarse grid, medium grid, and fine grid, respectively, and each grid has 273 blocks. The first cell height ∆₁, mesh size, and y+ values are listed in

Table 1. Details of baseline CFD grids.

Number	∆1	Y+	Number of Cells (Million)
L2	3.69 × 10−5	1.0	0.887
L1	2.46 × 10−5	2/3	6.776
L0	1.64 × 10−5	4/9	59.355

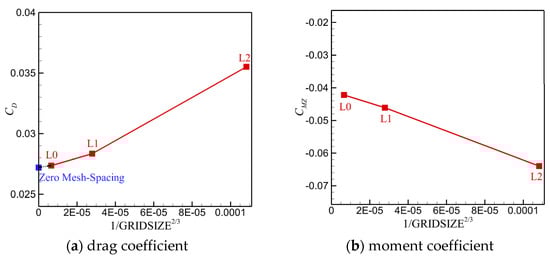

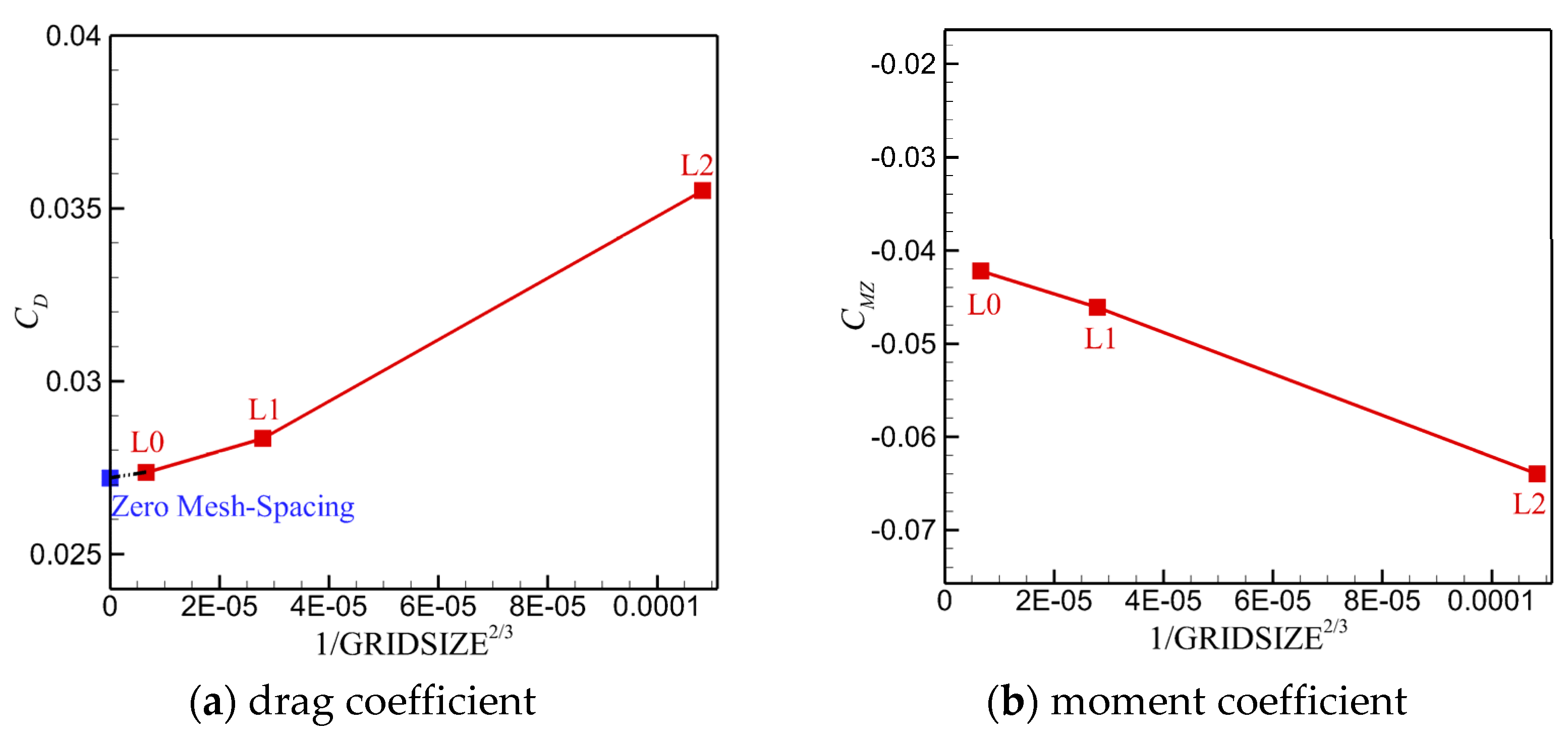

. A grid convergence study is performed based on these meshes. The flow condition is the lift coefficient C _L = 0.5, the freestream Mach number Ma = 0.85, and the Reynolds number Re = 5 × 10⁶. In addition, the drag coefficient C_D of the infinite-cell-grid is evaluated via Richardson extrapolation.

Table 2. CFD simulation results of the mesh convergence study.

Mesh Levels	CL	CD	CMZ
L00	0.5	0.02720	/
L0	0.5	0.02736	−0.0422
L1	0.5	0.02838	−0.0463
L2	0.5	0.03351	−0.0640

lists the CFD simulation results of the baseline meshes. It is obvious that the drag coefficient of the baseline geometry decreases with increasing mesh size, while the moment coefficient increases. The same trend can be seen in Figure 7, which shows the drag and moment convergence plots with respect to 1/MeshSize^2/3. The drag coefficient of the L0 grid is only 1.6 counts more than the zero grid spacing drag, which proves that the accuracy of the L0 mesh is close to the infinite-cell-grid.

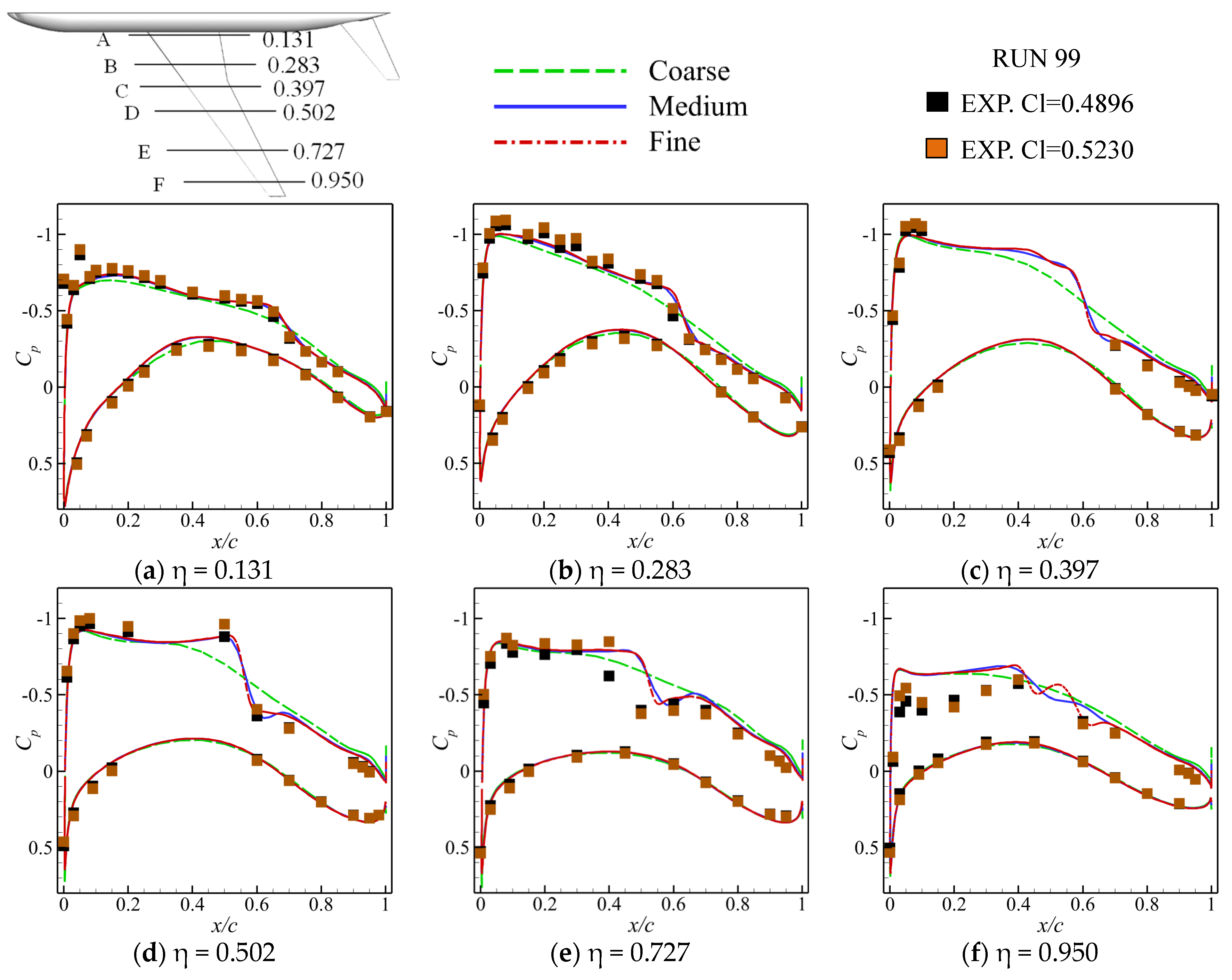

Figure 8 compares sectional pressure distributions from the CFD simulation results with the experimental data from the National Transonic Facility (NTF) test. We can see that the CFD results get closer to the experimental data with increasing mesh size, and the L1 and L0 grids have sufficient accuracy. After considering the trade-off between computational time and accuracy, L1 mesh is applied to optimizations.

3.3. Optimization Problem Formulation

To ensure the lift constraint C_L = 0.5 is satisfied, the angle of attack is treated as a design variable. As shown in Figure 1, the wing FFD volumetric block has a total of 90 control points. To fix the leading and trailing edge of the wing, the two control points at these locations of each control section share one design variable to move the same distance along the opposite directions. We also choose the y-axis direction displacements of the other 70 control points as design variables. Therefore, there are 80 wing shape variables in total.

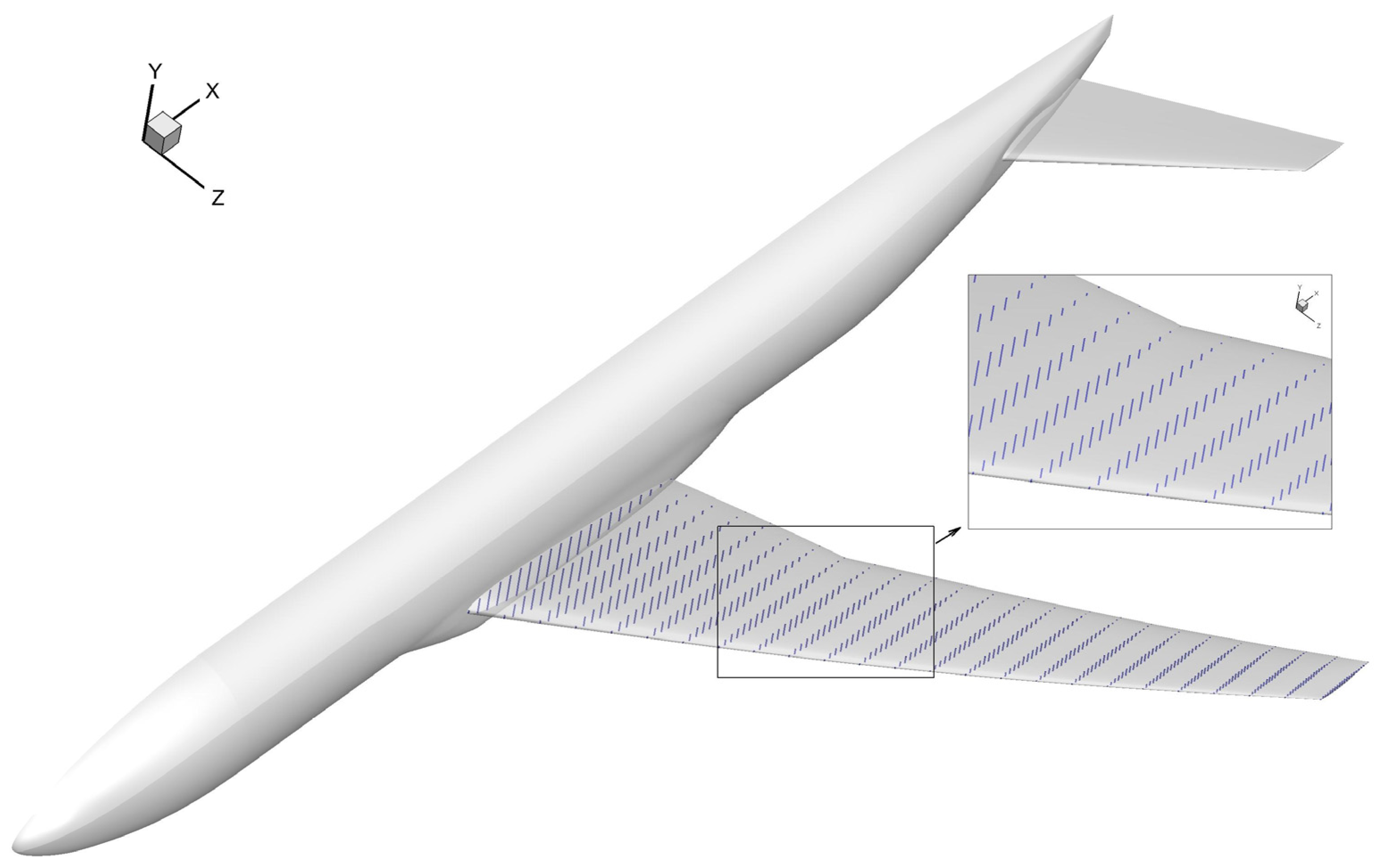

To ensure that a practical design can be obtained, a volume constraint and a large number of thickness constraints are added to the optimization. The volume is enforced to be no less than that of the baseline wing. As shown in Figure 9, we impose 525 thickness constraints on the wing with 25 spanwise and 21 chordwise locations. These thicknesses are enforced to be no less than 85% of those of the baseline wing. To handle so many geometric constraints efficiently, the constant-parameter Kreisselmeier–Steinhauser (KS) method [45] is adopted to lump all the thickness constraints into one during optimization. Thus, the cost of optimization is greatly reduced. The KS method can be defined as

$$KS\left[\mathit{g}\left(\mathit{x}\right)\right]=g_{\max }\left(\mathit{x}\right)+\frac{1}{{\rho }_{ks}}\ln \left[{\displaystyle \sum _{j=1}^n{e}^{\rho \left(g_j\left(x\right)-g_{\max }\left(x\right)\right)}}\right]$$

(8)

where g_max(x) denotes the maximum constraint value, and ${\rho }_{ks}$ is the aggregation parameter.

Two optimization strategies are adopted in this study. The first strategy optimizes the wing–body–tail configuration without considering trimming and then manually trims the optimized configuration by deflecting the horizontal tail as a solid body. The second strategy enforces the balanced pitching moment as a constraint of the optimization, and the trimming is realized automatically by treating the tail deflection angle as a design variable. The tail rotation axis is parallel to the z-axis and is located at 40% of the tail root chord. Figure 10 shows the −6° deflection of the horizontal tail relative to the original configuration. The design variables and constraints used for both strategies are listed in

Table 3. Summary of all optimization strategies.

Optimization Strategy	Design Variables		Objective	Constraints
	Description	Quantity		Function	Description	Quantity
Strategy I	Angle of attack	1	Min. CD	CL = 0.5	Lift constraint	1
				t−0.85t0 ≥ 0	Geometric constraints	525
				v ≥ v0	Volume constraint	1
	Wing shape	80		$\Delta y_{LE}^{\mathrm{upper}}=-\Delta y_{\mathrm{LE}}^{\mathrm{lower}}$	Fix the leading edge	5
				$\Delta y_{\mathrm{TE}}^{\mathrm{upper}}=-\Delta y_{\mathrm{TE}}^{\mathrm{lower}}$	Fix the trailing edge	5
Strategy II	Angle of attack	1	Min. CD	CL =0.5		1
				CMZ= 0	zero pitching moment constraint	1
	Wing shape	80		t−0.85t0 ≥ 0		525
				v ≥ v0		1
	Tail deflection angle	1		$\Delta y_{\mathrm{LE}}^{\mathrm{upper}}=-\Delta y_{\mathrm{LE}}^{\mathrm{lower}}$		5
				$\Delta y_{\mathrm{TE}}^{\mathrm{upper}}=-\Delta y_{\mathrm{TE}}^{\mathrm{lower}}$		5

.

4. Optimization Results

The ASO of the NASA CRM wing–body–tail configuration is performed via SBO and GBO in this section. For SBO, a multi-round optimization strategy is used to drive ASO towards the global optimum. The LHS method is used to select initial samples. EI and MSP are used to select 2 new samples, corresponding responses are solved simultaneously to update the surrogate models. For GBO, the gradient-based optimizer based on sequential quadratic programming (SQP) is used in our studies, and the gradients are provided by Adflow. All optimization works are conducted by the advanced TH-1A computing system at the National Supercomputer Center (NSCC) in Tianjin. Each computing node in this cluster has two 2.6 GHz Intel Xeon CPUs (e5-2690 V4) and 128 GB RAM in total.

4.1. Strategy I: Untrimmed Optimization + Manual Trimming

This strategy optimizes the wing only and then manually trims the optimized configuration by deflecting the horizontal tail as a solid body.

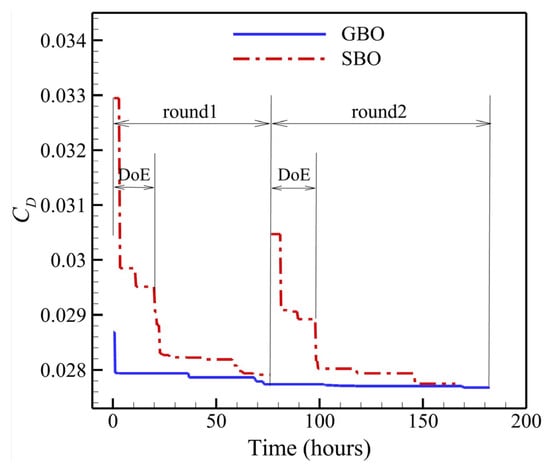

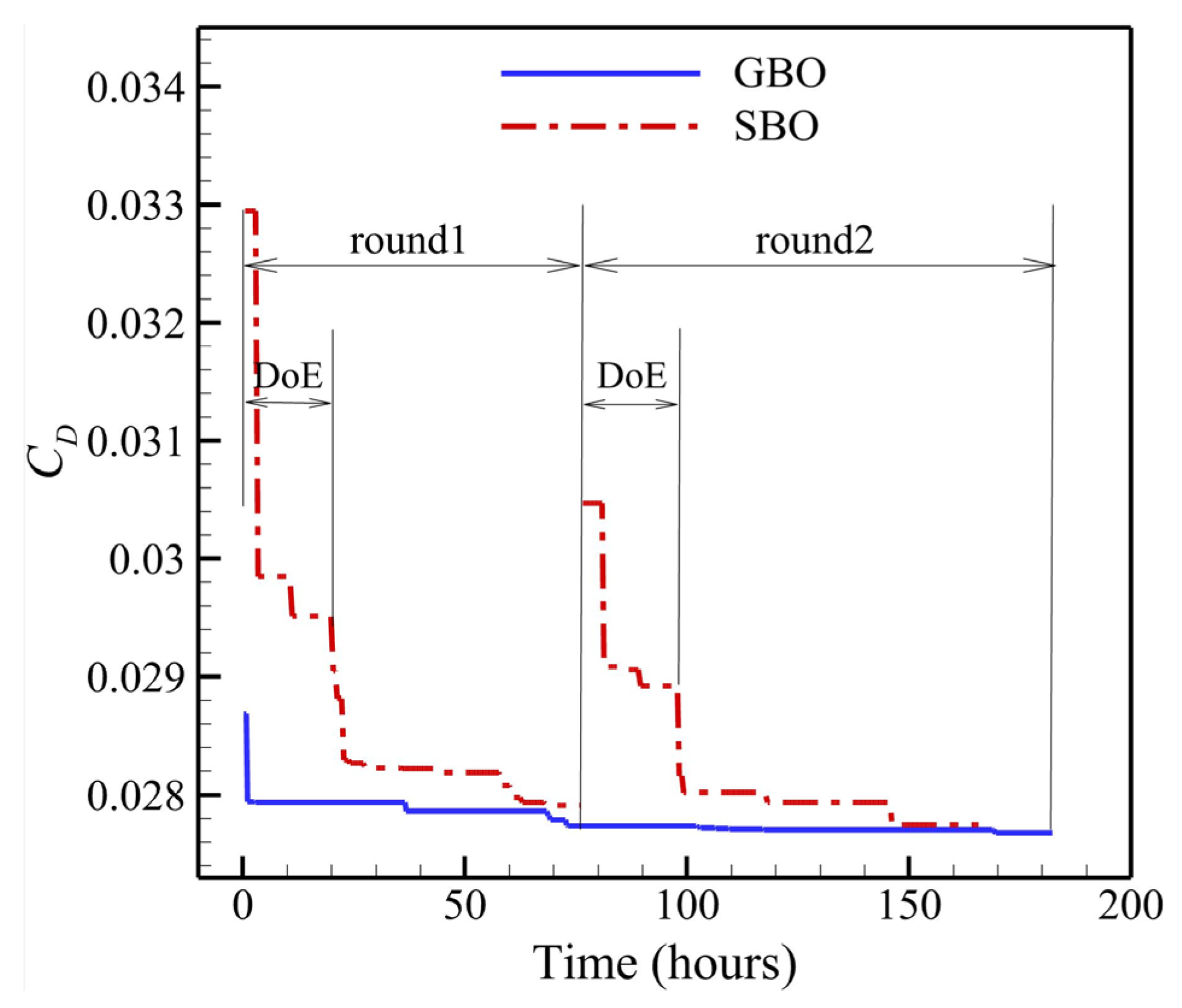

Convergence histories of the objectives are shown in Figure 11. The time costs of the optimizations are listed in

Table 4. Time cost of optimization via Strategy I.

Optimization Algorithm	Computational Cost (Hours)
GBO	182.27
SBO	165.58

; we can see that SBO is more efficient than GBO for the current example with 81 design variables, since the responses of the two new samples generated by EI and MSP are solved simultaneously in each iteration of SBO. The optimal objective function value obtained via SBO is comparable to that obtained via GBO. Figure 12 shows the pressure distributions of the baseline and optimal configurations, the shock wave on the suction side is notably weakened after the optimization. The drag coefficient drops from 283.77 counts to 277.48 counts after two rounds of optimizations within the framework of SBO, which is only 0.65 counts more than that (276.83 counts) obtained via GBO.

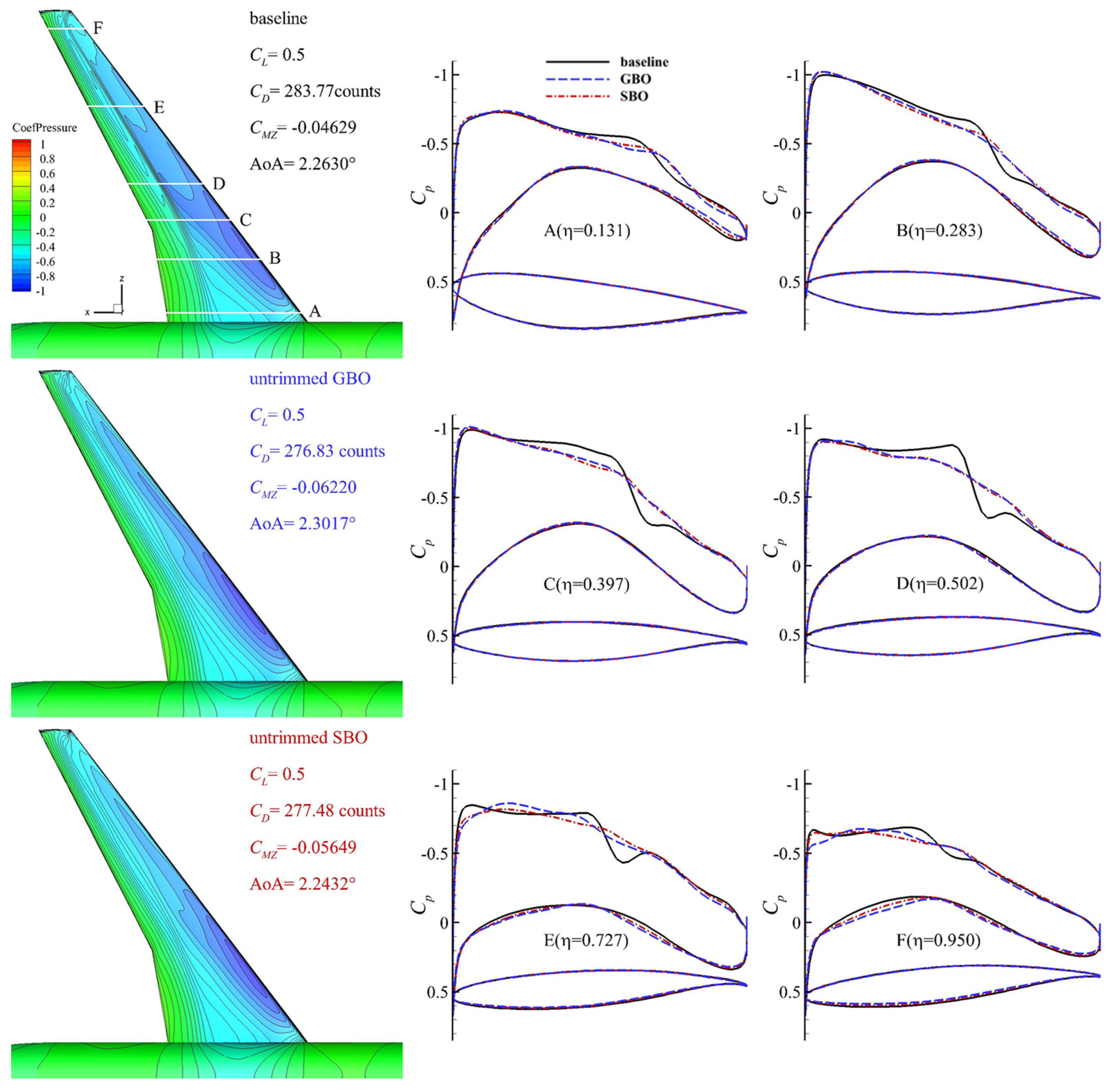

The optimal configurations obtained via Strategy I are then trimmed manually. Figure 13 depicts the pressure distributions of the baseline and trimmed configurations. The tail horizontal deflection angles are −0.835° and −0.899° for SBO and GBO, respectively, which results in zero pitching moment coefficient for the optimal configurations, leaving the total drag coefficient at 281.77 counts and 281.4 counts due to the trim drag. The trim drag coefficient is about 4 counts.

4.2. Strategy II: Trimmed Optimization

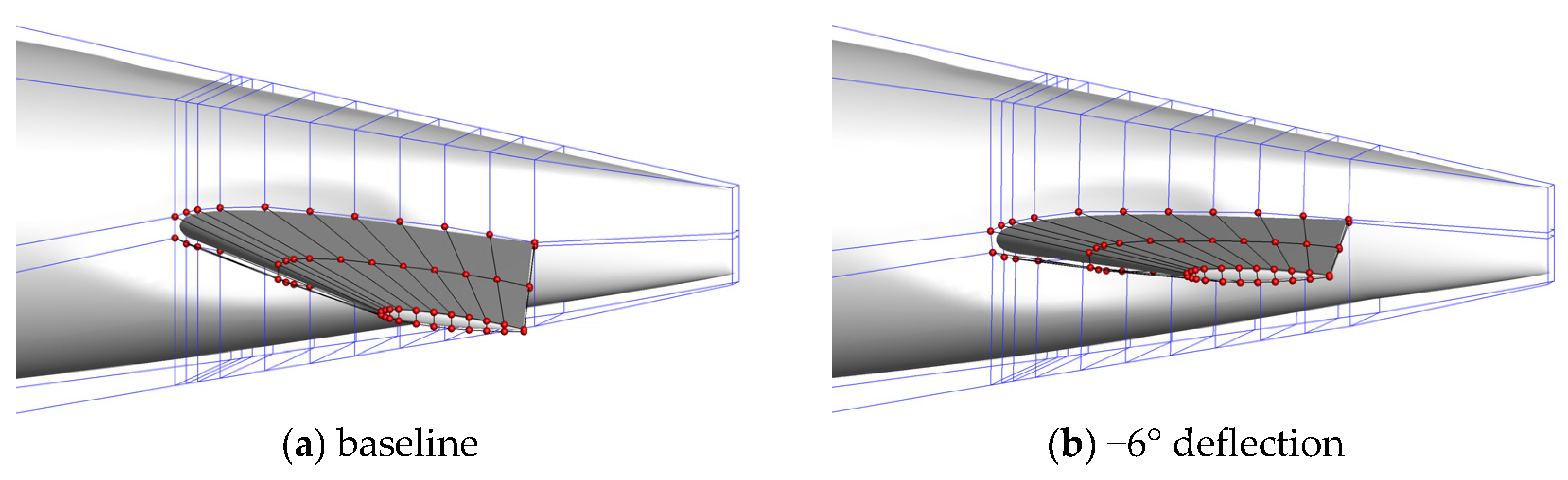

For this strategy, the tail deflection angle is treated as a design variable to trim the aircraft, and the balanced pitching moment constraint is enforced to ensure that the pitch moment coefficient is zero.

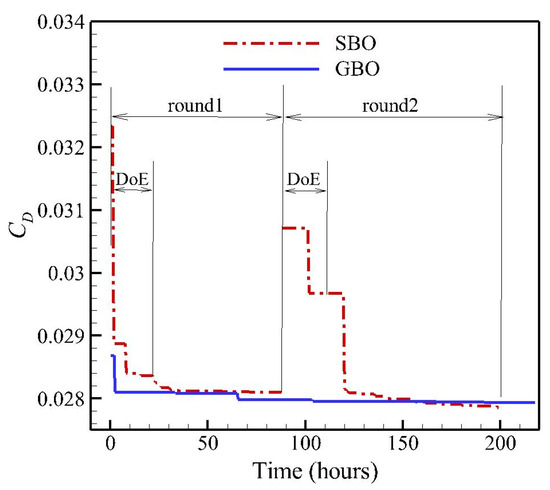

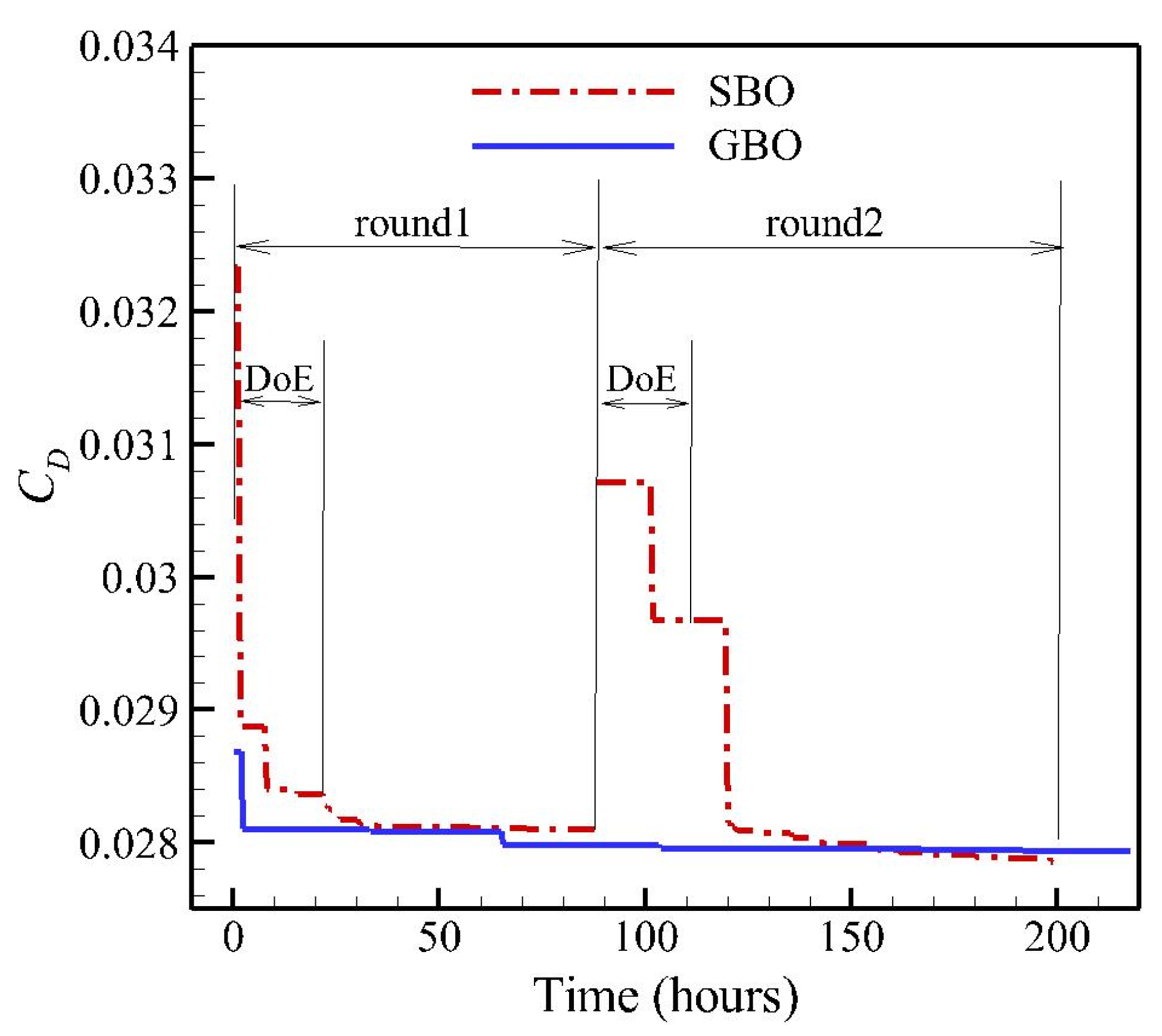

Convergence histories of the objectives obtained via SBO and GBO are plotted in Figure 14. The time costs of the optimizations are listed in

Table 5. Time cost of optimization via Strategy II.

Optimization Algorithm	Computational Cost (Hours)
GBO	218.14
SBO	200.25

, we can see that SBO is more efficient than GBO for the design of complex aircraft configurations with 82 design variables, since the responses of the two new samples generated by EI and MSP are solved simultaneously in each iteration of SBO. Figure 15 depicts the pressure distributions of the baseline and trimmed configurations. The shock wave on the suction side is weakened obviously after optimization. The drag coefficient drops from 283.77 counts to 278.61 counts after two rounds of optimizations within the framework of SBO, which is only 0.77 counts different from that (279.38 counts) obtained via GBO.

4.3. Comparison of the Results Obtained by Using Different Optimization Strategies

The optimization results obtained by all optimization strategies are compared, as listed in

Table 6. Comparison of the results of all optimization strategies.

Optimization Strategy		CL	CD (Counts)	CMZ	Tail Deflection Angle	Angle of Attack
Strategy I	untrimmed	0.5	277.48	−0.05649	0°	2.2432°
	trimmed manually	0.5	281.77	0	−0.8350°	2.3487°
Strategy II		0.5	278.61	0	−0.3996°	2.3604°

. It is obvious that better optimal configurations can be obtained by considering trimming during optimization via Strategy II compared with Strategy I. A total of 3.16-drag-count drag-reducing benefits is achieved by considering trimming during optimization rather than trimming the optimized configuration manually. In addition, the optimization results obtained by GBO and SBO are compared, as listed in

Table 7. Comparison of the results obtained via different optimization methods.

Optimization Method		CL	CD (Counts)	CMZ	Tail Deflection Angle	Angle of Attack
GBO	Strategy I: trimmed manually	0.5	281.40	0	−0.8990°	2.4087°
	Strategy II	0.5	279.38	0	−0.4065°	2.3543°
SBO	Strategy I: trimmed manually	0.5	281.77	0	−0.8350°	2.3487°
	Strategy II	0.5	278.61	0	−0.3996°	2.3604°

. One can see that the benefit of ASO achieved by SBO is comparable to that obtained by GBO, since the difference between the results obtained by these two optimization algorithms is less than 1 drag count.

5. Conclusions

In this article, the ASO of a full aircraft configuration considering trimming was investigated within the framework of a surrogate-based efficient global optimization. Two optimization strategies were adopted to optimize the NASA CRM wing–body–tail configuration. The first strategy optimizes the wing directly and then manually trims the optimized configuration by deflecting the horizontal tail. The second strategy optimizes the configuration considering trimming by adding a balanced pitching moment constraint during optimization. The optimization results are compared with those obtained via gradient-based optimization with gradients computed by the adjoint method, and the following conclusions can be drawn:

(1) Surrogate-based optimization combining the multi-round optimization strategy and Laplacian smoothing offers great potential in ASO of a full aircraft configuration. For the current test examples, it is more efficient than gradient-based optimization for design problems with around 80 design variables, and the drag reduction is comparable possibly due to the unimodal feature of the NASA CRM wing ASO [46,47]. As the number of design variables increases, gradient-based optimization becomes more efficient than surrogate-based optimization.

(2) The benefit of drag minimization can be expected to lose approximately 4 drag counts when trimming the optimal configuration obtained via untrimmed optimization. Therefore, when optimizing the wing–body–tail configuration, it is necessary to consider the influence of the trim drag on the optimization results.

(3) Compared with the strategy that manually trims the optimal configuration obtained from an untrimmed optimization, a trimmed optimization can achieve 3.16-drag-count drag-reducing benefits by enforcing the balanced pitching moment constraint during optimization.

Beyond the scope of this article, gradient-enhanced surrogate model will be investigated for the ASO of a full aircraft configuration.
