AgIn5S8/g-C3N4 Composite Photocatalyst Coupled with Low-Temperature Plasma-Enhanced Degradation of Hydroxypropyl-Guar-Simulated Oilfield Wastewater

by
Xiang Li
1,2,*,
Yuhang Zhang
1,
Yiling Wang
1,
Li Zhu
1,
Yuhang Liu
1 and
Lingxing Wang
1
1
School of Civil Engineering and Architecture, Chongqing University of Science and Technology, Chongqing 401331, China
2
Key Laboratory of the Three Gorges Reservoir Regions Eco-Environment, State Ministry of Education, Chongqing University, Chongqing 400045, China
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(12), 2862; https://doi.org/10.3390/molecules29122862
Submission received: 13 May 2024 / Revised: 11 June 2024 / Accepted: 14 June 2024 / Published: 16 June 2024
(This article belongs to the Special Issue Chemical Research on Photosensitive Materials)
Browse Figures
Versions Notes

Abstract

:
The effective treatment and recovery of fracturing wastewater has always been one of the difficult problems to be solved in oilfield wastewater treatment. Accordingly, in this paper, photocatalytic-coupled low-temperature plasma technology was used to degrade the simulated wastewater containing hydroxypropyl guar, the main component of fracturing fluid. Results indicated that hydroxypropyl-guar wastewater could be degraded to a certain extent by either photocatalytic technology or plasma technology; the chemical oxygen demand and viscosity of the treated wastewater under two single-technique optimal conditions were 781 mg·L−1, 0.79 mPa·s−1 and 1296 mg·L−1, 1.01 mPa·s−1, respectively. Furthermore, the effective coupling of AgIn5S8/gC3N4 photocatalysis and dielectric-barrier discharge–low-temperature plasma not only enhanced the degradation degree of hydroxypropyl guar but also improved its degradation efficiency. Under the optimal conditions of coupling treatment, the hydroxypropyl-guar wastewater achieved the effect of a single treatment within 6 min, and the chemical oxygen demand and viscosity of the treated wastewater reduced to below 490 mg·L−1 and 0.65 mPa·s−1, respectively. In the process of coupled treatment, the AgIn5S8/gC3N4 could directly absorb the light and strong electric field generated by the system discharge and play an important role in the photocatalytic degradation, thus effectively improving the energy utilization rate of the discharge system and enhancing the degradation efficiency of hydroxypropyl guar.

1. Introduction

Petroleum is a strategic resource of a country and is non-renewable. The exploitation of low-permeability oilfields is the focus of oil exploitation. Therefore, in order to develop low-permeability oil and gas fields with high efficiency and low cost, techniques such as increasing production and injection by fracturing in oil wells and repeated acidification are often adopted [1,2,3]. Among them, fracturing stimulation technology has become the main measure for the production of such oil and gas fields. The wastewater produced after oilfield fracturing operations has the characteristics of high turbidity, high viscosity, and high chemical oxygen demand (COD), which is the most difficult wastewater in oilfield wastewater treatment [4,5,6,7]. This kind of wastewater is large and highly dispersed, and if not treated effectively, it will cause serious pollution to the environment. How to effectively treat and recycle oilfield fracturing wastewater while maintaining energy conservation and emission reduction, environmental protection and water resources protection is one of the urgent problems to be solved at present. Therefore, it is of great practical significance to develop low permeability oil and gas fields with high efficiency and low cost to carry out the research on fracturing wastewater treatment technology suitable for the current situation of fracturing operations in oil and gas fields.
Oilfield fracturing wastewater is characterized by a large amount of water, complex and stable organic composition, and difficult to degrade [8,9,10]. The high viscosity and high CODCr characteristics of oilfield fracturing wastewater are both derived from the large number of polymer hydroxypropyl-guar compounds contained in the wastewater. In theory, if the chain of hydroxypropyl-guar molecules in the wastewater can be broken up to degrade it into small molecular substances, the viscosity of the wastewater would be greatly reduced and can improve the biochemical properties of wastewater to reduce the load of subsequent treatments. However, the research on its degradation technology in the world is still in the initial stage. The treatment effect of traditional chemical and physical methods is not ideal. If the membrane processing method is used, the cost is high and the requirements for equipment operation and maintenance are also relatively high [10,11,12,13]. In addition, the existing process always has some restrictive disadvantages, or the CODcr and viscosity of the degraded wastewater still make it difficult to meet the requirements of the subsequent biological treatment, or the treatment time and cost are high. Therefore, the study of oilfield fracturing wastewater treatment technology has become a focus of many experts, scholars, and engineers.
Photocatalytic technology is an advanced water treatment technology that has been used in recent years. It is a simple process that has the advantages of effectively damaging the structure of organic pollutants, low energy consumption and raw material consumption, and does not cause damage to the background environment or secondary pollution [14,15,16,17,18,19,20]. Therefore, it is a promising environmentally friendly water treatment method. In recent years, photocatalytic technology is mainly used in the degradation of printing and dyeing wastewater [21,22,23], papermaking wastewater [24,25], pharmaceutical wastewater [26], and other fields. Recent studies have shown that photocatalytic technology has great potential in the field of oily wastewater treatment [27,28,29]. Therefore, researchers began to focus on photocatalytic treatment of oily wastewater. However, the conventional photocatalyst treatment of oilfield fracturing wastewater still cannot achieve the desired effect. The development of new photocatalysts for selective and efficient treatment of oilfield fracturing wastewater or the use of some coupling technologies to achieve the pretreatment effect is a difficulty in this field.
Low-temperature plasma technology is a new advanced oxidation technology in the field of international environmental engineering in recent years [30,31,32]. Unlike the traditional advanced oxidation technology, low-temperature plasma technology can produce many high-energy particles with super-chemical activity (electrons, ions, ·OH and other free radicals, ultraviolet light, etc.) through plasma discharge. These high-energy particles can stimulate the activity of neutral particles, so as to force various high-energy organic bonds (such as C-C, C=O, C=C) to break, and finally reduce the molecular weight of high molecular organic matter and the viscosity of high molecular organic wastewater [31,32,33]. In view of the characteristics of low-temperature plasma and its various characteristics in the degradation of organic compounds, it can be found that due to the limitations of technical conditions, it cannot be used as an independent technology for the degradation of high concentration polymer organic wastewater. However, it can break the macromolecular chain, reduce the viscosity of polymer solution, and thus, it has great potential to reduce the difficulty of chemical and biochemical treatment of refractory organic compounds.
In view of the difficult degradation characteristics of oilfield fracturing wastewater, this paper carried out a study on the combined treatment process, combining photocatalytic technology with low-temperature plasma technology to strengthen the degradation of polymer organic components in fracturing wastewater, so as to effectively improve the biodegradability of wastewater. In the process of low-temperature plasma treatment of wastewater, in addition to the effective degradation chemical reaction caused by active substances in the system, the physical effects such as light and the electric field produced by the discharge can also induce the chemical reaction process. In addition, in order to improve the energy utilization rate of the discharge system, it is a very reasonable and effective method to improve the efficiency of light and the electric field. Studies have shown that UV light and a strong electric field generated by the plasma discharge can stimulate photocatalytic materials. Therefore, the introduction of nano-composite photocatalytic materials in this process can directly absorb the light and strong electric field generated by the discharge of the system to have a photocatalytic degradation effect, so as to effectively improve the energy utilization rate of the discharge system and enhance the degradation efficiency of polymer organic matter.

2. Results and Discussion

2.1. Photocatalytic Activity of AgIn5S8/g-C3N4 for Hydroxypropyl-Guar Wastewater

The experimental results of the major factors affecting AgIn5S8/g-C3N4 photocatalytic degradation of hydroxypropyl-guar wastewater are shown in Figure 1. It is clear that the load rate of g-C3N4 on the photocatalyst is one of the main factors affecting its photocatalytic properties. With an increase in the g-C3N4 load rate (5~25%), the photocatalytic effect of AgIn5S8/g-C3N4 on hydroxypropyl guar increased significantly, and when the g-C3N4 load rate exceeded 25% and continued to increase, the photocatalytic performance of the material was reduced, manifested in the decrease in the COD removal rate of the treated water samples (Figure 1a: 50 mg/L of AgIn5S8/g-C3N4 dosage, 7 of pH, 10 min of treatment time, 25 °C). The deteriorating photocatalytic performance of the 35% g-C3N4 load rate can be attributed to the overload of g-C3N4 covering the entire surface of AgIn5S8, resulting in poor AgIn5S8 photosensitizer collection and also reducing the active site on the AgIn5S8 surface. In addition, the AgIn5S8 nanoparticles would also cluster together under light exposure. Therefore, composite photocatalysts with a 25% g-C3N4 load rate have the best catalytic properties. Meanwhile, the above results also clearly indicate that the synergistic effect between AgIn5S8 and g-C3N4 played an important role in the photocatalytic process.
The dosage of the photocatalyst would affect the number of oxidation activity factors. It was necessary to study, under the same conditions, its effect on the degradation of hydroxypropyl guar (Figure 1b: 25% of g-C3N4 load rate, 7 of pH, 10 min of treatment time, 25 °C). When the AgIn5S8/g-C3N4 dosage was 70 mg/L, the best degradation of hydroxypropyl guar was obtained. When the dosage of the photocatalyst was less than 70 mg/L, less photocatalyst produced insufficient active species, and the reduction effect of pollutants was not optimal. Conversely, when the dosage of the photocatalyst exceeded 70 mg/L, excessive photocatalyst powder would increase the solid phase content of the suspension, so that the visible light was blocked by excessive catalyst [34,35,36]. Therefore, the process of photon delivery to the surface of the photocatalyst powder was affected, preventing the production of the active species, and thus causing a decrease in the efficiency of the photocatalytic degradation of hydroxypropyl guar.
It has been shown that the solution pH would affect the degradation effect of the photocatalyst on organic matter, so it was necessary to evaluate the effect of pH on the degradation of hydroxypropyl guar by AgIn5S8/g-C3N4 (Figure 2c: 25% of g-C3N4 load rate, 70 mg/L of AgIn5S8/g-C3N4 dosage, 10 min of treatment time, 25 °C). As shown in Figure 2c, in the process of increasing the solution pH from 3 to 10, the degradation effect of the photocatalyst for hydroxypropyl guar was first increased and then reduced, and the optimal solution pH was 4. The pH of the solution could affect the charge distribution on the surface of the composite photocatalyst, and there was a large amount of H+ in the weakly acidic aqueous solution, which was conducive to the formation of reactive oxygen species [37,38].
As can be seen from Figure 1d (25% of g-C3N4 load rate, 70 mg/L of AgIn5S8/g-C3N4 dosage, 4 of pH, 10 min of treatment time), the solution temperature had a great impact on the degradation of hydroxypropyl guar by the AgIn5S8/g-C3N4. As the solution temperature gradually increased from 20 °C to 50 °C, the degradation effect on hydroxypropyl guar increased first and then decreased. An increase in the temperature can improve the movement rate of ions and groups in the solution, and can significantly improve the catalytic reaction rate, so the appropriate temperature increase can better help the photocatalyst to degrade hydroxypropyl guar. The antiregular results of the catalytic degradation effect over 35 °C should come from two aspects. On the one hand, the excessive increase in temperature would affect the self-decomposition of AgIn5S8. On the other hand, the hydroxypropyl-guar solution would evaporate a part of the water with an increase in the solution temperature, indirectly resulting in an increase in the hydroxypropyl-guar concentration, which was not conducive to the improvement of degradation. The optimum temperature, shown in Figure 1d, was 35 °C. However, the degradation effect at 25~35 °C was seen to be a little different. If only photocatalytic technology is used to degrade hydroxypropyl guar, the temperature of 25 °C is more appropriate.

2.2. Treatment of Hydroxypropyl-Guar Wastewater by DBD–LTP

The effects of different voltages on the COD and viscosity of treated wastewater are shown in Figure 2a (discharge time: 8 min; ventilation: 12 L/min; pulse frequency: 300 Hz). It can be seen from the figure that when other treatment conditions were unchanged and only the voltage was changed, the COD value of the treated wastewater decreased first and then increased, while the viscosity of the wastewater decreased gradually. The reason for this phenomenon may be that some easily degraded substances could be degraded under low voltage, while the refractory substances cannot be degraded or oxidized by potassium dichromate under low voltage, so the measured COD value was lower than the actual value. When the voltage increases, the part of the substance that cannot be degraded under low voltage conditions is further degraded and can be oxidized by potassium dichromate, so the COD value measured at this time increases. With an increase in the voltage, the organic matter in the solution is continuously degraded into low molecular substances, so the viscosity is continuously decreased. Under this experimental condition, the COD value and viscosity of the treated hydroxypropyl-guar wastewater were 1280 mg/L and 1.05 mPa/s, respectively. Considering the energy consumption, the processing voltage used in the subsequent experiments was 120 V.
The influence of different discharge times on the COD and viscosity of treated wastewater is shown in Figure 2b (voltage: 120 V; ventilation: 12 L/min; pulse frequency: 300 Hz). It can be seen from the figure that when the other treatment conditions remain unchanged and only the discharge time is changed, the COD value of the treated wastewater also shows a trend of first increasing and then decreasing. The reason for the increase in the COD in the initial stage of the experiment is that hydroxypropyl guar is a refractory organic matter. In the process of discharge, the structure of hydroxypropyl guar is destroyed, and the macromolecular organic matter is broken to form small molecular organic matter, so that the refractory groups that cannot be oxidized by potassium dichromate are degraded into substances that can be oxidized by potassium dichromate after plasma treatment, which leads to an increase in the COD. Due to the increase in active substances in the plasma system, and the refractory groups in the wastewater breaking into small molecular substances, with the discharge, the small molecular organic matter in the wastewater is degraded into water and carbon dioxide, so the COD of the wastewater continues to decline. As the discharge goes on, the concentration of macromolecules decreases, so the viscosity decreases. Also, considering the processing economy, the discharge time is 8 min.
The effects of different pulse frequencies on the COD and viscosity of treated wastewater are shown in Figure 2c (voltage: 120 V; ventilation: 12 L/min; discharge time: 8 min). It can be seen from the figure that when other treatment conditions remain unchanged and only the pulse frequency is changed, the COD value and viscosity of the treated wastewater decrease continuously with the increase in the discharge frequency. When the pulse frequency exceeds 300 Hz, the COD value and viscosity decrease slowly. Studies have shown that increasing the pulse frequency can promote the formation of active substances, such as ozone, and improve the energy yield of the system. Considering the processing effect and cost, the pulse frequency is 300 Hz.

2.3. Treatment of Hydroxypropyl-Guar Wastewater by DBD–LTP Coupled with AgIn5S8/g-C3N4

The effect of the AgIn5S8/g-C3N4 nano-photocatalyst dosage in photocatalytic-coupled DBD–LTP on the COD and viscosity of treated wastewater is shown in Figure 3. It can be seen from the chart that compared with the plasma technology without the photocatalyst, the COD and viscosity of the wastewater treated by the three groups of experiments with the photocatalyst are greatly reduced. With the coupling treatment, in addition to the active substances produced by the original plasma system, the added photocatalyst also fully absorbs the light and energy in the system to produce substances with catalytic degradation activity, thus promoting the degradation of hydroxypropyl guar. It can be seen from the figure that in the first two minutes of the coupling treatment, the COD of wastewater increased to varying degrees, which also proved that the addition of the photocatalyst promoted the further degradation of refractory groups in guar gum. In addition, in the experimental group without the photocatalyst, the property change in wastewater slowed down after treatment for about 8 min, while the time of slowing down the property change in wastewater after treatment was advanced after adding the catalyst. When the dosage of the catalyst was 50 mg/L, this time was advanced to about 4~6 min. Therefore, the coupling treatment not only enhanced the degradation degree of hydroxypropyl guar, but also improved its degradation efficiency. By comparing the results of the two groups of experiments (Figure 2c and Figure 3) with the same discharge parameters, it can be seen that the time required when the CODCr dropped to the lowest value (1296 mg/L) is 8 min in the DBD test, while in the coupling experiment, the time required when the wastewater CODCr reached about 1296 mg/L is only 4 min. The comparative analysis can prove that under the same discharge conditions, the photocatalyst absorbed the ultraviolet light in the coupling process and played a photocatalytic role, and improved the degradation efficiency of hydroxypropyl guar. Therefore, the coupling technology can effectively improve the energy utilization rate of the discharge system and enhance the degradation efficiency of polymer organic matter.

2.4. Detection of Active Substances in the Liquid Phase

Many studies showed that high-voltage discharge could stimulate photocatalytic reactions to achieve the coordinated treatment of organic pollutants, which ultimately came down to active substances. Usually, in the majority of the active substances produced by the DBD discharge system, O3 accounts for the vast majority, which also contains ·OH and H2O2, and the three active substances transform with each other. However, O3 has the oxidation ability and can oxidize and degrade organic substances, but its oxidation ability is not as good as ·OH, and it cannot produce an effect on some refractory organic matter. Therefore, it was necessary to analyze the changes of the active substances in the DBD system under different conditions to explore the mechanism of the enhanced degradation of hydroxypropyl guar in the coupled treatment process. The results are shown in Figure 4.
O3 + hv → ·O2 + ·O
·O + H2O → 2·OH
2·OH → 2H2O2
H2O2 + hv → 2·OH
The increase in O3 concentration under light shading conditions was due to the inhibition of photolysis of O3 under the absence of light conditions, which also reduced the concentration of H2O2 and ·OH (Equations (1)–(4)). It also verified that the discharge radiation was an important factor of the pollutant treatment; so adding the photocatalyst to the solution could make full use of the discharge radiation and achieve the effect of organic matter degradation synergies. According to Figure 4, when the photocatalyst AgIn5S8/g-C3N4 was added to the discharge system, the concentration of O3 decreased significantly, while the concentration of H2O2 and ·OH increased. One reason was that electron–hole pairs produced in the photocatalytic reactions reacted with O3 and H2O2, respectively (Equations (5)–(9)). On the other hand, it may be that the addition of the photocatalyst affected the solubility of O3 and reduced its concentration significantly. As is also seen from Figure 5, the rate of H2O2 generation was reduced, probably because the AgIn5S8/g-C3N4 andNO3− produced during the discharge consumed ·OH. Based on the analysis of the active species in the system and the results of previous studies, it can be speculated that the effective degradation of hydroxypropyl guar in the coupling process was mainly attributed to two aspects. One is the direct oxidation and degradation of hydroxypropyl guar by the active substances (such as electrons, ions, ·OH) produced by the DBD system discharge; the other is the photocatalytic degradation by the active substances produced by the interaction transformation between photogenic electrons/holes produced by photocatalysts absorbing UV light and the active species in the system.
AgIn5S8/g-C3N4 + hv/visible → e− + h+
e− + O3 → ·O2 + ·O + e−
h+ + H2O → H+ + ·OH
e− + 2H2O2 → ·OH + OH−
h+ + H2O2 → H+ + HO2·

2.5. Effect of DBD Discharge on AgIn5S8/g-C3N4

It is well known that the physical and chemical effects of high-voltage discharges can directly or indirectly treat material surfaces and degrade pollutants in wastewater and waste gas. However, the study of the application of low-temperature plasma in pollutant treatment is limited to the production and utilization of active substances, and the indirect effect of its physical effects has been ignored or has not been deeply studied. It has been shown that the discharge of the DBD system will affect the specific surface area and pore structure of g-C3N4 material and affect its catalytic activity. However, the interaction of the DBD system discharge and photocatalytic materials has not been deeply studied, such as the detailed action mechanism between the high-voltage discharge and photocatalyst. BET analysis and UV/Vis DRS spectra were used to investigate the effects of the physical structure and optical properties of AgIn5S8/g-C3N4 materials before and after discharge of the DBD system. Results of the experiments are shown in Figure 5 and Figure 6.
Figure 5 shows the nitrogen adsorption-desorption isotherm of AgIn5S8/g-C3N4 material before and after discharge. As can be seen from Figure 5, a lag ring was formed before and after discharge, indicating slit medium holes were produced on the material. When the discharge time was 8 min, the adsorption amount of the material was almost the same as the raw material; when the discharge time continued to be extended, the adsorption amount of the material was reduced but not obvious. This showed that the DBD air discharge (milder) did not significantly change the specific surface area and pore volume of the material. This is likely because of the unselective physical effects of low-temperature plasma techniques, unlike the selective destruction of strongly oxidized solutions. Moreover, the oxidation of DBD discharge often follows the physical effect of the discharge. When the material is destroyed and forms a defect, the active substance will be immediately oxidized and defective, which may produce chemical functional groups that may cause side effects on the surface of AgIn5S8/g-C3N4.
The optical properties of the AgIn5S8/g-C3N4 samples at different discharge times are shown in Figure 6. As can be seen, when the discharge time was short, the light absorption band edge of the sample was not affected by the low-temperature plasma. This can be explained by the lack of defects, such as carbon and nitrogen vacancies, on the sample surface. Related studies show that the g-C3N4 sample incorporated by oxygen has no effect on the valence band but changes the edge of the absorption band [39,40]. As can be seen from Figure 6, there is a slight band edge blue shift in the discharge time at 15 min, possibly because of the long discharge time, the physical and chemical effects of the discharge promoting the generation of nanoparticles, and the quantum constraint effect also appeared. The method of adjusting the microstructure and bandgap by changing the discharge treatment time is similar to changing the pyrolysis time. Due to the low oxygen content on the sample surface and the slight layer destruction, the microstructure and band gap changes were not obvious.

3. Materials and Methods

3.1. Materials

All the synthetic raw materials of the composite photocatalyst (AgIn5S8/g-C3N4) were analytical grade and purchased from Sigma-Aldrich. Additionally, reagents and solvents related to the water quality analysis and hydroxypropyl guar were purchased from Chongqing Chuandong Chemical Industry Co., Ltd., Chongqing, China. All reagents were used in the study without further purification. The details of the main reagents are shown in Table 1.

3.2. DBD–LTP System

The DBD–LTP system is shown in Figure 7. This system consists of the aeration system, wastewater cooling circulation system, medium blocking discharge reactor, and high-voltage AC power supply.
The wastewater stored in the constant temperature tank entered from the inlet to the wastewater treatment container (effective volume of 1.6 L) under the action of the peristaltic pump, while the air entered the quartz pipe through the air pump and flow meter. During operation, the plasma produced in the quartz tube came out of the aeration head in the form of microbubbles under the impetus of air and made contact with the pollutants in the wastewater flowing outside the pipe. Meanwhile, the ultraviolet and visible light produced by the discharge entered through the quartz pipe into the wastewater. Pollutants were effectively decomposed under the strong oxidation of active substances and ultraviolet light.

3.3. Preparation of AgIn5S8/g-C3N4

AgIn5S8 nanoparticles were combined with g-C3N4 by the chemical wet method. The specific operation was as follows: 1.0 g g-C3N4 was ultrasonically dispersed in ethanol aqueous solution (v%, 66%) for 1 h. Then, AgIn5S8 nanoparticles were added with the mass fraction of g-C3N4 and was controlled at 15~40%. The mixture was then continuously stirred for 12 h. The precipitate was centrifuged and dried overnight in a vacuum drying oven at 70 °C. The dried product was the target photocatalyst.

3.4. Photocatalytic Activity and Mechanism of AgIn5S8/g-C3N4

A total of 50 mL hydroxypropyl-guar wastewater (0.3 wt.%) was added into the photo-reactor, and then, predetermined quality AgIn5S8/g-C3N4 photocatalysts were added to perform the photocatalytic degradation experiments. Before light, a dark adsorption-desorption reaction (10 min) was performed to achieve a balance between the catalyst and the hydroxypropyl-guar solution. After a certain light time, 2 mL of the degradation solution was centrifuged, and the supernatant was taken for CODcr and viscosity measurement.

3.5. Treatment of Hydroxypropyl-Guar Wastewater by DBD–LTP

The hydroxypropyl-guar wastewater (0.3 wt.%) was pumped into the reactor at a set flow rate, and the DBD–LTP reactor parameters (voltage and pulse frequency) and aeration strength were adjusted to investigate the impact of the discharge time, voltage, pulse frequency, and aeration strength on the degradation of hydroxypropyl guar.

3.6. Treatment of Hydroxypropyl-Guar Wastewater by DBD–LTP Coupled with AgIn5S8/g-C3N4

Firstly, a quantitative photocatalyst was added into the hydroxypropyl-guar wastewater (0.3 wt.%). Then, the wastewater was pumped into the reactor at a set flow rate, and the DBD–LTP reactor parameters (voltage and pulse frequency) and aeration strength were adjusted to the appropriate values. After the reaction, the COD and viscosity of the wastewater at the outlet were determined to investigate the effect of the photocatalyst dosage on hydroxypropyl-guar degradation.

3.7. Detection of Active Substances in the Liquid Phase of DBD–LTP Sysytem

Pure water or pure water containing a 50 mg/L photocatalyst was pumped into the plasma reactor at a flow rate of 0.2 L/min, while adjusting the reactor parameters (voltage of 120 V and pulse frequency of 300 Hz) and aeration strength (2.8 m3/m3·min). Salicylic acid was used as a ·OH scavenger, and the total contents of 2, 5-dHBA and 2, 3-dHB generated from the reaction of salicylic acid and ·OH in solution was determined by liquid chromatography to determine the concentration of the ·OH produced by the system discharge. The concentrations of H2O2 and O3 in the water were measured by the titanium salt colorimetric method and sodium blue disulfonate fade spectrophotometry, respectively. In addition, the discharge quartz tube was shaded with tin foil before operation, and pure water was used as the treatment medium; the concentration of active substances were measured under the same operating conditions described above.

4. Conclusions

The effective degradation treatment of fracturing wastewater has always been the bottleneck in the development of low-permeability oil and gas fields. In view of this, this paper studied the degradation treatment of photocatalytic and low-temperature plasma technology for simulated fracturing wastewater containing hydroxypropyl guar, and further explored the coupling of the two processes for the degradation of simulated wastewater. The results showed that hydroxypropyl-guar wastewater could be degraded to a certain extent by either photocatalytic technology or plasma technology, and the COD and viscosity of the treated wastewater under two single-technique optimal conditions were 781 mg·L−1, 0.79 mPa·s−1 and 1296 mg·L−1, 1.01 mPa·s−1, respectively. Furthermore, the effective coupling of AgIn5S8/gC3N4 photocatalysis and DBD–LTP not only enhanced the degradation degree of hydroxypropyl guar but also improved its degradation efficiency. Under the optimal conditions of coupling treatment, the hydroxypropyl-guar wastewater achieved the effect of a single treatment within 6 min, and the COD and viscosity of the treated wastewater reduced to below 490 mg·L−1 and 0.65 mPa·s−1, respectively. Accordingly, this paper proposed a new idea of treating oilfield fracturing wastewater. The research results could not only enrich the theoretical system of organic fracturing wastewater degradation, but also guide the practical application of the coupling technology in the environmental protection of low permeability oilfields.

Author Contributions

Methodology, X.L.; formal analysis, Y.Z. and Y.W.; data curation, L.Z. and Y.L.; writing—review and editing, Y.Z. and L.W.; funding acquisition, X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Project No. 52000019), the Chongqing Science and Technology Commission Project (Project No. CSTB2023NSCQ-MSX0039), The Science and technology innovation projects for college students (Project No. 202211551023).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhang, X.; Zhang, J.; Xiao, C. Experimental Investigation of Seepage Mechanism on Oil-Water Two-Phase Displacement in Fractured Tight Reservoir. Geofluids 2022, 2022, 1–13. [Google Scholar] [CrossRef]
  2. Zhang, Y.; Yu, R.; Yang, W.; Tian, Y.; Shi, Z.; Sheng, C.; Song, Y.; Du, H. Effect of temporary plugging agent concentration and fracturing fluid infiltration on initiation and propagation of hydraulic fractures in analogue tight sandstones. J. Petrol. Sci. Eng. 2022, 210, 110060. [Google Scholar] [CrossRef]
  3. Zhou, M.; Yang, X.; Gao, Z.; Wu, X.; Li, L.; Guo, X.; Yang, Y. Preparation and performance evaluation of nanoparticle modified clean fracturing fluid. Colloids Surf. A 2022, 636, 128117. [Google Scholar] [CrossRef]
  4. Aghababaei, M.; Luek, J.L.; Ziemkiewicz, P.F.; Mouser, P.J. Toxicity of hydraulic fracturing wastewater from black shale natural-gas wells influenced by well maturity and chemical additives. Environ. Sci. Proc. Impact 2021, 23, 621–632. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, F.; Wang, K.; Luo, M.; Bu, T.; Yuan, X.; Du, G.; Wu, H. Treatment and recycling of acidic fracturing flowback fluid. Environ. Technol. 2021, 43, 2310–2318. [Google Scholar] [CrossRef] [PubMed]
  6. Sitterley, K.A.; Silverstein, J.; Rosenblum, J.; Linden, K.G. Aerobic biological degradation of organic matter and fracturing fluid additives in high salinity hydraulic fracturing wastewaters. Sci. Total Environ. 2021, 758, 143622. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, A.; Gao, C.; Chen, T.; Xie, Y.; Wang, X. Treatment of fracturing wastewater by anaerobic granular sludge: The short-term effect of salinity and its mechanism. Bioresour. Technol. 2022, 345, 126538. [Google Scholar] [CrossRef] [PubMed]
  8. Ge, D. Combined treatment of organic material in oilfield fracturing wastewater by coagulation and UV/H2O2/ferrioxalate complexes process. Water Sci. Technol. 2018, 77, 909–919. [Google Scholar] [CrossRef] [PubMed]
  9. Zhang, Z. Combined treatment of hydroxypropyl guar gum in oilfield fracturing wastewater by coagulation and the UV/H2O2/ferrioxalate complexes process. Water Sci. Technol. 2018, 77, 565–575. [Google Scholar] [CrossRef]
  10. Hasanzadeh, R.; Souraki, B.A.; Pendashteh, A.; Khayati, G.; Ahmadun, F.l.-R. Application of isolated halophilic microorganisms suspended and immobilized on walnut shell as biocarrier for treatment of oilfield produced water. J. Hazard. Mater. 2020, 400, 123197. [Google Scholar] [CrossRef]
  11. Amakiri, K.T.; Canon, A.R.; Molinari, M.; Angelis-Dimakis, A. Review of oilfield produced water treatment technologies. Chemosphere 2022, 298, 134064. [Google Scholar] [CrossRef] [PubMed]
  12. Samuel, O.; Othman, M.H.D.; Kamaludin, R.; Sinsamphanh, O.; Abdullah, H.; Puteh, M.H.; Kurniawan, T.A.; Li, T.; Ismail, A.F.; Rahman, M.A.; et al. Oilfield-produced water treatment using conventional and membrane-based technologies for beneficial reuse: A critical review. J. Environ. Manag. 2022, 308, 114556. [Google Scholar] [CrossRef] [PubMed]
  13. Yan, X.; Wang, G.; Ma, C.; Li, J.; Cheng, S.; Yang, C.; Chen, L. Effects of pollutants in alkali/surfactant/polymer (ASP) flooding oilfield wastewater on membrane fouling in direct contact membrane distillation by response surface methodology. Chemosphere 2021, 282, 131130. [Google Scholar] [CrossRef] [PubMed]
  14. George, A.; Raj, A.D.; Irudayaraj, A.A.; Josephine, R.L.; Venci, X.; Sundaram, S.J.; Rajakrishnan, R.; Kuppusamy, P.; Kaviyarasu, K. Regeneration study of MB in recycling runs over nickel vanadium oxide by solvent extraction for photocatalytic performance for wastewater treatments. Environ. Res. 2022, 211, 112970. [Google Scholar] [CrossRef] [PubMed]
  15. Oluwole, A.O.; Olatunji, O.S. Photocatalytic degradation of tetracycline in aqueous systems under visible light irridiation using needle-like SnO2 nanoparticles anchored on exfoliated g-C3N4. Environ. Sci. Eur. 2022, 34, 5. [Google Scholar] [CrossRef]
  16. Zhu, C.; Li, Y.; Zhang, Y.; Liu, J.; Hao, X.-q.; Song, M.-P. Visible light photocatalytic reduction of Cr (VI) over polyimide in the presence of small molecule carboxylic acids. Colloids Surf. A 2022, 642, 128657. [Google Scholar] [CrossRef]
  17. Sivasankaran, R.; Rockstroh, N.; Hollmann, D.; Kreyenschulte, C.; Agostini, G.; Lund, H.; Acharjya, A.; Rabeah, J.; Bentrup, U.; Junge, H. Relations between Structure, Activity and Stability in C3N4 Based Photocatalysts Used for Solar Hydrogen Production. Catalysts 2018, 8, 52. [Google Scholar] [CrossRef]
  18. Yang, Y.; Mao, B.; Gong, G.; Li, D.; Liu, Y.; Cao, W.; Xing, L.; Zeng, J.; Shi, W.; Yuan, S. In-situ growth of Zn–AgIn5S8 quantum dots on g-C3N4 towards 0D/2D heterostructured photocatalysts with enhanced hydrogen production. Int. J. Hydrogen Energy 2019, 44, 15882. [Google Scholar] [CrossRef]
  19. Li, X.; Yang, B.; Xu, C.; Liu, J.; Lu, W.; Khan, S.; Feng, L. Construction of AgIn5S8/gC(3)N(4) composite and its enhanced photocatalytic hydrogen production and degradation of organic pollutants under visible light irradiation. J. Mater. Sci.-Mater. Electron. 2019, 30, 16195–16206. [Google Scholar] [CrossRef]
  20. Fendrich, M.; Bajpai, O.; Edla, R.; Molinari, A.; Ragonese, P.; Maurizio, C.; Orlandi, M.; Miotello, A. Towards the Development of a Z-Scheme FeOx/g-C3N4 Thin Film and Perspectives for Ciprofloxacin Visible Light-Driven Photocatalytic Degradation. Appl. Sci. 2023, 13, 10591. [Google Scholar] [CrossRef]
  21. Cheng, Y.; Cao, T.; Xiao, Z.; Zhu, H.; Yu, M. Photocatalytic Treatment of Methyl Orange Dye Wastewater by Porous Floating Ceramsite Loaded with Cuprous Oxide. Coatings 2022, 12, 286. [Google Scholar] [CrossRef]
  22. Liu, H.; Chen, H.; Ding, N. Visible Light-Based Ag3PO4/g-C3N4@MoS2 for Highly Efficient Degradation of 2-Amino-4-acetylaminoanisole (AMA) from Printing and Dyeing Wastewater. Int. J. Environ. Res. Pub. Health 2022, 19, 2934. [Google Scholar] [CrossRef] [PubMed]
  23. Tang, T.; Li, C.; He, W.; Hong, W.; Zhu, H.; Liu, G.; Yu, Y.; Lei, C. Preparation of MOF-derived C-ZnO/PVDF composites membrane for the degradation of methylene blue under UV-light irradiation. J. Alloys Compd. 2022, 894, 162559. [Google Scholar] [CrossRef]
  24. Lin, Z.; Li, J.; Shen, W.; Corriou, J.P.; Chen, X.; Xi, H. Different photocatalytic levels of organics in papermaking wastewater by flocculation-photocatalysis and SBR-photocatalysis: Degradation and GC?MS experiments, adsorption and photocatalysis simulations. Chem Eng. J. 2021, 41, 128715. [Google Scholar] [CrossRef]
  25. Peng, Y.; Ye, G.; Du, Y.; Zeng, L.; Hao, J.; Wang, S.; Zhou, J. Fe3O4 hollow nanospheres on graphene oxide as an efficient heterogeneous photo-Fenton catalyst for the advanced treatment of biotreated papermaking effluent. Environ. Sci. Pollut. R. 2021, 28, 39199–39209. [Google Scholar] [CrossRef] [PubMed]
  26. Zhao, T.; Cheng, H.; Liang, Y.; Xiong, J.; Zhu, H.; Wang, S.; Liang, J.; Chen, G. Preparation of TiO2/Sponge Composite for Photocatalytic Degradation of 2,4,6-Trichlorophenol. Water Air Soil Poll. 2020, 231, 412. [Google Scholar] [CrossRef]
  27. He, H.; Zhang, T.C.; Ouyang, L.; Yuan, S. Superwetting and photocatalytic Ag2O/TiO2@CuC2O4 nanocomposite-coated mesh membranes for oil/water separation and soluble dye removal. Mater. Today Chem. 2022, 23, 100717. [Google Scholar] [CrossRef]
  28. Li, H.; Wu, L.; Zhang, H.; Yu, F.; Peng, L. Mussel-inspired fabrication of superhydrophobic cellulose-based paper for the integration of excellent antibacterial activity, effective oil/water separation and photocatalytic degradation. Colloids Surf. A 2022, 640, 128490. [Google Scholar] [CrossRef]
  29. Xiang, X.; Chen, D.; Li, N.; Xu, Q.; Li, H.; He, J.; Lu, J. Mil-53(Fe)-loaded polyacrylonitrile membrane with superamphiphilicity and double hydrophobicity for effective emulsion separation and photocatalytic dye degradation. Sep. Purif. Technol. 2022, 282, 119910. [Google Scholar] [CrossRef]
  30. Fan, J.; Wu, H.; Liu, R.; Meng, L.; Sun, Y. Review on the treatment of organic wastewater by discharge plasma combined with oxidants and catalysts. Environ. Sci. Pollut. R 2021, 28, 2522–2548. [Google Scholar] [CrossRef]
  31. Yi, R.; Yi, C.; Du, D.; Zhang, Q.; Yu, H.; Yang, L. Research on quinoline degradation in drinking water by a large volume strong ionization dielectric barrier discharge reaction system. Plasma Sci. Technol. 2021, 23, 085505. [Google Scholar] [CrossRef]
  32. Zong, P.; Cheng, Y.; Wang, S.; Wang, L. Simultaneous removal of Cd (II) and phenol pollutions through magnetic graphene oxide nanocomposites coated polyaniline using low temperature plasma technique. Int. J. Hydrogen Energ. 2020, 45, 20106–20119. [Google Scholar] [CrossRef]
  33. Mu, X.; Wang, X.; Zhang, Y.; Liu, B.; Yang, J. Major products and their formation and transformation mechanism through degrading UDMH wastewater via DBD low temperature plasma. Environ. Technol. 2021, 42, 2709–2720. [Google Scholar] [CrossRef] [PubMed]
  34. Bethi, B.; Radhika, G.B.; Thang, L.M.; Sonawane, S.H.; Boczkaj, G. Photocatalytic decolourization of Rhodamine-B dye by visible light active ZIF-8/BiFeO3 composite. Environ. Sci. Pollut. R. 2022, 30, 25532–25545. [Google Scholar] [CrossRef] [PubMed]
  35. Li, Y.; Huo, H.; Chen, W.; Li, H.; Gao, L.; Yi, S. Efficient photocatalytic degradation of tetracycline under visible light by AgCl/Bi12O15Cl6/g-C3N4 with a dual electron transfer mechanism. Colloids Surf. A 2022, 638, 128227. [Google Scholar] [CrossRef]
  36. Wang, G.; Li, Y.; Dai, J.; Deng, N. Highly efficient photocatalytic oxidation of antibiotic ciprofloxacin using TiO2@g-C3N4@biochar composite. Environ. Sci. Pollut. R 2022, 29, 48522–48538. [Google Scholar] [CrossRef] [PubMed]
  37. Motamedi, M.; Yerushalmi, L.; Haghighat, F.; Chen, Z. Recent developments in photocatalysis of industrial effluents: A review and example of phenolic compounds degradation. Chemosphere 2022, 296, 133688. [Google Scholar] [CrossRef] [PubMed]
  38. Tu, W.; Liu, Y.; Chen, M.; Zhou, Y.; Xie, Z.; Ma, L.; Li, L.; Yang, B. Carbon nitride coupled with Ti3C2-Mxene derived amorphous Ti-peroxo heterojunction for photocatalytic degradation of rhodamine B and tetracycline. Colloids Surf. A 2022, 640, 128448. [Google Scholar] [CrossRef]
  39. Jiang, L.; Yuan, X.; Pan, Y.; Liang, J.; Zeng, G.; Wu, Z.; Wang, H. Doping of graphitic carbon nitride for photocatalysis: A reveiw. Appl. Catal. B Environ. 2017, 217, 388–406. [Google Scholar] [CrossRef]
  40. Solis-Fernandez, P.; Paredes, J.; Cosio, A.; Martinez-Alonso, A.; Tascon, J. A comparison between physically and chemically driven etching in the oxidation of graphite surfaces. J. Colloid. Interf. Sci. 2010, 344, 451–459. [Google Scholar] [CrossRef]
Molecules 29 02862 g001

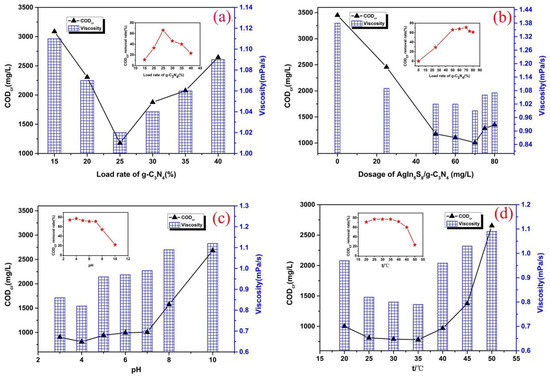

Figure 1. Effect of load rate of g-C3N4 (a), dosage of AgIn5S8/g-C3N4 (b), pH (c), and t (d) on the photocatalytic treatment of hydroxypropyl-guar wastewater by AgIn5S8/g-C3N4.
Figure 1. Effect of load rate of g-C3N4 (a), dosage of AgIn5S8/g-C3N4 (b), pH (c), and t (d) on the photocatalytic treatment of hydroxypropyl-guar wastewater by AgIn5S8/g-C3N4.
Molecules 29 02862 g001
Molecules 29 02862 g002

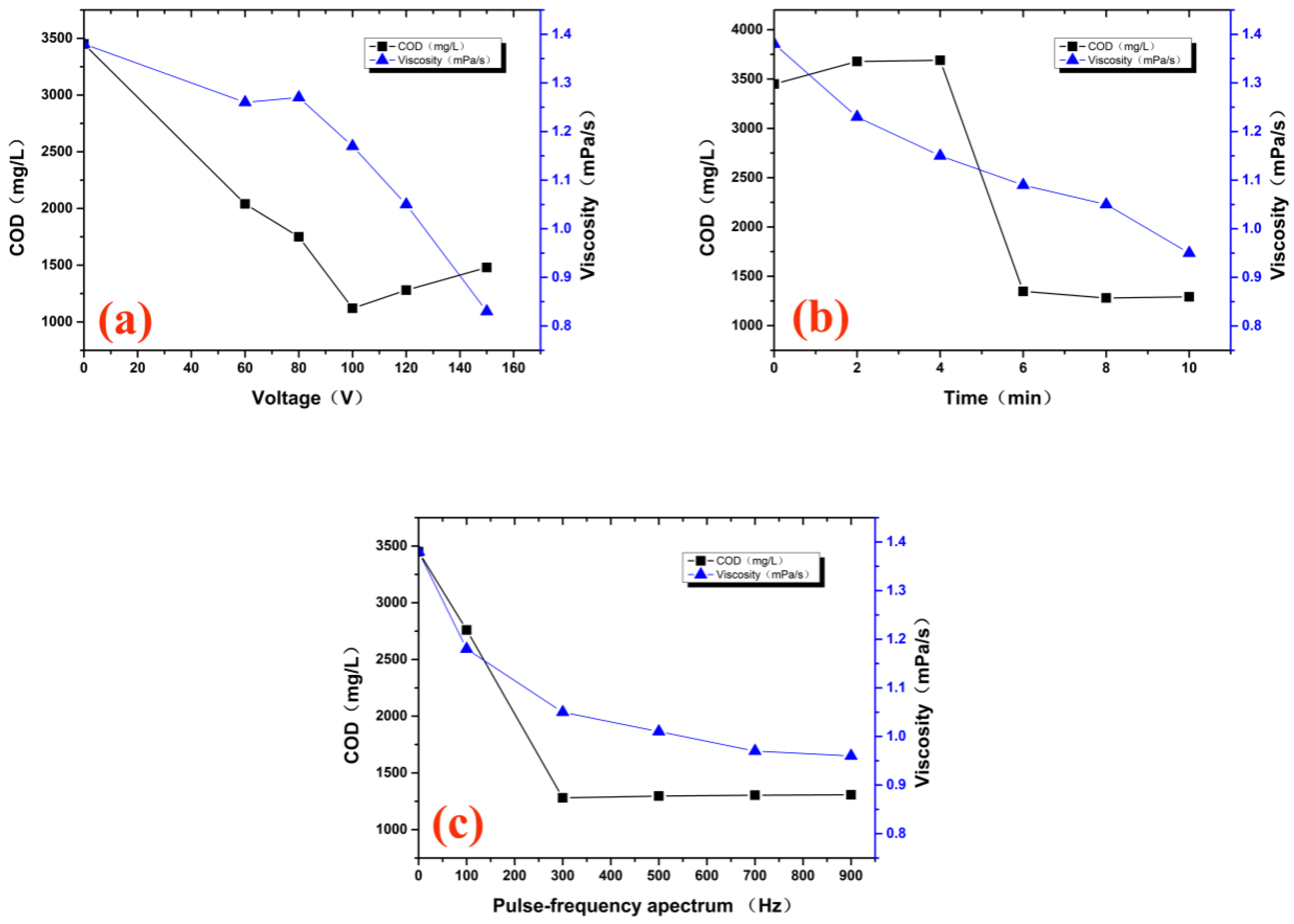

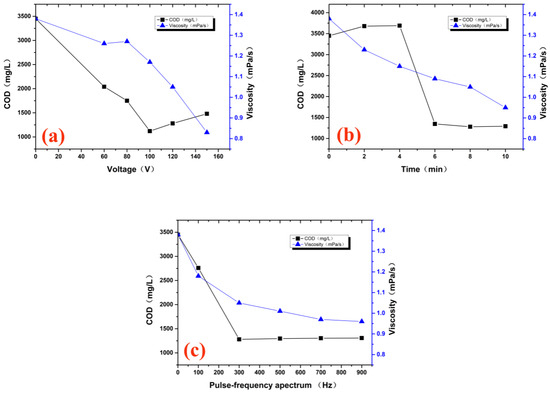

Figure 2. Effect of voltage (a), discharge time (b), and pulse frequency (c) on the hydroxypropyl-guar degradation by DBD–LTP.
Figure 2. Effect of voltage (a), discharge time (b), and pulse frequency (c) on the hydroxypropyl-guar degradation by DBD–LTP.
Molecules 29 02862 g002
Molecules 29 02862 g003

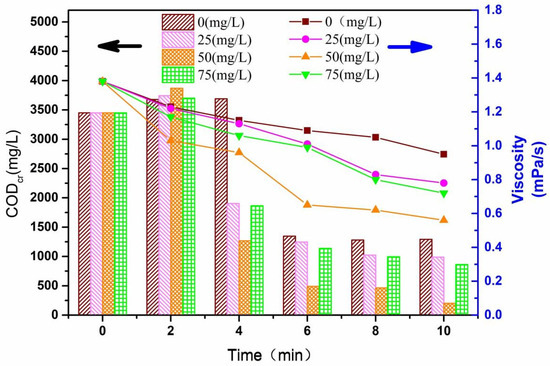

Figure 3. Effect of photocatalyst dosage on COD and viscosity of hydroxypropyl-guar wastewater by coupling process (voltage: 120 V; ventilation: 12 L/min; discharge time: 8 min; pulse frequency: 300 Hz; pH: 4).
Figure 3. Effect of photocatalyst dosage on COD and viscosity of hydroxypropyl-guar wastewater by coupling process (voltage: 120 V; ventilation: 12 L/min; discharge time: 8 min; pulse frequency: 300 Hz; pH: 4).
Molecules 29 02862 g003
Molecules 29 02862 g004

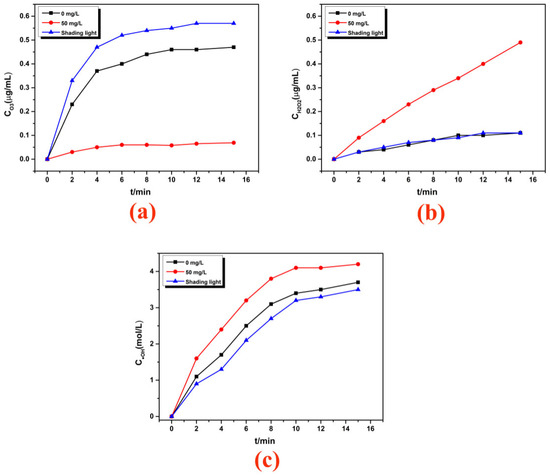

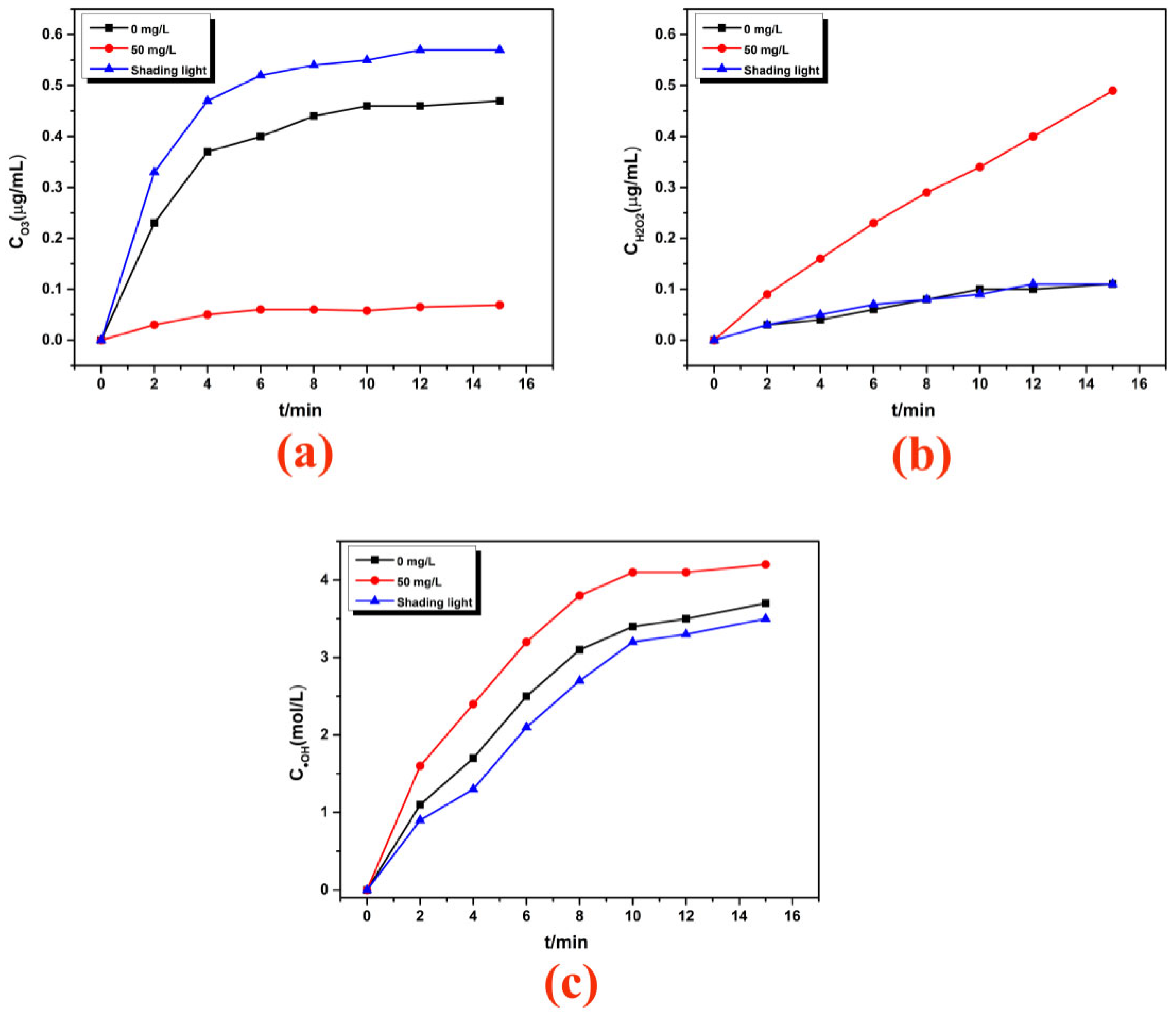

Figure 4. (a) The concentration of aqueous O3; (b) the concentration of H2O2; (c) the concentration of ·OH radicals. (Without pollution in solution; the concentration of AgIn5S8/g-C3N4: 50 mg/L or 0 mg/L; voltage: 120 V; ventilation: 12 L/min; discharge time: 8 min; pulse frequency: 300 Hz; pH: 4).
Figure 4. (a) The concentration of aqueous O3; (b) the concentration of H2O2; (c) the concentration of ·OH radicals. (Without pollution in solution; the concentration of AgIn5S8/g-C3N4: 50 mg/L or 0 mg/L; voltage: 120 V; ventilation: 12 L/min; discharge time: 8 min; pulse frequency: 300 Hz; pH: 4).
Molecules 29 02862 g004
Molecules 29 02862 g005

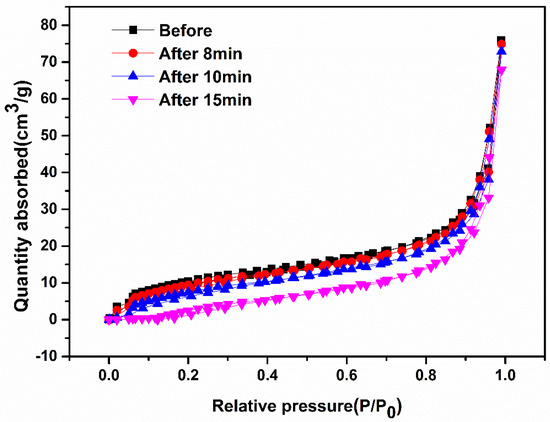

Figure 5. N2 absorption-desorption isotherms of the AgIn5S8/g-C3N4 composite.
Figure 5. N2 absorption-desorption isotherms of the AgIn5S8/g-C3N4 composite.
Molecules 29 02862 g005
Molecules 29 02862 g006

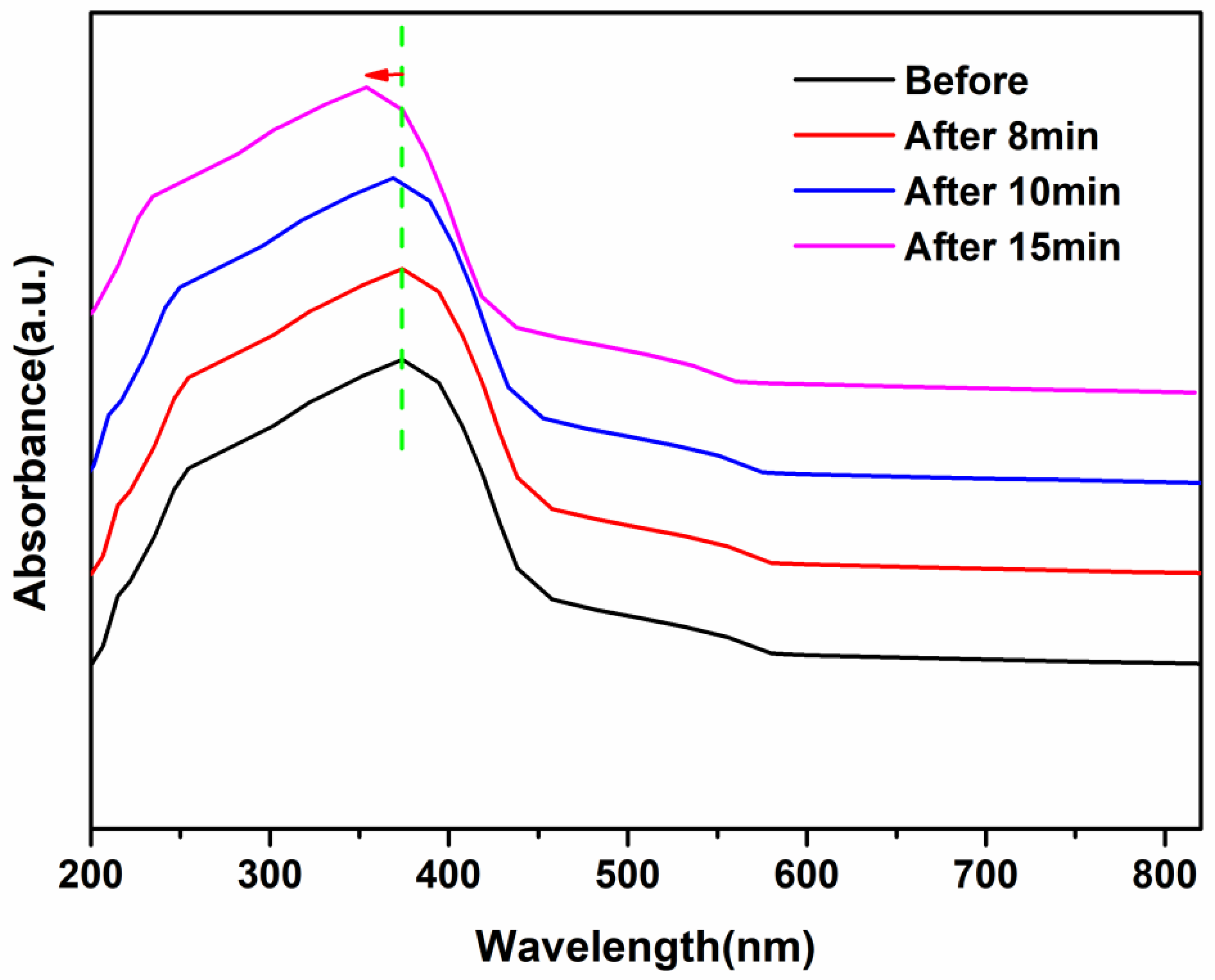

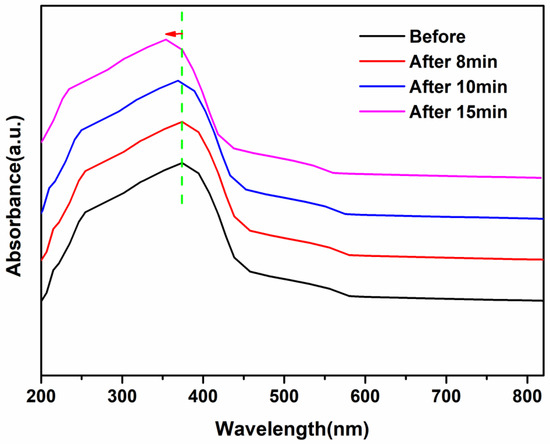

Figure 6. The UV/Vis DRS spectra of the AgIn5S8/g-C3N4 composite.
Figure 6. The UV/Vis DRS spectra of the AgIn5S8/g-C3N4 composite.
Molecules 29 02862 g006
Molecules 29 02862 g007

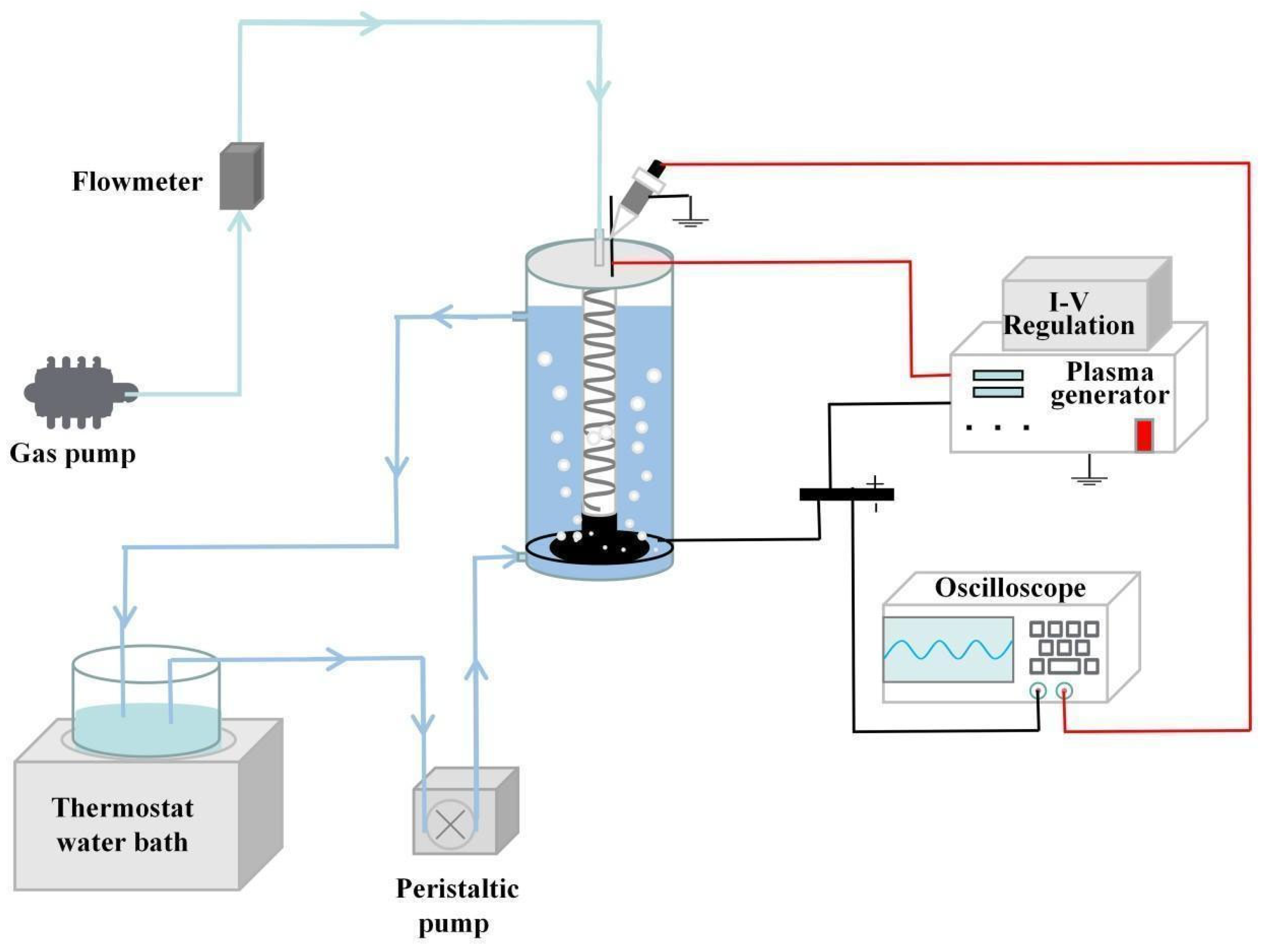

Figure 7. The DBD–LTP system.
Figure 7. The DBD–LTP system.
Molecules 29 02862 g007
Table 1. The details of the main reagents.
Table 1. The details of the main reagents.
ReagentsMolecular FormulaCASPurity Grade
MelamineC3H6N6108-78-1AR
Dilute nitric acid ①HNO37697-37-2AR
Silver nitrateAgNO37761-88-8AR
Indium nitrateIn(NO3)3·4H2O13770-61-1AR
Ethylene glycol(CH2OH)2107-21-1AR
ThioacetamideCH3CSNH262-55-5AR
Ethyl AlcoholCH3CH2OH64-17-5AR
Hydroxypropyl guarC3H8O2·x39421-75-5AR
① The concentration of dilute nitric acid: 6 mol/L.
