Tuning 2,3-Bis(arylimino)butane-nickel Precatalysts for High-Molecular-Weight Polyethylene Elastomers

by
Dongzhi Zhu
1,2,
Dedong Jia
2,
Qiuyue Zhang
2,
Yanping Ma
2,*,
Qaiser Mahmood
3 and
Wen-Hua Sun
2,*
1
Guangxi Key Laboratory of Advanced Structural Materials and Carbon Neutralization, School of Materials and Environment, Guangxi Minzu University, Nanning 530105, China
2
Key Laboratory of Engineering Plastics, Beijing National Laboratory for Molecular Sciences, Institute of Chemistry Chinese Academy of Sciences, Beijing 100190, China
3
Chemistry and Chemical Engineering Guangdong Laboratory, Shantou 515031, China
*
Authors to whom correspondence should be addressed.
Molecules 2025, 30(8), 1847; https://doi.org/10.3390/molecules30081847 (registering DOI)
Submission received: 19 March 2025 / Revised: 17 April 2025 / Accepted: 17 April 2025 / Published: 20 April 2025
(This article belongs to the Special Issue Featured Papers in Organometallic Chemistry—2nd Edition)
Browse Figures
Versions Notes

Abstract

:

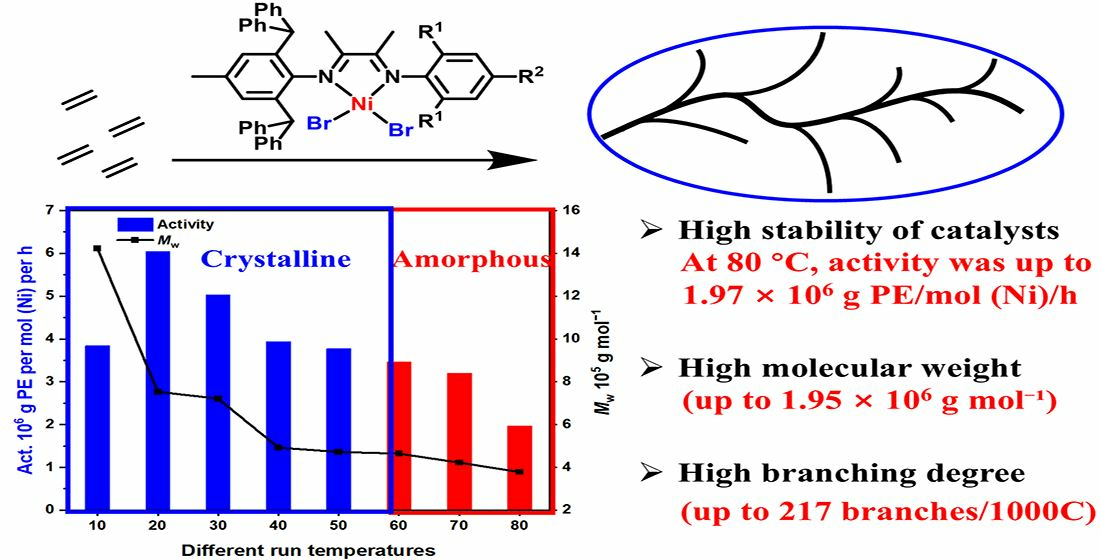

The catalytic performance of α-diiminonickel complexes is highly sensitive to structural modifications in their ligand frameworks. In this study, a series of unsymmetrical 2,3-bis(arylimino)butane-nickel complexes featuring ortho-2,6-dibenzhydryl groups as sterically demanding motifs and para-methyl groups as electron-donating enhancers were proposed and synthesized. These nickel complexes were thoroughly characterized using FTIR, elemental analysis, and single-crystal X-ray diffraction (for Ni4 and Ni5), revealing deviations from ideal tetrahedral geometry. Upon activation with Et2AlCl, these complexes demonstrated exceptional ethylene polymerization activity, achieving a remarkable value of 13.67 × 106 g PE mol−1 (Ni) h−1 at 20 °C. Notably, even at 80 °C, the nickel complexes maintained a high activity of 1.97 × 106 g PE mol−1 (Ni) h−1, showcasing superiority compared to previously reported unsymmetrical 2,3-bis(arylimino)butane-nickel complexes. The resulting polyethylenes exhibited ultra-high molecular weights (Mw: 3.33–19.47 × 105 g mol−1) and tunable branching densities (84–217/1000C), which were effectively controlled by polymerization temperature. Moreover, the mechanical properties of the polyethylenes, including tensile strength (σb = 0.74–16.83 MPa), elongation at break (εb = 271–475%), and elastic recovery (SR = 42–74%), were finely tailored by optimizing molecular weight, crystallinity, and branching degree. The prepared polyethylenes displayed outstanding elastic recovery, a hallmark of high-performance thermoplastic elastomers, making them promising candidates for advanced material applications.

1. Introduction

Thermoplastic elastomers (TPEs), combining the flexibility of elastomers with the processability of thermoplastics [1,2,3,4,5,6,7,8], have emerged as cost-effective alternatives to conventional thermoset elastomers [9,10,11,12,13,14,15,16]. Traditional high-performance TPEs, such as ethylene/propylene copolymers and polyolefin elastomers, rely on multistep copolymerization with expensive α-olefins—a process fraught with complexity and high costs [17,18,19,20,21,22,23,24]. A significant shift occurred in 1995 with Brookhart’s groundbreaking α-diimine nickel/palladium catalysts, which utilize ethylene as the sole monomer to produce polyethylene with tunable branching density and branch type via a unique chain-walking mechanism [25,26]. Recent advances in ligand design of these catalysts have enabled the synthesis of branched polyethylene elastomers (PEEs) with tailored mechanical and thermal properties, positioning PEEs as promising TPE alternatives [27,28,29,30,31,32,33,34,35].
The mechanical performance of PEE hinges critically on molecular weight (Mw), branching density, and crystallinity—properties governed by chain-walking and chain-transfer behaviors. Rational ligand design, focusing on synergistic steric and electronic modulation, has proven pivotal in enhancing thermal stability, suppressing β-H elimination, and finely tailoring polymeric microstructures [36,37,38]. Specifically, the introduction of ortho-dibenzhydryl groups into the N-aryl ring (A, Scheme 1) could significantly boost the thermal stability of nickel complexes and Mw of resulting polyethylenes [36,37,38,39,40,41,42,43]. Additionally, the electronic properties of para-substituents (electron-donating vs. electron-withdrawing) on the N-aryl ring were found to directionally regulate activity and branching density [36,37,38,39,40,41,42,43]. Electron-withdrawing groups (e.g., Cl [40], F [43], NO2 [41], OCF3 [38]) reduce the electron density at the metal center, accelerating ethylene coordination and insertion rates to achieve higher polyethylene molecular weights (Mw), a result also supported by theoretical calculations [44]. In contrast, electron-donating groups (e.g., Me [42], OMe [39], t-Bu [37], CHPh2 [36]) enhance catalytic stability, promoting both chain propagation and chain-walking processes, which collectively elevate polymerization activity and branching degree. Remarkably, regarding the para-Me-substituent [42], it not only showed high activity (1.48 × 107 g PE mol−1 (Ni) h−1) but also an extremely high branching degree, reaching 337/1000C. In contrast, for the para-Cl-substituent [40], the branching degree was 160/1000C. Evidently, the introduction of the electron-donating para-Me-substituent has played a crucial role in regulating the branching degree of the polyethylenes. Beyond substituent effects, the α-diimine backbone’s rigidity profoundly impacts catalytic behavior [45,46,47,48,49,50,51,52]. Our systematic studies revealed that 2,3-bis(arylimino)butane nickel complexes (B, Scheme 1) [52] yielded high-Mw polyethylenes with bimodal distributions, whereas their 1,2-bis(imino)acenaphthene analogues favored low-Mw unimodal products (ACl, Scheme 1) [40]. This divergence underscores the backbone’s role in balancing conjugation and steric tunability to control chain-transfer pathways.
Guided by these insights, we designed a series of unsymmetrical 2,3-bis(arylimino)butane-nickel precatalysts (C, Scheme 1) to integrate three critical features, including the 2,3-bis(arylimino)butane backbone, to maximize Mw and tunable dispersity, the ortho-bis(benzhydryl) groups for thermal robustness, as well as a para-methyl electron-donating substituent to optimize branching density and elasticity. The newly developed complexes were thoroughly characterized, and their ethylene polymerization behaviors were systematically investigated under varied reaction conditions. Furthermore, the mechanical and elastic properties of the resultant polyethylenes were rigorously analyzed to establish structure-property relationships, particularly how molecular weight, branching density, and crystallinity synergistically govern tensile strength and strain recovery.

2. Results and Discussion

2.1. Synthesis and Characterization of Ligands and Their Nickel Complexes

The 2,3-bis(arylimino)butane derivatives, {2,6-[CH(C6H5)2]2-4-MeC6H2}N = C(Me)C(Me) = NAr (L1–L5), where Ar = 2,6-Me2C6H3 (L1), Ar = 2,6-Et2C6H3 (L2), Ar = 2,6-iPr2C6H3 (L3), Ar = 2,4,6-Me3C6H2 (L4), Ar = 2,6-Et2-4-MeC6H2 (L5), were synthesized via a two-step method, as shown in Scheme 2. The imine-ketone intermediate was initially prepared via a p-toluenesulfonic acid-catalyzed condensation of 2,3-butanedione with 2,6-dibenzhydryl-4-methylaniline in dichloromethane under mild conditions, achieving a 65% yield after recrystallization from methanol. A ZnCl2-templated strategy was used to perform the second condensation with other anilines. Specifically, the imine-ketone, aniline, and zinc chloride were heated in acetic acid (99.5 w%) at 80 °C for 4 h, followed by demetallation with aqueous K2CO3 to afford the target ligands L1–L5 in moderate yields (42–57%). The ligands were rigorously characterized by FT-IR, 1H/13C NMR spectroscopy (see Figures S1–S6), and elemental analysis, confirming their structural integrity and purity. Subsequently, the nickel complexes (Ni1–Ni5) were synthesized in high yields (>70%) by reacting their respective ligands with (DME)NiBr2 in tetrahydrofuran (Scheme 2). Key spectroscopic evidence for nickel complex formation included the redshift of the imine C=N stretching vibration in FT-IR from 1640 cm−1 (free ligand) to 1634 cm−1 (coordinated to Ni), consistent with successful metal-ligand coordination. Elemental analysis further validated the purity of all new nickel complexes. Moreover, the molecular structures of Ni4 and Ni5 were confirmed by single-crystal X-ray diffraction analysis (see Table S1: Crystal data and structure refinement for Ni4 and Ni5), providing atomic-level insights into their geometric configurations.
X-ray-quality crystals of Ni4 and Ni5 were grown via controlled diffusion of diethyl ether into their saturated dichloromethane solutions of the complexes (Figure 1a,b). Both complexes adopt a distorted tetrahedral geometry with a four-coordinate nickel center, as evidenced by bond angles and lengths deviating from ideal tetrahedral symmetry. Notably, the N-bound phenyl rings—one substituted with sterically demanding dibenzhydryl groups and the other with an alkyl group—display significant tilting relative to the coordination plane [C(2)–C(3)–N(2)–Ni(1)–N(1)]. The dihedral angles in Ni4 (87.3° and 79.6°) and Ni5 (89.9° and 85.9°) highlight the steric influence of ortho-dibenzhydryl groups. Intriguingly, Ni5 exhibits angles approaching 90°, suggesting enhanced axial site protection compared to literature-reported symmetrical analogues [52], a feature critical for suppressing catalyst deactivation. Furthermore, the N1–Ni1–N2 and Br1–Ni1–Br2 bond angles in these complexes are slightly smaller than those observed in our previously reported unsymmetrical bis(imino)acenaphthene nickel complexes [53]. As summarized in Table 1, the Ni–N2 bond lengths are slightly longer than the Ni–N1 bond lengths in both Ni4 and Ni5, attributed to steric repulsion from the benzhydryl groups weakening Nimine coordination to the nickel center—a trend consistent with our previous findings [52].

2.2. Ethylene Polymerization Investigation

To systematically evaluate the catalytic performance of the prepared nickel complexes, we first conducted an initial screening of alkylaluminum cocatalysts using Ni1 as a model catalyst. Guided by these results, a comprehensive optimization of polymerization parameters—including Al/Ni molar ratio, ethylene pressure, temperature, and reaction duration—was performed to maximize activity and control polymer properties across the entire catalyst series (Ni1–Ni5).

2.2.1. Optimization of Alkyl Aluminum Cocatalyst Selection

Alkyl aluminum cocatalysts play a multifunctional role in polymerization systems by scavenging impurities to prevent catalyst deactivation, alkylating the nickel center to generate active species, and modulating chain transfer processes to control polymer properties [31,32,33]. Therefore, the catalytic performance of Ni1 was systematically evaluated using four structurally distinct alkylaluminum cocatalysts: MAO, MMAO, Et2AlCl, and EASC. Under identical conditions (Table 2), Et2AlCl emerged as the optimal cocatalyst, delivering slightly higher activity (4.61 × 106 g PE mol−1 (Ni) h−1) than MAO, while exhibiting 9.8-fold higher activity than EASC and 1.64-fold greater efficiency than MMAO. Meanwhile, Ni/Et2AlCl shows superior performance by delivering polyethylenes with the highest molecular weight (5.96 × 105 g mol−1) and the lowest melting temperature (49.01 °C), attributed to increased branching density from enhanced chain-walking behavior [42]. Notably, despite requiring only 400 equivalents (vs. 2000 for MAO/MMAO), Et2AlCl outperformed all tested cocatalysts in both activity and polymer microstructure control. These stark contrasts underscore how cocatalyst steric bulk, Lewis acidity, and activation efficiency critically govern nickel center reactivity and chain-transfer kinetics [54]. Based on these findings, Et2AlCl was selected for subsequent optimization studies.

2.2.2. Optimization of Polymerization Conditions Using Ni1 with Et2AlCl as Cocatalyst

The Ni1/Et2AlCl system was systematically optimized to establish optimal conditions for ligand screening. Polymerization tests were conducted across a range of Et2AlCl, temperatures, reaction times, and ethylene pressures, with detailed results summarized in Table 3.
To probe the impact of Et2AlCl concentration, polymerization reactions were conducted at Al/Ni molar ratios (300–700) (entries 1–5, Table 3). As shown in Figure 2b, catalytic activity peaked at 5.03 × 106 g PE mol−1 (Ni) h−1 at an Al/Ni ratio of 600, beyond which excessive cocatalyst accelerated chain transfer to aluminum, reducing both activity and polymer molecular weight. This trend reflects a balance between active site generation (maximized at Al/Ni = 600) and chain transfer overactivation (dominant at Al/Ni = 700) [37]. Similarly, polymer molecular weight (Mw) initially increased, reaching a maximum of 7.56 × 105 g mol−1 at Al/Ni = 500 (entries 1–3, Table 3), before declining to 4.67 × 105 g mol−1 at Al/Ni = 700 (entries 4–5, Table 3) (Figure 2a). This reduction, attributed to premature chain termination at high cocatalyst levels [42], was accompanied by a decrease in melting temperature (Tm) from 60.75 °C to 40.05 °C, consistent with reduced Mw and/or increased branching density [45]. These findings align with prior studies [40,41,42,43], underscoring the critical role of cocatalyst concentration in tuning both catalytic performance and polymer microstructure.
The reaction temperature serves as a critical parameter governing catalyst stability, polymerization activity, and the molecular weight/structural characteristics of polyethylene (PE) in ethylene polymerization. To systematically evaluate these thermal effects, a series of polymerizations were performed under identical conditions [Al/Ni = 600, ethylene 10 atm] across a temperature gradient of 10–80 °C (entries 4, 6–12, Table 3). As illustrated in Figure 3b, catalytic activity exhibited a distinct volcano-shaped profile: initial activity measured 3.84 × 106 g PE mol−1 (Ni) h−1 at 10 °C, nearly doubling to 6.07 × 106 g PE mol−1 (Ni) h−1 at 20 °C. This marked enhancement indicates that temperatures exceeding 10 °C were a prerequisite for complete precatalyst activation. Subsequent temperature elevation beyond 20 °C progressively diminished activity, attributable to thermal decomposition of active nickel species and reduced solubility of ethylene in the solvent [39,40,41]. This temperature-dependent behavior aligns with observations in analogous catalyst systems featuring benzhydryl-substituted unsymmetrical α-diimine ligands [37,38,39,40,41,42,43]. Notably, the polymer molecular weight displayed an inverse correlation with reaction temperature, with ultra-high molecular weight PE (Mw = 14.22 × 105 g mol−1) obtained at 10 °C progressively decreasing to 3.78 × 105 g mol−1 at 80 °C (Figure 3b). The molecular weight reduction stems from accelerated chain transfer processes—primarily β-hydride elimination and aluminum-mediated chain transfer—coupled with thermal destabilization of nickel active centers that curtails chain propagation kinetics [25]. Meanwhile, narrow and unimodal molecular weight distributions across all temperatures (Figure 3a) confirmed preservation of single-site catalytic characteristics.
Remarkably, the current catalytic system substituted by a para-methyl group maintained substantial activity (1.97 × 106 g PE mol−1 (Ni) h−1) even at 80 °C, representing a significant enhancement over structurally analogous precatalyst B (Scheme 1) [52]. The para-methyl substituent enhanced thermal stability through electron-donating effects, while its non-polar nature improved precatalyst solubility in toluene, facilitating efficient cocatalyst activation [37]. The polyethylene obtained at 10 °C displayed a melting temperature of 88.99 °C, progressively decreasing to 15.47 °C at 50 °C. Polymers produced above 50 °C (entries 10–12, Table 3) showed no discernible melting endotherm, indicative of fully amorphous microstructures (discussed in subsequent sections). This contrasts sharply with precatalyst B-derived PE obtained at 60 °C [52], which exhibited an obvious melting absorption peak in its DSC curves, thereby validating our previous findings on crystallization modulation through the modification of benzhydryl-methylphenyl ligand architectures [42].
Subsequently, the Ni1/Et2AlCl system was subjected to temporal polymerization studies under standardized conditions (Al/Ni = 600, temperature = 20 °C, ethylene = 10 atm). As summarized in Table 3 (entries 7, 13–16), polymerization durations spanning 5–60 min revealed a distinct time-dependent activity profile. The peak activity of 13.67 × 106 g PE mol−1 (Ni) h−1 was achieved within 5 min, indicative of rapid formation of active species. Activity gradually declined to 4.42 × 106 g PE mol−1 (Ni) h−1 at 60 min, likely attributable to cumulative catalyst deactivation and mass transfer limitations imposed by polymer accumulation [52]. Meanwhile, the molecular weight of polyethylene exhibited a monotonic increase from 3.33 × 105 g mol−1 to 19.47 × 105 g mol−1 with extended reaction times (Figure 4b). Notably, ultra-high-molecular-weight polyethylenes were obtained beyond 45 min. The GPC profiles (Figure 4a) displayed a unimodal distribution with narrow dispersity across all time points, confirming sustained single-site catalytic behavior [39]. The persistent high activity up to 4.42 × 106 g PE mol−1 (Ni) h−1 after 1 h, coupled with molecular weight escalation (19.47 × 105 g mol−1), suggests remarkable catalyst longevity (Figure 4b), a phenomenon previously documented in analogous nickel-mediated ethylene polymerization systems [38].
Systematic variation of ethylene pressure (1–10 atm) revealed profound pressure-dependent modulation of catalytic efficiency and polymer characteristics (entries 7, 17–18, Table 3). At atmospheric pressure (1 atm), minimal activity of 0.31 × 106 g PE mol−1 (Ni) h−1 and low molecular weight PE (Mw = 3.78 × 105 g mol−1) were observed. Elevating the pressure to 5 atm induced a 4.6-fold activity enhancement (1.43 × 106 g PE mol−1 (Ni) h−1) and 54% molecular weight increase (Mw = 5.81 × 105 g mol−1). Further pressure escalation to 10 atm amplified these effects, achieving 19.6-fold improvement in activity (6.07 × 106 g PE mol−1 (Ni) h−1) and doubled the molecular weight to 7.53 × 105 g mol−1 compared to 1 atm. This pressure-response correlation aligns with established chain propagation kinetics: elevated ethylene pressure increases local monomer concentration at catalytic sites, favoring chain growth over termination pathways (β-H elimination, chain transfer) [39]. Thermal analysis corroborated micro-structural variations, with polyethylenes synthesized at 10 atm exhibiting a higher melting temperature (Tm = 81.58 °C), indicative of reduced branching degree and enhanced crystallinity. Conversely, atmospheric-pressure polyethylenes displayed a depressed melting temperature (Tm = 51.50 °C), characteristic of highly branched and low molecular weight amorphous domains.

2.2.3. Ligand Structure Screening Under Optimal Conditions

Following optimization of Ni1/Et2AlCl, a systematic evaluation of structural analogs (Ni2–Ni5) was conducted under identical polymerization conditions (Al/Ni = 600, 20 °C, 10 atm ethylene) to elucidate ligand structure-performance correlations (entries 7, 19–22, Table 3). All catalysts demonstrated high activities (4.16–6.07 × 106 g PE mol−1 (Ni) h−1) while producing polyethylenes with high molecular weights (3.98–8.56 × 105 g mol−1) and narrow dispersities (Mw/Mn = 2.29–2.50) (Figure 5a). The ligand architectures uniformly incorporated a sterically demanding N-2,6-dibenzhydryl-4-methylphenyl group, while systematically varying substituents on the secondary N-aryl moiety. A distinct structure-activity correlation emerged with the activity decreasing in the following order: Ni1 [2,6-di(Me)] > Ni4 [2,4,6-tri(Me)] > Ni2 [2,6-di(Et)] > Ni5 [2,6-di(Et)-4-Me] > Ni3 [2,6-di(i-Pr)]. This progression highlights the steric modulation—less hindered analogs (Ni1 and Ni4) exhibited 21% and 8% greater catalytic activity than their bulkier counterparts (Ni2 and Ni5, respectively). The axial alkyl substituents’ steric bulk impedes ethylene coordination and insertion at the active center through spatial occupation of the metal coordination sphere [33]. The most sterically encumbered Ni3 accordingly exhibited the lowest activities.
Polymer molecular weights were found to inversely correlate with catalytic activity: Ni3 [2,6-di(i-Pr)] > Ni1 [2,6-di(Me)] ≈ Ni5 [2,6-di(Et)-4-Me] > Ni2 [2,6-di(Et)] > Ni4 [2,4,6-tri(Me)] (Figure 5a). Ni3 produced polyethylene with a molecular weight of 8.56 × 105 g mol−1, representing 20% and 14% enhancements over Ni2 and Ni1, respectively (entries 7, 19–20, Table 3). This anti-correlation demonstrates steric control over chain propagation kinetics—bulkier ligands suppress chain transfer pathways, extending polymer growth duration. Comparative analysis with benchmark catalyst B revealed fundamental distinctions: all current complexes produced unimodal polyethylenes (PDI < 2.5), contrasting sharply with B’s bimodal distributions [52]. This dichotomy originates from substituent electronic characteristics—the electron-withdrawing chlorine in B facilitates multiple active species formation, while the methyl group’s electron-donating nature in Ni1–Ni5 stabilizes a single catalytically active conformation. The resultant unimodal distributions signify superior control over polymer architecture, particularly advantageous for high-performance polyethylene synthesis [37].

2.3. Microstructure Analysis of Polyethylenes

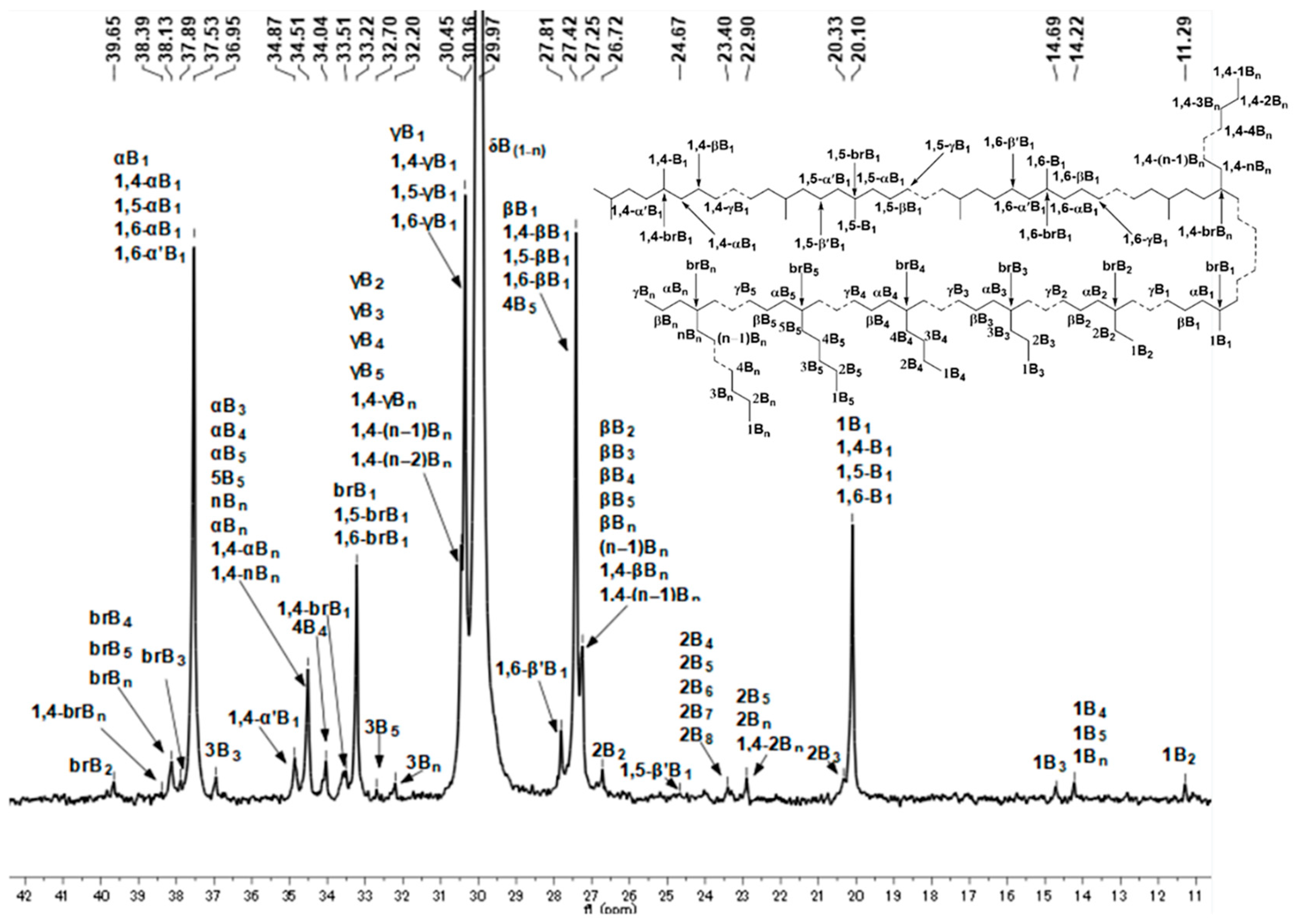

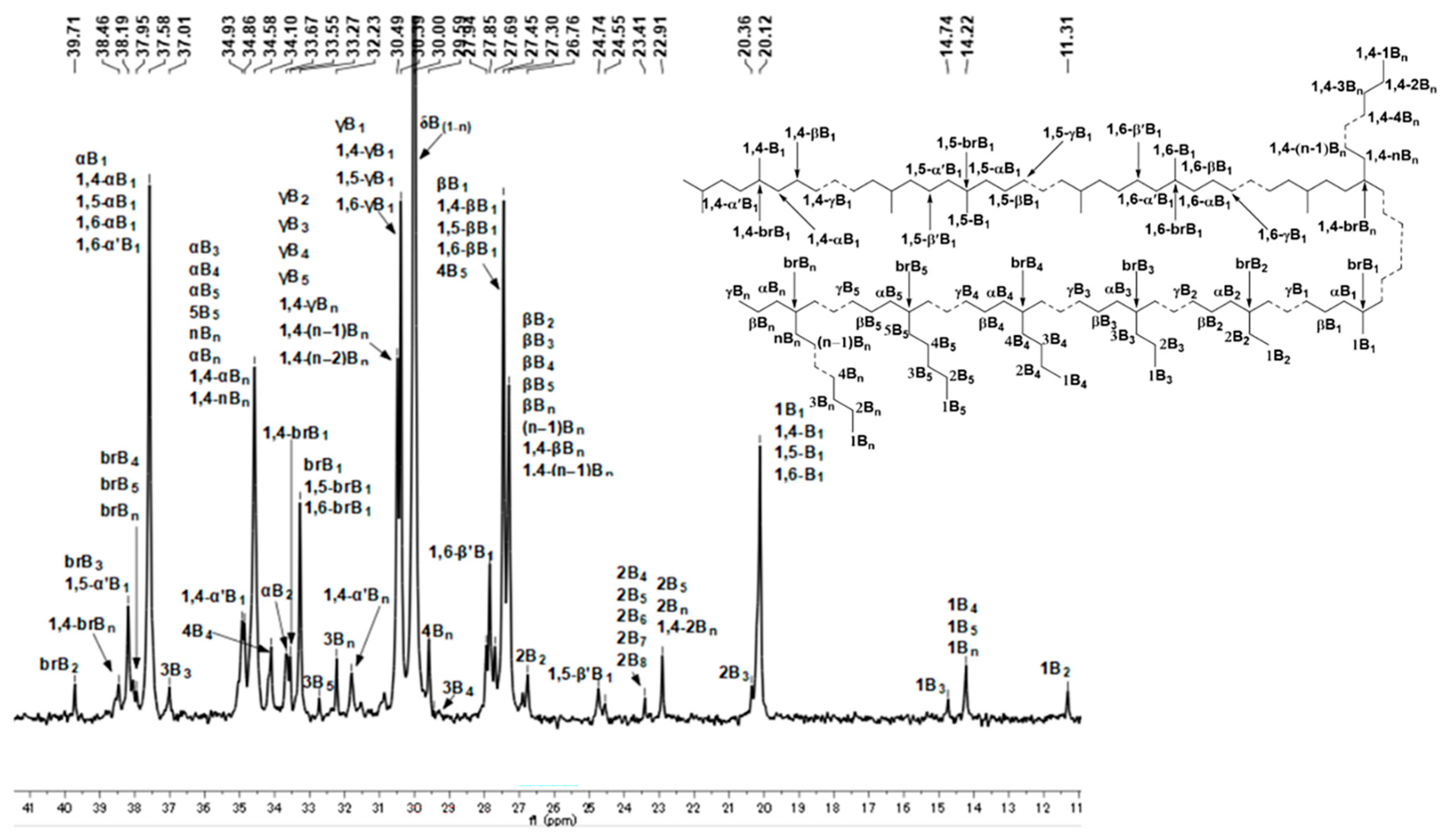

The melt temperatures of polyethylene are dependent on the reaction conditions and vary significantly with an increase in reaction temperature (entries 4, 6–12, Table 3). Polyethylene produced at 10 °C had a high melt temperature of 88.99 °C, while that produced at 50 °C showed a much lower melt temperature of 15.47 °C. Above 50 °C, no distinct melt temperature was observed, as the polymer transitioned from 35.78% crystallinity at 10 °C to only 8.19% at 50 °C, ultimately becoming fully amorphous above 50 °C. This change in crystallinity is directly related to the branching degree and content [55]. To investigate the branching content of the polyethylenes, high-temperature 13C NMR spectroscopy was employed for polyethylene produced at different temperatures. In particular, two polyethylene samples prepared using Ni1/Et2AlCl at 20 °C and 70 °C (entries 7 and 11, Table 3), labeled as PE-Et2AlCl-20 and PE-Et2AlCl-70, were characterized (Figure 6 and Figure 7). The signals were assigned based on previous reports [56]. PE-Et2AlCl-20 contained 84 branches/1000 carbons (Table 4), with the predominant types being methyl (84.8%), ethyl (3.1%), propyl (4.0%), butyl (4.9%), amyl (0.8%), and longer chains (2.4%). In comparison, PE-Et2AlCl-70 (entry 11, Table 3) exhibited an extremely high level of branching (217 branches per 1000 carbons). The main types of branches were methyl (71.4%), ethyl (5.3%), propyl (6.1%), butyl (8.8%), amyl (2.0%), and longer chains (6.4%). This occurs due to the enhanced chain walking reactions that are more prominent at higher temperatures. At elevated temperatures, the energy barriers for the formation of β-agostic alkyl metal complexes decrease, leading to more frequent chain walking events. Consequently, the polyethylene produced under these conditions exhibits an increased branching degree, which results in a lower melt temperature [37,43]. Compared to previously reported precatalysts B (Scheme 1), the replacement of para-Cl with a para-Me group in the prepared nickel complexes increased both the branching degree (B: 102 branches/1000C, this work: 217 branches/1000C) and the molecular weight of the polyethylenes [52].

2.4. Evaluation of Mechanical Performance in Polyethylenes

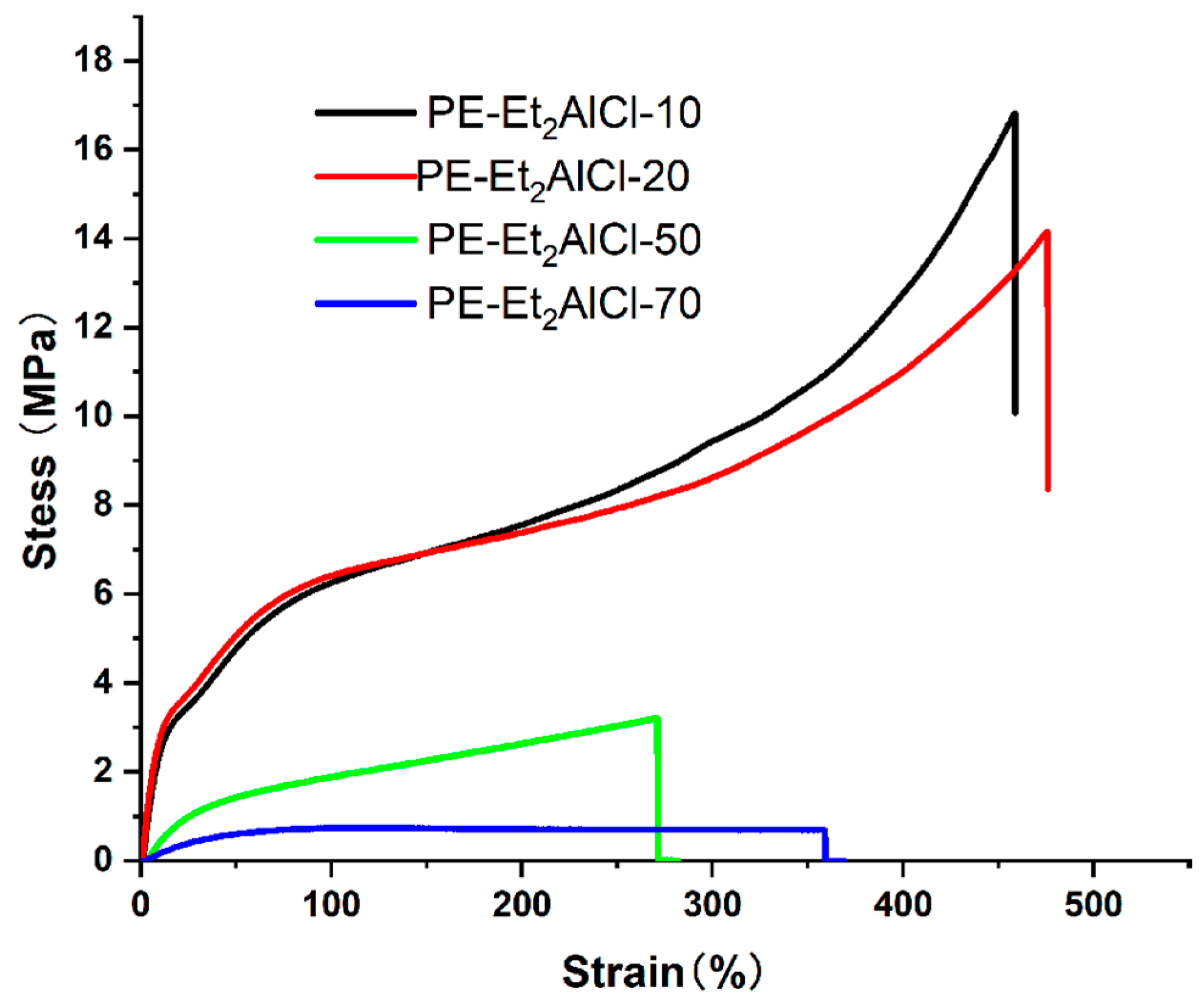

The physical properties of polyethylene, such as elasticity, mechanical strength, and toughness, are important for determining its suitability in various applications such as packaging, automotive, and construction. These properties influence the material performance, durability, and resistance to wear and tear in real-world conditions. To assess the physical properties of the prepared polyethylenes, four samples produced at different reaction temperatures (10 °C, 20 °C, 50 °C, 70 °C) using Ni1/Et2AlCl were selected and named PE-Et2AlCl-10 (entry 6, Table 3), PE-Et2AlCl-20 (entry 7, Table 3), PE-Et2AlCl-50 (entry 9, Table 3), and PE-Et2AlCl-70 (entry 11, Table 3). Each sample was tested for tensile stress-strain using a universal tester and for stress-strain recovery via dynamic mechanical analysis (DMA). The complete set of results are provided in Table 5. First, monotonic tensile stress-strain measurements were conducted at room temperature, with each test involving three specimens to ensure consistent results. The stress-strain curves are shown in Figure 8. The polyethylenes PE-Et2AlCl-10 and PE-Et2AlCl-20 prepared at lower temperatures (10 °C and 20 °C) exhibit higher tensile strength (16.83 MPa and 14.16 MPa) and strain-at-break values (458% and 475%) than previously reported polyethylenes in the literature [57]. This is likely due to the combination of high molecular weight (14.22 × 105 g mol−1 and 7.53 × 105 g mol−1) and low branching degree (PE-Et2AlCl-20, 84 branches/1000C), which in turn is associated with high crystallinity (35.78% and 25.76%). As shown in Table 5, the polyethylene sample PE-Et2AlCl-50, prepared at 50 °C, exhibited slightly poorer mechanical properties (σb = 3.21 MPa, εb = 271%) than PE-Et2AlCl-10 and PE-Et2AlCl-20, likely due to a combination of lower molecular weight (4.72 × 105 g mol−1), higher branching, and lower Tm and Xc (Table 5). The lowest ultimate tensile stress of 0.74 MPa was observed for PE-Et2AlCl-70, likely due to the material being almost amorphous at the run temperature [33,37]. However, it exhibited higher strain compared to PE-Et2AlCl-50, possibly because the higher branching at 70 °C results in a softer polymer, leading to slightly higher strain-at-break values (358%) compared to the sample prepared at 50 °C (271%).

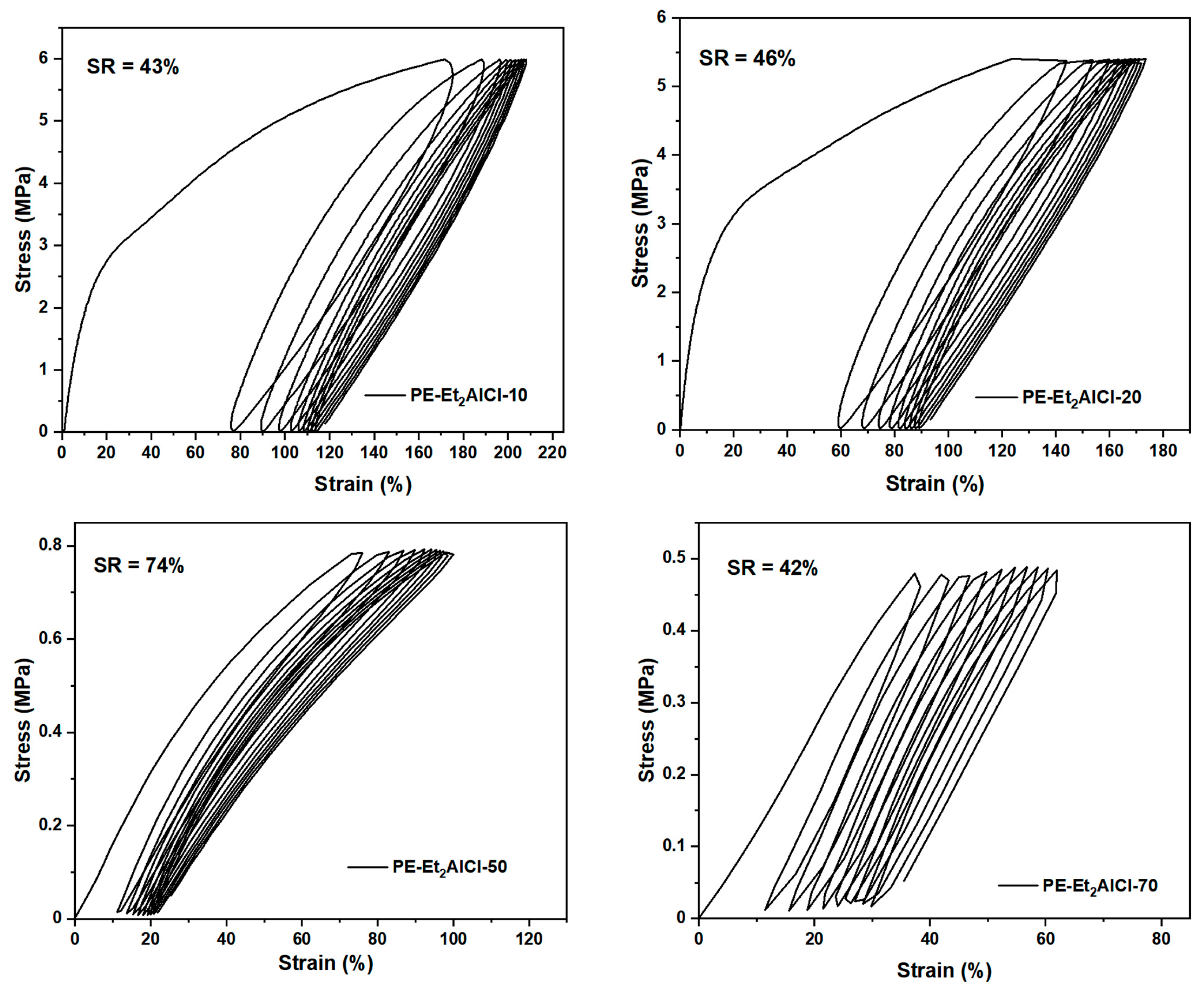

Figure 9 and Table 5 show the results of stress–strain recovery tests using DMA. These tests were conducted at 30 °C, with each cycle repeated up to ten times. The stress-strain hysteresis loops exhibited consistent recovery levels for all samples after the first cycle, indicating that the polyethylenes displayed characteristics of thermoplastic elastomers (TPEs). Despite its high Mw (4.22 × 105 g mol–1), the high branching density (217 branches/1000C) of PE-Et2AlCl-70 resulted in only 42% elastomeric recovery under a tensile stress of 0.5 MPa. The absence of a crystalline region and its completely amorphous nature rendered the polymer soft, with lower mechanical strength and reduced elastic recovery. The PE-Et2AlCl-50 sample demonstrated superior strain recovery (74%), attributed to its balanced branching and moderate crystallinity (8.19%). In contrast, PE-Et2AlCl-10 and PE-Et2AlCl-20 achieved recoveries of 43% and 46%, respectively, likely due to their greater crystalline content. These results indicate that the branching degree and crystallinity of polyethylene significantly influence its mechanical and elastic properties. Excessive crystallinity reduces elasticity, while a completely amorphous nature results in a soft polymer with limited elastic recovery [50,52].

3. Materials and Methods

3.1. Synthesis of Monoketone and Ligands (L1–L5)

2-(2,6-Dibenzhydryl-4-methylphenylimino)butanone
  • A solution of 2,6-diphenylmethyl-4-methylaniline (8.79 g, 20.0 mmol), 2,3-butanedione (1.72 g, 20.0 mmol), and a catalytic amount of p-toluenesulfonic acid (0.879 g) in dichloromethane (300 mL) was stirred at ambient temperature for 4 h. Afterward, the solvent was removed under reduced pressure, and the crude product was purified by recrystallization from methanol, affording 6.60 g of yellow solid with 65% yield. 1H NMR (400 MHz, CDCl3, TMS): δ 7.26–7.14 (m, 16H, Py–H), 7.01 (t, J = 2.0 Hz, 4H, Py–H), 6.64 (s, 2H, Py–H), 5.09 (s, 2H, Ar–CH(Ph)2), 2.31 (s, 3H, O=C–CH3), 2.15 (s, 3H, Ar–CH3), 0.68 (s, 3H, N=C–CH3). 13C NMR (100 MHz, CDCl3, TMS): δ 199.3 (O=C–CH3), 168.5 (N=C–CH3), 144.3, 142.5, 142.0, 132.3, 130.8, 129.4, 129.1, 128.3, 127.0, 126.2, 126.0, 52.1, 24.7, 21.1, 14.3. FT-IR (cm–1): 3059 (w), 3026 (w), 2921 (w), 1702 (s), 1649 (m), 1599 (w), 1572 (w), 1494 (m), 1439 (m), 1356 (m), 1262 (m), 1183 (m), 1119 (m), 1077 (m) 1031(m), 924 (w), 892 (w), 768 (m), 742 (m), 697 (s), 684 (m). Anal. calcd for C37H33NO (507.68): C, 87.54; H, 6.55; N, 2.79%. Found: C, 87.29; H, 6.59; N, 2.73%.
2-(2,6-Dibenzhydryl-4-methylphenylimino)-3-(2,6-dimethylphenylimino)butane (L1)
  • To a 25 mL round-bottomed flask, equipped with a stir bar, was added zinc(II) chloride (0.20 g, 1.5 mmol), 2-(2,6-dibenzhydryl-4-methylphenylimino)butanone (0.76 g, 1.5 mmol), 2,6-dimethylaniline (0.18 g, 1.5 mmol), and acetic acid (1 mL). The reaction mixture was stirred and heated for 4 h at 80 °C. Once cooled to room temperature, diethyl ether (10 mL) was added and the resulting yellow precipitate was filtered. This intermediate zinc(II) chloride complex was then dissolved in dichloromethane and a saturated aqueous solution of potassium carbonate (K2CO3) was added and the stirred at room temperature for 1.5 h [58,59,60]. Using a separating funnel, the organic layer was extracted and washed with water three times and dried over anhydrous magnesium sulfate (MgSO4). After removing the volatiles by rotary evaporation, the product was recrystallized from hexane to yield L1 as a yellow powder (0.52 g, 57%). 1H NMR (400 MHz, CDCl3, TMS): δ 7.27–7.22 (m, 8H, Py–H), 7.20–7.15 (m, 4H, Py–H), 7.09–7.03 (m, 10H, Py–H), 6.91 (t, J = 8.0 Hz, 1H, Py–H), 6.65 (s, 2H, Py–H), 5.23 (s, 2H, Ar–CH(Ph)2), 2.17 (s, 3H, Ar–CH3), 1.81 (s, 3H, N=C–CH3), 1.09 (s, 6H, Py–CH3), 0.85 (s, 3H, N=C–CH3). 13C NMR (100 MHz, CDCl3, TMS): δ 170.0 (N=C–CH3), 167.8 (N=C–CH3), 148.6, 145.8, 143.7, 142.6, 131.9, 131.6, 129.9, 129.6, 128.8, 128.6, 128.2, 128.0, 126.5, 126.2, 124.6, 123.2, 52.5, 21.5, 18.1, 16.1, 16.0. FT-IR (cm–1): 3024 (w, vPy–H), 2968 (w, vN=C–C–H), 1635 (m, vC=N), 1597 (w, vPy), 1493 (m, vPy), 1447 (m, vPy), 1419 (m, vPy), 1351 (m, vPy), 1257 (m, vC–N), 1199 (m, vC–N), 1122 (m, vPy), 1081 (m, vPy), 1028 (m, vPy), 924 (w, vPy ), 915 (w, vPy), 885 (m, vPy), 859 (m, vAr–C–H), 803 (s, vAr–C–H), 746 (m, vAr-C-H), 698 (s, vAr–CH(Ph-H)). Anal. calcd for C45H42N2 (610.85): C, 88.48; H, 6.93; N, 4.59%. Found: C, 88.33; H, 6.82; N, 4.66%.
2-(2,6-Dibenzhydryl-4-methylphenylimino)-3-(2,6-diethylphenylimino)butane (L2)
  • Using a similar procedure as described for L1 but using 2,6-diethylaniline as the aniline gave L2 as a yellow solid (0.48 g, 50%). 1H NMR (400 MHz, CDCl3, TMS): δ 7.28–7.17 (m, 11H, Py–H), 7.11–6.99 (m, 12H, Py–H), 6.67 (s, 2H, Py–H), 5.25 (s, 2H, Ar–CH(Ph)2), 2.31 (t, J = 8.0 Hz, 4H, Py–CH2CH3), 2.18 (s, 3H, Ar–CH3), 1.84 (s, 3H, N=C–CH3), 1.18 (s, J = 8.0 Hz, 6H, Py–CH2CH3), 0.89 (s, 3H, N=C–CH3). 13C NMR (100 MHz, CDCl3, TMS): δ 170.0 (N=C–CH3), 167.7 (N=C–CH3), 147.5, 145.7, 143.8, 142.6, 131.9, 131.6, 130.4, 129.9, 129.6, 128.9, 128.6, 128.2, 126.5, 126.2, 126.0, 123.6, 52.4, 24.6, 21.5, 16.4, 16.1, 14.0. FT-IR (cm–1): 3024 (w), 2963 (w), 1640 (m, vC=N), 1597 (m), 1493 (m), 1446 (m), 1419 (m), 1356 (m), 1255 (m), 1194 (m), 1121 (m), 1076 (m), 1029 (m), 1008 (w), 913 (w), 859 (m), 801 (m), 748 (m), 697 (s). Anal. calcd for C47H46N2 (638.90): C, 88.36; H, 7.26; N, 4.38%. Found: C, 88.10; H, 7.38; N, 4.31%.
2-(2,6-Dibenzhydryl-4-methylphenylimino)-3-(2,6-diisopropylphenylimino)butane (L3)
  • Using a similar procedure as described for L1 but using 2,6-diisopropylaniline as the aniline gave L3 as a yellow solid (0.42 g, 42%). 1H NMR (400 MHz, CDCl3, TMS): δ 7.28–7.24 (m, 8H, Py–H), 7.20–7.17 (m, 4H, Py–H), 7.15–7.09 (m, 6H, Py–H), 7.08–7.04 (m, 5H, Py–H), 6.66 (s, 2H, Py–H), 5.25 (s, 2H, Ar–CH(Ph)2), 2.61 (m, 2H, Py–CH(CH3)2), 2.18 (s, 3H, Ar–CH3), 1.85 (s, 3H, N=C–CH3), 1.22 (d, J = 6.8 Hz, 6H, Py–CH(CH3)2), 1.17 (d, J = 6.8 Hz, 6H, Py–CH(CH3)2), 0.88 (s, 3H, N=C–CH3). 13C NMR (100 MHz, CDCl3, TMS): δ 170.0 (N=C–CH3), 168.0 (N=C–CH3), 146.2, 145.8, 143.9, 142.7, 135.1, 131.9, 131.6, 129.9, 129.6, 128.9, 128.6, 128.2, 126.5, 126.2, 123.9, 123.1, 52.4, 28.3, 23.5, 23.3, 21.5, 16.8, 16.4. FT-IR (cm–1): 3025 (w), 2961 (w), 2921 (w), 1641 (m, vC=N), 1597 (w), 1597 (m), 1493 (m), 1443 (m), 1357 (m), 1326 (m), 1250 (m), 1186 (m), 1117 (m), 1075 (m), 1021 (m), 997 (w), 914 (w), 857 (w), 794 (m), 767 (m), 697 (s). Anal. calcd for C49H50N2 (666.95): C, 88.24; H, 7.56; N, 4.20%. Found: C, 88.01; H, 7.70; N, 4.29%.
2-(2,6-Dibenzhydryl-4-mehtylphenylimino)-3-(2,4,6-trimethylphenylimino)butane (L4)
  • Using a similar procedure as described for L1 but using 2,4,6-trimethylaniline as the aniline gave L4 as a yellow solid (0.45 g, 48%). 1H NMR (400 MHz, CDCl3, TMS): δ 7.29–7.24 (m, 8H, Py–H), 7.22–7.17 (m, 4H, Py–H), 7.12–7.06 (m, 8H, Py–H), 6.88 (s, 2H, Py–H), 6.68 (s, 2H, Py–H), 5.25 (s, 2H, Ar–CH(Ph)2), 2.29 (s, 3H, Py–CH3), 2.19 (s, 3H, Ar–CH3), 1.83 (s, 3H, N=C–CH3), 1.98 (s, 6H, Py–CH3), 0.88 (s, 3H, N=C–CH3). 13C NMR (100 MHz, CDCl3, TMS): δ 170.1 (N=C–CH3), 168.0 (N=C–CH3), 146.2, 145.8, 143.8, 142.6, 132.4, 131.8, 131.6, 129.9, 128.8, 128.6, 128.2, 126.5, 126.2, 124.5, 52.5, 21.5, 20.8, 18.0, 16.2, 15.9. FT-IR (cm–1): 3022 (w), 2920 (w), 1634 (m, vC=N), 1598 (m), 1570 (w), 1492 (m), 1359 (m), 1252 (m), 1201 (w), 1124 (m), 1075 (m), 1029 (m), 913 (w), 854 (m), 768 (w), 741 (m), 696 (s). Anal. calcd for C46H44N2 (624.87): C, 88.42; H, 7.10; N, 4.48%. Found: C, 88.59; H, 7.00; N, 4.42%.
2-(2,6-Dibenzhydryl-4-mehtylphenylimino)-3-(2,6-dimethyl-4-ethylphenylimino)butane (L5)
  • Using a similar procedure as described for L1 but using 2,6-diethyl-4-methylaniline as the aniline gave L5 as a yellow solid (0.43 g, 44%). 1H NMR (400 MHz, CDCl3, TMS): δ 7.28–7.17 (m, 10H, Py–H), 7.12–6.98 (m, 10H, Py–H), 6.91 (s, 2H, Py–H), 6.67 (s, 2H, Py–H), 5.26 (s, 2H, Ar–CH(Ph)2), 2.31 (s, 3H, Py–CH3), 2.30–2.25 (m, 4H, Py–CH2CH3), 2.19 (s, 3H, Ar–CH3), 1.84 (s, 3H, N=C–CH3), 1.17 (t, J = 7.6 Hz, 6H, Py–CH2CH3), 0.90 (s, 3H, N=C–CH3). 13C NMR (100 MHz, CDCl3, TMS): δ 170.1 (N=C–CH3), 168.0 (N=C–CH3), 145.8, 145.1, 143.1, 142.7, 132.7, 131.6, 131.6, 130.3, 129.9, 129.5, 128.2, 126.5, 126.2, 124.5, 52.4, 24.6, 28.8, 21.5, 16.4, 14.3, 14.1. FT-IR (cm–1): 3023 (w), 3010 (w), 2959 (w), 1642 (m, vC=N), 1599 (m), 1572 (w), 1493 (m), 1419 (w), 1359 (m), 1249 (m), 1203 (m), 1124 (m), 1075 (m), 1030 (m), 913 (w), 859 (w), 768 (w), 741 (m), 696 (s). Anal. calcd for C48H48N2 (652.93): C, 88.30; H, 7.41; N, 4.29%. Found: C, 88.11; H, 7.53; N, 4.20%.

3.2. Synthesis of Nickel Complexes (Ni1–Ni5)

2-(2,6-Dibenzhydryl-4-methylphenylimino)-3-(2,6-dimethylphenylimino)butane-NiBr2 (Ni1)
  • The complexes Ni1–Ni5 were prepared by the treatment of (DME)NiBr2 with the corresponding ligands (L1–L5) in THF. The preparation of Ni1 is outlined as follows. L1 (0.1 g, 0.16 mmol) and (DME)NiBr2 (0.05 g, 0.15 mmol) were added to a Schlenk tube, along with 10 mL of dichloromethane. The reaction mixture was stirred for 12 h at room temperature, followed by the addition of absolute diethyl ether (10 mL) to precipitate the complex. The precipitate was washed with diethyl ether and dried under vacuum, yielding a brick-red powder of Ni1 (70%, 0.093 g). FT-IR (cm–1): 3027 (w), 2917 (w), 2923 (w), 2866 (w), 1636 (m, vC=N), 1599 (m), 1494 (w), 1472 (w), 1441 (m), 1376 (m), 1301 (m), 1219 (m), 1152 (m), 1118 (m), 1075 (m), 1033 (m), 1003 (w), 916 (m), 828 (w), 800 (w), 770 (m), 751 (m), 698 (s). Anal calcd for C45H42Br2N2Ni (829.35): C, 65.17; H, 5.10; N, 3.38%. Found C, 64.99; H, 5.22; N, 3.10%.
2-(2,6-Dibenzhydryl-4-methylphenylimino)-3-(2,6-diethylphenylimino)butane-NiBr2 (Ni2)
  • A similar approach to that used for Ni1 was employed, replacing L1 with L2 as the ligand. Ni2 was isolated as a brick red complex (0.099 g, 72%). FT-IR (cm–1): 3329 (w), 2969 (w), 2933 (w), 1637 (m, vC=N), 1602 (m), 1543 (w), 1491 (m), 1445 (m), 1400 (w), 1380 (w), 1340 (w), 1073 (w), 990 (m), 980 (w), 970 (w), 940 (w), 900 (w), 864 (m), 829 (m), 791 (m), 767 (m), 700 (s). Anal calcd for C47H46Br2N2Ni (857.40): C, 65.84; H, 5.41; N, 3.27%. Found: C, 65.55; H, 5.20; N, 3.10%.
2-(2,6-Dibenzhydryl-4-methylphenylimino)-3-(2,6-diisopropylphenylimino)butane-NiBr2 (Ni3)
  • A similar approach to that used for Ni1 was employed, replacing L1 with L3 as the ligand. Ni3 was isolated as a brick red complex (0.120 g, 85%). FT-IR (cm–1): 3224 (w), 3024 (w), 2960 (m), 2923 (w), 2790 (w), 1634 (m, vC=N), 1600 (m), 1576 (w), 1494 (m), 1447 (m), 1413 (m), 1378 (s), 1323 (w), 1302 (w), 1252 (w), 1214 (m), 1153 (m), 1123 (m), 1033 (m), 995 (m), 912 (m), 861 (m), 830 (m), 791 (m), 763 (m), 741 (m), 698 (s). Anal calcd for C49H50Br2N2Ni (885.45): C, 66.47; H, 5.69; N, 3.16%. Found: C, 66.21; H, 5.82; N, 3.29%.
2-(2,6-Dibenzhydryl-4-mehtylphenylimino)-3-(2,4,6-trimethylphenylimino)butane-NiBr2 (Ni4)
  • A similar approach to that used for Ni1 was employed, replacing L1 with L4 as the ligand. Ni4 was isolated as a brick red complex (0.106 g, 79%). FT-IR (cm–1): 3120 (w), 2916 (m), 2762 (w), 1639 (m, vC=N), 1601 (m), 1491 (m), 1413 (m), 1380 (m), 1361 (m), 1302 (m), 1226 (m), 1167 (m), 1124 (m), 1074 (m), 1036 (m), 997 (w), 974 (w), 912 (w), 859 (m), 828 (m), 800 (m), 753 (m), 710 (s). Anal calcd for C46H44Br2N2Ni (843.37): C, 65.51; H, 5.26; N, 3.32%. Found: C, 65.21; H, 5.00; N, 3.11%.
2-(2,6-Dibenzhydryl-4-mehtylphenylimino)-3-(2,6-dimethyl-4-ethylphenylimino)butane-NiBr2 (Ni5)
  • A similar approach to that used for Ni1 was employed, replacing L1 with L5 as the ligand. Ni5 was isolated as a brick red complex (0.100 g, 72%). FT-IR (cm–1): 3112 (w), 2960 (m), 2731 (w), 1637 (m, vC=N), 1574 (m), 1494 (m), 1449 (m), 1392 (m), 1380 (m), 1359 (w), 1330 (w), 1311 (w), 1250 (m), 1219 (m), 1173 (m), 1125 (m), 1032 (m), 1000 (m), 914 (w), 866 (m), 828 (m), 780 (w), 751 (m), 691 (s). Anal calcd for C47H45Br2N2Ni (871.43): C, 66.16; H, 5.55; N, 3.21%. Found: C, 66.41; H, 5.10; N, 3.45%.

4. Conclusions

In summary, a series of unsymmetrical 2,3-bis(arylimino)butane-nickel precatalysts featuring a sterically hindered N-2,6-bis(benzhydryl)-4-methylphenyl group were successfully prepared and thoroughly characterized. These nickel precatalysts demonstrated exceptional catalytic performance in ethylene polymerization, marked by outstanding thermal stability, high polymer molecular weights, controlled unimodal dispersity, and tunable material properties. Notably, the nickel precatalysts maintained remarkable activity even at an elevated temperature of 80 °C (1.97 × 106 g PE mol−1 (Ni) h−1) and produced ultra-high molecular weight polyethylene up to 1.95 × 106 g mol−1, underscoring the exceptional stability of the active catalytic species. Moreover, the polymerization temperature emerged as a critical parameter for tailoring polymer architecture and performance, with the increase in the reaction temperature inducing a significant rise in branching density (from 84 to 217 branches/1000C), crystallinity, and melting temperature. These microstructural modifications directly governed the mechanical properties of the resulting polyethylenes, achieving a tensile strength of 16.83 MPa and strain recovery values as high as 74%—a hallmark of thermoplastic elastomers (TPEs). The synergy between controlled branching, high molecular weight, and dynamic chain entanglement enabled the polyethylene to exhibit both robust mechanical strength and elastic recovery, positioning it as a promising candidate for advanced TPE applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules30081847/s1. General Considerations, Table S1: Crystal data and structure refinement for Ni4 and Ni5, Figures S1–S6. 1H NMR (400 MPa) spectrum of 2-(2,6-dibenzhydryl-4- methylphenylimino)butanone, L1–L5 (recorded in CDCl3 at 25 °C). Refs. [61,62] are cited in the Supplementary Materials.

Author Contributions

D.Z.: methodology, investigation, data curation, writing—original draft preparation, and writing—review and editing; D.J.: data curation and writing; Q.Z.: validation, and writing—review and editing; Y.M.: writing—review and editing; Q.M.: writing—review and editing; W.-H.S.: conceptualization, resources, supervision, funding acquisition, and writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Scientific Research Foundation of Guangxi Minzu University (Grant No. 2023KJQD46) and the Guangxi Innovation-Driven Development Special Fund Project (Grant No. GuikeAA23062020).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

CCDC reference numbers 2431758 and 2431759 contain supplementary crystallographic information for Ni4 and Ni5 (see Supplementary Materials), and the data presented in this study are available in this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Silva, A.L.N.D.; Tavares, M.I.B.; Politano, D.P.; Coutinho, F.M.B.; Rocha, M.C.G. Polymer blends based on polyolefin elastomer and polypropylene. J. Appl. Polym. Sci. 2015, 66, 2005–2014. [Google Scholar] [CrossRef]
  2. Hotta, A.; Cochran, E.; Ruokolainen, J.; Khanna, V.; Fredrickson, G.; Kramer, E.; Shin, Y.; Shimizu, F.; Cherian, A.; Hustad, P. Semicrystalline thermoplastic elastomeric polyolefins: Advances through catalyst development and macromolecular design. Proc. Natl. Acad. Sci. USA 2006, 103, 15327–15332. [Google Scholar] [CrossRef] [PubMed]
  3. Giller, C.; Gururajan, G.; Wei, J.; Zhang, W.; Hwang, W.; Chase, D.B.; Rabolt, J.F.; Sita, L.R. Synthesis, characterization, and electrospinning of architecturally-discrete isotacticatacticisotactic triblock stereoblock polypropene elastomers. Macromolecules 2011, 44, 471–482. [Google Scholar] [CrossRef]
  4. Chapleski, R.C.; Kern, J.L.; Anderson, W.C.; Long, B.K.; Roy, S. A mechanistic study of microstructure modulation in olefin polymerizations using a redox-active Ni(ii) α-diimine catalyst. Catal. Sci. Technol. 2020, 10, 2029–2039. [Google Scholar] [CrossRef]
  5. Souza, R.F.; Casagrande, O.L. Recent advances in olefin polymerization using binary catalyst systems. Macromol. Rapid Commun. 2001, 22, 1293–1301. [Google Scholar] [CrossRef]
  6. Hustad, P.D. Frontiers in olefin polymerization: Reinventing the world’s most common synthetic polymers. Science 2009, 325, 704–707. [Google Scholar] [CrossRef]
  7. Ohtaki, H.; Deplace, F.; Vo, G.D.; LaPointe, A.M.; Shimizu, F.; Sugano, T.; Kramer, E.J.; Fredrickson, G.H.; Coates, G.W. Allyl-terminated polypropylene macromonomers: A route to polyolefin elastomers with excellent elastic behavior. Macromolecules 2015, 48, 7489–7494. [Google Scholar] [CrossRef]
  8. Nakata, N.; Toda, T.; Matsuo, T.; Ishii, A. Controlled Isospecific polymerization of α-olefins by hafnium complex incorporating with a trans-cyclooctanediyl-bridged [OSSO]-type bis(phenolate) ligand. Macromolecules 2013, 46, 6758–6764. [Google Scholar] [CrossRef]
  9. Collina, G.; Braga, V.; Sartori, F. New thermoplastic polyolefins elastomers from the novel Multicatalysts Reactor Granule Technology: Their relevant physical-mechanical properties after crosslinking. Polym. Bull. 1997, 38, 701–705. [Google Scholar] [CrossRef]
  10. Aluas, M.; Filip, C. Solid-state NMR characterization of cross-linking in EPDM/PP blends from 1H–13C polarization transfer dynamics—ScienceDirect. Solid State Nucl. Magn. Reson. 2005, 27, 165–173. [Google Scholar] [CrossRef]
  11. Montoya, M.; Tomba, J.P.; Carella, J.M.; Gobernado-Mitre, M.I. Physical characterization of commercial polyolefinic thermoplastic elastomers. Eur. Polym. J. 2004, 40, 2757–2766. [Google Scholar] [CrossRef]
  12. Braunecker, W.A.; Matyjaszewski, K. Controlled/living radical polymerization: Features, developments, and perspectives. Prog. Polym. Sci. 2007, 32, 93–146. [Google Scholar] [CrossRef]
  13. Poon, B.C.; Dias, P.; Ansems, P.; Chum, S.P.; Hiltner, A.; Baer, E. Structure and deformation of an elastomeric propylene–ethylene copolymer. J. Appl. Polym. Sci. 2010, 104, 489–499. [Google Scholar] [CrossRef]
  14. Schmalz, H.; Abetz, V.; Lange, R. Thermoplastic elastomers based on semicrystalline block copolymers. Compos. Sci. Technol. 2003, 63, 1179–1186. [Google Scholar] [CrossRef]
  15. Mehrabzadeh, M.; Delfan, N. Thermoplastic elastomers of butadiene-acrylonitrile copolymer and polyamide. VI. Dynamic crosslinking by different systems. J. Appl. Polym. Sci. 2000, 77, 2057–2066. [Google Scholar] [CrossRef]
  16. Stürzel, M.; Mihan, S.; Mülhaupt, R. From multisite polymerization catalysis to sustainable materials and all-polyolefin composites. Chem. Rev. 2016, 116, 1398–1433. [Google Scholar] [CrossRef]
  17. Wu, C.; Ren, M.; Hou, L.; Qu, S.; Li, X.; Zheng, C.; Chen, J.; Wang, W. Ethylene copolymerization with linear and end-cyclized olefins via a metallocene catalyst: Polymerization behavior and thermal properties of copolymers. Engineering 2023, 93–99. [Google Scholar] [CrossRef]
  18. Gao, Y.; Liu, W.; Zhu, S. Polyolefin thermoplastics for multiple shape and reversible shape memory. ACS Appl. Mater. Interfaces 2017, 9, 4882–4889. [Google Scholar] [CrossRef]
  19. Mcnally, T.; Mcshane, P.; Nally, G.M.; Murphy, W.R.; Cook, M.; Miller, A. Rheology, phase morphology, mechanical, impact and thermal properties of polypropylene/metallocene catalysed ethylene 1-octene copolymer blends. Polymer 2002, 43, 3785–3793. [Google Scholar] [CrossRef]
  20. Silva, A.L.N.D.; Rocha, M.C.G.; Coutinho, F.M.B.; Bretas, R.; Scuracchio, C. Rheological, mechanical, thermal, and morphological properties of polypropylene/ethylene-octene copolymer blends. J. Appl. Polym. Sci. 2015, 75, 692–704. [Google Scholar] [CrossRef]
  21. Anderson, W.C., Jr.; Long, B.K. Modulating polyolefin copolymer composition via redox-active olefin polymerization catalysts. ACS Macro. Lett. 2016, 5, 1029–1033. [Google Scholar] [CrossRef] [PubMed]
  22. Chen, S.-Y.; Pan, R.-C.; Liu, Y.; Lu, X.-B. Bulky o-phenylene-bridged bimetallic α-diimine Ni(II) and Pd(II) catalysts in ethylene (co)polymerization. Organometallics 2021, 40, 3703–3711. [Google Scholar] [CrossRef]
  23. Sakuma, A.; Weiser, M.-S.; Fujita, T. Living olefin polymerization and block copolymer formation with FI catalysts. Polym. J. 2007, 39, 193–207. [Google Scholar] [CrossRef]
  24. Makio, H.; Fujita, T. Development and application of FI catalysts for olefin polymerization: Unique catalysis and distinctive polymer formation. Acc. Chem. Res. 2009, 42, 1532–1544. [Google Scholar] [CrossRef]
  25. Johnson, L.K.; Killian, C.M.; Brookhart, M. New Pd(II)- and Ni(II)-based catalysts for polymerization of ethylene and .alpha.-Olefins. J. Am. Chem. Soc 1995, 117, 6414–6415. [Google Scholar] [CrossRef]
  26. Killian, C.M.; Tempel, D.J.; Johnson, L.K.; Brookhart, M. Living polymerization of α-olefins using NiII−α-diimine catalysts. Synthesis of new block polymers based on α-olefins. J. Am. Chem. Soc. 1996, 118, 11664–11665. [Google Scholar] [CrossRef]
  27. Ittel, S.D.; Johnson, L.K.; Brookhart, M. Late-metal catalysts for ethylene homo- and copolymerization. Chem. Rev. 2000, 100, 1169–1204. [Google Scholar] [CrossRef]
  28. Cherian, A.E.; Rose, J.M.; Lobkovsky, E.B.; Coates, G.W. A C-2-Symmetric, living α-diimine Ni(II) catalyst: Regioblock copolymers from propylene. J. Am. Chem. Soc. 2005, 127, 13770–13771. [Google Scholar] [CrossRef]
  29. Anderson, W.C.; Rhinehart, J.L.; Tennyson, A.G.; Long, B.K. Redox-active ligands: An advanced tool to modulate polyethylene microstructure. J. Am. Chem. Soc. 2016, 138, 774–777. [Google Scholar] [CrossRef]
  30. Camacho, D.H.; Guan, Z. Designing late-transition metal catalysts for olefin insertion polymerization and copolymerization. Chem. Commun. 2010, 46, 7879–7893. [Google Scholar] [CrossRef]
  31. Li, X.; Hu, Z.; Mahmood, Q.; Wang, Y.; Sohail, S.; Zou, S.; Liang, T.; Sun, W.-H. Tunable C2-symmetric α-diimine nickel catalysts mediated ethylene polymerization for PEE synthesis: In-depth insights from ligand and nickel halide variations. Dalton Trans. 2024, 53, 18193–18206. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, Q.; Zhang, Q.; Wang, Y.; Zou, S.; Ma, Y.; Liang, T.; Sun, W.-H. Axial-phenyl constrained bis(imino)acenaphthene-nickel precatalysts enhancing ethylene polymerization. Polym. Chem. 2024, 15, 4993–5006. [Google Scholar]
  33. Zheng, Y.; Jiang, S.; Liu, M.; Yu, Z.; Ma, Y.; Solan, G.A.; Zhang, W.; Liang, T.; Sun, W.-H. High molecular weight PE elastomers through 4,4-difluorobenzhydryl substitution in symmetrical α-diimino-nickel ethylene polymerization catalysts. RSC Adv. 2022, 12, 24037–24049. [Google Scholar] [CrossRef]
  34. Sa, S.; Jeon, M.; Kim, S.Y. Controlling branch distribution of polyethylenes by steric tuning of Ni α-diimine complexes based on phenanthrenequinone. J. Mol. Catal. A Chem. 2014, 393, 263–271. [Google Scholar] [CrossRef]
  35. Wang, X.; Fan, L.; Yuan, Y.; Du, S.; Sun, Y.; Solan, G.A.; Guo, C.-Y.; Sun, W.-H. Raising the n-aryl fluoride content in unsymmetrical diaryliminoacenaphthylenes as a route to highly active nickel(ii) catalysts in ethylene polymerization. Dalton Trans. 2016, 45, 18313–18323. [Google Scholar] [CrossRef]
  36. Wang, X.; Fan, L.; Ma, Y.; Guo, C.Y.; Solan, G.A.; Sun, Y.; Sun, W.-H. Elastomeric polyethylenes accessible via ethylene homo-polymerization using an unsymmetrical α-diimino-nickel catalyst. Polym. Chem. 2017, 8, 2785. [Google Scholar] [CrossRef]
  37. Mahmood, Q.; Zeng, Y.; Yue, E.; Solan, G.A.; Liang, T.; Sun, W.-H. Ultra-high molecular weight elastomeric polyethylene using an electronically and sterically enhanced nickel catalyst. Polym. Chem. 2017, 8, 6416–6430. [Google Scholar] [CrossRef]
  38. Liu, M.; Zhang, R.; Ma, Y.; Han, M.; Solan, G.A.; Yang, W.; Liang, T.; Sun, W.-H. Trifluoromethoxy-substituted nickel catalysts for producing highly branched polyethylenes: Impact of solvent, activator and N,N′-ligand on polymer properties. Polym. chem. 2022, 13, 1040–1058. [Google Scholar] [CrossRef]
  39. Wu, R.; Wang, Y.; Zhang, R.; Guo, C.-Y.; Flisak, Z.; Sun, Y.; Sun, W.-H. Finely tuned nickel complexes as highly active catalysts affording branched polyethylene of high molecular weight: 1-(2,6-dibenzhydryl-4-methoxyphenylimino)-2-(arylimino) acenaphthylenenickel halides. Polymer 2018, 153, 574–586. [Google Scholar] [CrossRef]
  40. Kong, S.; Guo, C.-Y.; Yang, W.; Wang, L.; Sun, W.-H.; Glaser, R. 2,6-Dibenzhydryl-n-(2-phenyliminoacenaphthylenylidene)-4-chloro-aniline nickel dihalides: Synthesis, characterization and ethylene polymerization for polyethylenes with high molecular weights. J. Organomet. Chem. 2013, 725, 37–45. [Google Scholar] [CrossRef]
  41. Mahmood, Q.; Zeng, Y.; Wang, X.; Sun, Y.; Sun, W.-H. Advancing polyethylene properties by incorporating NO2 moiety in 1,2-bis(arylimino)acenaphthylnickel precatalysts: Synthesis, characterization and ethylene polymerization. Dalton Trans. 2017, 46, 6934–6947. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, H.; Zhao, W.; Hao, X.; Redshaw, C.; Sun, W.-H. 2,6-Dibenzhydryl-N-(2-phenyliminoacenaphthylenylidene)-4-methylbenzenamine nickel dibromides: Synthesis, characterization, and ethylene polymerization. Organometallics 2011, 30, 2418–2424. [Google Scholar] [CrossRef]
  43. Fan, L.; Du, S.Z.; Guo, C.Y.; Hao, X.; Sun, W.-H. 1-(2,6-dibenzhydryl-4-fluorophenylimino)-2-aryliminoacenaphthylylnickel halides highly polymerizing ethylene for the polyethylenes with high branches and molecular weights. J. Polym. Sci. Part A Polym. Chem. 2015, 53, 1369–1378. [Google Scholar] [CrossRef]
  44. Yang, W.; Ma, Z.; Yi, J.; Sun, W.-H. Quantitative structure-thermostability relationship of late transition metal catalysts in ethylene oligo/polymerization. Catalysts 2017, 7, 120. [Google Scholar] [CrossRef]
  45. Rhinehart, J.L.; Brown, L.A.; Long, B.K. A robust Ni(II) α-diimine catalyst for high temperature ethylene polymerization. J. Am. Chem. Soc. 2013, 135, 16316–16319. [Google Scholar] [CrossRef]
  46. Matsko, M.A.; Semikolenova, N.V.; Zakharov, V.A.; Soshnikov, I.E.; Shundrina, I.K.; Sun, W.-H. Formation of branched polyethylenes by ethylene homopolymerization using LNiBr2 homoand heterogeneous precatalysts: Interpretation of the polymer structures in comparison with commercial LLDPE. J. Appl. Polym. Sci. 2021, 138, 50436. [Google Scholar] [CrossRef]
  47. Wu, R.; Wu, W.K.; Stieglitz, L.; Gaan, S.; Rieger, B.; Heuberger, M. Recent advances on α-diimine Ni and Pd complexes for catalyzed ethylene (co)polymerization: A comprehensive review. Coord. Chem. Rev. 2023, 474, 214844. [Google Scholar] [CrossRef]
  48. Yan, X.; Fu, Z.; Li, Y.; Shi, Y. Homo- and copolymerizations of ethylene and α-olefins in n -hexane catalyzed by Ni(ii)-α-diimine catalyst. Polym. Bull. 2012, 68, 327–339. [Google Scholar] [CrossRef]
  49. Soshnikov, I.E.; Semikolenova, N.V.; Bryliakov, K.P.; Antonov, A.A.; Sun, W.-H.; Talsi, E.P. Activation of an alpha-diimine Ni(II) precatalyst with AlMe3 and (AlBu3)-Bu-i: Catalytic and NMR and EPR spectroscopy studies. Organometallics 2020, 39, 3034–3040. [Google Scholar] [CrossRef]
  50. Liu, Q.; Zhang, W.; Jia, D.; Hao, X.; Redshaw, C.; Sun, W.-H. 2-{2,6-Bis[bis(4-fluorophenyl)methyl]-4-chlorophenylimino}-3-aryliminobutylnickel(II) bromide complexes: Synthesis, characterization, and investigation of their catalytic behavior. Appl. Catal. A Gen. 2014, 475, 195–202. [Google Scholar] [CrossRef]
  51. Jiang, S.; Zheng, Y.; Oleynik, I.V.; Yu, Z.; Solan, G.A.; Oleynik, I.I.; Liu, M.; Ma, Y.; Liang, T.; Sun, W.-H. N,N-Bis(2,4-Dibenzhydryl-6-cycloalkylphenyl)butane-2,3-diimine–nickel complexes as tunable and effective catalysts for high-molecular-weight PE elastomers. Molecules 2023, 28, 4852. [Google Scholar] [CrossRef] [PubMed]
  52. Jia, D.; Zhang, W.; Liu, W.; Wang, L.; Redshaw, C.; Sun, W.-H. Unsymmetrical α-diiminonickel bromide complexes: Synthesis, characterization and their catalytic behavior toward ethylene. Catal. Sci. Technol. 2013, 3, 2737–2745. [Google Scholar] [CrossRef]
  53. Jeon, M.; Kim, S.Y. Ethylene polymerizations with unsymmetrical (α-diimine)nickel(II) catalysts. Polym. J. 2008, 40, 409–413. [Google Scholar] [CrossRef]
  54. Du, S.; Kong, S.; Shi, Q.; Mao, J.; Guo, C.; Yi, J.; Liang, T.; Sun, W.-H. Enhancing the activity and thermal stability of nickel complex precatalysts using 1-[2,6-Bis(bis(4-fluorophenyl)methyl)-4-methyl phenylimino]-2-aryliminoacenaphthylene derivatives. Organometallics 2015, 34, 582–590. [Google Scholar] [CrossRef]
  55. Saeed, H.; Mahmood, Q.; Yuan, R.; Wang, Y.; Zou, S.; Tahir, K.F.; Ma, Y.; Liang, T.; Sun, W.-H. High-performance polyethylene elastomers using a hybrid steric approach in α-diimine nickel precatalysts. Polym. Chem. 2024, 15, 1437–1452. [Google Scholar] [CrossRef]
  56. Galland, G.B.; Souza, R.F.D.; Mauler, R.S.; Nunes, F.F. 13C NMR determination of the composition of linear low-density polyethylene obtained with [η 3 -methallyl-nickel-diimine]PF 6 complex. Macromolecules 2016, 32, 1620–1625. [Google Scholar] [CrossRef]
  57. Wang, L.; Liu, M.; Mahmood, Q.; Yuan, S.; Li, X.; Qin, L.; Zou, S.; Liang, T.; Sun, W.-H. Enhancing the thermal stability of α-diimine Ni(II) catalysts for ethylene polymerization via symmetrical axial shielding strategy. Eur. Polym. J. 2023, 194, 112112. [Google Scholar] [CrossRef]
  58. Rosa, V.; Avilés, T.; Aullon, G.; Covelo, B.; Lodeiro, C. A new bis(1-naphthylimino)acenaphthene compound and its Pd(II) and Zn(II) complexes: Synthesis, characterization, solid-state structures and sensity sunctional theory studies on the syn and anti isomers. Inorg. Chem. 2008, 47, 7734–7744. [Google Scholar] [CrossRef]
  59. Zhang, D.; Nadres, E.T.; Brookhart, M.; Daugulis, O. Synthesis of highly branched polyethylene using “sandwich” (8-p-tolyl naphthyl α-diimine)nickel(II) catalysts. Organometallics 2013, 32, 5136–5143. [Google Scholar] [CrossRef]
  60. Vasudevan, K.V.; Findlater, M.; Cowley, A.H. Synthesis and reactivity of tetrakis(imino)pyracene (TIP) ligands; bifunctional analogues of the BIAN ligand class. Chem. Commun. 2008, 16, 1918–1919. [Google Scholar] [CrossRef]
  61. Sheldrick, G. SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  62. Sheldrick, G. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
Molecules 30 01847 sch001

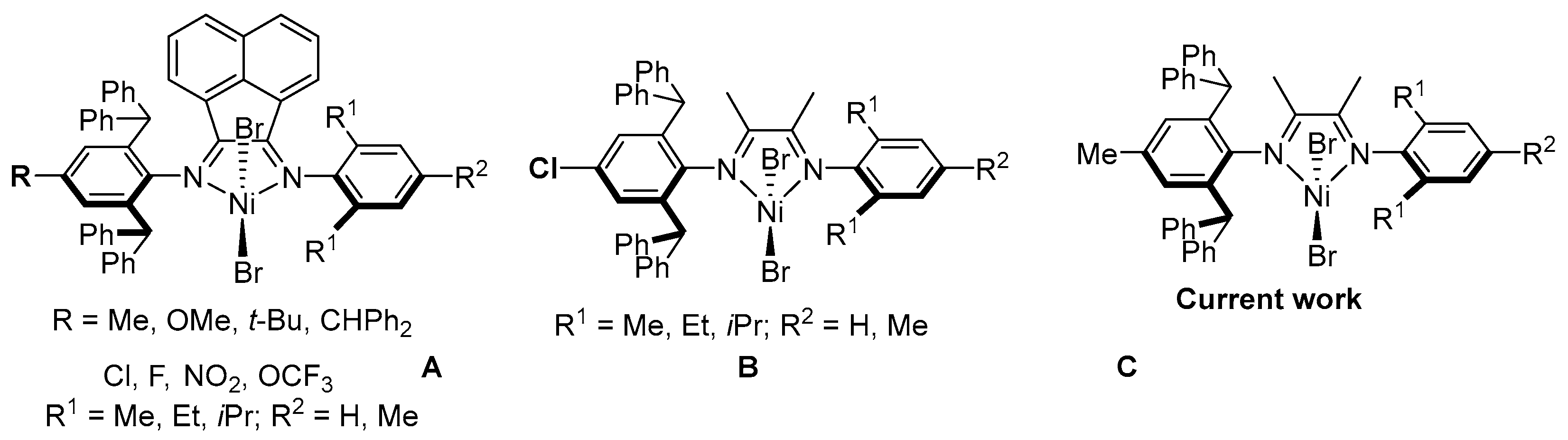

Scheme 1. Steric and electronic variations in α-diimine nickel precatalysts A and B, along with this work C.
Scheme 1. Steric and electronic variations in α-diimine nickel precatalysts A and B, along with this work C.
Molecules 30 01847 sch001
Molecules 30 01847 sch002

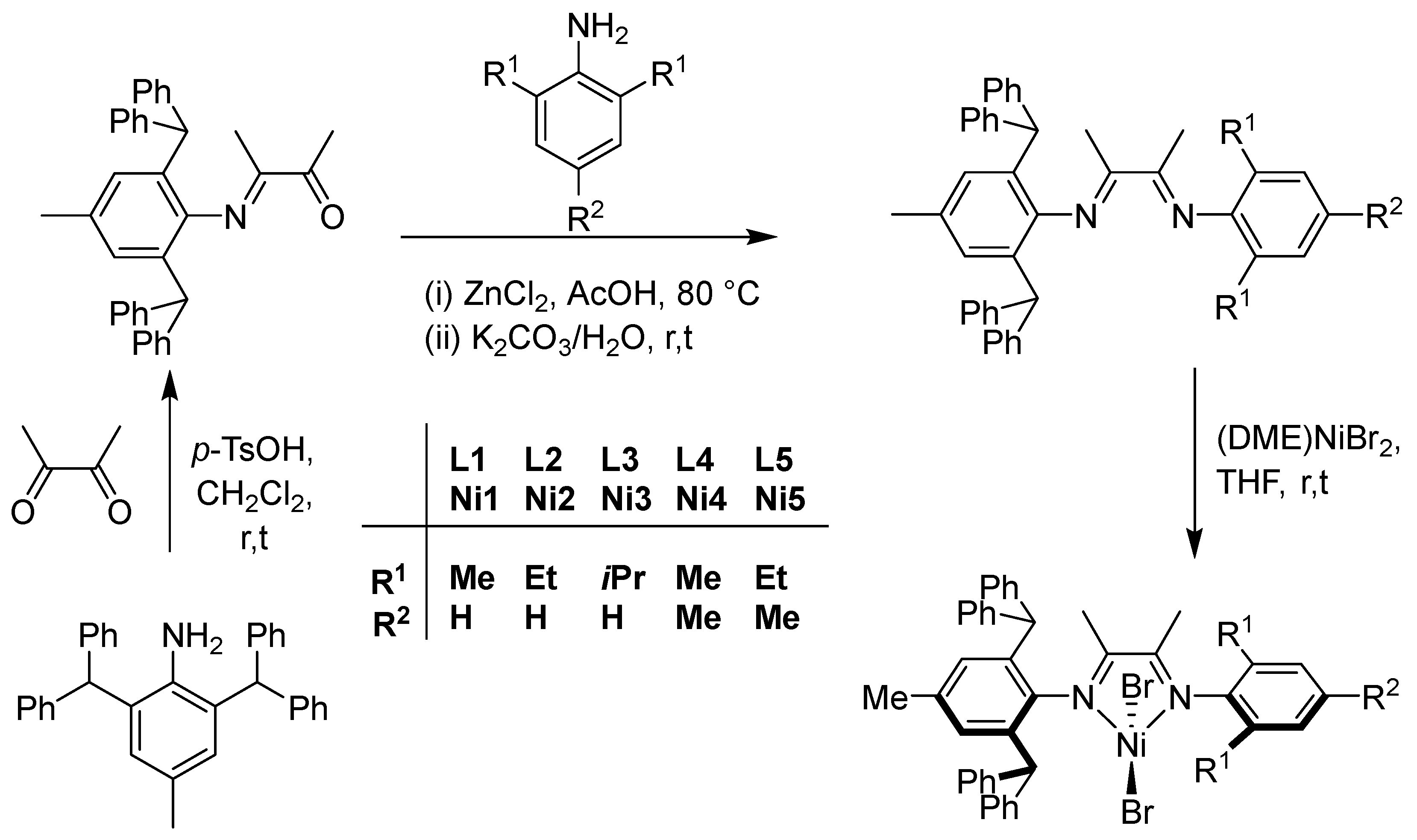

Scheme 2. Synthesis of ligands L1–L5 and their nickel complexes Ni1–Ni5.
Scheme 2. Synthesis of ligands L1–L5 and their nickel complexes Ni1–Ni5.
Molecules 30 01847 sch002
Molecules 30 01847 g001

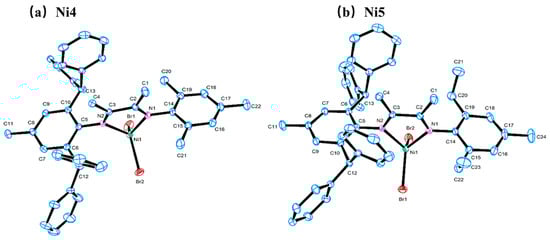

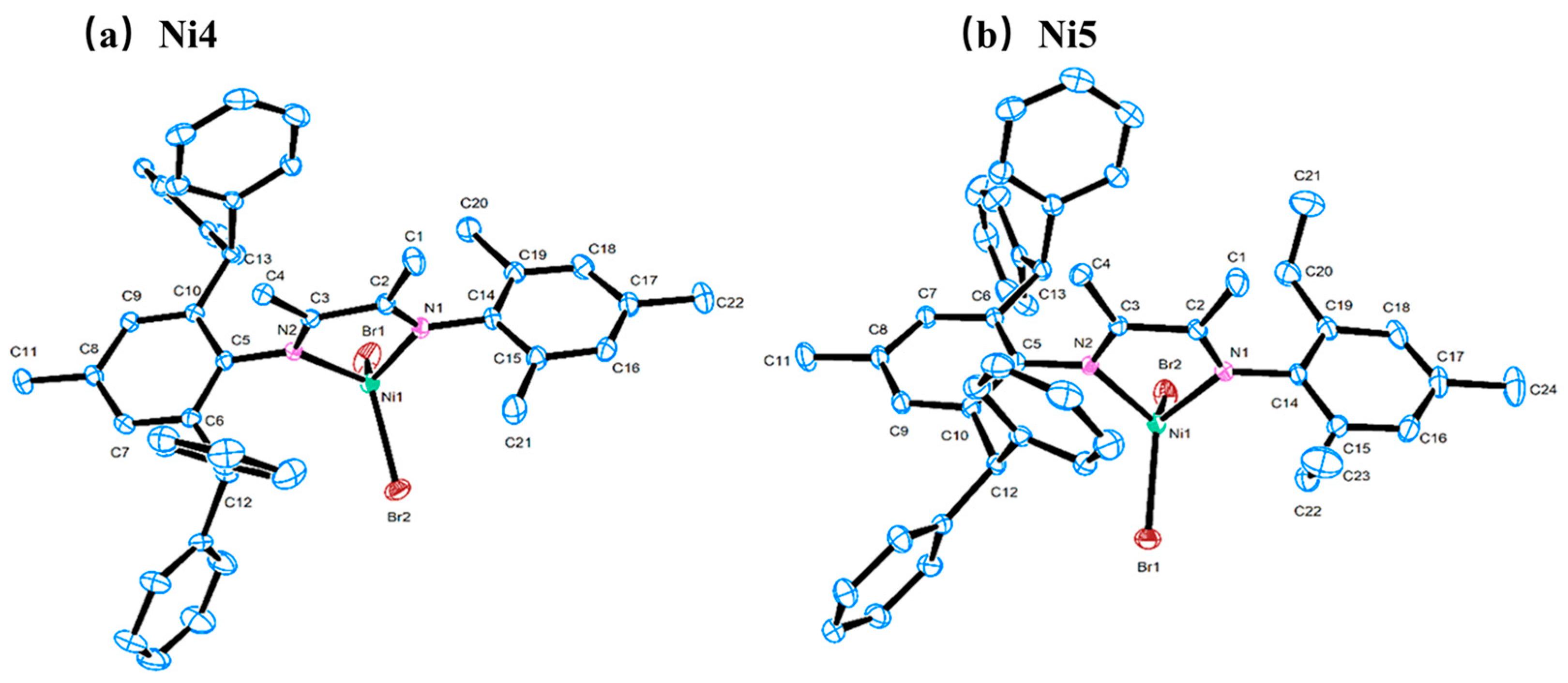

Figure 1. (a) ORTEP drawing of Ni4 and (b) Ni5. Thermal ellipsoids are shown at the 30% probability level, while the hydrogen atoms have been omitted for clarity.
Figure 1. (a) ORTEP drawing of Ni4 and (b) Ni5. Thermal ellipsoids are shown at the 30% probability level, while the hydrogen atoms have been omitted for clarity.
Molecules 30 01847 g001
Molecules 30 01847 g002

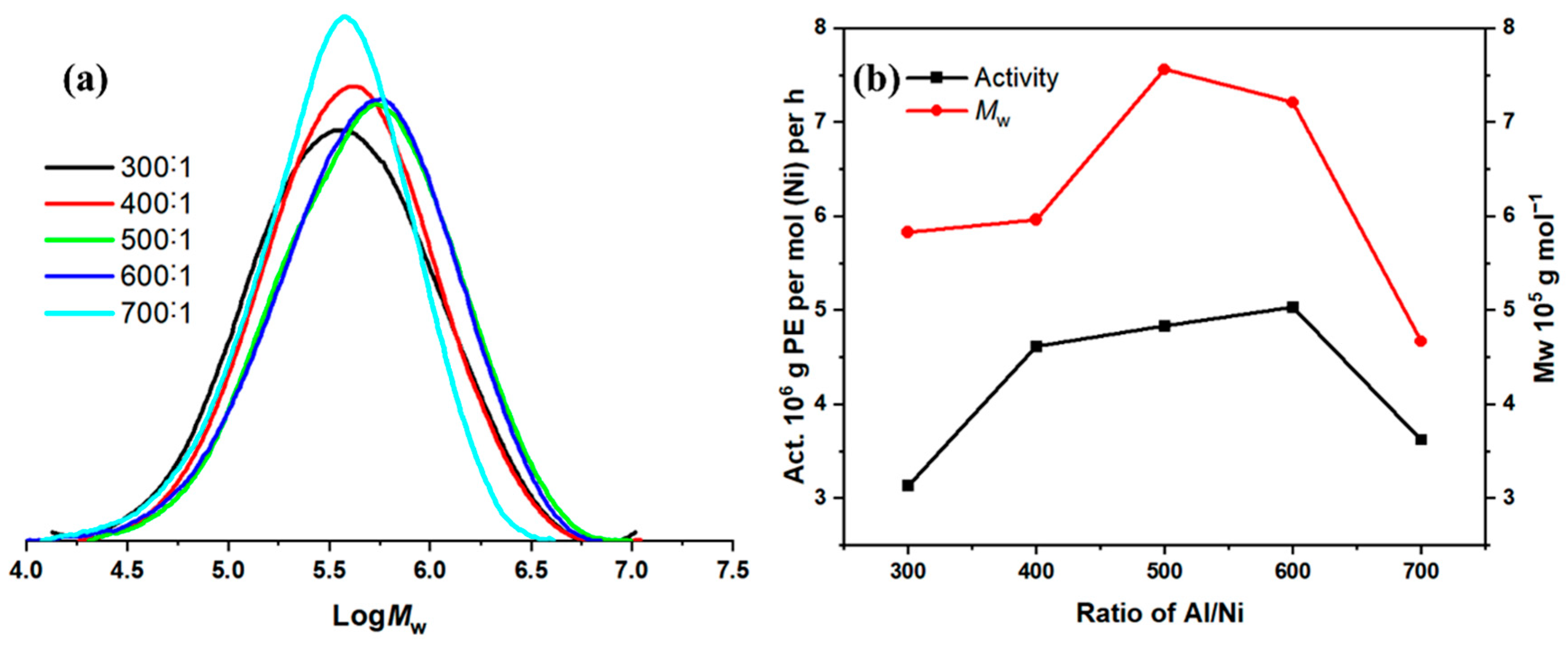

Figure 2. (a) GPC curves and (b) plots of catalytic activity and molecular weight of the polyethylene produced using Ni1/Et2AlCl at different Al/Ni molar ratios (entries 1–5, Table 3).
Figure 2. (a) GPC curves and (b) plots of catalytic activity and molecular weight of the polyethylene produced using Ni1/Et2AlCl at different Al/Ni molar ratios (entries 1–5, Table 3).
Molecules 30 01847 g002
Molecules 30 01847 g003

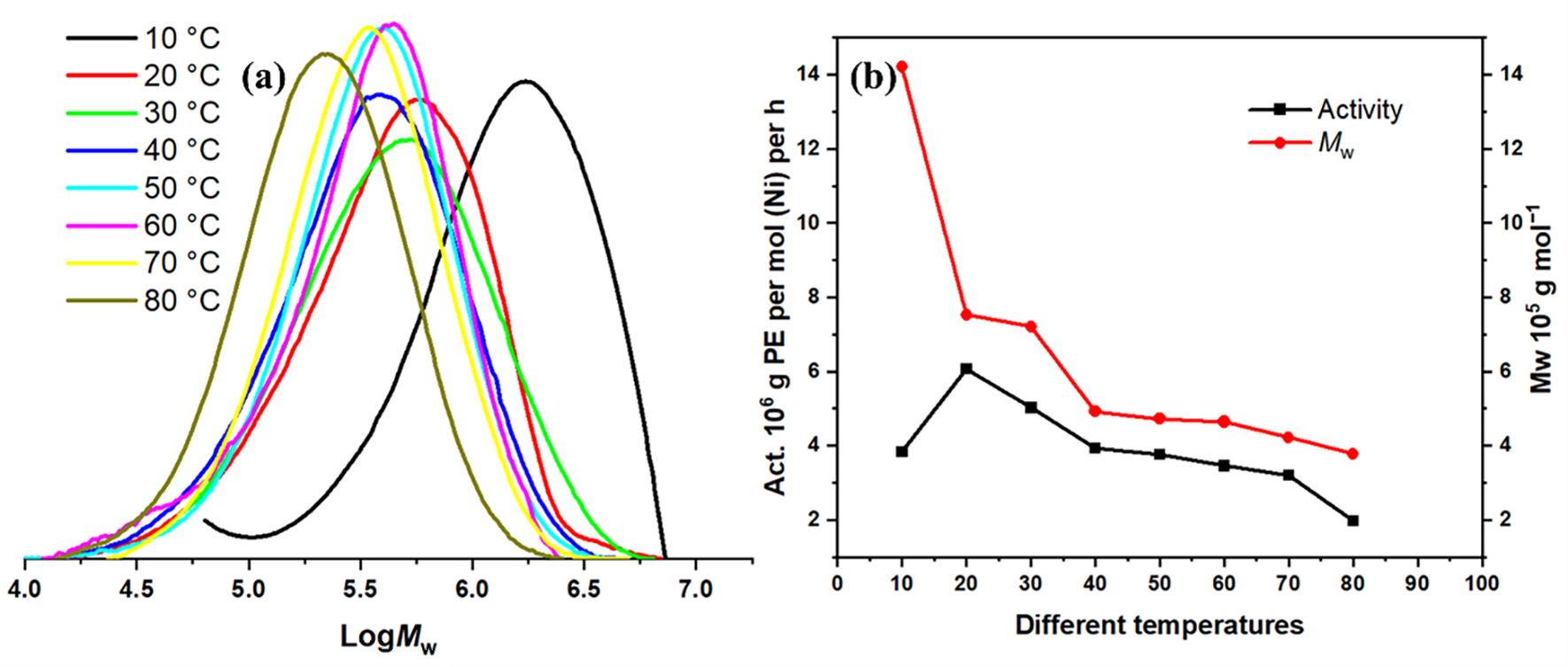

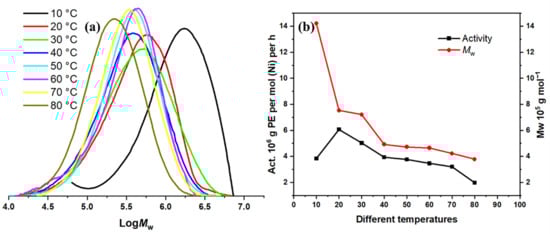

Figure 3. (a) GPC traces and (b) plots of catalytic activity and molecular weight of the polyethylene produced using Ni1/Et2AlCl at different run temperatures (entries 4 and 6–12, Table 3).
Figure 3. (a) GPC traces and (b) plots of catalytic activity and molecular weight of the polyethylene produced using Ni1/Et2AlCl at different run temperatures (entries 4 and 6–12, Table 3).
Molecules 30 01847 g003
Molecules 30 01847 g004

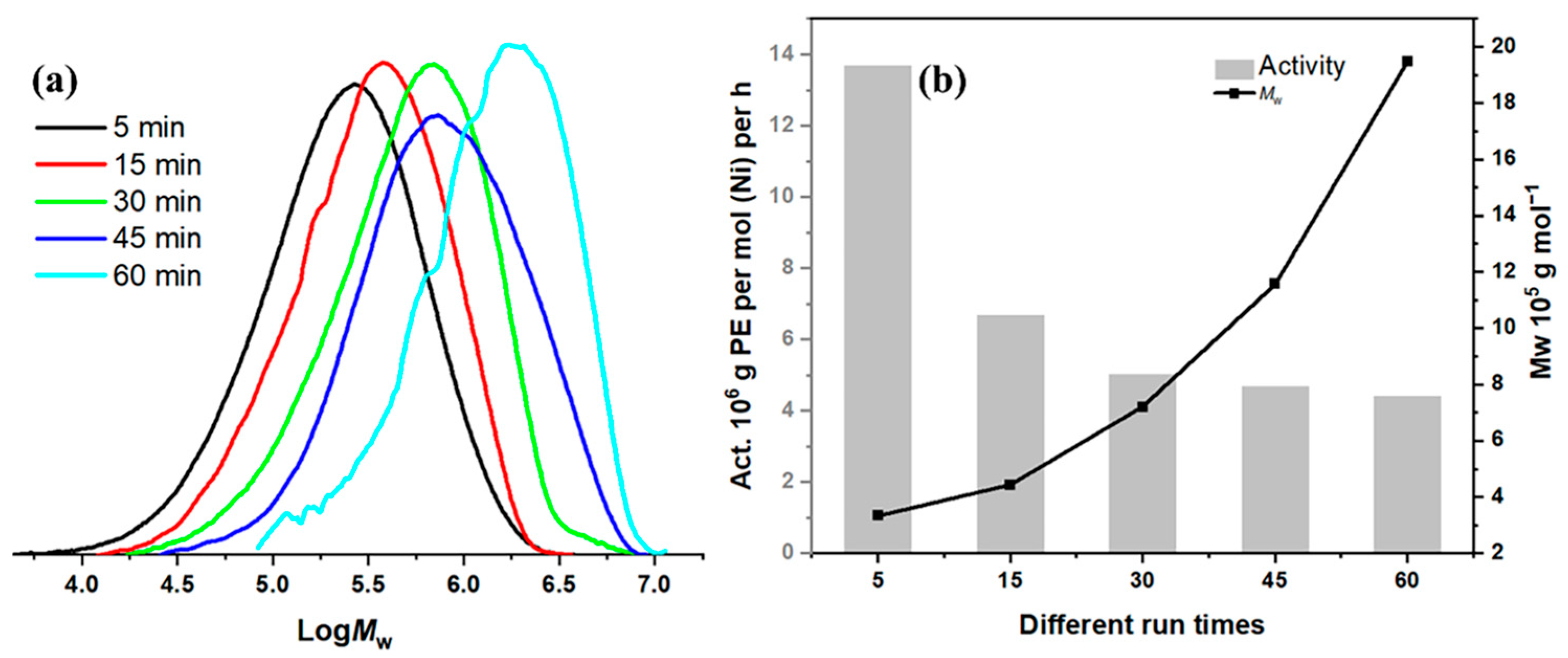

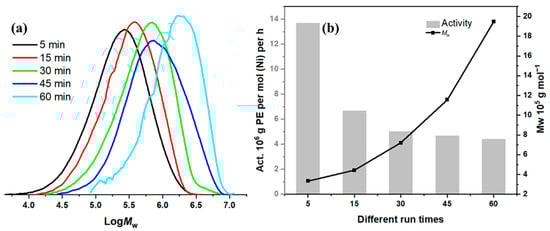

Figure 4. (a) GPC traces and (b) plots of catalytic activity and molecular weight of the polyethylene produced using Ni1/Et2AlCl at different run times (entries 4 and 13–16, Table 3).
Figure 4. (a) GPC traces and (b) plots of catalytic activity and molecular weight of the polyethylene produced using Ni1/Et2AlCl at different run times (entries 4 and 13–16, Table 3).
Molecules 30 01847 g004
Molecules 30 01847 g005

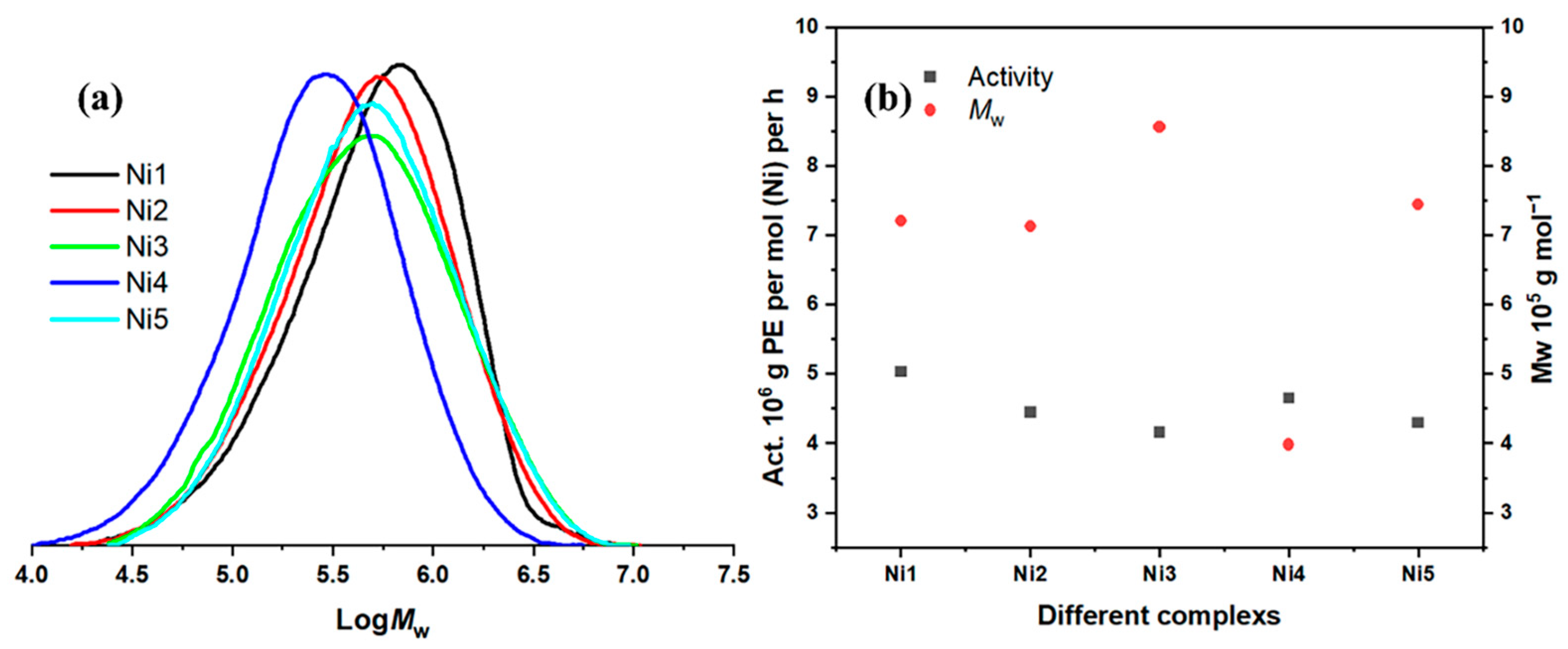

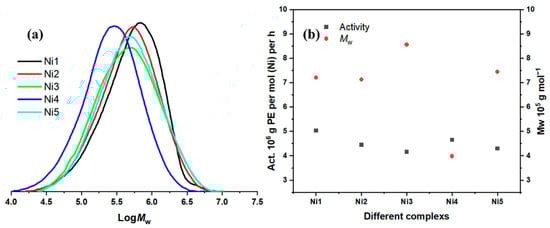

Figure 5. (a) GPC traces and (b) plots of the catalytic activity and molecular weight of the polyethylene produced using Ni1–Ni5 in combination with Et2AlCl (entries 7 and 19–22, Table 3).
Figure 5. (a) GPC traces and (b) plots of the catalytic activity and molecular weight of the polyethylene produced using Ni1–Ni5 in combination with Et2AlCl (entries 7 and 19–22, Table 3).
Molecules 30 01847 g005
Molecules 30 01847 g006
Figure 6. 13C NMR spectrum of polyethylene sample named PE-Et2AlCl-20 obtained at 20 °C using Ni1/Et2AlCl (entry 7, Table 3).
Figure 6. 13C NMR spectrum of polyethylene sample named PE-Et2AlCl-20 obtained at 20 °C using Ni1/Et2AlCl (entry 7, Table 3).
Molecules 30 01847 g006
Molecules 30 01847 g007
Figure 7. 13C NMR spectrum of polyethylene sample named PE-Et2AlCl-70 obtained at 70 °C using Ni1/Et2AlCl (entry 11, Table 3).
Figure 7. 13C NMR spectrum of polyethylene sample named PE-Et2AlCl-70 obtained at 70 °C using Ni1/Et2AlCl (entry 11, Table 3).
Molecules 30 01847 g007
Molecules 30 01847 g008
Figure 8. Stress–strain curves for PE-Et2AlCl-10, PE-Et2AlCl-20, PE-Et2AlCl-50, and PE-Et2AlCl-70.
Figure 8. Stress–strain curves for PE-Et2AlCl-10, PE-Et2AlCl-20, PE-Et2AlCl-50, and PE-Et2AlCl-70.
Molecules 30 01847 g008
Molecules 30 01847 g009
Figure 9. Stress–strain recovery tests for PE-Et2AlCl-10, PE-Et2AlCl-20, PE-Et2AlCl-50, and PE-Et2AlCl-70 at 30 °C.
Figure 9. Stress–strain recovery tests for PE-Et2AlCl-10, PE-Et2AlCl-20, PE-Et2AlCl-50, and PE-Et2AlCl-70 at 30 °C.
Molecules 30 01847 g009
Table 1. Selected bond lengths and angles for Ni4 and Ni5.
Table 1. Selected bond lengths and angles for Ni4 and Ni5.
Nickel ComplexesNi4Ni5
Bond length (Å)
Ni(1)–N(1)1.999(3)2.007(2)
Ni(1)–N(2)2.016(3)2.020(2)
Ni(1)–Br(1)2.3063(9)2.3387(8)
Ni(1)–Br(2)2.3425(7)2.3159(9)
N(1)–C(2)1.286(4)1.276(4)
N(1)–C(14)1.448(4)1.445(4)
N(2)–C(3)1.289(4)1.288(4)
N(2)–C(5)1.450(4)1.447(3)
Bond angles (°)
Br(1)–Ni(1)–Br(2)119.36(3)119.77(3)
N(1)–Ni(1)–Br(1)122.20(8)113.32(7)
N(1)–Ni(1)–Br(2)101.83(8)110.88(7)
N(1)–Ni(1)–N(2)80.84(10)80.99(10)
N(2)–Ni(1)–Br(1)117.25(7)111.20(7)
N(2)–Ni(1)–Br(2)108.47(7)114.34(7)
Table 2. Ethylene polymerization results obtained with Ni1 with different cocatalysts a.
Table 2. Ethylene polymerization results obtained with Ni1 with different cocatalysts a.
EntryCocat. T/°C t/min Al/Ni Act. b Mw cMw/Mn cTm d
1MAO 303020004.114.232.1585.11
2MMAO 303020002.813.523.9966.01
3EASC30304000.475.122.2261.61
4Et2AlCl 30304004.615.962.3549.01
a Conditions: cat. Ni1 (2 μmol) and 100 mL toluene, 10 atm C2H4. b 106 g PE mol−1 (Ni) h−1. c Mw 105 g mol−1; Mw and Mw/Mn determined by GPC. d Determined by DSC.
Table 3. Ethylene polymerization results obtained under different conditions using Ni1–Ni5 in combination with Et2AlCl a.
Table 3. Ethylene polymerization results obtained under different conditions using Ni1–Ni5 in combination with Et2AlCl a.
EntryPrecat. T/°C t/min Al/Ni Activity b Mw cMw/Mn cTm d
1Ni130303003.135.832.6760.75
2Ni130304004.615.962.3549.01
3Ni130305004.837.562.5447.40
4Ni130306005.037.212.6045.92
5Ni130307003.624.672.1545.05
6Ni110306003.8414.222.2388.99
7Ni120306006.077.532.3781.58
8Ni140306003.944.922.2641.04
9Ni150306003.774.721.9715.47
10Ni160306003.464.642.22– g
11Ni170306003.204.221.85– g
12Ni180306001.973.781.95– g
13Ni120560013.673.332.4880.38
14Ni120156006.684.442.2154.99
15Ni120456004.6711.582.4774.42
16Ni120606004.4219.472.1575.81
17 eNi120306000.313.781.9551.50
18 fNi120306001.435.812.3152.45
19Ni220306004.457.132.4453.88
20Ni320306004.168.562.2969.80
21Ni420306004.653.982.3578.64
22Ni520306004.37.442.5076.73
a Conditions: precat. Ni (2 μmol), cocat. Et2AlCl, 100 mL toluene, 10 atm C2H4. b 106 g PE mol−1 (Ni) h−1. c Mw 105 g mol−1; Mw and Mw/Mn determined by GPC. d Determined by DSC. e 1 atm of ethylene. f 5 atm of ethylene. g Broad and weak endotherms, amorphous-like polyethylenes.
Table 4. Branching degree and content of the polyethylenes produced at 20 and 70 °C using Ni1/Et2AlCl.
Table 4. Branching degree and content of the polyethylenes produced at 20 and 70 °C using Ni1/Et2AlCl.
PE SampleBranches
/1000Cs		Branching Composition (%)
MeEtPrBuAmylLonger Branch
PE-Et2AlCl-208484.83.14.04.90.82.4
PE-Et2AlCl-7021771.45.36.18.82.06.4
Table 5. Branching degree and composition of the PEs.
Table 5. Branching degree and composition of the PEs.
PE SampleT
(°C)		Mw
(105) a		Tm
(°C) b		Xc
(%) b		σb
(MPa) c		εb
(%) c		SR
(%) d
PE-Et2AlCl-101014.2288.9935.7816.8345843
PE-EtAlCl2-20207.5381.5829.7614.1647546
PE-Et2AlCl-50504.7215.478.193.2127174
PE-Et2AlCl-70704.22– e–0.7435842
a Determined by GPC, unit: g mol–1. b Determined by DSC; Xc = ΔHf (Tm) = ΔHf° (Tm°); ΔHf° (Tm°) = 248.3 J g–1. c Determined by using a universal tester. d Strain recovery values (SR) were calculated by using the standard formula SR = 100(εa − εr)/εa, where εa is the applied strain and εr is the strain in the cycle at 0 loads after 10 cycles. e Broad and weak endotherms, amorphous-like polyethylenes.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhu, D.; Jia, D.; Zhang, Q.; Ma, Y.; Mahmood, Q.; Sun, W.-H. Tuning 2,3-Bis(arylimino)butane-nickel Precatalysts for High-Molecular-Weight Polyethylene Elastomers. Molecules 2025, 30, 1847. https://doi.org/10.3390/molecules30081847

AMA Style

Zhu D, Jia D, Zhang Q, Ma Y, Mahmood Q, Sun W-H. Tuning 2,3-Bis(arylimino)butane-nickel Precatalysts for High-Molecular-Weight Polyethylene Elastomers. Molecules. 2025; 30(8):1847. https://doi.org/10.3390/molecules30081847

Chicago/Turabian Style

Zhu, Dongzhi, Dedong Jia, Qiuyue Zhang, Yanping Ma, Qaiser Mahmood, and Wen-Hua Sun. 2025. "Tuning 2,3-Bis(arylimino)butane-nickel Precatalysts for High-Molecular-Weight Polyethylene Elastomers" Molecules 30, no. 8: 1847. https://doi.org/10.3390/molecules30081847

APA Style

Zhu, D., Jia, D., Zhang, Q., Ma, Y., Mahmood, Q., & Sun, W.-H. (2025). Tuning 2,3-Bis(arylimino)butane-nickel Precatalysts for High-Molecular-Weight Polyethylene Elastomers. Molecules, 30(8), 1847. https://doi.org/10.3390/molecules30081847

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
