Discovery of Novel Druggable Sites on Zika Virus NS3 Helicase Using X-ray Crystallography-Based Fragment Screening
Abstract
:1. Introduction
2. Results

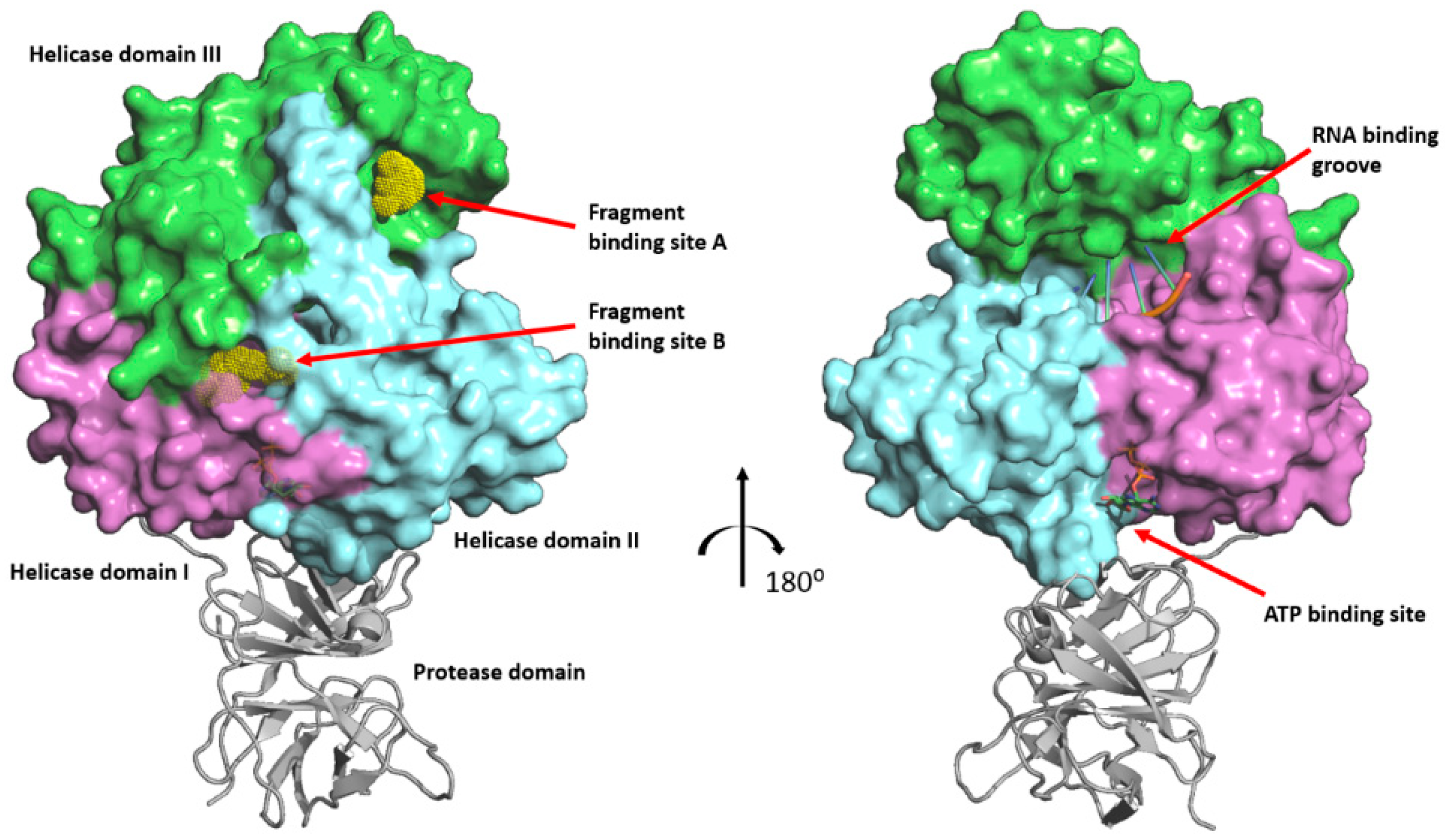

2.1. FBS-X Reveals Two Novel Drug Binding Sites on ZIKV NS3-Hel
2.2. Site A Is at a Critical Interface of the NS3-NS5 Flaviviral Replication Complex (RC)

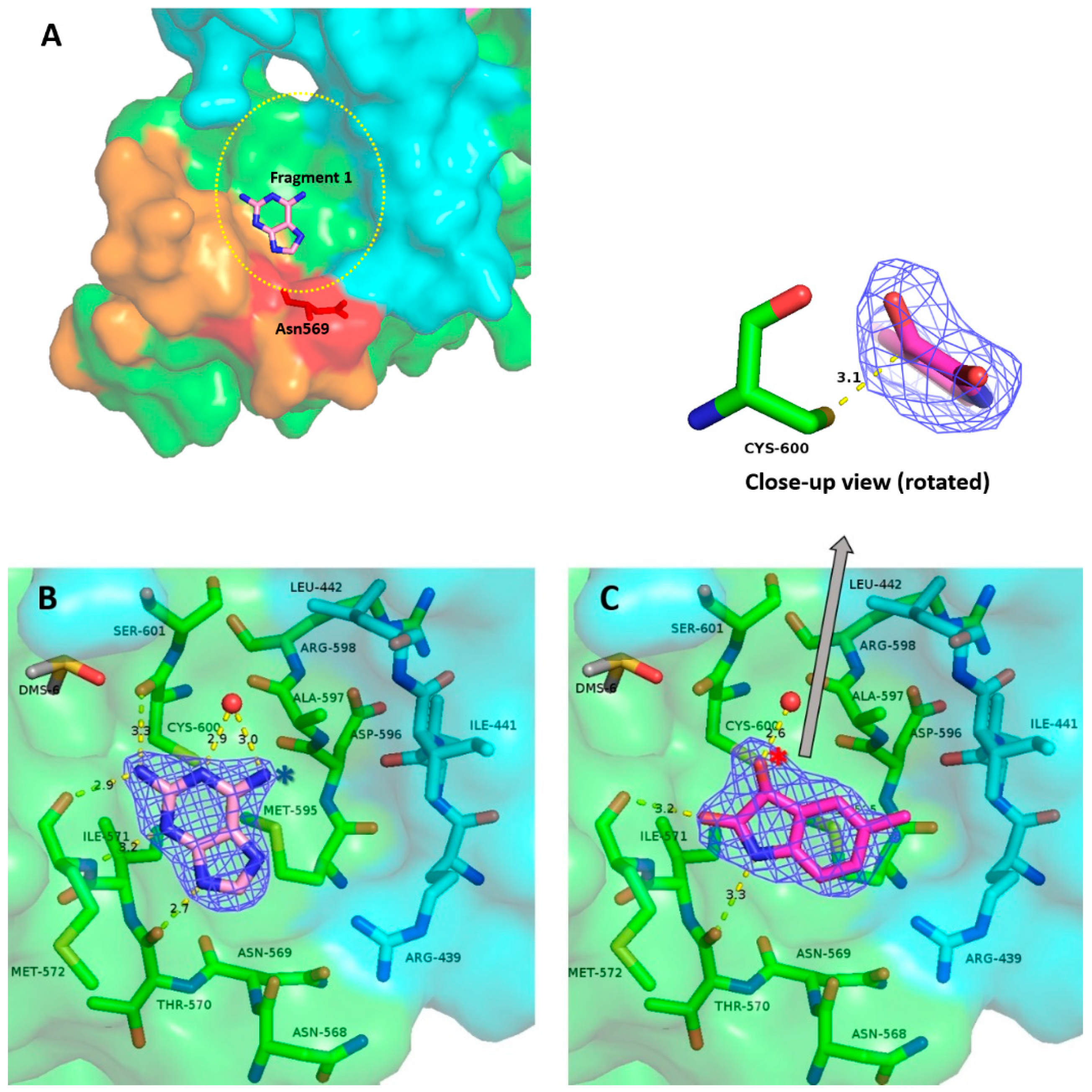

2.3. Binding of Fragments 1 and 2 to Site A Offers Multiple Drug Design Prospects
2.3.1. Fragment 1
2.3.2. Fragment 2
2.4. Site B Is at a Flexible, Interdomain Hinge That is Highly Conserved across Flaviviruses

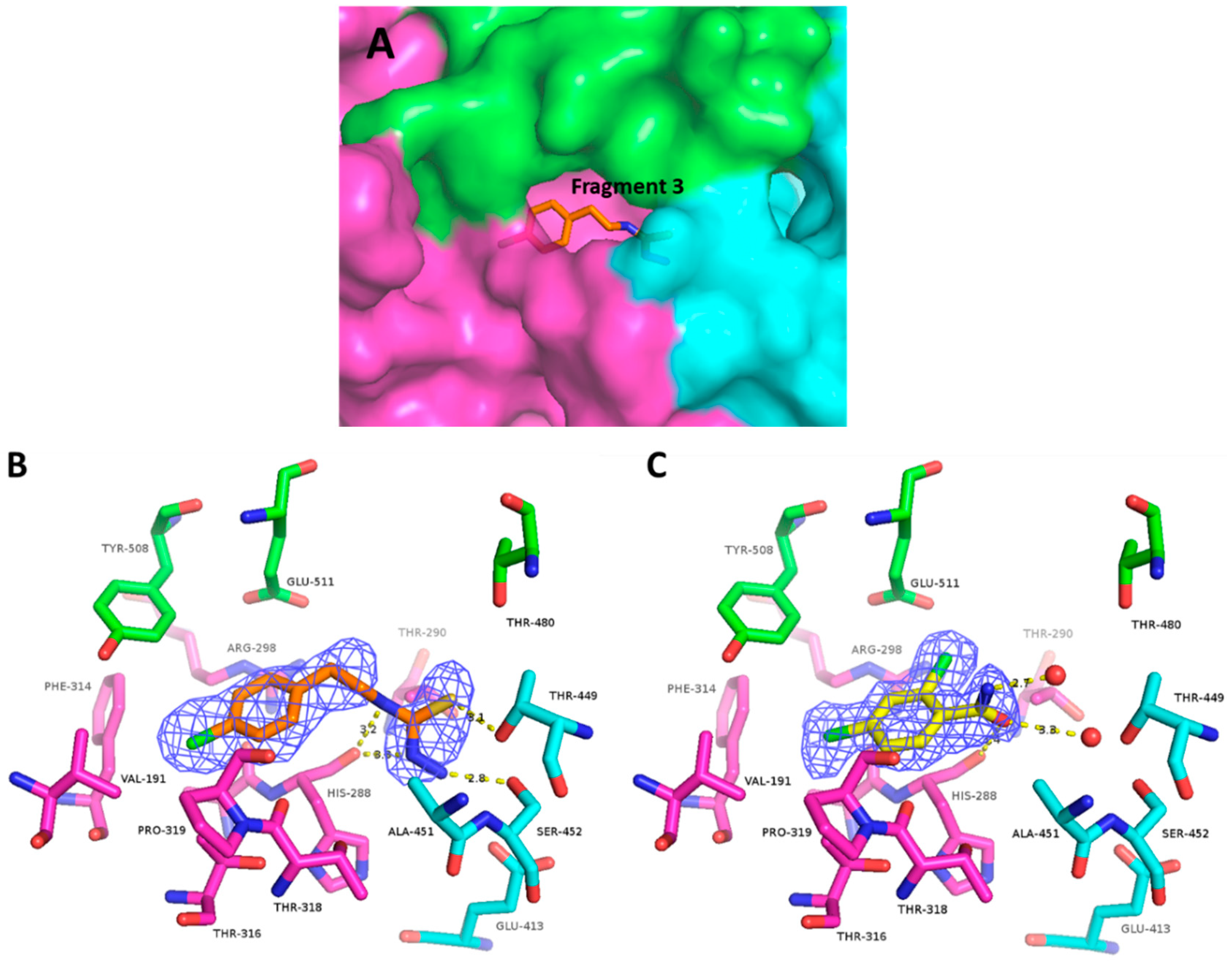

2.5. Fragments 3 and 4 Collectively Reveal Features Enabling Efficient Binding at Site B
2.5.1. Fragment 3
2.5.2. Fragment 4
3. Discussion
4. Materials and Methods
4.1. Fragment Libraries
4.2. Protein Purification and Crystallization
4.3. Fragment Soaking and X-ray Data Collection

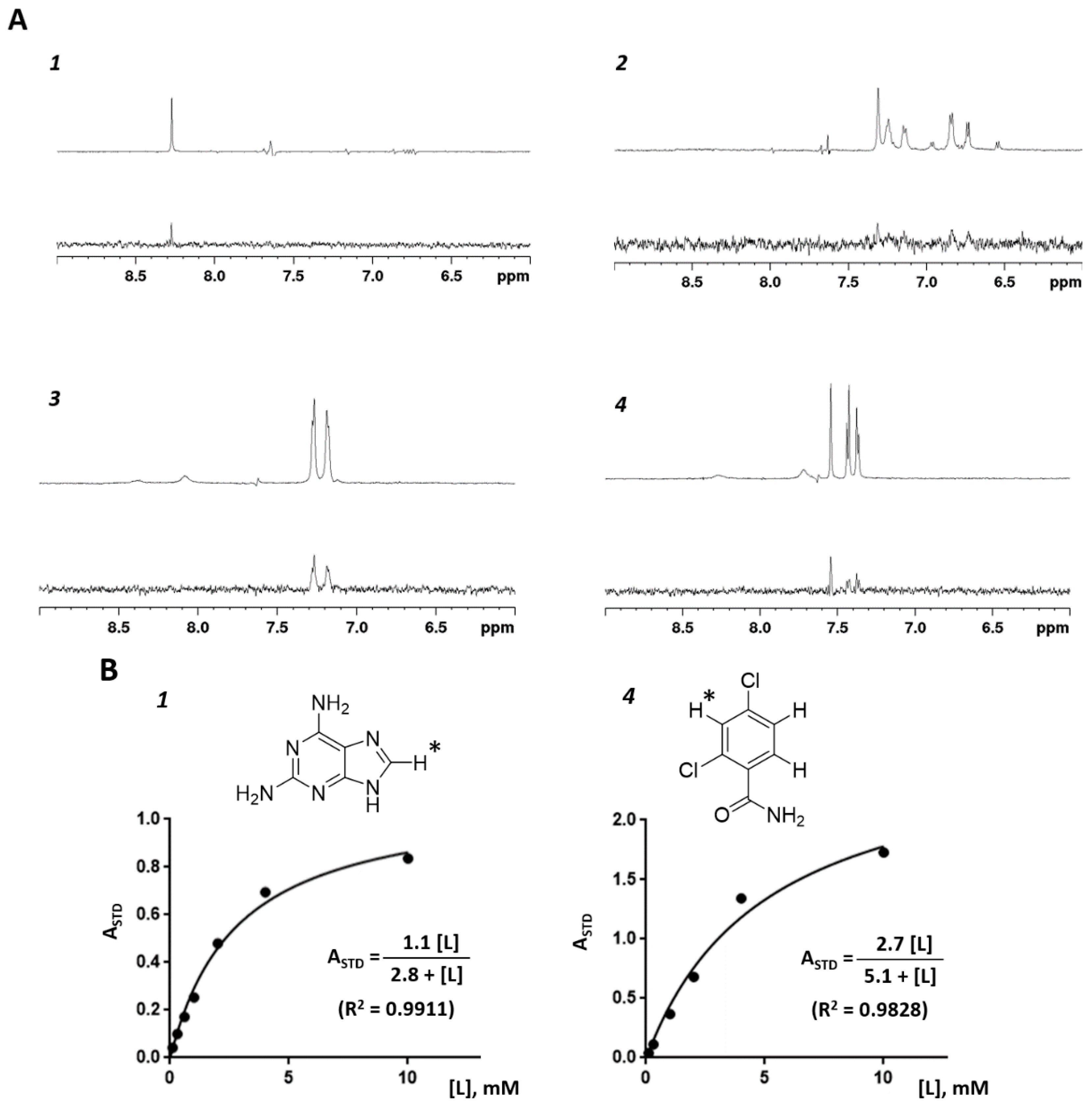

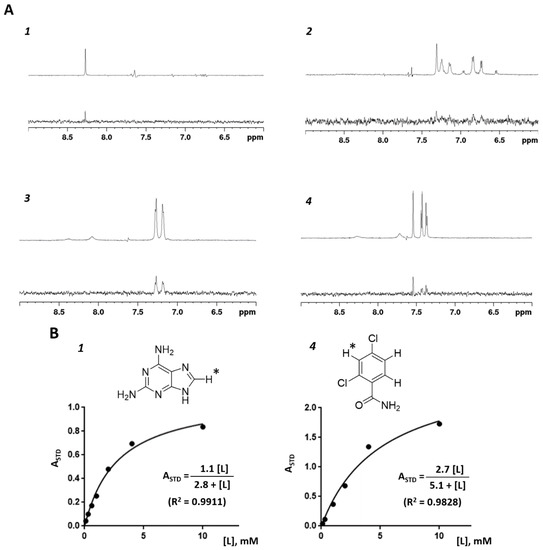

4.4. NMR STD Experiments
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Appendix A
Virus | ZIKV | DENV | Kunjin | JEV | YFV | MVEV | TBEV |
---|---|---|---|---|---|---|---|
PDB Code | This Work | 2JLQ | 2QEQ | 2Z83 | 1YKS | 2V8O | - |
Site A | R439 | R | R | R | K | R | R |
I441 | I | I | I | A | I | E | |
N568 | N | T | T | E | S | A | |
N569 | N | N | N | H | N | N | |
T570 | Q | T | A | E | I | A | |
I571 | I | I | I | I | I | V | |
M572 | L | L | L | L | L | D | |
M595 | L | I | L | C | L | K | |
A597 | A | A | A | E | A | A | |
C600 | Y | Y | Y | S | Y | F | |
S601 | A | S | A | S | S | K | |
Site B | V191 | V | V | V | V | V | V |
A287 | A | A | A | A | A | A | |
H288 | H | H | H | H | H | H | |
F314 | F | F | F | A | F | L | |
T316 | T | T | T | T | T | T | |
P320 | P | P | P | P | P | P | |
E413 | E | I | S | I | E | E | |
T449 | T | T | T | S | T | T | |
S452 | S | S | S | S | S | S | |
Y508 | Y | Y | Y | Y | Y | Y | |
P510 | P | P | P | V | P | P |
