The Chromatin Architectural Protein CTCF Is Critical for Cell Survival upon Irradiation-Induced DNA Damage

Abstract

CTCF is a nuclear protein initially discovered for its role in enhancer-promoter insulation. It has been shown to play a role in genome architecture and in fact, its DNA binding sites are enriched at the borders of chromatin domains. Recently, we showed that depletion of CTCF impairs the DNA damage response to ionizing radiation. To investigate the relationship between chromatin domains and DNA damage repair, we present here clonogenic survival assays in different cell lines upon CTCF knockdown and ionizing irradiation. The application of a wide range of ionizing irradiation doses (0–10 Gy) allowed us to investigate the survival response through a biophysical model that accounts for the double-strand breaks’ probability distribution onto chromatin domains. We demonstrate that the radiosensitivity of different cell lines is increased upon lowering the amount of the architectural protein. Our model shows that the deficiency in the DNA repair ability is related to the changes in the size of chromatin domains that occur when different amounts of CTCF are present in the nucleus.

1. Introduction

CTCF (CCCTC-binding factor) is an 11-zinc finger protein, which was initially described to bind 3 repeats of the DNA motif CCCTC and thereby to regulate the transcription of the c-myc oncogene [1,2]. The very conserved 11 zinc fingers of CTCF can be combined in different ways to achieve the binding of various sequences, such as the ones of promoters of the same gene, which have diverged during evolution in different species [3]. CTCF was hence initially classified as an insulator protein, due to its ability to insulate proximal DNA sequences (as reviewed in [4,5]). By mediating the insulation of enhancers and promoters, CTCF can either act as a transcriptional activator or repressor [4].

Besides its important role in transcriptional regulation, CTCF has received major interest due to its cooperation with the cohesin complex in chromatin loop formation. According to the loop extrusion model, CTCF acts as a border to the chromatin extruding activity of the ring-shaped cohesin complex, when two CTCF molecules bind two DNA motifs that are convergent in orientation [6].

With the introduction of chromosome conformation capture (3C) and related high-throughput techniques (e.g., Hi-C), matrices of the contact frequencies between different genomic sites have been calculated. Genome-wide interaction maps of CTCF were thus generated under various cellular conditions (reviewed in [7]). It soon became clear that CTCF binding sites are enriched at the boundaries of different types of chromatin domains, ranging from the loop domains [8] through to the topologically associated domains (TADs; [9]) to the A/B compartments [10].

The determinants of such domains have been investigated through depletion of the main architectural proteins and their cofactors and deletion of the genomic loci associated with domain boundaries and subsequent modeling. Since the homozygous knockout of the CTCF gene was shown to be lethal [11,12,13], subsequent studies have employed knockdown strategies. Zuin and colleagues proposed that CTCF and cohesin shape TADs in non-redundant ways, with CTCF being necessary for the maintenance of their boundaries and cohesin promoting self-association within the domains but not the segregation of neighboring domains [14]. In different cohesin depletion studies, TADs disappeared [15,16,17] or their borders shifted [18]. Recently, we demonstrated that cohesin depletion does not affect chromosome territories, but the size of DNA loops was enlarged up to 10-fold [19].

Nora and colleagues engineered mouse embryonic stem cells with an auxin-inducible degron to deplete CTCF [20,21] and showed its requirement for those loops with CTCF binding sites at their anchors [21]. CTCF depletion also caused loss of TAD insulation while A/B compartmentalization was mostly unaffected [21]. Additionally, they showed that misfolding defects were dose dependent and that TAD loss required the highest CTCF depletion [21].

The fact that upon depletion of either cohesin or CTCF, TADs are weakened or lost while the A/B compartments are unaffected or even strengthened [14,15,16,17,18,19,21] led the authors of the loop extrusion model to seek an explanation [22]. Through polymer modeling, they concluded that chromatin organization is the result of competition between loop extrusion and phase separation-mediated compartmentalization [22].

CTCF loops were shown to be highly dynamic, based on the very transient and cell cycle-dependent binding time of the protein, as measured by live-cell single-molecule microscopy [23,24]. However, as we reviewed recently [25], this dynamicity does not interfere with the concept of loops as stable structures over time. Their constant act of releasing and reforming will simply give rise to single-cell and cell cycle-dependent variability, which can be overcome by averaging the single-cell snapshots on a population level.

Ionizing radiation is high-energy radiation that is able to directly induce DNA breaks (30–40% of lesions) and generate reactive oxygen species (ROS) that oxidize biological molecules (60–70% of lesions) [26,27,28]. When these free radicals interact with DNA, they can generate abasic sites, base and sugar damage, depolymerization, crosslinking, and single-strand breaks [26,27,28]. Double-strand breaks (DSBs) are considered the most important DNA lesion, as they have the highest probability of inducing cell death, mutation, chromosomal aberrations, and carcinogenic transformation [28,29,30].

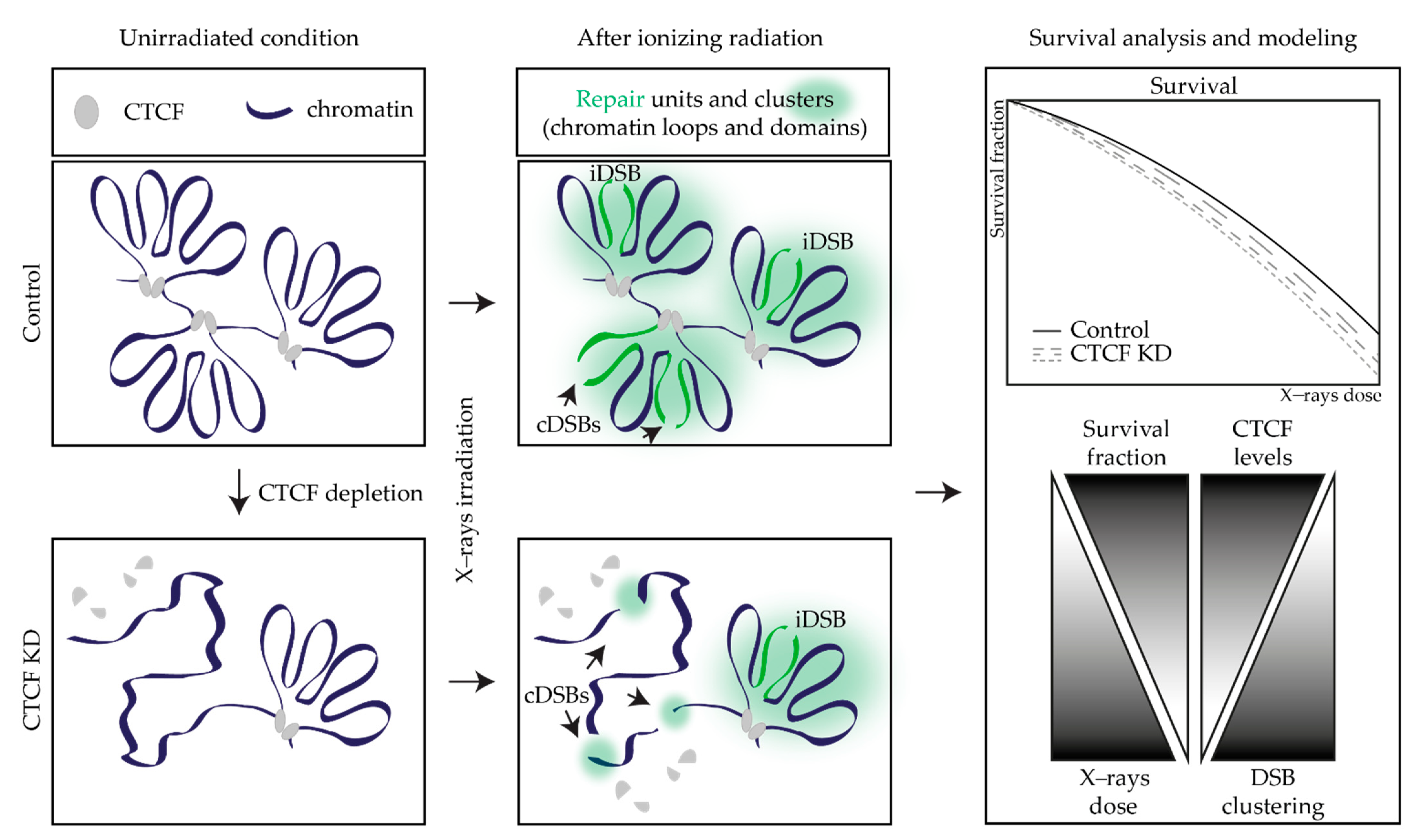

Recently, we identified CTCF as a key regulator of the DNA damage response (DDR) upon DSBs [31], which typically starts with a signaling cascade through the phosphorylation of the histone variant H2AX on serine 139 (γH2AX) [32,33]. For each Gray unit of ionizing radiation, corresponding roughly to 30 DSBs, 1% of the total H2AX amount of the genome is phosphorylated, which means that 2 Mbp of chromatin are involved in the response to a single DSB in a G1-phase genome of mammalian cells (0.03% of 6 × 10⁹ bp; [32,33]). H2AX phosphorylation is deposited by the key repair kinases ataxia telangiectasia mutated (ATM), DNA-PKcs, and ATR (ATM and RAD3-related) [34,35] and initiates at DSB sites [36,37] before spreading further [32,38]. ATM, DNA-PKcs, and ATR are correspondingly activated by the DNA-binding complexes MRE11-RAD50-NBS1 (MRN) [39,40], Ku70-Ku86 (XRCC6/XRCC5) [41,42,43], and RPA-ATRIP [44,45], which have respectively high affinity for diverse structures, including DSBs [46], DSB ends [41,43], and extended ssDNA from resected DSBs [44,47]. The γH2AX mark induces the recruitment of the repair factors to the sites of DNA damage, such as 53BP1, BRCA1, and RAD51 [48,49,50,51,52]. The choice between the two main DSB repair pathways of non-homologous end-joining (NHEJ) or homologous recombination (HR) is determined by the cell cycle phase and the chromatin environment [52,53].

Through 3D structured illumination microscopy (3D-SIM), we could resolve the γH2AX foci into clusters of ~4 75-kb-sized nano-foci (median size) [31]. Interestingly, this DNA size corresponds to the one of a single chromatin loop (reviewed in [25]). We found that single γH2AX-labeled loops are clustered together by a couple of CTCF molecules at the anchor of this multi-loop domain [31]. Each cluster of loops contains a single DSB, as shown by the 1:4 ratio of the foci of DSB-binding phospho-Ku70 proteins to γH2AX nano-foci [31]. Additionally, we found that CTCF depletion impairs the spreading of H2AX phosphorylation after damage, decreasing the number of γH2AX nano-foci and their clustering [31].

A different study showed that CTCF supports homologous recombination by associating with BRCA2 in a PARylation-dependent manner, hence enhancing the recruitment of BRCA2 to the sites of DSBs [54]. CTCF accumulated rapidly at DNA lesions following ultraviolet laser micro-irradiation, persisting for up to 2 h [54]. Its depletion delayed the repair kinetics of γH2AX foci but not 53BP1, increased the sensitivity to PARP-1 inhibitors, and decreased the survival potential [54].

In this study, the survival ability of different CTCF-depleted cell lines upon exposure to ionizing radiation was integrated into a biophysical model on the impact of CTCF on cellular radiosensitivity. CTCF levels were quantified prior to and upon CTCF depletion. We compared the survival rates to predictions of a variant of the Giant-LOop-Binary-LEsion model (GLOBLE) [55,56,57], which takes into account the number of giant 2 Mbp domains onto which double-strand breaks have the opportunity to distribute and how the clustering of DNA breaks can affect their repair and lethality. Based on our finding that CTCF holds together the anchors of a multi-loop chromatin domain, in which one single DSB is surrounded by, on average, four γH2AX-decorated chromatin loops [31], the model could explain the increased cell lethality in CTCF-depleted cells upon irradiation well. In fact, the model can predict the observed cell survival data when chromatin domains are supposed to lose coherence upon CTCF depletion and, consequently, multiple DSBs are clustered together, leading to decreased survival.

2. Results

2.1. Validation of the Genome Size, CTCF Basal Levels, and Binding in Different Cancer Cell Lines

In our previous study based on high-resolution microscopy, we observed that, on average, four loop-sized γH2AX nano-foci cluster around each double-strand break and that the DNA damage response is impaired in cells with diminished amounts of CTCF [31]. We concluded that the ability to signal DNA damage and to repair DSBs relies on CTCF anchoring multi-loop domains [31]. To better understand the relationship between CTCF and radiosensitivity, we aimed to design a model that can predict the clonogenic survival potential when a lower number of domains are anchored by CTCF.

Given the increased necessity of a better understanding of cancer cell dynamics and treatment, we used two different human tumor cell lines: cervical carcinoma (HeLa Kyoto [58]) and osteosarcoma (U2OS [59], Table S1). To measure the impact of CTCF depletion in the two cell lines under study, we first assessed the differences in the genome size and total amount of CTCF. This is particularly important, as tumor cells are known to be genomically unstable. As a DNA sequence-specific binding protein, the amount of CTCF needs to be evaluated relative to the cell’s genome size, which would translate to more or less CTCF binding sites. To this aim, both untreated HeLa Kyoto and U2OS cells were immunostained for CTCF and DNA was counterstained with DAPI (Table S2). Upon high-content microscopy imaging, nuclei were segmented and analyzed for both the DNA content and CTCF basal levels (Figure 1 and Figure S1, Table S3). By plotting the integrated nuclear DNA intensity distribution, we could identify the major G1 and G2 peaks, separated by the population of cells progressing through S-phase. The G1 peak was utilized to calculate the ratio of the higher genome content of U2OS to the lower one of HeLa Kyoto, which yielded a 1.23-fold larger genome size for the U2OS cells (Figure 1a,b). Based on our previous calculations, the genome size of HeLa Kyoto corresponds to 9.7 × 10³ Mbp [60] and by multiplying this value by the ratio, we estimated a genome size of 11.93 × 10³ Mbp for U2OS.

From the same data set, we extracted the integrated nuclear intensity of CTCF (after background subtraction from samples omitting the primary antibody against CTCF).

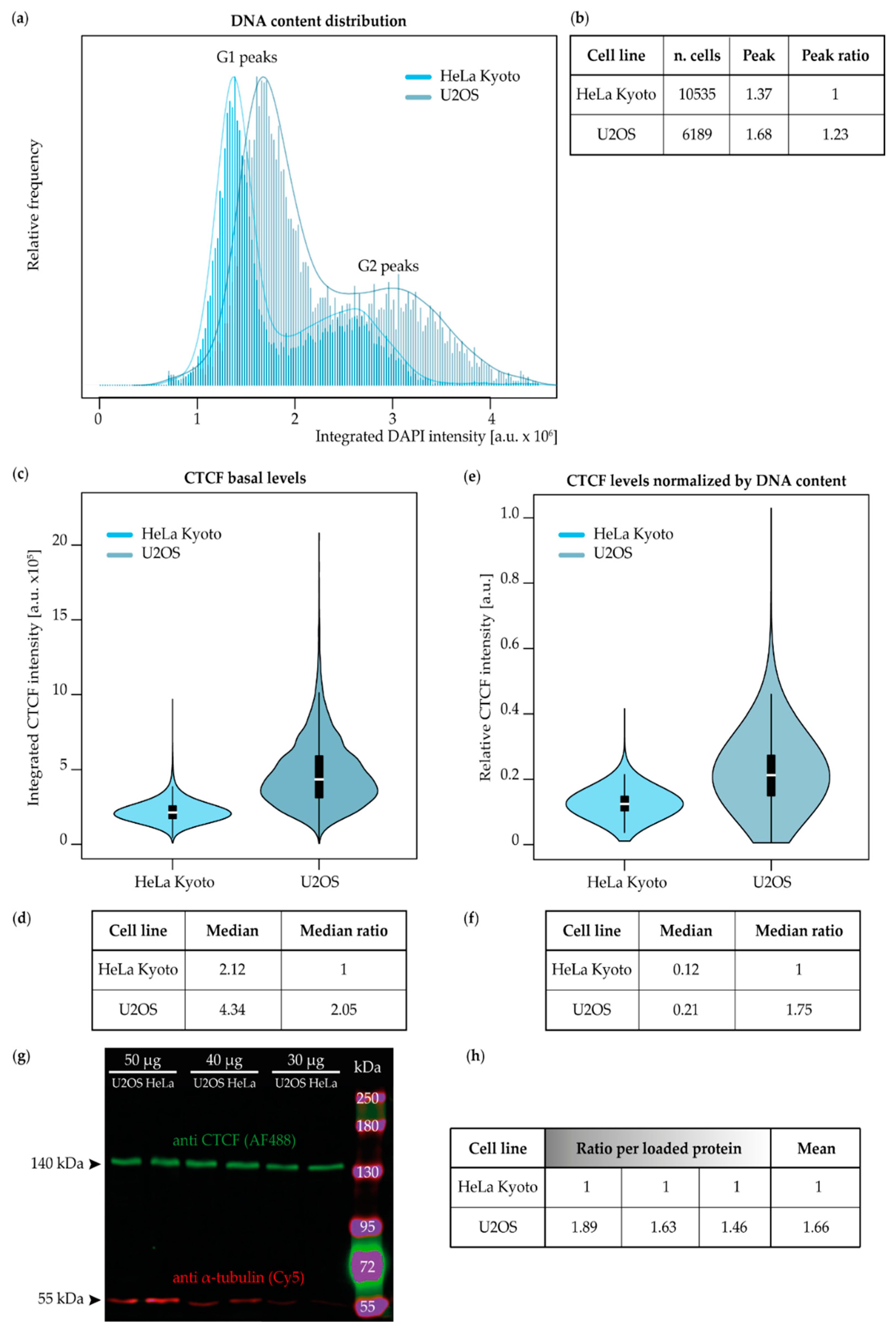

We measured a median value of 2.12 and 4.34 a. u. in HeLa Kyoto and U2OS, respectively ( Figure 1c,d and Figure S1, Table S4). Once the median value of U2OS was divided by the one of HeLa Kyoto, we found that the total amount of CTCF in the osteosarcoma cell line is double the one of cervical cancer cells. These findings correlate with the copy number differences (Cancer Cell Line Encyclopedia [61]) and relative gene expression levels (The Human Protein Atlas [62]). We then asked ourselves how this could be impacted by the difference in the genome size and divided the CTCF intensities by the respective integrated DNA values, obtaining a normalized ratio of CTCF of 1.75 in U2OS compared to HeLa Kyoto (Figure 1e,f and Figure S1, Table S4). We validated the specificity of the CTCF antibody through Western blot, detecting a single 140 kDa band in both cell lines (Figure 1g). Moreover, the quantification of the fluorescent CTCF bands from the Western blot resulted in a protein amount that agreed with the immunostaining quantification in situ, with an average U2OS to HeLa Kyoto ratio of 1.66 (Figure 1g,h and Figure S2).

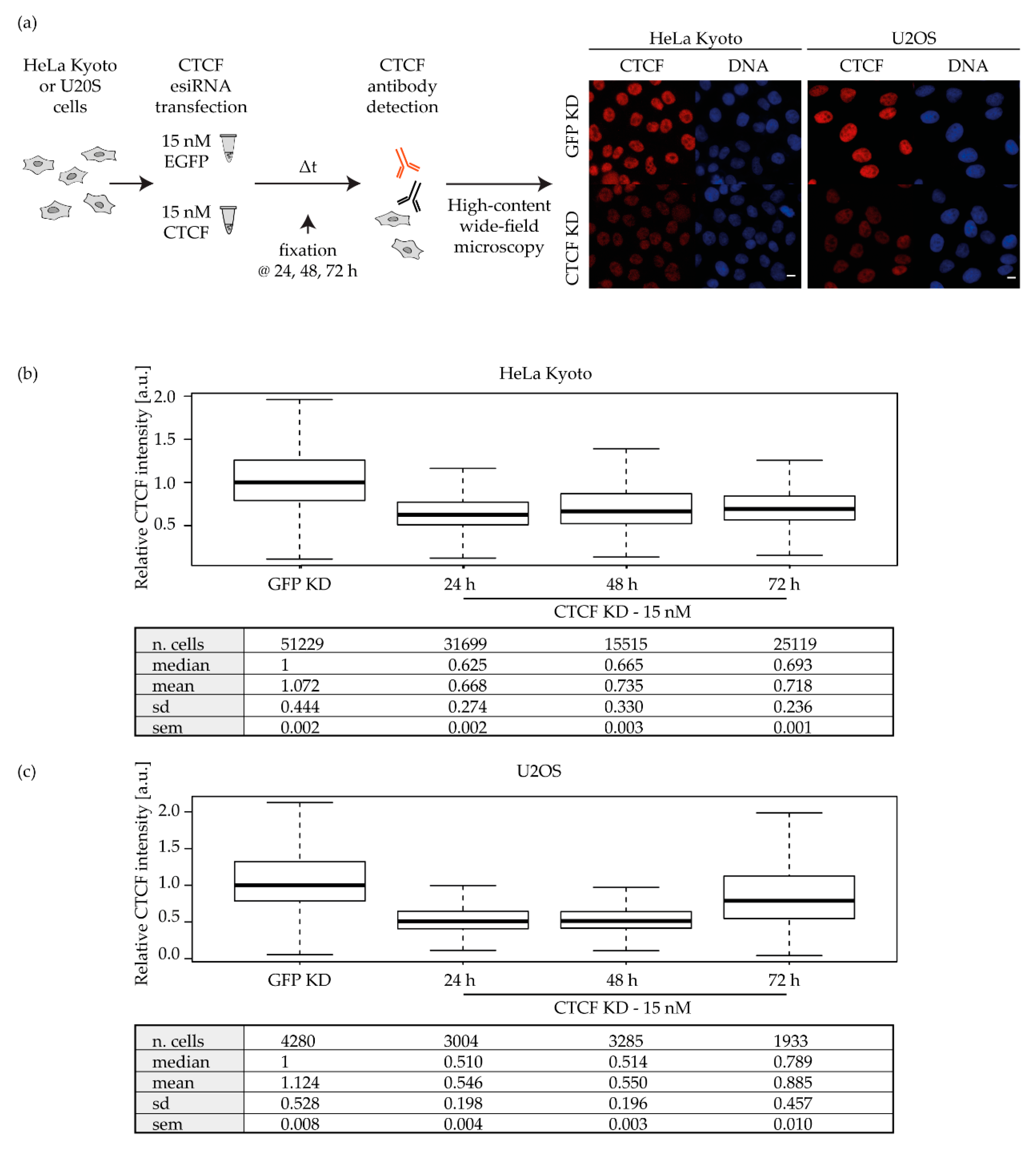

2.2. CTCF Knockdown and Validation in Different Cancer Cell Lines

The depletion of CTCF in cancer cells was performed by electroporation-mediated delivery of an esiRNA pool targeting the human CTCF transcript (Figure 2, Table S5). The knockdown was then confirmed by quantitative immunofluorescence staining in situ followed by high-content microscopy analysis (Figure 2a and Figure S1, Tables S2 and S3). In detail, the nuclear sum CTCF values of each sample were normalized (divided) by the median value of the respective EGFP mock-depleted control (hereafter renamed the GFP KD sample).

CTCF depletion was already reached in both HeLa Kyoto and U2OS at 24 h post transfection with 15 nM of esiRNA, with a median depletion of circa 40% and 50% of the control levels, respectively (Figure 2b,c). We could therefore estimate a residual amount of protein corresponding to 60% in HeLa Kyoto and 50% in U2OS (Figure 2b,c, Table S4). At later time points, the same concentration gave similar results (Figure 2b,c), indicating that the depletion was quite stable and that the early time point could be used for the following experiments, i.e., irradiation.

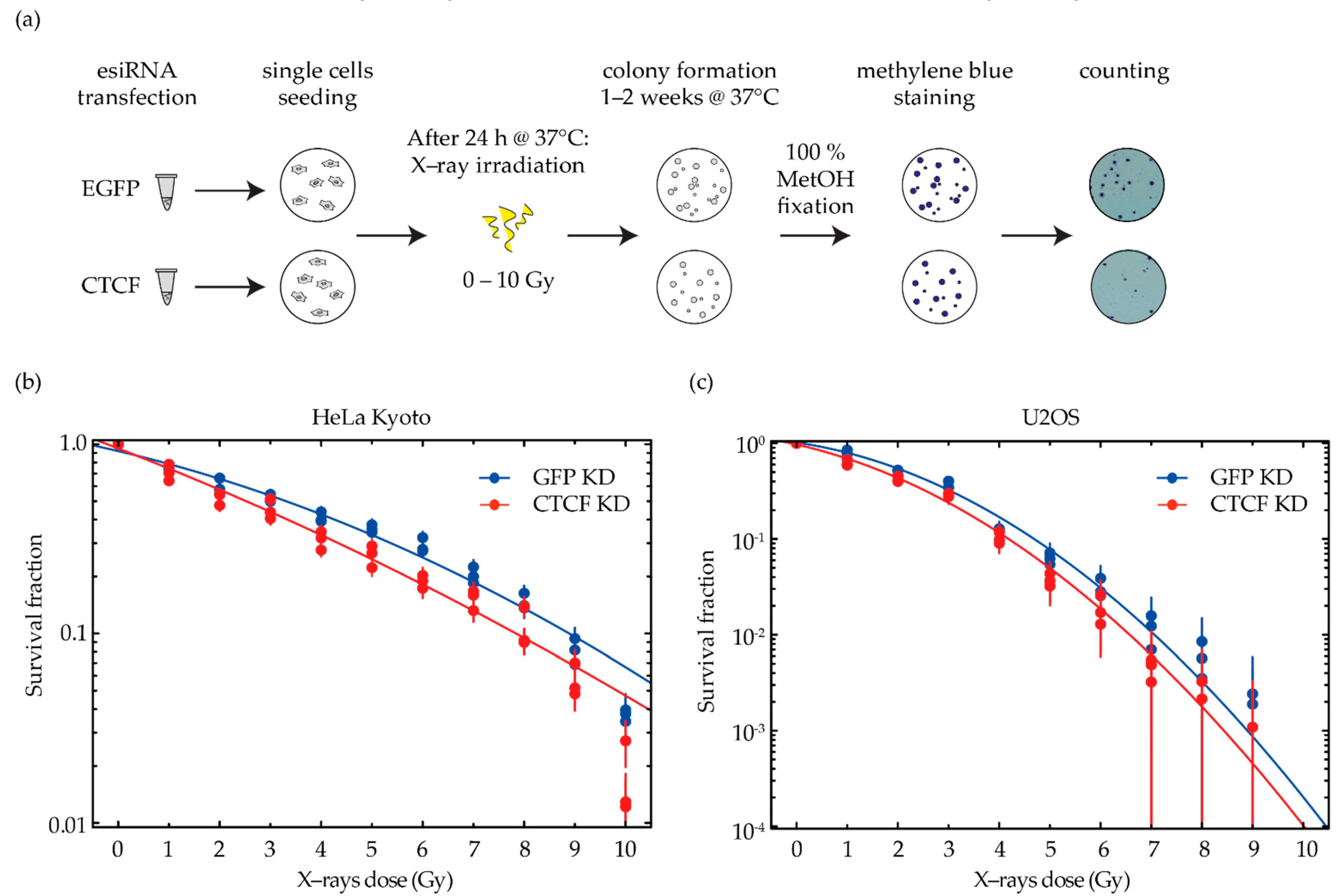

2.3. CTCF Depletion Increases the Radiosensitivity of Cancer Cells in a Cell Line-Dependent Way

In our previous studies on the DNA damage response units [31], we observed that CTCF-depleted cells were unable to properly signal the damage through γH2AX, or recruit the repair factors and showed reduced DSB repair upon irradiation. Based on the architectural role of CTCF, we concluded that this deficiency in repairing DNA double-strand breaks was related to the loss of correct chromatin looping.

Therefore, we decided to further investigate this relationship by testing a range of X-ray doses on CTCF-depleted cancer cells and by elaborating on the survival data to construct a model. In particular, cells were first subjected to 40–50% depletion of the architectural protein CTCF (Figure 2), then exposed to different doses of X-ray irradiation at 24 h post transfection, and allowed to form colonies (Figure 3a).

The survival data of each treatment was normalized to the average of the respective unirradiated control to calculate the survival fraction (see Table S6 for survival data statistics). In general, the survival curves follow the typical linear-quadratic behavior, i.e., $S\left(D\right)=e^{-\left(\alpha D+\beta D^2\right)}$, with α representing the initial slope at low doses and β characterizing the bending of the dose–response curve. We found that CTCF-depleted cells of both cell lines had a lower clonogenic potential than mock-treated cells at all radiation doses (Figure 3b,c, Figures S4 and S5a,b, Table S6). Our hypothesis is that the effect of CTCF depletion would be more relevant to the high-dose part of any survival curve, which is shaped by the β term and related to the increased frequency of clustered DSBs. The less CTCF present in the nucleus, holding the borders of chromatin domains, the higher the β term would be. This correlation is hypothesized based on the role of CTCF in shaping chromatin domains and the concomitant distribution of DNA damage within the same or different domain(s). In particular, cervical cancer cells are characterized by a survival curve with a very high α/β ratio (

Table 1. Parameters that were used in the GLOBLE model for prediction of the impact of CTCF depletion. The linear-quadratic parameters α and β and the corresponding lethalities ε_i and ε_c were determined from the survival curves under GFP KD conditions, after pooling all biological replicates. The genome size of Hela Kyoto was taken from [60] and that of U2OS estimated from that value multiplied by the genome size ratio in Figure 1b. The genome size for mouse mESC-AID-CTCF cells was taken from [63] (see Section 2.6). The default domain size was chosen to be identical for all cell lines.

Cell Line	HeLa Kyoto	U2OS	mESC-AID-CTCF
Genome size [Mbp]	9.7 × 103	11.93 × 103	5.2× 103
Domain size [Mbp]	2	2	2
α [Gy−1]	0.145± 0.014	0.179 ± 0.034	0.111 ± 0.025
β [Gy−2]	0.012± 0.002	0.067 ± 0.0067	0.013 ± 0.0029
α/β [Gy]	12.1	2.67	8.54
εi	0.0030	0.0030	0.0043
εc	0.0555	0.2310	0.1085

), meaning that the β term is not dominant in shaping the curve of HeLa Kyoto. We observed a modest increase in the radiosensitivity of this cervical cancer cell line upon CTCF depletion (Figure 3b and Figure S5a, see Table S6 for survival data statistics and Figure S4 for colony formation images).

We then applied the same treatment to the osteosarcoma cell line and expected to observe a higher impact due to the CTCF depletion. U2OS cells are, in fact, known to have a smaller α/β ratio (Table 1) and hence, a more pronounced shoulder in the survival curve compared to HeLa Kyoto (Figure 3c and Figure S5b, Table S6). However, the higher endogenous CTCF levels in U2OS led to a modest difference in survival upon CTCF depletion (Figure 3c and Figure S5b, see Table S6 for survival data statistics and Figure S4 for colony formation images).

2.4. GLOBLE Model Investigates the Impact of DSB Clustering in Chromatin Domains on Cell Kill

Our modeling approach is an adaptation of the previously published Giant-LOop-Binary-LEsion (GLOBLE) model (see Section 4.7; [55,56]), which allows quantitative prediction of several aspects of the cellular response to photon radiation. These comprise, e.g., the general linear-quadratic shape of cell survival curves [55,56], the impact of the dose rate on radiosensitivity [57], and the cell cycle dependence of radiosensitivity [64].

The GLOBLE model is based on the premise that the initial clustering properties of primary DNA damage, i.e., DSBs, are predictive of the expected cell killing. Clustering is defined with respect to the multiplicity of DSB within chromatin domains. Based on a given DSB yield and irradiation dose, the multiplicity of DSB within the domains can be determined by Poisson statistics, assuming that the DSBs are randomly distributed within the DNA after photon irradiation. Cases where only single DSBs are found in a domain are called “isolated DSBs” (iDSB) while cases with two or more DSBs in a domain are called “clustered DSBs” (cDSB).

Since CTCF is considered a key molecule involved in defining higher-order chromatin domain structures, it can be expected to also play a dominant role in defining the domain size. We, thus, hypothesize that the average size of chromatin domains is reciprocally proportional to the amount of CTCF. This leads to the following hypothesis that a CTCF reduction to 50% leads to less binding sites being occupied and correspondingly to an average increase in the domain size by a factor of 2.

The GLOBLE model can therefore predict the impact of CTCF depletion by correspondingly adapting the domain size but keeping all other parameters constant as for the control cells. The corresponding lethalities are derived from a linear-quadratic fit of the survival curve for the GFP KD control cells and using Equations (9) and (10) to assign the lethalities (see Section 4.7). These lethalities are kept constant for both conditions, i.e., control and CTCF-depleted cells, and only the frequency of iDSB and cDSB differs according to the change in the domain size. All relevant input parameters are summarized in Table 1.

As a consequence of the above mentioned concept, the α term, as defined by the lethality of iDSB according to Equation (9), should be untouched in the case of CTCF depletion, since the relative change in the number of iDSB at low doses is negligible. In contrast, the increase in the domain size should be connected with an increased β term of the survival curves according to Equation (10), since due to the constant α values, a decrease in N_D must be compensated by a corresponding increase in β.

2.5. Comparison of Model Predictions with Experimental Data

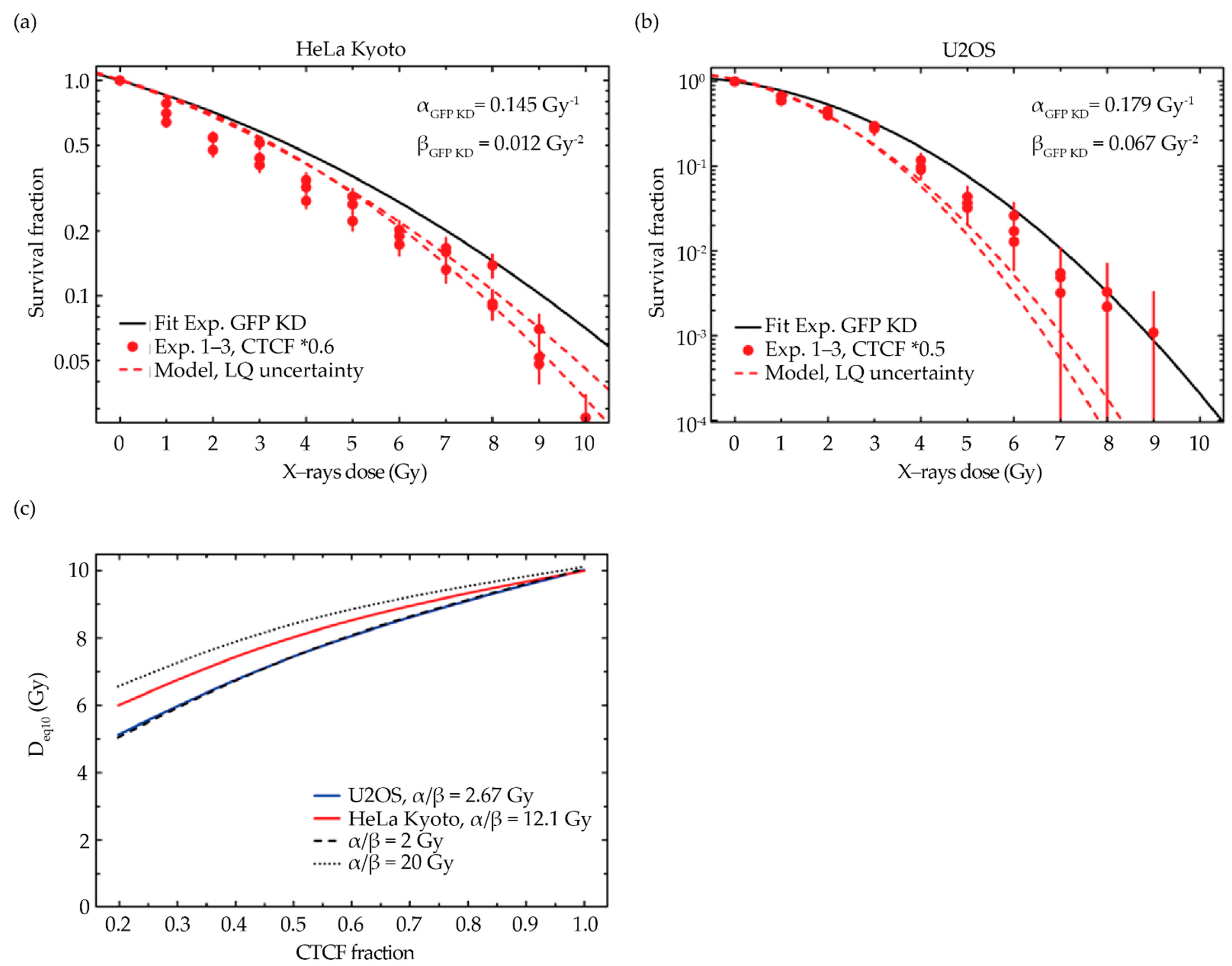

Our model predicted that CTCF depletion results in a change in the survival curves towards increased sensitivity, as a consequence of the hypothesized increase in the chromatin domain size and the corresponding higher number of more severe cDSB. In general, the order of magnitude of the shift is in reasonable agreement with the experimental data for both cell lines (CTCF KD: red dots; GFP KD: full blue curve), as shown by the comparison with the model predictions shown in Figure 4 (model: red curves).

In particular, the expected change in sensitivity as predicted by the model is shown for different levels of CTCF depletion (full and dashed red curves). The predictions for the experimentally determined depletion level (full red curves) agree best with the experimental data of HeLa Kyoto. For U2OS cells, the predicted shift is more pronounced as compared to the measured data, which is likely due to the possible influence of the different genome sizes on the chromatin domains’ architecture. The same predictions are plotted with equal y axis scaling in Figure S5c,d, for a direct comparison of the 2 cell lines.

An important parameter of the model is the assumption of the size of the chromatin domains, which up to now was chosen to be 2 Mbp. However, since different sizes are reported for chromatin contact domains, TADs, or compartments (see the introduction for an overview), we also checked the dependence of the model prediction on the reported domain sizes (Figure 5).

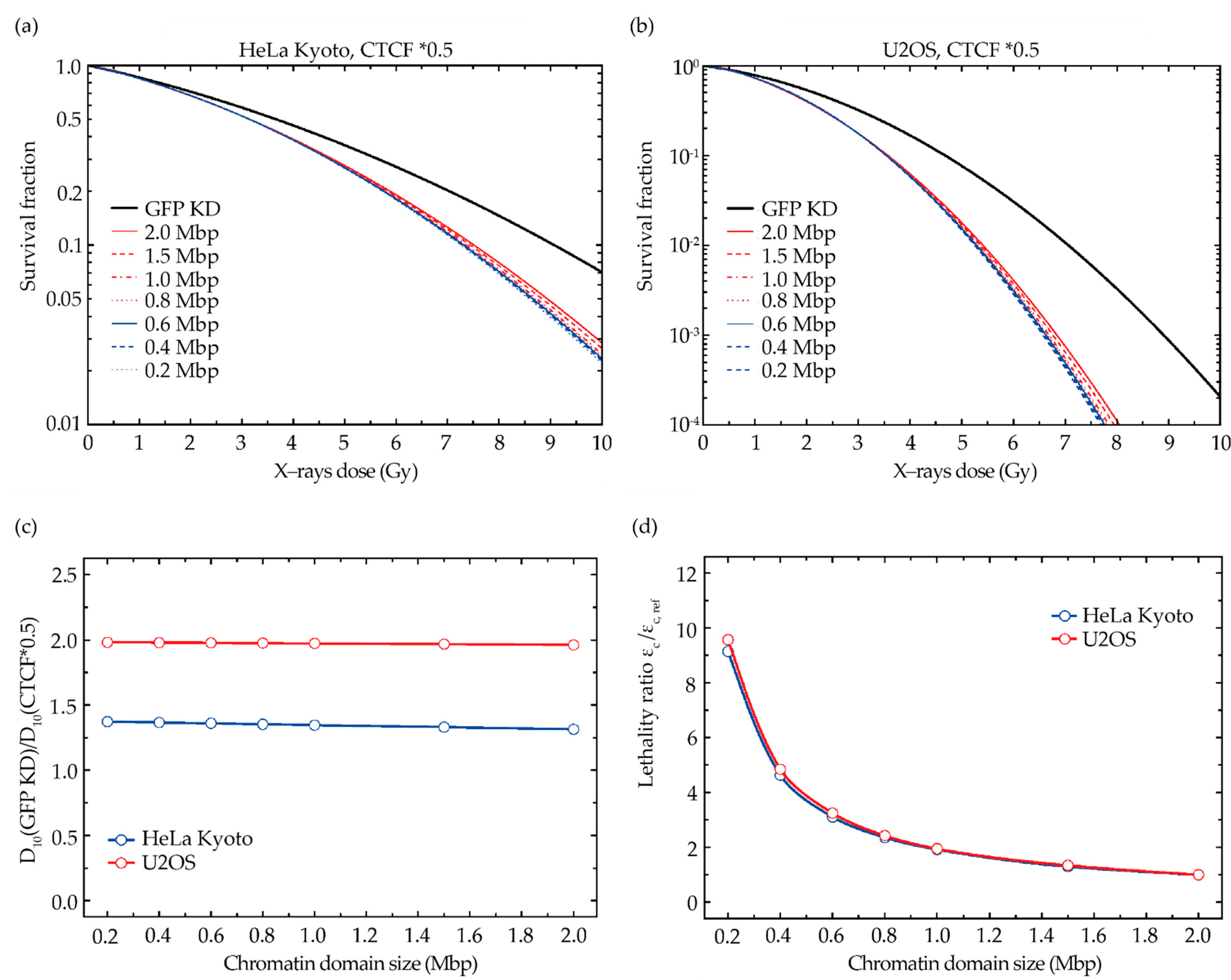

Although probably somewhat counterintuitive, the predicted impact of CTCF depletion only very weakly depends on the reference domain size, as demonstrated in Figure 5 for both the HeLa Kyoto (a) and U2OS (b) cell parameters. We chose depletion to 50% of the reference CTCF level to mimic a situation with a pronounced impact of CTCF depletion for both cell lines and to compare them relatively to the potential impact of the domain size. According to Equation (3), a reduction in the domain size is connected with a correspondingly lower probability to induce cDSB, but this can be compensated for by assigning a higher lethality to each cDSB. Consequently, the relative change in the lethality resulting from an increased domain size after depletion of CTCF is very similar for different reference domain sizes (Figure 5c,d).

Additionally, we checked the impact of the uncertainties of the fitted linear-quadratic parameters, which are used as input for the model, on the predicted change in the sensitivity after depletion of CTCF (Figure 6). Based on the errors Δα and Δβ as given in Table 1, we used 2 different combinations of either (α + Δα, β − Δβ) or (α − Δα, β + Δβ) as input parameters for the model. As shown in Figure 6a,b, the uncertainties mainly affect the high-dose part of the curves for both cell lines but otherwise do not substantially affect the agreement between the model prediction and experimental data.

Finally, we analyzed the expected effect of CTCF depletion for different cellular sensitivity characteristics (Figure 6c). In addition to the parameters representing HeLa Kyoto and U2OS cells, we chose hypothetical cell lines characterized by α/β = 2 Gy and α/β = 20 Gy. The impact of the chosen cell line is not very pronounced, but there is a systematic shift towards increasing sensitivity with a decreasing α/β-ratio (Figure 6c). This can be explained by the fact that, according to the model hypothesis, it is the β term that is affected by CTCF depletion, whereas the α term remains unaffected. Therefore, since the relative contribution of the β term increases with the decreasing α/β-ratio, the impact of CTCF depletion is also expected to be most pronounced in the case of small α/β values.

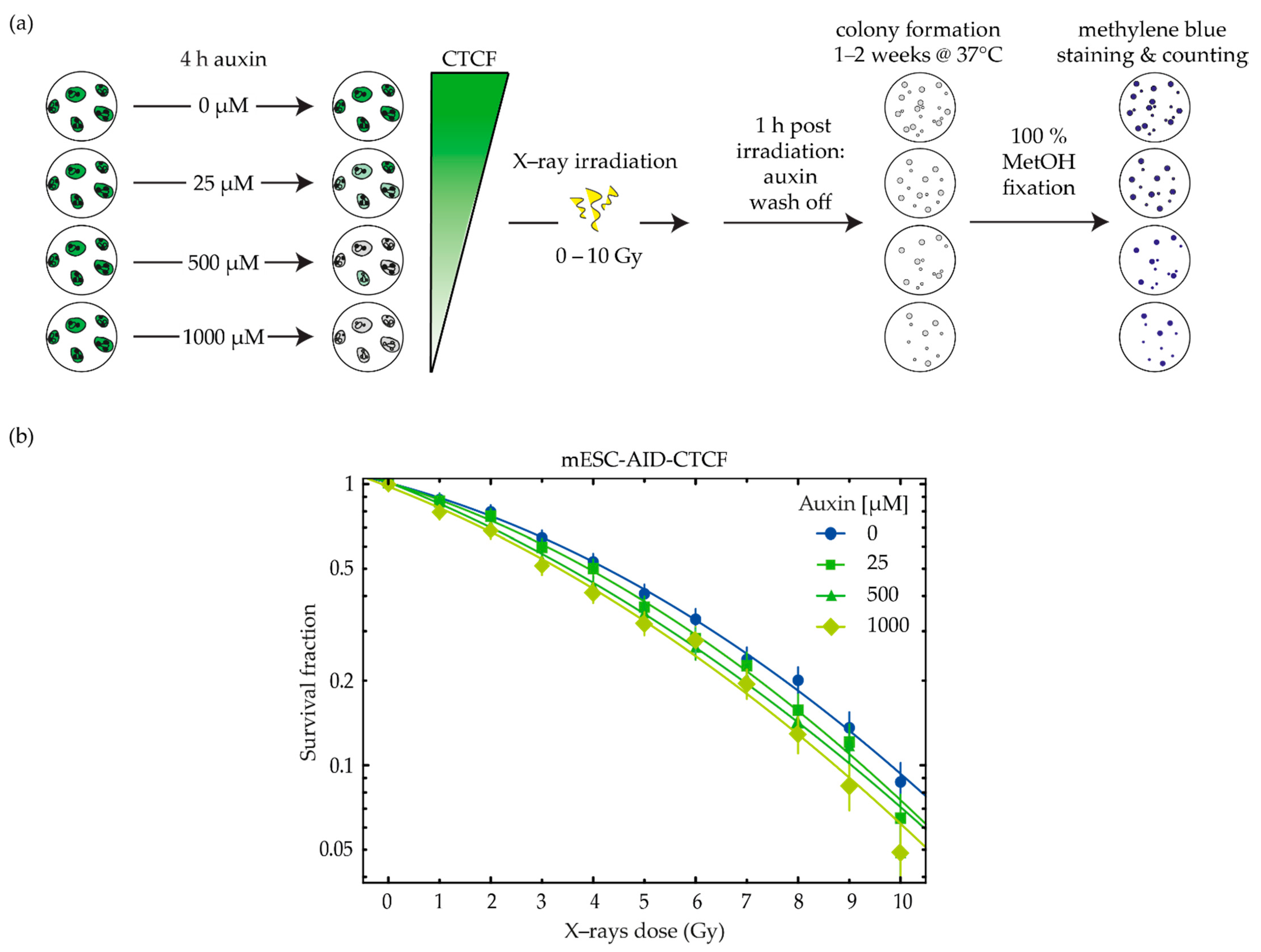

2.6. A CTCF Effect on Radiosensitivity Is also Observed in Mouse ES Cells and Is CTCF Dose Dependent

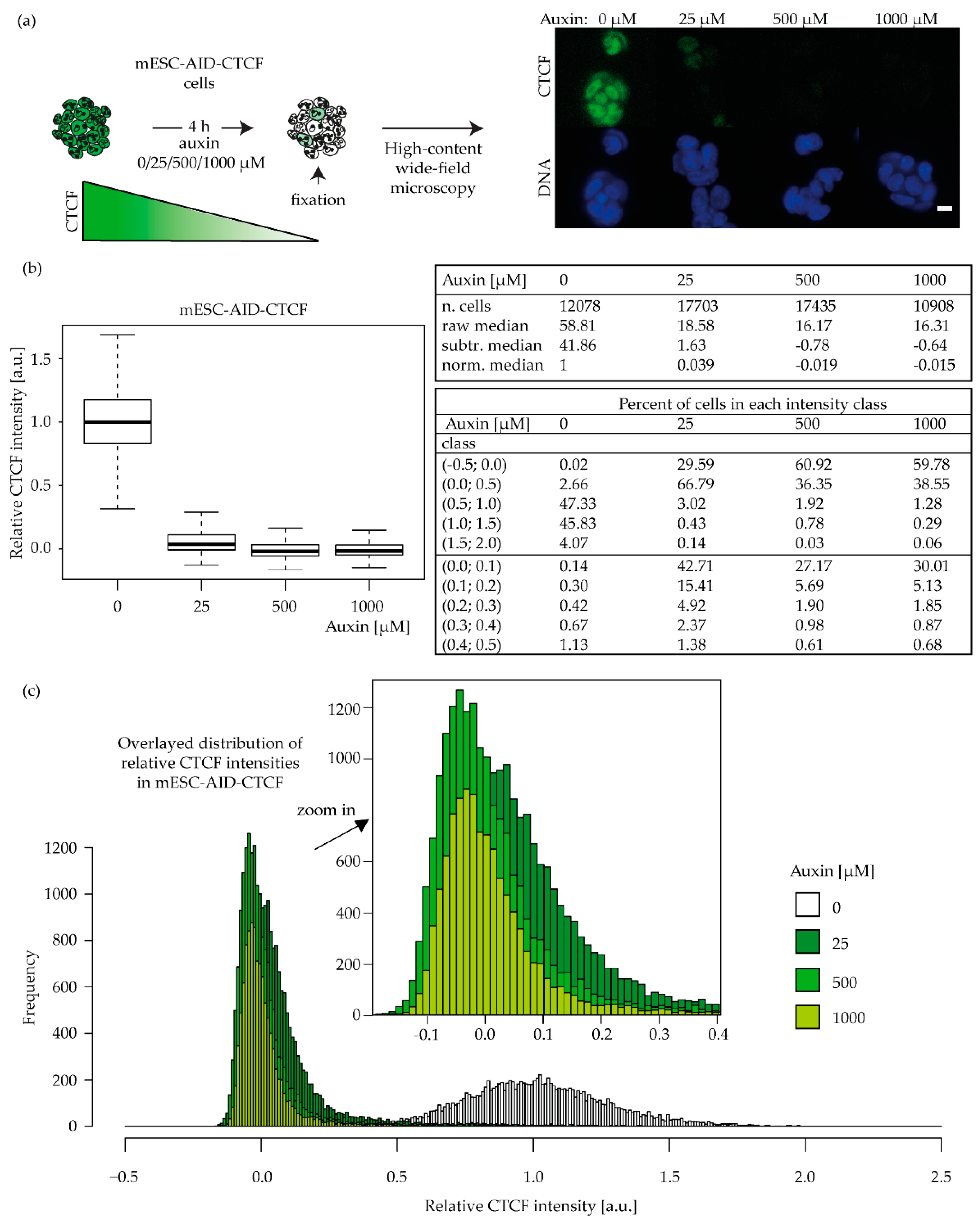

The use of a mouse embryonic cell line engineered with an auxin-inducible degron for CTCF, bearing a CTCF-GFP-tag (mESC-AID-CTCF [21], Table S1), allowed us to further investigate the effects of depletion in a completely different cell system and with a more synchronous dose regulation (Figure 7a). We applied different auxin concentrations (0, 25, 500, 1000 µM; Figure 7a) for 4 h. We obtained differential levels of depletion (Figure 7b), with circa 32% residual CTCF in the 25 µM sample and 28% CTCF in the 500-µM- and 1000-µM-treated cells, compared to the untreated cells.

When we subtracted the background GFP values measured in wild-type untagged mESC (ES14 [65], Table S1), we obtained a median 4% of CTCF left in the 25 µM sample and below 1% left in the 500 and 1000 µM samples (Figure 7b). Besides the similar median values, the 25 and 500 µM samples displayed a different CTCF intensity distribution. In the lowest auxin treatment, circa 70% of cells retained a small amount of CTCF, and in particular, 43% of the population showed a level of at least 10% of CTCF left while in 30% of cells, CTCF was not detectable. With the higher auxin treatments, the opposite was observed, with CTCF being equal to background levels in 60% of the cell population and the remaining 30% showing circa 10% residual CTCF (see “percent of cells in each intensity class” in Figure 7b,c). We next evaluated the survival of the cells with different CTCF levels to irradiation (Figure 8a). We observed that the impact of CTCF on radiosensitivity is dose dependent, as the fitting curves show decreased survival along with decreasing CTCF levels (Figure 8b, see Table S6 for survival data statistics and Figure S4 for colony formation images).

As it is reported that near to complete depletion does not allow cells to grow longer than four days [21], we decided to wash off auxin one hour after irradiation, in order to validate its impact solely on the DNA repair ability (Figure 8a). Although the samples treated with 500 and 1000 µM auxin showed an almost equivalent CTCF values distribution (Figure 7), an independent experiment was performed to assess the timing of CTCF depletion and recovery upon auxin wash off (Figure S6, Table S4). In this way, we observed that the higher the auxin concentration, the faster CTCF is depleted and the slower its recovery (Figure S6, Table S4). This explains how a slightly lower survival rate could be achieved with 1000 µM auxin (Figure 8b) even though the actual CTCF levels in the population were comparable with the 500-µM-treated sample (Figure 7). However, the decrease in survival in stem cells was lower than in the tumor cells that retained a higher CTCF level (Figure 3b,c), which may indeed be due to the faster recovery of CTCF levels in the first hour upon auxin wash off.

The modeling of CTCF depletion in the engineered cell line was performed qualitatively for residual values close to the observed raw CTCF residual values without background subtraction, i.e., 35%, 30%, and 25% (see Figure 9), for 2 reasons. On the one hand, the experimental method reaches its limits, since the detected CTCF signal is close to the background value for the higher auxin concentrations, leading to a substantial fraction of negative values in the intensity distribution (Figure 7b); therefore, the low values are subject to substantial uncertainties. On the other hand, the near-to-complete depletion imposed mathematical limits on our modeling. The model calculations based on the raw intensity values should therefore be interpreted as a lower limit for the expected impact of the CTCF depletion in this case.

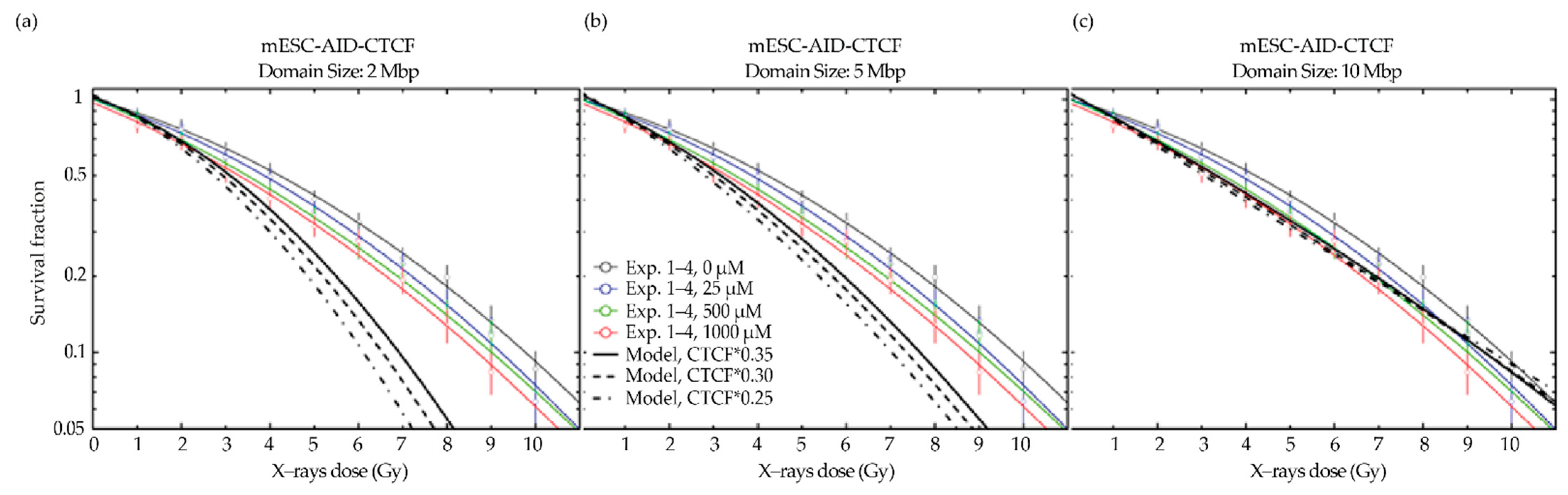

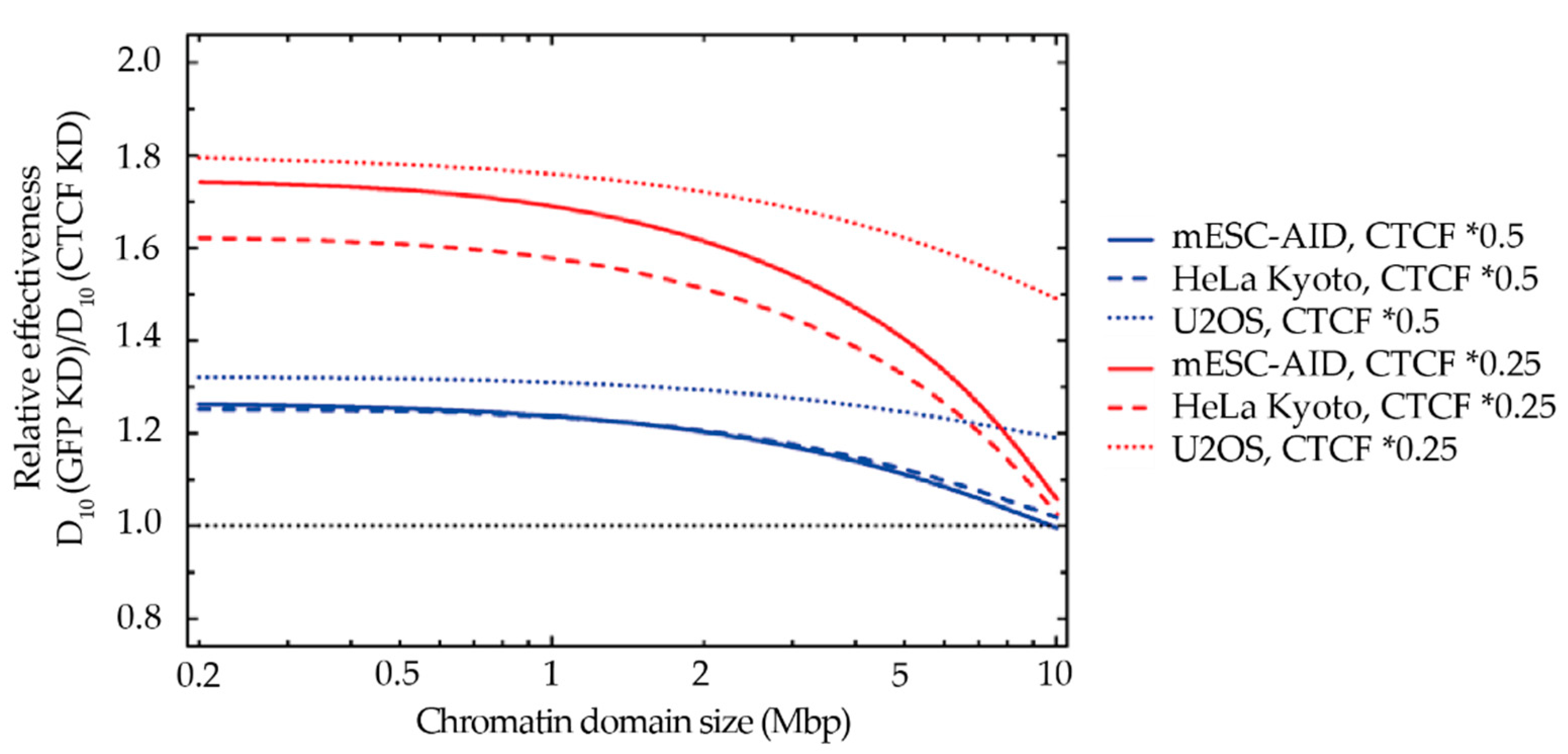

When we applied our GLOBLE modeling approach based on the standard 2 Mbp domain size, the obtained model predictions deviated from the experimental data (Figure 9a), likely due to the higher kinetics of CTCF recovery upon auxin wash off (Figure S6, Table S4). The resulting predictions of survival are therefore lower than the actual experimental data. This is probably due to the much faster CTCF recovery in this degron system compared to the KD systems used earlier. However, when a higher domain size of 5 or 10 Mbp was used, the survival predictions were closer to the experimental data (Figure 9b,c). This is consistent with a unique and looser chromatin architecture and correspondingly larger domain sizes in embryonic stem cells [66].

To investigate this possibility, we analyzed the domain-size dependency on the impact of CTCF depletion as in Figure 5c, this time in a range from 0.2 to 10 Mbp (Figure 10). A CTCF depletion up to 25% or 50% residual levels similarly impacts domains of different sizes up to 2 Mbp. However, the outcome changes beyond 2 Mbp: our model predicted a substantially reduced sensitivity to CTCF depletion when the considered domains have a size closer to 5 or 10 Mbp (Figure 10). The reduction in the impact of CTCF towards larger reference domain sizes is most pronounced for mESC and HeLa cells, whereas for U2OS, the effect is considerably smaller. This can be traced back to the much smaller α/β ratio for this cell line, indicating a larger impact of clustered DSB as compared to isolated DSB and consequently also a larger impact of CTCF depletion. More insights on the possible reasons for this deviation are illustrated in Section 3.

3. Discussion

In this study, we tested the survival of CTCF-depleted cells treated with increasing amounts of ionizing radiation, to establish a biophysical model of the impact of CTCF on cellular radiosensitivity. The measurements of the residual CTCF amounts after esiRNA- or auxin-induced depletion (Figure 2 and Figure 7) were integrated into an adaptation of the Giant-LOop-Binary-LEsion (GLOBLE) model (see Section 4.7, [55,56]). This allowed us to qualitatively predict the decreased survival of CTCF-depleted cells, based on the higher probability of DSB clustering and the related higher lethality (Figure 4 and Figure 9).

We previously demonstrated that CTCF is essential for the correct spreading of the signaling of DNA damage, i.e., phosphorylation of the histone variant H2AX [31]. Based on our high-resolution microscopy measurements, when a single DSB occurs on a multi-loop domain, whose bases are held together by CTCF, on average, four chromatin loops within this domain are decorated by γH2AX [31]. When this domain-wide signal spreading is not possible due to reduced CTCF amounts, the following repair cascade is impaired and consequently, the survival potential too. Moreover, the reduced CTCF presence translates into diminished bordering of the chromatin domains and hence into more DSBs clustering together. As the GLOBLE model assigns a higher lethality to clustered DSBs, which affects the higher-dose part of the survival curve, we could predict a relationship between CTCF depletion and increased cell lethality upon ionizing radiation (Figure 4 and Figure 9). We hypothesize that the lower effect seen in the CTCF-depleted osteosarcoma cells compared to the cervical cancer cells (Figure 3, Figure 4, and Figure S5) reflects a fact that is often neglected: that the endogenous levels of CTCF are significantly different in the two cell lines (Figure 1). As U2OS cells exhibit approximately twice the amount of CTCF compared to HeLa Kyoto cells, residual CTCF levels after depletion in U2OS were still higher, leading to a lower impact on survival relative to the other tumor type.

Our modeling approach considered the effect of different levels of CTCF depletion on radiosensitivity, assuming an identical impact on all cell cycle phases, as cells were not synchronized, and the relative effects were averaged. The main model parameters, i.e., the lethalities assigned to iDSBs and cDSBs, were determined from fitting of the survival curves under reference conditions (see Section 4.7). Importantly, uncertainties in these parameters are small and do not substantially affect the model predictions, which means the model settings are robust (Figure 6a,b). The model predictions were built on the distribution of DSBs as being isolated or clustered together within the same chromatin domains defined as “Giant LOops” of 2 Mbp (based on [32,67,68,69,70]). However, we also modeled how CTCF depletion could differentially affect chromatin domains of different sizes and predicted that CTCF-dependent radiosensitivity does not change in a size range between 0.2 and 2 Mbp (Figure 5). In other words, the effects of CTCF depletion on such domains would equally contribute to the enhanced radiosensitivity independently of the size under reference conditions. Despite these simplistic assumptions that could indeed average different situations in vivo, our model was successful in predicting the general trend and the order of magnitude by which different CTCF levels affect the clonogenic survival curves in the two tumor cell lines under study (Figure 4). Postulation of a dependency between the presence of the chromatin domain-anchoring protein CTCF and the tendency of DSBs to cluster within a domain was sufficient to recapitulate the experimental data of both tumor cells. We can hence conclude that the dominant mechanism by which reduced CTCF amounts result in increased radiosensitivity is based on the premise that in the absence of defined domain boundaries, the probability of DSBs clustering together is enhanced (Figure 11). As the lethality of cDSBs is higher and related to the β term of the survival functions, this is reflected in the higher impact of CTCF depletion in the high-dose part of the survival curves.

We next confirmed the impact of CTCF depletion further by using mouse embryonic stem cells engineered with an auxin-inducible degron system for the depletion of CTCF (Figure 7, Table S1, [21]). Embryonic stem cells are characterized by weakly condensed heterochromatin and large nucleosome-free regions [71], which is indicative of their high transcriptional activity [72,73]. The unique chromatin architecture of stem cells consists of infrequent and primarily short-ranged loop domains, whose boundaries are more permissive of interactions and are reinforced only during differentiation [66]. As stem cells have high pan-nuclear γH2AX levels, associated with global chromatin decondensation [74] but not DSBs, they are expected to have a consistent response to DSBs and were shown to have faster DSB repair rates than somatic cells [75]. Together with the suppression of mutagenesis, the elimination of damaged cells through apoptosis appears to be a mechanism that ensures the genome integrity in pluripotent embryos ([76,77,78], as also reviewed in [79]). It is widely accepted in radiation biology that DSBs are the most genotoxic lesions (as reviewed in [80,81,82]). Their repair in somatic mammalian cells preferentially uses the non-homologous end-joining (NHEJ) pathway, which commonly occurs between G1 and early S-phase and can be error prone when the broken ends require processing before religation [52,53,83,84,85]. Since the S-phase is the predominant cell cycle phase in highly proliferative embryonic stem cells (approximately 75% of the time [86]), their repair mechanism of choice is likely the homologous recombination (HR) pathway [87,88,89], which ensures high fidelity through the use of a template and mainly occurs between late S-phase and G2 (as reviewed in [79]). The different chromatin architecture and choice between DDR pathways might be a reason why the survival of mESC-AID-CTCF cells upon CTCF depletion does not meet our model predictions (Figure 9) and also why the experimental data showed a different sensitivity between tumor and embryonic cells (Figure 3 and Figure 8, respectively). Indeed, stem cells are more sensitive to damage, but they readily eliminate damaged cells and those that do not undergo apoptosis likely have higher survival potential and successfully proliferate into colonies. On the other hand, the tumor cell lines under study would accumulate important damage and show less survival in the long term. Moreover, the lethality of CTCF depletion [11,12,13] is required to timely limit the depletion. This could not be taken into account in the modeling, which therefore predicts what would happen after longer CTCF depletion (Figure 9).

Mechanistic insights into the decreased survival of CTCF-depleted cells are found in the assumptions of the GLOBLE model itself and the literature (see Section 2.4 and Section 4.7). The modeling approach presented here predicts cell survival based on the reverse proportion between the amounts of CTCF and the domain size, with the latter instead being proportional to the probability of cDSBs occurring (Figure 11). More than the induced number of DSBs, previous studies attributed cellular death to the delayed DSB rejoining and retained persistent damage at later time points [67,69,70,90,91,92,93], often related to nano- [94,95,96,97] or micrometer [68,98,99,100] clustering of the initial lesions. The yields of DSB induction considered in the model implicitly include not only the prompt DSBs but also those originating from clustered non-DSB lesions [69,70,101,102,103,104].

In previous studies based on filter elution techniques and flow cytometry detection of γH2AX [69,70], the GLOBLE model could reproduce the gradually slower processing of DSBs after high doses, supporting the higher toxicity of clustered DSBs at the micrometer scale in higher-order chromatin structures (extensively discussed in [64,69,70]). Our model distinguishes iDSB from cDSB, where a cluster is defined by a domain containing 2 or more DSBs (see Section 4.7). Even when the distance between two DSBs within the same chromatin domain is so high that these can be considered as single DSBs in terms of their individual repair, inter-DSBs DNA become a spatially independent fragment and any stabilization of its ends is at risk. A further development of our model could make another distinction within the cDSB class to predict in more detail the impact of DSB density on lethality. On the one hand, the more DSBs accumulate within a chromatin domain, the more DNA is fragmented, leading to a complex task for the repair machinery. On the other hand, two DSBs very close to the bases of a domain would evict a large portion of DNA, and additional fragmentation would not further enhance the damage severity. This distinction would hence allow us to define what is more critical for repair, the DSB density, defined as the ratio between the domain size and the number of DSBs within the domain, or the domain size itself as a self-determinant of the length of DNA that can be deleted with two DSBs at its bases. Moreover, our modeling could be additionally refined with differentiation of chromatin states into eu- or heterochromatin and their relative impact on domain sizes, and by considering the activity of different proteins and transcription events.

As previously mentioned, DSBs are considered the key damage in the field of radiation biology, but ionizing radiation induces various types of DNA lesions other than DSBs [26,27,28]. However, these occur both in control and in CTCF-depleted cells and it is unlikely that the deviations seen under CTCF depletion conditions could be mainly traced back to other damage, such as SSB or crosslinks. Damage to lipids and proteins is also a consequence of ionizing radiation, but the related effects will become visible only at extremely high doses due to the high cellular numbers of these molecules. At the dose ranges typically used for cell survival studies (0–10 Gy), these effects can be considered negligible as compared to damage to DNA.

Interestingly, the dose dependency found here between CTCF and radiosensitivity is consistent with the observation of Nora and colleagues on chromatin folding [21]. They observed that chromatin changes scaled together with CTCF depletion, with insulation of domains being more preserved in cells with 15% residual CTCF than in those cells with almost complete depletion [21]. Nonetheless, it is worth noting that even if TADs are lost upon CTCF depletion, higher-order A/B compartments are largely unaffected [21]. This might partially explain the overall small decrease in the survival of depleted cells and points to the fact that our understanding of the chromatin organization and related repair is still incipient.

4. Materials and Methods

4.1. Cell Culture

HeLa Kyoto and U2OS cells (Table S1) were grown at 37 °C in a humidified atmosphere with 5% CO₂ and cultured in Dulbecco’s modified Eagle’s medium (DMEM) high glucose (Cat. No.: D6429, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) supplemented with 50 µg/mL gentamicin, 20 mM L-glutamine (Cat. No.: G7513, Sigma-Aldrich Chemie GmbH, Steinheim, Germany), and 10% fetal calf serum (Cat. No.: F7524, Sigma-Aldrich Chemie GmbH, Steinheim, Germany).

mESC-AID-CTCF and wild-type ES-E14TG2a cells (Table S1) were cultured in Dulbecco’s modified Eagle’s medium (DMEM) high glucose (Cat. No.: D6429, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) supplemented with 15% fetal calf serum (Cat. No.: F7524, Sigma-Aldrich Chemie GmbH, Steinheim, Germany), 1× non-essential amino acids (Cat. No.: M7145, Sigma-Aldrich Chemie GmbH, Steinheim, Germany), 1× penicillin/streptomycin (Pen/Strep) (Cat. No.: P4333, Sigma-Aldrich Chemie GmbH, Steinheim, Germany), 1× L-glutamine (Cat. No.: G7513, Sigma-Aldrich Chemie GmbH, Steinheim, Germany), 0.1 mM beta-mercaptoethanol (Cat. No.: 4227, Carl Roth, Karlsruhe, Germany), 1000 U/mL recombinant mouse LIF (Millipore), and 2i (1 M PD032591 and 3 M CHIR99021 (Cat. Nos.: 1408 and 1386, respectively, Axon Medchem, Netherlands)) on gelatin-coated culture dishes (0.2% gelatin/ddH₂O; Cat. No.: G2500, Sigma-Aldrich Chemie GmbH, Steinheim, Germany).

4.2. CTCF Knockdown

An esiRNA pool against human CTCF (Table S5; Cat. No.: EHU130111, MISSION^® esiRNA, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) was used to deplete HeLa Kyoto and U2OS cells from the protein. The pool targets the 692–1195 region of the human CTCF transcript (NM_006565.3). Both cancer cell lines were transfected with 15 nM of esiRNA against either human CTCF or EGFP as a mock-depleted control (Table S5; Cat. No.: EHUEGFP, MISSION^® esiRNA, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) using the electroporation Neon™ Transfection System (Cat. No.: MPK5000, Thermo Fisher Scientific, Waltham, MA, USA). Voltage, width, and pulse for the different cell lines were applied as follows: HeLa Kyoto 1005 V, 35 ms, 2×; U2OS 1230 V, 10 ms, 4×. For the knockdown validation (Figure 2), cells were seeded on coverslips immediately after transfection and fixed with 3.7% formaldehyde/1× phosphate-buffered saline PBS (Cat. No.: F8775, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) at different time points (24, 48, 72 h). The results shown in Figure 2 are based on 3 biological replicates (Table S4). The same HeLa Kyoto and U2OS transfection aliquots were diluted in parallel for single-cell seeding to perform the clonogenic assay (Figure 3, Section 4.6). For CTCF depletion and its validation with the degron system (Figure 7), mESC-AID-CTCF cells were seeded on gelatinized coverslips and treated with auxin-supplemented medium (0, 25, 500, 1000 μM; 3-Indoleacetic acid IAA, Cat. No.: I3750, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) for 4 h, and then washed and fixed with 3.7% formaldehyde/1× PBS (Cat. No.: F8775, Sigma-Aldrich Chemie GmbH, Steinheim, Germany). The results shown in Figure 7 are based on 4 biological replicates (Table S4). The same auxin- supplemented medium was given in parallel to the single cells seeded for the clonogenic assay (Figure 8; Section 4.6). In an independent time course experiment (3 biological replicates; Table S4; Figure S6), stem cells seeded on gelatinized coverslips (0.2% gelatin/ddH₂O; Cat. No.: G2500, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) were treated with 25, 500, and 1000 μM auxin and fixed with 3.7% formaldehyde/1× PBS (Cat. No.: F8775, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) at different time points of auxin treatment (0.5, 1, 2, 3, and 4 h), washed 3 × with warm 1× PBS after 4 h, replaced with fresh medium, and CTCF recovery allowed until 24 h. Multiple time points were measured after auxin wash off (0.5, 1, 2, 4, 6, 8, 18, and 24 h).

4.3. CTCF Immunostaining

The previously fixed HeLa Kyoto and U2OS cells were washed with 1× PBS, permeabilized 15′ with 0.7% Triton^™ X-100 (Cat. No.: T8787, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) and washed again prior to 30′ blocking in 1% BSA (Cat. No.: A4503, Sigma-Aldrich Chemie GmbH, Steinheim, Germany). Incubation overnight at 4 °C with the primary rabbit anti-CTCF antibody followed. Information on the antibodies is listed in Table S2. Cells were then washed 2× with 1× PBS for 5′ and 3 × with 0.01% Tween^® 20 (Cat. No.: 9127.1, Carl Roth, Karlsruhe, Germany). The secondary goat anti-rabbit IgG (H + L) AF594 antibody was incubated for 1 h at room temperature, followed by washing as described above. DNA was counterstained with 10 µg/mL DAPI (4′,6-diamidino-2-phenylindole, Cat. No.: D27802, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) for 10′ at room temperature, cells dipped in ddH₂O, and mounted with Vectashield^® antifade medium (Cat. No.: NC9265087, Thermo Fisher Scientific, Walham, MA, USA) on coverslides. All dilutions mentioned above were performed in 1× PBS, except antibody dilutions in 1% BSA/1× PBS. mESC-AID-CTCF cells and wild-type ES-E14TG2a cells were only subjected to permeabilization, DNA counterstaining, and mounting as described above.

4.4. CTCF Western Blot

Cells were washed with ice-cold 1× PBS and collected using a cell scraper. Upon centrifugation at 500× g for 5′, cells were lysed for 1 h at 4 °C in lysis buffer (150 mM NaCl, 200 mM Tris pH 8.0, 5 mM EDTA) with 0.4% NP-40, protease, and phosphatase inhibitors (1 mM PMSF, 20 μM PepA, 20 mM NaF, 100 mM Na₃VO₄). Lysates were then centrifuged at 13,000 rpm for 20′ at 4 °C and supernatant collected. Protein concentrations were measured using the protein bovine serum albumin standard assay kit (Cat. No.: 23208, Thermo Fisher Scientific, Walham, MA, USA) according to the manufacturer’s protocol. Increasing amounts of protein lysates (30, 40, and 50 μg) were loaded along with the protein standard ladder (Cat. No.: P7719S, New England Biolabs, Ipswich, MA, USA) on a 6% polyacrylamide gel. This was followed by electrophoresis for 1.5 h in ice-cold 1× Laemmli electrophoresis running buffer (25 mM Tris base, 192 mM glycine, 3.5 mM SDS). Protein transfer to a 0.2 μm nitrocellulose membrane (Cat. No.: 162-0112, Bio-Rad Laboratories, Hercules, CA, USA) was performed in 1× transfer buffer (Pierce™ Western Blot Transfer Buffer 10 ×, Cat. No.: 35045, Thermo Fisher Scientific, Walham, MA, USA) using a semi-dry transfer system (Cat. No.: 1703940, Trans-Blot^® SD Semi-Dry Transfer Cell, Bio-Rad Laboratories, Hercules, CA, USA) for 55′ at 25 V. The membrane was subsequently blocked in 5% low-fat milk for 30′. Incubation with primary and secondary antibodies was performed in 5% milk at 4 °C overnight and at room temperature for 1 h, respectively. Each incubation was followed by 3 × 10′ washing with 0.075% Tween^® 20 in 1× PBS (Cat. No.: 9127.1, Carl Roth, Karlsruhe, Germany) and signals were detected using the Amersham™ Imager 600 (GE Healthcare, Chicago, IL, USA). Analysis was performed with Image Lab Software, Version 6.1 (SOFT-LIT-170-9690-ILSMAC-V-6-1, Bio-Rad Laboratories, Hercules, CA, USA). The antibodies and imaging conditions are listed in Tables S2 and S3, respectively.

4.5. Microscopy Imaging and Quantification

The samples were imaged with a high-content wide-field microscopy system Operetta^® and images were analyzed with the Harmony^™ software (both PerkinElmer, see Table S3), as described in Figure S1. In particular, the DAPI signal was used to create a nuclear mask and select nuclei. The nuclear intensities of both DAPI—DNA and AF594—CTCF or GFP—CTCF signals were measured and exported. The results tables were analyzed in RStudio (Version 0.99.902—© 2009–2016 RStudio Inc., Boston, USA) to produce the plots shown in Figure 1, Figure 2, Figure 7 and Figures S3 and S5. See Figure S3 for the boxplot interpretation.

4.6. Clonogenic Assay

HeLa Kyoto and U2OS cells were irradiated with X-ray doses of 0–10 Gy (1 Gy/58 s, 250 kV, 10 mA; Isovolt Titan, GE Sensing & Inspection Technologies, Ahrensburg, Germany) at 24 h post esiRNA transfection (Figure 3), at the respective time point of maximum depletion for each cell line (Figure 2b,c). Cells were incubated with 5% CO₂ at 37 °C for 7–10 days until colonies formed. Colonies were then fixed with cold 100% methanol and stained with 0.2% methylene blue in 50% methanol/1× PBS followed by washing in water (Figure 3a). The colonies with more than 50 cells were verified by microscopy and counted by eye. The results for both HeLa Kyoto and U2OS consist of three biological replicates, each composed of technical replicates (Table S6). mESC-AID-CTCF cells were treated with different auxin concentrations (0, 25, 500, and 1000 μM; 3-Indoleacetic acid IAA, Cat. No.: I3750, Sigma-Aldrich Chemie GmbH, Steinheim, Germany) for 4 h prior to irradiation (the same conditions as above), washed 3 times with 1× PBS, and replaced with fresh medium 1 h after irradiation (Figure 8a). Cells were then allowed to form colonies and treated as described above for the tumor cell lines. The results for mESC-AID-CTCF cells consist of four biological replicates (Table S6). The number of colonies was plotted as a survival ratio, in which each value was normalized to the average of the respective unirradiated controls.

The homegrown “gd” software (http://bio.gsi.de/DOCS/gd.htm, accessed on 10 March 2022; GSI Helmholtzzentrum für Schwerionenforschung GmbH, Biophysics Department, Darmstadt, Germany) [105] was used to plot the survival curves shown in Figure 3, 8, and S5. A linear-quadratic dose–response curve fitting weighted by $\frac{1}{relative erro{r}^2}$ was applied (dots = mean; whiskers = error bars; see the footer of Table S6 for the calculation of the relative error).

4.7. Modeling of Cell Survival Using the Giant-Loop Binary Lesion (GLOBLE) Model

For standard applications of the GLOBLE model, the domains are assumed to contain a genomic content of approximately g_D = 2 Mbp, covering a volume with an approximate side length of L_D = 0.5 μm in a cell nucleus with a typical DNA content of G = 6 Gbp and a cell nuclear volume of V_Nuc = 500 μm³. The number of domains is then given by:

$$N_D=\frac{G}{g_D}$$

(1)

resulting in N_D = 3000 domains per nucleus for the reference conditions given above. For cells with different genome sizes G, the total volume and the number of domains are correspondingly scaled, keeping the volume and side length and genomic content of the individual domains constant.

Photon radiation produces DSBs that are randomly distributed throughout the genome, with a yield of Y_DSB = 30 DSB/Gy/cell. Therefore, the mean number of DSBs produced by a given dose D in the whole cell nucleus is:

$$\overline{N_{DSB}\left(D\right)} =Y_{DSB}·D$$

(2)

and the mean number of DSB induced per domain is:

$$\overline{n_{DSB}\left(D\right)}=\frac{\overline{N_{DSB}\left(D\right)}}{N_D}$$

(3)

The probability of inducing isolated DSB (iDSB), characterized by exactly 1 DSB in a domain, or clustered DSB (cDSB), characterized by 2 or more DSB in a domain, is determined by randomly distributing DSB within the nucleus, based on a yield Y_DSB of 30 DSB/Gy/cell nucleus and evaluating the Poisson statistics for the corresponding mean value of DSB induced in a domain at a given dose D:

$$P_{DSB}\left(k,\overline{n}\right)=\frac{{\overline{n}}^k}{k!}{e}^{-\overline{n}}$$

(4)

Therefore, the number of iDSB and cDSB is given by:

$$n_i\left(D\right)=P_{DSB}\left(1,\overline{n}\right)·N_D=\overline{n}{e}^{-\overline{n}}·N_D$$

(5)

$$n_c\left(D\right)=(1-P_{DSB}\left(0,\overline{n}\right)-P_{DSB}\left(1,\overline{n}\right))·N_D$$

(6)

No further distinction according to the specific number of DSB contained in a cDSB is made, i.e., cases with just 2 DSB are handled identically to cases with more than 2 DSB.

Different lethalities ε_i and ε_c are assigned to the classes of iDSB and cDSB, and the final effect on cell kill at a given dose D is determined by multiplying the number of damages in each class, n_i and n_c, with the corresponding lethalities and finally summing it:

$$S\left(D\right)=e^{-\left(n_i\left(D\right){\epsilon }_i+n_c\left(D\right){\epsilon }_c\right)}$$

(7)

The lethalities ε_i and ε_c are related to the parameters α and β of the standard LQ-formulation of the survival curves:

$$S\left(D\right)=e^{-\left(\alpha D+\beta D^2\right)}$$

(8)

in the following way:

$${\epsilon }_i=\frac{\alpha }{{\alpha }_{DSB}}$$

(9)

$${\epsilon }_c=2\left(\frac{N_D\beta +{\alpha }_{DSB}\alpha }{{\alpha }_{DSB}^2}\right)$$

(10)

with N_D being the number of domains per cell nucleus and α_DSB representing the yield of DSB per Gy. Therefore, ε_i is uniquely linked to the initial slope of the dose–response curve as given by the linear term α, and ε_c is defined by a mixture of the contributions from the linear and the quadratic term β.

The main assumption for the application of the model to describe the impact of CTCF depletion is that with the decrease in CTCF, the domain size correspondingly increases. For example, if the fraction of CTCF remaining after depletion is given by f_CTCF, the modified domain size is given by:

$$g_D^{\prime }=\frac{1}{f_{CTCF}}{g}_{D }$$

(11)

The number of domains correspondingly decreases, i.e.,:

$$N_D^{\prime }=f_{CTCF}·N_{D }$$

(12)

The modified numbers of iDSB and cDSB are then determined as described in Equations (1)–(6), but the lethalities of iDSB and cDSB are kept identical to those under reference conditions. In principle, the genome size could also be expected to affect the sensitivity, since N_D increases with increasing DNA content when assuming a constant domain size. However, through calibration of the model by means of the experimental data for cells with a normal CTCF content, any changes in the DNA content are compensated for by corresponding changes in the lethality parameters (at least within the typical range of DNA content values for mammalian cells). GLOBLE model calculations were applied and the homegrown “gd” software (http://bio.gsi.de/DOCS/gd.html, accessed on 10 March 2022; GSI Helmholtzzentrum für Schwerionenforschung GmbH, Biophysics Department, Darmstadt, Germany) was used to produce the plots shown in Figure 4, Figure 5, Figure 6, Figure 9, Figure 10 and Figure S5. The GLOBLE parameters are listed in Table 1. The linear-quadratic parameters α and β and the corresponding lethalities ε_i and ε_c were determined from the survival curves under GFP KD conditions (curve fit weighted by $\frac{1}{relative erro{r}^2}$), after pooling all respective biological replicates (3 biological replicates of HeLa Kyoto and U2OS, 4 biological replicates of mESC-AID-CTCF cells, Table S6). A simple implementation of the model as an Excel sheet is available in the materials; a screenshot of the Excel sheet is shown in Figure S7.

5. Conclusions

Overall, we confirmed that the survival potential of different cell lines after exposure to ionizing radiation is dependent on CTCF. We showed that survival is finely tuned proportional to the CTCF dosage, which is consistent with the reported CTCF dose scaling of chromatin domains. The application of our GLOBLE modeling approach to the scenario of CTCF depletion allowed us to gain mechanistic insights relative to the decreased survival. CTCF anchoring activity limits the clustering of multiple DSBs, whose repair often has a dramatic outcome and ends with irreversible domain fractionation. Future research in cancer treatment should take into consideration the relative amount of this architectural protein in the particular tumor cell line under study and apply this model in order to predict the tumor survival after radiation therapy.
