In Silico Gene Prioritization Highlights the Significance of Bone Morphogenetic Protein 4 (BMP4) Promoter Methylation across All Methylation Clusters in Colorectal Cancer

by
Daša Jevšinek Skok
1 and
Nina Hauptman
2,*
1
Agricultural Institute of Slovenia, Hacquetova ulica 17, SI-1000 Ljubljana, Slovenia
2
Institute of Pathology, Faculty of Medicine, University of Ljubljana, Korytkova 2, SI-1000 Ljubljana, Slovenia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(16), 12692; https://doi.org/10.3390/ijms241612692
Submission received: 15 July 2023 / Revised: 3 August 2023 / Accepted: 9 August 2023 / Published: 11 August 2023
(This article belongs to the Special Issue From Omics to Therapeutic Targets in Cancer 2.0)
Browse Figures
Versions Notes

Abstract

:
The cytosine–phosphate–guanine (CpG) island methylator phenotype (CIMP) represents one of the pathways involved in the development of colorectal cancer, characterized by genome-wide hypermethylation. To identify samples exhibiting hypermethylation, we used unsupervised hierarchical clustering on genome-wide methylation data. This clustering analysis revealed the presence of four distinct subtypes within the tumor samples, namely, CIMP-H, CIMP-L, cluster 3, and cluster 4. These subtypes demonstrated varying levels of methylation, categorized as high, intermediate, and very low. To gain further insights, we mapped significant probes from all clusters to Ensembl Regulatory build 89, with a specific focus on those located within promoter regions or bound regions. By intersecting the methylated promoter and bound regions across all methylation subtypes, we identified a total of 253 genes exhibiting aberrant methylation patterns in the promoter regions across all four subtypes of colorectal cancer. Among these genes, our comprehensive genome-wide analysis highlights bone morphogenic protein 4 (BMP4) as the most prominent candidate. This significant finding was derived through the utilization of various bioinformatics tools, emphasizing the potential role of BMP4 in colorectal cancer development and progression.

1. Introduction

DNA methylation is a fundamental epigenetic mechanism that plays a crucial role in the regulation of gene expression [1]. It involves the binding of methyl groups by DNA methyltransferases to cytosine residues, resulting in the formation of 5-methylcytosine (5-mC) at cytosine–phosphate–guanine (CpG) dinucleotides [1,2]. In most somatic cells, the majority of CpG sites are methylated, with the exception of CpG islands located in promoter regions [1]. Notably, hypermethylation of these promoter regions often leads to the silencing of gene transcription [3]. Given that hypermethylation in promoter regions is an early event in colorectal cancer (CRC), it serves as a promising starting point for the identification of diagnostic methylation markers.
CRC is a prevalent malignancy worldwide and a significant contributor to global mortality rates [4]. The development of CRC involves a combination of genetic and epigenetic alterations in epithelial cells. Genetic abnormalities often include mutations in DNA mismatch repair genes and the APC regulator of WNT signaling pathway (APC) gene, which regulates the WNT signaling pathway [5,6,7]. In addition to genetic changes, CRC is characterized by widespread DNA promoter hypermethylation, leading to the silencing of tumor suppressor genes [5,6,7]. From a biological predisposition, CRC can be classified into two main subtypes: microsatellite instability (MSI) and microsatellite stable and chromosomally unstable (CIN), based on their genomic characteristics [8].
In 1999, the concept of the “CpG island methylator phenotype” (CIMP) was introduced, which characterizes the methylation of CpG islands in multiple genomic regions [9,10]. Currently, there is no consensus on the gene panel used to determine the CIMP status of a tumor. However, the most commonly utilized panel is the Wisenberger panel, consisting of the following genes: calcium voltage-gated channel subunit alpha1 G (CACNA1G), neurogenin 1 (NEUROG1), RUNX family transcription factor 3 (RUNX3), suppressor of cytokine signaling 1 (SOCS1), and insulin-like growth factor 2 (IGF2) [11].
CIMP tumors can be further classified into two subtypes: CIMP-H (CIMP high) and CIMP-L (CIMP low). CIMP-L tumors exhibit intermediate methylation levels and are often associated with mutations in the KRAS proto-oncogene, GTPase (KRAS) gene, with one to three genes from the aforementioned panel showing methylation [12]. On the other hand, CIMP-H tumors display high methylation levels, are significantly associated with mutations in the B-Raf proto-oncogene, serine/threonine kinase (BRAF) gene, and are predominantly located in the proximal colon. These tumors show methylation of more than three genes from the panel [11,12].
Recent studies have further expanded the classification of colorectal tumors based on their methylation subtypes. The Cancer Genome Atlas (TCGA) group identified four epigenetic subtypes: CIMP-H, CIMP-L, cluster 3, and cluster 4. The union of cluster 3 and cluster 4 is referred to as Non-CIMP [13]. Other studies, such as those conducted by Shen et al. [14] and Yagi et al. [10], identified three epigenetic subtypes and identified specific hypermethylated genes as markers. Additionally, Hinoue et al. identified four subtypes based on hierarchical clustering of DNA methylation, which exhibited high inter-tumor variability [15]. Among these subtypes, CIMP-H and CIMP-L were associated with BRAF and KRAS mutations, respectively. Tumors in the third cluster were associated with tumor protein p53 (TP53) mutations and were predominantly found in the distal colon, while the fourth cluster was enriched for rectal tumors with low rates of KRAS and TP53 mutations. These subtyping approaches provide valuable insights into the heterogeneity of colorectal tumors based on their DNA methylation patterns and associated genetic alterations. Understanding these subtypes can have implications for prognosis, treatment selection, and the identification of potential therapeutic targets.
DNA methylation alterations have been found to primarily occur in the early stages of cancer, making them valuable early risk indicators for cancer development [16]. In the context of CRC screening, researchers have investigated aberrant methylation patterns in various genes within tissues and body fluids of CRC patients, identifying potential biomarkers for early detection. Notably, several genes associated with crucial signaling pathways have been studied as potential candidates. These pathways include the WNT signaling pathway, represented by APC, axin 2 (AXIN2), dickkopf WNT signaling pathway inhibitor 1 (DKK1), secreted frizzled related protein 1 (SFRP1), secreted frizzled related protein 2 (SFRP2), and Wnt family member 5A (WNT5A). Additionally, DNA repair processes have been investigated, with a focus on O-6-methylguanine-DNA methyltransferase (MGMT) and mutS homolog 2 (MSH2). Furthermore, cell cycle regulation has been a target of study, with cyclin-dependent kinase inhibitor 2A (CDKN2A) and cyclin-dependent kinase inhibitor 2B (CDKN2B) being of particular interest. Finally, the RAS signaling cascade has been explored, with emphasis on Ras association domain family member 1 isoform A and isoform B (RASSF1A and RASSF1B) as potential biomarkers in colorectal cancer research. These genes’ roles in these pathways make them promising candidates for understanding the mechanisms underlying colorectal cancer development and progression. Among these, promoter hypermethylation of cadherin 1 (CDH1) has been linked to CRC progression, suggesting its potential as a diagnostic tool for this malignancy [17].
Several DNA methylation biomarkers have shown promise for early CRC screening. Notably, N-Myc, downstream-regulated gene-4 (NDRG4), and bone morphogenetic protein-3 (BMP3) are tumor suppressor genes that can be utilized for early detection of CRC [18]. In different sample types, NDRG4 methylation has been positively associated with CRC and adenoma, with sensitivity ranging from 27.8% to 81% and specificity from 78.1% to 91.7% [19,20]. BMP3 promoter methylation analysis in blood, stool, and tissue samples has shown sensitivity ranging from 33.3% to 56.66% and specificity from 85% to 94% for diagnosing CRC and advanced adenoma [19,21]. Notably, three DNA methylation markers, including NDRG4, BMP3, and SEPT9, have been incorporated into FDA-approved tests for CRC screening [22].
In an attempt to identify a novel methylation marker by which to identify most CRC samples regardless of methylation cluster, we focused our analysis on DNA methylation data obtained from 332 colorectal cancer (CRC) tumor samples and 45 normal samples. Using unsupervised clustering, we identified distinct methylation subtypes within the CRC samples. Next, we found common methylation alterations across all four subtypes and assigned them to promoter regions, which belonged to 253 genes.
Among these genes, bone morphogenic protein 4 (BMP4) emerged as a particularly promising candidate based on further functional analysis. BMP4 has been implicated in various biological processes, including cell differentiation, proliferation, and apoptosis. Its dysregulation has been associated with multiple diseases, including cancer. Our findings suggest that aberrant methylation of the BMP4 gene promoter may play a significant role in CRC development and progression.
By identifying common methylation alterations in gene promoters across different CRC subtypes, our study provides valuable insights into the potential epigenetic markers and mechanisms involved in CRC. Further investigation of the functional implications of these aberrantly methylated genes, particularly BMP4, may contribute to a better understanding of CRC pathogenesis and potentially lead to the development of novel diagnostic and therapeutic strategies.

2. Results

2.1. Classification of CIMP Status

To examine the differences in patterns of CpG methylation between tumor samples from different molecular subtypes, we performed hierarchical clustering of samples. We performed clustering based on the methylation data from HM27 using the recursively partitioned mixture model (RPMM) algorithm. Our goal was to identify subgroups within the dataset that closely matched the previously assigned clusters. To achieve this, we focused on 2757 probes that exhibited the highest variability in beta values among the tumor samples. By utilizing these probes, we obtained the best fit of clusters compared to the already assigned ones. This clustering model was then applied to HM450 methylation data to identify subgroups in the dataset. The hierarchical clustering dendrograms of HM450 methylation data (Figure 1) supported four distinct tumor groups: a heavily methylated cluster designated CIMP-H (n = 58), intermediate methylation levels cluster designated CIMP-L (n = 81), cluster 3 (n = 77), and cluster 4 (n = 116), with both clusters exhibiting low methylation levels. The clinical data from our clusters support previous studies wherein the CIMP-H subtype is enriched for BRAF mutation and MLH1 methylation and is more commonly found in the ascending colon [23]. The cluster 3 and cluster 4 subtypes are more commonly found in the sigmoid colon and rectum.
The clinical and pathologic features of the patients and their tumors were summarized for further analysis. All 332 patients had information on age, gender, tumor location, MSI status, and methylation status on MLH1 gene, and some also had mutational data available. For the purpose of classification, the mutational status of BRAF and KRAS mutations were used where available (Table 1). Consistent with previous studies, CIMP-H cluster is enriched in the ascending colon (38/58, 70%) and is associated with BRAF (V600E) mutation (21/49, 43%) and MLH1 methylation (28/58, 48%) [16]. The sigmoid colon and rectum locations are commonly associated with cluster 3 (72%) and cluster 4 (65%).
The assignment of methylation cluster and all the clinical data used for each tumor sample and normal sample used in this study can be obtained from Supplementary Table S1. All further references to the CIMP status of our samples are based on our hierarchical clustering classification.

2.2. Promoters Methylated in All Clusters

After performing the cluster analysis, we compared the beta values of each cluster to the normal samples in order to identify probes with aberrant methylation. Due to the high density of the HM450k arrays, we were able to apply the Bonferroni correction method to assess methylation at all CpG sites within each cluster. To establish a higher confidence level for validating candidate methylation sites using experimental methods, we set two criteria for each site. First, the differential methylation threshold was set to 0.3; second, the Bonferroni-adjusted p-value was required to be less than 0.01. The final list of differentially methylated CpG sites were both statistically significant under the Bonferroni correction method and had a difference in the mean beta value greater than 0.3. The intersection of the significant CpG probes across all clusters yielded a list of 614 probes, and the results of this analysis can be found in Supplementary Table S2.
The probes significant among all clusters were subsequently mapped to 426 regulatory regions, including promoter and bound regions, associated with 253 genes. The observed variation in the number of regions and genes can be attributed to two factors. First, we considered both promoter-bound regions and predicted promoter regions, which can both be associated with the same gene. This overlap accounts for some redundancy in the gene count. Second, there are cases where multiple genes share common gene promoters, leading to a smaller number of unique genes despite a larger number of associated regions. These factors contribute to the observed differences in the number of regions and genes identified in our study.
To derive a comprehensive view, the significant probes were extracted from the beta methylation value matrix and averaged based on their respective regulatory regions. In most cases, these values aligned with the criteria used in the differential methylation analysis, indicating a mean difference in beta values greater than 0.3. However, there were instances where this criterion was not met, primarily due to the presence of both hypo- and hypermethylated probes within the same regulatory region (Supplementary Table S3). These values have been illustrated in Figure 2, where the average methylation levels are depicted as increased (hyper) or decreased (hypo) compared to the average beta value in normal samples. Notably, we observed cluster-specific patterns of methylation events, with the CIMP-H cluster demonstrating the highest levels of hypermethylation.
The analysis revealed several gene promoters that had a high number of probes within the regions, indicating their potential significance in colorectal cancer. These genes include EYA transcriptional coactivator and phosphatase 4 (EYA4), alcohol dehydrogenase iron-containing 1 (ADHFE1), mitogen-activated protein kinase kinase kinase 14 (MAP3K14), and genes belonging to gene clusters: homeobox A cluster (HOXA) (HOXA2/3/6) and protocadherin gamma subfamily C (PCDHGC) (PCDHGC4/5). These genes have been extensively studied and proven to be hypermethylated and differentially expressed in various types of cancer [17,18,19]. Specifically, in colorectal cancer, EYA4 and ADHFE1 have already been validated as hypermethylated and down-regulated genes [24]. Furthermore, additional members of the same gene families have shown involvement in cancer. The HOXA cluster (HOXA2/3/6) has been identified as hypermethylated in breast and colon cancer [25]. MAP3K14 has been found to be differentially expressed and hypermethylated in lung squamous cell carcinoma, where it regulates the NF-κB activity pathway and participates in NF-κB-inducing signaling through receptors of the tumor-necrosis/nerve-growth factor (TNF/NGF) family [26].
In total, there are 132 genes corresponding to 220 regulatory regions that have two or more probes mapped to them. Table 2 presents the top 15 regulatory regions with the highest number of significant probes mapped, which correspond to nine genes. Notably, all these regions exhibit hypermethylation compared to normal tissue methylation levels.

2.3. Functional Analysis

To explore the functional properties and relations between the genes involved in the colorectal cancer, we performed functional analysis with gene ontology (GO) annotations including biological process (BP), molecular function (MF), and cellular component (CC), as well as Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways and protein–protein interactions.
The analysis showed that a total of 253 genes play significant role in 209 biological processes, 10 molecular functions, 4 cellular components, and 4 KEGG pathways (Table 3). The table presents the top-20 most significant biological processes, ranked by their strength scores. Among these processes, the one with the highest significance based on p-value is “Anatomical structure morphogenesis” (p-value 5.78 × 10−11). Conversely, when considering the strength score (1.51), “Ureter morphogenesis” emerges as the most significant biological process. Notably, a remarkable number of 200 genes are implicated in the process of “biological regulation”. The complete term list of gene ontology biological processes and all genes involved in each process can be found in Supplementary Table S4.
Regarding molecular functions, “Transcription regulator activity” exhibits the highest significance based on the p-value (0.0054). However, in terms of the strength score, “Cis-regulatory region sequence-specific DNA binding” is the molecular function that receives the highest score. In the cellular component category, the highest-ranking term is “Collagen-containing extracellular matrix” with a strength score of 0.49. The KEGG pathway analysis showed that 13 of the analyzed genes are involved in “Cell adhesion molecules (CAMs)” (p-value 2.87 × 10−5), and 6 in the “Basal cell carcinoma pathway” (p-value 0.0286).

2.4. Protein–Protein Interactions

To better understand the functional interactions between the identified genes with aberrant promoter methylation, the gene list was input into the STRING database to produce a functional association network based on their relationships, such as co-expression, co-occurrence, gene fusion, experiments, text-mining, and databases. A protein–protein interaction network (Figure 3) was constructed using our list of 253 genes. The network was further analyzed using the Cytoscape program plugins. Based on the network analysis of protein–protein interactions, it was found that BMP4 emerges as the most promising candidate gene, highly connected with 24 interactions. The strength of their connectedness is presented in Table 4. Moreover, the table of all protein–protein connections and their combined score can be found in Supplementary Table S5.

2.5. Gene Prioretization Using Phenolyzer

Phenolyzer is an integrative tool which takes as input a discrete list of phenotype terms and generates a list of candidate genes weighted by their chance of being associated with the phenotype, even in the absence of any genotype data [27]. Phenolyzer uses three steps for data processing, described in the Section 3.5. Our list of 253 genes was used, each gene was given a score, and we generated a visual gene–gene network (Figure 4). The figure shows seed genes (blue), and predicted greens (yellow). The highest scores were given to platelet-derived growth factor receptor alpha (PDGFRA) (0.139), phosphatidylinositol-4,5-bisphosphate 3-kinase catalytic subunit delta (PIK3CD) (0.126), APC regulator of WNT signaling pathway 2 (APC2) (0.119), BMP4 (0.112), baculoviral IAP repeat containing 2 (BIRC2) (0.112), and bone morphogenetic protein 2 (BMP2) (0.11). The genes with the highest scores are represented with the biggest round nodes.

3. Materials and Methods

3.1. Patients and Data

We utilized the TCGAbiolinks package [28] in the R programming environment to download both clinical information and DNA methylation microarray data included in the COAD (colon adenocarcinoma) and READ (rectum adenocarcinoma) project of TCGA. DNA methylation analysis was performed on level 3 data, which is already normalized and contains beta-value calculations, genomic coordinate, chromosome number, and Human Genome Organisation (HUGO) gene symbol for each CpG site on the array.
For our clustering model, we focused on methylation microarray data obtained from the Illumina Infinium HumanMethylation27k BeadChip (HM27). This dataset consisted of a total of 234 CRC samples, each containing DNA methylation data specifically generated from the HM27 array. Notably, these samples already had assigned methylation clusters, which were determined by the Cancer Genome Atlas Consortium [13]. Subsequently, we applied our clustering model to DNA methylation data obtained from the Illumina Infinium HumanMethylation450k BeadChip array (HM450). This dataset comprised a total of 332 CRC samples. Unlike the HM27 data, these samples did not have any assigned clusters from previous studies. Both microarray datasets were at data level 3, which included essential information such as beta-value calculations, HUGO gene symbols, chromosome numbers, and genomic coordinates for each targeted CpG site on the arrays. It is worth noting that the HM450 array targeted 482,421 CpG sites in the human genome. Additionally, we checked for the availability of mutation files for selected samples and downloaded them when accessible. For the purpose of differential methylation analysis, we also downloaded 45 normal samples that were included in COAD and READ dataset in TCGA.

3.2. Probes and Genes

The coordinates of protein-coding genes were downloaded from Ensembl, release 89 (http://www.ensembl.org/, accessed on 20 May 2023), while predicted promoter regions were obtained from the Ensembl Regulatory Build e89 [29]. The nomenclature of genes was unified according to the HUGO Gene Nomenclature Committee (HGNC) (http://www.genenames.org/, accessed on 20 May 2023).
We overlapped the HM450 probes mapped to the GRCh38/hg38 genome [30] with promoter regions and found their nearest genes. From the total of 482,421 probes, 93,794 probes are located within promoter region. The genes, where the transcription start position was within 5 kb of the mapped promoter region, were used for further analysis. KRAS and BRAF mutations were filtered from the mutation files. The mutations taken into account were in codon 12, 13 and 61 for KRAS, and p.V600E in BRAF. mutL homolog 1 (MLH1) DNA methylation status in each sample was asserted on the probe (cg00893636) located in the bidirectional MLH1/EPM2A interacting protein 1 (EPM2AIP1) promoter CpG island and closest to the current RefSeq MLH1 transcription start sites. Beta value greater than 0.2 was taken as the threshold for methylation.

3.3. Unsupervised Clustering

For unsupervised clustering, we used the data from HM27 and HM450 arrays included in the COAD and READ projects of TCGA. The methylation data from HM27 has been previously clustered by the Cancer Genome Atlas Consortium, and the resulting clusters have been included in the samples’ information data [13]. In this study, we aimed to recreate the clusters of methylation data from HM27 and their clustering information. To achieve this, we utilized the recursively partitioned mixture model (RPMM) algorithm. Specifically, we focused on 2757 probes that exhibited the highest variability in methylation levels. By applying the RPMM algorithm to these probes, we obtained the best clustering results compared to already assigned clusters.
To cluster the methylation data from the HM450 array, we utilized a total of 332 CRC samples. Among these samples, 248 tumor samples belonged to the COAD project, while 84 tumor samples belonged to the READ project. The data from both projects were combined, and we performed unsupervised clustering using conditions determined based on the samples from the HM27 array.
The RPMM clustering was applied to both the HM27 and HM450 datasets. RPMM is a model-based unsupervised clustering approach specifically designed for DNA methylation measurements that follow a beta distribution ranging between 0 and 1. We preprocessed the data by removing probes mapped to the X and Y chromosomes, as well as probes containing “NA” values. Subsequently, we performed RPMM clustering on the 2757 probes that exhibited the highest variability in DNA methylation levels. The FANNY algorithm was used for initialization, which is a fuzzy clustering algorithm that assigns data points to clusters with varying degrees of membership, allowing for more flexible clustering. We used the level-weighted version of the Bayesian information criterion (BIC) as a split criterion for existing clusters during the RPMM clustering process. The BIC is a statistical criterion used to assess the goodness-of-fit of a model while penalizing complex models to avoid overfitting. In the context of RPMM, the BIC was used to determine the optimal number of clusters and to split existing clusters based on the level of DNA methylation. The RPMM clustering was implemented using the R-based RPMM package, which provides tools and functions to perform RPMM clustering on DNA methylation data. Overall, the RPMM clustering approach allows for the identification of distinct clusters of DNA methylation patterns within the datasets and explores the underlying structure of DNA methylation variability in the samples [31].

3.4. Statistical Analysis and Data Visualization

For differential methylation analysis, we used the same tumor samples as described above with an additional 38 normal samples from the COAD project and 7 normal samples from READ project. The analysis was performed in R (version 4.3.0) and Bioconductor software packages (version 3.18). For multiple comparisons, package TCGAbiolinks was used for the calculation of false-discovery rate (FDR)-adjusted p-values using Bonferroni correction [28]. Differentially methylated regions were calculated using data of each cluster compared to data of normal tissues. The threshold for difference in methylation between tumor and normal tissue was set to 0.3, and adjusted p-value threshold was set to 0.01. The Illumina Infinium DNA methylation β-values were represented in a heatmap constructed with R-based software package ComplexHeatmap (version 2.17.0) [32]. Averaged probes per promoter region were graphically represented with the Circos software (version 0.69-9) [33].

3.5. Functional Analysis

The STRING database (version 11.5) was used to identify gene ontology processes enriched within genes associated with differentially methylated CpG sites for 253 genes from the intersection of all four clusters [34]. The protein–protein interactions network (PPIN) were performed using the STRING database with Cytoscape plugin, which produces a functional association network using interaction sources such as textmining, experiments, database, co-expression, neighborhood, gene fusion, and co/occurrence.
The Phenolyzer tool (http://phenolyzer.wglab.org/, accessed on 8 June 2023) was used for the prioritization of our list of genes. The Phenolyzer processes the list of genes in three steps [27]. The first step is to search databases in the CTD’s (Comparative Toxicogenomics Database) disease vocabulary and disease ontology for a certain disease/phenotype term, interpret the term into multiple specific disease names, and find all the associated genes and related information in OMIM (Online Mendelian Inheritance in Man), Orphanet (a journal for rare disease), NCBI’s (National Center for Biotechnology Information) ClinVar, GeneReviews (an expert-authored, peer-reviewed disease descriptions), and GWAS (Genome Wide Association Studies) databases, then generate the seed gene set with conditional probability as scores. The second step is to grow the seed gene set in the HPRD (Human Protein Reference Database) protein interaction, NCBI’s Biosystem, HGNC (HUGO Gene Nomenclature Committee) gene family, and HTRI (Human Transcriptional Regulation Interactions) databases and retrieve an augmented gene set. The third step involves integrating all the information to score genes. The input can be one or several disease/phenotype terms, while users can optionally supply a gene list or genomic region to further trim down the candidate genes [27].

4. Discussion

In this study, we employed the high-density coverage of the HM450 methylation array to comprehensively investigate DNA methylation patterns in CRC. Leveraging this genome-wide approach, we identified four distinct methylation subtypes characterized by high, intermediate, and low levels of methylation. Our clustering approach was based on previous studies utilizing the HM27 array [13], and the clinical data associated with our clusters align with prior research findings. Specifically, the CIMP-H subtype showed enrichment for BRAF mutations, MLH1 methylation, and a higher prevalence in the ascending colon [23]. In contrast, cluster 3 and cluster 4 subtypes were more commonly observed in the sigmoid colon and rectum.
The high density of the HM450 arrays enabled us to apply the Bonferroni test to evaluate methylation at all CpG sites of each cluster. While previous studies often set a low threshold (e.g., 0.1 or 0.2) for defining differentially methylated probes in genome-wide methylation array data, we set a threshold of 0.3 in our analysis. By intersecting the significant CpG probes and mapping them to promoter and bound regions, we obtained a list of 426 probes. These probes were then averaged within each promoter or bound region, increasing the confidence for validating candidate methylation sites through experimental methods. Specifically, we focused on 253 genes assigned to these regulatory regions. These genes were subsequently integrated into additional analyses to delve deeper into their interrelationship and their roles in CRC.
Among the gene promoters, several stood out due to having a higher number of probes within their regions. Notably, these included EYA4, ADHFE1, MAP3K14, as well as gene clusters such as HOXA (HOXA2/3/6) and PCDHGC (PCDHGC4/5). These genes have been previously studied and implicated in cancer, showing hypermethylation and differential expression [24,25,26].
To identify genes commonly methylated across all methylation subtypes, we employed two different approaches. Firstly, using protein–protein interaction analysis, we selected candidate genes based on the number of connected node genes. Among these candidates, BMP4 emerged as a prominent gene. Secondly, we utilized Phenolyzer, a tool that prioritizes genes based on phenotype associations, and BMP4 and BMP2 were among the top-ranked genes.
Our comprehensive genome-wide analysis highlights BMP4 as the most promising candidate gene with a potential role in the development and progression of colorectal cancer. BMP4 is a member of the bone morphogenetic protein (BMP) family, which belongs to the transforming growth factor β (TGF-β) superfamily [35]. BMPs interact with type I and type II receptors, each possessing serine/threonine and tyrosine kinase activities. The BMP family can be further divided into subgroups based on structural similarities and their ability to bind specific type I receptors [36].
Intriguingly, BMP4, while primarily targeted toward the epithelial compartment, demonstrates a distinct localization within mesenchymal cells expressing α-smooth muscle actin [37]. A pivotal role of BMP4 is evident in its capacity to mitigate colonic inflammation and uphold intestinal homeostasis [37]. The perturbation of epithelial Bmpr1a has been shown to amplify BMP4 levels in the context of dextran sodium sulphate (DSS)-inuced colitis. Conversely, the inflammatory cytokines TNF-α and interleukin-1β (IL-1β) exert inhibitory effects on BMP4 expression [37]. Recent investigations into DSS-induced colitis have unveiled dynamic expression patterns correlating with disease progression, notably observing an upregulation of BMP4 and Smad4 in the crypt during the early stages, followed by a downregulation in the later stages [38]. Counteracting the disease, exogenous administration of BMP4 recombinant protein emerges as a viable strategy, demonstrated to enhance epithelial proliferation by targeting an ID3 inhibitor and preserving Lgr5+ intestinal stem cells [38]. In addition, the transgenic overexpression of BMP4 ligands along the intestinal crypt-villus axis yields contrasting outcomes—suppressing proliferation, hastening terminal differentiation, and impeding intestinal regeneration in the setting of DSS-induced colitis [39]. Furthermore, inhibiting BMP4 in intestinal stromal cells imparts a conducive environment for intestinal stem cell proliferation and the maintenance of intestinal equilibrium [40]. Evidently, a myriad of factors, including localization, concentration, and specific targets, intricately shape the duality of BMP4’s impact on the intestinal epithelium—proliferative or anti-proliferative [41].
Moreover, BMPs have been found to exhibit diverse roles in cancer progression. On one hand, BMPs have demonstrated inhibitory effects on the proliferation of gastric cancer, breast cancer, and prostate cancer cells [42,43]; on the other hand, BMPs have been reported to enhance the motility and invasiveness of various cancer cell types, including breast cancer, prostate cancer, and malignant melanoma cells [44]. In the context of colorectal cancer, the inhibition of BMP4 has been shown to induce apoptosis in colorectal cancer cells by reducing mitogen-activated protein kinase (MAPK) activity in cell culture. Interestingly, increased BMP4 expression has been discerned in the context of Colitis-associated colon cancer relative to nonneoplastic mucosa, underscoring its potential implication in disease progression [45]. Furthermore, an experimental BMP inhibitor, known as LDN-193189, has been found to suppress colorectal cancer formation in vivo [46].
Intriguingly, the intricate role of BMPs in colon cancer progression unveils a dualistic nature. Previous studies have illuminated a dichotomy, wherein BMP4 overexpression has been correlated with the heightened invasiveness of colon cancer cells, as exemplified by [47]. Meanwhile, BMP2 was shown to be hypermethylated in CRC [48] and has been observed to induce epithelial–mesenchymal transition, thereby potentiating the metastatic capabilities of colon cancer cells [49,50]. Furthermore, compelling evidence has emerged, as presented by Lorente-Trigos et al. [51], underscoring the BMP pathway’s pivotal role in nurturing the growth of primary colon tumors within an in vivo context.
Collectively, these findings coalesce to propose a nuanced conjecture regarding BMP’s role in colon carcinogenesis. The prevailing hypothesis posits a biphasic behavior of BMPs, wherein they potentially exert an initial tumor suppressor effect, subsequently transitioning to assume a tumor-promoting role. This nuanced perspective underscores the dynamic and context-dependent interplay of BMP signaling within the intricate landscape of colon cancer progression [52].
While previous studies have examined the impact of polymorphisms within BMPs or their expression on colorectal cancer (CRC) [53,54,55,56,57], only the BMP3 gene has been previously identified as hypermethylated in CRC tissue [58,59]. In our comprehensive study of miRNA-target gene expressions in colorectal cancer, we have previously identified the overexpression of the BMP4 gene in colorectal cancer tissue [60]. By utilizing the high-density HM450 methylation array and applying rigorous thresholds for differential methylation, our study provides valuable insights into the methylation patterns and potential biomarkers associated with CRC. The identification of specific gene promoters, including those previously implicated in cancer, expands our understanding of the epigenetic alterations underlying CRC development and may contribute to the development of novel diagnostic and therapeutic strategies. Our scientific contribution lies in adding an epigenetic dimension to the existing understanding of the role of BMP4 polymorphisms and gene expression in relation to colorectal cancer. This aspect had not been previously substantiated or demonstrated in the scientific literature. These findings suggest that BMP4 may also act as a tumor-promoting factor in the specific context of colorectal cancer.
The study is subject to certain limitations that should be acknowledged. First, the sample size, especially the relatively smaller number of normal samples, presents a limitation. A larger number of normal samples would have enhanced the statistical power and confidence in the results. Additionally, the availability of paired-tumor and matching normal samples with methylation data is limited, which restricts the ability to draw strong conclusions from such a small subset. Another potential limitation arises from the inherent biases introduced by the various bioinformatics tools utilized in the analysis. To address this concern, we adopted a strategy of employing multiple tools to cross-validate our findings. This approach helps us to minimize any potential biases and ensures the robustness of our results. Despite these limitations, the study offers valuable insights into DNA methylation patterns in colorectal cancer. By being transparent about the limitations, we hope to encourage further research and foster a more comprehensive understanding of the underlying mechanisms involved in this complex disease.

5. Conclusions

In conclusion, our study employed clustering analysis of the COAD and READ projects from TCGA using the HM450 array, enabling us to identify a set of genes exhibiting aberrant promoter methylation across all four methylation subtypes of colorectal cancer CRC. By utilizing various bioinformatics approaches, we have identified BMP4 as the most compelling candidate gene. The comprehensive analysis presented in this study provides a valuable foundation for researchers investigating methylated promoter regions associated with colorectal cancer.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms241612692/s1.

Author Contributions

Conceptualization, D.J.S. and N.H.; methodology, D.J.S. and N.H.; software, D.J.S. and N.H.; resources, D.J.S. and N.H.; data curation, D.J.S. and N.H.; writing—original draft preparation, D.J.S. and N.H.; writing—review and editing, D.J.S. and N.H.; visualization, D.J.S. and N.H.; supervision, N.H.; funding acquisition, N.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Slovenian Research Agency under research core funding No. P3-0054, research core funding No. P4-0133, and project J3-3070.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data used in this paper are available in the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, E.; Zhang, Y. DNA methylation in mammals. Cold Spring Harb. Perspect. Biol. 2014, 6, a019133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Sharma, S.; Kelly, T.K.; Jones, P.A. Epigenetics in cancer. Carcinogenesis 2010, 31, 27–36. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Shen, H.; Laird, P.W. Interplay between the cancer genome and epigenome. Cell 2013, 153, 38–55. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Ferlay, J.; Shin, H.R.; Bray, F.; Forman, D.; Mathers, C.; Parkin, D.M. Estimates of worldwide burden of cancer in 2008: GLOBOCAN 2008. Int. J. Cancer 2010, 127, 2893–2917. [Google Scholar] [CrossRef]
  5. Laird, P.W. Cancer epigenetics. Hum. Mol. Genet. 2005, 14, R65–R76. [Google Scholar] [CrossRef] [Green Version]
  6. Issa, J.P. CpG island methylator phenotype in cancer. Nat. Rev. Cancer 2004, 4, 988–993. [Google Scholar] [CrossRef]
  7. Rashid, A.; Issa, J.P. CpG island methylation in gastroenterologic neoplasia: A maturing field. Gastroenterology 2004, 127, 1578–1588. [Google Scholar] [CrossRef]
  8. Ren, Z.; Wang, W.; Li, J. Identifying molecular subtypes in human colon cancer using gene expression and DNA methylation microarray data. Int. J. Oncol. 2016, 48, 690–702. [Google Scholar] [CrossRef] [Green Version]
  9. Toyota, M.; Ahuja, N.; Ohe-Toyota, M.; Herman, J.G.; Baylin, S.B.; Issa, J.P. CpG island methylator phenotype in colorectal cancer. Proc. Natl. Acad. Sci. USA 1999, 96, 8681–8686. [Google Scholar] [CrossRef]
  10. Yagi, K.; Akagi, K.; Hayashi, H.; Nagae, G.; Tsuji, S.; Isagawa, T.; Midorikawa, Y.; Nishimura, Y.; Sakamoto, H.; Seto, Y.; et al. Three DNA methylation epigenotypes in human colorectal cancer. Clin. Cancer Res. 2010, 16, 21–33. [Google Scholar] [CrossRef] [Green Version]
  11. Weisenberger, D.J.; Siegmund, K.D.; Campan, M.; Young, J.; Long, T.I.; Faasse, M.A.; Kang, G.H.; Widschwendter, M.; Weener, D.; Buchanan, D.; et al. CpG island methylator phenotype underlies sporadic microsatellite instability and is tightly associated with BRAF mutation in colorectal cancer. Nat. Genet. 2006, 38, 787–793. [Google Scholar] [CrossRef] [PubMed]
  12. Ogino, S.; Kawasaki, T.; Kirkner, G.J.; Loda, M.; Fuchs, C.S. CpG island methylator phenotype-low (CIMP-low) in colorectal cancer: Possible associations with male sex and KRAS mutations. J. Mol. Diagn. 2006, 8, 582–588. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Cancer Genome Atlas Network. Comprehensive molecular characterization of human colon and rectal cancer. Nature 2012, 487, 330–337. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Shen, L.; Toyota, M.; Kondo, Y.; Lin, E.; Zhang, L.; Guo, Y.; Hernandez, N.S.; Chen, X.; Ahmed, S.; Konishi, K.; et al. Integrated genetic and epigenetic analysis identifies three different subclasses of colon cancer. Proc. Natl. Acad. Sci. USA 2007, 104, 18654–18659. [Google Scholar] [CrossRef] [PubMed]
  15. Hinoue, T.; Weisenberger, D.J.; Lange, C.P.; Shen, H.; Byun, H.M.; Van Den Berg, D.; Malik, S.; Pan, F.; Noushmehr, H.; van Dijk, C.M.; et al. Genome-scale analysis of aberrant DNA methylation in colorectal cancer. Genome Res. 2012, 22, 271–282. [Google Scholar] [CrossRef] [Green Version]
  16. Guo, M.; Peng, Y.; Gao, A.; Du, C.; Herman, J.G. Epigenetic heterogeneity in cancer. Biomark. Res. 2019, 7, 23. [Google Scholar] [CrossRef]
  17. Michailidi, C.; Theocharis, S.; Tsourouflis, G.; Pletsa, V.; Kouraklis, G.; Patsouris, E.; Papavassiliou, A.G.; Troungos, C. Expression and promoter methylation status of hMLH1, MGMT, APC, and CDH1 genes in patients with colon adenocarcinoma. Exp. Biol. Med. 2015, 240, 1599–1605. [Google Scholar] [CrossRef] [Green Version]
  18. Imperiale, T.F.; Ransohoff, D.F.; Itzkowitz, S.H.; Levin, T.R.; Lavin, P.; Lidgard, G.P.; Ahlquist, D.A.; Berger, B.M. Multitarget Stool DNA Testing for Colorectal-Cancer Screening. N. Engl. J. Med. 2014, 370, 1287–1297. [Google Scholar] [CrossRef] [Green Version]
  19. Park, S.-K.; Baek, H.L.; Yu, J.; Kim, J.Y.; Yang, H.-J.; Jung, Y.S.; Choi, K.Y.; Kim, H.; Kim, H.O.; Jeong, K.U.; et al. Is methylation analysis of SFRP2, TFPI2, NDRG4, and BMP3 promoters suitable for colorectal cancer screening in the Korean population? Intest. Res. 2017, 15, 495–501. [Google Scholar] [CrossRef] [Green Version]
  20. Xiao, W.; Zhao, H.; Dong, W.; Li, Q.; Zhu, J.; Li, G.; Zhang, S.; Ye, M. Quantitative detection of methylated NDRG4 gene as a candidate biomarker for diagnosis of colorectal cancer. Oncol. Lett. 2015, 9, 1383–1387. [Google Scholar] [CrossRef] [Green Version]
  21. Rokni, P.; Shariatpanahi, A.M.; Sakhinia, E.; Kerachian, M.A. BMP3 promoter hypermethylation in plasma-derived cell-free DNA in colorectal cancer patients. Genes Genom. 2018, 40, 423–428. [Google Scholar] [CrossRef] [PubMed]
  22. Koch, A.; Joosten, S.C.; Feng, Z.; de Ruijter, T.C.; Draht, M.X.; Melotte, V.; Smits, K.M.; Veeck, J.; Herman, J.G.; Van Neste, L.; et al. Analysis of DNA methylation in cancer: Location revisited. Nat. Rev. Clin. Oncol. 2018, 15, 459–466. [Google Scholar] [CrossRef] [PubMed]
  23. Weisenberger, D.J.; Levine, A.J.; Long, T.I.; Buchanan, D.D.; Walters, R.; Clendenning, M.; Rosty, C.; Joshi, A.D.; Stern, M.C.; LeMarchand, L.; et al. Association of the colorectal CpG island methylator phenotype with molecular features, risk factors, and family history. Cancer Epidemiol. Biomark. Prev. 2015, 24, 512–519. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Oster, B.; Thorsen, K.; Lamy, P.; Wojdacz, T.K.; Hansen, L.L.; Birkenkamp-Demtroder, K.; Sorensen, K.D.; Laurberg, S.; Orntoft, T.F.; Andersen, C.L. Identification and validation of highly frequent CpG island hypermethylation in colorectal adenomas and carcinomas. Int. J. Cancer 2011, 129, 2855–2866. [Google Scholar] [CrossRef]
  25. Avraham, A.; Sandbank, J.; Yarom, N.; Shalom, A.; Karni, T.; Pappo, I.; Sella, A.; Fich, A.; Walfisch, S.; Gheber, L.; et al. A similar cell-specific pattern of HOXA methylation in normal and in cancer tissues. Epigenetics 2010, 5, 41–46. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, C.; Zhao, H.; Li, J.; Liu, H.; Wang, F.; Wei, Y.; Su, J.; Zhang, D.; Liu, T.; Zhang, Y. The identification of specific methylation patterns across different cancers. PLoS ONE 2015, 10, e0120361. [Google Scholar] [CrossRef]
  27. Yang, H.; Robinson, P.N.; Wang, K. Phenolyzer: Phenotype-based prioritization of candidate genes for human diseases. Nat. Methods 2015, 12, 841–843. [Google Scholar] [CrossRef]
  28. Colaprico, A.; Silva, T.C.; Olsen, C.; Garofano, L.; Cava, C.; Garolini, D.; Sabedot, T.S.; Malta, T.M.; Pagnotta, S.M.; Castiglioni, I.; et al. TCGAbiolinks: An R/Bioconductor package for integrative analysis of TCGA data. Nucleic Acids Res. 2016, 44, e71. [Google Scholar] [CrossRef]
  29. Zerbino, D.R.; Wilder, S.P.; Johnson, N.; Juettemann, T.; Flicek, P.R. The ensembl regulatory build. Genome Biol 2015, 16, 56. [Google Scholar] [CrossRef] [Green Version]
  30. Zhou, W.; Laird, P.W.; Shen, H. Comprehensive characterization, annotation and innovative use of Infinium DNA methylation BeadChip probes. Nucleic Acids Res. 2017, 45, e22. [Google Scholar] [CrossRef]
  31. Houseman, E.A.; Christensen, B.C.; Yeh, R.F.; Marsit, C.J.; Karagas, M.R.; Wrensch, M.; Nelson, H.H.; Wiemels, J.; Zheng, S.; Wiencke, J.K.; et al. Model-based clustering of DNA methylation array data: A recursive-partitioning algorithm for high-dimensional data arising as a mixture of beta distributions. BMC Bioinform. 2008, 9, 365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Gu, Z.; Eils, R.; Schlesner, M. Complex heatmaps reveal patterns and correlations in multidimensional genomic data. Bioinformatics 2016, 32, 2847–2849. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef] [Green Version]
  34. Szklarczyk, D.; Franceschini, A.; Wyder, S.; Forslund, K.; Heller, D.; Huerta-Cepas, J.; Simonovic, M.; Roth, A.; Santos, A.; Tsafou, K.P.; et al. STRING v10: Protein-protein interaction networks, integrated over the tree of life. Nucleic Acids Res. 2015, 43, D447–D452. [Google Scholar] [CrossRef] [Green Version]
  35. Von Bubnoff, A.; Cho, K.W. Intracellular BMP signaling regulation in vertebrates: Pathway or network? Dev. Biol. 2001, 239, 1–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Miyazono, K.; Kamiya, Y.; Morikawa, M. Bone morphogenetic protein receptors and signal transduction. J. Biochem. 2010, 147, 35–51. [Google Scholar] [CrossRef] [Green Version]
  37. Ji, T.; Takabayashi, H.; Mao, M.; Han, X.; Xue, X.; Brazil, J.C.; Eaton, K.A.; Shah, Y.M.; Todisco, A. Regulation and function of bone morphogenetic protein signaling in colonic injury and inflammation. Am. J. Physiol. Gastrointest. Liver. Physiol. 2017, 312, G24–G33. [Google Scholar] [CrossRef] [Green Version]
  38. Hu, L.; Xu, J.; Wang, X.; Feng, L.; Zhang, C.; Wang, J.; Wang, S. Bone Morphogenetic Protein 4 Alleviates DSS-Induced Ulcerative Colitis Through Activating Intestinal Stem Cell by Target ID3. Front. Cell Dev. Biol. 2021, 9, 700864. [Google Scholar] [CrossRef]
  39. Koppens, M.A.J.; Davis, H.; Valbuena, G.N.; Mulholland, E.J.; Nasreddin, N.; Colombe, M.; Antanaviciute, A.; Biswas, S.; Friedrich, M.; Lee, L.; et al. Bone Morphogenetic Protein Pathway Antagonism by Grem1 Regulates Epithelial Cell Fate in Intestinal Regeneration. Gastroenterology 2021, 161, 239–254.e9. [Google Scholar] [CrossRef]
  40. Yu, X.; Li, S.; Xu, Y.; Zhang, Y.; Ma, W.; Liang, C.; Lu, H.; Ji, Y.; Liu, C.; Chen, D.; et al. Androgen Maintains Intestinal Homeostasis by Inhibiting BMP Signaling via Intestinal Stromal Cells. Stem Cell Rep. 2020, 15, 912–925. [Google Scholar] [CrossRef]
  41. Xie, Z.; Zhou, G.; Zhang, M.; Han, J.; Wang, Y.; Li, X.; Wu, Q.; Li, M.; Zhang, S. Recent developments on BMPs and their antagonists in inflammatory bowel diseases. Cell Death Discov. 2023, 9, 210. [Google Scholar] [CrossRef] [PubMed]
  42. Davis, H.; Raja, E.; Miyazono, K.; Tsubakihara, Y.; Moustakas, A. Mechanisms of action of bone morphogenetic proteins in cancer. Cytokine Growth Factor Rev. 2016, 27, 81–92. [Google Scholar] [CrossRef] [PubMed]
  43. Wakefield, L.M.; Hill, C.S. Beyond TGFβ: Roles of other TGFβ superfamily members in cancer. Nat. Rev. Cancer 2013, 13, 328–341. [Google Scholar] [CrossRef]
  44. Ehata, S.; Yokoyama, Y.; Takahashi, K.; Miyazono, K. Bi-directional roles of bone morphogenetic proteins in cancer: Another molecular Jekyll and Hyde? Pathol. Int. 2013, 63, 287–296. [Google Scholar] [CrossRef]
  45. Huang, Y.; Zhang, X.; Peng, W.; Li, Y.; Yao, J. Identification of hub genes and pathways in colitis-associated colon cancer by integrated bioinformatic analysis. BMC Genom. Data 2022, 23, 48. [Google Scholar] [CrossRef]
  46. Yokoyama, Y.; Watanabe, T.; Tamura, Y.; Hashizume, Y.; Miyazono, K.; Ehata, S. Autocrine BMP-4 Signaling Is a Therapeutic Target in Colorectal Cancer. Cancer Res. 2017, 77, 4026–4038. [Google Scholar] [CrossRef] [Green Version]
  47. Deng, H.; Ravikumar, T.S.; Yang, W.-L. Bone morphogenetic protein-4 inhibits heat-induced apoptosis by modulating MAPK pathways in human colon cancer HCT116 cells. Cancer Lett. 2007, 256, 207–217. [Google Scholar] [CrossRef]
  48. Uhan, S.; Zidar, N.; Tomažič, A.; Hauptman, N. Hypermethylated promoters of genes UNC5D and KCNA1 as potential novel diagnostic biomarkers in colorectal cancer. Epigenomics 2020, 12, 1677–1688. [Google Scholar] [CrossRef]
  49. Kang, M.H.; Kang, H.N.; Kim, J.L.; Kim, J.S.; Oh, S.C.; Yoo, Y.A. Inhibition of PI3 kinase/Akt pathway is required for BMP2-induced EMT and invasion. Oncol. Rep. 2009, 22, 525–534. [Google Scholar] [CrossRef] [Green Version]
  50. Kim, B.R.; Oh, S.C.; Lee, D.H.; Kim, J.L.; Lee, S.Y.; Kang, M.H.; Lee, S.I.; Kang, S.; Joung, S.Y.; Min, B.W. BMP-2 induces motility and invasiveness by promoting colon cancer stemness through STAT3 activation. Tumour Biol. 2015, 36, 9475–9486. [Google Scholar] [CrossRef]
  51. Lorente-Trigos, A.; Varnat, F.; Melotti, A.; Ruiz i Altaba, A. BMP signaling promotes the growth of primary human colon carcinomas in vivo. J. Mol. Cell Biol. 2010, 2, 318–332. [Google Scholar] [CrossRef] [Green Version]
  52. Nørgaard, K.; Müller, C.; Christensen, N.; Chiloeches, M.L.; Madsen, C.L.; Nielsen, S.S.; Thingholm, T.E.; Belcheva, A. Loss of mismatch repair signaling impairs the WNT-bone morphogenetic protein crosstalk and the colonic homeostasis. J. Mol. Cell Biol. 2020, 12, 410–423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Li, J.; Sun, C.; Yuan, Y.; Liu, L.; Xiong, G.; Wu, J. Bone morphogenetic protein-4 polymorphism and colorectal cancer risk: A meta analysis. Mol. Biol. Rep. 2012, 39, 5239–5251. [Google Scholar] [CrossRef]
  54. Fernandez-Rozadilla, C.; Palles, C.; Carvajal-Carmona, L.; Peterlongo, P.; Nici, C.; Veneroni, S.; Pinheiro, M.; Teixeira, M.R.; Moreno, V.; Lamas, M.J.; et al. BMP2/BMP4 colorectal cancer susceptibility loci in northern and southern European populations. Carcinogenesis 2013, 34, 314–318. [Google Scholar] [CrossRef] [Green Version]
  55. Motoyama, K.; Tanaka, F.; Kosaka, Y.; Mimori, K.; Uetake, H.; Inoue, H.; Sugihara, K.; Mori, M. Clinical significance of BMP7 in human colorectal cancer. Ann. Surg. Oncol. 2008, 15, 1530–1537. [Google Scholar] [CrossRef] [PubMed]
  56. Yang, W.-L.; Makizumi, R.; Dong, H.; Ravikumar, T.S. Associated changes of bone morphogenetic proteins levels in human colorectal cancer during tumor progression. J. Am. Coll. Surg. 2005, 201, S86. [Google Scholar] [CrossRef]
  57. Fan, Y.; Guo, L.; Zheng, H.; Ji, C.; Wang, W.; Sun, H. BMP-9 is a novel marker for colorectal tumorigenesis undergoing the normal mucosa-adenoma-adenocarcinoma sequence and is associated with colorectal cancer prognosis. Oncol. Lett. 2020, 19, 271–282. [Google Scholar] [CrossRef] [Green Version]
  58. Wen, J.; Liu, X.; Qi, Y.; Niu, F.; Niu, Z.; Geng, W.; Zou, Z.; Huang, R.; Wang, J.; Zou, H. BMP3 suppresses colon tumorigenesis via ActRIIB/SMAD2-dependent and TAK1/JNK signaling pathways. J. Exp. Clin. Cancer Res. 2019, 38, 428. [Google Scholar] [CrossRef] [Green Version]
  59. Sobanski, T.; Arantes, L.; Dos Santos, W.; Matsushita, M.; de Oliveira, M.A.; Costa, M.; de Carvalho, A.C.; Berardinelli, G.N.; Syrjänen, K.; Reis, R.M.; et al. Methylation profile of colon cancer genes in colorectal precursor lesions and tumor tissue: Perspectives for screening. Scand. J. Gastroenterol. 2021, 56, 920–928. [Google Scholar] [CrossRef]
  60. Jevšinek Skok, D.; Hauptman, N.; Boštjančič, E.; Zidar, N. The integrative knowledge base for miRNA-mRNA expression in colorectal cancer. Sci. Rep. 2019, 9, 18065. [Google Scholar] [CrossRef] [Green Version]
Ijms 24 12692 g001

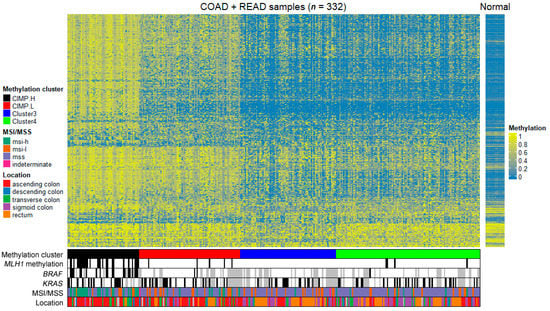

Figure 1. Heatmap of unsupervised hierarchical clustering of HM450 DNA methylation data of 332 tumor samples from colon adenocarcinoma (COAD) and rectum adenocarcinoma (READ) project in TCGA with some clinical and some genetic information. The color scale indicates the level of methylation: hypomethylation is blue and hypermethylation is yellow. CIMP.H, CpG island methylator phenotype—high; CIMP.L, CpG island methylator phenotype—low; msi-h, microsatellite instability—high; msi-l, microsatellite instability—low; mss, microsatellite stability; MLH1, mutL homolog 1; BRAF, B-Raf proto-oncogene, serine/threonine kinase; KRAS, KRAS proto-oncogene, GTPase; MSI, microsatellite instability; MSS, microsatellite stability.
Figure 1. Heatmap of unsupervised hierarchical clustering of HM450 DNA methylation data of 332 tumor samples from colon adenocarcinoma (COAD) and rectum adenocarcinoma (READ) project in TCGA with some clinical and some genetic information. The color scale indicates the level of methylation: hypomethylation is blue and hypermethylation is yellow. CIMP.H, CpG island methylator phenotype—high; CIMP.L, CpG island methylator phenotype—low; msi-h, microsatellite instability—high; msi-l, microsatellite instability—low; mss, microsatellite stability; MLH1, mutL homolog 1; BRAF, B-Raf proto-oncogene, serine/threonine kinase; KRAS, KRAS proto-oncogene, GTPase; MSI, microsatellite instability; MSS, microsatellite stability.
Ijms 24 12692 g001
Ijms 24 12692 g002

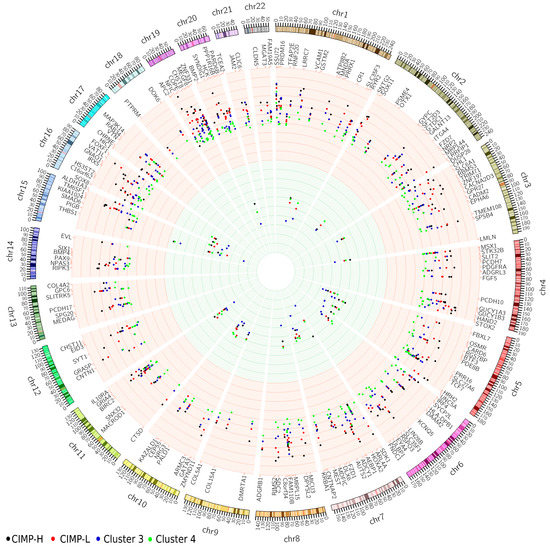

Figure 2. Visualization of averaged methylation level of promoter regions in all clusters, with corresponding gene names. Increased methylation is shown by the red background, while decreased methylation is represented by the green background. The clusters are visualized as colored dots, with the CIMP-H cluster displayed in black, CIMP-L in red, cluster 3 in blue, and cluster 4 in green. CIMP-H, CpG island methylator phenotype—high; CIMP-L, CpG island methylator pheno-type—low.
Figure 2. Visualization of averaged methylation level of promoter regions in all clusters, with corresponding gene names. Increased methylation is shown by the red background, while decreased methylation is represented by the green background. The clusters are visualized as colored dots, with the CIMP-H cluster displayed in black, CIMP-L in red, cluster 3 in blue, and cluster 4 in green. CIMP-H, CpG island methylator phenotype—high; CIMP-L, CpG island methylator pheno-type—low.
Ijms 24 12692 g002
Ijms 24 12692 g003

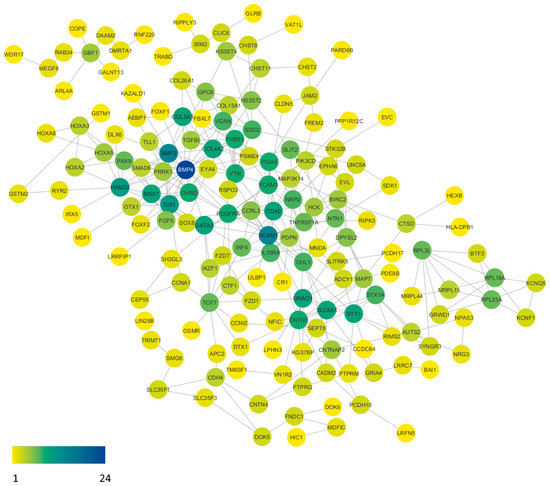

Figure 3. Protein–protein interaction network of aberrantly methylated genes in our gene list. The visualization was refined using specialized plugins within the Cytoscape software (version 3.10.0). Subsequent analysis of the network highlights BMP4 as a standout candidate, engaging in 24 interactions with other proteins. Node coloration corresponds to interaction frequency, with yellow nodes denoting singular interactions, while the deep blue node signifies the network pinnacle, boasting 24 interactions.
Figure 3. Protein–protein interaction network of aberrantly methylated genes in our gene list. The visualization was refined using specialized plugins within the Cytoscape software (version 3.10.0). Subsequent analysis of the network highlights BMP4 as a standout candidate, engaging in 24 interactions with other proteins. Node coloration corresponds to interaction frequency, with yellow nodes denoting singular interactions, while the deep blue node signifies the network pinnacle, boasting 24 interactions.
Ijms 24 12692 g003
Ijms 24 12692 g004
Figure 4. Phenolyzer network analysis of our 253 gene list and CRC terms. The most disease-relevant genes are shown as seed genes (blue) alongside the predicted genes. Yellow lines indicate that the two node genes are within the same biosystem; blue lines indicate that the two node genes have protein–protein interactions; and the black arrow line indicates transcription interaction.
Figure 4. Phenolyzer network analysis of our 253 gene list and CRC terms. The most disease-relevant genes are shown as seed genes (blue) alongside the predicted genes. Yellow lines indicate that the two node genes are within the same biosystem; blue lines indicate that the two node genes have protein–protein interactions; and the black arrow line indicates transcription interaction.
Ijms 24 12692 g004
Table 1. Clinical and genetic data of patients included in the study.
Table 1. Clinical and genetic data of patients included in the study.
Overall
n = 332		CIMP-H
n = 58		CIMP-L
n = 81		Cluster 3
n = 77		Cluster 4
n = 116
GenderFemale146 (44%)25 (43%)35 (43%)36 (47%)50 (43%)
Male186 (56%)33 (57%)46 (57%)41 (53%)66 (57%)
AgeMedian6669686363
Range(31–90)(33–88)(37–90)(37–90)(31–90)
SubsiteAscending111 (34%)38 (70%)40 (51%)15 (19%)18 (16%)
Transverse41 (13%)10 (19%)11 (14%)5 (6%)15 (13%)
Descending13 (4%)3 (6%)4 (5%)2 (3%)4 (4%)
Sigmoid77 (24%)1 (2%)11 (14%)23 (30%)42 (36%)
Rectum80 (25%)2 (4%)12 (15%)32 (42%)34 (29%)
No data104303
MSI statusMSI-H48 (14%)29 (50%)10 (12%)1 (1%)8 (7%)
MSI-L54 (16%)8 (14%)16 (20%)16 (21%)14 (12%)
Intermediate2 (1%)01 (1%)1 (1%)0
MSS228 (69%)21 (36%)54 (67%)59 (77%)94 (81%)
BRAFMutant24 (10%)21 (43%)2 (4%)0 (0%)1 (1%)
Wild-type208 (90%)28 (57%)52 (96%)46 (100%)82 (99%)
No data1009273133
KRASMutant83 (36%)16 (33%)23 (43%)17 (37%)27 (33%)
Wild-type149 (64%)33 (67%)31 (57%)29 (63%)56 (67%)
No data1009273133
MLH1Methylated36 (11%)28 (48%)4 (5%)0 (0%)4 (3%)
Unmethylated296 (89%)30 (52%)77 (95%)77 (100%)112 (97%)
MSI, microsatellite instability; MSI-H, microsatellite instability—high; MSI-L, microsatellite instability—low; MSS, microsatellite stability; BRAF, B-Raf proto-oncogene, serine/threonine kinase; KRAS, KRAS proto-oncogene, GTPase; MLH1, mutL homolog 1.
Table 2. Genes with the highest number of significant probes in regulatory regions.
Table 2. Genes with the highest number of significant probes in regulatory regions.
Gene NameMean
Normal		Mean
CIMP-H		Mean
CIMP-L		Mean
Cluster 3		Mean
Cluster 4		StatusProbe LocationNumber of Probes in
Region
EYA40.090.620.590.590.48Hypermethylatedpromoter bound region29
EYA40.090.620.5990.600.49Hypermethylatedpredicted promoter region25
HOXA30.330.730.720.740.69Hypermethylatedpromoter bound region19
PCDHGC50.200.650.630.700.60Hypermethylatedpromoter bound region16
PCDHGC40.200.650.630.700.60Hypermethylatedpromoter bound region16
HOXA20.380.800.790.810.76Hypermethylatedpredicted promoter region14
HOXA30.380.800.790.810.76Hypermethylatedpredicted promoter region14
HOXA60.310.650.710.710.69Hypermethylatedpromoter bound region12
RIPK30.100.670.520.510.45Hypermethylatedpromoter bound region10
PCDHGC50.180.660.640.710.62Hypermethylatedpredicted promoter region10
PCDHGC40.180.660.640.710.62Hypermethylatedpredicted promoter region10
RIPK30.100.670.520.510.45Hypermethylatedpromoter bound region10
MAP3K140.080.610.550.610.52Hypermethylatedpromoter bound region9
ADHFE10.110.690.670.730.64Hypermethylatedpredicted promoter region9
ADHFE10.110.690.670.730.64Hypermethylatedpromoter bound region9
Table 3. Results of functional analysis for gene ontology and KEGG pathways (the biological process is represented via the first 20 processes).
Table 3. Results of functional analysis for gene ontology and KEGG pathways (the biological process is represented via the first 20 processes).
Pathway IDPathway DescriptionObserved Gene CountBackground Gene CountStrengthFalse Discovery Rate
Gene ontology: Biological process
GO:0072197Ureter morphogenesis371.510.02
GO:0072189Ureter development5171.350.0013
GO:0010463Mesenchymal cell proliferation4161.280.0114
GO:0048557Embryonic digestive tract morphogenesis4181.230.0152
GO:0042474Middle ear morphogenesis4201.180.02
GO:0003177Pulmonary valve development4211.160.022
GO:0048485Sympathetic nervous system development4211.160.022
GO:0002053Positive regulation of mesenchymal cell proliferation4251.080.0333
GO:0045992Negative regulation of embryonic development4251.080.0333
GO:0061217Regulation of mesonephros development4251.080.0333
GO:0003176Aortic valve development5321.070.0113
GO:0060037Pharyngeal system development4261.070.0364
GO:0010464Regulation of mesenchymal cell proliferation5331.060.0124
GO:0048566Embryonic digestive tract development5341.050.0137
GO:0042481Regulation of odontogenesis4271.050.0385
GO:0048701Embryonic cranial skeleton morphogenesis7481.040.0011
GO:0003180Aortic valve morphogenesis4281.030.043
GO:0031128Developmental induction4281.030.043
GO:0048704Embryonic skeletal system morphogenesis13971.011.01 × 10−6
GO:0048483Autonomic nervous system development6441.010.0057
Gene ontology: Molecular function
GO:0000978RNA polymerase II cis-regulatory region sequence-specific DNA binding256720.450.0041
GO:0000987Cis-regulatory region sequence-specific DNA binding267010.450.0041
GO:0000977RNA polymerase II transcription regulatory region sequence-specific DNA binding308780.410.0041
GO:0000981DNA-binding transcription factor activity, RNA polymerase II-specific3210220.380.0041
GO:0000976Transcription regulatory region sequence-specific DNA binding3210280.370.0041
GO:0003690Double-stranded DNA binding3611560.370.0041
GO:1990837Sequence-specific double-stranded DNA binding3310680.370.0041
GO:0003700DNA-binding transcription factor activity3712380.360.0041
GO:0043565Sequence-specific DNA binding4013310.360.0041
GO:0140110Transcription regulator activity4316570.290.0054
GO:0000978RNA polymerase II cis-regulatory region sequence-specific DNA binding256720.450.0041
GO:0000987Cis-regulatory region sequence-specific DNA binding267010.450.0041
Gene ontology: Cellular component
GO:0062023Collagen-containing extracellular matrix163960.490.0453
GO:0098797Plasma membrane protein complex215470.460.0196
GO:0031226Intrinsic component of plasma membrane4417030.290.0196
GO:0030054Cell junction5120750.270.0196
KEGG pathways
hsa05144Malaria64610.0095
hsa05217Basal cell carcinoma6620.870.0286
hsa04514Cell adhesion molecules131370.862.87 × 10−5
hsa04390Hippo signaling pathway91530.650.0286
Table 4. Protein–protein interactions for BMP4.
Table 4. Protein–protein interactions for BMP4.
Node 1Node 2HomologyCoexpressionExperimentally Determined InteractionDatabase AnnotatedAutomated TextminingCombined Score
BMP4CHRD00.0620.7230.90.9880.999
BMP4BMP20.9610.07600.90.9010.907
BMP4MSX100.062000.8540.857
BMP4SMAD600.0970.14800.7380.781
BMP4FGF500000.70.7
BMP4PAX900000.6720.672
BMP4HAND200.0620.05600.6360.649
BMP4SIX100.070.13900.5680.624
BMP4GATA300.0990.10500.5390.596
BMP4VCAN00000.5770.577
BMP4FOXF100.070.05600.5510.571
BMP4TLL100.0640.24300.4060.542
BMP4GPC600.0960.15300.4410.535
BMP4THBS100000.5320.532
BMP4PDGFRA00.0620.0700.480.507
BMP4NCAM100.0620.05700.4830.503
BMP4COL4A200.0880.24600.3040.479
BMP4OTX100000.4550.455
BMP4COL5A100.0890.21300.2890.446
BMP4FOXF200.0750.05600.4070.437
BMP4VTN00.062000.410.423
BMP4SDC200000.4220.422
BMP4HOXA500.0530.05700.4030.42
BMP4SLIT200.0990.05600.3550.404
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jevšinek Skok, D.; Hauptman, N. In Silico Gene Prioritization Highlights the Significance of Bone Morphogenetic Protein 4 (BMP4) Promoter Methylation across All Methylation Clusters in Colorectal Cancer. Int. J. Mol. Sci. 2023, 24, 12692. https://doi.org/10.3390/ijms241612692

AMA Style

Jevšinek Skok D, Hauptman N. In Silico Gene Prioritization Highlights the Significance of Bone Morphogenetic Protein 4 (BMP4) Promoter Methylation across All Methylation Clusters in Colorectal Cancer. International Journal of Molecular Sciences. 2023; 24(16):12692. https://doi.org/10.3390/ijms241612692

Chicago/Turabian Style

Jevšinek Skok, Daša, and Nina Hauptman. 2023. "In Silico Gene Prioritization Highlights the Significance of Bone Morphogenetic Protein 4 (BMP4) Promoter Methylation across All Methylation Clusters in Colorectal Cancer" International Journal of Molecular Sciences 24, no. 16: 12692. https://doi.org/10.3390/ijms241612692

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
