An Insight of Betula platyphylla SWEET Gene Family through Genome-Wide Identification, Expression Profiling and Function Analysis of BpSWEET1c under Cold Stress

by
Hao Zhang
,
Yuting Ding
,
Kaiye Yang
,
Xinyu Wang
,
Wenshuo Gao
,
Qingjun Xie
,
Zhongyuan Liu
and
Caiqiu Gao
*
State Key Laboratory of Tree Genetics and Breeding, Northeast Forestry University, Harbin 150040, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(17), 13626; https://doi.org/10.3390/ijms241713626
Submission received: 28 June 2023 / Revised: 5 August 2023 / Accepted: 11 August 2023 / Published: 4 September 2023
(This article belongs to the Special Issue Advances in Forest Tree Physiology, Breeding and Genetic Research)
Browse Figures
Review Reports Versions Notes

Abstract

:
SWEET proteins play important roles in plant growth and development, sugar loading in phloem and resistance to abiotic stress through sugar transport. In this study, 13 BpSWEET genes were identified from birch genome. Collinearity analysis showed that there were one tandem repeating gene pair (BpSWEET1b/BpSWEET1c) and two duplicative gene pairs (BpSWEET17a/BpSWEET17b) in the BpSWEET gene family. The BpSWEET gene promoter regions contained several cis-acting elements related to stress resistance, for example: hormone-responsive and low-temperature-responsive cis-elements. Analysis of transcriptome data showed that BpSWEET genes were highly expressed in several sink organs, and the most BpSWEET genes were rapidly up-regulated under cold stress. BpSWEET1c, which was highly expressed in cold stress, was selected for further analysis. It was found that BpSWEET1c was located on the cell membrane. After 6 h of 4 °C stress, sucrose content in the leaves and roots of transient overexpressed BpSWEET1c was significantly higher than that of the control. MDA content in roots was significantly lower than that of the control. These results indicate that BpSWEET1c may play a positive role in the response to cold stress by promoting the metabolism and transport of sucrose. In conclusion, 13 BpSWEET genes were identified from the whole genome level. Most of the SWEET genes of birch were expressed in the sink organs and could respond to cold stress. Transient overexpression of BpSWEET1c changed the soluble sugar content and improved the cold tolerance of birch.

1. Introduction

Sugar plays a significant role in the plant developmental process and abiotic stress responses [1,2,3]. In these biological processes, sugar is transported from the source organs over a long distance through the phloem to the sink organs, achieving the distribution of sugar within the plant body. Sugar transport includes three processes: sugar loading in phloem [4], vascular bundle transport and sugar unloading in phloem [5]. During these processes, a large proportion of sugar transport relies on sugar transport proteins. In the apoplast loading pathway of sugar in phloem, sugar depending on sugars will eventually be exported transporters (SWEETs) to transfer from phloem parenchyma cells to the nearby sieve tube–companion cell complex [6], and then transported by sucrose transporters (SUTs) to the sieve tube–companion cell complex [7]. In the process of sugar unloading in phloem, the sugar in the apoplast is decomposed into monosaccharide and then transported to parenchymal cells through monosaccharide transporters (MSTs) [8].
In contrast with SUTs and MSTs, SWEETs can bidirectionally transport sugar along a concentration gradient [9], independent of proton gradient. In addition, SWEET proteins can also transport various soluble sugars such as glucose and fructose [10]. SWEET proteins are a new class of sugar transport which was discovered in 2010 [9]. The most significant feature of SWEET proteins is that it has MtN3/saliva or PQ-loop conserved transmembrane domain [10]. SWEET proteins consist with 7 TMs (7α-helical trans-membrane domains), the C-end and N-end are two relatively conservative 3-TMs, which are helically connected by signal TM with lower conservation in the middle [9].
With the frequent occurrence of extreme weather phenomena, cold stress is causing greater harm to plants. When the cold stress is coming, the plant membrane system will be damaged. Sugar involves the process of plant defense against cold stress by stabilizing cellular components and membranes [11]. More and more studies have shown that SWEET proteins are involved in plant cold tolerance through sugar transport and metabolism. For example, 30 BoSWEETs have been identified in cabbage (Brassica oleracea). Among them, BoSWEET11b, 11c, 12b, 16a and 17 were down-regulated when facing chilling stress. The genes down-regulation may cause the higher concentration of glucose and fructose and increase the tolerance of chilling [12]. Additionally, the vacuolar fructose exporter AtSWEET17 responds to cold stress by transporting fructose [13]. Furthermore, AtSWEET16, the closest homolog of AtSWEET17, also play an important role in cold resistance by increase the amount of glucose and sucrose to compensate the loss of fructose [14]. Overexpression of HfSWEET17 in tobacco enhances cold tolerance [15]. Taken together, these results suggest that SWEET genes play important roles in resistance to cold stress.
Birch (Betula platyphylla) is widely distributed in Northeast China, North China and other regions. As a pioneer tree species, birch has strong tolerance to cold stress and has developed a mature cold tolerance mechanism. Additionally, birch has a higher photosynthetic capacity and growth rate than other tree species [16]. Furthermore, birch can adapt to poor nutrient soils and dramatically improve the ecological environment. In recent years, with the completion of whole genome sequencing of birch, many molecular mechanisms of cold tolerance of birch have been revealed [17]. However, the function of SWEET proteins in birch in the cold stress response have not been noted. It is necessary to explore the SWEET gene family and the relation between BpSWEETs and cold tolerance.
In this study, the 13 SWEET genes were identified from birch. These BpSWEET genes were divided into four categories by constructing a BpSWEET evolutionary tree, and gene structures, chromosome localization and the cis-acting elements of promoter regions were analyzed. Through RNA-seq data, we found that BpSWEET genes have different expression levels in different organs and tissues, and most BpSWEET genes respond to cold stress. In addition, we conducted subcellular localization of a tandem repeating gene BpSWEET1c and found that BpSWEET1c was located in the cell membrane, and transient overexpressed BpSWEET1c may improve cold tolerance by changing the soluble sugar content.

2. Results

2.1. Identification and Evolutionary Tree Analysis of BpSWEET Gene Family of Birch

A total of 14 BpSWEET genes were identified from the birch genome database, one gene has been excluded because the deletion of the gene structure. The 13 BpSWEET genes were named as BpSWEET1a to BpSWEET17b, referring to their Arabidopsis homologs. Multiple sequence alignment showed that all 13 BpSWEET genes had two PQ-loop super family domains (Figure S1). The protein length of BpSWEET genes was calculated to range from 235 aa (BpSWEET2) to 313 aa (BpSWEET17b). The predicated molecular weight ranges from 26.18 kDa (BpSWEET2) to 35.49 kDa (BpSWEET17b), and theoretical isoelectric points (pl) varied from 5.79 (BpSWEET15) to 9.54 (BpSWEET1b). In addition, all proteins have seven transmembrane domains. Subcellular localization predicted that two SWEET proteins (BpSWEET9, BpSWEET17a) were located in the vacuolar membrane and other SWEET proteins were located in the plasma membrane (Table 1).
To better understand the evolutionary relationship of SWEET proteins, we constructed a phylogenetic tree by aligning 13 BpSWEET proteins from birch and 17 AtSWEET proteins from Arabidopsis. According to the phylogenetic tree, 13 BpSWEET proteins can be grouped into four clades (Clades I, Clades II, Clades III and Clade IV, Figure 1). Clades I include 5 BpSWEETs; Clades IV includes 4 BpSWEETs. Clades II and Clades III have fewer proteins, which includes 2 BpSWEETs. This result implied that the proteins from Clades II and Clades III may be conservative in evolution.

2.2. Gene Structures and Conserved Domains Analysis of BpSWEET Genes

Gene structures and gene motifs play an important role in the analysis of the characters and evolution of the gene family. The gene structures and conserved motifs of 13 BpSWEET genes were further analyzed (Figure 2). The results showed that 11 BpSWEET genes have 6 exons, BpSWEET7 has 5 exons and BpSWEET17b has 7 exons. In addition, most genes (10 BpSWEETs) have five introns. However, BpSWEET17b and BpSWEET2 have six introns, and BpSWEET4 has four introns.
The results of conserved motifs analyzed by MEME showed that a total of ten motifs were identified in the BpSWEET gene family, which are named motif 1–10, respectively (Figure 2). All BpSWEET genes contain motif 1, 2, 3, 4, 5 and 7. A total of 8 BpSWEET genes, including BpSWEET1a, 2, 3, 4, 7, 10, 11 and 15, contain motif 10. Moreover, BpSWEET15 and BpSWEET17b contain motif 9. Interestingly, three homologous genes of the AtSWEET1 gene (BpSWEET1a, BpSWEET1b and BpSWEET1c) were all contain motif 6 at the C-terminal. Similarly, motif 8 at C-terminal was found in 2 homologous genes, BpSWEET17a and BpSWEET17b.

2.3. Chromosome Mapping and Collinearity Analysis of BpSWEET Genes

The chromosome mapping of 13 BpSWEET genes was analyzed (Figure 3). The result showed that the genes were distributed on seven chromosomes. Chr02 and Chr12 have the largest number of BpSWEET genes. Chr02 includes three genes: BpSWEET7, BpSWEET10 and BpSWEET11. Chr12 includes three homologous genes: BpSWEET1a, BpSWEET1b and BpSWEET1c. Furthermore, Chr05 and Chr08 have two BpSWEET genes. Chr01, Chr04 and Chr11 contain only one BpSWEET gene. Interesting, one group tandem duplication gene pair (BpSWEET1b/1c) is located in Chr12. This result demonstrates that tandem duplication is partly responsible for the expansion of BpSWEETs.
A large part of gene duplication in plants comes from chromosome inter-chromosomal duplications. To learn the BpSWEETs evolutionary origins, the intraspecific synteny analysis of SWEET proteins in birch was performed (Figure 4A). According to synteny analysis, two pairs of segmental duplication genes were found (BpSWEET11/15, BpSWEET17a/17b), which locate on Chr01, 02, 05 and 08. We have marked the gene pairs in the figure with the red line. By synteny analysis, we inferred that one gene in each two gene pairs originates from the segmental duplication of the other gene.
To further explore the evolutionary relationship of SWEET genes among different species, we analyzed the homologs between birch and six other angiosperms, which includes five dicotyledonous plants (Arabidopsis thaliana, Populus trichocarpa, Vitis vinifera, Amborella trichopoda and Solanum lycopersicum) and one monocotyledonous plant (Oryza sativa) (Figure 4B). The results showed that P. trichocarpa has the most homologous genes with birch—with 20 pairs of homologous genes, followed by S. lycopersicum (13 pairs), V. vinifera (12 pairs), Arabidopsis (8 pairs), A. trichopoda (5 pairs), O. sativa (4 pairs). The result indicated that dicotyledonous plants, especially P. trichocarpa, have a high evolutionary homology with SWEET genes in birch.
Ka/Ks is widely used to measure the speed of gene evolution, reflecting the selection pressure in evolution [18]. The Ka/Ks results of BpSWEET paralogous genes showed the Ka/Ks ratio of three gene pairs (BpSWEET1b/1c, BpSWEET11/15, BpSWEET17a/17b) less than 1, suggesting that the genes have conservative function and have undergone purification selection (Table S2). Furthermore, SWEET orthologous genes were selected from birch and Ka/Ks analysis was performed with the orthologous genes from other two species (P. trichocarpa, Arabidopsis) (Table S3). In data, we can infer that these genes have undergone purification selection. They are also relatively conservative in function between birch and Arabidopsis and P. trichocarpa [19,20,21].

2.4. Analysis of BpSWEETs Promoter Regions

To better understand the biological processes involved in BpSWEETs, the cis-acting elements of the promoter regions of 2000 bp were analyzed (Figure 5). A total of 15 cis-acting elements were identified and selected by Plantcare. The elements mainly included: (1) cis-acting elements related to stress, containing low-temperature, drought and so on. (2) Cis-acting elements of corresponding hormones, such as abscisic acid, Me-JA, salicylic acid, gibberellin, auxin. (3) Cis-acting elements involved in growth and development. (4) Cis-acting elements that participate in the synthesis of secondary metabolites. (5) Cis-acting elements that control circadian rhythm. Overall, the results implied that SWEET genes involved many biological processes, play important roles in resisting stress, respond to hormones, and other biological processes.
Different subfamilies of the same gene family often have different functions. The functional differentiation of different subfamilies was analyzed from the perspective of cis-elements (Figure 5). A large part of the Class I family contains Me-JA responsive and low-temperature responsive cis-elements. Among the five members of the Class I family, four contain low-temperature-responsive cis-elements, MeJA-responsiveness element. Class II contains regulatory elements involved in Me-JA and gibberellin acid responsive cis-elements. Only the Class III members have functions involved in differentiation of the palisade mesophyll cells. Class IV contains cis-elements associated with ABA and salicylic acid responsive cis-elements. Interesting, almost all BpSWEET genes have anaerobic induction elements. This result proved that different gene subfamily members may have functional differentiations.

2.5. Transcript Analysis of BpSWEETs in Different Organs/Tissues, Cold Stress

On the basis of published birch transcriptomic data, the transcript levels of BpSWEET genes in different organs and tissues were analyzed (Table S4). All values were normalized for each row after log2 conversion, and the results of the expression level based on transcriptomic data was exhibited as Figure 6. As can be seen from the Figure 6, BpSWEET gene expressions were different among flowers, leaves, roots and xylem. Moreover, there were two genes (BpSWEET4, BpSWEET9) that have no expression data in any organs and tissues (the RNA seq data all showed 0). Among the other 11 BpSWEET genes, the gene with the highest expression levels in flowers, leaves and roots was BpSWEET1c (Figure 6A), and the gene with the highest expression in xylem was BpSWEET1b (Figure 6A). Eight genes were expressed in all four organs/tissues, while three genes were expressed in individual organs/tissues. In detail, BpSWEET10 was only expressed in roots, BpSWEET11 was expressed in flowers and roots, BpSWEET15 was expressed in flowers, roots and xylem, but not in leaves (Figure 6A). The results suggest that different BpSWEET genes may play various roles in development of birch.
In order to reveal the roles of BpSWEET genes in the cold stress resistance of birch, the transcriptome data of BpSWEET genes in leaves under cold stress were analyzed based on published data (Table S5) (Figure 6) [22]. All values were normalized for each row after log2 conversion and shown as a heatmap, similar to expression data of BpSWEETs in different tissues and organs; BpSWEET4 and BpSWEET9 have no expression data at the control or any of the six time points of cold stress treatment (the RNA seq data all showed 0). Most genes were up-regulated after 6 °C treated, while the time point of reaching the highest expression level was different. For example, BpSWEET3 and BpSWEET7 had the highest expression at 6 °C for 1 h, BpSWEET2 and BpSWEET17a reached their highest expression level at 1.5 h, BpSWEET1b and BpSWEET1c reached the highest expression level at 3 h (Figure 6B). In general, the results showed that most genes in the BpSWEET gene family could rapidly change gene expression in response to cold stress.
In order to verify the RNA-seq data, seven BpSWEET genes (BpSWEET1a, BpSWEET1b, BpSWEET1c, BpSWEET2, BpSWEET7, BpSWEET17a, BpSWEET17b) responding to cold stress were selected for quantitative verification. The results showed that the expression trend of these seven genes after cold treatment was basically consistent with the results of RNA-seq data (Figure 7).

2.6. Functional Analysis of BpSWEET1c

The BpSWEET1c, which has the highest expressed peak of BpSWEET genes in cold stress and roots (Table S5), was selected for further analysis. To verify the subcellular localization predicted by the WoLF PSORT, the BpSWEET1c-GFP fusion protein was transferred into tobacco leaves through the transient transformation method. The results showed that the GFP-only protein was detected in the plasma membrane and nucleus, etc, whereas BpSWEET1c was only localized in the plasma membrane (plas) (Figure 8), which was consistent with the subcellular localization results predicted by the website.
In previous studies, AtSWEET1, a homologue of BpSWEET1c, was involved in intercellular sugar transport as a glucose transporter. In order to identify the function of BpSWEET1c, the pBI121-BpSWEET1c vector was transferred into birch through the transient transformation method to obtain overexpressed plants. At the same time, the birch transformed with transient empty vector was treated as the control. After two days of co-culture, the relative expression of BpSWEET1c in the overexpressed plants was significantly 8 times higher than that in the control plants (Figure S1). We found that the expression of BpSWEET1c increased in both leaves and roots under cold stress (Figure 6, Figure 7 and Figure S3). Furthermore, the glucose, fructose, sucrose and Malondialdehyde (MDA) contents in roots and leaves were measured in both the BpSWEET1c-OE plants and the control (Figure 9). In previous studies, plants were usually subjected to cold stress at 4 °C. Compared with 6 °C, the physiological index changes of plants under 4 °C stress were more obvious [23], so we chose to stress the BpSWEET1c-OE plants and control at 4 °C for 3 h and 6 h.

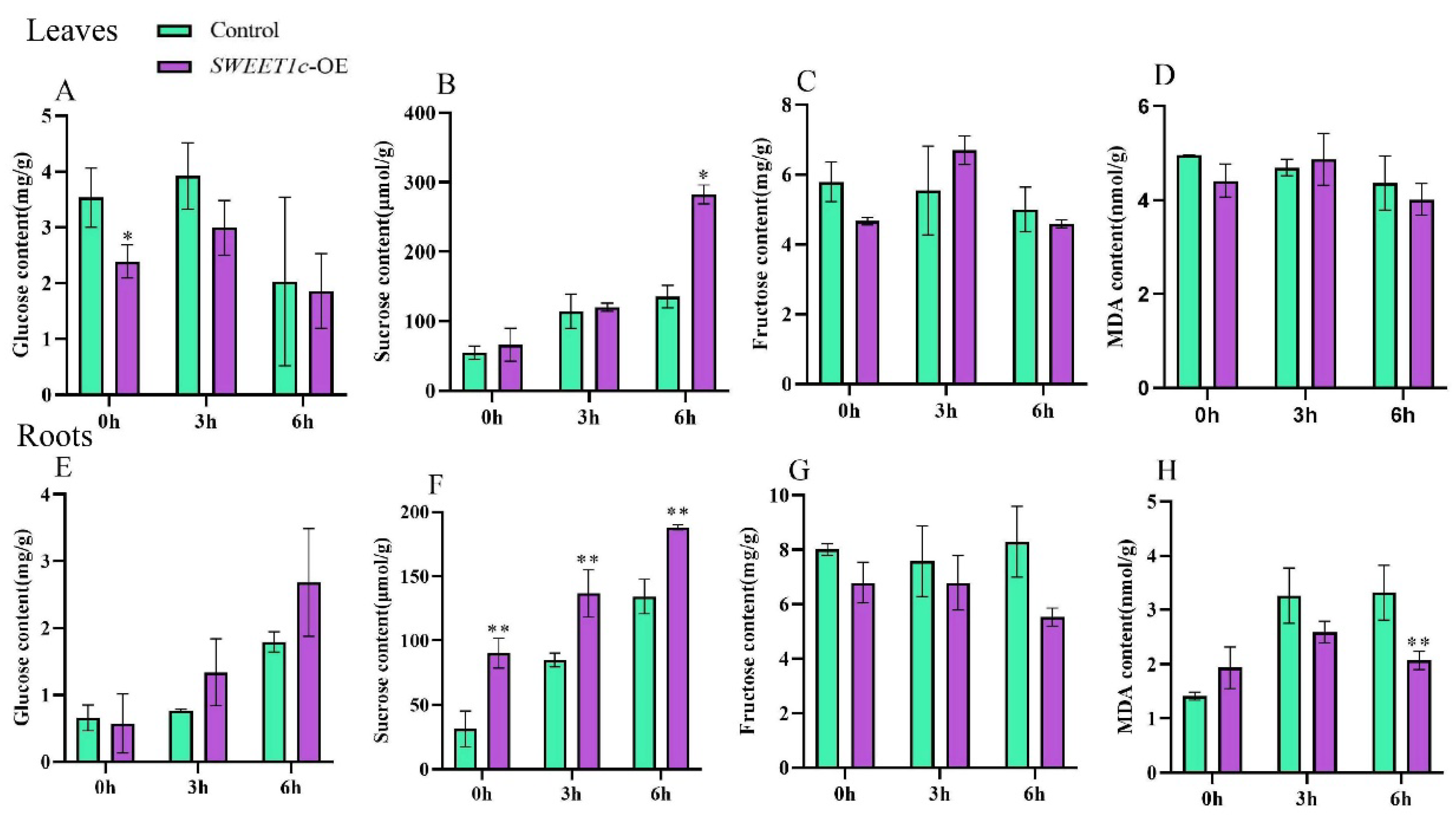

The results showed that the glucose content of the OE lines was always lower than the control in the leaves, while it was gradually increased as the stress time increased in the roots. However, most of the results did not show significant differences. There was a significant difference only at 0 h in leaves, which indicated that BpSWEET1c may be involved in glucose transport, but it does not exert a protective effect against cold stress through glucose transport. Interesting, at 6 h of 4 °C in the leaves and at all studied time points in the roots, the sucrose content of the BpSWEET1c-OE plants was significantly higher than that of the control. It is speculated that BpSWEET1c may be involved in sucrose metabolism and transport, and may play a role through sucrose metabolism and transport during cold stress. In addition, there was no significant difference in fructose content between the BpSWEET1c-OE plants and the control in the leaves and roots.
MDA is the final decomposition product of membrane peroxidation, and MDA content can reflect plant resistance to cold [24]. The MDA content showed no significant difference between the OE and the control in the leaves. In roots, the MDA content in the control was significantly higher than that in the OE lines at 4 °C for 6 h, indicating that overexpression of BpSWEET1c enhances the resistance of birch to cold. The results suggest that BpSWEET1c may play a positive role in the response to cold stress by involving soluble sugars metabolized.

3. Discussion

An increasing number of species have been identified in SWEET family genes. For example, 17, 13, 17, 29, 21, 23, 16, 52 SWEET genes have been identified in Arabidopsis [9], tea [25], grape [26], tomato [27], rice [28], sorghum [29], litchi [30] and soybean [31]. SWEET genes of birch have not been reported in previous studies. A total of 14 candidate SWEET genes were identified in the birch genome; one gene was excluded because of an incomplete genetic structure. A total of 13 BpSWEET genes can be divided into four Clades. Clade I, II, III and IV contain 5, 2, 4 and 2 genes, respectively (Figure 1), and these results are also consistent with Chen’s classification of the SWEET gene family [9]. Each clades contained some unique elements (Figure 2), suggesting that genes in different clades may have different functions.
Recently, more and more studies have proved that the number of SWEET genes in plants is caused by tandem repetition events [32] and chromosome replication events [33]. The analysis of the collinearity of the BpSWEET family genes and their distribution on chromosomes showed that there is indeed a pair of tandem repeat genes (BpSWEET1b/1c) and two pairs of chromosome replication genes (BpSWEET11/15, BpSWEET17a/17b) in the BpSWEET gene family (Figure 3). Interestingly, BpSWEET1a, BpSWEET1b, and BpSWEET1c all belong to Clade I and have motif 6, which is located very close on the Chr02. However, MCScanX analysis results showed that BpSWEET1a is not a tandem repeat gene of BpSWEET1b, BpSWEET1c. The results indicate that BpSWEET1a may have undergone evolutionary differentiation and is worthy of further research.
In previous studies, the SWEET genes had different expression patterns in various organs and tissues, thus performing different functions [25,34]. In this study, BpSWEET genes were highly expressed in flowers and roots but were less expressed in leaves (Figure 6). In addition, the duplicated genes in birch also had different expression patterns in different organs and tissues. For example, the tandem repeat genes, BpSWEET1b/1c, have different expression patterns. BpSWEET1b is highly expressed in xylem, while BpSWEET1c is highly expressed in roots. Our results were similar to the expression patterns of tandem repeat genes in litchi [30], apple [35] and wheat [36], suggesting the functional divergence of SWEET duplicated genes. BpSWEET11/15 genes derived from chromosomal replication events exhibited similar expression patterns, with high expression in both flowers and roots, similar to the expression pattern of PagSWEET15 in P. trichocarpa [37]. BpSWEET17a and BpSWEET17b are highly expressed in flowers, while AtSWEET16 and AtSWEET17 are mainly expressed in roots and leaves [38], which may be caused by the difference between birch and Arabidopsis. In contrast, PagSWEET17b, PagSWEET17c and PagSWEET17d in P. trichocarpa have higher expression in flowers [37], which verifies the hypothesis that the relationship between birch and P. trichocarpa is closer through collinearity analysis.
Most BpSWEET gene promoters have cis-acting elements in response to stress, especially in response to low temperature stress. Compared to normal conditions, the relative expression levels of most BpSWEET genes were up-regulated within 3 h after cold stress (Figure 6), indicating that the BpSWEET gene family can rapidly participate in response to cold stress. In the process of plant evolution, tandem repeat events lead to the generation of a series of tandem repeat genes, which play a very important role in the process of plant adaptation to environmental changes [39]. In Arabidopsis and rice genomes, tandem repeat genes play important roles in enhancing stress tolerance and membrane function [40]. In addition, there is many abiotic stress-related genes in the genome of S. thaliana, which are mainly produced by tandem repetition, making S. thaliana more tolerant to salt and cold [41]. In the BpSWEET gene family, the expression of BpSWEET1b/1c highly increased under cold stress. In particular, BpSWEET1c has the highest expression peak in BpSWEET genes after 3 h cold treatment, suggesting that BpSWEET1c plays a key role in resisting cold stress, which is worthy of further study. In addition, as a tandem repeat gene of BpSWEET1c, the expression of BpSWEET1b also changes significantly under cold stress, which is worth further research in future work.
The accumulation of sugars in cells can improve the cell’s tolerance to cold. As an osmoprotectant and antioxidant, sugar can stabilize cell membranes and protect the integrity of membranes by interacting with membrane lipids [42]. In addition, sugars can protect phospholipids in the cell membrane system by inducing the formation of glass in the cytoplasm [43]. In this study, the glucose content was measured and it was found that the glucose content of overexpressed BpSWEET1c lines in leaves was significantly higher than that of the control, but there was no significant difference in roots and leaves after cold stress. We speculate that BpSWEET1c proteins may be involved in glucose metabolism and transportation, but it does not play a significant role in resisting cold stress, suggesting that BpSWEET1c may also affect other soluble sugars to resist cold stress.
The CsSWEET1a-OE Arabidopsis lines had higher sucrose content than the wild-type, suggesting that CsSWEET1a may affect sucrose metabolism and transport [44]. Further analysis showed that BpSWEET1c, CsSWEET1a all had seven Transmembrane domains in the amino acid sequence. Under cold stress, BpSWEET1c and CsSWEET1a genes were up-regulated, which could respond to cold stress. In this study, BpSWEET1c-OE lines also had higher sucrose content than the control at 6 h of 4 °C in the leaves and all studied time points in the roots, and the sucrose content of both groups increased gradually with the increase of stress time (Figure 9), indicating that BpSWEET1c proteins may also affect sucrose metabolism and transport and play a positive role in the response to cold stress by increasing the sucrose content in plants. Interestingly, the fructose content of BpSWEET1c-OE in roots decreased gradually with stress time (Figure 9). Similar results were also found in the AtSWEET16-OE Arabidopsis lines [38] and the CsSWEET16-OE Arabidopsis lines [25]. There are seven Transmembrane domains in the amino acid sequences of BpSWEET1c, AtSWEET16 and CsSWEET16. Although the expression levels of AtSWEET16 and CsSWEET16 are down-regulated under cold stress, BpSWEET1c, AtSWEET16 and CsSWEET16 can respond to cold stress significantly. We guess that sucrose is more effective in protecting plants from low-temperature damage than fructose. However, if external factors stimulate BpSWEET1c proteins to undergo post-translational modification, the impact on sugar transport activity cannot be included. In conclusion, we demonstrated that BpSWEET1c can respond to cold stress by affecting soluble sugars’ metabolisms using the transient transformation method. However, the specific functions of SWEET genes in birch have not been determined in this study and need to be further explored.

4. Materials and Methods

4.1. Identification of SWEET Family Genes in Birch and the Acquisition of Genomic Information for Other Species

To identify SWEET gene family members in birch, 17 known SWEET gene family members in Arabidopsis were searched in TAIR (https://www.arabidopsis.org/, accessed on 1 February 2023). The Arabidopsis SWEET proteins sequences were used as query to search the SWEET genes in birch genome [17] (https://phytozome-next.jgi.doe.gov/info/Bplatyphylla_v1_1, accessed on 1 February 2023). Fourteen BpSWEET gene family members were identified using the BLASP method, and one gene has been excluded due to the incomplete gene structure. The conserved domains were found in the NCBI Conserved Domain Database for the protein sequences of all identified genes [45,46]. Gene sequences without MtN3_slv or PQ-loop superfamily domains were removed. In addition, the genome data of O. sativa, P. trichocarpa, V. vinifera, A. trichopoda and S. lycopersicum was downloaded from the phytozome13 (http://phytozome-next.jgi.doe.gov, accessed on 1 February 2023).

4.2. Analysis of Main Characteristics and the Phylogenetic Tree Analysis of SWEET Genes in Birch

Protein length, molecular weight, isopotential point and other information were analyzed using the ProtParam tool on Expasy (http://us.expasy.org/tools/protpara-m.html, accessed on 1 February 2023). The SWEET protein transmembrane domains were predicted by DeepTMHMM (http://DTU/DeepTMHMM-BioLib, accessed on 1 February 2023). Subcellular localization of SWEET genes in birch was achieved through the WoLF PSORT (http://wolfsort.hgc.jp, accessed on 1 February 2023). In addition, TBtools [47] was used to search the 2000 bp upstream regions of the start codon of the BpSWEET genes. Plantcare (http://bioinformatics.psb.ugent.be/webtools/plantcare/html, accessed on 1 February 2023) were used to identify cis-elements in the promoter regions.
MUSCLE was used to compare the SWEETs protein sequences of Arabidopsis and birch, and the protein sequences of BpSWEET family members alone [48]. The results of multiple sequence alignment were presented by GeneDoc. The phylogenetic tree was constructed by Neighbor-Joining (NJ) method on MEGA11.0, the bootstrap value was set to 1000. The phylogenetic tree results were presented with Evolview.

4.3. Gene Structures and Conserved Protein Motifs Analysis of BpSWEET Genes

The gene structure information of the BpSWEET genes, including introns and exons, was obtained in the birch genome annotation file and presented by TBtools [47]. MEME (http://meme-suit.org/meme/tools/meme, accessed on 1 February 2023) was used to analyze the motifs in BpSWEET protein sequences, the number of motifs searched was set to 10, and the site distribution was set to Zero or One Occurrence Per Sequence (zoops).

4.4. Identification and Analysis of Orthologous Gene and Paralogous Gene of SWEET Genes

The orthologous gene identification of SWEET genes in birch and the paralogous gene identification of birch with six other species were achieved by TBtools [47]. The collinear analysis of these homologous genes was further performed and TBtools was used for mapping. The synonymous mutation rates (ks) and non-synonymous mutation rates (ka) of BpSWEET gene pairs were calculated by TBtools [47].

4.5. Expression Analysis of BpSWEET Genes and Verification of RNA-Seq Data by qRT-PCR

To analyze the expression of BpSWEET genes in different organs/tissues, the raw data of organs and tissues (leaves, roots, flowers and xylem) from birch were obtained from NCBI (accession code: PRJNA 535361). To analyze the expression of BpSWEET genes under cold stress, the transcription data of birch under the cold treatment were obtained from NCBI (accession code: PRJNA532995). The TPM of the BpSWEET genes was used to construct the heat map. Heat maps of BpSWEETs in different organs and tissues and under cold stress was presented by TBtools. Using real time fluorescence quantitative gene amplification instrument (qTOWER3G), the qRT-PCR experiment was performed. Some gene expression data of leaves RNA-Seq were further identified by qRT-PCR. The corresponding primers were designed according to the coding region of BpSWEET genes (Table S1).

4.6. Subcellular Localization Analysis of BpSWEET1c Protein

The corresponding primers were designed according to the coding region of the BpSWEET1c gene (Table S1). The full-length sequence of the target gene is amplified with forward and reverse primers and connected to the pBI-121 vector. The recombinant vector is transformed into Agrobacterium GV3101, the infiltration and transient expression of tobacco is performed using the previously published protocols [49]. Two days after agrobacterium infection, the results were observed by confocal laser scanning microscope (Zeiss, Jena, Germany, LSM 800) and the GFP fluorescence photographs were obtained.

4.7. Transient Transformation and Related Physiological Indexes of Birch

The method of transient transformation referred to the method of Dong et al. [50]. Specifically, Agrobacterium Tumefaciens containing the target vector was cultured in LB medium containing the screening agent at 28 °C until OD600 reached 0.6–0.8. The culture medium was centrifuged at 3000× g with a high-speed centrifuge, and the obtained bacteria were suspended in the transformation solution [1/2 MS (Murashige and Skoog medium) + 2.5% (w/v) sucrose + 120 μM acetosyringone + Tween (0.02%, v/v), pH 5.4] until OD600 reached 0.7–0.8. Birch was soaked in the transformation solution at 25 °C for 2 h with shaking conditions for infection. After washing the transformation solution on birch with sterile distilled water, the birch was planted on solid MS medium [MS + 120 μM acetosyringone + 2% (w/v) sucrose + 0.5 mg/L NAA + 2 mg/L 6-BA, pH 5.8] for 48 h before the next experiments. The expression of BpSWEET1c in transient overexpressed BpSWEET1c gene birch (OE) was detected by qRT-PCR; the corresponding primers were designed according to the coding region of the BpSWEET1c gene (Table S1).
An amount of 0.05 g~0.1 g plant material was used to measure. MDA follows the method of Liu et al. [51]. The glucose and sucrose content were determined using a corresponding sugar content determination kit (Nanjing Jiancheng Bioengineering Research Institute, Nanjing, China). Fructose was measured using a fructose content measurement kit (Suzhou Keming Biotechnology Co., Ltd., Suzhou, China).

4.8. Statistical Analyses

Student’s t-test and one-way analysis of variance was used for statistical analysis; * indicates a significant difference (p < 0.05), ** represents a very significant difference (p < 0.01).

5. Conclusions

In this study, 13 BpSWEET genes were identified from the birch genome, and gene structures, chromosome localization, collinearity and cis-acting elements of the promoter regions were analyzed. Through RNA-seq data, we found that BpSWEET genes were highly expressed in several sink organs, and rapidly changed gene expression in response to cold stress. Moreover, BpSWEET1c was found to be located in the cell membrane, and transient overexpressed BpSWEET1c may play a positive role in the response to cold stress by changing the soluble sugar content. The identification and preliminary analysis of the SWEET gene family will lay a good foundation for future research on the relationship between sugar and abiotic stress.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms241713626/s1.

Author Contributions

Conceptualization, H.Z. and C.G.; Data curation, Y.D. and Q.X.; Formal analysis, K.Y., W.G. and Q.X.; Investigation, Y.D.; Resources, X.W.; Software, K.Y., W.G. and Z.L.; Validation, X.W.; Visualization, H.Z.; Writing original draft, H.Z. and C.G.; Writing, review and editing, C.G. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Postdoctoral Scientific Research Developmental Fund of Heilongjiang Provincial Government (LBHZ21086) and the Heilongjiang Touyan Innovation Team program (Tree Genetics and Breeding Innovation Team).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

SWEETSugars will eventually be exported transporter
SUTsSucrose transporters
MSTsMonosaccharide transporters
TMs7α-helical trans-membrane domains
MWMolecular weight
plIsoeletric points
plasPlasma memberance
VacuVacular membrane
KaNonsynonymous mutation rates
KsSynonymous mutation rates
aaAmino acid
MEMEMultiple EM for Motif Elictation
MDAMalondialdehyde
qRT-PCRQuantitative reverse transcription-PCR
OETransient overexpressed BpSWEET1c gene birch

References

  1. Rennie, E.A.; Turgeon, R. A comprehensive picture of phloem loading strategies. Proc. Natl. Acad. Sci. USA 2009, 106, 14162–14167. [Google Scholar] [CrossRef] [PubMed]
  2. Lemoine, R.; La Camera, S.; Atanassova, R.; Dedaldechamp, F.; Allario, T.; Pourtau, N.; Bonnemain, J.-L.; Laloi, M.; Coutos-Thevenot, P.; Maurousset, L.; et al. Source-to-sink transport of sugar and regulation by environmental factors. Front. Plant Sci. 2013, 4, 272. [Google Scholar] [CrossRef] [PubMed]
  3. Qin, G.Z.; Zhu, Z.; Wang, W.H.; Cai, J.H.; Chen, Y.; Li, L.; Tian, S.P. A Tomato Vacuolar Invertase Inhibitor Mediates Sucrose Metabolism and Influences Fruit Ripening. Plant Physiol. 2016, 172, 1596–1611. [Google Scholar] [CrossRef] [PubMed]
  4. Van Bel, A.J.E.; Knoblauch, M. Sieve element and companion cell: The story of the comatose patient and the hyperactive nurse. Aust. J. Plant Physiol. 2000, 27, 477–487. [Google Scholar] [CrossRef]
  5. Patrick, J.W. PHLOEM UNLOADING: Sieve Element Unloading and Post-Sieve Element Transport. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1997, 48, 191–222. [Google Scholar] [CrossRef] [PubMed]
  6. Chen, L.-Q.; Qu, X.-Q.; Hou, B.-H.; Sosso, D.; Osorio, S.; Fernie, A.R.; Frommer, W.B. Sucrose Efflux Mediated by SWEET Proteins as a Key Step for Phloem Transport. Science 2012, 335, 207–211. [Google Scholar] [CrossRef] [PubMed]
  7. Chen, L.Q. SWEET sugar transporters for phloem transport and pathogen nutrition. New Phytol. 2014, 201, 1150–1155. [Google Scholar] [CrossRef]
  8. Ruan, Y.L.; Jin, Y.; Yang, Y.J.; Li, G.J.; Boyer, J.S. Sugar Input, Metabolism, and Signaling Mediated by Invertase: Roles in Development, Yield Potential, and Response to Drought and Heat. Mol. Plant 2010, 3, 942–955. [Google Scholar] [CrossRef]
  9. Chen, L.Q.; Hou, B.H.; Lalonde, S.; Takanaga, H.; Hartung, M.L.; Qu, X.Q.; Guo, W.J.; Kim, J.G.; Underwood, W.; Chaudhuri, B.; et al. Sugar transporters for intercellular exchange and nutrition of pathogens. Nature 2010, 468, 527–532. [Google Scholar] [CrossRef]
  10. Yuan, M.; Wang, S.P. Rice MtN3/Saliva/SWEET Family Genes and Their Homologs in Cellular Organisms. Mol. Plant 2013, 6, 665–674. [Google Scholar] [CrossRef]
  11. Santarius, K.A. The protective effect of sugars on chloroplast membranes during temperature and water stress and its relationship to frost, desiccation and heat resistance. Planta 1973, 113, 105–114. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, W.; Wang, S.; Yu, F.; Tang, J.; Shan, X.; Bao, K.; Yu, L.; Wang, H.; Fei, Z.; Li, J. Genome-wide characterization and expression profiling of SWEET genes in cabbage (Brassica oleracea var. capitata L.) reveal their roles in chilling and clubroot disease responses. BMC Genom. 2019, 20, 93. [Google Scholar] [CrossRef]
  13. Chardon, F.; Bedu, M.; Calenge, F.; Klemens, P.A.W.; Spinner, L.; Clement, G.; Chietera, G.; Leran, S.; Ferrand, M.; Lacombe, B.; et al. Leaf Fructose Content Is Controlled by the Vacuolar Transporter SWEET17 in Arabidopsis. Curr. Biol. 2013, 23, 697–702. [Google Scholar] [CrossRef] [PubMed]
  14. Klemens, P.A.W.; Patzke, K.; Deitmer, J.; Spinner, L.; Le Hir, R.; Bellini, C.; Bedu, M.; Chardon, F.; Krapp, A.; Neuhaus, H.E. Overexpression of the Vacuolar Sugar Carrier AtSWEET16 Modifies Germination, Growth, and Stress Tolerance in Arabidopsis. Plant Physiol. 2013, 163, 1338–1352. [Google Scholar] [CrossRef] [PubMed]
  15. Huang, D.-M.; Chen, Y.; Liu, X.; Ni, D.-A.; Bai, L.; Qin, Q.-P. Genome-wide identification and expression analysis of the SWEET gene family in daylily (Hemerocallis fulva) and functional analysis of HfSWEET17 in response to cold stress. BMC Plant Biol. 2022, 22, 211. [Google Scholar] [CrossRef]
  16. Kitao, M.; Lei, T.T.; Nakamura, T.; Koike, T. Manganese toxicity as indicated by visible foliar symptoms of Japanese white birch (Betula platyphylla var. japonica). Environ. Pollut. (Barking, Essex: 1987) 2001, 111, 89–94. [Google Scholar] [CrossRef]
  17. Chen, S.; Wang, Y.C.; Yu, L.L.; Zheng, T.; Wang, S.; Yue, Z.; Jiang, J.; Kumari, S.; Zheng, C.F.; Tang, B.; et al. Genome sequence and evolution of Betula platyphylla. Hortic. Res. 2021, 8, 37. [Google Scholar] [CrossRef]
  18. McDonald, J.H.; Kreitman, M. Adaptive protein evolution at the Adh locus in Drosophila. Nature 1991, 351, 652–654. [Google Scholar] [CrossRef]
  19. Yang, Z. Likelihood ratio tests for detecting positive selection and application to primate lysozyme evolution. Mol. Biol. Evol. 1998, 15, 568–573. [Google Scholar] [CrossRef]
  20. Yang, Z.; Nielsen, R. Codon-substitution models for detecting molecular adaptation at individual sites along specific lineages. Mol. Biol. Evol. 2002, 19, 908–917. [Google Scholar] [CrossRef]
  21. Drummond, D.A.; Bloom, J.D.; Adami, C.; Wilke, C.O.; Arnold, F.H. Why highly expressed proteins evolve slowly. Proc. Natl. Acad. Sci. USA 2005, 102, 14338–14343. [Google Scholar] [CrossRef] [PubMed]
  22. Yan, S.Y.; Zhang, D.W.; Chen, S.; Chen, S. Transcriptome Sequencing Analysis of Birch (Betula platyphylla Sukaczev) under Low-Temperature Stress. Forests 2020, 11, 970. [Google Scholar] [CrossRef]
  23. Wu, Y.; Liu, J. Effects of chilling stress on chill-resistance physiological and biochemical indexes of muskmelon seedlings. J. Northwest Sci. Tech. Univ. Agric. For. 2007, 35, 139–143. [Google Scholar]
  24. Liu, Z.Y.; Xie, Q.J.; Tang, F.F.; Wu, J.; Dong, W.F.; Wang, C.; Gao, C.Q. The ThSOS3 Gene Improves the Salt Tolerance of Transgenic Tamarix hispida and Arabidopsis thaliana. Front. Plant Sci. 2021, 11, 597480. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, L.; Yao, L.; Hao, X.; Li, N.; Qian, W.; Yue, C.; Ding, C.; Zeng, J.; Yang, Y.; Wang, X. Tea plant SWEET transporters: Expression profiling, sugar transport, and the involvement of CsSWEET16 in modifying cold tolerance in Arabidopsis. Plant Mol. Biol. 2018, 96, 577–592. [Google Scholar] [CrossRef] [PubMed]
  26. Chong, J.-C.; Piron, M.-C.; Meyer, S.; Merdinoglu, D.; Bertsch, C.; Mestre, P. The SWEET family of sugar transporters in grapevine: VvSWEET4 is involved in the interaction with Botrytis cinerea. J. Exp. Bot. 2014, 65, 6589–6601. [Google Scholar] [CrossRef] [PubMed]
  27. Feng, C.-Y.; Han, J.-X.; Han, X.-X.; Jiang, J. Genome-wide identification, phylogeny, and expression analysis of the SWEET gene family in tomato. Gene 2015, 573, 261–272. [Google Scholar] [CrossRef]
  28. Yuan, M.; Zhao, J.; Huang, R.; Li, X.; Xiao, J.; Wang, S. Rice MtN3/saliva/SWEET gene family: Evolution, expression profiling, and sugar transport. J. Integr. Plant Biol. 2014, 56, 559–570. [Google Scholar] [CrossRef]
  29. Mizuno, H.; Kasuga, S.; Kawahigashi, H. The sorghum SWEET gene family: Stem sucrose accumulation as revealed through transcriptome profiling. Biotechnol. Biofuels 2016, 9, 127. [Google Scholar] [CrossRef]
  30. Xie, H.; Wang, D.; Qin, Y.; Ma, A.; Fu, J.; Qin, Y.; Hu, G.; Zhao, J. Genome-wide identification and expression analysis of SWEET gene family in Litchi chinensis reveal the involvement of LcSWEET2a/3b in early seed development. BMC Plant Biol. 2019, 19, 499. [Google Scholar] [CrossRef]
  31. Patil, G.; Valliyodan, B.; Deshmukh, R.; Prince, S.; Nicander, B.; Zhao, M.; Sonah, H.; Song, L.; Lin, L.; Chaudhary, J.; et al. Soybean (Glycine max) SWEET gene family: Insights through comparative genomics, transcriptome profiling and whole genome re-sequence analysis. BMC Genom. 2015, 16, 520. [Google Scholar] [CrossRef] [PubMed]
  32. Freeling, M. Bias in Plant Gene Content Following Different Sorts of Duplication: Tandem, Whole-Genome, Segmental, or by Transposition. Annu. Rev. Plant Biol. 2009, 60, 433–453. [Google Scholar] [CrossRef]
  33. Friedman, R.; Hughes, A.L. Gene duplication and the structure of eukaryotic genomes. Genome Res. 2001, 11, 373–381. [Google Scholar] [CrossRef]
  34. Singh, J.; Das, S.; Jagadis Gupta, K.; Ranjan, A.; Foyer, C.H.; Thakur, J.K. Physiological implications of SWEETs in plants and their potential applications in improving source-sink relationships for enhanced yield. Plant Biotechnol. J. 2023, 21, 1528–1541. [Google Scholar] [CrossRef] [PubMed]
  35. Zhen, Q.L.; Fang, T.; Peng, Q.; Liao, L.; Zhao, L.; Owiti, A.; Han, Y.P. Developing gene-tagged molecular markers for evaluation of genetic association of apple SWEET genes with fruit sugar accumulation. Hortic. Res. 2018, 5, 14. [Google Scholar] [CrossRef] [PubMed]
  36. Gautam, T.; Saripalli, G.; Gahlaut, V.; Kumar, A.; Sharma, P.K.; Balyan, H.S.; Gupta, P.K. Further studies on sugar transporter (SWEET) genes in wheat (Triticum aestivum L.). Mol. Biol. Rep. 2019, 46, 2327–2353. [Google Scholar] [CrossRef] [PubMed]
  37. Zhang, L.; Wang, L.; Zhang, J.; Song, C.; Li, Y.; Li, J.; Lu, M. Expression and localization of SWEETs in Populus and the effect of SWEET7 overexpression in secondary growth. Tree Physiol. 2021, 41, 882–899. [Google Scholar] [CrossRef] [PubMed]
  38. Guo, W.-J.; Nagy, R.; Chen, H.Y.; Pfrunder, S.; Yu, Y.C.; Santelia, D.; Frommer, W.B.; Martinoia, E. SWEET17, a Facilitative Transporter, Mediates Fructose Transport across the Tonoplast of Arabidopsis Roots and Leaves. Plant Physiol. 2014, 164, 777–789. [Google Scholar] [CrossRef]
  39. Pan, D.; Zhang, L.Q. Tandemly arrayed genes in vertebrate genomes. Comp. Funct. Genom. 2008, 2008, 545269. [Google Scholar] [CrossRef]
  40. Rizzon, C.; Ponger, L.; Gaut, B.S. Striking similarities in the genomic distribution of tandemly arrayed genes in Arabidopsis and rice. Plos Comput. Biol. 2006, 2, 989–1000. [Google Scholar] [CrossRef]
  41. Dassanayake, M.; Oh, D.H.; Haas, J.S.; Hernandez, A.; Hong, H.; Ali, S.; Yun, D.J.; Bressan, R.A.; Zhu, J.K.; Bohnert, H.J.; et al. The genome of the extremophile crucifer Thellungiella Parvula. Nat. Genet. 2011, 43, 913–918. [Google Scholar] [CrossRef] [PubMed]
  42. Ma, Y.; Zhang, Y.; Lu, J.; Shao, H. Roles of plant soluble sugars and their responses to plant cold stress. Afr. J. Biotechnol. 2009, 8, 2004–2010. [Google Scholar]
  43. Garg, A.; Owens, T.; Setter, T.; Miller, W.; Kim, J.-K.; Kochian, L.; Wu, R. Trehalose Accumulation in Rice, Maize, and Wheat Plants Confers High Tolerance Levels to Different Abiotic Stresses. Vitr. Cell. Dev. Biol. Anim. 2010, 46, S204. [Google Scholar]
  44. Yao, L.; Ding, C.; Hao, X.; Zeng, J.; Yang, Y.; Wang, X.; Wang, L. CsSWEET1a and CsSWEET17 Mediate Growth and Freezing Tolerance by Promoting Sugar Transport across the Plasma Membrane. Plant Cell Physiol. 2020, 61, 1669–1682. [Google Scholar] [CrossRef] [PubMed]
  45. Marchler-Bauer, A.; Bo, Y.; Han, L.; He, J.; Lanczycki, C.J.; Lu, S.; Chitsaz, F.; Derbyshire, M.K.; Geer, R.C.; Gonzales, N.R.; et al. CDD/SPARCLE: Functional classification of proteins via subfamily domain architectures. Nucleic Acids Res. 2017, 45, D200–D203. [Google Scholar] [CrossRef] [PubMed]
  46. Lu, S.; Wang, J.; Chitsaz, F.; Derbyshire, M.K.; Geer, R.C.; Gonzales, N.R.; Gwadz, M.; Hurwitz, D.I.; Marchler, G.H.; Song, J.S.; et al. CDD/SPARCLE: The conserved domain database in 2020. Nucleic Acids Res. 2020, 48, D265–D268. [Google Scholar] [CrossRef] [PubMed]
  47. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  48. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef]
  49. Sparkes, I.A.; Runions, J.; Kearns, A.; Hawes, C. Rapid, transient expression of fluorescent fusion proteins in tobacco plants and generation of stably transformed plants. Nat. Protoc. 2006, 1, 2019–2025. [Google Scholar] [CrossRef]
  50. Dong, W.; Xie, Q.; Liu, Z.; Han, Y.; Wang, X.; Xu, R.; Gao, C. Genome-wide identification and expression profiling of the bZIP gene family in Betula platyphylla and the functional characterization of BpChr04G00610 under low-temperature stress. Plant Physiol. Biochem. 2023, 198, 107676. [Google Scholar] [CrossRef]
  51. Liu, Z.Y.; Wang, P.L.; Zhang, T.Q.; Li, Y.B.; Wang, Y.Y.; Gao, C.Q. Comprehensive analysis of BpHSP genes and their expression under heat stresses in Betula platyphylla. Environ. Exp. Bot. 2018, 152, 167–176. [Google Scholar] [CrossRef]
Ijms 24 13626 g001

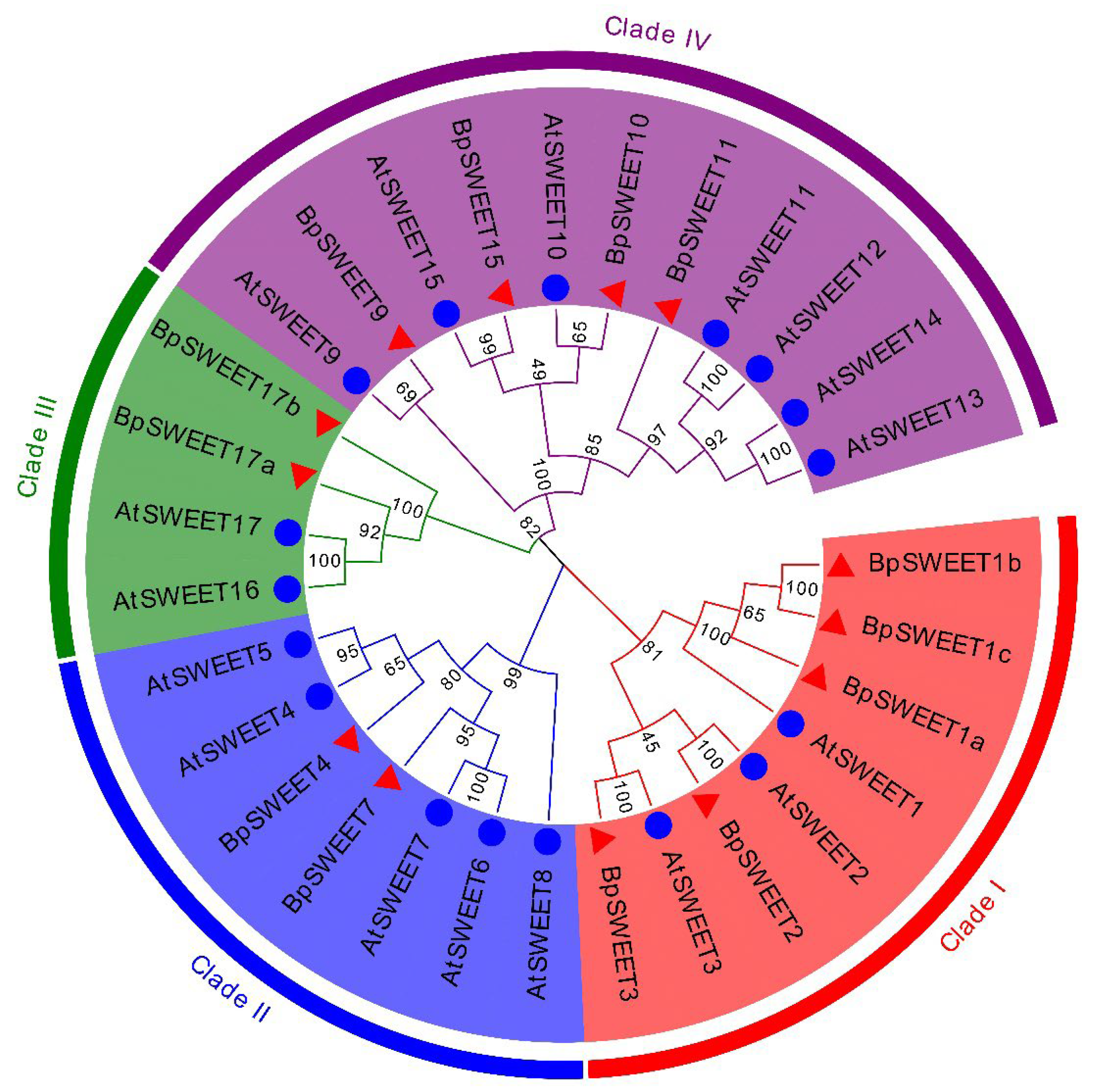

Figure 1. Analysis of the phylogenetic relationship between the SWEET proteins in birch and Arabidopsis. A total of 17 AtSWEEP proteins and 13 BpSWEET proteins conserved domains were aligned through MUSCLE. An evolutionary tree was constructed using Neighbor-Joining (NJ) method at MEGA11.0, the bootstrap value was set to 1000, Clades I, II, III and IV are represented by red, blue, green and purple, respectively. The evolutionary tree was visualized through the online tool Evolview.
Figure 1. Analysis of the phylogenetic relationship between the SWEET proteins in birch and Arabidopsis. A total of 17 AtSWEEP proteins and 13 BpSWEET proteins conserved domains were aligned through MUSCLE. An evolutionary tree was constructed using Neighbor-Joining (NJ) method at MEGA11.0, the bootstrap value was set to 1000, Clades I, II, III and IV are represented by red, blue, green and purple, respectively. The evolutionary tree was visualized through the online tool Evolview.
Ijms 24 13626 g001
Ijms 24 13626 g002

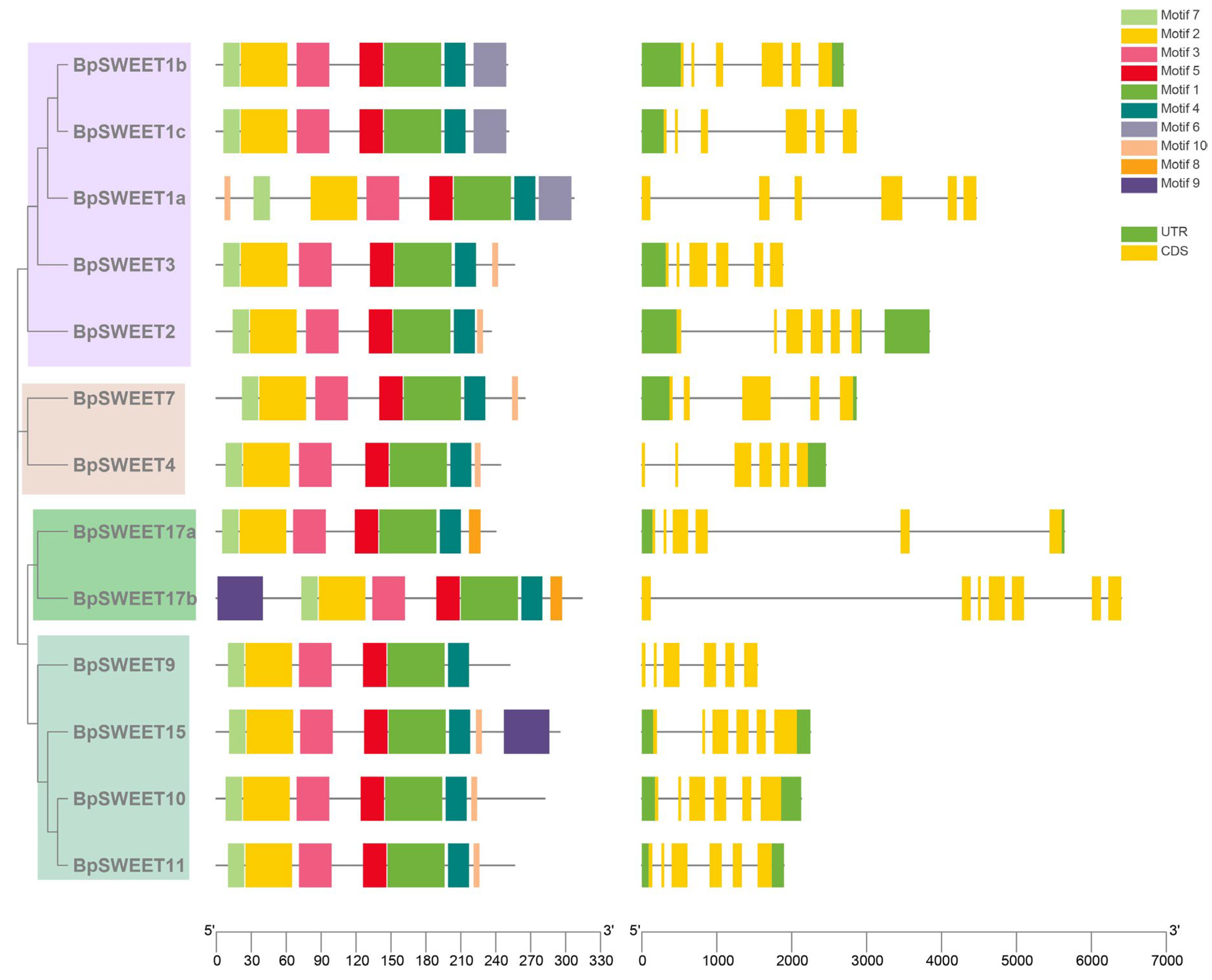

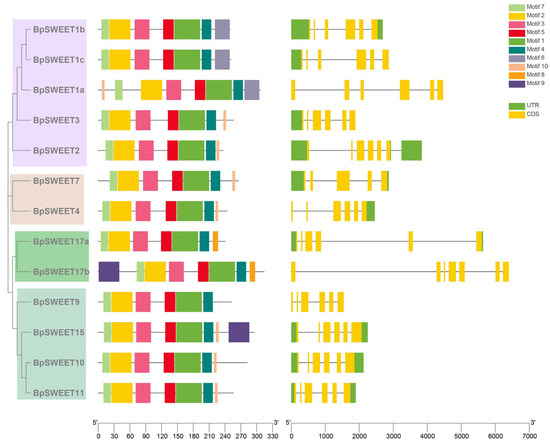

Figure 2. The conserved domain motifs and gene structures of 13 BpSWEETs. (a) Phylogenetic tree of 13 BpSWEETs. (b) Distribution of motifs on SWEET proteins. Motifs were analyzed by MEME, and a total of 10 different motifs were identified. Motifs 1–10 were presented with different colors. TBtools were used for visualization. (c) The genetic structures of the BpSWEET genes, with yellow boxes representing exons and black lines representing introns.
Figure 2. The conserved domain motifs and gene structures of 13 BpSWEETs. (a) Phylogenetic tree of 13 BpSWEETs. (b) Distribution of motifs on SWEET proteins. Motifs were analyzed by MEME, and a total of 10 different motifs were identified. Motifs 1–10 were presented with different colors. TBtools were used for visualization. (c) The genetic structures of the BpSWEET genes, with yellow boxes representing exons and black lines representing introns.
Ijms 24 13626 g002
Ijms 24 13626 g003

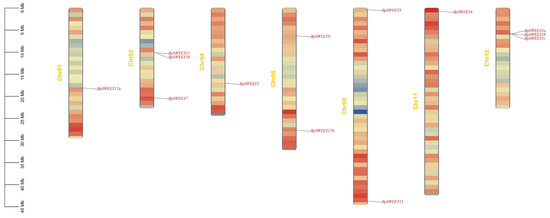

Figure 3. The distribution of 13 BpSWEET genes on the chromosomes of birch, visualized through TBtools.
Figure 3. The distribution of 13 BpSWEET genes on the chromosomes of birch, visualized through TBtools.
Ijms 24 13626 g003
Ijms 24 13626 g004

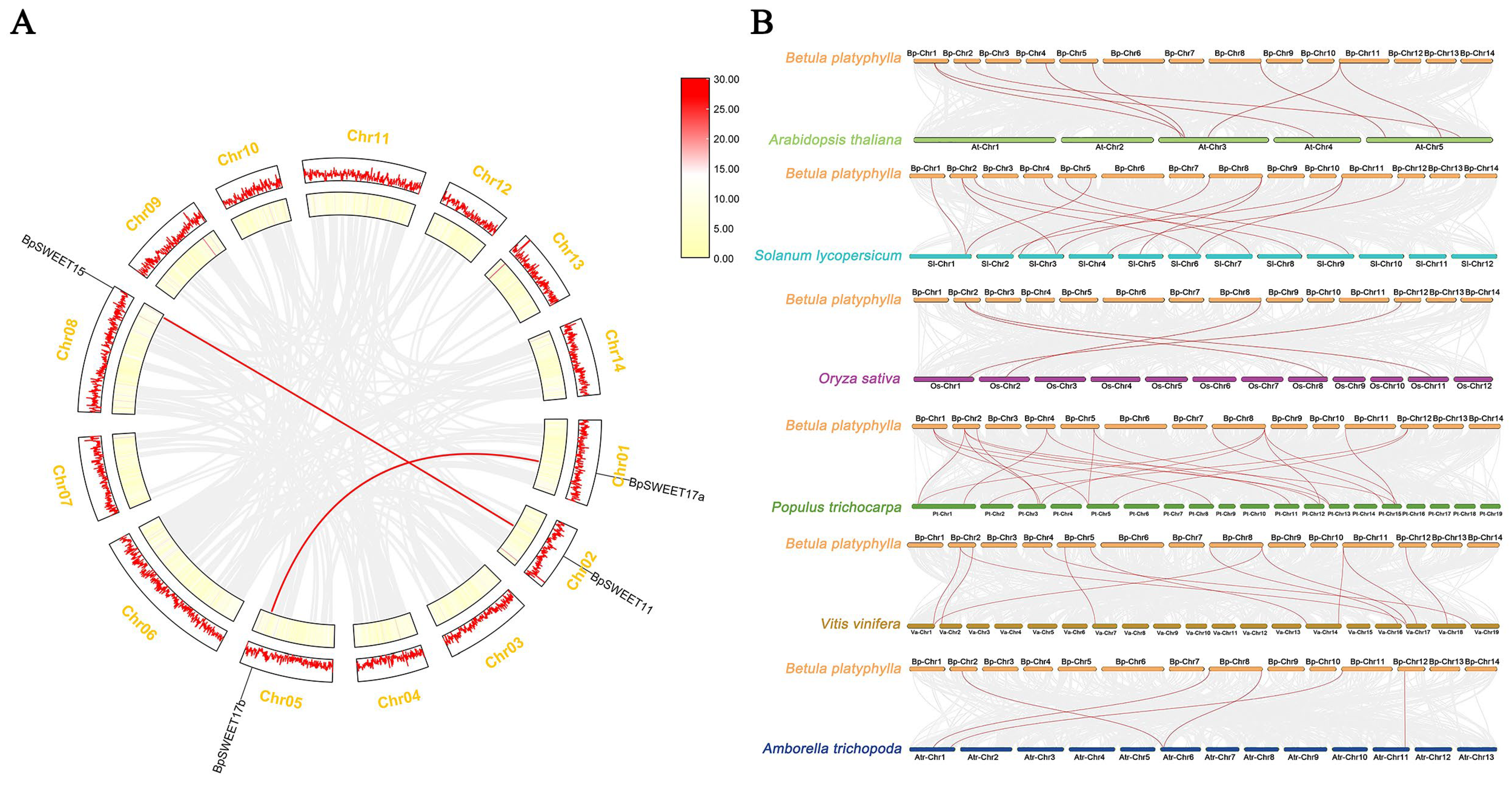

Figure 4. Collinearity of the BpSWEETs. (A) The relationship between BpSWEETs within the chromosomes of birch was determined through multiple collinear scanning toolkits (oneStepMCScanX-superFast in TBtools 2.0) and visualized through TBtools. The gray line indicates the collinearity modules within the birch genome, and the red line indicates the SWEET collinearity genes. (B) The collinearity analysis of SWEET genes in birch and six other species; the gray line represents the collinear blocks in the genome of birch and six other species, and the red line represents the SWEET collinearity genes in birch and six other species.
Figure 4. Collinearity of the BpSWEETs. (A) The relationship between BpSWEETs within the chromosomes of birch was determined through multiple collinear scanning toolkits (oneStepMCScanX-superFast in TBtools 2.0) and visualized through TBtools. The gray line indicates the collinearity modules within the birch genome, and the red line indicates the SWEET collinearity genes. (B) The collinearity analysis of SWEET genes in birch and six other species; the gray line represents the collinear blocks in the genome of birch and six other species, and the red line represents the SWEET collinearity genes in birch and six other species.
Ijms 24 13626 g004
Ijms 24 13626 g005

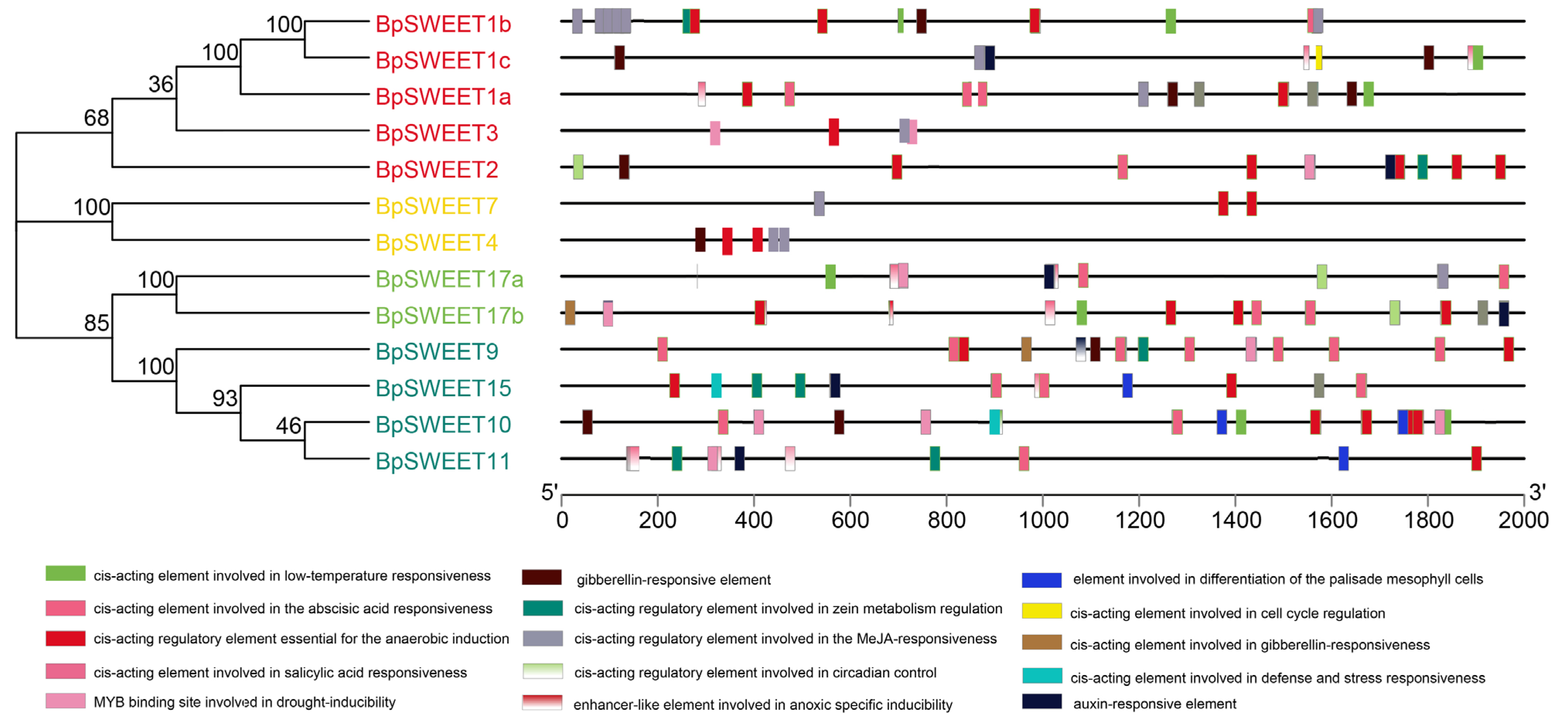

Figure 5. Analysis of cis-acting elements in the 13 BpSWEETs promoter regions; different colored boxes represent different cis-acting elements, and black lines represent the promoter length of the BpSWEET genes.
Figure 5. Analysis of cis-acting elements in the 13 BpSWEETs promoter regions; different colored boxes represent different cis-acting elements, and black lines represent the promoter length of the BpSWEET genes.
Ijms 24 13626 g005
Ijms 24 13626 g006
Figure 6. BpSWEET genes expression pattern based on RNA-seq analysis. Transcriptome data were obtained from NCBI (accession code: PRJNA535361 and PRJNA532995). Gene expression levels were shown as RNA-seq values log2 transformed followed by normalization for each row (A) Heat map of BpSWEET gene expression pattern in flowers, leaves, roots and xylem of two-month-old birch. (B) Heat map of BpSWEET gene expression pattern of two-month-old birch treated 6 °C for 0.5, 1, 1.5, 2, 2.5, and 3 h.
Figure 6. BpSWEET genes expression pattern based on RNA-seq analysis. Transcriptome data were obtained from NCBI (accession code: PRJNA535361 and PRJNA532995). Gene expression levels were shown as RNA-seq values log2 transformed followed by normalization for each row (A) Heat map of BpSWEET gene expression pattern in flowers, leaves, roots and xylem of two-month-old birch. (B) Heat map of BpSWEET gene expression pattern of two-month-old birch treated 6 °C for 0.5, 1, 1.5, 2, 2.5, and 3 h.
Ijms 24 13626 g006
Ijms 24 13626 g007

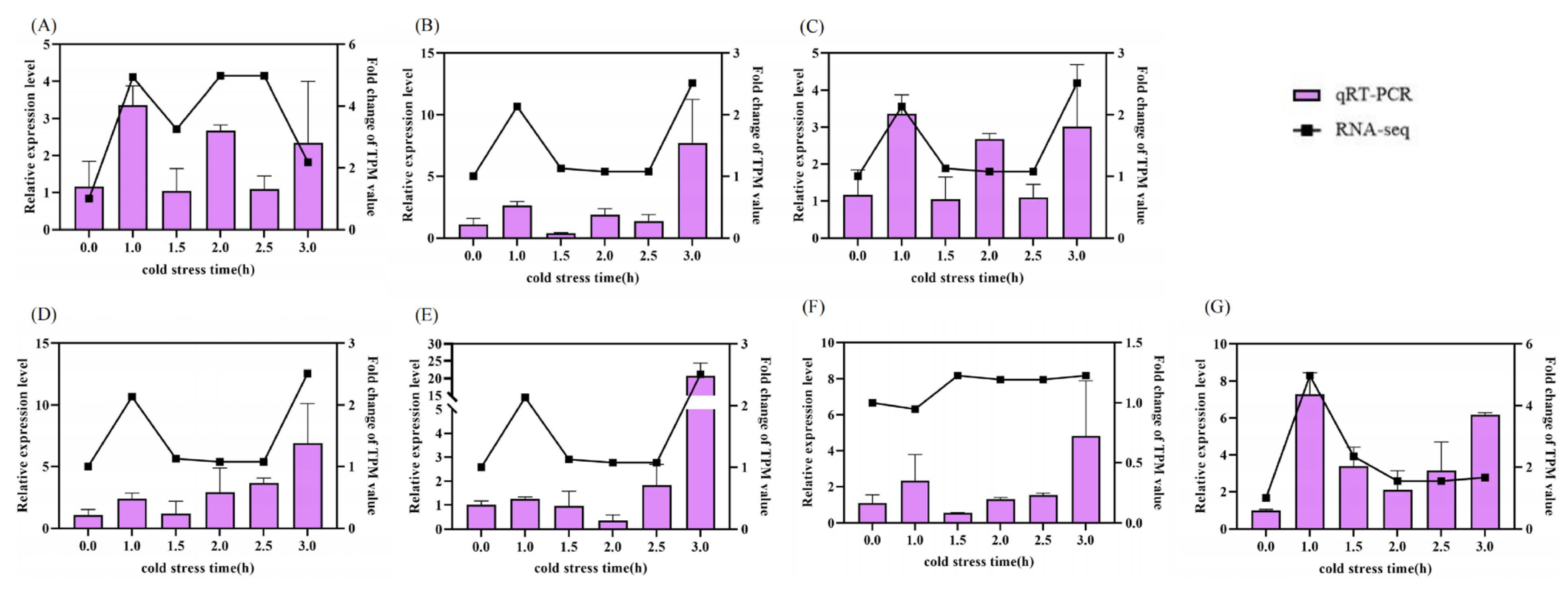

Figure 7. The expression of BpSWEET genes was verified by qRT-PCR. The bar graph is the relative expression level of qRT-PCR, and the line graph is the fold change of TPM value in RNA-seq data. The left Y-axis represents the numerical scale in the bar graph, and the right Y-axis represents the numerical scale in the line graph. (A) Changes in qRT-PCR and RNA-seq values of BpSWEET1a. (B) Changes in qRT-PCR and RNA-seq values of BpSWEET1b. (C) Changes in qRT-PCR and RNA-seq values of BpSWEET1c. (D) Changes in qRT-PCR and RNA-seq values of BpSWEET2. I Changes in qRT-PCR and RNA-seq values of BpSWEET7. (F) Changes in qRT-PCR and RNA-seq values of BpSWEET17a. (G) Changes in qRT-PCR and RNA-seq values of BpSWEET17b.
Figure 7. The expression of BpSWEET genes was verified by qRT-PCR. The bar graph is the relative expression level of qRT-PCR, and the line graph is the fold change of TPM value in RNA-seq data. The left Y-axis represents the numerical scale in the bar graph, and the right Y-axis represents the numerical scale in the line graph. (A) Changes in qRT-PCR and RNA-seq values of BpSWEET1a. (B) Changes in qRT-PCR and RNA-seq values of BpSWEET1b. (C) Changes in qRT-PCR and RNA-seq values of BpSWEET1c. (D) Changes in qRT-PCR and RNA-seq values of BpSWEET2. I Changes in qRT-PCR and RNA-seq values of BpSWEET7. (F) Changes in qRT-PCR and RNA-seq values of BpSWEET17a. (G) Changes in qRT-PCR and RNA-seq values of BpSWEET17b.
Ijms 24 13626 g007
Ijms 24 13626 g008
Figure 8. The subcellular localization of BpSWEET1c in tobacco leaves. BpSWEET1c-GFP and individual GFP empty vectors were instantly transformed into tobacco leaves through Agrobacterium infection. The experimental results are observed two days after infection. The white arrow shows where the nucleus is located.
Figure 8. The subcellular localization of BpSWEET1c in tobacco leaves. BpSWEET1c-GFP and individual GFP empty vectors were instantly transformed into tobacco leaves through Agrobacterium infection. The experimental results are observed two days after infection. The white arrow shows where the nucleus is located.
Ijms 24 13626 g008
Ijms 24 13626 g009
Figure 9. Analysis of glucose, sucrose, fructose and MDA contents of BpSWEET1c-OE and pBI-121 birch lines at 4 °C for 0, 3 and 6 h in leaves and roots. (A) Change of glucose content in leaves. (B) Changes of sucrose content in leaves. (C) Changes of fructose content in leaves. (D) Changes of MDA content in Ives. (E) Changes of glucose content in roots. (F) Change of sucrose content in roots. (G) Changes of fructose content in roots. (H) Changes of MDA content in roots. * Represents a significant difference (p < 0.05). ** Represents a very significant difference (p < 0.01).
Figure 9. Analysis of glucose, sucrose, fructose and MDA contents of BpSWEET1c-OE and pBI-121 birch lines at 4 °C for 0, 3 and 6 h in leaves and roots. (A) Change of glucose content in leaves. (B) Changes of sucrose content in leaves. (C) Changes of fructose content in leaves. (D) Changes of MDA content in Ives. (E) Changes of glucose content in roots. (F) Change of sucrose content in roots. (G) Changes of fructose content in roots. (H) Changes of MDA content in roots. * Represents a significant difference (p < 0.05). ** Represents a very significant difference (p < 0.01).
Ijms 24 13626 g009
Table 1. SWEET gene information for birch.
Table 1. SWEET gene information for birch.
Gene IDGene NameGenBank
Accession
Numbers 		Protein Length (aa)MW
(kD)		plPOSRT
Predictions		Number of MtN3_slv/PQ-Loop Repeat
Superfamily
Domain		Transmembrane
Domain
BPChr12G08384.v1.1.679BpSWEET1aOR36158430633.988.9plas27
BPChr12G08398.v1.1.679BpSWEET1bOR36158524927.499.54plas27
BPChr12G08357.v1.1.679BpSWEET1cOR36158625027.669.46plas27
BPChr04G06173.v1.1.679BpSWEET2OR36158723526.188.25plas27
BPChr08G24178.v1.1.679BpSWEET3OR36158825528.539.25plas27
BPChr11G26889.v1.1.679BpSWEET4OR36158924326.989.46plas27
BPChr02G10545.v1.1.679BpSWEET7OR36159026429.398.96plas27
BPChr05G07871.v1.1.679BpSWEET9OR36159125128.298.26vacu27
BPChr02G23316.v1.1.679BpSWEET10OR36159228131.919.09plas27
BPChr02G23301.v1.1.679BpSWEET11OR36159325528.549.18plas27
BPChr08G16703.v1.1.679BpSWEET15OR36159429433.225.79plas27
BPChr01G13604.v1.1.679BpSWEET17aOR36159523926.638.94vacu27
BPChr05G22191.v1.1.679BpSWEET17bOR36159631335.498.7plas27
Note: MW: molecular weight; pl: isoeletric points; plas: plasma membrane; vacu: vacular membrane.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, H.; Ding, Y.; Yang, K.; Wang, X.; Gao, W.; Xie, Q.; Liu, Z.; Gao, C. An Insight of Betula platyphylla SWEET Gene Family through Genome-Wide Identification, Expression Profiling and Function Analysis of BpSWEET1c under Cold Stress. Int. J. Mol. Sci. 2023, 24, 13626. https://doi.org/10.3390/ijms241713626

AMA Style

Zhang H, Ding Y, Yang K, Wang X, Gao W, Xie Q, Liu Z, Gao C. An Insight of Betula platyphylla SWEET Gene Family through Genome-Wide Identification, Expression Profiling and Function Analysis of BpSWEET1c under Cold Stress. International Journal of Molecular Sciences. 2023; 24(17):13626. https://doi.org/10.3390/ijms241713626

Chicago/Turabian Style

Zhang, Hao, Yuting Ding, Kaiye Yang, Xinyu Wang, Wenshuo Gao, Qingjun Xie, Zhongyuan Liu, and Caiqiu Gao. 2023. "An Insight of Betula platyphylla SWEET Gene Family through Genome-Wide Identification, Expression Profiling and Function Analysis of BpSWEET1c under Cold Stress" International Journal of Molecular Sciences 24, no. 17: 13626. https://doi.org/10.3390/ijms241713626

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
