Melatonin Receptor Expression in Primary Uveal Melanoma

by
Anna Hagström
1,*,
Ruba Kal Omar
1,
Hans Witzenhausen
1,
Emma Lardner
2,
Oran Abdiu
3 and
Gustav Stålhammar
1,2
1
Department of Clinical Neuroscience, Division of Eye and Vision, Karolinska Institutet, 171 77 Stockholm, Sweden
2
St. Erik Eye Hospital, 17164 Stockholm, Sweden
3
Ögonspecialisterna Farsta, 12347 Stockholm, Sweden
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(16), 8711; https://doi.org/10.3390/ijms25168711
Submission received: 4 July 2024 / Revised: 5 August 2024 / Accepted: 6 August 2024 / Published: 9 August 2024
(This article belongs to the Special Issue Translational Research in Ophthalmic Pathology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Melatonin, noted for its anti-cancer properties in various malignancies, including cutaneous melanoma, shows promise in Uveal melanoma (UM) treatment. This study aimed to evaluate melatonin receptor expression in primary UM and its association with UM-related mortality and prognostic factors. Immunohistochemical analysis of 47 primary UM tissues showed low expression of melatonin receptor 1A (MTNR1A) and melatonin receptor 1B (MTNR1B), with MTNR1A significantly higher in patients who succumbed to UM. Analysis of TCGA data from 80 UM patients revealed RNA expression for MTNR1A, retinoic acid-related orphan receptor alpha (RORα), and N-ribosyldihydronicotinamide:quinone oxidoreductase (NQO2), but not MTNR1B or G protein-coupled receptor 50 (GPR50). Higher MTNR1A RNA levels were observed in patients with a BRCA1 Associated Protein 1 (BAP1) mutation, and higher NQO2 RNA levels were noted in patients with the epithelioid tumor cell type. However, Kaplan–Meier analysis did not show distinct survival probabilities based on receptor expression. This study concludes that UM clinical samples express melatonin receptors, suggesting a potential mechanism for melatonin’s anti-cancer effects. Despite finding higher MTNR1A expression in patients who died of UM, no survival differences were observed.

1. Introduction

1.1. Uveal Melanoma

Uveal melanoma (UM) is the most prevalent primary intraocular malignancy in adults [1]. Within 15 years following diagnosis, between a third and half of all patients succumb to metastatic disease, irrespective of whether they undergo primary treatment with plaque brachytherapy or surgical enucleation [2,3,4]. This may be explained by the early spread of small tumor deposits, known as micrometastases, from the eye to distant organs, primarily the liver [5]. Once these clusters of tumor cells evolve into larger, radiologically detectable masses, median survival is approximately one year [6]. Unlike cutaneous melanoma, treatments involving immune checkpoint and v-Raf murine sarcoma viral oncogene homolog B1 (BRAF) inhibition have shown limited efficacy in extending survival for those with metastasized uveal melanoma [7].
Since macrometastases are uncommon at diagnosis, predicting the prognosis for individual patients relies on clinical and histological aspects of the primary tumor [8]. These factors include tumor location, size, and configuration as well as tumor cell type and the presence of genetic mutations or chromosomal abnormalities [9]. Primary uveal melanomas consist of four cell types; normal, spindle A, spindle B, and epithelioid cells where the last-mentioned has lower expression levels of the BReast CAncer gene associated protein (BAP-1) [10]. The BAP-1 gene is located on chromosome 3p21.1 and is involved in epigenetic modulation of chromatin, DNA- and cell repair as well as tumor growth suppression [11,12,13]. It is one of the genes mutated in uveal melanoma, often occurring in later stages of the disease with low nuclear BAP immunoreactivity being significantly associated with a higher incidence of metastasis [14]. Inactivating mutations of BAP-1 have been associated with monosomy 3 where protein absence requires biallelic changes through the loss of a copy on chromosome 3 and mutations of the remaining copy [15]. Monosomy 3 is related to poor prognosis of uveal melanoma regarding survival after treatment, suggesting a potential tumor suppressing role of chromosome 3 [16]. Furthermore, there appears to be a correlation between BAP-1 inactivation and the presence of the epithelioid cell type in primary tumors where epithelioid-mixed cell types are associated with worse prognosis [15].

1.2. Melatonin

Melatonin is a hormone that has been found to have therapeutic benefits in patients with cancer [17]. The indoleamine is primarily produced in the pineal gland and secreted into the bloodstream and cerebrospinal fluid in the evening [18,19]. In addition to regulating the circadian rhythm, melatonin impacts several other bodily functions, has been described as a potent free radical scavenger and appears to aid in DNA repair [20,21]. Moreover, melatonin contributes to immune system enhancement through promotion of T-helper cells and regulation of the maturation of immune cells including T-, NK-, and B-cells [22]. When used as an adjuvant treatment for various types of cancer in previous studies, melatonin has been associated with inhibited tumor growth, increased one-year survival, and few side effects [23,24]. The hormone has been shown to have low toxicity on its own while reducing the toxicity of chemotherapy and radiotherapy treatments [24,25,26].

1.3. Melatonin Receptors

1.3.1. Melatonin Receptor Type 1A and Melatonin Receptor Type 1B

Melatonin impacts various processes in the human body primarily through two membrane receptors; melatonin receptor type 1A (MTNR1A) and melatonin receptor type 1B (MTNR1B) [27]. Both receptors are G-coupled receptor proteins widely expressed both centrally and peripherally throughout the human body and play a role in melatonin’s impact on physiological systems such as circadian rhythm, neurodevelopment, blood glucose regulation and the cardiovascular system [28,29]. In a study published in 2000, Roberts et al. identified the MTNR1B subtype, but not the MTNR1A subtype, in reverse-transcribed RNA obtained from normal uveal melanocytes as well as melanoma cell lines [30]. In the study, receptor agonists for both MTNR1A and MTNR1B as well as melatonin itself inhibited the growth of uveal melanoma cells at physiological concentrations, thereby suggesting a receptor-mediated mechanism for the inhibition of tumor cell growth [30]. MTNR1B appeared to be expressed to a larger extent in the cancerous cell lines compared to normal uveal melanocytes, though this observation was not specifically verified [30].

1.3.2. N-Ribosyldihydronicotinamide:Quinone Oxidoreductase 2

N-ribosyldihydronicotinamide:quinone oxidoreductase 2 (NQO2) presents a melatonin binding site known as MT3 and carries out two-electron reductions of, primarily, quinones [31,32]. Despite previously being considered a detoxifying enzyme, some studies suggest that NQO2 activation leads to the production of reactive oxygen species (ROS) and the enzyme has been found to be increased in some cancer cell lines [33,34]. Of note, the affinity of NQO2 to melatonin seems to be in the nanomolar range, however, melatonin appears to inhibit the enzyme within the micromolar range, where concentrations above 1 μM are considered pharmacological [32].

1.3.3. Retinoic Acid-Related Orphan Receptor Alpha

The retinoic acid-related orphan receptor alpha (RORα) is a nuclear receptor within the ROR family [35]. RORα has been found to play a role in the immune system by contributing to Th17 development and the generation of innate lymphoid cells [36,37]. It may also aid in the stabilization and transcription of p53 [38]. Several studies suggest that RORα expression is down-regulated during tumor development and progression, while exogenous RORα inhibits cell proliferation and tumor growth in colorectal, prostate and breast cancer [39,40,41]. Previous immunocytochemistry studies on human melanoma samples have demonstrated an association between increased melanin pigmentation and reduced expression of RORα [42]. Interestingly, vitamin D hydroxyderivatives can act as inverse agonists to the receptor and have been found to possess anti-melanoma properties and protective effects against oxidative stress and DNA damage as in the case of melatonin [43]. Whether a correlation between melatonin and the ROR family exists has been debated, however, one study, using crystallography and molecular modeling, indicated that melatonin is unlikely to function as an ROR ligand and is therefore not a melatonin receptor [44,45]. Despite this, specific intermediate steps enabling melatonin to indirectly regulate ROR expression and function have been confirmed [44].

1.3.4. G Protein-Coupled Receptor 50

GPR50 is a G protein-coupled receptor with the ability to heterodimerize with both MTNR1A and MTNR1B [46]. GPR50 does not seem to modify the function of MTNR1A but rather leads to an inhibition of the functional response of the receptor to stimulation by melatonin [46].

1.4. Aim of the Study

Past studies have demonstrated that melatonin inhibits growth of cultured human uveal melanoma cells, however the mechanism by which this occurs is not fully understood [47,48]. If melatonin influences the progression of uveal melanoma and slows the onset of macrometastases, one potential mechanism could be through binding melatonin receptors present in primary uveal melanoma cells. This study aimed to explore expression levels for melatonin receptors in primary uveal melanoma and investigate a potential correlation between receptor expression and the risk for uveal melanoma related mortality as well as other prognostic factors such as BAP1 expression, cell type, and monosomy 3. We examined the expression of melatonin receptors in uveal melanoma tumors from two separate cohorts and identified the presence of four receptors including the two main melatonin receptors MTNR1A and MTNR1B as well as RORα and NQO2. Higher levels of MTNR1A were found in patients who died of UM, however, Kaplan–Meier analysis showed no difference in the survival curves as they related to receptor expression in either cohort.

2. Results

2.1. Descriptive Statistics

Analyses of the distribution of melatonin receptor expression between males and females revealed no significant differences in immunohistochemical expression of MTNR1A or MTNR1B in neither the cytoplasm nor nuclei (Mann-Whitney U p > 0.20) in the St. Erik cohort. Similarly, there were no significant differences in the expression levels of RORα, NQO2, or GPR50 RNA between the sexes (Mann-Whitney U p > 0.68) in the TCGA cohort.

2.2. Melatonin Receptor Type 1A

MTNR1A was expressed in uveal melanoma tumors in both the St. Erik and the TCGA cohorts (Figure 1). However, no significant difference was seen in survival probability between patients in the TCGA cohort with MTNR1A RNA levels below vs. above the median TPM value or below vs. above 1 TPM. Similarly, no significant difference was seen in survival probability between patients in the St. Erik cohort with MTNR1A optical density (OD) values below vs. above the median. In the St. Erik cohort, slides were missing for one of the tumors resulting in a total of 46 tumors analyzed. As illustrated in Figure 2, the median MTNR1A OD was significantly higher in the cytoplasm compared to the nuclei (p < 0.001). There was also a higher MTNR1A OD in the cytoplasm of those who died from uveal melanoma compared to those who did not (Holm-Bonferroni corrected p = 0.004). No significant difference was seen between UM related death and nuclear MTNR1A OD (Table 1). In the TCGA cohort, MTNR1A RNA levels were significantly lower in tumors with BAP1 mutations (Holm-Bonferroni corrected p = 0.005) (Table 2C) while there was no correlation between MTNR1A RNA and cell type or Monosomy 3 (Table 2A,B).

2.3. Melatonin Receptor Type 1B

No tumors from the TCGA data expressed MTNR1B (Table 2). In the St. Erik cohort of 47 patients, expression levels were analyzed in the nuclei and cytoplasm of 45 tumor samples as the slides immunohistochemically stained for MTNR1B were missing for two patients. As in the case of MTNR1A, the median MTNR1B optical density (OD) was significantly higher in the cytoplasm compared to the nuclei (p < 0.001) as described in Figure 2. No significant difference was seen between receptor expression and survival probability. Similarly, no correlation was observed between UM related death and OD levels in the cytoplasm or nucleus (Figure 3, Table 1).

2.4. N-Ribosyldihydronicotinamide:Quinone Oxidoreductase 2

The median NQO2 RNA expression levels for the 80 tumors in the TCGA data was 36.37 TPM. There was no correlation between receptor expression and survival probability (Figure A1). NQO2 RNA expression was higher in patients with epithelioid tumors compared to those with either spindle or mixed cell types (p = 0.01); however, after the Holm–Bonferroni correction, the result was no longer significant (corrected p = 0.05), as described in Table 2A. Similarly, when comparing NQO2 RNA expression levels across the three separate cell types, i.e., epithelioid, spindle and mixed, using the Kruskal–Wallis test, the original p value was significant (p = 0.0468) while the Holm–Bonferroni corrected p value was not (corrected p = 0.234). No other correlation was noted for other prognostic factors (Table 2B,C).

2.5. Retinoic Acid-Related Orphan Receptor Alpha

The median RNA expression level of RORα among the 80 tumors in the TCGA cohort was 0.66 TPM. Twenty-five patients had an RNA expression level equal to or above 1 TPM while 55 patients had an expression level below 1 TPM. No correlation between expression and survival probability or prognostic factors was noted (Figure A2, Table 2).

2.6. G Protein-Coupled Receptor 50

No tumors from the TCGA data expressed GPR50, i.e., the median expression level was 0 TPM with no tumors having a mean RNA expression level over 1 TPM (Table 2, Figure A3). There were therefore no observed correlations to UM survival or any of the included prognostic factors).

3. Materials and Methods

3.1. Patients and Samples

In order to determine expression levels of melatonin receptors in uveal melanoma, data were collected from both The Cancer Genome Atlas (TCGA) as well as from immunohistochemically stained tissues from the ocular pathology archive at St. Erik Eye Hospital in Stockholm, Sweden (Table 3). Within the Swedish population of 10 million, all uveal melanomas are diagnosed at this hospital, allowing access to extensive clinical and survival data with minimal loss to follow-up. St. Erik Eye Hospital is also the nation’s only laboratory for ocular pathology, with an extensive archive of almost all eyes and periocular tissues that have been surgically removed and examined since the 1960’s.
Fourty-eight eyes with uveal melanoma, enucleated between the years 2000–2008, were collected from the archives of the St. Erik Ophthalmic Pathology Laboratory for this study after obtaining approval from the Swedish Ethical Review Authority (year 2024, reference number 2024-00295-02). One eye was later excluded as medical records revealed the tumor originated from the conjunctiva. Formalin-fixed paraffin-embedded tissue from the enucleated eyes were sectioned and stained on a BOND III IHC stainer by biomedical analysts using mouse monoclonal antibodies to detect melatonin receptor 1A (NBP3-03633, Novus Biologicals, Centennial, CO, USA) and melatonin receptor 1B (NLS932, Novus Biologicals, Centennial, CO, USA). The hematoxylin-stained tissue sections were then digitally scanned using a Grundium Ocus 40 digital slide scanner (Grundium Oy, Tampere, Finland). Mean levels of immunohistochemical expression of MTNR1A and MTNR1B across all tumor cells, as determined by their staining intensity, were quantified using optical density (OD) in bioimage analysis (MTNR1A OD, MTNR1B OD). This was done using the program QuPath Bioimage analysis v. 0.4.1 m4 as illustrated in Figure 4 [49]. In QuPath, mean DAB (3,3′-diaminobenzidine) staining intensities were calculated from the sectioned and stained primary uveal melanoma tissue where DAB indicated the presence of the melatonin receptors. Cells which only revealed the background hematoxylin staining were considered negative. Calibration was performed by manually selecting a positive and negative cell. After calibration, three circular sections, 500 μm in diameter, were selected for analysis using the positive cell detection feature in QuPath which can further separate the nucleus from the cytoplasm in each cell. From this analysis, the mean staining intensity in both the nucleus and cytoplasm for the cells in the entire selected area were calculated and documented for each tumor.
Clinicopathological patient follow-up data including information regarding potential metastasis and cause of death was collected from patient charts and treatment registers (Table 3).
Data was also gathered from a second cohort comprised of 80 uveal melanoma patients from TCGA via the National Cancer Institute, National Institutes of Health, USA (Table 1). The 2017 publication by Robertson et al. provided anonymized patient and tumor information, including whole exome sequencing results, in the Appendix A [50]. This information was downloaded to evaluate RNA sequencing data, measured in transcripts per million (TPM), for the receptors MTNR1A, MTNR1B, RORα, GPR50, and NQO2, and its relation to UM-related death and prognostic factors including tumor cell type, BAP1 mutation, and monosomy 3. Clinical information as well as pathology data regarding these prognostic factors were also obtained from TCGA for all 80 patients.

3.2. Statistical Methods

To compare potential differences in receptor expression as it correlated to uveal melanoma related death, BAP1 mutation, monosomy 3 as well as tumor cell type, two-tailed Mann-Whitney U tests were employed using GraphPad Prism, version 10.1.1 (GraphPad Software, Boston, MA, USA). When making multiple comparisons, in the case of RNA expression levels across three tumor cell types, i.e., epithelioid, spindle and mixed, the Kruskal-Wallis test was employed. For the TCGA cohort, the sample size was 80 patients for analysis of all five receptors and for the St. Erik cohort 46 and 45 samples were analyzed for MTNR1A and MTNR1B respectively. Kaplan–Meier survival probability curves were plotted for patients when applicable using R, version 4.3.2 (R Core Team, Vienna, Austria), including the survival, survminer, ggplot2 and extrafont packages. For the St. Erik cohort, Kaplan–Meier curves were plotted for MTNR1A expression levels in the nucleus and cytoplasm of 46 tumor samples with a cut off below or above the median OD value. Similarly, for MTNR1B, Kaplan–Meier curves were plotted for expression levels in the nucleus and cytoplasm of 45 tumor samples. The difference in mean MTNR1A OD and MTNR1B OD in the nuclei and cytoplasm of the stained tumor tissue was determined for patients who died a UM related death and those who did not. To evaluate expression level significance, tumors with a mean MTNR1A OD or MTNR1B OD above the median value were compared with tumors with a mean MTNR1A OD or MTNR1B OD equal to or smaller than the median value.
Tumors from the TCGA cohort (n = 80) were considered to express the respective receptors if the mean RNA expression value was above 1 TPM (transcript per million). Note, the cutoff of 1 TPM for expression was arbitrarily chosen, as used in previous research [50]. No analyses in relation to the 1 TPM cutoff were conducted for MTNR1B RNA and GPR50 RNA considering that all tumors had TPM of less than 1. Similarly, the 1 TPM cutoff was not used for NQO2 as all tumors had TPM of more than 1 and analysis comparing groups above or below the cut off of 1 TPM would not be possible. Median TPM values were used as a cutoff in additional analyses for expression levels of MTNR1A RNA, NQO2 RNA, and RORα RNA obtained via the TCGA. This was not done for MTNR1B RNA or GPR50 RNA as they had a median value of 0.
Differences were considered significant when p < 0.05 and corrected p values were calculated using the Holm-Bonferroni method to limit error due to multiple comparisons for each cohort and prognostic factor. In other words, in the TCGA cohort (n = 80), the Holm-Bonferroni method was used to compare the five separate p values obtained for MTNR1A, MTNR1B, GPR50, RORα for each prognostic factor (i.e., epithelioid or non-epithelioid cell type, Monosomy 3 or Disomy 3, and BAP1 mutation or wildtype. In the St. Erik cohort, the Holm-Bonferroni correction was used for the p values obtained for MTNR1A OD (n = 46) and MTNR1B OD (n = 45) in the cytoplasm and nucleus as they related to patients who did or did not experience a UM-related death. Note that, in the results tables, p values greater than or equal to 0.05 are labeled non-significant (ns), p values less than 0.05 are labeled with *, p values less than 0.01 are labeled with **, and p values less than 0.001 are labeled with ***.

4. Discussion

4.1. Main Findings

The objective of this research was to assess the expression levels of melatonin receptors in primary uveal melanoma and explore potential associations between receptor expression and the likelihood of uveal melanoma-related mortality. A key finding of this study is the presence of MTNR1A expression in uveal melanoma tumors in both the St. Erik and the TCGA cohorts. This, to the knowledge of the authors, is the first investigation of MTNR1A in human uveal melanoma tissue. As mentioned, one previous study has found the expression of MTNR1B in a uveal melanoma cell line [30]. The current study confirms this earlier finding. In the St. Erik cohort, these main melatonin receptors were minimally expressed, however, the mean value for staining intensity in the cytoplasm was significantly higher than in the nuclei (p < 0.0001) for both MTNR1A OD and MTNR1B OD. This likely corresponds to the fact that both receptors are transmembrane receptors and therefore positioned closer to the cytoplasm compared to the nucleus [51].
MTNR1A OD levels in the cytoplasm of UM cells were significantly higher in patients who died of UM compared to those who did not. Other studies investigating immunohistochemically stained tissues from other cancer types have found similar results with higher levels of MTNR1A in the tumors of patients with more advanced stages and worse prognosis [52,53]. One hypothesis for this observation, mentioned by Wang et al., is that melatonin levels appear to be lower in cancer patients compared to healthy individuals and even lower in those with more advanced cancer stages. This may in turn trigger a feedback mechanism where melatonin receptor expression is upregulated leading to increased levels of MTNR1A [52].
Nevertheless, our results showed no difference in receptor expression levels in more aggressive tumors compared to less aggressive tumors, as illustrated by the Kaplan–Meier analyses for both the St. Erik and TCGA cohorts. However, in our study, expression levels were based on IHC staining intensities for the St. Erik cohort and RNA sequencing data for the TCGA cohort, therefore, these results should be confirmed in future studies which look at protein expression specifically. Moreover, as the overall expression of MTNR1A in UM cells was relatively low, it is difficult to draw specific conclusions regarding this finding. Furthermore, tumors with the BAP1 mutations in the TCGA cohort had significantly lower MTNR1A RNA expression levels (Holm–Bonferroni corrected p = 0.005). This is, however, a preliminary result which should be investigated further.
The current study also confirms the presence of RORα and NQO2 in uveal melanoma cells. While little is known about the physiologic effect of these receptors in uveal melanocyte homeostasis, their very presence in melanoma cells leaves room for potential involvement in the anti-cancer mechanisms of melatonin. NQO2 has been discussed in various models for cancer pathogenesis, and thus, has been considered a potential anti-cancer drug target [34]. Our study found NQO2 expression to be higher in patients with epithelioid tumors (p = 0.01), though the Holm–Bonferroni corrected p value was not significant (p = 0.05). Some previous studies have shown that higher levels of NQO2 may be associated with a poorer prognosis in non-small cell lung cancer, where the levels seem to be even higher in patients at a later stage of disease [34,54]. Since the epithelioid cell type is associated with worse prognosis, increased NQO2 expression in this group seems plausible. This is complicated by the ambivalent nature of NQO2 described in the literature. While earlier research highlights NQO2 as a detoxifying molecule, newer findings imply NQO2 is a mediator of increased ROS production and cytotoxicity. It is possible that the degree to which the molecule exerts either role is dependent on tumor stage and polymorphisms [55]. Melatonin was previously demonstrated to inhibit NQO2 at pharmacological concentrations [56]. While this study did not find a difference in survival between NQO2 expressing and non-expressing tumors, it is possible to hypothesize that the inhibitory effect is absent in uveal melanoma at endogenous melatonin concentrations. Future studies in patients using melatonin as an adjuvant treatment might shed light on this theory.
As for RORα, while not a receptor for melatonin, it has been shown that melatonin treatment correlates with increased RORα expression [44]. While survival was independent of RORα expression in the current study, RORα-related anti-tumor mechanisms could potentially be amplified via melatonin at therapeutic doses.
Lastly, while not a direct receptor for melatonin, earlier research suggests that GPR50 modulates the function of MTNR1A, which in turn inhibits the response of MTNR1A to binding by melatonin [46]. No tumors expressed GPR50 in this study, however, considering the potential role of MTNR1A in tumor suppression based on previous research, future studies investigating GPR50 may be of value.

4.2. Context

As previously stated, an earlier study found that MTNR1A and MTNR1B agonists as well as melatonin had a beneficial effect on uveal melanoma cells [30]. We have shown the presence of melatonin receptor expression in uveal melanoma, offering a potential mechanism for melatonin’s oncostatic properties. While this study did not show a clear correlation between melatonin receptor expression levels and survival in uveal melanoma patients, future studies investigating protein expression specifically should be performed to confirm these results. It is possible that melatonin exerts its potential anticancer effects via (1) its receptors at pharmacological doses rather than physiological doses, and (2) mechanisms independent of direct receptor-mediated signaling in tumor cells. One aspect to consider in future studies is the impact of varying pigmentation levels of melanin as it relates to melatonin receptor expression, considering the potential of pigmentation levels as an additional prognostic factor for UM [57].

4.3. Strengths and Limitations

This research involved data collection from two retrospective cohorts, which could potentially introduce biases associated with patient selection as well as the accuracy of the data. This restricts our capacity to draw conclusions regarding causal relationships. Selection bias could be present as the patients included in this study have undergone enucleation, the primary treatment option for larger and more advanced tumors, therefore, they may have a more aggressive variant compared to the general population of patients with UM. Another limitation is that this study did not examine aryl hydrocarbon receptor (AhR) or peroxisome proliferator-activated receptor gamma (PPARg), two newly identified nuclear melatonin receptors [58]. Additionally, this study did not examine all potential tumor-related effects of melatonin, as it is a molecule with many binding sites and diverse impacts. Furthermore, the phenotypic effects of melatonin are not necessarily mediated by melatonin itself but can also be mediated by its downstream metabolites [59]. One should also take into consideration the inherent limitations of immunohistochemistry which was used to analyze the uveal melanoma tissue from the St. Erik cohort. While IHC is a commonly used technique worldwide, the method is restricted concerning reproducibility, sensitivity, and specificity. Furthermore, receptor expression in the TCGA cohort was analyzed using RNA sequencing data measured in TPM. While TPM measurements provide insights into gene expression at the transcript level, they have limitations when inferring exact protein expression levels. It would, therefore, be of interest to confirm our results with future studies which address protein expression specifically. Lastly, while this study evaluates the expression of melatonin receptors in uveal melanoma tissue, it does not investigate their functional significance or downstream effects following activation or inhibition by melatonin. Additional studies are needed to determine potential biological implications of the observed receptor expression levels.

5. Conclusions

In conclusion, our findings confirm the presence of melatonin receptor expression in uveal melanoma tumors. Future studies should confirm the protein expression of these receptors, which may provide sites for melatonin’s binding or indirect impact.

Author Contributions

Conceptualization, A.H. and G.S.; methodology, E.L., A.H. and G.S.; validation, R.K.O., H.W. and O.A.; formal analysis, A.H. and G.S.; investigation, E.L., A.H. and G.S.; resources, A.H. and G.S.; data curation, O.A., A.H. and G.S.; writing—original draft preparation, A.H., R.K.O. and H.W.; writing—review and editing, R.K.O., H.W., O.A. and G.S.; visualization, A.H. and G.S.; supervision, G.S.; project administration, G.S.; funding acquisition, G.S. All authors have read and agreed to the published version of the manuscript.

Funding

Support for this study was provided to Gustav Stålhammar from: Region Stockholm (RS-2019-1138). The Swedish Cancer Society (20 0798 Fk). The Crown Princess Margareta Foundation for the Visually Impaired (2022-017). Karolinska Institutet (2022-01671). The Swedish Eye Foundation (2022-05-09). The sponsors and funding organizations had no role in the design or conduct of this study.

Institutional Review Board Statement

This study was approved by the Swedish Ethical Review Authority (Reference number 2024-00295-02) and adhered to the tenets of the Declaration of Helsinki.

Informed Consent Statement

Informed consent from the patients in the St. Erik cohort was waived as all included patients were deceased. Data from The Cancer Genome Atlas (TCGA) are de-identified and openly available in the public domain.

Data Availability Statement

The raw, anonymized data from the St. Erik cohort supporting the conclusions of this article will be made available by the authors on request. Data from the TCGA cohort are openly available at https://www.cancer.gov/tcga, accessed on 4 May 2023.

Acknowledgments

The findings presented in this article partially rely on information produced by the TCGA Research Network, available at https://www.cancer.gov/tcga, accessed on 4 May 2023.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Ijms 25 08711 g0a1
Figure A1. Kaplan–Meier survival curve and scatter plots for NQO2 expression (TCGA cohort). (A) Survival curve comparing incidence of UM-related death in those with an NQO2 RNA expression above or below the median TPM value (p = 0.20), n = 80. (B) Scatter plot comparing NQO2 RNA expression in patient tumors with disomy 3 or monosomy 3. (C) Scatter plot comparing NQO2 RNA expression in patients with tumors of an epithelioid cell type compared to other cell types (p = 0.0124). (D) Scatter plot comparing NQO2 RNA expression in patients with the BAP1 wild type or BAP1 mutation. Colored fields on the Kaplan–Meier curve indicate 95% confidence intervals. ns = not significant.
Figure A1. Kaplan–Meier survival curve and scatter plots for NQO2 expression (TCGA cohort). (A) Survival curve comparing incidence of UM-related death in those with an NQO2 RNA expression above or below the median TPM value (p = 0.20), n = 80. (B) Scatter plot comparing NQO2 RNA expression in patient tumors with disomy 3 or monosomy 3. (C) Scatter plot comparing NQO2 RNA expression in patients with tumors of an epithelioid cell type compared to other cell types (p = 0.0124). (D) Scatter plot comparing NQO2 RNA expression in patients with the BAP1 wild type or BAP1 mutation. Colored fields on the Kaplan–Meier curve indicate 95% confidence intervals. ns = not significant.
Ijms 25 08711 g0a1
Ijms 25 08711 g0a2

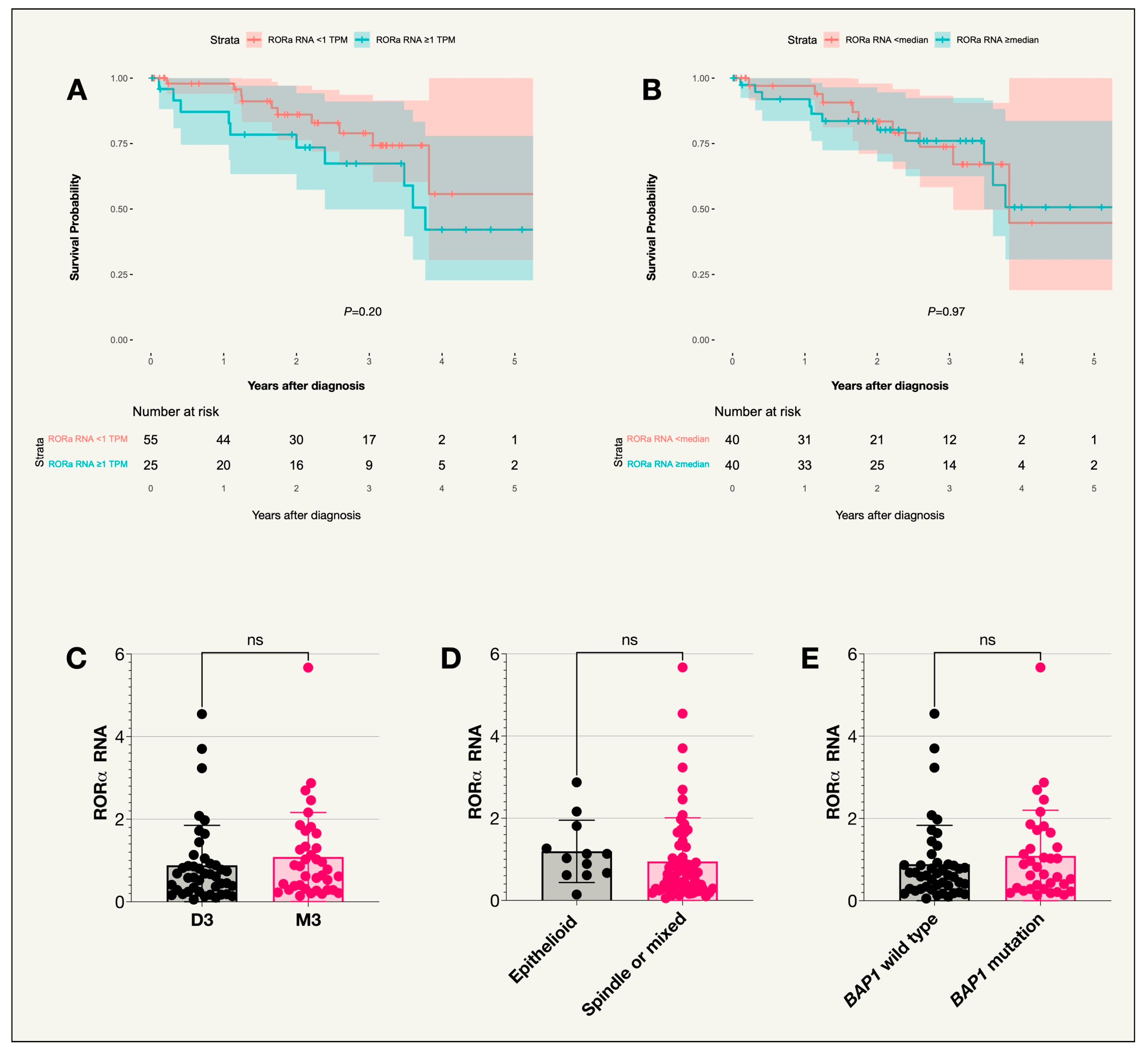

Figure A2. Kaplan–Meier survival curve and scatter plots for RORα expression (TCGA cohort). (A) Survival curve comparing incidence of UM-related death in those with RORα RNA expression above or below 1 TPM (transcripts per million) (p = 0.20), n = 80. (B) Survival curve comparing incidence of UM-related death in those with RORα RNA expression above or below the median value (p = 0.97), n = 80. (C) Scatter plot comparing RORα RNA expression in patient tumors with disomy 3 or monosomy 3. (D) Scatter plot comparing RORα RNA expression in patients with tumors of an epithelioid cell type compared to other cell types (spindle or mixed). (E) Scatter plot comparing RORα RNA expression in patients with the BAP1 wild type or BAP1 mutation. Colored fields on the Kaplan–Meier curve indicate 95% confidence intervals. ns = not significant.
Figure A2. Kaplan–Meier survival curve and scatter plots for RORα expression (TCGA cohort). (A) Survival curve comparing incidence of UM-related death in those with RORα RNA expression above or below 1 TPM (transcripts per million) (p = 0.20), n = 80. (B) Survival curve comparing incidence of UM-related death in those with RORα RNA expression above or below the median value (p = 0.97), n = 80. (C) Scatter plot comparing RORα RNA expression in patient tumors with disomy 3 or monosomy 3. (D) Scatter plot comparing RORα RNA expression in patients with tumors of an epithelioid cell type compared to other cell types (spindle or mixed). (E) Scatter plot comparing RORα RNA expression in patients with the BAP1 wild type or BAP1 mutation. Colored fields on the Kaplan–Meier curve indicate 95% confidence intervals. ns = not significant.
Ijms 25 08711 g0a2
Ijms 25 08711 g0a3

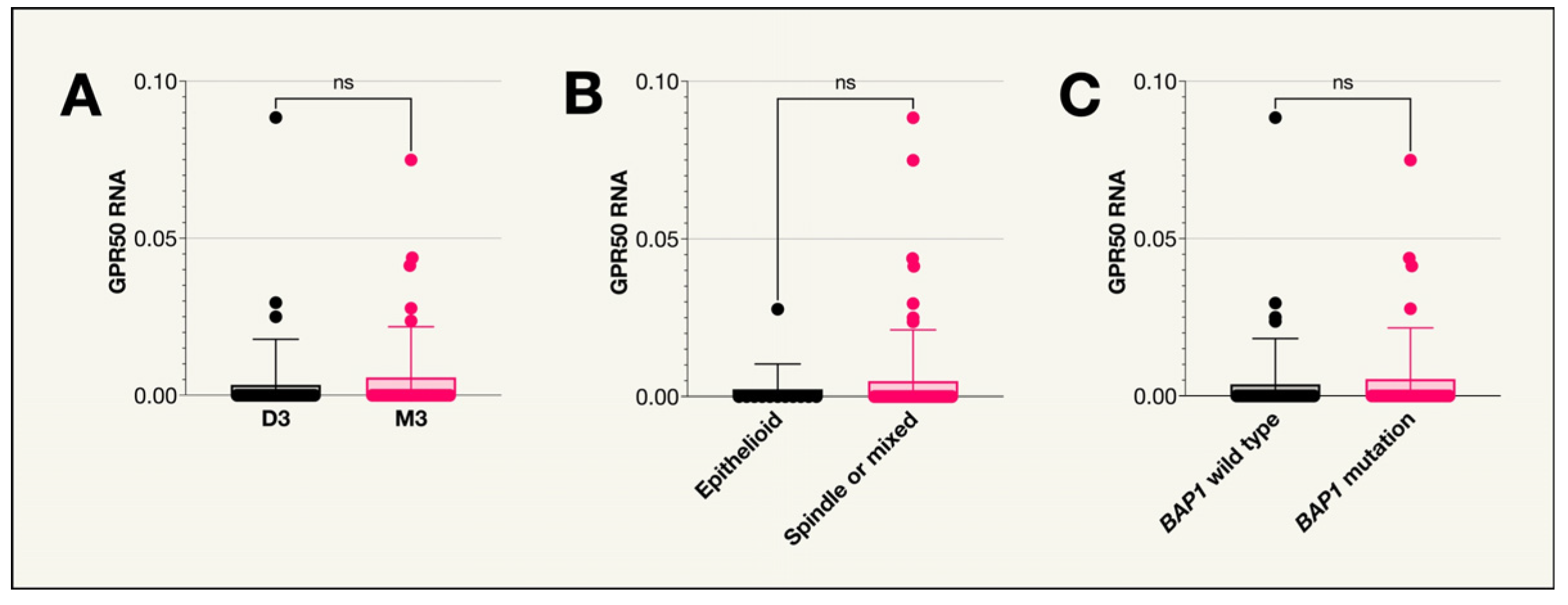

Figure A3. Scatter plots for GPR50 expression (TCGA cohort). (A) Scatter plot comparing GPR50 RNA expression in patient tumors with disomy 3 or monosomy 3. (B) Scatter plot comparing GPR50 RNA expression in patients with tumors of an epithelioid cell type compared to other cell types. (C) Scatter plot comparing GPR50 RNA expression in patients with the BAP1 wild type or BAP1 mutation. ns = not significant.
Figure A3. Scatter plots for GPR50 expression (TCGA cohort). (A) Scatter plot comparing GPR50 RNA expression in patient tumors with disomy 3 or monosomy 3. (B) Scatter plot comparing GPR50 RNA expression in patients with tumors of an epithelioid cell type compared to other cell types. (C) Scatter plot comparing GPR50 RNA expression in patients with the BAP1 wild type or BAP1 mutation. ns = not significant.
Ijms 25 08711 g0a3

References

  1. Singh, A.D.; Turell, M.E.; Topham, A.K. Uveal Melanoma: Trends in Incidence, Treatment, and Survival. Ophthalmology 2011, 118, 1881–1885. [Google Scholar] [CrossRef]
  2. Stålhammar, G. Forty-year prognosis after plaque brachytherapy of uveal melanoma. Sci. Rep. 2020, 10, 11297. [Google Scholar] [CrossRef]
  3. Kujala, E.; Mäkitie, T.; Kivelä, T. Very Long-Term Prognosis of Patients with Malignant Uveal Melanoma. Investig. Opthalmol. Vis. Sci. 2003, 44, 4651. [Google Scholar] [CrossRef]
  4. COMS. The COMS Randomized Trial of Iodine 125 Brachytherapy for Choroidal Melanoma: V. Twelve-Year Mortality Rates and Prognostic Factors: COMS Report No. 28. Arch. Ophthalmol. 2006, 124, 1684–1693. [Google Scholar] [CrossRef]
  5. Eskelin, S.; Pyrhönen, S.; Summanen, P.; Hahka-Kemppinen, M.; Kivelä, T. Tumor doubling times in metastatic malignant melanoma of the uvea: Tumor progression before and after treatment. Ophthalmology 2000, 107, 1443–1449. [Google Scholar] [CrossRef] [PubMed]
  6. Carvajal, R.D.; Schwartz, G.K.; Tezel, T.; Marr, B.; Francis, J.H.; Nathan, P.D. Metastatic disease from uveal melanoma: Treatment options and future prospects. Br. J. Ophthalmol. 2017, 101, 38–44. [Google Scholar] [CrossRef] [PubMed]
  7. Heppt, M.V.; Steeb, T.; Schlager, J.G.; Rosumeck, S.; Dressler, C.; Ruzicka, T.; Nast, A.; Berking, C. Immune checkpoint blockade for unresectable or metastatic uveal melanoma: A systematic review. Cancer Treat Rev. 2017, 60, 44–52. [Google Scholar] [CrossRef] [PubMed]
  8. Shields, C.L.; Say, E.A.T.; Hasanreisoglu, M.; Saktanasate, J.; Lawson, B.M.; Landy, J.E.; Badami, A.U.; Sivalingam, M.D.; Mashayekhi, A.; Shields, J.A.; et al. Cytogenetic Abnormalities in Uveal Melanoma Based on Tumor Features and Size in 1059 Patients: The 2016 W. Richard Green Lecture. Ophthalmology 2017, 124, 609–618. [Google Scholar] [CrossRef]
  9. Herrspiegel, C.; See, T.R.O.; Mendoza, P.R.; Grossniklaus, H.E.; Stålhammar, G. Digital morphometry of tumor nuclei correlates to BAP-1 status, monosomy 3, gene expression class and survival in uveal melanoma. Exp. Eye Res. 2020, 193, 107987. [Google Scholar] [CrossRef]
  10. Stålhammar, G.; Gill, V.T. Digital morphometry and cluster analysis identifies four types of melanocyte during uveal melanoma progression. Commun. Med. 2023, 3, 60. [Google Scholar] [CrossRef]
  11. Scheuermann, J.C.; de Ayala Alonso, A.G.; Oktaba, K.; Ly-Hartig, N.; McGinty, R.K.; Fraterman, S.; Wilm, M.; Muir, T.W.; Müller, J. Histone H2A deubiquitinase activity of the Polycomb repressive complex. Nature 2010, 465, 243–247. [Google Scholar] [CrossRef]
  12. Farmer, H.; McCabe, N.; Lord, C.J.; Tutt, A.N.J.; Johnson, D.A.; Richardson, T.B.; Santarosa, M.; Dillon, K.J.; Hickson, I.; Knights, C.; et al. Targeting the DNA repair defect in BRCA mutant cells as a therapeutic strategy. Nature 2005, 434, 917–921. [Google Scholar] [CrossRef] [PubMed]
  13. Jensen, D.E.; Proctor, M.; Marquis, S.T.; Gardner, H.P.; Ha, S.I.; Chodosh, L.A.; Ishov, A.M.; Tommerup, N.; Vissing, H.; Sekido, Y.; et al. BAP1: A novel ubiquitin hydrolase which binds to the BRCA1 RING finger and enhances BRCA1-mediated cell growth suppression. Oncogene 1998, 16, 1097–1112. [Google Scholar] [CrossRef] [PubMed]
  14. Szalai, E.; Wells, J.R.; Ward, L.; Grossniklaus, H.E. Uveal Melanoma Nuclear BRCA1-Associated Protein-1 Immunoreactivity Is an Indicator of Metastasis. Ophthalmology 2018, 125, 203–209. [Google Scholar] [CrossRef]
  15. Koopmans, A.E.; Verdijk, R.M.; Brouwer, R.W.W.; van den Bosch, T.P.P.; van den Berg, M.M.P.; Vaarwater, J.; Kockx, C.E.; Paridaens, D.; Naus, N.C.; Nellist, M.; et al. Clinical significance of immunohistochemistry for detection of BAP1 mutations in uveal melanoma. Mod. Pathol. 2014, 27, 1321–1330. [Google Scholar] [CrossRef] [PubMed]
  16. Prescher, G.; Bornfeld, N.; Hirche, H.; Horsthemke, B.; Jöckel, K.H.; Becher, R. Prognostic implications of monosomy 3 in uveal melanoma. Lancet 1996, 347, 1222–1225. [Google Scholar] [CrossRef] [PubMed]
  17. Gonzalez, R.; Sanchez, A.; Ferguson, J.A.; Balmer, C.; Daniel, C.; Cohn, A.; Robinson, W.A. Melatonin therapy of advanced human malignant melanoma. Melanoma Res. 1991, 1, 237–244. [Google Scholar] [CrossRef] [PubMed]
  18. Claustrat, B.; Leston, J. Melatonin: Physiological effects in humans. Neurochirurgie 2015, 61, 77–84. [Google Scholar] [CrossRef]
  19. Tricoire, H.; Møller, M.; Chemineau, P.; Malpaux, B. Origin of cerebrospinal fluid melatonin and possible function in the integration of photoperiod. Reprod. Suppl. 2003, 61, 311–321. [Google Scholar] [CrossRef]
  20. Majidinia, M.; Sadeghpour, A.; Mehrzadi, S.; Reiter, R.J.; Khatami, N.; Yousefi, B. Melatonin: A pleiotropic molecule that modulates DNA damage response and repair pathways. J. Pineal. Res. 2017, 63, e12416. [Google Scholar] [CrossRef]
  21. Tan, D.X.; Reiter, R.J.; Manchester, L.C.; Yan, M.T.; El-Sawi, M.; Sainz, R.M.; Mayo, J.C.; Kohen, R.; Allegra, M.; Hardeland, R. Chemical and Physical Properties and Potential Mechanisms: Melatonin as a Broad Spectrum Antioxidant and Free Radical Scavenger. Curr. Top. Med. Chem. 2002, 2, 181–197. [Google Scholar] [CrossRef]
  22. Miller, S.C.; Pandi, P.S.R.; Esquifino, A.I.; Cardinali, D.P.; Maestroni, G.J.M. The role of melatonin in immuno-enhancement: Potential application in cancer. Int. J. Exp. Pathol. 2006, 87, 81–87. [Google Scholar] [CrossRef]
  23. Lissoni, P.; Barni, S.; Ardizzoia, A.; Tancini, G.; Conti, A.; Maestroni, G. A randomized study with the pineal hormone melatonin versus supportive care alone in patients with brain metastases due to solid neoplasms. Cancer 1994, 73, 699–701. [Google Scholar] [CrossRef]
  24. Lissoni, P.; Meregalli, S.; Nosetto, L.; Barni, S.; Tancini, G.; Fossati, V.; Maestroni, G. Increased Survival Time in Brain Glioblastomas by a Radioneuroendocrine Strategy with Radiotherapy plus Melatonin Compared to Radiotherapy Alone. Oncology 1996, 53, 43–46. [Google Scholar] [CrossRef]
  25. Lissoni, P.; Barni, S.; Mandalà, M.; Ardizzoia, A.; Paolorossi, F.; Vaghi, M.; Longarini, R.; Malugani, F.; Tancini, G. Decreased toxicity and increased efficacy of cancer chemotherapy using the pineal hormone melatonin in metastatic solid tumour patients with poor clinical status. Eur. J. Cancer 1999, 35, 1688–1692. [Google Scholar] [CrossRef]
  26. Mills, E.; Wu, P.; Seely, D.; Guyatt, G. Melatonin in the treatment of cancer: A systematic review of randomized controlled trials and meta-analysis. J. Pineal. Res. 2005, 39, 360–366. [Google Scholar] [CrossRef]
  27. Zlotos, D.P. Recent progress in the development of agonists and antagonists for melatonin receptors. Curr. Med. Chem. 2012, 19, 3532–3549. [Google Scholar] [CrossRef]
  28. Hagström, A.; Kal Omar, R.; Williams, P.A.; Stålhammar, G. The rationale for treating uveal melanoma with adjuvant melatonin: A review of the literature. BMC Cancer 2022, 22, 398. [Google Scholar] [CrossRef]
  29. Dubocovich, M.L.; Delagrange, P.; Krause, D.N.; Sugden, D.; Cardinali, D.P.; Olcese, J. International Union of Basic and Clinical Pharmacology. LXXV. Nomenclature, classification, and pharmacology of G protein-coupled melatonin receptors. Pharmacol. Rev. 2010, 62, 343–380. [Google Scholar] [CrossRef]
  30. Roberts, J.E.; FWiechmann, A.; Hu, D.N. Melatonin receptors in human uveal melanocytes and melanoma cells. J. Pineal. Res. 2000, 28, 165–171. [Google Scholar] [CrossRef]
  31. Zhao, Q.; Yang, X.L.; Holtzclaw, W.D.; Talalay, P. Unexpected genetic and structural relationships of a long-forgotten flavoenzyme to NAD(P)H:quinone reductase (DT-diaphorase). Proc. Natl. Acad. Sci. USA 1997, 94, 1669–1674. [Google Scholar] [CrossRef]
  32. Calamini, B.; Santarsiero, B.D.; Boutin, J.A.; Mesecar, A.D. Kinetic, thermodynamic and X-ray structural insights into the interaction of melatonin and analogues with quinone reductase 2. Biochem. J. 2008, 413, 81–91. [Google Scholar] [CrossRef]
  33. Reybier, K.; Perio, P.; Ferry, G.; Bouajila, J.; Delagrange, P.; Boutin, J.A.; Nepveu, F. Insights into the redox cycle of human quinone reductase 2. Free Radic. Res. 2011, 45, 1184–1195. [Google Scholar] [CrossRef]
  34. Lozinskaya, N.A.; Bezsonova, E.N.; Dubar, M.; Melekhina, D.D.; Bazanov, D.R.; Bunev, A.S.; Grigor’eva, O.B.; Klochkov, V.G.; Sokolova, E.V.; Babkov, D.A.; et al. 3-Arylidene-2-oxindoles as Potent NRH:Quinone Oxidoreductase 2 Inhibitors. Molecules 2023, 28, 1174. [Google Scholar] [CrossRef]
  35. Giguère, V.; Tini, M.; Flock, G.; Ong, E.; Evans, R.M.; Otulakowski, G. Isoform-specific amino-terminal domains dictate DNA-binding properties of ROR alpha, a novel family of orphan hormone nuclear receptors. Genes Dev. 1994, 8, 538–553. [Google Scholar] [CrossRef]
  36. Jetten, A.M. Immunology: A helping hand against autoimmunity. Nature 2011, 472, 421–422. [Google Scholar] [CrossRef]
  37. Halim, T.Y.F.; MacLaren, A.; Romanish, M.T.; Gold, M.J.; McNagny, K.M.; Takei, F. Retinoic-acid-receptor-related orphan nuclear receptor alpha is required for natural helper cell development and allergic inflammation. Immunity 2012, 37, 463–474. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, Y.; Solt, L.A.; Kojetin, D.J.; Burris, T.P. Regulation of p53 stability and apoptosis by a ROR agonist. PLoS ONE 2012, 7, e34921. [Google Scholar] [CrossRef]
  39. Kottorou, A.E.; Antonacopoulou, A.G.; Dimitrakopoulos, F.I.; Tsamandas, A.C.; Scopa, C.D.; Petsas, T.; Kalofonos, H.P. Altered expression of NFY-C and RORA in colorectal adenocarcinomas. Acta Histochem. 2012, 114, 553–561. [Google Scholar] [CrossRef] [PubMed]
  40. Moretti, R.M.; Marelli, M.M.; Motta, M.; Polizzi, D.; Monestiroli, S.; Pratesi, G.; Limonta, P. Activation of the orphan nuclear receptor RORalpha induces growth arrest in androgen-independent DU 145 prostate cancer cells. Prostate 2001, 46, 327–335. [Google Scholar] [CrossRef] [PubMed]
  41. Du, J.; Xu, R. RORα, a potential tumor suppressor and therapeutic target of breast cancer. Int. J. Mol. Sci. 2012, 13, 15755–15766. [Google Scholar] [CrossRef]
  42. Brożyna, A.; Jóźwicki, W.; Skobowiat, C.; Jetten, A.; Slominski, A. RORα and RORγ expression inversely correlates with human melanoma progression. Oncotarget 2016, 7, 63261–63282. [Google Scholar] [CrossRef] [PubMed]
  43. Slominski, R.M.; Kim, T.-K.; Janjetovic, Z.; Brożyna, A.A.; Podgorska, E.; Dixon, K.M.; Mason, R.S.; Tuckey, R.C.; Sharma, R.; Crossman, D.K.; et al. Malignant Melanoma: An Overview, New Perspectives, and Vitamin D Signaling. Cancers 2024, 16, 2262. [Google Scholar] [CrossRef] [PubMed]
  44. Ma, H.; Kang, J.; Fan, W.; He, H.; Huang, F. ROR: Nuclear Receptor for Melatonin or Not? Molecules 2021, 26, 2693. [Google Scholar] [CrossRef] [PubMed]
  45. Slominski, R.M.; Reiter, R.J.; Schlabritz-Loutsevitch, N.; Ostrom, R.S.; Slominski, A.T. Melatonin membrane receptors in peripheral tissues: Distribution and functions. Mol. Cell. Endocrinol. 2012, 351, 152–166. [Google Scholar] [CrossRef] [PubMed]
  46. Levoye, A.; Dam, J.; Ayoub, M.A.; Guillaume, J.L.; Couturier, C.; Delagrange, P.; Jockers, R. The orphan GPR50 receptor specifically inhibits MT1 melatonin receptor function through heterodimerization. EMBO J. 2006, 25, 3012–3023. [Google Scholar] [CrossRef] [PubMed]
  47. Hu, D.N.; Roberts, J.E. Melatonin inhibits growth of cultured human uveal melanoma cells. Melanoma Res. 1997, 7, 27–31. [Google Scholar] [CrossRef]
  48. Hu, D.N.; McCormick, S.A.; Roberts, J.E. Effects of melatonin, its precursors and derivatives on the growth of cultured human uveal melanoma cells. Melanoma Res. 1998, 8, 205–210. [Google Scholar] [CrossRef]
  49. Bankhead, P.; Loughrey, M.B.; Fernández, J.A.; Dombrowski, Y.; McArt, D.G.; Dunne, P.D.; McQuaid, S.; Gray, R.T.; Murray, L.J.; Coleman, H.G.; et al. QuPath: Open source software for digital pathology image analysis. Sci. Rep. 2017, 7, 16878. [Google Scholar] [CrossRef]
  50. Robertson, A.G.; Shih, J.; Yau, C.; Gibb, E.A.; Oba, J.; Mungall, K.L.; Hess, J.M.; Uzunangelov, V.; Walter, V.; Danilova, L.; et al. Integrative Analysis Identifies Four Molecular and Clinical Subsets in Uveal Melanoma. Cancer Cell 2017, 32, 204–220. [Google Scholar] [CrossRef]
  51. Cockrum, C.; Kaneshiro, K.R.; Rechtsteiner, A.; Tabuchi, T.M.; Strome, S. A primer for generating and using transcriptome data and gene sets. Development 2020, 147, dev193854. [Google Scholar] [CrossRef]
  52. Wang, X.T.; Chen, C.W.; Zheng, X.M.; Wang, B.; Zhang, S.X.; Yao, M.H.; Chen, H.; Huang, H.F. Expression and prognostic significance of melatonin receptor MT1 in patients with gastric adenocarcinoma. Neoplasma 2020, 67, 415–420. [Google Scholar] [CrossRef]
  53. Park, H.K.; Ryu, M.H.; Hwang, D.S.; Kim, G.C.; Jang, M.A.; Kim, U.K. Effects of melatonin receptor expression on prognosis and survival in oral squamous cell carcinoma patients. Int. J. Oral. Maxillofac. Surg. 2022, 51, 713–723. [Google Scholar] [CrossRef]
  54. Zhang, J.; Zhou, Y.; Li, N.; Liu, W.T.; Liang, J.Z.; Sun, Y.; Zhang, W.X.; Fang, R.D.; Huang, S.L.; Sun, Z.H.; et al. Curcumol Overcomes TRAIL Resistance of Non-Small Cell Lung Cancer by Targeting NRH:Quinone Oxidoreductase 2 (NQO2). Adv. Sci. 2020, 7, 2002306. [Google Scholar] [CrossRef]
  55. Janda, E.; Boutin, J.A.; De Lorenzo, C.; Arbitrio, M. Polymorphisms and Pharmacogenomics of NQO2: The Past and the Future. Genes 2024, 15, 87. [Google Scholar] [CrossRef]
  56. Boutin, J.A. Quinone reductase 2 as a promising target of melatonin therapeutic actions. Expert. Opin. Ther. Targets 2016, 20, 303–317. [Google Scholar] [CrossRef]
  57. Harbour, J.W.; Brantley, M.A.; Hollingsworth, H.; Gordon, M. Association between choroidal pigmentation and posterior uveal melanoma in a white population. Br. J. Ophthalmol. 2004, 88, 39–43. [Google Scholar] [CrossRef] [PubMed]
  58. Slominski, A.T.; Kim, T.-K.; Slominski, R.M.; Song, Y.; Qayyum, S.; Placha, W.; Janjetovic, Z.; Kleszczyński, K.; Atigadda, V.; Song, Y.; et al. Melatonin and Its Metabolites Can Serve as Agonists on the Aryl Hydrocarbon Receptor and Peroxisome Proliferator-Activated Receptor Gamma. Int. J. Mol. Sci. 2023, 24, 15496. [Google Scholar] [CrossRef]
  59. Slominski, A.T.; Semak, I.; Fischer, T.W.; Kim, T.K.; Kleszczyński, K.; Hardeland, R.; Reiter, R.J. Metabolism of melatonin in the skin: Why is it important? Exp. Dermatol. 2017, 26, 563–568. [Google Scholar] [CrossRef]
Ijms 25 08711 g001

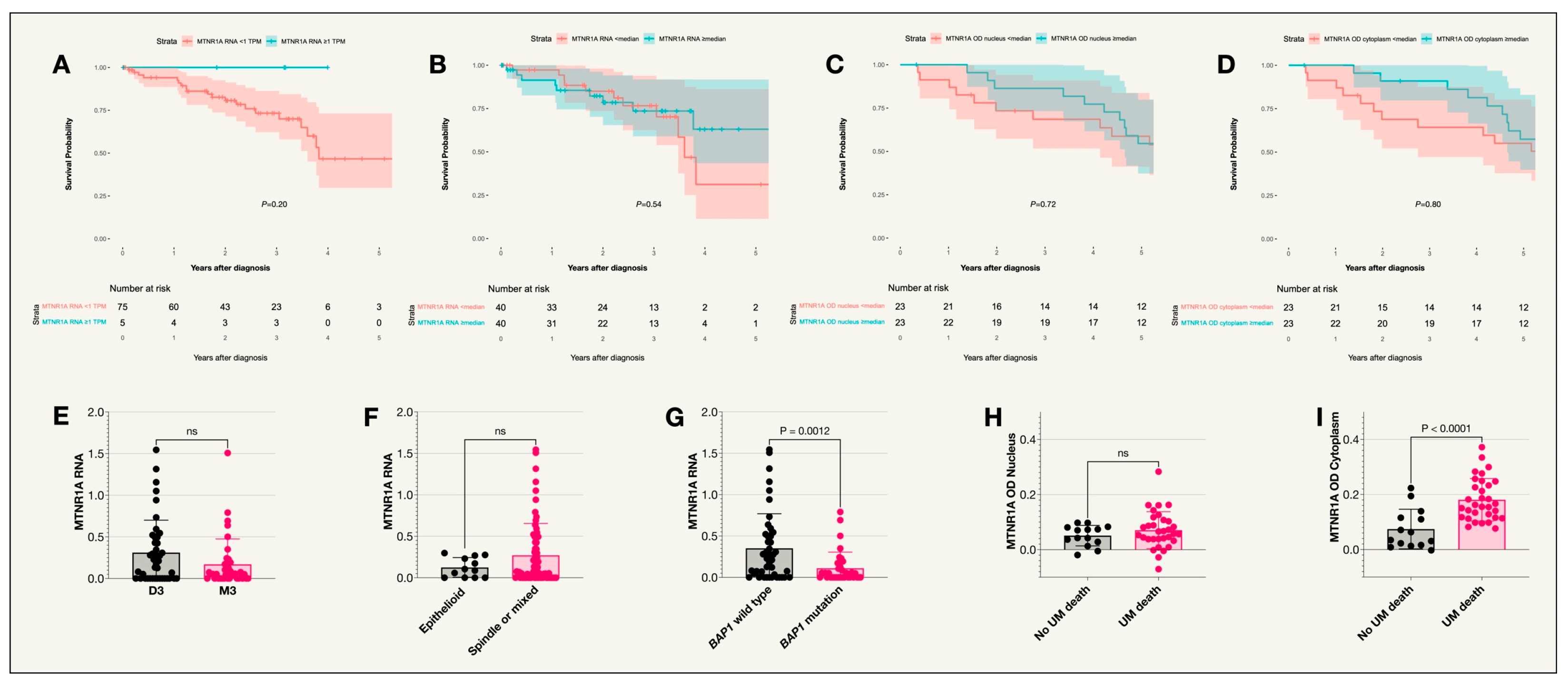

Figure 1. Kaplan–Meier survival curves and scatter plots for MTNR1A expression. (A) Survival curve comparing incidence of UM-related death in patients from the TCGA cohort with an MTNR1A RNA expression of less than 1 TPM compared to 1 TPM or above (p = 0.20), n = 80. (B) Survival curve comparing incidence of UM-related death in patients from the TCGA cohort with an MTNR1A RNA expression less than or equal to and above the median value (p = 0.54), n = 80. (C) Survival curve comparing the incidence of UM-related death in patients with IHC staining optical densities below or equal to and above the median in the nucleus (p = 0.72), n = 46. (D) Survival curve comparing the incidence of UM-related death in patients with IHC staining optical densities below or equal to and above the median in the cytoplasm (p = 0.80), n = 46. (E) Scatter plot comparing MTNR1A RNA expression in patient tumors with disomy 3 or monosomy 3. (F) Scatter plot comparing MTNR1A RNA expression in patients with tumors of an epithelioid cell type compared to other cell types (spindle or mixed). (G) Scatter plot comparing MTNR1A RNA expression in patients with the BAP1 wild type or BAP1 mutation where levels were higher in patients with the BAP1 wildtype (p = 0.0012). (H) Scatter plot comparing MTNR1A OD in the nucleus of tumor cells for patients who did or did not die due to uveal melanoma. (I) Scatter plot comparing MTNR1A OD in the cytoplasm of tumor cells for patients who did or did not die due to uveal melanoma (p < 0.0001). Colored fields on the Kaplan–Meier curves indicate 95% confidence intervals. ns = not significant. TCGA cohort, St Erik cohort.
Figure 1. Kaplan–Meier survival curves and scatter plots for MTNR1A expression. (A) Survival curve comparing incidence of UM-related death in patients from the TCGA cohort with an MTNR1A RNA expression of less than 1 TPM compared to 1 TPM or above (p = 0.20), n = 80. (B) Survival curve comparing incidence of UM-related death in patients from the TCGA cohort with an MTNR1A RNA expression less than or equal to and above the median value (p = 0.54), n = 80. (C) Survival curve comparing the incidence of UM-related death in patients with IHC staining optical densities below or equal to and above the median in the nucleus (p = 0.72), n = 46. (D) Survival curve comparing the incidence of UM-related death in patients with IHC staining optical densities below or equal to and above the median in the cytoplasm (p = 0.80), n = 46. (E) Scatter plot comparing MTNR1A RNA expression in patient tumors with disomy 3 or monosomy 3. (F) Scatter plot comparing MTNR1A RNA expression in patients with tumors of an epithelioid cell type compared to other cell types (spindle or mixed). (G) Scatter plot comparing MTNR1A RNA expression in patients with the BAP1 wild type or BAP1 mutation where levels were higher in patients with the BAP1 wildtype (p = 0.0012). (H) Scatter plot comparing MTNR1A OD in the nucleus of tumor cells for patients who did or did not die due to uveal melanoma. (I) Scatter plot comparing MTNR1A OD in the cytoplasm of tumor cells for patients who did or did not die due to uveal melanoma (p < 0.0001). Colored fields on the Kaplan–Meier curves indicate 95% confidence intervals. ns = not significant. TCGA cohort, St Erik cohort.
Ijms 25 08711 g001
Ijms 25 08711 g002

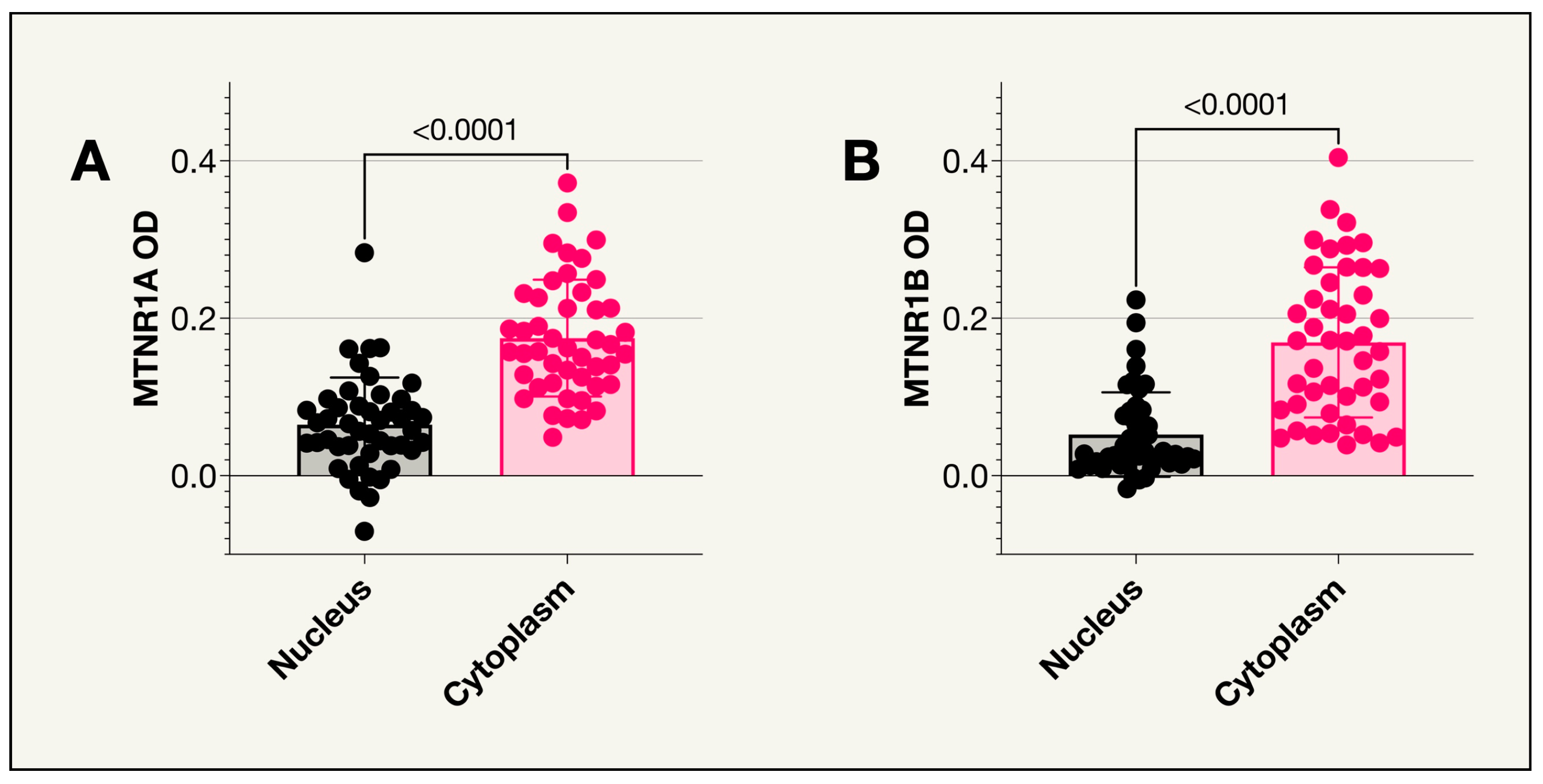

Figure 2. MTNR1A and MTNR1B receptors in the nucleus vs. cytoplasm. (A) The mean optical density (OD) for MTNR1A was significantly higher in the cytoplasm compared to the nucleus (p < 0.0001, n = 46); (B) The mean optical density (OD) for MTNR1B was significantly higher in the cytoplasm compared to the nucleus (p < 0.0001, n = 45).
Figure 2. MTNR1A and MTNR1B receptors in the nucleus vs. cytoplasm. (A) The mean optical density (OD) for MTNR1A was significantly higher in the cytoplasm compared to the nucleus (p < 0.0001, n = 46); (B) The mean optical density (OD) for MTNR1B was significantly higher in the cytoplasm compared to the nucleus (p < 0.0001, n = 45).
Ijms 25 08711 g002
Ijms 25 08711 g003
Figure 3. Kaplan–Meier survival curves and scatter plots for MTNR1B expression. (A) Survival curve comparing the incidence of UM-related death in those with MTNR1B OD levels in the nucleus below or equal to and above the median value (p = 0.98), n = 45. (B) Survival curve comparing incidence of UM-related death in those with MTNR1B OD levels in the cytoplasm below or equal to and above the median value (p = 0.34), n = 45. (C) Scatter plot comparing MTNR1B RNA expression in patient tumors with disomy 3 or monosomy 3. (D) Scatter plot comparing MTNR1B RNA expression in patients with tumors of an epithelioid cell type compared to other cell types (spindle or mixed). (E) Scatter plot comparing MTNR1B RNA expression in patients with the BAP1 wild type or BAP1 mutation. (F) Scatter plot comparing MTNR1B OD levels in the nucleus of tumor cells for patients who did or did not die due to uveal melanoma. (G) Scatter plot comparing MTNR1B OD levels in the cytoplasm of tumor cells for patients who did or did not die due to uveal melanoma. Colored fields on the Kaplan–Meier curves indicate 95% confidence intervals. ns = not significant. TCGA cohort, St Erik cohort.
Figure 3. Kaplan–Meier survival curves and scatter plots for MTNR1B expression. (A) Survival curve comparing the incidence of UM-related death in those with MTNR1B OD levels in the nucleus below or equal to and above the median value (p = 0.98), n = 45. (B) Survival curve comparing incidence of UM-related death in those with MTNR1B OD levels in the cytoplasm below or equal to and above the median value (p = 0.34), n = 45. (C) Scatter plot comparing MTNR1B RNA expression in patient tumors with disomy 3 or monosomy 3. (D) Scatter plot comparing MTNR1B RNA expression in patients with tumors of an epithelioid cell type compared to other cell types (spindle or mixed). (E) Scatter plot comparing MTNR1B RNA expression in patients with the BAP1 wild type or BAP1 mutation. (F) Scatter plot comparing MTNR1B OD levels in the nucleus of tumor cells for patients who did or did not die due to uveal melanoma. (G) Scatter plot comparing MTNR1B OD levels in the cytoplasm of tumor cells for patients who did or did not die due to uveal melanoma. Colored fields on the Kaplan–Meier curves indicate 95% confidence intervals. ns = not significant. TCGA cohort, St Erik cohort.
Ijms 25 08711 g003
Ijms 25 08711 g004
Figure 4. IHC data analysis. Using QuPath Bioimage analysis v. 0.4.1, mean DAB (3,3′-diaminobenzidine) staining intensity, measured by optical density (OD) for melatonin receptors were calculated from immunohistochemically stained primary uveal melanoma tissue. (A) Example of uveal melanoma tissue with positive staining where the presence of DAB (purple-red in color) signifies the presence of melatonin receptors. Cells which appear blue due to background hematoxylin staining, lack the presence of DAB and are therefore considered negative. (B) A closer view of stained tissue where positive (purple) and negative (blue) cells are visualized. (C) Calibration is performed by manually selecting a positive and negative cell. Note, the arrow to the left indicates a negative cell while the arrow to the right indicates a positive cell. (D) Three circular sections 500 μm in diameter are selected for analysis. (E) Positive Cell detection is performed to identify positive and negative cells within the selected sections. (F) A closer view of the detection of positive cells by QuPath. (G) An example of a false positive cell, indicated by an arrow, which is removed manually. (H) An example of the mean staining intensity for the entire selected area.
Figure 4. IHC data analysis. Using QuPath Bioimage analysis v. 0.4.1, mean DAB (3,3′-diaminobenzidine) staining intensity, measured by optical density (OD) for melatonin receptors were calculated from immunohistochemically stained primary uveal melanoma tissue. (A) Example of uveal melanoma tissue with positive staining where the presence of DAB (purple-red in color) signifies the presence of melatonin receptors. Cells which appear blue due to background hematoxylin staining, lack the presence of DAB and are therefore considered negative. (B) A closer view of stained tissue where positive (purple) and negative (blue) cells are visualized. (C) Calibration is performed by manually selecting a positive and negative cell. Note, the arrow to the left indicates a negative cell while the arrow to the right indicates a positive cell. (D) Three circular sections 500 μm in diameter are selected for analysis. (E) Positive Cell detection is performed to identify positive and negative cells within the selected sections. (F) A closer view of the detection of positive cells by QuPath. (G) An example of a false positive cell, indicated by an arrow, which is removed manually. (H) An example of the mean staining intensity for the entire selected area.
Ijms 25 08711 g004
Table 1. Mean DAB Optical Density (OD) for UM-related death or non-UM related death.
Table 1. Mean DAB Optical Density (OD) for UM-related death or non-UM related death.
AnalysisUM-Related Death,
Mean DAB OD (SD)		Non UM-Related Death,
Mean DAB OD (SD)		p (Holm–Bonferroni Corrected p Value)
MTNR1A OD in Nucleus and UM death0.07 (0.07)0.05 (0.04)ns (ns)
MTNR1A OD in Cytoplasm and UM death0.18 (0.08)0.16 (0.07)*** (**)
MTNR1B OD in Nucleus and UM death0.04 (0.04)0.07 (0.07)ns (ns)
MTNR1B OD in Cytoplasm and UM death0.16 (0.09)0.20 (0.11)ns (ns)
p values less than 0.01 are labeled with **, and p values less than 0.001 are labeled with ***. ns = not significant.
Table 2. (A) Mean RNA expression across cytomorphology. (B) Mean RNA expression for monosomy 3 vs. disomy 3. (C) Mean RNA expression for BAP1 mutation or wildtype.
Table 2. (A) Mean RNA expression across cytomorphology. (B) Mean RNA expression for monosomy 3 vs. disomy 3. (C) Mean RNA expression for BAP1 mutation or wildtype.
(A)
AnalysisEpithelioid,
Mean TPM (SD)		Non-Epithelioid,
Mean TPM (SD)		p (Holm-Bonferroni Corrected p Value)
NQO2 vs. epithelioid or non-epithelioid50 (17)35 (16)* (ns)
RORA vs. epithelioid or non-epithelioid1 (0.8)0.9 (1)ns (ns)
GPR50 vs. epithelioid or non-epithelioid<0.05 (<0.05)<0.05 (<0.05)ns (ns)
MTNR1B vs. epithelioid or non-epithelioid0 (0)<0.05 (<0.05)ns (ns)
MTNR1A vs. epithelioid or non-epithelioid0.1 (0.1)0.3 (0.4)ns (ns)
(B)
AnalysisMonosomy 3,
Mean TPM (SD)		Disomy 3,
Mean TPM (SD)		p (Holm–Bonferroni Corrected p Value)
NQO2 vs. M3 or D341 (18)36 (15)ns (ns)
RORA vs. M3 or D31 (1)0.9 (1)ns (ns)
GPR50 vs. M3 or D3<0.05 (<0.05)<0.05 (<0.05)ns (ns)
MTNR1B vs. M3 or D3<0.05 (<0.05)0 (<0.05)ns (ns)
MTNR1A vs. M3 or D30.4 (0.3)0.3 (0.2)ns (ns)
(C)
AnalysisBAP1 Mutation,
Mean TPM (SD)		BAP1 Wildtype,
Mean TPM (SD)		p (Holm–Bonferroni Corrected p Value)
NQO2 vs. BAP1 mutation or wildtype41 (17)36 (16)ns (ns)
RORA vs. BAP1 mutation or wildtype1.1 (1.1)0.9 (0.9)ns (ns)
GPR50 vs. BAP1 mutation or wildtype<0.05 (<0.05)<0.05 (<0.05)ns (ns)
MTNR1B vs. BAP1 mutation or wildtype<0.05 (<0.05)<0.05 (<0.05)ns (ns)
MTNR1A vs. BAP1 mutation or wildtype0.1 (0.2)0.4 (0.4)*** (***)
ns = not significant. p values less than 0.05 are labeled with *, and p values less than 0.001 are labeled with ***.
Table 3. Clinicopathologic characteristics of the two included cohorts.
Table 3. Clinicopathologic characteristics of the two included cohorts.
St. Erik Eye Hospital CohortTCGA Cohort
n4780
Sex, n (%)
   Female19 (40)35 (44)
   Male28 (60)45 (56)
Ciliary body involvement, n (%)8 (16)10 (13)
Extraocular extension, n (%)7 (14)6 (8)
Tumor thickness at diagnosis, mean mm (SD)7.8 (3.8)10.8 (2.6)
Tumor diameter at diagnosis, mean mm (SD)14.7 (4.9)16.6 (3.8)
Cell type, n (%)
   Spindle18 (38)28 (35)
   Epithelioid11 (24)12 (15)
   Mixed Spindle and Epithelioid18 (38)39 (49)
   Not available0 (0)1 (1)
AJCC T-category, n (%)
   T1a5 (11)0 (0)
   T1b0 (0)0 (0)
   T1c2 (4)0 (0)
   T2a9 (19)12 (15)
   T2b1 (2)2 (3)
   T2c1 (2)0 (0)
   T3a11 (24)26 (32)
   T3b1 (2)5 (6)
   T3c3 (6)1 (1)
   T4a3 (6)20 (25)
   T4b4 (9)9 (11)
   T4c7 (15)2 (3)
   T4d0 (0)2 (3)
   T4e0 (0)1 (1)
AJCC stage at diagnosis, n (%)
   I5 (11)0 (0)
   IIA11 (23)4 (5)
   IIB12 (26)32 (40)
   IIIA9 (19)27 (34)
   IIIB10 (21)10 (12)
   IIIC0 (0)3 (4)
   IV0 (0)4 (5)
Primary treatment, n (%)
   Plaque brachytherapy17 (36)40 (50)
   Enucleation30 (64)40 (50)
Median follow-up, years (IQR)
   Death from metastatic uveal melanoma4.6 (3.4)1.7 (1.6)
   Death from other cause9.7 (4.8)1.6 (1.8)
   Alive-2.3 (1.6)
AJCC, American Joint Committee on Cancer. IQR, Interquartile range. SD, Standard deviation.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hagström, A.; Kal Omar, R.; Witzenhausen, H.; Lardner, E.; Abdiu, O.; Stålhammar, G. Melatonin Receptor Expression in Primary Uveal Melanoma. Int. J. Mol. Sci. 2024, 25, 8711. https://doi.org/10.3390/ijms25168711

AMA Style

Hagström A, Kal Omar R, Witzenhausen H, Lardner E, Abdiu O, Stålhammar G. Melatonin Receptor Expression in Primary Uveal Melanoma. International Journal of Molecular Sciences. 2024; 25(16):8711. https://doi.org/10.3390/ijms25168711

Chicago/Turabian Style

Hagström, Anna, Ruba Kal Omar, Hans Witzenhausen, Emma Lardner, Oran Abdiu, and Gustav Stålhammar. 2024. "Melatonin Receptor Expression in Primary Uveal Melanoma" International Journal of Molecular Sciences 25, no. 16: 8711. https://doi.org/10.3390/ijms25168711

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
