Process Technologies and Projects for BioLPG

Abstract

Liquified petroleum gas (LPG)—currently consumed at some 300 million tonnes per year—consists of propane, butane, or a mixture of the two. Most of the world’s LPG is fossil, but recently, BioLPG has been commercialized as well. This paper reviews all possible synthesis routes to BioLPG: conventional chemical processes, biological processes, advanced chemical processes, and other. Processes are described, and projects are documented as of early 2018. The paper was compiled through an extensive literature review and a series of interviews with participants and stakeholders. Only one process is already commercial: hydrotreatment of bio-oils. Another, fermentation of sugars, has reached demonstration scale. The process with the largest potential for volume is gaseous conversion and synthesis of two feedstocks, cellulosics or organic wastes. In most cases, BioLPG is produced as a byproduct, i.e., a minor output of a multi-product process. BioLPG’s proportion of output varies according to detailed process design: for example, the advanced chemical processes can produce BioLPG at anywhere from 0–10% of output. All these processes and projects will be of interest to researchers, developers and LPG producers/marketers.

1. Introduction

Liquified petroleum gas (LPG) is a major fuel for heating and transport, with a current global market of around 300 million tonnes per year. As are all fossil fuels, LPG is under pressure to decarbonise. To this end, its main fossil competitors have introduced bio-alternatives: biodiesel for diesel; bioethanol for gasoline; and biogas or biomethane for natural gas. LPG has followed suit in 2017–18 with the introduction of BioLPG [1]. Based on discussions with the industry and detailed searches of the commercial literature, the author estimates current worldwide production of BioLPG at about 200 thousand tonnes per year. Nearly all of this is produced via hydrogenation of animal and plant oils, much of those being wastes.

There is great interest among the LPG industry and decarbonisation-proponents to expand production volumes of BioLPG. This could happen by increasing capacity for hydrogenation and by commercialization of other process routes to BioLPG. This paper aims to support that process by giving researchers and process-developers an initial roadmap: it reviews all possible processes and known projects for producing BioLPG. The contents were compiled through an extensive literature review and interviews with participants and stakeholders. The paper should be of interest to researchers, developers, and LPG producers/marketers.

BioLPG can be produced by seven general processes (Table 1). Two of them (in green) are most promising:

Table 1. Feedstock-process summary for BioLPG.

Feedstock	Process Class	Product/ Byproduct	Technical Readiness
Bio-oil	Hydrotreating	By	Commercial
Bio-oil Glycerine	Dehydrogenation	By Pro	Demonstration Pilot
Sugars	Fermentation	Pro	Demonstration
Cellulosics	Hydrolysis and fermentation	--	Concept
Wet wastes	Digestion	--	Concept
Cellulosics Organic waste	Gaseous conversion and synthesis	By	Demonstration Concept
Cellulosics Organic waste	Liquid conversion and synthesis	By	Concept

• Hydrotreating of bio-oils is already producing 200 kilotonnes of biopropane, with some additions planned;
• Gaseous conversion and synthesis of cellulosics and organic waste does not yet generate any BioLPG, but BioLPG production this way is technically feasible, is under exploration and the potential feedstock availability is huge.

Dehydrogenation (in yellow) offers some potential, mainly in the use of fluid catalytic crackers to process bio-oils and make some byproduct biopropane. Glycerine also can be dehydrogenated, and this is being explored. Fermentation already is producing small amounts of biobutylene and planning in underway for commercial production.

Fermentation (in grey) to biopropane has been proven at laboratory scale, but does not seem to be progressing further. The two other biological process (in brown) classes, hydrolysis and fermentation and digestion, do not offer serious promise of generating BioLPG. Neither does liquid conversion and synthesis (in brown), which technically is not all that different than gaseous conversion and synthesis, but attracts significantly less attention from developers.

In most cases, BioLPG is produced as a byproduct, or perhaps it could be called a ‘minor’ output of a multi-product process. Moreover, BioLPG’s proportion of output can vary according to detailed process design: for example, the advanced chemical processes can produce BioLPG at anywhere from 0–10% of output.

There are four process types that lead to BioLPG: conventional chemical, biological, advanced chemical, and other. These have been used to organise process classes and individual processes that are presented in this paper. Each of these is covered in a section, subsections are devoted to the individual processes and the projects pursuing those. Each process type is described, and then the individual processes and projects are described by feedstock type. All known BioLPG processes are covered.

Project is defined broadly. To projects we have applied the following classifications of ‘technology readiness’ that are widely used in the process industries:

• Concept
• Laboratory
• Pilot
• Demonstration
• First commercial
• Commercial

Some projects have been developed explicitly for licensing to third-party owner/operators.

2. Conventional Chemical Processes and Projects

These are synthetic processes that are well-known and commercially well-established: hydrotreatment and dehydration. Hydrotreatment is, to date, the only significant source of BioLPG. Dehydration produces negligible BioLPG so far, but could be expanded.

The biggest market trend is that of conventional refiners making BioLPG by co-processing bio-oils together with petroleum intermediates, typically at a blend of around 30% bio and 70% fossil. This results in a mixed stream of diesel/biodiesel and another, smaller stream of mostly BioLPG. Co-processing can be done in existing hydrotreaters or hydrocrackers that undergo some modifications. At least one refiner is experimenting with co-processing bio-oil in a fluid catalytic cracker: again, BioLPG comes out as a byproduct to biodiesel.

2.1. Hydrotreatment

Hydrotreatment, or hydrogenation, is the only significant source today of BioLPG production, an estimated 200 kilotonnes per year. About 100 kilotonnes of the biopropane produced is extracted for sale as BioLPG, the rest is used as a process fuel. None of the production is ‘on-purpose’, i.e., the biopropane is an unavoidable byproduct. The ‘on-purpose’ product is HVO biodiesel, (HVO stands for hydrogenated vegetable oil), often called renewable diesel. By weight the ratio of biodiesel:biopropane output is about 9–10:1.

Finland-based Neste is the largest producer of BioLPG (biopropane), making about 90 kilotonnes/year at three locations. Italian oil major ENI is second-largest, making a 20 kilotonnes/year and planning another 20-kt project. Projects of all types number to about 40, about 25 of those are commercial or first-commercial operations, and about 10 of those are believed to be in operation. All of them convert bio-oils to biodiesel and produce biopropane as a byproduct.

Neste and ENI, plus two US producers operate ‘exclusive’ biodiesel:biopropane plants, i.e., they run exclusively on bio feedstocks. Another six producers are conventional oil refiners that are co-processing bio-oils together with petroleum streams at approximately a 30:70 ratio by weight. This produces a mixed stream of diesel/biodiesel and propane/biopropane. Other refiners are known to be investigating this opportunity.

Most if not all biopropane producers hydrotreat some bio fatty acids along with bio-oils. The fatty acids convert to biodiesel, but they do not yield any biopropane. The hydrotreatment process is well understood and is available from several vendors for license. Other feedstocks than bio-oils could be hydrotreated to synthesise biopropane or biobutane. None of these are close to commercialisation.

2.1.1. Process Description

Hydrotreatment is a reaction of a hydrocarbon stream with hydrogen, usually in the presence of a catalyst, at moderate temperature and pressure. It is applied mainly in two ways: to hydrogenate unsaturated bonds, to remove oxygen or to reduce inorganic components such as nitrogen or sulphur. Depending on conditions, the process can cause a variety of reactions can occur (Figure 1). In the context of BioLPG, the most important of these are decarboxylation, hydrodeoxygenation and hydrogenation [2,3].

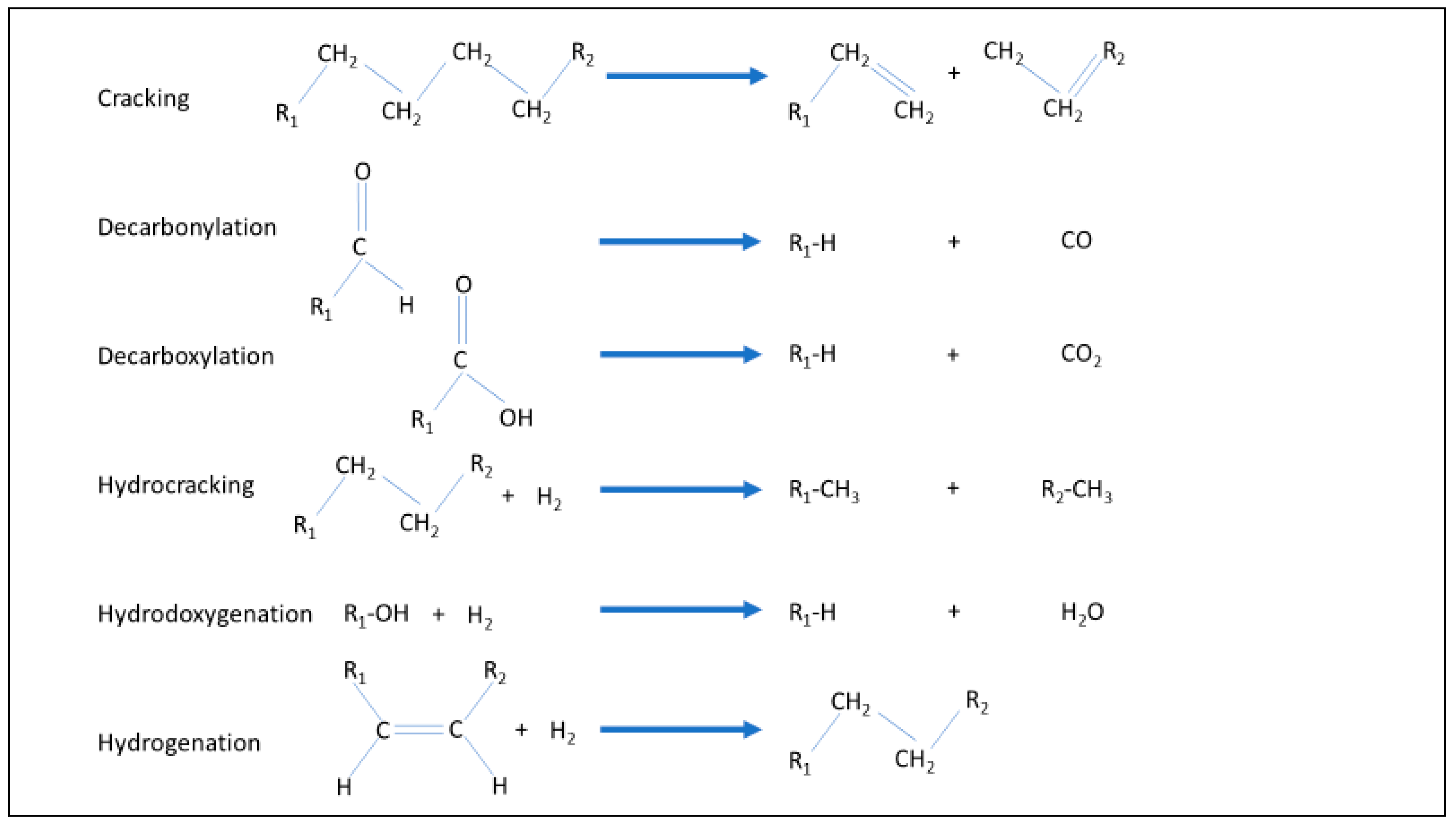

Figure 1. Reactions of hydrotreating.

With regard to BioLPG, hydrotreatment goes by a variety of names. The process for converting triglyceride bio-oils to biodiesel and biopropane is often called ‘HVO’, which comes from ‘hydrotreated vegetable oil’ or ‘hydrogenated vegetable oil’. Other names for it include: ‘HDRD’ for ‘hydrogenation derived renewable diesel’, ‘non ester renewable diesel’, ‘renewable hydrocarbon diesel’, ‘HBD’ for ‘hydro-generated biodiesel’ [4] and ‘HEFA’ for ‘hydroprocessed esters and fatty acids’. Another generic name would be ‘hydrogenation’, however, this is usually linked to the manufacturing of margarine, so hydrotreatment seems to be the best generic choice.

2.1.2. Technical Readiness

Hydrotreating in general is a mature, commercial process. It is widely used in petroleum refineries, particularly to remove sulphur from refined products. Refiners also practise a more severe form of hydrogenation, at higher temperatures and pressures, called hydrocracking (Figure 1). This cracks or splits longer hydrocarbons into shorter ones. Hydrotreating is also applied to make margarine: liquid vegetable oils are saturated by hydrotreating, to create a solid, hydrogenated vegetable oil.

Hydrotreating to create biodiesel and biopropane is less mature, maybe 20 years old, but still well established. Nearly 30 commercial or first-commercial projects exist worldwide (Table 2), and several vendors offer a version of the biodiesel/biopropane process for license.

Table 2. Hydrotreatment projects for BioLPG, by technological readiness.

Owner/Operator	Country	Location	Feedstock(s)	Process	Process Licensor	Prime Product	Prime Product Capacity kt/y	Is Biopropane Extracted?	Bioprop Capacity kt/y (These Have Been Estimated from Biodiesel Capacities.)	Status 2018	Source
COMMERCIAL
AltAir Fuels	USA	Paramount, CA	Tallow	Hydrocracker	UOP	Biodiesel	130	No	7	Operating	http://altairfuels.com/
BP	AUS	Bulwer Island	Bio oil	HVO		Biodiesel		No	3	Shut down	[8]
CEPSA	ES	Tenerife	UCO (used cooking oil)	Hydrotreater? Co-process		Biodiesel		?		Operating	Author research
CEPSA	ES	Huelva Algeciras-San Roque	Bio oil	Hydrotreater? Co-process		Biodiesel	180	?		Operating	Author research
Eni	I	Porto Marghera	Bio oil	HVO	UOP/ENI	Biodiesel	580	Yes	20	Operating	[8]
Eni	I	Gela, Sicily	Bio oil	HVO	UOP/ENI	Biodiesel	500			Startup later in year?	Author research
Galp	P	Sines	Bio oil	Hydrotreater Co-process		Biodiesel	250				Author research
Irving Oil (former ConocoPhillips)	IE	Whitegate	Soybean oil	Hydrogenation, co-processing	ConocoPhillips	Biodiesel	46	Possible, but company says is ‘technically difficult’	3.22	Operating	[8]
Neste Oil	NL	Rotterdam	Bio oil	HVO	Neste-Jacobs	Biodiesel	1000	yes	40	Operating	[8]
Neste Oil	SF	Porvoo	Bio oil	HVO	Neste-Jacobs	Biodiesel	380	Yes?	10	Operating	[8]
Neste Oil	Singapore	Singapore	Bio oil	HVO	Neste-Jacobs	Biodiesel	1000	No	40	Operating	[8]
Petrobras	P		Bio oil			Biodiesel				?	Author research
PREEM	S	Gothenburg	Tall oil, now also triglycerides	Hydrogenation, co-processing	Haldor-Topsoe	Biodiesel	300	Yes, sold to Kosan Gas	No, tall oil?	Operating Capacity addition planned	Author research
Renewable Energy Group (former Dynamic Fuels)	USA	Geismar, LA	High and low FFA (free fatty acid) feedstocks, heavy on tallow	HVO	Syntroleum	Biodiesel	270		1.3		[8]
Repsol	ES	La Coruña, Tarragona, Bilbao and Cartagena	Palm oil	Hydrogenation, co-processing		Biodiesel	60	starting 2018			Author research
Valero: Diamond Green Diesel	USA	Norco, LA	Tallow	HVO	UOP/ENI	Biodiesel	500	Small quantities?	10		[8]
FIRST COMMERCIAL
BSBios	BR	Passo Fundo, Marialva	Bio oil	HVO FAME (fatty acid methyl ether)	Petrobras	Biodiesel	2 × 230				Author research
Emerald Biofuels	USA	Jennings, Louisiana	Non-edible oils/fats	HVO	UOP/ENI	Biodiesel	280			Construction?	https://emeraldonellc-public.sharepoint.com/
Endicott Biofuels	USA	Port Arthur, TX	Bio oil			Biodiesel	90			Concept only?	Author research
Hitachi Zosen	J	Kyoto	Bio oil	HVO	Nippon Oil or Hitachi Zosen	Biodiesel	1	No	0.0	Operating	http://www.hitachizosen.co.jp/english/products/products010.html
Pertamina	Indonesia		Palm oil?	HVO?		Biodiesel	500				Author research
Petrixo	UAE	Fujairah	Bio oil	HVO	UOP/ENI	Biodiesel	400			Probably cancelled	Author research
Petrobras	BR	Passo Fundo, Marialva	Bio oil	HVO FAME (fatty acid methyl ether)		Biodiesel	2 × 230	No	?	Shut down 2016-17	Author research
Sinopec	PRC	Shanghai?	Bio oil	HVO		Biodiesel	20			Planned?
Total	F	La Mède	Bio oil	HVO	Axens/IFP	Biodiesel	650	Planned	30	Construction	https://www.axens.net/news-and-events/news/369/axens-vegan%C2%AE-technology-selected-by-total-for-its-first-biorefinery-in-france.html#.WoV-QudG2Uk
UPM	SF	Lappeenranta	Tall oil	HVO	UPM	Biodiesel	100	No	No, tall oil?	Operating	www.biomassmagazine.com/articles/15142/upm-biofuels-enters-the-bioplastics-market-with-new-partners
DEMONSTRATION
Gas Technology Institute	India	Bangalore	Residues, wood, stover, bagasse, algae	Hydrogenation, fluid bed	Gas Technology Institute	Gasoline, jet, diesel				Commissioning	https://www.cricatalyst.com/cricatalyst/catalysts/renewables/integrated-hydropyrolysis-and-hydroconversion.html
LABORATORY
La Laguna Univ	ES		UCO (used cooking oil) and atmospheric gasoil	Hydrogenation, co-processing with Atm gasoil		Biodiesel					Author research
Mississippi, University of	USA		Oils, fats		Mississippi, University of	Biopropane					Author research
NIS	Serbia	Novi Sad	Bio oil	HVO		Biodiesel				Study	Author research
ÖMV	A		Bio oil	Hydrogenation, co-processing		Biodiesel					Author research
PKN Orlen	PL		Bio oil	Hydrogenation, co-processing		Biodiesel					Author research
Sun Carbon	S	Tygelsjö	Lignin, from pulp mills	Lignin-to-biodiesel	SunCarbon	Biodiesel		Small amounts would be produced		Design	www.suncarbon.se
Unipetrol	CZ		UCO (used cooking oil) and atmospheric gasoil	Hydrogenation, co-processing with Atm gasoil		Biodiesel					Author research
FOR LICENSE
Axens/IFP	F			HVO	Axens/IFP	Biodiesel					https://www.axens.net/news-and-events/news/369/axens-vegan%C2%AE-technology-selected-by-total-for-its-first-biorefinery-in-france.html#.WsdiLZe-lPY
Chevron	USA			HVO	Chevron	Biodiesel					Author research
Haldor-Topsoe	DK		Bio oil	HVO	Haldor-Topsoe	Biodiesel					https://www.topsoe.com/sites/default/files/novel_hydrotreating_technology_for_production_of_green_diesel.ashx_.pdf
Hulteberg CEngineering	S		Bio oil	Hydrogenation, co-processing		Biodiesel				Design	http://www.hulteberg.com/newsletter4-its-all-about-co-processing/
Syntroleum	USA		Bio oil	HVO	Syntroleum	Biodiesel					Author research
UOP/ENI	USA/I		Bio oil	HVO	UOP/ENI	Biodiesel					https://www.uop.com/hydroprocessing-ecofining

2.1.3. Process Developers/Licensors

Six companies offer a biodiesel hydrotreatment process for license (Table 2). This report reckons engineering-contractor UOP and ENI as one company, in this respect, because they jointly offer a process. Petrobras is not on the list. Although the Brazilian oil company has developed its own process, called H-BIO, it is not clear whether this is available for license to third parties.

2.1.4. Projects and Production

Several feedstocks can be hydrotreated to create BioLPG: bio-oils, propylene, butylenes, and dimethyl ether (DME). The only commercially significant one is bio-oil. In turn, it is the only significant source of BioLPG.

Bio-Oils

This is the only significant source today of BioLPG production, an estimated 200 kilotonnes per year. About 100 kilotonnes of the biopropane produced is extracted for sale as BioLPG, the rest is used as a process fuel. None of the production is ‘on-purpose’, i.e., the biopropane is an unavoidable byproduct. The ‘on-purpose’ product is HVO biodiesel, often called renewable diesel. By weight, the ratio of biodiesel:biopropane output is about 9–10:1.

Biopropane is a byproduct, because bio-oils (natural oils from animals and plants) all come in the form of a triglyceride. These (Figure 2) are long-chain hydrocarbons (in yellow) connected by an ester linkage (where yellow and brown meet) to a three-carbon (in brown) backbone.

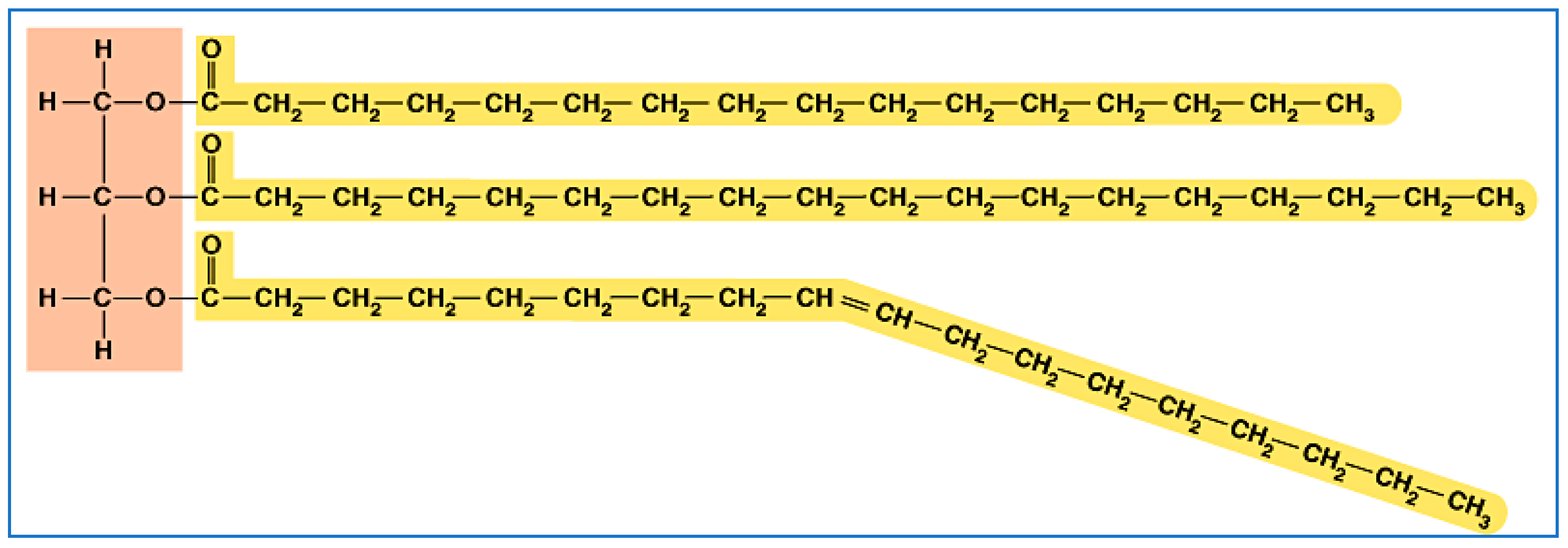

Figure 2. A typical triglyceride (natural oil or fat).

Hydrogen is reacted with the triglycerides at temperature and pressure in the presence of catalysts to hydrogenate the double bonds in the fatty acid chains in the triglyceride. Next, the glycerol backbone is broken and the oxygen removed, leaving paraffinic n-alkanes—the biodiesel—and the hydrogenated three-carbon backbone, biopropane [3] (Figure 3).

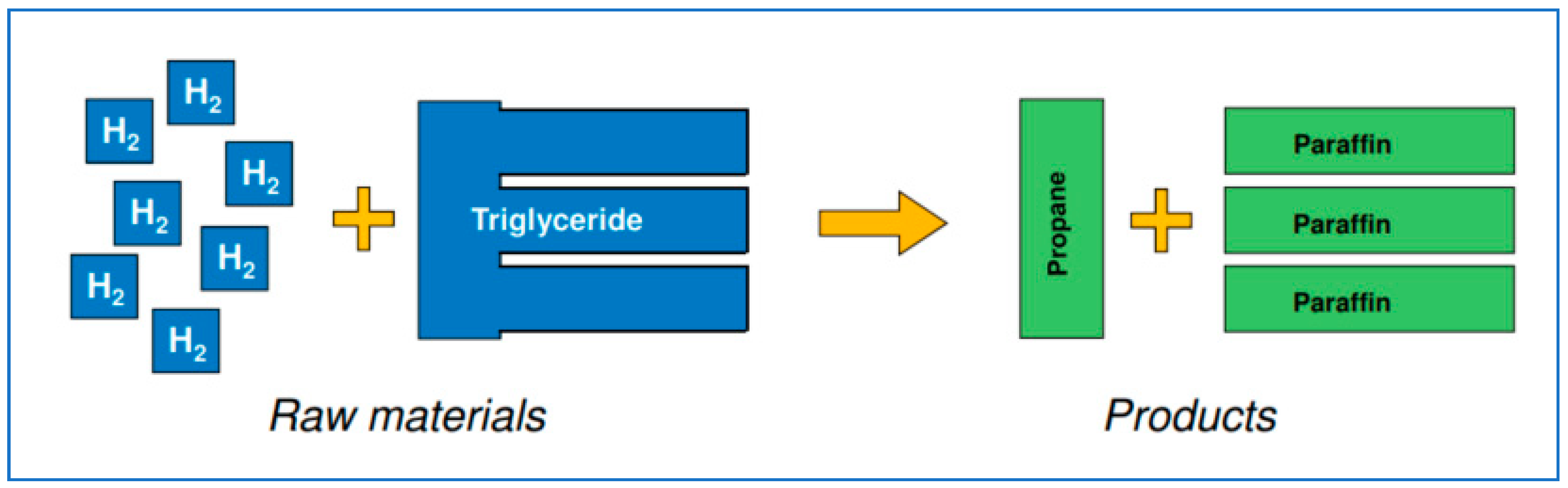

Figure 3. A schematic view of the process, bio-oil to biodiesel and biopropane.

Two Feedstock Approaches: Exclusive Bio and Co-Process

For hydrotreating bio-oils, there are two approaches to feedstocks.

One is to process only bio feedstocks. Neste and ENI, plus two US producers, Renewable Energy Group and Valero, do this. They operate ‘exclusive’ biodiesel/biopropane plants that run exclusively on bio feedstocks.

Another is to co-process bio and fossil feedstocks. Five refiners—Spain’s CEPSA, Portugal’s Galp, Ireland’s Irving Oil, Sweden’s PREEM and Spain’s Repsol—are conventional oil refiners that are co-processing petroleum streams together with bio-oils at approximately a 70:30 ratio by weight. This produces a mixed stream of diesel/biodiesel and propane:biopropane. Other refiners are known to be investigating this opportunity: Naftna Industrija Srbije at Novi Sad, Serbia [2], ÖMV and PKN Orlen. They are using existing refinery hydrotreaters that have been modified to handle bio-oils. Modifications are required, because bio-oils are oxygenates (the ester linkage), so they react differently to their petroleum counterparts [5,6]. PREEM is known to have applied Haldor Topsoe’s Hydroflex process for its modifications. Total is believed to have used the VEGAN process from Axens/IFP (Institut Francais du Petrole).

Fatty Acids (Do Not Make Biopropane)

Fatty acids are also suitable feedstocks to make HVO biodiesel, but not for BioLPG. If fatty acids were to displace bio-oils in hydrogenation processes, biopropane production would disappear.

Most of the commercial projects making HVO biodiesel (Table 2) use bio-oils as feedstocks. Because these are triglycerides, they also automatically produce biopropane. However, some of the projects also take fatty acids as feedstock. The fatty acids usually are mixed into the bio-oil, but in some cases the feedstock is all fatty acid:

• PFAD (palm fatty acid distillate)—crude palm oil has a fraction of fatty acids that usually is removed by distillation and sold separately.
• Tall oil—this comes from wood and is produced as a byproduct of pulping (to make paper). Despite its name, it is not actually an oil, but a collection of fatty acids.

Fatty acids are similar to triglycerides in that they have a long chain hydrocarbon connected to a carboxyl group, but the carboxyl group stops there—it is the acid. It does not connect to a three-carbon backbone that could be converted to biopropane.

Just one HVO biodiesel producer (Table 2) is known to use only fatty acid feedstock: UPM, a forest-products company at its plant in Lappeenranta, Finland. The plant takes tall oil from a nearby pulping operation. The HVO production of PREEM in its refinery in Gothenburg, Sweden, reportedly ran only on tall oil when it began operations, but has since moved to triglycerides (to what fraction is unclear). Other HVO producers take some fraction of fatty acids along with bio-oils, often as acid–oil mixtures. These mixtures tend to be cheaper, are inedible to humans, and sometimes classified as wastes (which leads to a lower carbon footprint).

Propylene and Butylene

Biopropylene could be hydrotreated to biopropane, and biobutylene could be hydrotreated to biobutane. While these are chemically feasible options, they are unlikely to attract much commercial interest, because either biopropylene or biobutylene could be sold on their own, without further processing.

Bio-olefins (ethylene, propylene, butylene) are not plentiful. Some bio-ethylene is produced in Brazil (from sugarcane), and this is sold to make bio-polyethylene. Braskem, the Brazilian chemical company, has investigated making bio-propylene, but has mothballed the idea as uneconomic. Bio-butylene is being produced in small quantities, but this is sold as such and not committed further to hydrotreating.

DME (Dimethyl Ether)

Japan’s University of Kitakyushu has developed a laboratory-scale process for the conversion of DME to LPG by hydrogenation [7].

This could be done using bio-DME, to yield BioLPG. Bio-DME can be produced by catalytic dehydration of bio-methanol. Bio-DME can also be made from bio-syngas, i.e., gasified cellulosics or organic wastes.

2.2. Dehydration

Dehydration is a possible route to BioLPG. Minor quantities of BioLPG are being produced by 2–3 operators. Another operator is considering commercial-scale production. Two feedstocks come into primary consideration: bio-oil and glycerine.

Dehydration is also used to create longer-chain hydrocarbons from alcohols. So far, nobody appears to be working with propanol or butanol, but both are technically possible.

2.2.1. Process Description

Dehydration is the removal of water (H₂O) from a larger molecule. The most common application is the conversion of alcohols to alkanes or alkenes. For instance, there is some commercial production of ethylene from ethanol, and styrene from benzyl alcohol.

2.2.2. Technical Readiness

As a chemical process, dehydration is mature and commercial. Process know-how has not focused on the production of BioLPG. Nonetheless, three processes are at a pilot-demonstration level for producing biopropane (Table 3).

Table 3. Dehydration projects that might produce BioLPG.

Owner/ Operator	Location	Feedstock(s)	Process	Prime Product	Tech Readiness	Source
BioFuel Solution	Limhamn, S	Glycerol	Dehydrogenation	Biopropane	Laboratory	https://www.biofuel-solution.com/
Enysn	USA	Bio-oil?	Fluid catalytic cracking	Biodiesel	Unknown	Author research
Petrobras	Sao Mateus do Sul, BR	Petroleum gasoil 80–90% + bio-oil 10–20%	Fluid catalytic cracking	Biodiesel	Demonstration	http://noticias.ambientebrasil.com.br/clipping/2005/04/15/18775-petrobras-pretende-abrir-usina-de-biodiesel-em-sao-mateus-do-sulpr.html
Renewable Energy Group	Geismar, LA, USA	Glycerin	Dehydrogenation	Biopropane	Concept	https://regi.com/
Tesoro	Martinez, CA, USA	Bio-oil	Fluid catalytic cracking	Biodiesel	Demonstration	Author research

Petrobras and Tesoro are reportedly feeding bio-oils to fluid catalytic crackers (FCCs) at conventional petroleum refineries, respectively in Brazil and the USA. Ensyn, a US-based company, is also reportedly testing cat-cracking of bio-oils, and is also reportedly working with Tesoro in California. FCCs are a significant source of C₃ and C₄ hydrocarbons in refineries, but these are mostly olefinic, i.e., propylene and butylenes. Some propane and butane are usually co-produced. The outputs of these FCCs are not clear.

Another potential dehydration route is dehydration of glycerol to biopropane. Glycerol is a logical feedstock candidate for propane, because they both have propyl structures. BioFuel Solution has published a detailed paper on its process [9] and in 2015 secured a European Patent EP 2 358 653 B1 (https://patents.google.com/patent/EP2358653B1/en) for it. The process involves several intermediate reactions between glycerol and propane.

At least one producer is considering converting glycerine to biopropane. Renewable Energy Group is investigating the production of some 65 kilotonnes/year of biopropane from about twice as much glycerine feedstock [10]. Renewable Energy appears to be considering a direct conversion of glycerine to propane: glycerine is reacted with hydrogen to yield propane and water.

2.2.3. Other Possible Dehydration Feedstocks

There are other possibilities for dehydration to BioLPG—all of them remote from commercialisation.

(Bio) propanol and butanol could be dehydrated into propane and butane. As [11] reports, short chain alcohols (such as ethanol, methanol, n-butanol and isobutanol) can be catalytically converted to hydrocarbon fuels, but most of the work in this area is aimed at gasoline, diesel and jet fuel. The conversion of ethanol or butanol molecules typically involves a combination of dehydration (to ethene or butene), then oligomerisation reactions (combining molecules into longer-chains), followed by hydrogenation (adding hydrogen), isomerisation (branching to meet fuel specifications) and finally distillation into the required product streams.

There is no known production of biopropanol, but a joint-venture of oil-company BP and chemical company DuPont, called Butamax, has pursued development of biobutanol. The work has gone on for at least a decade, with plants announced but then not built. Its current commercial status is unclear. The target market for that biobutanol (should it ever be produced) is as a high-octane additive to gasoline.

Bio-methanol can be converted to propylene via the Lurgi process, and then further dehydrogenated to propane [7]. Bio-methanol can also be converted to gasoline, which generates BioLPG as a byproduct [11].

Bio-ethanol is the starting point of a Braskem process that can produce biopropane [7]. Sugarcane-derived ethanol is dehydrated to ethylene: some is dimerized to butene and the rest undergoes metathesis with that ethylene to yield propylene. The propylene is finally dehydrogenated to propane. Braskem is known to operate the dehydration to ethylene, which is sold to make polyethylene. That bio-polyethylene is sold mainly for packaging of bio-cosmetics and so fetches a premium price. Although the conversion to propylene/propane is technically possible, Braskem says it is not pursuing other uses of the ethylene.

Several bioalcohol-to-hydrocarbon projects have been identified during this project (Table 4). This list is not exhaustive, and because none of them are believed to make BioLPG, it is not meant to be exhaustive. Nonetheless, it is one more possible route to BioLPG.

Table 4. Selection of alcohol-to-hydrocarbon projects.

Owner/Operator	Country	Feedstock(s)	Prime Product	Tech Readiness	Source
Swedish Biofuels/KTH Royal Institute of Technology (Stockholm)	S	Ethanol, butanol	Jet fuel	Laboratory	Author research
Swedish Biofuels	S	Wood, wastes	Jet fuel	First commercial	Author research
Byogy/Texas AM University	USA	Ethanol	Diesel	Unknown	Author research
Energy Biosciences Institute/BP	USA	Corn (Maize)	Diesel	Unknown	https://energybiosciencesinstitute.org/
Gevo	USA	Corn (Maize)	Jet fuel	First commercial	http://www.biomassmagazine.com/articles/15048/gevo-amends-isobutanol-supply-agreement-with-musket?utm_source=Biomass&utm_campaign=2fd66ac36c-EMAIL_CAMPAIGN_2018_02_14&utm_medium=email&utm_term=0_53880fe73c-2fd66ac36c-94471541
Gevo	USA	Corn (Maize)	Jet fuel	Demonstration	http://www.biomassmagazine.com/articles/15048/gevo-amends-isobutanol-supply-agreement-with-musket?utm_source=Biomass&utm_campaign=2fd66ac36c-EMAIL_CAMPAIGN_2018_02_14&utm_medium=email&utm_term=0_53880fe73c-2fd66ac36c-94471541
Pacific Northwest National Laboratory/Imperium/Lanzatech	USA	Wood syngas	Jet fuel	Demonstration	https://www.pnnl.gov/news/release.aspx?id=4527
Sundrop Fuels/ExxonMobil	USA	Wood syngas + nat gas H2	Gasoline	First commercial	https://www.businesswire.com/news/home/20120627006303/en/Sundrop-Fuels-ExxonMobil-MTG-Technology-Nation%E2%80%99s-%E2%80%9CGreen
Swedish Biofuels/Lanzatech	USA	Syngas, steel mill	Jet fuel	Demonstration	http://www.lanzatech.com/world-first-low-carbon-fuel-to-be-developed-for-virgin-atlantic/

3. Biological Processes and Projects

The three biological processes that can lead to BioLPG are fermentation, hydrolysis fermentation, and digestion. All are well-known, and both fermentation and digestion are commercially well-established, albeit not for BioLPG. Hydrolysis fermentation is in initial stages of commercialisation, also not for BioLPG.

Fermentation generates a small amount of BioLPG (biobutylene), and commercial-scale production is planned. Fermentation of biopropane has been proven at laboratory scale. Hydrolysis fermentation has produced BioLPG at a laboratory scale. Digestion is being tried by one demonstration project.

3.1. Fermentation

Fermentation is the conversion of sugars by bacteria, yeasts or other microorganisms, in the presence of air (aerobic), into other products. The best-known example is the fermentation of alcoholic beverages: yeast convert sugars into ethanol. Alcohol is fermentation’s best-known product, but fermentation can generate other products, including BioLPG (Table 5).

Table 5. Fermentation projects relevant to BioLPG.

Owner/Operator	Location(s)	Feedstock(s)	Prime Product	Tech Readiness	Source
C3 BioTechnologies	Manchester, UK	Glucose	Unknown	Unknown	https://www.manchester.ac.uk/research/beacons/breakthroughs/synthetic-bio-propane/
Global Bioenergies	Leuna, D	Sugarcane, sugar beet, (LC sugars)	Isobutene (gas)	Demonstration	http://www.global-bioenergies.com/global-bioenergies-adapts-its-bio-isobutene-process-to-sucrose/?lang=en
Global Bioenergies Cristal Union: IBN-One	France, in planning	Sugar beet co-products	Isobutene	Commercial	http://www.global-bioenergies.com/global-bioenergies-adapts-its-bio-isobutene-process-to-sucrose/?lang=en
University of Turku, Imperial College London	Turku, SF London, UK	Glucose, butyraldehyde	Biopropane	Laboratory	[13]

Biobutylene is only BioLPG produced by fermentation: this has so far been done only at a demonstration scale. Global Bioenergies converts sucrose (sugar) from sugar beets and sugarcane to isobutylene at a demonstration plant in Leuna, Germany. Capacity is reported at around 150 tonnes/year. Plans are underway to build a commercial-scale plant somewhere in France, reportedly of 50-kilotonne/year size.

Global Bioenergies has its own process, IBN-One process, that uses genetically engineered microorganisms to convert sugar to propylene, butylenes, propanols, and butanols. By tweaking the process, it can be directed to one or more of those possible products. Most fermentation processes require significant amounts of energy to separate the product from the fermentation broth (e.g., distillation of the alcohol from the mash). However, with IBN-One propylene and butylenes are emitted as gases, which avoids the need for distillation [12].

Fermentation of biopropane has been proven at laboratory scale. A team from Finland’s University of Turku and England’s Imperial College London have published two papers detailing the experiments [13,14] that involve the microorganisms cyanobacteria and E. coli. It is not known that there are any plans to scale up beyond the laboratory.

Converting sugars to chemicals is an active area of development by ‘bioproduct’ companies, including venerable names like DSM, DuPont, and Total as well as newcomers such as Amyris, Myriant, GEVO, and of course Global Bioenergies. Except for Global Bioenergies’s isobutylene, none of the target products are fuels, they are chemical intermediates such as acrylic acid, adipic acid, farnesene, polylactic acid, and succinic acid.

Sugars can of course be fermented to alcohols that in turn can be converted to BioLPG. National Renewable Energy Laboratory [7] reports a possible route from sugars to propanol or propionic acid as intermediates, with subsequent catalytic dehydration to propylene followed by catalytic hydrogenation of propylene to propane.

A final pathway similar to fermentation is the conversion of butyric acid to biopropane. As [7] reports, genetically engineered microbes can do the reaction of (butyric acid) C₄H₇COOH → C₃H₈ + CO₂. Most butyric acid today is produced synthetically from fossil feedstocks, but it can be made from bio feedstocks as well.

3.2. Hydrolysis and Fermentation of Cellulose

Cellulose is generally believed to be the most abundant bio-material on earth. It is the structural material of most plants. Its chemical structure is a polysaccharide, i.e., a polymer of sugar molecules. Cellulose is made only of glucose (C₆), while the less-abundant hemi-cellulose is polymerised from a variety of sugars. The sugar in cellulose cannot be fermented conventionally, because microorganisms are not capable of breaking down the polymer into its constituent sugars. Starch is also a polysaccharide, but its polymer can be broken down into sugars relatively easily.

Hydrolysis is a process to break down cellulose (or hemi-cellulose) into its sugars. These then can be fermented into other products, as reviewed above.

There are two general approaches to hydrolysis: treating the cellulose with steam and acid to break it down or treating the cellulose with special enzymes that also can break it down. Much research and development has gone into this over the past 40 years, precisely because cellulose is so abundant and could supply large proportions of fuels and chemicals. Even so, the process has only reached the technological readiness of ‘first commercial’, and even that is tenuous.

Most of the development has been driven by the aim to make cellulosic ethanol, by hydrolysis to sugar and then fermentation. Common feedstocks for this are straw and stover (the stalk and leaves of a corn/maize plant). Wood is also possible, but less suitable, because it requires more up-front processing to chop it up. The first commercial scale plants to do this, one owned by Abengoa and the other a joint venture of companies DSM and POET, opened in the USA in 2014. Abengoa subsequently went bankrupt—which is symptomatic of the industry: the economics are not self-sustaining; subsidies are required.

Sugars produced from hydrolysis can in principle be fermented similarly to ‘natural’ sugars. Indeed, Global Bioenergies reports that its IBN-One process to convert sugar to BioLPG has been successfully tested on cellulosic-derived sugar at a laboratory scale [12]

3.3. Digestion of Organic Wastes

Organic wastes with high water content—such as manure, sewage sludge, or food remnants—sometimes are treated by digestion, i.e., anaerobic fermentation. The output is biogas, typically around 50% methane, most of the rest carbon dioxide with small amounts of organic acids, nitrogenous and sometimes sulphurous compounds as well. Biogas is also produced ‘naturally’ at waste landfills, from the digestion of waste organics that can be either bio or fossil in origin.

Biogas is used as energy in two main ways. One is to combust it onsite in an internal-combustion engine that runs an electric generator. This has been done with landfill-biogas for decades now. The other is to clean and upgrade it to biomethane (90% purity) and inject that into the natural gas grid. This has become a significant industry in the past 10–15 years.

A third way is also possible: the digestion-gas could be synthesised into higher hydrocarbons. Two companies have worked on this process, both at laboratory scale.

3.3.1. Biomethane to Propane, Alkcon

In 2016 A US-based company, Alkcon Corporation, announced a process for converting methane, purified from digested biogas, to propane (Figure 4). No details are available. According to [7], presumably this is a thermochemical route which involves conversion of methane to ethane (first reactor) with subsequent conversion of ethane plus methane to propane (second reactor). Hydrogen is produced as a by-product.

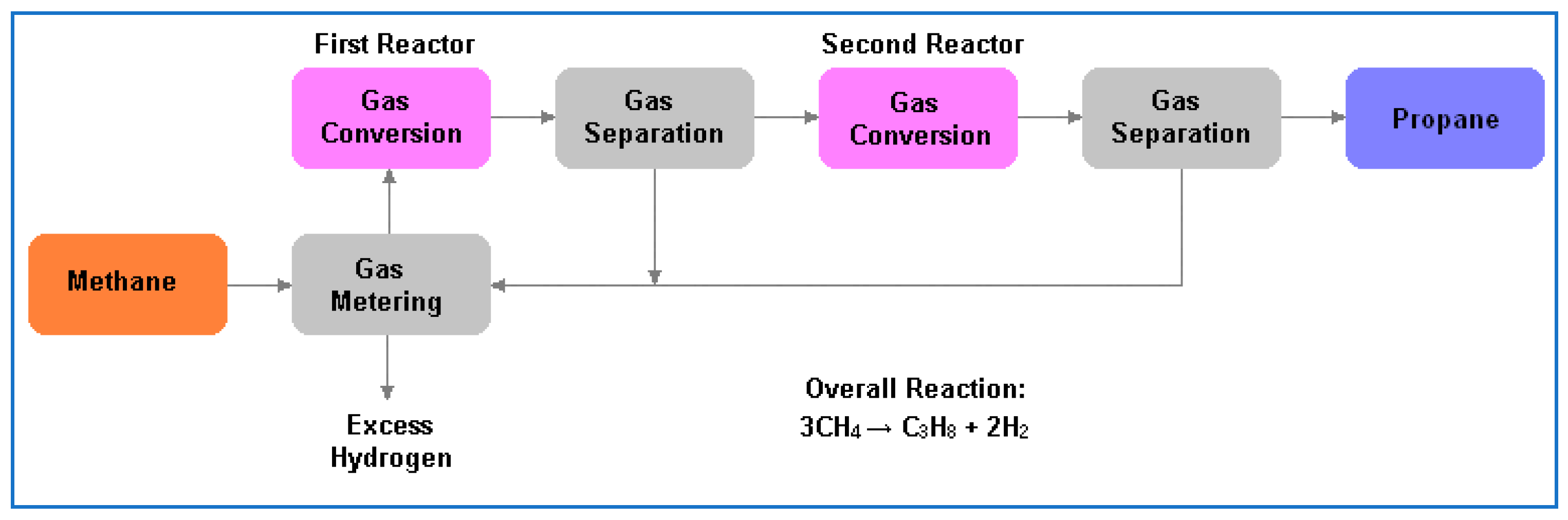

Figure 4. Alkcon’s process for methane to propane.

3.3.2. Bio-CO₂ to Propane and Methane, ‘FutureLPG’

A German consortium led by the Technical University of Clausthal plans to test a digestion-based process at laboratory scale for 30 months, starting in 2019. Unlike the Alkcon process that uses methane from biogas as feedstock, the FutureLPG process uses carbon dioxide produced in digestion. This will be reacted with hydrogen (produced by electrolysis of water, using low-carbon power) in a Fischer–Tropsch synthesis to produce biomethane and BioLPG (the mix of propane/butane is not clear).

This approach shares some aspects in common with those using atmospheric carbon dioxide as feedstock (see Section 5).

4. Advanced Chemical Processes and Projects

There are two advanced chemical process types that can lead to BioLPG: gaseous conversion and synthesis, and liquid conversion and synthesis. They are advanced, because they are technically challenging and not well-established commercially. The feedstocks for these are cellulosics and wastes.

Neither of these process types currently deliver commercial quantities of BioLPG. Still they are interesting, because they offer the possibility of using cellulosic- and waste-feedstocks at a large scale, and so potentially could produce significant volumes of BioLPG.

4.1. Process Descriptions

All these processes break down the large, complex molecules of biomass into smaller, simpler ones. These smaller, simpler molecules are then synthesised/refined into fuels. There are two main steps: gaseous or liquid conversion, followed by synthesis. The most promising route to BioLPG is gasification and synthesis, because the other routes usually are directed at longer-chain or more-complex hydrocarbons (Figure 5).

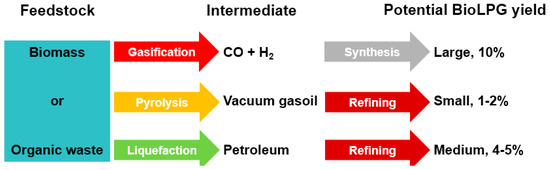

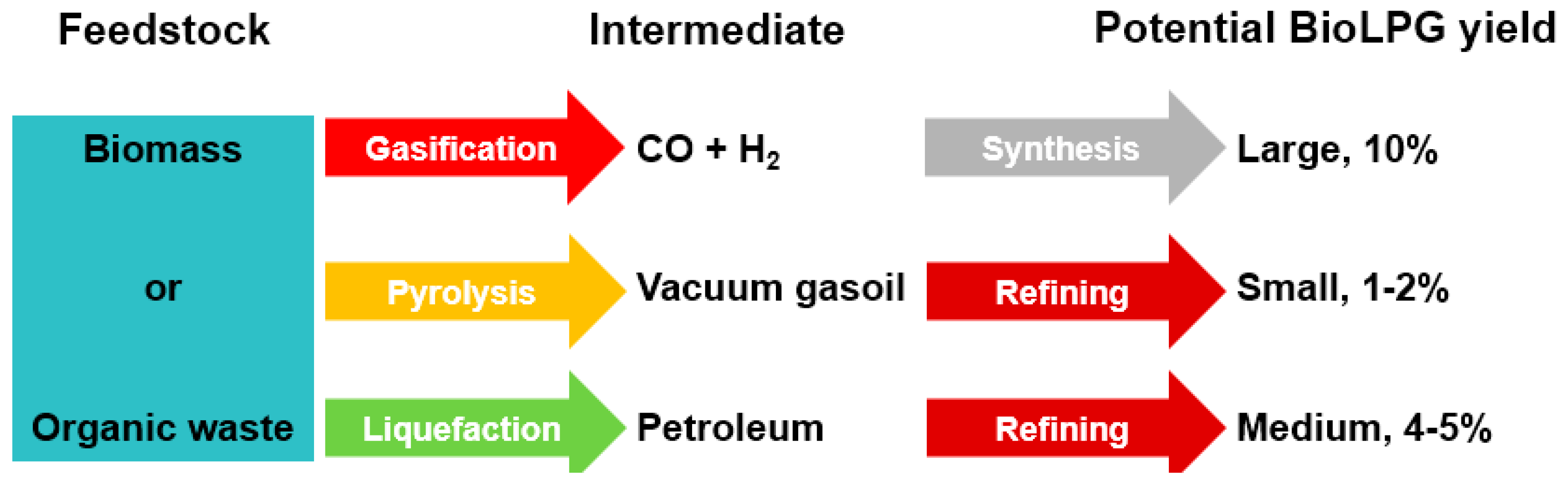

Figure 5. Advanced chemical paths to BioLPG.

4.1.1. Gaseous Conversion

Gaseous conversion (of biomass) can be done in two main ways: gasification and pyrolysis. Gasification is done at severe temperatures and pressures, in the presence of air and/or steam, while pyrolysis is more moderate and without air or steam. Gasification blasts the feedstocks into syngas, a gaseous mixture of small molecules, mostly carbon monoxide and hydrogen. Pyrolysis ‘cooks’ the feedstock into an oil.

Gasification

A gasifier hits its hydrocarbon feedstock with high temperatures (700+ C) and pressures (5–10 bar) plus air or oxygen and often steam as well. The harsh conditions blast apart long molecules into a mix of short ones, called syngas, composed mainly of carbon monoxide and hydrogen, but there usually is also some carbon dioxide, some methane and small amounts of other compounds. The precise mix of these depends on the gasification conditions and on the composition of the feedstock. Natural gas (methane, CH₄) delivers a hydrogen-rich syngas, whereas coal (say, C₂₄₀H₉₀O₄NS for anthracite) delivers a more carbon-rich syngas. Biomass (mostly cellulose, C₆H₁₀O₅) delivers a more oxygen-rich syngas.

Pyrolysis

A pyrolyser hits its hydrocarbon feedstock with moderate temperatures (300–600 °C) and limited oxygen or air, usually at ambient pressure. The hydrocarbons react with each other, forming a combination of oils, gases and solids (char). The precise mix of these depends on the pyrolysis conditions and on the composition of the feedstock. Unlike gasification, pyrolysis mostly generates mid-sized molecules, say C₅ to C₂₀, and these are mostly still hydrocarbons. When biomass is pyrolyzed, because it contains significant oxygen, oxygenates are produced such as carboxylic acids, phenols, sugars, and water.

A well-known application of pyrolysis is the conversion of wood to charcoal. The product here is the char, while the gases and oils are vented. Of more interest in this study is pyrolysis that leads mainly to pyrolysis oil, sometimes called bio-oil—which is broadly similar in composition to vacuum gasoil.

4.1.2. Liquid Conversion

A liquefaction process hits a wet hydrocarbon feedstock with moderate temperatures (up to 400 °C) and high pressures. Sometimes the conditions are enough to make the water go supercritical. As in pyrolysis, the hydrocarbons react with each other, and with the water, but the product is mainly an oil, also sometimes called bio-oil—which is broadly similar to petroleum [15], except with higher oxygen content.

4.1.3. Synthesis

Synthesis takes the smaller, simpler molecules created by gaseous or liquid conversion, and converts them into fuels.

Syngas from gasification is mainly carbon monoxide and hydrogen. It must be cleaned of tars and other contaminants, and carbon dioxide is also removed. The CO (carbon monoxide) and hydrogen are then catalytically reacted to make longer-chain hydrocarbons. The precise mix depends on conditions and on the syngas composition, but typically it covers about the same range as that of a petroleum refinery. Of course, this is by design. In fact, the target range can be adjusted towards most of the longer-chain or shorter-chain hydrocarbons, including those for BioLPG.

Pyrolysis oil is similar to vacuum gasoil (VGO), a common refinery intermediate, except that when made from biomass, it has more oxygen. The py-oil can be processed (synthesised) similarly to VGO in a conventional refinery, even directly blended with fossil VGO at 10–20%. It can be cat cracked, or hydro-deoxygenated and then hydrocracked.

4.2. Technical Readiness (with Biomass/Waste Feedstock)

For biomass or organic wastes, none of the advanced chemical processes have gone commercial (Table 6). This is mainly due to their economic unattractiveness, but technical challenges can also be considerable. For the first two, however, there is considerable know-how that has been built up in their application to fossil hydrocarbons, especially for gasification and synthesis.

Table 6. Technical readiness of advanced chemical processes.

Process Type	Fossil Feedstocks	Biomass Feedstocks
Gasification and synthesis	Commercial	Demonstration
Pyrolysis and synthesis	Demonstration	Demonstration
Liquefaction and synthesis	Not known	Demonstration

Gasification and synthesis is used commercially for fossil feedstocks. Probably the best-known examples are the coal-to-liquids (fuel) plants operated by Sasol in South Africa. Another well-known example is the Great Plains Synfuels Plant in American North Dakota, opened in 1986, that converts coal to fuel gas. These processes have never caught on widely, because the economics are unattractive. South Africa, and in earlier times Germany, turned to coal-to-liquids for political reasons, i.e., they had limited access to crude oil. Other prominent examples of gasification and synthesis are natural gas-to-liquids plants in Malaysia and Qatar, and methanol-to-gasoline in China and New Zealand.

Pyrolysis and synthesis has for years been proposed for the treatment of disused tyres, which can be a disposal problem and a fire hazard. The barrier to their commercialisation has been more economic than technical.

4.3. Process Developers/Licensors

For gaseous conversion and synthesis from biomass or waste that could potentially lead to BioLPG, several developers and licensors are active (Table 7). So too, in liquid conversion and synthesis (Table 8).

Table 7. Developers/licensors of relevant gaseous conversion and synthesis processes.

Process	Process Name	Developer/Licensor	Source
Gasification + Fischer–Tropsch	Biomass to liquids	Choren	www.ieatask33.org/app/webroot/files/file/2014/WS2/Kittelmann.pdf
Gasification + Fischer–Tropsch	Biomass to LPG	Japan Gas Synthesis	[16]
Gasification + Fischer–Tropsch		Maverick Synfuels	Author research
Gasification + Fischer–Tropsch		Shell	Author research
Gasification + Fischer–Tropsch		Velocys	https://www.velocys.com/
Gasification and pyrolysis	MILENA	Energy Research Centre of the Netherlands and Royal Dahlman	ftp://ftp.ecn.nl/pub/www/library/report/2016/m16032.pdf
Gasification-to-power		Energos	www.energos.com
Gasification-to-power		Outotec	https://www.outotec.com/
Gasification-to-power		Syngas Products	Author research
Methanol-to-gasoline/LPG	TIGAS	Haldor-Topsoe	https://www.topsoe.com/processes/gasoline-synthesis/tigastm
Methanol-to-propylene		Lurgi	Author research
Pyrolysis	RTP	Enysn	www.ensyn.com/rtp-applications
Pyrolysis (hydropyrolysis)	IH2	Gas Technology Institute	https://www.cricatalyst.com/cricatalyst/catalysts/renewables/integrated-hydropyrolysis-and-hydroconversion.html
Pyrolysis	Biomass catalytic cracking	KiOR (since renamed to Inaeris Technologies)	Author research
Synthetic natural gas		Energy Research Centre of the Netherlands	ftp://ftp.ecn.nl/pub/www/library/report/2016/m16032.pdf
Synthetic natural gas		Göbigas	https://sv.wikipedia.org/wiki/GoBiGas

Table 8. Developers/licensors of relevant liquid conversion and synthesis processes.

Developer/Licensor	Process Name
Biochemtex/ETH Zürich/KLM (Dutch national airline)/RE-CORD (consortium of Italian universities)
Chalmers University
Licella	Cat-HTR
Muradel
Next Fuels
Shell HTU
Southern Oil Refining
Steeper Energy/Aalborg University	Hydrofaction
Altaca/SCF Technologies
Chemtex
Genifuel/Pacific Northwest National Laboratory
Research Triangle Institute
Virent	Bioforming

Source: Author research.

4.4. Projects and Production

These are divided into three groups.

For gaseous conversion and synthesis of cellulosics, about 50 projects have been identified (see Section 4.4.1), divided into five classes. For gaseous conversion and synthesis of mixed waste, a list has not been compiled, because this is not yet a clear route to BioLPG. Nonetheless, the concept is presented in the second subsection below.

Cellulosics and mixed waste are separated, because process developers tend to view them separately. There are two main reasons for this:

• Cellulosics—say, wood chips or straw or forest residues—can be relatively homogeneous, regardless of whether they are products or wastes. A process can be adjusted carefully to specific feedstocks. Mixed wastes, on the other hand, by definition are of varying composition. Trying to convert them into intermediates that can be further converted into products is technically challenging. Several plants have been built but later shut down because of fouling in their processes (see Section 5).
• The other big differences between cellulosics and mixed waste are availability and economics (revenues). Availability of mixed waste is good, and logistics already exist: it is collected, it must go somewhere. By contrast, logistics and collection of cellulosics are thin on the ground. Most cellulosics are not collected centrally, and initiating collection would incur investment and operating costs. As for economics: because mixed waste usually comes with a ‘gate fee’, i.e., a payment to dispose of it, there is a ready revenue stream to help finance (say, a gaseous conversion and synthesis plant to do that). Cellulosics generally do not have an attendant ‘gate fee’. This could be created, just as they have been for some recyclables and wastes (used cooking oil, for example), but again, it would incur investment and changes in operating practice.

For liquid conversion and synthesis of biomass, about 14 projects have been identified (see Section 4.4.3).

4.4.1. Gaseous Conversion and Synthesis, Cellulosics

Five processes are of interest. The first four are gasification and synthesis: gasification and Fischer–Tropsch; gasification-to-methanol; methanol-to-gasoline/LPG; and synthetic natural gas. The final one is pyrolysis and synthesis. These are covered below. Four of these processes can potentially generate significant yields of BioLPG (Table 9).

Table 9. Potential (maximum) yield of BioLPG as a fraction of total output by weight.

Process General Description	Potential BioLPG Yield	Specific Process
Fischer–Tropsch	7.5%	Larson theoretical design
Fischer–Tropsch	50%	Japan Gas Synthesis
Methanol-to-gasoline/LPG	8.4%	‘Green Gasoline’
Fast hydropyrolysis	10%	IH2 process

Syngas Synthesis

Syngas from a gasifier can be further processed in a lot of directions (Figure 6). This report aims to cover only those relevant to BioLPG: Fischer–Tropsch, syngas-to-methanol-to-gasoline (and LPG); repurposed methanol; and synthetic natural gas.

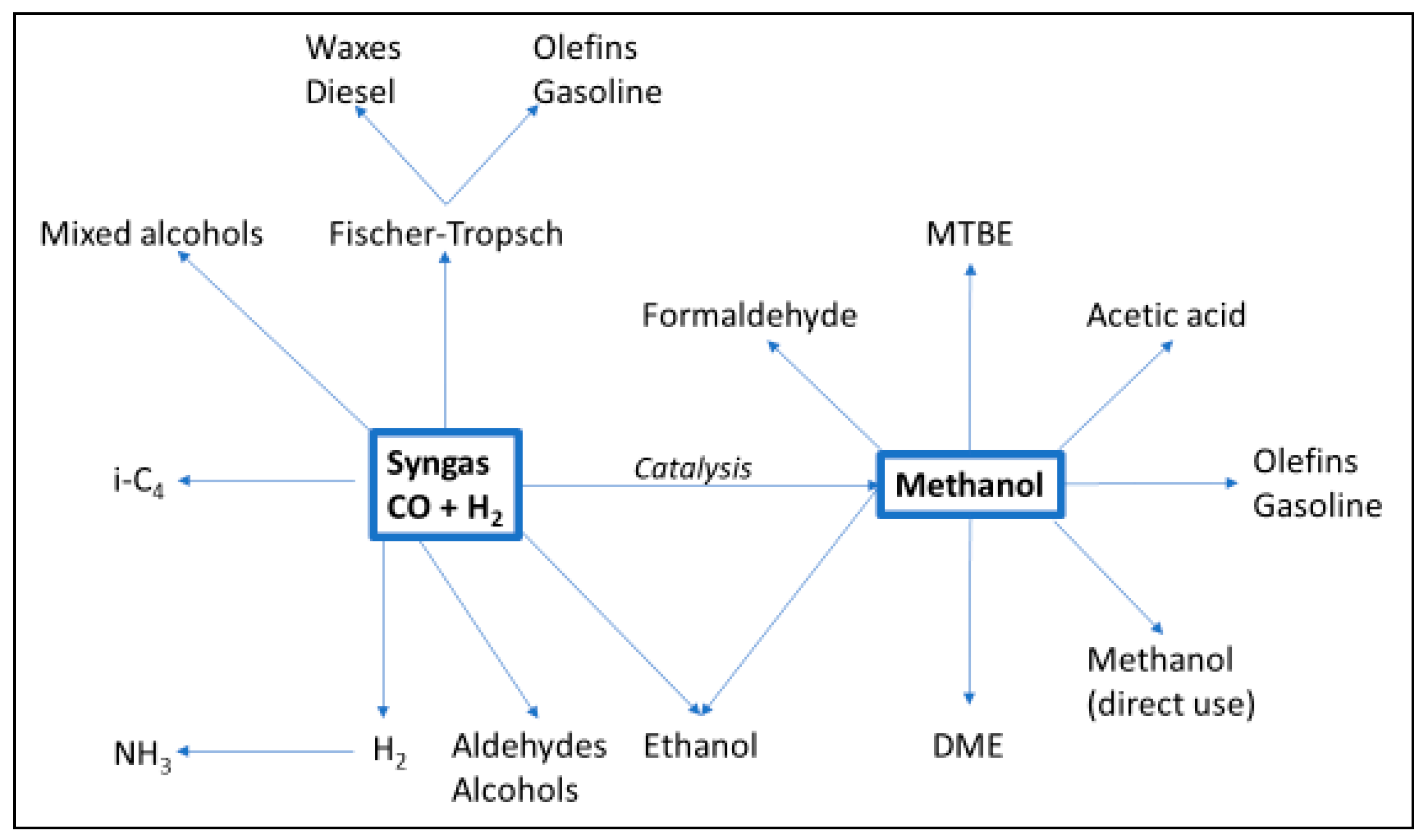

Figure 6. Processing options for syngas. Source: [17].

Fischer–Tropsch

One option for syngas is to synthesise it into liquid fuels with the Fischer–Tropsch (FT) process. About 25 projects have been identified (Table 10) that use FT process to do this, starting from cellulosic feedstocks. None of those actually operating are believed to be commercial, although some commercial projects reportedly are in the works.

Table 10. Gaseous conversion and synthesis projects for BioLPG, by process.

Owner/Operator	Country	Location	Feedstock	Prime Product	Prime Product Capacity kt/y	Source/Note
Gasification + Fischer–Tropsch
BIOENERGY 2020+	A		Wood	FT liquids	0.04	Author research
BioTfuel—Uhde	F		Torrefied wood	FT diesel, jet	0.064	Author research
Choren Industries	D	Freiberg (Sachsen)	Wood		13	Closed
Cutec	D		Straw, wood, dried silage, organic residues	FT liquids	0	Author research
ENVIA Energy	USA	Natchez, Miss	Woody biomass	Diesel, naphtha, wax	61	Planned
ENVIA Energy	USA	Oklahoma City, OK	Landfill gas and natural gas	Diesel, naphtha, wax	0	Author research
Flambeau River BioFuels	USA	Wisconsin Rapids, WI	Black/brown liquor			Author research
Frontline Bioenergy	USA		Wood, sorted municipal waste	FT jet	0.04	Author research
Fulcrum Biofuels	USA		Municipal waste, prepared	FT diesel, jet	30	Author research
Gridley Biofuels Project/Red Lion/Greyrock	USA		Agricultural residues	FT diesel	0.368	Author research
Haldor Topsoe Gas Technology Institute	USA		Wood pellets	FT gasoline	1.04	Author research
Japan Synthesis Gas, Kutakyushu University	J		Wood			Author research
Joule Unlimited/Red Rock Biofuels	USA		Wood wastes residues	FT diesel, jet	44	Planned
Kaidi	PRC		Biogenic waste	FT diesel	0.416	Author research
Kaidi	SF		Forest residues	FT diesel, jet	200	Planned
Maverick Synfuels	USA	Chapel Hill, NC	Biomass			Author research
NewPage Corporation	USA					Author research
NREL	USA		Lignocellulosics	FT liquids	0.048	Author research
Saskatchewan University	CAN		Syngas	C2-C4 olefins		Author research
Shell	USA	Houston	Hydrocarbons			Author research
Southern Research Institute/TRI	USA		Wood waste forest residues	FT liquids, mixed alcohols, industrial sugars	0	Author research
TRI	USA		Wood waste forest residues	FT liquids	0.016	Author research
Tübitak MRC-Energy Institute	T		Hazelnut shell, olive cake, wood chip lignite	FT liquids	0.256	Author research
Velocys	A		Wood	FT diesel	0.024	Author research
Gasification-to-methanol
Bio-MCN	NL	Groningen	Glycerol	Methanol		Operating
Methanol-to-gasoline/LPG
ExxonMobil	USA		Could run on biomass	Methanol and LPG		Has operated on coal and gas, but not bio feedstocks
Haldor-Topsoe	DK		Wood	Methanol and LPG		Demonstration in USA Green Gasoline
Synthetic natural gas
Energy research Centre of the Netherlands	NL		Biomass	Synthetic natural gas		Demonstration
Engie	F		Wood, straw	Synthetic natural gas		Demonstration?
Göbigas	S	Gothenburg	Wood residues	Synthetic natural gas		Demo plant, now closed.
Pyrolysis
Bioliq/Karlsruhe Institute of Technology	D		Wood, waste wood, straws, hay	Pyrolysis oil, DME, gasoline	1.44	Author research
BTG Bioliquids	NL	Hengelo	Wood biomass and/or residues	Pyrolysis oil	12	Subsidised by EU Research funding
Cool Planet	USA		Wood residues thinnings	Pyrolysis oil, Gasoline?	30	Said to be under construction
CRI (subsidiary of Shell)	USA		Straw, wood residues, wastes	Gasoline, jet, diesel	1.68	Author research
Ensyn	BR		Biomass and/or waste			Author research
Ensyn	CAN	Renfrew, ON	Lignocellulosics	Pyrolysis oil	9	Author research
Ensyn	Malaysia		Lignocellulosics			Author research
Envergent/Ensyn/UOP (engineering contractor)	CAN		Forest residues straw	Pyrolysis oil	320	Under construction?
Enysn	CAN		Biomass and/or waste			Author research
Fortum/Valmet/PREEM (refiner)	SF	Joensuu	Woodchips and thinnings	Pyrolysis oil	Commercial scale	Planned for 2020
Iowa /National Renewable Energy Laboratory/ConocoPhilips	USA		Biomass	Gasoline, diesel, jet	3.2	Author research
KiOR (now called Inaeris Technologies)	USA		Biomass			Author research
LignoCat/VTT Technical Research Centre/Fortum/UPM/Valmet	SF		Biomass	Upgraded pyrolysis oil	Not yet public	Author research
Next BTL/Future Blends	GB		Lignocellulosics	Pyrolysis oil	0.024	Author research
Petrobras/BTG	BR		Biomass	Gasoline, diesel, jet	1.36	Author research
Petrobras/Ensyn/NREL	BR		Biomass	Gasoline, diesel, jet	1.76	Author research
Research Triangle Institute	USA		Lignocellulosics	Bio-crude	0.024	Author research
SynSel Energy/CRI Criterion Catalyst	N	Grenland	Forest residues	Gasoline jet, diesel,	1.68	Author research
UOP	USA	Oahu, Hawaii	Biomass	Gasoline, diesel, jet	0.16	Author research
Gas Technology Institute/Shell	USA	Chicago, Ill	Residues, wood, stover, bagasse, algae	Gasoline, jet, diesel	0.008	Piloted in Chicago and Ontario
Gas Technology Institute/Shell	USA	Bangalore	Residues, wood, stover, bagasse, algae	Gasoline, jet, diesel		Demonstration plant

Sources: The information presented above has been compiled from public sources, including periodicals, reports, company websites and communications with the industry, plus estimates based on all of those.

Do they or will they produce BioLPG? Probably very little, if at all. These projects are targeted at mainstream refined products: gasoline, diesel and jet fuel. This report estimates the BioLPG output at 2–3% by weight. Or it could be less: FT processes are often designed to use most or all their LPG output as process fuel.

Could they produce BioLPG? Yes. A published model of a biomass FT plant [18] yields about 7.5% by energy content of LPG. About 5% is butane, 2.5% propane. In the same design, much of the butane is cannibalised in the process, but one of the authors, Larson, has said that this butane could be replaced by other process fuels.

Moreover, FT plants can produce LPG when they run on fossil feedstocks. At Sasol’s coal-to-liquids plant in South Africa, total LPG yield is around 5% (some is cannibalised, actual LPG production is lower). In a design study for the US Department of Energy, [19] engineered nine different configurations of FT with coal as feedstock. Propane/butane yields ranged from 3.5–6.5% by weight of all outputs. About two-thirds of that output was butane, one-third propane. Lab-scale research at Canada’s University of Saskatchewan (https://doi.org/10.1002/cjce.5450810208) has used fossil syngas feedstocks to achieve C₃/C₄ yields of nearly one-third of the output.

While FT will always produce hydrocarbons in a range of lengths, the focus can be moved from long to short or vice versa, depending on feedstocks and process conditions (Figure 7).

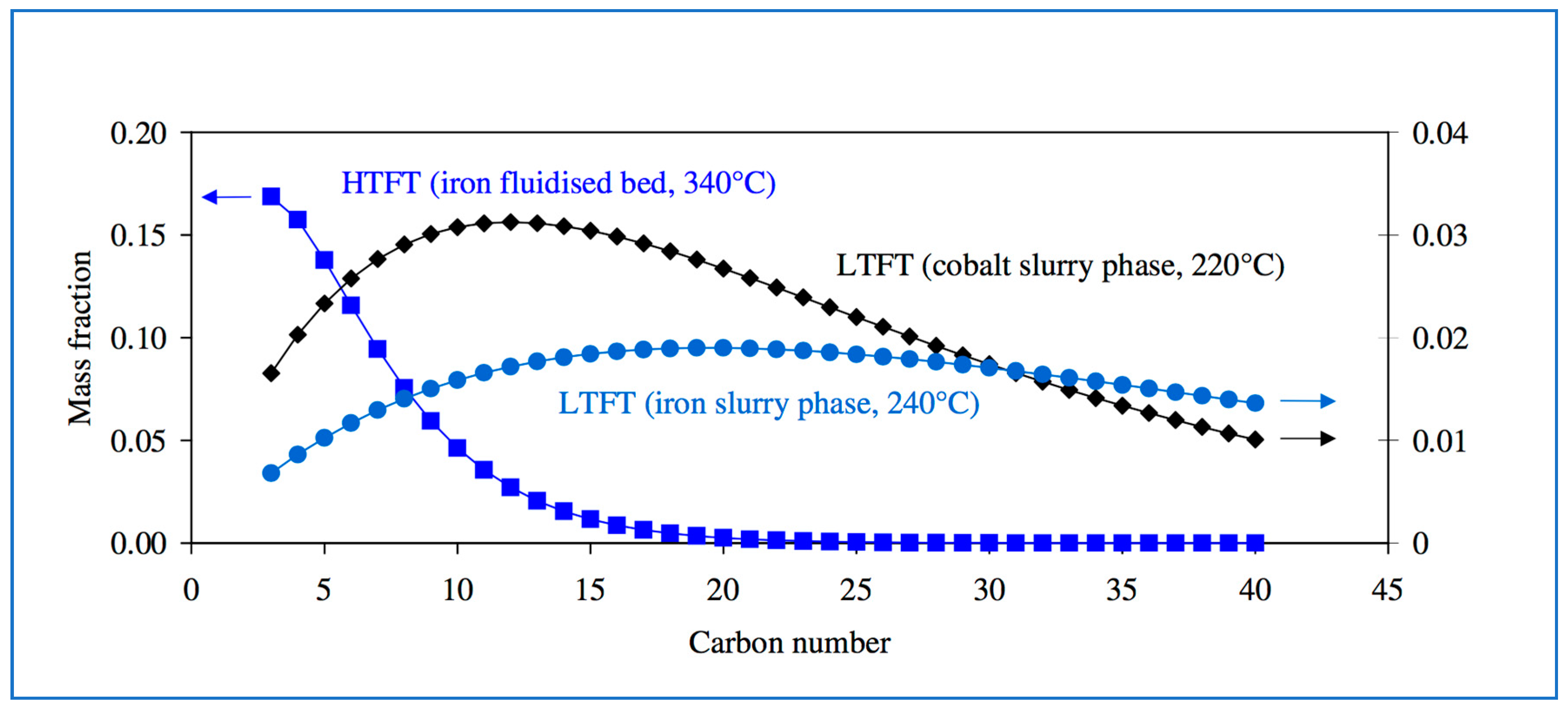

Figure 7. Products distributions for different coal-to-liquid FT processes, catalysts and reactors. Source: Atlantic Consulting.

FT synthesis is of syngas reacted over metallic catalysts to produce a mixture of longer-chain hydrocarbons. These can be upgraded via standard refinery processes (such as hydrocracking and distillation). FT plants can also generate excess electricity for sale to the grid. Overall yield, however, is very low. The Sasol coal-to-liquids plant’s products are only 18% by weight on the incoming coal feedstock. For a biomass FT plant, the energy efficiency is only about 50% [18].

A Specific Fischer–Tropsch Process for Biomass to LPG: Japan Gas

Japan Gas Synthesis Co. Ltd. (Yokohama, Japan) and the University of Kitakyushu have developed a biomass gasification and FT process that maximises output of LPG. The work was part of a larger effort to synthesise DME, iso-paraffins, methanol and LPG using FT [20]. An overview of the LPG pathway was presented to an IEA Bioenergy conference in Vienna in 2012 [16].

The LPG concept was proven at laboratory scale. Japanese cedar wood was gasified to syngas: 49% carbon, 45% oxygen and the rest hydrogen. The syngas was reacted in one pass at 260 °C and 20 bar over a combination of catalysts: zeolites and commercial catalysts used for methanol synthesis. For 100 t of wood input, the yield was 12.3 t LPG plus around 12 t of other off-gases (presumably other hydrocarbons).

In 2012, Japan Gas proposed to build a 100–200 t/day (36–72 kilotonne/year) commercial plant, based on this design. The proposal is not known to have been realised.

Syngas-to-Methanol (-to-Gasoline and LPG)

Another option for syngas is to convert it to methanol. This is less complex and costly than Fischer–Tropsch, and methanol is a fungible product that can be sold globally. Or, methanol can be converted to gasoline—which happens to produce LPG as a significant byproduct (Figure 8). This has been done with biomass at a demonstration scale, and with fossil feedstocks at a commercial scale.

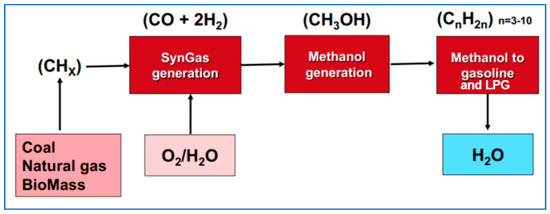

Figure 8. Schematic of the gas/coal/biomass-to-methanol-to-gasoline/LPG process. Source: ExxonMobil.

Most of the world’s methanol is produced this way, but not from biomass, rather from ‘stranded’ natural gas (or sometimes coal), gas or coal that are too remote to be used locally or to be transported somewhere else. In most cases, the methanol is sold onward as methanol, but there are cases where it is converted on to gasoline and LPG:

• New Zealand: in 1985, the New Zealand government opened a commercial-scale natural-gas-to-syngas-to-methanol-to-gasoline plant, at Montuni, to exploit a natural gas field offshore. The process technology was supplied by Mobil, now ExxonMobil. Technically, the plant operated as planned, but the economics were unattractive, so as of 1997 it stopped making gasoline but continued making methanol—which it still does today (http://www.techhistory.co.nz/ThinkBig/Petrochemical%20Decisions.htm).
• China: in 2009, the Jincheng Anthracite Mining Group started up a commercial plant in Shanxi that follows the same process as in New Zealand, except starting with coal. A second, much-larger plant came onstream in 2017. Process technology was supplied by ExxonMobil.
• United States: the company G2X Energy is planning a world-scale methanol plant at Lake Charles, Louisiana, that it calls the Big Lake Fuels project. As of early 2018, the plant has been permitted, but not built. G2X has licensed ExxonMobil’s methanol-to-gasoline process, but it is unclear if the project will be built, and if built, if it will include gasoline or just stop at methanol. ExxonMobil has also licensed its process to a company named DKRW Advanced Fuels, which planned to build a coal-to-methanol-to-gasoline plant near to a coal mine at Medicine Bow, Wyoming. The plant, announced in 2009, was to have started operation in 2014, but construction never started, due to lack of funding and permitting problems.

All of these run on syngas from fossil fuels: what about biomass to biogasoline and BioLPG? This has been proven at a demonstration scale. A ‘Green Gasoline from Wood’ project, funded mainly by the US Department of Energy and led by the Gas Technology Institute, ran from 2010–2014 at a plant in Des Plaines, Illinois. The methanol-to-gasoline section was supplied by Haldor Topsoe, with its TIGAS process. In the plant, wood chips are gasified to syngas, synthesised to methanol/DME and further reacted to naphtha (gasoline) and LPG (Figure 9). The LPG is about two-thirds butane, one-third propane.

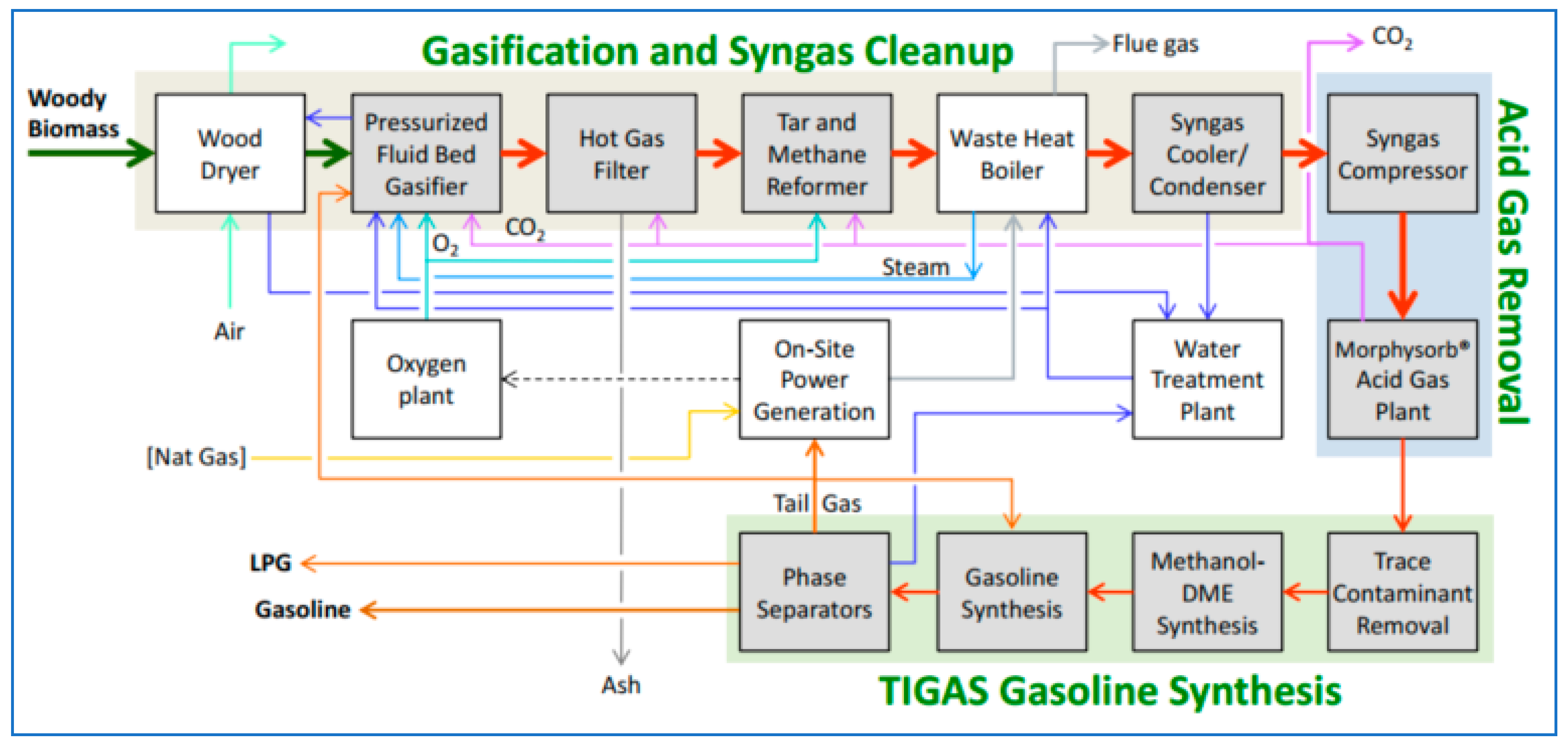

Figure 9. Schematic flow-sheet of the wood-to-gasoline/LPG demo plant ‘green gasoline from wood’.

The demonstration plant was fed about 19 tonnes/day of wood chips and produced 23 barrels/day of gasoline plus 3 barrels/day of LPG. Based on the demo plant results, the project delivered a conceptual design of a commercial-scale plant that would intake 2088 kilotonnes/year of wood at 50% moisture to produce 175 kt of biogasoline and 16 kt of BioLPG [21]. LPG yield is 8.4% by weight of the output.

Will wood-to-biogasoline/BioLPG go commercial? Haldor Topsoe would surely license TIGAS to an interested operator, and so would ExxonMobil, which says its MTG process could be adapted to biomass feedstock [22]. These are the only known licensors of the process.

Which leaves the question of BioLPG yields? For coal feedstock, Exxon has reported yields of 10% butane, 5% propane plus another 1% butylenes, i.e., 16% LPG of the total output by weight. Haldor Topsoe has reported that its TIGAS process could be optimised to make 20–25% LPG, but this seems to be for fossil feedstocks [23]. As a working figure, we estimate that the 8.4% proven at ‘green gasoline’ could be improved to 10%.

Repurposed Methanol: Glycerine to BioLPG?

There is speculation that conventional methanol plants (which gasify natural gas to syngas and then react that syngas to methanol) could be repurposed to convert bioglycerine—which is massively available at low prices—to BioLPG.

The example is a company called Bio-MCN, which operates a plant in The Netherlands (Table 10) that gasifies glycerine and converts the syngas to methanol. It is a special case: an existing natural-gas-to-methanol plant on the site was shut down, for economic reasons, and with heavy subsidy by the Dutch Government it was modified to run not on gas but on bioglycerin. Discussions with experts suggest that this plant could be further modified, with relative ease, to produce BioLPG instead of biomethanol.

If this is indeed feasible, it is a larger opportunity than just this plant. Methanol is a very cyclical business, and plants are regularly mothballed or shut for economic reasons. Moreover, methanol plants are sometimes moved from one location to another where the economics (i.e., natural gas prices) are more attractive. Converting them to BioLPG could be another option.

Synthetic Natural Gas (SNG)

The third relevant option for syngas-to-BioLPG is a variant of the process known as synthetic natural gas (SNG). It could be modified to produce BioLPG.

The name is confusing (is it synthetic or natural?), but what it means is bio-syngas converted to methane, which then is used in the same way as natural gas. Three projects have been identified (Table 10) based on cellulosic feedstocks, and another one is in development using mixed waste (see Section 4.4.3). SNG has been researched since at least the 1990s, but it has never reached commercialisation, because its economics have never been attractive enough. However, as some governments force bio or renewable content into their gas grids, its economics might turn attractive.

As the name suggests, SNG is aimed at methane. Nonetheless, discussions with developers suggest that the process could be modified to produce a combination of SNG and BioLPG. At present, no such research or development is known to be underway in this area.

Pyrolysis and Fast Hydropyrolysis (IH2)

A final gaseous conversion and synthesis option for BioLPG is a process that pyrolyzes cellulosic biomass and then synthesises those pyoils into liquid fuels. About 20 projects that pyrolyse and synthesise fuels from cellulosics have been identified (Table 10). None of those actually operating are believed to be of commercial-scale, although the Envergent project in Canada would be, if it is ever built.

Do they or will they produce BioLPG? Probably very little, if at all, with one exception: the IH2 process, developed by the Gas Technology Institute (GTI) and available for license through a Shell subsidiary company, CRI/Criterion, can produce biopropane at about 10% volume of the total output, presumably this is about 6% of the output by weight [23,24]. IH2 has been piloted a 50-kg/day plant operated by GTI and at a 5-tonne/day plant operated by Zeton Inc in Ontario, Canada. A demonstration-sized unit has reportedly been built in Bangalore, India.

This process is two-staged: first a medium pressure, catalytic ‘fast’ hydropyrolysis in a fluid bed under moderate hydrogen pressure. The hydrogen comes from the back end of the process: low-value C₁ and C₂ hydrocarbons are steam-reformed to make the hydrogen. Intermediates from the first stage enter a hydroconversion step, where a hydrodeoxygenation catalyst removes remaining oxygen and produces gasoline, diesel, jet, and LPG. Because it is pyrolysis, there is some solid (char) produced as well.

4.4.2. Gaseous Conversion and Synthesis, Mixed Wastes (Advanced Conversion Technologies)

Gaseous conversion and synthesis can also be applied to mixed wastes, most notably municipal waste. In this application, such processes are known as Advanced Conversion Technologies (ACTs). ACTs can be appealing to waste-disposal authorities, who are keen to find alternatives to landfill (increasingly forbidden or restricted) and incineration (often opposed by local communities). ACTs are believed to emit fewer particulates and dioxins than ACTs, because they run at higher temperatures, and they can be built in smaller, less-obtrusive sizes [25].

ACTs are similar to their cousins that process cellulosics (see above). They gasify or pyrolyze the (waste) feedstock into syngas or pyoil. However, with a few exceptions, they do not turn that gaseous intermediate into a liquid product—typically they burn it in a gas engine or a gas turbine to generate electricity. Because it is classified as renewable power (although 20–40% of the hydrocarbons in municipal wastes are fossil based, mainly from plastics), government credits/funds for green electricity usually can be obtained. Ironically, ACTs are less energy-efficient at than conventional incinerators, which run at 18–32% efficiencies [26].

To date, ACTs have shown mixed results. Reportedly they work successfully in Japan, but in Europe, there have been several failures. Probably the best-known was an ACT planned for Teesside in the UK by Air Products that would have generated 100 MWatts of electricity. It was cancelled in 2016 while still under construction (https://www.ft.com/content/226c0e34-fb47-11e5-8f41-df5bda8beb40). Reportedly its problem and the problem of ACTs in general is their tendency to create tars in gasification/pyrolysis that go on to foul the back end of the process.

Nonetheless, municipal waste is not about to go away, so interest will probably persist. Numerous developers are pointing to plasma gasification as the possible solution to the tar problem [25,27]: this has yet to be proven. Moreover, interest will persist in turning the syngas/pyoil into fuels or chemicals. No ACT projects are known to be targeting LPG, but three projects are aimed at not-distant chemicals:

• Enerkem, Alberta, Canada, waste-to-methanol: since 2014, this plant makes 30 kilotonnes/year of methanol from municipal waste in Edmonton. It is believed to be the first successful waste-to-chemical plant.
• Enerkem and partners, Rotterdam, The Netherlands, waste-to-methanol: this is tentatively planned for around 2020. It would convert 360 kt/year of waste to 220 kt of methanol. Partners include Air Liquide, Akzo Nobel, and the Port of Rotterdam.
• GoGreenGas, UK, waste-to-synthetic-natural-gas: the company owned mainly by Cadent, the UK’s gas grid operator, has pilot tested a process and is now planning to go to commercial scale. The SNG would be input to the gas grid.

How does this relate to BioLPG? Although no work is known to be going on in this direction, the above processes probably could be modified to produce LPG, waste volumes are of course huge, and waste as a feedstock has an inherent economic-incentive of a gate fee.

4.4.3. Liquid Conversion and Synthesis

A final option for BioLPG is liquid conversion and synthesis: about 15 projects that apply this process type to cellulosics have been identified (Table 11). None of those are of significant scale or commercial significance to BioLPG. If bio-pyrolysis oil were to be produced in significant quantities, refining it presumably could produce similar proportions of BioLPG as conventional refineries make of LPG, around 5% by weight.

Table 11. Liquid conversion and synthesis projects for BioLPG, by owner/operator.

Owner/Operator	Country	Feedstock(s)	Prime Product	Prime Product Capacity kt/y	Source
Altaca/SCF Technologies	T	Sewage sludge, food waste	Bio-crude	7.098	Author research
Biochemtex/ETH Zürich/KLM (Dutch national airline)/RE-CORD (Italian university consortium)	I	Lignin	Jet	1.95	https://www.biorefly.eu/project-partners
Chalmers University	S	Lignin	Bio-crude	0	Author research
Chemtex	USA	Lignin	Bio-crude	0	Author research
Genifuel/Pacific Northwest National Laboratory	USA	Wastes, algae, wood, straws	Bio-crude	0.2496	http://www.genifuel.com/technology.html
Licella	AUS	Wood, energy crops, algae	Bio-crude	15.522	Author research
Muradel	AUS	Micro-algae	Bio-crude	0.0156	https://muradel.com.au
Next Fuels	NL	Palm waste	Bio-crude	0.3276
Pacific Northwest National Laboratory	USA	Lignocellulosics, algae	Bio-crude	0	Author research
Research Triangle Institute	USA	Lignocellulosics	Bio-crude	0.0234	Author research
Shell HTU	NL	Wastes, wood, residues	Bio-crude	0.039	Author research
Southern Oil Refining	AUS	Bio-crude	Diesel, jet	0.2574	https://www.biofuelsdigest.com/bdigest/tag/southern-oil-refining/
Steeper Energy/Aalborg Uni	DK	DDGS, peat, wood, tall oil	Bio-crude	0.0156	Author research
Virent	USA	Glycerol, sugars, starches	Bio-crude		http://www.virent.com/technology/bioforming/

Sources: The information presented above has been compiled from public sources, including periodicals, reports, company websites and communications with the industry, plus estimates based on all of those.

Earlier this decade, there was an effort in the direction of BioLPG. Researchers at the Massachusetts Institute of Technology in the USA reportedly developed a process for converting starch/sugar from corn or sugarcane to propane. A company, C3 BioEnergy, was formed to commercialise the technology [8], but the company apparently was not able to pursue this and no longer exists.

5. Other: Atmospheric Carbon Dioxide

A final route to LPG is the process of reacting carbon dioxide from the atmosphere with ‘renewable’ hydrogen to create LPG. Ambient carbon dioxide can be absorbed directly from the air or from combustion exhausts (from, say, a power plant). Renewable hydrogen can be made by hydrolysis of water, using low-carbon electricity powered by hydro, solar or wind energy.

Seven companies are known to be pursuing this. They are not targeting LPG, rather higher-hydrocarbon fuels (Table 12). Still, they could in principle also pursue LPG. Not much detail is public about their processes, but presumably they are creating a syngas and then from that synthesizing fuels. Production so far is no more than laboratory scale, yet Carbon Engineering and Nordic Blue Crude claim to be pursuing commercial-scale plants.

Table 12. Companies pursuing atmospheric-carbon-to-fuels.

Owner/Operator	Location(s)	Country
Audi	Laufenberg	CH
Carbon Engineering	British Col.	CAN
Climeworks	Zürich	CH
New CO2 Fuels	Rehovot	ISR
Nordic Blue Crude	Herøya	N
SOLETAIR	Lappeenranta	SF
Sunfire	Dresden	D

Source: Author research and www.chemistryworld.com/business/carbon-capture-from-air-goes-commercial/3007813.article.

Would these generate biofuels? Not as such. Water is not bio; it is considered an inorganic, non-biological resource. Of atmospheric carbon dioxide, only about one-quarter is biological, the rest is inorganic. So, these fuels would be renewable, but not biological. Therefore, this process is classed for now as ‘other’.

6. Conclusions

BioLPG has been commercialized to offer the LPG industry a route to decarbonisation. Production is now around 200 thousand tonnes annually. Although this is a relatively small fraction of some 300 million tonnes of LPG sold annually, it is important, because it offers the LPG industry and its customers a bio-alternative to match its competitors and to demonstrate its ‘bio credibility’ to governments.

Clearly, to maintain and build this bio-credibility, BioLPG needs to be produced in greater volumes and probably via multiple processes. This article gives a scientific basis to that effort, by documenting all known process routes and relevant projects.

BioLPG can be produced by seven general processes (Table 1). Two of them are most promising:

• Hydrotreating of bio-oils is already producing 200 kilotonnes of biopropane, with some additions planned
• Gaseous conversion and synthesis of cellulosics and organic waste does not yet generate any BioLPG, but BioLPG production this way is technically feasible, is under exploration and potential feedstock availability is huge.

Dehydrogenation offers some potential, mainly in the use of fluid catalytic crackers to process bio-oils and make some byproduct biopropane. Glycerine also can be dehydrogenated, and this is being explored. Fermentation already is producing small amounts of biobutylene, and planning in underway for commercial production.

Fermentation to biopropane has been proven at laboratory scale, but does not seem to be progressing further. The two other biological process classes, hydrolysis and fermentation and digestion, do not offer serious promise of generating BioLPG. Neither does liquid conversion and synthesis, which technically is not all that different than gaseous conversion and synthesis, but attracts significantly less attention from developers.
