Investigation of Waste Biogas Flame Stability Under Oxygen or Hydrogen-Enriched Conditions

by
Nerijus Striūgas
,
Rolandas Paulauskas
*,
Raminta Skvorčinskienė
and
Aurimas Lisauskas
Laboratory of Combustion Processes, Lithuanian Energy Institute, Breslaujos str. 3, LT-44403 Kaunas, Lithuania
*
Author to whom correspondence should be addressed.
Energies 2020, 13(18), 4760; https://doi.org/10.3390/en13184760
Submission received: 18 August 2020 / Revised: 4 September 2020 / Accepted: 9 September 2020 / Published: 11 September 2020
(This article belongs to the Special Issue Sustainable Combustion Systems and Their Impact)
Browse Figures
Versions Notes

Abstract

:
Increasing production rates of the biomethane lead to increased generation of waste biogases. These gases should be utilized on-site to avoid pollutant emissions to the atmosphere. This study presents a flexible swirl burner (~100 kW) with an adiabatic chamber capable of burning unstable composition waste biogases. The main combustion parameters and chemiluminescence emission spectrums were examined by burning waste biogases containing from 5 to 30 vol% of CH4 in CO2 under air, O2-enriched atmosphere, or with the addition of hydrogen. The tested burner ensured stable combustion of waste biogases with CH4 content not less than 20 vol%. The addition of up to 5 vol% of H2 expanded flammability limits, and stable combustion of the mixtures with CH4 content of 15 vol% was achieved. The burner flexibility to work under O2-enriched air conditions showed more promising results, and the flammability limit was expanded up to 5 vol% of CH4 in CO2. However, the combustion under O2-enriched conditions led to increased NOx emissions (up to 1100 ppm). Besides, based on chemiluminescence emission spectrums, a linear correlation between the spectral intensity ratio of OH* and CH* (IOH*/ICH*) and CH4 content in CO2 was presented, which predicts blow-off limits burning waste biogases under different H2 or O2 enrichments.

1. Introduction

Due to concerns regarding global climate change, there has been a search for new ways to improve energy efficiency, reduce pollutant emission, and ensure sustainable management of resources. For these reasons, various alternative fuels and by-products (gas or waste fuel) with low calorific value are gaining more attention as an alternative energy source for energy production [1,2,3]. Basically, such fuels are gained in different fields with different compositions like steel production, refineries, landfills, biogas plants, gasification plants, and other industry sources. For example, a blast furnace gas or syngas consists of different concentrations of CO, H2, CO2, and/or N2, while biogas is mainly composed of CO2 and CH4. Considering that the biogas and biomethane production is increasing over the years, rates of the waste biogas from biomethane production are also growing. These gases mainly consist of from few to 25 vol% of methane and should be utilized on-site to prevent pollutant emissions to the atmosphere. However, these gases are not well suitable to combust in existing natural gas-fired systems as the low concentrations of CH4, and the high amount of CO2 could result in an unstable flame, blow-off, and a release of unburned gases into the environment. Mainly it caused by the high amount of CO2, which affects the flame temperature, thereby reducing the stability of the flame.
To avoid these problems and ensure complete and clean combustion of waste biogases, flame stability must be improved, and flammability limits expanded. It could be achieved using new concepts/modifications of burners [4,5,6,7]. For example, a new burner design based on modified geometry was proposed and tested for low calorific gas combustion by [8]. It was found that this burner ensures stable combustion of natural gas and syngas blends, but CO emissions exceed 200 mg/m3 if thermal shares of syngas are below 70%. Another concept burner based on continuous air staging for low calorific gases was developed by a research group from Gaswärme-Institute. V. Essen (GWI) [9]. The burner (up to 200 kW) was tested on syngas, landfill gas, and mine gas. The obtained results showed that it is possible to achieve a stable combustion process with low NOx and CO emissions, but there is a need to preheat these gases up to 400 °C before supplying to the combustion zone. A similar study was performed by Mortberg et al. [10]. The authors preheated air up to 900 °C to enhance the low calorific value (LCV) gas combustion stability. During combustion tests, a cross-flow jet of LCV gas mixture (11.9 vol% CH4 in N2) was introduced in the combustion airflow at oxygen-deficient conditions. The obtained results showed that this configuration using preheated combustion air is suitable to combust LCV gases, but results in the prolonged ignition delay, higher turbulence levels, and higher vorticity. Another work [11] showed that surface-stabilized combustion (SSC) technology burner is able to burn the LCV biogas with 20–65 vol% CO2 in CH4 or hydrogen-enriched CH4 (15–100 vol% H2 in CH4) with low pollutant emissions. However, the burner was more suitable for combustion of high calorific value gases. In the case of biogas with 65 vol% CO2 in CH4, the flames were lifted, changing φ from 0.98 to 0.8, while further increase in φ led to blow-off. Another research [12] also focused on the combustion of LCV gases in burners with SiC and Al2O3 porous structures. The authors were capable of combusting landfill gas with a methane content of 26 vol%. Though, at higher power (10 kW), the flammability limit decreased by 4 vol% of CH4 in CO2 due to increased flow speed. The authors also noticed that preheating the gas mixture, and the flammability limit could be extended by 2 vol%. Al-Attab et al. [13] investigated the combustion of producer gas from biomass gasification in a two-layer porous burner. Results showed that the burner is able to combust the producer gas with a lower calorific value of 5 MJ/m3 changing equivalence ratios φ in the range of 0.33–0.71, but NOx emissions were in the range from 230 to 270 ppm. In order to increase the blow-off limit of LCV gases, Song et al. [14] investigated an improved preheating method of the gas mixture, based on an annular heat recirculation. The gas flow was preheated by a high-temperature wall near the gas inlet, which temperature increase, due to improved axial heat conduction and radiation heat transfer of porous media. It ensured stable combustion of the LCV gas of 1.4 MJ/m3. However, according to [15], higher volumetric capacity is needed to achieve higher power comparing to existing conventional burning systems. Besides, the use of porous media burners for the combustion of waste biogases with the varying composition is a bit complicated as a material for the porous media should be designed considering gases needed to burn; otherwise, a periodic replacement of the porous media could be needed.
Another option to improve flame stability and flammability is to use an addition of hydrogen/syngas or supply of oxygen-enriched air [16,17,18,19,20,21,22]. Chiu et al. [23] investigated the effect of H2/CO on a premixed methane flame. The research was performed in an impinging burner by changing an H2/CO concentration from 20/80 to 80/20 vol% and a methane concentration from 10 to 20 vol%. It was determined that the stable flame with H2/CO of 20/80 vol% is achieved at reach combustion conditions (φ ≥ 1.8) though the flame stability and flammability increased with increasing the hydrogen concentration in simulated syngas. It was also noted that with the increasing amount of H2 in CO increases the flame temperature. A similar work focused on the hydrogen effect on the LCV gas combustion was performed by [24]. The authors performed numerical and experimental burner tests at a thermal power of 10 kW using syngas (~4.7 MJ/m3) and blast-furnace gas (~3.7 MJ/m3), including the addition of H2 (26 and 52 vol%). It was determined that the burner properly burns the syngas, but the blast-furnace gas requires an additional supply of H2 to avoid blow-off. Though, it was observed that the addition of H2 negatively affects NOx emissions. To extend LCV gas combustion flammability and improve flame stability, this burner was also tested under oxy-fuel combustion conditions [25]. Results showed that NOx emissions decrease; however, to achieve a more stable flame and avoid overheating of the burner wall, a modification for the oxidizer distribution is needed. More detailed investigation of the oxygen enrichment was performed by Ylmaz et al. [26]. The authors investigated the biogas flame stability and formation of emissions under different oxygen enrichment conditions in a pilot-scale model burner. It was pointed out that an increase of O2 to 24% in the oxidizer leads to improved flame stability though CO emissions were equal to 372 ppm. A higher enrichment level (28 vol% of O2) caused decreased flame stability, but lower CO emissions, till 10 ppm. During the tests, NOx emissions increased with increased O2 concentrations in the oxidizer. Ba et al. [20] tried to improve flame stability by coupling oxy-fuel combustion and fuel/air preheating. Firstly, this configuration was experimentally tested using a lab-scale tri-coaxial burner (25 kW), and later, the burner scaled-up to 180 kW was tested on a semi-industrial facility. In both cases, a stable flame of blast furnace gas was achieved with very low levels of CO and NOx emissions. However, this configuration was not tested on waste biogases, and the effect on flame stability is unknown.
Literature review reveals that there are many works proposing techniques to ensure stable combustion of syngas, furnace blast gases, natural gas blends with LCV gases and etc., but studies related to the combustion characteristics of waste biogas are still lacking. Taking into account that biogas production rates are increasing and to prevent waste biogas emissions to the atmosphere, these gases should be utilized safely on-site. The previous work [27] showed that the addition of up to 20 vol% hydrogen or oxygen-enriched air ensures stable combustion of waste biogases (CH4 > 30% in CO2) with low emissions in a flat flame burner. Based on these findings, a flexible swirl burner (~100 kW) with an adiabatic chamber capable of burning unstable composition waste biogases was designed and developed. The developed combustion system provides a solution to recover primary energy and reduce pollutant emissions from biomethane production obtained waste biogases. This study presents the flexible combustion system in detail and performed tests in real conditions. During the experimental tests, flame stability and combustion limits were explored to ensure a wide range operation of the burner with different waste biogas containing from 5 to 30 vol% of CH4 in CO2 under air, oxygen-enriched atmosphere, or with hydrogen addition. For a better understanding of waste gas flame behavior under different conditions and to identify a burner performance via flame transition modes and blow-off limits, chemiluminescence emission spectrums (OH* and CH*) from flames of different waste biogas mixtures were obtained. During all tests, an online flue gas analysis was also performed to determine variations of NOx and CO emissions and compliance with emission standards.

2. Materials and Methods

2.1. Experimental Setup

The experiments were carried out in a 200 kWth semi-industrial scale test facility (Figure 1). In order to simulate waste biogases (LCV) with a low content of methane (CH4) in carbon dioxide (CO2) and its combustion with oxygen (O2) or hydrogen (H2) addition, a gas supply system was constructed (1–5). CO2 was acquired in a liquid state (1) by a local supplier (JSC Gaschema), directed to a vaporizer (2) and supplied via the control unit to a gas-mixing system for preparation of LCV gases with pre-assigned compositions. Methane in the form of natural gas (NG) with the composition of 97.5 vol% CH4, 1.2 vol% C2H6, 0.27 vol% C3H8 and C4H10, and 0.08 vol% CO2 (NG composition is taken from the gas supplier’s datasheet) was delivered from a distributed NG pipeline and supplied through a pressure regulating and metering station (3) to the gas-mixing system. For hydrogen or oxygen-enriched combustion, these gases were supplied from gas cylinders (4,5) to a novel swirl LCV gas burner (7). The required gas flow was ensured by a mass flow controller. The combustion air was supplied using an air blower (6).
The combustion of the prepared LCV gas mixture was performed in an adiabatic chamber (8) with internal dimensions of 600 × 600 × 2500 mm. The temperatures in the chamber were measured with four K type thermocouples (T1–T4). The thermocouples were positioned at the 530, 900, 1690, and 2410 mm from the inner front wall, respectively. For spectral analysis of selected excited radicals from the flame, a spectrometer Andor Shamrock SR-303i coupled with an ICCD (Intensified Charge Coupled Device) camera Andor iStar DH734 (11) was used. Three optical fibers with collimating lenses (10) were installed to transmit the light to the spectrometer. The optical fibers were oriented horizontally to provide a radical distribution along with the flame and fitted at the distances of 170, 410, and 830 mm from the front wall. The combustion products are cooled down to appropriate temperature, which is measured with a K type thermocouple, by passing the boiler (9) mounted at the exit of the combustion chamber. A flow of cooling water is controlled, and water temperature is monitored before and after the boiler. The cooled flue gases are analyzed using a portable flue gas analyzer Testo 350XL (14) via a measurement point installed between the stack (15) and the boiler (9). The entire combustion process is automated and controlled from a control desk (13) installed outside the site. All operating signals from measuring equipment or sensors were collected and analyzed further.

2.2. Waste Biogas Burner

A novel swirl burner was developed for the waste biogas (LCV) combustion (Figure 2). The burner is designed to operate in a flexible mode for a variety of waste biogas compositions, including the possibility of hydrogen or oxygen addition. The burner has multiple inlets for different gases and operational regimes. The ignition of the main fuel (LCV gas) is executed with a pilot natural gas flame. After the ignition of the main fuel, a supply of pilot gas is stopped. The LCV gas is supplied via an annular channel installed in the center of the burner. Air was used as the main oxidizer, which enters the burner through a peripheral annulus. When a calorific value of waste biogas becomes very low, a stable operation is ensured by the oxygen or hydrogen addition. The supply of these gases is designed in the center of the burner.
The flame stabilization is achieved by swirling both, the combustion air and LCV gas flow with an axial vane swirl angle of 30°. Both swirlers has a swirl number of Sw = 0.5, which was defined by Equation (1) [28]:
S w = 2 3 tan ( ∝ sw ) ( 1 − R 3 1 − R 2 )
where αsw is the axial vane swirl angle, R is the ratio of the center-body diameter and outer inlet tube diameter.

2.3. Experimental Procedure

The stability limits of waste biogas (LCV) combustion were determined by running the combustor at a fixed heat load of 80 kWth. The heat load was calculated using the lower heating values (LHV) and measuring flows of combustible gases, namely, CH4, and H2 when it was used. Thus, the main variables were CO2 content in LCV gas, an amount of the oxidizer, and the fuel to air ratio (φ).
Three sets of experiments were performed to determine the limits of stable waste biogas (LCV) combustion. The first trial was associated with a determination of the lowest possible, stable combustion regime by decreasing LHV of LCV gas, which was changed by increasing the volumetric fraction of CO2. The air was used as the oxidizer. At each LCV gas composition, the burner performance was tested for different fuel to air ratios, which varied in the range from 0.7 to 1.0. The fuel to air ratio was determined by measuring the O2 concentration in flue gases.
The second round of experiments was conducted with the H2 addition to extend LCV gas combustion limits. In a previous work [29], the possibility to produce H2 on-site from LCV gas was explored. The idea was based on the power of syngas (P2SG) technology. Therein to produce H2 rich syngas, the thermal plasma was used to run a dry reforming of gases containing a low concentration of CH4 in CO2. Finally, it was concluded that from an economic point of view, this technology is cost competitive when a produced H2 content for 1 m3 LCV gas combustion will constitute up to 5 vol%. To simulate this situation in the present work, the hydrogen addition of 2.5 and 5 vol% was investigated. As in the previous case, the air was used as the oxidizer with ϕ ranging from 0.7 to 1.0.
During the third set of experiments, the stability limits were determined using O2-enriched air instead of the H2 addition. The amount of oxygen was gradually increased until the flame becomes stable to avoid possible problems described in some works [21,26] like increased CO emissions, high flame temperature, or even unstable combustion. When the flame became stable, the burner performance for different LCV gases against the various fuel to air ratios from 0.7 to 1.0 was tested. The expression of the volumetric oxygen content in this work corresponds to the O2 concentration in air, which was defined as follows:
O 2   in   air = V air 0.21 + V O 2 V air + V O 2
where Vair and VO2 are the volume flow rates of air and O2, respectively. The upper value of O2 in the air was pre-selected to not exceed 30 vol%.
During all experimental runs, emissions of CO and NOx in flue gases were measured continuously. CO is considered as the main indicator for incomplete combustion, thus despite the existence of flame stability, it demonstrates the inappropriate burner operation regime. NOx is one of the main regulated gaseous pollutants, which should be controlled. It is well known, that the main source of NOx formation is attributed to the thermal pathway. Thus, increasing oxygen content in the oxidizer during LCV gas combustion could lead to noticeable higher NOx emissions [3]. In order to know the level of this pollutant during combustion and compliance with emission standards (EU directive 2015/2193 [30]), it was measured and analyzed regarding the LCV combustion mode.
In addition, the chemiluminescence based optical diagnostic tool was used to identify the possible flame transition mode. The main chemiluminescent species of interest were OH* and CH* with a wavelength of 308.9 ± 2.0 nm and 431.4 ± 2.0 nm, respectively. According to [31,32,33,34], CH* formation is related to high temperature, and the main formation pathways are:
C2 + OH → CH* + CO,
C2H + O → CO + CH*,
C2H + O2 → CO2 + CH*,
The formation and excitation of the OH* radical are also attributed to the thermal excitation, and the main formation reactions are [31,32,33,34]:
H + O + M → OH* +M,
CH + O2 → OH* + CO,
The optical data were collected from three-measurement points using a spectrometry system (Figure 1). The light coming from the flame is dispersed, and entire spectra is collected on the split area of the ICCD camera sensor. The camera exposure duration was set to 3 s, a side input slit to 100 μm, and grating to 300 L/mm. Each spectrum consisted of 10 acquisitions.

3. Results and Discussion

3.1. Stability Maps of Waste Biogas (LCV) Combustion

This section presents combustion stability maps for developed LCV gas burner under different tested combustion modes. Firstly, LCV gases with different concentrations of CH4 and CO2 were burned in the air over a wide range of fuel to air ratios to determine the limit of stable combustion under ordinary conditions. As can be seen from Figure 3, the stable combustion of the waste biogas (LCV) with CH4 ≥ 25 vol% in CO2 can be reached in the air under all tested range of ϕ. Compared to previous results [27], the combustion of waste biogas in a flat flame burner under the air atmosphere was only able with a mixture of 30 vol% CH4 in CO2. In that case, the developed burner shows wider flammability ranges under air conditions. A reduced CH4 content to 20 vol% in the waste biogas (LCV) leads to flame stability problems, and blow-off occurs at a richer combustion mode, ϕ ≥ 0.87. According to obtained results (Figure 3), the stable combustion of LCV gases with lower CH4 content (>20 vol%) is only possible with H2 or O2 addition. The addition of H2 to the biogas flame was studied in detail by others [16,35,36]. Zhen et al. [35] noted that the H2 addition of 5 vol% improves biogas flame stability, and CO emissions decrease, but further addition increase to 10 vol% of H2 is insignificant on flame stability. Similar findings were also reported by Leung and Wierzba [17]. The authors investigated the effect of 10 vol%, 20 vol%, and 30 vol% H2 addition on the biogas flame stability and determined that the most significant results are achieved by supplying a small amount of H2.
Even though the concentration of CH4 in biogas is higher and varies from 40% to 60% compared to the studied range of CH4 concentrations (5–30 vol%), the provided findings are in good agreement with the obtained results. The stable combustion of LCV gas containing 15 vol% of CH4 is obtained within the range of ϕ from 0.7 to 0.85 by adding H2 of 2.5vol%, while an increased addition of H2 to 5 vol% has an insignificant effect, and the flammability limit is extended only to a richer region, up to ϕ of 0.95. However, further decrease of CH4 content in LCV gases results in flame blow-off even in both cases of H2 addition (Figure 3a). In order to extend the flammability limit and ensure stable combustion of LCV gases with very low CH4 content (5–15 vol%), O2-enriched air was introduced. Considering that a high oxygen enrichment level could lead to the unstable flame and increased CO emissions [26], two cases with 25 vol% and 30 vol% of O2 were tested (Figure 3b). As was expected, using O2-enriched air with O2 content of 25 vol%, the stable combustion of waste biogases with CH4 content from 30 to 5 vol% was ensured. However, in this case, the stable combustion of LCV gas containing 5 vol% of CH4 is achieved only in the narrow range of ϕ, from 0.79 to 0.86. Meanwhile, at a higher enrichment level (30 vol% of O2), the stable combustion of LCV gases is acquired in all tested points (Figure 3b). Similar results were also acquired numerically studying methane combustion under CO2/O2 atmosphere, and researchers pointed out that the most effective and stable combustion is achieved at O2 concentrations of 28–32 vol% [37]. Though another work [21] showed a bit higher level of O2 (31–35 vol%) is needed to achieve a stable flame. Considering the obtained results, it could be assumed that the designed burned with the adiabatic chamber ensure stable combustion of waste biogases (5–30 vol% of CH4 in CO2) at lower concentrations of O2 (25–30 vol%), due to a special design of the burner allowing the faster mixing of fuel oxidizer, faster reaction kinetic and minimal heat loss via the adiabatic combustion chamber walls. However, the presented design of the LCV gas burner shows an opposite relation in non-premixed combustion. The flame extinguish is more likely at higher fuel to air ratios than at lower ones, and this was found for all studied cases (Figure 3). Typically, the flame is more stable, or a flash-back phenomenon is more likely at lower fuel to air ratios, even in premixed flames [25]. The reasons for an instability arose might be related to ongoing several complex processes: The aerodynamic of the flame shape, which allows a proper internal hot gas recirculation zone, and an amount of heat provided from both recirculating gases and re-radiation from furnace walls [37].
In order to study the impact of those two parameters, the flame core temperature and averaged axial flow speed were analyzed. Figure 4 represents data obtained by T1 thermocouple and shows temperature ranges during the combustion of waste biogases (LCV) with different content of CH4 in CO2 for all three tested cases: Under air only combustion, under H2 addition, and under O2-enriched air. The upper and bottom limits stand for the maximum (ϕmax) and minimum (ϕmin) fuel to air ratio ϕ at which stable combustion still occurs. As can be seen from the temperature map (Figure 4a,b), the temperature in the core of the flame also rises with an increase of ϕ. While in opposite the temperature decreases with a decrease of CH4 content in CO2. The latter trends are well known and logical. However, the experiments showed that the temperature increase not always plays a key role and is sufficient to maintain a stable flame. Meanwhile, considering the axial velocity ranges (Figure 5) can be assumed that a change in velocities is contrary to the temperature and a decrease at higher ϕ ratios occurs. Based on this can be stated that a reduction in flow velocity affects an inner recirculation zone, and thus, prevents passing a sufficient amount of high temperature gas, which in turn negatively affects the combustion stability. This is well proven comparing the cases with H2 addition and O2 enrichment at 15 vol% of CH4 in CO2 as the flame temperature was higher almost by 100 °C under the oxygen-enriched conditions than in the case of H2 addition (Figure 4a,b). Though, the flow velocities were in the same order of magnitude. Taking into account these findings, it can be concluded that a certain amount of heat is critical and should be ensured and maintained to ignite the incoming cold air-fuel mixture.

3.2. Changes in Flame Chemiluminescence

For a better understanding of waste biogas (LCV) flame behavior under H2 or O2 addition and identify a possible performance for flame transition modes, chemiluminescence emission spectrums from flames of different LCV gas mixtures were obtained. The obtained OH* emission intensities distributed per the chamber length at ϕ = 0.85 are presented in Figure 6. The highest OH* intensities were observed at the front of the flame (17 cm from the burner) where the main reactions take place. Comparing cases with and without H2 enrichment, it was observed that the H2 addition of 2.5 vol% has a negligible effect on the LCV flame enhancement, especially for the mixture with 25 vol% CH4 in CO2 as the combustion chamber temperatures are near identical to ones without the H2 addition (Figure 4a). Similar results were also determined analyzing the obtained OH* emission intensities of hydrogen-enriched LCV flames (Figure 6a). Though, the increase of hydrogen addition to 5 vol% led to higher OH* emission intensities by ~1.6 times and a higher chamber temperature at point T1 by ~30 °C burning LCV gas mixtures with CH4 content of 25 vol% and 20 vol%. According to previous work [27], the increased OH* intensities and chamber temperatures could be attributed to an improved flame stability. However, the waste biogas (LCV) flammability limit using the H2 enrichment was achieved burning mixtures with CH4 content of 15 vol%, and a further decrease in CH4 content led to the flame blow-off. In the case of the mixture with 15 vol% CH4, lowermost OH* emission intensities, and chamber temperatures were determined using both H2 additions (2.5 and 5 vol%). This could be related to a high level of the diluent (CO2), which in turn lowers the flame temperature, and thus, OH* emission. The latter findings are in agreement with those found in the work of Guiberi et al. [38], where pointed out that OH* intensity decrease of CO2-diluted flame is more intense with the increasing diluent concentration.
A bit different results were obtained using oxygen-enriched air (Figure 6b). As an example, an increased O2 content by 4 vol% in the air affected the mixture with 25 vol% of CH4 combustion process significantly, and the OH* emission intensity at the flame front was almost four times higher compared to the intensity obtained under ordinary combustion in air. Besides, higher chamber temperatures were also observed (Figure 6b). Further increase in O2 content from 25 to 30 vol% also led to increased OH* emission intensities and the chamber temperatures. A similar trend of OH* emission intensity increase, due to a higher O2 content in the oxidizer was also determined in previous works [27,39]. According to He et al. [18], the OH* formation reaction (7) dominates under oxygen-enriched conditions as the intensity of reaction (7) is enhanced when the concentration of O2 in the oxidizer increases and vice versa. However, with increasing concentration of diluent or decreasing concentration of methane, the OH* emissions weaken gradually, resulting in decreased spectrum intensity. This tendency was determined by burning LCV gases with lower content of CH4 (20–5 vol%). Even though the supply of oxygen-enriched air expanded LCV gas flammability and was able to burn the mixture with CH4 content of 10 and 5 vol%.
At the lowest CH4 concentration (5 vol%) under oxygen-enriched air (25 and 30 vol% of O2), OH* emission intensities were lower than that in the case of the mixture with 20 vol% CH4 burned under air combustion mode. Though the chamber temperature at point T1 was about 900 °C, the combustion process was stable using both oxygen-enrichments, possibly due to enhanced fuel oxidation. According to obtained results under oxygen-enriched conditions, the OH* intensity decrease coincides with the decrease of chamber temperatures, and the OH* emission intensities are related to the flame temperature. In overall, this tendency is in good agreement with spectral intensity ratios of IOH*/ICH* changing CH4 content in CO2 (Figure 7) even though the ratio of IOH*/ICH* is mostly used to determine the global equivalence ratio [40,41]. Increasing the CO2 dilution level leads to decreased flame temperature as the LHV decreases, and the ratio of IOH*/ICH* also decreases. The supply of O2-enriched air results in rapidly increased ratios of IOH*/ICH*, but it also depends on the O2 level in the air and CO2 levels in LCV gases (Figure 7). Considering the stability of waste biogas (LCV) combustion, the ratios of IOH*/ICH* determined burning LCV gases under air combustion conditions could be assumed as indicators for a threshold of the stable combustion as a further decrease in the ratios of IOH*/ICH* lead to blow-off. Under oxygen-enriched conditions, the lowest ratio of IOH*/ICH* is achieved by burning LCV gas with the lowest CH4 content (5 vol%), and a further decrease in CH4 content or O2 enrichment level also leads to the flame extinguish and blow-off. Taking into account these observations, a dashed line in black was introduced in Figure 7 to represent the stability threshold of LCV gas combustion. The ratios of IOH*/ICH* on or above the dashed line show the stable combustion, and the combustion stability the increases with increase of CH4 content in CO2 and O2 level in the air. Meanwhile, the flame blow-off occurs below the stability line. Besides, the proposed indication of the stable combustion is in close agreement with the determined stability maps (Figure 4b). However, this tendency is not fully valid for the cases with H2 addition. This could be related to low content of H2 addition, as it might not be sufficient to represent the flame enhancement via flame chemiluminescence. The previous research showed similar results with the same level of H2 addition, and the significant combustion improvement and higher intensities of OH* and CH* were achieved only at higher levels of H2 addition [27].

3.3. Addictive Influence on NOx and CO Emission

During the waste biogas (LCV) combustion tests, an online flue gas analysis was performed to determine the behavior of NOx and CO emissions under all tested cases. The obtained concentrations of NOx and CO are presented graphically in Figure 8. The burner configuration ensured low NOx (up to 25 ppm) and zero CO emissions burning LCV gases with CH4 content of 25 and 20 vol% with air in the range of ϕ from 0.7 to 0.9. However, as noted before, the combustion at higher ϕ values (>0.9) becomes unstable, and CO is formed, in which concentration in the exhaust gases rises up to 45 ppm. This trend was determined in all tested conditions. At ϕ values below 0.9, the stable combustion is achieved, and variations in CO and NOx emissions mainly depend on the CH4 content in LCV gases and the level of O2 or H2 addition. In the case of H2 addition (Figure 8a), the NOx concentrations increased with increasing addition of H2 compared to emissions obtained at air combustion mode. For example, in the case of the mixture with 20 vol% CH4, the NOx concentrations increased by 2–5 ppm and by 5–7 ppm using the H2 addition of 2.5 vol% and 5 vol%, respectively. According to Figure 4a, it could be considered that NOx concentrations increase due to increased flame temperature, which in turn is affected by enhanced flame speed, and thermal NOx formation intensifies with higher levels of H2 addition. Meanwhile, the CO concentrations stand at zero, due to enhanced combustion. It is important to point out, that the lowest NOx (up to 14 ppm) and zero CO concentrations using the H2 addition are obtained burning the LCV gases with CH4 content of 15 vol%. In comparison, this is not able to combust under normal conditions (Figure 8a). Besides, the obtained emissions of NOx during the waste biogas combustion with hydrogen addition does not exceed the emission limit value (97 ppm) according to EU directive 2015/2193 [30]. Considering the oxygen-enriched conditions, the stable combustion of the 15 vol% CH4 in CO2 is also achieved, but NOx concentrations increase up to 78 ppm (Figure 8b). Moreover, with the increase of O2 enrichment in air, NOx increases gradually, even an N2 concentration in air decreases. This tendency was also determined with LCV gases containing higher LHV values, and the highest NOx concentrations were determined (up to 1100 ppm) burning the LCV gas with CH4-25%. However, minor emissions of NOx (up to 20 and 40 ppm) were observed burning LCV gases with CH4 content of 5 vol% and 10 vol%, respectively. Besides, the results show that during the combustion of waste biogas (up to 20 vol% CH4) under oxygen-enriched conditions (25 and 30 vol% of O2), the NOx and CO emissions do not exceed the established emission limits [30]. But the obtained results during the combustion of mixtures with a higher amount of CH4 in CO2 confirm that the NOx formation strongly belongs to the thermal NO formation route under oxygen-enriched conditions. As it mainly depends on the flame temperature, the O2 enrichment level should be controlled based on the LHV value to prevent unwanted NOx formation.

4. Conclusions

This study describes a flexible swirl burner (~100 kW) with an adiabatic chamber, which was designed and developed to burn unstable composition waste biogases (5–30 vol% of CH4 in CO2) and performed tests at real conditions. During the experimental tests, the flame stability and combustion limits were explored under air, oxygen-enriched atmosphere, or with hydrogen addition. The stable operation of non-premixed swirl combustion of waste biogas in the air was achieved for CH4 content in CO2 with not less than 20 vol%. Further decrease of CH4 content in CO2 requires H2 or O2 enrichment to extend flammability and improve flame stability. It was determined that by adding up to 5 vol% of H2, the stable combustion of waste biogas with CH4 content of 15 vol% is obtained. A greater improvement in flame stability of waste biogas was established using O2-enrichment. The supply of O2 by 25 and 30 vol% resulted in the stable combustion of waste biogases gases containing 10 vol% and 5 vol% of CH4, respectively. Besides, the tests of the developed swirl burner at real conditions revealed that the flame blow-off is more likely at higher fuel to air ratios (ϕ > 0.95), and this was established for all studied cases.
This work shows the different stabilization modes and the changes in intensities of OH*chemiluminescence spectra, which enables to determine the possible transition between regimes and when flammability limit might occur. The linear correlation between the spectral intensity ratio of OH* and CH* (IOH*/ICH* ) and CH4 content in LCV gas is determined, which clearly demonstrates the change in intensity for the tested modes and can be used for the prediction of blow-off limits burning different LCV gases under different H2 or O2 enrichments.
During all tests, the online flue gas analysis was performed to determine the behavior of NOx and CO emissions and explore its relation to flame stability. Minor emissions of NOx (up to 20 and 40 ppm) are observed only burning waste biogas (LCV) in air and with H2 addition. During combustion under oxygen-enriched conditions, such concentrations can be obtained only by combusting waste biogases containing the CH4 content of 5 vol% and 10 vol%, respectively. The CO emissions in most cases, were determined to be at zero levels and formed only by approaching the blow-off limit. In that case, the proposed combustion system meets the EU established emission standards for gas-burning systems.
However, if waste biogas calorific value increase, O2 enrichment should be minimized to prevent unwanted high NOx formation. Besides, thermal damage to the combustion system and high NOx emissions are possible if the oxygen-enriched air is supplied with higher O2 concentrations than 30 vol%.
Overall, the developed swirl burner with the adiabatic combustion chamber is a flexible combustion system that could be installed in the biogas plant to produce heat and electricity and also provides a solution to recover primary energy and reduce pollutant emissions from biomethane production obtained waste biogases.

Author Contributions

Conceptualization, N.S. and R.P.; methodology, N.S.; software, R.S.; validation, N.S. and R.S.; formal analysis, N.S. and R.P.; investigation, N.S., R.P., R.S. and A.L.; resources, N.S.; data curation, N.S. and R.P.; writing—original draft preparation, N.S. and R.P.; writing—review and editing, R.S. and A.L.; visualization, A.L.; supervision, N.S.; project administration, N.S.; funding acquisition, R.S. All authors have read and agreed to the published version of the manuscript.

Funding

This project has received funding from the Research Council of Lithuania (LMTLT), agreement No P-MIP-17-26.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rekleitis, G.; Haralambous, K.-J.; Loizidou, M.; Aravossis, K. Utilization of Agricultural and Livestock Waste in Anaerobic Digestion (A.D): Applying the Biorefinery Concept in a Circular Economy. Energies 2020, 13, 4428. [Google Scholar] [CrossRef]
  2. Stančin, H.; Mikulčić, H.; Wang, X.; Duić, N. A review on alternative fuels in future energy system. Renew. Sustain. Energy Rev. 2020, 128, 109927. [Google Scholar] [CrossRef]
  3. Kumar, G.; Kim, S.-H.; Lay, C.-H.; Ponnusamy, V.K. Recent developments on alternative fuels, energy and environment for sustainability. Bioresour. Technol. 2020, 317, 124010. [Google Scholar] [CrossRef] [PubMed]
  4. Tanaka, R.; Shinoda, M.; Arai, N. Combustion characteristics of a heat-recirculating ceramic burner using a low-calorific-fuel. Energy Convers. Manag. 2001, 42, 1897–1907. [Google Scholar] [CrossRef]
  5. Nguyen, P.D.; Ghazal, G.; Piñera, V.C.; Battaglia, V.; Rensgard, A.; Ekman, T.; Gazdallah, M. Modelling of flameless oxy-fuel combustion with emphasis on radiative heat transfer for low calorific value blast furnace gas. Energy Procedia 2017, 120, 492–499. [Google Scholar] [CrossRef]
  6. Hosseini, S.E.; Wahid, M.A. Biogas utilization: Experimental investigation on biogas flameless combustion in lab-scale furnace. Energy Convers. Manag. 2013, 74, 426–432. [Google Scholar] [CrossRef]
  7. Wang, G.; Tang, P.; Li, Y.; Xu, J.; Durst, F. Flame front stability of low calorific fuel gas combustion with preheated air in a porous burner. Energy 2019, 170, 1279–1288. [Google Scholar] [CrossRef]
  8. Kiedrzyńska, A.; Lewtak, R.; Świątkowski, B.; Jóźwiak, P.; Hercog, J.; Badyda, K. Numerical study of natural gas and low-calorific syngas Co-Firing in a pilot scale burner. Energy 2020, 118552. [Google Scholar] [CrossRef]
  9. Al-Halbouni, A.; Rahms, H.; Görner, K. An efficient combustion concept for low calorific gases. Renew. Energy Power Qual. J. 2007, 1, 45–50. [Google Scholar] [CrossRef] [Green Version]
  10. Mörtberg, M.; Blasiak, W.; Gupta, A.K. Combustion of normal and low calorific fuels in high temperature and oxygen deficient environment. Combust. Sci. Technol. 2006, 178, 1345–1372. [Google Scholar] [CrossRef]
  11. Colorado, A.; McDonell, V. Surface stabilized combustion technology: An experimental evaluation of the extent of its fuel-flexibility and pollutant emissions using low and high calorific value fuels. Appl. Therm. Eng. 2018, 136, 206–218. [Google Scholar] [CrossRef]
  12. Al-Hamamre, Z.; Diezinger, S.; Talukdar, P.; Von Issendorff, F.; Trimis, D. Combustion of Low Calorific Gases from Landfills and Waste Pyrolysis Using Porous Medium Burner Technology. Process. Saf. Environ. Prot. 2006, 84, 297–308. [Google Scholar] [CrossRef]
  13. Al-attab, K.A.; Ho, J.C.; Zainal, Z.A. Experimental investigation of submerged flame in packed bed porous media burner fueled by low heating value producer gas. Exp. Therm. Fluid Sci. 2015, 62, 1–8. [Google Scholar] [CrossRef]
  14. Song, F.; Wen, Z.; Dong, Z.; Wang, E.; Liu, X. Ultra-Low calorific gas combustion in a gradually-varied porous burner with annular heat recirculation. Energy 2017, 119, 497–503. [Google Scholar] [CrossRef]
  15. Wood, S.; Harris, A.T. Porous burners for lean-burn applications. Prog. Energy Combust. Sci. 2008, 34, 667–684. [Google Scholar] [CrossRef]
  16. Wei, Z.L.; Leung, C.W.; Cheung, C.S.; Huang, Z.H. Effects of equivalence ratio, H2 and CO2 addition on the heat release characteristics of premixed laminar biogas-hydrogen flame. Int. J. Hydrog. Energy 2016, 41, 6567–6580. [Google Scholar] [CrossRef]
  17. Leung, T.; Wierzba, I. The effect of hydrogen addition on biogas non-premixed jet flame stability in a co-flowing air stream. Int. J. Hydrog. Energy 2008, 33, 3856–3862. [Google Scholar] [CrossRef]
  18. García-Armingol, T.; Ballester, J. Flame chemiluminescence in premixed combustion of hydrogen-enriched fuels. Int. J. Hydrog. Energy 2014, 39, 11299–11307. [Google Scholar] [CrossRef]
  19. García-Armingol, T.; Ballester, J. Operational issues in premixed combustion of hydrogen-enriched and syngas fuels. Int. J. Hydrog. Energy 2015, 40, 1229–1243. [Google Scholar] [CrossRef]
  20. Bâ, A.; Cessou, A.; Marcano, N.; Panier, F.; Tsiava, R.; Cassarino, G.; Ferrand, L.; Honoré, D. Oxyfuel combustion and reactants preheating to enhance turbulent flame stabilization of low calorific blast furnace gas. Fuel 2019, 242, 211–221. [Google Scholar] [CrossRef]
  21. Khalil, A.E.; Gupta, A.K. Flame fluctuations in Oxy-CO2-methane mixtures in swirl assisted distributed combustion. Appl. Energy 2017, 204, 303–317. [Google Scholar] [CrossRef]
  22. Francisco, R.W.; Rua, F.; Costa, M.; Catapan, R.C.; Oliveira, A.A.M. On the Combustion of Hydrogen-Rich Gaseous Fuels with Low Calorific Value in a Porous Burner. Energy Fuels 2010, 24, 880–887. [Google Scholar] [CrossRef]
  23. Chiu, C.-P.; Yeh, S.-I.; Tsai, Y.-C.; Yang, J.-T. An Investigation of Fuel Mixing and Reaction in a CH4/Syngas/Air Premixed Impinging Flame with Varied H2/CO Proportion. Energies 2017, 10, 900. [Google Scholar] [CrossRef] [Green Version]
  24. Karyeyen, S.; Ilbas, M. Experimental and numerical analysis of turbulent premixed combustion of low calorific value coal gases in a generated premixed burner. Fuel 2018, 220, 586–598. [Google Scholar] [CrossRef]
  25. Ilbas, M.; Bektaş, A.; Karyeyen, S. A new burner for oxy-fuel combustion of hydrogen containing low-calorific value syngases: An experimental and numerical study. Fuel 2019, 256, 115990. [Google Scholar] [CrossRef]
  26. Yilmaz, İ.; Alabaş, B.; Taştan, M.; Tunç, G. Effect of oxygen enrichment on the flame stability and emissions during biogas combustion: An experimental study. Fuel 2020, 280, 118703. [Google Scholar] [CrossRef]
  27. Striūgas, N.; Zakarauskas, K.; Paulauskas, R.; Skvorčinskienė, R. Chemiluminescence-Based characterization of tail biogas combustion stability under syngas and oxygen-enriched conditions. Exp. Therm. Fluid Sci. 2020, 116, 110133. [Google Scholar] [CrossRef]
  28. Nemitallah, M.; AlKhaldi, S.; Abdelhafez, A.; Habib, M. Effect analysis on the macrostructure and static stability limits of oxy-methane flames in a premixed swirl combustor. Energy 2018, 159, 86–96. [Google Scholar] [CrossRef]
  29. Striūgas, N.; Tamošiūnas, A.; Marcinauskas, L.; Paulauskas, R.; Zakarauskas, K.; Skvorčinskienė, R. A sustainable approach for plasma reforming of tail biogas for onsite syngas production during lean combustion operation. Energy Convers. Manag. 2020, 209, 112617. [Google Scholar] [CrossRef]
  30. European Parliament, Council of the European Union. Directive (EU) 2015/2193 of the European Parliament and of the Council on the limitation of emissions of certain pollutants into the air from medium combustion plants. Off. J. Eur. Union EN 2014, 451, 123–134. [Google Scholar]
  31. Ballester, J.; García-Armingol, T. Diagnostic techniques for the monitoring and control of practical flames. Prog. Energy Combust. Sci. 2010, 36, 375–411. [Google Scholar] [CrossRef]
  32. Devriendt, K.; Van Look, H.; Ceursters, B.; Peeters, J. Kinetics of formation of chemiluminescent CH(A2Δ) by the elementary reactions of C2H(X2Σ+) with O(3P) and O2(X3Σg−): A pulse laser photolysis study. Chem. Phys. Lett. 1996, 261, 450–456. [Google Scholar] [CrossRef]
  33. Kojima, J.; Ikeda, Y.; Nakajima, T. Basic aspects of OH(A), CH(A), and C2(d) chemiluminescence in the reaction zone of laminar methane–air premixed flames. Combust. Flame 2005, 140, 34–45. [Google Scholar] [CrossRef]
  34. Quintino, F.M.; Trindade, T.P.; Fernandes, E.C. Biogas combustion: Chemiluminescence fingerprint. Fuel 2018, 231, 328–340. [Google Scholar] [CrossRef]
  35. Zhen, H.S.; Leung, C.W.; Cheung, C.S. Effects of hydrogen addition on the characteristics of a biogas diffusion flame. Int. J. Hydrog. Energy 2013, 38, 6874–6881. [Google Scholar] [CrossRef]
  36. Zhen, H.S.; Leung, C.W.; Cheung, C.S.; Huang, Z.H. Characterization of biogas-hydrogen premixed flames using Bunsen burner. Int. J. Hydrog. Energy 2014, 39, 13292–13299. [Google Scholar] [CrossRef]
  37. Song, Y.; Zou, C.; He, Y.; Zheng, C. The chemical mechanism of the effect of CO2 on the temperature in methane oxy-fuel combustion. Int. J. Heat Mass Transf. 2015, 86, 622–628. [Google Scholar] [CrossRef]
  38. Guiberti, T.F.; Durox, D.; Schuller, T. Flame chemiluminescence from CO2- and N2-diluted laminar CH4/air premixed flames. Combust. Flame 2017, 181, 110–122. [Google Scholar] [CrossRef] [Green Version]
  39. Paulauskas, R.; Martuzevičius, D.; Patel, R.B.; Pelders, J.E.H.; Nijdam, S.; Dam, N.J.; Tichonovas, M.; Striūgas, N.; Zakarauskas, K. Biogas combustion with various oxidizers in a nanosecond DBD microplasma burner. Exp. Therm. Fluid Sci. 2020, 118, 110166. [Google Scholar] [CrossRef]
  40. Oh, J. Spectral characteristics of a premixed oxy-methane flame in atmospheric conditions. Energy 2016, 116, 986–997. [Google Scholar] [CrossRef]
  41. Yang, J.; Gong, Y.; Guo, Q.; Zhu, H.; Wang, F.; Yu, G. Experimental studies of the effects of global equivalence ratio and CO2 dilution level on the OH* and CH* chemiluminescence in CH4/O2 diffusion flames. Fuel 2020, 278, 118307. [Google Scholar] [CrossRef]
Energies 13 04760 g001 550

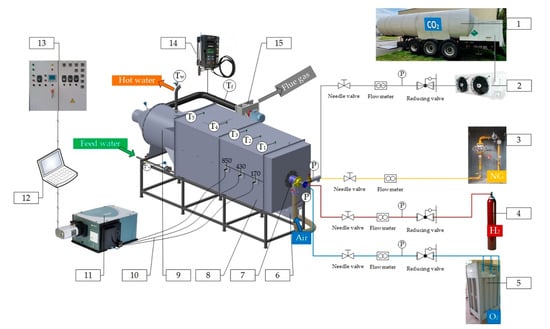

Figure 1. Scheme of the experimental burner testing setup: 1–A liquid CO2 tank; 2–a CO2 vaporizer; 3–a natural gas pressure regulating and metering station; 4–a hydrogen cylinder; 5–an O2 cylinder bundle with a manifold; 6–an air blower; 7–a novel low calorific value (LCV) gas burner; 8–an adiabatic combustion chamber; 9–a boiler; 10–optical fibers with collimating lens; 11–a spectrometer with an ICCD camera; 12–a data collecting system; 13-an operation panel; 14–a flue gas analysis system; 15–a flue gas blower.
Figure 1. Scheme of the experimental burner testing setup: 1–A liquid CO2 tank; 2–a CO2 vaporizer; 3–a natural gas pressure regulating and metering station; 4–a hydrogen cylinder; 5–an O2 cylinder bundle with a manifold; 6–an air blower; 7–a novel low calorific value (LCV) gas burner; 8–an adiabatic combustion chamber; 9–a boiler; 10–optical fibers with collimating lens; 11–a spectrometer with an ICCD camera; 12–a data collecting system; 13-an operation panel; 14–a flue gas analysis system; 15–a flue gas blower.
Energies 13 04760 g001
Energies 13 04760 g002 550

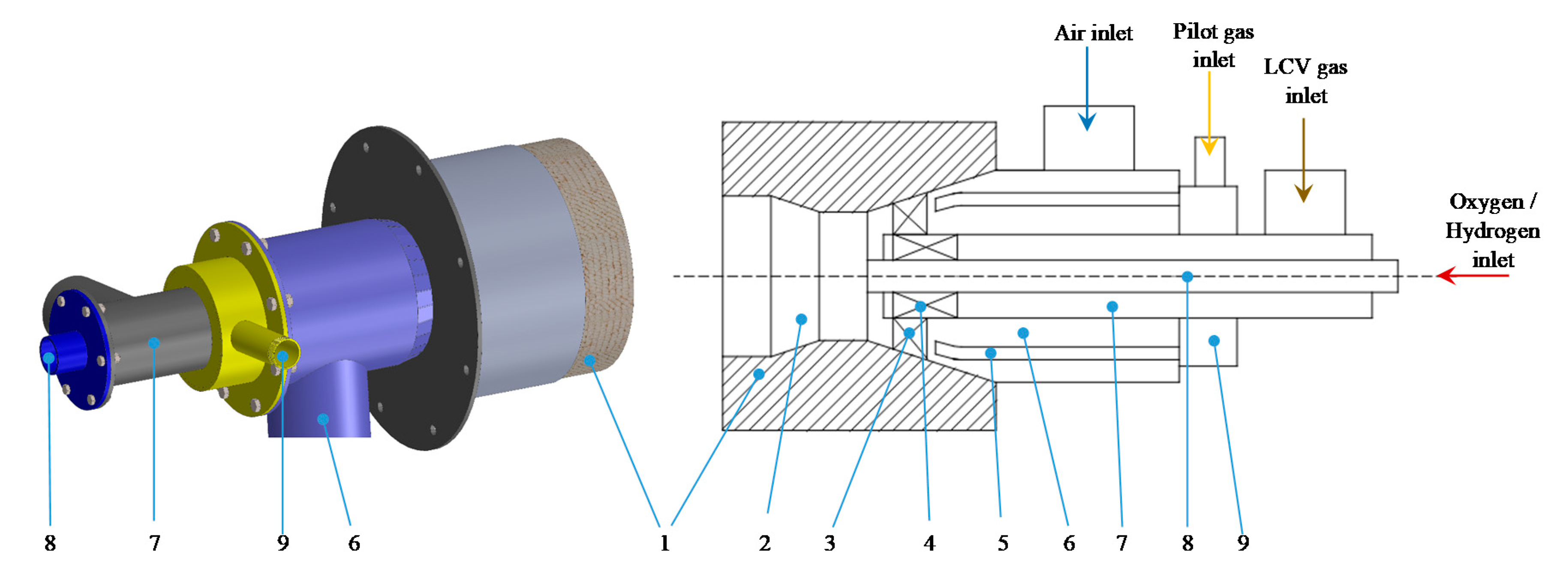

Figure 2. Schematic view of the experimental LCV gas burner:1–A burner embrasure; 2–a burner quarl; 3–an axial airflow swirler; 4–an axial LCV gas swirler; 5–a pilot gas lance; 6–an air annulus; 7–an LCV gas annulus; 8–an oxygen or hydrogen orifice; 9–a pilot gas annulus.
Figure 2. Schematic view of the experimental LCV gas burner:1–A burner embrasure; 2–a burner quarl; 3–an axial airflow swirler; 4–an axial LCV gas swirler; 5–a pilot gas lance; 6–an air annulus; 7–an LCV gas annulus; 8–an oxygen or hydrogen orifice; 9–a pilot gas annulus.
Energies 13 04760 g002
Energies 13 04760 g003 550

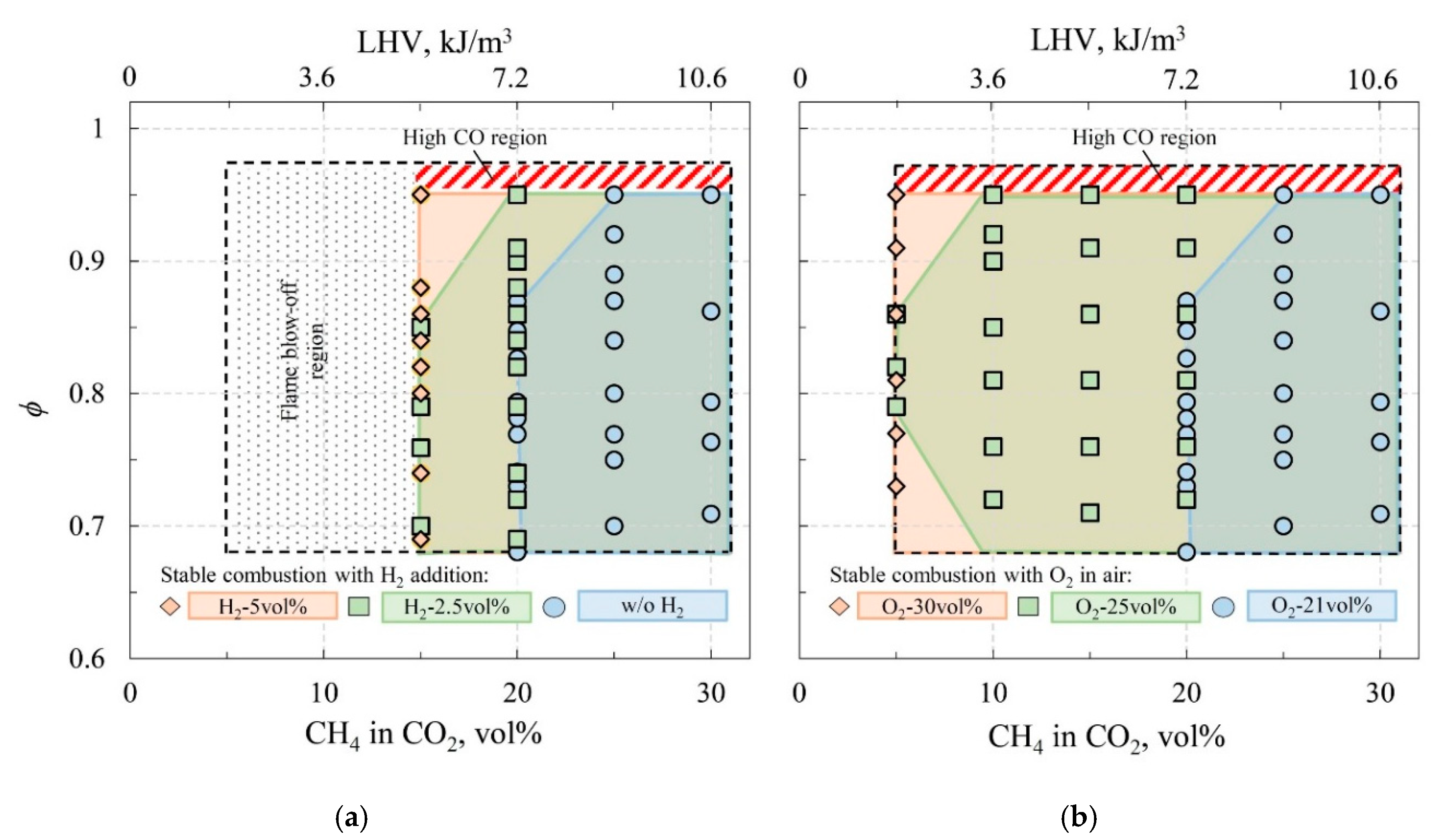

Figure 3. Stability maps of waste biogas (LCV) combustion with different content of CH4 in CO2 for a range of (a) H2 addition and (b) O2 air enrichment.
Figure 3. Stability maps of waste biogas (LCV) combustion with different content of CH4 in CO2 for a range of (a) H2 addition and (b) O2 air enrichment.
Energies 13 04760 g003
Energies 13 04760 g004 550

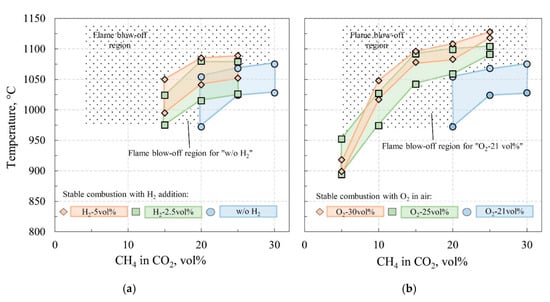

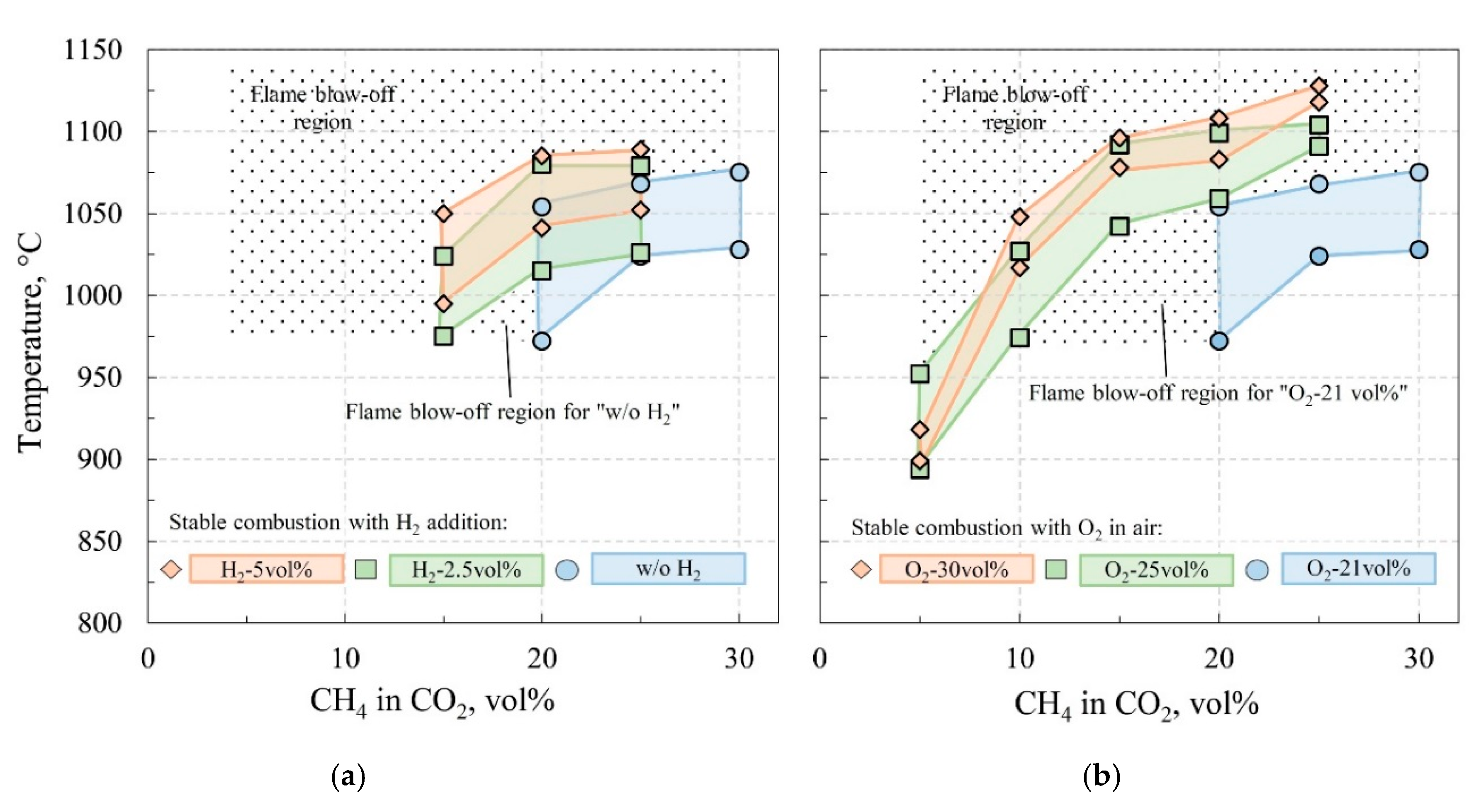

Figure 4. Temperature ranges during waste biogas (LCV) combustion with different content of CH4 in CO2 for a range of (a) H2 addition and (b) O2 air enrichment. The upper and bottom limit stands for a ϕmax and ϕmin, respectively.
Figure 4. Temperature ranges during waste biogas (LCV) combustion with different content of CH4 in CO2 for a range of (a) H2 addition and (b) O2 air enrichment. The upper and bottom limit stands for a ϕmax and ϕmin, respectively.
Energies 13 04760 g004
Energies 13 04760 g005 550

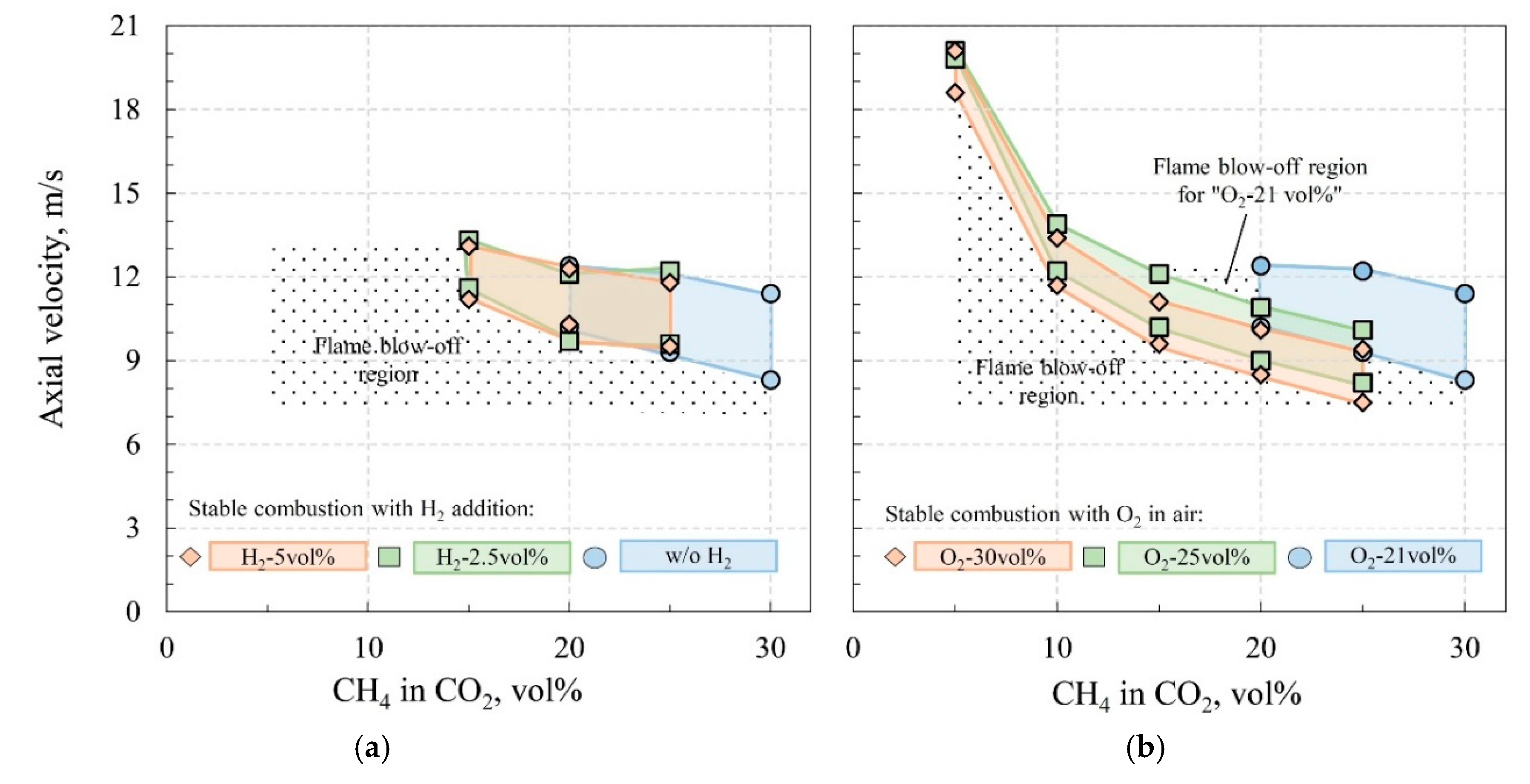

Figure 5. Axial velocity ranges during waste biogas (LCV) combustion with different content of CH4 in CO2 for a range of (a) H2 addition and (b) O2 air enrichment. The upper and bottom limit stands for a ϕmax and ϕmin, respectively.
Figure 5. Axial velocity ranges during waste biogas (LCV) combustion with different content of CH4 in CO2 for a range of (a) H2 addition and (b) O2 air enrichment. The upper and bottom limit stands for a ϕmax and ϕmin, respectively.
Energies 13 04760 g005
Energies 13 04760 g006 550

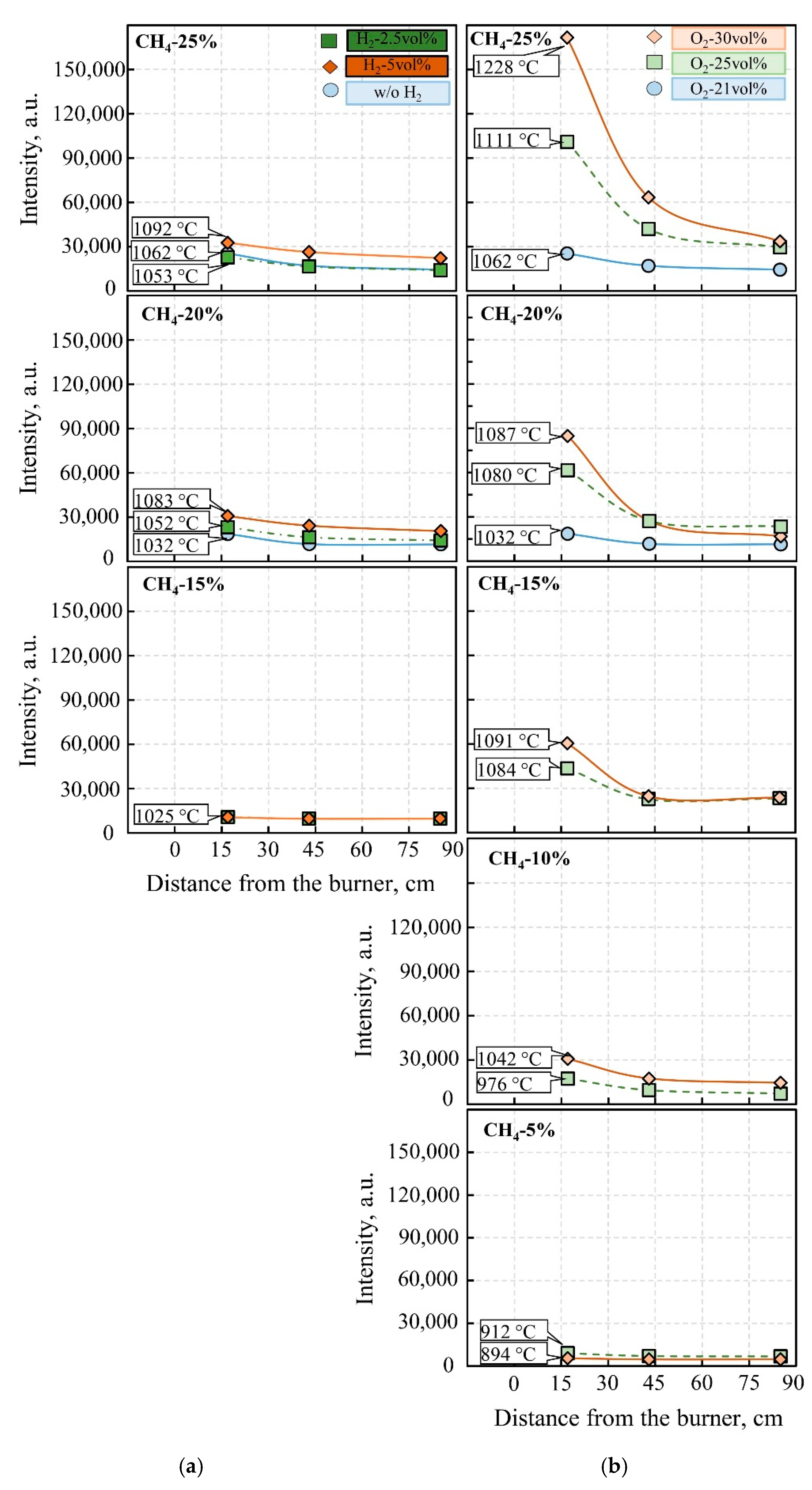

Figure 6. OH* spectral intensity distribution per distance at ϕ = 0.85 under (a) hydrogen-enrichment and (b) oxygen-enriched air.
Figure 6. OH* spectral intensity distribution per distance at ϕ = 0.85 under (a) hydrogen-enrichment and (b) oxygen-enriched air.
Energies 13 04760 g006
Energies 13 04760 g007 550

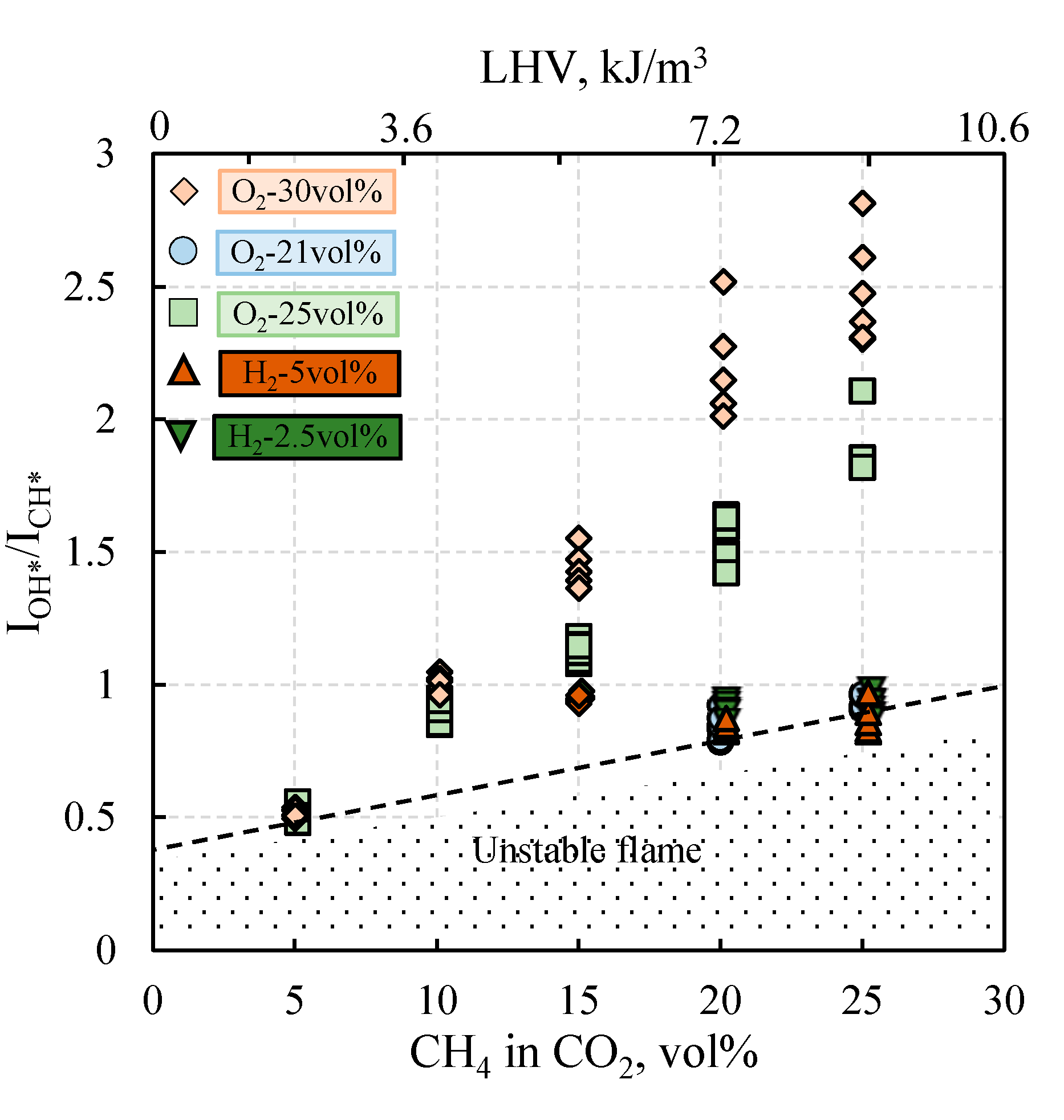

Figure 7. The tendency of the spectral intensity ratio of IOH*/ICH* with the increase of CH4 content in CO2.
Figure 7. The tendency of the spectral intensity ratio of IOH*/ICH* with the increase of CH4 content in CO2.
Energies 13 04760 g007
Energies 13 04760 g008 550

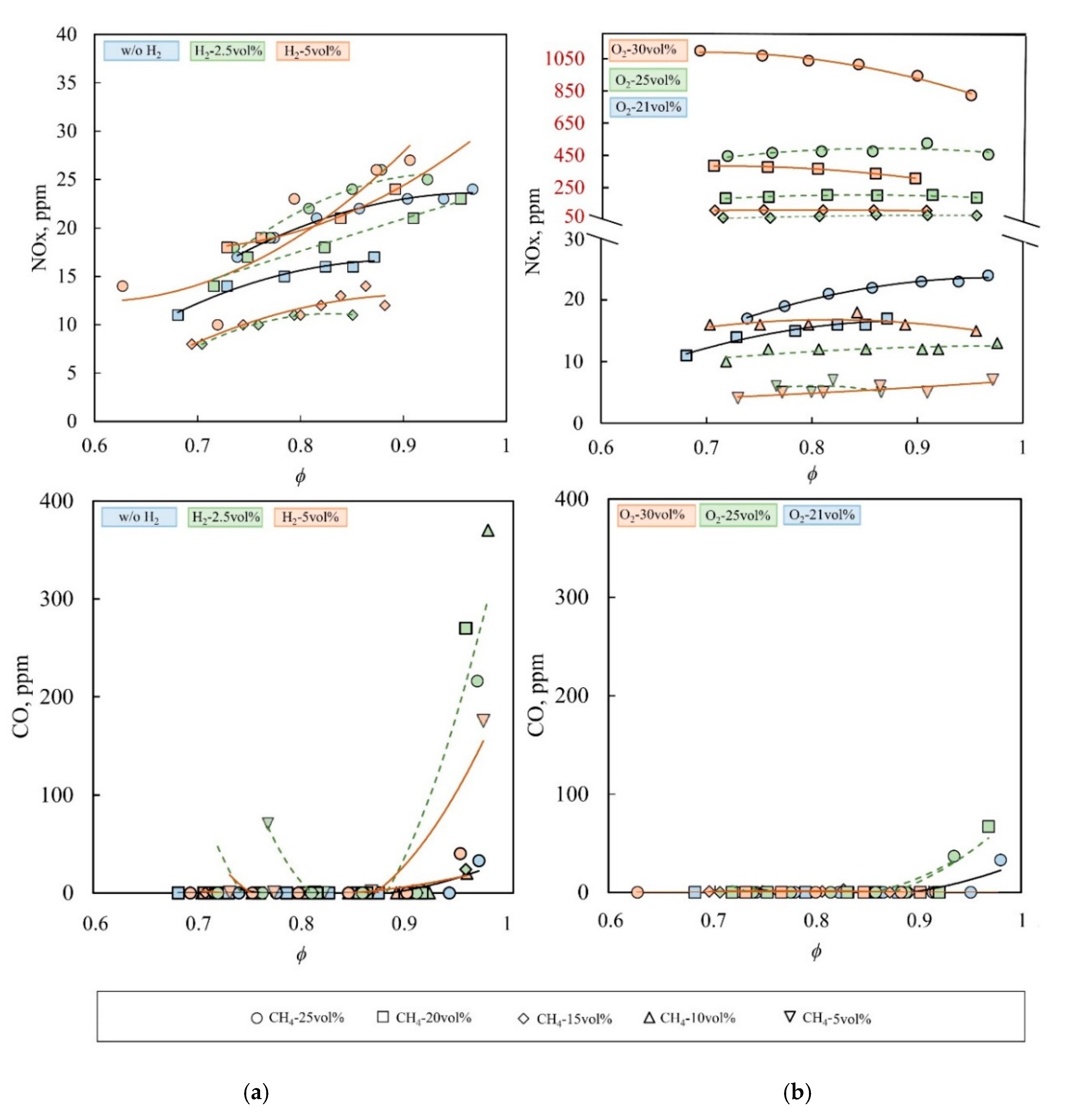

Figure 8. NOx and CO emissions of all tested waste biogas (LCV) mixture combustion under hydrogen-enrichment (a) and oxygen-enriched air (b) versus fuel-to-air ratio.
