Growth and Production of Lipids in Raphidocelis subcapitata Immobilized in Sodium Alginate Beads

Abstract

The growth and production of lipids in the green microalga Raphidocelis subcapitata immobilized in alginate gel are studied. The beads are made from alginate (2% w/v) and CaCl₂ (1% w/v). The dry weight, the concentration of cells, and the lipid content are determined after dissolution of the beads in a sodium phosphate buffer. The results show that variations in biomass do not reflect variations in the number of cells in R. subcapitata. Cells divide more rapidly (G_c = 3.45 ± 0.3 days) than biomass is produced (G_m = 4.1 ± 0.4 days) during the exponential growth phase. Therefore, the average mass of the immobilized cells decreases until it reaches its minimum at the end of the exponential phase. Thus, during the stationary phase, cell division ceases while biomass production continues, and the average mass of the immobilized cells increases. In the present study, it is shown that this increase is due to the accumulation of lipids following the depletion of nitrates and phosphates in the culture medium. A lipid content of 24.7 ± 2.5% (dcw) and a lipid productivity of LP = 29.8 ± 3.0 mg/L/day are recorded at the end of culture. These results suggest that immobilized R. subcapitata has promising potential for biodiesel production.

1. Introduction

In response to the problems of climate change and greenhouse gas emissions in the atmosphere, microalgal biomass has emerged as a superior raw material and promising alternative for biodiesel production [1,2,3,4]. According to some estimates, the average lipid productivity of microalgae is 54 tons/ha/year, which is higher compared to oilseed crops, such as oil palm (3.62 tons/ha/year) and rapeseed (0.68 tons/ha/year) [2,5]. In addition, microalgae can use CO₂ from the atmosphere, gases from various processes such as those from coal-fired power plants, or soluble carbonates with an efficiency 10 to 50 times greater than those of terrestrial plants [3,4,6]. Most importantly, growing microalgae for biodiesel production does not trigger a food-biofuel issue, which could lead the industry towards more sustainable development [7].

Great attention has been paid to certain species, including the green alga Raphidocelis subcapitata, because of their rapid growth and high level of lipid production [8,9]. Nevertheless, the high energy input required, particularly in the concentration and drying stage of biomass in the biodiesel production process, has made the possibility to market algocarbons questionable [10]. Production processes have evolved and new technologies, such as cell immobilization in natural polysaccharides, have been introduced into microalgae culture to facilitate their harvesting. The most frequently used are alginates, carrageenans, and agars because of their non-toxicity, biodegradability, and transparency to light, which helps to maintain the algae’s photosynthetic activity [11,12,13]. In the case of alginate polycarboxylate extracted from brown algae, the polymer is mixed with microalgae cells, then the gelling of the beads is produced by cationic grafting in the presence of multivalent ions such as CaCl₂ [14]. The beads obtained have a relatively large size compared to the free cells and can be easily separated from the culture medium by simple sieving without energy consumption. Thus, microalgal biomass will become easier to handle. However, in the literature, there is less work on the use of immobilized microalgae for biodiesel production compared to those using microalgae-free cultivation (

Table 1. Various species of free versus immobilized microalgae used for biodiesel production.

Microalgae	Type of Culture	Reference
Parachlorella kessleri UTEX2229	Free	[16]
Chlorella sp.	Free	[17]
Chlorella sorokiniana	Free	[18]
Chlorella vulgaris	Immobilized	[19]
Tetraselmis sp.	Free	[20]
Dunaliella tertiolecta	Free	[21]
Nannochloropsis oculata	Free	[22]
Phaeodactylum tricornutum	Free	[23]
Pseudokirchneriella subcapitata	Free	[9]
Botryococcus braunii	Immobilized	[24]

). The objective of this work is to study the growth and production of lipids in the microalga Raphidocelis subcapitata immobilized in alginate gel with a view to its development into biodiesel. This species is characterized by its high lipid productivity [8,9] and by the fixation of CO₂ in the form of organic matter, thanks to light energy, thus contributing to its reduction in the atmosphere [15]. To our knowledge, no research projects have been published on the cultivation of R. subcapitata in alginate beads for possible use in the production of biodiesel.

2. Materials and Methods

2.1. Chemical Products

Sodium alginate extracted from brown algae (No. 71238) and phosphate buffer components, sodium phosphate monobasic dihydrate NaH₂PO₄·2H₂O (No. 71505) and sodium phosphate dibasic dihydrate Na₂HPO₄·2H₂O (No. 71643), were supplied by Sigma-Aldrich^® (Oakville, ON, Canada). Calcium chloride dihydrate CaCl₂·2H₂O (No. 700912), used as a gelling medium [14,25,26,27,28], was supplied by Anachemia (Montréal, QC, Canada).

2.2. Microalga and Culture Medium

Raphidocelis subcapitata came from the Environment Canada Laboratory. The microalga was conserved and grown in a medium [29] prepared from five mother solutions whose composition (per liter) is as follows: (1) 25.5 g NaNO₃; (2) 14.7 g MgSO₄.7H₂O; (3) 1.044 g K₂HPO₄; (4) 15 g NaHCO₃; (5) 10 g MgCl₂·6H₂O; 4.4 g CaCl₂·2H₂O; 0.185 g H₃BO₃; 0.416 MnCl₂·4H₂O; 3.28 mg ZnCl₂; 0.16 g FeCl₃; 1.428 mg CoCl₂·6H₂O; 7.26 mg Na₂MoO₄·2H₂O; 0.012 mg CuCl; and 0.3 g Na₂EDTA.2H₂O. From each nutrient solution, 10 mL was taken and transferred to an Erlenmeyer flask; the distilled water was then added to bring the volume to 1 L. The pH of the medium was adjusted to 7.5. The culture medium was sterilized by an autoclave at 121 °C for 20 min.

2.3. Cell Immobilization

The immobilization of R. subcapitata cells in alginate gel was performed under sterile conditions from 2% (w/v) sodium alginate solutions, CaC1₂ 1% (w/v), sterilized by autoclave (121 °C, 20 min) [28], and an algae suspension in the exponential growth phase of biomass concentration of about 1 g/L.

A total of 100 mL of microalgae culture was concentrated by centrifugation (4000 rpm, 4 °C for 10 min); the pellet was recovered and washed three times in sterile saline water (0.85%), with centrifugation between each wash. Cells were then suspended in 50 mL of sterile saline water (0.85%). The algae suspension was finally mixed with 50 mL of sodium alginate solution and gently homogenized [28,30]. The mixture was transferred into a sterile 20 mL syringe equipped with a 20 G 0.9 × 40 mm needle (Braun, Melsungen, Germany) and expelled dropwise into the CaCl₂ solution. The beads generated were left in the CaCl₂ solution for 30 min to complete the gelation. After this, they were harvested using a sterile metal sieve and then washed with sterile distilled water.

2.4. Culture Conditions

The beads containing the microalgae were aseptically transferred into a 2 L Erlenmeyer flask, previously sterilized by an autoclave (121 °C, 20 min), containing 1 L of sterile culture medium. They were then placed in an incubator equipped with a stirring table (INFORS HT Ecotron, Montréal, QC, Canada), providing standard culture conditions, agitation (100 rpm), and temperature (25 ± 1 °C).

The experiment was carried out under a photoperiod of 24 h of light for 0 h of darkness (24/0; L/D). A white fluorescent lamp (KF15T8CW-PROJECT PAK 15W) was used as a light source. It was installed vertically, thus providing lighting of 4000–5000 lux (light quantum flux of approximately 56 μmol/(m² s)).

In order to avoid cell sedimentation and to prevent the depletion of the medium in CO₂, the cultures were heavily bubbled (145 L of air/liter of culture/hour). CO₂ was supplied by an air pump (MARINA 300). The air was filtered by a 0.45 μm porosity filter (Fischer Scientific).

2.5. Growth Monitoring

The growth monitoring of the cells immobilized in the beads was carried out by measuring the cell concentration and determining the dry weight over a period of 10 days. Each day, ten beads were removed aseptically from the Erlenmeyer flask and transferred in 20 mL of sterile sodium phosphate buffer (pH = 6.0), at a concentration of 50 mM. They were then incubated at room temperature for 24 h. This step allowed the dissolution of the beads and consequently the release of cells [28,31].

The number of cells was determined by measuring the optical density at 685 nm using a spectrophotometer (Varian cary 300 bio visible UV spectrophotometer). The relationship between the OD₆₈₅ (y) and the concentration of R. subcapitata cells (x) is given by the following equation: y = 0.3572x (R² = 0.9978).

The determination of the dry weight was carried out by filtration of the algae suspension on a pre-weighed fiberglass filter (Wathman filter, 1.2 μm) (METTLER AT261 balance). The cells were washed with 100 mL of sterile distilled water. The filter was then placed in the oven at 80 °C for 24 h, cooled in a desiccator for 15 min, and then weighed again. The biomass concentration represents the average of two tests. It was calculated from the difference in mass of the filter divided by the volume of the sample and was expressed in g/L, according to the following equation:

$$\mathrm{Cx} (g/L) =\frac{m_{2 }-m_1}{Vsample}\times {10}^3$$

where m₁: mass of the filter. m₂: mass of the filter containing the microalgae.

2.6. Calculation of Growth Parameters

The immobilized R. subcapitata culture is performed in batch. The optimal cell division rate (μ_c) and biomass production rate (μ_m) were calculated during the exponential growth phases according to the following equation [28,32]:

$${\mu }_c \left(da{y}^{-1}\right)=\frac{\ln (N_2/N_1)}{t_{2 }- t_1}$$

where N₁ and N₂ are defined as the number of cells (cell/L) at time t₁ and t₂, respectively.

$${\mu }_m \left(da{y}^{-1}\right)=\frac{\ln (M_2/M_1)}{t_{2 }- t_1}$$

where M₁ and M₂ are defined as biomass (g/L) at time t₁ and t₂, respectively.

The doubling time of the microalgae cells (G_c: generation time) and the biomass doubling time (G_m) are calculated according to the following formula [33]:

$$G_c=\ln 2/{\mu }_{c max}$$

G_c: generation time (day); ln: natural logarithm; μ_c: specific growth rate (day⁻¹).

$$G_m=\ln 2/{\mu }_{m max}$$

G_m: Biomass doubling time (day); ln: natural logarithm; μ_m: specific rate of biomass production (day⁻¹).

2.7. Lipid Extraction from Immobilized Microalgae

The extraction of total lipids was performed according to the whole cell analytical method (WCA) described by Van Vooren et al. [34]. It is based on the use of a mixture of apolar (chloroform) and polar (methanol) solvents in proportions 2:1 (v/v). Methanol allows the bursting of microalgae, thus making the lipids accessible to chloroform, which leads to the production of a complete lipid extract.

The choice of this method is justified by its numerous advantages compared to the methods of Folch [35] and Bligh and Dyer [36], which are recognized as reference techniques of extraction of total lipids. The WCA method is faster, simpler to perform, can be applied to a small sample volume, and ultimately achieves a better extraction yield [16].

After dissolving the beads (10 beads) as described above (Section 2.5), the resulting algal suspension was centrifuged for 10 min at 4000 rpm at 4 °C. Then, the supernatant was removed and 20 µL of butylated hydroxytoluene (BHT) at 20 µg/µL were added to the pellet containing the whole cells of microalgae in order to prevent lipid oxidation during the extraction. The extraction was carried out in glass tubes with 6 mL of CHCL₃/MeOH mixture 2:1 (v/v) which were added in three times (2 mL successively). After each addition of solvents, the tubes were vortexed for 10 s and then placed in an ultrasonic bath (BRANSON 5200) for 30 s to improve the extraction yield. In fact, the ultrasounds emitted generate bubbles in the solvent mixture; the bursting thereof in the vicinity of the cells makes it possible to maximize the extraction of the lipids contained inside the microalgae. The tubes were thus covered with aluminum foil and kept shaking on a pendulum for 6 h in the dark in order to ensure the complete extraction of the lipids. The evaporation of the extraction solvent was carried out in an oven at 60 °C for 6 h. The tubes were then cooled in a desiccator for 20 min and weighed to determine the weight of dry matter obtained corresponding to the total lipids extracted. The level of fatty acids in the biomass represents the average of two tests and is given by the following formula:

$$\mathrm{Percentage} \mathrm{mass} \mathrm{of} \mathrm{total} \mathrm{lipids} \% \left(\mathrm{dcw}\right)=\frac{\mathrm{Mass} \mathrm{of} \mathrm{total} \mathrm{lipids} \mathrm{extract} \left(\mathrm{g}\right) }{\mathrm{Dry} \mathrm{weight} \mathrm{of} \mathrm{cells} \left(\mathrm{g}\right)}\times 100$$

2.8. Calculating Lipid Productivity

The lipid productivity (LP) is calculated according to the following equation:

$$\mathrm{LP}(\mathrm{mg}/\mathrm{L}/\mathrm{day} )=\frac{C_2 B_{2 }- C_{1 } B_1}{t_{2 }-t_1}$$

where C₁ is the lipid content of microalgae (mg of lipids/mg of dry of cells) at t₁ and C₂ (mg of lipids/mg of dry of cells) is that at t₂. B₁ and B₂ are the biomass concentrations (mg/L) at time t₁ and t₂, respectively.

2.9. Measurement of Nitrates in the Culture Medium

The determination of the nitrate concentration in the culture medium during the growth period of immobilized microalgae (10 days) was carried out according to a standard method [37]. Each day, 1 mL of culture medium was removed from the Erlenmeyer flask and centrifuged (4000 rpm, 4 °C for 10 min) to remove free microalgae cells that can be relegated from the beads. The supernatant was recovered, and the nitrate concentration was estimated by measuring the absorbance at 220 nm using the spectrophotometer (Varian cary 300 bio visible UV spectrophotometer). Since organic matter dissolved in the culture medium can also absorb UV light at 220 nm, and thus distort the nitrate assay results, the absorbance of the sample was also measured at 275 nm. Indeed, at this wavelength, only the dissolved organic matter absorbs.

The absorbance of nitrates was calculated as follows:

$$A_{nitrate }=A_{220nm }-2A_{275nm}$$

A solution of sodium nitrate (NaNO₃) at different concentrations was used to plot the calibration curve.

2.10. Measurement of Phosphates in the Culture Medium

The determination of phosphate ions in the culture medium during the 10 days of culture of the immobilized microalgae was carried out according to the method of Murphy and Riley [38] with ascorbic acid.

2.10.1. Principle of the Method

Ammonium molybdate and potassium antimonyl tartrate react in acidic medium with orthophosphate to form an antimonyl–phosphate–molybdate complex, which is reduced by acid ascorbic acid to céruléomolybdic, a blue colored complex whose intensity is proportional to the phosphate concentration and is measured using a spectrophotometer (Varian cary 300 bio UV visible spectrophotometer) at 880 nm.

2.10.2. Reagents

-

Sulfuric acid, H₂SO₄, 5N.

-

Potassium antimonyl tartrate solution, K(SbO)C₄H₄O₆, 1/2H₂O, 3.42 g/L.

-

Ammonium molybdate solution, (NH₄)₆Mo₇O₂₄, 4H₂O, 40 g/L.

-

Ascorbic acid, 0.1 M.

Combined reagent: for 100 mL of combined reagent, the above reagents were mixed in the following order and in the following proportions: 50 mL H₂SO₄, 5N, 5 mL potassium antimonyl tartrate solution, 15 mL ammonium molybdate solution, and 30 mL ascorbic acid. The resulting mixture was stable for 4 h.

2.10.3. Procedure

Each day, 5 mL of culture medium were taken from the Erlenmeyer flask. After centrifugation at 4000 rpm at 4 °C for 10 min, the supernatant was collected in a 20 mL graduated flask to which 800 μL of combined reagent was added. The solution was kept at room temperature for about 20 min before reading the absorbance at 880 nm using the spectrophotometer (Varian cary 300 bio visible UV spectrophotometer).

A solution of potassium hydrogen phosphate (K₂HPO₄) at different concentrations was used to plot the calibration curve.

3. Results

3.1. Growth of R. subcapitata Immobilized in Alginate Beads

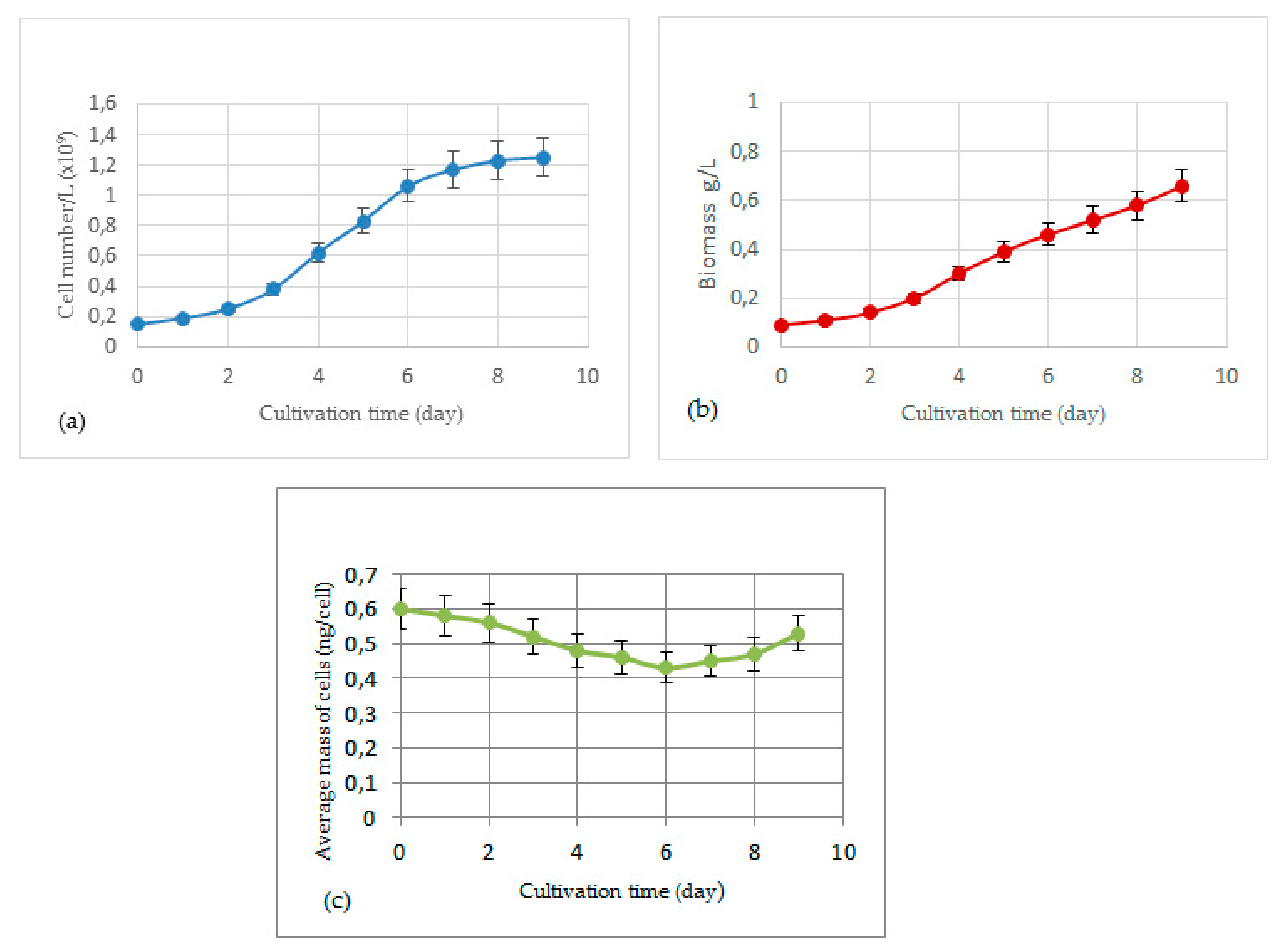

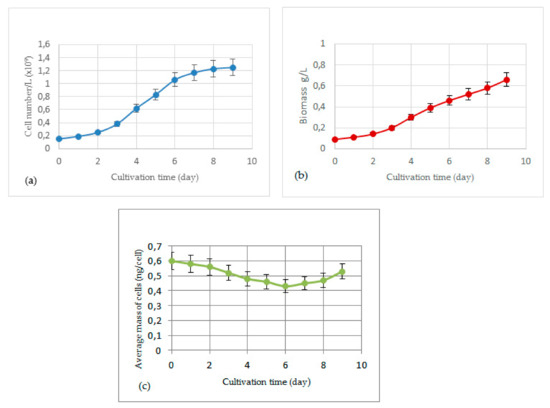

Variations in the number of cells of immobilized R. subcapitata (Figure 1a) show a classical pattern of a discontinuous culture with an exponential growth phase which stops after the seventh day of culture, followed by a short slowing and then a stationary phase. The cell division rate and the generation time during the exponential phase of growth, are μ_c = 0.20 ± 0.02 day⁻¹ and G_c = 3.45 ± 0.3 days, respectively.

The biomass variations of immobilized R. subcapitata (Figure 1b) show an increase in the amount of biomass produced by microalgae in the alginate beads from the first days of culture. The rate of biomass production during the exponential phase of growth is μ_m = 0.17 ± 0.02 day⁻¹ and the generation time is G_m = 4.1 ± 0.4 days. As a result, biomass values continue to increase after the seventh day of cultivation, and stable biomass production was not reached, even on the last day of cultivation.

The comparison of the doubling time of the microalgae cells (G_c = 3.45 ± 0.3 days) and the doubling time of the biomass (G_m = 4.1 ± 0.4 days) shows that for the growth of R. subcapitata in the alginate gel, the number of cells increases more rapidly than biomass production during the exponential growth phase. Consequently, the average mass of the immobilized cells decreases until it reaches its minimum at the end of the exponential phase (Figure 1c). This is justified by the asexual reproduction of the cells. Like all microalgae, R. subcapitata is divided by mitosis; the size of the cells then decreases until they can no longer divide.

In addition, during the last three days of culture, cell division ceases while biomass production continues, and the average cell mass increases. Since the culture of microalgae is carried out in batch, this increase could be due to the accumulation of lipids following the depletion of one of the nutrients essential for growth, such as phosphorus or nitrogen. Indeed, the accumulation of lipids in response to this stress was observed in free R. subcapitata [39] and in other species of microalgae [39,40] including Chlorococcum oleofaciens, Scenedesmus almeriensis, and Nannochloropsis sp. F & M-M24.

The production of lipids in immobilized R. subcapitata was then studied with the monitoring of the nitrate and phosphate concentrations in the culture medium during the whole culture period.

3.2. Production of Total Lipids in R. subcapitata Immobilized in Alginate Beads

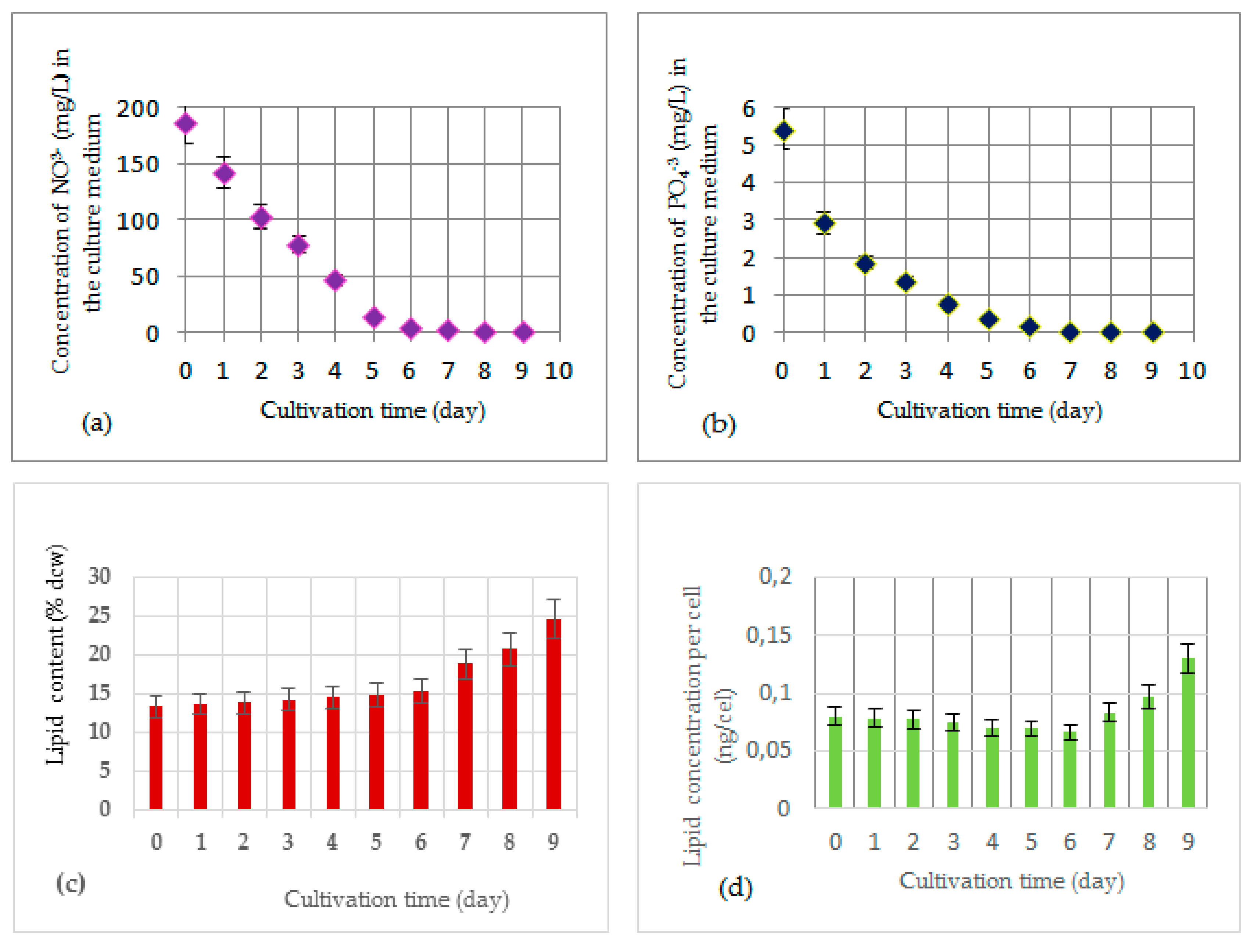

Figure 2 shows the production of total lipids in immobilized R. subcapitata with monitoring of nitrate and phosphate concentrations in the culture medium, over a period of 10 days. When nitrates and phosphates are available in the culture medium (Figure 2a,b), a slight increase in lipid content is noted (Figure 2c) from 13.3 ± 1.3% (dcw) (first day) to 15.3 ± 1.5% (dcw) (seventh day), with lipid productivity, LP = 9.5 ± 1.0 mg/L/day. After the seventh day, the nitrates and phosphates are exhausted in the culture medium (Figure 2a,b) and a lipid accumulation is observed (Figure 2c). A lipid content of 24.7 ± 2.5% (dcw) is recorded at the end of the experiment with lipid productivity (LP) of 29.8 ± 3.0 mg/L/day.

Despite variations in lipid concentration per microalgae cell, Figure 2d shows a progressive decrease in concentration during the first days of culture, reaching a minimum value of 0.066 ± 0.006 ng/cell on the seventh day (a decrease of approximately 17.5 ± 1.7%). This decrease results from the decrease in the mean mass of cells during their division (Figure 1c). After this, when the nitrates and phosphates are depleted in the culture medium (Figure 2a,b), the lipid concentration per cell is increased to 0.13 ± 0.01 ng/cell on the last day of culture. It should be noted that the accumulation of lipids was stimulated as soon as nitrates and phosphates were depleted in the culture medium. This implies that de novo fatty acid synthesis was activated rapidly due to the lack of medium in these two elements.

These results confirm the results obtained above (Figure 1). The increase in biomass production during the stationary phase of growth (Figure 1b) is due to the accumulation of lipids following the depletion of nitrates and phosphates in the culture medium. Indeed, the storage of lipids results from an imbalance between the flow of carbon, resulting from photosynthesis, and the flow of nitrogen and phosphorus necessary for growth. When the cell is deficient in these elements, it does not immediately interrupt the acquisition of CO₂ necessary for photosynthesis, as it cannot use it to produce proteins; it stores this flow, in the form of lipids [41,42,43].

Our results show that R. subcapitata immobilized in the alginate gel has the ability to accumulate lipids in response to nitrogen and phosphorus limitations. The value obtained in this study (accumulation of 24.7 ± 2.5% (dcw) at the end of culture), under standard culture conditions, is encouraging since, according to the literature, the lipid contents of R. subcapitata would be between 12% and 41% of the dry weight, depending on the culture conditions and the concentrations of nitrates and phosphates in the medium [39,44].

4. Conclusions

The results of this study suggest that the green microalga Raphidocelis subcapitata immobilized in alginate gel has promising potential for the production of biodiesel. Indeed, the strain has the ability to accumulate lipids in response to the depletion of nitrates and phosphates in the culture medium. The values obtained, under standard culture conditions, are encouraging. A lipid content of 24.7 ± 2.5% (dcw) was recorded at the end of culture, with a lipid productivity (LP) of 29.8 ± 3.0 mg/L/day.

In future work, it would be interesting to individually evaluate the effect of each element (nitrates, phosphates) on biomass production and lipid accumulation in order to optimize its growing conditions. This could significantly improve the yield of the species.
