Size- and Surface-Dependent Solubility of Cadmium Telluride in Aqueous Solutions

Abstract

Due to the toxicity of cadmium (Cd) and the scarcity of telluride (Te), CdTe-based photovoltaic modules have been under discussion during the last few years. In particular, the stability of CdTe in aqueous solutions is under debate. Here we show that the stability of CdTe depends not only on the pH of water-based solutions but also on size and surface treatment of CdTe particles. We compare milled module pieces with CdTe powders of different particle size. The leaching of CdTe is conditioned by the outdiffusion of Cd and Te at the interface between CdTe particles and the aqueous solution. The smaller the particle size, the faster the leaching. Therefore, milled module pieces decompose faster than CdTe powders with relatively large grains. We observe a dependence on time t according to t^0.43. The room temperature diffusion coefficients are calculated as D_Cd ≈ 3 × 10⁻¹⁷ cm²/s for Cd, and D_Te ≈ 1.5 × 10⁻¹⁷ cm²/s for Te in pH4. The chemical instability in aqueous solutions follows thermodynamic considerations. The solution behavior of Cd and Te depends on the pH value and the redox potential of the aqueous solutions. Chemical treatments such as those used in solar cell production modify the surface of the CdTe particles and their leaching behavior.

1. Introduction

At present, every year, small- and large-area photovoltaic systems are installed on the basis of cadmium telluride (CdTe)-containing modules with a power around 3 GW_p, which corresponds to an annual area of 20 km² and an annual distribution of about 230 tons of Cd. (A typical CdTe module of 16% efficiency (160 W/m²) with a CdTe thickness of around 4 µm contains about 78 mg Cd per W. At present (2020) about 3 GWp of CdTe modules are produced worldwide per year.) At the end of 2019, about 600 GW_p module power were installed worldwide. From these, between 25 and 30 GW_p, i.e., between 4% and 5% are modules on the basis of CdTe. This number corresponds to an area of 170 to 200 km² for the CdTe modules containing a total mass of about 2000 t of Cd. This enormous distribution of CdTe on large areas clearly raises the question of the environmental effects of the toxic element Cd as well as of the compound CdTe.

Despite the toxicity and the cancerogenic action of the element Cd, its use in CdTe modules still is not yet legally restricted within the European Union. The lack of legal sanctions against CdTe modules usually is justified by arguing that cadmium telluride is “chemically stable”, in particular in aqueous solutions, for example, in rainwater. Indeed, when compared to the elements Cd and Te, as well as to other Cd compounds, the crystalline compound cadmium telluride (CdTe) has a higher stability [1]. Therefore, intact CdTe photovoltaic modules seem to impose no risks for environment and health [2]: In unbroken modules, the CdTe layers are protected by two glass plates and the edge sealing of the module. However, at the end of use of intact photovoltaic modules questions remain concerning the decommissioning and recycling of CdTe [3]. Possible ways of recycling of the CdTe-modules are crushing and leaching in acids like sulfuric acid with low pH (pH < 1) [4,5].

For a long time it has been stated that even unprotected CdTe layers would only decompose in strong acids. Neutral water and rainwater were stated to not decompose CdTe [1]. These statements were based on experiments that were carried out over 24 h only. Recently, however, we gave direct experimental proof that CdTe layers in photovoltaic module pieces do not only decompose in strong acids, but (if waited long enough) even in neutral water [6,7].

During the course of our studies [6,7] we speculated if the thickness and/or the grain size of the CdTe layers might have an influence on the stability and solubility of CdTe in aqueous solutions. In the case of our commercially obtained CdTe solar modules, we measured a thickness d_CdTe ≈ 3 µm for the CdTe layer. This thickness is large enough to absorb about 90% of the sun’s light with photon energies hν ≥ E_g with the value E_g = 1.45 eV for the band gap of CdTe [8,9,10]. The size of CdTe particles and/or illumination may also play a role in the decomposition in aqueous solutions: illuminated CdTe particles of nm size show a higher mobilization of Cd due to a photochemical reaction [11]. The grain size of the crystals in the CdTe module pieces is in the µm-range [12], which we confirmed by own measurements.

Apart from thickness and/or grain size, the stability of the compound CdTe might also be influenced by the surface structure of the CdTe layers. During the production process of the solar module, the surface of the CdTe is modified by several steps [13,14,15], which alter the surface of the CdTe layers for solar modules. These steps may also change the solubility of CdTe layers either by protecting them or even by making them “weaker” against the attack of aqueous solution.

The present study reports on the influence of the grain size, and the surface properties of CdTe on its chemical stability. To cover a wide range of parameters, for most of our experiments, we do not only use CdTe-layers from solar modules. Instead, we also process CdTe powders of different grain sizes, and we emulate the influence of solar cell processes on these CdTe powders. Then, the differently prepared samples undergo stability experiments in aqueous solutions with pH-values of pH = 4, 7, and 10. Finally, we are able to explain the dissolution behavior of the CdTe layers not only qualitatively, but also quantitatively: (i) The dissolution of the CdTe-particles is a consequence of the diffusion of the Cd and Te towards the interface between the CdTe particles and the solution. (ii) The higher surface to volume ratio of small particles is responsible for their faster dissolution. (iii) The dissolution follows a dependence on time t according to t^0.43. This experimentally observed power law is in line with a pharmaceutical model for spherical particles.

2. Experimental

2.1. Cadmium Telluride (CdTe) Sources

Our leaching experiments are carried out on three different CdTe-powders, commercially available from company Sigma Aldrich [16]. The powders have a purity between 99.99% and 99.9999%. In addition, we compare the results to those obtained from milled module pieces out of the experiments from reference [6]. In total, we perform five different kinds of leaching experiment, using four different sources for the samples:

• Three sieved CdTe-powders with different maximal grain diameter d:

  (i)

  CdTe₂₅₀ with d₂₅₀ ≤ 250 µm, d_mean,250 ≈ 4 to 5 µm (see below)

  (ii)

  CdTe₈₄₀ with d₈₄₀ ≤ 840 µm, d_mean,840 ≈ 9 µm

  (iii)

  CdTe₃₀₀₀ with d₃₀₀₀ ≤ 3000 µm.

• CdTe_3,m pieces from milled modules:

The milled module particles from our reference [6] have a diameter around 200 µm and contain a CdTe layer of 3 µm thickness surrounded by the contacting metals and the glass layers from the front and back glass of the laminated module. After milling, the particles have a mean size d_mean,3,m ≈ 1.2 µm (shown below).

The production of the powder involves a subsequent sieving by the manufacturer, therefore only a small amount of particles shows the given maximum sizes d_250,max, d_840,max, d_3000,max. Determination of the powders’ surface by nitrogen adsorption with the Brunauer–Emett–Teller (BET)-method yields the surface area A. For CdTe₂₅₀, we obtain A₂₅₀ ≈ 0.22 m²/g. From this value and assuming a spherical shape, we derive the above given mean particle diameter d_mean,250 ≈ 4.6 µm compared to d_250,max ≈ 250 µm. In contrast, for CdTe₈₄₀ we obtain A₈₄₀ ≈ 0.11 m²/g with a mean particle diameter d_mean,840 ≈ 9 µm compared to d_840,max ≈ 840 µm. Thus, for the same mass of CdTe, the relative diameter r_diameter = 9 µm/4.6 µm of the directly measured (with BET) surface areas amounts to about r_diameter ≈ 2. If we calculate the diameter ratio only from the largest grains (840 vs. 250 µm), the relative ratio r_grain is r_grain = 840 µm/250 µm = 3.4.

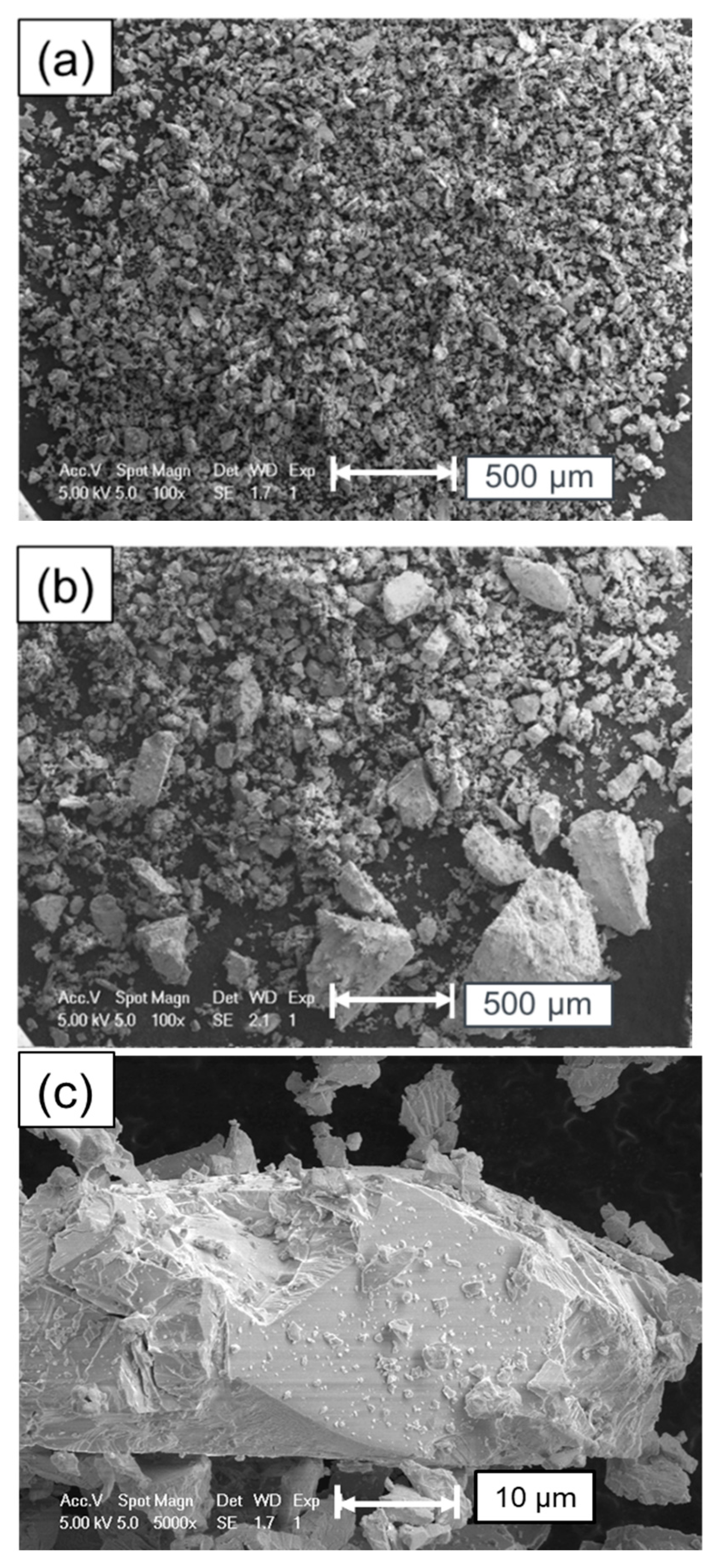

Figure 1a,b show micrographs taken with a Philips XL30 SFEG scanning electron microscope (SEM) from the as received CdTe powders. Figure 1a shows CdTe₂₅₀ with the maximum particle size d_250,max ≈ 250 µm, whereas Figure 1b exhibits maximal sizes d_840,max ≈ 840 µm for the CdTe₈₄₀ powder. Higher-resolution measurements with the SEM in Figure 1c for CdTe₂₅₀ and in Figure 1d for CdTe₈₄₀ indicate even smaller grain sizes than 1 µm for the sieved powder. The mean sizes d_mean,250 ≈ 4.6 µm and d_mean,840 ≈ 9 µm from the BET measurements roughly correspond with the SEM data for these powders.

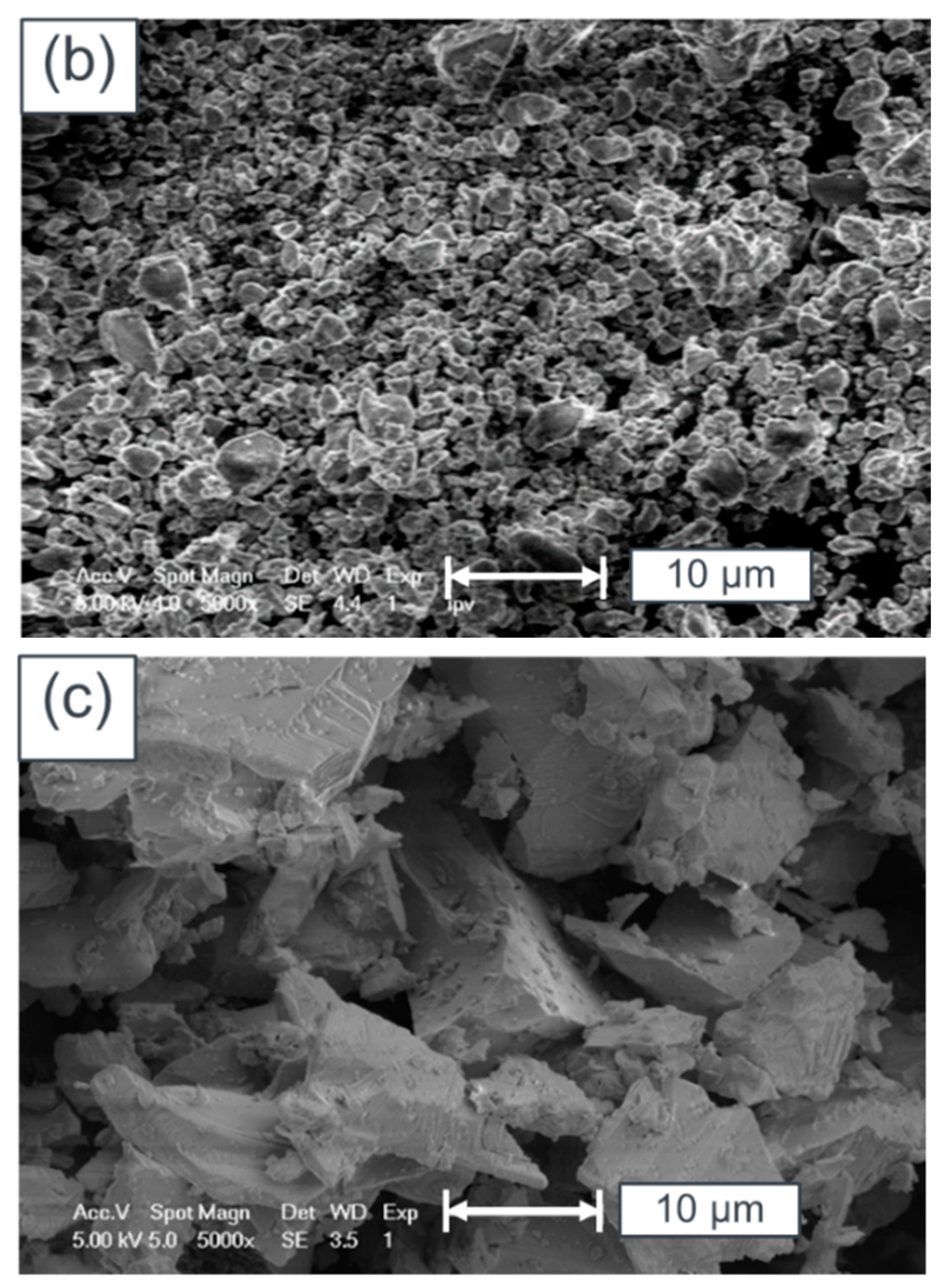

Figure 2a,b show micrographs of module pieces which were milled according to the recipes of reference [6]. If one compares Figure 2a with Figure 1a,b it seems that the milled module pieces have approximately the same particle size as the CdTe powders. However, measurements on a higher resolution scale indicate a much smaller particle size for the milled module pieces: From Figure 2b we derive a mean particle size d_mean,3,m ≈ 1 µm compared to the much larger particle diameter of the CdTe₂₅₀ powder from Figure 2c. For the CdTe₃₀₀₀ powder, from microscope pictures, we estimate a mean particle size around d_mean,3000 ≈ 200 µm. For further consideration of a size dependent elution we take the mean particle sizes into account.

Therefore, if we take the mean particle sizes of the CdTe₂₅₀ powder as a reference (we have most leaching data for those films), the ratio of the mean particle size behaves as:

d_mean,3,m : d_mean,250 : d_mean,840 : d_mean,,3000 ≈ 1 µm : 4.5 µm : 9 µm : 200 µm = 0.2 : 1 : 2 : 50

(1)

Thus, if we take the CdTe₂₅₀ powder as a reference, and assume that the etched mass C of CdTe in the solution is proportional to the relative ratio of the particles’ surface/volume ratio, i.e., to what we expect to be the concentrations C ∝ 1/d_mean, it roughly holds that:

C_3,m : C_{250 :} C₈₄₀ : C₃₀₀₀ ≈ 5 : 1 : 0.5 : 0.02

(2)

for the eluted mass C_3,m from the milled module pieces, C₂₅₀ from the CdTe₂₅₀ powder, C₈₄₀ from the CdTe₈₄₀ powder, and C₃₀₀₀ from the CdTe₃₀₀₀ powder. Here, for example, the C_3,m is an abbreviation, standing for C_3,m,Cd (the relative eluted mass of Cd) as well as for C_3,m,Te (the concentration of Te) in the eluting liquid.

2.2. Samples for Leaching Experiments

We use five different kinds of sample for the leaching experiments:

• The untreated CdTe-powders from Sigma Aldrich as described in Section 2.1.
• Solar-cell-like activated CdTe-powder CdTe_act as described in Section 2.3.
• Solar-cell-like etched CdTe-powder CdTe_etch as described in Section 2.3.
• Solar-cell-like activated and etched CdTe-powder CdTe_act+etch as described in Section 2.3.
• The milled module pieces CdTe_3,m as described in Section 2.1.

The activated and/or etched CdTe powders undergo “solar-cell-like” processes that are similar to those used in the production of CdTe solar modules, as described below.

2.3. Solar-Cell-Like Processing

During the production process of the solar module, the surface of the CdTe powder is modified by two steps, which improve the cells’ efficiency [10,13]:

• “Activation” [10,13,14]; and
• “Etching” [15].

Activation: The fabrication of the cells (in a superstrate configuration) starts with the deposition of a transparent conductive oxide (TCO) on a glass substrate, followed by depositing an n-type cadmium sulfide (CdS) layer. Then the activation occurs in the cell processes: after deposition of p-type CdTe on the CdS, an activation with cadmium chloride (CdCl₂) via an annealing step increases the grain size of the CdTe and CdS and, therefore, the efficiency. [12] Interdiffusion of Te and S at the CdTe/CdS interface could also be found [14].

Etching: Then, before the deposition of molybdenum for the ohmic back contact, the surface of the low doped p-type CdTe, undergoes etching by a nitric-phosphoric acid mixture (N-P etch). This etching process creates a phosphorus rich and a Te enriched layer [15]. Soluble Cd compounds are removed leaving insoluble Te compounds on the surface. Moreover, a Te cap on the individual grains due to etching enlarges the contact area and thus lowers the contact resistance between the Mo metal and the CdTe layer [10]. The N-P etch etches primarily at grain boundaries. This effect leads to an elemental layer of Te with a thickness of 8 nm leaving Cd on top with a concentration of 10% [12,17].

2.3.1. Activated CdTe Powder CdTe_act

Our experiments on the small sized CdTe-powder with d₂₅₀ ≤ 250 µm simulate the “activation step” in the preparation of CdTe layers for solar modules. Following the processes of references [18,19,20] we use a chloride treatment and subsequent annealing: The CdCl₂ treatment is done in methanol which contains dissolved CdCl₂-powder. The activation of CdTe depends on the ratio of CdTe to CdCl₂: with a given CdTe thickness d_CdTe = 4 µm the optimal thickness of the CdCl₂-layer should be d_CdCl = 0.35 µm [18,19]. For activation of the powder we use the ratio of thicknesses as a ratio for the mass ratio CdTe:CdCl₂ = 1:0.057 with a mass density of 6.20 g/cm³ for CdTe and 4.047 g/cm³ for CdCl₂. The CdCl₂-powder dissolves in methanol with a maximum solubility of 1.5 g CdCl₂ in 100 mL methanol [20]. We stay below this value and dissolve the mass m_CdCl2 = 0.286 g of CdCl₂ in the mass m_Meth = 28.6 g of methanol within a time t_usb = 45 min by using an ultrasonic bath. Then, CdTe of mass m_CdTe = 5 g is suspended in the CdCl₂/methanol mixture in the mass ratio CdTe:CdCl₂ = 1:0.057. Thereafter, in order to prepare the powder for the activation step, a rotary evaporator evaporates the methanol at a temperature T_rot = 40 °C and a pressure p_rot = 200 mbar. Afterwards, freeze drying removes the possible remaining methanol. Finally, we perform the annealing in order to support grain growth by the activation. We anneal the CdTe/CdCl₂-powder for a time t_sb = 30 min in a sand bath with a sand temperature T_sand = 360 °C. These parameters also follow the processes described in references [18,20]. The excess CdCl₂ which might deposit on the surface of the CdTe powder is not rinsed after heat treatment to see the effect of change in the surface of CdTe.

2.3.2. Etched CdTe Powder CdTe_etch

We also simulate the wet chemical etching for oxide removal and formation of a Te-rich surface as done on CdTe in solar cell fabrication. For that purpose, following reference [10], we use a mixture of 65% nitric acid (HNO₃) and 85% phosphoric acid (H₃PO₄) (NP-etch) in the volume ratios HNO₃:H₃PO₄:DI-water = 1:70:29 for a time t_etch = 60 s. Then, a paper filter separates the etched CdTe_etch from the acid, followed by rinsing with water for a time t_rinse = 10 min in order to remove remaining acid. Freeze-drying instead of annealing makes sure that the etched CdTe powder does not oxidize [21].

2.3.3. Activated and Etched CdTe Powder CdTe_act+etch

This preparation uses first step A, then step B.

2.4. Leaching Solutions and Sampling

The leaching experiments are carried out at room temperature. To test the chemical stability of the differently prepared CdTe powders, we use the following three buffered aqueous solutions:

(a)

pH4: 3.9 g citric acid with 4.5 g disodium hydrogen phosphate in 1000 mL deionized water.

(b)

pH7: 1.2 g citric acid with 9.6 g disodium hydrogen phosphate in 1000 mL deionized water.

(c)

pH10: 2.0 g sodium hydroxide in 1000 mL deionized water.

For the leaching experiments, 100 mg CdTe-powder (either in the unprocessed or in the solar-cell-like processed state) is put in bottles with 100 mL of aqueous solution, which corresponds to a concentration of 1 g/L. Bottles are made out of low-density polyethylene (LDPE) to ensure that there is no reaction of the solutions with the material, especially in acidic solutions. To make sure that the pH value remains constant, we use buffered solutions. The buffered solutions stabilize the pH values during the experiments, while the pH value is monitored on a regular basis.

The bottles with the aqueous solutions and the different CdTe powders are shaken overhead for several weeks at room temperature. To exclude a photochemical reaction during the experiments, the bottles are packed in cartons, which are impervious to light. For the analysis of leached elements, we periodically take samples from the solutions. The volume and composition of the leaching solution is corrected by the amount of solution and leached elements, which are removed during sampling. Inductively coupled plasma mass spectroscopy (ICP-MS) analyzes the amount of leached substances. The measurement uncertainty is around ±10%. All leaching experiments are carried out in triplicate, thus each one of our data points represents the mean value of three experiments.

Our pH values are representative for pHs that could occur in the environment whether in rain, ground water or within waste disposal sites—from the acidic pH4 to the alkaline pH10. In comparison, the pH values of rainwater and landfills differ with location and conditions: In Brazil, the pH of rain water ranges within 4.2 < pH < 6.1 [22], whereas in Germany it ranges within 4.1 < pH < 5.3 [23]. Depending on the classification of waste, landfills in Germany range within 3.4 < pH < 11.9 [24], i.e., from strongly acidic to strongly alkaline. In contrast, seawater with 7.5 < pH < 8.5 [25], covers a relatively narrow pH range, more in the range of neutral water with pH7. Mineralized water also, depending on its origin, varies in the range 4.9 < pH < 8.4 [26]. The solubility of almost all elements in aqueous solutions strongly depends on the pH of the solution. Our experiments aim at the quantification of this pH dependency. Thus, e.g., the experiments at pH4 and pH7, allow us to conclude about the behavior at pH values in between.

3. Leaching Results

Here, we show the results of the leaching of CdTe powder as well as of the milled module pieces in aqueous solutions with the three different pH. The pH value of the eluted milled module pieces (but not for the powders) varied because of non-buffered solutions (only for the milled module pieces) with ΔpH ≈ 2 [6]. The data for the eluted Cd and Te are presented as concentration in relation to their total mass (i.e., the 100 % value) contained in the prepared CdTe powder/module pieces before the leaching experiments. The leaching lasts up to a time t = 83 days, partly also to t = 56 days. Due to our measurements with ICP-MS, we only obtain the amounts of elements which are dissolved in the solutions; precipitates in the solution are not measured by the ICP-MS.

3.1. Leaching of Untreated CdTe Powder with Different Grain Sizes in pH4

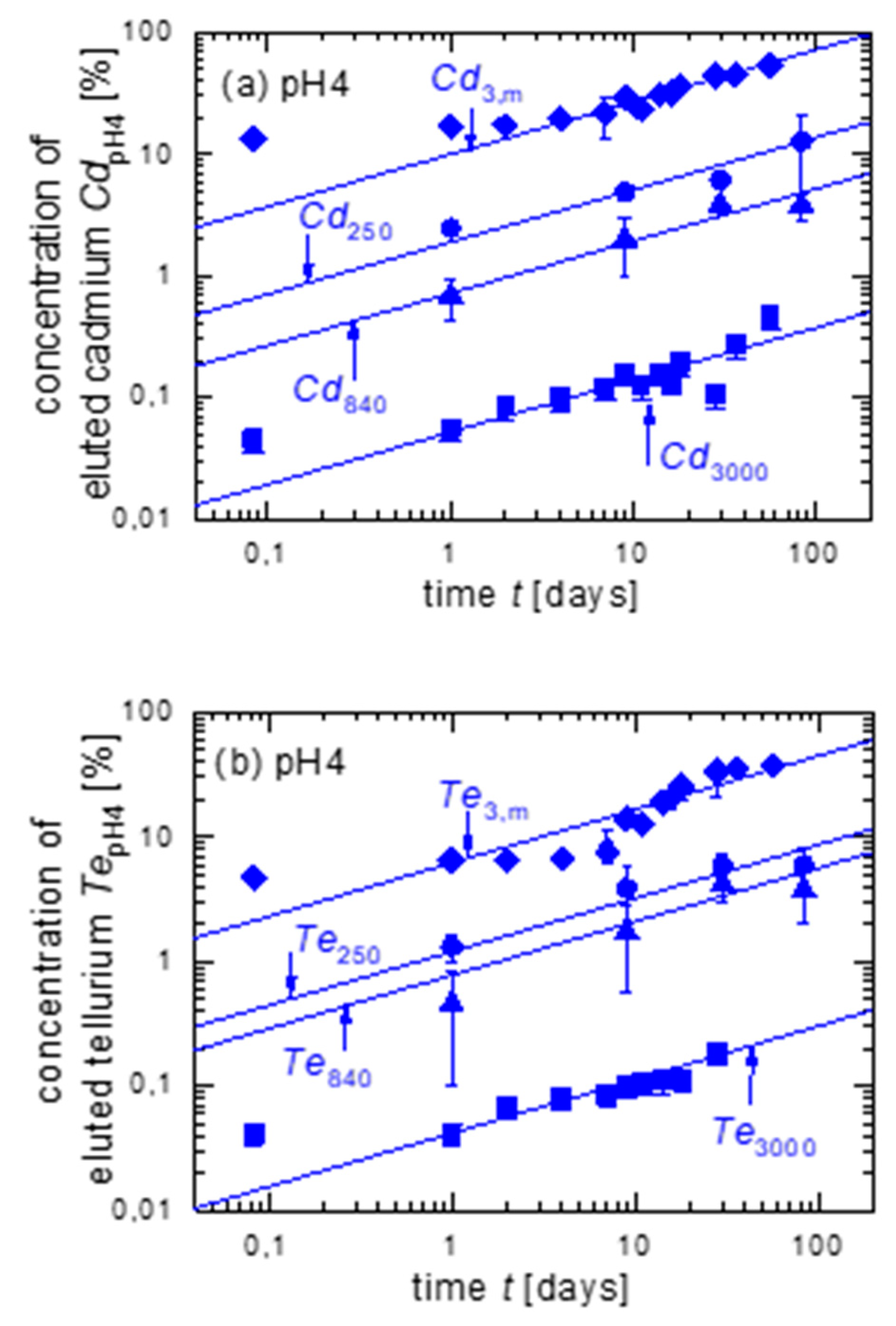

Figure 3a,b show that Cd and Te eluted out of CdTe samples follow a dependence on time t with a power law tⁿ, with n = 0.43, as discussed below. In addition, we observe a strong dependence of leaching on the particle size of the CdTe-powder: the smaller the particle diameter, the higher the elution rate. The highest elution rates are obtained for the milled module pieces. The maximum of the y-axis in Figure 3a,b, Figure 4a,b and Figure 5a,b is C = 100%.

Figure 3a presents detailed data about the release of Cd, termed as Cd_pH4, when Cd is leached out from CdTe powder in and with the solution of pH4. The weakest elution is found for the powder CdTe₃₀₀₀ with grain diameters d₃₀₀₀ ≤ 3000 µm: After t = 56 d, less than 1% of the Cd contained in the original powder is found to be dissolved in the leaching solution, i.e., Cd₃₀₀₀ (t = 56 d) < 1%. For the powder CdTe₈₄₀, the elution of Cd₈₄₀ is one order of magnitude higher, while eluted Cd₂₅₀ from CdTe₂₅₀ reaches Cd₂₅₀ (t = 83 d) > 10%. In addition to the data for the three different CdTe powders with different maximum grain sizes, Figure 3a also contains leaching results, which we obtain from the milled CdTe module pieces with a thickness d_CdTe ≈ 3 µm [6]. These data are termed Cd_3,m in Figure 3a. The data for the milled module pieces closely match the data of the CdTe powders: the instability of the compound CdTe increases with smaller grain sizes. For the leached out concentrations, it clearly holds that Cd₃₀₀₀ < Cd₈₄₀ < Cd₂₅₀ < Cd_3,m.

Figure 3b presents the data for the elution of Te_pH4 out of CdTe powder; in addition, we also show data for the elution of Te from the milled module pieces [6]. Again, as for the Cd elution, we find not only the same power law dependence t⁰.⁴³ for the elution, but also Te₃₀₀₀ < Te₈₄₀ < Te₂₅₀ < Te_3,m for the elution of the Te.

3.2. Leaching of Untreated CdTe Powder with Different Grain Sizes in pH7

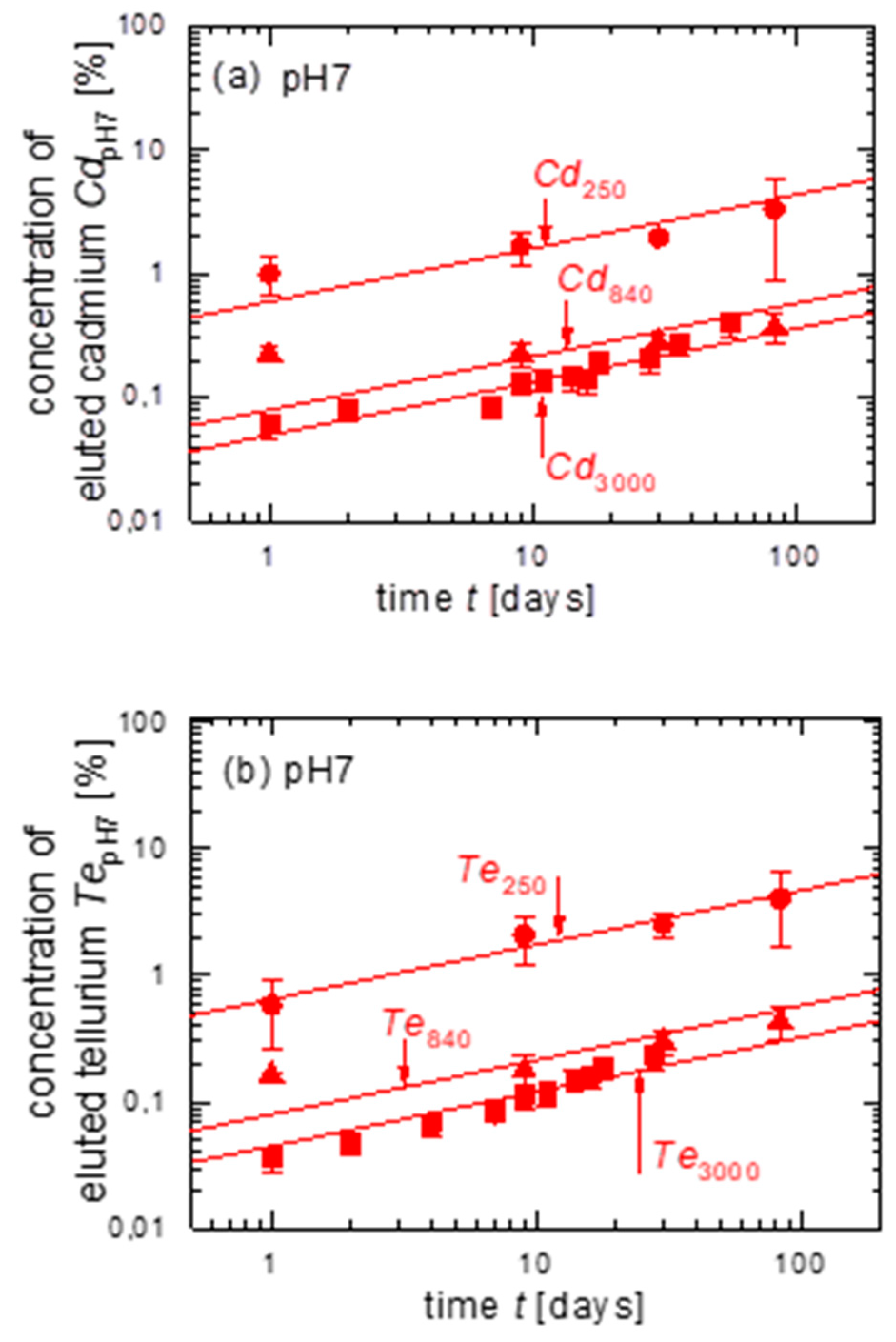

Figure 4a,b present our data for the elution of CdTe powder in aqueous solutions with pH7. Clearly, the total values for the elution of Cd as well as of Te are lower than those in pH4 (compare Fissure 3a,b). Nevertheless, we find the same time dependence for both Cd and Te; their eluted amount increases with t⁰.⁴³. The elution out of Cd₈₄₀ and Cd₃₀₀₀ show small narrow differences. We observe Cd₃₀₀₀ ≈ Cd₈₄₀ < Cd₂₅₀ as well as Te₃₀₀₀ ≈ Te₈₄₀ < Te₂₅₀. Unfortunately, no elution values of milled CdTe modules exist for pH7.

3.3. Leaching of Untreated CdTe Powder with Different Grain Sizes in pH10

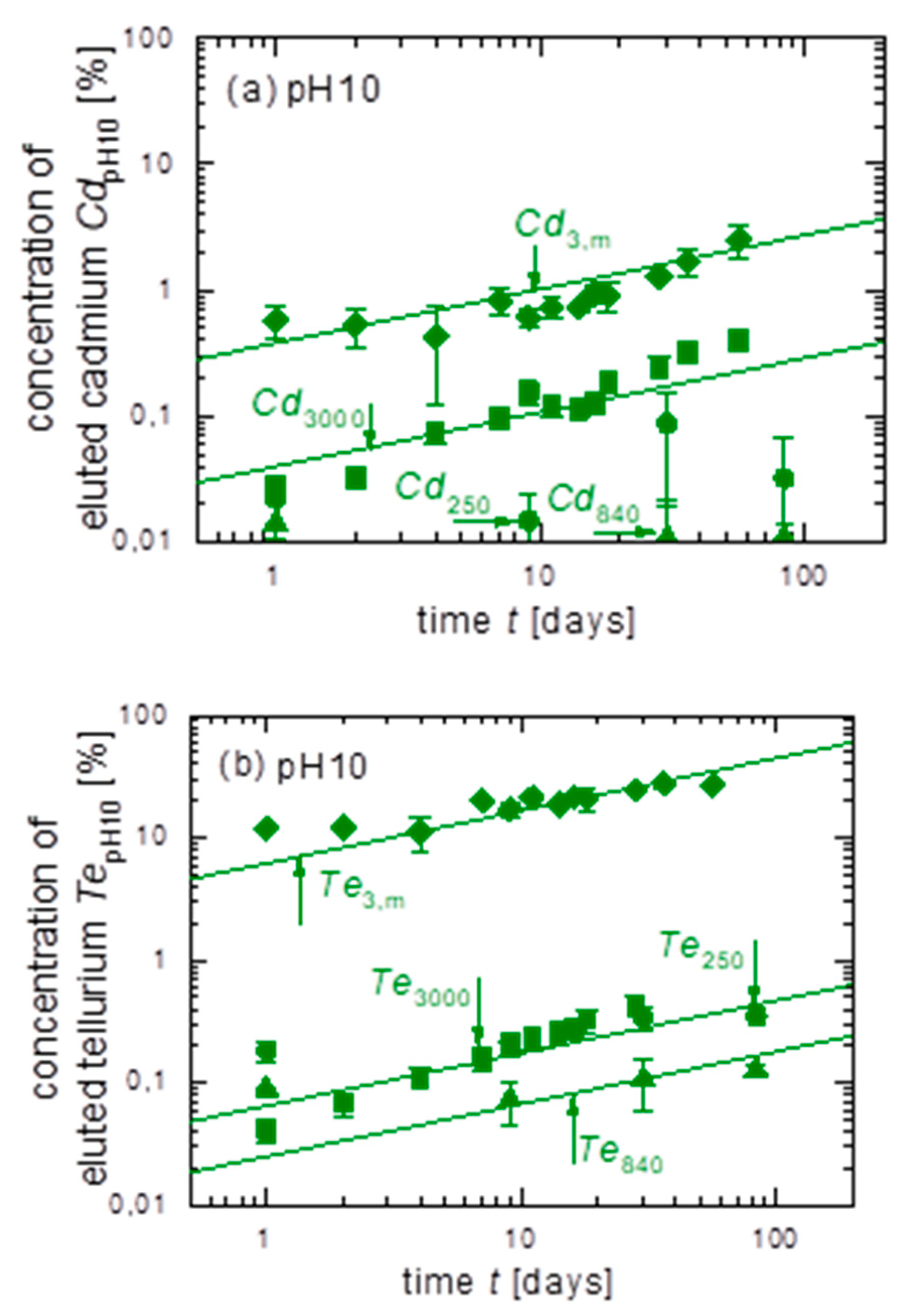

Figure 5a,b present the stability of the CdTe powders and the milled module pieces [6] in the alkaline solution with pH10. Again, we observe the same time dependence t⁰.⁴³ as in Figure 3a,b and Figure 4a,b. Also, again, the elution for the milled module pieces is the highest. However, for the CdTe powders, in contrast to the elution in pH4 and pH7, now with pH10, not the powder with the smallest grains is eluted fastest, but the powder with the largest grains in aqueous solutions. In Figure 5a it holds that: Cd₂₅₀ ≈ Cd₈₄₀ < Cd₃₀₀₀ < Cd_3,m. Similarly, for the eluted Te_pH10, illustrated in Figure 4b, it holds Te₃₀₀₀ < Te₈₄₀ < Te₂₅₀ < Te_3,m. In the alkaline range, a higher amount of eluted Te_pH10 than Cd_pH10 is measured. The elution of Te_3,m with Te_3,m (t = 56 d) ≈ 26% from the milled modules is two orders of magnitude higher when compared to Te₂₅₀ with Te₂₅₀ (t = 83 d) ≈ 0.3%.

3.4. Maximum Values after t = 83 d

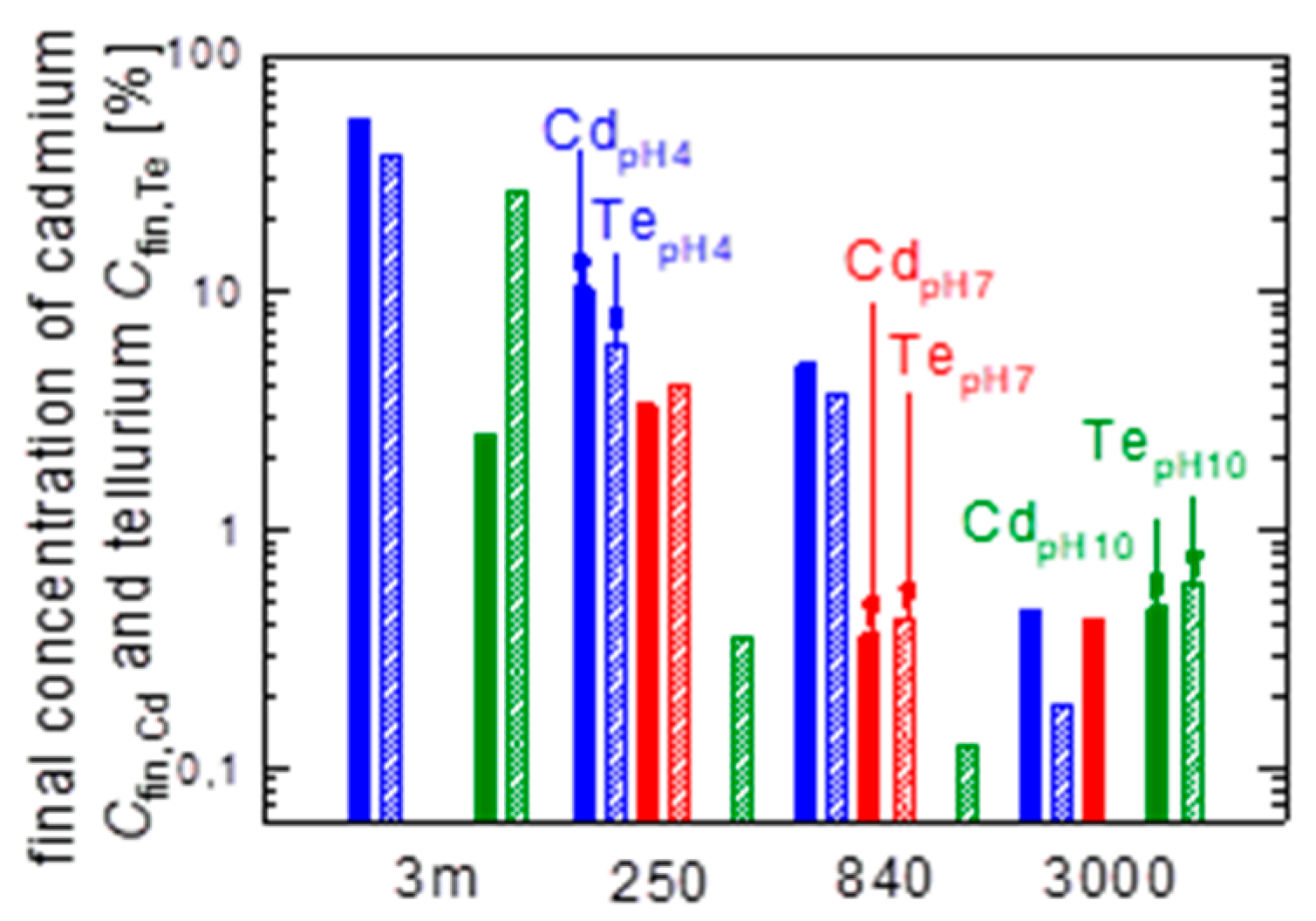

Figure 6 summarizes the data from Figure 3a,b, Figure 4a,b and Figure 5a,b after 83 days for the maximum concentration of Cd and Te that is found in the solutions with different pH. From the Cd contained in the milled module pieces (3m), close to 54% are leached out in the solution with pH4. In the same time under the same conditions, 30% of Te are found in the same solution. For acidic conditions (pH4) the quantity ratio Cd:Te in the solution is Cd:Te ≈ 2:1, for neutral conditions (pH7) it holds Cd:Te ≈ 1:1, whereas for alkaline conditions (pH10) it holds Cd:Te ≈ 1:2.

3.5. Comparison with Equation (2)

Table 1. Relative ratios of the dilution rates for the different CdTe powders and the milled module pieces compared to the relative surface to volume ratio from Equation (2). For pH4 the elution of Cd as well as for Te is in good agreement with Equation (2). For pH7 there is a noticeable and for pH10 a strong deviation from Equation (2), in particular if one compares the leached module pieces with the powders for pH10. For the powders, the elution is much more suppressed, probably via a chemical passivation of the surface of the powder particles.

	Figure	Cd3,m/Cd250	Cd250/Cd250	Cd840/Cd250	Cd3000/Cd250	Te3,m/Te250	Te250/Te250	Te840/Te250	Te3000/Te250
Equation (2)	-	5	1	0.5	<<0.5	5	1	0.5	<< 0.5
pH4	3a	5.4	1	0.4	0.03	-	-	-	-
	3b	-	-	-	-	5	1	0.5	0.03
pH7	4a	-	1	0.15	0.1	-	-	-	-
	4b	-	-	-	-	-	1	0.15	0.1
pH10	5a	≈ 500	1	≈ 1	4	-	-	-	-
	5b	-	-	-	-	≈ 100	1	0.4	≈ 1

compares the relative leaching ratios of the data in Figure 3, Figure 4 and Figure 5 to the values from Equation (2). Here, we take the values for the CdTe₂₅₀ films as a reference. The data for pH4 agree very well with the expected behavior: The dissolution/elution is proportional to the surface/volume ratio, i.e., to the inverse of the mean particle diameter d_mean. For the other pH values, the prediction goes in the right direction. However, there are noticeable deviations. Note, Equation (2) does not consider that the mean particle size changes during the dissolution. After leaching in aqueous solution with pH4 for t = 274 d,

CdTe₂₅₀ and CdTe₈₄₀ powder show that the smaller particles disappear, leaving particles with larger sizes. Nonetheless, Equation (2) with the assumed mean particle size seems to be valid in Figure 3, Figure 4 and Figure 5. This assumption is allowed as long as the particles are not completely dissolved, and smaller than the mean particle size. Also, we do not consider any chemistry or hindered transport in the solutions. Also, this simple reflection does not consider any change of the particle distribution upon dissolution. It is just assumed that smaller particles dissolve faster than larger particles. One would also expect that not only the original mean particle sizes, but the exact chemistry of the particles’ surface plays a role in the dissolution behavior. For this purpose, we compare CdTe powders with different surface treatment.

4. Leaching of ‘Solar-Cell-Like’ Processed CdTe Powder

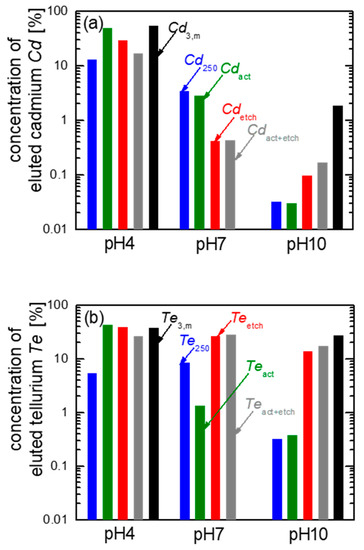

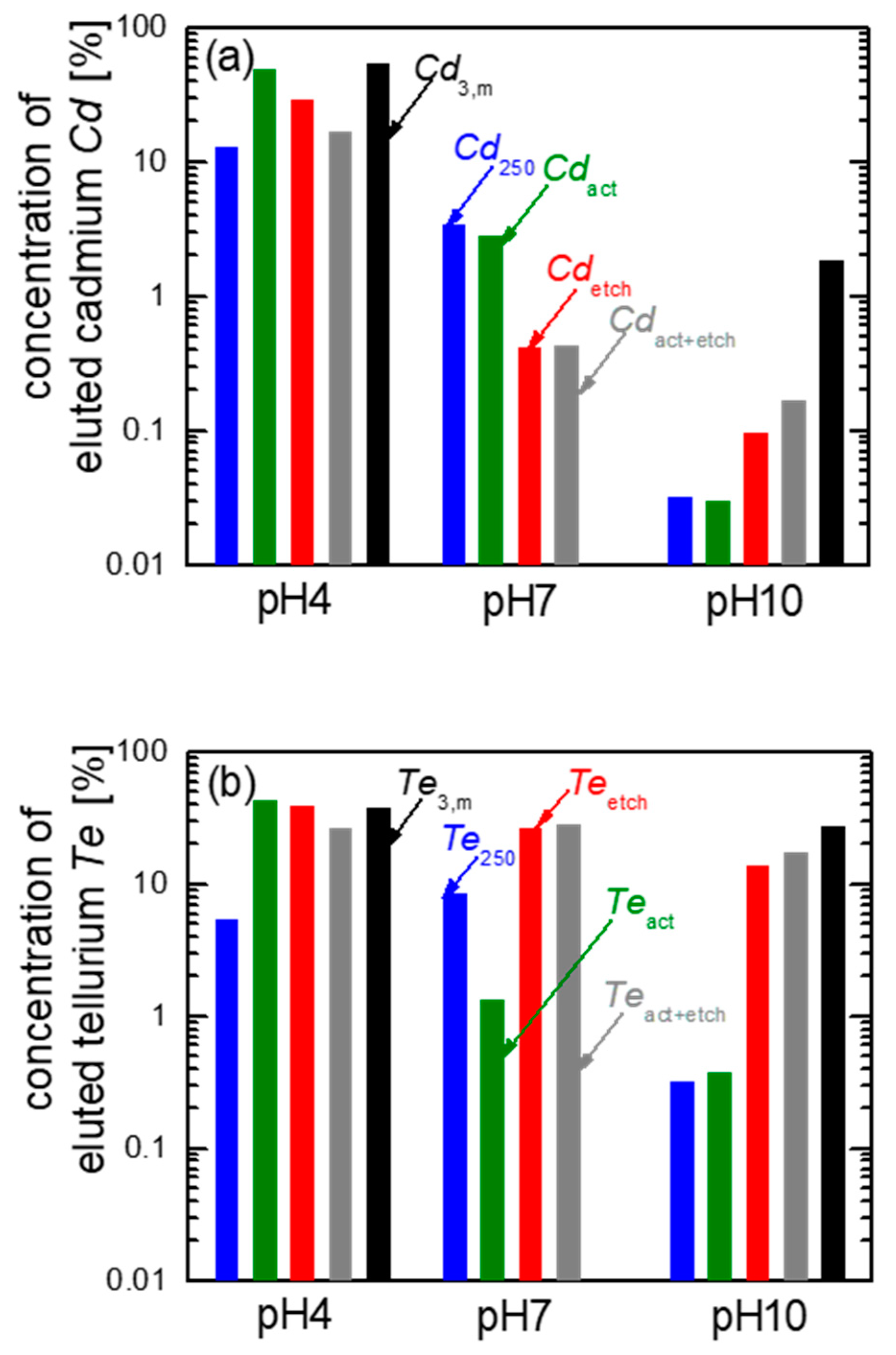

Table 1 gives an indication that not only the particle size but also the detailed surface chemistry plays a role in the dilution behavior. Therefore, Figure 7a,b compare the influence of solar-cell-like processes on the leaching behavior of the CdTe₂₅₀ powder in different aqueous solutions. We distinguish:

• Powder CdTe₂₅₀, untreated, initial powder (blue bars);
• Powder CdTe₂₅₀, activated by CdCl₂ (green bars);
• Powder CdTe₂₅₀, etched in NP-etch (red bars);
• Powder CdTe₂₅₀, activated and etched (grey bars);
• Milled module pieces from Ref. [6] (black bars).

The data in Figure 7a, b is taken after eluting with pH4, pH7, and pH10 after a time t = 83 d after processing of the CdTe-powders. The data Cd_3,m and Te_3,m from milled module pieces stem for eluting for t = 56 d.

• pH4: The eluted Cd of the initial powder is Cd₂₅₀ ≈ 10% (data in blue). Activation (green data) strongly increases the elution to Cd_act ≈ 50%, whereas the etching (red data) and the combination of activation plus etching (grey data) decelerates the elution to Cd_etch ≈ 30% and Cd_act+etch ≈ 16%.
• pH7: All solar cell like processing steps decrease the elution in pH7, when compared to the unprocessed powder: the data in blue are still the highest for pH7.
• pH10: Solar cell-like processing leads to higher elution in pH10 with the highest value observed for the milled module pieces (see black data Cd_3,m).

Figure 7b shows the amount of eluted Te: in pH4 the Te₂₅₀ ≈ 5% displays the lowest elution, while Te_act, Te_etch and Te_act+etch increase and become close to Te_3,m ≈ 38%. In solutions with pH7 and pH10, the solar cell like processing increases the elution of Te, except the activation step, which decreases eluted Te to Te_act ≈ 1.3% and Te_act ≈ 0.4%, respectively.

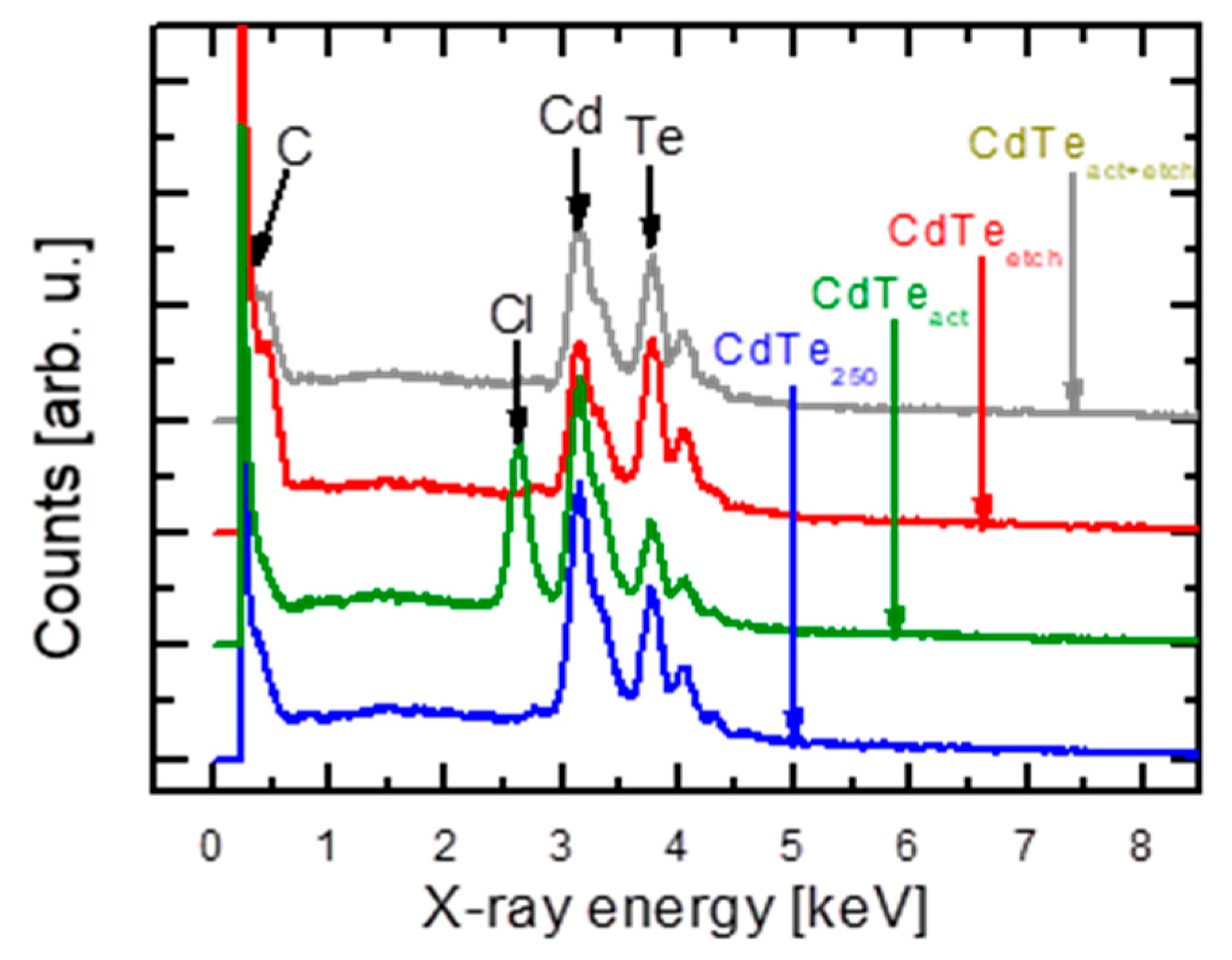

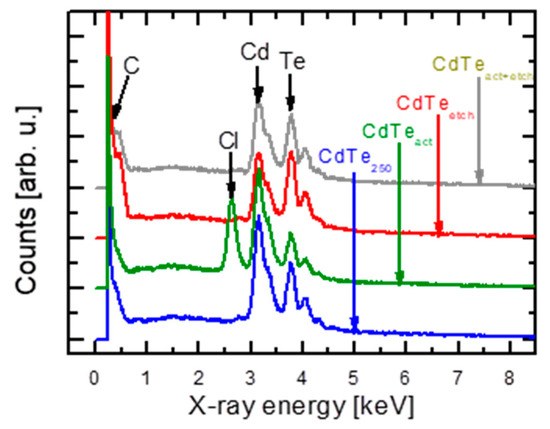

Due to a possible deposition of excess CdCl₂ on the Cd₂₅₀-powder, as shown in Figure 10 by energy-dispersive X-ray (EDX) spectroscopy analysis, the Cd-elution might be increased. The mass of Cd—if the whole Cd out of CdCl₂ deposits on CdTe—adds up to an increase in mass of around 7.5%. The increase in the elution between Cd_act–CdT₂₅₀ ≈ 50–12% ≈ 38% is still much higher.

5. Surface Analysis of CdTe Powder

Surface Analysis of Leached and Processed CdTe Powder

The solar-cell-like processing and the leaching change the surface conditions and the particle size of the CdTe powders. Here, we present measurements taken from the CdTe-powders CdTe₂₅₀ and CdTe₈₄₀. In addition to SEM, we also show EDX data, which identify elements at the surface of the powder grains. For the analysis by SEM the leached powders are filtered by paper filters with a retention of particles with the sizes 7 to 12 µm. The smallest particles we found in SEM have sizes of around 5 to 7 µm.

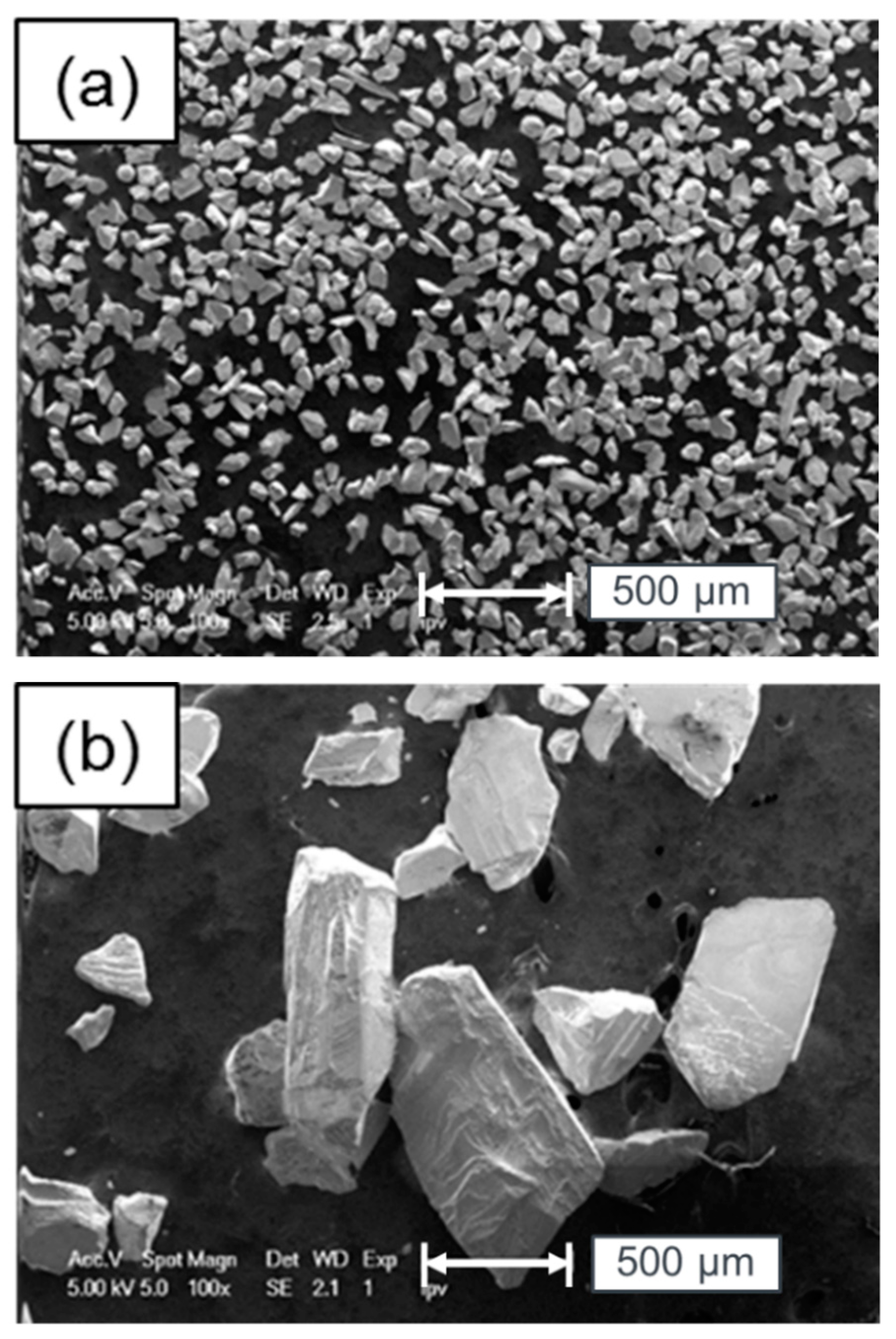

Figure 8a,b show CdTe powder after leaching for t = 274 d in the aqueous solution with pH4. The same powders before leaching are shown in Figure 1a,b. From the comparison of Figure 1a (before leaching) with Figure 8a (after leaching) for the CdTe₂₅₀ powder and Figure 1b (before leaching) with Figure 8b (after leaching) for the CdTe₈₄₀ powder, it becomes obvious that in both powders, the smaller particles are dissolved faster than the large particles. This observation is in line with the data of Figure 4a: in the same time, the powder with the smaller grains is eluted faster than the powder with the large grains. Thus, it is understandable, that mainly the largest particles within the powders are left after leaching. Therefore, in the case of both powders, the size distribution of the particles became more homogeneous, when compared to Figure 1a,b. After leaching, the particles in Figure 8a from the CdTe₂₅₀ powder have a relatively similar diameter d_250,274d ≈ 100 µm. In contrast, Figure 8b from leached CdTe₈₄₀ still shows different particle diameters with d_840,274d > 100 µm and all particles with small diameters (compare to Figure 1b) disappeared completely.

Leaching and processing of CdTe-powder modifies not only the particles’ size and their distribution, but also their surface. The matrix-like Figure 9a–d2 show SEM-pictures of the CdTe₂₅₀ powders in 12 different stages:

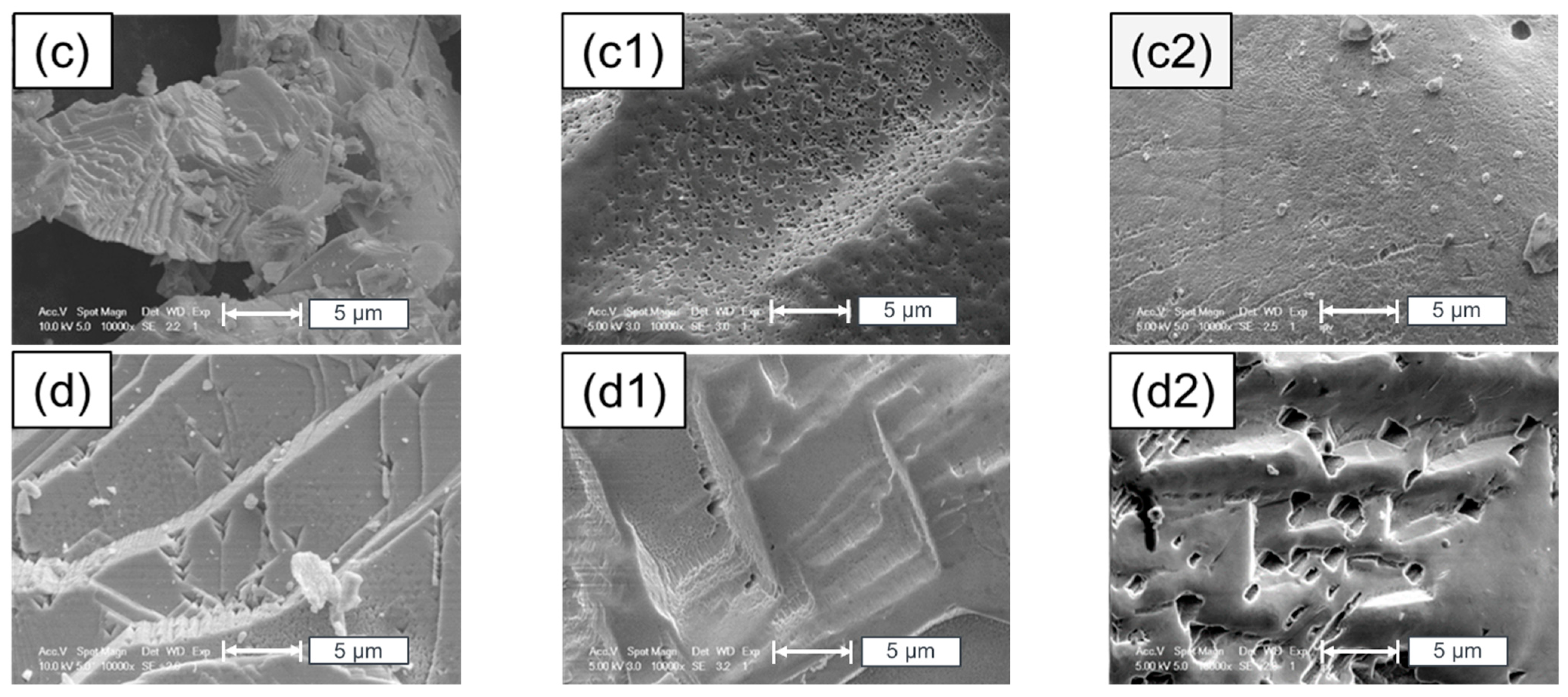

• Figure 9a–d represent the changes due to the “solar-cell-like” processing, all images are taken before leaching.
• Figure 9a1–d1 show the powders from Figure 9a–d after leaching them for t_pH4 = 20 d in solutions with pH4.
• Figure 9a2–d2 show the same powders after leaching them for t_pH4 = 274 d in solutions with pH4.

Figure 9a presents the rough surface of initial, untreated CdTe₂₅₀ powder. The “activation” step in the “solar-cell-like” processing deposits CdCl₂ on the surface, as indicated in Figure 9b. Figure 9c displays the surface of the CdTe powder after the “etching step” of the “solar-cell-like” processing and Figure 9d shows the surface after “activation plus etching” of the “solar-cell-like” processing.

Each one of the powders from Figure 9a–d is now leached out in pH4 solution: Figure 9a1–d1 show the powders after t_pH4 = 20 d, Figure 9a2–d2 after t_pH4 = 274 d of leaching in pH4 solution.

If one follows the series from Figure 9a–a2 one observes that the surface of the initial untreated film from Figure 9a becomes smoother with ongoing leaching. In contrast, the deposition of the CdCl₂ via the “activation” (see Figure 9b) leads to an increasing number of etch pits during the leaching (see Figure 9b1,b2) of the active powders. The “etching” forms steps on the grains of the powder, as visible in Figure 9c. Leaching for t_pH4 = 20 d forms etch pits as shown in Figure 9c1, but after t_pH4 = 274 d of leaching smoother surfaces are observed (see Figure 9c2). The “activation plus etching” already creates etch steps and pits before leaching in pH4 solution, as shown in Figure 9d. Short term leaching for t_pH4 = 20 d smoothens the surface, visible in Figure 9d1, while long-term leaching for t_pH4 = 274 d forms deep etch pits in µm-size, as illustrated in Figure 9d2.

The “solar cell-like” processing steps change the physical and chemical composition of the CdTe-grains with the consequence of different leaching behavior, when compared to the untreated powders. The change of the chemical properties is confirmed by the different X-ray spectra in Figure 10. The EDX spectra are taken in a scanning electron microscope. To see differences in more detail, the spectra are shifted in the zero line of the counts. Due to “activation” by CdCl₂, the composition of the surface of CdTe_act changes to a higher amount of Cd and Cl and a lower amount of Te. The “etching” forms a more Te-rich surface on CdTe_etch. However, the combination of “activation plus etching” still leaves more Te on the surface of CdTe_act+etch which boosts the elution of Te.

6. Discussion

6.1. Thermodynamics and Surface Chemistry

The experimental data in Figure 3a,b, Figure 4a,b and Figure 5a,b do not show any saturation for leaching out Cd and/or Te from the CdTe powders as well as from the milled module pieces. Thus, without any question: CdTe powders and module pieces are not stable in aqueous solutions. It is only a matter of time, until the CdTe is completely decomposed. Leaching of Cd and Te out of CdTe-powder strongly depends on the pH of the aqueous solutions.

Our results are completely in accordance with earlier data [27,28], which explain the instability of CdTe in aqueous solutions on the basis of thermodynamic considerations: Zeng et al. explained the leaching behavior of CdTe in aqueous solutions with the help of a Pourbaix-diagram for reductive and oxidative conditions [27]. Ramos-Ruiz et al. confirmed these results on CdTe modules [28]. In oxidative conditions, as we measure in our solutions, the probability of the formation of Cd⁺⁺ ions in pH < 6.9 is high, whereas for pH > 6.9 the released Cd forms the compound cadmium hydroxide Cd(OH)₂. The Cd(OH)₂ precipitates in water and is not accessible in our measurements of dissolved elements. Formation of Cd⁺⁺ ions in low pH and a precipitation of Cd(OH)₂ in higher pH is in agreement with our elution results. Except in acidic solutions, Te elutes in a higher amount than Cd. The Pourbaix diagram indicates a generation of non-soluble tellurium oxide TeO₂ at low pH, whereas in alkaline conditions the formation of soluble Te ions predominates.

6.2. Particle Size and Time-Dependent Elution

Dependence on particle size: the data in Figure 3 and Table 1 (in particular for pH4) reveal the strong influence of the particle size on elution. Smaller particles dissolve faster than larger particles. Such behavior is well known in the field of pharmacy: Hintz et al. [29] increased the dissolution of drugs by milling them to smaller particle sizes. The study indicated that the solubility is proportional to the inverse diameter of the particles if in the micrometer range, just as assumed in our Equation (2). As a consequence, during elution/dissolution, the particle distribution will become more homogeneous: the larger particles survive longest.

Time dependence: apart from the detailed influence of the surface, as well as of the particle size/distribution, as well as of the pH, we observe a universal behavior: Figure 3a,b, Figure 4a,b and Figure 5a,b reveal a particular dependence of the eluted concentration C on time t. Before saturation is reached, the concentration C of the eluted elements follows a power law

$$C\propto t^{n }$$

(3)

In our case, we find n = 0.43 ± 0.02.

Our experimental result with n = 0.43 from leaching CdTe-powders in different pH is in agreement with an earlier pharmaceutic model of Ritger and Peppas [30]. They modeled the release of drugs from polymeric devices. Similar to our system, where Cd and Te are released from CdTe particles, they modelled the release of drugs from polymeric devices of different shapes. As in their case, also in our case, the “drugs” Cd and Te are dissolved at the surface of the particles, then they diffuse into the solvent. Ritger and Peppas [30] assumed a Fickian diffusion within the polymeric matrix. Earlier it was shown by Crank [31], that the mathematically exact solution for a diffusion from spherical particles with radius r is

$$\frac{C\left(t\right)}{C_{\infty }}=1-\frac{6}{{\pi }^2}{\displaystyle \sum }_{n=1}^{\infty }\frac{1}{n^2} exp\left(\frac{-D{n}^2{\pi }^{2}t}{r^2}\right)$$

(4)

Here, in our notation, C(t) is the eluted concentration of the “drug” (e.g., Cd, Te) in the solution, C_∞ stands for the mass C for time t = ∞, and D is the diffusion constant of the drug (i.e., Cd, Te) within the surface of the CdTe matrix. Instead of the complete Equation (4), a good approximation to Equation (4) for the first 60% of drug release is given by [30]

$$\frac{C\left(t\right)}{C_{\infty }}=k{t}^n$$

(5)

Equation (5) is a good approximation not only to Equation (4) for spheres, but also to the respective mathematical solutions for other geometries: for thin films and cylinders instead of spheres [31]. If the dissolution is limited by diffusion in the matrix, then it holds that n = 0.5 for thin films, n = 0.45 for cylindrical particles and n = 0.432 ± 0.007 for spherical particles of uniform size. These n-values are a good approximation for the first 60% release. For the first 10% to 15% release from spherical particles, n = 0.5 is also a good approximation. If one considers not only spheres of the same size, but also size distributions, one obtains n-values between n = 0.41 to n = 0.43 [30].

The elution behavior in Figure 3a,b, Figure 4a,b and Figure 5a,b is well described by Equation (5) with n = 0.43. It is also understandable why a size distribution of spheres does not change much the exponent n: the smaller particles accelerate the outdiffusion and the elution, the larger particles lead to retardation of the diffusion process within the CdTe particles.

The elution behavior from the spheres is different but not much far from a time dependence with n = 0.5. In this case, it holds for particles with a diameter d [30]:

$$\frac{C_t}{C_{\infty }}=4{(\frac{Dt}{\pi r^2})}^{\frac{1}{2}}=8\sqrt{\frac{Dt}{\pi d^2}}$$

(6)

Here, D is the diffusion constant of the diffusing substance within the matrix of the drug. In our interpretation, D is the diffusion constant D_Cd of Cd and D_Te of Te within the CdTe particles. The Cd and the Te diffuse to the surface of the CdTe particles, and the solution acts as a perfect sink for Cd and Te just as in the pharmaceutic model.

Equation (6) allows us to estimate the diffusion constant D from measured values of the eluted mass C_t = C(t) at time t with respect to the value C_∞, the saturation value at t = ∞ and the diameter d of the particles, according to

$$D= \frac{\pi }{64}{\left(C_t/C_{\infty }\right)}^2\frac{d^2}{t}$$

(7)

We derive the D-values from the data in Figure 3a for pH4 and the Cd-elution from the milled module pieces (uppermost curve), assuming d = d_mean,mod = 1 µm. The extrapolation shows that the extrapolated C_∞-value for the Cd_3,m-data is reached after t = 200 d. At this time, it holds C_t = C₂₀₀ = C_∞ = 100% and C_t/C_∞ = 1. From these values, we obtain D_Cd ≈ 3 × 10⁻¹⁷ cm²/s for the diffusion constant of Cd. In case of the Te-elution, the extrapolated 100% value would be reached after 400 days. This yields a diffusion constant D_Te ≈ 1.5 × 10⁻¹⁷ cm²/s for Te. The shift downwards of the other curves in Figure 3a,b with respect to those of the milled module pieces within one figure is simply explained with the larger particle sizes: the powders contain larger particles than the milled module pieces. Therefore, it simply takes longer to reach the saturation value.

For the calculation of D_Cd and D_Te from Equation (7) we have to assume the value C_∞ for the Cd as well as for the Te. For the determination of the diffusion constants from the data for pH4 in Figure 3a,b we assume that this value is at 100% of the amount of Cd and Te, which are contained in the CdTe particles, simply because the experimental data Cd_3,m and Te_3,m come close to 100%. Thus, if we had just measured long enough, all the Cd and Te would have been found in the solution. However, this assumption is not generally valid: the values C_∞ for Cd and Te cannot exceed the solubility limits of the solution. Therefore, generally, even if the CdTe particles were dissolved completely, part of the Cd and Te could fall out in the form of precipitates. In the case of Cd, these are cadmium hydroxides. Such precipitates are not detected by our analysis method. We only measure the dissolved Cd and Te. However, the data for pH4 approach the 100% for Cd as well as for Te. Therefore, for this pH the amount of precipitates can be neglected.

The result for the lower diffusion constant D_Te for Te compared to D_Cd for Cd stems from the shift downwards of the Te curves in Figure 3b when compared to the Cd curves in Figure 3a. Note, these diffusion constants hold for room temperature. Therefore, it is not easy to compare them to literature data [32,33,34], which are taken at temperatures above 500 °C. In 2015 Shcherbak et al. [35] analyzed the literature data for diffusion in CdTe in the high-temperature regime. For most diffusing species in CdTe there holds an Arrhenius law for the dependence of the diffusion constants D on absolute temperature T according to D = D₀ exp (−E_A/kT) with prefactor D₀ and activation energy E_A. Depending on the experimental technique as well as on the diffusion mechanism (e.g., interstitial, vacancy) and charge, there is substantial scatter even for Cd and Te and even for the high-temperature regime. In our case for room temperature, we neither know the charge nor the diffusion mechanisms for Cd and Te but, probably, they diffuse as neutral species. To put our data in perspective, we compare them to the radiotracer self-diffusion data in Figure 2, Figure 3, Figure 5 and Figure 6 of reference [34], which also showed Arrhenius-type behavior in the high temperature regime (T > 1000 K) with exponential tails for lower temperatures, and absolute values of D ≈ 10⁻¹³ cm²/s at T ≈ 800 K. If we extrapolate the data in the Arrhenius plots of reference [34] data towards room temperature T ≈ 300 K, our results with D ≈ 10⁻¹⁷ cm²/s range in an expected order of magnitude. There seems to be also agreement that the diffusivity of Te in CdTe is smaller than that of Cd. Thus, our data fit into the trend of the literature data towards lower temperatures. These findings support our assumption that the elution of Cd and Te out of the CdTe is mainly controlled by the diffusion of Cd and Te in and across the surface of the particles. The solution acts as a perfect sink because, during the experiment, we shake the containers with the solutions and the powders/particles.

The behavior of the data for Cd for pH7 and pH10 is different, but also understood. Compared to the Cd-data for pH4, for the same elution time t, we find much less Cd in the solution. We explain this finding with the formation of Cd-containing precipitates: Depending not only on the pH, but also on the kind of solvent, Cd forms different hydroxides in water-based solutions. For pH4, the species distribution plots of Cd [35,36] show only Cd^2+-ions. The higher the pH, depending on the redox potential, the more hydroxides that appear. The species distribution plot of Wilkin [36] shows 100% of Cd²⁺ at pH4. In contrast, at pH10, much less Cd²⁺ is available. Therefore, it is understandable that the Cd curves in Figure 5a are shifted downwards: the extrapolated data for the Cd_3m-pieces for pH4 (Figure 3a) and t = 200 d end up at C_∞ ≈ 100%, whereas the data for the Cd_3m-pieces for pH10 (Figure 5a) and t = 200 d end up at C_∞ ≈ 4%. This means that only about 4% of the Cd will go into solution for pH10, if we ascribe all missing Cd in the solution to precipitates. Under this assumption the missing 96% of Cd in case of pH10 would precipitate in the form of hydroxides. The data for pH7 in Figure 4a lie between the data from Figure 3a and Figure 5a. Therefore, we also expect some precipitation of hydroxides even for pH7. However, it is also possible that for pH7 a surface layer preventing outdiffusion is formed.

In contrast to the Cd-data, we do not have an indication for the formation of Te precipitates for pH7 and pH10. We speculate that the lower values in Figure 4b and Figure 5b compared to Figure 3a are related to the surface of the CdTe. For the Te, apart from a substantial scatter of the data in Figure 4b and Figure 5b for the larger particles, there is almost no change of the data for different pH, in particular for the milled module pieces. The Te_3,m-data for pH4 (Figure 3a) and pH11 (Figure 5a) agree almost exactly with each other. Therefore, it seems that—independent of pH—there is no formation of precipitates for Te. Obviously, we are far from the solubility limit for Te. The scatter of the data for larger particle sizes, probably is a consequence of a passivation of the surface by tellurium oxide. In this case, the etching/outdiffusion of Te would also be hindered with the consequence of a lower diffusion constant.

7. Conclusions

Our time-dependent leaching experiments have demonstrated severe leaching of Cd out of CdTe which is not finished until day 83. The measured elution of Cd and Te indicates a destabilization and corrosion of the compound CdTe. The CdTe particles are not stable in water, even for neutral water with pH7.

Our leaching experiments on CdTe particles with different sizes are not only qualitatively but also quantitatively understood:

• The faster dissolution for the smaller particles is simply understood by their larger surface to volume ratio. The dissolution rate is proportional to the inverse diameter.
• The time-dependent aggregation of the dissolved species with t^0.43 is understood on the basis of a model that, originally, stems from pharmacy. The dissolution is controlled by the diffusion of Cd and Te in and across the surface of the spherical particles.
• The total behavior of the data in Figure 3a,b, Figure 4a,b and Figure 5a,b is understood on the basis of the room temperature diffusion coefficients D_Cd ≈ 3 × 10⁻¹⁷ cm²/s for the Cd, and D_Te ≈ 1.5 × 10⁻¹⁷ cm²/s for Te.
