EMC Component Modeling and System-Level Simulations of Power Converters: AC Motor Drives

Abstract

EMC simulations are an indispensable tool to analyze EMC noise propagation in power converters and to assess the best filtering options. In this paper, we first show how to set up EMC simulations of power converters and then we demonstrate their use on the example of an industrial AC motor drive. Broadband models of key power converter components are reviewed and combined into a circuit model of the complete power converter setup enabling detailed EMC analysis. The approach is demonstrated by analyzing the conducted noise emissions of a 75 kW power converter driving a 45 kW motor. Based on the simulations, the critical impedances, the dominant noise propagation, and the most efficient filter component and location within the system are identified. For the analyzed system, maxima of EMC noise are caused by resonances of the long motor cable and can be accurately predicted as functions of type, length, and layout of the motor cable. The common-mode noise at the LISN is shown to have a dominant contribution caused by magnetic coupling between the noisy motor side and the AC input side of the drive. All the predictions are validated by measurements and highlight the benefit of simulation-based EMC analysis and filter design.

1. Introduction

Switched-mode power converters transform the electrical power supplied to their inputs according to the requirements of the load connected at their output. While these converters provide high efficiency and control, their internal switching events also introduce high-frequency noise that pollutes the environment with conducted and radiated noise emissions [1,2]. In order to avoid any harm of such noise emissions to the device itself or to other equipment in the same environment, electromagnetic compatibility (EMC) norms limit the maximum allowed noise emissions of power converters and the minimum necessary immunity against external EM disturbances. In this work, we consider EMC norms on conducted noise emissions in the frequency band “B” ranging from 150 kHz to 30 MHz [3,4,5].

The objective of the EMC analysis of a converter is to design EMC filters that ensure compliance with these norms and to optimize these filters by minimizing cost and/or volume [6]. A powerful approach to EMC analysis is the usage of EMC simulations, where the entire power converter system including the external impedances is described in a form of an electrical circuit that captures the high-frequency noise sources as well as the noise propagation [7,8]. In principle, such simulations allow a detailed study of the system’s electromagnetic behavior, including the spectrum and location of noise sources depending on the converter topology, the applied control scheme, and the semiconductor technology [9,10], or of the noise propagation depending on the internal power components or the externally connected load and grid impedances [11]. Simulations can also help in the assessment and optimization of interconnects or the locations of grounding connections [12]. Importantly, such simulations can be done at an early design stage, before the converter is built, which enables short development time and minimizes risks of late redesigns. With all these benefits, a simulation-based EMC design seems to clearly outperform a conventional measurement-based approach [13].

However, all these benefits crucially depend on the quality of the simulation model. All the relevant components need to be identified and represented by corresponding circuit models valid in the frequency range of interest, where at high frequencies, the components’ behavior is far from ideal. Grounding connections and interconnects are no longer ideal shorts but introduce important coupling mechanisms [12]. Even the discrete components can couple to each other [1]. Ultimately, when the entire system is mapped to an accurate circuit model, the used circuit solver has to run numerically stable simulations within a reasonable time [13]. The active components such as semiconductor switches or the modeled nonlinear magnetic effects might require time-domain simulations spanning over a full fundamental period (20 ms for 50 Hz grid frequency), with a necessary resolution to resolve noise up to 30 MHz. These challenges explain why EMC analysis is still an art, despite all the advances in EMC technologies and in commercial software tools.

In this paper, we introduce and demonstrate a methodology to create, set up, and run an EMC simulation of power electronic converters. A state-of-the-art review of all EMC-critical components is given and a set of carefully developed component models is chosen [14,15,16,17,18,19,20] to build up an entire system-level model of industrial power converters. The used models not only accurately represent the EMC behavior of the power converter components, but also ensure stable and time-efficient simulations of the entire circuit. Prior work on EMC analysis of AC-drives has been reported in [21,22,23,24,25,26,27] and EMC analysis of DC-fed motors can be found in [9,10,13,28,29,30]. However, many of these publications are dealing with academic or low-power applications.

In this paper, the adopted methodology is applied to EMC analysis of conducted noise emissions in an industrial 75 kW AC motor drive (a variable-speed drive that controls the speed and torque of an induction motor connected at its output via a long, shielded motor cable). The system is represented by broadband stable circuits and is analyzed to identify the main noise propagation paths and the best noise filtering options. All effects predicted and explained by simulations are validated by measurements.

2. State-of-the-Art Review of EMC Modeling of Power Electronic Components

Efficient and accurate circuit models of power electronic components are necessary for EMC simulations of power electronic systems. In this section, we review the state-of-the-art in high-frequency modeling of all EMC-relevant power electronic components, such as chokes with non-linear magnetic cores, long cables, and motors, including resistors and capacitors, printed circuit boards (PCB) and housing, semiconductors, and line impedance stabilized networks (LISN).

Component modeling can be generally classified into two broad categories: physical or behavioral modeling [14,31]. Physical modeling is based on fundamental laws of physics, such as Maxwell equations. It requires the knowledge of geometry and electromagnetic characteristics of the modeled component and it can make use of analytical or numerical techniques to solve the equations and create an equivalent circuit model. The behavioral modeling, on the other hand, does not need this information and uses measured impedances of a component in various connection schemes to create an equivalent circuit that will reproduce that same behavior. In this paper, we follow this classification and designate the equivalent circuit models obtained using these two modeling procedures as physical and behavioral models, respectively.

2.1. Choke Modeling

Electromagnetic interference (EMI) filters in power electronic systems are based on passive elements with inductors (chokes) used to reduce both common-mode (CM) and differential-mode (DM) EMI levels. The frequency characteristics of chokes may be much different from ideal when operating at high frequencies, due to parasitic capacitance of windings, leakage inductance, and frequency-dependent permeability of the magnetic cores, among other high-frequency effects. Accurate high-frequency models of single- and three-phase chokes are, therefore, an important building block in EMC simulations used for the filter design of power systems.

2.1.1. Physical Models

Physical models are based on analytical or numerical approaches, or a combination of the two, where electromagnetic equations are constructed and solved using the geometry and electromagnetic characteristics of the choke’s windings and the core, which are either available from datasheets or need to be separately measured.

Analytical equations exist to estimate the magnetic fields inside the magnetic core and in the air, as well as the electric fields between two turns and between turns and core. These calculations can then be used to create an equivalent circuit of the choke [32,33,34,35], including leakage inductances [36,37,38,39] and parasitic (turn-to-turn and turn-to-core) capacitances [40,41,42,43,44,45,46]. These models can be effectively used for the purpose of optimizing the common-mode choke geometry and core materials [47,48].

Numerical approaches use various numerical techniques to solve Maxwell’s equations for the entire choke or for some of its parts. Such techniques include the Finite-Element Method (FEM) [49,50,51] or 3-D Partial Element Equivalent Circuit (PEEC) method combined with the boundary integral method (BIM) [52,53]. Numerical models are more suitable for choke designs and their frequency-domain analysis.

2.1.2. Behavioral Models

Behavioral choke models can be further broadly grouped into two subcategories [31,54]. The first subcategory is behavioral models with circuit topologies that reflect the physical effects inside the choke (e.g., magnetic characteristics of the core). The second subcategory is black-box behavioral models having circuit topologies without any relation to the choke’s internal physical effects, but correctly reproducing the measured behavior at its terminals.

Behavioral modeling based on black-box measurements can be carried out on a choke in different connection schemes using a spectrum analyzer [55,56,57,58], impedance analyzer [14,59], or vector network analyzer (VNA) [60,61,62]. The parameters of the corresponding equivalent circuits (with either fixed or variable topologies) are then extracted from measurements by (iterative) analytical formulas [14] and/or optimization algorithms for fitting the measured data, such as rational function approximations [31,63], vector fitting [62,64,65], and evolutionary algorithms [14].

In behavioral models with circuit topologies reflecting the physical behavior of the core, the frequency-dependent core permeability (caused by eddy currents inside the core) is usually modeled using Cauer of Foster ladder networks, whose parameters are fitted to the measured complex permeability using different methods [54,66,67,68,69,70,71,72,73].

Recently, the Cauer RL ladder network from [66] has been extended by replacing linear inductors with Preisach [74] inductors. This model accurately captures high-frequency effects, saturation, and hysteresis in single- and three-phase chokes [15]. A description of the measurement setup used to characterize the magnetic properties and the parameter extraction procedure for the equivalent circuit has been provided. This model has been further extended in [16] to also account for dimensional resonance in ferrites. We use this methodology to create equivalent circuit models of the chokes for system-level simulations presented in this paper.

2.2. Multiconductor Cable Modeling

Power cables, found in power distribution systems and motor drives, are distributed elements whose lengths may by far exceed the operating wavelength. They can be modeled as multi-conductor transmission lines, where many frequency-dependent characteristics including per unit length (p.u.l.) parameters, skin and proximity effect, dielectric losses, and transmission line propagation, reflections, and delay need to be appropriately accounted for [75,76].

2.2.1. Determination of Frequency-Dependent Per Unit Length Parameters

Typically, the first step in modeling cables is to determine their distribution or p.u.l. parameters. When cable material parameters and cross-sectional geometry are known, the p.u.l. parameters can be obtained using analytical formulas or numerical electromagnetic simulations.

Analytical formulas exist for a limited set of canonical cross-section geometries [77,78,79,80] or can be used in combination with cable cross-section partitioning for more general cross-section geometries [81,82]. Different numerical electromagnetic methods can also be used to extract the cable p.u.l. parameters, such as finite element method [80,83,84,85,86,87,88,89] or method of moments [90,91,92]. In cables designed primarily to carry high-frequency signals, the p.u.l. parameters are kept within strict tolerance levels during manufacture, which is not necessarily the case for power cables whose primary function is the distribution of power signals [79].

When the material and geometrical characteristics of the cable are not known, the p.u.l. parameters can also be extracted from measurements using an impedance meter [93,94], impedance analyzer [29,80,95,96], vector network analyzer (VNA) [18,97,98,99,100], and combining the VNA measurements with time-domain reflectometry (TDR) [101] or impedance meter measurements [18] to accurately capture both DC, low, and high-frequency behavior.

2.2.2. Cable Models Based on Lumped Segmentation of Transmission Line

Equivalent circuits of multiconductor cables to be used in SPICE (Simulation Program with Integrated Circuit Emphasis) circuit simulations can be created using conventional lumped segmentation of transmission lines. Each segment is represented by an elementary cell containing the extracted p.u.l. RLGC parameters to model the transmission line that may have an additional RL ladder network to model for frequency-dependent skin and proximity effects, and an additional RC ladder network to model for frequency-dependent dielectric losses [29,80,82,93,94,95,96,101,102,103,104].

Approaches based on conventional lumped segmentation of transmission lines provide an adequate solution to the problem of mixed frequency/time simulations for short cables or approximate predictions of overvoltage transients. However, these methods lead to large circuit matrices, rendering the simulations inefficient and/or unstable especially for system-level EMC simulations including long cables [105,106].

2.2.3. Cable Models Based on Matrix Transfer Functions

An equivalent circuit of transmission lines can also be obtained based on matrix transfer functions that interrelate terminal voltage and current vectors. They can be further emulated in SPICE using modal decoupling and voltage/current controlled generators [105] or represented in a form of matrix rational function in terms of poles and residues either analytically [107], or using various numerical algorithms such as a vector-fitting algorithm [108,109,110,111], matrix-rational approximation method [106], or method of characteristics [112]. Additionally, more advanced methods, such as extraction of the propagation delay in the method of characteristics [113], delayed vector fitting (DVF) [114], or multivariate orthonormal vector fitting (MOVF) [115,116] can also be used. These matrix rational function techniques are suited to generate state-space models and synthesize equivalent circuits, which can be embedded into conventional SPICE solvers by using lumped RLC elements [63,108,117], Laplace elements [17,105], and/or controlled sources [76,105,118].

The behavioral modeling procedure for long multiconductor power cables presented in [17] starts with measurements of the DC resistances of the cable and of its frequency-dependent admittance matrix up to the highest frequency of interest using a VNA. Rational function interpolation and passivity enforcement are used next to create an analytic representation of the tabulated measured data [108,109,110]. Finally, a SPICE equivalent circuit of the measured cable is produced by translating the rational function representation into the circuit domain [76,105,117]. This approach provides stable, causal, and passive equivalent circuits of multiconductor cables that can be used in both time- and frequency-domain SPICE simulations. An extension of this method is introduced in [18] to obtain length-scalable multi-conductor cable models by using modal decomposition [119,120], extracting the p.u.l. parameters from the measured admittance matrix, and by taking advantage of the rotational symmetries of the cable, which in turn result in reduced equivalent circuits that speed up the SPICE simulations of long multiconductor power cables (three- and four-conductor shielded cables of 150 m length were modeled). This method is used for creating models of multi-conductor cables in this paper.

2.3. Motor Modeling

High-frequency modeling of induction machines plays an important role in investigating motor drive electromagnetic interference issues such as stator winding reflected-wave overvoltage and bearing discharging current [121].

Physical modeling of motors utilizes electromagnetic field analysis based on 2-D or 3-D FEM to create the equivalent circuits [122,123,124,125,126]. This methodology requires complete geometry and material information and it enables a detailed EMC analysis and design of the motor itself.

Behavioral modeling needs real motor measurements to construct the equivalent circuit that reproduces the motor impedances. These impedances are usually measured using an impedance analyzer on a motor in several connection schemes (typically in common and differential modes). The circuit parameters can then be extracted from the measurements using either pre-defined equivalent circuit topologies that emulate the physical behavior of the motors [29,93,95,102,121,127,128,129,130,131,132,133,134] or more general circuit topologies based on rational function approximations [135,136] and vector fitting algorithm [17,19,137,138]. A combination of FEM and behavioral modeling may also be used to improve and fine-tune the model parameters [139].

It is useful to create equivalent circuit models of various motors, which can then be used to assess the conducted noise in the full converter system for different loads.

The behavioral motor model used in this paper is created by a parallel connection of a high-frequency motor model based on measurements of a standstill motor [19] and a low-frequency model capturing the operation condition of the motor [23]. A high pass filter placed in front of the high-frequency model ensures that depending on the frequency of excitation the correct motor model is used.

2.4. Interconnects, PCB, and Housing

From the EMC theory point of view, all low frequency (LF) coupling mechanisms (galvanic, capacitive, and inductive coupling) are present in a power converter system and must be adequately taken into account [1,2].

In the EMC analysis of real applications, the influence of PCB- and interconnects design is sometimes overlooked. It is however very important to include the above-described parasitic effects in the system level circuits [12,13,53,140], as will be demonstrated later in Section 3.3. Although the extraction of equivalent circuits from 3-D models of interconnects is quite a complex and time-consuming task, careful preparation of the CAD data can significantly accelerate the modeling so that it can be integrated into the EMC analysis process. For that purpose, the following features are expected from commercial design tools:

• import of the manufacturer CAD data with the automated placement of component models, ports, and terminals;
• extraction of models with a large number of ports (>100);
• extraction of passive, broadband models which are accurate in a preselected frequency range;
• Creating a standard, SPICE-compatible output model, suitable for time- and frequency-domain system level simulations.

Presently, there are several commercial tools, allowing a full data process chain from CAD import to the extraction of the wideband equivalent circuit. Tools like ANSYS Q3D Extractor [141] or Dassault CST studio suite (3D/PCB) [142] implement the full design chain described above, are easy to use and validated in a variety of applications by a large user community.

2.5. HF Capacitor and Resistor Models

Capacitors, together with inductors, are essential components of any filter design. Contrary to the complexity of the inductor modeling techniques (see Section 2.1), the impedance curves of nearly all types of capacitors can be accurately represented by a simple series RLC equivalent circuit. The RLC values can be obtained from measurements either directly using hardware (Impedance- or Vector Network Analyzer) or software fitting tools (e.g., Matlab Zfit [143]).

Analysis of impedance curves of different capacitors can be very helpful in the capacitor selection procedure, especially if certain resonances have to be damped by the appropriate selection of the filter capacitors.

2.6. Power Semiconductor Models

In most PE applications, the power semiconductors are operated in switching mode and their switching waveforms are the main EMC noise source. The spectrum of this noise source is determined by the applied control scheme that determines the switching frequency of the semiconductors, and by the switch-on/switch-off waveforms of the switching devices, which depend on the type of semiconductor (IGBT, MOSFET, BJT, WBG semiconductors [9,10]). The EMI noise spectrum increases with increasing switching frequency and with reduced turn-on and turn-off time (for frequencies above the inverse switching time). Due to the dominant role of semiconductors in EMC noise creation, accurate semiconductor models are needed in EMC simulations, that capture switching waveforms of controlled commutations and reverse recovery of free-wheeling diodes for spontaneous commutation.

A detailed analysis of semiconductor modeling techniques is beyond the scope of this paper, however, in the following we give a short overview of power semiconductor models used in system-level EMC simulations. Modeling of power diodes [144,145,146,147], MOSFETs [148,149], and BJTs [150] is well established, therefore, numerous models are readily available either in libraries of SPICE simulation tools (e.g., SIMetrix [151], LTSpice [152]) or on the web pages of most manufacturers. This does not seem to be the case for IGBT models. A detailed overview of the modeling techniques and different complexity levels of IGBT models can be found in [153,154]. Although several physical and behavioral models of the coupled MOSFET-BJT structure of an IGBT device are presented in the literature [145,146,155,156,157,158,159,160,161,162,163,164,165,166,167], the parameter extraction procedures ask for simultaneous fitting to both static and dynamic device measurement data, which makes the modeling of IGBTs a rather complex task even for major manufacturers. Quite a few of them provide models of some IGBT devices (e.g., [165,166]) but the accuracy and stability of these models differ and the selection of an appropriate model for system level EMC simulations is still challenging.

2.7. LISN and Noise Detector Modelling

The line impedance stabilized network (LISN) is a low pass filter device, connected between the mains and device under test (DUT). Application of a LISN in a test setup serves two purposes: it filters out the HF electrical noise from the grid and it provides a test port for EMC conducted emission measurements. A standard LISN must provide 50 Ω impedance between each line and the common ground in the frequency range 150 kHz—30 MHz.

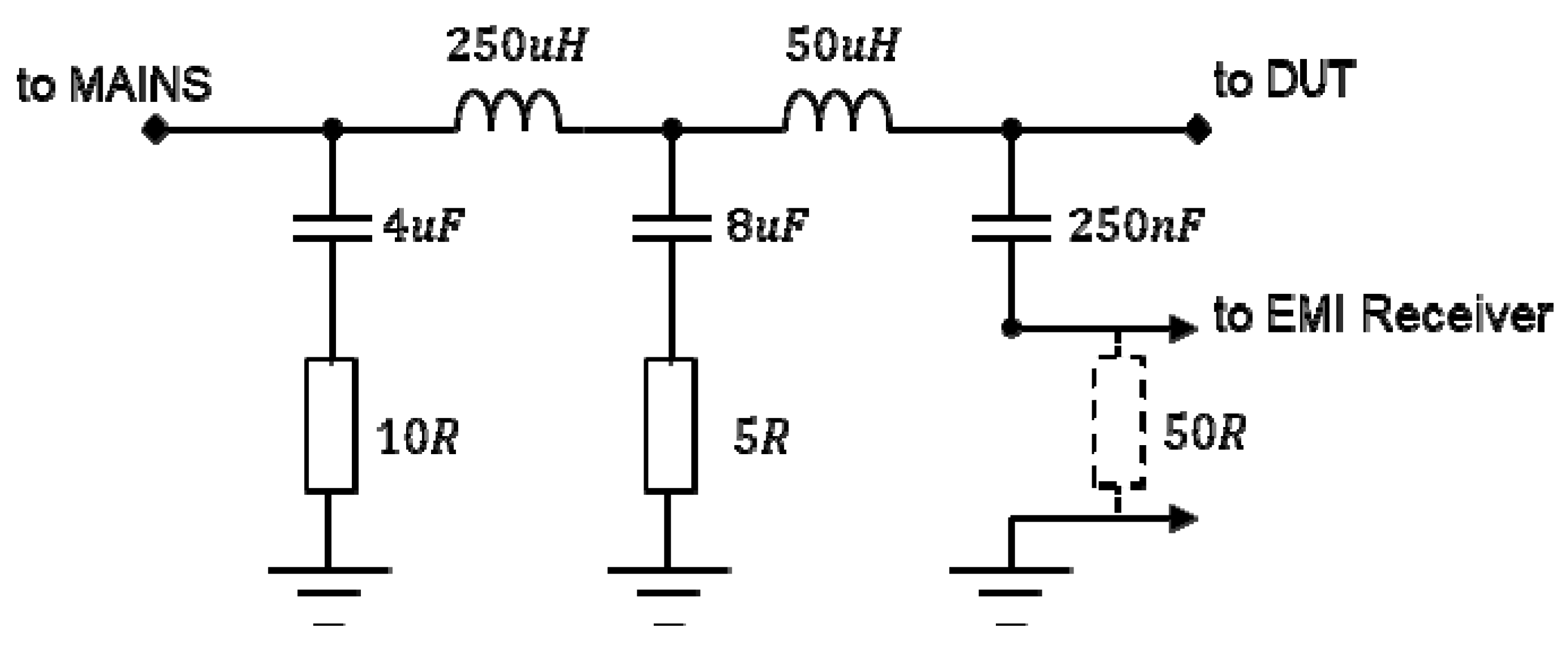

A typical circuit diagram of one phase leg of a CISPR-16-1-2 [5] compatible LISN is shown in Figure 1. Depending on the power level and manufacturer, the values of filter components and the number of low-pass filter stages can vary but the circuit diagram from Figure 1 is a good starting point for creating a LISN equivalent circuit in system level EMC simulations.

EMC standards are referring to the EMC noise using two types of noise detectors: average (AV) and quasi-peak (QP). These noise detectors are implemented in a special type of spectrum analyzers called EMI receivers. Since system level EMC simulations are usually evaluated/compared with measured EMI noise, there is a need for having a software implementation of QP and AV detectors based on simulation data. The easiest way to obtain a QP or AV spectrum is the use of postprocessing routines. A digital time-domain data processing methodology with the emulation of AV, QP, etc. detectors can be found in [168] and has been used to post-process the simulations shown here.

3. System Level EMC Simulation and Analysis: Voltage-Source Inverter Driving a Motor

In this section, we analyze measured and simulated EMC noise spectra of an industrial power converter. The power converter is a 75 kW, 400 V three-phase variable speed drive with a two-level inverter topology and an input diode rectifier. The converter is connected via a long (10–200 m) shielded power cable to a 45 kW induction motor. The measurements of conducted EMC noise are performed in an EMC lab according to the norms specified in [3,4,5]. The simulation model of the EMC setup is created by combining the component models reviewed in Section 2 into a full system model in SPICE software [151]. We show the accuracy of the model in predicting the measured conducted EMC noise. Then we analyze and simplify the system model in order to identify the main noise propagation paths and the best noise filtering options. We found a dominant impact of the motor cable on the measured EMC noise as well as of the couplings caused by the interconnects.

3.1. Build-up and Validation of System Level EMC Simulation

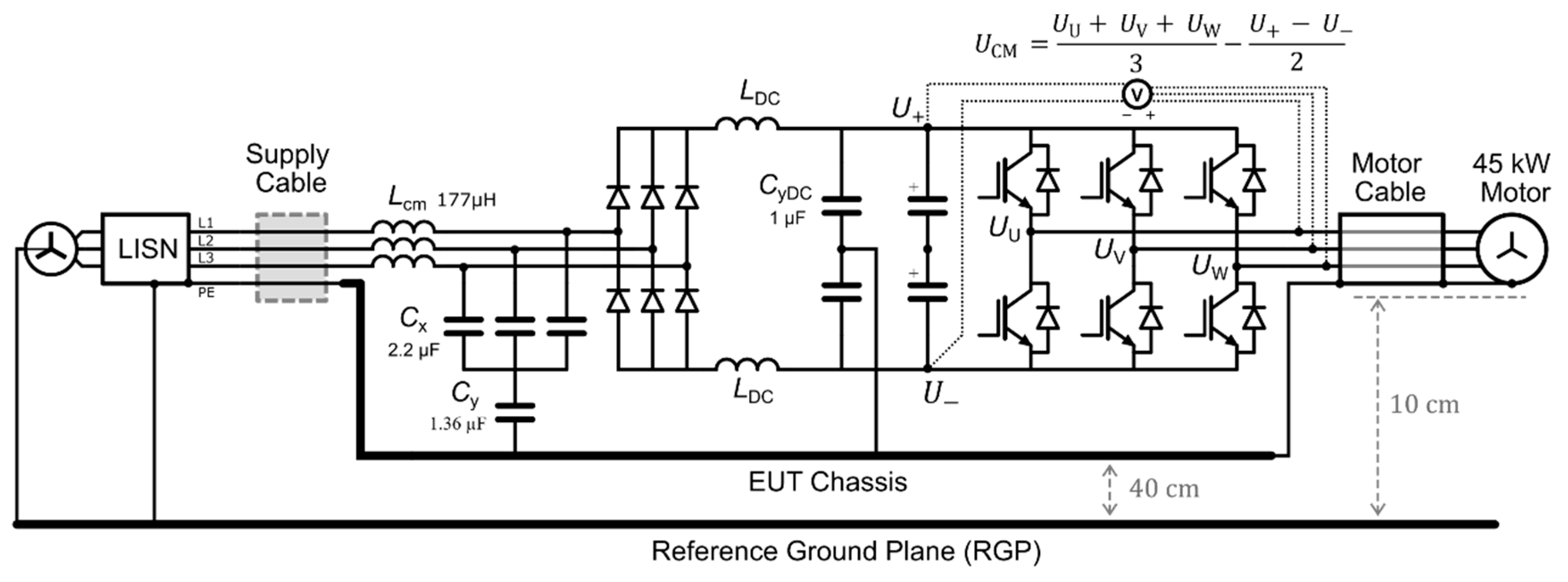

The schematic of the EMC setup is shown in Figure 2. The required component models have been discussed in the previous section. The common mode choke is realized by placing three nanocrystalline magnetic cores around the three-phase input and it is modeled using the physical equivalent circuit presented in [15], with parameters extracted from impedance measurements. The two identical DC reactors are modeled with a behavioral model created by applying vector fitting to the measured impedance [108].

The model of the shielded motor cable is based on VNA measurements and created using vector fitting [17]. Models of the same cable with different lengths are obtained by first extracting the p.u.l. parameters of the cable which are then used to create the equivalent circuit of the same cable for any length [18].

The voltages across the IGBTs in the inverter power module with an average switching frequency of 4 kHz are the main noise source of the drive. The IGBTs were modeled using physical behavioral models obtained from the manufacturer [165,166]. The actual equipment under test (EUT) uses a complex vector control algorithm to determine the switching pattern. Given that the average switching frequency of 4 kHz is well below the EMC band of conducted emissions starting at 150 kHz, the exact switching pattern has only a minor impact on EMC noise in stationary operation. Therefore, a simplified scalar control scheme based on pulse width modulation is used in the simulations to approximate the real behavior.

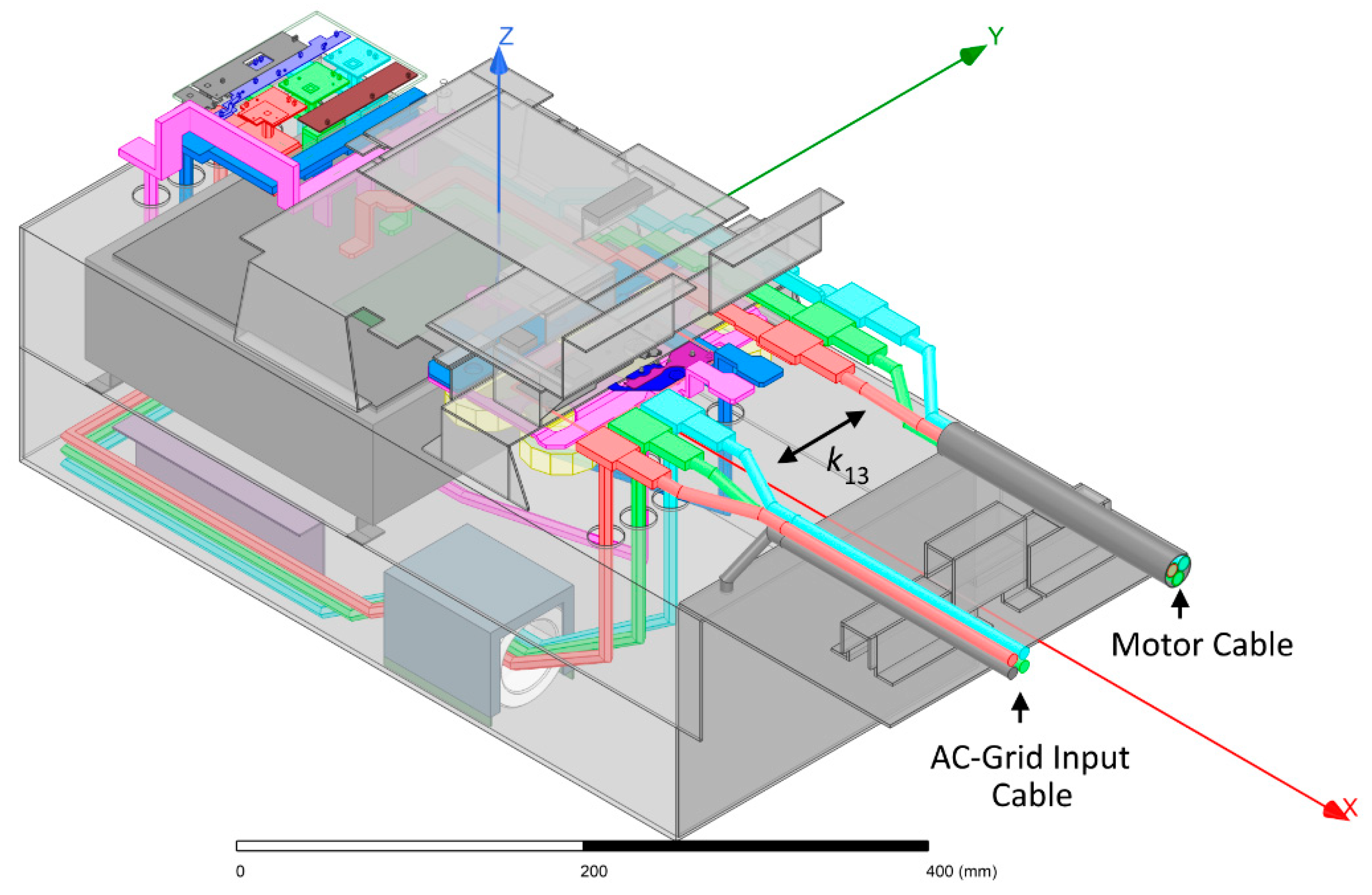

Interconnects between the components are not ideal shorts and introduce relevant parasitic couplings that need to be included as was discussed in Section 2.4. Parasitic effects of wires, busbars, and the metal chassis are included in the full three-phase simulation by extracting an RLGC equivalent SPICE circuit of interconnects and housing using a quasi-static field solver based on the method of moments (MoM [141]) as described in Section 2.4. The simplified 3D model of the structure is shown in Figure 3. The extracted black-box model has 69 ports and includes parasitic capacitances, coupled inductances, and resistances. Instead of connecting the components of the schematic shown in Figure 2 by ideal shorts, they are then connected at the corresponding ports of the extracted SPICE circuit. The compact broadband model of interconnects and housing is not shown explicitly in the schematic of Figure 2 for better readability but is an important part of the full three-phase circuit model.

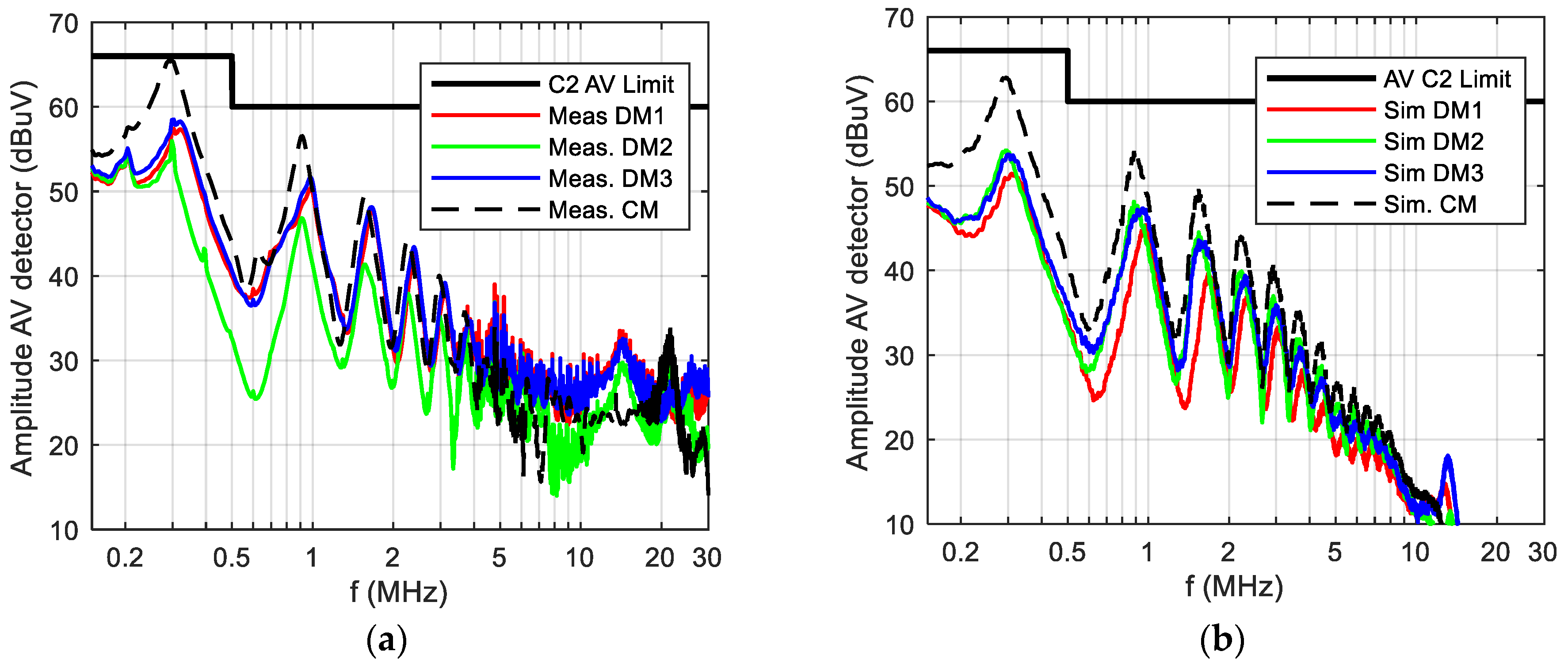

Figure 4a shows the measured EMC noise at the LISN for all three phases, labeled L1, L2, and L3 in the setup shown in Figure 2. The EMC noise shows repetitive resonances as functions of frequency that exist due to wave resonances in the motor cable that occur at certain ratios of wavelength to cable length, as we will discuss in more detail in Section 3.3. The schematic shown in Figure 2 does not include any auxiliary power circuit that powers fans or control and gate circuits. These auxiliary circuits also include switch mode power supplies with high switching frequency, however, they process much lower powers. Figure 4b shows that for the analyzed converter, the contribution of these auxiliary circuits to conducted noise emissions is small. The red curve in Figure 4b is the phase noise for normal operation, as also shown in Figure 4a. For comparison, the black curve in Figure 4b shows the EMC noise when only the auxiliary power is turned on, while the inverter is not switching, and the motor is at a standstill. The noise stemming from the auxiliary supply alone has a minor contribution to the total EMC noise and only becomes relevant for frequencies above 4 MHz, where for the setup shown, the noise is well below the norm. Therefore, the auxiliary power circuit is not included in the simulation, and simulation results above 4 MHz are not accurate.

3.2. Common Mode Equivalent Circuit and Impact of Interconnects on EMI Noise

For EMC analysis it is useful to separate the phase noise in its common mode (CM) and differential mode (DM) components. CM current flows between the power conversion system and ground, while current flowing between the power lines is denoted as DM noise. As indicated in Figure 2 with the line voltages at the LISN denoted as $U_{Li},i=1,2,3$, the CM voltage $U_{CM}$ and differential mode voltages $U_{DMi}$ at the LISN can be defined as:

$$U_{CM}=\frac{U_{L1}+U_{L2}+U_{L3}}{3};U_{DMi}=U_{Li}-U_{CM};i=1,2,3.$$

(1)

In measurements, the transformation from phase noise to common mode and differential mode noise is done using a CM/DM noise separator [169,170]. The measurement results shown in Figure 5a reveal that the EMC noise is dominated by the common mode noise, which will be the focus of the EMC analysis in this paper. Figure 5b shows the CM and DM noise obtained by postprocessing of time-domain simulations of the full setup. Simulated and measured EMC curves are in excellent agreement up to 4 MHz. For higher frequencies, the EMC noise is very low, and the auxiliary power supply noise becomes significant, which explains the deviation between simulations and measurements. As explained in Section 2.6, the dominant EMC noise sources of the converter shown in Figure 2 are the switching waveforms of the IGBTs in the inverter. The propagation of differential mode noise from the inverter towards the input (AC grid side) is well suppressed by the electrolytic DC capacitors, however, the DC capacitor cannot filter CM noise. The main reasons why measurements still show significant DM noise at the AC grid side are the noise mixing between CM and DM within the diode rectifier [20] and parasitic magnetic couplings from the noisy load side to the input side [171], which will be described later in Section 3.3.

The propagation of the CM noise can be described by the equivalent circuit shown in Figure 6. Most of the impedances shown in the CM circuit of Figure 6 are the CM impedances of the components shown in the three-phase circuit of Figure 2. The frequency-dependent CM impedances are shown in Figure 7a and they are accurately reproduced by the circuit models. The impact of the diode rectifier either as a CM noise source or CM impedance is neglected in the CM circuit of Figure 6, while the HF noise introduced by the switching of the DC voltage in the inverter is represented as a fixed voltage noise source U_cm. As indicated in Figure 2, the noise source U_cm is the voltage difference between the DC bus midpoint and the average of the three output voltages, and it is determined only once, using a time-domain simulation of the full three-phase circuit (which uses accurate semiconductor models). The frequency spectrum of U_cm is shown in Figure 7b.

The parasitic CM loop inductances L_p1, L_p2, L_p3 and their mutual couplings k₁₂, k₁₃, k₂₃ capture the most relevant coupling mechanism of the interconnects and housing shown in Figure 3 and they can be directly extracted by defining the corresponding CM current paths in the quasi-static field solver [141] using matrix reduction which corresponds to a parallel connection of the AC-phases and DC buses. The loop inductances L_p1 and L_p3 and their coupling coefficient k₁₃ quantify the important magnetic coupling between the noisy output of the converter on the load side and the quiet input of the converter on the AC-grid side. As indicated in Figure 3, this coupling is introduced by the pigtails of the input and output cables that are close to each other, run in parallel, and do not have any shielding. Why are the other types of parasitics introduced by the interconnects less important? Parasitic capacitances between different interconnects and between interconnects and chassis turn out to have little impact on CM noise propagation, due to the dominant shunt capacitances C_AC on the grid side, C_DC on the DC link, and the effective cable capacitance between the conductors of the motor cable and their grounded shield. Furthermore, resistances of the interconnects are small compared to the other impedances within each loop namely Z_LISN + Z_CMC, Z_LDC, or Z_load. In contrast, the magnetic coupling between the different current loops, which is modeled by the parasitic loop inductances L_p1, L_p2, L_p3 with their mutual coupling factors k₁₂, k₁₃, k₂₃ is highly relevant, because the induced voltages bypass the capacitive filters C_AC and C_DC. It turns out that the most important coupling is the one between the load loop with its high noise current between i₃ and the grid loop with its low noise current i₁.

The CM circuit shown in Figure 6 consists of three loops. The first loop contains the CM impedances on the grid side: LISN (Z_LISN), common mode choke (Z_CMC), and the AC side capacitance C_AC which consists of a series connection of X and Y capacitors. The loop current $i_1$ is subject to the EMC norms of the LISN side. The second loop consists of C_AC, the DC-reactors (Z_LDC), and the DC-Y-capacitors C_DC. As already stated above, the impact of the diode rectifier on the CM noise in the EMC range is neglected here. The third loop contains C_DC, the CM voltage noise source U_cm, and the load impedance Z_load given by the CM impedance of the cable terminated with the motor. The loop current $i_3$ is by far the largest CM current in the system and its propagation to the LISN is filtered by the CLC filter formed by C_DC, Z_LDC, C_AC. However, the magnetic couplings, most importantly k₁₃, bypass this filter.

The simple structure of the CM circuit helps to understand the noise propagation, furthermore, it is a linear circuit (if common mode choke and DC reactors are approximated by linear broadband models) which allows one to apply frequency-domain analysis, which is much faster than time-domain analysis.

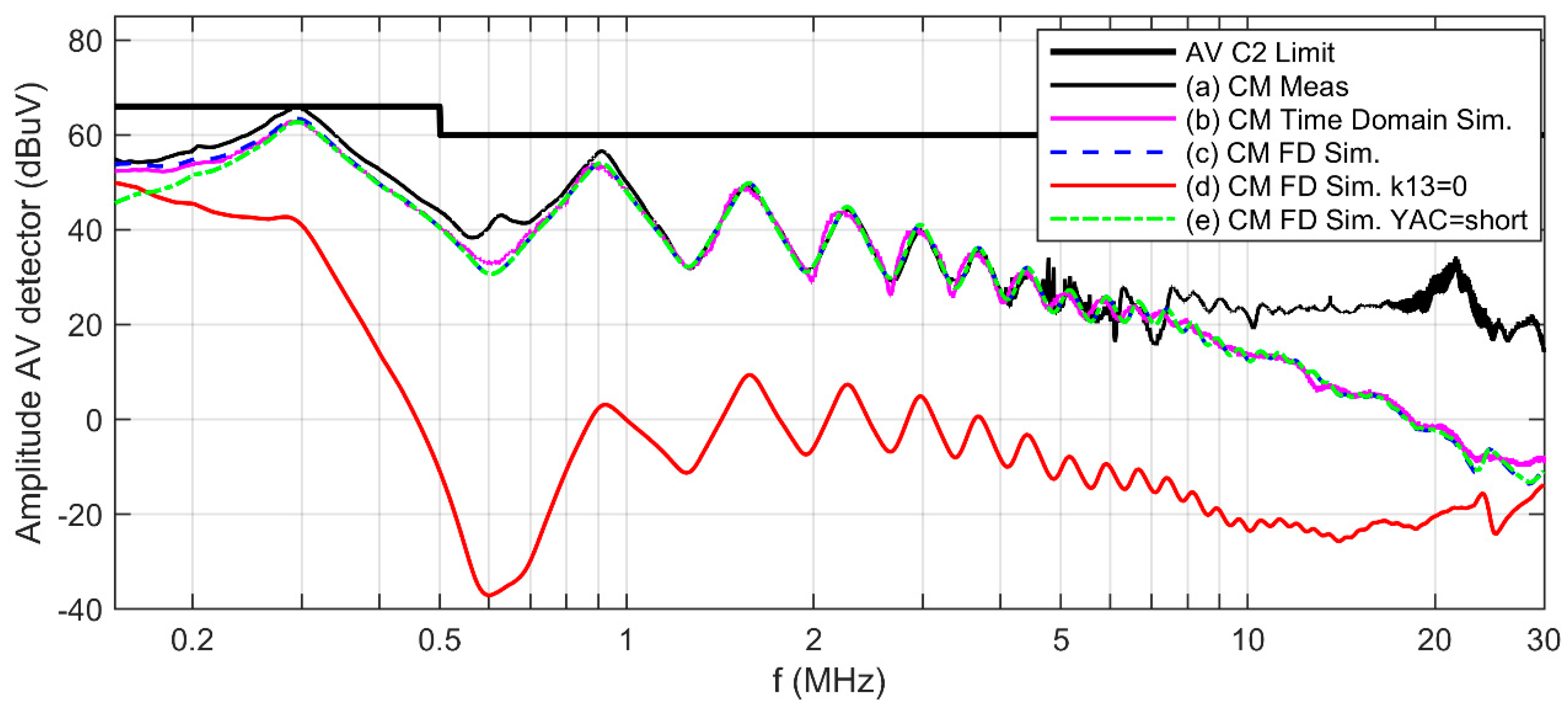

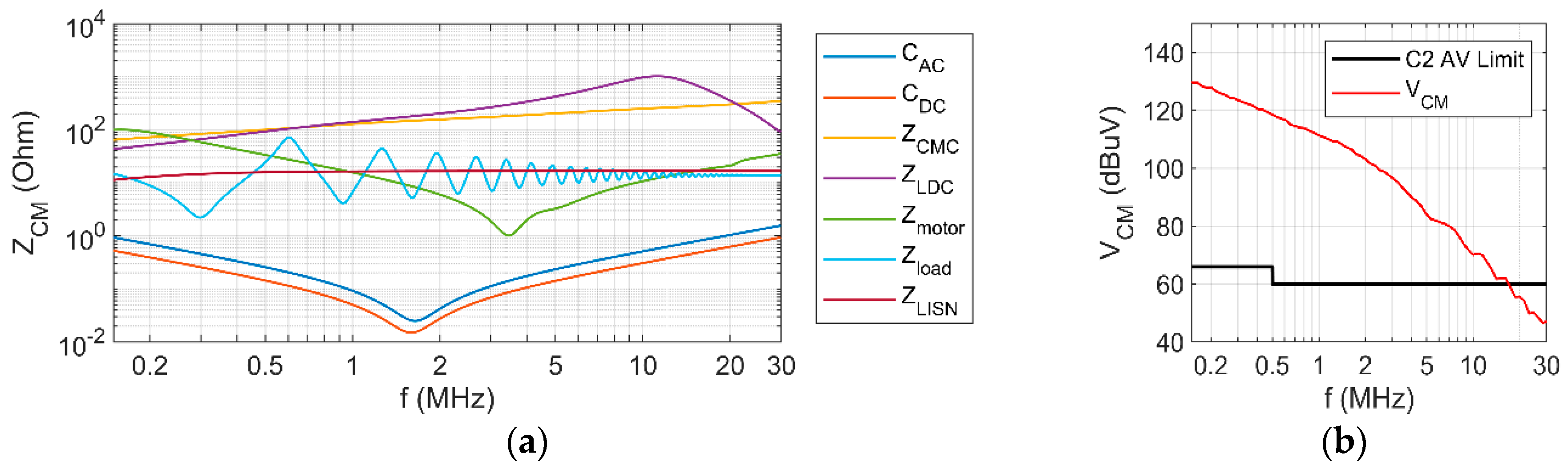

The propagation of CM noise is assessed using the equivalent circuit shown in Figure 6 and the results are shown in Figure 8. As a validation of the simulation models, we show that the measured noise (curve (a) in Figure 8) is accurately predicted by time-domain simulations (curve (b) in Figure 8) using the three-phase circuit of Figure 2. Equivalent results are obtained by frequency-domain simulations (curve (c) in Figure 8) using the common mode circuit of Figure 6. By varying the three mutual coupling factors in the common mode circuit of Figure 6, the relative importance of the different couplings is analyzed. In the simulations, the coupling factors are simple parameters that can easily be changed. In the physical setup, the inductive couplings between the current loops depend on the layout of the interconnects and can be reduced by minimizing the area enclosed by the current loops, by increasing the distance between the loops, or by introducing electromagnetic shields. It is found that the coupling factor k₁₃ between loops 3 and 1 has the biggest impact. In fact, as shown by curve (d) in Figure 8, if the coupling between the input and output loops is set to zero k₁₃ = 0 (all other parameters stay the same), the grid side noise is reduced significantly below the norm limit. The load side loop (between inverter and load) has the largest EMI noise current, which explains the relevance of even a small magnetic coupling between output and input.

In contrast, an increase of the AC-side capacitance does not reduce the CM noise. As shown by curve (e) in Figure 8, the noise level remains almost unchanged (except for a small reduction at 150 kHz) when the filter capacitance C_AC on the grid side is shorted completely but the magnetic couplings are present. This finding confirms that the grid side CM noise is mainly caused by the induced voltage source in the grid side current loop. In the presence of the induced voltage, the current on the grid side is most effectively suppressed by a large impedance within the grid side loop, which is achieved by placing a large CM choke impedance $Z_{CMC}\gg Z_{LISN}+Z_{CAC}$ see Figure 7a. Unfortunately, among the EMC filter components, the CM choke is the largest and most expensive component. Other CM filter options will be discussed in Section 4.

3.3. Impact of Cable Characteristics on EMI Noise

In this section, we show that the prominent maxima in the EMC noise measured at the LISN are caused by cable resonances and we discuss how these maxima depend on the length and the type of the motor cable. As shown in Figure 7, the load impedance Z_load is much larger than the impedance of the C_Y caps at the DC link, called C_DC in Figure 7. Therefore, the current i₃ in the output loop is largest at the minima of the load impedance Z_load (or maxima of its admittance Y_load). Furthermore, by comparing the impedances Z_motor of the motor alone, with the load impedance Z_load given by the CM impedance of the cable terminated with the motor, we notice that resonances of the load stem from the cable resonances. The measured noise at the LISN is determined by the current i₁ in the input loop. According to the circuit shown in Figure 6, the noise can propagate from the noisy output to the input either by conduction from output to DC link to input, or by the inductive coupling between the loop inductances. As we will see in the next section, the inductive coupling dominates the noise propagation. For both coupling paths, the EMC noise measured at the LISN shows the same maxima as the output noise (although with lower amplitude) and these maxima are essentially determined by the motor cable. Accurate cable models are therefore essential for EMC simulations of the current setup.

In order to further analyze the impact of the motor cable on EMC noise, measurements and simulations with two different cable types and for different cable lengths were done. The results are shown in Figure 9. Figure 9a compares the load admittance of the two cables, both 30 m long, connected to the same 45 kW motor. Both motor cables are three-phase, shielded power cables, but one uses conductors with a cross section of 16 mm² and the other with 70 mm² [172] The load admittances of the two cables shown in Figure 9a have the same qualitative behavior as the load admittances with the periodic cable resonances as functions of frequency. However, due to the different cable cross section, the p.u.l. parameters are different, which causes a different characteristic cable impedance and propagation constant. The measured and simulated EMC noise when these cables are used in the EMC setup of Figure 2 is shown in Figure 9c. Note that the maxima of the load admittance coincide with the maxima of the conducted noise emissions.

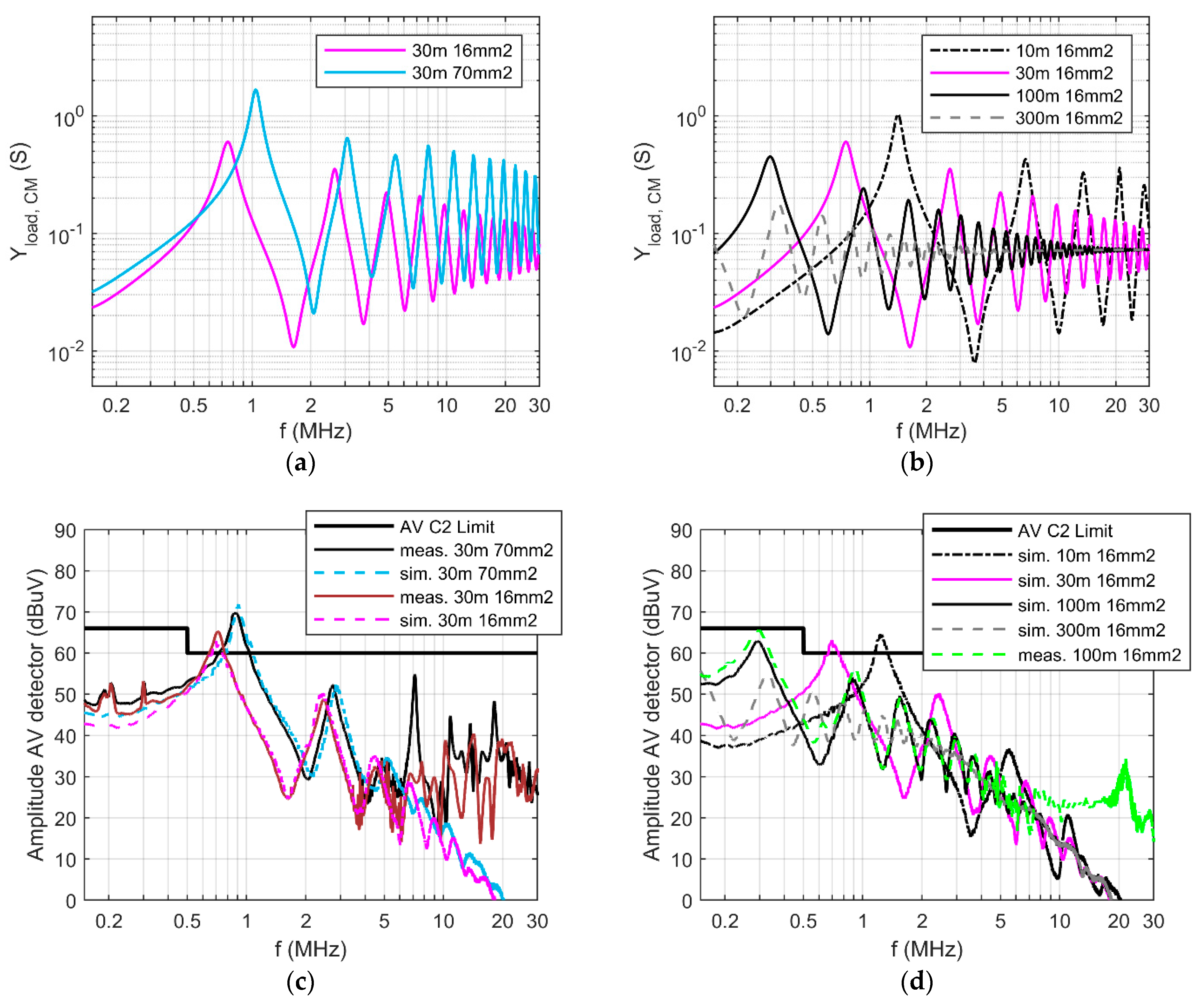

Figure 9c shows a good agreement between simulations and measurements up to about 5 MHz, however for higher frequencies the measured noise shows additional peaks that are not reproduced by the simulations. These peaks cannot be explained by the auxiliary supply alone but are most probably caused by coupling between the motor cable and the conductive ground plane present in the EMC setup [171]. Since the reference ground plane of the setup was not included in the simulation model, the effect is not reproduced in the simulation. In [171], the cable to ground coupling was analyzed and it was shown that changes in the cable layout relative to the ground plane can significantly affect the noise levels. However, the cable layout is currently not strictly specified in the EMC measurement standards, despite its large impact on the measured EMC noise.

Next, the impact of the cable length on the load admittance and EMC noise at the LISN is analyzed. Figure 9b compares the load admittances of motor cables of the same cable type but of different lengths, all connected to the same 45 kW motor. With increasing length, the frequency spacing between successive maxima as well as the amplitude of the oscillations of the admittance is reduced. Both observations are well explained by the transmission line behavior of the cable. In the limit of an infinitely long cable, the load impedance would be given by the characteristic cable impedance that shows no oscillations.

Figure 9d shows the EMC noise measured at the LISN, for the various cables shown in Figure 9b. Again, the resonances of the EMC noise stem from the cable resonances. The location of the first maximum in EMC noise (or load admittance) shown in Figure 9d moves to lower frequencies as the cable length increases, while the amplitude stays roughly the same (or might even be higher for shorter cables). Interestingly, for the data shown in Figure 9d, the EMC norm is violated for the shorter cables (10 m and 30 m) while the CM noise is below the limits prescribed by the norm for the longer cables (100 m and 300 m). The large EMC noise for short cables contradicts the common belief that the EMC emissions increase with increasing cable length, and this finding is discussed and explained in Section 4. Here we note that the length-scalable cable models are an effective and accurate tool to predict EMC noise emissions as shown by the good agreement between simulations and measurements in Figure 9.

4. Discussion

Before drawing general conclusions of this work and providing an outlook, in this section, we discuss two main findings of the EMC system simulations of the motor drive presented in Section 3.

The first finding was presented in Section 3.2 and concerns the impact of magnetic coupling on the filter performance of magnetic and capacitive filters. We showed that for the analyzed system, EMC noise is dominated by CM noise and we derived the equivalent circuit for CM noise propagation shown in Figure 6. Two main noise propagation paths were identified. The first noise path is the conventional galvanic noise propagation from the noise source at the inverter to the input side. This noise propagation is filtered by the CLCL-type filter formed by $C_{DC},L_{DC},C_{AC},L_{CM}$. The CM choke $L_{CM}$ is larger and more expensive than the capacitors $C_{DC},C_{AC}$ and its size could be reduced by increasing the capacitance $C_{AC}$ to ground. However, there is a second noise propagation path introduced by the coupled loop inductances $L_{p1},L_{p2},L_{p3}$ in Figure 6, which represents the magnetic couplings between the interconnects. The coupling gives rise to an induced voltage $U_{ind}$ in the grid side current loop, which drives the grid current $i_1$. The induced voltage $U_{ind}=j\omega M{i}_3$, where $M=k_{13}\sqrt{L_{p1}{L}_{p3}}$ denotes the magnetic coupling between output and input loops and the dominant contribution was identified to be the cable connectors at the input and output of the convert as shown in Figure 3. The second noise propagation path dominates the emissions in the EMC frequency range. In fact, as shown in Figure 8, even when replacing the capacitive filter $C_{AC}$ of the CM circuit of Figure 6 by an ideal short, the emissions are not reduced. The emissions caused by the induced voltage are most effectively suppressed by a large impedance within the grid side loop, which is achieved by placing a large CM choke. What about other filter options for CM noise? In the presented setup, most of the EMC noise on the grid side is caused by the induced voltage between the motor side and the grid input side, and therefore an increase of the DC link impedance Z_LDC value will have little effect on the grid noise. One could try to filter the noise on the load side, by placing a CM choke around the motor cable. However, the high CM current levels on the load side result in large losses in the core material and can cause saturation. Finally, the coupling factor k₁₃ could be lowered by introducing a shielding or by the improved layout of the busbar geometry. If these parasitic mitigation methods are not possible, the grid side common mode impedance must be kept high enough to limit the coupled noise below standard requirements.

The second finding of the EMC analysis that we discuss here concerns the dependence of noise emissions on the type and length of the motor cable as analyzed in Section 3.3. The maxima of EMC noise are caused by resonances of the long motor cable. The interesting finding was that in the analyzed system, the conducted EMC emissions are larger for cables with a length of 30 m than for cables of 100 m (or even 300 m), which contradicts the common belief that emissions always increase with cable length. The common belief is based on the facts, that long cables have a larger capacitance to ground, leading to higher load admittance and, furthermore, the cable resonance occurs at a lower frequency where the noise source has a larger amplitude, see Figure 7b. The explanation for why the common belief is wrong here is based on a combination of EMC effects. First, while the noise source decreases in frequency as shown in Figure 7b, its propagation to the AC input is dominated by magnetic coupling (for the analyzed converter) leading to an induced voltage on the grid side $U_{ind}=j\omega M{i}_3$. This coupling is represented by the coupled loop inductances in circuit Figure 6. The magnetic coupling is more effective with increasing frequency, which improves noise propagation and compensates for the decrease of the noise source with increasing frequency. Furthermore, the cable resonances are better damped for longer cable lengths. Another aspect is that EMC norms are often stricter at higher frequencies (above 500 kHz in Figure 9d) and the frequency of the cable resonance increases with reducing cable length. Similarly, for sufficiently long cables, the first resonance moves below this frequency and for even longer cables (e.g., for the 300 m cable shown in Figure 9), the first resonance of the cable admittance is below 150 kHz, which is the lower frequency bound of the frequency band “B” relevant for conducted emissions. However, in addition to the impact of the cable length on the EMC spectrum above 150 kHz, longer cables also increase capacitive currents in the low-frequency range (DC up to low harmonics of switching frequencies) due to increased parasitic cable capacitance. The increased CM currents must be considered in the design of the inductive CM filter components to avoid saturation, which relativizes the surprising finding that longer cables can lead to smaller EMC problems.

5. Conclusions

EMC simulations are shown to be an excellent tool to analyze EMC noise propagation and to assess the best filtering options. However, the setup of EMC simulations is a difficult task and requires experience. First, the relevant components need to be identified and modeled in the required detail. The relevant models are not limited to the power components of the converter, but also include the couplings introduced by interconnects, PCB and housing, as well as the external impedance of the converter at the input and output sides, such as the power cable, motor, including the LISN and noise detector. The models can be represented as SPICE circuits to allow including them into a circuit model for the EMC analysis of the full power converter. Often the circuit representation of the full EMC setup is rather complex, which can lead to long simulation times and sometimes even to numerical instability. Therefore, a simplification of the circuit is very beneficial, which also helps with better understanding the noise propagation. For example, the complex semiconductor models can be replaced by a fixed voltage source, representing the switching waveform, and/or by separately analyzing common and differential mode noise, which can often be analyzed by simpler circuits. The simplified circuit is often a linear circuit and can then be analyzed using much faster frequency-domain simulations. Conducted noise emissions of a 75 kW power converter driving a 45 kW motor were analyzed. Based on the simulations, the critical impedances within the system were identified, as well as the dominant noise propagation and the most efficient filter component and location. The conducted noise was found to be dominated by common mode noise in the studied system and a simplified CM circuit was derived. The layout of the interconnects and housing was shown to introduce parasitic magnetic couplings between output and input grounding loops formed by the EMC shunt capacitors and multiple common mode chokes are required to suppress the EMC noise caused by induced voltages. Sharp maxima in the conducted noise emissions were shown to be caused by cable resonances that can be accurately predicted as functions of type, length, and layout of the motor cable. An interesting finding was that in the analyzed system, the conducted EMC emissions were larger for cables with a length of 30 m than for cables of 100 m length or more, which contradicts the common belief that emissions always increase with cable length. All effects predicted and explained by the simulations were validated by measurements, and the close agreement between simulations and measurements underlines the benefit of simulation-based EMC analysis and filter design.

There are various possible continuations of this work. Having identified the detrimental effect of magnetic couplings between input and output, possibilities of an improved layout of the busbar geometry need to be assessed as well as other shielding options. Furthermore, in order to reduce the need for expensive common mode chokes, the benefit of an active EMC filter should be assessed [11]. Finally, while EMC simulations are a powerful tool to analyze conducted noise emissions and to design the required filter, further efforts are needed to build up similar simulation tools for radiated noise emissions.
