Research on Rock Minerals and IP Response Characteristics of Shale Gas Reservoir in Sichuan Basin
Abstract
:1. Introduction

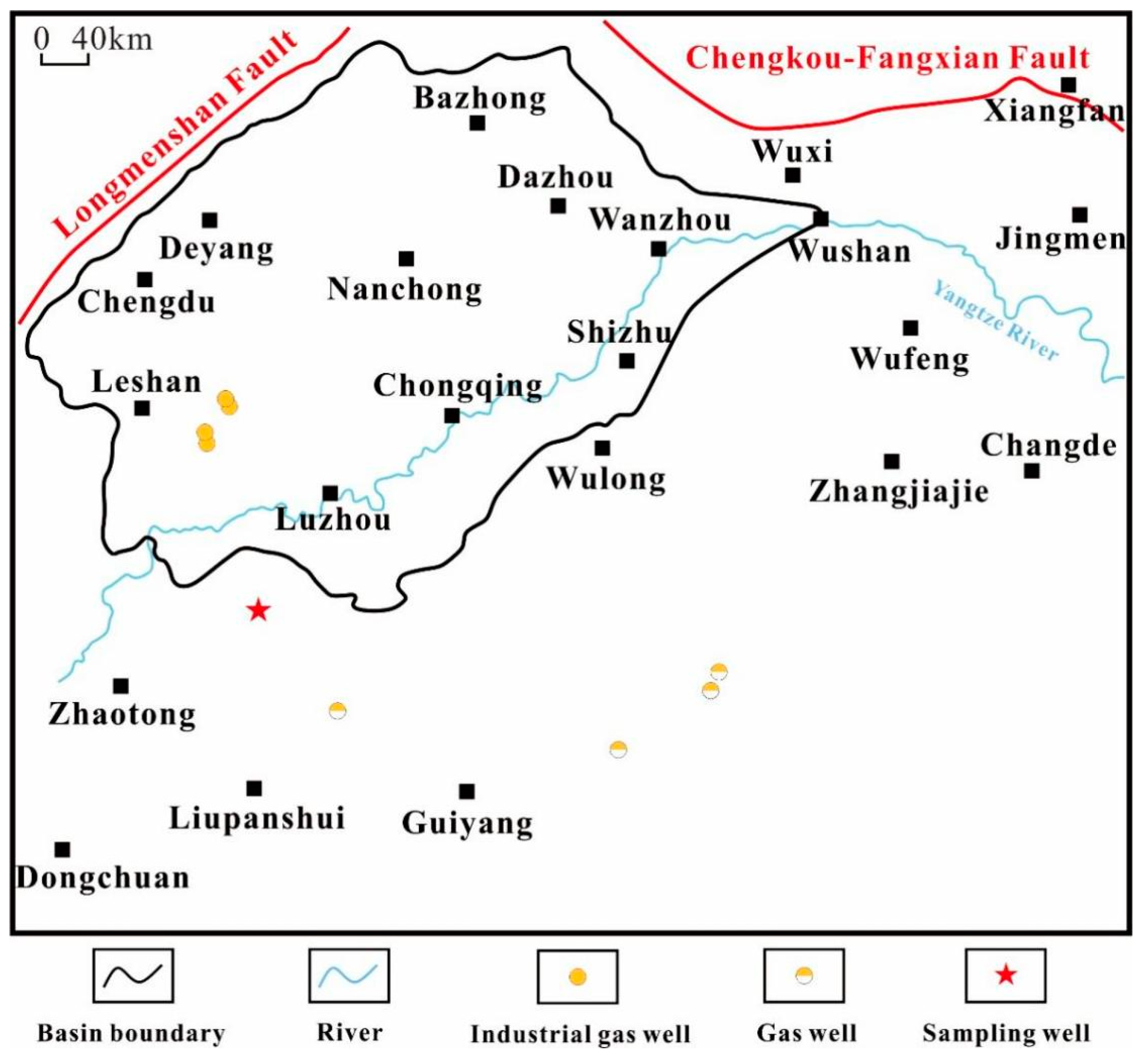

2. Geological Overview of the Sampling Area and Sample Information
3. Measurement and Analysis Method of Shale Complex Resistivity

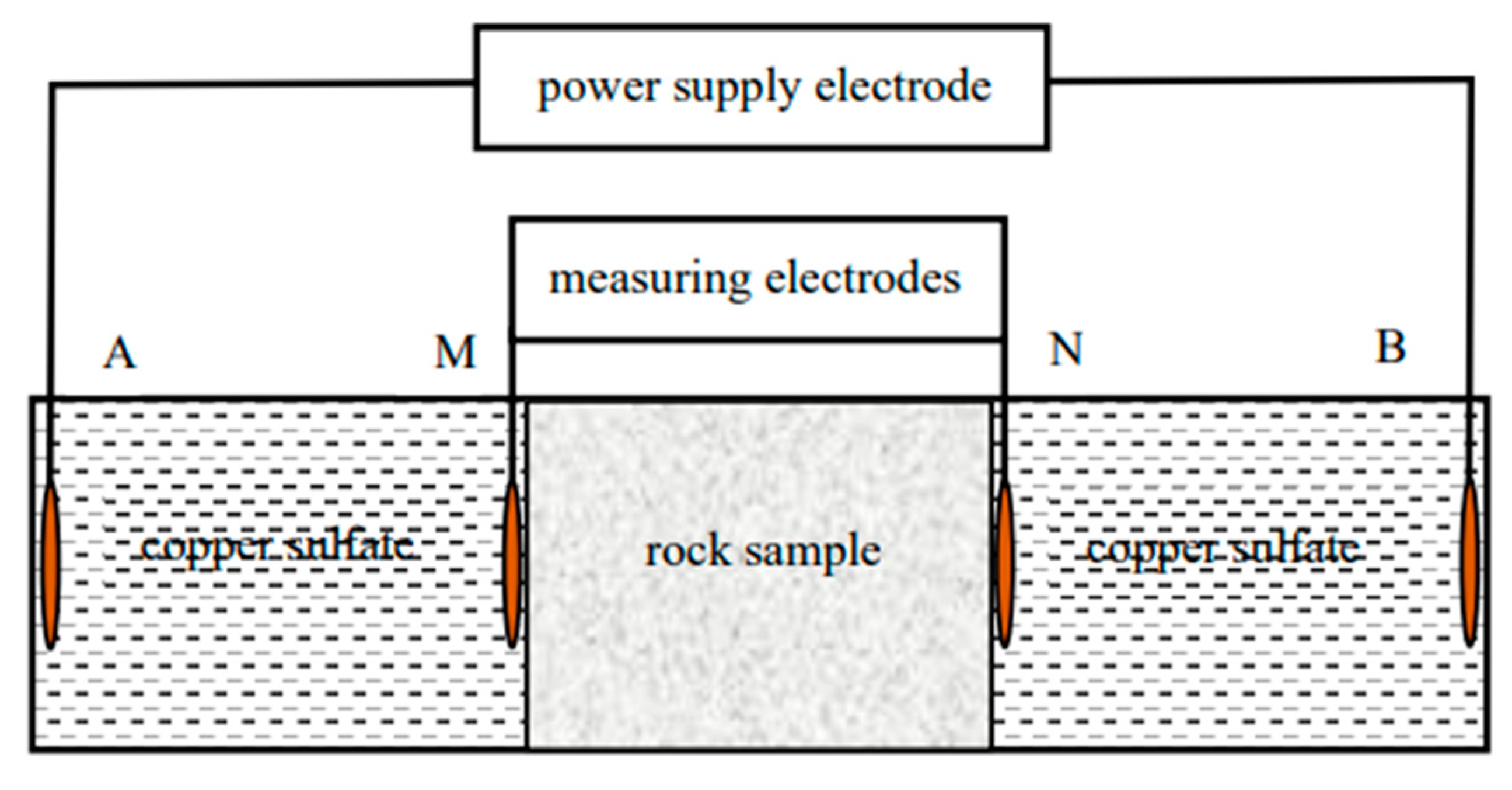

3.1. Complex Resistivity Measurement Method
3.2. Complex Resistivity Inversion Model

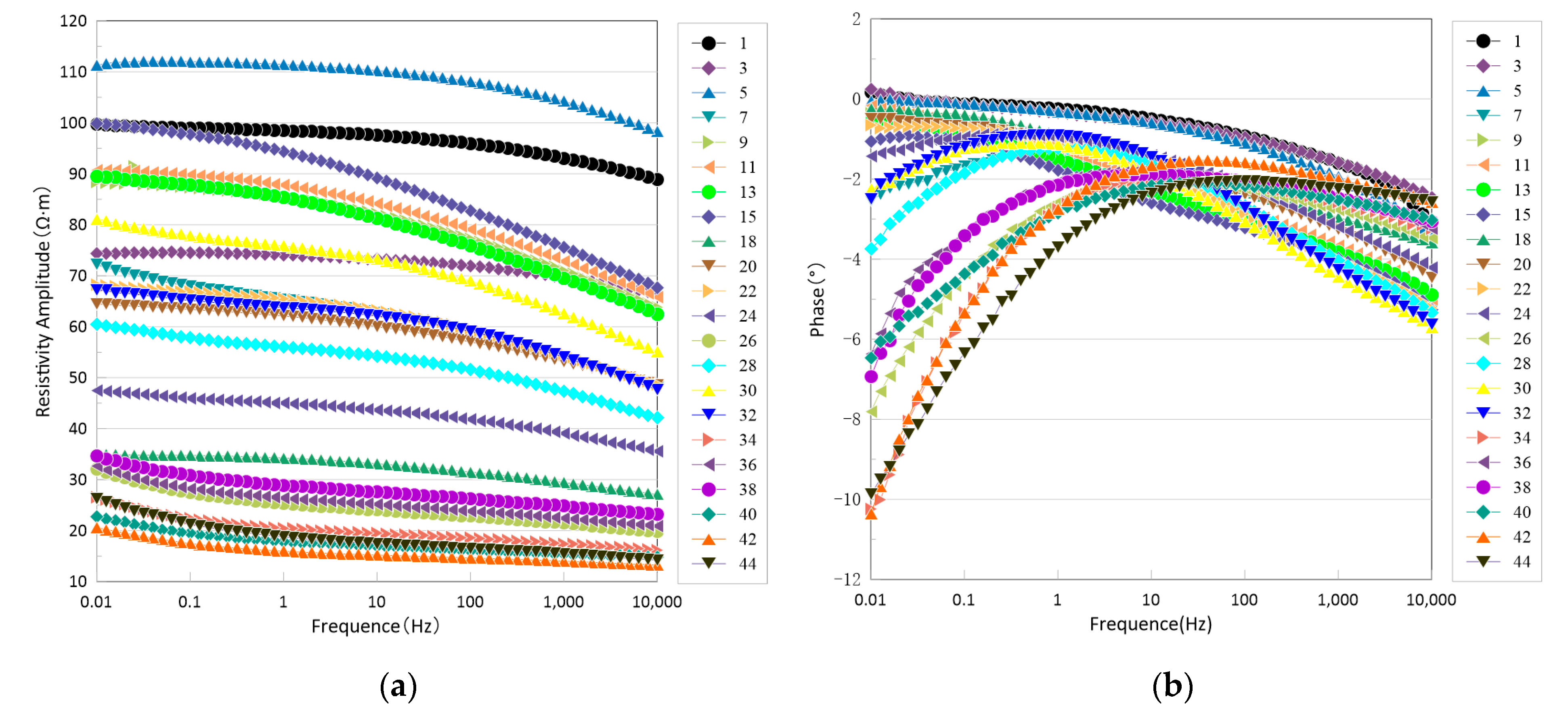

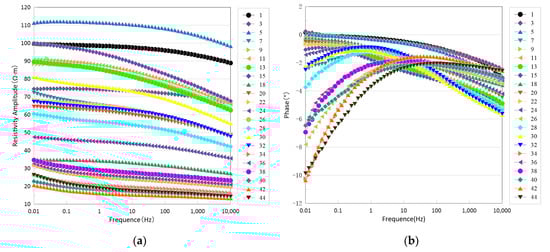

4. Complex Resistivity and IP Parameter Results

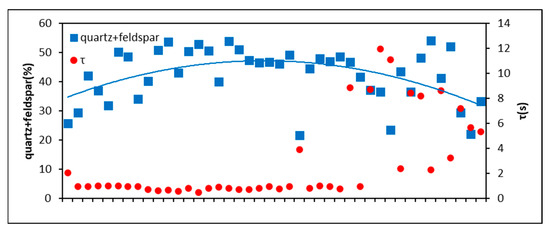

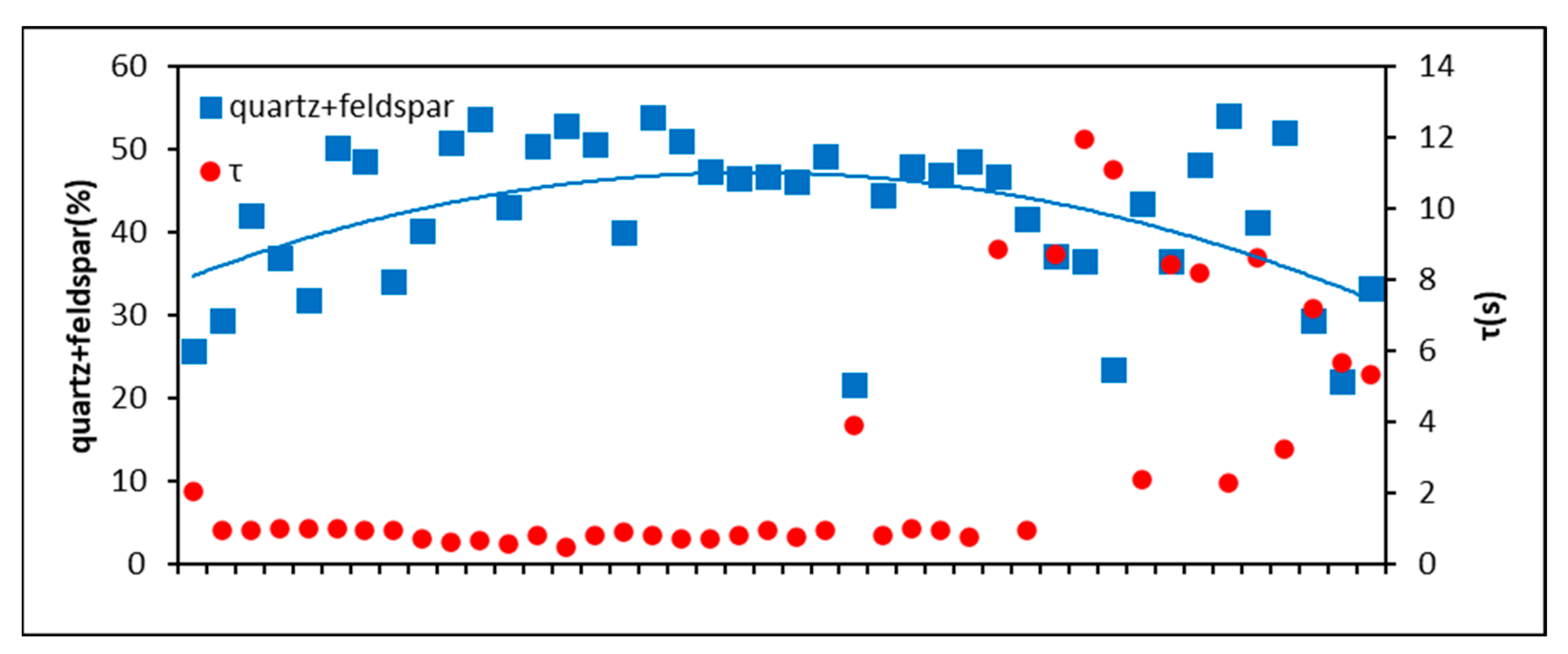

5. Analysis of Minerals and IP Parameters
6. Conclusions

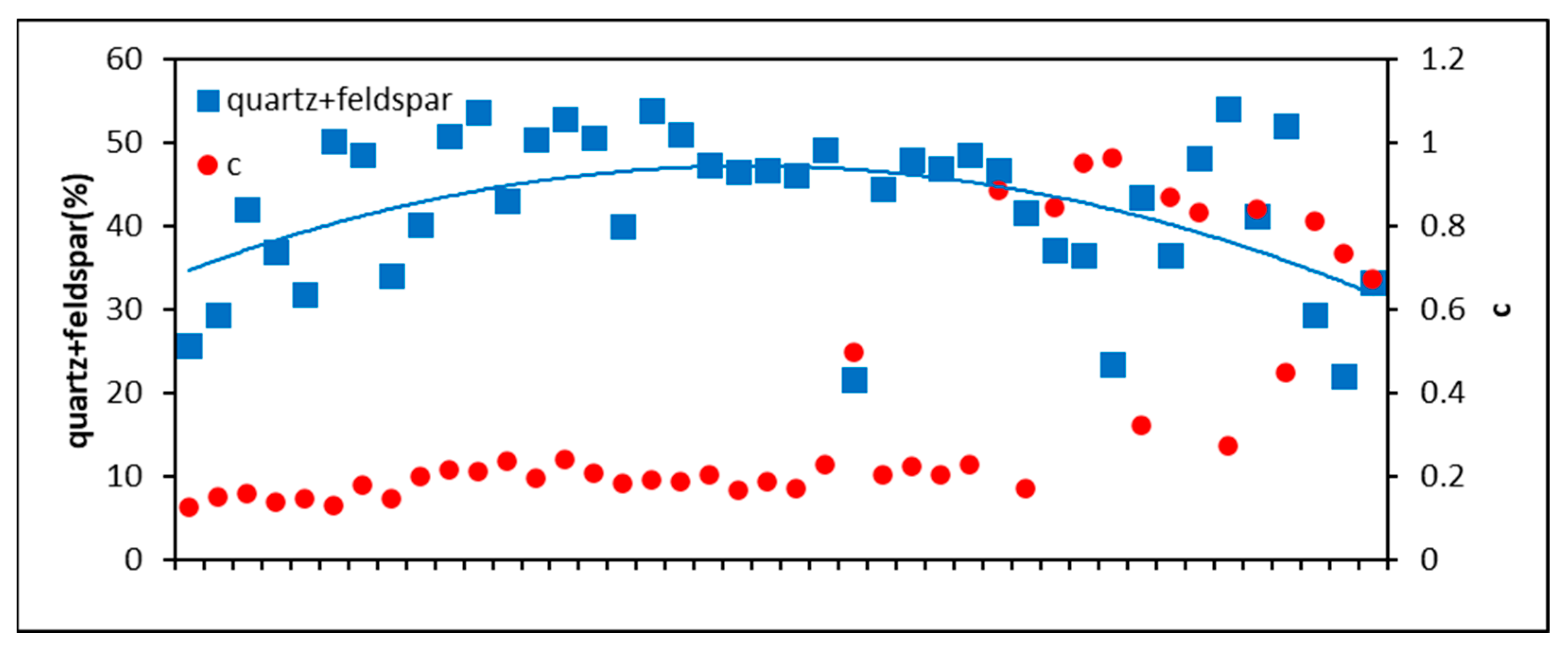

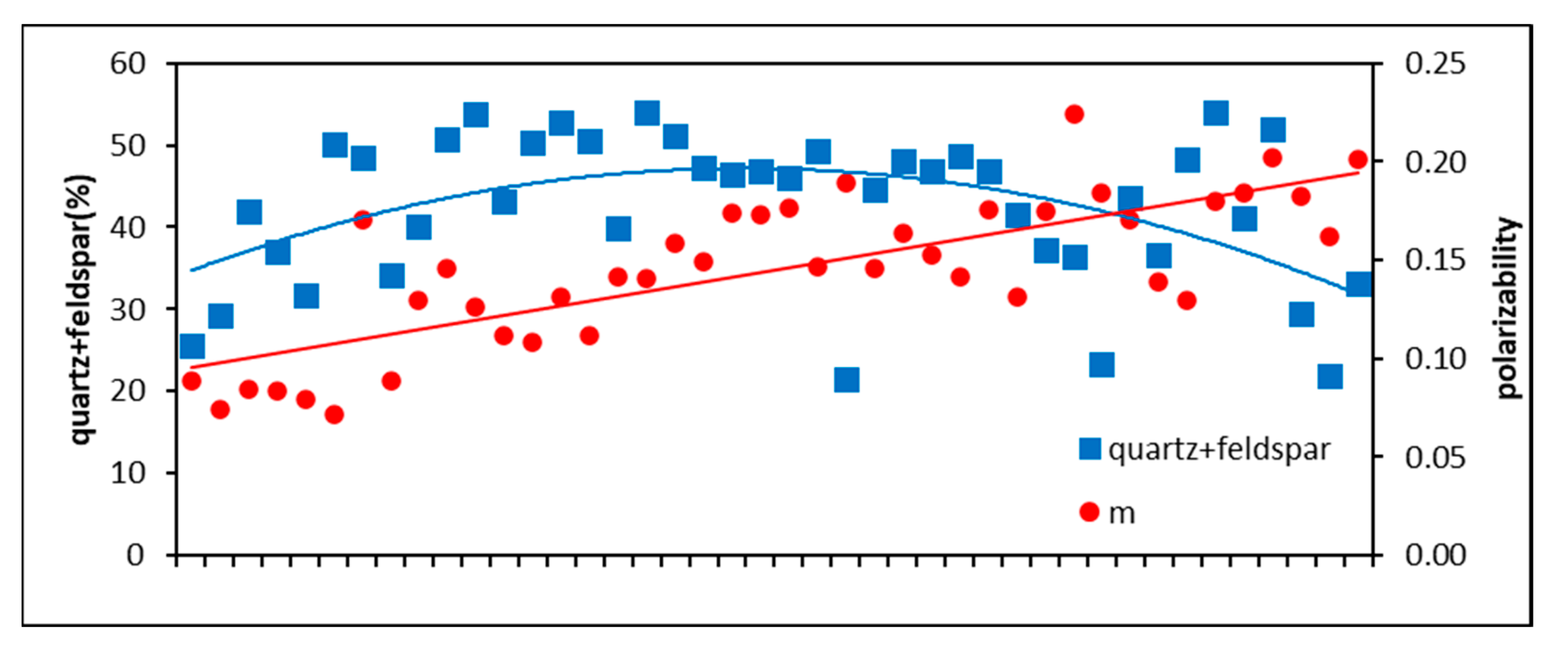

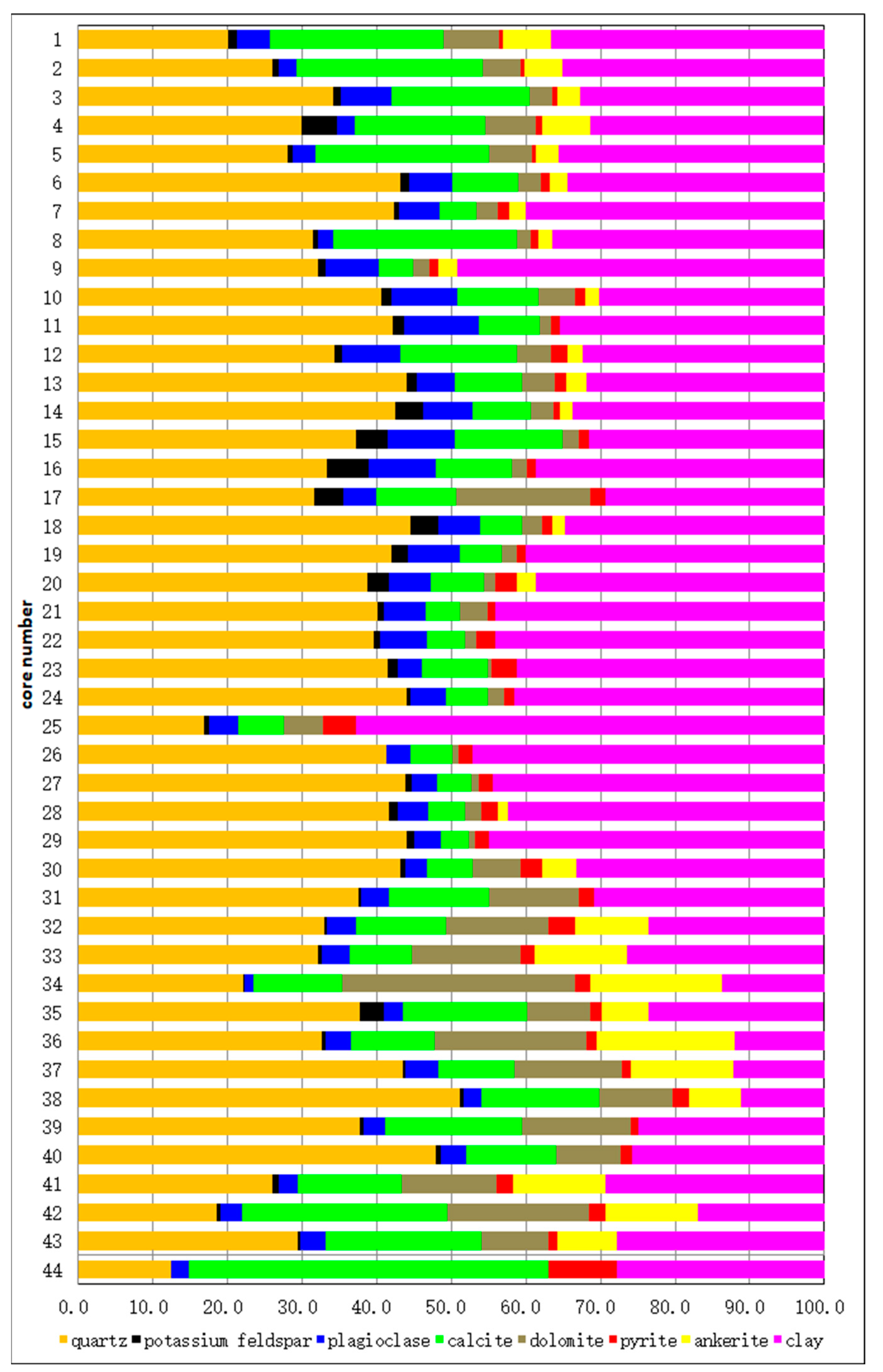

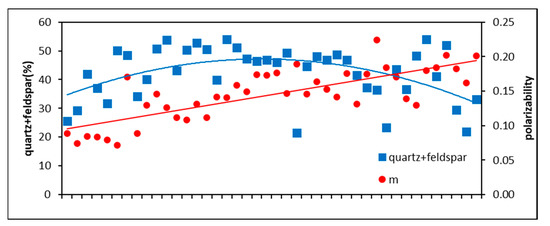

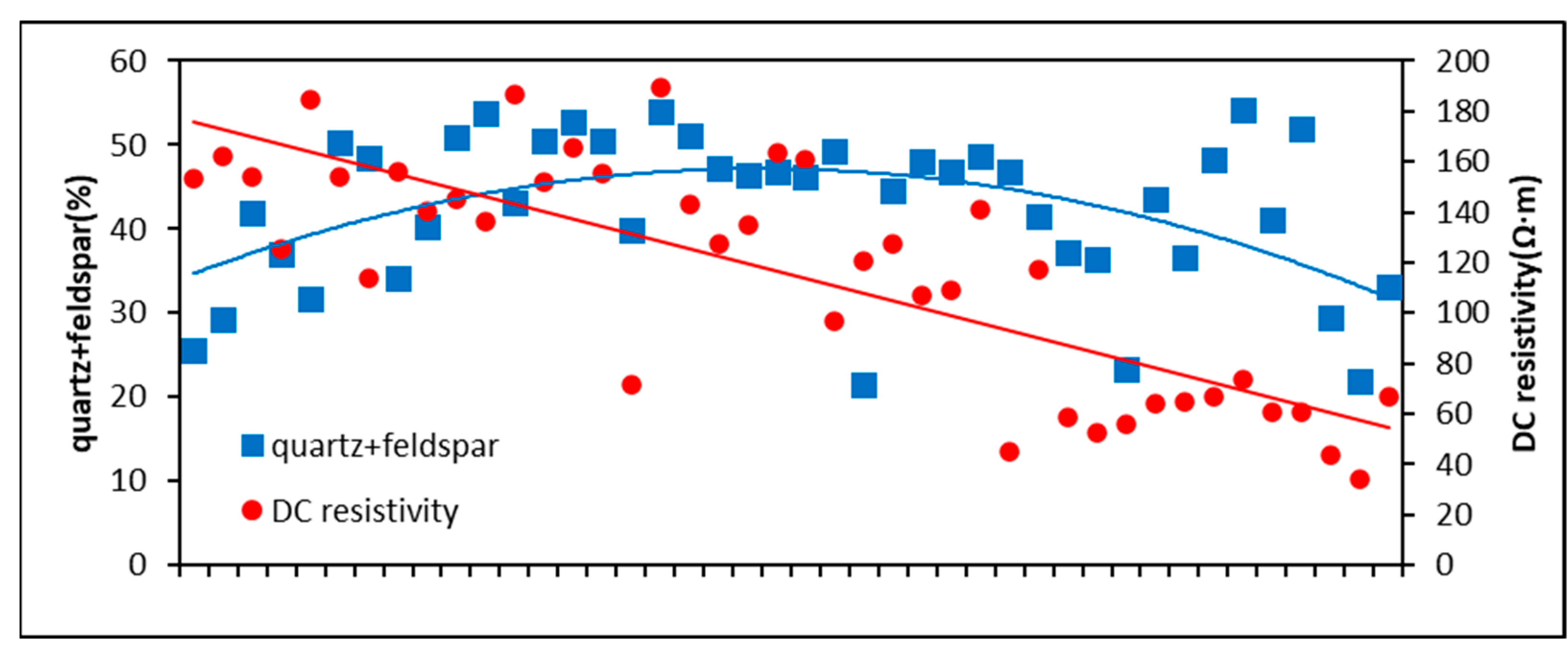

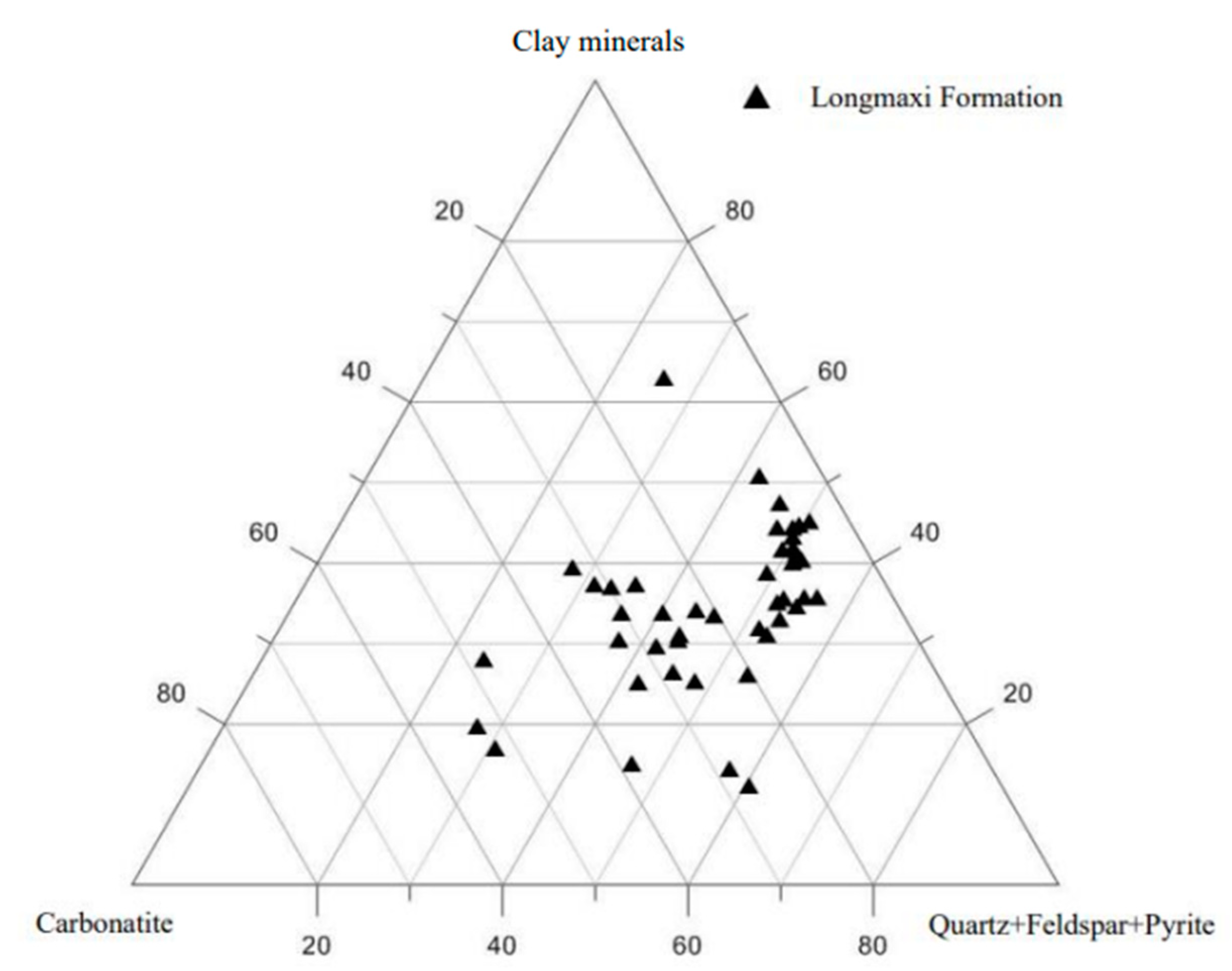

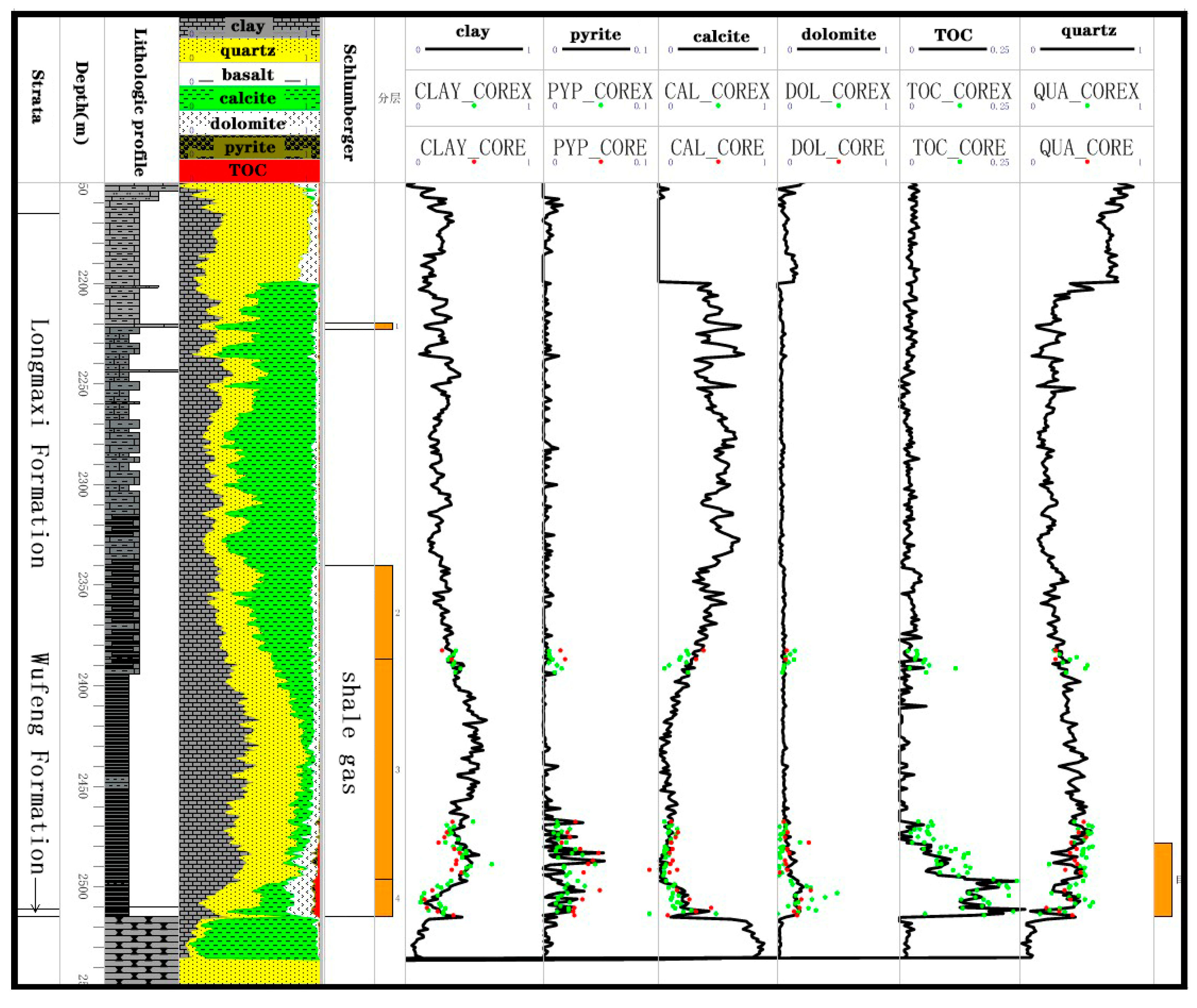

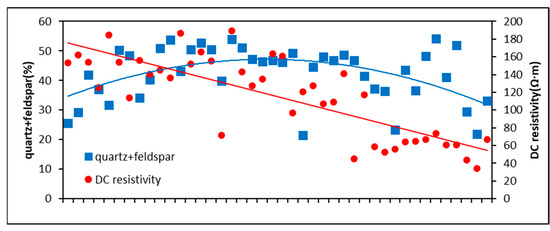

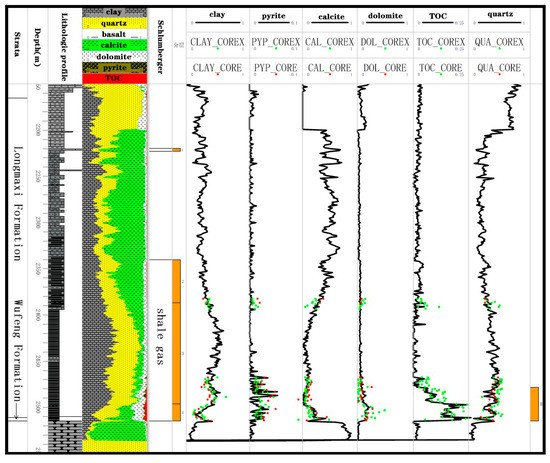

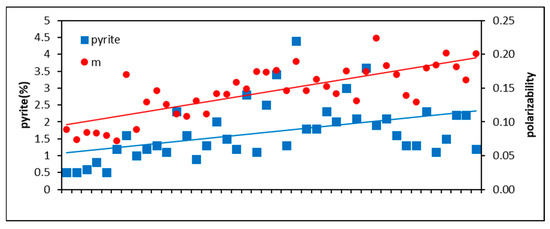

- Through the analysis of mineral composition and IP parameters, with the increase of well depth, the content of brittle minerals increases at first and then decreases, and the content of pyrite and TOC increases on the whole, while the polarizability is increasing and the resistivity is decreasing. Combined with lithologic histogram, it is found that the polarizability is higher and the resistivity is lower closer to the gas-producing horizon, showing the characteristics of low resistance and high polarization.

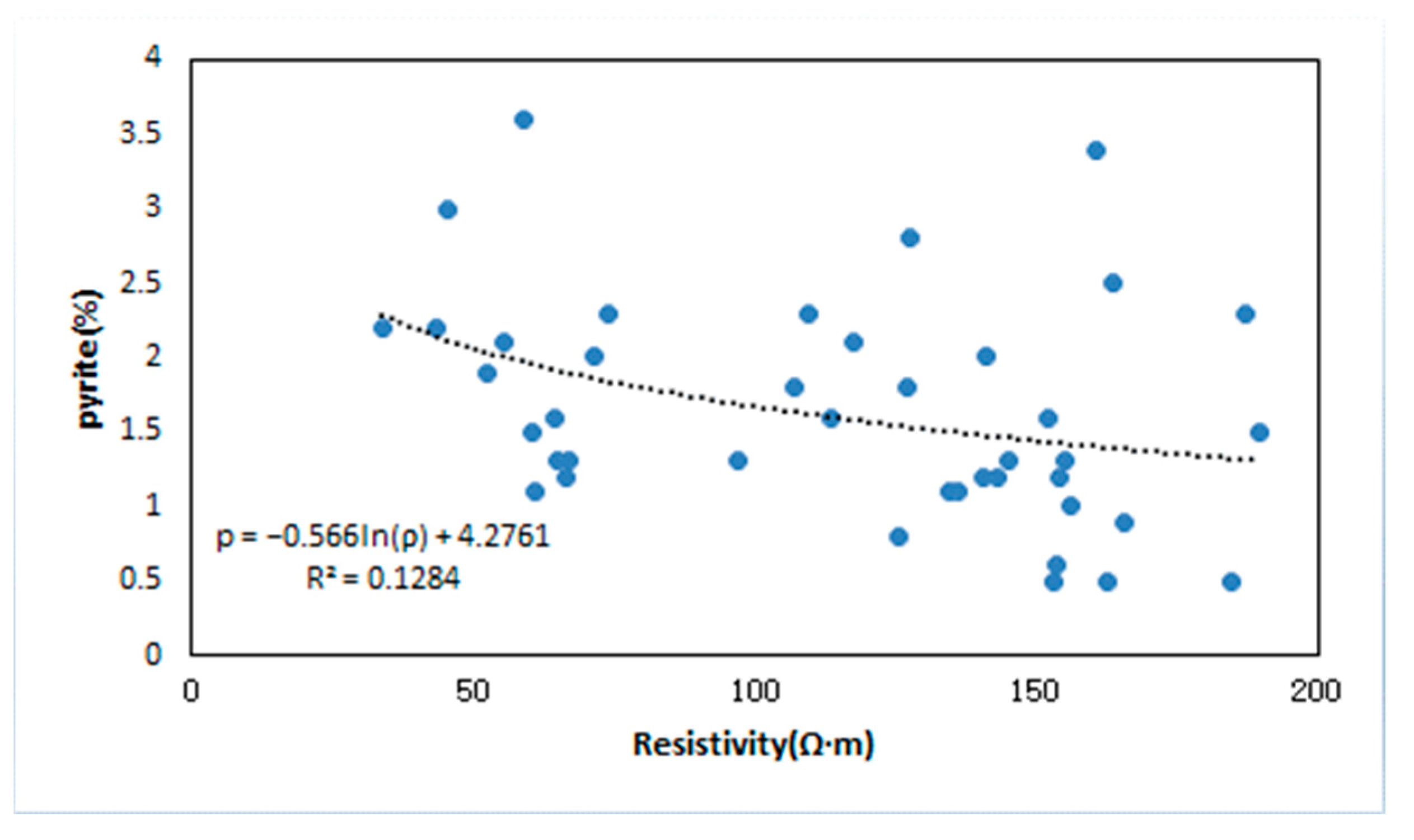

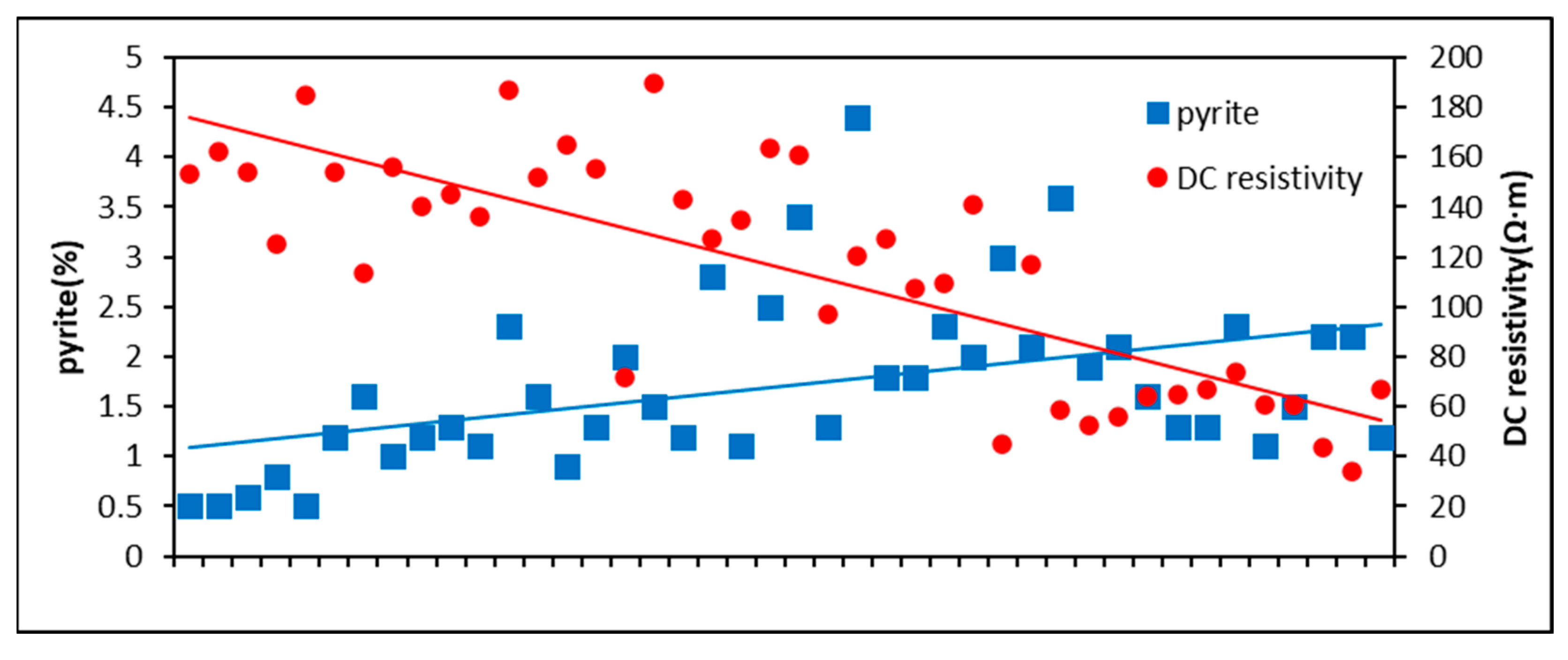

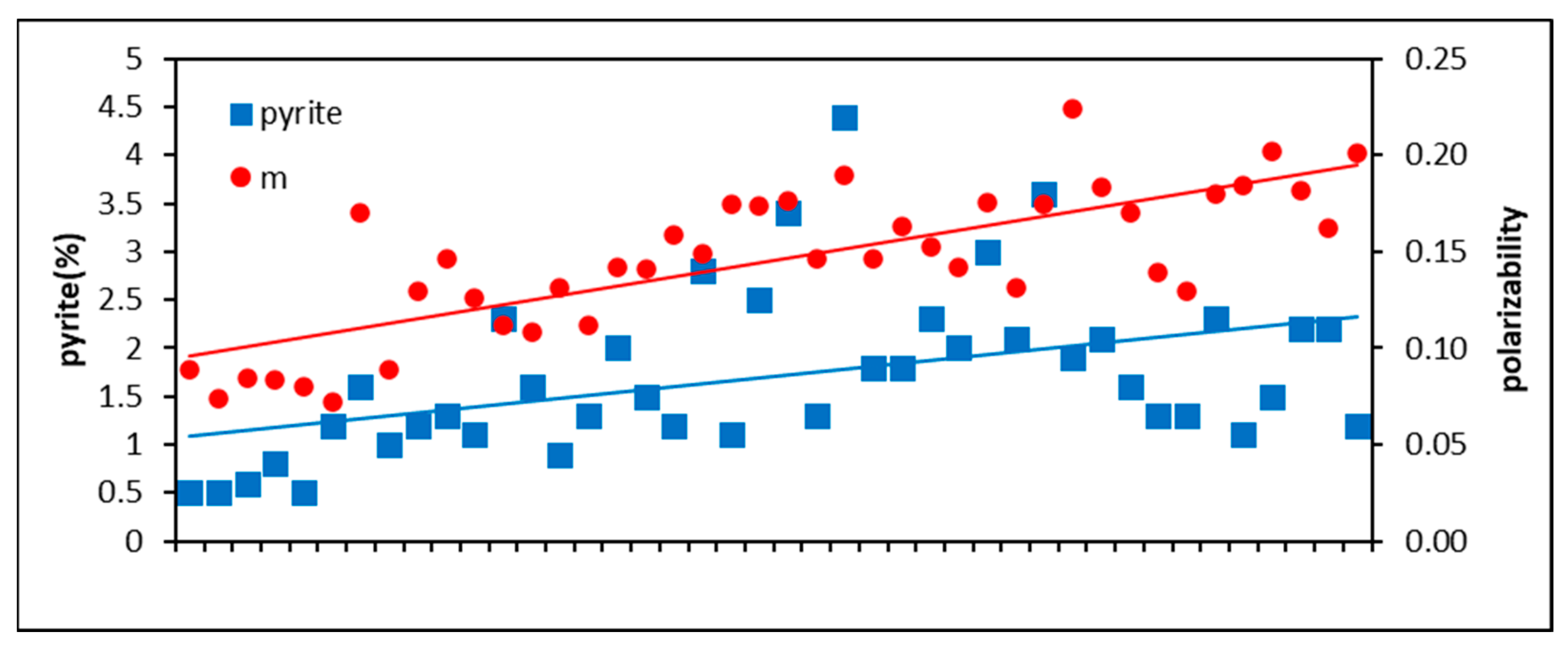

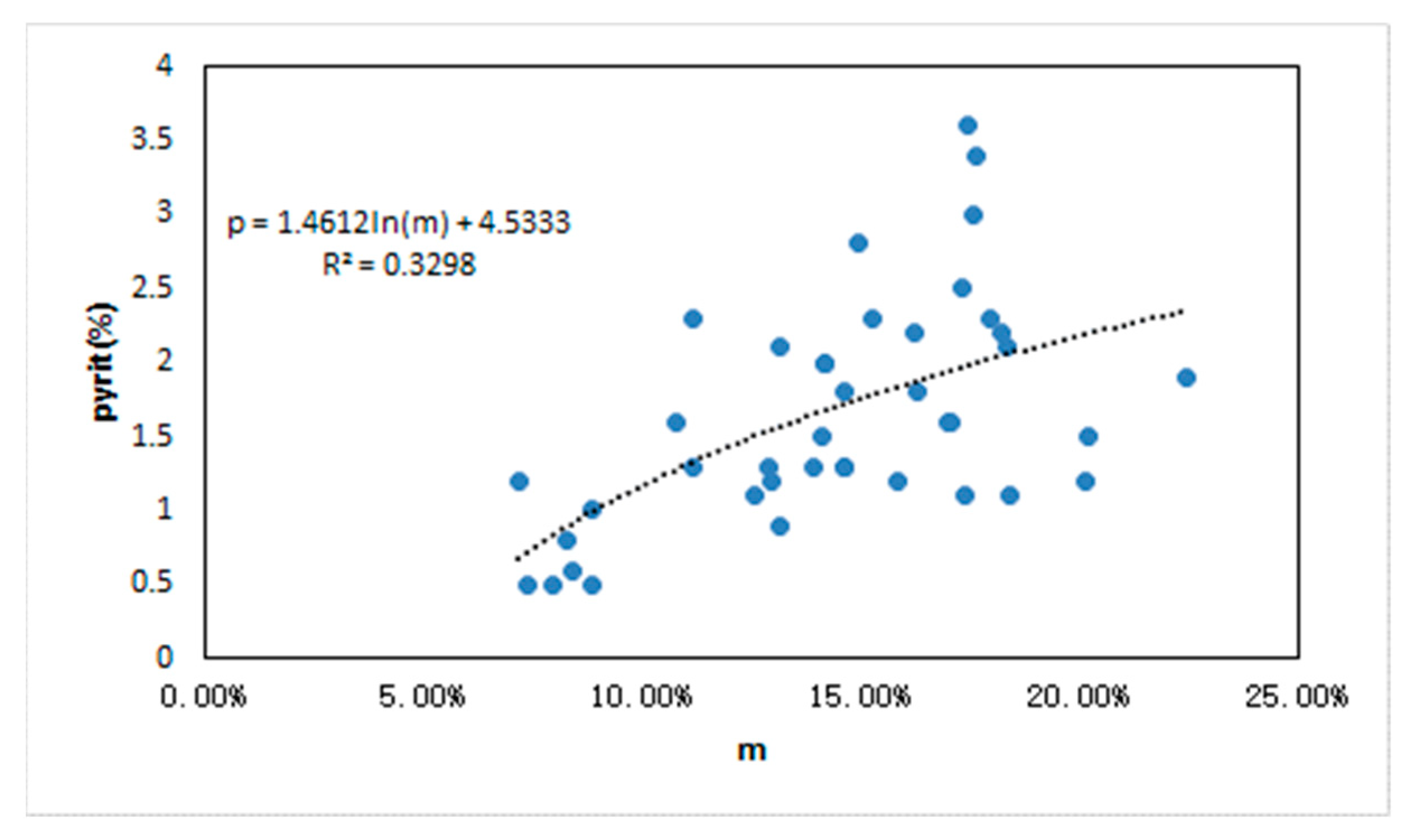

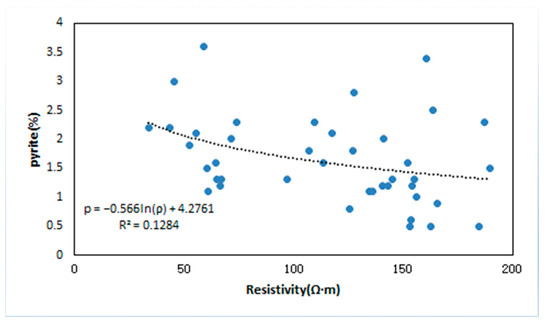

- The relationship model was initially established by the cross-plot of pyrite content, polarizability and resistivity. The rock sample polarizability gradually increased with the increase of pyrite content, and the resistivity decreased with the increase of pyrite content. The correlation between pyrite and IP parameters is indicative for the preliminary exploration and development of shale gas reservoirs.

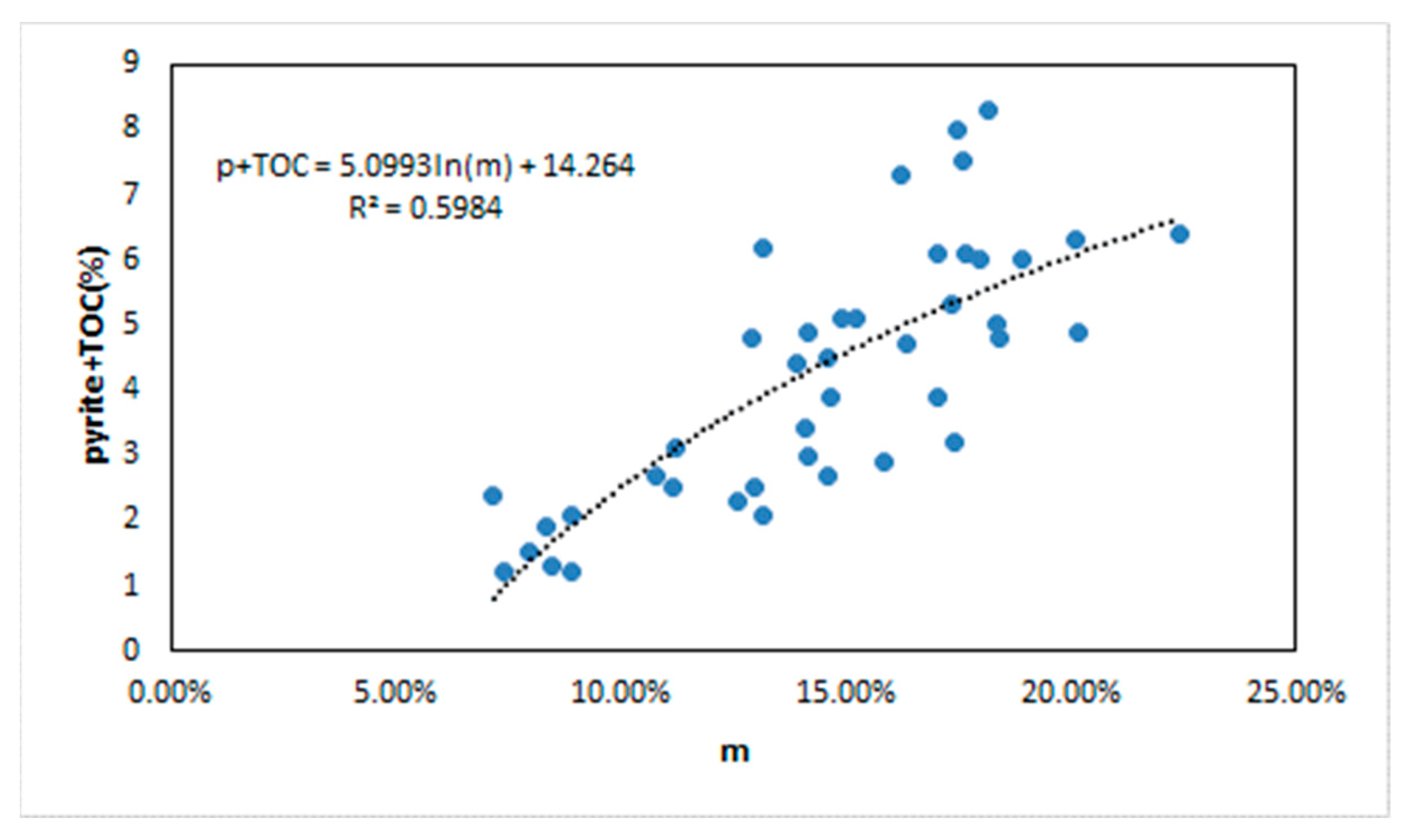

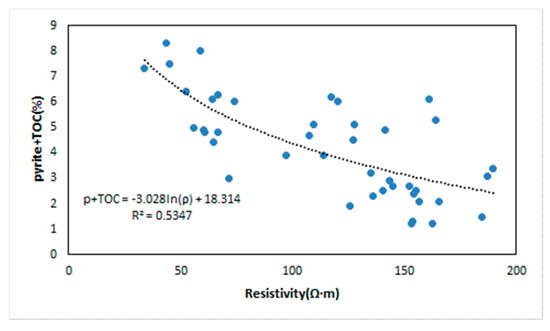

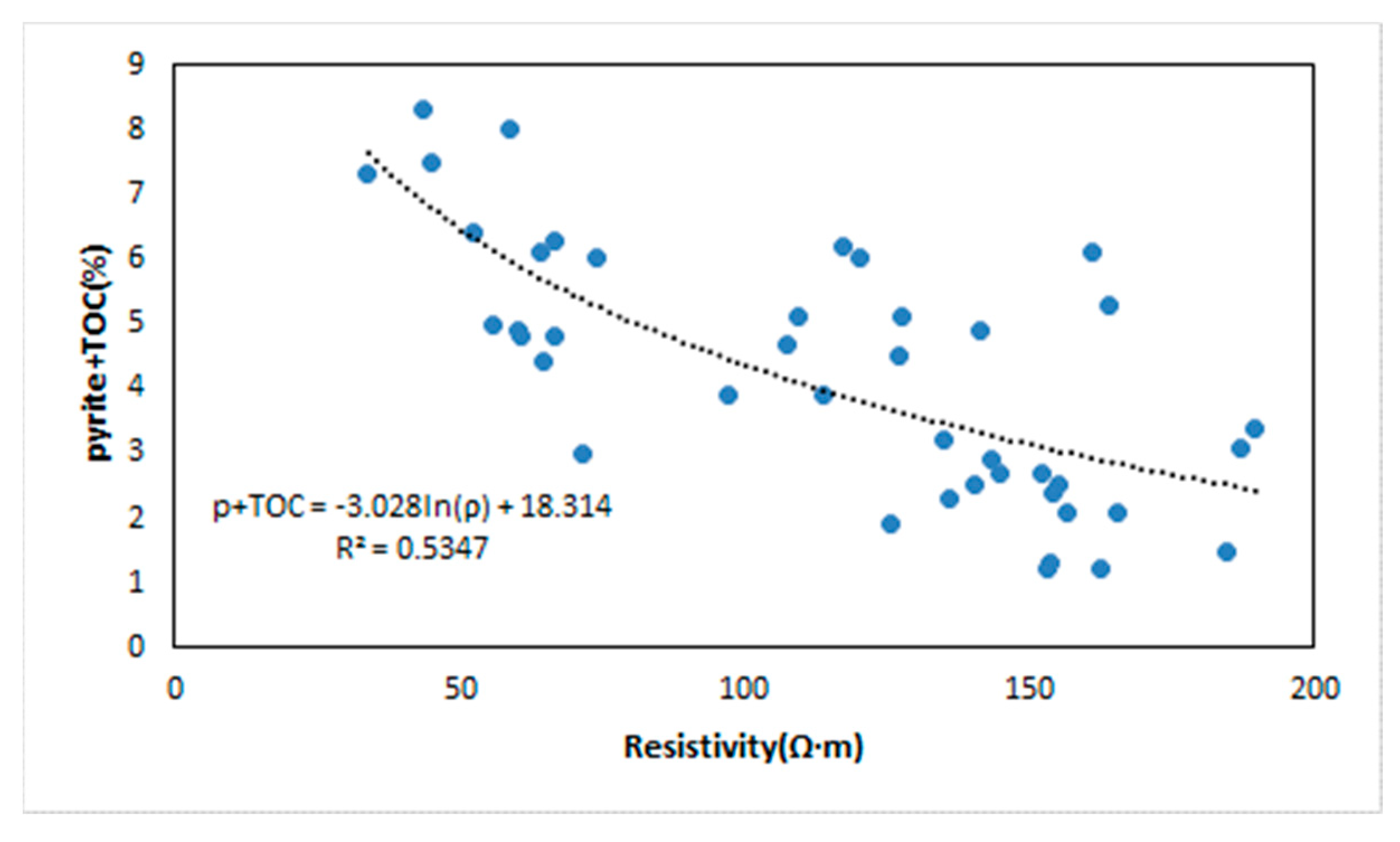

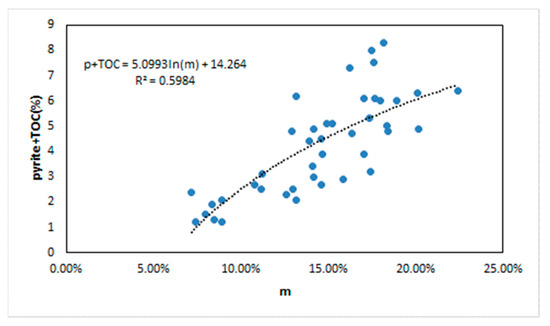

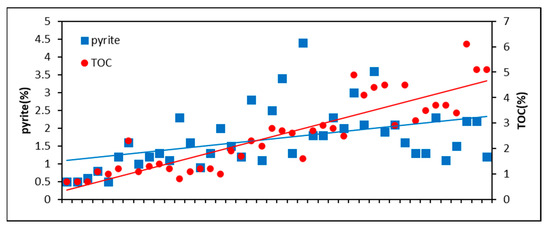

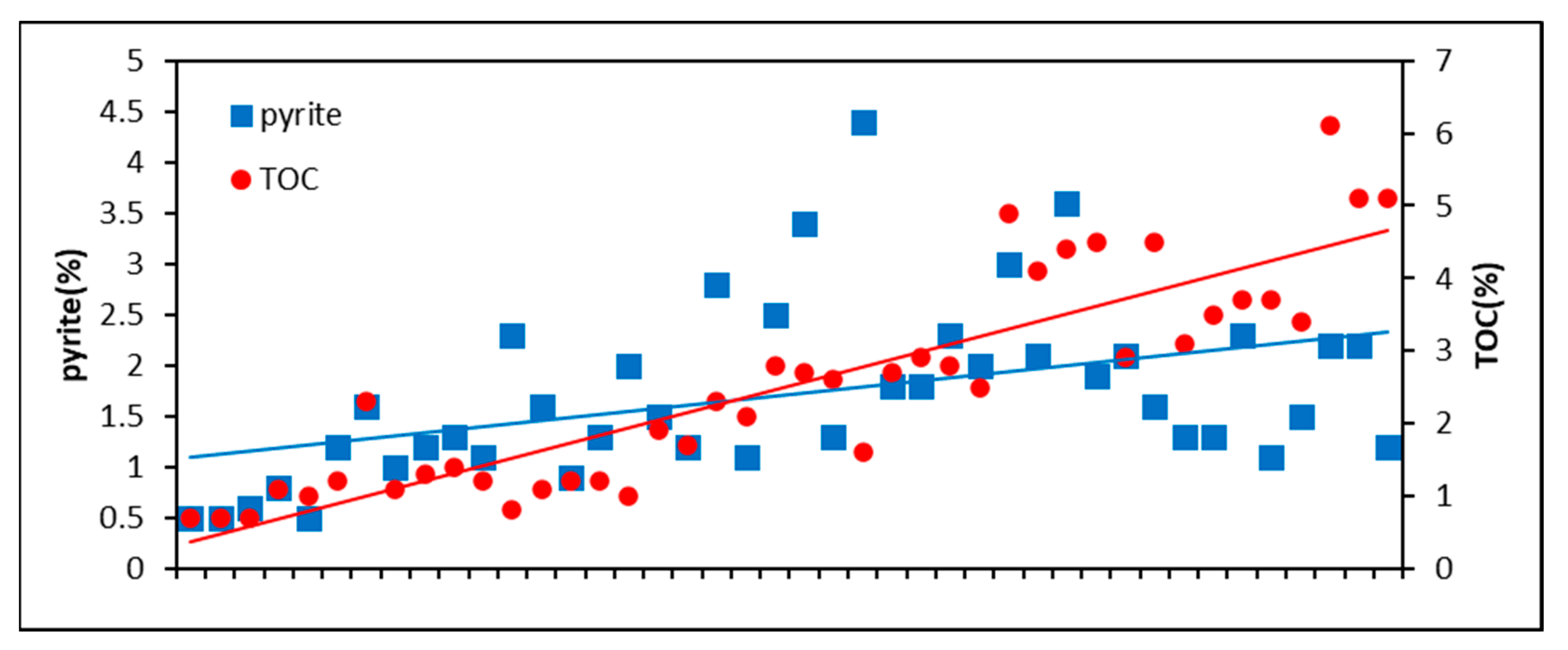

- The content of pyrite and TOC are important parameters for shale gas reservoir evaluation. By analyzing the relationship between the total content of pyrite and TOC and IP parameters, it was found that there is a strong correlation between them, and the sensitivity of polarizability is better than that of resistivity. Polarizability is a parameter found in this study that is extremely sensitive to shale gas reservoir information, which can provide reference for shale gas reservoir electrical exploration, subsequent shale gas development and reservoir reconstruction. However, the research content needs to be further deepened, and the relationship between mineral components and IP parameters needs more experimental data to supplement and improve.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- He, Y.; Zhang, L.; Gan, W.; Wang, W.; Gu, D. Exploration and development of deep shale under the background of carbon neutralization. Energy Res. Util. 2022, 2, 52–55. [Google Scholar]
- Wang, Z.; Luo, Y.; Li, P.; Cai, X. Problem Orientated Analysis on China’s Shale Gas Policy. Energies 2018, 11, 2962. [Google Scholar] [CrossRef]
- Ross, D.J.K.; Bustin, R.M. Characterizing the shale gas resource potential of Devonian-Mississippian strata in Western Canada sedimentary basin; application of an integrated formation evaluation. AAPG Bull. 2008, 92, 87–125. [Google Scholar] [CrossRef]
- Hill, D.G.; Nelson, C.R. Reservoir properties of the Upper Cretaceous Lewis Shale, a new natural gas play in San Juan Basin. AAPG Bull. 2000, 84, 1240. [Google Scholar]
- Warlick, D. Gas shale and CBM development inn North America. Oil Gas Financ. J. 2006, 3, 1–5. [Google Scholar]
- Chang, C.; Zhang, J.; Hu, H.; Zhang, D.; Zhao, Y. Molecular Simulation of Adsorption in Deep Marine Shale Gas Reservoirs. Energies 2022, 15, 944. [Google Scholar] [CrossRef]
- Fu, Q.; Liu, X.; Yao, J.; Wang, Y.; Wu, N.; Xu, Q.; Wang, J.; Liang, Y. Characteristics of Source Rocks and Formation of Reservoir Bitumen in Yinchuan Graben, Ordos Basin, China. Energies 2022, 15, 4809. [Google Scholar] [CrossRef]
- Li, W.; Wang, X.; Wang, M.; Yang, E. Organic Petrological Characteristics of Graptolite and Its Contribution to Buried Organic Carbon of Longmaxi Formation Shales, Middle Yangtze Region. Energies 2022, 15, 2520. [Google Scholar] [CrossRef]
- Shi, Z.; Zhou, T.; Wang, H.; Sun, S. Depositional Structures and Their Reservoir Characteristics in the Wufeng–Longmaxi Shale in Southern Sichuan Basin, China. Energies 2022, 15, 1618. [Google Scholar] [CrossRef]
- Li, Y.; Zhou, D.H.; Wang, W.H.; Jiang, T.X.; Xue, Z.J. Development of unconventional gas and technologies adopted in China. Energy Geosci. 2020, 11, 55–68. [Google Scholar] [CrossRef]
- Fan, C.; Li, H.; Qin, Q.; He, S.; Zhong, C. Characterization of shale gas enrichment in the Wufeng-Longmaxi Formation in the Sichuan Basin and its evaluation of geological construction transformation evolution sequence. Nat. Gas Geosci. 2017, 28, 724–733. [Google Scholar]
- Zheng, H.; Zhang, J.; Qi, Y. Geology and geomechanics of hydraulic fracturing in the Marcellus shale gas play and their potential applications to the Fulling shale gas development. Energy Geosci. 2020, 1, 36–46. [Google Scholar] [CrossRef]
- Ge, X.; Guo, D.; Ma, Y.; Wang, G.; Li, M.; Yu, X.; Wang, P. Prediction of shale reservoir sweet spots of the Upper Ordovician Wufeng-Longmaxi Formations in Lintanchang area, southeastern margin of Sichuan Basin. Oil Gas Geol. 2022, 43, 633–647. [Google Scholar]
- Gao, H.; Cheng, P.; Wu, W.; Liu, S.; Luo, C.; Li, T.; Zhong, K.; Tian, H. Pore Water and Its Influences on the Nanopore Structures of Deep Longmaxi Shales in the Luzhou Block of the Southern Sichuan Basin, China. Energies 2022, 15, 4053. [Google Scholar] [CrossRef]
- Zhao, F.; Dong, Z.; Wang, C.; Zhang, W.; Yu, R. Pore Connectivity Characteristics and Controlling Factors for Black Shales in the Wufeng-Longmaxi Formation, Southeastern Sichuan Basin, China. Energies 2022, 15, 2909. [Google Scholar] [CrossRef]
- Guo, X.; Teng, G.; Wei, X.; Yu, L.; Lu, X.; Sun, L.; Wei, F. Occurrence mechanism and exploration potential of deep marine shale gas in Sichuan Basin. ACTA Pet. Sin. 2022, 43, 453–468. [Google Scholar]
- Jiang, B.; Deng, E.; Yang, T.; Han, M.; Ma, Z. Geological conditions and controls of gas content of Carboniferous shale gas reservoirs in western Guizhou. Pet. Geol. Exp. 2022, 6, 24. [Google Scholar]
- Davis, H.R.; Byers, C.W.; Dean, W.E. Pyrite formation in the Lower Cretaceous Moway Shale: Effect of organic matter type and reactive iron content. Am. J. Sci. 1988, 288, 873–890. [Google Scholar] [CrossRef]
- Szabó, N.P.; Valadez-Vergara, R.; Tapdigli, S.; Ugochukwu, A.; Szabó, I.; Dobróka, M. Factor Analysis of Well Logs for Total Organic Carbon Estimation in Unconventional Reservoirs. Energies 2021, 14, 5978. [Google Scholar] [CrossRef]
- Lu, Z.; Tang, X.; Zhang, W.; Wang, Y.; Zhang, J.; Meng, Q.; Shao, D. Existence and geological significance of pyrite in the organic-rich shale of Lower Cambrian Niutitang Formation in Upper Yangtze region. Pet. Geol. Exp. 2021, 43, 599–610. [Google Scholar]
- Revil, A.; Florsch, N.; Mao, D. Induced polarization response of porous media with metallic particles—Part 1: A theory for disseminated semiconductors. Geophysics 2015, 80, D525–D538. [Google Scholar] [CrossRef]
- Chen, S.; Zhu, Y.; Wang, H.; Liui, H.; Wei, W.; Fang, J. Characteristics and significance of mineral compositions of Lower Silurian Longmaxi Formation shale gas reservoir in the southern margin of Sichuan Basin. ACTA Pet. Sin. 2011, 32, 775–782. [Google Scholar]
- Haq, I.U.; Padmanabhan, E.; Iqbal, O. Depositional Heterogeneities and Brittleness of Mudstone Lithofacies in the Marcellus Subgroup, Appalachian Basin, New York, U.S.A. Energies 2021, 14, 6620. [Google Scholar] [CrossRef]
- Yan, L.; Xiang, K.; Li, P.; Liu, X.; Wang, Z. Study on the induced polarization model in the exploration for shale gas in southern China. In Proceedings of the SEG International Exposition and 84th Annual Meeting, Denver, CO, USA, 26–31 October 2014. [Google Scholar]
- Zhang, C.; Liu, X.; Zhou, H. A step forward study for the exploration of organic rich shale by using time frequency electromagnetic method(TFEM). Geophys. Prospect. Pet. 2015, 54, 627–634. [Google Scholar]
- Xiang, K.; Yan, L.; Hu, H. Relationship analysis between brittle index and electrical properties of marine shale in South China. Geophys. Prospect. Pet. 2016, 55, 894–903. [Google Scholar]
- Zhao, W.; Li, J.; Yang, T.; Wang, S.; Huang, J. Geological difference and its significance of marine shale gases in South China. Pet. Explor. Dev. 2016, 43, 499–510. [Google Scholar] [CrossRef]
- Wu, J.; Zhao, S.; Zhang, Y. Material composition and pore contribution of deep shale gas reservoir and its significance for exploration and development. Nat. Gas Geosci. 2022, 33, 642–653. [Google Scholar]
- Xiang, K.; Hu, W.; Yan, L. Dispersion characteristics of shale complex resistivity in Sichuan-Guizhou area. Oil Geophys. Prospect. 2014, 49, 1013–1019. [Google Scholar]
- Zhao, W. Reservoir of Electricity of Silurian longmaxi Shale in South Sichuan Area. Ph.D. Thesis, Chengdu University of Technology, Chengdu, China, 2015. [Google Scholar]
Number | Depth | ρ0 (Ω·m) | m1 | τ1 (s) | c1 |
---|---|---|---|---|---|
1 | 2382.43–2382.72 | 153.06 | 0.09 | 2.02 | 0.13 |
2 | 2384.13–2384.43 | 162.42 | 0.07 | 0.96 | 0.15 |
3 | 2385.46–2385.73 | 153.72 | 0.08 | 0.96 | 0.16 |
4 | 2386.75–2387.05 | 125.41 | 0.08 | 0.96 | 0.14 |
5 | 2388.16–2388.43 | 184.75 | 0.08 | 0.98 | 0.15 |
6 | 2389.48–2389.78 | 154.23 | 0.07 | 0.99 | 0.13 |
7 | 2391.22–2391.49 | 113.71 | 0.17 | 0.92 | 0.18 |
8 | 2393.19–2393.47 | 156.30 | 0.09 | 0.93 | 0.15 |
9 | 2467.47–2467.77 | 140.45 | 0.13 | 0.70 | 0.20 |
10 | 2469.01–2469.30 | 144.82 | 0.15 | 0.59 | 0.21 |
11 | 2469.77–2470.07 | 136.01 | 0.13 | 0.65 | 0.21 |
12 | 2471.00–2471.28 | 186.98 | 0.11 | 0.57 | 0.24 |
13 | 2472.19–2472.45 | 151.87 | 0.11 | 0.81 | 0.20 |
14 | 2472.93–2473.22 | 165.32 | 0.13 | 0.47 | 0.24 |
15 | 2473.72–2473.97 | 155.21 | 0.11 | 0.80 | 0.21 |
17 | 2477.61–2477.91 | 71.45 | 0.14 | 0.89 | 0.18 |
18 | 2479.66–2479.93 | 189.55 | 0.14 | 0.81 | 0.19 |
19 | 2480.34–2480.64 | 143.16 | 0.16 | 0.70 | 0.19 |
20 | 2481.09–2481.39 | 127.45 | 0.15 | 0.69 | 0.20 |
21 | 2481.92–2482.22 | 134.70 | 0.17 | 0.82 | 0.17 |
22 | 2482.96–2483.23 | 163.70 | 0.17 | 0.96 | 0.19 |
23 | 2483.82–2484.10 | 160.76 | 0.18 | 0.75 | 0.17 |
24 | 2485.19–2485.48 | 96.97 | 0.15 | 0.93 | 0.23 |
25 | 2488.52–2488.80 | 120.32 | 0.19 | 3.89 | 0.50 |
26 | 2489.48–2489.77 | 127.14 | 0.15 | 0.81 | 0.20 |
27 | 2490.28–2490.55 | 107.18 | 0.16 | 0.98 | 0.22 |
28 | 2492.71–2492.99 | 109.32 | 0.15 | 0.95 | 0.20 |
29 | 2494.15–2494.45 | 141.09 | 0.14 | 0.75 | 0.23 |
30 | 2496.82–2497.08 | 45.24 | 0.18 | 8.84 | 0.88 |
31 | 2498.44–2498.75 | 117.28 | 0.13 | 0.94 | 0.17 |
32 | 2499.44–2499.71 | 58.96 | 0.17 | 8.69 | 0.84 |
33 | 2500.30–2500.57 | 52.24 | 0.22 | 11.97 | 0.95 |
34 | 2502.86–2503.13 | 55.65 | 0.18 | 11.10 | 0.96 |
35 | 2504.09–2504.32 | 64.31 | 0.17 | 2.36 | 0.32 |
36 | 2504.90–2505.17 | 64.89 | 0.14 | 8.41 | 0.87 |
37 | 2505.89–2506.17 | 66.85 | 0.13 | 8.20 | 0.83 |
38 | 2507.40–2507.67 | 73.98 | 0.18 | 2.26 | 0.27 |
39 | 2508.09–2508.37 | 60.78 | 0.18 | 8.62 | 0.84 |
40 | 2509.22–2509.50 | 60.45 | 0.20 | 3.25 | 0.45 |
41 | 2510.38–2510.65 | 43.52 | 0.18 | 7.19 | 0.81 |
42 | 2511.42–2511.69 | 33.86 | 0.16 | 5.67 | 0.73 |
43 | 2512.15–2512.42 | 66.67 | 0.20 | 5.30 | 0.67 |
44 | 2513.20–2513.45 | 46.12 | 0.15 | 7.50 | 0.80 |
