Optimal Multi-Objective Placement and Sizing of Distributed Generation in Distribution System: A Comprehensive Review

by
Mahesh Kumar
1,*,
Amir Mahmood Soomro
1,
Waqar Uddin
2,* and
Laveet Kumar
3
1
Department of Electrical Engineering, Mehran University of Engineering and Technology, Jamshoro 76062, Sindh, Pakistan
2
Electrical Engineering Department, National University of Technology, Islamabad 44000, Pakistan
3
Department of Mechanical Engineering, Mehran University of Engineering and Technology, Jamshoro 76062, Sindh, Pakistan
*
Authors to whom correspondence should be addressed.
Energies 2022, 15(21), 7850; https://doi.org/10.3390/en15217850
Submission received: 26 September 2022 / Revised: 15 October 2022 / Accepted: 20 October 2022 / Published: 23 October 2022
Browse Figures
Versions Notes

Abstract

:
For over a decade, distributed generations (DGs) have sufficiently convinced the researchers that they are the economic and environment-friendly solution that can be integrated with the centralized generations. The optimal planning of distributed generations requires the appropriate location and sizing and their corresponding control with various power network types to obtain the best of the technical, economical, commercial, and regulatory objectives. Most of these objectives are conflicting in nature and require multi-objective solutions. Therefore, this paper brings a comprehensive literature review and a critical analysis of the state of the art of the optimal multi-objective planning of DG installation in the power network with different objective functions and their constraints. The paper considers the adoption of optimization techniques for distributed generation planning in radial distribution systems from different power system performance viewpoints; it considers the use of different DG types, distribution models, DG variables, and mathematical formulations; and it considers the participation of different countries in the stated DG placement and sizing problem. Moreover, the summary of the literature review and critical analysis of this article helps the researchers and engineers to explore the research gap and to find the future recommendations for the robust optimal planning of the DGs working with various objectives and algorithms. The paper considers the adoption of uncertainties on the load and generation side, the introduction of DGs with energy storage backups, and the testing of DG placement and sizing on large and complex distribution networks.

1. Introduction

The electricity market competitiveness and increased load demand are the core challenges for distribution companies. In addition, enhancing the transmission and distribution system capacity may not be an economical solution. These challenges have motivated distribution companies to cope with power demand with the proper planning and designing of the network [1,2]. Distributed generation offers the solution to the problem of meeting this demand and is also a feasible and attractive choice even for densely populated and far-flung rural areas. DGs can be connected locally for an isolated consumer or by integration with the distribution network. DG provides benefits for the consumers and utilities where central generation is impossible, and there are deficiencies in the transmission network. Various research has confirmed that the DG penetration of 10–15% of the maximum load can be installed easily in the existing system without major structural changes [3]. It also offers benefits over the traditional sources of electric power for domestic, commercial, and industrial consumers that utilities explore for the best choice by which to meet the electric power supply challenges [4,5]. Moreover, DG investments can potentially establish a competitive market.
Distributed generation is referred to as on-site generation, embedded generation, dispersed generation, and decentralized generation. It is generally defined as the electric power source (renewable and non-renewable) connected to either the distribution network or the consumer site. This technology offers various benefits to electric utility companies with regard to the economical, technical, and environmental factors. However, traditionally, the distribution systems have been designed to operate with a unidirectional power flow [6,7,8], whereas integrating DG allows a bidirectional power flow with various challenging operating conditions, such as increased terminal voltage level, fault current, harmonic distortion and stability, and reverse power flow [9,10]. Therefore, the planning of DG installation for delivering real and reactive power to the system is still an open-ended challenge for the research community. The DG planning requires appropriate location, sizing, and the corresponding control with various types in the power networks. Choosing a proper strategy for DG prompted the urge to seek for mathematical optimization techniques that can assist in the decision-making process of designing and planning [11,12].
Despite the many advantages offered by DGs, the random placement and sizing of DGs cause many operational complexities in the distribution system. The distribution system was designed to carry a unidirectional current [13], whereas the installation of DG creates a bidirectional power flow. This leads to technical problems, such as variations in power losses, issues of voltage fluctuations (in both sending and receiving power), and disturbances in power stability and reliability. The bidirectional power flow may also overstep the protection measures, and the introduction of power invertor-based DGs produces more harmonics and transients in the system. Furthermore, renewable generation, such as wind turbines and solar PVs, depends on their inputs. They are stochastic in nature and depend on wind velocity and solar irradiance; it is expected this may overrule the reliability and stability of the system. It must be noted that the installation of DG in distribution systems is not a simple plug-and-play move. It requires a robust model which helps the distribution network operator to decide the location of installation, the type, and size of the DGs. Therefore, interest has developed in employing optimization methods that are applied to minimize the challenges and maximize the benefits while dealing with multiple contradictory objectives.
During the last decade, many countries around the world have focused on the challenges of integrating DG in low-voltage networks. This could have changed the operational and control behavior of the power system. Various research reviews have been carried out and published on the optimal configuration of distributed generation. For instance, G. Pepermans et al. [14] have discussed the challenges and benefits of DGs. Tan et al. [15] carried out a review of the multi-objective planning of DG resources along with the advanced renewable energy technologies. The planning of DG technologies, objectives, and techniques with a grid connection has been studied by Paliwal et al. [16]. The techno-economic system reliability with a low investment in standalone photovoltaic/wind hybrid system optimal sizing has been reviewed in [17]. The optimum size of the PV, wind, and battery backup with power losses and energy cost considerations was the challenge. Khatod et al. [18] reviewed the DG placement and sizing problem from the perspective of the methods used for the optimal integration of distributed generation in the radial distribution system. Pesaran et al. [19] conducted a comprehensive study of different objective functions, constraints, and algorithms for optimal DG allocation. Singh et al. [20] studied DG planning performance in terms of real and reactive power loss, stability, load ability and oscillations, power transfer capacity, voltage profile, and short circuit capacity with environmental friendliness.
Despite the various review articles focusing on DG planning in terms of its sizing and placement, the multi-objective optimization techniques, and the technical challenges in both standalone and grid-integrated DG installation, the challenges remain for optimal power system performances and energy savings. It is observed that with regard to the DG placement and sizing in radial distribution networks with multi-objective optimization techniques, a review of the existing body of knowledge is needed. As the research trend for radial networks is in the replication of the real networks, multi-objective optimization problems are the dire requisites for dealing with the various unpredictable factors in DG planning. Hence, a wider review is required to fill this gap in the body of knowledge. Therefore, the objective of this paper is to comprehensively review the optimization approaches utilized for distributed generation planning in radial distribution power networks from different power system performance viewpoints. It covers the technical, commercial, and regulatory objectives, the associated methods, and the system constraints in order to give complete knowledge of the multi-objective optimal placement and sizing of DGs in the existing distribution systems.
This paper reviewed the state-of-the-art, optimal, multi-objective placement and sizing problems of DGs in distribution systems. The key terminologies relevant to optimization have been searched as ‘distributed generation’, ‘optimal placement and sizing of DG’, ‘optimal capacity and location of DG’, ‘optimal multi-objective problem in DG’, and ‘multi-objective placement and sizing of DG in distribution system’. The scope of this paper limits the optimal multi-objective DG placement and sizing problems for the radial distribution network. The keywords for this literature review were searched in well-known search engines, which include IEEE Explore Digital Library, Web of Knowledge, Google Scholar, and MDPI. The timeline for the search was limited to almost ten years, and the journals and conference papers were encapsulated in the review. The comprehensive summaries of the selected articles are presented in Table 1. The literature review evaluates the mathematical model, simulated for techno-economic and environmental objectives, constraints, and validation purposes. The review also demonstrates the models and the research used in the study to integrate intermittent-based generation with its varying load demands. The entire literature review is presented in a chronologically descending order to encapsulate the recent advancements in the cited issue.

2. Literature Analysis

The literature in Table 1 was organized and presented in chronologically descending order. The optimal placement and sizing of the DGs is influenced by many parameters, such as the DG sources, the number of DG units, the optimization algorithm, and the type of load used. The integration of DG changes the operational and control behaviors of the distribution system. Moreover, the objective functions are classified on an operational, commercial, and regulatory basis. The current and future trends of the presented research summary are portrayed in a graphical layout shown in Figure 1i–ix.

2.1. Objective Function

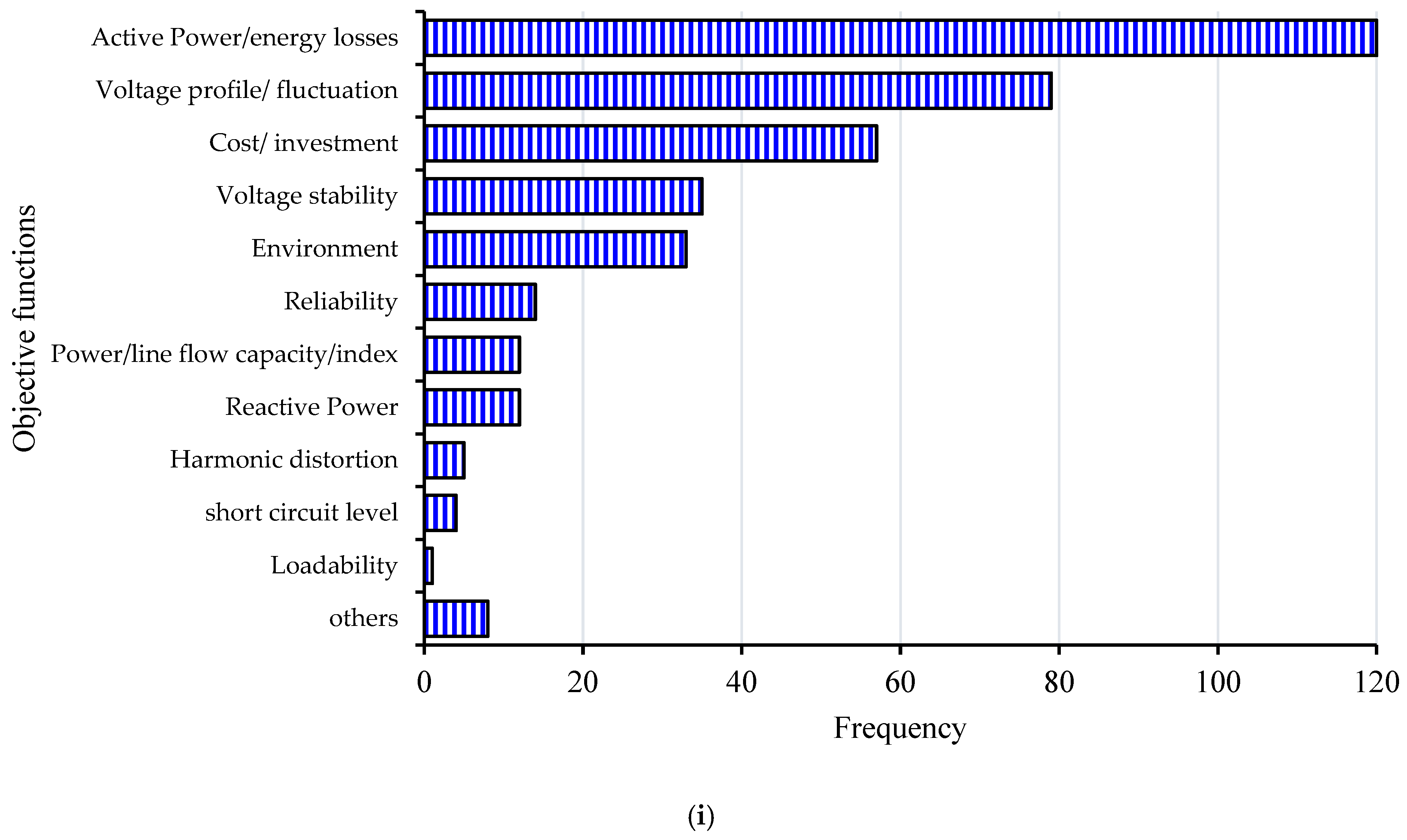

Various objective functions have been considered using multi-objective distributed generation placement and sizing problems. Figure 1i depicts the percentage of objective functions that have been used for the optimal multi-objective DG placement and sizing problems. The active power loss reduction and the energy loss reduction are 32%, the voltage profile is 21%, the cost and investment is 15%, the voltage stability is 9%, the environment is 9%, the reliability is 4%, and the power flow capacity and the reactive power loss are 3%. Moreover, a few authors have also considered the decrease in reactive power losses, harmonic distortion, and short circuit levels as an objective function for their study.

2.2. Optimization Algorithm

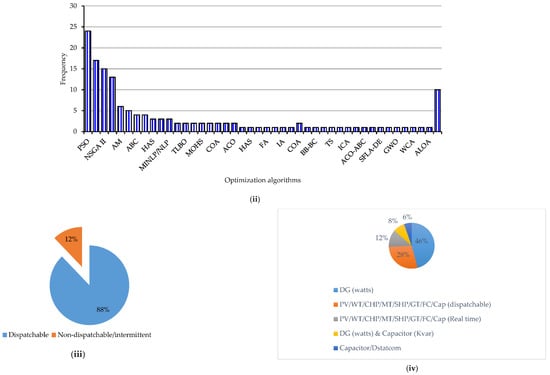

To attain the trade-off among the various contradictory objective functions of DG planning, optimization algorithms have been utilized and are depicted in Figure 1ii, with PSO (16.22%) optimization being the most used algorithm, followed by MOPSO (11.49%), NSGA-II (10.14%), and GA (8.78%). It has also been observed that over the last decade meta-heuristic optimization algorithms have become popular for resolving the DG planning challenges.

2.3. Distributed Generation (DG) Type

The DG types have been categorized into those of dispatchable and those of non-dispatchable energy sources. The dispatchable DG refers to the output power at the DG end being available whenever it is required by the distribution network operators. Eighty-eight percent of the literature considers dispatchable DGs in the studies, as shown in Figure 1iii, whereas only 12% have studied the non-dispatchable DGs; these studies refer to a particular type and size of DGs to be integrated into the distribution system.
Mostly, the studies refer to DG watts (46%) in their considerations, as shown in Figure 1iv. Multiple dispatchable DGs, which consider PV, wind, CHP, MT, SHP, GT, FC, and capacitors, have been studied in 28% of the literature, whereas real-time multiple DGs have been studied in only 12%. In addition, the trend towards compensating reactive power along with capacitors and D-STATCOM has been considered in 8% and 6%, respectively.

2.4. Distribution System Model

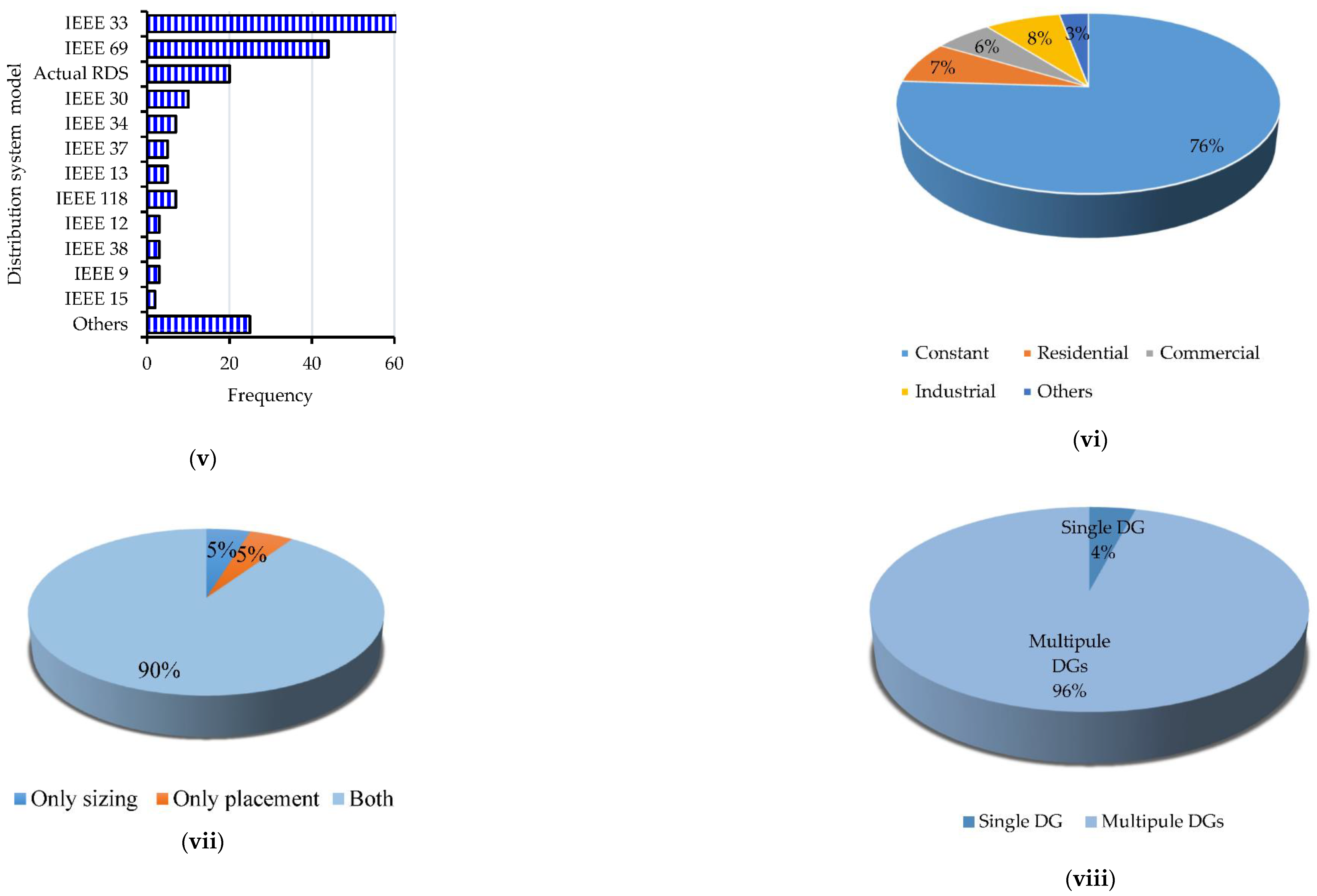

The distribution systems are mostly radially configured in nature; hence, the literature considered for this study is on the radial distribution system. Most of the literature has been on standard IEEE radial distribution systems, such as IEEE 9, 12, 14, 15, 33, 69, 113, etc. In this literature, 33.66% of the authors have used the IEEE 33, and an estimated 21.78% of the authors have simulated the IEEE 69 bus, as shown in Figure 1v.

2.5. Load Model

The optimal placement and sizing of DGs is greatly affected by the types of load used. The load model design is largely constant, residential, commercial, and agricultural, and it is a ZIP model. Figure 1vi shows the pattern of load models considered for the studies; they are referred to as peak constant load (76%), industrial load (8%), residential load (7%), and commercial load (6%).

2.6. Optimal DG Variables

Maximum returns from the DGs are possible when both variables, i.e., placement and sizing, are taken into consideration. It should be noted that 90% of the authors have worked on both variables, whereas 5% of each of the works reported on the placement or only on the sizing variables, respectively, as shown in Figure 1vii.

2.7. No. of DG Units

The number of DGs considered to be allocated would offer different characteristics, which would be challenging and significant. The study reveals that around 96% of the authors have worked on multiple DGs, whereas only 4% of studies are found to be on the single DG, as shown in Figure 1viii.

2.8. Countries Working on DG

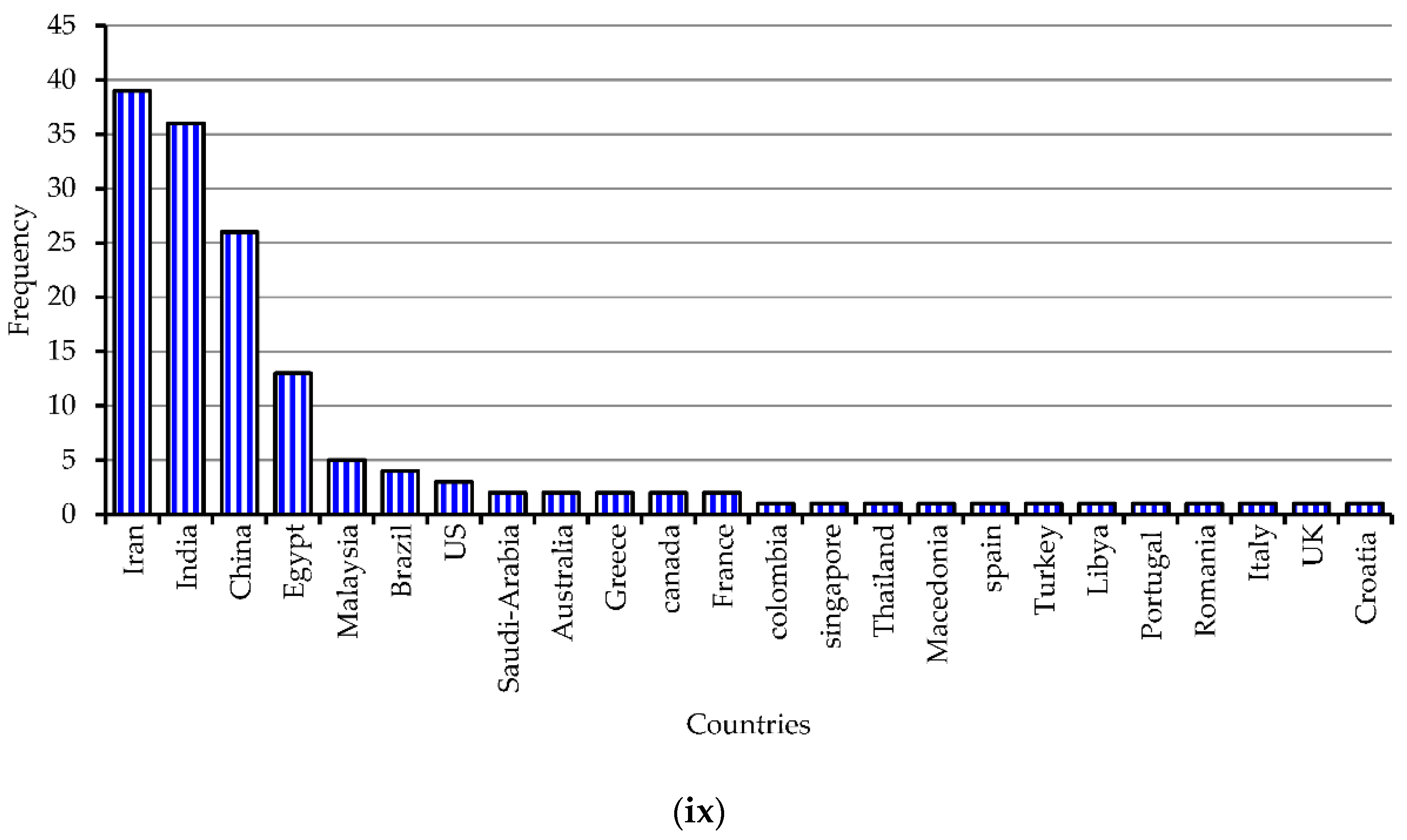

The countries which have participated actively in understanding optimal DG integration in their current distribution systems are shown in Figure 1ix. Information about these countries will help researchers and power experts follow and share updates on the highlighted problem. It is interesting to see that Iran and India are the countries most interested in integrating DG into their grids. The research on the optimal DG problem for both of these countries is found to be 26.35% and 24.32%, respectively. China is the third country on the list, with research accounting 17.56%. Similarly, Egypt and Malaysia hold up to 8.78% and 3.38%, respectively. On the other hand, Western countries (Europe, the Americas, and so forth) remain at 1–3%.

3. Objective Functions and Constraints

The optimal integration of DG is necessary to obtain the maximum benefit from it. This section discusses the impacts of DG on the different parameters in terms of, e.g., power loss, voltage profile improvement, voltage stability improvement, reliability improvement, reduction in harmonics distortion, emission reduction, minimization of the cost associated with the investment, maximization of network security, and the short circuit current index, etc.

3.1. Power Loss

Power losses are a waste of resources and a product of inefficiency in power output. It is reported that conventional distribution systems cause approximately 13% of the power losses from the total power generation [69,155,156,157]. The main reason for these power losses is the high resistance-to-reactance ratio and the radial structure. The optimal placement of DG in the distribution systems reduces these power losses, whereas non-optimal placement can increase the occurrence of power losses, relatively speaking. Many authors have paid attention to both types of active and reactive power loss reduction, as mentioned below.

3.1.1. Active Power Loss Reduction

The previous literature has largely focused on active power loss reduction as a single-objective function, with regard to the optimal placement and sizing of the DG [158,159,160,161,162,163,164,165,166,167,168]. However, considering the increasing trend of incorporating DGs in current distribution systems, work needs to be carried out with the multi-objective functions, as reported in [13,15,41,42,43,44,45,46,47,48,49,50,51,53,55,56,57,58,59,60,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,83,84,86,87,88,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,108,109,110,111,112,113,116,117,118,119,120,123,125,126,127,128,129,130,131,132,133,134,135,136,138,139,140,141,142,143,144,146,147,148,150,151,152,154,169,170,171,172,173,174,175,176].
The mathematical expression for the minimization of power loss at each branch and on the total network can be computed using Equations (1) and (2).
P i   l o s s = R i × ( P i ′ 2 + Q i ′ 2 ) | V n | 2
where P i   l o s s is the real power loss for the branch i , respectively.

3.1.2. Reactive Power Loss Reduction

The integration of certain types of DGs, such as solar PVs and traditional wind farms (i.e., asynchronous generators), etc., is incapable of supplying reactive power to the system. Hence, a sophisticated control requirement is needed to fulfill the need for reactive power. Therefore, in many studies, it has been observed that the combination of the active and reactive type of DGs is used to balance the reactive power losses and that it also improves system performance [76,177,178]. It has also been observed that invertor-based technology is sufficiently robust for reactive power management and has the capabilities to export or consume reactive power to and from the system. The reactive power losses associated with the other objective functions, such as the multi-objective functions mentioned in Table 1, have been covered in [44,52,53,58,77,78,100,105,120,141].
Q i   l o s s = X i × ( P i ′ 2 + Q i ′ 2 ) | V n | 2
where Q i   l o s s is the reactive power losses of branch i in the network.

3.2. Voltage Profile Improvement

The voltage profile is largely related to the power quality of the system. The voltage in the distribution systems usually remains in a fluctuating mode due to the variable nature of the connected load. Nowadays, with the integration of various types of DG, the voltage quality in the distribution system becomes more unpredictable. The non-optimal placement and sizing of DGs causes more rises and dips in the system voltages. Hence, it is necessary to properly investigate and maintain the nominal range, as described in IEEE 1547. In the literature, many authors have considered it to be a system constraint. However, a few authors have used it as a separate objective function for the multi-objective DG problem, as presented in [41,42,43,44,45,46,47,50,51,52,53,54,55,57,58,60,61,63,64,65,66,67,68,69,74,78,79,80,81,83,84,86,87,90,92,93,97,99,100,102,103,105,106,108,109,110,112,113,121,122,123,125,129,130,131,132,134,136,138,141,143,146,147,148,149,151,153,172,174,179,180]. The mathematical index for the minimization of the voltage deviation can be formulated as in Equation (3).
VD = min   ∑ m i N b | 1 − r e a l ( V m i ) |
where V m i is the voltage of node m, of branch i in the m-n two nodes network.

3.3. Voltage Stability Improvement

Voltage stability improvement is a very important factor for maintaining a good transmission and distribution system performance. Voltage instability usually occurs due to the incompatibility of the reactive power supplies. When the load on the system increases, the reactive power demand also increases. Eventually, the system voltage declines and reaches a point where a blackout happens. In the last two decades, there have been many incidents where a complete blackout had been observed [181]. However, the optimal integration of the DGs and the proper load forecasting can improve the voltage stability index and provide safe and consistent power delivery. The authors in [41,46,48,50,55,56,58,60,62,69,84,87,88,90,91,94,95,96,98,104,106,110,116,119,123,129,142,154,172,175] have contributed significantly to the study of the voltage stability improvement for the multi-objective DG problem. The voltage stability index at bus n can be written as shown in Equation (4).
V S I n = | V m | 4 − 4 ( P i ′ X i − Q i ′ R i )   2 − 4 ( P i ′ R i + Q i ′ X i ) | V m | 2
V S I n is the VSI for bus n .

3.4. Reliability Improvement

The continuous fluctuations and discontinuity of electric power at peak hours creates serious concerns for utilities and consumers. However, the introduction of DG in the current distribution system provides better, safe, and more reliable power delivery options. The integration of DGs not only improves the overall reliability of the existing systems but also improves the socio-economic standard of any country that adopts it. The improvement in reliability, as an objective function in optimal DG placement, is solved via multiple reliability indices, including SAIFI, SAIDI, CAIFI, CAIDI, AENS, ENS, EENS, etc. These are fully described in [45,54,73,114,115,118,120,123,127,132,136,137,139,145,154].
S A I D I =   U i · N i N i ( h / c · y e a r   )
S A I F I = ∑ N i × λ i N i ( f / c · y e a r   )
C A I D I = ∑ U i × N i ∑ N i × λ i   ( h / c · i n t )
A S A I = ∑ N i × 8760 − ∑ U i N i ∑ N i × 8760   ( p · u )
E E N S = ∑ E E N S   ( M W h / y e a r )
E C O S T = ∑ E C O S T   ( $ / M W h )

3.5. Reduction in Harmonics Distortion

The high penetration of renewable and non-renewable DGs and electronics-based power converters causes the introduction of harmonics and transients into the conventional distribution systems. According to Karimyan et al., 2014, distribution systems need to satisfy the minimum harmonics and transients standards, as defined in the IEEE 1547 interconnection [166,171,173,177,180,182]. Therefore, the severity of harmonic distortion can be reduced with the appropriate DG technology. Many authors have studied optimal placement and sizing for power loss reduction with total harmonics distortion (THD) [72], power loss reduction, improvement in voltage profile and minimization of THD [148], power loss reduction with total voltage thyroid minimization [111], power loss, voltage sag, and harmonics reduction with the maximization of the voltage profile [112]. The author in [183] presented work conducted on cost and undesirable transient voltage performance and the proximity to steady-state voltage collapse.

3.6. Emission Reduction

DG integration into current power distribution systems is congruous with the ongoing plans for greenhouse gas (GHG) emission reduction. The degree of GHG emission reduction depends on the type of DG technology used. For example, solar PVs and the use of batteries create no emission, whereas CHP and fuel cells increase the efficiency of power supplies and can be utilized for co-generation in order to meet thermal and cooling necessities [184]. The following authors in [50,62,71,75,82,85,89,90,97,102,103,107,117, 121,122,124,125,127,132,135,138,142,149,150,152,153,154,185,186] have considered the reduction in GHG emissions as the multi-objective optimization for the optimal DG planning scenario.

3.7. Minimization of Cost Associated with Investment

The proper integration of DGs can reduce investment costs, upgrading costs, and operational and management costs. Many authors in the literature, such as [41,43,45,47,53,54,59,61,62,67,70,71,75,76,82,85,88,89,90,91,107,114,115,117,118,120,121,122,123,124,127,128,132,135,136,137,138,139,140,144,145,149,151,170,171,173,183,185,186,187,188,189,190,191,192,193,194], have considered the investment, or costs, as an objective function, in association with the other objective functions for the optimal placement and sizing of DG.

3.8. Maximization of Network Security

The current distribution system was designed to operate as a one-way power delivery system. However, with the integration of DGs, the power flows bi-directionally. Hence, there is a need to set a power flow limit so that networks do not create over/under loading conditions. In the literature, an IC index is introduced, which carries the information of line flows and currents in the network. The index has a 0–1 range, which shows the minimum and maximum limit for power flow, as investigated in [44,50,56,58,63,64,74,78,87,105,141,146].

3.9. Short Circuit Current Index

The distributed generators are interconnected in parallel to the distribution system. It is, therefore, expected that at the time of the fault the current flowing from the substation may add to the current flowing from the DGs. This may increase the fault current and rupture the connected protection schemes. Hence, the authors in [113,126,133,141] have suggested that a level of short circuit current should be included as an element in the in multi-objective DG placement problem.

3.10. Network Constraints

The equality and non-equality constraints for the proposed problem can be described as below.

3.10.1. Power Balance

The mathematical formulation of power balance can be formulated as in Equations (11) and (12).
P s u b s t a t i o n + ∑ P D G = ∑ P l o s s + ∑ P l o a d
Q s u b s t a t i o n + ∑ Q D G = ∑ Q l o s s + ∑ Q l o a d
where P s u b s t a t i o n and Q s u b s t a t i o n are the total real and reactive power injection by a substation into the network. Σ P D G and Σ Q D G are the total real and reactive power, injected by distributed generation. Σ P l o s s and Σ Q l o s s are the total real and reactive power loss in the network. Σ P l o a d and Σ Q l o a d are the total real and reactive power losses of the network, respectively.

3.10.2. Position of DG

Bus 1 is the substation or slack bus; so, the position of the DG should not be used at bus 1.
2   ≤ D G p o s i t i o n ≤ n b u s e s

3.10.3. Voltage Profile

In order to maintain the quality of the power supplies, the voltage profile of every bus in the network should satisfy the following constraint.
V min ≤ V ≤ V max

3.10.4. Boundary Condition of Distributed Generation

The boundary conditions of the real and reactive power DGs are also restricted; this is given in Equations (15) and (16).
P D G min ≤ P D G ≤ P D G max
P D G min ≤ P D G ≤ P D G max

3.10.5. Thermal Limit

The temperature of the cable or conductor must be less than the rated value, as expressed by Equation (17).
S line   ≤   S rated

4. Optimization Methods

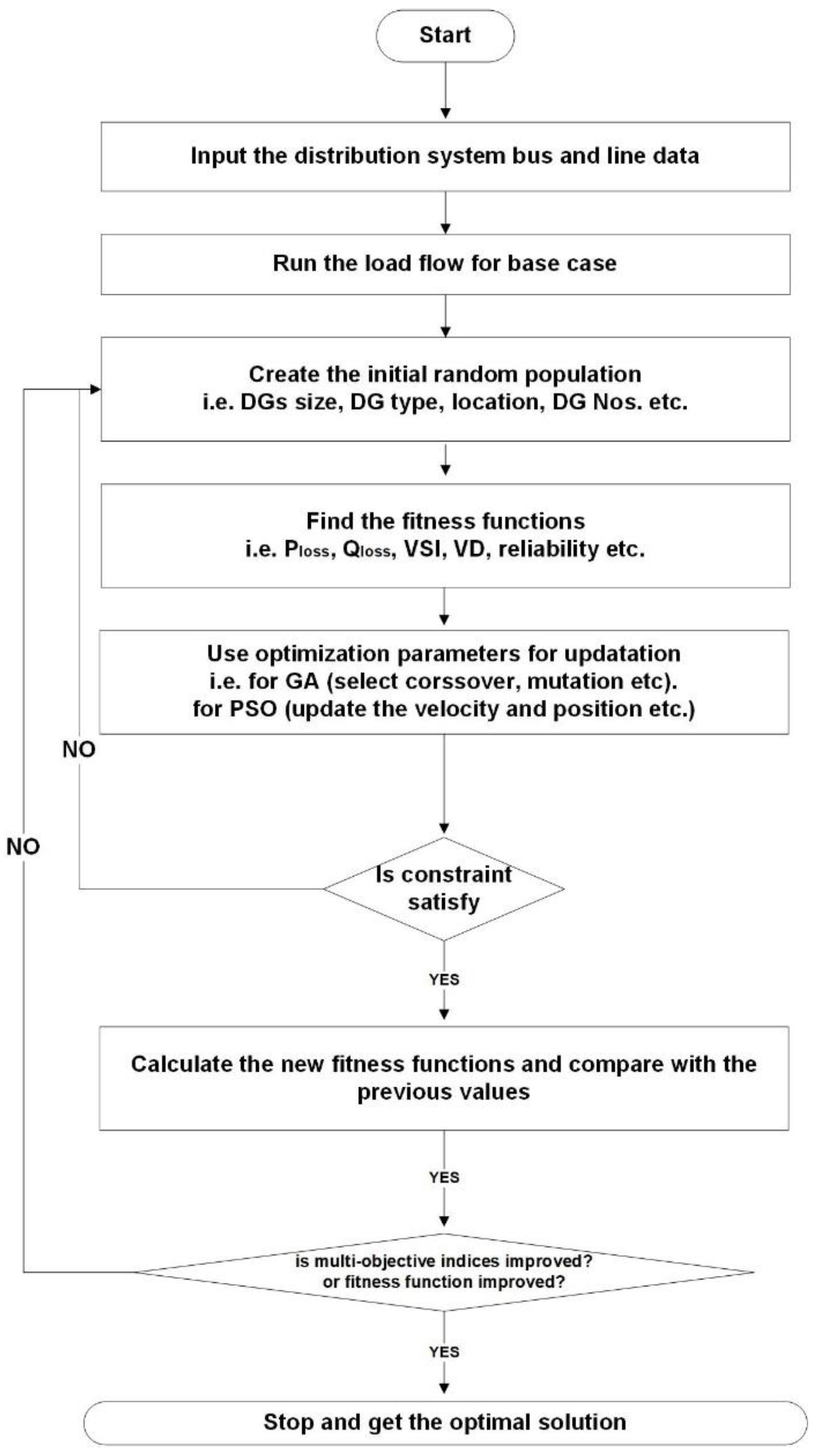

The appropriate configuration of DG placement and sizing would yield optimal returns. Due attention is required for DG sizing and placement since their non-optimal installation may result in various technical, economic, and environmental challenges [158,159,160,161,162,163,164,165,166,167,168,195,196]. In addition, it is considered as a mixed integer, non-linear, extremely constrained, complex, and combinatorial multi-objective problem. In order to attain an optimal trade off among the various challenges simultaneously, multi-objective optimization algorithms can play a vital role. The common objectives have been considered by various authors and include the reduction in power losses, the improvement in voltage profile or voltage deviation, the strengthening of the voltage stability, the improvement of reliability, and the reduction in costs and emissions. Recently, a widespread development has been observed for DG placement and sizing, and various scientists have established several optimization algorithms to optimize this multi-objective problem. This review considers the optimization algorithms that have been used in the literature and provides an in-depth readership and viewpoint for the researchers to derive the most appropriate multi-objective optimization algorithms for the said challenge.

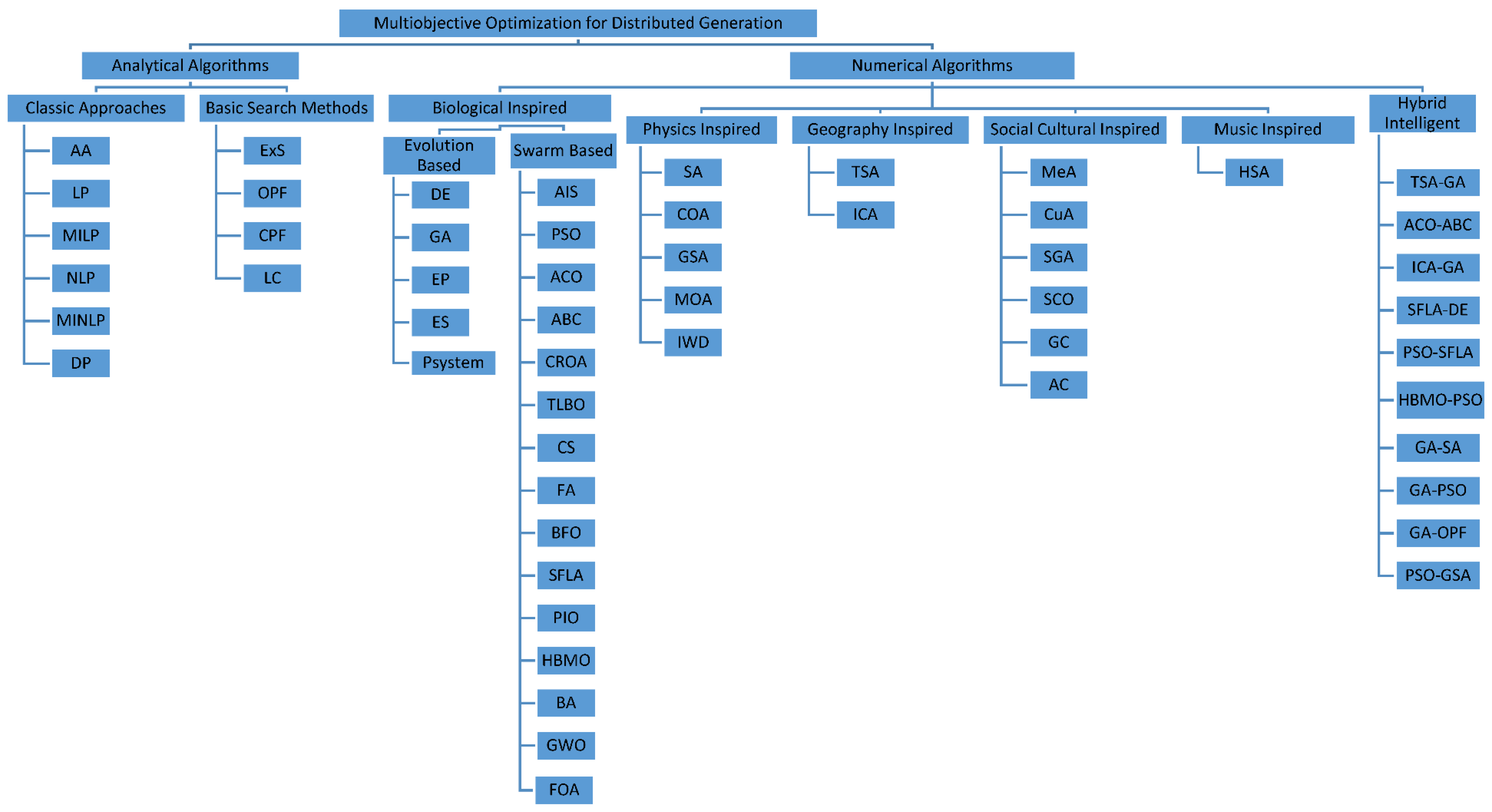

These are primarily categorized into two broad methods for solving the optimization problems: the analytical methods and the numerical methods. The analytical methods are also referred to as classical approaches, involving mathematical derivation and proofs which allow to attainment of the exact solution. This method is rigorous and strict, with problematic characteristics that may not realistically match, and hence, it may not be able to accurately optimize the system. These analytical methods have been further classified as classic approaches and basic search methods. The numerical method mainly applies the iterative approach to obtain the approximate optimal solution, which requires decision and objective variables from the optimization problem. The numerical method has basically been derived by mimicking natural evolution or specific processes that occur naturally in an ecological environment. These have been further been classified into biologically inspired algorithms, physics-inspired, geography-inspired, social–cultural inspired, music inspired, and hybrid intelligent algorithms [197]. The flow chart depicting how the heuristic algorithm has been modeled for the said problem is shown in Figure 2, whereas the multi-objective optimization algorithm taxonomy is depicted in Figure 3.

4.1. Analytical Method

The analytical approach is the way of solving the distribution network solutions with the help of mathematical formulas and expressions. These formulas and expressions are further used to design the required objective functions. The analytical approach is non-iterative, easy to handle, and guarantees the convergence of the solutions. The analytical approach is widely used in single-objective optimization for the optimal placement and sizing of distributed generation with multiple objectives, such as power loss reduction, voltage deviation improvement, voltage stability index improvement, etc. [160,167,198,199,200,201,202,203]. It is also reported in the multi-objective index, where two expressions are brought into a single objective, and the required objective function is calculated. For example, the authors in [77,95] used the multi-objective index for an active power loss reduction and a reactive power loss reduction in the optimal multi-objective placement and sizing of the DG problem. The efficiency and accuracy of the simplistic systems are very high, with less computational time. However, it is not true in case of complex system. The method can be used in conjunction with the modern meta-heuristic algorithm, as suggested in [77,95,100]. Various classic approaches have been categorized, such as the mixed integer linear programming, nonlinear programming, and dynamic programming.
The linear programming technique is a mathematical model which uses linear equations for objective functions and linear constraints. This method is used in some literature for optimal DG planning to maximize DG penetration and for energy loss reduction purposes, such as that reported in [204,205]. However, this method fails when finding the exact solution and optimal power flow calculations for a required network. As a result, this method is not used in the literature for the optimal multi-objective optimization of DG placement and sizing problems.
The mixed integer linear programming method involves the linearization of the power flow calculations and sets the objective functions and constraints in the form of a discrete and continuous variable. For instance, in Ref. [206], the author developed the two agents, i.e., the optimal placement and the financial contract model between DISCO’s and the owner, and converted the two agent problems into a single level and solved them with the MILP method.
The non-linear programming method works on the principle of derivatives, where the first step is to choose the search direction for an iterative process. In the literature, this method is solved with many techniques. For instance, the author in [207] used the first-order method with the generalized reduced gradient method for the optimal power flow. The author in [208] employed this method for solving the power flow equations with second-order derivatives by serial quadratic programming with the Newton–Raphason method. The nonlinear programming-based optimal placement and sizing of the distributed generation for a minimum number of DG units and power loss reductions has been proposed by [116]. The author converted multiple objectives into a single-objective function using the fuzzification method. Moreover, it is cited in [209] that this method has several disadvantages in the computations for large and complex power networks. For instance, it may be trapped into local minima, and it also has slow convergence. The reason for these disadvantages is its irregular searching capabilities.
In real-world applications, problems may either be discrete in nature or have non-linear system dynamics. Hence, the mixed integer non-linear programming method is composed of linear programming (LP), non-linear programming, and mixed integer programming (MIP). MINLP solves discrete problems, continuous problems, and non-linear functions. The drawback of the LP is that it can handle linear objective functions and constraints only, as proposed by the author [116], whereas the efficiency and performance of the non-linear optimization algorithm are tested by the authors [59,137]. The author in [144] proposed the mixed integer non-linear programming method for finding the optimal placement and number of DG units in a radial distribution system. First, the most suited nodes are identified on the basis of real power losses and the nodal power nodal price-based sensitivity method. Later, the MINLP method is applied. The results are tested on the IEEE 24 radial distribution system. The optimal placement and sizing of distributed generation for the energy loss reduction [210] and the minimization of the total fuel cost and energy loss have been proposed by [144]. The proposed model in both cases used the mixed integer non-linear programming method. It is suggested in Ref. [211] that the traditional computational technique can guarantee the better results for simple and ideal problems. However, in the case of real-world problems or problems with an increased number of variables, the MINLP method may fail to guarantee the global optima.
The dynamic programming type of technique is the most suited and gives feasible solutions for multistage decision-level problems [212]. The DP method is used in both mathematical and computer applications. The dynamics of this method involve dividing the complex problem into several sub-problems and then solving them in the different time domains. The author in [96] proposed the optimal location and sizing of distributed generation for the voltage stability index improvement and power loss reduction using dynamic programming search technique. First, the most critical node in terms of voltage instability is found, which then chooses the optimal location. However, the best sizing is found using the dynamic programming-based method.

4.2. Basic Search Method

The exhaustive search method type of method is best suited for the single-objective optimization problem [213]. For the optimal DG placement and sizing problem, the final solutions are taken using the process of exhaustively searching the whole search space. The method is computationally effective when it is solved for a lower search space. However, it is difficult to find the final solutions in more complex optimizations problems [214]. For instance, the author in [100] uses the ES method to find the optimal sitting and sizing of distributed generation with three DG units, and the MO optimization problem is solved with the weighted sum approach. The author minimizes the active and reactive power losses and voltage deviation, and the model is tested on the standard IEEE 6, IEEE 14, and IEEE 30 bus system.
The optimal power flow (OPF) method is a non-linear programming method, which is normally used for the economic dispatch problem [214]. However, this method has also been used to optimize the distribution system parameters; the author in [93] used the OPF method for the optimal placement and sizing of distributed generation in a distribution system with multi-objective optimization. The different objectives, i.e., power losses, voltage deviation, and maximum DG output, are formulated in the MO problem; later, it is transferred into single-objective optimization. In order to reduce the complexity in such a large convex problem, the optimization is reduced with the sensitivity method using trust region sequential quadratic (TRSQ) programming.
The continuous power flow method (CPF) is mostly used to optimally place the DG units on the most sensitive bus, whereas the optimal size of the DG units could not be addressed [19]. The optimization problem works by searching the sensitivity of the bus or at a maximum loading leading to voltage collapse. Initially, a specific size of DG unit is proposed at a sensitive bus and then a load flow is run iteratively to satisfy the objective and the constraints. If any of the objectives and constraints are not satisfied then the algorithm will move towards another sensitive bus, and finally, satisfactory results will be obtained.
The sensitivity based analysis (SBA) technique is used in engineering applications to reduce the search space. It is widely used in conjunction with heuristic and meta-heuristic techniques. In DG optimal placement and location problems, many authors have used power loss minimization-based sensitivity analysis or maximization of voltage stability-based sensitivity analysis. The main objective is to find the optimal location for DG, with as little computational time as possible. After deriving the optimal location, the meta-heuristic algorithm is used for finding the optimal DG sizing, as recommended by authors in [109,111,131].

4.3. Numerical Methods

The attainment of the optimal solutions through the iterative approach, utilizing decision and objective variables, has been designated as the numerical method. These have generally been derived through imitating the evolutionary process. These have been classified as follows.

4.3.1. Biologically Inspired Algorithms

The biologically inspired algorithms are referred to as the sub-branch of the numerical intelligent optimization algorithm, inspired by natural evolution or biological characteristics in the micro and macro world [215]. These algorithms are also referred to as memetic algorithms since they are derived from behaviors, structural features, or substantial developments [197]. These have broadly been categorized as evolution-based algorithms and swarm-based algorithms.
Evolutionary algorithms are meta-heuristic optimization algorithms which mimic the process of natural or biological evolution and the social behavior of species. These species learn and adapt through the process of evolution [197]. The DE, GA, EP, ES, and Psystem are algorithms discussed under this category.
The genetic algorithm (GA) is a meta-heuristic optimization algorithm inspired by natural evolution. It works on the three fundamental principles of selection, crossover, and mutation. Initially, a large number of random candidate solutions are generated. These solutions are processed with a genetic operator for the selection process. Each candidate solution is termed as a chromosome. In each iteration (i.e., generation), the fitness of each individual chromosome improves, and the highest fitness in any generation will be the optimal solution in the search pool. The best chromosomes are selected to be put through crossover process. The number of chromosomes undergoing these crossover processes depends on the crossover probability. The mutation operator is introduced, which maintains the diversity of the solution set. It may alter the previous solution and bring forth the most favorable solution. The multi-objective DG placement and sizing problem with GA has been proposed by [45,66,67,72,112,113,127,130,170,190]. The demand for multiple objective function solutions in a single run raises the need for newly adopted evolutionary algorithms. Therefore, the non-sorting genetic algorithm (NSGA) is proposed; it is relatively competent, as compared to the other optimization algorithms, and reaches the global optimal solutions of any multi-objective problem. The most famous NSGA-II was introduced by Deb et al. [216]. The working principle is defined as (1) generating the initial population, (2) finding the fitness function of an initial population, (3) filtering out the non-dominated solution set in the serrate archive, (4) choosing the best leaders among the solutions in the archives, (5) updating the current population, (6) introducing the mutation factor for diversity in the population and finding the fitness values of the newly updated solution, (7) filtering out the non-dominated solution, and finally, with the help of decision-making, the best solution from the Pareto optimal set is to be chosen. The authors in [46,60,61,73,85,89,90,118,124,125,132,135,140,151,152,194] have recommended using NSGA and NSGA-II for the optimal placement and sizing of DG in the multi-objective problem.
GA, R. Storn, and K. Price [217] introduced the differential evolution optimization algorithm. This was developed to optimize the real parameter and real-valued functions that are non-linear, noisy, non-differentiable, and non-continuous and have many local minima, constraints, and stochasticity. The comprehensive working environment for DG placement through optimal differential evolution has been mentioned in [103,149,150,153,218]. Moreover, there is the need to optimize multiple objectives simultaneously that are incommensurable and conflicting in nature. The results of these problems may not yield a single optimal solution. Hence, the both MODE and PFDE algorithms use the non-dominated sorting and fitness functions and yield a Pareto optimal solution set for the ODGP problem, as described in [41,49,218].
The author in [107] uses an adaptive crossover and mutation factor in the evolutionary process of the improved Pareto evolutionary programming (PEA), with simulated annealing for the multi-objective DG optimization problem. Moreover, the constraints of objective functions are penalized in order to find the best results.

4.3.2. Swarm-Based Optimization Algorithm

The swarm-based optimization algorithm is the sub-branch of artificial intelligence. The theory of these algorithms is derived from the natural behaviors of birds, ants, bees, and fish. These algorithms are most feasible for lowering costs, with high convergence speeds, and they give a robust solution to many non-linear and complex problems. The swarm-based optimization algorithms are PSO, MOPSO, ABC CABC, BAT, BFOA, QTLBO, SFLA, IA, COA, and HBMOA.
Particle swarm optimization is a subset of artificial intelligence. The theory of this algorithm stems from the natural behaviors of birds, ants, bees, and fish. It is a population-based algorithm and is inspired by birds maneuvering and fish schooling. The algorithm was introduced by Kennedy et al. [219] in 1995. The working principle of this algorithm is defined in the following points: (1) randomly generating swarm population, (2) finding the fitness function of the initial population, (3) checking the pbest and gbest in the solution and in the entire search space, (4) updating the velocity and position vector, (5) finding the pbset and gbest of the newly yielded solution, and introducing the stopping criteria, as described in [51,63,71,76,80,86,106,119,120,121,133,139,141,172,189,191,192].
As with the NSGA-II or MODE, the multi-objective PSO is a well-known and efficient algorithm for solving the multi-objective optimization problem. With MOPSO, the author in [220] introduces the non-sorting mechanism to find the optimal solution set from a Pareto optimal set in the MOPSO optimization algorithm. Moreover, the MOPSO-based optimization algorithm for optimal DG placement problem is highlighted in [47,50,56,98,99,104,115,122,123,127,143,144,145,174].
The artificial immune algorithm is an evolutionary optimization algorithm, inspired by the complex mechanism of the immune system. Immunity protects the body from foreign invaders and also helps maintain requisite antibodies within the body. The author in [173] proposed this optimization algorithm for the optimal DG placement and sizing problem.
The ant colony optimization is a bio-inspired computing technique. The functioning principle is analogous to the rummaging behavior of real ants. Initially, ants find food close to their nest. This helps them to ascertain the location of the food source, and they always take some of the food back to their nest. During this journey (from food source to nest), the ants release a pheromone trail on the ground. The potency of the pheromone trail depends on the quality and quantity of the food. This pheromone behaves as a guide for the other ants and determines the shortest route to the food source for the other ants. Inspired by this, the author in [221] introduces the optimization algorithm for the combinatorial optimization problem and further implements this in the DG placement problem in [74,169].
The artificial bee colony is an iterative-based optimization algorithm and part of swarm optimization. The algorithm was presented by Karaboga [222] in 2005 and was inspired by a real honey bee cluster’s wage dance and the way bees source for food in hives. The cluster for this algorithm is divided into three groups called scout bees, employed bees, and onlooker bees. The inhabitants of the ABC are divided into halves; one-half behave as scouts, searching for a food source (called the new position of the optimization problem). After locating a new food source, the scout bees then become employed bees and assemble the other bees to the new food source position by communicating with them. In a specific time span, if the employed bees are not able to improve the new food position, then these bees are nominated as scout bees, and the above procedure is repeated. Finally, the onlooker bees decode the new location of the food source. The authors in [58,102,126,175] have incorporated the ABC optimization algorithm for the problem.
The teaching–learning-based optimization and the quasi-teaching–learning optimization algorithms are meta-heuristic optimization algorithms, inspired by a teaching–learning activity in a student’s classroom. The working principle of these algorithms basically depend on two steps: (1) the teaching phase and (2) the learning phase. In the former step, the learner acquires knowledge from the teacher, and in the latter step, the learner can be guided by his classmates [223]. The competency of these algorithms is highlighted in [84].
The cuckoo optimization algorithm is a meta-heuristic evolutionary algorithm, inspired by the way cuckoos lay their eggs in hosts’ nests. It is the cuckoos’ inventiveness which compels them to find the best place for laying their eggs and where the eggs are subject to minimum danger. The algorithm is broadly used in the optimizations of engineering applications and specifically in the DG problem, as proposed in [81,134].
The firefly algorithm is inspired by the swarm optimization algorithm; it mimics the process of setting off fireworks. This can be found detailed in [94].
The bacterial foraging optimization algorithm was presented by [224] in 2002 and was inspired by the foraging characteristics of the bacteria Escherichia coli (E. coli). The accuracy and reliability of this algorithm is tested by [88,91,97] in the multi-objective optimal placement and sizing of a DG problem.
The shuffled frog leaping algorithm (SFLA) is a memetic meta-heuristic optimization algorithm, inspired by the food-searching capabilities of frogs. The performance of the algorithm is highly applicable in computing and in finding a global search ability [128].
The honeybee mating optimization algorithm is inspired by the natural mating flight process of the honeybee. The author [138] uses this algorithm, with a further modification (called modified-HBMOA) for the multi-objective placement of DGs in the distribution system.
The bat algorithm is inspired by the sonar and echolocation qualities of micro-bats, with a variation of the pulse rate of the emissions and the loudness. The algorithm was first introduced in 2010 by [225]. The movement of bats depends upon their velocity and position. Once they reach their prey, the pulse rate emission and loudness increase. The working principle of this algorithm is similar to the PSO optimization method, as used by [43,44,65,105].
The gray wolf optimization algorithm (GWO) simulates the hunting and social leadership of grey wolves in nature [226]. The algorithm is simple and robust and has been used in various complex problems. The MODG placement problem with GWO is proposed by the author in [52].
The fireworks optimization algorithm is inspired by the swarm optimization algorithm, which mimics the process of setting off fireworks. This can be found detailed in [94].

4.3.3. Physics-Inspired Algorithm

These algorithms are motivated by the physical properties, or physical characteristics, of matter. Sometimes, these algorithms mimic the laws of physics. The details of these algorithms are well defined in [197]. The types of physics-inspired optimization algorithms are detailed as follows.
Kirkpatrick et al., in 1983, and Cerny et al., in 1985, proposed the probabilistic method for finding the global minimum of the cost function using the simulated annealing method. The method is inspired by the metallurgy processes of the heating–cooling material. According to the author, the metal is first heated up to its melting point and then cooled down very slowly. The reason for moderated the cooling is to attain the best solution and to reduce the probability of an unfavorable solution. The efficiency and performance of this algorithm for the DG placement problem are focused on by the authors in [79,142,147,187].
The big bang–big crunch optimization algorithm is inspired by the theory behind the creation of the universe and was presented in 2006 by [227]. The idea is carried out in two phases: (1) the big bang phase—where the initial randomness is entrenched in the problem and spread along the search space and the (2) big crunch phase—which works as the center of mass and has a convergence operator that brings many inputs to one output. The algorithm is similar to GA in the initializing of the random particles, as described by the authors in [53,78].
The invasive weed optimization algorithm (IWO) is inspired by the process of the colonization by invasive weeds. Considering the behavior, biology, and ecology of weeds, a meta-heuristic optimization algorithm is formed. The IWO with the fuzzy decision for the MODG placement problem is proposed by [55].

4.3.4. Geography-Inspired Algorithm

The geography-based optimization algorithms generate random solutions in the topographical search space. These meta-heuristics optimization algorithms are classified as follows.
Tabu search is a meta-heuristic optimization algorithm proposed by Fred et al. in 1986 to solve a local search for mathematical problems. The algorithm has a tendency to move iteratively towards better solutions in its neighborhood. The algorithm stops once it satisfies the stopping criteria. It is possible that the local search may be stuck in the plateau region or in the poor scoring region. Therefore, it uses a distinct type of memory structure so that the new neighborhood solution can be further explored for better solutions, as highlighted in [185].
The imperialistic competitive algorithm (ICA) was introduced by Atashpaz et al. in 2007 as an evolutionary optimization algorithm. The algorithm starts with a number of countries in the world; the best countries among them are selected for the ‘imperialists’ category, and the others act as colonies. The initialization of countries, or empires, is similar to the particles in PSO or to the chromosomes in GA, and the best countries resemble the fitness function in PSO/GA. The colonies then move towards the relevant imperialists according to the powers they have. With this competition between the colonies and their chosen empires, a state will occur where all the countries will become colonies, and the only country left as the imperialist will become the empire. The solving of the issue of the multi-objective placement and sizing of DGs using ICA is recommended by the authors in [48,87].

4.3.5. Music-Inspired Optimization Algorithm

These algorithms are derived from the concept of music. The harmony search algorithm/multi-objective harmony search algorithm is a music-inspired optimization algorithm. The aim of music is to find the perfect state of harmony. This is analogous to the search for the optimal solution in any computer or engineering problem. The HSA/MOHSA-based solution for the optimal placement and sizing for the multi-objective DG problem is found in [108,110,148,171].

4.3.6. Math-Inspired Algorithm

These algorithms are inspired by the working principles of mathematical laws and their expression solving. The math-inspired optimization algorithms can be classified as follows.
The backtracking search optimization algorithm (BSOA) is an evolutionary new algorithm. It is applied to find out the solutions of real-valued, non-linear, non-differential, and complex numerical optimization functions. It is simpler, more effective, faster, and more easily adaptable to different numerical optimization techniques, as advised by the authors in [68,69].
The sequential quadratic programming (SQP) algorithm is a relatively famous algorithm devised half a century ago to solve non-linear, constrained mathematical problems. The algorithm is also called iterative quadratic programing or recursive quadratic programing. The quadratic sub-problem is used to make an approximate solution, e.g., x k , with the help of non-linear programming. Then, the process is iterated in the hope that the solution will converge to a better solution, e.g., x * . Solving the optimal sizing of the DG issue is suggested by the authors in [70,93].

4.3.7. Hybrid Optimization Algorithms

In earlier days, the power system problems were mostly solved with conventional computational methods, such as the N-R method, the linear and non-linear programming methods, the quadratic and interior point methods, etc. [228]. However, in the last decade there has been a progressive evolution towards the use of the numerical algorithms with the physics-inspired, geography-inspired, social-culture inspired, and music-inspired optimization algorithms. Nevertheless, the fuzzy-based approach and the neural network-based computation has also been used largely. The obvious reason to use of these numerical optimization algorithms over the conventional computational methods is their robustness, their handling of large sets of data, and their initial search and convergence levels [228]. However, in the most recent years, there has been an increasing trend towards the hybridization of two or more optimization algorithms to solve the real-world problems. The results of these hybridizations give the most feasible solutions by utilizing the advantages of each algorithm or method. Moreover, it also increases the possible accuracy and computation time. The most generic hybrid optimization algorithms for the optimal placement and sizing of distributed generations in the distribution system are realized as: GA–PSO [27]; LSF + ALOA Ant lion OA [36]; LSF + PSOGSA and MFO [37]; PABC and HAS particle artificial bee colony and harmony search algorithm [38]; hybrid—tabu search and GA [188]; GA–GAMS [45]; PSOHBMA–PSO [51]; hybrid ACO–ABC [62]; location sensitivity index–GA [67]; CSO–MCS [75]; ICA–GA [87]; GA–PEM with chance constraints [193]; hybrid PSO with SFLA [114]; hybrid SFLA–DE [117]; SVM–MOPSO [122]; MCS–GA [186]; and GA and MO [154]

5. Tools Used for Optimal Multi-Objective Planning of DGs

It has been observed that most of the authors used MATLAB software for both load flow analysis and the optimization tool. However, a few authors used the PSAT, Digsilent, OpenDSS, etc., software for load flow analysis, and multi-objective optimization was carried out with MATLAB environment. The breakdown of most of the literature is shown in the following in Table 2.

6. Review Findings/Critical Analysis

The review considers the continuous developments and the research on utilizing multi-objective optimization algorithms for the optimal placement and sizing of DG for radial distribution networks. The attempts to utilize either the analytic method or the numerical intelligence algorithms require a considerable amount of time and effort. The selection of the optimization algorithm and the trade-off for DG placement and sizing are mainly based on the expert knowledge in and experiences of the available research. However, there are still certain challenges and opportunities that exist in coping with the DG optimization problem.
The existing research limitations in this domain:
  • The studies considered for DG placement and sizing mainly consider two or three objectives; beyond that, the optimization problem becomes complex. Therefore, some methods need to be adopted for problem decomposition, handling constraints, reduction in dimensions, and convexification to simplify the convoluted optimization problem without damaging the optimized solutions.
  • The hybridization of two or more optimization algorithms has the benefit of increasing the search space and giving the most feasible solution, and it has a good level of convergence. It has been observed from the literature that the optimal placement and sizing of DG in the distribution system has not been explored much with different optimization algorithms.
  • The most commonly and widely used multi-objective optimization algorithms are the genetic algorithm and particle swarm optimization. In addition to that, their hybridization with other algorithms is the current trend among the researchers and scientists working with DG placement and sizing.
  • Exploring the use of hybrid optimization algorithms for the intermittent renewable generation will be more effective in finding the optimal placement and sizing of renewable generations and will decrease its computational time.
  • Mainly, the researchers working with multi-objective optimization do not report algorithm efficiency, efficacy, convergence, iterations, and computational time and system requirements. In addition, the performance metrics of the optimized solutions are necessary to justify their optimized results. In contrast to that, the researchers compare their results with respect to the objective functional optimized values.
  • Some new algorithms inspired by various physical and biological phenomena have been focused on which also need attention for their performances in DG placement and sizing. Moreover, a few of the algorithms, such as the pigeon-inspired, membrane computing, load concentration, and evolutionary strategy have been utilized in other applications; these can be employed for this multi-objective optimization problem.
  • The optimal DG placement and sizing has preferably deployed dispatchable generation systems while conducting simulation studies. However, there are renewable energy sets which have an intermittent power supply and are uncertain in their delivery of power when required. The research can be extended to both dispatchable and non-dispatchable types of DG units.
  • Most of the study considers the generations with unity power factor, However, there is a need to include the power factor for observing the non-unity operation.
  • The literature shows that 88% of researchers had incorporated a constant peak load for the optimal installation of distributed generations. However, there is an acute need to check uncertain generation with stochastic load demand variations.
  • The reactive power compensation with capacitors banks considered for the optimization of DG proposes some continuous values for their size. However, there are standard rated capacitors available in the market which pose significant system challenges when the exact capacitor size has not been installed.
  • The intermittent nature of renewable resources may have certain challenges in coping with the load demand; however, the hybridization of multiple renewable DGs would offer the challenge of optimization. The co-existence of hybrid renewable resources should be considered with a practical network configuration strategy for their smooth operation. These can be integrated with conventional generation; therefore, an economic modeling and optimization would be the prime consideration in future research.

7. Conclusions

In this paper, an attempt was made to review the multi-objective optimal placement and sizing of DG in the radial distribution system. The presented literature review draws the attention of power experts, investigators, and researchers to analyze the trends of a decade’s worth of surveys for the optimal placement and sizing problem of DGs in distribution systems. The most important factors are the decision variables and the objective functions, the optimization techniques and comparisons, the algorithms that are validated on various types of load and in different distribution systems, and the integration of dispatchable DGs and non-dispatchable DGs, along with the kinds of uncertainty modeling. Moreover, it is also observed that the analytical methods are giving accurate results for small networks. However, for large and complex systems new and hybrid optimization techniques need to be adopted for effective and reliable solutions.

8. Future Recommendations

From the systematic literature review and critical analysis it is found that following future areas for the optimal multi-objective placement and sizing problem of distributed generation need to be explored:
  • From the review, it was found that a lot of research efforts from developing countries have already been included to model the optimization tools for optimal integration of DG in the distribution system. Among the optimization methods, the analytical methods are not computationally efficient for large and complex systems. On the other hand, the researchers have also put forward and proposed the meta-heuristic optimization algorithm, which has an effective and reliable optimum solution. Due to the nature of the problem, it can be said that there is still room for improvement and recommendations for more efficient optimization algorithms that have strong competencies in the exploration of the global optimum.
  • It has also been observed that many parameters in the electrical power system are uncertain by nature, i.e., wind and solar DG, electrical load, and the market price for fuel and electricity, etc. However, most of the presented literature does not include the uncertainty parameters in the studies For secure and reliable power delivery, it is highly recommended that the proposed models of the future should include the stochastic nature of inputs in solving the DG placement problem.
  • Fluctuations in the primary source of renewable DGs in peak time give rise to the concept of energy storage. The presented literature lacks the usage of DGs and energy storage as a combined model. The addition of DGs and energy storage in distribution systems provides continuous, ecologically friendlier power, and reduces the intermittency of renewable DG inputs. Hence, it is highly recommended to explore the effects of renewable DGs on energy storage.
  • Among the renewable DER used in the literature, the use of micro-turbines, combined heat, power, and biomass are rarely used in the studies. The suggested renewable-based DG in distribution system needs to be explored, and it is expected that the integration of these DGs could have a positive impact on long-term planning.
  • The DG placement and sizing varies with different load models, and most of the existing literature uses the static load model. As such, the study also needs to focus on different types of voltage-dependent load models.
  • Practically speaking, the distribution network is large and complex. A large number of buses and branches exist, but most of the present literature has validated its optimization algorithms on a very small-scale distribution network. Hence, it is recommended that the forthcoming models should be applied to real or larger distribution systems.
  • It is also recommended that the application of the installation of DGs be further extended for the expansion and protection of the existing distribution systems.

Author Contributions

M.K. conceptualized and prepared original draft, A.M.S. review and edit, W.U. and L.K. carried formal analysis and provides funding. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shaheen, A.M.; Elsayed, A.M.; Ginidi, A.R.; Elattar, E.E.; El-Sehiemy, R.A. Effective Automation of Distribution Systems With Joint Integration of DGs/SVCs Considering Reconfiguration Capability by Jellyfish Search Algorithm. IEEE Access 2021, 9, 92053–92069. [Google Scholar] [CrossRef]
  2. Shaheen, A.M.; Elsayed, A.M.; Ginidi, A.R.; El-Sehiemy, R.A.; Elattar, E.E. Improved Heap-Based Optimizer for DG Allocation in Reconfigured Radial Feeder Distribution Systems. IEEE Syst. J. 2022, 10, 1–10. [Google Scholar] [CrossRef]
  3. Viral, R.; Khatod, D.K. Optimal planning of distributed generation systems in distribution system: A review. Renew. Sustain. Energy Rev. 2012, 16, 5146–5165. [Google Scholar] [CrossRef]
  4. Shaheen, A.; Elsayed, A.; Ginidi, A.; El-Sehiemy, R.; Elattar, E. A heap-based algorithm with deeper exploitative feature for optimal allocations of distributed generations with feeder reconfiguration in power distribution networks. Knowl.-Based Syst. 2022, 241, 108269. [Google Scholar] [CrossRef]
  5. Shaheen, A.; Elsayed, A.; Ginidi, A.; El-Sehiemy, R.; Elattar, E. Reconfiguration of electrical distribution network-based DG and capacitors allocations using artificial ecosystem optimizer: Practical case study. Alex. Eng. J. 2022, 61, 6105–6118. [Google Scholar] [CrossRef]
  6. Ali, S.S.; Choi, B.J. State-of-the-Art Artificial Intelligence Techniques for Distributed Smart Grids: A Review. Electronics 2020, 9, 1030. [Google Scholar] [CrossRef]
  7. Peñalba, M.A.; Sumper, A. Special Issue on Microgrids; Multidisciplinary Digital Publishing Institute: Basel, Switzerland, 2019. [Google Scholar]
  8. Jumani, T.A.; Mustafa, M.W.; Rasid, M.; Mirjat, N.H.; Baloch, M.H.; Salisu, S. Optimal Power Flow Controller for Grid-Connected Microgrids using Grasshopper Optimization Algorithm. Electronics 2019, 8, 111. [Google Scholar] [CrossRef] [Green Version]
  9. Çelik, D.; Meral, M.E. Current control based power management strategy for distributed power generation system. Control Eng. Pr. 2018, 82, 72–85. [Google Scholar] [CrossRef]
  10. Çelik, D.; Meral, M.E. A novel control strategy for grid connected distributed generation system to maximize power delivery capability. Energy 2019, 186, 115850. [Google Scholar] [CrossRef]
  11. Zsiborács, H.; Baranyai, N.H.; Csányi, S.; Vincze, A.; Pintér, G. Economic Analysis of Grid-Connected PV System Regulations: A Hungarian Case Study. Electronics 2019, 8, 149. [Google Scholar] [CrossRef]
  12. Khawla, E.M.; Chariag, D.E.; Sbita, L. A Control Strategy for a Three-Phase Grid Connected PV System under Grid Faults. Electronics 2019, 8, 906. [Google Scholar] [CrossRef] [Green Version]
  13. Alarcon-Rodriguez, A.; Ault, G.; Galloway, S. Multi-objective planning of distributed energy resources: A review of the state-of-the-art. Renew. Sustain. Energy Rev. 2010, 14, 1353–1366. [Google Scholar] [CrossRef]
  14. Pepermans, G.; Driesen, J.; Haeseldonckx, D.; Belmans, R.; D’haeseleer, W. Distributed generation: Definition, benefits and issues. Energy Policy 2005, 33, 787–798. [Google Scholar] [CrossRef]
  15. Tan, W.S.; Hassan, M.Y.; Majid, S.; Rahman, H.A. Optimal distributed renewable generation planning: A review of different approaches. Renew. Sustain. Energy Rev. 2013, 18, 626–645. [Google Scholar] [CrossRef]
  16. Paliwal, P.; Patidar, N.; Nema, R. Planning of grid integrated distributed generators: A review of technology, objectives and techniques. Renew. Sustain. Energy Rev. 2014, 40, 557–570. [Google Scholar] [CrossRef]
  17. Belmili, H.; Haddadi, M.; Bacha, S.; Almi, M.F.; Bendib, B. Sizing stand-alone photovoltaic–wind hybrid system: Techno-economic analysis and optimization. Renew. Sustain. Energy Rev. 2014, 30, 821–832. [Google Scholar] [CrossRef]
  18. Prakash, P.; Khatod, D.K. Optimal sizing and siting techniques for distributed generation in distribution systems: A review. Renew. Sustain. Energy Rev. 2016, 57, 111–130. [Google Scholar] [CrossRef]
  19. Ha, M.P.; Huy, P.D.; Ramachandaramurthy, V.K. A review of the optimal allocation of distributed generation: Objectives, constraints, methods, and algorithms. Renew. Sustain. Energy Rev. 2017, 75, 293–312. [Google Scholar]
  20. Singh, B.; Sharma, J. A review on distributed generation planning. Renew. Sustain. Energy Rev. 2017, 76, 529–544. [Google Scholar] [CrossRef]
  21. Ali, S.M.; Mohamed, A.-A.A.; Hemeida, A. A Pareto Strategy based on Multi-Objective for Optimal Placement of Distributed Generation Considering Voltage Stability. In Proceedings of the 2019 International Conference on Innovative Trends in Computer Engineering (ITCE), Aswan, Egypt, 2–4 February 2019; pp. 498–504. [Google Scholar] [CrossRef]
  22. Saha, S.; Mukherjee, V. A novel multi-objective modified symbiotic organisms search algorithm for optimal allocation of distributed generation in radial distribution system. Neural Comput. Appl. 2020, 33, 1751–1771. [Google Scholar] [CrossRef]
  23. Pesaran, H.M.; Nazari-Heris, M.; Mohammadi-Ivatloo, B.; Seyedi, H. A hybrid genetic particle swarm optimization for distributed generation allocation in power distribution networks. Energy 2020, 209, 118218. [Google Scholar] [CrossRef]
  24. Manna, D.; Goswami, S.K. Optimum placement of distributed generation considering economics as well as operational issues. Int. Trans. Electr. Energy Syst. 2019, 30, e12246. [Google Scholar] [CrossRef]
  25. Khoubseresht, O.; Shayanfar, H. The role of demand response in optimal sizing and siting of distribution energy resources in distribution network with time-varying load: An analytical approach. Electr. Power Syst. Res. 2019, 180, 106100. [Google Scholar] [CrossRef]
  26. El-Ela, A.A.A.; El-Sehiemy, R.A.; Abbas, A.S. Optimal Placement and Sizing of Distributed Generation and Capacitor Banks in Distribution Systems Using Water Cycle Algorithm. IEEE Syst. J. 2018, 12, 3629–3636. [Google Scholar] [CrossRef]
  27. Bhullar, S.; Ghosh, S. Optimal Integration of Multi Distributed Generation Sources in Radial Distribution Networks Using a Hybrid Algorithm. Energies 2018, 11, 628. [Google Scholar] [CrossRef] [Green Version]
  28. HassanzadehFard, H.; Jalilian, A. Optimal sizing and location of renewable energy based DG units in distribution systems considering load growth. Int. J. Electr. Power Energy Syst. 2018, 101, 356–370. [Google Scholar] [CrossRef]
  29. Grisales-Noreña, L.F.; Montoya, D.G.; Ramos-Paja, C.A. Optimal Sizing and Location of Distributed Generators Based on PBIL and PSO Techniques. Energies 2018, 11, 1018. [Google Scholar] [CrossRef] [Green Version]
  30. Eltamaly, A.M.; Al-Saud, M.S. Nested multi-objective PSO for optimal allocation and sizing of renewable energy distributed generation. J. Renew. Sustain. Energy 2018, 10, 035302. [Google Scholar] [CrossRef]
  31. Rastgou, A.; Moshtagh, J.; Bahramara, S. Improved harmony search algorithm for electrical distribution network expansion planning in the presence of distributed generators. Energy 2018, 151, 178–202. [Google Scholar] [CrossRef]
  32. Meena, N.K.; Parashar, S.; Swarnkar, A.; Gupta, N.; Niazi, K.R. Improved Elephant Herding Optimization for Multiobjective DER Accommodation in Distribution Systems. IEEE Trans. Ind. Inform. 2017, 14, 1029–1039. [Google Scholar] [CrossRef]
  33. Raouf, A.A. A multi-objective distributed generation allocation and sizing using swarm intelligence based algorithms. In Proceedings of the 2018 19th IEEE Mediterranean Electrotechnical Conference (MELECON), Marrakech, Morocco, 2–7 May 2018; pp. 281–286. [Google Scholar]
  34. Quadri, I.A.; Bhowmick, S.; Joshi, D. A comprehensive technique for optimal allocation of distributed energy resources in radial distribution systems. Appl. Energy 2018, 211, 1245–1260. [Google Scholar] [CrossRef]
  35. Biswas, P.P.; Mallipeddi, R.; Suganthan, P.; Amaratunga, G.A. A multiobjective approach for optimal placement and sizing of distributed generators and capacitors in distribution network. Appl. Soft Comput. 2017, 60, 268–280. [Google Scholar] [CrossRef]
  36. Ali, E.; Elazim, S.A.; Abdelaziz, A. Ant Lion Optimization Algorithm for optimal location and sizing of renewable distributed generations. Renew. Energy 2017, 101, 1311–1324. [Google Scholar] [CrossRef]
  37. Tolba, M.A.; Rezk, H.; Tulsky, V.; Diab, A.A.Z.; Abdelaziz, A.Y.; Vanin, A. Impact of Optimum Allocation of Renewable Distributed Generations on Distribution Networks Based on Different Optimization Algorithms. Energies 2018, 11, 245. [Google Scholar] [CrossRef] [Green Version]
  38. Muthukumar, K.; Jayalalitha, S. Integrated approach of network reconfiguration with distributed generation and shunt capacitors placement for power loss minimization in radial distribution networks. Appl. Soft Comput. 2017, 52, 1262–1284. [Google Scholar]
  39. Kaur, N.; Jain, S.K. Multi-Objective Optimization Approach for Placement of Multiple DGs for Voltage Sensitive Loads. Energies 2017, 10, 1733. [Google Scholar] [CrossRef] [Green Version]
  40. Guan, W.; Guo, N.; Yu, C.; Chen, X.; Yu, H.; Liu, Z.; Cui, J. Optimal placement and sizing of wind/solar based DG sources in distribution system. IOP Conf. Ser. Mater. Sci. Eng. 2017, 207, 12096. [Google Scholar] [CrossRef] [Green Version]
  41. Moradi, M.H.; Abedini, M.; Hosseinian, S.M. A Combination of Evolutionary Algorithm and Game Theory for Optimal Location and Operation of DG from DG Owner Standpoints. IEEE Trans. Smart Grid 2016, 7, 608–616. [Google Scholar] [CrossRef]
  42. Chen, Y.; Strothers, M.; Benigni, A. A stochastic approach to optimum placement of photovoltaic generation in distribution feeder. In Proceedings of the 2016 Clemson University Power Systems Conference (PSC), Clemson, South Carolina, 8–11 March 2016; pp. 1–7. [Google Scholar] [CrossRef]
  43. Yammani, C.; Maheswarapu, S.; Matam, S.K. A Multi-objective Shuffled Bat algorithm for optimal placement and sizing of multi distributed generations with different load models. Int. J. Electr. Power Energy Syst. 2016, 79, 120–131. [Google Scholar] [CrossRef]
  44. Yammani, C.; Maheswarapu, S.; Matam, S.K. Optimal placement and sizing of distributed generations using shuffled bat algorithm with future load enhancement. Int. Trans. Electr. Energy Syst. 2015, 26, 274–292. [Google Scholar] [CrossRef]
  45. Pazouki, S.; Mohsenzadeh, A.; Ardalan, S.; Haghifam, M. Optimal place, size, and operation of combined heat and power in multi carrier energy networks considering network reliability, power loss, and voltage profile. IET Gener. Transm. Distrib. 2016, 10, 1615–1621. [Google Scholar] [CrossRef]
  46. Zhao, H.; Luan, Z.; Guo, S.; Han, C. Multi-Objective Reactive Power Optimization of Distribution Network with Distributed Generation. MATEC Web Conf. 2016, 55, 6009. [Google Scholar] [CrossRef] [Green Version]
  47. Suchitra, D.; Jegatheesan, R.; Deepika, T. Optimal design of hybrid power generation system and its integration in the distribution network. Int. J. Electr. Power Energy Syst. 2016, 82, 136–149. [Google Scholar] [CrossRef]
  48. Poornazaryan, B.; Karimyan, P.; Gharehpetian, G.; Abedi, M. Optimal allocation and sizing of DG units considering voltage stability, losses and load variations. Int. J. Electr. Power Energy Syst. 2016, 79, 42–52. [Google Scholar] [CrossRef]
  49. Liu, W.; Xu, H.; Niu, S.; Xie, J. Optimal Distributed Generator Allocation Method Considering Voltage Control Cost. Sustainability 2016, 8, 193. [Google Scholar] [CrossRef] [Green Version]
  50. Kayal, P.; Chanda, C. Strategic approach for reinforcement of intermittent renewable energy sources and capacitor bank for sustainable electric power distribution system. Int. J. Electr. Power Energy Syst. 2016, 83, 335–351. [Google Scholar] [CrossRef]
  51. Wu, L.; Yang, X.; Zhou, H.; Hao, X. Asymptotically Optimal Scenario-based Multi-objective Optimization for Distributed Generation Allocation and Sizing in Distribution Systems. Int. J. Grid Distrib. Comput. 2016, 9, 75–86. [Google Scholar] [CrossRef]
  52. Sultana, U.; Khairuddin, A.B.; Mokhtar, A.; Zareen, N.; Sultana, B. Grey wolf optimizer based placement and sizing of multiple distributed generation in the distribution system. Energy 2016, 111, 525–536. [Google Scholar] [CrossRef]
  53. Ghaffarzadeh, N.; Sadeghi, H. A new efficient BBO based method for simultaneous placement of inverter-based DG units and capacitors considering harmonic limits. Int. J. Electr. Power Energy Syst. 2016, 80, 37–45. [Google Scholar] [CrossRef]
  54. Zhang, L.; Tang, W.; Liu, Y.; Lv, T. Multiobjective optimization and decision-making for DG planning considering benefits between distribution company and DGs owner. Int. J. Electr. Power Energy Syst. 2015, 73, 465–474. [Google Scholar] [CrossRef]
  55. Tolabi, H.B.; Ara, A.L.; Hosseini, R. A fuzzy-ExIWO method for optimal placement of multiple DSTATCOM/DG and tuning the DSTATCM’s controller. COMPEL: Int. J. Comput. Math. Electr. Electron. Eng. 2016, 35, 1014–1033. [Google Scholar]
  56. Zeinalzadeh, A.; Mohammadi, Y.; Moradi, M.H. Optimal multi objective placement and sizing of multiple DGs and shunt capacitor banks simultaneously considering load uncertainty via MOPSO approach. Int. J. Electr. Power Energy Syst. 2015, 67, 336–349. [Google Scholar] [CrossRef]
  57. Mohan, N.; Ananthapadmanabha, T.; Kulkarni, A. A Weighted Multi-objective Index Based Optimal Distributed Generation Planning in Distribution System. Procedia Technol. 2015, 21, 279–286. [Google Scholar] [CrossRef] [Green Version]
  58. Mohandas, N.; Balamurugan, R.; Lakshminarasimman, L. Optimal location and sizing of real power DG units to improve the voltage stability in the distribution system using ABC algorithm united with chaos. Int. J. Electr. Power Energy Syst. 2015, 66, 41–52. [Google Scholar] [CrossRef]
  59. Mena, A.J.G.; García, J.A.M. An efficient approach for the siting and sizing problem of distributed generation. Int. J. Electr. Power Energy Syst. 2015, 69, 167–172. [Google Scholar] [CrossRef]
  60. Sheng, W.; Liu, K.-Y.; Liu, Y.; Meng, X.; Li, Y. Optimal Placement and Sizing of Distributed Generation via an Improved Nondominated Sorting Genetic Algorithm II. IEEE Trans. Power Deliv. 2014, 30, 569–578. [Google Scholar] [CrossRef]
  61. Liu, K.-Y.; Sheng, W.; Liu, Y.; Meng, X.; Liu, Y. Optimal sitting and sizing of DGs in distribution system considering time sequence characteristics of loads and DGs. Int. J. Electr. Power Energy Syst. 2015, 69, 430–440. [Google Scholar] [CrossRef]
  62. Kefayat, M.; Ara, A.L.; Niaki, S.N. A hybrid of ant colony optimization and artificial bee colony algorithm for probabilistic optimal placement and sizing of distributed energy resources. Energy Convers. Manag. 2015, 92, 149–161. [Google Scholar] [CrossRef]
  63. Kayal, P.; Chanda, C. Optimal mix of solar and wind distributed generations considering performance improvement of electrical distribution network. Renew. Energy 2015, 75, 173–186. [Google Scholar] [CrossRef]
  64. Karatepe, E.; Ugranlı, F.; Hiyama, T. Comparison of single-and multiple-distributed generation concepts in terms of power loss, voltage profile, and line flows under uncertain scenarios. Renew. Sustain. Energy Rev. 2015, 48, 317–327. [Google Scholar] [CrossRef]
  65. Kanwar, N.; Gupta, N.; Niazi, K.; Swarnkar, A.; Bansal, R. Multi-objective optimal DG allocation in distribution networks using bat algorithm. In Proceedings of the Third Southern African Solar Energy Conference (SASEC2015), Kruger National Park, South Africa, 11–13 May 2015. [Google Scholar]
  66. Ganguly, S.; Samajpati, D. Distributed Generation Allocation on Radial Distribution Networks under Uncertainties of Load and Generation Using Genetic Algorithm. IEEE Trans. Sustain. Energy 2015, 6, 688–697. [Google Scholar] [CrossRef]
  67. Gampa, S.R.; Das, D. Optimum placement and sizing of DGs considering average hourly variations of load. Int. J. Electr. Power Energy Syst. 2014, 66, 25–40. [Google Scholar] [CrossRef]
  68. El-Fergany, A. Optimal allocation of multi-type distributed generators using backtracking search optimization algorithm. Int. J. Electr. Power Energy Syst. 2015, 64, 1197–1205. [Google Scholar] [CrossRef]
  69. El-Fergany, A. Multi-objective Allocation of Multi-type Distributed Generators along Distribution Networks Using Backtracking Search Algorithm and Fuzzy Expert Rules. Electr. Power Compon. Syst. 2015, 44, 252–267. [Google Scholar] [CrossRef]
  70. Darfoun, M.A.; El-Hawary, M.E. Multi-objective Optimization Approach for Optimal Distributed Generation Sizing and Placement. Electr. Power Compon. Syst. 2015, 43, 828–836. [Google Scholar] [CrossRef]
  71. Cheng, S.; Chen, M.-Y.; Fleming, P.J. Improved multi-objective particle swarm optimization with preference strategy for optimal DG integration into the distribution system. Neurocomputing 2015, 148, 23–29. [Google Scholar] [CrossRef]
  72. Abdelsalam, A.A.; Zidan, A.A.; El-Saadany, E.F. Optimal DG Allocation in Radial Distribution Systems with High Penetration of Non-linear Loads. Electr. Power Compon. Syst. 2015, 43, 1487–1497. [Google Scholar] [CrossRef]
  73. Abbasi, F.; Hosseini, S.M. Optimal DG allocation and sizing in presence of storage systems considering network configuration effects in distribution systems. IET Gener. Transm. Distrib. 2016, 10, 617–624. [Google Scholar] [CrossRef]
  74. Tolabi, H.B.; Ali, M.H.; Rizwan, M. Simultaneous Reconfiguration, Optimal Placement of DSTATCOM, and Photovoltaic Array in a Distribution System Based on Fuzzy-ACO Approach. IEEE Trans. Sustain. Energy 2014, 6, 210–218. [Google Scholar] [CrossRef]
  75. Peng, X.; Lin, L.; Zheng, W.; Liu, Y. Crisscross Optimization Algorithm and Monte Carlo Simulation for Solving Optimal Distributed Generation Allocation Problem. Energies 2015, 8, 13641–13659. [Google Scholar] [CrossRef] [Green Version]
  76. Chen, S.; Hu, W.; Su, C.; Zhang, X.; Chen, Z. Optimal reactive power and voltage control in distribution networks with distributed generators by fuzzy adaptive hybrid particle swarm optimisation method. IET Gener. Transm. Distrib. 2015, 9, 1096–1103. [Google Scholar] [CrossRef]
  77. Naik, S.N.G.; Khatod, D.K.; Sharma, M.P. Analytical approach for optimal siting and sizing of distributed generation in radial distribution networks. IET Gener. Transm. Distrib. 2015, 9, 209–220. [Google Scholar] [CrossRef]
  78. Abdelaziz, A.Y.; Hegazy, Y.G.; El-Khattam, W.; Othman, M.M. A Multi-objective Optimization for Sizing and Placement of Voltage-controlled Distributed Generation Using Supervised Big Bang–Big Crunch Method. Electr. Power Compon. Syst. 2014, 43, 105–117. [Google Scholar] [CrossRef]
  79. Dharageshwari, K.; Nayanatara, C. Multiobjective optimal placement of multiple distributed generations in IEEE 33 bus radial system using simulated annealing. In Proceedings of the 2015 International Conference on Circuits, Power and Computing Technologies [ICCPCT-2015], Nagercoil, India, 19–20 March 2015; pp. 1–7. [Google Scholar] [CrossRef]
  80. Wang, Y.F.; Wang, T.; Ren, X. Optimal Allocation of the Distributed Generations using AMPSO. In Proceedings of the Proceedings of the 2015 International Industrial Informatics and Computer Engineering Conference, Xi’an, China, 10–11 January 2015. [Google Scholar]
  81. Zulpo, R.S.; Leborgne, R.C.; Bretas, A.S. Optimal siting and sizing of distributed generation through power losses and voltage deviation. In Proceedings of the 2014 16th International Conference on Harmonics and Quality of Power (ICHQP), Bucharest, Romania, 25–28 May 2014; pp. 871–875. [Google Scholar] [CrossRef]
  82. Vahidinasab, V. Optimal distributed energy resources planning in a competitive electricity market: Multiobjective optimization and probabilistic design. Renew. Energy 2014, 66, 354–363. [Google Scholar] [CrossRef]
  83. Tamandani, S.; Hosseina, M.; Rostami, M.; Khanjanzadeh, A. Using Clonal Selection Algorithm to Optimal Placement with Varying Number of Distributed Generation Units and Multi Objective Function. World J. Control Sci. Eng. 2014, 2, 12–17. [Google Scholar]
  84. Sultana, S.; Roy, P. Multi-objective quasi-oppositional teaching learning based optimization for optimal location of distributed generator in radial distribution systems. Int. J. Electr. Power Energy Syst. 2014, 63, 534–545. [Google Scholar] [CrossRef]
  85. Shaaban, M.; El-Saadany, E.F. Accommodating High Penetrations of PEVs and Renewable DG Considering Uncertainties in Distribution Systems. IEEE Trans. Power Syst. 2013, 29, 259–270. [Google Scholar] [CrossRef]
  86. Prasanna, H.A.M.; Kumar, M.V.L.; Veeresha, A.G.; Ananthapadmanabha, T.; Kulkarni, A.D. Multi objective optimal allocation of a distributed generation unit in distribution network using PSO. In Proceedings of the 2014 International Conference on Advances in Energy Conversion Technologies (ICAECT), Manipal, India, 23–25 January 2014; pp. 61–66. [Google Scholar] [CrossRef]
  87. Moradi, M.H.; Zeinalzadeh, A.; Mohammadi, Y.; Abedini, M. An efficient hybrid method for solving the optimal sitting and sizing problem of DG and shunt capacitor banks simultaneously based on imperialist competitive algorithm and genetic algorithm. Int. J. Electr. Power Energy Syst. 2014, 54, 101–111. [Google Scholar] [CrossRef]
  88. Imran, A.M.; Kowsalya, M. Optimal size and siting of multiple distributed generators in distribution system using bacterial foraging optimization. Swarm Evol. Comput. 2014, 15, 58–65. [Google Scholar] [CrossRef]
  89. Mena, R.; Hennebel, M.; Li, Y.-F.; Ruiz, C.; Zio, E. A risk-based simulation and multi-objective optimization framework for the integration of distributed renewable generation and storage. Renew. Sustain. Energy Rev. 2014, 37, 778–793. [Google Scholar] [CrossRef] [Green Version]
  90. Liu, K.-Y.; Sheng, W.; Liu, Y. Optimal allocation of distributed generation in distribution system considering time sequence data and low-carbon economy. In Proceedings of the 2014 IEEE PES General Meeting|Conference & Exposition, National Harbor, MD, USA, 27–31 July 2014; pp. 1–5. [Google Scholar] [CrossRef]
  91. Kowsalya, M.I.A.M. Optimal distributed generation and capacitor placement in power distribution networks for power loss minimization. In Proceedings of the 2014 International Conference on Advances in Electrical Engineering (ICAEE), Vellore, India, 9–11 January 2014; pp. 1–6. [Google Scholar]
  92. Zhao, Y.; An, Y.; Ai, Q. Research on size and location of distributed generation with vulnerable node identification in the active distribution network. IET Gener. Transm. Distrib. 2014, 8, 1801–1809. [Google Scholar] [CrossRef]
  93. Sheng, W.; Liu, K.; Cheng, S. Optimal power flow algorithm and analysis in distribution system considering distributed generation. IET Gener. Transm. Distrib. 2014, 8, 261–272. [Google Scholar] [CrossRef]
  94. Imran, A.M.; Kowsalya, M.; Kothari, D. A novel integration technique for optimal network reconfiguration and distributed generation placement in power distribution networks. Int. J. Electr. Power Energy Syst. 2014, 63, 461–472. [Google Scholar] [CrossRef]
  95. Hung, D.Q.; Mithulananthan, N.; Bansal, R. An optimal investment planning framework for multiple distributed generation units in industrial distribution systems. Appl. Energy 2014, 124, 62–72. [Google Scholar] [CrossRef] [Green Version]
  96. Esmaili, M.; Firozjaee, E.C.; Shayanfar, H.A. Optimal placement of distributed generations considering voltage stability and power losses with observing voltage-related constraints. Appl. Energy 2014, 113, 1252–1260. [Google Scholar] [CrossRef]
  97. Jaganathan, S.; Palaniswami, S. Control of voltage profile with optimal control and placement of distributed generation using the refined bacterial foraging algorithm. J. Vib. Control 2013, 20, 2006–2018. [Google Scholar] [CrossRef]
  98. Cheng, S.; Chen, M.-Y.; Wai, R.-J.; Wang, F.-Z. Optimal placement of distributed generation units in distribution systems via an enhanced multi-objective particle swarm optimization algorithm. J. Zhejiang Univ. Sci. C 2014, 15, 300–311. [Google Scholar] [CrossRef]
  99. Musa, I.; Gadoue, S.; Zahawi, B. Integration of Distributed Generation in Power Networks Considering Constraints on Discrete Size of Distributed Generation Units. Electr. Power Compon. Syst. 2014, 42, 984–994. [Google Scholar] [CrossRef]
  100. Pesaran, M.; Zin, A.A.M.; Khairuddin, A.; Shariati, O. Optimal Sizing and Siting of Distributed Generators by a Weighted Exhaustive Search. Electr. Power Compon. Syst. 2014, 42, 1131–1142. [Google Scholar] [CrossRef]
  101. Barukčić, M.; Hederić, Ž.; Miklošević, K. Multi objective optimization of energy production of distributed generation in distribution feeder. In Proceedings of the 2014 IEEE International Energy Conference (ENERGYCON), Cavtat, Croatia, 13–16 May 2014; pp. 1325–1333. [Google Scholar]
  102. Biswas, S.; Chatterjee, A.; Goswami, S.K. An artificial bee colony based optimal placement and sizing of distributed generation. In Proceedings of the 2014 International Conference on Control, Instrumentation, Energy and Communication (CIEC), Calcutta, India, 31 January–2 February 2014; pp. 356–360. [Google Scholar]
  103. Ge, X.-L.; Xia, S. An Improved Multi-objective Differential Evolution Algorithm for Allocating Wind Generation and Photovoltaic. In Proceedings of the International Conference on Life System Modeling and Simulation and International Conference on Intelligent Computing for Sustainable Energy and Environment, Shanghai, China, September 2014; pp. 21–31. [Google Scholar]
  104. Kayal, P.; Khan, C.M.; Chanda, C.K. Selection of distributed generation for distribution network: A study in multi-criteria framework. In Proceedings of the 2014 International Conference on Control, Instrumentation, Energy and Communication (CIEC), Calcutta, India, 31 January–2 February 2014; pp. 269–274. [Google Scholar] [CrossRef]
  105. Yammani, C.; Maheswarapu, S.; Matam, S.K. Optimal placement and sizing of multi Distributed generations with renewable bus available limits using Shuffled Bat algorithm. In Proceedings of the 2014 IEEE 27th Canadian Conference on Electrical and Computer Engineering (CCECE), Toronto, ON, Canada, 4–7 May 2014; pp. 1–6. [Google Scholar] [CrossRef]
  106. Dejun, A.E.; LiPengcheng, B.; PengZhiwei, C.; OuJiaxiang, D. Research of voltage caused by distributed generation and optimal allocation of distributed generation. In Proceedings of the 2014 International Conference on Power System Technology, Chengdu, China, 20–22 October 2014; pp. 3098–3102. [Google Scholar] [CrossRef]
  107. Sheng, W.; Liu, K.-Y.; Liu, Y.; Meng, X.; Song, X. A New DG Multiobjective Optimization Method Based on an Improved Evolutionary Algorithm. J. Appl. Math. 2013, 2013, 1–11. [Google Scholar] [CrossRef]
  108. Nekooei, K.; Farsangi, M.M.; Nezamabadi-Pour, H.; Lee, K.Y. An Improved Multi-Objective Harmony Search for Optimal Placement of DGs in Distribution Systems. IEEE Trans. Smart Grid 2013, 4, 557–567. [Google Scholar] [CrossRef]
  109. Murthy, V.; Kumar, A. Comparison of optimal DG allocation methods in radial distribution systems based on sensitivity approaches. Int. J. Electr. Power Energy Syst. 2013, 53, 450–467. [Google Scholar] [CrossRef]
  110. Liu, Y.; Li, Y.; Liu, K.-Y.; Sheng, W. Optimal placement and sizing of distributed generation in distribution power system based on multi-objective harmony search algorithm. In Proceedings of the 2013 6th IEEE Conference on Robotics, Automation and Mechatronics (RAM), Manila, Philippines, 12–15 November 2013; pp. 168–173. [Google Scholar] [CrossRef]
  111. Kadir, A.F.A.; Mohamed, A.; Shareef, H.; Wanik, M.Z.C.; Ibrahim, A.A. Optimal sizing and placement of distributed generation in distribution system considering losses and THDv using gravitational search algorithm. Przegl. Elektrotech. 2013, 89, 132–136. [Google Scholar]
  112. Biswas, S.; Goswami, S.K.; Chatterjee, A. Optimal distributed generation placement in shunt capacitor compensated distribution systems considering voltage sag and harmonics distortions. IET Gener. Transm. Distrib. 2014, 8, 783–797. [Google Scholar] [CrossRef]
  113. Hosseini, S.A.; Madahi, S.S.K.; Razavi, F.; Karami, M.; Ghadimi, A.A. Optimal sizing and siting distributed generation resources using a multiobjective algorithm. Turk. J. Electr. Eng. Comput. Sci. 2013, 21, 825–850. [Google Scholar]
  114. Gitizadeh, M.; Vahed, A.A.; Aghaei, J. Multistage distribution system expansion planning considering distributed generation using hybrid evolutionary algorithms. Appl. Energy 2013, 101, 655–666. [Google Scholar] [CrossRef]
  115. Ganguly, S.; Sahoo, N.; Das, D. Multi-objective particle swarm optimization based on fuzzy-Pareto-dominance for possibilistic planning of electrical distribution systems incorporating distributed generation. Fuzzy Sets Syst. 2013, 213, 47–73. [Google Scholar] [CrossRef]
  116. Esmaili, M. Placement of minimum distributed generation units observing power losses and voltage stability with network constraints. IET Gener. Transm. Distrib. 2013, 7, 813–821. [Google Scholar] [CrossRef]
  117. Doagou-Mojarrad, H.; Gharehpetian, G.; Rastegar, H.; Olamaei, J. Optimal placement and sizing of DG (distributed generation) units in distribution networks by novel hybrid evolutionary algorithm. Energy 2013, 54, 129–138. [Google Scholar] [CrossRef]
  118. Dehghanian, P.; Hosseini, S.H.; Moeini-Aghtaie, M.; Arabali, A. Optimal siting of DG units in power systems from a probabilistic multi-objective optimization perspective. Int. J. Electr. Power Energy Syst. 2013, 51, 14–26. [Google Scholar] [CrossRef]
  119. Aman, M.; Jasmon, G.; Bakar, A.; Mokhlis, H. A new approach for optimum DG placement and sizing based on voltage stability maximization and minimization of power losses. Energy Convers. Manag. 2013, 70, 202–210. [Google Scholar] [CrossRef]
  120. Abdi, S.; Afshar, K. Application of IPSO-Monte Carlo for optimal distributed generation allocation and sizing. Int. J. Electr. Power Energy Syst. 2012, 44, 786–797. [Google Scholar] [CrossRef]
  121. Habibi, A.; Nayeripour, M.; Aghaei, J. Secure multi-objective distributed generation planning in distribution network. In Proceedings of the 2013 21st Iranian Conference on Electrical Engineering (ICEE), Mashhad, Iran, 14–16 May 2013; pp. 1–6. [Google Scholar] [CrossRef] [Green Version]
  122. Cai, R.; Chen, H.; Lu, R.; Jin, X.; Liu, H. Distributed generation planning in distribution network based on hybrid intelligent algorithm by SVM-MOPSO. In Proceedings of the 2013 IEEE PES Asia-Pacific Power and Energy Engineering Conference (APPEEC), Hong Kong, China, 8–11 December 2013; pp. 1–6. [Google Scholar] [CrossRef]
  123. Ameli, A.; Farrokhifard, M.; Shahsavari, A.; Ahmadifar, A.; Shayanfar, H.-A. Multi-objective DG planning considering operational and economic viewpoints. In Proceedings of the2013 13th International Conference on Environment and Electrical Engineering (EEEIC), Wroclaw, Poland, 1–3 November 2013; pp. 104–109. [Google Scholar] [CrossRef]
  124. Mena, R.; Li, Y.; Zio, E.; Hennebel, M.; Ruiz, C. Optimal Sizing and Allocation of Distributed Generation for Reliable Energy Distribution Accounting For Uncertainty; ESREL: Amsterdam, The Netherlands, 2013; pp. 1–8. [Google Scholar] [CrossRef]
  125. Dehghani-Arani, A.; Maddahi, R. Introduction a multi-objective function in unbalanced and unsymmetrical distribution networks for optimal placement and sizing of distributed generation units using NSGA-II. In Proceedings of the 18th Electric Power Distribution Conference, Kermanshah, Iran, 30 April–1 May 2013; pp. 1–9. [Google Scholar] [CrossRef]
  126. Johan, N.F.M.; Azmi, A.; Rashid, M.A.; Yaakob, S.B.; Rahim, S.R.A.; Zali, S.M. Multi-objective using Artificial Bee Colony optimization for distributed generation placement on power system. In Proceedings of the 2013 IEEE International Conference on Control System, Computing and Engineering, Penang, Malaysia, 29 November–1 December 2013; pp. 117–121. [Google Scholar] [CrossRef]
  127. Gilani, S.H.; Afrakhte, H.; Ghadi, M.J. Probabilistic method for optimal placement of wind-based distributed generation with considering reliability improvement and power loss reduction. In Proceedings of the 4th Conference on Thermal Power Plants, Tehran, Iran, 18–19 December 2012; pp. 1–6. [Google Scholar]
  128. Yammani, C.; Maheswarapu, S.; Matam, S. Multiobjective Optimization for Optimal Placement and Size of DG using Shuffled Frog Leaping Algorithm. Energy Procedia 2012, 14, 990–995. [Google Scholar] [CrossRef] [Green Version]
  129. Darabian, V.R.M.; Molaei, S. A Robust Technique for Optimal Placement of Distribution Generation. In Proceedings of the International Conference on Advances in Computer and Electrical Engineering (ICACEE, 2012), Manila, Philippines, 17–18 November 2012. [Google Scholar]
  130. Sadighmanesh, A.; Zare, K.; Sabahi, M. Distributed Generation unit and Capacitor Placement for Multi-objective Optimization. Int. J. Electr. Comput. Eng. (IJECE) 2012, 2, 615–620. [Google Scholar] [CrossRef]
  131. Rotaru, F.; Chicco, G.; Grigoras, G.; Cartina, G. Two-stage distributed generation optimal sizing with clustering-based node selection. Int. J. Electr. Power Energy Syst. 2012, 40, 120–129. [Google Scholar] [CrossRef]
  132. Mohsenzadeh, A.; Haghifam, M.-R. Simultaneus placement of conventional and renewable distributed generation using fuzzy multiobjective optimization. In Proceedings of the Integration of Renewables into the Distribution Grid, Lisbon, Portugal, 29–30 May 2012; pp. 1–4. [Google Scholar]
  133. Maciel, R.S.; Rosa, M.; Miranda, V.; Padilha-Feltrin, A. Multi-objective evolutionary particle swarm optimization in the assessment of the impact of distributed generation. Electr. Power Syst. Res. 2012, 89, 100–108. [Google Scholar] [CrossRef] [Green Version]
  134. Fard, M.M.; Oroozian, R.N.; Molaei, S. Determining the optimal placement and capacity of DG in intelligent distribution networks under uncertainty demands by COA. In Proceedings of the Iranian Conference on Smart Grids, Tehran, Iran, 24–25 May 2012; pp. 1–8. [Google Scholar]
  135. Chen, M.-Y.; Cheng, S. Multi-objective optimization of the allocation of DG units considering technical, economical and environmental attributes. Prz. Elektrotech. 2012, 88, 233–237. [Google Scholar]
  136. Singh, R.K.; Goswami, S.K. Multi-objective Optimization of Distributed Generation Planning Using Impact Indices and Trade-off Technique. Electr. Power Compon. Syst. 2011, 39, 1175–1190. [Google Scholar] [CrossRef]
  137. Porkar, S.; Poure, P.; Abbaspour-Tehrani-Fard, A.; Saadate, S. Optimal allocation of distributed generation using a two-stage multi-objective mixed-integer-nonlinear programming. Eur. Trans. Electr. Power 2010, 21, 1072–1087. [Google Scholar] [CrossRef]
  138. Niknam, T.; Taheri, S.I.; Aghaei, J.; Tabatabaei, S.; Nayeripour, M. A modified honey bee mating optimization algorithm for multiobjective placement of renewable energy resources. Appl. Energy 2011, 88, 4817–4830. [Google Scholar] [CrossRef]
  139. Mohammadi, M.; Nasab, M.A. PSO based multiobjective approach for optimal sizing and placement of distributed generation. Res. J. Appl. Sci. Eng. Technol. 2011, 3, 832–837. [Google Scholar]
  140. Moeini-Aghtaie, M.; Dehghanian, P.; Hosseini, S.H. Optimal Distributed Generation placement in a restructured environment via a multi-objective optimization approach. In Proceedings of the 16th Electrical Power Distribution Conference, Bandar Abbas, Iran, 19–20 April 2011; pp. 1–6. [Google Scholar]
  141. El-Zonkoly, A. Optimal placement of multi-distributed generation units including different load models using particle swarm optimization. Swarm Evol. Comput. 2011, 1, 50–59. [Google Scholar] [CrossRef]
  142. Sutthibun, T.; Bhasaputra, P. Multi-objective optimal distributed generation placement using simulated annealing. In Proceedings of the ECTI-CON2010: The 2010 ECTI International Confernce on Electrical Engineering/Electronics, Computer, Telecommunications and Information Technology, Chiang Mai, Thailand, 19–21 May 2010; pp. 810–813. [Google Scholar]
  143. Molazei, S. Maximum loss reduction through DG optimal placement and sizing by MOPSO algorithm. Recent Res. Environ. Biomed. 2010, 4, 143–147. [Google Scholar]
  144. Kumar, A.; Gao, W. Optimal distributed generation location using mixed integer non-linear programming in hybrid electricity markets. IET Gener. Transm. Distrib. 2010, 4, 281–298. [Google Scholar] [CrossRef]
  145. Ganguly, S.; Sahoo, N.C.; Das, D. A novel multi-objective PSO for electrical distribution system planning incorporating distributed generation. Energy Syst. 2010, 1, 291–337. [Google Scholar] [CrossRef]
  146. Barin, A.; Pozzatti, L.F.; Canha, L.N.; Machado, R.Q.; Abaide, A.R.; Arend, G. Multi-objective analysis of impacts of distributed generation placement on the operational characteristics of networks for distribution system planning. Int. J. Electr. Power Energy Syst. 2010, 32, 1157–1164. [Google Scholar] [CrossRef]
  147. Aly, A.I.; Hegazy, Y.G.; Alsharkawy, M.A. A simulated annealing algorithm for multi-objective distributed generation planning. In Proceedings of the IEEE PES General Meeting, Minneapolis, MN, USA, 25–29 July 2010; pp. 1–7. [Google Scholar] [CrossRef]
  148. Parizad, A.; Khazali, A.H.; Kalantar, M. Sitting and sizing of distributed generation through Harmony Search Algorithm for improve voltage profile and reducuction of THD and losses. In Proceedings of the CCECE 2010, Calgary, AB, Canada, 2–5 May 2010; pp. 1–7. [Google Scholar] [CrossRef]
  149. Hejazi, H.A.; Hejazi, M.A.; Gharehpetian, G.B.; Abedi, M. Distributed generation site and size allocation through a techno economical multi-objective Differential Evolution Algorithm. In Proceedings of the 2010 IEEE International Conference on Power and Energy, Kuala Lumpur, Malaysia, 29 November–1 December 2010; pp. 874–879. [Google Scholar] [CrossRef]
  150. Xiaoqun, D.; Jiahong, W.; Feng, Z. Optimal location and capacity of distributed generation based on scenario probability. In Proceedings of the 2009 International Conference on Sustainable Power Generation and Supply, Nanjing, China, 6–7 April 2009; pp. 1–5. [Google Scholar] [CrossRef]
  151. Ahmadi, M.; Yousefi, A.; Soroudi, A.; Ehsan, M. Multi objective distributed generation planning using NSGA-II. In Proceedings of the 2008 13th International Power Electronics and Motion Control Conference, Poznan, Poland, 1–3 September 2008; pp. 1847–1851. [Google Scholar] [CrossRef]
  152. Celli, G.; Mocci, S.; Pilo, F.; Soma, G. A multi-objective approach for the optimal distributed generation allocation with environmental constraints. In Proceedings of the 10th International Conference on Probablistic Methods Applied to Power Systems, Rincon, PR, USA, 25–29 May 2008; pp. 1–8. [Google Scholar]
  153. Mantway, A.H.; Al-Muhaini, M.M. Multi-objective BPSO algorithm for distribution system expansion planning including Distributed Generation. In Proceedings of the 2008 IEEE/PES Transmission and Distribution Conference and Exposition, Chicago, IL, USA, 21–24 April 2008; pp. 1–8. [Google Scholar] [CrossRef]
  154. Tang, X.; Tang, G. Multi-objective planning for distributed generation in distribution network. In Proceedings of the 2008 Third International Conference on Electric Utility Deregulation and Restructuring and Power Technologies, Nanjing, China, 6–9 April 2008; pp. 2664–2667. [Google Scholar] [CrossRef]
  155. Kumar, M.; Nallagownden, P.; Elamvazuthi, I. Optimal Placement and Sizing of Renewable Distributed Generations and Capacitor Banks into Radial Distribution Systems. Energies 2017, 10, 811. [Google Scholar] [CrossRef] [Green Version]
  156. Mahesh, K.; Nallagownden, P.; Elamvazuthi, I. Advanced Pareto Front Non-Dominated Sorting Multi-Objective Particle Swarm Optimization for Optimal Placement and Sizing of Distributed Generation. Energies 2016, 9, 982. [Google Scholar] [CrossRef] [Green Version]
  157. Nallagownden, P.; Mahesh, K.; Elamvazuthi, I. A Combined-Model for Uncertain Load and Optimal Configuration of Distributed Generation in Power Distribution System. Int. J. Simul. Syst. Sci. Technol. 2017, 17. [Google Scholar] [CrossRef]
  158. Kansal, S.; Kumar, V.; Tyagi, B. Optimal placement of different type of DG sources in distribution networks. Int. J. Electr. Power Energy Syst. 2013, 53, 752–760. [Google Scholar] [CrossRef]
  159. Hung, D.Q.; Mithulananthan, N.; Lee, K.Y. Optimal placement of dispatchable and nondispatchable renewable DG units in distribution networks for minimizing energy loss. Int. J. Electr. Power Energy Syst. 2013, 55, 179–186. [Google Scholar] [CrossRef]
  160. Viral, R.; Khatod, D. An analytical approach for sizing and siting of DGs in balanced radial distribution networks for loss minimization. Int. J. Electr. Power Energy Syst. 2015, 67, 191–201. [Google Scholar] [CrossRef]
  161. Othman, M.M.; El-Khattam, W.; Hegazy, Y.G.; Abdelaziz, A.Y. Optimal Placement and Sizing of Distributed Generators in Unbalanced Distribution Systems Using Supervised Big Bang-Big Crunch Method. IEEE Trans. Power Syst. 2014, 30, 911–919. [Google Scholar] [CrossRef]
  162. Kaur, S.; Kumbhar, G.; Sharma, J. A MINLP technique for optimal placement of multiple DG units in distribution systems. Int. J. Electr. Power Energy Syst. 2014, 63, 609–617. [Google Scholar] [CrossRef]
  163. Karimyan, P.; Gharehpetian, G.; Abedi, M.; Gavili, A. Long term scheduling for optimal allocation and sizing of DG unit considering load variations and DG type. Int. J. Electr. Power Energy Syst. 2014, 54, 277–287. [Google Scholar] [CrossRef]
  164. Elsaiah, S.; Benidris, M.; Mitra, J. Analytical approach for placement and sizing of distributed generation on distribution systems. IET Gener. Transm. Distrib. 2014, 8, 1039–1049. [Google Scholar] [CrossRef]
  165. Devi, S.; Geethanjali, M. Optimal location and sizing determination of Distributed Generation and DSTATCOM using Particle Swarm Optimization algorithm. Int. J. Electr. Power Energy Syst. 2014, 62, 562–570. [Google Scholar] [CrossRef]
  166. Abul’Wafa, A.R. Optimal capacitor allocation in radial distribution systems for loss reduction: A two stage method. Electr. Power Syst. Res. 2013, 95, 168–174. [Google Scholar] [CrossRef]
  167. Quoc, H.D.; Mithulananthan, N. An optimal operating strategy of DG unit for power loss reduction in distribution systems. In Proceedings of the 2012 IEEE 7th International Conference on Industrial and Information Systems (ICIIS), Chennai, India, 6–9 August 2012; pp. 1–6. [Google Scholar]
  168. Prakash, K.; Sydulu, M. Particle swarm optimization based capacitor placement on radial distribution systems. In Proceedings of the 2007 IEEE Power Engineering Society General Meeting, Tampa, FL, USA, 24–28 June 2007; pp. 1–5. [Google Scholar]
  169. El-Ela, A.A.A.; El-Sehiemy, R.A.; Kinawy, A.; Mouwafi, M.T. Optimal capacitor placement in distribution systems for power loss reduction and voltage profile improvement. IET Gener. Transm. Distrib. 2016, 10, 1209–1221. [Google Scholar] [CrossRef]
  170. Vuletić, J.; Todorovski, M. Optimal capacitor placement in distorted distribution networks with different load models using Penalty Free Genetic Algorithm. Int. J. Electr. Power Energy Syst. 2016, 78, 174–182. [Google Scholar] [CrossRef]
  171. Ali, E.; Abd-Elazim, S.; Abdelaziz, A. Improved Harmony Algorithm and Power Loss Index for optimal locations and sizing of capacitors in radial distribution systems. Int. J. Electr. Power Energy Syst. 2016, 80, 252–263. [Google Scholar] [CrossRef]
  172. Rocha, L.; Castro, R.; de Jesus, J.M.F. An improved particle swarm optimization algorithm for optimal placement and sizing of STATCOM. Int. Trans. Electr. Energy Syst. 2015, 26, 825–840. [Google Scholar] [CrossRef]
  173. Taher, S.A.; Afsari, S.A. Optimal location and sizing of DSTATCOM in distribution systems by immune algorithm. Int. J. Electr. Power Energy Syst. 2014, 60, 34–44. [Google Scholar] [CrossRef]
  174. Ganguly, S. Multi-Objective Planning for Reactive Power Compensation of Radial Distribution Networks With Unified Power Quality Conditioner Allocation Using Particle Swarm Optimization. IEEE Trans. Power Syst. 2014, 29, 1801–1810. [Google Scholar] [CrossRef]
  175. El-Fergany, A.A. Involvement of cost savings and voltage stability indices in optimal capacitor allocation in radial distribution networks using artificial bee colony algorithm. Int. J. Electr. Power Energy Syst. 2014, 62, 608–616. [Google Scholar] [CrossRef]
  176. Kroposki, B.; Sen, P.K.; Malmedal, K. Selection of Distribution Feeders for Implementing Distributed Generation and Renewable Energy Applications. IEEE Trans. Ind. Appl. 2013, 49, 2825–2834. [Google Scholar] [CrossRef]
  177. Pereira, B.R.; da Costa, G.R.M.M.; Contreras, J.; Mantovani, J.R.S. Optimal Distributed Generation and Reactive Power Allocation in Electrical Distribution Systems. IEEE Trans. Sustain. Energy 2016, 7, 975–984. [Google Scholar] [CrossRef] [Green Version]
  178. Zou, K.; Agalgaonkar, A.P.; Muttaqi, K.M.; Perera, S. Distribution System Planning With Incorporating DG Reactive Capability and System Uncertainties. IEEE Trans. Sustain. Energy 2011, 3, 112–123. [Google Scholar] [CrossRef]
  179. Mahesh, K.; Nallagownden, P.; Elamvazuthi, I. Optimal Configuration of DG in Distribution System: An Overview. MATEC Web Conf. 2016, 38, 01007. [Google Scholar] [CrossRef] [Green Version]
  180. Kumar, M.; Nallagownden, P.; Elamvazuthi, I. Optimal placement and sizing of distributed generators for voltage-dependent load model in radial distribution system. Renew. Energy Focus 2017, 19–20, 23–37. [Google Scholar] [CrossRef]
  181. Sultana, U.; Khairuddin, A.B.; Aman, M.; Mokhtar, A.; Zareen, N. A review of optimum DG placement based on minimization of power losses and voltage stability enhancement of distribution system. Renew. Sustain. Energy Rev. 2016, 63, 363–378. [Google Scholar] [CrossRef]
  182. IEEE Std 1547-2003; IEEE Standard for Interconnecting Distributed Resources with Electric Power Systems. IEEE: Piscataway, NJ, USA, 2003; pp. 1–28.
  183. Xu, Y.; Dong, Z.Y.; Xiao, C.; Zhang, R.; Wong, K.P. Optimal placement of static compensators for multi-objective voltage stability enhancement of power systems. IET Gener. Transm. Distrib. 2015, 9, 2144–2151. [Google Scholar] [CrossRef]
  184. Carreras-Sospedra, M.; Vutukuru, S.; Brouwer, J.; Dabdub, D. Central power generation versus distributed generation—An air quality assessment in the South Coast Air Basin of California. Atmos. Environ. 2010, 44, 3215–3223. [Google Scholar] [CrossRef] [Green Version]
  185. Koutsoukis, N.C.; Georgilakis, P.S.; Hatziargyriou, N.D. A Tabu search method for distribution network planning considering distributed generation and uncertainties. In Proceedings of the 2014 International Conference on Probabilistic Methods Applied to Power Systems (PMAPS), Durham, UK, 7–10 July 2014; pp. 1–6. [Google Scholar] [CrossRef]
  186. Liu, Z.; Wen, F.; Ledwich, G. Optimal Siting and Sizing of Distributed Generators in Distribution Systems Considering Uncertainties. IEEE Trans. Power Deliv. 2011, 26, 2541–2551. [Google Scholar] [CrossRef]
  187. Mitra, J.; Vallem, M.R.; Singh, C. Optimal deployment of distributed generation using a reliability criterion. IEEE Trans. Ind. Appl. 2016, 52, 1989–1997. [Google Scholar] [CrossRef]
  188. Massignan, J.A.; Pereira, B.R.; London, J.B. Load flow calculation with voltage regulators bidirectional mode and distributed generation. IEEE Trans. Power Syst. 2016, 32, 1576–1577. [Google Scholar] [CrossRef]
  189. Hemmati, R.; Hooshmand, R.-A.; Taheri, N. Distribution network expansion planning and DG placement in the presence of uncertainties. Int. J. Electr. Power Energy Syst. 2015, 73, 665–673. [Google Scholar] [CrossRef]
  190. Rahmani-Andebili, M. Distributed Generation Placement Planning Modeling Feeder’s Failure Rate and Customer’s Load Type. IEEE Trans. Ind. Electron. 2015, 63, 1598–1606. [Google Scholar] [CrossRef]
  191. Zhang, S.; Cheng, H.; Li, K.; Bazargan, M.; Yao, L. Optimal siting and sizing of intermittent distributed generators in distribution system. IEEJ Trans. Electr. Electron. Eng. 2015, 10, 628–635. [Google Scholar] [CrossRef]
  192. Khare, A.; Rangnekar, S. Optimal sizing of a grid integrated solar photovoltaic system. IET Renew. Power Gener. 2014, 8, 67–75. [Google Scholar] [CrossRef]
  193. Evangelopoulos, V.A.; Georgilakis, P.S. Optimal distributed generation placement under uncertainties based on point estimate method embedded genetic algorithm. IET Gener. Transm. Distrib. 2014, 8, 389–400. [Google Scholar] [CrossRef] [Green Version]
  194. Zangeneh, A.; Jadid, S. Fuzzy multiobjective model for distributed generation expansion planning in uncertain environment. Eur. Trans. Electr. Power 2010, 21, 129–141. [Google Scholar] [CrossRef]
  195. Kansal, S.; Sai, B.; Tyagi, B.; Kumar, V. Optimal placement of wind-based generation in distribution networks. In Proceedings of the IET Conference on Renewable Power Generation (RPG 2011), Edinburgh, UK, 6–8 September 2011. [Google Scholar] [CrossRef]
  196. Aman, M.; Jasmon, G.; Bakar, A.; Mokhlis, H. A new approach for optimum simultaneous multi-DG distributed generation Units placement and sizing based on maximization of system loadability using HPSO (hybrid particle swarm optimization) algorithm. Energy 2014, 66, 202–215. [Google Scholar] [CrossRef]
  197. Behera, S.; Sahoo, S.; Pati, B. A review on optimization algorithms and application to wind energy integration to grid. Renew. Sustain. Energy Rev. 2015, 48, 214–227. [Google Scholar] [CrossRef]
  198. Hung, D.Q.; Mithulananthan, N.; Bansal, R. Analytical strategies for renewable distributed generation integration considering energy loss minimization. Appl. Energy 2013, 105, 75–85. [Google Scholar] [CrossRef]
  199. Acharya, N.; Mahat, P.; Mithulananthan, N. An analytical approach for DG allocation in primary distribution network. Int. J. Electr. Power Energy Syst. 2006, 28, 669–678. [Google Scholar] [CrossRef]
  200. Tah, A.; Das, D. Novel analytical method for the placement and sizing of distributed generation unit on distribution networks with and without considering P and PQV buses. Int. J. Electr. Power Energy Syst. 2016, 78, 401–413. [Google Scholar] [CrossRef]
  201. Willis, H.L. Analytical methods and rules of thumb for modeling DG-distribution interaction. In Proceedings of the IEEE PES Summer Meeting, Seattle, WA, USA, 16–20 July 2000; pp. 1643–1644. [Google Scholar] [CrossRef]
  202. Wang, C.; Nehrir, M. Analytical approaches for optimal placement of distributed generation sources in power systems. IEEE Trans. Power Syst. 2005, 19, 2068–2076. [Google Scholar] [CrossRef]
  203. Gözel, T.; Hocaoglu, M.H. An analytical method for the sizing and siting of distributed generators in radial systems. Electr. Power Syst. Res. 2009, 79, 912–918. [Google Scholar] [CrossRef]
  204. Keane, A.; O’Malley, M. Optimal Utilization of Distribution Networks for Energy Harvesting. IEEE Trans. Power Syst. 2007, 22, 467–475. [Google Scholar] [CrossRef]
  205. Keane, A.; O’Malley, M. Optimal allocation of embedded generation on distribution networks. IEEE Trans. Power Syst. 2005, 20, 1640–1646. [Google Scholar] [CrossRef]
  206. Rider, M.J.; López-Lezama, J.M.; Contreras, J.; Padilha-Feltrin, A. Bilevel approach for optimal location and contract pricing of distributed generation in radial distribution systems using mixed-integer linear programming. IET Gener. Transm. Distrib. 2013, 7, 724–734. [Google Scholar] [CrossRef]
  207. Wu, F.F.; Gross, G.; Luini, J.F.; Look, P.M. A Two-stage Approach to Solving Large-scale Optimal Power Flows. In Proceedings of the IEEE Conference Proceedings Power Industry Computer Applications Conference, Cleveland, OH, USA, 15–19 May 2005; pp. 126–136. [Google Scholar] [CrossRef]
  208. Rau, N.; Wan, Y.-H. Optimum location of resources in distributed planning. IEEE Trans. Power Syst. 1994, 9, 2014–2020. [Google Scholar] [CrossRef]
  209. Zhang, W.; Li, F.; Tolbert, L.M. Review of reactive power planning: Objectives, constraints, and algorithms. IEEE Trans. Power Syst. 2007, 22, 2177–2186. [Google Scholar] [CrossRef] [Green Version]
  210. Atwa, Y.M.; El-Saadany, E.F.; Salama, M.M.A.; Seethapathy, R. Optimal Renewable Resources Mix for Distribution System Energy Loss Minimization. IEEE Trans. Power Syst. 2009, 25, 360–370. [Google Scholar] [CrossRef]
  211. Geem, Z.W.; Kim, J.H.; Loganathan, G.V. A new heuristic optimization algorithm: Harmony search. Simulation 2001, 76, 60–68. [Google Scholar] [CrossRef]
  212. Zubo, R.H.A.; Mokryani, G.; Rajamani, H.-S.; Aghaei, J.; Niknam, T.; Pillai, P. Operation and Planning of Distribution Networks With Integration of Renewable Distributed Generators Considering Uncertainties: A Review. Renew. Sustain. Energy Rev. 2017, 72, 1177–1198. [Google Scholar] [CrossRef] [Green Version]
  213. Keane, A.; Ochoa, L.F.; Borges, C.L.T.; Ault, G.W.; Alarcon-Rodriguez, A.D.; Currie, R.A.F.; Pilo, F.; Dent, C.; Harrison, G.P. State-of-the-Art Techniques and Challenges Ahead for Distributed Generation Planning and Optimization. IEEE Trans. Power Syst. 2013, 28, 1493–1502. [Google Scholar] [CrossRef] [Green Version]
  214. Ehsan, A.; Yang, Q. Optimal integration and planning of renewable distributed generation in the power distribution networks: A review of analytical techniques. Appl. Energy 2018, 210, 44–59. [Google Scholar] [CrossRef]
  215. Yang, X.S. Biology-derived algorithms in engineering optimization. In Handbook of Bio-Inspired Algorithms and Applications; Chapman & Hall/CRC Computer & Information Science Series; Chapman & Hall: London, UK, 2005; pp. 585–596. [Google Scholar]
  216. Deb, K.; Pratap, A.; Agarwal, S.; Meyarivan, T. A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE Trans. Evol. Comput. 2002, 6, 182–197. [Google Scholar] [CrossRef] [Green Version]
  217. Storn, R.; Price, K. Differential evolution—A simple and efficient heuristic for global optimization over continuous spaces. J. Glob. Optim. 1997, 11, 341–359. [Google Scholar] [CrossRef]
  218. Moradi, M.H.; Tousi, S.R.; Abedini, M. Multi-objective PFDE algorithm for solving the optimal siting and sizing problem of multiple DG sources. Int. J. Electr. Power Energy Syst. 2014, 56, 117–126. [Google Scholar] [CrossRef]
  219. Kennedy, J.; Eberhart, R. Particle swarm optimization. In Proceedings of the ICNN’95—International Conference on Neural Networks, Perth, WA, Australia, 27 November–1 December 1995. [Google Scholar]
  220. Coello, C.A.C.; Toscano-Pulido, G.T.; Lechuga, M.S. Handling multiple objectives with particle swarm optimization. IEEE Trans. Evol. Comput. 2004, 8, 256–279. [Google Scholar] [CrossRef]
  221. Dorigo, M.; Maniezzo, V.; Colorni, A. Ant system: Optimization by a colony of cooperating agents. IEEE Trans. Syst. Man Cybern. Part B Cybern. 1996, 26, 29–41. [Google Scholar] [CrossRef] [Green Version]
  222. Karaboga, D. An idea based on honey bee swarm for numerical optimization. Technical report-tr06, Erciyes university, engineering faculty, computer engineering department Kayseri/Türkiye 2005. Available online: https://abc.erciyes.edu.tr/pub/tr06_2005.pdf (accessed on 25 September 2022).
  223. Črepinšek, M.; Liu, S.-H.; Mernik, L. A note on teaching–learning-based optimization algorithm. Inf. Sci. 2012, 212, 79–93. [Google Scholar] [CrossRef]
  224. Passino, K.M. Biomimicry of bacterial foraging for distributed optimization and control. IEEE Control Syst. Mag. 2002, 22, 52–67. [Google Scholar] [CrossRef]
  225. Yang, X.-S. A New Metaheuristic Bat-Inspired Algorithm. In Nature Inspired Cooperative Strategies for Optimization (NICSO 2010); González, J.R., Pelta, D.A., Cruz, C., Terrazas, G., Krasnogor, N., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; pp. 65–74. [Google Scholar]
  226. Mirjalili, S.; Saremi, S.; Mirjalili, S.M.; Coelho, L.d.S. Multi-objective grey wolf optimizer: A novel algorithm for multi-criterion optimization. Expert Syst. Appl. 2016, 47, 106–119. [Google Scholar] [CrossRef]
  227. Erol, O.K.; Eksin, I. A new optimization method: Big bang–big crunch. Adv. Eng. Softw. 2006, 37, 106–111. [Google Scholar] [CrossRef]
  228. Rahman, I.; Mohamad-Saleh, J. Hybrid bio-Inspired computational intelligence techniques for solving power system optimization problems: A comprehensive survey. Appl. Soft Comput. 2018, 69, 72–130. [Google Scholar] [CrossRef]
  229. Hadian, A.; Haghifam, M.-R.; Zohrevand, J.; Akhavan-Rezai, E. Probabilistic approach for renewable dg placement in distribution systems with uncertain and time varying loads. In Proceedings of the IEEE Power & Energy Society General Meeting, Calgary, AB, Canada, 26–30 July 2009; pp. 1–8. [Google Scholar] [CrossRef]
  230. Hassan, A.S.; Sun, Y.; Wang, Z. Multi-objective for optimal placement and sizing DG units in reducing loss of power and enhancing voltage profile using BPSO-SLFA. Energy Rep. 2020, 6, 1581–1589. [Google Scholar] [CrossRef]
  231. Gampa, S.R.; Jasthi, K.; Goli, P.; Das, D.; Bansal, R. Grasshopper optimization algorithm based two stage fuzzy multiobjective approach for optimum sizing and placement of distributed generations, shunt capacitors and electric vehicle charging stations. J. Energy Storage 2020, 27, 101117. [Google Scholar] [CrossRef]
  232. de Koster, O.A.C.; Domínguez-Navarro, J.A. Multi-Objective Tabu Search for the Location and Sizing of Multiple Types of FACTS and DG in Electrical Networks. Energies 2020, 13, 2722. [Google Scholar] [CrossRef]
  233. Ahmed, A.; Nadeem, M.F.; Sajjad, I.A.; Bo, R.; Khan, I.A. Optimal Allocation of Wind DG with Time Varying Voltage Dependent Loads Using Bio-Inspired: Salp Swarm Algorithm. In Proceedings of the 2020 3rd International Conference on Computing, Mathematics and Engineering Technologies (iCoMET), Sukkur, Pakistan, 29–30 January 2020; pp. 1–7. [Google Scholar] [CrossRef]
  234. Khoa, T.; Binh, P.; Tran, H. Optimizing Location and Sizing of Distributed Generation in Distribution Systems. In Proceedings of the 2006 IEEE PES Power Systems Conference and Exposition, Atlanta, GA, USA, 29 October–1 November 2006; pp. 725–732. [Google Scholar] [CrossRef]
  235. Gözel, T.; Eminoglu, U.; Hocaoglu, M. A tool for voltage stability and optimization (VS&OP) in radial distribution systems using matlab graphical user interface (GUI). Simul. Model. Pr. Theory 2008, 16, 505–518. [Google Scholar] [CrossRef]
  236. Raut, U.; Mishra, S.; Mishra, D.P. An Adaptive NSGA II for Optimal Insertion of Distributed Generators in Radial Distribution Systems. In Proceedings of the 2019 International Conference on Information Technology (ICIT), Bhubaneswar, India, 19–21 December 2019; pp. 65–69. [Google Scholar] [CrossRef]
  237. Liu, W.; Luo, F.; Liu, Y.; Ding, W. Optimal Siting and Sizing of Distributed Generation Based on Improved Nondominated Sorting Genetic Algorithm II. Processes 2019, 7, 955. [Google Scholar] [CrossRef] [Green Version]
  238. Pombo, A.V.; Murta-Pina, J.; Pires, V.F. A multiobjective placement of switching devices in distribution networks incorporating distributed energy resources. Electr. Power Syst. Res. 2016, 130, 34–45. [Google Scholar] [CrossRef]
  239. Li, Q.; Ayyanar, R.; Vittal, V. Convex Optimization for DES Planning and Operation in Radial Distribution Systems with High Penetration of Photovoltaic Resources. IEEE Trans. Sustain. Energy 2016, 7, 985–995. [Google Scholar] [CrossRef]
  240. Deshmukh, M.; Dugaya, N. Analysis of Distributed Generation Allocation and Sizing in Distribution Systems via a Multi-objective Particle Swarm Optimization and Improved Non dominated Sorting Genetic Algorithm-II. Int. J. Comput. Appl. 2016, 133, 5–12. [Google Scholar] [CrossRef]
  241. Abdelaziz, A.; Ali, E.; Elazim, S.A. Flower Pollination Algorithm and Loss Sensitivity Factors for optimal sizing and placement of capacitors in radial distribution systems. Int. J. Electr. Power Energy Syst. 2015, 78, 207–214. [Google Scholar] [CrossRef]
  242. Patnaik, B.; Sattianadan, D.; Sudhakaran, M.; Dash, S.S. Optimal Placement and Sizing of Solar and Wind Based DGs in Distribution Systems for Power Loss Minimization and Economic Operation. In Power Electronics and Renewable Energy Systems: Proceedings of ICPERES 2014; Kamalakannan, C., Suresh, P.L., Dash, S.S., Panigrahi, K.B., Eds.; Springer: New Delhi, India, 2015; pp. 351–360. [Google Scholar]
  243. Khan, N.A.; Ghoshal, S.P.; Ghosh, S. Optimal Allocation of Distributed Generation and Shunt Capacitors for the Reduction of Total Voltage Deviation and Total Line Loss in Radial Distribution Systems Using Binary Collective Animal Behavior Optimization Algorithm. Electr. Power Compon. Syst. 2014, 43, 119–133. [Google Scholar] [CrossRef]
  244. Gómez-González, M.; Ruiz-Rodriguez, F.J.; Jurado, F. Metaheuristic and probabilistic techniques for optimal allocation and size of biomass distributed generation in unbalanced radial systems. IET Renew. Power Gener. 2015, 9, 653–659. [Google Scholar] [CrossRef]
  245. El Ela, A.A.; Allam, S.; Shatla, M. Maximal optimal benefits of distributed generation using genetic algorithms. Electr. Power Syst. Res. 2010, 80, 869–877. [Google Scholar] [CrossRef]
  246. Zeinali, H.G.O.; Saketi, G.H.; Sadrabadi, H.A. Multi-objective Modeling for Optimal Placement of Distributed Generation Resources in Electrical Railways of Azerbaijan District Using DAPSO Algorithm. PeerJ Comput. Sci. 2022, 8, e834. [Google Scholar] [CrossRef]
  247. Narayanan, K.; Siddiqui, S.A.; Fozdar, M. Optimal Placement of Distributed Generators in Radial Distribution System for Reducing the Effect of Islanding. J. Electr. Eng. Technol. 2016, 11, 551–559. [Google Scholar] [CrossRef] [Green Version]
  248. Ochoa, L.F.; Padilha-Feltrin, A.; Harrison, G.P. Evaluating Distributed Time-Varying Generation through a Multiobjective Index. IEEE Trans. Power Deliv. 2008, 23, 1132–1138. [Google Scholar] [CrossRef] [Green Version]
  249. Kim, K.-H.; Song, K.-B.; Joo, S.-K.; Lee, Y.-J.; Kim, J.-O. Multiobjective distributed generation placement using fuzzy goal programming with genetic algorithm. Eur. Trans. Electr. Power 2008, 18, 217–230. [Google Scholar] [CrossRef]
  250. Kroposki, B.; Sen, P.; Malmedal, K. Optimum Sizing and Placement of Distributed and Renewable Energy Sources in Electric Power Distribution Systems. In Proceedings of the 2009 IEEE Industry Applications Society Annual Meeting, Houston, TX, USA, 4–8 October 2009; pp. 1–10. [Google Scholar] [CrossRef]
  251. Singh, D.; Verma, K. Multiobjective optimization for DG planning with load models. IEEE Trans. Power Syst. 2009, 24, 427–436. [Google Scholar] [CrossRef]
  252. Parizad, A.; Khazali, A.; Kalantar, M. Optimal placement of distributed generation with sensitivity factors considering voltage stability and losses indices. In Proceedings of the 2010 18th Iranian Conference on Electrical Engineering, Isfahan, Iran, 11–13 May 2010; pp. 848–855. [Google Scholar] [CrossRef]
  253. Muttaqi, K.; Le, A.D.; Aghaei, J.; Mahboubi-Moghaddam, E.; Negnevitsky, M.; Ledwich, G. Optimizing distributed generation parameters through economic feasibility assessment. Appl. Energy 2016, 165, 893–903. [Google Scholar] [CrossRef]
Energies 15 07850 g001a 550Energies 15 07850 g001b 550Energies 15 07850 g001c 550Energies 15 07850 g001d 550
Figure 1. Summary of the literature works gathered from Table 1. (i) Objective function used for optimal multi-objective DG placement and sizing. (ii) Different optimizations used for optimal multi-objective DG placement and sizing. (iii) Types of DG used for optimal multi-objective DG placement and sizing problem. (iv) Dispatchable and real-time DG sources used for optimal multi-objective DG placement and sizing problem. (v) Different IEEE test systems used for optimal multi-objective DG placement and sizing problem. (vi) Different load models used for optimal multi-objective DG placement and sizing problem. (vii) Sizing/placement, or both, problems carried out for optimal multi-objective DG placement and sizing problem. (viii) Single large or multiple DGs used for optimal multi-objective DG placement and sizing problem. (ix) Research for optimal multi-objective DG placement and sizing problem conducted in different countries.
Figure 1. Summary of the literature works gathered from Table 1. (i) Objective function used for optimal multi-objective DG placement and sizing. (ii) Different optimizations used for optimal multi-objective DG placement and sizing. (iii) Types of DG used for optimal multi-objective DG placement and sizing problem. (iv) Dispatchable and real-time DG sources used for optimal multi-objective DG placement and sizing problem. (v) Different IEEE test systems used for optimal multi-objective DG placement and sizing problem. (vi) Different load models used for optimal multi-objective DG placement and sizing problem. (vii) Sizing/placement, or both, problems carried out for optimal multi-objective DG placement and sizing problem. (viii) Single large or multiple DGs used for optimal multi-objective DG placement and sizing problem. (ix) Research for optimal multi-objective DG placement and sizing problem conducted in different countries.
Energies 15 07850 g001aEnergies 15 07850 g001bEnergies 15 07850 g001cEnergies 15 07850 g001d
Energies 15 07850 g002 550
Figure 2. Heuristic algorithm for optimal multi-objective placement and sizing problem.
Figure 2. Heuristic algorithm for optimal multi-objective placement and sizing problem.
Energies 15 07850 g002
Energies 15 07850 g003 550
Figure 3. Taxonomy of optimization algorithm used for optimal DG placement problem. Note: Algorithm abbreviations: LP—linear programming, MILP—mixed integer linear programming, NLP—non-linear programming, MINLP—mixed integer non-linear programming, DP—dynamic programming, OPF—optimal power flow, CPF—continuous power flow, DE—differential evolution, GA—genetic algorithm, EP—evolutionary programming, ES—evolutionary search, PSO—particle swarm optimization, ACO—ant colony search, ABC—ant bee colony, TLBO—teacher learning-based optimization, SFLA—shuffled frog leaping algorithm, HBMO—honey bee mating algorithm, BA—bat algorithm, GWO—grey wolf optimizer, SA—simulated annealing, FOA—fly optimization algorithm, COA—cuckoo optimization algorithm, TSA—tree speed algorithm, HAS—harmony search algorithm.
Figure 3. Taxonomy of optimization algorithm used for optimal DG placement problem. Note: Algorithm abbreviations: LP—linear programming, MILP—mixed integer linear programming, NLP—non-linear programming, MINLP—mixed integer non-linear programming, DP—dynamic programming, OPF—optimal power flow, CPF—continuous power flow, DE—differential evolution, GA—genetic algorithm, EP—evolutionary programming, ES—evolutionary search, PSO—particle swarm optimization, ACO—ant colony search, ABC—ant bee colony, TLBO—teacher learning-based optimization, SFLA—shuffled frog leaping algorithm, HBMO—honey bee mating algorithm, BA—bat algorithm, GWO—grey wolf optimizer, SA—simulated annealing, FOA—fly optimization algorithm, COA—cuckoo optimization algorithm, TSA—tree speed algorithm, HAS—harmony search algorithm.
Energies 15 07850 g003
Table
Table 1. Summary of literature reviewed for the optimal multi-objective placement and sizing of DG in the distribution system.
Table 1. Summary of literature reviewed for the optimal multi-objective placement and sizing of DG in the distribution system.
Ref.YearCountryJournal/ConferenceProblemDG No.DG TypeDG Mix/
Distribution Network Mix		Load TypeObjective Function(s)Other
Objective
Functions		Distribution System
Model		Optimization Algorithms/Methods
SizingPlacementSingleMultipleActive Power/Energy LossesReactive Power/Energy LossesVoltage Profile/FluctuationVoltage StabilityLoadabilityReliabilityCost/InvestmentEnvironment
[21]2019EgyptIEEE Conference√√ √WT + PV Constant√ √√ IEEE 118NSGA-III
[22]2020IndiaNeural Computing and Applications√√ √WT + PV + Biomass Constant√ √ √ IEEE 69MOMSOS
[23]2020DenmarkEnergy√√ √PV Linear and Non-Linear√√√ IEEE 33
IEEE 69		GA + PSO
[24]2020IndiaInt. Transactions on Electrical Energy Systems√√ √PV + Wind Constant√ √ 38 bus systemABC
[25]2020IranElectrical Power System Research√√ √Dispatchable/PV Constant√√ IEEE 33Analytical method
[26]2018EgyptIEEE Systems Journal√√ √PV/Wind/GT Constant√-√√- √√ IEEE 33
IEEE 69		Water Cycle Algorithm
[27]2018IndiaEnergies√√ √DG Constant√ √ 30 Node
141 Node		GA, PSO, GA-PSO
[28]2018IranInt. J. of Elec. Power & Energy Systems√√ √DG Linear and Non-Linear√ √√Total Harmonic Distortion31-BusPSO
[29]2018ColombiaEnergies√√ √DG Constant√ √ IEEE 33
IEEE 69		PBIL (population-based incremental learning) for location and PSO for sizing
[30]2018Saudi ArabiaJournal of Renewable & Sustainable Energy√√ √Solar/Wind Constant√ √ IEEE 30MOPSO
[31]2018IranEnergy√√ √DE/FC/GT
/MT/PV/WT		 Constant√ √√ IEEE 6
IEEE 69		Improved HSA
[32]2018IndiaIEEE Transactions on Industrial Informatics√√ √DG Constant√ √√ IEEE 33
IEEE 118
IEEE 880		Improved EHO (elephant herding optimization)
[33]2018EgyptIEEE Conf.√√ √DG Constant√ √ IEEE 33PSOFA/novel bat algorithm
[34]2018IndiaApplied Energy√√ √DG Constant√ √√ IEEE 33
IEEE 69
IEEE 118		Comprehensive TLBO
[35]2017SingaporeApplied soft computing√√ √DG and Cap Constant√√ IEEE 33
IEEE 69
IEEE 119		MOEA/D
[36]2017EgyptRenewable Energy√√ √Solar/Wind Constant√ √√ IEEE 33LSF + ALOA
Ant lion OA
[37]2017EgyptEnergies√√ √PV/Wind Constant√ √ √ Real DSLSF + PSOGSA
and MFO
[38]2017IndiaApplied soft computing√√ √DG/CapacitorReconfigurationConstant√ √ Max. branch current capacity limit indexIEEE 69
IEEE 118		PABC and HSA
Particle artificial bee colony and harmony search algorithm.
[39]2017IndiaEnergies√√ √DG Voltage dependent load√√√ IEEE 69MOPSO
[40]2017ChinaACMME 2017 Conference√√ √Wind/Solar Constant√ √ IEEE33QPSO
[41]2016IranIEEE√√-√DG (P-MW)--√-√√--√--IEEE 33
IEEE 69		PFDE
[42]2016USAPSC
Conference		√√-√Solar PV--√-√------38 -Walterboro USA feeder-
[43]2016IndiaInt. Journal of Electrical Power & Energy System√√-√P-kW
Q-KVar
Both		-Constant Industrial
Residential
Commercial
Mix		√-√---√--IEEE 33Shuffled bat algorithm
[44]2016IndiaInt.
Transactions on Electrical Energy Systems		√√-√Wind
Solar
Fuel Cell
Micro Turbine		--√√√-----Optimization of line flow capacityIEEE 38
IEEE 69		Shuffled bat algorithm
[45]2016IranIET Generation, Transmission and Distribution√√-√CHP
Wind		DG with Energy Storage-√-√--√√--IEEE 33GA GAMS
[46]2016ChinaACPEE Conference√√-√PV-Wind
(P-kW)		--√-√√-----IEEE 33NSGA-II
[47]2016 1IndiaInt. Journal of Electrical Power & Energy Systems√√-√Photovoltaic Wind
Diesel
(P-kW)		DG with Batteries-√-√---√--IEEE 69i-MOPSO
------√---√√-
[48]2016IranInt. Journal of Electrical Power & Energy Systems√√--P-kW
Q-KVar
Both		--√--√-----IEEE 34
IEEE 69		Improved ICA
[49]2016ChinaSustainability-√-√Small Hydro Power Plant
(P-MW)		--√-------Maximizing clean energy generation ratioIEEE 33MODE
[50]2016IndiaInt. Journal of Electrical Power & Energy Systems√√-√Photovoltaic Wind
capacitor
(P-kW)
(Q-KVar)		--√-√√---√Optimizing network security28 Indian RDSMOPSO
[51]2016ChinaInt. Journal of Grid and Distributed Computing√√-√Wind-PV--√-√------IEEE 33PSO
HBMA-PSO
[52]2016MalaysiaEnergy
The Int. Journal		√√-√DG
(MVA)		---√√------IEEE 69GWO
[53]2016IranInt. Journal of Electrical Power & Energy Systems√√-√PV
Fuel cell		--√√√---√--IEEE 33
IEEE 69		BBO
[54]2016ChinaInt. Journal of Electrical Power & Energy Systems√√-√DG (P-kW)----√--√√- 37 bus system-
[55]2016IranInt. Journal for Computation and Mathematics in Electrical and Electronic Engineering√√-√DG & DSTATCOM
(P-kW)		--√-√√-----IEEE 33
IEEE 119		Fuzzy-ExIWO
[56]2015IranInt. Journal of Electrical Power & Energy Systems√√-√DG (P-kW)
Capacitor
(Q-KVar)		--√--√----Minimization of section current indexIEEE 33
Portuguese 94 RDS		MOPSO
[57]2015IndiaProcedia Technology√√√ DG (P-MW)--√ √------Civanlar 16 bus
and actual 12 bus		Weighted Multi-Objective Index
[58]2015IndiaInt. Journal of Electrical Power & Energy Systems√√-√DG (P-kW)-Industrial
Residential
Commercial		√√√√----Maximizing line flow limit indexIEEE 38
IEEE 69		CABC
[59]2015SpainInt. Journal of Electrical Power & Energy Systems√√-√DG (P-kW)--√-----√--IEEE 69
IEEE 118		MINLP
[60]2015ChinaIEEE√√--DG (P-MW)
Wind (P-MW)		--√-√√-----IEEE 33
292 bus
588 bus		Improved NSGA-II
[61]2015ChinaInt. Journal of Electrical Power & Energy Systems√√-√Photovoltaic Wind
(P-kW)		----√---√-Minimizing purchasing costModified PG&E 69,292, 588 and 1180 RDSImproved NSGA-II
[62]2015IranEnergy Conversion and Management
An Int. Journal		√√-√Gas Turbine
Fuel Cell
Wind Turbine
(P-MW)		--√--√--√√-IEEE 33
IEEE 69		Hybrid ACO-ABC
[63]2015IndiaRenewable Energy
An Int. Journal		√√- Wind Photovoltaic
(P-kW)		--√-√-----Minimization of network security index28 Indian RDSPSO
[64]2015TurkeyRenewable and Sustainable Energy Reviews√√-√Not mentioned (P-kW)--√-√-----Optimize line flows indexIEEE 30
IEEE 34
IEEE 57		Different probability states
[65]2015IndiaSASEC
Conference		√√-√DG (P-kW)--√-√------IEEE 33
IEEE 69		BAT algorithm
[66]2015IndiaIEEE√√- DG (P-kW)--√-√------IEEE 33
Indian 52 RDS		Adaptive GA
[67]2015IndiaInt. Journal of Electrical Power & Energy Systems√√-√Solar-PV
Biomass Wind
(P-kW)		--√-√---√ Maximize branch current capacity index and cost factor index51 RDSLocation- Sensitivity Index
Sizing GA
[68]2015EgyptInt. Journal of Electrical Power & Energy Systems√√-√Photovoltaic (P-kW)
Wind (P-kW)
Capacitor (Q-KVar)
Diesel (PQ-kW-KVar)		--√-√------IEEE 33
IEEE 94		Fuzzy expert with BSOA
[69]2015EgyptElectrical Power Components and Systems√√-√Photovoltaic (P-kW)
Wind (P-kW)
Capacitor (Q-KVar)
Diesel (PQ-kW-KVar)		--√-√√-----IEEE 33
IEEE 94		Fuzzy expert with BSOA
[70]2015LibyaElectrical Power Components and Systems√√- ---√-----√--IEEE 15SQP
[71]2015ChinaNeuro- computing√√-√DG (P-kW)--√-----√√-IEEE 33IMPSO-PS
[72]2015EgyptElectrical Power Components and Systems√√-√---√-------Minimizing total harmonics distortionIEEE 31GA
[73]2015IranIET Generation, Transmission and Distribution√√-√DG (P-kW)DG with storage and distribution system as reconfiguration-√----√---Civanlar test system
Baran test system		NSGA-II
[74]2015IranIEEE√√-√PV
DSTATCOM		Distribution system as reconfiguration-√-√-----Optimize feeder load balancingIEEE 33Fuzzy-ACO
[75]2015ChinaEnergies √- Wind Turbine
Photovoltaic
Micro Turbine		--√-----√√-IEEE 33
PG & E 69		CSO-MCS
[76]2015ChinaIET Generation, Transmission and Distribution√√-√DG (P-kW)
Capacitor (KVar)		--√-----√--IEEE 33HPSO
[77]2015IndiaIET Generation, Transmission and Distribution√√-√DG MVA--√√-------IEEE 33
IEEE 69		Analytical method
[78]2015EgyptElectrical Power Components and Systems√√- DG (P-kW)
Q-KVar		-Industrial
Residential
Commercial		√√√-----Maximize reserve capacity of conductor indexIEEE 69
IEEE 123		Supervised big bang crunch method
[79]2015IndiaICCPCT
Conference		√√-√DG (P-kW)--√ √------IEEE 33SA
[80]2015ChinaIIICICE Conference√√-√DG (P-kW)--√ √------IEEE 33AMPSO
[81]2014BrazilICHQP Conference√√--DG
P-kW
Q-KVar		--√-√------IEEE 33Noval COA
[82]2014IranRenewable Energy√√-√Wind
Photovoltaic Fuel Cell
Micro Turbine
Gas Turbine
Diesel Engine
(all P-MW)		--------√√-9 bus systemAEC method
[83]2014IranWorld Journal of Control Science and Engineering√√-√DG (P-MW)--√-√------IEEE 33CSA
[84]2014IndiaInt. Journal of Electrical Power & Energy Systems√√-√DG (P-MW)--√-√√-----IEEE 33
IEEE 69
IEEE 118		QOTLBO
[85]2014CanadaIEEE√√- Dispatchable DG
Wind
PV		DG with PEVMix load of Industrial,
Residential and Commercial		------√√-IEEE 38NDSGA
[86]2014IndiaICAECT Conference√√- DG
(P-MW)
(Q-MVar)		--√-√------IEEE 33
IEEE 69		PSO
[87]2014IranInt. Journal of Electrical Power & Energy Systems√√-√DG (P-MW)
capacitor
(PQ-MVar)		--√-√√----Minimize index of balancing current of sectionsIEEE 33
IEEE 69		ICA-GA
[88]2014IndiaSwarm and Evolutionary Computation√√-√--Constant P
Constant I
Constant Z		√--√--√ -IEEE 33
IEEE 69		BFOA
[89]2014FranceRenewable and Sustainable Energy Reviews√√-√Renewable DG (wind and PV)
DG with energy storage and PEV-------√√-IEEE 13NSGA-II
[90]2014ChinaPES-General Meeting/Conference√√- Wind
PV		-Industrial
Residential
Commercial Municipal		--√√--√√-Modified PG&E 69
292 test system China		INSGA-II
[91]2014IndiaSwarm and Evolutionary Computation√√-√DG (P-MW)-Constant P
Constant I
Constant Z		√--√--√--IEEE 33
IEEE 69		BFOA
[92]2014ChinaIET Generation, Transmission and Distribution√√-√DG (P-kW)Active Distribution Network-√-√------IEEE 30
IEEE 57
IEEE 118		GA
[93]2014ChinaIEEE√√-√DG (P-MW)--√-√-----Maximizing DG outputIEEE 33
PG&E 69
Actual 292
588
1180		TRSQP
[94]2014IndiaInt. Journal Of Electrical Power & Energy Systems√√- DGReconfiguration-√--√-----IEEE 33
IEEE 69		Firework algorithm
[95]2014AustraliaApplied Energy√√-√DG
(PQ-MVA)		-Industrial√--√-----IEEE 69Analytical
method with multi-objective index
[96]2014IranApplied Energy√√-√DG (P-MW)--√--√-----IEEE 34Dynamic search programing
[97]2014IndiaJournal of Vibration and Control√√- DG (P-kW)--√-√----√-IEEE 30BFA
[98]2014ChinaJournal of Zhejiang University– Science C√√- DG (P-MW)--√--√-----IEEE 33Enhanced MOPSO
[99]2014UKElectrical Power Components and Systems√√-√DG
P-kW
PQ-KVar		--√-√------IEEE 69DPSO
[100]2014MalaysiaElectrical Power Components and Systems√√-√---√√√------IEEE 6
IEEE 14
IEEE 30		Weighted exhausted search
[101]2014CroatiaENERGYCON Conference√√-√DG (P-kW)--√-------Maximizing daily financial profit and active energy produced by DGIEEE 13ES
[102]2014IndiaCIEC Conference√√-√DG (P-kW)--√-√----√-IEEE 34ABC
[103]2014ChinaLSMS & ICSE&E Conference√√-√Wind
solar		--√-√----√-IEEE 33DE
[104]2014IndiaCIEC Conference√√-√Wind
Solar
Biomass
Fuel Cell
Diesel Engine		--√--√-----28 Indian RDSMOPSO
[105]2014CanadaCCECE Conference√√-√DG
Solar
Wind
Fuel Cell		--√√√-----Maximize MVA capacity index84 bus systemShBAT
[106]2014ChinaPOWERCON Conference√√-√DG (P-MW)--√-√√-----IEEE 33PSO
[107]2013ChinaJournal of Applied Mathematics√√-√Wind
Photovoltaic
Diesel Engine		--------√√Minimize customer cost on electricity priceIEEE 33Improved PEA
[108]2013IranIEEE√√-√DG (P-MW)--√-√------IEEE 33
IEEE 69		Improved MOHS algorithm
[109]2013IndiaInternational Journal of Electrical Power & Energy Systems√√-xDG
(PQ-KVA)		--√-√------IEEE 33
IEEE 69		Modified sensitivity indexes
[110]2013ChinaRAM Conference√√-√DG (P-MW)--√-√√-----IEEE 33MOSH
[111]2013MalaysiaPrzegl. Elektrotech√√- DG (P-MW)--√-------Minimizing total average voltage thyroidIEEE 69GSA
[112]2013IndiaIET Generation, Transmission and Distribution√√-√DG (P-MW)- √-√-----Minimizing voltage sag and harmonicsIEEE 33GA
[113]2013IranTurkish journal of Electrical Engineering & Computer Sciences√√-√DG (P-MW)--√-√-- --Minimizing short circuit levelZanjian’s RDS IranGA
[114]2013IranApplied Energy√ -√DG
(PQ-KVA)		-------√√---Hybrid PSO with SFLA
[115]2013IndiaFuzzy Sets and Systems-----Sectionalizing switchesRadial Mesh-----√√--21 node
54 node 100 node		MOPSO
[116]2013IranIET Generation, Transmission and Distribution√√-√DG (P-MW)--√--√----Minimizing maximum number of DG units34 bus systemNon-linear programming
[117]2013IranEnergy√√-√Micro turbine
Fuel cell
Photovoltaic wind		--√-----√√-IEEE 69Hybrid SFLA-DE
[118]2013IranInternational Journal of Electrical Power & Energy Systems √-√Micro turbine-Industrial
Residential
Commercial		√----√√--IEEE 37
NSGA-II
[119]2013MalaysiaEnergy Conversion and Management√√-√DG (P-MW)--√--√-----IEEE 12
IEEE 30
IEEE 33
IEEE 69		PSO
[120]2013IranInternational Journal of Electrical Power & Energy Systems√√-√Solar PV-Constant P
Constant I
Constant Z Industrial
Residential
Commercial		√√---√√- IEEE 33Improved PSO
[121]2013IranICEE Conference√√- DG----√---√√-IEEE 33PSO
[122]2013ChinaAPPEEC Conference√√-√Wind
Solar		----√---√√-IEEE 33SVM-MOPSO
[123]2013IranEEEIC Conference√√-√DG (P-MW)--√-√√-√√--IEEE 33MOPSO
[124]2013FranceESREL√√-√Wind
Solar		EV
storage		-------√√-IEEE 13NSGA-II
[125]2013IranEPDC Conference√√-√DG (P-MW)--√-√----√-13 bus systemNSGA-II
[126]2013MalaysiaICCCE Conference√√-√DG (P-MW)--√-------Minimizing short circuit current indexIEEE 69ABC
[127]2012ChinaCTPP Conference√√-√DG (P-MW)----- --√√-IEEE 33MOPSO
[128]2012IndiaICAEE√√√ DG (P-kW)--√-----√--IEEE 38SFLA
[129]2012IranICACEE Conference√√-√DG (P-MW)--√-√√-----IEEE 33
IEEE 69		BFA
[130]2012IranInt. Journal of Electrical and Computer Engineering√√-√DG (P-MW)
Capacitors
(KVar)		--√-√-----Increasing available transfer capabilityIEEE 41GA
[131]2012RomaniaInternational Journal of Electrical Power & Energy Systems√√-√Small hydro Plant
Photovoltaic
Combined heat and power
(P-kW)		--√-√--- --24 node RDSExhaustive search optimization algorithm
[132]2012IranCIRED Workshop√√-√Wind Engine
Diesel Engine
(P-MW)		--√-√--√√√--NSGA-II
[133]2012BrazilElectrical Power Systems Research
An Int. Journal		√√-√Synchronous Generator
(P-kW)		 √-------Minimizing short circuit currentIEEE 123
IEEE 34		MEPSO
[134]2012IranICSG Conference√√√ Biomass
Solar Thermal		--√-√ -----IEEE 33COA
[135]2012ChinaPrzeglad Elektrotechnizny√√-√Micro Gas Turbine--√-----√√-IEEE 33NSGA-II
[136]2011IndiaElectrical Power Components and Systems√√√-DG-Constant
Industrial
Residential
Commercial		√-√-√√√ ---
[137]2011IranInt. Transactions on Electrical Energy Systems√√-√PV
Wind
Micro Turbine
Fuel Cell
Gas Turbine		-------√√- IEEE 30MINLP
[138]2011IranApplied Energy√√-√PV
Wind
Fuel cell		--√ √ √√-70 bus systemImproved HBMO
[139]2011IranResearch Journal of Applied Sciences, Technology and Engineering√√-√DG (P-MW)--√----√---IEEE 12 busPSO
[140]2011IranEPDC Conference√√-√DG (P-MW)--√-----√--IEEE 27NSGA-II
[141]2011EgyptSwarm and Evolutionary Computation√√ √DG (P-MW)-Constant
Industrial
Residential
Commercial		√√√-----Optimization of MVA capacity index and short circuit level index38 bus system
IEEE 30		PSO
[142]2010ThailandECTI-CON Conference√√ √DG (P-MW)--√--√---√-IEEE 30SA
[143]2010IranRecent Research in Environment and Biomedicine√√-√DG (P-MW)--√-√------IEEE 33MOPSO
[144]2010IndiaIET Generation, Transmission and Distribution√√-√Conventional
Distributed Generation		--√-------Minimizing fuel cost
real and reactive nodal price		IEEE 24MOPSO
[145]2010IndiaEnergy Systems√√-√DG (P-kW)-Radial
Mesh		------√--Minimizing installation and operation cost of DG100 node
21 node		Step-1: First no. of feeder, routes, and sectionalizing of switch conducted, then
Step:2 MOPSO method used
[146]2010BrazilInt. Journal of Electrical Power & Energy Systems √--DG--√-√-----Optimizing current levels-DG location by Bellman–Zadeh algorithm and fuzzy logic
[147]2010EgyptPES General Meeting√√-√DG (P-kW)--√-√----- 68 RDSSA
[148]2010IndiaCCECE Conference√√-√DG (P-MW)--√-√-----Minimizing total harmonic distortion12 bus systemhas
[149]2010IranPECON Conference√√ √DG (P-MW)----√----√Minimizing network upgrading, network purchase, energy losses, and capacity releaseIEEE 37DE
[150]2009ChinaSUPERGEN’ Conference√√ √DG (P-MW)--√------√-IEEE 33PSO
[151]2008IranPEMC Conference√√--Micro Turbine
Combustion Turbine
IC
Fuel cell
PV		--√-√---√--13 nodeNSGA-II
[152]2008ItalyPMAPS Conference√ √Gas Turbine
CHP
Wind Turbine		-Industrial
Residential
Commercial
Tertiary		√------√-60 node real RDSNSGA-II
[153]2008Saudi-ArabiaIEEE/PES Conference√√ √DG----√----√-9 bus systemBPSO
[154]2008ChinaIEEE/DRPT Conference√√ √DG--√--√-√-√-43 bus systemGA and MO
1 Int. =International.
Table
Table 2. Tools used for optimal multi-objective planning of DGs.
Table 2. Tools used for optimal multi-objective planning of DGs.
S.No.Tools Used for Optimal Multi-Objective Planning of DGsReferences
1MATALB [21,22,23,25,41,42,43,44,47,50,52,53,54,56,57,58,59,60,61,62,63,64,65,66,67,68,69,75,77,80,125,143,161,169,170,171,172,177,178,183,191,229,230,231,232,233,234,235,236,237,238,239,240,241,242,243,244]
2Digsilent and GARP3[146]
3MATPOWER and MATLAB[245]
4Digsilent and MATLAB[246]
5MATLAB and GAMS[45,144]
6OpenDSS and Matlab[101]
7PSAT ad MATLAB[247]
8Did not report in their manuscripts [24,142,145,147,148,149,150,151,152,153,154,248,249,250,251,252,253]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kumar, M.; Soomro, A.M.; Uddin, W.; Kumar, L. Optimal Multi-Objective Placement and Sizing of Distributed Generation in Distribution System: A Comprehensive Review. Energies 2022, 15, 7850. https://doi.org/10.3390/en15217850

AMA Style

Kumar M, Soomro AM, Uddin W, Kumar L. Optimal Multi-Objective Placement and Sizing of Distributed Generation in Distribution System: A Comprehensive Review. Energies. 2022; 15(21):7850. https://doi.org/10.3390/en15217850

Chicago/Turabian Style

Kumar, Mahesh, Amir Mahmood Soomro, Waqar Uddin, and Laveet Kumar. 2022. "Optimal Multi-Objective Placement and Sizing of Distributed Generation in Distribution System: A Comprehensive Review" Energies 15, no. 21: 7850. https://doi.org/10.3390/en15217850

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
