Anaerobic Digestion as a Component of Circular Bioeconomy—Case Study Approach
Abstract
:1. Introduction
2. Materials and Methods

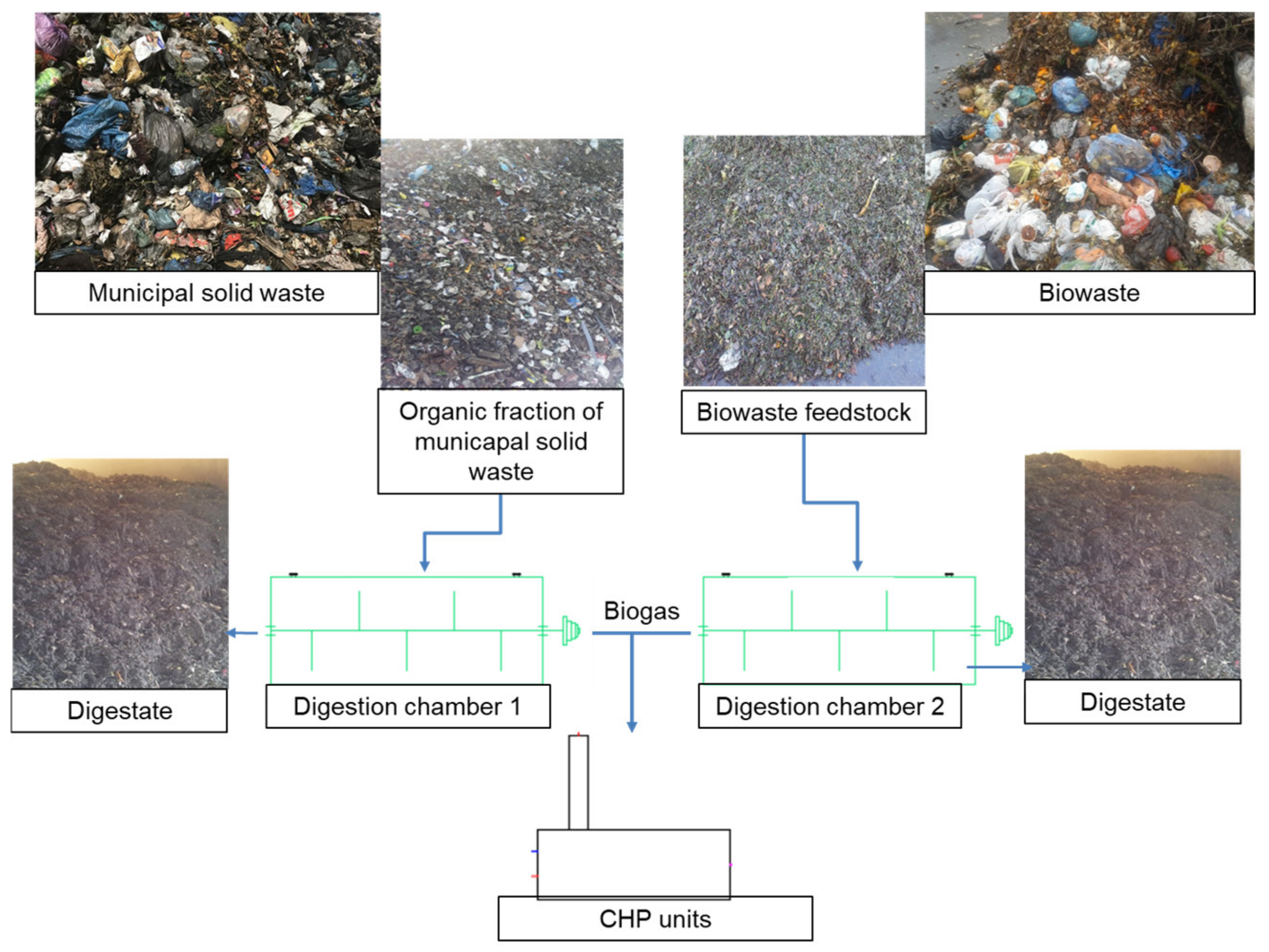

2.1. The Research Conditions Uner Full-Scale Operation
2.2. Analytical Methods
2.3. Carbon Dioxide Emission Reduction—Calculation Method
- REy—yearly emission reduction,
- EBy—yearly basic emission, calculated according to Equation (2)
- EPy—yearly final emission, calculated according to Equation (3).
- EBy—yearly basic emission,
- WECO2—emission factor of purchased electricity from the grid (kgCO2/MWh),
- EE—the total quantity of purchased electricity (MWh).
- EPy—yearly final emission,
- WE1CO2—emission factor of electricity produced in CHP unit (kgCO2/MWh),
- EE1—the total quantity of electricity produced in CHP unit (MWh),
- WE2CO2—emission factor of purchased electricity from the grid (kgCO2/MWh),
- EE2—the total quantity of purchased electricity (MWh).
- WE2CO2 and EE2 were applied because the CHP unit did not cover all electricity demand.
3. Results and Discussion

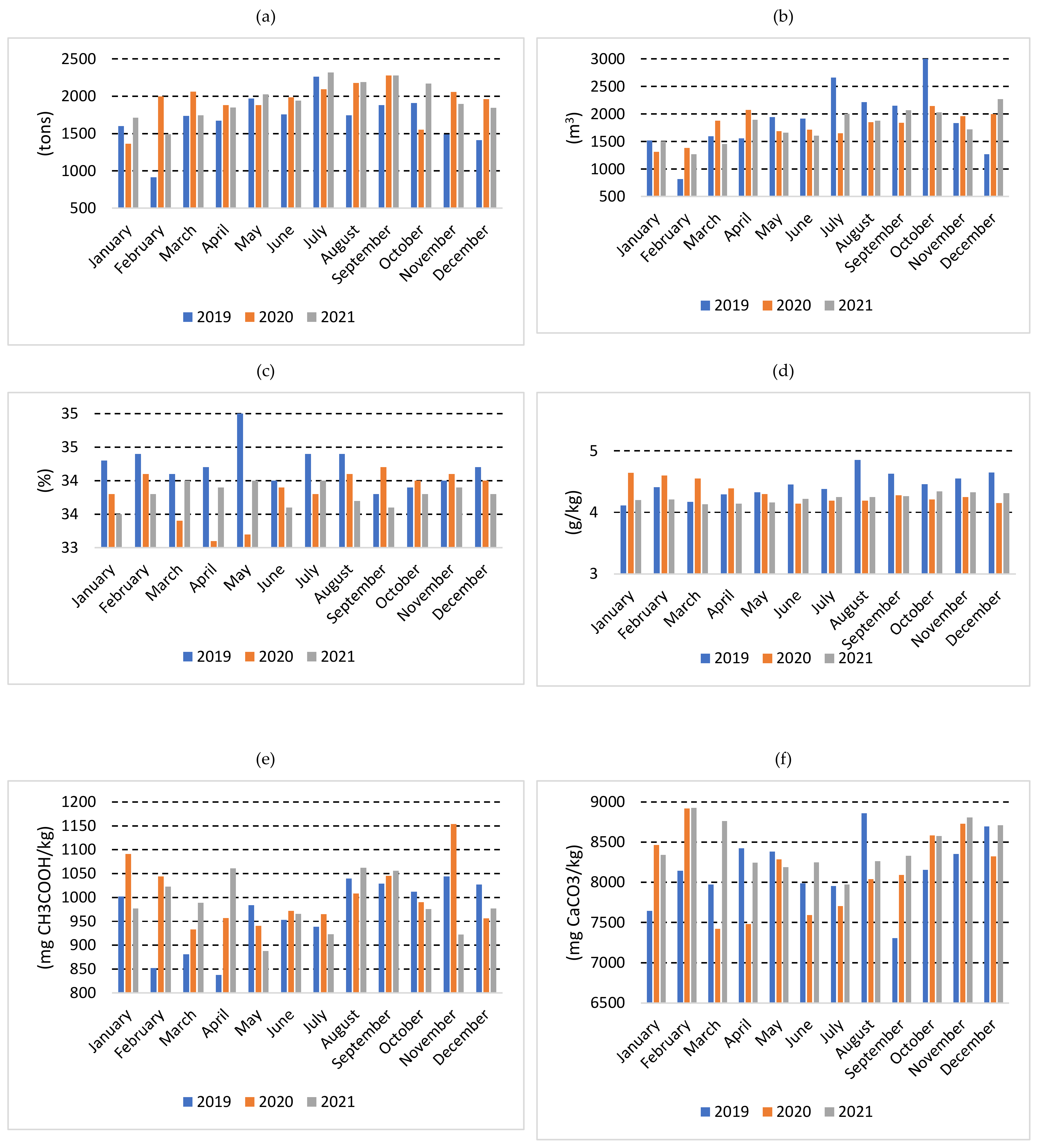

3.1. Waste Treatment

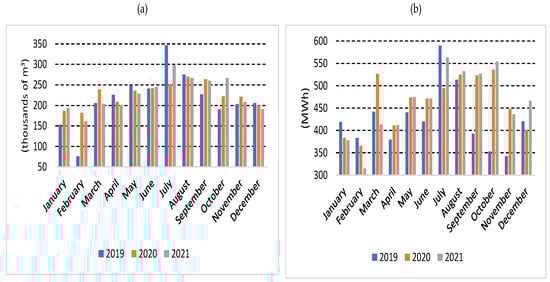

3.2. Electricity Balance—Biogas Utilization
3.3. Digestate and CO2 Emission
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Taffuri, A.; Sciullo, A.; Diemer, A.; Nedelciu, C.E. Integrating Circular Bioeconomy and Urban Dynamics to Define an Innovative Management of Bio-Waste: The Study Case of Turin. Sustainability 2021, 13, 6224. [Google Scholar] [CrossRef]
- Kirchherr, J.; Piscicelli, L.; Bour, R.; Kostense-Smit, E.; Muller, J.; Huibrechtse-Truijens, A.; Hekkert, M. Barriers to the Circular Economy: Evidence From the European Union (EU). Ecol. Econ. 2018, 150, 264–272. [Google Scholar] [CrossRef] [Green Version]
- What Is a Circular Economy? Available online: https://ellenmacarthurfoundation.org/topics/circular-economy-introduction/overview (accessed on 26 October 2022).
- Cities and Circular Economy for Food. Available online: https://ellenmacarthurfoundation.org/cities-and-circular-economy-for-food (accessed on 26 October 2022).
- D’Amato, D.; Droste, N.; Allen, B.; Kettunen, M.; Lähtinen, K.; Korhonen, J.; Leskinen, P.; Matthies, B.D.; Toppinen, A. Green, Circular, Bio Economy: A Comparative Analysis of Sustainability Avenues. J. Clean. Prod. 2017, 168, 716–734. [Google Scholar] [CrossRef]
- Carus, M.; Dammer, L. The Circular Bioeconomy—Concepts, Opportunities, and Limitations. Ind. Biotechnol. 2018, 14, 83–91. [Google Scholar] [CrossRef]
- European Environment Agency. The European Environment—State and Outlook 2020; European Environment Agency: Copenhagen, 2020; p. 496. [Google Scholar] [CrossRef]
- Kamperidou, V.; Terzopoulou, P. Anaerobic Digestion of Lignocellulosic Waste Materials. Sustainability 2021, 13, 12810. [Google Scholar] [CrossRef]
- Lim, L.S.; Lee, L.H.; Wu, T.Y. Sustainability of using composting and vermicomposting technologies for organic solid waste biotransformation: Recent overview, greenhouse gases emissions and economic analysis. J. Clean. Prod. 2016, 111, 262–278. [Google Scholar] [CrossRef]
- Alam, O.; Qiao, X. An in-depth review on municipal solid waste management, treatment and disposal in Bangladesh. Sustain. Cities Soc. 2019, 52, 101775. [Google Scholar] [CrossRef]
- Pawlak-Kruczek, H.; Niedzwiecki, L.; Sieradzka, M.; Mlonka-Mędrala, A.; Baranowski, M.; Serafin-Tkaczuk, M.; Magdziarz, A. Hydrothermal carbonization of agricultural and municipal solid waste digestates—Structure and energetic properties of the solid products. Fuel 2020, 275, 117837. [Google Scholar] [CrossRef]
- Cesaro, A.; Belgiorno, V.; Guida, M. Compost from organic solid waste: Quality assessment and European regulations for its sustainable use. Resour. Conserv. Recycl. 2015, 94, 72–79. [Google Scholar] [CrossRef]
- Myszograj, S.; Kozłowska, K.; Gramza, P. Monitoring of the Respiration Activity of Sewage Sludge and Biofractions of Municipal Waste in the Composting Process. Br. J. Appl. Sci. Technol. 2016, 14, 1. [Google Scholar] [CrossRef]
- European Biogas Association, EBA Statistical Report 2020. Available online: https://www.europeanbiogas.eu/eba-statistical-report-2020/ (accessed on 10 December 2022).
- Ziero, H.D.D.; Ampese, L.C.; Sganzerla, W.G.; Torres-Mayanga, P.C.; Timko, M.T.; Mussatto, S.I.; Forster-Carneiro, T. Subcritical Water Hydrolysis of Poultry Feathers for Amino Acids Production. J. Supercrit. Fluids 2022, 181, 105492. [Google Scholar] [CrossRef]
- Paudel, S.R.; Banjara, S.P.; Choi, O.K.; Park, K.Y.; Kim, Y.M.; Lee, J.W. Pretreatment of Agricultural Biomass for Anaerobic Digestion: Current State and Challenges. Bioresour. Technol. 2017, 245, 1194–1205. [Google Scholar] [CrossRef] [PubMed]
- Rocamora, I.; Wagland, S.T.; Villa, R.; Simpson, E.W.; Fernández, O.; Bajón-Fernández, Y. Dry Anaerobic Digestion of Organic Waste: A Review of Operational Parameters and Their Impact on Process Performance. Bioresour. Technol. 2020, 299, 122681. [Google Scholar] [CrossRef] [PubMed]
- Abbassi-Guendouz, A.; Brockmann, D.; Trably, E.; Dumas, C.; Delgenès, J.-P.; Steyer, J.-P.; Escudié, R. Total Solids Content Drives High Solid Anaerobic Digestion via Mass Transfer Limitation. Bioresour. Technol. 2012, 111, 55–61. [Google Scholar] [CrossRef] [PubMed]
- Sganzerla, W.G.; Ampese, L.C.; Parisoto, T.A.C.; Forster-Carneiro, T. Process Intensification for the Recovery of Methane-Rich Biogas from Dry Anaerobic Digestion of Açaí Seeds. Biomass Convers. Biorefinery 2021, 1–14. [Google Scholar] [CrossRef]
- Pavičić, J.; Novak Mavar, K.; Brkić, V.; Simon, K. Biogas and Biomethane Production and Usage: Technology Development, Advantages and Challenges in Europe. Energies 2022, 15, 2940. [Google Scholar] [CrossRef]
- Pazuch, F.A.; Nogueira, C.E.C.; Souza, S.N.M.; Micuanski, V.C.; Friedrich, L.; Lenz, A.M. Economic Evaluation of the Replacement of Sugar Cane Bagasse by Vinasse, as a Source of Energy in a Power Plant in the State of Paraná, Brazil. Renew. Sustain. Energy Rev. 2017, 76, 34–42. [Google Scholar] [CrossRef]
- Stan, C.; Collaguazo, G.; Streche, C.; Apostol, T.; Cocarta, D.M. Pilot-Scale Anaerobic Co-Digestion of the OFMSW: Improving Biogas Production and Startup. Sustainability 2018, 10, 1939. [Google Scholar] [CrossRef] [Green Version]
- Seruga, P.; Krzywonos, M.; Seruga, A.; Niedzwiecki, Ł.; Pawlak-Kruczek, H.; Urbanowska, A. Anaerobic Digestion Performance: Separate Collected vs. Mechanical Segregated Organic Fractions of Municipal Solid Waste as Feedstock. Energies 2020, 13, 3768. [Google Scholar] [CrossRef]
- Gross, T.; Breitenmoser, L.; Kumar, S.; Ehrensperger, A.; Wintgens, T.; Hugi, C. Anaerobic Digestion of Biowaste in Indian Municipalities: Effects on Energy, Fertilizers, Water and the Local Environment. Resour. Conserv. Recycl. 2021, 170, 105569. [Google Scholar] [CrossRef]
- Lohri, C.R.; Diener, S.; Zabaleta, I.; Mertenat, A.; Zurbrügg, C. Treatment Technologies for Urban Solid Biowaste to Create Value Products: A Review with Focus on Low- and Middle-Income Settings. Rev. Environ. Sci. Biotechnol. 2017, 16, 81–130. [Google Scholar] [CrossRef] [Green Version]
- Das, S.; Lee, S.-H.; Kumar, P.; Kim, K.-H.; Lee, S.S.; Bhattacharya, S.S. Solid Waste Management: Scope and the Challenge of Sustainability. J. Clean. Prod. 2019, 228, 658–678. [Google Scholar] [CrossRef]
- Lee, U.; Han, J.; Wang, M. Evaluation of Landfill Gas Emissions from Municipal Solid Waste Landfills for the Life-Cycle Analysis of Waste-to-Energy Pathways. J. Clean. Prod. 2017, 166, 335–342. [Google Scholar] [CrossRef]
- Sogn, T.A.; Dragicevic, I.; Linjordet, R.; Krogstad, T.; Eijsink, V.G.H.; Eich-Greatorex, S. Recycling of Biogas Digestates in Plant Production: NPK Fertilizer Value and Risk of Leaching. Int. J. Recycl. Org. Waste Agric. 2018, 7, 49–58. [Google Scholar] [CrossRef] [Green Version]
- Manilal, V.B.; Chitrajit, B.; Nath, R.S.D. Advanced Anaerobic Digestion and Associated Process for Zero Discharge Biowastes Treatment. Int. J. Environ. Agric. Biotechnol. 2019, 4, 1480–1486. [Google Scholar] [CrossRef] [Green Version]
- Moretti, P.; de Oliveira, M.M.; Bayard, R.; Buffiere, P.; de Araujo, J.M.; de Castilhos, A.B.; Gourdon, R. Mechanical Pretreatment of Municipal Biowaste to Produce an Aqueous Slurry Dedicated to Anaerobic Digestion. Environ. Sci. Pollut. Res. 2021, 28, 20586–20597. [Google Scholar] [CrossRef]
- Brusselaers, J.; Van Der Linden, A. Bio-Waste in Europe—Turning Challenges into Opportunities (Issue 04). Bio-Waste in Europe—Turning Challenges into Opportunities; European Environment Agency: Luxembourg, 2020; ISBN 9789294802231. [Google Scholar]
- Vaccari, M.; Di Bella, V.; Vitali, F.; Collivignarelli, C. From Mixed to Separate Collection of Solid Waste: Benefits for the Town of Zavidovići (Bosnia and Herzegovina). Waste Manag. 2013, 33, 277–286. [Google Scholar] [CrossRef]
- Bernstad, A. Household Food Waste Separation Behavior and the Importance of Convenience. Waste Manag. 2014, 34, 1317–1323. [Google Scholar] [CrossRef]
- Rice, E.W.; Baird, R.B.; Eaton, A.D. (Eds.) APHA—American Public Health Association Standard Methods for the Examination of Water and Wastewater, 23rd ed.; American Public Health Association, American Water Works Association, and Water Environment Federation: Washington, DC, USA, 2017; ISBN 978-0-87553-287-5. [Google Scholar]
- United Nations Framework Convention on Climate Change Clean Development Mechanism. CDM Methodology 2010. Available online: https://cdm.unfccc.int/methodologies/documentation/1611/CDM-Methodology-Booklet_fullversion.pdf (accessed on 20 December 2022).
- Regulation of the Minister of the Environment of 7 October, 2019, on the Detailed Method of Selective Collection of Selected Waste Fractions and Realized by Collecting the Following Fractions: Metals and Plastics; Paper; Glass, Bio-Waste and Residual. (Journal of Laws 2019 Item. 2028). Available online: https://isap.sejm.gov.pl/isap.nsf/DocDetails.xsp?id=WDU20190002028 (accessed on 20 December 2022). (In Polish)
- Rolewicz-Kalińska, A.; Lelicińska-Serafin, K.; Manczarski, P. The Circular Economy and Organic Fraction of Municipal Solid Waste Recycling Strategies. Energies 2020, 13, 4366. [Google Scholar] [CrossRef]
- Seruga, P.; Krzywonos, M. Separate Collected versus Mechanical Segregated Organic Fractions in Terms of Fertilizers Suitability. Energies 2021, 14, 3971. [Google Scholar] [CrossRef]
- Paritosh, K.; Kushwaha, S.K.; Yadav, M.; Pareek, N.; Chawade, A.; Vivekanand, V. Food Waste to Energy: An Overview of Sustainable Approaches for Food Waste Management and Nutrient Recycling. BioMed Res. Int. 2017, 2017, 2370927. [Google Scholar] [CrossRef] [PubMed]
- Drosg, B. Process Monitoring in Biogas Plants; IEA Bioenergy: Cork, Ireland, 2013. [Google Scholar]
- Paladino, O. Data Driven Modelling and Control Strategies to Improve Biogas Quality and Production from High Solids Anaerobic Digestion: A Mini Review. Sustainability 2022, 14, 16467. [Google Scholar] [CrossRef]
- Scarlat, N.; Dallemand, J.F.; Fahl, F. Biogas: Developments and Perspectives in Europe. Renew. Energy 2018, 129, 457–472. [Google Scholar] [CrossRef]
- International Environmental Agency (IEA). Biogas and More: Systems and Markets Overview of Anaerobic Digestion; AEA Technology Environment: Paris, France, 2001. [Google Scholar]
- Banks, C.J.; Chesshire, M.; Heaven, S.; Arnold, R. Anaerobic Digestion of Source-Segregated Domestic Food Waste: Performance Assessment by Mass and Energy Balance. Bioresour. Technol. 2011, 102, 612–620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Dewil, R.; Appels, L.; Baeyens, J. Energy use of biogas hampered by the presence of siloxanesm. Energy Convers. Manag. 2006, 47, 1711–1722. [Google Scholar]
- Buller, L.S.; da Silva Romero, C.W.; Lamparelli, R.A.C.; Ferreira, S.F.; Bortoleto, A.P.; Mussatto, S.I.; Forster-Carneiro, T. A Spatially Explicit Assessment of Sugarcane Vinasse as a Sustainable By-Product. Sci. Total Environ. 2021, 765, 142717. [Google Scholar] [CrossRef]
- Yu, H.; Ling, N.; Wang, T.; Zhu, C.; Wang, Y.; Wang, S.; Gao, Q. Responses of soil biological traits and bacterial communities to nitrogen fertilization mediate maize yields across three soil types. Soil Tillage Res. 2019, 185, 61–69. [Google Scholar] [CrossRef]
- Wang, M.C.; Yang, C.H. Type of fertilizer applied to a paddy-upland rotation affects selected soil quality attributes. Geoderma 2003, 114, 93–108. [Google Scholar] [CrossRef]
- The European Parliament and the Council of the European Union Regulation (EU) 2019/1009 of the European Parliament and of the Council of 5th June 2019 Laying down Rules on the Making Available on the Market of EU Fertilising Products and Amending Regulation (EC) No 1069/2009 and (EC) No 1107/2009 and Repealing Regulat. Off. J. Eur. Union 2019, 2019, 1–114.
- The Ordinance of the Minister of Agriculture and Rural Development of 18th June 2008 on Implementation of Certain Provisions of the Act on Fertilisers and Fertilizing (Journal of Laws 2008 No. 119 Item. 765). Available online: https://isap.sejm.gov.pl/isap.nsf/DocDetails.xsp?id=wdu20081190765 (accessed on 20 December 2022). (In Polish)
- Foster, P.; Prasad, M. Development of Quality Standards for Compost and Digestate in Ireland; Environmental Protection Agency: Wexford, Ireland, 2021; ISBN 9781840959949. [Google Scholar]
- Teglia, C.; Tremier, A.; Martel, J.L. Characterization of Solid Digestates: Part 2, Assessment of the Quality and Suitability for Composting of Six Digested Products. Waste Biomass Valori 2011, 2, 113–126. [Google Scholar] [CrossRef]
- Insam, H.; Gómez-Brandón, M.; Ascher, J. Manure-Based Biogas Fermentation Residues—Friend or Foe of Soil Fertility? Soil Biol. Biochem. 2015, 84, 1–14. [Google Scholar] [CrossRef]
- Möller, K.; Müller, T. Effects of Anaerobic Digestion on Digestate Nutrient Availability and Crop Growth: A Review. Eng. Life Sci. 2012, 12, 242–257. [Google Scholar] [CrossRef]
- Zawadzki, P.; Głodniok, M. Environmental Safety Assessment of Fertilizer Products. Polish J. Environ. Stud. 2020, 30, 11–22. [Google Scholar] [CrossRef]
- Guilayn, F.; Jimenez, J.; Martel, J.L.; Rouez, M.; Crest, M.; Patureau, D. First Fertilizing-Value Typology of Digestates: A Decision-Making Tool for Regulation. Waste Manag. 2019, 86, 67–79. [Google Scholar] [CrossRef]
- O’Connor, S.; Ehimen, E.; Pillai, S.C.; Lyons, G.; Bartlett, J. Economic and Environmental Analysis of Small-Scale Anaerobic Digestion Plants on Irish Dairy Farms. Energies 2020, 13, 637. [Google Scholar] [CrossRef] [Green Version]
- Krajowy Osrodek Bilansowania i Zarzadzania Emisjami. Wskazniki Produktowe Dla Energii Elektrycznej; Krajowy Osrodek Bilansowania i Zarzadzania Emisjami: Warsaw, Poland, 2019. (In Polish) [Google Scholar]
- Baldasano, J.M.; Soriano, C. Emission of Greenhouse Gases from Anaerobic Digestion Processes: Comparison with Other Municipal Solid Waste Treatments. Water Sci. Technol. 2000, 41, 275–282. [Google Scholar] [CrossRef] [Green Version]
- Kim, D.; Kim, K.T.; Park, Y.K. A Comparative Study on the Reduction Effect in Greenhouse Gas Emissions between the Combined Heat and Power Plant and Boiler. Sustainability 2020, 12, 5144. [Google Scholar] [CrossRef]
Fraction | Mass Share |
---|---|
Organic (incl. green waste) (%) | 69.3 ± 4.9 |
Wood (%) | 8.7 ± 1.1 |
Paper (%) | 1.3 ± 0.2 |
Plastics (%) | 5.4 ± 0.7 |
Glass (%) | 0.9 ± 0.4 |
Inert waste (%) | 1.1 ± 0.7 |
Textiles (%) | 0.1 ± 0.1 |
Metals (%) | 0.1 ± 0.1 |
Hazardous (%) | 0.1 ± 0.1 |
Tetra Pak (%) | 0.1 ± 0.1 |
Others (%) | 0.3 ± 0.1 |
Fine fraction 0–15 mm (%) | 11.7 ± 2.5 |
Parameter | Year | Changes in Parameters | |||
---|---|---|---|---|---|
2019 | 2020 | 2021 | 2020–2019 | 2021–2020 | |
AD feedstock volume (tons) | 20,347 | 23,294 | 23,473 | 14.5% | 0.8% |
Generated biogas (m3) | 2,598,983 | 2,724,955 | 2,724,717 | 4.8% | 0.0% |
Electricity generated in CHP-units (MWh) | 5101 | 5558 | 5545 | 9.0% | −0.2% |
Purchased electricity from the grid (MWh) | 703 | 678 | 716 | −3.7% | 5.6% |
Consumed electricity (MWh) | 4443 | 5184 | 4881 | 16.7% | −5.8% |
The heat generated in CHP units (GJ) | 6194 | 6418 | 6802 | 3.6% | 6.0% |
Consumed heat (GJ) | 3595 | 4267 | 3272 | 18.7% | −23.3% |
Digestate volume (m3) | 19,534 | 21,506 | 21,364 | −4.6% | −0.7% |
Parameter | Content |
---|---|
Methane (CH4) (%vol) | 58.0 ± 3.0 |
Carbon dioxide (CO2) (%vol) | 39.0 ± 3.0 |
Ammonia (NH3) (ppm) | 190.0 ± 15.0 |
Hydrogen sulfide (H2S) (ppm) | 124.0 ± 20.0 |
Oxygen (O2) (%vol) | <0.2 |
Parameter | Digestate | Polish Required Levels [21] | EU Required Levels [19] |
---|---|---|---|
Metal Contents | |||
Cadmium (Cd) (mg/kg dry matter) | 0.42 ± 0.08 | Max. 5 | Max. 1.5 |
Chrome (Cr) (mg/kg dry matter) | 31.2 ± 6.0 | Max. 100 | Max. 100 * |
Lead (Pb) (mg/kg dry matter) | 31.2 ± 6.0 | Max. 140 | Max. 120 |
Mercury (Hg) (mg/kg dry matter) | <0.1 | Max. 2 | Max. 1 |
Nickel (Ni) (mg/kg dry matter) | 22.3 ± 4.0 | Max. 60 | Max. 50 |
Nonmetal Contents | |||
Organic matter (%dry matter) | 34.7 ± 2.8 | Min. 30 | - |
Phosphorus (P2O5) (%dry matter) | 0.59 ± 0.04 | Min. 0.2 | Min. 1 |
Total organic carbon (TOC) (%dry matter) | 17.2 ± 2.4 | - | Min. 5 |
Total nitrogen (%dry matter) | 1.3 ± 0.2 | Min. 0.3 | Min. 1 |
Dry matter (%) | 43.3 ± 2.9 | - | - |
Parameter | Year | Changes in Parameters | |||
---|---|---|---|---|---|
2019 | 2020 | 2021 | 2020–2019 | 2021–2020 | |
EBy (kg CO2) | 3194.3 | 3618.4 | 3406.1 | 13.3% | −5.8% |
EPy (kg CO2) | 2343.3 | 2687.2 | 2546.3 | 14.7% | −5.2% |
REy (%) | 26.6 | 25.7 | 25.3 | −3.4% | −1.8% |
