1. Introduction
Power transformers are devices commonly found along the power electric system. They are used to transmit and to distribute electrical energy by adjusting current and voltage levels. Additionally, its design and manufacture are complex, being among the most expensive equipment in the system, besides requiring well planned logistics [
1,
2,
3,
4].
There are numerous concerns regarding issues that could compromise the proper functioning of power transformers or even lead to their outage, potentially interrupting the continuous supply of electrical energy. Considering this, it is worth noticing that power transformers are designed to withstand nominal and overload voltages and currents; however, there may be situations in which the values considered in the design are exceeded, subjecting the device to extreme internal stresses [
5,
6].
One of these situations is the short-circuit, which results in significant electrical, thermal, and mechanical stresses in the electrical network and its components. During this transient fault, the transformers are exposed to high electromechanical stresses that can lead to deformations in their windings and, consequently, their failure. The winding deformation can result in, among other consequences, the rupture of solid insulation, which, in turn, may lead to internal short circuits. In the long term, deformations can reduce the asset’s lifespan [
7,
8,
9].
In relation to the protective system, protective techniques are employed to extinguish this phenomenon and to avoid damage. However, protective devices are also prone to failure, which can prolong the time required to mitigate this transient. As a result, the devices within the electric grid have to be designed to withstand short-circuit current until its extinction. Otherwise, there can be extreme internal stresses that may lead to damage to the transformer, jeopardizing the operation of the electrical system [
10].
From a design point of view, several parameters influence the mechanical durability of the windings. The conductor material is the first, but is, generally, defined by the customer. The conductor’s dimensions are defined by the designer according to the specified losses and reactance. With these defined, the withstand can be adjusted by modifying the mechanical spacer between discs and the conductor hardness.
The number and dimensions of spacers must be defined together with the thermal design. An increase in the number of spacers, or its dimensions, enhances the mechanical withstand, however, it reduces the thermal efficiency, leading to higher temperatures. Thus, the conductor hardness is the last parameter that can be modified without influencing the rest of the project. On the other hand, a harder conductor results in manufacturing issues, as it is more difficult during production and assembly, demanding more time.
In this scenario, in addition to the need for design optimization and costs reduction, it is necessary to improve these design parameters for a more reliable and robust transformer, with lower costs and time for manufacturing. For this, the electromagnetic forces and their respective stresses distributions along the windings must be obtained to be considered in the mechanical design.
The authors reported in previous papers that finite element analysis (FEA) has emerged as a crucial tool for the analysis and diagnostics of short-circuit forces in power transformers [
1,
11]. Numerous FEA studies have also been conducted to evaluate electromagnetic forces. However, existing modeling methods often lack detailed analyses of these forces and their distribution across transformer windings. In references [
12,
13,
14], only radial forces were examined, while in [
15], only axial forces were considered.
Many studies have focused on simulations of single-phase transformers, such as those in [
9,
16,
17,
18,
19]. In [
20], a three-dimensional (3D) model was employed, with windings partitioned in both the radial and axial directions, providing insight into radial force distribution around a single winding, but axial forces were solely analyzed along the axial direction. In another study [
21], a 3D model of a three-phase transformer was utilized to investigate inrush electromechanical forces, yet only total forces were examined. Similarly, in [
22], a 3D simulation of a single-phase transformer only analyzed forces over the height of the windings.
Given the simplified models and incomplete force analyses in the aforementioned works, the authors previously presented a comprehensive calculation of axial and radial electromagnetic forces in a three-phase transformer with concentric windings [
1,
11]. The methodology verified the axial and radial forces distribution, along the winding height and around the core column, in the central and lateral phases, inside and outside the core window. In addition, it was verified that the tap arrangements influenced the force behavior.
Once the electromagnetic force distribution is known, the electromechanical stresses must be evaluated. The authors presented a simplified stress analysis in a previous paper [
23], considering the winding as an unique solid. As a sequence of that study, this article focuses on evaluating electromagnetic stresses in power transformers through finite element analysis under short-circuit excitation along the winding. The analyzed transformer windings were modeled according to the number of discs and the mechanical spacers between them, ensuring more precise results. First, the axial and radial force distributions were obtained. From this, the axial and radial mechanical stresses were evaluated. In addition, the windings were simulated considering copper and aluminum as the materials, at different temperatures, to compare their mechanical resistance in different conditions.
2. Electromagnetic Forces
The principle of electromagnetic stresses is based on the following physical phenomenon: when an electric current flows through a conductor immersed in a magnetic field, it experiences electromagnetic forces. This behavior is quantified and described by the Lorentz law, where the cross product of the current density (
) and the magnetic flux density (
) results in an orthogonal density force, as shown in (
1) [
1,
6,
24].
This principle is fundamental in electric motors, as the interaction between the magnetic flux and the current generates the movement of the rotor. These electromagnetic forces are also present in transformers. However, as transformers are static devices, they must be designed to support and contain these forces.
The transformer active part consists of low-voltage (LV) and high-voltage (HV) concentric windings wounded around a ferromagnetic core. As detailed in [
1], the behavior of the leakage magnetic field within the transformer windings can be divided into two components: radial (
) and axial (
). The axial component of the magnetic flux interacting with the current results in radial forces (
). As a consequence of these radial forces, the external winding of a transformer is subjected to tensile stress, while the internal winding experiences compressive stress, as shown in

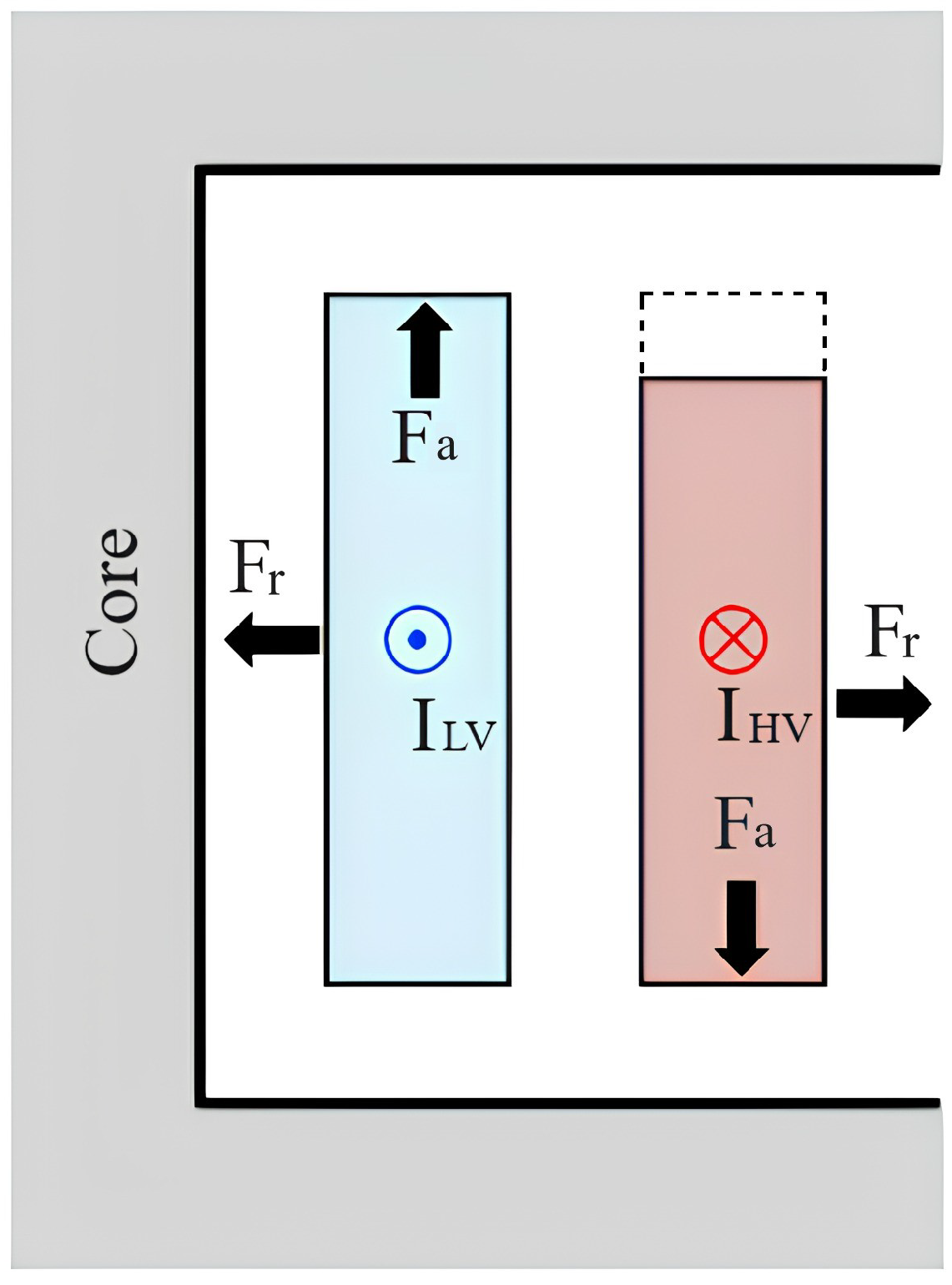

Figure 1, which illustrates the arrangement with a tap located at the head of the external winding, represented by a dashed line.
The calculation of radial forces in transformers with concentric windings is described in [
24], where more details about the mathematical deduction can be found. These forces can be expressed as a product of the average axial flux and the total current of the winding, as shown in (
2), which calculates the radial force per unit of winding length. To obtain the total radial force, the result from (
2) was multiplied by the winding circumference
, where
is the average winding diameter, assumed as the average value between the internal and external diameter of the analyzed winding, as shown in (
3).
where:
: Radial force per unit length (tons/m);
: Total radial force (tons);
NI: Ampère-turn (A);
h: Winding height (m);
: Average winding diameter (m).
The axial forces (
) are a result of the interaction between the current and the radial component of the magnetic flux, which depends on the arrangement geometry and is difficult to determine. Thus, axial stresses are directly related to the winding arrangement [
6]. In order to provide a satisfactory method to estimate the magnetic flux radial component, the Ampère-turn residual method is used [
24], illustrated in

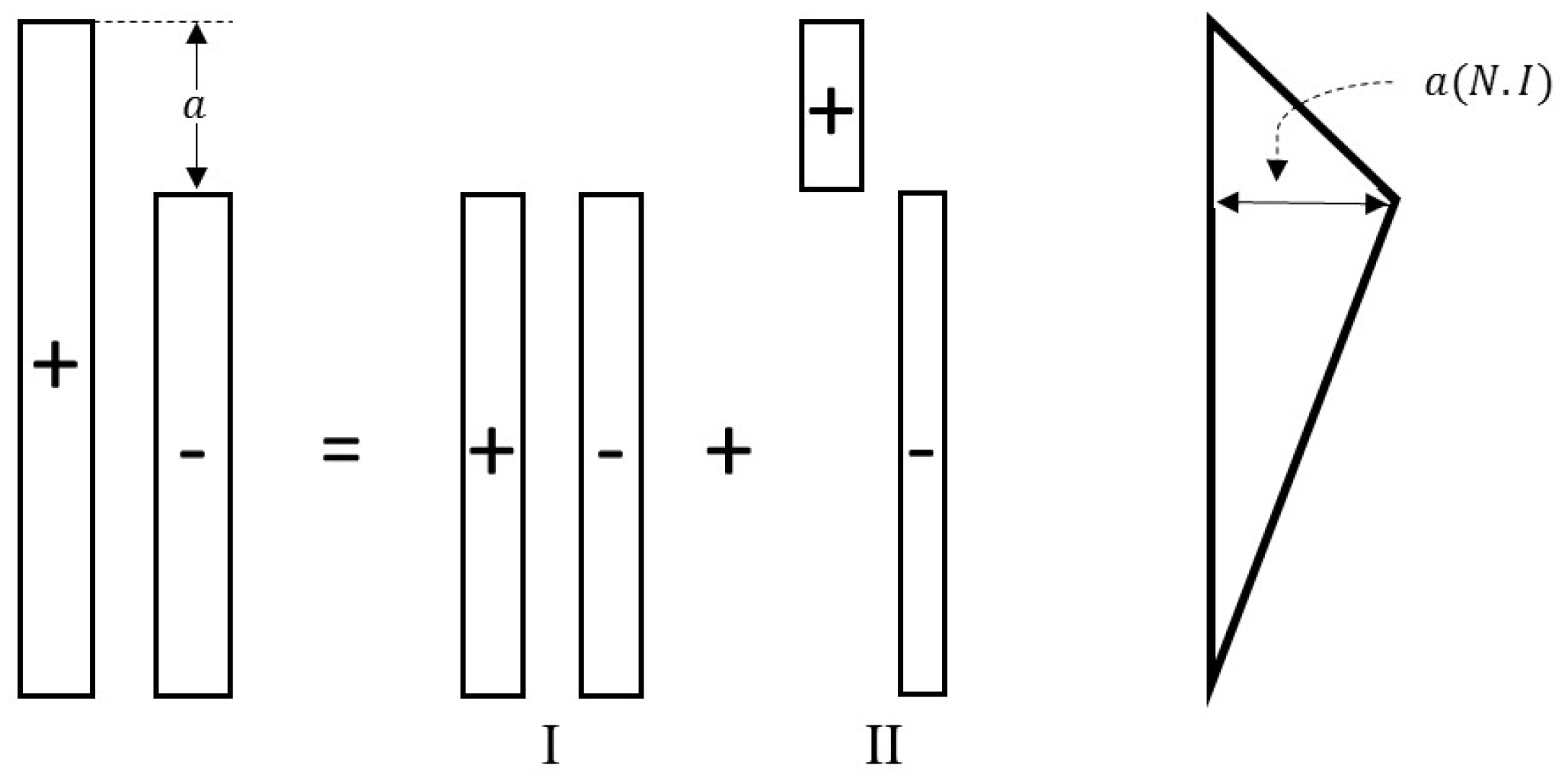

Figure 2, for the arrangement with a tap located at the head of the external winding. The unbalanced arrangement is separated in two balanced arrangements. The residual Ampère-turn diagram represents the radial flux distribution along the windings, in a triangle format, with a peak value of
, where
a is the percentage height difference between the windings.
The arrangement with a tap located at the head of the external winding, shown in
Figure 1, is considered critical with the highest axial stresses [
1,
11], with its Ampère-turn residual diagram shown in
Figure 2. For this arrangement, the axial force
, in tons, is calculated using (
4), where
, in meters, is the effective path of the radial flux. In this arrangement, the LV winding experiences an upward axial stress, while the HV winding undergoes a downward force, leading to an expansion of the tap of the power transformer.
The term
represents only constructive dimensions and is called the permeance per unit of length in the radial direction, represented by the variable
, in Equation (
5). The
is dimensionless and expresses the ratio between the core window and core diameter, which was studied empirically. It was observed that a lower ratio core window/diameter led to a higher axial force [
24].
More details about the Ampère-turn residual method, the
empirical study, and the mathematical deduction for the calculation of the axial force of other windings arrangements can be found in [
24].
4. Finite Element Simulation
The analytical methods previously presented provide simplified tools to make a global analysis of the mechanical system. However, a more detailed evaluation, not restricted to simplifying assumptions, to achieve a more comprehensive understanding of the overall behavior of the electromagnetic forces and the resulting mechanical stresses demands a more sophisticated approach, using, e.g., the finite element method (FEM).
The present work focuses on the central phase of a three-phase transformer prototype, the same analyzed in the previous papers of the authors [
1,
11,

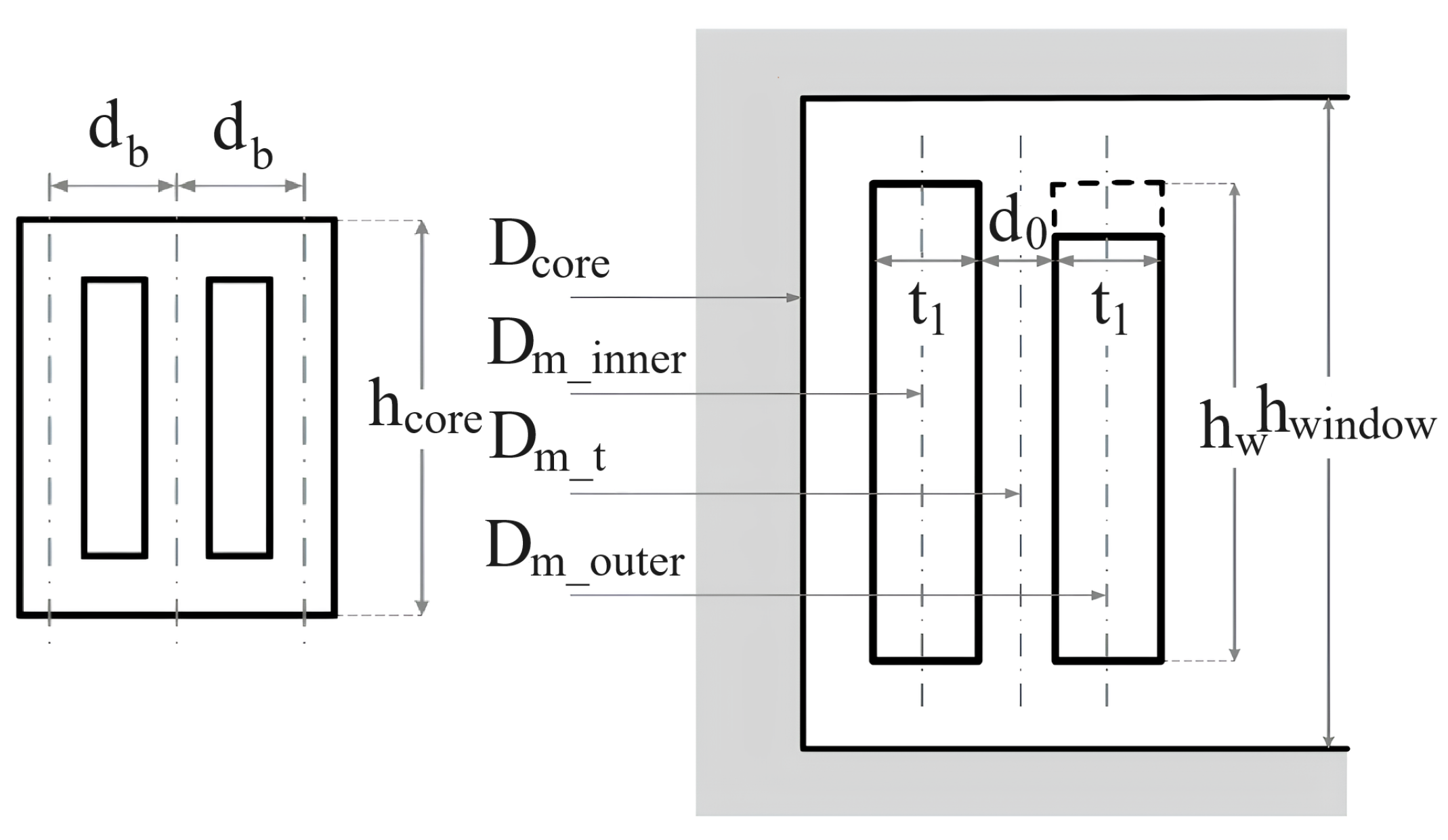

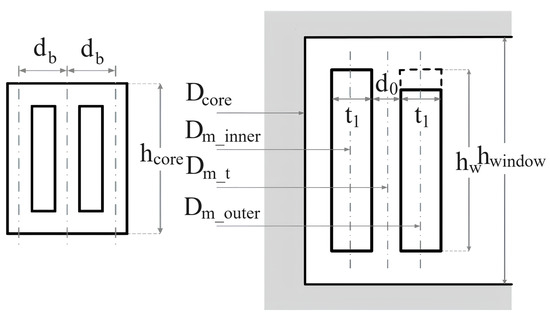

23]. It includes concentric coils with a 5% tap at the head of the external winding. The active part constructive dimensions are illustrated in
Figure 7, with the tap indicated by a dashed line at the upper head of the outer winding, and detailed in
Table 1.

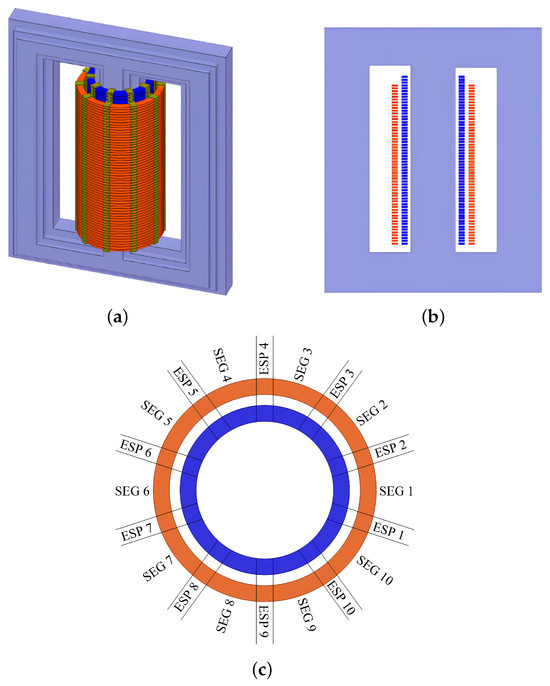

The prototype was simulated in ANSYS Electronics Desktop© software using a 3D simulation, which can be seen in
Figure 8. The electromagnetic simulation was carried out in a static regime, examining the actual forces during the short-circuit peak. The modeled transformer consisted of 60 discs in the LV and 57 discs in the HV, indicating a 5% tap in the external winding, as shown in
Figure 8a,b. Both windings are equipped with 10 axial spacers, resulting in 10 segments of discs in between the spacers, as shown in

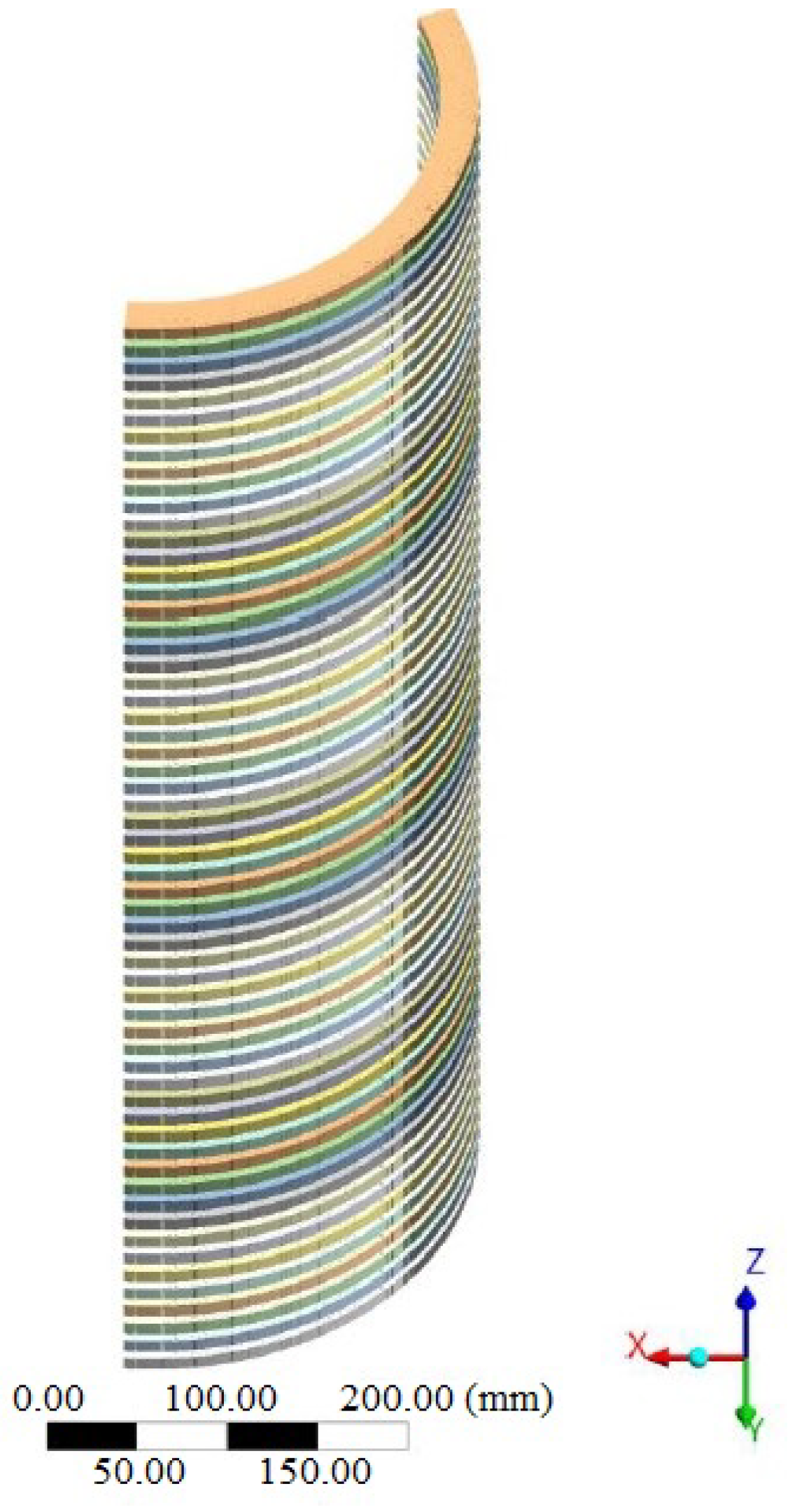

Figure 8c, where the spacers and segments are called “ESP” and “SEG”, respectively. The analysis of the electromagnetic forces will cover the entire HV winding, while the structural analysis will encompass segments 1 to 3, including spacers 1 to 4, within the HV winding. The 3D structural model used for mechanical analysis is presented in
Figure 9.
5. Results
The modeling and simulations were carried out using the commercial software ANSYS Workbench©, version 2022 R1, on a computer with 16 GB of RAM and an Intel Core i7 8th generation processor, operating at 2 GHz. The 3D simulations performed in ANSYS Electronics Desktop and Mechanical had an average duration of approximately 4 h. The electromagnetic simulation mesh had a total number of 1,506,511 elements, and the structural simulation involved a total number of 100,092 elements.
Initially, the analytical calculations for radial and axial forces were performed for comparison and verification of the finite element data.
Table 2 provides a comparison between the analytical Waters method and the finite element simulation. The maximum difference between the methods was less than 7%, indicating a good precision when using FEM.
Regarding the distribution of the electromagnetic forces over the discretizations of the windings, segment 1, located below the core window, presents the highest electromagnetic stresses, as seen in

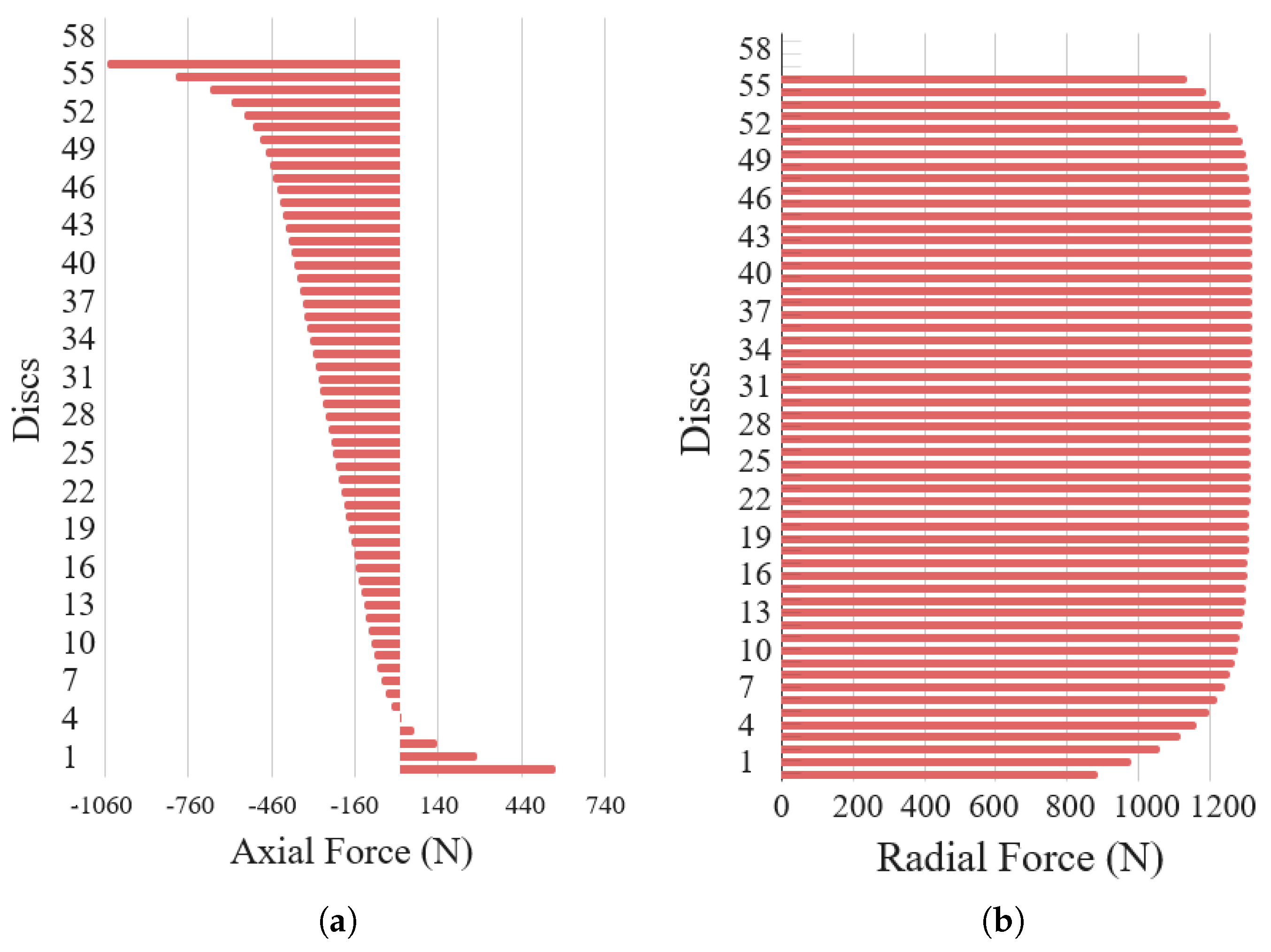

Figure 10. In
Figure 10a, the axial forces along the HV winding can be observed. The top disc experiences a force of −1.053 kN, and it is evident that the stresses reduce along the lower discs, and experience a reversal in the force direction towards the base of the windings. The behavior of the axial force indicates that the outer winding is subjected to a downwards pressure, compressing the structure towards the base of the transformer.
In
Figure 10b, it can be seen that HV winding supports positive outreach stresses, with forces that are nearly uniform toward the center of the windings and a decrease in magnitude at the extremities, where there is a curvature in the magnetic flux. Disc 43, located just above the center of the winding, presented the highest stress, reaching 1.318 kN.
For the structural analysis, the mechanical stresses were calculated for the disc that experienced the highest electromagnetic stresses, with disc 57 for axial forces and disc 43 for radial forces. The geometric model for the simulation encompassed only the external winding, from spacer 1 to spacer 4. Consequently, the simulations were conducted in the ANSYS Mechanical—Static Structural model.
Table 3 presents a comparison between the analytical solution presented in
Section 4 and the computational simulations, indicating an error lower than 3%, which demonstrates the accuracy of the numerical calculations.

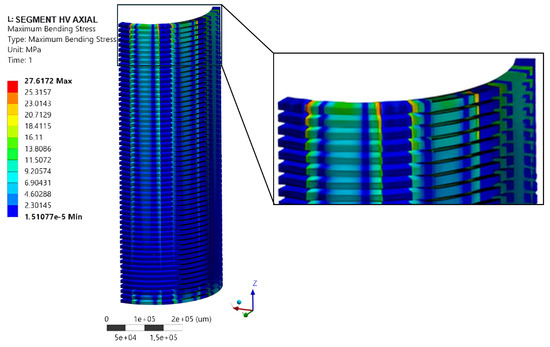

Figure 11 illustrates the axial stress distribution along a cross-section of the winding, with an average stress of 1.91 MPa, predominantly in the disc nearest to the head where the highest electromagnetic forces were encountered. Additionally, it is noticeable that the highest stress magnitudes were observed in the disc segments situated between the radial spacers.

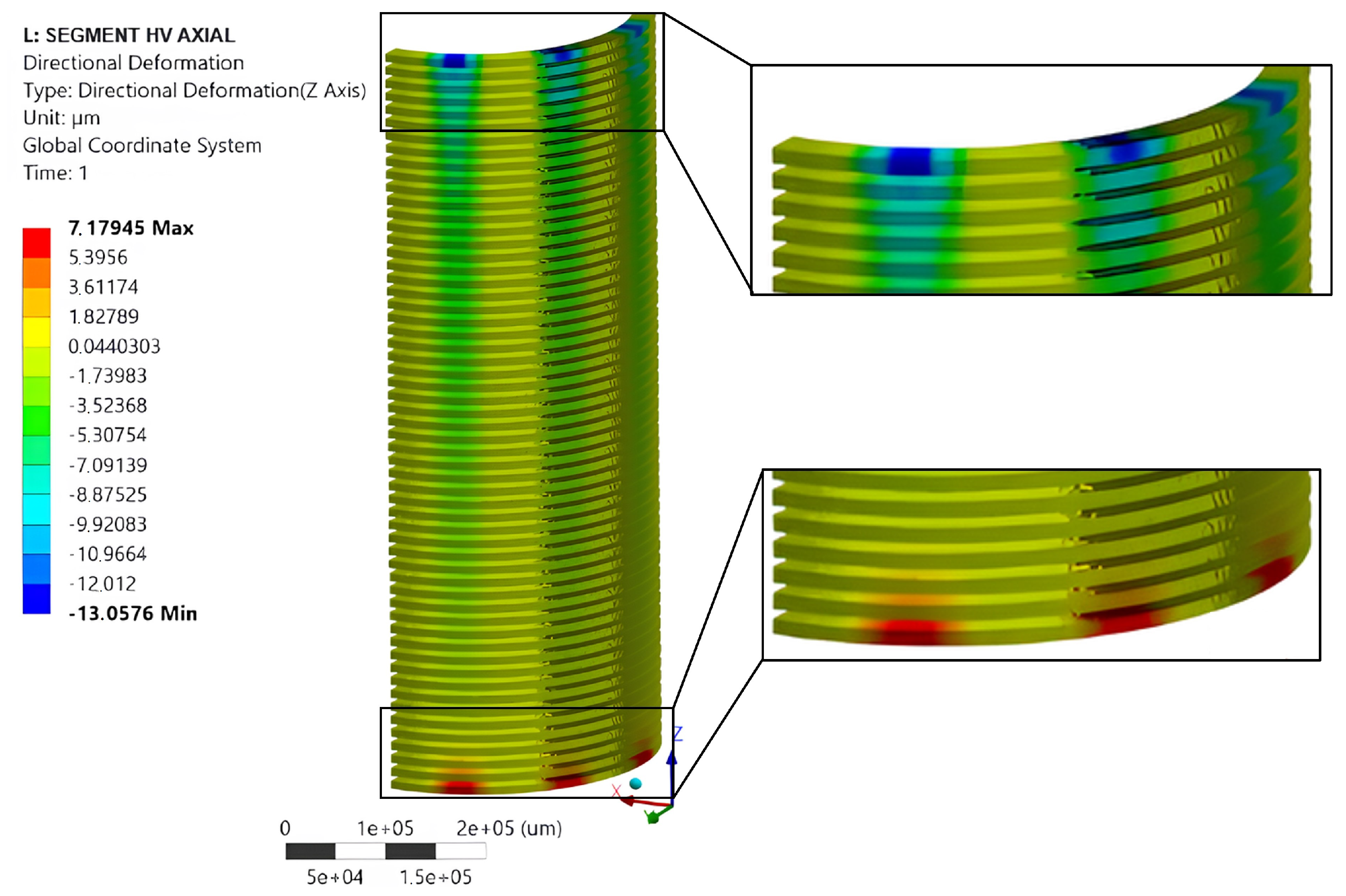

Figure 12 shows the disc strains, where the conductors were made of copper and reached a temperature of 115 °C. The most significant displacements were observed at the extremities of the windings, with a maximum displacement of 13.05
m in disc 57. In

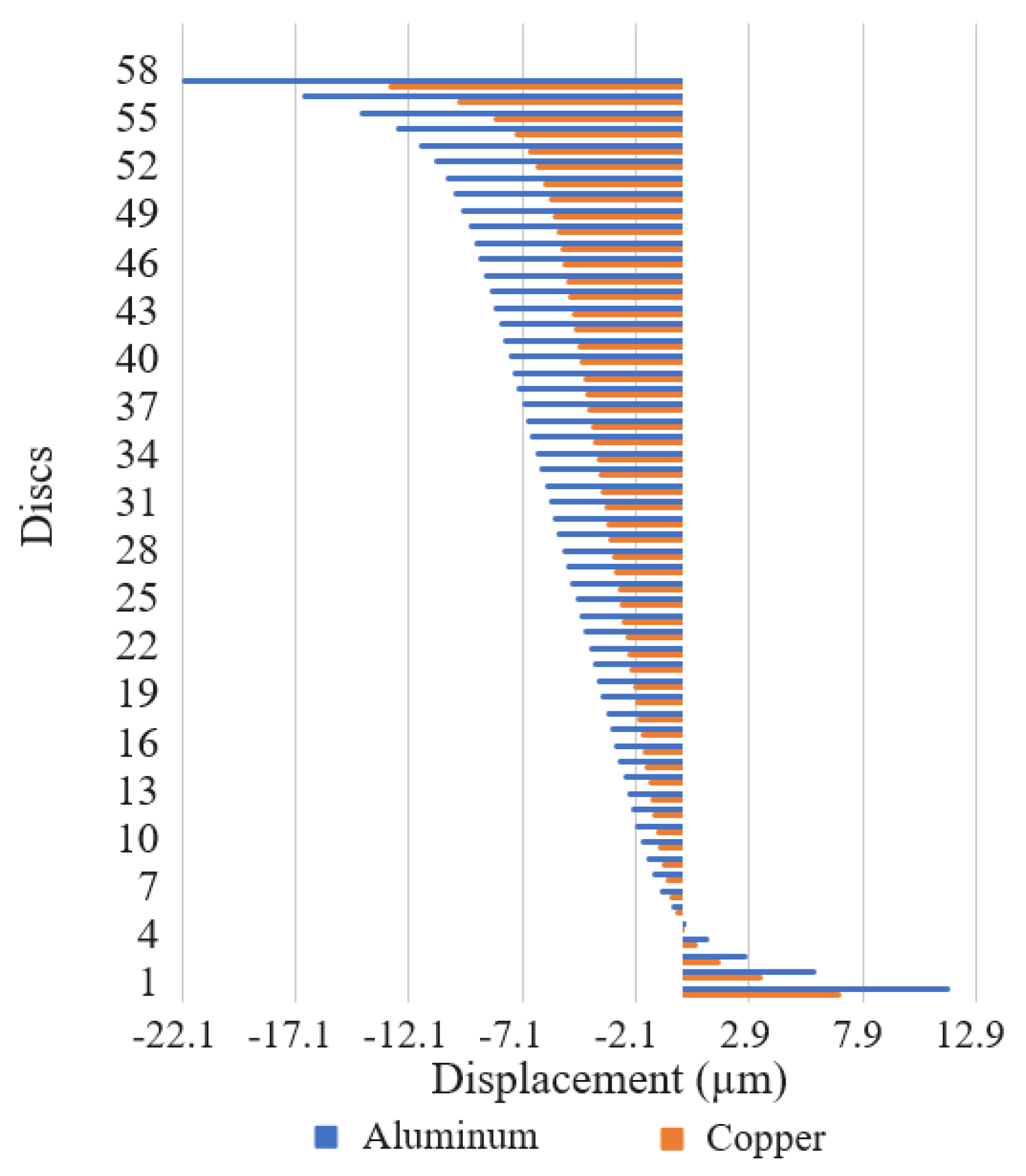

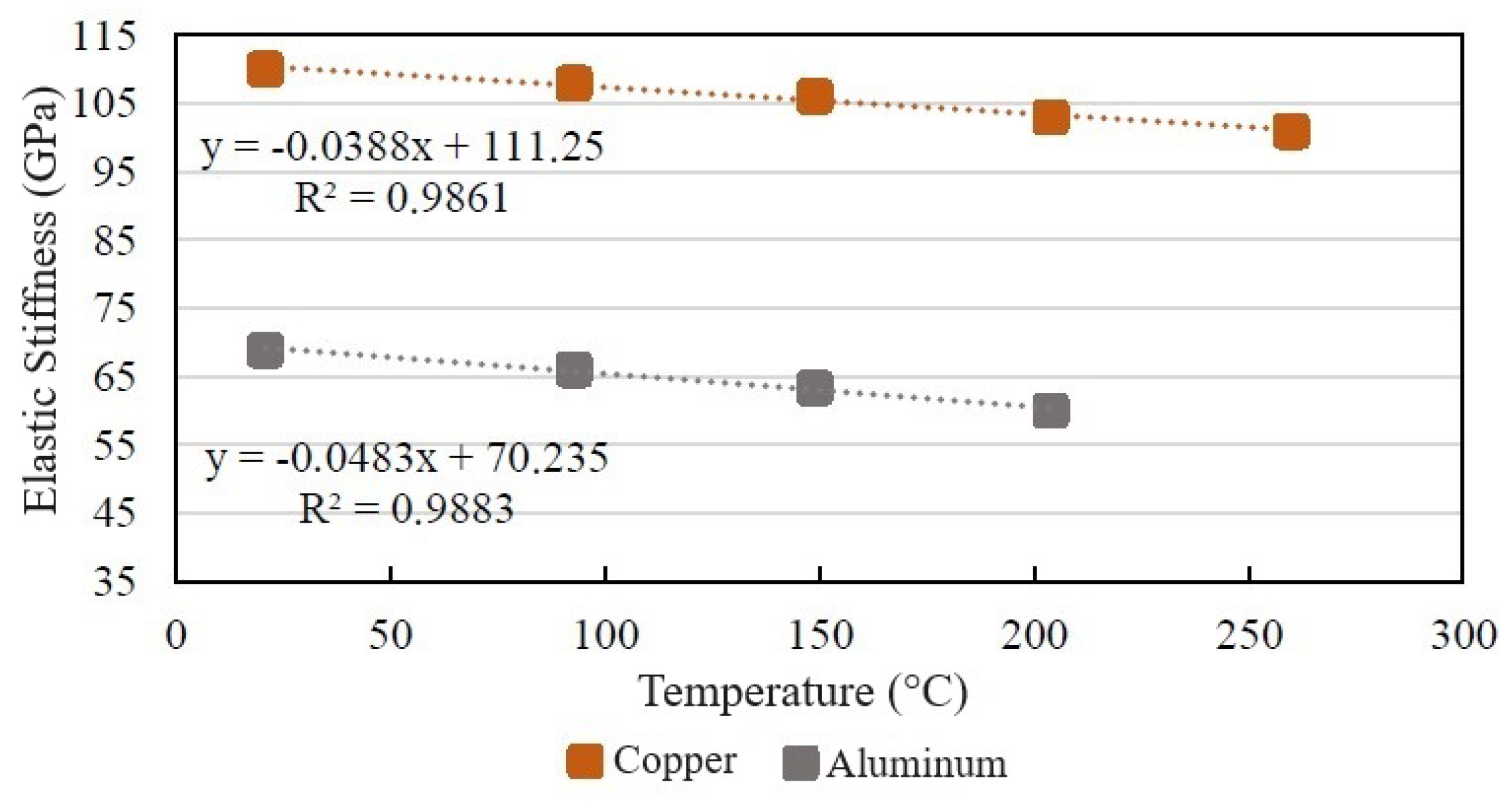

Figure 13, a comparison of the axial displacement distribution across the 57 discs in segment 1 is presented. To facilitate the analysis, it was assumed that all turns in the windings had the same dimensions for both copper and aluminum. Consequently, the highest displacement was observed in the aluminum winding, given that its Young’s Modulus was smaller than that of copper. In the graph, it is evident that disc 57 reached a displacement of 22.09
m, representing an increase of 9.04
m compared with the displacement observed for copper.
Subsequently, a more detailed analysis was conducted on segment 1 of disc 57 in the external winding. In

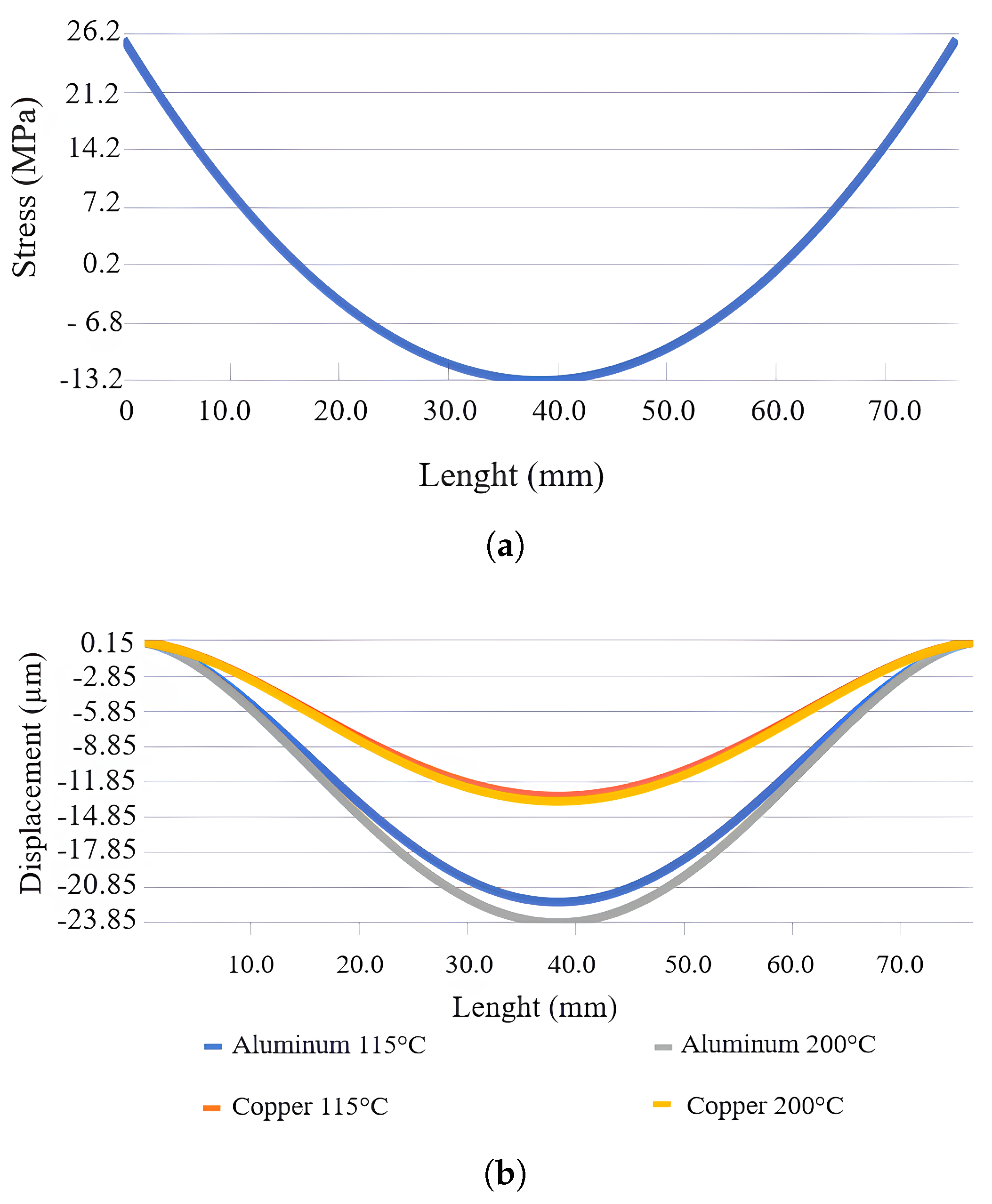

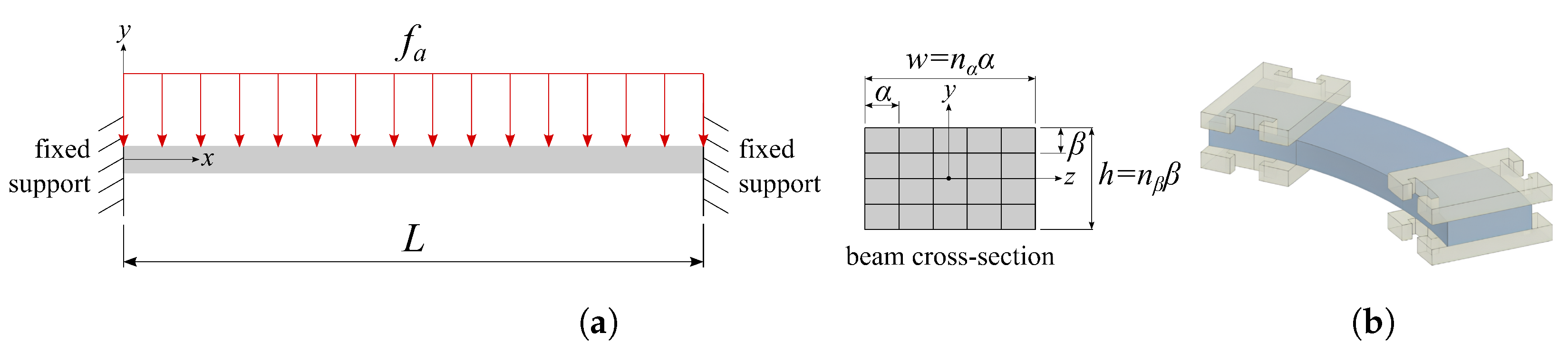

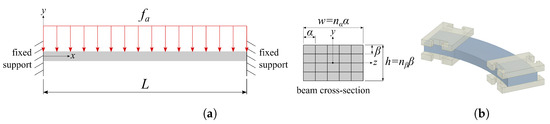

Figure 14a, the stress distribution along the disc segment is illustrated. Stress reached 28 MPa at the extremities of the segment, where the disc was firmly held between the spacers and was not deformable. However, this state could potentially lead to a process of cracking of the material. In the center of the segment, the point of greatest displacement, the stress was −13.77 MPa.
Figure 14b shows the segment displacement using copper and aluminum as the winding conductor materials at temperatures of 115 °C and 200 °C—temperatures that the winding could reach during fault transients. The displacement with copper increased by 0.46
m at 200 °C, while with aluminum, the increase was 1.75
m.

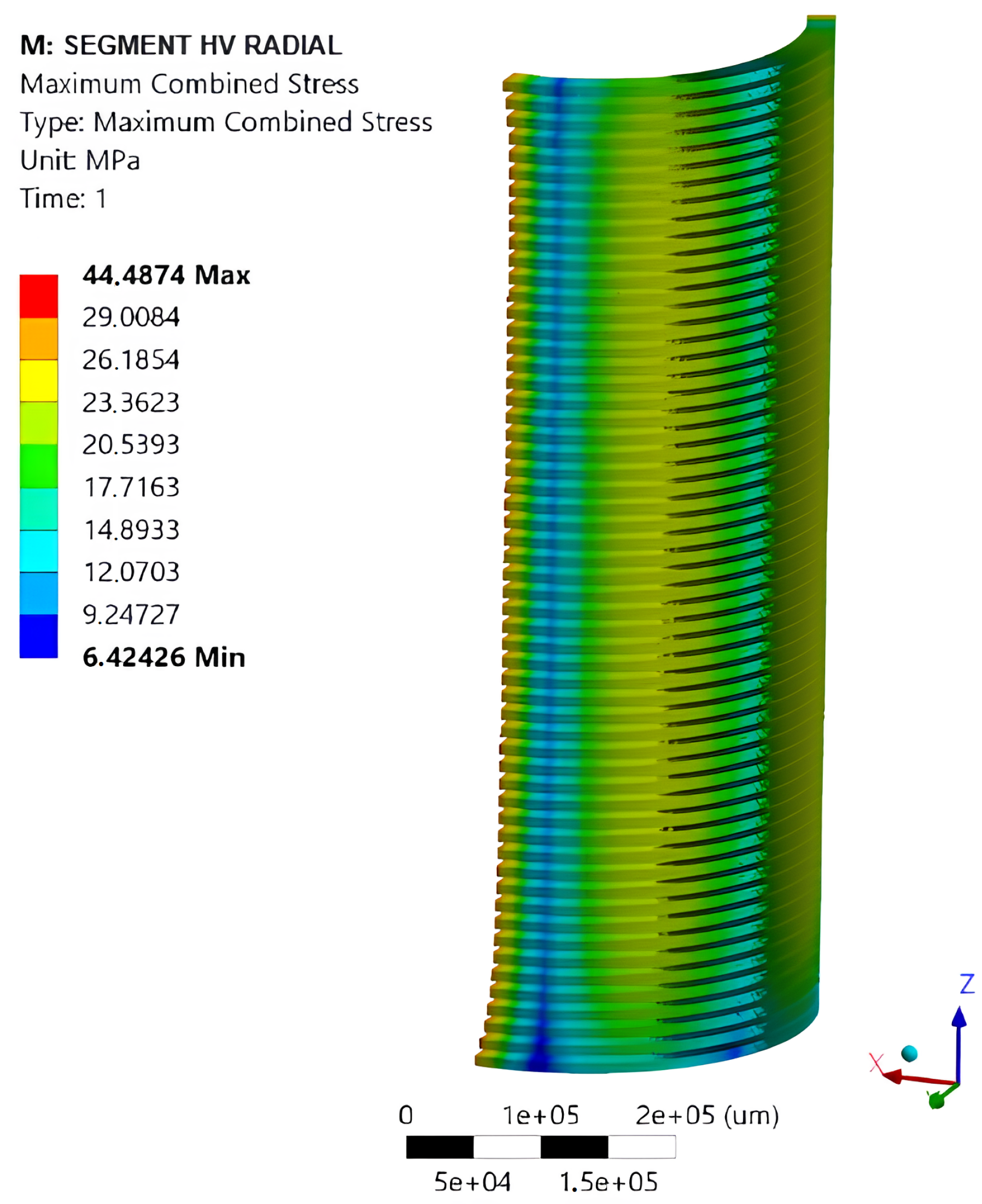

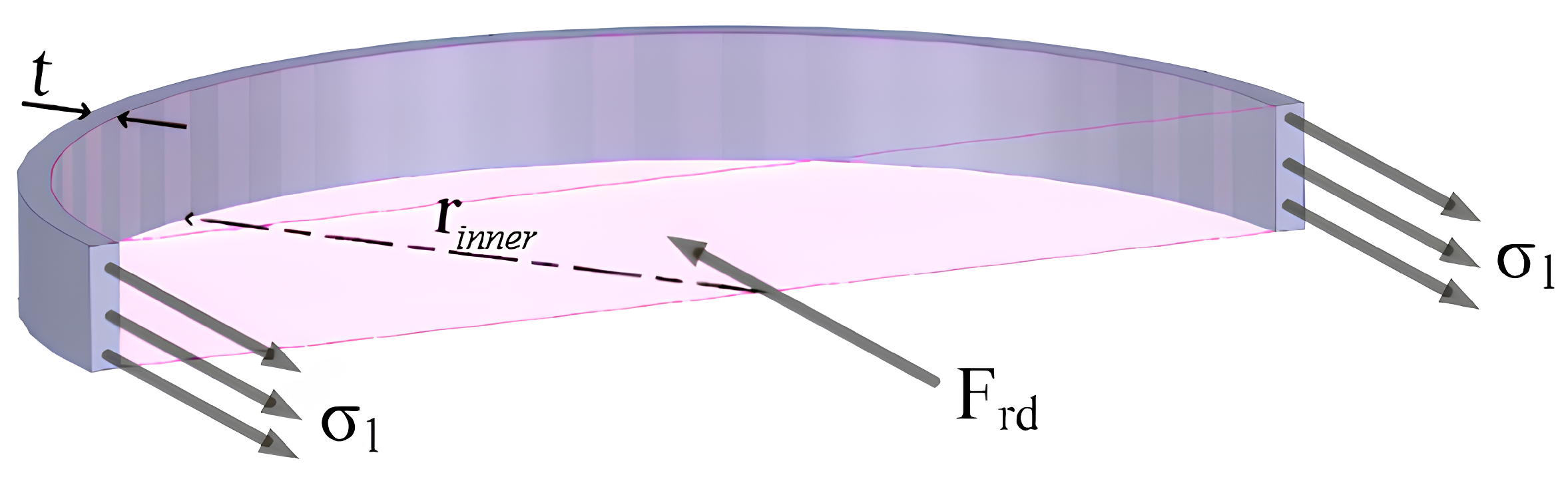

In the radial tension simulation, the average tension was 20.29 MPa, and its distribution can be seen in
Figure 15. The highest stresses were located in segments 1 and 2 and spacer 2, with a magnitude of approximate 26 MPa. The high magnitude in comparison with the axial simulation was due to the fact that the external winding did not have a spacer to restrain the expansion movement caused by the stresses.

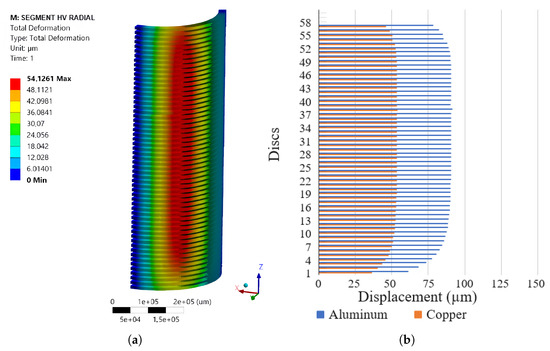

The greatest radial displacement was observed at the points with the highest stresses, reaching 54
m, as depicted in
Figure 16a. In
Figure 16b the comparison between using copper and aluminum as conductors in temperature 115 °C is presented. The maximum displacement was 90
m for aluminum, which is 36
m higher than that using a copper conductor.
6. Conclusions

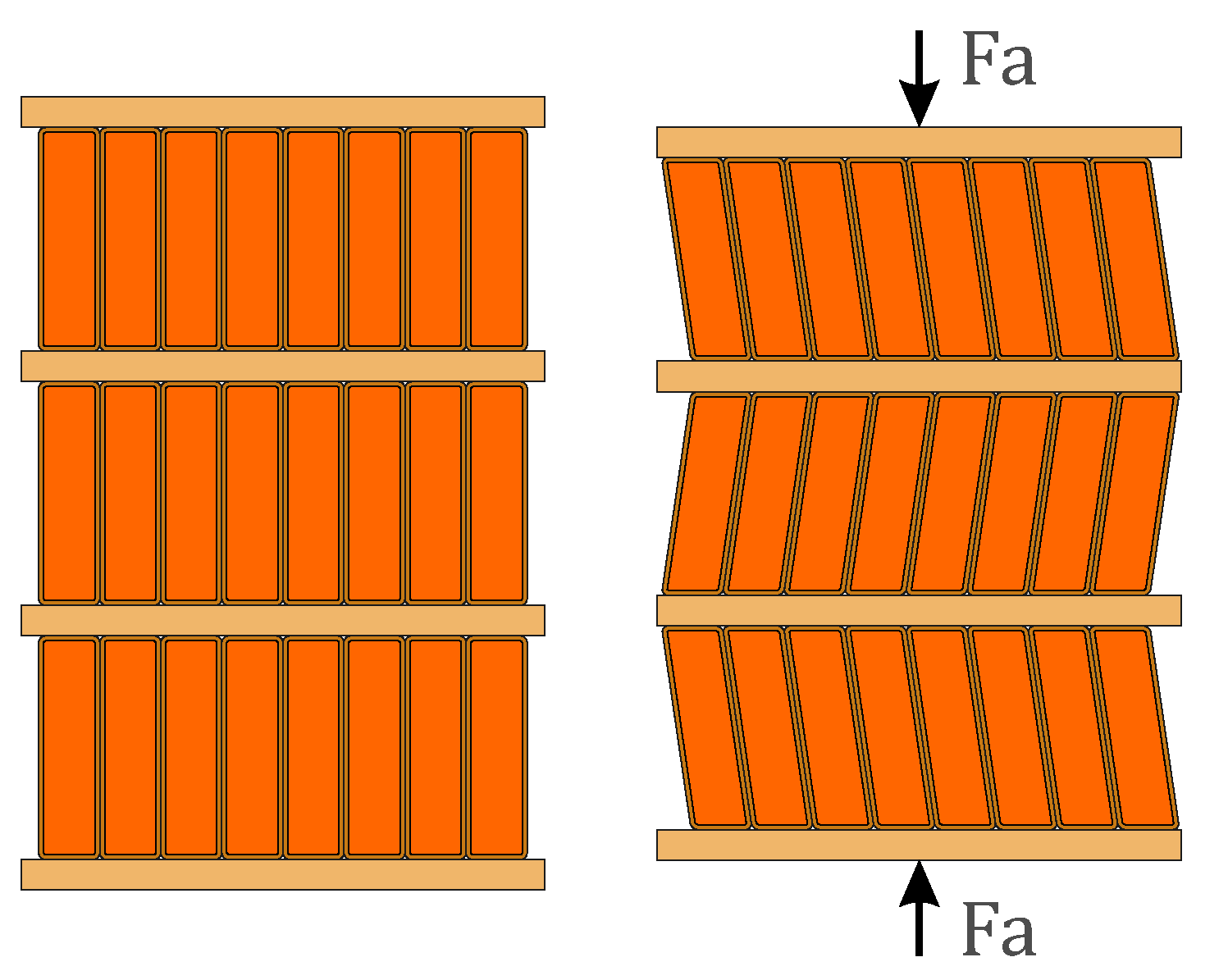

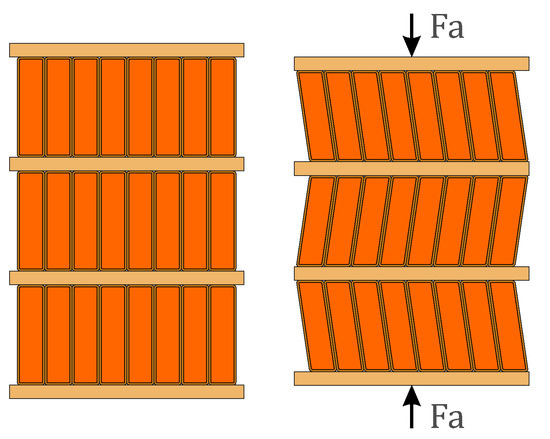

This study conducted electromagnetic–structural simulations of a transformer with concentric windings, with a tap at the head, focusing on assessing deformation in the HV winding. Conductor displacement can potentially damage the insulation and lead to internal short-circuits in the transformer. It can also result in loosening of the spacers, which must be secured to prevent winding inclination or tilting, ultimately reducing the mechanical stability of the structure.
The FEM methodology has the accuracy verified when compared with the analytical results, reaching errors below 7%, demonstrating its effectiveness. One of the features of the computational simulations is the visual analysis, revealing the areas most affected by the electromechanical forces and the estimation of displacements using the copper and aluminum materials. Aluminum, with its lower modulus of elasticity compared with copper, presented larger displacements. Through the analysis with different temperatures, it was verified that aluminum is more influenced by the temperature increase.
The better understanding of the electromagnetic forces and mechanical stresses distributions along the winding allows for an optimized design. Knowing the points of the lower and greater stresses values, the number, dimensions, and position of the spacers can be selected appropriately, in addition to reducing the costs of an oversized project. Also, these results can be coupled to a thermal analysis, making it possible to verify the impacts of the mechanical design in the thermal one, optimizing the spacers choices.
The obtained results show that future studies can be conducted in order to evolve in this area. The fatigue analysis is important to be verified, considering how factors such as the number of short-circuits, duration, and intensity can impact the conductors deformation and lifespan of transformers.
