Performance Prediction of Cement Stabilized Soil Incorporating Solid Waste and Propylene Fiber
Abstract
:1. Introduction
2. Experimental Programs
2.1. Materials
2.2. Mixture Design
2.3. Mechanical Tests
2.4. Machine Learning Models
2.4.1. Baseline Models

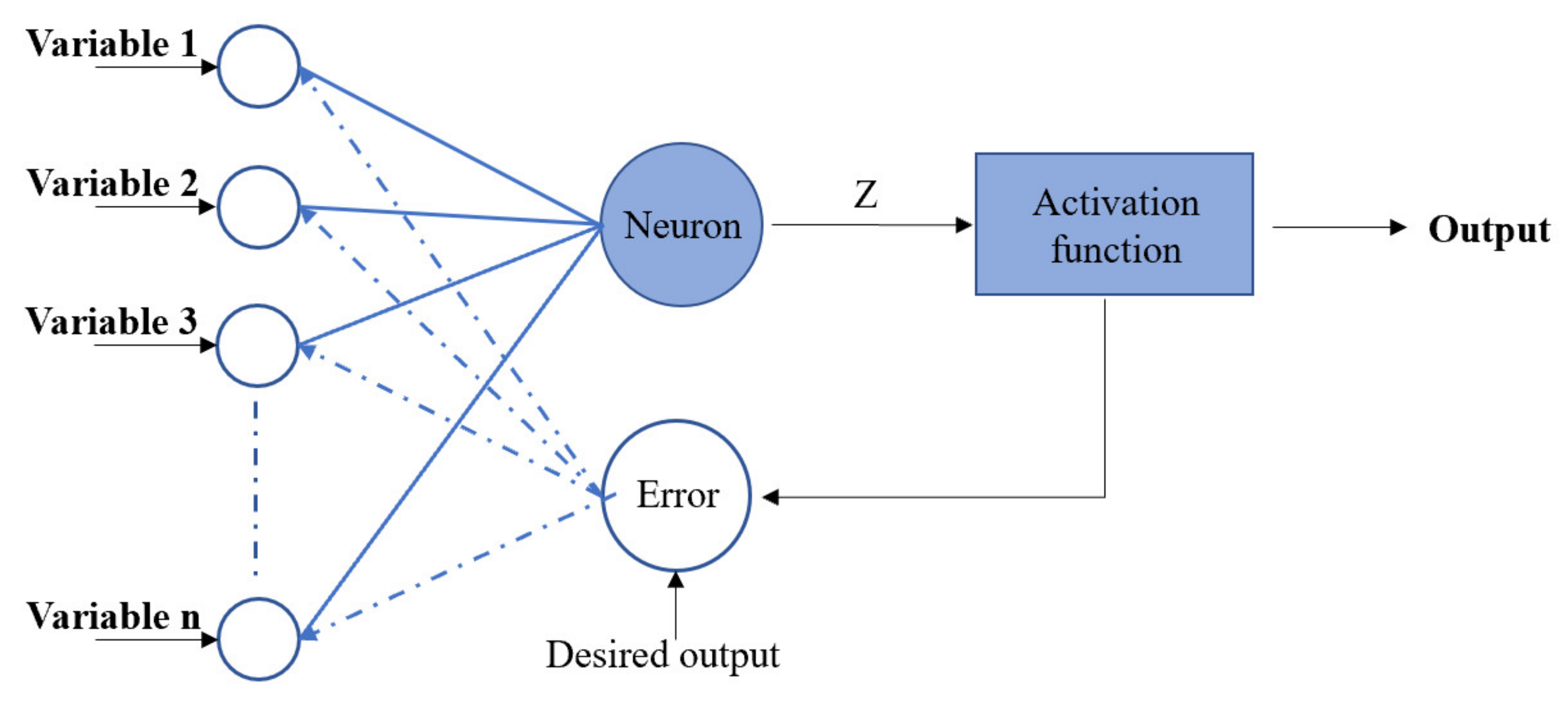

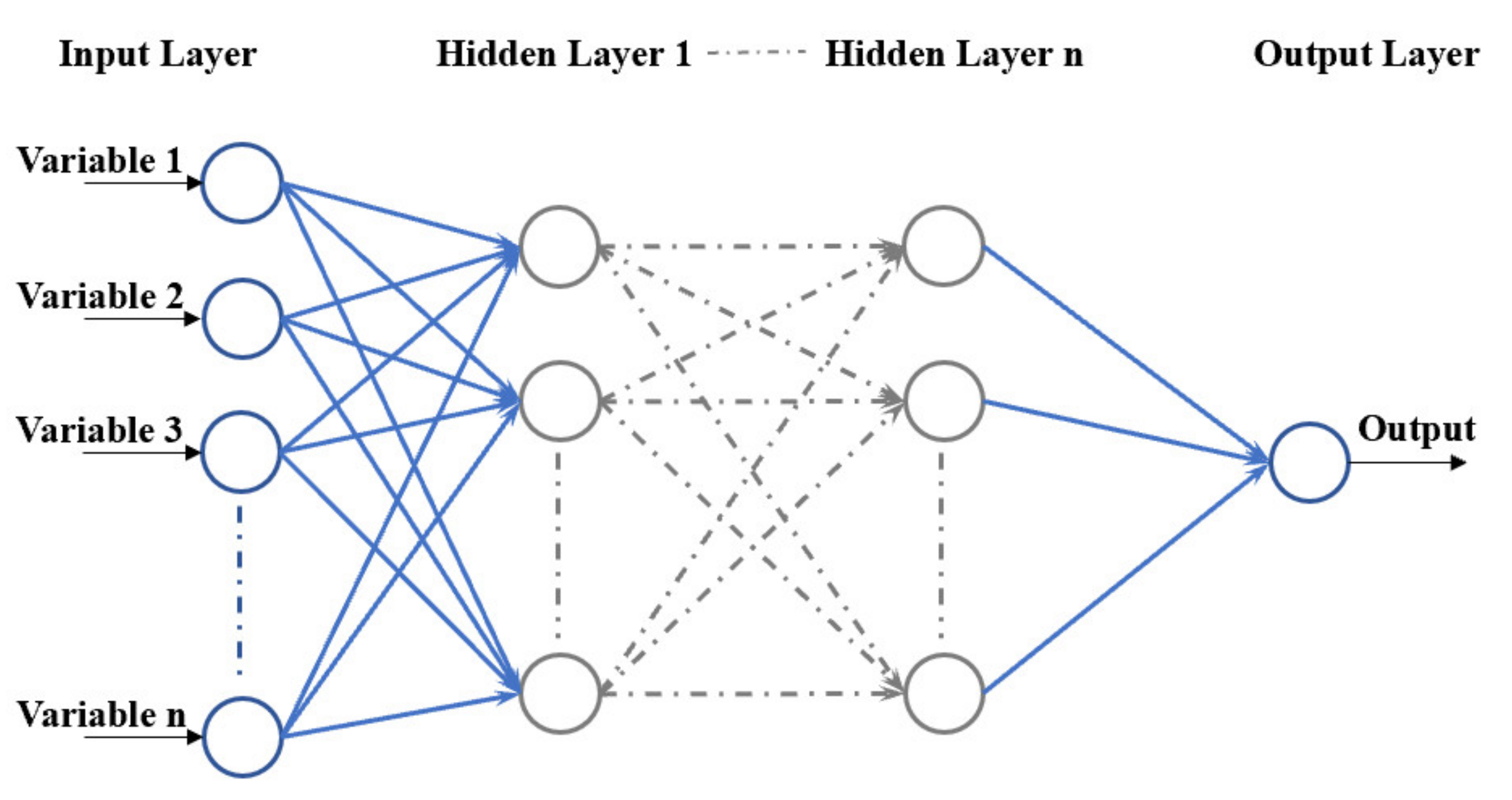

2.4.2. Back Propagation Neural Network (BPNN)

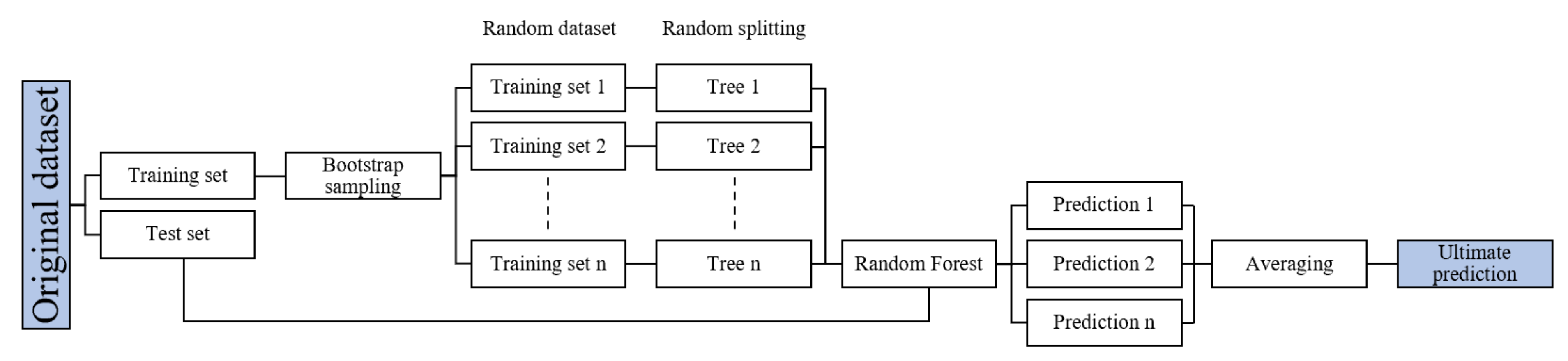

2.4.3. Random Forest (RF)
2.4.4. Beetle Antennae Search (BAS)
2.4.5. Cross-Validation
2.4.6. Performance Evaluation
3. Results and Discussion
3.1. Effect of Portland Cement
3.2. Effect of C&D Waste

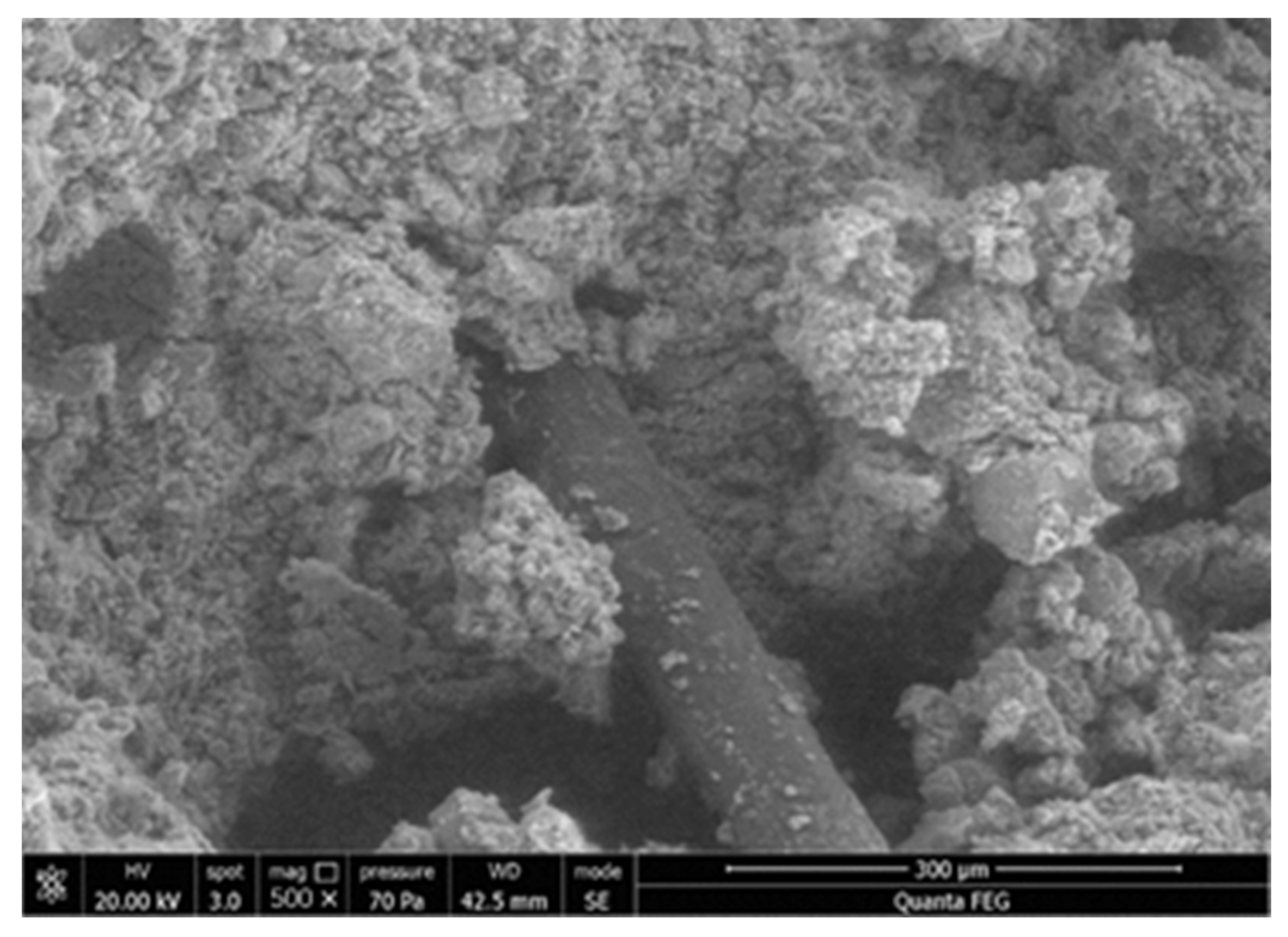

3.3. Effect of Polypropylene Fiber

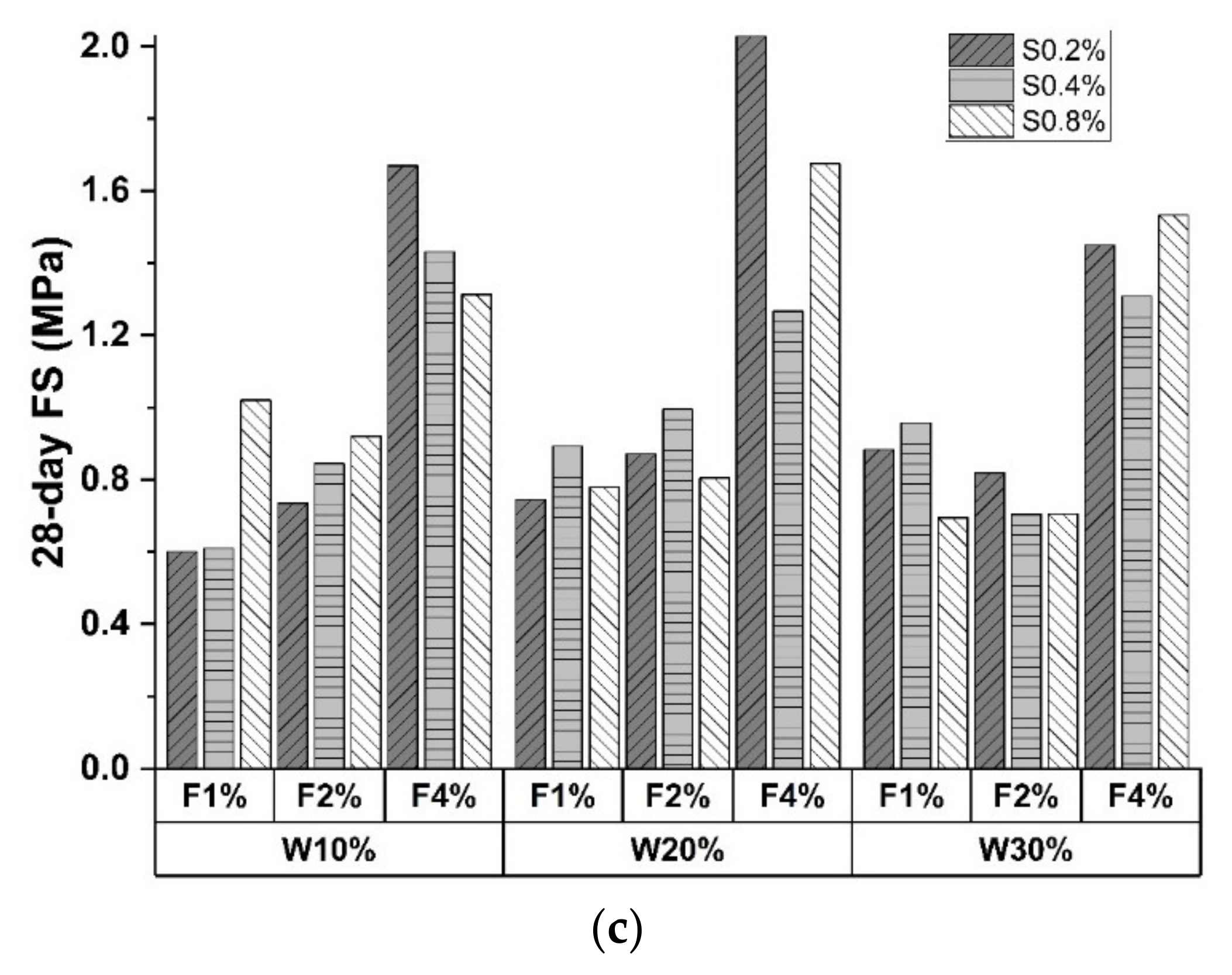

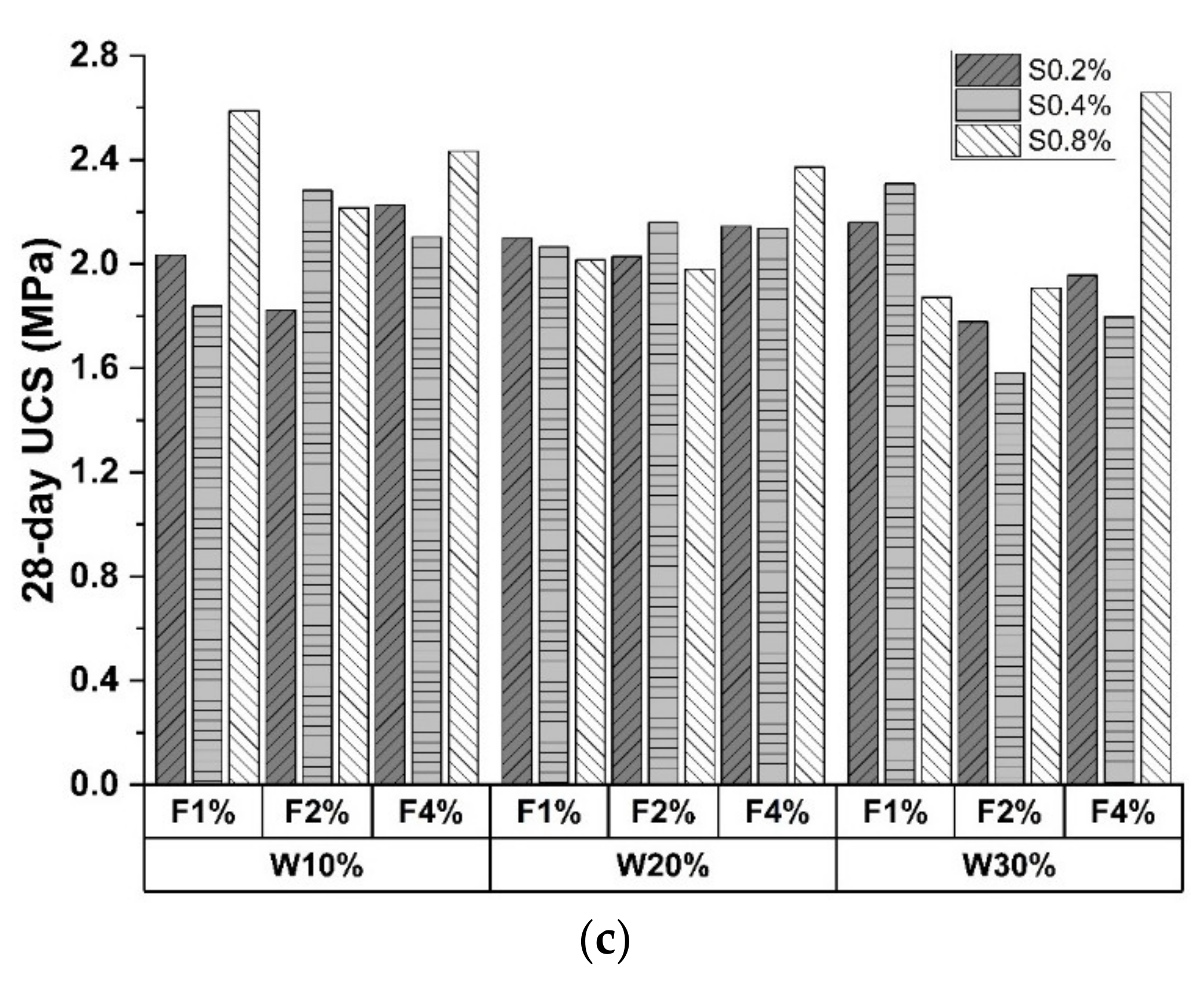

3.4. Effect of Sodium Sulfate
4. Machine Learning Predicted Results
4.1. Prediction for UCS Performance

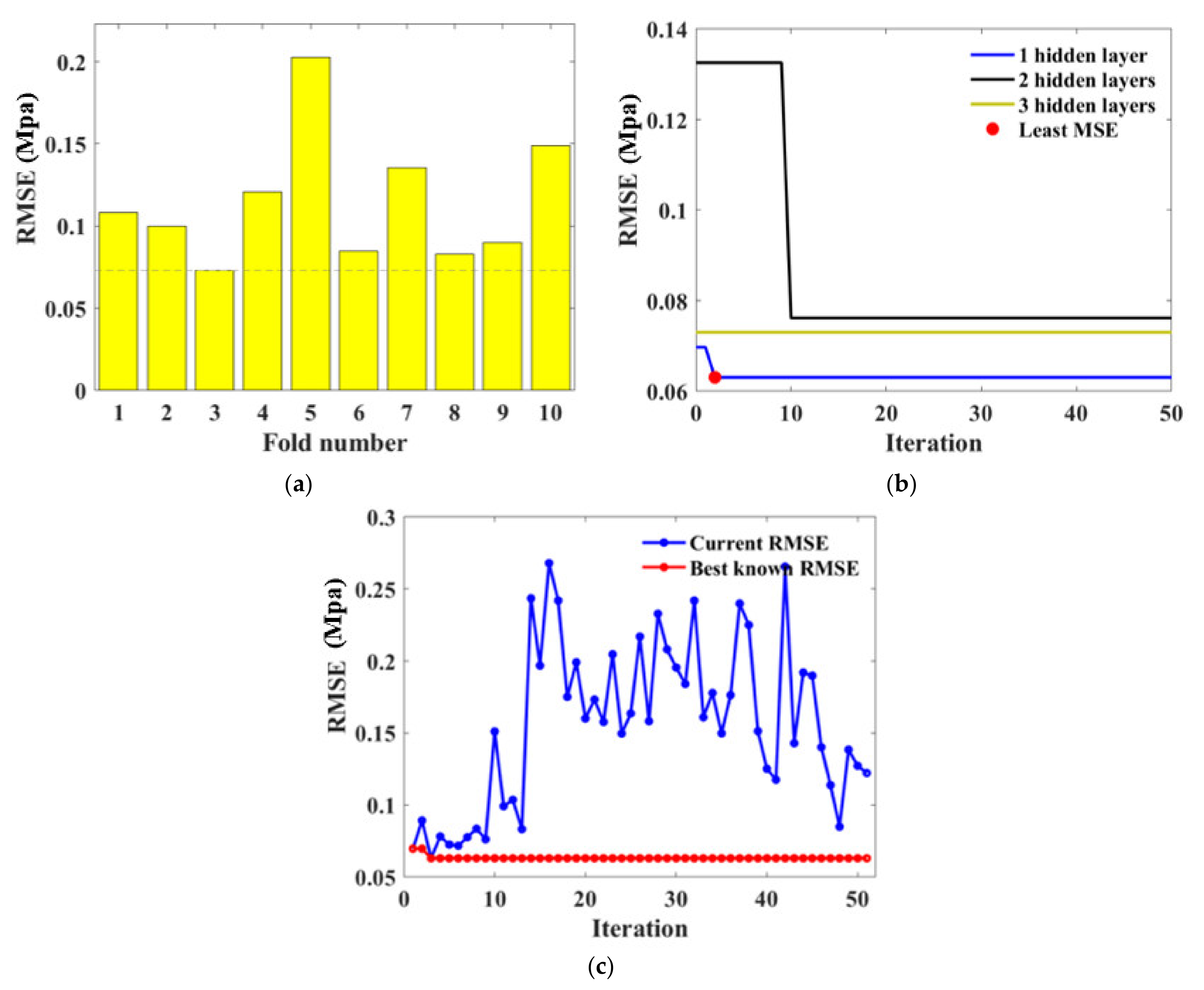

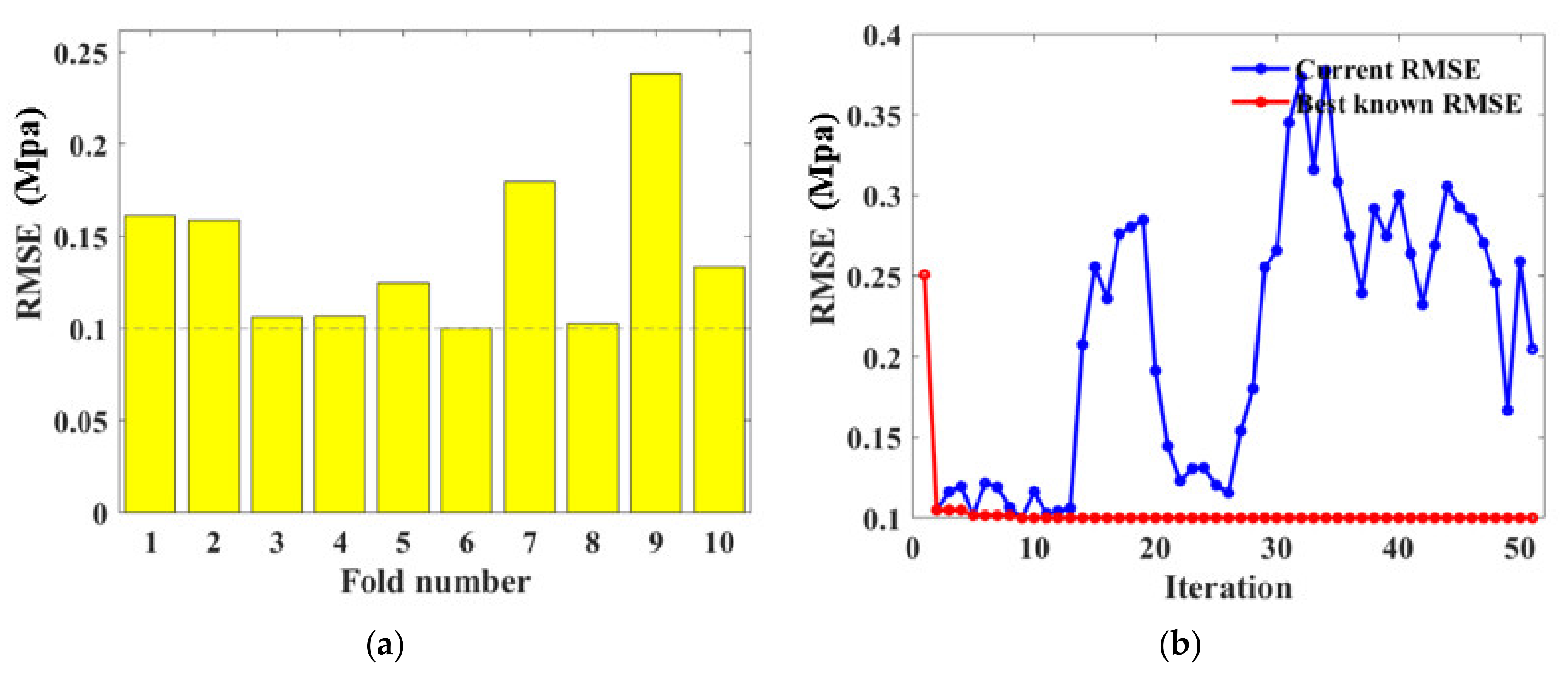

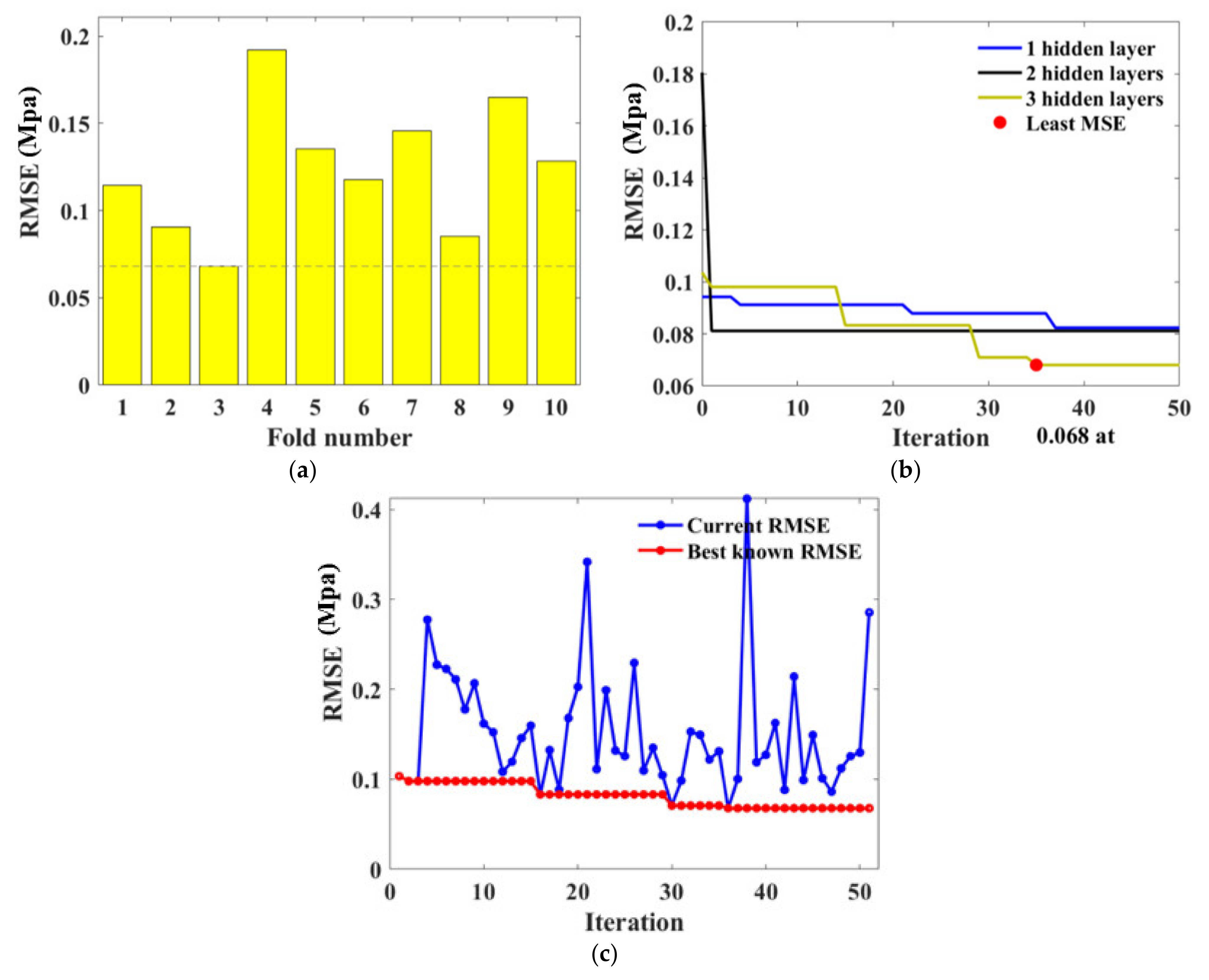

4.1.1. Hyperparameter Tuning

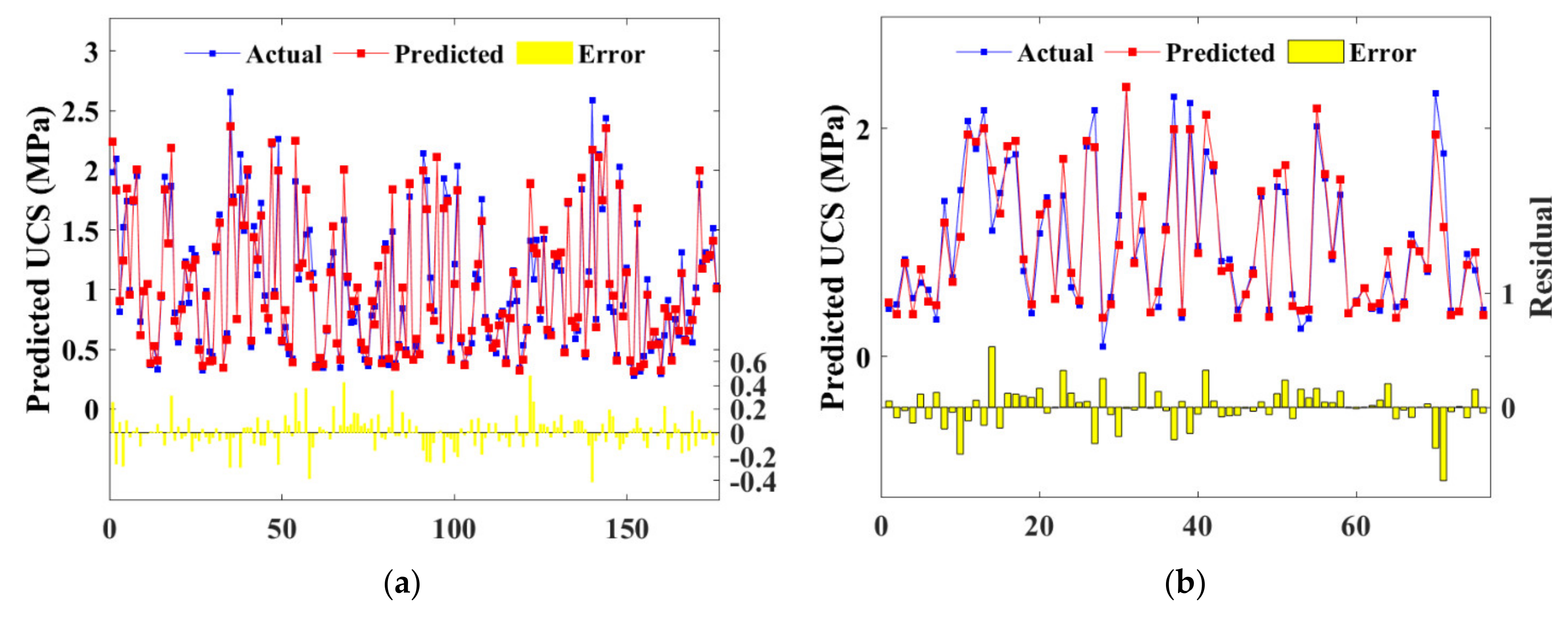

4.1.2. Performance of BAS-BPNN and BAS-RF for UCS

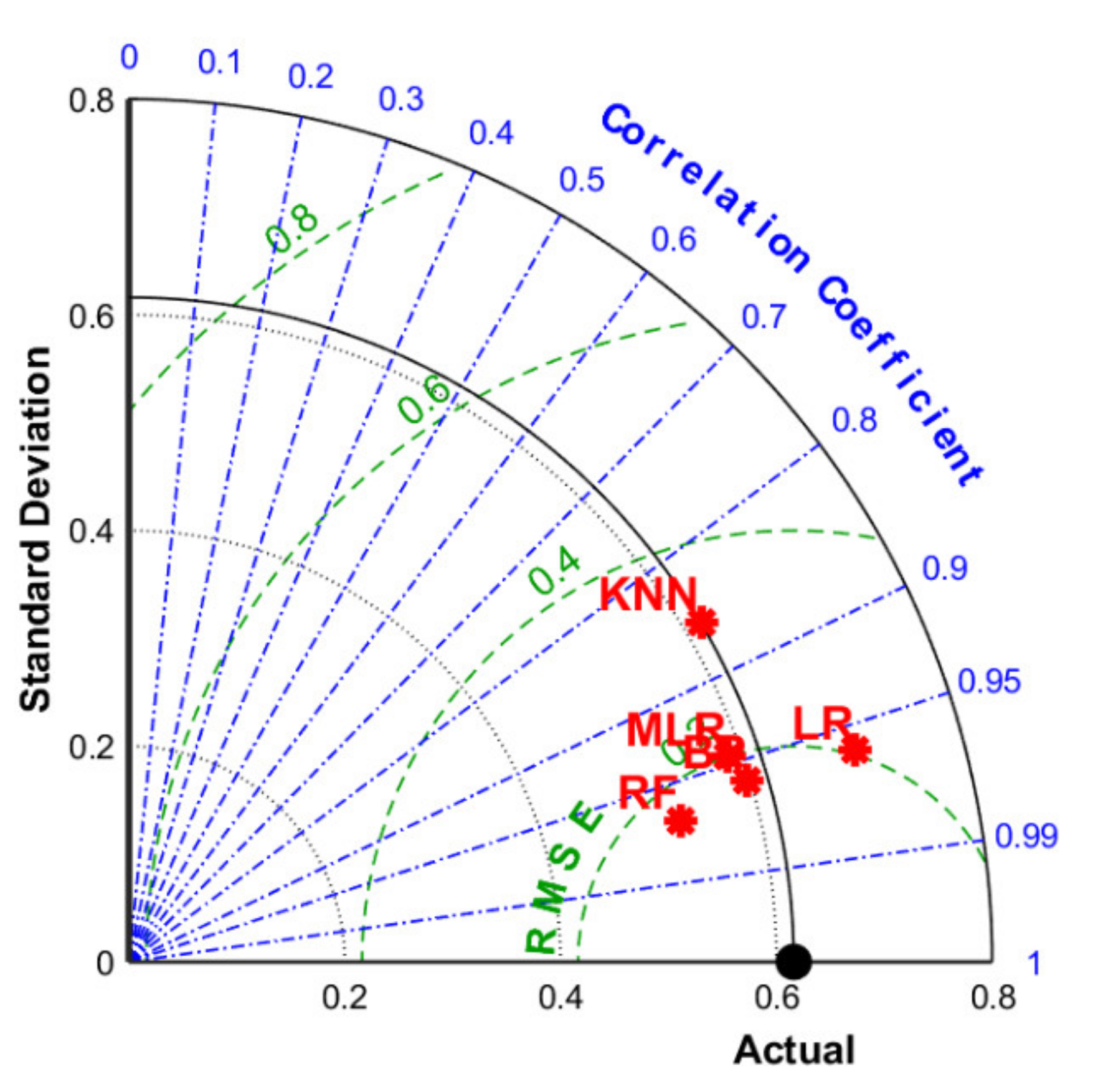

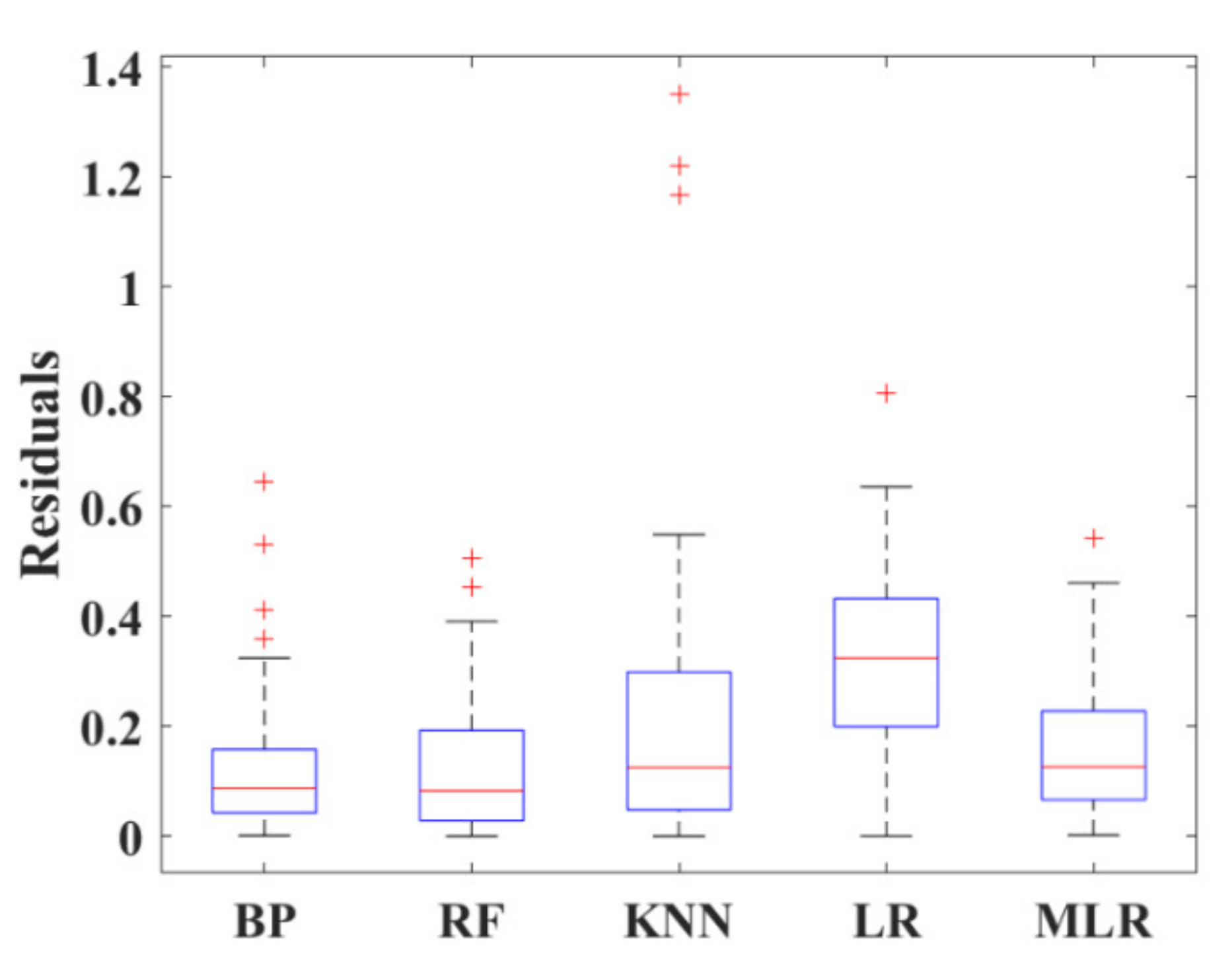

4.1.3. Comparison of BPNN. RF, LR, MLR, and KNN
4.2. Prediction for FS Performance

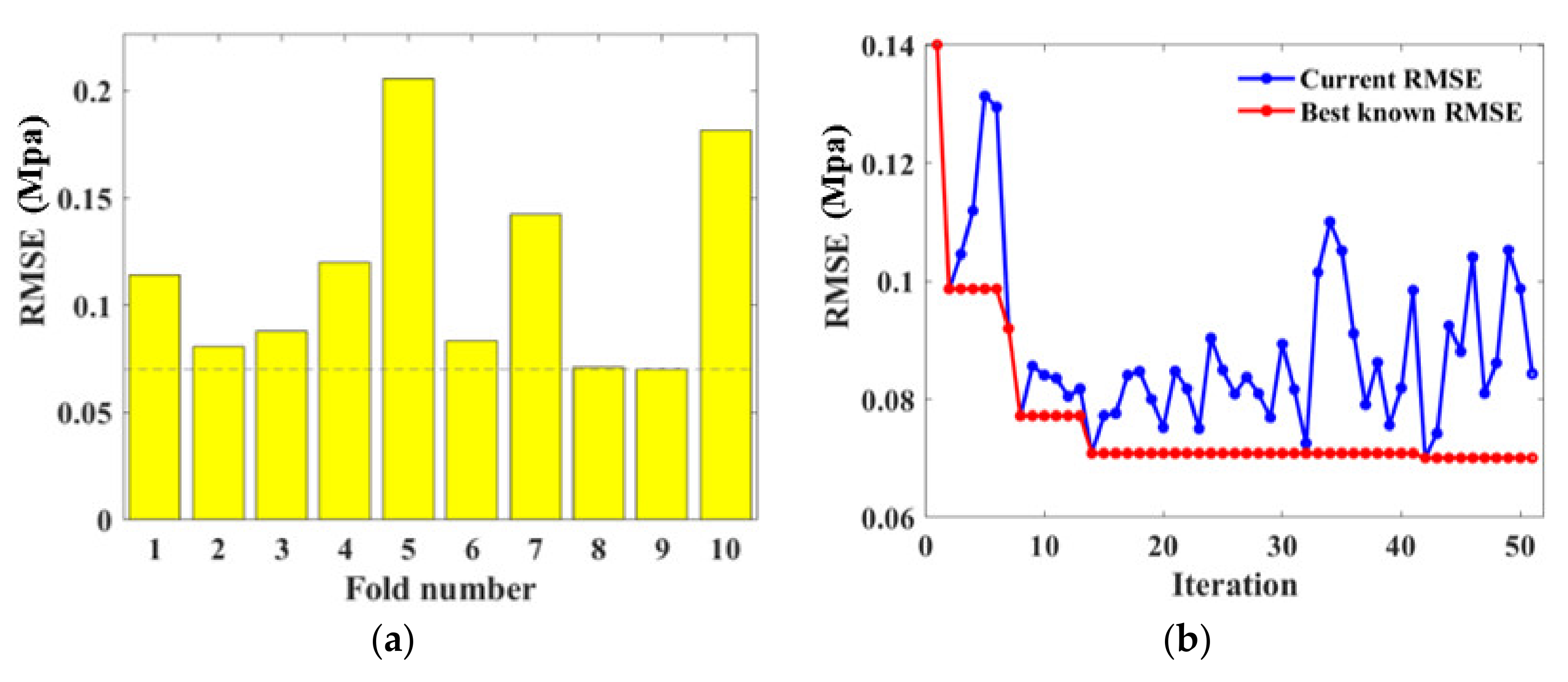

4.2.1. Hyperparameter Tuning
4.2.2. Performance of BAS-BPNN and BAS-RF for FS

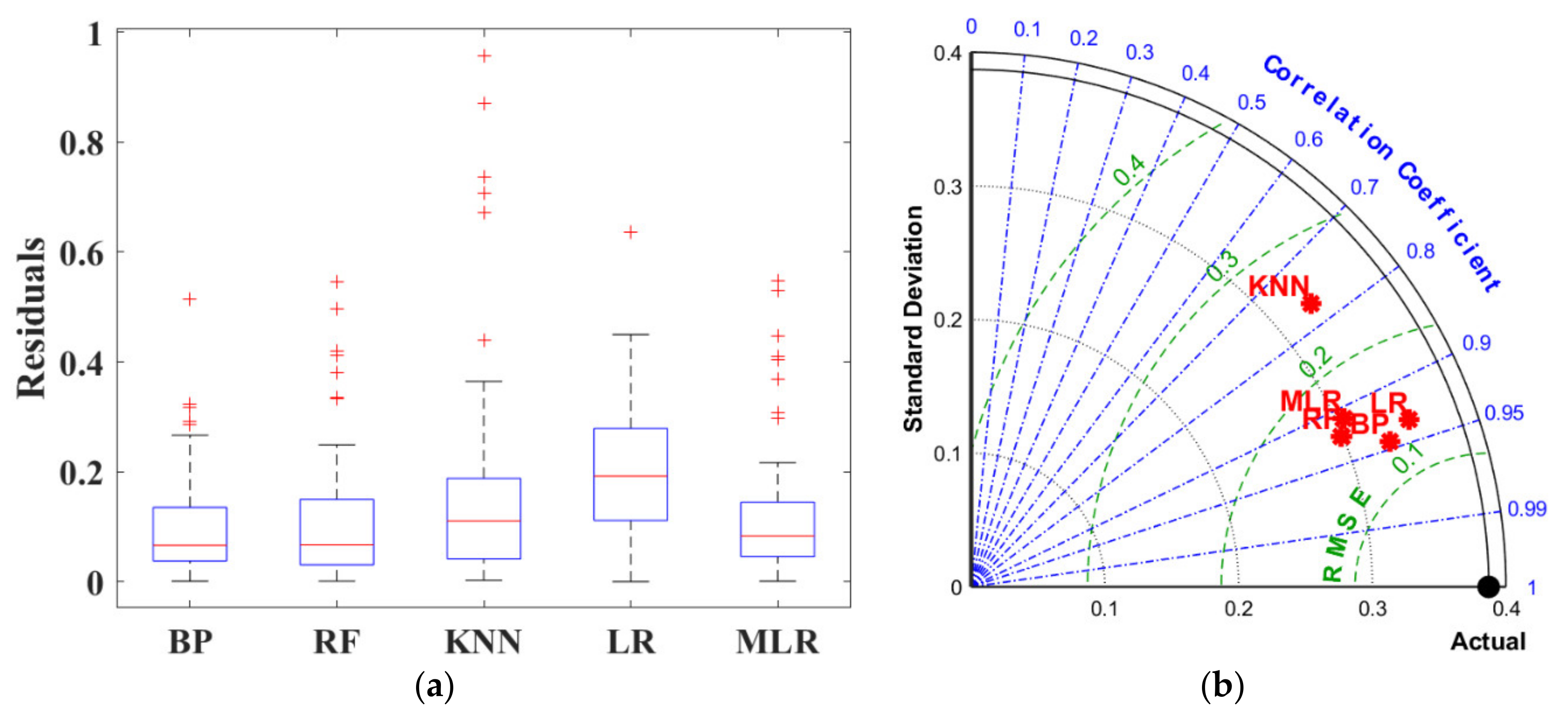

4.2.3. Comparison of BPNN. RF, LR, MLR, and KNN
5. Optimal Mixture Design
6. Conclusions
- (1)
- Portland cement demonstrates outstanding enhancement of mechanical strengths through cement hydration. The maximum increase in sample strength on 28-day when the curing time and admixture amounts were 450.34% and 176.91%.
- (2)
- The C&D waste has a positive effect on both the compressive and flexural properties of the samples, with the largest increase in performance being 57.2%. A 20% C&D waste content demonstrates the best-improving effect.
- (3)
- Polypropylene fiber brings a 150.31% increase in the flexural properties of the samples. However, the increase in compressive properties is not significant.
- (4)
- Higher levels of sodium sulphate increase the mechanical properties of the cement soil by 59.61% and 69.96%, respectively. However, the 0.4% sodium sulphate fails to change the properties regularly, with a range of −14% to 32.59%.
- (5)
- The influencing factors of each variable on CSS performance are ranked in descending order as: Portland cement, polypropylene fiber, C&D waste, sodium sulfate. The mixture design of 30% cement, 20% C&D waste, 4% fiber and 0.8% is considered as the best-performed combination.
- (6)
- BPNN and RF acquired the most accurate prediction for UCS and FS, respectively. Baseline models generally are inferior to Machine Learning models with hyperparameters in mechanical strength prediction.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A
ID | UCS (MPa) | FS (MPa) | ||||
---|---|---|---|---|---|---|
7-Day | 14-Day | 28-Day | 7-Day | 14-Day | 28-Day | |
Control 1 | 0.0876 | 0.2503 | 0.3408 | 0.1242 | 0.1403 | 0.1571 |
Control 2 | 0.4820 | 0.5676 | 0.7560 | 0.1451 | 0.2375 | 0.3003 |
Control 3 | 1.2340 | 1.7832 | 1.9160 | 0.3891 | 0.5912 | 0.8316 |
CWFS-1112 | 0.4612 | 0.3225 | 0.3783 | 0.1645 | 0.1537 | 0.1943 |
CWFS-1114 | 0.4476 | 0.3439 | 0.4128 | 0.1544 | 0.1481 | 0.1904 |
CWFS-1118 | 0.5304 | 0.4448 | 0.5220 | 0.1684 | 0.1918 | 0.2886 |
CWFS-1122 | 0.4212 | 0.3862 | 0.5092 | 0.2006 | 0.2064 | 0.3543 |
CWFS-1124 | 0.4128 | 0.4212 | 0.5544 | 0.2584 | 0.3167 | 0.3715 |
CWFS-1128 | 0.4024 | 0.4236 | 0.5544 | 0.1904 | 0.2996 | 0.3488 |
CWFS-1142 | 0.4212 | 0.3225 | 0.4320 | 0.2519 | 0.2890 | 0.3356 |
CWFS-1144 | 0.4448 | 0.4236 | 0.5728 | 0.3581 | 0.3670 | 0.5117 |
CWFS-1148 | 0.4984 | 0.4876 | 0.6208 | 0.3692 | 0.3423 | 0.4967 |
CWFS-1212 | 0.3676 | 0.4104 | 0.5116 | 0.1643 | 0.1817 | 0.2264 |
CWFS-1214 | 0.4076 | 0.3811 | 0.5116 | 0.1700 | 0.1581 | 0.2094 |
CWFS-1218 | 0.4448 | 0.4636 | 0.6316 | 0.1832 | 0.2064 | 0.2761 |
CWFS-1222 | 0.3648 | 0.3462 | 0.4556 | 0.1589 | 0.1567 | 0.1893 |
CWFS-1224 | 0.3488 | 0.3597 | 0.4664 | 0.2232 | 0.2314 | 0.2285 |
CWFS-1228 | 0.5144 | 0.5464 | 0.7272 | 0.2398 | 0.3235 | 0.3210 |
CWFS-1242 | 0.4848 | 0.4664 | 0.5892 | 0.3698 | 0.4548 | 0.4739 |
CWFS-1244 | 0.3488 | 0.4716 | 0.5568 | 0.3774 | 0.3058 | 0.4289 |
CWFS-1248 | 0.4048 | 0.5676 | 0.6980 | 0.3274 | 0.4652 | 0.5195 |
CWFS-1312 | 0.3860 | 0.4392 | 0.5836 | 0.1674 | 0.1772 | 0.2363 |
CWFS-1314 | 0.3352 | 0.4156 | 0.5436 | 0.1517 | 0.1904 | 0.1998 |
CWFS-1318 | 0.3116 | 0.3676 | 0.5276 | 0.1195 | 0.1615 | 0.2421 |
CWFS-1322 | 0.2900 | 0.3890 | 0.5196 | 0.2296 | 0.3000 | 0.2977 |
CWFS-1324 | 0.2796 | 0.3304 | 0.4984 | 0.1799 | 0.3218 | 0.3270 |
CWFS-1328 | 0.3940 | 0.5220 | 0.6556 | 0.2710 | 0.2516 | 0.3739 |
CWFS-1342 | 0.3888 | 0.4368 | 0.5596 | 0.3164 | 0.4713 | 0.3691 |
CWFS-1344 | 0.3752 | 0.4528 | 0.6020 | 0.3032 | 0.4713 | 0.5394 |
CWFS-1348 | 0.4904 | 0.5436 | 0.8048 | 0.4861 | 0.5032 | 0.4442 |
CWFS-2112 | 0.6100 | 0.6848 | 0.9860 | 0.2753 | 0.3355 | 0.3807 |
CWFS-2114 | 0.6476 | 0.8236 | 1.0316 | 0.2911 | 0.3504 | 0.3821 |
CWFS-2118 | 0.7728 | 0.8500 | 1.1804 | 0.3175 | 0.4010 | 0.4440 |
CWFS-2122 | 0.7700 | 0.8796 | 1.2392 | 0.3898 | 0.4295 | 0.4914 |
CWFS-2124 | 0.8024 | 0.8528 | 1.1512 | 0.4256 | 0.4452 | 0.6076 |
CWFS-2128 | 0.8472 | 0.9888 | 1.2312 | 0.8139 | 0.7081 | 0.6401 |
CWFS-2142 | 0.6500 | 0.6208 | 1.0524 | 0.5446 | 0.7073 | 0.7116 |
CWFS-2144 | 0.7196 | 0.7808 | 1.0552 | 0.6068 | 0.6676 | 0.6396 |
CWFS-2148 | 0.7596 | 0.8528 | 1.0820 | 0.5692 | 0.6123 | 0.8199 |
CWFS-2212 | 0.5916 | 0.5856 | 0.9380 | 0.2905 | 0.2862 | 0.3238 |
CWFS-2214 | 0.5464 | 0.6528 | 0.8872 | 0.2567 | 0.3296 | 0.3459 |
CWFS-2218 | 0.7648 | 0.7300 | 1.1596 | 0.3668 | 0.4259 | 0.4089 |
CWFS-2222 | 0.6100 | 0.7436 | 0.9916 | 0.4029 | 0.5192 | 0.4870 |
CWFS-2224 | 0.5596 | 0.6820 | 0.8528 | 0.3065 | 0.3741 | 0.4079 |
CWFS-2228 | 0.7516 | 0.8100 | 1.0820 | 0.4071 | 0.3687 | 0.5402 |
CWFS-2242 | 0.6584 | 0.7516 | 0.9008 | 0.5067 | 0.5630 | 0.8492 |
CWFS-2244 | 0.8180 | 0.8100 | 1.1432 | 0.6622 | 0.7713 | 0.7164 |
CWFS-2248 | 0.7156 | 0.8436 | 1.1196 | 0.5821 | 0.8092 | 0.8442 |
CWFS-2312 | 0.7516 | 0.8552 | 1.0820 | 0.3391 | 0.4377 | 0.5259 |
CWFS-2314 | 0.6580 | 0.9140 | 1.1404 | 0.2974 | 0.4101 | 0.4568 |
CWFS-2318 | 0.7640 | 0.9702 | 1.2020 | 0.2985 | 0.3597 | 0.4502 |
CWFS-2322 | 0.7408 | 0.8553 | 1.0768 | 0.2919 | 0.3759 | 0.4609 |
CWFS-2324 | 0.8368 | 0.8846 | 1.2128 | 0.4333 | 0.4249 | 0.5002 |
CWFS-2328 | 0.9516 | 0.9931 | 1.3404 | 0.4617 | 0.5216 | 0.5790 |
CWFS-2342 | 0.8648 | 1.0981 | 1.4608 | 0.7216 | 0.7460 | 0.7958 |
CWFS-2344 | 0.8980 | 1.0153 | 1.5008 | 0.7840 | 0.7140 | 0.7119 |
CWFS-2348 | 0.9272 | 1.1304 | 1.4364 | 0.7981 | 0.8484 | 1.2859 |
CWFS-3112 | 1.1968 | 1.4952 | 2.0340 | 0.3985 | 0.5504 | 0.6006 |
CWFS-3114 | 1.0848 | 1.4444 | 1.8388 | 0.3893 | 0.5857 | 0.6095 |
CWFS-3118 | 1.5244 | 2.1324 | 2.5880 | 0.5919 | 0.8247 | 1.0207 |
CWFS-3122 | 1.1032 | 1.4900 | 1.8232 | 0.4669 | 0.6060 | 0.7354 |
CWFS-3124 | 1.4152 | 1.7780 | 2.2816 | 0.6744 | 0.8850 | 0.8449 |
CWFS-3128 | 1.3856 | 1.8444 | 2.2148 | 0.6531 | 0.9415 | 0.9202 |
CWFS-3142 | 1.4180 | 1.7752 | 2.2256 | 1.0989 | 1.1942 | 1.6690 |
CWFS-3144 | 1.5164 | 1.7404 | 2.1032 | 1.1547 | 1.4189 | 1.4320 |
CWFS-3148 | 1.3085 | 1.9538 | 2.4336 | 1.2395 | 1.3497 | 1.3127 |
CWFS-3212 | 1.3140 | 1.6258 | 2.0976 | 0.5497 | 0.6575 | 0.7450 |
CWFS-3214 | 1.3647 | 1.5537 | 2.0656 | 0.6025 | 0.6948 | 0.8935 |
CWFS-3218 | 1.2685 | 1.4820 | 2.0148 | 0.4875 | 0.4820 | 0.7792 |
CWFS-3222 | 1.3192 | 1.7296 | 2.0284 | 0.6980 | 0.8248 | 0.8717 |
CWFS-3224 | 1.2926 | 1.7164 | 2.1592 | 0.7482 | 0.8778 | 0.9954 |
CWFS-3228 | 1.3778 | 1.7780 | 1.9804 | 0.6061 | 0.7348 | 0.8046 |
CWFS-3242 | 1.4253 | 1.7324 | 2.1456 | 1.1684 | 1.6124 | 2.0286 |
CWFS-3244 | 1.3940 | 1.7216 | 2.1376 | 0.8412 | 0.8754 | 1.2671 |
CWFS-3248 | 1.5592 | 1.8868 | 2.3720 | 1.0135 | 1.4556 | 1.6752 |
CWFS-3312 | 1.2182 | 1.7564 | 2.1592 | 1.2259 | 0.7466 | 0.8835 |
CWFS-3314 | 1.3085 | 1.6284 | 2.3084 | 0.5386 | 0.7910 | 0.9581 |
CWFS-3318 | 1.0819 | 1.4632 | 1.8712 | 0.4022 | 0.5725 | 0.6951 |
CWFS-3322 | 1.1595 | 1.1056 | 1.7780 | 0.6079 | 0.6103 | 0.8183 |
CWFS-3324 | 1.0448 | 1.4128 | 1.5808 | 0.5543 | 0.5529 | 0.7040 |
CWFS-3328 | 1.4020 | 1.4100 | 1.9072 | 0.4953 | 0.6974 | 0.7057 |
CWFS-3342 | 1.5276 | 1.6736 | 1.9560 | 0.8984 | 1.2113 | 1.4504 |
CWFS-3344 | 1.2368 | 1.9432 | 1.7964 | 1.2807 | 1.2696 | 1.3083 |
CWFS-3348 | 1.9296 | 2.2656 | 2.6572 | 1.2370 | 1.1690 | 1.5334 |
References
- Anagnostopoulos, C.A. Strength properties of an epoxy resin and cement-stabilized silty clay soil. Appl. Clay Sci. 2015, 114, 517–529. [Google Scholar] [CrossRef]
- Zhu, W.; Chen, X.; Struble, L.J.; Yang, E.-H. Characterization of calcium-containing phases in alkali-activated municipal solid waste incineration bottom ash binder through chemical extraction and deconvoluted Fourier transform infrared spectra. J. Clean. Prod. 2018, 192, 782–789. [Google Scholar] [CrossRef]
- Liu, W.; Guo, Z.; Wang, C.; Niu, S. Physico-mechanical and microstructure properties of cemented coal Gangue-Fly ash backfill: Effects of curing temperature. Constr. Build. Mater. 2021, 299, 124011. [Google Scholar] [CrossRef]
- Donatello, S.; Fernández-Jimenez, A.; Palomo, A. Very high volume fly ash cements. Early age hydration study using Na2SO4 as an activator. J. Am. Ceram. Soc. 2013, 96, 900–906. [Google Scholar] [CrossRef]
- Sun, J.; Wang, Y.; Liu, S.; Dehghani, A.; Xiang, X.; Wei, J.; Wang, X. Mechanical, chemical and hydrothermal activation for waste glass reinforced cement. Constr. Build. Mater. 2021, 301, 124361. [Google Scholar] [CrossRef]
- Tang, Z.; Li, W.; Ke, G.; Zhou, J.L.; Tam, V.W.Y. Sulfate attack resistance of sustainable concrete incorporating various industrial solid wastes. J. Clean. Prod. 2019, 218, 810–822. [Google Scholar] [CrossRef]
- Feng, J.; Chen, B.; Sun, W.; Wang, Y. Microbial induced calcium carbonate precipitation study using Bacillus subtilis with application to self-healing concrete preparation and characterization. Constr. Build. Mater. 2021, 280, 122460. [Google Scholar] [CrossRef]
- Tang, Y.; Feng, W.; Chen, Z.; Nong, Y.; Guan, S.; Sun, J. Fracture behavior of a sustainable material: Recycled concrete with waste crumb rubber subjected to elevated temperatures. J. Clean. Prod. 2021, 318, 128553. [Google Scholar] [CrossRef]
- Sun, J.; Huang, Y.; Aslani, F.; Wang, X.; Ma, G. Mechanical enhancement for EMW-absorbing cementitious material using 3D concrete printing. J. Build. Eng. 2021, 41, 102763. [Google Scholar] [CrossRef]
- Zhang, C.; Abedini, M. Development of PI model for FRP composite retrofitted RC columns subjected to high strain rate loads using LBE function. Eng. Struct. 2022, 252, 113580. [Google Scholar] [CrossRef]
- Huang, H.; Guo, M.; Zhang, W.; Huang, M. Seismic Behavior of Strengthened RC Columns under Combined Loadings. J. Bridge Eng. 2022, 27, 05022005. [Google Scholar] [CrossRef]
- Narani, S.; Abbaspour, M.; Hosseini, S.M.M.; Aflaki, E.; Nejad, F.M. Sustainable reuse of Waste Tire Textile Fibers (WTTFs) as reinforcement materials for expansive soils: With a special focus on landfill liners/covers. J. Clean. Prod. 2020, 247, 119151. [Google Scholar] [CrossRef]
- Sun, J.; Aslani, F.; Wei, J.; Wang, X. Electromagnetic absorption of copper fiber oriented composite using 3D printing. Constr. Build. Mater. 2021, 300, 124026. [Google Scholar] [CrossRef]
- Aslani, F.; Hou, L.; Nejadi, S.; Sun, J.; Abbasi, S. Experimental analysis of fiber-reinforced recycled aggregate self-compacting concrete using waste recycled concrete aggregates, polypropylene, and steel fibers. Struct. Concr. 2019, 20, 1670–1683. [Google Scholar] [CrossRef]
- Aslani, F.; Sun, J.; Huang, G. Mechanical behavior of fiber-reinforced self-compacting rubberized concrete exposed to elevated temperatures. J. Mater. Civ. Eng. 2019, 31, 04019302. [Google Scholar] [CrossRef]
- Sun, J.; Huang, Y.; Aslani, F.; Ma, G. Electromagnetic wave absorbing performance of 3D printed wave-shape copper solid cementitious element. Cem. Concr. Compos. 2020, 114, 103789. [Google Scholar] [CrossRef]
- Sun, J.; Aslani, F.; Lu, J.; Wang, L.; Huang, Y.; Ma, G. Fibre-reinforced lightweight engineered cementitious composites for 3D concrete printing. Ceram. Int. 2021, 47, 27107–27121. [Google Scholar] [CrossRef]
- Sun, J.; Huang, Y.; Aslani, F.; Ma, G. Properties of a double-layer EMW-absorbing structure containing a graded nano-sized absorbent combing extruded and sprayed 3D printing. Constr. Build. Mater. 2020, 261, 120031. [Google Scholar] [CrossRef]
- Dobrovolski, M.E.G.; Munhoz, G.S.; Pereira, E.; Medeiros-Junior, R.A. Effect of crystalline admixture and polypropylene microfiber on the internal sulfate attack in Portland cement composites due to pyrite oxidation. Constr. Build. Mater. 2021, 308, 125018. [Google Scholar] [CrossRef]
- Sun, J.; Ma, Y.; Li, J.; Zhang, J.; Ren, Z.; Wang, X. Machine learning-aided design and prediction of cementitious composites containing graphite and slag powder. J. Build. Eng. 2021, 43, 102544. [Google Scholar] [CrossRef]
- Feng, W.; Wang, Y.; Sun, J.; Tang, Y.; Wu, D.; Jiang, Z.; Wang, J.; Wang, X. Prediction of thermo-mechanical properties of rubber-modified recycled aggregate concrete. Constr. Build. Mater. 2022, 318, 125970. [Google Scholar] [CrossRef]
- Zhang, W.; Li, H.; Li, Y.; Liu, H.; Ding, X. Application of deep learning algorithms in geotechnical engineering: A short critical review. Artif. Intell. Rev. 2021, 54, 5633–5673. [Google Scholar] [CrossRef]
- Zhang, W.; Wu, C.; Zhong, H.; Li, Y.; Wang, L. Prediction of undrained shear strength using extreme gradient boosting and random forest based on Bayesian optimization. Geosci. Front. 2021, 12, 469–477. [Google Scholar] [CrossRef]
- Zhang, W.; Li, H.; Wu, C.; Li, Y.; Liu, Z.; Liu, H. Soft computing approach for prediction of surface settlement induced by earth pressure balance shield tunneling. Undergr. Space 2021, 6, 353–363. [Google Scholar] [CrossRef]
- Cook, R.; Lapeyre, J.; Ma, H.; Kumar, A. Prediction of compressive strength of concrete: Critical comparison of performance of a hybrid machine learning model with standalone models. J. Mater. Civ. Eng. 2019, 31, 04019255. [Google Scholar] [CrossRef]
- Zhang, J.; Sun, Y.; Li, G.; Wang, Y.; Sun, J.; Li, J. Machine-learning-assisted shear strength prediction of reinforced concrete beams with and without stirrups. Eng. Comput. 2020, 38, 1–15. [Google Scholar] [CrossRef]
- Huang, H.; Huang, M.; Zhang, W.; Yang, S. Experimental study of predamaged columns strengthened by HPFL and BSP under combined load cases. Struct. Infrastruct. Eng. 2021, 17, 1210–1227. [Google Scholar] [CrossRef]
- Sun, J.; Wang, Y.; Yao, X.; Ren, Z.; Zhang, G.; Zhang, C.; Chen, X.; Ma, W.; Wang, X. Machine-learning-aided prediction of flexural strength and ASR expansion for waste glass cementitious composite. Appl. Sci. 2021, 11, 6686. [Google Scholar] [CrossRef]
- Kang, M.-C.; Yoo, D.-Y.; Gupta, R. Machine learning-based prediction for compressive and flexural strengths of steel fiber-reinforced concrete. Constr. Build. Mater. 2021, 266, 121117. [Google Scholar] [CrossRef]
- Xu, H.; Wang, X.-Y.; Liu, C.-N.; Chen, J.-N.; Zhang, C. A 3D root system morphological and mechanical model based on L-Systems and its application to estimate the shear strength of root-soil composites. Soil Tillage Res. 2021, 212, 105074. [Google Scholar] [CrossRef]
- Ma, G.; Sun, J.; Aslani, F.; Huang, Y.; Jiao, F. Review on electromagnetic wave absorbing capacity improvement of cementitious material. Constr. Build. Mater. 2020, 262, 120907. [Google Scholar] [CrossRef]
- Wang, X.; Yang, Y.; Yang, R.; Liu, P. Experimental Analysis of Bearing Capacity of Basalt Fiber Reinforced Concrete Short Columns under Axial Compression. Coatings 2022, 12, 654. [Google Scholar] [CrossRef]
- Huang, Y.; Zhang, J.; Ann, F.T.; Ma, G. Intelligent mixture design of steel fibre reinforced concrete using a support vector regression and firefly algorithm based multi-objective optimization model. Constr. Build. Mater. 2020, 260, 120457. [Google Scholar] [CrossRef]
- Wei, J.; Xie, Z.; Zhang, W.; Luo, X.; Yang, Y.; Chen, B. Experimental study on circular steel tube-confined reinforced UHPC columns under axial loading. Eng. Struct. 2021, 230, 111599. [Google Scholar] [CrossRef]
- Yu, Y.; Zhang, C.; Gu, X.; Cui, Y. Expansion prediction of alkali aggregate reactivity-affected concrete structures using a hybrid soft computing method. Neural Comput. Appl. 2019, 31, 8641–8660. [Google Scholar] [CrossRef]
- Shariati, M.; Mafipour, M.S.; Mehrabi, P.; Bahadori, A.; Zandi, Y.; Salih, M.N.; Nguyen, H.; Dou, J.; Song, X.; Poi-Ngian, S. Application of a hybrid artificial neural network-particle swarm optimization (ANN-PSO) model in behavior prediction of channel shear connectors embedded in normal and high-strength concrete. Appl. Sci. 2019, 9, 5534. [Google Scholar] [CrossRef] [Green Version]
- Kaveh, A.; Izadifard, R.; Mottaghi, L. Optimal design of planar RC frames considering CO2 emissions using ECBO, EVPS and PSO metaheuristic algorithms. J. Build. Eng. 2020, 28, 101014. [Google Scholar] [CrossRef]
- Chahnasir, E.S.; Zandi, Y.; Shariati, M.; Dehghani, E.; Toghroli, A.; Mohamad, E.T.; Shariati, A.; Safa, M.; Wakil, K.; Khorami, M. Application of support vector machine with firefly algorithm for investigation of the factors affecting the shear strength of angle shear connectors. Smart Struct. Syst. 2018, 22, 413–424. [Google Scholar]
- Wang, J.; Chen, H. BSAS: Beetle swarm antennae search algorithm for optimization problems. arXiv 2018, arXiv:1807.10470. [Google Scholar]
- Liu, K.; Alam, M.S.; Zhu, J.; Zheng, J.; Chi, L. Prediction of carbonation depth for recycled aggregate concrete using ANN hybridized with swarm intelligence algorithms. Constr. Build. Mater. 2021, 301, 124382. [Google Scholar] [CrossRef]
- Shi, T.; Lan, Y.; Hu, Z.; Wang, H.; Xu, J.; Zheng, B. Tensile and Fracture Properties of Silicon Carbide Whisker-Modified Cement-Based Materials. Int. J. Concr. Struct. Mater. 2022, 16, 1–13. [Google Scholar] [CrossRef]
- GB/T 50123-1999; Standard for Soil Test Method. China Planning Press: Beijing, China, 1999.
- Cunningham, P.; Delany, S.J. k-Nearest neighbour classifiers—A Tutorial. ACM Comput. Surv. (CSUR) 2021, 54, 1–25. [Google Scholar] [CrossRef]
- Salami, B.A.; Rahman, S.M.; Oyehan, T.A.; Maslehuddin, M.; Al Dulaijan, S.U. Ensemble machine learning model for corrosion initiation time estimation of embedded steel reinforced self-compacting concrete. Measurement 2020, 165, 108141. [Google Scholar] [CrossRef]
- Zhang, G.; Chen, C.; Sun, J.; Li, K.; Xiao, F.; Wang, Y.; Chen, M.; Huang, J.; Wang, X. Mixture optimisation for cement-soil mixtures with embedded GFRP tendons. J. Mater. Res. Technol. 2022, 18, 611–628. [Google Scholar] [CrossRef]
- Sun, J.; Wang, J.; Zhu, Z.; He, R.; Peng, C.; Zhang, C.; Huang, J.; Wang, Y.; Wang, X. Mechanical Performance Prediction for Sustainable High-Strength Concrete Using Bio-Inspired Neural Network. Buildings 2022, 12, 65. [Google Scholar] [CrossRef]
- Zhang, Y.; Aslani, F.; Lehane, B. Compressive strength of rubberized concrete: Regression and GA-BPNN approaches using ultrasonic pulse velocity. Constr. Build. Mater. 2021, 307, 124951. [Google Scholar] [CrossRef]
- Xu, J.; Chen, Y.; Xie, T.; Zhao, X.; Xiong, B.; Chen, Z. Prediction of triaxial behavior of recycled aggregate concrete using multivariable regression and artificial neural network techniques. Constr. Build. Mater. 2019, 226, 534–554. [Google Scholar] [CrossRef]
- Chaabene, W.B.; Flah, M.; Nehdi, M.L. Machine learning prediction of mechanical properties of concrete: Critical review. Constr. Build. Mater. 2020, 260, 119889. [Google Scholar] [CrossRef]
- Han, Q.; Gui, C.; Xu, J.; Lacidogna, G. A generalized method to predict the compressive strength of high-performance concrete by improved random forest algorithm. Constr. Build. Mater. 2019, 226, 734–742. [Google Scholar] [CrossRef]
- Chou, J.-S.; Tsai, C.-F. Concrete compressive strength analysis using a combined classification and regression technique. Autom. Constr. 2012, 24, 52–60. [Google Scholar] [CrossRef]
- Dimitriou, G.; Savva, P.; Petrou, M.F. Enhancing mechanical and durability properties of recycled aggregate concrete. Constr. Build. Mater. 2018, 158, 228–235. [Google Scholar] [CrossRef]
- Sun, J.; Lin, S.; Zhang, G.; Sun, Y.; Zhang, J.; Chen, C.; Morsy, A.M.; Wang, X. The effect of graphite and slag on electrical and mechanical properties of electrically conductive cementitious composites. Constr. Build. Mater. 2021, 281, 122606. [Google Scholar] [CrossRef]
- Xu, D.; Liu, Q.; Qin, Y.; Chen, B. Analytical approach for crack identification of glass fiber reinforced polymer–sea sand concrete composite structures based on strain dissipations. Struct. Health Monit. 2020, 13, 1475921720974290. [Google Scholar] [CrossRef]
- Xu, J.; Wu, Z.; Chen, H.; Shao, L.; Zhou, X.; Wang, S. Study on strength behavior of basalt fiber-reinforced loess by digital image technology (DIT) and scanning electron microscope (SEM). Arab. J. Sci. Eng. 2021, 46, 11319–11338. [Google Scholar] [CrossRef]
- Marchon, D.; Flatt, R.J. Mechanisms of cement hydration. In Science and Technology of Concrete Admixtures; Elsevier: Amsterdam, The Netherlands, 2016; pp. 129–145. [Google Scholar]
- Joseph, S.; Skibsted, J.; Cizer, Ö. A quantitative study of the C3A hydration. Cem. Concr. Res. 2019, 115, 145–159. [Google Scholar] [CrossRef]
- Neto, J.d.S.A.; Angeles, G.; Kirchheim, A.P. Effects of sulfates on the hydration of Portland cement—A review. Constr. Build. Mater. 2021, 279, 122428. [Google Scholar] [CrossRef]
- Zhang, G.; Wu, C.; Hou, D.; Yang, J.; Sun, D.; Zhang, X. Effect of environmental pH values on phase composition and microstructure of Portland cement paste under sulfate attack. Compos. Part B Eng. 2021, 216, 108862. [Google Scholar] [CrossRef]
- Fu, J.; Jones, A.M.; Bligh, M.W.; Holt, C.; Keyte, L.M.; Moghaddam, F.; Foster, S.J.; Waite, T.D. Mechanisms of enhancement in early hydration by sodium sulfate in a slag-cement blend–Insights from pore solution chemistry. Cem. Concr. Res. 2020, 135, 106110. [Google Scholar] [CrossRef]
Soil Properties | Value |
---|---|
Specific gravity | 2.69 |
Liquid limit (%) | 38.87 |
Plastic limit (%) | 21.55 |
Plasticity index | 17.32 |
Maximum dry unit weight (kN/m3) | 1.51 |
Optimum moisture content (%) | 25.37 |
Polypropylene Fiber Properties | Value |
---|---|
Diameter (μm) | 10 |
Cut length (mm) | 10 |
Density (g/cm3) | 0.91 |
Tensile strength (MPa) | 486 |
Stretching limit (%) | 15 |
Acid resistance | Excellent |
Alkali resistance | Excellent |

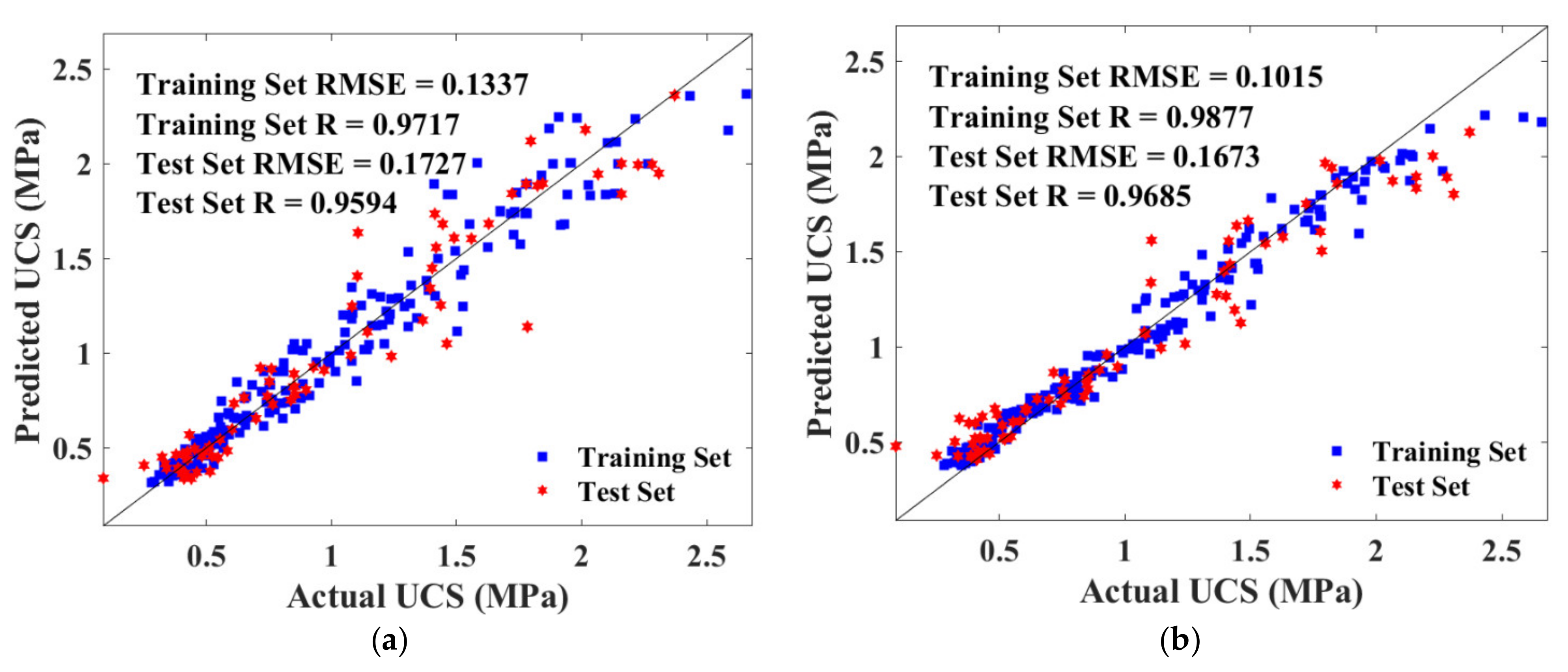

Evaluation Index | Model | ||||
---|---|---|---|---|---|
LR | MLR | KNN | BPNN | RF | |
RMSE (MPa) | 0.3694 | 0.2014 | 0.3242 | 0.1727 | 0.0280 |
R | 0.9598 | 0.9462 | 0.8599 | 0.9594 | 0.9685 |

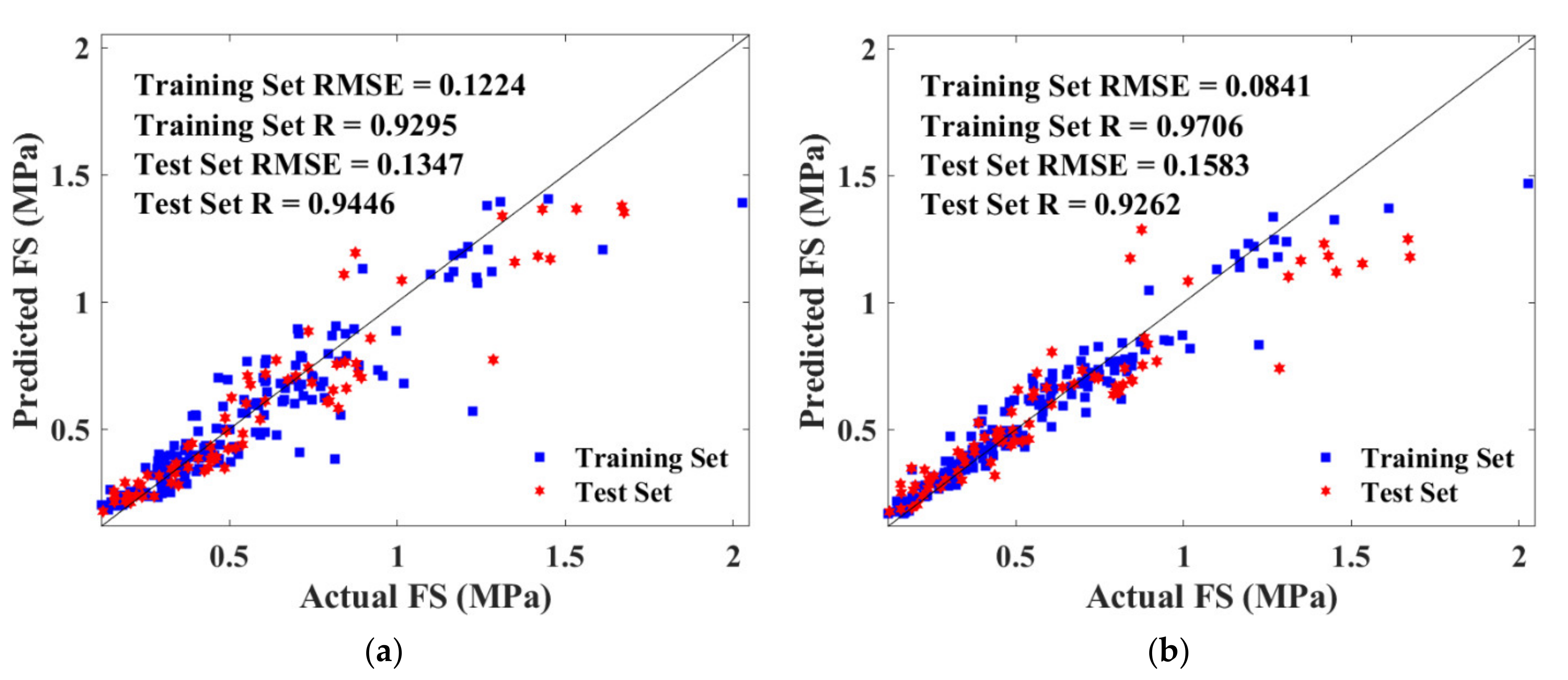

Evaluation Index | Model | ||||
---|---|---|---|---|---|
LR | MLR | KNN | BPNN | RF | |
RMSE (MPa) | 0.2386 | 0.1677 | 0.2498 | 0.1347 | 0.1583 |
R | 0.9341 | 0.9107 | 0.7678 | 0.9446 | 0.9262 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Zhang, G.; Ding, Z.; Wang, Y.; Fu, G.; Wang, Y.; Xie, C.; Zhang, Y.; Zhao, X.; Lu, X.; Wang, X. Performance Prediction of Cement Stabilized Soil Incorporating Solid Waste and Propylene Fiber. Materials 2022, 15, 4250. https://doi.org/10.3390/ma15124250
Zhang G, Ding Z, Wang Y, Fu G, Wang Y, Xie C, Zhang Y, Zhao X, Lu X, Wang X. Performance Prediction of Cement Stabilized Soil Incorporating Solid Waste and Propylene Fiber. Materials. 2022; 15(12):4250. https://doi.org/10.3390/ma15124250
Chicago/Turabian StyleZhang, Genbao, Zhiqing Ding, Yufei Wang, Guihai Fu, Yan Wang, Chenfeng Xie, Yu Zhang, Xiangming Zhao, Xinyuan Lu, and Xiangyu Wang. 2022. "Performance Prediction of Cement Stabilized Soil Incorporating Solid Waste and Propylene Fiber" Materials 15, no. 12: 4250. https://doi.org/10.3390/ma15124250
