Explicit Thermal Resistance Model of Self-Heating Effects of AlGaN/GaN HEMTs with Linear and Non-Linear Thermal Conductivity
Abstract
:1. Introduction

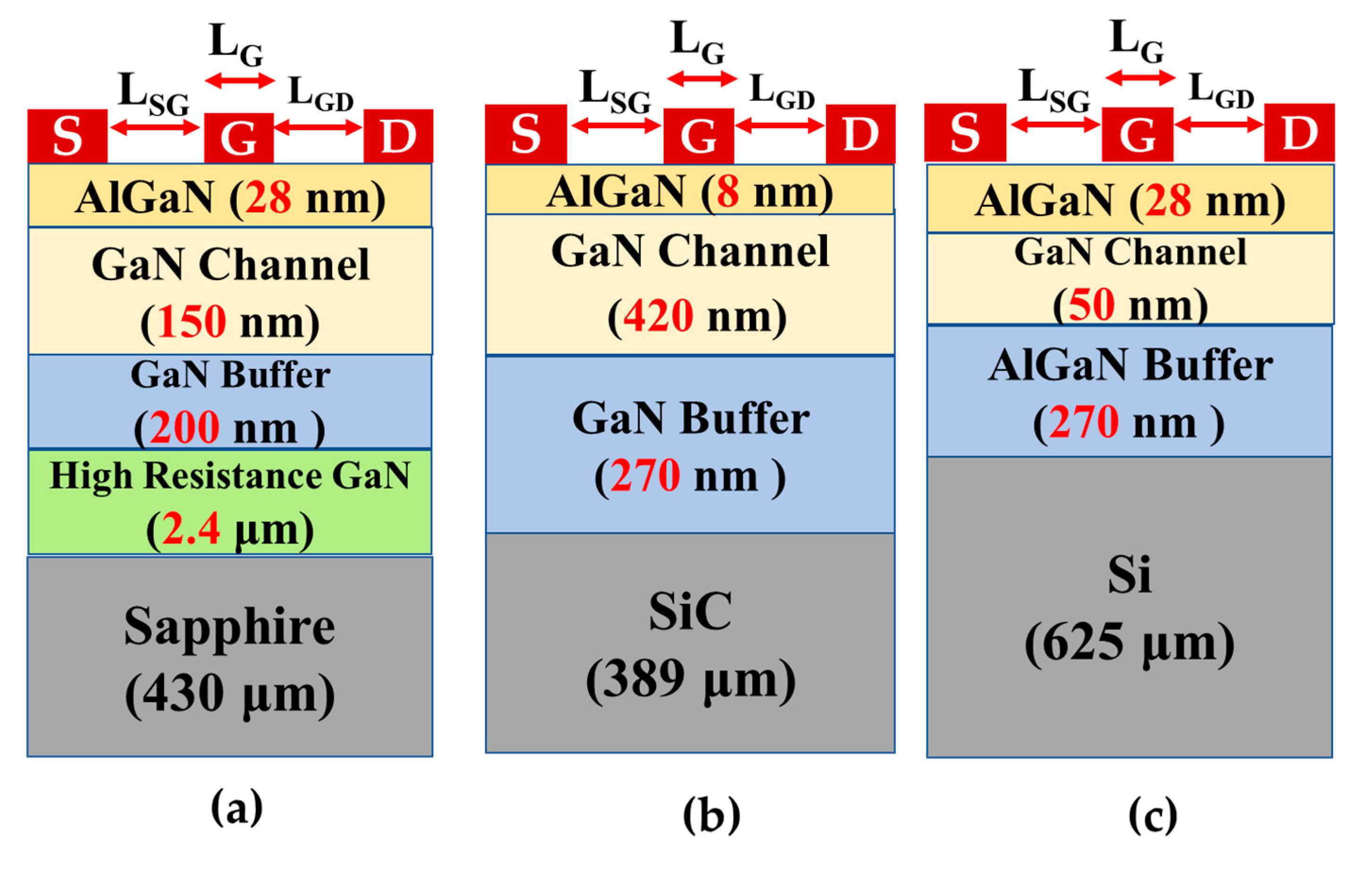

2. Technology and Thermal Measurements

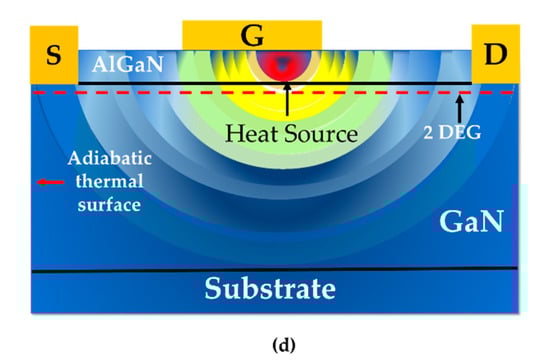

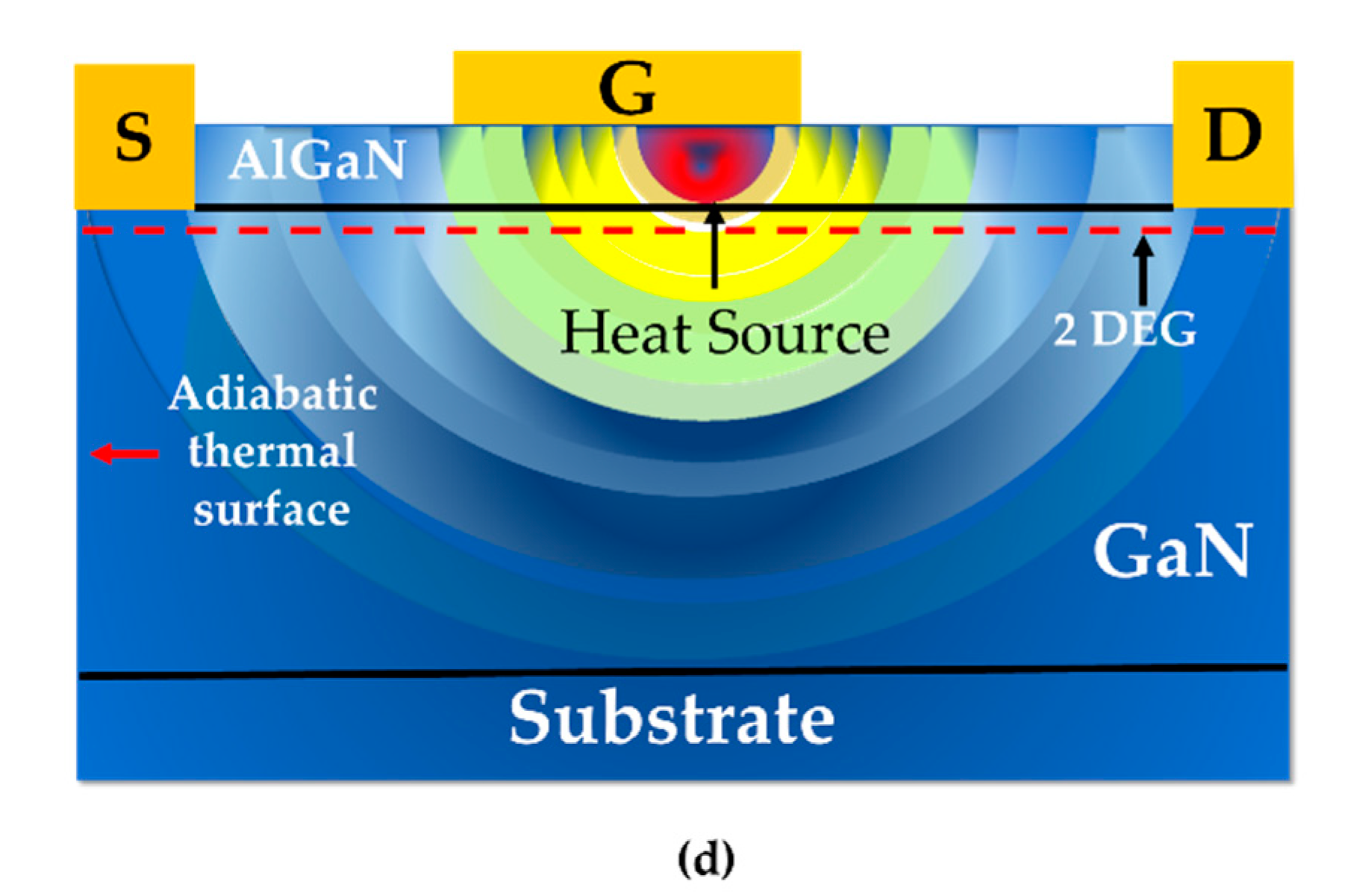

Thermal Resistance Model

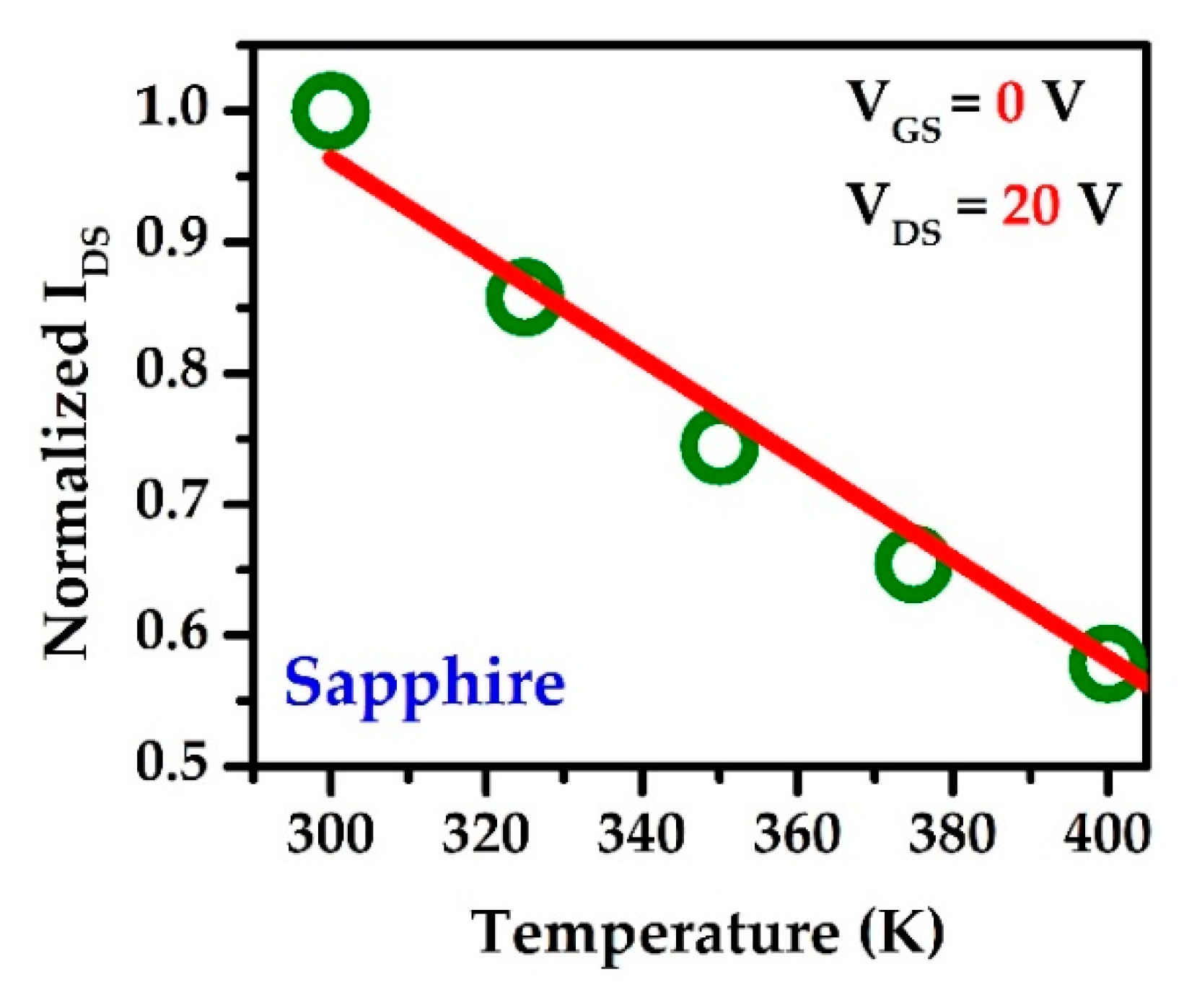

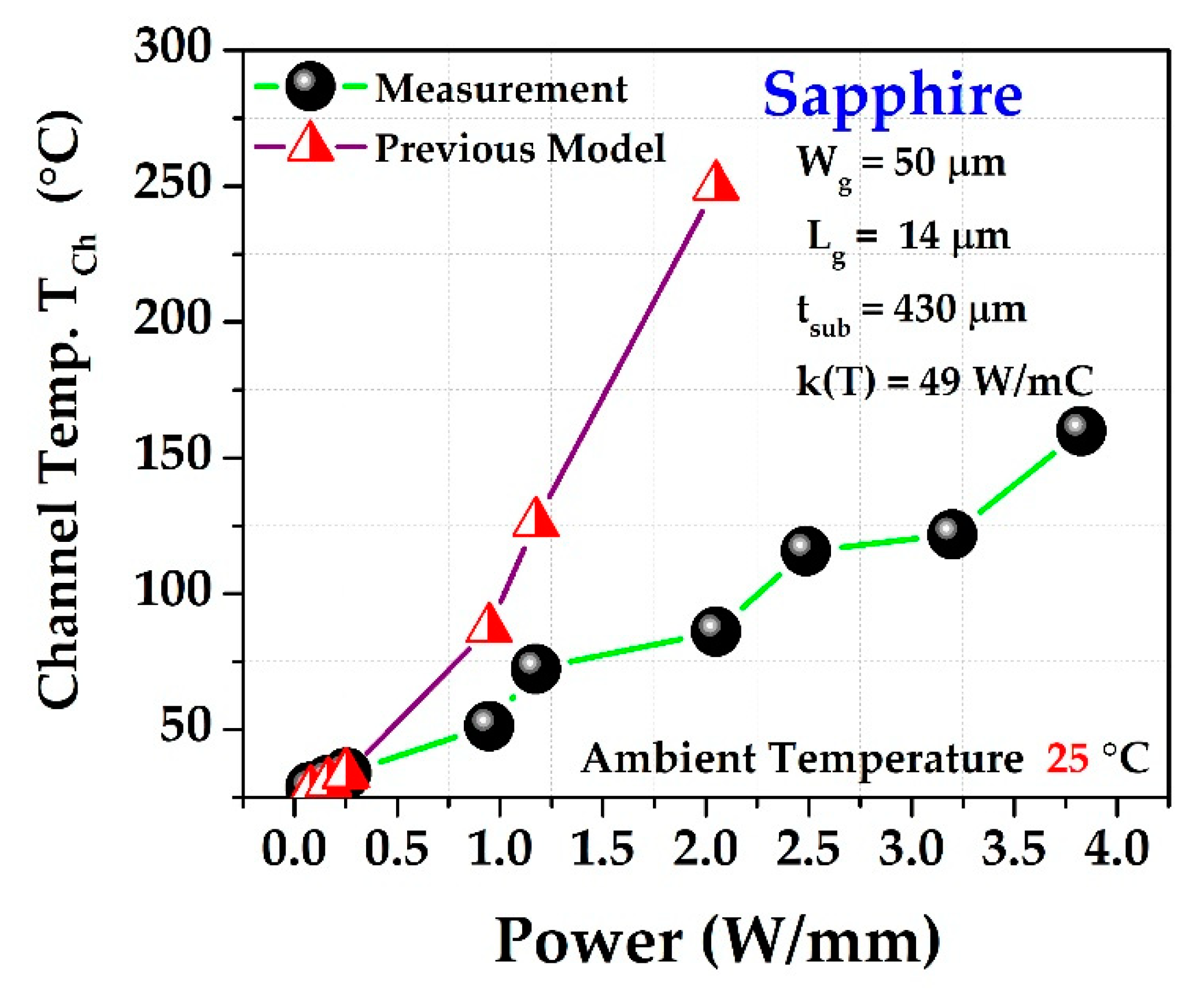

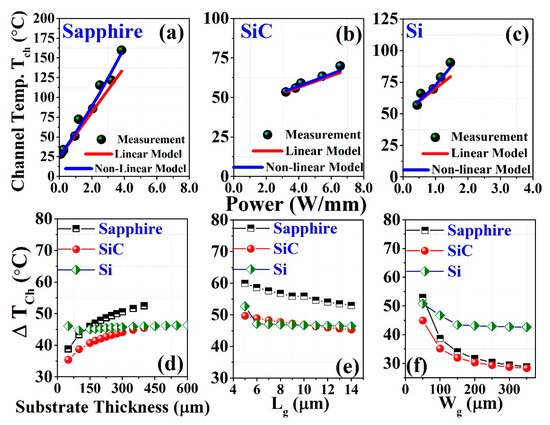

3. Experimental Results and Discussion

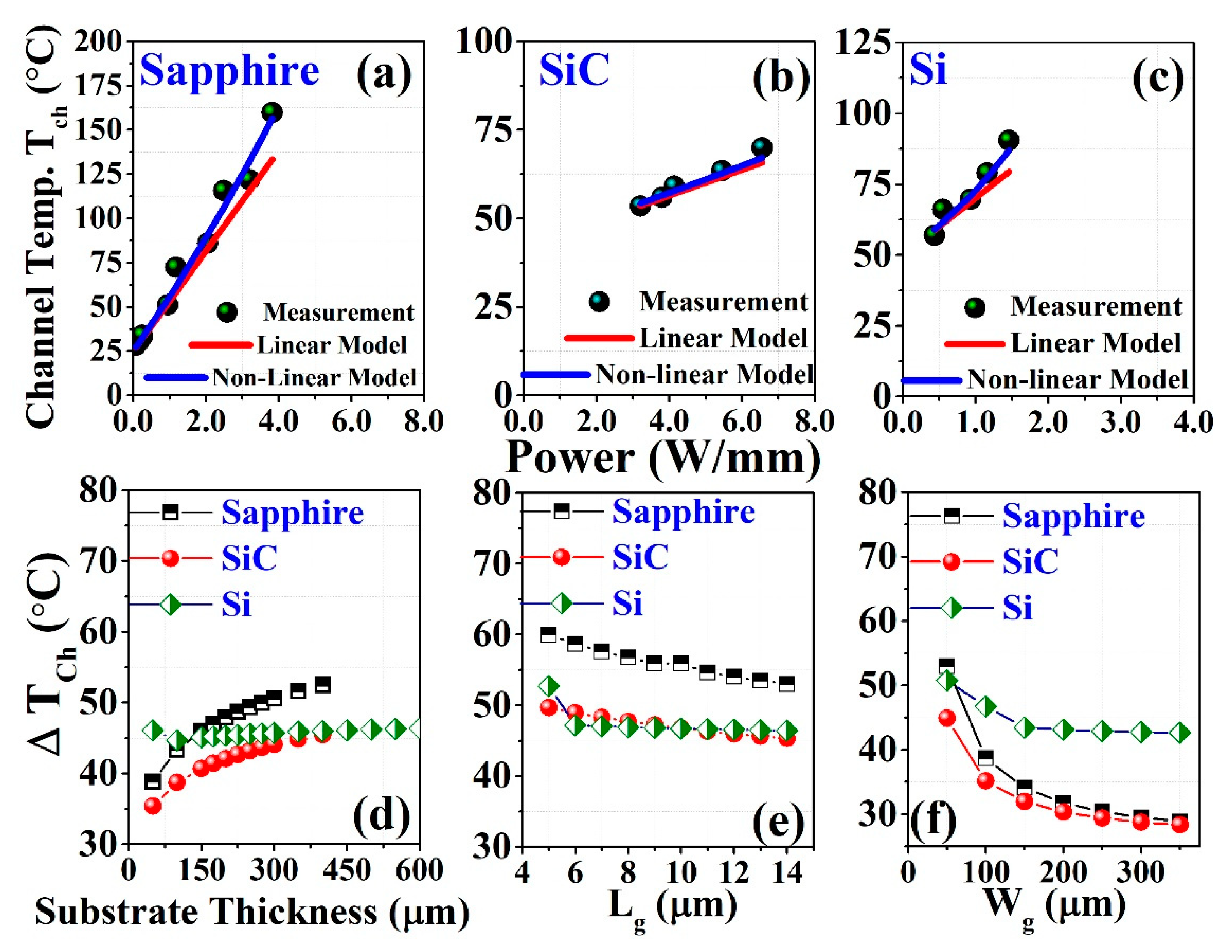

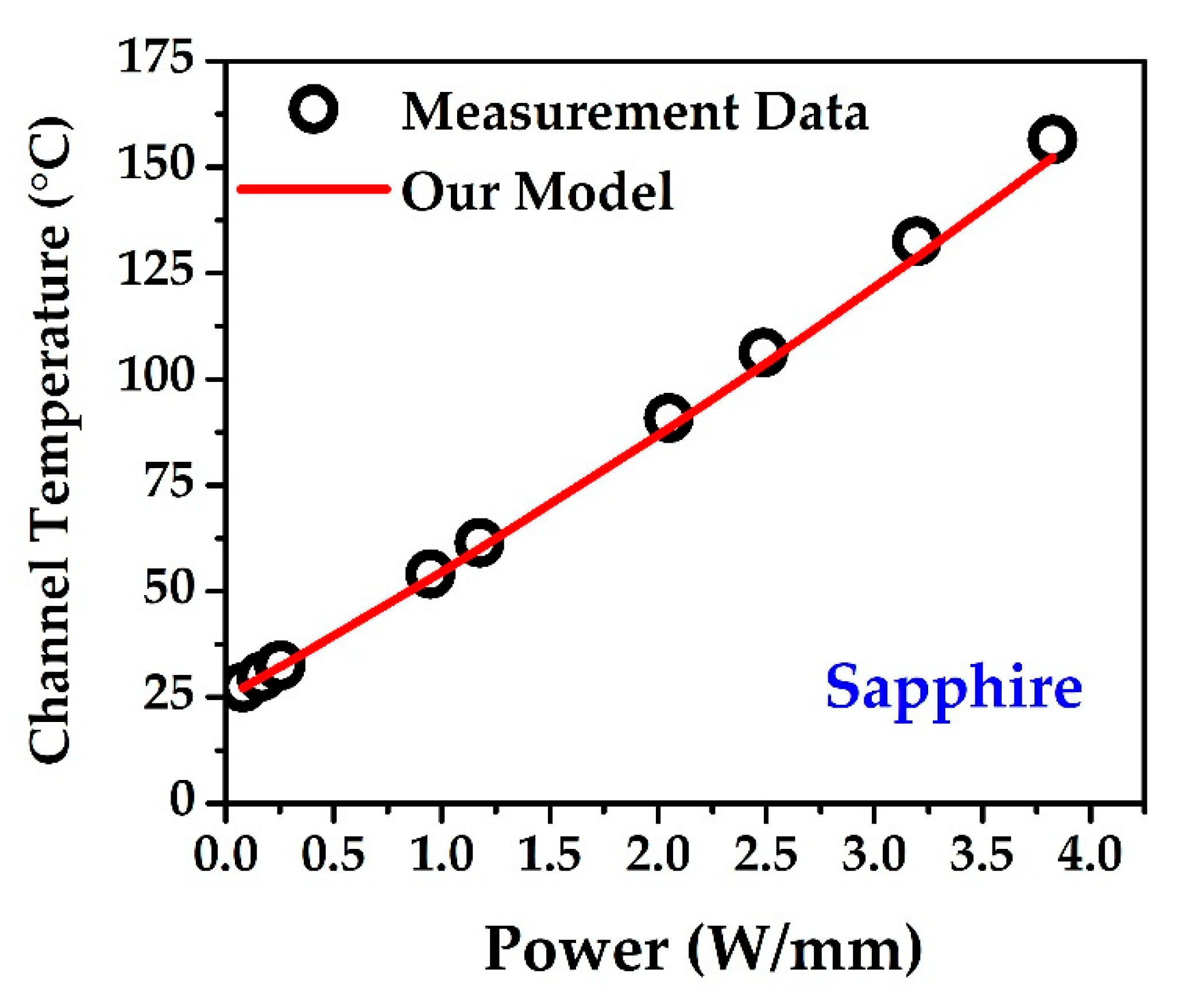

4. Modeled and Extraction Data Verification

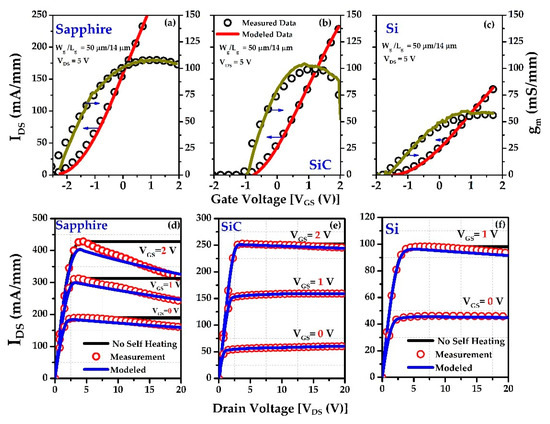

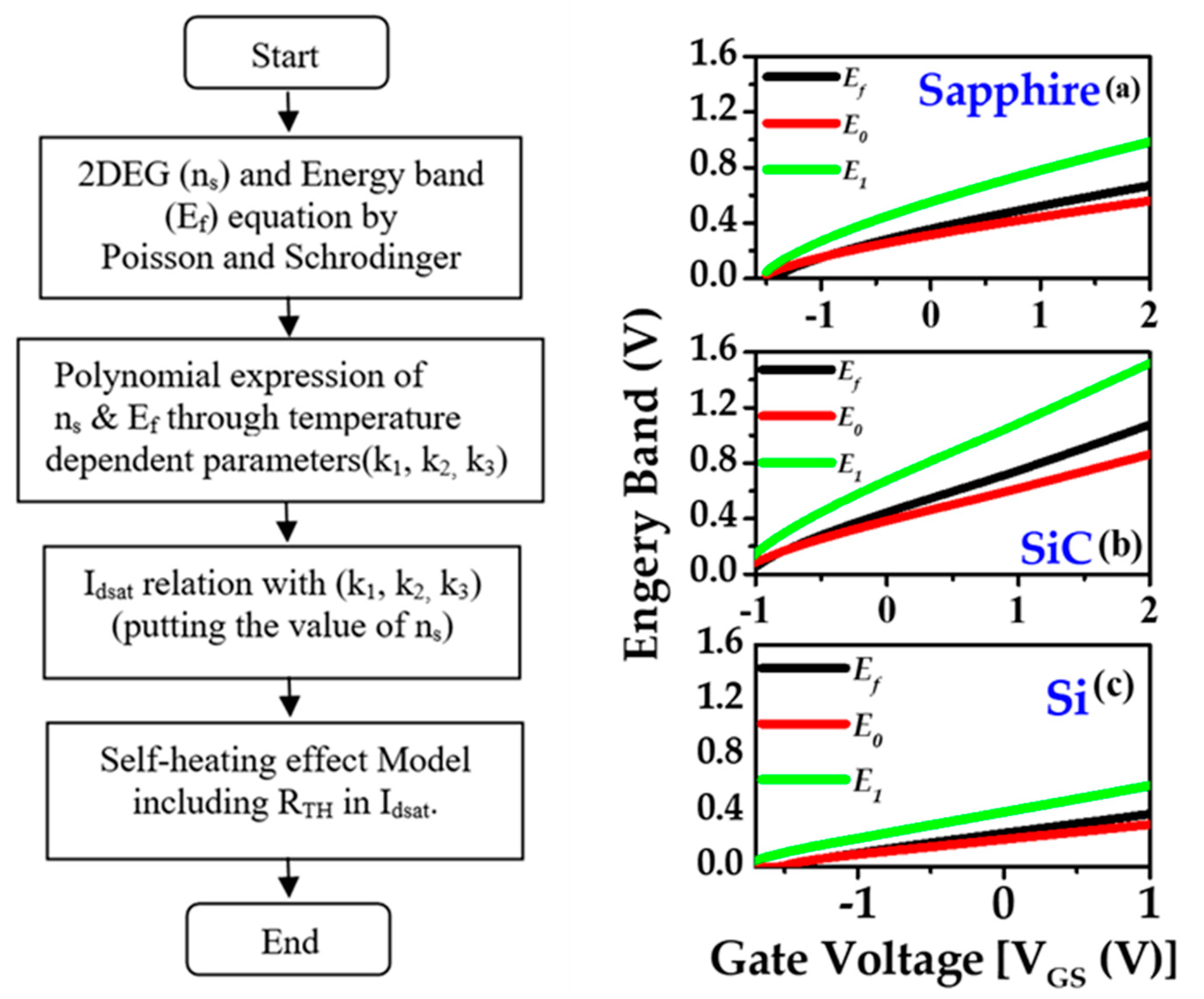

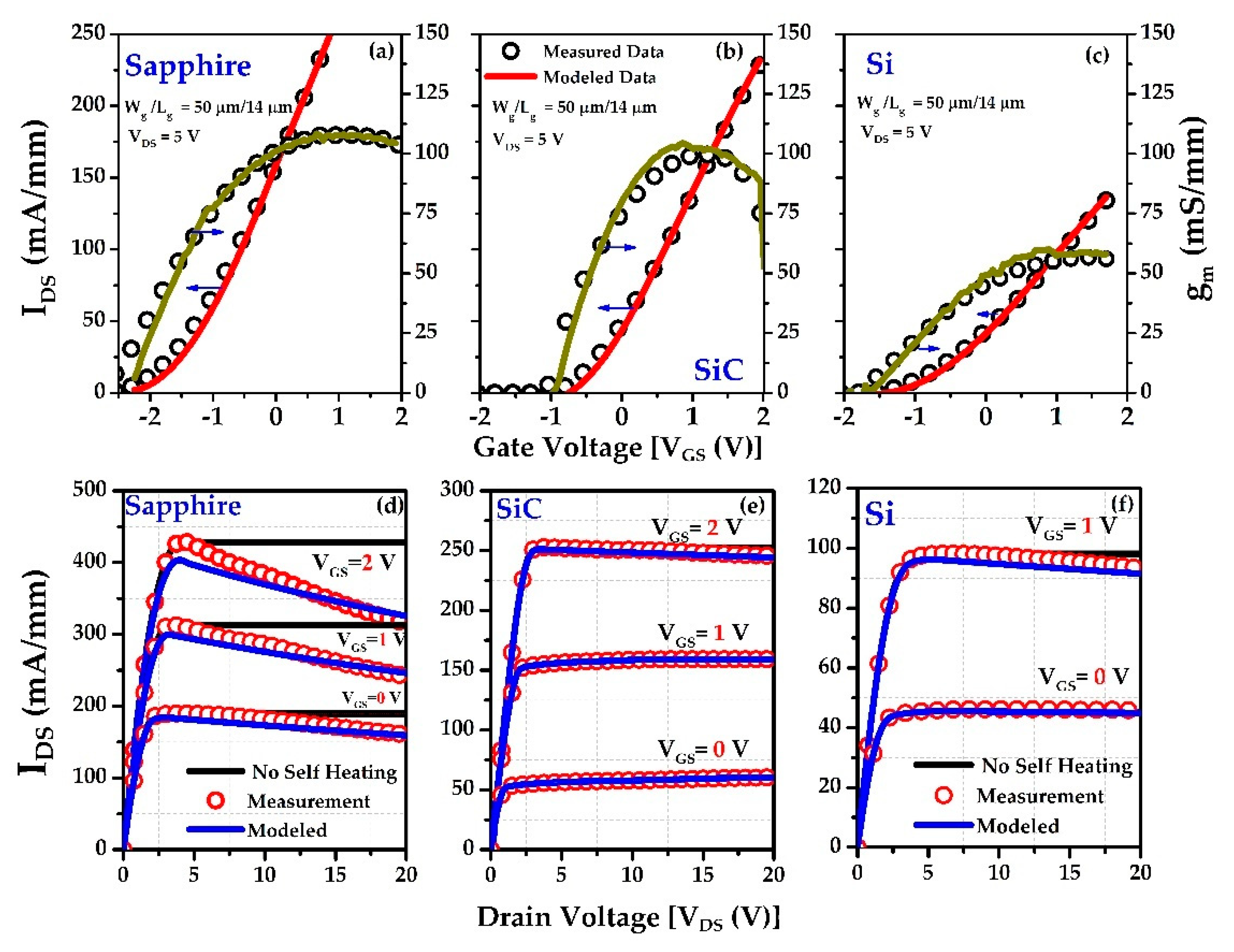

Current-Voltage Characteristics
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Nuttinck, S.; Gebara, E.; Laskar, J.; Harris, M. Development of GaN wide bandgap technology for microwave power applications. IEEE Microw. Mag. 2002, 3, 80–87. [Google Scholar] [CrossRef]
- Chakraborty, S.; Kim, T.W. Comprehensive Schottky Barrier Height Behavior and Reliability Instability with Ni/Au and Pt/Ti/Pt/Au on AlGaN/GaN High-Electron-Mobility Transistors. Micromachines 2022, 13, 84. [Google Scholar] [CrossRef] [PubMed]
- Amir, W.; Shin, J.W.; Shin, K.Y.; Kim, J.M.; Cho, C.Y.; Park, K.H.; Hoshi, T.; Tsutsumi, T.; Sugiyama, H.; Matsuzaki, H.; et al. A quantitative approach for trap analysis between Al0.25Ga0.75N and GaN in high electron mobility transistors. Sci. Rep. 2021, 11, 22401. [Google Scholar] [CrossRef] [PubMed]
- Guo, H.; Li, Y.; Yu, X.; Zhou, J.; Kong, Y. Thermal Performance Improvement of AlGaN/GaN HEMTs Using Nanocrystalline Diamond Capping Layers. Micromachines 2022, 13, 1486. [Google Scholar] [CrossRef]
- Salawu, S.O.; Obalalu, A.M.; Shamshuddin, M. Nonlinear Solar Thermal Radiation Efficiency and Energy Optimization for Magnetized Hybrid Prandtl–Eyring Nanoliquid in Aircraft. Arab. J. Sci. Eng. 2022, 47. [Google Scholar] [CrossRef]
- Simms, R.J.T.; Pomeroy, J.W.; Uren, M.J.; Martin, T.; Kuball, M. Channel temperature determination in high-power AlGaN/GaN HFETs using electrical methods and Raman spectroscopy. IEEE Trans. Electron. Devices 2008, 55, 478–482. [Google Scholar] [CrossRef]
- Šermukšnis, E.; Jorudas, J.; Šimukovič, A.; Kovalevskij, V.; Kašalynas, I. Self-Heating of Annealed Ti/Al/Ni/Au Contacts to Two-Dimensional Electron Gas in AlGaN/GaN Heterostructures. Appl. Sci. 2022, 12, 11079. [Google Scholar] [CrossRef]
- Gryglewski, D.; Wojtasiak, W.; Kamińska, E.; Piotrowska, A. Characterization of self-heating process in gan-based hemts. Electronics 2020, 9, 1305. [Google Scholar] [CrossRef]
- Qin, Y.; Chai, C.; Li, F.; Liang, Q.; Wu, H.; Yang, Y. Study of Self-Heating and High-Power Microwave Effects for Enhancement-Mode p-Gate GaN HEMT. Micromachines 2022, 13, 106. [Google Scholar] [CrossRef] [PubMed]
- Mitterhuber, L.; Hammer, R.; Dengg, T.; Spitaler, J. Thermal Characterization and Modelling of AlGaN-GaN Multilayer Structures for HEMT Applications. Energies 2020, 13, 2363. [Google Scholar] [CrossRef]
- Huang, C.R.; Chiu, H.C.; Liu, C.H.; Wang, H.C.; Kao, H.L.; Chen, C.T.; Chang, K.J. Characteristic analysis of algan/gan hemt with composited buffer layer on high-heat dissipation poly-aln substrates. Membranes 2021, 11, 848. [Google Scholar] [CrossRef] [PubMed]
- Park, J.; Shin, M.W.; Lee, C.C. Thermal modeling and measurement of AlGaN-GaN HFETs built on sapphire and SiC substrates. IEEE Trans. Electron Devices 2004, 51, 1753–1759. [Google Scholar] [CrossRef]
- Darwish, A.M.; Bayba, A.J.; Hung, H.A. Thermal resistance calculation of AlGaN—GaN Devices. IEEE Trans. Microw. Theory Tech. 2004, 52, 2611–2620. [Google Scholar] [CrossRef]
- Kuzmik, J.; Javorka, P.; Alam, A.; Marso, M.; Heuken, M. Determination of Channel Temperature in AlGaN/GaN HEMTs Grown on Sapphire and Silicon Substrates Using DC Characterization Method. IEEE Trans. Electron Devices 2002, 49, 1496–1498. [Google Scholar] [CrossRef]
- Gaska, R.; Osinsky, A.; Yang, J.W.; Shur, M.S. Self-Heating in High-Power AlGaN-GaN HFET’s. J-Global 1998, 19, 89–91. [Google Scholar]
- Gaska, R.; Chen, Q.; Yang, J.; Osinsky, A.; Asif Khan, M.; Shur, M.S. High-temperature performance of AlGaN/GaN HFET’s on SiC substrates. IEEE Electron Device Lett. 1997, 18, 492–494. [Google Scholar] [CrossRef]
- Hiroki, M.; Kumakura, K.; Yamamoto, H. Efficient heat dissipation in AlGaN/GaN high electron mobility transistors by substrate-transfer technique. Phys. Status Solidi Appl. Mater. Sci. 2017, 214. [Google Scholar] [CrossRef]
- Amar, A.; Radi, B.; El Hami, A. Electrothermal reliability of the high electron mobility transistor (Hemt). Appl. Sci. 2021, 11, 10720. [Google Scholar] [CrossRef]
- Alim, M.A.; Chowdhury, A.Z.; Islam, S.; Gaquiere, C.; Crupi, G. Temperature-sensitivity of two microwave hemt devices: Algaas/gaas vs. algan/gan heterostructures. Electron. 2021, 10, 1115. [Google Scholar] [CrossRef]
- Chatterjee, B.; Lundh, J.S.; Dallas, J.; Kim, H.; Choi, S. Electro-thermal reliability study of GaN high electron mobility transistors. In Proceedings of the 2017 16th IEEE Intersociety Conference on Thermal and Thermomechanical Phenomena in Electronic Systems (ITherm), Orlando, FL, USA, 30 May 2017–2 June 2017; pp. 1247–1252. [Google Scholar] [CrossRef]
- Wang, Y.; Ding, Y.; Yin, Y. Reliability of Wide Band Gap Power Electronic Semiconductor and Packaging: A Review. Energies 2022, 15, 6670. [Google Scholar] [CrossRef]
- Meneghini, M.; De Santi, C.; Abid, I.; Buffolo, M.; Cioni, M.; Khadar, R.A.; Nela, L.; Zagni, N.; Chini, A.; Medjdoub, F.; et al. GaN-based power devices: Physics, reliability, and perspectives. J. Appl. Phys. 2021, 130, 181101. [Google Scholar] [CrossRef]
- Meneghini, M.; Hilt, O.; Wuerfl, J.; Meneghesso, G. Technology and reliability of normally-off GaN HEMTs with p-type gate. Energies 2017, 10, 153. [Google Scholar] [CrossRef] [Green Version]
- Bertoluzza, F.; Delmonte, N.; Menozzi, R. Three-dimensional finite-element thermal simulation of GaN-based HEMTs. Microelectron. Reliab. 2009, 49, 468–473. [Google Scholar] [CrossRef]
- Darwish, A.; Bayba, A.J.; Hung, H.A. Channel temperature analysis of GaN HEMTs with nonlinear thermal conductivity. IEEE Trans. Electron Devices 2015, 62, 840–846. [Google Scholar] [CrossRef]
- Freeman, J.C.; Mueller, W. Channel Temperature Determination for AlGaN/GaN HEMTs on SiC and Sapphire. NASA Cent. Aerosp. Inf. 2008, 119. [Google Scholar]
- Usman; Shaheen, S.; Arain, M.B.; Nisar, K.S.; Albakri, A.; Shamshuddin, M.D. A case study of heat transmission in a Williamson fluid flow through a ciliated porous channel: A semi-numerical approach. Case Stud. Therm. Eng. 2022, 40, 102523. [Google Scholar] [CrossRef]
- Jia, Y.; Xu, Y.; Guo, Y. A Universal Scalable Thermal Resistance Model for Compact Large-Signal Model of AlGaN/GaN HEMTs. IEEE Trans. Microw. Theory Tech. 2018, 66, 4419–4429. [Google Scholar] [CrossRef]
- Khandelwal, S.; Goyal, N.; Fjeldly, T.A. A physics-based analytical model for 2DEG charge density in AlGaN/GaN HEMT devices. IEEE Trans. Electron Devices 2011, 58, 3622–3625. [Google Scholar] [CrossRef]
- Li, J.; Tang, M.; Mao, J. Analytical Thermal Model for AlGaN/GaN HEMTs Using Conformal Mapping Method. IEEE Trans. Electron Devices 2022, 69, 2313–2318. [Google Scholar] [CrossRef]
- Fang, Z. The Study of Self-Heating Effect of AlGaN/GaN High Electron Mobility Transistors Based on TCAD. J. Phys. Conf. Ser. 2020, 1699, 012006. [Google Scholar] [CrossRef]
- Darwish, A.M.; Bayba, A.J.; Hung, H.A. Accurate determination of thermal resistance of FETs. IEEE Trans. Microw. Theory Tech. 2005, 53, 306–313. [Google Scholar] [CrossRef]
- Masana, F.N. A closed form solution of junction to substrate thermal resistance in semiconductor chips. IEEE Trans. Compon. Packag. Manuf. Technol. Part A 1996, 19, 539–545. [Google Scholar] [CrossRef]
- Masana, F.N. A new approach to the dynamic thermal modelling of semiconductor packages. Microelectron. Reliab. 2001, 41, 901–912. [Google Scholar] [CrossRef]
- Li, Z. Thermal Conduction Phenomena in Nanostructured Semiconductor Devices and Materials. PhD. Thesis, Stanford University, Stanford, CA, USA, 2012. [Google Scholar]
- Alzahrani, F. The effects of variable thermal conductivity in semiconductor materials photogenerated by a focused thermal shock. Mathematics 2020, 8, 1230. [Google Scholar] [CrossRef]
- Gang, C. Nanoscale Energy Transport and Conversion; Oxford University Press: Oxford, UK, 2005; ISBN 9780195159424. [Google Scholar]
- Wingert, M.C. Thermal transport in amorphous materials: A review Manuscript version: Accepted Manuscript Department of Mechanical and Aerospace Engineering. Semicond. Sci.Technol. 2016, 31, 113003. [Google Scholar] [CrossRef]
- Sodan, V.; Stoffels, S.; Oprins, H.; Decoutere, S.; Altmann, F.; Baelmans, M.; Wolf, I. De Fast and Distributed Thermal Model for Thermal Modeling of GaN Power Devices. IEEE Trans. Compon. Packag. Manuf. Technol. 2018, 8, 1747–1755. [Google Scholar] [CrossRef]
- Hou, M.; Pan, C.C.; Asheghi, M.; Senesky, D.G. Finite element thermal analysis of localized heating in AlGaN/GaN HEMT based sensors. In Proceedings of the Fourteenth Intersociety Conference on Thermal and Thermomechanical Phenomena in Electronic Systems (ITherm), Orlando, FL, USA, 27–30 May 2014; pp. 25–30. [Google Scholar] [CrossRef]
- Temperature-dependent, H.W.; Hemts, A.G.; Terms, I. Nonlinear thermal analysis of AlGaN/GaN parameters. IEEE Trans. Electron Devices 2021, 68, 4565–4570. [Google Scholar]
- Xie, J.; Swaminathan, M. Electrical—Thermal Cosimulation With Nonconformal Domain Decomposition Method for Multiscale 3-D Integrated Systems. IEEE Trans. Components, Packag. Manuf. Technol. 2014, 4, 588–601. [Google Scholar] [CrossRef]
- Kirchhoff, G.P.M. Vorlesungen über die Theorie der Wärme; B.G. Teubner: Leipzig, Germany, 1894. [Google Scholar]
- Joyce, W.B. Thermal resistance of heat sinks with temperature-dependent conductivity. Solid State Electron. 1975, 18, 321–322. [Google Scholar] [CrossRef]
- Canfield, P.C.; Allstot, D.J.; Lam, S.C.F. Modeling of Frequency and Temperature Effects in GaAs MESFET’s. IEEE J. Solid-State Circuits 1990, 25, 299–306. [Google Scholar] [CrossRef]
- Chattopadhyay, M.K.; Tokekar, S. Thermal model for dc characteristics of algan/gan hemts including self-heating effect and non-linear polarization. Microelectron. J. 2008, 39, 1181–1188. [Google Scholar] [CrossRef]
- Menozzi, R.; Member, S.; Umana-membreno, G.A.; Nener, B.D.; Member, S.; Parish, G.; Sozzi, G.; Faraone, L.; Member, S.; Mishra, U.K. Temperature-Dependent Characterization of AlGaN/GaN HEMTs: Thermal and Source/Drain Resistances. IEEE Trans. Device Mater. Reliab. 2008, 8, 255–264. [Google Scholar] [CrossRef] [Green Version]
- Kuzmik, J.; Javorka, P.; Alam, A.; Marso, M.; Heuken, M.; Kordos, P. Investigation of self-heating effects in AlGaN-GaN HEMTs. In Proceedings of the 2001 International Symposium on Electron Devices for Microwave and Optoelectronic Applications, Vienna, Austria, 16 November 2001; EDMO 2001 (Cat. No.01TH8567). pp. 21–26. [Google Scholar]
- Islam, S.S.; Anwar, A.F.M. Self-heating and trapping effects on the RF performance of GaN MESFETs. IEEE Trans. Microw. Theory Tech. 2004, 52, 1229–1236. [Google Scholar] [CrossRef]
- Nuttinck, S.; Gebara, E.; Laskar, J.; Harris, H.M. Study of self-heating effects, temperature-dependent modeling, and pulsed load-pull measurements on GaN HEMTs. IEEE Trans. Microw. Theory Tech. 2001, 49, 2413–2420. [Google Scholar] [CrossRef]
- Anwar, A.F.M.; Wu, S.; Webster, R.T. Temperature dependent transport properties in GaN, Al/sub x/Ga/sub 1-x/N, and In/sub x/Ga/sub 1-x/N semiconductors. IEEE Trans. Electron Devices 2001, 48, 567–572. [Google Scholar] [CrossRef]
- Islam, S.S.; Mehdi Anwar, A.F. Temperature-dependent nonlinearities in GaN/AlGaN HEMTs. IEEE Trans. Electron Devices 2002, 49, 710–717. [Google Scholar] [CrossRef]
- Kohn, E.; Daumiller, I.; Kunze, M.; Neuburger, M.; Seyboth, M.; Jenkins, T.J.; Sewell, J.S.; Van Norstand, J.; Smorchkova, Y.; Mishra, U.K. Transient characteristics of GaN-based heterostructure field-effect transistors. IEEE Trans. Microw. Theory Tech. 2003, 51, 634–642. [Google Scholar] [CrossRef]
- Kavangary, A.; Graf, P.; Azazoglu, H.; Flebbe, M.; Huba, K.; Nienhaus, H.; Möller, R. Temperature dependent electrical characteristics of a junction field effect transistor for cryogenic sub-attoampere charge detection. AIP Adv. 2019, 9, 025104. [Google Scholar] [CrossRef] [Green Version]
- Florovič, M.; Szobolovszký, R.; Kováč, J.; Kováč, J.; Chvála, A.; Jacquet, J.-C.; Delage, S.L. AlGaN/GaN HEMT channel temperature determination utilizing external heater. Semicond. Sci. Technol. 2020, 35, 25006. [Google Scholar] [CrossRef]
- Deng, W.; Huang, J.; Ma, X.; Liou, J.J. An explicit surface potential calculation and compact current model for AlGaN/GaN HEMTs. IEEE Electron Device Lett. 2015, 36, 108–110. [Google Scholar] [CrossRef]
- Rashmi; Haldar, S.; Gupta, R.S. 2-D analytical model for current-voltage characteristics and output conductance of {AlGaN}/{GaN} {MODFET}. Microw. Opt. Technol. Lett. 2001, 29, 117–123. [Google Scholar] [CrossRef]
- DasGupta, N.; DasGupta, A. An analytical expression for sheet carrier concentration vs gate voltage for HEMT modelling. Solid State Electron. 1993, 36, 201–203. [Google Scholar] [CrossRef]
- Korwal, M.; Haldar, S.; Gupta, M.; Gupta, R.S. Parasitic resistance and polarization-dependent polynomial-based non-linear analytical charge-control model for AlGaN/GaN MODFET for microwave frequency applications. Microw. Opt. Technol. Lett. 2003, 38, 371–378. [Google Scholar] [CrossRef]
[Constant k(T)] | Channel Temperature (Tch) | [Non-Linear k(T)] | Channel Temperature (Tch) [from Non-Linear k(T)] | |
---|---|---|---|---|
0.0039 | 0.0441 | 27.24 | 0.0083 | 27.34 |
0.0039 | 0.0441 | 27.26 | 0.0095 | 27.36 |
0.0082 | 0.0441 | 29.63 | 0.0116 | 29.86 |
0.0083 | 0.0441 | 29.72 | 0.0133 | 29.95 |
0.0124 | 0.0441 | 32.01 | 0.0189 | 32.37 |
0.0127 | 0.0441 | 32.18 | 0.0213 | 32.55 |
0.0474 | 0.0441 | 51.84 | 0.0343 | 54.07 |
0.0587 | 0.0441 | 58.28 | 0.0345 | 61.39 |
0.1024 | 0.0441 | 83.09 | 0.0371 | 90.79 |
0.1243 | 0.0441 | 95.48 | 0.0372 | 106.21 |
0.1599 | 0.0441 | 115.66 | 0.0405 | 132.49 |
0.1913 | 0.0441 | 133.42 | 0.0405 | 156.46 |
[Constant k(T)] | Non-Linear Model | Percentage of Error (%) with Measurement | |||
---|---|---|---|---|---|
0.0039 | 0.0441 | 0.089 | 0.0080 | 27.25 | 0.328 |
0.0039 | 0.0441 | 0.090 | 0.0082 | 27.27 | 0.330 |
0.0082 | 0.0441 | 0.185 | 0.0343 | 29.67 | 0.621 |
0.0083 | 0.0441 | 0.188 | 0.0356 | 29.76 | 0.630 |
0.0124 | 0.0441 | 0.281 | 0.0787 | 32.093 | 0.865 |
0.0127 | 0.0441 | 0.287 | 0.0825 | 32.267 | 0.881 |
0.0474 | 0.0441 | 1.074 | 1.1530 | 52.998 | 1.979 |
0.0587 | 0.0441 | 1.331 | 1.7724 | 60.056 | 2.173 |
0.1024 | 0.0441 | 2.324 | 5.3994 | 88.491 | 2.539 |
0.1243 | 0.0441 | 2.819 | 7.9499 | 103.438 | 2.607 |
0.1599 | 0.0441 | 3.626 | 13.1513 | 128.813 | 2.780 |
0.1913 | 0.0441 | 4.337 | 18.8081 | 152.223 | 2.706 |
Symbol | SiC | Si | Sapphire |
---|---|---|---|
x | 0.45 | 0.21 | 0.20 |
k1 | −0.11 | −0.12 | −0.11 |
k2 (V ∙ cm) | 1.76 × 10−9 | 1.96 × 10−9 | 1.74 × 10−9 |
k3 (V ∙ cm2) | 1.76 × 10−18 | 1.10 × 10−18 | 1.80 × 10−18 |
d (nm) | 8 | 28 | 28 |
VSAT (V/m) | 9.5 × 108 | 9.0 × 108 | 4.5 × 108 |
Voff (V) | −0.88 | −1.54 | −2.63 |
μ0 (m2/V ∙ s) | 0.0126 | 0.0186 | 0.016 |
Sample | Drain Voltage Range | Measured Rth (°C/W) | Charge Control based Rth (°C/W) [Average] | Our Model Rth (°C/W) | ||
---|---|---|---|---|---|---|
VGS = 2 V | VGS = 1 V | VGS = 0 V | ||||
Sapphire | 10–13 V | 645 | 605 | 554 | 630 | 625 |
14–16 V | 650 | 705 | 729 | |||
17–20 V | 673 | 714 | 830 | |||
SiC | 13–15 V | 136 | 178 | - | 150 | 127 |
16–20 V | 140 | 165 | ||||
Si | 10–13 V | - | 593 | 683 | 705 | 712 |
14–16 V | - | 636 | 800 | |||
17–20 V | - | 846 | 905 |
