Improving the Efficacy and Accessibility of Intracranial Viral Vector Delivery in Non-Human Primates

by
Devon J. Griggs
1,2,†,
Aaron D. Garcia
2,3,4,5,†,
Wing Yun Au
6,
William K. S. Ojemann
6,
Andrew Graham Johnson
7,8,
Jonathan T. Ting
2,4,9,
Elizabeth A. Buffalo
2,4 and
Azadeh Yazdan-Shahmorad
1,2,6,*
1
Department of Electrical and Computer Engineering, University of Washington, Seattle, WA 98195, USA
2
Washington National Primate Research Center, Seattle, WA 98195, USA
3
Graduate Program in Neuroscience, University of Washington, Seattle, WA 98195, USA
4
Department of Physiology and Biophysics, University of Washington, Seattle, WA 98195, USA
5
Department of Biology, University of Washington, Seattle, WA 98195, USA
6
Department of Bioengineering, University of Washington, Seattle, WA 98195, USA
7
Department of Earth and Space Sciences, University of Washington, Seattle, WA 98195, USA
8
Bellevue School District, Bellevue, WA 98005, USA
9
Allen Institute for Brain Science, Seattle, WA 98109, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Pharmaceutics 2022, 14(7), 1435; https://doi.org/10.3390/pharmaceutics14071435
Submission received: 7 June 2022 / Revised: 4 July 2022 / Accepted: 7 July 2022 / Published: 8 July 2022
(This article belongs to the Special Issue Brain-Targeted Drug Delivery)
Browse Figures
Versions Notes

Abstract

:
Non-human primates (NHPs) are precious resources for cutting-edge neuroscientific research, including large-scale viral vector-based experimentation such as optogenetics. We propose to improve surgical outcomes by enhancing the surgical preparation practices of convection-enhanced delivery (CED), which is an efficient viral vector infusion technique for large brains such as NHPs’. Here, we present both real-time and next-day MRI data of CED in the brains of ten NHPs, and we present a quantitative, inexpensive, and practical bench-side model of the in vivo CED data. Our bench-side model is composed of food coloring infused into a transparent agar phantom, and the spread of infusion is optically monitored over time. Our proposed method approximates CED infusions into the cortex, thalamus, medial temporal lobe, and caudate nucleus of NHPs, confirmed by MRI data acquired with either gadolinium-based or manganese-based contrast agents co-infused with optogenetic viral vectors. These methods and data serve to guide researchers and surgical team members in key surgical preparations for intracranial viral delivery using CED in NHPs, and thus improve expression targeting and efficacy and, as a result, reduce surgical risks.

1. Introduction

The development of novel tools to genetically alter the properties of neurons has been instrumental in expanding the scope of neuroscientific questions. Perhaps one of the most popular of these genetic modification methods is optogenetics, through which cells can be made susceptible to rapid, reversible manipulations via light stimulation. This technique was first demonstrated in 2005 [1] and since then has been robustly developed and widely adopted. In particular, optogenetics has become a powerful tool for rodent neuroscience [2,3]. The high-throughput nature of experiments with these models means that researchers can pilot, experiment, and make corrections with new subjects rapidly and with minimal resources. Additionally, the rapid gestational time (~1 month for most research species) and large litter size (4–12 pups/L) of these models extends the genetic modification toolkit of rodent researchers to allow for breeding genetically altered lines and testing transgenic subjects with relative ease. However, transgenic lines are largely unavailable for highly translational non-human primate (NHP) models. In contrast to rodents, the macaque has a gestational period of ~6 months and gives birth to singular offspring, which eliminates the practical viability of transgenic approaches. This leaves viral vector transfection as the primary method of preparing NHPs for experiments requiring genetic modification. However, this experimental approach still proves to be a challenging, and potentially costly, endeavor. Here, we present novel and updated methods that eliminate several of the main dissuading factors of transduction studies in NHPs.
Convection-enhanced delivery (CED) is an infusion technique that has been developed over the past few decades to deliver medicinal agents to the brain [4,5]. Classic neural infusion techniques rely on diffusion, which is based on a concentration gradient and therefore is heavily influenced by molecular weight [6]. Large molecules such as viral vectors are inefficiently spread by diffusion. By contrast, CED capitalizes on a pressure gradient for delivery, which is much less influenced by molecular weight and comes with a number of benefits over diffusion: 1. CED can be performed at higher delivery rates (on the order of 1 µL/min or higher), which speeds up delivery [7,8,9], 2. CED can distribute agent over greater volumes (hundreds of mm3) [8,9], 3. CED produces a roughly uniform concentration of agent throughout the distribution volume [6,7,10,11,12,13,14], and 4. as previously alluded, CED is effective at transporting large molecules, such as viral vectors, throughout regions of the brain [7,11,12,13,14,15].
Incentivized by these desirable properties, we have used CED in recent years to deliver optogenetic viral vectors into the brains of non-human primates for neuroscientific experiments [8,9,16,17]. To complement the technique, we utilized a method of real-time infusion validation with magnetic resonance imaging (MRI) technology using a gadolinium-based contrast agent co-infused with the optogenetic viral vector [18]. We previously validated the resulting optogenetic expression with epifluorescence imaging, electrophysiology, and histology [8,9]. However, we recognize that not all institutions have access to an MRI scanner in which live validation of an injection can be visualized. Thus, a separate set of CED experiments without live MRI guidance was performed using novel optogenetic viral vectors co-infused with a manganese-based contrast agent. This allowed us to confirm infusion success the following day with MRI. With these live and next-day in vivo MRI data collected across ten animals and three different brain regions, we were uniquely positioned to develop a model to assist in planning CED procedures in the brains of NHPs. This work is important to the field because not all researchers have access to MRI scanners for next-day imaging, and fewer still are equipped to perform NHP viral infusions in an MRI scanner. We propose a CED modeling method that can assist any researcher in NHP neurosurgical CED planning.
Here, we have developed a quantitative bench-side CED model that provides the users with hands-on CED experience. Our bench-side model builds on our recent qualitative infusion modeling work [19], as well as our in vivo NHP data [8,9]. Bench-side CED models usually comprise dye infused into agar phantom, a clear gel with material properties similar to the brain [20,21]. In this work, we propose a similar model, but to our knowledge, we are the first to base a bench-side model on in vivo MRI data of CED in NHP brains. We provide the MRI data and we present a calibration method for our model using the MRI data to ensure that the reproduction of our quantitative method is practical for the field. Infusions into the primate brain are inherently coupled with surgical and experimental risks; however, the toolkit presented here mitigates the risk factors of these procedures, such as cost, surgical time, and overall subject count, by providing easily accessible ways to plan CED experiments. We also utilize a radiolabel that can be co-infused with viruses that can be imaged in MRI 24 h post-operatively, which empowers researchers without immediate access to an MRI scanner to identify issues and make any necessary surgical corrections in a timely fashion.

2. Materials and Methods

2.1. Subjects

Data from ten macaques were used for this study, as described in Table 1. The cortical and thalamic data (total n = 5) come from previously published procedures [8,9,18,22,23], and those data have been used in the present study. In contrast, data from the medial temporal lobe (MTL) group are derived from new injection procedures, which are described in detail below. The ages ranged from 5 to 11 years, and weights ranged from 5.7 to 17.5 kg. Five females and four males were rhesus macaques (Macaca mulatta) and one male was a pigtail macaque (Macaca nemestrina). MTL subjects were provided by the tissue distribution program available from the Washington National Primate Center (WaNPRC), and no observable differences were seen in our data as a function of age, sex, species, or weight.

2.2. Animal Procedures and MRI Analysis

Three different neuroanatomical structures were targeted for CED infusions: cortex, thalamus, and the medial temporal lobe together with the caudate nucleus (MTL). Most of the cortical and thalamic infusions were validated with live MRI, while MTL infusions were validated with MRI the day following infusion. Table 1 contains the infusion details for each subject.
Subsequent subsections describe the various methods and MRI analysis related to the cortical, thalamic, and MTL infusions. Because the procedures relating to the cortical and thalamic groups have been previously published, detailed surgical methods are omitted with references to the respective primary studies. However, aspects of the procedures germane to the present study are presented. For the MTL group, details of the surgical methods, euthanasia, and immunohistochemistry are presented in full. For all procedures, vital signs such as heart rate, respiration, and body temperature were monitored throughout.

2.2.1. Cortical Infusion

We have previously described the surgical methods for cortical CED procedures [8,18]. Briefly, the subjects were anesthetized under isoflurane, a craniotomy was made above the sensorimotor cortex in a sterile operating room, and an MR-compatible cannula guide was affixed to the skull with MR-compatible screws and dental acrylic. Afterwards, the subjects were transferred to an MR scanner (Siemens 3T) while remaining under isoflurane anesthesia. We inserted the tip of a stepped-tip cannula about 2 mm below the surface of the brain in the sensorimotor cortex. A syringe pump (WPI UMP3, MICRO2T SMARTouch SGE250TLL, Sarasota, FL, USA) was used to co-infuse a mixture of AAV-CamKIIa-C1V1-EYFP (Table 2; 2.5 × 1012 virus molecules/milliliter (vm UPenn vector core) and a gadolinium-based contrast agent (Table 2; 2 mM Gd-DTPA, ratio of 250:1, Gadoteridol, Prohance, Bracco Diagnostic Inc., Princeton, NJ, USA) into the brain at a starting rate of 1 µL/min, which was increased every few minutes up to 5 µL/min. After the majority of the volume had been delivered, the rate was reduced in the same stair-step method to end with a rate of 1 µL/min. After infusion, we left the cannula in place for 10 min and then removed the cannula. This infusion process was repeated multiple times. During the infusion process, multiple MRI images were taken to track the progress of the infusions. We used fast (2 min) flash T1-weighted images (flip angle = 30°, repetition time/echo time = 3.05, matrix size = 128 × 128, slice thickness = 1 mm, 64 slices, Siemens 3T MR scanner). After recovery and optogenetic expression, Monkeys C1, C2, and CT were euthanized for immunohistochemical analysis of optogenetic expression [8,22,23].

2.2.2. Thalamus Infusion

We previously described the surgical details of the thalamic CED infusions [9], which are similar to the cortical infusion procedures described above. Briefly, the subjects were anesthetized with isoflurane and craniotomies were made (15 mm diameter). We implanted cannula guides and secured them with plastic screws and dental acrylic. We allowed the subjects to recover for two weeks before performing CED. After recovery, the subjects were anesthetized, placed in a stereotax and transported to an MR scanner. We used the cannula guides to manually insert a 3 mm stepped-tip cannula (ClearPoint Neuro Inc. (formerly MRI Interventions, Solana Beach, CA, USA) to the targeted regions of the thalamus. We used a syringe pump (WPI UMP3, MICRO2T SMARTouch, SGE250TLL, Sarasota, FL, USA) to co-infuse multiple serotypes of AAV-CamKII-ChR2 (Table 2; Upenn vector core) with gadolinium-based contrast agent (Table 2; 2 mM Gadoteridol, Prohance, Bracco Diagnostic Inc., Princeton, NJ, USA) at rates between 0.5 µL/min and 3 µL/min while simultaneously performing fast (2 min) flash T1 MR scans (flip angle = 30°, repetition time/echo time = 3.05, matrix size = 128 × 128, slice thickness = 1 mm, 64 slices, Siemens 3T MR scanner). After all infusions were complete, the subjects were transported back to the surgical suite where the cannula guides were explanted and the incision closed. After recovery and optogenetic expression, Monkeys CT, T1, and T2 were euthanized for immunohistochemical analysis of optogenetic expression [9,23].

2.2.3. MTL Infusion

To pilot the efficacy of expression in the medial temporal lobe (MTL), five viral vectors were infused into the brains of five subjects. Subjects MTL1–3 were infused with two retrograde viruses (gifted from Edward Boyden and Karel Svoboda; Addgene viral preps #59170-AAVrg and #29017-AAVrg, respectively) [24,25]. Subjects MTL4 and 5 were infused with three GABA-selective viruses (Allen Institute for Brain Science and University of Washington, Seattle, WA.). See Table 2 for specific information about the vectors and target regions for all animals.
The surgical details of the MTL infusions are described in detail here. The animals were sedated with ketamine. A surgical plane was induced with propofol and maintained with 0.8–1.2% isoflurane, and the subjects were then stereotaxed. Analgesia was administered prior to (meloxicam) and during the procedure (fentanyl CRI transitioned to sustained-release buprenorphine). Sagittal incisions were made to expose the skull, and burr holes were drilled above our intended target. A 3 mm stepped-tip cannula (ClearPoint Neuro Inc. (formerly MRI Interventions, Solana Beach, CA, USA) was stereotactically lowered with a micro-manipulator arm through the burr hole to the targeted region of the MTL (hippocampus or entorhinal cortex), or the tail of the caudate nucleus. We used a syringe pump (WPI UMP3, MICRO2T SMARTouch, SGE250TLL, Sarasota, FL, USA) to co-infuse optogenetic viral vector with manganese-based contrast agent (Mn2+, Millipore Sigma, Burlington, MA) at rates between 1 µL/min and 5 µL/min. The final concentration of Mn2+ mixed with virus was 6.5 mM and was specifically chosen as it is well under the limit for neuronal toxicity and interference with viral efficacy, as identified by [26]. After all infusions were complete, the cannula was removed and the incision closed. In one case (MTL5), this procedure was performed using the Brainsight veterinary surgical robot (Rogue Research Inc., Montreal, QC, Canada) instead of micromanipulator arms. A final analgesic was administered in the form of a local anesthetic block (bupivacaine). The day following infusion, the subjects were again anesthetized and placed in an MR-compatible stereotax, and 3D MPRAGE sequences were taken in a 3T MRI scanner to localize the manganese signal (Scanner: Phillips GE, Boston, MA, slice thickness: 0.35 × 0.35 × 0.5 mm anisotropic and 0.5 isotropic voxels, repetition time/echo time = 2, flip angle: 9 degrees). After eight weeks, the animals were euthanized via intraperitoneal pentobarbital injection and transcardially perfused with 4% paraformaldehyde–phosphate buffer solution.
The harvested tissue was stored in sucrose and then sliced into 50 μm sections using a freezing microtome. The resulting slices were treated in a sodium borohydride bath (Millipore Sigma, Burlington, MA, USA) to reduce background fluorescence for 24 h. Afterward, the slices were incubated for 72 h at 4 °C in primary antibodies targeting the respective fluorescent tag of the infused virus (for case MTL4: rabbit-Anti-GFP 1:1000, Abcam #ab290). This was followed by two-hour incubation in fluorescent secondary antibodies (for case MTL4: donkey anti-rabbit 568 1:200, Invitrogen Molecular Probes #A10042) and DAPI stain (1:5000, ThermoFisher Scientific #D21490) before mounting and visualization.

2.2.4. MRI Volume Extraction

The following infusion volume extraction procedure was performed on the MRI scans. For cortical and thalamic trials, the MRIs were taken throughout the infusion period. For MTL infusions, the MRIs were taken the day after infusion. We imported each MRI scan into MRI viewing software (Mango, Research Imaging Institute, UTHSCSA, San Antonio, TX, USA) and identified the location of the infusion—due to the contrast agent, this area had a higher contrast than the surrounding tissue. A spherical region of interest (ROI) was created and adjusted as necessary to encompass the infused volume. We shrink-wrapped the ROI in 3D with a threshold value below the intensity of the infusion location, but above the intensity of the surrounding tissue. The threshold for the ROI was adjusted until it only contained the infusion volume and the final ROI was saved in the NIFTI file format. Next, we reloaded each ROI as its own image and generated an interpolated surface of the infusion volume. Finally, we measured the volume of the bolus using this interpolated surface in the MRI viewing software. In the case of live imaging during infusions, we mapped the infusion trajectories by applying this protocol to successive MRI scans within an infusion trial.

2.3. Bench-Side Modeling

We developed a bench-side CED infusion technique using agar and custom-built cannulas. We also developed an image processing technique and statistical methods to analyze the agar data.

2.3.1. Cannula Production for Agar Infusions

We manufactured 1 mm and 3 mm stepped-tip cannulas (Supplementary Figure S1) with polyimide-coated fused silica capillary tubing (Polymicro Technologies, Phoenix, AZ, USA) for the cortical and deep infusions, respectively. These cannulas were created by sliding the smaller tubing into the larger tubing until the smaller tubing extended out of the larger tubing by 1 mm or 3 mm. This placement was then secured with cyanoacrylate (Super Glue Corporation, liquid super glue, Ontario, CA, USA). For both cannulas, the inner tubing had an inner diameter of 320 µm and an outer diameter of 435 µm (part #1068150204) and the outer tubing had an inner diameter of 450 µm and an outer diameter of 673 µm (part #1068150625). The cannulas were the same as, or similar to, the cannulas used for our NHP CED experiments above.

2.3.2. Agar Phantom Infusion

We prepared a solution of 1× phosphate-buffered saline (PBS) and 0.6% powder mixture, where the powder mixture comprised agar powder (Benchmark Scientific, A1700, Sayreville, NJ, USA) and locust bean gum powder (Modernist Pantry LLC, Eliot, ME, USA) in a 4:1 ratio by mass, respectively. We heated and mixed the solution in a microwave to dissolve the powder and poured it into molds to set. Setting occurred in a refrigerator for at least two hours. The molds were 3D printed with polylactic acid (PLA) filament and were designed to produce agar blocks with a 2 × 2 cm base and either 2 or 4 cm high. The agar phantoms were used shortly after setting or were refrigerated for up to one day for future use.
To prepare for CED infusion, we mounted a pump (WPI UMP3, MICRO2T SMARTouch, Sarasota, FL, USA) to a stereotactic arm (KOPF, 1460, Tujunga, CA, USA) attached to a stereotactic frame (KOPF, 1430, Tujunga, CA, USA). We filled the pump’s 250 mL syringe (WPI, SGE250TLL, Sarasota, FL, USA) with deionized (DI) water and attached it to the pump. The cannula was attached to the syringe with a catheter connector (B. Braun Medical Inc., part #332283, Bethlehem, PA, USA). All of the DI water was ejected from the syringe to fill the cannula with DI water. Undiluted yellow food coloring (McCormick yellow food coloring, Hunt Valley, MD, USA) was then drawn through the cannula and into the syringe. We positioned the agar phantom under the cannula so that it was centered. The agar phantom was oriented such that the side of the block that was not in contact with the mold during the molding process (i.e., the top side, which was the smoothest side of the phantom) was facing up and would be the side to receive the cannula insertion. The cannula was then lowered until the tip touched the surface of the agar phantom. We lowered the cannula manually with the stereotactic arm to a pre-specified depth, 2 mm deep for cortical infusions and 2 cm deep for thalamic and MTL infusions. We checked that the surface of the agar sealed around the cannula above the stepped-tip before proceeding with the infusion.
To image the infusion process, we positioned a digital single-lens reflex (DSLR) camera (Nikon D5300, Minato City, Tokyo, Japan) with a 35 mm lens (Nikon, AF-S NIKKOR 1:1.8G) and adjusted the camera settings to clearly image the agar phantom edges, needle, and bolus. The ISO was set at 400, the shutter speed at 1/125, and the aperture at f/6.3. We used interval time shooting. We arranged a white backdrop to help with image processing and placed a ruler near the agar phantom and in-plane with the cannula for scale. We prepared a script in MATLAB (MathWorks Inc., Natick, MA, USA) to run the pump autonomously and in accordance with the infusion rates used in corresponding surgical infusions (Table 3). We started the script and the camera’s time interval shooting simultaneously. Representative cortical and thalamic infusion models are compared with MRI data as shown in Figure 1 and Figure 2, respectively. Refinements to infusion techniques during preliminary trials included optimizing lighting conditions, and camera angle and placement with respect to the agar phantom.

2.3.3. Agar Phantom Image Processing

We estimated volumes of distribution from photographs of the agar phantom infusion. A single-color component was selected from the color images. (Further description of the color component selection process is found below in Section 2.3.4.) Then, we applied a threshold value to the remaining matrix to produce a mask, being a matrix of binary values. (Specific methods for selecting this threshold value are found below in Section 2.3.5.) We manually selected the cluster of binary values representative of the infusion bolus and erased the other clusters from the mask. In some cases, this was enough to isolate the bolus, but in other cases, the mask appeared to depict the cannula together with the bolus. In these cases, the cannula was erased by masking all pixels above a manually selected point in the image such that the mask outlined the bolus alone. Representative images of the agar phantom image processing are shown in Figure 3. Finally, we converted the mask of the bolus to a volume by assuming an ellipsoidal form, where the ellipsoid was radially symmetric about the axis of the cannula. Similar to [27,28], we took the height (h) and width (w) of the bolus and calculated the volume (v) of the associated ellipsoid with the equation
v = π 6 × h × w 2
The volume estimation was converted to metric units based on the ruler in the original image.
We performed all agar image processing with MATLAB.

2.3.4. Color Component Selection

Our color component selection is the process by which a 24-bit RGB color image is converted to an image with one 8-bit value per pixel. We tested the three different color components to determine which aligned the agar data most closely with the MRI data. All data of the same infusion type were processed with one selected color component. While image processing software often have functions built in that will reduce images to a single value per pixel (e.g., the “rgb2gray” function in MATLAB), we found our color component selection process to be more effective.

2.3.5. Threshold Value Selection

After the color component selection, we used a threshold value to distinguish which pixels had strong enough values to be included as part of the bolus. To select the threshold value, we identified a region of the image where heavy coloration faded to no coloration, and then we selected a pixel from this region and used its value as the initial threshold. We performed the entire image processing procedure with this threshold value and plotted the agar data together with the MRI data to observe the quality of alignment. Based on the results, we selected a new threshold and repeated as necessary in an iterative fashion until the MRI data and the agar data were in alignment. Once aligned qualitatively, we compared the NHP volume data quantitatively with the agar volume data by using linear regression to determine the slope of each agar and NHP trial, as described in more detail in Section 2.3.6. All data of the same infusion type were processed with one selected threshold value.

2.3.6. Statistical Methods

To compare the agar and NHP data for the cortical and thalamic trials, we required a quantitative method that would take into account correlations between data points within a given trial, and also compare the different groups of trials. Additionally, we required a method that would not assume a fixed slope between the volume infused by the syringe and the measured bolus volume. To this end, we used a linear mixed-effects model with random slopes to fit each infusion trial, both in agar and in NHP data. All best-fit lines were restricted to passing through the origin (i.e., zero input volume and zero output volume). From this model, we calculated the interaction effect, which is an approximation of the difference in the average slope between the agar and NHP data. All linear mixed-effect model calculations were performed with MATLAB’s built-in “fitlme” function.
All other statistical calculations were performed in MATLAB except the average and percent error values of Table 4, which were performed in Excel (Microsoft Corp., Redmond, WA, USA).

3. Results

Some agar infusion trials were unsuccessful, and these failed trials were omitted from statistical analyses and reattempted. Failed trials may have been produced by reasons such as dye leaking out through the catheter adapter or damaged agar phantoms.

3.1. Cortical and Thalamic Infusions

We iteratively selected color components and threshold values to align the agar data with our previously published cortical [8] and thalamic [9] NHP data (Figure 4 and Figure 5, respectively). The green component and threshold value of 110 (43% of green component intensity range) were best for the thalamic infusions, and the blue component and threshold value of 67 (26% of blue component intensity range) were best for the cortical infusions.
When comparing the cortical agar data to the thalamic agar data, we observed that the agar and NHP best-fit slopes were similar (Figure 4 and Figure 5). The cortical NHP data had slopes ranging from 2.9–4.6 µL/µL, and the cortical agar data had a range of 2.7–4.8 µL/µL. Meanwhile, the thalamic NHP data had a range of 3.5–6.4 µL/µL and the thalamic agar data had a range of 2.6–4.4 µL/µL (Table 4). There is significant variation in the slopes of the best-fit lines of the agar infusion data; however, this variation reflects the variation in the NHP data (Figure 4B and Figure 5B).
We observed that a reduction of flow rate at the end of the cortical agar trials led to greater increase in bolus volume with respect to infused volume, i.e., the plots steepen near the end of the infusion protocol (Supplementary Figure S2). This is not characteristic of NHP cortical data, so we omitted the agar cortical data from 44 µL to 50 µL from statistical analysis and Figure 4 because it was not characteristic of NHP cortical data. Further descriptions may be found in the discussion (Section 4.4).
For the cortical and thalamic trials, we used a linear mixed-effects model with random slopes to fit each infusion trial, both in agar and in NHPs. This model produces an interaction effect of 1.1 and −0.5 for the cortical and thalamic infusions, respectively. These values are close to zero in comparison with the aforementioned ranges of the slopes, and these values have magnitudes less than the slope ranges, indicating that the agar and NHP data differ only mildly and that our agar phantom is a good representation of the NHP data for cortical and thalamic infusions.

3.2. MTL Infusions

Our MTL NHP data were highly variable, and upon analysis of the MRI scans, we observed that four of the nine infusions displayed a bolus in the MTL as expected (Figure 6A). We only modeled these four successful MTL NHP infusions and omitted the remaining five infusions, which are discussed below (Section 3.2.1).
Because the thalamic and MTL NHP infusions used similar cannulas and differed chiefly in the infused volume, we initially compared the thalamic agar bolus volumes with MTL NHP bolus volumes (Figure 6B). Counter to our expectations, the MTL NHP data did not align with either the thalamic NHP or agar data. We recognized that while the cortical and thalamic MRI scans were collected during CED infusion, the MTL MRI scans were collected the next day. Therefore, we reasoned that a CED-generated bolus may diffuse overnight and thus be displayed as a larger bolus in the NHP when MRI is performed the day after infusion. With this in mind, we proposed that the diffusion of food coloring in agar after a standard CED protocol would approximate our MTL data. We collected data following the end of 15 µL infusions into agar and observed that the agar data closely modeled the NHP data after approximately 29 min of diffusion following the completion of the infusion (Figure 7). We calculated the mean of the NHP infusion volumes and the mean of the agar infusion volumes selected approximately 29 min after infusion completion (Table 5), and report a 3.5% percent error between the two datasets. Given the biological context of our model, this error is small enough to safely conclude that 29 min of diffusion in our agar phantom, following CED, approximates the next-day MRI results of NHP MTL infusions.
The green component and threshold value of 100 (39% of green component intensity range) were best to model the MTL infusions. We used a t-test to compare the two NHP data points for the 15 µL infusions and two data points for the 20 µL infusions, and because the two populations were not statistically significant (p = 0.56), we pooled the four NHP data points for comparison with the agar data. Significant noise was observed in the MTL agar data, more so than in the cortical and thalamic agar infusions. The additional noise was possibly due to the smaller infusion volumes. We addressed the noise by fitting a line with linear regression to each agar infusion trial and removing data points greater than 1.1 times the corresponding value on the best-fit line.

3.2.1. MTL Data Omitted from Agar Modeling

Five of the nine NHP MTL infusions were excluded from the analysis since the next-day MRI did not confirm infusion into the MTL regions (Figure 6 and Supplementary Figure S3). These failed infusions mostly likely occurred due to the complex shapes of the hippocampus and neighboring structures, which contrast with the structures of the cortex and thalamus. In three of the five unsuccessful MTL cases, the boluses were very small, which suggested either puncturing into the hippocampal fissure, or infusing deep in the dentate gyrus, depending on the injection depth (Supplementary Figure S3). Penetration of the fissure resulted in contrast agent and virus partially escaping our injection target, indicative of unsuccessful CED. By contrast, deep dentate gyrus infusions were limited to a small portion of the hippocampus, limiting the amount of diffusion observed when compared to our gel model. In the remaining unsuccessful case, the bolus was very large and extended well outside of the volume of the hippocampus, indicating that the contrast agent refluxed along the track of the cannula (Supplementary Figure S3). We excluded these five unsuccessful MTL CED data points from our models, but these negative results are presented to highlight the value of in vivo verification of deep injection surgeries.

3.3. Histological Analysis

For cortical and thalamic infusions, the spread of the MR contrast agent modeled the volume of expression of the optogenetic viral vector, as previously analyzed and reported [8,9]. We used different constructs, including retrograde viruses, for our MTL infusions. Because of the variability of the resulting expression, further experiments using a single virus known to express well in these regions is necessary to confirm whether the next-day, Mn2+ MRI signal mirrors expression. Nevertheless, the Mn2+ MRI confirmed our targeting in vivo. Additionally, preliminary evidence from the successful local infection in case MTL4-L suggests a close match between Mn2+ signal and immunofluorescence (Figure 8).

4. Discussion

Targeted neural manipulations, such as those achieved via optogenetics, are revolutionary techniques for investigating circuit-level communication in the brain and have the potential to influence novel neurotherapeutic technologies in humans. NHPs are the keystone model for validating these techniques because of their similarity to humans, but they are a scarce resource that does not allow for experiments with many unknowns. As such, the risks associated with the viral infusions necessary for most genetic manipulations have led to a lack of uniformity in experimental design and much trepidation in engaging this type of research [29]. In this work, we developed a simple and efficient pipeline to ameliorate a number of these concerns. Our method improves upon past models [7,20,21] by quantitatively matching agar data with in vivo infusions of viral particles co-infused with MRI contrast agents, which serve as a proxy of the effective infusion volume. Further, we observe that certain contrast agents can signal the location of infusions up to 24 h post-infusion, which is a greater time delay for bolus localization than previously demonstrated [26]. Taken together, the methods presented here serve as an accessible and inexpensive protocol to plan the optimized spread of infusions bench-side and validate the spread and accuracy in vivo, significantly reducing the number of unknowns that hinder confidence during circuit-manipulation experiments. Our presented methods contribute to a body of work supporting large-scale optogenetics in NHPs [8,9,16,17,18,19,22,23,30,31,32,33,34,35,36,37,38,39].
Agar has been previously established as a model of intraparenchymal neural tissue and is now commonly used as a medium for simulating infusion procedures [7,20,21]. Our work builds on prior studies by presenting a data-driven method developed from in vivo results. To our knowledge, the model proposed here is the first to provide a quantitative method of fitting agar infusion data with NHP CED data collected with live MRI. Because of this, our model serves as a more accurate guide for selecting infusion parameters for future in vivo infusions targeting a wide array of brain areas when compared to other simulations.
Our work lends itself well to case-by-case methodological refinements: for example, researchers may consider alternative cannulas, infusion protocols, etc., to cater to their goals. Additionally, our method is designed to facilitate replication by other labs with its simplicity in both materials and methods. We also recognize that labs replicating our work are unlikely to implement agar infusion imaging setups identical to our own. With this in mind, we designed our image processing technique to be easily adaptable to different imaging setups. We provide NHP MRI bolus volume data (see Supplementary Materials) to which other labs may align their own agar infusion data, using our presented method. We have also made our custom code freely available (see Data Availability Statement), and the code is written in MATLAB, which is widely used by researchers and is straightforward to adapt for applications akin to ours.

4.1. Diversity of Modeled Structures

To maximize the flexibility in accurately predicting spread of CED infusions in a variety of brain areas, we used in vivo data from cortical, thalamic, and MTL infusions of viruses co-infused with MRI contrast agent. Our cortical and thalamic procedures, which represented shallow and deep infusions into large brain structures, utilized live MRI taken during surgery. In addition to the qualitative agreement between these infusion types, the ranges of MRI data best-fit slopes were similar (2.9–4.6 µL/µL for cortical and 3.5–6.4 µL/µL for thalamic), which suggested that the agar models for cortical and thalamic infusions may be similar as well. This proved to be the case. Despite differences in the cannula design, depth of insertion, and infusion protocol, the models for both cortical and thalamic CED were generated with our same presented method and aligned well with the in vivo data (agar model best-fit slopes were 2.7–4.8 µL for cortical and 2.6–4.4 µL/µL for thalamic). The cortical and thalamic models did differ in the parameters used during image processing (cortical: blue component, threshold = 67; thalamic: green component, threshold = 110), but this demonstrates that our method is robust to variations in agar infusion processes. Our successful MTL cases differed from the previous two conditions and represented infusions into more limited and more difficult to access deep structures. Additionally, they differed in their post-operative MRIs in that scans were taken ~20 h after infusion. We found that our initial hypothesis of these data aligning to the thalamic cases was invalidated. However, after accounting for diffusion expected from the delay in imaging, our model successfully aligned to all three conditions.

4.2. Insights from MTL Infusions

Because of its unfurled shape in primates compared to rodents [40], standard injections into the NHP hippocampus are laborious and often require either multiple craniotomies and penetrations [41], or penetrating through the long-axis of the structure and periodically injecting while retracting [42] to try and maximize coverage. To inject into this structure more efficiently, we leveraged the unique ability of CED to deliver a large bolus with a single infusion in our MTL CED group, which, to our knowledge, is the first set of CED infusions delivered to this area in NHPs. Because of the exploratory nature of these experiments, we experienced challenges that made delivery into this structure and subsequent imaging of our contrast agents more difficult. Infusion MTL2-L was a case of mass reflux due to an error made during the infusion delivery. MTL3-R and MTL4-R represent issues in targeting. Because much of the hippocampus is separated from the rest of the brain by ventricular spaces except laterally, targets made too shallow or too deep will leak into those spaces and either dissipate away or reflux upwards. For similar reasons, posterior–medial injections—for example, targeting the intermediate dentate gyrus—produced more isolated boluses (cases MTL4-L, MTL5-R). Our successful cases were qualitatively similar to our cortical and thalamic data because they were delivered to larger, more anterior regions in the genu of the hippocampus, or to large neighboring regions such as the entorhinal cortex or tail of the caudate nucleus. For areas such as MTL, where targeting needs to be very precise, we strongly recommend the use of MRI validation of injection either during infusion or the next day.

4.3. MRI Scan Parameters for Successful Contrast Label Visualization

Our novel MTL infusions were also the first to utilize co-infused manganese to localize viral infusions in MRI scans acquired ~20 h post-operatively. Despite the differences in the employed contrast agent, scan acquisition timing, and even the scanner used between this group and our cortical and thalamic infusions, we observed a few similar parameters for successful contrast imaging in all MRI scans for all groups. Specifically, all scans were T1-weighted scans with a repetition time/echo time ratio around 2 to 3 and flip angles from 9 to 30 degrees. Analysis of other studies employing similar manganese-enhanced MRI protocols either to image viral injections delivered at shorter delays [26] or at much longer delays for in vivo tract tracing [43] also closely mirrored the majority of the parameters used in these experiments, suggesting a range of optimized parameters for imaging T1-weighted MRI contrast agents.

4.4. Diffusion versus Convection Using Agar

It is important to note that while agar is a good model of CED, agar’s rate of diffusion differs from the rate of diffusion in the brain. This factor became apparent when we observed that a reduction of flow rate at the end of the cortical agar trials led to a greater increase in the bolus volume with respect to the infused volume, i.e., the plots steepen near the end of the infusion protocol (Supplementary Figure S2). This is consistent with our observation that diffusion will continue to cause the bolus to grow in agar after the end of our infusion trials. With this in mind, we concluded that diffusion and convection both contribute to bolus size in agar to varying degrees during CED. However, we propose the relative contributions of diffusion and convection were skewed when the flow rate was reduced at the end of the protocol, thus allowing diffusion to contribute more heavily to the bolus size in the agar. To prevent the best-fit lines of the cortical agar data from being skewed due to this effect, we omitted the data from 44 µL to 50 µL from the statistical analysis and Figure 4. This effect was not observed in the thalamic agar infusions, likely due to the lower maximum rate of infusion (3 µL for the thalamic agar protocol, as contrasted with 5 µL for the cortical agar protocol) in conjunction with the short duration of infusion at the lower rates and small amount of volume infused during the flow rate reduction at the end of the protocol. This effect was not observed in the in vivo cortical or thalamic injections collected with live MRI. We observed diffusion in our in vivo MTL data, but the data were collected with our next-day imaging technique, thus allowing sufficient time for diffusion. We show that MTL next-day imaging data can be modeled with our agar phantom when we allow 29 min of diffusion following the end of the infusion protocol. This highlights that the speed of diffusion in agar differs from that of the brain. This is also in agreement with our observation that the cortical and thalamic NHP data collected with live MRI did not exhibit high levels of diffusion at the end of the protocols, in contrast to the cortical agar data.

4.5. Technical Considerations

We encountered some issues during the agar infusions. The most common issues faced when refining the infusion techniques were damaging the agar during its extraction from the mold, such that no smooth surface was available for imaging, and reflux of the dye during the infusion. While the agar preparation became more efficient with practice, we suggest that custom, flexible silicone molds be considered in lieu of our 3D-printed molds to more easily produce undamaged agar phantoms. Reflux issues can arise in agar, neural tissue, and other media and are less easily mitigated because the cause of reflux is not always obvious. In some cases, the reflux may be related to the quality of the seal between the media and cannula, which is difficult to assess visually even in transparent media such as agar. Additionally, we hypothesize that, in some cases, the cannula becomes clogged with the media during insertion. To address this potential issue, we suggest a low flow rate during insertion to avoid clogging.
As previously mentioned, the agar data are aligned with the in vivo MRI data with an iterative process of parameter selection. The iterative alignment process allows researchers to fine tune their image processing parameters to overcome potential differences in lighting, camera placement, etc. While our agar image processing techniques are effective, we acknowledge that software refinements may be attained. Our process is currently semi-automated, yet we expect it could be more fully automated in future work. Improvement opportunities may also exist in the refinement of our volume estimation formula, and the characterization of the bolus shape.

4.6. Ethical Considerations

Despite the limitations presented, our methods will allow for the development of more efficient and effective CED procedures. We can inexpensively plan the expected spread of our infusions with our data-driven model and validate our surgical targeting rapidly without the need to perform infusions in an MRI scanner. Critically, our method is not only quantitative and data-based, but also designed to aid surgical planning with its visual, hands-on nature. Our bench-side modeling technique serves to increase the likelihood of success in NHP CED experiments, thus refining animal research processes and reducing the number of animals required for experimentation, both of which are key ethical considerations in animal research and included in the 3Rs [44]. Our model was capable of simulating both cortical and deep infusions (limitations discussed above). Because of this, our method provides a generalized surgical preparation technique to all researchers regardless of region of interest, and particularly to research groups that do not have the facilities or resources required to perform live MRI during CED infusions. Our novel next-day MRI data additionally serve to showcase a post hoc infusion confirmation method that improves upon previous work [26] to highlight the verification of infusion placement ~20 h post-operatively. This method supplements our proposed modeling technique and is a welcome alternative to live MRI, which requires specialized equipment and facilities often unavailable to researchers. In sum, we propose our method as an additional way of applying the principles of replacement, reduction, and refinement (3Rs) to injections in NHPs [44,45]. We recommend NHP CED infusions be modeled in advance of surgery with our proposed method to reduce the number of animals, replace an excess of pilot procedures with artificial simulations, and refine the overall technique to reduce harm. We also suggest the results be confirmed after surgery with MRI if live MRI is not feasible during infusion. Finally, our work is designed to be highly flexible. While our methods are specifically prepared for NHP experiments involving optogenetic actuators, we expect that our method would also be generally effective for modeling the CED of optogenetic sensors, pharmaceutical compounds, and other therapeutic agents in large brains.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics14071435/s1. We provide three supplementary figures and a CSV file of the MRI data points.

Author Contributions

Conceptualization, E.A.B. and A.Y.-S.; methodology, D.J.G., A.D.G., W.Y.A., W.K.S.O., A.G.J., E.A.B. and A.Y.-S.; software, D.J.G., A.D.G., W.Y.A. and W.K.S.O.; validation, D.J.G. and A.D.G.; formal analysis, D.J.G., W.Y.A., W.K.S.O. and A.Y.-S.; investigation, D.J.G., A.D.G., W.Y.A., W.K.S.O., A.G.J., E.A.B. and A.Y.-S.; resources, E.A.B., A.Y.-S. and J.T.T.; data curation, D.J.G., A.D.G., W.Y.A., W.K.S.O., A.Y.-S. and A.G.J.; writing—original draft preparation, D.J.G., A.D.G., W.Y.A. and W.K.S.O.; writing—review and editing, D.J.G., A.D.G., W.Y.A., W.K.S.O., A.G.J., E.A.B. and A.Y.-S.; visualization, D.J.G., A.D.G., W.Y.A., E.A.B. and A.Y.-S.; supervision, E.A.B. and A.Y.-S.; project administration, E.A.B. and A.Y.-S.; funding acquisition, E.A.B. and A.Y.-S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science Foundation Graduate Research Fellowship Program (#1762114, A.D.G.), the National Institutes for Health (NS107609, A.D.G. and E.A.B.; P51 OD010425, all authors; R01 NS119395, D.J.G. and A.Y.; R01 NS116464-01, A.Y.), the University of Washington Mary Gates Research Scholarship (W.Y.A., W.K.S.O.), and the Center for Neurotechnology (CNT, a National Science Foundation Engineering Research Center, EEC-1028725, A.G.J., D.J.G).

Institutional Review Board Statement

All animal care and experiments performed at the University of Washington were approved by the University of Washington’s Office of Animal Welfare, the Institutional Animal Care and Use Committee (IACUC protocol information for animals MTL1-5: project identification code: 4316-01, approval date: 1 July 2013), and the Washington National Primate Research Center (WaNPRC). All animal care and experiments performed at the University of California, San Francisco, were performed under the approval of the University of California, San Francisco Institutional Animal Care and Use Committee (IACUC protocol information for animals C1, C2, CT, T1, and T2: approval number: AN080609-03D, approval date: 6 September 2011) and were compliant with the Guide for the Care and Use of Laboratory Animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

MRI files, agar data, and histological data will be made available upon reasonable request. MATLAB code has been made publicly available: https://bitbucket.org/yazdanlab/ced_protocol_and_analysis/src/master/, accessed on 7 July 2022.

Acknowledgments

We would like to thank all of the staff from the University of Washington, Seattle, and University of California, San Francisco, who provided animal care and surgical support. We thank Sabes lab for use of their previously published data. We thank Spencer Hansen, Serge Aleshin-Guendel, and Tianyu Zhang for their help with statistical analyses. We thank the Viral Technology team at the Allen Institute for Brain Science, Ximena Opitz Araya, Shane Gibson, and Greg Horwitz for assistance with virus production. Finally, we thank Toni Haun, Karam Khateeb, and Megan L. Jutras for their technical help.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boyden, E.S.; Zhang, F.; Bamberg, E.; Nagel, G.; Deisseroth, K. Millisecond-timescale, genetically targeted optical control of neural activity. Nat. Neurosci. 2005, 8, 1263–1268. [Google Scholar] [CrossRef] [PubMed]
  2. Yizhar, O.; Fenno, L.E.; Davidson, T.J.; Mogri, M.; Deisseroth, K. Optogenetics in neural systems. Neuron 2011, 71, 9–34. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Ting, J.T.; Feng, G. Recombineering strategies for developing next generation BAC transgenic tools for optogenetics and beyond. Front. Behav. Neurosci. 2014, 8, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Mehta, A.M.; Sonabend, A.M.; Bruce, J.N. Convection-Enhanced Delivery. Neurotherapeutics 2017, 14, 358–371. [Google Scholar] [CrossRef] [Green Version]
  5. René, C.A.; Parks, R.J. Delivery of therapeutic agents to the central nervous system and the promise of extracellular vesicles. Pharmaceutics 2021, 13, 492. [Google Scholar] [CrossRef]
  6. Bobo, R.H.; Laske, D.W.; Akbasak, A.; Morrison, P.F.; Dedrick, R.L.; Oldfield, E.H. Convection-enhanced delivery of macromolecules in the brain. Proc. Natl. Acad. Sci. USA 1994, 91, 2076–2080. [Google Scholar] [CrossRef] [Green Version]
  7. Krauze, M.T.; Saito, R.; Noble, C.; Tamas, M.; Bringas, J.; Park, J.W.; Berger, M.S.; Bankiewicz, K. Reflux-free cannula for convection-enhanced high-speed delivery of therapeutic agents. J. Neurosurg. 2005, 103, 923–929. [Google Scholar] [CrossRef] [Green Version]
  8. Yazdan-Shahmorad, A.; Diaz-Botia, C.; Hanson, T.L.; Kharazia, V.; Ledochowitsch, P.; Maharbiz, M.M.; Sabes, P.N. “A Large-Scale Interface for Optogenetic Stimulation and Recording in Nonhuman Primates. Neuron 2016, 89, 927–939. [Google Scholar] [CrossRef] [Green Version]
  9. Yazdan-Shahmorad, A.; Tian, N.; Kharazia, V.; Samaranch, L.; Kells, A.; Bringas, J.; He, J.; Bankiewicz, K.; Sabes, P.N. Widespread optogenetic expression in macaque cortex obtained with MR-guided, convection enhanced delivery (CED) of AAV vector to the thalamus. J. Neurosci. Methods 2018, 293, 347–358. [Google Scholar] [CrossRef]
  10. Lieberman, D.M.; Laske, D.W.; Morrison, P.F.; Bankiewicz, K.S.; Oldfield, E.H. Convection-enhanced distribution of large molecules in gray matter during interstitial drug infusion. J. Neurosurg. 1995, 82, 1021–1029. [Google Scholar] [CrossRef]
  11. Lonser, R.R.; Gogate, N.; Morrison, P.F.; Wood, J.D.; Oldfield, E.H. Direct convective delivery of macromolecules to the spinal cord. J. Neurosurg. 1998, 89, 616–622. [Google Scholar] [CrossRef] [PubMed]
  12. Lonser, R.R.; Walbridge, S.; Garmestani, K.; Butman, J.A.; Walters, H.A.; Vortmeyer, O.; Morrison, P.F.; Brechbiel, M.W.; Oldfield, E.H. Successful and safe perfusion of the primate brainstem: In vivo magnetic resonance imaging of macromolecular distribution during infusion. J. Neurosurg. 2002, 97, 905–913. [Google Scholar] [CrossRef] [PubMed]
  13. Sanftner, L.M.; Sommer, J.M.; Suzuki, B.M.; Smith, P.H.; Vijay, S.; Vargas, J.A.; Forsayeth, J.R.; Cunningham, J.; Bankiewicz, K.S.; Kao, H.; et al. AAV2-mediated gene delivery to monkey putamen: Evaluation of an infusion device and delivery parameters. Exp. Neurol. 2005, 194, 476–483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Szerlip, N.J.; Walbridge, S.; Yang, L.; Morrison, P.F.; Degen, J.W.; Jarrell, S.T.; Kouri, J.; Kerr, P.B.; Kotin, R.; Oldfield, E.H.; et al. Real-time imaging of convection-enhanced delivery of viruses and virus-sized particles. J. Neurosurg. 2007, 107, 560–567. [Google Scholar] [CrossRef] [Green Version]
  15. Kells, A.P.; Hadaczek, P.; Yin, D.; Bringas, J.; Varenika, V.; Forsayeth, J.; Bankiewicz, K.S. Efficient gene therapy-based method for the delivery of therapeutics to primate cortex. Proc. Natl. Acad. Sci. USA 2009, 106, 2407–2411. [Google Scholar] [CrossRef] [Green Version]
  16. Yazdan-Shahmorad, A.; Diaz-Botia, C.; Hanson, T.; Ledochowitsch, P.; Maharabiz, M.M.; Sabes, P.N. Demonstration of a setup for chronic optogenetic stimulation and recording across cortical areas in non-human primates. SPIE BiOS 2015, 9305, 231–236. [Google Scholar] [CrossRef]
  17. Macknik, S.L.; Alexander, R.G.; Caballero, O.; Chanovas, J.; Nielsen, K.J.; Nishimura, N.; Schaffer, C.B.; Slovin, H.; Babayoff, A.; Barak, R.; et al. Advanced Circuit and Cellular Imaging Methods in Nonhuman Primates. J. Neurosci. 2019, 39, 8267–8274. [Google Scholar] [CrossRef]
  18. Khateeb, K.; Griggs, D.J.; Sabes, P.N.; Yazdan-Shahmorad, A. Convection Enhanced Delivery of Optogenetic Adeno-associated Viral Vector to the Cortex of Rhesus Macaque Under Guidance of Online MRI Images. J. Vis. Exp. 2019, 147, e59232. [Google Scholar] [CrossRef] [Green Version]
  19. Ojemann, W.K.; Griggs, D.J.; Ip, Z.; Caballero, O.; Jahanian, H.; Martinez-Conde, S.; Macknik, S.; Yazdan-Shahmorad, A. A mri-based toolbox for neurosurgical planning in nonhuman primates. J. Vis. Exp. 2020, 2020, e61098. [Google Scholar] [CrossRef]
  20. Chen, Z.J.; Gillies, G.T.; Broaddus, W.C.; Prabhu, S.S.; Fillmore, H.; Mitchell, R.M.; Corwin, F.D.; Fatouros, P.P. A realistic brain tissue phantom for intraparenchymal infusion studies. J. Neurosurg. 2004, 101, 314–322. [Google Scholar] [CrossRef]
  21. Pomfret, R.; Miranpuri, G.; Sillay, K. The substitute brain and the potential of the gel model. Ann. Neurosci. 2013, 20, 118–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Yazdan-Shahmorad, A.; Silversmith, D.B.; Kharazia, V.; Sabes, P.N. Targeted cortical reorganization using optogenetics in non-human primates. eLife 2018, 7, e31034. [Google Scholar] [CrossRef]
  23. Yazdan-Shahmorad, A.; Hanson, T.; Tian, N.; He, J.; Sabes, P. A novel technique for infusion of optogenetics viral vectors in nonhuman primates (NHPs) cortex using MR-guided convection enhanced delivery (CED). In Proceedings of the 6th International IEEE/EMBS Conference on Neural Engineering (NER), San Diego, CA, USA, 6–8 November 2013; pp. 5–8. [Google Scholar]
  24. Klapoetke, N.C.; Murata, Y.; Kim, S.S.; Pulver, S.R.; Birdsey-Benson, A.; Cho, Y.K.; Morimoto, T.K.; Chuong, A.S.; Carpenter, E.J.; Tian, Z.; et al. Independent optical excitation of distinct neural populations. Nat. Methods 2014, 11, 338–346. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Mao, T.; Kusefoglu, D.; Hooks, B.M.; Huber, D.; Petreanu, L.; Svoboda, K. Long-Range Neuronal Circuits Underlying the Interaction between Sensory and Motor Cortex. Neuron 2011, 72, 111–123. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Fredericks, J.M.; Dash, K.E.; Jaskot, E.M.; Bennett, T.W.; Lerchner, W.; Dold, G.; Ide, D.; Cummins, A.C.; Der Minassian, V.H.; Turchi, J.N.; et al. Methods for mechanical delivery of viral vectors into rhesus monkey brain. J. Neurosci. Methods 2020, 339, 108730. [Google Scholar] [CrossRef]
  27. Prezelski, K.; Keiser, M.; Stein, J.M.; Lucas, T.H.; Davidson, B.; Gonzalez-Alegre, P.; Vitale, F. Design and Validation of a Multi-Point Injection Technology for MR-Guided Convection Enhanced Delivery in the Brain. Front. Med. Technol. 2021, 3, 1–12. [Google Scholar] [CrossRef]
  28. Seunguk, O.H.; Odland, R.; Wilson, S.R.; Kroeger, K.M.; Liu, C.; Lowenstein, P.R.; Castro, M.G.; Hall, W.A.; Ohlfest, J.R. “Improved distribution of small molecules and viral vectors in the murine brain using a hollow fiber catheter. J. Neurosurg. 2007, 107, 568–577. [Google Scholar] [CrossRef]
  29. Tremblay, S.; Acker, L.; Afraz, A.; Albaugh, D.L.; Amita, H.; Andrei, A.R.; Angelucci, A.; Aschner, A.; Balan, P.F.; Basso, M.A.; et al. An Open Resource for Non-human Primate Optogenetics. Neuron 2020, 108, 1075–1090. [Google Scholar] [CrossRef]
  30. Belloir, T.; Montalgo Vargo, S.; Ahmed, Z.; Griggs, D.; Fisher, S.; Brown, T.; Chamanzar, M.; Yazdan-Shahmorad, A. Large-scale multimodal surface neural interfaces for non-human primates. iScience. under revision.
  31. Bloch, J.; Shea-brown, E.; Harchaoui, Z.; Shojai, A. E Network structure mediates functional reorganization induced by optogenetic stimulation of non-human primate sensorimotor cortex. iScience 2022, 25, 104285. [Google Scholar] [CrossRef]
  32. Griggs, D.J.; Belloir, T.; Yazdan-Shahmorad, A. Large-scale neural interfaces for optogenetic actuators and sensors in non-human primates. SPIE BiOS 2021, 1166305, 17. [Google Scholar] [CrossRef]
  33. Griggs, D.J.; Bloch, J.; Fisher, S.; Ojemann, W.K.S.; Coubrough, K.M.; Khateeb, K.; Chu, M.; Yazdan-Shahmorad, A. Demonstration of an Optimized Large-scale Optogenetic Cortical Interface for Non-human Primates. IEEE EMBC 2022, 119395, 7–15. [Google Scholar]
  34. Griggs, D.J.; Khateeb, K.; Philips, S.; Chan, J.W.; Ojemann, W.K.S.; Yazdan-Shahmorad, A. Optimized large-scale optogenetic interface for non-human primates. SPIE BiOS 2019, 1086605, 3. [Google Scholar] [CrossRef]
  35. Griggs, D.J.; Khateeb, K.; Zhou, J.; Liu, T.; Wang, R.; Yazdan-Shahmorad, A. Multi-modal artificial dura for simultaneous large-scale optical access and large-scale electrophysiology in non-human primate cortex. J. Neural Eng. 2021, 18, 055006. [Google Scholar] [CrossRef]
  36. Komatsu, M.; Sugano, E.; Tomita, H.; Fujii, N. A chronically implantable bidirectional neural interface for non-human primates. Front. Neurosci. 2017, 11, 514. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Ledochowitsch, P.; Yazdan-Shahmorad, A.; Bouchard, K.E.; Diaz-Botia, C.; Hanson, T.L.; He, J.W.; Seybold, B.A.; Olivero, E.; Phillips, E.A.; Blanche, T.J.; et al. Strategies for optical control and simultaneous electrical readout of extended cortical circuits. J. Neurosci. Methods 2015, 256, 220–231. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Rajalingham, R.; Sorenson, M.; Azadi, R.; Bohn, S.; DiCarlo, J.J.; Afraz, A. Chronically implantable LED arrays for behavioral optogenetics in primates. Nat. Methods 2021, 18, 1112–1116. [Google Scholar] [CrossRef]
  39. Yazdan-Shahmorad, A.; Silversmith, D.B.; Sabes, P.N. Novel techniques for large-scale manipulations of cortical networks in non-human primates. In Proceedings of the 40th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), Honolulu, HI, USA, 17–21 July 2018; pp. 5479–5482. [Google Scholar] [CrossRef]
  40. Strange, B.A.; Witter, M.P.; Lein, E.S.; Moser, E.I. Functional organization of the hippocampal longitudinal axis. Nat. Rev. Neurosci. 2014, 15, 655–669. [Google Scholar] [CrossRef] [Green Version]
  41. Zola, S.M.; Squire, L.R.; Teng, E.; Stefanacci, L.; Buffalo, E.A.; Clark, R.E. Impaired recognition memory in monkeys after damage limited to the hippocampal region. J. Neurosci. 2000, 20, 451–463. [Google Scholar] [CrossRef] [Green Version]
  42. Hampton, R.R.; Buckmaster, C.A.; Anuszkiewicz-Lundgren, D.; Murray, E.A. Method for making selective lesions of the hippocampus in Macaque monkeys using NMDA and a longitudinal surgical approach. Hippocampus 2004, 14, 9–18. [Google Scholar] [CrossRef]
  43. Simmons, J.M.; Saad, Z.S.; Lizak, M.J.; Ortiz, M.; Koretsky, A.P.; Richmond, B.J. Mapping prefrontal circuits in vivo with manganese-enhanced magnetic resonance imaging in monkeys. J. Neurosci. 2008, 28, 7637–7647. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Russell, W.; Burch, R. The Principles of Humane Experimental Technique; Methuen: London, UK, 1959. [Google Scholar]
  45. Prescott, M.J.; Poirier, C. The role of MRI in applying the 3Rs to non-human primate neuroscience. Neuroimage 2021, 225, 117521. [Google Scholar] [CrossRef] [PubMed]
Pharmaceutics 14 01435 g001 550

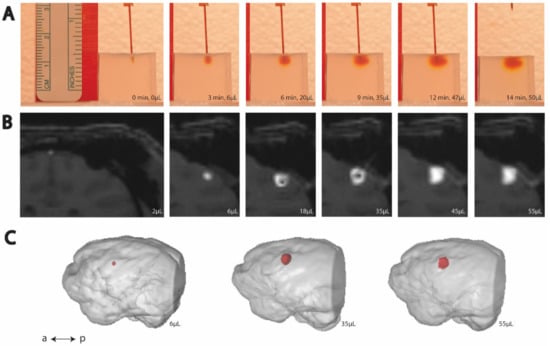

Figure 1. Time-lapse (left to right) of cortical CED. (A) Example trial of CED in agar phantom. (B) Example MRI visualization of CED in an NHP. (C) Post hoc reconstruction of NHP brain (gray) and infusion volume (red).
Figure 1. Time-lapse (left to right) of cortical CED. (A) Example trial of CED in agar phantom. (B) Example MRI visualization of CED in an NHP. (C) Post hoc reconstruction of NHP brain (gray) and infusion volume (red).
Pharmaceutics 14 01435 g001
Pharmaceutics 14 01435 g002 550

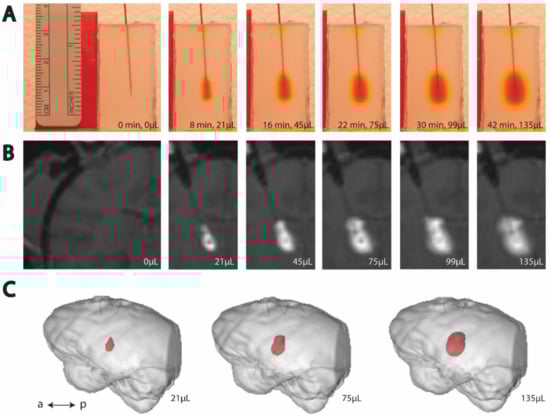

Figure 2. Time-lapse (left to right) of thalamic CED. (A) Example trial of CED in agar phantom. (B) Example MRI visualization of CED in an NHP. (C) Post hoc reconstruction of NHP brain (gray) and infusion volume (red).
Figure 2. Time-lapse (left to right) of thalamic CED. (A) Example trial of CED in agar phantom. (B) Example MRI visualization of CED in an NHP. (C) Post hoc reconstruction of NHP brain (gray) and infusion volume (red).
Pharmaceutics 14 01435 g002
Pharmaceutics 14 01435 g003 550

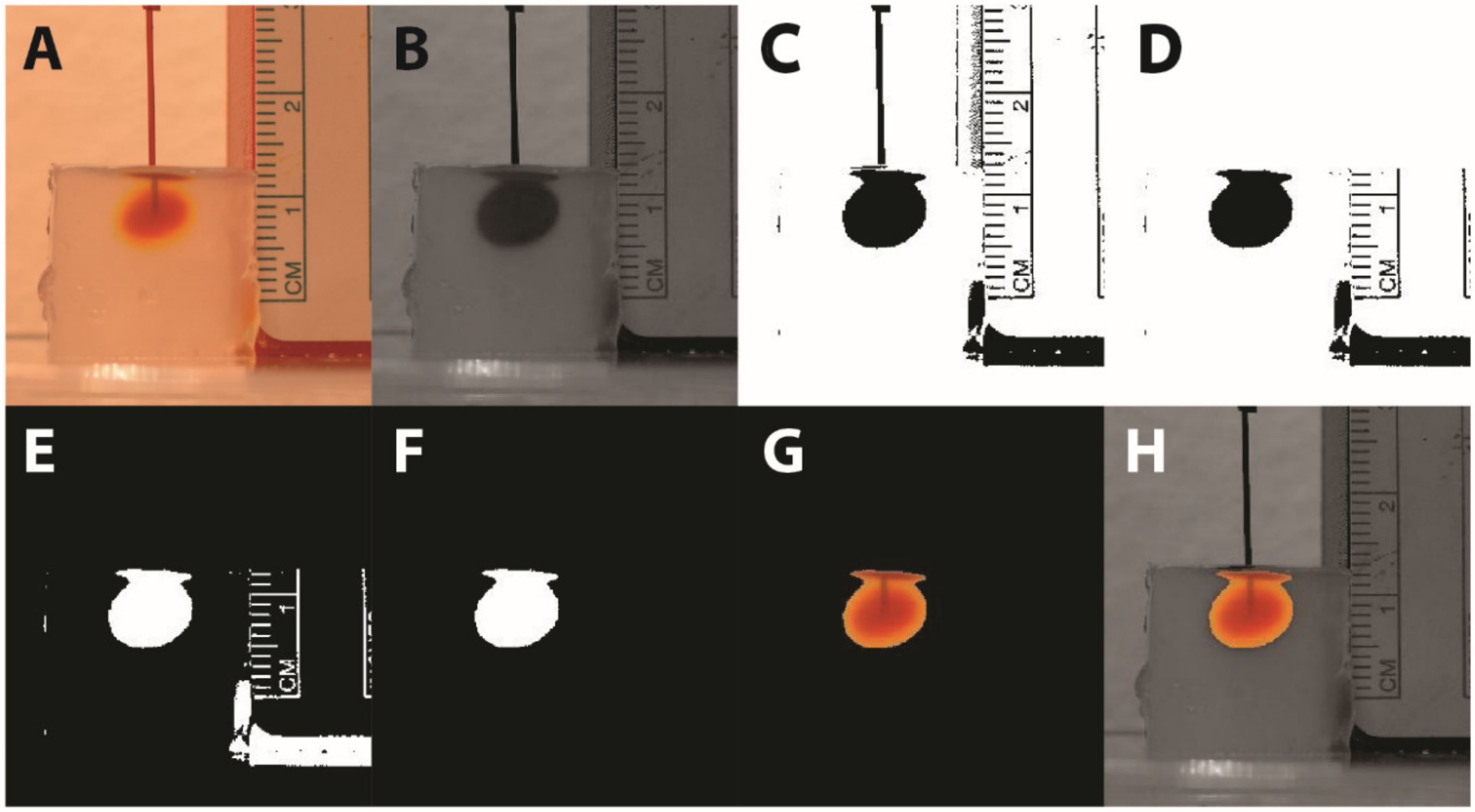

Figure 3. Image processing algorithm. (A) Original color image. (B) Single-color component image. (C) Thresholded image. (D) Cannula erasure. (E) Binary inversion. (F) Deletion of all non-bolus pixels. This is the final image used for volume calculation. (G) Color image of bolus overlaid on final image for user reference. (H) Color image of bolus overlaid on the single-color component image for user reference.
Figure 3. Image processing algorithm. (A) Original color image. (B) Single-color component image. (C) Thresholded image. (D) Cannula erasure. (E) Binary inversion. (F) Deletion of all non-bolus pixels. This is the final image used for volume calculation. (G) Color image of bolus overlaid on final image for user reference. (H) Color image of bolus overlaid on the single-color component image for user reference.
Pharmaceutics 14 01435 g003
Pharmaceutics 14 01435 g004 550

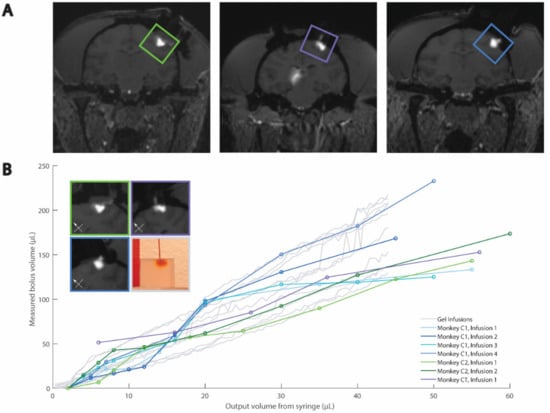

Figure 4. Comparison of agar and MRI cortical CED. (A) Example MRIs of cortical infusions. (B) Quantitative and example qualitative (inset) comparisons of agar and NHP data. Box colors in inset relate to images in (A) and traces in (B). Reprinted/adapted with permission from Ref. [8]. Copyright 2016, Neuron.
Figure 4. Comparison of agar and MRI cortical CED. (A) Example MRIs of cortical infusions. (B) Quantitative and example qualitative (inset) comparisons of agar and NHP data. Box colors in inset relate to images in (A) and traces in (B). Reprinted/adapted with permission from Ref. [8]. Copyright 2016, Neuron.
Pharmaceutics 14 01435 g004
Pharmaceutics 14 01435 g005 550

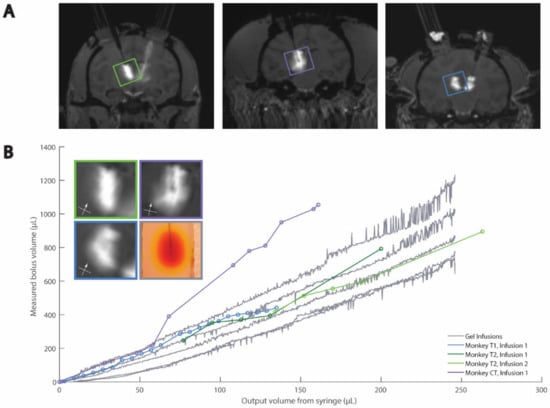

Figure 5. Comparison of agar and MRI thalamic CED. (A) Example MRIs of cortical infusions. (B) Quantitative and example qualitative (inset) comparisons of agar and NHP data. Box colors in inset relate to images in (A) and traces in (B). Reprinted/adapted with permission from Ref. [9]. Copyright 2018, Journal of Neuroscience Methods.
Figure 5. Comparison of agar and MRI thalamic CED. (A) Example MRIs of cortical infusions. (B) Quantitative and example qualitative (inset) comparisons of agar and NHP data. Box colors in inset relate to images in (A) and traces in (B). Reprinted/adapted with permission from Ref. [9]. Copyright 2018, Journal of Neuroscience Methods.
Pharmaceutics 14 01435 g005
Pharmaceutics 14 01435 g006 550

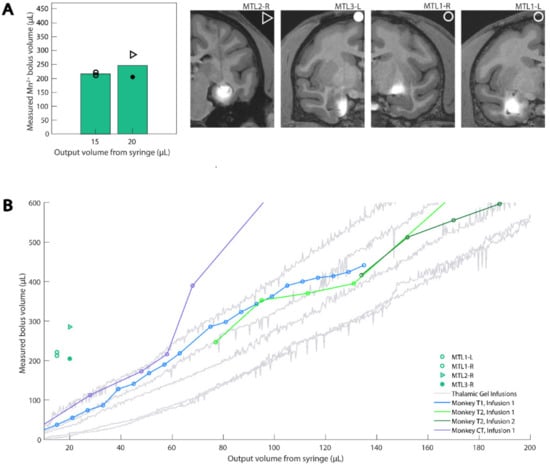

Figure 6. MTL MRI data compared with both agar and MRI thalamic data. (A) Deep CED infusions were made into the hippocampus, entorhinal cortex, and the tail of the caudate nucleus. Bar plots show the mean value of measured Mn2+ bolus seen in next-day, post-operative MRIs, with individual data points overlaid. Corresponding MRI slices in the coronal plane are shown for infusions into deep brain areas, which are visually similar to cortical and thalamic data. Shape labels correspond to each subject contributing to the data. (B) MTL MRI data compared with both agar and MRI thalamic data. Reprinted/adapted with permission from Ref. [9]. Copyright 2018, Journal of Neuroscience Methods.
Figure 6. MTL MRI data compared with both agar and MRI thalamic data. (A) Deep CED infusions were made into the hippocampus, entorhinal cortex, and the tail of the caudate nucleus. Bar plots show the mean value of measured Mn2+ bolus seen in next-day, post-operative MRIs, with individual data points overlaid. Corresponding MRI slices in the coronal plane are shown for infusions into deep brain areas, which are visually similar to cortical and thalamic data. Shape labels correspond to each subject contributing to the data. (B) MTL MRI data compared with both agar and MRI thalamic data. Reprinted/adapted with permission from Ref. [9]. Copyright 2018, Journal of Neuroscience Methods.
Pharmaceutics 14 01435 g006
Pharmaceutics 14 01435 g007 550

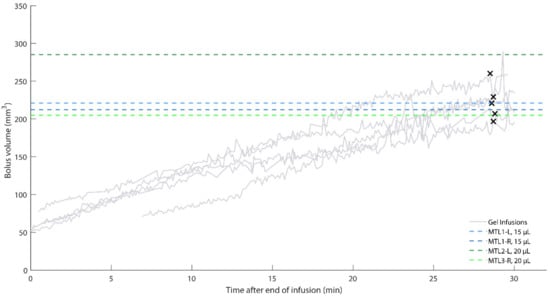

Figure 7. MTL MRI data compared with MTL agar data after CED completion. Some trials lack data early in the diffusion process due to the bolus being difficult to identify. Black Xs indicate the final point used for statistical analysis from each agar trial. The final chosen points may be shifted slightly to avoid noise spikes. All agar infusions were 15 µL.
Figure 7. MTL MRI data compared with MTL agar data after CED completion. Some trials lack data early in the diffusion process due to the bolus being difficult to identify. Black Xs indicate the final point used for statistical analysis from each agar trial. The final chosen points may be shifted slightly to avoid noise spikes. All agar infusions were 15 µL.
Pharmaceutics 14 01435 g007
Pharmaceutics 14 01435 g008 550
Figure 8. Comparison of Mn2+ MRI signal (left) and local expression of virus (right) after a hippocampal injection in case MTL4-L. Right-imaged region highlighted with red square in MRI (left). Our virus used a GABA-specific enhancer to selectively target interneurons, as evidenced by a lack of red pyramidal cell body labeling in CA3 and granule cell body labeling in the dentate gyrus (DG). We tagged infected interneurons and associated fibers with red-shifted fluorophores (anti-EYFP, ThermoFisher, Waltham, MA, USA) and cell bodies were non-selectively labeled using a DAPI stain (ThermoFisher, Waltham, MA, USA). (Viral construct CN1760: trAAV-3xhI56i(core)-minBG-ChR2(CRC)-EYFP-WPRE3-BGHpA (Paul Allen Institute, Seattle, WA., USA)).
Figure 8. Comparison of Mn2+ MRI signal (left) and local expression of virus (right) after a hippocampal injection in case MTL4-L. Right-imaged region highlighted with red square in MRI (left). Our virus used a GABA-specific enhancer to selectively target interneurons, as evidenced by a lack of red pyramidal cell body labeling in CA3 and granule cell body labeling in the dentate gyrus (DG). We tagged infected interneurons and associated fibers with red-shifted fluorophores (anti-EYFP, ThermoFisher, Waltham, MA, USA) and cell bodies were non-selectively labeled using a DAPI stain (ThermoFisher, Waltham, MA, USA). (Viral construct CN1760: trAAV-3xhI56i(core)-minBG-ChR2(CRC)-EYFP-WPRE3-BGHpA (Paul Allen Institute, Seattle, WA., USA)).
Pharmaceutics 14 01435 g008
Table
Table 1. NHP and surgical data. NHPs are named for their infusion location(s). Medial temporal lobe and caudate nucleus (MTL). Hippocampus (HPC). Entorhinal cortex (EC), Tail of Caudate Nucleus (C).
Table 1. NHP and surgical data. NHPs are named for their infusion location(s). Medial temporal lobe and caudate nucleus (MTL). Hippocampus (HPC). Entorhinal cortex (EC), Tail of Caudate Nucleus (C).
NHP NameC1C2CTT1T2MTL1MTL2MTL3MTL4MTL5
Infusion TargetCortexCortex, ThalamusThalamusMTL
(HPC+C)		MTL
(EC)		MTL
(HPC+C)		MTL
(HPC)
NHP VarietyRhesus MacaquePigtail Macaque
SexMMMFFFFFMM
Age (y)78891189885
Weight (kg)16.517.58.77.56.58.26.45.78.887.2
Cannula Step Tip Length (mm)11 (Cortex) and 3 (Thalamus)3
Left Hemisphere Infusions (µL)50, 50, 50, 5050, 50, 50, 5050
(Cortex)		140, 120115, 85152010, 1015N/A
Right Hemisphere Infusions (µL)--246
(Thalamus)		152, 111-152010, 101520
Contrast AgentGadoteridolManganese
MRI TimingLiveLive
(2 infusions)		LiveNext-day
InstitutionUniversity of California, San FranciscoUniversity of Washington, Seattle
NHP AliasMonkey J [8]Monkey G [8]NHP-H
[9,23]		NHP-A [9]NHP-B [9]N/A
Table
Table 2. Virus information. S1 (primary sensorimotor cortex), M1 (primary motor cortex), AT (anterior thalamus), MT (medial thalamus), PT (posterior thalamus), HPC (hippocampus), C (tail of caudate nucleus), EC (entorhinal cortex). vm/mL (virus molecules per milliliter).
Table 2. Virus information. S1 (primary sensorimotor cortex), M1 (primary motor cortex), AT (anterior thalamus), MT (medial thalamus), PT (posterior thalamus), HPC (hippocampus), C (tail of caudate nucleus), EC (entorhinal cortex). vm/mL (virus molecules per milliliter).
Animal NameC1C2CTT1T2MTL1MTL2MTL3MTL4MTL5
HemisphereLeftRightLeftRightLeftLeftRightLeftRightLeftRightLeftRightLeftRightRight
TargetS1+M1S1MTAT+PTHPCCHPCECHPCCHPC
Vector SerotypeAAV5AAV2.9AAV2.2AAV2.9AAVRetrogradePHP.eBAAV2PHP.eB
VectorAAV-CamKIIa-C1V1-EYFPAAV-CaMKII-ChR2(H134R)-YFPAAV-CAG-hChR2-H134R-tdTomatoAAV-Syn-Chronos-GFPAAV-CAG-hChR2-H134R-tdTomatoAAV-CAG-hChR2-H134R-tdTomatoAAV-3xhI56i(core)-minBG-ChR2(CRC)-EYFP-WPRE3-BGHpAAAV-mDLX5/6-ChrimsonR-tdTomato
Titer (vm/mL)2.5 × 10125.26 × 10121.02 × 10135.26 × 10127.6 × 10129 × 10127.6 × 10129 × 10123.25 × 10138.7 × 10123.55 × 1012
Table
Table 3. Gel infusion rates. Medial temporal lobe (MTL).
Table 3. Gel infusion rates. Medial temporal lobe (MTL).
Cortical Infusion
Rates (µL/min)		Duration
(min)		Thalamic Infusion
Rates (µL/min)		Duration
(min)		MTL Infusion
Rates (µL/min)		Duration
(min)
111111
212121
3138033
412121
561111
41
31
21
11
Total infused:
50 µL		Total time:
14 min		Total infused:
246 µL		Total time:
84 min		Total infused:
15 µL		Total time:
7 min
Table
Table 4. Cortical and thalamic data.
Table 4. Cortical and thalamic data.
Cortical Infusion Slopes
NHPMRI Slopes (µL/µL)TrialGel Slopes (µL/µL)
C12.8613.03
C13.9022.69
C13.0732.72
C14.6144.74
C22.6754.11
C23.0564.67
CT3.0774.23
83.10
94.81
103.82
Thalamic Infusion Slopes
NHPMRI Slopes (µL/µL)TrialGel Slopes (µL/µL)
T13.4812.63
T23.5923.71
T23.3034.02
CT6.3842.66
53.17
Table
Table 5. MTL data.
Table 5. MTL data.
NHP, HemisphereInfusion Volume (µL)Measured Volume (µL)
MTL1, left15221.1
MTL1, right15212.2
MTL2, left20285.3
MTL3, right20204.7
Average: 230.8
Gel TrialInfusion Volume (µL)Measured Volume (µL)
115196.7
215229.2
315260.2
415220.7
515207.0
Average: 222.8
% Error: 3.5
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Griggs, D.J.; Garcia, A.D.; Au, W.Y.; Ojemann, W.K.S.; Johnson, A.G.; Ting, J.T.; Buffalo, E.A.; Yazdan-Shahmorad, A. Improving the Efficacy and Accessibility of Intracranial Viral Vector Delivery in Non-Human Primates. Pharmaceutics 2022, 14, 1435. https://doi.org/10.3390/pharmaceutics14071435

AMA Style

Griggs DJ, Garcia AD, Au WY, Ojemann WKS, Johnson AG, Ting JT, Buffalo EA, Yazdan-Shahmorad A. Improving the Efficacy and Accessibility of Intracranial Viral Vector Delivery in Non-Human Primates. Pharmaceutics. 2022; 14(7):1435. https://doi.org/10.3390/pharmaceutics14071435

Chicago/Turabian Style

Griggs, Devon J., Aaron D. Garcia, Wing Yun Au, William K. S. Ojemann, Andrew Graham Johnson, Jonathan T. Ting, Elizabeth A. Buffalo, and Azadeh Yazdan-Shahmorad. 2022. "Improving the Efficacy and Accessibility of Intracranial Viral Vector Delivery in Non-Human Primates" Pharmaceutics 14, no. 7: 1435. https://doi.org/10.3390/pharmaceutics14071435

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
