Article

Baseline Soil Dioxin Levels from Sites Where Municipal Solid Waste Incineration Construction Is Planned throughout China: Characteristics, Sources and Risk Assessment

1
School of Economics and Management, Beijing University of Chemical Technology, Beijing 100029, China
2
School of Economics and Management, Beihang University, Beijing 100191, China
3
Appraisal Center for Environment and Engineering, Ministry of Ecology and Environment, Beijing 100012, China
4
International School of Economics and Management, Capital University of Economics and Business, Beijing 100070, China
5
School of Economics and Management, University of Chinese Academy of Sciences, Beijing 100190, China
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(12), 9310; https://doi.org/10.3390/su15129310
Submission received: 16 May 2023 / Revised: 2 June 2023 / Accepted: 5 June 2023 / Published: 8 June 2023
(This article belongs to the Section Hazards and Sustainability)

Abstract

:
The determination of baseline dioxins levels in soils is fundamental for the quantitative assessment of the net environmental and health impacts of municipal solid waste (MSW) incineration plants, which remains unexplored. Therefore, this study develops a Chinese baseline soil dioxins database (covering 918 soil samples from 292 pre-construction MSW incineration plants nationwide during 2016–2020) to thoroughly explore the baseline contamination characteristics and health risks of dioxins in soils. The empirical results show that (1) for concentration levels, the baseline international toxic equivalency (I-TEQ) concentrations vary from 0.0015 to 32 ng I-TEQ/kg, which are close to or even lower than those in most existing studies and show significant heterogeneity across provinces; (2) for dioxins homolog, highly chlorinated dioxins (i.e., PCDDs) are the dominant contributor to the total dioxins in soils (contributing 54.30% of the total I-TEQ concentrations), implying that dioxins in baseline soils often have an atmospheric fingerprint; and (3) for health risks, the carcinogenic risk and non-carcinogenic risk of dioxins in soils are mostly below acceptable levels, close to or even lower than the results of previous studies. Despite these results being considered as quite preliminary, they have certain implications for local authorities. Future studies can expand the size of the database and the generalizability of the results, and if necessary, establish a long-term dynamic monitoring of dioxins in soils for systematically evaluating the net impact of MSW incineration on environment and human health.

1. Introduction

Currently, the fast-increasing amount of municipal solid waste (MSW) provides a broad market for China’s emerging MSW incineration industry, although they may cause environmental issues [1]. Since 2004, China’s MSW production has surpassed that of the United States by 190 million tons, and it now ranks first in the world [1,2]. It has continued to grow rapidly at an annual growth rate of 2.63% until 2020 [3] and is predicted to grow to 480 million tons by 2030 [4]. However, the MSW incineration rate is rather low in China (e.g., only 44.70% in 2018) [5], which is far below that in developed countries or regions; for instance, Monaco (85%), Japan (80.20%) and the British Virgin Islands (80.30%) [6]. Therefore, China’s MSW incineration industry has much scope for growth, and it is expected that the MSW incineration rate will exceed 65% of the total MSW treatment capacity by 2025 and even approach 100% in developed regions (such as Zhejiang, Fujian and Chongqing) by 2030 [7,8,9,10]. However, MSW incineration is questionable due to the high emissions of dioxins (known as polychlorinated dibenzo-p-dioxins (PCDDs) and polychlorinated dibenzofurans (PCDFs), together PCDD/Fs) [11,12,13], which are assessed as a Group 1 carcinogen for humans by the International Agency for Research on Cancer [14].
Soil is an important environmental medium where dioxins from different emission sources gradually accumulate during long-term transportation, thereby affecting human health through the food chain, inhalation and dermal contact [15,16]. Furthermore, considering the immobility and stability in soils, dioxins in soils have been widely examined to detect the environmental impacts and health risks from waste incineration [17,18]. Notably, dioxins in surface soil near MSW incineration plants mainly originate from baseline soil contamination (i.e., the dioxins level in the surrounding soils before the construction of MSW incineration plants) and the deposition of MSW incineration [11,19,20]. On one hand, dioxins released through the MSW incineration can be deposited in soil by wet and dry deposition, contaminating the surrounding soil environment and causing health risks to humans [21,22,23]. On the other hand, compared with the dioxins released by MSW incineration, the baseline soil concentration is the principal source of human exposure to soil dioxins [20,24,25,26]. Therefore, it is essential to analyze the baseline level and health risk from dioxins in soils around MSW incinerators, which is also valuable for future assessments of the eventual environmental and health impacts of MSW incineration.
To date, existing studies on baseline levels of dioxins contamination in soil have mostly focused on hazardous waste (HW) incineration [27,28] and medical waste (MW) incineration [29,30]. In contrast, only one study has been performed on the baseline levels of dioxins contamination in soil around MSW incineration plants [20]; data for both the baseline levels of contamination and health risk from dioxins in soils around MSW incineration plants are still lacking. Furthermore, existing studies focusing only on the dioxins in soils around the established MSW incinerators [11,15,18,31], have confirmed that disregarding the baseline levels of dioxins in soil may lead to an overestimation of contamination and health risks in soils resulting from the construction of waste incineration plants [32,33,34]. This study is conducted to systematically study the baseline levels of contamination and health risk for dioxins in soils around pre-construction MSW incineration plants in China.
Overall, this study is the first attempt to comprehensively explore the baseline levels of contamination and health risk from dioxins in soil before the construction of Chinese MSW incineration plants nationwide. First, the baseline concentrations of dioxins in soils before the establishment of MSW incineration plants in China (a total of 292 MSW incineration plants) are systematically explored. Second, the contamination characteristics (including congener, homologue profiles and source apportionment) of dioxins in soils are investigated via statistical analyses. Third, the baseline levels of health risks (considering carcinogenic risk (CR) and non-carcinogenic risk (NCR)) for dioxins in soils under different exposure pathways are thoroughly assessed.
This study makes contributions to the existing literature from the following two perspectives:
(1)
This study will develop a Chinese baseline soil dioxins database, presenting and analyzing the actual measurements of dioxin concentrations in soils determined before the construction of 292 Chinese MSW incineration plants nationwide during 2016–2020.
(2)
Using the database, this study will be the first attempt to comprehensively explore the baseline contamination characteristics and health risks from dioxins in soils surrounding pre-construction MSW incineration plants in China.

2. Materials and Methods

2.1. Data Preparation

This study focused on 292 pre-construction MSW incineration plants in 30 provincial-level administrative regions of China (excluding Tibet, Hong Kong, Macao and Taiwan) (Figure 1). The actual measurement data of dioxin concentrations in soils, covering a total of 918 soil samples collected during 2016–2020, were obtained from the official websites of several provincial ecology departments and MSW incineration companies (see Table S1 in the Supplementary Materials for details). These soil samples were collected, processed and analyzed by the laboratories with the China Inspection Body and Laboratory Mandatory Approval (CMA), according to the Chinese standards of HJ/T 166-2004 and HJ 77.4-2008 [35,36].
First, the soil samples were collected from the topsoil (within a depth of 20 cm), following the Chinese standards of HJ/T 166-2004 [35]. Second, the dioxins in soil samples were subjected to strict pretreatment, purification, instrumental analysis and data processing, according to the Chinese standard of HJ 77.4-2008 [36] (see Figure S1 in the Supplementary Materials for details). In particular, for data processing, the international toxic equivalent factor (I-TEF) for dioxins was used to calculate the international toxic equivalency (I-TEQ), and concentrations below the detection limit was calculated as half of the detection limit [36]. Third, for quality control and quality assurance, recoveries of the sampling standards, blank experiments and parallel samples were conducted. Accordingly, detailed information on TEF, method detection limits (MDLs) and recoveries of dioxins were listed in Table S2 in the Supplementary Materials.
In addition, other statistical data, including total population, population density, GDP, per capita GDP, the added value of the secondary industry, industrialization degree (defined as the ratio of the added value of the secondary industry to GDP), urbanization level (the proportion of the urban population) and the proportion of environmental protection expenditures (the proportion of local fiscal expenditure on environmental protection in the general budget of local finance), were collected from the China Statistical Yearbook [37], as listed in Table S3 in the Supplementary Materials.

2.2. Health Risk Assessment

Health risks (including CR and NCR) were calculated based on the USEPA standard model [38]. According to existing research [11,15], the chronic daily intakes (CDIs) of soil pollutants through three main exposure pathways, namely dust ingestion (CDIing), air inhalation (CDIinh) and dermal contact (CDIder), were estimated. The intake methodology was utilized in this study to calculate the CDIs of dioxins in soils for different age groups (i.e., children, adolescents and adults) [11,15,39,40,41]:
C D I i n g = C s × I n g R × E D × E F A T × B W × 10 6
where, CDIing is the CDI related to dust ingestion (mg·(kg∙day)−1); Cs denotes the toxic equivalent concentration of dioxins in soils (ng I-TEQ·kg−1); IngR means the rate of soil ingestion (mg·day−1); ED and EF are the duration (year) and frequency (day·year−1) of exposure, respectively; and AT and BW indicate the average exposure time (day) and body weight (kg), respectively. In particular, for CR, the AT values for the three age groups are 25,550 days, while for NCR, the AT values of dioxins are 4015, 2190 and 19,345 days for the three age groups, respectively.
C D I i n h = C s × I n h R × E F × E D P E F × A T × B W
where, CDIinh is the CDI related to air inhalation (mg·(kg∙day)−1); InhR expresses the rate of air inhalation (m3·day−1); and PEF is the particulate emission factor (m3·kg−1).
C D I d e r = C s × A B S × A F × E F × E D × S A A T × B W × 10 6
where, CDIder is the CDI related to dermal contact (mg·(kg∙day)−1); ABS describes the dermal absorption factor (unitless); AF represents the relative skin adherence factor for soil (mg·(cm∙day)−1); and SA denotes the surface area of the skin that contacts soil (m2). The values and parameters for the health risk assessment are listed in Table S4 in the Supplementary Materials.
The CR of dioxins in soils for different age groups was assessed using Equation (4) [11,42]:
C R s o i l = i = 1 3 ( C D I i × S F i )
where, SF denotes the carcinogenicity slope factor and represents the three exposure pathways (i.e., 1.30 × 105 for the ingestion exposure pathway, 1.50 × 105 for the inhalation exposure pathway and 1.30 × 105 for the dermal exposure pathway) (mg kg−1 day−1)−1 [15,43].
The NCR of dioxins in topsoil was assessed via the Hazard Index (HI) [11,44,45].
H I s o i l = i = 1 3 ( C D I i R f D i )
where, RfD denotes the reference dose concentration for different exposure pathways (7.00 × 10−10, mg kg−1 day−1) [15,43].

2.3. Statistical Analysis

In this study, dioxin concentrations were expressed on the basis of dry weight. The detailed analysis steps are as follows. First, all concentration data were normalized before homologue profile analysis. Second, the Pearson correlation coefficient was introduced to evaluate the correlation between economic indicators and dioxin concentrations in soils. Third, statistical significance among different groups was calculated using variance (ANOVA) or the non-parametric Mann–Whitney test, where a result of p < 0.05 was considered statistically significant. Finally, principal component analysis (PCA) and hierarchical cluster analysis (HCA) were employed to identify the underlying emission sources of dioxins in soils. All statistical analyses were performed in RStudio, v.4.1.3.

3. Results and Discussion

3.1. Baseline Concentration Level of Dioxins

The baseline I-TEQ concentrations of dioxins in soil samples, taken before the construction of 292 MSW incineration plants in China, are displayed in Figure 2. Overall, the dioxin concentrations vary across spatial distributions in China. At the national level, the dioxin concentrations range from 0.0015 to 32 ng I-TEQ/kg, with average and median values of 1.83 and 0.89 ng I-TEQ/kg, respectively (Figure 2a). At the regional level, the dioxin concentrations decrease in the order of eastern region (3.06 ng I-TEQ/kg) > central and southern regions (1.80 ng I-TEQ/kg) > southwestern region (1.62 ng I-TEQ/kg) > northern region (1.21 ng I-TEQ/kg) > northeastern region (0.95 ng I-TEQ/kg) > northwestern region (0.81 ng I-TEQ/kg) (Figure 2b); by averaging the I-TEQ concentrations of all sample points in certain region). The results show a significant heterogeneity in the spatial distribution pattern for dioxin concentrations in soils (ANOVA: F = 10.31, p < 0.001). The reason for this might lie in the higher industrialization degree and intensive dioxins emission sources (e.g., cement production, MSW incineration and steel industry) in the eastern region, which results in the increase in dioxin concentrations in soils through atmospheric deposition [46,47,48].
At the provincial level, the distribution of I-TEQ concentrations across provinces also shows a high degree of spatial heterogeneity (ANOVA: F = 4.04, p < 0.001), which is mainly attributed to the influence of the provincial economic development level, population density and industrialization degree (Figure 2c); by averaging the I-TEQ concentrations of all sample points in certain province) [47,49,50,51]. For example, Inner Mongolia, Qinghai and Hainan, with lower levels of economic development (accounting for 1.71%, 0.30% and 0.55% of the national GDP in 2020, respectively), population density (1850.42, 2929.52 and 2444.40 people/km2, respectively) and added value of secondary industry (6868.00, 1143.50 and 1055.30 billion yuan, respectively), have the lowest average dioxin concentrations: 0.25, 0.30 and 0.51 ng I-TEQ/kg, respectively. In comparison, Fujian, Jiangxi and Hunan have the highest dioxin concentrations in China, with averages of 6.41, 3.12 and 3.09 ng I-TEQ/kg, respectively. The reason for this might be the higher total economic output (4.34%, 2.54% and 4.13%, respectively), population density (3545.37, 4426.17 and 3676.79 people/km2, respectively) and added value of secondary industry (20,328.80, 11,084.80 and 15,937.70 billion yuan, respectively).
To further investigate the driving factors of spatial heterogeneity, correlation analysis between dioxin concentrations in soils and various economic indicators across provinces is performed. In particular, the dioxins concentration is significantly negatively correlated with the proportion of environmental protection expenditure (p < 0.05), whereas it is significantly positively associated with GDP, per capita GDP, industrialization and urbanization level (p < 0.01). These findings demonstrate that the enhancement of pollution control measures can inhibit the increase in dioxin concentrations in soils, while the improvement of economic development, urbanization and industrialization promotes the increase in dioxin concentrations. This implies that with rapid economic development, investment in environmental protection should be increased to reduce soil pollution.

3.2. Comparative Analysis of Dioxin Concentrations

To better understand the relative extent of dioxins contamination in soils, the baseline levels of dioxins in this study are compared with the results for different regions obtained in previous studies (Figure 3). Compared with the other studies on background dioxins levels, the baseline I-TEQ concentrations of soil dioxins in this study are significantly greater in the same areas, such as Qinghai-Tibet Plateau [52,53], Wolong Mountain [54] and Qinghai Lake [55]. Compared with other studies on baseline levels (Figure 3b), the baseline I-TEQ concentrations of dioxins under this research are comparable to those in the existing research on newly built HW incineration plants (0.12–17.2 ng I-TEQ/kg) [27,28], MW incineration plants (0.46–2.63 ng I-TEQ/kg) [29] and MSW incineration plants (0.32–11.40 ng I-TEQ/kg) [20].
Compared with the literature on operated MSW incineration plants (Figure 3c), the I-TEQ concentrations of dioxins near the studied pre-construction MSW incineration plants are mostly close to or lower than those around the operated MSW incineration plants in other regions, such as Sichuan [11], Shanghai [56], Zhejiang [57] and East region [15] in China and Sant Adrià del Besòs in Spain [58] and Rimini in Italy [59]. Notably, in some cases, the I-TEQ concentrations of dioxins under this study are greater than those surrounding the operated MSW incineration plants of Tianjin in China [60], Spain [18,25,61] and Rimini in Italy [59].
Compared with studies on soils for other land uses (Figure 3d), the I-TEQ concentrations of dioxins in the studied baseline soils are similar to or below those in soils for waste disposal [17,62], parks [63], agricultural land [31,64,65,66,67], and industrial land [68,69,70]. Above all, the baseline levels of dioxins in this research are close to or below the results of most existing research; however, it should be noted that there is still ample room to decrease soil dioxins pollution in China, compared with developed countries (e.g., Spain and Italy).
Furthermore, the maximum acceptable levels of different land use listed in the international soil guidelines and regulations [71] are utilized for comparison with the I-TEQ concentrations in this study. The comparison results show that (1) the I-TEQ concentrations of all samplings are below the US and China guideline values (i.e., 1000 and 40–400 ng I-TEQ/kg) [38,72]; (2) the I-TEQ concentrations of approximately 91.29% of soil samples in this study are lower than the strictest Canadian guideline value (i.e., 4 ng I-TEQ/kg) for agricultural, residential/parkland, commercial and industrial uses [73]; and (3) approximately 97.18% and 93.68% of soil samples have lower contamination levels than the guideline values of Dutch, Swedish and German for agricultural land use (i.e., 10 and 5 ng I-TEQ/kg) [74,75,76]. These findings imply that in most cases, the baseline levels of dioxins in soils surrounding the pre-construction MSW incineration plants are relatively low, but this will also affect the accuracy of soil contamination assessment after MSW incineration.

3.3. Multivariate Analysis

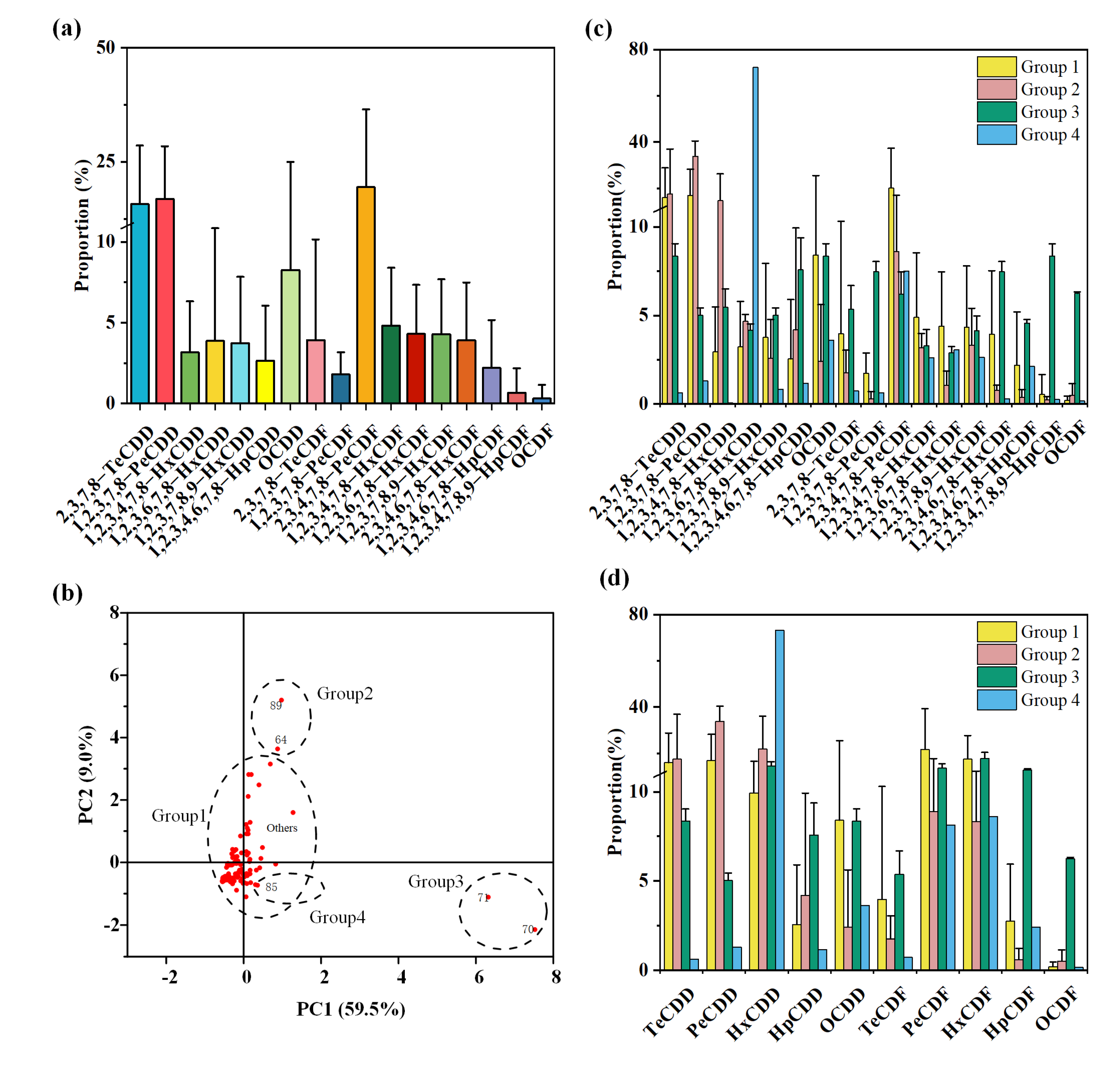

The congeners data of dioxins in only 113 soil samples were available in the official websites. Figure 4 shows the congeners, homolog and correlation analysis of dioxins in these soil samples determined before the construction of MSW incineration plants in China. As illustrated in Figure 4a, highly chlorinated dioxins (i.e., PCDDs) of all samples account for 54.30% of the total TEQ concentrations, compared to 45.70% for low-chlorinated dioxins (i.e., PCDFs), which is consistent with previous studies on baseline soils [20,77,78]. In particular, the PCDDs are mainly formed by condensation of chlorophenols, while the PCDFs are formed by further chlorination of non- or low-chlorinated precursors [79]. Among the PCDD congeners, 1,2,3,7,8-PeCDD is the primary compound, contributing 16.86% of the total I-TEQ concentrations of dioxins, followed by 2,3,7,8-TeCDD (15.74%). Among the PCDF congeners, 2,3,4,7,8-PeCDF is the predominant component, representing 19.45% of the total I-TEQ concentrations of dioxins.
Notably, the differences in formation mechanisms between PCDDs and PCDFs remain unclear since the chemical reactions and formation stability during high-temperature processes are more complex than theoretical explanations [80]. Therefore, the values of the ∑PCDFs/∑PCDDs (abbreviated as F/D) ratio are utilized to help identify the characteristics of dioxins in environmental media [15]. Among 113 soil samples, PCDD homolog are dominant in 72 soil samples (accounting for 63.72% of the total samples), with an F/D ratio of 0.04 to 0.95, indicating that dioxins in baseline soils often have an atmospheric fingerprint (with higher levels of chlorinated PCDDs than chlorinated PCDFs) [20,77,78]. For the other 41 soil samples, the F/D ratios are higher than 1, implying that dioxins in these baseline soils had been contaminated by anthropogenic activities, such as MSW incineration [11,20].
Next, the PCA and HCA methods are utilized to further explore the homolog profiles and potential sources of dioxins in soils, as shown in Figure 4b, Figure S2 and Figure S3 in the Supplementary Materials. According to the principle, for an eigenvalue greater than 1, the four principal components (i.e., PCs with a variance contribution rate of 81.73%) can be extracted via the PCA method, among which the first two PCs declare 68.5% of the total variance (Figure 4b). In detail, PC1 accounts for 59.5% of the total variance and primarily correlates with 1,2,3,7,8-PeCDF, 2,3,4,6,7,8-HxCDF, OCDF, 1,2,3,4,6,7,8-HpCDF and 1,2,3,4,7,8,9-HpCDF, while the PC2 accounts for 9.0% of total variance and positively correlates with 1,2,3,7,8-PeCDD, 2,3,7,8-TeCDD and 1,2,3,4,7,8-HxCDD.
Then, the HCA method is used to characterize the distribution of samples with similar characteristics of dioxin congeners and homolog. In Figure 4c,d, the PCA and HCA results indicate that the characteristics of dioxin congeners and homolog in the four groups of samples are significantly different. First, soil samples in Group 1 are characterized by 2,3,4,7,8-PeCDF, 2,3,7,8-TeCDD and 1,2,3,7,8-PeCDD, with the largest proportion of I-TEQ levels (accounting for 20.01%, 16.91% and 15.98%, respectively), of which the dioxin profiles are very similar to those in the background soils of southeast China and Cambodia [69,81]. Second, the average proportions of 1,2,3,7,8-PeCDD and 2,3,7,8-TeCDD in Group 2 are relatively higher, accounting for 33.84% and 17.56% of the total I-TEQ concentrations, respectively. This profile is similar to that in soils of industrial parks from Taiwan, which may come from industrial waste incineration and the recycling of aluminum and electric arc furnaces [82]. Third, the TEQ concentrations of PCDFs homolog in Group 3 are higher than those of PCDDs homolog, which may have been polluted by waste incineration or other thermal sources [20]. Finally, soil samples in Group 4 are characterized by the highest I-TEQ concentrations of 1,2,3,6,7,8-HxCDD (72.28%), which may be related to pulp and paper production and tall-oil distillation [83].

3.4. Multivariate Analysis

3.4.1. Carcinogenic Risk

The carcinogenic risks from dioxins in soils for different age groups via different exposure routes are estimated, as illustrated in Figure 5 and Figure S4a in the Supplementary Materials. In general, carcinogenic risks above 1.00 × 10−4 are considered unacceptable; carcinogenic risks below 1.00 × 10−6 are considered to cause no obvious health effects; and carcinogenic risk between 1.00 × 10−6 and 1.00 × 10−4 is generally considered to be a tolerable level [84]. Regarding the spatial distribution, 70.00% of the studied provinces have higher CR values than the lower limit of the acceptable level (CR < 1.00 × 10−6), but all provinces have CR values below the upper limit of the acceptable level (CR < 1.00 × 10−4), implying that a potential carcinogenic risk occurred in some provinces. For different age groups, the CR values for children, adolescents and adults in all provinces range from 3.66 × 10−8 to 5.54 × 10−6, 1.12 × 10−8 to 1.69 × 10−6 and 4.28 × 10−8 to 6.47 × 10−6, respectively. These CR values for different age groups are all within the acceptable level (1.00 × 10−6 < CR < 1.00 × 10−4), suggesting that no obvious carcinogenic risk is developed. In comparison, adults are susceptible to dioxins in soils, and their CR values are much higher than those of children and adolescents (1.17 and 3.82 times, respectively). The reason for this might be that the ED and InhR values of adults are much higher than those of the other two age groups [15].
Regarding diverse exposure routes, ingestion is the main pathway of exposure to dioxins in soils, which is in line with the existing literature [11,15]. The CR values for ingestion, dermal and inhalation exposure routes in all provinces ranged from 5.88 × 10−8 to 8.90 × 10−6, 3.17 × 10−8 to 4.80 × 10−6 and 5.37 × 10−11 to 8.13 × 10−9, respectively. In detail, 56.67% and 33.33% of provinces for ingestion and dermal exposures have higher CR values than the lower limit of the acceptable level, respectively, while the CR values for inhalation exposure in almost all provinces are below the acceptable level. These findings suggest that there is spatial heterogeneity in the CR values, especially in the regions with CR values higher than 1.00 × 10−6, which are mainly concentrated in relatively developed provinces, indicating that residents living in developed regions may have potential carcinogenic risks due to by dioxins exposure. Therefore, the carcinogenic risk from dioxins in these regions deserves special attention.

3.4.2. Non-Carcinogenic Risk

Figure 6 and Figure S4b show the provincial non-carcinogenic risks (i.e., HI values) posed by dioxins for different age groups associated with the three exposure routes. For the spatial distribution, the HI values of all provinces for different age groups and exposure routes are lower than the upper limit of non-carcinogenic risks (HI < 1), indicating no obvious non-carcinogenic risk. In the three age groups, the HI values of children, adolescents and adults in all provinces range from 2.53 × 10−5 to 3.84 × 10−3, 1.43 × 10−3 to 2.17 × 10−1 and 6.21 × 10−4 to 9.40 × 10−2, respectively, which are significantly below the threshold of non-carcinogenic risk (i.e., HI < 1), implying that no significant non-carcinogenic risks occurred. For the three exposure pathways, the HI values for inhalation, dermal and ingestion exposure pathways in all provinces range from 1.23 × 10−6 to 1.86 × 10−4, 8.08 × 10−4 to 1.22 × 10−1 and 1.27 × 10−3 to 1.92 × 10−1, respectively, indicating that ingestion exposure is also the dominant exposure pathway for non-carcinogenic risks from dioxins in soils. Compared with the CR values, the distribution of HI values is significantly different among the three age groups. This is mainly due to the differences in the average exposure times across age groups when calculating the carcinogenic and non-carcinogenic risks.

3.4.3. Comparative Analysis of Health Risks

For a deeper understanding of the baseline health risk levels of dioxins in soils, Figure 7 presents the results of this study compared with the existing literature. The comparison results display that the baseline level of health risks in this study is close to or even significantly lower than those of the studies on soils surrounding the operated MSW incineration plants in Sichuan [11], East region [15] and Shanghai [85] in China, Spain [61,86] and Korea [87], but higher than that of the research focusing on Hainan (i.e., a relatively polluted region) in China [88]. Overall, the baseline health risks (involving the CR and NCR) from dioxins in soils near the pre-construction MSW incineration plants of this study are relatively low and below the acceptable level, suggesting no significant adverse effects on human health.

4. Conclusions

This study is the first attempt to develop a national baseline soil dioxins database to comprehensively explore the contamination characteristics and associated health risks of soil dioxins determined before the construction of Chinese MSW incineration plants. From the empirical study, some interesting findings can be drawn: (1) For concentration levels, the baseline levels of dioxin concentrations in this research are close to or below those in most existing studies and show significant heterogeneity across provinces (highly correlated with economic development). (2) For dioxin homolog, the highly chlorinated dioxins (i.e., PCDDs) are the dominant compounds in the total dioxins in soils (accounting for 54.30% of total I-TEQ concentrations), implying that dioxins in baseline soils tend to have an atmospheric fingerprint. (3) For health risks, the CR and NCR aroused by dioxins in soils for different age groups via three different exposure routes are almost all within acceptable levels and are close to or lower than the results of previous studies.
Although these findings are rather preliminary, only focusing on the pre-construction MSW incineration plants, our findings have certain implications for health practitioners, policy makers and general public. First, medical institutions can prevent and control the exposure of susceptible groups to dioxins by regular inspection and publicity of common dioxins diseases. Second, the government should increase investment in environmental protection and implement strict emissions standards to reduce soil pollution and potential health risks. Third, public can report environmental violations via official complaint platform, to urge the treatment of environmental problems. Future studies can expand the size of the database and the generalizability of the results. Furthermore, long-term dynamic monitoring of soil dioxins is necessary, which can help to investigate the net impact of MSW incineration on environment and human health.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/su15129310/s1, Figure S1: Flow diagram of dioxins testing; Figure S2: The principal component analysis of dioxins in the surface soil; Figure S3: The cluster analysis of dioxins; Figure S4: Carcinogenic risk (a) and non-carcinogenic risk (b) for different provinces (unitless); Table S1: Platforms of the environmental impact assessment report for building construction project; Table S2: The method detection limits (MDLs), toxic equivalency factor (TEF) and recoveries of dioxins; Table S3: The provincial statistical data in mainland China for 2020; Table S4: The reference values and distributions of parameters for dioxins health risk assessment. References [11,15,36,37,44,45,89,90,91] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, R.W. and L.T.; methodology, R.W., L.L. and L.T.; software, R.W.; validation, J.Q.; formal analysis, R.W., J.W. and L.L.; investigation, R.W. and J.G.; resources, J.Q.; data curation, J.G. and J.Q.; writing—original draft preparation, R.W.; writing—review and editing, R.W., J.G., L.L. and L.T.; visualization, R.W. and J.G.; supervision, J.W., L.L. and L.T.; project administration, L.T.; funding acquisition, L.L. and L.T.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by grants from the National Natural Science Foundation of China (Nos. 71971007; 72004144), Beijing Natural Science Foundation of China (No. JQ21033).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Present study data are available with corresponding author and are available on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Cheng, J.; Shi, F.; Yi, J.; Fu, H. Analysis of the factors that affect the production of municipal solid waste in China. J. Clean. Prod. 2020, 259, 120808. [Google Scholar] [CrossRef]
  2. Chen, X.; Geng, Y.; Fujita, T. An overview of municipal solid waste management in China. Waste Manag. 2010, 30, 716–724. [Google Scholar] [CrossRef] [PubMed]
  3. MHURD (Ministry of Housing and Urban-Rural Development). China Urban Construction Statistical Yearbook (2020); Chinese Statistics Press: Beijing, China, 2021. (In Chinese) [Google Scholar]
  4. Zheng, L.; Song, J.; Li, C.; Gao, Y.; Geng, P.; Qu, B.; Lin, L. Preferential policies promote municipal solid waste (MSW) to energy in China: Current status and prospects. Renew. Sustain. Energy Rev. 2014, 36, 135–148. [Google Scholar] [CrossRef]
  5. MHURD (Ministry of Housing and Urban-Rural Development). China Urban Construction Statistical Yearbook (2018); Chinese Statistics Press: Beijing, China, 2019. (In Chinese) [Google Scholar]
  6. World Bank. What a Waste Global Database. 2019. Available online: https://datacatalog.worldbank.org/search/dataset/0039597/What-a-Waste-Global-Database (accessed on 1 May 2023).
  7. CQMDRC (Chongqing Municipal Development and Reform Commission). Medium and Long-Term Special Plan for Power Generation by Domestic Waste Incineration Power in Chongqing (2021–2035). 2021. Available online: http://fzggw.cq.gov.cn/zwxx/tzgg/202108/t20210810_9564871_wap.html (accessed on 1 May 2023).
  8. NDRC (National Development and Reform Commission). “14th Five-Year Plan” for the Development of Urban Domestic Waste Classification and Treatment Facilities. 2021. Available online: https://www.ndrc.gov.cn/xxgk/zcfb/tz/202105/t20210513_1279763_ext.html (accessed on 1 May 2023).
  9. FJPDRC (Fujian Provincial Development and Reform Commission). Medium and Long-Term Special Plan for Power Generation by Domestic Waste Incineration Power in Fujian Province (2019-2030). 2020. Available online: http://fgw.fujian.gov.cn/zfxxgkzl/zfxxgkml/ghjh/202009/t20200917_5387747.htm (accessed on 1 May 2023).
  10. ZJPDRC (Zhejiang Provincial Development and Reform Commission). Medium and Long-Term Special Plan for Power Generation by Domestic Waste Incineration Power in Zhejiang Province (2019–2030). 2020. Available online: https://fzggw.zj.gov.cn/art/2020/1/6/art_1229629046_4906231.html (accessed on 1 May 2023).
  11. Bo, X.; Guo, J.; Wan, R.; Jia, Y.; Yang, Z.; Lu, Y.; Wei, M. Characteristics, correlations and health risks of PCDD/Fs and heavy metals in surface soil near municipal solid waste incineration plants in Southwest China. Environ. Pollut. 2022, 298, 118816. [Google Scholar] [CrossRef] [PubMed]
  12. Wei, J.; Li, H.; Liu, J. Curbing dioxin emissions from municipal solid waste incineration: China’s action and global share. J. Hazard. Mater. 2022, 435, 129076. [Google Scholar] [CrossRef]
  13. Sun, C.; Meng, X.; Peng, S. Effects of waste-to-energy plants on China’s urbanization: Evidence from a hedonic price analysis in Shenzhen. Sustainability 2017, 9, 475. [Google Scholar] [CrossRef] [Green Version]
  14. Chan, J.K.Y.; Wong, M.H. A review of environmental fate, body burdens, and human health risk assessment of PCDD/Fs at two typical electronic waste recycling sites in China. Sci. Total Environ. 2013, 463, 1111–1123. [Google Scholar] [CrossRef]
  15. Li, J.; Zhang, Y.; Sun, T.; Hao, H.; Wu, H.; Wang, L.; Chen, Y.; Xing, L.; Niu, Z. The health risk levels of different age groups of residents living in the vicinity of municipal solid waste incinerator posed by PCDD/Fs in atmosphere and soil. Sci. Total Environ. 2018, 631, 81–91. [Google Scholar] [CrossRef]
  16. Kim, K.S.; Shin, S.K.; Kim, K.S.; Song, B.J.; Kim, J.G. National monitoring of PCDD/Fs in environmental media around incinerators in Korea. Environ. Int. 2008, 34, 202–209. [Google Scholar] [CrossRef]
  17. Lin, X.; Li, M.; Chen, Z.; Chen, T.; Li, X.; Wang, C.; Lu, S.; Yan, J. Long-term monitoring of PCDD/Fs in soils in the vicinity of a hazardous waste incinerator in China: Temporal variations and environmental impacts. Sci. Total Environ. 2020, 713, 136717. [Google Scholar] [CrossRef]
  18. Rovira, J.; Nadal, M.; Schuhmacher, M.; Domingo, J.L. Concentrations of trace elements and PCDD/Fs around a municipal solid waste incinerator in Girona (Catalonia, Spain). Human health risks for the population living in the neighborhood. Sci. Total Environ. 2018, 630, 34–45. [Google Scholar] [CrossRef] [PubMed]
  19. Li, Y.; Chen, T.; Zhang, J.; Meng, W.; Yan, M.; Wang, H.; Li, X. Mass balance of dioxins over a cement kiln in China. Waste Manag. 2015, 36, 130–135. [Google Scholar] [CrossRef] [PubMed]
  20. Liu, H.; Lu, S.; Buekens, A.G.; Chen, T.; Li, X.; Yan, J.; Ma, X.; Cen, K. Baseline soil levels of PCDD/Fs established prior to the construction of municipal solid waste incinerators in China. Chemosphere 2012, 86, 300–307. [Google Scholar] [CrossRef] [PubMed]
  21. Die, Q.; Lu, A.; Li, C.; Li, H.; Kong, H.; Li, B. Occurrence of dioxin-like POPs in soils from urban green space in a metropolis, North China: Implication to human exposure. Environ. Sci. Pollut. Res. 2021, 28, 5587–5597. [Google Scholar] [CrossRef]
  22. Llobet, J.M.; Domingo, J.L.; Bocio, A.; Casas, C.; Teixidó, A.; Müller, L. Human exposure to dioxins through the diet in Catalonia, Spain: Carcinogenic and non-carcinogenic risk. Chemosphere 2003, 50, 1193–1200. [Google Scholar] [CrossRef] [PubMed]
  23. Domingo, J.L.; Schuhmacher, M.; Llobet, J.M.; Müller, L.; Rivera, J. PCDD/F concentrations in soil and vegetation in the vicinity of a municipal waste incinerator after a pronounced decrease in the emissions of PCDD/Fs from the facility. Chemosphere 2001, 43, 217–226. [Google Scholar] [CrossRef]
  24. Vilavert, L.; Nadal, M.; Schuhmacher, M.; Domingo, J.L. Two decades of environmental surveillance in the vicinity of a waste incinerator: Human health risks associated with metals and PCDD/Fs. Arch. Environ. Contam. Toxicol. 2015, 69, 241–253. [Google Scholar] [CrossRef]
  25. Vilavert, L.; Nadal, M.; Schuhmacher, M.; Domingo, J.L. Long-term monitoring of dioxins and furans near a municipal solid waste incinerator: Human health risks. Waste Manag. Res. 2012, 30, 908–916. [Google Scholar] [CrossRef]
  26. Meneses, M.; Schuhmacher, M.; Domingo, J.L. A design of two simple models to predict PCDD/F concentrations in vegetation and soils. Chemosphere 2002, 46, 1393–1402. [Google Scholar] [CrossRef]
  27. Schuhmacher, M.; Agramunt, M.C.; Rodriguez-Larena, M.C.; Dıaz-Ferrero, J.; Domingo, J.L. Baseline levels of PCDD/Fs in soil and herbage samples collected in the vicinity of a new hazardous waste incinerator in Catalonia, Spain. Chemosphere 2002, 46, 1343–1350. [Google Scholar] [CrossRef]
  28. Schuhmacher, M.; Granero, S.; Llobet, J.M.; De Kok, H.A.M.; Domingo, J.L. Assessment of baseline levels of PCDD/F in soils in the neighbourhood of a new hazardous waste incinerator in Catalonia, Spain. Chemosphere 1997, 35, 1947–1958. [Google Scholar] [CrossRef] [PubMed]
  29. Li, X.; Yan, M.; Yang, J.; Chen, T.; Lu, S.; Yan, J. PCDD/Fs in soil around a hospital waste incinerator: Comparison after three years of operation. J. Environ. Sci. 2012, 24, 699–703. [Google Scholar] [CrossRef] [PubMed]
  30. Li, X.; Yan, M.; Chen, T.; Lu, S.; Yan, J.; Cen, K. Levels of PCDD/Fs in soil in the vicinity of a medical waste incinerator in China: The temporal variation during 2007 2009. J. Hazard. Mater. 2010, 179, 783–789. [Google Scholar] [CrossRef] [PubMed]
  31. Xu, M.; Yan, J.; Lu, S.; Li, X.; Chen, T.; Ni, M.; Dai, H.; Wang, F.; Cen, K. Agricultural soil monitoring of PCDD/Fs in the vicinity of a municipal solid waste incinerator in Eastern China: Temporal variations and possible sources. J. Hazard. Mater. 2009, 166, 628–634. [Google Scholar] [CrossRef] [PubMed]
  32. Marquès, M.; Nadal, M.; Díaz-Ferrero, J.; Schuhmacher, M.; Domingo, J.L. Concentrations of PCDD/Fs in the neighborhood of a hazardous waste incinerator: Human health risks. Environ. Sci. Pollut. Res. 2018, 25, 26470–26481. [Google Scholar] [CrossRef]
  33. Mari, M.; Nadal, M.; Ferré-Huguet, N.; Schuhmacher, M.; Borrajo, M.A.; Domingo, J.L. Monitoring PCDD/Fs in soil and herbage samples collected near a hazardous waste incinerator: Health risks for the population living nearby. Hum. Ecol. Risk Assess. 2007, 13, 1255–1270. [Google Scholar] [CrossRef]
  34. Ferré-Huguet, N.; Nadal, M.; Schuhmacher, M.; Domingo, J.L. Environmental impact and human health risks of polychlorinated dibenzo-p-dioxins and dibenzofurans in the vicinity of a new hazardous waste incinerator: A case study. Environ. Sci. Technol. 2006, 40, 61–66. [Google Scholar] [CrossRef]
  35. HJ/T 166-2004; The Technical Specification for Soil Environmental Monitoring. MEPC (Ministry of Environmental Protection of the People’s Republic of China): Beijing, China, 2004. (In Chinese)
  36. HJ77.4-2008; Soil and Sediment Determination of Polychlorinated Dibenzo-P-Dioxin (PCDDs) and Polychlorinated Dibenzofurans (PCDFs) Isotope Dilution HRGCHRMS. MEPC (Ministry of Environmental Protection of the People’s Republic of China): Beijing, China, 2008. (In Chinese)
  37. NBS (National Bureau of Statistics of China). China Statistical Yearbook; China Statistical Publishing House: Beijing, China, 2021. (In Chinese) [Google Scholar]
  38. EPA/600/P-00/001Bb; USEPA (United States Environmental Protection Agency). Exposure and Human Health Reassessment of 2,3,7,8-Tetrachlorodibenzo-P-Dioxins and Related Compounds. Part I: Estimating Exposure to Dioxin-like Compounds. Volume 2: Sources of Dioxin-like Compounds in the United States. Draft Final Report. National Center for Environmental Assessment: Washington, DC, USA, 2000.
  39. EPA/540/R/99/005; USEPA (United States Environmental Protection Agency). Risk Assessment Guidance for Superfund. Volume 1: Human Health Evaluation Manual (Part E, Supplemental Guidance for Dermal Risk Assessment). Office of Emergency and Remedial Response: Washington, DC, USA, 2001.
  40. OSWER 9355.4-24USEPA (United States Environmental Protection Agency). Supplemental Guidance for Developing Soil Screening Levels for Superfund Sites; Office of Emergency and Remedial Response: Washington, DC, USA, 2002. [Google Scholar]
  41. USEPA (United States Environmental Protection Agency). Example Exposure Scenarios; National Center for Environmental Assessment: Washington, DC, USA, 2004. [Google Scholar]
  42. Li, J.; Dong, H.; Sun, J.; Nie, J.; Zhang, S.; Tang, J.; Chen, Z. Composition profiles and health risk of PCDD/F in outdoor air and fly ash from municipal solid waste incineration and adjacent villages in East China. Sci. Total Environ. 2016, 571, 876–882. [Google Scholar] [CrossRef]
  43. USEPA (United States Environmental Protection Agency). Mid Atlantic Risk Assessment; Regional Screening Level (RSL) Summary Table; USEPA: Washington, DC, USA, 2017. [Google Scholar]
  44. Li, J.; Dong, H.; Xu, X.; Han, B.; Li, X.; Zhu, C.; Zhang, D. Prediction of the bioaccumulation of PAHs in surface sediments of Bohai sea, China and quantitative assessment of the related toxicity and health risk to humans. Mar. Pollut. Bull. 2016, 104, 92–100. [Google Scholar] [CrossRef]
  45. Li, Z.; Ma, Z.; Van der Kuijp, T.J.; Yuan, Z.; Huang, L. A review of soil heavy metal pollution from mines in China: Pollution and health risk assessment. Sci. Total Environ. 2014, 468, 843–853. [Google Scholar] [CrossRef]
  46. Huang, Y.; Chen, Y.; Li, Y.; Zhou, L.; Zhang, S.; Wang, J.; Du, W.; Yang, J.; Chen, L.; Meng, W.; et al. Atmospheric emissions of PCDDs and PCDFs in China from 1960 to 2014. J. Hazard. Mater. 2022, 424, 127320. [Google Scholar] [CrossRef] [PubMed]
  47. Hsu, Y.; Que, D.; Gou, Y.; Tsou, T.; Liu, C.; Wang, Y.; Hou, W.; Lin, Y.; Chao, H.; Lee, W. National surveillance of 2,3,7,8-substituted polychlorinated dibenzo-p-dioxins/furans in soil in Taiwan. Chemosphere 2018, 203, 239–252. [Google Scholar] [CrossRef] [PubMed]
  48. Chi, K.; Kao, S.; Liu, K.; Lee, T. Evaluation of atmospheric PCDD/F depositions via automated and traditional water surface samplers in Taiwan. Environ. Sci. Technol. 2012, 46, 2839–2846. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, P.; Chen, Y. Polycyclic aromatic hydrocarbons contamination in surface soil of China: A review. Sci. Total Environ. 2017, 605, 1011–1020. [Google Scholar] [CrossRef] [PubMed]
  50. Wei, Y.; Bao, L.; Wu, C.; He, Z.; Zeng, E. Association of soil polycyclic aromatic hydrocarbon levels and anthropogenic impacts in a rapidly urbanizing region: Spatial distribution, soil-air exchange and ecological risk. Sci. Total Environ. 2014, 473, 676–684. [Google Scholar] [CrossRef] [PubMed]
  51. Villanneau, E.J.; Saby, N.P.; Marchant, B.P.; Jolivet, C.C.; Boulonne, L.; Caria, G.; Barriuso, E.; Bispoe, A.; Briand, O.; Arrouays, D. Which persistent organic pollutants can we map in soil using a large spacing systematic soil monitoring design? A case study in Northern France. Sci. Total Environ. 2011, 409, 3719–3731. [Google Scholar] [CrossRef]
  52. Jia, S.; Wang, Q.; Li, L.; Fang, X.; Shi, Y.; Xu, W.; Hu, J. Comparative study on PCDD/F pollution in soil from the Antarctic, Arctic and Tibetan Plateau. Sci. Total Environ. 2014, 497, 353–359. [Google Scholar] [CrossRef]
  53. Tian, Z.; Li, H.; Xie, H.; Tang, C.; Han, Y.; Wang, M.; Liu, W. Polychlorinated dibenzo-p-dioxins and dibenzofurans and polychlorinated biphenyls in surface soil from the Tibetan Plateau. J. Environ. Sci. 2014, 26, 2041–2047. [Google Scholar] [CrossRef]
  54. Pan, J.; Yang, Y.; Zhu, X.; Yeung, L.W.Y.; Taniyasu, S.; Miyake, Y.; Falandysz, J.; Yamashita, N. Altitudinal distributions of PCDD/Fs, dioxin-like PCBs and PCNs in soil and yak samples from Wolong high mountain area, eastern Tibet-Qinghai Plateau, China. Sci. Total Environ. 2013, 444, 102–109. [Google Scholar] [CrossRef]
  55. Han, Y.; Liu, W.; Hansen, H.C.B.; Chen, X.; Liao, X.; Li, H.; Wang, M.; Yan, N. Influence of long-range atmospheric transportation (LRAT) on mono-to octa-chlorinated PCDD/Fs levels and distributions in soil around Qinghai Lake, China. Chemosphere 2016, 156, 143–149. [Google Scholar] [CrossRef]
  56. Deng, Y.; Jia, L.; Li, K.; Rong, Z.; Yin, H. Levels of PCDD/Fs in agricultural soils near two municipal waste incinerators in Shanghai, China. Bull. Environ. Contam. Toxicol. 2011, 86, 65–70. [Google Scholar] [CrossRef] [PubMed]
  57. Jin, Y.; Liu, H.; Li, X.; Ma, X.; Lu, S.; Chen, T.; Yan, J. Health risk assessment of PCDD/F emissions from municipal solid waste incinerators (MSWIs) in China. Environ. Technol. 2012, 33, 2539–2545. [Google Scholar] [CrossRef] [PubMed]
  58. Domingo, J.L.; Rovira, J.; Vilavert, L.; Nadal, M.; Figueras, M.J.; Schuhmacher, M. Health risks for the population living in the vicinity of an Integrated Waste Management Facility: Screening environmental pollutants. Sci. Total Environ. 2015, 518, 363–370. [Google Scholar] [CrossRef] [PubMed]
  59. Vassura, I.; Passarini, F.; Ferroni, L.; Bernardi, E.; Morselli, L. PCDD/Fs atmospheric deposition fluxes and soil contamination close to a municipal solid waste incinerator. Chemosphere 2011, 83, 1366–1373. [Google Scholar] [CrossRef] [PubMed]
  60. Liu, W.; Li, H.; Tian, Z.; Xie, H.; Li, C. Spatial distribution of polychlorinated dibenzo-p-dioxins and polychlorinated dibenzofurans in soil around a municipal solid waste incinerator. Environ. Geochem. Health 2013, 35, 605–611. [Google Scholar] [CrossRef]
  61. Rovira, J.; Vilavert, L.; Nadal, M.; Schuhmacher, M.; Domingo, J.L. Temporal trends in the levels of metals, PCDD/Fs and PCBs in the vicinity of a municipal solid waste incinerator. Preliminary assessment of human health risks. Waste Manag. 2015, 43, 168–175. [Google Scholar] [CrossRef]
  62. Chakraborty, P.; Selvaraj, S.; Nakamura, M.; Prithiviraj, B.; Cincinelli, A.; Bang, J.J. PCBs and PCDD/Fs in soil from informal e-waste recycling sites and open dumpsites in India: Levels, congener profiles and health risk assessment. Sci. Total Environ. 2018, 621, 930–938. [Google Scholar] [CrossRef]
  63. Li, W.; Li, C.; Chen, Z.; Ding, N.; Cai, Z. Levels of polychlorinated dibenzo-p-dioxins and dibenzofurans in mountainous and park soils in Beijing, China. Int. J. Environ. Anal. Chem. 2014, 94, 691–711. [Google Scholar] [CrossRef]
  64. Węgiel, M.; Chrząszcz, R.; Maślanka, A.; Grochowalski, A. Seasonal variations of PCDD/Fs congeners in air, soil and eggs from a Polish small-scale farm. Chemosphere 2018, 199, 89–97. [Google Scholar] [CrossRef]
  65. Xu, P.; Tao, B.; Li, N.; Qi, L.; Ren, Y.; Zhou, Z.; Zhang, L.; Liu, A.; Huang, Y. Levels, profiles and source identification of PCDD/Fs in farmland soils of Guiyu, China. Chemosphere 2013, 91, 824–831. [Google Scholar] [CrossRef]
  66. Rong, Z.; Li, K.; Yin, H. Pilot study of the polychlorinated dibenzo-p-dioxins and dibenzofurans level in agricultural soil in Shanghai, China. Environ. Monit. Assess. 2010, 171, 493–500. [Google Scholar] [CrossRef] [PubMed]
  67. Kiguchi, O.; Kobayashi, T.; Wada, Y.; Saitoh, K.; Ogawa, N. Polychlorinated dibenzo-p-dioxins and dibenzofurans in paddy soils and river sediments in Akita, Japan. Chemosphere 2007, 67, 557–573. [Google Scholar] [CrossRef] [PubMed]
  68. Wu, J.; Hu, J.; Wang, S.; Jin, J.; Wang, R.; Wang, Y.; Jin, J. Levels, sources, and potential human health risks of PCNs, PCDD/Fs, and PCBs in an industrial area of Shandong Province, China. Chemosphere 2018, 199, 382–389. [Google Scholar] [CrossRef] [PubMed]
  69. Yang, B.; Chen, Z.; Zhang, C.; Dong, J.; Peng, X. Distribution patterns and major sources of dioxins in soils of the Changsha-Zhuzhou-Xiangtan urban agglomeration, China. Ecotoxicol. Environ. Saf. 2012, 84, 63–69. [Google Scholar] [CrossRef]
  70. Zhang, S.; Huang, W.; Li, X.; Zhang, G. PCDD/PCDF pollution in soils and sediments from the Pearl River Delta of China. Chemosphere 2009, 75, 1186–1195. [Google Scholar] [CrossRef]
  71. Leung, A.O.; Luksemburg, W.J.; Wong, A.S.; Wong, M.H. Spatial distribution of polybrominated diphenyl ethers and polychlorinated dibenzo-p-dioxins and dibenzofurans in soil and combusted residue at Guiyu, an electronic waste recycling site in southeast China. Environ. Sci. Technol. 2007, 41, 2730–2737. [Google Scholar] [CrossRef]
  72. GB36600-2018; Soil Environmental Quality Risk Control Standard for Soil Contamination of Development Land. MEEC (Ministry of Ecology and Environment of the People’s Republic of China): Beijing, China, 2018. (In Chinese)
  73. CCME (Canadian Council of Ministers of the Environment). Canadian Environmental Quality Guidelines; Summary Table; CCME: Winnipeg, MB, Canada, 2003. [Google Scholar]
  74. BMU (Federal Ministry for the Environment, Nature Conservations and Nuclear Safety). Federal Soil Protection and Contaminated Sites Ordinance (BvodSchV); BMU: Bonn, Germany, 1999; Volume 12, p. 6. [Google Scholar]
  75. UNEP (United Nations Environmental Programme). Standardized Toolkit for Identification and Quantification of Dioxin and Furan Releases; UNEP Chemicals: Geneva, Switzerland, 2005. [Google Scholar]
  76. MfE/MoH (New Zealand Ministry for the Environmental and the Ministry of Health). Health and Environmental Guidelines for Selected Timber Treatment Chemicals; MfE/MoH: Wellington, New Zealand, 1997; Volume 9. [Google Scholar]
  77. Liu, J.; Liu, W. Distribution of polychlorinated dibenzo-p-dioxins and dibenzofurans (PCDDs/Fs) and dioxin-like polychlorinated biphenyls (dioxin-like PCBs) in the soil in a typical area of eastern China. J. Hazard. Mater. 2009, 163, 959–966. [Google Scholar] [CrossRef]
  78. Yan, J.; Xu, M.; Lu, S.; Li, X.; Chen, T.; Ni, M.; Dai, H.; Cen, K. PCDD/F concentrations of agricultural soil in the vicinity of fluidized bed incinerators of co-firing MSW with coal in Hangzhou, China. J. Hazard. Mater. 2008, 151, 522–530. [Google Scholar] [CrossRef]
  79. Oh, J.; Choi, S.; Lee, S.; Chang, Y. Influence of a municipal solid waste incinerator on ambient air and soil PCDD/Fs levels. Chemosphere 2006, 64, 579–587. [Google Scholar] [CrossRef]
  80. Chang, Y.; Fan, W.; Dai, W.; Hsi, H.; Wu, C.; Chen, C. Characteristics of PCDD/F content in fly ash discharged from municipal solid waste incinerators. J. Hazard. Mater. 2011, 192, 521–529. [Google Scholar] [CrossRef]
  81. Minh, N.H.; Minh, T.B.; Watanabe, M.; Kunisue, T.; Monirith, I.; Tanabe, S.; Sakai, S.; Subramanian, A.; Sasikumar, K.; Viet, P.H.; et al. Open dumping site in Asian developing countries: A potential source of polychlorinated dibenzo-p-dioxins and polychlorinated dibenzofurans. Environ. Sci. Technol. 2003, 37, 1493–1502. [Google Scholar] [CrossRef] [PubMed]
  82. Ngo, T.; Tsou, H.; Chen, Y.; Chen, Y.; Chi, K. Sources identification of PCDD/Fs in soil and atmospheric deposition in Taiwan. Chemosphere 2018, 208, 374–381. [Google Scholar] [CrossRef] [PubMed]
  83. Assefa, A.T.; Tysklind, M.; Sobek, A.; Sundqvist, K.L.; Geladi, P.; Wiberg, K. Assessment of PCDD/F source contributions in Baltic Sea sediment core records. Environ. Sci. Technol. 2014, 48, 9531–9539. [Google Scholar] [CrossRef] [PubMed]
  84. USEPA (United States Environmental Protection Agency). Technical Support Document EPA’s 2014 National Air Toxics Assessment; Office of Air Quality Planning and Standards, Research Triangle Park: Durham, NC, USA, 2018. [Google Scholar]
  85. Deng, Y.; Peng, P.; Jia, L.; Mao, W.; Hu, J.; Yin, H. Environmental exposure-associated human health risk of dioxin compounds in the vicinity of a municipal solid waste incinerator in Shanghai, China. Bull. Environ. Contam. Toxicol. 2020, 105, 173–179. [Google Scholar] [CrossRef]
  86. Domingo, J.L.; Rovira, J.; Nadal, M.; Schuhmacher, M. High cancer risks by exposure to PCDD/Fs in the neighborhood of an Integrated Waste Management Facility. Sci. Total Environ. 2017, 607, 63–68. [Google Scholar] [CrossRef]
  87. Lee, S.; Choi, S.; Jin, G.; Oh, J.; Chang, Y.; Shin, S.K. Assessment of PCDD/F risk after implementation of emission reduction at a MSWI. Chemosphere 2007, 68, 856–863. [Google Scholar] [CrossRef]
  88. Tang, L.; Guo, J.; Li, L.; Wan, R.; Cui, L.; Liu, A.; Lu, Y. Contamination characteristics, coexistence relationships and health risk assessment of dioxins and metals in topsoil around municipal solid waste incinerator in Hainan, China. Front. Environ. Sci. 2022, 10, 898934. [Google Scholar] [CrossRef]
  89. Chen, J.; Wang, S.; Hsieh, D.P.H.; Yang, H.H.; Lee, H.L. Carcinogenic potencies of polycyclic aromatic hydrocarbons for back-door neighbors of restaurants with cooking emissions. Sci. Total Environ. 2012, 417, 68–75. [Google Scholar] [CrossRef]
  90. Man, Y.; Kang, Y.; Wang, H.; Lau, W.; Li, H.; Sun, X.; Giesy, J.P.; Chow, K.L.; Wong, M.H. Cancer risk assessments of Hong Kong soils contaminated by polycyclic aromatic hydrocarbons. J. Hazard. Mater. 2013, 261, 770–776. [Google Scholar] [CrossRef]
  91. Yang, W.; Lang, Y.; Li, G. Cancer risk of polycyclic aromatic hydrocarbons (PAHs) in the soils from Jiaozhou Bay wetland. Chemosphere 2014, 112, 289–295. [Google Scholar] [CrossRef]

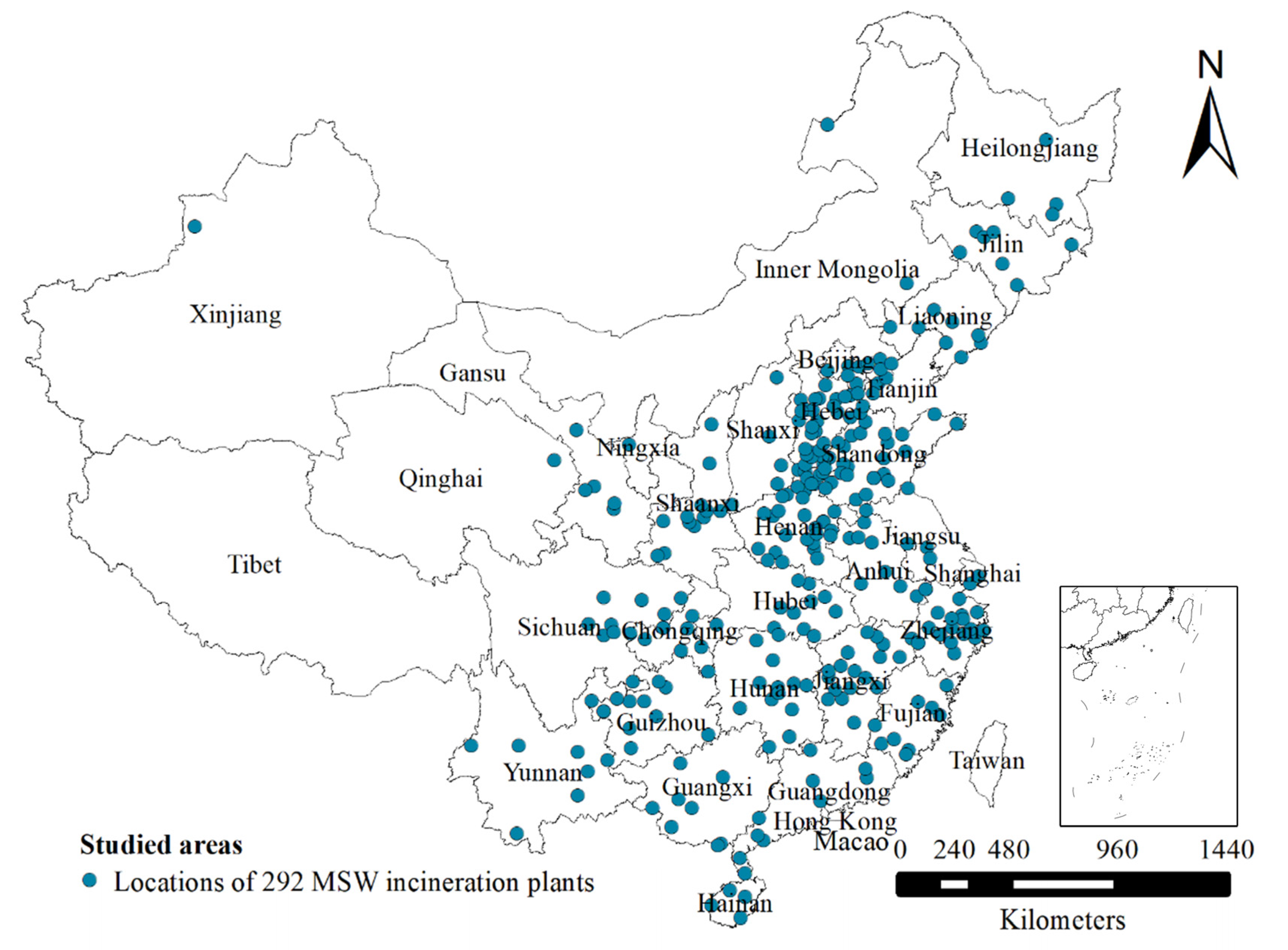

Figure 1. Spatial distribution of pre-construction MSW incineration plants in China.
Figure 1. Spatial distribution of pre-construction MSW incineration plants in China.
Sustainability 15 09310 g001
Figure 2. Distributions of the baseline I-TEQ concentrations in China (a), grouped by region (b) and province (c).
Figure 2. Distributions of the baseline I-TEQ concentrations in China (a), grouped by region (b) and province (c).
Sustainability 15 09310 g002
Figure 3. Comparative analysis of studies on the I-TEQ levels of dioxins in (a) background soils, (b) other baseline soils, (c) soils around operated MSW incineration plants and (d) soils for other land uses [11,15,17,18,20,25,27,28,29,31,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70].
Figure 3. Comparative analysis of studies on the I-TEQ levels of dioxins in (a) background soils, (b) other baseline soils, (c) soils around operated MSW incineration plants and (d) soils for other land uses [11,15,17,18,20,25,27,28,29,31,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70].
Sustainability 15 09310 g003
Figure 4. Congener profiles (a), correlation analysis (b), homolog profiles in each group (c) and congener profiles in each group (d) for dioxins in soil samples.
Figure 4. Congener profiles (a), correlation analysis (b), homolog profiles in each group (c) and congener profiles in each group (d) for dioxins in soil samples.
Sustainability 15 09310 g004
Figure 5. CR in different age groups (ac) and exposure pathways (df) (unitless).
Figure 5. CR in different age groups (ac) and exposure pathways (df) (unitless).
Sustainability 15 09310 g005
Figure 6. NCR in different age groups (ac) and exposure pathways (df) (unitless).
Figure 6. NCR in different age groups (ac) and exposure pathways (df) (unitless).
Sustainability 15 09310 g006
Figure 7. Comparison with existing studies on the health risks from dioxins in soils (unitless). Carcinogenic risk (a); Non-carcinogenic risk (b) [11,15,61,85,86,87,88].
Figure 7. Comparison with existing studies on the health risks from dioxins in soils (unitless). Carcinogenic risk (a); Non-carcinogenic risk (b) [11,15,61,85,86,87,88].
Sustainability 15 09310 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wan, R.; Wu, J.; Guo, J.; Qu, J.; Li, L.; Tang, L. Baseline Soil Dioxin Levels from Sites Where Municipal Solid Waste Incineration Construction Is Planned throughout China: Characteristics, Sources and Risk Assessment. Sustainability 2023, 15, 9310. https://doi.org/10.3390/su15129310

AMA Style

Wan R, Wu J, Guo J, Qu J, Li L, Tang L. Baseline Soil Dioxin Levels from Sites Where Municipal Solid Waste Incineration Construction Is Planned throughout China: Characteristics, Sources and Risk Assessment. Sustainability. 2023; 15(12):9310. https://doi.org/10.3390/su15129310

Chicago/Turabian Style

Wan, Ruxing, Jun Wu, Jing Guo, Jiabao Qu, Ling Li, and Ling Tang. 2023. "Baseline Soil Dioxin Levels from Sites Where Municipal Solid Waste Incineration Construction Is Planned throughout China: Characteristics, Sources and Risk Assessment" Sustainability 15, no. 12: 9310. https://doi.org/10.3390/su15129310

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
