Numerical Investigation of a Reactivity-Controlled Compression Ignition Engine Fueled with N-Heptane and Iso-Octane

,
,
and
1
Department of Automotive Engineering, Faculty of Technology, Pamukkale University, Denizli 20160, Turkey
2
Department of Automotive Engineering, Faculty of Technology, Gazi University, Ankara 06500, Turkey
3
Department of Mechanical Engineering, Faculty of Engineering, Hitit University, Corum 19040, Turkey
*
Author to whom correspondence should be addressed.
Sustainability2023, 15(13), 10406;https://doi.org/10.3390/su151310406
This article belongs to the Section Energy Sustainability
Version Notes
Order Reprints

Abstract

In this numerical study, the effects of the premixed ratio, intake manifold pressure and intake air temperature on a four-cylinder, four-stroke, direct injection, low-compression-ratio gasoline engine, operated in reactivity-controlled compression ignition (RCCI) combustion mode at a constant engine speed of 1000 rpm, were investigated using Converge CFD software. The results of numerical analyses showed that the maximum in-cylinder pressure and heat release rate (HRR) increased and the combustion phase advanced depending on the rise in both intake manifold pressure and intake air temperature. The CA50 shifted by 18.5 °CA with an increment in the intake air temperature from 60 °C to 100 °C. It was observed that the combustion duration dropped from 44 °CA to 38 °CA upon boosting the intake manifold pressure from 103 kPa to 140 kPa. Moreover, a delay in the combustion phase occurred at a constant intake air temperature with an increasing premixed ratio. The maximum value of in-cylinder pressure was recorded as 36.15 bar (at 11 °CA aTDC) with the use of PRF20. Additionally, as the content of iso-octane in the fuel mixture was increased, combustion delay occurred, and the maximum value of in-cylinder temperature obtained was 11 °CA aTDC using PRF20 fuel at the earliest point. While HC and CO emissions reached the highest values at a 60 °C intake air temperature, NOx and soot emission values were detected at quite low levels at this temperature. The values of all these emissions increased with rising intake manifold pressure and reached their highest values at 140 kPa. In addition, while the highest HC and CO emission values were observed with the use of PRF60 fuel, the results revealed that the control of the combustion phase in the RCCI strategy is notably affected by the premixed ratio, intake manifold pressure and intake air temperature.

1. Introduction

Recently, there has been an increase in the cost of oil resources due to a reduction in the amount of them. Moreover, exhaust emissions have caused serious environmental pollution due to the increase in the use of vehicles. Scientists have focused on alternative combustion modes with high efficiency and low emissions in the face of these negative conditions [1,2,3]. Although spark ignition (SI) and compression ignition (CI) internal combustion engines have high power density and performance, in SI engines, a compression ratio (CR) higher than 14 cannot be applied due to the knock limit. In addition, SI engines are known to have low energy conversion efficiency at high loads and high CO emissions [4,5]. CI engines also have high soot emission, which may occur due to the heterogeneity of the mixture and high nitrogen oxide (NOx) emission values due to high temperatures [6]. The use of after-treatment systems to prevent these emissions is mandatory and costly. These problems expose disadvantages in the use of SI and CI engines. Considering these negative effects, a new combustion mode has been developed that represents low-temperature combustion technology, and involves a combination of the combustion processes of SI and CI engines [7,8].
Some low-temperature combustion modes include homogeneous charged compression ignition (HCCI), premixed charge compression ignition (PCCI) and reactivity-controlled compression ignition (RCCI) [9]. In HCCI engines, the air fuel mixture is taken into the cylinder as in spark ignition engines. Combustion takes place via simultaneous self-ignition of the homogeneous air–fuel mixture towards the end of the compression stroke. In this low-temperature combustion mode, thermal efficiency is also high due to the need for a high compression ratio [10,11,12]. Since HCCI engines can work with homogeneous lean mixtures, the in-cylinder gas temperatures at the end of combustion are lower than in SI and CI engines. Thanks to the low gas temperatures at the end of combustion, very low levels of NOx are released [13,14]. The start of combustion (SOC) and the combustion rate are different in each cycle due to the fuel properties and auto-ignition. The severe knocking that occurs as a result of simultaneous homogeneous flash combustion, which increases the pressure rise rate and leads to high fluctuation in pressure, causes low thermal efficiency and cyclical variations. In addition, the operational range of an engine with HCCI combustion mode is very limited due to the increased knocking at high loads and the problem of misfire at low loads. The inability to control combustion, narrow operating range, high carbon monoxide (CO) and unburned hydrocarbon (UHC) emissions are seen as the biggest challenges in HCCI engines [15]. In HCCI engines, some methods, such as changing the octane number [16], increasing the intake air temperature [17], exhaust gas recirculation (EGR) [18] and the use of alternative fuels [19], different compression ratios [20,21], different intake manifold pressures [22,23,24] and different injection timings [25], are used to expand the operating range and to control the combustion process.
Researchers developed the RCCI combustion mode using two fuels of different reactivity in order to overcome the disadvantages of the HCCI combustion mode [26,27]. In the RCCI mode, a low-reactivity fuel LRF (e.g., gasoline, ethanol, methanol, etc.) is injected via port fuel injection, and a high-reactivity fuel HRF (e.g., diesel, dimethyl ether, etc.), which acts as the ignition source, is injected via direct injection [28,29]. The combustion phase can be controlled using a mixed ratio of LRFs and HRFs in the cylinder; thus, knocking can be decreased by controlling heat release, and NOx and soot emissions can be significantly reduced. In addition, the combustion phase can be controlled by the injection timing of the fuels. Moreover, engines operating in RCCI mode have higher thermal efficiency than engines with conventional combustion modes thanks to controlled combustion [30,31]. A gasoline–air mixture cannot be ignited without diesel, as gasoline has poor auto-ignitability at low compression ratios. In their study forming the basis of the RCCI combustion mode, Kokjohn et al. [26] injected gasoline via port injection and diesel fuel via direct injection. The ratio of gasoline/diesel and injection timing can be used for controlling combustion. It was stated that 50% thermal efficiency and lower fuel consumption were achieved compared to diesel or gasoline engines. RCCI depends on the homogeneity of the mixture and the stratification of ignitability. This stratification can be easily controlled by spraying diesel fuel via direct injection. In RCCI mode, combustion progression from the high-reactivity region to the low-reactivity region significantly decreases the pressure rise rate (PRR) [32,33]. In a study conducted to examine how fuel properties affect RCCI combustion at low loads, both a dual fuel strategy and a single fuel strategy using gasoline with a 2-ethylhexylnitrate additive as an ignition improver were used. The indicated thermal efficiency (ITE) of 54% was achieved with the addition of additives, using gasoline as the single fuel [34]. Uyumaz and Solmaz [35] investigated the effect of injection timing on combustion characteristics in RCCI engines. It was observed that as the lambda diminished in a gasoline engine run at different lambda values, the heat release and maximum cylinder pressure increased. It was stated that the maximum ITE obtained was 42.47% at an injection timing of 80 °CA before top dead center (bTDC), with lambda value of 2.2. The study revealed that when the timing of direct injection was earlier than normal, the mixture was more homogeneous than in HCCl combustion. In a study conducted to investigate the combustion characteristics and thermal efficiency of an RCCI engine for a wide range of engine speeds and loads, it was observed that there was a maximum 5% improvement in thermal efficiency and a 92% reduction in NOx emissions compared to conventional diesel combustion [36]. Some parameters affecting RCCI combustion characteristics and emissions are also investigated numerically. Kakaee et al. [37] investigated the emissions and combustion characteristics of RCCI mode in a diesel engine using the KIVA–CHEMKIN code with gasoline and diesel used as fuel. It was stated that the PRR in RCCI combustion could be controlled by ratios of fuels and the timing of the start of injection (SOI) of diesel fuel. In a study investigating the effects of high-compression piston design to improve RCCI combustion and emissions, the authors reported that the indicated mean effective pressure (IMEP) achieved was 18 bar using gasoline–diesel in RCCI mode at an exhaust gas recirculation (EGR) of 35%. The direct injection of diesel fuel at different times was carried out for this analysis. The results showed that the changing of EGR affected RCCI combustion at high load [38]. In addition, since combustion temperature decreases with the dilution and thermal effects of EGR, a reduction in soot emissions and NOx has been observed [39]. Hasankola et al. [40] numerically investigated intake valve closing temperature (Tıvc) and EGR’s effectts on an RCCI engine’s emissions and performance, and the software CHEMKIN II and AVL FIRE were used in the numerical analyses. The natural gas was sprayed via port injection as an LRF, while the diesel fuel was directly sprayed into the cylinder as an HRF. The simulation results showed that as the EGR increased, the maximum pressure in the cylinder, the maximum heat release rate, and NOx and soot emissions were reduced. In addition, an increase in the maximum pressure, HRR, and NOx and soot emissions was observed due to the increase in the Tıvc.
In this study, a four-stroke four-cylinder gasoline engine was operated in RCCI mode at a 9.2:1 compression ratio, 80 °C intake air temperature and a constant engine speed of 1000 rpm. The influences of intake air temperature, intake manifold pressure and a premixed ratio of fuels on combustion and emission characteristics in a low-compression-ratio gasoline engine operated in RCCI mode were investigated numerically, with the validation of experimental results, using Converge CFD computer software. Conventional combustion modes have low energy efficiency and damage the environment with their high emission levels. In particular, their inability to reduce soot and NOx emissions simultaneously is a major problem. The RCCI combustion mode has a high energy conversion efficiency (up to 59% of the indicated thermal efficiency [27]), thereby contributing to sustainable energy utilization. In addition, the reduction in soot and NOx emissions simultaneously will have a positive effect on the environment. This numerical study aims to contribute to the development of sustainable clean-energy technologies by using low-temperature combustion modes that promise high thermal efficiency and low emission levels.

2. Methodology

2.1. Experimental Setup

Experiments were conducted using iso-octane/n-heptane in a direct-injection, four-cylinder, four-stroke, 2.0 L, gasoline GM Ecotec engine operating in RCCI mode. The technical properties of the engine used in the experiments, carried out at Michigan Technological University (at the Research Center for Advanced Power Systems), are given in Table 1.
Table 1. Detailed technical properties of test engine.
The test engine was connected to a 460 HP adjustable AC dynamometer; thus, the engine load and speed were controlled. An external fuel pump and electric motor were used for the fuel system. The intake air temperature was controlled by an air heater. The control of the air heater was carried out via dSPACE. An air filter mounted in front of a supercharger has a significant effect on the performance of the intake system and causes a certain pressure drop [41,42]. The air filter also has a considerable effect on the flow resistance [43,44].
Eight low-pressure-port-type fuel (PFI) injectors were subsequently assembled on the engine’s intake manifold. Four of these were used while the engine was operating in RCCI mode. Iso-octane as an LRF was sprayed using PFI injectors with 3 bar injection pressure, and n-heptane as an HRF was injected into the cylinder at 100 bar pressure via direct injection (DI). The features of the n-heptane and iso-octane fuels used in the experiments are shown in Table 2.
Table 2. Features of n-heptane and iso-octane [45,46].
A 115A04 model PCB piezotronics pressure transducer was used for in-cylinder pressure measurement in the combustion analysis. The measured in-cylinder pressure was amplified using a charge amplifier (DSP 1104CA) and processed using an ACAP analysis system. An encoder with a sensitivity of 1 °CA was connected to the engine. Fuel consumption was determined using a Coriolis-type fuel-flow meter (Micro Motion 1700).
Control of the RCCI motor was achieved using MicroAutoBox, dSPACE and RapidPro. Control of throttle body, high-pressure fuel pump, variable valve timing and injectors was achieved using the MATLAB Simulink model, which is embedded in the processor. Parameters influencing engine control, such as pressure of fuel rail, ignition system, position of cam, premixed ratio, position of throttle body, EGR valve position, pressure and intake air temperature, were controlled using dSPACE.

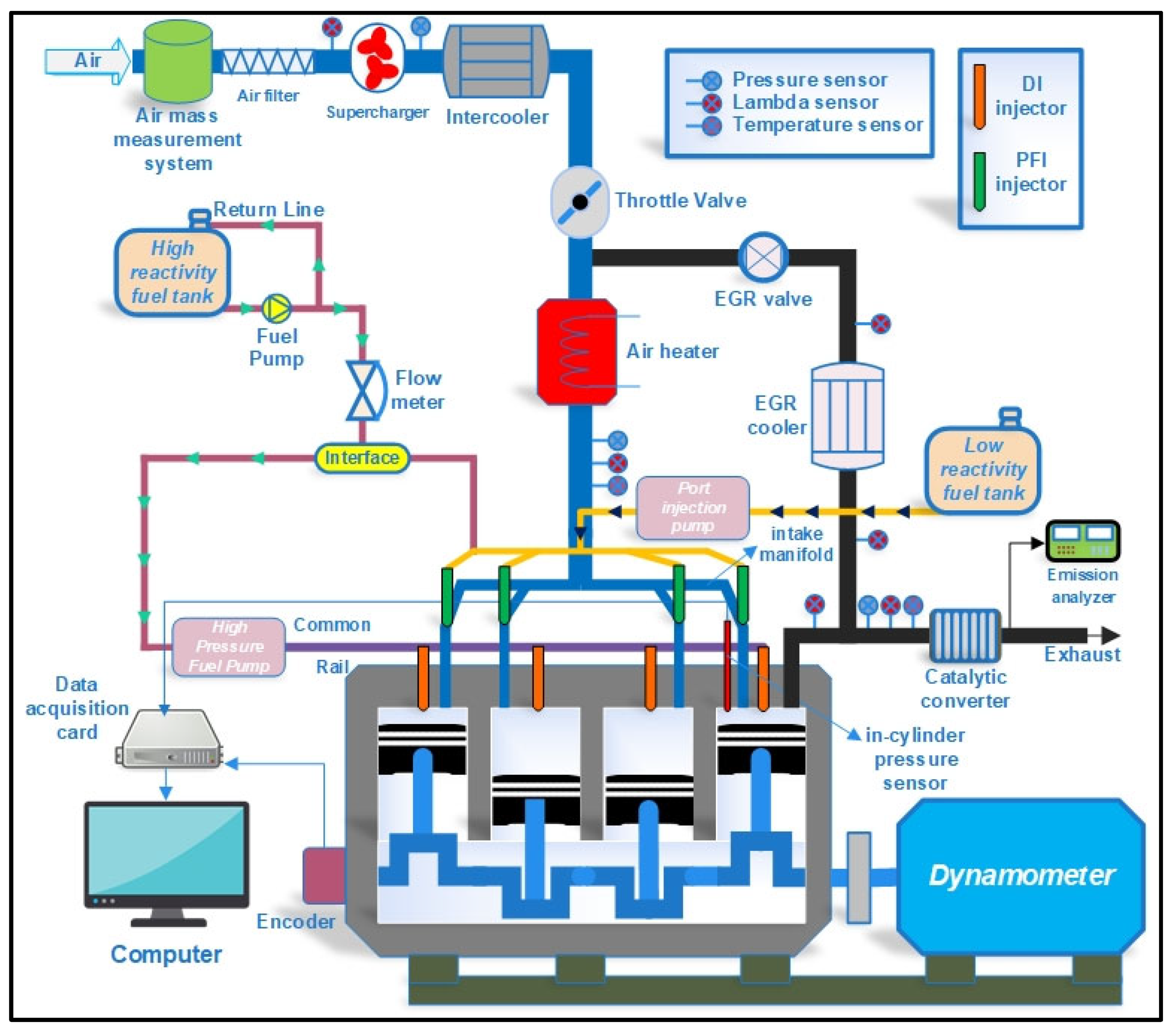

In Figure 1, a diagram of the test bed is displayed. The chassis system (NI PXIe-1078) was used for measurements of the thermocouple (NI TB-4353) and pressure transducer (NI PXI-6225), and for control of the dynamometer (NI PXI-6722). LabVIEW was used to display the obtained data. An emission analyzer was used for CO, CO2, NOx, HC and O2 emission measurements in the experiments.
Figure 1. Diagram of the test bed.
Specific fuel consumption (SFC), mean effective pressure (IMEP), maximum in-cylinder pressure and temperature, heat release rate (HRR), integrated heat release rate (IHRR), volumetric efficiency, maximum pressure rise rate (MPRR), thermal efficiency, combustion efficiency, CA50 and coefficient of variation of IMEP (COVIMEP) were computed using a developed MATLAB code.
The HRR was calculated using Equation (1) according to the first law of thermodynamics [47].
d Q d θ = k k − 1 P d V d θ + 1 k − 1 V d P d θ + d Q h e a t d θ
where P ,   V ,   d Q ,   d Q h e a t ,   d θ and k are in-cylinder pressure, cylinder volume, heat release, heat transfer to the cylinder walls, change in crank angle and ratio of specific heats, respectively.

2.2. Numerical Model

The CFD method was used with CONVERGE CFD software to simulate RCCI combustion. CONVERGE is a CFD program consisting of pre-process, process and post-process sections. CONVERGE automatically forms an excellently orthogonal, well-structured grid at run-time based on easy grid control variables. This method for the generation of grids at run-time completely overcomes the need for the manual generation of grids. The CONVERGE pre-processor CONVERGE Studio (Graphical User Interface) was used to form the case setup. Then, the compiled input files were run on the workstation, and the results were obtained via precision analysis [48].
The characteristics of the GM Ecotec GDI Turbo engine used in the simulations are given in Table 1. The geometry, including the total cylinder volume of the RCCI engine, was sketched using SOLIDWORKS software. Then, CONVERGE CFD was used for the meshing process, as this software provides auto-mesh refinement. Adaptive mesh refinement (AMR), which makes the mesh structure sensitive in the required regions, can be used in CONVERGE. The geometry of the model and the mesh process are seen in Figure 2. The mesh structure approximately consists of 550,867 cells.

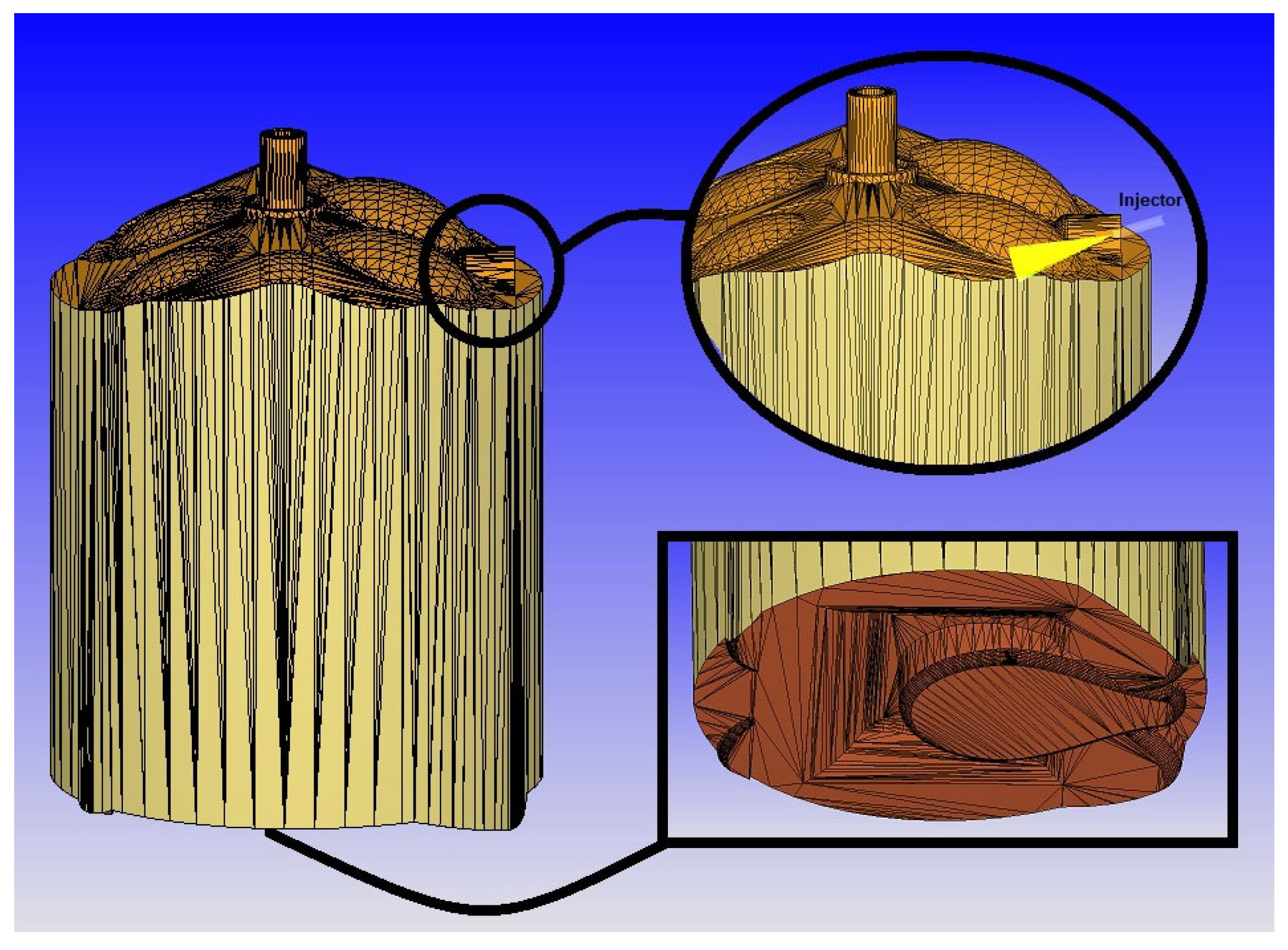

Figure 2. Demonstration of the geometry and mesh structure.
This numerical study was carried out as a closed cycle between IVC and EVO. Air and iso-octane injected via port injection were considered to be homogeneously mixed upon intake valve closing. The n-heptane direct injection procedure was simulated using the Discrete Droplet Model (DDM) [49]. The hybrid Kelvin–Helmholtz (KH)–Rayleigh–Taylor (RT) model, which consists of primary and secondary breakups, was used as a spray atomization model. KH and RT instabilities are responsible for the breakup length, while KH is responsible for drop breakup in the characteristic breakup distance [50]. The Renormalized Group (RNG) k-ε/Reynolds Averaged Navier–Stokes (RANS) was used to calculate turbulence in this numerical study [51]. In all the analyses, the values of the Prandtl and Schmidt numbers were assumed to be 0.9 and 0.78, respectively. The PISO method was used for solving discrete equations in CONVERGE. The velocity field was determined using momentum equations [52]. The SAGE detailed chemical kinetics solver was used for combustion modeling [53]. A PRF chemical kinetic mechanism including n-heptane and iso-octane, with 171 species and 861 reactions, was used in the numerical analyses. RCCI combustion was simulated using this mechanism, which was developed by Luang et al. [54].
The validation case setup of the RCCI engine is shown Table 3. It can be concluded that the validation process was successfully performed upon comparing the numerical results with the experimental results. The change in in-cylinder pressure and HRR depending on the crank angle obtained in the validation process is seen in Figure 3. According to results of the simulations, RCCI combustion with iso-octane and n-heptane was effectively analyzed by complying with the real experimental conditions. Therefore, the simulations are thought to be reliable. It can be seen that the max. HRR from the experiments and max. HRR from the simulations are 79.29 J/°CA and 77.91 J/°CA, respectively.
Table 3. Validation case setup of RCCI engine at initial stage.

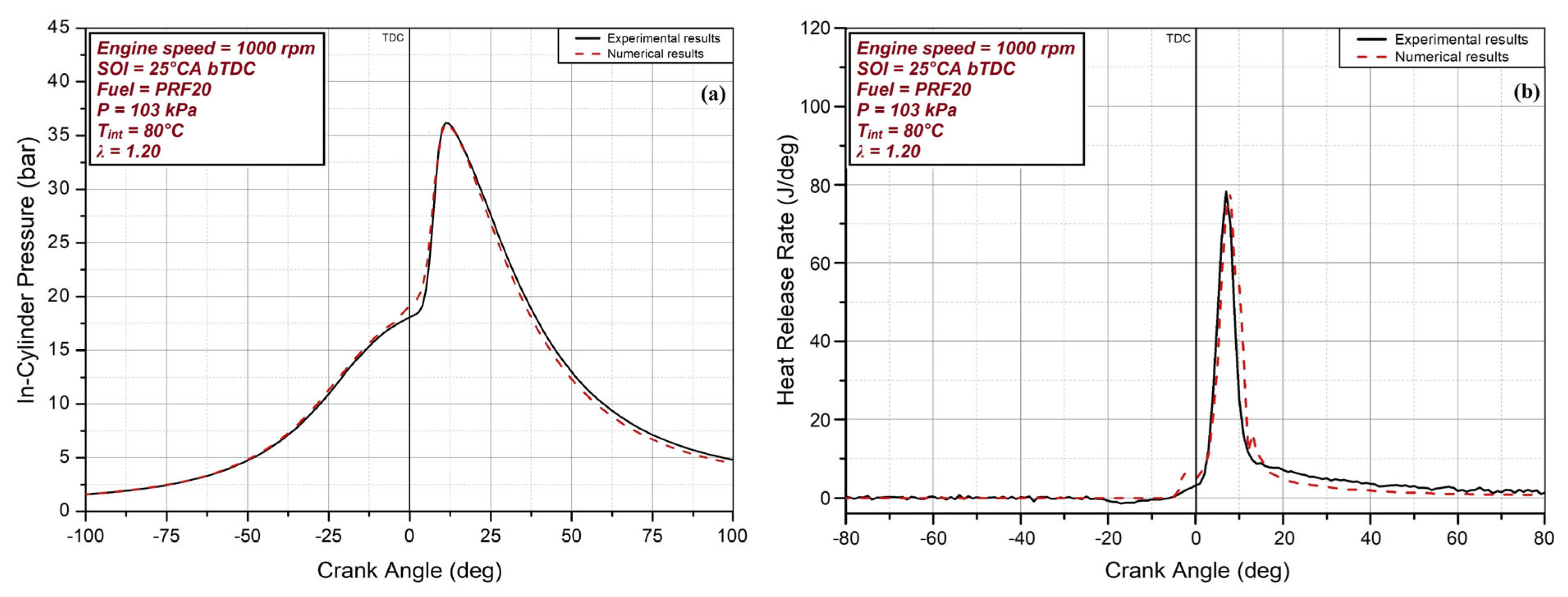

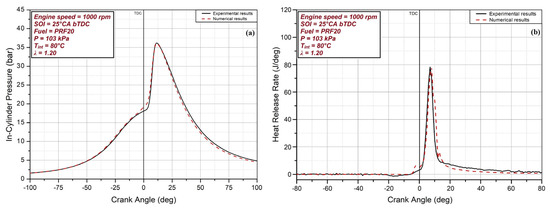

Figure 3. Validation of (a) in-cylinder pressure and (b) HRR.

3. Results and Discussion

The simulation results were validated based on the experiments carried out under the conditions mentioned above. An extensive simulation study was performed to investigate the effects of intake manifold pressure, premixed fuel ratio and intake air temperature on RCCI combustion.

3.1. Intake Air Temperature’s Effects on RCCI Combustion

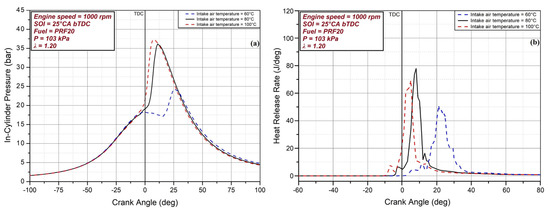

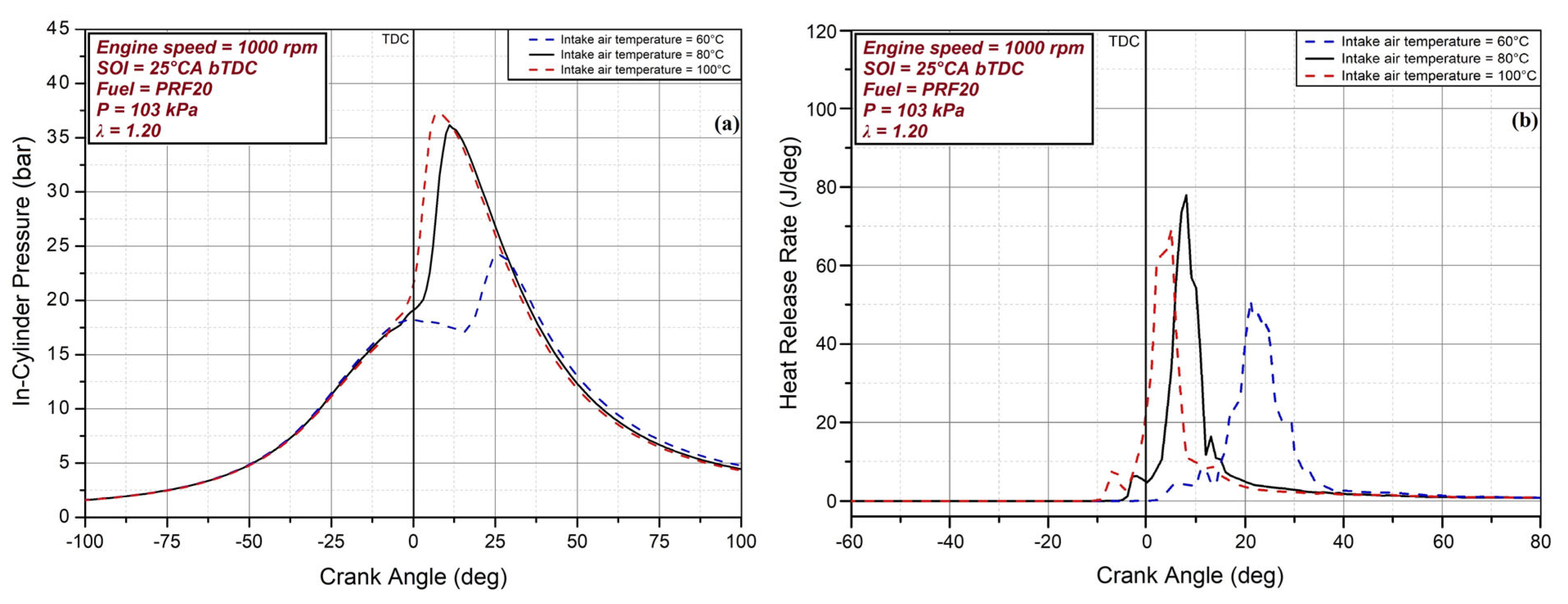

Figure 4 displays the change in the in-cylinder pressure and HRR at different intake air temperatures (60 °C, 80 °C and 100 °C). RCCI combustion shows a lower heat release gradient and lower cylinder pressure than the other conventional combustion types. RCCI combustion has longer and slower heat release than conventional diesel combustion. These results are consistent with those in the study of Pohlkamp and Reitz [55].
Figure 4. Change in (a) in-cylinder pressure and (b) HRR at various intake air temperatures.
The maximum cylinder pressure increases and the combustion is advanced as the intake air temperature increases. This situation influences the thermal efficiency and combustion. There is a significant increase in reactivity with increasing intake air temperature. The results show that combustion is significantly advanced and the maximum pressure increases, especially at an intake air temperature of 100 °C. After a certain value, the volumetric efficiency is significantly reduced due to the low density of the intake air. The lower volumetric efficiency causes the engine to operate at lower loads, which can bring about a delay at the start of combustion.
RCCI combustion is a type of premixed combustion controlled by chemical kinetics. The high intake air temperature prevents the cylinder wall temperature from decreasing too much; thus, the combustion is improved. This is because the cold cylinder wall causes a decrease in the kinetic reaction rate and adversely affects the combustion in RCCI mode [56].
Combustion duration is equal to the difference between the crank angle of 90% (CA90) and the crank angle of 10% (CA10) of the total heat released. The crank angle corresponding to 50% of the total heat release is called CA50. CA50 and combustion duration (CA90-CA10) can affect the cyclic variability, controllability and tendency for knocking [57,58]. The CA50 is equal to 23 °CA, 8.5 °CA and 4.5 °CA aTDC for intake air temperatures of 60 °C, 80 °C and 100 °C, respectively.
The results show that higher values of intake air temperature increase CA50, and the combustion duration is also decreased noticeably. When intake air temperature goes up from 60 °C to 100 °C, the CA50 shifts by 18.5 °CA.
For low-temperature combustion strategies such as HCCI and RCCI, the charge air is heated and taken into the cylinder in order to achieve better combustion. Figure 5 presents the effects of intake air temperature on HC, CO, NOx and soot emissions for RCCI combustion. The lower the intake air temperature, the lower the in-cylinder temperature tends to be, and incomplete combustion products are also produced. This is why it is seen that HC emissions are much higher at low temperatures. A similar situation is also observed for CO emissions. The maximum values of these emissions were recorded at a 60 °C intake air temperature. As the intake air temperature is increased, the temperature profile in the cylinder tends to drop less than the previous temperature value. Therefore, the increase in intake air temperature causes more NOx to be released. Soot emission also reaches higher emission levels with increasing intake air temperature. However, the NOx and soot emission values obtained in this numerically investigated low-temperature combustion strategy are very low relative to conventional diesel combustion. The minimum NOx emission obtained is 0.03 g/h at a 60 °C intake air temperature.

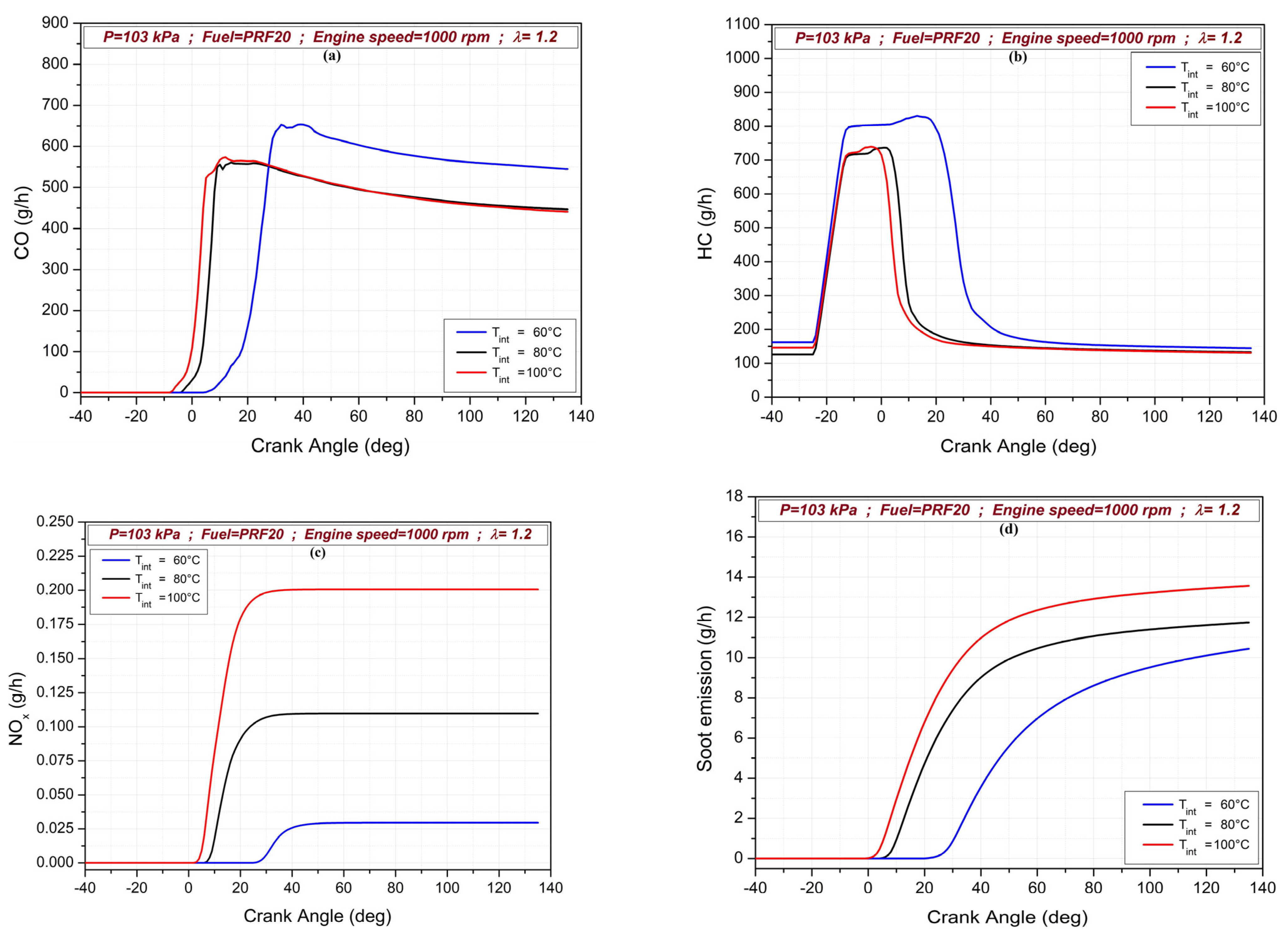

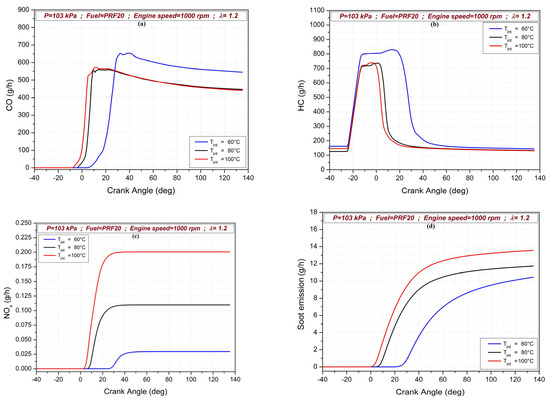

Figure 5. The effects of intake air temperature on (a) CO, (b) HC, (c) NOx and (d) soot emissions.

3.2. Intake Manifold Pressure’s Effects on RCCI Combustion

Figure 6 illustrates the change in the in-cylinder pressure and HRR at various intake manifold pressures and at a constant lambda value (λ = 1.2). The in-cylinder pressure rises as the intake manifold pressure increases. It is seen that the start of combustion advances when the intake manifold pressure increases. It is found that the combustion duration is dropped from 44 °CA to 38 °CA upon boosting the intake manifold pressure from 103 kPa to 140 kPa. It is observed that the maximum in-cylinder pressure is equal to 48 bar (at 7 °CA aTDC) at an intake manifold pressure of 140 kPa. In addition, the combustion is advanced with increased manifold pressure. The rise in auto-ignition reactions with increasing intake manifold pressure easily brings about combustion of the fuel. There are two stages of heat release—low temperature and high temperature—in RCCI combustion. The low-temperature reactions are advanced due to increased intake manifold pressure [46].

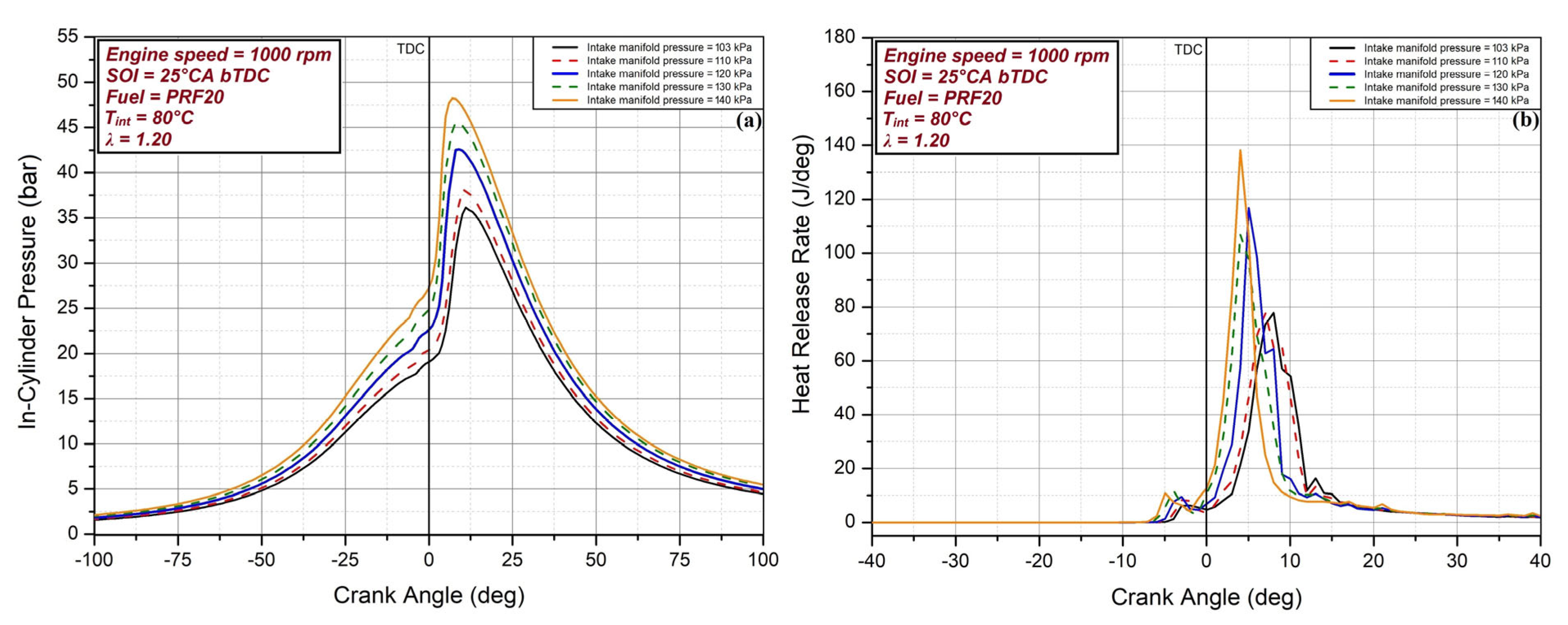

Figure 6. Change in (a) in-cylinder pressure and (b) HRR at various intake manifold pressures.
The effects of intake manifold pressure on HC, CO, NOx and soot emissions for the RCCI combustion mode are seen in Figure 7. The nOx and soot emission values increase due to the effect of rising in-cylinder temperature with increasing intake manifold pressure. The minimum value of NOx emission is recorded as 0.110 g/h at a 103 kPa intake manifold pressure. In addition, an increase in HC and CO emissions is also observed as more charge is taken into the cylinder with the increase in intake manifold pressure. The maximum values of these emissions are obtained at 140 kPa intake manifold pressure. In the analyses performed in the closed cycle, it is observed that the HC emissions are at different values before direct injection with increasing intake manifold pressure, since approximately 8% of the residual exhaust gas formation was defined after combustion in the cylinder. As the intake manifold pressure increases, it can be stated that the emissions are released at lower crank angles with increasing temperature.

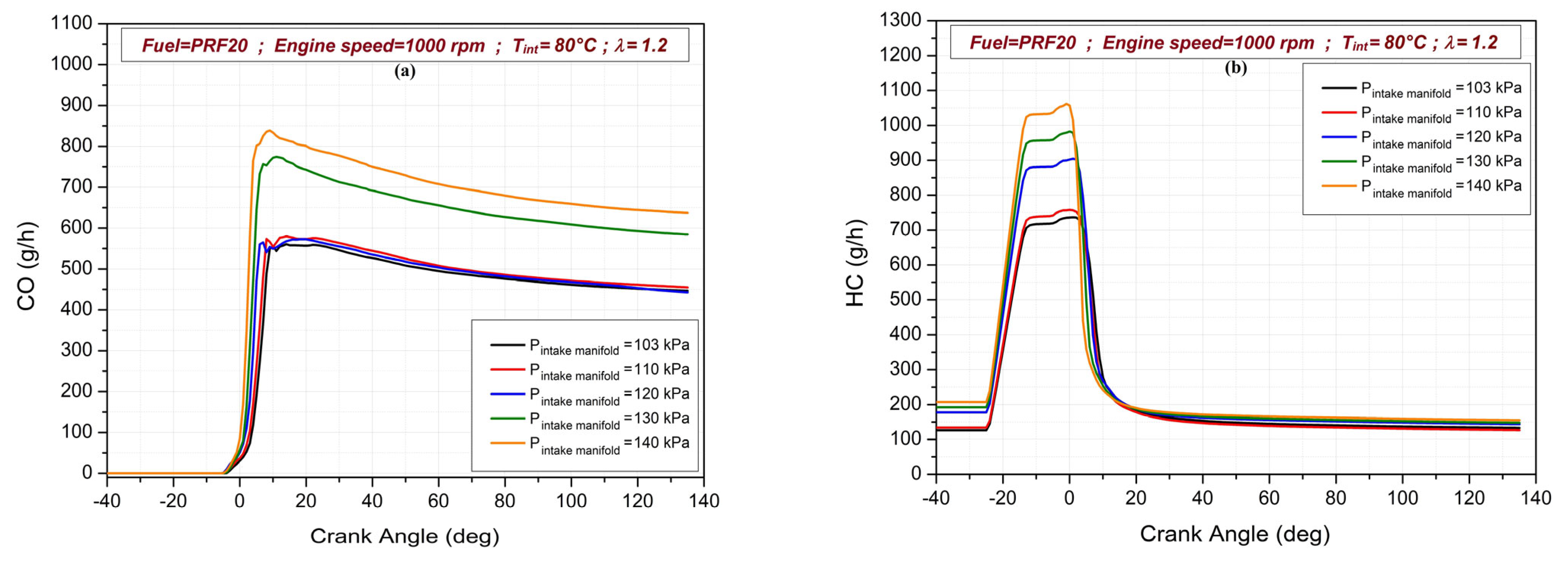

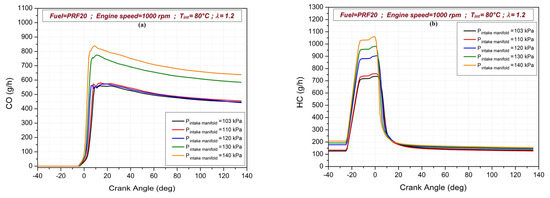

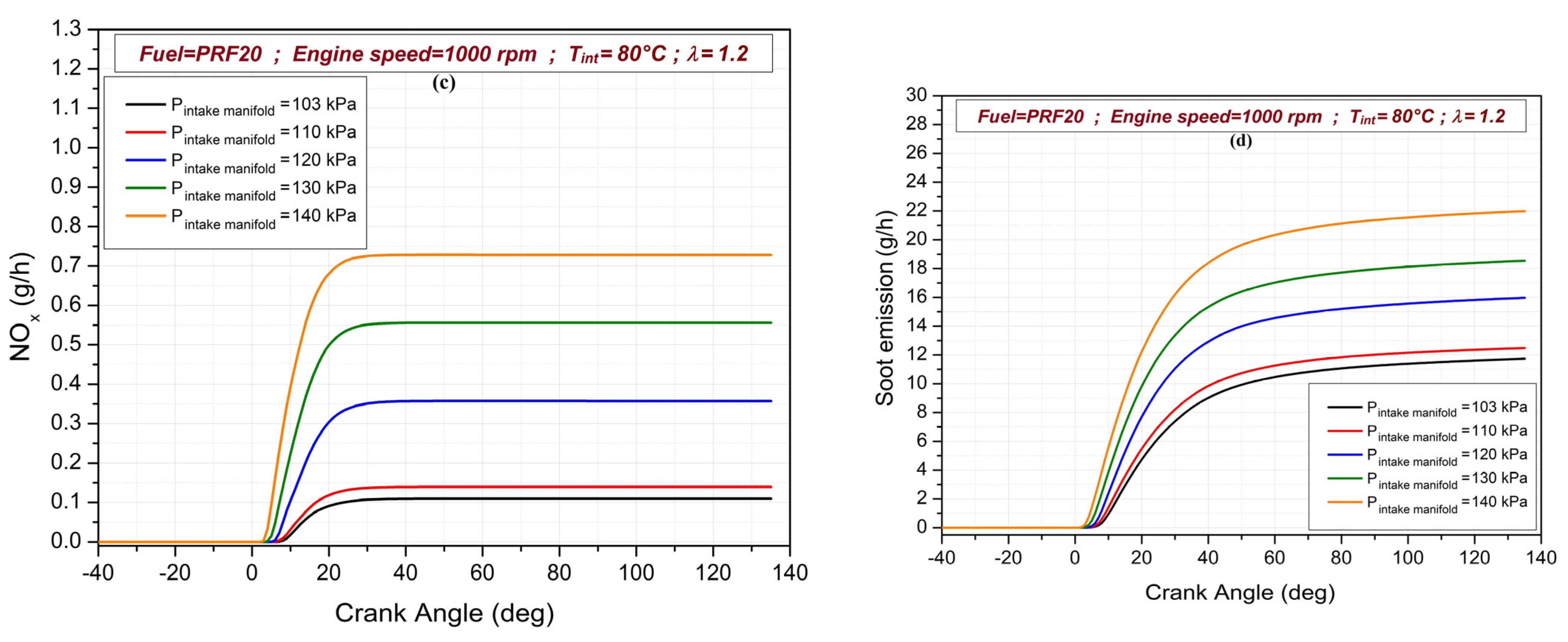

Figure 7. The effects of intake manifold pressure on (a) CO, (b) HC, (c) NOx and (d) soot emissions.

3.3. Premixed Fuel Ratio’s Effects on RCCI Combustion

The premixed fuel ratio’s effects on RCCI combustion are demonstrated in Figure 8. The premixed fuel ratio significantly affects low-temperature combustion. The ignition timing delays, the cylinder pressure and the combustion rate decrease with a rise in the LRF in RCCI mode [59].

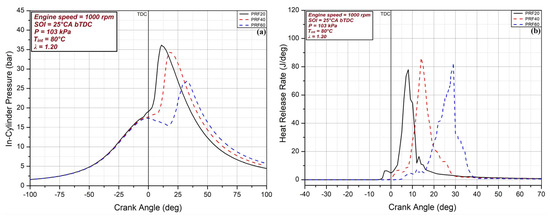

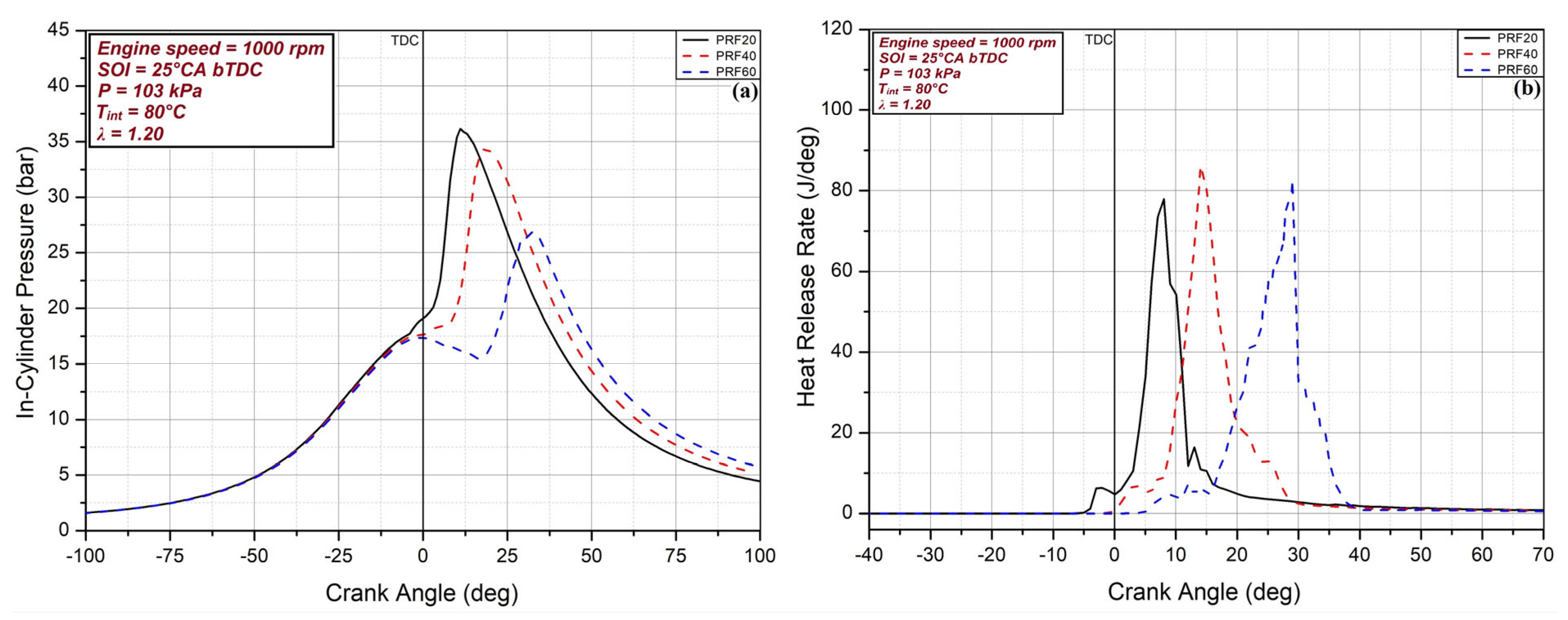

Figure 8. Change in (a) in-cylinder pressure and (b) HRR at various premixed ratios.
As can be seen, combustion is delayed with increasing premixed fuel ratio. This may be due to the decrease in fuel reactivity in the combustion chamber when the premixed LRF rises [60]. More HRF is injected directly a reduction in premixed fuel ratio. This causes the formation of richer regions in the combustion chamber before the combustion starts. It can be stated that combustion is controlled by n-heptane at low premixed fuel ratios [34].
The maximum value of in-cylinder pressure was recorded as 36.15 bar (at 11 °CA aTDC) with the use of PRF20. When PRF20, PRF40 and PRF60 fuels are used, the combustion durations are obtained at 39 °CA, 18 °CA and 15 °CA, respectively.
The effects of premixed ratio variation on HC, CO, NOx and soot emissions in RCCI combustion mode are shown in Figure 9. In general, it is seen that increasing the amount of iso-octane fuel in the mixture causes an increment in HC, CO and soot emissions. The minimum values of these emissions are recorded with PRF20 fuel. On the contrary, the NOx emission values decrease. It can be concluded that this is caused by the reduction in the in-cylinder temperature with the increase in the percentage of iso-octane content in the mixture. The minimum NOx emission obtained is 0.110 g/h with PRF60 fuel.

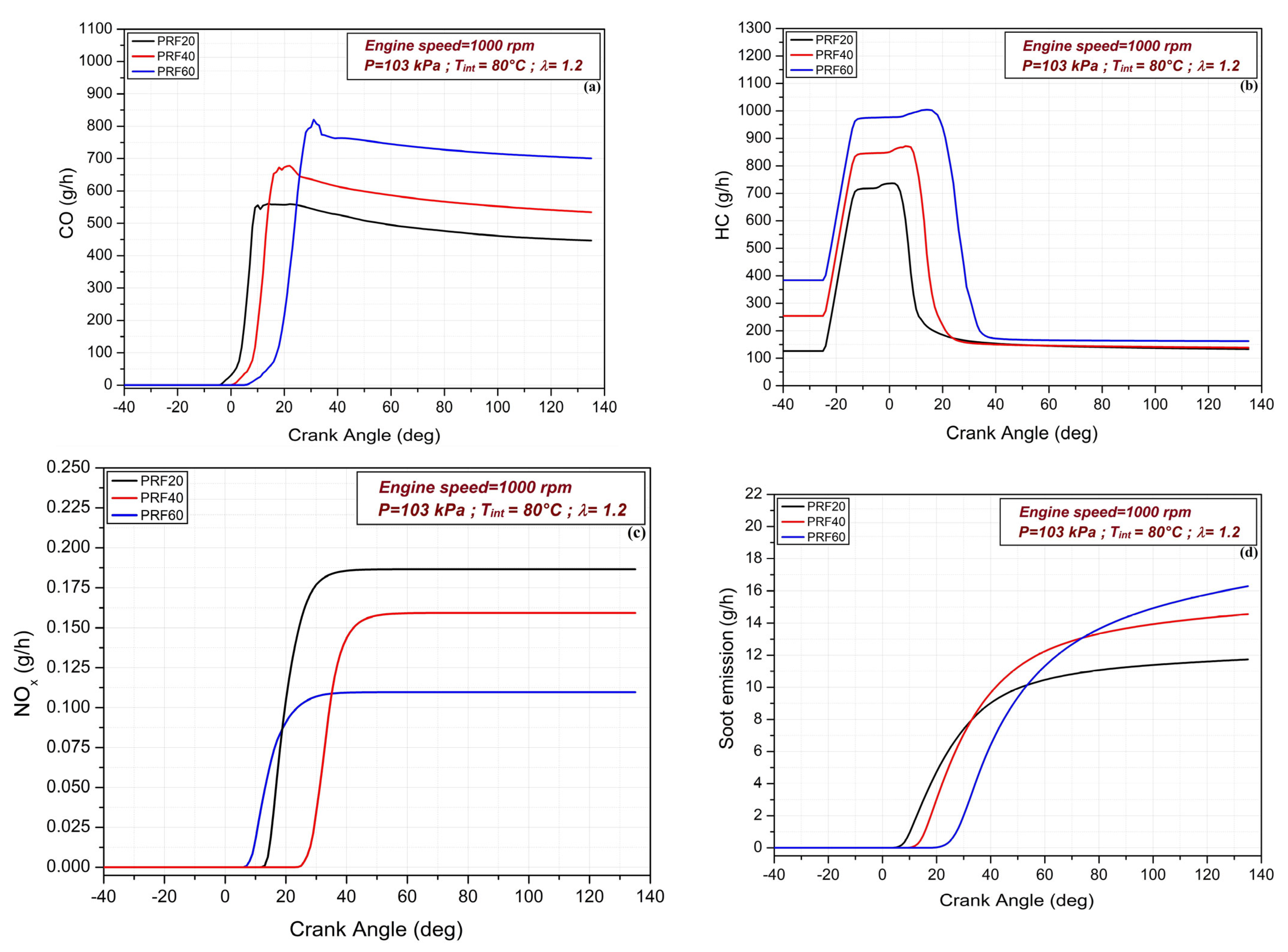

Figure 9. The effects of premixed ratio on (a) CO, (b) HC, (c) NOx and (d) soot emissions.

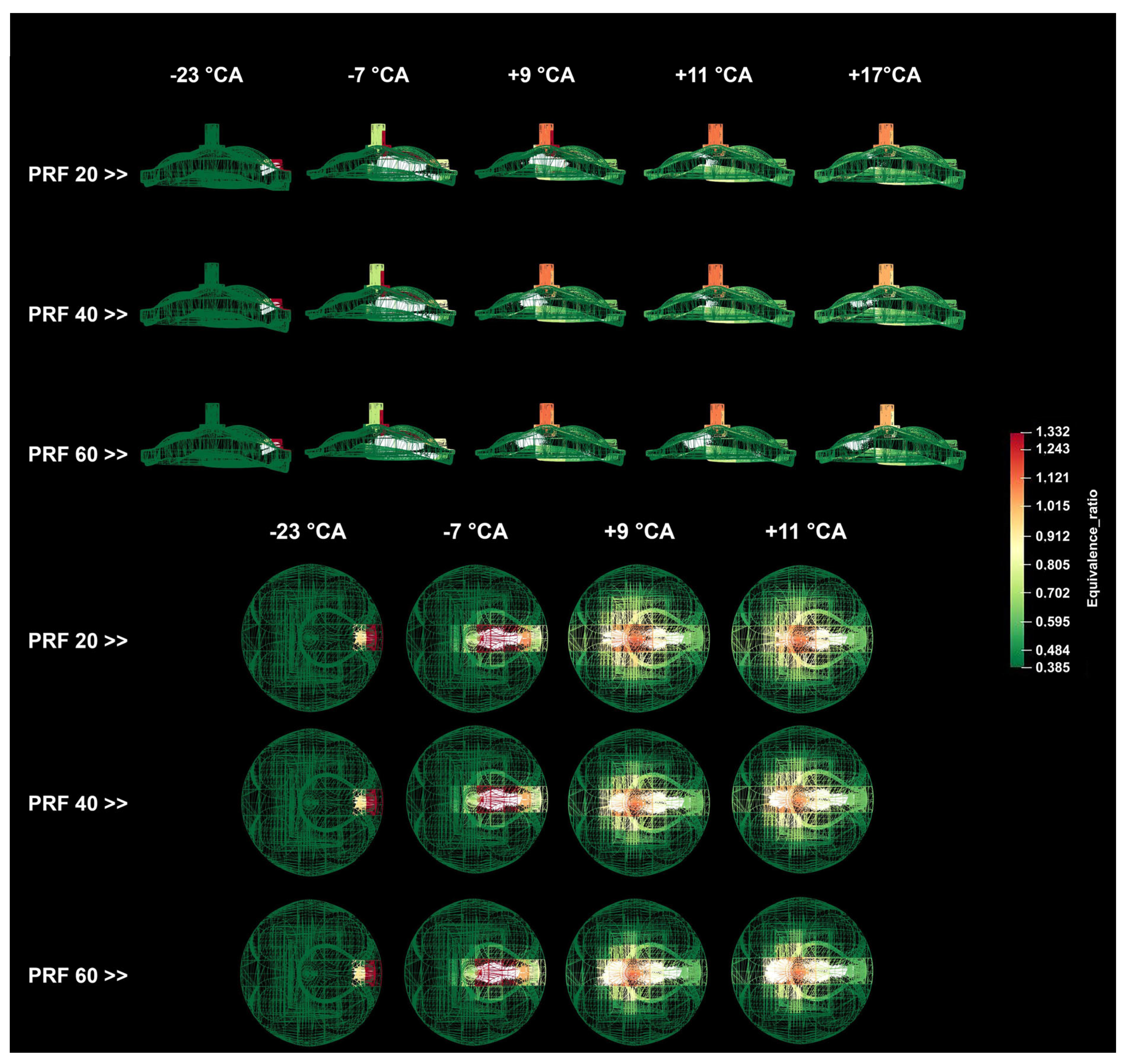

It is not possible to experimentally obtain the distribution of equivalence ratio of the fuel and the in-cylinder temperature depending on the crank angle. These parameters were also analyzed numerically. The distribution of equivalence ratio for different premixed ratios is shown in Figure 10. The distribution of the fuels at different crank angles and the regions where they are concentrated were investigated depending on the PRF ratio change. The amount of iso-octane in the fuel mixture directly affects the equivalence ratio in the cylinder. Considering the equivalence ratio distribution, the formation of richer regions can be increased by reducing the amount of n-heptane in the mixture [61], which significantly affects the combustion efficiency.
Figure 10. The distribution of equivalence ratio for different PRFs.

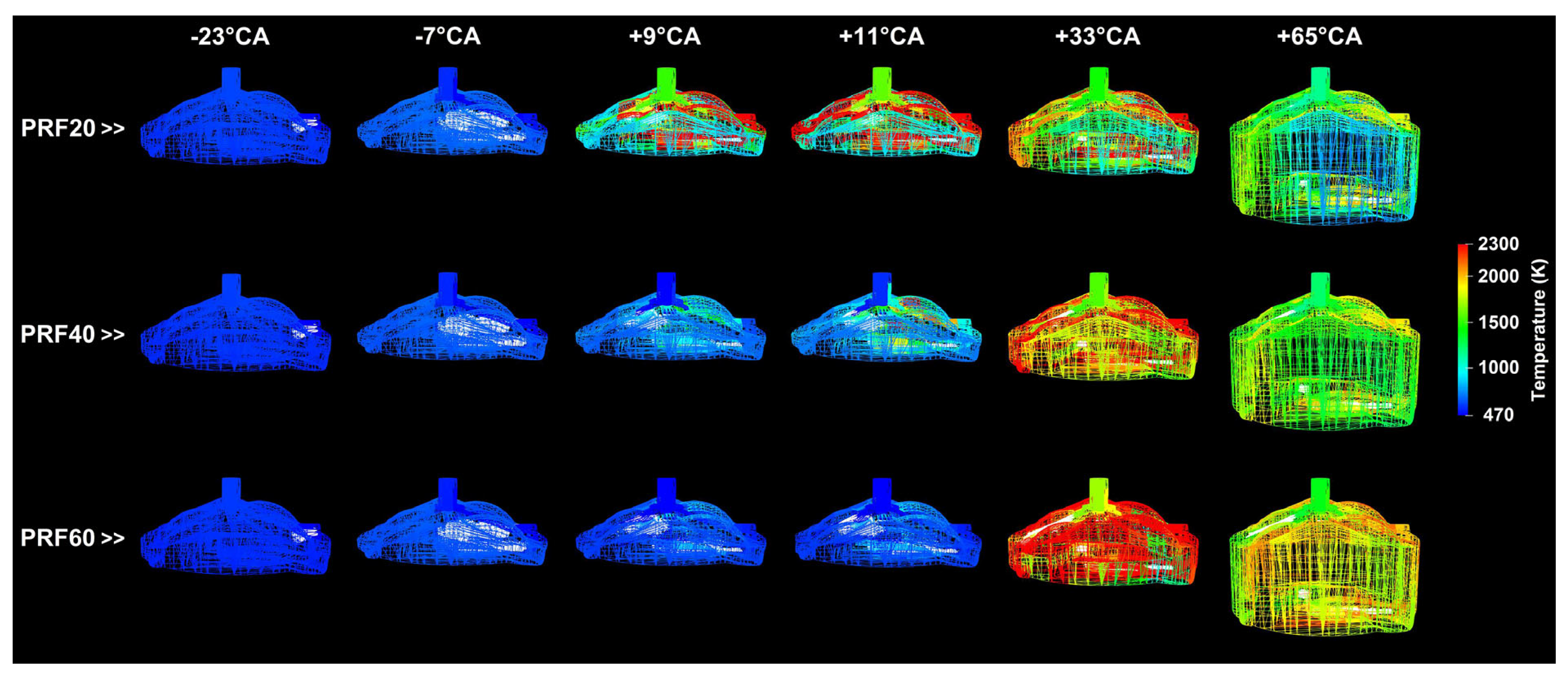

Figure 11 shows the distributions of in-cylinder mean temperature for the different premixed ratios. The numerical analysis results show that the maximum temperatures occur at 11 °CA, 31 °CA and 33 °CA aTDC for the fuels of PRF20, PRF40 and PRF60, respectively. As the PRF ratio increases, the amount of iso-octane in the mixture also increases, and thus, combustion is delayed due to the high octane number of iso-octane. Thereby, it is observed that the maximum temperatures in the cylinder for the three fuels occur at different crank angles.
Figure 11. The distribution of in-cylinder mean temperature for different PRFs.

4. Conclusions

The aim of this study was to numerically research the effects of premixed ratio, intake manifold pressure and intake air temperature on RCCI combustion using n-heptane as an HRF and iso-octane as an LRF at a compression ratio of 9.2:1.
The in-cylinder pressure and HRRs for RCCI combustion were validated as being close to those under real conditions using the physical and chemical properties of the surrogate fuels (n-heptane and iso-octane) for diesel and gasoline. As a result of the analyses, it was found that intake air temperature, premixed fuel ratio and intake manifold pressure significantly affect RCCI combustion. There was a significant increase in reactivity in the combustion chamber with increasing intake air temperature. Therefore, the max. cylinder pressure also was increased, and combustion was advanced. The CA50 shifted by 18.5 °CA with an increment in the intake air temperature from 60 °C to 100 °C. As the intake charge mass increased, higher in-cylinder pressures were acquired by increasing the intake manifold pressure. In addition, combustion was advanced with increasing intake manifold pressure. It was observed that the combustion duration dropped from 44 °CA to 38 °CA upon boosting the intake manifold pressure from 103 kPa to 140 kPa. The combustion phasing was delayed as the premixed fuel ratio increased owing to the decrease in fuel reactivity in the combustion chamber. The maximum value of in-cylinder pressure was recorded as 36.15 bar (at 11 °CA aTDC) with the use of PRF20. This value was the highest in-cylinder pressure among all the in-cylinder pressure values obtained using all the fuels. It was shown that combustion delay occurred as the content of iso-octane in the fuel mixture was increased, and the maximum value of in-cylinder temperature obtained was 11 °CA aTDC using PRF20 fuel at the earliest point.
As the intake air temperature decreased, the in-cylinder temperature also dropped and incomplete combustion products were formed. Therefore, HC and CO emissions are much higher at low temperatures. The maximum values of these emissions were recorded at a 60 °C intake air temperature. However, the minimum NOx emission obtained was 0.03 g/h at a 60 °C intake air temperature. As more charge was supplied to the cylinder with increasing intake manifold pressure, an increase in HC and CO emissions was also detected. The maximum values of these emissions were observed at a 140 kPa intake manifold pressure. The nOx and soot emission values increased due to the effect of rising in-cylinder temperature with increasing intake manifold pressure. The minimum value of NOx emission was recorded as 0.110 g/h at a 103 kPa intake manifold pressure. The maximum values of HC and CO emissions were recorded using PRF60 fuel since hydrocarbons were not fully combusted with an increase in the amount of iso-octane in the mixture. In addition, the minimum NOx emission obtained was 0.110 g/h with PRF60 fuel due to the decrease in the in-cylinder temperature with the rising proportion of iso-octane content in the mixture.
Considering the results of this study and similar studies, the operating range and combustion and emission characteristics of the alcohol-derived fuels that show good performance in RCCI combustion can be investigated experimentally or numerically in future studies. Also, optimization studies can be carried out using the response surface method for different fuel pairs. Moreover, the operating range can be extended using the variable compression ratio approach. Experimental and numerical studies can be carried out in this respect.

Author Contributions

S.H.: Conceptualization, Writing—Original Draft, Visualization, Software, Methodology, Validation. H.S.: Conceptualization, Funding Acquisition, Data Curation, Supervision. S.P.: Conceptualization, Methodology, Supervision. H.S.Y.: Conceptualization, Methodology, Supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

Hamit Solmaz and Serdar Halis were financially supported by the Scientific and Technological Research Council of Turkey (TÜBİTAK) to conduct this investigation. In addition, another source of financial funding from the United States National Science Foundation (Grant No: 1434273) was used in the experimental setup stage and for carrying out the experiments. The authors would like to thank TUBITAK, the United States National Science Foundation, Mahdi Shahbakhti (the previous director of the Energy Mechatronics Laboratory at Michigan Technological University) and Convergent Science Inc. for providing a free version of CONVERGE software.

Conflicts of Interest

The authors declare that there are no conflict of interest associated with this study.

Nomenclature

AMRAdaptive Mesh Refinement
aTDCAfter Top Dead Center
bTDCBefore Top Dead Center
CACrank Angle
CA50Crank Angle Corresponding to 50% of the Total Heat Release
CFDComputational Fluid Dynamics
CICompression Ignition
COCarbon Monoxides
COVIMEPCoefficient of Variation of IMEP
CRCompression Ratio
DDMDiscrete Droplet Model
DIDirect Injection
EGRExhaust Gas Recirculation
EVOExhaust Valve Opening
GDIGasoline Direct Injection
HCHydrocarbon
HCCIHomogeneous Charged Compression Ignition
HRFHigh-Reactivity Fuel
HRRHeat Release Rate
IHRRIntegrated Heat Release Rate
IMEPIndicated Mean Effective Pressure
ITEIndicated Thermal Efficiency
IVCIntake Valve Closing
KHKelvin–Helmholtz
LHVLow Heat Value
LRFLow-Reactivity Fuel
PFIPort Fuel Injection
PRRPressure Rise Rate
NOxNitrogen Oxides
PCCIPremixed Charge Compression Ignition
PRFPremixed Ratio Fuel
RANSReynolds Averaged Navier–Stokes
RCCIReactivity-Controlled Compression Ignition
RTRayleigh–Taylor
SFCSpecific Fuel Consumption
SISpark Ignition
SOCStart of Combustion
SOIStart of Injection
TIVCIntake Valve Closing Temperature
UHCUnburned Hydrocarbons
