Refining Spatial and Temporal XCO₂ Characteristics Observed by Orbiting Carbon Observatory-2 and Orbiting Carbon Observatory-3 Using Sentinel-5P Tropospheric Monitoring Instrument NO₂ Observations in China

Abstract

The spatial and temporal variations in the atmospheric CO₂ concentrations evidently respond to anthropogenic CO₂ emission activities. NO₂, a pollutant gas emitted from fossil fuel combustion, comes from the same emission sources as CO₂. Exploiting the simultaneous emissions characteristics of NO₂ and CO₂, we proposed an XCO₂ prediction approach to reconstruct XCO₂ data based on the data-driven machine learning algorithm using multiple predictors, including satellite observation of atmospheric NO₂, to resolve the issue of data gaps in satellite observation of XCO₂. The prediction model showed good predictive performance in revealing CO₂ concentrations in space and time, with a total deviation of 0.17 ± 1.17 ppm in the cross-validation and 1.03 ± 1.15 ppm compared to ground-based XCO₂ measurements. As a result, the introduction of NO₂ obtained better improvements in the CO₂ concentration responding to the anthropogenic emissions in space. The reconstructed XCO₂ data not only filled the gaps but also enhanced the signals of anthropogenic CO₂ emissions by using NO₂ data, as NO₂ strongly responds to anthropogenic CO₂ emissions (R² = 0.92). Moreover, the predicted XCO₂ data preferred to correct the abnormally low XCO₂ retrievals at satellite observing footprints, where the XCO₂_uncertainity field in the OCO-2 and OCO-3 products indicated a larger uncertainty in the inversion algorithm.

1. Introduction

The increase in atmospheric carbon dioxide (CO₂) has significantly enhanced global climate warming [1], mainly caused by carbon emissions from human activities [2]. In order to mitigate global warming, countries are adopting measures to reduce and control their anthropogenic carbon emissions. Changes in atmospheric CO₂ concentrations can be used as an indicator to monitor the effects of anthropogenic CO₂ emission reductions and control [3,4], as well as to evaluate the impacts on natural ecological CO₂ emissions due to extreme climate change [5,6]. Thus, accurate data on atmospheric CO₂ concentrations in space and time can help us better understand the changing mechanisms of the atmospheric CO₂ concentration induced by anthropogenic CO₂ emissions and natural effects to support government decision-making policies for carbon emission reduction and control.

Satellite observations of atmospheric CO₂ have been used to obtain global CO₂ data effectively, with the advantage of global and period coverage. Currently, the XCO₂ (columnar average of molar fractions of carbon dioxide in dry air) retrievals derived from CO₂ observation satellites such as the Greenhouse Gases Observing Satellite (GOSAT), GOSAT-2, Orbiting Carbon Observatory-2 (OCO-2), and OCO-3 are available from 2009 [7,8,9,10]. These XCO₂ retrievals, however, have numerous gaps in space and time due to the satellite observation mode, cloudy or aerosol-contaminated conditions, data quality filtering, etc. These gaps result in missing the fine-tuning changes of CO₂ in space and time, making it difficult to correlate the correspondence of CO₂ changes with anthropogenic emissions. A data-driven methodology, which is different from the model-based data assimilation method, was developed in this research to fill the gaps and reconstruct satellite-observed XCO₂ data.

Applying the geo-statistics of satellite XCO₂ retrievals in space and time, some studies have developed a gap-filling method [11,12]. Global spatio-temporal XCO₂ datasets in a 1-degree grid over three-day or monthly periods from 2009 have been generated using GOSAT, GOSAT-2, OCO-2, and OCO-3 [13] and have been released in the HARVARD Dataverse [14]. The feasibility and reliability of these datasets have been verified by comparing them with the ground-based measures (The Total Atmospheric Carbon Column Observation Network, TCCON), cross-validation methods, and application analyses to reveal changes in CO₂ concentrations corresponding to anthropogenic emissions [15] and extreme climate change. The spatial resolutions of data generated by this method greatly depend on the number of XCO₂ retrievals; the more XCO₂ retrievals, the higher the spatial resolution. It has been found that this method can only generate data with a resolution of 0.5 degrees when using the available observation data from a single GOSAT, or a combination of GOSAT, OCO-2, and OCO-3, in order to guarantee the accuracy of the filled gaps and the reliability of the generated spatio-temporal data [16].

Recently, machine learning (ML) and deep learning methodologies for fusing multisource data have been developed to reconstruct high-resolution XCO₂ data in space and time, driven by the increase in satellite observations that directly or indirectly capture changes in CO₂. Algorithms such as Light Gradient-Boosting Machine (LGB), GWNN-GWT, CatBoost (CatB), Random Forest (RF), and Multi-Layer Perceptron (MLP) have been applied to develop XCO₂ predictive models using satellite-observed CO₂ as the target variable and the multiple parameter data from multisource observations and measurements as predictor variables [17,18,19,20]. The choice of predictor variables strongly influences the accuracy and effectiveness of ML methodology. Previous research has used predictor variables such as NDVI, land use, population, meteorological reanalysis data, and model- simulated CO₂ data. However, parameters such as land use and population, suggested to describe the anthropogenic emissions, may not effectively interpret dynamic CO₂ emission activity, especially from constantly changing point sources. Furthermore, previous research lacks clarity on the extent to which raw XCO₂ retrievals at the footprints are modified after being recomputed based on the ML model and whether the reconstructed XCO₂ accurately reflects responses to anthropogenic CO₂ emissions.

Atmospheric NO₂ concentration data, obtained from observations of Sentinel-5 Precursor/Tropospheric Monitoring Instrument (S5P/TROPOMI), have been widely used in recent years to quantify anthropogenic CO₂ emissions, as both NO₂ and CO₂ emitted by human activity such as fossil fuel combustion originate from the same sources [21,22,23,24]. It has been shown that NO₂ observations have the potential to provide much stronger constraints to total annual fossil CO₂ emissions [25,26,27]. NO₂ emitted from a point source can be sensitively detected with minimal background disturbance, as NO₂ is a gas with a short lifetime of only a few hours [28,29,30]. CO₂, however, is a long-lived gas [31]. CO₂ emissions from sources with weak signals of 1–4 ppm are overshadowed by background levels exceeding 400 ppm, making it difficult to detect enhancements in CO₂ emissions with the existing signal-to-noise ratios of sensors in satellites. The magnitude of NO₂ columns is generally much larger than background levels around the emitting source, making it a suitable tracer for CO₂ emissions and capable of characterizing anthropogenic emissions. Therefore, NO₂ can be used as a tracer for CO₂ emissions, and previous research has demonstrated the effectiveness of simultaneously using satellite observations of NO₂ and XCO₂ to detect anthropogenic CO₂ emissions [32]. Using NO₂ as a proxy for fossil CO₂ allows for the quantification of anthropogenic emissions and distinguishes them from biogenic sources of CO₂ [33,34].

China is a country with high CO₂ emissions and heavy air pollution due to rapid economic development. Anthropogenic CO₂ emissions in China are spatially and inhomogeneously distributed, with a significant concentration in the eastern region characterized by high population density, numerous large cities, and industrial enterprises. Evidence of satellite-based CO₂ observations strongly correlating with satellite-based NO₂ observations have been demonstrated in this area [14]. The Chinese government has been taking measures to reduce carbon emissions and put forward clear time programs for emissions reduction and has outlined clear timelines for emission reduction and control to contribute to the mitigation of global climate warming [35,36,37]. Synergistic analysis of satellite-based CO₂ and NO₂ could enhance our ability to better monitor the effects of emissions reduction.

Focusing on the effectiveness of predictors and reconstructed XCO₂ based on ML, as described above, we introduced NO₂ data as one of the predictor variables. Our study area was the Chinese mainland, and we developed an ML-based method to reconstruct XCO₂ data from the satellite observations using multiple sources of data. We assessed the performance of reconstructed XCO₂ and the contribution and effect of NO₂ in reconstructing XCO₂ for the quantification of anthropogenic emissions and differentiation from biogenic sources of CO₂. Additionally, we analyzed the co-variation of NO₂ and CO₂ in response to the dramatic reduction in anthropogenic CO₂ emissions in a special scenario.

2. Materials and Methods

2.1. Data Used for Reconstructing XCO₂

The signals of atmospheric CO₂ observed by satellites mainly originate from anthropogenic CO₂ emissions, CO₂ uptake and emissions (fluxes) from land ecosystems, and atmospheric transmission fluxes over the target area. We collected parameter data significantly related to these sources CO₂ [38,39,40,41], along with XCO₂ retrievals derived from OCO-2 and OCO-3 observations from January 2019 to December 2022 in the study area, as shown in

Table 1. Summary table of the multisource data used.

Acronym	Parameter	Source	Resolution		Product
			Space	Time
fp-XCO2	XCO2 retrievals	OCO-2	2.25 km × 1.29 km	16 days	OCO-2 _L2_Lite_FP_11r
		OCO-3	2.25 km × 1.29 km	16 days	OCO-3 _L2_Lite_FP_10.4r
NO2	Atmospheric NO2 column	TROPOMI-S5P	0.01°	Monthly	Sentinel-5P OFFL NO2: Offline Nitrogen Dioxide
NDVI	Normalized-difference vegetation index	MODIS	0.05°	Monthly	MOD13C2
D2M	2 m dewpoint temperature	ERA5— fifth-generation ECMWF atmospheric reanalysis	0.1°	Monthly	Complete ERA5 global atmospheric reanalysis
T2M	2 m temperature
U10	10 m U-wind component
V10	10 m V-wind component
MXCO2	Mapping XCO2	Mapped geostatistical method using XCO2 retrievals	0.5°	Monthly	Global land 0.5° mapping XCO2 dataset using satellite observations of GOSAT, OCO-2, and OCO-3 from 2009 to 2022
T-XCO2	Ground-based XCO2 data	TCCON	Point	-	TCCON data from Hefei (PRC)

.

The XCO₂ retrieval data were collected from the OCO-2 XCO₂ (OCO-2_L2_Lite_FP 11r) and OCO-3 XCO₂ (OCO-3_L2_Lite_FP 10.4r) data products from August 2019 to December 2022. According to the threshold settings of the variables land_fraction < 90 and XCO₂_quality_flag = 0 in the raw satellite observation data file, the land area and data quality were filtered, respectively, and only land area and high-quality XCO₂ data were used for the analysis. The XCO₂ retrievals were derived from CO₂ sounder observations on the Orbiting Carbon Observatory-2 (OCO-2) satellite (launched in 2014) and the Orbiting Carbon Observatory-3 (OCO-3) satellite (launched in 2019). The XCO₂ data products were generated by the Atmospheric CO₂ Observations from Space (ACOS) XCO₂ retrieval algorithm, which is an all-physical algorithm and has been filtered through recommended data screening and bias-corrected XCO₂ in the Lite files. The retrieval algorithm exhibited a significant regional bias, i.e., the surface pressure was incorrectly estimated in areas of high topographic variability, leading to a more significant bias (~1 ppm) [42]. Cloud-disturbed errors persist in the OCO-2 data, as noted by Massie et al. [43]. The deviation between the bias-corrected XCO₂ data and the Total Carbon Column Observing Network (TCCON) is 0.78 ± 1.14 ppm. Additionally, the temporal and spatial coverage of the observation data was not continuous, and there were many blank areas due to limitations of clouds and observation modes.

We collected three-level OFFL NO₂ data products in the study area from January 2019 to December 2022 through the GEE platform. The raw NO₂ observations were obtained from the Copernicus Ecosystem’s Sentinel-5 Precursor observation satellite, a global atmospheric pollution monitoring satellite launched on 13 October 2017, which carries the Tropospheric Monitoring Raster Spectrometer (TROPOspheric Monitoring Instrument (TROPOMI). Compared with previous remote-sensing instruments for monitoring atmospheric composition, the technical characteristics of the TROPOMI sensor have been greatly improved, with the signal-to-noise ratio increased by a factor of 1 to 5 [44]. The high temporal and spatial resolution and high-precision data observed by TROPOMI can be used to study urban-scale air pollution conditions and air quality monitoring for major events, providing a scientific data basis for policy decisions related to pollution emissions [23,45,46,47]. TROPOMI inverts atmospheric NO₂ data using Differential Optical Absorption Spectroscopy (DOAS) in the UV–Vis spectral band. The data processing system is based on the DOMINO-2 product and the Ozone Monitoring Instrument (OMI) EU QA4ECV NO₂ reprocessing dataset, and the algorithm is further optimized with the inversion–assimilation–modeling algorithm that uses the TM5-MP chemical transport model at a 1° × 1° resolution in the global three dimensions as the basic element [44]. Since October 2018, the Copernicus ecosystem has provided NO₂ data through three Level 2 data products including Near Real-Time (NRTI), Offline (OFFL), and Reprocessing (RPRO). Some of these products may have undergone multiple processing iterations, potentially resulting in improved data quality but delayed availability. Since Level 2 data products are generated on a per-orbit basis, further processing is required for areas where scanned orbits are repeatedly observed. Google Earth Engine (GEE) provides Level 3 data products with a spatial resolution of 1.1132 km, derived from Level 2 data that undergo screening for quality and grid-based reprocessing. The satellite-observed NO₂ data are the total vertical column concentration in mol/m². Since the effect of data observation noise can lead to negative observations in the clean region, only anomalous observations below −0.001 mol/m² need to be removed, as recommended in the data description document. In this study, monthly-averaged atmospheric NO₂ data were calculated for the study area using the GEE platform for online processing, converted to common units of molec/cm² by a multiplication factor of 6.02214 × 10¹⁹, and the spatial resolution was standardized to a 0.01° grid for use in this study.

We collected normalized vegetation index (NDVI) and ECMWF Reanalysis v5 (ERA5) data during the same period as the XCO₂ data, which were used as predictors to account for the effects of the vegetation ecological system and atmospheric transport on the atmospheric CO₂ concentrations. NDVI, obtained by the Moderate Resolution Imaging Spectroradiometer (MODIS), can account for the CO₂ uptake and release of the vegetation ecological system. The seasonal variation in NDVI, caused by vegetation CO₂ uptake and release, results in seasonal variations in the CO₂ concentration [48,49]. Meteorological data, including T2M (2 m temperature), D2M (dew point temperature), U10 (10 m U-wind fraction), and V10 (10 m V-wind fraction) were obtained from the ERA5 data. These data were derived from the fifth generation of the reanalysis climatic dataset of the European Centre for Medium-Range Weather Forecasts (ECMWF).

Mapping-XCO₂ (MXCO₂), was used to constrain the global variation in XCO₂ as one of the predictors in modeling XCO₂ prediction using ML. MXCO₂, which represents spatio-temporally continuous XCO₂ data, was generated through geo-statistical analysis of the XCO₂ retrievals in space and time obtained from multiple satellite observations, including GOSAT (April 2009 to August 2014), OCO-2 (September 2014 to December 2020), and OCO-3 (August 2019 to December 2022). This dataset is available on the HARVARD Dataverse (https://dataverse.harvard.edu/, accessed on 17 August 2021) [14]. The Mapping-XCO₂ dataset, which exhibited a −0.29 ± 1.04 ppm deviation compared to the TCCON, enabled examination of temporal and spatial changes at global and regional scales [50,51].

The ground-based XCO₂ data released from 2019 to 2022 from Hefei station (117.17°E, 31.9°N) in China, which is in the Total Atmospheric Carbon Column Observation Network (TCCON) [32,52] (https://tccon-wiki.caltech.edu/, accessed on 12 May 2021), were used to validate the accuracy of the reconstructed data by the predictive model. TCCON data, an atmospheric CO₂ column concentration derived by ground-based Fourier Transform Spectrometer (FTSE) observations, have been widely used to validate greenhouse gas products from space-based observations.

2.2. Methodology

The modeling XCO₂ prediction at spatio-temporal location i can be expressed as follows using the NO₂ data in addition to the other parameter variables.

XCO_2[i] = f(NO_2[i], NDVI_[i], T2M_[i], D2M_[i], U10_[i], V10_[i], MXCO_2[i], T_[i])

(1)

where f represents the function obtained by the ML algorithm based on the training data. XCO_2[i] is the predicted XCO₂ by model f at spatio-temporal location i; the variables, including NO_2[i], NDVI_[i], T2M_[i], D2M_[i], U10_[i], V10_[i], MXCO₂_[i], and T_[i], are the predictors of the spatio-temporal constrain fields for the atmospheric CO₂ concentration. Among the predictive parameters, D2M and T2M denote the 2 m dew point temperature and 2 m air temperature, respectively, elucidating the impact of meteorological temperature conditions on the atmospheric CO₂ concentration [53]. NO₂ serves as an indicator of anthropogenic CO₂ emissions, stemming from the same sources [24]. TimeIndex represents timestamps expressed in 1–12 corresponding to the current month, which was used to capture the temporal seasonal variation in the CO₂ concentration. NDVI represents physical quantities of the normalized-difference vegetation index, which is used to characterize CO₂ uptake and emissions by surface vegetation ecosystems [54]. U10 and V10 represent the physical quantities of the 10 m U-wind component and V-wind component, which are used to characterize the transport effects of the atmospheric wind field [53]. Additionally, MXCO₂ represents the spatio-temporal continuum of atmospheric XCO₂, serving as a constraint on the overall spatial distribution [14].

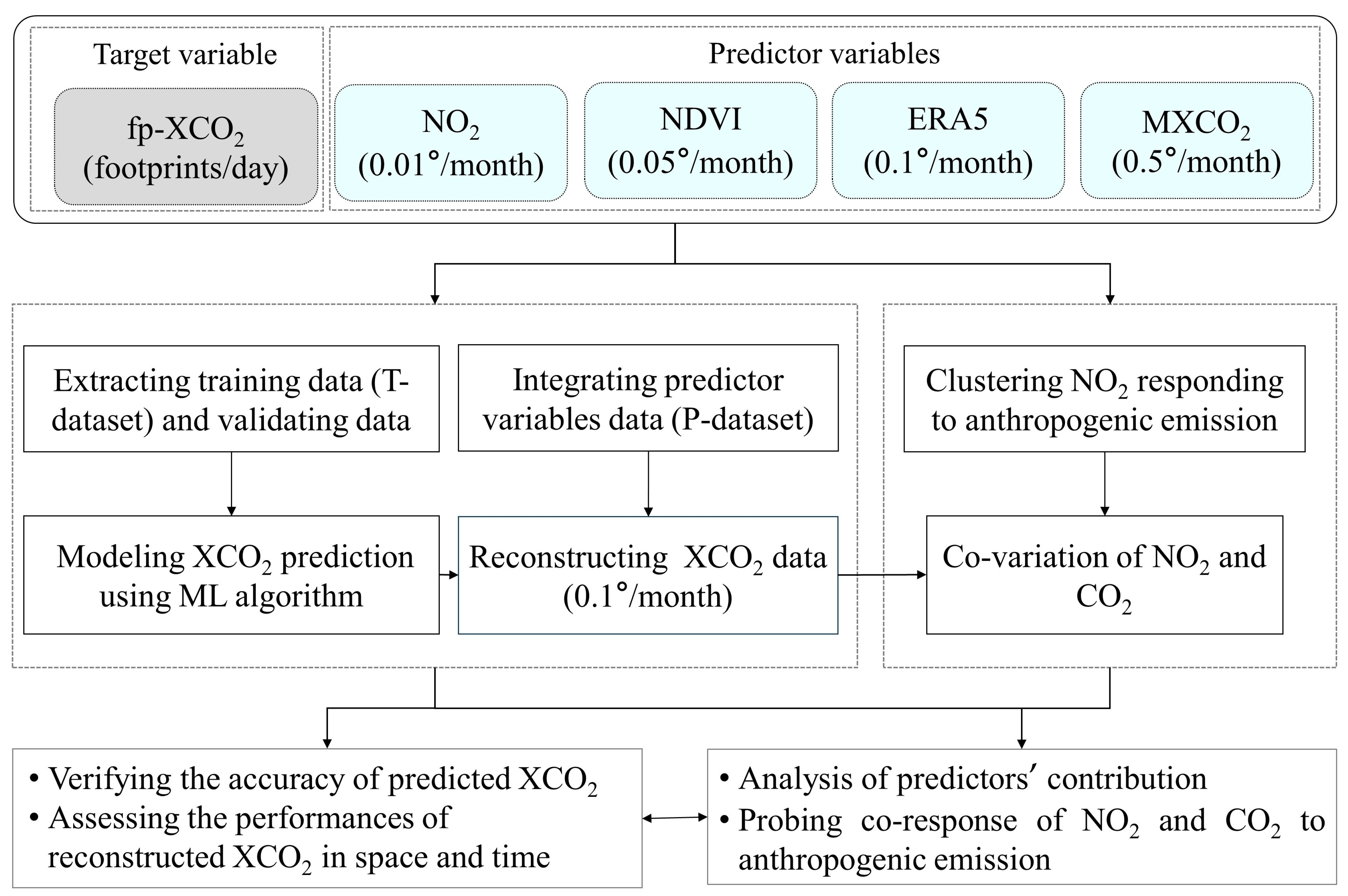

The framework for refining XCO₂ characteristics in space and time using simultaneously emitted NO₂ alongside CO₂, as shown in Figure 1, includes ML-based reconstruction of XCO₂ data and assessment of the NO₂ field constraint to modeling CO₂.

2.2.1. Modeling XCO₂ Prediction and Reconstructing XCO₂ in Space and Time

We built an XCO₂ prediction model by co-locating the fp-XCO₂ as the Y variable with the predictor variables as the X variable, including NO₂, NDVI, T2M, D2M, U10, V10, MXCO₂, and TimeIndex in Equation (1).

The training samples used for modeling XCO₂ predictions are especially critical, as the type of predictor variables and their spatial scale greatly influence the modeling accuracy and the performance of the predicted XCO₂. In addition to incorporating NO₂, we applied MXCO₂ data generated through mathematical geostatistics of the XCO₂ retrievals rather than simulated XCO₂ such as CarbonTracker, as carried out by other researchers [17]. This approach aims to constrain the spatio-temporal relationship of XCO₂, relying on a data-driven method that identifies a mathematical (constraining) relationship between observations of XCO₂ from OCO satellites and multiple parameters. MXCO₂ demonstrates the spatio-temporal relationships among the XCO₂ retrievals and addresses gaps in satellite observations through mathematical geostatistical methods [13,14].

We assessed the predictive effects of model training data at different scales of a 0.5° grid that is the same as MXCO₂ and a 0.1° grid that is the same as the reconstructed XCO₂ grid using four ML algorithms, CatB, LGB, MLP, and LSTM, respectively. The results showed that both 0.5° and 0.1° training data without MXCO₂ demonstrated much lower prediction accuracy than did those with MXCO₂ via cross-validation for all ML algorithms, indicating that MXCO₂ can help constrain the spatial relationship of XCO₂ during model training. Furthermore, XCO₂ predictions from the 0.5°-grid training data demonstrated higher accuracy than those from the 0.1°-grid training data, because resampling MXCO₂ to a 0.1° grid within a 0.5° grid could result in the loss of spatio-temporal characteristic information due to the smoothing of scale-up resampling.

As a result of the training data analysis above, we generated a dataset consisting of a set of co-located fp-XCO₂ and predictors (NO₂, NDVI, T2M, D2M, U10, V10, and MXCO₂) from the years 2019 to 2022 in a 0.5° grid/month unit. We then split it into two parts; one is 10% of this dataset, which was randomly extracted as a cross-validation dataset, while the remaining data were used as the training dataset for modeling XCO₂ predictions (hereinafter referred to as the T-dataset).

Additionally, we detrended the impact of background on XCO₂ (hereafter referred to as dXCO₂) by subtracting the monthly average values of the entire XCO₂ dataset in the study area for the XCO₂ in values in both the T-dataset and P-dataset. This step removed effects from the background due to the atmospheric transportation and the accumulations of CO₂ over a long lifetime. Lastly, the XCO₂ predictions were calculated for each grid by adding the predicted dXCO₂ value to the background trend value used in the same month.

We assessed the performance of the ML algorithms, including CatB, LGB, MLP, and Long Short-Term Memory (LSTM), which have been proven more effective for nonlinear prediction. CatB and LGB are decision tree models, while MLP and LSTM are neural network models. After parameter testing and tuning, the optimal parameter settings for each model are shown below. The CatB model had 10,000 iterations and a learning rate of 0.001. The LGB model had 500 leaf nodes, a model depth of 8, and a learning rate of 0.001. The MLP model had (64, 32, 8) hidden neurons and a learning rate of 0.001. The LSTM model had 50 hidden neurons and a learning rate of 0.001. As a result, the predictions by CatB significantly outperformed those of LGB, MLP, and LSTM through model cross-validation, demonstrating reasonable performance in predicting XCO₂ in both space and time. CatB showed the smallest deviation from fp-XCO₂, which is 0.17 ± 1.17 ppm (R² = 0.81), while LGB, MLP, and LSTM showed deviations of 0.21 ± 1.18 ppm (R² = 0.79), 1.49 ± 3.18 ppm (R² = 0.47), and 1.03 ± 2.16 ppm (R² = 0.58), respectively (see Figure A1). Specific comparative validation screenings of the model results are outlined in the Discussion section. Therefore, we applied CatB for modeling XCO₂ predictions to reconstruct XCO₂.

2.2.2. Evaluation of Reconstructed XCO₂ and Effects of NO₂ Constraints

The multiple predictor variable data (NO₂, NDVI, T2M, D2M, U10, V10, and MXCO₂) in Equation (1), each with different spatial and temporal resolutions as shown in Table 1, were integrated into the dataset at a resolution of 0.1° grid/month unit for each variable from the years 2019 to 2022 (hereinafter referred to as the P-dataset). This integration was achieved through resampling, where those variables with a resolution of less than 0.1° in the grid were averaged within each grid for each variable, and MXCO₂ was resampled using the nearest-neighbor method.

XCO₂ was predicted using the XCO₂ prediction model built previously with the P-dataset and reconstructed XCO₂ data at a resolution of 0.1°/month from 2019 to 2022, as shown in Figure 1.

The accuracy and performance of the reconstructed XCO₂ were implemented through three methods, namely, model cross-validation, ground-based observed XCO₂, and analysis of the predictor’s contribution and co-response of NO₂ and CO₂ to anthropogenic emissions, as well as the effects of NO₂ for disentanglement from biogenic sources of CO₂.

We extracted ground-based XCO₂ data from the TCCON site in Hefei, obtained between 12:00 and 14:00 around the local observation time of OCO series satellites (13:30), and calculated monthly averaged values (hereafter referred to as T-XCO₂). The paired data of the co-located predicted XCO₂ and T-XCO₂ were used to calculate three metrics, the coefficient of determination (R²), the root mean square error (RMSE), and the mean absolute percentage error (MAPE), using the following equations to evaluate the accuracy of the predicted XCO₂.

The coefficient of determination, R-squared (R²), was calculated by Equation (2), where a value closer to 1 indicates a better fit of the model.

$${\mathrm{R}}^2=1-\frac{\sum ({\mathrm{Y}}_{\mathrm{i}}-\widehat{\mathrm{Y}})}{\sum ({\mathrm{Y}}_{\mathrm{i}}-\overline{\mathrm{Y}})}$$

(2)

The formula for the root mean square error (RMSE) and mean absolute prediction error (MAPE) are as follows, respectively:

$${\mathrm{X}}_{\mathrm{R}\mathrm{M}\mathrm{S}\mathrm{E}}=\sqrt{\frac{{\sum }_{\mathrm{i}=1}^{\mathrm{N}}{\left({\mathrm{Y}}_{\mathrm{i}}-{\widehat{\mathrm{Y}}}_{\mathrm{i}}\right)}^2}{\mathrm{N}}}$$

(3)

$${\mathrm{X}}_{\mathrm{M}\mathrm{A}\mathrm{P}\mathrm{E}}=\frac{100\mathrm{\%}}{\mathrm{N}}{\sum }_{\mathrm{i}=1}^{\mathrm{N}}|\frac{{\mathrm{Y}}_{\mathrm{i}}-{\widehat{\mathrm{Y}}}_{\mathrm{i}}}{\mathrm{Y}}|$$

(4)

where ${\mathrm{Y}}_{\mathrm{i}}$ is the observed value, $\widehat{\mathrm{Y}}$ is the model predicted value, $\overline{\mathrm{Y}}$ is the mean of the observations, and N is the number of samples.

We applied the SHAP (Shapley Additive exPlanations) method to assess the contribution of predictor variables to the XCO₂ predictions and to explore the contribution of NO₂ co-emitted with fossil CO₂ during combustion, along with the co-variation of NO₂ and CO₂ in response to anthropogenic CO₂ emissions through clustering analysis. Clustering analysis of the spatio-temporal characteristics of NO₂ can demonstrate the emission intensity in clustered area units, thereby integrating different chemical processes of NO₂ and CO₂ in the atmosphere. This approach allows us to investigate the co-variation of NO₂ and XCO₂ in response to anthropogenic CO₂ emissions by statistically analyzing clustered areas, which helps avoid the effects of chemical processes in NO₂ and CO₂. The clustering analysis of NO₂ data at a resolution of 0.1°/month from the years 2019 to 2022 classified the study area into 14 categories using the K-means method.

3. Results

3.1. Model Prediction Accuracy and Performance of the Reconstructed XCO₂

3.1.1. Accuracy of the XCO₂ Predictions

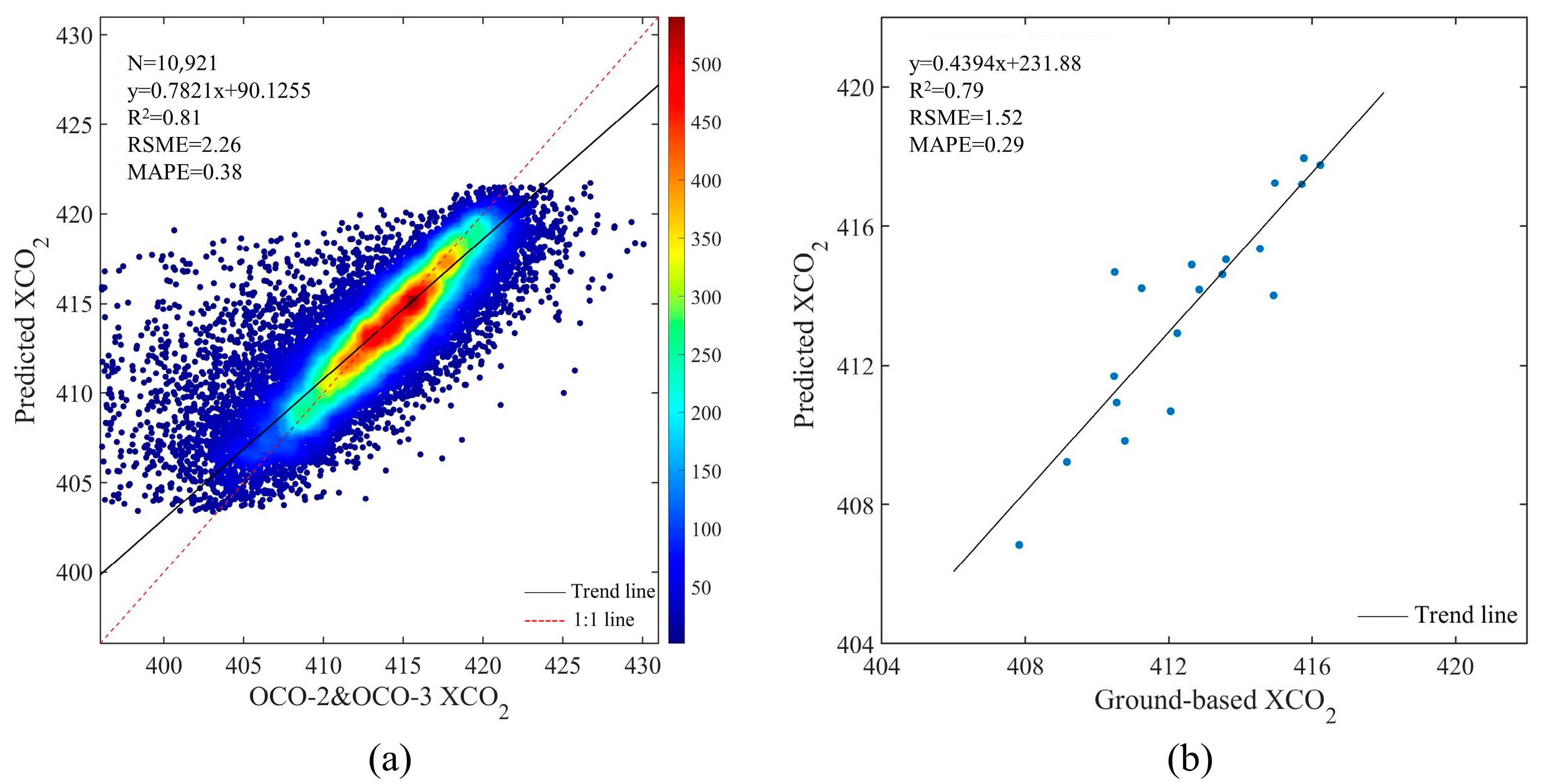

Figure 2 demonstrates the predicted XCO₂ from the CatB-based built predictive model compared to both the satellite-based fp-XCO₂ and the ground-based observed XCO₂.

The results from the cross-validation, as shown in Figure 2a, demonstrate that the R², RMSE, and MAPE of the XCO₂ predictions compared with the fp-XCO₂ are 0.81, 2.26 ppm, and 0.38, respectively, with a total deviation of 0.17 ± 1.17 ppm. The model’s predicted XCO₂ tended to be higher than the satellite-observed XCO₂ in the low-value range of fp-XCO₂, which implies that the model predictions increase those low XCO₂ retrievals mostly in the areas without anthropogenic emissions or irregular values. The validation of the predicted XCO₂ against T-XCO₂, shown in Figure 2b, demonstrates R², RMSE, and MAPE values of 0.79, 1.52 ppm, and 0.29, respectively. The total deviation of the predicted XCO₂ was 1.03 ± 1.15 ppm, similar to the deviation of the co-located fp-XCO₂ and TCCON site, which was 0.89 ± 1.23 ppm.

3.1.2. Performance of the Model Predictions

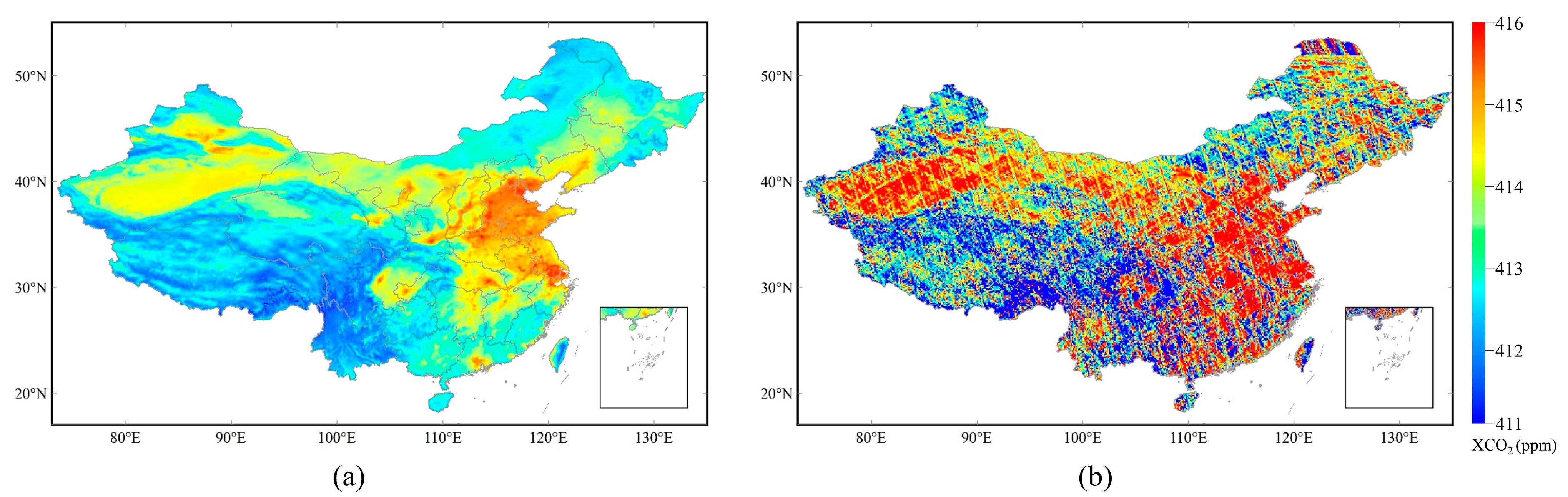

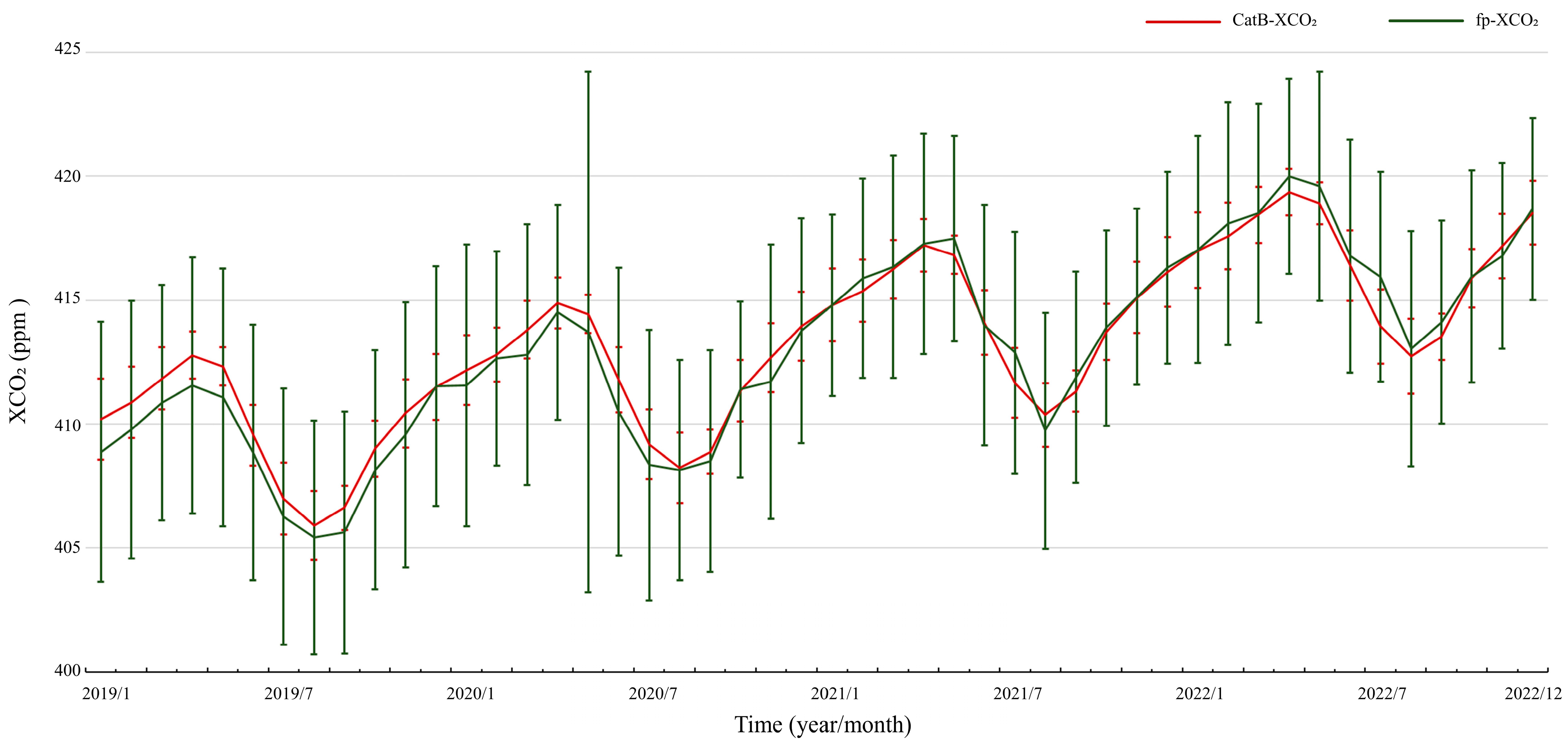

We applied the XCO₂ prediction model constructed by the CatB algorithm and T-dataset to generate an XCO₂ dataset at a resolution of 0.1° grid/month, denoted as Cm-XCO₂, from 2019 to 2022 using the predictor dataset from 2019 to 2022. Figure 3 shows the averaged values for each grid calculated from the model-predicted XCO₂, as well as the original satellite-observed XCO₂ values within the 0.1° grid. The model-predicted XCO₂ exhibited significantly finer spatial features and appeared more reasonable than the original satellite XCO₂ retrievals, particularly evident in the resolution of anomalous high XCO₂ in the southern region, and the western Taklamakan Desert in the original satellite observations in the study area.

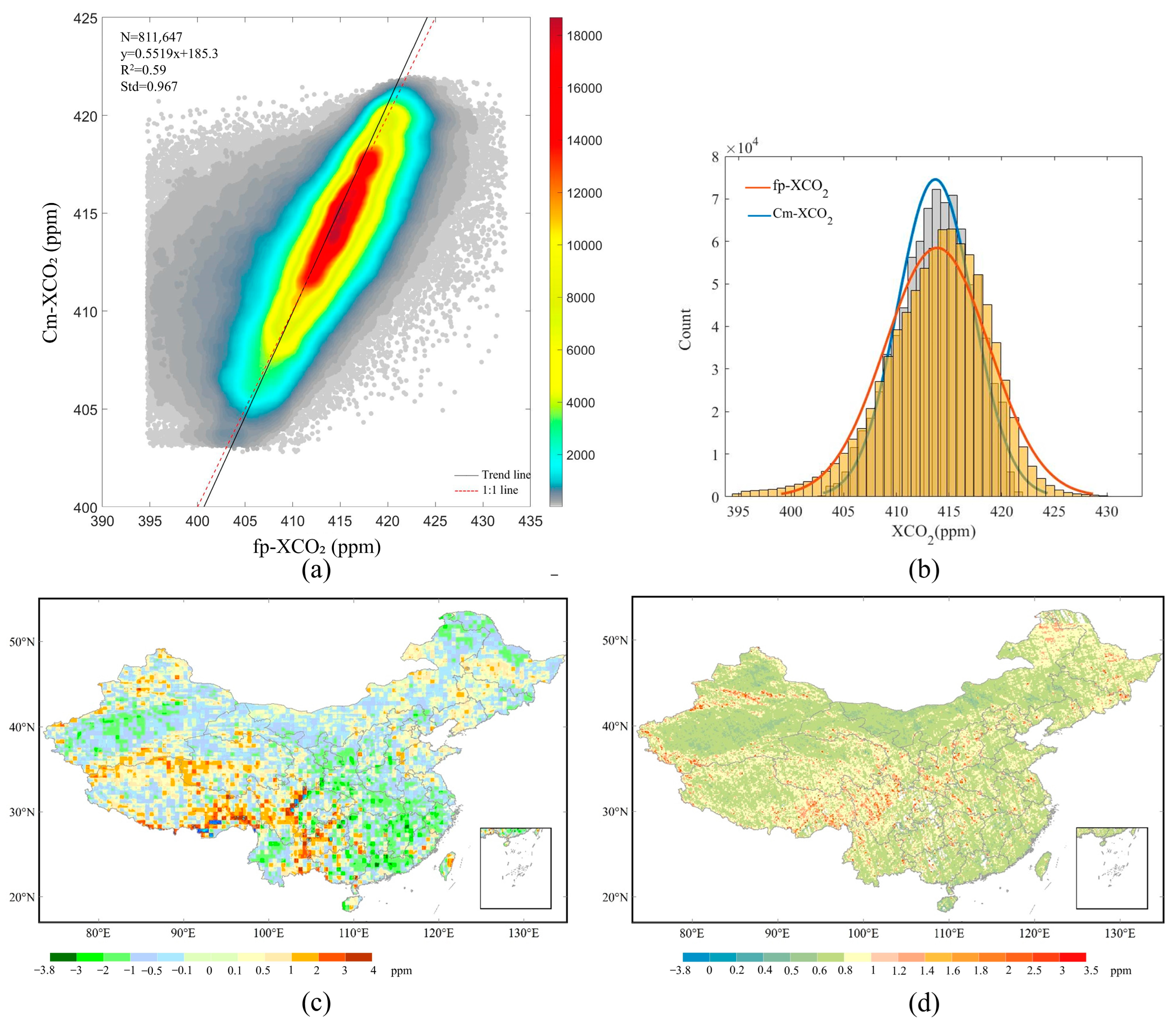

We assessed the impact of model prediction on the original satellite-observed XCO₂ (fp-XCO₂) that was re-calculated by the predicting model comparing the co-located fp-XCO₂ and Cm-XCO₂. Figure 4 shows a diagram, histogram, and the difference of the co-located Cm-XCO₂ and fp-XCO₂, along with a comparison with the posterior uncertainty in the XCO₂ algorithm released in L2 product data [55].

It can be found from Figure 4a,b that the model predicting XCO₂ narrowed the range of fp-XCO₂ values from 399.06–428.67 ppm to 403.04–424.14 ppm within the cumulative frequency range of 5–95%. The low fp-XCO₂ values of 395–402 ppm were enlarged to 403–417 ppm using the predictive model, occurring mostly in mountainous areas with highly undulating terrain along the edge of the Tibetan Plateau, as shown in Figure 4c. Here, the differences between Cm-XCO₂ and fp-XCO₂ ranged from 1 to 4 ppm. It is known that a CO₂ concentration of less than 400 ppm is unreasonable since 2019 according to the global CO₂ background concentration (see Figure A2), where the minimum of CO₂ concentration was 408 ppm in 2019, as observed the from ground-based XCO₂ measurements from the TCCON station in Hefei shown in Figure 2b.

Additionally, comparing Figure 4c and Figure 4d reveals that the large differences between Cm-XCO₂ and fp-XCO₂ correspond to large posterior uncertainty in the XCO₂ retrieval data products derived by the OCO L2 algorithm [56] over the edge of the Tibetan Plateau, respectively, which has higher elevation and topographic variations. This is likely because the sharp variations in elevation in the undulating terrain result in anomalous values of fp-XCO₂. Currently, the remaining uncertainties in XCO₂ retrievals may indicate large biases, especially in regions with large topographic variations [54]. Therefore, the reconstructed XCO₂ for these abnormally low values of fp-XCO₂, by constraint computation of XCO₂ through the ML of the multiple variables, rectified these XCO₂ retrievals with large uncertainties, which could be induced by the uncertainty of input parameters in the algorithms of XCO₂ retrievals [55].

The high values of fp-XCO₂ ranged from 422 to 430 ppm, which are currently unreasonable, as the Global Atmosphere Watch Programme (GAW) global background station located in Waliguan, Qinghai, China, observed that the atmospheric CO₂ concentrations peaked at 419.3 ppm in 2022 [57]. These high values are predicted to be reduced to low values ranging from 415 to 420 ppm in Cm-XCO₂, mostly in eastern areas with differences ranging from −2 ppm to −3 ppm.

3.2. Co-Variation of CO₂ and NO₂ to Anthropogenic CO₂ Emissions

3.2.1. NO₂ Constraints Enhancing the XCO₂ Response to Anthropogenic Emissions

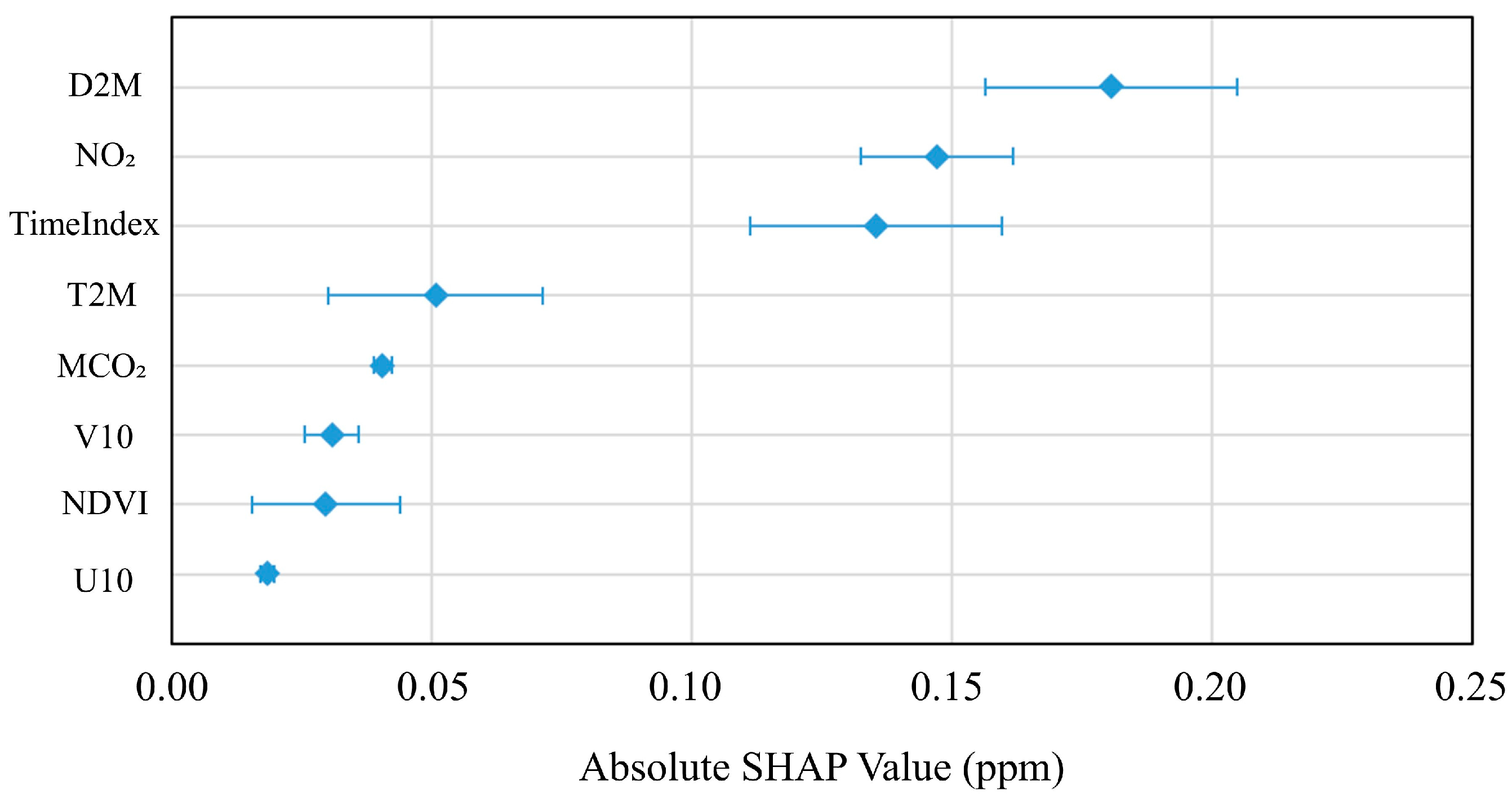

The larger the SHAP value of a predictor variable, the greater its contribution to the model prediction. The contribution of an individual variable is ranked in order of contributions by the average SHAP value, as shown in Figure 5. This is defined as the average of the absolute SHAP value (in ppm) and the standard deviation calculated from the training data from 2019 to 2022.

The results of the SHAP values show that D2M, NO₂, and TimeIndex significantly contributed to modeling XCO₂ predictions much more than the other variables. The largest contributor, D2M, and third-largest, TimeIndex, are likely significant because the distinct seasonal variation in CO₂ is strongly impacted by CO₂ uptake and release in terrestrial ecosystems, which generally depend on temperature and water vapor, as explained by D2M and monthly time. The contribution of the vegetation index NDVI was low, ranking second from the bottom. The spatial NDVI demonstrated the different seasonal variations in CO₂ absorption capacity over various land surfaces with different vegetation and non-vegetation densities. Wind can result in CO₂ flowing in space, diminishing the CO₂ signals in the atmosphere from CO₂ fluxes of land ecosystem surfaces [19].

NO₂ ranked second in the contribution of multiple variables to modeling XCO₂ prediction. NO₂, a pollutant gas emitted from fossil fuel combustion, strongly affects the modeling of XCO₂ prediction due to its co-emission with CO₂. NO₂ showed the strongest linear relationship with Cm-XCO₂ (R² = 0.57) among the predictor variables (see Figure A3), while D2M and NDVI showed a nonlinear relationship with Cm-XCO₂. Furthermore, we investigated the co-variation of NO₂ and XCO₂ in relationship to anthropogenic CO₂ emissions.

NO₂, as a tracer of CO₂ emissions from fossil fuel combustion, can constrain the predictive model to enhance the information on CO₂ from the anthropogenic emissions. The spatial distribution of NO₂, as shown in Figure 6a, generally aligned with the anthropogenic CO₂ emissions (Figure 6b), and the hotspots of emissions demonstrated the spread of high NO₂ concentrations. NO₂ showed a strong response to the anthropogenic CO₂ emissions with an R² of 0.92, as shown in Figure 6c, when calculating their correlation between NO₂ and EDGAR emissions using the averaged values of the grids within each clustered area derived from the spatio-temporal clustering analysis of NO₂ data. This result implies that NO₂, as a predictor variable, could strengthen the response to anthropogenic CO₂ emissions in modeling XCO₂ predictions. The predicted XCO₂ for those locations of the satellite-observed XCO₂ (fp-XCO₂) showed an R² of 0.79 with the co-located anthropogenic emission, which is higher than the R² of fp-XCO₂ (R² = 0.66). Here, the CO₂ response to anthropogenic emissions (66–79%) was lower than that of NO₂ (92%), reasonably indicating that atmospheric CO₂ still includes natural emissions from land ecosystems and transported CO₂ fluxes.

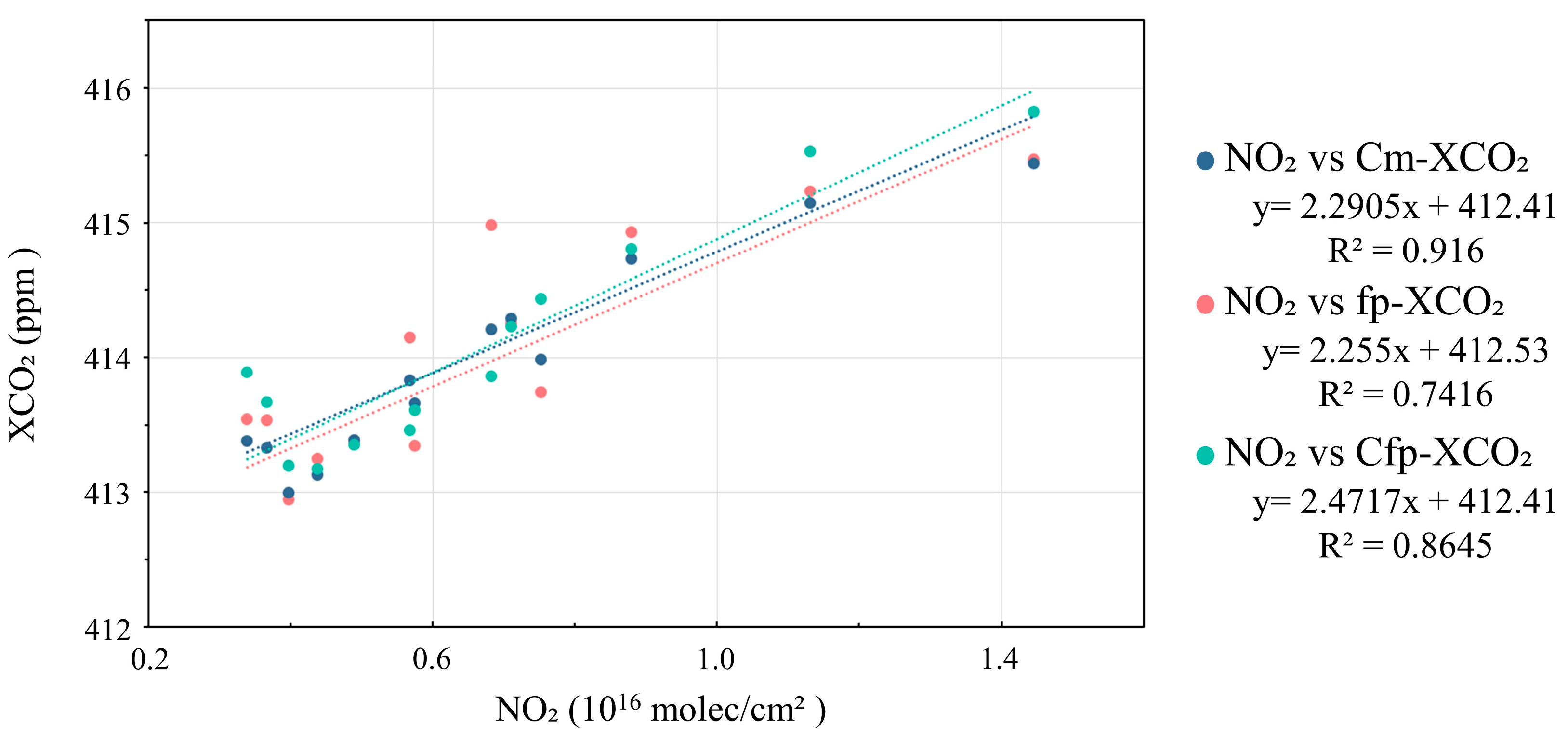

The relationship between the co-located NO₂ and fp-XCO₂ reached up to 0.74 based on the clustered areas, compared with the calculations based on the grids (R² = 0.57 in Figure A3b). The clustered areas derived from the spatio-temporal clustering analysis of NO₂ data smoothed the impacts of different spreads and lifetimes between NO₂ and CO₂ in the grid by averaging said grids for each clustered area. The strong correlations between the predicted XCO₂ (Cfp-XCO₂ and Cm-XCO₂) and NO₂, with R² values of 0.86 and 0.92, respectively, as shown in Figure 7, indicated that NO₂, as one of the predictors, can constrain XCO₂ in modeling XCO₂ predictions. This is consistent with Emily G. Yang et al.’s suggestion that the satellite-based NO₂ can serve as a proxy species to constrain CO₂ [34].

3.2.2. Co-Response of NO₂ and CO₂ Concentrations to Anthropogenic Emissions under Special Scenarios of Human Activity

The significant reduction in human activities during the 2020–2022 COVID-19 period resulted in decreases in NO₂ and CO₂ from anthropogenic emissions [14]. We analyzed the co-variation of CO₂ and NO₂ under this particular reduction in anthropogenic emissions from 2019 to 2022 to find how NO₂ and XCO₂ synchronized in response to an abnormal reduction in anthropogenic emissions. Based on the clustering results of the spatio-temporal characteristics of the NO₂ concentration and anthropogenic CO₂ emissions in China, we selected 13 regions of interest (ROIs) with high NO₂ values and anthropogenic emissions, as shown in Figure 8a. ROI1–ROI13 (referred to as R1–R13 in Figure 8) indicate Wuhan (R1-Wuhan), Shanghai (R2-Shanghai), the Yangtze River Delta (R3-YRD), Beijing–Tianjin–Hebei (R4-BTH), Xi’an (R5-Xian), Shanxi Coal Mining Belt (R6-ShanxiCoal), Jinan (R7-Jinan), Chengdu–Chongqing (R8-ChengduC), Guangzhou (R9-Guangzhou), the strip west-northwest of Urumqi toward Shihezi (R10-Wulumuqi), Yinchuan (R11-Yinchuan), the strip south of Hohhot (R12-Huhehaote), and Shenyang (R13-Shenyang).

It is known that the maximum anthropogenic emissions generally occur in the winter season when the XCO₂ shows the largest enhancements [14]. Therefore, we calculated the enhancement relative to the background value in the winter (December–February) for each ROI (winter value in ROIs minus the winter average of the overall study area in the same year) for the four years from 2019 to 2022 (hereafter referred as to ΔXCO₂ and ΔNO₂), as shown in Figure 8b. Figure 8b shows that both ΔNO₂ and ΔXCO₂, after 2019, ahead of the COVID-19 outbreak and control, were lower than the values in the normal year of 2019 from R1 to R7, especially in R1-Wuhan in the eastern part of China, where ΔXCO₂ was around 3 ppm. These yearly changes clearly respond to the unexpected reduction of human activity in 2020 and 2021 during the COVID-19 outbreak and control, with human economic activity not returning to 2019 levels in 2022. The reduction in anthropogenic activity during the COVID-19 period resulted in a decrease in ΔNO₂ of 0.4–1.0 × 10¹⁶ molec/cm² and in ΔCO₂ of 0.5–1.7 ppm compared to 2019. The largest decrease in ΔCO₂, 1.7 ppm, occurred when emissions from human activity were minimized in Wuhan.

The ΔCO₂ in R8–R13 were less than those of R1–R7, and the interannual variations were also small due to a lesser impact from COVID-19. It should be noted that ΔNO₂ in R10-Urumqi presented the largest value among the ROIs abnormally, with the maximum value, 3.4 × 10¹⁶ molec/cm², occurring in 2021, not in the normal year of 2019. The maximum interannual difference was up to 75% during 2019–2022, while ΔCO₂ did not present similar changes to ΔNO₂ correspondingly, with the maximum interannual difference being only 12%. This abnormal ΔNO₂ was due to high emissions from many air-polluting enterprises (mainly the coal and chemical industry and non-ferrous metals) that have been rapidly increasing in recent years in this region, resulting in it having the worst air pollution in China in recent years. The discrepancy, where the change in CO₂ did not correspond to the change in NO₂, was likely caused by two reasons. One reason is probably due to the fossil fuel combustion processes in these air-polluting enterprises, of coal chemical industry and non-ferrous metal, in which NO₂, the pollutant gas emitted by companies, has been rising, while CO₂ has reached its maximum. That is, the emitted CO₂ does not respond to an increase in emitted NO₂ from these sources when NO₂ emissions increase beyond a certain level. Another reason is probably due to the uncertainties of XCO₂ data; the aerosols, which are one of the key input parameters in the XCO₂ retrieval algorithm, likely introduced large biases due to the heavy air pollution (see Figure 4d), even if the ML predictions (see Figure 4c) modified some of their biases.

The extreme reductions in anthropogenic emissions in 2020 and 2021 impacted the corresponding variation in NO₂ and XCO₂ when comparing NO₂ and XCO₂ in these two years to the normal year 2019, as shown in Figure 8c. We found that the R² in 2020 and 2021 (0.49–0.50) was less than in 2022 (0.63) when anthropogenic emissions had begun to recover but not yet returned to 2019 levels. This implies that CO₂ may inexactly respond to NO₂ changes in these extreme scenarios and during extreme NO₂ events like R10-Urumqi.

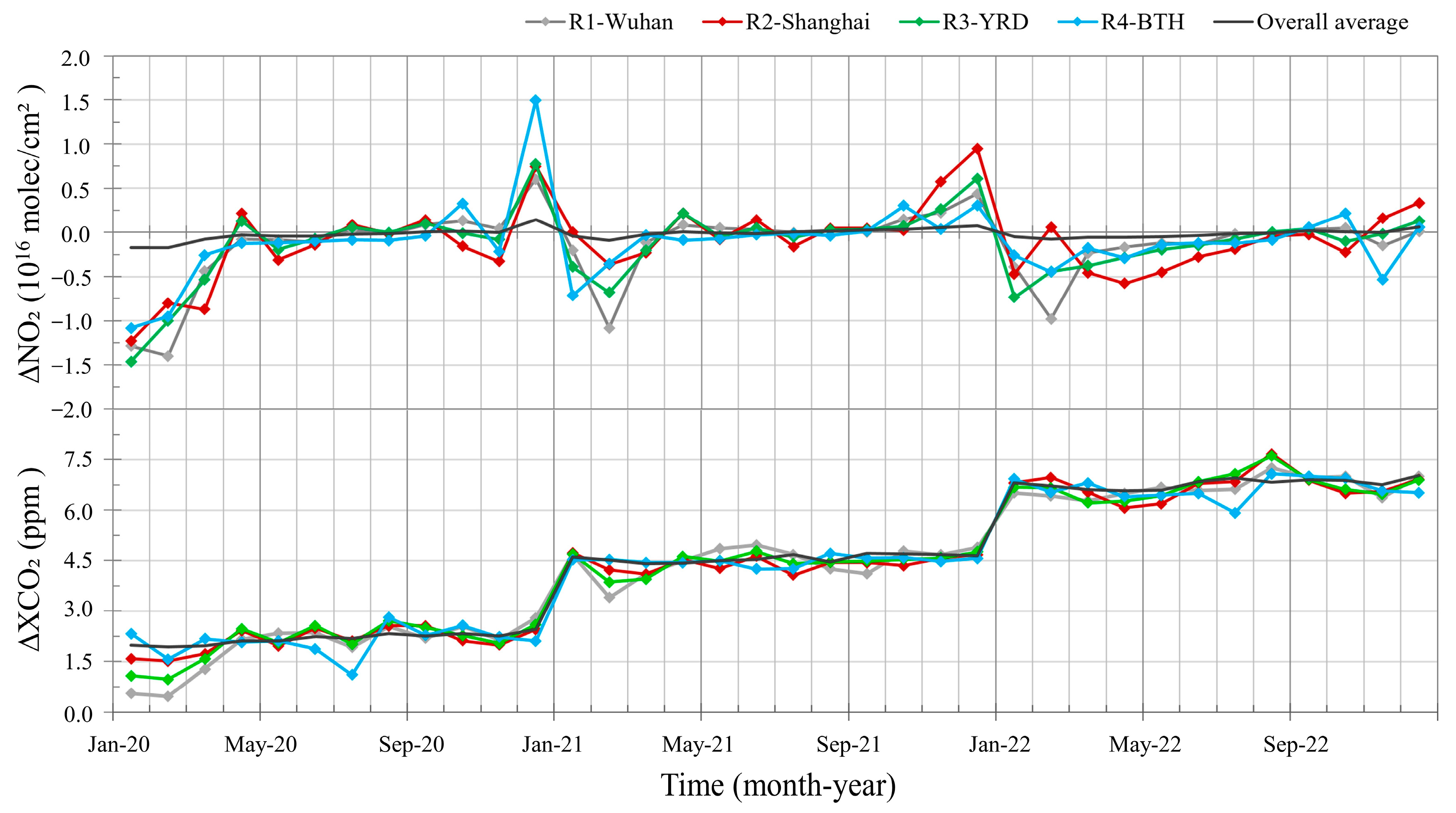

Further, in contrast to 2019, the monthly differences between monthly values from 2020 to 2022 and the same month in 2019 showed that XCO₂ inexactly responded to NO₂ as well. Figure 9 shows an example of these differences for R1-Wuhan, R2-Shanghai, R3-YRD, and R4-BTH, where the fluctuations in human economic activities were the highest during the COVID-19 period. Figure 9 shows a co-decrease in NO₂ and XCO₂ during the first period of COVID-19, covering January–March of 2020, especially in R1-Wuhan, which experienced an extreme reduction in human activities due to COVID-19. NO₂ showed a decrease of 1.3 × 10¹⁶ molec/cm² in February 2020, corresponding to a reduction of 1.4 ppm in XCO₂. The faint co-decrease in NO₂ and XCO₂ during the COVID-19 controlling period in April 2022 in R2-Shanghai is shown as well, with a decrease of 0.5 × 10¹⁶ molec/cm² in NO₂, corresponding to a reduction of 0.5 ppm in XCO₂.

XCO₂ still demonstrated a yearly increase of, on average, 2.3 ppm from 2020 to 2022, which implies that regional reductions in anthropogenic emission activities, such as in China, cannot effectively mitigate the increase in CO₂ globally. This means that to mitigate further increase in CO₂, global action is required.

4. Discussion

Considering that the prediction results of different machine learning algorithms differ, we further compared the prediction performance of LGB, MLP, and LSTM. The results showed that the prediction results of all three models were worse than CatB. The R² and total deviation of the cross-validation for the four models (CatB, LGB, MLP, and LSTM) were 0.81, 0.79, 0.47, and 0.58, and 0.17 ± 1.17 ppm, 0.21 ± 1.18 ppm, 1.49 ± 3.18 ppm, and 1.03 ± 2.16 ppm (see Figure 2 and Figure A1), respectively. The predictions of CatB and LGB, based on decision trees, were better than those of MLP and LSTM, based on neural networks. LGB and LSTM generally presented overestimates, while MLP presented severe underestimates (see Figure 3 and Figure 10).

These results are likely due to the fact that different machine learning algorithms have different abilities to capture the features of multisource satellite observations. CatB, and LGB are optimized algorithms based on the Gradient-Boosting Decision Tree (GBDT) algorithm, which is the most widely used ML algorithm. GBDT applies weak classifiers (decision trees) for training to obtain an optimal model iteratively, which has the advantages of a good training effect and being hard to overfit. MLP and LSTM are forward-structured artificial neural networks containing an input layer, an output layer, and several hidden layers. The error backward propagation technique was employed to train the parameters of the neural network model and is capable of handling nonlinear separable problems.

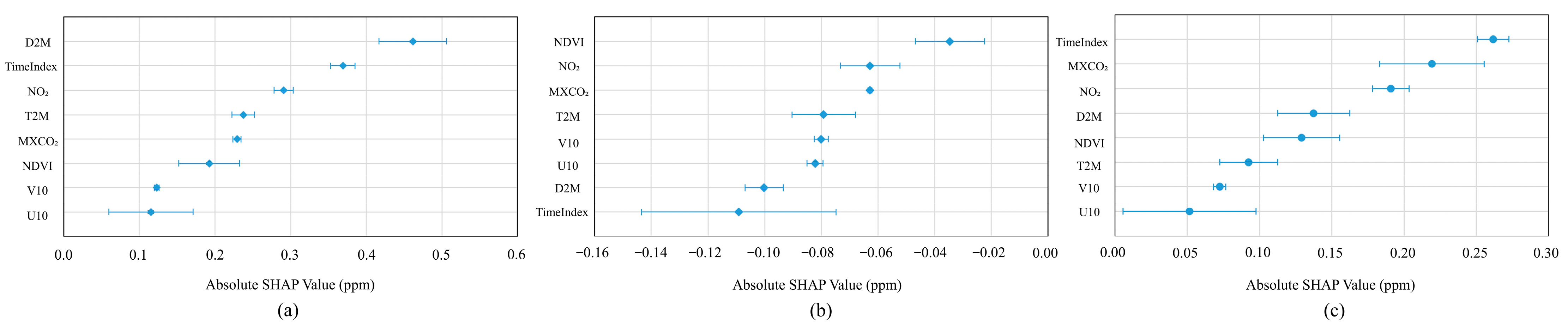

The total contribution of the model predictor parameters to the predictions (see Figure 5 and Figure 11) showed that the contribution of the predictor variables in MLP and LSTM were 24.7%, 13.6%, 13.6%, 10.8%, 10.7%, 10.4%, 8.5%, and 7.7% (NDVI, NO₂, MXCO₂, T2M, V10, U10, D2M, and TimeIndex) and 22.7%, 19%, 16.5%, 11.9%, 11.2%, 8%, 6.3%, and 4.5% (TimeIndex, MXCO₂, NO₂, D2M, NDVI, T2M, V10, and U10), respectively. It can be seen that NDVI and MXCO₂ had unusually high contributions in MLP, as well as TimeIndex and MXCO₂ in LSTM, which led to significantly worse predictions in both models. In addition, TimeIndex contributed a higher percentage in LGB and LSTM than in CatB. As described in Section 2.2, for the physical significance and impact of the predicted parameters, overconsideration of the temporal increase in the atmospheric CO₂ concentration leads to an overall overestimation of its predictions.

5. Conclusions

The spatio-temporal discontinuities in the original satellite XCO₂ observations and the large number of data gaps make it difficult to accurately reveal the spatial and temporal characteristics of the atmospheric CO₂ concentration. We reconstructed satellite-observed XCO₂ data using multiple predictors, including satellite-observed NO₂ with co-emissions from the same sources based on a machine learning algorithm to generate spatially and temporally continuous monthly XCO₂ data from January 2019 to December 2022 in Chinese regions. The accuracy of the ML predictive model and the effectiveness of introducing NO₂ to enhance the XCO₂ response to anthropogenic emission activities were assessed through the cross-validation, validation against TCCON observations, and comparison with original satellite XCO₂ retrievals.

The results showed that the predictive model had good predictive performance in terms of revealing the spatial and temporal concentrations of CO₂, with an R² and total deviations of 0.79, 0.17 ± 1.17 ppm, and 0.81, 1.03 ± 1.15 ppm, respectively, compared to ground-based XCO₂ measurements and model cross-validation. The reconstructed XCO₂ data not only fills in the gaps but also corrects the large uncertainties of the original observations over areas with high elevation and steep terrain. The strong correlation of NO₂ with the anthropogenic CO₂ emissions (R² = 0.92), due to simultaneous anthropogenic CO₂ emissions, implies that the introduction of NO₂ can enhance the anthropogenic emissions information in the model-predicted XCO₂ with R² = 0.76, which is higher than the R² = 0.66 found for the raw satellite-observed XCO₂.

The findings, by analyzing co-response variations of XCO₂ and NO₂ under special anthropogenic emission scenarios during the COVID-19 control period of 2020–2022 in the study area, indicate a synchronized CO₂ and NO₂ response to the dramatic reduction in anthropogenic activities; however, CO₂ could incompletely respond to NO₂ changes in the case of overly heavy gas polluting scenarios. This XCO₂ and NO₂ co-response variation mechanism to anthropogenic CO₂ emissions needs further verification via practical CO₂ and NO₂ emissions measures.
