The Role of VEGF Receptors as Molecular Target in Nuclear Medicine for Cancer Diagnosis and Combination Therapy

by
Katarzyna Masłowska
1,*,
Paweł Krzysztof Halik
1,*,
Dagmara Tymecka
2,
Aleksandra Misicka
2 and
Ewa Gniazdowska
1
1
Centre of Radiochemistry and Nuclear Chemistry, Institute of Nuclear Chemistry and Technology, Dorodna 16, 03-195 Warsaw, Poland
2
Faculty of Chemistry, University of Warsaw, Pasteura 1, 02-093 Warsaw, Poland
*
Authors to whom correspondence should be addressed.
Cancers 2021, 13(5), 1072; https://doi.org/10.3390/cancers13051072
Submission received: 22 December 2020 / Revised: 13 February 2021 / Accepted: 24 February 2021 / Published: 3 March 2021
(This article belongs to the Special Issue Combination Therapies in Cancers)

Abstract

:

Simple Summary

The rapid development of diagnostic and therapeutic methods of the cancer treatment causes that these diseases are becoming better known and the fight against them is more and more effective. Substantial contribution in this development has nuclear medicine that enables very early cancer diagnosis and early start of the so-called targeted therapy. This therapeutic concept compared to the currently used chemotherapy, causes much fewer undesirable side effects, due to targeting a specific lesion in the body. This review article discusses the possible applications of radionuclide-labelled tracers (peptides, antibodies or synthetic organic molecules) that can visualise cancer cells through pathological blood vessel system in close tumour microenvironment. Hence, at a very early step of oncological disease, targeted therapy can involve in tumour formation and growth.

Abstract

One approach to anticancer treatment is targeted anti-angiogenic therapy (AAT) based on prevention of blood vessel formation around the developing cancer cells. It is known that vascular endothelial growth factor (VEGF) and vascular endothelial growth factor receptors (VEGFRs) play a pivotal role in angiogenesis process; hence, application of angiogenesis inhibitors can be an effective approach in anticancer combination therapeutic strategies. Currently, several types of molecules have been utilised in targeted VEGF/VEGFR anticancer therapy, including human VEGF ligands themselves and their derivatives, anti-VEGF or anti-VEGFR monoclonal antibodies, VEGF binding peptides and small molecular inhibitors of VEGFR tyrosine kinases. These molecules labelled with diagnostic or therapeutic radionuclides can become, respectively, diagnostic or therapeutic receptor radiopharmaceuticals. In targeted anti-angiogenic therapy, diagnostic radioagents play a unique role, allowing the determination of the emerging tumour, to monitor the course of treatment, to predict the treatment outcomes and, first of all, to refer patients for AAT. This review provides an overview of design, synthesis and study of radiolabelled VEGF/VEGFR targeting and imaging agents to date. Additionally, we will briefly discuss their physicochemical properties and possible application in combination targeted radionuclide tumour therapy.

1. Introduction

The process of new blood vessel creation in cancer formation and growth, as well as the influencing factors, has been at the forefront of cancer research over the last few decades [1,2,3]. It is now known that vascular endothelial growth factor (VEGF) and vascular endothelial growth factor receptors (VEGFRs) play a pivotal role in angiogenesis process [3,4,5,6,7]. Nowadays, the use of inhibitors of angiogenesis promoting factors is a powerful tool in anticancer combination therapeutic strategies [3,5,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23]. Several types of molecules have been used in targeted VEGF/VEGFR anticancer therapy: human VEGF ligands and their derivatives, anti-VEGF or anti-VEGFR monoclonal antibodies (mAb) (e.g., bevacizumab, ranibizumab) [19,24], VEGFR binding peptides and proteins [13] and small molecular inhibitors of receptor tyrosine kinases (RTKs) of VEGF receptors (e.g., sunitinib, sorafenib, vandetanib) [8,16,18,25,26,27,28]. Up to 20 RTK inhibitors have been approved for clinical use, in which certain inhibitors specifically target VEGFR, while others act as multi-kinase inhibitors [26,29,30]. Additionally, neuropilin 1 (NRP-1) a major co-receptor of VEGFR-2, as well as an independent receptor, is involved in the regulation of physiological and pathological angiogenic processes. For this reason, current research has focused on various neuropilin-targeting substances due to its possible application of anticancer therapy [31,32,33,34,35,36,37,38,39,40,41].
It is generally accepted that targeted anticancer drugs are the most effective in target overexpressing tumours; however, several clinical studies have shown that in different patients with the same tumours, the effects of these drugs are not always sufficiently efficient [42,43,44]. The ultimate goal of contemporary personalised oncology is to tailor the specific treatment protocols at the right time for individual patient population and to provide quantitative, low-invasive and accurate information on their responses to the therapy in the real time [15,16,20,45,46,47].
Modern methods of molecular imaging (SPECT, PET), defined as in vivo targeted visualisation for assessment of biological processes, provide an insight into physiological or pathological processes at the molecular level. They are considered as the basis for accurate clinical diagnosis, providing almost immediate feedback about the course of the treatment process. Receptor radiopharmaceuticals play the leading role in nuclear medicine, which is at the forefront in both cancer diagnosis and combination targeted therapy. These radiopharmaceuticals contain an appropriate (diagnostic or therapeutic) radionuclide and biovector (antibody, peptide or small organic molecule), that leads the radiopharmaceutical mostly to its specific receptors overexpressed on tumour cells. The use of biovectors in nuclear medicine enables the accumulation of diagnostic or therapeutic radionuclide mainly at the target site and achieve a high target to non-target ratio. As a consequence, that provides high-resolution imaging, or enables effective and specific annihilation of cancer cells.
Anti-angiogenic therapy (AAT) is a particular type of cancer treatment approach, which employs VEGFRs and its ligands as a reliable molecular target of tumour associated angiogenesis [3,15,16,20]. Angiogenesis is physiological vital process occurring during wound healing and embryonic development, that provides the formation of new capillaries splitting from created vessels over the vasculogenesis process. It serves as the key mechanism to overcome local metabolic stress and intracellular hypoxia in pathological conditions. It is known that, many tumours force neoangiogenesis as an essential growth and nutrition constituent and further to initiate metastasis. The pharmacologic inhibition of angiogenesis via VEGF pathway is considered an underestimated therapeutic support in prevention of cancer development and metastasis formation. Several studies have shown that anti-VEGF treatment, in association with chemotherapy or radiation therapy, results in greater anti-tumour effects compared to independent treatment [46].
The aim of this review is to collect and discuss data regarding the chemical and biological aspects of radiolabelled VEGF derivatives and VEGFRs’ ligands used in nuclear medicine for cancer diagnosis and combination targeted radionuclide tumour therapy. Specific consideration has been placed on the role of radiolabelled VEGF derivatives and VEGFRs’ ligands in AATs.

2. VEGF/VEGFRs System in Angiogenesis and AAT

2.1. VEGF Glycoproteins

The first reports on VEGF appeared in 1980s, when it was recognised as vascular permeability factor [48], vasculotropin [49] and, as currently known, vascular endothelial growth factor [50], an endogenous effector of prominent pro-angiogenic action through direct activation of vascular endothelial cells. VEGF belongs to the mammalian peptide family consisting of constituents originating from different genes: VEGF-A, VEGF-B, VEGF-C, VEGF-D and PlGF (placenta growth factor), but also viral homolog VEGF-E [51] and VEGF-F of snake venom origin [52]. The common feature of these glycoproteins is the creation of dimeric forms through specific sequence of cysteines forming disulphide bridges between two monomers [53]. Each VEGF family protein occurs as a glycosylated peptide monomer; however, it has to homodimerise or heterodimerise to activate its biological function.
VEGF-A (commonly called VEGF), is the most researched representative of the family and occurs in multiple isoforms (e.g., VEGF-A121, VEGF-A145, VEGF-A165, VEGF-A183, VEGF-A189 and VEGF-A206) due to an alternative splicing of mRNA obtained in the transcription process of the human gene VEGFA [54,55]. The VEGFA gene consists of eight exons that are highly conserved between species. In the first five constitutive exons are encoded the fundamental signal sequence, dimerisation cysteine fragment, specific VEGF receptors recognition domain, fragment employed in glycosylation and plasmin cleavage site, respectively. Furthermore, exons 6 and 7 encode an alternative heparine binding sequence and neuropilin binding domain, while last exon 8 encodes the unique VEGF domain. Alternative splicing results in variability of the primarily structure between isoforms, which affects their bioavailability and biological potency, mainly due to the isoform affinity to heparin sulphate and proteoglycan present on the extracellular surface competing with VEGF receptors [56]. Therefore, VEGF-A121 is freely diffusible and highly active isoform because it binds to neither neuropilins nor heparin sulphate, while VEGF-A165 and VEGF-A189 bind to both, resulting in expansion of their retention on the cellular surface or extracellular matrix.
Althought VEGF-A is highly recognised as a critical angiogenic inductor, it shows broad pleiotropic action in mammals, namely,
(I)
significant mitogenic effect on vascular endothelial cells [57], as well as anti-apoptotic impact on these cells [58];
(II)
increase of vascular permeability, resulting in increased serum peptides extravasation and local intra-tissue pressure [59];
(III)
induction of chemotaxis and activation of monocytes and haematopoietic stem cells [60,61,62];
(IV)
neurotrophic and neuroprotective action [63].
The production of VEGF-A glycoproteins occurs in the endothelium and vascular smooth muscle cells, but also in activated platelets, fibroblasts, lymphocytes and macrophages [64], where the production may be stimulated by numerous factors. This process is especially noticeable in tumour cells, that hyperexpress VEGF to stimulate the promotion of tumour growth neoangiogenesis [65]. The main initiator of the transcription of mRNA encoding VEGF-A is hypoxia state, especially noticeable in the necrotic and cancer cells [66]. This phenomenon is associated with the formation of hypoxia induced factor in these cells, which is called hypoxia inducible factor-1 (HIF-1) [67,68]. In contrast to hypoxia, HIF-1 cellular concentration is strictly regulated under physiological conditions. Other significant stimulating factors of VEGF-A cellular synthesis are cytokines (interleukin 1b, IL-1b and tumour necrosis factor alpha, TNF-α), several hormones and specific growth factors [69,70], activation of oncogenes RAS and SRC, mutation in suppressor genes p53 and von Hippel–Lindau (VHL) [70,71,72], as well as nitric oxide and oxygen radicals [73,74]. These factors are more or less known as indirect initiators of angiogenesis, acting on the synthesis of VEGF-A.
The activity of other mammalian VEGF proteins is more specific than that of VEGF-A, however effects in site of action of all VEGF glycoproteins are more or less similar. VEGF-B has a relatively limited angiogenic action only towards ischemic myocardium, which is associated with VEGF-B level decrease [75]. More recently, it has been revealed that potent metabolic and antioxidative action of VEGF-B is possibly related to pro-angiogenic effects [76,77,78]. It contributes to the homeostasis of lipids in numerous tissues and the upregulation of brown adipose tissue, resulting in reduced risks of obesity and insulin resistance induced by diet rich in fat. Moreover, there are also reports of neuroprotective activity of exogenous VEGF-B186 isoform in the distal neuropathy and Parkinson’s disease models [79,80]. This effect is assumed to be induced directly on the motor neurons, similar to VEGF-A, not through their vascularity.
Some similarities to VEGF-B action exhibits placenta growth factor. PlGF is expressed dominantly by placental trophoblasts, but also during early embryonic development and to a lesser extent in a few adult organs such as heart, lungs, thyroid or skeletal muscles [81]. Contribution of PlGF in physiological angiogenesis in adults is negligible, however under pathological conditions such as ischemia, it prominently stimulates vascular endothelium proliferation and also differentiation and activation of the monocytes into the macrophages recognised as an angiogenic feedback stimulant [82]. Moreover, PlGF increases vessel permeability and inflammation in degenerations as rheumatoid arthritis and atherosclerosis promoting neoangiogenesis [83]. In addition, several types of tumour cell lines have the ability of PlGF expression, which favours the pro-angiogenic M2-phenotype tumour-associated macrophages [84].
VEGF-C is recognised as the fundamental promotor of proliferation and migration of the lymphatic system endothelium [85]. It also stimulates the cytokine-inducted migration and permeability of the vascular endothelial cells, although to a lesser extent than VEGF-A and independently of hypoxia stimulus. Similar in structure and function to VEGF-C, VEGF-D plays a secondary role in the physiological stimulation of human endothelium of vascular and lymphatic systems. Concomitantly, the high expression of both growth factors significantly promote and correlate with the metastasis through the lymphatic vessels in a variety of cancers [86,87,88].

2.2. VEGF Receptors and Their Co-Receptors

The site of action of all above growth factors are specific receptors for VEGF glycoproteins on the surface of target cells. There are three such receptors: VEGFR-1 (also known as FLT1, due to the same name of its gene), VEGFR-2 (known as KDR or FLK1, encoded by KDR gene) and VEGFR-3 (FLT4, encoded by FLT4 gene).
VEGFRs are classified as members of receptor tyrosine kinase superfamily due to their autophosphorylation ability induced by recognition of specific ligands. They are present in the form of homo- or heterodimers consisting of three functional fragments defined as extracellular part with seven Ig-like subunits, lipophilic single transmembrane domain and intracellular domain with distinctive tyrosine kinase activity. Individual VEGF proteins (and their isoforms) have different affinity towards each receptor. It is well known that VEGFR-1 binds VEGF-A, VEGF-B and PlGF, while VEGFR-2 binds VEGF-A as well as post-proteolytic VEGF-C and VEGF-D. Both VEGF-C and VEGF-D have affinity mainly towards VEGFR-3 [89] (Figure 1).
Interaction of growth factor with its receptor becomes much stronger with the participation of specific co-receptors that facilites the creation of the molecular complex ligand-receptor [90]. These co-receptors, known as neuropilins, occur as neuropilin 1 (NRP-1) that participates in VEGFR-1 or VEGFR-2 interactions with ligands and neuropilin 2 (NRP-2) mostly assigned to VEGFR-3 (Figure 1). Both types of neuropilins are expressed on endothelial cells and specific types of tumours [90,91]. NRP-1 binding differs between VEGF isoforms, so that VEGF-A165 and VEGF-A189 create stronger complexes with VEGFR-2 and NRP-1 than VEGF-A121, which is deprived of NRP-1 binding domain [90]. Nevertheless, direct interaction of VEGF-A121 with NRP-1 can regulate endothelial cell migration and sprouting independently of specific VEGF receptors [92].
The expression of VEGFR-1 occurs predominantly on endothelial cells of blood vessels, but also on monocytes and macrophages, placental trophoblasts as well as renal mesangial cells [93,94]. Similarly, VEGFR-2 occurs mostly on blood vessel endothelium, as well as platelets, haematopoietic and retinal stem cells. Both receptors are clearly expressed on cell surfaces of solid cancers and haematopoietic system neoplasms [95,96]. VEGFR-3 expression is specified only on endothelial cells of lymphatic system [97]. Therefore, a substantial share of VEGFR-1 and VEGFR-2 on vascular endothelium shows their significant contribution in angiogenesis, while VEGFR-3 and NRP-2 highly contribute in lymphangiogenesis [89,98].
For ligand binding receptors require at least the first three Ig-like domains, however, not all must participate in ligand binding. Simultaneously, if the ligand binds to neuropilin, then the third and fourth domains of the receptor will also attach to neuropilin. Moreover, besides ligand interaction, receptors also have to dimerise to be able to transduct signals intracellularly [99,100]. When both conditions are met, ligand can trigger the mutual autophosphorylation of the receptor intracellular tyrosine subunits and activation of specific signalling pathways inside the cell.
Different ligands can stimulate various biological effects through activated receptors, as well as activation of VEGFR-1 and VEGFR-2 by VEGF-A cause a different induction of intracellular signalling pathways [58,100]. Activation of VEGFR-2 leads to stimulation of the cell cycle, proliferation, migration, cell differentiation, angiogenesis, increased permeability of blood vessels but also inhibition of the apoptotic death and up-regulation of VEGF-A synthesis in endothelial cells [58,101]. On the contrary, VEGF-A can bind to VEGFR-1, activating its low-efficient tyrosine kinases, which has insignificant influence on endothelial cells [100,102]. Despite the high abundance of this receptor on endothelium, second receptor exerts even 10-fold higher density on endothelial cells [100,103]. Concomitantly, VEGF-A has about 10-fold lower affinity to VEGFR-2 compared to VEGFR-1. Hence, it is suspected that VEGFR-1 acts as concomitant decoy receptor and uptakes VEGF-A before it can bind to adjacent VEGFR-2, ergo VEGFR-1 plays an angiogenic-regulation role [82,103]. However, the same receptor interaction with PlGF promotes VEGF-A pool for endothelial angiogenic action through VEGFR-2 [82] and can regulate transphosphorylation of VEGFR-2 [104], thus amplifying angiogenesis through VEGFR-2. VEGFR-1 signalling can also regulate paracrine release in the vascular endothelial cells of other tissue endothelium growth factors inducing intestinal organogenesis and morphogenesis before vascular flow formation [105].
All VEGF isoforms that bind selectively to VEGFR-2 are capable to elicit receptor autophosphorylation, thus triggering the activation of numerous intracellular signalling pathways (Figure 2) [58,100,103,106,107]. Phosphorylated receptor subunits bind many adaptor molecules such as Shb (SH2 domain-containing adapter protein B), SOS (Son of sevenless proteins) or Grb-2 (Growth factor receptor-bound protein 2) that activate Ras GPTase. This last protein stimulates MAPK pathway responsible for endothelium proliferation. Simultaneously, phosphorylated intracellular VEGFR-2 domain activates phospholipase C-gamma (PLC-γ), which catalyses hydrolysis of phosphatidylinositol bisphosphate (PIP2) to inositol triphosphate (IP3) and diacylglycerol (DAG). IP3 triggers intracellular release of Ca2+ form endoplasmic reticulum, which employs calcium modulated protein calmodulin to stimulate cAMP phosphodiesterase, adenylate cyclase and site-specific endothelial NO synthase (eNOS) and consequently increase NO-driven vasodilation and vascular permeability. However, DAG activates calcium-dependent protein kinase C (PKC), a multi-target kinase stimulating indirect cell proliferation and migration. Additionally, phosphorylated VEGFR-2 induces protein kinase B (commonly known as AKT) at the beginning of PI3K/AKT/mTOR pathway, an important signalling regulator of the cell cycle and metabolism, reducing risk of apoptosis and promoting cellular transcription, proliferation and migration [58,106]. Moreover, phosphorylated VEGFR-2 activates signalling of focal adhesion kinase (FAK) observed during cellular migration, adhesion, cytoskeleton rearrangement and tumour progression [107,108]. Nevertheless, it was observed that VEGF-A can regulate endothelial cell attachment independently of VEGFR-2 through NPR-1 [109].
VEGF receptors, in addition to transmembrane forms, can also occur in soluble forms, known as sVEGFR-1 and sVEGFR-2 (Figure 1) [108,110]. Their formation can be explained by two mechanisms, namely, a proteolysis of extracellular binding domain [111,112] and alternative splicing of primary gene transcript [108,113], both forming freely diffusible proteins consisting of only six of seven Ig-like subunits [114]. Soluble receptors are secreted by identical cells that express regular receptors, mostly by vascular endothelial cells [110]. Due to the fact that sVEGFRs exhibit comparable binding affinity on a similar basis as regular receptors, but are deprived of effector domains of tyrosine kinases, they can demonstrate only a regulatory decoy function. Both soluble receptors compete for VEGF-A with regular receptors inhibiting angiogenic and other actions of the growth factor. Simultaneously, sVEGFR-2 can uptake VEGF-C and VEGF-D reducing their overall supply intended for lymphangiogenesis stimulation through VEGFR-3 [113]. Moreover, creation of heterodimers from soluble and regular receptors precludes cellular signalling [110]; however, it is suspected that interaction of sVEGFRs with NRP-1 can mediate VEGF-A trigger of intracellular PKC pathway signalling [115].
Interestingly, several reports have shown the reverse correlation between sVEGFR expression and cancerous angiogenesis or metastasis. Such research has indicated that sVEGFR-1 permanently suppresses tumour growth and decreases metastasis promoting overall survival rate in rodents or humans with fibrosarcoma and glioblastoma [116], advanced renal cancer [117], breast cancer [118,119], acute myeloid leukaemia [120], colorectal cancer [121] and non-small cell lung cancer [122]. Similar results were presented for sVEGFR-2 [119,123,124,125,126], demonstrating significant biomarker role of these receptors in diagnosis of numerous cancers.

2.3. Anti-Angiogenic Therapy Strategies for Tumour Treatment

Although various angiogenesis-stimulating factors exist, VEGF-A is considered the most potent and predominant one. This also applies to sustained angiogenesis in cancers. Currently, it is known that angiogenesis, besides its crucial role in the tumour growth, stimulates the progression of invasiveness and development of vascular network in the surrounding tumour microenvironment [127,128]. The concept of angiogenesis targeting for cancer diagnosis and treatment seems promising, therefore, a wide variety of therapeutic strategies have been directed at visualisation and interfering with tumour-stimulated angiogenesis. However, since the first FDA approval of bevacizumab (BV), humanised anti-VEGF-A mAb, for the combinational chemotherapy regimen with 5-fluorouracil of metastatic colorectal cancer [129], only a few AAT strategies have been granted similar approval. It has become a challenge to evaluate these strategies almost personally for each patient, due to considerable variability of the angiogenic process in each treated entity [42]. Although the correlation between tumour progression and VEGF-A expression is well established, it does not transfer into intended anti-angiogenic therapeutic effects. This is due to the heterogeneity of the same tumour between patients, but also between different tumours in an individual patient, that occurs and changes at different stages of the lesion development. This raises the need for appropriate methods of assessing how the patient responds to the proposed therapy. In terms of AAT, this applies to clinically significant parameters as the lesion location with regard to tumour admission of therapeutic agents and expression of endogenous growth factors in tumour microenvironment affecting the saturation of target receptors involved in angiogenesis. Despite the complexity of this issue, the use of radiopharmaceuticals is increasingly proposed for independent preliminary screening, which can provide the prediction of patient clinical response [130]. Radioligands successfully targeting VEGF/VEGFR system in vivo are potentially valuable tracers for the study of angiogenic processes [131], stratification of patients to AATs [132], as well as monitoring therapy efficacy and clinical outcomes [133,134].
Basically, the aforementioned radiopharmaceuticals are based on various approaches to VEGF/VEGFR system targeting including radiolabelled derivatives of human VEGF-A ligands, anti-VEGF or anti-VEGFR antibodies, VEGFR binding peptides, small molecular inhibitors of tyrosine kinase domain of VEGF receptors and peptidomimetic ligands targeting NRP-1 co-receptor. Additionally, depending on specific radiation features of applied radionuclide, the radiopharmaceuticals are dedicated for diagnostic, therapeutic or theranostic purposes. This multitude of radiopharmaceutical solutions allows for the design of tailor-made therapeutic tool and its evaluation on a specific cancer model. The broad selection of above listed biovectors enables choice of one that provides the desired multiple molecular targets or just specific one, exhibits eligible pharmacokinetics, predicts response of certain chemotherapeutic strategy, or shows confirmed complemental contribution to the selected chemotherapy.
AAT methods have especially found a place in clinical practice applied in monotherapy. Currently, it is well known that even these methods used alone are inefficient, they advantageously support conventional chemotherapy effects [135]. Interestingly, the AAT contributes to normalisation of the tumour vasculature resulting in enhanced metabolic rate and delivery capacity of the tumour; hence, AAT can increase efficacy of the radiotherapy or activity of immune system in the close tumour surroundings.

3. The Role of VEGFR and Their Ligands in Combination Targeted Radionuclide Tumour Treatment

3.1. Radiolabelled VEGF Ligands and Their Derivatives

VEGF pro-angiogenic factors are one of the most often labelled compounds in angiogenesis imaging studies. Of the many known VEGF-A isoforms, mainly VEGF-A121 and VEGF-A165 are employed as a biovectors in radiotracers for imaging purposes. These compounds are generally labelled with diagnostic radionuclides dedicated for both SPECT (99mTc, 111In, 123I and 125I) and PET (18F, 61Cu, 64Cu, 68Ga, 89Zr). The literature shows that there are also descriptions of therapeutic radionuclide (177Lu and 188Re) in labelled VEGF derivatives [136,137,138]. VEGF-A-based radiocompounds are used extensively for selective imaging of VEGFR overexpressions, but also, inter alia, for therapy monitoring [139], new tracers search [140], estimation of tumour vascularity [141], correlation between receptor density and disease progression [142] or as a prognostic marker for treatment progress evaluation [143].
The first reports on radiolabelled derivatives of VEGF-A generally focused on the use of radioiodinated VEGF-A isoforms, [125I]I-VEGF-A121/165, for pharmacokinetic and pharmacodynamic studies on various cell lines, animal models, as well as autoradiography studies on human cancers [91,144,145,146,147,148,149].
Unmodified VEGF-A121 and its derivates were most often labelled with copper-64 ([64Cu]Cu-DOTA-VEGF-A121) [132,133,150,151,152,153], gallium-68 ([68Ga]Ga-NOTA-VEGF-A121 and [68Ga]Ga-NODAGA-VEGF121) [154,155], iodine-123 and iodine -125 (([123/125I]I-VEGF-A121/165) [141,156] and in one case with indium-111 ([111In]In-DTPA-VEGF-A121) [157].
[64Cu]Cu-DOTA-VEGF-A121 was applied for the first time by Cai et al., where the inverse correlation between radiocompound accumulation and size of human glioblastoma xenografts in mice was demonstrated [133]. Due to high [64Cu]Cu-DOTA-VEGF-A121 uptake in kidney, Wang et al. proposed another radiotracer, [64Cu]Cu-DOTA-VEGFDEE [132]. Both radiocompounds exhibited similar uptake in tumour and major organs with exception of the kidneys, where [64Cu]Cu-DOTA-VEGFDEE uptake was almost 2-fold lower.
More detailed studies on the previously found by Cai et al. correlation [133] was carried out with the use of the same [64Cu]Cu-DOTA-VEGF-A121 radiocompound by Chen et al. [153]. In this study, the highest tracer uptake was observed in medium tumours (100-250 mm3) and correlated with the highest receptor expression, which was determined using specific anti-VEGFR-2 antibody staining on tested tumours [153].
The next three works focused on the use of [64Cu]Cu-DOTA-VEGF-A121 and/or [64Cu]Cu-DOTA-VEGFmutant to study the level of VEGFR expression in post-stroke angiogenesis in rats [150], peripheral arterial disease in murine hindlimb ischemia [151] and myocardial infarctions in rats [152]. All reports showed specific uptake in ischemic tissues; however, superior imaging quality was provided by [64Cu]Cu-DOTA-VEGF-A121 radioligand [150,151].
Radiocompounds with gallium-68 were demonstrated in two reports [154,155]. Kang et al. used [68Ga]Ga-NOTA-VEGF-A121 for imaging VEGFR expression in U87MG cell line xenograft murine models [154]. This radiocompound showed relatively low tumour affinity and high uptake in the liver and spleen, thereby poor imaging ability in glioblastoma neoangiogenesis. A similar study showed that a more hydrophilic radiocompound [68Ga]Ga-NODAGA-VEGF-A121 also gave poor results [155].
VEGF-A121 was also labelled with 111In ([111In]In-DTPA-VEGF-A121) to detect VEGFR expression in a rabbit model in hindlimb ischemia [157]. Despite the pronounced radiotracer uptake in ischemic muscle, the very high accumulation in other organs limit the application of this radioagent.
Iodinated radiocompounds were studied by Li et al., where [123I]I-VEGF-A121 and [123I]I-VEGF-A165 radiocompounds successfully demonstrated the overexpression of VEGF specific binding sites on various types of tumour cells in comparison to normal cell lines [156]. [123I]I-VEGF-A165 binds to more types of tumour cell due to affinity to both VEGFR-1 and VEGFR-2, according to data presented in cited reports [100,158]. Yoshimoto et al. compared the action of the same ligands but labelled with 125I, [125I]I-VEGF-A121 and [125I]I-VEGF-A165, on LS180 tumour xenograft murine model [141]. [125I]I-VEGF-A121 proved to be a more promising tumour imaging agent due to its enhanced specific tumour accumulation related to high binding affinity towards VEGFR-2.
Studies on modified VEGF-A121 isoform focused on the use of a recombinant VEGF protein with Cys-tag motif labelled with various radionuclides (18F, 64Cu, 68Ga, 89Zr, 99mTc and 177Lu) [134,136,137,139,140,142,159,160,161,162,163,164,165,166,167]. This cysteine-containing fusion tag motif is commonly used for site-specific protein conjugation without affecting vector functionality and was evaluated based on synthesis and study of [99mTc]Tc-scVEGF-PEG-DOTA, [99mTc]Tc-HYNIC-scVEGF and [64Cu]Cu-DOTA-PEG-scVEGF radiotracers [160].
The Cys-tag motif was used for the first time in [99mTc]Tc-HYNIC-C-tagged-VEGF synthesis and the obtained radiocompound was compared with [99mTc]Tc-HYNIC-biotin-inactivated-VEGF for tumour vasculature imaging of 4T1 murine tumours [159]. The obtained results showed that [99mTc]Tc-HYNIC-C-tagged-VEGF exhibited higher tumour uptake compared to that of inactivated-VEGF radioagent. Similar results were presented by Backer et al. when examining [99mTc]Tc-HYNIC-scVEGF and [64Cu]Cu-DOTA-PEG-scVEGF [134]. Based on the results of biodistribution study on mice model, the authors observed the superiority of [64Cu]Cu-DOTA-PEG-scVEGF radiocompound due to more favourable pharmacokinetics compared to that of [99mTc]Tc-HYNIC-scVEGF; however, both tracers showed only detectable and generally heterogenous tumour accumulation.
The research group of Levashova described the usefulness of 99mTc directly-labelled single-chain VEGF (scVEGF) complexed with tricine—the synthesis of which, by definition, should be easier and faster [139,161,162]. The obtained [99mTc]Tc-scVEGF was used: (1) to compare its tumour and non-tumour uptake with that of chelator-containing radioconjugates (e.g., [64Cu]Cu-DOTA-PEG-scVEGF and [99mTc]Tc-HYNIC-scVEGF [134]) [161]; (2) to compare its effectivities in imaging of thigh abscesses in mouse model with that of [99mTc]Tc-inactivated-VEGF [162]; (3) imaging of VEGFR expression changes in breast cancer xenograft mice under sunitinib treatment [139]. These studies have shown the practical performance of direct labelling, as well as the general usefulness of radiocompounds obtained by this method for imaging of thigh abscesses [162] or changes in VEGFR-2 prevalence in tumour [139]. Additionally, reports have shown that studied [99mTc]Tc-scVEGF radiocompound, similar to radiocompounds with chelators in their structure, exhibits high kidney and liver uptakes with relatively low tumour uptake [161]. Blankenberg et al. presented the evaluation of efficiency of RTK inhibitor pazopanib treatment on HT29 xenografts in mice, which was assessed through VEGFR-2 imaging using [99mTc]Tc-scVEGF radioagent [163].
Comprehensive research on scVEGF labelling with 68Ga invastigated the use of various reactions parameters: chelator types, lengths of PEG linker and syntheses conditions [164,165]. [68Ga]Ga-HBED-CC-PEG-scVEGF and [68Ga]Ga-NOTA-PEG-scVEGF were studied by Eder et al. [164] and [68Ga]Ga-NOTA-PEG-scVEGF and [68Ga]Ga-DOTA-PEG-scVEGF by Blom et al. [165] as VEGFR-2 imaging radiotracers in various human cell line xenografts in mice. Firstly, Eder et al. showed that stability, binding assay, biodistribution and PET imaging were similar for both radioagents; however, [68Ga]Ga-HBED-CC-PEG-scVEGF radiotracer possessed a more effective and faster labelling end point, which was advantageous for compound labelling with short-lived radionuclides. Blom et al. demonstrated the advantage of microwave heating synthesis over conventional synthesis, as well as there were no impact on different linker lengths [165].
The possibility of selective imaging of VEGFR-1 and VEGFR-2 receptors on the tumour surface and in various diseases, discussed in the following articles, may provide detailed information on overexpression of receptors and thus allow more accurate imaging of specific therapy solutions. Tekabe et al. used technetium-99m labelled scVEGF-PEG-DOTA [142] and its mutant versions, scVR1-PEG-DOTA and scVR2-PEG-DOTA, which have selective affinity to VEGFR-1 and VEGFR-2, respectively [167]. In both studies, the obtained results confirmed the expected usefulness of radiotracers in plaque progression monitoring of atherosclerosis in diabetic mice. Another efficient imaging of VEGFR-1 or VEGFR-2 was confirmed on breast cancer mice model using [89Zr]Zr-DFO-PEG-scVR1 and [89Zr]Zr-DFO-PEG-scVR2 radiocompounds [166].
[18F]FBEM-scVEGF radioagent was dedicated for VEGFRs imaging in mouse models with xenografts of various tumour cell lines (MDA-MB-435, U87MG and 4T1) [140]. The results of performed tests showed VEGFR specific tumour uptake, as well as significant uptake in kidneys, lung and intestine. Therefore, the authors qualified this radiotracer for VEGFR-2 overexpressing tumour imaging.
scVEGF-based radiotracer containing therapeutic radionuclide lutetium-177, [177Lu]Lu-DOTA-PEG-scVEGF, was studied as a radioagent for targeted systemic radiotherapy by Blakenberg et al. [136] and in combined chemotherapy by Rusckowski et al. [137]. Blakenberg et al. compared the tumour growth inhibition effectiveness of three radiocompounds with different lengths of PEG linkers (2.0, 3.4 and 5.0 kDa). Based on the experimental results, the authors concluded that tumour growth inhibition was dose dependent and that there were significantly different therapy responses between individual MDA231luc tumour bearing mice. Moreover, the most promising radiocompound (containing the linker 3.4 kDa PEG) was established, as well as its well-tolerated single dose necessary to obtain the tumour growth inhibition effect. Further studies on the effectiveness of [177Lu]Lu-DOTA-PEG-scVEGF alone or with doxorubicin were performed on mice with metastatic and orthotopic triple-negative breast cancer [137]. The results showed inhibition of tumour metastasis and prolongation of the survival time in the case of mice treated with [177Lu]Lu-DOTA-PEG-scVEGF compared to the control group of mice treated with scVEGF-PEG-DOTA. Orthotopic tumours displayed superiority of combination therapy (compared to [177Lu]Lu-DOTA-PEG-scVEGF or doxorubicin used separately) with a noticeably longer tumour doubling time.
The application of [61Cu]Cu-NOTA-K3-VEGF-A121 radiocompound (based on VEGF-A121 modified with three lysine residues, K3-VEGF-A121) for PET/CT imaging of VEGFR expression on 4T1 tumour-bearing mice was described by Zhang et al. [168]. The experimental results clearly showed noticeable radiotracer uptake in tumour, but also significant uptake in the liver. The authors indicated that [61Cu]Cu-NOTA-K3-VEGF-A121 would be a promising radiocompound to imaging VEGFR expressions.
Numerous reports have utilised modified VEGF-A121 protein in multimodal VEGFR imaging studies [169,170,171]. Blankenberg et al. described the synthesis of [99mTc]Tc-HuS/Hu-VEGF and [99mTc]Tc-HuS/Hu-P4G7 (the latter based on anti-VEGFR-2 single-chain antibody), which were both evaluated during VEGFR-2 expression imaging of subcutaneous and pulmonary 4T1 luc/gfp adenocarcinoma tumours [169]. VEGFR-2 imaging and biodistribution studies on tumour-bearig mice showed higher uptake of [99mTc]Tc-HuS/Hu-VEGF in comparison to that of [99mTc]Tc-HuS/Hu-P4G7. Hence, the authors recommended [99mTc]Tc-HuS/Hu-VEGF radioagent for imaging of small subcutaneous and internal VEGFR-2 overexpression tumours.
The examples of VEGF-based radiotracer application for dual-modality imaging, PET and near-infrared fluorescent (PET/NIRF) were described by Chen et al. [170] and Kang et al. [171]. The first approach consisted of DOTA and VEGF-DOTA conjugate that were coupled with amine-functionalised quantum dots (QD) and labelled with copper-64 radionuclide. In vitro and in vivo studies of [64Cu]Cu-DOTA-QD and [64Cu]Cu-DOTA-QD-VEGF displayed VEGFR-specific binding and uptake in U87MG tumour only for VEGF-based radioagent, as well as correlation between results obtained in PET and NIRF methods. The second approach described similar studies (VEGFR expression imaging in U87MG tumour-bearing mice) using [64Cu]Cu-DOTA-(AF)-SAv/biotin-PEG-VEGF-A121 radiotracer (detailed description of the synthesis and labelling procedure was presented by Kang et al. [171]). Radiochemical yield and specific activity of synthesised radiotracer were generally low (31.40 ± 3.30% and 1.96 ± 0.67 GBq/mg, respectively), whereas its tumour uptake and stability in 50% fetial bovine serum at 37 °C for 24 h (>93%) were satisfactorily high. Unfortunately, high radioactivity accumulation in ex vivo and microPET studies was observed also in the liver and kidneys. The remarkably high uptake in the same U87MG tumours was observed in [64Cu]Cu-DOTA-VEGF-A121 radiotracer [133], however, it should be noted that these two studies evaluated different tumour sizes [133,169].
Another modified VEGF-A121 derivative labelled with copper-64 radionuclide was described by Hsu et al. [172]. The research studied tumour uptake and VEGFR imaging in mice with implemented U87MG-fLuc cells, where [64Cu]Cu-DOTA-VEGF-A121/rGel radioagent was used as an efficient marker to evaluate the results of VEGF-A121/rGel anti-angiogenic and anti-tumour treatment. Detailed information regarding VEGF-A121/rGel toxin and its activities are available in references [173,174,175,176].
Clinical applications of VEGF-A165-based radiocompound, [123I]I-VEGF-A165 for scintigraphic tumour localisation was evaluated in patients with gastrointestinal tumours [177], pancreatic carcinoma [178], highly malignant osteosarcoma [179] and various grades primary brain tumours [143]. The results showed fast and different uptake in various lesions; however, contrary to CT and MRI, SPECT imaging detection of existing tumours and metastases was the least sensitive [177]. [123I]I-VEGF-A165 radiocompound used for preliminary scintigraphy of highly malignant VEGFR-positive osteosarcoma gave very promising results; however, due to an unrepresentative number of two patients, they may require further verification [179]. The differences in [123I]I-VEGF-A165 uptake and survival time in patients with various grades and sizes of primary brain tumours were studied by Rainer et al. [143]. The obtained scintigraphy results showed correlation between the tumour grade and radiotracer uptake, which allowed distinguishability between VEGFR-positive (stage IV) and VEGFR-negative (stage II and III) tumours. Conrelissen et al. evaluated [123I]I-VEGF-A165 and [125I]I-VEGF-A165 on melanoma tumour-bearing mice for future assessment of efficiency of farnesyl transferase inhibitors therapy [180]. The results revealed low, but noticeable radiotraces tumour uptake, but, also significant uptake in kidneys, intestine and stomach in the case of both control and A2058 tumour-bearing athymic mice [180]. Nevertheless, it was concluded that [123I]I-VEGF-A165 radiotracer could be a potential tool for imaging of VEGFR overexpression.
[99mTc]Tc-HYNIC-VEGF-A165 radiocompound with unmodified VEGF-A165 was evaluated for VEGFR expressions in various xenografts tumours in mice [181]. The authors admitted that studies with VEGF-based radiocompounds gave false negative results in the case of large tumours due to receptor saturation by in situ secreted VEGF glycoproteins. Similar observations were presented earlier by Cai et al., where larger tumour showed lower uptake of radiolabelled [64Cu]Cu-DOTA-VEGF-A121 than that of smaller size [133].
Three recombinant VEGF-A165 derivatives: human transferrin-VEGF-A165 (hnTf-VEGF-A165), VEGF-2K and VEGF-2K-NLS labelled with indium-111 or technetium-99m were described by Chan et al. [182,183]. In the first study the distribution of [111In]In-hnTf-VEGF-A165 in athymic mice bearing U87MG human glioblastoma xenografts, performed in excess of apotransferrin and VEGF-A165, showed specific binding of radioagent towards VEGFRs [182]. The second study focused on the comparison of the cytotoxicity of [111In]In/[99mTc]Tc-DTPA-VEGF-2K and [111In]In/[99mTc]Tc-DTPA-VEGF-2K-NLS radiocompounds on PAE cells overexpressing VEGFR-1 [183]. Based on the study results, the authors concluded that [111In]In-DTPA-VEGF-2K-NLS radiotracer exhibited the greatest cytotoxic properties.
VEGFA gene exon 6-encoded peptide, QKRKRKKSRYKS and its derivatives, QKRKRKKSRKKH and RKRKRKKSRYIVLS, exhibit an anti-angiogenic effect due to the binding to VEGFRs without activation of VEGFR TKs, and were able to compete with endogenous VEGF for the receptor binding site [138,184]. The first peptide labelled with rhenium-188, [188Re]Re-MAG3-QKRKRKKSRYKS, was used to compare the results of ex vivo distribution and SPECT tumour imaging regarding VEGFR-2 [184]. Experimental results confirmed higher accumulation in truncated receptor tumours than for full length ones. Zhang et al. described two novel radiotracers, QKRKRKKSRKKH and RKRKRKKSRYIVLS, derived from VEGF-A125-136, which exhibited significantly higher affinity to VEGFR-1 than QKRKRKKSRYKS. These peptides were labelled with technetium-99m or rhenium-188 using HYNIC or ethylene dicysteine (EC) chelators in order to study potential radioagents for tumour diagnosis and therapy [138]. The obtained radiotracers [99mTc]Tc-HYNIC-QKRKRKKSRKKH, [99mTc]Tc-HYNIC-RKRKRKKSRYIVLS, [188Re]Re-EC-QKRKRKKSRKKH and [188Re]Re-EC-RKRKRKKSRYIVLS showed high stability in saline and human serum and high specific accumulation in tumour sites on mice with A549 tumour xenografts. In the case of 188Re-labelled peptides, the authors also recorded a noticeable therapeutic effect. According to the authors conclusion, all studied radiopreparations were considered promising candidates for tumour radionuclide imaging and therapy.
The wide range of works concerning VEGF protein labelled with diagnostic or therapeutic radionuclides presented in this paragraph indicates the significant evolution of this field of research. The VEGF protein was used both in unmodified and modified forms, mainly as single-chain recombinant VEGF with a cysteine-containing fusion tag (C-tag), which allows site-specific conjugation without affecting protein functionality. Reports have confirmed that such modification maintains functional characteristics of proteins [134,159]. Moreover, many articles found that C-tagged-radiopeptides shows greater accumulation in VEGFR-2 expressed areas compared to that of their inactivated forms [134,142,159,162,164]. Unfortunately, significant limitations in the use of VEGF-based radiocompounds reside in their high uptake mainly in the kidneys and liver, which hinders proper visualisation of the tumours. In the cited articles, none of the studies refered to the reduction of renal uptake, e.g., using infusion of amino acids [185] or Gelofusine preparation [186,187]. The poor imaging results are also influenced by uneven VEGF expression on the surface of tumours, related to tumour size or grade, and the phenomenon of receptor saturation by endogenous VEGF. An interesting method for VEGFR-1 and VEGFR-2 imaging may be the application of radiotracers [89Zr]Zr-DFO-PEG-scVR1/scVR2 [166] or [99mTc]Tc-scVR1/scVR2-PEG-DOTA [167], capable of selective and separate imaging of each receptor. It is also worth mentioning that short peptides QKRKRKKSRYKS, QKRKRKKSRKKH and RKRKRKKSRYIVLS can be successfully utilised for the design and synthesis of VEGF-based radiotracers [138,184]. In summary, unfortunately, it seems that most of the above disscussed VEGF-based radiopreparations do not fulfil the requirements for VEGFRs imaging agents. Concise information concerning radiolabelled VEGF ligands and their derivatives is presented in Table 1.

3.2. Radiolabelled Anti-VEGF and Anti-VEGFR Antibodies

Anti-VEGF antibodies belong to a group of angiogenesis inhibitors acting in an indirect manner. They operate by interfering with the pro-angiogenic communication between the tumour cells and endothelial cell by blocking VEGF ligands binding to their receptor. As a result, occurrence of VEGF-induced proliferation, permeability, survival and growth of endothelial cells is restricted. Radiolabelled anti-VEGF antibodies can be used, both alone or in combination with chemotherapy in targeted radionuclide tumour therapy, for tumour uptake imaging and can play the role of predictive markers. The following works detail the landscape of current literature regarding various anti-VEGF antibodies labelled with radionuclides, which are arranged in chronological manner corresponding to publishing of performed studies.
The first reports examine the use of anti-VEGF or anti-VEGFR antibodies labelled with various radionuclides in nuclear medicine concern HuMV833, VG76e, Avas12a1 and DC101 mAbs.
HuMV833 anti-VEGF antibody (mean biological half-life 8–9 days), a humanised IgG4ĸ mAb that binds VEGF-A121 and VEGF-A165 and has anti-tumour activity against a wide spectrum of human tumour xenografts, was the first evaluated anti-VEGF mAb in preclinical studies [188]. Binding studies of [124I]I-HuMV833 radioconjugate, showed high affinity for VEGF and confirmed that VEGF-binding potential was retained after iodination [26,46,188,189,190,191,192]. The authors also highlighted the issue of significant differences in radioconjugate tumour uptake, radioconjugate clearance and biologic response during and after therapy ocurrig even within the same tumour among patients and the different tumours within the same patient.
Collingridge et al., Bouziotis et al. and Fani et al. described radiopreparations based on anti-VEGF antibody VG76e [193,194,195]. VG76e, a mouse IgG1 mAb capable of recognising 121, 165 and 189 isoforms of human VEGF, was recommended for detection of VEGFs being the prognostic indicators of cancer occurrence [46,131,189,190,191,193,194,195]. Collingridge et al. using different iodination methods synthesised and tested four VG76e-based radioconjugates: [125I]I-VG76e, [125I]I-SIB-VG76e, [125I]I-SHPP-VG76e for SPECT imaging and [124I]I-SHPP-VG76e for PET imaging of human fibrosarcoma cell line HT1080 xenografts in mice. Radioconjugate [124I]I-SHPP-VG76e displayed so satisfactory results, that the authors proposed its application for classification of patients for anti-angiogenic therapy, investigation of angiogenesis pathways in vivo and determination of resistance mechanisms of AAT agents.
Bouziotis et al. studied the same anti-VEGF antibody labelled with technetium-99m, samarium-153 and lutetium-177 [194], whereas Fani et al. applied lutetium-177, using DOTA and DTPA chelating agents [195]. Biodistribution studies of [99mTc]Tc-VG76e, [153Sm]Sm-DTPA-VG76e and [177Lu]Lu-DTPA-VG76e radiotracers were performed on mice with human breast adenocarcinoma cell line MCF7 xenografts. Research showed that VEGFs could be effectively visualised using VG76e antibody labelled with diagnostic radionuclides [194]. Both therapeutic radioconjugates [177Lu]Lu-DOTA-VG76e and [177Lu]Lu-DTPA-VG76e showed similar and satisfactory physicochemical and biological properties, which indicated that they could be successfully employed in tumour radioimmunotherapy [195].
Willmann et al. described the application of [125I]MBs-I-Bt-Avas12a1 [196] and [18F]MBs-SFB-Avas12a1 [197] radioconjugates, containing rat anti-VEGFR-2 mAb, Avas12a1, for tumour angiogenesis imaging using ultrasonographic (US) or dual-model US/PET approaches. [125I]MBs-I-Bt-Avas12a1 was used only as a radiotracer in the coupling reaction of streptavidin-containing microbubbles (MBs) and iodine-125 labelled biotinylated anti-VEGFR-2 monoclonal antibody Avas12a1 (Bt-Avas12a1) for the quantitative assessment of reaction products [196]. The second radiocompound, [18F]MBs-SFB-Avas12a1, formed in the reaction of MBs and the radiofluorine agent [18F]N-succinimidyl-4-fluorobenzoate (SFB) coupled with Avas12a1 antibody, was used for dynamic micro-PET imaging on nude mice bearing angiosarcomas. It was concluded that fluorine radiotracer allowed non-invasive assessment of the whole-body biodistribution with targeted VEGFR-2 radiotracer in most tissues of living mice and could be used for studying the biology of angiogenesis in living subjects [197].
Lee et al. presented another radioagent based on rat anti-VEGFR-2 mAb DC101, dedicated for ischemia monitoring, containing chitosan polymer and diagnostic radionuclide Tc-99m [198]. Examination of [99mTc]Tc-HYNIC-chtiosan-Cy5.5-DC101 was performed on human umbilical vein endothelial cells and mice with surgically induced ischemia. The study revealed good correlation between radiotracer uptake in ischemic tissues and changes in VEGFR-2 expression, which proved that the radiocompound could be successfully used for imaging of ischemic areas [198].
The most widely used anti-VEGF antibody in cancer diagnosis and therapy is bevacizumab (BV, mean biological half-life is 17–21 days). This humanised mAb, sold under the brand name Avastin, is a medication used in combinational immunotherapy to treat numerous types of cancers (e.g. colon cancer [24], lung cancer [24], breast cancer [24], renal-cell carcinoma [24,199,200], glioblastoma multiforme [201,202,203,204]) as well as age-related macular degeneration [6,23]. It binds to all isoforms of VEGF and thus prevents interactions with VEGFR-1 and VEGFR-2 [41].
Various research groups tested BV labelled with numerous diagnostic (64Cu, 86Y, 89Zr, 99mTc, 111In, 124I, 125I) and therapeutic (90Y, 131I, 177Lu) radionuclides and BV-based radioconjugates, in general, for non-invasive measurement of VEGF expression in tumours both prior to the initiation of anticancer therapy and during therapy conducted with different medications [191,199,205,206,207,208,209,210,211,212,213,214,215,216,217,218,219,220,221,222,223,224,225,226,227,228,229,230,231,232,233,234,235,236,237,238,239].
Nagengast et al. examined labelling reactions of BV with In-111 (using DTPA chelator) and Zr-89 (using N-succinyl-desferrioxamine (N-suc-Df) chelator), as well as stability of [111In]In-DTPA-BV and [89Zr]Zr-N-suc-Df-BV radioconjugates [205]. Comparison of the binding studies results of BV-based radioconjugates and human [89Zr]Zr-N-suc-Df-IgG as a nonspecific control in SKOV-3 ovarian tumour-bearing mouse model showed that these new BV-based radioconjugates could be used as tracers for non-invasive imaging of VEGF in tumour microenvironment during anti-angiogenic therapy [45,46,47,191,192,205,212,240,241]. However, the study revealed that despite the success of AAT, some patients treated with BV did not benefit from this targeted therapy, possibly due to BV failure in reaching the target.
Sheer et al. and Nagengast et al. focused on correlation between [111In]In-DTPA-BV radioconjugate tumour uptake and the level of cancer VEGF-A expression [206,207]. Research of patients with liver metastases of the colon did not show such correlation [26,45,46,192,206]; however, it was noticed during VEGF imaging of the melanoma lesions treated with BV [46,207,241].
Scintigraphical visualisation of VEGF-A expression in tumours in mice with xenografts of human colon carcinoma LS174T cell line using [111In]In-DTPA-BV and [125I]I-BV radioconjugates were presented by Stollman et al. [208]. Experimental results showed that uptake of [111In]In-DTPA-BV was significantly higher than that of [125I]I-BV. According to author’s evaluation, both radiocompounds were regarded as prognostic factor. Imaging of VEGF-A expression provided information on prognosis and response to chemotherapy and allowed patient classification for anti-VEGF AAT.
Stollman et al. also investigated [111In]In-DTPA-BV radiocompound uptake in Mel57 human melanoma cell line expressing different VEGF-A isoforms (121, 165 and 189). High specific tumour uptake of the labelled antibody was detected only in the case of VEGF-A165 and VEGF-A189 isoforms [209]. Furthermore, it was suggested that scintigraphy imaging of these VEGF isoforms could be useful for predicting responses to AAT.
Scintigraphy imaging of renal cell cancer and evaluation of neoadjuvant treatment with VEGFR inhibitor sorafenib were studied by Desar et al. using [111In]In-DTPA-BV [199]. Based on the experimental results, authors concluded that cancer progression can be effectively visualised using this radioconjugate and that neoadjuvant treatment significantly decreases [111In]In-DTPA-BV cancer accumulation. However, the reduced uptake of the radioconjugate was not the consequence of reduced VEGF-A expression (VEGF-A expression was measured independently by ELISA method), indicating, similarly as in the case of Sheer’s study [206], that there was no correlation between [111In]In-DTPA-BV tumour uptake and VEGF expression. Nevertheless, [111In]In-DTPA-BV scintigraphy could be considered an attractive biomarker of therapy response; however, this approach requires further research.
BV-based radioconjugates containing diagnostic radionuclides In-111 and Y-86 and therapeutic radionuclide Lu-177 were synthesised and tested by Hosseinimehr et al., Nayak et al., and Kameswaran et al. [210,211,213]. Binding specificity study of [111In]In-CHX-A″-DTPA-BV showed high specific binding towards human ovary SKOV-3 and colon LS174T tumour cell lines, as well as non-specific binding towards prostate cancer DU 145 cell line [210]. This radioconjugate was dedicated for scintigraphic imaging of VEGF expression before patient selection for anti-VEGF therapy. Biodistribution and PET imaging studies of [86Y]Y-CHX-A″-DTPA-BV were performed on mice bearing VEGF-A negative human mesothelioma MSTO-211H and VEGF-A secreting LS-174T and SKOV-3 xenografts [46,47,211]. The preclinical study of the radioconjugate demonstrated its potential for non-invasive assessment of VEGF-A tumour angiogenesis status and possibile application as a marker in radioimmunotherapy conducted using therapeutic radioconjugate [90Y]Y-CHX-A″-DTPA-BV. Binding studies of [177Lu]Lu-CHX-A″-DTPA-BV were performed using VEGF expressing U937 tumour cell line [213]. The studied therapeutic radiopharmaceutical showed high in vitro stability, strong cell binding, as well as high and specific uptake by VEGF overexpressing melanoma cells.
Patel et al. described the specificity and pharmacokinetics of [111In]In-DTPA-BV binding to VEGF and its use for assessment of response to rapamycin inhibition of mTOR kinase used in the treatment of renal and breast cancer [214]. Clinical trials in patients with renal cell carcinoma and metastatic colorectal cancer showed no correlation, similar to the previously discussed reports [199,206], between uptake of radiotracer and intratumoural VEGF expression, determined by ELISA assay, in situ hybridisation or immunohistochemically.
Yudistiro et al. investigated the potential application of novel BV-based radioconjugates (biotinylated-BV, Bt-BV) [215]. In general, the disadvantage of BV radioimmunotherapy is its low clearance value, which causes high risk of haematotoxicity. The authors synthesised new radioconjugates [111In]In-DTPA-Bt-BV and [90Y]Y-DTPA-Bt-BV and tested their biological properties in mice triple negative breast cancer xenograft model. Application of avidin chase strategy for [90Y]Y-DTPA-Bt-BV therapy increased the maximum tolerated dose of the therapeutic radioconjugate and consequently improved the therapeutic outcome.
Utilisation of BV labelled with zirconium-89 for VEGF level imaging was the subject of many reported experimental and clinical studies [26,46,47,216,240]. Based on the knowledge that in animal models targeted heat shock protein 90 inhibition therapy leads to reduction of VEGF secretion and mean vascular density in tumour cell lines, Nagengast et al. examined the possibility of PET imaging using [89Zr]Zr-N-suc-Df-BV for in vivo non-invasive visualisation of early changes in VEGF levels during treatment with new synthetic inhibitor NVPAUY922 [216].
Application of [89Zr]Zr-N-suc-Df-BV radioconjugate as an early biomarker of AAT with everolimus is described in several reports [47,217,218,219,241]. On the basis of experimental results, authors showed that everolimus, an inhibitor of mTOR pathway often activated in ovarian tumours [217], advanced neuroendocrine tumours [218] and metastatic renal cell carcinoma (RCC) [219], can reduce the production of VEGF-A stimulated by cancer cells, which in turn allows monitoring of effects on everolimus treatment using [89Zr]Zr-N-suc-Df-BV radiotracer by PET imaging.
Other reports by Gaykema et al. and Bahce et al. employed [89Zr]Zr-N-suc-Df-BV radioconjugate to image VEGF-A level in primary breast cancer patients and non-small cell lung cancer (NSCLC) patients, respectively [46,47,220,221,241]. In both cases [89Zr]Zr-N-suc-Df-BV uptake correlated with the level of VEGF-A in studied tumours. Moreover, VEGF-A imaging with [89Zr]Zr-N-suc-Df-BV radioconjugate applied in phase III study showed survival benefits for NSCLC patients treated with combination carboplatin-paclitaxel-bevacizumab regimen compared to patients treated with only these chemotherapeutics.
Potential application of [89Zr]Zr-N-suc-Df-BV radioconjugate for monitoring VEGF-A level changes before and during anti-angiogenic treatment with BV and IFNα and sunitinib of metastatic RCC patients and patients with VHL disease are presented in several papers published by Oosting’s research group [222,223,224]. The pilot study revealed differences in [89Zr]Zr-N-suc-Df-BV tumour uptake after BV/IFNα and sunitinib therapy (BV/IFNα strongly decreases [89Zr]Zr-N-suc-Df-BV tumour uptake, whereas sunitinib results in modest reduction), which indicated that they induce different angiogenic responses [47,222,223]. Hence, [89Zr]Zr-N-suc-Df-BV radioconjugate may be an effective tool, for anti-VEGF therapy stratification of patients with VHL-associated lesions [224,241].
Various BV labelling reactions with technetium-99m and application of prepared [99mTc]Tc-radiopharmaceuticals for targeted nuclear medicine were reported in several publications [225,226,227]. These potential diagnostic radiopharmaceuticals were dedicated for scintigraphic imaging of VEGF levels in tumour and its environment. In general, these radiocompounds exhibited satisfactory stability in saline and serum solutions; however, significant signals related to [99mTc]Tc-HYNIC-BV degradation occurred in the presence of great excess of competing ligand cysteine [225,227] and in the case of [99mTc]Tc(CO)3-BV—in the presence of histidine [226]. Biodistribution and scintigraphy imaging using [99mTc]Tc-HYNIC-BV and [99mTc]Tc(CO)3-BV tracers were performed on mice bearing breast adenocarcinoma tumour xenografts [225] or mouse model with subcutaneous melanoma xenograft [226,227]. The observed body retention of [99mTc]Tc-HYNIC-BV and [99mTc]Tc(CO)3-BV radiocompounds indicated a mixed hepatobiliary/renal clearance. The authors suggested that all studied radiotracers could be observed in preclinical studies as a clinical tool for solid tumours screening and as markers providing response to BV chemotherapy before and after therapy. Kameswaran et al. examined BV radiolabelling reaction utilising p-SCN-Bn-DTPA chelator [228]. [99mTc]Tc-DTPA-BV radiotracer was stable in histidine solution and biodistribution studies performed on murine melanoma model showed good radiotracer specificity of VEGF binding, indicating its potential as a radioimmunoscintigraphy agent for various cancers.
Cohen et al. described the procedure for dual labelling of antibodies BV and cetuximab with NIRF dye IRDye800CW and zirconium-89 for optical and PET imaging, respectively [229,230]. Biodistribution studies of [89Zr]Zr-N-suc-Df-BV/cetuximab-800CW and [89Zr]Zr-N-suc-Df-BV/cetuximab radioconjugates were performed using mice bearing human squamous carcinoma cell line A431 or human epithelial cell line FaDu and control mice. Both radioconjugates were dedicated for early photo- and radio-detection of small, established tumours that could not be identified by other radiological and nuclear techniques.
Potential application of [89Zr]Zr-N-suc-Df-BV radioconjugate for diagnosis in nuclear medicine was described by Jansen et al. and Veldhuijzen van Zanten et al. [231,232,233]. The possibility of [89Zr]Zr-N-suc-Df-BV radioconjugate application for adult and adolescent recurrent high-grade gliomas imaging was tested, including end stage diffuse intrinsic pontine glioma (DIPG) tumours. DIPG tumours, overexpressing pro-angiogenic factors, including VEGF, were resistant to various types of systemic therapies, including targeted therapies. However, the obtained results were inconclusive, no significant uptake of [89Zr]Zr-N-suc-Df-BV in the intracranial tumour models occurs at any stage of the disease, but the mice model displayed high and moderate uptake of the radiotracer in E98 and HSJD-DIPG-007 xenografts, respectively [231]. Moreover, authors emphasised that anti-VEGF therapy could induce more diffused and distant spread of tumour cell, hence, BV treatment was only justified if targeting of VEGF by BV as previously verified by immuno-PET scan [231]. Immuno-PET in children and adults with DIPG showed large variability in the intratumour [89Zr]Zr-N-suc-Df-BV uptake, suggesting large differences in local expression of VEGF within the tumour [232]. PET imaging study combined with autopsy study data confirmed high inter- and intrapatient DIPG heterogeneity, which could explain lack of benefit from BV anti-VEGF treatment in some DIPG patients [233]. Based on the conducted studies, the authors suggested that the combination of MRI and PET imaging may help in selecting potential DIPG patients for BV treatment.
Current literature has relatively little information regarding BV labelling with other radionuclides and application of such radioconjugates in nuclear medicine. Stollman et al. described the potential application of BV labelled with diagnostic radionuclide I-125, for scintigraphic visualisation of VEGF-A expressing tumours [208]. The recorded lower concentration of [125I]I-BV radiotracer in the tumour compared to that of [111In]In-DTPA-BV may be explained by [125I]I-BV faster metabolism and efflux of the radioactive metabolite from the tumour [208]. Radioconjugate of BV labelled with therapeutic iodine-131, was discussed by Ashrati et al. and Kameswaran et al. [234,235]. [131I]I-BV radioconjugate showed high stability, high and specific binding and internalisation rate into SKOV-3 ovarian cancer cell xenogafts in mice model [234]. Kameswaran et al. investigated cell binding studies and biodistribution pattern of [131I]I-BV radioconjugate, which were tested in HUVEC, U937 and A375 cell lines and melanoma bearing mice, respectively [235]. Additionally, this radioconjugate was used both as diagnostic and radioimmunotherapy agent due to gamma and beta radiation emitted by theranostic 131I radionuclide [234,235]. There are also some reports on BV labelled with I-124 radionuclide [236,237,238], however, these works focus on effective evaluation of VEGF imaging by PET method using different antibodies labelled with I-124 and they will be discussed later.
Radioconjugates of BV and diagnostic copper-64 radionuclide were reported by Paudyal et al., Zhang et al., and Chang et al. [46,47,200,239,240,242]. In the case of BV radiolabelling reactions chelators DOTA [239] or NOTA [200,240] were used. Paudyal et al. using in vivo stable [64Cu]Cu-DOTA-BV radioconjugate, demonstrated a strong dependence between tumour size and tumour vasculature expression of VEGF and significant correlation between VEGF levels and accumulation of labelled antibody in human colorectal cancer HT29 mice xenografts. Tested radioconjugate was found to be promising radiopharmaceutical for non-invasive VEGF expression imaging, as well as a powerful tool for patient stratification for their potential BV-based AAT [46,47,239]. Chang et al. evaluated VEGF specific PET radiotracer [64Cu]Cu-NOTA-BV applied for imaging VEGF overexpressing renal carcinoma cell line 786-O xenografts (injected subcutaneously into the ears of athymic NCr-nu/nu mice) and for monitoring of tumour response to everolimus inhibition of mTOR kinase [200]. Similar to [89Zr]Zr-N-suc-Df-BV [217,218,219], [64Cu]Cu-NOTA-BV was considered a novel biomarker for monitoring of the disease status after treatment with rapalog in mTOR kinase inhibitor therapies. Zhang et al. focused on dual-labelled BV ([64Cu]Cu-NOTA-BV-800CW), with PET radionuclide copper-64 and NIRF dye 800CW for VEGF imaging of human glioblastoma cells U87MG (overexpressing VEGF-A121, VEGF-A165 and VEGF-A189), where mice model xenografts showed good linear correlation between recorded in vivo PET and NIRF results [47,240]. Such PET/NIRF agents ([64Cu]Cu-NOTA-BV-800CW or [89Zr]Zr-N-suc-Df-BV-800CW [229,230]) could be utilised in many clinical applications, e.g., disease diagnosis, patient stratification, treatment monitoring, image-guided surgery, etc.
Further reports have studied radiolabelled ramucirumab and ranibizumab, much less commonly used anti-VEGF antibodies in AAT.
Ramucirumab (RamAb, Ram, also known as IMC-1121B, mean serum half-life 14 days), sold under the trade name Cyramza, is a fully human IgG1 class mAb dedicated to treatment of various malignancies, including hepatocellular, colorectal, gastric and lung cancers, as well as a second drug after prior treatment with fluoropyrimidine or platinum-containing chemotherapy.
Ramucirumab labelled with diagnostic radionuclide copper-64 (using NOTA chelator) was described by Luo et al. and Laffon and Marthan [243,244]. Luo et al. presented cell binding studies performed on HCC4006 and A549 cell lines with high and low VEGFR-2 expression, respectively, while biodistribution assays were performed on lung tumour-bearing mice model. The obtained results showed specific binding of [64Cu]Cu-NOTA-RamAb to extracellular VEGFR-2 and, moreover, greater selectivity than BV [243]. Laffon and Marthan repeated Luo et al. study and determined three independent kinetic parameters, namely, uptake rate constant, release rate constant and fraction of free tracer in blood and interstitial volume [244]. They showed that the applied evaluation approach may be useful for characterisation of radiotracer and assess patient response to VEGFR-2-targeted therapies.
Deferrioxamine-conjugated Ram labelled with zirconium-89 was synthesised and evaluated by Li et al. [245]. The binding profile of [89Zr]Zr-N-suc-Df-Ram radioconjugate was tested using three different prostate cancer cell lines: PC-3, LNCAP and LAPC-4 and showed that radioconjugate conserved Ram affinity and selectivity towards VEGFR-1 and VEGFR-2. PET imaging was also conducted on mice models bearing subcutaneous xenografts of above listed cell lines. The reports suggested the radiocompound could be utilised as a tracer for in vivo VEGFR-2 expression monitoring and patient stratification for AAT.
Janousek et al. described various Ram-based radioconjugates differing in technetium-99m labelling method (direct or indirect method with the use of HYNIC or DTPA bifunctional chelating agents) [246]. In vitro saturation binding studies were performed with overexpressing VEGFR-2 cell lines PC-3 and SKOV-3. All obtained potential radiopharmaceuticals [99mTc]Tc-Ram, [99mTc]Tc-HYNIC-Ram and [99mTc]Tc-DTPA-Ram showed approximately one order of magnitude lower affinity towards the targeted receptor compared to that of the natural antibody, while the binding specificity was conserved. [99mTc]Tc-Ram and [99mTc]Tc-DTPA-Ram exhibited slightly worse binding to VEGFR-2 than [99mTc]Tc-HYNIC-Ram did.
Ranibizumab (Ran, serum half-life 2–6 h) is an antigen-binding fragment (Fab) of BV, which has higher affinity to all soluble and matrix bound human VEGF-A isoforms than origin mAb. Ran is used mainly for macular degeneration treatment.
Nagengast et al. employed Ran labelled with zirconium-89 to evaluate the efficiency of sunitinib cancer treatment [16,247]. VEGF imaging with [89Zr]Zr-N-suc-Df-Ran radioconjugate in mice bearing human cancer xenografts was found to be superior compared to imaging using radiotracers [18F]FDG and [15O]H2O. The results of tumour imaging with [89Zr]Zr-N-suc-Df-Ran corresponded with tumour growth changes and showed differences in response to AAT among tumour areas. Hence, [89Zr]Zr-N-suc-Df-Ran allowed non-invasive dynamic visualisation and quantification of VEGF signalling and could potentially become a biomarker for AAT.
Christoforidis’s research group described the labelling of Ran with iodine-124 and comparison of physicochemical and biological behaviour of [124I]I-Ran versus BV- and aflibercept-based 124I-radiocompounds in age-related macular degeneration [236,237,238]. Aflibercept belongs to VEGFR-based binding peptides and will be described in more detail in the following section of this article [248]. Experimental PET/CT studies on rabbit model of both [124I]I-Ran and [124I]I-BV showed no leakage from the vitreous cavity, which indicated the possibility of corresponding therapeutic radiopharmaceutical application in the future [46,236]. The application of [124I]I-Ran and [124I]I-BV radiocompounds showed shorter intravitreal retention of [124I]I-Ran compared to that of [124I]I-BV and significant reduction of intravitreal retention after vitrectomy and lensectomy in the case of both radioagents [237]. Christoforidis et al. studied PET/CT biodistribution and pharmacokinetic of [124I]I-Ran, [124I]I-BV and [124I]I-aflibercept in non-human primate model, as well as the potential clinical application of the tested radiocompounds [238].
In summary, it is worth emphasising the frequently reported information that mAb AAT was ineffective in some patients and the results of VEGF imaging levels were not always consistent with the actual amount of this parameter, determined by e.g. ELISA method. A major cause of antibody therapy failure may be due to mAb impossibility to cross the blood brain barrier to reach its target, or that the target is completely unavailable. However, this may be related with tumour size, tumour heterogeneity and patient subjective sensitivity to treatment. Therefore, numerous novel approaches in nuclear medicine insist on personalised treatment, based on previously developed markers that allow prediction of treatment outcome and verification of course of therapy at its every stage. Notably, the most frequent examined radiopreparation, BV labelled with 89Zr, was employed in numerous registered clinical trials for imaging of VEGF expression in pulmonary arterial hypertension and various cancers.
Concise information concerning radiolabelled anti-VEGF and anti-VEGFR antibodies are presented in Table 2.

3.3. Radiolabelled Peptide-Like Structure Ligands Used for VEGF/VEGFR Imaging

Radiolabelled ligands with peptide-like structure used as radiotracers for VEGF/VEGFR system imaging create a relatively small group, with only few reports describing such compounds [44,238,248,249,250].
Christoforidis et al. conducted iodine-labelled aflibercept studies to evaluate its pharmacokinetic properties by sequential ocular imaging after the intravitreal administration radiocompound [238,248]. Aflibercept is a recombinant fusion protein composed of fragments of human VEGFR-1 and VEGFR-2 extracellular domains combined to Fc fragment of human IgG1. This drug was specific towards age-related macular degeneration disease. Uniquely, aflibercept could bind to both sides of the VEGF dimer, forming an inert 1:1 complex, also called “VEGF trap”. PET/CT imaging study with [124I]I-aflibercept in rabbit model showed the radiocompound presents mainly in the vitreous, but unfortunately, the detectable radioactivity was recorded also in the thyroid gland [248]. The comparison of pharmacokinetic properties of [124I]I-aflibercept with those of [124I]I-Ran and [124I]I-BV, already mentioned in the previous section, determined in PET/CT study in owl monkey model, showed that [124I]I-aflibercept radiotracer possessed the shortest intravitreal retention time and relatively short and low levels in serum, heart, liver and distal femur [238].
Hao et al. and Cai et al. published simultaneously and discussed the application of peptoids labelled with diagnostic radionuclides for non-invasive VEGFR-2 imaging [249,250]. Peptoids, poly-N-substituted glycine, e.g. GU40C or GU40C4, belong to the peptidomimetics group, in which side chains are attached via nitrogen atoms of the molecule backbone instead of α-carbon atoms as it is in case of peptides, resulting in peptoids peptidase/proteinase resistance [250]. PET imaging study with [64Cu]Cu-DOTA-GU40C4 on mice bearing PC3 prostate cancer xenografts revealed a clear and unambiguous radiocompound accumulation in VEGFR-2 positive PC3 tumours [249]. The reports suggested that peptoids labelled with diagnostic or therapeutic radionuclides can play a significant role in cancer diagnosis and treatment.
It is also worth mentioning that research was conducted on the potential application of cyclic nanopeptide RRL containing sequence Cys-Gly-Gly-Arg-Arg-Leu-Gly-Gly-Cys with terminal intramolecular disulphide bridge, for the precise and quantitative characterisation of tumour angiogenesis [44]. The binding specificity of RRL towards tumour-derived endothelial cells and VEGFR-2 protein was confirmed using optical method (FITC-RRL orAlexa 680/800-RRL) and ultrasonic imaging (MB-RRL). After tyrosine attachment to the amino terminal Cys1 and then conjugate labelling with iodine-131, the obtained [131I]I-Tyr-RRL was stable in saline and human serum. The biodistribution study of [131I]I-Tyr-RRL on PC3 xenograft mice showed specific accumulation of radiocompound in the tumour and according the report, [131I]I-Tyr-RRL could be considered as a drug for tumour radioimmunotherapy.
Rezazadeh et al. described an innovative approach for preparing peptide-based VEGFRs imaging radioagents [251]. They synthesised and studied the physicochemical and biological properties of technetium-99m labelled D(LPR) peptide, which is a retro-inverso peptidomimetic derivative of L(RPL) peptide known to have high affinity for VEGFRs [252]. Using HYNIC as a bifunctional chelator and tricine/EDDA as coligands, two radiotracers, [99mTc]Tc-peptide1 and [99mTc]Tc-peptide2 were synthesised, wherein the chelating moiety was attached to either the C-terminus or N-terminus of D(LPR) peptide, respectively. The chemical and biological tests performed in terms of their potential application for VEGFR imaging showed that both radiotracers had high stability in saline and human serum and high specific binding to VEGFR-1 and NRP-1. Unfortunately, the accumulation of both radioagents in the tumour was relatively low, nevertheless, in conclusion authors emphasised that the application of retro-inverso peptides for the synthesis of radiopharmaceuticals was stated as very promising. Concise information concerning radiolabelled peptide-like structure ligands used as radiotracers for VEGF/VEGFR system imaging are presented in Table 3.

3.4. Radiolabelled Small Molecular Inhibitors of VEGFR Tyrosine Kinase

Radiolabelled small molecular inhibitors of VEGFR tyrosine kinases constitute a relatively large group of radiotracers used for VEGF/VEGFR system imaging [8,16,18,25,26,27,28,40,41,253]. These molecules should exhibit an extremely high affinity towards VEGFR-TKs (Kd in low nanomolar range) and be characterised with logD values from 1 to 3, which allows crossing the cellular membrane by passive diffusion and reaching the intracellular RTK targets [254]. Due to RTKs being overexpressed in many tumour entities, they seem to be a suitable target for cancer imaging. Furthermore, RTK inhibitor labelled with diagnostic radionuclide can be a useful tool for monitoring levels of RTKs in tumour and give valuable information of AAT effectiveness. Currently, about 20 small molecule inhibitors of VEGFR-TKs are approved for clinical use and some of them, labelled with diagnostic radionuclides, have already been used for VEGFR expression imaging.
Multi-targeted RTK inhibitor sunitinib (SU11248) is an anti-angiogenic agent, approved as an anticancer agent in kidney cancer and gastrointestinal stromal tumour therapies. Wang et al. synthesised and described sunitinib labelled with fluorine-18 ([18F]5-F-sunitinib, Figure 3) [26,255] and Kuchar et al. reported sunitinib labelled with iodine-125 ([125I]5-I-sunitinib, Figure 3) [26,254]. Both radiocompounds were used successfully for PET imaging of angiogenic processes in metastatic renal cell cancer patients.
Sunitinib labelled with technetium-99m was described by Sakr et al. [259]. [99mTc]Tc-sunitinib radiocompound was prepared via direct labelling approach with stannous chloride, reductant of [99mTc]TcO4. Unfortunately, a possible structure of the obtained radiopreparation was not presented in the article. Biodistribution study in tumour hypoxia bearing mice showed high target to non-target ratio and rapid organ clearance via urinary and hepatobiliary excretion, indicating that [99mTc]Tc-sunitinib could be considered as a potential selective radiopharmaceutical for tumour hypoxia imaging.
Kniess et al. and Caballero et al. examined the physicochemical and biological properties of methoxy substituted derivative of sunitinib, 5-methoxy-sunitinib and its analogue, [methoxy-11C]5-methoxy-sunitinib, (Figure 3) [256,257]. The performed molecular dynamic simulation studies showed that fluorine substitution at position 5 of the oxindole scaffold with methoxy group did not affect the orientation of the inhibitor towards VEGFR-2 TK, but influenced their electrostatic and van der Waals interactions. Based on experimental results of the colorimetric MTT assay in two VEGFR expressing cell lines, primary endothelial HAEC and cancer HT29, it was revealed that [methoxy-11C]5-methoxy-sunitinib was a promising imaging agent of VEGFR-2 TK expressing cells and potential radiotracer for angiogenesis and carcinogenesis evaluation [257].
Another RTK inhibitor with a similar structure to SU11248 is SU5416 therapeutic specifically for metastatic colorectal cancer therapy. Kniess et al. presented the design and labelling of 3-[4′-fluorobenzylidene]indolin-2-one (SU5202, containing the characteristic benzylidene oxindole scaffold existing in SU5416 structure) with fluorine-18 as potential radiotracers for PET imaging [258]. Based on the results of the biodistribution study on mice, an assessment of in vivo metabolic stability in blood and plasma and a small animal PET study on mice with FaDu xenograft, [18F]3-[4′-fluorobenzylidene]indolin-2-one ([18F]-SU5202) radiocompound (Figure 3) was unstable and, with only moderate IC50 affinity to VEGFR-TKs. Hence, it was not a suitable radiotracer for RTK imaging.
Sorafenib (BAY 43-9006) is a part of a group of small molecular inhibitors of the VEGFR-TKs, which is an approved drug for the treatment of primary kidney cancer, advanced primary liver cancer and radioactive iodine resistant advanced thyroid carcinoma. Procedures for the preparation of its analogues labelled with fluorine-18 and iodine-124, dedicated for imaging of diseases accompanied by increased expression of VEGFRs, are the subject of patent reported by Schuller et al. [260]. Examples of the use of these radiocompounds presented in the patent proved that they could successfully act as radiotracers in PET imaging.

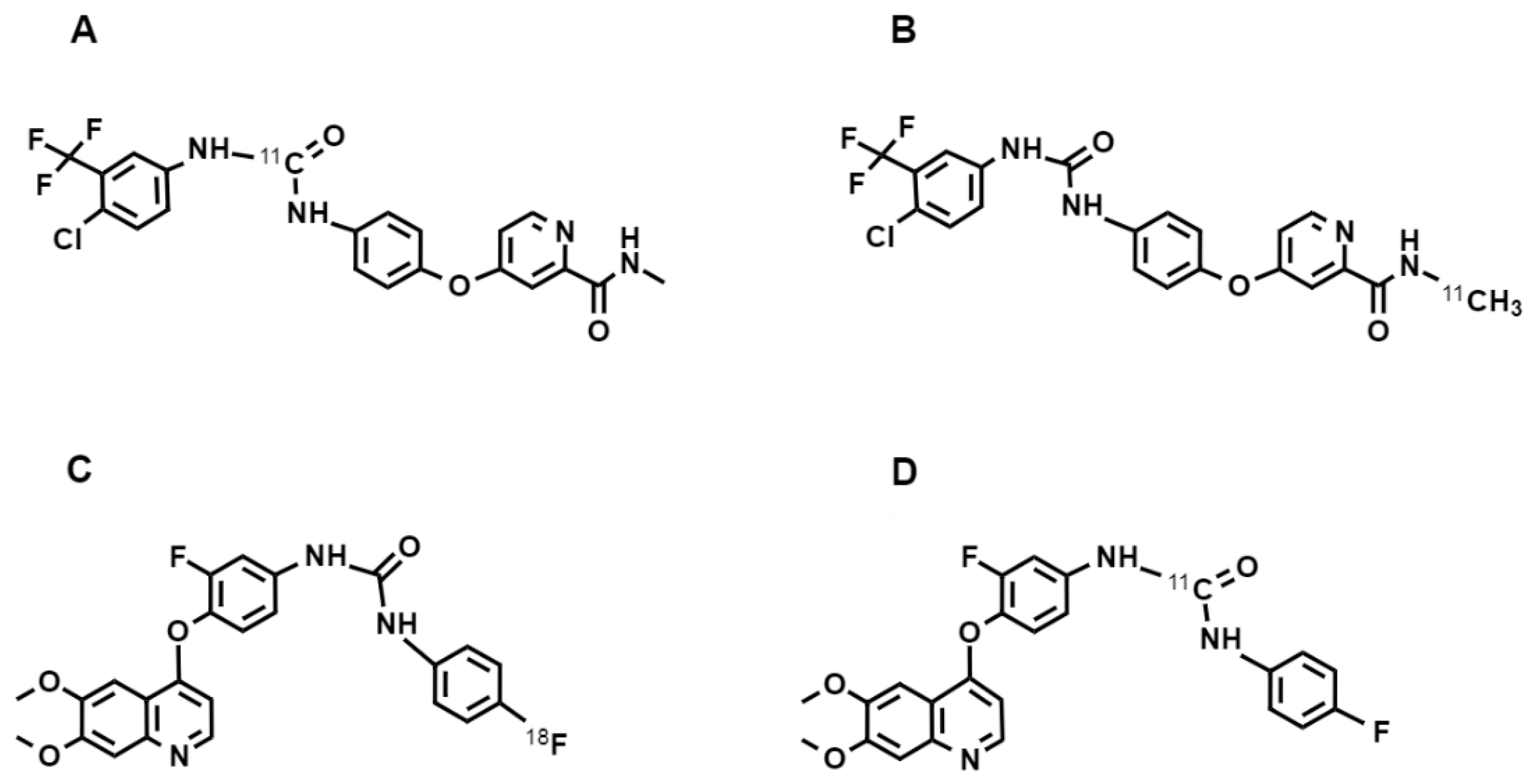

Synthesis of radiolabelled sorafenib, containing 11C located in the urea carbonyl positions of the molecule ([carbamate-11C]-sorafenib, Figure 4), was described for the first time by Asakava et al. [26,261]. [carbamate-11C]-sorafenib imaging on P-glycoprotein and/or breast cancer resistance protein knockout mice using small-animal PET (on P-glycoprotein and/or breast cancer resistance protein knockout mice) with [carbamate-11C]-sorafenib, revealed the negative influence of P-glycoprotein and breast cancer resistance protein on radioactivity uptake in the brain, resulting in reduced effectiveness of chemotherapy against tumour cells. Poot et al. also prepared and examined [carbamate-11C]-sorafenib and [N-methyl-11C]-sorafenib radiotracers (Figure 4) [26,262]. In vivo metabolite studies in rats showed that both radiocompounds were highly stable. Based on PET studies and ex vivo biodistribution experiments in mice carrying RXF393, MDA-MB-231 and FaDu cell line xenografts, it was assessed that [N-methyl-11C]-sorafenib was more promising target-specific PET tracer and its tumour accumulation could be related to sorafenib treatment response.
Several reports have described various synthetic routes and radiolabelling reactions of multi-target RTK inhibitors, including different diaryl ureas (based on N-phenyl-N′-4-(4-quinolyloxy)-phenyl-urea skeleton with related structure to sorafenib) with PET isotopes fluorine-18 ([18F]F-diaryl urea, Figure 4) and carbon-11 ([carbamate-11C]-diaryl urea, Figure 4) [26,263,264,265]. Both [18F]F-diaryl urea and [carbamate-11C]-diaryl urea radiotracers, containing positron emitter in aryl-ureas moieties, were found to be highly stable in human blood and suitable for utilisation as PET imaging agents for angiogenesis.
Another representative of the small molecular inhibitors acting on the intracellular RTK domain of VEGFR is vandetanib (ZD6474), which belongs to the 6,7-alkoxyanilinoquinazoline family, capable of inhibiting neovascularisation induced by a wide variety of cancers including lung, melanoma, prostate, breast and ovarian cancer. PAQ, an analogue of vandetanib, based on 3-piperidinylethoxy-anilinoquinazoline, exhibited lower IC50 value and better binding selectivity to VEGFR-2 compared to VEGFR-1. Synthesis of PAQ and its labelling with positron emitter carbon-11, as well pharmacokinetic behaviour of the obtained radiotracer [N-methyl-11C]-PAQ (Figure 5) were described by Samén et al. [43]. Biodistribution study in tumour-bearing mice (induced by subcutaneous injection of human breast cancer cell line TUBO or murine melanoma cell line B16F10) demonstrated a heterogeneous uptake of [N-methyl-11C]-PAQ radiotracer in different tumour models that correlated with the expression of VEGFR-2 determined ex vivo by immunohistochemical analysis. It was concluded that [N-methyl-11C]-PAQ radiotracer could be used as a PET agent for angiogenic processes monitoring.

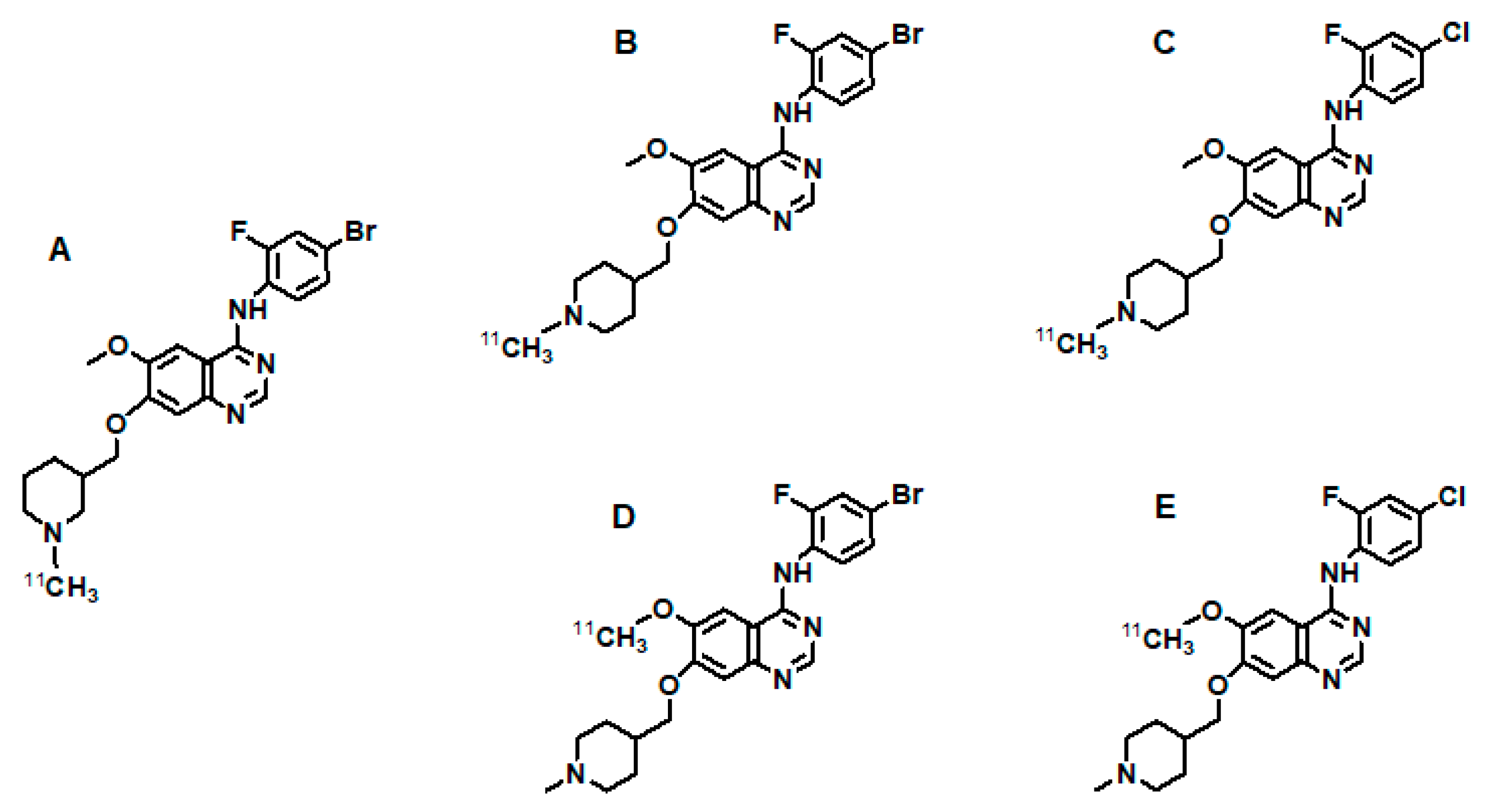

Vandetanib and its chlorine analogue chloro-vandetanib are known as potent and selective VEGFR-RTKs inhibitors with low nanomolar IC50 values. Gao et al. designed a synthetic routes for the preparation vandetanib and chloro-vandetanib radiolabelled with carbon-11 radionuclide located at nitrogen and oxygen positions in both molecules ([N-methyl-11C]vandetanib, [N-methyl-11C]chloro-vandetanib and [O-methyl-11C]vandetanib, [O-methyl-11C]chloro-vandetanib, Figure 5) [16,26,266]. These new potential PET agents were obtained with high radiochemical purity, chemical purity and specific activity (370-555 GBq/µmol). The report highlighted the use of synthesised radiotracers for further research as radioagents for VEGFR imaging in tumours and monitoring the therapeutic effectiveness of vandetanib and chlorovandetanib therapy.

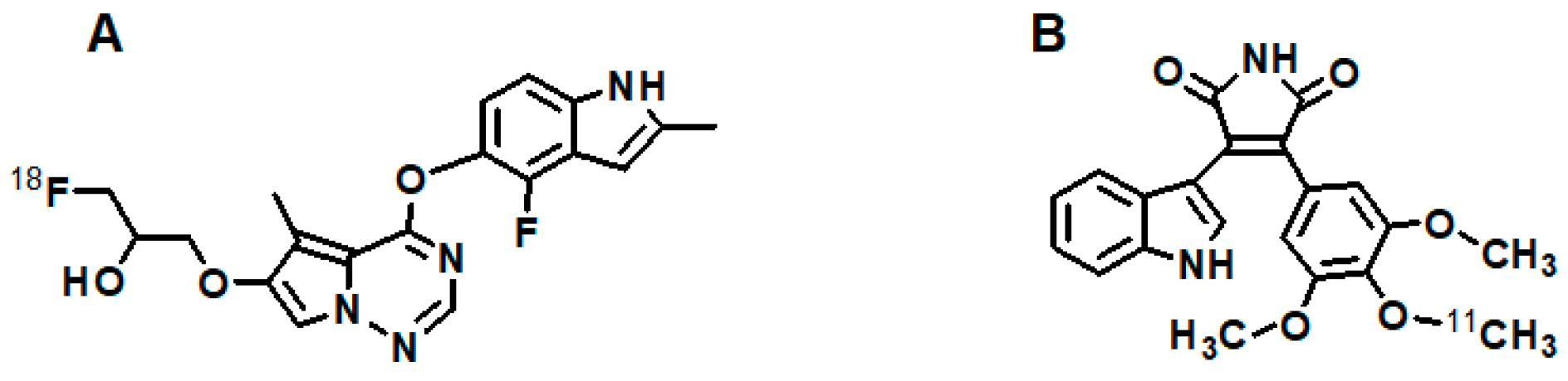

Dischino et al. synthesised and studied brivanib (BMS-540215, a pyrrolotriazine-based inhibitor of VEGFR-TKs with potential anticancer activity, specific for treatment of solid tumours, hepato-cellular carcinoma and metastatic colorectal cancer) labelled with fluorine-18 [26,267]. However, the report lacked sufficient information regarding the physicochemical and biological properties of this radiocompound (Figure 6). [18F]F-brivanib was obtained with relatively low radiochemical yield and specific activity of 85.1 GBq/µmol. Additionally, biodistribution studies on rodents were performed, however, experimental results were not published. Based on the data, it was not possible to evaluate the usefulness of [18F]F-brivanib as PET imaging agent for angiogenic processes monitoring.
Ilovich et al. investigated another potential PET radiotracer, [methoxy-11C-](trimethoxy-phenyl)-4-indolyl maleimide (Figure 6), with high affinity and selectivity towards VEGFR-TKs, dedicated for visualisation of angiogenic processes [268]. They developed methods for the synthesis of (trimethoxy-phenyl)-indolyl-maleimide and its three derivatives with different halogens at 5-indole position, which in the future could be applied for syntheses of radiotracers containing different PET radioisotopes [268]. Radiolabelling reaction with carbon-11 for the non-halogenated (trimethoxy-phenyl)-indolyl-maleimide compound was performed. The obtained radiopreparation [methoxy-11C-](trimethoxy-phenyl)-indolyl-maleimide was characterised with desired logD value (1.99 ± 0.04), high stability in human blood and specific binding in cells overexpressing VEGFR-2. However, biodistribution studies conducted in tumour-bearing mice showed unsatisfactory accumulation and low retention of radiotracer in target tissues. In addition, incubation of tested radiotracer with hepatic microsomes displayed very low metabolic stability, which actually disqualified this radiotracer as an agent for non-invasive monitoring of angiogenic processes [26,268]. It was proposed that the maleimide moiety, despite its well-known high affinity and selectivity towards VEGFR-RTKs, is not a suitable linking group.

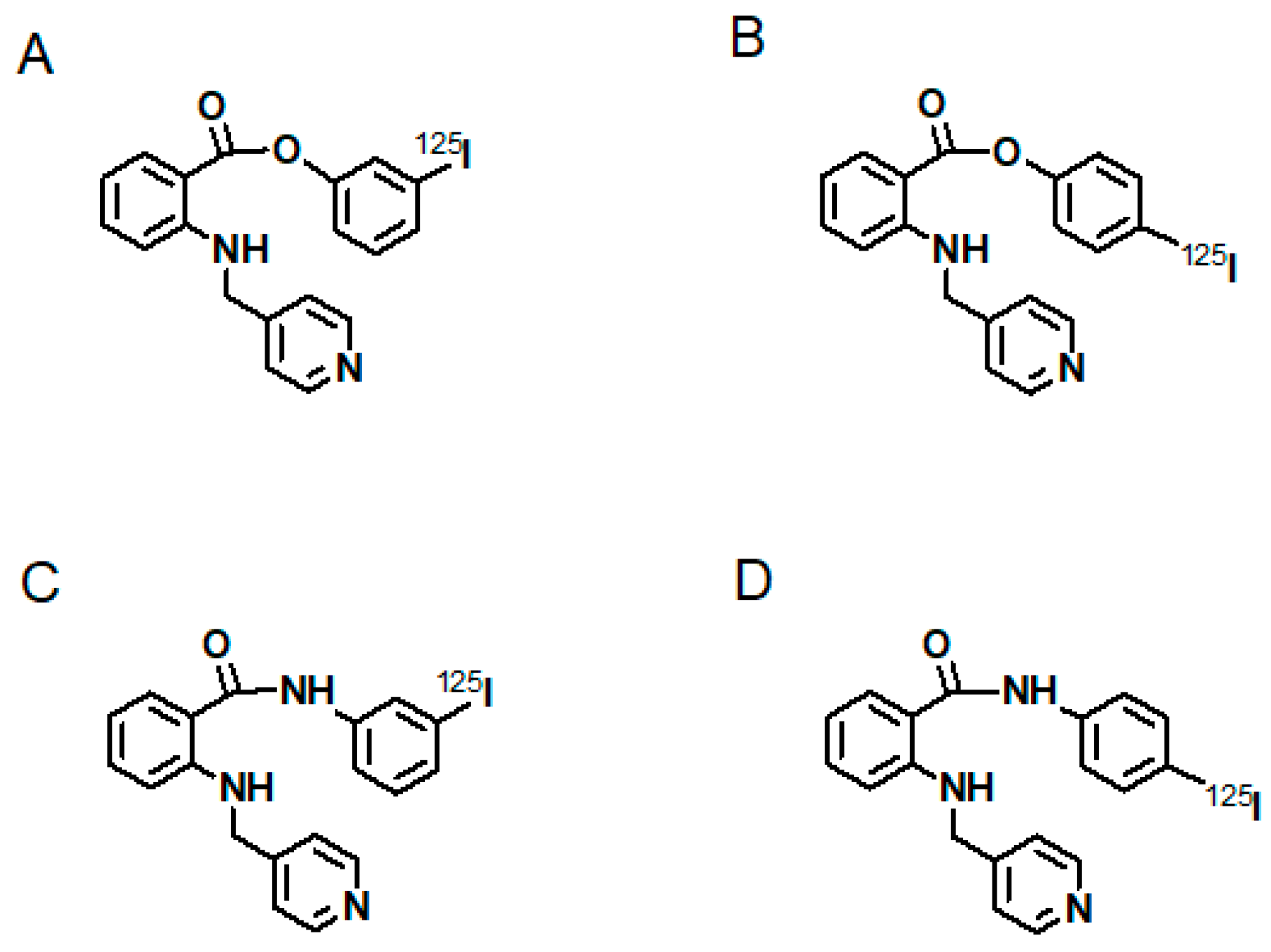

Anthranilate derivatives are another group of compounds showing antitumour activity, among which 2-([pyridin-4-ylmethyl]amino)-N-(3-[trifluoromethyl]phenyl) benzamide (AAL-993) is an anticancer drug targeting VEGFR-RTKs. Hirata et al. designed and synthesised four radioiodinated anthranilate-based radiotracers with related structure to AAL-993 drug [269]. Iodine-125 was located at m- and p-positions of the phenoxy ring (radiotracers [125I]m-I-NPAE and [125I]p-I-NPAE) or phenylamino ring (radiotracers [125I]m-I-NPAM and [125I]p-I-NPAM). Incubation of obtained radiotracers in neutral phosphate buffer showed high stability of [125I]m-I-NPAM and [125I]p-I-NPAM radiocompounds and rapid degradation of [125I]m-I-NPAE and [125I]p-I-NPAE. Therefore, [125I]m-I-NPAM and [125I]p-I-NPAM (Figure 7) were selected for further in vivo research. Biodistribution study in human prostate tumour-bearing mice showed high tumour uptake of both radiotracers; however, [125I]p-I-NPAM exhibited superior tumour targeting and tumour to blood radioactivity ratio in comparison to [125I]m-I-NPAM. Radiotracer [125I]p-I-NPAM was recommended for in vivo VEGFR imaging using SPECT/CT method.
A novel approach for the design of new radiotracers for non-invasive visualisation of tumour angiogenesis was described by Mitran et al. [270]. A new conjugate was prepared containing two anti-VEGFR-2 affibody molecules (ZVEGFR2 and Bp2, characterised with affinities towards VEGFR-2 in the nanomolar range) targeting non overlapping epitopes (so-called biparatopic dimer) of VEGFR-2. The biparatopic affibody dimer called ZVEGFR2-Bp2 was then labelled with indium-111 using a macrocyclic chelator NODAGA. Obtained [111In]In-NODAGA-ZVEGFR2-Bp2 radiotracer showed excellent stability in PBS and EDTA excess. Targeting specificity, activity biodistribution and imaging properties of [111In]In-NODAGA-ZVEGFR2-Bp2 studied in mice bearing VEGFR-2-expressing xenografts showed that the affinity of radiotracer based on biparatopic affibody conjugate for binding to VEGFR-2 was two orders of magnitude higher than that of individual affibodies. Hence, [111In]In-NODAGA-ZVEGFR2-Bp2 could be used for non-invasive visualisation of the tumour angiogenesis in the preclinical diagnosis of glioblastoma, for therapeutic design and therapy monitoring.
Summary of the above cited articles regarding VEGF/VEGFR system imaging radiotracers reveals that radiopreparations based on small molecular inhibitors of VEGFR-TKs could play a pivotal role in AATs. They allow for referring patients to appropriate therapies, planning the course of these therapies and monitoring the effects of therapies at each stage of treatment. So far, a number of such radiopreparations have been designed and tested and some have proved to be very promising, but none of them have been studied in clinical trials. The search for such radiotracers still remains an ongoing challenge. Concise information concerning radiolabelled small molecular inhibitors of VEGFR tyrosine kinase are presented in Table 4.

3.5. Radiolabelled Peptide-Like Ligands for NRP-1 Imaging

Radiolabelled NRP-1 ligands discussed in this chapter can be generally divided into two groups: inhibitors of VEGF-A165/NRP-1 complex and tumour penetrating peptides (TPPs) targeting NRP-1. In general, literature data on radiolabelled peptide-like ligands targeting NRP-1 co-receptor is rare. The binding of VEGF-A165 to NRP-1 occurs through the b1 subdomain of NRP-1 binding pocket and VEGF-A165 fragment of the sequence Cys-Asp-Lys-Pro-Arg-Arg-COOH with C-terminal arginine residue. Therefore, novel NRP-1 ligands can be designed with compatible arginine or lysine located at C-terminus of the R/KXXR/K sequence (R: arginine, K: lysine, X: any amino acids), which has been called “C-end-Rule” [271,272,273]. Moreover, compounds containing such sequence are in vivo competitive with NRP-1 ligands, so they can prevent interaction between VEGF-A165 and NRP-1 [274,275].
The only radiocompounds described in the literature, related to the first group, are based on ATWLPPR (A7R) peptidomimetic used alone or conjugated with RGD peptide. A7R is known as in vivo anti-angiogenic and anti-tumour agent [35,36,276].
The second group of radioligands targeting co-receptor NRP-1 includes radiolabelled TPPs, with R/KXXR/K motif [37,38] required for specific NRP-1 targeting and/or internalisation into NRP-1 overexpressing tumour cells. Depending on the position of the R/KXXR/K motif, these compounds can bind to NRP-1 either directly (exposed motif) or indirectly (cryptic motif). In general, TPPs binding to NRP-1 occurs in three steps: (1) TPPs bind to their specific receptors on endothelium; (2) proteolytic cleavage occurs and R/KXXR/K motif is revealed; (3) truncated peptide loses its affinity for its main receptor and binds to NRP-1 [37,38,277] (Figure 8).
There are only few reports in the literature that examine radiocompounds based on A7R labelled with diagnostic radionuclides, namely, technetium-99m for SPECT or fluorine-18 for PET [278,279,280,281,282,283].
Perret et al. investigated the binding affinity of radiolabelled inhibitor of the VEGF-A165/NRP-1 complex, [99mTc]Tc-MA-A7R, towards NRP-1 and NRP-2 [278]. The results of the performed research confirmed that [99mTc]Tc-MA-A7R binds to NRP-1 (with no binding to NRP-2). However, biodistribution study on tumour bearing rodents showed low [99mTc]Tc-MA-A7R accumulation in the NRP-1-expressing tumours. Lan et al. studied another radiocompound based on A7R peptide and containing diagnostic radionuclide Tc-99m, [99mTc]Tc-HYNIC-A7R, which was successfully applied for NRP-1 positive tumours imaging on human breast cancer bearing mice model [279].
Wu et al. tested dual-peptide based radiocompound [18F]F-Al-NOTA-RGD-A7R for micro-PET/CT imaging of αvβ3 and NRP-1 positive glioma tumours [280]. The performed studies showed higher tumour uptake of this radiotracer compared to those based on single peptides, [18F]F-Al-NOTA-A7R and [18F]F-Al-NOTA-RGD used separately. [18F]F-Al-NOTA-RGD-A7R radiotracer was also employed by Liang et al. for PET/CT imaging in U87MG glioma tumours model [281]. Obtained results showed high specific radiotracer uptake in the tumour; however, similar to previous studies, a noticeable uptake in the kidneys was also observed.
Yufei et al. presented similar dual-peptide radiotracer, [18F]F-benzoate-RGD-A7R, for imaging of U87MG tumour model [282]. Cellular binding affinities of benzoate-RGD-A7R were determined through two independent competitive binding assays using [125I]I-A7RY or [125I]I-RGDyK. MicroPET and biodistribution studies demonstrated clearly visible [18F]F-benzoate-RGD-A7R tumour uptake, but unfortunately, also pronounced uptake in kidney, stomach and intestines.
Nanoparticular radiotracer [18F]F-n-BSA-RGD-A7R based on RGD-A7R hybrid peptide conjugated with modified bovine serum albumin (BSA) was used for biodistribution studies on U87MG tumour-bearing mice [283]. This radiotracer was characterised with enhanced pharmacokinetics properties compared to previously described fluorine radiocompounds [280,281,282]. Experimental results showed higher [18F]F-n-BSA-RGD-A7R uptake in the tumour and lower in the liver compared to that of [18F]F-benzoate-RGD-A7R [281], but still with high kidney uptake.
TPPs found various preclinical applications [38,284,285,286] and some NRP-1-targeting TPPs have also been radiolabelled with diagnostic or therapeutic radionuclides [285,286,287,288,289,290,291,292,293]. These radiopreparations are based on TPPs containing R/KXXR/K motif located at C-terminus (exposed motif): RPAR [37,290], CGNKRTR (tLyp-1) [291], or based on TPPs with R/KXXR/K motif located inside the peptide sequence (cryptic motif): CRGDKGPDC (iRGD) [287,288], CRNGRGPDC (iNGR) [285,289], AKRGARSTA (LinTT1) [39,292] or CLKADKAKC (CK3) [293].
The most investigated TPP radiotracers are radiocompounds based on iRGD peptide. [68Ga]Ga-DOTAGA-Ahx-iRGD and [68Ga]Ga-NODAGA-Ahx-iRGD were tested in terms of their in vivo imaging capabilities on melanoma murine model [287]. Both radiocompounds showed comparable tumour uptake; however, [68Ga]Ga-DOTAGA-Ahx-iRGD exhibited higher accumulation in the kidneys. Carlsen et al. employed the same 68Ga labelled iRGD peptide with different PEG linkers in their structure [288]. The biodistribution studies and microPET imaging on mice bearing brain, prostate or melanoma cancers showed successful monitoring of αvβ3 expression and neuropilin 1 related internalisation into the neoplastic cells.
Zhao et al. studied the properties of 68Ga-labelled NGR (CD13 ligand) and iNGR (TPP with cryptic motif) peptides conjugated with NOTA ([68Ga]Ga-NOTA-NGR and [68Ga]Ga-NOTA-iNGR) [289] and DOTA ([68Ga]Ga-DOTA-NGR and [68Ga]Ga-DOTA-iNGR) [285] for microPET imaging of CD13-positive tumour xenografts. In both studies iNGR based radiotracers revealed higher tumour uptake and longer retention compare to those of NGR-radiotracer, thus, confirming deeper tumoural penetration of iNGR peptides [284].
Adhikari et al. examined a radiocompound containing NRP-1 targeting peptide RPAR, [99mTc]Tc-DO3A-Et-RPAR for possible imaging of NRP-1 overexpressing tumours [290]. Binding assay of NRP-1 overexpressed human glioma cell line, biodistribution and scintigraphy imaging on U87MG xenografts mice showed specific binding to NRP-1 and relatively good tumour uptake, despite the observation of the highest uptake in kidneys and liver, which suggested hepatobiliary excrection.
tLyp-1 peptide coupled with tyrosine at N-terminus followed by iodine-131 labelling, [131I]I-Tyr–tLyp-1, was studied on different types of cell lines (NRP-1 positive and negative) and evaluated for biodistribution and SPECT/CT imaging on A549 tumour-bearing mice. The studied radiocompound showed binding to NRP-1 positive cells sensitive to blockage of another TPPs, RPARPAR peptide; however, low tumour and high kidney uptake also indicated dominance of the renal-urinary excretion pathway [291].
LinTT1 conjugated with PEG-PCL polymersomes (PS) labelled with iodine-124 was evaluated for imaging of small triple negative breast tumour in mice, however, mainly in terms of specific targeting to p32 protein [292]. The results of [124I]I-Tyr-LinTT1-PS biodistribution and PET-CT imaging showed higher tumour accumulation of LinTT1-polymersomes than peptide-free polymersomes, promising imaging quality and potential application of proposed drug delivery system.
CK3, a NRP-1 targeting peptide with a cryptic KXXK motif [293], was labelled with 99mTc or Cy5 and its binding properties was evaluated towards NRP-1 overexpressed on MDA-MB-231 breast cancer cells. Results of SPECT or NIRF imaging confirmed accumulation of tracers in tumour, but significant high levels were observed also in the kidneys. Due to the presence of a cryptic C-motif, no radiotracer accumulation in the first encountered organs (lung and heart) was monitored in biodistribution studies on normal rabbits. Notably, according to the literature, such compounds cannot be internalised into tumour cells (in contrary to compounds with exposed C-motif) [38,293].
Due to generally low tumour uptake and rapid blood clearance of above mentioned small peptides [290,291,293], Dou et al. examined radiolabelled anti-b1b2 domain of NRP-1 mAb, A6-11-26 [294,295,296] for imaging of NRP-1 positive glioma U87MG tumours [297]. Prepared [131I]I-A6-11-26 radiocompound showed high NRP-1 binding affinity in cellular study and poor, but noticeable accumulation in tumours and unfortunately, high accumulation in the kidneys, liver, lungs and blood. The utilisation of antibody fragments or anti-NRP-1 affibody molecules with low-energy emitting radionuclide were proposed for further research.
According to Bumbaca’s opinion [298], poor imaging results of NRP-1 expressing tumours could be caused by the high expression of this receptor in healthy organs and relatively low expression in tumours. Therefore, radiolabelled antibody, [111In]In-DOTA-MNRP1685A, was used to evaluate NRP-1 dependent uptake efficiency [298]. The uptake of radiolabelled antibody in tumour and non-tumour tissue was studied on mice bearing human colon carcinoma under simultaneous administration of variable amounts of unlabelled antibody (MNRP1685A) in order to induce receptor saturation in healthy organs. Such action was aimed to receive the most optimal labelled to unlabelled antibody ratio and finally the best tumour visualisation with the lowest uptake in non-tumour tissue. The authors observed MNRP1685A dose-dependent radioactivity increase in tumour and plasma with decrease of a previously high uptake in lungs and liver.
In summary, radiolabelled NRP-1 ligands, possess a dual role—as a vector leading radiotracer to NRP-1 overexpressing tumour cells and anti-angiogenic agent. In our humble opinion NRP-1 receptor abundance on endothelial cells [90,91] and epithelial cells of numerous organs [298] negates to a great extent the application of these radiocompounds. Indeed, high non-target tissue uptakes of radiotracers has been observed. Nevertheless, an advantage of these radiocompounds is the simplicity of the required motif (R/KXXR/K) for NRP-1 binding that allows for numerous modifications within the peptide sequence, which may result in procurement of new radiopreparations with desired properties.
Moreover, such radiocompounds have also an ability to penetrate deep inside the tumour, which could benfit the delivery of therapeutic cargo as radiation source or a cytotoxic drug, equivalently in whole tumour volume. Furthermore, radiocompounds based on more than one peptide, e.g., [18F]F-Al-NOTA-RGD-A7R [281], show higher tumour uptake compared to single peptide radiocompounds (synergic effect) and ability to recognise more than one receptor (e.g., αvβ3 integrins and NRP-1), which is their advantage and generally broadens the possibility of their use. Therfore, due to the presented advantages and disadvantages of discussed radiocompounds it seems that only some radiotracers discussed herein (e.g., based on A7R) may be of interest to clinical applications as NRP-1 imaging agents. Concise information concerning NRP-1 targeting radiotracers are presented in Table 5.

4. Conclusions

Radiotracers targeting VEGF/VEGFR system presented in this paper represent a diverse group of radiolabelled biovectors based on VEGF ligands and their derivatives, anti-VEGF and anti-VEGFR antibodies, peptide-like structure ligands, small molecular inhibitors of RTK and NRP-1 targeting peptides. Despite the multitude of available tracers, targeting VEGF/VEGFR system is overwhelmingly dominated by radiolabelled VEGF-based radiocompounds and anti-VEGF antibodies. Radiolabelled VEGF-based radiotracers are based mainly on freely diffusible and highly active VEGF-A121 isoform, which is medium molecular and hydrophilic peptide showing high in vivo stability and renal clearance. VEGF-A121 based radiotracers have high in vitro VEGFRs affinity, while in vivo they struggle to target VEGFRs overexpression, due to their competition with overproduced endogenous VEGF in close tumoural microenvironment.
On the other hand, radiolabelled BV was the most frequently researched mAb among anti-VEGF antibodies. Moreover, in recent years, there have been several clinical trials on efficacy of 89Zr or 111In labelled BV imaging applied for assessment of treatment effect prediction or as patient stratification method [199,216,218,219,223,299,300]. Although some results of these studies are incomplete and inconclusive, the data obtained from completed trials are a significant development in the pursuit of an effective assessment of the patient treatment outcome and quantitative characteristics of an uptake of evaluated tracer.
Globally looking at above presented research, the vast majority of radiocompounds, although partly referred by the authors of individual publications as promising and worthy of future evaluation, in our humble opinion do not fulfil the requirements of VEGF/VEGFR imaging radioagents due to in vivo instability, target unspecificity or low target affinity. It seems that despite the well-defined knowledge of characteristics of VEGF, VEGFR, and NRP-1 molecular targets and the ability to proper radiotracer preparation, targeting and tumour imaging are still a challenge, due to heterogeneity and changeability of tumour environment [42]. Similarly, results obtained on in vivo models do not transfer directly into results observed in clinical trials. Furthermore, conclusions from the first few clinical trials in this field should be approached with caution. It still needs to be concluded in future research, which of the direct anti-angiogenic approaches is worth being called promising. We already know that it becomes necessary to approach individually to specific groups of patients and not the same therapeutic regimen for each patient. Going one step further, attempts to use a combination of anti-angiogenic and anticancer drugs or a combination of internal radiotherapy with chemotherapy, differing in the mechanism of action, are increasingly considered [301]. The practical benefits of the synergistic approach may prove surprisingly advantageous.
An application of the radiopharmaceuticals offers an exceptional solution for preliminary screening and prediction of patient clinical response before therapeutic intervention. Additionally, radioligand imaging may provide a non-invasive evaluation of the VEGF/VEGFR system targeting and angiogenic processes description, followed by patient stratification for appropriate AAT and final clinical outcome monitoring [130,131,132,133,134]. The multitude of radiopharmaceutical solutions meets the needs of an individual patient and specific treatment regimen. Thereby, targeting VEGF/VEGFR system with radiolabelled tracers is an interesting and prominent approach with clinical benefit that can guide current search for efficient AAT diagnostic methods, patient response evaluation, and further personalised patient treatment approaches.

Author Contributions

Conceptualization, E.G. and K.M.; writing—original draft preparation, K.M., P.K.H. and E.G.; writing—review and editing, K.M., P.K.H. and D.T.; visualization, K.M. and P.K.H.; supervision, E.G. and D.T.; project administration, E.G. and A.M.; funding acquisition, E.G. and A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was carried out within grant 2019/33/B/NZ7/02818, supported by the National Science Centre (Poland).

Acknowledgments

The contributions of Katarzyna Masłowska and Paweł Krzysztof Halik have been done in the frame of the National Centre for Research and Development Project No POWR.03.02.00-00-I009/17 (Radiopharmaceuticals for molecularly targeted diagnosis and therapy, RadFarm, Operational Project Knowledge Education Development 2014–2020 co-financed by European Social Fund).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AATsanti-angiogenic therapies
AKTprotein kinase B
BSAbovine serum albumin
BVbevacizumab
C-tagcysteine-tag
DAGdiacylglicerole
DIPGdiffuse intrinsic pontine glioma
ECethylene dicysteine
eNOSendothelial nitric oxide synthase
Fabantigen-binding fragment
FAKfocal adhesion kinase
HIF-1hypoxia inducible factor-1
hnTfhuman transferrin
IL-1binterleukin 1b
IP3inositol triphosphate
mAbmonoclonal antibody
MBsmicrobubbles
NIRFnear-infrared fluorescent
NRPneuropilin
NSCLCnon-small cell lung cancer
N-suc-DfN-succinyl-desferrioxamine
PIP2phosphatidylinositol bisphosphate
PLC-γphospholipase C-gamma
PlGFplacental growth factor
PKCprotein kinase C
PSpolymersome
QDquantum dot
Ramramucirumab
Ranranibizumab
RTKsreceptor tyrosine kinases
scVEGFsingle-chain vascular endothelial growth factor
SFBN-succinimidyl-4-fluorobenzoate
sVEGFRsoluble vascular endothelial growth factor receptor
TNF-αtumour necrosis factor alpha
TPPstumour penetrating peptides
VEGFvascular endothelial growth factor
VEGFRvascular endothelial growth factor receptor
VHLvon Hippel–Lindau
VRAPsVEGFR-associated proteins

References

  1. Ferrara, N. VEGF and the quest for tumour angiogenesis factors. Nat. Rev. Cancer 2002, 2, 795–803. [Google Scholar] [CrossRef]
  2. Ferrara, N.; Gerber, H.P.; LeCouter, J. The biology of VEGF and its receptors. Nat. Med. 2003, 9, 669–676. [Google Scholar] [CrossRef]
  3. Zhu, L.; Niu, G.; Fang, X.; Chen, X. Preclinical molecular imaging of tumor angiogenesis. Q. J. Nucl. Med. Mol. Imaging 2010, 54, 291–308. [Google Scholar] [PubMed]
  4. Rahimi, N. Vascular endothelial growth factor receptors: Molecular mechanisms of activation and therapeutic potentials. Exp. Eye Res. 2006, 83, 1005–1016. [Google Scholar] [CrossRef] [Green Version]
  5. Kiselyov, A.; Balakin, K.V.; Tkachenko, S.E. VEGF/VEGFR signalling as a target for inhibiting angiogenesis. Expert Opin. Investig. Drugs 2007, 16, 83–107. [Google Scholar] [CrossRef]
  6. Zhang, L.; Xu, J.S.; Sanders, V.M.; Letson, A.D.; Roberts, C.J.; Xu, R.X. Multifunctional microbubbles for image-guided antivascular endothelial growth factor therapy. J. Biomed. Opt. 2010, 15, 030515. [Google Scholar] [CrossRef]
  7. Arjaans, M.; Schröder, C.P.; Oosting, S.F.; Dafni, U.; Kleibeuker, J.E.; de Vries, E.G. VEGF pathway targeting agents, vessel normalization and tumor drug uptake: From bench to bedside. Oncotarget 2016, 7, 21247–21258. [Google Scholar] [CrossRef] [Green Version]
  8. Tortora, G.; Melisi, D.; Ciardiello, F. Angiogenesis: A target for cancer therapy. Curr. Pharm. Des. 2004, 10, 11–26. [Google Scholar] [CrossRef] [PubMed]
  9. Kubo, K.; Shimizu, T.; Ohyama, S.; Murooka, H.; Iwai, A.; Nakamura, K.; Hasegawa, K.; Kobayashi, Y.; Takahashi, N.; Takahashi, K.; et al. Novel Potent Orally Active Selective VEGFR-2 Tyrosine Kinase Inhibitors: Synthesis, Structure—Activity Relationships, and Antitumor Activities of N-Phenyl-N′-{4-(4-quinolyloxy)phenyl}ureas. J. Med. Chem. 2005, 48, 1359–1366. [Google Scholar] [CrossRef]
  10. Wedge, S.R.; Kendrew, J.; Hennequin, L.F.; Valentine, P.J.; Barry, S.T.; Brave, S.R.; Smith, N.R.; James, N.H.; Dukes, M.; Curwen, J.O.; et al. AZD2171: A highly potent, orally bioavailable, vascular endothelial growth factor receptor-2 tyrosine kinase inhibitor for the treatment of cancer. Cancer Res. 2005, 65, 4389–4400. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Shrivastava, A.; von Wronski, M.A.; Sato, A.K.; Dransfield, D.T.; Sexton, D.; Bogdan, N.; Pillai, R.; Nanjappan, P.; Song, B.; Marinelli, E.; et al. A distinct strategy to generate high-affinity peptide binders to receptor tyrosine kinases. Protein Eng. Des. Sel. 2005, 18, 417–424. [Google Scholar] [CrossRef]
  12. Roskoski, R., Jr. Sunitinib: A VEGF and PDGF receptor protein kinase and angiogenesis inhibitor. BioChem. Biophys. Res. Commun. 2007, 356, 323–328. [Google Scholar] [CrossRef] [PubMed]
  13. Rüegg, C.; Hasmim, M.; Lejeune, F.J.; Alghisi, G.C. Antiangiogenic peptides and proteins: From experimental tools to clinical drugs. Biochim. Biophys. Acta 2006, 1765, 155–177. [Google Scholar] [CrossRef]
  14. Le Tourneau, C.; Raymond, E.; Faivre, S. Sunitinib: A novel tyrosine kinase inhibitor. A brief review of its therapeutic potential in the treatment of renal carcinoma and gastrointestinal stromal tumors (GIST). Ther. Clin. Risk Manag. 2007, 3, 341–348. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Murukesh, N.; Dive, C.; Jayson, G.C. Biomarkers of angiogenesis and their role in the development of VEGF inhibitors. Br. J. Cancer 2010, 102, 8–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Backer, M.V.; Backer, J.M. Imaging key biomarkers of tumor angiogenesis. Theranostics 2012, 2, 502–515. [Google Scholar] [CrossRef] [Green Version]
  17. Muñoz, C.; Adasen, F.; Alzate-Morales, J.; Vergara, A.; Kniess, T.; Caballero, J. Study of differences in the VEGFR2 inhibitory activities between semaxanib and SU5205 using 3D-QSAR, docking, and molecular dynamics simulations. J. Mol. Graph. Model. 2012, 32, 39–48. [Google Scholar] [CrossRef]
  18. Feliz, L.R.; Tsimberidou, A.M. Anti-vascular endothelial growth factor therapy in the era of personalized medicine. Cancer Chemother. Pharmacol. 2013, 72, 1–12. [Google Scholar] [CrossRef]
  19. Zhao, Y.; Adjei, A.A. Targeting Angiogenesis in Cancer Therapy: Moving Beyond Vascular Endothelial Growth Factor. Oncologist 2015, 20, 660–673. [Google Scholar] [CrossRef] [Green Version]
  20. Bueno, M.J.; Mouron, S.; Quintela-Fandino, M. Personalising and targeting antiangiogenic resistance: A complex and multifactorial approach. Br. J. Cancer 2017, 116, 1119–1125. [Google Scholar] [CrossRef] [Green Version]
  21. Simon, T.; Gagliano, T.; Giamas, G. Direct Effects of Anti-Angiogenic Therapies on Tumor Cells: VEGF Signaling. Trends Mol. Med. 2017, 23, 282–292. [Google Scholar] [CrossRef] [PubMed]
  22. Zirlik, K.; Duyster, J. Anti-Angiogenics: Current Situation and Future Perspectives. Oncol. Res. Treat. 2018, 41, 166–171. [Google Scholar] [CrossRef] [PubMed]
  23. Garcia-Quintanilla, L.; Luaces-Rodríguez, A.; Gil-Martínez, M.; Mondelo-García, C.; Maroñas, O.; Mangas-Sanjuan, V.; González-Barcia, M.; Zarra-Ferro, I.; Aguiar, P.; Otero-Espinar, F.J.; et al. Pharmacokinetics of Intravitreal Anti-VEGF Drugs in Age-Related Macular Degeneration. Pharmaceutics 2019, 11, 365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Ferrara, N.; Hillan, K.J.; Gerber, H.P.; Novotny, W. Discovery and development of bevacizumab, an anti-VEGF antibody for treating cancer. Nat. Rev. Drug Discov. 2004, 3, 391–400. [Google Scholar] [CrossRef]
  25. Haubner, R.; Beer, A.J.; Wang, H.; Chen, X. Positron emission tomography tracers for imaging angiogenesis. Eur. J. Nucl. Med. Mol. Imaging 2010, 37 (Suppl. 1), S86–S103. [Google Scholar] [CrossRef] [Green Version]
  26. Kniess, T. Radiolabeled small molecule inhibitors of VEGFR—Recent advances. Curr. Pharm. Des. 2012, 18, 2867–2874. [Google Scholar] [CrossRef]
  27. Bernard-Gauthier, V.; Bailey, J.J.; Berke, S.; Schirrmacher, R. Recent Advances in the Development and Application of Radiolabeled Kinase Inhibitors for PET Imaging. Molecules 2015, 20, 22000–22027. [Google Scholar] [CrossRef] [Green Version]
  28. Yoshimoto, M.; Kurihara, H.; Fujii, H. Theragnostic Imaging Using Radiolabeled Antibodies and Tyrosine Kinase Inhibitors. Sci. World J. 2015, 842101. [Google Scholar] [CrossRef] [Green Version]
  29. Schenone, S.; Bondavalli, F.; Botta, M. Antiangiogenic Agents: An update on small molecule VEGFR inhibitors. Curr. Med. Chem. 2007, 14, 2495–2516. [Google Scholar] [CrossRef]
  30. Casaletto, J.B.; McClatchey, A.I. Spatial regulation of receptor tyrosine kinases in development and cancer. Nat. Rev. Cancer 2012, 12, 387–400. [Google Scholar] [CrossRef]
  31. Binétruy-Tournaire, R.; Demangel, C.; Malavaud, B.; Vassy, R.; Rouyre, S.; Kraemer, M.; Plouët, J.; Derbin, C.; Perret, G.; Mazie, J.C. Identification of a peptide blocking vascular endothelial growth factor (VEGF)-mediated angiogenesis. EMBO J. 2000, 19, 1525–1533. [Google Scholar] [CrossRef] [Green Version]
  32. Starzec, A.; Vassy, R.; Martin, A.; Lecouvey, M.; Di Benedetto, M.; Crépin, M.; Perret, G.Y. Antiangiogenic and antitumor activities of peptide inhibiting the vascular endothelial growth factor binding to neuropilin-1. Life Sci. 2006, 79, 2370–2381. [Google Scholar] [CrossRef]
  33. Teesalu, T.; Sugahara, K.N.; Kotamraju, V.R.; Ruoslahti, E. C-end rule peptides mediate neuropilin-1-dependent cell, vascular, and tissue penetration. Proc. Natl. Acad. Sci. USA 2009, 106, 16157–16162. [Google Scholar] [CrossRef] [Green Version]
  34. Sugahara, K.N.; Teesalu, T.; Karmali, P.P.; Kotamraju, V.R.; Agemy, L.; Girard, O.M.; Hanahan, D.; Mattrey, R.F.; Ruoslahti, E. Tissue-penetrating delivery of compounds and nanoparticles into tumors. Cancer Cell 2009, 16, 510–520. [Google Scholar] [CrossRef] [Green Version]
  35. Simón-Gracia, L.; Hunt, H.; Teesalu, T. Peritoneal carcinomatosis targeting with tumor homing peptides. Molecules 2018, 23, 1190. [Google Scholar] [CrossRef] [Green Version]
  36. Jarvis, A.; Allerston, C.K.; Jia, H.; Herzog, B.; Garza-Garcia, A.; Winfield, N.; Ellard, K.; Aqil, R.; Lynch, R.; Chapman, C.; et al. Small molecule inhibitors of the neuropilin-1 vascular endothelial growth factor A (VEGF-A) interaction. J. Med. Chem. 2010, 53, 2215–2226. [Google Scholar] [CrossRef]
  37. Jia, H.; Aqil, R.; Cheng, L.; Chapman, C.; Shaikh, S.; Jarvis, A.; Chan, A.W.; Hartzoulakis, B.; Evans, I.M.; Frolov, A.; et al. N-terminal modification of VEGF-A C terminus-derived peptides delineates structural features involved in neuropilin-1 binding and functional activity. ChemBioChem 2014, 15, 1161–1170. [Google Scholar] [CrossRef]
  38. Tymecka, D.; Puszko, A.K.; Lipiński, P.F.; Fedorczyk, B.; Wilenska, B.; Sura, K.; Perret, G.Y.; Misicka, A. Branched pentapeptides as potent inhibitors of the vascular endothelial growth factor 165 binding to Neuropilin-1: Design, synthesis and biological activity. Eur. J. Med. Chem. 2018, 158, 453–462. [Google Scholar] [CrossRef]
  39. Puszko, A.K.; Sosnowski, P.; Tymecka, D.; Raynaud, F.; Hermine, O.; Lepelletier, Y.; Misicka, A. Neuropilin-1 peptide-like ligands with proline mimetics, tested using the improved chemiluminescence affinity detection method. MedChemComm 2019, 10, 332–340. [Google Scholar] [CrossRef]
  40. Puszko, A.K.; Sosnowski, P.; Raynaud, F.; Hermine, O.; Hopfgartner, G.; Lepelletier, Y.; Misicka, A. Does Cysteine Rule (CysR) Complete the CendR Principle? Increase in Affinity of Peptide Ligands for NRP-1 through the Presence of N-Terminal Cysteine. Biomolecules 2020, 10, 448. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Liu, W.Q.; Lepelletier, Y.; Montès, M.; Borriello, L.; Jarray, R.; Grépin, R.; Leforban, B.; Loukaci, A.; Benhida, R.; Hermine, O.; et al. NRPa-308, a new neuropilin-1 antagonist, exerts in vitro anti-angiogenic and anti-proliferative effects and in vivo anti-cancer effects in a mouse xenograft model. Cancer Lett. 2018, 414, 88–98. [Google Scholar] [CrossRef] [PubMed]
  42. Longo, R.; Gasparini, G. Challenges for patient selection with VEGF inhibitors. Cancer Chemother. Pharmacol. 2007, 60, 151–170. [Google Scholar] [CrossRef]
  43. Samén, E.; Thorell, J.O.; Lu, L.; Tegnebratt, T.; Holmgren, L.; Stone-Elander, S. Synthesis and preclinical evaluation of [11C]PAQ as a PET imaging tracer for VEGFR-2. Eur. J. Nucl. Med. Mol. Imaging 2009, 36, 1283–1295. [Google Scholar] [CrossRef] [PubMed]
  44. Lu, X.; Wang, R.F. A concise review of current radiopharmaceuticals in tumor angiogenesis imaging. Curr. Pharm. Des. 2012, 18, 1032–1040. [Google Scholar] [CrossRef] [PubMed]
  45. Tolmachew, V.; Stone-Elander, S.; Orlova, A. Radiolabelled receptor-tyrosine-kinase targeting drugs for patient stratification and monitoring of therapy response: Prospects and pitfalls. Lancet Oncol. 2010, 11, 992–1000. [Google Scholar] [CrossRef]
  46. Taurone, S.; Galli, F.; Signore, A.; Agostinelli, E.; Dierckx, R.A.J.O.; Minni, A.; Pucci, M.; Artico, M. VEGF in nuclear medicine: Clinical application in cancer and future perspectives (Review). Int. J. Oncol. 2016, 49, 437–447. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Bahce, I.; Yaqub, M.; Smit, E.F.; Lammertsma, A.A.; van Dongen, G.A.M.S.; Hendrikse, N.H. Personalizing NSCLC therapy by characterizing tumors using TKI-PETand immuno-PET. Lung Cancer 2017, 107, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Senger, D.R.; Galli, S.J.; Dvorak, A.M.; Perruzzi, C.A.; Harvey, V.S.; Dvorak, H.F. Tumor cells secrete a vascular permeability factor that promotes accumulation of ascites fluid. Science 1983, 219, 983–985. [Google Scholar] [CrossRef]
  49. Plouet, J.; Schilling, J.; Gospodarowicz, D. Isolation and characterization of a newly identified endothelial cell mitogen produced by AtT-20 cells. EMBO J. 1989, 8, 3801–3806. [Google Scholar] [CrossRef]
  50. Ferrara, N.; Hanzel, W.J. Pituitary folicular cells secrete a novel heparinbinding growth factor specific for vascular endothelial cells. BioChem. Biophys. Res. Commun. 1989, 161, 851–858. [Google Scholar] [CrossRef]
  51. Holmes, D.I.R.; Zachary, I. The vascular endothelial growth factor (VEGF) family: Angiogenic factors in health and disease. Genome Biol. 2005, 6, 209. [Google Scholar] [CrossRef] [Green Version]
  52. Yamazaki, Y.; Matsunaga, Y.; Tokunaga, Y.; Obayashi, S.; Saito, M.; Morita, T. Snake Venom Vascular Endothelial Growth Factors (VEGF-Fs) Exclusively Vary Their Structures and Functions among Species. J. Biol. Chem. 2009, 284, 9885–9891. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Pötgens, A.J.; Lubsen, N.H.; van Altena, M.C.; Vermeulen, R.; Bakker, A.; Schoenmakers, J.G.; Ruiter, D.J.; de Waal, R.M. Covalent Dimerization of Vascular Permeability Factor/Vascular Endothelial Growth Factor Is Essential for Its Biological Activity. J. Biol. Chem. 1994, 269, 32879–32885. [Google Scholar] [CrossRef]
  54. Nowak, D.G.; Woolard, J.; Amin, E.M.; Konopatskaya, O.; Saleem, M.A.; Churchill, A.J.; Ladomery, M.R.; Harper, S.J.; Bates, D.O. Expression of pro- and anti-angiogenic isoforms of VEGF is differentially regulated by splicing and growth factors. J. Cell Sci. 2008, 121, 3487–3495. [Google Scholar] [CrossRef] [Green Version]
  55. Peach, C.J.; Mignone, V.W.; Arruda, M.A.; Alcobia, D.C.; Hill, S.J.; Kilpatrick, L.E.; Woolard, J. Molecular Pharmacology of VEGF-A Isoforms: Binding and Signalling at VEGFR2. Int. J. Mol. Sci. 2018, 19, 1264. [Google Scholar] [CrossRef] [Green Version]
  56. Houck, K.A.; Leung, D.W.; Rowland, A.M.; Winer, J.; Ferrara, N. Dual regulation of vascular endothelial growth factor bioavailability by genetic and proteolytic mechanisms. J. Biol. Chem. 1992, 267, 26031–26037. [Google Scholar] [CrossRef]
  57. Ferrara, N.; Davis-Smith, T. The Biology of Vascular Endothelial Growth Factor. Endocr. Rev. 1997, 18, 4–25. [Google Scholar] [CrossRef] [PubMed]
  58. Gerber, H.P.; McMurtrey, S.; Kowalski, J.; Yan, M.; Keyt, B.A.; Dixit, V.; Ferrara, N. Vascular Endothelial Growth Factor Regulates Endothelial Cell Survival through the Phosphatidylinositol 3′-Kinase/Akt Signal Transduction Pathway. Requirement for Flk-1/KDR activation. J. Biol. Chem. 1998, 273, 30336–30343. [Google Scholar] [CrossRef] [Green Version]
  59. Dvorak, H.F.; Brown, L.F.; Detmar, M.; Dvorak, A.M. Vascular permeability factor/vascular endothelial growth factor, microvascular hyperpermeability, and angiogenesis. Am. J. Pathol. 1995, 146, 1029–1039. [Google Scholar]
  60. Cluass, M.; Gerlach, M.; Gerlach, H.; Brett, J.; Wang, F.; Familletti, P.C.; Pan, Y.C.; Olander, J.V.; Connolly, D.T.; Stern, D. Vascular Permeability Factor: A Tumor-derived Polypeptide that Induces Endothelial Cell and Monocyte Procoagulant Activity, and Promotes Monocyte Migration. J. Exp. Med. 1990, 172, 1535–1545. [Google Scholar] [CrossRef]
  61. Broxmeyer, H.E.; Cooper, S.; Li, Z.H.; Lu, L.; Song, H.Y.; Kwon, B.S.; Warren, R.E.; Donner, D.B. Myeloid progenitor cell regulatory effects of vascular endothelial cell growth factor. Int. J. Hematol. 1995, 62, 203–215. [Google Scholar] [CrossRef]
  62. Hattori, K.; Dias, S.; Heissig, B.; Hackett, N.R.; Lyden, D.; Tateno, M.; Hicklin, D.J.; Zhu, Z.; Witte, L.; Crystal, R.G.; et al. Vascular Endothelial Growth Factor and Angiopoietin-1 Stimulate Postnatal Hematopoiesis by Recruitment of Vasculogenic and Hematopoietic Stem Cells. J. Exp. Med. 2001, 193, 1005–1014. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Storkebaum, E.; Carmeliet, P. VEGF: A critical player in neurodegeneration. J. Clin. Investig. 2004, 113, 14–18. [Google Scholar] [CrossRef]
  64. Berse, B.; Brown, L.F.; Van de Water, L.; Dvorak, H.F.; Senger, D.R. Vascular Permeability Factor (Vascular Endothelial Growth Factor) Gene is Expressed Differentially in Normal Tissues, Macrophages, and Tumors. Mol. Biol. Cell 1992, 3, 211–220. [Google Scholar] [CrossRef] [Green Version]
  65. Dvorak, H.F.; Sioussat, T.M.; Brown, L.F.; Berse, B.; Nagy, J.A.; Sotrel, A.; Manseau, E.J.; Van de Water, L.; Senger, D.R. Distribution of Vascular Permeability Factor (Vascular Endothelial Growth Factor) in Tumors: Concentration in Tumor Blood Vessels. J. Exp. Med. 1991, 174, 1275–1278. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Semenza, G. Angiogenesis in ischemic and neoplastic disorders. Annu. Rev. Med. 2003, 54, 17–28. [Google Scholar] [CrossRef] [PubMed]
  67. Forsythe, J.A.; Jiang, B.H.; Iyer, N.V.; Agani, F.; Leung, S.W.; Koos, R.D.; Semenza, G.L. Activation of vascular endothelial growth factor gene transcription by hypoxia-inducible factor 1. Mol. Cell. Biol. 1996, 16, 4604–4613. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Warren, R.S.; Yuan, H.; Matli, M.R.; Ferrara, N.; Donner, D.B. Induction of vascular endothelial growth factor by insulin-like growth factor 1 in colorectal carcinoma. J. Biol. Chem. 1996, 271, 29483–29488. [Google Scholar] [CrossRef] [Green Version]
  69. Ben-Av, P.; Crofford, L.J.; Wilder, R.L.; Hla, T. Induction of vascular endothelial growth factor expression in synovial fibroblasts by prostaglandin E and interleukin-l: A potential mechanism for inflammatory angiogenesis. FEBS Lett. 1995, 372, 83–87. [Google Scholar] [CrossRef] [Green Version]
  70. Enholm, B.; Paavonen, K.; Ristimäki, A.; Kumar, V.; Gunji, Y.; Klefstrom, J.; Kivinen, L.; Laiho, M.; Olofsson, B.; Joukov, V.; et al. Comparison of VEGF, VEGF-B, VEGF-C and Ang-1 mRNA regulation by serum, growth factors, oncoproteins and hypoxia. Oncogene 1997, 14, 2475–2483. [Google Scholar] [CrossRef] [Green Version]
  71. Siemesiter, G.; Weindel, K.; Mohrs, K.; Barleon, B.; Martiny-Baron, G.; Marmé, D. Reversion of deregulated expression of vascular endothelial growth factor in human renal carcinoma cells by von Hippel-Lindau tumor suppressor protein. Cancer Res. 1996, 56, 2299–2301. [Google Scholar]
  72. Eliceiri, B.P.; Paul, R.; Schwartzberg, P.L.; Hood, J.D.; Leng, J.; Cheresh, D.A. Selective requirement for Src kinases during VEGF-induced angiogenesis and vascular permeability. Mol. Cell 1999, 4, 915–924. [Google Scholar] [CrossRef]
  73. Kimura, H.; Esumi, H. Reciprocal regulation between nitric oxide and vascular endothelial growth factor in angiogenesis. Acta Biochim. Pol. 2003, 50, 49–59. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Ushio-Fukai, M.; Nakamura, Y. Reactive oxygen species and angiogenesis: NADPH oxidase as target for cancer therapy. Cancer Lett. 2008, 266, 37–52. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Li, X.; Tjwa, M.; Van Hove, I.; Enholm, B.; Neven, E.; Paavonen, K.; Jeltsch, M.; Juan, T.D.; Sievers, R.E.; Chorianopoulos, E.; et al. Reevaluation of the Role of VEGF-B Suggests a Restricted Role in the Revascularization of the Ischemic Myocardium. Arter. Thromb. Vasc. Biol. 2008, 28, 1614–1620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Hagberg, C.E.; Falkevall, A.; Wang, X.; Larsson, E.; Huusko, J.; Nilsson, I.; van Meeteren, L.A.; Samen, E.; Lu, L.; Vanwildemeersch, M.; et al. Vascular endothelial growth factor B controls endothelial fatty acid uptake. Nature 2010, 464, 917–921. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Hagberg, C.E.; Mehlem, A.; Falkevall, A.; Muhl, L.; Fam, B.C.; Orstäter, H.; Scotney, P.; Nyqvist, D.; Samen, E.; Lu, L.; et al. Targeting VEGF-B as a novel treatment for insulin resistance and type 2 diabetes. Nature 2012, 490, 426–430. [Google Scholar] [CrossRef]
  78. Arjunan, P.; Lin, X.; Tang, Z.; Du, Y.; Kumar, A.; Liu, L.; Yin, X.; Huang, L.; Chen, W.; Chen, Q.; et al. VEGF-B is a potent antioxidant. Proc. Natl. Acad. Sci. USA 2018, 115, 10351–10356. [Google Scholar] [CrossRef] [Green Version]
  79. Dhondt, J.; Peeraer, E.; Verheyen, A.; Nuydens, R.; Buysschaert, I.; Poesen, K.; Van Geyte, K.; Beerens, M.; Shibuya, M.; Haigh, J.J.; et al. Neuronal FLT1 receptor and its selective ligand VEGF-B protect against retrograde degeneration of sensory neurons. FASEB J. 2011, 25, 1461–1473. [Google Scholar] [CrossRef] [Green Version]
  80. Yue, X.; Hariri, D.J.; Caballero, B.; Zhang, S.; Bartlett, M.J.; Kaut, O.; Mount, D.W.; Wullner, U.; Sherman, S.J.; Falk, T. Comparative study of the neurotrophic effects elicited by VEGF-B and GDNF in preclinical in vivo models of Parkinson’s disease. Neuroscience 2014, 258, 385–400. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  81. De Falco, S. The discovery of placenta growth factor and its biological activity. Exp. Mol. Med. 2012, 44, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Carmeliet, P.; Moons, L.; Luttun, A.; Vincenti, V.; Compernolle, V.; De Mol, M.; Wu, Y.; Bono, F.; Devy, L.; Beck, H.; et al. Synergism between vascular endothelial growth factor and placental growth factor contributes to angiogenesis and plasma extravasation in pathological conditions. Nat. Med. 2001, 7, 575–583. [Google Scholar] [CrossRef]
  83. Oura, H.; Bertoncini, J.; Velasco, P.; Brown, L.F.; Carmeliet, P.; Detmar, M. A critical role of placental growth factor in the induction of inflammation and edema formation. Blood 2003, 101, 560–567. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Rolny, C.; Mazzone, M.; Tugues, S.; Laoui, D.; Johansson, I.; Coulon, C.; Squadrito, M.L.; Segura, I.; Li, X.; Knevels, E.; et al. HRG inhibits tumor growth and metastasis by inducing macrophage polarization and vessel normalization through down-regulation of PlGF. Cancer Cell. 2011, 19, 31–44. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Jussila, L.; Alitalo, K. Vascular growth factors and lymphangiogenesis. Physiol. Rev. 2002, 82, 673–700. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Tsurusaki, T.; Kanda, S.; Sakai, H.; Kanetake, H.; Saito, Y.; Alitalo, K.; Koji, T. Vascular endothelial growth factor-C expression in human prostatic carcinoma and its relationship to lymph node metastasis. Br. J. Cancer 1999, 80, 309–313. [Google Scholar] [CrossRef] [Green Version]
  87. Mandriota, S.J.; Jussila, L.; Jeltsch, M.; Compagni, A.; Baetens, D.; Prevo, R.; Banerji, S.; Huarte, J.; Montesano, R.; Jackson, D.G.; et al. Vascular endothelial growth factor-C-mediated lymphangiogenesis promotes tumour metastasis. EMBO J. 2001, 20, 672–682. [Google Scholar] [CrossRef] [Green Version]
  88. Stacker, S.A.; Caesar, C.; Baldwin, M.E.; Thornton, G.E.; Williams, R.A.; Prevo, R.; Jackson, D.G.; Nishikawa, S.; Kubo, H.; Achen, M.G. VEGF-D promotes the metastatic spread of tumor cells via the lymphatics. Nat. Med. 2001, 7, 186–191. [Google Scholar] [CrossRef]
  89. Shibuya, M.; Claesson-Welsh, L. Signal transduction by VEGF receptors in regulation of angiogenesis and lymphangiogenesis. Exp. Cell Res. 2006, 312, 549–560. [Google Scholar] [CrossRef]
  90. Soker, S.; Fidder, H.; Neufeld, G.; Klagsbrun, M. Characterization of novel vascular endothelial growth factor (VEGF) receptors on tumor cells that bind VEGF165 via its exon 7-encoded domain. J. Biol. Chem. 1996, 271, 5761–5767. [Google Scholar] [CrossRef] [Green Version]
  91. Soker, S.; Takashima, S.; Miao, H.Q.; Neufeld, G.; Klagsbrun, M. Neuropilin-1 is expressed by endothelial and tumor cells as an isoform-specific receptor for vascular endothelial growth factor. Cell 1998, 92, 735–745. [Google Scholar] [CrossRef] [Green Version]
  92. Pan, Q.; Chathery, Y.; Wu, Y.; Rathore, N.; Tong, R.K.; Peale, F.; Bagri, A.; Tessier-Lavigne, M.; Koch, A.W.; Watts, R.J. Neuropilin-1 binds to VEGF121 and regulates endothelial cell migration and sprouting. J. Biol. Chem. 2007, 282, 24049–24056. [Google Scholar] [CrossRef] [Green Version]
  93. Jakeman, L.B.; Armanini, M.; Philips, H.S.; Ferrara, N. Developmental expression of binding sites and mRNA for vascular endothelial growth factor suggests a role for this protein in vasculogenesis and angiogenesis. Endocrinology 1993, 133, 848–859. [Google Scholar] [CrossRef]
  94. Shen, H.; Clauss, M.; Ryan, J.; Schmidt, A.M.; Tijburg, P.; Borden, L.; Connolly, D.; Stern, D.; Kao, J. Characterization of vascular permeability factor/vascular endothelial growth factor receptors on mononuclear phagocytes. Blood 1993, 81, 2767–2773. [Google Scholar] [CrossRef] [Green Version]
  95. Walter, J.W.; North, P.E.; Waner, M.; Mizeracki, A.; Blei, F.; Walker, J.W.; Reinisch, J.F.; Marchuk, D.A. Somatic mutation of vascular endothelial growth factor receptors in juvenile hemangioma. Genes Chromosomes Cancer 2002, 33, 295–303. [Google Scholar] [CrossRef] [PubMed]
  96. Guo, S.; Colbert, L.S.; Fuller, M.; Zhang, Y.; Gonzalez-Perez, R.R. Vascular endothelial growth factor receptor-2 in breast cancer. Biochim. Biophys. Acta 2010, 1806, 108–121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  97. Pajusola, K.; Aprelikova, O.; Korhonen, J.; Kaipainen, A.; Pertovaara, L.; Alitalo, R.; Alitalo, K. FLT4 receptor tyrosine kinase contains seven immunoglobulin-like loops and is expressed in multiple human tissues and cell lines. Cancer Res. 1992, 52, 5738–5743. [Google Scholar]
  98. Yuan, L.; Moyon, D.; Pardanaud, L.; Breant, C.; Karkkainen, M.J.; Alitalo, K.; Eichmann, A. Abnormal lymphatic vessel development in neuropilin 2 mutant mice. Development 2002, 129, 4797–4806. [Google Scholar] [PubMed]
  99. Mac Gabhann, F.; Popel, A.S. Dimerization of VEGF receptors and implications for signal transduction: A computational study. Biophys. Chem. 2007, 128, 125–139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  100. Waltenberger, J.; Claesson-Welsh, L.; Siegbahn, A.; Shibuya, M.; Heldin, C.H. Different signal transduction properties of KDR and Flt1, two receptors for vascular endothelial growth factor. J. Biol. Chem. 1994, 269, 26988–26995. [Google Scholar] [CrossRef]
  101. Sondell, M.; Lundborg, G.; Kanje, M. Vascular endothelial growth factor has neurotrophic activity and stimulates axonal outgrowth, enhancing cell survival and Schwann cell proliferation in the peripheral nervous system. J. Neuro Sci. 1999, 19, 5731–5740. [Google Scholar] [CrossRef]
  102. De Vries, C.; Escobedo, J.A.; Ueno, H.; Houck, K.; Ferrara, N.; Williams, L.T. The fms-like tyrosine kinase, a receptor for vascular endothelial growth factor. Science 1992, 255, 989–991. [Google Scholar] [CrossRef]
  103. Olsson, A.K.; Dimberg, A.; Kreuger, J.; Claesson-Welsh, L. VEGF receptor signaling—In control of vascular function. Nat. Rev. Mol. Cell. Biol. 2006, 7, 359–371. [Google Scholar] [CrossRef] [PubMed]
  104. Autiero, M.; Waltenberger, J.; Communi, D.; Kranz, A.; Moons, L.; Lambrechts, D.; Kroll, J.; Plaisance, S.; De Mol, M.; Bono, F.; et al. Role of PlGF in the intra- and intermolecular cross talk between the VEGF receptors Flt1 and Flk1. Nat. Med. 2003, 9, 936–943. [Google Scholar] [CrossRef]
  105. Matsumoto, K.; Yoshitomi, H.; Rossant, J.; Zaret, K.S. Liver organogenesis promoted by endothelial cells prior to vascular function. Science 2001, 294, 559–563. [Google Scholar] [CrossRef] [PubMed]
  106. Byzova, T.V.; Goldman, C.K.; Pampori, N.; Thomas, K.A.; Bett, A.; Shattil, S.J.; Plow, E.F. A mechanism for modulation of cellular responses to VEGF: Activation of the integrins. Mol. Cell 2000, 6, 851–860. [Google Scholar] [CrossRef]
  107. Le Boeuf, F.; Houle, F.; Huot, J. Regulation of Vascular Endothelial Growth Factor Receptor 2-mediated Phosphorylation of Focal Adhesion Kinase by Heat Shock Protein 90 and Src Kinase Activities. J. Biol. Chem. 2004, 279, 39175–39185. [Google Scholar] [CrossRef] [Green Version]
  108. Kendall, R.L.; Thomas, K.A. Inhibition of vascular endothelial cell growth factor activity by an endogenously encoded soluble receptor. Proc. Natl. Acad. Sci. USA 1993, 90, 10705–10709. [Google Scholar] [CrossRef] [Green Version]
  109. Murga, M.; Fernandez-Capetillo, O.; Tosato, G. Neuropilin-1 regulates attachment in human endothelial cells independently of vascular endothelial growth factor receptor-2. Blood 2005, 105, 1992–1999. [Google Scholar] [CrossRef] [PubMed]
  110. Horing, C.; Weich, H.A. Soluble VEGF receptors. Angiogenesis 1999, 3, 33–39. [Google Scholar] [CrossRef]
  111. Ebos, J.M.L.; Bocci, G.; Man, S.; Thrope, P.E.; Hicklin, D.J.; Zhou, D.; Jia, X.; Kerbel, R.S. A naturally occurring soluble form of vascular endothelial growth factor receptor 2 detected in mouse and human plasma. Mol. Cancer Res. 2004, 2, 315–326. [Google Scholar]
  112. Cai, J.; Jiang, W.G.; Grant, M.B.; Boulton, M. Pigment epithelium-derived factor inhibits angiogenesis via regulated intracellular proteolysis of vascular endothelial growth factor receptor 1. J. Biol. Chem. 2006, 281, 3604–3613. [Google Scholar] [CrossRef] [Green Version]
  113. Albuquerque, R.J.C.; Hayashi, T.; Cho, W.G.; Kleinman, M.E.; Dridi, S.; Takeda, A.; Baffi, J.Z.; Yamada, K.; Kaneko, H.; Green, M.G.; et al. Alternatively spliced vascular endothelial growth factor receptor-2 is an essential endogenous inhibitor of lymphatic vessel growth. Nat. Med. 2009, 15, 1023–1030. [Google Scholar] [CrossRef]
  114. Barleon, B.; Totzke, F.; Herzog, C.; Blanke, S.; Kremmer, E.; Siemeister, G.; Marmé, D.; Martiny-Baron, G. Mapping of sites for ligand binding and receptor dimerization at the extracellular domain of the vascular endothelial growth factor receptor FLT-1. J. Biol. Chem. 1997, 272, 10382–10388. [Google Scholar] [CrossRef] [Green Version]
  115. Lorquet, S.; Berndt, S.; Blacher, S.; Gengoux, E.; Peulen, O.; Maquoi, E.; Noël, A.; Foidart, J.M.; Munaut, C.; Péqueux, C. Soluble forms of VEGF receptor-1 and -2 promote vascular maturation via mural cell recruitment. FASEB J. 2010, 24, 3782–3795. [Google Scholar] [CrossRef] [Green Version]
  116. Goldman, C.K.; Kendall, R.L.; Cabrera, G.; Soroceanu, L.; Heike, Y.; Gillespie, G.Y.; Siegal, G.P.; Mao, X.; Bett, A.J.; Huckle, W.R.; et al. Paracrine expression of a native soluble vascular endothelial growth factor receptor inhibits tumor growth, metastasis, and mortality rate. Proc. Natl. Acad. Sci. USA 1998, 95, 8795–8800. [Google Scholar] [CrossRef] [Green Version]
  117. Harris, A.L.; Reusch, P.; Barleon, B.; Hang, C.; Dobbs, N.; Marme, D. Soluble Tie2 and Flt1 extracellular domains in serum of patients with renal cancer and response to antiangiogenic therapy. Clin. Cancer Res. 2001, 7, 1992–1997. [Google Scholar]
  118. Toi, M.; Bando, H.; Ogawa, T.; Muta, M.; Hornig, C.; Weich, H.A. Significance of vascular endothelial growth factor (VEGF)/soluble VEGF receptor-1 relationship in breast cancer. Int. J. Cancer 2002, 98, 14–18. [Google Scholar] [CrossRef]
  119. Bando, H.; Weich, H.A.; Brokelmann, M.; Horiguchi, S.; Funata, N.; Ogawa, T.; Toi, M. Association between intratumoral free and total VEGF, soluble VEGFR-1, VEGFR-2 and prognosis in breast cancer. Br. J. Cancer 2005, 92, 553–561. [Google Scholar] [CrossRef] [Green Version]
  120. Aref, S.; El Sherbiny, M.; Goda, T.; Fouda, M.; Al Askalany, H.; Abdalla, D. Soluble VEGF/sFLt1 ratio is an independent predictor of AML patient outcome. Hematology 2005, 10, 131–134. [Google Scholar] [CrossRef]
  121. Yamaguchi, T.; Bando, H.; Mori, T.; Takahashi, K.; Matsumoto, H.; Yasutome, M.; Weich, H.; Toi, M. Overexpression of soluble vascular endothalial growth factor receptor 1 in colorectal cancer: Association with progression and prognosis. Cancer Sci. 2007, 98, 405–410. [Google Scholar] [CrossRef] [PubMed]
  122. Kopczyńska, E.; Dancewicz, M.; Kowalewski, J.; Makarewicz, R.; Kardymowicz, H.; Kaczmarczyk, A.; Tyrakowski, T. Time-dependent changes of plasma concentrations of angiopoietins, vascular endothelial growth factor, and soluble forms of their receptors in nonsmall cell lung cancer patients following surgical resection. ISRN Oncol. 2012, 2012, 638352. [Google Scholar] [CrossRef] [Green Version]
  123. Kou, B.; Li, Y.; Zhang, L.; Zhu, G.; Wang, X.; Li, Y.; Xia, J.; Shi, Y. In vivo inhibition of tumor angiogenesis by a soluble VEGFR-2 fragment. Exp. Mol. Pathol. 2004, 76, 129–137. [Google Scholar] [CrossRef]
  124. Faderl, S.; Do, K.A.; Johnson, M.M.; Keating, M.; O’Brien, S.; Jilani, I.; Ferrajoli, A.; Ravandi-Kashani, F.; Aguilar, C.; Dey, A.; et al. Angiogenic factors may have a different prognostic role in adult acute lymphoblastic leukemia. Blood 2005, 106, 4303–4307. [Google Scholar] [CrossRef] [Green Version]
  125. Jayasinghe, C.; Simiantonaki, N.; Michel-Schmidt, R.; Kirkpatrick, C.J. Comparative study of human colonic tumor-derives endothelial cells (HCTEC) and normal colonic microvascular endothelial cells (HCMEC): Hypoxia-induces sVEGFR-1 and sVEGFR-2 levels. Oncol. Rep. 2009, 21, 933–939. [Google Scholar] [CrossRef] [PubMed]
  126. Kikuchi, S.; Obata, Y.; Yagyu, K.; Lin, Y.; Nakajima, T.; Kobayashi, O.; Kikuichi, M.; Ushijima, R.; Kurosawa, M.; Ueda, J. Reduced serum vascular endothelial growth factor receptor-2 (sVEGFR-2) and sVEGFR-1 levels in gastric cancer patients. Cancer Sci. 2011, 102, 866–869. [Google Scholar] [CrossRef] [PubMed]
  127. Folkman, J. What is the evidence that tumors are angiogenesis dependent? J. Natl. Cancer Inst. 1990, 82, 4–6. [Google Scholar] [CrossRef] [Green Version]
  128. Skobe, M.; Rockwell, P.; Goldstein, N.; Vosseler, S.; Fusenig, N.E. Halting angiogenesis suppresses carcinoma cell invasion. Nat. Med. 1997, 3, 1222–1227. [Google Scholar] [CrossRef]
  129. Yang, J.C.; Haworth, L.; Sherry, R.M.; Hwu, P.; Schwartzentruber, D.J.; Topalian, S.L.; Steinberg, S.M.; Chen, H.X.; Rosenberg, S.A. A randomized trial of bevacizumab, an anti-vascular endothelial growth factor antibody, for metastatic renal cancer. N. Engl. J. Med. 2003, 349, 427–434. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  130. Stephen, R.M.; Gilles, R.J. Promise and progress for functional and molecular imaging of response to targeted therapies. Pharm. Res. 2007, 24, 1172–1185. [Google Scholar] [CrossRef]
  131. Stacy, M.R.; Maxfield, M.W.; Sinusas, A.J. Targeted Molecular Imaging of Angiogenesis in PET and SPECT: A review. Yale J. Biol. Med. 2012, 85, 75–86. [Google Scholar] [PubMed]
  132. Wang, H.; Cai, W.; Chen, K.; Li, Z.B.; Kashefi, A.; He, L.; Chen, X. A new PET tracer specific for vascular endothelial growth factor receptor 2. Eur. J. Nucl. Med. Mol. Imaging 2007, 34, 2001–2010. [Google Scholar] [CrossRef]
  133. Cai, W.; Chen, K.; Mohamedali, K.A.; Cao, Q.; Gambhir, S.S.; Rosenblum, M.G.; Chen, X. PET of vascular endothelial growth factor receptor expression. J. Nucl. Med. 2006, 47, 2048–2056. [Google Scholar]
  134. Backer, M.V.; Levashova, Z.; Patel, V.; Jehning, B.T.; Claffey, K.; Blankenberg, F.G.; Backer, J.M. Molecular imaging of VEGF receptors in angiogenic vasculature with single-chain VEGF-based probes. Nat. Med. 2007, 13, 504–509. [Google Scholar] [CrossRef] [PubMed]
  135. Goel, S.; Duda, D.G.; Xu, L.; Munn, L.L.; Boucher, Y.; Fukumura, D.; Jain, R.K. Normalization of the vasculature for treatment of cancer and other diseases. Physiol. Rev. 2011, 91, 1071–7121. [Google Scholar] [CrossRef] [PubMed]
  136. Blankenberg, F.G.; Levashova, Z.; Goris, M.G.; Hamby, C.V.; Backer, M.V.; Backer, J.M. Targeted systemic radiotherapy with scVEGF/177Lu leads to sustained disruption of the tumor vasculature and intratumoral apoptosis. J. Nucl. Med. 2011, 52, 1630–1637. [Google Scholar] [CrossRef] [Green Version]
  137. Rusckowski, M.; Wang, Y.; Blankenberg, F.G.; Levashova, Z.; Backer, M.V.; Backer, J.M. Targeted scVEGF/177 Lu radiopharmaceutical inhibits growth of metastases and can be effectively combined with chemotherapy. EJNMMI Res. 2016, 6, 4. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  138. Zhang, X.; Feng, S.; Liu, J.; Li, Q.; Zheng, L.; Xie, L.; Li, H.; Huang, D. Novel small peptides derived from VEGF 125-136: Potential drugs for radioactive diagnosis and therapy in A549 tumor-bearing nude mice. Sci. Rep. 2017, 7, 1–13. [Google Scholar] [CrossRef]
  139. Levashova, Z.; Backer, M.; Hamby, C.V.; Pizzonia, J.; Backer, J.M.; Blankenberg, F.G. Molecular imaging of changes in the prevalence of vascular endothelial growth factor receptor in sunitinib-treated murine mammary tumors. J. Nucl. Med. 2010, 51, 959–966. [Google Scholar] [CrossRef] [Green Version]
  140. Wang, H.; Gao, H.; Guo, N.; Niu, G.; Ma, Y.; Kiesewetter, D.O.; Chen, X. Site-specific labeling of scVEGF with fluorine-18 for positron emission tomography imaging. Theranostics 2012, 2, 607. [Google Scholar] [CrossRef] [Green Version]
  141. Yoshimoto, M.; Kinuya, S.; Kawashima, A.; Nishii, R.; Yokoyama, K.; Kawai, K. Radioiodinated VEGF to image tumor angiogenesis in a LS180 tumor xenograft model. Nucl. Med. Biol. 2006, 33, 963–969. [Google Scholar] [CrossRef] [PubMed]
  142. Tekabe, Y.; Kollaros, M.; Zerihoun, A.; Zhang, G.; Backer, M.V.; Backer, J.M.; Johnson, L.L. Imaging VEGF receptor expression to identify accelerated atherosclerosis. EJNMMI Res. 2014, 4, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  143. Rainer, E.; Wang, H.; Traub-Weidinger, T.; Widhalm, G.; Fueger, B.; Chang, J.; Zhu, Z.; Marosi, C.; Haug, A.; Hacker, M.; et al. The prognostic value of [123 I]-vascular endothelial growth factor ([123 I]-VEGF) in glioma. Eur. J. Nucl. Med. Mol. Imaging 2018, 45, 2396–2403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  144. Vaisman, N.; Gospodarowicz, D.; Neufeld, G. Characterization of the receptors for vascular endothelial growth factor. J. Biol. Chem. 1990, 265, 19461–19466. [Google Scholar] [CrossRef]
  145. Jakeman, L.B.; Winer, J.; Bennett, G.L.; Altar, C.A.; Ferrara, N. Binding sites for vascular endothelial growth factor are localized on endothelial cells in adult rat tissues. J. Clin. Investig. 1992, 89, 244–253. [Google Scholar] [CrossRef] [PubMed]
  146. Cohen, T.; Gitay-Goren, H.; Sharon, R.; Shibuya, M.; Halaban, R.; Levi, B.Z.; Neufeld, G. VEGF121, a vascular endothelial growth factor (VEGF) isoform lacking heparin binding ability, requires cell-surface heparan sulfates for efficient binding to the VEGF receptors of human melanoma cells. J. Biol. Chem. 1995, 270, 11322–11326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  147. Simon, M.; Röckl, W.; Hornig, C.; Gröne, E.F.; Theis, H.; Weich, H.A.; Fuchs, E.; Yayon, A.; Gröne, H.J. Receptors of vascular endothelial growth factor/vascular permeability factor (VEGF/VPF) in fetal and adult human kidney: Localization and [125I] VEGF binding sites. JASN 1998, 9, 1032–1044. [Google Scholar]
  148. Cooper, M.E.; Vranes, D.; Youssef, S.; Stacker, S.A.; Cox, A.J.; Rizkalla, B.; Casley, D.J.; Bach, L.A.; Kelly, D.J.; Gilbert, R.E. Increased renal expression of vascular endothelial growth factor (VEGF) and its receptor VEGFR-2 in experimental diabetes. Diabetes 1999, 48, 2229–2239. [Google Scholar] [CrossRef]
  149. Backer, M.V.; Backer, J.M. Functionally active VEGF fusion proteins. Protein Expr. Purif. 2001, 23, 1–7. [Google Scholar] [CrossRef]
  150. Cai, W.; Guzman, R.; Hsu, A.R.; Wang, H.; Chen, K.; Sun, G.; Gera, A.; Choi, R.; Bliss, T.; He, L.; et al. Positron emission tomography imaging of poststroke angiogenesis. Stroke 2009, 40, 270–277. [Google Scholar] [CrossRef]
  151. Willmann, J.K.; Chen, K.; Wang, H.; Paulmurugan, R.; Rollins, M.; Cai, W.; Wang, D.S.; Chen, I.Y.; Gehysens, O.; Rodriguez-Porcel, M.; et al. Monitoring of the biological response to murine hindlimb ischemia with 64Cu-labeled vascular endothelial growth factor-121 positron emission tomography. Circulation 2008, 117, 915. [Google Scholar] [CrossRef] [Green Version]
  152. Rodriguez-Porcel, M.; Cai, W.; Gheysens, O.; Willmann, J.K.; Chen, K.; Wang, H.; Chen, I.Y.; He, L.; Wu, J.C.; Li, Z.B.; et al. Imaging of VEGF receptor in a rat myocardial infarction model using PET. J. Nucl. Med. 2008, 49, 667–673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  153. Chen, K.; Cai, W.; Li, Z.B.; Wang, H.; Chen, X. Quantitative PET imaging of VEGF receptor expression. Mol. Imaging Biol. 2009, 11, 15–22. [Google Scholar] [CrossRef]
  154. Kang, C.M.; Kim, S.M.; Koo, H.J.; Yim, M.S.; Lee, K.H.; Ryu, E.K.; Choe, Y.S. In vivo characterization of 68 Ga-NOTA-VEGF 121 for the imaging of VEGF receptor expression in U87MG tumor xenograft models. Eur. J Nucl. Med Mol. Imaging 2013, 40, 198–206. [Google Scholar] [CrossRef] [PubMed]
  155. Kang, C.M.; Koo, H.J.; Choe, Y.S.; Choi, J.Y.; Lee, K.H.; Kim, B.T. 68Ga-NODAGA-VEGF121 for in vivo imaging of VEGF receptor expression. Nucl. Med. Biol. 2014, 41, 51–57. [Google Scholar] [CrossRef] [PubMed]
  156. Li, S.; Peck-Radosavljevic, M.; Koller, E.; Koller, F.; Kaserer, K.; Kreil, A.; Kapiotis, S.; Hamwi, A.; Weich, H.A.; Valent, P.; et al. Characterization of 123I-vascular endothelial growth factor–binding sites expressed on human tumour cells: Possible implication for tumour scintigraphy. Int. J. Cancer 2001, 91, 789–796. [Google Scholar] [CrossRef]
  157. Lu, E.; Wagner, W.R.; Schellenberger, U.; Abraham, J.A.; Klibanov, A.L.; Woulfe, S.R.; Csikari, M.M.; Fisher, D.; Schreiner, G.F.; Brandenburger, G.H.; et al. Targeted in vivo labeling of receptors for vascular endothelial growth factor: Approach to identification of ischemic tissue. Circulation 2003, 108, 97–103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  158. Gitay-Goren, H.; Cohen, T.; Tessler, S.; Soker, S.; Gengrinovitch, S.; Rockwell, P.; Klaksburg, M.; Levi, B.Z.; Neufeld, G. Selective binding of VEGF to one of the three vascular endothelial growth factor receptors of vascular endothelial cells. J. Biol. Chem. 1996, 271, 5519–5523. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  159. Blankenberg, F.G.; Backer, M.V.; Levashova, Z.; Patel, V.; Backer, J.M. In vivo tumor angiogenesis imaging with site-specific labeled 99m Tc-HYNIC-VEGF. Eur. J. Nucl. Med. Mol. Imaging 2006, 33, 841–848. [Google Scholar] [CrossRef] [PubMed]
  160. Backer, M.V.; Levashova, Z.; Levenson, R.; Blankenberg, F.G.; Backer, J.M. Cysteine-containing fusion tag for site-specific conjugation of therapeutic and imaging agents to targeting proteins. In Peptide-Based Drug Design. Methods In Molecular Biology™; Otvos, L., Ed.; Humana Press: Totowa, NJ, USA, 2008; Volume 494, pp. 275–294. [Google Scholar] [CrossRef]
  161. Levashova, Z.; Backer, M.; Backer, J.M.; Blankenberg, F.G. Direct site-specific labeling of the Cys-tag moiety in scVEGF with technetium 99m. Bioconjugate Chem. 2008, 19, 1049–1054. [Google Scholar] [CrossRef] [PubMed]
  162. Levashova, Z.; Backer, M.; Backer, J.M.; Blankenberg, F.G. Imaging vascular endothelial growth factor (VEGF) receptors in turpentine-induced sterile thigh abscesses with radiolabeled single-chain VEGF. J. Nucl. Med. 2009, 50, 2058–2063. [Google Scholar] [CrossRef] [Green Version]
  163. Blankenberg, F.G.; Levashova, Z.; Sarkar, S.K.; Pizzonia, J.; Backer, M.V.; Backer, J.M. Noninvasive assessment of tumor VEGF receptors in response to treatment with pazopanib: A molecular imaging study. Transl Oncol. 2010, 3, 56–64. [Google Scholar] [CrossRef] [Green Version]
  164. Eder, M.; Krivoshein, A.V.; Backer, M.; Backer, J.M.; Haberkorn, U.; Eisenhut, M. ScVEGF-PEG-HBED-CC and scVEGF-PEG-NOTA conjugates: Comparison of easy-to-label recombinant proteins for [68Ga] PET imaging of VEGF receptors in angiogenic vasculature. Nucl. Med. Biol. 2010, 37, 405–412. [Google Scholar] [CrossRef] [PubMed]
  165. Blom, E.; Velikyan, I.; Monazzam, A.; Razifar, P.; Nair, M.; Razifar, P.; Vaderheyden, J.L.; Krivoshein, A.V.; Backer, M.; Backer, J.; et al. Synthesis and characterization of scVEGF-PEG-[68Ga] NOTA and scVEGF-PEG-[68Ga] DOTA PET tracers. J. Labelled Comp. Radio Pharm. 2011, 54, 685–692. [Google Scholar] [CrossRef]
  166. Meyer, J.P.; Edwards, K.J.; Kozlowski, P.; Backer, M.V.; Backer, J.M.; Lewis, J.S. Selective imaging of VEGFR-1 and VEGFR-2 using 89Zr-labeled single-chain VEGF mutants. J. Nucl. Med. 2016, 57, 1811–1816. [Google Scholar] [CrossRef] [Green Version]
  167. Tekabe, Y.; Johnson, L.L.; Rodriquez, K.; Li, Q.; Backer, M.; Backer, J.M. Selective imaging of vascular endothelial growth factor receptor-1 and receptor-2 in atherosclerotic lesions in diabetic and non-diabetic ApoE−/− mice. Mol. Imaging Biol. 2018, 20, 85–93. [Google Scholar] [CrossRef]
  168. Zhang, Y.; Hong, H.; Niu, G.; Valdovinos, H.F.; Orbay, H.; Nayak, T.R.; Chen, X.; Barnhart, T.E.; Cai, W. Positron emission tomography imaging of vascular endothelial growth factor receptor expression with 61Cu-labeled lysine-tagged VEGF121. Mol. Pharm. 2012, 9, 3586–3594. [Google Scholar] [CrossRef] [Green Version]
  169. Blankenberg, F.G.; Mandl, S.; Cao, Y.A.; O’Connell-Rodwell, C.; Contag, C.; Mari, C.; Gaynutdinov, T.I.; Vanderheyden, J.L.; Backer, M.V.; Backer, J.M. Tumor imaging using a standardized radiolabeled adapter protein docked to vascular endothelial growth factor. J. Nucl. Med. 2004, 45, 1373–1380. [Google Scholar] [PubMed]
  170. Chen, K.; Li, Z.B.; Wang, H.; Cai, W.; Chen, X. Dual-modality optical and positron emission tomography imaging of vascular endothelial growth factor receptor on tumor vasculature using quantum dots. Eur. J. Nucl. Med. Mol. Imaging 2008, 35, 2235–2244. [Google Scholar] [CrossRef] [PubMed]
  171. Kang, C.M.; Koo, H.J.; Lee, K.C.; Choe, Y.S.; Choi, J.Y.; Lee, K.H.; Kim, B.T. A vascular endothelial growth factor 121 (VEGF121)-based dual PET/optical probe for in vivo imaging of VEGF receptor expression. Biomaterials 2013, 34, 6839–6845. [Google Scholar] [CrossRef]
  172. Hsu, A.R.; Cai, W.; Veeravagu, A.; Mohamedali, K.A.; Chen, K.; Kim, S.; Vogel, H.; Hou, L.C.; Tse, V.; Rosenblum, M.G.; et al. Multimodality molecular imaging of glioblastoma growth inhibition with vasculature-targeting fusion toxin VEGF121/rGel. J. Nucl. Med. 2007, 48, 445–454. [Google Scholar] [PubMed]
  173. Veenendaal, L.M.; Jin, H.; Ran, S.; Cheung, L.; Navone, N.; Marks, J.W.; Waltenberger, J.; Thorpe, P.; Rosenblum, M.G. In vitro and in vivo studies of a VEGF121/rGelonin chimeric fusion toxin targeting the neovasculature of solid tumors. Proc. Natl. Acad. Sci. USA 2002, 99, 7866–7871. [Google Scholar] [CrossRef] [Green Version]
  174. Akiyama, H.; Mohamedali, K.A.; e Silva, R.L.; Kachi, S.; Shen, J.; Hatara, C.; Umeda, N.; Hackett, S.F.; Aslam, S.; Krause, M.; et al. Vascular targeting of ocular neovascularization with a vascular endothelial growth factor121/gelonin chimeric protein. Mol. Pharmacol. 2005, 68, 1543–1550. [Google Scholar] [CrossRef] [Green Version]
  175. Ran, S.; Mohamedali, K.A.; Luster, T.A.; Thorpe, P.E.; Rosenblum, M.G. The vascular-ablative agent VEGF121/rGel inhibits pulmonary metastases of MDA-MB-231 breast tumors. Neoplasia 2005, 7, 486–496. [Google Scholar] [CrossRef] [Green Version]
  176. Fine, B.A.; Valente, P.T.; Feinstein, G.I.; Dey, T. VEGF, flt-1, and KDR/flk-1 as prognostic indicators in endometrial carcinoma. Gynecol. Oncol. 2000, 76, 33–39. [Google Scholar] [CrossRef]
  177. Li, S.; Peck-Radosavljevic, M.; Kienast, O.; Preitfellner, J.; Hamilton, G.; Kurtaran, A.; Pirich, C.; Angelberger, P.; Dudczak, R. Imaging gastrointestinal tumours using vascular endothelial growth factor-165 (VEGF165) receptor scintigraphy. Ann. Oncol. 2003, 14, 1274–1277. [Google Scholar] [CrossRef]
  178. Li, S.; Kienast, O.; Beheshti, M.; Preitfellner, J.; Traub-Weidinger, T.; Dudczak, R.; Peck-Radosavljevic, M.; Schmid, M.; Hamilton, G.; Schima, W.; et al. Iodine-123-vascular endothelial growth factor-165 (123 I-VEGF 165): Biodistribution, safety and radiation dosimetry in patients with pancreatic cancer. Nuklearmedizin 2003, 42, A180. [Google Scholar]
  179. Holzer, G.; Hamilton, G.; Angelberger, P.; Lai, D.; Ubl, P.; Dudczak, R.; Dominkus, M.; Li, S. Imaging of highly malignant osteosarcoma with iodine-123-vascular endothelial growth factor. Oncology 2012, 83, 45–49. [Google Scholar] [CrossRef]
  180. Cornelissen, B.; Oltenfreiter, R.; Kersemans, V.; Staelens, L.; Frankenne, F.; Foidart, J.M.; Slegers, G. In vitro and in vivo evaluation of [123I]-VEGF165 as a potential tumor marker. Nucl. Med. Biol. 2005, 32, 431–436. [Google Scholar] [CrossRef] [PubMed]
  181. Galli, F.; Artico, M.; Taurone, S.; Manni, I.; Bianchi, E.; Piaggio, G.; Weintraub, B.D.; Szkudlinski, M.W.; Agostinelli, E.; Signore, A. Radiolabeling of VEGF165 with 99mTc to evaluate VEGFR expression in tumor angiogenesis. Int. J. Oncol. 2017, 50, 2171–2179. [Google Scholar] [CrossRef] [Green Version]
  182. Chan, C.; Sandhu, J.; Guha, A.; Scollard, D.A.; Wang, J.; Chen, P.; Bai, K.; Lee, L.; Reilly, R.M. A human transferrin-vascular endothelial growth factor (hnTf-VEGF) fusion protein containing an integrated binding site for 111In for imaging tumor angiogenesis. J. Nucl. Med. 2005, 46, 1745–1752. [Google Scholar] [PubMed]
  183. Chan, C.; Cai, Z.; Su, R.; Reilly, R.M. 111In-or 99mTc-labeled recombinant VEGF bioconjugates: In vitro evaluation of their cytotoxicity on porcine aortic endothelial cells overexpressing Flt-1 receptors. Nucl. Med. Biol. 2010, 37, 105–115. [Google Scholar] [CrossRef] [PubMed]
  184. Qin, Z.X.; Li, Q.W.; Liu, G.Y.; Luo, C.X.; Xie, G.F.; Zheng, L. Imaging targeted at tumor with 188Re-labeled VEGF189 exon 6-encoded peptide and effects of the transfecting truncated KDR gene in tumor-bearing nude mice. Nucl. Med. Biol. 2009, 36, 535–543. [Google Scholar] [CrossRef]
  185. Bodei, L.; Cremonesi, M.; Zoboli, S.; Grana, C.; Bartolomei, M.; Rocca, P.; Caracciolo, M.; Maäcke, H.R.; Chinol, M.; Paganelli, G. Receptor-mediated radionuclide therapy with 90 Y-DOTATOC in association with amino acid infusion: A phase I study. Eur. J. Nucl. Med. 2003, 30, 207–216. [Google Scholar] [CrossRef]
  186. Rolleman, E.J.; Bernard, B.F.; Breeman, W.A.P.; Forrer, F.; de Blois, E.; Hoppin, J.; Gotthardt, M.; Boerman, O.C.; Krenning, E.P.; de Jong, M. Molecular imaging of reduced renal uptake of radiolabelled [DOTA0, Tyr3] octreotate by the combination of lysine and Gelofusine in rats. Nuklearmedizin 2008, 47, 110–115. [Google Scholar] [CrossRef]
  187. Melis, M.; Bijster, M.; de Visser, M.; Konijnenberg, M.W.; de Swart, J.; Rolleman, E.J.; Boerman, O.C.; Krenning, E.P.; de Jong, M. Dose-response effect of Gelofusine on renal uptake and retention of radiolabelled octreotate in rats with CA20948 tumours. Eur. J. Nucl. Med. Mol. Imaging 2009, 36, 1968. [Google Scholar] [CrossRef] [Green Version]
  188. Jayson, G.C.; Zweit, J.; Jackson, A.; Mulatero, C.; Julyan, P.; Ranson, M.; Broughton, L.; Wagstaff, J.; Hakannson, L.; Groenewegen, G.; et al. Molecular imaging and biological evaluation of HuMV833 anti-VEGF antibody: Implications for trial design of antiangiogenic antibodies. J. Natl. Cancer Inst. 2002, 94, 1484–1493. [Google Scholar] [CrossRef] [Green Version]
  189. Cai, W.; Chen, X. Multimodality imaging of vascular endothelial growth factor and vascular endothelial growth factor receptor expression. Front. Biosci. 2007, 12, 4267–4279. [Google Scholar] [CrossRef]
  190. Choe, Y.S.; Lee, K.H. Targeted In Vivo Imaging of Angiogenesis: Present Status and Perspectives. Curr. Pharm. Des. 2007, 13, 17–31. [Google Scholar] [CrossRef]
  191. Cai, W.; Chen, X. Multimodality Molecular Imaging of Tumor Angiogenesis. J. Nucl. Med. 2008, 49, 113S–128S. [Google Scholar] [CrossRef] [Green Version]
  192. Michalski, M.H.; Chen, X. Molecular imaging in cancer treatment. Eur. J. Nucl. Med. Mol. Imaging 2011, 38, 358–377. [Google Scholar] [CrossRef] [Green Version]
  193. Collingridge, D.R.; Carroll, V.A.; Glaser, M.; Aboagye, E.O.; Osman, S.; Hutchinson, O.C.; Barthel, H.; Luthra, S.K.; Brady, F.; Bicknell, R.; et al. The Development of [124I]Iodinated-VG76e: A Novel Tracer for Imaging Vascular Endothelial Growth Factor in Vivo Using Positron Emission Tomography. Cancer Res. 2002, 62, 5912–5919. [Google Scholar]
  194. Bouziotis, P.; Psimadas, D.; Fani, M.; Gourni, E.; Loudos, G.; Xanthopoulos, S.; Archimandritis, S.C.; Varvarigou, A.D. Radiolabeled biomolecules for early cancer detection and therapy via angiogenesis targeting. Nucl. Instrum. Methods Phys. Res. A 2006, 569, 492–496. [Google Scholar] [CrossRef]
  195. Fani, M.; Bouziotis, P.; Harris, A.L.; Psimadas, D.; Gourni, E.; Loudos, G.; Varvarigou, A.D.; Maecke, H.R. 177Lu-labeled-VG76e monoclonal antibody in tumor angiogenesis: A comparative study using DOTA and DTPA chelating systems. Radiochim. Acta 2007, 95, 351–357. [Google Scholar] [CrossRef]
  196. Willmann, J.K.; Paulmurugan, R.; Chen, K.; Gheysens, O.; Rodriguez-Porcel, M.; Lutz, A.M.; Chen, I.Y.; Chen, X.; Gambhir, S.S. US imaging of tumor angiogenesis with microbubbles targeted to vascular endothelial growth factor receptor type 2 in mice. Radiology 2008, 246, 508–518. [Google Scholar] [CrossRef] [Green Version]
  197. Willmann, J.K.; Cheng, Z.; Davis, C.; Lutz, A.M.; Schipper, M.L.; Nielsen, C.H.; Gambhir, S.S. Targeted microbubbles for imaging tumor angiogenesis: Assessment of whole-body biodistribution with dynamic micro-PET in mice. Radiology 2008, 249, 212–219. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  198. Lee, C.M.; Kim, E.M.; Cheong, S.J.; Kim, D.W.; Lim, S.T.; Sohn, M.H.; Jeong, H.J. Targeted molecular imaging of VEGF receptors overexpressed in ischemic microvasculature using chitosan-DC101 conjugates. J. Biomed. Mater. Res. A 2010, 92, 1510–1517. [Google Scholar] [CrossRef]
  199. Desar, I.M.E.; Stillebroer, A.B.; Oosterwijk, E.; Leenders, W.P.J.; van Herpen, C.M.L.; van der Graaf, W.T.A.; Boerman, O.C.; Mulders, P.F.A.; Oyen, W.J.G. 111In-Bevacizumab Imaging of Renal Cell Cancer and Evaluation of Neoadjuvant Treatment with the Vascular Endothelial Growth Factor Receptor Inhibitor Sorafenib. J. Nucl. Med. 2010, 51, 1707–1715. [Google Scholar] [CrossRef] [Green Version]
  200. Chang, A.J.; Sohn, R.; Lu, Z.H.; Arbeit, J.M.; Lapi, S.E. Detection of Rapalog-Mediated Therapeutic Response in Renal Cancer Xenografts Using 64Cu-bevacizumab ImmunoPET. PLoS ONE 2013, 8, e58949. [Google Scholar] [CrossRef]
  201. Cea, V.; Sala, C.; Verpelli, C. Antiangiogenic Therapy for Glioma. J. Signal Transduct. 2012, 483040. [Google Scholar] [CrossRef] [PubMed]
  202. Gerstner, E.R.; Batchelor, T.T. Antiangiogenic therapy for glioblastoma. Cancer J. 2012, 18, 45–50. [Google Scholar] [CrossRef] [Green Version]
  203. Batchelor, T.T.; Reardon, D.A.; de Groot, J.F.; Wick, W.; Weller, M. Antiangiogenic therapy for glioblastoma: Current status and future prospects. Clin. Cancer Res. 2014, 20, 5612–5619. [Google Scholar] [CrossRef] [Green Version]
  204. Kozakiewicz, P.; Kordzińska-Cisek, I.; Król-Woch, K.; Stachyra, P. Anti-angiogenic therapy in glioblastoma multiforme. Oncol. Radiother. 2018, 2, 17–22. [Google Scholar]
  205. Nagengast, W.B.; de Vries, E.G.E.; Hospers, G.A.; Mulder, N.H.; de Jong, J.R.; Hollema, H.; Brouwers, A.H.; van Dongen, G.A.; Perk, L.R.; Lub-de Hooge, M.N. In Vivo VEGF Imaging with Radiolabeled Bevacizumab in a Human Ovarian Tumor Xenograft. J. Nucl. Med. 2007, 48, 1313–1319. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  206. Scheer, M.G.; Stollman, T.H.; Boerman, O.C.; Verrijp, K.; Sweep, F.C.G.J.; Leenders, W.P.J.; Ruers, T.J.M.; Oyen, W.J.G. Imaging liver metastases of colorectal cancer patients with radiolabelled bevacizumab: Lack of correlation with VEGF-A expression. Eur. J. Cancer 2008, 44, 1835–1840. [Google Scholar] [CrossRef] [PubMed]
  207. Nagengast, W.B.; Lub-de Hooge, M.N.; van Straten, E.M.E.; Kruijff, S.; Brouwers, A.H.; den Dunnen, W.F.A.; de Jong, J.R.; Hollema, H.; Dierckx, R.A.; Mulder, N.H.; et al. VEGF-SPECT with 111In-bevacizumab in stage III/IV melanoma patients. Eur. J. Cancer 2011, 47, 1595–1602. [Google Scholar] [CrossRef]
  208. Stollman, T.H.; Scheer, M.G.W.; Leenders, W.P.J.; Verrijp, K.C.N.; Soede, A.C.; Oyen, W.J.G.; Ruers, T.J.M.; Boerman, O.C. Specific imaging of VEGF-A expression with radiolabeled anti-VEGF monoclonal antibody. Int. J. Cancer 2008, 122, 2310–2314. [Google Scholar] [CrossRef]
  209. Stollman, T.H.; Scheer, M.G.; Franssen, G.M.; Verrijp, K.N.; Oyen, W.J.G.; Ruers, T.J.M.; Leenders, W.P.J.; Boerman, O.C. Tumor accumulation of radiolabeled bevacizumab due to targeting of cell- and matrix-associated VEGF-A isoforms. Cancer Biother. Radiopharm. 2009, 24, 195–200. [Google Scholar] [CrossRef] [Green Version]
  210. Hosseinimehr, S.J.; Orlova, A.; Tolmachev, V. Preparation and in vitro evaluation of 111In-CHX-A″-DTPA-labeled anti-VEGF monoclonal antibody bevacizumab. Hum. Antibodies 2010, 19, 107–111. [Google Scholar] [CrossRef] [PubMed]
  211. Nayak, T.K.; Garmestani, K.; Baidoo, K.E.; Milenic, D.E.; Brechbiel, M.W. PET imaging of tumor angiogenesis in mice with VEGF-A targeted 86Y-CHX-A″-DTPA-bevacizumab. Int. J. Cancer 2011, 128, 920–926. [Google Scholar] [CrossRef] [Green Version]
  212. Van Dongen, G.A.M.S.; Poot, A.J.; Vugt, D.J. PET imaging with radiolabeled antibodies and tyrosine kinase inhibitors: Immuno-PET and TKI-PET. Tumor Biol. 2012, 33, 607–615. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  213. Kameswaran, M.; Pandey, U.; Gamre, N.; Vimalnath, K.V.; Sarma, H.D.; Dash, A. Evaluation of (177)Lu-CHX-A’’-DTPA-Bevacizumab as a radioimmunotherapy agent targeting VEGF expressing cancers. Appl. Radiat. Isot. 2016, 114, 196–201. [Google Scholar] [CrossRef]
  214. Patel, N.; Able, S.; Allen, D.; Fokas, E.; Cornelissen, B.; Gleeson, F.V.; Harris, A.L.; Vallis, K.A. Monitoring response to anti-angiogenic mTOR inhibitor therapy in vivo using 111In-bevacizumab. EJNMMI Res. 2017, 7, 49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  215. Yudistiro, R.; Hanaoka, H.; Katsumata, N.; Yamaguchi, A.; Tsushima, Y. Bevacizumab Radioimmunotherapy (RIT) with Accelerated Blood Clearance Using the Avidin Chase. Mol. Pharm. 2018, 15, 2165–2173. [Google Scholar] [CrossRef]
  216. Nagengast, W.B.; de Korte, M.A.; Munnink, T.H.O.; Timmer-Bosscha, H.; den Dunnen, W.F.; Hollema, H.; de Jong, J.R.; Jensen, M.R.; Quadt, C.; Garcia-Echeverria, C.; et al. 89Zr-Bevacizumab PET of Early Antiangiogenic Tumor Response to Treatment with HSP90 Inhibitor NVP-AUY922. J. Nucl. Med. 2010, 51, 761–767. [Google Scholar] [CrossRef] [Green Version]
  217. Van der Bilt, A.R.; Terwisscha van Scheltinga, A.G.; Timmer-Bosscha, H.; Schröder, C.P.; Pot, L.; Kosterink, J.G.W.; van der Zee, A.G.J.; Lub-de Hooge, M.N.; de Jong, S.; de Vries, E.G.E.; et al. Measurement of tumor VEGF-A levels with 89Zr-bevacizumab PET as an early biomarker for the antiangiogenic effect of everolimus treatment in an ovarian cancer xenograft model. Clin. Cancer Res. 2012, 18, 6306–6314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  218. Van Asselt, S.J.; Oosting, S.F.; Brouwers, A.H.; Bongaerts, A.H.H.; de Jong, J.R.; Lub-de Hooge, M.N.; Munnink, T.H.O.; Fiebrich, H.B.; Sluiter, W.J.; Links, T.P.; et al. Everolimus Reduces (89)Zr-Bevacizumab Tumor Uptake in Patients with Neuroendocrine Tumors. J. Nucl. Med. 2014, 55, 1087–1092. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  219. Van Es, S.C.; Brouwers, A.H.; Mahesh, S.V.K.; Leliveld-Kors, A.M.; de Jong, I.J.; Lub-de Hooge, M.N.; de Vries, E.G.E.; Gietema, J.A.; Oosting, S.F. 89Zr-Bevacizumab PET: Potential Early Indicator of Everolimus Efficacy in Patients with Metastatic Renal Cell Carcinoma. J. Nucl. Med. 2017, 58, 905–910. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  220. Gaykema, S.B.M.; Brouwers, A.H.; Lub-de Hooge, M.N.; Timmer-Bosscha, H.; Pot, L.; van Dam, G.M.; Pleijhuis, R.G.; van der Meulen, S.B.; Bart, J.; de Vries, J.; et al. 89Zr-Bevacizumab PET Imaging in Primary Breast Cancer. J. Nucl. Med. 2013, 54, 1014–1018. [Google Scholar] [CrossRef] [Green Version]
  221. Bahce, I.; Huisman, M.C.; Verwer, E.E.; Ooijevaar, R.; Boutkourt, F.; Vugts, D.J.; van Dongen, G.A.; Boellaard, R.; Smit, E.F. Pilot study of 89Zr-bevacizumab positron emission tomography in, patients with advanced non-small cell lung cancer. EJNMMI Res. 2014, 4, 35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  222. Oosting, S.; Brouwers, A.H.; Van Es, S.C.; Nagengast, W.B.; Munnink, T.H.O.; Hooge, M.N.L.-D.; Hollema, H.; De Jong, J.R.; De Jong, I.J.; De Haas, S.; et al. 89 Zr-bevacizumab PET imaging in metastatic renal cell carcinoma patients before and during antiangiogenic treatment. J. Clin. Oncol. 2012, 30, 10581. [Google Scholar] [CrossRef]
  223. Oosting, S.F.; Brouwers, A.H.; Van Es, S.C.; Nagengast, W.B.; Munnink, T.H.O.; Hooge, M.N.L.-D.; Hollema, H.; De Jong, J.R.; De Jong, I.J.; De Haas, S.; et al. 89Zr-bevacizumab PET visualizes heterogeneous tracer accumulation in tumour lesions of renal cell carcinoma patients and differential effects of antiangiogenic treatment. J. Nucl. Med. 2015, 56, 63–69. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  224. Oosting, F.S.; van Asselt, S.J.; Brouwers, A.H.; Bongaerts, A.H.H.; Steinberg, J.D.J.; de Jong, J.R.; Lub-de Hooge, M.N.; van der Horst-Schrivers, A.N.A.; Walenkamp, A.M.E.; Hoving, E.W.; et al. 89Zr-Bevacizumab PET Visualizes Disease Manifestations in Patients with von Hippel–Lindau Disease. J. Nucl. Med. 2016, 57, 1244–1250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  225. Camacho, X.; García, M.F.; Calzada, V.; Fernández, M.; Porcal, W.; Alonso, O.; Gambini, J.P.; Cabral, P. Synthesis and evaluation of (99m)Tc chelate-conjugated bevacizumab. Curr. Radiopharm 2013, 6, 12–19. [Google Scholar] [CrossRef]
  226. Camacho, X.; García, M.F.; Calzada, V.; Fernández, M.; Chabalgoity, J.A.; Moreno, M.; de Aguiar, R.B.; Alonso, O.; Gambini, J.P.; Chammas, R.; et al. [99mTc(CO)3]-Radiolabeled Bevacizumab: In vitro and in vivo Evaluation in a Melanoma Model. Oncology 2013, 84, 200–209. [Google Scholar] [CrossRef]
  227. Camacho, X.; García, M.F.; Calzada, V.; Fernández, M.; Alonso, O.; Gambini, J.P.; de Aguiar, R.B.; Machado, C.M.L.; Chamms, R.; Porcal, W.; et al. 99mTc-Labeled Bevacizumab via HYNIC for Imaging of Melanoma. J. Anal. Oncol. 2014, 3, 53–64. [Google Scholar] [CrossRef]
  228. Kameswaran, M.; Pandey, U.; Sarma, H.D.; Samuel, G. Preparation of 99mTc carbonyl DTPA-bevacizumab and its bioevaluation in a melanoma model. Ann. Nucl. Med. 2014, 28, 911–916. [Google Scholar] [CrossRef]
  229. Cohen, R.; Stammes, M.A.; de Roos, I.H.; Stigter-van Walsum, M.; Visser, G.W.; van Dongen, G.A. Inert coupling of IRDye800CW to monoclonal antibodies for clinical optical imaging of tumor targets. EJNMMI Res. 2011, 1, 31. [Google Scholar] [CrossRef] [Green Version]
  230. Cohen, R.; Vugts, D.J.; Stigter-van Walsum, M.; Visser, G.W.; van Dongen, G.A. Inert coupling of IRDye800CW and zirconium-89 to monoclonal antibodies for single- or dual-mode fluorescence and PET imaging. Nat. Protoc. 2013, 8, 1010–1018. [Google Scholar] [CrossRef]
  231. Jansen, M.H.; Lagerweij, T.; Sewing, A.C.; Vugts, D.J.; van Vuurden, D.G.; Molthoff, C.F.M.; Caretti, V.; Veringa, S.J.E.; Petersen, N.; Carcaboso, A.M.; et al. Bevacizumab Targeting Diffuse Intrinsic Pontine Glioma: Results of 89Zr-Bevacizumab PET Imaging in Brain Tumor Models. Mol. Cancer Ther. 2016, 15, 2166–2174. [Google Scholar] [CrossRef] [Green Version]
  232. Jansen, M.H.; Veldhuijzen van Zanten, S.E.M.; van Vuurden, D.G.; Huisman, M.C.; Vugts, D.J.; Hoekstra, O.S.; van Dongen, G.A.; Kaspers, G.J.L. Molecular Drug Imaging: 89Zr-Bevacizumab PET in Children with Diffuse Intrinsic Pontine Glioma. J. Nucl. Med. 2017, 58, 711–716. [Google Scholar] [CrossRef] [Green Version]
  233. Veldhuijzen van Zanten, S.E.M.; Sewing, A.C.P.; van Lingen, A.; Hoekstra, O.S.; Wesseling, P.; Meel, M.H.; van Vuurden, D.G.; Kaspers, G.J.L.; Hulleman, E.; Bugiani, M. Multiregional Tumor Drug-Uptake Imaging by PET and Microvascular Morphology in End-Stage Diffuse Intrinsic Pontine Glioma. J. Nucl. Med. 2018, 59, 612–615. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  234. Ashrafi, S.A.; Hosseinimehr, S.J.; Varmira, K.; Abedi, S.M. Radioimmunotherapy with 131I-bevacizumab as a specific molecule for cells with overexpression of the vascular endothelial growth factor. Cancer Biother. Radiopharm. 2012, 27, 420–425. [Google Scholar] [CrossRef]
  235. Kameswaran, M.; Sarma, H.D.; Dash, A. Preclinical evaluation of 131I-Bevacizumab—A prospective agent for radioimmunotherapy in VEGF expressing cancers. Appl. Radiat. Isot. 2017, 123, 109–113. [Google Scholar] [CrossRef] [PubMed]
  236. Christoforidis, J.B.; Carlton, M.M.; Knopp, M.V.; Hinkle, G.H. PET/CT imaging of I-124-radiolabeled bevacizumab and ranibizumab after intravitreal injection in a rabbit model. Invest. Ophthalmol. Vis. Sci. 2011, 52, 5899–5903. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  237. Christoforidis, J.B.; Carlton, M.M.; Wang, J.; Jiang, A.; Pratt, C.; Abdel-Rasoul, M.; Hinkle, G.H.; Knopp, M.V. Anatomic and pharmacokinetic properties of intravitreal bevacizumab and ranibizumab after vitrectomy and lensectomy. Retina 2013, 33, 946–952. [Google Scholar] [CrossRef] [Green Version]
  238. Christoforidis, J.B.; Briley, K.; Binzel, K.; Bhatia, P.; Wei, L.; Kumar, K.; Knopp, M.V. Systemic Biodistribution and Intravitreal Pharmacokinetic Properties of Bevacizumab, Ranibizumab, and Aflibercept in a Nonhuman Primate Model. Invest. Ophthalmol. Vis. Sci. 2017, 58, 5636–5645. [Google Scholar] [CrossRef] [Green Version]
  239. Paudyal, B.; Paudyal, P.; Oriuchi, N.; Hanaoka, H.; Tominaga, H.; Endo, K. Positron emission tomography imaging and biodistribution of vascular endothelial growth factor with 64Cu-labeled bevacizumab in colorectal cancer xenografts. Cancer Sci. 2011, 102, 117–121. [Google Scholar] [CrossRef]
  240. Zhang, Y.; Hong, H.; Engle, J.W.; Yang, Y.; Barnhart, T.E.; Cai, W. Positron emission tomography and near-infrared fluorescence imaging of vascular endothelial growth factor with dual-labeled bevacizumab. Am. J. Nucl. Med. Mol. Imaging 2012, 2, 1–13. [Google Scholar]
  241. Zhang, Y.; Hong, H.; Cai, W. PET tracers based on Zirconium-89. Curr. Radiopharm. 2011, 4, 131–139. [Google Scholar] [CrossRef] [Green Version]
  242. Wei, W.; Ni, D.; Ehlerding, E.B.; Luo, Q.-Y.; Cai, W. PET Imaging of Receptor Tyrosine Kinases in Cancer. Mol. Cancer Ther. 2018, 17, 1625–1636. [Google Scholar] [CrossRef] [Green Version]
  243. Luo, H.; England, C.G.; Graves, S.A.; Sun, H.; Liu, G.; Nickles, R.J.; Cai, W. PET Imaging of VEGFR-2 Expression in Lung Cancer with 64Cu-Labeled Ramucirumab. J. Nucl. Med. 2016, 57, 285–290. [Google Scholar] [CrossRef] [Green Version]
  244. Laffon, E.; Marthan, R. A three-time-point method for assessing kinetic parameters of 64Cu-labeled Ramucirumab trapping in VEGFR-2 positive lung tumors. Phys. Med. 2017, 43, 1–5. [Google Scholar] [CrossRef]
  245. Li, M.; Jiang, D.; Barnhart, T.E.; Cao, T.; Engle, J.W.; Chen, W.; Cai, W. Immuno-PET imaging of VEGFR-2 expression in prostate cancer with 89Zr-labeled ramucirumab. Am. J. Cancer Res. 2019, 9, 2037–2046. [Google Scholar] [PubMed]
  246. Janousek, J.; Barta, P.; Novy, Z.; Zilkova, K.; Trejtnar, F. Antiangiogenic Human Monoclonal Antibody Ramucirumab Radiolabelling: In Vitro Evaluation on VEGFR2-positive Cell Lines. Anticancer Res. 2019, 39, 735–744. [Google Scholar] [CrossRef] [PubMed]
  247. Nagengast, W.B.; Lub-de Hooge, M.N.; Oosting, S.F.; den Dunnen, W.F.A.; Warnders, F.J.; Brouwers, A.H.; de Jong, J.R.; Price, P.M.; Hollema, H.; Hospers, G.A.P.; et al. VEGF-PET Imaging Is a Noninvasive Biomarker Showing Differential Changes in the Tumor during Sunitinib Treatment. Cancer Res. 2011, 71, 143–154. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  248. Christoforidis, J.B.; Williams, M.M.; Kothandaraman, S.; Kumar, K.; Epitropoulos, F.J.; Knopp, M.V. Pharmacokinetic properties of intravitreal I-124-aflibercept in a rabbit model using PET/CT. Curr. Eye Res. 2012, 37, 1171–1174. [Google Scholar] [CrossRef] [PubMed]
  249. Hao, G.; Hajibeigi, A.; León-Rodríguez, L.M.; Oz, O.K.; Sun, X. Peptoid-based PET imaging of vascular endothelial growth factor receptor (VEGFR) expression. Am. J. Nucl. Med. Mol. Imaging 2011, 1, 65–75. [Google Scholar]
  250. Cai, W.; Hong, H. Peptoid and positron emission tomography: An appealing combination. Am. J. Nucl. Med. Mol. Imaging 2011, 1, 76–79. [Google Scholar]
  251. Rezazadeh, F.; Sadeghzadeh, N.; Abedi, S.M.; Abediankenari, S. 99mTc-D (LPR): A novel retro-inverso peptide for VEGF receptor-1 targeted tumor imaging. Nucl. Med. Biol. 2018, 2. [Google Scholar] [CrossRef] [PubMed]
  252. Giordano, R.J.; Cardó-Vila, M.; Salameh, A.; Anobom, C.D.; Zeitlin, B.D.; Hawke, D.H.; Valente, A.P.; Almeida, F.C.L.; Nör, J.E.; Sidman, R.L.; et al. From combinatorial peptide selection to drug prototype (I): Targeting the vascular endothelial growth factor receptor pathway. Proc. Natl. Acad. Sci. USA 2010, 107, 5112–5117. [Google Scholar] [CrossRef] [Green Version]
  253. Hicks, J.W.; VanBrocklin, H.F.; Wilson, A.A.; Houle, S.; Vasdev, N. Radiolabeled small molecule protein kinase inhibitors for imaging with PET or SPECT. Molecules 2010, 15, 8260–8278. [Google Scholar] [CrossRef] [Green Version]
  254. Kuchar, M.; Oliveira, M.C.; Gano, L.; Santos, I.; Kniess, T. Radioiodinated sunitinib as a potential radiotracer for imaging angiogenesis-radiosynthesis and first radiopharmacological evaluation of 5-[125I]Iodo-sunitinib. Bioorg. Med. Chem. Lett. 2012, 22, 2850–2855. [Google Scholar] [CrossRef] [PubMed]
  255. Wang, J.Q.; Miller, K.D.; Sledge, G.; Zheng, Q.H. Synthesis of [F-18]SU11248, a new potential PET tracer for imaging cancer tyrosine kinase. Bioorg. Med. Chem. Lett. 2005, 15, 4380–4384. [Google Scholar] [CrossRef]
  256. Kniess, T.; Bergmann, R.; Steinbach, J. Synthesis and metabolic stability of 11C-labelled SU11248 derivative as inhibitor of tyrosine kinases. Eur. J. Nucl. Med. Mol. Imaging 2009, 36, S310. [Google Scholar]
  257. Caballero, J.; Muñoz, C.; Alzate-Morales, J.H.; Cunha, S.; Gano, L.; Bergmann, R.; Steinbach, J.; Kniess, T. Synthesis, in silico, in vitro, and in vivo investigation of 5-[11C]methoxy-substituted sunitinib, a tyrosine kinase inhibitor of VEGFR-2. Eur. J. Med. Chem. 2012, 58, 272–280. [Google Scholar] [CrossRef] [PubMed]
  258. Kniess, T.; Bergmann, R.; Kuchar, M.; Steinbach, J.; Wuest, F. Synthesis and radiopharmacological investigation of 3-[4′-[(18)F]fluorobenzylidene]indolin-2-one as possible tyrosine kinase inhibitor. Bioorg. Med. Chem. 2009, 17, 7732–7742. [Google Scholar] [CrossRef]
  259. Sakr, T.M.; El-Safoury, D.M.; Awad, G.A.; Motaleb, M.A. Biodistribution of 99mTc-sunitinib as a potential radiotracer for tumor hypoxia imaging. J. Label. Comp. Radiopharm. 2013, 56, 392–395. [Google Scholar] [CrossRef] [PubMed]
  260. Schuller, H.M.; Kabalka, G.W.; Schuller, H.M. Diagnosis by Determination of Hyperactivity or Increased Expression of Members of Cell Signaling Pathways. U.S. Patent 2006/0233705 A1, 19 October 2006. [Google Scholar]
  261. Asakawa, C.; Ogawa, M.; Kumata, K.; Fujinaga, M.; Kato, K.; Yamasaki, T.; Yui, J.; Kawamura, K.; Hatori, A.; Fukumura, T.; et al. [11C]Sorafenib: Radiosynthesis and preliminary PET study of brain uptake in P-gp/Bcrp knockout mice. Bioorg. Med. Chem. Lett. 2011, 21, 2220–2223. [Google Scholar] [CrossRef] [PubMed]
  262. Poot, A.J.; van der Wildt, B.; Stigter-van Walsum, M.; Rongen, M.; Schuit, R.C.; Hendrikse, N.H.; Eriksson, J.; van Dongen, G.A.M.S.; Windhorst, A.D. [11C]Sorafenib: Radiosynthesis and preclinical evaluation in tumor-bearing mice of a new TKI-PET tracer. Nucl. Med. Biol. 2013, 40, 488–497. [Google Scholar] [CrossRef] [Green Version]
  263. Ilovich, O.; Jacobson, O.; Aviv, Y.; Litchi, A.; Chisin, R.; Mishani, E. Formation of fluorine-18 labeled diaryl ureas-labeled VEGFR-2/PDGFR dual inhibitors as molecular imaging agents for angiogenesis. Bioorg. Med. Chem. 2008, 16, 4242–4251. [Google Scholar] [CrossRef]
  264. Ilovich, O.; Åberg, O.; Langstrom, B.; Mishani, E. Rhodium-mediated [11C]Carbonylation: A library of N-phenyl-N′-{4-(4-quinolyloxy)-phenyl}-[11C]-urea derivatives as potential PET angiogenic probes. J. Label. Compd. Radiopharm. 2009, 52, 151–157. [Google Scholar] [CrossRef]
  265. Sun, W. Angiogenesis in metastatic colorectal cancer and the benefits of targeted therapy. J. Hematol. Oncol. 2012, 5, 63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  266. Gao, M.; Lola, C.M.; Wang, M.; Miller, K.D.; Sledge, G.W.; Zheng, Q.H. Radiosynthesis of [11C]Vandetanib and [11C]chloro-Vandetanib as new potential PET agents for imaging of VEGFR in cancer. Bioorg. Med. Chem. Lett. 2011, 21, 3222–3226. [Google Scholar] [CrossRef]
  267. Dischino, D.; Tran, T.; Donnelly, D.; Bonacorsi, S.; Chow, P.; Roache, R.; Kukral, D.; Kim, J.; Hayes, W. Radiosynthesis of a F-18 labeled fluoro analog of brivanib. J. Label. Compd. Radiopharm. 2011, 54, S444. [Google Scholar]
  268. Ilovich, O.; Billauer, H.; Dotan, S.; Mishani, E. Labeled 3-aryl-4-indolylmaleimide derivatives and their potential as angiogenic PET biomarkers. Bioorg. Med. Chem. 2010, 18, 612–620. [Google Scholar] [CrossRef] [PubMed]
  269. Hirata, M.; Asanom, A.; Magata, Y.; Ohmomo, Y.; Temma, T. Synthesis and evaluation of novel radioiodinated anthranilate derivatives for in vivo imaging of vascular endothelial growth factor receptor with single-photon emission computed tomography. Ann. Nucl. Med. 2020, 34, 486–495. [Google Scholar] [CrossRef] [PubMed]
  270. Mitran, B.; Güler, R.; Roche, F.P.; Lindström, E.; Selvaraju, R.M.; Fleetwood, F.; Rinne, S.S.; Claesson-Welsh, L.; Tolmachev, V.; Stahl, S.; et al. Radionuclide imaging of VEGFR2 in glioma vasculature using biparatopic affibody conjugate: Proof-of-principle in a murine model. Theranostics 2018, 8, 4462–4476. [Google Scholar] [CrossRef] [PubMed]
  271. Niland, S.; Eble, J.A. Neuropilin: Handyman and Power Broker in the Tumor Microenvironment. Advances in Experimental Medicine and Biology. In Tumor Microenvironment; Birbrair, A., Ed.; Springer: Cham, Switzerland, 2020; Volume 1223, pp. 31–67. [Google Scholar] [CrossRef]
  272. Mota, F.; Fotinou, C.; Rana, R.R.; Chan, A.E.; Yelland, T.; Arooz, M.T.; O’Leary, A.P.; Hutton, J.; Frankel, P.; Zachary, I.; et al. Architecture and hydration of the arginine-binding site of neuropilin-1. FEBS J. 2018, 285, 1290–1304. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  273. Peng, K.; Bai, Y.; Zhu, Q.; Hu, B.; Xu, Y. Targeting VEGF–neuropilin interactions: A promising antitumor strategy. Drug Discov. Today 2019, 24, 656–664. [Google Scholar] [CrossRef]
  274. Vander Kooi, C.W.; Jusino, M.A.; Perman, B.; Neau, D.B.; Bellamy, H.D.; Leahy, D.J. Structural basis for ligand and heparin binding to neuropilin B domains. Proc. Natl. Acad. Sci. USA 2007, 104, 6152–6157. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  275. Jia, H.; Bagherzadeh, A.; Hartzoulakis, B.; Jarvis, A.; Löhr, M.; Shaikh, S.; Aqil, R.; Cheng, L.; Tickner, M.; Esposito, D.; et al. Characterization of a bicyclic peptide neuropilin-1 (NP-1) antagonist (EG3287) reveals importance of vascular endothelial growth factor exon 8 for NP-1 binding and role of NP-1 in KDR signaling. J. Biol. Chem. 2006, 281, 13493–13502. [Google Scholar] [CrossRef] [Green Version]
  276. Starzec, A.; Ladam, P.; Vassy, R.; Badache, S.; Bouchemal, N.; Navaza, A.; du Penhoat, C.H.; Perret, G.Y. Structure–function analysis of the antiangiogenic ATWLPPR peptide inhibiting VEGF165 binding to neuropilin-1 and molecular dynamics simulations of the ATWLPPR/neuropilin-1 complex. Peptides 2007, 28, 2397–2402. [Google Scholar] [CrossRef] [PubMed]
  277. Teesalu, T.; Sugahara, K.N.; Ruoslahti, E. Tumor-penetrating peptides. Front. Oncol. 2013, 3, 216. [Google Scholar] [CrossRef] [Green Version]
  278. Perret, G.Y.; Starzec, A.; Hauet, N.; Vergote, J.; Le Pecheur, M.; Vassy, R.; Léger, G.; Verbeke, K.A.; Bormans, G.; Nicolas, P.; et al. In vitro evaluation and biodistribution of a 99mTc-labeled anti-VEGF peptide targeting neuropilin-1. Nucl. Med. Biol. 2004, 31, 575–581. [Google Scholar] [CrossRef]
  279. Lan, X.L.; Gao, Z.R.; Sun, L. An experimental study on radionuclide imaging with radiolabeled blood vessel polypeptide in diagnosis for malignant tumor. J. Oncol. 2008, 14, 627–630. [Google Scholar]
  280. Wu, H.; Chen, H.; Pan, D.; Ma, Y.; Liang, S.; Wan, Y.; Fang, Y. Imaging integrin α v β 3 and NRP-1 positive gliomas with a novel fluorine-18 labeled RGD-ATWLPPR heterodimeric peptide probe. Mol. Imaging Biol. 2014, 16, 781–792. [Google Scholar] [CrossRef]
  281. Liang, S.; Ma, Y.; Guo, J.; Guo, R.; Wang, H. 18 F-radiolabeled analogs of peptide RGD-A7R for simultaneous PET imaging of both αvβ3 and VEGF in tumors. J. Radioanal. Nucl. Chem. 2015, 303, 1891–1896. [Google Scholar] [CrossRef]
  282. Ma, Y.; Liang, S.; Guo, J.; Guo, R.; Wang, H. 18F labeled RGD-A7R peptide for dual integrin and VEGF-targeted tumor imaging in mice bearing U87MG tumors. J. Label. Compd. Radio Pharm. 2014, 57, 627–631. [Google Scholar] [CrossRef]
  283. Ma, Y.; Liang, S.; Guo, J.; Wang, H. 18 F-radiolabeled RGD-A7R-conjugated nano-particles for integrin and VEGF-targeted tumor imaging. J. Radioanal. Nucl. Chem. 2016, 308, 741–746. [Google Scholar] [CrossRef]
  284. Alberici, L.; Roth, L.; Sugahara, K.N.; Agemy, L.; Kotamraju, V.R.; Teesalu, T.; Bordignon, C.; Traversari, C.; Rizzardi, G.P.; Ruoslahti, E. De novo design of a tumor-penetrating peptide. Cancer Res. 2013, 73, 804–812. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  285. Zhao, M.; Yang, W.; Zhang, M.; Li, G.; Wang, S.; Wang, Z.; Ma, X.; Kang, F.; Wang, J. Evaluation of 68 Ga-labeled iNGR peptide with tumor-penetrating motif for microPET imaging of CD13-positive tumor xenografts. Tumor Biol. 2016, 37, 12123–12131. [Google Scholar] [CrossRef] [PubMed]
  286. Ye, Y.; Zhu, L.; Ma, Y.; Niu, G.; Chen, X. Synthesis and evaluation of new iRGD peptide analogs for tumor optical imaging. Bioorg. Med. Chem. Lett. 2011, 21, 1146–1150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  287. Satpati, D.; Vats, K.; Sharma, R.; Sarma, H.D.; Dash, A. 68Ga-labeling of internalizing RGD (iRGD) peptide functionalized with DOTAGA and NODAGA chelators. J. Pept. Sci. 2020, 26, e3241. [Google Scholar] [CrossRef] [PubMed]
  288. Carlsen, J.; Gildehaus, F.J.; Pfeiffer, S.; Oos, R.; Haubner, R.; Bormann-Giglmaier, K.; Schumacher, G.; Bartenstein, P. iRGD peptides labelled with 68-Ga as diagnostic tracers for human cancers using μPET and for future therapy labelled with 177-Lu. J. Nucl. Med. 2013, 54 (Suppl. 2), 1327. [Google Scholar]
  289. Zhao, M.; Kang, F.; Zhang, M.; Wang, S.; Yang, W.; Wang, J. Evaluation of 68Ga-labeled iNGR peptide with tumor penetrating motif for microPET imaging of CD13-positive tumor xenografts. J. Nucl. Med. 2015, 56 (Suppl. 3), 1157. [Google Scholar] [CrossRef]
  290. Adhikari, A.; Tiwari, A.K.; Shukla, A.; Mishra, A.K.; Datta, A. Synthesis and Preclinical Evaluation of Radioligand, 99mTc-DO3A-Et-RPAR for Imaging NRP-1 Specific Tumor. ChemistrySelect 2019, 4, 12950–12954. [Google Scholar] [CrossRef]
  291. Dong, P.; Cai, H.; Chen, L.; Li, Y.; Yuan, C.; Wu, X.; Shen, G.; Zhou, H.; Zhang, W.; Li, L. Biodistribution and evaluation of 131I-labeled neuropilin-binding peptide for targeted tumor imaging. Contrast Media Mol. Imaging 2016, 11, 467–474. [Google Scholar] [CrossRef]
  292. Simón-Gracia, L.; Scodeller, P.; Fuentes, S.S.; Vallejo, V.G.; Ríos, X.; San Sebastián, E.; Sidorenko, V.; Di Silvo, D.; Suck, M.; De Lorenzi, F.; et al. Application of polymersomes engineered to target p32 protein for detection of small breast tumors in mice. Oncotarget 2018, 9, 18682. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  293. Feng, G.K.; Liu, R.B.; Zhang, M.Q.; Ye, X.X.; Zhong, Q.; Xia, Y.F.; Li, M.Z.; Wang, J.; Song, E.W.; Zhang, X.; et al. SPECT and near-infrared fluorescence imaging of breast cancer with a neuropilin-1-targeting peptide. J. Control. Release 2014, 192, 236–242. [Google Scholar] [CrossRef] [PubMed]
  294. Li, X.; Luo, F.; Wang, S.; Ni, E.; Tang, X.; Lv, H.; Chen, X.; Chen, L.; Yan, J. Monoclonal antibody against NRP-1 b1b2. Hybridoma 2011, 30, 369–373. [Google Scholar] [CrossRef]
  295. Chen, L.; Miao, W.; Tang, X.; Zhang, H.; Wang, S.; Luo, F.; Yan, J. Inhibitory effect of neuropilin-1 monoclonal antibody (NRP-1 MAb) on glioma tumor in mice. J. Biomed. Nanotechnol. 2013, 9, 551–558. [Google Scholar] [CrossRef] [PubMed]
  296. Zeng, F.; Luo, F.; Lv, S.; Zhang, H.; Cao, C.; Chen, X.; Wang, S.; Li, Z.; Wang, X.; Dou, X.; et al. A monoclonal antibody targeting neuropilin-1 inhibits adhesion of MCF7 breast cancer cells to fibronectin by suppressing the FAK/p130cas signaling pathway. Anticancer Drugs 2014, 25, 663–672. [Google Scholar] [CrossRef] [PubMed]
  297. Dou, X.; Yan, J.; Zhang, Y.; Liu, P.; Jiang, Y.; Lv, S.; Zeng, F.; Chen, X.; Wang, S.; Zhang, H.; et al. SPECT imaging of neuropilin receptor type-1 expression with 131I-labeled monoclonal antibody. Int. J. Oncol. 2016, 49, 961–970. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  298. Bumbaca, D.; Xiang, H.; Boswell, C.A.; Port, R.E.; Stainton, S.L.; Mundo, E.E.; Ulufatu, S.; Bagri, A.; Theil, F.P.; Fielder, P.J.; et al. Maximizing tumour exposure to anti-neuropilin-1 antibody requires saturation of non-tumour tissue antigenic sinks in mice. Br. J. Pharmacol. 2012, 166, 368–377. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  299. ClinicalTrials.gov Identifier: NCT01859234. Available online: clinicaltrials.gov/ct2/show/NCT01859234 (accessed on 22 October 2020).
  300. ClinicalTrials.gov Identifier: NCT01894451. Available online: clinicaltrials.gov/ct2/show/NCT01894451 (accessed on 22 October 2020).
  301. Ferrara, N.; Kerbel, R.S. Angiogenesis as a therapeutic target. Nature 2005, 438, 967–974. [Google Scholar] [CrossRef]
Figure 1. Scheme of expression of VEGF receptors and specificity of VEGF ligands. VEGF receptors occurs mainly as the homodimer transmembrane receptor tyrosine kinases, known as VEGFR-1, VEGFR-2 and VEGFR-3, or in soluble forms defined as sVEGFR-1 or sVEGFR-2. Moreover, surface receptors can create mixed heterodimers or even dimerise with soluble forms. VEGFR-1 expression occurs on vascular endothelium as well as haematopoietic stem cells, macrophages and monocytes. Expression on VEGFR-2 occurs mainly on vascular endothelium, less often on lymphatic endothelium, as well as on the surface of haematopoietic stem cells. The third receptor is mosty expressed on lymphatic endothelium. Conjugation of soluble form with transmembrane receptor preclude VEGF-driven signaling inside the cell. The mammalian VEGF glycoproteins, VEGF-A, VEGF-B, VEGF-C, VEGF-D and PlGF, are expressed as dimers that create different interations with specific VEGFRs, which is indicated by the dashed arrows. Representative VEGF-A glycoprotein binds to VEGFR-1 and VEGFR-2 with significantly higher affinity towards the first receptor. Concomitantly, VEGFR-1 is a specific molecular target for VEGF-B and PlGF, while VEGF-C and VEGF-D selectively bind to VEGFR-3; however, after proteolytic maturation, both VEGF-C and VEGF-D can also bind to VEGFR-2.
Figure 1. Scheme of expression of VEGF receptors and specificity of VEGF ligands. VEGF receptors occurs mainly as the homodimer transmembrane receptor tyrosine kinases, known as VEGFR-1, VEGFR-2 and VEGFR-3, or in soluble forms defined as sVEGFR-1 or sVEGFR-2. Moreover, surface receptors can create mixed heterodimers or even dimerise with soluble forms. VEGFR-1 expression occurs on vascular endothelium as well as haematopoietic stem cells, macrophages and monocytes. Expression on VEGFR-2 occurs mainly on vascular endothelium, less often on lymphatic endothelium, as well as on the surface of haematopoietic stem cells. The third receptor is mosty expressed on lymphatic endothelium. Conjugation of soluble form with transmembrane receptor preclude VEGF-driven signaling inside the cell. The mammalian VEGF glycoproteins, VEGF-A, VEGF-B, VEGF-C, VEGF-D and PlGF, are expressed as dimers that create different interations with specific VEGFRs, which is indicated by the dashed arrows. Representative VEGF-A glycoprotein binds to VEGFR-1 and VEGFR-2 with significantly higher affinity towards the first receptor. Concomitantly, VEGFR-1 is a specific molecular target for VEGF-B and PlGF, while VEGF-C and VEGF-D selectively bind to VEGFR-3; however, after proteolytic maturation, both VEGF-C and VEGF-D can also bind to VEGFR-2.
Cancers 13 01072 g001
Figure 2. Scheme of endothelial signal transduction of VEGF-VEGFR-2 ligand-receptor molecular complex. The autophosphorylation of receptor tyrosine kinase domains caused by VEGF binding stimulates multiple specific VEGFR-associated proteins (VRAPs) and adaptor molecules inducing concurrent intracellular signalling pathways that promotes proliferation, differentiation, migration, gene expression and apoptosis survival of endothelium leading to angiogenesis.
Figure 2. Scheme of endothelial signal transduction of VEGF-VEGFR-2 ligand-receptor molecular complex. The autophosphorylation of receptor tyrosine kinase domains caused by VEGF binding stimulates multiple specific VEGFR-associated proteins (VRAPs) and adaptor molecules inducing concurrent intracellular signalling pathways that promotes proliferation, differentiation, migration, gene expression and apoptosis survival of endothelium leading to angiogenesis.
Cancers 13 01072 g002
Figure 3. Sunitinib-based VEGFR imaging agents; (A): [18F]5-F-sunitinib [255]; (B): [125I]5-I-sunitinib [254]; (C): [methoxy-11C]5-methoxy-sunitinib [256,257]; (D): [18F]3-(4′-fluorobenzylidene)indolin-2-one [258].
Figure 3. Sunitinib-based VEGFR imaging agents; (A): [18F]5-F-sunitinib [255]; (B): [125I]5-I-sunitinib [254]; (C): [methoxy-11C]5-methoxy-sunitinib [256,257]; (D): [18F]3-(4′-fluorobenzylidene)indolin-2-one [258].
Cancers 13 01072 g003
Figure 4. Sorafenib-based and diaryl urea-based VEGFR imaging agents; (A): [carbamate-11C]-sorafenib [261,262]; (B): [N-methyl-11C]-sorafenib [262]; (C): [18F]F-diaryl urea [263]; (D): [carbamate-11C]-diaryl urea [264].
Figure 4. Sorafenib-based and diaryl urea-based VEGFR imaging agents; (A): [carbamate-11C]-sorafenib [261,262]; (B): [N-methyl-11C]-sorafenib [262]; (C): [18F]F-diaryl urea [263]; (D): [carbamate-11C]-diaryl urea [264].
Cancers 13 01072 g004
Figure 5. Vandetanib-based VEGFR imaging agents; (A): [N-methyl-11C]-PAQ [43]; (B): [N-methyl-11C]vandetanib [266]; (C): [N-methyl-11C]chloro-vandetanib [266]; (D): [O-methyl-11C]vandetanib [266]; (E): [O-methyl-11C]chloro-vandetanib [266].
Figure 5. Vandetanib-based VEGFR imaging agents; (A): [N-methyl-11C]-PAQ [43]; (B): [N-methyl-11C]vandetanib [266]; (C): [N-methyl-11C]chloro-vandetanib [266]; (D): [O-methyl-11C]vandetanib [266]; (E): [O-methyl-11C]chloro-vandetanib [266].
Cancers 13 01072 g005
Figure 6. Brivanib-based and diaryl maleimide-based VEGFR imaging agents; (A): [18F]F-brivanib [267]; (B): [methoxy-11C-](trimethoxy-phenyl)-indolyl-maleimide [268].
Figure 6. Brivanib-based and diaryl maleimide-based VEGFR imaging agents; (A): [18F]F-brivanib [267]; (B): [methoxy-11C-](trimethoxy-phenyl)-indolyl-maleimide [268].
Cancers 13 01072 g006
Figure 7. AAL 993-based VEGFR imaging agents; (A): [125I]m-I-NPAE [269]; (B): [125I]p-I-NPAE [269]; (C): [125I]m-I-NPAM [269]; (D): [125I]p-I-NPAM [269].
Figure 7. AAL 993-based VEGFR imaging agents; (A): [125I]m-I-NPAE [269]; (B): [125I]p-I-NPAE [269]; (C): [125I]m-I-NPAM [269]; (D): [125I]p-I-NPAM [269].
Cancers 13 01072 g007
Figure 8. Mechanism of TPP multistep binding and tumour penetration on the example of iRGD peptide.
Figure 8. Mechanism of TPP multistep binding and tumour penetration on the example of iRGD peptide.
Cancers 13 01072 g008
Table 1. Radiolabelled VEGF ligands and their derivatives.
Table 1. Radiolabelled VEGF ligands and their derivatives.
RadiocompoundAim of StudyReferences
[125I]I-VEGFidentification and characterisation of VEGFR[144]
[125I]I-VEGF-A121investigation of the heparin effect on binding of VEGF-A121/165 to VEGFRs; study of the induction of VEGFR-2 tyrosine autophosphorylation by VEGF-A[146,149]
[125I]I-VEGF-A165investigation of the heparin effect on VEGF-A121/165 binding to VEGFRs; localisation of VEGFR and quantification of VEGF binding in human kidney; study of VEGF binding to neuropilin-1; study of renal expression of VEGF and VEGFR-2 in experimental diabetes; study on induction of VEGFR-2 tyrosine autophosphorylation by VEGF-A; identification of VEGFR binding sites for VEGF-A165 [91,145,146,147,148,149]
[111In]In-DTPA-VEGF-A121detection of ischemia related with VEGFRs [157]
[64Cu]Cu-DOTA-VEGF-A121examination of VEGFR expression on different sized human glioblastoma U87MG tumours, in rats myocardial infractions, post-stroke angiogenesis and ischemia; development of VEGFR-2-specific tracer with low renal toxicity[132,133,150,151,152,153]
[64Cu]Cu-DOTA-VEGFmutant
[64Cu]Cu-DOTA-VEGFDEE
[68Ga]Ga-NOTA-VEGF-A121examination of VEGFR overexpression in U87MG tumour xenograft models [154,155]
[68Ga]Ga-NODAGA-VEGF-A121
[123I]I/[125I]I-VEGF-A121examination of VEGFR overexpression on various types of human and cancer cells; examination of angiogenesis in LS180 tumour xenograft model[141,156]
[123I]I/[125I]I-VEGF-A165
[99mTc]Tc-HuS/Hu-VEGFexamination of VEGFR-2 overexpression in subcutaneous and pulmonary adenocarcinoma tumours [169]
[99mTc]Tc-HYNIC-C-tagged-VEGFimaging of tumour vasculature during cyclophosphamide treatment[159]
[99mTc]Tc-HYNIC-scVEGFmultimodal imaging of VEGFRs; description of site-specific protein modification and labelling; identification of accelerated atherosclerosis in diabetes via VEGFRs imaging [134,142,160]
[64Cu]Cu-DOTA-PEG-scVEGF
[99mTc]Tc-scVEGF-PEG-DOTA
[64Cu]Cu-DOTA-QD-VEGFdual-modality optical and PET imaging of VEGFR overexpression on U87MG tumour model [170,171]
[64Cu]Cu-DOTA-(AF)-SAv/biotin-PEG-VEGF-A121
[99mTc]Tc-scVEGFusefulness of direct labelled VEGF-radiocompound; imaging of VEGFR expression changes in breast cancer xenografts under sunitinib treatment and HT29 xenografts during pazopanib treatment[139,161,162,163]
[68Ga]Ga-HBED-CC-PEG-scVEGFimaging of VEGFRs in different human xenografts in mice [164,165]
[68Ga]Ga-NOTA/DOTA-PEG-scVEGF
[18F]FBEM-scVEGFVEGFRs imaging on mouse models with xenografts of various tumour cell lines [140]
[89Zr]Zr-DFO-PEG-scVR1independent imaging of VEGFR-1 and VEGFR-2 on breast cancer on 4T1luc mice model[166]
[89Zr]Zr-DFO-PEG-scVR2
[99mTc]Tc-scVR1-PEG-DOTAselective imaging of VEGFR-1 and VEGFR-2 in atherosclerotic lesions on diabetic and non-diabetic mice[167]
[99mTc]Tc-scVR2-PEG-DOTA
[61Cu]Cu-NOTA-K3-VEGF-A121PET/CT imaging of VEGFR expression on 4T1 tumour-bearing mice[168]
[177Lu]Lu-DOTA-PEG-scVEGFsynthesis and study of therapeutic radiocompound for targeted systemic radiotherapy on MDA231luc tumour-bearing mice; investigation on effectiveness of combinational therapy with doxorubicin[136,137]
[64Cu]Cu-DOTA-VEGF-A121/rGeldetermination of anti-angiogenic and anti-tumour effects of a vasculature-targeting fusion toxin on orthotopic glioblastoma mice model by multimodal imaging[172]
[123I]I/[125I]I-VEGF-A165 examination of tumour localisation in patients with gastrointestinal tumours; evaluation of tumour therapy efficiency on athymic mice models; imaging of highly malignant VEGFR-positive osteosarcoma; investigation of prognostic value of imaging in patients with histologically verified brain tumours[143,177,178,179,180]
[99mTc]Tc-HYNIC-VEGF-A165evaluation of VEGFR overexpressions on various xenograft tumours in mice[181]
[111In]In-hnTf-VEGF-A165imaging of athymic mice bearing U87MG human glioblastoma xenografts by new human-transferin recombinant protein[182]
[99mTc]Tc/[111In]In-DTPA-VEGF-2Ksynthesis of new recombinant proteins and comparison their cytotoxicity on overexpressing VEGFR-1 PAE cells [183]
[99mTc]Tc/[111In]In-DTPA-VEGF-2K-NLS
[188Re]Re-MAG3-QKRKRKKSRYKSevaluation of in vivo distribution and tumour imaging in two groups of human ovarian tumour-bearing mice[184]
[99mTc]Tc-HYNIC-QKRKRKKSRKKHsynthesis and study of novel small peptides as potential drugs for radioactive diagnosis and therapy in A549 tumour-bearing mice[138]
[99mTc]Tc-HYNIC-RKRKRKKSRYIVLS
[188Re]Re-EC-QKRKRKKSRKKH
[188Re]Re-EC-RKRKRKKSRYIVLS
Table 2. Radiolabelled anti-VEGF and anti-VEGFR antibodies.
Table 2. Radiolabelled anti-VEGF and anti-VEGFR antibodies.
RadiocompoundAim of StudyReferences
[124I]I-HuMV833antibody distribution study in patients treated with HuMV833 [188]
[125I]I-VG76eVEGFs level imaging in human fibrosarcoma;
patient classification for AAT
[193]
[125I]SIB-VG76e
[125I]I-SHPP-VG76e
[124I]I-SHPP-VG76e
[99mTc]Tc-VG76edetection and inhibition of human breast adenocarcinoma [194]
[153Sm]Sm-DTPA-VG76e
[177Lu]Lu-DTPA-VG76e
[177Lu]Lu-DOTA-VG76esynthesis and evaluation of novel potential therapeutic anti-angiogenic radioagents[195]
[177Lu]Lu-DTPA-VG76e
[125I]MBs-I-Bt-Avas12a1studies of biological aspects of angiogenesis[196]
[18F]MBs-SFB-Avas12a1VEGFR overexpression and tumour angiogenesis imaging[197]
[99mTc]Tc-HYNIC-chtiosan-Cy5.5-DC101ischemia monitoring of umbilical vein endothelial cells studied on mice with surgically induced ischemia[198]
[64Cu]Cu-NOTA-BVimaging of VEGF overexpressing renal carcinoma; monitoring of tumour response to cancer everolimus treatment[200]
[111In]In-DTPA-BVassessment of new radiotracers‘ application as markers for non-invasive VEGF imaging in tumour microenvironment [205]
[89Zr]Zr-N-suc-Df-BV
[111In]In-DTPA-BVresearch on correlation between radiotracer tumour uptake and level of VEGF-A expression, studied on colon cancer metastases
to liver and melanoma lesions treated with BV
[206,207]
[111In]In-DTPA-BVvisualisation of VEGF-A for prediction of chemotherapy response and patient classification for anti-VEGF AAT[208]
[125I]I-BV
[111In]In-DTPA-BVimaging of different VEGF isoforms expression[209]
study of radiotracer tumour uptake during sorafenib treatment regading to VEGF expression [199]
[111In]In-CHX-A″-DTPA-BVscintigraphic imaging of VEGF expression;
patient stratification for anti-VEGF AAT
[210]
[86Y]Y-CHX-A″-DTPA-BVapplication for non-invasive assessment of VEGF-A tumour angiogenesis status; possibility of application as a marker in radioimmunotherapy conducted with the use of therapeutic radioconjugate [90Y]Y-CHX-A″-DTPA-BV[211]
[177Lu]Lu-CHX-A″-DTPA-BVapplication as therapeutic agent for anti-VEGF AAT[213]
[111In]In-DTPA-BVVEGF expression imaging and radiotracer application for assessment of response to rapamycin renal and breast cancer treatment [214]
[111In]In-DTPA-Bt-BVapplication of avidin chase strategy for [90Y]Y-DTPA-Bt-BV therapy [215]
[90Y]Y-DTPA-Bt-BV
[89Zr]Zr-N-suc-Df-BVin vivo non-invasive visualisation of early changes in VEGF levels during treatment with synthetic inhibitor NVPAUY922[216]
application as an early biomarker of everolimus AAT [217,218,219]
VEGF expression imaging in primary breast cancer and non-small cell lung cancer; study on correlation between radiotracer uptake and of VEGF-A level[220,221]
VEGF-A expression imaging before and during AAT with BV/IFNα and sunitinib[222,223,224]
[99mTc]Tc-HYNIC-BVscintigraphic imaging of VEGF levels in tumour [225,226,227]
[99mTc]Tc(CO)3-BV
[99mTc]Tc-DTPA-BVevaluation of VEGF binding and application in radioimmunoscintigraphy of various cancers[228]
[89Zr]Zr-N-suc-Df-BV/cetuximab-800CWearly photo- and radio-detection of small, established tumours which cannot be identified by current radiological and nuclear techniques[229,230]
[89Zr]Zr-N-suc-Df-BV/cetuximab
[89Zr]Zr-N-suc-Df-BVstudy on VEGFR expression in adult and childhood HGG, including DIPG tumours; identification of heterogeneity of pontine glioma lesions smaller than a centimeter; stratification patients for BV treatment[231,232,233]
[131I]I-BVtumour-targeting evaluation for cancer imaging and treatment[234]
targeting VEGF overexpressing cancers therapy; evaluation of application as potential diagnostic and radioimmunotherapeutic agent[235]
[124I]I-Ranapplication in age-related macular degeneration treatment[236,237,238]
[124I]I-BV
[64Cu]Cu-DOTA-BVstudy on correlation between VEGF expression and tumour uptake of radiotracer; evaluation of possibility for patient stratification for
AAT
[239]
[64Cu]Cu-NOTA-BV-800CWVEGF imaging in human glioblastoma; application in disease diagnosis, patient stratification and treatment monitoring [240]
[64Cu]Cu-NOTA-RamAbVEGFR-2 binding studies of radiopreparation [243]
[89Zr]Zr-N-suc-Df-Ramradiotracer application for AAT monitoring and patient stratification for AAT[245]
[99mTc]Tc-Ramevaluation of affinity to VEGFR-2 receptor [246]
[99mTc]Tc-HYNIC-Ram
[99mTc]Tc-DTPA-Ram
[89Zr]Zr-N-suc-Df-Rannon-invasive dynamic visualisation and quantification of VEGF signaling; radiotracer application for AAT monitoring[247]
Table 3. Radiolabelled peptide-like structure ligands used as radiotracers for VEGF/VEGFR system imaging.
Table 3. Radiolabelled peptide-like structure ligands used as radiotracers for VEGF/VEGFR system imaging.
RadiocompoundAim of StudyReferences
[124I]I-afliberceptexamination of pharmacokinetic properties of intravitreally applied [124I]I-aflibercept in the vitreous cavity[238]
[64Cu]Cu-DOTA-GU40C4evaluation of diagnostic and therapeutic abilities on VEGFR-2 positive prostate cancer [249,250]
[131I]I-Tyr-RRLangiogenesis imaging in tumour AAT[44]
[99mTc]Tc-peptide1application of retro-inverso peptidomimetic derivatives for synthesis of radiotracers with high affinity towards VEGFR-1 and NRP-1[251,252]
[99mTc]Tc-peptide2
([99mTc]Tc-HYNIC-retro-inverso peptidomimetic)
Table 4. Radiolabelled small molecular inhibitors of VEGFR tyrosine kinase.
Table 4. Radiolabelled small molecular inhibitors of VEGFR tyrosine kinase.
RadiocompoundAim of StudyReferences
[125I]5-I-sunitinibimaging of VEGFR expressing tumours and angiogenic processes[254]
[18F]5-F-sunitinibRTKs in vivo imaging[255]
[99mTc]Tc-sunitinibpotential radiopharmaceutical for tumour hypoxia imaging[259]
[methoxy-11C]5-methoxy-sunitinibRTKs in vivo imaging and evaluation of AAT efficiency[256,257]
[18F]3-[4′-fluorobenzylidene]indolin-2-oneRTKs in vivo imaging[258]
[18F]sorafenibimaging of increased expression of VEGFRs[260]
[124I]I-sorafenib
[carbamate-11C]-sorafenibVEGFR expressing tumours in vivo imaging[261,262]
[carbamate-11C]-sorafenib
[N-methyl-11C]-sorafenib
[18F]F-diaryl ureaVEGFR-positive tumours in vivo imaging in AAT[263]
[carbamate-11C]-diaryl urea[264]
[N-methyl-11C]-PAQimaging of VEGFR-2 expression fluctuations and angiogenesis[43]
[N-methyl-11C]vandetanibVEGFR imaging and monitoring of effectiveness of vandetanib orchloro-vandetanib therapy[266]
[N-methyl-11C]chloro-vandetanib [O-methyl-11C]vandetanib
[O-methyl-11C]chloro-vandetanib
[18F]F-brivanibVEGFR in vivo imaging and angiogenic processes visualisation[267]
[methoxy-11C-](trimethoxy-phenyl)-indolyl-maleimideVEGFR in vivo imaging and visualisation of angiogenic processes[268]
[125I]m-I-NPAEVEGFR in vivo imaging in AAT[269]
[125I]p-I-NPAE
[125I]m-I-NPAM
[125I]p-I-NPAM
[111In]In-NODAGA-ZVEGFR2-Bp2VEGFR-2 expression imaging and visualisation of tumour angiogenesis in GBM[270]
Table 5. NRP-1 targeting radiotracers.
Table 5. NRP-1 targeting radiotracers.
RadiocompoundAim of StudyReferences
[99mTc]Tc-MA-A7Rdetermination of peptide binding to NRP-1 and NRP-2[278]
[99mTc]Tc-HYNIC-A7Rimaging of NRP-1 positive tumours[279]
[18F]F-Al-NOTA-RGD-A7Rinvestigation of diagnostic ability on dual αvβ3 and NRP-1 positive glioblastoma tumours[280,281,282,283]
[18F]F-Al-NOTA-A7R
[18F]-benzoate-RGD-A7R
[18F]F-n-BSA-RGD-A7R
[68Ga]Ga-DOTAGA-Ahx-iRGDinvestigation of diagnostic ability on dual αvβ3 and NRP-1 positive tumours[287,288]
[68Ga]Ga-NODAGA-Ahx-iRGD
68Ga labelled iRGD
[68Ga]Ga-NOTA/DOTA-NGR
[68Ga]Ga-NOTA/DOTA-iNGR
comparison of diagnostic abilities on CD13-positive tumour xenografts[285,289]
99mTc and RPAR derivative complexinvestigation of diagnostic ability on different NRP-1 positive tumours[290]
[131I]I-Tyr-tLyp-1[291]
99mTc labelled CK3[293]
[124I]I-Tyr-LinTT1-PSinvestigation of diagnostic ability of polymersomes conjugated with LinTT1 peptide on triple negative breast cancer[292]
[131I]I-A6-11-26investigation of delivery ability on NRP-1 positive tumours[297]
[111In]In-DOTA-MNRP1685A[298]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Masłowska, K.; Halik, P.K.; Tymecka, D.; Misicka, A.; Gniazdowska, E. The Role of VEGF Receptors as Molecular Target in Nuclear Medicine for Cancer Diagnosis and Combination Therapy. Cancers 2021, 13, 1072. https://doi.org/10.3390/cancers13051072

AMA Style

Masłowska K, Halik PK, Tymecka D, Misicka A, Gniazdowska E. The Role of VEGF Receptors as Molecular Target in Nuclear Medicine for Cancer Diagnosis and Combination Therapy. Cancers. 2021; 13(5):1072. https://doi.org/10.3390/cancers13051072

Chicago/Turabian Style

Masłowska, Katarzyna, Paweł Krzysztof Halik, Dagmara Tymecka, Aleksandra Misicka, and Ewa Gniazdowska. 2021. "The Role of VEGF Receptors as Molecular Target in Nuclear Medicine for Cancer Diagnosis and Combination Therapy" Cancers 13, no. 5: 1072. https://doi.org/10.3390/cancers13051072

APA Style

Masłowska, K., Halik, P. K., Tymecka, D., Misicka, A., & Gniazdowska, E. (2021). The Role of VEGF Receptors as Molecular Target in Nuclear Medicine for Cancer Diagnosis and Combination Therapy. Cancers, 13(5), 1072. https://doi.org/10.3390/cancers13051072

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
