Simulation and Optimization of the CWPO Process by Combination of Aspen Plus and 6-Factor Doehlert Matrix: Towards Autothermal Operation

Diaz de Tuesta, Jose L.; Quintanilla, Asunción; Moreno, Daniel; Ferro, Víctor R.; Casas, Jose A.

doi:10.3390/catal10050548

Open AccessFeature PaperEditor’s ChoiceArticle

Simulation and Optimization of the CWPO Process by Combination of Aspen Plus and 6-Factor Doehlert Matrix: Towards Autothermal Operation

by

Jose L. Diaz de Tuesta

¹

,

Asunción Quintanilla

^2,*,

Daniel Moreno

²,

Víctor R. Ferro

²

and

Jose A. Casas

²

¹

Mountain Research Center (CIMO), Polytechnic Institute of Bragança, Campus de Santa Apolónia, 5300 253 Bragança, Portugal

²

Chemical Engineering Department, Faculty of Science, Autonomous University of Madrid, Cantoblanco, Ctra. de Colmenar km 15, 28049 Madrid, Spain

^*

Author to whom correspondence should be addressed.

Catalysts 2020, 10(5), 548; https://doi.org/10.3390/catal10050548

Submission received: 1 May 2020 / Revised: 12 May 2020 / Accepted: 13 May 2020 / Published: 15 May 2020

(This article belongs to the Special Issue Advances in Catalytic Wet Peroxide Oxidation)

Download

Browse Figures

Versions Notes

Abstract

:

This work aims to present an industrial perspective on Catalytic Wet Peroxide Oxidation (CWPO) technology. Herein, process simulation and experimental design have been coupled to study the optimal process conditions to ensure high-performance oxidation, minimum H₂O₂ consumption and maximum energetic efficiency in an industrial scale CWPO unit. The CWPO of phenol in the presence of carbon black catalysts was studied as a model process in the Aspen Plus^® v11 simulator. The kinetic model implemented, based on 30 kinetic equations with 11 organic compounds and H₂O₂ involvement, was valid to describe the complex reaction network and to reproduce the experimental results. The computer experiments were designed on a six-factor Doehlert Matrix in order to describe the influence of the operating conditions (i.e., the different process temperatures, inlet chemical oxygen demands, doses of H₂O₂ and space time) on each selected output response (conversion, efficiency of H₂O₂ consumption and energetic efficiency) by a quadratic model. The optimization of the WPO performance by a multi-criteria function highlighted the inlet chemical oxygen demand as the most influential operating condition. It needed to have values between 9.5 and 24 g L⁻¹ for autothermal operation to be sustained under mild operating conditions (reaction temperature: 93–130 °C and pressure: 1–4 atm) and with a stoichiometric dose of H₂O₂.

Keywords:

catalytic wet peroxide oxidation; carbon catalyst; ASPEN plus; simulation and optimization; design of experiments; energetic efficiency; heat integration; surface response methodology

Graphical Abstract

1. Introduction

Advanced oxidation processes (AOPs) are technologies that involve the generation of hydroxyl radicals in sufficient quantities to mineralize recalcitrant pollutants to carbon dioxide, water and inorganics or, at least, to transform them into harmless products. Wastewater with relative low chemical oxygen demand (COD < 5 g L⁻¹) is suitably treated under near ambient conditions by different types of oxidant i.e., H₂O₂, O₂ and O₃. In addition, these processes can be photo and electro assisted. The treatment of highly loaded wastewater (COD > 20 g L⁻¹) requires the employment of thermal technologies, namely wet air oxidation (WAO) or catalytic wet air oxidation (CWAO), that operate under high temperatures (T) and pressures (P), 130–300 °C and 5–200 atm, respectively [1]. The selection of each technology depends on many factors, such as the technical effectiveness using real streams, the manageability and applicability to the specific operations and the cost, among others [2,3,4]. For medium-high concentrations of COD (5–20 g L⁻¹), the combination of processes is proposed to provide technical solutions for each specific wastewater, but it entails a consequent increase in the cost of the treatment.

Alternatively, catalytic wet peroxide oxidation (CWPO) is a technology, developed at the end of the nineteen nineties [5], that has also shown great potential for the removal of recalcitrant organic compounds contained at medium-high concentrations of COD [4,6,7,8,9]. This process requires a solid catalyst with redox properties to decompose H₂O₂ into hydroxyl and hydroperoxyl radicals under mild conditions (T = 50–100 °C and P = 1−5 atm). In comparison to CWAO, the CWPO units require less capital injection, because the operating conditions make it unnecessary to use special reactors and materials, though it generates higher running costs due to the consumption of H₂O₂ instead of O₂ [6]. Additionally, CWPO units are intrinsically safer, the formation of foams and odors is much lower than for CWAO, it could be a technology movable from site to site and it does not require highly specialized personal [4]. These reasons have incentivized the research and development of this technology.

CWPO research studies published in the past 20 years have conscientiously focused on searching for stable and efficient solid catalysts such as iron or/and carbon based catalysts [10,11,12,13] and the proposal of kinetic models to envisage a reaction mechanism. The conformation of catalysts in suitable morphologies (spheres, pellets or trefoils) has allowed operation in continuous mode in fixed bed reactors [14,15,16,17,18,19], and hence, the study of the durability of the catalysts exposed to long-term operation and the influence of the operating conditions on the oxidation performance. Furthermore, CWPO was studied in a pilot scale process [20]. The recent development of structured catalysts/reactors using monolith [21,22,23] or structured cellular foams [24,25] has circumvented the barrier to scaling up. Besides, a variety of agro-food effluents i.e., from coffee [26], olive oil mills [27,28,29] and wineries [30], and industrial effluents, i.e., from textile [31], pharmaceutical [32], cosmetic [33] and chemical production [34,35,36], have been suitable treated by this technology. More recently, it has also been demonstrated to be a feasible technique to reduce the impact of residual contaminants, such as persistent endocrine-disrupting chemicals [36], present in very low concentrations in urban wastewater, or antibiotics and other pharmaceuticals in sanitary wastewater [37,38,39].

Despite the potential offered by CWPO, which can be exploited to treat industrial and domestic wastewater before or after a biological treatment within a wide range of pollutant loads [4,36] with a simple installation, since conventional atmospheric pressure reactors may be used, there are no commercial CWPO processes with solid catalysts. This work serves to help translate CWPO research into an industrial reality.

The novelty of this work lies in the analysis of the industrial operation of the CWPO technology by using a simulator, ASPEN Plus^® v11, and then carrying out a multi-criteria optimization of the oxidation process in order to consider the application of the CWPO in a reliable and economical manner. Particular emphasis is put on the necessity of maintaining an autothermic or energetically self-sustaining operation; therefore, the pollutant load of the wastewater and the reaction temperature are operational conditions that have been carefully considered. In addition, the H₂O₂ dose and consumption must be also taken into account for the economy of the process.

Our previous experience of using CWPO for phenolic wastewater with carbon black catalysts [40], with a comprehensive kinetic model that describes the oxidation and mineralization of 11 organic compounds (including phenol, oxidized intermediates and by-products) and the H₂O₂ consumption, has encouraged us to consider it as a case study. The design of experiments, by a six-factor Doehlert matrix, has been combined with simulation as an efficient way to minimize the number of simulation runs and to assemble all the significant operating variables in equations to facilitate the interpretation of the results [41,42,43,44]. The CWPO process optimization has also been addressed by considering the operating variables under the best oxidation performance (maximum pollutant abatement) in an economical manner (maximum efficiency of H₂O₂ consumption and heat released).

2. Computational Details

2.1. Process Simulation Flowsheet

The simulation of the CWPO process was carried out with Aspen Plus ^® v11. A flow and temperature diagram of the base case configuration is depicted in Figure 1. As can be seen, the wastewater, which contains the target pollutant (phenol in this case), enters the process (S-01) and mixes with a flow of H₂O₂ (S-02). The resulting stream (S-03) at T_S-03 and a dose of H₂O₂ predefined with respect to the stoichiometric one for complete phenol mineralization are led to a heater (E-100) to increase the temperature to reaction conditions (T_R). Then, the heated stream (S-04) is fed to the fixed-bed reactor (R-100), where the oxidation of phenol and its oxidized intermediates take place under isothermal conditions in the presence of a catalyst (carbon black, in this case). In the current process model, the reaction took place only in R-100. The CWPO reactor was modeled as an isothermal plug-flow reactor. The temperature of the liquid outlet stream of the reactor (S-05) was decreased in a cooler (E-101) to the temperature predefined for the process outlet stream (T-06). T_S-06 was always 5 °C above T_S-03 to maintain a minimum pinch point for the viability of the process heat exchanger network. The heat duty of the different unit operations was defined as H-01, H-02 and H-03, for the heater (E-100), cooler (E-101) and fixed-bed reactor (R-100), respectively (Figure 1).

The mass flows of the streams and dimensions of the reactor and the heaters were arbitrary, since only non-dimensional variables are taken into account in this work (see Section “Variables definition”). In addition, the pressure drop in the pipes and equipment was considered negligible, and the operating pressure was fixed at 4 bar, the same as that used to obtain the kinetic equations [40].

2.2. Reaction Pathway and Kinetic Model

The kinetic model used to simulate the CWPO of phenol upon a carbon black catalyst was experimentally obtained in a batch-reactor in the absence of mass transfer limitation and according to the reaction pathway previously proposed [40]. Briefly, phenol is oxidized to aromatic intermediates—namely, resorcinol (RS), catechol (CTL), hydroquinone (HQ) and p-benzoquinone (BQ)—in parallel reactions, and these cyclic species are broken down into different carboxylic acids, namely, maleic (MAL), fumaric (FUM), malonic (MLO), oxalic (OXA), acetic (ACE) and formic (FORM) acid. This reaction pathway comprises a set of 30 elementary reactions (summarized in Table S1 of the Supplementary Material), with the following rate Equation:

R_{i} = \frac{1}{C_{c a t}} \cdot \frac{d C_{i}}{d t} = k_{i} \cdot C_{i} \cdot C_{H_{2} O_{2}}

(1)

where C_cat, C_i and C_H₂O₂ refer to the concentrations of the catalyst, organic compound i and H₂O₂, respectively, while k_i is the rate constant.

The kinetic rate constant values were estimated from the fitted experimental data in the previous work of Diaz de Tuesta et al. [40]. The H₂O₂ consumption rate was calculated from the production rate of each organic compound and the stoichiometric coefficient of the corresponding Equation (Table S1 of the Supplementary Material).

2.3. Components and Property Model Selection

The components considered in the simulation were H₂O₂, CO₂, N₂, O₂, H₂O, phenol and the oxidized species mentioned above.

The UNIQUAC property model was selected to estimate the fluid properties in the process simulations. Most of the parameters were taken from the Aspen Property and NIST databases available in Aspen Plus. The unknown (water/organic compounds, CO₂/O₂ and O₂/N₂) binary interaction parameters were either estimated by the group contribution methods or fitted by the regression of experimental data using, respectively, the estimation and regression algorithms implemented in Aspen Plus. The experimental data of the corresponding vapor/gas-liquid equilibria were used to fit the unknown UNIQUAC binary parameters. They were retrieved from the literature [45,46,47,48,49] and the NIST database. The NIST database was accessed through the link implemented in Aspen Plus and supported by the NIST Thermo Data Engine. The binary interaction parameters used in this work are shown in Table S2 of the Supplementary Material. The gases considered in the simulations (CO₂, O₂ and N₂) were defined as Henry components. The corresponding binary gas/water parameters for the Henry equation were obtained from the Aspen Property database. The heats of formation of all the components involved in the chemical reactions were taken from the Aspen Property database.

2.4. Variable Definition

The simulation of the CWPO process was run to explore the influence of six operating variables on six selected responses. The operating variables of the process studied were:

T_R, the reaction temperature (°C).

T_input, the heater E-100 inlet temperature (°C), equal to T_S-01 = T_S-02 = T_S-03 as shown in Figure 1.

T_output, the cooler E-101 outlet temperature (°C), equal to T_S-06 as shown in Figure 1.

ThOD_feed, the COD of the wastewater (g·L⁻¹). In this work, it is calculated from the concentration of phenol fed to the reactor then named as theoretical oxygen demand fed to the reactor.

HP_excess, the excess of H₂O₂ with respect to the stoichiometric dose.

τ, the space time in g_cat mol_phenol⁻¹ h⁻¹, calculated as in Equation (2) by the ratio of the mass of the catalyst (W) to the inlet phenol molar flow rate (F).

τ = \frac{W (g_{c a t})}{F_{p h e n o l, i n l e t} (m o l_{p h e n o l} \cdot h^{- 1})}

(2)

The selected response variables were as follows:

X_j is the conversion of phenol, H₂O₂, theoretical oxygen demand (ThOD) or total organic carbon (TOC). It is calculated according to Equation (3), in terms of molar flow (for phenol and H₂O₂) or mass flow (for ThOD and TOC):

X_{j} (%) = \frac{F_{j, i n l e t} - F_{j, o u t l e t}}{F_{j, i n l e t}} \cdot 100

(3)

The calculation of ThOD and TOC, g L⁻¹, for the inlet and outlet streams of the reactor is provided in Table S3 of the Supplementary Material.

η_H₂O₂ is the efficiency of the H₂O₂ consumption. It was calculated according to the amount of H₂O₂ necessary to oxidize 1 mol of carbon, as expressed in Equation (4) [50]:

η_{H_{2} O_{2}} (%) = \frac{F_{T O C, i n l e t} - F_{T O C, o u t l e t}}{F_{H_{2} O_{2}, i n l e t} - F_{H_{2} O_{2}, o u t l e t}} \cdot (\frac{2 m o l_{H 2 O 2}}{1 m o l T O C_{}}) \cdot 100

(4)

η_E is the energetic efficiency. It is calculated as the ratio of the process of “heat release” (through the cooler H-02 and reactor H-03) to “heat needed” (through the heater H-01). For that, a heat loss of 3% has been considered for heat exchangers and 10% for the chemical reactor [51]:

η_{E} (%) = \frac{| H - 02 | \cdot 0.97 + | H - 03 | \cdot 0.90}{| H - 01 | \cdot 0.97} \cdot 100

(5)

Energetic efficiency values above 100% imply that the heat released by the CWPO reaction can be recovered to preheat the incoming feed stream. This means that the CWPO process is energetically self-sufficient or can be run under autothermal operation.

2.5. Design of Experiments

The study of the influence of the selected operating variables T_R, T_input, T_output, ThOD_feed, HP_excess and τ on the responses X_phenol, X_ThOD, X_H₂O₂, X_TOC, η_H₂O₂ and η_E in the CWPO process, with the minimum number of simulation runs, was carried out based on a six-factor Doehlert Matrix.

The resulting numerical experiments, or cases, to simulate by Aspen Plus numbered 43. Table 1 shows these experiments with the real and code values for each operating variable. The different ranges of interest to assign the real values were the following: T_R from 50 to 130 °C, taking into account that the oxidation rate is almost negligible below 50 °C [40]; ThOD_feed from 2.38 to 23.8 g·L⁻¹, corresponding to an inlet phenol concentration equal to 1−10 g L⁻¹, an appropriate pollutant load for the CWPO processes [8,36]; T_output from 30 to 60 °C, taking into account the values of the pitch point above 5 °C—the minimum value is 8.7 °C in Case 35 and the maximum, 41.2 °C in Case 41. Additionally, the Doehlert Matrix allows the simulation of this range of values without temperature crossing, thus avoiding inconsistent behavior scenarios such as T_output values above T_R. The HP_excess varied from 50% to 150% respect to the stoichiometric dose. The τ was between 94 and 235 g_cat·h·mol_phenol⁻¹, in the range of values reported for flow reactors [15,16,17,18,19,20,21,22]. T_input ranged from 15 to 25 °C, which reflects the worst scenario.

The function selected to describe the dependence between each response and the operating variables was a second-order polynomial equation:

y = β_{0} + \sum_{i = 1}^{n} β_{i} \cdot x_{i} + \sum_{i = 1}^{n} β_{i i} \cdot x_{i}^{2} + \sum_{i < j = 1}^{n} β_{i j} \cdot x_{i} \cdot x_{j} + ε

(6)

where y represents the predicted response; x_i and x_j, the codes of the operating variables (provided in Table 1 as x₁ = T_R, x₂ = ThOD_feed, x₃ = T_output, x₄ = HP_excess, x₅ = τ and x₆ = T_input); and β, the regression coefficients where β₀ is the intercept, β_i is the coefficient for linear effects, β_ii is that for quadratic effects and β_ij is that for two-factor interaction effects.

The Solver tool in Microsoft ^® Excel, which employs the Generalized Reduced Gradient algorithm, was used to estimate the coefficients by multiple non-linear regression. The analysis of variance (ANOVA) was used to evaluate both the coefficients’ statistical significance and the fitting of the function. The objective functions were maximized or minimized, as appropriate, using as restrictions the minimum and maximum values of the operating variables provided in Table 1. The optimization was run under several interactions and with more than 100 starting points (arbitrarily chosen).

3. Results and Discussion

3.1. Kinetic Model Validation

Prior to the simulation of the CWPO process, it is necessary to confirm that the evolution of the reactants (i.e., phenol and H₂O₂) and the oxidized intermediates can be successfully computed, and that the results obtained reproduced the experimental ones. Based on the elementary reaction set introduced in the simulator (Table S1), the empirical kinetic equation was defined for each organic species, shown in Equation (1), with the kinetic constants estimated for the CWPO with a carbon black catalyst [40] and the thermodynamic data selected (Table S2 of the Supplementary Material); calculations were performed in a batch reactor with Aspen Plus under the following selected operating conditions: C_Phenol,0 = 1 g·L⁻¹, C_H₂O₂,0 = 5 g·L⁻¹, pH₀ = 6, W = 4 g_cat and T = 90 °C and at different reaction times in order to mimic the experimental conditions.

The results obtained in the simulations, in terms of the temporal evolution of the molar fraction of phenol and the aromatic intermediates (BQ, CTL, HQ and RS), are provided in Figure 2a. The profiles for the organic acids, also calculated, are not shown for simplicity. Besides, the H₂O₂ molar fraction calculated from the production rate of each organic compound and the stoichiometric coefficient of the corresponding equation (Table S1) is provided in Figure 2b. As can be seen in Figure 2c, the molar fractions calculated by the simulation agree with the experimental data obtained in our previous work [40]. The kinetic model implemented in the simulator is valid to describe the complex reaction network of the phenol CWPO in the presence of carbon black catalysts. Note that the kinetic model is particular for each catalyst, since the specificity of each active site can lead to a different reaction networks and rate equations.

3.2. CWPO Performance

The values of the response variables (i.e., X_phenol, X_ThOD, X_TOC, X_H₂O₂, η_H₂O₂ and η_E) obtained in the 43 simulation cases conducted under the operating conditions defined by the Doehlert Matrix (Table 1) are given in Table 2. As observed, total pollutant removal (X_phenol > 99%) is only achieved in Cases 2, 4, 14, 31 and 32, in which X_ThOD and X_TOC are also high, above 75% and 71%, respectively, as is η_H₂O₂, between 69% and 79%. There is always remaining ThOD and TOC in the reactor outlet. In fact, the maximum conversions are obtained at the highest reaction temperature of 110 °C, in Cases 4 and 14, where both X_ThOD ~78% and X_TOC ~74% are achieved.

Noteworthily, the self-sustaining thermal condition (η_E > 100%) is achievable under a wide range of operating conditions (in 24 scenarios of the 43 simulated, see Table 2), including the whole ranges of values explored for T_output (30–60 °C), T_input (15-25 °C), HP_excess (50%–100%) and τ (94 and 235 g_cat·h·mol_phenol⁻¹). This is an important aspect because in these 24 scenarios, the CWPO unit can be operated without any external heat supply under steady state operation. The ThOD_feed seems to be the most influential variable affecting the energetic efficiency (see Figure S1 of the Supplementary Material). Additionally, it is possible to observe a linear relationship between η_E and ThOD_feed, regardless of the values of the rest of the operating conditions—T_R, T_output, HP_excess, τ and T_input (see Figure S1d of the Supplementary Material). This can be explained because the more the organic matter that is converted in the reactor (by the oxidation of phenol and its intermediates), the more heat is generated (the same tendency was observed with respect to X_TOC). However, ThOD_feed should not be the only variable taken into account, as exemplified by Cases 36 and 30. In the former, 5.4 g L⁻¹ of ThOD was removed in the reactor (ThOD_feed = 13 g/L and X_ThOD = 42%) and the energy efficiency was 101%, while in the latter, 8.4 g L⁻¹ of ThOD was removed in the reactor (ThOD_feed = 13 g·L⁻¹ and X_ThOD = 64.7%) while η_E was lower than 100%. Elucidating the interactive effects of the operating variables on the responses will necessitate assessing the mathematical adjustment of the data to the quadratic model in Equation (6), as addressed below.

Finally, the minimum X_phenol, X_ThOD and X_TOC values that guarantee the self-sustaining thermal CWPO condition (η_E > 100%) are 75, 42 and 37%, respectively (Case 36 of Table 2). In this case, an energy efficiency of 101% is achieved at ThOD_feed = 13 g/L, HP_excess = 60%, τ = 153 g_cat·h·mol_phenol⁻¹, T_R = 90 °C, T_input = 45 °C and T_input = 25 °C.

3.3. Mathematical Modeling and Response Surface Plots

The ANOVA results of quadratic model for X_phenol, X_ThOD, X_TOC, X_H₂O₂, η_H₂O₂ and η_E are summarized in Table 3, along with the estimated coefficient values. The F-distribution and p-values for each estimated coefficient are collected in order to compute their statistical significance (coefficient excluded if p-value > 0.30). As observed, the F of Fisher is higher than the p-value for all the regressions, so the desired model significance is fulfilled. In fact, the parity plot depicted in Figure 3 shows good agreement.

In general, the conversion response equations are similar since all the conversions (i.e., X_phenol, X_ThOD, X_TOC and X_H₂O₂) take high values upon increasing the T_R (β₁ = 15.2–22.1), ThOD_feed (β₂ = 35.1–40.8) and τ (−β₅ = 10.2–12.5). Interestingly, X_phenol, X_ThOD and X_TOC also increase upon increasing HP_excess (β₄ = 16.6–18.4), whereas the X_H₂O₂ is decreased by increasing HP_excess (β₄ = −13.1), which indicates that a higher concentration of radical species in the reactor medium increases the organic compound oxidation rates but also favors the conversion of the radical scavenging recombination into H₂O₂. The most influential variable for the conversions is ThOD_feed (β₂ > β_i≠2), which is in agreement with the previous discussion.

Regarding η_H₂O₂, T_R is the variable with the greatest influence (β₁> β_i≠1) followed by ThOD_feed. According to this, a high reaction temperature improves the efficient consumption of H₂O₂ in CWPO, as has been already reported for the Fenton process [52]. To a lesser extent, a high concentration of ThOD_feed also favors the efficient use of the oxidant. Note that doses of H₂O₂ above the stoichiometric ones, HP_excess > 100%, do not induce a significant detriment to the efficiency.

In the case of η_E, the significant operating conditions are T_input, T_output and ThOD_feed—in particular, ThOD_feed (β₂ = 63.2 vs. |β_i≠2| = 8–25.4). Expectedly, a higher initial pollutant concentration in the feed stream leads to higher conversions, and thus, more heat is released in the reactor. It is also noteworthy that while T_input has a positive effect (β₆ = 10.0), T_output has a negative one (β₃ = −25.4); this means that η_E is increased by decreasing the heat recovery from the output stream. For this response, the effect of this temperature (T_output) is found to be more significant than the effect of the T_R, ThOD_feed, HP_excess or τ (β₆ > β₁, β₃, β₄, β₅).

All the fitted response variables, i.e., X_phenol, X_ThOD, X_TOC, X_H₂O₂, η_H₂O₂ and η_E, show significant second-order (β_ii) and interaction (β_ij) coefficients, so it will be important to consider all the operating conditions to seek optimal performance. To gain an insight into this, the response surface plots and 2-D contour plots showing the effects of T_R and ThOD_feed and also, HP_excess and ThOD_feed on the responses X_phenol, X_ThOD, η_H₂O₂ and η_E are shown in Figure 4 and Figure 5, respectively.

As can be seen, for X_phenol (A) and X_ThOD (B), the increase in T_R and HP_excess up to 100 °C and 100% of the stoichiometric dose, respectively, enhances the conversions, whereas ThOD_feed values above 16 g·L⁻¹ have a clearly negative impact. This means that X_phenol and X_ThOD can be optimized to achieve their maximum values (100 and 78%, respectively) inside the operation window considered. Regarding the η_H₂O₂, its variation is higher with T_R than ThOD_feed and HP_excess, as expected, but the three variables must be considered for the optimization of η_H₂O₂. It is remarkable that the thermal self-sustaining conditions (η_E ≥ 100%) can be achieved across a wide range of η_H₂O₂ values (47%–81%) (see Figure 4c and Figure 5c). Lastly, η_E ≥ 100% are obtained at T_R from 80 to 100 °C and ThOD_feed values above 9 g·L⁻¹ (Figure 4d). The effect of the HP_excess is not as significant as that of ThOD_feed (Figure 5d) for this response.

3.4. Multi-Criteria Optimization of CWPO Performance

The operating conditions necessary to obtain the highest X_phenol, X_ThOD, X_TOC, X_H₂O₂, η_H₂O₂ or η_E upon CWPO in the presence of carbon black catalysts, derived from the optimization of the quadratic model selected in Equation (6), for each response are provided in Table 4.

As can be seen, the space time, τ, required to achieve this best individual performance for each response needs to be high, usually 235 g_cat·h·mol_phenol⁻¹. In order to assure the maximum high degrees of oxidation in terms of phenol, oxygen demand and TOC, only wastewater with high ThOD_feed (>16.2 g·L⁻¹) could be suitably treated under high reaction temperatures (100–130 °C) and an excess of H₂O₂ dose. However, this scenario is far from that in which complete and efficient H₂O₂ consumption occurs and, consequently, far from being a cost-effective treatment [2,36].

The wastewater with the maximum chemical oxygen demand selected (ThOD_feed = 23.8 g·L⁻¹) and its treatment under an excess of H₂O₂ guarantee the production of energy upon CWPO (η_E > 200%) while the reaction temperature can be set to 65 °C, and T_input and T_output to 25 and 30 °C, respectively (Table 4).

Considering the practical application of the treatment, the CWPO performance has been optimized in order to achieve the maximum oxidation degree, in terms of X_ThOD, with the most efficient consumption of H₂O₂ and most favorable energetic conditions. For that, a multi-objective optimization has been carried out using linear scalarization to find the optimal values for the operating conditions (T_R, HP_excess, τ and T_output) for a given wastewater (T_input and ThOD_feed) that assure the greatest values of the selected objectives (X_ThOD, η_H₂O₂ and η_E):

y_{o p t} (%) = X_{T h O D} (%) + η_{H_{2} O_{2}} (%) + η_{E} (%)

(7)

where y_opt is the function that allows increasing the three responses X_ThOD, η_H₂O₂ and η_E with the same weight in Equation (7). The optimal operating conditions for T_R, T_output, HP_excess and τ in the 10 cases of multi-criteria optimization calculated by setting T_input = 20 °C and ThOD_feed between 2.38–23.8 g·L⁻¹ are summarized in Table 5. Besides, the values of the six response variables—i.e., X_phenol, X_ThOD, X_TOC, X_H₂O₂, η_H₂O₂ and η_E—estimated by simulation with Aspen Plus and by the response quadratic models (in brackets) are included.

As can be seen, the highest oxidation performance for operation under energetically self-sustaining conditions (η_E > 100%) corresponds to X_phenol, X_ThOD and X_TOC values of 100%, 78% and 74%, respectively, and it is achieved from a ThOD_feed of 9.52 g·L⁻¹ and at the stoichiometric dose of H₂O₂. An increase in the organic load in the wastewater (from the 9.52 to 23.8 g·L⁻¹) allows a decrease in the reaction temperature (from 123 to 93 °C) and an increase in the heat release. These conditions of COD content and temperature are in between those accepted for the AOPs at near ambient conditions and for other thermal wet oxidation technologies such as the well established CWAO [1]. Note that the 10 cases studied (Table 5) comprise the most cost-effective options for the CWPO operation. Taking into account that the operational cost is mainly due to the H₂O₂ consumption, since the contribution of the catalyst can be considered negligible in continuous operation, a cost between 0.70 and 11.60 € m⁻³ of treated wastewater has been estimated for ThOD_feed between 2.38 and 23.8 g L⁻¹, respectively. For the calculations, the excess of H₂O₂ has been considered, with a cost of H₂O₂ equal to 0.23 € L⁻¹ [52].

According to the above results, the CWPO process should be considered as a treatment able to abate recalcitrant compounds such as phenol and to increase the detoxification of the wastewater (due to the oxidation of recalcitrant compounds into organic acids) before its disposal via a biological process. The CWPO process could be successful in treating a wide range of industrial wastewaters as a one-step treatment and then oriented to increase the quality of the treated effluent for water reuse or safe discharge.

4. Conclusions

It has been demonstrated that CWPO aims to fill the gap between the AOPs under near ambient conditions and CWAO processes. The advantages of CWPO include the treatment of mildly loaded wastewater, with a COD demand between 9.5 and 24 g L⁻¹, under mild operating conditions (T_R = 93–130 °C, P = 1−4 atm and a stoichiometric dose of H₂O₂) in an autothermal fixed bed reactor. In addition, there is the possibility of energy recovery, to a greater or lesser extent depending on the inlet COD and the reaction temperature.

This study demonstrates that:

The COD removal achieved in CWPO units is increased by increasing the reaction temperature and dose of hydrogen peroxide. Nevertheless, the best conditions lead to 78% COD conversion due to the refractoriness of the organic acid species.
Working at high temperature favors the efficient consumption of H₂O₂ in the oxidation process.
Autothermal operation is possible if a high load of COD (or TOC) is employed and high conversions are achieved, which requires setting up the process with the optimal operating conditions.

Clearly, the CWPO process is a promising technology for reducing the impact of non-biodegradable hazardous substances on the environment.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/5/548/s1, Figure S1: Influence of the operating variables (A–F) and conversions (G–I) on the energetic efficiency of the CWPO process, Table S1: Elementary reactions considered in the CWPO reactor according to the oxidation pathway and kinetic model reported in Diaz de Tuesta et al. (2017), Table S2: Binary coefficients (aij, aji, bij, bji) estimated for the implementation of the UNIQUAC thermodynamic model in the simulator software, Table S3: Theoretical oxygen demand (ThOD) and total organic carbon (TOC) of each compound (i).

Author Contributions

Conceptualization, J.A.C. and A.Q.; Funding acquisition, J.A.C.; Investigation, J.L.D.d.T.; Methodology, J.L.D.d.T. and A.Q.; Software, J.L.D.d.T., D.M. and V.R.F.; Supervision, V.R.F. and J.A.C.; Validation, D.M.; Writing – original draft, J.L.D.d.T.and A.Q.; Writing – review & editing, V.R.F. and J.A.C. All authors have read and agree to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors thank the financial support by the Spanish Government and Comunidad de Madrid through the projects CTM2016-76454-R and S2018/EMT-4341, respectively. Also, the authors acknowledge financial support to the Portugal Government through the project UIDB/00690/2020.

Conflicts of Interest

The authors declare no conflict of interest.

References

Andreozzi, R.; Caprio, V.; Insola, A.; Marotta, R. Advanced oxidation processes (AOP) for water purification and recovery. Catal. Today 1999, 53, 51–59. [Google Scholar] [CrossRef]
De Heredia, J.B.; Domínguez, J.R.; Peres, J.A. Eliminación de compuestos fenólicos por oxidación avanzada: Estimación de costes. Ing. Química 2002, 386, 142–146. [Google Scholar]
Esplugas, S.; Gimenez, J.; Contreras, S.; Pascual, E.; Rodriguez, M. Comparison of different advanced oxidation processes for phenol degradation. Water Res. 2002, 36, 1034–1042. [Google Scholar] [CrossRef]
Perathoner, S.; Centi, G. Wet hydrogen peroxide catalytic oxidation (WHPCO) of organic waste in agro-food and industrial streams. Top. Catal. 2005, 33, 207–224. [Google Scholar] [CrossRef]
Fajerwerg, K.; Debellefontaine, H. Wet oxidation of phenol by hydrogen peroxide using heterogeneous catalysis Fe-ZSM−5: A promising catalyst. Appl. Catal. B Environ. 1996, 10, L229. [Google Scholar] [CrossRef]
Debellefontaine, H.; Chakchouka, M.; Foussarda, J.N.; Tissot, D.; Striolo, P. Treatment of organic aqueous wastes: Wet air oxidation and wet peroxide oxidation^®. Environ. Pollut. 1996, 92, 155–164. [Google Scholar] [CrossRef]
Catrinescu, C.; Teodosiu, C.; Macoveanu, M.; Miehe-Brendle, J.; Le Dred, R. Catalytic wet peroxide oxidation of phenol over Fe-exchanged pillared beidellite. Water Res. 2003, 37, 1154–1160. [Google Scholar] [CrossRef]
Lücking, F.; Köser, H.; Jank, M.; Ritter, A. Iron powder, graphite and activated carbon as catalysts for the oxidation of 4-chlorophenol with hydrogen peroxide in aqueous solution. Water Res. 1998, 32, 2607–2614. [Google Scholar] [CrossRef]
Pignatello, J.J.; Oliveros, E.; Mac Kay, A. Advanced Oxidation Processes for Organic Contaminant Destruction Based on the Fenton Reaction and Related Chemistry. Crit. Rev. Environ. Sci. Technol. 2006, 36, 1–84. [Google Scholar] [CrossRef]
Rey, A.; Faraldos, M.; Bahamonde, A.; Casas, J.A.; Zazo, J.A.; Rodriguez, J.J. Role of the Activated Carbon Surface on Catalytic Wet Peroxide Oxidation. Ind. Eng. Chem. Res. 2008, 47, 8166–8174. [Google Scholar] [CrossRef]
Navalon, S.; Dhakshinamoorthy, A.; Alvaro, M.; Garcia, H. Heterogeneous Fenton catalysts based on activated carbon and related materials. ChemSusChem 2011, 4, 1712–1730. [Google Scholar] [CrossRef] [PubMed]
Dhakshinamoorthy, A.; Navalon, S.; Alvaro, M.; Garcia, H. Metal Nanoparticles as Heterogeneous Fenton Catalysts. ChemSusChem 2012, 5, 46–64. [Google Scholar] [CrossRef] [PubMed]
Munoz, M.; de Pedro, Z.; Casas, J.A.; Rodriguez, J.J. Preparation of magnetite-based catalysts and their application in heterogeneous Fenton oxidation—A review. Appl. Catal. B Environ. 2015, 176, 249–265. [Google Scholar] [CrossRef] [Green Version]
Guo, J.; Al-Dahhan, M. Catalytic Wet Oxidation of Phenol by Hydrogen Peroxide over Pillared Clay Catalyst. Ind. Eng. Chem. Res. 2003, 42, 2450–2460. [Google Scholar] [CrossRef]
Martínez, F.; Melero, J.A.; Botas, J.A.; Pariente, I.; Molina, R. Treatment of Phenolic Effluents by Catalytic Wet Hydrogen Peroxide Oxidation over Fe₂O₃/SBA-15 Extruded Catalyst in a Fixed-Bed Reactor. Ind. Eng. Chem. Res. 2007, 46, 4396–4405. [Google Scholar] [CrossRef]
Martínez, F.; Pariente, I.; Melero, J.A.; Botas, J.A.; Gómez, E. Catalytic wet peroxidation of phenol in a fixed bed reactor. Water Sci. Technol. 2007, 55, 75–81. [Google Scholar] [CrossRef] [Green Version]
Botas, J.A.; Melero, J.A.; Martinez, F.; Pariente, M.I. Assessment of Fe₂O₃/SiO₂ catalysts for the continuous treatment of phenol aqueous solutions in a fixed bed reactor. Catal. Today 2010, 149, 334–340. [Google Scholar] [CrossRef]
Ferentz, M.; Landau, M.V.; Vidruk, R.; Herskowitz, M. Fixed-bed catalytic wet peroxide oxidation of phenol with titania and Au/titania catalysts in dark. Catal. Today 2015, 241, 63–72. [Google Scholar] [CrossRef]
Yan, Y.; Wu, X.; Zhang, H. Catalytic wet peroxide oxidation of phenol over Fe₂O₃/MCM-41 in a fixed bed reactor. Sep. Purif. Technol. 2016, 171, 52–61. [Google Scholar] [CrossRef]
Martínez, F.; Pariente, I.; Melero, J.A.; Botas, J.A. Catalytic Wet Peroxide Oxidation Process for the Continuous Treatment of Polluted Effluents on a Pilot Plant Scale. J. Adv. Oxid. Technol. 2016, 11, 65–74. [Google Scholar] [CrossRef]
Taran, O.P.; Zagoruiko, A.N.; Ayusheev, A.B.; Yashnik, S.A.; Prihod’ko, R.V.; Ismagilov, Z.R.; Goncharuk, V.V.; Parmon, V.N. Wet peroxide oxidation of phenol over Cu-ZSM-5 catalyst in a flow reactor. Kinetics and diffusion study. Chem. Eng. J. 2015, 282, 108–115. [Google Scholar] [CrossRef]
Quintanilla, A.; Casas, J.A.; Miranzo, P.; Osendi, M.I.; Belmonte, M. 3D-Printed Fe-doped silicon carbide monolithic catalysts for wet peroxide oxidation processes. Appl. Catal. B Environ. 2018, 235, 246–255. [Google Scholar] [CrossRef]
Quintanilla, A.; Carbajo, J.; Casas, J.A.; Miranzo, P.; Osendi, M.I.; Belmonte, M. Graphene-based nanostructures as catalysts for wet peroxide oxidation treatments: From nanopowders to 3D printed porous monoliths. Catal. Today 2019. [Google Scholar] [CrossRef]
Ou, X.; Pilitsis, F.; Xu, N.; Taylor, S.F.R.; Warren, J.; Garforth, A.; Zhang, J.; Hardacre, C.; Jiao, Y.; Fan, X.; et al. On developing ferrisilicate catalysts supported on silicon carbide (SiC) foam catalysts for continuous catalytic wet peroxide oxidation (CWPO) reactions. Catal. Today 2018. [Google Scholar] [CrossRef]
Ou, X.; Pilitsis, F.; Jiao, Y.; Zhang, Y.; Xu, S.; Jennings, M.; Yang, Y.; Taylor, S.F.R.; Garforth, A.H.; Hardacre, C.; et al. Hierarchical Fe-ZSM−5/SiC foam catalyst as the foam bed catalytic reactor (FBCR) for catalytic wet peroxide oxidation (CWPO). Chem. Eng. J. 2019, 362, 53–62. [Google Scholar] [CrossRef]
Peralta, Y.M.; Sanabria, N.R.; Carriazo, J.G.; Moreno, S.; Molina, R. Catalytic wet hydrogen peroxide oxidation of phenolic compounds in coffee wastewater using Al-Fe-pillared clay extrudates. Desalin. Water Treat. 2015, 55, 647–654. [Google Scholar] [CrossRef]
Caudo, S.; Centi, G.; Genovese, C.; Perathoner, S. Copper- and iron-pillared clay catalysts for the WHPCO of model and real wastewater streams from olive milling production. Appl. Catal. B Environ. 2007, 70, 437–446. [Google Scholar] [CrossRef]
Azabou, S.; Najjar, W.; Bouaziz, M.; Ghorbel, A.; Sayadi, S. A compact process for the treatment of olive mill wastewater by combining wet hydrogen peroxide catalytic oxidation and biological techniques. J. Hazard. Mater. 2010, 183, 62–69. [Google Scholar] [CrossRef]
Maduna Valkaj, K.; Kaselj, I.; Smolkovic, J.; Zrnčević, S.; Kumar, N.; Murzin, D.Y. Catalytic wet peroxide oxidation of olive oil mill wastewater over zeolite based catalyst. Chem. Eng. Trans. 2015, 43, 853–858. [Google Scholar]
Dominguez, C.M.; Quintanilla, A.; Casas, J.A.; Rodriguez, J.J. Treatment of real winery wastewater by wet oxidation at mild temperature. Sep. Purif. Technol. 2014, 129, 121–128. [Google Scholar] [CrossRef]
Torres-Luna, J.A.; Giraldo-Gomez, G.I.; Sanabria-Gonzalez, N.R.; Carriazo, J.G. Catalytic degradation of real-textile azo-dyes in aqueous solutions by using Cu-Co/halloysite. Bull. Mater. Sci. 2019, 42, 1–10. [Google Scholar] [CrossRef] [Green Version]
Melero, J.A.; Martinez, F.; Botas, J.A.; Molina, R.; Pariente, M.I. Heterogeneous catalytic wet peroxide oxidation systems for the treatment of an industrial pharmaceutical wastewater. Water Res. 2009, 43, 4010–4018. [Google Scholar] [CrossRef]
Bautista, P.; Mohedano, A.F.; Casas, J.A.; Zazo, J.A.; Rodriguez, J.J. Oxidation of cosmetic wastewaters with H₂O₂ using a Fe/gamma-Al₂O₃ catalyst. Water Sci. Technol. 2010, 61, 1631–1636. [Google Scholar] [CrossRef]
Díaz de Tuesta, J.L.; García-Figueruelo, C.; Quintanilla, A.; Casas, J.A.; Rodriguez, J.J. Application of high-temperature Fenton oxidation for the treatment of sulfonation plant wastewater. J. Chem. Technol. Biotechnol. 2015, 90, 1839–1846. [Google Scholar] [CrossRef]
Pariente, M.; Melero, J.A.; Martinez, F.; Botas, J.A.; Gallego, A.I. Catalytic wet hydrogen peroxide oxidation of a petrochemical wastewater. Water Sci. Technol. 2010, 61, 1829–1836. [Google Scholar] [CrossRef] [PubMed]
Rueda, J.J.; Levchuk, I.; Sillanpää, M. Application of CatalyticWet Peroxide Oxidation for Industrial and Urban Wastewater Treatment: A Review. Catalysts 2018, 8, 673. [Google Scholar] [CrossRef] [Green Version]
Velichkova, F.; Julcour-Lebigue, C.; Koumanova, B.; Delmas, H. Heterogeneous Fenton oxidation of paracetamol using iron oxide (nano) particles. J. Environ. Chem. Eng. 2013, 1, 214–1222. [Google Scholar] [CrossRef] [Green Version]
Silva, A.S.; Kalmakhanova, M.; Massalimova, B.; Juliana, G.S.; De Tuesta, J.L.D.; Gomes, H.; Sgorlon, J.G.; De Tuesta, J.L.D.; De Tuesta, J.D.; Gomes, H. Wet Peroxide Oxidation of Paracetamol Using Acid Activated and Fe/Co-Pillared Clay Catalysts Prepared from Natural Clays. Catalysts 2019, 9, 705. [Google Scholar] [CrossRef] [Green Version]
Munoz, M.; Conde, J.; de Pedro, Z.M.; Casas, J.A. Antibiotics abatement in synthetic and real aqueous matrices by H₂O₂/natural magnetite. Catal. Today 2018, 313, 142–147. [Google Scholar] [CrossRef]
Diaz de Tuesta, J.L.; Quintanilla, A.; Casas, J.A.; Rodriguez, J.J. Kinetic modeling of wet peroxide oxidation with a carbon black catalyst. Appl. Catal. B Environ. 2017, 209, 701–710. [Google Scholar] [CrossRef]
Dobrijevic, M.; Claeys-Bruno, M.; Sergent, M.; Phan-Tan-Luu, R. Experimental designs for the determination of key reactions in photochemical models: Application to the photochemistry of hydrocarbons in the atmosphere of Titan. Planet. Space Sci. 2008, 56, 519–529. [Google Scholar] [CrossRef]
Karimi, M.C.; Silva, J.A.; Gonçalves, C.N.; Diaz de Tuesta, J.L.; Rodrigues, A.E.; Gomes, H.T. CO₂ Capture in Chemically and Thermally Modified Activated Carbons Using Breakthrough Measurements: Experimental and Modeling Study. Ind. Eng. Chem. Res. 2018, 57, 11154–11166. [Google Scholar] [CrossRef] [Green Version]
Lefèvre, S.; Ferrasse, J.H.; Boutin, O.; Sergent, M.; Faucherand, R.; Viand, A. Process optimisation using the combination of simulation and experimental design approach: Application to wet air oxidation. Chem. Eng. Res. Des. 2011, 89, 1045–1055. [Google Scholar] [CrossRef]
Lefèvre, S.; Ferrasse, J.H.; Faucherand, R.; Viand, A.; Boutin, O. Energetic optimization of wet air oxidation process using experimental design coupled with process simulation. Energy 2012, 41, 175–183. [Google Scholar] [CrossRef]
Constantine, M.T.; Cain, E.F. Chemical and Material Sciences Department, Research Division Rocketdyne. In Hydrogen Peroxide Handbook; Division of North American Aviation, Inc.: Canoga Park, CA, USA, 1967. [Google Scholar]
Giguère, P.A. The thermal decomposition of hydrogen peroxide vapour. II. Can. J. Res. 1947, 25b, 135–150. [Google Scholar] [CrossRef]
Giguère, P.A.; Liu, I.D. Kinetics of the thermal decomposition of hydrogen peroxide vapor. Can. J. Chem. 1957, 35, 283–293. [Google Scholar] [CrossRef] [Green Version]
Scatchard, G.; Kavanagh, G.M.; Ticknor, L.B. Vapor-Liquid Equilibrium. VIII. Hydrogen Peroxide—Water Mixtures1. J. Am. Chem. Soc. 1952, 74, 3715–3720. [Google Scholar] [CrossRef]
Wichterle, I.; Linek, J.; Wagner, Z.; Fontaine, J.C.; Sosnkowska-Kehiaian, K.; Kehiaian, H.V. Vapor-Liquid Equilibrium of the Mixture H₂O + H₂O₂. In Binary Liquid Systems of Nonelectrolytes. Part 2; Kehiaian, H.V., Ed.; Springer Materials: Berlin, Germany, 2008; Volume 13A2. [Google Scholar]
Diaz de Tuesta, J.L.; Quintanilla, A.; Casas, J.A.; Rodriguez, J.J. P-, B- and N-doped carbon black for the catalytic wet peroxide oxidation of phenol: Activity, stability and kinetic studies. Catal. Commun. 2017, 102, 131–135. [Google Scholar] [CrossRef]
Lavric, E.D.; Weyten, H.; De Ruyck, J.; Pleşu, V.; Lavric, V. Delocalized organic pollutant destruction through a self-sustaining supercritical water oxidation process. Energy Convers. Manag. 2005, 46, 1345–1364. [Google Scholar] [CrossRef]
Zazo, J.A.; Pliego, G.; Blasco, S.; Casas, J.A.; Rodriguez, J.J. Intensification of the Fenton Process by Increasing the Temperature. Ind. Eng. Chem. Res. 2011, 50, 866–870. [Google Scholar] [CrossRef]

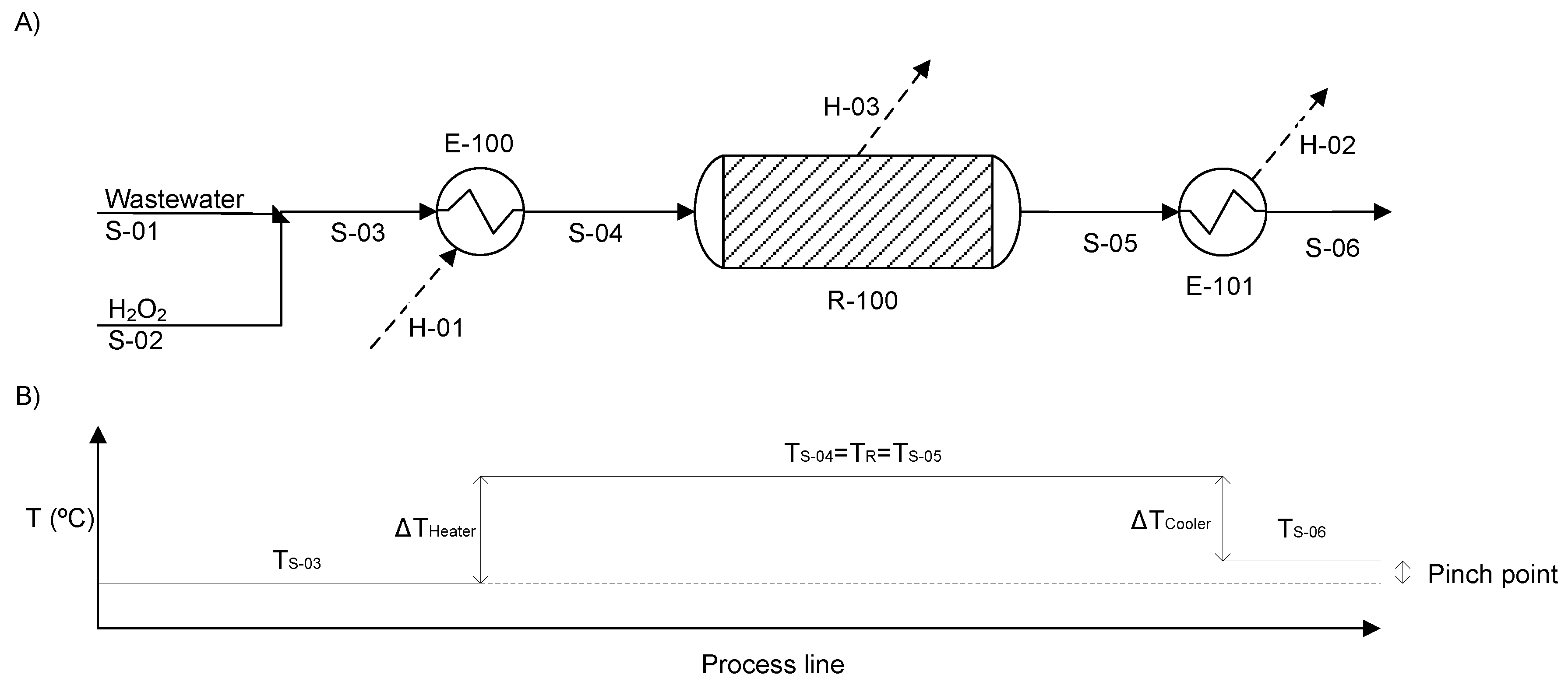

Figure 1. Flowsheet of the Catalytic Wet Peroxide Oxidation (CWPO) process implemented in the ASPEN Plus^® v11 simulator (A) and the temperature line diagram of the process (B).

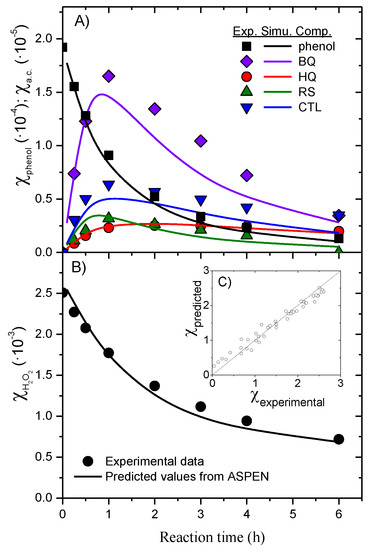

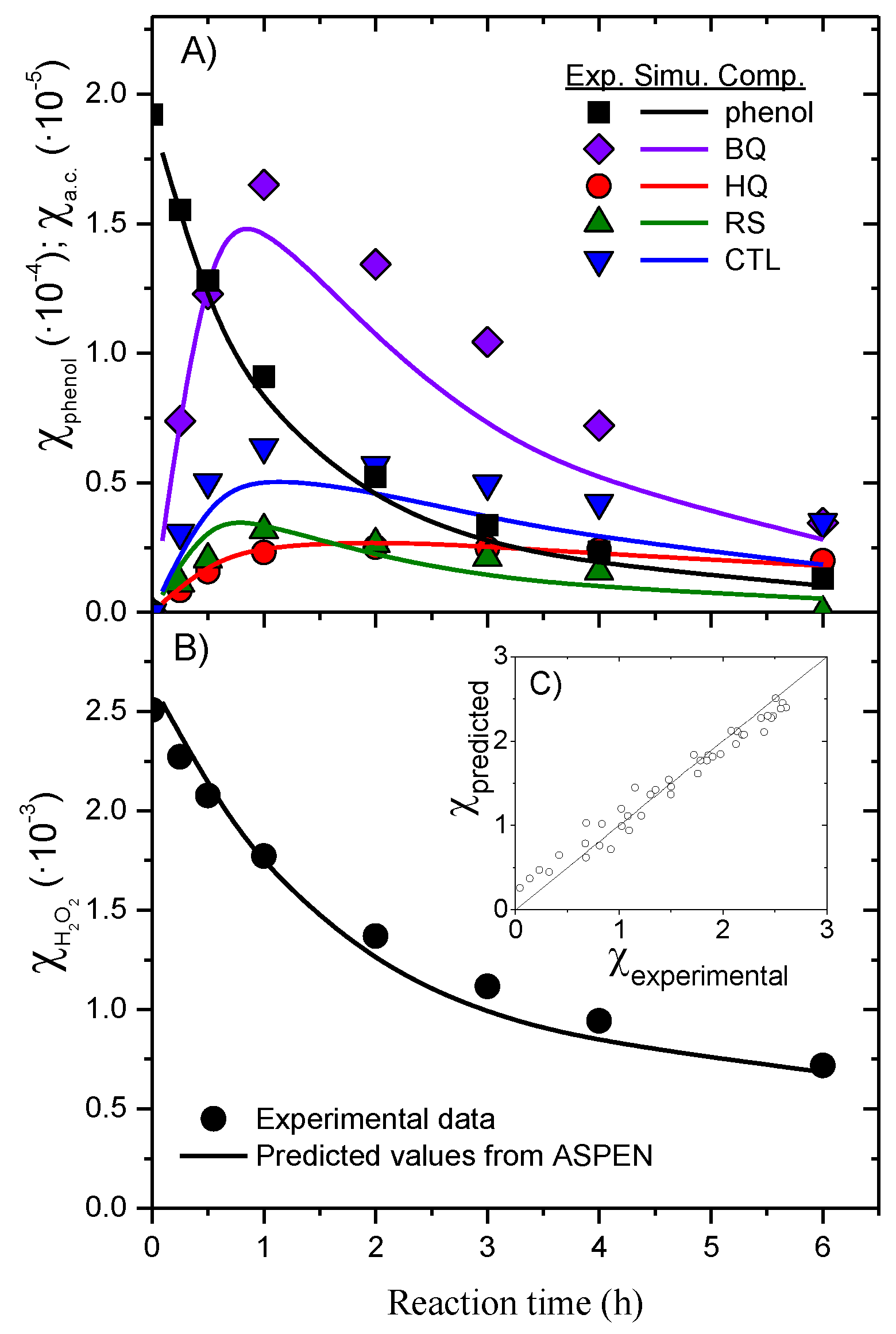

Figure 2. Experimental results (symbols) and those predicted by the ASPEN Plus^® v11 simulator (curves) time course of the molar fraction of aromatic compounds (A) and H₂O₂ (B) in a batch reactor at C_Phenol,0 = 1 g L⁻¹, C_H_2O_2,0 = 5 g L⁻¹, W = 4 g_cat, pH₀ = 6 and T = 90 °C; parity plot of H₂O₂ molar fraction (C).

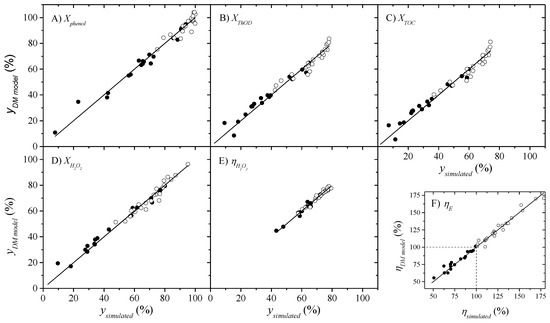

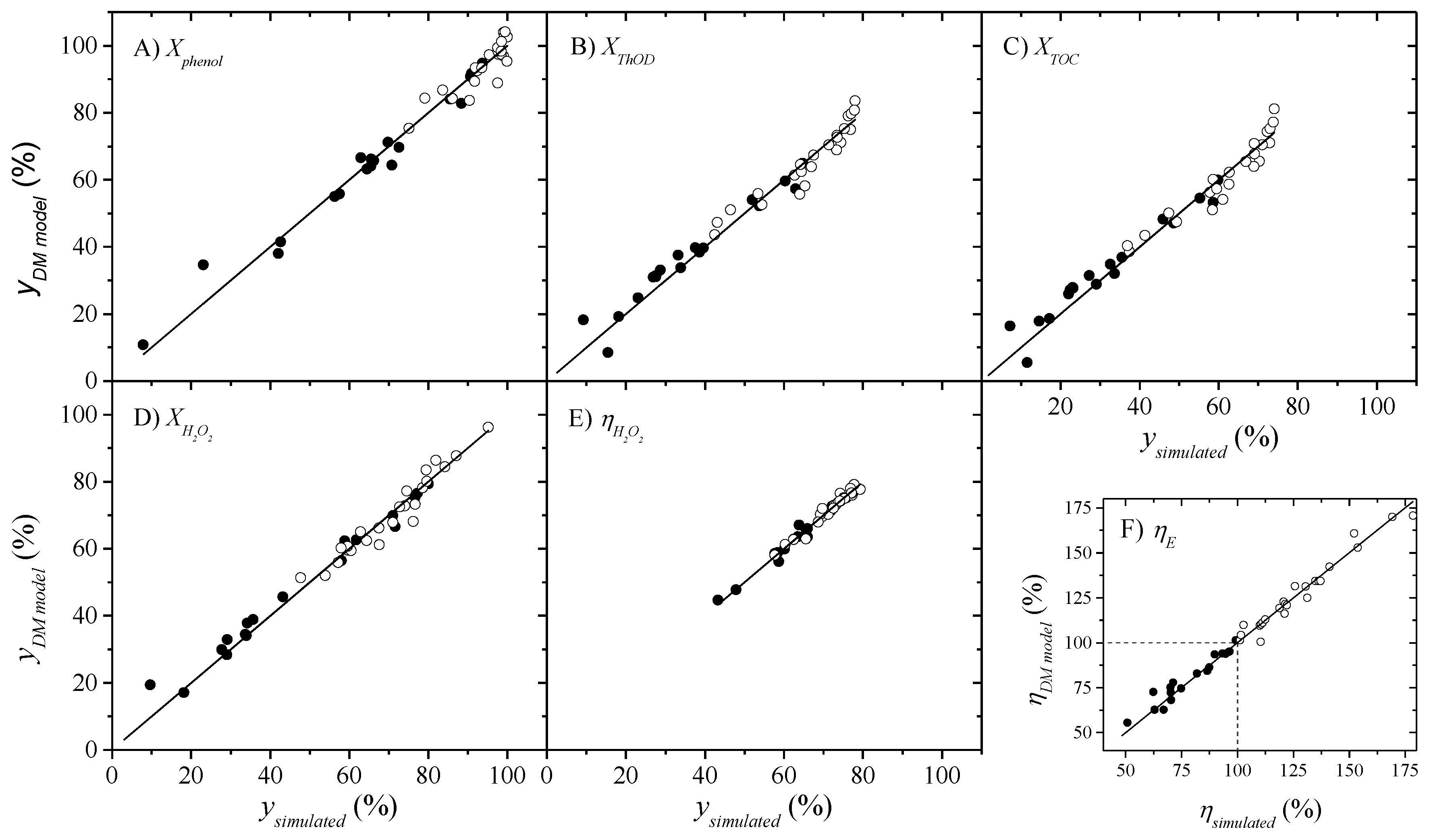

Figure 3. Parity plots comparing the six response variables (A–F) predicted by the quadratic model and by the ASPEN Plus^® v11 simulator. Open symbols represent the cases under autothermal operation.

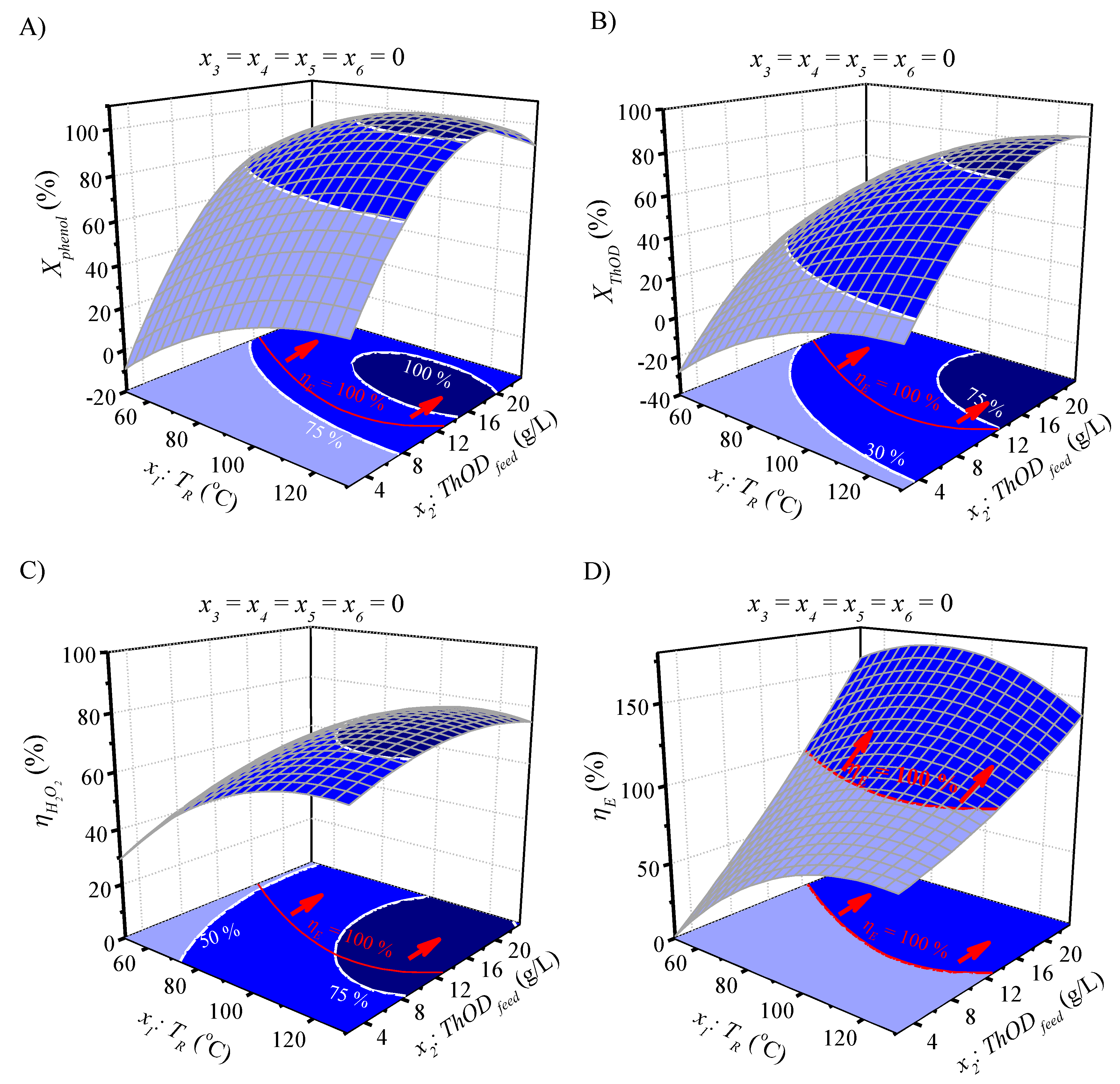

Figure 4. Response surfaces, contour plots and surface projections for X_phenol (A), X_ThOD (B), η_H₂O₂ (C) and η_E (D) as predicted by the quadratic models at different T_R and ThOD_feed values under T_output = 45 °C (x₃ = 0), HP_excess = 100 (x₄ = 0), τ = 165 g h mol⁻¹ (x₅ = 0) and T_input = 20 °C (x₆ = 0).

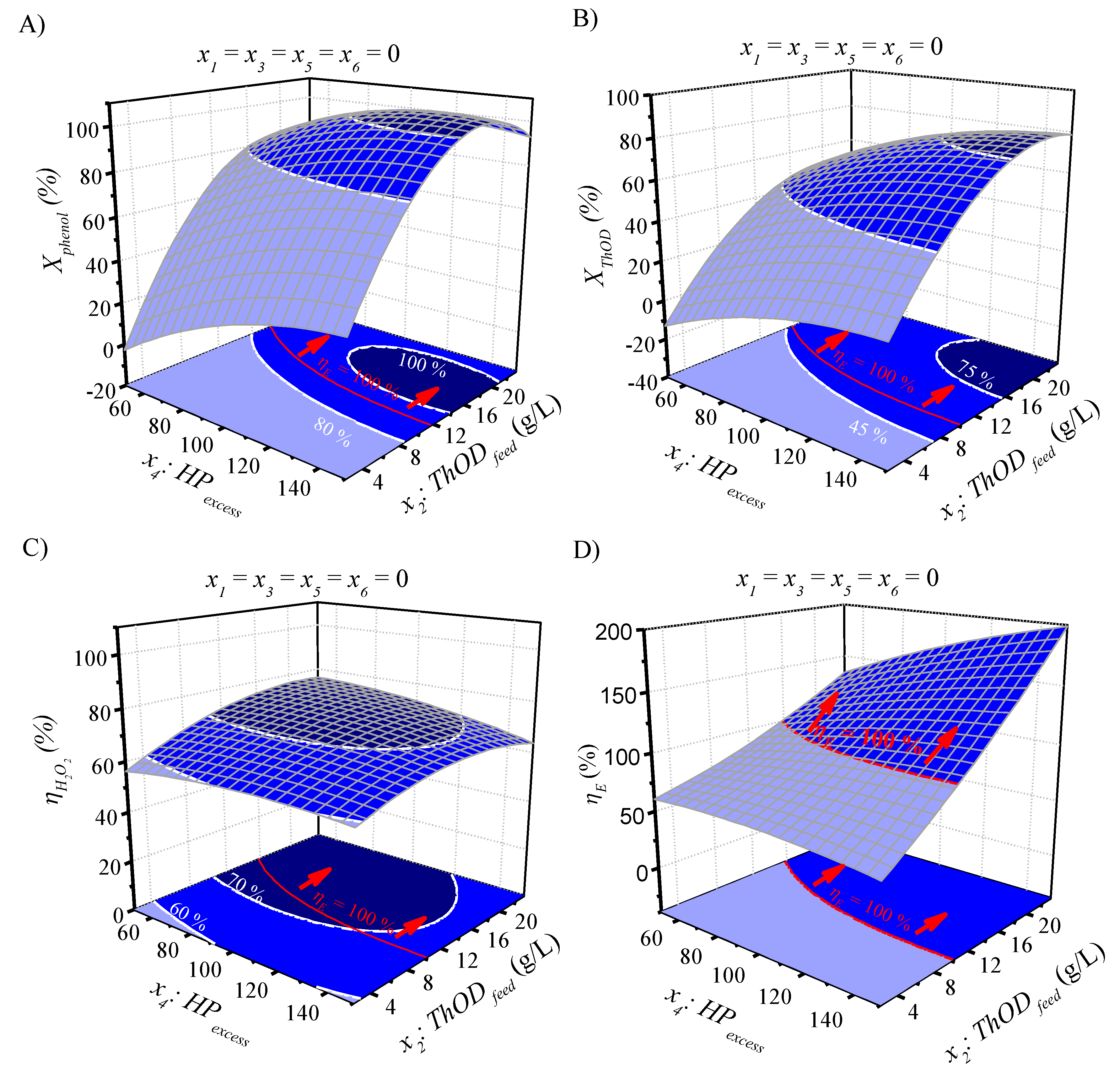

Figure 5. Response surfaces, contour plots and surface projections for X_phenol (A), X_ThOD (B), η_H₂O₂ (C) and η_E (D) as predicted by the quadratic models at different HP_excess and ThOD_feed values under T_output = 90 °C (x₁ = 0), T_output = 45 °C (x₃ = 0), τ = 165 g·h·mol⁻¹ (x₅ = 0) and T_input = 20 °C (x₆ = 0).

Table 1. Design of experiments based on the six-factor Doehlert Matrix. The codified values are in brackets.

Case	T_R (x₁) (°C)	ThOD_feed (x₂) (g·L⁻¹)	T_output (x₃) (°C)	HP_excess (x₄) (%)	τ (x₅) (g·h·mol⁻¹)	T_input (x₆) (°C)
1	90 (0)	13 (0)	45 (0)	100 (0)	165 (0)	20 (0)
2	130 (1)	13 (0)	45 (0)	100 (0)	165 (0)	20 (0)
3	50 (−1)	13 (0)	45 (0)	100 (0)	165 (0)	20 (0)
4	110 (0.5)	23 (0.866)	45 (0)	100 (0)	165 (0)	20 (0)
5	70 (−0.5)	23 (0.866)	45 (0)	100 (0)	165 (0)	20 (0)
6	110 (0.5)	2 (−0.867)	45 (0)	100 (0)	165 (0)	20 (0)
7	70 (−0.5)	2 (−0.867)	45 (0)	100 (0)	165 (0)	20 (0)
8	110 (0.5)	16 (0.288)	60 (0.816)	100 (0)	165 (0)	20 (0)
9	70 (−0.5)	16 (0.288)	60 (0.816)	100 (0)	165 (0)	20 (0)
10	110 (0.5)	9 (−0.289)	30 (−0.817)	100 (0)	165 (0)	20 (0)
11	70 (−0.5)	9 (−0.289)	30 (−0.817)	100 (0)	165 (0)	20 (0)
12	90 (0)	20 (0.577)	30 (−0.817)	100 (0)	165 (0)	20 (0)
13	90 (0)	5 (−0.578)	60 (0.816)	100 (0)	165 (0)	20 (0)
14	110 (0.5)	16 (0.288)	48.7 (0.204)	150 (0.79)	165 (0)	20 (0)
15	70 (−0.5)	16 (0.288)	48.7 (0.204)	150 (0.79)	165 (0)	20 (0)
16	90 (0)	5 (−0.578)	48.7 (0.204)	150 (0.79)	165 (0)	20 (0)
17	90 (0)	13 (0)	33.7 (−0.613)	150 (0.79)	165 (0)	20 (0)
18	110 (0.5)	9 (−0.289)	41.2 (−0.205)	50 (−0.791)	165 (0)	20 (0)
19	70 (−0.5)	9 (−0.289)	41.2 (−0.205)	50 (−0.791)	165 (0)	20 (0)
20	90 (0)	20 (0.577)	41.2 (−0.205)	50 (−0.791)	165 (0)	20 (0)
21	90 (0)	13 (0)	56.2 (0.612)	50 (−0.791)	165 (0)	20 (0)
22	110 (0.5)	16 (0.288)	48.7 (0.204)	110 (0.158)	94 (0.774)	20 (0)
23	70 (−0.5)	16 (0.288)	48.7 (0.204)	110 (0.158)	94 (0.774)	20 (0)
24	90 (0)	5 (−0.578)	48.7 (0.204)	110 (0.158)	94 (0.774)	20 (0)
25	90 (0)	13 (0)	33.7 (−0.613)	110 (0.158)	94 (0.774)	20 (0)
26	90 (0)	13 (0)	45 (0)	59 (−0.633)	94 (0.774)	20 (0)
27	110 (0.5)	9 (−0.289)	41.2 (−0.205)	89 (−0.159)	235 (−0.775)	20 (0)
28	70 (−0.5)	9 (−0.289)	41.2 (−0.205)	89 (−0.159)	235 (−0.775)	20 (0)
29	90 (0)	20 (0.577)	41.2 (−0.205)	89 (−0.159)	235 (−0.775)	20 (0)
30	90 (0)	13 (0)	56.2 (0.612)	89 (−0.159)	235 (−0.775)	20 (0)
31	90 (0)	13 (0)	45 (0)	140 (0.632)	235 (−0.775)	20 (0)
32	110 (0.5)	16 (0.288)	48.7 (0.204)	110 (0.158)	153 (0.129)	25 (0.763)
33	70 (−0.5)	16 (0.288)	48.7 (0.204)	110 (0.158)	153 (0.129)	25 (0.763)
34	90 (0)	5 (−0.578)	48.7 (0.204)	110 (0.158)	153 (0.129)	25 (0.763)
35	90 (0)	13 (0)	33.7 (−0.613)	110 (0.158)	153 (0.129)	25 (0.763)
36	90 (0)	13 (0)	45 (0)	59 (−0.633)	153 (0.129)	25 (0.763)
37	90 (0)	13 (0)	45 (0)	100 (0)	223 (−0.646)	25 (0.763)
38	110 (0.5)	9 (−0.289)	41.2 (−0.205)	89 (−0.159)	176 (−0.13)	15 (−0.764)
39	70 (−0.5)	9 (−0.289)	41.2 (−0.205)	89 (−0.159)	176 (−0.13)	15 (−0.764)
40	90 (0)	20 (0.577)	41.2 (−0.205)	89 (−0.159)	176 (−0.13)	15 (−0.764)
41	90 (0)	13 (0)	56.2 (0.612)	89 (−0.159)	176 (−0.13)	15 (−0.764)
42	90 (0)	13 (0)	45 (0)	140 (0.632)	176 (−0.13)	15 (−0.764)
43	90 (0)	13 (0)	45 (0)	100 (0)	106 (0.645)	15 (−0.764)

Table 2. Response variables obtained with the six-factor Doehlert Matrix.

Case	X_phenol (%)	X_ThOD (%)	X_TOC (%)	X_H₂O₂ (%)	η_H₂O₂ (%)	η_E (%)
1	92.4	62.7	57.8	67.5	73.13	110.0
2	99.1	76.9	72.9	78.6	79.35	110.4
3	63.0	23.1	17.2	34.0	43.29	62.5
4	99.9	77.8	73.8	81.9	77.09	152.2
5	97.6	64.0	58.4	76.2	65.59	178.6
6	23.0	9.3	7.2	9.7	63.83	70.1
7	7.9	2.4	1.7	2.9	47.90	48.3
8	99.0	76.3	72.2	79.5	77.72	110.6
9	91.0	52.0	45.9	61.8	63.49	93.4
10	90.4	65.3	61.0	67.6	77.23	112.4
11	66.2	28.7	23.1	34.2	57.67	99.3
12	98.6	73.5	69.1	79.6	74.18	169.3
13	56.3	26.9	22.4	29.1	65.95	50.9
14	100.0	78.0	74.1	60.5	69.76	125.7
15	97.7	64.2	58.6	58.0	57.67	137.2
16	70.8	38.6	33.6	29.1	65.94	70.3
17	98.5	73.4	68.9	57.2	68.71	134.9
18	65.5	39.6	35.5	80.1	75.80	89.8
19	42.1	15.5	11.6	33.7	58.68	67.0
20	79.1	46.5	41.3	95.2	74.26	120.8
21	69.8	37.6	32.6	77.2	72.15	74.9
22	97.6	74.4	70.3	71.0	77.15	121.1
23	83.6	43.2	37.0	47.7	60.32	102.8
24	42.7	18.2	14.6	18.2	62.41	62.9
25	86.1	54.5	49.3	54.0	71.24	118.8
26	65.5	33.9	29.0	58.9	70.48	87.4
27	91.8	66.9	62.7	76.6	77.86	101.7
28	72.6	33.2	27.3	43.2	60.18	81.9
29	98.5	73.4	69.0	87.1	75.40	153.9
30	93.7	64.7	59.8	76.7	74.31	96.3
31	99.3	75.3	71.1	62.9	69.22	121.5
32	99.5	77.0	73.0	74.5	76.86	130.5
33	91.9	53.5	47.4	59.6	62.46	131.3
34	57.5	27.7	23.2	27.7	65.61	71.3
35	93.5	64.4	59.5	64.4	72.55	136.4
36	75.1	42.5	37.4	74.0	72.66	101.1
37	95.4	67.5	62.7	72.8	73.70	122.1
38	88.4	62.9	58.6	71.6	77.45	94.8
39	64.5	27.6	22.1	35.7	58.42	70.3
40	97.5	71.4	66.8	84.2	75.12	141.3
41	90.7	60.3	55.2	71.0	73.61	86.6
42	98.2	72.9	68.4	59.7	69.76	111.3
43	85.5	53.7	48.6	58.0	71.89	96.5

Table 3. Analysis of variance and significant coefficient values (p-value < 0.30) for the six responses studies.

	Coefficients						p-Values
	X_phenol (%)	X_ThOD (%)	X_TOC (%)	X_H₂O₂ (%)	η_H₂O₂ (%)	η_E (%)	X_phenol (%)	X_ThOD (%)	X_TOC (%)	X_H₂O₂ (%)	η_H₂O₂ (%)	η_E (%)
β₀	92.5	61.4	56.2	66.2	73.0	109.5	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵
β₁	15.2	25.1	26.2	22.1	16.5	13.9	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵
β₂	40.1	36.1	35.1	40.8	7.1	63.2	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵
β₃						−25.4						<1·10⁻⁵
β₄	16.6	18.4	18.4	−13.1	−3.0	18.1	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵
β₅	−10.2	−11.7	−11.8	−12.5	−1.9	−8.0	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	0.00084	4.0·10⁻⁴
Β₆						10.0						2.5·10⁻⁵
β₁₁	−10.8	−11.5	−11.4	−10.1	−11.8	−23.1	0.002	0.001	0.003	0.001	<1·10⁻⁵	<1·10⁻⁵
β₂₂	−43.2	−28.7	−26.2	−29.2	−8.6	9.5	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	0.024
β₄₄	−13.2	−11.3	−10.8		−4.3	−8.3	<1·10⁻⁵	6.5·10^-4	0.001		7.184	0.027
β₅₅	−4.5	−3.9	−3.7	−4.2	−1.0	−3.9	0.119	0.192	0.237	0.100	0.264	0.272
β₁₂	−10.0			−4.4	−3.3	−27.4	0.032			0.288	0.02948	7.1·10⁻⁵
β₁₃						12.6						0.071
β₁₄	−10.1	−7.7	−6.5	−27.2	−2.0	−14.4	0.080	0.161	0.265	1.1·10⁻⁵	0.272	0.049
β₂₄	−9.8		6.5	−12.7	−5.6	26.5	0.091		0.297	0.021	0.00044	6.7·10⁻⁴
β₂₅	13.6	6.6		6.1	2.2		0.025	0.275		0.264	0.241
R²	0.973	0.968	0.963	0.976	0.980	0.981
R²_ajust.	0.962	0.958	0.951	0.967	0.971	0.971
S.E. *	4.27	4.42	4.71	3.97	1.39	5.27
F	89.4	95.7	83.0	114.3	120.2	101.3	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵	<1·10⁻⁵

* S.E. = Standard error

Table 4. Optimal operating conditions for each individual response.

Responses		Operating Conditions
Variable	Optimized Value (%)	T_R (x₁) (°C)	ThOD_feed (x₂) (g L⁻¹)	T_S-06 (x₃) (°C)	HP_excess (x₄) (%)	τ (x₅) (g·h·mol⁻¹)	T_S-03 (x₆) (°C)
$X_{phenol}$	>100.0 ^*	106 (0.406)	16.2 (0.256)	n.a. **	123 (0.377)	232 (−0.747)	n.a.
$X_{ThOD}$	91.6	116 (0.672)	20.8 (0.628)	n.a.	137 (0.586)	235 (−0.775)	n.a.
$X_{TOC}$	96.1	126 (0.921)	22.5 (0.768)	n.a.	150 (0.791)	235 (−0.775)	n.a.
$X_{H_{2} O_{2}}$	>100.0 ^*	130 (1.000)	21.9 (0.715)	n.a.	50 (−0.791)	235 (−0.775)	n.a.
$η_{H_{2} O_{2}}$	>100.0 ^*	130 (1.000)	23.8 (0.866)	n.a.	50 (−0.791)	94 (0.774)	n.a.
$η_{E}$	241.7	62 (−0.685)	23.8 (0.866)	30 (−0.817)	150 (0.79)	235 (−0.775)	25 (0.763)

^* response models do not take into account physico-chemical limitations, and values above 100% were calculated. ^** n.a. = not affected.

Table 5. Optimal operating conditions and corresponding response values calculated by the Aspen Plus^® v11 simulator as a function of the chemical oxygen demand flow rate fed to a CWPO unit to accomplish the multi-objective optimization of Equation (7). The values predicted by the quadratic models are in brackets.

ThOD_feed	T_R	T_output	HP_excess	τ	T_input	X_phenol	X_ThOD	X_TOC	X_H₂O₂	η_H₂O₂	η_E
(g L⁻¹)	(°C)	(°C)	(%)	(g·h·mol⁻¹)	(°C)	(%)	(%)	(%)	(%)	(%)	(%)
2.38	129	30	59	235	20	66 [37]	44 [12]	41 [19]	76 [55]	78 [69]	95 [100]
4.76	123	32	73	235	20	91 [60]	67 [32]	63 [36]	93 [61]	80 [73]	113 [100]
7.14	118	38	88	235	20	99 [79]	76 [50]	72 [50]	89 [66]	79 [76]	131 [100]
9.52	113	46	100	235	20	100 [92]	78 [63]	74 [62]	83 [71]	77 [78]	146 [100]
11.9	110	55	100	235	20	100 [100]	78 [71]	74 [70]	84 [78]	76 [79]	159 [100]
14.3	106	60	100	235	20	100 [>100]	78 [78]	74 [75]	85 [84]	75 [79]	177 [104]
16.7	103	60	100	235	20	100 [>100]	78 [81]	74 [78]	87 [87]	74 [79]	203 [115]
19.0	100	60	100	235	20	100 [>100]	78 [83]	74 [80]	88 [88]	72 [77]	231 [127]
21.4	96	60	100	235	20	100 [99]	78 [82]	74 [79]	89 [87]	71 [76]	262 [140]
23.8	93	60	100	235	20	100 [91]	78 [79]	74 [76]	90 [84]	71 [73]	296 [154]

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

Share and Cite

MDPI and ACS Style

Diaz de Tuesta, J.L.; Quintanilla, A.; Moreno, D.; Ferro, V.R.; Casas, J.A. Simulation and Optimization of the CWPO Process by Combination of Aspen Plus and 6-Factor Doehlert Matrix: Towards Autothermal Operation. Catalysts 2020, 10, 548. https://doi.org/10.3390/catal10050548

AMA Style

Diaz de Tuesta JL, Quintanilla A, Moreno D, Ferro VR, Casas JA. Simulation and Optimization of the CWPO Process by Combination of Aspen Plus and 6-Factor Doehlert Matrix: Towards Autothermal Operation. Catalysts. 2020; 10(5):548. https://doi.org/10.3390/catal10050548

Chicago/Turabian Style

Diaz de Tuesta, Jose L., Asunción Quintanilla, Daniel Moreno, Víctor R. Ferro, and Jose A. Casas. 2020. "Simulation and Optimization of the CWPO Process by Combination of Aspen Plus and 6-Factor Doehlert Matrix: Towards Autothermal Operation" Catalysts 10, no. 5: 548. https://doi.org/10.3390/catal10050548

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Menu

Simulation and Optimization of the CWPO Process by Combination of Aspen Plus and 6-Factor Doehlert Matrix: Towards Autothermal Operation

Abstract

1. Introduction

2. Computational Details

2.1. Process Simulation Flowsheet

2.2. Reaction Pathway and Kinetic Model

2.3. Components and Property Model Selection

2.4. Variable Definition

2.5. Design of Experiments

3. Results and Discussion

3.1. Kinetic Model Validation

3.2. CWPO Performance

3.3. Mathematical Modeling and Response Surface Plots

3.4. Multi-Criteria Optimization of CWPO Performance

4. Conclusions

Supplementary Materials

Author Contributions

Funding

Acknowledgments

Conflicts of Interest

References

Share and Cite

Article Metrics

Article Access Statistics

Further Information

Guidelines

MDPI Initiatives

Follow MDPI
