Abstract

:
As an important biodegradable and partially biobased copolyester, poly(butylene succinate-co-terephthalate) (PBST) possesses comparable thermal and mechanical properties and superior gas barrier performance when compared with poly(butylene adipate-co-terephthalate) (PBAT), but it was found to display poorer melt processability during pelletizing and injection molding. To make clear its melt crystallization behavior under rapid cooling, PBST48 and PBST44 were synthesized, and their melt crystallization was investigated comparatively with PBAT48. PBST48 showed a PBAT48-comparable melt crystallization performance at a cooling rate of 10 °C/min or at isothermal conditions, but it showed a melt crystallization ability at a cooling rate of 40 °C/min which was clearly poorer. PBST44, which has the same mass composition as PBAT48, completely lost its melt crystallization ability under the rapid cooling. The weaker chain mobility of PBST, resulting from its shorter succinate moiety, is responsible for its inferior melt crystallization ability and processability. In comparison with PBAT48, PBST48 displayed higher tensile modulus, and both PBST48 and PBST44 showed higher light transmittance. The findings in this study deepen the understanding of PBST’s properties and will be of guiding significance for improving PBST’s processability and application development.

Graphical Abstract

1. Introduction

Aliphatic-aromatic copolyesters refer to a class of polyesters synthesized from an aliphatic diol, an aliphatic α,ω-diacid, and an aromatic diacid. Such copolyesters can be biodegradable within a suitable composition range [1,2,3,4]. Among them, only the copolyesters synthesized from 1,4-butanediol (BDO), terephthalic acid (TPA), and adipic acid (AA) or succinic acid (SA) have been commercialized to date. Poly(butylene adipate-co-terephthalate) (PBAT) was commercialized in the mid-1990s and gradually found applications in various disposable film products like shopping bags, express packages, and mulch film, due to its biodegradability, thermoplastic processability, well-balanced thermal/mechanical properties [5,6,7], and relatively low cost. It is one of the most widely used biodegradable polymers today. Researchers on the modification and applications of PBAT are still very active in recent years [8,9,10,11,12,13,14].
Poly(butylene succinate-co-terephthalate) (PBST) is another biodegradable aliphatic-aromatic copolyester, with a structure and properties similar to PBAT [15,16,17,18]. After extensive studies on synthetic technology [19,20,21] and process optimization [22,23], PBST was industrialized at Sinopec Yizheng Chemical Fiber Co., Ltd., Yizheng, China in 2020. It is a partially biobased polymer because SA is a biobased monomer [24,25]. In fact, biobased SA has been commercially produced at a cost comparable to petroleum-based SA. As the cost of biobased succinic acid gradually declines, the cost of PBST will become increasingly competitive, although it is currently higher than that of PBAT. Furthermore, we found recently that PBST displays 3–4 times more oxygen and carbon dioxide and a 1.6 times stronger water vapor barrier performance when compared with PBAT. This demonstrates that the two fewer methylene groups in the succinate moiety of PBST result in a smaller free volume fraction and a slower gas diffusion [26]. The advantages of PBST’s gas barrier have been confirmed by other subsequent reports [27]. The biobased nature and higher gas barrier make PBST more promising in demanding applications such as food package materials. In fact, the R&D of a variety of differentiated products based on PBST has been reported recently [28,29,30,31,32,33].
Although PBST has advantages in sustainability and the gas barrier, its melt processability seems inferior to that of PBAT. During PBST’s industrial development, it was found that it is harder to cool it down in time for pelleting after melt polycondensation or for demolding in injection molding. In comparison, PBAT is clearly easier to pelletize and inject under the same conditions. The poorer melt processability of PBST suggests inferior melt crystallizability. However, in most reports on PBST crystallization in the literature [16,34,35], PBST displayed melt crystallization behavior similar to PBAT, with the exception of the findings of Heidarzadeh et al. [36]. Heidarzadeh et al. reported that PBST melt crystallization demonstrates a higher degree of super-cooling than PBAT. As the cooling rate (mostly, 10 °C/min) used in these DSC studies of PBST [16,34,35] is much slower than that in the real melt-processing process, these DSC results do not reflect the real melt crystallizability of PBST in the industrial process. Therefore, it is necessary to evaluate the melt crystallizability at a rapid cooling rate. On the other hand, the fact that PBST possesses a significantly higher gas barrier than PBAT [26] reminds us that the tiny difference in chain structure between them may also result in a clear difference in melt crystallization and even in some crystallization-related macroscopic properties. Although the physical and mechanical properties of PBST and PBAT have been extensively studied [5,6,7,15,16,17,18,19,20,21], a comparative study is still missing.
In this study, PBAT48, PBST48, and PBST44 copolyesters with the same molar (48 mol% BT) or mass (50 wt% BT) composition as commercial PBAT resin were synthesized, and their melt crystallization behaviors at normal cooling, rapid cooling, and isothermal condition were studied comparatively. Their light transmittance performance and tensile properties were also studied.

2. Experimental Section

2.1. Materials

One PBAT (PBAT48, the subscript means the molar percentage of butylene terephthalate (BT) unit) and two PBST (PBST44, PBST48) samples were synthesized in a 2.5 L stainless reactor from terephthalic acid (99%, Hengyi PetroChem., Co., Hangzhou, China), 1,4-butanediol (99.5%, Mitsubishi Chem. Co., Ltd., Ningbo, China), succinic acid (99%, Anhui Sanxin Chem. Co., Chizhou, China) or adipic acid (99%, Liaoyang Petrochem. Co., Liaoyang, China) using tetrabutoxyl titanium (TBT, 99.8%, J&K Chem., Beijing, China) as a catalyst. First, esterification was conducted at a diol/diacid molar ratio of 2/1 and 220 °C for about 3.5 h in the presence of 0.05 mol% TBT based on diacid until over 95 wt% water was stilled out. Then, an additional 0.05 mol% TBT was added, and the pressure was slowly reduced. The temperature was gradually raised to 250 °C over 45 min. Finally, melt polycondensation was then carried out at 250 °C and 20–100 Pa for about 3 h.
The copolyesters were melt-processed by a heat press (GT-7014-A50C, Taiwan, China) under about 15 MPa at 165 °C to prepare film samples with a thickness of about 400 μm. The films were directly used for WAXD observation and optical property measurement. Dumbbell-shaped standard specimens (2 × 25 × 0.4 mm3) were prepared from the films by a cutter and used for the tensile test.

2.2. Characterization

The copolyesters (0.1250 g) were dissolved in chloroform. The resulting solution (0.005 g/mL) was used for an intrinsic viscosity (IV) measurement at 25 °C using a IVS300 semi-automatic viscometer tester (Hangzhou Zhongwang Co., Hangzhou, China) equipped with an Ubbelohde viscometer (inner diameter 0.36 mm). 1H NMR spectra were recorded with a Bruker AC-80 spectroscopy instrument (400 M). Deuterated chloroform was used as the solvent and tetramethylsilane was used as the internal reference. The pulse sequence, temperature, and pulse duration were one pulse, 25 °C, and 1 s, respectively.
Thermal transition behaviors of PBAT and PBST were recorded with differential scanning calorimetry (DSC, Q200, TA Instrument Co., New Castle, DE, USA) under nitrogen flow. For nonisothermal crystallization and melting, the samples (6–8 mg) were heated at 10 °C/min from room temperature to 220 °C, kept at this temperature for 5 min, then cooled at 10 °C/min or 40 °C/min to −80 °C, kept at this temperature for another 5 min, and finally heated to 220 °C at 10 °C/min. For the isothermal crystallization and melting, the samples were heated at 10 °C/min from room temperature to 220 °C, kept at this temperature for 5 min, then quenched to the predetermined melt crystallization temperature (Tc), kept at this temperature for 30 min, then cooled at 10 °C/min to −80 °C, and finally heated to 220 °C at 10 °C/min.
Wide-angle X-ray diffraction (WAXD) patterns of PBAT and PBST were recorded with the X-ray diffractometer (PANalytical B.V., X-pert-Powder, Almelo, The Netherlands) with a CuKα radiation (1.54 Å), working at 40 KV and 40 mA. The sample was scanned from 2θ = 5° to 2θ = 80° with a step size of 0.026° and an acquisition time of 30 s per step.
The transmittance and haze of the copolyesters were determined using a CS-821 N desktop spectrophotometric colorimeter (Hangzhou CHNSpec Technology Co. Ltd., Hangzhou, China). All of the tests were carried out in the visible wavelength range 400–800 nm.
The tensile properties of the copolyesters were measured with a Zwick/Roell Z020 (Zwick Co., Ulm, Germany) universal testing machine at a tensile speed of 50 mm/min. The value of the load cell and preload were 500 N and 0 N, respectively. All of the specimens were kept at 25 °C and 50% relative humidity for at least 48 h before testing. At least five specimens were tested for each sample.

3. Results and Discussion

As the BT unit content in commercial PBAT is usually about 47–48 mol% or 50–51 wt%, one PBAT (PBAT48) and two PBST (PBST44 and PBST48) samples with the same molar (~48 mol%, PBAT48 and PBST48) or mass percentage (~50 wt%, PBAT48 and PBST44) of BT unit were synthesized and used for this study. The 1H NMR characterization and calculation of the chemical composition, average sequence length, and randomness degree are listed in the supporting information (Figure S1). The copolymer molar and mass compositions, the average sequence length, the randomness degree, and the intrinsic viscosity of the copolyesters are listed in Table 1. Random copolyesters with high-enough intrinsic viscosity (>1.0 dL/g, chloroform as solvent) and expected copolymer composition were successfully synthesized.
When the resin melt was discharged out of the bottom outlet of the 2.5 L reactor with the aid of nitrogen pressure, stretched into thin strips and cooled by tap-water in a 2-m long tank, and then cut into pellets by a pelletizer, it was found that PBAT48 was easily cut off but that PBST48 was not. The PBST pellets were connecting with each other, as shown in Figure 1. PBST44 was too soft after water cooling and so more difficult than PBST48 to be cut off under the same condition. The result implies that the melt crystallization of these copolyesters under rapid cooling was quite different. Although there are extensive studies on the melt crystallization of PBST [16,34,35] at a conventional cooling rate, research on melt crystallization in the case of rapid cooling is still lacking. So, the isothermal melt crystallization and the nonisothermal melt crystallization of PBAT and PBST at rapid and conventional cooling rates are comparatively investigated in this work.

3.1. Nonisothermal Melt Crystallization and Melting

First, the thermal transition behaviors of PBAT48, PBST48, and PBST44 were studied with DSC at a cooling/heating rate of 10 °C/min, which is widely used in DSC studies of PBST in the literature [16,34,35] After erasing the heat history, all of the copolyesters showed melt crystallization during cooling at 10 °C/min (Figure 2a), then glass transition and melting occurred during the 2nd heating at 10 °C/min (Figure 2b). The melt crystallization and 2nd melting peaks are attributed to the BT sequence. The BA and BS sequences did not crystallize from melt under the testing condition. But melting peaks of BA and BS sequences were indeed observed in the 1st heating scan (see Figure S2 in supporting information). It has been reported that, although the BS crystal of PBST can not be detected by X-ray diffraction, it can indeed be formed slowly after long-time storage at room temperature, and therefore can be observed in the first DSC scan [35]. The results in Figure S2 provide evidence for a similar conclusion regarding the copolyesters in this study.
At the cooling rate of 10 °C/min, PBAT48 and PBST48 showed almost the same melt crystallization behavior, with almost the same temperature, enthalpy, and half period of melt crystallization (Tc 78 °C, ΔHc 19.8–20.4 J/g, t1/2 43–45 s, see Table 2). No cold crystallization was observed in the secondary heating curve, suggesting that the melt crystallization of them occurred sufficiently. In comparison with the thermal transition properties of commercial PBAT [37,38], the PBAT48 sample displayed almost the same transition temperatures (Tg, Tc, Tm) but higher ΔHc and ΔHm. The existence of branched or chain extender structures in the macromolecular chain of commercial PBAT may account for its lower transition enthalpies. In comparison, PBST44 clearly showed poorer melt crystallizability. The Tc, ΔHc, and t1/2 of PBST44 were 47 °C, 17.3 J/g, and 98 s, respectively. Its melt crystallization took place at a higher supercooling degree at a much slower rate (t1/2 over 2 times). Due to insufficient melt crystallization, weak but still obvious cold crystallization (ΔHcc = 1.2 J/g) can be observed during the 2nd heating. In summary, at the conventional DSC cooling rate of 10 °C/min, PBST48 has excellent melt crystallizability comparable to that of PBAT48 and better than that of commercial PBAT [37,38]. Its thermal transition properties are also consistent with those reported for PBST45–50 in the literature [16,34,35]. But the PBST44 with lower ϕBT but the same ϕw,BT shows significantly poorer crystallizability than PBAT48. It seems that the molar composition is the determining factor for the melt crystallization of these copolyesters.
As the cooling rate during practical melt processing is much faster than the conventional DSC cooling rate, the above DSC results do not represent the melt crystallization behavior under real processing conditions. To make clear the melt crystallization of PBST and PBAT under real processing conditions, the DSC cooling rate was raised to 40 °C/min (the maximum controllable cooling rate of the DSC instrument) and other conditions were kept unchanged. The DSC curves are shown in Figure 2a′,b′ and the results are summarized in Table 2 too.
In comparison with the results for the cooling rate of 10 °C/min, PBAT48 showed lower Tc (63 °C), shorter t1/2 (15 s), but constant ΔHc (20.1 J/g) at a cooling rate of 40 °C/min, and no cold crystallization was observed during the second heating. Obviously, PBAT48 still manifested an excellent melt crystallization performance, though a higher supercooling degree was observed. Under the same cooling rate, the Tc, ΔHc, and t1/2 values of PBST48 were 51 °C, 16.9 J/g, and 30 s, respectively. The lower Tc, smaller ΔHc,, and longer t1/2 of PBST48 shown in Figure 3a indicate that it clearly has a poorer melt crystallizability than PBAT48 under rapid cooling conditions. An obvious cold crystallization (ΔHcc = 4.7 J/g) in the 2nd heating was observed, indicating that the melt crystallization of PBST48 was insufficient. In order to compare the effect of the cooling rate on the melt crystallization of PBAT48 and PBST48 more clearly, the difference between the melt crystallization temperature and enthalpy (ΔTc = Tc,10 ࢤ Tc,40, Δ (ΔHc) = ΔHc,10 ࢤ ΔHc,40) of PBAT48 and PBST48 are defined and compared in Figure 3b. It can be seen that the ΔTc and Δ (ΔHc) values of PBST48 are clearly higher than those of PBAT48. This indicates that PBST48 was affected more remarkably than PBAT48 by the cooling rate in melt crystallization and exhibited weakened melt crystallizability at a cooling rate of 40 °C/min. As for PBST44, no obvious melt crystallization peak was observed during the rapid cooling, and there was a big cold crystallization peak (ΔHcc 15.4 J/g) in the 2nd heating. This means that PBST44 almost completely lost its melt crystallization ability. The above results indicate that the melt crystallizability of PBST48 and PBST44 is clearly inferior to that of PBAT48 under rapid cooling, regardless of having the same molar or mass composition. This is the reason why PBST is more difficult to melt-process.
The inferior melt crystallization ability of PBST under rapid cooling can be attributed to its weaker chain mobility due to its shorter aliphatic diacid moiety (2 CH2 in succinate vs. 4 CH2 in adipate). The weaker chain mobility of PBST has been demonstrated by a smaller free volume fraction and a smaller gas diffusion coefficient in our previous study [26]. At a relatively slow cooling rate of 10 °C/min, the chain mobility of PBST48 is still high enough to meet the need of the chain rearrangement during melt crystallization. However, under rapid cooling conditions, PBST48 cannot provide enough chain mobility to rapidly rearrange its chain into the lattice. As a result, it needs a higher supercooling degree to start and a longer time to complete melt crystallization under rapid cooling. In comparison, PBAT has sufficient chain mobility to meet the demands of melt crystallization even under rapid cooling.

3.2. Isothermal Crystallization and Melting Behavior

Li FX et al. studied the isothermal melt crystallization of PBST70 [39], but the isothermal melt crystallization of PBST44–48 has not been reported in the literature. Therefore, the isothermal melt crystallization behavior of PBAT48, PBST48, and PBST44 was further investigated in this study. The nonisothermal melt crystallization peak temperature at 10 °C/min cooling, namely, 78 °C, 78 °C, and 47 °C (see Table 2), was selected for the isothermal melt crystallization. After erasing the heat history, the melt was quenched to the isothermal temperature. As seen in Figure 4a, all of the three copolyesters displayed distinctive isothermal melt crystallization behaviors. First, two exothermic peaks appeared, and second, the peaks were very asymmetrical. Both peaks were attributed to the crystallization of the BT sequence. The smaller peak may correspond to the crystallization of the shorter BT sequences which could only crystallize more slowly to form immature crystals after the longer BT sequences had crystallized to form more perfect crystals.
From the thermal flow data in Figure 4a, the relative crystallinity (Xt) was calculated with Equation (1) and plotted in Figure 4b. From the Avrami equation shown in Equation (2), the Avarami plots (Equation (3)) were made and shown in Figure 4c. The linear part in the grey area corresponding to the isothermal time range 0.05–0.22 min is used to calculate the crystallization rate constant K and the Avrami index n by linear fitting. The half time of isothermal melt crystallization, t1/2, is calculated from n and K with Equation (4). All the results are summarized in Table 3. The Avrami indexes n of all of the three copolyesters are close to three. The K and t1/2 values of PBST48 are equal to those of PBAT48, indicating that their isothermal melt crystallization rates are equal to each other. The t1/2 value of PBST48 (36.6 s) is obviously longer than that (11 s) reported for PBST70 at 80 °C [39], indicating much slower melt crystallization of PBST48 than PBST70. The t1/2 value of PBST44 is longer than that of PBST48 (0.68 min vs. 0.61 min), indicating a slower crystallization rate. These results are similar to the crystallization performance of non-isothermal melt crystallization at a cooling rate of 10 °C/min.
X t = ∫ 0 t ( Δ H c ) d t ∫ 0 ∞ ( Δ H c ) d t
1 − X t = exp ( − K t n )
ln [ − ln ( 1 − X t ) ] = ln K + n ln t
t 1 / 2 = ( ln 2 K ) 1 / n
After 30 min of isothermal melt crystallization, the samples were cooled down further to −80 °C at 10 °C/min. Neither further melt crystallization during the cooling nor cold crystallization during the 2nd heating process were observed, indicating that they had sufficiently crystallized during the isothermal crystallization process. During the 2nd heating, they all displayed two melting peaks. The first smaller one represents the melting of the immature crystals formed at the later stage of isothermal melt crystallization, and the second/main peak represents the melting of the more perfect crystals formed at the earlier stage of isothermal melt crystallization. Although it is reported that the BS sequence in PBST50 can crystallize slowly at room temperature [35], the smaller peak in Figure 4d can not be regarded as the melting of BS or BA crystals. As the first Tm (88 °C) of PBAT48 is much higher than the equilibrium melting temperature of PBA (63 °C [40]), it is impossible to attribute the first melting peak of PBAT48 to the melting of BA crystal. Therefore, in can be deduced that the first peaks of PBST48 and PBST44 are not the melting of BS crystals.
The thermal transition properties during the 2nd heating are summarized in Table 4. For PBAT48, it can be seen that, although the ΔHm2 value (16.2 J/g) is lower, the total ΔHm value (ΔHm,sum = ΔHm1 + ΔHm1 = 18.8 J/g) is almost the same as the ΔHm value (19.2 J/g) after nonisothermal melt crystallization at 10 °C/min (see Table 2). This result supports the conclusion that PBAT48 has strong melt crystallizability. In other words, the BT sequences in PBAT48 crystallized sufficiently during 10 °C/min cooling; as a result, the ΔHm,sum could not be further increased by the annealing. But for PBST48 and PBST44, the ΔHm,sum values (21.9, 20.1 J/g) are clearly higher than those values (19.7, 18.8 J/g) after nonisothermal melt crystallization at 10 °C/min (see Table 2), indicating that the two PBST samples did not crystallize sufficiently during the 10 °C/min cooling, and therefore the melt enthalpies were further increased after annealing. On the other hand, the two PBST samples displayed higher ΔHm,sum values after isothermal melt crystallization than PBAT48, regardless of weaker nonisothermal melt crystallizability. In other words, they can have slightly higher crystallinity than PBAT48.

3.3. Light Transmittance Performance

PBAT film is often translucent. But we find PBST film always displays better light transmittance performance than PBAT film. The light transmittance and haze of PBAT48, PBST48, and PBST44 films with thickness of ca. 425 μm were measured and compared in Table 5. It can be seen that all the films display almost the same haze but different transmittance in such an order: PBAT48 < PBST48 < PBST44. The difference in light transmittance might be related to their difference in crystallization and in the formed microscopic crystal morphology. The films were melt-processed by heat press at 165 °C and then cooled with cooling water. Due to the stronger chain mobility of PBAT48, it can be inferred that its crystals probably grew faster to form crystals with a bigger size than PBST48 and PBST44. For PBST48 and PBST44, it was difficult to finish the melt crystallization quickly under such a rapid cooling process, so the crystallization occurred mostly at lower temperatures. As lower temperature is known to favor nucleation over crystal growth, PBST48 and PBST44 crystals would have smaller size and consequently higher transmittance than PBAT48. However, the authors failed to demonstrate this point using polarized light optical microscopy (POM). Although clear spherulites can be observed for commercial PBAT [41] and PBST70 [39], there is in fact no report of the spherulite observation of PBST44–48 in the literature. In Lee SH et al.’s report, they discuss how PBST10–20 can form clear spherulites during a supercooling of 30 °C, but the spherulites structure of PBST30 is not clear and the typical Maltese-cross is not clearly seen, and for PBST40, no spherulite can be observed at all [18]. Zheng C et al. [35] demonstrated the existence of PBST50 spherulites with POM, but the spherulite boundary was blurred. As the average length of BT sequences in the PBST and PBAT copolyesters is very small (close to two, Table 1), the polymers lack enough chain regularity, so there might be a lot of defects in the formed crystals. Possibly for this reason, it is difficult to form a sufficiently ordered crystal structure with a big enough size. In fact, it was reported that the spherulite size of PBST50 determined by light scattering pattern is only 11.4 um in diameter [35].

3.4. Tensile Properties

The tensile properties of PBAT48, PBST48, and PBST44 were further investigated. Typical tensile curves are shown in Figure 5. As semi-crystalline polymers, they all exhibited typical ductile-tensile behavior, displaying elastic deformation, yielding, high elastic deformation, and strain hardening in sequence with increasing tensile strain. In comparison with PBAT48, PBST48 displayed the same tensile stress at break but a clearly higher tensile modulus (E, 144 MPa vs. 107 MPa) and yield strength (σy, 9.9 MPa vs. 7.7 MPa) because of its lower chain flexibility and higher crystallinity, as demonstrated by the nonisothermal melt crystallization results. PBST44 has less BT molar content but the same BT mass content and similar crystallinity to PBAT48, so it exhibited E and σy comparable to PBAT48, and slightly lower tensile stress at break (49 MPa vs. 55 MPa). As PBAT is too soft for many applications, the higher modulus and yielding strength of the PBST copolyesters are very desirable properties for practical applications. In addition, when compared with commercial PBAT reported in the literature [37], the PBST copolyesters exhibited not only a much higher modulus (107–144 MPa vs. 46 MPa [37]), but also a much higher strength (49–56 MPa vs. 29 MPa [37]). This result also supports the conclusion that the PBST copolyesters used in this study have a sufficiently high molecular weight.

4. Conclusions

In this study, the melt crystallization of PBST48 and PBST44 was investigated in nonisothermal and isothermal manners and compared with PBAT48. PBST48 showed a PBAT48-comparable melt crystallization performance at a conventional DSC cooling rate of 10 °C/min or at isothermal conditions, but showed a clearly lower melt crystallization temperature and enthalpy and a much longer crystallization time at a cooling rate of 40 °C/min. PBST44, which has the same mass percentage of BT unit as PBAT48, not only showed a much slower crystallization rate at a cooling rate of 10 °C/min, but it also completely lost its melt crystallization ability at a cooling rate of 40 °C/min. The weaker melt crystallization ability of PBSTs at the same copolymer composition is attributed to the shorter aliphatic diacid moiety in PBST than in PBAT (succinate vs. adipate) and the resultant weaker chain mobility. It is the main reason why PBST is more difficult to pelletize and injection-mold. Due to the difference in melt crystallization at rapid cooling and chain flexibility, the PBST films show higher light transmittance, and PBST48 showed an obviously higher tensile modulus and yielding strength than PBAT48. Although PBST crystallizes more slowly under rapid cooling, it has superior mechanical, optical, and gas barrier properties to PBAT and therefore appears to be a more promising biodegradable aliphatic-aromatic copolyester when it comes to more demanding applications, such as food packaging. The promotion of the melt crystallization of PBST under rapid cooling will be reported later.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym16172445/s1, Figure S1: 1H NMR spectra (solvent: CDCl3) of PBAT48, PBST48 and PBST44, Figure S2: (a) First heating DSC scan (10 oC/min) curves and (b) WAXD patterns of PBAT48, PBST48 and PBST44.

Author Contributions

Conceptualization, L.W.; Methodology, P.Q.; Validation, P.Q.; Investigation, P.Q.; Resources, L.W.; Writing – original draft, P.Q.; Writing – review & editing, L.W.; Supervision, L.W.; Project administration, L.W.; Funding acquisition, L.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (52173107), the Natural Science Foundation of Zhejiang Province (Z24E030004), State Key Laboratory of Chemical Engineering (SKL-ChE-23T05) and China Petroleum & Chemical Corporation.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Acknowledgments

The authors also thank Li Xu, Qun Pu, Sudan Shen, Na Zheng and Bin Zhang, Eryuan Fang for their assistance in specimen preparation and instrument measurement at State Key Laboratory of Chemical Engineering.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Marten, E.; Müller, R.-J.; Deckwer, W.-D. Studies on the enzymatic hydrolysis of polyesters. II. Aliphatic-aromatic copolyesters. Polym. Degrad. Stab. 2005, 88, 371–381. [Google Scholar] [CrossRef]
  2. Witt, U.; Müller, R.J.; Deckwer, W.D. Studies on sequence distribution of aliphatic/aromatic copolyesters by high-resolution 13C nuclear magnetic resonance spectroscopy for evaluation of biodegradability. Macromol. Chem. Phys. 1996, 197, 1525–1535. [Google Scholar] [CrossRef]
  3. Müller, R.J.; Witt, U.; Rantze, E.; Deckwer, W.D. Architecture of biodegradable copolyesters containing aromatic constituents. Polym. Degrad. Stab. 1998, 59, 203–208. [Google Scholar] [CrossRef]
  4. Müller, R.-J.; Kleeberg, I.; Deckwer, W.-D. Biodegradation of polyesters containing aromatic constituents. J. Biotechnol. 2001, 86, 87–95. [Google Scholar] [CrossRef]
  5. Siegenthaler, K.O.; Künkel, A.; Skupin, G.; Yamamoto, M. Ecoflex® and Ecovio®: Biodegradable, performance-enabling plastics. In Synthetic Biodegradable Polymers; Springer: Berlin/Heidelberg, Germany, 2011; pp. 91–136. [Google Scholar]
  6. Jiao, J.; Zeng, X.B.; Huang, X.B. An overview on synthesis, properties and applications of poly(butylene-adipate-co-terephthalate)-PBAT. Adv. Ind. Eng. Polym. Res. 2020, 3, 19–26. [Google Scholar]
  7. Ferreira, F.V.; Cividanes, L.S.; Gouveia, R.F.; Lona, L.M.F. An overview on properties and applications of poly(butylene adipate-co-terephthalate)-PBAT based composites. Polym. Eng. Sci. 2017, 59, E7–E15. [Google Scholar] [CrossRef]
  8. Debeli, D.K.; Huang, F.F.; Wu, L.B. Sulfonated poly(butylene adipate-co-terephthalate)/sodium montmorillonite nanocomposite films with an ultra-high oxygen barrier. Ind. Eng. Chem. Res. 2022, 61, 13283–13293. [Google Scholar] [CrossRef]
  9. Wei, C.; Guo, P.; Lyu, M.F.; Wang, B.; Li, C.; Sang, L.; Wei, Z.Y. High barrier poly (glycolic acid) modified poly (butylene adipate-co-terephthalate) blown films and accelerated ultraviolet degradability evaluation. ACS Appl. Polym. Mater. 2023, 5, 3457–3467. [Google Scholar] [CrossRef]
  10. Gao, F.X.; Cai, Y.; Liu, S.J.; Wang, X.H. High-performance biodegradable PBAT/PPC composite film through reactive compatibilizer. Chin. J. Polym. Sci. 2022, 41, 1051–1058. [Google Scholar] [CrossRef]
  11. Ran, L.B.; Hong, W.Y.R.; Yu, G.Y.; Du, Q.J.; Guo, S.Y.; Li, C.H. Preparation and improving mechanism of PBAT/PPC-based micro-layer biodegradable mulch film with excellent water resistance and mechanical properties. Polymer 2024, 291, 126614. [Google Scholar] [CrossRef]
  12. de Matos Costa, A.R.; Crocitti, A.; Hecker de Carvalho, L.; Carroccio, S.C.; Cerruti, P.; Santagata, G. Properties of biodegradable films based on poly (butylene succinate)(PBS) and poly (butylene adipate-co-terephthalate)(PBAT) blends. Polymers 2020, 12, 2317. [Google Scholar] [CrossRef]
  13. Ren, P.G.; Liu, X.H.; Ren, F.; Zhong, G.J.; Ji, X.; Xu, L. Biodegradable graphene oxide nanosheets/poly-(butylene adipate-co-terephthalate) nanocomposite film with enhanced gas and water vapor barrier properties. Polym. Test. 2017, 58, 173–180. [Google Scholar] [CrossRef]
  14. Livi, S.; Bugatti, V.; Marechal, M.; Soares, B.G.; Barra, G.M.O.; Duchet-Rumeau, J.; Gérard, J.-F. Ionic liquids-lignin combination: An innovative way to improve mechanical behaviour and water vapour permeability of eco-designed biodegradable polymer blends. RSC Adv. 2015, 5, 1989–1998. [Google Scholar] [CrossRef]
  15. Li, F.X.; Xu, X.J.; Hao, Q.H.; Li, Q.B.; Yu, J.Y.; Cao, A.M. Effects of comonomer sequential structure on thermal and crystallization behaviors of biodegradable poly(butylene succinate-co-butylene terephthalate)s. J. Polym. Sci. Part B Polym. Phys. 2006, 44, 1635–1644. [Google Scholar] [CrossRef]
  16. Gang, M.J.; Wang, Y.X.; Zhang, Y.; Liu, L.Z.; Shi, Y. The relationship between microstructure and mechanical properties of PBST two-component crystalline random copolymers with different BT contents. Polymers 2023, 15, 383. [Google Scholar] [CrossRef] [PubMed]
  17. Nagata, M.; Goto, H.; Sakai, W.; Tsutsumi, N. Synthesis and enzymatic degradation of poly(tetramethylene succinate) copolymers with terephthalic acid. Polymer 2000, 41, 4373–4376. [Google Scholar] [CrossRef]
  18. Lee, S.H.; Lim, S.W.; Lee, K.H. Properties of potentially biodegradable copolyesters of (succinic acid-1,4-butanediol)/(dimethyl terephthalate-1,4-butanediol). Polym. Int. 1999, 48, 861–867. [Google Scholar] [CrossRef]
  19. Sun, Y.J.; Wu, L.B.; Bu, Z.Y.; Li, B.G.; Li, N.X.; Dai, J.M. Synthesis and thermomechanical and rheological properties of biodegradable long-chain branched poly(butylene succinate-co-butylene terephthalate) copolyesters. Ind. Eng. Chem. Res. 2014, 53, 10380–10386. [Google Scholar] [CrossRef]
  20. Sun, Y.J.; Wu, L.B.; Li, N.X.; Dai, J.M. Co-esterification process for synthesis of aliphatic-aromatic copolyester poly(butylene succinate-co-butylene terephalate). Chem. Reac. Eng. Technol. 2016, 32, 78–82. [Google Scholar]
  21. Lu, J.; Wu, L.B.; Li, B.G. Long chain branched poly(butylene succinate-co-terephthalate) copolyesters using pentaerythritol as branching agent: Synthesis, thermo-mechanical, and rheological properties. J. Appl. Polym. Sci. 2016, 133, 44544. [Google Scholar] [CrossRef]
  22. Hu, L.X.; Wu, L.B.; Song, F.C.; Li, B.G. Kinetics and modeling of melt polycondensation of poly(butylene succinate-co-terephthalate), 1-esterification. Macromol. React. Eng. 2010, 4, 621–632. [Google Scholar] [CrossRef]
  23. Liu, T.Q.; Gu, X.P.; Li, N.X.; Wu, L.B.; Wang, J.J.; Feng, L.F. Modeling of coesterification process for biodegradable poly(butylene succinate-co-butylene terephthalate) copolyesters. Macromol. React. Eng. 2019, 13, 1800069. [Google Scholar] [CrossRef]
  24. Song, H.; Sang, Y.L. Production of succinic acid by bacterial fermentation. Enzym. Microb. Tech. 2006, 39, 352–361. [Google Scholar] [CrossRef]
  25. Bechthold, I.; Bretz, K.; Kabasci, S.; Kopitzky, R.; Springer, A. Succinic acid: A new platform chemical for biobased polymers from renewable resources. Chem. Eng. Technol. 2008, 31, 647–654. [Google Scholar] [CrossRef]
  26. Qin, P.K.; Wu, L.B.; Li, B.-G.; Li, N.X.; Pan, X.H.; Dai, J.M. Superior gas barrier properties of biodegradable PBST vs. PBAT copolyesters: A comparative study. Polymers 2021, 13, 3449. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, L.Z.; Tu, Z.; Liang, J.M.; Wei, Z.Y. Barrier properties of biodegradable aliphatic–aromatic copolyesters (PBXT series). Macromol. Chem. Phys. 2024, 225, 2400051. [Google Scholar] [CrossRef]
  28. Zhang, Q.; Gao, Y.G.; Luo, B.J.; Cui, Y.; Shu, S.L.; Chen, W.; Wang, L. Effect of styrene-maleic anhydride copolymer on properties of PBST/PLA blends. Polymers 2023, 15, 952. [Google Scholar] [CrossRef]
  29. Chen, P.; Gao, X.L.; Zhao, L.; Xu, Z.M.; Li, N.X.; Pan, X.H.; Dai, J.M.; Hu, D.D. Preparation of biodegradable PBST/PLA microcellular foams under supercritical CO2: Heterogeneous nucleation and anti-shrinkage effect of PLA. Polym. Degrad. Stab. 2022, 197, 109844. [Google Scholar] [CrossRef]
  30. Yan, X.Y.; Xie, R.H.; Pan, H.W.; Zhao, T.; Han, L.J.; Bian, J.J.; Yang, H.L.; Zhao, Y.; Wu, G.F.; Zhang, H.L. Effect of 1,4-bis(tert-butyl peroxy isopropyl) benzene on the rheological, mechanical, thermal and barrier properties of poly(butylene succinate-co-terephthalate)/poly(lactic acid) blends and blown films. Mater. Today Commun. 2022, 31, 103830. [Google Scholar] [CrossRef]
  31. Yan, X.Y.; Liu, C.K.; He, L.T.; Li, C.T.; Wang, D.M.; Wu, G.F.; Bian, J.J.; Zhao, Y.; Zhang, H.L. Biodegradable blends of poly(butylene succinate-co-terephthalate) and stereocomplex polylactide with enhanced rheological, mechanical properties, heat resistance and hydrolytic degradation. J. Mater. Scie. 2023, 58, 6391–6404. [Google Scholar] [CrossRef]
  32. Xue, K.; Chen, P.; Yang, C.; Xu, Z.M.; Zhao, L.; Hu, D.D. Low-shrinkage biodegradable PBST/PBS foams fabricated by microcellular foaming using CO2 & N2 as co-blowing agents. Polym. Degrad. Stab. 2022, 206, 110182. [Google Scholar]
  33. Yan, X.Y.; Chen, L.; Tian, H.L.; Jia, S.L.; Wang, X.Y.; Pan, H.W.; Han, L.J.; Bian, J.J.; Yang, H.L.; Wu, G.F.; et al. Enhancement of the compatibility, mechanical properties, and heat resistance of poly(butylene succinate-co-terephthalate)/poly(butylene succinate) blends by the addition of chain extender and nucleating agent. J. Polym. Res. 2023, 30, 111. [Google Scholar] [CrossRef]
  34. Zhang, J.; Li, F.X.; Yu, J.Y. Non-isothermal crystallization behavior of biodegrdable poly(butylene succinate-co-terephthalate) (PBST) copolyesters. Therm. Sci. 2012, 16, 1480–1483. [Google Scholar] [CrossRef]
  35. Zheng, C.; Zhu, G.X.; Shi, Y.; Liu, L.Z.; Ren, M.Q.; Zhang, W.; Han, L. Crystallization, structures and properties of biodegradable poly(butylene succinate-co-butylene terephthalate) with a symmetric composition. Mater. Chem. Phys. 2021, 260, 124183. [Google Scholar] [CrossRef]
  36. Heidarzadeh, N.; Rafizadeh, M.; Taromi, F.A.; Puiggalí, J.; Del Valle, L.J.; Franco, L. Preparation of random poly(butylene alkylate-co-terephthalate)s with different methylene group contents: Crystallization and degradation kinetics. J. Polym. Res. 2017, 24, 163. [Google Scholar] [CrossRef]
  37. Xing, Q.Q.; Ruch, D.; Dubois, P.; Wu, L.B.; Wang, W.J. Biodegradable and High-Performance Poly(butylene adipate-coterephthalate)−Lignin UV-Blocking Films. ACS Sustain. Chem. Eng. 2017, 5, 10342–10351. [Google Scholar] [CrossRef]
  38. Xing, Q.Q.; Buono, P.; Ruch, D.; Dubois, P.; Wu, L.B.; Wang, W.J. Biodegradable UV-Blocking Films through Core−Shell Lignin−Melanin Nanoparticles in Poly(butylene adipate-co-terephthalate). ACS Sustainable Chem. Eng. 2019, 7, 4147–4157. [Google Scholar] [CrossRef]
  39. Li, F.X.; Luo, S.L.; Yu, J.Y. Mechanical, thermal properties and isothermal crystallization kinetics of biodegradable poly(butylene succinate-co-terephthalate) (PBST) fibers. J. Polym. Res. 2010, 17, 279–287. [Google Scholar] [CrossRef]
  40. Righettig, M.C.; Piuoli, M. Crystallization kinetics and melting behavior of poly(buty1ene adipate), poly(buty1ene isophthalate) and their copolymers. Macromol. Chem. Phys. 1998, 199, 2063–2070. [Google Scholar] [CrossRef]
  41. Cranston, E.; Kawada, J.; Raymond, S.; Morin, F.G.; Marchessault, R.H. Cocrystallization model for synthetic biodegradable poly(butylene adipate-co-butylene terephthalate). Biomacromolecules 2003, 4, 995–999. [Google Scholar] [CrossRef]
Polymers 16 02445 g001

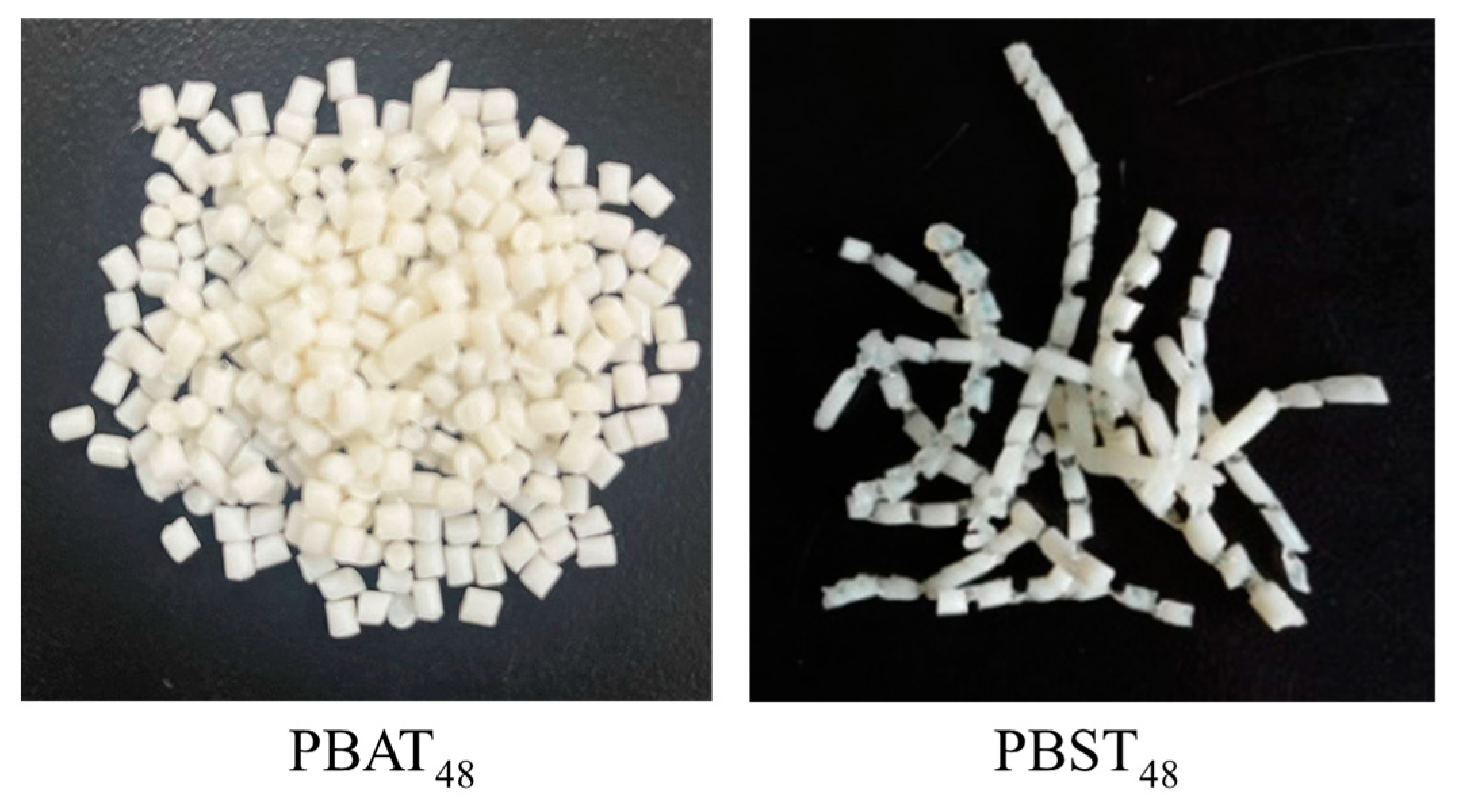

Figure 1. Picture of pelletized samples of PBAT48 and PBST48.
Figure 1. Picture of pelletized samples of PBAT48 and PBST48.
Polymers 16 02445 g001
Polymers 16 02445 g002

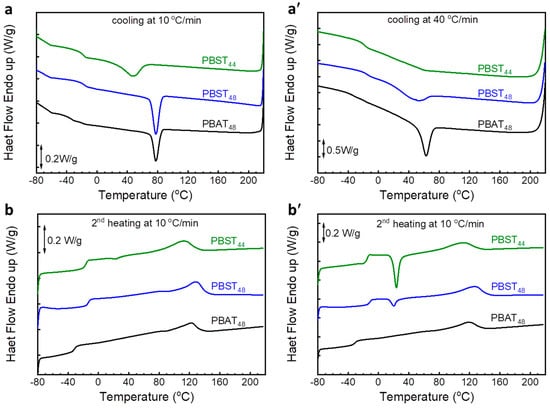

Figure 2. DSC cooling ((a): 10 °C/min; (a′): 40 °C/min) and 2nd heating ((b,b′): 10 °C/min) scan curves of PBAT48, PBST44 and PBST48.
Figure 2. DSC cooling ((a): 10 °C/min; (a′): 40 °C/min) and 2nd heating ((b,b′): 10 °C/min) scan curves of PBAT48, PBST44 and PBST48.
Polymers 16 02445 g002
Polymers 16 02445 g003

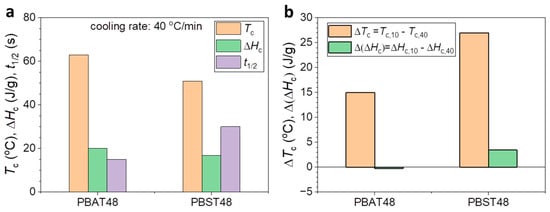

Figure 3. (a) The temperature, enthalpy, and half time of melt crystallization (Tc, ΔHc, t1/2) of PBST48 and PBAT48 at cooling rate of 40 °C/min; (b) change in melt crystallization temperature (ΔTc) and enthalpy (Δ(ΔHc)) of PBST48 and PBAT48 between different cooling rates. The subscript “10” or “40” in Tc,10, Tc,40, ΔHc,10, ΔHc,40 means the cooling rate, 10 or 40 °C/min.
Figure 3. (a) The temperature, enthalpy, and half time of melt crystallization (Tc, ΔHc, t1/2) of PBST48 and PBAT48 at cooling rate of 40 °C/min; (b) change in melt crystallization temperature (ΔTc) and enthalpy (Δ(ΔHc)) of PBST48 and PBAT48 between different cooling rates. The subscript “10” or “40” in Tc,10, Tc,40, ΔHc,10, ΔHc,40 means the cooling rate, 10 or 40 °C/min.
Polymers 16 02445 g003
Polymers 16 02445 g004

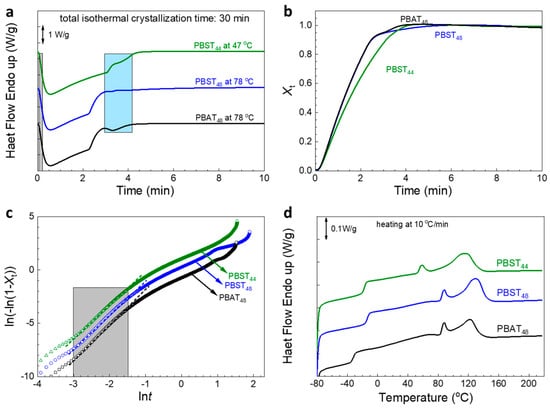

Figure 4. (a) Isothermal crystallization DSC curves; (b) time evolution of relative crystallinity (Xt); (c) Avarami plot of ln(−ln(1 − Xt)) vs. lnt. (d) 2nd heating (10 °C/min) curves after isothermal melt crystallization for 30 min and then cooling at 10 °C/min to −80 °C.
Figure 4. (a) Isothermal crystallization DSC curves; (b) time evolution of relative crystallinity (Xt); (c) Avarami plot of ln(−ln(1 − Xt)) vs. lnt. (d) 2nd heating (10 °C/min) curves after isothermal melt crystallization for 30 min and then cooling at 10 °C/min to −80 °C.
Polymers 16 02445 g004
Polymers 16 02445 g005

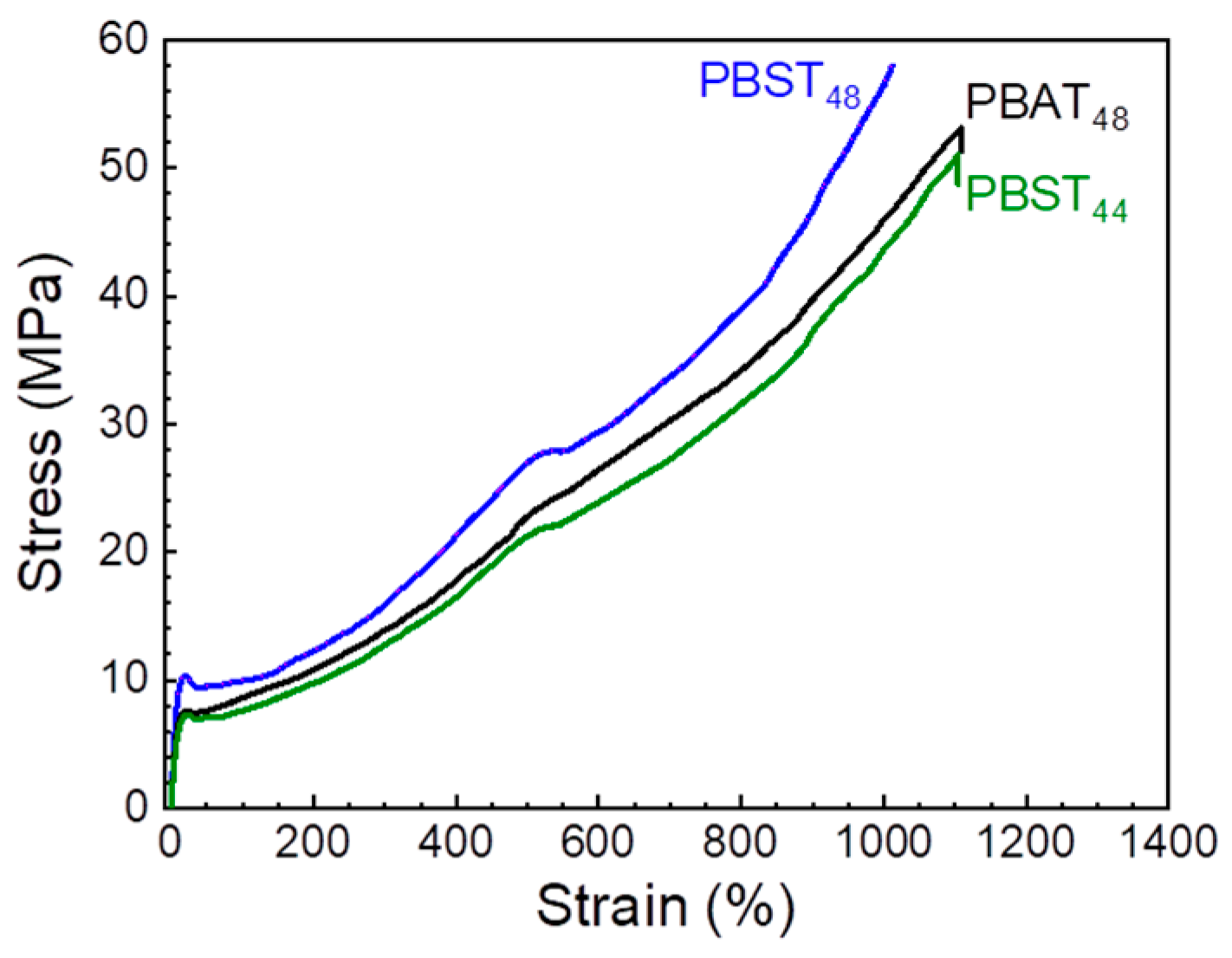

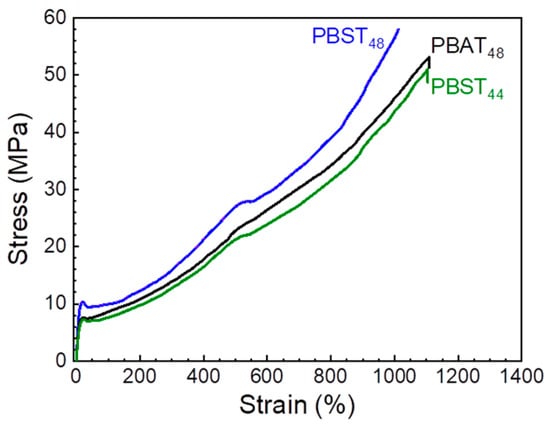

Figure 5. Tensile stress-strain curves of PBAT48, PBST48, and PBST44.
Figure 5. Tensile stress-strain curves of PBAT48, PBST48, and PBST44.
Polymers 16 02445 g005
Table 1. Structural characteristics of PBAT48, PBST44, and PBST48 used in this study.
Table 1. Structural characteristics of PBAT48, PBST44, and PBST48 used in this study.
SampleφTPA a (mol%)ϕBT b (mol%)ϕw,BT c (wt%)Ln,BX dLn,BT eR fIV g (dL/g)
PBAT4846.047.850.22.071.891.011.15
PBST4846.048.454.52.031.971.001.21
PBST4442.044.450.52.241.811.001.08
a Molar percentage of TPA in diacid feed; b molar percentage of BT unit in copolyesters, calculated from 1H NMR results; c mass percentage of BT unit in copolyesters calculated from ϕBT; d,e number-average length of BX (X = A or S) and BT sequences; f degree of randomness; and g intrinsic viscosity measured at 25 °C using chloroform as solvent.
Table 2. Thermal transition properties of PBAT48, PBST48, and PBST44 during cooling and 2nd heating DSC scans a..
Table 2. Thermal transition properties of PBAT48, PBST48, and PBST44 during cooling and 2nd heating DSC scans a..
SampleTc b (°C)ΔHc c (J/g)t1/2 d (s)Tg (°C)Tcc (°C)ΔHcc e (J/g)Tm (°C)ΔHm f (J/g)
Cooling at 10 °C/min2nd heating at 10 °C/min
PBAT487819.843−31ndnd12219.2
PBST487820.445−13ndnd12819.7
PBST444717.398−16231.211218.8
PBAT g82, 808.3, 13.1/−33, −35//120, 1195.7, 8.5
Cooling at 40 °C/min 2nd heating at 10 °C/min
PBAT486320.115−31ndnd11820.6
PBST485116.930−14214.712721.6
PBST44ndndnd−52415.411119.2
a: Heat history was erased at 220 °C for 5 min; b melt crystallization temperature; c melt crystallization enthalpy; d melt crystallization half period—namely, the time taken for the relative crystallinity reaching 50%; e cold crystallization enthalpy during 2nd heating; f melting enthalpy during 2nd heating; g commercial PBAT with Mn of 39,700 g/mol and melt flow index 3.5 g/10 min, reported in ref. [37,38].
Table 3. Isothermal melt crystallization kinetic constants BT sequence of PBAT48, PBST48 and PBST44 *.
Table 3. Isothermal melt crystallization kinetic constants BT sequence of PBAT48, PBST48 and PBST44 *.
SampleTc (°C)nK (min−n)t1/2 (min)
PBAT48783.23.30.61
PBST48783.23.30.61
PBST44473.12.30.68
* K and n are calculated from the data in the time range from 0.05 to 0.22 min, as indicated by the grey area in Figure 4a,c.
Table 4. Melting point (Tm) and melting enthalpies (ΔHm) of PBAT48, PBST48, and PBST44 during 2nd heating after isothermal crystallization.
Table 4. Melting point (Tm) and melting enthalpies (ΔHm) of PBAT48, PBST48, and PBST44 during 2nd heating after isothermal crystallization.
SampleTm1
(°C)		ΔHm1
(J/g)		Tm2
(°C)		ΔHm2
(J/g)		ΔHm,sum a
(J/g)
PBAT48882.612316.218.8
PBST48882.413019.521.9
PBST44591.911518.220.1
a: Total enthalpy of melting, ΔHm,sum = ΔHm1 + ΔHm2.
Table 5. Haze, transmittance, and tensile properties of PBAT48, PBST48 and PBST44.
Table 5. Haze, transmittance, and tensile properties of PBAT48, PBST48 and PBST44.
SampleHaze (%)Trans (%)E a (MPa)σy b (MPa)σb c (MPa)εy d (%)εb e (%)
PBAT4898.445.0107 ± 17.7 ± 0.155 ± 119.8 ± 0.11110 ± 10
PBST4898.751.3144 ± 59.9 ± 0.256 ± 219.3 ± 0.4995 ± 12
PBST4498.553.797 ± 17.5 ± 0.249 ± 322.4 ± 0.31040 ± 42
PBAT f//46 ± 6/29 ± 4/655 ± 65
a Tensile modulus; b stress at yielding; c stress at break; d strain at yielding; e strain at break; and f commercial PBAT with Mn of 39,700 g/mol and melt flow index 3.5 g/10 min, reported in ref. [37].
