Article

Green Manure Return Strategies to Improve Soil Properties and Spring Maize Productivity under Nitrogen Reduction in the North China Plain

1
College of Agronomy, Resources and Environment, Tianjin Agricultural University, Tianjin 300392, China
2
Tianjin Highquality Agricultural Products Development Demonstration Center, Tianjin 301500, China
*
Authors to whom correspondence should be addressed.
Agronomy 2022, 12(11), 2734; https://doi.org/10.3390/agronomy12112734
Submission received: 29 September 2022 / Revised: 30 October 2022 / Accepted: 31 October 2022 / Published: 4 November 2022
(This article belongs to the Special Issue Crop Yield Formation and Fertilization Management)

Abstract

:
In order to study the effect of green manure return for stabilized spring maize (Zea mays L.) grain yield (GY) we reduced nitrogen fertilizer input by regulation and examined effects on soil nutrients, enzyme activity, and fungal communities. This two-year field experiment was conducted in the North China Plain. The field experiment was undertaken with a split-plot design; the primary plots were winter fallow (WF) and green manure (GM), and the split-plots were five N application rates of 0 (N0), 189 (N189), 216 (N216), 243 (N243), and 270 (N270) kg ha−1. The results showed that, spring maize GY under GM treatments (GYGM) were significantly increased by 5.38–11.68% more than WF treatment (GYWF), and GYWF and GYGM significantly increased by 35.9–91.5% and 80.1–135.5% across all N treatments. By linear-platform model analysis, spring maize under GM treatments obtained higher GY, reaching 1270.5–14,312.2 kg ha−1 with optimized N application rate at 238–265 kg ha−1, which resulted in a GY higher than WF (11,820.0 and 13,654.2 kg ha−1) and N reduced 11.2% (238 vs. 268 kg ha−1). GM treatment significantly increased soil organic carbon by 3.90–12.23% more than WF over all N application rates, and total nitrogen and available nitrogen were significantly increased by 3.79–15.76% and 4.87–17.29%, with total phosphorus and available phosphorus for GM higher than WF by 6.1–13.6% and 9.6–5.3%, respectively. However, there were lesser effects of GM on total potassium and available potassium. Compared to WF, soil catalase, sucrose, urease, and alkaline phosphatase activity were significantly increased by 6.2–16.4%, 5.8–48.1%, 3.3–21.5% and 11.5–82.3%, respectively, over all N application rates under GM over two years. GM increased Zygomycota and Basidiomycota relative abundances significantly, and reduced Thielavia, unclassified fungi, and Podospora relative abundances by 35.35%, 52.92% and 52.77% more than WF treatment, respectively. In summary, due to the GM return into fields, increased soil nutrients were available, which were positively affected by soil enzyme activity and fungal communities, and reduced nutrient requirements, and so the farmers could obtain a spring maize grain yield higher than 14,000 kg ha−1 with a reduced 11.2% N application rate from 268 kg ha−1 to 238 kg ha−1 by sowing winter green manure for a long time period in the North China Plain.

1. Introduction

The North China Plain is the main maize production region, where almost 35–40% of China’s maize is produced every year through winter a wheat-summer maize rotation system and a single spring maize system [1]. Nitrogen (N) is one of the most important nutrients for maize growth and yield formation, contributing 30–50% to grain yield increase [2]. Farmers apply large amounts of N fertilizers in order to gain more cereal grain yields in China [3,4,5]. However, numerous studies have focused on the negative effects of excessive amounts of N fertilizers, Meng et al. reported that excessive N application results in later harvesting or plant lodging [6], but more seriously, caused negative environmental impacts, such as soil acidification, sutrophication of surface water, nitrate leaching, greenhouse gas emission, etc., leading to the degradation of miscellaneous ecosystem functions [7,8,9,10,11,12,13]. Therefore, one of the most urgent issues in agriculture is to study how to coordinate crop production and ensure sustainable ecosystems. To date, numerous studies focused on rational N management measures to improve maize yields and achieve sustainable N utilization [14], such as, the steady-state N balance (SSNB) management system [15], the nutrient expert (NE) system [16], N inhibitors application [17], etc. In recent years, sowing green manure and returning it to the field could achieve fertilizer savings, emission reduction and nutrient loss through endogenous driving [18]. The application of green manure has been widely accepted as a sustainable management practice in agriculture due to its environmentally friendly properties [19,20,21]. On a global scale, green manure intercropping with main crops saved 26% of N fertilizer, increased surface soil organic carbon by 320 kg ha−1 a−1, compensates about 8% of the greenhouse effects, and also reduced N leaching loss by 40−50%, especially in winter when green manure becomes more significant [22]. Green manure increased available soil N, organic matter, available potassium content [23], and can replace 11–32% nitrogen in spring wheat systems in Northwest China. Furthermore, it reduces CH4 emissions by 3.5%, increases carbon sequestration potential by 21.8% by intercropping with maize, and maintains equal crop yields [24,25,26].
The decomposition of green manure and the subsequent release of nutrients depends largely on the physical, chemical, and biological aspects of soil [27]. Additionally, green manure had no significant effect on catalase activity, but significantly increased soil sucrase, urease and phosphatase activities by intercropping with spring maize in Northwest China [28]. Soil microbial communities and soil enzyme activity respond much more sensitively to changes in soil management practices compared to total soil organic matter [29]. Previous studies concerning green manure have indicated that the introduction of green manure directly changed the soil carbon and nitrogen input, which is enough to change soil microbial community structures, functions, and related enzyme activity [30,31,32]. A rich soil microbiome can improve the service functions of terrestrial ecosystems, enhance crop production, and increase plant resistance to global climate changes as well as biological stress and resilience through the improvement of nutrient utilization [33,34]. Soil total phospholipid fatty acids (PLFAs) and bacterial PLFAs were significantly increased with green manure plant years, however, the ratio of fungal to bacterial biomarkers was decreased significantly [23]. The research indicated green manure increased soil microbial biomass C, as well as respiration. Micro-organisms degrade organic matter through the production of diverse extracellular enzymes [27,35]. Maize intercropping with different green manure increased the richness of bacteria and archaea and Chao Index but had no significant effect on fungi [28]. The redundant analysis (RDA) showed that soil available N, organic matter, and available potassium were positively correlated with dominant flora of bacteria and fungi and were negatively correlated with dominant flora of bacteria and fungi with green manure [23].
Water shortage is an urgent problem for crops growth, especially in the North China Plain, where is the underground water extraction limit region in China [36]. In some provinces, winter wheat seeding areas were reduced to recharge underground water, however, ways to compensate for the winter crops’ ecological effects also need to be studied. In recent years, sowing green manure over winter reduced water consumption in the North China Plain. How the effects of green manure return on soil properties, and reduced N application on spring maize grian yield formation occurred were limited. Thus, a two-year field experiment was conducted, and the main objectives were to (1) explore how green manure and nitrogen application affected spring maize grain yield, soil nutrients, enzyme activity and fungal communities and (2) understand the amount of N fertilizer green manure can replace to achieve green and stainable production for spring maize in the North China Plain.

2. Materials and Methods

2.1. Site Description and Initial Soil Properties

Site, Climate and Soil

A 2-year field experiment was established in 2019 and 2020, at the High-quality Agricultural Products Development Demonstration Center (117°49′ E, 39°42′ N, 8 m elevation), Tianjin, China. The region has a semiarid continental monsoon climate, with annual mean sunshine hours of 2230 h, a temperature of 11.2 °C, and 240 frost-free days, precipitation of 642 mm, with about 60% of which occurs mainly from June to September. Dry farmland for crop production mostly depends on precipitation in this region. The soil properties of the soil plow layer (0–20 cm) are shown in Table 1.

2.2. Experimental Design and Field Management

The field experiment was conducted in a split plot design with three replications over 2 years. Each subplot was 8 m × 6 m, and the subplots were separated by 1 m width pathways to avoid cross-contamination and treatment effects. Two planting patterns were utilized: (i) winter fallow–maize (WF) (control, spring maize only), and (ii) green manure (GM)–maize (winter green manure followed by spring maize). During the whole spring maize growing period, a N application rate of 270 kg ha−1 270 (N270, 100%) was conducted by farmers, and another four N application rates were conducted at 0 (N0), 189 (N189, 70%), 216 (N216, 80%) and 243 (N243, 90%) kg ha−1, respectively. The total N was applied at the planting and jointing stages at 70−30% by basal fertilizer and top dressing. Meanwhile, P2O5 was applied at 90 kg ha−1 and K2O was applied at 120 kg ha−1 at the planting stage. The basal fertilizer was applied by contained biochar-based fertilizer (N-P2O5-K2O: 24%-10%-10%), super-phosphate (P2O5: 12%), and potassium sulfate (K2O: 50%), and the top dressing was by urea (N: 46%).
The winter green manure rape seeds (Brassica campestris L., Longyou 12) were sown at 25 kg ha−1 via a planter in 25–28 September after spring maize harvest, and no chemical fertilizers were applied during the whole growth period. The green manure rape fresh plants were chopped into pieces and incorporated into the field via a farming rotary cultivator at the full bloom stage in 1–5 May. The spring maize (Zea mays L., Zhengdan 958) was sown 18 May, and harvested 22–25 September, respectively. The density of maize seedlings was 67,500 plants ha−1, and the field management was carried out in a similar manner to the common field.

2.3. Measurement Methods

2.3.1. Maize Grain Yield (GY)

At the maize maturity stage, 20 ears from adjacent plants in the middle two rows of each plot were harvested manually and threshed. Then the dry weight and moisture content were measured, and the grain yield was calculated at a moisture content of 14%.

2.3.2. Soil Sampling

At maize jointing, tasseling, filling, and maturity stages, soil from five sites in each plot were sampled (0–20 cm) by a soil auger, and the visible and plant debris were removed, and then thoroughly mixed to form pooled soil samples. The moist pooled samples at maturity stages were dried at room temperature and sieved at 1 mm for total nitrogen (TN), total phosphorus (TP) and total potassium (TK) measurements, at 0.25 mm for available nitrogen (AN), available p phosphorus (AP) and available potassium (AK) measurement. The moist pooled samples at four-stages were sieved at 0.5 mm for enzyme activity determination. The soil samples at the maturity stage were used to determined fungal communities, and so the moist, pooled soil samples were stored in an ultra-low temperature freezer at −80 °C.

2.3.3. Soil Nutrients

A total of eight soil nutrients were measured, C content (SOC) was measured by the K2Cr2O7-H2SO4 wet oxidation method [37], TN and AN determined by Kjeldahl and alkali N-proliferation method [38], TP and AP were measured by Mo–Sb colorimetry and NaHCO3 extraction method [39], while TK and AK were measured by a flame photometer method [40].

2.3.4. Soil Enzyme Activity

Additionally, the four soil enzyme activities were analyzed by using relevant kits (Beijing Solarbio science & technology Co., Ltd., Beijing, China), and catalase activity was measured by KMNO4 titration [41,42], sucrase activity was determined by 3,5-dinitrosalicylic acid colorimetry using sucrose as the substrate [43,44], urease activity was measured by indophenol blue colorimetry [45], alkaline phosphatase activity was determined by C6H5Na2O4P colorimetry using p-nitrophenyl phosphate as the substrate [46,47].

2.3.5. DNA Extraction, PCR-Amplification and Illumina Miseq Sequencing

The DNA of each soil sample was extracted by using the CTAB method according to the manufacturer’s instructions, and the total DNA quality and quantity were assessed by agarose gel electrophoresis and an ultraviolet spectrophotometer at LC-Bio Technology Co., Ltd., Hang Zhou, Zhejiang Province, China [48,49,50].
The primers used for PCR amplification and Illumina sequencing were from the ITS 1 region.
The ITS 1 region was amplified with the primers ITS 1 F (5′-GAACCWGCGGARGGATCA-3′) and ITS 1 R (5′-GCTGCGTTCTTCATCGATGC-3′) [51,52,53]. The 5′ ends of the primers were tagged with specific barcodes for sample and sequencing universal primers. PCRs were performed in a reaction mixture with a total volume of 25 μL, containing 25 ng of template DNA, 12.5 μL of PCR premix, 2.5 μL of each primer, and PCR-grade water to adjust the volume. The PCR program consisted of an initial denaturation at 98 °C for 30 s, followed by 32 cycles of 98 °C for 10 s, 54 °C for 30 s, and 72 °C for 45 s, and a final extension at 72 °C for 10 min. The PCR products were confirmed through 2% agarose gel electrophoresis. After this, the PCR products were purified by AMPure XT beads (Beckman Coulter Genomics, Danvers, MA, USA) and quantified by Qubit (Invitrogen Corporation, Waltham, MA, USA). The amplicon pools were prepared for sequencing, and the size as well as the quantity of the amplicon library were assessed on an Agilent 2100 Bioanalyzer (Agilent Technologies Co., Santa Clara, CA, USA) and with the Library Quantification Kit for Illumina (Kapa Biosciences, Woburn, MA, USA), respectively. The amplicon libraries were sequenced on a NovaSeq PE250 platform according to the manufacturer’s recommendations at LC-Bio Technology Co., Ltd., Hang Zhou, China.
The sequences of barcodes and primers were removed, and reads were paired [54,55,56,57]. Paired-end reads were merged using Pear (v0.9.6). Quality filtering on the raw reads was performed under specific filtering conditions to obtain high-quality clean tags according to fqtrim (v0.94). The chimeric sequences were removed by Vsearch software (v2.3.4). After dereplication by using DADA2, we obtained a feature table and a feature sequence. Alpha diversity and beta diversity were calculated by QIIME2, in which the same number of sequences were extracted randomly through reducing the number of sequences to the minimum of some samples, and the relative abundance (X fungi count/total count) is used in fungi taxonomy. Alpha diversity and beta diversity were analyzed by the QIIME2 process, and pictures were drawn by R (v3.5.2). The sequence alignment of species annotation was performed by a QIIME2 plugin feature classifier, and the alignment database was RDP and united.

2.4. Statistical Analysis

Differences in the spring maize yield, soil enzyme activity, soil nutrients, and fungal average relative abundance among the treatments were evaluated by using a two-way analysis of variance (ANOVA) in the SPSS 19.0 software (SPSS Inc., Chicago, IL, USA). Differences between the mean values were evaluated by using Duncan’s multiple-range test with a probability of p < 0.05.

3. Results

3.1. Mazie Grain Yield

Compared with the maize grain yield (GY) of WF treatment (GYWF), the GY of GM treatment (GYGM) was significantly increased by 5.38% and 11.68% in two years over all N application rates (Figure 1 and Table 2). However, GYGM was higher than GYWF under N243 levels in 2020 (p < 0.05), and in 2021 GYGM were significantly higher than GYWF under N0~N243 levels. With N application rate increased, GYs were increased significantly by 35.9–60.7% and 84.4–135.5% more than N0 in 2020 and 2021 under WF treatment, that for GM treatment were 56.1–91.5% and 80.1–107.1% (p < 0.01), respectively. Meanwhile, the highest GYs were always at N243 levels, under WF and GM treatments were 11,775–13,682 kg ha−1 and 13,105–14,985 kg ha−1 in two years, which were significantly higher than N189 and N216 levels.
The linear + platform function was also used to fit the N application rate and maize GY, which showed that the GY was increased linearly by 17.3–30.2 kg ha−1 and 22.2–29.2 kg ha−1 at first, when the N application rate increased by 1 kg ha−1, and then the obtained platform yields were 11,820.0 and 13,654.2 kg ha−1, and 12,702.5 and 14,312.2 kg ha−1 under WF and GM treatments in two years, when the N application rate reached the optimized levels of 264 and 268 kg ha−1, and 265 and 238 kg ha−1, respectively. That indicated that in the early period of green manure return, there were no significant effects on maize GY and N application rate reduction (264 vs. 265 kg ha−1), but GYs were increased significantly (14,312.2 vs. 13,654.2 kg ha−1) with N application rate reduced by 11.2% (238 vs. 268 kg ha−1).

3.2. Soil Nutrients

Soil nutrients were varied drastically by green manure return and N application rate (Table 3). The SOC for GM treatments were significantly increased by 12.23% and 3.90% more than WF, respectively, over all N application rate in 2020 and 2021. however, SOCGM was significantly higher than SOCWF under all N levels in 2020, and only at the N243 level in 2021 (p < 0.05). With N application rate increased, SOC always displayed an increased tendency, and there was a significant performance difference if N application rate was higher than N243 under WF and GM treatment over two years.
Compared with WF treatments, the TN and AN for GM treatments were significantly increased by 3.79–15.76% and 4.87–17.29%, respectively, over all N application rates in two years. With N application rate increased, TN and AN occurred in the order of N243 > N270 > N216 > N189 > N0, were increased significantly by 9.3–31.9% and 7.7–38.4% than N0 under WF treatment in two years, those for GM treatment were 3.2–15.3% and 7.2–41.8% (p < 0.01), respectively.
The TP and AP for GM treatments in 2020 and 2021 were significantly higher than WF by 6.1% and 13.6%, and 9.6% and 5.3%, respectively, over all N application rates. The TP and AP were increased with N application rate increased, which were increased significantly by 2.74–28.3% and 10.0–35.9%, and 1.2–31.2% and 18.9–43.5% more than N0 under WF and GM treatment in two years, respectively. The highest was always at N243 or N270 levels which were significantly higher than N189.
In addition, there were no significant differences between WF and GM on TK over all N levels in two years, and only TK at the N243 level was significantly higher than N0 and N189 in 2020. However, the AK under GM treatments was significantly increased by 4.36% more than WF in 2021, and with N application the rate increased with AK highest with N243, which was higher than N0, although there were no significant differences among N levels.

3.3. Soil Enzyme Activity

The soil enzyme activities during spring maize growth stages always expressed a significant difference between WF and GM treatments, and among different N application rates, however, they were not significantly affected by interaction between GM and N levels, over two years (Table 4).
Specifically, compared to WF, the soil catalase activities (s-CA) were significantly increased by 9.3–16.4%, 6.2–9.3%, 10.2–12.6% and 4.9–8.9%, respectively, at four growth stages over all N application rates under GM over two years, which always significantly decreased with maize growth (Table 4 and Figure 2). During spring maize total growth duration, and s-CA were significantly increased, by 7.3–23.4% and 8.1–21.9% with N application, the rate increased more than N0 under WF treatments in 2020 and 2021, that for GF were 7.4–26.1% and 7.6–20.5%. Meanwhile, s-CA at N243 levels were the highest and had a significant difference to N189, no significant difference to N216 or N270 under WF and GM treatments over two years.
The soil sucrase activity (s-SA) performance increased initially and then decreased at the VT stage, which was significantly higher by 27.4–43.2%, 11.3–120.2%, 15.2–51.7% and 8.7–160.0% than V6, R1 and R6 stages under WF and GM treatments over two years (Table 4 and Figure 3). Additionally, s-SAs for WF were significantly decreased compared to GM by 31.4% and 5.8%, 33.8% and 25.0%, 48.1% and 24.2%, and 25.8% and 29.3%, respectively, at four growth stages over all N application rates in the years 2020 and 2021 (Table 3 and Figure 2). During the spring maize total growth duration, with N application rate increased, s-SA were significantly increased by 16.4–45.9% and 23.8–38.4% compared to N0 under WF treatments over two years, and for GM were 15.0–27.1% and 7.2–32.1%. However, the s-SA at N189 levels were significantly lower than at N216–N270, with a reduced range from 8.9% to 25.4% and 4.3% to 11.8%, from 9.3% to 10.5% and 12.6% to 22.4%, respectively, under WF and GM treatments in 2020 and 2021.
The soil urease activity (s-UA) was extremely reduced in 2021 compared to 2020 (Table 4 and Figure 4). With spring maize growth, the s-UA performance increased initially and then decreased, and in 2020 the highest s-UA at the R1 stage was significantly increased by 28.6–42.4% and 30.5–47.7% compared to the V6, VT and R6 stages under WF and GM treatments. Meanwhile, in 2021 the highest s-UA at the VT stage was significantly increased by 6.1–57.4% and 13.8–42.1% compared to the V6, R1 and R6 stages under WF and GM treatments (Figure 4). In addition, s-UA for WF was significantly decreased compared to GM by 3.3% and 14.7%, 5.6% and 12.9%, 7.2%and 5.3%, and 3.0% and 21.5%, respectively, at four growth stages over all N application rates in two years (Table 3 and Figure 2). Over spring maize total growth duration, s-APA was increased with increased N application rate, and under WF treatment were significantly increased by 10.3–26.1% and 5.1–20.0% in 2020 and 2021 compared with N0, and those for GM were 1.9–13.7% (p < 0.05) and 3.9–21.8% (p < 0.05). However, only in 2021, were the s-UA at N243–N270 levels under WF significantly higher than N189 and N216 by 17.5–30.5% and 12.9–25.4%, while under GM treatments N243 was significantly raised by 31.9%,16.3% and 13.0% compared to N189, N243 and N270, respectively.

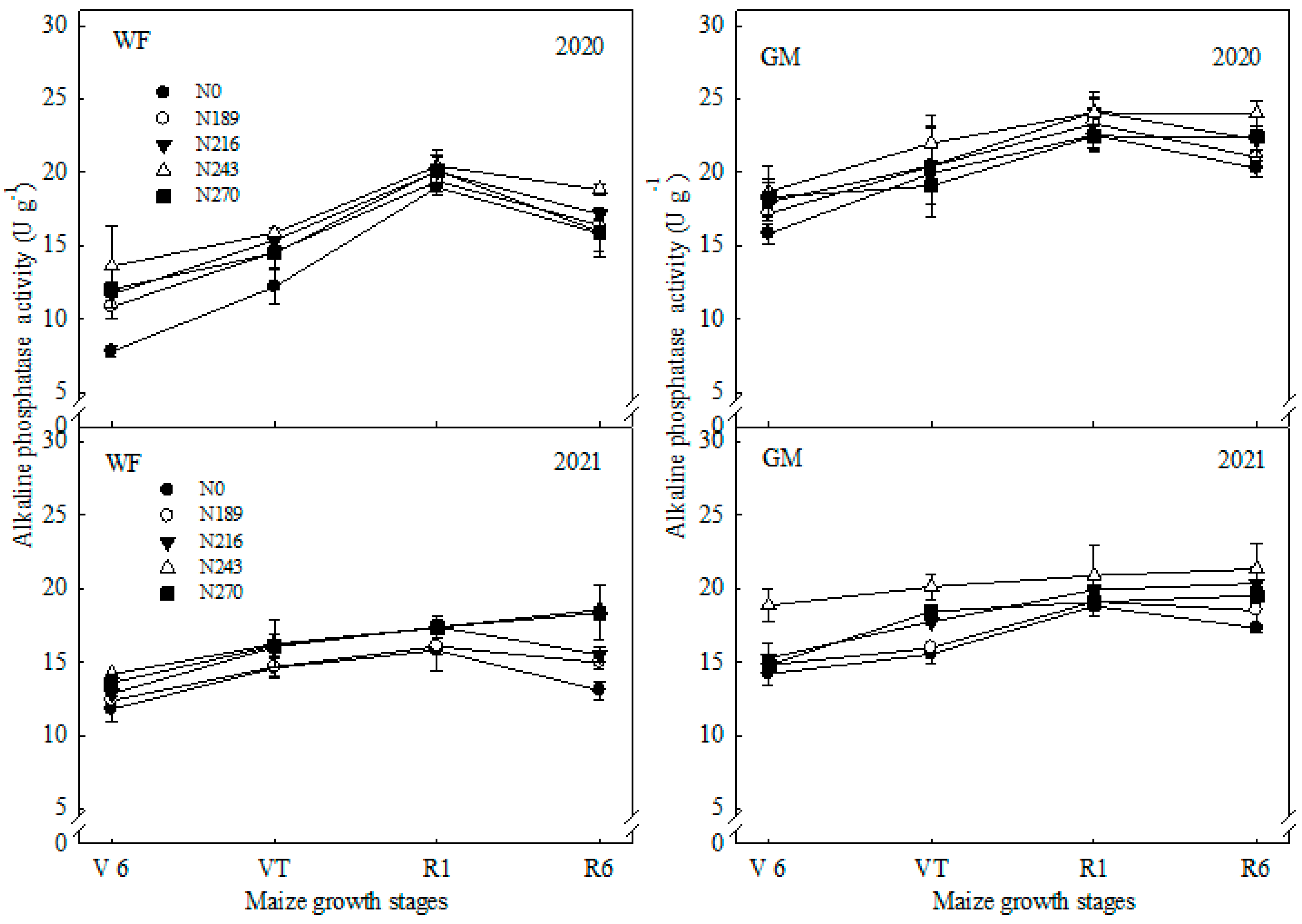

There were significant differences in soil alkaline phosphatase activity (s-APA) between the two study years (Table 4 and Figure 5). The s-APA performance increased initially and then decreased, with the highest values obtained at the R1 stage where significant rises of 17.6–77.3% and 5.0–29.4%, and 5.7–14.1% and 0.9–27.2% compared to the other three stages under WF and GM treatments over two years (Figure 5). Additionally, s-APA at V6, VT, R1 and R6 stages under GM treatments were significantly increased by 82.3% and 18.3%, 22.0% and 11.5%, 17.42%and 16.3%, and 29.6% and 19.8%, respectively, compared to WF over all N application rates over two years (Table 3 and Figure 2). With N application rate increased, s-APA were increased by 5.6–9.1% (p < 0.05) and 17.9–53.8% (p < 0.05), and 1.9–2.8% (p > 0.05) and 21.4–60.2% (p < 0.05) compared to N0 under WF and GM treatments over two years. Additionally, there were only significant differences between N243 and N189 under WF and GM treatments over two years.
The dominant fungal phyla at the phylum level were Ascomycota (85.06% average relative abundance), unclassified fungi (6.29%), Zygomycota (5.50%), and Basidiomycota (1.39%), across all the N application rates under WF and GM treatments (Figure 6A), as well as at the genus level were Thielavia (29.35% average relative abundance), unclassified fungi (8.66%), Podospora (7.39%), Gibberella (5.37%), and Mortierella (5.04%) (Figure 6B).
The WF and GM treatments and N application rates, and the interactions significantly affected the relative abundances of some dominant fungi at the phylum and genus levels, which were related to soil nutrients such as SOC and AP (Figure 7). By cluster analysis, compared to WF, GM return without N (GMN0) decreased the unclassified fungal relative abundance at the phylum and genus levels. Regardless of N application, fungal communities forming a distinctive group were strongly altered by GM, which was significantly different to that of the WF treatment (Bray–Curtis distance analysis, Figure 7). At the phylum level, Ascomycota was the dominant fungal order in all of the N applications rate treatments, but GM reduced their abundance (all abundances are relative abundances in this MS) (Figure 7A). Compared to WF, GM treatments also decreased the abundance of Chytridiomycota, but increased the abundance of Basidiomycota and Zygomycota over all N application rates. At the gene level, the averages of Thielavia, unclassified fungi, and Podospora under GM treatment were significantly reduced by 35.35%, 52.92%, and 52.77% compared to WF treatment, respectively (Figure 7B). For Mortierella, the amount under GM treatment was 47.37% higher than that of the WF treatment (p < 0.05).

3.4. Link between Soil Microbial Community Structures and Environmental Factors

Using RDA analyses (RDAs) to determine the total variation in soil fungal community structures and their responses to the WF and GM treatments, and N application rates, we showed that soil fungal structures were significantly correlated with environmental factors across all treatments in the study (Figure 8). For soil fungi, the first and second RDA axes explained 49.82% and 17.97% of fungal community variation, respectively. In particular, the s-CA, s-SA and s-APA, as well as the SOC and TN levels, were significantly associated with fungal community variation. Generally, the contribution of soil enzyme activity to fungal community variation were significantly larger than that of soil nutrients. Furthermore, soil enzyme activities were positively correlated with the soil nutrients. Under WF treatment, the N application rate significantly affected the fungal community at the genus level, meanwhile under GM treatments with reduction of the N application rate, fungal community structures were significantly different from those of N270 (Figure 8).

4. Discussion

Numerous studies have shown that crops grain yied (GY) could be improved by about 30–50% attributed to N application [2,58], especially in North China Plain [59,60,61]. The present results indicate that N treatments always increased spring maize GY by 35.9–91.5% and 80.1–135.5% in two years, respectively (Figure 1). Meanwhile, the GY with N application reduced 10% to N243, averaged over two years were the highest at 11,775–13,682 kg ha−1 and 13,105–14,985 kg ha−1, respectively. In a recent study, spring maize GY under GM treatments (GYGM) were significantly increased by 5.38–11.68% compared to WF treatment (GYWF), which is supported by previous studies which reported that long-term use of astragalus smicus as green manure, can simultaneously improve double-rice GY and its stability [62], photo yield [23], and spring wheat GY in the Northwest China [25]. Generally, a linear-platform model has always been used for identifying the optimal N application for maximum crop yield [63]. In this study, we estimated an optimal N application rate of 264–268 kg ha−1 and 238–265 kg ha−1 for spring maize under WF and GM treatments, respectively. GY increased more under GM compared to WF (17.3–30.2 kg ha−1 vs. 22.2–29.2 kg ha−1), and maximum GY was 1820.0–13,654.2 kg ha−1 and 1270.5–14,312.2 kg ha−1 (Figure 1), which indicated that GM return little affected maize GY and N application rate reduction in the first year, but GY was increased significantly (14,312.2 vs. 13,654.2 kg ha−1) with N application rate reduced by 11.2% (238 vs. 268 kg ha−1) over two years. This agreed with previous studies reported that long-term use of astragalus smicus can change 0–40% N and K fertilizer in the early rice season and 0–20% N and K fertilizer in the late rice season [62], and replace N 11–32% in spring wheat systems [25], and even in different GM return years, increased total yield differently [23].
In recent years, GM return to the field could achieve fertilizer savings and nutrient loss through endogenous driving [18]. Winter GM affected nitrogen transformation processes by regulating soil N; SOC and TN increased by 4.36% and 6.47% compared to single fertilizer application [62,63,64], and even increased soil AN and AK contents [23], and increased C sequestration potential by 21.8% in maize-GM intercropping systemd [24,25]. In this study, GM treatment significantly increased SOC by 3.90–12.23% compared to the WF overall N application rate in two years, and TN and AN were significantly increased by 3.79–15.76% and 4.87–17.29%, with TP and AP for GM higher than WF by 6.1–13.6% and 9.6–5.3%, respectively. However, there were less effects of GM on TK and AK. The different results with previous studies for TK and AK may be due to the research area, with South China having paddy soil and North China having dry land, and crop varieties such as rice and spring maize. With N application rate increased, SOC, TN and AN, TP and AP, and AK always played an increased tendency, which showed a significant difference if the N application rate was higher than N243, and under GM treatment was higher than WF at the same N levels over two years. The results were supported by recent studies showing that optimized N management can be associated with soil nutrient improvement [65].
Soil enzyme activities have been recognized as indicators of soil fertility and soil quality, and are responsible for SOC transformation and nutrient cycling [66,67]. The soil catalase activity (s-CA) and sucrase activity (s-SA) is related to the C cycle [68,69], soil urease activity (s-UA) plays an important role in the N cycle [70,71]. Soil alkaline phosphatase activity (s-APA) is secreted by microorganisms that mineralize unstable forms of organophosphate, which also become an important source for the mineralizing of soil organic phosphorus [72,73]. In the previous studies, GM had no significant effect on s-CA, but significantly increased s-SA, s-UA and s-APA in spring maize–GM intercropping [28]. In this study we showed that, compared to WF, s-CA, s-SA, s-UA and s-APA were significantly increased by 6.2–16.4%, 5.8–48.1%, 3.3–21.5% and 11.5–82.3%, respectively, over all N application rates under GM over two years. The soil enzymes’ activity always increased initially and then decreased with spring maize growth stages and reached the highest values at the VT or R1 stages. With N application rates increased, the soil enzymes’ activity increased significantly, and the N216 and N243 levels were the most suitable. These results were confirmed with previous studies that soil enzymes’ activities decompose SOC to acquire energy for microbial growth [74], GM return increases substrate availability and supports microbial growth and leads to enhanced enzyme activity compared to that of inorganic fertilizers or no fertilizers [74,75].
Microbial diversity plays a crucial role in influencing ecosystem stability, productivity, and resilience towards stress [76], with soil microbial diversity increasing with long periods of C input [77]. Previous studies indicated that GM changed the soil C and N input, which were enough to change soil microbial community structures and functions [30,31,32]. Our results indicate that the fungal alpha diversity hardly changed with GM and N application, and the fungal community diversities significantly increased with GM at each N level, especially at N189, which is inconsistent with the results reported by Royta et al. [78]. In this study, GM and N application increased beneficial fungal microbes’ relative abundance, but decreased harmful microbes’ relative abundance, especially Zygomycota and Basidiomycota relative abundances which were significantly increased at the phylum level (Figure 7A). The results agree with previous studies, which have indicated that Zygomycota are oligotrophic microbes (K strategy) and dominate residue decompositions of highly recalcitrant fractions [79,80], and Basidiomycota can quickly metabolize organic substrates deposited in the rhizosphere with the soil C cycle [81]. In a recent study, the averages of Thielavia, unclassified fungi, and Podospora under GM treatment were significantly reduced by 35.35%, 52.92% and 52.77% compared to WF treatment, respectively, while Mortierella were significantly increased by 47.37%. at the gene level (Figure 7B). To date, numerous studies indicated that, Mortierella fungal microbes stimulate the insoluble phosphorus in soil and promote the absorption of mineral elements [82]. GM can significantly inhibit a large colony of pathogenic fungi [83], but another report suggested that GM had no significant effect on fungi and increased bacteria and archaea richness [28]. The GM can significantly increase the number of soil microbial populations and change the soil microbial compositions of biological groups [84].
The redundant analysis (RDA) showed that the changes in the soil fungal community were explained to the greatest extent by soil enzyme activity, SOC, and TN, supporting similar conclusions of other studies [23,85]. In this study, soil fungal structures were significantly correlated with environmental factors across all treatments by the RDAs (Figure 8). For soil fungi, the first and second RDA axes explained 49.82% and 17.97% of fungal community variation, respectively. Nutrients release in soil from decaying SOC under GM increased soil enzyme activity [86], which was confirmed in a recent study showing that the s-CA, s-SA and s-APA as well as the SOC and TN levels, were significantly associated with fungal community variation. GM changes fungal communities, thus increasing enzyme activity [19,87], which could be attributable to the fact that GM and N provides an energy- and food-rich living environment for fungi [88,89], and in our study the N application rate significantly affected the fungal community at the genus level under WF treatments. Meanwhile, fungal community structures were significantly reduced with N application rate compared to N270 under GM treatments (Figure 8).

5. Conclusions

Our results demonstrated that, with green manure returned to the field, soil organic carbon, total nitrogen, available nitrogen, total phosphorus, available phosphorus were significantly increased, potentially due to the green manure providing nutrient requirements for soil enzymatic (catalase, sucrose, urease, and alkaline phosphatase) activity, and soil fungal communities, which can improve soil nutrient performance feedback. This can allow farmers to obtain spring maize grain yields higher than 14,000 kg ha−1 with reduced (11.2%) N application rates from 268 kg ha−1 to 238 kg ha−1 by consistently sowing winter green manure in the North China Plain.

Author Contributions

Funding acquisition and conceiving and designing the experiments, X.W., J.W. and J.G.; data collection and writing—original draft, G.S., R.Z., Y.W. and Y.Y.; writing—review and editing, G.S., J.W. and J.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Key National Research and Development Program of China (2017YFD0300305, 2017YFD0200808).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kong, X.; Lal, R.; Li, B.; Liu, H.; Li, K.; Feng, G. Chapter four–fertilizer intensification and its impacts in China’s HHH Plains. Adv. Agron. 2014, 125, 135–169. [Google Scholar]
  2. Erisman, J.W.; Sutton, M.A.; Galloway, J.; Klimont, Z.; Winiwarter, W. How a century of ammonia synthesis changed the world. Nat. Geosci. 2008, 1, 636–639. [Google Scholar] [CrossRef]
  3. Grant, C.A.; Wu, R.; Selles, F.; Harker, K.N.; Clayton, G.W.; Bittman, S.; Zebarth, B.J.; Lupwayi, N.Z. Crop yield and nitrogen concentration with controlledrelease urea and split applications of nitrogen as compared to non-coated ureaapplied at seeding. Field Crops Res. 2012, 127, 170–180. [Google Scholar] [CrossRef]
  4. Liu, B.B.; Wu, Q.R.; Wang, F.; Zhang, B. Is straw return-to-field always beneficial? Evidence from an integrated cost-benefit analysis. Energy 2019, 171, 393–402. [Google Scholar] [CrossRef]
  5. Liu, X.R.; Ren, J.Q.; Zhang, Q.W.; Liu, C. Long-term effects of biochar addition and straw return on N2O fluxes and the related functional gene abundances under wheat-maize rotation system in the North China Plain. Appl. Soil Ecol. 2019, 135, 44–55. [Google Scholar] [CrossRef]
  6. Meng, Q.F.; Cui, Z.L.; Yang, H.S.; Zhang, F.S.; Chen, X.P. Chapter Three–establishing high-yielding maize system for sustainable intensification in China. Adv. Agron. 2018, 148, 85–109. [Google Scholar]
  7. Ma, D.K.; Yin, L.; Ju, W.L.; Li, X.K.; Liu, X.X.; Deng, X.P.; Wang, S.W. Meta-analysis of green manure effects on soil properties and crop yield in northern China. Field Crop. Res. 2021, 266, 108146. [Google Scholar]
  8. Cui, J.W.; Song, D.L.; Dai, X.L.; Xu, X.P.; He, P.; Wang, X.Y.; Liang, G.Q.; Zhou, W.; Zhu, P. Effects of long -term cropping regimes on SOC stability, soil microbial community and enzyme activities in the Mollisol region of Northeast China. Appl. Soil Ecol. 2021, 164, 103941. [Google Scholar] [CrossRef]
  9. Le, C.; Zha, Y.; Li, Y.; Sun, D.; Lu, H.; Yin, B. Eutrophication of lake waters in China: Cost, causes, and control. Environ. Manage 2010, 45, 662–668. [Google Scholar] [CrossRef]
  10. Kong, L.; Xie, Y.; Hu, L.; Si, J.; Wang, Z. Excessive nitrogen application dampens antioxidant capacity and grain filling in wheat as revealed by metabolic and physiological analyses. Sci. Rep. 2017, 7, 43363. [Google Scholar] [CrossRef] [Green Version]
  11. Khakbazan, M.; Grant, C.A.; Huang, J.; Smith, E.G.; O’Donovan, J.T.; Blackshaw, R.E.; Harker, K.N.; Lafond, G.P.; Johnson, E.N.; Gan, Y. Economic effects of preceding crops and nitrogen application on canola and subsequent barley. Agron. J. 2014, 106, 2055. [Google Scholar] [CrossRef]
  12. Liu, X.J.; Duan, L.; Mo, J.M.; Du, E.Z.; Shen, J.L.; Lu, X.K.; Zhang, Y.; Zhou, X.B.; He, C.N.; Zhang, F.S. Nitrogen deposition and its ecological impact in China: An overview. Environ. Pollut. 2011, 159, 2251–2264. [Google Scholar] [CrossRef] [PubMed]
  13. Guo, J.H.; Liu, X.J.; Zhang, Y.; Shen, J.L.; Han, W.X.; Zhang, W.F.; Christie, P.; Goulding, K.W.T.; Vitousek, P.M.; Zhang, F.S. Significant acidification in major Chinese croplands. Science 2010, 327, 1008–1010. [Google Scholar] [CrossRef] [PubMed]
  14. Di, J.Y.; Feng, W.T.; Zhang, W.J.; Cai, A.D.; Xu, M.G. Soil organic carbon saturation deficit under primary agricultural managements across major croplands in China. Ecosyst. Health Sust. 2017, 3, 1364047. [Google Scholar] [CrossRef] [Green Version]
  15. Yin, Y.L.; Zhao, R.F.; Yang, Y.; Meng, Q.F.; Ying, H.; Kenneth, G.; Cassman, C.W.F.; Tian, X.S.; He, K.; Wang, Y.C.; et al. A steady-state N balance approach for sustainable smallholder farming. PANS 2021, 118, e2106576118. [Google Scholar] [CrossRef]
  16. He, P.; Xu, X.P.; Zhou, W.; Smith, W.; He, W.T.; Grant, B.; Ding, W.C.; Qiu, S.J.; Zhao, S.C. Ensuring future agricultural sustainability in China utilizing an observationally validated nutrient recommendation approach. Eur. J Agron. 2022, 132, 126409. [Google Scholar] [CrossRef]
  17. Liu, C.R.; Ren, D.Y.; Liu, H.R.; Zhang, Y.S.; Wang, L.G.; Li, Z.H.; Zhang, M.C. Optimizing nitrogen management diminished reactive nitrogen loss and acquired optimal net ecosystem economic benefit in a wheat-maize rotation system. J. Clean. Prod. 2022, 33, 129964. [Google Scholar] [CrossRef]
  18. Abdalla, M.; Hastings, A.; Cheng, K.; Yue, Q.; Chadwick, D.; Espenberg, M.; Smith, P. A critical review of the impacts of cover crops on nitrogen leaching, net greenhouse gas balance and crop productivity. Glob. Change Biol. 2019, 25, 2530–2543. [Google Scholar] [CrossRef] [Green Version]
  19. Muhammad, Q.; Huang, J.; Waqas, A.; Li, D.C.; Liu, S.J.; Sehrish, A.; Liu, K.L.; Xu, Y.M.; Zhang, L.; Liu, L.S.; et al. Long-term green manure rotations improve soil biochemical properties, yield sustainability and nutrient balances in acidic paddy soil under a rice-based cropping system. Agronomy 2019, 9, 780. [Google Scholar]
  20. Yao, Z.Y.; Xu, Q.; Chen, Y.P.; Liu, N.; Li, Y.Y.; Zhang, S.Q.; Cao, W.D.; Zhai, B.N.; Wang, Z.H.; Zhang, D.B.; et al. Leguminous green manure enhances the soil organic nitrogen pool of cropland via disproportionate increase of nitrogen in particulate organic matter fractions. Catena 2021, 207, 105574. [Google Scholar] [CrossRef]
  21. Li, T.; Gao, J.S.; Bai, L.Y.; Wang, Y.N.; Zeng, X.B. Influence of green manure and rice straw management on soil organic carbon, enzyme activities, and rice yield in red paddy soil. Soil Till. Res. 2019, 195, 104428. [Google Scholar] [CrossRef]
  22. Christopher, P.; Don, A. Carbon sequestration in agricultural soils via cultivation of cover crops–A. meta-analysis. Agr. Ecosyst. Environ. 2015, 200, 33–41. [Google Scholar]
  23. Wang, X.Y.; Duan, Y.; Zhang, J.; Ciampitti, I.A.; Cui, J.W.; Qiu, A.S.J.; Xu, X.P.; Zhao, S.C.; PingHe, P. Response of potato yield, soil chemical and microbial properties to different rotation sequences of green manure-potato cropping in North China. Soil Till. Res. 2022, 271, 105273. [Google Scholar] [CrossRef]
  24. Zhou, G.P.; Gao, S.J.; Xu, C.X.; Dou, F.G.; Shimizuf, K.Y.; Cao, W.D. Rational utilization of leguminous green manure to mitigate methane emissions by influencing methanogenic and methanotrophic communities. Geoderma 2020, 361, 114071. [Google Scholar] [CrossRef]
  25. Yao, Z.; Zhang, D.; Yao, P.; Zhao, N.; Liu, N.; Zhai, B.; Zhang, S.; Li, Y.; Hang, D.; Gao, Y. Coupling life-cycle assessment and the RothC model to estimate the carbon footprint of green manure-based wheat production in China. Sci. Total Environ. 2017, 607, 433–442. [Google Scholar] [CrossRef] [PubMed]
  26. Zhou, G.; Gao, S.; Chang, D.; Rees, R.M.; Cao, W. Using milk vetch (Astragalus sinicus L.) to promote rice straw decomposition by regulating enzyme activity and bacterial community. Bioresour. Technol. 2021, 319, 124215. [Google Scholar] [CrossRef]
  27. Tejada, M.; Gonzalez, J.L.; García, A.M.; Parrado, J. Effects of different green manures on soil biological properties and maize yield. Bioresour. Technol. 2008, 99, 1758–1767. [Google Scholar] [CrossRef]
  28. Ablimit, R.; Li, W.K.; Zhang, J.D.; Gao, H.N.; Zhao, Y.M.; Cheng, M.M.; Meng, X.Q.; Lizhe, A.; Chen, Y. Altering microbial community for improving soil properties and agricultural sustainability during a 10-year maize-green manure intercropping in Northwest China. J. Env. Man. 2022, 321, 115859. [Google Scholar] [CrossRef]
  29. García, C.; Hernandez, T.; Pascual, J.A.; Moreno, J.L.; Ros, M. Microbial activity in soils of SE Spain exposed to degradation and desertification processes. Strategies for their rehabilitation. In Research and Perspectives of Soil Enzymology in Spain; CEBAS–CSIC: Murcia, Spain, 2000; pp. 93–143. [Google Scholar]
  30. Kim, N.; Zabaloy, M.C.; Guan, K.Y.; Villamil, M.B. Do cover crops benefit soil microbiome? A meta-analysis of current research. Soil Biol. Biochem. 2020, 142, 107701. [Google Scholar] [CrossRef]
  31. Finney, D.M.; Buyer, J.S.; Kaye, J.P. Living cover crops have immediate impacts on soil microbial community structure and function. J. Soil Water Conserve 2017, 72, 361–373. [Google Scholar] [CrossRef] [Green Version]
  32. Detheridge, A.P.; Brand, G.; Fychan, R.; Crotty, F.V.; Sanderson, R.; Griffith, G.W. The legacy effect of cover crops on soil fungal population in a cereal rotation. Agr. Ecosyst Environ. 2016, 228, 49–61. [Google Scholar] [CrossRef] [Green Version]
  33. Chen, Q.L.; Cui, H.L.; Su, J.Q.; Penuelas, J.; Zhu, Y.G. Antibiotic resistomes in plant microbiomes. Trends Plant Sci. 2019, 24, 530–541. [Google Scholar] [CrossRef] [PubMed]
  34. Zhu, Y.G.; Peng, J.J.; Wei, Z.; Sheng, Q.R.; Zhang, F.S. Soil microbiome and soil health. Scien. Sin. Vita. 2021, 51, 1–11. [Google Scholar]
  35. Kautz, T.; Wirth, S.; Ellmer, F. Microbial activity in a sandy soil is governed by the fertilization regime. Eur. Soil Biol. 2004, 40, 87–94. [Google Scholar] [CrossRef]
  36. Zhang, X.; Wang, S.; Sun, H.; Chen, S.; Shao, L.; Liu, X. Contribution of cultivar, fertilizer and weather to yield variation of winter wheat over three decades: Acase study in the North China Plain. Eur. J. Agron. 2013, 50, 52–59. [Google Scholar] [CrossRef]
  37. Nelson, D.W.; Sommers, L.E. Total carbon, organic carbon and organic matter. In Methods of Soil Analysis. Part 2. Agronomy Monograph 9, 2nd ed.; Page, A.L., Miller, R.H., Keeney, D.R., Eds.; ASA and SSSA: Madison, WI, USA, 1982; pp. 539–579. [Google Scholar]
  38. Bremner, J.M. Method of Soil Analysis: Part 3 Chemical Methods; Soil Science Society of America and American Society of Agronomy: Madison, WI, USA, 1996. [Google Scholar]
  39. SS 028198; Vattenunderso¨kningar-Besta¨mning av sulfathalt i vatten–Nefelometriskmetod (Determination of sulphate content of water-Nephelometric method). Swedish Standards Institution (SIS): Stockholm, Suedia, 1989. (In Swedish)
  40. Bao, S.D. Soil Agrochemical Analysis, 3rd ed.; China Agricultural Press: Beijing, China, 2000. [Google Scholar]
  41. Saikia, R.; Sharma, S.; Thind, H.S.; Sidhu, H.S.; Sing, Y. Temporal changes in biochemical indicators of soil quality in response to tillage, crop residue and green manure management in a rice-wheat system. Ecol. Indic. 2019, 103, 383–394. [Google Scholar] [CrossRef]
  42. Guan, S.Y. Soil Enzymes and Their Research Methods; Science Press: Beijing, China, 1982. [Google Scholar]
  43. Hou, Q.; Wang, W.; Yang, Y.; Hu, J.; Bian, C.; Jin, L.; Li, G.; Xiong, X. Rhizosphere microbial diversity and community dynamics during potato cultivation. Eur. J. Soil Biol. 2020, 98, 103176. [Google Scholar] [CrossRef]
  44. Gao, M.; Song, W.; Zhou, Q.; Ma, X.; Chen, X. Interactive effect of oxytetracycline and lead on soil enzymatic activity andmicrobial biomass]. Environ. Toxicol. Phar. 2013, 36, 667–674. [Google Scholar] [CrossRef]
  45. McGarity, J.W.; Myers, M.G. A survey of urease activity in soils of northern New South Wales. J. Pl. Soil. 1967, 27, 217–238. [Google Scholar] [CrossRef]
  46. Liu, B.; Wang, S.; Wang, J.; Zhang, X.; Shen, Z.; Shi, L.; Chen, Y. The great potential for phytoremediation of abandoned tailings pond using ectomycorrhizal Pinus sylvestris. Sci. Total Environ. 2020, 719, 137475. [Google Scholar] [CrossRef]
  47. Shao, T.; Zhao, J.J.; Liu, A.; Long, X.; Rengel, Z. Effects of soil physicochemical properties on microbial communities in different ecological niches in coastal area. Appl. Soil Ecol. 2020, 150, 103486. [Google Scholar] [CrossRef]
  48. Hargreaves, S.K.; Roberto, A.A.; Hofmockel, K.S. Reaction-and sample-specific inhibition affect standardization of qPCR assays of soil bacterial communities. Soil Biol. Biochem. 2013, 59, 89–97. [Google Scholar] [CrossRef]
  49. Luton, P.E.; Wayne, J.M.; Sharp, R.J.; Riley, P.W. The mcrA gene as an alternative to 16S rRNA in the phylogenetic analysis of methanogen populations in landfill. Microbiol. 2002, 148, 3521–3530. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Sengupta, A.; Dick, W.A. Methanotrophic bacterial diversity in two diverse soils under varying land-use practices as determined by high-throughput sequencing of the pmoA gene. Appl. Soil Ecol. 2017, 119, 35–45. [Google Scholar] [CrossRef]
  51. Poly, F.; Monrozier, L.J.; Bally, R. Improvement in the RFLP procedure for studying the diversity of nifH genes in communities of nitrogen fixers in soil. Res. Microbiol. 2017, 152, 95–103. [Google Scholar] [CrossRef]
  52. Hoshino, Y.T.; Morimoto, S. Comparison of 18S rDNA primers for estimating fungal diversity in agricultural soils using polymerase chain reaction-denaturing gradient gel electrophoresis. Soil Sci. Plant Nutr. 2008, 54, 701–710. [Google Scholar] [CrossRef]
  53. Wartiainen, I.; Eriksson, T.; Zheng, W.; Rasmussen, U. Variation in the active diazotrophic community in rice paddy-nifH PCR-DGGE analysis of rhizosphere and bulk soil. Appl. Soil Ecol. 2008, 39, 65–75. [Google Scholar] [CrossRef]
  54. Karlsson, I.; Friberg, H.; Steinberg, C.; Persson, P. Fungicide effects on fungal community composition in the wheat phyllosphere. PLoS ONE 2014, 9, e111786. [Google Scholar] [CrossRef] [Green Version]
  55. Caporaso, J.G.; Kuczynski, J.; Stombaugh, J.; Bittinger, K.; Bushman, F.D.; Costello, E.K.; Fierer, N.; Peña, A.G.; Goodrich, J.K.; Gordon, J.I.; et al. QIIME allows analysis of highthroughput community sequencing data. Nat. Methods 2010, 7, 335. [Google Scholar] [CrossRef] [Green Version]
  56. Zehr, J.P.; Jenkins, B.D.; Short, S.M.; Steward, G.F. Nitrogenase gene diversity and microbial community structure: A cross-system comparison. Environ. Microbiol. 2003, 5, 539–554. [Google Scholar] [CrossRef]
  57. Tu, Q.; Zhou, X.; He, Z.; Xue, K.; Wu, L.; Reich, P.; Hobbie, S.; Zhou, J. The diversity and co-occurrence patterns of N2-fixing communities in a CO2-enriched grassland ecosystem. Microb. Ecol. 2016, 71, 604–615. [Google Scholar] [CrossRef] [PubMed]
  58. Vilmus, I.; Ecarnot, M.; Verzelen, N.; Roumet, P. Monitoring nitrogen leaf resorption kinetics by near-Infrared spectroscopy during grain filling in durum wheat in different nitrogen availability conditions. Crop Sci. 2013, 54, 284. [Google Scholar] [CrossRef]
  59. Zhao, R.F.; Chen, X.P.; Zhang, F.S.; Zhang, H.L.; Jackie, S.; Volker, R. Fertilization and nitrogen balance in a wheat-maize rotation system in NorthChina. Agron. J. 2006, 98, 938–945. [Google Scholar] [CrossRef]
  60. Li, J.; Xu, X.; Lin, G.; Wang, Y.; Liu, Y.; Zhang, M.; Zhou, J.; Wang, Z.; Zhang, Y. Micro-irrigation improves grain yield and esource use efficiency by co-locating the roots and N-fertilizer distribution of winter wheat in the North China Plain. Sci. Total Environ. 2018, 643, 367–377. [Google Scholar] [CrossRef]
  61. Hou, P.; Liu, Y.E.; Liu, W.; Liu, G.Z.; Xie, R.Z.; Wang, K.R.; Ming, B.; Wang, Y.; Zhao, R.; Zhang, W.; et al. How to increase maize production without extra nitrogen input. Resour. Conserv. Recycl. 2020, 160, 104913. [Google Scholar] [CrossRef]
  62. Zhang, J.L.; Nie, J.; Cao, W.D.; Gao, Y.J.; Lu, Y.H.; Liao, Y.L. Long-term green manuring to substitute partial chemical fertilizer simultaneously improving crop productivity and soil quality in a double-rice cropping system. Europ. J. Agron. 2023, 142, 126641. [Google Scholar] [CrossRef]
  63. Yao, C.C.; Wu, X.W.; Bai, H.; Gu, J.X. Nitrous oxide emission and grain yyield in Chinese winter wheat–summer maize rotation: A meta-analysis. Agronomy 2022, 12, 2305. [Google Scholar] [CrossRef]
  64. Gao, S.; Zhou, G.; Rees, R.M.; Cao, W. Green manuring inhibits nitrification in a typical paddy soil by changing the contributions of ammonia-oxidizing archaea and bacteria. Appl. Soil Ecol. 2020, 156, 103698. [Google Scholar] [CrossRef]
  65. Zhang, F.S.; Cui, Z.L.; Fan, M.S.; Zhang, W.F.; Chen, X.P.; Jiang, R.F. Integrated soil-crop system management: Reducing environmental risk while increasing crop productivity and improving nutrient use efficiency in China. J. Environ. Qual. 2011, 40, 1051–1057. [Google Scholar] [CrossRef]
  66. Liu, S.B.; Razavi, B.S.; Maharjan, X.; Zarebanadkouki, M.; Blagodatskaya, M.; Yakov, E.K. Spatio-temporal patten s of enzyme activities after manure application reflect mechanism of niche differentiation between plants and micro-organisms. Soil Biol. Biochem. 2017, 112, 100–109. [Google Scholar] [CrossRef]
  67. Zhang, P.; Chen, X.; Wei, T.; Yang, Z.; Jia, Z.; Yang, B.; Han, Q.; Ren, X. Effects of straw incorporation on the soil nutrient contents, enzyme activities, and crop yield in a semiarid region of China. Soil Till. Res. 2016, 160, 65–72. [Google Scholar] [CrossRef]
  68. Gong, X.; Liu, C.; Li, J.; Luo, Y.; Yang, Q.; Zhang, W.; Yang, P.; Feng, B. Responses of rhizosphere soil properties, enzyme activities and microbial diversity to intercropping patterns on the Loess Plateau of China. Soil Till. Res. 2019, 195, 104355. [Google Scholar] [CrossRef]
  69. Jin, K.; Sleutel, S.; Buchan, D.; Neve, S.D.; Cai, D.X.; Gabriels, D. Changes of soil enzyme activities under different tillage practices in the Chinese Loess Plateau. Soil Till. Res. 2009, 104, 115–120. [Google Scholar] [CrossRef]
  70. Klose, S.; Tabatabai, M.A. Urease activity of microbial biomass in soil as affected by cropping system. Biol. Fertil. Soils. 2000, 31, 191–199. [Google Scholar] [CrossRef]
  71. Fisger, K.A.; Yarwood, S.A.; James, B.R. Soil urease activitand bacterial urec gene crop number: Effect of PH. Geoderma 2017, 285, 1–8. [Google Scholar]
  72. Ragot, S.A.; Kertesz, M.A.; Bünemann, E.K. phoD alkaline phosphatase gene diversity in soil. Appl. Environ Microb. 2015, 81, 7281–7289. [Google Scholar] [CrossRef] [Green Version]
  73. Fraser, T.D.; Lynch, D.H.; Gaiero, J.; Khosla, K.; Dunfield, K.E. Quantification of bacterial non-specific acid (phoC) and alkaline (phoD) phosphatase genes in bulk and rhizosphere soil from organically managed soybean fields. Appl. Soil Ecol. 2017, 111, 48–56. [Google Scholar] [CrossRef]
  74. Tang, H.M.; Xiao, X.P.; Tang, W.G.; Li, C.; Wang, K.; Cheng, K.K.; Sun, G. Dynamic change of soil enzyme activities and soil microbe during rice main growth stages in different long-term fertilizer regimes. J. Pure Appl. Microbio. 2017, 11, 649–660. [Google Scholar] [CrossRef]
  75. Wang, J.; Fu, X.; Ghimire, R.; Sainju, U.M.; Jia, Y.; Zhao, F.Z. Responses of soil bacterial community and enzyme activity to organic matter components under long-term fertilization on the Loess Plateau of China. Appl. Soil Ecol. 2021, 166, 103992. [Google Scholar] [CrossRef]
  76. Zheng, J.; Chen, J.; Pan, G.; Liu, X.; Zhang, X.; Li, L.; Sian, R.; Cheng, K.; Zheng, J.W. Biochar decreased microbial metabolic quotient and shifted community composition four years after a single incorporation in a slightly and rice paddy from southwest China. Sci. Total Environ. 2016, 571, 206–217. [Google Scholar]
  77. Grossman, J.M.; O’Neill, B.E.; Tsai, S.M.; Liang, B.; Neves, E.; Lehmann, J.; Thiess, J.E. Amazonian anthrosols support similar microbial communities that differ distinctly from those extant in adjacent, unmodified soils of the same mineralogy. Microb. Ecol. 2010, 60, 192–205. [Google Scholar] [CrossRef] [PubMed]
  78. Ryota, K.; Katsuhiko, N.; Yasuhiro, T.; Hideki, Y.; Shoya, S.; Eiji, H.; Masayuki, H.; Yasushi, S. Hairy vetch (Vicia villosa), as a green manure, increases fungal biomass, fungal community composition, and phosphatase activity in soil. Appl. Soil Ecoogyl. 2017, 117–118, 16–20. [Google Scholar]
  79. Zhao, M.; Sun, B.; Wu, L.; Gao, Q.; Wang, F.; Wen, C.; Wang, M.; Liang, Y.; Hale, L.; Zhou, J. Zonal soil type determines soil microbial responses to maize cropping and fertilization. Appl. Environ. Sci. 2016, 1, e00075-e16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Zhao, S.C.; Fan, F.L.; Qiu, S.J.; Xu, X.P.; He, P.; Ignacio, A.C. Dynamic of fungal community composition during maize residue decomposition process in north-central China. Appl. Soil Ecol. 2021, 167, 104057. [Google Scholar] [CrossRef]
  81. Yelle, D.J.; Ralph, J.; Lu, F.; Hammel, K.E. Evidence for cleavage of lignin by a brown rot basidiomycete. Environ. Microbiol. 2008, 10, 1844–1849. [Google Scholar] [CrossRef]
  82. Osorio, N.W.; Habte, M. Soil phosphate desorption induced by a phosphate-solubilizing fungus. Communica. Soil Sci. Plant Analy. 2014, 45, 451–460. [Google Scholar] [CrossRef]
  83. Yulianti, T.; Sivasithamparam, K.; Turner, D.W. Saprophytic growth of Rhizoctonia solani Kuhn AG2-1(ZG5) in soil amended with fresh green manure affects the severity of damping-off in canlao. Soil Boil.Biochem. 2006, 38, 923–930. [Google Scholar] [CrossRef]
  84. Longa, C.M.O.; Nicola, L.; Antonielli, L. Soil microbiota respond to green manure in organic vineyards. J. Appl. Microbiol. 2017, 123, 1547–1560. [Google Scholar] [CrossRef]
  85. Yang, Y.; Li, T.; Wang, Y.Q.; Dou, Y.X.; Cheng, H.; Liu, L.G.; An, S.S. Linkage between soil ectoenzyme stoichiometry ratio and microbial diversity following the conversion of cropland into grassland. Agric. Ecos. Environ. 2021, 314, 107418. [Google Scholar]
  86. Dlugosz, A.P.; Wilczewski, E. Changes in enzyme activities as affected by green manure catch crop and mineral nitrogen fertilization. Zemdirbyste 2004, 101, 139–146. [Google Scholar] [CrossRef]
  87. Zhang, X.X.; Zhang, R.J.; Gao, J.S.; Wang, X.C.; Fan, F.L.; Ma, X.T.; Yin, H.Q.; Zhang, C.W.; Feng, K.; Deng, Y. Thirty-one years of rice-rice-green manure rotation shape the rhizosphere microbial community and enrich beneficial bacteria. Soil Biol. Biochem. 2017, 104, 208–217. [Google Scholar] [CrossRef]
  88. Ju, W.L.; Liu, L.; Fang, L.C.; Cui, Y.X.; Duan, C.J.; Wu, H. Impact of co-inoculation with plant-growth-promoting rhizobacteria and rhizobium on the biochemical responses of alfalfa-soil system in copper contaminated soil. Ecotoxicol. Environ. Saf. 2019, 167, 218–226. [Google Scholar] [CrossRef] [PubMed]
  89. Hueso, R.O.; Hughes, J.; Baquerizo, M.D.; Drake, J.E.; Tjoelker, M.G.; Pineiro, J.; Power, S.A. Rhizosphere-driven increase in nitrogen and phosphorus availability under elevated atmospheric CO2 in a mature Eucalyptus woodland. Plant Soil. 2017, 416, 283–295. [Google Scholar] [CrossRef]
Figure 1. Spring maize grain yield (GY) response to N application under winter fallow (WF) and green manure return (GM) treatments in the North China Plain.
Figure 1. Spring maize grain yield (GY) response to N application under winter fallow (WF) and green manure return (GM) treatments in the North China Plain.
Agronomy 12 02734 g001

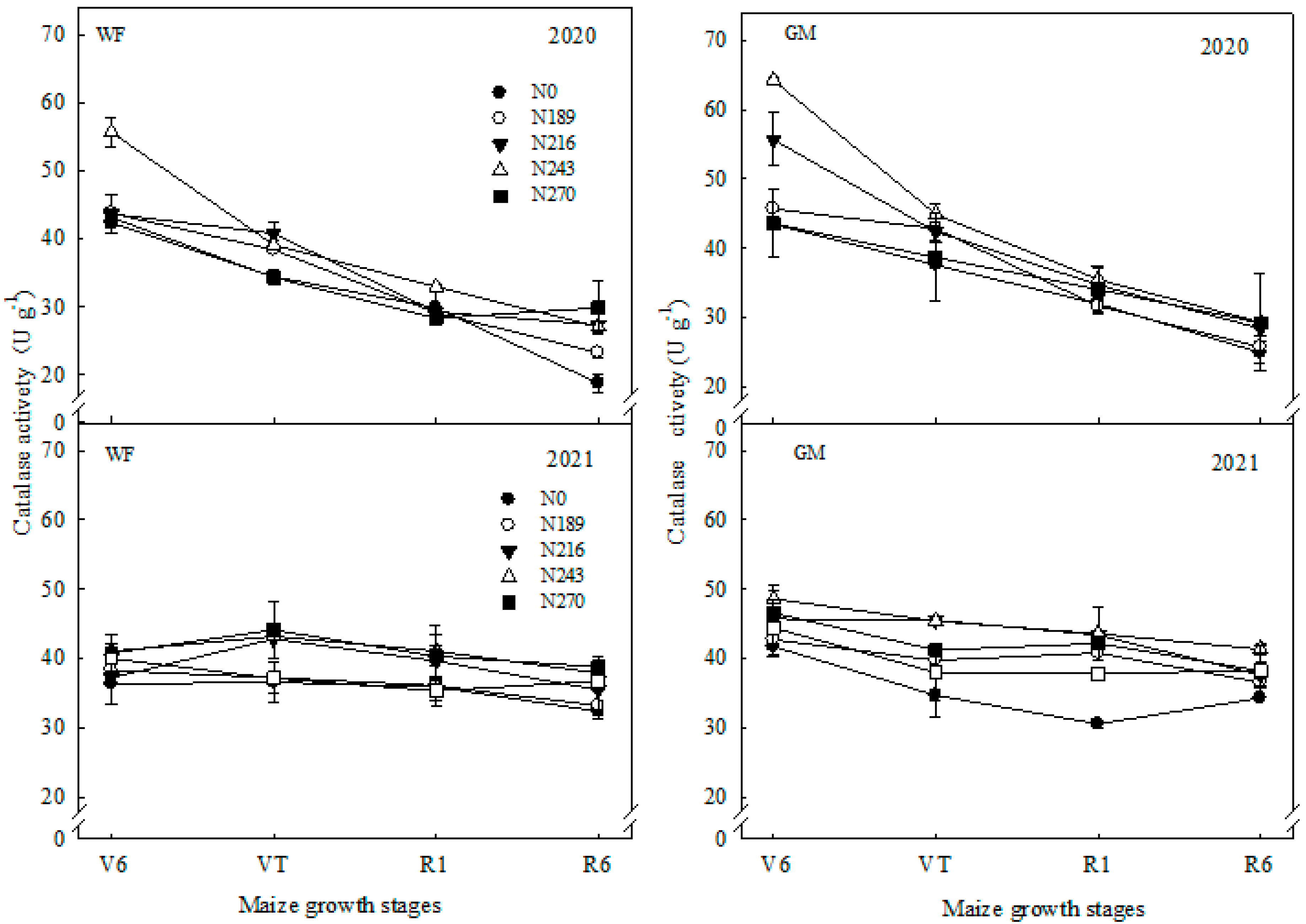

Figure 2. The soil catalase activity response to N application under WF and GM treatments in the North China Plain. V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Figure 2. The soil catalase activity response to N application under WF and GM treatments in the North China Plain. V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Agronomy 12 02734 g002
Figure 3. The soil sucrase activity response to N application under WF and GM treatments in the North China Plain. V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Figure 3. The soil sucrase activity response to N application under WF and GM treatments in the North China Plain. V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Agronomy 12 02734 g003
Figure 4. The soil urease activity response to N application under WF and GM treatments in the North China Plain. V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Figure 4. The soil urease activity response to N application under WF and GM treatments in the North China Plain. V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Agronomy 12 02734 g004
Figure 5. The soil alkaline phosphatase activity response to N application under WF and GM treatments in the North China Plain. V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Figure 5. The soil alkaline phosphatase activity response to N application under WF and GM treatments in the North China Plain. V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Agronomy 12 02734 g005
Figure 6. The soil fungal community’s response to N application under WF and GM treatments in the North China Plain. (A), Phylum level; (B), Genus level.
Figure 6. The soil fungal community’s response to N application under WF and GM treatments in the North China Plain. (A), Phylum level; (B), Genus level.
Agronomy 12 02734 g006
Figure 7. The soil fungal phylum and genus abundance group clusters response to N application under WF and GM treatments in the North China Plain. (A), Phylum level; (B), Genus level.
Figure 7. The soil fungal phylum and genus abundance group clusters response to N application under WF and GM treatments in the North China Plain. (A), Phylum level; (B), Genus level.
Agronomy 12 02734 g007
Figure 8. RDA analysis of soil microbial community structures and environmental factors. The red arrow line length represents the affect strength of environmental factors on soil microbial community structures SOC, soil organic carbon; TN, total nitrogen; TP: total phosphorus; AN, available nitrogen; AK: available potassium; s-CA, soil catalase activities; s-SA, soil sucrase activity; s-UA, soil uease activity; s-APA, soil alkaline phosphatase activity.
Figure 8. RDA analysis of soil microbial community structures and environmental factors. The red arrow line length represents the affect strength of environmental factors on soil microbial community structures SOC, soil organic carbon; TN, total nitrogen; TP: total phosphorus; AN, available nitrogen; AK: available potassium; s-CA, soil catalase activities; s-SA, soil sucrase activity; s-UA, soil uease activity; s-APA, soil alkaline phosphatase activity.
Agronomy 12 02734 g008
Table 1. The soil properties of the soil plow layer (0–20 cm).
Table 1. The soil properties of the soil plow layer (0–20 cm).
PHSOC
(g kg−1)
TN
(g kg−1)
TP
(g kg−1)
TK
(g kg−1)
AN
(g kg−1)
AP
(g kg−1)
AK
(g kg−1)
8.0513.401.210.9324.50118.10111.50353.28
SOC, soil organic carbon; TN, total nitrogen; TP: total phosphorus; TK: total potassium; AN, available nitrogen; AP: available phosphorus; AK: available K.
Table 2. The ANOVA for GY under WF and GM treatments.
Table 2. The ANOVA for GY under WF and GM treatments.
YearsSourcesType III Sum of SquaresDegrees of FreedomMean SquaresF ValuesSig.
2020GM2,326,867.512,326,867.514.50.001
N1.117 × 108427,915,217.5174.10.000
GM × N2,724,420.04681,105.04.250.012
Error3,207,300.020160,365.0
Sum3.547 × 10930
2021GM12,613,973.6112,613,973.660.9950.000
N2.257 × 108456,425,058.1272.8460.000
GM × N6,315,293.941,578,823.57.6340.001
Error4,136,039.320206,802.0
Sum4.392 × 10930
Table 3. The responses of soil chemicals to the application of nitrogen under green manure return strategies in the North China Plain.
Table 3. The responses of soil chemicals to the application of nitrogen under green manure return strategies in the North China Plain.
NSOC
(g kg−1)
TN
(g kg−1)
TP
(g kg−1)
TK
(g kg−1)
AN
(mg kg−1)
AP
(mg kg−1)
AK
(mg kg−1)
2020WFN014.00 ± 0.57b1.05 ± 0.01b0.72 ± 0.06c19.95 ± 0.49b59.16 ± 2.58d77.00 ± 2.55d306.24 ± 11.63b
N18915.15 ± 0.31b1.14 ± 0.04ab0.81 ± 0.02bc20.12 ± 0.21ab67.34 ± 2.09c87.20 ± 0.71c311.01 ± 4.33ab
N21616.05 ± 0.30a1.14 ± 0.05ab0.85 ± 0.05ab20.82 ± 0.82ab70.98 ± 1.93bc92.8 ± 1.27bc317.65 ± 10.2ab
N24315.72 ± 0.44a1.23 ± 0.04a0.89 ± 0.01ab21.03 ± 0.28a81.90 ± 1.93a96.25 ± 3.18b325.93 ± 4.97ab
N27015.93 ± 0.79a1.22 ± 0.06a0.93 ± 0.01a20.46 ± 0.03ab75.76 ± 6.76ab104.65 ± 2.33a332.38 ± 24.78a
GMN016.25 ± 0.88b1.20 ± 0.01c0.84 ± 0.05b19.95 ± 0.68b69.16 ± 0.65c81.00 ± 7.50c310.28 ± 3.19b
N18916.37 ± 0.12b1.25 ± 0.03c0.86 ± 0.04ab20.33 ± 0.65b74.39 ± 0.97bc97.10 ± 2.40b324.49 ± 9.9ab
N21617.59 ± 0.97ab1.27 ± 0.03bc0.92 ± 0.07ab20.42 ± 0.86ab82.81 ± 5.14ab104.60 ± 4.10ab326.88 ± 0.19ab
N24318.78 ± 1.11a1.35 ± 0.03a0.96 ± 0.02a21.72 ± 0.65a90.09 ± 5.79a116.25 ± 1.20a345.82 ± 1.11a
N27017.25 ± 0.33ab1.32 ± 0.03 ab0.88 ± 0ab20.87 ± 0.65ab83.73 ± 2.58ab104.05 ± 5.44ab342.55 ± 19.42a
G34.66 **63.14 **6.78 *1.00 ns25.43 **34.30 **1.00 ns
N5.43 *15.10 **7.38 **5.00 **18.15 **41.55 **5.00 **
G × N1.28 ns0.28 ns4.68 *0.48 ns0.214 ns2.57 ns1.00 ns
2021WFN012.48 ± 0.07c0.91 ± 0.02b0.76 ± 0.04c20.07 ± 0.46a57.33 ± 2.08c71.05 ± 1.20b262.35 ± 16.57b
N18914.89 ± 0.36b1.14 ± 0.02a0.78 ± 0.02bc19.56 ± 0.83a61.74 ± 2.08bc78.15 ± 1.06ab273.32 ± 5.49ab
N21614.94 ± 0.58ab1.15 ± 0.05a0.83 ± 0.01ab20.22 ± 0.61a65.42 ± 3.12b88.50 ± 3.11a283.25 ± 1.92a
N24315.35 ± 0.54ab1.15 ± 0.02a0.84 ± 0.01ab19.76 ± 0.42a77.18 ± 3.12a91.95 ± 2.47a290.5 ± 4.31a
N27015.76 ± 0.13a1.21 ± 0.01a0.86 ± 0.04a19.51 ± 0.56a73.47 ± 0.04a93.8 ± 4.38a288.38 ± 9.34a
GMN013.21 ± 0.08c1.08 ± 0.01b0.82 ± 0.05c19.83 ± 0.54a58.37 ± 2.28c70.65 ± 5.30c276.81 ± 2.25b
N18915.12 ± 0.7b1.11 ± 0.07b0.86 ± 0.01c20.37 ± 0.85a62.62 ± 5.40b84.00 ± 1.27b291.66 ± 14.12ab
N21615.64 ± 0.73ab1.23 ± 0.03a0.88 ± 0.05bc19.84 ± 1.09a77.18 ± 1.04ab94.90 ± 1.56a292.63 ± 8.9ab
N24316.54 ± 0.33a1.24 ± 0.07a1.07 ± 0.02a19.72 ± 0.28a82.77 ± 0.63a98.35 ± 0.07a303.83 ± 16.43a
N27015.89 ± 0.44ab1.23 ± 0.06a0.99 ± 0.10ab19.85 ± 0.16a72.77 ± 5.20b97.15 ± 3.61a294.02 ± 3.36ab
G13.99 **14.02 **44.78 **0.17 ns5.16 *9.27 *7.94 *
N41.40 **16.89 **14.08 **0.35 ns27.28 **34.69 **4.95 *
G × N2.00 ns2.73 ns4.23 *0.87 ns2.24 ns0.90 ns0.24 ns
SOC, soil organic carbon; TN, total nitrogen; TP: total phosphorus; TK: total potassium; AN, available nitrogen; AP: available phosphorus; AK: available K. Different letters following values in the same column are significantly different between N treatments at the p < 0.05 *, difference significant at p < 0.05; **, Difference significant at p < 0.01; ns, no significant difference.
Table 4. The ANOVA for soil catalase, sucrose, urease, and alkaline phosphatase activity at different growth stages under WF and GM treatments in 2020 and 2021.
Table 4. The ANOVA for soil catalase, sucrose, urease, and alkaline phosphatase activity at different growth stages under WF and GM treatments in 2020 and 2021.
Soil Enzyme
Activity
YearsSourcesV6VTR1R6
F ValuesSig.F ValuesSig.F ValuesSig.F ValuesSig.
Catalase2020GM20.530.0019.990.00727.7708.950.011
N29.830.0005.430.0063.820.0303.910.025
GM × N4.670.0260.6210.6870.890.5260.880.523
2021GM32.8907.690.02115.480.0028.180.016
N2.680.08711.410.0018.560.0026.770.004
GM × N0.490.7730.250.9320.360.8630.620.69
Sucrose2020GM215.310.000289.26080.41067.500.000
N34.190.000112.4605.110.01117.340.000
GM × N0.630.65016.0201.230.3591.810.191
2021GM18.250227.400118.990196.420
N0.460.79957.09018.63019.450
GM × N0.600.6995.540.0074.740.0113.050.057
Urease2020GM4.930.04031.50026.66013.080.002
N6.340.00220.3702.970.0381.060.407
GM × N0.610.6630.9380.4851.200.3450.540.744
2021GM36.68017.880.0015.880.03621.370
N10.920.0019.2120.00120.47029.390
GM × N0.990.4710.340.881.120.40817.230
Alkaline Phosphatase2020GM93.490101.49068.860187.460
N2.130.1696.780.0031.890.1618.820.001
GM × N0.880.5152.400.0941.020.4440.860.532
2021GM108.80046.36069.690105.440
N13.29013.3302.780.06820.620
GM × N4.750.0084.020.0220.540.7413.270.043
V6, spring maize jointing stage; VT, spring maize tasseling stage; R1, spring maize filling stage; R6, spring maize maturity stage.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Su, G.; Zhao, R.; Wang, Y.; Yang, Y.; Wu, X.; Wang, J.; Ge, J. Green Manure Return Strategies to Improve Soil Properties and Spring Maize Productivity under Nitrogen Reduction in the North China Plain. Agronomy 2022, 12, 2734. https://doi.org/10.3390/agronomy12112734

AMA Style

Su G, Zhao R, Wang Y, Yang Y, Wu X, Wang J, Ge J. Green Manure Return Strategies to Improve Soil Properties and Spring Maize Productivity under Nitrogen Reduction in the North China Plain. Agronomy. 2022; 12(11):2734. https://doi.org/10.3390/agronomy12112734

Chicago/Turabian Style

Su, Gang, Rui Zhao, Yizhen Wang, Yong’an Yang, Xidong Wu, Jinlong Wang, and Junzhu Ge. 2022. "Green Manure Return Strategies to Improve Soil Properties and Spring Maize Productivity under Nitrogen Reduction in the North China Plain" Agronomy 12, no. 11: 2734. https://doi.org/10.3390/agronomy12112734

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
