Comparison of the MUSLE Model and Two Years of Solid Transport Measurement, in the Bouregreg Basin, and Impact on the Sedimentation in the Sidi Mohamed Ben Abdellah Reservoir, Morocco

Abstract

The evaluation and quantification of solids transport in Morocco often uses the Universal Soil Loss Model (USLE) and the revised version RUSLE, which presents a calibration difficulty. In this study, we apply the MUSLE model to predict solid transport, for the first time on a large river basin in the Kingdom, calibrated by two years of solid transport measurements on four main gauging stations at the entrance of the Sidi Mohamed Ben Abdellah dam. The application of the MUSLE on the basin demonstrated relatively small differences between the measured values and those expected for the calibrated version, these differences are, for the non-calibrated version, +5% and +102% for the years 2016/2017 and 2017/2018 respectively, and between −33% and +34% for the calibrated version. Besides, the measured and modeled volumes that do not exceed 1.78 × 10⁶ m³/year remain well below the dam’s siltation rate of 9.49 × 10⁶ m³/year, which means that only 18% of the dam’s sediment comes from upstream. This seems very low because it is calculated from only two years. The main hypothesis that we can formulate is that the sediments of the dam most probably comes from the erosion of its banks.

1. Introduction

Erosion is a natural phenomenon that reduces the capacity of dam reservoirs around the world. The natural erosive process is aggravated by anthropogenic activities including pastoral activity [1], deforestation [2,3,4], and climate change [5] with the advent of periods of heavy rainfall and increasingly frequent dry periods. This phenomenon constitutes a major challenge for water resource management at the scale of the Bouregreg basin [6,7] in northern Morocco.

The Sidi Mohamed Ben Abdellah (SMBA) dam, commissioned in 1974 and raised in 2007, is intended solely to supply drinking water to the coastal area between Rabat and Casablanca, which represents nearly eight million inhabitants. It has a relatively low silting rate compared to other dams in the Kingdom [8].However, it has lost 132 Mm³ since its commissioning of which 58% of this volume was lost before rising the dam height, with this loss constituting a very significant reduction in its storage capacity. Given the magnitude of this situation, the modeling of soil losses in the basin aims at achieving the following objectives:

• analyzing the biophysical environment;
• describing and evaluating the erosive processes affecting the Bouregreg Basin, and the solid transport by the main tributaries to the SMBA dam;
• and identifying the priority areas contributing to siltation, in order to better guide spatial planning actions.

Universal Soil Loss Equation (USLE) was first established in USA to model erosion in small agricultural catchment [9]. It is based on several parameters linked to climate, soil cover and properties, topography, and human activities. This equation has been modified and adapted several times. The MUSLE model includes the use of water flow rates [10]. Despite the difficulties encountered in calibrating and adapting the Universal Land Loss Model (USLE) to conditions in Morocco [11], most studies on watershed management in Morocco [12,13,14,15] and bordering Mediterranean regions, in particular in Algeria and Tunisia [15,16,17], continue to use USLE, and the revised version RUSLE [18,19,20,21], or an event normalized plot soil loss estimated by a modified USLE model—USLE-MM—as in Italy [22], most often for small basins of much less than 5000 km². As USLE [23] and RUSLE [24] were developed for the rough assessment of annual land loss at the scale of small plots, their application to large areas leads to rather large errors [25,26]. However, their accuracy increases when coupled with hydrological models [27]. To overcome the difficulties in assessing the accuracy of using a simple erosion equation like USLE, Alewell et al. [28] recommend to strengthen and extend measurement and monitoring programs to build up validation data sets.

Thus, Williams [10] developed a modified version of the USLE (MUSLE) that takes into account the flow load at the outlet by taking into account the biophysical characteristics of the watershed. This model has already been applied to micro-watersheds [29,30] and gave very reliable results compared to measurements. Indeed, in the Sidi Sbaa basin in Morocco, the deviation of the results compared to the MUSLE model was −4% by underestimating the solid inputs [31]. Samaras and Koutitas et al. [32] use MUSLE with SWAT to simulate the potential impact of land cover change on sediment yields to the sea in Greece, but with no observed validation data; while other authors like Fang [33] use the WaTEM/SEDEM model, which includes the RUSLE formula, to estimate erosion, but always without observations to compare. Only a few studies compare the erosion rates with the three USLE formulas. In Maghreb, only one study by Djoukbala et al. [34] compared them on the small basin of 384 km² in the north of Algeria, with erosion rates quite similar between the three methods, but they were slightly superior in the case MUSLE. Unfortunately, they could not compare their results with observation data, which does not allow an assessment of the validity of the erosion rates produced in regard to real natural processes.

2. Materials and Methods

2.1. Study Area

The Bouregreg Basin, located in central western Morocco, covers a total area of approximately 10,130 km² at its mouth in the north of the city of Rabat (Figure 1). The main rivers of the basin are the Bouregreg, the Grou, and the Korifla and its tributary, the Machraa.

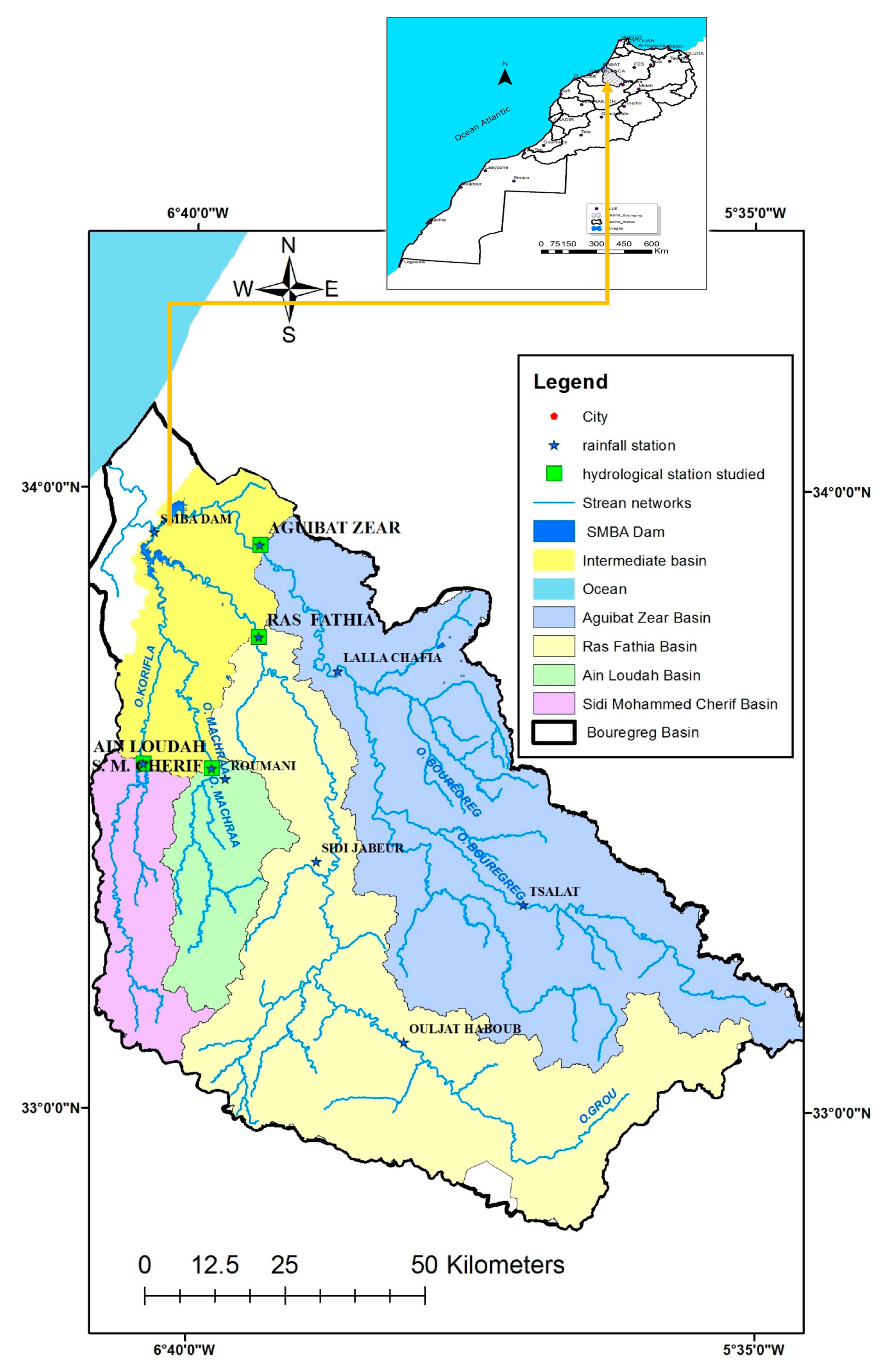

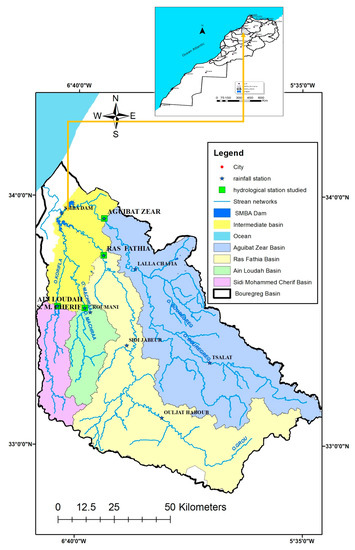

Figure 1. Situation of the Bouregreg Basin on the north Morocco Atlantic coast.

The climate in the study area is Mediterranean with oceanic influence, with an average annual rainfall over the basin varying from 450 mm in Rabat in the north-west, to nearly 750 mm in the mountainous area in the south-east.

Rain events generate water volume of 680 × 10⁶ m³/year, i.e., an annual mean of 22 m³/s. It is regulated by the capacity of the SMBA dam, located downstream of the confluence between the Bouregreg, Korifla/Machraa, and Grou rivers. Table 1 summarizes the characteristics of the SMBA dam.

Table 1. Sidi Mohamed Ben Abdellah (SMBA)dam data.

	Watershed Area (km²)	Initial Dam Capacity (106 m3)	Inter-Annual Water Resources (106 m3)	Opening Date	Number of Bathymetric Measurements
SMBA at its construction	9800	508.6	680	1974	5
SMBA after raising its dike		974.0		2007	3

2.2. Basic Data

2.2.1. Discharges Measurements

The hydrometric network of the Bouregreg basin upstream of the SMBA dam is composed of three major tributaries: Bouregreg, Grou, and Korifla (including its tributary the Machraa). Four hydrological stations located on these tributaries at the entrance of the dam’s reservoir were chosen to carry out the measurements of solid transport. These hydrological stations control a basin of about 8521 km², i.e., 87% of the catchment area of the SMBA dam. They also have human and material means to ensure the measurement of flows, rainfall, and the concentration of suspended solids. Table 2 gives the characteristics of the four hydrological stations.

Table 2. Characteristics of the four hydrological stations studied.

Hydrological Station	Name of River	Date of Commissioning	Averaging Period	N°IRE ABHBC Code	Watershed Area (km²)	Lambert Coordinates
						X	Y	Z
Aguibat Zear	Bouregreg	1975	1975/2018	3118/13	3681	394.500	368.150	90
Ras Fathia	Grou	1975	1975/2018	989/20	3485	394.250	351.800	100
Ain Loudah	Korifla	1971	1971/2018	2673/20	699	373.750	329.150	175
Sidi Mohamed Cherif	Machraa	1971	1971/2018	2674/21	656	385.850	328.200	270

Figure 2 shows that the two years, 2016/2017 and 2017/2018, are dry years which did not record significant water inflows.

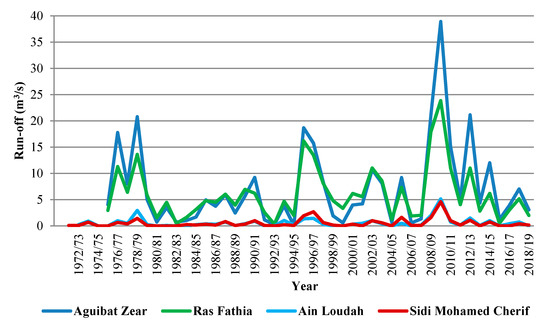

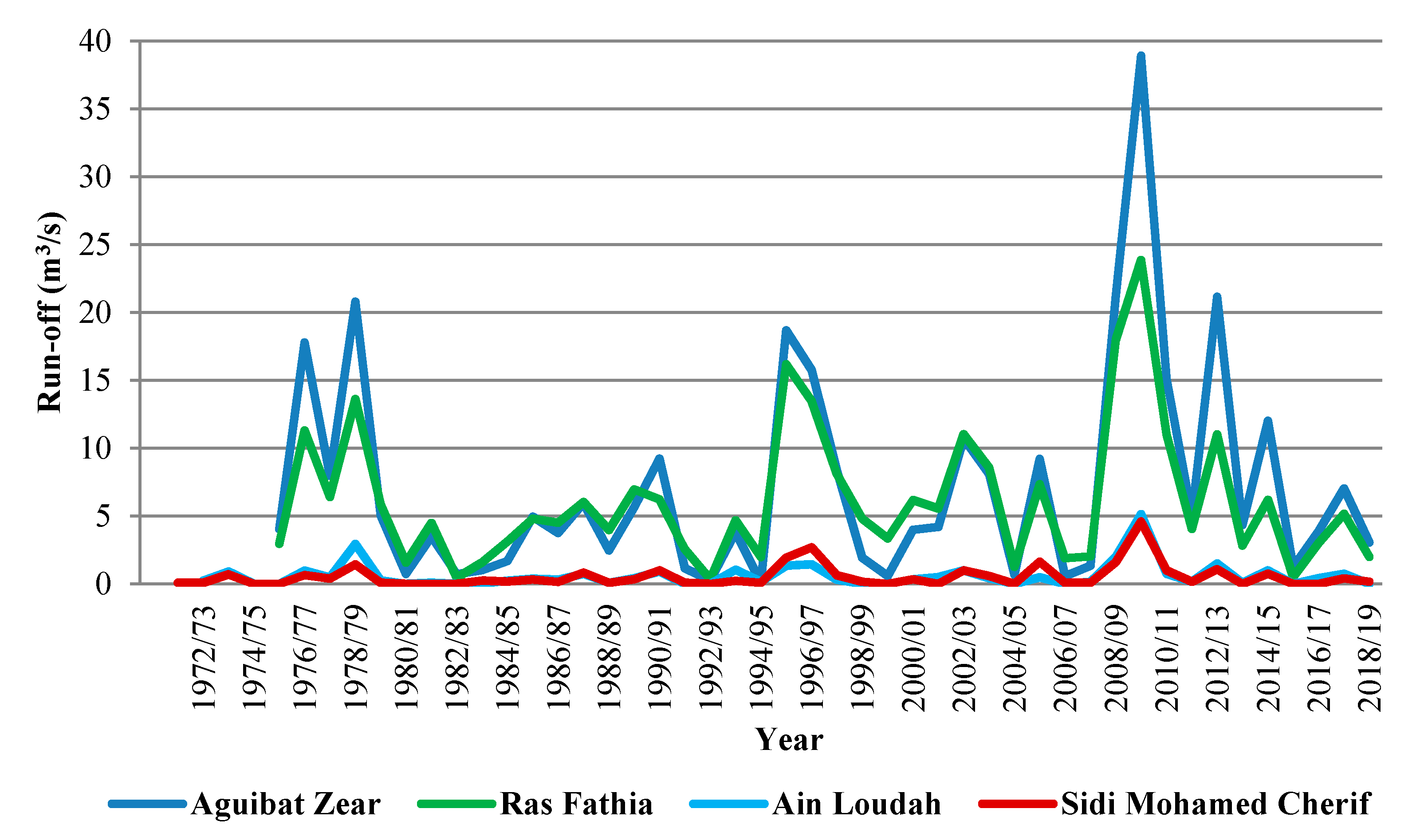

Figure 2. Annual discharges at the 4 hydrological stations studied.

Examination of the historical measurement data from the four observation stations shows that 80% of the inflows to the dam are recorded between October and May (Figure 3). The Bouregreg and Grou rivers contribute more than 90% of the inflows generated in the basin.

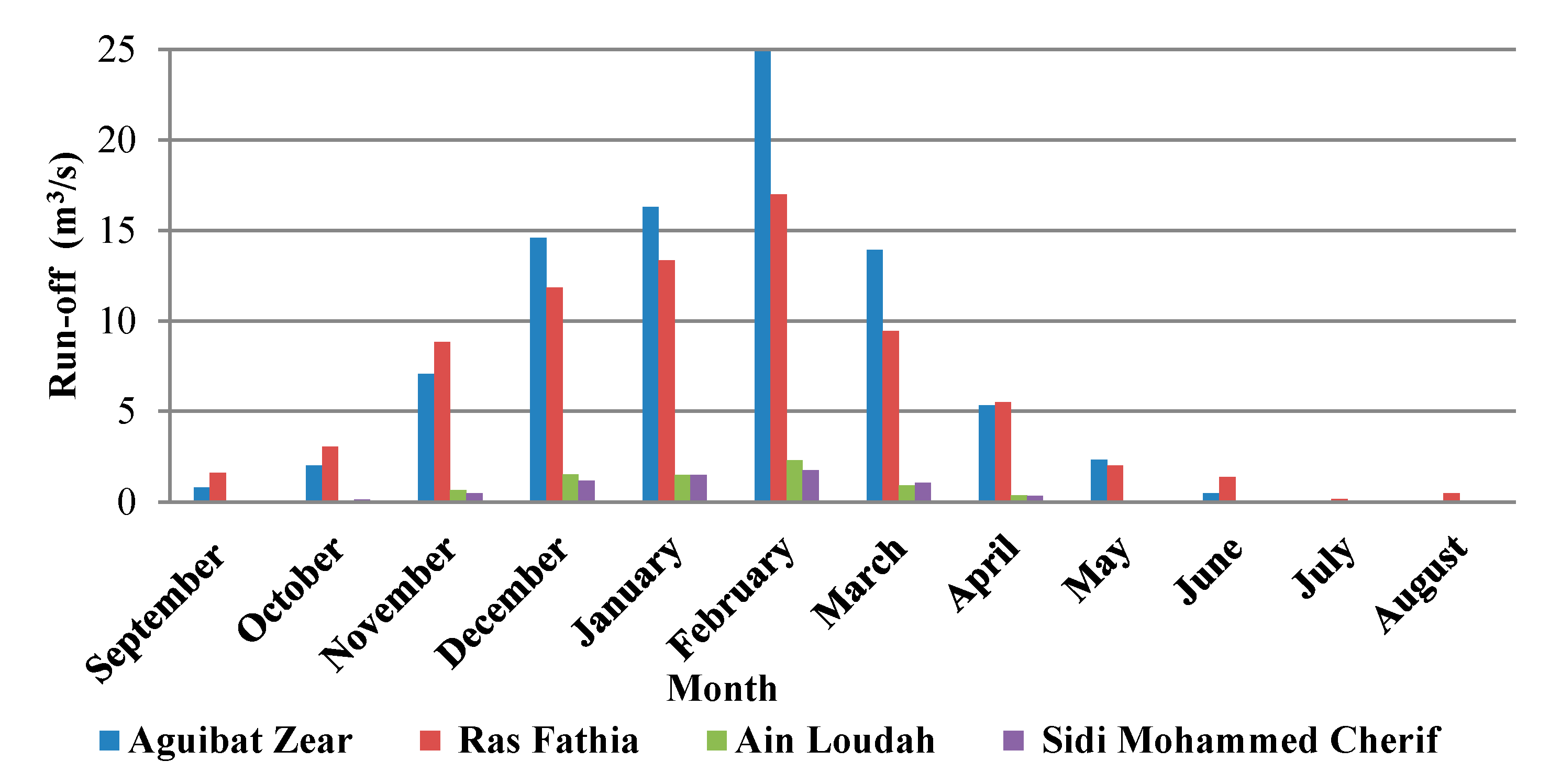

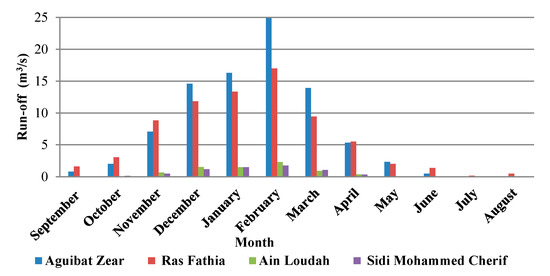

Figure 3. Mean monthly discharges at the hydrological stations studied.

Table 3 shows the maximum flows, volumes, and number of flood events recorded during the 2016/2017 and 2017/2018 hydrological years at the four hydrological stations studied. The number of recorded events is between six and seventeen, depending on the observation station and the year.

Table 3. Flood events for the four hydrological stations studied.

Hydrological Station	Hydrological Year	Maximum Discharge Recorded Per Year (m3/s)	Date of Flood Event	Volume (106 m3)	Number of Flood Events
Aguibat Zear	2016/2017	263.4	24/02/2017 at 23h00	52	13
	2017/2018	265.9	07/03/2018 at 14h00	77	14
Ras Fathia	2016/2017	256.4	25/02/2017 at 07h30	33	11
	2017/2018	423.8	07/03/2018 at 09h00	59	10
Ain Loudah	2016/2017	24.5	13/10/2016 at 11h00	0.7	10
	2017/2018	198.7	24/04/2018 at 23h00	7.6	17
Sidi Mohamed Cherif	2016/2017	62.6	13/10/2016 at 07h00	1.8	6
	2017/2018	48.0	11/12/2017 at 17h00	1.28	6

2.2.2. Concentration of Suspended Solids (CSS)

Observers at the four hydrological stations studied, who are contracted by the Hydraulic Basin of the Bouregreg and Chaouia Agency (ABHBC), carry out daily sampling during low-flow periods and hourly sampling during periods of flooding. At each instantaneous sampling, the date, time, and scale rating are noted on the specimen bottles catalogued. The samples are then analyzed in the laboratory and filtered under a vacuum using filtering membranes (0.45µm). The available data for measuring the concentration of suspended solids cover two hydrological years, 2016/2017 and 2017/2018. The number of measurement samples is presented in Table 4.

Table 4. Number of concentration of suspended solids (CSS)samples and floods events per station.

Name of Hydrological Station	River	Watershed Area (km²)	2016/2017 and 2016/2018
			Number of CSS Samples	Number of Flood Events
AguibatZear	Bouregreg	3681	727	27
Ras Fathia	Grou	3485	636	21
Ain Loudah	Korifla	699	233	27
Sidi Mohamed Cherif	Machraa	656	789	12

2.2.3. Bathymetric Data

In order to draw up an inventory of the silting of the SMBA dam reservoir, the bathymetric surveys carried out by the Moroccan Directorate of Water Research and Planning were collected and analyzed. A total of seven bathymetric surveys were collected, the oldest dating back to 1974, while the most recent were carried out in 2013. Analysis of the bathymetric data shows that the silting up of the SMBA dam reservoir was of the order of 2.65 × 10⁶ m³/year, i.e., a specific degradation of 270.4 m³/km²/year before raising. After raising, the silting increased to 9.49 × 10⁶ m³/year, i.e. a specific degradation of 968.37 m³/km²/year, which increased the silting rate by 400% [4]. However, the data is subject to doubt for values in the early 2000s [35].The difference between the beginning and the end of the chronicle is of reliable quality. Therefore, the total silting of the SMBA dam reached 132 ×10⁶ m³, i.e., an average silting rate of 3.7 × 10⁶ m³/year since its commissioning. Subsequently, the dam has exceeded its dead unit, which is sized for 100 × 10⁶ m³ and has lost 32 × 10⁶ m³of its useful reserve since its commissioning. Table 5 summarizes the silting status of the dam.

Table 5. Summary of SMBA dam siltation calculation results since its impoundment.

Name of the Dam	Initial Dam Capacity (106 m3)	Total Siltation (106 m3)	Number of Years	Rate of Siltation (106 m3)	Dead-unit Volume at Dam Building (106m3)	Lost Volume (%)	Current Capacity (106 m3)
SMBA before raising	508.60	76.88	29	2.65	100.00	15	431.72
SMBA after raising	974.79	55.28	6	9.49		6	919.51

The silting of the dam reservoir represents a real threat to the sustainability of the mobilization of surface water resources in the Bouregreg basin to satisfy required needs. The regulation of the SMBA dam, prior to its raising, was done on a seasonal basis (capacity lower than the annual inflow). In other words, the dam had to discharge the surplus inflows most often from flood spillway or bottom discharge. This technique of management favored the elimination of solid deposits and thus a reduction in the siltation rate of the dam. After the dam was raised and consequently the water capacity of the reservoir increased, the SMBA dam moved to multi-year regulation (capacity greater than annual inflows). By using the restitution devices of the dam, this method of regulation favors storage to the detriment of evacuation, which accentuates the silting rate. Figure 4 illustrates the evolution over time of the normal capacity of the SMBA dam.

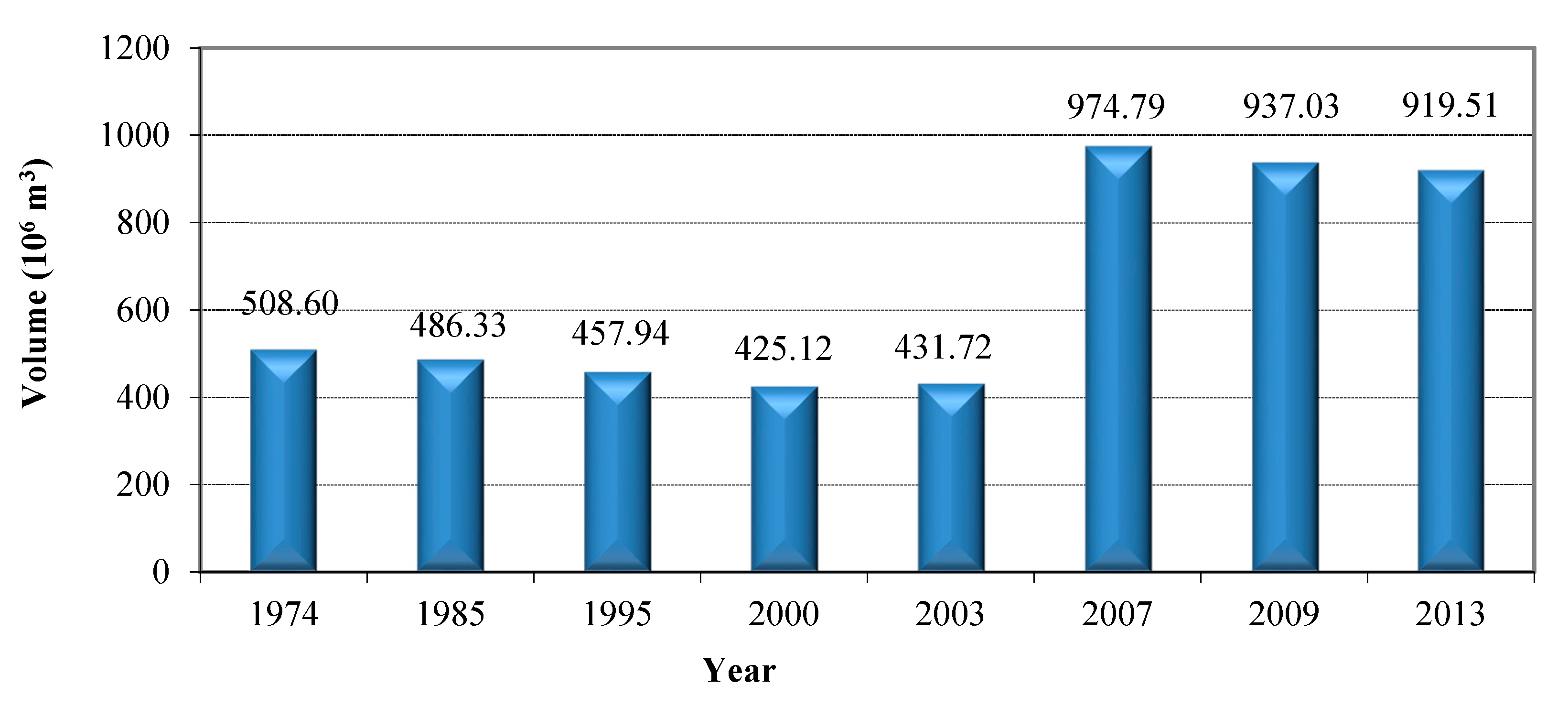

Figure 4. Evolution of the normal capacity of the SMBA dam reservoir, in millions of m³.

2.3. Methods

2.3.1. Model Selection

In this study we apply the Williams [10] model based on the Modified Universal Soil Loss Equation (MUSLE), integrated in the ArcGIS Geographic Information System for the determination of the soil loss potential at the level of the Bouregreg watershed to the four hydrological stations located immediately upstream of the SMBA dam, as previously done by Khali Issa et al. [36] in another region of Morocco in the North of the country, over a very small basin of 38 km².

This model evaluates the average annual rate of erosion at the outlet of the basin. It uses hydrological parameters, measured at the four hydrological stations, taking into account biophysical characteristics. Thus, the model equation is as follows:

$$A=a{\left(Q_{max}\times V_t\right)}^{b}K\times LS\times C\times P,$$

(1)

where $A$: amount of sediment produced at the outlet in tons, a and b: in this study, we used the scale factor values of the Sidi Sbaa micro-basin [30] (a = 11.8 and b = 0.56), $Q_{max}$: maximum flow rate in m³/s, $V_t$: total volume of runoff water in m³, $K$: average soil erodibility (mg MJ-1mm-1), $LS$: average topographic factor, $C$: average vegetation cover factor, $P$: average cultural practices and amenities factor.

2.3.2. Methods Selection

We adopted the suite of methods and operations explained in the flowchart (Figure 5) below to assess siltation rates at hydrological stations upstream of the SMBA dam [37].

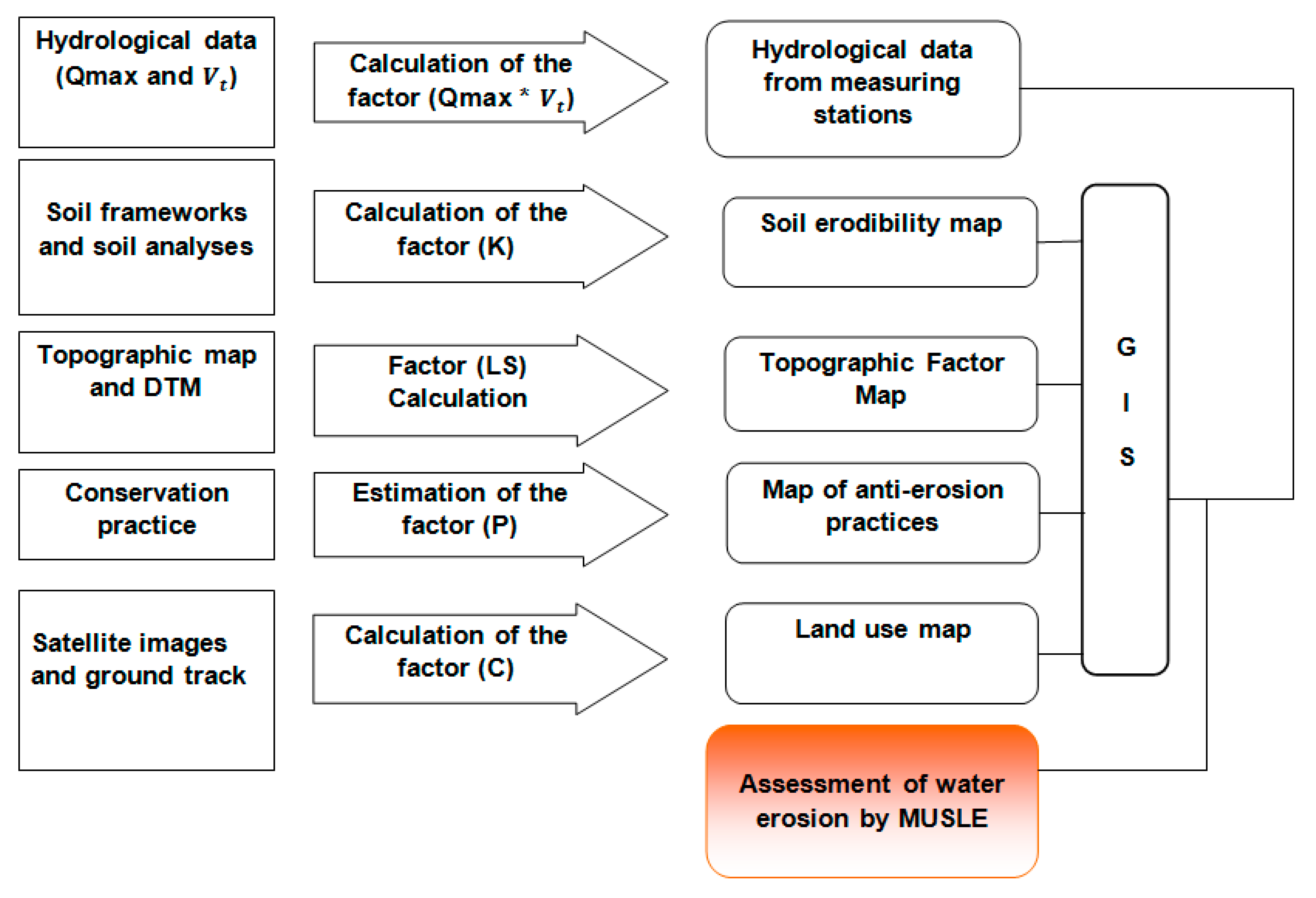

Figure 5. Methodology adopted for the assessment of erosion in the Bouregreg basin.

3. Results

3.1. Rainfall and Hydrometric Analysis

Solid transports are calculated at the four hydrological stations concerned in the hydrological years 2016/2017 and 2017/2018. These two years were respectively dry and wet in terms of rainfall. The average rainfall recorded at all the rainfall stations in the basin reached 354 mm in 2016/2017 and 496 mm in 2017/2018. Thus, the rainfall differences recorded in relation to the arithmetic mean of the data from the rainfall stations located in the Bouregreg basin varied respectively by −10% and +26% since the commissioning dates of the stations, based on data available to study from the ABHBC.

Table 6 summarizes the rainfall variations recorded in relation to the average rainfall of the stations in the Bouregreg basin.

Table 6. Rainfall for the 2016/2017 and 2017/2018 water years.

Rain Gauge Station	Basin	Cumulative Rainfall (mm)		Averaging Period	Mean Year (mm)	Deviation from the Mean (%)
		2016/2017	2017/2018			2016/2017	2017/2018
LallaChafia	Bouregreg	409	569	1972/2019	486	−16	17
AguibatZear	Bouregreg	482	578	1975/2019	429	12	35
Sidi Jabeur	Grou	260	432	1971/2019	317	−18	36
Tsalat	Bouregreg	454	622	1977/2019	469	−3	33
Roumani	Machraa	261	431	1933/2019	342	−24	26
Ras Fathia	Grou	290	505	1975/2019	387	−25	30
S. M Cherif	Machraa	290	495	1971/2019	367	−21	35
Barrage SMBA	Bouregreg	518	479	1984/2019	469	10	2
OuljatHaboub	Grou	321	350	1972/2019	311	3	12
Ain Loudah	Krofla	258	498	1971/2019	347	−26	43
Total		354	496		392	−10	26

With the exception of the Korifla sub-basin at the right of the Ain Loudah station which recorded a surplus of nearly 24% during 2017/2018, the contributions were in deficit on the rest of the sub-basins during the two hydrological years with more pronounced deficits during the dry year 2016/2017. Table 7 summarizes the inflows recorded at the four stations of the study.

Table 7. Water supplies to the four hydrological stations studied.

Hydrological Station	River	Water Supply (Mm3)				Deviation from the Mean (%)
		2016/2017	2017/2018	Averaging Period	Annual Average (mm)	2016/2017	2017/2018
AguibatZear	Bouregreg	122.2	221.5	1975/2019	227.6	−46	−3
Ras Fathia	Grou	95.0	162.8	1975/2019	194.2	−51	−16
Ain Loudah	Korifla	13.3	23.5	1971/2019	18.9	−29	+24
Sidi Mohammed Cherif	Machraa	3.7	12.9	1971/2019	16.7	−77	−23

3.2. Analysis of the Biophysical Environment

The analysis of the biophysical environment consists of determining the average factors used by the model for each sub-basin. These factors, that affect soil erosion, are: soil type, topography, land use and cropping practices, and erosion control facilities [38].

3.2.1. Soil Erodibility Factor (K)

Erodibility is defined as the degree to which soils are resistant to erosion. The factors that have a major influence on the response of soils to erosion, namely the detachment and transport of particles by rain and runoff, are texture, structure, organic matter, and permeability. The methodology for estimating RUSLE K has been applied, and is written as follows [39]:

$$\mathrm{K}=\left[2.1\times {10}^{-4}\left(12-\mathrm{MO}\right){\mathrm{M}}^{1.14}+3.25\left(\mathrm{S}-2\right)+2.5\left(\mathrm{P}-3\right)\right]/10,$$

(2)

with K: soil erodibility expressed in t.ha.h/ha.MJ.mm (tonne. hectare. hour/hectare. mega joule. millimeter); MO: percentage of organic matter; M: textural term % fine sand + % silt; S: structure class code 1 to 4, with 1 fragmented structure and 4 coarse structure, soil structure affects both landslide susceptibility and infiltration, the profiles described on the Bouregreg have a subangular polyhedral structure and fall under class (3); and P: the permeability code (1 to 6), its value can be inferred indirectly from the organic matter content by calculating the infiltration given by the Equation [40]:

$$\mathrm{Y}=3.53\times \mathrm{X}+2.08,$$

(3)

with: Y = infiltration in cm/h, X = organic matter in %.

Thereafter, the soil erodibility factor K will be calculated using the Harmonized World Soil Database (HWSD), developed by the Food and Agriculture Organization of the United Nations (FAO) (http://www.fao.org/soils-portal/fr/). This database gives the distribution of silt, sand, and clay soil compositions by soil type [41].

Soil is composed of organic and mineral matter. Its texture is determined by the size of the soil particles and their respective quantities. There are three categories of particles that determine soil texture: sand, silt, and clay. They are distinguished by particle diameter: sand 0.05 mm to 2 mm, silt 0.002 mm to 0.05 mm, clay 0.002 mm and less. The modified illustrated triangular graph [42] was used to determine soil texture classification.Soil texture is classified according to the percentage of silt, sand, and clay.

Once the textures have been determined, it is possible to establish the correspondence between the standard texture and the K-factor [43]. These values are given in tons/ha and ton/acre (US system). Although this methodology provides an approximation in the calculation of the K-factor, it has the advantage of lending itself to the constraints imposed by the study area. The rate of organic matter at the level of each watershed for each texture value is calculated by converting organic carbon into organic matter. The conversion factor of 1.724 is commonly used to convert the organic carbon content of a soil sample to organic matter. The conversion factor is old and has survived the test of time and modern analytical methods. According to authors [44], this conventional factor is attributed to the 19th century authors Van Bemmelen [45], Wolff [46], or even Sprengel [47]. It is based on well-established and very old studies showing that soil organic matter contains 58% carbon. Since the C/MO ratio would be equal to 0.58, the MO/C ratio would be equal to 1.724.

Thus, the calculation of the organic matter is carried out by the following formula, which uses the value 1.724 and is widely used in Morocco:

$$\mathrm{MO}=\mathrm{CO}\times 1.724,$$

(4)

the average erodibility factor K per basin is calculated by the formula:

$${\mathrm{K}}_{\mathrm{average} }=\frac{{{\displaystyle \sum }}^{}\left(\mathrm{K}\times \mathrm{number}\right)}{{{\displaystyle \sum }}^{}\mathrm{number}},$$

(5)

with K: K-factor per value, number: counting of pixels with the same K-value in the Arcmap allocation table.

The results of the calculation of the average K-factor for each watershed are in Table 8.

Table 8. Average erodibility factor for each watershed.

Name Watershed	Erodibility Factor Kaverage
Bouregreg	0.352
Grou	0.350
Ain Loudah	0.348
Sidi Mohamed Cherif	0.348

The Kmoy factor used is 0.35. This value corresponds to the silt, with the latter being a sedimentary formation whose grains are of intermediate size between clays and sands. The loss of silt leads to a decrease in the water retention capacity of the soil. The result is an increased erodibility and an increased risk of erosion. Because silt is often suspended in water, it is easily transported by floods and can contribute to the siltation of dam reservoirs. Figure 6 shows the distribution of the K factor over the Bouregreg basin for the four hydrological stations located immediately upstream of the SMBA dam.

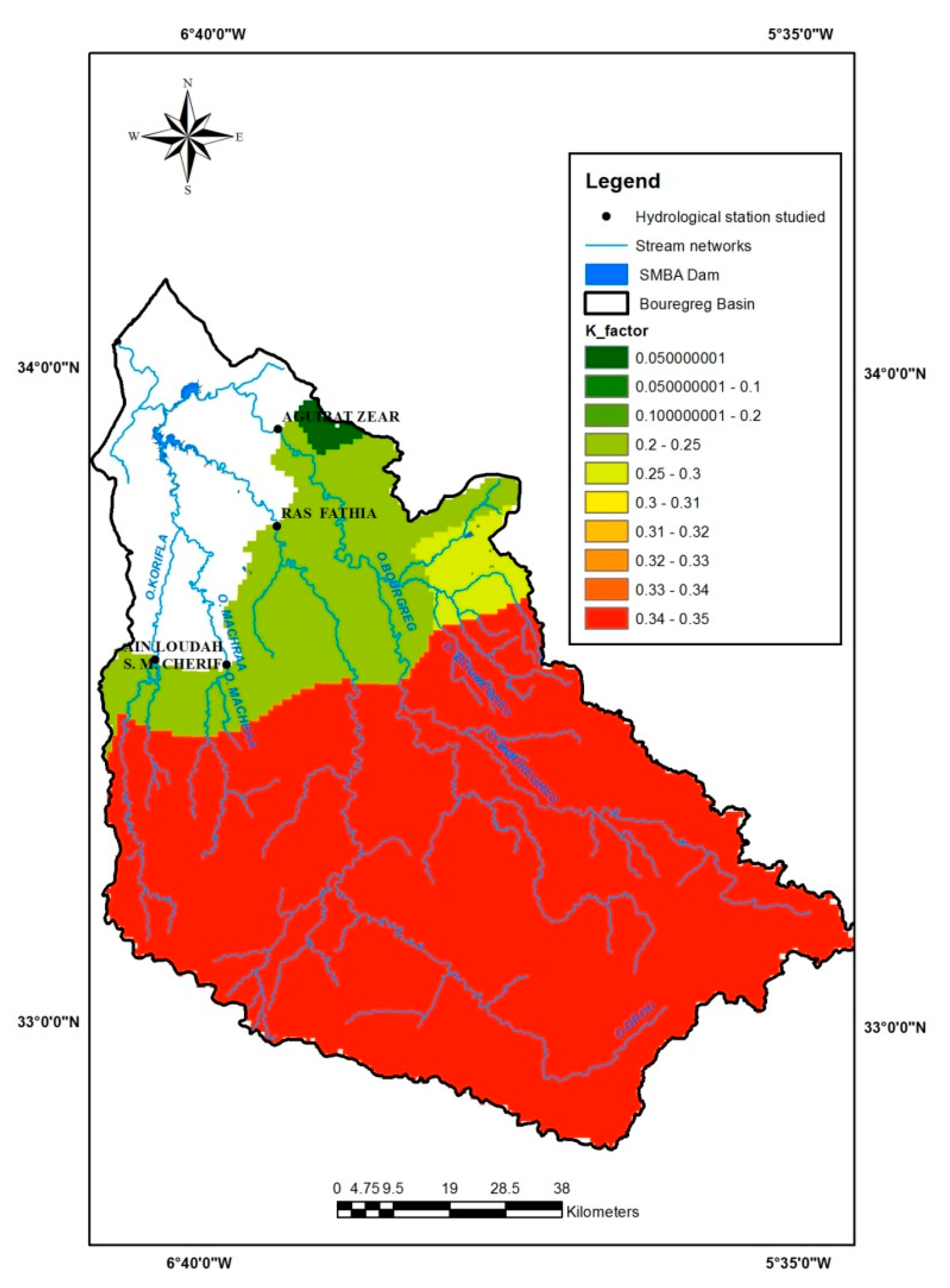

Figure 6. K-factor of the Bouregreg basin at the four hydrological stations.

3.2.2. Topographic Factor (LS)

The topographic factor LS is an essential parameter of the model. It expresses the result of erosion due to the combined effect of the degree of slope and its length. Most recent studies for the determination of the soil loss potential at the watershed level by the MUSLE model utilize the equation established by Wischmeier and Smith [9,23], which is expressed as:

$$LS={\left(\frac{\mathsf{ʎ}}{22.13}\right)}^m\times 65.4\sin ²\mathsf{\beta }+4.56\sin \mathsf{\beta }+0.0654,$$

(6)

with:$\mathsf{ʎ}$: length of the slope in m, $\beta$: slope in degrees, m = 0.5 if β ≥ 5%, m = 0.3 if 1 < β < 5%, m = 0.2 if β ≤ 1.

First, the slope map was established by the spatial analyst tool of the ArcGis software using a 90 m resolution DTM. Then, the LS map (Figure 7) by basin was generated using the Wishmeierand Smith formula [9,23]. The mean slopes and mean LS values are given in Table 9.

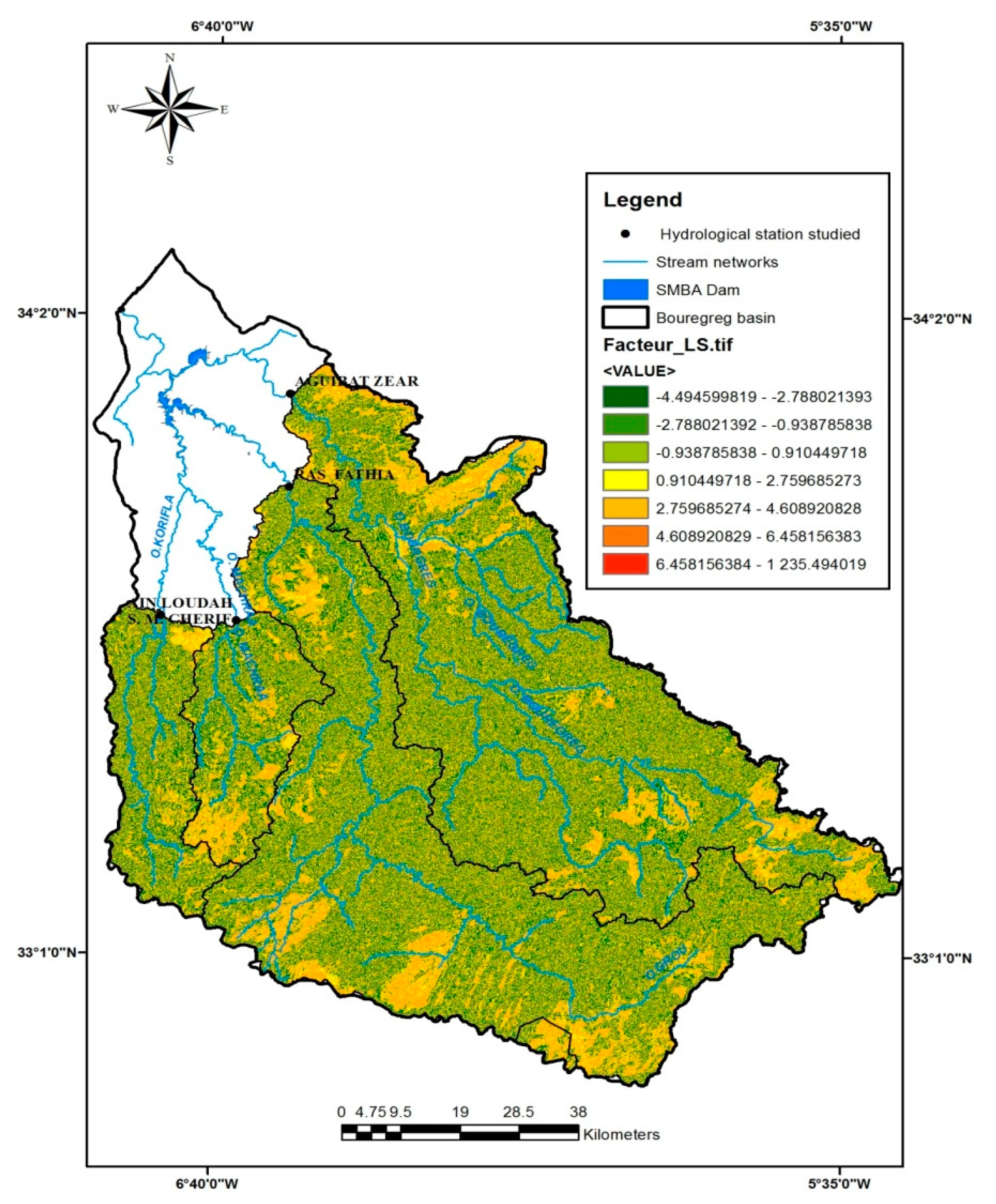

Figure 7. LS factor of the Bouregreg basin at the four hydrological stations.

Table 9. Mean slope and mean topographic factor (LS).

	Mean Slope (%)	Mean Topographic Factor (Ls)
Bouregreg à Lala Chafia	16.6	0.48
Grou à Ras Fathia	14.6	0.49
Korifla à Ain Loudah	9.8	0.27
Machraa à Sidi Mohamed Cherif	12.2	0.58

3.2.3. Land Cover Factor (C)

The soil protection factor (C) indicates the degree of soil protection by vegetation cover. This factor has undergone several changes since the establishment of the universal soil loss equation. The vegetation cover is—after topography—the second most important factor controlling the risk of soil erosion. The value of C depends mainly on the percentage of vegetation cover and the growth phase. The Cfactor map for the Bouregreg catchment area was derived from the land use maps. These were determined from the use of remote sensing data and field observations [48]. The land cover map was extracted from SPOT satellite images at 20 m resolution combined with recent Landsat ETM+ images (2011/2012) using the supervised classification method [41]. Another approach could be to derive the C factor from NDVI maps as practiced on the Wadi Mina in Algeria by Toumi et al. [16].

The distribution of surfaces according to the nature of the vegetation cover is carried out by the ArcGis tool, which subdivides the catchment area into several polygons. Each polygon corresponds to a specific type of vegetation cover. Each vegetation cover corresponds to a factor given by Wischmeir and Smith according to the theme [49]. A color is assigned to each polygon that represents a land cover type. For the calculation of the Cfactor, an independent calculation is required for each sub-basin. Indeed, the sensitivity to erosion of the different classes is determined from the main land use themes, i.e., forest formations, rangelands, agricultural land, arboriculture, water, and bare soil, whose values vary between 0 and 1. The calculation of the average vegetation cover factor depends on the factor given for each land use and surface area by the following formula:

$${\mathrm{C}}_{\mathrm{average}}=\frac{{{\displaystyle \sum }}^{}{\mathrm{S}}_{\mathrm{i}}.{\mathrm{C}}_{\mathrm{i}}}{{{\displaystyle \sum }}^{}{\mathrm{S}}_{\mathrm{i}}},$$

(7)

with ${ \mathrm{S}}_{\mathrm{i}}$: partial polygon area, ${\mathrm{C}}_{\mathrm{i}}$: value of the C factor according to the theme. Figure 8 shows the C factors for each sub-basin of the Bouregreg River.

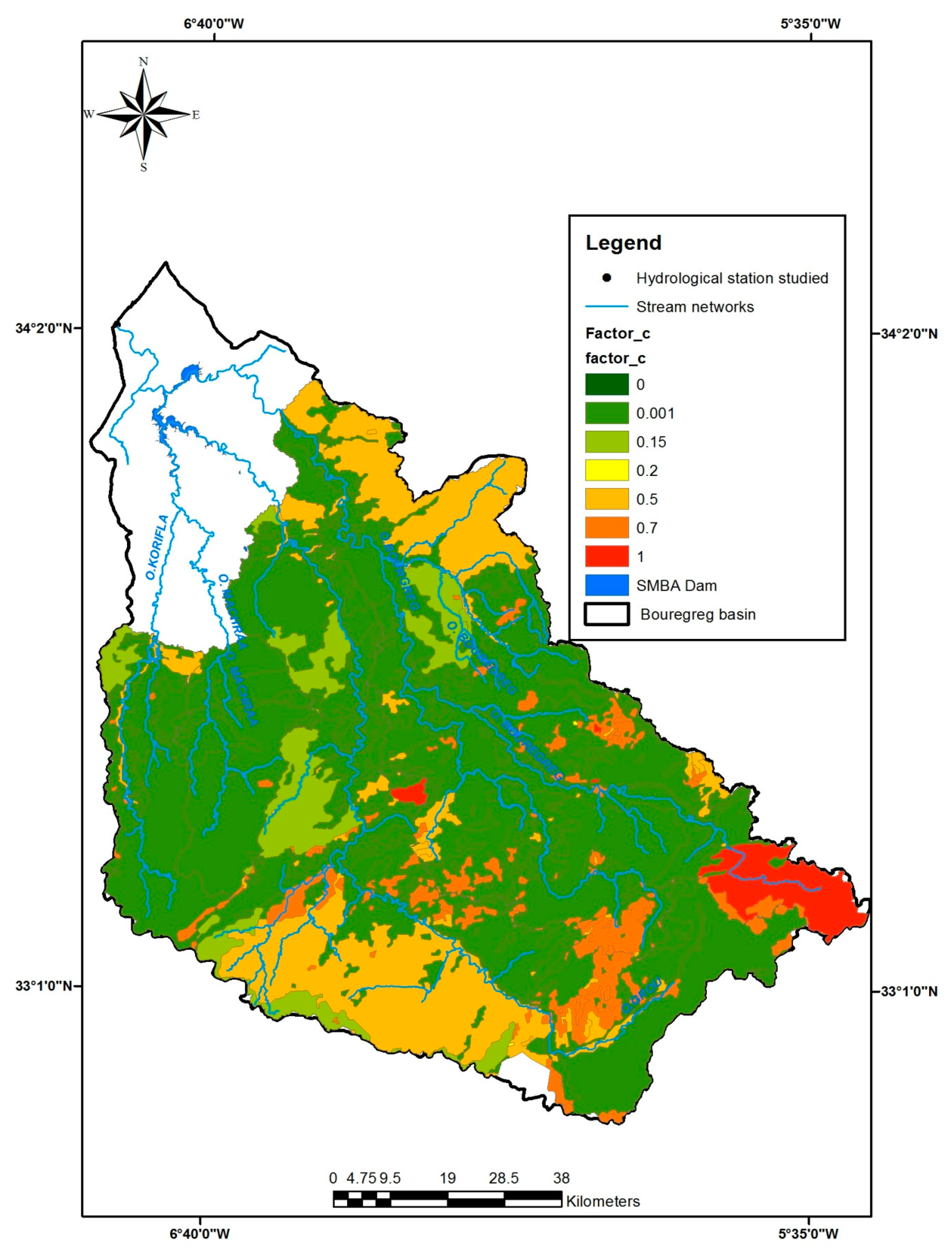

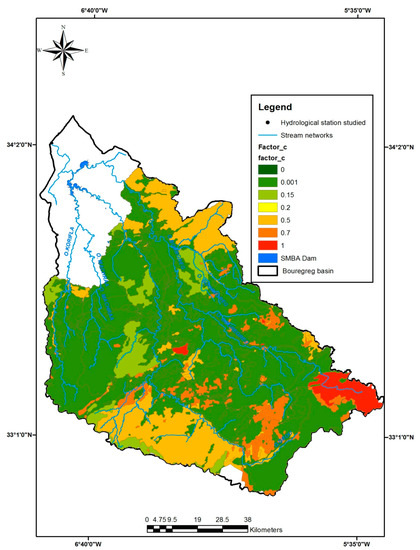

Figure 8. Factor C of the Bouregreg basin at the four hydrological stations.

The application of the formula leads to the results presented in Table 10.

Table 10. Average vegetation cover factor C for each watershed.

Watershed	Land Cover Factor (C) Caverage
Bouregreg	0.26
Grou	0.45
Korifla	0.41
Machraa	0.33

The vegetation cover factor (C) can vary from close to 0 for well-protected soils, to 1 for striated surfaces that are very sensitive to gully erosion. The determination of this factor for the Bouregreg watershed and sub-basins is based on the density of vegetation and the height of the vegetation strata. These data were deduced from the field updating of the land use map by the Royal Centre for Remote Sensing in Space of Morocco (CRTS) available at the ABHBC. The values assigned to the different land use patterns are based on Wischmeier and Smith’s tables for forests, matorrals, and pastures. The results show that the values of the C factor range from 0.26 for the sub-basin located in the northeast region, the Bouregreg, the wettest, to 0.45 for the sub-basin that extends furthest south, which is more arid [50,51]. The spatial distribution of the vegetation cover index by class for the Bouregreg watershed shows on 50.45% of the total surface area, i.e., nearly 181,556 ha, an index lower than or equal to 0.2, indicating good protection, while 49.5% of the surface area shows very low protection against erosion, i.e., about 177,986 ha. It can also be noted that the upper northeastern basin, which is both the most humid and the least covered with vegetation, is not, however, subject to high erodibility [52].

3.2.4. Average Cultivation Practices and Amenities Factor P

The P factor is a dimensionless factor expressing soil protection through agricultural practices (P).This factor takes into account purely anti-erosion practices. Contour, strip or terrace cultivation, bench planting, and ridging are the most effective soil conservation practices. These practices proportionally affect erosion by altering the flow pattern or direction of surface runoff and by reducing the amount and speed of runoff. P values are less than or equal to 1. A value of 1 is assigned to lands where none of the practices listed are used. P values vary between 0 and 1 depending on the practice adopted and also on the slope. In the Bouregreg watershed, there are few anti-erosion facilities and farmers do not use anti-erosion cultivation practices. These actions are small-scale and do not have a major impact on reducing erosion due to the size of the basin. As a result, a P value equal to 1 has been assigned to the entire area of the basin.

3.3. Application and Calibration of the MUSLE Model

3.3.1. Application of the MUSLE Model

The parameters required for the application of the MUSLE model for the evaluation of solid inputs by the MUSLE model are summarized in Table 11.

Table 11. Averaging factors for the universal soil loss equation modified per sub-basin.

	Mean Topographic Factor (LS)	Mean Erodibility Factor (K)	Mean Vegetation Cover Factor (C)	Mean Development Factor (P)
Bouregreg	0 48	0.32	0.26	1
Grou	0.49	0.32	0.45	1
Korifla	0.27	0.34	0.33	1
Machraa	0.58	0.31	0.41	1

By introducing the various factors of the MUSLE model, the amount of solid inputs produced at the outlet of each watershed is calculated using the flow and volume measurement data for each flood, according to the model equation. The solids transport is then calculated using the measured suspended solids concentrations for the same floods. The concentrations are linearly interpolated over the range of flows in each hydrograph. The bottom solid transport is taken as 10% of the total volume of suspended solids [53], which remains an empirical but widely used value.

3.3.2. Calibration of the MUSLE Model

Calibration of the model at each hydrological station is carried out using the percentage bias method (PBIAS), which consists of minimizing the difference between the observed mean and the mean predicted by the model by acting on the model’s scaling parameters a and b:

$$\mathrm{PBIAS}=\left[\frac{{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}\left({\mathrm{Y}}_{\mathrm{i}}^{\mathrm{obs}}-{\mathrm{Y}}_{\mathrm{i}}^{\mathrm{sim}}\right)\times \left(100\right)}{{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}\left({\mathrm{Y}}_{\mathrm{i}}^{\mathrm{obs}}\right)}\right] ,$$

(8)

with ${\mathrm{Y}}_{\mathrm{i}}^{\mathrm{obs}}$: observed solid transport, ${\mathrm{Y}}_{\mathrm{i}}^{\mathrm{sim}}$: solid transport simulated by MUSLE, n: number of observations.

In our case, a and b are respectively equal to 11.80 and 0.56. The calibration period is spread over two years of observations available. The optimal value of PBIAS is 0, where PBIAS has the ability to clearly indicate poor model performance [54]. To ensure model reliability, the model is also calibrated using the KGE (Kling-Gupta Efficiency) Method [55]:

$$\mathrm{KGE}=1-\sqrt{{\left(r-1\right)}^2+{\left(\frac{{\mathsf{\sigma }}_{\mathrm{sim}}}{{\mathsf{\sigma }}_{\mathrm{Obs}}}-1\right)}^2+{\left(\frac{{\mathsf{\mu }}_{\mathrm{sim}}}{{\mathsf{\mu }}_{\mathrm{Obs}}}-1\right)}^2},$$

(9)

with r: simple correlation coefficient between observed and simulated values, σ_Obs: standard deviation of observed solid transport values, σ_sim: standard deviation of simulated solid transport values, µ_Obs: mean of observed solid transport values, µ_sim: mean of simulated solid transport values. The optimal value of the KGE factor is 1.

The PBAIS calibration of the model shows that the scaling factor (a) does not change while (b) is more sensitive, but remains close to the initial value. Table 12 shows the results of the PBIAS model calibration.

Table 12. Model calibration results at the four stations studied by percentage bias method (PBIAS).

Name of Basin	Scaling Parameters after Calibration		Calibration Criteria
	A	B	Bias	KGE	r
Bouregreg	11.799	0.548	0.00	0.48	0.58
Grou	11.799	0.535	0.00	0.11	0.26
Korifla	11.800	0.541	0.00	0.49	0.57
Machraa	11.799	0.502	0.00	0.65	0.70

Calibration of the model by the KGE method shows that the scaling factors a and b are very sensitive, with the terms being very far from the initial values, and are quite or widely and varyingly different from one basin to another. Table 13 shows the results of model calibration using the KGE method.

Table 13. Model calibration results for the four stations studied by KGE.

Name of Basin	Scaling Parameters after Calibration		Calibration Criteria
	A	b	Bias	KGE	r
Bouregreg	0.039	0.807	0.024	0.601	0.603
Grou	11.799	0.546	−0.236	0.149	0.272
Korifla	1.727	0.643	−0.055	0.537	0.545
Machraaf	1.421	0.620	−0.017	0.689	0.690

3.4. Comparison of Observations with MUSLE Model Results

3.4.1. Aguibat Zear Hydrological Station on the Bouregreg River

During the two hydrological years studied, twenty-seven floods were recorded. The total solid volumes observed were 742,334 tons in 2016/2017 and 439,735 tons in 2017/2018. Table 14 summarizes the results from applying the model to the Aguibat Zear hydrological station.

Table 14. Results of the MUSLE model at Aguibat Zear on the Bouregreg and a comparison with observations.

Hydrologic Year	Observed Solid Transport (tons)	Solid Transport (MUSLE) (tons)			Difference Observation-MUSLE (%)
		Uncalibrated	Calibration PBAIS	Calibration KGE	Uncalibrated	Calibration PBAIS	Calibration KGE
2016/2017	742 334	619 023	487 494	436 922	−17	−34	−41
2017/2018	439 735	888 011	694 575	716 809	+102	+58	+63

Examination of the results of the MUSLE model calibrated by the two approaches—PBAIS and KGE—shows that calibration by the PBAIS method better simulates solid transport. Figure 9 compares the simulated and observed solid transport. The latter events are less well simulated by MUSLE than the former.

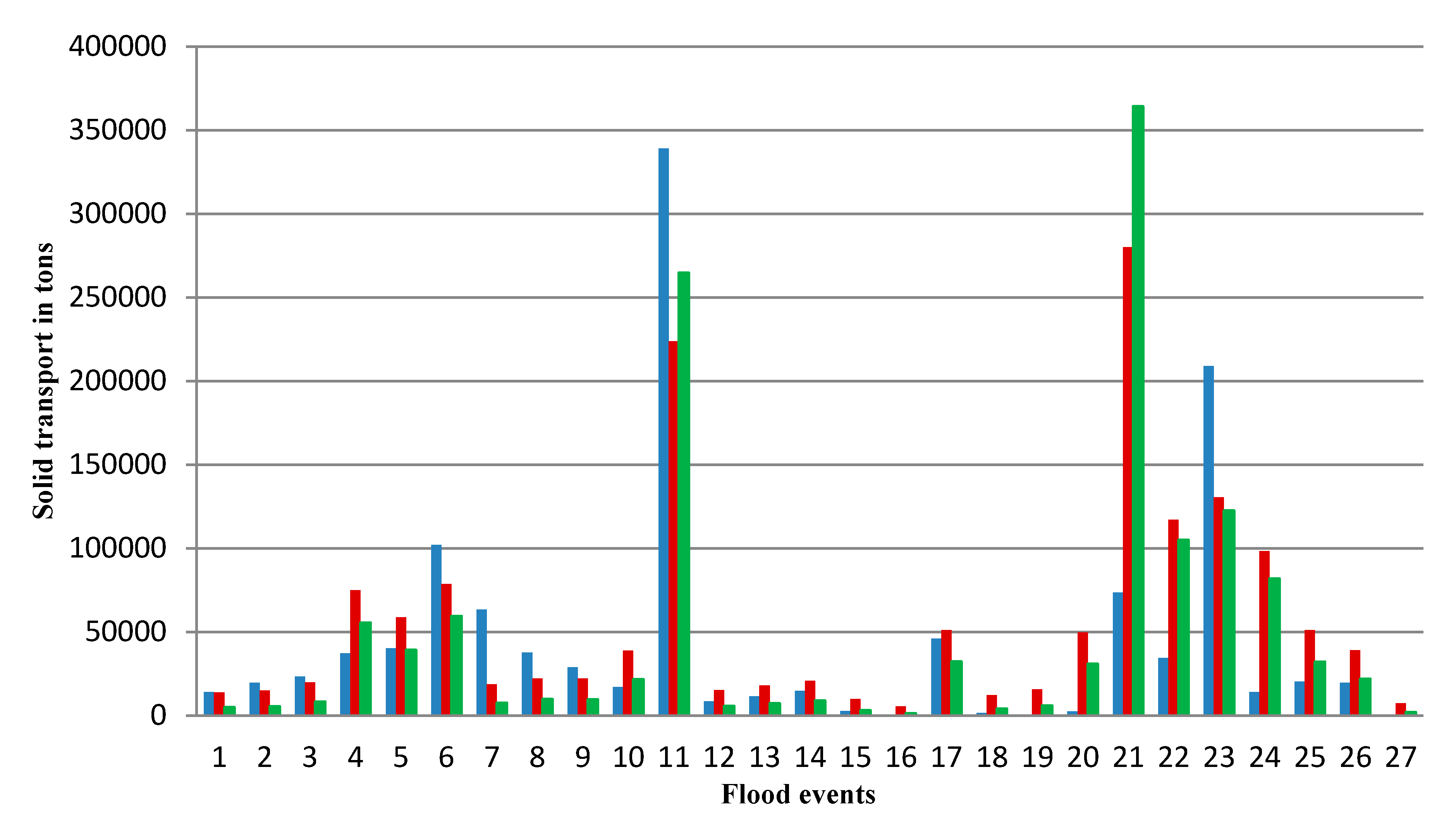

Figure 9. Comparison between MUSLE and observations at Aguibat Zear on the Bouregreg.

3.4.2. Ras Fathia Hydrological Station on the Grou River

During the two hydrological years studied, twenty-one floods were recorded. The total observed solid volumes amount to 517,194 tons in 2016/2017 and 896,438 tons in 2017/2018. Table 15 summarizes the results of applying the model to the Ras Fathia hydrological station for the two versions of the model calibration.

Table 15. Results of the MUSLE model at Ras Fathia on the Grou and comparison with observations.

Hydrologic Year	Observed Solid Transport (tons)	Solid Transport (MUSLE) (tons)			Difference Observation-MUSLE (%)
		Uncalibrated	Calibration PBAIS	Calibration KGE	Uncalibrated	Calibration PBAIS	Calibration KGE
2016/2017	673 551	875 366	517 194	649 389	+30	−23	−4
2017/2018	740 083	1 446 831	896 438	1 098 213	+95	+21	+48

Examination of the results of the MUSLE model calibrated by the two approaches PBAIS and KGE, shows that calibration by the PBAIS method better simulates solid transport. Figure 10 shows the comparison of simulated and observed solid transport. As for the Bouregreg, the events of the second year are less well represented by MUSLE.

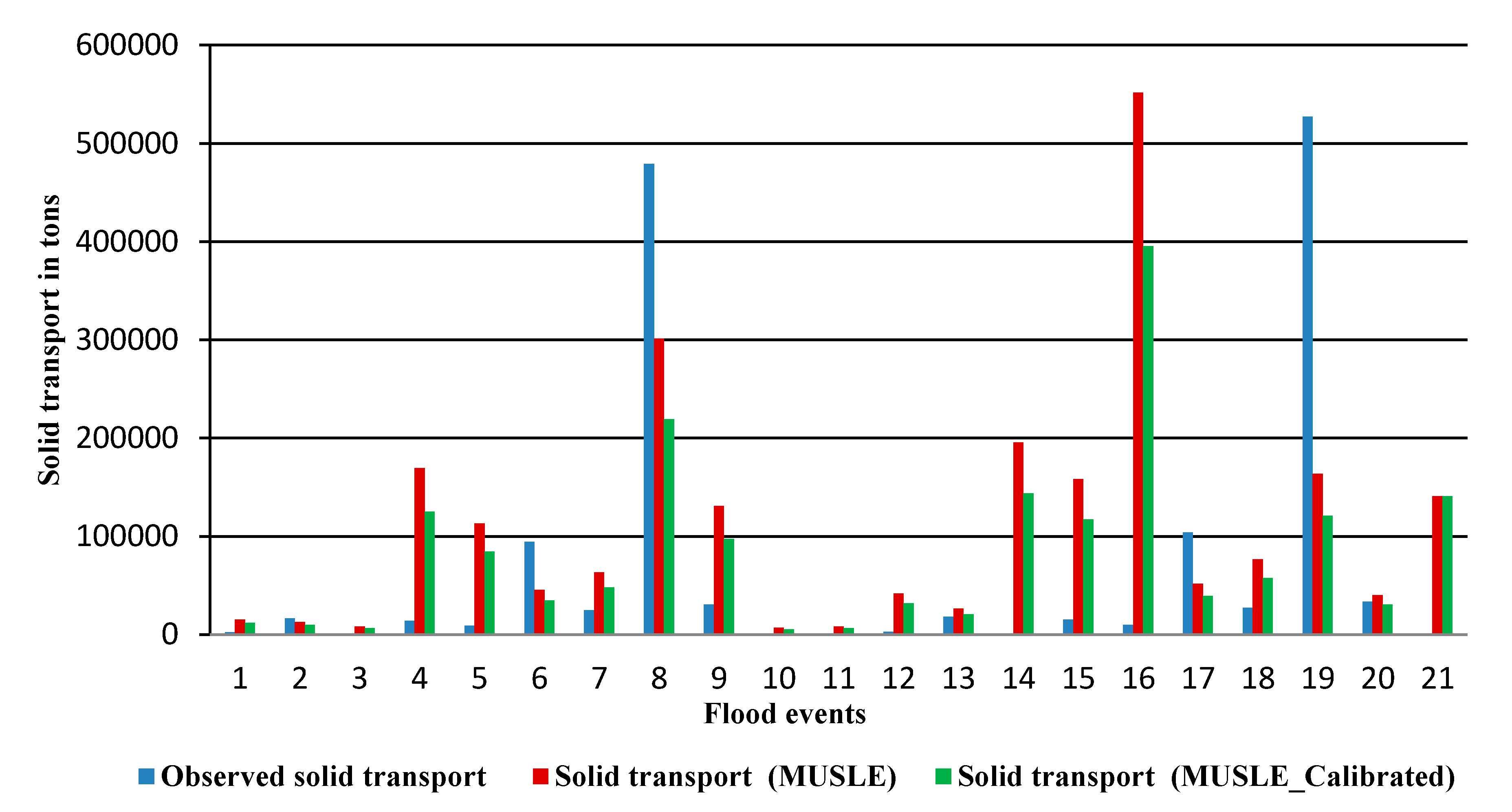

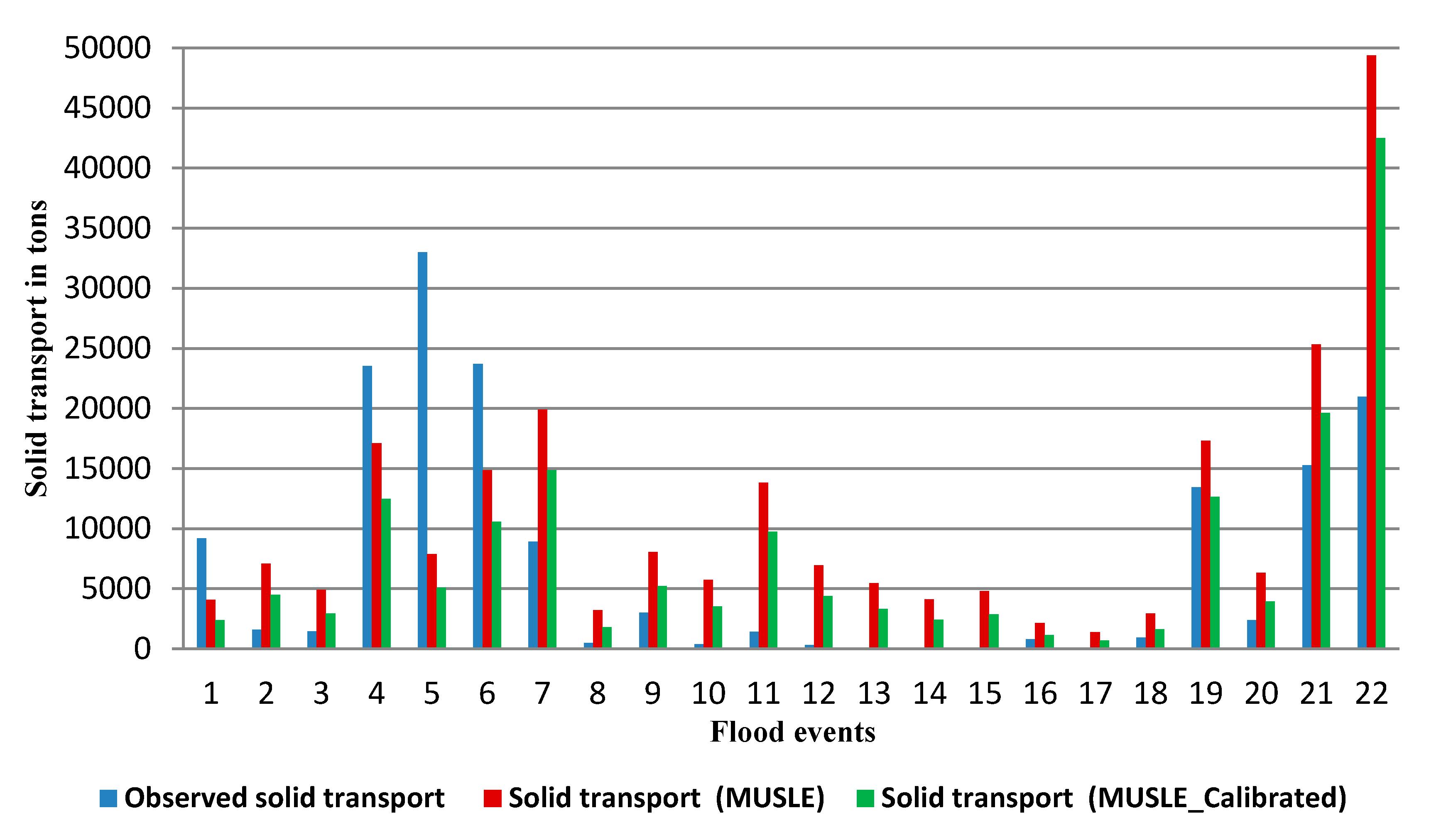

Figure 10. Comparison between MUSLE and observations at Ras Fathia on the Grou.

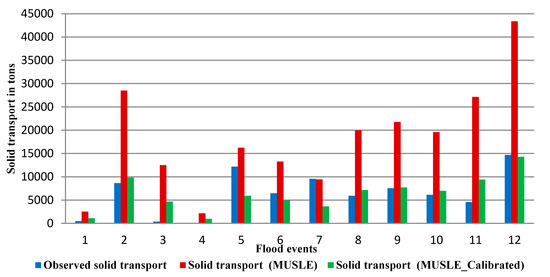

3.4.3. Sidi Mohamed Cherif Hydrological Station on the Machraa River

During the two hydrological years studied, twelve floods were recorded. The total solid volumes observed were 28,155 tons in 2016/2017 and 48,422 tons in 2017/2018. Table 16 summarizes the results of the application of the model to the hydrological station Sidi Mohamed Cherif.

Table 16. Results of the MUSLE model at Sidi Mohamed Cherif on the Machraa and comparison with observations.

Hydrologic Year	Observed Solid Transport (tons)	Solid Transport (MUSLE) (tons)			Difference Observation-MUSLE (%)
		Uncalibrated	Calibration PBAIS	Calibration KGE	Uncalibrated	Calibration PBAIS	Calibration KGE
2016/2017	28,155	75,194	27,431	26,225	+167	−3	−7
2017/2018	48,422	141,249	49,146	51,657	+192	+1	+7

Examination of the results of the MUSLE model calibrated by the two approaches—PBAIS and KGE—shows that calibration by the PBAIS method better simulates solid transport. Figure 11 shows the comparison of simulated and observed solid transport. Again, the MUSLE simulations are significantly too high for the events in the recording portion.

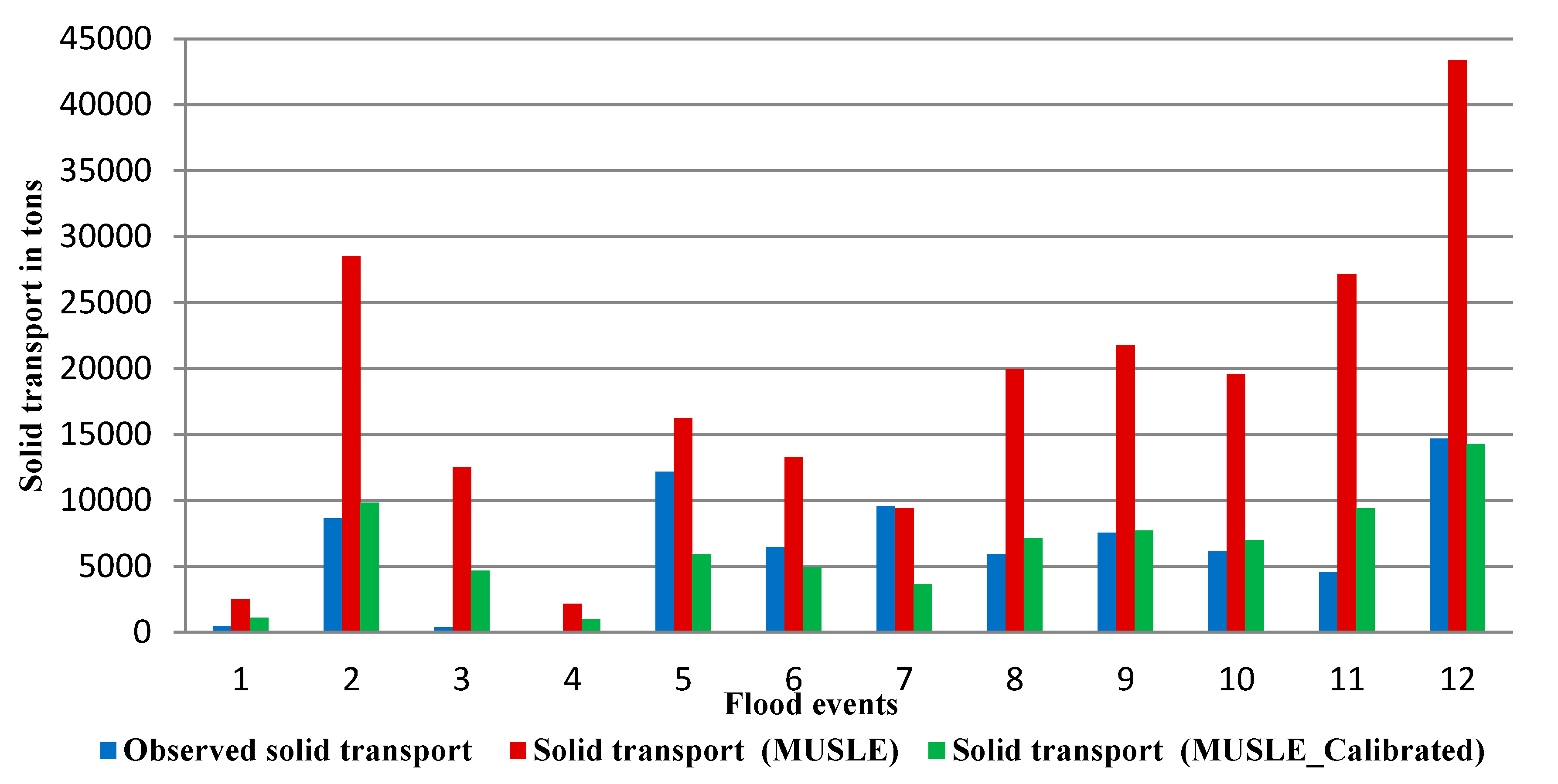

Figure 11. Comparison between MUSLE and observations at Sidi Mohamed Cherif on the Machraa.

3.4.4. Ain Loudah Hydrological Station on the Korifla River

During the two hydrological years studied, twenty-seven floods were recorded. The total solid volumes observed were 68,759 tons in 2016/2017 and 92,324 tons in 2017/2018. Table 17 summarizes the results of the application of the model to the Ain Loudah hydrological station.

Table 17. Results of the MUSLE model at Ain Loudah on the Korifla and comparison with observations.

Hydrologic Year	Observed Solid Transport (tons)	Solid Transport (MUSLE) (tons)			Difference Observation-MUSLE (%)
		Uncalibrated	Calibration PBAIS	Calibration KGE	Uncalibrated	Calibration PBAIS	Calibration KGE
2016/2017	68,759	41,083	28,881	27,739	−40	−58	−60
2017/2018	92,324	191,859	132,202	142,138	+108	+43	+54

Examination of the results of the MUSLE model calibrated by the two approaches PBAIS and KGE, shows that calibration by the PBAIS method better simulates solid transports. Figure 12 shows the comparison of simulated and observed solid transports. Out of the four stations studied, it is on the Korifla at Ain Loudah that the simulations seem to be the most efficient.

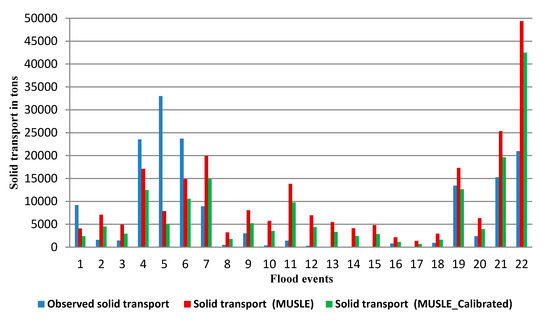

Figure 12. Comparison between MUSLE and observations at Ain Loudah on the Korifla.

From the deviations from observations at the four hydrological stations, it can be deduced that in general, the model calibrated by the PBAIS method gives better results than the model calibrated by the KGE method. Thus, from the observation we note that the differences varied between −58% and +58% for the model calibrated by PBAIS, between −60% and +63% for the model calibrated by the KGE method, and between −40% and +192% for the model not calibrated.

3.5. Comparison of Observations and Results of the MUSLE Model at the Four Hydrological Stations Upstream from the SMBA Dam, with Bathymetric Data

To validate the calibration method, the Nash and Sutcliffe NSE index was used to measure the performance of the model. According to Nash–Sutcliffe [56], NSE is defined as:

$$\mathrm{NSE}=1-\frac{{{\displaystyle \sum }}_{i=1}^n{\left( {\mathrm{Y}}_{\mathrm{i}}^{\mathrm{obs}}-{\mathrm{Y}}_{\mathrm{i}}^{\mathrm{Sim}} \right)}^2}{{{\displaystyle \sum }}_{i=1}^n{({\mathrm{Y}}_{\mathrm{i}}^{\mathrm{obs}}-{\mu }_{\mathrm{Obs}})}^2},$$

(10)

With NSE: Nash coefficient, ${\mathrm{Y}}_{\mathrm{i}}^{\mathrm{obs}}$: observed solid transport, ${\mathrm{Y}}_{\mathrm{i}}^{\mathrm{sim}}$: solid transport simulated by MUSLE, µ_Obs: average of the observed solid transport values.

The NSE index varies from −∞ to 1, such that if NSE = 1, then the modeled values match the observations perfectly, while a value above 0 shows a relationship between simulation and reality, and a value below 0 shows that there is no relationship between the two. In other words, the closer the efficiency is to 1, the more the model is observed to be accurate.

Table 18 shows the different calculated values of the Nash–Sutcliffe index, which compares observations to the values calculated by the uncalibrated MUSLE model and observations to the values of the calibrated MUSLE model.

Table 18. Nash–Sutcliffe index (NSE) at study stations.

Name of Basin	Scaling Parameters after Calibration		Nash–Sutcliffe Index (NSE)
	a	B	MUSLE	MUSLE calibrated
Bouregreg à Aguibat Zear	11.799	0.548	0.38	0.46
Grou à Ras Fathia	11.799	0.535	−0.07	0.02
Korifla à Ain Loudah	11.800	0.541	−0.35	0.30
Machraa à Sidi Mohammed Cherif	11.799	0.502	−9.8	0.47

In general, the uncalibrated MUSLE model has negative NSE values except for those in the Bouregreg basin, which shows that the model values are far from reality, whereas the NSE values of the calibrated model are positive, varying between 0.02 and 0.47, which shows that the calibrated model is superior in reliably representing reality.

Though, for the continuity of the experiment we are continuing the calculation on the four basins in order to complete the comparisons with the volumes of sediment deduced from the bathymetric measurements carried out in the SMBA dam reservoir. For the calculation of the volume of suspended matter, an earthy density of 1.5 t/m³ is adopted [57]. The siltation of the dam is considered to be equal to 9.49 × 10⁶ m³/year. Table 19 summarizes the results of the calculations for all the hydrological stations.

Table 19. Summary table of observation results, application of the MUSLE, calibrated MUSLE_ model and bathymetry for the four sub-basins of the Bouregreg.

Name of Basin	Solid Transport 2016/2017			Solid Transport 2017/2018
	Observation	MUSLE	MUSLE calibrated	Observation	MUSLE	MUSLE calibrated
Bouregreg	742,334	619,023	487,494	439,735	888,011	694,575
Grou	673,551	875,366	517,194	740,083	1,446,831	896,438
Korifla	68,759	41,083	28,881	92,324	191,859	132,202
Machraa	28,155	75,194	27,431	48,422	141,249	49,146
Total (tons)	1,512,799	1,610,666	1,061,000	1,320,564	2,667,950	1,772,361
Total (106 m3)	1.01	1.07	0.71	0.88	1.78	1.18

Thus, the results listed in Table 19 and Table 20 show that the calibrated model is closer to the measurement than the non-calibrated model, and that the observed values of sediment transport at the four stations, which vary between 1.01 × 10⁶ m³ and 0.88 × 10⁶ m³ for the two hydrological years 2016/2017 and 2017/2018 respectively, and remain largely lower than the quantity of sediments obtained by bathymetric measurements in the SMBA dam, which is approximately 9.49 × 10⁶ m³.

Table 20. Comparison of observation results, application of the calibrated MUSLE, MUSLE_ model, and bathymetry for the four sub-basins of the Bouregreg during 2016/2017 and 2017/2018.

Hydrologic Year	Bathymetry (106 m3)	Difference MUSLE/ Observation	Difference MUSLE Calibrated/ Observation	Difference Observation/ Bathymetry	Difference MUSLE/ Bathymetry	Difference MUSLE Calibrated/Bathymetry
2016/2017	9.25	+5%	−30%	−89%	−89%	−93%
2016/2018		+102%	+34%	−91%	−81%	−88%

4. Discussion and Conclusions

The relationships between man, environment, and solid transport are well understood at the spatial scale of catchment areas, and modeling tools using satellite data are particularly suitable [58]. The results obtained from the application of the model (MUSLE), show that the soils of the Bouregreg catchment area are affected by several factors engendering erosion, i.e., steep slopes, low vegetation cover and soil erodibility. Thus, the processing of spatial remote sensing images to determine the biophysical characteristics of the watershed has made it possible to identify areas of high erodibility, low vegetation cover, and steep slopes, which can be used for potential development purposes.

The analysis of solid transports observed during two years at the four hydrological stations that control the main tributaries of the SMBA dam reservoir showed that the Bouregreg and the Grou generated 1,415,885 tons of suspended matter, i.e., 94% and 956,929 tons of suspended matter, i.e., 73% of the total suspended matter generated by the four basins during the 2016/2017 and 2017/2018 hydrological years. Compared to bathymetry, the four sub-basins generate only 12% of the solid transport to the dam in the best case. Hence the relevance of concentrating anti-erosion actions on the dam banks and the intermediate basin which contribute to more than 88% of the solid transport. These actions will have to be carried out in areas of high erodibility and slope to ensure the effectiveness of the intervention.

On the other hand, examination of the figures for MUSLE and calibrated MUSLE values shows that the model in these two versions does not predict peaks in solid transport well. It overestimates low values and underestimates high solid transport values most of the time. Indeed, the deviations from observations range from +5% for the dry year, to +102% for the wet year for the non-calibrated model. These results are similar to several applications of the model in different areas around the world [40]. The deviations recorded for the calibrated model are significantly improved. They vary respectively between −30% and +34% [59]. Thus, the calibrated version of the model gives better results with less than +55% error in sediment prediction [60]. These results are interesting on an interannual average, but do not allow the prediction of quantities transported to the stations during unit floods due to the very high dispersion of the relationship between observation and modeling, which results in average-to-low Nash index values. The large positive differences are due to the underestimation of solid transport peaks by the model. Indeed, the model involves the entire basin without concern for the spatial and temporal distribution of rainfall.

Although the model overestimates values relative to observations, comparison of the model to bathymetric data shows that the differences between mean siltation and model results range from −89% to −81% for the non-calibrated version of the model, and from −93% to −88% for the calibrated version. This underestimation of the inflows to the dam in relation to the mean silting is explained by the fact that the upstream basins do not control the whole SMBA dam basin and that the basins immediately surrounding the banks of the dam reservoir bring significant quantities of sediment to the dam, as assumed by the first results of Maleval [61] on the SMBA dam reservoir, and this is mainly after its elevation, for reasons that are perhaps not only related to the physics of the environment, but also perhaps to the evolution of agro-sylvo-pastoral practices in an environment undergoing rapid socio-economic change due to the proximity of the capital and the development of the "Grand Rabat" and new traffic routes [62,63]. The gaps between the observed solid transport and the silting rate, which are respectively −89% and −91%, confirm this observation, which is also the situation observed by Hallouz et al. [64] on the Wadi Mina basin and the Sidi Mohamed Ben Aouda dam, of a size comparable to the Bouregreg in Western Algeria.

In order to improve the model’s output, its scaling parameters should be reviewed and its sensitivity to different physical factors including basin size by adopting a distributed form of sub-basin modeling should be tested [65]. This approach requires a long series of observations thatare currently unavailable, but which are being acquired since the ABHBC, which manages the water resource on the Bouregreg catchment area and the SMBA dam, has set up permanent concentration of suspended solids observation on the stations of the basin, and soon a long time series will be available to refine these first results. Michalec et al. [66] have pointed out the necessity to calibrate the MUSLE model with long time series of observations in order to reduce the uncertainty of simulated erosion provided, even if in some cases very good correlations have been obtained from a calibration with only 10 events like in Nigeria [30]. These measurements will allow a monitoring of the contribution of each sub-basin in order to better direct intervention measurements towards the most productive areas on the one hand, thus reducing the overall cost of the measures to reduce erosion, and to improve modeling and subsequent solid transport forecasting on the other hand.

Eventually, the results of the MUSLE model confirm the relevance of its application in watershed management studies once calibrated, since it integrates all forms of erosion observed at the watershed scale, coupled with hydrological data, which greatly improves accuracy compared to USLE [67] and to RUSLE [68]. Indeed, the average specific degradation at the level of the Bouregreg basin alone at the Aguibat Zear station is of the order of 13.81 t/ha/year according to Moussebbih et al. [69] when calculated by the RUSLE method, whereas those of calibrated MUSLE and observation are of the order of 1.6 t/ha/year. The studies carried out on the wadi Mina basin in Algeria, a basin similar to the Bouregreg basin [64], confirm this finding with deviations of the RUSLE model results from the measurement of suspended solids concentrations, which can reach 79%. In Spain, Ramos-Diez et al. [70] have used the USLE formula to assess the amount of sediment inputs to 25 very small check dams used in an important restoration project over a 9 km² area in the north of Spain, showing interesting but still mitigated results and concluding that the size and shape of the dams had an impact on the quality of the USLE assessment.

Kronvang et al. [71] showed that bank erosion was the dominant sediment source (90–94%) in the River Odense catchment in Denmark during three study years. They add that in-channel and overbank sediment sinks and storage dominated the sediment budget, as 79–94% of the sediment input from all sources was not exported from the catchment during the three study years. This is in accordance with our results, as the regular bathymetric survey to monitor the silting up rate of the dam have shown that half of the sediment input to the reservoir comes from the dam banks. Our results are very important for the forthcoming works for erosion mitigation on the Bouregreg catchment; they will enable more efficient orientation of the soil conservation and restoration works that may be carried out in the future, with priority being given to the environment close to the dam, in order to preserve the water capacity of the SMBA dam reservoir while optimizing the financial resources mobilized. Palazon and Navas [72] have shown the same interest to monitor the sediment sources draining to a large reservoir in the Esera River, Ebro basin in Spain. The small basin size (1500 km²) allowed them to use the SWAT model as an alternative to MUSLE with two gauging stations, each one being covered by different types of soil. This might make it possible to implement the SWAT model on the Bouregreg basin, when the ABHBC will have started the monitoring of sediment transport at all the stations of the basin.

To conclude, it should be pointed out that in the context of climate change, which predicts, in Morocco, an increase in temperatures and a drop in rainfall [73,74,75], the projections of erosion and sediment transport evolution that are possible from climate model outputs, and which are based on USLE or SWAT type approximation models [76], will need observed data to calibrate and validate their results.
