Article

Comparison of Changes in Soil Moisture Content Following Rainfall in Different Subtropical Plantations of the Yangtze River Delta Region

by
Xin Liu
1,
Yingzhou Tang
1,†,
Xuefei Cheng
1,
Zhaohui Jia
1,
Chong Li
1,
Shilin Ma
1,
Lu Zhai
2,
Bo Zhang
2 and
Jinchi Zhang
1,*
1
Co-Innovation Center for Sustainable Forestry in Southern China, Jiangsu Province Key Laboratory of Soil and Water Conservation and Ecological Restoration, Nanjing Forestry University, 159 Longpan Road, Nanjing 210037, China
2
Department of Natural Resource Ecology and Management, Oklahoma State University, Stillwater, OK 74078, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Water 2021, 13(7), 914; https://doi.org/10.3390/w13070914
Submission received: 23 February 2021 / Revised: 25 March 2021 / Accepted: 25 March 2021 / Published: 27 March 2021
(This article belongs to the Section Hydrology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Rainfall is an indispensable link in the atmospheric water cycle, which plays a critical role in forest hydrology. Quercus acutissima and Cunninghamia lanceolata are two fast-growing and economically important tree species in the middle and lower reaches of the Yangtze River. They are extensively applied in the restoration of vegetation, hydraulic engineering, and the development of artificial forests. The primary aims of this study were to describe and compare the changes in soil water content following rainfall events, while elucidating their relationships to environmental factors. From September 2012 to August 2013, we monitored the soil moisture at different depths every 30 min using commercially available soil moisture measuring devices. Hourly meteorological data were monitored over an open area at 200 m from the sample site, including photosynthetically active radiation (Par), air temperature (Ta), relative air humidity (RH), vapor pressure deficits (Vpd), rainfall, and wind speed. The results revealed that variations in the soil moisture content during summer (Cv = 0.231) and autumn (Cv = 0.0.170) were greater than during spring (Cv = 0.0.092) and winter (Cv = 0.0.055), with those in the deep soil moisture (Cv = 0.117) being smaller. The soil moisture content was significantly altered following the cessation of rainfall, where the initial and average moisture content, and the ACR of the soil increased with higher rainfall intensities. The ACR was positively correlated with Ta (γ = 0.16), RH (γ = 0.46) and rainfall (γ = 0.22), but negatively correlated with Par (γ = −0.29), Vpd (γ = −0.23), and wind speed (γ = −0.01). This study provides valuable information regarding the hydrological processes of artificial forests in the middle and lower reaches of the Yangtze River.

1. Introduction

According to the results of the Ninth National Forest Resources Inventory, the area of artificial forest in China has reached 79,542,800 hm2, which accounts for 32.94% (almost a third) of its total forested area [1]. Plantations play critical roles in the greening of the land and improvement of ecosystems. An in-depth study of hydrology can have a profound impact on the sustainable development of plantations, encompassing their formation and the regulation of water distribution. The quantity and intensity of rainfall directly influence the soil moisture of artificial forests, which is an important comprehensive index of water circulation in terrestrial ecosystems [2,3]. Soil moisture encompasses ambient atmospheric water vapor, groundwater, surface water, and biological water [4], each of which play critical roles in the hydrological circulatory system. Soil water is a comprehensive indicator of the status of climate, vegetation [5], topography [6,7], and land use patterns [8,9]. It is an essential parameter that impacts the growth and development of vegetation, as well as a key factor that affects the succession of vegetation in ecosystems. The attributes of precipitation, including rainfall amounts and frequency, affect the behavior of soil moisture [10,11]. Therefore, an investigation into the responses of soil moisture to rainfall events is of particular importance as it relates to soil water resources, which has practical significance for the rational use of regional water resources.
Soil moisture content reflects localized hydrological characteristics, where there can be significant variations in areas with different types of vegetation cover. A greater soil moisture content indicates that local rainfall is higher, or that the soil water retention capacity is stronger [12], otherwise the soil moisture content is lower, and soil erosion is reduced due to plant cover [13]. Soil moisture possesses both spatial and temporal variability. Previous studies found that the spatial variability of soil moisture increased with regional changes [14], and the coefficient of variation of soil moisture decreased with higher average soil moisture [15]. Vegetation cover can effectively reduce soil moisture variability following rainfall [16,17], which is also seasonally affected [18,19]. Soil moisture is the critical link that connects all aspects of the hydrological cycle, and since it is essential for the growth and coverage of vegetation, it is a good indicator of a healthy environment. Soil moisture can also directly reflect the amount of underground runoff. Good vegetation growth and adequate transpiration can effectively supplement atmospheric moisture and provide the necessary conditions for rainfall, which can supplement surface runoff and soil moisture over time; thus forming the complete hydrological cycle [20].
Numerous previous studies have revealed that soil moisture content is severely impacted by land use patterns [21] and environmental factors, including topography [22,23], rainfall intensity [24], soil temperature, solar radiation, vapor pressure differences, Ta [25], and more [26]. Other research has shown that southern slopes receive more solar radiation than northern slopes; thus, the soil temperature is higher, and the soil moisture is lower [27,28,29,30]. In general, the higher the slope, the lower the soil water content [29,30,31]. The soil water content of concave slopes are generally higher than that of convex slopes, which is due to a significant correlation between the slope shape and its soil drainage capacity [32]. In comparative tests involving various land-use models, it was revealed that the soil moisture content of bare land was always highest [33], whereas the soil moisture content of grassland was significantly higher than that of camphor pine [34]. The water-holding capacity of pine forests was lower than that of cultivated land, grasslands, and shrub areas. In most cases, the soil moisture content of shrubs and grasslands was at medium and high levels over short periods [35], which may have been caused by the enhanced hydrophobicity of pine trees [36].
Research into the effects of environmental factors (e.g., Par and Ta) on soil moisture, signified that the change in Par was negatively correlated with that in the average soil moisture content. This was because sun exposure was the direct cause of evaporation from the shallow surface soil. The effects of precipitation and sunlight on soil moisture dynamics were greater than that of soil temperature [37]. The average soil water content was inversely proportional to both air and soil temperature, where the soil water content decreased with higher temperatures [38,39]. Rainfall intensity has the most direct impact on soil water content compared to multiple other environmental factors. It is generally believed that the greater the intensity of rainfall, the higher the soil moisture content [40]; however, this was found not to be the case in other studies. Firstly, this phenomenon was observed to occur only under the condition of moderate humidity, where the increased soil water content corresponded with cumulative rainfall [41]. Secondly, changes in the soil water content demonstrated exponential curve fitting. With greater rainfall intensity, the divergence near the best fitting line increased, which may have been caused by the ability of heavy rainfall to destroy near-surface soil structures [42]. Furthermore, the relationship between rainfall intensity and infiltration depth was linear [43].
Studies have indicated that precipitation of less than 5 mm cannot supplement the soil water content; however, it can be enhanced with precipitation of between 5 mm and 20 mm. Precipitation levels at >20 mm, from 0 to 40 cm [44], and from 0 to 100 cm can significantly increase the soil water content. Furthermore, the precipitation intensity significantly affected the infiltration rate, where the higher the intensity, the deeper and faster the infiltration [45]. When there was a prolonged interval between two precipitation events, the soil water content of each soil layer decreased continuously over time. Meanwhile, the water content at the 0 to 40 cm soil depth was significantly affected by precipitation and wind speed [41], whereas at the 0 to 100 cm soil depth it was strongly influenced by the relative humidity and water pressure.
Although a plethora of studies have explored the relationships between rainfall and soil moisture, these studies typically focused only on changes in soil moisture after the beginning of rainfall. However, it is still not clear how the soil water content is altered over time following different rainfall intensities, and what the key factors are that determine these changes. Based on the water distribution characteristics of the main afforested tree species in the middle and lower extents of the Yangtze River, this investigation employed long-term position monitoring equipment to continuously monitor the study area. This strategy provided more coherent and sufficient monitoring data, while establishing a solid foundation for the future study of plantation hydrology.
To explore the influences of different rainfall events on soil moisture, we conducted a series of observational experiments in a typical plantation system in the Yangtze River Delta region. Our main objectives were to: (1) compare changes in the soil moisture content of various soil layers during different seasons in the study area; (2) analyze the influences of initial and average precipitation loads on the overall soil moisture content following rainfall events; (3) verify the relationships between changes in the soil water content and environmental factors.

2. Materials and Methods

2.1. Study Site

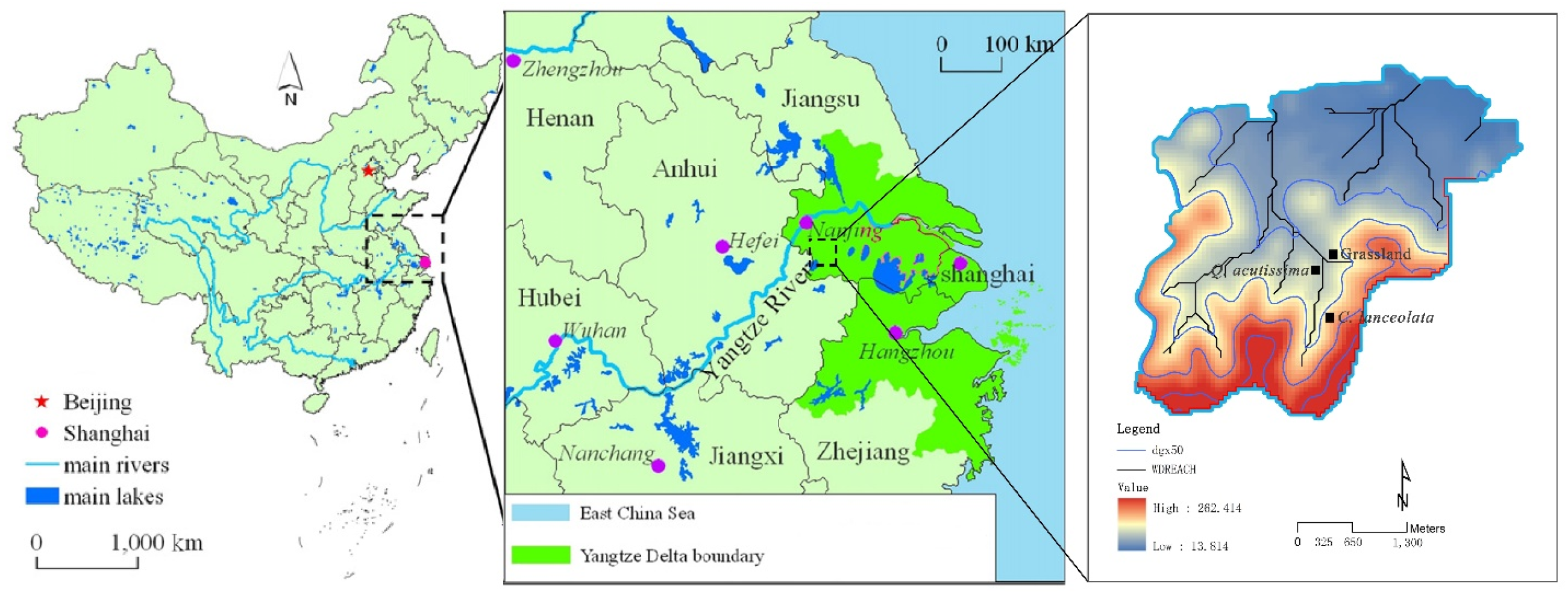

The study site (Figure 1) was located in Tongshan Branch, at the Dongshanqiao Forest Farm, in Nanjing, China (31°35′~31°39′ N, 118°50′~118°52′ E). The Tong Shan Forest Farm resides in a north subtropical monsoon zone, with a mild and humid climate, distinct seasons, and abundant water resources. The average annual temperature is 16.5 °C, with a maximum of 28.6 °C in July and minimum of 3.1 °C in January. The frost-free period lasts 229 days, and the annual sunlight amounts to 2199.5 h. The water resources are abundant with an annual average precipitation of 1126.9 mm, with a rainy season that spans from June to August with an average rainfall of 587.6 mm (Figure A1).
The soil type was yellow brown and the slope direction was northeast (NE). The soil thickness was ~60 cm, beyond which was weathered parent sandstone. The terrain comprised the southern Jiangsu hills at an altitude of from between 38–388 m, and the water table was at <10 m. The forest stand types included Q. acutissima, C. lanceolata, Phyllostachy, Pinus massoniana, and Camellia sinensis. The understory shrub herbs were primarily Lindera glauca (sieb.et Zucc.) BI, Rhus chinensis, Erigeron annuus, Arthraxon hispidus (Thunb.) Makino, and Rubus tephrodes Hance.
At the study site, a 45-year-old holm Q. acutissima forest was selected, with a canopy density of 0.8 (425 trees/hM2) and an average tree height of 16.8 m. The average DBH was 24.3 cm and the average crown width was 9.7 m, with a forest floor slope of 18° and a slope length of 62 m. A 45-year-old holm lanceolata, Phyllostachy edulis forest was also selected with a canopy density of 0.61 (850 trees/hM2), average tree height of 23 m, average DBH of 22 cm, average crown width of 13.6 m, and a forest floor slope of 20°.

2.2. Soil Moisture Measurements

ECH2O probes (Decagon Devices Inc., Pullman, WA, USA) are soil moisture sensors that measure the single-value polynomial relationship between the soil moisture content and soil dielectric constant to calculate the moisture content of a soil volume [46]. The study site (slope 21°) was not affected by a forest margin, and a forest window was selected for fixed-point observations at four soil layers (5 cm, 10 cm, 15 cm, and 40 cm). There was no distribution of roots with diameters greater than 0.5 cm within 10 cm of the soil water probe. Data were collected every 30 min, and a set of repeated observation points were established at 3 m from the study site under similar lighting conditions. The mean data value was taken as the final soil moisture content value of a given soil layer. The observation duration extended from September 2012 to August 2013.

2.3. Rainfall Measurements

In an open field 200 m from the stand under study, a point with little influence on the forest margin and canopy was selected. Using a HOBO Counter (Onset Computer Inc., Bourne, MA, USA) the real-time rain cylinder monitoring of rainfall and its duration was conducted. Following each rainfall event any deciduous branches on the rain gauge were removed. According to the accumulated precipitation between two rainfall events, the rainfall amounts were divided into six levels, which were ≤2 mm, 2–10 mm, 10–15 mm, 15–20 mm, 20–50 mm, and >50 mm, respectively.

2.4. Meteorological Measurements

Additional meteorological factors, including photosynthetically active radiation (Par), air temperature (Ta), relative air humidity (RH), soil temperature, and wind speed were measured via a CNR4 Net Radiometer (Campbell Scientific Inc., North Logan, UT, USA), HMP155A Temperature and Relative Humidity Probe (Campbell Scientific Inc., North Logan, UT, USA), HFP01 Soil Heat Flux Plate (Campbell Scientific Inc., North Logan, UT, USA), and MetOne 010C Wind Speed Sensor (Campbell Scientific Inc., North Logan, UT, USA), respectively. The vapor pressure deficits (Vpd) were calculated by Ta and RH data. All data were collected using an EM50 Data Logger (Decagon Devices, Pullman, WA, USA) [37,47].

2.5. Soil Moisture Content Change Rate

The soil moisture content change rate was calculated via linear regression according to the differences in the soil moisture content between two rainfall events:
R = (Swct − Swc)/t
where R is the change rate of the soil moisture content (%0.5 h−1), Swct is the soil moisture content at the onset of a subsequent rainfall event (%), Swc is the soil moisture content at the conclusion of the previous rainfall event (%), t is the interval between the end of a previous rainfall and the onset of a subsequent rainfall (per 30 min).

2.6. Statistical Analyses

The average value of the soil water content was calculated using a classical statistical method to analyze the concentration of soil water within the study scope. The spatial and temporal distribution and variability of the soil water content were articulated by calculating the standard deviation and coefficient of variation. The coefficient of variation [14,48] reflects the relative variation, that is, the degree of dispersion of the random variable:
C v = σ μ
In the formula, σ is the standard deviation of the sample, and μ is the sample mean of the soil layer. According to the coefficient of variation [49], changes in the soil water content may be classified as weak (Cv ≤ 0.1), moderate (0.1 < Cv < 1), and strong (Cv ≥ 1).
A Duncan test [50] was employed when one-way analysis of variance (ANOVA, SPSS Inc., Chicago, IL, USA) showed that meteorological factors had a significant impact on the rate of change of the soil moisture content of grassland, Q. acutissima, and C. lanceolata forests. To elucidate whether the mean between multiple samples was significant, two-way ANOVA was used to test the main effects and interactions of rainfall intensity, soil layer, initial moisture content, and average moisture content using SPSS 25.0. (IBM Inc., NY, USA) This, when correlation analysis revealed that meteorological factors were significantly associated with the soil moisture content, soil temperature, and the soil moisture content change rate. Redundancy discriminant analysis (RDA) was performed to reveal the relationships between the soil moisture content rate of change, soil temperature, soil moisture content, and environmental factors using Canoco 5.0 software (Microcomputer Power, Ithaca, NY, USA). The visualization of the data was achieved using OriginPro 8.5 software (OriginLab Inc., Northampton, MA, USA).

3. Results

3.1. Rainfall

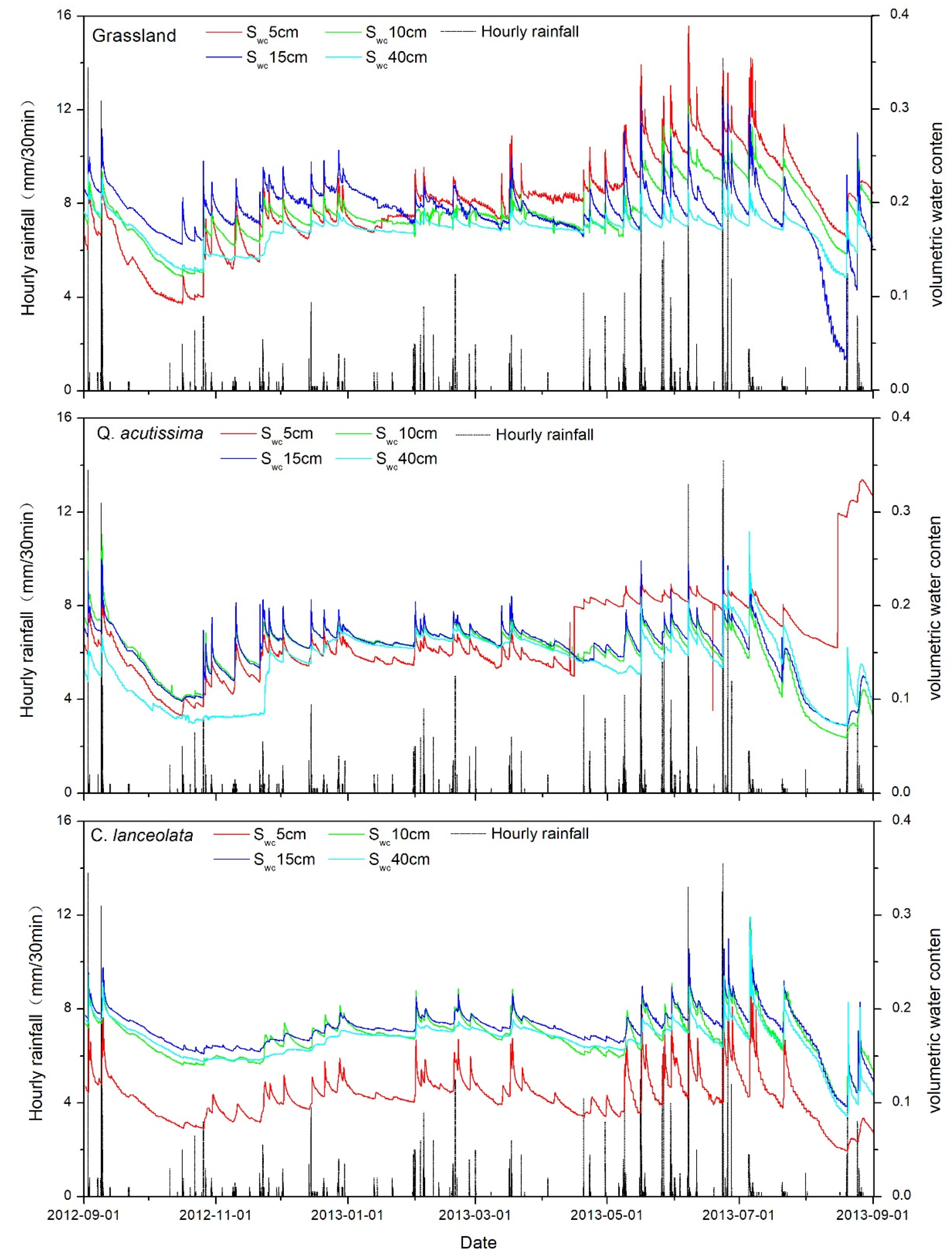

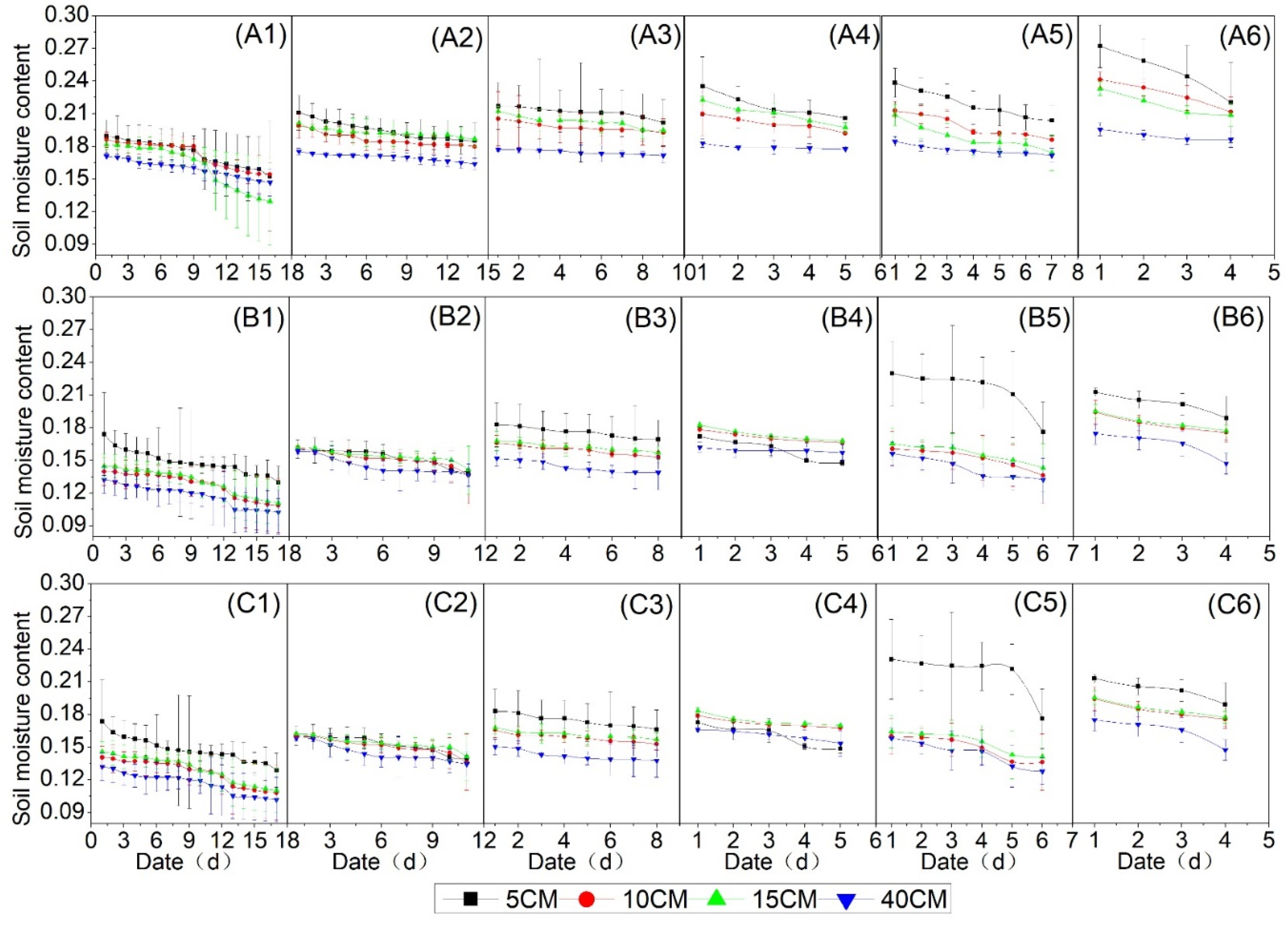

The water content increased following rainfall events and began to drop once the rainfall stopped. A maximum daily rainfall of 76.2 mm was recorded on 7 June 2013, and the highest intensity was 14.2 mm/30 min on 23 June 2013. The peak water content value appeared in June and July, while the valley value appeared in August (Figure 2). During the data collection period there were 114 rainy days, and the cumulative rainfall over 12 months was 798.4 mm, with the rainfall distribution shown in Table 1. Minimal rain events (≤2 mm) were the most frequent and had the lowest contribution to the total rainfall. Intermediate rain events (2–10 mm) were the second most frequent, albeit they had the greatest contribution to overall rainfall. Heavy rain events (>50 mm) were the least frequent but had the second greatest contribution to the total rainfall (Figure A2.).

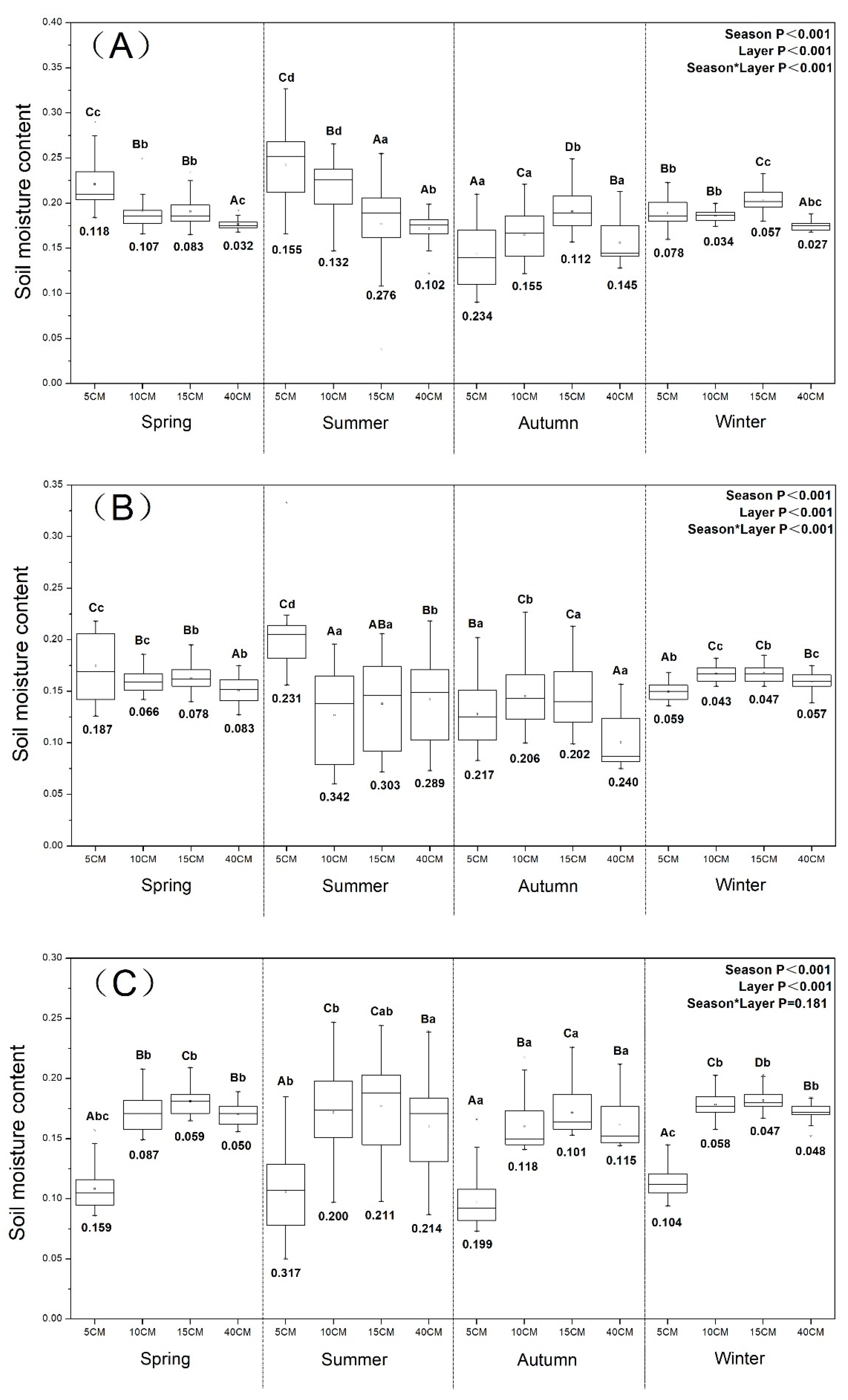

3.2. Soil Moisture Content

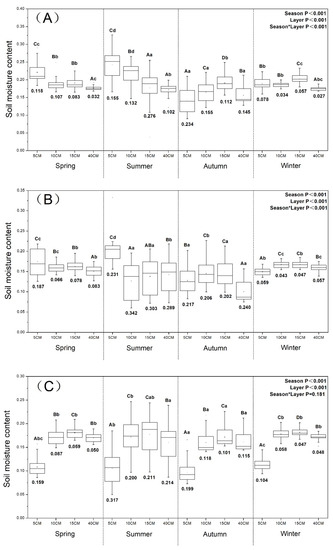

Season, soil layer, and land type significantly influenced the soil moisture content (p < 0.001) (Figure 3). The impacts of season and soil layer interactivity were also significant, except for the effects of C. lanceolata. During the spring and summer, the moisture content of the 5 cm soil layer in the grassland and Q. acutissima forest was significantly higher than that of other soil layers (p < 0.05). Furthermore, with soil layer depth, the soil moisture content decreased significantly (p < 0.05), except for the Q. acutissima forest in summer.
During autumn and winter, the soil water content of the grassland and Q. acutissima forest initially increased and then decreased within the deeper soil layers, where the water content of the 15 cm soil layer was significantly higher than that of the other soil layers (p < 0.05). The soil water content of the 5 cm soil layer in the C. lanceolata. forest was significantly lower than that of the other soil layers (p < 0.05). Within the deeper soil layers, the soil water content initially increased and then decreased, where that of the 15 cm soil layer was significantly higher than for the other soil layers (p < 0.05). The soil moisture content during summer and autumn varied medially, whereas it was weakly variable during winter. During the spring, the soil moisture content in the 5 cm soil layer exhibited moderate variability, whereas it varied weakly in the 15 cm and 40 cm soil layers.

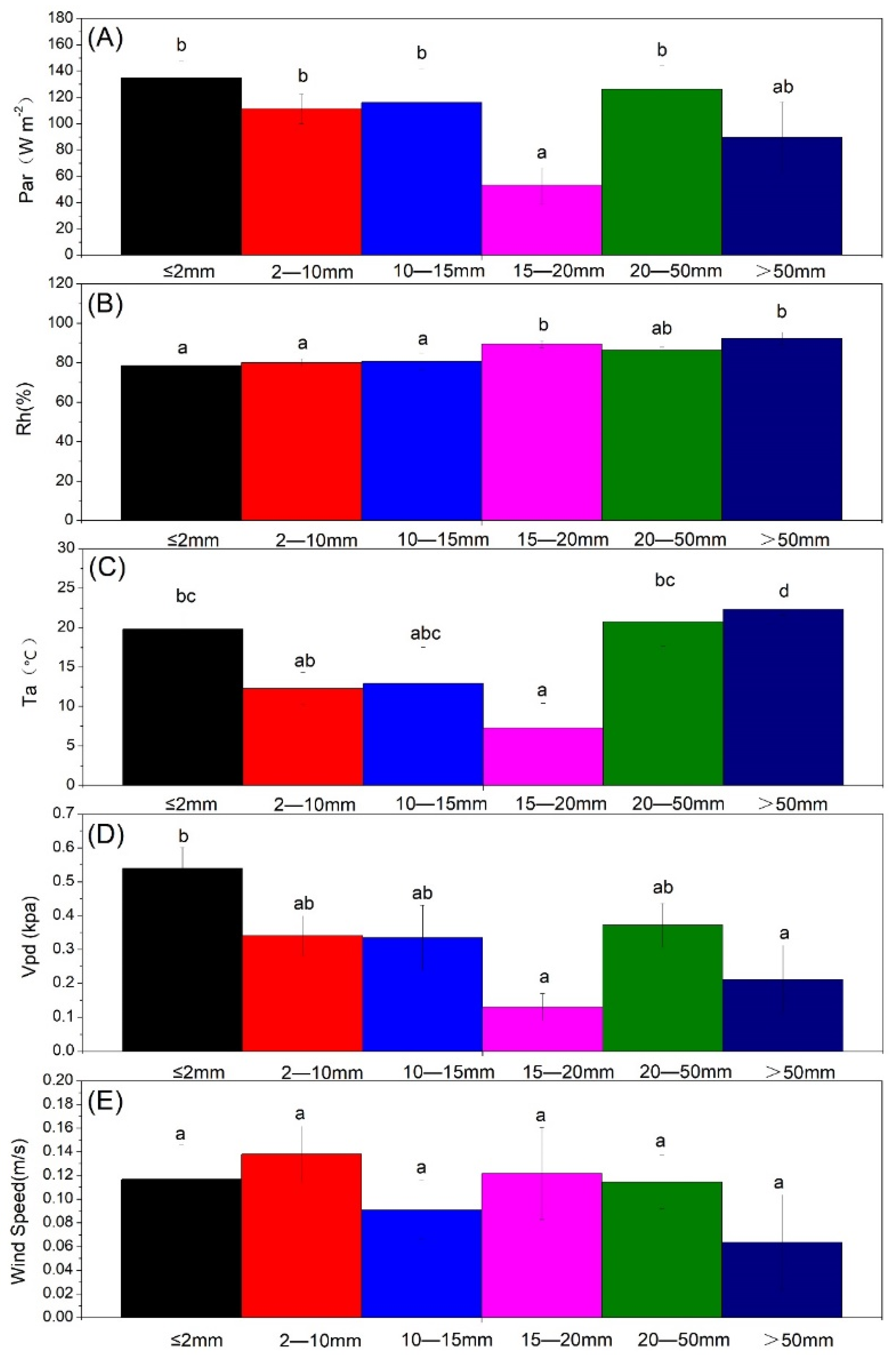

3.3. Environmental Factors Following Rainfall Events

Among the six major environmental factors, there were no significant differences in wind speed (p > 0.05) (Figure 4E), where Par with a 15–20 mm rainfall intensity was significantly lower than Par with a rainfall intensity ≤2 mm, 2–10 mm, and 10–15 mm (p < 0.05) (Figure 4A). The Ta with a > 50 mm rainfall intensity was significantly higher than Ta with other rainfall intensities (p < 0.05) (Figure 4C). The RH under a strong rainfall intensity (15–20 mm, >50 mm) was significantly higher than for the low rainfall intensity (≤2 mm, 2–10 mm, 10–15 mm) (p < 0.05) (Figure 4B), whereas the Vpd under a strong rainfall intensity (15–20 mm, >50 mm) was significantly lower than for the low rainfall intensity (≤2 mm) (p < 0.05) (Figure 4D).

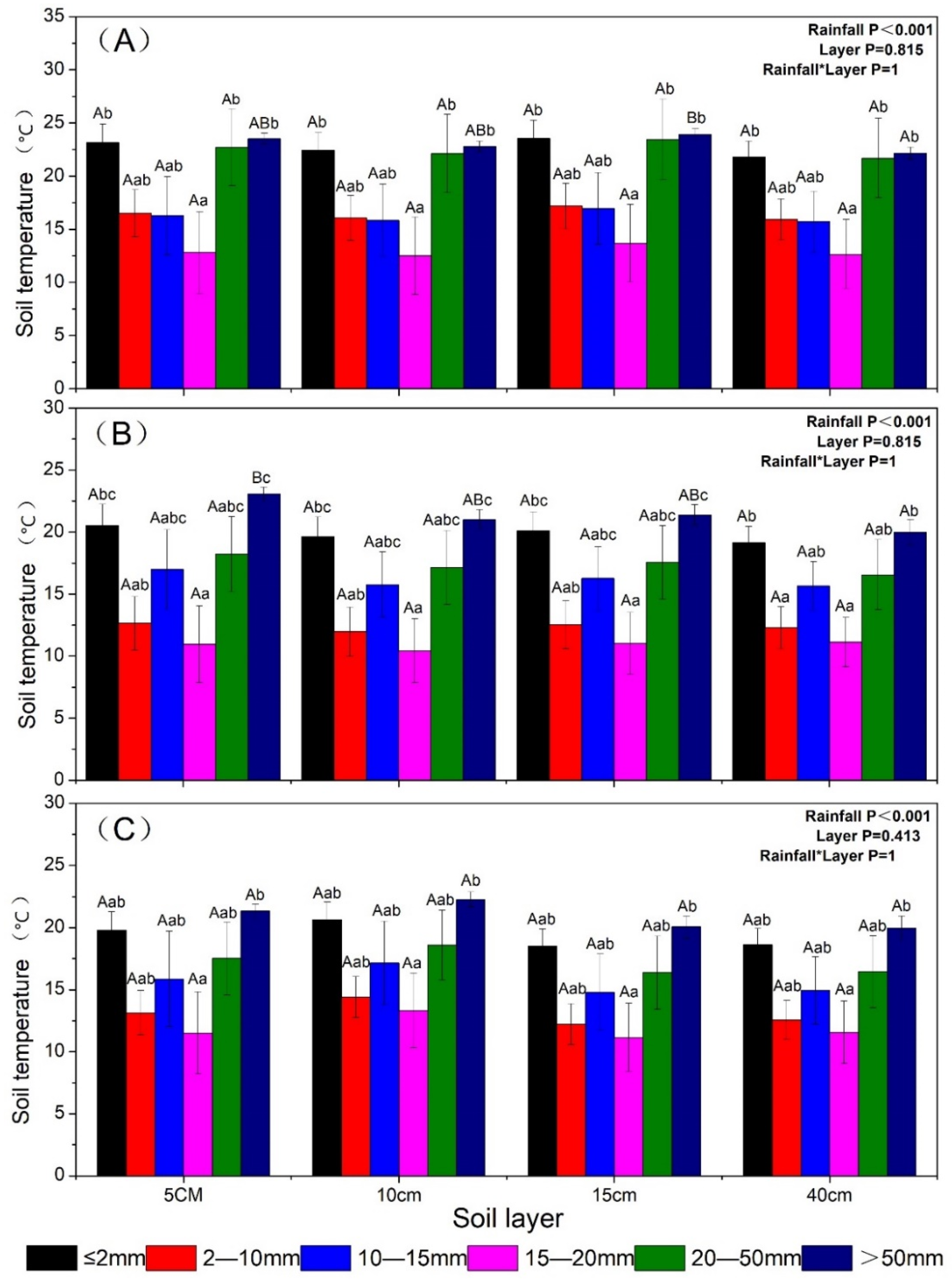

3.4. Soil Temperature and Moisture Content after Rainfall Events

The rainfall intensity and land type significantly influenced the soil temperature (p < 0.001); however, the effects of rainfall intensity and soil layer interactions were not significant (p > 0.05) (Figure 5). The soil temperature with a rainfall intensity of 15–20 mm was significantly lower than that under a rainfall intensity of >50 mm (p > 0.05) (Figure 5). Following rainfall, the soil moisture content of the grassland, Q. acutissima, and C. lanceolata obviously changed. The moisture content increased with higher rainfall intensity; however, over time, the soil moisture content of each layer exhibited a downward trend (Figure 6).

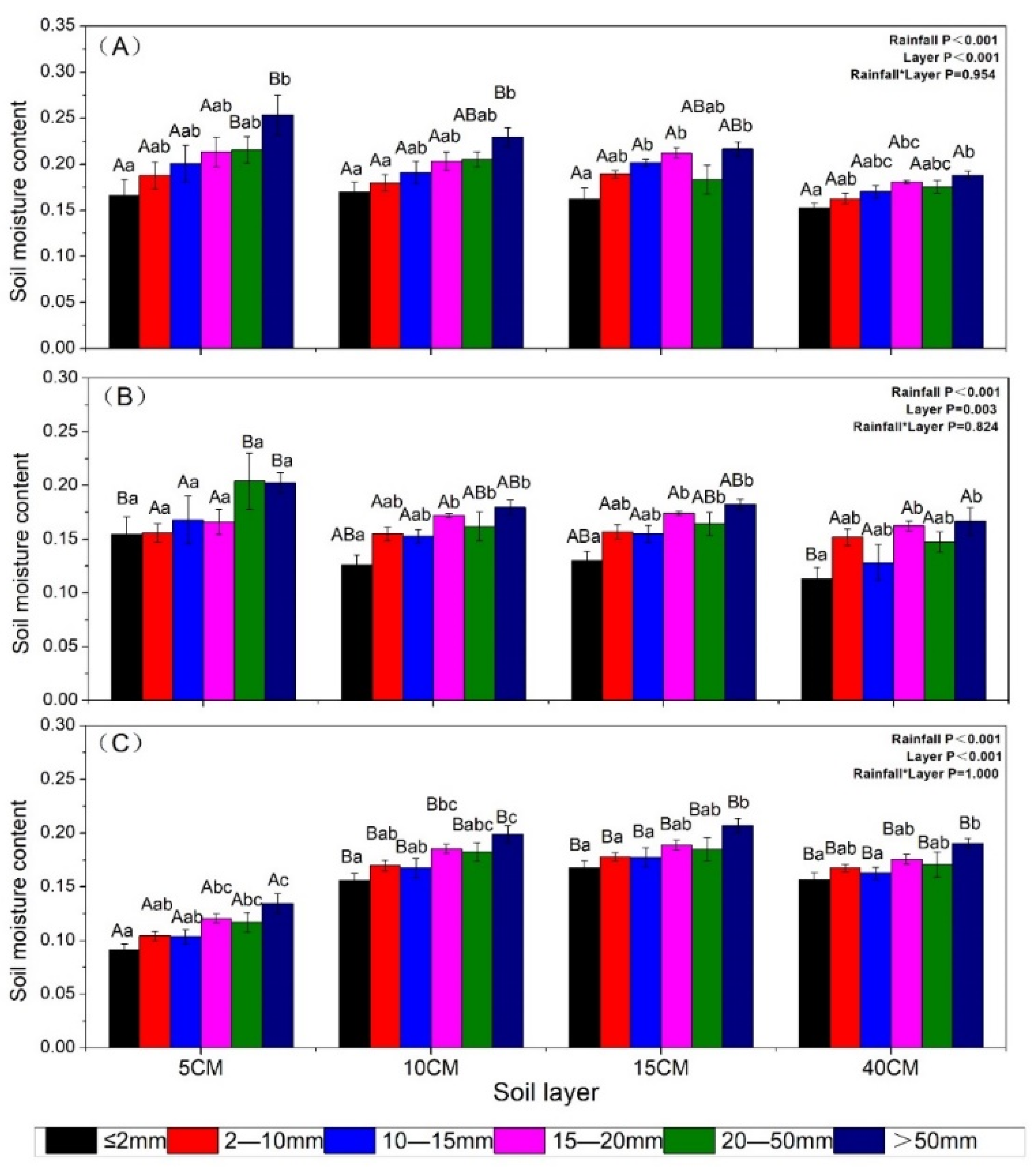

The rainfall intensity, soil layer, and land type significantly influenced the initial soil moisture content (p < 0.001), except for the effects of soil layers and rainfall on that of Q. acutissima and C. lanceolata (Figure 7). The initial soil moisture content increased with higher rainfall intensity. When the rainfall intensity was >50 mm, the initial moisture content of the 5 cm soil layer was significantly higher than that of the other soil layers. When the rainfall intensity was >50 mm, the initial water content of the grassland, except for the 5 cm soil layer, was significantly higher than that of the grassland when the rainfall intensity was ≤2 mm. (Figure 7A). When the rainfall intensity was 20–50 mm, the initial moisture content of the 5 cm soil layer of Q. acutissima (Figure 7B) and C. lanceolata (Figure 7C) was significantly higher than that of the other soil layers. The rainfall intensity, soil layer, and land type significantly influenced the average soil moisture content (p < 0.001), except for the effects of soil layers on the soil moisture content of Q. acutissima (Figure 8). The average moisture content of the 5 cm soil layer under the same rainfall intensity was significantly lower than that of the other soil layers (p < 0.05) (Figure 8C). The average soil moisture content increased with higher rainfall intensities. With the exception of the 5 cm soil layer in the Q. acutissima forest, the average moisture content of all the other soil layers was significantly higher under a rain intensity of ≤2 mm, in contrast to when the rain intensity was >50 mm (Figure 8).

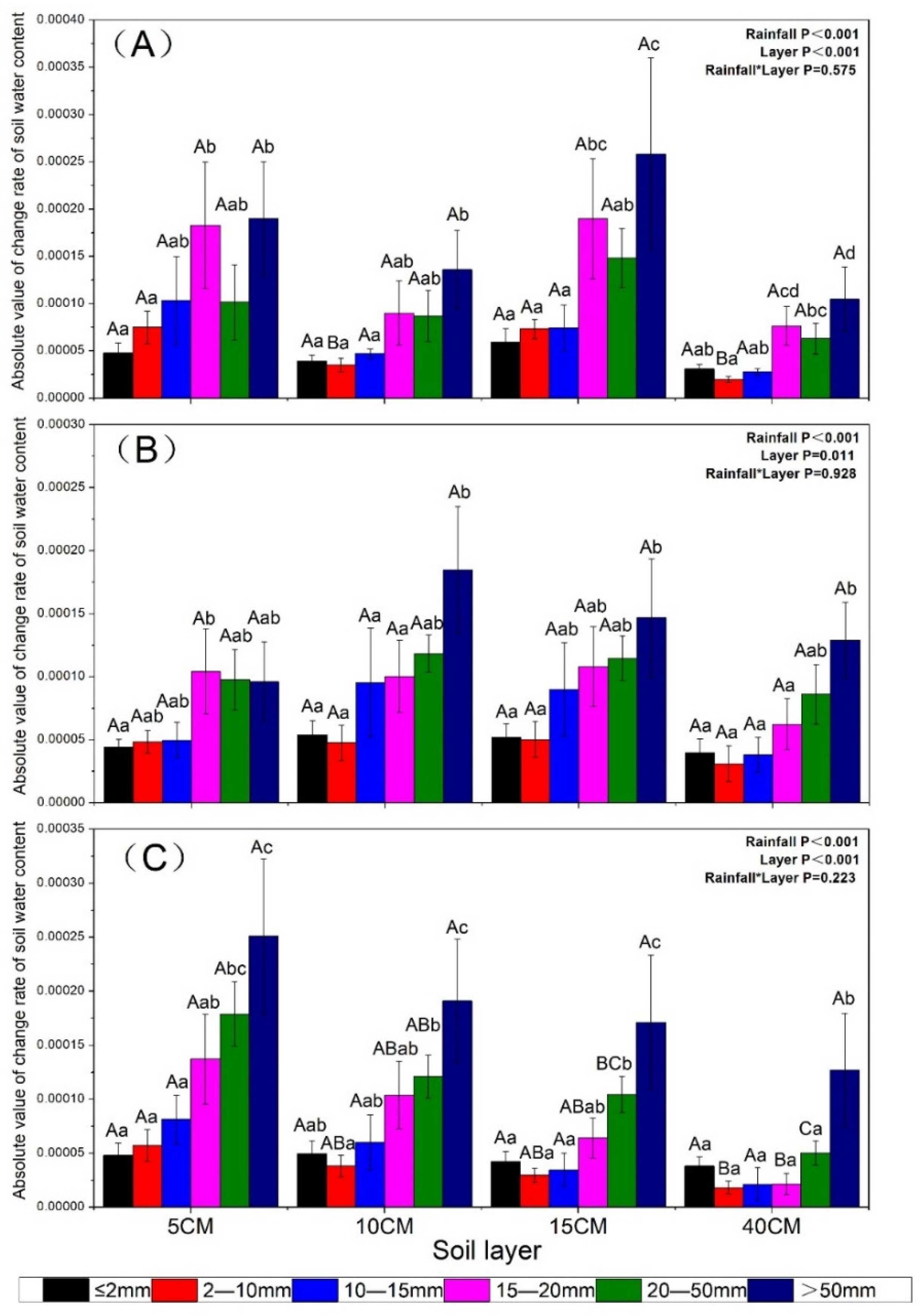

3.5. ACR (Absolute Change Rate Value) of Soil Moisture Content Following Rainfall Events

The rainfall intensity and specific soil layers significantly influenced the ACR (Absolute change rate value) (p < 0.001), except for the effects of soil layers on the ACR of Q. acutissima. However, the impacts of their interactions were not significant (p > 0.05) (Figure 9), and the ACR increased with higher rainfall intensities. When the rainfall intensity ranged from 2–10 mm, the ACR in the 10 cm and 40 cm soil layers in grassland was significantly lower than that in the 5 cm and 15 cm soil layers, and there were no significant differences between the various soil layers under other rain intensity conditions (Figure 9A).
The ACR of the 40 cm soil layer was significantly lower than that of the 5 cm soil layer under rainfall intensities of 2–10 mm, 15–20 mm, and 20–50 mm in the C. lanceolata forest (Figure 9C). Except for the 5 cm soil layer of the Q. acutissima forest, the ACR of all the soil layers of all land types was significantly higher when the rainfall intensity was >50 mm, in contrast to when the rainfall intensity was ≤2 mm, or from 2–10 mm (Figure 9B). The ACR in the C. lanceolata forest was significantly higher than the other rainfall intensities, except for the 5 cm soil layer at a rainfall intensity of >50 mm (Figure 9C).

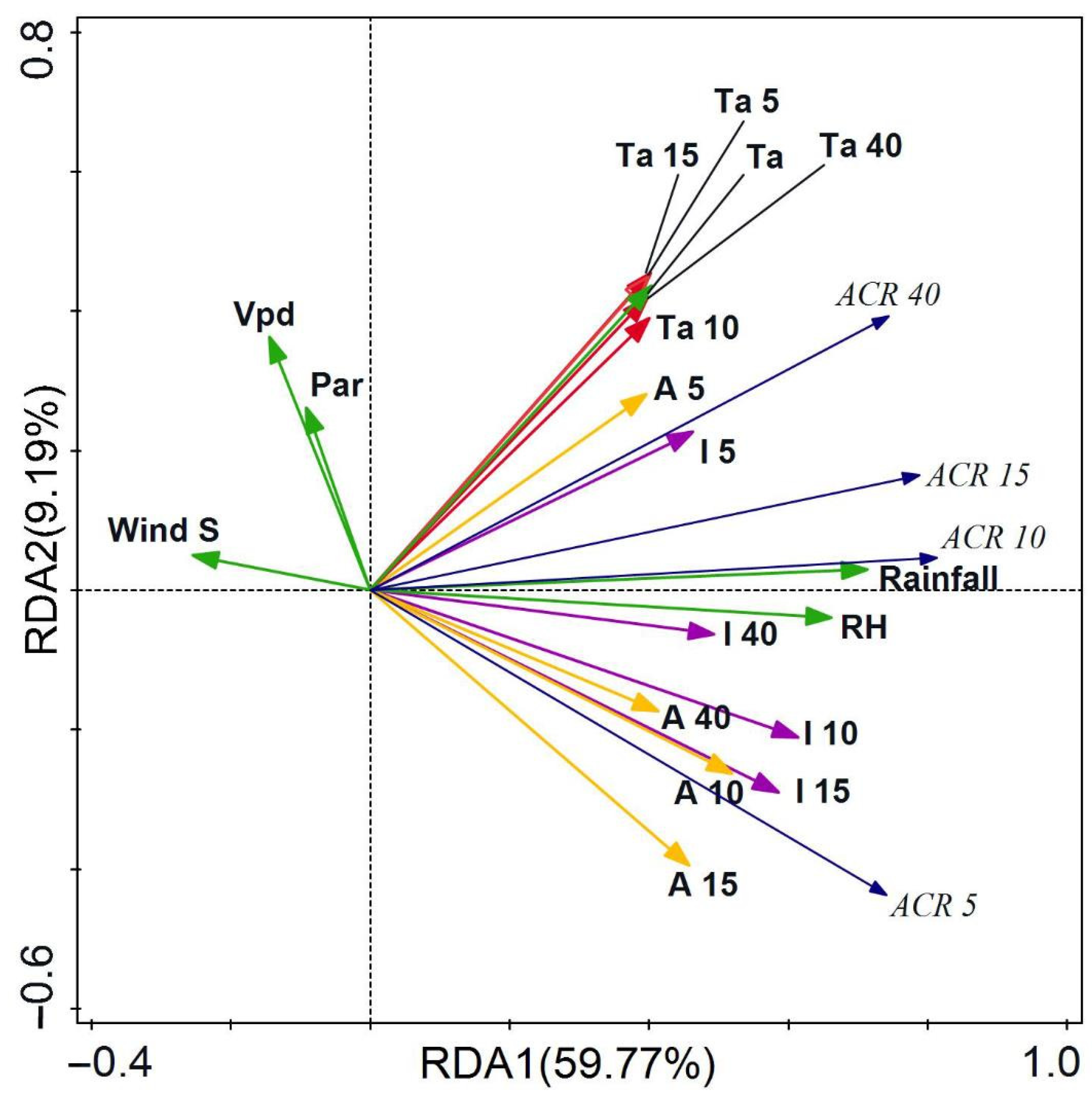

3.6. Relationships Between the ACR of Soil Moisture Content and Environmental Factors Following Rainfall Events

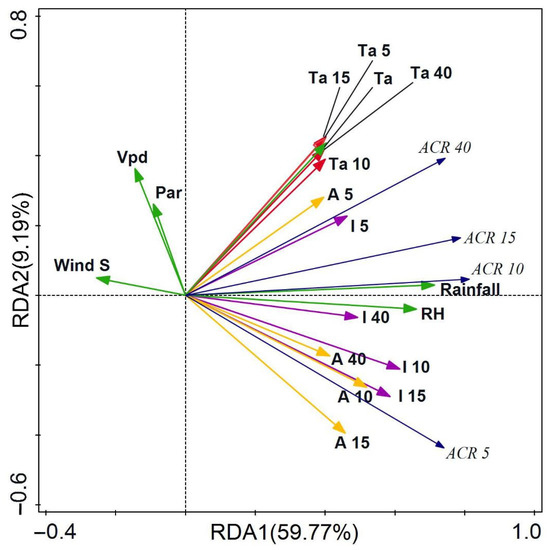

The RDA of the ACR of the soil moisture content in each layer, and the soil temperature and environmental factors of each layer were considered as explanatory variables. Axis 1 accounted for 59.77% of the variation in the dataset, with 9.19% of the variation accounted for by axis 2 (Figure 10). In Figure 8, high ACR 5, ACR 10, ACR 15, and ARC 40 were found at the right-hand end of the ordination plots, and were associated with the Par, Vpd, and wind speed. The soil temperature, Ta, I5, A5, and rainfall increased along the y-axis, whereas the I10, I15, I40, A10, A15, A40, and RH decreased.

4. Discussion

Rainfall has always been one of the most heated issues in forest hydrology, to which researchers worldwide have paid close attention. Rainfall leads to the immediate modification of soil moisture [51], which is directly related to the degree of localized drought. It is typically assumed that drought exists only in arid and semi-arid regions; however, the rapid loss of soil water in non-arid areas can cause localized drought, seriously threaten the growth of local vegetation, and further aggravate soil and water loss in non-arid areas. Conversely, when the soil has a strong water retention capacity, the soil water content decreases slowly following rainfall, which is not easily prone to drought and more conducive to plant growth.
Serious water shortages and quality issues occur in many regions [52,53], particularly in the Yangtze River Delta region of China. Therefore, it is of particular importance to study rainfall and soil moisture in areas with more plentiful water resources. This enables us to make full use of water resources and has important implications for the management of planted forests. For this study, three different land types were selected, and environmental factors such as rainfall and soil water data were collected to quantify soil water changes under different rainfall intensities, as well as to determine the main environmental factors that affected changes in soil water.
The localization and monitoring of soil moisture, rainfall and other environmental factors through the use of relevant EM50 kits has been widely employed in the study of soil hydrology [47]. In this study, although the number of rainfall events with amounts of ≤2 mm accounted for the largest proportion during the overall study period, it had the lowest contribution to the total precipitation. In contrast, the lowest proportion of >50 mm rainfall events accounted for nearly a quarter of the total rainfall. Similar results have also been found in other regions [35].
Seasonal variations in precipitation provide a basis for the further study of rainfall and soil moisture. Higher rainfall events during summer and autumn directly increase the soil moisture content, while lower temperatures during the winter and spring lead to a reduction in rainfall in conjunction with a decrease of evaporation, which is the indirect cause of the low soil moisture content [54]. There is sufficient evidence to suggest that these changes alter the physical and chemical properties of the soil due to changes in rainfall, temperature [55], and other environmental factors across the different seasons. In this study, variabilities in the content of soil moisture during the summer and autumn were greater than during the winter and spring [56], which may have been caused by rising temperatures and increased rainfall during summer and autumn, respectively.
However, variations in the soil moisture content is minimal in winter, which may be due to changes in the pore structures of soil caused by lower temperatures, which can significantly limit water transport. Simultaneously, research has indicated that variabilities in the water content of deeper soil layers were lower than that of shallow soil layers, which was due to the shallow soil layers being more susceptible to the vagaries of the external environment [57]. We also found that the soil moisture content of the 5 cm soil layer (except in the Chinese fir forest) in the spring was significantly higher than that of the other soil layers [58]. This may have been because the rainfall was temporarily stored within the surface layer [59], after which soil water slowly seeped into the deeper soil layers subsequent to increased rainfall. Moreover, this trend may be modified over time, where increased rainfall and the water storage capacity of the surface soil are decreased, and the SWC is increased with greater soil depths [60].
In previous studies, changes in soil moisture were investigated in different areas and habitats [61,62,63,64]. Discerning changes in soil moisture is a very complex process, as it is not only affected by the length of precipitation events [24], but also by precipitation intensity [65], vegetation type, soil texture, and other factors. The soil moisture content of grassland was higher than that of the other vegetation types, which may have been attributed to the soil compaction of Q. acutissima and C. lanceolata forests, and poor ground cover under the trees [35].
As is well acknowledged, the canopies of arbor trees have interceptive effects on rainfall. In contrast to Grassland, the canopies of Q. acutissima and C. lanceolata had less rainwater that directly reached the ground to supplement soil moisture, where a large proportion of rainfall was intercepted by and evaporated from the canopy. The ACR of the 40 cm soil layer in grassland and C. lanceolata forest was lower than that of the other soil layers, which may have been due to the influence of shallow water transport channels in the grassland and C. lanceolata forest. We found that the variation coefficient of soil moisture content in the 5 cm soil layer was: C. lanceolata forests > grassland > Q. acutissima forests (Figure 11A). The C. lanceolate was a coniferous forest; thus, the interceptive functions of the plants were small. Grass could well cover the surface of bare land, while Q. acutissima was a broadleaved forest, which possessed a better interlocking effect, such that less rainfall made it to the ground, and the variation coefficient of soil water content was smaller.
The water loss in shallow soil was more rapid following rainfall. Since Q. acutissima is a deep-rooted tree its root systems can penetrate deeply into the soil and provide water transfer channels, so that the ACR of the deep soil is not too low. In this study, the initial and average moisture content of the 5 cm soil layer of the C. lanceolata forest was significantly lower than that of the other soil layers. This may have been due to the fact that under the action of canopy interception there was less water available to enter the soil, and the coniferous litter layer was not conducive to water storage. Furthermore, direct sunlight facilitated the increased evaporation of surface water.
Soil is directly impacted by rainfall, which has a potent influence on surface and deep soil structures, as well as changes in soil moisture [24]. We found that both the initial and average soil moisture content and ACR were greater when the rainfall intensity was ≤2 mm, in contrast to when the rainfall intensity was >50 mm. This may have been due to the fact that low amounts rainfall induced soil particles to aggregate through low cohesion forces [66,67], which resulted in the formation of a crust on the soil surface following rainfall, making it more difficult for water to enter into the deep soil [68]. This phenomenon can lead to more frequent and long-term drought conditions within the surface soil [69], while strong rainfall can cause more water to infiltrate into and supplement the deep soil layers [70,71]. In this study, it was revealed that changes in rainfall intensity caused changes in the soil moisture content at different depths (Figure 11). Under the same rainfall intensity, the variation coefficient of the water content in shallow soil was larger (Figure 11A), because it was more susceptible to other environmental factors in addition to rainfall.
Strong rainfall events facilitated the transport of water into the deep soil layers, while simultaneously establishing and connecting water transport channels within the soil. Consequently, the ACR under heavy rainfall intensities were also larger, and water was more easily lost through the walls of the water transport channels. With higher precipitation, the soil moisture content increased within the deeper soil layers [72]. We also found that high rainfall intensities enhanced the soil moisture content, albeit not significantly. This may have been due to the buildup of runoff following high intensity rainfall [73], which can disrupt shallow soil structures [42]. Since the influence of increased water content on soil infiltration was gradually lessened [74] the infiltration rate was reduced [75]. Rainfall is a critical link in the hydrological cycle, and each link of the hydrological cycle does not exist in isolation; thus, any variation in one link can initiate a cascading chain reaction. Rainfall increased the soil moisture content and air humidity, after which the soil and air temperature decreased; thus, affecting plant growth, which in turn altered transpiration dynamics and affected rainfall.
Environmental factors that affected the ACR primarily included the initial soil moisture content, average soil moisture content, soil temperature, Ta, rainfall, RH, and more [76]. The initial and average soil moisture content were positively correlated with the ACR, which was consistent with previous research results [25]. The reason may have been that the higher soil moisture content served as a prerequisite for soil moisture loss, where water channels within the soil were opened by the original soil moisture; thus, water loss occurred much easier [77].
Compared with deep soil, correlations between the ACR in shallow soil and soil moisture were weak, which may have been related to the fact that shallow soil was more susceptible to the variabilities of the external environment. The soil and air temperature had no significant influence on the ACR of the surface soil, while the ACR was positively correlated with temperature in the soil layer below 5 cm [78]. This may have been due to the evaporation of soil water at higher temperatures and affected by the soil water content [79]. Further, wind expedited the transpiration of plants and soil, thus causing the loss of surface water.
Since the transpiration of plants induced deep soil moisture to supplement the surface [80], the ACR of the surface soil was most vulnerable to the impacts of precipitation, air flow, air temperature, and so on, which could rapidly increase or decrease. Deep soil consumes water primarily due to the action of meteorological factors on plants [81,82]. Simultaneously, because of the single vertical structures of tree species at the test site, air flow more easily passed through the forest canopy. Therefore, the two factors above became critical factors that initiated changes in the soil ACR.
It is worth noting that this study undertook only one year of field monitoring. Simultaneously, the soil organic matter content was believed to affect the soil water content and water storage [51], whereas topographic factors also had an impact on the soil water content. This aspect of the index should be included in future studies.

5. Conclusions

Following a one-year location monitoring experiment, different rainfall intensities and environmental factors were observed to have significant influences on the soil moisture of a typical plantation in the Yangtze River Delta. The variability of soil water during the summer (Cv = 0.231) and autumn (Cv = 0.0.170) was stronger than during the winter (Cv = 0.0.055). Compared with shallow soil, water variability in the deep soil (Cv = 0.117) was decreased, and the shallow soil was more susceptible to the influences of external environmental factors. With higher rainfall intensities, the initial and average moisture content and the ACR of the soil increased correspondingly. Strong rainfall was more conducive to the infiltration and migration of soil water, and deep-rooted tree species such as Q. acutissima were more favorable for the migration of deep soil water. Furthermore, the ACR was susceptible to environmental factors such as soil temperature, soil moisture, Par (γ = −0.29), RH (γ = 0.46), and wind speed. In other areas with similar or different soil moisture conditions, the dynamic monitoring of soil moisture should be strengthened, particularly before and after rainfall events. A detailed set of principles that reflect changes in soil water dynamics should be developed to facilitate scientific planning and guidance toward the optimal cultivation of artificial forests, or the protection of natural forests. In this study, we collected and analyzed meteorological, soil moisture, and temperature data for only one year; hence, there were some limitations in the analytical results. In future studies, soil physical and chemical indexes should be combined for analysis, whereas meteorological, soil moisture temperature data might be collected for a longer period of time to improve the reliability of the study. In summary, we believe that future changes in soil moisture may have increasingly profound impacts on forest ecology and hydrology, which will be progressively driven by rapidly changing environmental conditions due to global warming.

Author Contributions

Conceptualization, Y.T. and X.L.; methodology, Y.T. and X.L.; software, Y.T. and X.L.; validation, Y.T., X.L., X.C. and C.L.; formal analysis, Y.T. and X.L.; investigation, Y.T. and X.L.; resources, Y.T. and X.L.; data curation, Y.T. and X.L.; writing—original draft preparation, Y.T. and X.L.; writing—review and editing, Y.T. and X.L.; visualization, Y.T. and X.L.; supervision, Y.T., X.L., Z.J., S.M., L.Z. and B.Z.; project administration, Y.T. and X.L.; funding acquisition, Y.T., X.L. and J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This research was supported by the Natural Science Foundation for Youth of Jiangsu Province (BK20200785), National Special Fund for Forestry Scientific Research of the Jiangsu Agriculture Science, Technology Innovation Fund (Grant No. CX (17)1004), Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD), and China Postdoctoral Science Foundation (2018M642260). We would like to thank Frank Boehm, from Lakehead University, for the language editing of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Water 13 00914 g0a1 550

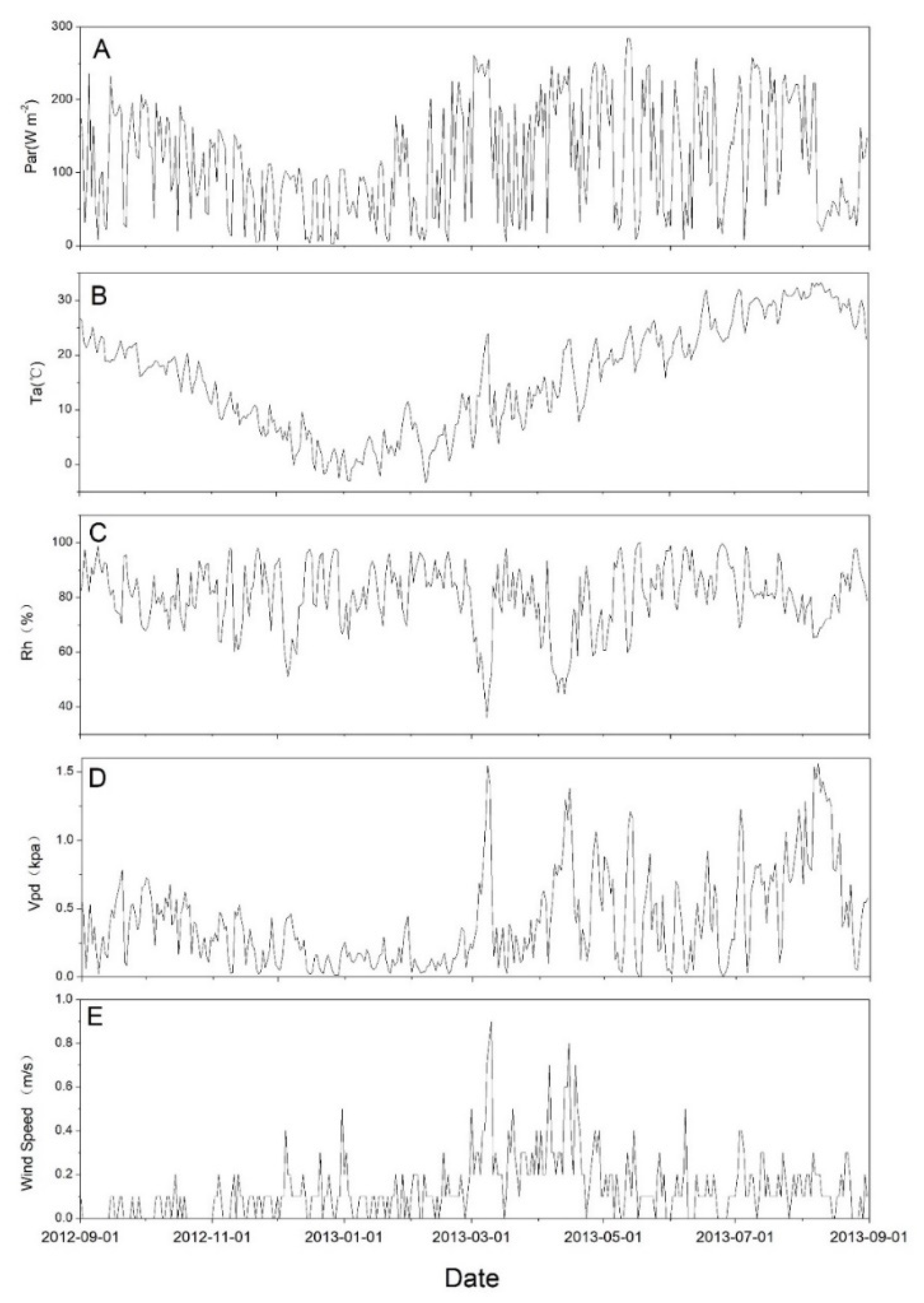

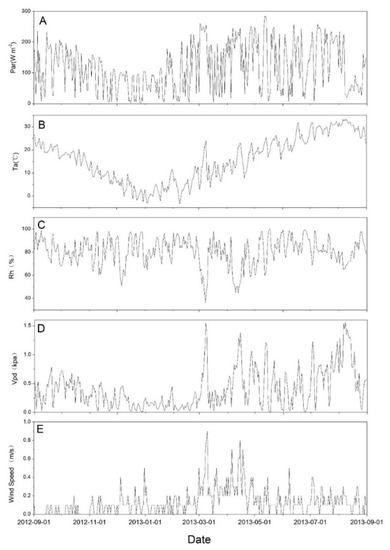

Figure A1. Seasonal course of daily mean photosynthetically-active radiation. (Par) (A), daily mean air temperature (Ta) (B), mean air relative humidity (Rh) (C), mean vapor pressure deficit (Vpd) (D), mean wind speed (E) between 9 September 2012 and 8 August 2013.
Figure A1. Seasonal course of daily mean photosynthetically-active radiation. (Par) (A), daily mean air temperature (Ta) (B), mean air relative humidity (Rh) (C), mean vapor pressure deficit (Vpd) (D), mean wind speed (E) between 9 September 2012 and 8 August 2013.
Water 13 00914 g0a1
Water 13 00914 g0a2 550

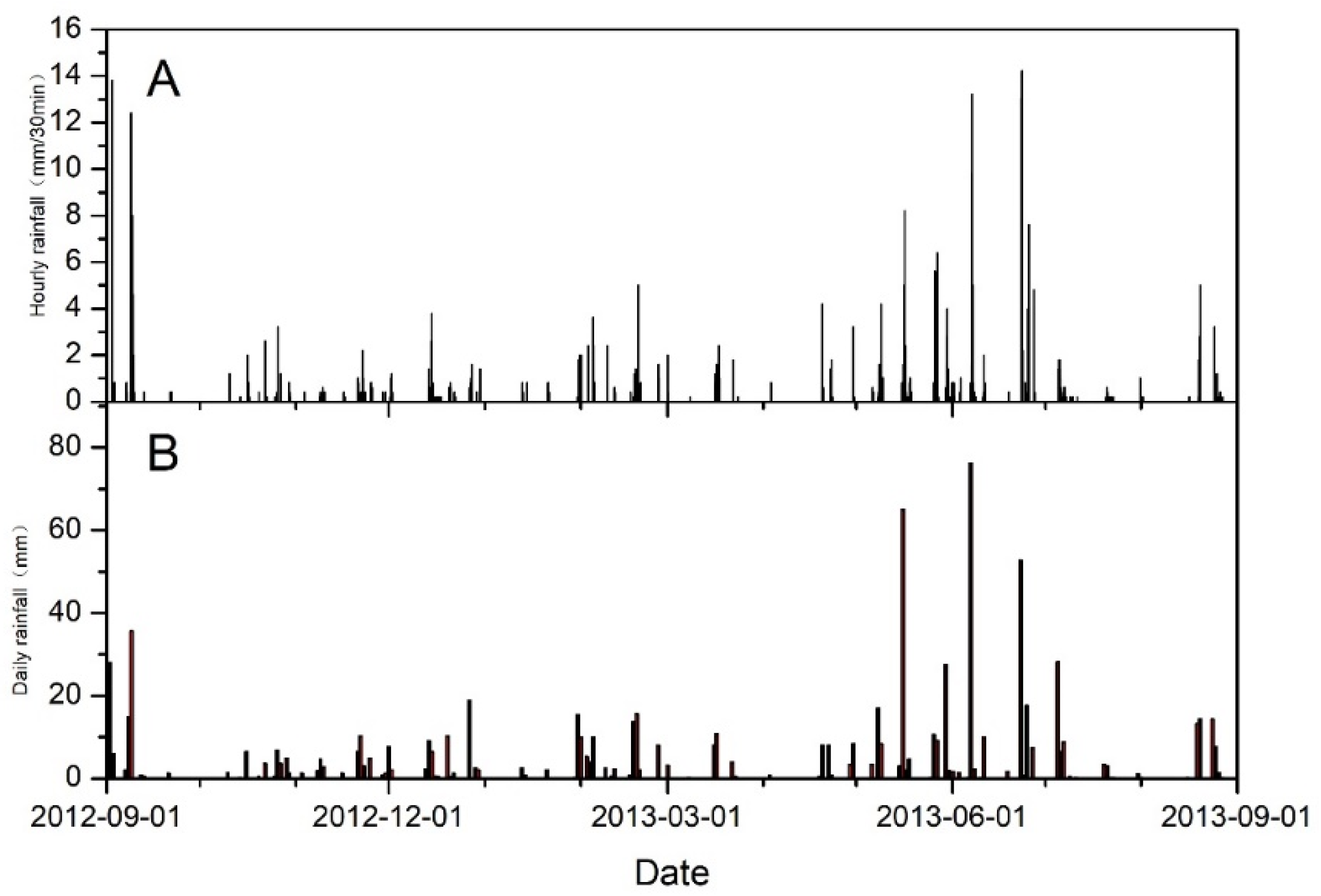

Figure A2. Rainfall measurements ((A): half-hourly rainfall; (B): daily rainfall).
Figure A2. Rainfall measurements ((A): half-hourly rainfall; (B): daily rainfall).
Water 13 00914 g0a2
