The Poopó Polymetallic Epithermal Deposit, Bolivia: Mineralogy, Genetic Constraints, and Distribution of Critical Elements
Abstract
:1. Introduction

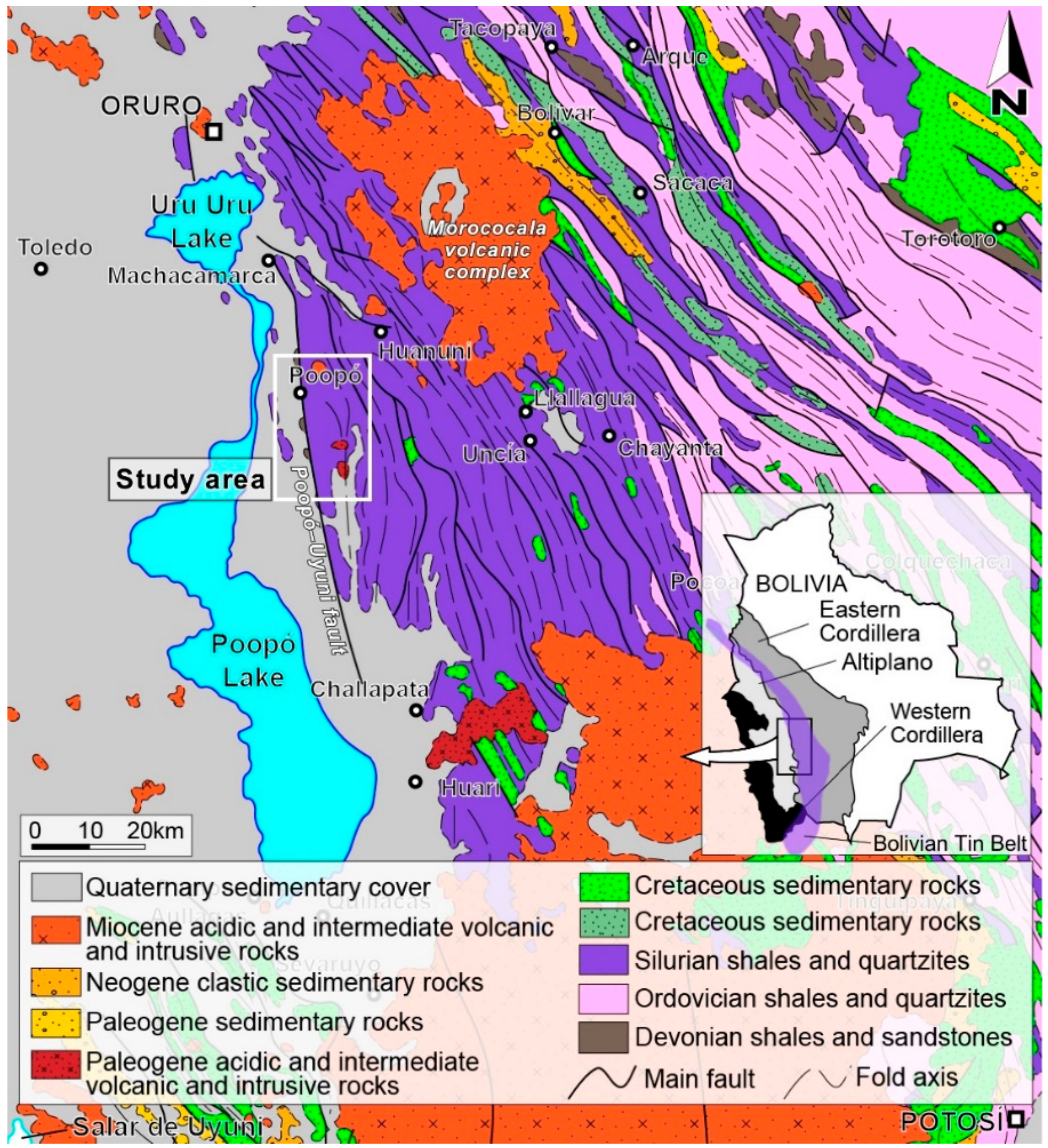

2. Geology
3. Methodology
4. Mineralogy
4.1. Alteration Assemblages
4.2. Mineralogy of the Veins
Vein Minerals

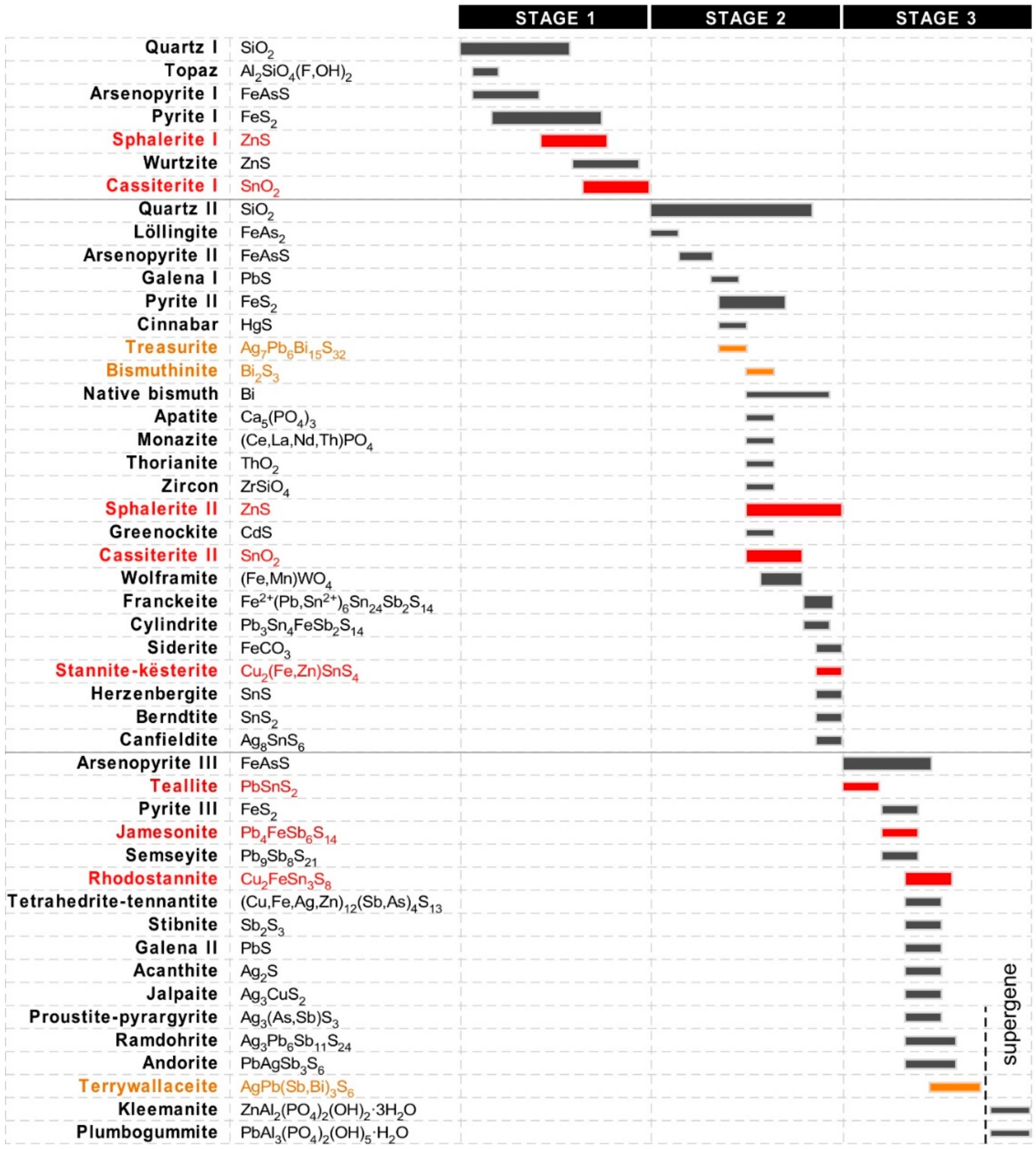

4.3. Paragenetic Sequence
5. Mineral Chemistry
6. Sulphur Isotopes
7. Discussion

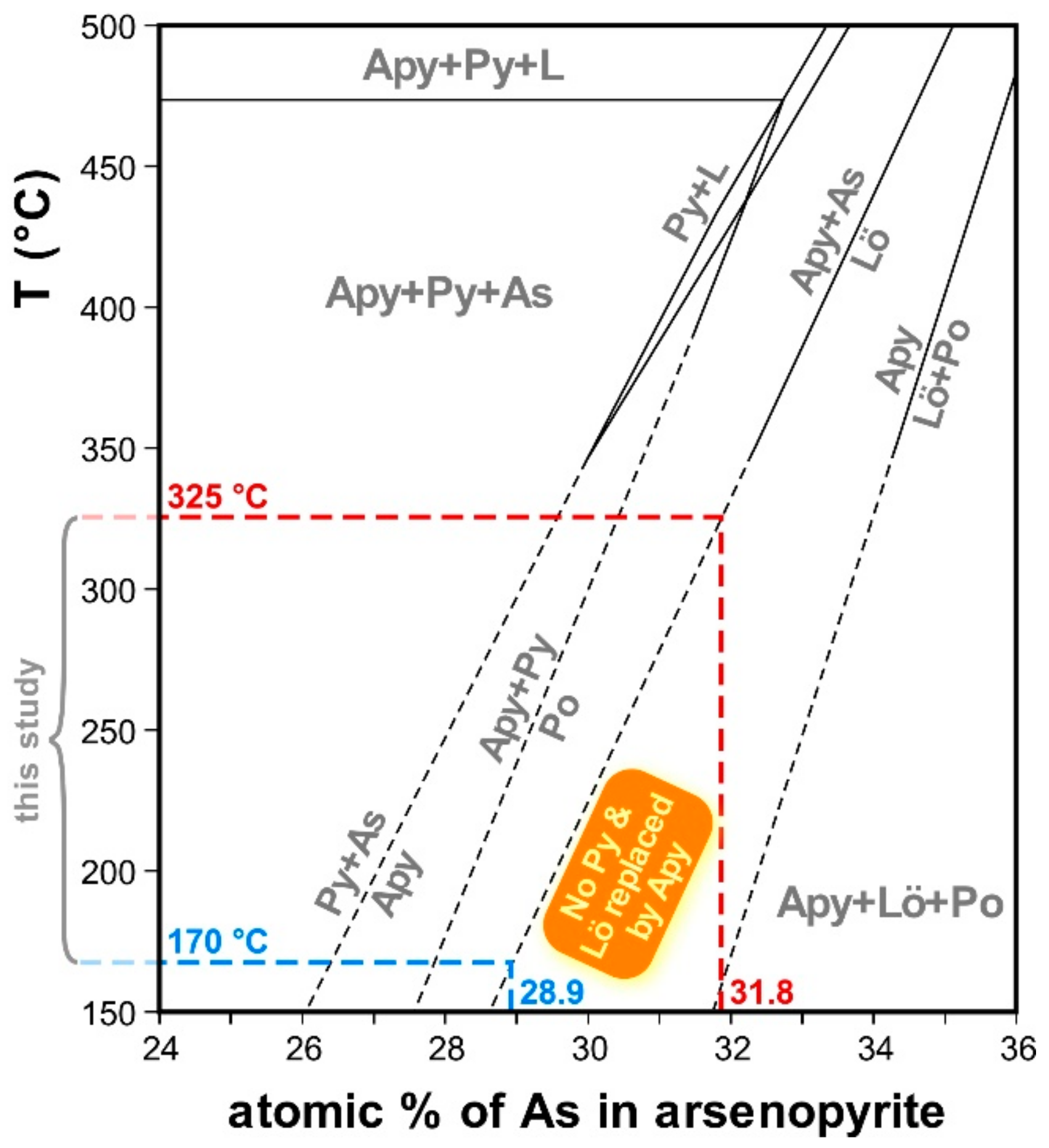

7.1. Type of Deposit and Conditions of Formation
7.2. Sources for Sulphur
7.3. Distribution of Strategic Elements in the Deposit
8. Conclusions
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Turneaure, F.S. The Bolivian tin-silver province. Econ. Geol. 1971, 66, 215–225. [Google Scholar] [CrossRef]
- Lehmann, B.; Ishihara, S.; Michel, H.; Miller, J.; Rapela, C.; Sanchez, A.; Tistl, M.; Winkelmann, L. The Bolivian tin province and regional tin distribution in the central Andes: A reassessment. Econ. Geol. 1990, 85, 1044–1058. [Google Scholar] [CrossRef]
- Mlynarczyk, M.S.J.; Williams-Jones, A.E. The role of collisional tectonics in the metallogeny of the Central Andean tin belt. Earth Plan. Sci. Lett. 2005, 240, 656–667. [Google Scholar] [CrossRef]
- Ishihara, S.; Murakami, H.; Marquez-Zavalia, M.F. Inferred indium resources of the Bolivian tin-polymetallic deposits. Resour. Geol. 2011, 61, 174–191. [Google Scholar] [CrossRef]
- Torró, L.; Melgarejo, J.C.; Gemmrich, L.; Mollinedo, D.; Cazorla, M.; Martínez, Á.; Pujol-Solà, N.; Farré de Pablo, J.; Camprubí, A.; Artiaga, D.; et al. Spatial and temporal controls on the distribution of indium in xenothermal vein deposits: The Huari Huari district, Potosí, Bolivia. Minerals 2019, 9, 304. [Google Scholar] [CrossRef]
- European Commission. Critical Raw Materials. Available online: https://ec.europa.eu/growth/sectors/raw-materials/specific-interest/critical_en (accessed on 1 April 2019).
- SERGEOTECMIN. Mapa Geológico de Bolivia, Escala 1:1.000.000; SERGEOTECMIN: La Paz, Bolivia, 2001. [Google Scholar]
- Panteleyev, A. Epithermal Au-Ag: Low Sulphidation. In Selected British Columbia Mineral Deposit Profiles, Vol. 2—Metallic Deposits; Lefebure, D.V., Hõy, T., Eds.; British Columbia Ministry of Employment and Investment: Vancouver, BC, Canada, 1996; pp. 45–48. [Google Scholar]
- Ahlfeld, F.; Schneider-Scherbina, A. Los yacimientos minerales y de hidrocarburos de Bolivia. Bol. Dept. Nac. Geol. La Paz 1964, 5, 1–388. [Google Scholar]
- Jelsma, H.A.; de Wit, M.J.; Thiart, C.; Dirks, P.H.G.M.; Viola, G.; Basson, I.J.; Anckar, E. Preferential distribution along transcontinental corridors of kimberlites and related rocks of Southern Africa. South. Af. J. Geol. 2004, 107, 301–324. [Google Scholar] [CrossRef]
- Nieto-Samaniego, A.F.; Alaniz-Álvarez, S.A.; Camprubí, A. The Central Mesa of México: Stratigraphy, structure and tectonic evolution during the Cenozoic. In Geology of México: Celebrating the Centenary of the Geological Society of México; Alaniz-Álvarez, S.A., Nieto-Samaniego, A.F., Eds.; The Geological Society of America: Boulder, CO, USA, 2007; Volume 422, pp. 41–70. [Google Scholar]
- Gibson, G.M.; Meixner, A.J.; Withnall, I.W.; Korsch, R.J.; Hutton, L.J.; Jones, L.E.A.; Holzschuh, J.; Costelloe, R.D.; Henson, P.A.; Saygin, E. Basin architecture and evolution in the Mount Isa mineral province, northern Australia: Constraints from deep seismic reflection profiling and implications for ore genesis. Ore Geol. Rev. 2016, 76, 414–441. [Google Scholar] [CrossRef]
- Deng, J.; Yang, L.Q.; Li, R.H.; Groves, D.I.; Santosh, M.; Wang, Z.L.; Sai, S.X.; Wang, S.R. Regional structural control on the distribution of world-class gold deposits: An overview from the Giant Jiaodong Gold Province, China. Geol. J. 2019, 54, 378–391. [Google Scholar] [CrossRef]
- Sempere, T.; Hérail, G.; Oller, J.; Bonhomme, M.G. Late Oligocene-Early Miocene major tectonic crisis and related basins in Bolivia. Geology 1990, 18, 946–949. [Google Scholar] [CrossRef]
- Sempere, T. Phanerozoic Evolution of Bolivia and Adjacent Regions; American Association of Petroleum Geologists (AAPG) Memoir: Tulsa, OK, USA, 1995; Volume 62, pp. 207–230. [Google Scholar]
- McQuarrie, N. The kinematic history of the central Andean fold-thrust belt, Bolivia: Implications for building a high plateau. Bull. Geol. Soc. Am. 2002, 114, 950–963. [Google Scholar] [CrossRef]
- McQuarrie, N.; DeCelles, P.G. Geometry and structural evolution of the Central Andean backthrust belt, Bolivia. Tectonics 2001, 20, 669–692. [Google Scholar] [CrossRef]
- Eichelberger, N.; McQuarrie, N.; Ryan, J.; Karimi, B.; Beck, S.; Zandt, G. Evolution of crustal thickening in the central Andes Bolivia. Earth Plan. Sci. Lett. 2015, 426, 191–203. [Google Scholar] [CrossRef]
- Ramos, V.A.; Aleman, A. Tectonic evolution of the Andes. In Tectonic Evolution of South America, Proceedings of 31st International Geological Congress, Rio de Janeiro, Brazil, 6–17 August 2000; Cordani, U.G., Milani, E.J., Thomaz Filho, A., Campos, D.A., Eds.; Brazilian Academy of Science—Departamento Nacional de Produção Mineral: Rio de Janeiro, Brazil, 2000; pp. 635–685. [Google Scholar]
- Lamb, S.; Hoke, L. Origin of the high plateau in the central Andes, Bolivia, South America. Tectonics 1997, 16, 623–649. [Google Scholar] [CrossRef]
- Heuschmidt, B.; Bellot de la Torre, J.; Miranda Angles, V.; Claure Zapata, M. Las áreas prospectivas de Bolivia para yacimientos metalíferos. Boletín Serv. Nac. Geol. Min. 2002, 30, 154. [Google Scholar]
- Jochum, K.P.; Weis, U.; Stoll, B.; Kuzmin, D.; Yang, Q.; Raczek, I.; Jacob, D.E.; Stracke, A.; Birbaum, K.; Frick, D.A.; et al. Determination of reference values for NIST SRM 610-617 glasses following ISO guidelines. Geostand. Geoanal. Res. 2011, 35, 397–429. [Google Scholar] [CrossRef]
- Van Achterbergh, E.; Ryan, C.G.; Jackson, S.E.; Griffin, W.L. Data reduction software for LA-ICP-MS: Appendix. In Laser Ablation–ICP–Mass Spectrometry in the Earth Sciences: Principles and Applications; Sylvester, P.J., Ed.; Mineralogical Association of Canada: St. Johns, NL, Canada, 2001; Volume 29, pp. 239–243. [Google Scholar]
- Griffin, W.L.; Powell, W.J.; Pearson, N.; O’Reilly, S.Y. GLITTER: Data reduction software for laser ablation ICP-MS. In Laser Ablation–ICP–MS in the Earth Sciences; Sylvester, P.J., Ed.; Mineralogical Association of Canada: St. Johns, NL, Canada, 2008; Volume 37, pp. 204–207. [Google Scholar]
- Mindat.org. Poopó town, Poopó Province, Oruro, Bolivia. Available online: https://www.mindat.org/loc-350.html (accessed on 2 April 2019).
- Frenzel, A. Über den Kylindrit. N. Jb. Miner. Geol. Paläont. 1893, 2, 125–128. [Google Scholar]
- Kelly, W.C.; Turneaure, F.S. Mineralogy, paragenesis and geothermometry of the tin and tungsten deposits of the eastern Andes, Bolivia. Econ. Geol. 1970, 65, 609–680. [Google Scholar] [CrossRef]
- Kretschmar, U.; Scott, S.D. Phase relations involving arsenopyrite in the system Fe-As-S and their application. Can. Mineral. 1976, 14, 364–386. [Google Scholar]
- Andersen, J.C.Ø.; Stickland, R.J.; Rollinson, G.K.; Shail, R.K. Indium mineralisation in SW England: Host parageneses and mineralogical relations. Ore Geol. Rev. 2016, 78, 213–238. [Google Scholar] [CrossRef] [Green Version]
- Sahlström, F.; Arribas, A.; Dirks, P.; Corral, I.; Chang, Z. Mineralogical distribution of germanium, gallium and indium at the Mt Carlton high-sulfidation epithermal deposit, NE Australia, and comparison with similar deposits worldwide. Minerals 2017, 7, 213. [Google Scholar] [CrossRef]
- Liu, J.; Rong, Y.; Zhang, S.; Liu, Z.; Chen, W. Indium mineralization in the Xianghualing Sn-polymetallic orefield in southern Hunan, Southern China. Minerals 2017, 7, 173. [Google Scholar] [CrossRef]
- Lerouge, C.; Gloaguen, E.; Wille, G.; Bailly, L. Distribution of In and other rare metals in cassiterite and associated minerals in Sn ± W ore deposits of the western Variscan Belt. Eur. J. Mineral. 2017, 29, 739–753. [Google Scholar] [CrossRef]
- Murakami, H.; Ishihara, S. Trace elements of Indium-bearing sphalerite from tin-polymetallic deposits in Bolivia, China and Japan: A femto-second LA-ICPMS study. Ore Geol. Rev. 2013, 53, 223–243. [Google Scholar] [CrossRef]
- Costi, H.T.; Coimbra Horbe, A.M.; Munhoz Krás Borges, R.; Dall’Agnol, R.; Sighnolfi, G. Mineral chemistry of cassiterites from Pitinga province, Amazonian, Craton, Brazil. Rev. Bras. Geoc. 2000, 30, 775–782. [Google Scholar] [CrossRef]
- Melcher, F.; Graupner, T.; Gäbler, H.E.; Sitnikova, M.; Oberthür, T.; Gerdes, A.; Badanina, E.; Chudy, T. Mineralogical and chemical evolution of tantalum–(niobium–tin) mineralisation in pegmatites and granites. Part 2: Worldwide examples (excluding Africa) and an overview of global metallogenetic patterns. Ore Geol. Rev. 2017, 89, 946–987. [Google Scholar] [CrossRef]
- Wille, G.; Lerouge, C.; Schmidt, U. A multimodal microcharacterisation of trace-element zonation and crystallographic orientation in natural cassiterite by combining cathodoluminescence, EBSD, EPMA and contribution of confocal Raman-in-SEM imaging. J. Microsc. 2018, 270, 309–317. [Google Scholar] [CrossRef]
- Einaudi, M.T.; Hedenquist, J.W.; Inan, E.E. Sulfidation state of fluids in active and extinct hydrothermal systems: Transitions from porphyry to epithermal environments. Soc. Econ. Geol. Spec. Publ. 2003, 10, 285–313. [Google Scholar]
- Teal, L.; Benavides, A. History and geologic overview of the Yanacocha mining district, Cajamarca, Peru. Econ. Geol. 2010, 105, 1173–1190. [Google Scholar] [CrossRef]
- Hedenquist, J.W.; Taran, Y.A. Modeling the formation of advanced argillic lithocaps: Volcanic vapor condensation above porphyry intrusions. Econ. Geol. 2013, 108, 1523–1540. [Google Scholar] [CrossRef]
- Hemley, J.J.; Montoya, J.W.; Marinenko, J.W.; Luce, R.W. Equilibria in the system Al2O3-SiO2-H2O and some implications for alteration/mineralization process. Econ. Geol. 1980, 75, 210–228. [Google Scholar] [CrossRef]
- Camprubí, A.; Albinson, T. Epithermal deposits in México—an update of current knowledge, and an empirical reclassification. In Geology of México: Celebrating the Centenary of the Geological Society of México; Alaniz-Álvarez, S.A., Nieto-Samaniego, A.F., Eds.; The Geological Society of America: Boulder, CO, USA, 2007; Volume 422, pp. 377–415. [Google Scholar]
- Voudouris, P.C. Hydrothermal corundum, topaz, diaspore and alunite supergroup minerals in the advanced argillic alteration lithocap of the Kassiteres-Sapes porphyry-epithermal system, western Thrace, Greece. Neues Jahrb. Miner. Abh. 2014, 191, 117–136. [Google Scholar] [CrossRef]
- Andressa, T.; Crósta, A.P.; Toledo, C.L.B.; Silva, A.M. Unveiling the hydrothermal mineralogy of the Chapi Chiara gold prospect, Peru, through reflectance spectroscopy, geochemical and petrographic data. Ore Geol. Rev. 2015, 64, 299–315. [Google Scholar]
- Chambefort, I.; Lewis, B.; Simpson, M.P.; Bignall, G.; Rae, A.J.; Ganefianto, N. Ngatamariki geothermal system: Magmatic to epithermal transition in the Taupo volcanic zone, New Zealand. Econ. Geol. 2017, 112, 319–346. [Google Scholar] [CrossRef]
- Schwarz-Schampera, U.; Herzig, P.M. Indium. Geology, Mineralogy, and Economics; Springer: Berlin, Germany, 2002. [Google Scholar]
- Sugaki, A.; Ueno, H.; Hayashi, K. Sulfur isotope reconnaissance of Bolivian hydrothermal deposits. Min. Geol. 1990, 40, 299–312. [Google Scholar]
- Xiong, Y.Q.; Shao, Y.J.; Mao, J.W.; Wu, S.C.; Zheng, M.H. The polymetallic magmatic-hydrothermal Xiangdong and Dalong systems in the W–Sn–Cu–Pb–Zn–Ag Dengfuxian orefield, SE China: Constraints from geology, fluid inclusions, H–O–S–Pb isotopes, and sphalerite Rb–Sr geochronology. Miner. Depos. 2019. [Google Scholar] [CrossRef]
- Camprubí, A.; Cardellach, E.; Canals, À.; Lucchini, R. The La Guitarra Ag-Au low sulfidation epithermal deposit, Temascaltepec district, Mexico: Fluid inclusion and stable isotope data. In New Mines and Discoveries in Mexico and Central America; Albinson, T., Nelson, C.E., Eds.; Society of Economic Geologists Special Publication: Littleton, CO, USA, 2001; Volume 8, pp. 159–185. [Google Scholar]
- Camprubí, A.; González-Partida, E.; Torres-Tafolla, E. Fluid inclusion and stable isotope study of the Cobre–Babilonia polymetallic epithermal vein system, Taxco district, Guerrero, Mexico. J. Geochem. Explor. 2006, 89, 33–38. [Google Scholar] [CrossRef]
- Mango, H.; Arehart, G.; Oreskes, N.; Zantop, H. Origin of epithermal Ag–Au–Cu–Pb–Zn mineralization in Guanajuato, Mexico. Miner. Depos. 2014, 49, 119–143. [Google Scholar] [CrossRef]
- Ishihara, S. The granitoid series and mineralization. Econ. Geol. 1981, 75, 458–484. [Google Scholar]
- Morgan, G.B., IV; London, D.; Luedke, R.G. Petrochemistry of Late Miocene perluminous silicic volcanic rocks from the Morococala field, Bolivia. J. Pet. 1998, 4, 601–632. [Google Scholar] [CrossRef]
- Lehmann, B.; Dietrich, A.; Heinhorst, J.; Metrich, N.; Mosbah, M.; Palacios, C.; Schneider, H.J.; Wallianos, A.; Webster, J.; Winkelmann, L. Boron in the Bolivian tin belt. Miner. Depos. 2000, 35, 223–232. [Google Scholar] [CrossRef]
- Seal, I.R. Sulfur isotope geochemistry of sulfide minerals. Rev. Miner. Geochem. 2006, 61, 633–677. [Google Scholar] [CrossRef]

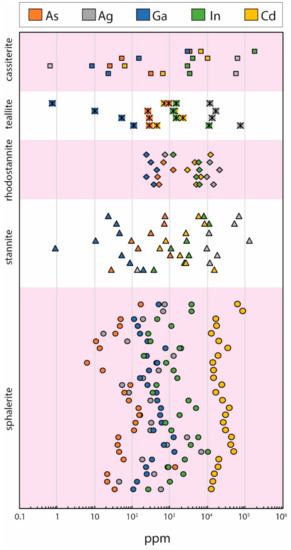

Mineral | Label | 115In | 1σ | 69Ga | 1σ |
---|---|---|---|---|---|
sphalerite | P1-B-32 | 269 | 65 | 110 | 85 |
P2-A-37 | 1030 | 180 | 140 | 35 | |
P2-B-40 | 2360 | 170 | 246 | 18 | |
P2-C-46 | 949 | 84 | 233 | 21 | |
P2-D-48 | 2520 | 80 | 340 | 11 | |
P3-A-49 | 10,500 | 340 | 1360 | 46 | |
P3-B-52 | 3640 | 110 | 717 | 22 | |
P3-B-53 | 5750 | 190 | 1280 | 45 | |
P4-A-67 | 1120 | 220 | 380 | 75 | |
P4-B-70 | 779 | 170 | 608 | 120 | |
P4-D-73 | 1850 | 390 | 565 | 120 | |
P4-E-75 | 5010 | 1200 | 599 | 140 | |
P5-A-77 | 3230 | 750 | 463 | 110 | |
P6-A-81 | 360 | 95 | 447 | 110 | |
P6-A-82 | 457 | 120 | 260 | 74 | |
P7-A-84 | 1610 | 110 | 166 | 12 | |
P7-B-86 | 1300 | 92 | 289 | 23 | |
P8-A-88 | 809 | 65 | 478 | 40 | |
P9-A-93 | 203 | 19 | 246 | 25 | |
P9-B-96 | 1850 | 190 | 769 | 85 | |
P9-B-97 | 307 | 34 | 266 | 31 | |
P10-A-147 | 269 | 73 | 164 | 46 | |
P10-B-149 | 1120 | 380 | 146 | 47 | |
P10-C-152 | 482 | 200 | 116 | 50 | |
P11-B-156 | 3870 | 1100 | <dl | - | |
P11-C-157 | 3780 | 1200 | 508 | 100 | |
stannite | P1-C-34 | 368 | 23 | 199 | 13 |
P2-B-41 | 2400 | 200 | 85.7 | 7.1 | |
P2-D-47 | 3140 | 290 | 53.8 | 5.1 | |
P8-B-91 | 1090 | 94 | 0.90 | 0.094 | |
P9-A-94 | 2820 | 380 | 10.9 | 0.96 | |
P10-C-153 | 2650 | 1400 | 46.4 | 24 | |
P11-C-158 | 11,100 | 3200 | 38.9 | 13 | |
P11-D-159 | 8040 | 2400 | 22.9 | 6.5 | |
rhodostannite | P4-A-68 | 6070 | 1200 | 377 | 74 |
P4-B-69 | 5160 | 1000 | 239 | 48 | |
P4-D-72 | 6030 | 1300 | 441 | 95 | |
P4-E-76 | 5800 | 1300 | 316 | 81 | |
P7-B-87 | 1240 | 260 | 241 | 10 | |
teallite | P5-B-80 | 10,800 | 2900 | 108 | 23 |
P8-A-89 | 1480 | 120 | 54.0 | 6.0 | |
P8-A-90 | 1220 | 98 | 10.3 | 2.2 | |
P9-A-95 | 1460 | 150 | 0.76 | 0.096 | |
cassiterite | P1-B-33 | 3530 | 130 | 24.3 | 0.38 |
P2-A-39 | 3070 | 110 | 8.95 | 1.4 | |
P2-B-42 | 4280 | 150 | 157 | 16 | |
P10-B-150 | 18,3000 | 1900 | 3060 | 306 |

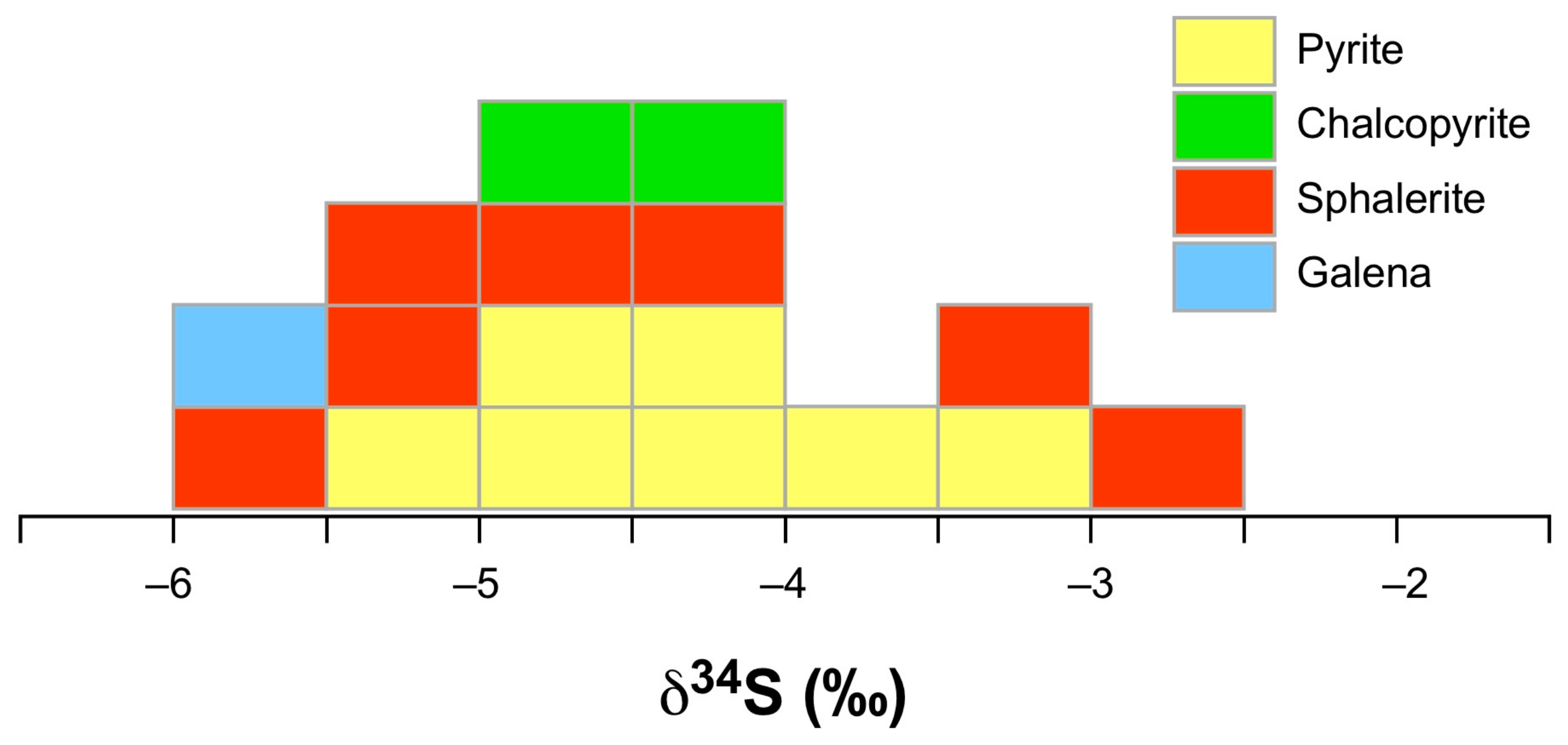

Sample | Mineral | δ34SVCDT (‰) |
---|---|---|
P1 | chalcopyrite | −4.8 |
P6 | pyrite | −3.7 |
P7 | pyrite | −3.4 |
sphalerite | −2.8 | |
P8 | pyrite | −4.1 |
sphalerite | −3.2 | |
chalcopyrite | −4.2 | |
P11 | pyrite | −4.2 |
sphalerite | −5.8 | |
P12 | pyrite | −4.6 |
sphalerite | −5.5 | |
P13 | sphalerite | −5.4 |
P19 | pyrite | −4.5 |
galena | −5.9 | |
P22 | pyrite | −5.4 |
sphalerite | −4.6 | |
P23 | sphalerite | −4.4 |
