UVC Box: An Effective Way to Quickly Decontaminate Healthcare Facilities’ Wheelchairs

Abstract

Disinfection in the hospital environment remains challenging, especially for wide and structurally complex objects such as beds or wheelchairs. Indeed, the regular disinfection of these objects with chemicals is manually carried out by healthcare workers and is fastidious and time-consuming. Alternative antibacterial techniques were thus proposed in the past decades, including the use of naturally antimicrobial UVC. Here, the antibacterial efficiency of a large UVC box built to accommodate wheelchairs was investigated through testing bacterial burden reductions on various parts of a wheelchair, with various support types and with several treatment durations. The results demonstrate a time-dependent antibacterial effect, with a strong burden reduction at only five minutes of treatment (>3-log median reduction in Escherichia coli and Staphylococcus epidermidis). The UVC flux and residual bacterial burden both significantly varied depending on the spatial location on the wheelchair. However, the nature of the support impacted the antibacterial efficiency even more, with residual bacterial burdens being the lowest on rigid materials (steel, plastics) and being the highest on tissue. On metallic samples, the nature of the alloy and surface treatment had various impacts on the antibacterial efficiency of the UVC. This study highlights the efficiency of the tested UVC box to efficiently and quickly decontaminate complex objects such as wheelchairs, but also gives rise to the warning to focus on rigid materials and avoid porous materials in the conception of objects, so as to ensure the efficiency of UVC decontamination.

1. Introduction

More than ever, the spread of pathogens in human or animal communities is concerning. The COVID-19 pandemic brought the problem of microorganism’s transmission to light, especially since the rate of healthcare-associated infections (HAIs) caused by other pathogens significantly rose (eventually by 60%) during the period between March and September 2020 [1]. This sheds light on the importance of the transmission of microorganisms and how quick the spread between people can be. Since 2020, reinforced hygiene habits have been adopted by populations and numerous solutions to reduce sanitary risks in human environments have been proposed.

In healthcare facilities particularly, the protection of patients, residents, and visitors, but also healthcare workers against pathogen transmission is essential. Indeed, the prevalence of HAIs does not decrease to less than 4–5% [2]. In palliative units, this rate can dramatically rise to above 70% [3], and an important part of HAIs might originate from cross-contamination [4].

Cross-contamination between colonized and naïve persons can occur via direct contact but also through the surrounding inert environment [5]. Indeed, numerous pathogens can spread on healthcare surfaces, where they can potentially persist for months [5,6]. Thus, these contaminated surfaces represent a threat toward future users, with the contaminations being higher for frequently touched surfaces or items near the patient [5,7].

Currently, reducing the risk from environmental surfaces mainly involves chemical cleaning and manual disinfection by workers. While the antimicrobial activity of numerous chemicals agents is well known, with various efficiencies (a 5-log reduction of the microbial burden obtained within minutes to hours) [8], this type of disinfection represents a time-consuming and fastidious task. In particular, geometrically complex objects such as wheelchair, beds, and stretchers need to be frequently disinfected, which takes considerable time through manual cleaning. In addition, several studies have demonstrated that room cleaning is often insufficient, with the majority of surfaces not being properly disinfected [9,10,11,12,13,14,15].

Thus, automating the disinfection process might allow saving time and ensure a constant quality level of the process. Self-disinfecting surfaces have gained popularity over the last decades, especially copper-containing surfaces that demonstrated a microbial burden log-reduction within under 30 min to several hours in vitro [16,17] and lowered contamination levels as observed in in-use studies of copper-containing touch surfaces [17,18,19]. However, as the antimicrobial effect of copper relies on copper ions releasing from the surface through oxidation [16], the use of copper might not be adapted to the production of large objects meant to be in prolonged contact with patients’ skin.

Another promising way to perform an automated disinfection might be through ultraviolet C (UVC) treatment. For several years, UVC has drawn attention as an interesting non-chemical method to eliminate bacteria, viruses, and fungi, with promising results [20,21]. For example, a 15 s exposure reduced burdens of methicillin-resistant Staphylococcus aureus and of bacteriophage MS2 by more than 99% and reduced burdens of Clostridium difficile by 96% [20]. UVC is a non-visible electromagnetic radiation whose wavelengths range from 100 nm to 280 nm, and the 200–280 nm window is effective for microbial decontamination [22]. UVC directly interacts with DNA strands in living organisms, inducing the photodimerization of thymine, which leads to the binding of consecutive DNA bases together [23,24]. This process induces the corrupted translation and replication of the DNA. Conjointly, UVC triggers a hyperproduction of reactive oxygen species (ROS) [25]. Thus, high doses of UVC induce a large amount of mutations and an important oxidative stress that together lead to cell death (or virus inactivation) [23].

The potential applications of UVC are various, including the antimicrobial treatment of air, water, food, and inert surfaces [9,23,26,27,28]. In healthcare, small UVC boxes are already proposed for the disinfection of small items like medical ultrasound probes. While the use of UVC to disinfect larger objects is interesting, the use of UVC as a disinfection process encounters limitations that are inherent to the technology. This includes the rapid decrease of UVC energy with distance from the source (especially in water), and the inability to pass through physical barriers, which can be numerous in large and complex objects. This might make some areas unreachable for UVC, leading to incomplete disinfection, which combines with the difficulty to obtain powerful-enough UVC sources to ensure complete elimination of microorganisms on these types of wide and geometrically complex objects.

The aim of this study was to characterize the antibacterial capacities of a large UVC box (BYOLA Hosta 900^®, Byola, Faulquemont, France) composed of powerful lamps and highly reflective inner surfaces, against Escherichia coli, Staphylococcus epidermidis, and Bacillus subtilis spores. The investigations examined the ability of the box to reduce the bacterial burden on various sites of a wheelchair, on various types of surfaces, and on materials of different natures.

2. Materials and Methods

2.1. Characteristics of the UVC Box

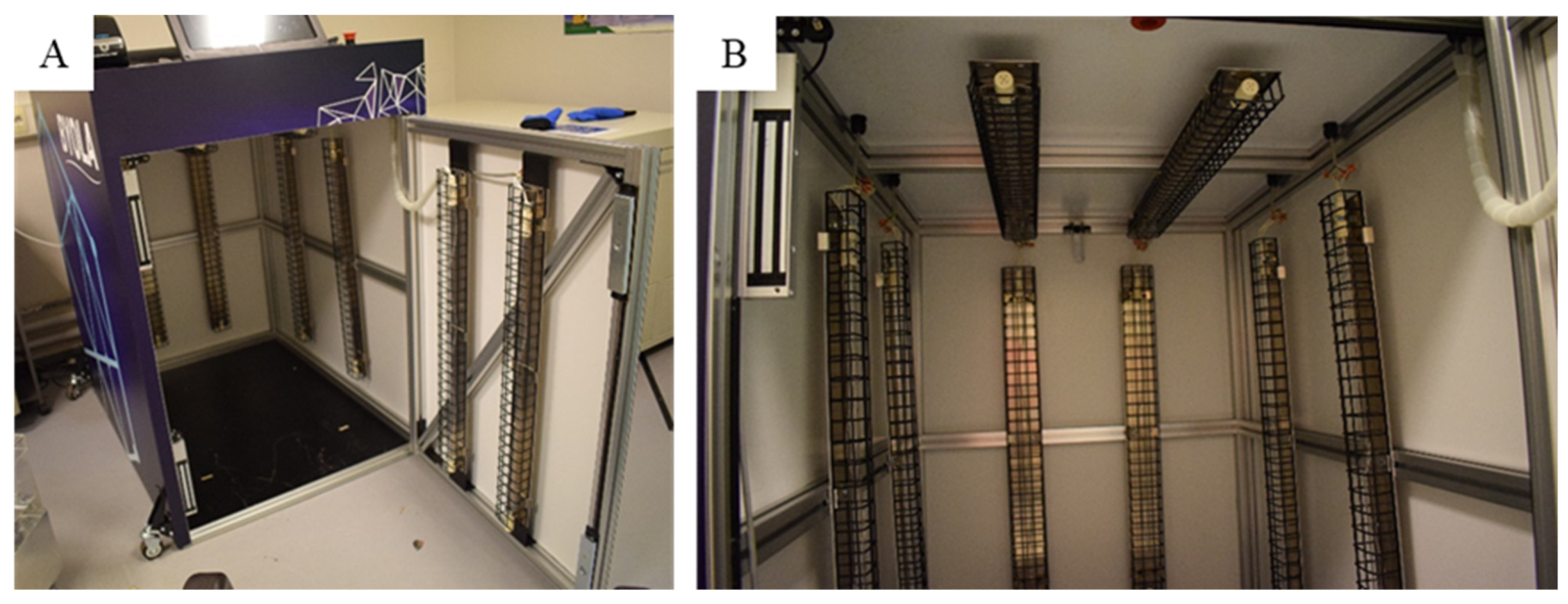

The UVC box used in the tests was a BYOLA Hosta 900^® (BYOLA, Faulquemont, France) (Figure 1). The inner surfaces of the box measured H115×L90×D118 cm. Ten Amalgam T6 TUV XPT SE UVC lamps (Philips, Amsterdam, The Netherlands) (130 W each, peak radiation at 253.7 nm) were distributed on inner sides of the box, with two lamps per side (including door side) fixed vertically, and two lamps on the top panel, fixed horizontally. The inside panels of the box were white and non-reflecting on the four sides and top side. The floor panel was black and non-reflecting. The UVC lamps were fixed on reflecting metallic rails.

2.2. Wheelchair and Material Samples Preparation

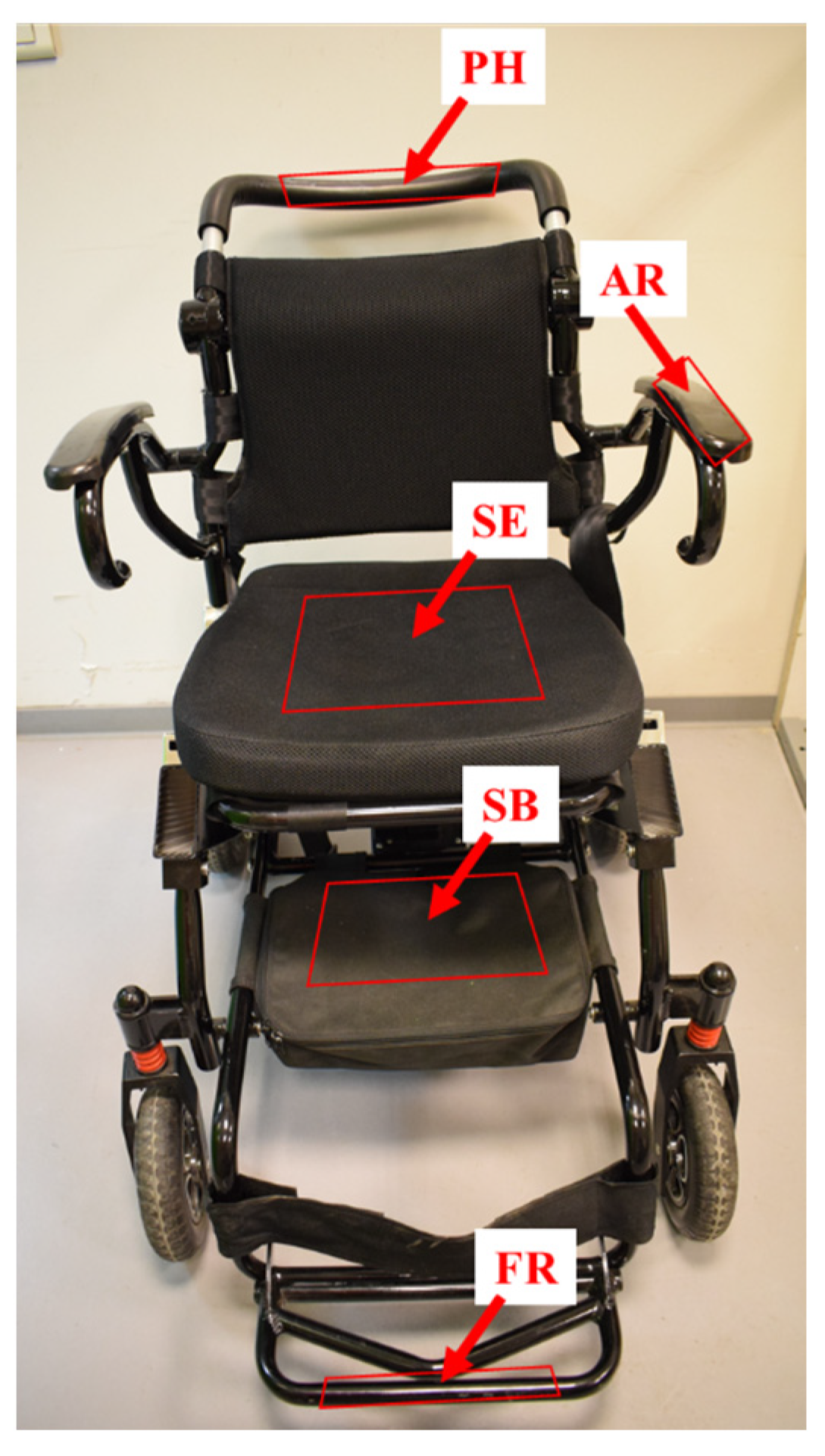

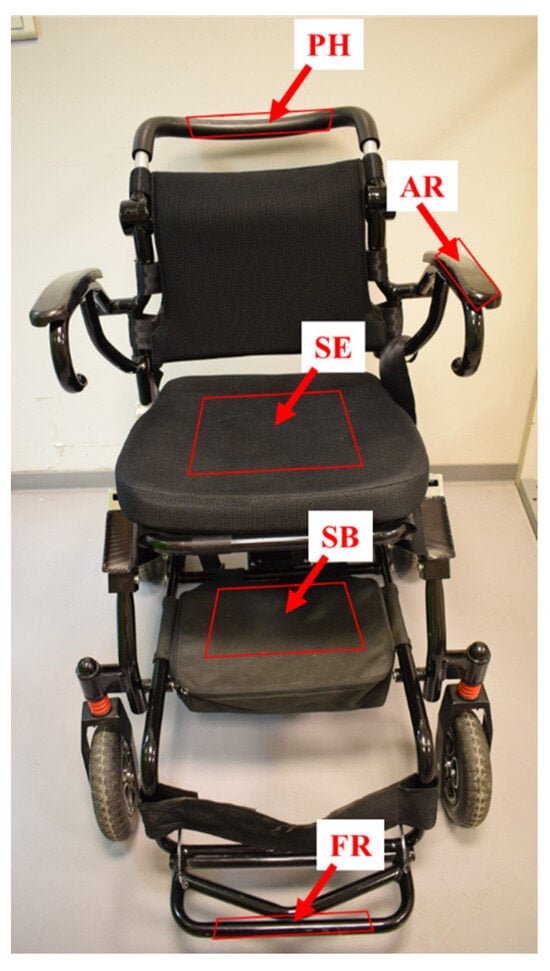

A Lightchair^® (Logo Silver, Échirolles, France) wheelchair was used to perform either direct inoculation of bacteria on the wheelchair or to position material samples artificially contaminated with bacteria. Five positions were selected for bacterial tests (Figure 2). Eight types of material samples were used (

Table 1. Material samples from wheelchair.

Type of Samples	Materials	Porosity
Armrest	Artificial leather	Non-porous
Push handle	Rubber	Non-porous
Black steel tube	Painted steel	Non-porous
Grey steel tube	Painted steel	Non-porous
Ribbed plastic	Plastic	Non-porous
Angled plastic	Plastic	Non-porous
Seatback	Artificial leather	Non-porous
Seat cushion	Tissue and foam	Porous

).

2.3. Metallic Samples Preparation

Three metals used in the manufacturing of wheelchair parts were tested: 304L steel, S235 steel, and 5754 aluminum. The chemical compositions of these alloys are given in

Table 2. Chemical compositions (wt%) of 5754 aluminum, S235 steel, and 304L steel.

5754 Aluminum	Al	Mg	Mn	Fe	Si	Cr	Zn	Ti	Cu
	bal.	2.6–3.6	<0.5	<0.4	<0.4	<0.3	<0.2	<0.15	<0.1
S235 steel	Fe	C	Mn	Cu	P	S	N
	bal.	<0.2	<1.4	<0.55	<0.04	<0.04	<0.012
304L steel	Fe	C	Cr	Ni	Mn	Si	N	P	S
	bal.	<0.03	17.5–19.5	8–10.5	<2	<1	<0.11	<0.045	<0.015

.

The samples were cylindrical discs of 5 mm thickness and 29 mm diameter. All samples were cut using a water jet from 500 × 500 × 5 mm plates in order to avoid any heating and therefore any formation of oxides.

The samples were then separated into three batches, each undergoing a different surface preparation:

• Polished samples (Pol.) to simulate a scratched condition. The specimens were polished with a polishing turret and 80# diamond abrasive paper.
• Sandblasted samples (San.) to simulate a surface condition typically found on industrial parts. Blasting was performed with a 220# corundum and 7 bar dry air pressure.
• Mirror-polished samples (Mir.) to simulate a perfect finish. The samples were manually polished to 1200 grit before being automatically polished with 9, 6, and 3 µm diamond powder solutions for 5 min at a pressure of 20 N. The final mirroring step was performed using a colloidal silica suspension (OPS) for 5 min at a pressure of 10 N.

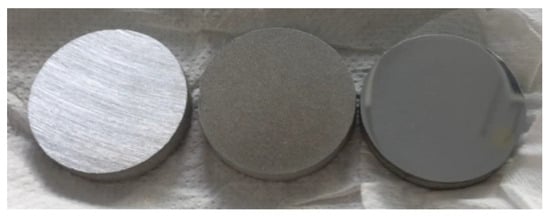

Figure 3 shows an overview of the processed samples. Roughness was measured using a Surftest SJ-210 roughness tester (Mitutoyo, Kawasaki, Japan) with a feed rate of 0.5 mm/s.

2.4. Bacterial Strains Preparation

2.4.1. Vegetative Bacteria

Escherichia coli CIP 54.8T and Staphylococcus epidermidis CIP 53124 strains were maintained for long-term conservation at −80 °C and thawed just before use. Strains were seeded onto tryptic soy agar plates (TSA, Biokar Diagnostics, Allonne, France) and incubated aerobically at 37 °C for 24 h to create a reference petri dish. For each assay, two or three colonies were resuspended in 10 mL of tryptic soy broth (TSB, Sigma-Aldrich, Dutscher, Brumath, France) and incubated at 37 °C, stirring overnight. Subsequently, 3 mL of the culture was added to 50 mL of TSB, and incubated at 37 °C, stirring for four hours. After three washes with 10 mL peptone water and centrifugation (4500× g for 5 min), the bacterial pellet was resuspended in peptone water to reach a concentration of 10¹⁰ CFU/mL.

2.4.2. Bacillus Subtilis Spores

A Bacillus subtilis ATCC 6633 spores BAS E9 suspension (Liofilchem, Roseto degli Abruzzi, Italy) was used at a final concentration of spores in the suspension of around 10⁹ CFU/mL. The initial suspension was diluted to half in distilled water and stocked at 4 °C. Before the assays, the diluted suspension was vortexed for 2 min, ultrasonicated in a bath (45 kHz) for 5 min, and the suspension was once again vortexed for 2 min. The presence of spores and absence of vegetative bacteria in the suspension were confirmed by Malachite green staining and observation by optical microscopy.

2.5. UVC Treatment Procedure and Evaluation of Antibacterial Activity

All types of surfaces tested were sprayed with 70% ethanol and allowed to dry for at least ten minutes before the beginning of the assay.

Three independent droplets of 10 µL of bacterial or spore suspension were deposited on the tested surface or on the material sample. The wheelchair was placed in the box and the door was sealed. The UVC lamps were then activated for 5, 15, or 30 min. The UVC power was measured using a UVC light meter (UVC-254SD, Lutron, Coopersburg, Pennsylvania, USA). After the treatment, residual bacteria in each inoculum were carefully harvested using a sterile swab moistened with 50 µL of peptone water. The swab was firmly applied to the area of the inoculum and rotated. The swab was then placed in a 50 mL sterile tube containing 7.5 mL of peptone water. Tubes were placed in an ultrasonic bath (35 Hz) for 2 min and then briefly vortexed for 20 s. Serial dilutions of each tube suspension were performed in peptone water and 100 µL of each dilution was exponentially seeded (easySpiral Pro, Interscience, Saint-Nom-la-Bretèche, France) on TSA. Plates were incubated for 24 h, either at 37 °C for the bacteria or 30 °C for the spores. Colonies were counted using the Interscience Scan 1200 to determine the number of colony-forming units (CFU) per inoculum. For the control condition, the procedure was identical, except that the UVC lamps were not activated. All biological tests were performed three times (n = 3).

2.6. Statistical Analysis

Conditions were compared using the non-parametric Kruskal–Wallis (KW) test for the comparison of multiple conditions and the non-parametric Mann–Whitney (MW) test (two-tailed) for the comparison of two conditions. Differences between conditions were considered significant for p < 0.05.

3. Results

3.1. UVC Power Displayed in the Box

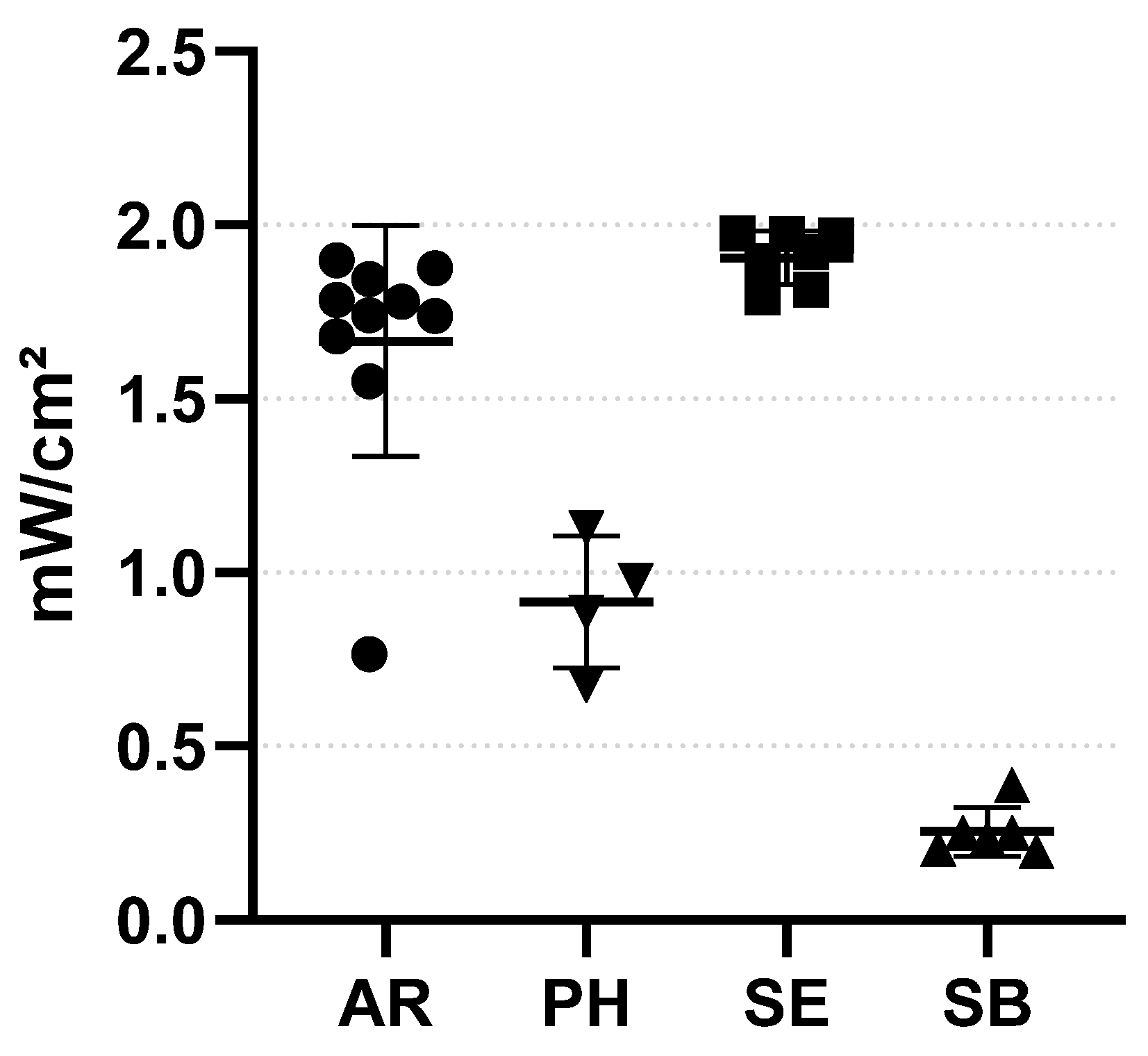

Important differences were observed regarding the position of the light meter on the wheelchair (Figure 4). The mean radiant flux was 1.666 mW/cm² on AR, 1.906 mW/cm² on SE, 0.255 mW/cm² on SB, and 0.916 mW/cm² on PH. The most important difference was between SB and SE, the radiant flux on SB representing only 13% of the radiant flux on SE.

3.2. Effects of Treatment Time and Positions on the Wheelchair

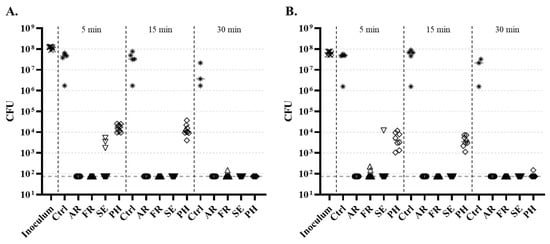

The first investigations were performed through direct inoculation of E. coli or S. epidermidis on the wheelchair and the testing of three treatment duration: 5, 15, and 30 min (Figure 5). A strong and significant antibacterial effect was observed on all surfaces and for both bacterial strains, as soon as after 5 min of treatment. However, differences were noted depending on the position on the wheelchair. Regarding E. coli, no surviving bacteria were detected on AR nor on FR after 5 min, but three inocula on SE and all nine inocula on PH harbored surviving bacteria. A 15 min treatment eliminated all detectable bacteria on SE but not on PH, with still around 10⁴ UFC per inocula. A 30 min treatment induced more than a 4-log reduction of the bacterial burden at all positions. The results on S. epidermidis were very similar, except that at 5 min a slight survival of bacteria was noted on FR.

3.3. Investigation of the Effect of the Surface Material and Position on the Wheelchair on the Antibacterial Activity

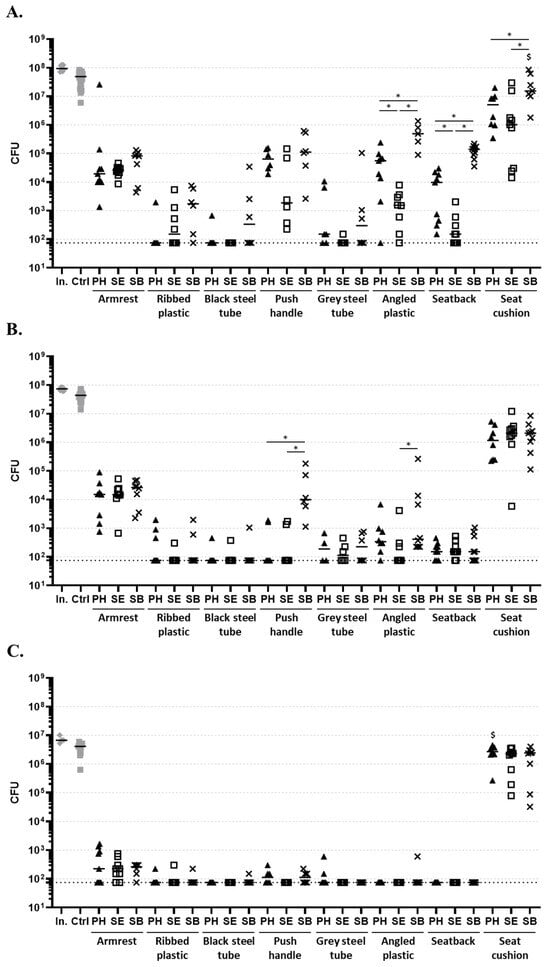

To discriminated if the differences in bacterial survival were due to the position on the wheelchair or to the material composition of the surface, eight types of material samples cut from a second wheelchair (Table 1) were artificially contaminated with bacteria, placed at one of three positions of the wheelchair and treated with UVC for five minutes (Figure 6).

The five-minute treatment induced a statistical reduction of the bacterial burden for each strain, position, and material type (except for E. coli on the seat cushion at position SB and for B. subtilis spores on seat cushion at position PH). Overall, bacterial burdens were reduced by up to more than five logs through the treatment. Once again, the activity was stronger on S. epidermidis than on E. coli on each type of support. Surprisingly, the antibacterial effects observed on B. subtilis spores were higher than the effect on both E. coli and S. epidermidis, excepted for the seat cushion, on which almost no reduction was observed (0.2 log comparing medians).

While the bacterial burdens were differently impacted by the position for the push handles (S. epidermidis), angle plastics (E. coli and S. epidermidis), or seat back (E. coli), the position on the wheelchair led to undetectable differences in the antibacterial effects for most of the materials tested (e.g., no observable difference for the armrest, regardless of the strain).

Conversely, the antibacterial effect highly depended on the type of material. For example, on the seatback materials and angled plastic, residual E. coli burdens were significantly different between positions, the lowest burdens being observed at SE and the highest at SB.

To sum up, for each bacterial species tested (E. coli, S. epidermidis, and B. subtilis spores) and for each position independently, the type of material had a significant impact on the residual bacterial burden (KW test; p < 0.0001). The statistical one-by-one comparison of material types (

Table A1. Statistical comparison of residual E. coli burdens on materials. p values of Mann–Whitney tests. Numbers are noted in bold when p < 0.05.

PH position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	0.002
Black steel tube	0.0004	0.7273
Push handle	0.1077	0.0043	0.0022
Grey steel tube	0.0046	0.21	0.1515	0.0022
Angled plastic	0.7125	0.0065	0.0028	0.405	0.0162
Seatback	0.0892	0.0105	0.0022	0.0016	0.047	0.0625
Seat cushion	0.0054	0.0016	0.0007	0.0007	0.0007	<0.0001	<0.0001
SE position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	<0.0001
Black steel tube	0.0002	0.0769
Push handle	0.3277	0.0443	0.0006
Grey steel tube	0.0004	0.1329	0.4615	0.0022
Angled plastic	<0.0001	0.0993	0.0014	0.662	0.007
Seatback	<0.0001	0.8566	0.0337	0.01	0.168	0.0355
Seat cushion	0.0315	<0.0001	0.0002	0.012	0.0004	<0.0001	<0.0001
SB position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	0.0047
Black steel tube	0.0027	0.4978
Push handle	0.4136	0.0087	0.0043
Grey steel tube	0.0193	0.3268	>0.9999	0.0087
Angled plastic	0.0109	0.0043	0.0043	0.2468	0.0087
Seatback	0.0592	0.0004	0.0004	0.9546	0.0028	0.042
Seat cushion	0.0003	0.0012	0.0012	0.0012	0.0012	0.0025	0.0002

) demonstrated numerous differences. In particular, the bacterial burdens from the seat cushion were significantly higher than from every other material and for each strain tested. Arm rest materials also frequently presented significant differences compared to other materials, especially black steel tubes (Table A1,

Table A2. Statistical comparison of residual S. epidermidis burdens on materials. p values of Mann–Whitney tests. Numbers are noted in bold when p < 0.05.

PH position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	0.0011
Black steel tube	0.0007	0.4126
Push handle	0.007	>0.9999	0.4545
Grey steel tube	0.004	>0.9999	0.4	>0.9999
Angled plastic	0.0022	0.2351	0.023	0.315	0.2747
Seatback	<0.0001	0.8612	0.1944	0.7385	0.8601	0.0603
Seat cushion	0.0002	0.0002	0.0007	0.0007	0.004	0.0002	<0.0001
SE position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	0.0002
Black steel tube	0.0003	0.7333
Push handle	0.0027	0.3187	0.3147
Grey steel tube	0.0007	0.248	0.2902	>0.9999
Angled plastic	0.0003	0.4462	0.4974	>0.9999	0.9394
Seatback	<0.0001	0.0211	0.0437	0.5756	0.5439	0.4103
Seat cushion	0.0037	<0.0001	0.0002	0.0004	0.0004	<0.0001	<0.0001
SB position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	<0.0001
Black steel tube	0.0007	0.8418
Push handle	0,8518	0.0004	0.0022
Grey steel tube	0.0007	0.4821	0.5455	0.0022
Angled plastic	0.0373	0.0081	0.0123	0.1395	0.1868
Seatback	0.0007	0.3267	0.2963	0.0004	0.9888	0.0412
Seat cushion	<0.0001	<0.0001	0.0004	0.0008	0.0004	0.0002	<0.0001

and

Table A3. Statistical comparison of residual B. subtilis spores burdens on materials. p values of Mann–Whitney tests. Numbers are noted in bold when p < 0.05.

PH position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	0.0498
Black steel tube	0.0709	>0.9999
Push handle	0.351	0.2022	0.1818
Grey steel tube	0.2308	0.4264	0.4545	0.9242
Angled plastic	0.0294	>0.9999	>0.9999	0.044	0.1429
Seatback	0.0294	>0.9999	>0.9999	0.044	0.1429	>0.9999
Seat cushion	0.0002	<0.0001	0.0012	0.0012	0.0012	<0.0001	<0.0001
SE position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	0.0115
Black steel tube	0.0086	>0.9999
Push handle	0.0086	>0.9999	>0.9999
Grey steel tube	0.0086	>0.9999	>0.9999	>0.9999
Angled plastic	0.0023	>0.9999	>0.9999	>0.9999	>0.9999
Seatback	0.0023	>0.9999	>0.9999	>0.9999	>0.9999	>0.9999
Seat cushion	<0.0001	<0.0001	0.0004	0.0004	0.0004	<0.0001	<0.0001
SB position:
	Arm rest	Ribbed plastic	Black steel tube	Push handle	Grey steel tube	Angled plastic	Seatback	Seat cushion
Arm rest
Ribbed plastic	0.0056
Black steel tube	0.0281	>0.9999
Push handle	0.1017	0.2352	0.4242
Grey steel tube	0.0256	>0.9999	>0.9999	0.1818
Angled plastic	0.0152	0.7353	>0.9999	0.2448	>0.9999
Seatback	0.002	>0.9999	0.4	0.044	>0.9999	0.4706
Seat cushion	0.0004	<0.0001	0.0004	0.0004	0.0004	<0.0001	<0.0001

, Appendix A).

3.4. Effect of Sample Surface Treatment on Antibacterial Efficacy

Metal surface texturations are known to differently influence bacterial colonization. Therefore, three treatments of three different alloys were investigated. The averaged results of the roughness analyses of the five samples are given in

Table 3. Roughness Ra of the surface-prepared samples.

	304L Steel			S235 Steel			5754 Aluminum
	Pol.	San.	Mir.	Pol.	San.	Mir.	Pol.	San.	Mir.
Ra (µm)	0.584	2.061	0.029	0.832	1.305	0.01	1.651	0.887	0.032
Standard deviation	0.059	0.145	0.027	0.052	0.092	0.002	0.164	0.206	0.011

below.

For steels, the results are those classically expected, i.e., surface blasting creates the highest roughness and mirror polishing the least (a few tens of nm). For aluminum, on the other hand, the Ra of polished samples is the most important. This is probably because 5754 aluminum is a softer material than steel and therefore 80# paper pulls out more chips during abrasion. Sandblasting, on the other hand, will tend to close the surface roughness and thus slightly decrease the roughness.

It should be noted that X-ray measurements did not reveal any phase transformation in the microstructure before and after surface preparation, which eliminates a possible bias during the various biological campaigns.

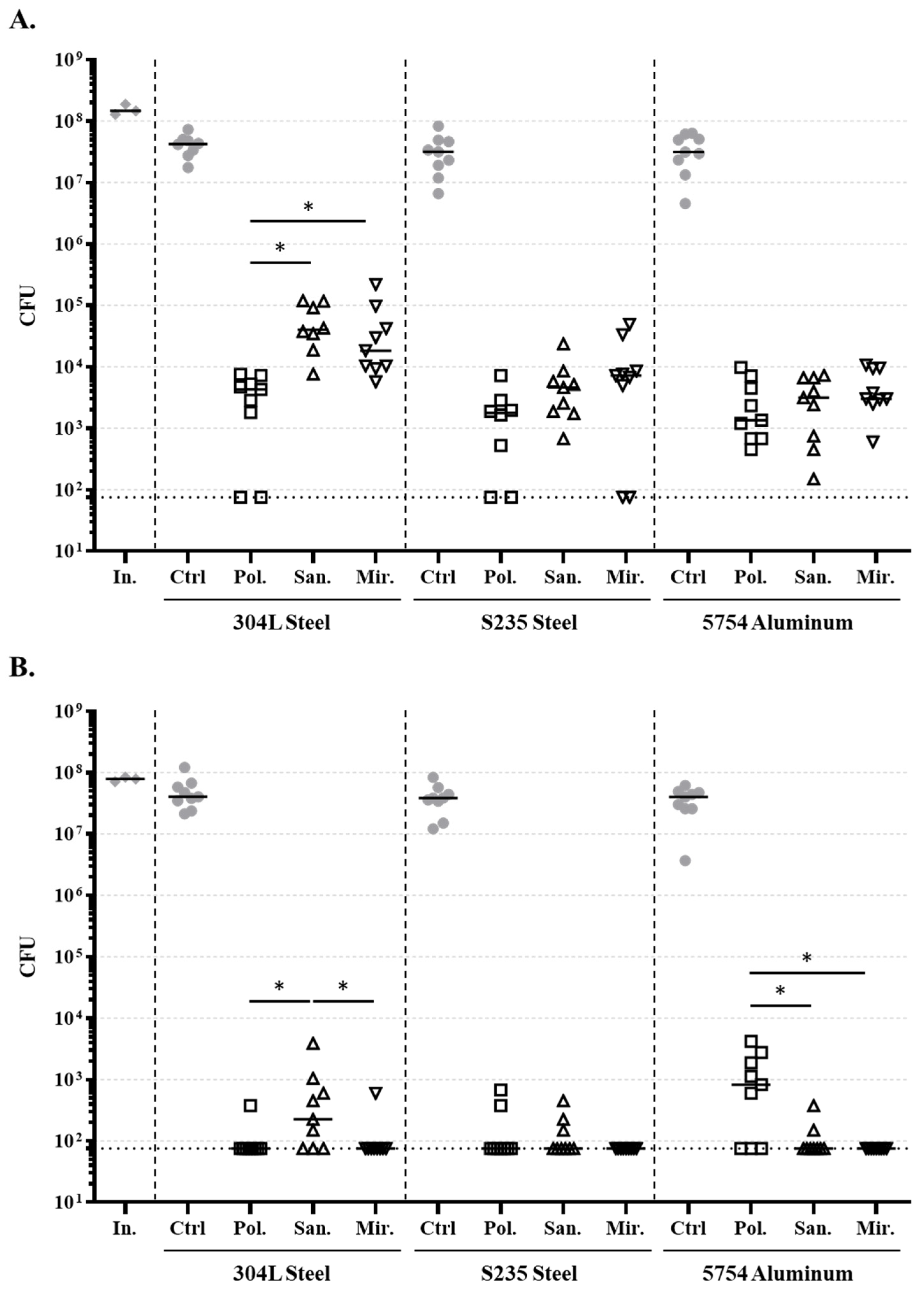

UVC antibacterial effects were investigated on E. coli and S. epidermidis inoculated on these nine surface types (Figure 7). The bacterial burden reduction ranged from two to five logs for E. coli and from three to five logs for S. epidermidis with, overall, less residual bacteria for S. epidermidis after the UVC treatment.

Considering E. coli, the polished texturation demonstrated the lowest bacterial burden, while the sandblasted and mirror texturations were similar. Notable differences were observed between alloys, with 304L steel demonstrating higher levels of residual bacteria than the two other materials. For S. epidermidis, trends were different from E. coli. This was especially noticeable for 5754 aluminum, for which the highest residual burdens were observed for the polished texturation.

4. Discussion

Since the last decades, UVC has risen as a promising and effective tool to decontaminate air, water, food, materials, and fomites [23]. While the technology is attractive thanks to its high antimicrobial efficiency/treatment time ratio, UV rays are quickly blocked by physical barriers, and proofs of UVC disinfection efficiency on complex items are still needed. The present study aimed to examine the antibacterial efficiency of a large UVC box dedicated to wheelchair disinfection in care centers.

The evaluation of UVC doses in the box through treatment cycles clearly demonstrated that UVC reached all four positions tested (AR, PH, SE, and SB). However, the radiant flux highly differed from one position to another, almost reaching a ten-time difference between the lowest (SB) and the highest (SE) positions. These differences might be dependent of two factors. First, the position, orientation, and reflectance of the surface presenting the inoculum with regard to the UVC lamps can strongly influence the irradiance received by this surface [29]. Second, the wheelchair structure can act as a barrier toward UVC rays, thus reducing the overall flux in inward zones such as SB. The first bacteriological tests performed directly on wheelchair surfaces demonstrated that the antibacterial effect was, indeed, stronger at positions exposed to stronger flux, with less residual bacteria at SE than at PH. Also, a time-dependent effect was observed, and while most bacteria were eliminated during the first five minutes of treatment (at least a 1.5-log reduction), a 4- to 5-log eradication in extremely concentrated bacterial burdens might require up to 30 min.

These tests indicated that some factors importantly impact the efficiency of the disinfection process, but it was unclear if the position in the box, the material nature, or both were the cause. The cross-tests on every material at three different positions clearly demonstrated the influence of the material nature on the antibacterial effect. This was especially evident with E. coli at the SE position: while most of the material displayed less than 10⁴ CFU, all values from the seat cushion were higher than 10⁴ CFU and even reached 3.10⁷ CFU. Moreover, the seat cushion was systematically the surface presenting the most residual bacteria, regardless of the bacterial strain or the position in the box. These results are not surprising, as the seat cushion is made up of porous materials, allowing bacteria to infiltrate inside and blocking UVC rays. In a less significant way, the armrest also displayed specific responses. While the material was non-porous, the overall bacterial burdens on the armrest were higher than on most other non-porous samples, no complete bacterial elimination was observed for E. coli and S. epidermidis tests, and almost no differences were observable between positions. These intriguing results support the huge impact of the material nature on the UVC decontamination efficacy and suggest that the conception of objects meant to be frequently decontaminated by UVC might avoid specific materials such as leather/false leather and, above all, porous materials.

While results differed between E. coli and S. epidermidis, surface texturation also seems to have an impact on the antibacterial effect. However, no clear overall effect was observed. Indeed, the polished samples demonstrated the lowest residual charge, but only for E. coli, while the mirrored samples demonstrated the best results for S. epidermidis. In the present study, texturation was only performed on metallic samples, but further investigation on other materials is needed to understand if texturation may prevail on the material composition and in which cases. The surface reflectiveness has also been pointed out to play an important role in treatment efficiency [30].

Among all bacteriological tests, some were surprising. Indeed, for the same conditions, E. coli appeared more resistant to UVC than S. epidermidis, while Gram-negative bacteria are known to be more sensitive than Gram-positive bacteria [31]. These differences may be explained through using different strains and even species (Staphylococcus aureus vs. S. epidermidis) between studies. Also, the UVC wavelengths are often different between studies: Kim et al. [31] tested wavelengths ranging from 266 to 279 nm, while lamps essentially emitting at 253.7 nm were used in the present study. It is possible to hypothesize that some bacteria species or strains may be more sensitive to some wavelengths than others [32]. Very interestingly, B. subtilis spores did not show a specific survival compared to vegetative strains, except for tests on the seat cushion. Nevertheless, the UVC doses recorded in the box ranged from 59.7 to 592.5 mJ/cm², which is 10 to 100 times the amount of energy needed to reduce the burden of B. subtilis ATCC6633 by one log, according to Nicholson and Galeano (2003) [33]. Thus, the important reduction (and even total elimination in most of the cases) of spores seems consistent. Other studies have already demonstrated various responses from one bacterial strain to another with, sometimes, higher resistances in vegetative bacteria [34] than in spores [35], confirming that the type of UVC lamps, the conception of the box, and the nature of materials to be decontaminated are, among others, crucial parameters influencing the treatment efficiency. Thus, each new box prototype should be tested for its antimicrobial abilities, under multiple experimental conditions.

To summarize, the results obtained in this study are promising on non-porous materials, with reductions that range from 0.25 to more than 5 logs after five minutes of treatment. While it is hard to compare with other disinfection methods due to the numerous differences in study protocols, these reduction levels seem consistent with the ones obtained with various chemical disinfectants that require several minutes to several hours to eliminate three to five logs of the microbial burden [8]. A Canadian study demonstrated that manual disinfection appeared fastidious and unclear, and that wheelchairs were not disinfected between two patients in around 50% of cases [36]. Thus, UVC disinfection appears interesting for the disinfection of complex models like wheelchairs, so as to save both chemical costs and worker time.

One limitation that can be addressed regarding the box tested here is the use of mercury lamps as the UVC source. Indeed, over the past few years, UVC LEDs have gained popularity because of their advantages including robustness, a longer lifecycle, and the absence of hazardous materials. However, UVC mercury lamps still have a better wall-plug efficiency [23], which renders them a better choice for decontamination in large containers, whereas UVC LEDs require much more electrical energy [23,37,38]. Nevertheless, like any other method of disinfections, as dirt residues might act as a physical barrier that protect microorganisms, another limitation to the use of UVC lamps to decontaminate surfaces remains the necessity to clean the surface prior to the UVC treatment.

Another obstacle to UVC use in disinfection is the long-term modifications of the UVC-treated surfaces. Indeed, repeated radiation treatments can have an influence on surfaces colors and microstructures through years of disinfection cycles [39]. While these effects do not compromise wheelchair integrity nor UVC treatment effectiveness, it would be interesting if further studies focused on surfaces that underwent numerous disinfection cycles. This will ensure the maintaining of the optimal functioning of the UVC on “long-term use” wheelchairs that underwent repeated treatments.

Furthermore, the inside of the box model was made of non-reflecting surfaces. The use of reflecting surfaces might help avoid UVC loss on absorbing surfaces and increase the UVC quantities actually reaching the wheelchair parts. Thus, this would probably increase the antimicrobial efficiency of the box and reduce the time and energy displayed to reach a satisfying reduction of microbial burdens.

The next step of the investigations will be to validate the efficiency of the UVC box through in situ study through the environmental sampling and analyses of microbial flora colonizing wheelchairs in hospital care units. Further, as the patient benefit represents the fundamental goal, studies must focus on epidemiological investigation in UVC box-equipped versus non-equipped units, to prove the concrete advantage for patients’ health. While this type of study exists [40], evidence needs to accumulate to guarantee UVC’s assets in healthcare.

5. Conclusions

In conclusion, the BYOLA Hosta 900^® UVC box displayed interesting antibacterial action, reducing the bacterial burden of both vegetative bacteria (both Gram-positive and Gram-negative) and spores. While a duration as short as five minutes might be enough for a routine decontamination of wheelchairs, the efficiency of the treatment highly relies on the material nature. UVC treatment is ineffective to confidently decontaminate porous materials; thus, only non-porous materials should be used for the conception of wheelchairs adapted to this type of box. As non-porous materials also displayed various responses regarding the efficiency of decontamination, further studies are needed to precisely characterize the interactions between UVC, bacteria, and different supports of different natures. Overall, large UVC boxes might represent an effective solution to quickly reduce the microbial burden and disinfect wheelchairs or other complex and large pieces of equipment, allowing both to standardize the procedure and to save workers’ time.
