Article

Deep Learning-Based Reconstruction vs. Iterative Reconstruction for Quality of Low-Dose Head-and-Neck CT Angiography with Different Tube-Voltage Protocols in Emergency-Department Patients

1
Department of Neuroradiology and Emergency Radiology, François-Mitterrand University Hospital, 14 Rue 7 Paul Gaffarel, BP 77908, 21079 Dijon, France
2
Imaging and Artificial Vision (ImViA) Laboratory-EA 7535, University of Bourgogne/Franche-Comté, 9 10 Avenue Alain Savary, BP 47870, 21078 Dijon, France
3
Department of Vascular and Interventional Radiology, Image-Guided Therapy Center, François-Mitterrand 13 University Hospital, 14 Rue Paul Gaffarel, BP 77908, 21079 Dijon, France
4
Computed Tomography Division, Canon Medical Systems France, 24 Quai Gallieni, 92150 Suresnes, France
*
Author to whom correspondence should be addressed.
Diagnostics 2022, 12(5), 1287; https://doi.org/10.3390/diagnostics12051287
Submission received: 9 April 2022 / Revised: 18 May 2022 / Accepted: 19 May 2022 / Published: 21 May 2022
(This article belongs to the Special Issue Artificial Intelligence in Clinical Medical Imaging Analysis)

Abstract

:
Objective: To compare the image quality of computed tomography angiography of the supra-aortic arteries (CTSA) at different tube voltages in low doses settings with deep learning-based image reconstruction (DLR) vs. hybrid iterative reconstruction (H-IR). Methods: We retrospectively reviewed 102 patients who underwent CTSA systematically reconstructed with both DLR and H-IR. We assessed the image quality both quantitatively and qualitatively at 11 arterial segmental levels and 3 regional levels. Radiation-dose parameters were recorded and the effective dose was calculated. Eighty-six patients were eligible for analysis Of these patients, 27 were imaged with 120 kVp, 30 with 100 kVp, and 29 with 80 kVp. Results: The effective dose in 120 kVp, 100 kVp and 80 kVp was 1.5 ± 0.4 mSv, 1.1 ± 0.3 mSv and 0.68 ± 0.1 mSv, respectively (p < 0.01). Comparing 80 kVp + DLR vs. 120 and 100 kVp + H-IR CT scans, the mean overall arterial attenuation was about 64% and 34% higher (625.9 ± 118.5 HU vs. 382.3 ± 98.6 HU and 468 ± 118.5 HU; p < 0.01) without a significant difference in terms of image noise (17.7 ± 4.9 HU vs. 17.5 ± 5.2; p = 0.7 and 18.1 ± 5.4; p = 0.3) and signal-to-ratio increased by 59% and 33%, respectively (37.9 ± 12.3 vs. 23.8 ± 9.7 and 28.4 ± 12.5). This protocol also provided superior image quality in terms of qualitative parameters, compared to standard-kVp protocols with H-IR. Highest subjective image-quality grades for vascular segments close to the aorta were obtained with the 100 kVp + DLR protocol. Conclusions: DLR significantly reduced image noise and improved the overall image quality of CTSA with both low and standard tube voltages and at all vascular segments. CT that was acquired with 80 kVp and reconstructed with DLR yielded better overall image quality compared to higher kVp values with H-IR, while reducing the radiation dose by half, but it has limitations for arteries that are close to the aortic arch.

1. Introduction

Computed tomography angiography (CTA) is the first-line imaging study for a growing number of neurovascular diseases. Its unrivalled availability, minimal invasiveness, high resolution, and combination if needed with cerebral perfusion CT make it a versatile imaging tool for rapid vascular assessment. The main disadvantage of CT is the delivery of ionizing radiation to the patient. The increasing use of CT has resulted in greater cumulative doses [1,2,3,4]. The As Low As Reasonably Achievable (ALARA) principle is applied to minimize radiation exposure during scheduled CTs; however, regarding emergency CTs, studies are needed to assess the efficacy and reliability of low-dose protocols [5,6,7,8].
Emergency CTA can have a major impact on treatment decisions in patients with acute neurologic symptoms. Therefore, high image quality and fast reconstruction are needed in this situation. Moreover, a challenge raised by CTA of the supra-aortic arteries is that complete imaging from the aortic arch to the circle of Willis is performed in a single acquisition, although the arteries are in three anatomically complex regions that are characterized by different attenuation profiles, namely, the shoulders, neck, and skull. Thus, physics-based artifacts may considerably impair image quality, thereby reducing diagnostic confidence [9].
Historically, diverse approaches have been suggested to improve or maintain the image quality of head-and-neck CT scans while minimizing the radiation dose. Examples include the use of lower or adjusted tube voltages, tube-current modulation, and the application of iterative reconstruction (IR) algorithms [10]. Tube-voltage reduction is of special interest as the radiation dose varies inversely with the third power of kVp [11] and iodine attenuation increases when photon energy approaches the K-edge of iodine (33.2 keV) [12,13]. On the other hand, lowering photon energy inevitably increases noise and beam hardening artifacts, requiring efficient reconstruction algorithms to maintain diagnostic image quality. Several studies have already compared low-kVp CT of the supra-aortic arteries with IR vs. standard-kVp CT with filtered back-projection (FBP) [14,15,16,17]. Image quality was generally better with low-dose CT and IR, although limitations for evaluating arterial segments close to the aortic arch or intracranial arteries were observed in some studies [7,15]. These discrepancies may be ascribable to differences in IR algorithms, some of which incorporate image-based anatomical models [18], and in the number and variety of vascular segments assessed.
Most recently, artificial intelligence methods were introduced into the field of CT reconstruction. Two deep learning-based reconstruction techniques (DLRs) have been approved by the Food and Drug Administration and European Union, Advanced Intelligent Clear-IQ Engine (AiCE) (Canon Medical, Otawara, Japan) and TrueFidelity (GE Healthcare, IL, USA) [19,20]. Both use a deep convolutional neural network to distinguish true signal from noise within the images. The deep convolutional neural network used in AiCE was trained to restore image quality equivalent to that produced by advanced model-based iterative reconstruction (MBIR) from paired low-dose CT images that are processed using hybrid iterative-reconstruction (H-IR). Thus, AiCE was designed to provide the noise reduction and increased spatial resolution available with MBIR but within a far shorter time, consistent with the needs of emergency patients.
Data on the properties and clinical usefulness of DLR in neuroradiology are scarce [21,22]. Given that MBIR outperformed H-IR for low-kVp CT in numerous studies [23,24,25,26] we hypothesized that DLR might improve neurovascular imaging quality in emergency settings.
Here, our objective was to compare DLR and H-IR regarding the quality of supra-aortic-artery CT imaging with various tube-voltage protocols in low dose settings used as part of our neurovascular imaging protocol in an emergency department.

2. Materials and Methods

2.1. Study Population

We conducted a retrospective single-center study of consecutive patients who were referred to our emergency department between January 2021 and February 2021 and who underwent CT of the supra-aortic arteries. This period was chosen as we updated our standard CTA protocol on the 1 February by extending the automatic tube-voltage selection SUREkV range from 100–120 kVp to 80–120 kVp. At that time, our “stroke-protocol” was standardized and included a fixed 120 kVp CTA. These CTA have also been included in this study. We identified the patients using our radiology information system’s built-in thesaurus (XPLORE; EDL, La Seyne-Sur-Mer, France). For each search, keywords related to supra-aortic arteries (“carotid” OR “vertebral”) and to predefined kVp settings (80 kVp OR 100 kVp OR 120 kVp) were combined with CTA as a filter using the Boolean operator “AND”. Exclusion criteria were, allergy to iodinated contrast, severe renal disease, age < 18 years, nonstandard supra-aortic-artery CT protocol, body mass index (BMI) above 35, and health condition responsible for bilaterally altered hemodynamics. All data were anonymized. In compliance with French law about retrospective studies of anonymized data, neither ethics committee approval nor patient informed consent were required.

2.2. CT Scanning Protocol

All CT examinations were performed with a 320-detector row CT scanner (Aquilion ONE GENESIS, Canon Medical). For each CT, the main parameters were as follows: helical acquisition, 0.5 mm × 80 rows; beam pitch, 0.813; gantry rotation time, 0.35 s; matrix, 512 × 512; and field of view, 320 mm. Tube voltage was 120 kVp, 100 kVp, or 80 kVp. Automatic tube-current modulation (SUREExposure™ 3D, Canon Medical) was used for all CTs. The noise-index settings were based on our initial experience in clinical practice and on the manufacturer’s recommendations. Reconstruction parameters were 1.0-mm slice thickness and 0.8-mm gap. Table 1 lists the acquisition and reconstruction parameters. In accordance with our standard CTA protocol involving subtraction, all patients received a fixed 65-mL intravenous bolus of Iomeron, 350 mg iodine per mL (Bracco Imaging, Courcouronnes, France), followed by a 50-mL bolus of saline at an injection rate of 4 mL/s for both. Image acquisition was triggered using a predefined threshold of aortic-arch attenuation. Each CT scan was reconstructed using both H-IR (AIDR 3D) with a standard FC43 kernel and DLR with beam-hardening correction (AiCE Body Sharp).

2.3. Image-Quality Assessment

2.3.1. Objective Quantitative Image-Quality Assessment

The images were analyzed on a dedicated workstation (Vitrea, version 6.5.3; Vital, Minneapolis, MN, USA) by an independent radiologist who had 5 years of experience in neuroradiology and was blinded to the reconstruction method and kVp value. The reader manually placed circular regions of interest (ROI) within the axial images.
ROIs were as large as possible while avoiding regions with severe artifacts (e.g., caused by dental artifacts or motion, flow artifacts, or partial volume effects). ROIs were then duplicated on the two image sets. Mean attenuation with the standard deviation (Hounsfield Units [HU]) was obtained for each measurement. Measurements were performed at the aortic arch (AO), common carotid artery (CCA), cervical internal carotid artery (ICAc), intrapetrous ICA (ICAp), terminal ICA (ICAt), middle cerebral artery (MCA), vertebral artery (portions V1, V2, V3, and V4), and basilar artery (BA). Vascular regions were also categorized as close to the aortic arch (AO, CCA, and V1), close to bones (ICAp, V2, and V3), or intracranial (ICAt, MCA, V4, and BA).
The signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR) were calculated based on the following equation [15]:
S N R = S v e s s e l N v e s s e l
C N R e c = S v e s s e l S m u s c l e N v e s s e l + N m u s c l e / 2 C N R i c = S v e s s e l S b r a i n N v e s s e l + N b r a i n / 2
where Svessel was the mean signal intensity of the vessels of interest. When an intracranial abnormality was responsible for hemodynamic alterations, the ROI was placed in a contralateral vessel segment. Smuscle was calculated as the mean attenuation of neck muscles on both sides in areas as free of fat as possible. Sbrain was the mean attenuation in an ROI of about 1 cm2 positioned within the white matter of the centrum semiovale. Noise was defined as the mean of the standard deviations of these measurements.
CNRec and CNRic were the CNRs in extracranial and intracranial vessels, respectively.

2.3.2. Subjective Qualitative Image-Quality Assessment

All supra-aortic-artery CTs were randomized, anonymized, and independently evaluated on standard LCD monitors by two radiologists with 4 and 10 years of experience, respectively, who were blinded to all patient data and reconstruction parameters. Both readers used 1–5 Likert scales to subjectively rate perceived diagnostic confidence, vessel sharpness, artifacts, and noise level on axial slices within predefined regions and overall (Table 2).
During the evaluation, readers were free to adjust the window level and width. To improve interobserver agreement, the readers were trained blindly on images obtained from patients excluded from the study.

2.4. Radiation Dose Measurements

To assess radiation exposure we recorded the volume CT dose index (CTDIvol) and dose-length product (DLP) recorded as Digital Imaging and Communications in Medicine (DICOM) data. Equivalent doses (EDs) were calculated after scanning by multiplying the DLP by the k factor (0.00751 for the CTSA) [27].

2.5. Statistical Analysis

Continuous variables were described as mean ± standard deviation (SD) and dichotomous variables as number (percentage). The Shapiro-Wilk test showed that all parameters were normally distributed. Therefore, we applied the two-sided paired t-test to compare H-IR (AIDR 3D) and DLR (AiCE) images within each group regarding the mean attenuation value (HU), noise (SD), SNR, CNR, and image-quality scores. The homoscedastic t-test was used for intergroup comparisons. p values smaller than 0.05 were considered statistically significant. Interobserver agreement for qualitative image-quality scores was evaluated using weighted Cohens’ kappa coefficients (k), interpreted as follows: <0, no agreement; 0.00–0.20, poor agreement; 0.21–0.40, fair agreement; 0.41–0.60, moderate agreement; 0.61–0.80, substantial agreement; and 0.81–1.00, excellent agreement. All statistical tests were performed using STATA® software version 13 (StataCorp, College Station, TX, USA) and Excel version 2016 (Microsoft, Redmond, WA, USA).

3. Results

3.1. Patient Characteristics

Of 102 consecutive eligible patients, 86 (33 men and 53 women) were included in the analysis (Figure 1). The mean age was 64.8 ± 18.3 years (range, 24–92 years) and the mean BMI was 25.4 ± 4 kg/m2 (range, 16.5–34.4 kg/m2). Age, BMI, and sex distribution did not differ significantly between the three groups.

3.2. Radiation Exposure

The mean CTDIvol and DLP values were lowest with 80 kVp and highest with 120 kVp (Table 3). The ED was significantly lower with 80 kVp than with 100 or 120 kVp (0.68 ± 0.1 mSv vs. 1.1 ± 0.3 mSv 1.5 ± 0.4 mSv, respectively, p < 0.01).

3.3. Quantitative Image Analysis

We analyzed 9272 measurements (means and SDs for 4636 ROIs). The quantitative image analysis results at segmental levels are summarized in the Supplementary Materials.

3.3.1. Image Signal Fluctuation with DLR vs. H-IR

Figure 2 shows the mean arterial vascular attenuation for the anterior circulation at different kVp with both DLR and H-IR. These data showed fluctuations in terms of image signal between the two reconstruction methods depending on the ROI location and the kVp selected. In fact, overall vascular enhancement with DLR compared to H-IR was lower by 6% with 120 kVp and higher by 5% with 80 kVp. These differences were maximal in low-kVp settings and reached +65 HU (+12%) at the aorta and +82 HU (+15%) at the intrapetrous portion of the carotidal artery with DLR vs. H-IR.

3.3.2. Comparison of the Two Reconstruction Techniques at Constant kVp Value

As shown in Table 4, noise was significantly lower on the DLR images at each ROI location and kVp value. Relative noise reduction was greatest in areas close to the AO and to bones (−36% and −30%, respectively) and minimal for the intracranial arteries (−22%). The relative overall noise reduction with DLR was constant across all three kVp values.
SNR and CNR were significantly higher on DLR images at each ROI location. At regional levels, SNR gains with DLR were greatest in regions close to the AO and to bones (+43% and +42%, respectively) and were smaller for the intracranial arteries (+28%).

3.3.3. Comparison of Low kVp plus DLR vs. Standard kVp plus DLR

When using DLR, the image signal and noise were significantly greater with 80 kVp than with 100 or 120 kVp (Table 5). Decreasing the tube voltage from 120 kVp or 100 kVp to 80 kVp increased the image signal by +75% and +37%, and the image noise by +40%. This resulted in significantly higher SNR and CNR values at the 80 kVp vs. 120 kVp. There were no significant differences at segmental and regional levels in term of SNR or CNR between 80 kVp and 100 kVp CT-scans with DLR as the image noise increase counterbalanced the iodine attenuation increase.

3.3.4. Comparison of Low kVp plus DLR vs. Standard kVp plus H-IR

We compared 80-kVp images that were taken with the DLR to 100- and 120-kVp images with H-IR (Table 6). Noise was significantly greater in the 80-kVp plus DLR group for the ICAt, MCA, and BA and was lower for the aorta, and the V1 segment of the vertebral artery.
At regional levels, noise was significantly less in the vascular segments close to the AO in the 80 kVp plus DLR group, compared to the 100 kVp and 120 kVp plus H-IR groups (−17% and −20%, respectively). On the other hand, with 80 kVp plus DLR, noise at the intracranial arteries was significantly greater than with 100 kVp or 120 kVp plus H-IR (+14% and +13%, respectively).
SNR and CNR were consistently higher at regional levels with 80 kVp plus DLR than with 100 and 120 kVp plus H-IR but they did not reach significant levels for the segmental analysis vs. 100 kVp plus H-IR at the CCA, ICAc, ICAt, or MCA.
Considering the overall vascular enhancement, no significant difference was found between the three groups while the image signal reached 625.9 ± 118.5 HU with 80 kVp plus DLR, vs. 468 ± 118.5 and 382.3 ± 98.6 HU with 100 kVp and 120 kVp plus H-IR, respectively. This led to a significant increase in terms of both SNR and CNR for the former group reaching, respectively, 37.9 ± 12.3 and 39.6 ± 10.4, vs. 28.4 ± 12.5, and 26.9 ± 9.5 with 100 kVp + H-IR, and 23.8 ± 9.7 and 22.1 ± 7.5 with 120 kVp + H-IR.

3.4. Qualitative Image Analysis

As shown in Table 7, DLR yielded the highest image-quality scores across kVp values and vascular regions. The inter-observer agreement was moderate (κ, 0.42; weighted κ, 0.53).
Confidence in diagnosis, perceived sharpness and noise reduction were significantly higher with DLR in the entire cohort, whatever the tube-voltage and ROI location (Figure 3).
Subjective noise reduction was greatest with 80 kVp and for vessels close to the aorta (4.4 ± 0.6 with DLR vs. 3.6 ± 0.8 with H-IR). Increases in term of diagnostic confidence were also the highest for vessels close to the aortic arch with 80 kVp CTA + DLR (4.4 ± 0.6 vs. 3.6 ± 0.8 with H-IR). Artifacts were maximal in this setting with a score of 2.9 ± 1.1 with DLR and 2.5 ± 1.2 with H-IR (Figure 4). Overall, artifact reduction was slightly better with DLR, although the difference did not reach significant levels for the intradural arteries.
Comparing 80 kVp plus DLR to 100 and 120 kVp plus H-IR protocols, confidence significantly increased (p < 0.05) in all segments that were evaluated, except for segments too close to the aorta.
Figure 4 depicts the differences between DLR and H-IR for the vascular regions close to the aortic arch.

4. Discussion

This study provides the first evidence on the effects of DLR on image quality and radiation dose when performing CTA of the supra-aortic arteries in the emergency setting. We retrospectively evaluated image quality for 11 vascular segments and three anatomical regions in 86 patients imaged using three different tube voltages (120, 100, and 80 kVp) at low doses. The mean CTDIvol at 80-kVp CT in the current study was only 2.3 ± 0.2 mGy which is lower than previously reported values.
DLR yielded significantly less noise and higher SNR and CNR values than H-IR with all three voltages and at all ROI locations. Image quality that was assessed qualitatively was also significantly better with DLR than with H-IR.
The AiCE DLR applies the advanced capabilities of a trained deep convolutional neural network to suppress noise, thus generating high-quality images. With all three tube voltages, the overall vascular image noise was lower by 29% with DLR, and the SNR and CNR values were higher by 36% and 42%, respectively. The noise reduction capabilities of AiCE varied across ROI locations, from 36% in vascular segments close to the AO to 30% in segments close to bone and 22% in intracranial arteries. We also found slight but significant image signal variations with DLR vs. H-IR, depending on the tube voltage and ROI location. Although we did not have ground truth HU values in vivo, DLR seemed more robust in maintaining the signal information, resulting in greater consistency with adjacent vascular segments, notably at low kVp settings. In fact, in low-kVp settings, these variations reached +65 HU (+12%) at the AO and +82 HU (+15%) at the ICAp with DLR vs. H-IR, suggesting a reduced attenuation loss secondary to beam-hardening in these segments with DLR. We believe these variations were not produced by the neural network—which is a denoising algorithm [28]—but rather by the entire AiCE in which both the raw-data and the image-domain components might contribute to the measured HU value variation.
Tube-voltage reduction also drastically increased the iodine attenuation. This well-known phenomenon is due to decreased Compton scattering and a stronger photoelectric effect when the photon energy approaches the K-edge of iodine (33.2 keV) [11,13]. In our study, the increase in image signal and reduction in radiation dose obtained by decreasing the tube voltage from 120 or 100 kVp to 80 kVp were consistent with earlier data [14,15].
We then compared 80 kVp plus DLR to 120 and 100 kVp plus H-IR. Although there was no significant difference in image noise for overall vascular attenuation, several noteworthy differences were found at the segmental and regional levels (Figure 5). First, the image noise was lower with 80 kVp plus DLR in regions usually described as difficult to image, i.e., vessels close to the AO or to bone [7,15]. Second, the mean vascular noise in the intracranial arteries was higher with 80 kVp plus DLR than with 100 or 120 kVp plus H-IR (20.6 ± 5.5 HU vs. 18.0 ± 5.5 HU [+14%] and 18.3 ± 5 HU [+13%] at 120 kVp and 100 kVp, respectively). Although this noise increase of less than 3 HU is of negligible clinical relevance, especially since the SNR remained 21% higher, it may suggest that the maximum denoising capabilities of DLR were reached for intracranial vessels at 80 kVp. Third, despite the superior image quality in terms of qualitative parameters with DLR at lower-kVp we found that vascular segments close to the aorta remained the most subject to artifacts at 80 kVp with the lowest image quality score of 2.9 ± 0.6 with DLR vs. 3.4 ± 0.6 and 3.5 ± 0.6 with H-IR, 3.6 ± 0.5, and 3.8 ± 0.6 with DLR at 100 and 120 kVp, respectively. These streak artefacts were only slightly diminished by AiCE and were caused by the increased arterial enhancement at 80 kVp of the non-utilized contrast agent within the brachiocephalic vein.
Our findings confirm the superiority of DLR over conventional H-IR for CTA of all supra-aortic artery segments using three tube voltages. Our results are consistent with studies of pulmonary and abdominal CT scans that were reconstructed using DLR algorithms [29,30,31,32]. We also demonstrated that low-kVp CT with DLR provided better image quality as assessed quantitatively (SNR and CNR) and qualitatively, compared to higher kVp values with H-IR in most vessels. Last, our data indicate that although 80-kVp protocols with DLR proved feasible and reliable, optimal image quality of the intracranial arteries and arteries that are close to the aortic arch may be obtained with 100 kVp + DLR as the qualitative measurements were highest in this setting.
The limitations of our study should be addressed. First, we recruited all patients at a single center. Second, with a mean BMI of 25.3 ± 4.0 kg, our cohort was representative of the normal weight range. Additional studies are warranted to evaluate whether our results apply to obese patients in whom photon-starvation might impair image quality. Further, tube-current modulation (SUREExposure) frequently reached its lower limit at 120 kVp. Given our low-dose settings, this led to the high-kVp CTs being performed with an inappropriately low tube current. The result was an overall decrease in image quality at 120 kVp with both reconstruction methods. This suggests that a low-dose CT scan should preferably be achieved by reducing the tube-voltage and maintaining an adequate tube current, rather than performing a high-kVp and extremely low mAs. Third, most of the 120 kVp CTA were acquired as part of our institutional “stroke-protocol” which may have further degraded the image quality by including patients with more severe conditions. This bias has been partially addressed by placing ROIs in contralateral vessels to the ones with potentially altered hemodynamics. Fourth, we did not assess the potential superiority of DLR over H-IR for detecting neurovascular disease due to the considerable heterogeneity of the suspected diagnoses in both groups. Instead, the goal of our study was to evaluate the impact on the image quality of DLR with different tube voltages. Fifth, mean vascular enhancement was 625.9 ± 118.5 HU in the 80-kVp group which was far above the diagnostic limit of 250 HU. This implies that a decrease in the contrast agent dose should be achievable with 80 kVp and DLR, a possibility of interest for patients with impaired renal function which may also improve the image quality by reducing the streak artifacts induced by a high contrast media concentration in the subclavian vein. Studies are under way to further assess this hypothesis. Sixth, although blinded to all reconstruction parameters, reviewers could have easily differentiated the two algorithms as the image texture noticeably changed, introducing a potential bias. Last, our study compared two reconstruction algorithms (AIDR 3D and AiCE) that were developed by the same manufacturer (Canon Medical). Comparisons of IR algorithms from different manufacturers to DLR may be warranted. Nonetheless, the comparability of the three tube-voltage groups and the evaluation of both objective (SNR, CNR, CTDI, and DLP) and subjective parameters support the validity of our findings.

5. Conclusions

DLR significantly reduced image noise and improved the image quality of CTSA performed in the emergency setting, vs. H-IR. Thus, low-dose CTSA with 80 kVp + DLR yielded better overall image quality than higher-kVp CT with H-IR while halving the radiation dose, but it had limitations for imaging arteries close to the aortic arch.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/diagnostics12051287/s1, Supplemental S1: Comparison of the two reconstruction techniques at segmental levels with constant kVp value.; Supplemental S2: Quantitative image analysis at segmental levels of low-kVp protocol with DLR vs. higher-kVp protocol with DLR.; Supplemental S3: Quantitative image analysis at segmental levels of low-kVp protocol with DLR vs. higher-kVp protocol with H-IR.

Author Contributions

Conceptualization, M.L. and R.L.; methodology, M.L., P.-O.C. and K.G.; software, K.H. and A.T.; validation, F.R., R.L. and P.-O.C.; formal analysis, M.L., P.-O.C., F.G. and K.G.; investigation, M.L., P.-O.C. and R.L.; resources, K.H. and A.T.; data curation, M.L. and F.G.; writing—original draft preparation, M.L., P.-O.C. and R.L.; writing—review and editing, M.L., P.-O.C., K.H., O.C. and R.L.; visualization, F.R.; supervision, R.L.; project administration, F.R.; funding acquisition, M.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Ethical review and approval were waived in view of the retrospective nature of the study and all the procedures being performed were part of the routine care.

Informed Consent Statement

Patient consent was waived due to the retrospective nature of the study and all the procedures being performed were part of the routine care.

Data Availability Statement

The data presented in this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brenner, D.J.; Hall, E.J. Computed tomography--an increasing source of radiation exposure. N. Engl. J. Med. 2007, 357, 2277–2284. [Google Scholar] [CrossRef] [Green Version]
  2. Yamashita, K.; Higashino, K.; Hayashi, H.; Takegami, K.; Hayashi, F.; Tsuruo, Y.; Sairyo, K. Direct measurement of radiation exposure dose to individual organs during diagnostic computed tomography examination. Sci. Rep. 2021, 11, 5435. [Google Scholar] [CrossRef]
  3. Kuefner, M.A.; Grudzenski, S.; Schwab, S.A.; Wiederseiner, M.; Heckmann, M.; Bautz, W.; Lobrich, M.; Uder, M. DNA double-strand breaks and their repair in blood lymphocytes of patients undergoing angiographic procedures. Investig. Radiol. 2009, 44, 440–446. [Google Scholar] [CrossRef]
  4. Berrington de González, A. Projected Cancer Risks From Computed Tomographic Scans Performed in the United States in 2007. Arch. Intern. Med. 2009, 169, 2071. [Google Scholar] [CrossRef]
  5. Grupp, U.; Schäfer, M.-L.; Meyer, H.; Lembcke, A.; Pöllinger, A.; Wieners, G.; Renz, D.; Schwabe, P.; Streitparth, F. Reducing Radiation Dose in Emergency CT Scans While Maintaining Equal Image Quality: Just a Promise or Reality for Severely Injured Patients? Emerg. Med. Int. 2013, 2013, 1–7. [Google Scholar] [CrossRef]
  6. Eller, A.; Wiesmüller, M.; Wüst, W.; Heiss, R.; Kopp, M.; Saake, M.; Brand, M.; Uder, M.; May, M. Carotid CTA at the Lowest Tube Voltage (70 kV) in Comparison with Automated Tube Voltage Adaption. Am. J. Neuroradiol. 2019, 40, 1374–1382. [Google Scholar] [CrossRef]
  7. Beitzke, D.; Wolf, F.; Edelhauser, G.; Plank, C.; Schernthaner, R.; Weber, M.; Nolz, R.; Lammer, J.; Loewe, C. Computed tomography angiography of the carotid arteries at low kV settings: A prospective randomised trial assessing radiation dose and diagnostic confidence. Eur. Radiol. 2011, 21, 2434–2444. [Google Scholar] [CrossRef]
  8. Moloney, F.; Murphy, K.P.; Twomey, M.; Crush, L.; Canniffe, E.M.; McLaughlin, P.D.; Moore, N.; O’keeffe, M.; O’neill, S.; Manning, B.M.; et al. Low-Dose Carotid Computed Tomography Angiography Using Pure Iterative Reconstruction. J. Comput. Assist. Tomogr. 2016, 40, 833–839. [Google Scholar] [CrossRef]
  9. Kim, J.J.; Dillon, W.P.; Glastonbury, C.M.; Provenzale, J.; Wintermark, M. Sixty-Four-Section Multidetector CT Angiography of Carotid Arteries: A Systematic Analysis of Image Quality and Artifacts. Am. J. Neuroradiol. 2010, 31, 91–99. [Google Scholar] [CrossRef] [Green Version]
  10. McCollough, C.H.; Primak, A.N.; Braun, N.; Kofler, J.; Yu, L.; Christner, J. Strategies for Reducing Radiation Dose in CT. Radiol. Clin. N. Am. 2009, 47, 27–40. [Google Scholar] [CrossRef] [Green Version]
  11. Elojeimy, S.; Tipnis, S.; Huda, W. Relationship between radiographic techniques (kilovolt and milliampere-second) and CTDIVOL. Radiat. Prot. Dosim. 2010, 141, 43–49. [Google Scholar] [CrossRef]
  12. Van Hamersvelt, R.W.; Eijsvoogel, N.G.; Mihl, C.; de Jong, P.A.; Schilham, A.M.R.; Buls, N.; Das, M.; Leiner, T.; Willemink, M.J. Contrast agent concentration optimization in CTA using low tube voltage and dual-energy CT in multiple vendors: A phantom study. Int. J. Cardiovasc. Imaging 2018, 34, 1265–1275. [Google Scholar] [CrossRef] [Green Version]
  13. Kalva, S.P.; Sahani, D.V.; Hahn, P.F.; Saini, S. Using the K-edge to Improve Contrast Conspicuity and to Lower Radiation Dose With a 16-MDCT: A Phantom and Human Study. J. Comput. Assist. Tomogr. 2006, 30, 391–397. [Google Scholar] [CrossRef]
  14. Yu, S.; Zhang, L.; Zheng, J.; Xu, Y.; Chen, Y.; Song, Z. A comparison of adaptive iterative dose reduction 3D and filtered back projection in craniocervical CT angiography. Clin. Radiol. 2017, 72, 96.e1–96.e6. [Google Scholar] [CrossRef]
  15. Zhang, L.; Chen, Y.; Che, Y.; Xu, Y.-F.; Zheng, J.; Yu, S.-J. The impact of adaptive iterative dose reduction 3D on the improvement of shoulder image quality in head and neck CTA. Curr. Med. Res. Opin. 2019, 35, 887–891. [Google Scholar] [CrossRef]
  16. Zhang, W.; Li, M.; Zhang, B.; Geng, H.-Y.; Liang, Y.-Q.; Xu, K.; Li, S.-B. CT Angiography of the Head-and-Neck Vessels Acquired with Low Tube Voltage, Low Iodine, and Iterative Image Reconstruction: Clinical Evaluation of Radiation Dose and Image Quality. PLoS ONE 2013, 8, e81486. [Google Scholar] [CrossRef] [Green Version]
  17. Gervaise, A.; Osemont, B.; Lecocq, S.; Noel, A.; Micard, E.; Felblinger, J.; Blum, A. CT image quality improvement using adaptive iterative dose reduction with wide-volume acquisition on 320-detector CT. Eur. Radiol. 2012, 22, 295–301. [Google Scholar] [CrossRef]
  18. Angel, E. AIDR 3D Iterative Reconstruction (White Paper). Toshiba Medical Systems; Canon Medical Systems Corporation: Tustin, CA, USA, 2012; Available online: https://us.medical.canon/download/aidr-3d-wp-aidr-3d (accessed on 10 January 2022).
  19. Boedeker, K. AiCE Deep Learning Reconstruction: Bringing the Power of Ultra-High Resolution CT to Routine Imaging; Canon Medical Systems Corporation: Tustin, CA, USA, 2018; Available online: https://eu.medical.canon/publication/ct/2019WP_AiCE_Deep_Learning (accessed on 10 January 2022).
  20. Hsieh, J.; Liu, E.; Nett, B.; Tang, J.; Thibault, J.-B.; Sahney, S. A New Era of Image Reconstruction: TrueFidelityTM. Technical White Paper on Deep Learning Image Reconstruction; 2019; Available online: https://www.gehealthcare.com/-/jssmedia/040dd213fa89463287155151fdb01922.pdf (accessed on 10 January 2022).
  21. Fukushima, Y.; Fushimi, Y.; Funaki, T.; Sakata, A.; Hinoda, T.; Nakajima, S.; Sakamoto, R.; Yoshida, K.; Miyamoto, S.; Nakamoto, Y. Evaluation of moyamoya disease in CT angiography using ultra-high-resolution computed tomography: Application of deep learning reconstruction. Eur. J. Radiol. 2022, 151, 110294. [Google Scholar] [CrossRef]
  22. Oostveen, L.J.; Meijer, F.J.A.; de Lange, F.; Smit, E.J.; Pegge, S.A.; Steens, S.C.A.; van Amerongen, M.J.; Prokop, M.; Sechopoulos, I. Deep learning–based reconstruction may improve non-contrast cerebral CT imaging compared to other current reconstruction algorithms. Eur. Radiol. 2021, 31, 5498–5506. [Google Scholar] [CrossRef]
  23. Yokomachi, K.; Tatsugami, F.; Higaki, T.; Kume, S.; Sakamoto, S.; Okazaki, T.; Kurisu, K.; Nakamura, Y.; Baba, Y.; Iida, M.; et al. Neointimal formation after carotid artery stenting: Phantom and clinical evaluation of model-based iterative reconstruction (MBIR). Eur. Radiol. 2019, 29, 161–167. [Google Scholar] [CrossRef] [Green Version]
  24. Boas, F.E.; Fleischmann, D.C.T. Artifacts: Causes and reduction techniques. Imaging Med. 2012, 4, 229–240. [Google Scholar] [CrossRef] [Green Version]
  25. Moloney, F.; Kavanagh, R.G.; Ronan, N.J.; Grey, T.; Joyce, S.; Ryan, D.; Moore, N.; O’Connor, O.; Plant, B.; Maher, M. Ultra-low-dose thoracic CT with model-based iterative reconstruction (MBIR) in cystic fibrosis patients undergoing treatment with cystic fibrosis transmembrane conductance regulators (CFTR). Clin. Radiol. 2021, 76, 393.e9–393.e17. [Google Scholar] [CrossRef]
  26. Ippolito, D.; Maino, C.; Pecorelli, A.; Salemi, I.; Gandola, D.; Riva, L.; Franzesi, C.T.; Sironi, S. Application of low-dose CT combined with model-based iterative reconstruction algorithm in oncologic patients during follow-up: Dose reduction and image quality. Br. J. Radiol. 2021, 94, 20201223. [Google Scholar] [CrossRef]
  27. Lee, S.-K.; Kim, J.S.; Yoon, S.-W.; Kim, J.M. Development of CT Effective Dose Conversion Factors from Clinical CT Examinations in the Republic of Korea. Diagnostics 2020, 10, 727. [Google Scholar] [CrossRef]
  28. Nakamura, Y.; Higaki, T.; Tatsugami, F.; Honda, Y.; Narita, K.; Akagi, M.; Awai, K. Possibility of Deep Learning in Medical Imaging Focusing Improvement of Computed Tomography Image Quality. J. Comput. Assist. Tomogr. 2020, 44, 161–167. [Google Scholar] [CrossRef] [Green Version]
  29. Akagi, M.; Nakamura, Y.; Higaki, T.; Narita, K.; Honda, Y.; Zhou, J.; Yu, Z.; Akino, N.; Awai, K. Deep learning reconstruction improves image quality of abdominal ultra-high-resolution CT. Eur. Radiol. 2019, 29, 6163–6171. [Google Scholar] [CrossRef]
  30. Singh, R.; Digumarthy, S.R.; Muse, V.V.; Kambadakone, A.R.; Blake, M.A.; Tabari, A.; Hoi, Y.; Akino, N.; Angel, E.; Madan, R.; et al. Image Quality and Lesion Detection on Deep Learning Reconstruction and Iterative Reconstruction of Submillisievert Chest and Abdominal CT. Am. J. Roentgenol. 2020, 214, 566–573. [Google Scholar] [CrossRef]
  31. Bernard, A.; Comby, P.-O.; Lemogne, B.; Haioun, K.; Ricolfi, F.; Chevallier, O.; Loffroy, R. Deep learning reconstruction versus iterative reconstruction for cardiac CT angiography in a stroke imaging protocol: Reduced radiation dose and improved image quality. Quant. Imaging Med. Surg. 2021, 11, 392–401. [Google Scholar] [CrossRef]
  32. Greffier, J.; Dabli, D.; Frandon, J.; Hamard, A.; Belaouni, A.; Akessoul, P.; Fuamba, Y.; Le Roy, J.; Guiu, B.; Beregi, J. Comparison of two versions of a deep learning image reconstruction algorithm on CT image quality and dose reduction: A phantom study. Med. Phys. 2021, 48, 5743–5755. [Google Scholar] [CrossRef]

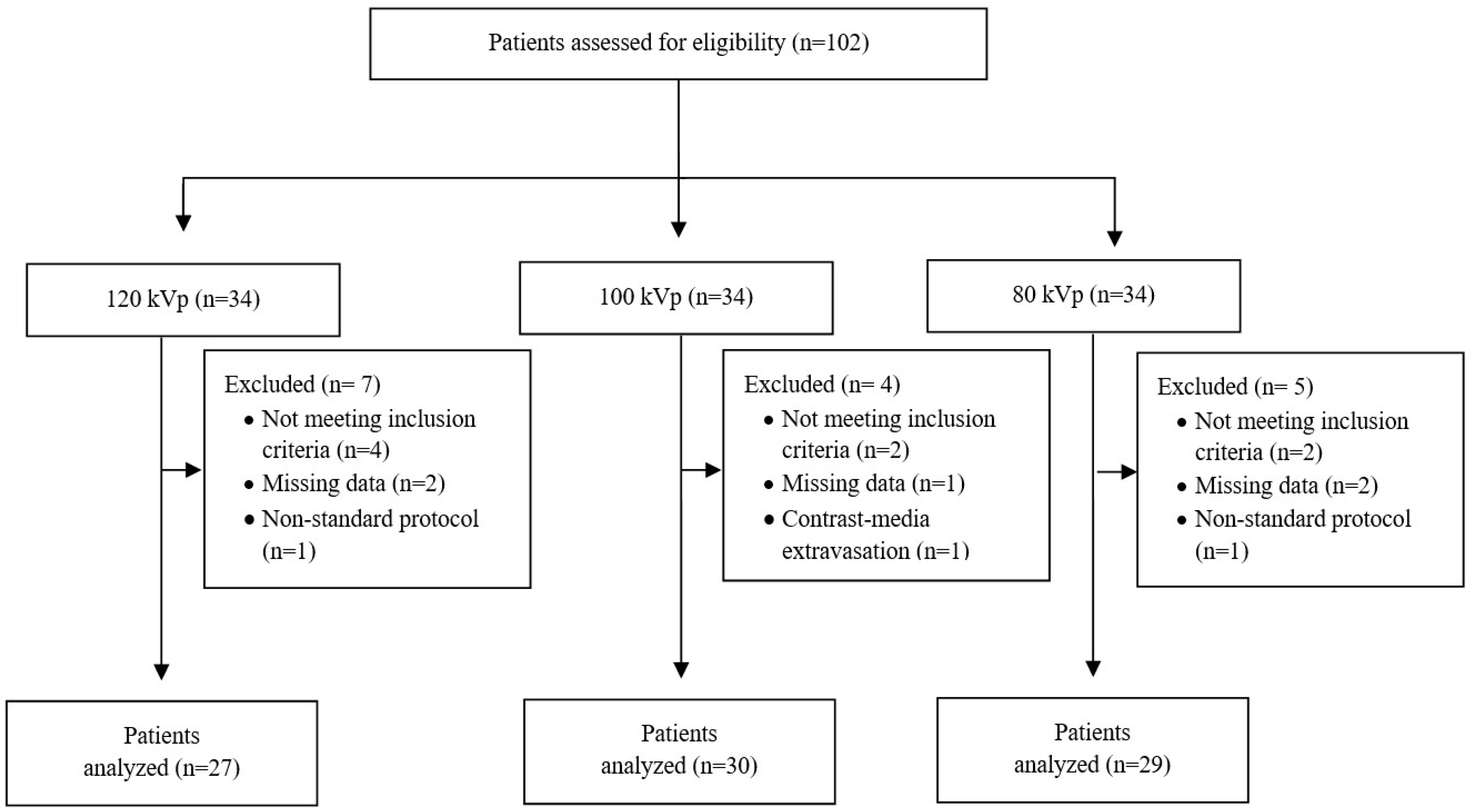

Figure 1. Flow chart of the study. kVp, kilovoltage peak.
Figure 1. Flow chart of the study. kVp, kilovoltage peak.
Diagnostics 12 01287 g001

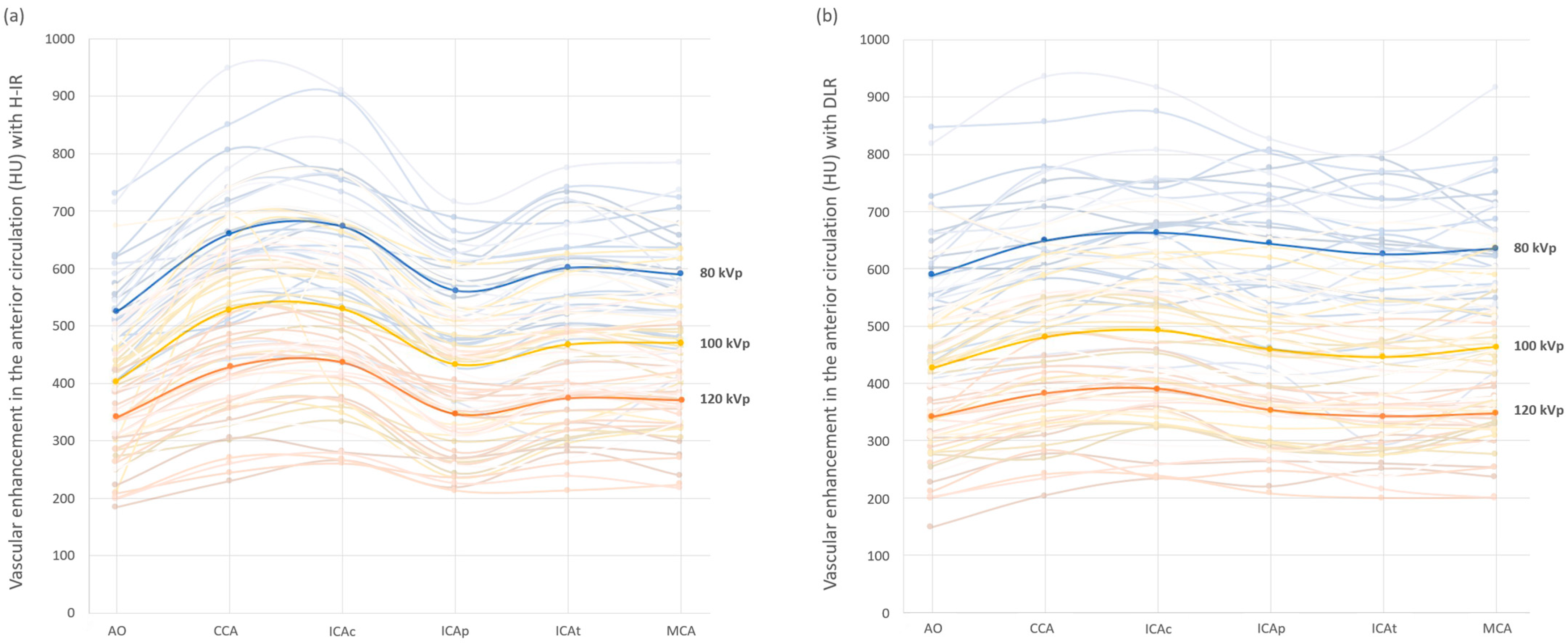

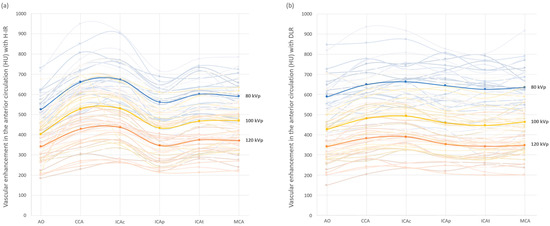

Figure 2. Arterial vascular attenuation profile for the anterior cerebral vascularization with H-IR (a) and DLR (b), with 80 kVp in blue, 100 kVp in yellow and 120 kVp in orange. Mean values are displayed in bold lines. Vessel contrast for each patient are in the corresponding light colors. AO: Aortic arch; CCA: common carotid artery; ICAc: cervical internal carotid artery; ICAp: intrapetrous internal carotid artery; ICAt: terminal internal carotid artery; MCA: middle cerebral artery.
Figure 2. Arterial vascular attenuation profile for the anterior cerebral vascularization with H-IR (a) and DLR (b), with 80 kVp in blue, 100 kVp in yellow and 120 kVp in orange. Mean values are displayed in bold lines. Vessel contrast for each patient are in the corresponding light colors. AO: Aortic arch; CCA: common carotid artery; ICAc: cervical internal carotid artery; ICAp: intrapetrous internal carotid artery; ICAt: terminal internal carotid artery; MCA: middle cerebral artery.
Diagnostics 12 01287 g002

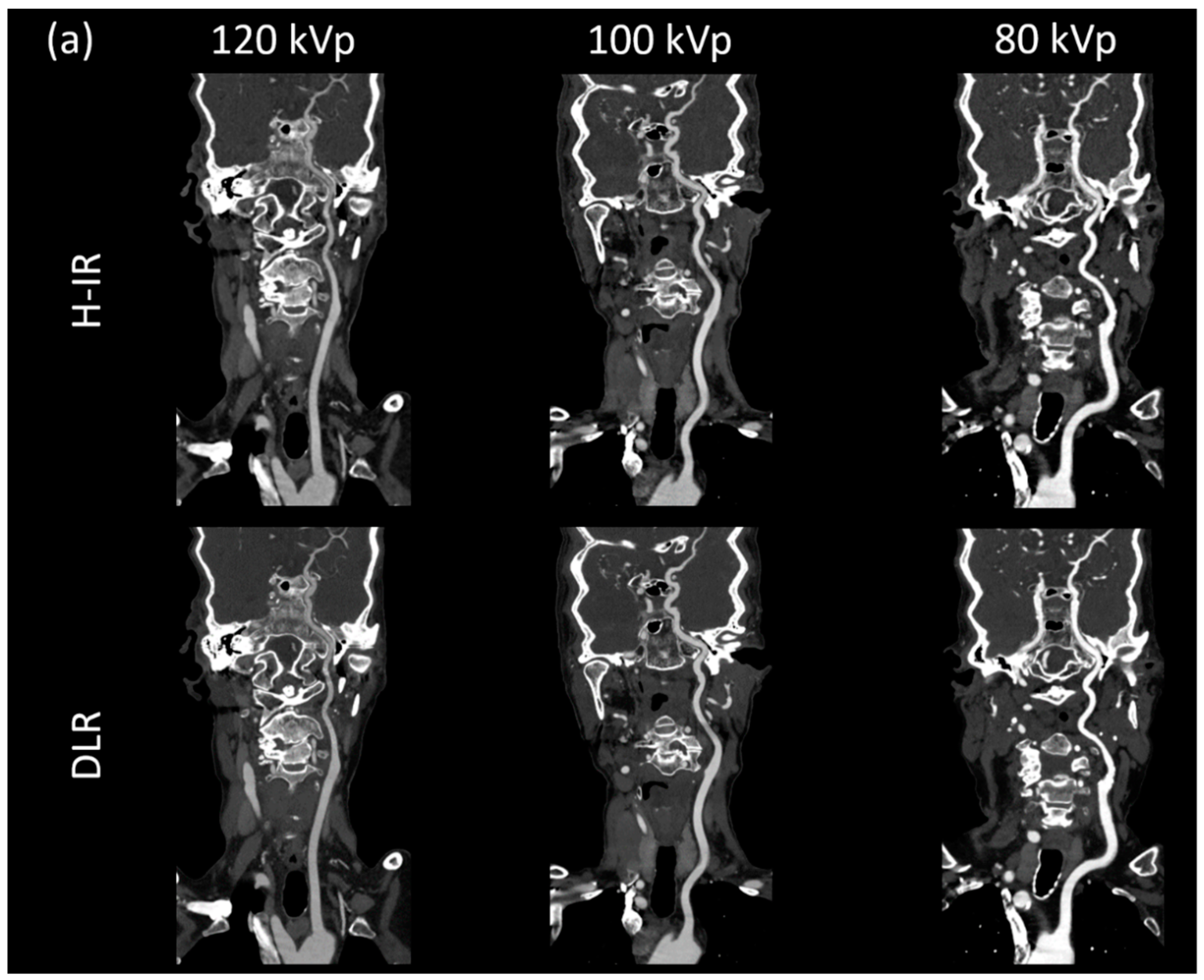

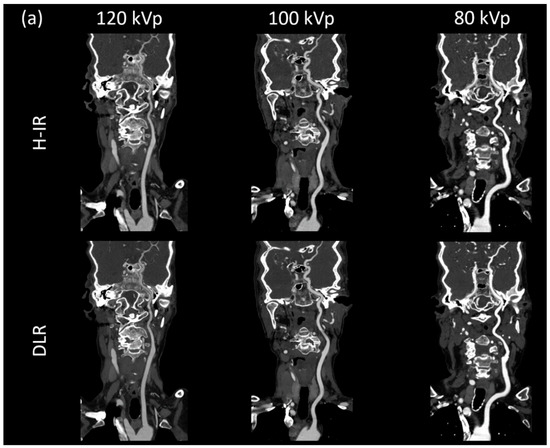

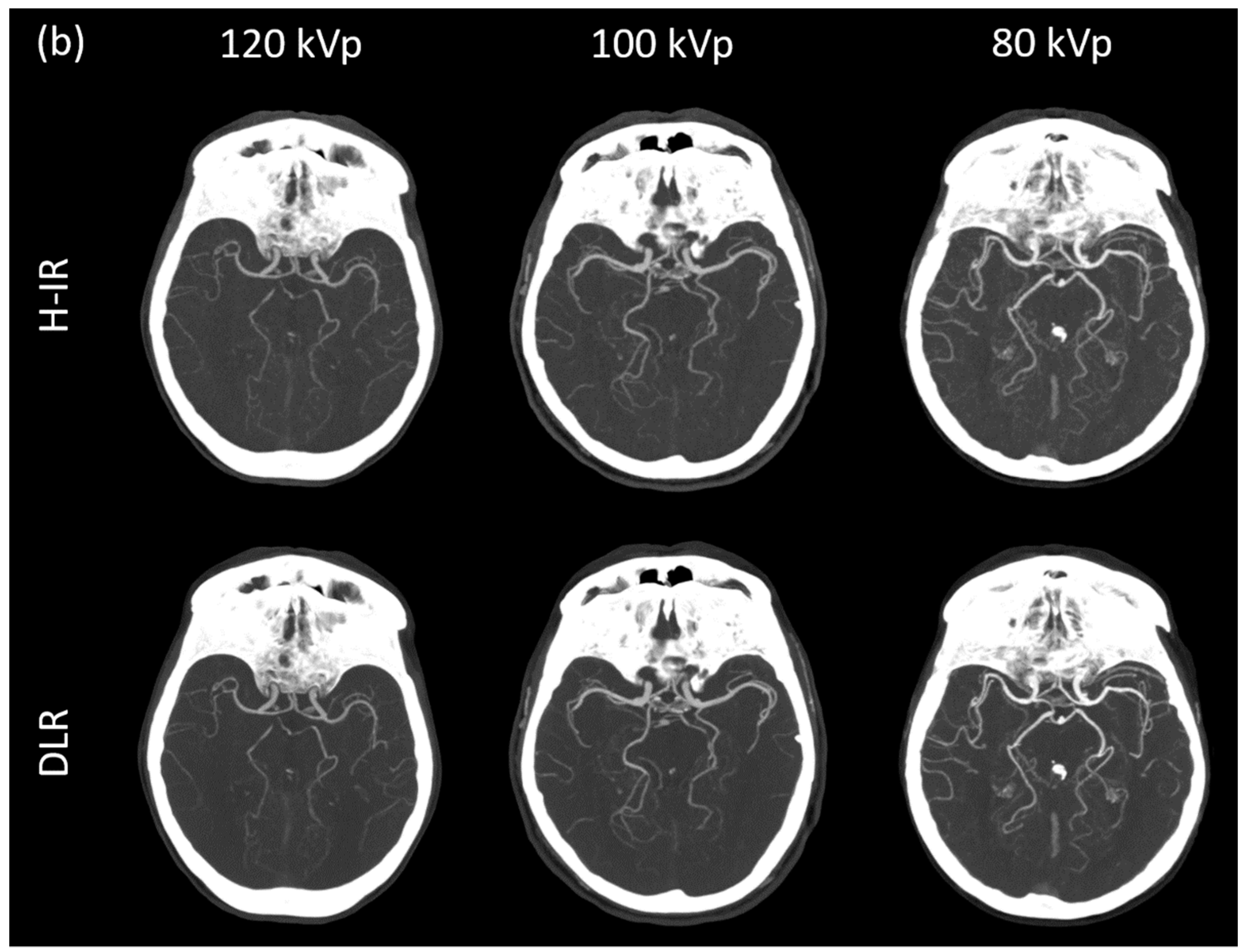

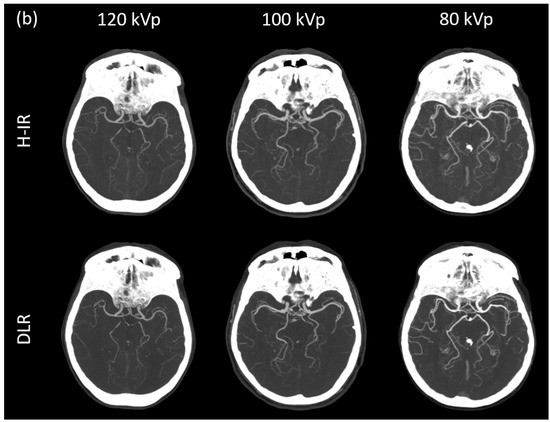

Figure 3. (a) Curved planar reconstructed CT image, (b) Axial MIP 20mm of patients from each group for both DLR (AiCE) and H-IR (AIDR 3D) reconstructions with a constant window setting (W:1000 L:300). 120 kVp patient was a 68-year-old woman (BMI: 25.7), CTDI 4.7 mGy, DLP 196.8 mGy·cm.; 100 kVp patient was an 86-year-old woman (BMI: 25.2), CTDI 4.7 mGy, DLP 176.6 mGy·cm; 80 kVp patient was a 79-year-old woman (BMI: 23.8), CTDI 2.5 mGy, DLP 88.3 mGy·cm. 80 kVp image provided increased contrast with both DLR and H-IR. Note that DLR maintain a noticeably low noise level for the 3 groups.
Figure 3. (a) Curved planar reconstructed CT image, (b) Axial MIP 20mm of patients from each group for both DLR (AiCE) and H-IR (AIDR 3D) reconstructions with a constant window setting (W:1000 L:300). 120 kVp patient was a 68-year-old woman (BMI: 25.7), CTDI 4.7 mGy, DLP 196.8 mGy·cm.; 100 kVp patient was an 86-year-old woman (BMI: 25.2), CTDI 4.7 mGy, DLP 176.6 mGy·cm; 80 kVp patient was a 79-year-old woman (BMI: 23.8), CTDI 2.5 mGy, DLP 88.3 mGy·cm. 80 kVp image provided increased contrast with both DLR and H-IR. Note that DLR maintain a noticeably low noise level for the 3 groups.
Diagnostics 12 01287 g003aDiagnostics 12 01287 g003b

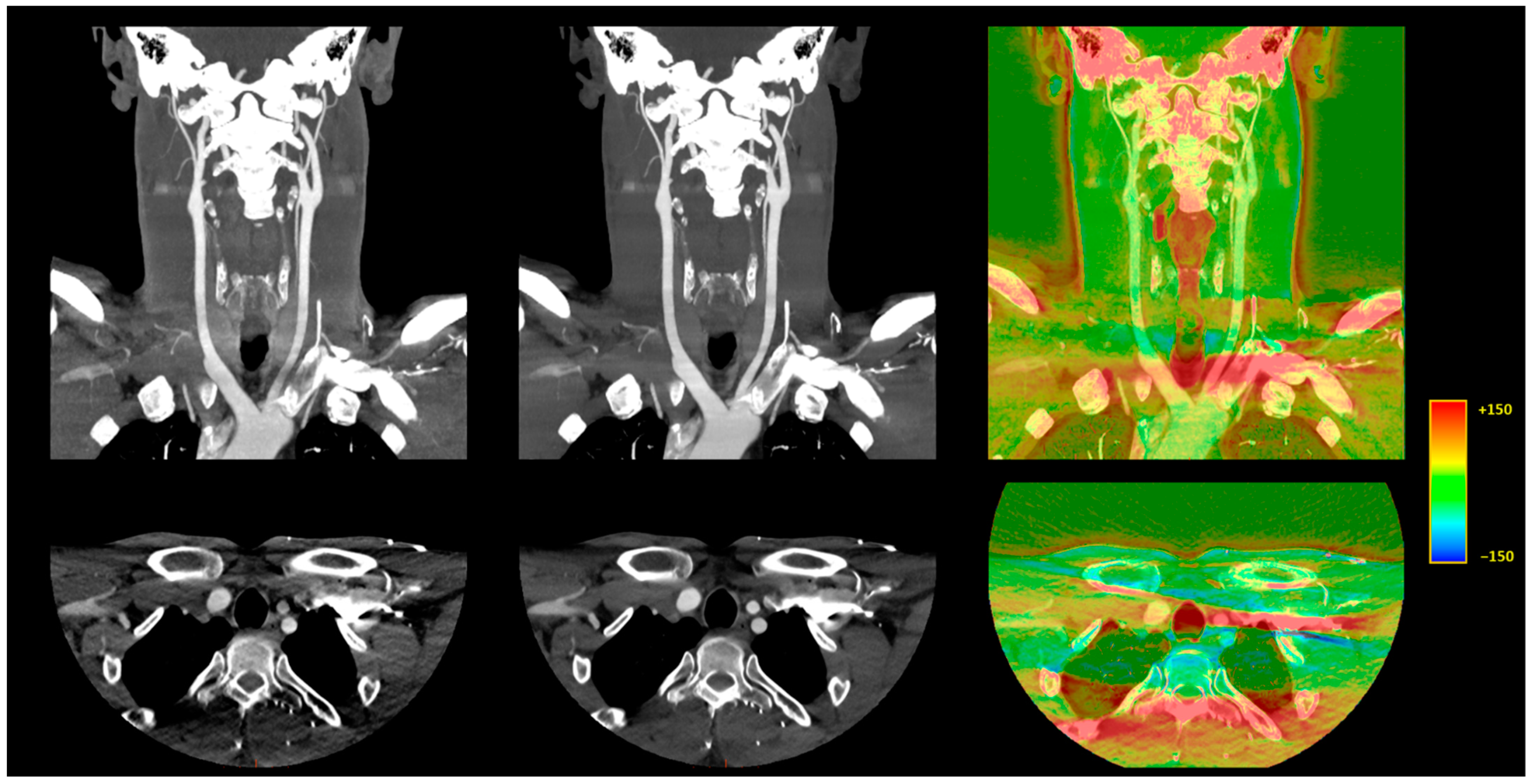

Figure 4. Illustration of the differences between DLR and H-IR for the vascular regions close to the aortic arch. A 10 mm, maximum intensity projection, coronal CT reconstruction (top row) and 1-mm axial CT reconstruction (bottom row). Left: AIDR 3D, hybrid iterative reconstruction. Middle: AiCE, deep learning-based reconstruction. Right: Color-mapped subtraction [AiCE-AIDR 3D] layered on the DLR image to visually highlight the differences between the two reconstruction techniques.
Figure 4. Illustration of the differences between DLR and H-IR for the vascular regions close to the aortic arch. A 10 mm, maximum intensity projection, coronal CT reconstruction (top row) and 1-mm axial CT reconstruction (bottom row). Left: AIDR 3D, hybrid iterative reconstruction. Middle: AiCE, deep learning-based reconstruction. Right: Color-mapped subtraction [AiCE-AIDR 3D] layered on the DLR image to visually highlight the differences between the two reconstruction techniques.
Diagnostics 12 01287 g004

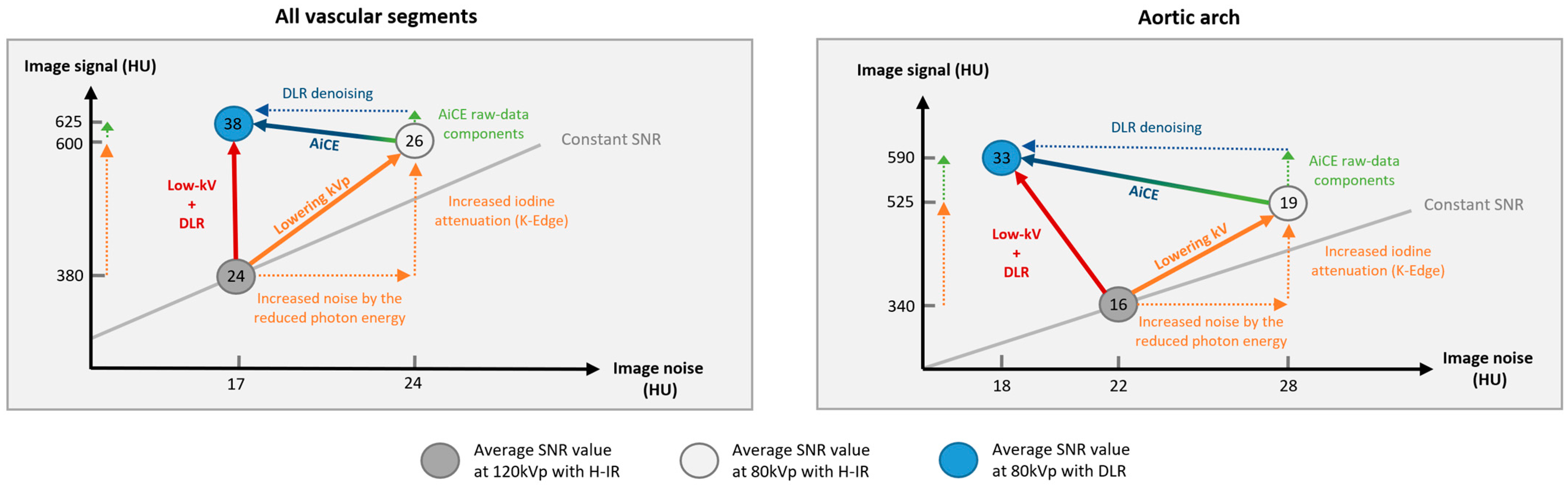

Figure 5. Schematic representation of the low-tube voltage approach combined with deep learning reconstruction to increase the signal-to-noise ratio vs. standard-kVp and iterative reconstruction protocol.
Figure 5. Schematic representation of the low-tube voltage approach combined with deep learning reconstruction to increase the signal-to-noise ratio vs. standard-kVp and iterative reconstruction protocol.
Diagnostics 12 01287 g005
Table 1. CT acquisition parameters in each peak kilovoltage (kVp) group.
Table 1. CT acquisition parameters in each peak kilovoltage (kVp) group.
Parameters120 kVp100 kVp80 kVp
Acquisition modeHelicalHelicalHelical
Tube voltage (kVp)12010080
Tube current range (mA)200–700200–700200–700
Collimation (mm)0.5 × 800.5 × 800.5 × 80
Rotation time (s)0.350.350.35
Field of view (mm)320320320
Slice thickness (mm)111
Interval (mm)0.80.80.8
Pitch0.80.80.8
Noise index101010
mA, milliampere; mm, millimeter; s, second.
Table 2. Five-point Likert-scale used for qualitative image evaluation.
Table 2. Five-point Likert-scale used for qualitative image evaluation.
GradingConfidenceArtifactsSharpnessNoise
1Non-diagnosticExtensiveVery blurryVery high/Very coarse graininess
2Low confidenceSignificantBlurryHigh/Coarse graininess
3AverageAverageAverageAverage
4Good confidenceFewSharpLow/Fine graininess
5Highest confidenceVery fewVery SharpVery low/Very fine graininess
Table 3. Comparison of radiation dose to the patient with the three kVp values.
Table 3. Comparison of radiation dose to the patient with the three kVp values.
Parameters120 kVp
(N = 27)
100 kVp
(N = 30)
80 kVp
(N = 29)
100 kVp vs. 120 kVp80 kVp vs. 100 kVp80 kVp vs. 120 kVp
% Changep-Value% Changep-Value% Changep-Value
Age67 ± 17.765.7 ± 1963.4 ± 18.8NS0.96NS0.64NS0.67
Female/male14/1318/1221/8NS0.54NS0.32NS0.12
BMI, kg/m225.6 ± 4.625 ± 4.125.6 ± 3.3NS0.55NS0.48NS0.99
Right/left arm injection14/1314/1614/15NS0.7NS0.9NS0.8
CTDIvol, mGy4.8 ± 1.14 ± 1.12.3 ± 0.2−17%0.01−42%<0.01−51%<0.01
DLP, mGy.cm197.1 ± 51.2150.7 ± 37.890.4 ± 9.4−24%<0.01−40%<0.01−54%<0.01
ED, mSv1.5 ± 0.41.1 ± 0.30.68 ± 0.1−24%<0.01−40%<0.01−54%<0.01
Table 4. Comparison of the two reconstruction techniques at regional levels with constant kVp value.
Table 4. Comparison of the two reconstruction techniques at regional levels with constant kVp value.
Parameters, N120 kVp, 27100 kVp, 3080 kVp, 29All kVp, 86
H-IRDLRp-ValueH-IRDLRp-ValueH-IRDLRp-ValueH-IRDLRp-Value
Close to the aorta
   Image signal (HU)382.8 ± 115.8351.1 ± 102.4<0.01474.3 ± 127.7453.6 ± 115.4<0.01580.9 ± 124595.8 ± 122.7<0.01475.3 ± 144.3465.8 ± 150.4<0.01
   Image noise (HU)18.9 ± 4.712.2 ± 1.9<0.0119.4 ± 6.112 ± 2.7<0.0123.5 ± 6.115.6 ± 3.1<0.0120.8 ± 5.913.4 ± 3.1<0.01
   SNR21.9 ± 9.929.5 ± 10.2<0.0128.1 ± 15.839.9 ± 15.3<0.0127 ± 11.539.7 ± 12.4<0.0125.1 ± 12.536 ± 13.3<0.01
   CNR20.5 ± 8.927.5 ± 10.6<0.0125.3 ± 8.038.3 ± 14<0.0126.5 ± 10.139.5 ± 11.2<0.0124 ± 10.434.9 ± 12.9<0.01
Close to bones
   Image signal (HU)384.2 ± 95.2371.3 ± 86.4<0.01490.2 ± 117.4486 ± 117.10.2612.1 ± 114647.8 ± 121.4<0.01491.3 ± 142.2501.1 ± 157.2<0.01
   Image noise (HU)16.9 ± 4.811.7 ± 2.7<0.0117 ± 4.611.9 ± 3.3<0.0122.7 ± 5.515.8 ± 3.2<0.0119.1 ± 5.713.3 ± 3.6<0.01
   SNR24.2 ± 8.433.4 ± 11.3<0.0130.7 ± 11.243.1 ± 15.3<0.0128 ± 6.842.7 ± 12.6<0.0127.2 ± 6.839.2 ± 13.7<0.01
   CNR22 ± 7.830.9 ± 11.4<0.0127.6 ± 6.340.6 ± 11.7<0.0127.8 ± 6.244.8 ± 11.7<0.0140.1 ± 6.257.2 ± 29.4<0.01
Intra-dural arteries
   Image signal (HU)366.7 ± 79.3345.1 ± 79.1<0.01456.4 ± 106.9450.1 ± 107.4<0.01584.7 ± 107.3618.7 ± 116<0.01470.9 ± 133.2472.9 ± 152.60.3
   Image noise (HU)18 ± 5.514.2 ± 4.7<0.0118.3 ± 513.9 ± 3.5<0.0126.3 ± 7.320.6 ± 5.5<0.0120.9 ± 7.216.3 ± 5.6<0.01
   SNR22.1 ± 8.526.2 ± 8.9<0.0126.5 ± 8.834.5 ± 12.7<0.0123.8 ± 7.332 ± 10.1<0.0124.1 ± 8.330.9 ± 11.2<0.01
   CNR21.7 ± 6.827.1 ± 10.3<0.0126.0 ± 6.035.9 ± 9.0<0.0124.4 ± 5.636.0 ± 9.2<0.0129.1 ± 11.638.8 ± 13.6<0.01
All vascular segments
   Image signal (HU)382.3 ± 98.6358 ± 90.2<0.01468 ± 118.5456.6 ± 113.5<0.01597.6 ± 114.9625.9 ± 118.5<0.01484.9 ± 141.7482.8 ± 154.40.16
   Image noise (HU)17.5 ± 5.212.6 ± 3.6<0.0118.1 ± 5.412.6 ± 3.2<0.0124.4 ± 6.717.7 ± 4.9<0.0120 ± 6.614.3 ± 4.6<0.01
   SNR23.8 ± 9.730.3 ± 11.1<0.0128.4 ± 12.538.7 ± 14.7<0.0126.4 ± 9.137.9 ± 12.3<0.0126.3 ± 10.735.8 ± 13.4<0.01
   CNR22.1 ± 7.528.9 ± 9.5<0.0126.9 ± 9.538.1 ± 13.3<0.0126.4 ± 7.739.6 ± 10.4<0.0125.2 ± 8.635.7 ± 12.2<0.01
Table 5. Quantitative image analysis at regional levels of low-kVp protocol with DLR vs. higher-kVp protocol with DLR.
Table 5. Quantitative image analysis at regional levels of low-kVp protocol with DLR vs. higher-kVp protocol with DLR.
Parameters120 kVp + DLR100 kVp + DLR80 kVp + DLR80 kVp + DLR vs.
120 kVp + DLR100 kVp + DLR
% Changep-Value% Changep-Value
Close to the aorta
   Image signal (HU)351.1 ± 102.4453.6 ± 115.4595.8 ± 122.7+70%<0.01+31%<0.01
   Image noise (HU)12.2 ± 1.912 ± 2.715.6 ± 3.1+28%<0.01+30%<0.01
   SNR29.5 ± 10.239.9 ± 15.339.7 ± 12.4+35%<0.01+0%0.9
   CNR27.5 ± 10.638.3 ± 1439.5 ± 11.2+44%<0.01+3%0.62
Close to bones
   Image signal (HU)371.3 ± 86.4486 ± 117.1647.8 ± 121.4+74%<0.01+33%<0.01
   Image noise (HU)11.7 ± 2.711.9 ± 3.315.8 ± 3.2+35%<0.01+33%<0.01
   SNR33.4 ± 11.343.1 ± 15.342.7 ± 12.6+28%<0.01−1%0.68
   CNR30.9 ± 11.440.6 ± 11.744.8 ± 11.7+45%<0.01+10%0.08
Intra-dural arteries
   Image signal (HU)345.1 ± 79.1450.1 ± 107.4618.7 ± 116+79%<0.01+37%<0.01
   Image noise (HU)14.2 ± 4.713.9 ± 3.520.6 ± 5.5+45%<0.01+48%<0.01
   SNR26.2 ± 8.934.5 ± 12.732 ± 10.1+22%<0.01−9%0.07
   CNR27.1 ± 10.335.9 ± 9.036.0 ± 9.2+33%<0.01+0%0.95
All vascular segments
   Image signal (HU)358 ± 90.2456.6 ± 113.5625.9 ± 118.5+75%<0.01+37%<0.01
   Image noise (HU)12.6 ± 3.612.6 ± 3.217.7 ± 4.9+40%<0.01+40%<0.01
   SNR30.3 ± 11.138.7 ± 14.737.9 ± 12.3+25%<0.01−2%0.4
   CNR28.9 ± 9.538.1 ± 13.339.6 ± 10.4+37%<0.01+4%0.76
AO: Aortic arch; CCA: common carotid artery; ICAc: cervical internal carotid artery; ICAp: intrapetrous internal carotid artery; ICAt: terminal internal carotid artery; MCA: middle cerebral artery; V1, V2, V3, and V4: vertebral artery, four portions; BA, basilar artery.
Table 6. Quantitative image analysis at regional levels of low-kVp protocol with DLR vs. higher-kVp protocol with H-IR.
Table 6. Quantitative image analysis at regional levels of low-kVp protocol with DLR vs. higher-kVp protocol with H-IR.
Parameters120 kVp + H-IR100 kVp + H-IR80 kVp + DLR80 kVp + DLR vs.
120 kVp + H-IR100 kVp + H-IR
% Changep-Value% Changep-Value
Close to the aorta
   Image signal (HU)382.8 ± 115.8474.3 ± 127.7595.8 ± 122.7+56%<0.01+26%<0.01
   Image noise (HU)18.9 ± 4.719.4 ± 6.115.6 ± 3.1−17%<0.01−20%<0.01
   SNR21.9 ± 9.928.1 ± 15.839.7 ± 12.4+81%<0.01+41%<0.01
   CNR20.5 ± 8.925.3 ± 8.039.5 ± 11.2+92%<0.01+56%<0.01
Close to bones
   Image signal (HU)384.2 ± 95.2490.2 ± 117.4647.8 ± 121.4+69%<0.01+32%<0.01
   Image noise (HU)16.9 ± 4.817 ± 4.615.8 ± 3.2−7%0.1−7%0.05
   SNR24.2 ± 8.430.7 ± 11.242.7 ± 12.6+76%<0.01+39%<0.01
   CNR22 ± 7.827.6 ± 6.344.8 ± 11.7+104%<0.01+62%<0.01
Intra-dural arteries
   Image signal (HU)366.7 ± 79.3456.4 ± 106.9618.7 ± 116+69%<0.01+36%<0.01
   Image noise (HU)18 ± 5.518.3 ± 520.6 ± 5.5+14%<0.01+13%<0.01
   SNR22.1 ± 8.526.5 ± 8.832 ± 10.1+45%<0.01+21%<0.01
   CNR21.7 ± 6.826.0 ± 6.036.0 ± 9.2+65%<0.01+38%<0.01
All vascular segments
   Image signal (HU)382.3 ± 98.6468 ± 118.5625.9 ± 118.5+64%<0.01+34%<0.01
   Image noise (HU)17.5 ± 5.218.1 ± 5.417.7 ± 4.9+1%0.7−2%0.3
   SNR23.8 ± 9.728.4 ± 12.537.9 ± 12.3+59%<0.01+33%<0.01
   CNR22.1 ± 7.526.9 ± 9.539.6 ± 10.4+79%<0.01+47%<0.01
CCA: common carotid artery; ICAc: cervical internal carotid artery; ICAp: intrapetrous internal carotid artery; ICAt: terminal internal carotid artery; MCA: middle cerebral artery; V1, V2, V3, and V4: vertebral artery, four portions; BA, basilar artery.
Table 7. Qualitative image evaluation including mean scores of confidence, artifacts, sharpness, and noise with AIDR 3D (H-IR) and AiCE (DLR). Regional levels: close to the aorta (AO, CCA, V1), close to bones (ICAp, V2, and V3), and intracranial arteries (ICAt, MCA, V4, BA). CCA: common carotid artery; ICAc: cervical internal carotid artery; ICAp: intrapetrous in-ternal carotid artery; ICAt: terminal internal carotid artery; MCA: middle cerebral artery; V1, V2, V3, and V4: vertebral artery, four portions; BA, basilar artery.
Table 7. Qualitative image evaluation including mean scores of confidence, artifacts, sharpness, and noise with AIDR 3D (H-IR) and AiCE (DLR). Regional levels: close to the aorta (AO, CCA, V1), close to bones (ICAp, V2, and V3), and intracranial arteries (ICAt, MCA, V4, BA). CCA: common carotid artery; ICAc: cervical internal carotid artery; ICAp: intrapetrous in-ternal carotid artery; ICAt: terminal internal carotid artery; MCA: middle cerebral artery; V1, V2, V3, and V4: vertebral artery, four portions; BA, basilar artery.
Parameters120 kVp100 kVp80 kVpAll kVp
H-IRDLRp-ValueH-IRDLRp-ValueH-IRDLRp-ValueH-IRDLRp-Value
Close to the aorta
Confidence4.3 ± 0.74.8 ± 0.4<0.014.2 ± 0.64.7 ± 0.5<0.013.6 ± 0.84.4 ± 0.6<0.014 ± 0.84.6 ± 0.5<0.01
Artifacts3.9 ± 1.14.1 ± 1<0.013.9 ± 1.14.1 ± 1<0.012.5 ± 1.22.9 ± 1.1<0.013.4 ± 1.33.7 ± 1.2<0.01
Sharpness3.6 ± 0.64.8 ± 0.4<0.013.8 ± 0.54.8 ± 0.4<0.013 ± 0.74.5 ± 0.5<0.013.4 ± 0.74.7 ± 0.5<0.01
Noise3.2 ± 0.64.5 ± 0.5<0.013.3 ± 0.64.8 ± 0.4<0.013 ± 0.54.9 ± 0.3<0.013.1 ± 0.64.7 ± 0.4<0.01
Close to bones
Confidence4.5 ± 0.64.9 ± 0.3<0.014.3 ± 0.74.9 ± 0.3<0.014.2 ± 0.74.9 ± 0.3<0.014.3 ± 0.74.9 ± 0.3<0.01
Artifacts4.5 ± 0.64.9 ± 0.4<0.014.4 ± 0.74.9 ± 0.3<0.014.3 ± 0.74.9 ± 0.3<0.014.4 ± 0.74.9 ± 0.3<0.01
Sharpness3.6 ± 0.54.7 ± 0.5<0.013.7 ± 0.54.8 ± 0.4<0.013.5 ± 0.54.9 ± 0.3<0.013.6 ± 0.54.8 ± 0.4<0.01
Noise3.4 ± 0.64.8 ± 0.4<0.013.6 ± 0.54.8 ± 0.4<0.013.4 ± 0.54.9 ± 0.3<0.013.5 ± 0.54.8 ± 0.4<0.01
Intra-dural arteries
Confidence4.6 ± 0.55 ± 0.2<0.014.4 ± 0.64.9 ± 0.3<0.014.3 ± 0.74.9 ± 0.4<0.014.4 ± 0.64.9 ± 0.3<0.01
Artifacts5 ± 0.25 ± 0.2-4.9 ± 0.45 ± 0.20.34.8 ± 0.45 ± 0.20.044.9 ± 0.35 ± 0.20.02
Sharpness3.7 ± 0.54.7 ± 0.5<0.013.8 ± 0.44.8 ± 0.4<0.013.4 ± 0.64.8 ± 0.5<0.013.6 ± 0.54.8 ± 0.5<0.01
Noise3.4 ± 0.64.9 ± 0.4<0.013.6 ± 0.54.9 ± 0.3<0.013.4 ± 0.55 ± 0.2<0.013.4 ± 0.54.9 ± 0.3<0.01
All vascular segments
Confidence4.5 ± 0.64.9 ± 0.3<0.014.4 ± 0.74.9 ± 0.3<0.014 ± 0.64.9 ± 0.3<0.014.3 ± 0.74.9 ± 0.3<0.01
Artifacts4.3 ± 0.84.6 ± 0.5<0.014.1 ± 0.84.4 ± 0.70.033.5 ± 0.84.1 ± 0.8<0.014 ± 0.84.4 ± 0.7<0.01
Sharpness3.7 ± 0.54.7 ± 0.5<0.013.8 ± 0.44.8 ± 0.4<0.013.4 ± 0.64.9 ± 0.3<0.013.6 ± 0.54.8 ± 0.4<0.01
Noise3.4 ± 0.64.8 ± 0.4<0.013.6 ± 0.54.8 ± 0.4<0.013.3 ± 0.55 ± 0.2<0.013.4 ± 0.54.8 ± 0.4<0.01
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lenfant, M.; Comby, P.-O.; Guillen, K.; Galissot, F.; Haioun, K.; Thay, A.; Chevallier, O.; Ricolfi, F.; Loffroy, R. Deep Learning-Based Reconstruction vs. Iterative Reconstruction for Quality of Low-Dose Head-and-Neck CT Angiography with Different Tube-Voltage Protocols in Emergency-Department Patients. Diagnostics 2022, 12, 1287. https://doi.org/10.3390/diagnostics12051287

AMA Style

Lenfant M, Comby P-O, Guillen K, Galissot F, Haioun K, Thay A, Chevallier O, Ricolfi F, Loffroy R. Deep Learning-Based Reconstruction vs. Iterative Reconstruction for Quality of Low-Dose Head-and-Neck CT Angiography with Different Tube-Voltage Protocols in Emergency-Department Patients. Diagnostics. 2022; 12(5):1287. https://doi.org/10.3390/diagnostics12051287

Chicago/Turabian Style

Lenfant, Marc, Pierre-Olivier Comby, Kevin Guillen, Felix Galissot, Karim Haioun, Anthony Thay, Olivier Chevallier, Frédéric Ricolfi, and Romaric Loffroy. 2022. "Deep Learning-Based Reconstruction vs. Iterative Reconstruction for Quality of Low-Dose Head-and-Neck CT Angiography with Different Tube-Voltage Protocols in Emergency-Department Patients" Diagnostics 12, no. 5: 1287. https://doi.org/10.3390/diagnostics12051287

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
