Multimodal Study of PRPH2 Gene-Related Retinal Phenotypes
by
, , ,
Giulio Antonelli
1
,
Mariacristina Parravano
1,*,
Lucilla Barbano
1,
Eliana Costanzo
1,
Matteo Bertelli
2,3,4,
Maria Chiara Medori
2,
Vincenzo Parisi
1 and
Lucia Ziccardi
1 1
IRCCS—Fondazione Bietti, Via Livenza 3, 00198 Rome, Italy
2
MAGI’S LAB, Via Delle Maioliche 57/D, 38068 Rovereto, Italy
3
MAGI EUREGIO, Via Maso Delle Pieve 60/A, 39100 Bolzano, Italy
4
MAGISNAT, Atlanta Tech Park, 107 Technology, Parkway, Peachtree Corners, GA 30092, USA
*
Author to whom correspondence should be addressed.
Diagnostics 2022, 12(8), 1851; https://doi.org/10.3390/diagnostics12081851
Submission received: 6 July 2022
/
Revised: 28 July 2022
/
Accepted: 29 July 2022
/
Published: 31 July 2022
(This article belongs to the Special Issue Structure-Function Relationship in Retinal Diseases)
Abstract
:PRPH2 gene mutations are frequently found in inherited retinal dystrophies (IRD) and are associated with a wide spectrum of clinical phenotypes. We studied 28 subjects affected by IRD carrying pathogenic PRPH2 mutations, belonging to 11 unrelated families. Functional tests (best-corrected visual acuity measurement, chromatic test, visual field, full-field, 30 Hz flicker, and multifocal electroretinogram), morphological retino-choroidal imaging (optical coherence tomography, optical coherence tomography angiography, and fundus autofluorescence), and clinical data were collected and analyzed. Common primary complaints, with onset in their 40s, were visual acuity reduction and abnormal dark adaptation. Visual acuity ranged from light perception to 20/20 Snellen. Visual field peripheral constriction and central scotoma were found. Chromatic sense was reduced in one third of patients. Electrophysiological tests were abnormal in most of the patients. Choroidal neovascular lesions were detected in five patients. Three novel PRPH2 variants were found in four different families. Based on the present multimodal study, we identified seven distinct PRPH2 phenotypes in 11 unrelated families carrying either different mutations or the same mutation, both within the same family or among them. Fundus autofluorescence modality turned out to be the most adequate imaging method for early recognition of this dystrophy, and the optical coherence tomography angiography was highly informative to promptly detect choroidal neovascularization, even in the presence of the extensive chorioretinal atrophy phenotype.
1. Introduction
Mutations in the peripherin-2 (PRPH2) gene are frequently found in inherited retinal diseases (IRD) [1,2]. This gene is located on chromosome 6p21.2 and is also known as retinal degeneration slow (RDS) gene.
The gene product, the PRPH2 protein, is a member of the tetraspanin family, a transmembrane structural glycoprotein with an integral role in the formation and structure of both rod and cone photoreceptor outer segments [3,4]. The protein, containing four transmembrane domains and an intracellular domain, forms intramolecular disulfide bonds [5,6,7] and mediates assembly of peripherin-2/retinal outer segment membrane protein 1 (PRHP2/ROM1) tetramers into covalently linked higher-order complexes [7]. The formation of this protein complex is quite important for the functional activity of the protein, that is to create and maintain the rim region of rod discs and cone lamellae and to regulate disc size and alignment [7].
Although the mechanism of action of PRPH2 gene alterations is still not completely understood [8], different related clinical pathological presentations have been described: pattern dystrophy (PD), multifocal pattern dystrophy simulating fundus flavimaculatus (PDSFF), macular dystrophy (MD), Stargardt disease (SD), retinitis pigmentosa (RP), adult-onset vitelliform macular dystrophy (AVMD), extensive chorioretinal atrophy (ECA) and central areolar choroidal dystrophy (CACD) [7,9,10,11,12].
This phenotypic heterogeneity makes the definition of the disease very challenging, for various reasons. The first one is that a transition from one clinical classification to another is possible as patients grow older; indeed, it has been reported that patients showing early and pure macular dystrophy phenotype will progress to a cone-rod or rod-cone dystrophy [7]. The second reason is the inter- and intra-familial phenotypical variability, even among family members carrying the same mutant allele [13,14], possibly due to other genetic modifiers, as ROM1, (in digenic RP), ABCA4 (typically in autosomal recessive SD), and RPE65 variants [8,15,16,17].
Because of the phenotype variability, the diagnosis is often delayed, and the real number of patients affected by PRPH2-related retinal dystrophy may be underestimated.
Indeed, the prevalence of PRPH2 disease is reported differently among countries, 10.3% in France, 9% in America, 9% in Italy, 5% in Japan, and 3.5% in North America [2,18,19,20,21]. Moreover, because of the reduced frequency out of Europe, a European ancestry has been suggested [21].
From the observation of several different IRD in our clinical practice, we focused on those patients with a confirmed known pathogenic mutation, and a possible novel one in the PRPH2 gene, detected by a next generation sequencing (NGS) large genetic panel for MD, cone-rod dystrophy (CRD), and RP cases.
A retinal multimodal study was conducted on a cohort of PRPH2 patients with the aim to describe the clinical characteristics of the spectrum phenotype and to unveil whether the presence of choroidal neovascularization (CNV) was relevant or could be considered an unusual associated feature, as in other IRD.
2. Materials and Methods
All research procedures described in this work adhered to the tenets of the Declaration of Helsinki. The study protocol (NEU_01-2014) was approved by the local ethical committee (Comitato Etico Centrale IRCCS Lazio, Sezione IFO/Fondazione Bietti, Rome, Italy) and informed consent after full explanation of the procedures was obtained from each subject included in the study.
We retrieved from our IRD registry, all patients with a pathogenic mutation of the PRPH2 gene and collected clinical and instrumental examinations performed during their visits. Data presented in the present study refer to the last visit.
All patients underwent best-corrected visual acuity (BCVA) measurement by the early treatment of diabetic retinopathy study (ETDRS) charts (Lighthouse Precision Vision, Woodstock, IL, USA) expressed in Snellen, chromatic test evaluated by Ishihara charts, slit-lamp fundus indirect ophthalmoscopy (with 90D Volk lens and dilated pupil by tropicamide 1% drops), kinetic visual field test by Goldmann perimeter (Haag-Streit, Bern, Switzerland), fundus autofluorescence (FAF) imaging, at 50° and 30°, by Spectralis (Heidelberg Engineering, Heidelberg, Germany), spectral domain optical coherence tomography (sdOCT), and where necessary, as a confirm for neovascular lesion, appropriate imaging as OCT-angiography (OCT-A) and/or fluoresceine angiography (FA). Full-field electroretinogram (ffERG) (by Retimax CSO, Firenze, Italy) and multifocal electroretinogram (mfERG) (using VERIS Clinic TM version 4.9; Electro-Diagnostic Imaging, San Mateo, CA, USA), with a multifocal stimulus consisting of 61-scaled hexagons, were recorded in accordance with the standards of the International Society for Clinical Electrophysiology of Vision [22,23,24] by using Dawson, Trick, and Litzkow (DTL) electrodes. We performed ffERG after 10 min of dark adaptation (flash 1J at 1 Hz), 30 Hz flicker ERG after 10 min of light adaptation and the mfERG, whose peak-to-peak response amplitude density (RAD), was measured in nanoVolt/degree2 (nV/d2) between the first negative peak (N1) and the first positive peak (P1), as described in our previous works [25,26,27].
Genetic Testing
Genetic testing was performed at MAGI’s laboratory (MAGI’S Lab, Rovereto, Italy, and MAGI Euregio, Bolzano-Bozen, Italy) from salivary samples, after genetic counseling to reconstruct the family pedigree and after obtaining informed consent and explaining the characteristics of a genetic test. We assumed the mode of inheritance as autosomal dominant if two generations or more were affected; autosomal recessive if there was parental consanguinity or siblings from normal parents were affected; patients not reporting parental consanguinity and not having any evidence of other affected family members were defined as “sporadic”.
The patients were tested between 2014 and 2021 via targeted NGS performed on a MiSeq personal sequencer (Illumina, San Diego, CA, USA), using panels that include genes associated with RP, MD, and pattern dystrophy. Family members of the proband were analyzed only for the variants already known and for genes modifier, as associated with the phenotype in the first family member tested with PCR. The pathogenicity of variants was evaluated according to the American College of Medical Genetics and Genomics (ACMG) guidelines [28].
3. Results
3.1. Clinical Findings
Demographic and functional data of the study cohort are reported on Table 1.
From a total of 63 patients belonging to 11 unrelated families, we found 34 patients carrying a PRPH2 mutation. Among them, two subjects, deceased after the genetic test, (done for completing the family segregation study) and four subjects were unavailable to come to our center to be studied. Thus, we had the opportunity to collect clinical and genetic data from 28 affected subjects. All these latter patients had some visual complaints or some clinical findings typical of bilateral and symmetric IRD.
All the family’s pedigrees are available in Figure S1 in Supplementary Material.
The autosomal dominant inheritance pattern was verified in 6 out of 11 families, the remnants were defined as sporadic.
Our cohort included 14 females and 14 males. The age of the patients ranged from 37 to 79 years with a mean (±SD) of 58 ± 1235 and the mean age of onset of symptoms was 41 ± 1283 years old, similar to data already reported in previous studies [7,9,20]. BCVA of the patients ranged from light perception to 20/20 Snellen. Common primary complaints were reduction in VA (10 patients, 35%), difficulty in dark adaptation (7 patients, 25%), metamorphopsia and photophobia (both 5 patients, 17%) in accordance with other previous reports [7,9].
Of note, six subjects (21%) had no symptoms, and they were detected only because of sibilants of other patients.
The most frequent visual field defects were peripheral constriction (8 patients, 28%), central scotoma (7 patients, 25%) and ring scotoma (4 patients, 14%); in a small percentage of patients no abnormalities were detected at the visual field (4 patients, 14%). We found abnormal chromatic test in nine patients (32%) of our cohort, data not reported in other studies, except for one reported patient [29]. The a-b wave amplitude of the scotopic ffERG and the amplitude of the 30 Hz flicker ERG were reduced similarly in the majority of patients (22 patients, 78%). The mfERG RAD was found reduced between 0–20 degrees in 15 patients (53%), whereas localized dysfunction was found within 0–5 degrees in another six patients (21%) and reduced RAD within 10–20 degrees was found in only two patients (7%); mfERG RAD was found normal in four patients (14%) and in one patient this data was not available.
As above mentioned, and based on previous clinical reports of PRPH2 families, we identified seven different phenotypes associated with PRPH2 mutation in our cohort. Patients displayed clinical features varying from RP to MD. For instance, we identified a total of five patients (17%) with autosomal dominant RP (ADRP), two patients with MD (7%), three patients (10%) with AVMD, six patients (21%) with PD, two patients (7%) with CACD, four with ECA (14%), and six patients (21%) with PDSFF. Fundus aspect and retinal morphological features detected by SD-OCT and FAF are reported in Table 2. Representative examples of the seven different phenotypes are illustrated in Figure 1.
3.2. Genetic Findings
We studied 11 families with seven distinct PRPH2 genetic variants. Among these, we found three novel PRPH2 variants not previously reported: the same variant c.734dup; p.(Trp246Valfs*55) was found in two unrelated families (family 4 and family 8), the variant c.903del; p.(Ser301Argfs*23) was found in family 10 and another one c.742C > A; p.(Arg248Ser) in family 11. Another already known variant, c.499G > A; p.(Gly167Ser), was found in four unrelated families (family 1, 3, 5 and 9); moreover in family 2 the variant c.290G > A; p.(Trp97*) was found, in family 6 the variant c.136C > T; p.(Arg46*), and in family 7 the variant c.623G > A; p.(Gly208Asp), these last four variants were previously reported.
Concerning the modifier genes, we found a total of five variants (four on ABCA4 gene and one on ROM1 gene) in five patients of five unrelated families.
Genotype data including a detailed list of PRPH2 variants, genetic modifiers and correlated clinical diagnosis are presented on Table 3.
4. Discussion
We performed a retinal multimodal study in a cohort of patients carrying causative mutations of the PRPH2 gene that, to our knowledge, represents at the present time the biggest study in Italy.
The study was conducted in a cohort of 28 PRPH2 patients with the aim of describing the clinical variability of the wide spectrum phenotype, which was classified in seven main types. The present work also described the presence of monolateral choroidal neovascularization in five patients, as an unexpected but relevant feature, unusually associated with other IRD.
Among the PRPH2 variants found to be pathogenic in our cohort, we also described three novel mutations, one of which was found in members of two unrelated families.
4.1. Phenotype-Genotype Variability of PRPH2 Disease Related Spectrum
We found the clinical diagnosis and the classification of the disease considering the variable clinical spectrum at presentation to be challenging. Despite it appearing that only one gene was involved in the pathogenesis of the disease, the retinal dystrophy presented in almost seven different phenotypes involving the peripheral retina (i.e., retinitis pigmentosa, extensive chorio-retinal atrophy, pattern dystrophy-simulating fundus flavimaculatus), or the central macula (i.e., macular dystrophy, AVMD, CACD, pattern dystrophy), as illustrated in Figure 1.
Indeed, we observed in our cohort that phenotype variability was present:
- (1)
- (2)
- in different unrelated families carrying the same mutation (inter-familiar phenotype variability), as reported in Figure 2.
The relationships between the clinical features and genetic variants are still unclear because the same genetic variant can affect rods and cones differently. [3,7] Therefore, without consistent genotype–phenotype correlations, the accepted view is that a single mutation in PRPH2 may cause a spectrum of phenotypes, impacting on both the central photopic system and peripheral scotopic cellular elements. In other reports it is evidenced that many genetic variants are mostly found in the D2 loop [11,20], which is critical for protein–protein interactions. In agreement, we found that most of our patients have a mutation in this domain, except for family 2 (Trp97*), family 6 (Arg46*), and family 10 (Ser301A).
We found it valuable to acquire FAF imaging for all patients. By analyzing the 50° and 30° images (Figure 1) we classified the PRPH2 retinal dystrophy spectrum and found common characteristics of seven different patterns. To explain the uncommon and variable presentation of this monogenic disease, as already hypothesized, we accounted for other factors such as genetic background, genetic modifiers, and/or environmental factors that may affect phenotypes and outcomes [7,8,15,16,17]. As recently reported, it is likely that also mRNA and protein expression levels and/or post transcriptional regulatory mechanisms are intermediate factors between gene expression and clinical phenotypes [32,33].
Of interest, we documented different presentations in unrelated families carrying the same identical gene mutation either already described, as found in families 1, 3, 5, and 9 (c.499G > A) or novel (c.734dup), as reported in families 4 and 8 (as illustrated in Figure 2). About the cases with the c.734dup mutation, the phenotype variability could be given by the genetic modifiers ABCA4, which resulted, however, differently mutated in both families, and could influence the prognosis.
In addition to this interfamilial variability, an interesting feature that we found is the important intrafamilial variability identified in family 2, where the same identical mutation (c.290G > A) produced five different presentations (PD, PDSFF, ECA, ADVM, and ADRP), as illustrated in Figure 3.
This example enabled us to think that there could be unidentified factors, more than the classic genetic one, that can influence the translation of the phenotype. Moreover, we could further observe a follow-up of 6 years of a member of Family 2 (F2-III-7) showing AVMD (Figure 3A,B) feature at the onset of the disease (age of 38 y/o) with a subsequent reabsorption of the vitelliform lesion without progression of the outer retinal layer to atrophy, as usually expected [34], which can justify the good BCVA at the present.
4.2. Unreported Clinical Functional and Morphologic Characteristics of PRPH2-Related Disease
Although previous authors have tried to find out some distinctive traits of this spectrum disorder, as above-mentioned, this is one of the most variable IRD. In addition to that already reported in other IRD, we found an alteration of the chromatic sense, which was interestingly reduced only in those PRPH2 patients with a reduction of BCVA. This observation was not confirmed by Sonia H et al. [35] who reported an alteration in chromatic perception even with good BCVA, however the study cohort was made of patients with only best maculopathy.
On the functional assessment by electroretinographic signals, Rola Ba-Abbad et al. [36] described a case series of six patients (51.6 ± 11.86 years old), all with PRPH2 mutations but with different retinal involvement, all with an electronegative electroretinogram waveform (full field scotopic and photopic ERG), later confirmed only by one more report [37]. In our cohort, which appears slightly older (58 ± 12.35 years old) none of our patients displayed an electronegative ERG. It is likely that the electronegative ERG is not pathognomonic of PRPH2 related dystrophy, contrary to that previously hypothesized [36]. In addition, since we found similarly reduced signals derived from scotopic and photopic cellular systems of the outer retina, we were not able to establish whether PRPH2 related disorder mimics a cone-rod or a rod-cone dystrophy
Concerning the electrofunctional assessment of the macular region, we were able to record mfERG in almost all subjects and found reduced RAD in the majority [17]. Interestingly of these, eight had preserved BCVA (20/20 Snellen) and only slightly macular involvement evident at the SDOCT. As far as we know, there are only a few mfERG studies [38,39] in patients with this phenotype and one of these included only four patients with evident macular involvement. Our finding of reduced mfERG responses describes a dysfunction of photoreceptors and bipolar cells in this retinal degeneration.
Of interest, the presence of CNV was relevant in our cohort. A recent report by Yousra Falfoul et al. [40] assessed a frequent macular involvement with CNV in RP patients, enough to consider the research of PRPH2 gene mutation, when a CNV is observed. In agreement with this observation, we found monocular CNV in five subjects, presenting with RP and PD phenotypes, as already reported [20,30,31], and associated with ECA phenotype, not previously reported (F3-I-2, Figure 1 and F2-II-4, Figure 3). The follow-up of CNV found in our cohort was not complete, as only one patient underwent anti-vascular endothelial growth factor (VEGF) intravitreal injection in our center.
Our findings are relevant because, as previously suggested [40], all PRPH2 patients displaying PD or RP phenotypes should be followed by SD-OCT and OCTA for the possibility of developing CNV as a complication of the disease. This alert should be extended to PRPH2 patients displaying ECA features. This agrees with a previous OCTA study that highlighted the importance of assessing vascular retino-choroidal alterations, such as the already described increase in the size of the foveal avascular zone (FAZ) at the superficial vascular plexus (SVP) or deep capillary complex (DCP), appreciable in PRPH2 patients presenting a phenotype of CACD and ECA [12].
Concerning the imaging, FAF was revealed as a useful tool to detect and observe the seven phenotypes of this IRD and especially PDSFF. This phenotype was characterized by the appearance of a speckled point of hypo- and hyper-autofluorescence in the posterior pole and beyond the vascular arcades (see Figure 1 and Figure 3) Only the thorough acquisition of the FAF modality in all patients allowed the seven patterns (see Figure 1) to be distinguished and the PRPH2 IRD to be easily differentiated from any others that could have been misdiagnosed using only the SD-OCT scans. All this let us propose the FAF modality as the most appropriate morphological method to categorize the retinal prototypical characteristics of the PRPH2 disease spectrum, especially the PDSFF type which presents peculiar abnormalities along the vascular arcades and otherwise not detectable easily by SD-OCT. In agreement with this observation, a previous study [41] described that quantitative fundus autofluorescence (qAF) may help to distinguish patients with PRPH2 gene mutations. In this group, qAF values were lower than in patients with ABCA4 gene mutations but higher with respect to control subjects [22].
5. Conclusions
The identification of PRPH2 IRD is challenging, and the rate of affected population may be underestimated because of the clinical variability of the different phenotypes, and thus the numerous misdiagnosed cases with limited access to genetic testing. We reported three novel PRPH2 variants: the c.734dup associated with PD, PDSFF and CACD in two unrelated families, the c.903del associated with RP, and the c.742C > A associated with PD in another two distinguished families. We observed new electrophysiological features of the PRPH2 spectrum phenotypes, consisting of an impairment of the mfERG, even in those patients with preserved BCVA and only slightly macular SD-OCT alterations. We propose in PRPH2 patients FAF modality as the most suitable and accessible imaging method to identify the disease phenotypes and OCTA acquisition to promptly detect CNV, even in patients with ECA phenotype, and for a correct diagnosis, advocating the programing of a correct follow up for appropriate management of this complication.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/diagnostics12081851/s1, Figure S1: Multipanel family’s pedigree.
Author Contributions
Conceptualization, L.Z. and G.A.; methodology, L.Z. and M.P.; software, V.P., L.Z. and M.P.; validation, L.Z. and V.P.; formal analysis, G.A.; investigation, G.A., L.B., E.C., M.C.M. and M.B.; resources, L.Z.; data curation, L.Z. and M.P.; writing—original draft preparation, G.A., E.C. and L.B.; writing—review and editing, L.Z. and M.P.; visualization, V.P.; supervision, L.Z.; project administration, L.Z. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
All research procedures described in this work adhered to the tenets of the Declaration of Helsinki. The study protocol (NEU_01-2014) was approved by the local ethical committee (Comitato Etico Centrale IRCCS Lazio, Sezione IFO/Fondazione Bietti, Rome, Italy).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
Data available from authors.
Acknowledgments
Research for this study was supported by Fondazione Roma and Ministry of Health. The authors acknowledge Federica Petrocchi for executing visual psychophysical assessment, Elisa Tronti and Maria Luisa Alessi for technical assistance in electrophysiology and all patients and their families for their participation in the study.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
References
- Pontikos, N.; Arno, G.; Jurkute, N.; Schiff, E.; Ba-Abbad, R.; Malka, S.; Gimenez, A.; Georgiou, M.; Wright, G.; Armengol, M.; et al. Genetic basis of inherited retinal disease in a molecularly characterized cohort of over 3000 families from the United Kingdom. Ophthalmology 2020, 127, 1384–1394. [Google Scholar] [CrossRef] [PubMed]
- Manes, G.; Guillaumie, T.; Vos, W.L.; Devos, A.; Audo, I.; Zeitz, C.; Marquette, V.; Zanlonghi, X.; Defoort-Dhellemmes, S.; Puech, B.; et al. High prevalence of PRPH2 in autosomal dominant retinitis pigmentosa in france and characterization of biochemical and clinical features. Am. J. Ophthalmol. 2015, 159, 302–314. [Google Scholar] [CrossRef] [PubMed]
- Arikawa, K.; Molday, L.L.; Molday, R.S.; Williams, D.S. Localization of peripherin/rds in the disk membranes of cone and rod photoreceptors: Relationship to disk membrane morphogenesis and retinal degeneration. J. Cell Biol. 1992, 116, 659–667. [Google Scholar] [CrossRef] [PubMed]
- Molday, R.S.; Hicks, D.; Molday, L. Peripherin. A rim-specific membrane protein of rod outer segment discs. Invest. Ophthalmol. Vis. Sci. 1987, 28, 50–61. [Google Scholar] [PubMed]
- Charrin, S.; Jouannet, S.; Boucheix, C.; Rubinstein, E. Tetraspanins at a glance. J. Cell Sci. 2014, 127 Pt 17, 3641–3648. [Google Scholar] [CrossRef] [Green Version]
- Zimmerman, B.; Kelly, B.; McMillan, B.J.; Seegar, T.; Dror, R.O.; Kruse, A.C.; Blacklow, S.C. Crystal Structure of a Full-Length Human Tetraspanin Reveals a Cholesterol-Binding Pocket. Cell 2016, 167, 1041–1051.e1011. [Google Scholar] [CrossRef] [Green Version]
- Boon, C.J.; den Hollander, A.I.; Hoyng, C.B.; Cremers, F.P.; Klevering, B.J.; Keunen, J.E. The spectrum of retinal dystrophies caused by mutations in the peripherin/RDS gene. Prog. Retin. Eye Res. 2008, 27, 213–235. [Google Scholar] [CrossRef]
- Poloschek, C.M.; Bach, M.; Lagrèze, W.A.; Glaus, E.; Lemke, J.R.; Berger, W.; Neidhardt, J. ABCA4 and ROM1: Implications for Modification of the PRPH2-Associated Macular Dystrophy Phenotype. Investig. Ophthalmol. Vis. Sci. 2010, 51, 4253–4265. [Google Scholar] [CrossRef] [Green Version]
- Reeves, M.J.; Goetz, K.E.; Guan, B.; Ullah, E.; Blain, D.; Zein, W.M.; Tumminia, S.J.; Hufnagel, R.B. Genotype-phenotype associations in a large PRPH2-related retinopathy cohort. Hum. Mutat. 2020, 41, 1528–1539. [Google Scholar] [CrossRef]
- Zulliger, R.; Conley, S.M.; Mwoyosvi, M.L.; Al-Ubaidi, M.R.; Naash, M.I. Oligomerization of Prph2 and Rom1 is essential for photoreceptor outer segment formation. Hum. Mol. Genet. 2018, 27, 3507–3518. [Google Scholar] [CrossRef] [Green Version]
- Coco-Martin, R.M.; Sanchez-Tocino, H.T.; Desco, C.; Usategui-Martín, R.; Tellería, J.J. PRPH2-Related Retinal Diseases: Broadening the Clinical Spectrum and Describing a New Mutation. Genes 2020, 11, 773. [Google Scholar] [CrossRef] [PubMed]
- Albertos-Arranz, H.; Sánchez-Sáez, X.; Martínez-Gil, N.; Pinilla, I.; Coco-Martin, R.M.; Delgado, J.; Cuenca, N. Phenotypic Differences in a PRPH2 Mutation in Members of the Same Family Assessed with OCT and OCTA. Diagnostics 2021, 11, 777. [Google Scholar] [CrossRef] [PubMed]
- Michaelides, M.; Holder, G.E.; Bradshaw, K.; Hunt, D.M.; Moore, A.T. Rod dystrophy, intrafamilial variability, and incomplete penetrance associated with the R172W mutation in the peripherin/RDS gene. Ophthalmology 2005, 112, 1592–1598. [Google Scholar] [CrossRef] [PubMed]
- Vaclavik, V.; Tran, H.V.; Gaillard, M.C.; Schorderet, D.F.; Munier, F.L. Pattern dystrophy with high intrafamilial variability associated with Y141C mutation in the peripherin/RDS gene and successful treatment of subfoveal CNV related to multifocal pattern type with anti-VEGF (ranibizumab) intravitreal injections. Retina 2012, 32, 1942–1949. [Google Scholar] [CrossRef]
- Leroy, B.P.; Kailasanathan, A.; De Laey, J.J.; Black, G.C.; Manson, F.D. Intrafamilial phenotypic variability in families with RDS mutations: Exclusion of ROM1 as a genetic modifier for those with retinitis pigmentosa. Br. J. Ophthalmol. 2006, 91, 89–93. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Palma, M.; Martin, D.; Salles, M.V.; Motta, F.; Abujamra, S.; Sallum, J. Retinal dystrophies and variants in PRPH2. Arq. Bras. Oftalmol. 2019, 82, 158–160. [Google Scholar] [CrossRef]
- Conley, S.M.; Naash, M.I. Gene therapy for PRPH2-associated ocular disease: Challenges and prospects. Cold Spring Harb. Perspect. Med. 2014, 4, a017376. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sullivan, L.S.; Bowne, S.J.; Birch, D.G.; Hughbanks-Wheaton, D.; Heckenlively, J.R.; Lewis, R.A.; Garcia, C.A.; Ruiz, R.S.; Blanton, S.H.; Northrup, H.; et al. Prevalence of disease-causing mutations in families with autosomal dominant retinitis pigmentosa: A screen of known genes in 200 families. Invest. Ophthalmol. Vis. Sci. 2006, 47, 3052–3064. [Google Scholar] [CrossRef]
- Falsini, B.; Placidi, G.; De Siena, E.; Chiurazzi, P.; Minnella, A.M.; Savastano, M.C.; Ziccardi, L.; Parisi, V.; Iarossi, G.; Percio, M.; et al. Genetic characteristics of 234 Italian patients with macular and cone/cone-rod dystrophy. Sci. Rep. 2022, 12, 3774. [Google Scholar] [CrossRef]
- Oishi, A.; Fujinami, K.; Mawatari, G.; Naoi, N.; Ikeda, Y.; Ueno, S.; Kuniyoshi, K.; Hayashi, T.; Kondo, H.; Mizota, A.; et al. Genetic and Phenotypic Landscape of PRPH2-Associated Retinal Dystrophy in Japan. Genes 2021, 12, 1817. [Google Scholar] [CrossRef]
- Coussa, R.G.; Chakarova, C.; Ajlan, R.; Taha, M.; Kavalec, C.; Gomolin, J.; Khan, A.; Lopez, I.; Ren, H.; Waseem, N.; et al. Genotype and Phenotype Studies in Autosomal Dominant Retinitis Pigmentosa (adRP) of the French-Canadian Founder Population. Invest. Ophthalmol. Vis. Sci. 2015, 56, 8297–8305, Erratum in Invest. Ophthalmol. Vis. Sci. 2017, 58, 4768. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Marmor, M.F.; Fulton, A.B.; Holder, G.E.; Miyake, Y.; Brigell, M.; Bach, M.; International Society for Clinical Electrophysiology of Vision. ISCEV Standard for full-field clinical electroretinography (2008 update). Doc. Ophthalmol. 2009, 118, 69–77. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- McCulloch, D.L.; Marmor, M.F.; Brigell, M.G.; Hamilton, R.; Holder, G.E.; Tzekov, R.; Bach, M. ISCEV Standard for full-field clinical electroretinography (2015 update). Doc. Ophthalmol. 2015, 130, 1–12. [Google Scholar] [CrossRef] [PubMed]
- Hood, D.C.; Bach, M.; Brigell, M.; Keating, D.; Kondo, M.; Lyons, J.S.; Marmor, M.F.; McCulloch, D.L.; Palmowski-Wolfe, A.M.; International Society for Clinical Electrophysiology of Vision. ISCEV standard for clinical multifocal electroretinography (mfERG) (2011 edition). Documenta ophthalmologica. Adv. Ophthalmol. 2012, 124, 1–13. [Google Scholar]
- Ziccardi, L.; Cioffi, E.; Barbano, L.; Gioiosa, V.; Falsini, B.; Casali, C.; Parisi, V. Macular Morpho-Functional and Visual Pathways Functional Assessment in Patients with Spinocerebellar Type 1 Ataxia with or without Neurological Signs. J. Clin. Med. 2021, 10, 5271. [Google Scholar] [CrossRef] [PubMed]
- Ziccardi, L.; Parisi, V.; Picconi, F.; Di Renzo, A.; Lombardo, M.; Frontoni, S.; Parravano, M. Early and localized retinal dysfunction in patients with type 1 diabetes mellitus studied by multifocal electroretinogram. Acta Diabetol. 2018, 55, 1191–1200. [Google Scholar] [CrossRef]
- Parisi, V.; Ziccardi, L.; Costanzo, E.; Tedeschi, M.; Barbano, L.; Manca, D.; Di Renzo, A.; Giorno, P.; Varano, M.; Parravano, M. Macular Functional and Morphological Changes in Intermediate Age-Related Maculopathy. Invest. Ophthalmol. Vis. Sci. 2020, 61, 11. [Google Scholar] [CrossRef] [PubMed]
- Richards, S.; Aziz, N.; Bale, S.; Bick, D.; Das, S.; Gastier-Foster, J.; Grody, W.W.; Hegde, M.; Lyon, E.; Spector, E.; et al. Laboratory Quality Assurance Committee. Standards and guidelines for the interpretation of sequence variants: A joint consensus recommendation of the American College of Medical Genetics and Genomics and the Association for Molecular Pathology. Genet. Med. Off. J. Am. Coll. Med. Genet. 2015, 17, 405–424. [Google Scholar]
- Fakin, A.; Zupan, A.; Glavač, D.; Hawlina, M. Combination of retinitis pigmentosa and hearing loss caused by a novel mutation in PRPH2 and a known mutation in GJB2: Importance for differential diagnosis of Usher syndrome. Vis. Res. 2012, 75, 71–76. [Google Scholar] [CrossRef] [Green Version]
- Xu, J.; Li, K.; Zheng, B.; Dai, H. Treatment and longitudinal follow-up of CNV associated with pattern dystrophy with novel PRPH2 variant. Ophthalmic Genet. 2021, 42, 768–772. [Google Scholar] [CrossRef] [PubMed]
- Lee, C.S.; Leys, M. A Family Affected by Novel C213W Mutation in PRPH2: Long-Term Follow-Up of CNV Secondary to Pattern Dystrophy. Ophthalmic Surg. Lasers Imaging Retin. 2020, 51, 354–362. [Google Scholar] [CrossRef]
- Buccitelli, C.; Selbach, M. mRNAs, proteins and the emerging principles of gene expression control. Nat. Rev. Genet. 2020, 21, 630–644. [Google Scholar] [CrossRef] [PubMed]
- Campello, L.; Singh, N.; Advani, J.; Mondal, A.K.; Corso-Díaz, X.; Swaroop, A. Aging of the Retina: Molecular and Metabolic Turbulences and Potential Interventions. Annu. Rev. Vis. Sci. 2021, 7, 633–664. [Google Scholar] [CrossRef] [PubMed]
- Arnold, J.J.; Sarks, J.P.; Killingsworth, M.C.; Kettle, E.K.; Sarks, S.H. Adult vitelliform macular degeneration: A clinicopathological study. Eye 2003, 17, 717–726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Campos, S.H.; Forjaz, V.; Kozak, L.R.; Silva, E.; Castelo-Branco, M. Quantitative phenotyping of chromatic dysfunction in best macular dystrophy. Arch. Ophthalmol. 2005, 123, 944–949. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ba-Abbad, R.; Robson, A.G.; Yap, Y.C.; Moore, A.T.; Webster, A.R.; Holder, G.E. Prph2 mutations as a cause of electronegative ERG. Retina 2014, 34, 1235–1243. [Google Scholar] [CrossRef]
- Downes, S.M.; Fitzke, F.W.; Holder, G.E.; Payne, A.M.; Bessant, D.A.; Bhattacharya, S.S.; Bird, A.C. Clinical features of codon 172 RDS macular dystrophy: Similar phenotype in 12 families. Arch Ophthalmol. 1999, 117, 1373–1383. [Google Scholar] [CrossRef] [Green Version]
- Duncan, J.L.; Talcott, K.E.; Ratnam, K.; Sundquist, S.M.; Lucero, A.S.; Day, S.; Zhang, Y.; Roorda, A. Cone structure in retinal degeneration associated with mutations in the peripherin/RDS gene. Investig. Ophthalmol. Vis. Sci. 2011, 52, 1557–1566. [Google Scholar] [CrossRef] [Green Version]
- Schatz, P.; Abrahamson, M.; Eksandh, L.; Ponjavic, V.; Andréasson, S. Macular appearance by means of OCT and electrophysiology in members of two families with different mutations in RDS (the peripherin/RDS gene). Acta Ophthalmol. Scand. 2003, 81, 500–507. [Google Scholar] [CrossRef] [Green Version]
- Falfoul, Y.; Matri, K.E.; Habibi, I.; Halouani, S.; Chebil, A.; Schorderet, D.; El Matri, L. OCT-angiography assessing quiescent and active choroidal neovascularization in retinitis pigmentosa associated with PRPH2 pathogenic variant. Eur. J. Ophthalmol. 2021, 32, NP98–NP102. [Google Scholar] [CrossRef]
- Duncker, T.; Tsang, S.H.; Woods, R.L.; Lee, W.; Zernant, J.; Allikmets, R.; Delori, F.C.; Sparrow, J.R. Quantitative Fundus Autofluorescence and Optical Coherence Tomography in PRPH2/RDS- and ABCA4-Associated Disease Exhibiting Phenotypic Overlap. Investig. Ophthalmol. Vis. Sci. 2015, 56, 3159–3170. [Google Scholar] [CrossRef] [PubMed] [Green Version]

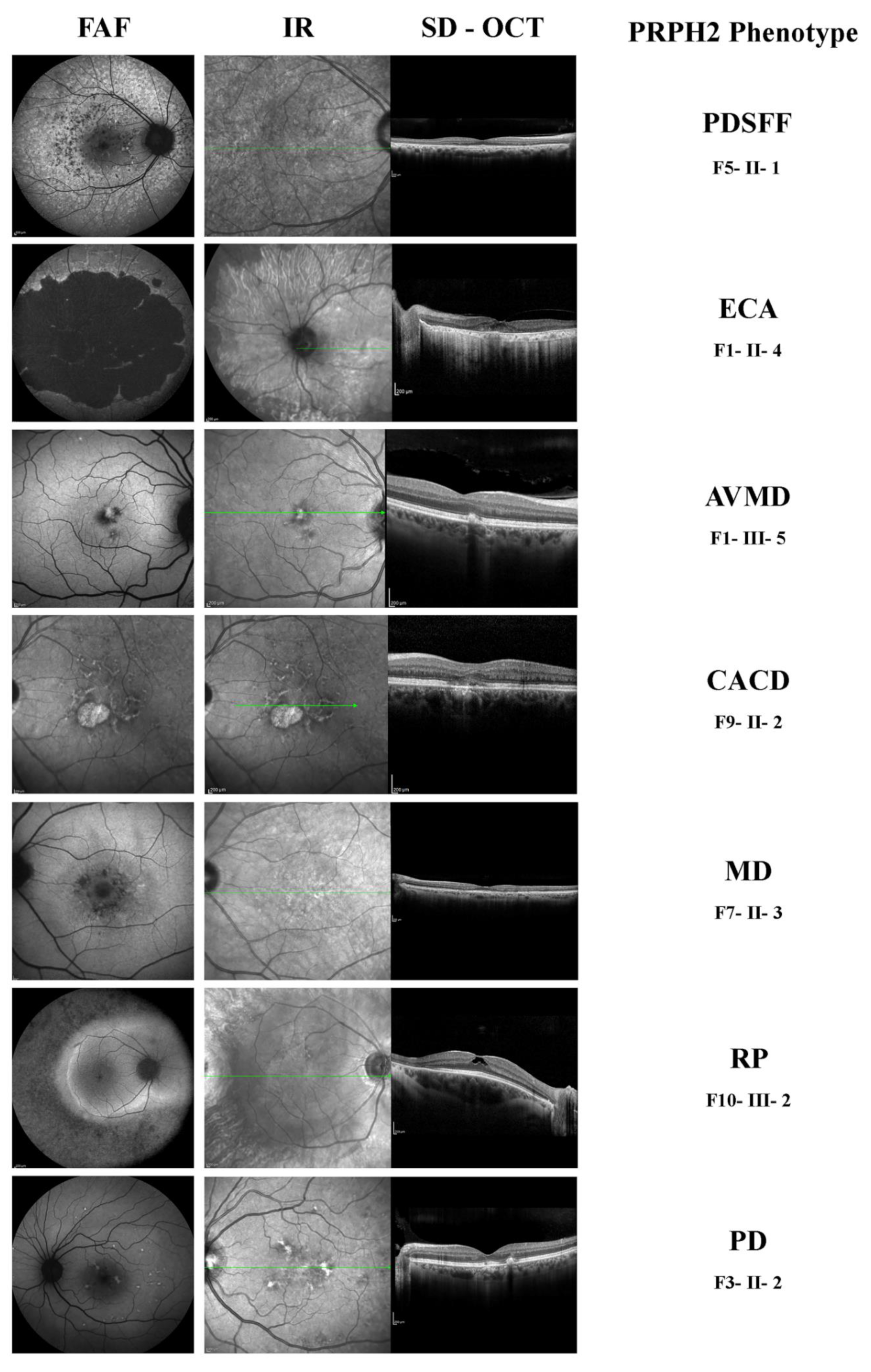

Figure 1.
Inter-familiar genetic variability of PRPH2-related retinal dystrophy. Fundus autofluorescence (FAF), Infra-red (IR) and spectral-domain optical coherence tomography (SD-OCT) acquisitions of different PRPH2 phenotypes due to different variants of the same gene in different unrelated families. PD, pattern dystrophy; PDSFF, multifocal pattern dystrophy simulating fundus flavimaculatus; MD, macular dystrophy; RP, retinitis pigmentosa; AVMD, adult-onset vitelliform macular dystrophy; ECA, extensive chorioretinal atrophy; CACD, central areolar choroidal dystrophy.
Figure 1.
Inter-familiar genetic variability of PRPH2-related retinal dystrophy. Fundus autofluorescence (FAF), Infra-red (IR) and spectral-domain optical coherence tomography (SD-OCT) acquisitions of different PRPH2 phenotypes due to different variants of the same gene in different unrelated families. PD, pattern dystrophy; PDSFF, multifocal pattern dystrophy simulating fundus flavimaculatus; MD, macular dystrophy; RP, retinitis pigmentosa; AVMD, adult-onset vitelliform macular dystrophy; ECA, extensive chorioretinal atrophy; CACD, central areolar choroidal dystrophy.

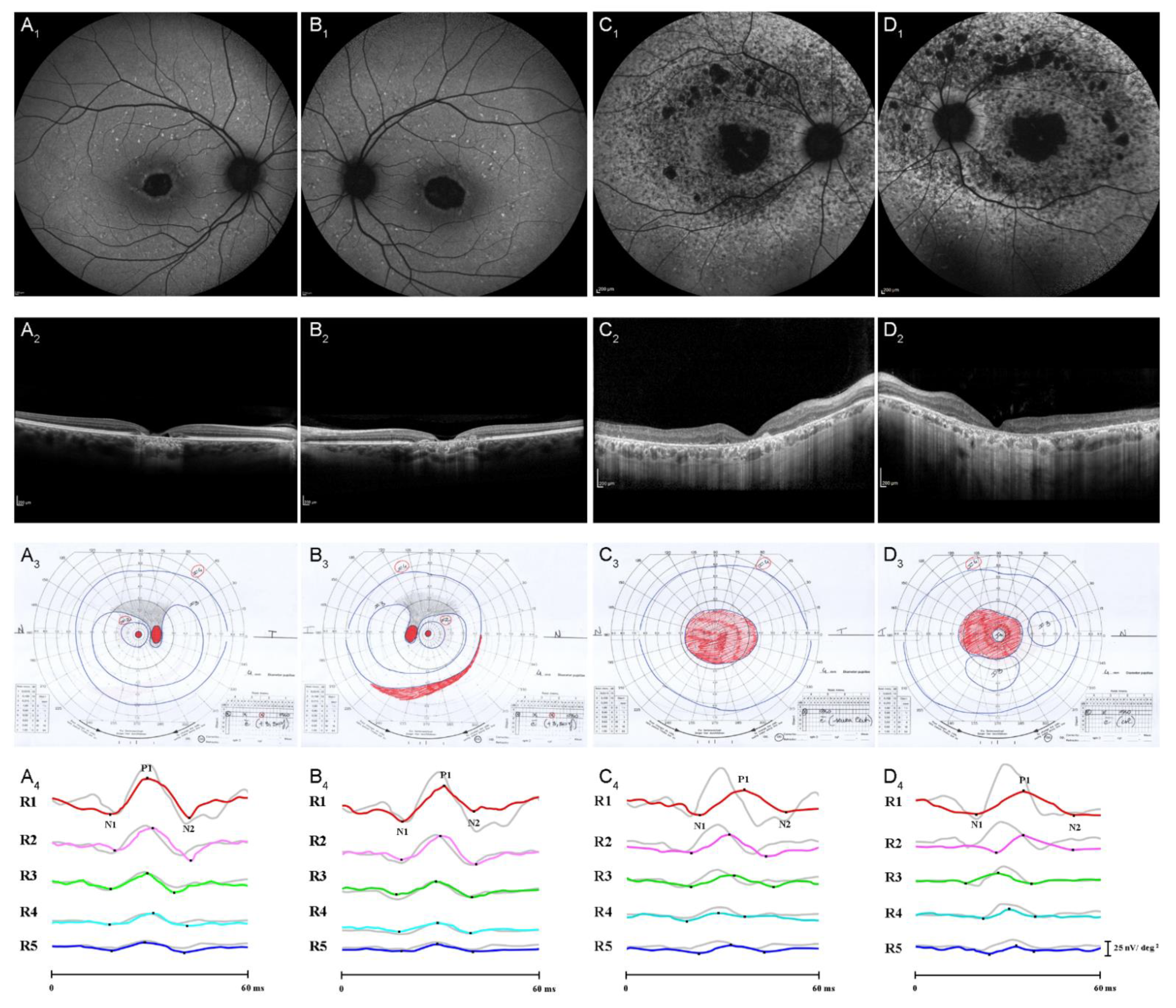

Figure 2.
Inter-familiar phenotypic variability of PRPH2-related retinal dystrophy. Column A and B showing Right eye and left eye of F4-III-3 (52 years old at time of examination), Column C and D showing right eye and left eye of F8-II-1 (56 years old at time of examination). On line A1–D1 are displayed fundus autofluorescence (FAF), on line A2–D2 are displayed spectral-domain optical coherence tomography (SD-OCT), On line A3–D3 are displayed Goldmann visual field test and on line A4–D4 are displayed multifocal electroretinogram (mfERG) ring (R) traces overlayed by control trace. Different phenotypes in different families carrying the same mutation in PRPH2 gene are displayed.
Figure 2.
Inter-familiar phenotypic variability of PRPH2-related retinal dystrophy. Column A and B showing Right eye and left eye of F4-III-3 (52 years old at time of examination), Column C and D showing right eye and left eye of F8-II-1 (56 years old at time of examination). On line A1–D1 are displayed fundus autofluorescence (FAF), on line A2–D2 are displayed spectral-domain optical coherence tomography (SD-OCT), On line A3–D3 are displayed Goldmann visual field test and on line A4–D4 are displayed multifocal electroretinogram (mfERG) ring (R) traces overlayed by control trace. Different phenotypes in different families carrying the same mutation in PRPH2 gene are displayed.
Figure 3.
Intra-familiar variability of PRPH2-related retinal dystrophy. Fundus autofluorescence (FAF) and spectral-domain optical coherence tomography (SD-OCT) acquisitions in patients belonging to the same large pedigree (Family 2), thus harboring the same PRPH2 mutation and presenting with different phenotypes. (A1,A2,B1,B2): F2-III-7 FAF and OCT (44 years old at time of examination), AVMD; adult-onset vitelliform macular dystrophy; (C1,C2,D1,D2): F2-II-3 FAF and OCT (70 years old at time of examination), PDSFF, multifocal pattern dystrophy simulating fundus flavimaculatus; (E1,E2,F1,F2): F2-III-5 FAF and OCT (39 years old at time of examination), RP, retinitis pigmentosa, (G1,G2,H1,H2): F2-II-4 FAF and OCT (79 years old at time of examination) ECA, extensive chorioretinal atrophy; (I1,I2,J1,J2): F2-III-2 FAF and OCT (66 years old at time of examination), PDSFF; (K1,K2,L1,L2): F2-IV-1 FAF and OCT (41 years old at time of examination), PD, pattern dystrophy.
Figure 3.
Intra-familiar variability of PRPH2-related retinal dystrophy. Fundus autofluorescence (FAF) and spectral-domain optical coherence tomography (SD-OCT) acquisitions in patients belonging to the same large pedigree (Family 2), thus harboring the same PRPH2 mutation and presenting with different phenotypes. (A1,A2,B1,B2): F2-III-7 FAF and OCT (44 years old at time of examination), AVMD; adult-onset vitelliform macular dystrophy; (C1,C2,D1,D2): F2-II-3 FAF and OCT (70 years old at time of examination), PDSFF, multifocal pattern dystrophy simulating fundus flavimaculatus; (E1,E2,F1,F2): F2-III-5 FAF and OCT (39 years old at time of examination), RP, retinitis pigmentosa, (G1,G2,H1,H2): F2-II-4 FAF and OCT (79 years old at time of examination) ECA, extensive chorioretinal atrophy; (I1,I2,J1,J2): F2-III-2 FAF and OCT (66 years old at time of examination), PDSFF; (K1,K2,L1,L2): F2-IV-1 FAF and OCT (41 years old at time of examination), PD, pattern dystrophy.
Table 1.
Demographic and functional characteristics of PRPH2 patients.
| Patient | Gender | Age at Examination | Age at Disease Onset | Symptoms at Onset | BCVA at Last Visit RE; LE | Chromatic Test (Ishihara Charts) in OU | Visual Field in OU | Scotopic ffERG a-b Wave Amplitude in OU | Flicker 30 Hz Amplitude in OU | mfERG RAD in OU |
|---|---|---|---|---|---|---|---|---|---|---|
| F1-III-8 | F | 45 | 29 | metamorphopsia | 20/20; 20/20 | normal | blind spot enlargement (I/4) | normal | reduced | normal in all rings |
| F1-II-4 | M | 74 | 66 | visual acuity reduction | Counting fingers; 20/32 | pathologic | central scotoma (III/4) | reduced | reduced | reduced in all rings |
| F1-II-3 | M | 68 | 60 | visual acuity reduction | 20/400; 20/40 | pathologic | central scotoma (V/4) | reduced | reduced | reduced in all rings |
| F1-III-5 | M | 44 | 45 | visual acuity reduction, metamorphopsia | 20/20; 20/20 | NA | normal | normal | normal | normal in all rings |
| F2-III-7 | M | 44 | 38 | photophobia, difficulty dark adaptation | 20/20; 20/20 | normal | ring scotoma (I/3) | reduced | reduced | normal in all rings |
| F2-III-5 | M | 39 | 36 | photophobia | 20/20; 20/20 | normal | peripheral restriction (I/4) | reduced | reduced | reduced in all rings |
| F2-II-4 | M | 79 | 35 | visual acuity reduction and photophobia | light perception; 20/25 | pathologic | peripheral restriction (V/4) | reduced | reduced | NA |
| F2-II-3 | M | 70 | 30 | photophobia | 20/20; 20/20 | normal | blind spot enlargement (I/4) | reduced | reduced | reduced in all rings |
| F2-IV-2 | F | 37 | 34 | difficulty dark adaptation | 20/20; 20/20 | normal | normal | reduced | normal | reduced R1 and R3 in OU |
| F2-IV-1 | F | 41 | 33 | metamorphopsia | 20/20; 20/20 | normal | peripheral restriction (I/2) | normal | normal | reduced in R1-R2 |
| F2-III-2 | F | 66 | 30 | metamorphopsia | 20/20; 20/20 | pathologic | ring scotoma (III/4) | reduced | reduced | reduced in all rings |
| F3-I-2 | F | 73 | 40 | photophobia | counting fingers; 20/50 | pathologic | NA | reduced | reduced | reduced in all rings |
| F3-II-1 | F | 50 | / | casual finding | 20/20; 20/20 | normal | normal | normal | normal | normal in all rings |
| F3-II-2 | M | 53 | 42 | visual acuity reduction | 20/20; 20/20 | normal | blind spot enlargement (I/2) | normal | normal | reduced in all rings |
| F4-III-1 | F | 57 | / | casual finding | 20/28; 20/20 | pathologic | NA | normal | normal | reduced R1-R3 |
| F4-III-3 | M | 52 | 43 | difficulty dark adaptation, visual acuity reduction | 20/200; 20/40 | pathologic | peripheral restriction (I/4) | reduced | reduced | reduced in all rings |
| F5-II-1 | M | 69 | 65 | casual finding | 20/20; 20/20 | normal | central scotoma (I/4) | reduced | reduced | reduced R2-R5 |
| F6-III-1 | M | 60 | 30 | casual finding | 20/28; 20/28 | normal | NA | reduced | reduced | reduced in all rings |
| F7-II-3 | F | 60 | / | casual finding | 20/20; 20/20 | normal | ring scotoma (I/4) | normal | normal | reduced R1-R2 |
| F8-II-1 | F | 56 | 40 | difficulty dark adaptation, | 20/50, 20/66 | normal | central scotoma (I/2) | normal | normal | reduced R1 |
| F9-II-1 | F | 70 | 20 | visual acuity reduction and photophobia | 20/32; 20/200 | normal | central scotoma and peripheral restriction (I/4) | reduced | reduced | reduced R1-R2 |
| F9-II-6 | F | 74 | 63 | visual acuity reduction | light perception; 20/40 | pathologic | central scotoma and peripheral restriction (III/4) | reduced | reduced | reduced in all rings |
| F9-II-7 | M | 62 | 55 | casual finding | 20/20; 20/20 | normal | normal | normal | normal | reduced in all rings |
| F9-II-5 | F | 63 | 40 | difficulty dark adaptation, | 20/200; 20/32 | pathologic | central scotoma (III/4) | normal | normal | reduced in all rings |
| F9-II-4 | M | 65 | 40 | difficulty dark adaptation, metamorphopsia | 20/63; 20/25 | normal | ring scotoma (I/4) | normal | normal | reduced in all rings |
| F9-II-2 | m | 68 | 50 | visual acuity reduction | 20/400; 20/400 | pathologic | peripheral restriction (V/4) | reduced | reduced | reduced in all rings |
| F10-III-2 | F | 37 | 16 | difficulty dark adaptation, | 20/20; 20/32 | normal | peripheral restriction (I/3) | reduced | reduced | reduced R3-R5 |
| F11-II-1 | F | 48 | 45 | visual acuity reduction | 20/20. 20/20 | normal | NA | normal | normal | reduced in all rings |
M, male; F, female; RE, right eye; LE, left eye; NA, not available; OU, both eyes; RAD, response amplitude density, I/1, I/2, I/3, I/4, III/4, V/4 refers to the kinetic visual field isopters tested.
Table 2.
Morphological retinal aspect of PRPH2 patients.
| Patient | Fundus Aspect | Phenotype | FAF | SD-OCT | Evidence of CNV |
|---|---|---|---|---|---|
| F1-III-8 | Simil-flecks lesions in mid-periphery along vascular arcades | PDSFF | Macular hypo-AF with speckled hyper-AF in the macular and mid-periphery associated with hypo-AF due to plaques atrophy in the mid-periphery | Hyper-reflective deposit above the RPE in the parafoveal region. EZ and ELM preservation in foveal and parafoveal region | No |
| F1-II-4 | Diffuse chorioretinal atrophy, small trophic area in fovea in LE | ECA | Hypo-AF at the atrophic area extended in macular region and mid-periphery, involving the optic disc, speckled hyper-AF in the mid-periphery | Vitreo-macular adhesion. Disruption of the EZ and ELM in the parafoveal area with sparing of foveal region | No |
| F1-II-3 | Chorioretinal atrophy with pigment dispersion along vascular arcades | ECA | Macular hypo-AF with speckled hyper-AF in the mid-periphery associated with hypo-AF due to plaques atrophy in the macula and mid-periphery | Vitreo-macular adhesion. Outer retinal atrophy of the macular region and choroidal hyper-reflectivity by window defect at the posterior pole and rarefaction of EZ and ELM and ORT in parafoveal region in RE. Disruption of the EZ and ELM in the parafoveal area with partial sparing of foveal region in LE | No |
| F1-III-5 | Slight rehash in macula | AVMD | Parafoveal hyper-AF in RE. Macular hypo-AF with speckled hyper-AF in the macula in LE | Hyper-reflective deposit above the RPE in the foveal and parafoveal region | No |
| F2-III-7 | Yellowish stippling in the periphery | AVMD | Macular hypo-AF with speckled hyper-AF in the mid-periphery | Hyper-reflective deposit above the RPE in the foveal and parafoveal region | No |
| F2-III-5 | Slightly rehash in macula in LE | RP | Normal-AF of macula and mid-periphery in RE. Speckled hyper-AF in peripapillary region in LE | Normal profile and reflectivity of the inner and outer retinal layers and of RPE-CC complex | No |
| F2-II-4 | Peripapillary chorioretinal atrophy with mid- and peripheral dystrophy | ECA | Macular hypo-AF with hyper-AF island in the parafoveal region Hypo-AF due to plaques atrophy in the mid-periphery | Foveal hyper-reflective lesion with ORT due to MNV scar n RE. Outer retinal atrophy of the macular region and choroidal hyper-reflectivity by window defect at the posterior pole in LE | CNV in RE |
| F2-II-3 | Lipofuscin deposits in macula | PDSFF | Macular hypo-AF with speckled hyper-AF in the mid-periphery and granular hypo-AF in one sector (inferior) of the peripheral region | SDD/reticular pseudodrusen with rarefaction of EZ and ELM in foveal and parafoveal region | No |
| F2-IV-2 | Many points of altered pigmentation at the posterior pole and outside vascular arcades | PDSFF | Macular hypo-AF with speckled hyper-AF and hyper-AF flecks at the posterior pole and mid-periphery | SDD/reticular pseudodrusen with rarefaction of EZ in foveal and parafoveal region | No |
| F2-IV-1 | Small lipofuscin deposit near the fovea | PD | Focal hyper-AF in the parafoveal region | SDD/reticular pseudodrusen with rarefaction of EZ in foveal and parafoveal region | No |
| F2-III-2 | Macular atrophy and altered pigmentation in the periphery | PDSFF | Macular hypo-AF with speckled hyper-AF and hyper-AF flecks at the posterior pole and mid-periphery in OU, hypo-AF due to plaques atrophy in the parafoveal regions in RE | Disruption of the EZ and ELM in the parafoveal area with sparing of foveal region in OU. In RE area of retinal atrophy in parafoveal region | No |
| F3-I-2 | Diffuse areas of chorioretinal atrophy at the posterior pole and in mid periphery | ECA | Hypo-AF due to plaques atrophy in the macula and mid-periphery (RE > LE), associated with macular hypo-AF with speckled hyper-AF in the mid-periphery | Outer retinal atrophy of the macular region and choroidal hyper-reflectivity by window defect at the posterior pole in RE. Hyper-reflective deposit above the RPE in the foveal region followed by outer retinal atrophy of the macular region in LE | CNV in LE |
| F3-II-1 | Lipofuscin deposits in LE | PD | Macular hypo-AF in macular region in BE with focal hyper-AF in the parafoveal region in LE | SDD/reticular pseudodrusen with rarefaction of EZ in parafoveal region | No |
| F3-II-2 | Lipofuscin deposits with RPE rehash in macula | AVMD | Macular hypo-AF with hyper-AF flecks at the posterior pole | SDD/reticular pseudodrusen with rarefaction of EZ in parafoveal region | No |
| F4-III-1 | SlightRPE rehash in macula | PD | Focal hyper-AF in the parafoveal region in RE | SDD/reticular pseudodrusen with rarefaction of EZ in foveal and parafoveal region | No |
| F4-III-3 | Stippling outside vascular arcades | PDSFF | Macular hypo-AF at the atrophic macular area with speckled hyper-AF and hyper-AF flecks at the posterior pole and mid-periphery | Outer retinal atrophy of the macular region with choroidal hyper-reflectivity by window defect. Disruption of the EZ and ELM in the parafoveal region | No |
| F5-II-1 | Stippling inside and outside vascular arcades | PDSFF | Macular hypo-AF with speckled hyper-AF and hyper-AF flecks at the posterior pole and mid-periphery | Disruption of the EZ and ELM in the parafoveal area with sparing of foveal region | No |
| F6-III-1 | Pigment dispersion in the periphery | RP | Macular hypo-AF in macular region and granular hypo-FA in the mid-periphery | ERM, Disruption of the EZ and ELM in the macular and extramacular region (out of the posterior pole) | No |
| F7-II-3 | Macular dystrophy | MD | Macular hypo-AF with speckled hyper- and hypo-AF at the posterior pole | Disruption of the EZ and ELM in the parafoveal area with sparing of foveal region SDD/reticular pseudodrusen with rarefaction of EZ in parafoveal region. | No |
| F8-II-1 | Chorioretinal atrophy in macula with peripheral rehash | CACD | Macular hypo-AF at the atrophic macular area with speckled hyper-AF and hyper-AF flecks at the posterior pole and mid-periphery | Disruption of the EZ and ELM limited to the foveal region with outer retinal atrophy of the macular region and choroidal hyper-reflectivity by window defect | No |
| F9-II-1 | RPE rehash in macula | RP | Normal-AF of macula and mid-periphery in RE. Speckled hyper-AF in peripapillary region in LE | Normal profile and reflectivity of the inner and outer retinal layers and of RPE-CC complex | No |
| F9-II-6 | Pigment dispersion in the periphery, fibrotic scar in RE | MD | Macular hypo-AF with speckled hyper-AF and hyper-AF flecks at the posterior pole and mid-periphery | Disruption of the EZ and ELM in the parafoveal area with sparing of foveal region. SDD/reticular pseudodrusen with rarefaction of EZ in parafoveal region | No |
| F9-II-7 | Pigment dispersion in the periphery | RP | Normal-AF of macula and mid-periphery in RE. Speckled hyper-AF in peripapillary region in LE | Normal profile and reflectivity of the inner and outer retinal layers and of RPE-CC complex | No |
| F9-II-5 | Rehash of RPE in macula | PD | Hypo-AF due to fibrotic plaque in RE, focal hyper-AF in the parafoveal region | SDD/reticular pseudodrusen with rarefaction of EZ in foveal and parafoveal region, foveal hyper-reflective lesion due to CNV scar in RE | CNV in RE |
| F9-II-4 | Rehash of RPE in macula | PD | Focal hyper-AF in the parafoveal region | SDD/reticular pseudodrusen with rarefaction of EZ in foveal and parafoveal region, lifting of RPE in LE | CNV in LE |
| F9-II-2 | Rehash of RPE in macula and MNV in RE | CACD | Macular hypo-AF with hyper-AF in the foveal region in RE. Hypo-AF due to plaques atrophy in LE | Foveal hyper-reflective lesion with ORT due to MNV scar n RE. Disruption of the EZ and ELM limited to the foveal region with outer retinal atrophy and choroidal hyper-reflectivity by window defect in LE | CNV in RE |
| F10-III-2 | Stippling of the posterior pole | RP | Hyper-AF ring that delineates the posterior pole with granular hypo-FA in the mid-periphery | Disruption of the EZ and ELM in the extramacular region (out of the posterior pole) | No |
| F11-II-1 | Rehash of RPE in macula | PD | Focal hyper-AF in the parafoveal region | SDD/reticular pseudodrusen with rarefaction of EZ in foveal and parafoveal region. | No |
SD-OCT, spectral domain optical coherence tomography, CNV, choroidal neovascularization; FAF, fundus autofluorescence; RPE, retinal pigmented epithelium; EZ, ellipsoid zone; ELM, external limiting membrane; ORT, outer retinal tubulations; SDD, subretinal drusenoid deposits, RPE-CC, retinal pigmented epithelium choriocapillaris complex; OU, both eyes; ERM, epiretinal membrane, RE, right eye; LE, left eye.
Table 3.
Genotype and phenotype data of PRPH2 cohort.
| Family | PRPH2 Gene Mutation | Inheritance | Clinical Significance | Mutation Type | Accession Number | Global Allele Frequency | Genetic Modifiers | Phenotypes of Our Patients |
|---|---|---|---|---|---|---|---|---|
| Family 1 (4 patients) | NM_000322.4: c.499G > A; p.(Gly167Ser) | AD | Pathogenic * | Missense | rs527236098 | ƒ = 0.00000756 | None | F1-III-8 PDSFF F1-II-3,4 ECA F1-III-5 AVMD |
| Family 2 (8 patients) | c.290G > A; Trp97* | AD | Pathogenic ^ | Nonsense | / | / | None | F2-III-7 AVMD F2-II-4 ECA F2-II-3 PDSFF F2-IV-2 PDSFF F2-IV-1 PD F2-III-2 PDSFF F2-III-5 RP |
| Family 3 (3 patients) | NM_000322.4: c.499G > A; p.(Gly167Ser) | AD | Pathogenic * | Missense | rs527236098 | ƒ = 0.00000756 | None | F3-II-1 PD F3-II-2 AVMD F3-I-2 ECA |
| Family 4 (2 patients) | NM_000322.4: c.734dup; p. (Trp246Valfs*55) | AD | Pathogenic | Frameshift | / | / | ABCA4 c.5882G > A; Gly1961Glu | F4-III-1 PD F4-III-3 PDSFF |
| Family 5 (1 patient) | NM_000322.4: c.499G > A; p.(Gly167Ser) | / | Pathogenic * | Missense | rs527236098 | ƒ = 0.00000756 | None | F5-II-1 PDSFF |
| Family 6 (1 patient) | NM_000322: c.136C > T; p.(Arg46*) | / | Pathogenic § | Missense | rs139185976 | ƒ = 0.0000159 | None | F6-III-1 RP |
| Family 7 (1 patient) | NM_000322.5: c.623G > A; p.(Gly208Asp) | / | Pathogenic # | Missense | rs139185976 | ƒ = 0.0000477 | PROM1 Nonsense rs780697796c c.436C > T Arg146* | F7-II-3 MD |
| Family 8 (1 patient) | NM_000322.5; c.734dup; p. (Trp246Valfs*55) | / | Pathogenic | Frameshift | Unknown | / | ABCA4; c.514G > A; Gly172Ser: Missense rs61748532; AR | F8-II-1 CACD |
| Family 9 (7 patients) | NM_000322.4: c.499G > A; p.(Gly167Ser) | AD | Pathogenic * | Missense | rs527236098 | ƒ = 0.00000756 | ABCA4; c.5603A > T; Asn1868Ile; Missense; rs1801466; AR | F9-II-1,7 RP F9-II-6 MD F9-II-4,5 PD F9-II-2, CACD |
| Family 10 (1 patient) | NM_000322.5 c.903del; p. (Ser301ARGfs*23) | AD | Likely pathogenic | Frameshift | Unknown | / | ABCA4; c.6148G > C; Val2050Leu; Missense; rs41292677; AR | F10-III-2 RP |
| Family 11 (1 patient) | NM_000322: c.742C > A; p.(Arg248Ser) | / | Likely pathogenic | Missense | Unknown | / | None | F11-II-1 PD |
PD, pattern dystrophy; PDSFF, pattern disease simulating fundus flavimaculatus; RP, retinitis pigmentosa; CRD, cone-rod dystrophy; AVMD, adult-onset vitelliform macular dystrophy; ECA, extensive chorioretinal atrophy; CACD; central areolar choroidal dystrophy. *: Testa, F.; Marini, V.; Rossi, S.; E, Interlandi.; Nesti, A.; Rinaldi, M.; Varano, M.; Garré, C.; Simonelli, F. A novel mutation in the RDS gene in an Italian family with pattern dystrophy, British Journal of Ophthalmology 2005, 89, 1066–1068. #: Kohl, S.; Christ-Adler, M.; Apfelstedt-Sylla, E.; Kellner, U.; Eckstein, A.; Zrenner, E.; Wissinger, B. RDS/peripherin gene mutations are frequent causes of central retinal dystrophies. Journal of Medical Genetics 1997, 34, 620–626. §: Meins, M.; Grüning, G.; Blankenagel, A.; Krastel, H.; Reck, B.; Fuchs, S.; Schwinger, E.; Gal, A. Heterozygous ‘null allele’ mutation in the human peripherin/RDS gene, Human Molecular Genetics, Issue, 1993, 2, 2181–2182. ^: National Center for Biotechnology Information. ClinVar; [VCV000861236.3], https://www.ncbi.nlm.nih.gov/clinvar/variation/VCV000861236.3 (accessed on 28 July 2022).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Antonelli, G.; Parravano, M.; Barbano, L.; Costanzo, E.; Bertelli, M.; Medori, M.C.; Parisi, V.; Ziccardi, L. Multimodal Study of PRPH2 Gene-Related Retinal Phenotypes. Diagnostics 2022, 12, 1851. https://doi.org/10.3390/diagnostics12081851
AMA Style
Antonelli G, Parravano M, Barbano L, Costanzo E, Bertelli M, Medori MC, Parisi V, Ziccardi L. Multimodal Study of PRPH2 Gene-Related Retinal Phenotypes. Diagnostics. 2022; 12(8):1851. https://doi.org/10.3390/diagnostics12081851
Chicago/Turabian StyleAntonelli, Giulio, Mariacristina Parravano, Lucilla Barbano, Eliana Costanzo, Matteo Bertelli, Maria Chiara Medori, Vincenzo Parisi, and Lucia Ziccardi. 2022. "Multimodal Study of PRPH2 Gene-Related Retinal Phenotypes" Diagnostics 12, no. 8: 1851. https://doi.org/10.3390/diagnostics12081851
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
