Physical and Structural Characterization of Monocrystalline Cu-13.7% Al-4.2% Ni Alloy Submitted to Thermo-Cyclical Treatments under Applied Loads
Abstract
:1. Introduction
2. Materials and Methods
3. Results

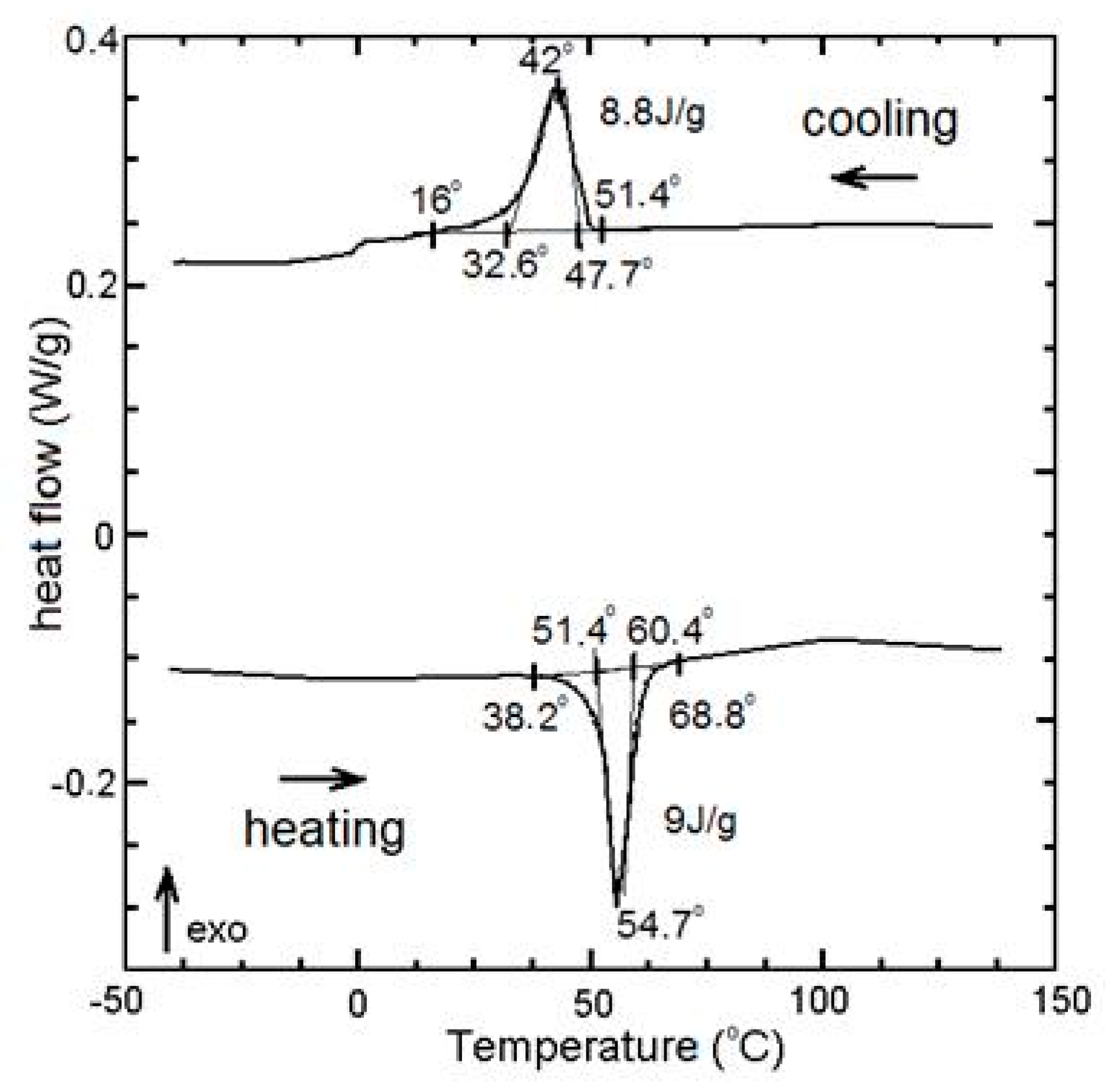

3.1. Analysis of the Monocrystalline Cu-13.7% Al-4.2% Ni Alloy in the Initial State

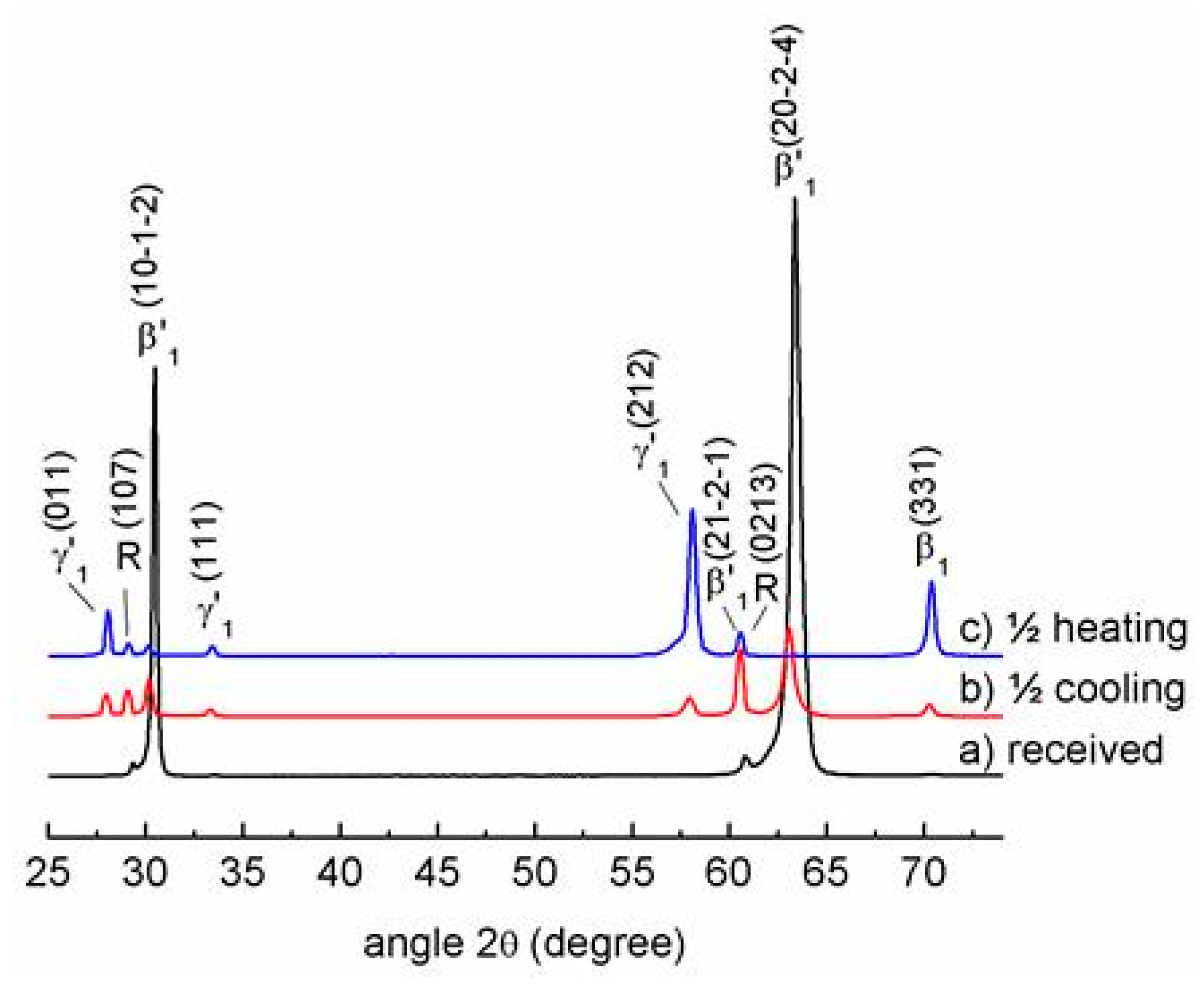

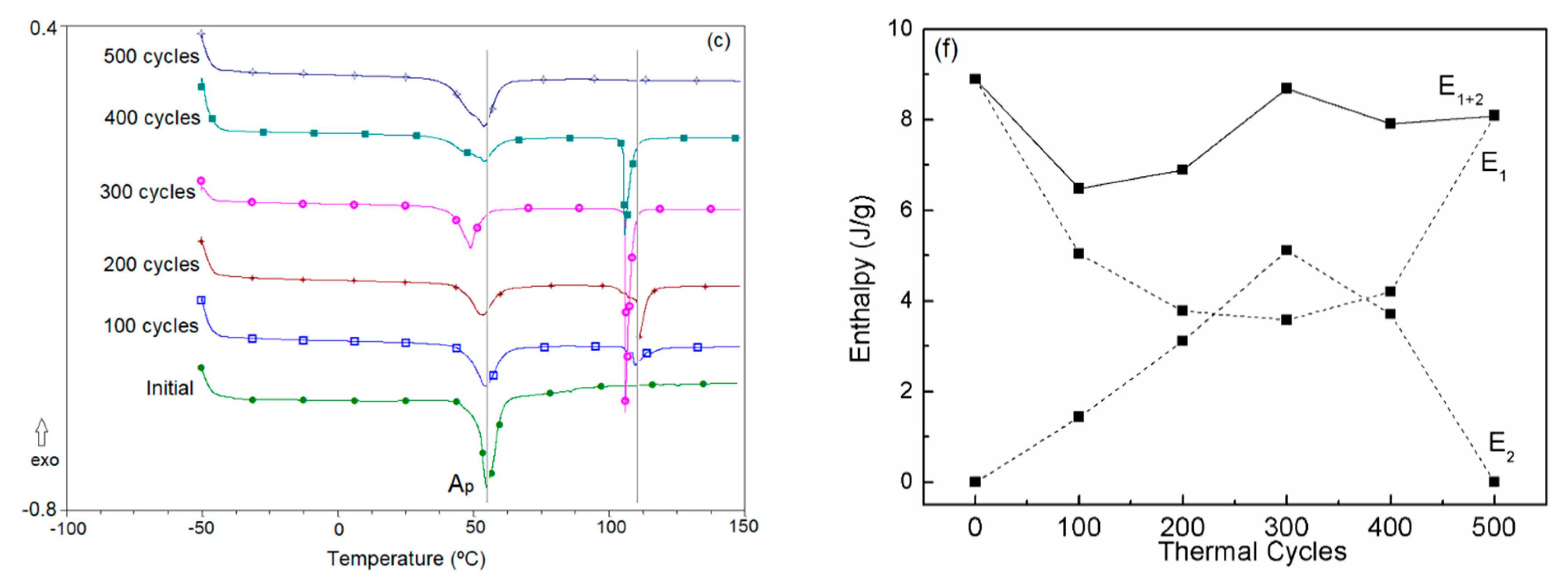

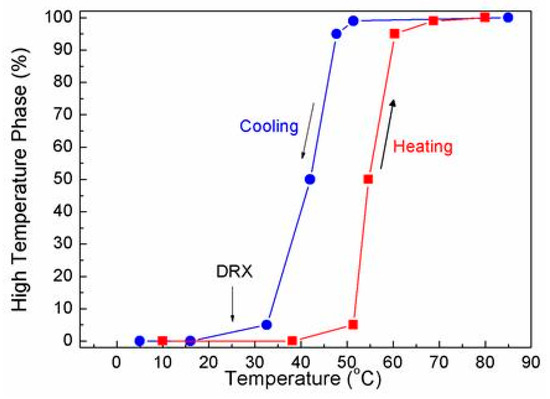

3.2. Differential Scanning Calorimetry of the Monocrystalline Cu-13.7% Al-4.2% Ni Alloy after TCT under Loads

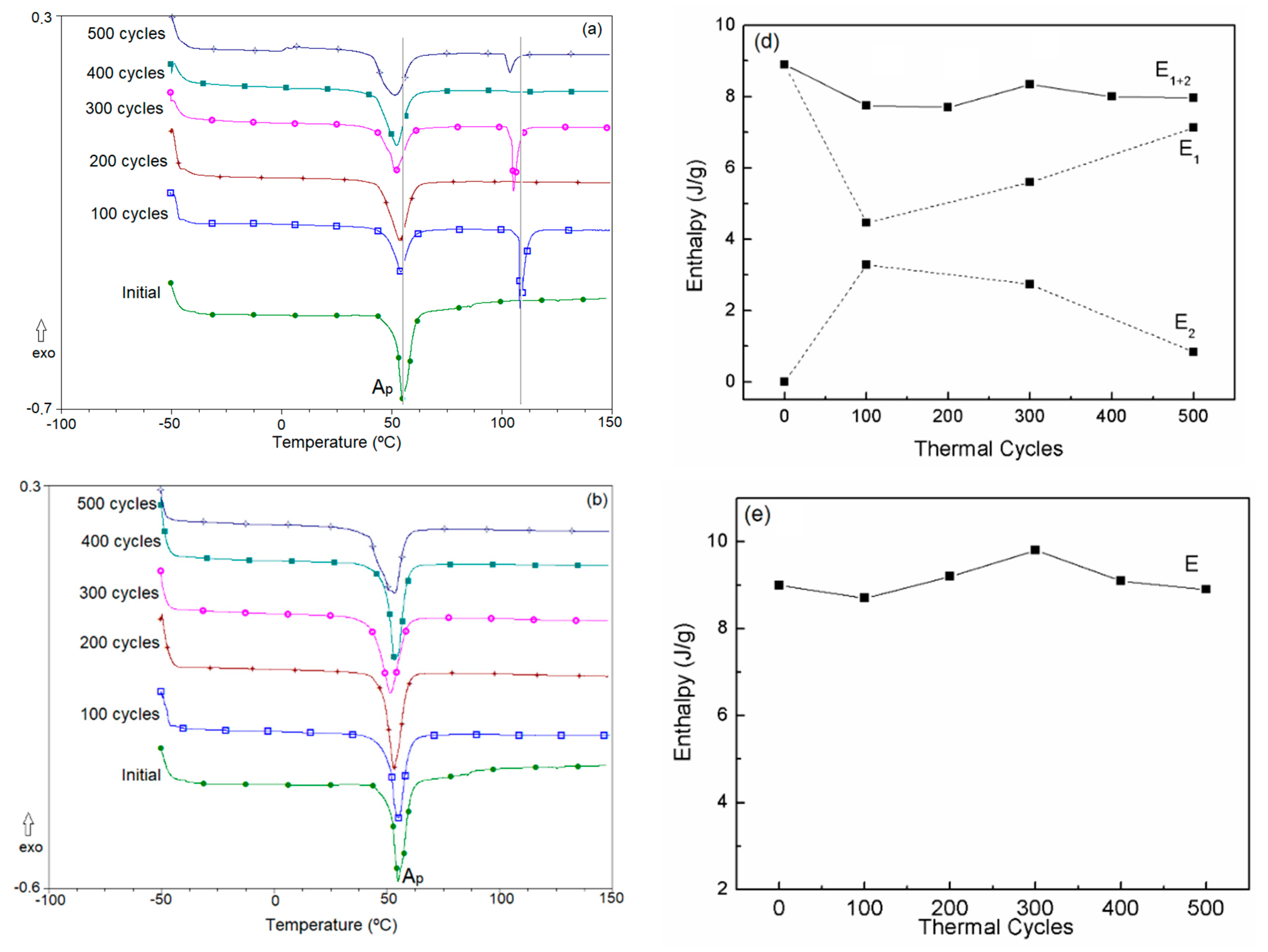

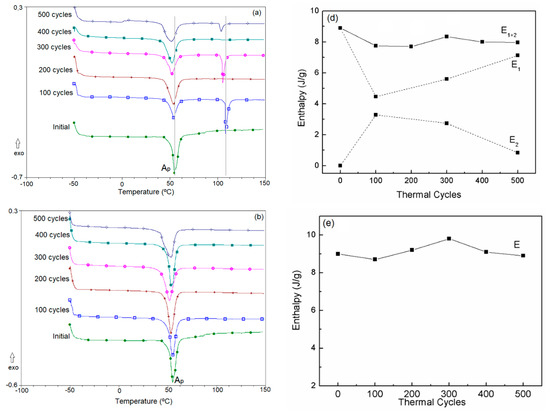

3.2.1. Reverse RMT Curves during the First Cycle of DSC Analysis

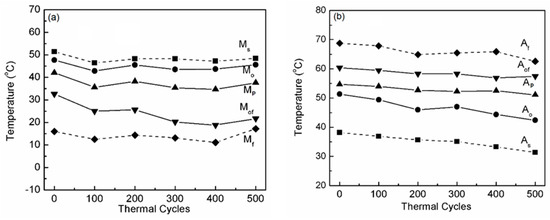

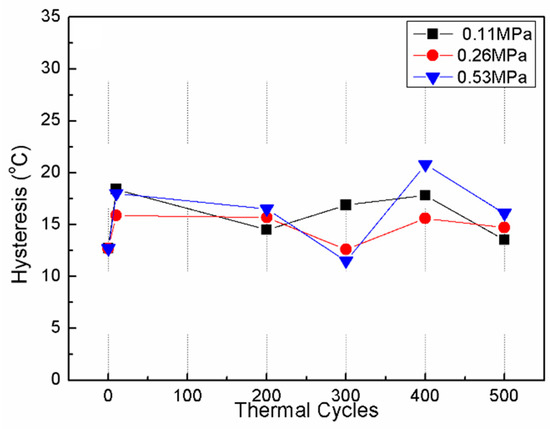

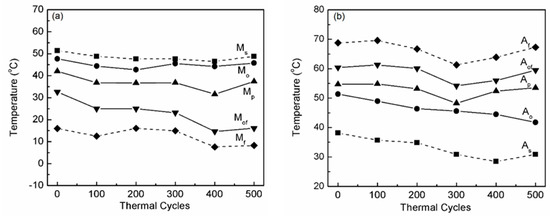

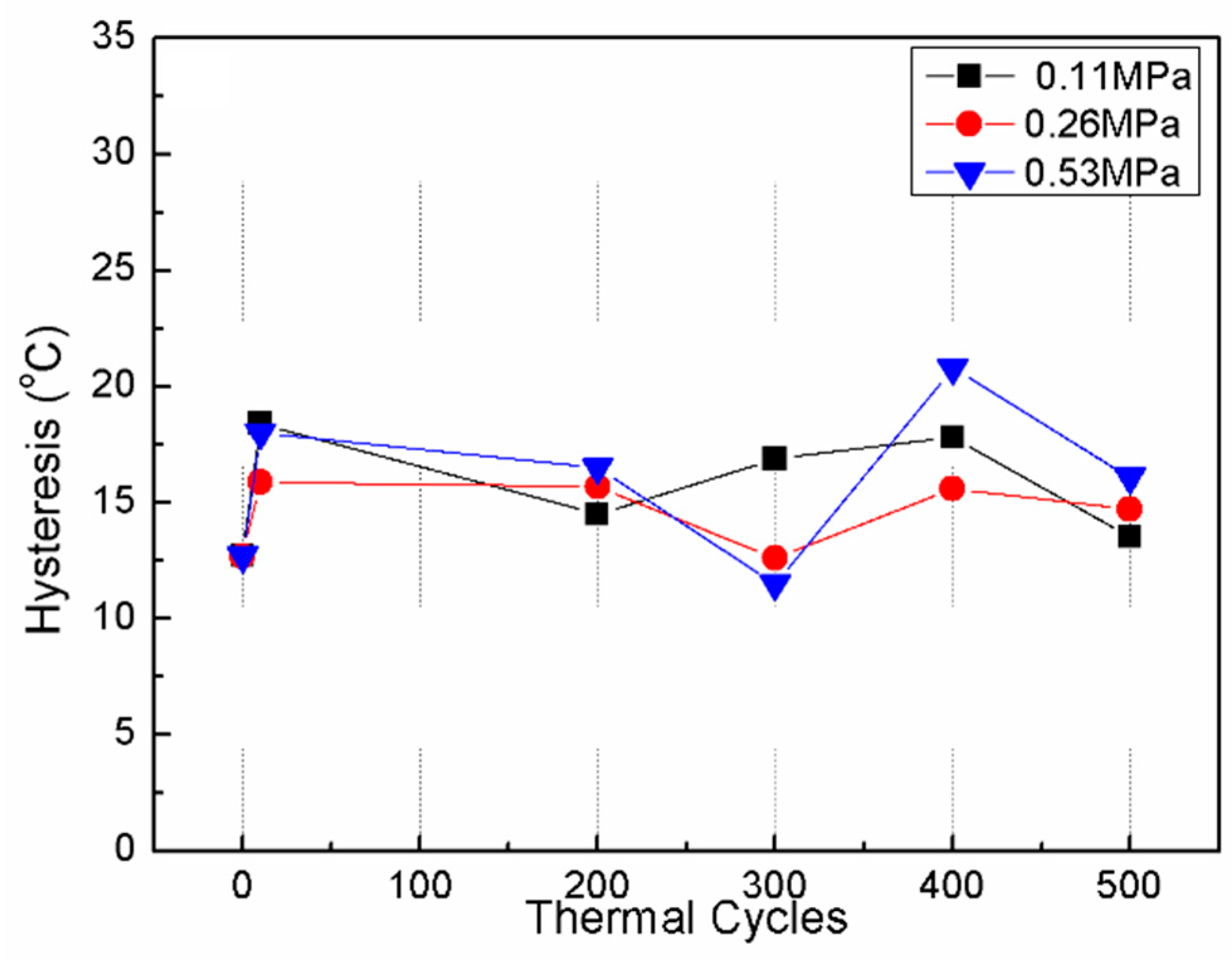

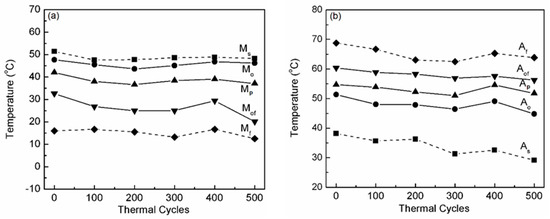

3.2.2. Direct and Reverse RMT of the Monocrystalline Cu-13.7% Al-4.2% Ni Alloy Curves after TCT under Loads

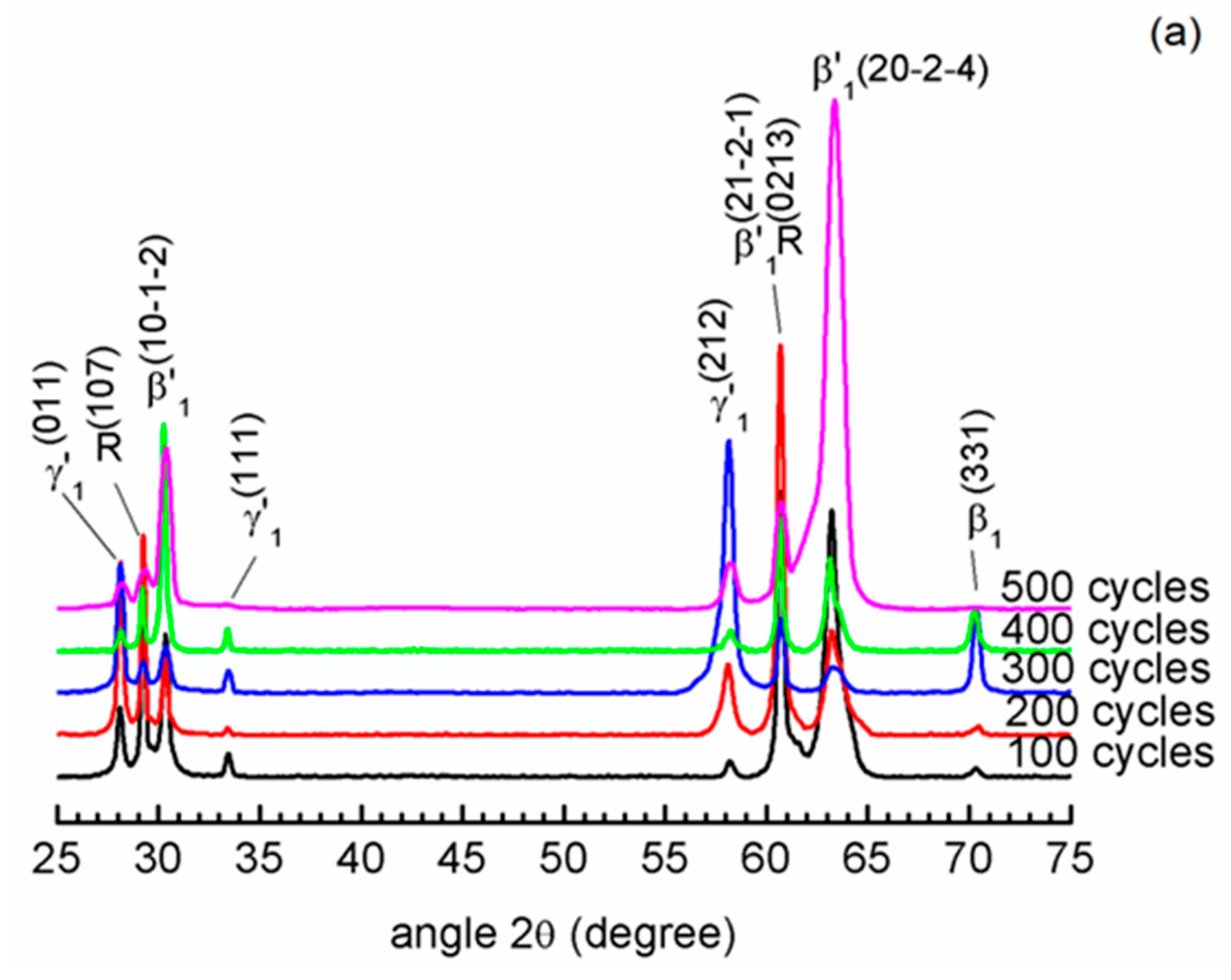

3.3. XRD Analysis of the Monocrystalline Cu-13.7% Al-4.2% Ni Alloy after TCT under Load

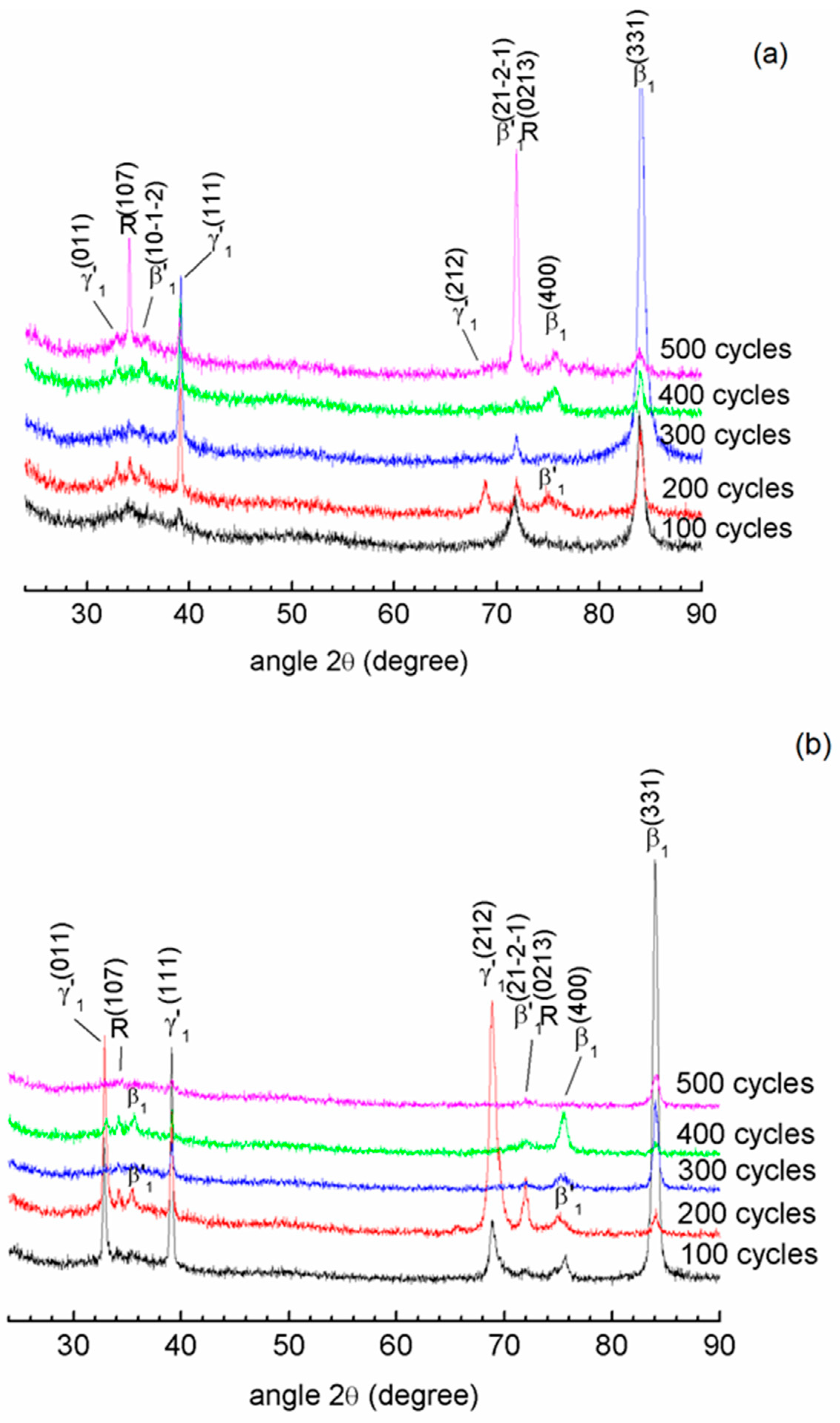

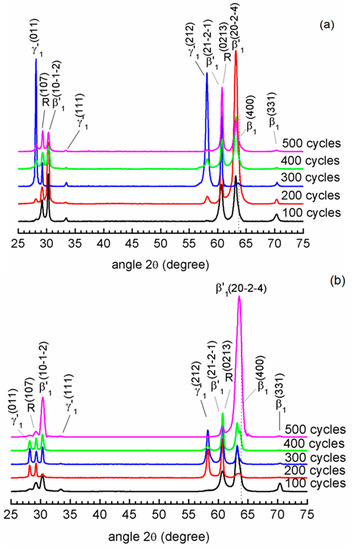

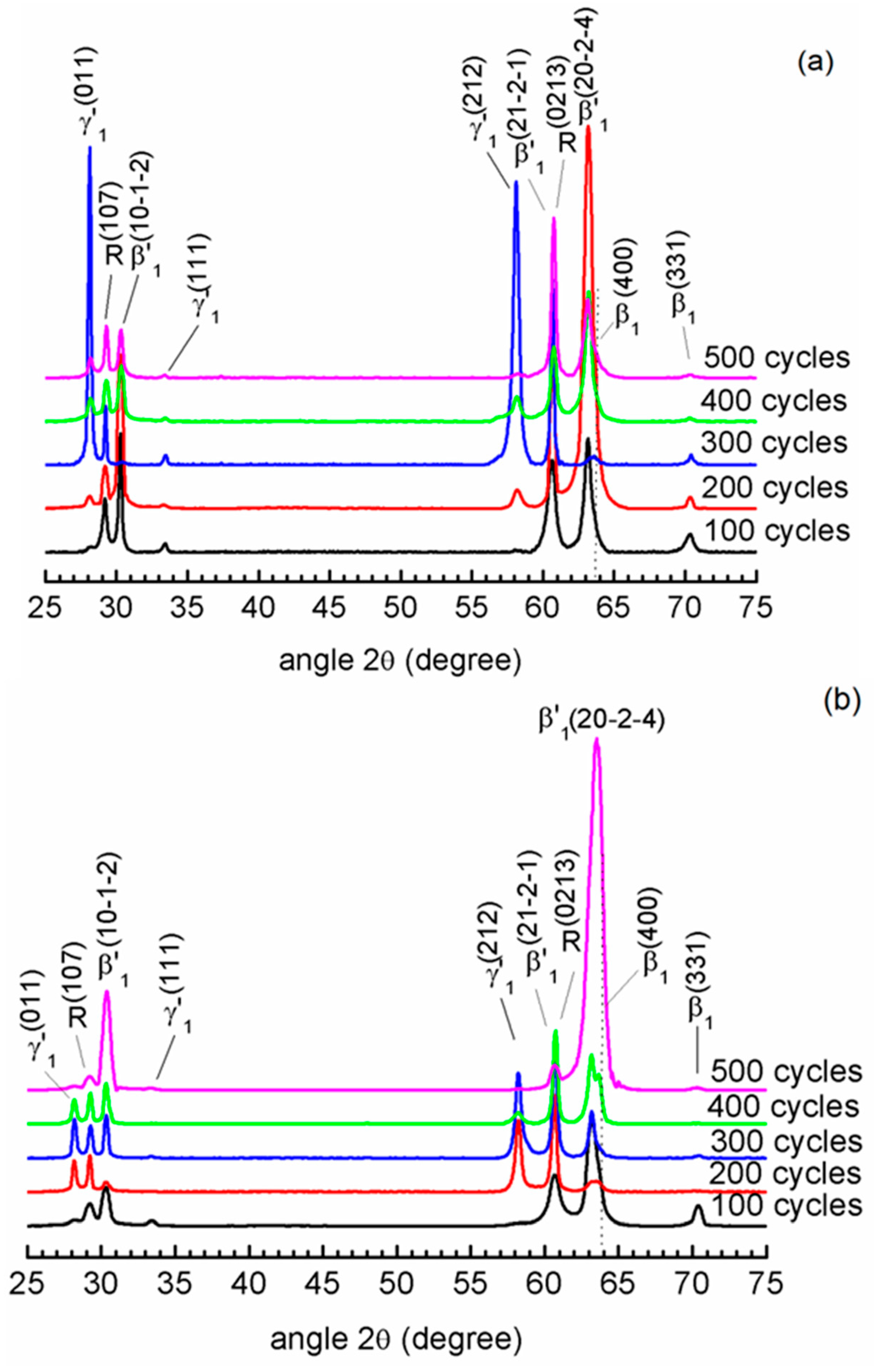

3.3.1. XRD Analysis after TCT under Loading of 0.11 MPa Ending with the ½ Cooling Cycle
3.3.2. XRD Analysis after TCT under Loading of 0.11 MPa Ending with ½ Heating Cycle

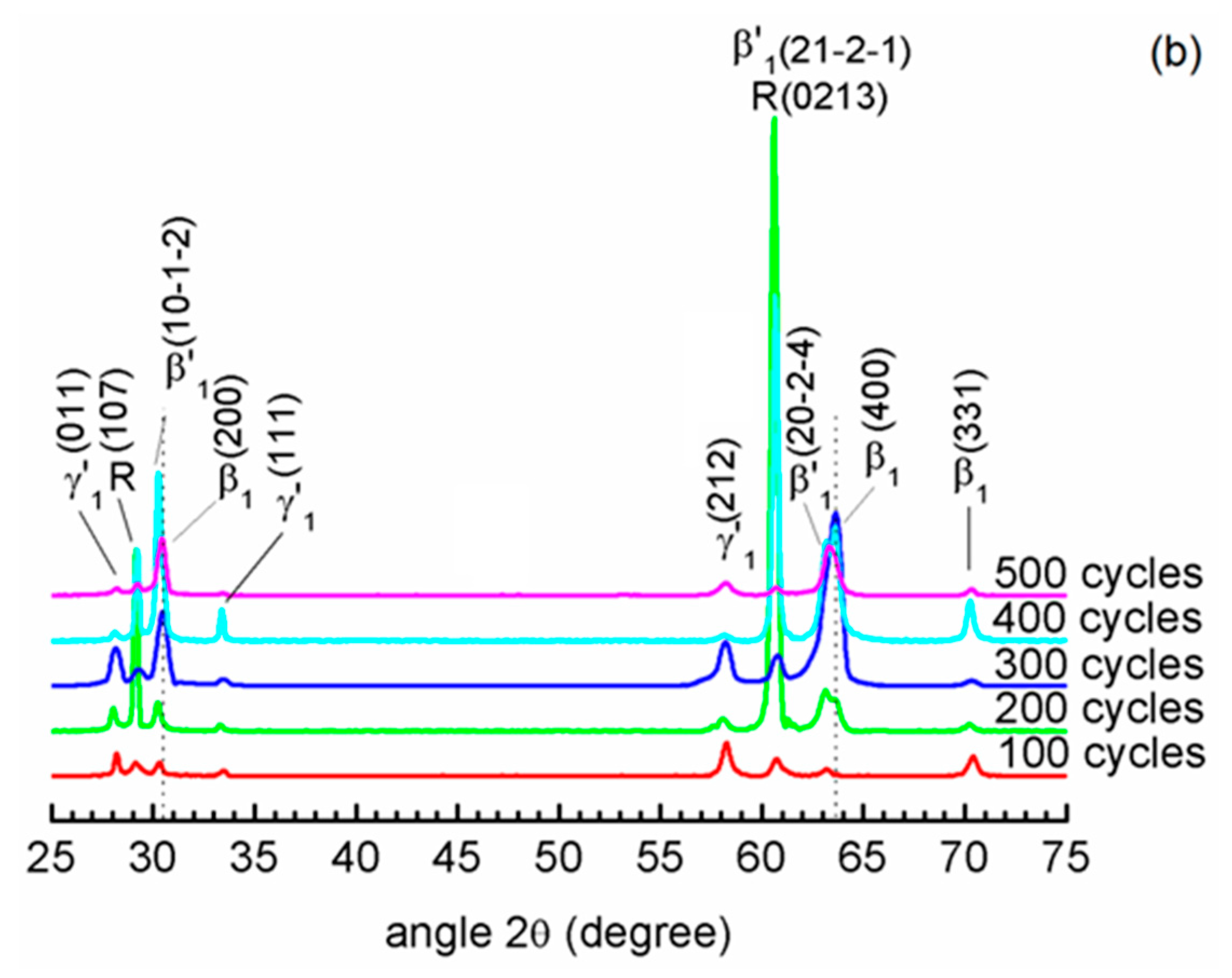

3.3.3. XRD Analysis after TCT under Loading of 0.26 MPa Ending with ½ Cooling Cycle
3.3.4. XRD Analysis after TCT under Loading of 0.26 MPa Ending with ½ Heating Cycle
3.3.5. XRD Analysis after TCT under Loading of 0.53 MPa Ending with ½ Cooling Cycle
3.3.6. XRD Analysis after TCT under Loading of 0.53 MPa Ending with ½ Heating Cycle

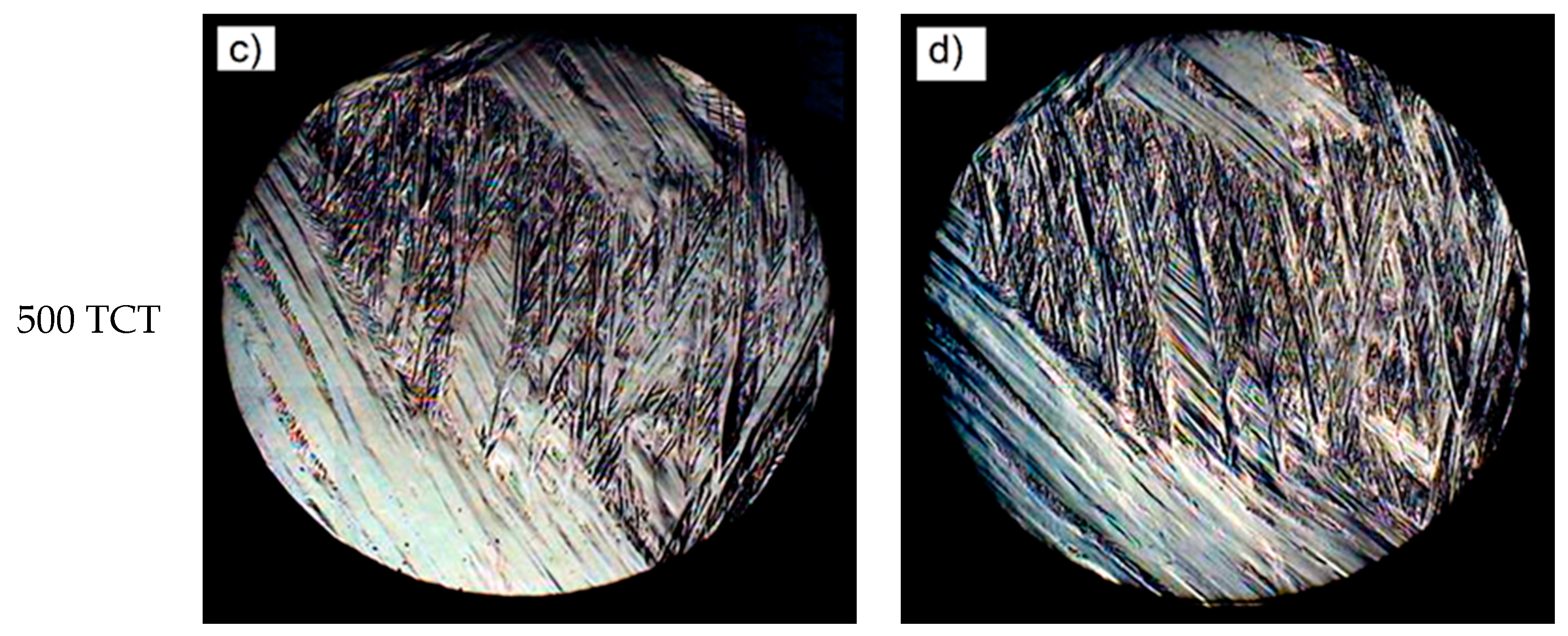

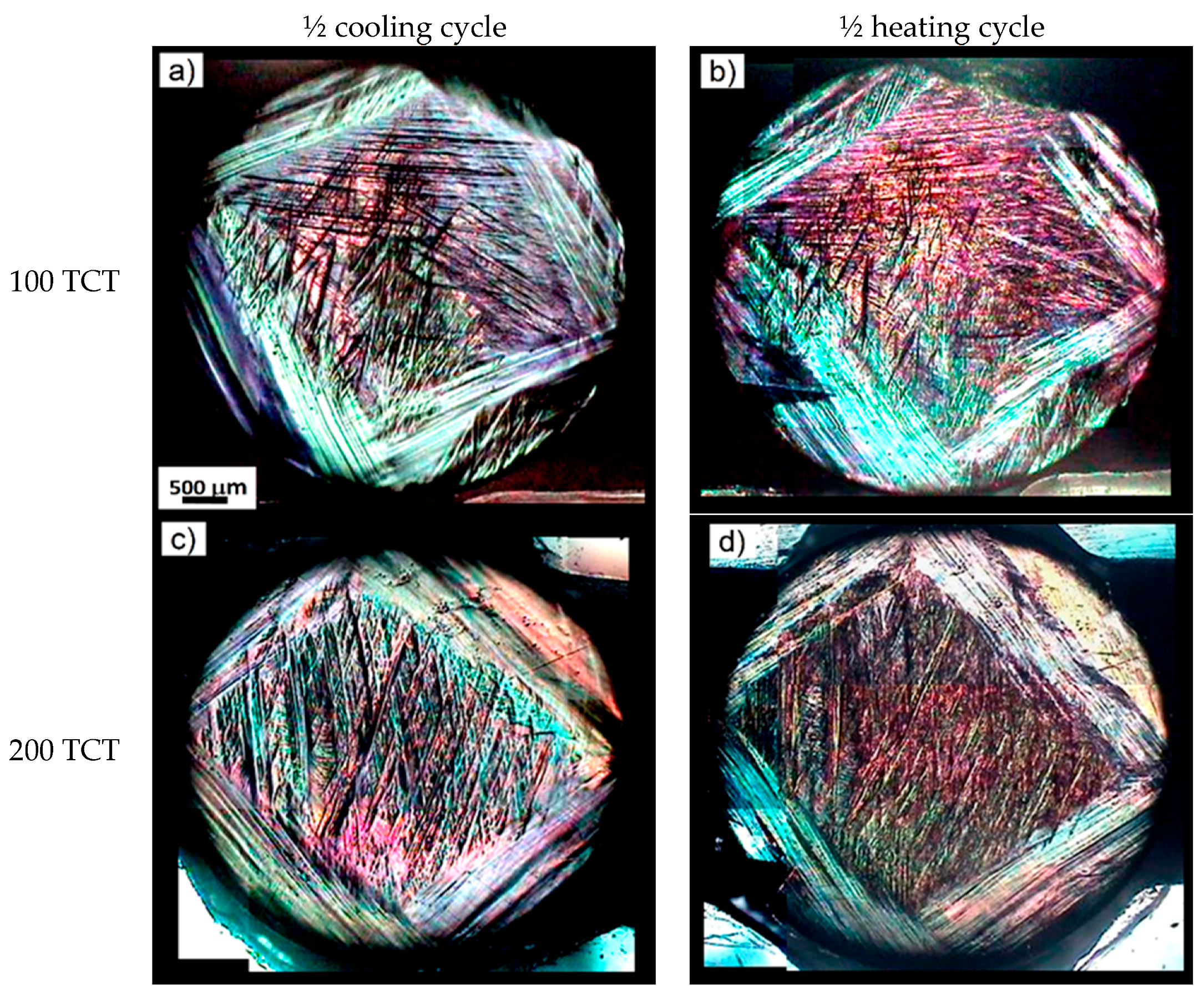

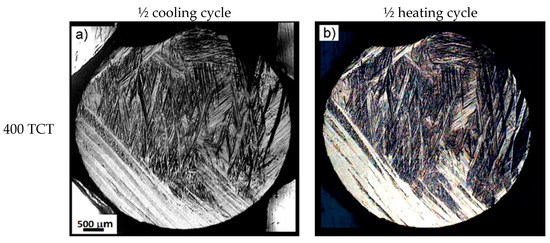

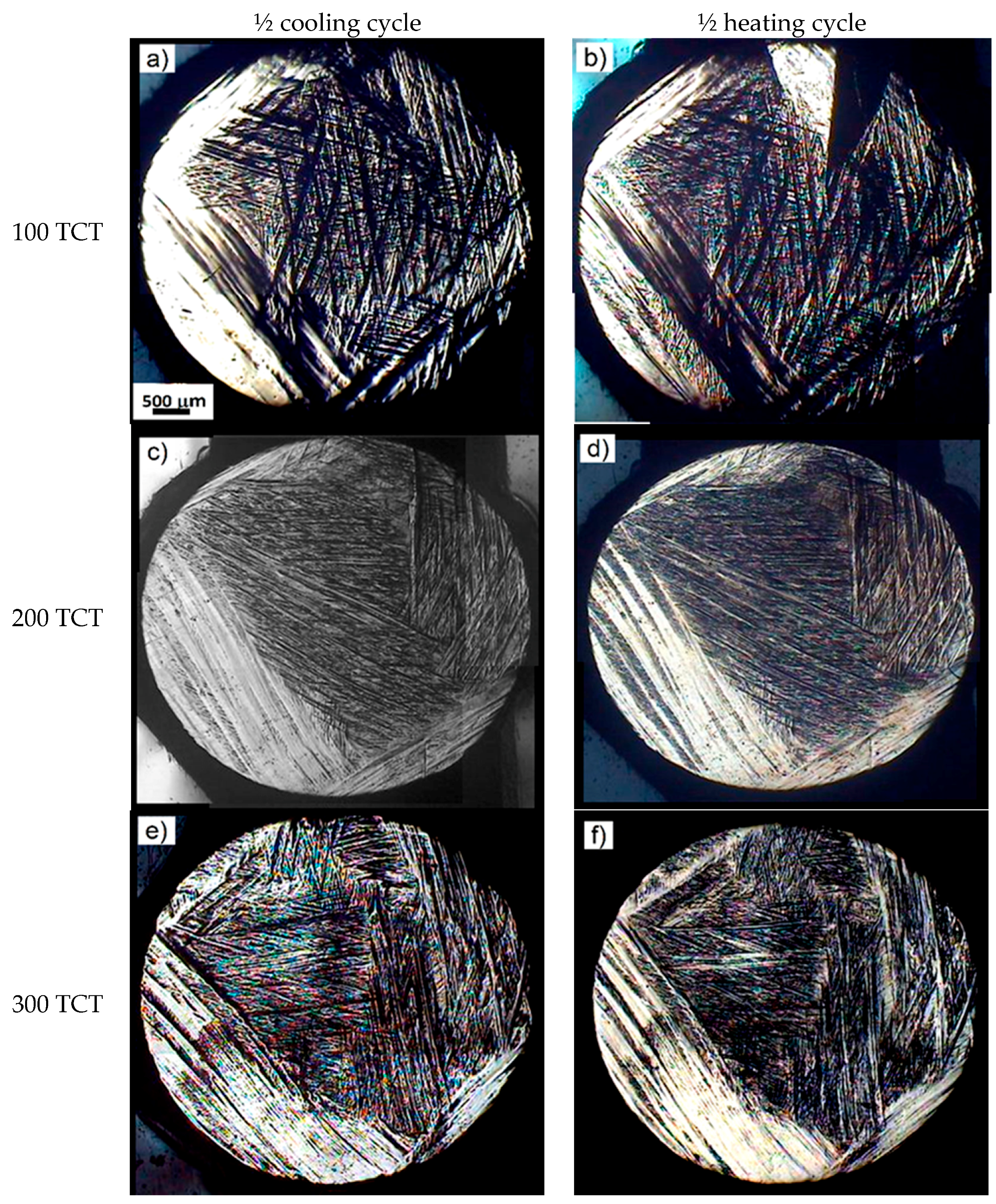

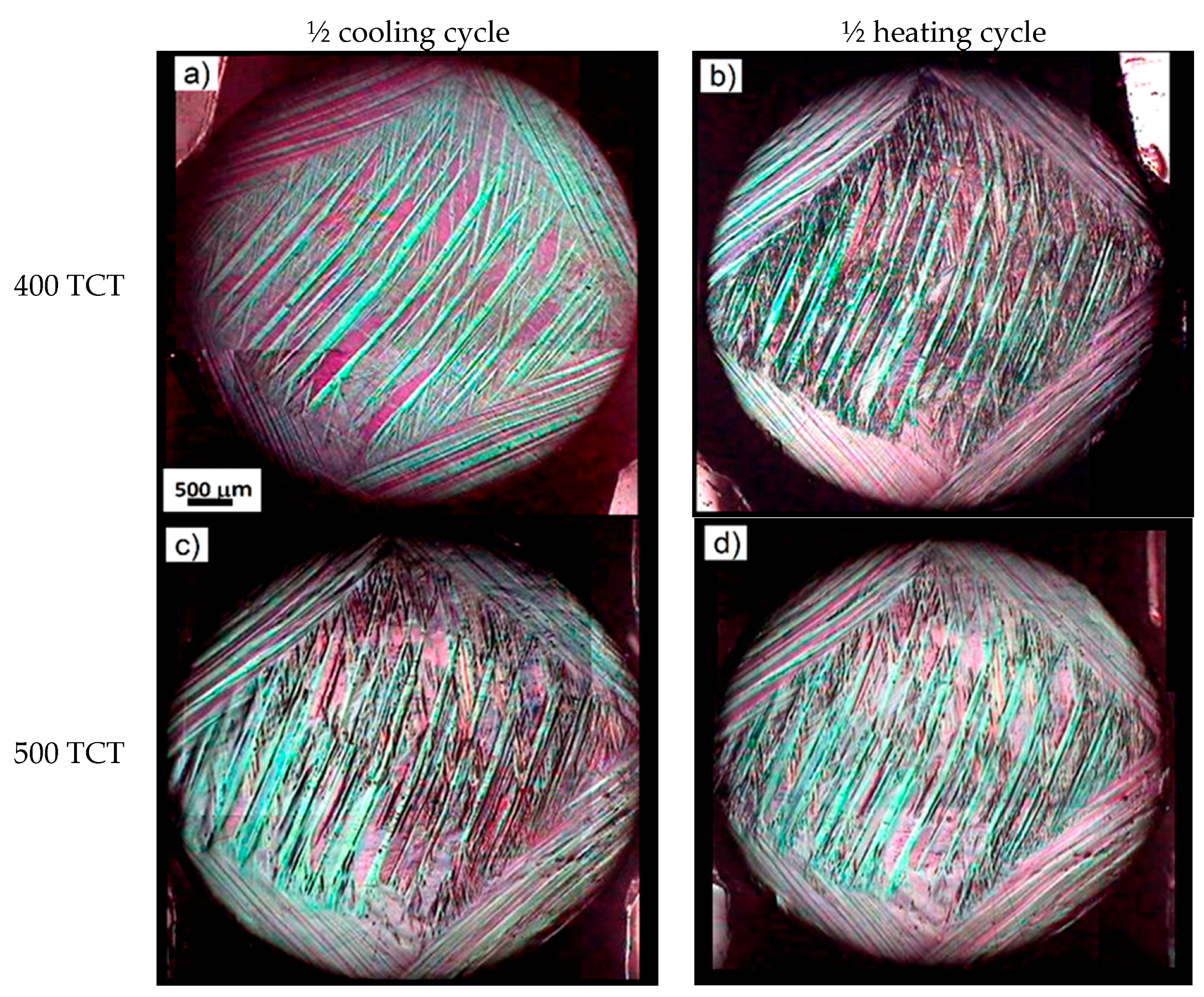

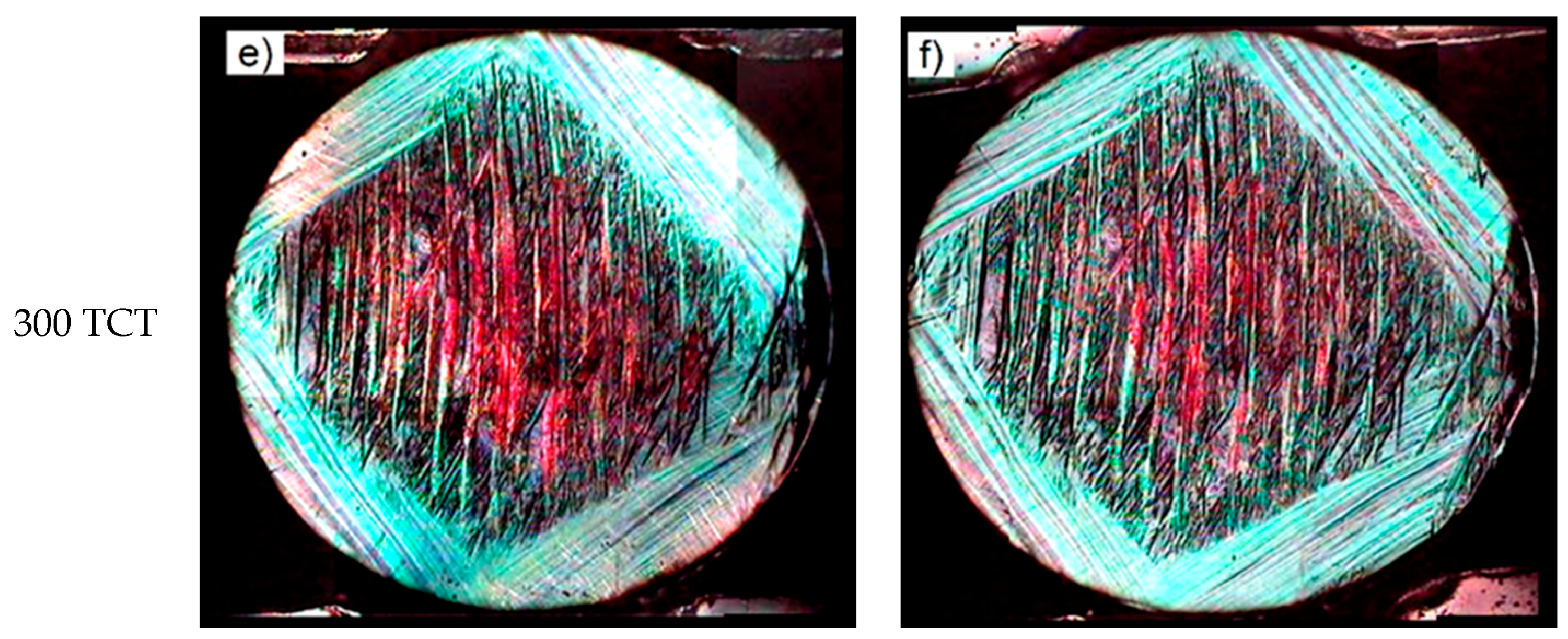

3.4. Optical Microscopy after TCT under Loading

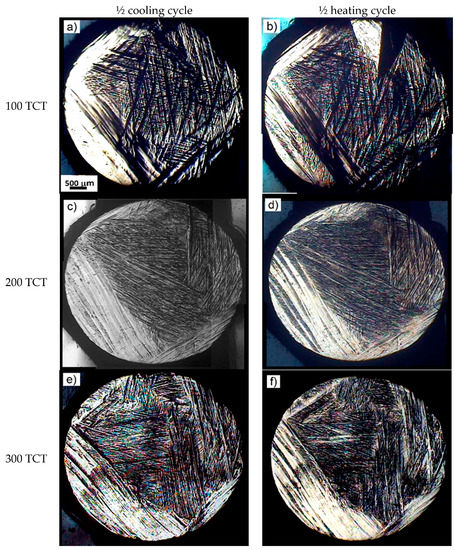

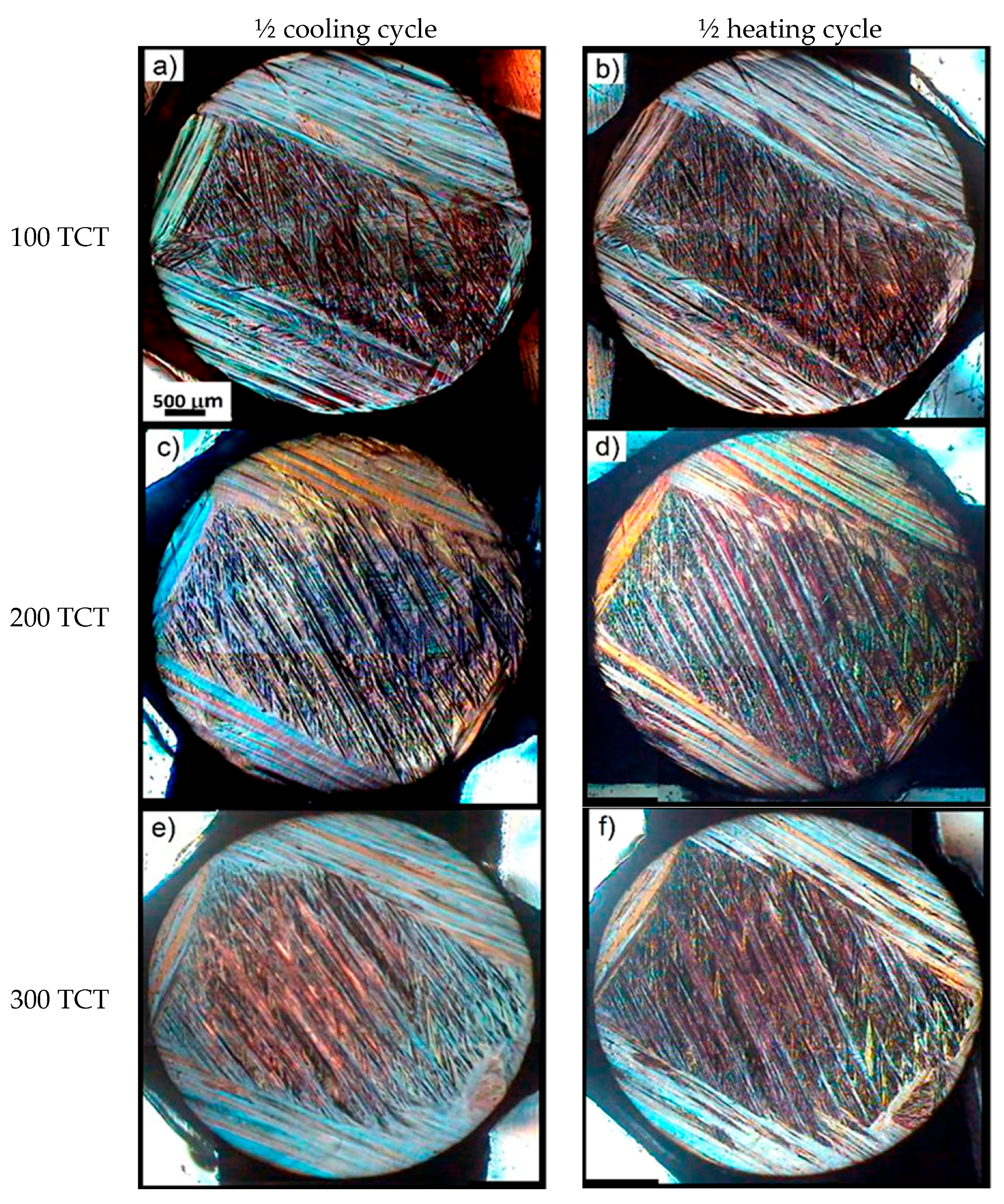

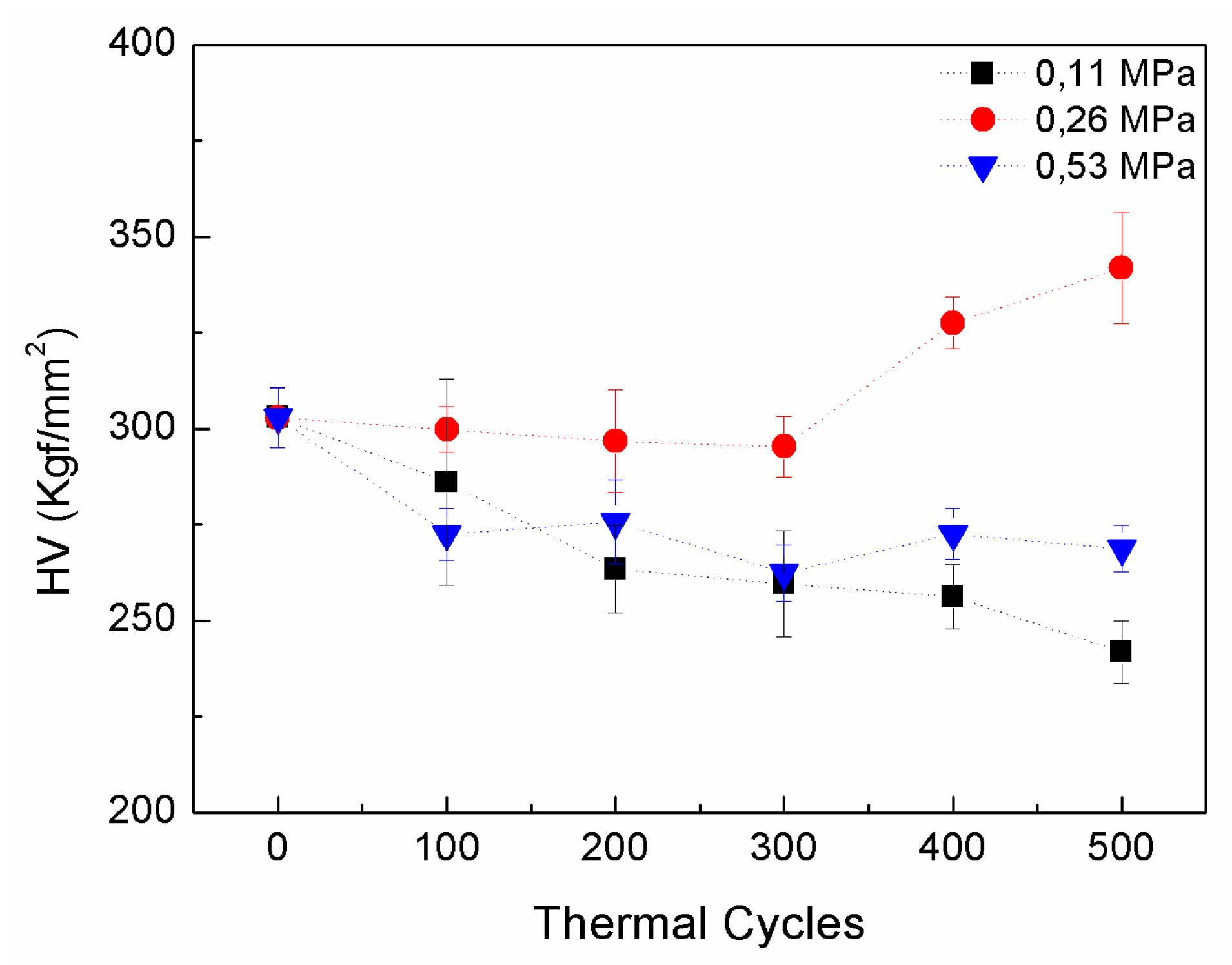

3.5. Vickers Microhardness after TCT under Loads
4. Discussion
5. Conclusions
- The monocrystalline Cu-13.7% Al-4.2% Ni alloy represents complex mixed transformation, revealing the RMT sequence β1 ↔ R ↔ β′1 + γ′1, where the present phases are coherent with each other and are very sensitive to structural changes.
- Alterations in the alloy structure by finishing the ½ cycle heating treatment (TA → 90 °C → TA) show good consistency with the critical temperatures of direct RMT. The martensite γ′1 field lies below the end of the intensive direct RMT (below Mof). Above this temperature, a greater participation of martensite β′1 is observed, coherent to phase R.
- The participation of the high-temperature phase β1 in the alloy structure, mainly after TCTs under the load of 0.26 MPa, appears as a response of the load applied during the treatment which promotes partially the reverse RMT γ′1 + β′1 → R → β1.
- During TCTs performed under optimized load (0.26 MPa), where the RMT range was not changed, the reorientation, hardening, and stabilization of the structure during RMT occur more intensively, resulting in a reduction of critical intervals, increasing and stabilizing of the microhardness, from 300 thermal cycles.
- The changes in the main RMT parameters of monocrystalline Cu-13.7% Al-4.2% Ni alloy during TCT under load are not very significant, especially after complete RMT cycles, which indicate good resistance of the alloy investigated to irreversible changes, making its practical use feasible.
