Exploring Resistance Spot Welding for Grade 2 Titanium Alloy: Experimental Investigation and Artificial Neural Network Modeling
Abstract
:1. Introduction
2. Materials and Methods

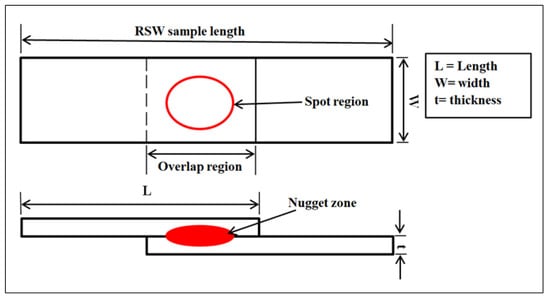

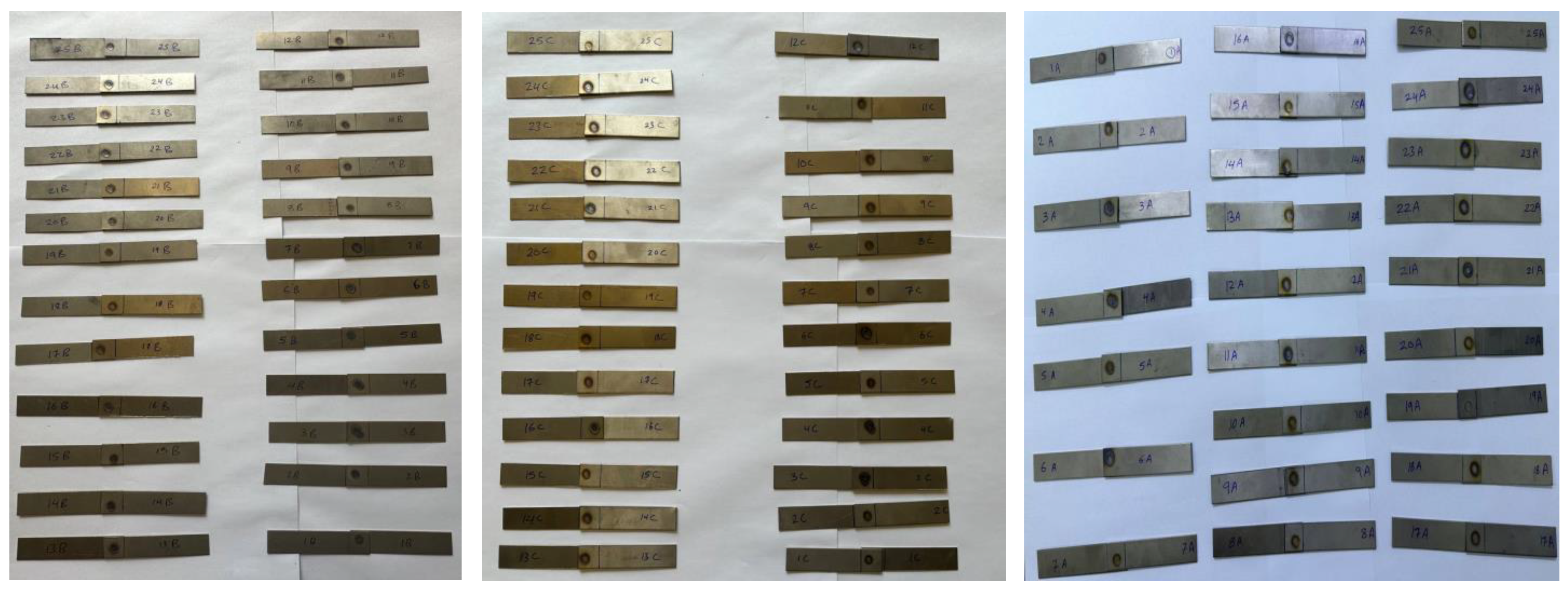

2.1. Materials and Specimens’ Preparation

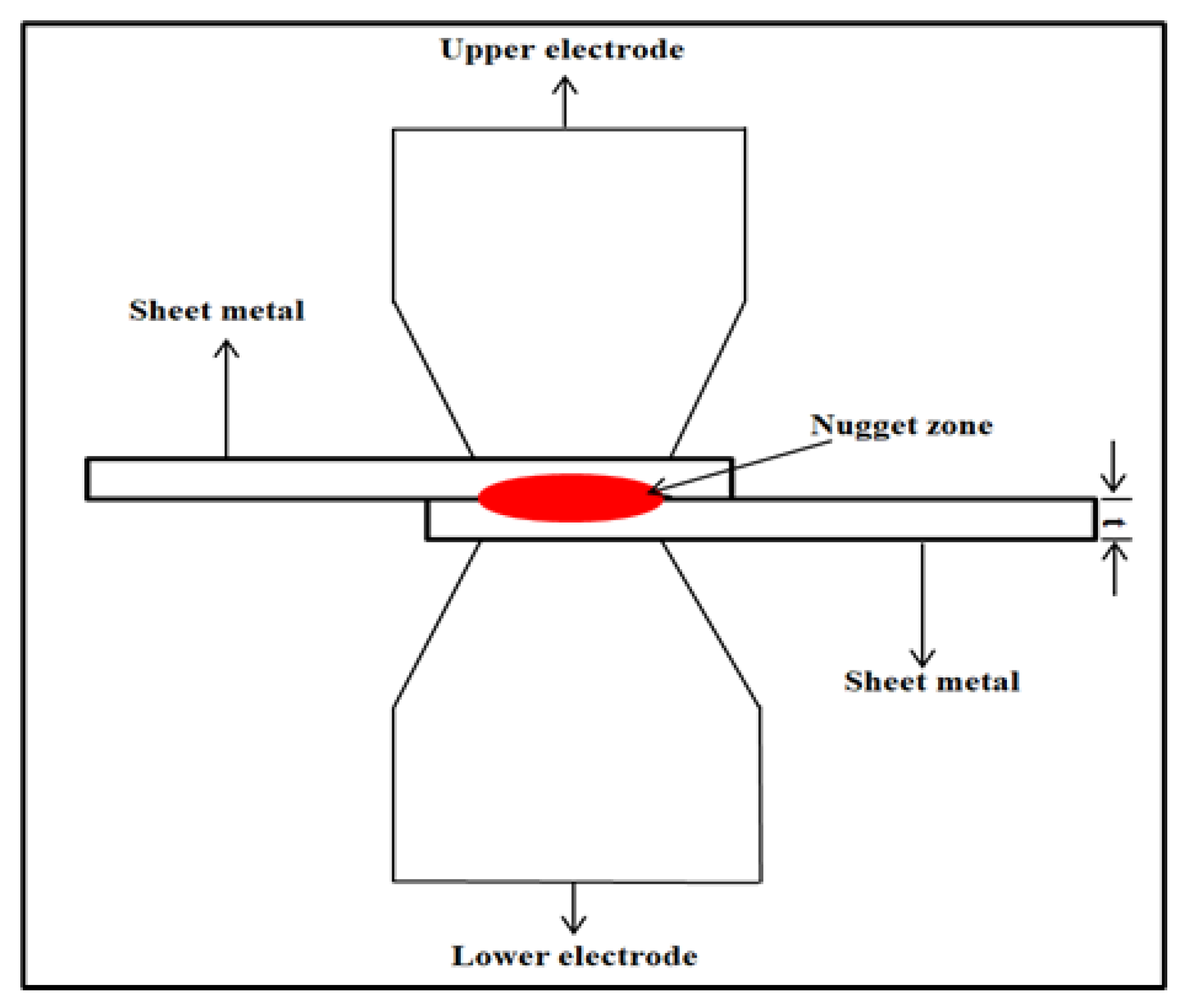

2.2. Resistance Spot Welding Process
- Welding time: the duration applied to weld the samples.
- Welding current: the amount of current provided by the source.
- Pressure: the pressure exerted to hold the materials together during welding.
- Squeeze time: the duration between the application of pressure and the welding process.
- Hold time: the duration for which the pressure is maintained after the welding is completed.
- Pulse welding: the alternating modulation of amperage between high and low points.

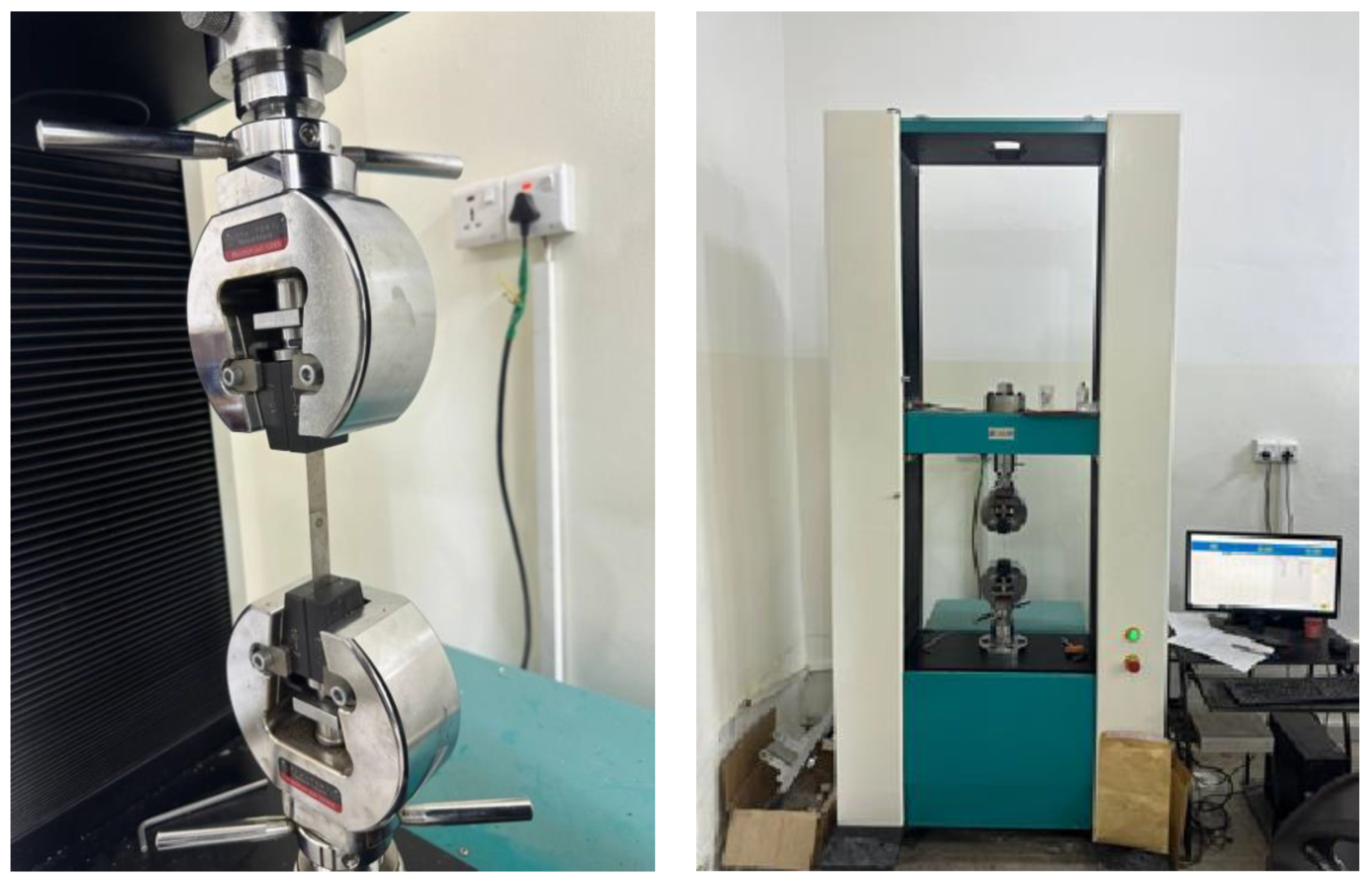

2.3. Tensile Shear Test

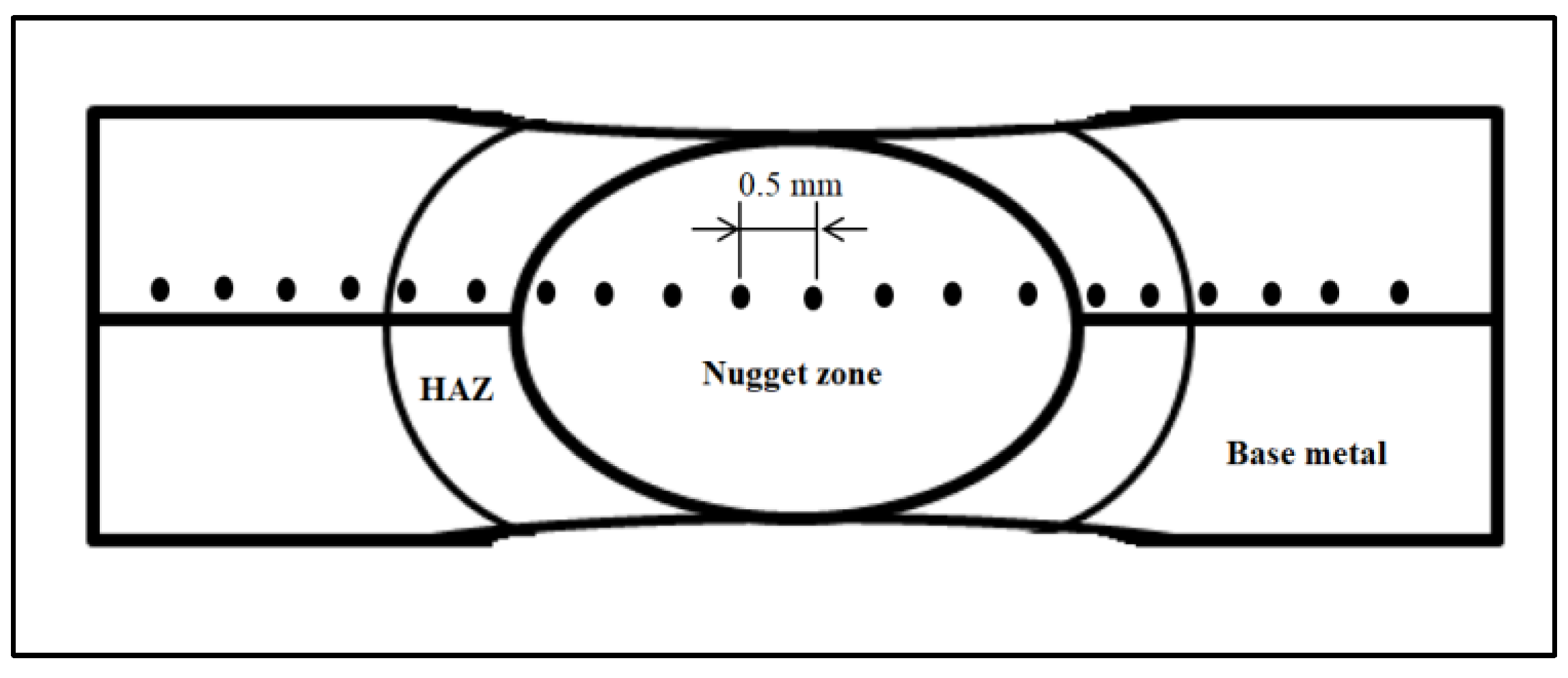

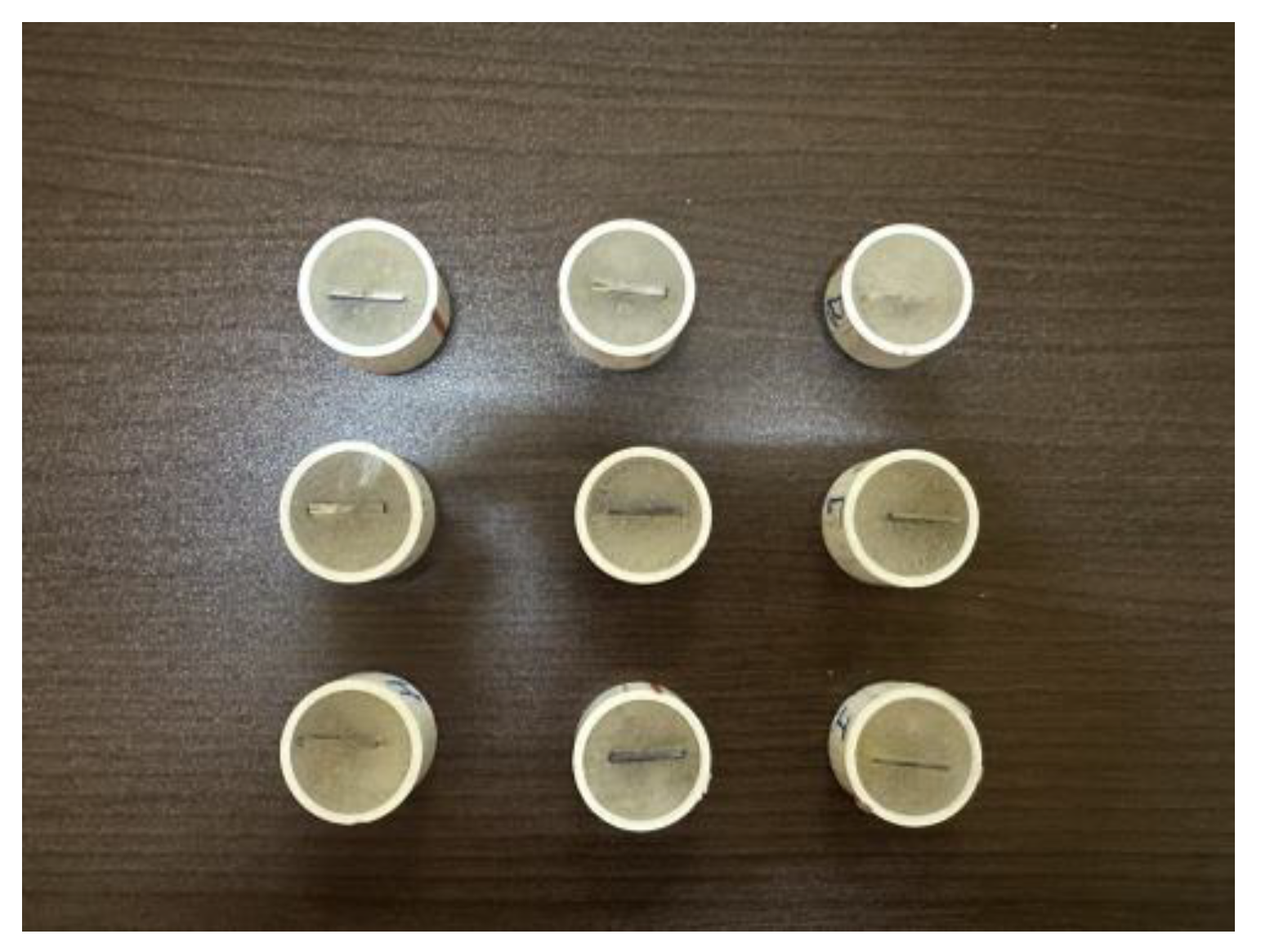

2.4. Micro-Hardness Measurements

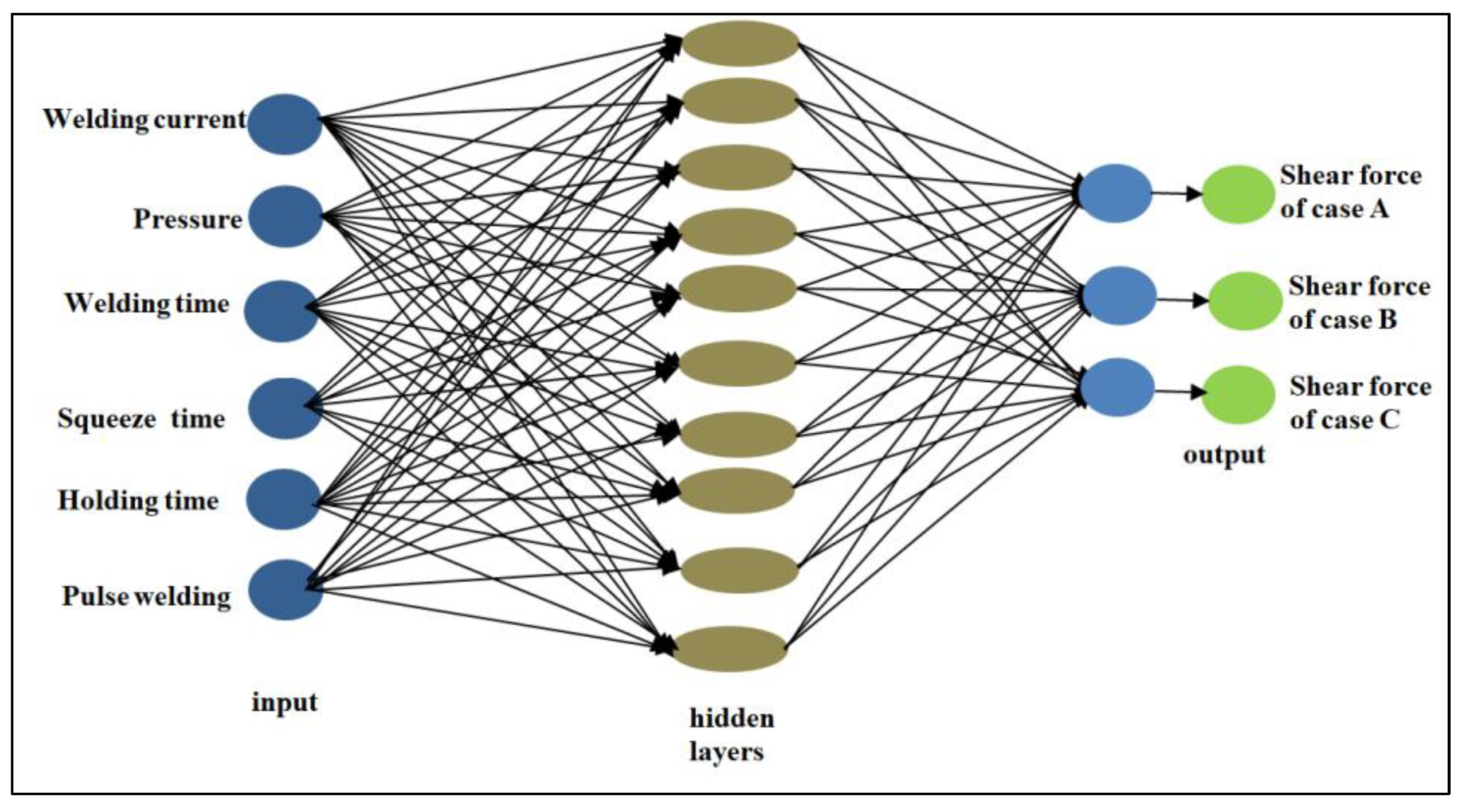

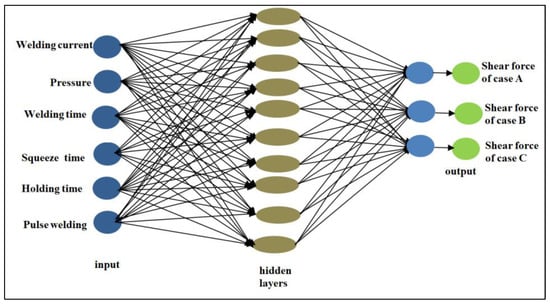

3. Artificial Neural Network (ANN)
- y: the outputs,
- : the activation function,
- x: the input,
- wi: the weights,
- b: the bias.
4. Results and Discussions

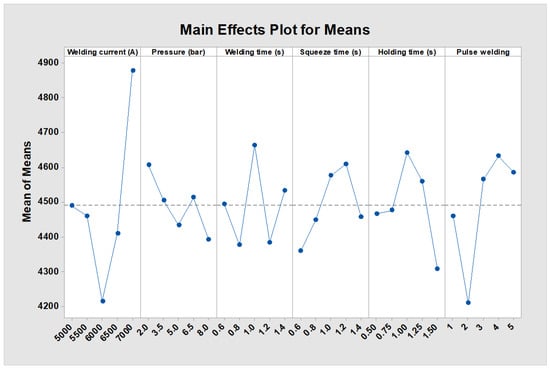

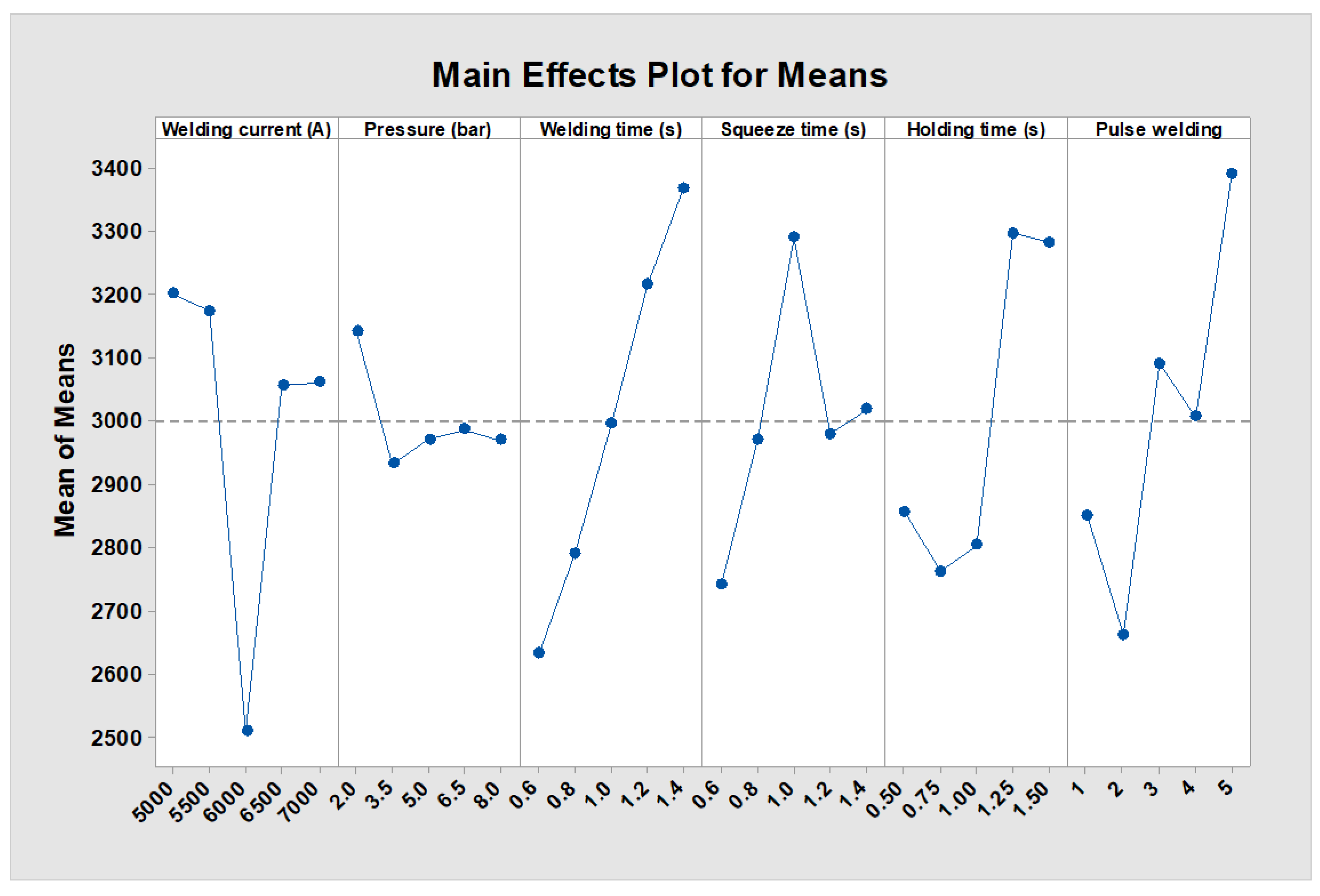

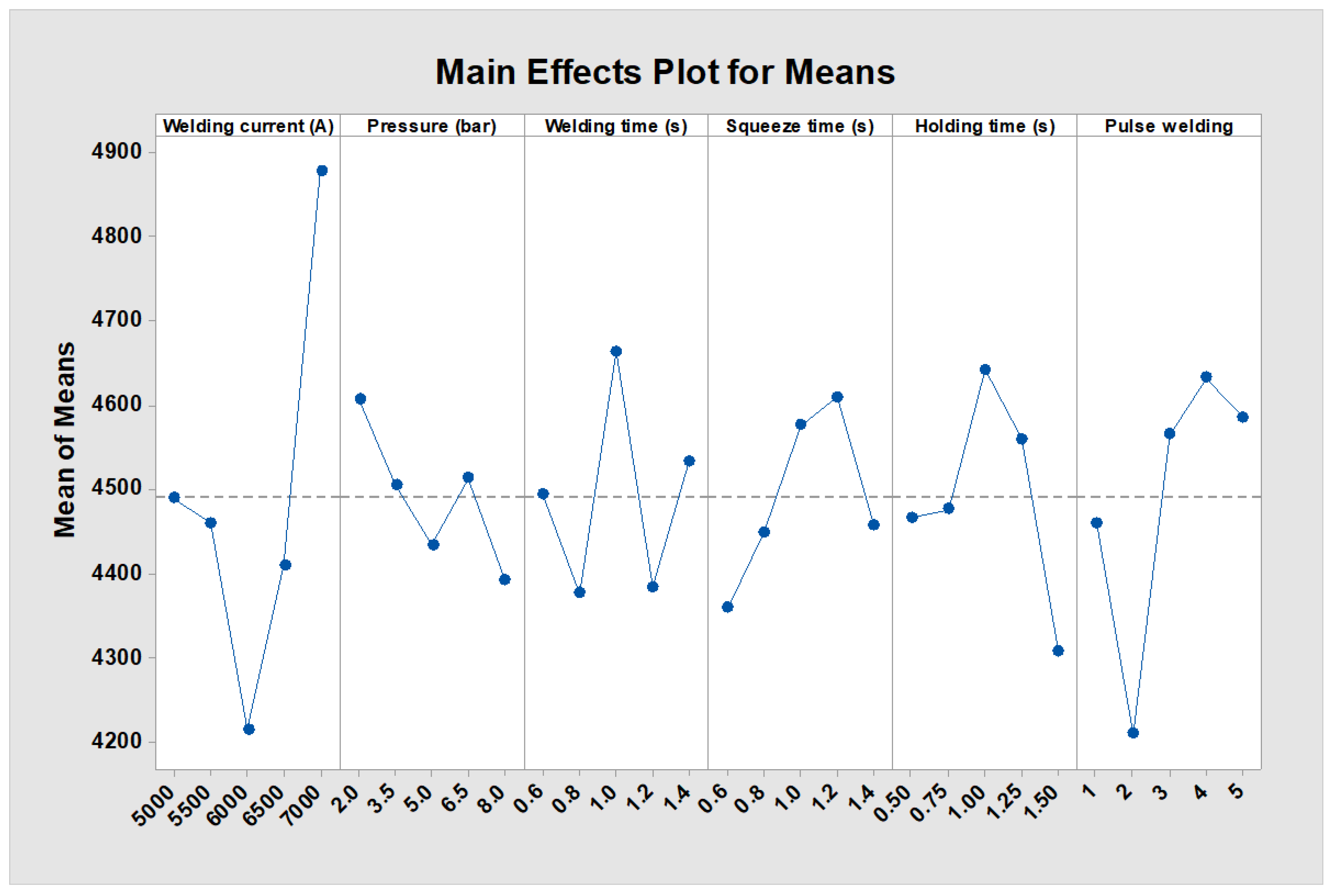

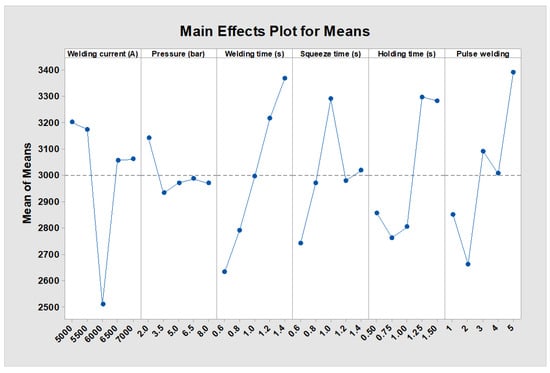

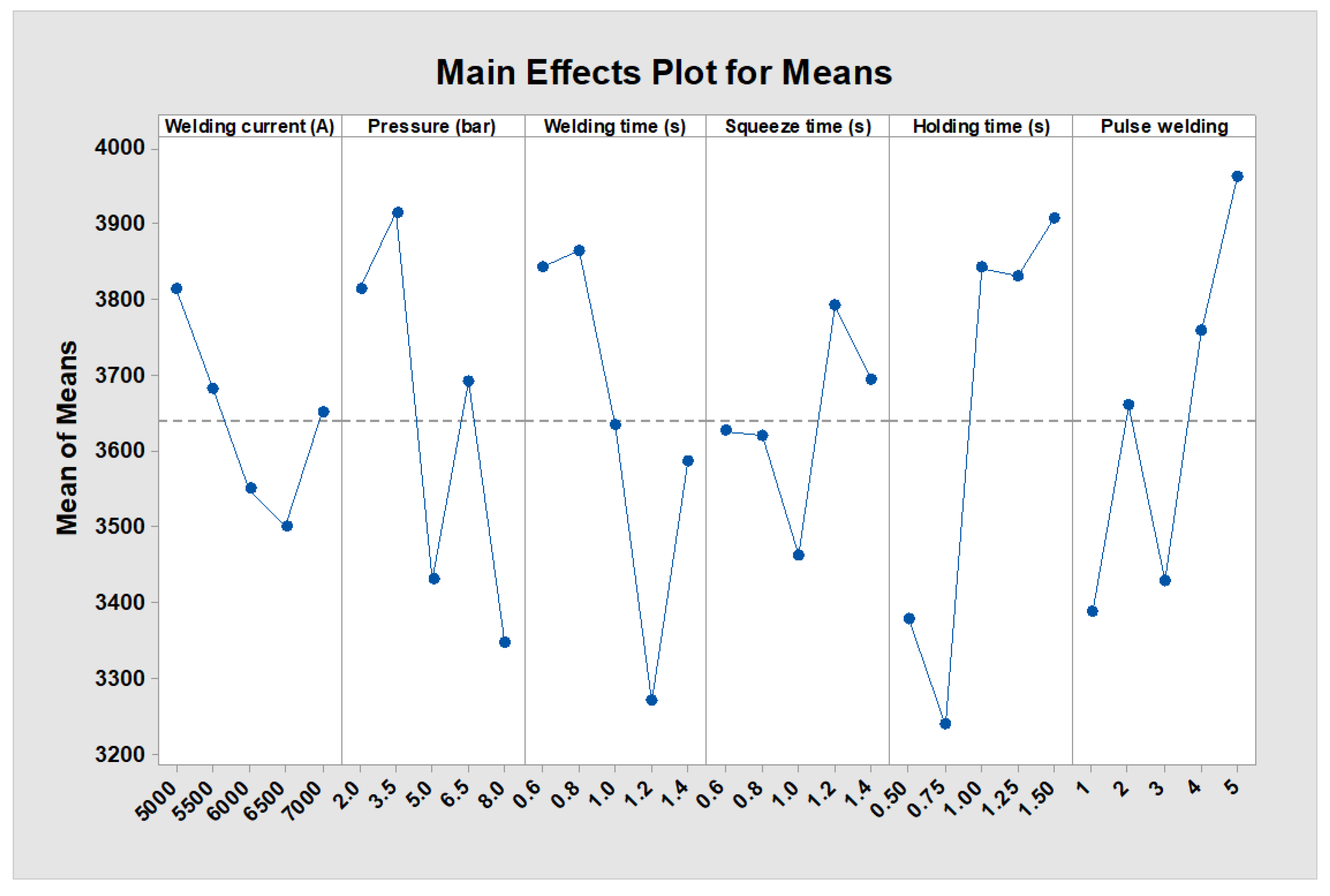

4.1. Tensile Shear Force

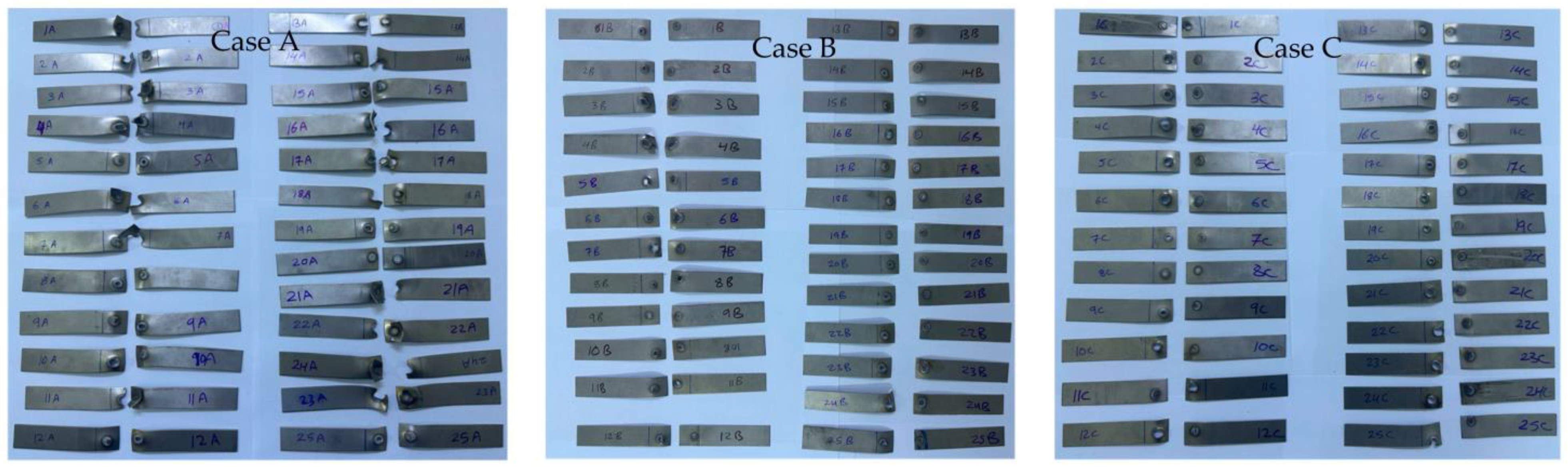

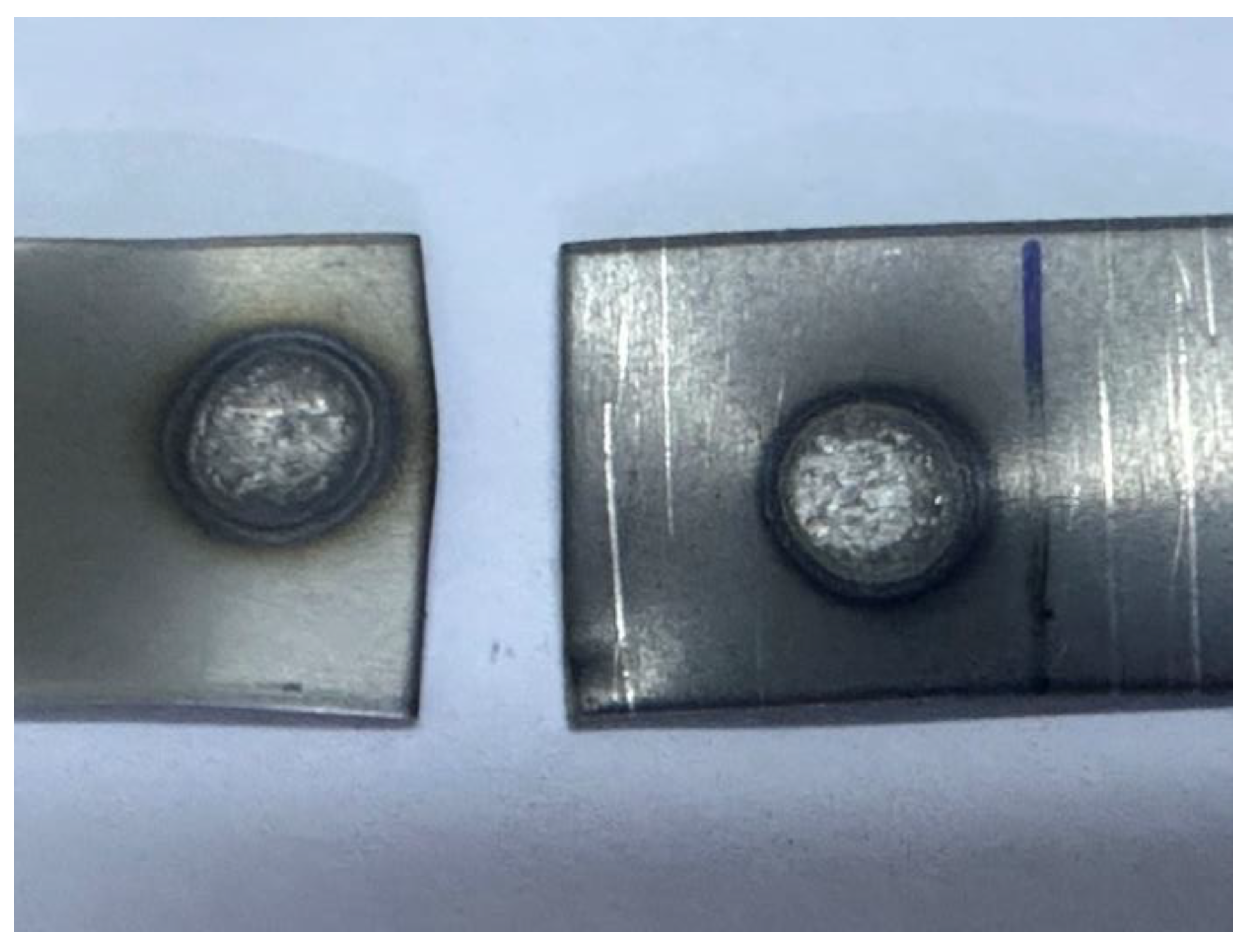

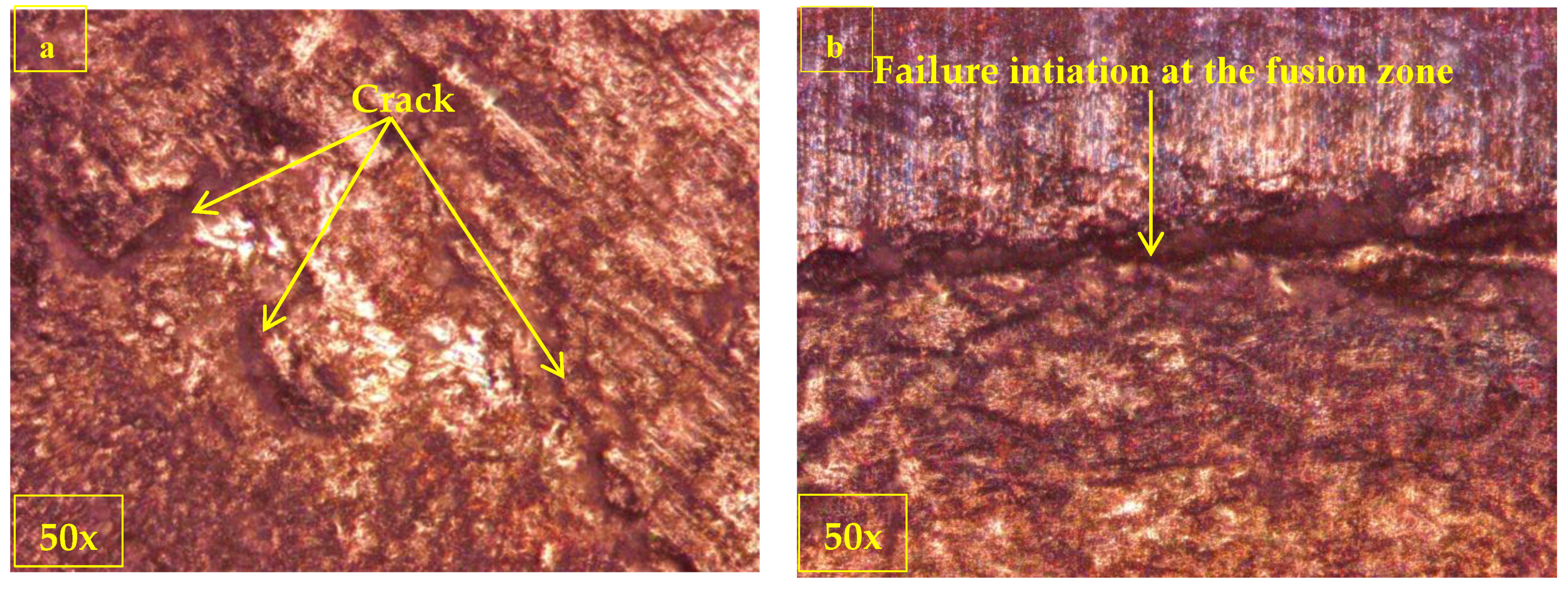

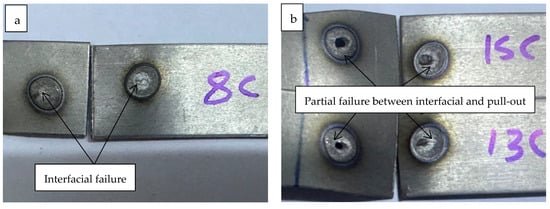

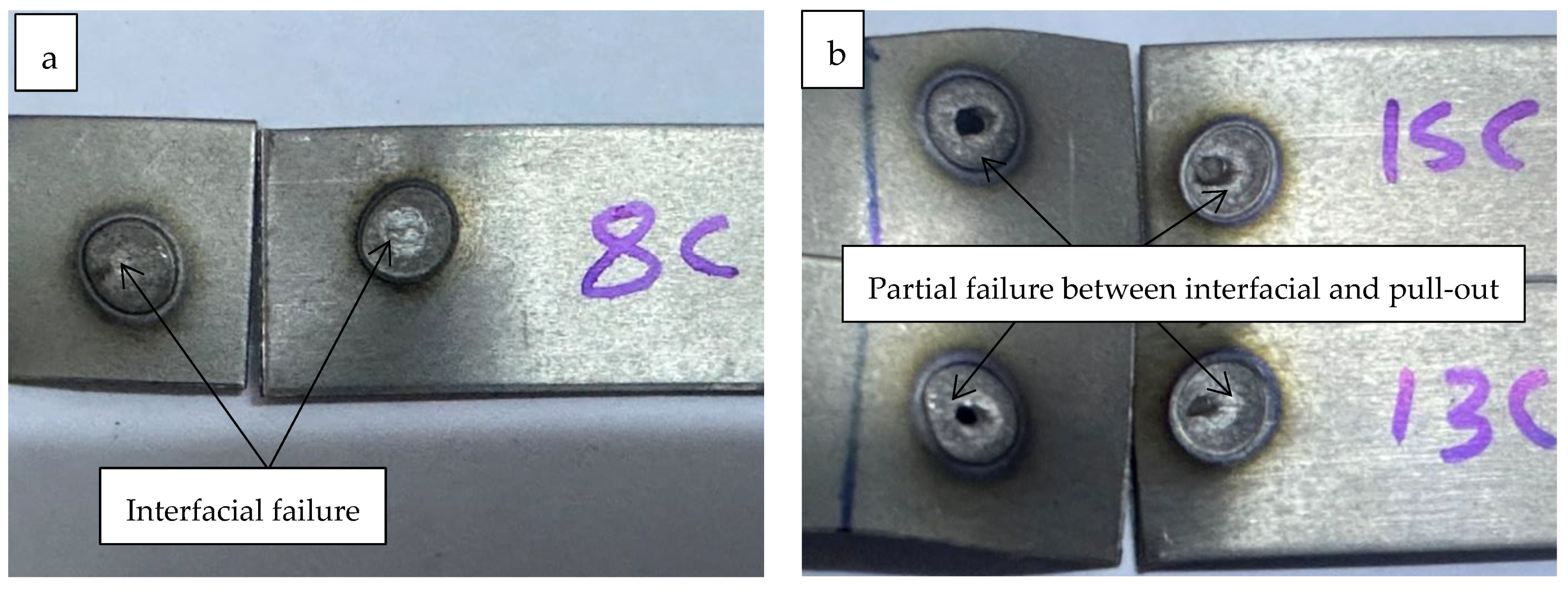

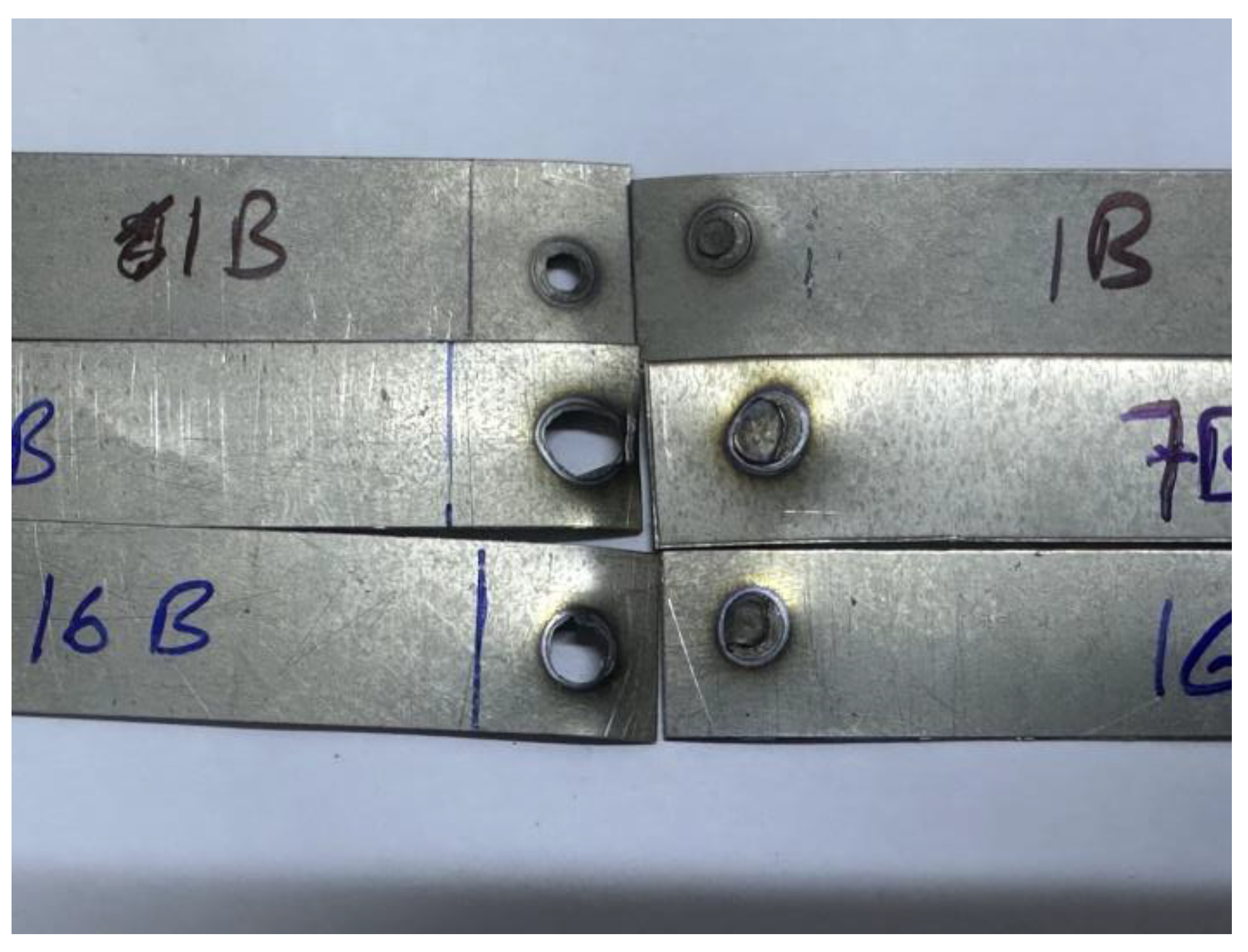

4.2. Failure Mechanism

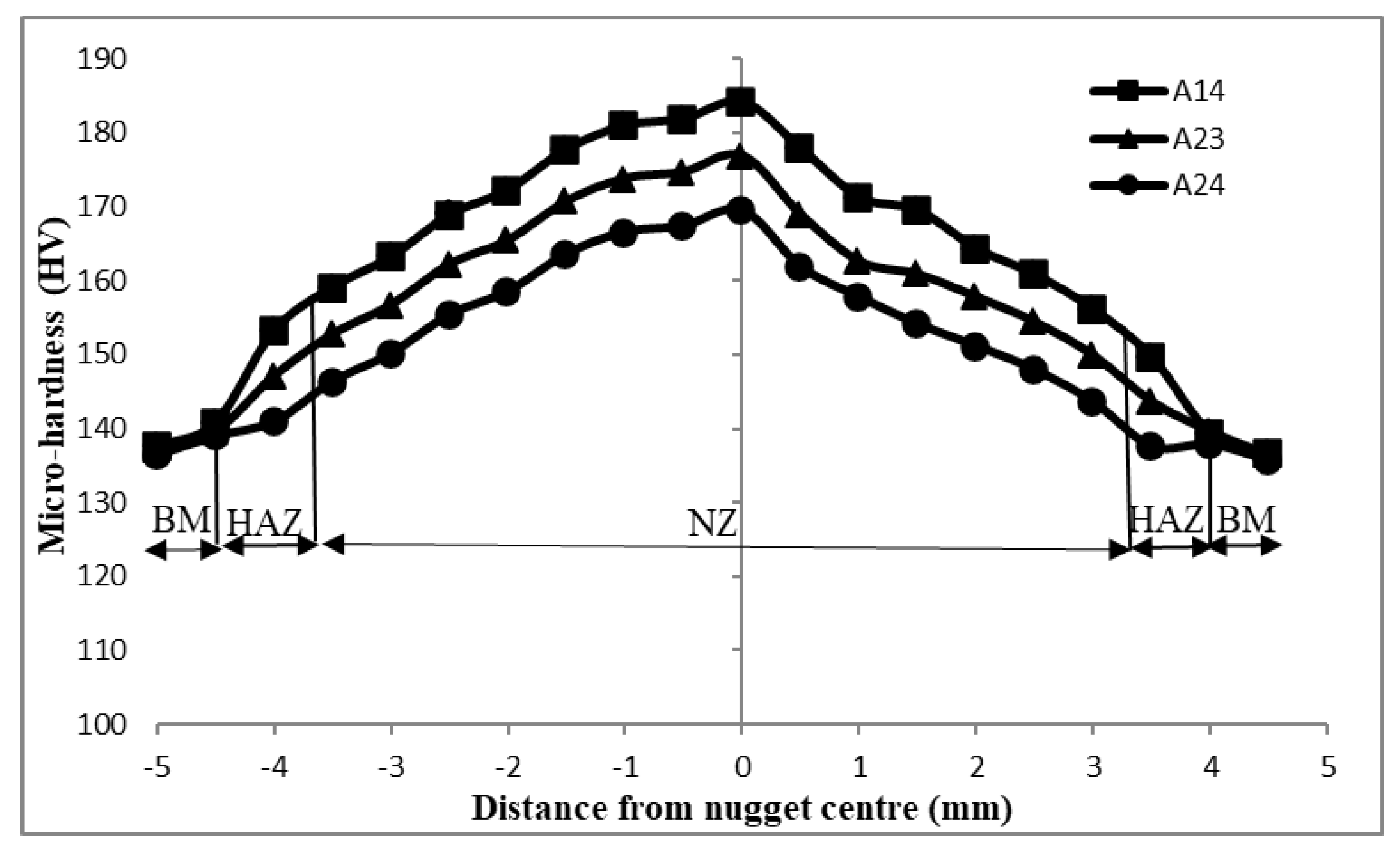

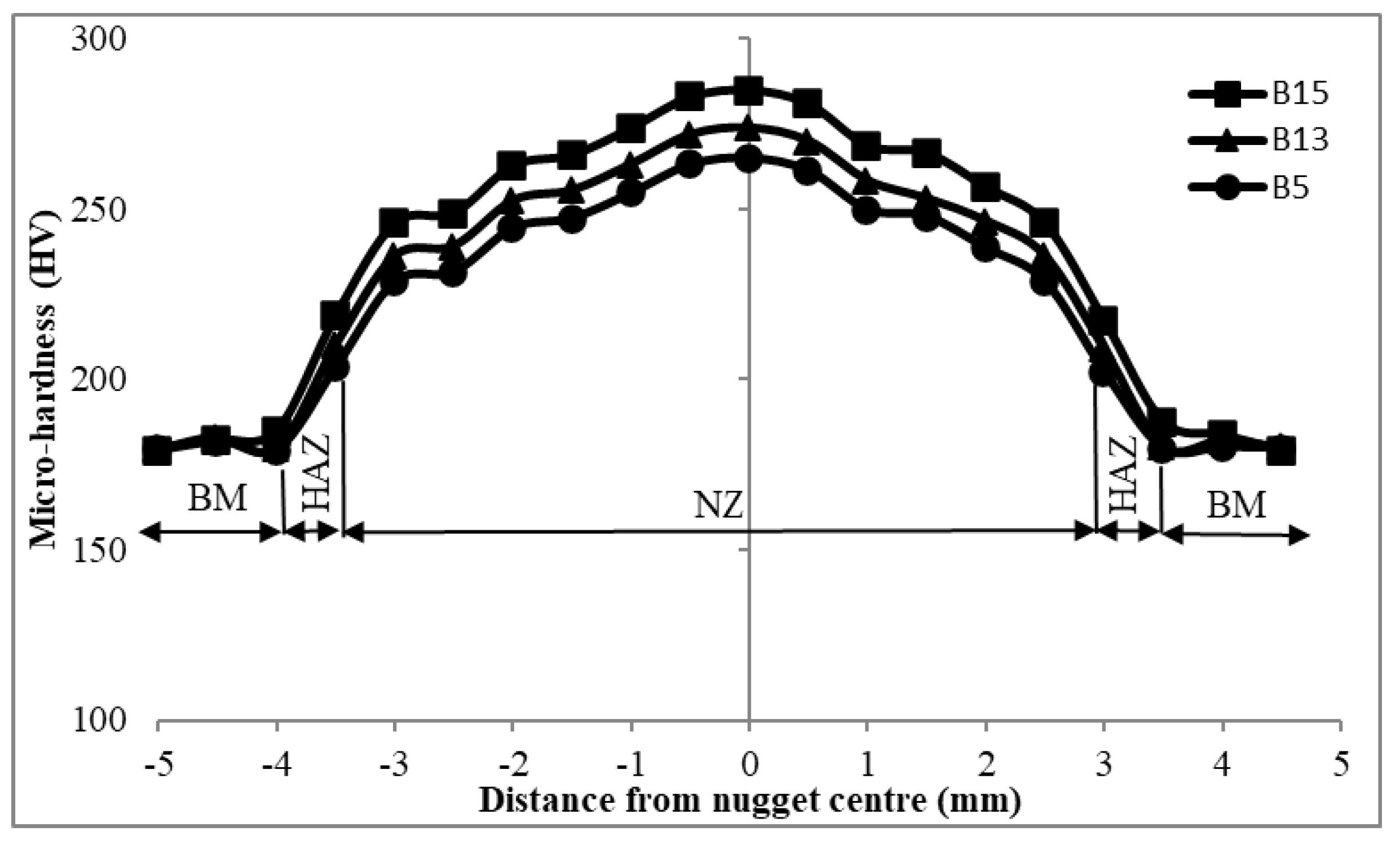

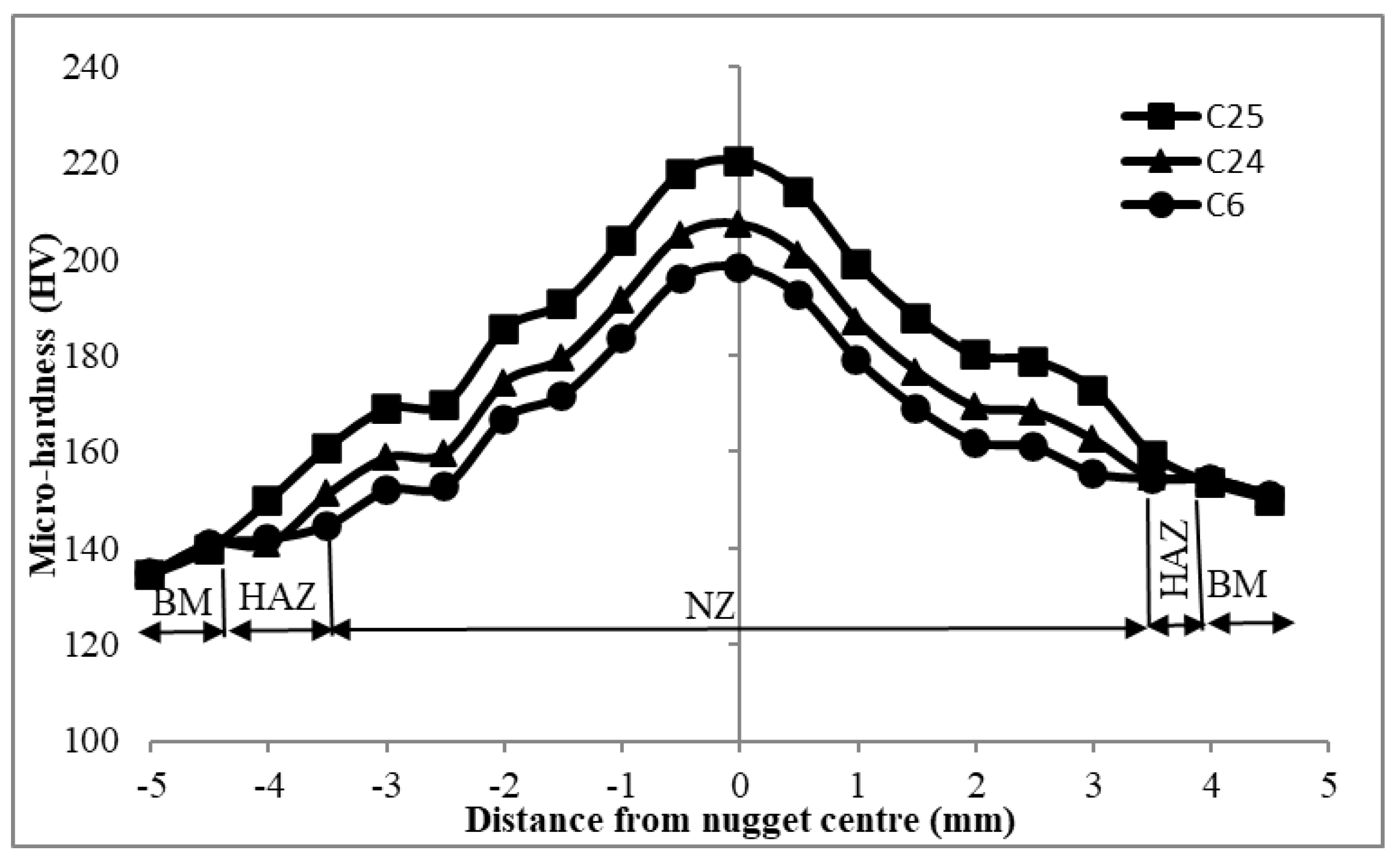

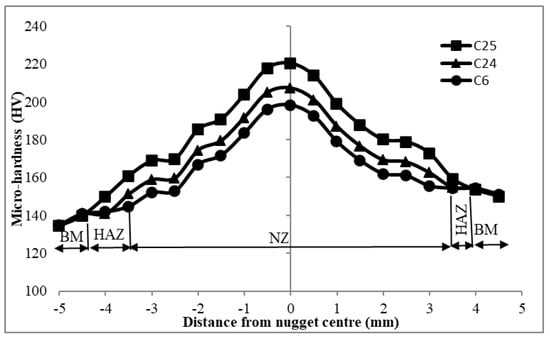

4.3. Micro-Hardness Distribution

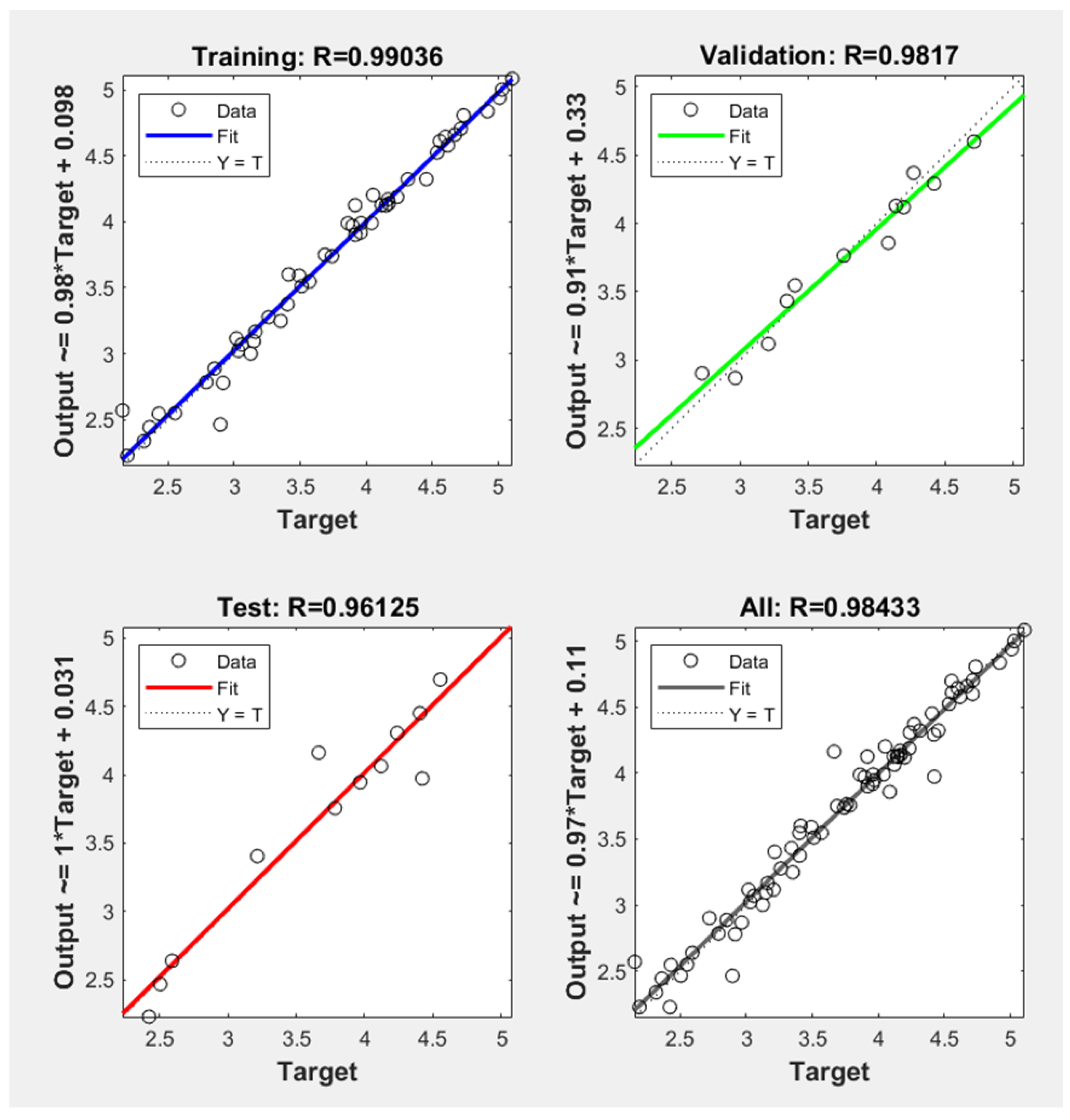

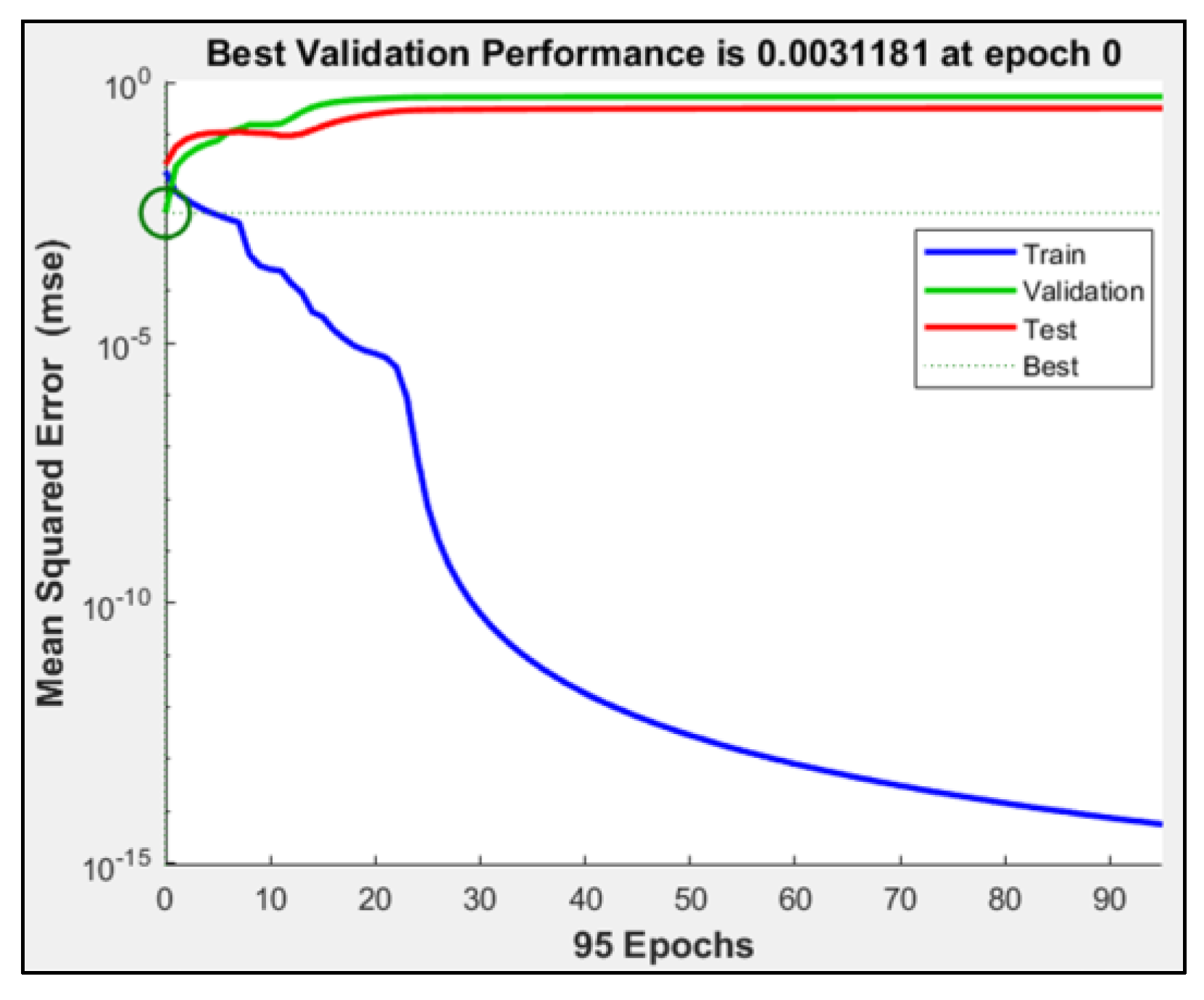

4.4. Artificial Neural Network Prediction
5. Conclusions
- Case A presented the highest tensile shear observations, while case C gave the second maximum tensile shear force. The lowest tensile shear force observations were noticed in case B.
- The maximum hardness was observed with a minimum tensile shear force sample, while the lowest hardness was recorded with the highest tensile shear force sample. Furthermore, the nugget zone presented the maximum hardness, followed by the HAZ, while the lowest hardness was noted at the base metal zone.
- The maximum micro-hardness was attained in case B. The second highest hardness measurements were determined to be with case C, and case A showed the minimum hardness.
- Pull-out nugget failure type was observed with all samples of case A, except one sample that failed with an interfacial mode. The failure mechanism of the case B samples was a pull-out nugget failure varying the failure location (around the nugget zone or the HAZ). Most of the case C samples failed with pull-out nugget type except one sample that failed with full interfacial mode. Some samples of case C showed partial failure between the pull-out and interfacial failure.
- Artificial neural network models presented a significant finding in predicting the actual data and minimizing the error in the RSW process.
- The most interesting observation about the neural network model is that the Trainlm training function gives the best performance when using the Logsig as a transfer function. The Trainlm training function with Logsig transfer function gives the best performance in predicting tensile shear force where the MSE and R2 were 0.01821 and 0.98433, respectively. The Purelin transfer function revealed a lower MSE and R2 of 0.10719 and 0.90377, respectively, when trained with Trainlm function.
- The lowest prediction of tensile shear force was achieved with Traincgb training function by adopting the Purelin transfer function with an MSE and R2 of 0.12269 and 0.89377, respectively. The Logsig transfer function gave a higher MSE and R2 of 0.0481 and 0.95941 when trained with the Traincgb function, but this was still lower than the validation metrics compared to the other training functions.
6. Recommendation for Future Work
- To study the effect of the RSW parameters on the joint quality of other thicknesses.
- To analyze in detail the microstructure of the welded joints using X-ray diffraction (XRD), scanning electron microscopy (SEM), or tunneling electron microscope (TEM) techniques.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Pal, T.; Chattopadhyay, K. Resistance spot weldability and high cycle fatigue behaviour of martensitic (M190) steel sheet. Fatigue Fract. Eng. Mater. Struct. 2010, 34, 46–52. [Google Scholar] [CrossRef]
- Banerjee, P.; Sarkar, R.; Pal, T.; Shome, M. Effect of nugget size and notch geometry on the high cycle fatigue performance of resistance spot welded DP590 steel sheets. J. Mater. Process. Technol. 2016, 238, 226–243. [Google Scholar] [CrossRef]
- He, Y.; Yang, K.; Wang, X.; Huang, H.; Chen, J. Quality prediction and parameter optimisation of resistance spot welding using machine learning. Appl. Sci. 2022, 12, 9625. [Google Scholar] [CrossRef]
- Lin, P.C.; Pan, J.; Pan, T. Failure modes and fatigue life estimations of spot friction welds in lap-shear specimens of aluminum 6111-T4 sheets. Part 2: Welds made by a flat tool. Int. J. Fatigue 2008, 30, 90–105. [Google Scholar] [CrossRef]
- Peterson, W.; Borchelt, J. Maximizing cross tension impact properties of spot welds in 1.5 mm low carbon, dual-phase, and martensitic steels. In International Body Engineering Conference & Exposition; SAE International: Warrendale, PA, USA, 2000. [Google Scholar] [CrossRef]
- Fatmahardi, I.; Mustapha, M.; Ahmad, A.; Ginta, T.L.; Taufiqurrahman, I.; Danish, M. Effect of welding parameters on the properties of the Ti-6Al-4V plate resistance spot weld joint. In IOP Conference Series: Materials Science and Engineering; IOP Publishing: Bristol, UK, 2021; Volume 1101, p. 012036. [Google Scholar] [CrossRef]
- Das, T.; Rawal, S.; Panda, S.K.; Paul, J. Resistance spot-welding of AISI-1008 steel joints with MWCNT coating interlayer. Mater. Manuf. Process. 2020, 36, 448–456. [Google Scholar] [CrossRef]
- Zhao, D.; Ren, D.; Song, G.; Zhao, K.; Zhang, Z. Nugget formation analysis of Al/Steel clinch resistance hybrid spot welding. Sci. Technol. Weld. Join. 2021, 26, 439–447. [Google Scholar] [CrossRef]
- Deng, L.; Li, Y.; Cai, W.; Haselhuhn, A.; Carlson, B. Simulating Thermoelectric Effect and Its Impact on Asymmetric Weld Nugget Growth in Aluminum Resistance Spot Welding. J. Manuf. Sci. Eng. 2020, 142, 091001. [Google Scholar] [CrossRef]
- Atasoy, E.; Kahraman, N. Diffusion bonding of commercially pure titanium to low carbon steel using a silver interlayer. Mater. Charact. 2006, 59, 1481–1490. [Google Scholar] [CrossRef]
- Cui, C.; Hu, B.; Zhao, L.; Liu, S. Titanium alloy production technology, market prospects and industry development. Mater. Des. 2011, 32, 1684–1691. [Google Scholar] [CrossRef]
- Sun, Z.; Pan, D.; Zhang, W. Correlation between welding parameters and microstructures in TIG, plasma and laser welded Ti-6Al-4V. In Proceedings of the 6th International Conference Trends in Welding Research, Pine Mountain, GA, USA, 15–19 April 2002; pp. 760–767. [Google Scholar]
- Blackburn, J. Laser welding of metals for aerospace and other applications. Weld. Join. Aerosp. Mater. 2012, 75–108. [Google Scholar] [CrossRef]
- Freeman, R. New welding techniques for aerospace engineering. Weld. Join. Aerosp. Mater. 2012, 3–24. [Google Scholar] [CrossRef]
- Liu, H.; Nakata, K.; Yamamoto, N.; Liao, J. Microstructural characteristics and mechanical properties in laser beam welds of Ti6Al4V alloy. J. Mater. Sci. 2012, 47, 1460–1470. [Google Scholar] [CrossRef]
- Zhang, Y.; Sato, Y.S.; Kokawa, H.; Seung Park, S.H.C.; Hirano, S. Microstructural characteristics and mechanical properties of Ti–6Al–4V friction stir welds. Mater. Sci. Eng. A 2008, 485, 448–455. [Google Scholar] [CrossRef]
- Mironov, S.; Zhang, Y.; Sato, Y.S.; Kokawa, H. Development of grain structure in β-phase field during friction stir welding of Ti–6Al–4V alloy. Scr. Mater. 2008, 59, 27–30. [Google Scholar] [CrossRef]
- Buffa, G.; Ducato, A.; Fratini, L. FEM based prediction of phase transformations during friction stir welding of Ti6Al4V titanium alloy. Mater. Sci. Eng. A 2013, 581, 56–65. [Google Scholar] [CrossRef]
- Zhang, X.; Zhang, J.; Fei Chen, F.; Yang, Z.; He, J. Characteristics of Resistance Spot Welded Ti6Al4V Titanium Alloy Sheets. Metals 2017, 7, 424. [Google Scholar] [CrossRef]
- El Kandaoui, M.; Scandella, F.; Germain, L.; Brandy, P.; Debreyer, D.; Gérardin, C.; Fleury, É. Microstructure and Mechanical Properties of Ti-6Al-4V Laser Welds for Airplane Floor Manufacturing Application. In Proceedings of the 13th World Conference on Titanium; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2016; pp. 1551–1556. [Google Scholar] [CrossRef]
- Chen, S.; Sun, T.; Jiang, X.; Qi, J.; Zeng, R. Online monitoring and evaluation of the weld quality of resistance spot welded titanium alloy. J. Manuf. Process. 2016, 23, 183–191. [Google Scholar] [CrossRef]
- Mansor, M.S.M.; Yusof, F.; Ariga, T.; Miyashita, Y. Microstructure and mechanical properties of micro-resistance spot welding between stainless steel 316L and Ti-6Al-4V. Int. J. Adv. Manuf. Technol. 2018, 96, 2567–2581. [Google Scholar] [CrossRef]
- Li, Y.; Zhang, Y.; Luo, Z. Microstructure and mechanical properties of Al/Ti joints welded by resistance spot welding. Sci. Technol. Weld. Join. 2015, 20, 385–394. [Google Scholar] [CrossRef]
- Lacki, P.; Niemiro, J. Strength evaluation of the beam made of the titanium sheets Grade 2 and Grade 5 welded by Resistance Spot Welding. Compos. Struct. 2017, 159, 538–547. [Google Scholar] [CrossRef]
- Anna, D.; Marcin, D.; Piotr, L. Evaluation of load-bearing capacity of resistance spot welding (RSW) joints made of titanium Gr 5 sheets. Key Eng. Mater. 2016, 687, 212–219. [Google Scholar] [CrossRef]
- Arunchai, T.; Sonthipermpoon, K.; Apichayakul, P.; Tamee, K. Resistance Spot Welding Optimization Based on Artificial Neural Network. Int. J. Manuf. Eng. 2014, 2014, 154784. [Google Scholar] [CrossRef]
- Wan, X.; Wang, Y.; Zhao, D.; Huang, Y. A comparison of two types of neural network for weld quality prediction in small scale resistance spot welding. Mech. Syst. Signal Process. 2017, 93, 634–644. [Google Scholar] [CrossRef]
- Ghafarallahi, E.; Farrahi, G.H.; Amiri, N. Acoustic simulation of ultrasonic testing and neural network used for diameter prediction of three-sheet spot welded joints. J. Manuf. Process. 2021, 64, 1507–1516. [Google Scholar] [CrossRef]
- Bi, Y.; Yang, Y.; Luo, Z. Evolution mechanism of fracture interface wave and microstructure during resistance butt spot welding. J. Manuf. Process. 2023, 101, 1101–1108. [Google Scholar] [CrossRef]
- Piotr, L.; Judyta, N. Numerical and experimental analysis of lap joints made of grade 2 titanium and grade 5 titanium alloy by resistance spot welding. Materials 2023, 16, 2038. [Google Scholar] [CrossRef] [PubMed]
- Yu, J.; Zhang, H.; Wang, B.; Du, R.; Fan, Y.; He, P. Interfacial evolution behavior and mechanical properties of Ti/steel joint via ultrasonic seam assisted resistance spot welding with Cu interlayer. J. Manuf. Process. 2023, 95, 535–550. [Google Scholar] [CrossRef]
- Santhakumari, A.; Senthilkumar, T.; Mahadevan, G.; Ramasamy, N. Interface and microstructural characteristics of titanium and 304 stainless steel dissimilar joints by upset butt welding using a gleeble thermo mechanical simulator. J. Mater. Res. Technol. 2023, 26, 7460–7470. [Google Scholar] [CrossRef]
- Butsykin, S.; Slobodyan, M.; Strelkova, I.; Klimenov, V.; Elkin, M.; Gordynets, A.; Kiselev, A. Effects of preheating and slow cooling stages in small-scale resistance spot welding of the Ti-2Al-1Mn alloy. Int. J. Adv. Manuf. Technol. 2023, 128, 3011–3024. [Google Scholar] [CrossRef]
- Niu, S.; Wang, Z.; Lou, M.; Ma, Y.; Lei, H.; Li, Y. Resistance rivet welding of aluminum/titanium dissimilar materials. J. Manuf. Process. 2023, 108, 141–152. [Google Scholar] [CrossRef]
- Bi, Y.; Xu, Y.; Luo, Z. Material characterization and mechanical performance of laser diffusion welded joint between titanium alloy and stainless steel. Mater. Lett. 2023, 336, 133927. [Google Scholar] [CrossRef]
- Liu, F.; Chen, Y.; Li, L.; Wang, C.; Wang, Q.; Liu, Y. Influence of welded pores on fatigue behavior of TC17 titanium alloy welded joints subjected to gigacycle regime at room and high temperatures. J. Mater. Sci. Technol. 2024, 178, 1–21. [Google Scholar] [CrossRef]
- Mezher, M.T.; Saad, M.L.; Barrak, O.S.; Hussein, S.K.; Shakir, R.A. Multi-coupled field simulation and experimental study of AISI 316L stainless steel using resistance spot welding. J. Mech. Eng. Res. Dev. 2021, 44, 150–160. [Google Scholar]
- ANSI/AWS C1.1M/C1.1; Recommended Practices for Resistance Welding. American Welding Society: Doral, NW, USA, 2012.
- Beale, M.H.; Hagan, M.T.; Demuth, H.B. Neural Network ToolboxTM User’s Guide R2013b; Mathworks Inc.: Natick, MA, USA, 2013. [Google Scholar]
- Chakraborty, A.; Roy, S.; Banerjee, R. An experimental based ANN approach in mapping performance- emission characteristics of a diesel engine operating in dual-fuel mode with LPG. J. Nat. Gas Sci. Eng. 2015, 28, 15–30. [Google Scholar] [CrossRef]
- Kaya, Y.; Kahraman, N. The effects of electrode force, welding current and welding time on the resistance spot weldability of pure titanium. Int. J. Adv. Manuf. Technol. 2012, 60, 127–134. [Google Scholar] [CrossRef]
- Long, H.; Hu, Y.; Jin, X.; Shao, J.; Zhu, H. Effect of holding time on microstructure and mechanical properties of resistance spot welds between low carbon steel and advanced high strength steel. Comput. Mater. Sci. 2016, 117, 556–563. [Google Scholar] [CrossRef]
- Paventhan, R.; Lakshminarayanan, P.R.; Balasubramanian, V. Prediction and optimization of friction welding parameters for joining aluminium alloy and stainless steel. Trans. Nonferrous Met. Soc. China 2011, 21, 1480–1485. [Google Scholar] [CrossRef]
- Pouranvari, M.; Marashi, S.P.H. Failure mode transition in AHSS resistance spot welds. Part I. Controlling factors. Mater. Sci. Eng. A 2011, 528, 8337–8343. [Google Scholar] [CrossRef]
- Pouranvari, M.; Marashi, S.P.H. Failure of resistance spot welds: Tensile shear versus coach peel loading conditions. Ironmak. Steelmak. Process. Prod. Appl. 2012, 39, 104–111. [Google Scholar] [CrossRef]
- Pouranvari, M.; Marashi, S.P.H. Critical review of automotive steels spot welding: Process, structure and properties. Sci. Technol. Weld. Join. 2013, 18, 361–403. [Google Scholar] [CrossRef]
- Zeytin, H.K.; Emre, H.E.; Kaçar, R. Properties of resistance spotwelded TWIP steels. Metals 2017, 7, 14. [Google Scholar] [CrossRef]
- Fan, Q.; Xu, G.; Gu, X. Expulsion characterization of stainless steel resistance spot welding based on dynamic resistance signal. J. Mater. Process. Technol. 2016, 236, 235–240. [Google Scholar] [CrossRef]
- Ma, C.; Chen, D.L.; Bhole, S.D.; Boudreau, G.; Lee, A.; Biro, E. Microstructure and fracture characteristics of spot-welded DP600 steel. Mater. Sci. Eng. A 2008, 485, 334–346. [Google Scholar] [CrossRef]
- Alizadeh-Sh, M.; Marashi, S.P.H.; Pouranvari, M. Resistance spot welding of AISI 430 ferritic stainless steel: Phase transformations and mechanical properties. Mater. Des. 2014, 56, 258–263. [Google Scholar] [CrossRef]
- Bouyousfi, B.; Sahraoui, T.; Guessasma, S.; Chaouch, K.T. Effect of process parameters on the physical characteristics of spot weld joints. Mater. Des. 2007, 28, 414–419. [Google Scholar] [CrossRef]
- Pouranvari, M.; Marashi, S.P.H.; Safanama, D.S. Failure mode transition in AHSS resistance spot welds. Part II: Experimental investigation and model validation. Mater. Sci. Eng. A 2011, 528, 8344–8352. [Google Scholar] [CrossRef]
- Marashi, P.; Pouranvari, M.; Amirabdollahian, S.; Abedi, A.; Goodarzi, M. Microstructure and failure behavior of dissimilar resistance spot welds between low carbon galvanized and austenitic stainless steels. Mater. Sci. Eng. A 2008, 480, 175–180. [Google Scholar] [CrossRef]

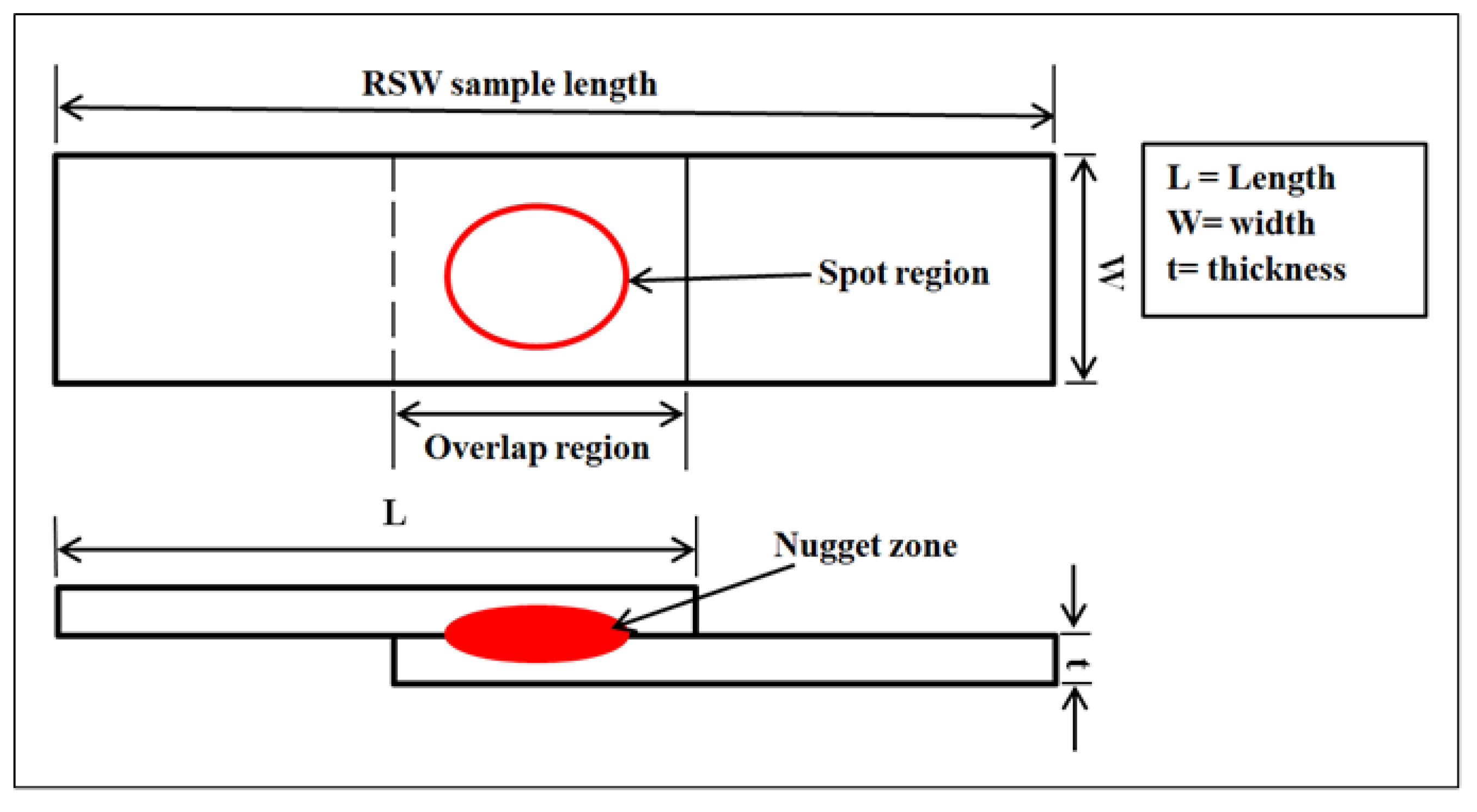

Thickness (mm) | Length (mm) | Width (mm) | Overlap Region (mm) |
---|---|---|---|
0.5 | 76 | 16 | 16 |
1 | 100 | 25 | 25 |
Property | Tensile Strength (MPa) | Yield Strength (MPa) | Poisson’s Ratio | Young Modulus (GPa) | Elongation (%) |
---|---|---|---|---|---|
Standard | ≥400 | 275–450 | 0.37 | 105–120 | ≥25 |
Measured | 428 | 318 | 0.37 | 113 | 28 |
Element wt.% | Fe | O | N | C | H | Ti |
---|---|---|---|---|---|---|
Standard | ≤0.3 | ≤0.25 | ≤0.03 | ≤0.08 | ≤0.015 | Balance |
Measured | 0.062 | 0.11 | 0.0067 | 0.0055 | 0.001 | Balance |
No. | Welding Cases | Welding Current (A) | Pressure (bar) | Welding Time (s) | Squeeze Time (s) | Holding Time (s) | Pulse Welding (-) | ||
---|---|---|---|---|---|---|---|---|---|
1 | A1 | B1 | C1 | 5000 | 2.0 | 0.6 | 0.6 | 0.50 | 1 |
2 | A2 | B2 | C2 | 5000 | 3.5 | 0.8 | 0.8 | 0.75 | 2 |
3 | A3 | B3 | C3 | 5000 | 5.0 | 1.0 | 1.0 | 1.00 | 3 |
4 | A4 | B4 | C4 | 5000 | 6.5 | 1.2 | 1.2 | 1.25 | 4 |
5 | A5 | B5 | C5 | 5000 | 8.0 | 1.4 | 1.4 | 1.50 | 5 |
6 | A6 | B6 | C6 | 5500 | 2.0 | 0.8 | 1.0 | 1.25 | 5 |
7 | A7 | B7 | C7 | 5500 | 3.5 | 1.0 | 1.2 | 1.50 | 1 |
8 | A8 | B8 | C8 | 5500 | 5.0 | 1.2 | 1.4 | 0.50 | 2 |
9 | A9 | B9 | C9 | 5500 | 6.5 | 1.4 | 0.6 | 0.75 | 3 |
10 | A10 | B10 | C10 | 5500 | 8.0 | 0.6 | 0.8 | 1.00 | 4 |
11 | A11 | B11 | C11 | 6000 | 2.0 | 1.0 | 1.4 | 0.75 | 4 |
12 | A12 | B12 | C12 | 6000 | 3.5 | 1.2 | 0.6 | 1.00 | 5 |
13 | A13 | B13 | C13 | 6000 | 5.0 | 1.4 | 0.8 | 1.25 | 1 |
14 | A14 | B14 | C14 | 6000 | 6.5 | 0.6 | 1.0 | 1.50 | 2 |
15 | A15 | B15 | C15 | 6000 | 8.0 | 0.8 | 1.2 | 0.50 | 3 |
16 | A16 | B16 | C16 | 6500 | 2.0 | 1.2 | 0.8 | 1.50 | 3 |
17 | A17 | B17 | C17 | 6500 | 3.5 | 1.4 | 1.0 | 0.50 | 4 |
18 | A18 | B18 | C18 | 6500 | 5.0 | 0.6 | 1.2 | 0.75 | 5 |
19 | A19 | B19 | C19 | 6500 | 6.5 | 0.8 | 1.4 | 1.00 | 1 |
20 | A20 | B20 | C20 | 6500 | 8.0 | 1.0 | 0.6 | 1.25 | 2 |
21 | A21 | B21 | C21 | 7000 | 2.0 | 1.4 | 1.2 | 1.00 | 2 |
22 | A22 | B22 | C22 | 7000 | 3.5 | 0.6 | 1.4 | 1.25 | 3 |
23 | A23 | B23 | C23 | 7000 | 5.0 | 0.8 | 0.6 | 1.50 | 4 |
24 | A24 | B24 | C24 | 7000 | 6.5 | 1.0 | 0.8 | 0.50 | 5 |
25 | A25 | B25 | C25 | 7000 | 8.0 | 1.2 | 1.0 | 0.75 | 1 |
No. | Case A | Shear Force (kN) | Case B | Shear Force (kN) | Case C | Shear Force (kN) |
---|---|---|---|---|---|---|
1 | A1 | 4.423 | B1 | 2.422 | C1 | 3.665 |
2 | A2 | 4.052 | B2 | 2.317 | C2 | 3.916 |
3 | A3 | 4.918 | B3 | 3.352 | C3 | 3.412 |
4 | A4 | 4.737 | B4 | 3.687 | C4 | 3.960 |
5 | A5 | 4.315 | B5 | 4.234 | C5 | 4.116 |
6 | A6 | 4.713 | B6 | 4.086 | C6 | 4.421 |
7 | A7 | 4.555 | B7 | 3.215 | C7 | 4.121 |
8 | A8 | 3.958 | B8 | 2.895 | C8 | 2.916 |
9 | A9 | 4.455 | B9 | 3.125 | C9 | 3.058 |
10 | A10 | 4.618 | B10 | 2.552 | C10 | 3.896 |
11 | A11 | 4.600 | B11 | 2.430 | C11 | 3.492 |
12 | A12 | 4.239 | B12 | 2.591 | C12 | 3.969 |
13 | A13 | 4.198 | B13 | 2.965 | C13 | 3.207 |
14 | A14 | 3.861 | B14 | 2.360 | C14 | 3.918 |
15 | A15 | 4.171 | B15 | 2.191 | C15 | 3.161 |
16 | A16 | 4.271 | B16 | 3.760 | C16 | 3.343 |
17 | A17 | 4.671 | B17 | 3.511 | C17 | 3.404 |
18 | A18 | 4.558 | B18 | 2.789 | C18 | 3.570 |
19 | A19 | 4.406 | B19 | 2.504 | C19 | 3.785 |
20 | A20 | 4.141 | B20 | 2.721 | C20 | 3.402 |
21 | A21 | 5.028 | B21 | 3.017 | C21 | 4.149 |
22 | A22 | 5.009 | B22 | 3.031 | C22 | 4.165 |
23 | A23 | 4.536 | B23 | 2.852 | C23 | 4.040 |
24 | A24 | 5.106 | B24 | 3.261 | C24 | 3.741 |
25 | A25 | 4.715 | B25 | 3.149 | C25 | 2.155 |

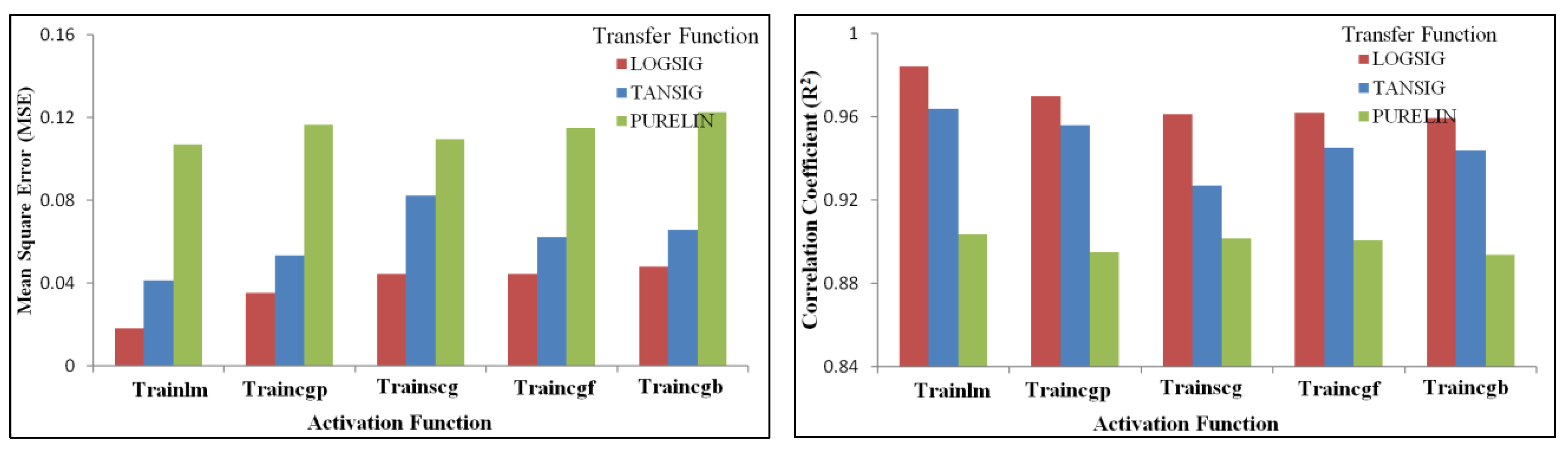

Training Function | Transfer Function | MSE | R2 |
---|---|---|---|
Trainlm | Logsig | 0.01821 | 0.98433 |
Tansig | 0.04151 | 0.96390 | |
Purelin | 0.10719 | 0.90377 | |
Traincgp | Logsig | 0.03533 | 0.97006 |
Tansig | 0.05336 | 0.95587 | |
Purelin | 0.11669 | 0.89503 | |
Trainscg | Logsig | 0.04449 | 0.96146 |
Tansig | 0.08234 | 0.92700 | |
Purelin | 0.10950 | 0.90158 | |
Traincgf | Logsig | 0.04450 | 0.96200 |
Tansig | 0.06238 | 0.94526 | |
Purelin | 0.11491 | 0.90088 | |
Traincgb | Logsig | 0.04810 | 0.95941 |
Tansig | 0.06574 | 0.94382 | |
Purelin | 0.12269 | 0.89377 |
Sample No. | Welding Cases | ||||||||
---|---|---|---|---|---|---|---|---|---|
A | B | C | |||||||
Actual (kN) | Predicted (kN) | Error % | Actual (kN) | Predicted (kN) | Error % | Actual (kN) | Predicted (kN) | Error % | |
1 | 4.423 | 3.973 | 10.174 | 2.422 | 2.228 | 8.010 | 3.665 | 4.162 | 11.941 |
2 | 4.052 | 4.2017 | 3.677 | 2.317 | 2.339 | 0.950 | 3.916 | 4.125 | 5.067 |
3 | 4.918 | 4.836 | 1.647 | 3.352 | 3.249 | 3.073 | 3.412 | 3.601 | 5.221 |
4 | 4.737 | 4.806 | 1.436 | 3.687 | 3.750 | 1.709 | 3.960 | 3.989 | 0.702 |
5 | 4.315 | 4.322 | 0.162 | 4.234 | 4.187 | 1.110 | 4.116 | 4.126 | 0.218 |
6 | 4.713 | 4.599 | 2.419 | 4.086 | 3.857 | 5.580 | 4.421 | 4.292 | 3.006 |
7 | 4.555 | 4.698 | 3.117 | 3.215 | 3.404 | 5.879 | 4.121 | 4.064 | 1.403 |
8 | 3.958 | 3.918 | 0.985 | 2.895 | 2.465 | 14.853 | 2.916 | 2.779 | 4.894 |
9 | 4.455 | 4.322 | 2.963 | 3.125 | 3.002 | 3.936 | 3.058 | 3.071 | 0.391 |
10 | 4.618 | 4.577 | 0.866 | 2.552 | 2.550 | 0.039 | 3.896 | 3.969 | 1.839 |
11 | 4.600 | 4.644 | 0.935 | 2.430 | 2.547 | 4.774 | 3.492 | 3.591 | 2.757 |
12 | 4.239 | 4.307 | 1.604 | 2.591 | 2.638 | 1.775 | 3.969 | 3.945 | 0.583 |
13 | 4.198 | 4.118 | 1.882 | 2.965 | 2.868 | 3.238 | 3.207 | 3.117 | 2.855 |
14 | 3.861 | 3.988 | 3.289 | 2.360 | 2.444 | 3.559 | 3.918 | 3.901 | 0.436 |
15 | 4.171 | 4.139 | 0.743 | 2.191 | 2.228 | 1.643 | 3.161 | 3.167 | 0.158 |
16 | 4.271 | 4.370 | 2.318 | 3.760 | 3.764 | 0.106 | 3.343 | 3.432 | 2.593 |
17 | 4.671 | 4.658 | 0.257 | 3.511 | 3.512 | 0.028 | 3.404 | 3.375 | 0.830 |
18 | 4.558 | 4.609 | 1.119 | 2.789 | 2.785 | 0.108 | 3.570 | 3.546 | 0.649 |
19 | 4.406 | 4.451 | 0.999 | 2.504 | 2.466 | 1.478 | 3.785 | 3.756 | 0.772 |
20 | 4.141 | 4.129 | 0.266 | 2.721 | 2.902 | 6.652 | 3.402 | 3.547 | 4.060 |
21 | 5.028 | 4.999 | 0.557 | 3.017 | 3.117 | 3.281 | 4.149 | 4.123 | 0.606 |
22 | 5.009 | 4.938 | 1.397 | 3.031 | 3.023 | 0.231 | 4.165 | 4.169 | 0.072 |
23 | 4.536 | 4.524 | 0.243 | 2.852 | 2.888 | 1.262 | 4.040 | 3.989 | 1.253 |
24 | 5.106 | 5.083 | 0.450 | 3.261 | 3.277 | 0.491 | 3.741 | 3.739 | 0.053 |
25 | 4.715 | 4.703 | 0.233 | 3.149 | 3.095 | 1.683 | 2.155 | 2.571 | 16.180 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Mezher, M.T.; Carou, D.; Pereira, A. Exploring Resistance Spot Welding for Grade 2 Titanium Alloy: Experimental Investigation and Artificial Neural Network Modeling. Metals 2024, 14, 308. https://doi.org/10.3390/met14030308
Mezher MT, Carou D, Pereira A. Exploring Resistance Spot Welding for Grade 2 Titanium Alloy: Experimental Investigation and Artificial Neural Network Modeling. Metals. 2024; 14(3):308. https://doi.org/10.3390/met14030308
Chicago/Turabian StyleMezher, Marwan T., Diego Carou, and Alejandro Pereira. 2024. "Exploring Resistance Spot Welding for Grade 2 Titanium Alloy: Experimental Investigation and Artificial Neural Network Modeling" Metals 14, no. 3: 308. https://doi.org/10.3390/met14030308
