Fusion of Thermal Point Cloud Series of Buildings for Inspection in Virtual Reality

Abstract

Point cloud acquisition systems now enable the capture of geometric models enriched with additional attribute data, providing a deeper semantic understanding of the measured environments. However, visualizing complex spatiotemporal point clouds remains computationally challenging. This paper presents a fusion methodology that aggregates points from different instants into unified clouds with reduced redundancy while preserving time-varying information. The static 3D structure is condensed using a voxel approach, while temporal attributes are propagated across the merged data. The resulting point cloud is optimized and rendered interactively in a virtual reality (VR) application. This platform allows for intuitive exploration, visualization, and analysis of the merged clouds. Users can examine thermographic properties using color maps and study graphical temperature trends. The potential of VR for insightful interrogation of point clouds enriched with multiple properties is highlighted by the system.

1. Introduction

Contemporary three-dimensional scanning methods, such as those outlined in [1], enable the acquisition of highly accurate spatial measurements in the form of point cloud data sets. Point clouds offer advantages over mesh models for representing scanned environments. They capture all details without simplification or loss of geometric accuracy [2], similar to raw measurements from laser scanning or photogrammetry. Point clouds are ideal for applications that require accurate measurements of built work, such as architecture, engineering, construction, and cultural heritage [3]. They also avoid errors that can be introduced in mesh generation, such as excessive smoothing or poorly colored textures [4]. In general, point cloud rendering is preferred when geometric accuracy and measurement precision are paramount, despite the higher processing requirements compared to lighter mesh models.

Many current scanning devices include cameras to provide color information in addition to geometry. It is also possible to capture point clouds with additional attributes, such as temperature, due to the development of novel sensors and the integration of complementary components into scanning pipelines, as demonstrated in [5]. The integration of thermal data with 3D geometric models is an important area of research for advancing building information modeling (BIM). According to Ramon et al. [6], thermal point clouds that combine temperature attributes with 3D coordinate data can provide a more complete digital representation of a building’s thermal behavior. Incorporating thermal features into BIM can enhance energy modeling and simulations of building behavior compared to models based solely on visual geometry [7,8]. For existing buildings, thermal point clouds obtained by thermography and 3D scanning techniques enable in situ assessment of the thermal transmittance properties of the building envelope required for energy models [9]. Thermal data can reveal insulation defects, air leakage, moisture ingress, and other anomalies that affect building energy consumption [10]. The fusion of 3D thermography with traditional BIM geometry offers new opportunities to create smarter, semantically richer digital building models with direct applications for sustainability and energy efficiency.

Kurkela et al. [3] describe how measuring luminance distributions in indoor environments can provide valuable information on lighting quality, visual comfort, and aesthetics. By utilizing radiometric calibration techniques and high dynamic range (HDR) imaging, the intensity values recorded in the red, green, and blue channels of the laser scanner panoramic images can be converted into absolute luminance readings and projected onto the measured 3D point cloud [3,11].

Some surface properties obtained from identical scanner positions may vary over time, depending on the time of day or season of data acquisition. Therefore, a distinction can be made between static properties, such as three-dimensional coordinates, and dynamic properties, such as temperature, which are stored as time series. The analysis of static property values and the variation of certain dynamic properties over time can be useful in various fields, such as engineering, architecture, and physics.

However, advancements in 3D scanning technology have led to an increase in data throughput. Therefore, the use of multiple point cloud captures from the same location results in extremely large aggregate point sets for rendering, which presents computational performance challenges for real-time interactive visualization and exploration. It is necessary to handle and examine substantial volumes of information. To achieve real-time performance without sacrificing detail, advanced rendering techniques are necessary [12,13,14]. This challenge is particularly evident in virtual reality platforms, which have strict graphics processing requirements that necessitate optimization.

On the other hand, virtual reality has become a useful tool for monitoring buildings when combined with BIM. An overview of these works can be found in the survey presented in [15]. Another interesting example that shows the benefits of introducing virtual reality in building assessment is the one in [16], where they combine structure from motion and infrared images to create detailed 3D thermal models viewable in virtual reality, enabling remote energy loss assessment and structural inspection of buildings.

This paper presents a method for fusing information from multiple indoor building clouds that have been digitized at different points in time. The proposed method eliminates redundancy in spatial information and stores time-varying data at each point.

Additionally, a VR application has been developed to apply the optimization method. This application enables the representation and interaction with point clouds with additional acquired properties. The Unity engine was used to develop the application, as its usefulness for working with point clouds has been demonstrated by other authors [17].

The article is structured as follows: Section 2 explains the fusion method, starting with the acquisition of the point cloud, continuing with data processing, and ending with VR application development. All the features of such applications are exposed in Section 3. Finally, in Section 4, the conclusions and work future perspectives are discussed.

2. Materials and Methods

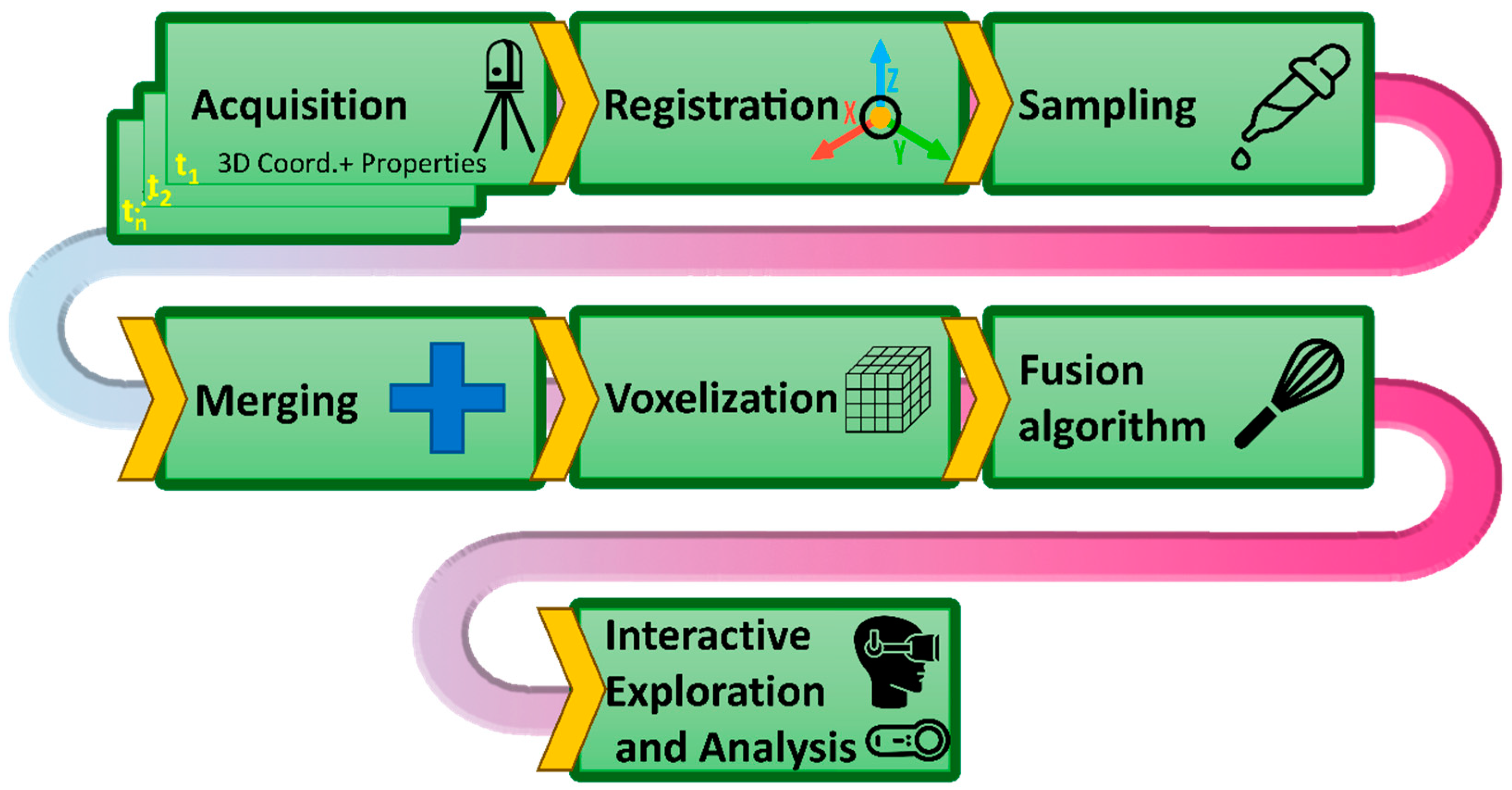

The method proposed can be divided into several distinguishable stages, from the acquisition process to the interactive exploration and analysis of the developed VR application. The data flow is adapted and transformed throughout all these stages. Figure 1 displays a diagram in which all the stages that compose the method are sequentially ordered.

The proposed steps are described below.

2.1. Acquisition

The method presented in this paper can be applied to the general case where the surface of any environment is acquired at different time instants using capture devices that obtain a set of surface properties. The data acquisition device is strategically positioned to fully sample all regions of the environment’s surface. This method generates point clouds, each linked to a specific time, consisting of points with 3D coordinates and associated property values at the time of capture.

Nowadays, acquisition equipment commonly obtains the color of each point using the RGBA color model, which has four associated values. Other properties may also be included depending on the capture equipment or data processing, such as:

Intensity: it offers information about the reflectance of target surfaces.

Time: it registers the time when a point was acquired.

Confidence: it gives an idea of the precision with which a point has been captured.

Range: it stores the range or distance value, from the scanning laser, at which the point has been detected.

Temperature: it stores the temperature value at points.

Luminance: it is a photometric measure of the luminous intensity emitted or reflected from a surface per unit area in a given direction.

Properties values derived from the environment of each point: By analyzing the environment of each point or the complete point cloud, various properties can be obtained, such as curvature (which estimates the variation of the normal in the environment of a point), density (which is the ratio between the number of neighbors of each point and the distance between them, giving an idea of the distribution of the points along the cloud), and statistical values obtained from other properties (such as mean, median, and standard deviation).

The method, presented in this article, is valid for acquiring any of these properties, but for simplicity, this explanation will focus on point clouds composed of 3D coordinates, color, and temperature. Specifically, all examples in this work were acquired using a Leica BLK360 laser scanner, which adds thermal information to the point cloud.

In order to fully digitize each room, the scanning device must be positioned in various locations throughout the room until all surfaces are captured. This sequence of acquisitions, along with the repositioning of the scanner, constitutes the room scanning sequence. Although this scanning protocol may take several minutes in practice, it is conceptualized here as occurring at a discrete instant in time, denoted by consecutive integers (Instant 1, Instant 2, Instant 3, etc.). Room scanning sequences occur at w discrete time intervals, either closely spaced (hours or days apart) or widely separated (months or seasons apart). Therefore, each room scanning sequence, $S_t$, can be denoted by

$$S_t=\bigcup _{i=1}^{m_t}{PC}_i;t=\left\{\mathrm{1,2},\dots ,w\right)$$

(1)

where ${PC}_i$ are the point clouds captured at time instant $t$, at each of the $m_t$ scanner locations that complete the room scanning sequence. It is important to note that although the same number of positions is typically utilized to acquire the entire room, it is not obligatory that each scan sequence be conducted with identical scanner locations. Consequently, the number of such locations may also vary between room scan sequences. Each of the acquired point clouds is designated as follows:

$${PC}_i=\bigcup _{v=1}^{p_{it}}\left\{P_v,K_v,T_v\right\}$$

(2)

where $P_v,K_v,\mathrm{and}{T}_v$ correspond to the coordinates, color, and temperature of each of the $p_{it}$ points that compose the cloud and can be represented as:

$$P_v=\left\{x_v,y_v,z_v\right\}$$

(3)

$$K_v=\left\{x_v,y_v,z_v\right\}$$

(4)

$$T_v=\left\{x_v,y_v,z_v\right\}$$

(5)

As for temperature, the above simplification of considering that all scans in a room scanning sequence belong to the same time instant is logical, since this property varies very slowly.

2.2. Registration and Sampling

Following the acquisition phase, the subsequent step is registration, which entails aligning the scanned clouds. This process establishes a common reference system for each cloud, ${PC}_i$, of a room scanning sequence so that they all share the same reference system.

Although the 3D scanner software provides assistance, this registration step requires the use of algorithms such as the classical ‘Iterative Closest Point’ [18], ICP, or one of its variants [19].

After this step, the initial set of point clouds undergoes a 3D coordinate transformation. As a result, each room scan sequence is transformed to ${S^{\prime }}_t$, since its point clouds are transformed to $P{C^{\prime }}_i$. This transformation can be expressed as follows:

$${S^{\mathrm{\prime }}}_t=\bigcup _{i=1}^{m_t}{P{C}^{\mathrm{\prime }}}_i;{P{C}^{\mathrm{\prime }}}_i=\bigcup _{v=1}^{p_{it}}\left\{{P^{\mathrm{\prime }}}_v,K_v,T_v\right\};{P^{\mathrm{\prime }}}_v=\left\{{x^{\mathrm{\prime }}}_v,{y^{\mathrm{\prime }}}_v,{z^{\mathrm{\prime }}}_{iv}\right\}$$

(6)

As expressed in Equation $\left(6\right)$, the point coordinates are transformed in the registration process, but the color and other properties remain unchanged. Note that the registration is applied on two levels: all the point clouds of a room scanning sequence are registered, and also each global point cloud of each scanning sequence is registered. Therefore, this process involves the registration of $\sum _{t=1}^w{m}_t$ point clouds.

Given the high number of points generated by current digitalization devices, it is necessary to reduce the number of points in order to process them. This is achieved by sampling the registered point clouds, which results in a reduction in the number of points in all scanning sequences. This process is conducted using an octree data structure, which ensures the preservation of geometric fidelity and fine detail when compressing massive point clouds.

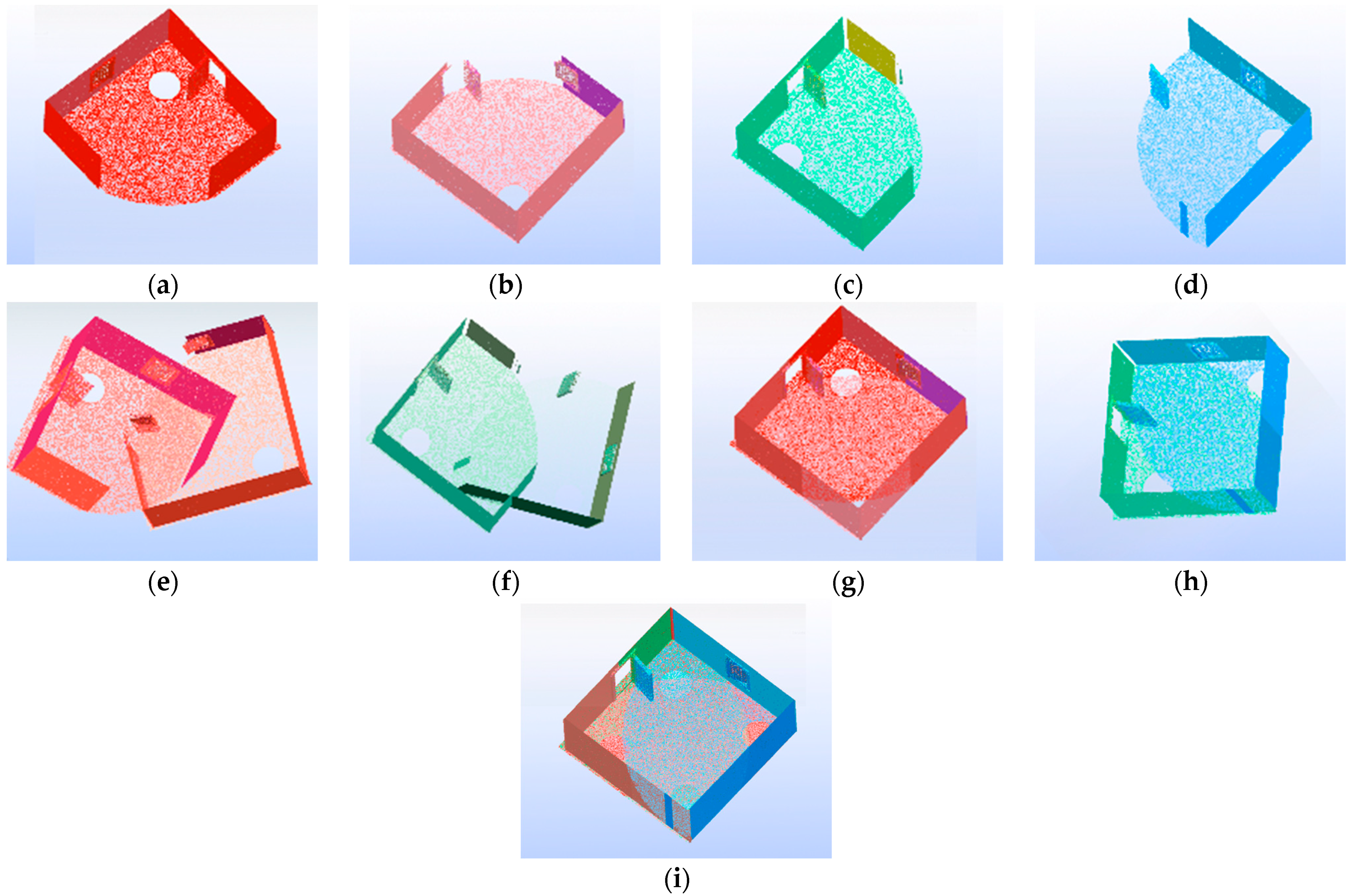

As an example, Figure 2a–d shows Raw Clouds #1, #2, #3 and #4, respectively, which have been acquired at time instants $t_1$, $t_2$, $t_3,$ and $t_4$. In this example, we assume that $t_1$ and $t_2$ correspond to close moments of the same day, and $t_3$ and $t_4$ the same but of another day. In Figure 2e,f, the relative position of the cloud pairs #1–#2 and #3–#4 are shown. First, they must be aligned, recorded, and added two by two, resulting in the clouds shown in Figure 2g,h. Finally, these clouds must be registered and merged, the result of which is shown in Figure 2i.

2.3. Merging

After the registering step, all point clouds are merged to produce a unique point cloud of ${\sum }_{t=1}^w\left({\sum }_{i=1}^{m_t}{p}_{it}\right)$ points, which can be expressed as

$$\mathcal{C}=\bigcup _{t=1}^w\left\{{S^{\mathrm{\prime }}}_t,t\right\}=\bigcup _{t=1}^w\bigcup _{i=1}^{m_t}\bigcup _{v=1}^{p_{it}}\left\{{P^{\mathrm{\prime }}}_{iv},K_{iv},T_{iv},t\right\}$$

(7)

where $\mathcal{C}$ is a list of all the 3D coordinates of all points of the point clouds ${C\mathrm{\prime }}_j$, obtained in all the room scanning sequences at every position of the scanner. In addition to the 3D coordinates, the $t$ value is also included. This value is the instant associated with the room scanning sequence to which the point belongs. As mentioned before, the instants are represented by consecutive integer numbers which represent the chronological order in which the room scanning sequences were carried out.

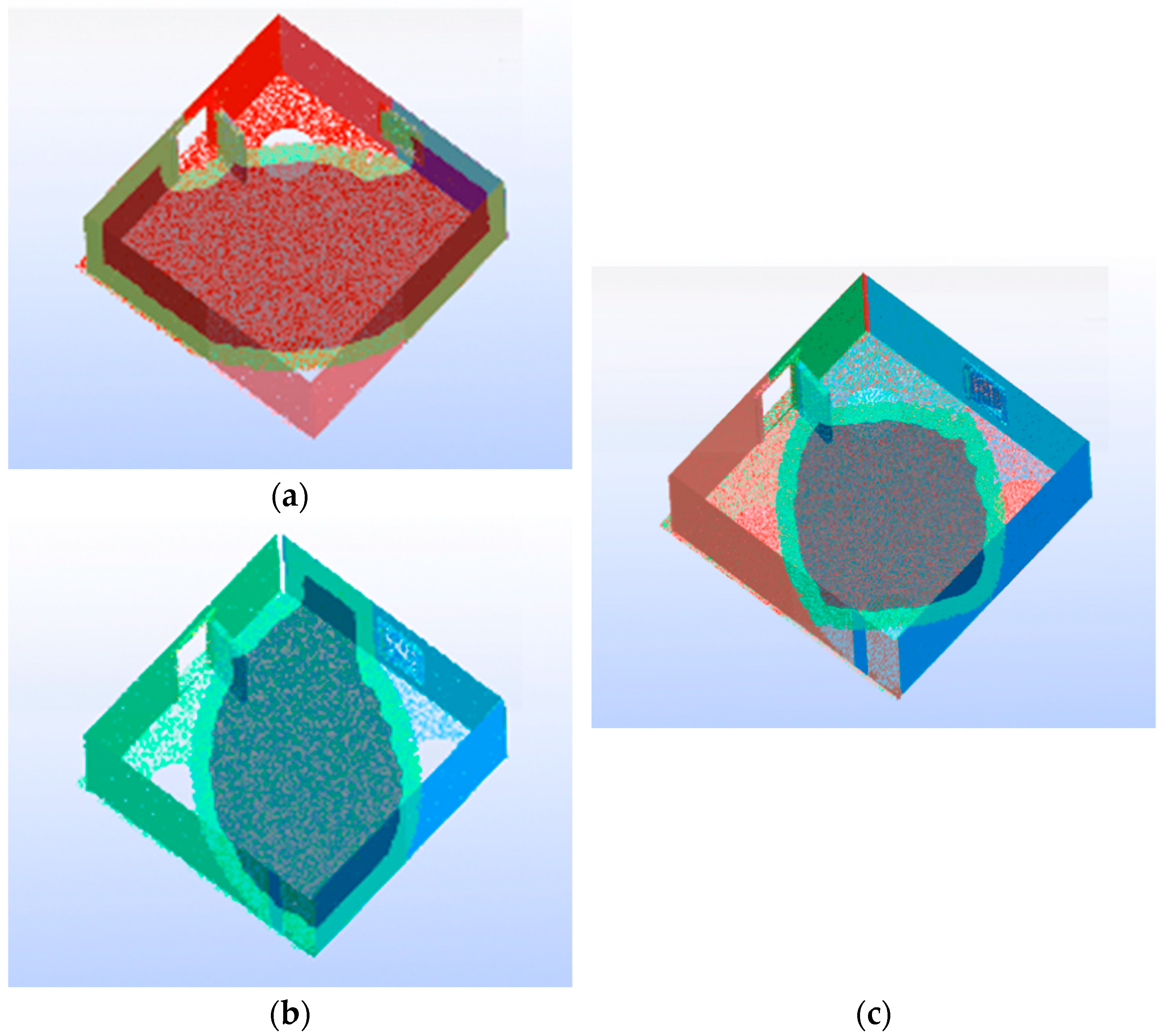

It is possible to distinguish between several zones with different densities in $\mathcal{C}$. Thus, on the one hand, some zones contain only points corresponding to a single 3D capture, while, on the other hand, zones where two or more-point clouds overlap can be identified. The overlapping zone between cloud pairs #1–#2 and #3–#4, respectively, is highlighted in Figure 3a,b. The four overlapping clouds are shown in Figure 3c.

The resulting cloud, $\mathcal{C}$, contains an excessive number of points and with a variable density. Regarding the analysis and visualization applications, such number of points are not useful. For this purpose, a fusion algorithm is implemented, which is explained in the next section.

2.4. Voxelization and Fusion Algorithm

The fusion algorithm aims, on the one hand, to reduce the number of points, which is essential for the real-time representation in VR and, on the other hand, to generate a more uniform point cloud, a feature that is valuable for visual exploration. It should be noted that the algorithm must be capable of analyzing the evolution of the point properties over time.

The fusion algorithm starts with the merged cloud obtained after the merging step (Figure 3c). It should be remembered that this cloud basically consists of a list of ${P^{\mathrm{\prime }}}_{iv}$ (3D coordinates of each point), $K_{iv}$ (its colour), $T_{iv}$ (a property value—temperature) and a $t$ instant value associated to each of them. The objective of this algorithm is to generate a uniform point cloud, common to all the instants, whose points have a property value associated to such instants.

To achieve this, the first step is the voxelization of the point cloud, whereby the points occupying the same voxel are replaced by a point at the center of gravity of the voxel. This is a simplification because the points that are within the same voxel are replaced by a unique 3D point. This process can be expressed as

$$\mathcal{C}\to \mathcal{V}$$

(8)

$$\mathcal{V}=\bigcup _{u=1}^q{V}_u=\bigcup _{u=1}^q\left\{G_u,{L_u,T}_{u1},T_{u2},\dots ,T_{uw}\right\}$$

(9)

$$G_u=\sum _{i=1}^{g_q}{P}_i$$

(10)

$$L_u=\sum _{i=1}^{g_q}{K}_i$$

(11)

where the merged cloud $\mathcal{C}$ is replaced by the voxelized cloud $\mathcal{V}$. The expression in (8) does not imply a univocal correspondence between the ${\sum }_{t=1}^w\left({\sum }_{i=1}^{m_t}{p}_{it}\right)$ points of $\mathcal{C}$ and the $q$ points of $\mathcal{V}$, which entails that generally the number of points of both point clouds will be different. $\mathcal{V}$ is composed by $q$ points whose coordinates, called $G_u$, correspond to the center of gravity of the g points inside a voxel; whose colors, called $L_u$, correspond to the average of the colors in the voxel and whose property values along time are $T_{uw}$. Thus, $q$ is also the number of voxels occupied by points.

The voxelization process is optimized by the use of an octree. In other words, an octree is created with the input parameter of the size of the deepest, or smaller, octree node. Finally, the merged cloud is inside a grid of voxels whose sizes are equal to the aforementioned node size.

Regarding the property value assignment depending on the acquisition instant, it must be analyzed to know how to proceed. The following situations can occur:

A single point ${P\mathrm{\prime }}_{ik}$ of the merged cloud, $\mathcal{C},$ acquired at instant $k$ is inside the voxel $h$. This point is substituted by the point $V_h$ whose property values are assigned a $NaN\left(notanumber\right)$ except for the property value of $T_{ik}$. This can be expressed as

$${{P^{\mathrm{\prime }}}_{ik}\to V}_h=\left\{G_h,L_h,{NaN\dots ,T}_{ik},\dots ,NaN\right\}$$

(12)

A set of points ${P^{\mathrm{\prime }}}_{a1},{P^{\mathrm{\prime }}}_{b2},{P^{\mathrm{\prime }}}_{c3},\dots ,{P^{\mathrm{\prime }}}_{dj}$ of the merged cloud, $\mathcal{C},$ where each of them were acquired at each of the acquisition instants, $j$, are inside the voxel $h$. The property’s values of such points are directly assigned to $V_h$. This can be expressed as

$$\left.\begin{array}{c}{P^{\mathrm{\prime }}}_{a1}\\ {P^{\mathrm{\prime }}}_{b2}\\ \begin{array}{c}{P^{\mathrm{\prime }}}_{c3}\\ ⋮\\ {P^{\mathrm{\prime }}}_{dj}\end{array}\end{array}\right\}\to V_h=\left\{G_h,{L_h,T}_{a1,}{T}_{b2},T_{c3},\dots ,T_{dj}\right\};a,b,c,d\in \mathbb{N}$$

(13)

Several points ${P^{\mathrm{\prime }}}_{am},{P^{\mathrm{\prime }}}_{bm},{P^{\mathrm{\prime }}}_{cn},{P^{\mathrm{\prime }}}_{dn},{P^{\mathrm{\prime }}}_{en},\dots ,{P^{\mathrm{\prime }}}_{fp}$ of the merged cloud, $\mathcal{C}$, of one or more of the acquisition instants, $m,n,p$,…, are inside the voxel $h$. The value property for a specific instant, i.e., $m$, is obtained from the average value of such property for all the points acquired in $m$ that lie inside the voxel. If no point is found for instant $q$, a $NaN$ value is assigned to the property value $T_{hq,}$. This can be expressed as

$$\left.\begin{array}{c}{P^{\mathrm{\prime }}}_{am}\\ {P^{\mathrm{\prime }}}_{bm}\\ \begin{array}{c}{P^{\mathrm{\prime }}}_{cn}\\ \begin{array}{c}{P^{\mathrm{\prime }}}_{dn}\\ \begin{array}{c}{P^{\mathrm{\prime }}}_{en}\\ ⋮\\ {P^{\mathrm{\prime }}}_{fp}\end{array}\end{array}\end{array}\end{array}\right\}\to V_h$$

(14)

$$V_h=\left\{G_u,L_h,NaN,\dots ,\frac{1}{M}\sum _{i=1}^M{T}_{im},\dots \frac{1}{N}\sum _{i=1}^N{T}_{in},NaN,\dots ,\frac{1}{P}\sum _{i=1}^P{T}_{ip}\right\};a,b,c,d\in \mathbb{N}$$

(15)

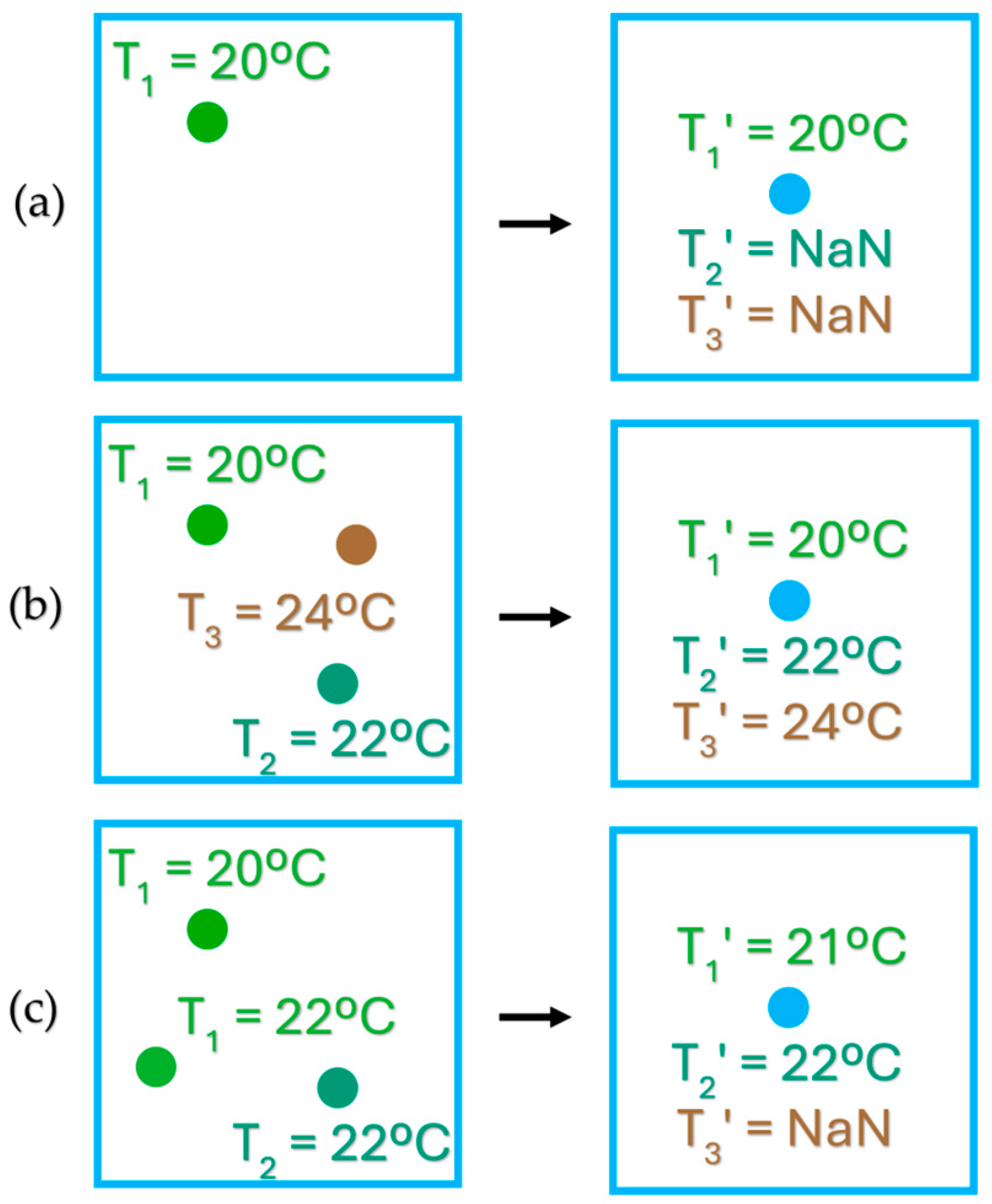

Figure 4 summarizes all situations describes above when the measured property is the temperature in °C. The different acquisition instants are represented by colors.

One of the most critical parameters in the fusion process is the voxel size. Larger voxel dimensions yield lower resulting point cloud densities, but each point assimilates thermal data from more time instants because the likelihood of encapsulating points from different scans increases, integrating information across more time instants. In addition, the use of larger voxels results in a reduction in the resolution of the representation relative to the source clouds, which may lead to the loss of data or information. Conversely, smaller voxels result in a greater number of points, which could impede real-time visualization and survey. This issue depends on the computing hardware utilized. Consequently, an optimal balance must be achieved in order to generate a model with adequate information for proper visualization, remove redundant data, and form a manageable point cloud for real-time operation. Voxel size selection balances these competing factors. Voxelization is a common practice in point cloud optimization, as applied, for example, in [20,21].

3. Virtual Reality Application

The goal of the developed VR application is to interactively explore the point cloud, allowing the user to access all the temporal thermal information associated with the points, in an intuitive and visual way, using a color scale representation.

The application addressed in this paper has been developed using the Unity 3D engine and is available to be downloaded in a GitHub repository [22]. Although there were other possible alternatives for implementing the application, the choice of Unity was based on the group’s extensive previous experience, its extensive community support, and the flexibility to add new shaders, which are essential for customizing the elements to be computed and rendered in real time.

Most of these engines focus on the use of 3D models defined by meshes and do not natively support point clouds. Therefore, one of the fundamental steps is the implementation of a module to overcome this drawback. The developed module is based on [23] and extends some of its features.

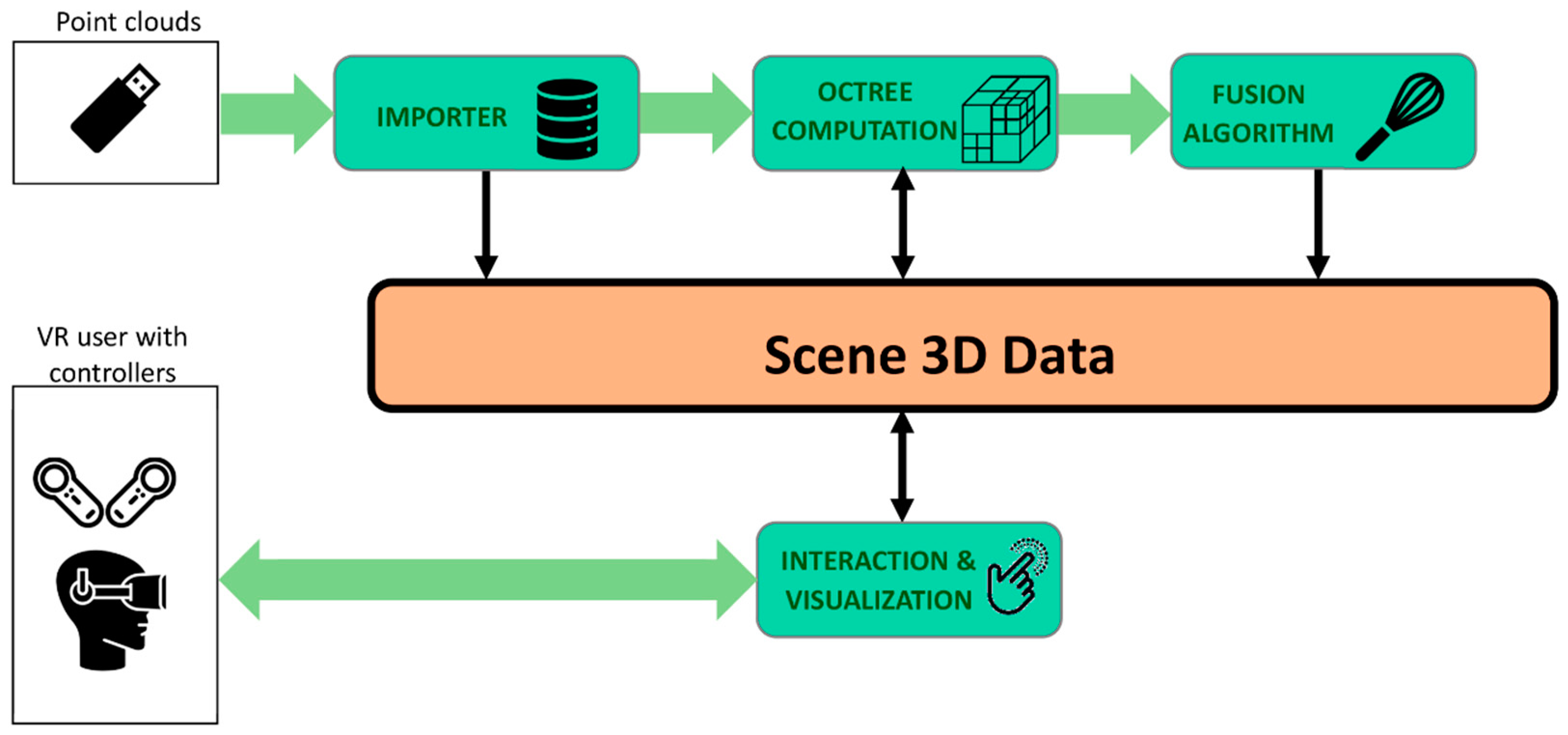

The final application is structured according to the scheme shown in Figure 5. The figure shows a VR application scheme where the Importer module reads the point clouds files; the Octree Computation and Fusion Algorithm modules are executed consecutively each time the data resolution is modified, including the first time, and after, where the 3D scene data are the main element around which orbit different modules and blocks that create, manage, extract, and interact with such data. These modules are ‘Importer’, ‘Octree computation’, ‘Fusion algorithm’, and ‘3D representation’, and those blocks are ‘Interfaces’ and ‘GPU/VR Device’.

The input data for the application are the acquired point clouds for which the thermal information is going to be analyzed and explored. These data are read and stored in the scene 3D data, in the first module of the application: the importer. Then, in the second module, an octree is computed and stored with such data. Finally, in the third module the fusion algorithm, explained in Section 2.4, is applied and the scene 3D data are updated. This algorithm reduces the number of points of the initial read data and produces a uniform point cloud, where each point has a value associated with the K properties.

The 3D representation is handled by the Unity 3D engine when using 3D meshes. In the case of point clouds, Unity cannot display them natively. Therefore, a special module must be inserted to render point clouds by using special shaders. This module streams the 3D information of the point cloud to the GPU in a specific format.

As a result, the user can observe the 3D data on the VR device’s screens. He/she can interact with the application by using the VR controllers. Some interfaces have been designed to connect the user experience with the 3D data of the scene.

The PC used to develop and test the application was an AMD Ryzen 7 5800X 3.8GHz, with 32 GB RAM and GeForce RTX 3070 8 GB GDDR6. In any case, the goal was to create a tool that was not too dependent on the hardware, for which we added features that allow the adaptation of the performance depending on the device used. In the next subsections, some elements of the scheme shown above are explained in more detail: the input data, the 3D scene data along with their representation, and the interfaces.

3.1. Input Data

Specifically, the input data are given in a single point cloud resulting from the merging, voxelization, and fusion of $K$ different room scanning sequences. The point clouds of such sequences contain the coordinates, color, and temperature of the acquired points and have been previously registered in a common reference system.

These mentioned processes of merging, voxelization, and fusion are performed using a C# script that we have developed to prepare the point clouds for the VR application, which is available in [24]. As a result, the script generates a single point cloud in which each point stores the $K$-values of the temperature corresponding to each of the scanning sequences.

The file format chosen to store this enriched cloud is the PLY, because this format allows to associate as many scalar properties as desired to each of the points in the cloud, apart from the usual 3D coordinates and colors. Moreover, the PLY is encoded in binary for more compact storage and faster saving and loading.

3.2. 3D Scene Data

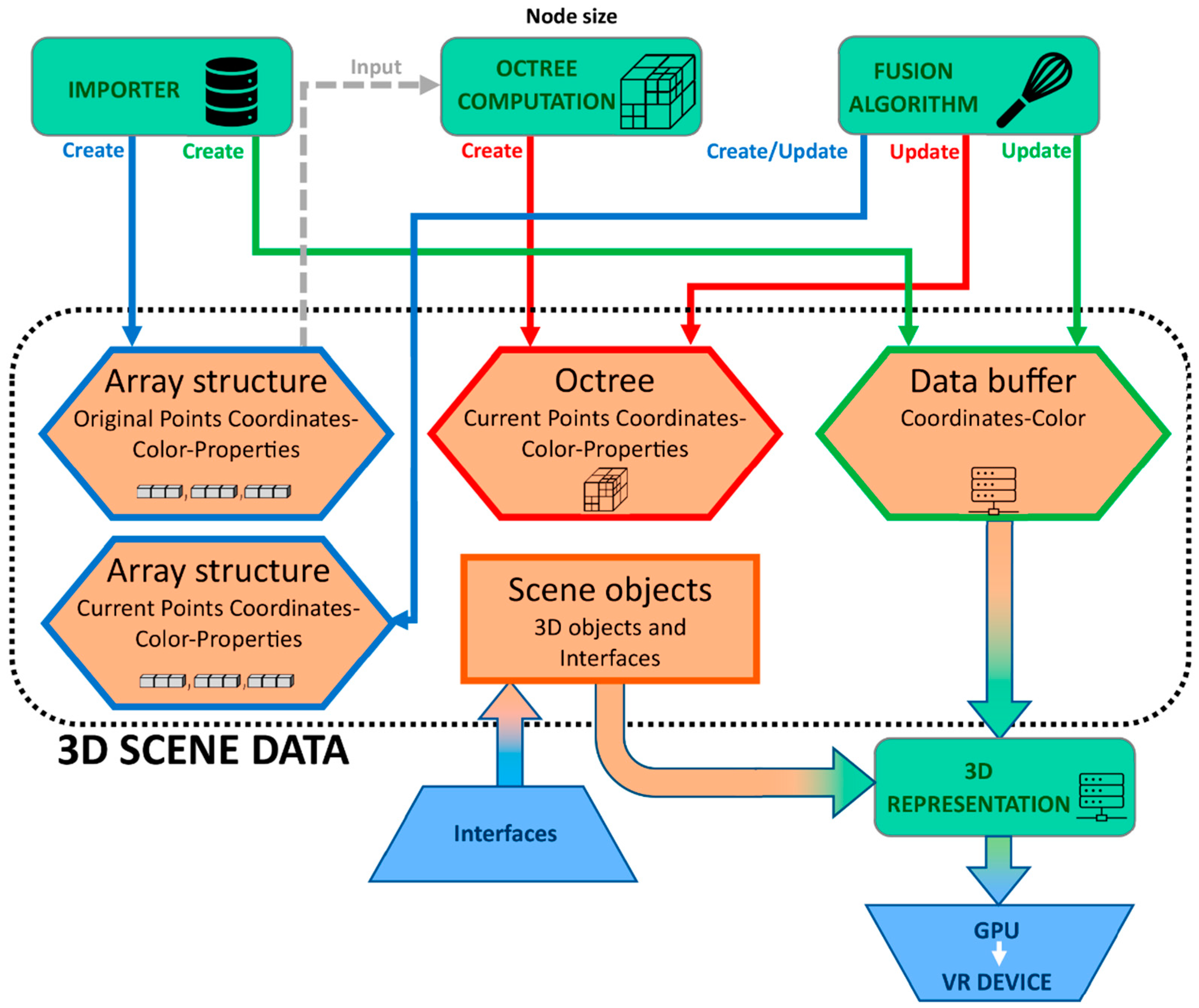

The core of the developed application is the 3D scene data, whose components are point clouds and 3D objects. Point cloud manipulation and rendering use three different data structures, while 3D objects use the Unity engine’s inherent ‘game object’ elements for management and visualization. Figure 6 schematizes the composition of the 3D scene data to be managed in the application, where the structures associated with point clouds are represented by hexagons and the rest of the 3D elements (interfaces, 3D meshes…) are represented by a rectangle. A more detailed explanation of the elements of this scheme is given in the following subsections.

3.2.1. Array Structure

The array structure is the storage in memory of all the data to be used in the application related to the point cloud. Regarding the composition of this element, a structure is defined, let us call it $PointCloud$, which contains the data associated with each point in the point cloud, and then an array of these structures, $PointCloud\left(i\right)$, is created in which to store the $i$ points in the cloud. Specifically, each $PointCloud$ element is composed of a 3D vector containing the $XYZ$ coordinates of each point, a vector containing the RGB components of the color associated with each point, and $K$ scalar values corresponding to the temperature values of the $K$ acquisition instants. The composition of an array structure is schematized in Figure 7, on the left.

Specifically, two array structures must be created in the application. First, when the importer block reads the PLY file, it stores the data in one of the array structures, which is intended to preserve all the original data read from the input file. Subsequently, as the number of points fluctuates with alterations to the point cloud resolution, the alternative array structure is tasked with maintaining the current ‘version’ of the point cloud utilized in the application.

Therefore, if the resolution of the cloud to be represented is changed in the application, the octree is recalculated with a new node size and the fusion algorithm is applied. To do this, the structure with the original data is used as the basis for generating a new 3D representation of the cloud, and after the fusion algorithm is executed, the array structure is updated with the current version of the cloud.

3.2.2. Octree

The octree is initially created after the importer has read the PLY file. The elements stored in this tree structure are the points defined by the $PointCloud\left(i\right)$ structure described in the previous section. The main parameter to create the octree is the minimum node size $\kappa$, i.e., the size of the node from which no further subdivisions are made in the octree. This size is obtained as a function of the number of points in the cloud, ζ; of the dimensions of the bounding box, width ($w$), length ($l$), and height ($h$), that contains it and of the number of points $\psi ,$ which is set as the maximum that can be contained in the node of minimum size. In this way, the following relationship is obtained:

$$\kappa =\sqrt[3]{\frac{\psi ·w·l·h}{{\zeta }^2}}$$

(16)

In the linear octree structure, it is verified that

$$n=1+{\log }_8\mathsf{\eta }$$

(17)

where $n$ is the level of subdivision of the octree and $\eta$ is the number of nodes you have at that level. The subdivision level $n_{\mathsf{\kappa }}$ to implement to achieve a node size $\kappa$ can be obtained as follows:

$$n_{\kappa }=1+{\log }_8\left(\frac{w·l·h}{{\kappa }^3}\right)$$

(18)

Considering $\left(16\right)$, $n_{\mathsf{\kappa }}$ can also be obtained as follows:

$$n_{\kappa }=1+{\log }_8\left(\frac{{\zeta }^2}{\psi }\right)$$

(19)

Thus, the octree creation process is conditioned by the choice of the number of levels to be computed. This number is set either according to the minimum size of the node to be obtained or according to the maximum number of points to be contained in the smallest node of the octree, using Equations $\left(16\right)$ and $\left(19\right)$, respectively.

The octree has two functions in the developed application. The first one is to serve as a voxel grid to perform the fusion algorithm mentioned above, since the smallest nodes of the octree form the voxel grid that is used in such algorithm. This is carried out after the first import of the data and each time the user increases or decreases the number of points to be displayed, after changing the node size of the octree. The number of points of the cloud to be displayed can be approximately obtained by the Equations $\left(16\right)$–$\left(19\right)$.

The second function of the octree is to allow faster searches within the point cloud information, which is of great importance considering the large amount of data that point clouds obtained by laser scanners usually contain together with the corresponding K-property values.

In summary, the octree is used because it provides an efficient way to organize, process, and visualize large point cloud datasets, which is crucial for the real-time VR application described in this article. It allows for adaptive resolution, efficient searching, and serves as the foundation for the voxelization and fusion processes that are key to the method presented.

3.2.3. Data Buffer

As mentioned above, many real-time engines such as Unity do not natively integrate a point cloud rendering method. Our proposal extends the work in [23] to add the feature of 3D colored point cloud representation of additional property values.

One of the main steps to achieve a point cloud representation is the data transfer to the shader, i.e., a program running on the graphic card (GPU). This transfer is carried out by means of a data buffer, or computer buffer, which contains the 3D coordinates and the color (RGB) of the points to be represented.

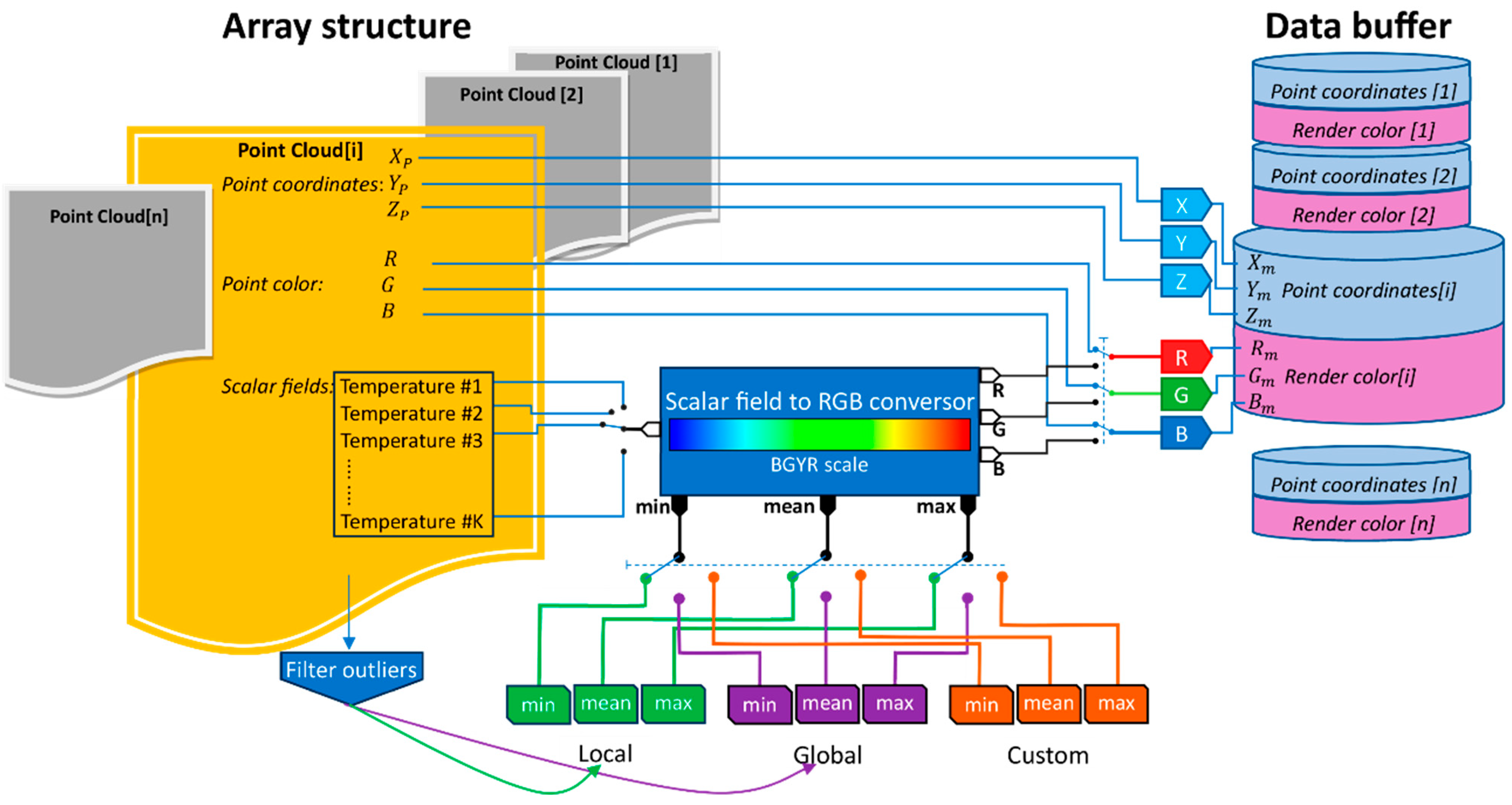

A mechanism must be implemented to transform the data from the array structure to the data buffer, which is schematized in Figure 7. Regarding the coordinates, no conversion is required, so they are literally copied into the buffer. As for the color, it depends on what information the user wants to visualize. By default, the original RGB color array is copied to the buffer. However, if one of the scalar fields, $t$, is to be displayed graphically, a conversion to a specific scale color is required. Each scalar value must be converted to an RGB vector. Specifically, a Blue-Green-Yellow-Red (BGYR) color scale was used, as shown in Figure 7. The maximum and minimum values, $t_{max}$ and $t_{min}$, of the scalar field are assigned a pure red color $(R:255,G:0,B:0)$ and a pure blue color (R:0, G:0, B:255), respectively. The mean value, $\overline{t}$, is assigned a pure green color $(R:0,G:255,B:0)$. The intermediate values are generated by varying the color components linearly, depending on whether the scalar value is in the first half (between min and mean) or whether it is in the second half (between mean and max). Formally, the following color-ramp mapping function is applied to each property value $t$ to obtain its color:

$$\mathsf{\Gamma }\left(t\right)=\left(r_t,g_t,b_t\right)$$

(20)

where

$$r_t=\left\{\begin{array}{c}0,t<\overline{t}\\ \frac{255\left(t-\overline{t}\right)}{t_{max}-\overline{t}},t\ge \overline{t}\end{array}\right.$$

(21)

$$g_t=\left\{\begin{array}{c}\frac{255\left(t-t_{min}\right)}{\overline{t}-t_{min}},t<\overline{t}\\ \frac{-255\left(t-\overline{t}\right)}{t_{max}-\overline{t}}+255,t\ge \overline{t}\end{array}\right.$$

(22)

$$b_t=\left\{\begin{array}{c}\frac{-255\left(t-t_{min}\right)}{\overline{t}-t_{min}}+255,t<\overline{t}\\ 0,t\ge \overline{t}\end{array}\right.$$

(23)

Before selecting the maximum and minimum values, it is advisable to determine whether there are outliers in the measurements. These values can be determined globally if the scalar fields represent the value of the same property at different instants, or locally or independently for each of the scalar fields if they represent properties of a different nature. In both cases, the scalar field values must be sorted in ascending order, either from the complete set of scalar field values for all instants in the first case, or from each of the scalar fields separately in the second case. The mean value of the data set, ${\mu }_{data}$, is then obtained. Afterwards, the data set is divided in half by finding the center of the data. If you have an odd number of data, you choose exactly the middle number as the middle element. On the other hand, if you have an even number, the midpoint will be between the two middle numbers. That is, in this case the center of the data is the mean of the two central values. For each of the two halves of the data set, lower and upper, the mean values ${\mu }_{lower\_half}$ y ${\mu }_{upper\_half}$, respectively, are calculated. The value of the interquartile range is

$$IQR={\mu }_{upper\_half}-{\mu }_{lower\_half}$$

(24)

Lower and upper outliers, $s_{outliers\_lower}$ and $s_{outliers\_upper}$, are those values that satisfy the following:

$${\mu }_{data}-s_{outliers\_lower}>1.5\ast IQR$$

(25)

$$s_{outliers\_upper}-{\mu }_{data}>1.5\ast IQR$$

(26)

Those values are not considered to compute the maximum and minimum, globally, or locally, of the scalar fields.

3.3. Application Features

The following subsection describes the features that have been included in the developed VR application, so that the result can be useful for exploration and analysis of point clouds with properties.

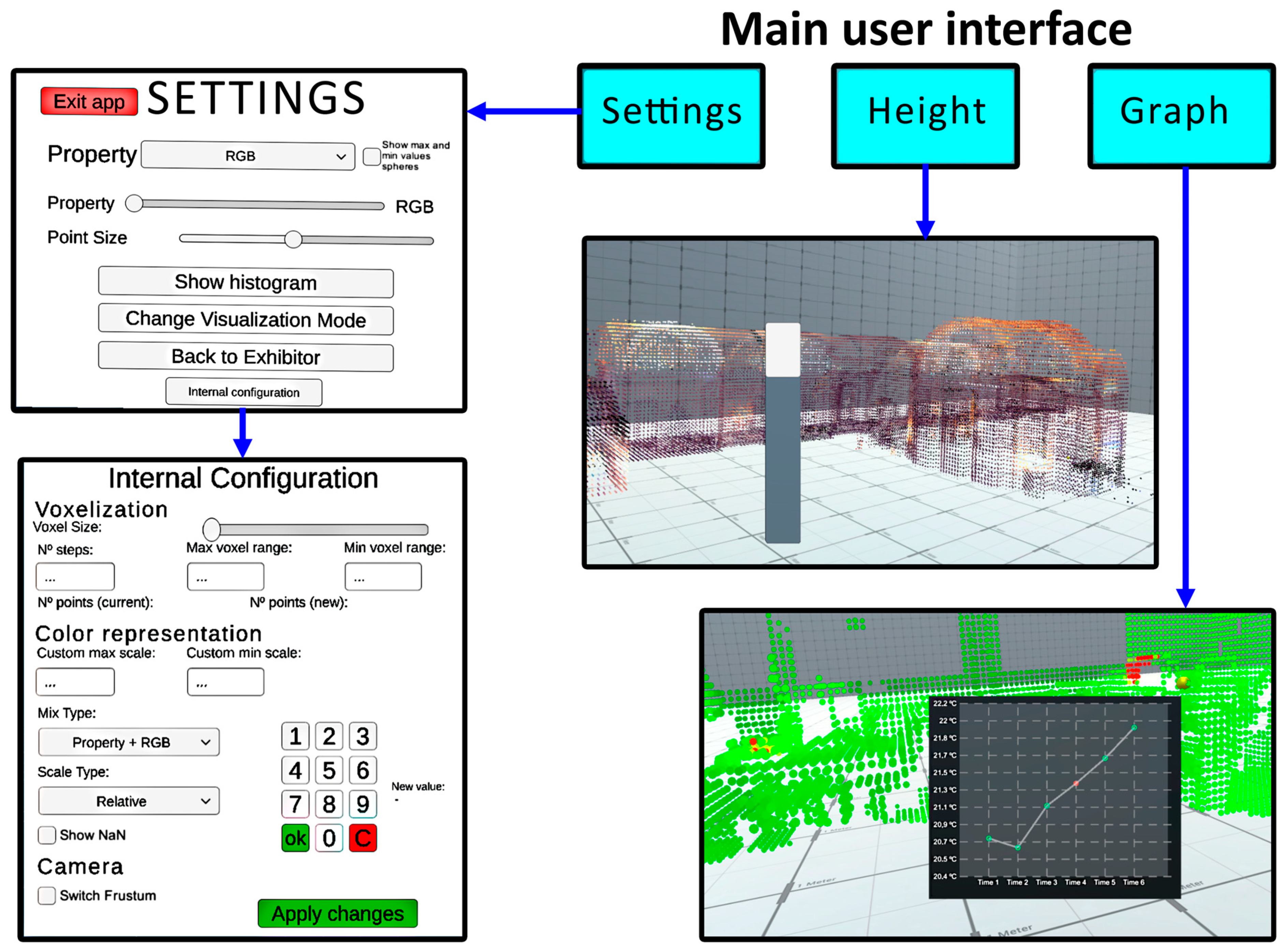

In order to modify or visualize some of the parameters of these features, five interfaces have been designed, which are shown in Figure 8: Main User Interface, Settings Interface, Internal Configuration Interface, Height Setting, and Graphical Representation. All of them are accessible with the VR controllers, following the paths schematized in the figure.

The next subsections explain in detail the different parameters to be adjusted.

3.3.1. Number of Point Customization

The point clouds obtained with the current acquisition devices contain a high number of points, a number that increases as the digitized area increases, such as the number of rooms, floors of a building, etc. Although it has already been mentioned that in the developed application reduction and homogenization of the point cloud is applied, the resulting number of points is high. The real-time representation of these data is highly conditioned by the hardware of the device in which the application is executed. The application includes the possibility of modifying the number of points to be displayed in real time within certain limits. With the slider, shown in the Internal Configuration Interface (Figure 8), the user selects the new voxel size to recompute the points in the cloud. After selecting the new value, a text with the estimated new number of points is presented so that the user can decide whether to apply such a new value. This involves a recomputation of the octree followed by a re-run of the fusion algorithm, as shown in Figure 5.

On the other hand, to optimize the real-time representation, the computation of the camera frustum can be forced with the checkbox of the Internal Configuration Interface (Figure 8). In this mode, when the camera moves (the user with the VR headset) the points inside the camera frustum are marked and only these points are inserted into the data buffer to be rendered. This improves performance, although in some cases there may be some missing information in the periphery of the image. This is especially useful when more than one cloud is imported into the scene.

3.3.2. Point Size

When displaying point clouds, the lack of surface information and the lack of occlusion between the elements that make up the model means that the user can “see through”, e.g., in a model of a building, the user can see through the walls into the other rooms of the building, causing some confusion when exploring the point clouds.

One way to improve this aspect is to force an increase in the occlusion of the model elements, which can be achieved by increasing the size of the points.

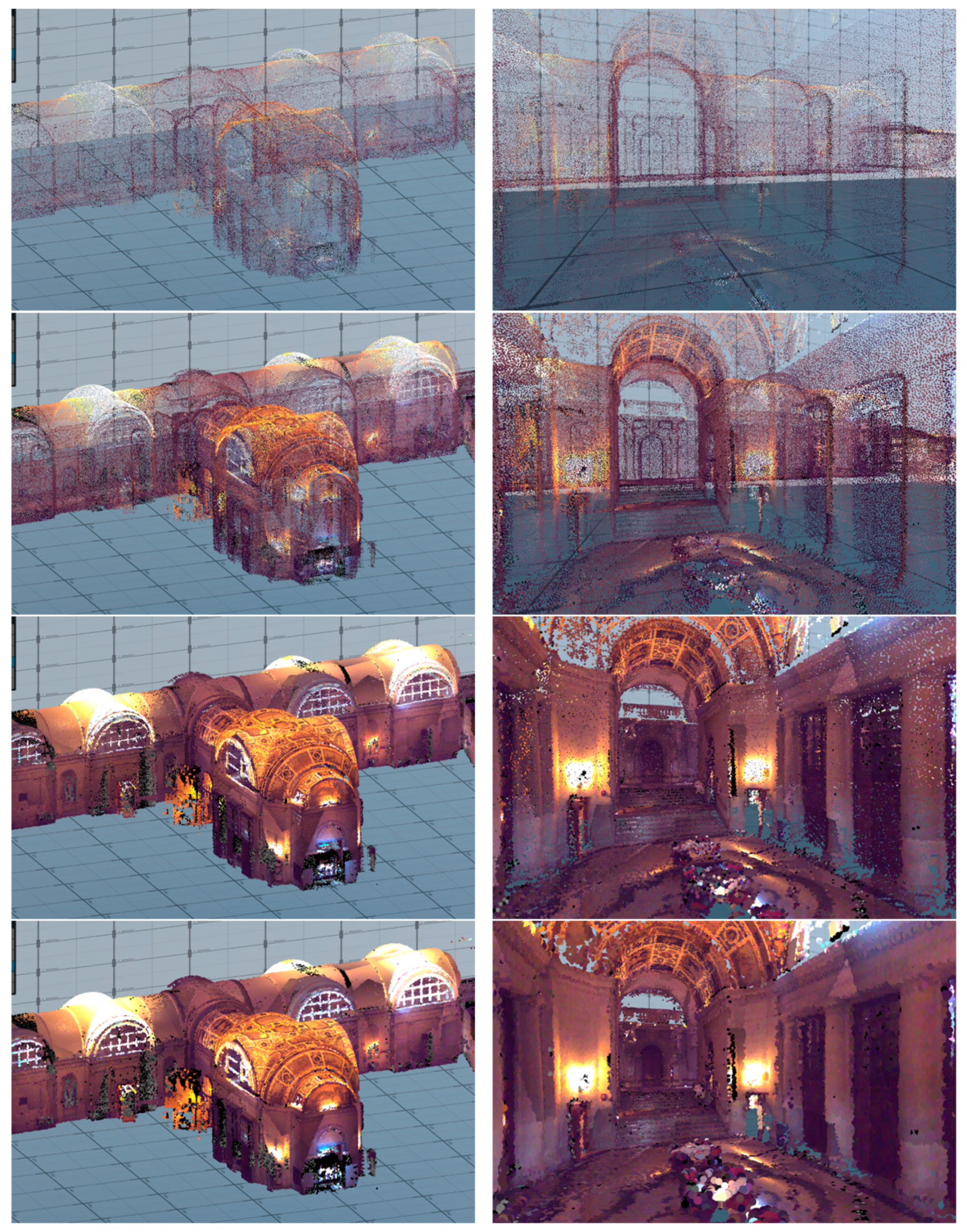

The possibility to modify the size of the point by means of a slider bar has been added to the Settings Interface (Figure 8). If $\overline{d_P}$ is the average distance between neighboring points in the cloud, the point size can be varied between $0.01\ast \overline{d_P}$ and $0.7\ast \overline{d_P}$. Some examples of point sizes for the point cloud of a building are shown in Figure 9.

3.3.3. Property Color Visualization

When a property is selected in the Settings Interface, the scale conversion discussed in the ‘Data buffer’ section is applied. This conversion is conditioned on the maximum, average, and minimum values of each scalar field. The user has three options: calculate a global maximum and minimum for all the scalar fields, calculate the local maximum and minimum for each scalar field, or enter both values manually. These options are accessible in the ‘Color representation’ section of the Internal Configuration Interface of the VR application (Figure 8).

After the user selects the maximum and minimum of the scalar field to be displayed, the coordinates and the corresponding scalar field, converted to the RGB space, of each point are inserted into the data buffer.

As explained in Section 3.2, it is possible to display both the actual color or texture information, if the cloud contains it, and the variation of property values on the BGYR scale. Unless a very simple model is being scanned, such as a single room in a building, displaying the properties on such a color scale can lead to the confusion mentioned above. Here, it is helpful to include texture information mixed with the BGYR scale. In this way, the user can perceive both the color variation associated with the variation of the property value and the actual colors of the elements, which helps the user to identify familiar areas (doors, windows, furniture, tiles...) and to have reference points during exploration.

To perform this blending, the user is offered two options. The first one applies the proposal in [25] and performs the weighted mixing between the property value and the grayscale conversion of the color or texture of the point cloud. Specifically, the resulting color of each point, $\left(r_{mix\_gray},g_{mix\_gray},b_{mix\_gray}\right)$, in the proposed new scale is

$$\left[\begin{array}{c}{r}_{mix\_gray}\\ g_{mix\_gray}\\ b_{mix\_gray}\end{array}\right]=w\left(t\right)\left[\begin{array}{c}{r}_t\\ g_t\\ b_t\end{array}\right]+\gamma \left(1-w\left(t\right)\right)K\left(\begin{array}{c}r\\ g\\ b\end{array}\right)$$

(27)

where $r_t$, $g_t$, and $b_t$ are obtained from Equations (12)–(15), γ is a factor between 0 and 1 that allows the brightness to be adjusted, $K\left(\right)$ is the function that converts the original color $r,g,b$ to grayscale, and w(t) is the following weighted function:

$$w\left(t\right)=\left\{\begin{array}{c}\frac{t-\overline{t}}{t_{max}-\overline{t}},t>\overline{t}\\ \frac{\overline{t}-t}{\overline{t}-t_{min}},t<\overline{t}\end{array}\right.$$

(28)

The other offered option is to mix the property value with the color or texture of the point cloud. In this case, the resulting color of each point, $\left(r_{mix\_color},g_{mix\_color},b_{mix\_color}\right)$, in the proposed new scale is

$$\left[\begin{array}{c}{r}_{mix\_color}\\ g_{mix\_color}\\ b_{mix\_color}\end{array}\right]={\rm E}\left[\begin{array}{c}{r}_t\\ g_t\\ b_t\end{array}\right]+\left(1-{\rm E}\right)\left[\begin{array}{c}r\\ g\\ b\end{array}\right]$$

(29)

where $r_t$, $g_t,$ and $b_t$ are obtained from Equations (12)–(15), and ${\rm E}$ is a mixing factor between 0 and 1.

A slider bar is included in the interface for the user to adjust both $\gamma$ and ${\rm E}$ to the value that provides the best visualization of the mixture.

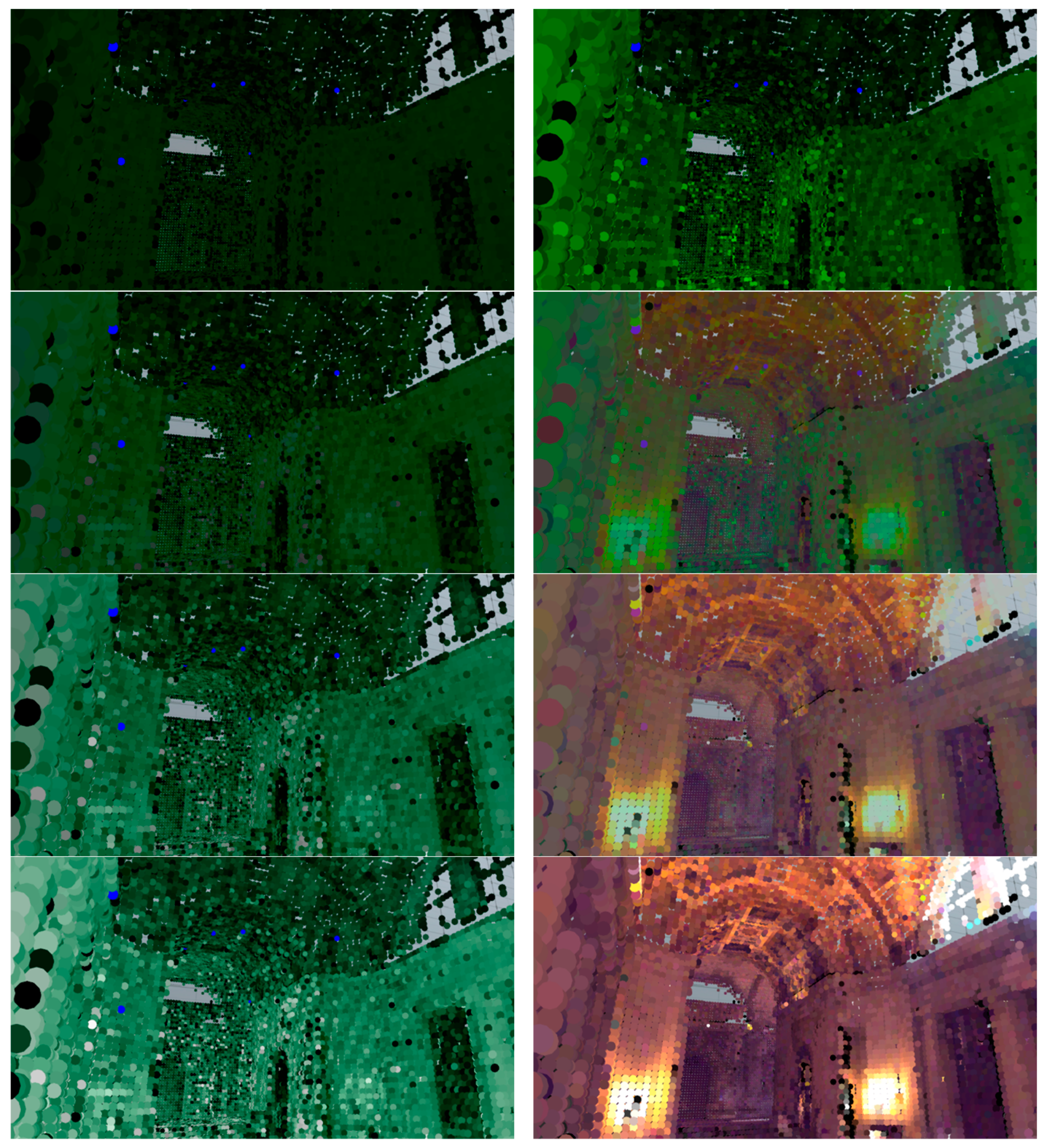

An example of these two mixture types for the property visualization is shown in Figure 10. On the left, the property values (converted to BGYR scale) blended with the grayscaled values of the original RGB colors of the cloud are represented, with different values of γ: 0, 0.3, 0.6, and 1. On the right, the property values (converted to BGYR scale) blended with the original RGB colors of the cloud are shown, with different values of Ε: 0, 0.3, 0.6, and 1.

3.3.4. Analyzing Property Values

The developed application allows the reading of PLY point cloud files with up to $K$ scalar fields. As mentioned before, these can consist of values of $K$ different properties (color, intensity, luminance, temperature, ...) or the value of a single property captured at $K$ different instants. From the application interface, the user can toggle between displaying the original cloud color and the $K$ scalar fields using a dropdown.

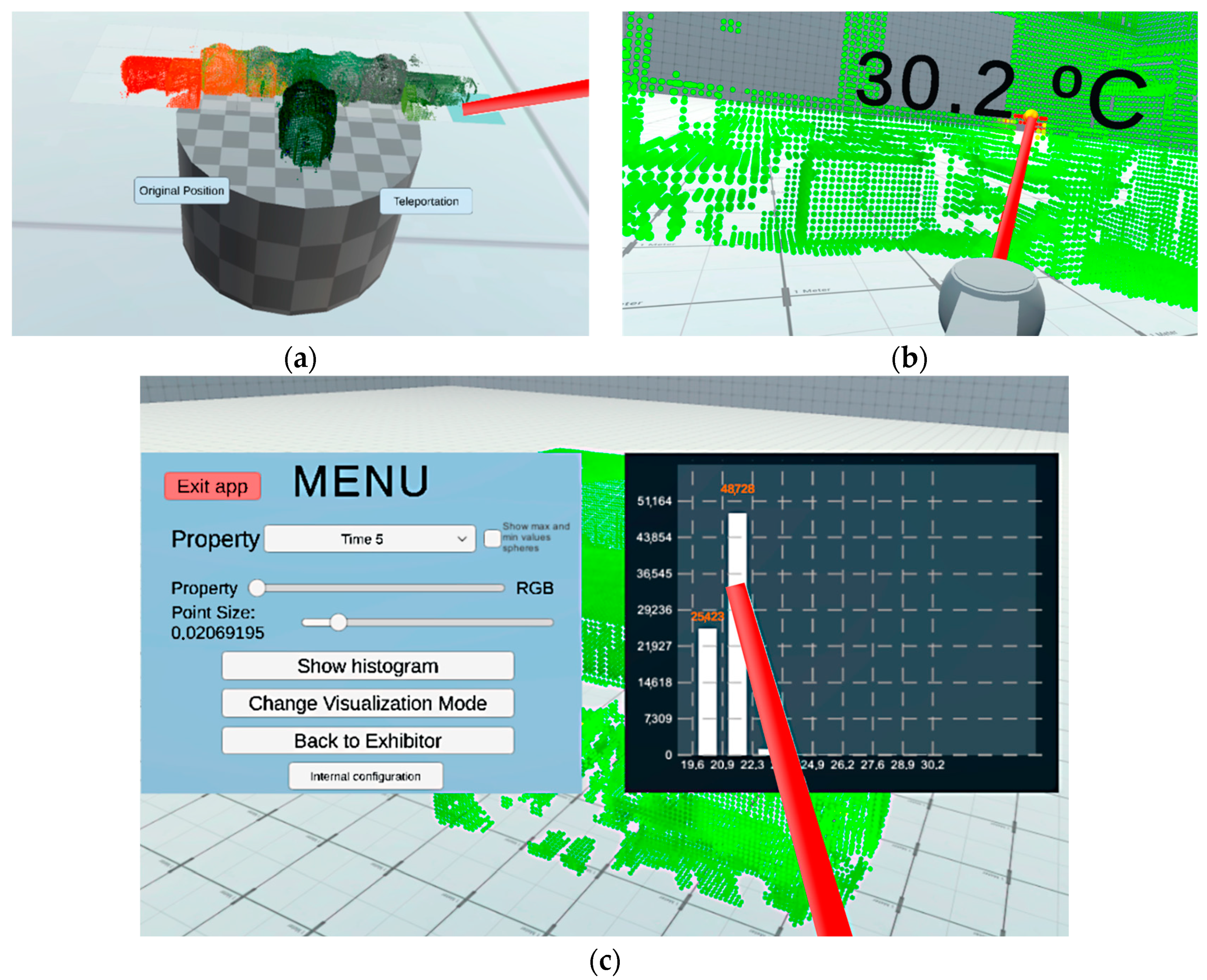

Once one of the properties is selected, a histogram representation of the values of that property, with eight equal-width intervals between the maximum and minimum of the property can be activated from the Settings Interface (Figure 8). As the user interacts with each bar of the histogram using the VR controller, the number of points within that bar is displayed, as shown in Figure 11c. This option can be useful to adjust the maximum and minimum of the color scale, which was explained in the ‘Property color visualization’ section.

In the case that the cloud contains the value of a property, acquired at $K$ different instants, it may be interesting to study its evolution over time. For this purpose, the interface offers the possibility to activate the visualization of the time graph. This also activates a virtual stick on one of the VR controllers. When one of the points is touched, a floating graph with the time evolution of the property value at that point is displayed.

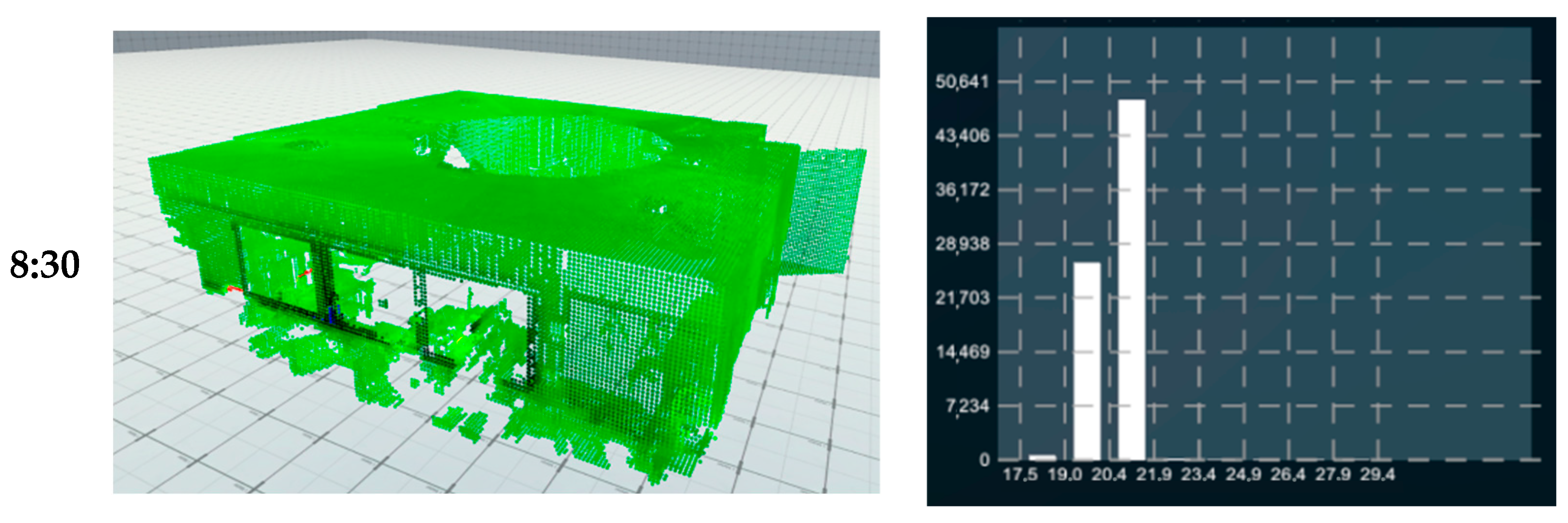

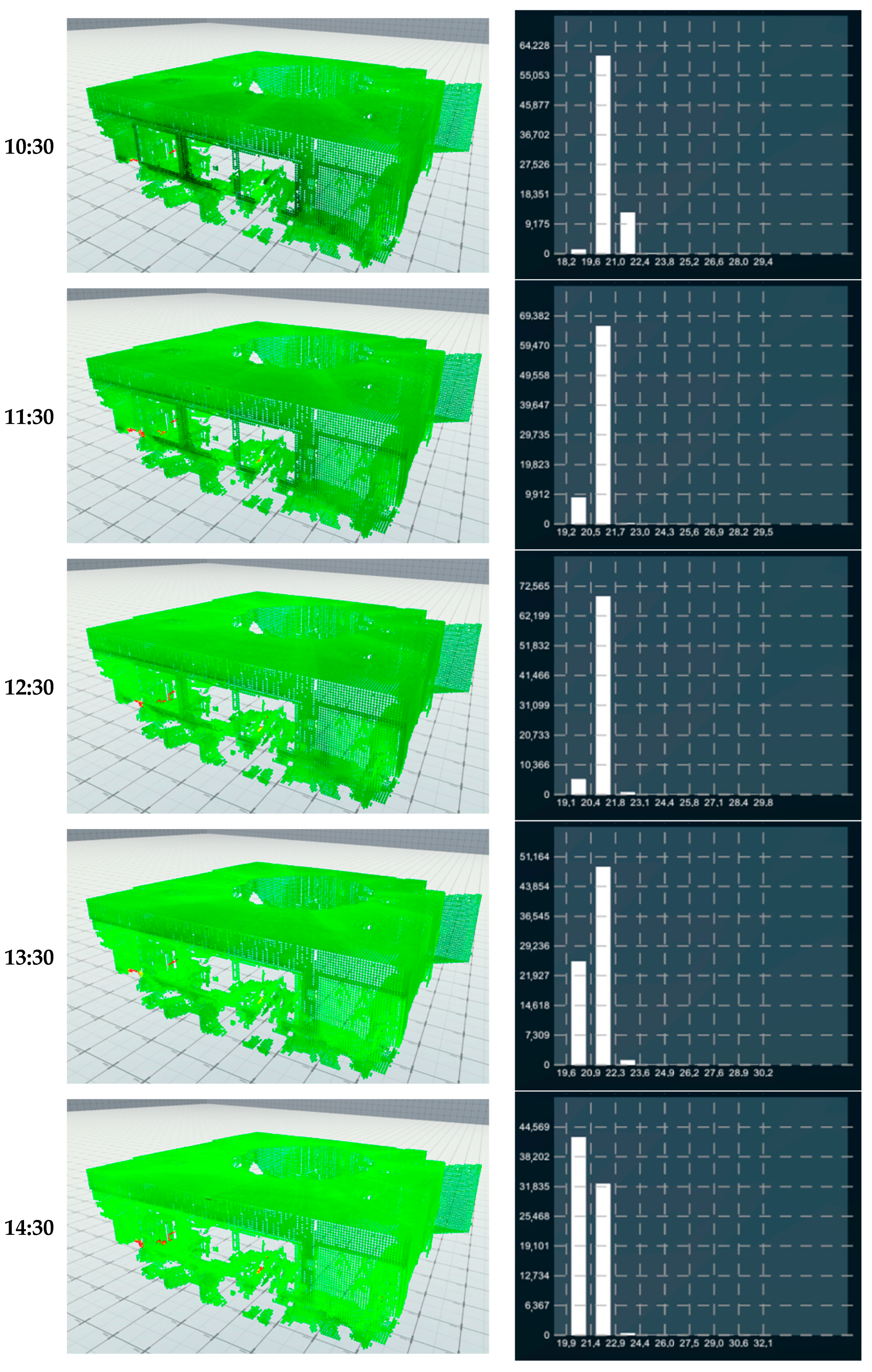

An example of temperature measurement for the interior of a building at different times with the corresponding histogram plots is represented in Figure 12. The time graph for one of the points of such a building is shown in Figure 8.

On the other hand, when the user activates the display of a property, a virtual stick is activated on one of the VR controllers, allowing the user to probe the value of the property at each point. This is carried out by selecting a point with the virtual stick and a floating text informs about the value of the property, as shown in Figure 11b.

Another feature available in the interface is the possibility to activate the display of a red sphere and a blue sphere, at the points where the property value is maximum and minimum, respectively.

Finally, regarding the property values, in Section 2.4, the situation of points with no value for a property was considered. In this case, a NaN value is assigned to such property. When displaying properties with NaN values assigned in some points, a neutral gray color is applied to them. However, the user can disable the visualization of points with NaN values via the interface, using the checkbox in the ‘Color representation’ section of the Internal Configuration Interface (Figure 8).

3.3.5. Point Cloud Exploration

The virtual scene into which the point cloud is inserted basically consists of a box with a texture of a 1 m grid in both directions, which serves as a spatial reference for navigation. The user’s locomotion within the scene uses the conventional VR technique of teleportation, which allows ground-constrained motion within the reference box. The user-adjustable height parameter for teleportation is set via a slider in the main menu (Figure 8).

An additional miniature exploration mode provides a scaled rendering of the entire cloud on a cylindrical base that acts as an examination table (Figure 11a). This provides the user with a complete view of the cloud, which can be useful for global surveys of property variations throughout a building. In addition, the user can select a location on the miniaturized cloud and then teleport and resume inspection of the full-scale point cloud.

4. Discussion

This paper presents a methodology for the fusion of multiple point clouds acquired from random locations and at different instants, resulting in point clouds enriched with static and dynamic properties that can vary over time. The proposed approach first registers and merges the different point clouds into a single set of aggregated points. Then, voxel-based fusion is applied to reduce the point density while preserving information about the evolution of properties through temporal aggregation. This optimization balances competing factors such as model detail and real-time interactivity. The fused point cloud, which combines spatial and temporal information, is used in a VR application developed for interactive visualization, exploration, and analysis, which is publicly available at the URL mentioned in Section 3.

The VR system allows intuitive interaction with the enriched point clouds. Although real-time point clouds can be represented in Unity in a way that is not easily accessible, there are no alternatives like this one where the users can explore 3D geometry merged with time-varying thermal attributes through a color map overlay. Interactive interfaces facilitate the analysis of graphical temperature trends at points and the generation of histograms to study value distributions. The application highlights the potential of VR as a tool for point cloud inspection when enriched with multifaceted data such as thermal properties.

It is necessary to remember here that although the application has been focused on the use of temperature values, it is easily scalable to accept other properties that have been acquired (time, luminance...).

The fact of orienting the application to the use of the temperature variable has been due to the need to create an application focused on the improvement of predictive maintenance tasks as well as the energy optimization of existing buildings.

However, it is important to recognize the inherent limitations of this approach. The reliance on hardware for real-time visualization and the management of large volumes of data are challenges that require up-front usage analysis for each building in which it is intended to be used. Data obtained from 3D scanners contain a large volume of points. In the proposed methodology, a prior registration of these point clouds is required so that they can be introduced into the virtual reality application. The result provided by the point cloud fusion algorithm will be affected by the accuracy with which such a registration has been performed. In addition, although the application includes functionalities to vary the representation resolution, it is necessary that the initial cloud has a previous reduction applied so that the application can manage its loading.

On the other hand, the accuracy of the representation of thermal properties is conditioned by the quality of the input data, which underlines the importance of calibration and validation of the capturing devices. It has been found that the Leica BLK360 sensor does not provide consistency of measurements over measurements taken at close time instants.

There is considerable potential for extending this research. The exploration of more advanced data compression techniques, improved fusion algorithms, and the integration of new properties into point clouds are areas of planned activity. These advances could facilitate the adoption of these technologies in a wider range of applications, from cultural heritage preservation to urban planning.

Specifically, our future work includes improving the fusion methodology to include more complex spatiotemporal alignments and aggregations and improving the VR software by incorporating automatic anomaly detection based on property analysis, implementing collaborative multi-user interaction, and deploying it on additional VR platforms, such as standalone, where resource optimization is a critical factor.

Overall, this research demonstrates a proof-of-concept for merging point clouds from different instants into unified models that can uncover hidden temporal patterns in spatial point data. The proposed techniques help advance the use of point clouds for building modeling, energy efficiency, and other applications that require the characterization of dynamic behavior.
