Intelligent Reduced-Dimensional Scheme of Model Predictive Control for Aero-Engines

Abstract

Model Predictive Control (MPC) has many advantages in controlling an aero-engine, such as handling actuator constraints, but the computational burden greatly obstructs its application. The current multiplex MPC can reduce computational complexity, but it will significantly decrease the control performance. To guarantee real-time performance and good control performance simultaneously, an intelligent reduced-dimensional scheme of MPC is proposed. The scheme includes a control variable selection algorithm and a control sequence coordination strategy. A constrained optimization problem with low computational complexity is first constructed by using only one control variable to define a reduced-dimensional control sequence. Therein, the control variable selection algorithm provides an intelligent mode to determine the control variable that has the best control effect at the current sampling instant. Furthermore, a coordination strategy is adopted in the reduced-dimensional control sequence to consider the interaction of control variables at different predicting instants. Finally, an intelligent reduced-dimensional MPC controller is designed and implemented on an aero-engine. Simulation results demonstrate the effectiveness of the intelligent reduced-dimensional scheme. Compared with the multiplex MPC, the intelligent reduced-dimensional MPC controller enhances the control quality significantly by 34.06%; compared with the standard MPC, the average time consumption is decreased by 64.72%.

1. Introduction

As the power source of flight, the aero-engine plays an important role in the modern aircraft. During operation, the engine needs to not only meet the power requirement of the flight mission but also to ensure its own safety [1]. These all impose strict demands on the engine’s control system. With the increasing demands, traditional control techniques cannot handle the tasks well [2,3]. Therefore, the engineering community of aero-engine control is urged to seek more advanced control techniques. Model Predictive Control (MPC), a model-based optimal control method, has attracted engineers’ attention [4,5,6]. MPC emerged in the 1970s and then rapidly flourished in process control [7,8]. MPC has an online prediction model, which can estimate unmeasurable performance parameters. This is lacking in other techniques (e.g., robust control, adaptive control) [9,10]. Additionally, MPC solves a constrained optimization problem, which can achieve the control objective and constrains management simultaneously. The constraints consider the physical limitations of the actuators, whereas other techniques (e.g., anti-windup) require additional design to handle them [11]. Therefore, researchers try to apply MPC to aero-engines [12,13,14,15].

Although MPC can enhance control performance, it has real-time implementation issues. The main reason is that optimization in MPC leads to a huge computational burden [16]. The MPC controller mainly includes an optimization problem and a mathematical algorithm. At each sampling instant, a nonlinear optimization problem can be constructed according to the control objective and the constraint conditions. Then, the mathematical algorithm is employed to solve this optimization problem. Since there have been many well-developed mathematical algorithms to be chosen, this paper focuses on the optimization problem [17,18].

Among the existing methods, Bemporad aimed to perform the solution of the online optimization problem offline and proposed the explicit MPC [19,20,21]. Based on multiparameter programming theory, the explicit MPC controller is designed offline in each region of the state space. When implementing online, the corresponding control parameters are searched according to the current state. The method of offline calculation and online query greatly reduces the online computational complexity of the MPC controller and thus improves the real-time property. Gu improved the control system’s real-time performance by applying the multiparameter quadratic programming explicit model predictive control on a turboshaft engine [22], while Feng designed the explicit MPC controller for a turbofan engine and demonstrated that it meets the requirement of real-time property by a hardware-in-the-loop test [23]. However, this explicit implementation must satisfy that the optimization problem can be simplified into a multiparameter programming. In addition, the control parameters of all regions should be stored in the explicit MPC controller, placing high demands on the memory of the control system. What is more, the explicit MPC controller that has been designed offline may fail when the engine deteriorates.

From handling the online optimization problem itself, there are two directions to reduce the computational complexity. The first is to decrease the order of the optimization problem. Normally, the 2-norm is used to construct a quadratic cost function as the performance index, resulting in the optimization problem being nonlinear [24]. Using 1/∞-norm instead of 2-norm can construct a linear cost function which reduces the optimization problem’s order and can be solved by simpler linear programming. Genceli employed the 1-norm to form the cost function and thus solved the control law by online linear programming [25]. Kerrigan utilized 1/∞-norm in a robustly stable MPC problem and found that the ∞-norm has higher real-time performance, while the 1-norm has higher solution accuracy [26]. However, compared with the 2-norm, the 1/∞-norm results in obvious differences in the solution results, which hinders further development in this direction.

Another direction is to lower the scale of the optimization problem by reducing the dimension of the control sequence. In reality, the computational complexity of the optimization problem relates to the cube of the control sequence’s length [27,28]. Different from standard MPC that updates all the control inputs at the same time, multiplexed MPC (mMPC), which is proposed by Ling, is employed to update only one control variable at a time and all the control variables sequentially and cyclically in the implementation process, resulting in the computation speed up [29,30]. Richter applied mMPC to a large commercial turbofan engine and demonstrated the computational savings of this method [31]. Then, Pang employed this method to control a gas turbine engine, and all the results showed that the time consumption can be greatly reduced in comparison with the standard MPC [32,33]. Although it has shown superiority in reducing computational complexity, mMPC finds a suboptimal solution to the original optimization problem actually, and the control variable’s update mode is fixed and inflexible. Each control variable has the same possibility to be used to control the system despite their different regulating abilities. Therefore, the control quality actually witnesses a significant decrease. In the implementation in an aero-engine, the mMPC controller has a much bigger control error than the standard MPC ones [31,32].

Aiming at the defect of existing methods, a novel MPC intelligent reduced-dimensional scheme is proposed in this paper to realize great real-time performance and control performance simultaneously. The main contributions are as follows:

(1)

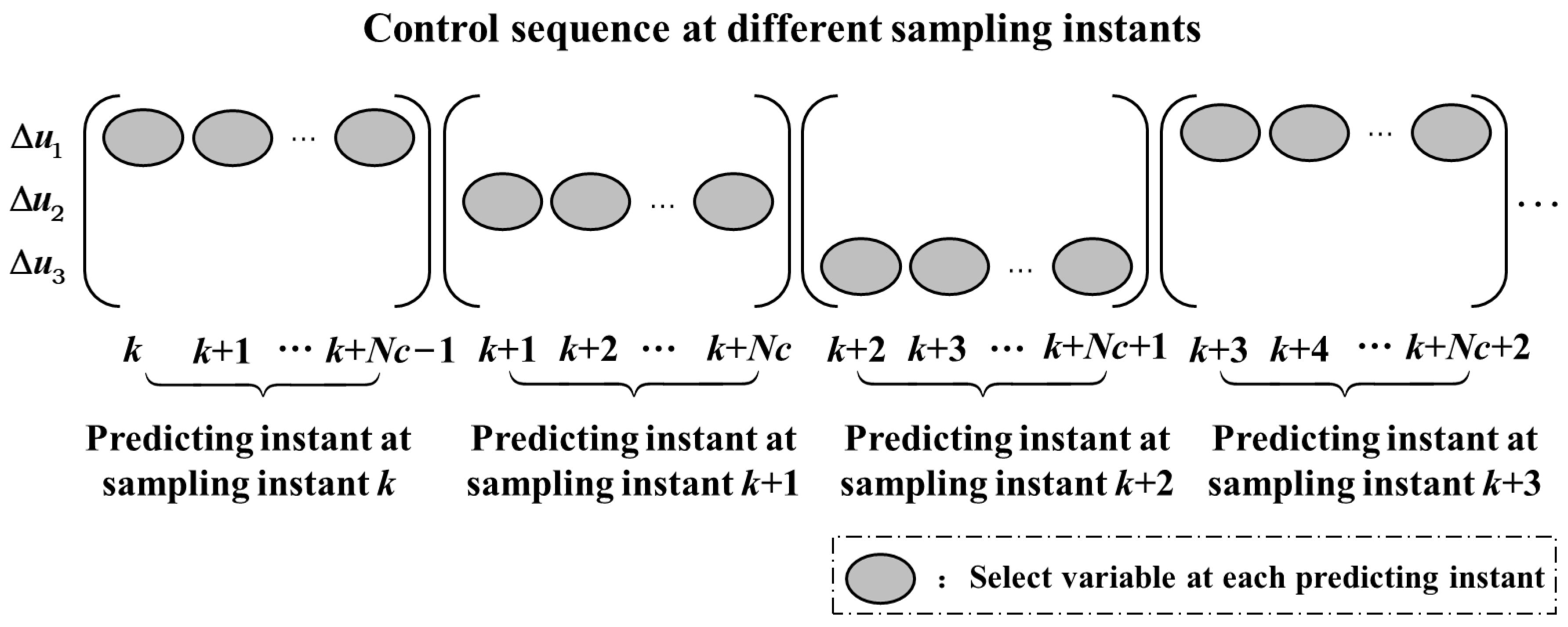

Different from mMPC, a selection algorithm is designed in the scheme to determine the control variable with the best control effect at each sampling instant, which is an intelligent update mode and helps to enhance the control performance;

(2)

To search for a better sub-optimal solution, a coordination strategy is developed in the scheme, which considers the interaction of the control variables at different predicting instants in the control sequence;

(3)

By constructing an optimization problem with low computational complexity, the intelligent reduced-dimensional scheme guarantees the superiority in time consumption.

The remainder of this paper is organized as follows. Section 2 details the methodology of the proposed intelligent reduced-dimensional scheme. Section 3 shows the simulation results to demonstrate the effectiveness of the proposed method. Finally, Section 4 concludes this paper.

2. MPC Intelligent Reduced-Dimensional Scheme

2.1. MPC Optimization Problem with Low Computational Complexity

Consider a linear state-space model with forms of discrete-time and small deviation as the predictive model:

$$\left\{\begin{array}{c}{x}_{k+1}=A{x}_k+B{u}_k\\ \begin{array}{l}{y}_k=C{x}_k+D{u}_k\\ u_{k+1}=u_k+\Delta u_k\end{array}\end{array}\right.$$

(1)

where $x\in {ℝ}^n$ is the state vector, $u\in {ℝ}^m$ is the input vector, the output vector $y\in {ℝ}^r$ contains the controlled parameters $y_{ctrl}\in {ℝ}^s$ and the constrained parameters $y_{con}\in {ℝ}^t$, and k is the sampling instant. The system matrices A, B, C and D have dimensions of n by n, n by m, r by n and r by m, respectively. Note that the symbol Δ, which represents a small deviation, is omitted for simplifying the expression.

In Equation (1), the third formula introduces integral action to the MPC, and $\Delta u_k$ actually represents the increment of input vector with a small deviation form, i.e., $(\Delta )u_{k+1}=(\Delta )u_k+(\Delta )\Delta u_k$ [31].

After augmenting the state vector with the input vector, Equation (1) can be rewritten as

$$\left\{\begin{array}{c}{x}_{a,k+1}=A_a{x}_{a,k}+B_a\Delta u_k\\ y_{ctrl,k}=C_{a,ctrl}{x}_{a,k}\\ y_{con,k}=C_{a,con}{x}_{a,k}\end{array}\right.$$

(2)

where $x_{a,k}^T=[\begin{array}{cc}{x}_k^T& u_k^T\end{array}]\in {ℝ}^{1\times (n+m)}$, $A_a=\left[\begin{array}{cc}A& B\\ 0& I\end{array}\right]\in {ℝ}^{(n+m)\times (n+m)}$, $B_a=\left[\begin{array}{c}0\\ I\end{array}\right]\in {ℝ}^{(n+m)\times m}$, $C_{a,ctrl}=\left[\begin{array}{cc}{C}_{ctrl}& D_{ctrl}\end{array}\right]\in {ℝ}^{s\times (n+m)}$, $C_{a,con}=\left[\begin{array}{cc}{C}_{con}& D_{con}\end{array}\right]\in {ℝ}^{t\times (n+m)}$.

For the MPC, the computation complexity of its optimization problem depends on the dimension of $\Delta u_k$ in Equation (2) to a great extent. Therefore, the input vector is encouraged to lower the dimension from m to 1 to minimize the computation complexity.

Without loss of generality, consider the ith control variable $\Delta u_{i,k}$ as the available one and $\Delta u_{j,k}=0,j\ne i$. $\Delta u_{i,k}$ can be obtained by removing all the zero elements from $\Delta u_k$. Then, the first formula in Equation (2) is revised as

$$\begin{array}{l}\Delta u_{i,k}=E_i\Delta u_k\\ x_{a,k+1}=A_a{x}_{a,k}+(B_a{E}_i^T)\Delta u_{i,k}\end{array}$$

(3)

where $E_i\in {ℝ}^{1\times m}$ is a transfer matrix, and its ith element is 1, while the others are zero.

It should be noted that the other control variables keep their previous values when selecting $u_i$ at sampling instant k.

Then, a reduced-dimensional control sequence in the MPC can be defined as

$$\Delta \tilde{U}={[\Delta u_{i,k}^T,\Delta u_{i,k+1}^T,\dots ,\Delta u_{i,k+Nc-1}^T]}^T$$

(4)

where Nc is the control horizon.

According to Equations (2)–(4), the predicted output vector over the prediction horizon can be denoted as

$$\begin{array}{l}{Y}_{ctrl}=P_{ctrl}{x}_{a,k}+H_{ctrl}\Delta \tilde{U}\\ Y_{con}=P_{con}{x}_{a,k}+H_{con}\Delta \tilde{U}\end{array}$$

(5)

where $Y_{ctrl}={[y_{ctrl,k+1}^T,y_{ctrl,k+2}^T,\dots ,y_{ctrl,k+Np}^T]}^T$, $Y_{con}={[y_{con,k+1}^T,y_{con,k+2}^T,\dots ,y_{con,k+Np}^T]}^T$, Np is the prediction horizon. The $P_{ctrl}\in {ℝ}^{sNp\times (n+m)}$, $P_{con}\in {ℝ}^{tNp\times (n+m)}$, $H_{ctrl}\in {ℝ}^{sNp\times Nc}$ and $H_{con}\in {ℝ}^{tNp\times Nc}$ are

$$\begin{array}{l}{P}_{ctrl}=\left[\begin{array}{c}{C}_{a,ctrl}{A}_a\\ C_{a,ctrl}{A}_a^2\\ ⋮\\ C_{a,ctrl}{A}_a^{Nc}\\ ⋮\\ C_{a,ctrl}{A}_a^{Np}\end{array}\right],H_{ctrl}=\left[\begin{array}{ccccc}{C}_{a,ctrl}{B}_a{E}_i^T& 0& 0& \cdots & 0\\ C_{a,ctrl}{A}_a{B}_a{E}_i^T& C_{a,ctrl}{B}_a{E}_i^T& 0& \cdots & 0\\ ⋮& ⋮& ⋮& ⋮& ⋮\\ C_{a,ctrl}{A}_a^{Nc-1}{B}_a{E}_i^T& C_{a,ctrl}{A}_a^{Nc-2}{B}_a{E}_i^T& C_{a,ctrl}{A}_a^{Nc-3}{B}_a{E}_i^T& \cdots & C_{a,ctrl}{B}_a{E}_i^T\\ ⋮& ⋮& ⋮& ⋮& ⋮\\ C_{a,ctrl}{A}_a^{Np-1}{B}_a{E}_i^T& C_{a,ctrl}{A}_a^{Np-2}{B}_a{E}_i^T& C_{a,ctrl}{A}_a^{Np-3}{B}_a{E}_i^T& \cdots & C_{a,ctrl}{A}_a^{Np-Nc}{B}_a{E}_i^T\end{array}\right]\\ P_{con}=\left[\begin{array}{c}{C}_{a,con}{A}_a\\ C_{a,con}{A}_a^2\\ ⋮\\ C_{a,con}{A}_a^{Nc}\\ ⋮\\ C_{a,con}{A}_a^{Np}\end{array}\right],H_{con}=\left[\begin{array}{ccccc}{C}_{a,con}{B}_a{E}_i^T& 0& 0& \cdots & 0\\ C_{a,con}{A}_a{B}_a{E}_i^T& C_{a,con}{B}_a{E}_i^T& 0& \cdots & 0\\ ⋮& ⋮& ⋮& ⋮& ⋮\\ C_{a,con}{A}_a^{Nc-1}{B}_a{E}_i^T& C_{a,con}{A}_a^{Nc-2}{B}_a{E}_i^T& C_{a,con}{A}_a^{Nc-3}{B}_a{E}_i^T& \cdots & C_{a,con}{B}_a{E}_i^T\\ ⋮& ⋮& ⋮& ⋮& ⋮\\ C_{a,con}{A}_a^{Np-1}{B}_a{E}_i^T& C_{a,con}{A}_a^{Np-2}{B}_a{E}_i^T& C_{a,con}{A}_a^{Np-3}{B}_a{E}_i^T& \cdots & C_{a,con}{A}_a^{Np-Nc}{B}_a{E}_i^T\end{array}\right]\end{array}$$

(6)

Equation (5) is considered to have a high prediction accuracy, and with the help of it, a constrained optimization problem under the reduced-dimensional control sequence Equation (4) can be constructed as follows.

A common quadratic performance index that contains the control error and the control energy consumption is defined as the cost function of the optimization problem.

$$J=e^{T}Qe+\Delta {\tilde{U}}^{T}R\Delta \tilde{U}$$

(7)

where $e=r_{ctrl}-Y_{ctrl}$ is the error vector, and $r_{ctrl}={[r_{k+1}^T r_{k+2}^T \dots r_{k+Np}^T]}^T$ is the command vector. Q and R are two weight matrices to balance the control error and the control energy consumption. In other words, larger coefficients in Q denote smaller control errors of the controlled parameters, while larger coefficients in R indicate less energy consumption, which reduces the system’s response speed when applying the ith control variable.

$$Q=\left[\begin{array}{ccc}\tilde{Q}& & \\ & \ddots & \\ & & \tilde{Q}\end{array}\right]\in {ℝ}^{sNp\times sNp},\tilde{Q}=\left[\begin{array}{ccc}{Q}_1& & \\ & \ddots & \\ & & Q_s\end{array}\right]\in {ℝ}^{s\times s},R=\left[\begin{array}{ccc}{R}_i& & \\ & \ddots & \\ & & R_i\end{array}\right]\in {ℝ}^{Nc\times Nc}$$

(8)

where $Q_i,i=1,2,\dots ,s$ is the weight for each controlled parameter, and $R_i$ is the weight for the ith control variable.

The constraint conditions of the output parameters and the control variable can be represented in the form of $\Delta \tilde{U}$, as follows.

$$\begin{array}{l}\left\{\begin{array}{c}{H}_{con}\Delta \tilde{U}\le Y_{ub}\\ -H_{con}\Delta \tilde{U}\le Y_{lb}\end{array}\right.\\ \left\{\begin{array}{c}\Delta \tilde{U}\le d{U}_{ub}\\ -\Delta \tilde{U}\le d{U}_{lb}\end{array}\right.\\ \left\{\begin{array}{c}{L}_{con}\Delta \tilde{U}\le U_{ub}\\ -L_{con}\Delta \tilde{U}\le U_{lb}\end{array}\right.\end{array}$$

(9)

with

$$\begin{array}{l}\left\{\begin{array}{c}{Y}_{ub}={[I_{t,1}, I_{t,2},\dots ,I_{t,Np}]}^T{y}_{con,ub}-P_{con}{x}_{a,k}\\ Y_{lb}=-{[I_{t,1}, I_{t,2},\dots ,I_{t,Np}]}^T{y}_{con,lb}+P_{con}{x}_{a,k}\end{array}\right.\\ \left\{\begin{array}{c}d{U}_{ub}={[d{u}_{i,ub},d{u}_{i,ub},\dots ,d{u}_{i,ub}]}^T\\ d{U}_{lb}=-{[d{u}_{i,lb},d{u}_{i,lb},\dots ,d{u}_{i,lb}]}^T\end{array}\right.\\ \left\{\begin{array}{c}{U}_{ub}={[u_{i,ub},u_{i,ub},\dots ,u_{i,ub}]}^T\\ U_{lb}=-{[u_{i,lb},u_{i,lb},\dots ,u_{i,lb}]}^T\end{array}\right.\end{array}$$

(10)

$$L_{con}=\left[\begin{array}{ccccc}1& 0& 0& \cdots & 0\\ 1& 1& 0& \cdots & 0\\ 1& 1& 1& \cdots & 0\\ ⋮& ⋮& ⋮& & ⋮\\ 1& 1& 1& 1& 1\end{array}\right]\in {ℝ}^{Nc\times Nc}$$

(11)

where the subscripts ub and lb denote the upper limit and the lower limit.

Since Equation (2) has a form of small deviation, $y_{con,ub}={[y_{con,1,ub},y_{con,2,ub},\dots ,y_{con,t,ub}]}^T$ and $y_{con,lb}={[y_{con,1,lb},y_{con,2,lb},\dots ,y_{con,t,lb}]}^T$ are the constrained parameters’ increment upper and lower limit, respectively. $d{u}_{i,ub}$ and $d{u}_{i,lb}$ are the ith control variable increment rate’s upper and lower limit, respectively. $u_{i,ub}$ and $u_{i,lb}$ are the ith control variable increment magnitude’s upper and lower limit, respectively.

Finally, a constrained optimization problem with low computation complexity is summarized as

$$\begin{array}{l}\min \hspace{1em}J=e^{T}Qe+\Delta {\tilde{U}}^{T}R\Delta \tilde{U}\\ s.t.\hspace{1em}M\Delta \tilde{U}\le C\end{array}$$

(12)

where $M=\left[\begin{array}{c}{H}_{con}\\ -H_{con}\\ I\\ -I\\ L_{con}\\ -L_{con}\end{array}\right],C=\left[\begin{array}{c}{Y}_{ub}\\ Y_{lb}\\ d{U}_{ub}\\ d{U}_{lb}\\ U_{ub}\\ U_{lb}\end{array}\right]$.

Some well-developed methods can cope with the constructed optimization problem. Among them, the interior point method is accessible. For the solution $\Delta \tilde{U}$, the first element $\Delta u_{i,k}$ is utilized to update the ith control variable and control the aero-engine at sampling instant k.

2.2. Control Variable Selection Algorithm

In fact, the control effect on the engine during the regulating process is accumulated by the control effect at each sampling instant, and the control effect at each sampling instant depends on the regulating ability of the selected control variable. Therefore, it is extremely necessary to consider which control variable is to be chosen at each sampling instant for better control results. However, the existing method, such as mMPC, does not pay enough attention to this selection issue. It changes the control variable sequentially and cyclically as the sampling instant increases, as shown in Figure 1. Essentially, it is an inflexible and non-intelligent selection mode. Since the regulating ability of each control variable is evidently not equivalent, an intelligent mode is needed to choose the suitable control variable at each sampling instant.

To achieve the intelligent mode, a control variable selection algorithm is designed to select the control variable that has the best control effect at the current sampling instant. According to the system information of the current sampling instant and the control target, the control effect of each control variable can be predicted for selection. The control variable selection algorithm is conducted as follows.

Firstly, the value range of each control variable at the first predicting instant is calculated. For example, at sampling instant k, the ith control variable at predicting instant k (i.e., $\Delta u_{i,k}$) should be able to meet the requirements of the constraints, that is, the limits of the control variable increment rate, the limits of the control variable increment magnitude and the limits of the constrained parameters’ increment.

$$\begin{array}{c}d{u}_{i,lb}\le \Delta u_{i,k}\le d{u}_{i,ub}\\ u_{i,lb}\le \Delta u_{i,k}\le u_{i,ub}\end{array}$$

(13)

$$y_{con,lb}\le y_{con,k+1}=C_{a,con}{A}_a{x}_{a,k}+C_{a,con}{B}_a{E}_i^T\Delta u_{i,k}\le y_{con,ub}$$

(14)

According to Equations (13) and (14), the value range of $\Delta u_{i,k}$ can be calculated as

$$\left[\begin{array}{cc}\Delta u_{i,k,\min }& \Delta u_{i,k,\max }\end{array}\right]$$

(15)

Then, the value range of the controlled parameters at predicting instant k + 1 can be computed as

$$\left\{\begin{array}{c}{y}_{ctrl,k+1,\min }(\Delta u_{i,k})=\min (C_{a,ctrl}{A}_a{x}_{a,k}+C_{a,ctrl}{B}_a{E}_i^T\Delta u_{i,k,\min },C_{a,ctrl}{A}_a{x}_{a,k}+C_{a,ctrl}{B}_a{E}_i^T\Delta u_{i,k,\max })\\ y_{ctrl,k+1,\max }(\Delta u_{i,k})=\max (C_{a,ctrl}{A}_a{x}_{a,k}+C_{a,ctrl}{B}_a{E}_i^T\Delta u_{i,k,\min },C_{a,ctrl}{A}_a{x}_{a,k}+C_{a,ctrl}{B}_a{E}_i^T\Delta u_{i,k,\max })\end{array}\right.$$

(16)

By comparing $r_{k+1}$ with $\left[\begin{array}{cc}{y}_{ctrl,k+1,\min }(\Delta u_{i,k})& y_{ctrl,k+1,\max }(\Delta u_{i,k})\end{array}\right]$, the possible value of $\Delta u_{i,k}$ can be obtained.

$$\Delta u_{i,k}=\left\{\begin{array}{c}\Delta u_{i,k,\min } \mathrm{or} \Delta u_{i,k,\max },\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}if r_{k+1}<y_{ctrl,k+1,\min }(\Delta u_{i,k})\hfill \\ \frac{r_{k+1}-C_{a,ctrl}{A}_a{x}_{a,k}}{C_{a,ctrl}{B}_a{E}_i^T},\hspace{1em}\hspace{1em} if y_{ctrl,k+1,\min }(\Delta u_{i,k})< r_{k+1}<y_{ctrl,k+1,\max }(\Delta u_{i,k})\hfill \\ \Delta u_{i,k,\max } \mathrm{or} \Delta u_{i,k,\min },\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}if r_{k+1}>y_{ctrl,k+1,\max }(\Delta u_{i,k})\hfill \end{array}\right.$$

(17)

In Equation (17), the first formula represents the value of $\Delta u_{i,k}$ that corresponds to $y_{ctrl,k+1,\min }(\Delta u_{i,k})$ and so does the third formula.

Subsequently, a merit function that considers the minimum control error and the possible control energy consumption is used to evaluate the control effect of $\Delta u_{i,k}$.

$$\tilde{J}(\Delta u_{i,k})=\left\{\begin{array}{c}\tilde{Q}{(r_{k+1}-y_{ctrl,k+1,\min })}^2+R_i\Delta {u_{i,k}}^2,\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} if r_{k+1}<y_{ctrl,k+1,\min }(\Delta u_{i,k})\hfill \\ R_i\Delta {u_{i,k}}^2,\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}if y_{ctrl,k+1,\min }(\Delta u_{i,k})< r_{k+1}<y_{ctrl,k+1,\max }(\Delta u_{i,k})\hfill \\ \tilde{Q}{(r_{k+1}-y_{ctrl,k+1,\max })}^2+R_i\Delta {u_{i,k}}^2,\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} if r_{k+1}>y_{ctrl,k+1,\max }(\Delta u_{i,k})\hfill \end{array}\right.$$

(18)

In Equation (18), $\Delta u_{i,k}$ takes the corresponding value in Equation (17). The second formula indicates the case in which the control objective is in the range of the control variable’s regulating ability.

Finally, the merit functions of m control variables are calculated separately, and the control variable with the smallest merit function value is taken as the selected one.

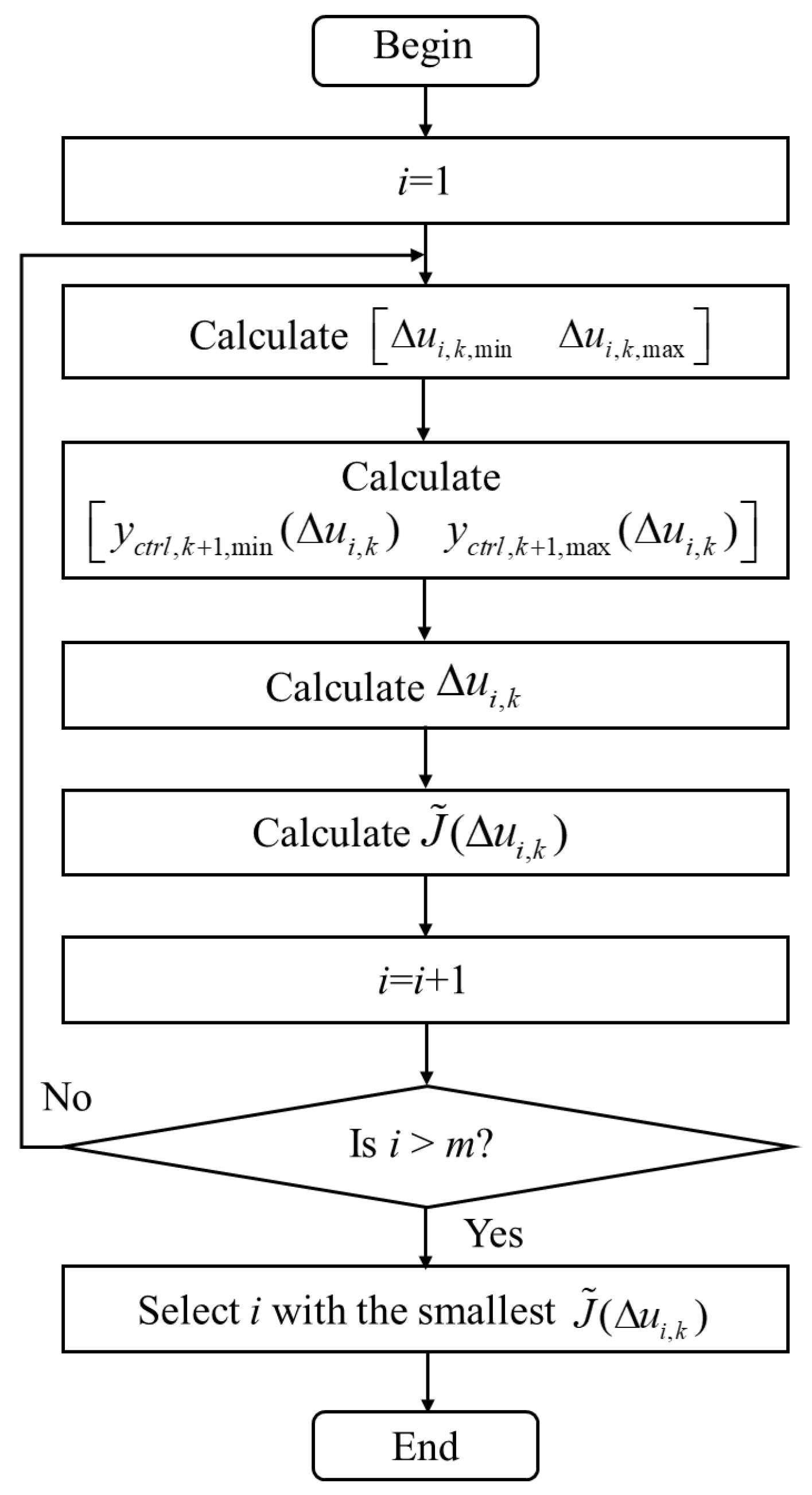

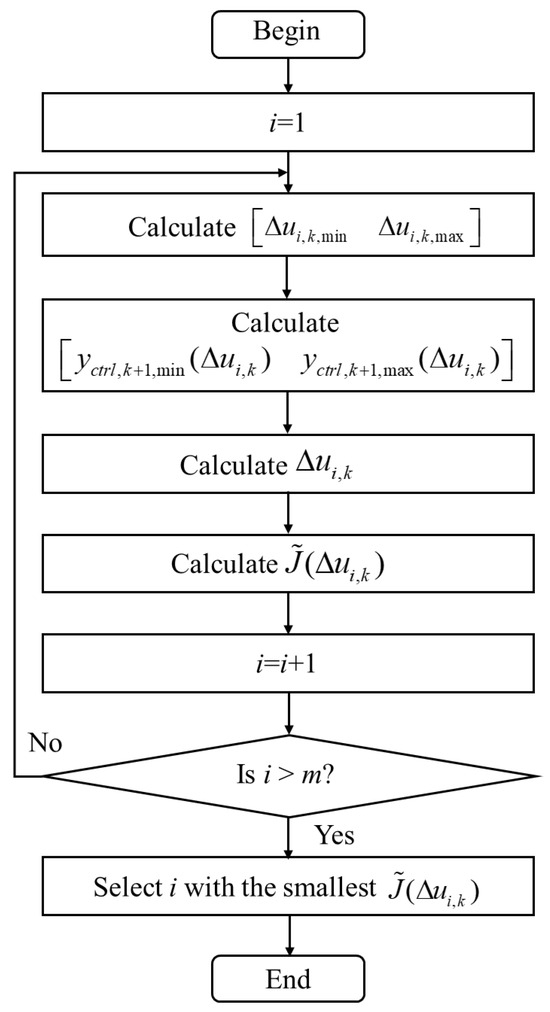

The flowchart of the control variable selection algorithm at the current sampling instant can be illustrated as in Figure 2.

2.3. Control Sequence Coordination Strategy

Despite only the first element $\Delta u_{i,k}$ in the control sequence being fed to the engine, MPC actually predicts all the other elements, i.e., $\Delta u_{i,k+1},\dots ,\Delta u_{i,k+Nc-1}$, by solving the constructed optimization problem. In the solution process, the result of each element will affect the others. For example, if the second element is another variable $\Delta u_{j,k+1}$, the solution result of $\Delta u_{i,k}$ changes accordingly. Among the elements, each one represents the predictive value of the control variable at the corresponding sampling instant. According to Section 2.2, each sampling instant can select the best variable to be the control action. Assume that the variable at sampling instant k + 1 is $\Delta u_j$; it is better to employ $\Delta u_j$ as the second element in the control sequence of sampling instant k. This is true for the other sampling instants (k + 2, …, k + Nc − 1). Under this arrangement, $\Delta u_{i,k}$ can obtain a better solution to enhance the control performance since each element is selected properly, whereas all the elements are the same in mMPC, which neglects the interaction among the predicting instants in the control sequence.

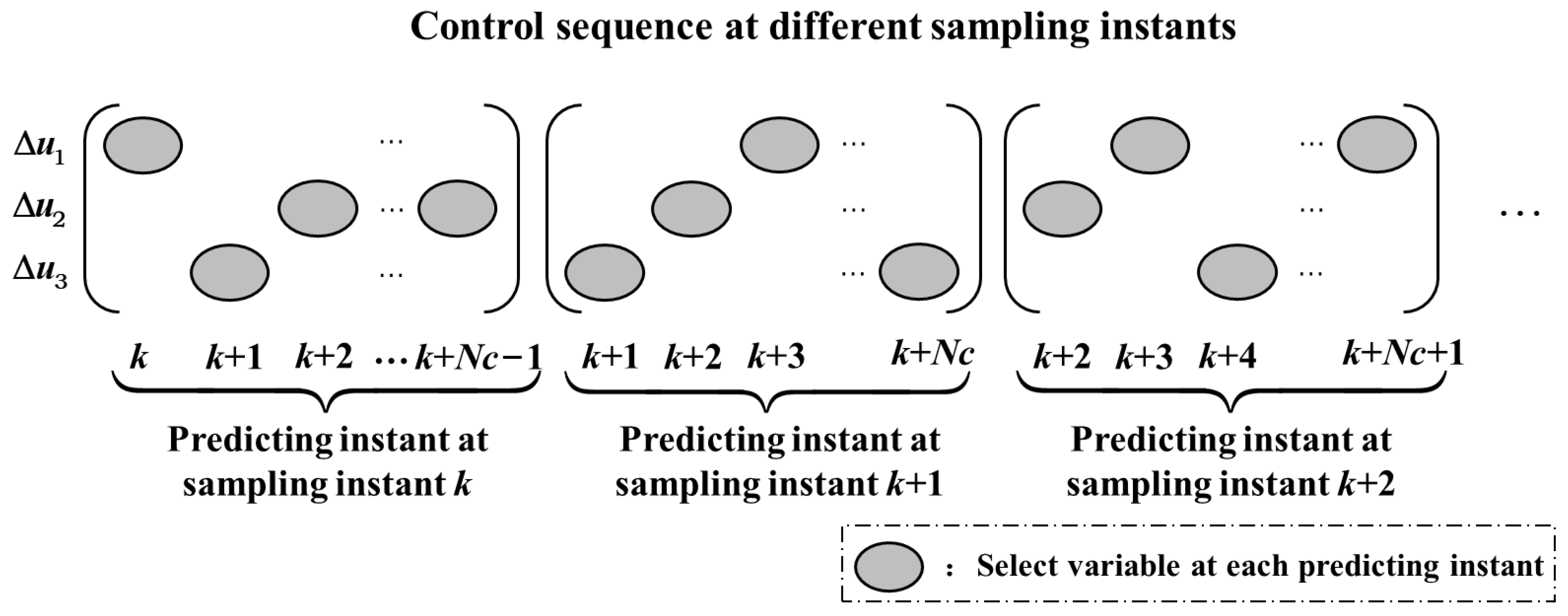

The arrangement is called a control sequence coordination strategy. The strategy is conducted as follows to optimally select the variables at subsequent predicting instants in the control sequence.

Based on Section 2.2, the first element and its potential value in the control sequence can be determined as $\Delta u_{i,k}$. Assuming that the second element is $\Delta u_{j,k+1}$, it should also satisfy the constraints of control variable and constrained parameters.

$$\begin{array}{l}d{u}_{j,lb}\le \Delta u_{j,k+1}\le d{u}_{j,ub}\\ u_{j,lb}\le \Delta u_{j,k+1}\le u_{j,ub}\end{array}$$

(19)

$$y_{con,lb}\le y_{con,k+2}=C_{a,con}{A}_a{x}_{a,k+1}+C_{a,con}{B}_a{E}_j^T\Delta u_{j,k+1}\le y_{con,ub}$$

(20)

In Equation (20), $x_{a,k+1}$ can be obtained with the help of Equations (2) and (3).

Similarly, the value range of $\Delta u_{j,k+1}$ and the value range of the controlled parameters at predicting instant k + 2 can be derived as

$$\left[\begin{array}{cc}\Delta u_{j,k+1,\min }& \Delta u_{j,k+1,\max }\end{array}\right]$$

(21)

$$\left\{\begin{array}{c}{y}_{ctrl,k+2,\min }(\Delta u_{j,k+1})=\min (C_{a,ctrl}{A}_a{x}_{a,k+1}+C_{a,ctrl}{B}_a{E}_j^T\Delta u_{j,k+1,\min },C_{a,ctrl}{A}_a{x}_{a,k+1}+C_{a,ctrl}{B}_a{E}_j^T\Delta u_{j,k+1,\max })\\ y_{ctrl,k+2,\max }(\Delta u_{j,k+1})=\max (C_{a,ctrl}{A}_a{x}_{a,k+1}+C_{a,ctrl}{B}_a{E}_j^T\Delta u_{j,k+1,\min },C_{a,ctrl}{A}_a{x}_{a,k+1}+C_{a,ctrl}{B}_a{E}_j^T\Delta u_{j,k+1,\max })\end{array}\right.$$

(22)

Then, the possible value of $\Delta u_{j,k+1}$ is

$$\Delta u_{j,k+1}=\left\{\begin{array}{c}\Delta u_{j,k+1,\min } \mathrm{or} \Delta u_{j,k+1,\max },\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}if r_{k+2}<y_{ctrl,k+2,\min }(\Delta u_{j,k+1})\hfill \\ \frac{r_{k+2}-C_{a,ctrl}{A}_a{x}_{a,k+1}}{C_{a,ctrl}{B}_a{E}_j^T},\hspace{1em}\hspace{1em}\hspace{1em} if y_{ctrl,k+2,\min }(\Delta u_{j,k+1})< r_{k+2}<y_{ctrl,k+2,\max }(\Delta u_{j,k+1})\hfill \\ \Delta u_{j,k+1,\max } \mathrm{or} \Delta u_{j,k+1,\min },\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}if r_{k+2}>y_{ctrl,k+2,\max }(\Delta u_{j,k+1})\hfill \end{array}\right.$$

(23)

In the same way, to evaluate the control effect of $\Delta u_{j,k+1}$, the merit function can be constructed as

$$\tilde{J}(\Delta u_{j,k+1})=\left\{\begin{array}{c}\tilde{Q}{(r_{k+2}-y_{ctrl,k+2,\min })}^2+R_j\Delta {u_{j,k+1}}^2,\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} if r_{k+2}<y_{ctrl,k+2,\min }(\Delta u_{j,k+1})\hfill \\ R_j\Delta {u_{j,k+1}}^2,\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} if y_{ctrl,k+2,\min }(\Delta u_{j,k+1})< r_{k+2}<y_{ctrl,k+2,\max }(\Delta u_{j,k+1})\hfill \\ \tilde{Q}{(r_{k+2}-y_{ctrl,k+2,\max })}^2+R_j\Delta {u_{j,k+1}}^2,\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}if r_{k+2}>y_{ctrl,k+2,\max }(\Delta u_{j,k+1})\hfill \end{array}\right.$$

(24)

By computing the m merit functions, the second element and its potential value in the control sequence can be determined. Then, accordingly, the variable that yields the optimal control effect at each predicting instant can be selected to form a coordinated control sequence, as illustrated in Figure 3.

2.4. Intelligent Reduced-Dimensional MPC

Denote the coordinated control sequence as

$$\Delta \stackrel{⌢}{U}={[\Delta u_{i,k},\Delta u_{j,k+1},\Delta u_{l,k+2},\dots ]}^T$$

(25)

where i, j and l separately represent the selected control variable at their corresponding predicting instants.

Based on Equation (25), a new constrained optimization problem can be constructed as follows. Firstly, Equation (5) can be rewritten as

$$\begin{array}{l}{Y}_{ctrl}=P_{ctrl}{x}_{a,k}+{\stackrel{⌢}{H}}_{ctrl}\Delta \stackrel{⌢}{U}\\ Y_{con}=P_{con}{x}_{a,k}+{\stackrel{⌢}{H}}_{con}\Delta \stackrel{⌢}{U}\end{array}$$

(26)

where ${\stackrel{⌢}{H}}_{ctrl}$ has a difference from $H_{ctrl}$ in that the transfer matrix $E_i^T$ in each column should be changed according to Equation (25). The same is true for the matrix ${\stackrel{⌢}{H}}_{con}$.

The cost function is also changed as

$$\stackrel{⌢}{J}=e^{T}Qe+\Delta {\stackrel{⌢}{U}}^T\stackrel{⌢}{R}\Delta \stackrel{⌢}{U}$$

(27)

where $\stackrel{⌢}{R}=\left[\begin{array}{cccc}{R}_i& & & \\ & R_j& & \\ & & R_l& \\ & & & \ddots \end{array}\right]\in {ℝ}^{Nc\times Nc}$.

Then, for the constrained parameters and control variables, the corresponding equations about limitation are

$$\begin{array}{l}\left\{\begin{array}{c}{\stackrel{⌢}{H}}_{con}\Delta \stackrel{⌢}{U}\le Y_{ub}\\ -{\stackrel{⌢}{H}}_{con}\Delta \stackrel{⌢}{U}\le Y_{lb}\end{array}\right.\\ \left\{\begin{array}{c}\Delta \stackrel{⌢}{U}\le d{\stackrel{⌢}{U}}_{ub}\\ -\Delta \stackrel{⌢}{U}\le d{\stackrel{⌢}{U}}_{lb}\end{array}\right.\\ \left\{\begin{array}{c}{\stackrel{⌢}{L}}_{con}\Delta \stackrel{⌢}{U}\le {\stackrel{⌢}{U}}_{ub}\\ -{\stackrel{⌢}{L}}_{con}\Delta \stackrel{⌢}{U}\le {\stackrel{⌢}{U}}_{lb}\end{array}\right.\end{array}$$

(28)

where

$$\begin{array}{l}\left\{\begin{array}{c}d{\stackrel{⌢}{U}}_{ub}={[d{u}_{i,ub},d{u}_{j,ub},d{u}_{l,ub},\dots ]}^T\\ d{\stackrel{⌢}{U}}_{lb}=-{[d{u}_{i,lb},d{u}_{j,lb},d{u}_{l,lb},\dots ]}^T\end{array}\right.\\ \left\{\begin{array}{c}{\stackrel{⌢}{U}}_{ub}={[u_{i,ub},u_{j,ub},u_{l,ub},\dots ]}^T\\ {\stackrel{⌢}{U}}_{lb}=-{[u_{i,lb},u_{j,lb},u_{l,lb},\dots ]}^T\end{array}\right.\end{array}$$

(29)

${\stackrel{⌢}{L}}_{con}\in {ℝ}^{Nc\times Nc}$ is a lower triangular matrix with diagonal elements all equal to 1. Except for the diagonal, for any two variables in the control sequence $\left\{\Delta u_i(k_1) \Delta u_i(k_2)\left|k_1<k_2, i=1,2,\cdots ,m\right.\right\}$, ${\stackrel{⌢}{L}}_{con}(k_2,k_1)=1$.

Finally, the constrained optimization problem in the intelligent reduced-dimensional MPC can be abstracted as

$$\begin{array}{l}\min \hspace{1em}\stackrel{⌢}{J}=e^{T}Qe+\Delta {\stackrel{⌢}{U}}^T\stackrel{⌢}{R}\Delta \stackrel{⌢}{U}\\ s.t.\hspace{1em}\stackrel{⌢}{M}\Delta \stackrel{⌢}{U}\le \stackrel{⌢}{C}\end{array}$$

(30)

where $\stackrel{⌢}{M}=\left[\begin{array}{c}{\stackrel{⌢}{H}}_{con}\\ -{\stackrel{⌢}{H}}_{con}\\ I\\ -I\\ {\stackrel{⌢}{L}}_{con}\\ -{\stackrel{⌢}{L}}_{con}\end{array}\right],\stackrel{⌢}{C}=\left[\begin{array}{c}{Y}_{ub}\\ Y_{lb}\\ {\stackrel{⌢}{U}}_b\\ {\stackrel{⌢}{U}}_a\\ {\stackrel{⌢}{U}}_{ub}\\ {\stackrel{⌢}{U}}_{lb}\end{array}\right]$.

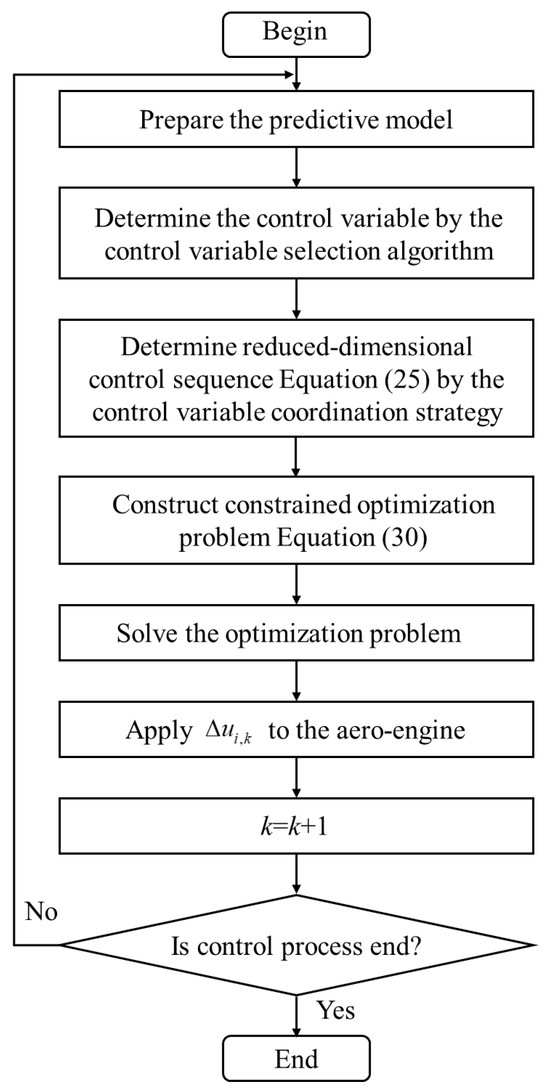

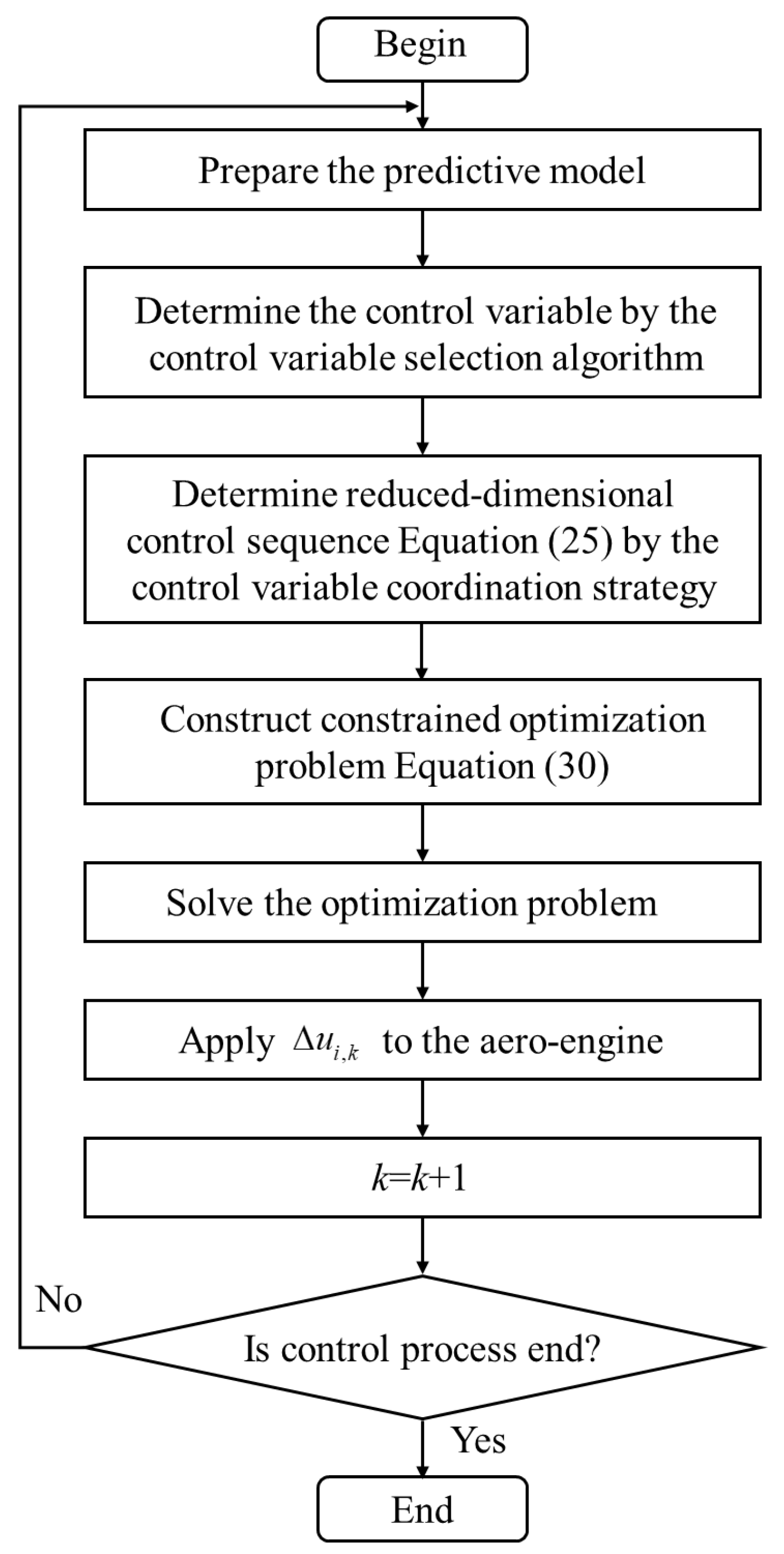

In summary, the proposed intelligent reduced-dimensional scheme has three key points. Firstly, reduce the dimension of control variables from m to 1 to lower the computational complexity of the optimization problem in MPC; secondly, determine the control variable with the best control effect at the current sampling instant by the control variable selection algorithm; finally, define a coordinated reduced-dimensional control sequence as Equation (25) with the help of the control variable coordination strategy and thus construct the constrained optimization problem Equation (30). By solving the optimization problem and applying the solution to the aero-engine, a receding horizon control process can operate. The flowchart of the proposed method is shown in Figure 4.

3. Simulation and Discussion

3.1. Simulation Cases

A twin-shaft turbofan engine with core driven fan stage (CDFS) is selected as the controlled object. The engine has components of intake, fan, CDFS, high-pressure compressor (HPC), combustor, high-pressure turbine (HPT), low-pressure turbine (LPT), duct and nozzle. By referring to the modeling method in [34,35] and using the Simulink Toolbox for the Modeling and Analysis of Thermodynamics Systems (T-MATS), the component-level model of this engine is constructed. In the model, all the co-operation equations are formulated based on aero-thermodynamics principles, flow continuity equations, pressure balance equations and rotor dynamics equations and are solved with the help of the Newton-Raphson method. All the components’ maps and performance data are acquired from GasTurb [36].

The input of the component-level model includes the flight condition [H, Ma] and the following control variables: the fuel flow $W_f$, the nozzle area $A_8$ and the variable guide vane angle of LPT ${\alpha }_{LPT}$, i.e., $\Delta u={[\begin{array}{ccc}\Delta W_f& \Delta A_8& \Delta {\alpha }_{LPT}\end{array}]}^T$. The output parameters are composed of the low-pressure rotor speed $n_L$, the high-pressure rotor speed $n_H$, the HPC exhaust pressure $P_3$ and the LPT exhaust temperature $T_5$. Among them, $n_L$ is selected as the controlled parameter due to the strong correlation with thrust, while $n_H$, $P_3$ and $T_5$ are considered the constrained parameters for safety operation, i.e., $y_{ctrl}=n_L$ and $y_{con}={[\begin{array}{ccc}{n}_H& P_3& T_5\end{array}]}^T$.

To demonstrate the effectiveness of the proposed intelligent reduced-dimensional scheme, simulations are conducted at two flight conditions: [H, Ma] = [0, 0] and [H, Ma] = [11,000 m, 1.2]. In these conditions, the configuration of the engine is listed in

Table 1. The configuration of the engine at [H, Ma] = [0, 0].

Parameters		Initial Steady-State Value	Magnitude Limit	Rate Limit	Unit
Output	$n_L$	98			%
	$n_H$	99.7	$n_H\le 102$		%
	$P_3$	2618.4	$P_3\ge 2500$		kPa
	$T_5$	1198.2	$T_5\le 1300$		K
Control variable	$W_f$	0.768	$0.1\le W_f\le 1$	0.03/$T_s$	kg/s
	$A_8$	100	$90\le A_8\le 110$	0.5/$T_s$	%
	${\alpha }_{LPT}$	1	$0\le {\alpha }_{LPT}\le 5$	0.2/$T_s$	°

and

Table 2. The configuration of the engine at [H, Ma] = [11,000 m, 1.2].

Parameters		Initial Steady-State Value	Magnitude Limit	Rate Limit	Unit
Output	$n_L$	98			%
	$n_H$	98.6	$n_H\le 102$		%
	$P_3$	1425.4	$P_3\ge 1300$		kPa
	$T_5$	1189	$T_5\le 1300$		K
Control variable	$W_f$	0.429	$0.1\le W_f\le 1$	0.03/$T_s$	kg/s
	$A_8$	100	$90\le A_8\le 110$	0.5/$T_s$	%
	${\alpha }_{LPT}$	1	$0\le {\alpha }_{LPT}\le 5$	0.2/$T_s$	°

, wherein $T_s$ = 20 ms is the sampling period.

A set value of $\Delta n_L$ = 2% is given as the control objective of both cases. A method is adopted to determine the reference trajectory based on the set value and the current value of the controlled parameter [37], wherein $\alpha$ is a softening factor.

$$r_{k+j}={\alpha }^j{y}_{ctrl,k}+(1-{\alpha }^j)\Delta n_L,j=1,2,\dots ,Np$$

(31)

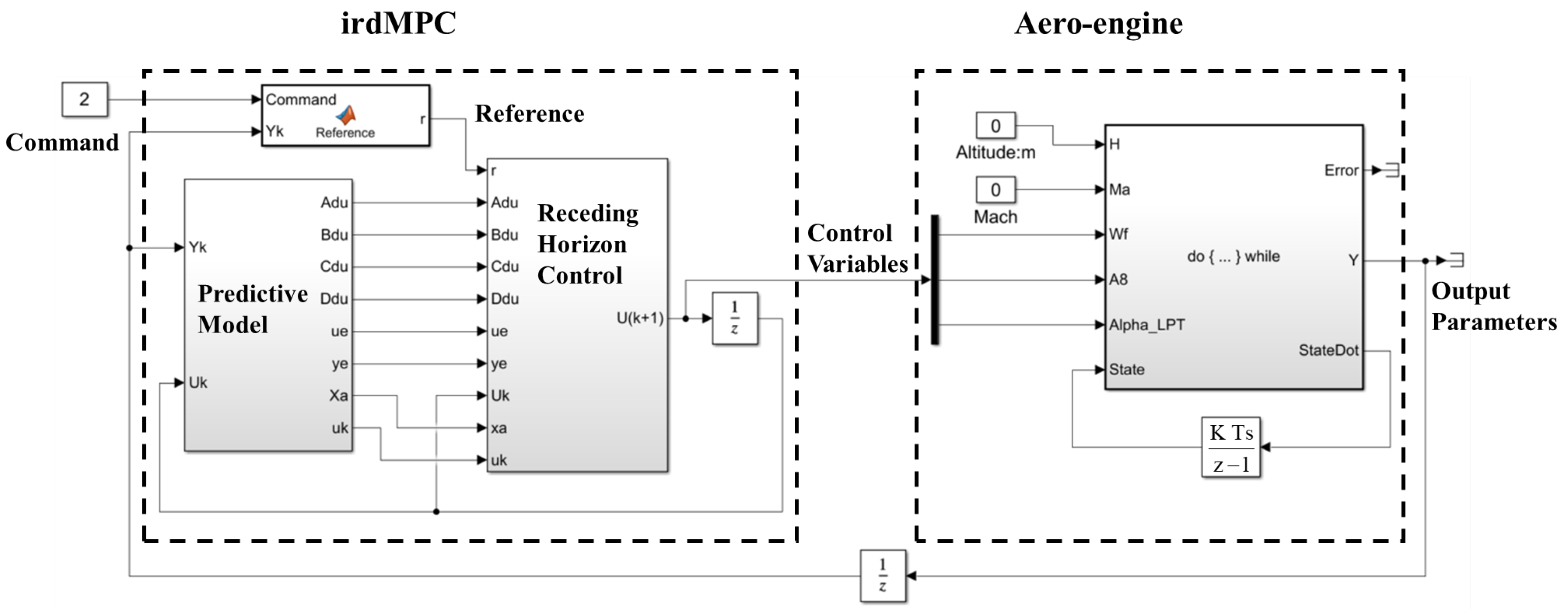

For each case, an intelligent reduced-dimensional linear MPC controller, denoted as “irdMPC” and shown in Figure 5, can be designed according to Section 2 and implemented to achieve the control targets. Concurrently, both the standard MPC controller and the multiplex MPC controller, denoted as “sMPC” and “mMPC”, respectively, are designed for comparative analysis.

3.2. Control Effect Comparison

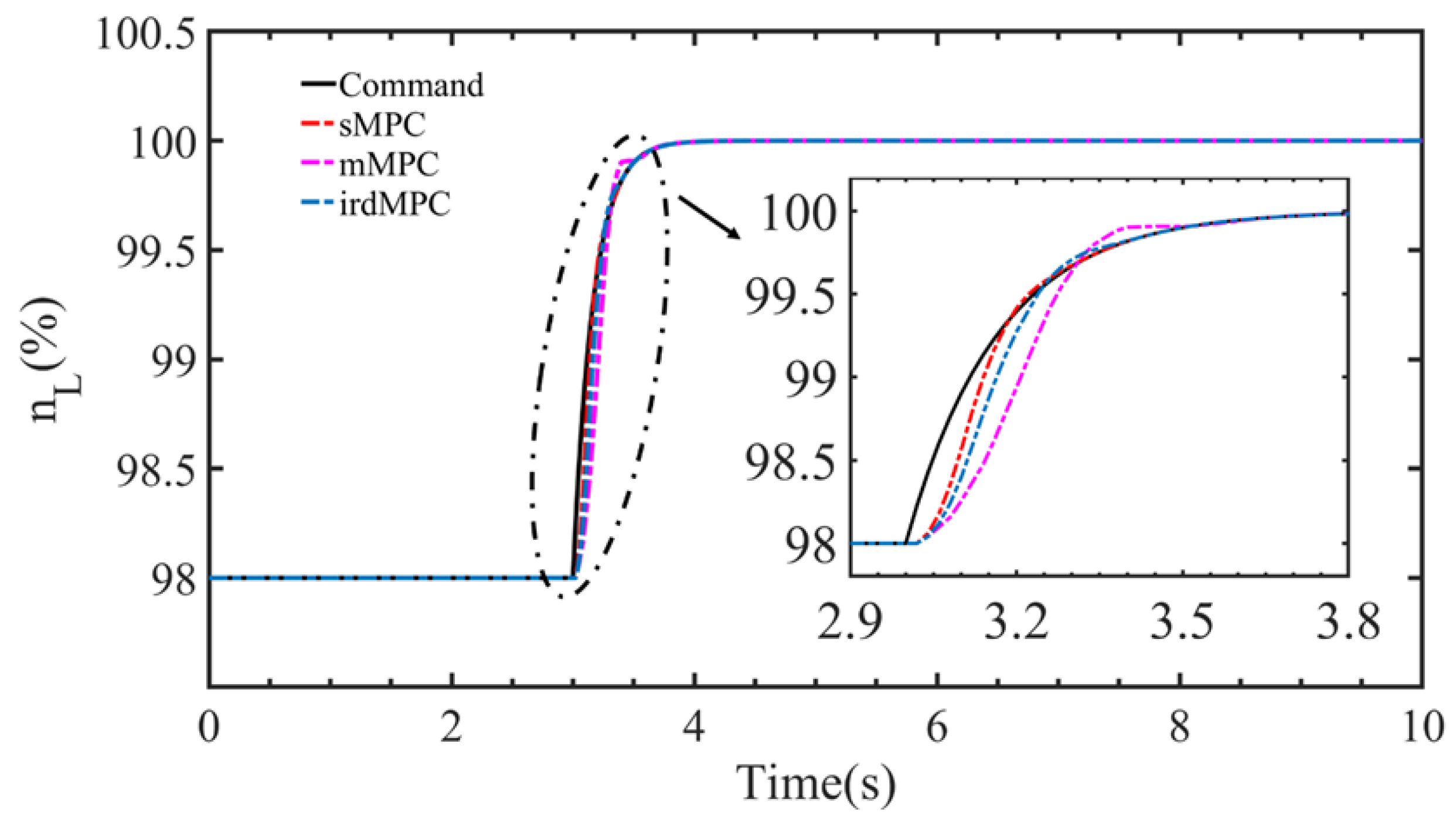

Firstly, a simulation is conducted at the flight condition [H, Ma] = [0, 0] to illustrate the effectiveness of the proposed method in control performance. During the simulation, the designed MPC controllers, which are “irdMPC”, “sMPC” and “mMPC”, adopt the same parameter settings, i.e., prediction horizon Np, control horizon Nc, weight matrices Q and R, in order to intuitively reflect the differences in control quality. By trial-and-error simulations, they can be well tuned. The controlled parameter’s response under the three MPC controllers is depicted in Figure 6. The constrained parameters are depicted in Figure 7.

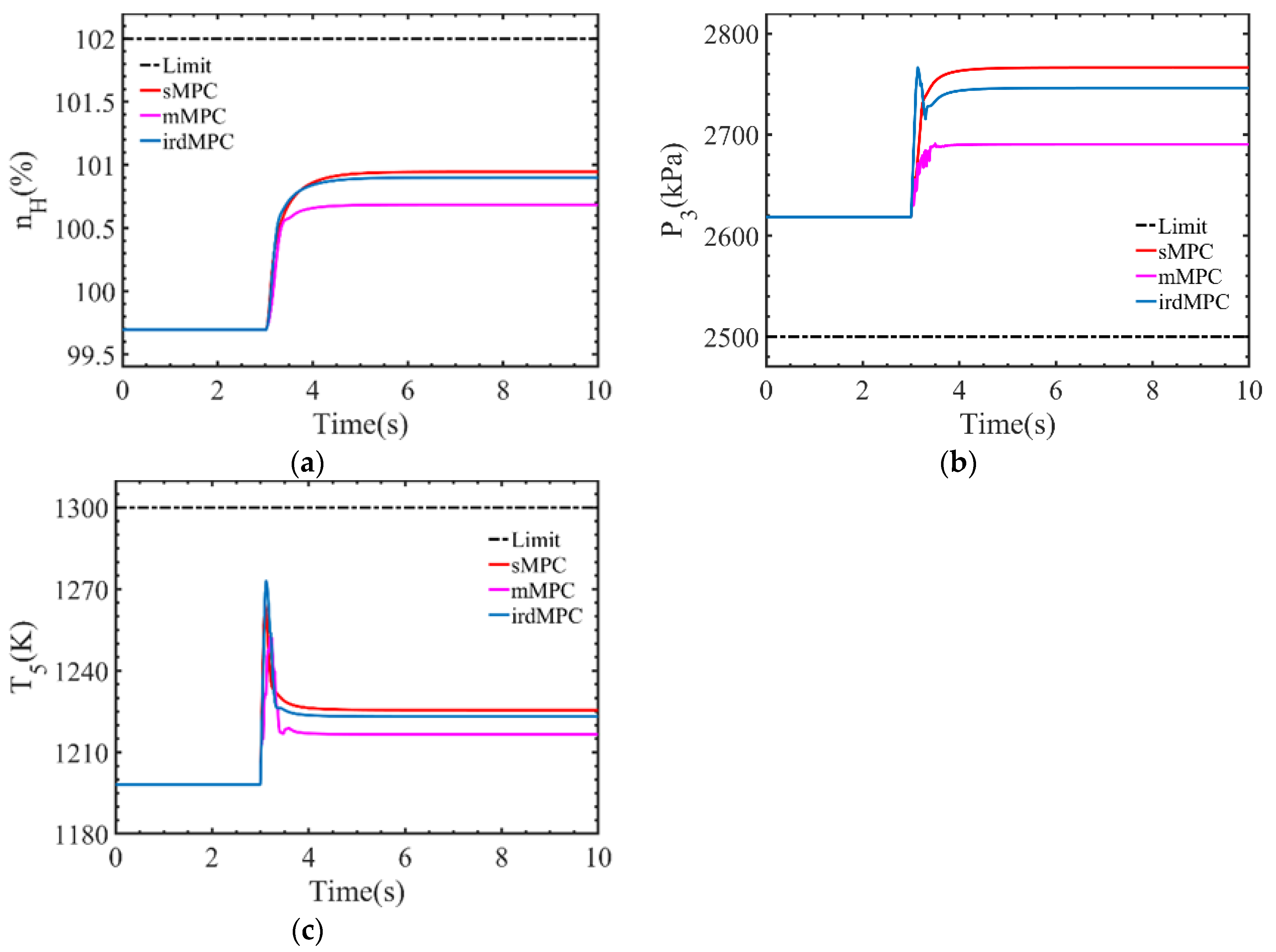

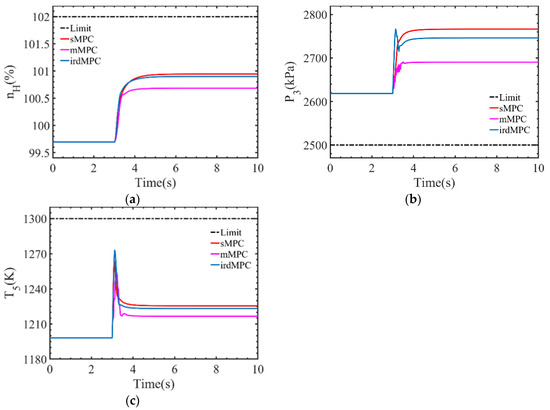

Although all the MPC controllers can accomplish effective command tracking and constrains management, they actually have different performances. From Figure 6, it can be seen that “mMPC” witnesses a noticeable overshoot and long tracking response time. Thus, it has a poorer control outcome in command tracking than the others. “irdMPC” outperforms “mMPC”, but it is still slightly inferior to “sMPC”. The reason is that “irdMPC” and “mMPC” degrade their regulating ability by reducing the dimension of the control sequence. Nevertheless, “irdMPC” can track the reference trajectories well and has smaller tracking errors than “mMPC”, demonstrating the effectiveness of the intelligent reduced-dimensional scheme in achieving good control quality. In terms of constraint management, the constrain parameters of the three MPC controllers reach different values after the transition process, as shown in Figure 7. Similarly, “irdMPC” is closer to “sMPC” than “mMPC”, which represents that “irdMPC” derives a better operating state than “mMPC”. Moreover, “mMPC” has a certain oscillation during transition in Figure 7b.

The parameters’ response originates from the control variables’ changes. During the process, the control variables’ changes are shown in Figure 8. During transition, the selected control variable in “irdMPC” at each sampling instant is represented as “o” and is displayed in Figure 9.

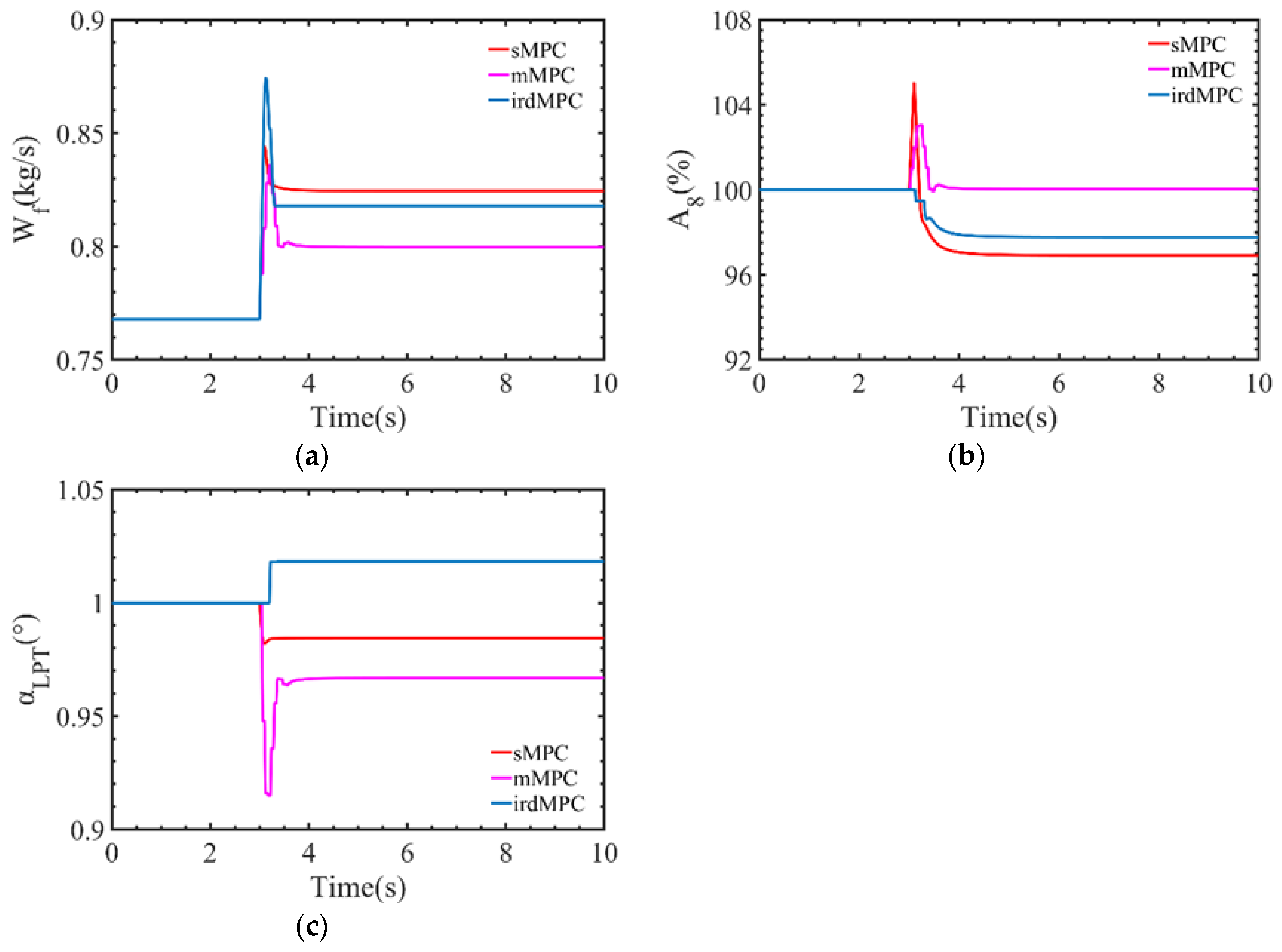

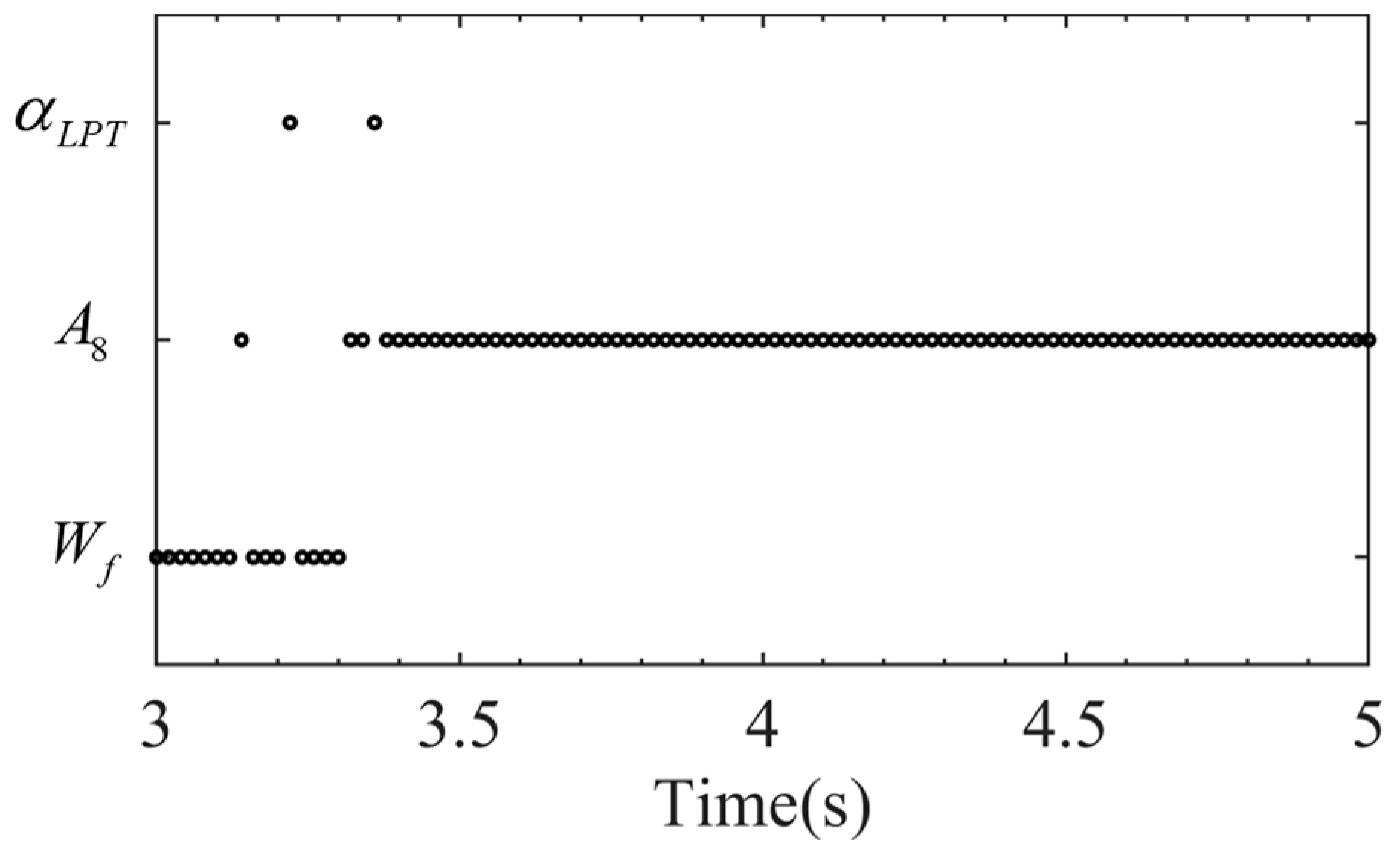

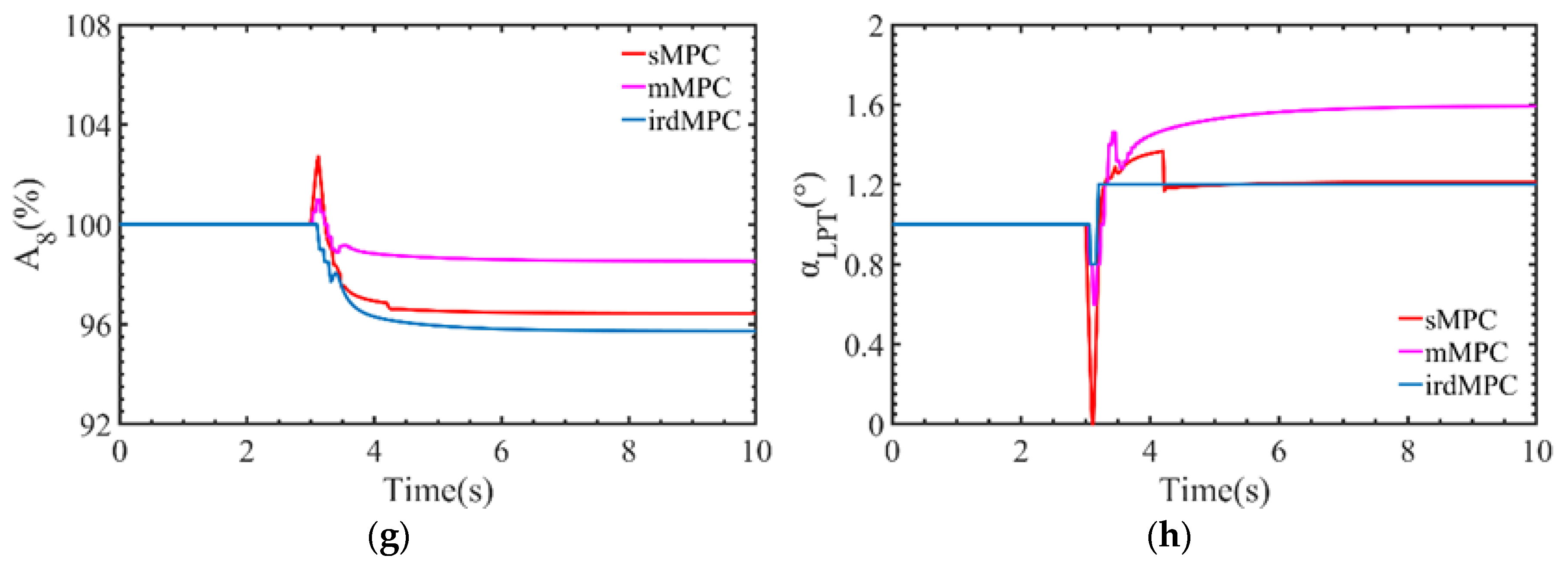

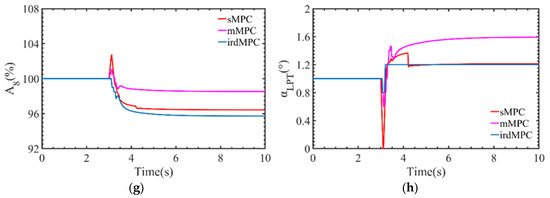

In Figure 8, the control variables have various changes in the MPC controllers. Unlike “sMPC”, only one control variable is optimized in “mMPC” and “irdMPC” at each sampling instant. Moreover, the control variable to be optimized among them is also different. Thus, the results of solving constraints’ optimization problems, namely the changes of control variables, are different, resulting in their corresponding control outcomes. From Figure 9, it can be seen that the intelligent reduced-dimensional scheme selects $W_f$ for adjustment in the initial stage of transition, while it selects the three variables separately in the middle stage and $A_8$ in the final stage. This intelligent update mode makes the variables of “irdMPC” nearer to those of “sMPC” and thus leads to a better parameter response than “mMPC”. Although the ${\alpha }_{LPT}$ change is different from the others, it has only a small impact on the overall results since the regulating ability of ${\alpha }_{LPT}$ is the lowest among the variables.

For further comparison, the Root Mean Squared Error (RMSE) of the controlled parameter $n_L$ is calculated by Equation (32) to quantify the control errors of the controllers.

Table 3. RMSE comparison of “sMPC”, “mMPC” and “irdMPC”.

	sMPC	mMPC	irdMPC
RMSE (×10−2)	3.8146	8.046	5.3057

shows the RMSE of the three MPC controllers.

$$\mathrm{RMSE}=\sqrt{\frac{{\displaystyle \sum _{i=1}^N{(r_i-y_{ctrl,i})}^2}}{N}}$$

(32)

where N is the number of sample points.

By comparing the controllers’ RMSE, it can be seen that the multiplex MPC controller has much larger RMSE compared with the standard one. The RMSE of the “mMPC” is 2.11 times and differs by $4.2314\times {10}^{-2}$ from that of “sMPC”. While “irdMPC” greatly decreases the control errors, it has an RMSE of $5.3057\times {10}^{-2}$ and a 34.06% improvement in control performance over “mMPC”. Compared with “mMPC”, “irdMPC” significantly reduces the RMSE deviation from $4.2314\times {10}^{-2}$ to $1.4911\times {10}^{-2}$, which indicates the superiority of the proposed intelligent reduced-dimensional scheme to the existing method, i.e., the multiplex MPC, in control performance.

3.3. Time Consumption Comparison

To illustrate the effectiveness of the proposed method in real-time performance, some simulations of different control horizons are conducted at the flight condition [H, Ma] = [0, 0]. During the simulation, the time required for the optimization solving processes in “irdMPC”, “sMPC” and “mMPC” are recorded and compared. Since the MPC controllers adopt the same configuration and the simulations implement the same test environment, the results make sense.

Table 4. Average time comparison of the “sMPC”, “mMPC” and “irdMPC”.

Nc	${\mathit{t}}_{\mathit{a}\mathit{v}\mathit{g}}$ (ms)
	sMPC	mMPC	irdMPC
3	6.3461	4.858	4.9351
4	7.4579	4.9323	5.1989
5	9.1945	5.0723	5.4687
6	11.111	5.2522	5.6339
7	13.2113	5.3438	5.8783
8	15.2596	5.5492	6.008
9	17.4286	5.6789	6.148

lists the average time of the optimization problem solving, which is defined as Equation (33) and denoted as “$t_{avg}$”.

$$t_{avg}=\frac{{\displaystyle \sum _{i=1}^N{t}_i}}{N}$$

(33)

In Table 4, the prediction horizon Np is equal to 10. It can be seen that the average time consumption of these MPC controllers increases as the control horizon increases. The increase in the control horizon leads to an increase in the dimension of the control sequence. Therefore, the computational complexity increases, resulting in the time required for the optimization solutions increasing, while under the same control horizon, “irdMPC” has a lower dimension of the control sequence compared with “sMPC” and thus has lower computational complexity and a shorter average time consumption. The average time consumption of “irdMPC” is 4.9351 ms when the control horizon is 3, while that of the “sMPC” is 6.3461 ms. The $t_{avg}$ of “sMPC” is 1.286 times that of “irdMPC”. When the control horizon is 9, the $t_{avg}$ of “irdMPC” is 6.148 ms, while that of “sMPC” is 17.4286 ms. The $t_{avg}$ of “sMPC” becomes 2.835 times that of “irdMPC”. As the dimension of the control sequence increases, “irdMPC” reduces the $t_{avg}$ of “sMPC” at most by 64.72%. Compared with “mMPC”, “irdMPC” has a slightly bigger time consumption as a result of the control variable selection algorithm and control sequence coordinate strategy embedded in the scheme bringing extra computational tasks. For the $t_{avg}$ of “irdMPC” and “mMPC”, the ratio fluctuates between 1.016 and 1.1, which is small and acceptable considering a significant improvement in control performance. Furthermore, this ratio does not have a growing trend as the control horizon increases.

In the case of Nc = 5, some single-step time consumption results are listed in

Table 5. Single-step time comparison of “sMPC”, “mMPC” and “irdMPC”.

Sampling Instant	t (ms)
	sMPC	mMPC	irdMPC
k + 1	9.1861	5.2361	4.8048
k + 2	8.3069	5.3285	6.2879
k + 3	9.2412	4.9081	6.1662
k + 4	9.6713	4.9276	5.6472
k + 5	13.01	5.7536	4.8898
k + 6	10.3904	5.104	6.2612
k + 7	7.2827	5.2765	5.421
k + 8	7.7749	4.976	5.3001
k + 9	9.7422	4.8451	5.6359

to show details about the real-time performance comparison.

Table 5 records the time consumption of solving optimization problems at nine sampling instants. It can be seen that the results of these sampling instants are close to the values in Table 4. For each sampling instant, “sMPC” has larger solving time than “mMPC” and “irdMPC”. Owing to extra computational tasks, the time consumption of “irdMPC” is slightly bigger than that of “mMPC” at most of the sampling instants. Nevertheless, their results have a similar level, and there exist two sampling instants at which “irdMPC” has smaller results.

The above results and analysis demonstrate the superiority of the intelligent reduced-dimensional MPC controller in time consumption over the standard MPC controller. In a fixed sampling period during the control process, the intelligent reduced-dimensional MPC controller has the potential to operate under a bigger control horizon.

3.4. Further Verification

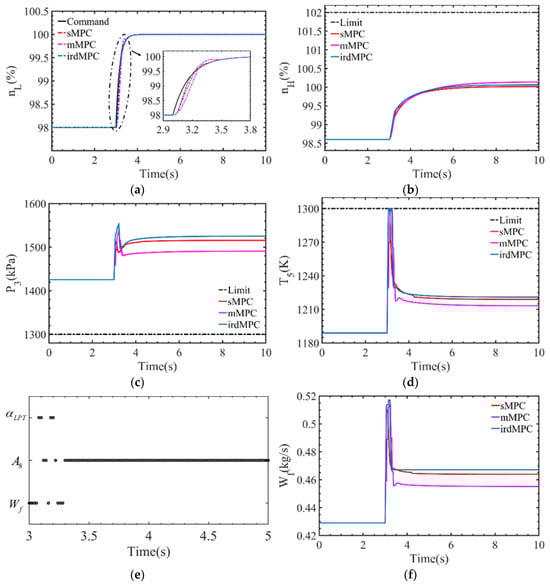

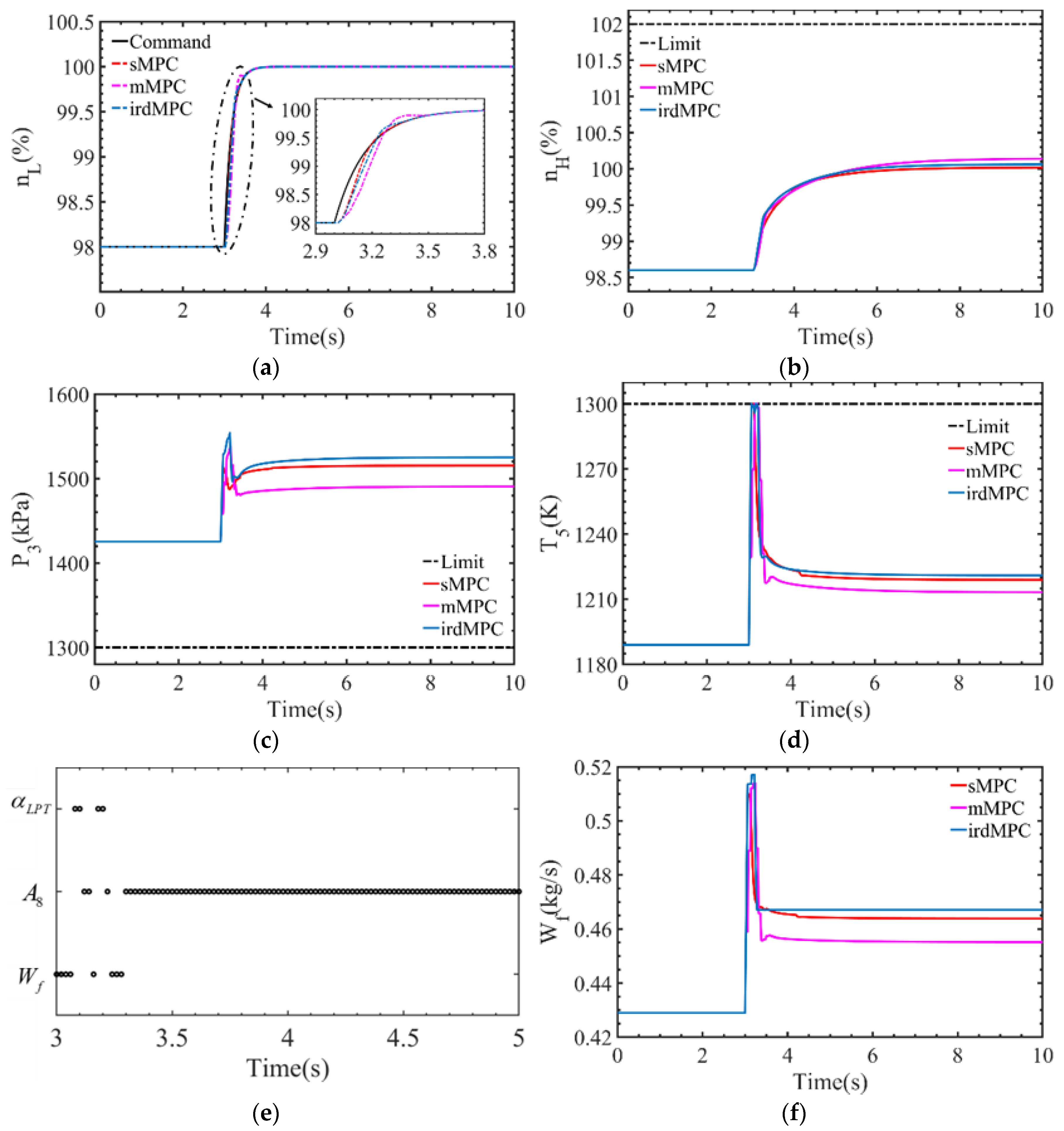

Under another flight condition [H, Ma] = [11,000 m, 1.2], simulations are implemented to further illustrate the effectiveness of the proposed method. Similar results can be seen in Figure 10 and

Table 6. Simulation results for real-time performance at [H, Ma] = [11,000 m, 1.2].

Nc	${\mathit{t}}_{\mathit{a}\mathit{v}\mathit{g}}$ (ms)
	sMPC	mMPC	irdMPC
3	6.3336	5.0491	5.1505
4	8.0574	5.0809	5.3599
5	9.8516	5.1691	5.603
6	11.8859	5.4101	5.7942
7	14.5266	5.4756	5.9671
8	16.6374	5.6881	6.1405
9	19.3425	5.8344	6.2934

.

Through the results under two flight conditions, the ability of the proposed intelligent reduced-dimensional scheme in achieving both good control performance and real-time performance is demonstrated, and the prospect of the designed intelligent reduced-dimensional MPC controller in regulating the aero-engine is validated.

4. Conclusions

For good control performance and real-time performance simultaneously, an intelligent reduced-dimensional scheme of model predictive control is proposed in this paper. By reducing the dimension of the control vector in the control sequence to 1, a reduced-dimensional optimization problem with low computational complexity is constructed. In the proposed scheme, a novel selection algorithm is proposed to intelligently select the control variable with the best control effect as the available one in the optimization problem. In addition, the scheme embeds a coordination strategy to take into account the interaction among the control variables at different predicting instants in order to obtain a better optimization solution.

Simulation examples are implemented to illustrate the effectiveness of the proposed method. The results are as follows: (1) by applying the intelligent reduced-dimensional scheme, the control error of the multiplex MPC is greatly improved by 34.06%; (2) the intelligent reduced-dimensional scheme guarantees superiority in computational complexity. Compared to the standard MPC, it can save average time consumption by up to 64.72% when the control horizon increases to nine. All the results demonstrate that the proposed method has not only a better control outcome than the multiplex MPC but also less computation time than the standard MPC and thus helps the implementation of the MPC controller in the aero-engine.

The limitation of the proposed intelligent reduced-dimensional scheme is that this methodology is currently suitable for linear MPC, so the extension to nonlinear MPC needs further research. In addition, only numerical simulations are conducted in this paper to illustrate the effectiveness of the method. For further verification, the hardware-in-the-loop experiment will be considered in future research.
