A Genomics-Based Discovery of Secondary Metabolite Biosynthetic Gene Clusters in the Potential Novel Strain Streptomyces sp. 21So2-11 Isolated from Antarctic Soil

by
Yu Du
1,
Wei Han
1,
Puyu Hao
1,2,
Yongqiang Hu
1,
Ting Hu
1 and
Yinxin Zeng
1,3,4,5,6,*
1
Key Laboratory for Polar Science, Polar Research Institute of China, Ministry of Natural Resources, Shanghai 200136, China
2
College of Marine Ecology and Environment, Shanghai Ocean University, Shanghai 201306, China
3
School of Oceanography, Shanghai Jiao Tong University, Shanghai 200030, China
4
Antarctic Great Wall Ecology National Observation and Research Station, Polar Research Institute of China, Ministry of Natural Resources, Shanghai 200136, China
5
Shanghai Key Laboratory of Polar Life and Environment Sciences, Shanghai Jiao Tong University, Shanghai 200030, China
6
Key Laboratory of Polar Ecosystem and Climate Change, Shanghai Jiao Tong University, Ministry of Education, Shanghai 200030, China
*
Author to whom correspondence should be addressed.
Microorganisms 2024, 12(6), 1228; https://doi.org/10.3390/microorganisms12061228
Submission received: 1 June 2024 / Revised: 15 June 2024 / Accepted: 17 June 2024 / Published: 19 June 2024
(This article belongs to the Section Microbial Biotechnology)
Browse Figures
Versions Notes

Abstract

:
Streptomyces species are attractive sources of secondary metabolites that serve as major sources of antibiotics and other drugs. In this study, genome mining was used to determine the biosynthetic potential of Streptomyces sp. 21So2-11 isolated from Antarctic soil. 16S rRNA gene sequencing revealed that this strain is most closely related to Streptomyces drozdowiczii NBRC 101007T, with a similarity of 98.02%. Genome comparisons based on average nucleotide identity (ANI) and digital DNA–DNA hybridization (dDDH) showed that strain 21So2-11 represents a novel species of the genus Streptomyces. In addition to a large number of genes related to environmental adaptation and ecological function, a total of 28 putative biosynthetic gene clusters (BGCs) responsible for the biosynthesis of known and/or novel secondary metabolites, including terpenes, lantipeptides, polyketides, nonribosomal peptides, RiPPs and siderophores, were detected in the genome of strain 21So2-11. In addition, a total of 1456 BGCs were predicted to contribute to the biosynthesis of more than 300 secondary metabolites based on the genomes of 47 Streptomyces strains originating from polar regions. The results indicate the potential of Streptomyces sp. 21So2-11 for bioactive secondary metabolite production and are helpful for understanding bacterial adaptability and ecological function in cold terrestrial environments.

1. Introduction

Actinomycetes are known for their potential to synthesize bioactive secondary metabolites (also known as natural products) that serve as major sources of agricultural and medical drugs, such as antibiotics and antifungal, antitumor, antiviral, antiparasitic, and immunosuppressive compounds [1,2], accounting for approximately 45% of the secondary metabolites of microbial origin [3]. The genus Streptomyces is considered the most effective producer of bioactive natural products widely used in clinical practice, such as streptomycin, kanamycin and vancomycin [4]. To date, more than 70% of currently known natural antibiotics from microorganisms are produced by Streptomyces species [5,6,7]. However, with the isolation of a large number of secondary metabolites, the probability of finding antibiotics with significant biological activity and novel structures from Streptomyces is decreased [8,9]. This has led to a shift in focus to unexplored, underexploited and/or extreme habitats for isolating novel actinobacteria, particularly novel Streptomyces species [10]. In addition, the development of new genetic tools and fermentation strategies is pursued to facilitate natural product discovery in the genus Streptomyces [11].
Due to their remote and isolated geographic locations and extreme and hostile environments, the Arctic and Antarctic regions are regarded as valuable places for the isolation of novel microorganisms. A large number of novel actinobacteria, including Streptomyces species, have been detected in Arctic and Antarctic environments [12,13,14,15]. In addition, to adapt to extreme conditions such as low temperature, polar days and strong ultraviolet radiation [16], microorganisms inhabiting Arctic and Antarctic environments have evolved unique gene regulations and metabolic functions and therefore have the potential to produce structurally novel secondary metabolites [17,18]. Secondary metabolites with unique structures and significant activities, including actinomycin V, cinerubin B [19], enterocin [20] and frigocyclinone [21], have been found in Streptomyces species isolated from Arctic and Antarctic habitats.
Recent advances in genome mining have promoted the discovery of natural products from microorganisms [22]. The genetic elements responsible for the biosynthesis of secondary metabolites are usually clustered in microbial genomes to form gene clusters. Genome mining has become an important approach to explore novel biosynthetic gene clusters (BGCs) from isolated strains or to isolate new bioactive microbial strains from the environment to find novel BGCs [23]. These novel BGCs have great potential for the production of novel natural products. In recent years, with the increase in the number of Streptomyces genomes published, Streptomyces genomes have been confirmed to contain a wide range of undiscovered BGCs, which can serve as an invaluable source for the discovery of novel drug leads [24]. Furthermore, a large number of novel BGCs have been discovered in the genomes of Streptomyces species originating from Arctic and Antarctic habitats [25,26,27], indicating that Streptomyces strains in polar regions have strong potential for containing new secondary metabolites. Therefore, identifying novel Streptomyces species in polar regions can provide a basis for mining novel genetic sources for new natural products.
In the present study, the bacterial strain 21So2-11 isolated from soil on the Fildes Peninsula, King George Island, Antarctica, was assigned to the genus Streptomyces and further identified as a novel species based on genomic analysis. Secondary metabolite BGCs in the genome of strain 21So2-11 were predicted and further compared with those of Streptomyces species originating from polar regions with genome data available in public databases to evaluate the potential for producing novel bioactive compounds found in Streptomyces species inhabiting Arctic and Antarctic environments.

2. Materials and Methods

2.1. Bacterial Isolation and Cultivation

Soil samples were collected from pristine sites and penguin-colony-impacted sites in the Fildes Peninsula region, King George Island, Antarctica, in December 2019. After removing surface 1 cm of the soil samples with a sterile spoon for decontamination, about 100 g of soil was collected in a sterile Whirl-Pak bag (Nasco, Fort Atkinson, WI, USA). The bacterial strain 21So2-11 was isolated from a pristine bulk soil sample (62°12′43.85″ S; 58°55′52.54″ W; approximately 28 m above sea level) collected on the top of a hill on Ardley Island. A measure of 1 g of the soil sample was suspended in 9 mL of sterile 0.85% (w/v) NaCl solution. The suspension was serially diluted to a 10−5 dilution, and 100 μL of the suspension was spread onto R2A plates (BD, Sparks, MD, USA). The plates were incubated at 15 °C for 30 days. Single colonies were purified by repeated streaking on R2A plates. Strain 21So2-11 was purified on R2A plates at 15 °C and preserved as a suspension in R2A broth containing glycerol (20%, v/v) at −80 °C. The strain was deposited at the Polar Research Institute of China under accession number PMCC100865. The growth range of temperature was tested in R2A broth at 4, 10, 15, 20, 25, 30, 35, 37 and 42 °C. Tolerance to NaCl was examined using R2A liquid media containing NaCl at concentrations ranging from 0 to 10% (w/v, in 1% intervals). In this study, strain 21So2-11 was routinely cultured in R2A broth or on R2A solidified with agar at 15 °C.

2.2. Genomic DNA Extraction, Whole Genome Sequencing and Genomic Analyses

The genomic DNA of the bacterium was extracted from liquid cultures using a Wizard® Genomic DNA Purification Kit (Promega, Madison, WI, USA) according to the manufacturer’s protocol. The purified genomic DNA was subjected to sequencing on an Illumina NovaSeq platform by Shanghai Personalbio Technology Co., Ltd. (Shanghai, China). FastQC v0.11.7 was used to control the quality of the next-generation sequencing data using default parameters [28], and Trimmomatic v0.36 was used to remove adapters and low-quality reads using a 4 bp Q20 sliding window [29]. Filtered clean reads were assembled into scaffolds using SPAdes v3.12.0 [30]. Pilon v1.18 was utilized to correct the next-generation high-quality data and stitched together to assemble a complete genome sequence [31].
Coding DNA sequence (CDS) regions were predicted using GeneMarkS v4.32 with default settings [32]. tRNA and rRNA predictions were performed using tRNAscan-SE v1.3.1 [33] and Barrnap v0.9 (https://github.com/tseemann/barrnap; accessed on 11 February 2023), respectively. A graphical map of the circular genome was generated using online Proksee software (http://proksee.ca; accessed on 28 February 2024). All predicted protein-encoding genes were annotated using DIAMOND v0.8.36 BLASTP to perform sequence alignment based on the National Center for Biotechnology Information (NCBI) NR database, Clusters of Orthologous Groups (COG) database, and SwissProt database [34]. Gene annotation of KEGG (Kyoto Encyclopedia of Genes and Genomes) orthologs and pathways was completed using the KAAS v2.1 automated annotation system [35]. Genes were also annotated via Gene Ontology (GO) analysis using Blast2GO v1.0 [36]. Pathogenic and virulence-related genes in the genome were predicted by Virulence Factors of Pathogenic Bacteria (http://www.mgc.ac.cn/VFs/main.htm; accessed on 11 February 2023). Antibiotic resistance genes, antibiotic target genes, and antibiotic biosynthesis genes were predicted based on the Comprehensive Antibiotic Resistance Database (CARD, http://card.mcmaster.ca; accessed on 11 February 2023). Carbohydrate-active enzymes were predicted using the Carbohydrate-Active Enzymes Database (CAZy, http://www.cazy.org; accessed on 11 February 2023).

2.3. 16S rRNA Gene Sequencing and Phylogenetic Analysis

The 16S rRNA gene was amplified and sequenced as described previously [37]. Sequence similarity analysis of the almost-complete 16S rRNA gene sequence was performed using the GenBank database (http://blast.ncbi.nlm.nih.gov/Blast.cgi; accessed on 11 September 2022) and the EzBioCloud server (https://www.ezbiocloud.net; accessed on 11 September 2022). The 16S rRNA gene sequences of closely related type strains were downloaded from the GenBank database. Clustering and phylogenetic tree construction were performed using the maximum-likelihood (ML) algorithm based on the Kimura 2-parameter model in MEGA v11 [38] after multiple alignment of the data via ClustalW [39]. Bootstrap values from 1000 replications were used to determine the confidence level of the branches.

2.4. Phylogenomic Analysis

The genomic sequence was uploaded to the Type Strain Genome Server (TYGS; https://tygs.dsmz.de; accessed on 11 February 2024) for in silico-based taxonomic analysis [40]. Based on the dDDH value showing high similarity to strain 21So2-11, closely related type strains were chosen for phylogenomic analysis. The pairwise comparison of strain 21So2-11 with closely related type strains of the genus Streptomyces was performed using Genome BLAST Distance Phylogeny (GBDP), and accurate intergenomic distances were inferred via the “trimming” algorithm and distance formula d0. The intergenomic distances were used to construct a balanced minimum evolutionary tree using FastME v2.1.6.1 with 100 pseudobootstrap replicates for branch support. The online server TYGS platform was also used to determine the digital DNA–DNA hybridization (dDDH) values of strain 21So2-11 and its close neighbors. The genomic average nucleotide identity (ANI) values between strain 21So2-11 and its close relatives were calculated using an online ANI Calculator (https://www.ezbiocloud.net/tools/ani; accessed on 11 February 2024).

2.5. Comparative Analysis of Secondary Metabolite Biosynthetic Gene Clusters

To evaluate the biosynthetic capacity of strain 21So2-11, secondary metabolite BGC was identified in genomic sequences using antiSMASH 7.0 (https://antismash.secondarymetabolites.org; accessed on 11 February 2024). Furthermore, such identification of secondary metabolite BGCs was conducted in Streptomyces strains isolated from Arctic or Antarctic environments with genome data available in public databases. The BGC distribution across all the Streptomyces genomes investigated in this study was represented with a heatmap using the online ImageGP server (https://www.ehbio.com/ImageGP; accessed on 15 March 2024). Those BGCs were then clustered into groups based on sequence similarity using BiG-SCAPE v1.1.2 and CORASON workflows [41] using default parameters, including singletons. The MIBiG database v2.1 [42] was used to analyze networks to assign BGCs producing known compounds. The generated networks were visualized using Cytoscape v3.8.2 [43]. Comparison of the naphthomycin- and gaudimycin-producing gene clusters between strain 21So2-11 and other actinobacteria was performed using the multigene BLAST tool [44].

3. Results

3.1. 16S rRNA Gene- and Genome-Based Phylogenies of Streptomyces sp. 21So2-11

The 16S rRNA gene sequence of strain 21So2-11 (1486 bp) was aligned with the EzBioCloud database, which revealed that the strain shared the highest similarity with Streptomyces drozdowiczii NBRC 101007T (98.02%), followed by S. candidus NBRC 12846T (97.82%) and S. avidinii NBRC 13429T (97.81%). The similarity values of strain 21So2-11 with the type strains of related Streptomyces species were below the recognized threshold (98.65%) for bacterial species definition [45], indicating that 21So2-11 represents a potential novel species of the genus Streptomyces. The 16S rRNA gene phylogenetic ML tree (Figure 1) revealed that strain 21So2-11 was clustered within the genus Streptomyces but formed a distinct line separated from the other Streptomyces species.
Compared to the 16S rRNA gene informing classification at and above the rank of genus, genome-based classification can afford greater resolution for delineations at the species and subspecies levels [46]. After the bacterial genome sequence was uploaded to TYGS, a total of 34 close Streptomyces reference strains were selected for phylogenetic analysis based on dDDH value showing high similarity to strain 21So2-11 (Table S1). The dDDH values between strain 21So2-11 and its most closely related species, Streptomyces altiplanensis HST21T, S. chryseus DSM 40420T and S. albidochromogenes DSM 41800T, were 28.60%, 28.20% and 27.90%, respectively, which are well below the threshold value of 70% for species delineation [47]. Moreover, the dDDH values between strains 21So2-11 and S. drozdowiczii NBRC 101007T, S. candidus NBRC 12846T, and S. avidinii NBRC 13429T were 23.30%, 23.30% and 22.70%, respectively. The genomic ANI values for strains 21So2-11 with S. altiplanensis HST21T, S. chryseus DSM 40420T and S. albidochromogenes DSM 41800T were 83.74%, 83.68% and 83.35%, respectively, which are lower than the cutoff value (95%) for species delineation [45]. The genomic ANI values between strains 21So2-11 and S. drozdowiczii NBRC 101007T, S. candidus NBRC 12846T, and S. avidinii NBRC 13429T were 82.01%, 82.11% and 81.31%, respectively. The GBDP tree (Figure 2) showed that 21So2-11 was within the cluster composed of S. altiplanensis HST21T, S. chryseus DSM 40420T and S. albidochromogenes DSM 41800T but formed a distinct line separate from the three most closely related Streptomyces relatives. These results support that strain 21So2-11 represents a novel species of the Streptomyces genus, which is consistent with the results of 16S rRNA gene phylogenetic analysis.

3.2. Genomic Features of Streptomyces sp. 21So2-11

A total of 11,306,456 paired-end reads were obtained for Streptomyces sp. 21So2-11 after processing the high-quality reads. The coverage for the genome was approximately 198×. The genome had an N50 of 58.39 Kb and an L50 of 5. A circular map of Streptomyces sp. 21So2-11 is shown in Figure 3. After assembly, the draft genome of strain 21So2-11 had a total of 8,445,049 bp with 29 scaffolds. The DNA G + C content was estimated to be 69.57 mol%. A total of 7390 protein-encoding genes and 137 RNA genes (including 14 rRNA, 67 tRNA and 56 sRNA) were predicted in the genome. In addition, 6237 (84.39%), 4908 (66.41%) and 2445 (33.09%) genes were annotated by querying the COG, GO and KEGG databases, respectively. Among the 23 functional categories based on COG annotation, the 7 most abundant genes were those with functions related to unknown (category S; 34.41%), transcription (category K; 8.69%), replication, recombination and repair (category L; 8.21%), amino acid transport and metabolism (category E; 6.45%), carbohydrate transport and metabolism (category G; 5.98%), signal transduction mechanisms (category T; 5.13%), and energy production and conversion (category C; 4.73%) (Figure S1A).

3.3. Genes Related to Environmental Adaptation and Ecological Function

Cell growth of strain 21So2-11 was observed after incubation at 4–35 °C and 0–8.0% (w/v) NaCl, indicating its psychrotolerance and halotolerance. Genes related to environmental adaptation and ecological function were identified using KEGG and SwissProt annotations. A total of 36 genes related to salt and osmotic stress tolerance, including betABIT, cvrA, dnaK, ectABCD, gbsA, gdh, gltBD, kdpABCDE, mscS, otsAB, osmC, prc, proABC, surE, treS and trkA, were detected in the genome (Table S2). Furthermore, 154 genes related to membrane transport were detected based on KEGG annotation (Figure S1B). These genes may provide a protection strategy for strain 21So2-11 against salt and osmotic stress. In addition, a total of 22 cold-shock protein- and RNA helicase-related genes, including cspAC, cstA, deaD, dinG, grpE, hepA, hmgA, hrpAB, recQ, rep, rhlE, rnr and tesB, were detected in the genome of 21So2-11 (Table S2). Both cold-shock proteins and RNA helicases could play roles in the adaptation of the bacterial strain to the cold Antarctic environment. Moreover, a total of 21 genes responsible for repairing DNA damage induced by ultraviolet (UV) and ionizing radiation, including lexA, mtcA, phr, polA, recAFORX, uvrABCD, rsr and ssb, were detected in the genome of 21So2-11 (Table S2). Different gene families, different genes of the same gene family (e.g., recAX in scaffold5 and recFOR in scaffold1), and different copies of the same gene (e.g., four copies of uvrD in three different scaffolds) were found to be distributed at different positions in the genome (Table S2), indicating that the genes related to salt tolerance, cold adaptation and UV resistance were randomly distributed in the genome.
Strain 21So2-11 harbored 11 pathogenic and virulence-related genes, including IdeR, DevR, MrpA, SigEH, GroEL and AhpC. In addition, there were 33 antibiotic resistance genes, 21 antibiotic target genes and one antibiotic biosynthesis gene detected using the CARD database. A total of 291 putative CAZyme genes related to the degradation of polysaccharides, including 110 glycoside hydrolases, 68 glycosyl transferases, 57 carbohydrate esterases, 26 carbohydrate-binding modules, 22 auxiliary active enzymes and eight polysaccharide lyases, were found in the genome. These results suggest that strain 21So2-11 can compete with other bacteria and degrade polysaccharides for growth in the Antarctic terrestrial environment.
Based on KEGG annotation, complete key genes involved in the reductive citrate cycle (Arnon–Buchanan cycle), including aclB, acnB, frdABCD, fumDE, korAB, mdh, ppc, ppdK, sdhABCD and sucCD, were detected in the genome of strain 21So2-11, indicating its ecological role in carbon fixation. Moreover, the 21So2-11 genome contained all genes of the complete set of dissimilatory nitrate reduction pathways, including narGHI and nirBD. In addition, all genes of the complete set of assimilatory sulfate reduction pathways, including cysCDHN and sir, were detected in the bacterial genome. These results provide the genomic basis for the participation of strain 21So2-11 in carbon, nitrogen and sulfur metabolism in the local habitat.

3.4. Genome Mining of Secondary Metabolites

A total of 28 putative BGCs with an average length of 38,781 base pairs were identified, including 4 polyketide synthases (PKSs), 4 lantipeptides, 4 terpenes, 4 hybrid polyketide-nonribosomal peptides, 2 nonribosomal peptide synthetases (NRPSs), 2 siderophores, 2 RiPPs, 2 melanins, 1 ectoine, 1 LAP (linear azol(in)e-containing peptides), 1 hydrogen-cyanide, and 1 redox cofactor (Table S3). Among them, six gene clusters showed high similarity (>75%) to reported gene clusters responsible for melanin, coelichelin, isorenieratene, ectoine, SapB and hopene. For the other 22 BGCs, 6 of them shared similarities between 30 and 70% with known BGCs, whereas 12 BGCs likely encode novel compounds due to very low similarity values (<30%). The most four abundant types of secondary metabolite BGCs in the 21So2-11 genome were NRPSs, PKSs, NRPS-PKS hybrids, and terpenes. These BGCs included genes responsible for the synthesis of compounds with different biological activities, such as antitumor (aborycin), antimicrobial (auroramycin, capreomycin, enteromycin, gaudimycin, kinamycin, leucomycin, naphthomycin, neomediomycin and streptolydigin) and siderophore (desferrioxamine) activities.
Two BGCs responsible for moldins (i.e., naphthomycin and gaudimycin) were predicted in strain 21So2-11. The bacterium had a hybrid polyketide-nonribosomal peptide system in cluster 9.1 (Table S3), which could be responsible for naphthomycin production. The naphthomycin biosynthesis gene cluster in strain 21So2-11 contained 60 genes, 27 of which were responsible for the production of the bioactive red pigment naphthomycin. The cluster comprised regulatory, transport-related, core, and additional genes involved in the biosynthesis of naphthomycin derivatives (Figure 4). The naphthomycin core biosynthesis gene cluster in strain 21So2-11 was identical to the red gene cluster found in Streptomyces sp. CS [48] and showed 95% similarity with that in Streptomyces sp. 11-1-2. The naphthomycin core synthesizing genes in Streptomyces sp. 11-1-2 and S. hygroscopicus XM201 were named the red gene cluster, whereas those in Actinoplanes teichomyceticus ATCC 31121 were identified as the pig gene cluster (Figure 4). In addition, strain 21So2-11 had a type II PKS system in cluster 19.1, which was responsible for gaudimycin production. This BGC exhibited 54% similarity to the gaudimycin C gene cluster found by Kallio et al. [49]. Gaudimycin core synthesizing genes in strains 21So2-11 and Salinispora fenicalii CNT-569 B116 were both identified as fab gene clusters (Figure S2). Additional biosynthetic genes responsible for SDR family oxidoreductases, the FMN reductase family and the TetR family, which are key enzymes in natural product biosynthetic pathways, were found in the 21So2-11 gaudimycin cluster (Figure S2). The presence of these genes suggests that Streptomyces sp. 21So2-11 has the potential to produce novel actinomycin analogs. In addition, another noteworthy BGC detected in strain 21So2-11 was the desferrioxamine gene cluster, which showed 50% similarity with the desferrioxamine B/E gene cluster in S. coelicolor [50]. Desferrioxamine can be used to treat iron overload disorders in humans [51].

3.5. Distribution of BGCs across Streptomyces Genomes Originating from Polar Regions

To evaluate the secondary metabolite biosynthetic potential of Streptomyces isolated from polar environments, BGCs from 47 selected Streptomyces genomes were identified using antiSMASH, and then a network analysis was performed in BiG-SCAPE together with similar BGC sequences available in the MIBiG database. A total of 1456 BGCs falling into 48 secondary metabolite categories were detected in the 47 polar Streptomyces, and the average number of BGCs in those genomes was 30.98. The four most abundant secondary metabolite categories were those related to terpenes (16.8% of total BGCs), NRPSs (15.2%), type I polyketide synthases (T1PKSs, 8.7%), and lanthipeptides (8.3%). Biosynthetic gene cluster families (BGCFs), including terpenes, NRPSs, T1PKSs, lanthipeptides and siderophores, were shared by almost all polar Streptomyces strains (Figure 5), which is consistent with previous studies [52]. In total, more than 300 secondary metabolites (including more than 100 antimicrobials) were found in the 47 polar Streptomyces strains, providing us with the opportunity to identify novel secondary metabolites in Streptomyces species inhabiting Arctic and Antarctic environments. The BGC types and related major secondary metabolites predicted on the basis of the genomes of the 47 investigated Streptomyces strains are shown in Figure S3. The network analysis revealed that among the 28 BGCs observed in strain 21So2-11, 24 BGCs showed 6–100% similarity to known BGCs according to the MIBiG database (Table S3), including 18 BGCs from Streptomyces strains originating from polar regions (Figure 6). These findings indicate that four novel BGCs in strain 21So2-11 have not been detected in reported actinomycetes and that ten BGCs in strain 21So2-11 have not been detected in known polar Streptomyces strains.

4. Discussion

In this study, both phylogenetic trees based on 16S rRNA gene sequences and whole-genome sequences (Figure 1 and Figure 2) revealed that strain 21So2-11 had a unique taxonomic position within the genus Streptomyces. Further genome comparisons based on ANI and dDDH confirmed that strain 21So2-11 is a potential novel Streptomyces species due to the fact that its similarity values with the closest type strains within the same genus were less than the thresholds for species definition. Thus, this actinomycete can likely be considered a new source for the discovery of novel secondary metabolites because of the well-known potential of Streptomyces in drug development [4,7].
A comprehensive evaluation of the genome of strain 21So2-11 revealed that the bacterium contained a large number of genes related to cold adaptation (e.g., cold-shock protein- and RNA helicase-related genes) and UV resistance (e.g., DNA damage repair-related genes) (Table S2), which are helpful for adapting to harsh Antarctic conditions such as low temperature and strong UV radiation [53,54]. The halotolerance (e.g., salt tolerance- and membrane transport-related genes) of strain 21So2-11, which was isolated from terrestrial soils, was an unexpected result. In fact, halotolerant Streptomyces strains have reportedly been isolated from terrestrial environments, including Antarctic soil [55,56]. A gene cluster responsible for ectoine synthesis was also detected in strain 21So2-11 (Table S3). As a main compatible solute, ectoine is beneficial for bacterial cells not only as an osmoregulatory solute but also as a protectant of cells by mitigating the detrimental effects of freezing, drying, UV radiation and cytotoxins [57]. Notably, most (83.0%) of the investigated Streptomyces strains isolated from various polar environments, including Arctic and Antarctic soils, Arctic and Antarctic sediments and Southern Ocean seawater, have been observed to contain ectoine and melanin-related BGCs with high similarity (Figure 5 and Figure 6), suggesting that the ectoine and melanin-related BGCs are core BGCs in polar Streptomyces species. In Streptomyces species, melanin is involved in virulence factors as well as in protection mechanisms against UV radiation and oxidative agents [58]. In addition, strain 21So2-11 contained a gene cluster responsible for synthesizing desferrioxamine, a siderophore that can be beneficial for the growth and development of Streptomyces [59]. The strain also contained a gene cluster responsible for the synthesis of SapB, a morphogenetic peptide important for the formation of aerial mycelia in Streptomyces [60]. These genes and gene clusters provide insight into the environmental adaptation and cell growth of Streptomyces sp. 21So2-11 inhabiting Antarctic soil.
Microorganisms have developed different strategies to prevent self-toxicity because they must be resistant to the biological effects of bioactive compounds to survive during natural product production/accumulation [61]. As the function of bacterial defense against self-toxicity is intimately linked to virulence factors and antibiotic resistance genes [62,63], abundant pathogenic and virulence-related genes as well as antibiotic resistance genes found in the 21So2-11 genome can contribute to preventing the self-toxicity of bacteria caused by secondary metabolites, including auroramycin, capreomycin, enteromycin, gaudimycin, leucomycin, naphthomycin, neomediomycin, streptolydigin and kinamycin. At the same time, these virulence factors and antibiotic resistance genes can provide strain 21So2-11 with an advantage in competing with organisms inhabiting the same habitat, especially those that are sensitive to the antibiotics produced by strain 21So2-11. In addition, four BGCs (i.e., Cluster Nos. 1.1, 4.3, 9.4 and 16.1; Table S3) in 21So2-11 showed no similarity to known gene clusters according to antiSMASH, indicating that these BGCs can contribute to the production of novel secondary metabolites by polar Streptomyces species.
Two BGCs related to naphthomycin and gaudimycin biosynthesis in strain 21So2-11 showed more than 50% similarity to known antibiotics. Naphthomycins are 29-membered naphthalenic ansamacrolactam antibiotics with antimicrobial and antineoplastic activities [48]. These antibiotics can act as fatty acid synthase inhibitors and have better inhibitory effects on both Gram-positive bacteria and fungi [64]. Naphthomycin also has antineoplastic activity by inhibiting various SH enzymes, particularly those involved in nucleic acid synthesis [65]. Angucyclines are a specific group of aromatic polyketides that are associated with various biological activities (e.g., antimicrobial and antitumor activities) and are mainly produced by soil-dwelling Streptomyces bacteria [66]. They can act as topoisomerase inhibitors by targeting bacterial and eukaryotic topoisomerase [67]. Through a cascade of oxidation/reduction reactions, the novel angucycline metabolite gaudimycin can be generated [49,68].
Abundant secondary metabolite BGCs (1456 BGCs) responsible for diverse known and/or novel secondary metabolites (48 secondary metabolite categories) were detected in the genomes of 47 investigated Streptomyces bacteria isolated from Arctic and Antarctic environments. These secondary metabolites, including ectoines, lanthipeptides, melanins, NRPSs, siderophores, terpenes, T1PKSs, T2PKSs and T3PKSs, have diverse chemical structures and various biological activities (e.g., antitumor and antibacterial activities), supporting their potential in drug development. Among the 1456 putative secondary metabolite BGCs, there were 162 unknown BGCs, accounting for 11.2% of the total BGCs. The four most abundant unknown BGCs were related to PKSs, NRPSs, terpenes and lanthipeptides, accounting for 19.1%, 18.0%, 14.8% and 8.6% of the total unknown BGCs, respectively. At the same time, high diversity was observed in the main putative secondary metabolites in the 47 polar Streptomyces strains based on genome mining. For example, the melanin family was divided into eight independent clades that have four groups and four individual types (Figure 6). In addition, the hopene family was composed of five groups and three individual types. Gene loss and horizontal gene transfer often lead to a highly variable distribution of BGCs in the Streptomyces genome, which allows them to lose or acquire BGCs in response to selective pressures [69]. Our results indicate that Streptomyces bacteria inhabiting polar regions are potentially valuable sources for identifying novel secondary metabolites.
Similarity network analysis clearly revealed that ten BGCs responsible for secondary metabolites, including capreomycin, hiroshidine, K-252a, leucomycin, naphthomycin, neomediomycin and four unknown materials, were exclusively detected in strain 21So2-11 (Figure 6), indicating the potential of this novel bacterial strain for the discovery of novel drug leads. Moreover, the results showed that this approach can complement antiSMASH analysis to provide a deeper insight into the biosynthetic potential of a given strain. Based on similarity network analysis, BGCs responsible for coelichelin, SapB, tylactone, enteromycin, vazabitide and streptolydigin were found in the Antarctic Streptomyces strains, whereas no secondary metabolite BGC was exclusively detected in the Arctic Streptomyces strains. Whether Antarctic actinomycetes can provide more chances to find known and/or novel natural products compared to Arctic bacteria should receive more attention in future research.
In the postgenome mining era, the continuously increasing number of Streptomyces genome sequences has provided invaluable genetic resources for the discovery of novel secondary metabolites with interesting biological activities [2]. However, most secondary metabolite BGCs in Streptomyces are silent or poorly expressed under laboratory culture conditions, limiting the effective use of Streptomyces bacteria [2,70]. Thus, the activation of silent secondary metabolite BGCs, including the expression of related functional genes and the regulation of biosynthetic pathways, is important for successfully isolating bioactive secondary metabolites from Streptomyces strains. Diverse methods have been applied to activate silent secondary metabolite BGCs, including culture media modifications, chemical or antibiotic treatments, co-cultivation and one strain many compounds method (OSMAC) [11,71]. However, these untargeted methods usually resulted in non-directed activation of silent secondary metabolite BGCs in Streptomyces [2]. Synthetic biology approaches including promoter replacement, overexpression or repression of regulatory genes, heterologous expression in different hosts and refactoring of targeted BGCs have been implemented for specific activation of target secondary metabolite BGCs. Over the last decade, synthetic biology has emerged as a powerful tool to facilitate natural product discovery via optimization of secondary metabolite production and activation of target silent BGCs in Streptomyces [2,11]. Synthetic biology strategies including engineering of original host genome and heterologous expression in chassis strains should be considered for expanding the productivity and diversity of available novel secondary metabolites from polar Streptomyces strains.

5. Conclusions

A draft genome was de novo assembled for strain 21So2-11, which was isolated from Antarctic soil, using Illumina sequencing technology. A combination of 16S rRNA gene-based phylogenetic analysis and genome-based identification revealed that strain 21So2-11 is a potential novel species within the genus Streptomyces. In addition to numerous genes related to environmental adaptation and ecological function, antiSMASH and sequence similarity network analyses revealed that the bacterium contained a large number of putative biosynthetic gene clusters responsible for known and/or novel secondary metabolites with various biological activities, such as antimicrobial and antitumor activities. Furthermore, the Streptomyces bacteria inhabiting the Antarctic may be valuable sources for identifying bioactive secondary metabolites. The results of this study provide important insights into the adaptation mechanism, ecological role and application potential of the novel Streptomyces sp. 21So2-11 inhabiting the Antarctic terrestrial environment.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/microorganisms12061228/s1: Table S1: Genome characteristics of strain 21So2-11 and 34 closely related type strains used for phylogenetic analysis; Table S2: Genes related to cold adaptation, ultraviolet (UV) resistance and salt tolerance in the genome of Streptomyces sp. 21So2-11; Table S3: Putative secondary metabolite biosynthetic gene clusters (BGCs) in Streptomyces sp. 21So2-11 using the antiSMASH server (https://antismash.secondarymetabolites.org; accessed on 11 February 2024); Figure S1: Annotations of the genome of Streptomyces sp. 21So2-11 using the COG (A) and KEGG (B) databases; Figure S2. Comparison of the gaudimycin gene cluster in strain 21So2-11 (cluster 19.1 in Table S3) with that in Salinispora fenicalii CNT-569 B116. Homologous genes between the two bacterial strains are presented in the same colors and linked by brown lines. Genes without any color in strain 21So2-11 have unknown functions, whereas those in S. fenicalii CNT-569 B116 have no homologs in 21So2-11; Figure S3. BGC types and related major secondary metabolites (occurring more than once) in strain 21So2-11 and 46 other polar Streptomyces strains using antiSMASH and BiG-SCAPE.

Author Contributions

Conceptualization, Y.D. and Y.Z.; methodology, Y.D. and Y.Z.; software, Y.D. and Y.H.; validation, Y.D. and Y.Z.; formal analysis, Y.D. and T.H.; investigation, W.H., Y.H. and Y.Z.; resources, W.H., P.H. and Y.H.; data curation, Y.D.; writing—original draft preparation, Y.D., Y.H. and Y.Z.; writing—review and editing, Y.D. and Y.Z.; visualization, Y.D.; supervision, T.H. and Y.Z.; project administration, Y.Z.; funding acquisition, Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (Grant No. 2022YFC2807501).

Data Availability Statement

The GenBank accession numbers for the 16S rRNA gene sequence and the whole-genome shotgun project of Streptomyces sp. 21So2-11 are PP758583 and JBDHNH010000000 (BioProject: PRJNA1108015), respectively.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

ANI: Average Nucleotide Identity; BGCs, Biosynthetic Gene Clusters; BLAST, Basic Local Alignment Search Tool; CAZy, Carbohydrate-Active Enzymes Database; CDS, Coding Sequence; COG, Clusters of Orthologous Groups; dDDH, Digital DNA–DNA Hybridization; GBDP, Genome BLAST Distance Phylogeny; KEGG, Kyoto Encyclopedia of Genes and Genomes; NCBI, National Center for Biotechnology Information; NRPS, Non-Ribosomal Peptide Synthetase; PKS, PolyKetide Synthase; TYGS, Type Strain Genome Server.

References

  1. Manivasagan, P.; Venkatesan, J.; Sivakumar, K.; Kim, S.K. Pharmaceutically active secondary metabolites of marine actinobacteria. Microbiol. Res. 2014, 169, 262–278. [Google Scholar] [CrossRef]
  2. Lee, N.; Hwang, S.; Lee, Y.; Cho, S.; Palsson, B.; Cho, B.K. Synthetic biology tools for novel secondary metabolite discovery in Streptomyces. J. Microbiol. Biotechnol. 2019, 29, 667–686. [Google Scholar] [CrossRef]
  3. Berdy, J. Bioactive microbial metabolites. J. Antibiot. 2005, 58, 1–26. [Google Scholar] [CrossRef]
  4. De Lima Procópio, R.E.; da Silva, I.R.; Martins, M.K.; de Azevedo, J.L.; de Araújo, J.M. Antibiotics produced by Streptomyces. Braz. J. Infect. Dis. 2012, 16, 466–471. [Google Scholar] [CrossRef]
  5. Takahashi, Y.; Nakashima, T. Actinomycetes, an inexhaustible source of naturally occurring antibiotics. Antibiotics 2018, 7, 45. [Google Scholar] [CrossRef]
  6. Pham, J.V.; Yilma, M.A.; Feliz, A.; Majid, M.T.; Mafetone, N.; Walker, J.R.; Kim, E.; Cho, H.J.; Reynolds, J.M.; Song, M.C.; et al. A review of the microbial production of bioactive natural products and biologics. Front. Microbiol. 2019, 10, 1404. [Google Scholar] [CrossRef]
  7. Sánchez-Suárez, J.; Coy-Barrera, E.; Villamil, L.; Díaz, L. Streptomyces-derived metabolites with potential photo-protective properties-a systematic literature review and meta-analysis on the reported chemodiversity. Molecules 2020, 25, 3221. [Google Scholar] [CrossRef]
  8. Newman, D.J.; Cragg, G.M. Natural products as sources of new drugs over the nearly four decades from 01/1981 to 09/2019. J. Nat. Prod. 2020, 83, 770–803. [Google Scholar] [CrossRef]
  9. Salwan, R.; Sharma, V. Molecular and biotechnological aspects of secondary metabolites in actinobacteria. Microbiol. Res. 2020, 231, 126374. [Google Scholar] [CrossRef]
  10. Ates, H.; Saygin, H.; Cora, M.; Kilic, A.O.; Ay, H. Genome-based classifcation of Streptomyces anatolicus sp. nov., an actinobacterium with antimicrobial and cytotoxic activities, and reclassifcation of Streptomyces nashvillensis as a later heterotypic synonym of Streptomyces tanashiensis. Antonie Leeuwenhoek 2023, 116, 1073–1090. [Google Scholar] [CrossRef]
  11. Krysenko, S. Impact of nitrogen-containing compounds on secondary metabolism in Streptomyces spp.—A source of metabolic engineering strategies. SynBio 2023, 1, 204–225. [Google Scholar] [CrossRef]
  12. Le Roes-Hill, M.; Rohland, J.; Meyers, P.R.; Cowan, D.A.; Burton, S.G. Streptomyces hypolithicus sp. nov., isolated from an Antarctic hypolith community. Int. J. Syst. Evol. Microbiol. 2009, 59, 2032–2035. [Google Scholar] [CrossRef]
  13. Li, J.; Tian, X.P.; Zhu, T.J.; Yang, L.L.; Li, W.J. Streptomyces fildesensis sp. nov., a novel streptomycete isolated from Antarctic soil. Antonie Leeuwenhoek 2011, 100, 537–543. [Google Scholar] [CrossRef]
  14. Zhang, L.; Ruan, C.; Peng, F.; Deng, Z.; Hong, K. Streptomyces arcticus sp. nov., isolated from frozen soil. Int. J. Syst. Evol. Microbiol. 2016, 66, 1482–1487. [Google Scholar] [CrossRef]
  15. Kamjam, M.; Nopnakorn, P.; Zhang, L.; Peng, F.; Deng, Z.; Hong, K. Streptomyces polaris sp. nov. and Streptomyces septentrionalis sp. nov., isolated from frozen soil. Antonie Leeuwenhoek 2019, 112, 375–387. [Google Scholar] [CrossRef]
  16. Liu, J.T.; Lu, X.L.; Liu, X.Y.; Gao, Y.; Hu, B.; Jiao, B.H.; Zheng, H. Bioactive natural products from the Antarctic and Arctic organisms. Mini. Rev. Med. Chem. 2013, 13, 617–626. [Google Scholar] [CrossRef]
  17. Yukimura, K.; Nakai, R.; Kohshima, S.; Uetake, J.; Kanda, H.; Naganuma, T. Spore-forming halophilic bacteria isolated from Arctic terrains: Implications for long-range transportation of microorganisms. Polar Sci. 2010, 3, 163–169. [Google Scholar] [CrossRef]
  18. Tian, Y.; Li, Y.L.; Zhao, F.C. Secondary metabolites from polar organisms. Mar. Drugs 2017, 15, 28. [Google Scholar] [CrossRef]
  19. Silva, L.J.; Crevelin, E.J.; Souza, D.T.; Lacerda-Júnior, G.V.; de Oliveira, V.M.; Ruiz, L.T.G.; Rosa, L.H.; Moraes, L.A.B.; Melo, I.S. Actinobacteria from Antarctica as a source for anticancer discovery. Sci. Rep. 2020, 10, 13870. [Google Scholar] [CrossRef]
  20. Jiang, S.P.; Tian, X.Q.; Liao, L.; Yang, Q.; Lu, Y.N.; Ma, L.Y.; Chen, B.; Fan, C.Q. Antimycin A and vulgamycin derivatives from the Arctic marine actinomycete Streptomyces sp. 604F. Chin. J. Polar Res. 2016, 28, 331–335. (In Chinese) [Google Scholar]
  21. Bruntner, C.; Binder, T.; Pathom-aree, W.; Goodfellow, M.; Bull, A.T.; Potterat, O.; Puder, C.; Hörer, S.; Schmid, A.; Bolek, W.; et al. Frigocyclinone, a novel angucyclinone antibiotic produced by a Streptomyces griseus strain from Antarctica. J. Antibiot. 2005, 58, 346–349. [Google Scholar] [CrossRef]
  22. Schneider, O.; Simic, N.; Aachmann, F.L.; Rückert, C.; Kristiansen, K.A.; Jiang, Y.; Wang, L.S.; Jiang, C.L.; Lale, R.; Zotchev, S.B. Genome mining of Streptomyces sp. YIM 130001 isolated from lichen affords new thiopeptide antibiotic. Front. Microbiol. 2018, 9, 3139. [Google Scholar] [CrossRef]
  23. Nguyen, H.T.; Pokhrel, A.R.; Nguyen, C.T.; Pham, V.T.T.; Dhakal, D.; Lim, H.N.; Jung, H.J.; Kim, T.S.; Yamaguchi, T.; Sohng, J.K. Streptomyces sp. VN1, a producer of diverse metabolites including non-natural furan-type anticancer compound. Sci. Rep. 2020, 10, 1756. [Google Scholar] [CrossRef]
  24. Lee, N.; Kim, W.; Hwang, S.; Lee, Y.; Cho, S.; Palsson, B.; Cho, B.K. Thirty complete Streptomyces genome sequences for mining novel secondary metabolite biosynthetic gene clusters. Sci. Data 2020, 7, 55. [Google Scholar] [CrossRef]
  25. Chen, R.Q.; Liao, L.; Zhang, X.H.; Chen, B. Cloning and analysis of a halogenase gene of Streptomyces sp. 604F from the Arctic ocean. Acta. Microbiol. Sin. 2014, 54, 703–712. (In Chinese) [Google Scholar]
  26. Guerrero-Garzón, J.F.; Zehl, M.; Schneider, O.; Rückert, C.; Busche, T.; Kalinowski, J.; Bredholt, H.; Zotchev, S.B. Streptomyces spp. from the marine sponge Antho dichotoma: Analyses of secondary metabolite biosynthesis gene clusters and some of their products. Front. Microbiol. 2020, 11, 510456. [Google Scholar] [CrossRef]
  27. Duan, Z.D.; Liao, L.; Chen, B. Complete genome analysis reveals secondary metabolite biosynthetic capabilities of Streptomyces sp. R527F isolated from the Arctic Ocean. Mar. Genom. 2022, 63, 100949. [Google Scholar] [CrossRef]
  28. Wingett, S.W.; Andrews, S. FastQ Screen: A tool for multi-genome mapping and quality control. F1000Research 2018, 7, 1338. [Google Scholar] [CrossRef]
  29. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef]
  30. Bankevich, A.; Nurk, S.; Antipov, D.; Gurevich, A.A.; Dvorkin, M.; Kulikov, A.S.; Lesin, V.M.; Nikolenko, S.I.; Pham, S.; Prjibelski, A.D.; et al. SPAdes: A new genome assembly algorithm and its applications to single-cell sequencing. J. Comput. Biol. 2012, 19, 455–477. [Google Scholar] [CrossRef]
  31. Utturkar, S.M.; Klingeman, D.M.; Hurt, R.A.; Brown, S.D. A case study into microbial genome assembly gap sequences and finishing strategies. Front. Microbiol. 2017, 8, 1272. [Google Scholar] [CrossRef]
  32. Besemer, J.; Lomsadze, A.; Borodovsky, M. GeneMarkS: A self-training method for prediction of gene starts in microbial genomes. Implications for finding sequence motifs in regulatory regions. Nucleic Acids Res. 2001, 29, 2607–2618. [Google Scholar] [CrossRef]
  33. Chan, P.P.; Lin, B.Y.; Mak, A.J.; Lowe, T.M. tRNAscan-SE 2.0: Improved detection and functional classification of transfer RNA genes. Nucleic Acids Res. 2021, 49, 9077–9096. [Google Scholar] [CrossRef]
  34. Buchfink, B.; Xie, C.; Huson, D.H. Fast and sensitive protein alignment using DIAMOND. Nat. Methods 2015, 12, 59–60. [Google Scholar] [CrossRef]
  35. Moriya, Y.; Itoh, M.; Okuda, S.; Yoshizawa, A.C.; Kanehisa, M. KAAS: An automatic genome annotation and pathway reconstruction server. Nucleic Acids Res. 2007, 35, W182–W185. [Google Scholar] [CrossRef]
  36. Conesa, A.; Götz, S. Blast2GO: A comprehensive suite for functional analysis in plant genomics. Int. J. Plant Genom. 2008, 2008, 619832. [Google Scholar] [CrossRef]
  37. Zeng, Y.X.; Zheng, T.L.; Li, H.R. Community composition of the marine bacterioplankton in Kongsfjorden (Spitsbergen) as revealed by 16S rRNA gene analysis. Polar Biol. 2009, 32, 1447–1460. [Google Scholar] [CrossRef]
  38. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular evolutionary genetics analysis version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  39. Thompson, J.D.; Higgins, D.G.; Gibson, T.J. CLUSTAL W: Improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Res. 1994, 22, 4673–4680. [Google Scholar] [CrossRef]
  40. Meier-Kolthof, J.P.; Göker, M. TYGS is an automated high-throughput platform for state-of-the-art genome-based taxonomy. Nat. Commun. 2019, 10, 2182. [Google Scholar] [CrossRef]
  41. Blin, K.; Shaw, S.; Steinke, K.; Villebro, R.; Ziemert, N.; Lee, S.Y.; Medema, M.H.; Weber, T. AntiSMASH 5.0: Updates to the secondary metabolite genome mining pipeline. Nucleic Acids Res. 2019, 47, W81–W87. [Google Scholar] [CrossRef]
  42. Kautsar, S.A.; Blin, K.; Shaw, S.; Navarro-Munoz, J.C.; Terlouw, B.R.; van der Hooft, J.J.J.; van Santen, J.A.; Tracanna, V.; Suarez Duran, H.G.; Pascal Andreu, V.; et al. MIBiG 2.0: A repository for biosynthetic gene clusters of known function. Nucleic Acids Res. 2020, 48, D454–D458. [Google Scholar] [CrossRef]
  43. Shannon, P.; Markiel, A.; Ozier, O.; Baliga, N.S.; Wang, J.T.; Ramage, D.; Amin, N.; Schwikowski, B.; Ideker, T. Cytoscape: A software environment for integrated models of biomolecular interaction networks. Genome Res. 2003, 13, 2498–2504. [Google Scholar] [CrossRef]
  44. Medema, M.H.; Takano, E.; Breitling, R. Detecting sequence homology at the gene cluster level with multigeneblast. Mol. Biol. Evol. 2013, 30, 1218–1223. [Google Scholar] [CrossRef]
  45. Kim, M.; Oh, H.S.; Park, S.C.; Chun, J. Towards a taxonomic coherence between average nucleotide identity and 16S rRNA gene sequence similarity for species demarcation of prokaryotes. Int. J. Syst. Evol. Microbiol. 2014, 64, 346–351. [Google Scholar] [CrossRef]
  46. Hugenholtz, P.; Chuvochina, M.; Oren, A.; Parks, D.H.; Soo, R.M. Prokaryotic taxonomy and nomenclature in the age of big sequence data. ISME J. 2021, 15, 1879–1892. [Google Scholar] [CrossRef]
  47. Chun, J.; Oren, A.; Ventosa, A.; Christensen, H.; Arahal, D.R.; da Costa, M.S.; Rooney, A.P.; Yi, H.; Xu, X.W.; De Meyer, S.; et al. Proposed minimal standards for the use of genome data for the taxonomy of prokaryotes. Int. J. Syst. Evol. Microbiol. 2018, 68, 461–466. [Google Scholar] [CrossRef]
  48. Wu, Y.Y.; Kang, Q.J.; Shen, Y.M.; Su, W.J.; Bai, L.Q. Cloning and functional analysis of the naphthomycin biosynthetic gene cluster in Streptomyces sp. CS. Mol. Biosyst. 2011, 7, 2459–2469. [Google Scholar] [CrossRef]
  49. Kallio, P.; Liu, Z.L.; Mäntsälä, P.; Niemi, J.; Metsä-Ketelä, M. Sequential action of two flavoenzymes, PgaE and PgaM, in angucycline biosynthesis: Chemoenzymatic synthesis of gaudimycin C. Cell Chem. Biol. 2008, 15, 157–166. [Google Scholar] [CrossRef]
  50. Barona-Gómez, F.; Wong, U.; Giannakopulos, A.E.; Derrick, P.J.; Challis, G.L. Identifcation of a cluster of genes that directs desferrioxamine biosynthesis in Streptomyces coelicolor M145. J. Am. Chem. Soc. 2004, 22, 16282–16283. [Google Scholar] [CrossRef]
  51. Müller, G.; Raymond, K.N. Specificity and mechanism of ferrioxamine-mediated iron transport in Streptomyces pilosus. J. Bacteriol. 1984, 160, 304–312. [Google Scholar] [CrossRef]
  52. Park, C.J.; Andam, C.P. Within-species genomic variation and variable patterns of recombination in the tetracycline producer Streptomyces rimosus. Front. Microbiol. 2019, 10, 552. [Google Scholar] [CrossRef]
  53. Marizcurrena, J.J.; Herrera, L.M.; Costabile, A.; Morales, D.; Villadoniga, C.; Eizmendi, A.; Davyt, D.; Castro-Sowinski, S. Validating biochemical features at the genome level in the Antarctic bacterium Hymenobacter sp. strain UV11. FEMS Microbiol. Lett. 2019, 366, fnz177. [Google Scholar] [CrossRef]
  54. De Francisco Martínez, P.; Morgante, V.; González-Pastor, J.E. Isolation of novel cold-tolerance genes from rhizosphere microorganisms of Antarctic plants by functional metagenomics. Front. Microbiol. 2022, 13, 1026463. [Google Scholar] [CrossRef]
  55. Bhave, S.V.; Shanbhag, P.V.; Sonawane, S.K.; Parab, R.R.; Mahajan, G.B. Isolation and characterization of halotolerant Streptomyces radiopugnans from Antarctica soil. Lett. Appl. Microbiol. 2013, 56, 348–355. [Google Scholar] [CrossRef]
  56. Mohamed, S.H.; Al-Saeedi, T.A.; Sadik, A.S. Halotolerant streptomycetes isolated from soil at Taif region, Kingdom of Saudi Arabia II: RAPD-PCR analysis and salt tolerance-gene isolation. Afr. J. Biotechnol. 2013, 12, 1452–1458. [Google Scholar]
  57. Schwibbert, K.; Marin-Sanguino, A.; Bagyan, I.; Heidrich, G.; Lentzen, G.; Seitz, H.; Rampp, M.; Schuster, S.C.; Klenk, H.P.; Pfeifer, F.; et al. A blueprint of ectoine metabolism from the genome of the industrial producer Halomonas elongata DSM 2581T. Environ. Microbiol. 2011, 13, 1973–1994. [Google Scholar] [CrossRef]
  58. Kordjazi, T.; Mariniello, L.; Giosafatto, C.V.L.; Porta, R.; Restaino, O.F. Streptomycetes as microbial cell factories for the biotechnological production of melanin. Int. J. Mol. Sci. 2024, 25, 3013. [Google Scholar] [CrossRef]
  59. Codd, R.; Richardson-Sanchez, T.; Telfer, T.J.; Gotsbacher, M.P. Advances in the chemical biology of desferrioxamine B. ACS Chem. Biol. 2018, 13, 11–25. [Google Scholar] [CrossRef]
  60. Kodani, S.; Hudson, M.E.; Durrant, M.C.; Buttner, M.J.; Nodwell, J.R.; Willey, J.M. The SapB morphogen is a lantibiotic-like peptide derived from the product of the developmental gene ramS in Streptomyces coelicolor. Proc. Natl. Acad. Sci. USA 2004, 101, 11448–11453. [Google Scholar] [CrossRef]
  61. Almabruk, K.H.; Dinh, L.K.; Philmus, B. Self-resistance of natural product producers: Past, present, and future focusing on self-resistant protein variants. ACS Chem. Biol. 2018, 13, 1426–1437. [Google Scholar] [CrossRef]
  62. Castillo-Arteaga, R.D.; Garrido, L.M.; Pedre, B.; Helmle, I.; Gross, H.; Gust, B.; Padilla, G. Mycothiol peroxidase activity as a part of the self-resistance mechanisms against the antitumor antibiotic Cosmomycin, D. Microbiol. Spectr. 2022, 10, e0049322. [Google Scholar] [CrossRef]
  63. Hu, X.; Tang, Y.; Liu, Y.; Pei, X.; Huang, Z.; Song, F.; Zhang, H. Comprehensive genomic analysis of marine strain Streptomyces sp. 891, an excellent producer of Chrysomycin A with therapeutic potential. Mar. Drugs 2022, 20, 287. [Google Scholar] [CrossRef]
  64. Mukhopadhyay, T.; Franco, C.M.M.; Reddy, G.C.S.; Ganguli, B.N.; Fehlhaber, H.W. A new ansamycin antibiotic, naphthomycin H from a Streptomyces species Y-83, 40369. J. Antibiot. 1985, 38, 948–951. [Google Scholar] [CrossRef]
  65. Okabe, T.; Yuan, B.D.; Isono, F.; Sato, I.; Fukazawa, H.; Nishimura, T.; Tanaka, N. Studies on antineoplastic activity of naphthomycin, a naphthalenic ansamycin, and its mode of action. J. Antibiot. 1985, 38, 230–235. [Google Scholar] [CrossRef]
  66. Patrikainen, P.; Kallio, P.; Fan, K.; Klika, K.D.; Shaaban, K.A.; Mäntsälä, P.; Rohr, J.; Yang, K.; Niemi, J.; Metsä-Ketelä, M. Tailoring enzymes involved in the biosynthesis of angucyclines contain latent context-dependent catalytic activities. Chem. Biol. 2012, 19, 647–655. [Google Scholar] [CrossRef]
  67. Klahn, P.; Brönstrup, M. Bifunctional antimicrobial conjugates and hybrid antimicrobials. Nat. Prod. Rep. 2017, 34, 832–885. [Google Scholar] [CrossRef]
  68. Palmu, K.; Ishida, K.; Mäntsälä, P.; Hertweck, C.; Metsä-Ketelä, M. Artificial reconstruction of two cryptic angucycline antibiotic biosynthetic pathways. ChemBioChem 2007, 8, 1577–1584. [Google Scholar] [CrossRef]
  69. Belknap, K.C.; Park, C.J.; Barth, B.M.; Andam, C.P. Genome mining of biosynthetic and chemotherapeutic gene clusters in Streptomyces bacteria. Sci. Rep. 2020, 10, 2003. [Google Scholar] [CrossRef]
  70. Onaka, H. Novel antibiotic screening methods to awaken silent or cryptic secondary metabolic pathways in actinomycetes. J. Antibiot. 2017, 70, 865–870. [Google Scholar] [CrossRef]
  71. Lim, F.Y.; Sanchez, J.F.; Wang, C.C.; Keller, N.P. Toward awakening cryptic secondary metabolite gene clusters in filamentous fungi. Methods Enzymol. 2012, 517, 303–324. [Google Scholar]
Microorganisms 12 01228 g001

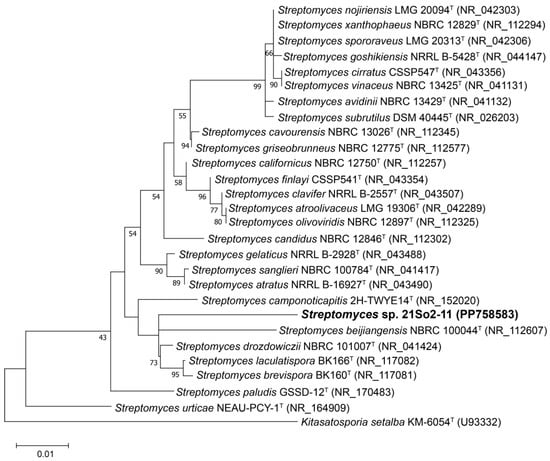

Figure 1. Maximum likelihood (ML) tree based on 16S rRNA gene sequences showing the phylogenetic position of strain 21So2-11 within the genus Streptomyces. Bootstrap values above 50% based on 1000 replicates are shown at branch nodes. Kitasatospora setae KM-6054T was used as an outgroup. The scale bar corresponds to 0.01 substitutions per nucleotide position.
Figure 1. Maximum likelihood (ML) tree based on 16S rRNA gene sequences showing the phylogenetic position of strain 21So2-11 within the genus Streptomyces. Bootstrap values above 50% based on 1000 replicates are shown at branch nodes. Kitasatospora setae KM-6054T was used as an outgroup. The scale bar corresponds to 0.01 substitutions per nucleotide position.
Microorganisms 12 01228 g001
Microorganisms 12 01228 g002

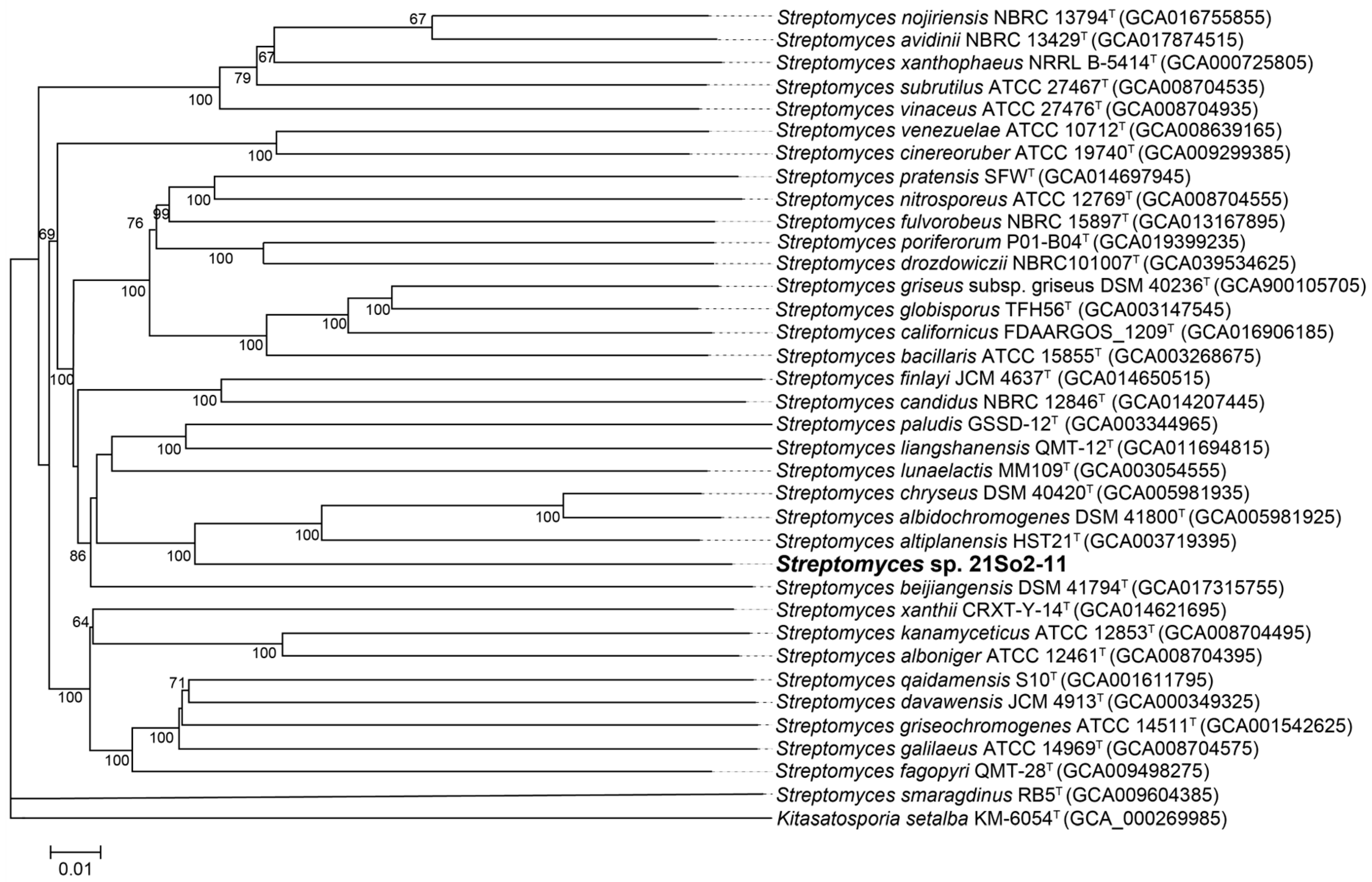

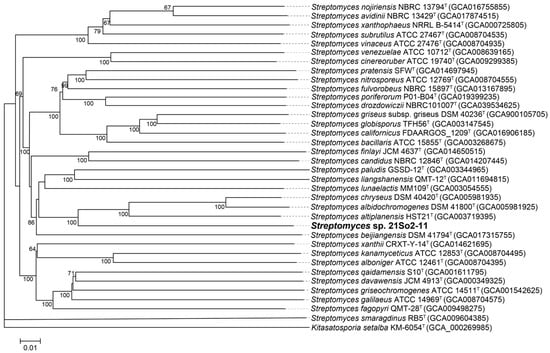

Figure 2. Whole-genome-sequence-based phylogenetic tree of strain 21So2-11 with closely related type strains. The numbers above the branches represent genome BLAST distance phylogeny (GBDP) pseudobootstrap values greater than 75% based on 100 replicates. The scale bar corresponds to 0.01 substitutions per nucleotide position. Kitasatospora setae KM-6054T was used as an outgroup.
Figure 2. Whole-genome-sequence-based phylogenetic tree of strain 21So2-11 with closely related type strains. The numbers above the branches represent genome BLAST distance phylogeny (GBDP) pseudobootstrap values greater than 75% based on 100 replicates. The scale bar corresponds to 0.01 substitutions per nucleotide position. Kitasatospora setae KM-6054T was used as an outgroup.
Microorganisms 12 01228 g002
Microorganisms 12 01228 g003

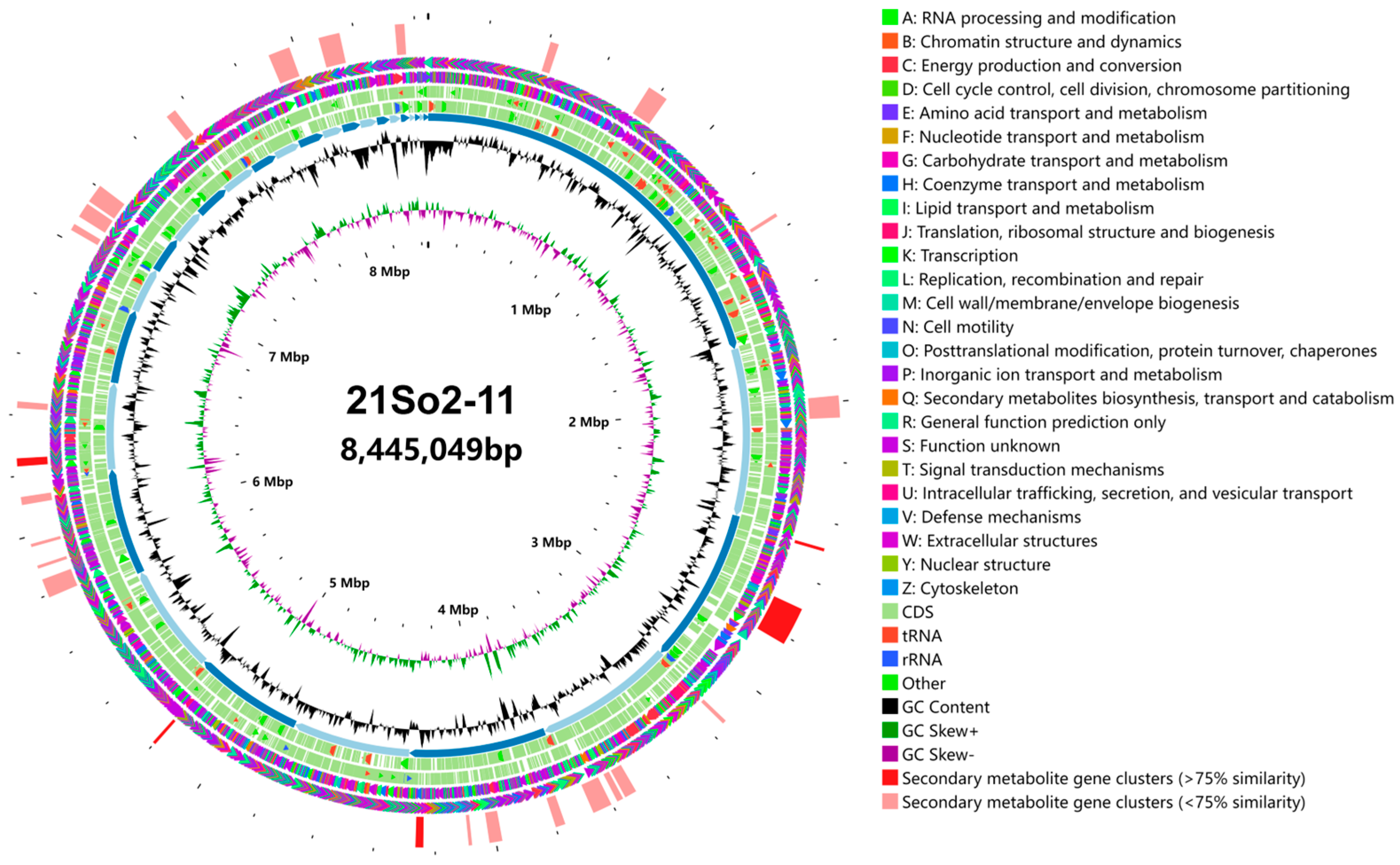

Figure 3. Circular visualization of the genome of Streptomyces sp. 21So2-11. The outer circle represents the distribution of gene clusters coding for secondary metabolites (red: clusters that are >75% similar to those BGCs present in related organisms; kermesinus: <75% similarity). The gene clusters are followed by COG on the forward (the second circle) and reverse (the third circle) strands (colored by COG categories). The fourth and fifth circles represent coding regions (CDSs), tRNAs (red bars) and rRNA operons (blue bars) in the sense and antisense directions, respectively. The order of the scaffolds is represented in the sixth circle. Histograms in the seventh circle indicate the GC content per 10,000 bases. The eighth circle represents GC skew data per 10,000 bases (green indicates positive skewness, and purple indicates negative skewness). The innermost circle represents the number of bases.
Figure 3. Circular visualization of the genome of Streptomyces sp. 21So2-11. The outer circle represents the distribution of gene clusters coding for secondary metabolites (red: clusters that are >75% similar to those BGCs present in related organisms; kermesinus: <75% similarity). The gene clusters are followed by COG on the forward (the second circle) and reverse (the third circle) strands (colored by COG categories). The fourth and fifth circles represent coding regions (CDSs), tRNAs (red bars) and rRNA operons (blue bars) in the sense and antisense directions, respectively. The order of the scaffolds is represented in the sixth circle. Histograms in the seventh circle indicate the GC content per 10,000 bases. The eighth circle represents GC skew data per 10,000 bases (green indicates positive skewness, and purple indicates negative skewness). The innermost circle represents the number of bases.
Microorganisms 12 01228 g003
Microorganisms 12 01228 g004

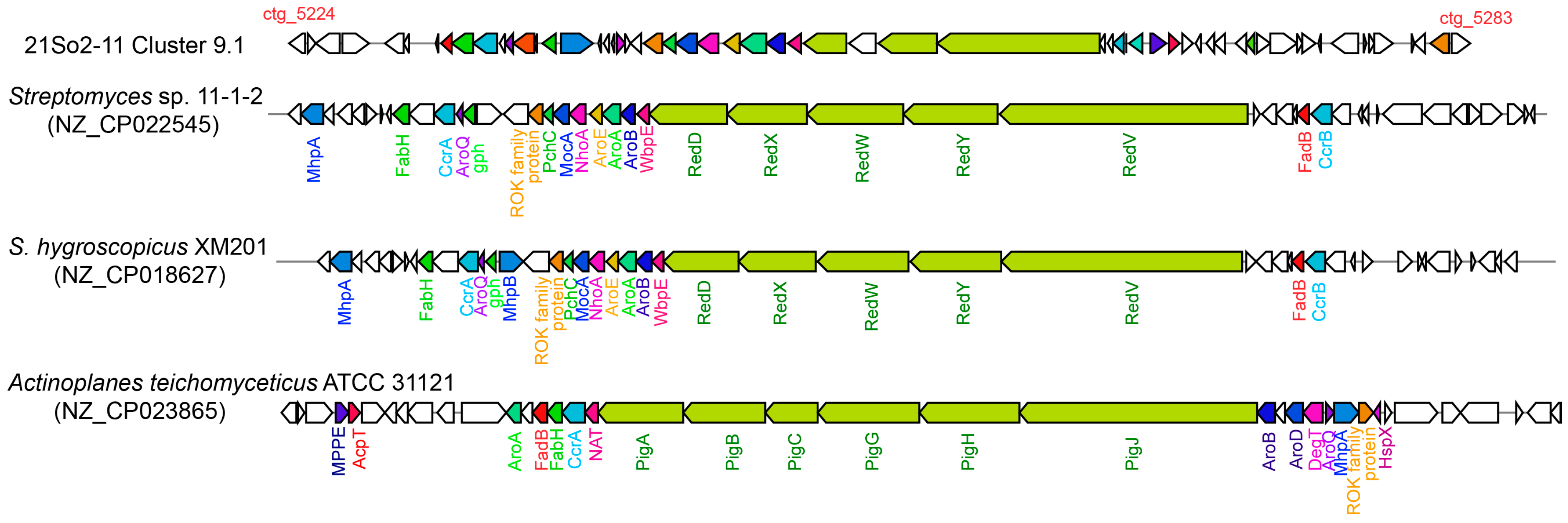

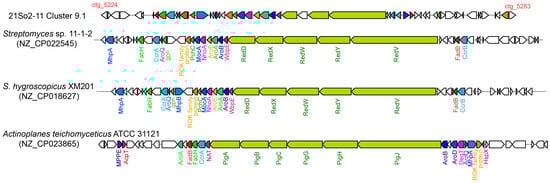

Figure 4. Comparison of the naphthomycin gene cluster in strain 21So2-11 (cluster 9.1 in Table S3) with those in Streptomyces sp. 11-1-2, S. hygroscopicus XM201 and Actinoplanes teichomyceticus ATCC 31121. Homologous genes among the four bacterial strains are shown in the same colors. Genes without any color in strain 21So2-11 are of unknown function, whereas those in the other species have no homologs in 21So2-11.
Figure 4. Comparison of the naphthomycin gene cluster in strain 21So2-11 (cluster 9.1 in Table S3) with those in Streptomyces sp. 11-1-2, S. hygroscopicus XM201 and Actinoplanes teichomyceticus ATCC 31121. Homologous genes among the four bacterial strains are shown in the same colors. Genes without any color in strain 21So2-11 are of unknown function, whereas those in the other species have no homologs in 21So2-11.
Microorganisms 12 01228 g004
Microorganisms 12 01228 g005

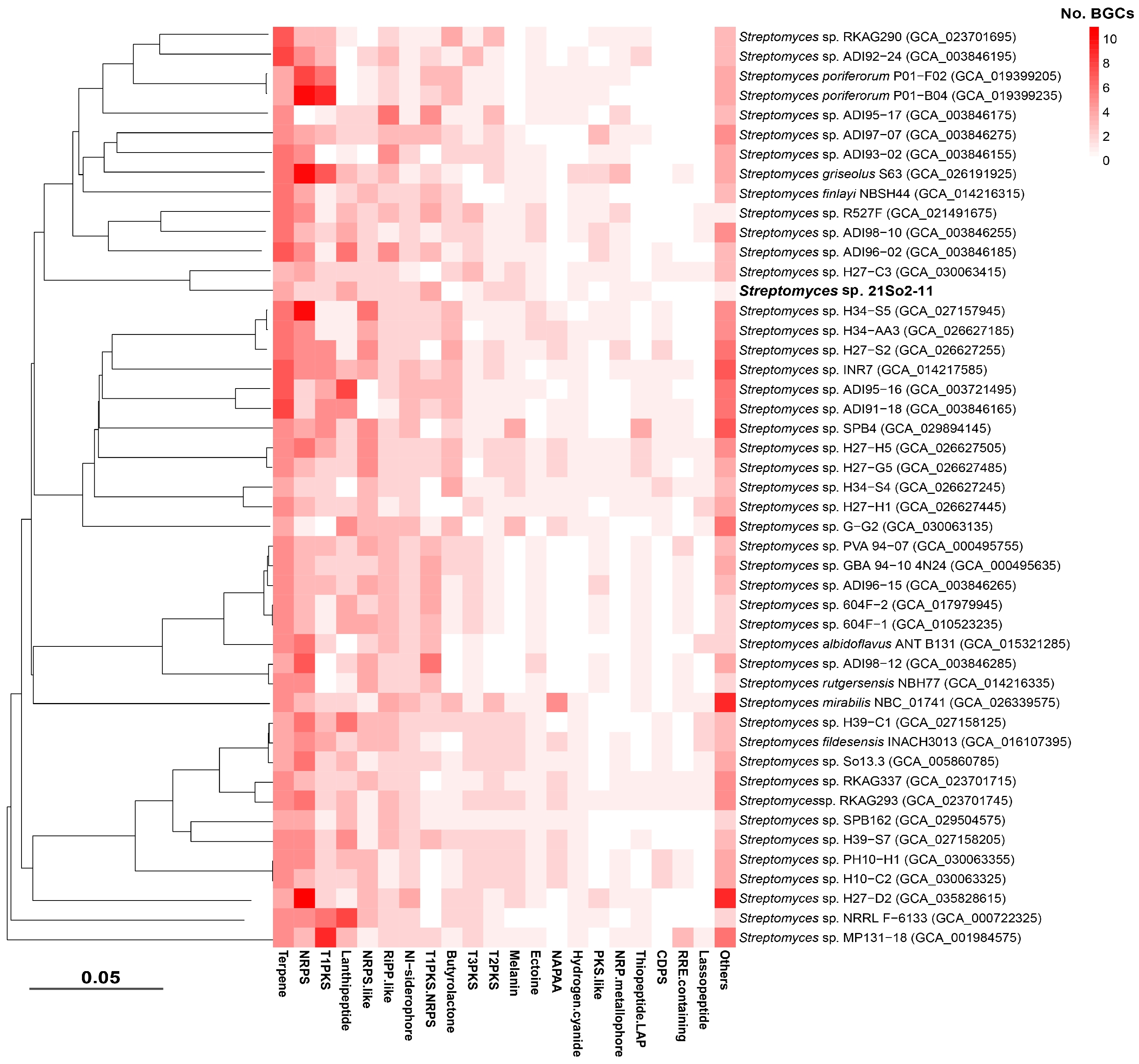

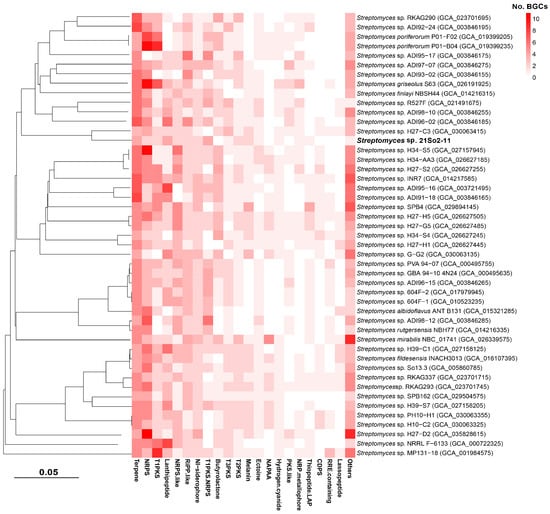

Figure 5. Heatmap of BGC types in the genomes of strain 21So2-11 and 46 other polar Streptomyces strains identified using antiSMASH and BiG-SCAPE.
Figure 5. Heatmap of BGC types in the genomes of strain 21So2-11 and 46 other polar Streptomyces strains identified using antiSMASH and BiG-SCAPE.
Microorganisms 12 01228 g005
Microorganisms 12 01228 g006

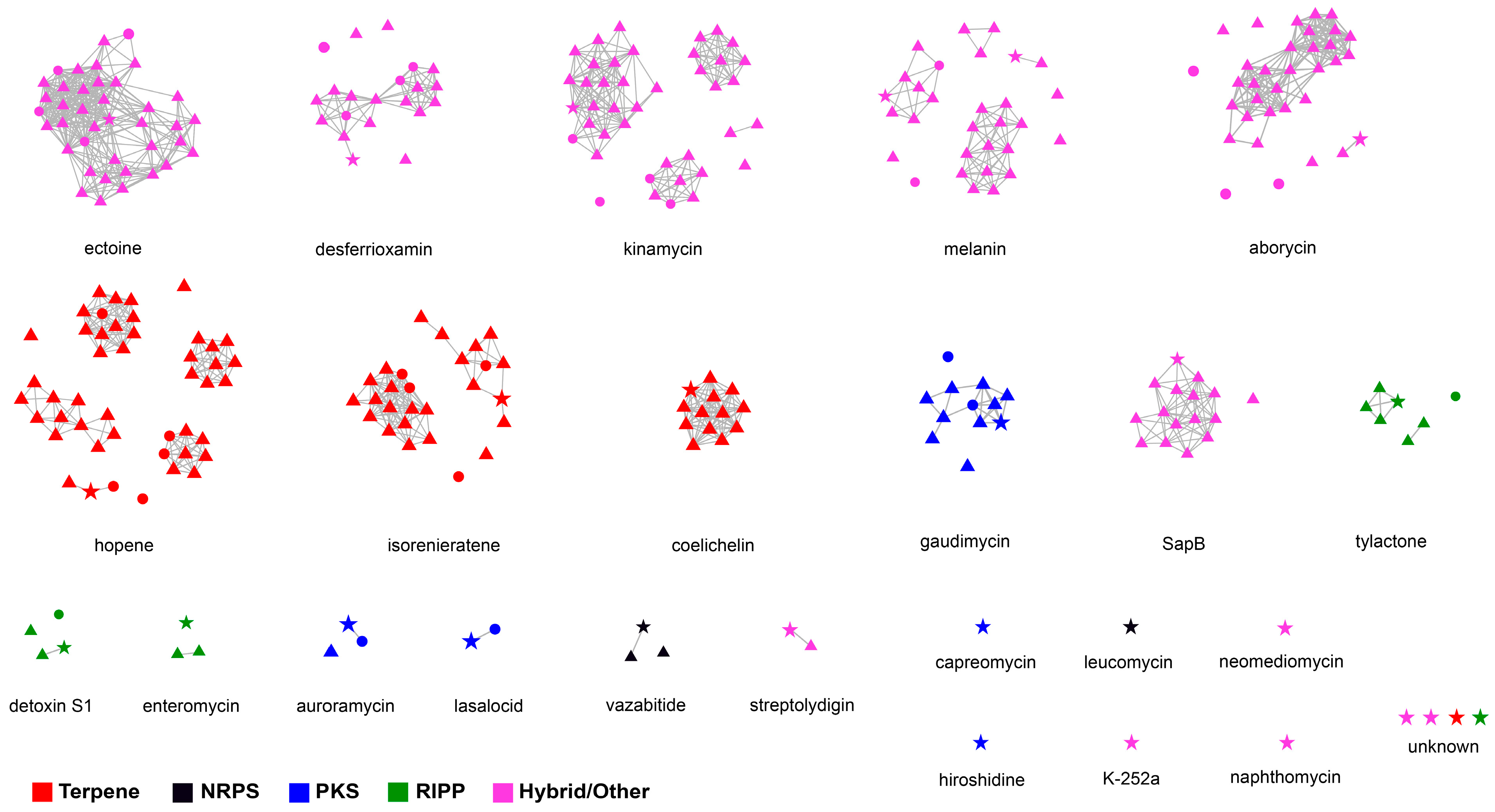

Figure 6. Sequence similarity network of 28 BGCs detected in strain 21So2-11 compared against BGCs in 46 other polar Streptomyces strains. Nodes in stars, triangles and circles represent BGCs originating from strain 21So2-11, 41 Antarctic Streptomyces strains, and 5 Arctic Streptomyces strains, respectively. Clusters of nodes associated with a MIBiG BGC are all presented separately. The colors are shown according to different BGC family annotations.
Figure 6. Sequence similarity network of 28 BGCs detected in strain 21So2-11 compared against BGCs in 46 other polar Streptomyces strains. Nodes in stars, triangles and circles represent BGCs originating from strain 21So2-11, 41 Antarctic Streptomyces strains, and 5 Arctic Streptomyces strains, respectively. Clusters of nodes associated with a MIBiG BGC are all presented separately. The colors are shown according to different BGC family annotations.
Microorganisms 12 01228 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Du, Y.; Han, W.; Hao, P.; Hu, Y.; Hu, T.; Zeng, Y. A Genomics-Based Discovery of Secondary Metabolite Biosynthetic Gene Clusters in the Potential Novel Strain Streptomyces sp. 21So2-11 Isolated from Antarctic Soil. Microorganisms 2024, 12, 1228. https://doi.org/10.3390/microorganisms12061228

AMA Style

Du Y, Han W, Hao P, Hu Y, Hu T, Zeng Y. A Genomics-Based Discovery of Secondary Metabolite Biosynthetic Gene Clusters in the Potential Novel Strain Streptomyces sp. 21So2-11 Isolated from Antarctic Soil. Microorganisms. 2024; 12(6):1228. https://doi.org/10.3390/microorganisms12061228

Chicago/Turabian Style

Du, Yu, Wei Han, Puyu Hao, Yongqiang Hu, Ting Hu, and Yinxin Zeng. 2024. "A Genomics-Based Discovery of Secondary Metabolite Biosynthetic Gene Clusters in the Potential Novel Strain Streptomyces sp. 21So2-11 Isolated from Antarctic Soil" Microorganisms 12, no. 6: 1228. https://doi.org/10.3390/microorganisms12061228

APA Style

Du, Y., Han, W., Hao, P., Hu, Y., Hu, T., & Zeng, Y. (2024). A Genomics-Based Discovery of Secondary Metabolite Biosynthetic Gene Clusters in the Potential Novel Strain Streptomyces sp. 21So2-11 Isolated from Antarctic Soil. Microorganisms, 12(6), 1228. https://doi.org/10.3390/microorganisms12061228

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
