Ticks and Tick-Borne Pathogens in Popular Recreational Areas in Tallinn, Estonia: The Underestimated Risk of Tick-Borne Diseases

by
Maria Vikentjeva
1,
Julia Geller
2 and
Olga Bragina
3,*
1
Department of Communicable Diseases, Health Board, Paldiski mnt 81, 10614 Tallinn, Estonia
2
Influenza Centre, Health Board, Paldiski mnt 81, 10614 Tallinn, Estonia
3
Division of Chemistry, Department of Chemistry and Biotechnology, School of Science, Tallinn University of Technology, Akadeemia tee 15, 12618 Tallinn, Estonia
*
Author to whom correspondence should be addressed.
Microorganisms 2024, 12(9), 1918; https://doi.org/10.3390/microorganisms12091918
Submission received: 25 August 2024 / Revised: 13 September 2024 / Accepted: 18 September 2024 / Published: 20 September 2024
(This article belongs to the Special Issue Borreliosis and Other Tick-Borne Diseases in the Northern and Southern Hemispheres)
Browse Figure
Review Reports Versions Notes

Abstract

:
This study reveals a significant presence of ticks and tick-borne pathogens in urban recreational areas of Tallinn, Estonia. During the period of May–June 2018, 815 Ixodes ticks were collected from an area of 11,200 m2 using the flagging method. Tick density reached up to 18.8 ticks per 100 m2, indicating a high concentration of ticks in these urban green spaces. Pathogen analysis demonstrated that 34% of the collected ticks were infected with at least one pathogen. Specifically, Borrelia burgdorferi s.l., the causative agent of Lyme borreliosis, was detected in 17.4% of the ticks; Rickettsia spp. was detected in 13.5%; Neoehrlichia mikurensis was detected in 5.5%; Borrelia miyamotoi was detected in 2.6%; and Anaplasma phagocytophilum and tick-borne encephalitis virus were detected in 0.5% each. These findings indicate that the prevalence and abundance of ticks and tick-borne pathogens in these urban environments are comparable to or even exceed those observed in natural endemic areas. Given the increasing incidence of Lyme borreliosis in Central and Northern Europe, the risk of tick bites and subsequent infection in urban recreational sites should not be underestimated. Public health measures, including enhanced awareness and precautionary information, are essential to mitigate the risk of tick-borne diseases in these urban settings.

1. Introduction

Ticks, especially those belonging to the Ixodes ricinus complex, are among the most medically important vectors for various diseases in the Northern Hemisphere. Traditionally the risk of a tick bite followed by Lyme borreliosis (LB) or tick-borne encephalitis (TBE) has been associated with deciduous or mixed boreal forests, pastures and meadows. However, with global urbanization and the development of green infrastructures and urban woodlands within the cities, various wildlife transformed from residing in wild landscapes to urban areas and adapted to new environments, becoming well established in close proximity to human settlements. This has increased the risk for various zoonotic and vector-borne diseases for members of the public.
Ticks are widely present in green spaces of urban environments, even despite low local floral and faunal diversity. Several studies from Europe report the detection of various tick-borne pathogens (TBPs) in ticks found within cities, such as tick borne encephalitis virus (TBEV), Borrelia burgdorferi sensu lato (BBSL), Borrelia miyamotoi, Neoehrlichia mikurensis, Anaplasma phagocytophilum and Rickettsia helvetica [1,2,3,4]. Many small mammalian species that are essential blood meal providers for larval and nymphal ticks and act as reservoirs for TBPs, such as BBSL and TBEV, are highly established in urban areas, well adapted to anthropogenic pressure and may thus play a role in the increasing incidence of tick-borne diseases (TBDs) in cities [5]. The urban heat island effect may also reflect positively on arthropods sensitive to cold temperatures by promoting their survival and shortening developmental diapause periods [6].
Estonia has long been an endemic area for TBE and LB, and by 2020, both diseases had reached record incidence rates. The incidence of TBE fell nearly threefold, reaching its lowest rate in the last 20 years at 5.1 cases per 100,000 people. By contrast, the number of LB cases reached a record high during the same period, with 182.1 cases per 100,000 people. This is three times higher compared to the levels recorded in 2013 [7]. Still, about 15% of diagnosed TBD patients with tick bites of an assumable geographical origin were reported within urban areas [8]. Two non-nidicolous Ixodes tick species of medical importance, I. ricinus and I. persulcatus, have been shown to maintain the circulation of various TBPs in Estonia. In addition to European (TBEV-Eu) and Siberian (TBEV-Sib) TBEV subtypes, at least five species of BBSL, as well as various TBPs including tick-borne Rickettsiales (A. phagocytophilum, Ehrlichia muris, N. mikurensis, R. helvetica, R. monacensis and Candidatus R. tarasevichae), relapsing fever group B. miyamotoi and several Babesia species have been detected in questing ticks in their natural habitats in Estonia [9,10,11,12,13,14,15]. The aim of this study is to investigate the distribution and abundance of ticks in urban areas of Tallinn and to analyze these ticks for the presence of tick-borne pathogens (TBPs), including TBEV, BBSL, B. miyamotoi, A. phagocytophilum, N. mikurensis and Rickettsia spp., in popular recreational and leisure sites within the city.

2. Materials and Methods

2.1. Study Areas Selection and Tick Collection Sites

Two main aspects were considered when choosing study areas: suitable habitats for ticks and popularity among visitors. Satellite imagery from Google Earth and the Estonian Land Board Web Map application (xgis.maaamet.ee/maps accessed on 15 April 2018), as well as personal observations and data on recreational areas from the official Tallinn webpage (www.tallinn.ee, accessed 15 April 2018), were used for the initial identification of potentially suitable study areas, which were then visited to determine specific flagging sites. Areas were selected according to the presence of bushes, a broad-leaf or temperate forested area and a litter layer, with known recreational popularity among visitors. Based on these criteria, 14 sites were selected in collaboration with the respective authorities where applicable (Figure 1).
Each transect was located along trails or their closest proximity to imitate visitors’ behavior as closely as possible. The observations and variables recorded at each site included a date, time, transect length and air temperature. Habitat and vegetation type, as well as signs of any host presence by seeing an actual animal or any direct evidence (e.g., tracks, birdsongs, nests, feces), were also noted.
Based on climate and weather observations from previous years, the month of May was predicted to be the most suitable time for the survey. Sites were surveyed for ticks from 9 May to 1 June 2018, preferably during morning hours from 9 to 11 a.m. Each site was examined once.

2.2. Tick Collection and Species Identification

Tick collections were performed using the flagging technique with a 1 m2 light-colored flannel cotton cloth, attached to a wooden T-shaped handle, that was dragged over vegetation at slow pace over a set of distances of 5 m2. At each survey site, a minimum of 60 × 5 m2 transects were completed by one person. More transects were carried out at sites with less tick density (with no nymphs or adult ticks observed in first 30 transects, i.e., 150 m2) or in sites with uneven terrain. The minimum survey area for each site was 300 m2.
Ticks were removed from the cloth with tweezers, placed into separate glass vials according to their development stage and sex and stored at +4 °C prior to species identification. The presence of larvae was noted, but they were not collected, counted nor included in any analysis of this study. Adults and nymphal tick species were identified individually using a stereomicroscope according to morphological keys [16]. Ambiguous specimens were additionally identified by molecular keys using PCR based on internal transcribed spacer 2 (ITS2) and the partial 16S rRNA gene, as described previously [11,17].
Questing tick abundance was calculated as the density of total number of ticks (DOT), adults (DOA) and nymphs (DON) collected per 100 m2. Additionally, indexes of abundance, which takes into account collection efforts, were calculated as described [18]. The DIN per 100 m2 was derived for each site by multiplying the mean density of host-seeking nymphs (DON) by the infection prevalence at each site.

2.3. DNA/RNA Isolation

All ticks were individually processed for DNA and RNA isolation using the blackPREP Tick DNA/RNA kit (Analytik Jena, Jena, Germany). The initial tick lysis step was increased twice in time, and the homogenization step was performed twice according to manufacturers’ recommendations. Homogenization was performed using MixerMill MM301 (Retsch, Haan, Germany). Mixing mill cassettes with vials, containing tick homogenate, were flipped over between homogenization steps to assure better milling performance. DNA and RNA solutions were then stored at −20 °C and −70 °C, respectively, prior to further individual screening for the presence of TBPs.

2.4. TBP Detection

All tick nucleic acid extracts were analyzed individually. Positive tick samples, which were obtained from previous studies and successfully sequenced for respective TBP gene fragments, and deionized PCR-grade water were used as positive and negative controls, respectively, at each amplification step. To reduce contamination risk, each procedure, including tick pre-extraction washes, RNA/DNA extraction, PCR reaction mix preparation, DNA/RNA adding step, PCR reaction and gel-electrophoresis, were performed in separate rooms.
The initial screening of Rickettsia spp. and TBEV was performed by real-time PCR based on a 74 bp fragment of the gltA gene and 67 bp long fragment of a 3′ non-coding region, respectively [12,19]. The detection of other bacterial TBPs was performed by nested PCR reactions based on respective TBP specific regions as follows: 245–256 bp long 5S–23S intergenic spacer (IGS) region was used for BBSL [20], 532 bp fragment of the p66 gene was used for B. miyamotoi [21] and 1350 bp 16S rRNA fragment was used for Anaplasmataceae [11]. Detailed information on all PCR reactions, including target name, product size, primer/probe sets and amplification conditions used in this current study are presented in Supplementary Table S1.

2.5. TBP Identification and Genotyping

After initial determination, all positive PCR samples were subjected to direct Sanger sequencing with subsequent BLAST analysis of obtained sequences for TBP species identification. Sequencing of PCR products was performed at the Core Facility, Institute of Genomics, University of Tartu. BLASTN® tools (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed 21 January 2021) were used for sequences, comparing them to existing GenBank records once MEGA 7.0 software had been used for sequencing chromatogram proofreading, sequence trimming and group aligning.
The genotyping of Rickettsia species in positive qPCR samples was performed by the sequencing of the 667 bp long region of the gltA gene, amplified by nested PCR [22]. Samples positive for Rickettsia spp. qPCR, but negative for nested PCR of the gltA fragment, were additionally subjected to PCR amplification and sequencing of a 769 bp long ompB gene region, as described by Roux and Raoult [23], and an 843 bp long region of the sca4 gene as described by Igolkina et al. [24]. Samples remained negative for any analyzed gene region by PCR, but those with Ct values below 35.0 were classified as unspecified.
TBEV genotype detection for RT-qPCR positive samples with Ct values below 35.0 was performed via nested RT-PCR amplification of the partial E protein gene 465 bp long fragment [14,19].
All final nested PCR products were visualized by 1% agarose gel electrophoresis, stained with ethidium bromide.
Due to the number of identical sequences, especially within BBSL and R. helvetica, only unique sequences were deposited, and duplicate sequences were omitted from submission. Samples whose nucleotide sequences allowed for performing pathogen genotyping, but with a partially poor chromatogram or with possible mixed infections of several pathogen species strains, were also excluded from depositing. All other sequences were deposited with the maximum reliable plot length read. Nucleotide sequences of gene fragments obtained during this study were submitted to the GenBank database under the following accession numbers: MW924118 and MW924120—MW924135 for BBSL species (196-215 bp 5S-23S IGS), MW924974—MW924983 for B. miyamotoi (p66, 472 bp), MW924984—MW925040 for R. helvetica (554 bp gltA, 739 bp ompB, and 715 bp sca4), MW922757—MW922793 for N. mikurensis (618-118 bp 16S rRNA gene fragment), MW922752—MW922756 for A. phagocytophilum (1158 bp 16S rRNA gene fragment) and MW916612—MW916613 for TBEV (465–468 bp long E protein gene fragment).

2.6. Statistical Analysis

Confidence intervals with 95% (CI) for TBP prevalence were calculated using the Wilson score interval. A Chi square test was used to evaluate the significance of the results from each study site. Statistical analyses were performed using GraphPad Prism 9. Since the collection of ticks at each site was carried out once and the choice of site was not based on the landscape, habitat or vegetation preferences, no statistical analysis for tick distribution was performed for any study site. No habitat preferences, climate or any other variables among sites was applied for this study.

3. Results

3.1. Tick Sampling

A total of 177 adults (79 male and 98 female ticks) and 638 nymphs were collected from over 11,000 m2 of the vegetation screened (Table 1). All ticks were identified as I. Ricinus, except one I. persulcatus male collected in the Sütiste forested park (site 2). Among the 14 visited sites, the highest numbers of ticks were collected at Tallinn Zoo, Estonian Open Air Museum and Pirita forest park (sites 12, 8 and 2, respectively), which accounted for 28.7% (234/815), 27.7% (226/815) and 15.0% (122/815) of the total number of collected ticks, respectively. The estimated overall mean DOT was 9.3, with the greatest at Estonian Open Air Museum, Männiku forest (site 14) and Tallinn Zoo (18.8, 18.3 and 15.6, respectively) (Table 1). The overall mean density of nymphs (DON) was 7.3 nymphs per 100 m2, although it fluctuated between 1.3 and 8.6 among the sites (Table 1).
From all the sites visited during this study, ticks were found at 10 sites. There were no ticks found in the city central parks Hirvepark and Toompark; von Glehni park; Järve health trails; and Sanatooriumi park (sites 5; 6; 11; and 13; respectively) (Figure 1).

3.2. Pathogen Prevalence

Of all ticks analyzed, 34% tested positive for at least one TBP species. Between sites, the TBP abundance rate varied from 3.3% in the Nõmme-Mustamäe forested area to 43.8% in the Estonian Open Air Museum (Table 2), both with extreme statistically significant relations to other sites (χ2 = 13,045, df = 1, p = 0.0003 and χ2 = 13,434, df = 1, p = 0.0002, respectively). Other statistically significant TBP abundance scores were obtained in ticks collected from Tallinn Zoo (41.5%; χ2 = 8153, df = 1, p = 0.0043) and Männiku (19.2%; χ2 = 7831, df = 1, p = 0.0051) (Table 2).

3.3. Borrelia burgdorferi (Sensu Lato)

B. burgdorferi s.l. was the most frequently detected tick-borne pathogen (TBP), identified in ticks from nearly all collection sites except for the Pirita River Valley. Overall, BBSL DNA was detected in 17.4% of all analyzed ticks, representing 51.2% of all TBP-positive ticks. The prevalence of BBSL varied between sites, ranging from 3.3% at Nõmme-Mustamäe to 25.2% at the Estonian Open Air Museum (Table 2). Statistically significant differences in BBSL prevalence were observed among several sites, including Pirita River Valley, Tallinn Zoo and Männiku, with χ2 values of 4.298 (df = 1, p = 0.0382), 13.217 (df = 1, p = 0.0003), 3.884 (df = 1, p = 0.0488), 5.254 (df = 1, p = 0.0219) and 7.95 (df = 1, p = 0.0048), respectively.
A sequence analysis of the 5S–23S intergenic spacer (IGS) region revealed the presence of three BBSL genospecies. The predominant genospecies was Borrelia afzelii (121/142; 85.2%), followed by Borrelia garinii (11/142; 7.3%) and Borrelia valaisiana (7/142; 4.7%). Three samples could not be specified at the genospecies level due to inadequate sequencing results, which might indicate the presence of mixed genospecies (Table 2). The nucleotide similarity of the B. afzelii 5S–23S IGS sequences ranged from 77.4% to 99.5% among samples and matched previously detected sequences from Estonian questing and passerine-attached ticks (GenBank accession numbers KX418639, KX418638, KX418640), as well as sequences reported from France (KY273112, KY273113), Italy (MT038899), Slovakia (KX906933, KX906945), Taiwan (JX649207) and Russia (MK118750, AB178349). The nucleotide similarity rates of B. garinii 5S–23S IGS sequences varied from 79.0% to 99.5% and clustered with sequences previously reported from Estonia (KX418634 and KX418637), Taiwan (JX649205), Italy (MT038900), Belarus (AY772205), Sweden (JX909934), Czech Republic (AF497993) and Russia (MK118761). The B. valaisiana sequences were identical to each other and to those previously detected in Estonian I. ricinus from the common blackbird (KX418641), as well as to strains reported from Spain (MG245790), the Czech Republic (AF497989) and Italy (MT038902).

3.4. Borrelia miyamotoi

B. miyamotoi was detected in 2.6% of all analyzed ticks (21/815). This genospecies was found mostly in the Estonian Open Air Museum followed by Tallinn Zoo and Männiku forest (Table 2), whereas significant association between study site and the prevalence rate was obtained for the Open Air Museum only (χ2 = 4255, df = 1, p = 0.0391). Sequencing analysis of the B. miyamotoi partial p66 gene showed that nucleotide sequences of this study are identical to each other and to sequences revealed previously in the Estonian tick population [10] and from human patient samples from Sweden (MK458691).
Rickettsia spp. was the second most prevalent bacterial TBP after BBSL. Its presence was detected in 13.5% (110/815) of all analyzed tick samples and varied from 3,2% to 22,2% between study sites (Table 2), whereas statistically significant prevalence was shown only in Nõmme-Mustamäe (χ2 = 4.86, df = 1, p = 0.0275). According to sequencing analysis of partial gltA, sca4 and ompB gene nucleotide sequences, all Rickettsia-positive samples belonged to the R. helvetica species and were identical to each other within each gene fragment and to sequences reported from Western Siberia (KX963385), Germany (MF163040, KU310591) and to those previously detected in Estonian Ixodes ticks [12].

3.5. Anaplasmataceae

Although total Anaplasmataceae DNA prevalence rate shown was 6.1% (50/815), these TBPs were detected only in ticks collected from three sites: Tallinn Zoo, Estonian Open Air Museum and Pirita forest park (Table 2). Of these sites, only Tallinn Zoo showed a statistically important association between the collection site and obtained prevalence (χ2 = 14,115, df = 1, p = 0.0002). The analysis of Anaplasmataceae 16S rRNA sequences revealed the presence of two species: A. phagocytophilum (4/815; 0.5%) and N. mikurensis (45/815; 5.5%) (Table 2). One sample remained unspecified and was thus treated as Anaplasmataceae sp.-positive.
The most prevalent Anaplasmataceae species detected was N. mikurensis. N. mikurensis was identified in I. ricinus ticks collected from Pirita Forest Park (4 out of 122; 3.3%), the Estonian Open Air Museum (14 out of 226; 7.5%), and Tallinn Zoo (24 out of 234; 10.2%). Within partial 16S rRNA gene N. mikurensis sequences, this study showed 98.2–99.6% similarity to GenBank sequences reported previously from Estonian ticks (KU535862) and up to 99.4% similarity to sequences from Germany (KU865475) and Western Siberia (MN736126).
A. phagocytophilum was the least detected Anaplasmacateae species, detected in four I. ricinus ticks from Pirita forest park (2/122; 1.6%), Estonian Open Air Museum (1/226; 0.4%) and Tallinn Zoo (1/234; 0.4%). The 16S rRNA partial nucleotide sequences of A. phagocytophilum obtained in this study were 99.7–99.9% similar to each other. A comparison to previously reported sequences from Estonian questing ticks (acc. no HQ629920, HQ629922, HQ629920) and sequences reported from Russia (acc. no HQ629911), Sweden (acc. no AY527213) and Austria (acc. no JX173652) showed 99.7–100% similarity.

3.6. TBEV

According to qRT-PCR results, TBEV was the least common of the detected TBPs, detected in 4 I. ricinus nymphs of all 815 examined individual ticks (total prevalence of 0.5%) found at Pirita river valley (1/18; 5.6%), Ilmarise health trails (1/37; 2.7%), Estonian Open Air Museum (1/226; 0.4%) and Männiku forest (1/73; 1.4%) (Table 2).
Two samples were successfully sequenced and genotyped. According to the analysis of the partial E gene sequence obtained from an I. ricinus tick sample from the Estonian Open Air Museum, it clustered with TBEV-Sib sequences previously detected in Estonian I. persulcatus ticks collected in Eastern Estonia (acc. no KT748749 and KT748748) at an identity rate of 99.8%, belonging to the Baltic lineage within TBEV-Sib [14,22]. Another TBEV partial E gene sequence, retrieved from an I. ricinus sample collected at Ilmarise health trails, clustered within the TBEV-Eu subtype with 98.7% similarity to the strain previously reported from Estonia (acc. No GU183383) and 99.6% similarity to the TBEV strain from Latvia (acc. No AJ319583).

3.7. Mixed Infections

In all, 15.2% (42/277) of all TBP-positive ticks contained double infections, and four tick samples tested positive for three tick-borne pathogens (4/277; 1.4%). The most frequently detected TBP combination in double infected ticks was B. afzelii with N. mikurensis (18/42; 42.9%) or R. helvetica (13/42; 31.0%), and these originated mainly from Open Air Museum, Tallinn Zoo and Pirita forest park. It is noteworthy that of the four TBEV-positive tick samples, two were co-infected with bacterial TBP; one tick sample from the Estonian Open Air Museum was positive for TBEV-Sib and N. mikurensis, and the TBEV-Eu-positive sample from Männiku was also positive for unspecified BBSL. Of the four tick samples with triple infections, three tested positive for the presence of B. afzelii, R. helvetica and N. mikurensis, and one tested positive for B. afzelii, R. helvetica and B. miyamotoi.

4. Discussion

Prior to this study, there was no previous information on the spread of ticks and TBPs in urban recreational areas in Tallinn, Estonia. This study confirms the presence of Ixodes tick species in popular recreational, outdoor sport and leisure areas in the largest city of Estonia, with abundance rates that are comparable to or even exceed those previously recorded in the most endemic foci in natural environments. Notably, among all collected ticks from the genus Ixodes, we identified the species Ixodes ricinus, except for a single tick that belonged to the species Ixodes persulcatus. This finding underscores the diversity of tick species present in urban settings and highlights the potential public health risks associated with these areas [22]. As shown in this study, large and less-fragmented areas, such as Tallinn Zoo, Open Air Museum, Pirita forest park and Männiku, with needle- and broad-leaved trees, underwood with rich litter and signs of the presence of an ample variety of synanthropic small and medium-sized mammals offer a prerequisite environment for tick survival, development and maintenance. Therefore, a higher number of ticks, especially nymphs, is expected (DOT over 9.8 and DON over 8.6). By contrast, smaller, highly managed parks with mowed areas, such as Kadrioru park, Hirve/Toompark and von Glehni park, showed significantly lower tick densities (DOT < 2; DON < 1.3), despite having similar vegetation. While not focusing on tick density, our study results are generally in agreement with other European studies [23]. This suggests that human activity and landscape management practices may play a significant role in reducing tick habitat suitability in urban parks.
The prevalence of tick-borne pathogens varies significantly across European countries. The prevalence rate of 34% identified in this study is notably high compared to other regions, such as Spain, where the prevalence of tick-borne pathogens in urban environments was only 4.1%, or in French peri-urban forests, where it reached 15.9% [25,26]. The high average prevalence rate of TBPs in Tallinn’s urban green spaces indicates a significant risk of tick-borne infections, potentially even greater than in more extensive natural habitats due to the limited availability of green areas within the city [27].
Lyme borreliosis is notifiable and of great concern in Estonia. According to Estonian Health Board epidemiological reports from 2014–2018, up to 19% of all confirmed LB patients in Harju county with tick bites of known geographical origins had been bitten by ticks within Tallinn [8]. The prevalence rates of B. burgdorferi s.l in our study (17.4%) are compatible with those reported in Scandinavia, the Balkans and Central Europe (15.5%, 18.5% and 19.3%, respectively) [28,29]. Similar results have also been shown in urban areas in Switzerland (18%) and the urban Lazienki Park in Warsaw, Poland (17.3%) [23,30]. However, the BBSL prevalence reached 23.0% in Helsinki, Finland, demonstrating variability across different urban environments [31]. The presence of three LB-associated species—B. afzelii, B. garinii, B. valaisiana, known to be the most prevalent in Europe [32,33,34]—is in agreement with previous results concluded in Estonia [9]. As seen in previous studies, in Europe, B. afzelii and B. garinii were the most prominent species found in I. ricinus ticks. Notably, B. afzelii is predominant in Nordic countries (also in Mediterranean ones), whereas B. garinii and, to a lesser extent, B. valaisiana have been brought to Nordic countries (e.g., Sweden) by migratory birds, particularly pheasants [35] The predominance of B. afzelii and B. garinii in urban I. ricinus ticks (85.2% and 7.7%, respectively) [9], compared to natural environments (56.1% and 20.3%), is an interesting finding. A similar disproportion has also been observed in Poland [23], Switzerland [30] and Belgium [36]. This disparity may be explained by the dilution/amplification effects in fragmented urban landscapes and the availability of hosts. Natural forests and other sylvatic areas with little anthropogenic disturbance, fragmentation and transformation are inhabited or visited during migration stops by large amounts and varieties of avian species, which might serve as sources of avian-associated TBPs, such as B. garinii and B. valaisiana [32,37,38]. Thus, under conditions of anthropopressure, the contact of ticks with birds and the prevalence of bird-specialized TBPs are significantly decreased in comparison to natural areas, which may lead to a lower presence of these TBPs in urban ticks. By contrast, rodents, which are highly adapted to an urbanized environment, smaller agglomeration-surrounded areas and human interruption, promote sub-adult tick population maintenance, facilitate the frequency of tick–host contacts and trigger an increase and amplification of rodent-associated Borrelia, like B. afzelii [36].
B. miyamotoi, which belongs to the Hard Tick-Borne Relapsing Fever (HTBRF) group, has been documented to undergo vertical transmission in Ixodes ticks [39]. The detection rate of B. miyamotoi in our study was 2.6% across all analyzed I. ricinus ticks, with site-specific prevalence rates ranging from 0.75% to 4.4%. These findings are consistent with rates observed in urban and suburban areas in Slovakia [40], Poland [41], France [42] and Switzerland [30], as well as with our previous results from the Valgamaa and Võrumaa counties, where I. ricinus co-circulates with I. persulcatus, and the highest positivity rates for B. miyamotoi were recorded at 2.8% [10]. As the population density of peridomestic mice and voles might be higher in urban regions due to favorable breeding and survival factors [43] and as B. miyamotoi, being related to relapsing fever Borrelia, is transovarially transmitted, the higher infection rates in urban areas versus natural wooded sites may be due to higher amplification rates of this pathogen within urban landscape fragments compared to larger natural woodlands and pastures.
Our previous studies indicated the circulation of at least four medically important species within the Rickettsiales order in Estonian I. ricinus populations: A. phagocytophilum [12], N. mikurensis [11], R. helvetica and R. monacensis [13].
A spotted-fever Rickettsia group is transmitted trans-stadially and transovarially among ticks, and, with high tick abundance in urban green areas, may contribute to higher infection rates of this pathogen. The detection of different Rickettsia spp., such as as R. monacensis, R. raoultii, R. slovaca and R. Helvetica, in urban and suburban I. ricinus ticks has been reported from Germany, the Czech Republic, Poland, Ukraine, Romania and Slovakia at rates from 1 to 47% [44,45,46,47,48,49,50,51]. In this study, no other Rickettsia species than R. helvetica has been detected. Although the total abundance of Rickettsia is in line with that detected in natural tick habitats in Harjumaa county previously, larger green open spaces within the city showed up to twice as high rates of Rickettsia distribution (up to 19.5% vs. 10.2%, respectively) [13].
N. mikurensis appeared to be also slightly more abundant in urban I. ricinus ticks compared to those found in the natural I. ricinus allopatric areas with a site-specific prevalence of 3.3–10.9% (average 5.5%) versus 1.0–9.1% (average 0.9%), respectively [11]. These findings align with studies conducted in urban and sylvatic areas in Austria, Sweden, Germany and Poland, which reported prevalence rates from 4.2% to 19.3% [52,53,54,55]. Such widespread prevalence of the pathogen may be connected not only to arthropod vectors but also to reservoir hosts—bank voles and yellow-necked mice—which are largely synurbanized. Some studies also claim that non-rodent species such as hedgehogs, but not insectivores, may also contribute to N. mikurensis maintenance in urban and peri-urban green landscapes and human dwellings [56,57].
The detection of A. phagocytophilum at a prevalence rate of 0.5% makes it one of the least abundant pathogens found in this study, consistent with our previous research in natural landscapes, as well as with studies from Austria (1%) and Poland (0.8–1.2%) [12,53,58,59]. Also, the scattered distribution of this TBP, which in this study was concentrated mainly in larger, mostly outskirt city landscapes—the Pirita forested area, Zoo and Estonian Open Air Museum—corresponds to the presence of synurbanized ungulates or other known Anaplasma animal reservoir hosts, essential for its maintenance and circulation in nature. Although A. phagocytophilum was detected in sites with the highest tick densities as well, the absence of it in the least human-disturbed and fragmented Männiku forest may be due to a dilution effect. Thus, the distribution of A. phagocytophilum in urban conditions might be less dependent on ticks and small mammals present but rather on suitable habitats for ungulates.
The circulation of the tick-borne encephalitis virus (TBEV) in natural foci is maintained by small rodents, which serve as competent reservoir hosts, and ticks, which act as both hosts and vectors [60]. As many rodent species are well adapted to a human-affected and urbanized environment, the presence of TBEV foci and, therefore, the occurrence of autochthonous human TBE cases even within large cities is possible [61]. Previous studies have found TBEV in questing ticks with prevalence rates ranging from 0.2% to 0.8% in the I. ricinus allopatric area and up to 4.9% in areas where I. persulcatus also circulates [15]. This is consistent with the results of this study, as well as with TBEV prevalence rates in I. ricinus ticks in European foci [62]. According to epidemiological data of the Estonian Health Board, about 18% of TBE patients in Harju county had a tick bite history from Tallinn [8]. The results of this study not only confirm the presence of TBEV foci in green areas within the city but also indicate the circulation of European and Siberian subtypes of TBEV in I. ricinus ticks within urban habitats. Since the presence of TBEV-Sib in I. ricinus ticks in locations with no I. persulcatus co-circulation had also been previously shown [15], it may be assumed that TBEV-Sib might be potentially spread into I. ricinus distribution areas without the presence of its principal vector, I. persulcatus.
Due to the fragmentation and separation of urban green areas, ticks collected in these territories most likely have several pathogens at once/at the same time, since they most likely feed on the same hosts. In general, it has been argued more than once that for Ixodes ticks, co-infections are rather the rule than an unusual phenomenon. The most prevalent co-infection combinations were B. afzelii with N. mikurensis (42.9%), as well as B. afzelii with R. helvetica (31.0%); previously, the same situation was observed and described in Switzerland [63] due to their common reservoir. A study of urban ticks in Romania reported a co-infection rate of 34.3% among all I. ricinus ticks. The most common dual co-infections involved Rickettsia spp. and Borrelia spp., followed by co-infections with Rickettsia spp. and A. phagocytophilum, as well as A. phagocytophilum and Borrelia spp. [44]. The presence of multiple pathogens may facilitate more effective colonization of the host, driven by synergistic interactions initiated through co-transmission and the simultaneous invasion of the host by multiple pathogens.

5. Conclusions

This study focuses on the city of Tallinn as a model for understanding tick populations and the prevalence of tick-borne pathogens (TBPs) in urban environments. It reveals a well-established presence of Ixodes ticks, particularly Ixodes ricinus, across both central and peripheral green spaces of the city. The overall tick density in Tallinn’s urban areas varied significantly, with higher concentrations observed in larger, less-fragmented green spaces such as Tallinn Zoo, the Estonian Open Air Museum, Pirita forest park, and Männiku. However, tick density was generally low in smaller, more intensively managed green areas. The prevalence of Borrelia spp. and other pathogens was relatively high, with 34% of ticks testing positive for at least one pathogen. The most commonly detected pathogen group was B. burgdorferi s.l., particularly in areas with ecological connectivity to the outskirts or with dense vegetation. Infected ticks were found in 26.7% of all samples, with the highest prevalence recorded at the Estonian Open Air Museum. Wildlife such as rodents, deer, boar and birds are likely key contributors to the presence of infected ticks in these urban settings, serving as hosts that maintain and spread tick populations. This study also identified several other pathogens, including B. miyamotoi, R. helvetica and N. mikurensis, suggesting a complex ecology of TBP transmission within the city. Given the increasing popularity of urban green spaces for recreation, public health awareness regarding tick-borne diseases is crucial. Our study highlights the need for targeted tick management and control strategies, especially in areas with high tick densities and pathogen prevalence. Urban planning should consider the ecological characteristics that support tick populations and pathogen transmission, potentially reducing the risk of tick-borne diseases in urban settings. Future research should focus on understanding the dynamics of TBP transmission and the role of urban wildlife hosts in sustaining these pathogens.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/microorganisms12091918/s1, Table S1: PCR settings and primers used for the detection of tick-borne pathogens in tick nucleic acid extracts.

Author Contributions

M.V.: methodology, investigation, resources, original draft writing and supervision. O.B.: validation, investigation, review and editing. J.G.: conceptualization, methodology, investigation, resources, original draft writing, visualization, supervision, project administration and funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministry of Education and Research of Estonia in the project IUT-42-1.

Data Availability Statement

All additional data associated with this study can be obtained from the corresponding author on reasonable request. Unique nucleotide sequences obtained during this study were submitted to the GenBank database under the following accession numbers: MW924118—MW924135 for BBSL species, MW924974—MW924983 for B. miyamotoi, MW924984—MW925040 for R. helvetica, MW922757—MW922793 for N. mikurensis, MW922752—MW922756 for A. phagocytophilum and MW916612—MW916613 for TBEV.

Acknowledgments

The authors would like to thank Larissa Starkova and Reet Rumvolt (National Institute for Health Development, Estonia), for their assistance during laboratory research and Riina Süld for helpful advice and suggestions regarding the manuscript.

Conflicts of Interest

The authors declare that they have no competing interests.

References

  1. Chvostac, M.; Spitalska, E.; Vaclav, R.; Vaculova, T.; Minichova, L.; Derdakova, M. Seasonal Patterns in the Prevalence and Diversity of Tick-Borne Borrelia burgdorferi Sensu Lato, Anaplasma phagocytophilum and Rickettsia spp. in an Urban Temperate Forest in South Western Slovakia. Int. J. Environ. Res. Public Health 2018, 15, 994. [Google Scholar] [CrossRef] [PubMed]
  2. Kjelland, V.; Paulsen, K.M.; Rollum, R.; Jenkins, A.; Stuen, S.; Soleng, A.; Edgar, K.S.; Lindstedt, H.H.; Vaino, K.; Gibory, M.; et al. Tick-borne encephalitis virus, Borrelia burgdorferi sensu lato, Borrelia miyamotoi, Anaplasma phagocytophilum and Candidatus Neoehrlichia mikurensis in Ixodes ricinus ticks collected from recreational islands in southern Norway. Ticks Tick. Borne Dis. 2018, 9, 1098–1102. [Google Scholar] [CrossRef] [PubMed]
  3. Banovic, P.; Jakimovski, D.; Bogdan, I.; Simin, V.; Mijatovic, D.; Bosilkovski, M.; Mateska, S.; Diaz-Sanchez, A.A.; Foucault-Simonin, A.; Zajac, Z.; et al. Tick-borne diseases at the crossroads of the Middle East and central Europe. Infect. Dis. Now 2024, 54, 104959. [Google Scholar] [CrossRef]
  4. Kowalec, M.; Szewczyk, T.; Welc-Faleciak, R.; Sinski, E.; Karbowiak, G.; Bajer, A. Rickettsiales Occurrence and Co-occurrence in Ixodes ricinus Ticks in Natural and Urban Areas. Microb. Ecol. 2019, 77, 890–904. [Google Scholar] [CrossRef] [PubMed]
  5. de Cock, M.P.; Baede, V.O.; Esser, H.J.; Fonville, M.; de Vries, A.; de Boer, W.F.; Mehl, C.; Ulrich, R.G.; Schares, G.; Hakze-van der Honing, R.W.; et al. T(r)icky Environments: Higher Prevalence of Tick-Borne Zoonotic Pathogens in Rodents from Natural Areas Compared with Urban Areas. Vector Borne Zoonotic Dis. 2024, 24, 478–488. [Google Scholar] [CrossRef]
  6. Dale, A.G.; Frank, S.D. Urban plants and climate drive unique arthropod interactions with unpredictable consequences. Curr. Opin. Insect Sci. 2018, 29, 27–33. [Google Scholar] [CrossRef]
  7. Terviseamet. Nakkushaigustesse Haigestumine Eestis 2000–2020. Available online: https://www.terviseamet.ee/et/nakkushaigused-menuu/tervishoiutootajale/nakkushaigustesse-haigestumine (accessed on 15 April 2021).
  8. Terviseamet. Communicable Disease Statistics in Estonia; National Health Board: Estonia, Tallinn, 2020; p. 195. [Google Scholar]
  9. Geller, J.; Nazarova, L.; Katargina, O.; Golovljova, I. Borrelia burgdorferi sensu lato prevalence in tick populations in Estonia. Parasit. Vectors 2013, 6, 202. [Google Scholar] [CrossRef]
  10. Geller, J.; Nazarova, L.; Katargina, O.; Jarvekulg, L.; Fomenko, N.; Golovljova, I. Detection and genetic characterization of relapsing fever spirochete Borrelia miyamotoi in Estonian ticks. PLoS ONE 2012, 7, e51914. [Google Scholar] [CrossRef] [PubMed]
  11. Ivanova, A.; Geller, J.; Katargina, O.; Varv, K.; Lundkvist, A.; Golovljova, I. Detection of Candidatus Neoehrlichia mikurensis and Ehrlichia muris in Estonian ticks. Ticks Tick. Borne Dis. 2017, 8, 13–17. [Google Scholar] [CrossRef]
  12. Katargina, O.; Geller, J.; Alekseev, A.; Dubinina, H.; Efremova, G.; Mishaeva, N.; Vasilenko, V.; Kuznetsova, T.; Jarvekulg, L.; Vene, S.; et al. Identification of Anaplasma phagocytophilum in tick populations in Estonia, the European part of Russia and Belarus. Clin. Microbiol. Infect. 2012, 18, 40–46. [Google Scholar] [CrossRef]
  13. Katargina, O.; Geller, J.; Ivanova, A.; Varv, K.; Tefanova, V.; Vene, S.; Lundkvist, A.; Golovljova, I. Detection and identification of Rickettsia species in Ixodes tick populations from Estonia. Ticks Tick. Borne Dis. 2015, 6, 689–694. [Google Scholar] [CrossRef] [PubMed]
  14. Katargina, O.; Geller, J.; Vasilenko, V.; Kuznetsova, T.; Jarvekulg, L.; Vene, S.; Lundkvist, A.; Golovljova, I. Detection and characterization of Babesia species in Ixodes ticks in Estonia. Vector Borne Zoonotic Dis. 2011, 11, 923–928. [Google Scholar] [CrossRef] [PubMed]
  15. Katargina, O.; Russakova, S.; Geller, J.; Kondrusik, M.; Zajkowska, J.; Zygutiene, M.; Bormane, A.; Trofimova, J.; Golovljova, I. Detection and characterization of tick-borne encephalitis virus in Baltic countries and eastern Poland. PLoS ONE 2013, 8, e61374. [Google Scholar] [CrossRef] [PubMed]
  16. Estrada-Peña, A.n.; Mihalca, A.D.; Petney, T.N. Ticks of Europe and North Africa: A Guide to Species Identification; Springer Nature: Berlin, Germany, 2017; Volume 1. [Google Scholar] [CrossRef]
  17. Caporale, D.A.; Rich, S.M.; Spielman, A.; Telford, S.R., 3rd; Kocher, T.D. Discriminating between Ixodes ticks by means of mitochondrial DNA sequences. Mol. Phylogenet. Evol. 1995, 4, 361–365. [Google Scholar] [CrossRef]
  18. Rogovskyy, A.S.; Nebogatkin, I.V.; Scoles, G.A. Ixodid ticks in the megapolis of Kyiv, Ukraine. Ticks Tick. Borne Dis. 2017, 8, 99–102. [Google Scholar] [CrossRef]
  19. Schwaiger, M.; Cassinotti, P. Development of a quantitative real-time RT-PCR assay with internal control for the laboratory detection of tick borne encephalitis virus (TBEV) RNA. J. Clin. Virol. 2003, 27, 136–145. [Google Scholar] [CrossRef]
  20. Fomenko, N.V.; Livanova, N.N.; Borgoiakov, V.; Kozlova, I.V.; Shulaikina, I.V.; Pukhovskaia, N.M.; Tokarevich, K.N.; Livanov, S.G.; Doroshchenko, E.K.; Ivanov, L.I. Detection of Borrelia miyamotoi in ticks Ixodes persulcatus from Russia. Parazitologiia 2010, 44, 201–211. [Google Scholar] [PubMed]
  21. Rar, V.A.; Fomenko, N.V.; Dobrotvorsky, A.K.; Livanova, N.N.; Rudakova, S.A.; Fedorov, E.G.; Astanin, V.B.; Morozova, O.V. Tickborne pathogen detection, Western Siberia, Russia. Emerg. Infect. Dis. 2005, 11, 1708–1715. [Google Scholar] [CrossRef]
  22. Värv, K.; Rumvolt, R.; Remm, J.; Katargina, O.; Geller, J.; Jaik, K. The impact of ecological factors on the abundance of ticks and prevalence of tick-borne pathogens in endemic and non-endemic locations in Estonia. Parasit. Vectors 2020. [Google Scholar]
  23. Kowalec, M.; Szewczyk, T.; Welc-Faleciak, R.; Sinski, E.; Karbowiak, G.; Bajer, A. Ticks and the city—Are there any differences between city parks and natural forests in terms of tick abundance and prevalence of spirochaetes? Parasit. Vectors 2017, 10, 573. [Google Scholar] [CrossRef]
  24. Igolkina, Y.P.; Rar, V.A.; Yakimenko, V.V.; Malkova, M.G.; Tancev, A.K.; Tikunov, A.Y.; Epikhina, T.I.; Tikunova, N.V. Genetic variability of Rickettsia spp. in Ixodes persulcatus/Ixodes trianguliceps sympatric areas from Western Siberia, Russia: Identification of a new Candidatus Rickettsia species. Infect. Genet. Evol. 2015, 34, 88–93. [Google Scholar] [CrossRef] [PubMed]
  25. Lejal, E.; Marsot, M.; Chalvet-Monfray, K.; Cosson, J.F.; Moutailler, S.; Vayssier-Taussat, M.; Pollet, T. A three-years assessment of Ixodes ricinus-borne pathogens in a French peri-urban forest. Parasit. Vectors 2019, 12, 551. [Google Scholar] [CrossRef]
  26. Remesar, S.; Matute, R.; Diaz, P.; Martinez-Calabuig, N.; Prieto, A.; Diaz-Cao, J.M.; Lopez-Lorenzo, G.; Fernandez, G.; Lopez, C.; Panadero, R.; et al. Tick-borne pathogens in ticks from urban and suburban areas of north-western Spain: Importance of Ixodes frontalis harbouring zoonotic pathogens. Med. Vet. Entomol. 2023, 37, 499–510. [Google Scholar] [CrossRef] [PubMed]
  27. Janzen, T.; Choudhury, F.; Hammer, M.; Petersson, M.; Dinnetz, P. Ticks—Public health risks in urban green spaces. BMC Public Health 2024, 24, 1031. [Google Scholar] [CrossRef]
  28. Sawczyn-Domanska, A.; Zwolinski, J.; Kloc, A.; Wojcik-Fatla, A. Prevalence of Borrelia, Neoehrlichia mikurensis and Babesia in ticks collected from vegetation in eastern Poland. Exp. Appl. Acarol. 2023, 90, 409–428. [Google Scholar] [CrossRef]
  29. Strnad, M.; Honig, V.; Ruzek, D.; Grubhoffer, L.; Rego, R.O.M. Europe-Wide Meta-Analysis of Borrelia burgdorferi Sensu Lato Prevalence in Questing Ixodes ricinus Ticks. Appl. Environ. Microbiol. 2017, 83, e00609-17. [Google Scholar] [CrossRef] [PubMed]
  30. Oechslin, C.P.; Heutschi, D.; Lenz, N.; Tischhauser, W.; Peter, O.; Rais, O.; Beuret, C.M.; Leib, S.L.; Bankoul, S.; Ackermann-Gaumann, R. Prevalence of tick-borne pathogens in questing Ixodes ricinus ticks in urban and suburban areas of Switzerland. Parasit. Vectors 2017, 10, 558. [Google Scholar] [CrossRef] [PubMed]
  31. Sormunen, J.J.; Kulha, N.; Klemola, T.; Makela, S.; Vesilahti, E.M.; Vesterinen, E.J. Enhanced threat of tick-borne infections within cities? Assessing public health risks due to ticks in urban green spaces in Helsinki, Finland. Zoonoses Public Health 2020, 67, 823–839. [Google Scholar] [CrossRef]
  32. Hanincova, K.; Taragelova, V.; Koci, J.; Schafer, S.M.; Hails, R.; Ullmann, A.J.; Piesman, J.; Labuda, M.; Kurtenbach, K. Association of Borrelia garinii and B. valaisiana with songbirds in Slovakia. Appl. Environ. Microbiol. 2003, 69, 2825–2830. [Google Scholar] [CrossRef]
  33. Hansford, K.M.; Wheeler, B.W.; Tschirren, B.; Medlock, J.M. Questing Ixodes ricinus ticks and Borrelia spp. in urban green space across Europe: A review. Zoonoses Public Health 2022, 69, 153–166. [Google Scholar] [CrossRef]
  34. Kurtenbach, K.; De Michelis, S.; Sewell, H.S.; Etti, S.; Schafer, S.M.; Hails, R.; Collares-Pereira, M.; Santos-Reis, M.; Hanincova, K.; Labuda, M.; et al. Distinct combinations of Borrelia burgdorferi sensu lato genospecies found in individual questing ticks from Europe. Appl. Environ. Microbiol. 2001, 67, 4926–4929. [Google Scholar] [CrossRef] [PubMed]
  35. Wilhelmsson, P.; Jaenson, T.G.T.; Olsen, B.; Waldenstrom, J.; Lindgren, P.E. Migratory birds as disseminators of ticks and the tick-borne pathogens Borrelia bacteria and tick-borne encephalitis (TBE) virus: A seasonal study at Ottenby Bird Observatory in South-eastern Sweden. Parasit. Vectors 2020, 13, 607. [Google Scholar] [CrossRef] [PubMed]
  36. Heylen, D.; Lasters, R.; Adriaensen, F.; Fonville, M.; Sprong, H.; Matthysen, E. Ticks and tick-borne diseases in the city: Role of landscape connectivity and green space characteristics in a metropolitan area. Sci. Total Environ. 2019, 670, 941–949. [Google Scholar] [CrossRef]
  37. Becker, N.S.; Margos, G.; Blum, H.; Krebs, S.; Graf, A.; Lane, R.S.; Castillo-Ramirez, S.; Sing, A.; Fingerle, V. Recurrent evolution of host and vector association in bacteria of the Borrelia burgdorferi sensu lato species complex. BMC Genom. 2016, 17, 734. [Google Scholar] [CrossRef]
  38. Millins, C.; Dickinson, E.R.; Isakovic, P.; Gilbert, L.; Wojciechowska, A.; Paterson, V.; Tao, F.; Jahn, M.; Kilbride, E.; Birtles, R.; et al. Landscape structure affects the prevalence and distribution of a tick-borne zoonotic pathogen. Parasit. Vectors 2018, 11, 621. [Google Scholar] [CrossRef] [PubMed]
  39. Trevisan, G.; Cinco, M.; Trevisini, S.; di Meo, N.; Ruscio, M.; Forgione, P.; Bonin, S. Borreliae Part 2: Borrelia Relapsing Fever Group and Unclassified Borrelia. Biology 2021, 10, 1117. [Google Scholar] [CrossRef]
  40. Vaculova, T.; Derdakova, M.; Spitalska, E.; Vaclav, R.; Chvostac, M.; Rusnakova Taragelova, V. Simultaneous Occurrence of Borrelia miyamotoi, Borrelia burgdorferi Sensu Lato, Anaplasma phagocytophilum and Rickettsia helvetica in Ixodes ricinus Ticks in Urban Foci in Bratislava, Slovakia. Acta Parasitol. 2019, 64, 19–30. [Google Scholar] [CrossRef] [PubMed]
  41. Ciebiera, O.; Grochowalska, R.; Lopinska, A.; Zduniak, P.; Strzala, T.; Jerzak, L. Ticks and spirochetes of the genus Borrelia in urban areas of Central-Western Poland. Exp. Appl. Acarol. 2024, 93, 421–437. [Google Scholar] [CrossRef]
  42. Reis, C.; Cote, M.; Paul, R.E.; Bonnet, S. Questing ticks in suburban forest are infected by at least six tick-borne pathogens. Vector Borne Zoonotic Dis. 2011, 11, 907–916. [Google Scholar] [CrossRef]
  43. Maaz, D.; Krucken, J.; Blumke, J.; Richter, D.; McKay-Demeler, J.; Matuschka, F.R.; Hartmann, S.; von Samson-Himmelstjerna, G. Factors associated with diversity, quantity and zoonotic potential of ectoparasites on urban mice and voles. PLoS ONE 2018, 13, e0199385. [Google Scholar] [CrossRef]
  44. Borsan, S.D.; Ionica, A.M.; Galon, C.; Toma-Naic, A.; Pestean, C.; Sandor, A.D.; Moutailler, S.; Mihalca, A.D. High Diversity, Prevalence, and Co-infection Rates of Tick-Borne Pathogens in Ticks and Wildlife Hosts in an Urban Area in Romania. Front. Microbiol. 2021, 12, 645002. [Google Scholar] [CrossRef] [PubMed]
  45. Jensen, B.B.; Andersen, N.S.; Wolfel, S.; Chen, M.; Paarup, H.M.; Olesen, C.R.; Fournier, P.E.; Jensen, P.M.; Skarphedinsson, S. Rickettsiosis in Denmark: A nation-wide survey. Ticks Tick. Borne Dis. 2023, 14, 102236. [Google Scholar] [CrossRef] [PubMed]
  46. Levytska, V.A.; Mushinsky, A.B.; Zubrikova, D.; Blanarova, L.; Dlugosz, E.; Vichova, B.; Slivinska, K.A.; Gajewski, Z.; Gizinski, S.; Liu, S.; et al. Detection of pathogens in ixodid ticks collected from animals and vegetation in five regions of Ukraine. Ticks Tick. Borne Dis. 2021, 12, 101586. [Google Scholar] [CrossRef]
  47. Silaghi, C.; Gilles, J.; Hohle, M.; Pradel, I.; Just, F.T.; Fingerle, V.; Kuchenhoff, H.; Pfister, K. Prevalence of spotted fever group rickettsiae in Ixodes ricinus (Acari: Ixodidae) in southern Germany. J. Med. Entomol. 2008, 45, 948–955. [Google Scholar] [CrossRef] [PubMed]
  48. Silaghi, C.; Hamel, D.; Thiel, C.; Pfister, K.; Pfeffer, M. Spotted fever group rickettsiae in ticks, Germany. Emerg. Infect. Dis. 2011, 17, 890–892. [Google Scholar] [CrossRef] [PubMed]
  49. Spitalska, E.; Boldis, V.; Derdakova, M.; Selyemova, D.; Rusnakova Taragelova, V. Rickettsial infection in Ixodes ricinus ticks in urban and natural habitats of Slovakia. Ticks Tick. Borne Dis. 2014, 5, 161–165. [Google Scholar] [CrossRef] [PubMed]
  50. Venclikova, K.; Rudolf, I.; Mendel, J.; Betasova, L.; Hubalek, Z. Rickettsiae in questing Ixodes ricinus ticks in the Czech Republic. Ticks Tick. Borne Dis. 2014, 5, 135–138. [Google Scholar] [CrossRef]
  51. Welc-Faleciak, R.; Kowalec, M.; Karbowiak, G.; Bajer, A.; Behnke, J.M.; Sinski, E. Rickettsiaceae and Anaplasmataceae infections in Ixodes ricinus ticks from urban and natural forested areas of Poland. Parasit. Vectors 2014, 7, 121. [Google Scholar] [CrossRef]
  52. Andersson, M.; Bartkova, S.; Lindestad, O.; Raberg, L. Co-infection with ’Candidatus Neoehrlichia Mikurensis’ and Borrelia afzelii in Ixodes ricinus ticks in southern Sweden. Vector Borne Zoonotic Dis. 2013, 13, 438–442. [Google Scholar] [CrossRef]
  53. Glatz, M.; Mullegger, R.R.; Maurer, F.; Fingerle, V.; Achermann, Y.; Wilske, B.; Bloemberg, G.V. Detection of Candidatus Neoehrlichia mikurensis, Borrelia burgdorferi sensu lato genospecies and Anaplasma phagocytophilum in a tick population from Austria. Ticks Tick. Borne Dis. 2014, 5, 139–144. [Google Scholar] [CrossRef]
  54. Richter, D.; Matuschka, F.R. “Candidatus Neoehrlichia mikurensis,” Anaplasma phagocytophilum, and lyme disease spirochetes in questing european vector ticks and in feeding ticks removed from people. J. Clin. Microbiol. 2012, 50, 943–947. [Google Scholar] [CrossRef] [PubMed]
  55. Szczotko, M.; Kubiak, K.; Michalski, M.M.; Moerbeck, L.; Antunes, S.; Domingos, A.; Dmitryjuk, M. Neoehrlichia mikurensis-A New Emerging Tick-Borne Pathogen in North-Eastern Poland? Pathogens 2023, 12, 307. [Google Scholar] [CrossRef] [PubMed]
  56. Jahfari, S.; Ruyts, S.C.; Frazer-Mendelewska, E.; Jaarsma, R.; Verheyen, K.; Sprong, H. Melting pot of tick-borne zoonoses: The European hedgehog contributes to the maintenance of various tick-borne diseases in natural cycles urban and suburban areas. Parasit. Vectors 2017, 10, 134. [Google Scholar] [CrossRef] [PubMed]
  57. Silaghi, C.; Woll, D.; Mahling, M.; Pfister, K.; Pfeffer, M. Candidatus Neoehrlichia mikurensis in rodents in an area with sympatric existence of the hard ticks Ixodes ricinus and Dermacentor reticulatus, Germany. Parasit. Vectors 2012, 5, 285. [Google Scholar] [CrossRef] [PubMed]
  58. Grochowska, A.; Dunaj, J.; Pancewicz, S.; Czupryna, P.; Majewski, P.; Wondim, M.; Tryniszewska, E.; Moniuszko-Malinowska, A. Detection of Borrelia burgdorferi s.l., Anaplasma phagocytophilum and Babesia spp. in Dermacentor reticulatus ticks found within the city of Bialystok, Poland-first data. Exp. Appl. Acarol. 2021, 85, 63–73. [Google Scholar] [CrossRef]
  59. Grochowska, A.; Dunaj-Malyszko, J.; Pancewicz, S.; Czupryna, P.; Milewski, R.; Majewski, P.; Moniuszko-Malinowska, A. Prevalence of Tick-Borne Pathogens in Questing Ixodes ricinus and Dermacentor reticulatus Ticks Collected from Recreational Areas in Northeastern Poland with Analysis of Environmental Factors. Pathogens 2022, 11, 468. [Google Scholar] [CrossRef]
  60. Lindquist, L.; Vapalahti, O. Tick-borne encephalitis. Lancet 2008, 371, 1861–1871. [Google Scholar] [CrossRef]
  61. Makenov, M.; Karan, L.; Shashina, N.; Akhmetshina, M.; Zhurenkova, O.; Kholodilov, I.; Karganova, G.; Smirnova, N.; Grigoreva, Y.; Yankovskaya, Y.; et al. First detection of tick-borne encephalitis virus in Ixodes ricinus ticks and their rodent hosts in Moscow, Russia. Ticks Tick. Borne Dis. 2019, 10, 101265. [Google Scholar] [CrossRef]
  62. Suss, J. Tick-borne encephalitis 2010: Epidemiology, risk areas, and virus strains in Europe and Asia-an overview. Ticks Tick Borne Dis 2011, 2, 2–15. [Google Scholar] [CrossRef]
  63. Lommano, E.; Bertaiola, L.; Dupasquier, C.; Gern, L. Infections and coinfections of questing Ixodes ricinus ticks by emerging zoonotic pathogens in Western Switzerland. Appl. Environ. Microbiol. 2012, 78, 4606–4612. [Google Scholar] [CrossRef]
Microorganisms 12 01918 g001

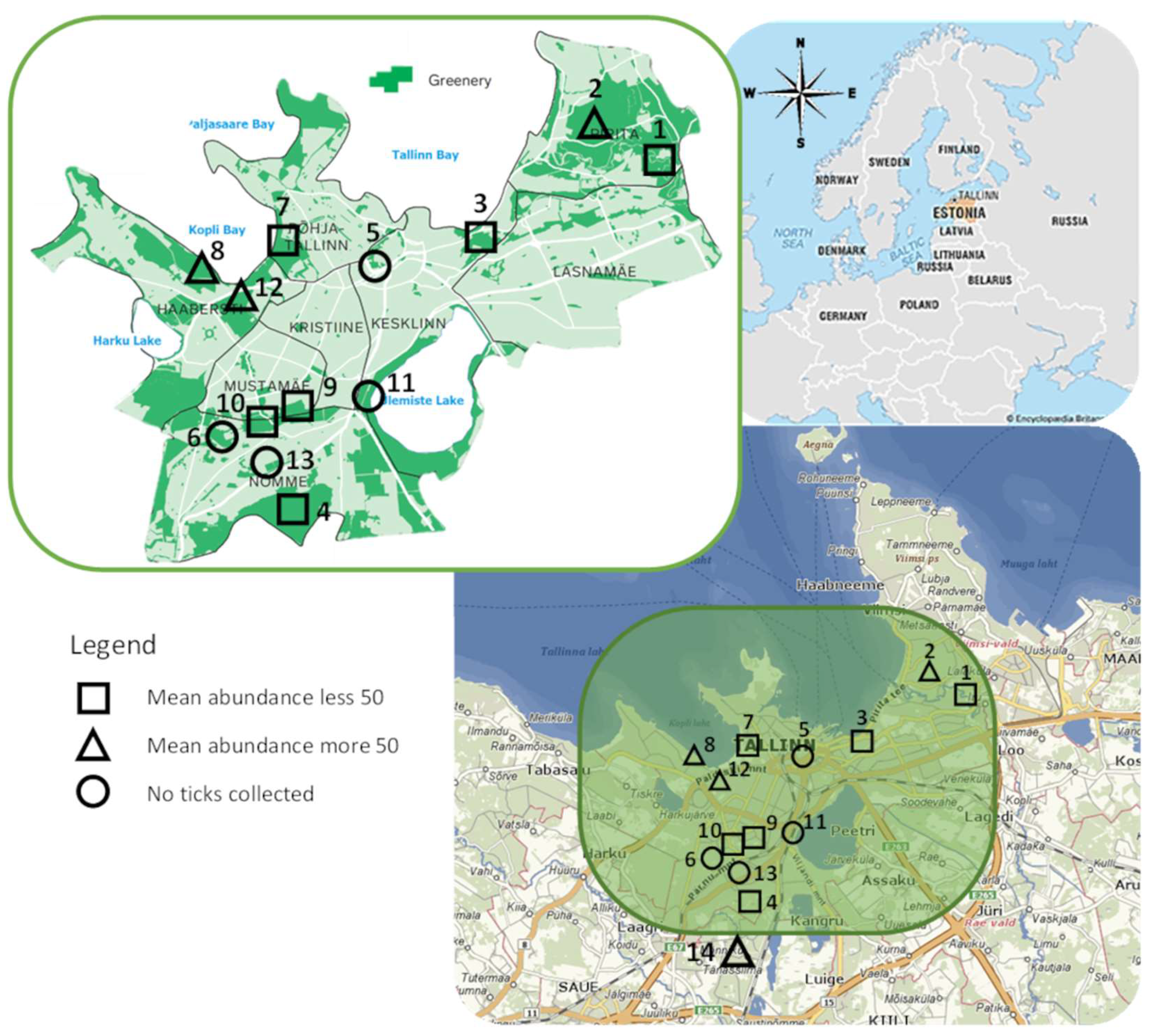

Figure 1. Tick collection sites, located in green areas within the city (Tallinn green area map https://statistika.tallinn.ee/, accessed 21 January 2021). Circular marks represent places with no ticks collected, triangular marked sites represent places with over 50 ticks collected and square marks represent places with 1 to 49 ticks collected. Site names according to numbers are as follows: 1—Pirita river valley, 2—Pirita forested park, 3—Kadrioru park, 4—Ilmarise health trails, 5—Hirve and Toompark, 6—von Glehni park, 7—Stroomi, 8—Estonian Open Air Museum, 9—Sütiste park, 10—Nõmme-Mustamäe, 11—Järve health trails, 12—Tallinn’s Zoo, 13—Sanatooriumi park, 14—Männiku.
Figure 1. Tick collection sites, located in green areas within the city (Tallinn green area map https://statistika.tallinn.ee/, accessed 21 January 2021). Circular marks represent places with no ticks collected, triangular marked sites represent places with over 50 ticks collected and square marks represent places with 1 to 49 ticks collected. Site names according to numbers are as follows: 1—Pirita river valley, 2—Pirita forested park, 3—Kadrioru park, 4—Ilmarise health trails, 5—Hirve and Toompark, 6—von Glehni park, 7—Stroomi, 8—Estonian Open Air Museum, 9—Sütiste park, 10—Nõmme-Mustamäe, 11—Järve health trails, 12—Tallinn’s Zoo, 13—Sanatooriumi park, 14—Männiku.
Microorganisms 12 01918 g001
Table 1. Tick collection sites and tick collection results.
Table 1. Tick collection sites and tick collection results.
Site No.NameDescriptionLatitude/Longitudem2 FlaggedTotal Ticks (M/F/N) *IADOT (95%CI)
DOA/DON **		Larvae ***
1Pirita river valleyriverside with rich herbal lower vegetation and bushes59.4574, 24.902345018 (1/1/16)6.04.0 (2.5–6.2);
0.4/3.6 		−
2Pirita forested parklarge urban mixed forest, with hills and swamp areas and rich litter59.4604, 24.85931250122 (7/8/107);40.79.8 (8.1–11.4);
1.2/8.6		+
3Kadriorularge urban park with mainly broadleaved trees59.4415, 24.79823006 (1/1/4);2.02.0 (0.9–4.2);
0.7/1.3		−
4Ilmarise health trailslarge natural-like urban mixed forest with swamps59.3659, 24.6666140037 (5/2/30);12.32.6/(1.8–3.5);
0.5/2.1		+
5Hirve/Toomparkcentral city park, some bushes with a litter59.4336, 24.73746000 (0/0/0);
−/−		 −−
6von Glehni parka park in the large urban mixed forest59.3925, 24.65773000 (0/0/0);
−/−		 −−
7Stroomiurban broadleaved natural-like forest at the seaside 59.4372, 24.6921120038 (6/5/27);12.73.2 (2.3–4.3);
0.9/2.3		+
8Estonian Open Air Museumbroadleaved- and mixed-type urban semi-forested area at the seaside59.4323, 24.63951200226 (18/33/175);75.318.8 (16.7–21.1);
4.3/14.6		++
9Sütiste forested parkurban mixed-type forest59.3944, 24.689980031 (3/3/25);15.53.9 (2.5–5.2);
0.8/3.1		−
10Nõmme-Mustamäeurban mixed type forested area59.38952, 24.674560030 (3/1/26);15.05.0 (3.5–7.0);
0.7/4.3		−
11Järve health trailssemi-forested area, mainly with pine trees and an herbal lower layer59.3997, 24.72996000 (0/0/0);
−/−		 −−
12Tallinn Zoonatural-like broadleaved forested areas with a rich lower layer59.4208, 24.66161500234 (30/39/165);78.015.6 (13.9–17.5);
4.6/11.0		+++
13Sanatooriumi parksemi-forested area, mainly with pine trees and an herbal or mossy lower layer59.3762, 24.66386000 (0/0/0);
−/−		 −−
14Männikumixed and coniferous forest with a mainly herbal or mossy lower layer59.3273, 24.679740073 (5/5/63);36.518.3 (14.8–22.3);
2.5/15.8		−
Overall11,200815 (79/98/638)
* N—nymphs, M—male, F—female; ** DOT, DOA and DON—density of total ticks, adults and nymphs, respectively, collected per 100 m2; IA—index of abundance = no. of ticks/all minutes of collection by all collectors ×60 (i.e., one-hour reduction index); *** L—larvae (“−“—no larvae observed; “+”—single larvae on some transects; “++”—a portion of larvae on several transects; “+++”—many larvae on several transects); the presence of larvae has been noted without exact count.
Table 2. Tick-borne pathogens detected in urban questing ticks.
Table 2. Tick-borne pathogens detected in urban questing ticks.
BorreliaRickettsialesTBEV %;
CI, 95%
Site No. *Site Name *Total No. of TicksTBPs % (No.);
CI, 95% ***		DIN
TBP ¥		BBSL, % (No.);
CI, 95%		BA, % (No.)BG, % (No)BV, % (No)Bmiy % (No.);
CI, 95%		Rh % (No.);
CI, 95%		An. ph, % (No.);
CI, 95%		N. mik, % (No.);
CI, 95%
1Pirita river valley1827.8% (5);
12.5–50.9%		0.90.0% (0)0.0% (0)0.0% (0)0.0% (0)0.0% (0)22.2% (4);
8.5–45.8%		0.0% (0)0.0% (0)5.6% (1);
1–25.8%
2Pirita forested park12231.1% (38);
23.6–39.8%		2.711.5% (14);
6.7–18.3%		4.9% (6)4.9% (6)1.6% (2)0.0% (0)18.0% (22);
42.2–72.2%		1.6% (2);
0.4–5.8%		3.3% (4);
1.3–8.1%		0.0% (0);
3Kadrioru616.7% (1);
3.0–56.4%		0.316.7% (1);
3.0–56.4%		0.0% (0)16.7% (1)0.0% (0)0.0% (0);0.0% (0);0.0% (0)0.0% (0)0.0% (0);
4Ilmarise health trails3724.3% (9);
13.4–40.1%		0.48.1% (3);
2.8–21.3%		0.0% (0)2.7% (1)2.7% (1)0.0% (0);
0.0–9.4%		16.2% (6);
7.6–31.1%		0.0% (0)0.0% (0)2.7% (1);
0.5–13.8%
7Stroomi3818.4% (7);
9.2–33.4%		0.513.2% (5);
5.8–27.3%		10.5% (4)0.0% (0)2.6% (1)0.0% (0);
0.0–9.2%		7.9% (3);
2.8–20.8%		0.0% (0)0.0% (0)0.0% (0);
8Estonian Open Air Museum22643.8% (99);
37.5–50.3%		6.325.2% (57);
20.0–31.3%		24.8% (56);0.4% (1)0.0% (0)4.4% (10);
2.4–8.0%		13.7% (31)
9.8–18.8%		0.5% (1);
0.0–2.5%		7.5% (17);
4.8–11.7%		0.4% (1)
0.1–2.5%
9Sütiste forested park3119.4% (6);
9.2–36.3%		0.816.1% (5);
7.1–32.6%		9.7% (3)0.0% (0)6.5% (2)0.0% (0);
0.0–11.0%		3.2% (1);
0.6–16.2%		0.0% (0)0.0% (0)0.0% (0);
10Nõmme-Mustamäe303.3% (1);
0.6–16.7%		0.23.3% (1);
0.6–16.7%		0.0% (0)0.0% (0)3.3% (1)0.0% (0);
0.0–11.4%		0.0% (0);
0.0–11.4%		0.0% (0)0.0% (0)0.0% (0);
12Tallinn Zoo23441.5%(97);
35.3–47.9%		5.322.2% (52); 17.4–28.0%20.9% (49)0.9% (2)0.0% (0)3.9% (9);
2.0–7.2%		15.0% (35); 11.0–20.1%0.4% (1);
0.1%–2.4%		10.2% (24);
7.0–14.8%		0.0% (0);
14Männiku7319.2% (14);
11.8–29.7%		2.85.5% (4);
1.8–13.3%		4.1% (3)0.0% (0)0.0% (0)2.7% (2);
0.8–9.5%		11.0% (8);
5.7–20.2%		0.0% (0)0.0% (0)1.4% (1);
0.2–7.4%
TOTAL81534.0% (277);
30.8–37.3%		2.417.4% (142); 15.0–20.2%14.8% (121);
85.2% †		1.3% (11);
7.7% †		0.9% (7); 4.9% †2.6% (21);
1.7–3.9%		13.5% (110);
11.3–16.0%		0.5% (4);
0.2–1.3%		5.5% (45);
4.2–7.3%		0.5%(4);
0.2–1.3%
* Sites with no ticks collected were excluded; *** TBPs—tick-borne pathogens; BBSL—B. burgdorferi s.l., BA—B. afzelii, BG—B. garinii, BV—B. valaisiana, Bmiy—B. miyamotoi; Rh—R. helvetica; An. ph—A. phagocytophilum, N. mik—N. mikurensis, TBEV—tick-borne encephalitis virus; *** CI—confidence interval, calculated only for sites with TBPs observed; ¥ DIN—density of infected nymphs per 100 m2, all tick-borne pathogens included; †—% from BBSL-positive 3.5. Rickettsia species.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Vikentjeva, M.; Geller, J.; Bragina, O. Ticks and Tick-Borne Pathogens in Popular Recreational Areas in Tallinn, Estonia: The Underestimated Risk of Tick-Borne Diseases. Microorganisms 2024, 12, 1918. https://doi.org/10.3390/microorganisms12091918

AMA Style

Vikentjeva M, Geller J, Bragina O. Ticks and Tick-Borne Pathogens in Popular Recreational Areas in Tallinn, Estonia: The Underestimated Risk of Tick-Borne Diseases. Microorganisms. 2024; 12(9):1918. https://doi.org/10.3390/microorganisms12091918

Chicago/Turabian Style

Vikentjeva, Maria, Julia Geller, and Olga Bragina. 2024. "Ticks and Tick-Borne Pathogens in Popular Recreational Areas in Tallinn, Estonia: The Underestimated Risk of Tick-Borne Diseases" Microorganisms 12, no. 9: 1918. https://doi.org/10.3390/microorganisms12091918

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
