Mixed-Mating Model of Reproduction Revealed in European Phytophthora cactorum by ddRADseq and Effector Gene Sequence Data

by
Matěj Pánek
1,*,
Ivana Střížková
1,
Miloslav Zouhar
2,
Tomáš Kudláček
3 and
Michal Tomšovský
3
1
Crop Research Institute, Team of Ecology and Diagnostics of Fungal Plant Pathogens, Drnovská 507/73, 161 06 Praha, Czech Republic
2
Department of Plant Protection, Faculty of Agrobiology, Food and Natural Resources, Czech University of Life Sciences in Prague, Kamýcká 129, 165 00 Praha, Czech Republic
3
Department of Forest Protection and Wildlife Management, Faculty of Forestry and Wood Technology, Mendel University in Brno, Zemědělská 3, CZ-613 00 Brno, Czech Republic
*
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(2), 345; https://doi.org/10.3390/microorganisms9020345
Submission received: 12 January 2021 / Revised: 27 January 2021 / Accepted: 6 February 2021 / Published: 10 February 2021
(This article belongs to the Section Systems Microbiology)
Browse Figures
Review Reports Versions Notes

Abstract

:
A population study of Phytophthora cactorum was performed using ddRADseq sequence variation analysis completed by the analysis of effector genes—RXLR6, RXLR7 and SCR113. The population structure was described by F-statistics, heterozygosity, nucleotide diversity, number of private alleles, number of polymorphic sites, kinship coefficient and structure analysis. The population of P. cactorum in Europe seems to be structured into host-associated groups. The isolates from woody hosts are structured into four groups described previously, while isolates from strawberry form another group. The groups are diverse in effector gene composition and the frequency of outbreeding. When populations from strawberry were analysed, both asexual reproduction and occasional outbreeding confirmed by gene flow among distinct populations were detected. Therefore, distinct P. cactorum populations differ in the level of heterozygosity. The data support the theory of the mixed-mating model for P. cactorum, comprising frequent asexual behaviour and inbreeding alternating with occasional outbreeding. Because P. cactorum is not indigenous to Europe, such variability is probably caused by multiple introductions of different lineages from the area of its original distribution, and the different histories of sexual recombination and host adaptation of particular populations.

1. Introduction

Phytophthora cactorum (Lebert and Cohn) J. Schröt. has a cosmopolitan distribution [1] and the ability to cause infection in more than two hundred plant species [1]. It is considered one of the most important Phytophthora pathogens [2], the substantial economic impact of P. cactorum, especially on strawberry production, has been repeatedly reported [3,4,5]. The host specificity phenomenon has been verified in various Phytophthora species [6,7], as well as in P. cactorum, despite its wide host spectrum [1]. Van Der Scheer [8] reported the selective ability of some P. cactorum isolates to cause crown rot in strawberry plants. Isolates obtained from other hosts were unable to cause the disease in this crop. Similar conclusions were also revealed by other authors; an association between the host specificity and genetic differences of strawberry crown rot isolates and those from other hosts was discovered [3,4,9,10,11,12]. Recently, four genetic groups were described in P. cactorum [13], which also include P. hedraiandra [14] and P. × serendipita [15,16] previously considered as distinct species. Although the differentiation of genetic lineages in P. cactorum was repeatedly confirmed, the genetic background of host specificity remains unclear, although some works indicate genes of virulence as being responsible for host specificity in other Phytophthora species [17]. The small cysteine-rich secretory protein (SCR), Crinkler family proteins (CRN) and RXLR genes (genes coding for proteins characterised by the presence of a signalling peptide on the N-terminal region with the following order of amino acids: R-arginine, X-some amino acid, L-leucin, R-arginine) are usually mentioned as being responsible for virulence and host specificity in Phytophthora [17,18,19,20].
The occurrence of multiple genetic lineages and the host specificity in P. cactorum is not likely to be in agreement with the considered low genetic diversity of a homothalic oomycete [12,21,22]. However, according to some results, the homo- or heterothallic mode of sexual reproduction in Phytophthora can be changed. Examples of isolates with homothallic behaviour belonging to heterothallic species have been reported [23,24,25,26]. The concept of homo/heterothallism in Phytophthora is considered to be “hormonal homo/heterothallism”, where the sexual behaviour of the isolate depends on the production of one of two sexual hormones [27]. Homothallic species are considered to produce and to be sensitive to both hormones [23,28]. Preferences of particular isolates to produce either antheridia or oogonia in heterothallic species have been recorded; however, bisexuality is hypothesised in homothallic species [29], therefore, the possibility of the mating of two isolates of homothallic species cannot be excluded. Outbreeding was documented in either heterothalic P. infestans [30,31,32] or P. ramorum [33], or in homothallic species such as P. sojae and P. porri. In homothallic Phytophthora spp., outbreeding was reported as a possible mechanism generating new pathotypes able to overcome host resistance [34,35,36,37]. Outbreeding has a crucial impact on the genetic variability, gene flow and heterozygosity of oomycete populations as well as on their phenotypic features, such as their aggressivity and fitness [38].
P. cactorum, as a homothallic species with described host specificity, a wide host spectrum, worldwide distribution and well-documented interspecific hybridisation, is an interesting model for a genotyping study. The aims of this study were to analyse the genetic structure and sequence variation in P. cactorum populations from strawberry fields in the Czech Republic and from other hosts, and to evaluate the relationships between these populations, as well as their relationships with the genetic groups defined earlier. We also related the population structure to the host specificity and related this specificity to particular arrangements of some avirulence gene groups. We inferred those conclusions on the basis of SNP (single nucleotide polymorphism) markers generated using high-throughput sequencing with the ddRADseq method of gene library preparation, enabling us to calculate many population characteristics. The ascertained structure was confirmed by phylogeny based on the sequences of three cytoplasmic effector genes.

2. Materials and Methods

2.1. P. cactorum Isolates

To obtain P. cactorum isolates, 24 strawberry plantations in the Czech Republic were sampled. Most of the isolates were isolated from symptomatic strawberry plants in 2017–2019 using the baiting method with subsequent cultivation on a selective V8 PARPNH medium [39]. Except for newly isolated cultures, several DNA samples from isolates used in a previous study [13] were also used to compare genotypes of new isolates with the previously defined genetic groups C1, C2, F and H. Most of these isolates were pathogenic on woody hosts. In total, 136 isolates were used (Table 1). For the purposes of this study, P. cactorum isolates originating from the same strawberry plantation were considered a single population and, similarly, each previously defined group (C1, C2, F and H) was considered a separate population. The species identity of the newly acquired isolates was preliminarily morphologically determined according to the shape and size of reproductive organs.

2.2. DNA Extraction

All isolates were cultivated on V8 agar plates covered by a cellophane membrane in Petri dishes. After a colony was developed, the mycelium was harvested and homogenised in a 1.5 Eppendorf tube by a mixer mill (Retsch, MM400, Retsch GmbH, Haan, Germany). The extraction of DNA was performed using a DNeasy Power Plant Pro Kit (Qiagen Ltd., Manchester, United Kingdom) according to the manufacturer’s instructions.

2.3. Species Identification

Isolates were identified according to DNA barcoding based on the sequences of the ITS region of the ribosomal DNA. The PCR was processed using ITS1 and ITS4 primers designed by White et al. [40], according to a method used by Pánek et al. [13]. The identity of the ITS sequences of P. cactorum was confirmed by the BLAST algorithm of the NCBI database.

2.4. DNA Library Preparation for Genotyping by ddRADseq

The ddRADseq DNA library was prepared according to the method of Peterson et al. [41]. The composition of the restriction mix of each P. cactorum isolate was: 300 ng of sample DNA, 5 U of MspI and 7 U of Sau3AI endonucleases and 1 × Tango buffer (all components from Thermo Fisher Scientific, Inc., Waltham, Massachusetts, USA), added to nuclease-free water to 30 µL. The reaction was performed in a thermocycler at 37 °C for three hours. Single-stranded oligos for the adapter were synthesised by the MilliporeSigma(Burlington, Massachusetts, USA) according to a template proposed by Peterson et al. [41], of which ends were redesigned to meet the MspI and Sau3AI restriction sites’ characteristics. The double-stranded adapters (one for MspI and twelve for Sau3AI) were prepared according to Peterson et al. [41]. The adapters’ ligation onto DNA fragments prepared in a restriction reaction was carried out in a mixture containing 40 ng of fragmented DNA, with both adapter stocks in a final concentration of 0.075 pmol/µL of Sau3AI and 0.041 pmol/µL of MspI adapters, 1 × ligation buffer (Thermo Fisher Scientific, Inc.) and 5 U of T4 DNA ligase (Thermo Fisher Scientific, Inc.) added to nuclease-free water to 40 µL. The reaction conditions were: 23 °C/60 min, 65 °C/10 min, and then the mixture was cooled by 0.6 °C/min until the temperature reached 0 °C. The length selection of DNA fragments in twelve partial DNA libraries was carried out using Pippin prep (Sage Science, Inc., New Castel upon Tyne, United Kingdom), and the selection window was set to 170–370 bp. Where required by protocol, the samples were purified using AMPure XP beads (Beckman Coulter, Brea, California, USA). The DNA concentration in partial libraries was increased by PCR using primers complementary to adapter sequences (one for the Sau3AI and twelve for the MspI adapter). Using the combination of twelve adapters and twelve primers, each sample was characterised by a unique combination of barcodes on both ends of the DNA fragments. The PCR master mix included 20 ng of DNA, 0.5 µM of both primers, 20 µM of dNTP mix, 1 U of Phusion DNA polymerase and 1 × final of Phusion HF buffer (New England BioLabs, Inc., Ipswitch, Massachusetss, USA). The PCR conditions were: 98 °C/45 s, 10 cycles consisting of 98 °C/10 s, 58 °C/10 and 72 °C/15 s and 72 °C/5 min as a final extension. The content of DNA fragments and their length distribution in each partial DNA library was evaluated by Agilent TapeStation (Agilent Technologies, Inc., Santa Clara, California, USA), and the concentration was fluorimetrically measured. The total library was finalised by an equimolar mixture of all twelve partial libraries.
The sequencing on an Illumina MiSeq device was processed by the Biotechnology and Biomedicine Centre of the Academy of Sciences and Charles University (Vestec, Czech Republic) using a MiSeq Reagent Kit v3 (Illumina, Inc., San Diego, CA, USA).

2.5. Effector Genes Sequence Analysis

Three effector gene regions that are potentially polymorphic were chosen: RXLR6, RXLR7 [19] and SCR113 [42]. Only a subset of all P. cactorum isolates were used in this part of the whole study (Table 1). Primer sequences were used according to Chen et al. [19,42]; their sequences are given in Table 2. The PCR was performed using Phire Plant Direct PCR Mastermix (Thermo Fisher ScientificTM). The concentration of primers in RXLR6 and RXLR7 was 0.2 mM, and in SCR113 it was 1.32 mM. The reaction conditions in the thermocycler (Eppendorf Nexus X2, Eppendorf, Hamburg, Germany) were identical for all three DNA regions except for the annealing phase. The cycling conditions were as follows: 98 °C for 5 min; 35 cycles of 98 °C for 30 s, annealing −54 °C for 15 s for both RXLRs and 55 °C for 30 s for SCR113, 72 °C for 60 s, then 72 °C for 5 min. The PCR product was sequenced by MacroGen Inc. (Seoul, South Korea).

2.6. Data Processing—ddRADseq

The quality of data in all 2 × 12 individual runs of sequencing on an Illumina MiSeq device was evaluated using FastQC software (Simon Andrews; FastQC version 0.11.8; A quality control tool for high throughput sequence data; Babraham Bioinformatics, Open source, 2010; Cambridge, United Kingdom) [43]; in particular, the total number of sequences, the length of sequences and the per-base quality were ascertained.
The subsequent data processing was carried out using seven modules of Stacks software (Julian Catchen; Stacks version 2.0—analysis tool set for population genomics; Molecular Ecology, 2013) [44,45]. The initial data processing was performed using the “process_radtags” module of the Stacks software. The samples were demultiplexed using combinatorial barcodes, checked for the presence of restriction sites and marked by their original ID numbers. The reads with a low quality score and those with uncalled bases were discarded, along with those which did not contain both restriction sites. All sequences were truncated to a length of 75 bp. The “ustacks” module was used to make short-read sequences into “stacks” (sets of exactly matching sequences). Afterwards, SNPs were identified using the calling by maximum likelihood framework. The settings of this process were: Minimum depth of coverage required to create stacks—3, maximum distance allowed between stacks—2. The catalogue of consensus loci of all samples was created by the “cstacks” module; the number of allowed mismatches between sample loci was set to 1 according to the standard settings of this step. The “sstacks” module searched the loci of all samples created by “ustacks” against a catalogue created by “cstacks”. The data were than transposed by the “tsv2bam” module, to be oriented by locus instead of samples, and in this step sets of paired end reads were also pulled together. The subsequent module “gstacks” removed PCR duplicates, identified SNPs within the whole metapopulation for all loci and phased them into haplotypes. The last module, “populations”, was used to compute statistics on a population level and to create data files for subsequent analyses by another software. For the purpose of evaluating the genetic differentiation among populations, the F-statistics were calculated. Since different methods of calculation emphasise different properties of population data, analogues of the F-statistics were calculated using four distinct methods to obtain more reliable information about population structure: the Φst statistics were calculated according to Excoffier et al. [46] and, as other analogues of this statistic, the Fst according to Meirmans [47], Fst according to Weir and Cockerham [48] and Dst according to Jost [49] were calculated. The information of genetic differentiation among populations was complemented by the determination of the “number of private alleles” in each group, which also provided information about the mutual isolation between populations. The “frequency of polymorphic loci” and “mean frequency of the most frequent alleles” of each population were used as tools to provide information on the genetic variability of populations. In addition, estimates of “observed” and “expected hetorozygosity” and population “inbreeding coefficient—Fis” and its variance were calculated. Since the heterozygosity is strongly influenced by the reproduction behaviour of the population, heterozygosity reveals the sexual or asexual nature of the population. Briefly, heterozygosity is increased by clonal reproduction and by outbreeding [50,51], while inbreeding and mitotic recombination cause the reverse [20,52]. Similar information is also traceable by the inbreeding coefficient and its variability, which were also calculated.
To more reliably deduce the structuring of the population of P. cactorum and the number of discrete genetic groups (K-numbers), the Structure analysis (Jonathan K. Pritchard; Structure version 2.3.4; Tool for inference population structure using multilocus genotype data, University of Oxford, Oxford, United Kingdom and Pritchrd Lab, Stanford university, Stanford, California, USA) [53] was processed for K = 1 to K = 8. The burning period was set to 50,000 and the total number of MCMC (Markov chain Monte Carlo) repetitions was 500,000 after burning in a no-admixture model without linkage. The structure analysis was repeated ten times for each K number. The results of single runs of structure in terms of the analysis of each K number were compared, and the most probable K number was chosen by the structure harvester (Dent Earl, STRUCTURE HARVESTER, a website and program for visualizing STRUCTURE output and implementing the Evanno method, vA.2, Univesity of California, Santa Cruz, California, USA) [54]. VcfTools (Adam Authon; VCFtools v0.1.13, the program package designed for working with VCF files equipped by suite of functions for use on genetic variation data, Wellcome Trust Sanger Institute, Cambridge, United Kingdom) [55] was used to evaluate the reading depth of each DNA sample. Using the same tool, the individual heterozygosity of each sample was calculated, which provided information on genetic polymorphism on an individual level. The other way of evaluating genetic polymorphism used was to calculate the individual inbreeding coefficient (Fis), also by VcfTools. The indication of population exposition to some evolutionary pressure was tested by the exact test for Hardy–Weinberg equilibrium [56], calculated by VcfTools as well. The same software was used for the calculation of kinship coefficient (Φ) [57], which expresses the degree of relatedness between isolates. The values of the kinship coefficient (Φ) acquired from this analysis were categorised into five classes according to the following threshold values: (A) 0.5 ≥ Φ ≥ 0.25, (B) 0.25 ≥ Φ ≥ 0.125, (C) 0.125 ≥ Φ ≥ 0.0625, (D) 0.0625 ≥ Φ ≥ 0, (E) Φ ≤ 0 [57]. The threshold values of Φ are matched to relations: 0.5—monozygotic twins, 0.25—parent–offspring/full siblings, 0.125—2nd degree, such as half-sibs, 0.0625—3rd degree, such as first cousins and 0.0—unrelated; negative values indicate rather distinct populations. The relative frequency of samples in each class was ascertained.

2.7. Data Processing—Effector Genes (RXLR6, RXLR7 and SCR117)

To reveal the relation between the host specificity, the population structuring and the presence of the specific group of effector genes in different parts of population, the sequence analysis of three of effector genes was conducted. The DNA sequences were manually aligned using the software BioEdit 7.1 (https://bioedit.software.informer.com/7.2/; accessible 9 February 2021). The phylogenetic analysis was performed for all three loci, which were concatenated into one dataset and analysed using maximum likelihood and a Bayesian approach. A partitioning scheme and the best-fit model of evolution were selected in PartitionFinder 2 (Rob Lanfear, PartitionFinder 2—free open source software to select best-fit partitioning schemes and models of molecular evolution for phylogenetic analyses; Australian National University, Canberra, Australia) [58] using the corrected Akaike information criterion, and both linked and unlinked branch lengths were carried out. All available models were chosen by the program and, in total, 84 models were included in the analysis, with all possible partitioning schemes. The selected partitioning schemes were used for both maximum likelihood and Bayesian analysis. Selected evolutionary models were used for the maximum likelihood analysis, while for the Bayesian inference, the averaging model was used. A maximum likelihood phylogeny was constructed by means of RAxML-NG software (Alexey M. Kozlov, RAxML tool for Maximum-likelihood based phylogenetic inference, Heidelberg Institute for Theoretical Studies, Heidelberg, Germany) [59], and a sufficient number of bootstrap replicates was determined by the MRE -based (majority rules method) bootstrapping test [60]. The convergence cutoff value was set to 0.03. Support values were calculated using the transfer bootstrap expectation method [61]. Bayesian inference was carried out in BEAST 2 software (M.A.Suchard, Beast v1.10.4, cross-platform program for Bayesian analysis of molecular sequences using MCMC; University of Auckland, Auckland, New Zealand) [62] using the standard template. A model for each partition was selected automatically via model averaging implemented in the bModelTest package (Remco R. Bouckaert, bModelTest, tool for infering site models in a phylogenetic analysis using MCMC proposals; University of Auckland, Auckland, NZ) [63] using 20,000,000 MCMC repetitions sampled by every 2000th repetition. The posterior parameter estimates were summarised in Tracer (A. Rambaud, Tracer v1.7.1, graphical tool for visualization and diagnostics of MCMC output; University of Edinbourgh, Edinbourgh, United Kingdom and University of Ackland, Auckland, New Zealand) [64]. The minimum ESS value evaluating the quality of posterior estimates was adjusted to 200. The nucleotide diversity [65] was calculated, an AMOVA test was performed and fixation index Fst [48] between genetic groups of isolates for all three gene loci was calculated using the software Arlequin 3.5.2.2 (Laurent Excoffier, Arlequin ver 3.5, An Integrated Software Package for Population Genetics Data Analysis, University of Berne, Bern, Switzrerland) [66].

3. Results

3.1. Analyses Based on ddRADseq Data

Illumina MiSeq sequencing and data processing: The sequencing on an Illumina MiSeq device resulted in a total of 33.6 × 106 reads. The error rate of sequencing was 0.16% in run 1 and 0.23% in run 2. In all reads, the average percentage of GC content was 52.78%, and the average percentage of target sequence length (80 bp) was between 95.3 and 98.4% for all reads. Both the median and lower quartiles of per-base sequence quality were higher than 34, which means a very good quality of reads. During data processing, 7.25% of reads were discarded because of the low barcode quality, 1.34% of reads were of poor sequence quality and in 0.78%, no restriction enzyme cut site was found, thus, 3.05 × 107 (90.64%) reads were retained for further processing. After the processing of all data and SNP calling, the mean number of identified sites per individual was 3943.37 and the average depth of sites per individual was 5.69.
Structure: According to structure analysis, the most probable model appears to be K = 5, with the highest value of ΔK = 677.6, followed by a considerably less probable K = 2 with ΔK = 360.9 (Table A1). Since the more probable K = 5 is also supported by the value of LnP(K), K = 5 was evaluated as the overall more probable choice. In all subsequent analyses, five genetic groups were considered. In this grouping, the strains isolated from strawberry plants form a separate genetic group “S” (strawberry) and include the majority of strawberry populations, except for population 45, which is closer to C1. The C1, C2, H and F groups from woody hosts are well delimited (Figure 1).
Private sites: The numbers of private sites in S group populations were mainly between 0 and 54, which supports the close relations of all populations of the S group, and the numbers of private sites of other groups confirm the dissimilarity of this genetic group from the others. Population 45 was exceptional, with 403 private sites, which places this population outside the S group. The numbers of private sites in the C1, C2, F and H groups were as follows: C2-728, C1-4651, H-3700 and F-8962. These values (Table 3) support the grouping resulting from the structure analysis and indicate the relevance of mutual differentiation between groups well. The presence of larger numbers of private sites is another mark of mutual isolation between groups [67].
Hardy–Weinberg (HW) equilibrium: Hardy–Weinberg equilibrium was confirmed in 14,928 positions of all 24,412 (p ≤ 0.05), therefore, 61.2% of loci are in HW equilibrium. Such a result means deviation from HW equilibrium, which indicates the presence of some evolutionary forces influencing the P. cactorum population. The deviation from HW equilibrium as such does not explain the type of these forces, but supports conclusions about the presence of some of these forces.
Genetic differentiation between populations (Fst, Φst, Dst): The basic structure is similar in all four matrices displaying the differentiation among populations calculated according to various methods. The separation of all groups identified by structure analysis is apparent in the results of Fst according to Weir and Cockerham [48] (Table 4). Similar results were reached through the use of other calculation methods—Φst [46] (Appendix A, Supplementary Table S2), Fst [47] (Appendix A, Supplementary Table S3) and DST [49] (Appendix A, Supplementary Table S4). Since all of those methods provide the measure of population differentiation, the ascertained values of calculated coefficients provide the conclusion that all five groups (S, C1, C2, F and H) are rather separated. The differentiation of the vast majority of populations in the S group is mostly low; population 45 is closer to C1.
P—mean frequency of the most frequent allele in each population: This characteristic is in close association with the homozygosity. In variant positions, the values of the mean frequency of the most frequent alleles in the P. cactorum S group are usually between 0.93–0.96, except for population 28 (0.863); the substantially different values of other populations are 0.819 in C2 and 0.744 in F. The ascertained values mean rather high homozygosity in all groups, with mentioned exceptions. The reduced values in those populations means a decrease in their homozygosity in comparison to others, which can be interpreted as being a consequence of increased outbreeding. Detailed information is in Table 3.
Heterozygosity: The heterozygosity values at the population level ranged from 0.060 to 0.465; in all cases, the observed heterozygosity was higher than the expected heterozygosity (Table 3). The highest values were found in groups F (0.465) and C2 (0.355); the lowest value was in C1 (0.060). Differences between groups were also obvious in the heterozygosity values of individual isolates (Table S1), which increased in groups F, C2 and H; thus, the total heterozygosity of those groups is not the result of a mixture of different genotypes, but more probably the result of an increase in individual heterozygosity in those populations. The individual values in the S group were rather variable (0.060–0.274), which leads to conclusion that the whole group is made up of many genetically different individuals, rather than a few clonal lineages. The ratio between estimates of “observed” and “expected” heterozygosity in all populations indicates an isolation-breaking effect—the mixing of previously isolated populations.
Fis—inbreeding coefficient: The inbreeding coefficient Fis [51] was slightly negative in most populations of the S, F and C2 groups. Since the inbreeding coefficient is defined by the equation Fis = 1 − HI/HS, where HI means individual heterozygosity and HS means the subpopulation heterozygosity [68], values lower than zero are determined by the presence of individuals that are more heterozygous than expected given the whole subpopulation, which indicates the presence of some individuals originating from another population. The increasing variance of Fis indicates asexual reproduction. The ascertained values thus indicate at least occasional outbreeding; only the C1 (0.001) and H (0.043) groups had slightly positive values. These results suggest that outbreeding occurs with a different frequency in each group, which is also implied by the variability of individual Fis values. The values of population and individual Fis are summarised in Table 3 and Supplementary Table S1.
Nucleotide diversity Π and proportion of polymorphic sites: Nucleotide diversity is a measure of genetic variation, which is similar to expected heterozygosity. The values of nucleotide diversity Π are given in Table 3. Neglecting the values of populations represented by only one sample, the values of S group populations and the C1 group were on the scale of 0.044 to 0.097, while the values of F, C2 and H were 0.451, 0.337 and 0.148. Similarly, the variance of Π (Table 3) had also substantially increased in those three groups. Another measure of genetic polymorphism is the proportion of polymorphic sites, which expresses the percentage of variable loci in a population. This measure is in rough agreement to a previous one: The groups C2 and F also have an increased proportion of polymorphic sites in comparison to other groups. Those results indicate increased outbreeding of the F, C2 and probably also H groups.
Relations between isolates: The kinship coefficient (Φ) values among all isolates, calculated according to Manichaikul et al. [57], are summarised in a relatedness matrix (Supplementary Table S5). The C1, C2, H and F groups are rather distant from the S group. The Φ values of either S group and of all groups were divided into five categories A–E, and relative frequencies of kinship coefficient (Φ) values falling into each category were expressed (Table 5). Most values of the S group (54.4%) analysed separately fell into category B (such as parent–offspring/full siblings). If the analysis also included another groups (C1, C2, F and H), most values fell similarly into category B, while a proportion of category E (genetically distinct individuals) markedly increased compared to the S group alone. Only a markedly low proportion (0.9 and 1.2%, respectively) of relations was on the level of clones in the S group and overall. The expected distribution of relatedness in the population under the validity of the presumption of exclusive homothallic inbreeding and clonal reproduction should reveal the presence of only a limited number of lineages comprising relations among isolates of category A. Those lineages should be mutually unrelated (category E), while the numbers of relations in middle categories should be negligible. Compared to that expectation, highly distant relations are notably recorded only if groups other than the S group are included in the analysis. Our results indicate a rather wide scale of ascertained relations in the S group, with the majority of relations falling into middle categories (B and C) and only a significant minority of very close or very distant relations. A possible explanation for this distribution is the presence of outbreeding as a mechanism increasing the proportion of medium-distance relations.

3.2. Analyses Based on Sequences of Effector Genes

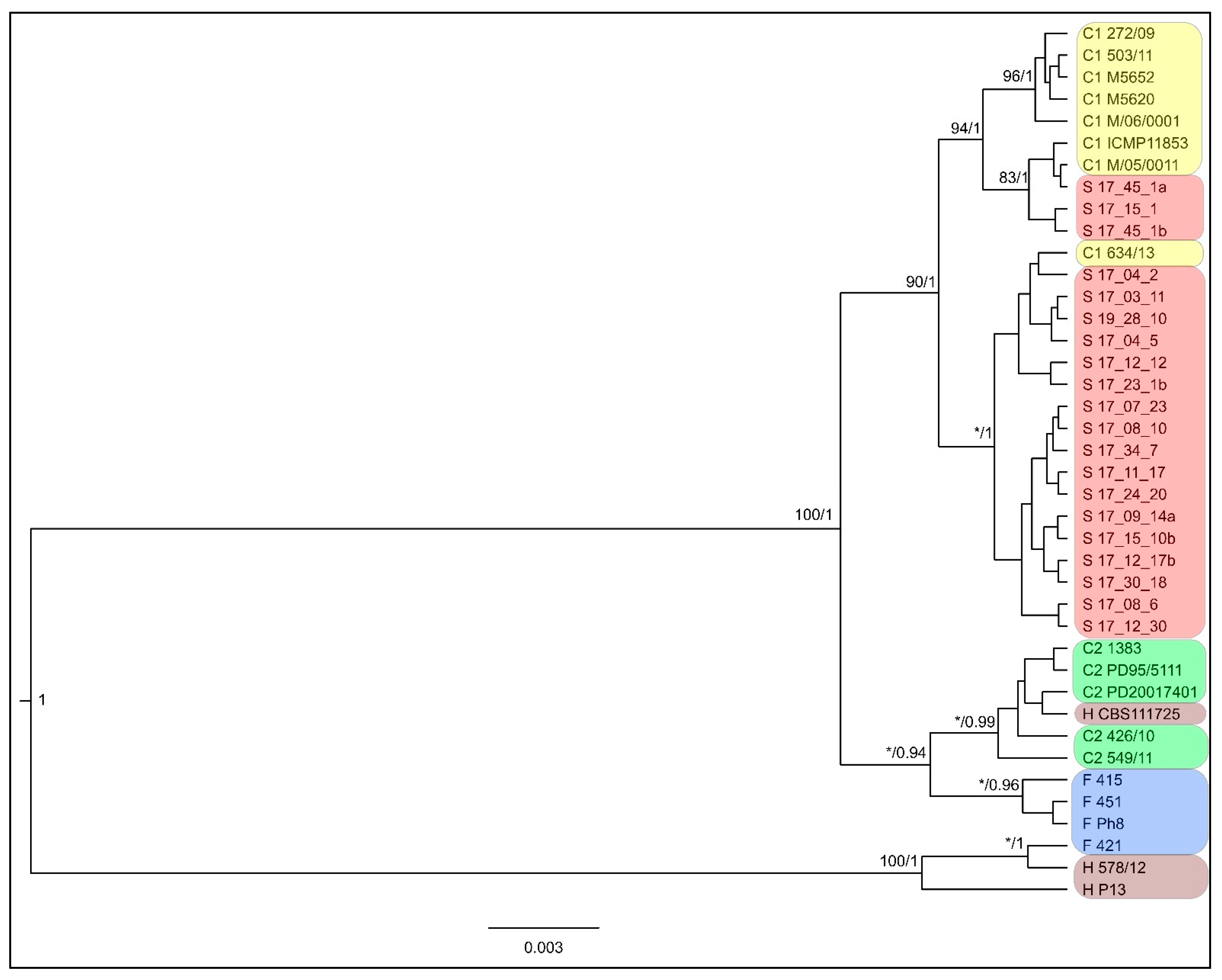

Phylogeny: The phylogenetic analysis based on DNA sequences of RXLR6, RXLR7 and SCR113 effector genes resulted in a phylogenetic tree (Figure 2). The main statistically supported clades represent groups delimited by structure analysis; however, some isolates were placed in different groups than they were in structure analysis: Isolates 17_45_1a, 17_45_1b (both of them are the only isolates of population 45) and 17_15_1 isolated from strawberry plants clustered together with isolates of the C1 group; on the contrary, isolate 634/13 from C1 clustered together with the S group. Similarly, the clade of C2 also included isolate CBS111725, belonging to the H group, and one separate lineage is composed of two isolates from the H group and one from the F group.
AMOVA: The results of AMOVA based on DNA sequence data of the three examined effector genes are not in complete concordance (Table 6). The resultant Fst values congruently put the C2, F and H groups mutually rather close. The locus SCR113 clustered together the S and C1 groups, while the locus RXLR6 clustered the S group together with the C2 group.
Heterozygosity (effector genes): Values of heterozygosity (as nucleotide diversity) calculated for each group based on data for three effector genes are summarised in Table 7. In comparison to the overall heterozygosity calculated from ddRADseq data, these values are substantially higher, except for the SCR113 locus in the C1 group.

3.3. Summary of Results—DdRADseq + Effector Genes: Relationship between C1, S and Other Groups

The results of structure based on ddRADseq data as well as phylogeny based on three effector genes congruently support the division of tested isolates into the groups described earlier (C1, C2, F and H) and group S specific to strawberry plants; this result is also supported by the numbers of private alleles (Table 3). The S group is closer to C1 than to others according to effector gene phylogeny (Figure 2), structure (Figure 1) and fixation index Fst (Table 4).
The populations of the S group are genetically homogenous, which is confirmed by low fixation index Fst or Dst values (Table 4, Tables S2–S4) and by kinship coefficient Φ (Table S5). Despite this proximity, differentiations among populations in the S group were detected, and their differences in genetic variation are obvious (Table S5 and Table 3).
Several isolates that are genetically distinct from members of the S group were obtained from strawberry plants. Isolate 19_28_2 (locality 28) is distant from the members of the S group according to kinship coefficient Φ (Table S5), and isolate 17_15_1 (locality 15) is closer to C1 than to the S group according to phylogeny based on effector genes; however, according to the kinship coefficient, it is not different from the S group. The separation of isolates 17_15_1 and 19_28_2 from the S group is also not supported by the number of private alleles. Although population 45 includes only two isolates (17_45_1a and 17_45_1b), a relatively large number of private alleles were detected here, which separate this population from both the S and C1 groups. Two isolates from locality 45 appear closer to the C1 group than to the S group according to the fixation index Fst value (Table 4). These two isolates are not genetically identical according to the kinship coefficient. Such examples confirm an occasional gene flow between the C1 and S groups.
The C1 group is likely to be genetically homogenous, with low heterozygosity and low probability of outbreeding. On the contrary, the C2 and F groups seem to be highly heterozygotic, with a higher probability of outbreeding in their history. Group H turned out to be highly heterozygotic, but with a low probability of outbreeding documented by inbreeding index Fis (Table 3 and Table S1).

4. Discussion

Historically, two host-specific types of P. cactorum were distinguished, associated with either strawberry crown rot or woody hosts; this concept has been confirmed and validated in different parts of the world [3,5,8,9,69]. The phenomenon of narrow host specificity of some Phytophthora species is in contrast to the extremely wide host spectrum of others, such as P. cinnamomi [70] or P. ramorum [71]. Intraspecific variability of host specificity, or host preference of some strains, was also repeatedly reported in P. parasitica [72,73]. On the contrary, narrow host specificity is typical for other Phytophthora spp., e.g., the P. alni complex specific to genus Alnus [7] or P. infestans, which is specific to Solanaceae [6,74]. In P. cactorum, four distinct genetic groups were delimited recently [13]. The lineage C1 was considered P. cactorum sensu stricto, the H lineage was associated with P. hedraiandra, C2 is a hybrid between C1 and H (i.e., P. × serendipita) and the F group includes exclusively Finnish isolates, also considered to be of a probable hybrid origin. Isolates of the F group were considered as specific to birch [4] and they exhibited a high oogonial abortion rate [13]. Although the host specificity of some isolates to strawberry hosts was repeatedly described [3,9,69], the association between population structure and host specificity was not studied in detail. Our results revealed that isolates of P. cactorum from strawberry plants do not belong to the C1 group, as expected in [13], but form a separate S group. Those results are supported by structure and by the phylogeny of effector genes, as well as by kinship coefficient, fixation index (Fst, Φst, Dst) and the numbers of private sites of each group.
The presence of those genetic groups, including the newly revealed S group, raises a question of the permanency of such a P. cactorum population structure, which is primarily determined by the mode of reproduction. Three basic modes of reproduction are known for homothallic Phytophthora species: Asexual clonal reproduction driven by the production of zoospores and chlamydospores, homothallic sexual reproduction (selfing) represented by the production of oogonia and antheridia by a single strain [1] and heterothallic sexual reproduction—outbreeding—between two genetically distinct isolates. Mitotic recombination, which is connected to clonal reproduction [75] can also be hypothesised, but this process was rarely observed in Phytophthora and only under high concentrations of strong mutagens [76]. Each mode of reproduction is traceable through population heterozygosity, which is influenced by particular reproduction modes in different ways. While clonal and heterothallic sexual reproduction (outbreeding) maintains or increases the population heterozygosity [50,51], selfing and mitotic recombination act in the reverse direction [22,52]. The reproduction mode is also traceable by means of the values of F-statistics; if only selfing occurs in the population, the heterozygosity decreases to close to zero over several generations [77], and the fixation index (Fst) among populations increases to 1 [22]. Outbreeding decreases both the fixation (Fst) and inbreeding (Fis) indices [78]. In heterothallic P. andina, inbreeding coefficient Fis values between −0.13 and −0.07 were considered to be associated with outbreeding, or an isolation-breaking effect, which is congruent with the low revealed rate of clones in those populations [79], similar conclusions were made by other authors in other species [50,51]. Heterozygosity values revealed by our analyses in P. cactorum are rather low. Anyway, in all cases, the observed heterozygosity was slightly higher than expected, which indicates outbreeding and an isolation-breaking effect [52]. The values of our Fis are slightly negative in most groups, with the exception of slightly positive values for C1 and H, while the variance of Fis is rather low. The revealed proportion of clones (1.2%) and the proportion of genetically distant individuals in populations of the S group are low (Table S5, Table 5). If outbreeding were absent, the presence of a rather low number of unrelated clonal lineages would be expected in each locality. The genetic diversity of the S group confirms that outbreeding occurs in those populations. The low Fst values between S group populations also suggests the migration of P. cactorum genotypes among populations. The migration of P. cactorum strains among different plantations can be easily explained by the human-mediated transfer of infected plant material [80].
The heterozygosity of P. cactorum was repeatedly confirmed as low [12,21,22], thus, some mechanism preventing the total loss of heterozygosity and Muller’s ratchet threat is likely to occur. This phenomenon [81] is described as the gradual accumulation of deleterious mutations in the genome in the absence of sexual recombination, leading sooner or later to probable species extinction due to the loss of species adaptability to environmental changes. The increase in population heterozygosity as a result of outbreeding in one species was confirmed by Carlson et al. [82]. Such an increase in population heterozygosity leads to an increase in the adaptability and total fitness of the population [83]. Our results revealed that heterozygosity is variable among the populations and at the group level as well. In the case of the C2 and F groups, heterozygosity is rather high (0.3562 and 0.4647, Table 3). The differences in genetic variability among types (crown rot and fruit leather rot types) of P. cactorum have already been reported [3,4,5]. Such differences in heterozygosity values can be explained by different sexual behaviour in the various populations, confirmed by different Fis. A similar population structure was described for heterothallic P. capsici in China, where both clonally reproducing populations with low genetic diversity and outbreeding populations with high genetic diversity were found [84].
Heterozygosity similar to our results was also revealed in heterothallic P. cinnamomi [85], which may indicate fewer differences in the population structure of homothalic and heterothallic Phytophthora spp. Outbreeding in homothallic Phytophthora species has already been discussed [9,86], but the frequency and mechanism of this phenomenon has not yet been explained in detail. Our results indicate the presence of at least occasional outbreeding in homothallic P. cactorum, having a deep impact on population heterozygosity. In the case of increased population heterozygosity caused by outbreeding, albeit infrequent, the rate of heterozygosity remains fixed for long periods by subsequent multiple clonal reproduction by asexual zoospores, although selfing is also present. This mixed-mating model is in agreement with a deviation from Hardy–Weinberg equilibrium, which was confirmed by our results. A similar reproduction behaviour has already been suggested for P. heveae, P. citrophthora, P. meadii and P. megacarya [22]. The described mixed-mating model could be considered an adaptation protecting the population against the course of Muller’s ratchet [81]. The mixed-mating model resolves this issue without the need for frequent outbreeding. The strategy of a low frequency of sexual reproduction alternating with frequent clonal reproduction is not unusual among microorganisms, such as fungi and oomycetes [83,87], and such behaviour has the potential to decrease the costs of sexual reproduction while maintaining sufficient genetic variability [51]. Such behaviour also allows for phenotypic plasticity sufficient for adaptation to new hosts to be maintained [88]. Therefore, Phytophthora spp. seems to be able to behave flexibly either towards clonal reproduction, inbreeding or outbreeding [82,84]. The high heterozygosity value of the F group, associated with frequent oogonial abortion [13], can be explained by a shift in the balance between clonal reproduction and selfing towards clonal reproduction.
Our analyses revealed substantial heterozygosity in effector genes (most of them belong to RXLR effector genes (RXLRs)); its level varies among loci (Table 7). The heterozygosity values found for effector genes are predominantly substantially higher than those based on whole genome sequencing (Table 3). The high heterozygosity of effector genes explains at least part of the calculated overall heterozygosity. Goodwin [22] presumed that the distribution of heterozygosity in one genome is because of the selection for heterozygotes in effector gene loci. Although the number of analysed effector genes is only a small fraction of the presumed hundreds of total RXLRs, or 14 SCRs [17,18,42,89], the presence of their different genotypes in specific groups is rather obvious and strongly correlates with the adaptation of the S group to strawberry plants. The increased speed of evolution in effector genes in comparison to housekeeping genes in Phytophthora spp. has been repeatedly confirmed [90,91,92], and our results are another indication that those genes play a crucial role in heterozygosity [93].
Since the allele composition of virulence genes probably determines the host specificity, their change by outbreeding carries the risk of changes of pathogenicity [94] and has a potential to change the host preference or specificity. Another possible important consequence of revealed gene flow between groups is the spreading of resistance to chemical compounds across P. cactorum populations. The development of such resistance has been repeatedly evidenced in this pathogen [95,96,97], and its heritability has also been confirmed [34,98]. Therefore, the issue of the outbreeding of P. cactorum plays an important role in the spread of this pathogen to new host species and environments; outbreeding is equally important in chemical plant protection as well.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/9/2/345/s1, Caption to Table S1. The values of inbreeding coefficient (Fis) and observed heterozygosity calculated for individual isolates on the basis of ddRADseq data. Caption to Table S2. The values of fixation index Φst (Excoffier et al. 1992). Populations of the S group are marked by their ID number, and the matrix also includes the genetic groups originating from woody hosts—C1, C2, F and H. Caption to Table S3. The values of fixation index Fst (Meirmans 2006). Populations of the S group are marked by their ID number, and the matrix also includes the genetic groups originating from woody hosts—C1, C2, F and H. Caption to Table S4. The values of fixation index DST (Jost 2008). Populations of the S group are marked by their ID number, and the matrix also includes the genetic groups originating from woody hosts—C1, C2, F and H. Caption to Table S5: Mutual relatedness between isolates estimated by the kinship coefficient (Φ). The threshold values of Φ are matched to relations: 0.5—monozygotic twin or clone, 0.25—parent–offspring/full siblings, 0.125—2nd degree, such as half-sibs, 0.0625—3rd degree, such as first cousins, 0.0—unrelated, negative values indicate distinct populations (Manichaikul et al. 2010).

Author Contributions

I.S. isolated cultures; M.Z. optimised NGS methods and participated in laboratory works; M.P. formulated aims of the paper, participated in isolation of cultures, selected and optimised NGS methods, processed laboratory work, evaluated data and compiled the manuscript; T.K. participated in data processing and evaluation; M.T. verified results and conclusions and mentored on the manuscript finalisation. All authors have read and agreed to the published version of the manuscript.

Funding

Work was supported by project of the Ministry of Agriculture of the Czech Republic QK1710377, institutional support MZE-RO0418, and by the European Regional Development Fund, Project Phytophthora Research Centre CZ.02.1.01/0.0/0.0/15_003/0000453.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The sequence data of three tested effector genes are available in NCBI GenBank under their ID numbers (Table 1). The ddRADseq data are available on request from the corresponding author.

Acknowledgments

Work was supported by a project of the Ministry of Agriculture of the Czech Republic QK1710377, institutional support MZE-RO0418, and by the European Regional Development Fund, Project Phytophthora Research Centre CZ.02.1.01/0.0/0.0/ 15_003/0000453.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table
Table A1. The assessment of probability of structure models according to different K values. Ln’ (K)—the mean difference between successive likelihood values of K, Ln’’ (K)—difference between successive values of L′(K), Delta K—the mean of the absolute values of L′′(K).
Table A1. The assessment of probability of structure models according to different K values. Ln’ (K)—the mean difference between successive likelihood values of K, Ln’’ (K)—difference between successive values of L′(K), Delta K—the mean of the absolute values of L′′(K).
KMean LnP (K) Standard Deviation of LnP (K)Ln’ (K)|Ln’’ (K)|Delta K
1−2,847,681.0818.7235///
2−2,357,312.03975.6982490,369.05352,173.92360.945563
3−2,219,116.902730.3848138,195.13130,000.2147.612413
4−2,210,921.9827,897.91858194.9224,848.990.890711
5−2,177,878.0719,420.455633,043.9113,158,329.00677.549964
6−15,303,163.1625,446,335.2133−13,125,285.0913,924,243.000.547200
7−14,504,205.2512,966,509.3833798,957.9127,142,589.452.093284
8−40,847,836.7945,589,265.4895−26,343,631.54//
