Screening of Rhizosphere Bacteria and Nematode Populations Associated with Soybean Roots in the Mpumalanga Highveld of South Africa

by
Gerhard Engelbrecht
*,
Sarina Claassens
,
Charlotte M. S. Mienie
and
Hendrika Fourie
Unit for Environmental Sciences and Management, North-West University, Private Bag X6001, Potchefstroom 2520, South Africa
*
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(9), 1813; https://doi.org/10.3390/microorganisms9091813
Submission received: 20 July 2021 / Revised: 13 August 2021 / Accepted: 19 August 2021 / Published: 26 August 2021
(This article belongs to the Special Issue Interactions between the Rhizosphere Microbiome and Plant Parasitic Nematodes)
Browse Figures
Versions Notes

Abstract

:
Soybean is among South Africa’s top crops in terms of production figures. Over the past few years there has been increasingly more damage caused to local soybean by plant-parasitic nematode infections. The presence of Meloidogyne (root-knot nematodes) and Pratylenchus spp. (root lesion nematodes) in soybean fields can cripple the country’s production, however, little is known about the soil microbial communities associated with soybean in relation to different levels of Meloidogyne and Pratylenchus infestations, as well as the interaction(s) between them. Therefore, this study aimed to identify the nematode population assemblages and endemic rhizosphere bacteria associated with soybean using Next Generation Sequencing (NGS). The abundance of bacterial genera that were then identified as being significant using linear discriminant analysis (LDA) Effect Size (LEfSe) was compared to the abundance of the most prevalent plant-parasitic nematode genera found across all sampled sites, viz. Meloidogyne and Pratylenchus. While several bacterial genera were identified as significant using LEfSe, only two with increased abundance were associated with decreased abundance of Meloidogyne and Pratylenchus. However, six bacterial genera were associated with decreased Pratylenchus abundance. It is therefore possible that endemic bacterial strains can serve as an alternative method for reducing densities of plant-parasitic nematode genera and in this way reduce the damages caused to this economically important crop.

1. Introduction

Plant parasitic nematodes (PPN) cause substantial yield losses to agricultural crops, with annual global crop losses estimated at $78 billion [1]. Aphelenchoides bessseyi, Bursaphelenchus xylophilus, Ditylenchus dispaci, Globodera spp., Heterodera spp., Meloidogyne spp., Naccobus aberrans, Radopholus similis, Rotylenchulus reniformis and Xiphinema index are considered the top 10 nematode pests worldwide [2]. Due to their global distribution and wide range of host plants, of all the PPN genera and species, root-knot nematodes (RKN; Meloidogyne spp.) and lesion nematodes (Pratylenchus spp.) are particularly harmful to crops in South Africa and can cause substantial damage and adversely affect production figures of a wide range of economically important crops, such as the potato, grain, oilseed, industrial and fruit crops produced in this country [3,4]. Of all Meloidogyne spp. documented to parasitize crops on a global scale, 22 are reported to occur in Africa [5], while 14 Meloidogyne spp. and 10 Pratylenchus spp., respectively, have been listed for South Africa [6,7,8,9].
In the Mpumalanga Highveld region of South Africa crops that are usually planted include maize (Zea mays), wheat (Triticum spp.), groundnut (Arachis hypogaea), soybean (Glycine max (L.) Merr.), sunflower (Helianthus spp.) and potato (Solanum tuberosum) [10] of which all are known hosts of both RKN and lesion nematodes. Of these crops, soybean is considered an important crop in South Africa, with the Mpumalanga Highveld region being one of the most important production regions [11]. Soybean is one of the most important summer legumes produced worldwide and serves as an important dietary protein and oil source for both animal and human consumption [12,13]. A major benefit of growing soybean is its ability to fix nitrogen, providing an environmentally friendly alternative to synthetic nitrogen application [13]. South African soybean production dates back to the 1960s when production was only 2631 metric tons (MT) [14]. Production of the crop drastically increased since then and during the 2019/2020 growing season the area planted to soybean were estimated at 705,000 hectares (ha) from which 1,245,500 MT seeds were produced. During the following season (2020/2021), South Africa experienced a record crop production, represented by 827,100 ha planted and 1,793,650 MT of seeds harvested [11]. With the local increase in, and expansion of soybean and maize production since the beginning of the century, the risk of the crop being infected by a wide range of diseases and pests was expected [15,16]. The continuous generation of knowledge regarding nematode pests associated with soybean and maize is hence crucial.
Since these crops is usually grown in warmer climates, PPN such as Meloidogyne and/or Pratylenchus are the genera that cause major damage to these crops [13]. Soybean roots infected by Meloidogyne are usually distinguished by the formation of galls which interfere with several root functions, including water uptake, while roots infected by Pratylenchus can be characterized by the formation of necrotic root tissues. These nematode pests also cause various above ground symptoms like stunted growth and reduced leaf size [4,9]. Apart from nematodes, soybean production is also impacted by microorganisms such as bacteria that are present in the soil. Bacteria like Bradyrhizobium or Rhizobium are applied as a standard practice to increase the nitrogen fixation of soybean while other bacterial genera such as Bacillus have the potential to reduce nematode densities and resultant damage due to their nematicidal activities. Chemical nematicides remain one of the most used methods in nematode management, yet increasingly more research is being done to identify and develop eco-friendly products by using bacteria with nematicidal potential [9]. This study was performed in stages, by firstly stratifying the two top PPN in the localities into high, medium and low according to their abundance. Secondly, the bacterial community structure in these strata were determined. Therefore, the aims of this study were: (1) to determine the PPN communities and bacterial rhizosphere communities associated with soybean grown in the Highveld region of South Africa, which is the second biggest local production area for the crop [11] and (2) to determine whether a potential biocontrol link exists between these endemic rhizosphere bacteria and the prevailing PPN communities.

2. Materials and Methods

2.1. Site Description

South Africa is situated between the 22 and 35° S latitudes in the southern hemisphere and is characterized by diverse climatic conditions when compared to most sub-Saharan African countries. Located in Mpumalanga, one of the nine provinces of the country, the Mpumalanga Highveld (where this study was conducted) has a mean annual rainfall of 800–900 mm and an annual temperature range of 6–30 °C [10]. The grassland biome of this province, which contains rich and fertile upper layers, together with its annual rain and wide temperature ranges, makes it suitable for cultivation of crops such as soybean. In the 2019 summer growing season, rhizosphere samples (soil and roots) were taken from 15 fields where soybean was grown in the Mpumalanga Highveld of South Africa (Figure 1).

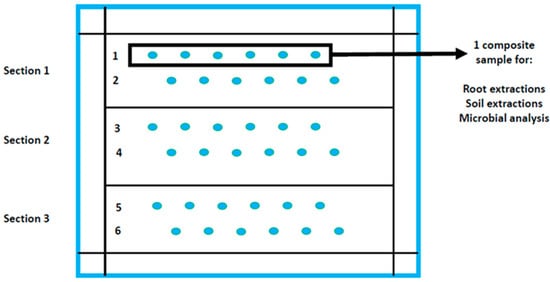

The fields were spread across the province as seen in Supplementary Table, from locations located between 1518–1747 m above sea level with maize-soybean rotations being practiced. Each field was divided into three sections depending on the size of the locality (Figure 2). Sampling of roots and soil was done in a W shape in each section and the distance between points differed in size according to the size of the locality. Therefore, in each section two rows were selected where the roots and soil (approximately 30 g of soil around the root per plant) of 6 soybean plants were sampled per row. The root samples of each row were cut up into 1 cm pieces, pooled and homogenized before being used for nematode analyses. Six soil samples collected in each row were also pooled and homogenized, of which 50 g was taken for microbial analyses. This was done for 6 rows (2 rows per section) per field.

2.2. Extraction of PPN from Soybean Roots

Nematodes were extracted from 20 g of composite root samples, for each of the fields using the adapted centrifugal-flotation method [17] and transferred to a De Grisse counting dish [18]. The nematodes were counted and concurrently identified to the genus level using an ECLIPSE TS100 inverted microscope (Nikon Corporation, Tokyo, Japan) at 40× magnification.

2.3. DNA Extraction of Microbial Communities from the Soil

To extract the DNA of microbial communities from the composite soil samples, 0.25 g of each composite sample was used (Figure 2). This was done by using the NucleoSpin® Soil kit (Macherey-Nagel, Düren, Germany) with the optimal lysis buffer system (a combination of SL 2 and Enhancer SX). The concentration of the extracted microbial DNA (absorbance at 260 nm) and its purity (absorbance ratio 260/230 and 260/280) were measured using a NanoDrop (Thermo Fisher Scientific, Waltham, MA, USA). To ensure the integrity of extracted DNA, it was analyzed by means of gel electrophoresis [19].

2.4. Next Generation Sequencing of the Soil Bacterial Community 16s rRNA

The diversity of the total rhizosphere bacterial community was assessed by next generation sequencing (NGS) of amplicons obtained from extracted DNA Sequencing of 16S rRNA amplicons was used for NGS analyses. The first step was to perform a polymerase chain reaction (PCR) with the bacterial primers (linked to the adapter sequences needed for Illumina MiSeq analysis) 341F (5′ TCGTCGGCAGCGTCAGATGTGTATAAGAGACAGCCTACGGGNGGCWGCAG) and 805R (5′ GTCTCGTGGGCTCGGAGATGTGTATAAGAGACAGGACTACHVGGGTATCTAATCC) to amplify the hypervariable regions V3 and V4 of the 16S gene [20]. The thermal conditions were: 95 °C for 3 min, 25 cycles of 95 °C for 30 s; 55 °C for 30 s and 72 °C for 30 s and finally followed by 75 °C for 5 min. All PCR reactions were done using the 1000 Cycler (BioRad, Hercules, CA, USA) thermal cycler.
All the samples consisted of a total volume of 25 μL. This volume consisted of 1 μL DNA (20–60 ng/μL), 12.5 μL KAPA Hifi Hotstart Ready Mix (2.5 mM MgCl2, 0.3 mM of each dNTP, KAPA HiFi HotStart DNA Polymerase at 0.5 U per 25 µL reaction) (Roche, Basel, Switzerland); 5 μL (1 µM) of the forward primer, 5 μL (1 µM) of the reverse primer and nuclease free water. To ensure the PCR was successful a 1.5% agarose gel electrophoresis in 1× TAE buffer, containing ethidium bromide (Bio-Rad) was run at 100 V for 30 min.
This was followed by the first PCR clean-up with Agencourt AMPure XP beads (Beckman Coulter Genomics, Chaska, MIN, USA) to purify the amplicons and eliminate free primers and primer dimers. After the first product clean-up, a second PCR with limited cycles was performed that attached dual-index barcodes to the amplicons (Nextera XT Index Kit, Illumina, San Diego, CA, USA) as recommended by the library preparation protocol from Illumina [21]. A second PCR clean-up was performed to clean up the library before quantification. The libraries were quantified with a fluorescence-based method (Invitrogen) using a Qubit 3.0 (Life Technologies, Carlsbad, CA, USA) before normalization and pooling to 4 nM. The pooled library (5 pM) was denatured and 2 × 300 bp paired-end sequencing was conducted with a MiSeq V3 600 cycle reagent cartridge (Illumina) on an Illumina MiSeq according to the manufacturer’s instructions.

2.5. NGS Data Bio-Informatics Analysis

Demultiplexing of reads was performed using the on-board MiSeq reporter software (Illumina). The Quantitative Insights into Microbial Ecology 2 (QIIME2) pipeline [22] was used for the processing of NGS data. The quality of reads was evaluated and filtered with demux for elimination of random sequencing errors, deletion of unreliable data from the libraries and removal of reads shorter than 200 bp. Based on the quality control parameters for DADA2, sequences were adjusted and forward and reverse reads assembled. The assembled reads were classified into amplicon sequence variants (ASV) using the feature classifier from QIIME2 software.
The processed sequences were aligned against the SILVANGS rRNA database (SILVA 132release) [23] for taxonomic assignment. The generated ASV count table was summarized in QIIIME2. Graphs of statistically significant bacteria were done using STAMP [24]. Metagenassist was used to do taxonomic to phenotype mapping [25]. MicrobiomeAnalyst was used to do abundance analysis between various stages [26,27]. Using this online tool, alpha diversity was produced using the Chao1 and Shannon diversity indices. With regards to beta-diversity, results were generated using the Bray-Curtis dissimilarity distance distribution. In order to detect the genera with significant differential abundance among the sample fields, linear discriminant analysis (LDA) Effect size (LEfSe) was used [28].

2.6. Statistical Analysis of Nematode and Microbial Data

Plant-parasitic nematode population assemblages extracted from the six 20 g composite root samples per field, were pooled and the frequency of occurrence, mean population density (MPD) and prominence value (PV) of each nematode genus calculated [15,29]. Frequency of occurrence was calculated as: (number of localities at which the genus occurred in the root and soil sub-samples of each cultivar/number of localities sampled) × 100. To determine the mean population density (MPD) at each field the total number of individuals of a genus present in root samples of each field was divided by the number of localities in which the genus occurred in root samples. Finally, to determine the prominence value (PV) the mean population density of each genus was multiplied by the √frequency of occurrence and divided by 100. Density classification for Meloidogyne and Pratylenchus were done as follows: low x ≤ 600; medium 601 ≤ x ≤ 2999 and high x ≥ 3000 (x = individuals per 20 g roots).
The alpha diversities of microbial communities, reflected by the bacterial abundance and diversity with regards to the population densities of Meloidogyne and Pratylenchus individuals in 20 g of soybean roots for each field, were demonstrated using Chao1 boxplots (abundance of bacterial ASV) and Shannon boxplots (community richness). A high Chao1 index indicates a high level of species richness, while a high Shannon index indicates a high level of diversity. Non-metric multidimensional scaling (NMDS) diagrams were used to show the differences between the various rhizosphere microbial communities, beta diversity, of the sample localities. The population densities of Meloidogyne and Pratylenchus were based on the number of individuals per 20 g of roots. Since the diversity of bacterial communities in each of the fields has its own unique taxonomic abundance profile, the fields with similar taxonomic profiles will group together. Similarities or differences in taxonomic profiles were determined by the Bray-Curtis dissimilarity distance distribution which uses read counts of the bacterial communities. Fields that are plotted close to zero indicate similar taxonomic abundance profiles, whereas sites that don’t plot close to zero have different taxonomic profiles.
Differences in bacterial genus abundance with regards to the population densities of Meloidogyne and Pratylenchus were evaluated using the LEfSe algorithm [30]. The LEfSe was done using the following parameters: an LDA score of 1 and a cut off p-value of 0.05. To determine the link between the abundance of the rhizosphere bacteria that were identified using LEfSe and nematode densities, a functional response model described by Holling [31] was used. The abundances of Meloidogyne and Pratylenchus, respectively, were compared to the sequence read count (SRC)of each individual bacterial genus ASV to determine whether an increase in the abundance of a certain bacterial genus might cause a decrease in the abundance of the respective said nematode genera. A Windows-based program (CANOCO version 5, Microcomputer Power, Ithaca, NY, USA) was used to generate the response graphs.

3. Results

3.1. PPN Associated with Soybean Roots

Eleven PPN genera were identified, while those individuals that could not be identified to genus level were listed as belonging to the Order Tylenchida and/or the families Aphelenchoididae and Criconematidae (Table 1). The highest number of nematode genera (9) were present at S9 and S15, while S2 had the lowest number of nematode genera (three) present (Table 1). Of the 12 genera present across the 15 fields, only Meloidogyne and Pratylenchus were present in each of these localities (Table 1). The highest number of Meloidogyne spp. (Table 1) was present at S7 (24,402 individuals/20 g of roots), with S14 having the lowest (183 individuals per 20 g of roots).
With regards to Pratylenchus spp., S18 (7851 individuals/20 g of root) and S11 (107 individuals/20 g of root) had the highest and lowest levels, respectively. The PV the nematode genera in all 15 fields ranged from 7 (Ditylenchus) to 5291 (Meloidogyne) (Table 2). The MPD of Meloidogyne were the highest (5291) with Ditylenchus and Tylenchida both having the lowest MPD of 28 (Table 2). Some of the other nematode genera present in root samples from the Highveld region were observed in only a few fields. These were Tylenchorhynchus, Ditylenchus, Rotylenchus, Tylenchus and nematodes belonging to the Order Tylenchida, and the individuals of the Aphelenchidae and Criconematidae families. Individuals belonging to the genera Tylenchus and Tylenchorhynchus as well as those identified as belonging to the Criconematidae family are usually ectoparasitic [32] and were potentially feeding actively on the roots when sampling and extractions were done.

3.2. Rhizosphere Bacterial Community Associated with Soybean

3.2.1. Alpha Diversity

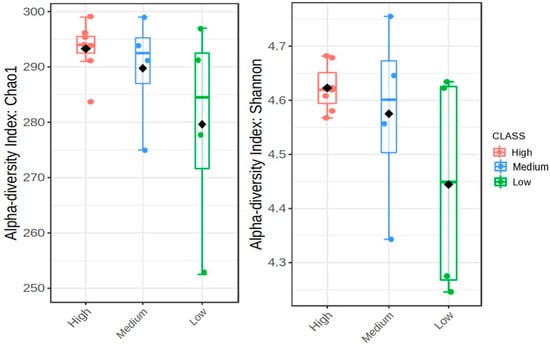

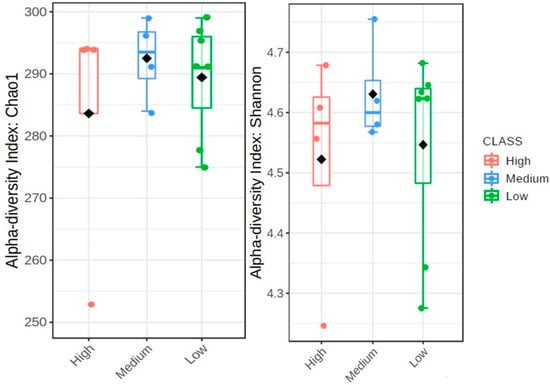

The boxplots in Figure 3 and Figure 4 represent the alpha diversities which are reflective of the bacterial abundance and diversity of Meloidogyne and Pratylenchus individuals in 20 g of soybean roots for each field (Table 1). In Figure 3 the Chao1 index reveals that sites with high levels of Meloidogyne had higher levels of bacterial ASV abundance (±290–300), whereas sites with low levels of Meloidogyne had the lowest bacterial ASV abundance. Yet, when compared to the Chao1 index of Figure 4, it is evident that sites with lower Pratylenchus densities had higher levels of bacterial ASV abundance, while sites with higher Pratylenchus densities had the lowest bacterial ASV abundance. With regards to the species diversity (Shannon index), Figure 3 showed that sites with the highest Meloidogyne densities had less diverse bacterial communities (±4.56–4.69) as compared to those with low and medium densities of Meloidogyne. In the case of Pratylenchus, (Figure 4) it was evident that sites with medium densities of Pratylenchus showed higher bacterial diversity (±4.56–4.75) compared to those with high and low densities of Pratylenchus.

3.2.2. Beta Diversity

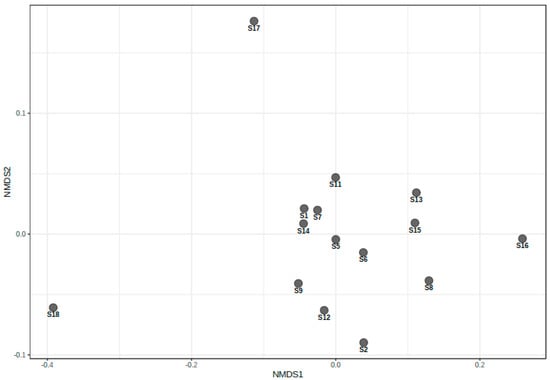

The non-metric multidimensional scaling diagram (Figure 5) show the differences between the various rhizosphere microbial communities of the fields sampled. From Figure 5 it is evident that the following fields, S17 and S18, did not group with the others resulting in each of these fields having a different taxonomic microbe profile when compared to those of the other fields. Most of the fields grouped relatively close to zero on both the x- and y-axis, indicating that they share similar bacterial taxonomic profiles.

3.2.3. Bacterial Populations Associated with Soybean

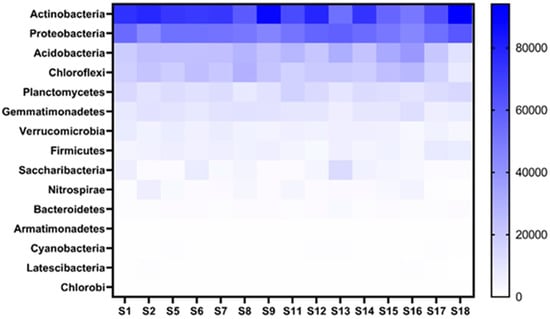

All the NGS sequences obtained for bacterial populations from soil collected from the 15 fields sampled could be divided into 15 phyla (Figure 6), 47 classes, 55 orders, 91 families and 148 genera. Actinobacteria (33.88%) was the most abundant phyla across the 15 fields followed by Proteobacteria (25.14%). The least abundant phyla were Cyanobacteria (0.11%) Latescibacteria (0.09%) and Chlorobi (0.02%).

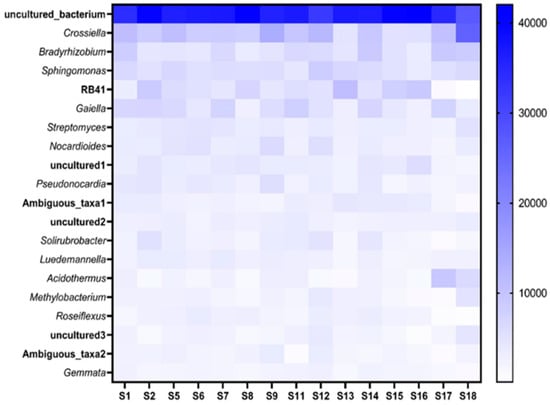

Figure 7 indicates the top 20 genera present across all fields. Of these genera uncultured_bacteria and Crossiella had the highest abundance across all the fields. Some genera such as Bradyrhizobium, Sphingomonas and Acidothermus amongst others could be identified while there were many genera that could not be identified with the database used and were listed as uncultured. Of the 148 genera identified, all the similar genus names were assigned a number to identify which of these uncultured bacterial genera is being referred to in further analysis.

3.2.4. Linear Discriminant Analysis (LDA) Effect Size (LEfSe)

A total of 9 bacterial genera (Table 3) were found to be significantly more abundant in the soybean rhizospheres of plants sampled for this study. With regards to Meloidogyne densities, the genera Bacillus2 (p = 0.01) and uncultured15 (p = 0.03) had significantly higher abundances in fields with medium densities of Meloidogyne (Table 1). However, the genera Gemmata1 (p = 0.02), Streptomyces2 (p = 0.04), Roseiflexus2 (p = 0.034), Pirellula3 (p = 0.034) and Ambiguous_taxa10 (p = 0.007) had significantly higher abundances in fields with low densities of Pratylenchus. Moreover, the genera uncultured15 (p = 0.025) and uncultured30 (p = 0.0355) as well as Ambiguous_taxa16 (p = 0.026) were significantly more abundant in fields with medium densities of Pratylenchus.

3.3. Potential Link between Significantly Abundant Rhizosphere Bacteria and PPN Population Density

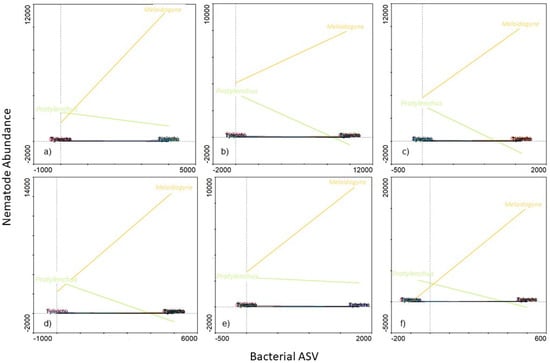

Of the 9 bacterial genera that were identified using LEfSe, only Ambiguous_taxa16 (Hyphomicrobiaceae family) was associated with high abundance of both Meloidogyne and Pratylenchus (Figure 8). In fact, where a high abundance of the Ambiguous_taxa16 (±300 ASV) was evident, both Meloidogyne (±8000 individuals) and Pratylenchus (±4000 individuals) abundances were also high. Furthermore, from the 9 genera identified using LEfSe, high abundances (SRC) of 6 were associated with low Pratylenchus densities (Figure 9). However, of these 6 genera, a high abundance (SRC) of uncultured15 was associated with the lowest Pratylenchus abundance. Although the high abundance of these bacterial genera correlated with high Meloidogyne densities, high abundance of in Gemmata1 (Figure 9b) were inversely correlated with Meloidogyne densities. An SRC count of ±10,000 for Gemmata1 was associated with ±8000 Meloidogyne individuals (Figure 10b), compared to an SRC count of ±5000 for both Bacillus2 (Figure 9a) and Streptomyces2 (Figure 9d), associated with ±12,000 Meloidogyne individuals.

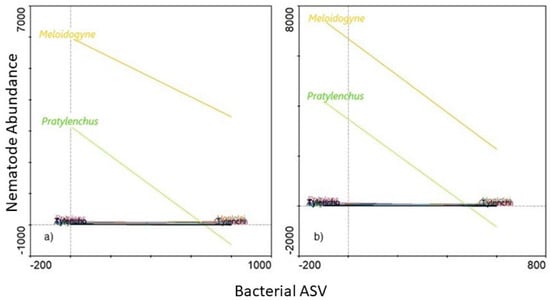

The two remaining genera Ambiguous_taxa10 (Figure 10a) and Roseiflexus2 (Figure 10b) were the only two of which high abundances (SRC) were associated with low densities of both Meloidogyne and Pratylenchus. Of these two genera, high SRC of Roseiflexus2 (Figure 10b) were associated with the lowest Meloidogyne densities. A Roseiflexus2 SRC count of ±600 was, for example, associated with Meloidogyne densities of ±2000 individuals. In comparison Ambiguous_taxa10 with an SRC count of ±800 was associated with Meloidogyne densities of ±3500 individuals. In both cases of Ambiguous_taxa10 (Figure 10a) and Roseiflexus2 (Figure 10b), low Pratylenchus densities were found to be associated with increased abundances of these genera.

4. Discussion

The current study reports a similar number of PPN genera associated with soy-bean roots (11) than the those reported in 2020 [33] and more than the 7 genera previously reported in 2001 to be associated with soybean in South Africa [15]. This can likely be explained by the improved, adapted methods used for PPN extraction from soybean roots—during this study the protocol of Swart and Marais [17] was used. Also, the expansion of soybean production compared to the beginning of the century when a previous study [15] was done could add to the explanation of this phenomenon. However, when results from this study were compared to the results from a previous study [15], the predominant endoparasites were still found to be Meloidogyne and Pratylenchus spp. on both occasions. One of the most important observations that was made is the high PV of both the Meloidogyne and Pratylenchus genera (Table 2). The PV of Meloidogyne (Table 2) was higher when compared to that reported by previous studies [15,34]. Crop rotation used in the Mpumalanga Highveld region, especially in the fields used in this study, usually include soybean rotated with grain crops such as maize (Zeae mays L.) [35], which is also susceptible RKN. This rotation practice therefore contributes to aggravated strain being placed on the sustainable crop production of grain and legumes in this region.
Moreover, other factors that are not known to the authors could have impacted on the higher PVs of these two genera in the Highveld region compared to those of the 2001 study. With regards to the PV of Pratylenchus (lesion nematode), this study reports similar findings to that of Mbatyoti [34]. Although Pratylenchus was not considered to be an important pest of soybean [36], recent studies have found that Pratylenchus spp. severely impact soybean, causing potential losses of up to 85% in some cases [34,37]. The high PV of Pratylenchus in this study might also be caused by the rotation practices used. It has been reported that rotation of soybean with maize in Brazilian production areas, favored the reproduction of P. brachyurus [37] and this might have similar effects in South African production areas, such as the Mpumalanga Highveld. Moreover, the common practice of using maize and grain legumes in rotation in the Mpumalanga Highveld will therefore contribute to higher RKN and lesion nematode population densities since these crops have been found to all being susceptible to the two predominant nematode pest genera [10,35]. The impact of climate change is another factor that should be considered in terms of higher abundance of the two predominant endoparasitic nematode genera found in Mpumalanga Highveld study since combined changes in temperature and moisture is for example factors that will and is foreseen to impact on plant-parasitic nematode abundance [38]. Due to high population densities of both RKN and lesion nematodes in soybean roots, more studies are needed that are aimed at the impact of the co-occurrence of these harmful PPNs on soybean yields. The use of poor-host or resistant cultivars of soybean and rotation crops has until recently generally been the only way to reduce PPN numbers in local farmer’s fields. Such a strategy requires that commercially available cultivars are annually screened for their host status to target nematode pest species and that resistance to such pests be introgressed into high yielding genetic material to develop high levels of resistance. This is, however, not receiving priority and therefore this approach cannot be used optimally. Furthermore, Velum 1GR (a.i. fluopyram) has recently been officially registered for use on soybean in South Africa representing the only nematicide available for use by producers [39]. An alternative and/or supplementary approach to the non-optimal use of poor-host or resistant cultivars and limited chemical control options can be the use of endemic biological control agents such as bacteria or fungi. However, management of PPN remains difficult [40]. Although chemicals remain the most common method for RKN management [41], many have elevated levels of toxicity contributing to environmental and human safety concerns. Various chemical nematicides are also increasingly being removed from international markets [42]. This calls for the urgent development of more environmentally friendly PPN control methods.
Previous studies have shown that factors such as the crop that was planted, soil type and the root exudates of the cultivated plants can affect the bacterial community structure of the rhizosphere microbiome by changing the physical and chemical properties of soil [43,44,45]. Although the alpha diversity of rhizosphere bacterial communities with regards to either Meloidogyne or Pratylenchus were found to be different, the beta diversity (Figure 5) and therefore, the taxonomic profile of the fields was relatively similar. Only the taxonomic profiles of S18 and S17 were different compared to those of the other localities. The difference in the taxonomic profile of S18, when compared to other localities, might be caused by the monocropping of soybean at this locality. Yet, S17 also had a different taxonomic profile, although the reason for this might not be attributed to monocropping like that of S18, but to other complementary and unknown factors warranting further analysis. However, although the differences in the alpha diversity observed in this study were not significantly different, it might be caused by several factors including the root exudates of soybean plants. Root exudates are known to influence rhizosphere bacterial assemblages [43]. As the soybean plants respond to varying PPN densities, the root exudates can act as attractants/stimulants as well as inhibitors/repellents, which may have a profound effect on rhizosphere bacteria potentially causing the observed differences in bacterial diversity and richness [46].
The phyla that were identified in this study were very similar to those reported [47] when examining the soybean rhizosphere in Kyoto, Japan and that of soybean fields across China [48]. However, in these studies Proteobacteria was identified as the most abundant phylum. Bradyrhizobium, Sphingomonas, Bryobacter and Streptomyces were identified from the top 20 listed genera in the soybean rhizosphere in two similar studies [33,49]. There are microorganisms present in the soil that are not pathogenic towards plants and of the bacterial genera identified in Figure 8, Bradyrhizobium and Sphingomonas are examples of these. Bradyrhizobium, a nitrogen-fixing symbiont of legumes, would usually be abundant in higher numbers when analyzing the rhizosphere of legumes [50] and explains the high abundance of this genera reported in this study. The plant growth-promoting endophytic bacteria (PGPEB) Sphingomonas can occur in diverse environments. Together with its plant growth promoting capabilities, this genus can also decompose various pesticides such as those that contain the active ingredient cypermethrin [51,52]. Other reports suggest that bacteria belonging to the genera Methylobacterium have been found in soils that are suppressive against the genus Meloidogyne in vegetable production sites in Grossbeeren, south of Berlin, Germany [53] and sites with a history of RKN infestation in Spain [54]. This corresponds with the abundance of Methylobacterium identified in the localities investigated in this study. The Bacillus genus has been associated with the soybean rhizosphere and promotes its plant growth [55] as well as being present in soils with low densities of P. neglectus and M. chitwoodi in potato farms of the San Luis Valley, Colorado, USA [56]. Other genera such as Gemmata, Streptomyces and Roseiflexus have also been reported from the rhizosphere of soybean fields in Kyoto, Japan and the Heilongjiang Province of China [48,57]. Furthermore, although a previous study found that bacteria belonging to genera such as Lysobacter, Steroidobacter, Flavobacterium, Chryseobacterium and Flexibacter were present in soils with low densities of Meloidogyne, none of these genera were identified as significant in this study [54].
Several studies have reported the presence of the Gemmata genus [58] in environments ranging from bogs in Russia [59], a compost heap in Northern Germany [60] as well as a water spring in South Africa [61]. Although these studies did not aim to study the nematicidal potential of this genus, a study done [62] found that Gemmata obscuriglobus is capable of polyketide and non-ribosomal peptide synthesis. These compounds can activate plant defenses and contribute to a potential decrease in nematode infections [63,64]. In a study done in China [47], they compared the rhizosphere of soybean and another legume plant, alfalfa (Medicago sativa) and found that the genus of the Planctomycetes phylum, Pirellula to be more abundant in the rhizosphere of alfalfa than that of soybean. A strain of this genus, also known as Rhodopirellula, has been identified in the soybean root endosphere. This genus was found to be present in soybean monoculture systems in north-eastern China with suppressive effects against the soybean cyst nematode, Heterodera glycines [65]. It is possible that a higher abundance of several bacterial genera, such as those mentioned above, might cause reduced levels of parasitic nematodes like Meloidogyne and Pratylenchus. The identification of such bacterial genera and their abundance will therefore provide valuable information regarding bacteria that might be used as potential biocontrol agents in nematode management.
It has been reported that the Streptomyces genus has high abundances in the soybean rhizosphere [66]. This genus has been reported to be suppressive against Fusarium wilt disease [67] as well as the soybean cyst nematode, Heterodera glycines [68] and the RKN, M. incognita [69,70]. A novel strain belonging to the Streptomyces genus was also isolated from nematode-suppressive soil in Costa Rica [71]. Furthermore, Streptomyces spp. were found to have suppressive effects against the lesion nematode, P. penetrans that parasitizes alfalfa in Minnesota and Wisconsin field soils [72]. In the case of Bacillus2 (Figure 9a), this genus belongs to the family Bacillaceae. Various species of the genus Bacillus has been known to have nematicidal activity against harmful nematode pests such as Meloidogyne spp., Pratylenchus spp. and Heterodera spp. Amongst these are B. pumilus, B. megaterium, B. thuringiensis and B. soli [69,73,74,75,76].
Ambiguous_taxa10 belongs to the Hyphomicrobiaceae family, which has been identified in soybean monoculture systems in Minnesota, USA [77], with the genus Rhodoplanes (Hyphomicrobiaceae family) identified in potato farms of the San Luis Valley (Colorado, USA). However, Rhodoplanes was found to be positively correlated with M. chitwoodi in a previous study. Yet, our results suggest that the abundance of the Ambiguous_taxa10 genus, belonging to the Hyphomicrobiaceae family, shows a negative correlation with relation to both Meloidogyne and Pratylenchus densities, contrasting results previously reported [56]. The relation of Roseiflexus2 (Figure 10b) abundance towards Meloidogyne and Pratylenchus densities proves quite interesting, as this genus has been found to be related to uncultivated filamentous phototrophic bacteria, predominately present in microbial mats of hot springs [78]. To our knowledge, there has not been any reports of the potential nematicidal activity of this genus and future studies will thus generate novel information in this regard.

5. Conclusions

Plant-parasitic nematodes cause extensive losses to various economically important crops in South Africa, including soybean. Notably, most research has been done on species of PPN genera such as Heterodera, Meloidogyne and Pratylenchus and their potential impact on soybean production. There are various control strategies such as nematicides, both chemical and biological, that can be used to manage the impact of the PPN. However, more research is being done on the use of microorganisms as potential biocontrol agents of nematodes to fill the gap left by the removal of various chemical nematicides from the international markets. Research relating to biocontrol remains challenging as the nematicidal effects observed for microbes in in vitro studies often fail to reproduce upon the reintroduction of these strains into field studies [79]. While the identification of bacterial strains with nematicidal activity in vitro remains helpful, DNA based classification of the microbiomes associated with the natural rhizosphere of soybean plants with low PPN densities can provide a more comprehensive understanding of bacteria with nematicidal activity in such an environment. Since less than 1% of bacterial spp. can be cultivated in a laboratory [80,81], 16S rRNA gene amplification and more recently NGS have emerged as powerful tools that can be used to study microbial populations [81]. Even so, identification of genera still proves difficult, resulting in numerous genera not being identified. A possible explanation for the observations made in this study, with regards to bacterial ASV as well as Meloidogyne and Pratylenchus densities might be a result of competition between organisms (including both bacteria and nematodes). This is caused by the environmental conditions or mixtures of different bacteria having various nutritional and environmental requirements that influences certain metabolic capabilities of these bacteria [82,83], potentially causing changes in their nematicidal activity. In a similar study [57], the authors concluded that a consortium of bacteria with nematicidal properties can exist on a spatial scale within a field of soybean that is infected by RKN. There could then be a possibility of identifying several biological control agents that are potentially available in situ without introducing any “foreign” bacterial strain(s). Improving our understanding of the natural rhizosphere bacterial and fungal communities and their relationship with both the plant and nematodes will help unravel the natural microbiome structure needed for biocontrol of PPN.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/microorganisms9091813/s1, Table S1: Details of 15 fields of commercial producers in the Highveld region of South Africa where soybean rhizosphere (root and soil) samples were collected during the 2018/2019 growing season for nematode and microbe analyses.

Author Contributions

G.E. initiated the writing of this review article and compiled the initial manuscript. The promotor H.F. and co-promoters S.C. and C.M.S.M. of G.E.’s PhD studies, respectively, edited and provided valuable inputs to the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge the funding support of the National Research Foundation (NRF) (Grant numbers: 106783 and 115233), the Maize Trust of South Africa (providing a bursary to G.E). Any opinions, findings, conclusions or recommendations expressed in this material is that of the authors alone and the NRF does not accept any liability in this regard.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Faculty of Natural and Agricultural Sciences Ethics Committee (FNASREC) of the North-West University (Potchefstroom, South Africa) (NWU-01363-20-A9; 01/02/2020) for studies not involving humans or animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data, referring to those for nematodes and microbes, are available from the principal author.

Acknowledgments

Jaco J. Bezuidenhout (Unit for Environmental Sciences and Management, Microbiology Department, North-West University, Potchefstroom, South Africa) and Obinna T. Ezeokoli (Pathogenic Yeast Research Group, Department of Microbial, Biochemical and Food Biotechnology, University of the Free State, Bloemfontein, South Africa): Analyses and data interpretation of NGS work. Wiltrud Durand (BFAP, GIS & Crop Modelling): Composition of the map used to indicate sampling localities.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Lima, F.S.O.; Correa, V.R.; Nogueira, S.R.; Santos, P.R.R. Nematodes affecting soybean and sustainable practices for their management. In Soybean—The Basis of Yield, Biomass and Productivity; Kasai, M., Ed.; InTech: Rijeka, Croatia, 2017; pp. 107–124. [Google Scholar]
  2. Jones, J.T.; Haegeman, A.; Danchin, E.G.J.; Gaur, H.S.; Helder, J.; Jones, M.G.K.; Kikuchi, T.; Manzanilla-López, R.; Palomares-Rius, J.E.; Wesemael, W.M.L.; et al. Top 10 plant-parasitic nematodes in molecular plant pathology. Mol. Plant Pathol. 2013, 14, 946–961. [Google Scholar] [CrossRef] [PubMed]
  3. Jones, R.K.; Storey, S.G.; Knoetze, R.; Fourie, H. Nematode pests of potato and other vegetable crops. In Nematology in South Africa: A View from the 21st Century; Fourie, H., Spaull, V.W., Jones, R.K., Daneel, M.S., De Waele, D., Eds.; Springer: Cham, Switzerland, 2017; pp. 231–260. [Google Scholar]
  4. Fourie, H.; Mc Donald, A.H.; Steenkamp, S.; De Waele, D. Nematode Pests of Leguminous and Oilseed Crops. In Nematology in South Africa: A View from the 21st Century; Fourie, H., Spaull, V.W., Jones, R.K., Daneel, M.S., De Waele, D., Eds.; Springer: Cham, Switzerland, 2017; pp. 201–230. [Google Scholar]
  5. Onkendi, E.M.; Kariuki, G.M.; Marais, M.; Moleleki, L.N. The threat of root-knot nematodes (Meloidogyne spp.) in Africa: A review. Plant Pathol. 2014, 63, 727–737. [Google Scholar] [CrossRef] [Green Version]
  6. Kleynhans, K.P.N.; van den Berg, E.; Swart, A.; Marais, M.; Buckley, N.H. Plant Nematodes in South Africa; Plant Protection Research Institute Handbook No. 8; ARC-Plant Protection Research Institute: Pretoria, South Africa, 1996. [Google Scholar]
  7. Marais, M.; Swart, A.; Buckley, N.H. Overview of the South African Plant-Parasitic Nematode Survey (SAPPNS). In Nematology in South Africa: A View from the 21st Century; Fourie, H., Spaull, V.W., Jones, R.K., Daneel, M.S., De Waele, D., Eds.; Springer: Cham, Switzerland, 2017; pp. 451–458. [Google Scholar]
  8. Van den Berg, E.; Marais, M.; Swart, A. Nematode Morphology and Classification. In Nematology in South Africa: A View from the 21st Century; Fourie, H., Spaull, V.W., Jones, R.K., Daneel, M.S., De Waele, D., Eds.; Springer: Cham, Switzerland, 2017; pp. 33–71. [Google Scholar]
  9. Engelbrecht, G.; Claassens, S.; Mienie, C.M.S.; Fourie, H. South Africa: An Important Soybean Producer in Sub-Saharan Africa and the Quest for Managing Nematode Pests of the Crop. Agriculture 2020, 10, 242. [Google Scholar] [CrossRef]
  10. Fourie, H.; Jones, V.W.; Daneel, R.K.; De Waele, D. Introduction. In Nematology in South Africa: A View from the 21st Century; Fourie, H., Spaull, V.W., Jones, R.K., Daneel, M.S., De Waele, D., Eds.; Springer: Cham, Switzerland, 2017; pp. 1–12. [Google Scholar]
  11. Grain Market Overview 2021. Available online: http://www.grainsa.co.za (accessed on 6 May 2021).
  12. Hartman, G.L.; West, E.D.; Herman, T.K. Crops that feed the World 2. Soybean-worldwide production, use, and constrains caused by pathogens and pests. Food Secur. 2011, 3, 5–17. [Google Scholar] [CrossRef]
  13. Elhady, A.; Heuer, H.; Hallmann, J. Plant parasitic nematodes on soybean in expanding production areas of temperate regions. J. Plant Dis. Prot. 2018, 125, 567–576. [Google Scholar] [CrossRef]
  14. Shurtleff, W.; Aoyagi, A. History of Soybeans and Soyfoods in Africa (1857–2009): Extensively Annotated Bibliography and Sourcebook; Soyinfo Centre: Lafayette, CA, USA, 2009. [Google Scholar]
  15. Fourie, H.; McDonald, A.; Loots, G. Plant-parasitic nematodes in field crops in South Africa. 6. Soybean. Nematology 2001, 3, 447–454. [Google Scholar] [CrossRef]
  16. Fourie, H.; de Waele, D.; Mc Donald, A.H.; Mienie, C.M.S.; Marais, M.; de Beer, A. Nematode pests threatening soybean production in South Africa, with reference to Meloidogyne. S. Afr. J. Sci. 2015, 111, 1–9. [Google Scholar] [CrossRef]
  17. Swart, A.; Marais, M. Extracting and detecting nematodes. In The Kleynhans Manual: Collecting and Preserving Nematodes; Swart, A., Marais, M., Eds.; ARC-Plant Protection Research Institute: Pretoria, South Africa, 2017; p. 29. [Google Scholar]
  18. De Grisse, A.T. Redescription ou modifications de quelques techniques ultilisées dans l’étude des nématodes phytoparasitaires. Medelingen Rijksfac. Landbouwwet. 1969, 34, 351–359. [Google Scholar]
  19. Burbach, K.; Seifert, J.; Pieper, D.H.; Camarinha-Silva, A. Evaluation of DNA extraction kits and phylogenetic diversity of the porcine gastrointestinal tract based on Illumina sequencing of two hypervariable regions. Microbiologyope 2016, 5, 70–82. [Google Scholar] [CrossRef]
  20. Klindworth, A.; Pruesse, E.; Schweer, T.; Peplies, J.; Quast, C.; Horn, M.; Glöckner, F.O. Evaluation of general 16S ribosomal RNA gene PCR primers for classical and next-generation sequencing-based diversity studies. Nucleic Acids Res. 2013, 41, 1–11. [Google Scholar] [CrossRef]
  21. Gallego, S.; Devers-Lamrani, M.; Rousidou, K.; Karpouzas, D.G.; Martin-Laurent, F. Assessment of the effects of oxamyl on the bacterial community of an agricultural soil exhibiting enhanced biodegradation. Sci. Total Environ. 2019, 651, 1189–1198. [Google Scholar] [CrossRef] [PubMed]
  22. Guerrini, C.J.; Botkin, J.R.; McGuire, A.L. Clarify the HIPAA right of access to individuals’ research data. Nat. Biotechnol. 2019, 37, 850–852. [Google Scholar] [CrossRef]
  23. Quast, C.; Pruesse, E.; Yilmaz, P.; Gerken, J.; Schweer, T.; Yarza, P.; Peplies, J.; Glöckner, F.O. The SILVA ribosomal RNA gene database project: Improved data processing and web-based tools. Nucleic Acids Res. 2012, 41, 590–596. [Google Scholar] [CrossRef]
  24. Parks, D.H.; Tyson, G.W.; Hugenholtz, P.; Beiko, R.G. STAMP: Statistical analysis of taxonomic and functional profiles. Bioinformatics 2014, 30, 3123–3124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Arndt, D.; Xia, J.; Liu, Y.; Zhou, Y.; Guo, A.C.; Cruz, J.A.; Sinelnikov, I.; Budwill, K.; Nesbø, C.L.; Wishart, D.S. METAGENassist: A comprehensive web server for comparative metagenomics. Nucleic Acids. Res. 2012, 40, 88–95. [Google Scholar] [CrossRef] [Green Version]
  26. Dhariwal, A.; Chong, J.; Habib, S.; King, I.L.; Agellon, L.B.; Xia, J. MicrobiomeAnalyst: A web-based tool for comprehensive statistical, visual and meta-analysis of microbiome data. Nucleic. Acids. Res. 2017, 45, 180–188. [Google Scholar] [CrossRef] [PubMed]
  27. Chong, J.; Liu, P.; Zhou, G.; Xia, J. Using MicrobiomeAnalyst for comprehensive statistical, functional, and meta-analysis of microbiome data. Nat. Protoc. 2020, 15, 799–821. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, J.; Ma, J.-Y.; Li, Q.-H.; Su, H.; Sun, X. Lactobacillus rhamnosus GG induced protective effect on allergic airway inflammation is associated with gut microbiota. Cell. Immunol. 2018, 332, 77–84. [Google Scholar] [CrossRef]
  29. Karuri, H.W.; Olago, D.; Neilson, R.; Njeri, E.; Opere, A.; Ndegwa, P. Plant parasitic nematode assemblages associated with sweet potato in Kenya and their relationship with environmental variables. Trop. Plant Pathol. 2017, 42, 1–12. [Google Scholar] [CrossRef] [Green Version]
  30. Meng, Q.; Yang, W.; Men, M.; Bello, A.; Xu, X.; Xu, B.; Deng, L.; Jiang, X.; Sheng, S.; Wu, X.; et al. Microbial community succession and response to environmental variables during cow manure and corn straw composting. Front. Microbiol. 2019, 10, 1–13. [Google Scholar] [CrossRef] [Green Version]
  31. Holling, C.S. Some characteristics of simple types of predation and parasitism. Can. Entomol. 1959, 91, 385–398. [Google Scholar] [CrossRef]
  32. Hunt, D.J.; Palomares-Rius, J.E.; Manzanilla-López, R.H. Identification, Morphology and Biology of Plant Parasitic Nematodes. In Plant Parasitic Nematodes in Subtropical and Tropical Agriculture, 3rd ed.; Sikora, R.A., Coyne, D., Hallmann, J., Timper, P., Eds.; CABI: Boston, MA, USA, 2018; pp. 20–61. [Google Scholar]
  33. Mbatyoti, A.; Daneel, M.S.; Swart, A.; Marais, M.; De Waele, D.; Fourie, H. Plant-parasitic nematode assemblages associated with glyphosate tolerant and conventional soybean cultivars in South Africa. Afr. Zool. 2020, 55, 1–16. [Google Scholar] [CrossRef]
  34. Mbatyoti, O.A. Soybean Host Status to Meloidogyne incognita and Nematode Biodiversity in Local Soybean Cropping Systems. Ph.D. Dissertation, North-West University, Potchefstroom, South Africa, 2018. [Google Scholar]
  35. Mc Donald, A.H.; De Waele, D.; Fourie, H. Nematode Pests of Maize and other Cereal Crops. In Nematology in South Africa: A View from the 21st Century; Fourie, H., Spaull, V.W., Jones, R.K., Daneel, M.S., De Waele, D., Eds.; Springer: Cham, Switzerland, 2017; pp. 183–200. [Google Scholar]
  36. Bridge, J.; Starr, J.L. Plant. Nematodes of Agricultural Importance; Manson Publishing Ltd.: London, UK, 2007. [Google Scholar]
  37. Lima, F.S.D.O.; Santos, G.R.D.; Nogueira, S.R.; Santos, P.R.R.D.; Correa, V.R. Population dynamics of the root lesion nematode, Pratylenchus brachyurus, in soybean fields in Tocantins State and its effect to soybean yield. Nematropica 2015, 45, 170–177. [Google Scholar]
  38. Colagiero, M.; Cianco, A. Climate changes and nematodes: Expected effects and perspectives for plant protection. Redia 2011, 94, 113–118. [Google Scholar]
  39. Bayer. Velum 1GR Product Overview. 2021. Available online: https://www.cropscience.bayer.africa/za/en-za/products/product-detail-page.label.html/insecticides/velum_1_gr.html (accessed on 22 August 2021).
  40. Xiong, J.; Zhou, Q.; Luo, H.; Xia, L.; Li, L.; Sun, M.; Yu, Z. Systemic nematicidal activity and biocontrol efficacy of Bacillus firmus against the root-knot nematode Meloidogyne incognita. World J. Microbiol. Biotechnol. 2015, 31, 661–667. [Google Scholar] [CrossRef] [PubMed]
  41. Schneider, S.M.; Rosskopf, E.N.; Leesch, J.G.; Chellemi, D.O.; Bull, C.T.; Mazzola, M. United States Department of Agriculture—Agricultural Research Service research on alternatives to methyl bromide: Pre-plant and post-harvest. Pest. Manag. Sci. 2003, 59, 814–826. [Google Scholar] [CrossRef]
  42. Naz, I.; Saifullah; Palomares-Rius, J.E.; Khan, S.M.; Ali, S.; Ahmad, M.; Ali, A.; Khan, A. Control of Southern root knot nematode Meloidogyne incognita (Kofoid and White) Chitwood on tomato using green manure of Fumaria parviflora Lam (Fumariaceae). Crop. Prot. 2015, 67, 121–129. [Google Scholar] [CrossRef]
  43. Dennis, P.G.; Miller, A.J.; Hirsch, P.R. Are root exudates more important than other sources of rhizodeposits in structuring rhizosphere bacterial communities? FEMS Microbiol. Ecol. 2010, 72, 313–327. [Google Scholar] [CrossRef] [Green Version]
  44. Mashiane, R.A.; Ezeokoli, O.T.; Adeleke, R.A.; Bezuidenhout, C.C. Metagenomic analyses of bacterial endophytes associated with the phyllosphere of a Bt maize cultivar and its isogenic parental line from South Africa. World J. Microbiol. Biotechnol. 2017, 33, 1–13. [Google Scholar] [CrossRef]
  45. Xiao, X.; Fan, M.; Wang, E.; Chen, W.; Wei, G. Interactions of plant growth-promoting rhizobacteria and soil factors in two leguminous plants. Appl. Microbiol. Biotechnol. 2017, 101, 8485–8497. [Google Scholar] [CrossRef]
  46. Baetz, U.; Martinoia, E. Root exudates: The hidden part of plant defense. Trends Plant Sci. 2014, 19, 90–98. [Google Scholar] [CrossRef] [Green Version]
  47. Sugiyama, A.; Ueda, Y.; Zushi, T.; Takase, H.; Yazaki, K. Changes in the bacterial community of soybean rhizospheres during growth in the field. PLoS ONE 2014, 9, e100709. [Google Scholar] [CrossRef] [Green Version]
  48. Zhang, B.; Zhang, J.; Liu, Y.; Shi, P.; Wei, G. Co-occurrence patterns of soybean rhizosphere microbiome at a continental scale. Soil Biol. Biochem. 2018, 118, 178–186. [Google Scholar] [CrossRef]
  49. Yu, Z.; Li, Y.; Wang, G.; Liu, J.; Liu, J.; Liu, X.; Herbert, S.J.; Jin, J. Effectiveness of elevated CO2 mediating bacterial communities in the soybean rhizosphere depends on genotypes. Agric. Ecosyst. Environ. 2016, 231, 229–232. [Google Scholar] [CrossRef]
  50. Chang, C.; Chen, W.; Luo, S.; Ma, L.; Li, X.; Tian, C. Rhizosphere microbiota assemblage associated with wild and cultivated soybeans grown in three types of soil suspensions. Arch. Agron. Soil. Sci. 2019, 65, 74–87. [Google Scholar] [CrossRef]
  51. Liu, F.; Chi, Y.; Wu, S.; Jia, D.; Yao, K. Simultaneous Degradation of Cypermethrin and Its Metabolite, 3-Phenoxybenzoic Acid, by the Cooperation of Bacillus licheniformis B-1 and Sphingomonas sp. SC-1. J. Agric. Food Chem. 2014, 62, 8256–8262. [Google Scholar] [CrossRef] [PubMed]
  52. Khan, A.L.; Waqas, M.; Asaf, S.; Kamran, M.; Shahzad, R.; Bilal, S.; Khan, M.A.; Kang, S.-M.; Kim, Y.-H.; Yun, B.-W.; et al. Plant growth-promoting endophyte Sphingomonas sp. LK11 alleviates salinity stress in Solanum pimpinellifolium. Environ. Exp. Bot. 2017, 133, 58–69. [Google Scholar] [CrossRef]
  53. Adam, M.; Westphal, A.; Hallmann, J.; Heuer, H. Specific Microbial Attachment to Root Knot Nematodes in Suppressive Soil. Appl. Environ. Microbiol. 2014, 80, 2679–2686. [Google Scholar] [CrossRef] [Green Version]
  54. Giné, A.; Carrasquilla, M.; Martínez-Alonso, M.; Gaju, N.; Sorribas, F.J. Characterization of soil suppressiveness to root-knot nematodes in organic horticulture in plastic greenhouse. Front. Plant Sci. 2016, 7, 1–15. [Google Scholar] [CrossRef] [Green Version]
  55. Sibponkrung, S.; Kondo, T.; Tanaka, K.; Tittabutr, P.; Boonkerd, N.; Teaumroong, N.; Yoshida, K.-I. Genome sequence of Bacillus velezensis S141, a new strain of plant growth-promoting rhizobacterium isolated from soybean rhizosphere. Genome Announc. 2017, 5, 1–2. [Google Scholar] [CrossRef] [Green Version]
  56. Castillo, J.D.; Vivanco, J.M.; Manter, D.K. Bacterial Microbiome and Nematode Occurrence in Different Potato Agricultural Soils. Microb. Ecol. 2017, 74, 888–900. [Google Scholar] [CrossRef]
  57. Toju, H.; Tanaka, Y. Consortia of anti-nematode fungi and bacteria in the rhizosphere of soybean plants attacked by root-knot nematodes. R. Soc. Open Sci. 2019, 6, 1–20. [Google Scholar] [CrossRef] [Green Version]
  58. Mishek, H.P.; Stock, S.A.; Florick, J.D.E.; Blomberg, W.R.; Franke, J.D. Development of a chemically defined minimal medium for studies on growth and protein uptake of Gemmata obscuriglobus. J. Microbiol. Methods 2018, 145, 40–46. [Google Scholar] [CrossRef]
  59. Kulichevskaya, I.S.; Ivanova, A.A.; Baulina, O.I.; Rijpstra, W.I.C.; Sinninghe Damsté, J.S.; Dedysh, S.N. Fimbriiglobus ruber gen. nov., sp. nov., a Gemmata-like planctomycete from Sphagnum peat bog and the proposal of Gemmataceae fam. nov. Int. J. Syst. Evol. Microbiol. 2017, 67, 218–224. [Google Scholar] [CrossRef]
  60. Ward, N.; Rainey, F.A.; Stackebrandt, E.; Schlesner, H. Unraveling the extent of diversity within the order Planctomycetales. Appl. Environ. Microbiol. 1995, 61, 2270–2275. [Google Scholar] [CrossRef] [Green Version]
  61. Tekere, M.L.; Olivier, J.; Jonker, N.; Venter, S. Metagenomic analysis of bacterial diversity of Siloam hot water spring, Limpopo, South Africa. Afr. J. Biotechnol. 2011, 10, 18005–18012. [Google Scholar] [CrossRef] [Green Version]
  62. Jeske, O.; Jogler, M.; Petersen, J.; Sikorski, J.; Jogler, C. From genome mining to phenotypic microarrays: Planctomycetes as source for novel bioactive molecules. Antonie Van Leeuwenhoek 2013, 104, 551–567. [Google Scholar] [CrossRef] [PubMed]
  63. Aleti, G.; Sessitsch, A.; Brader, G. Genome mining: Prediction of lipopeptides and polyketides from Bacillus and related Firmicutes. Comput. Struct. Biotechnol. J. 2015, 13, 192–203. [Google Scholar] [CrossRef]
  64. Horak, I.; Engelbrecht, G.; van Rensburg, P.J.J.; Claassens, S. Microbial metabolomics: Essential definitions and the importance of cultivation conditions for utilizing Bacillus species as bionematicides. J. Appl. Microbiol. 2019, 127, 326–343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Hussain, M.; Hamid, M.I.; Tian, J.; Hu, J.; Zhang, X.; Chen, J.; Xiang, M.; Liu, X. Bacterial community assemblages in the rhizosphere soil, root endosphere and cyst of soybean cyst nematode-suppressive soil challenged with nematodes. FEMS Microbiol. Ecol. 2018, 94, 1–11. [Google Scholar] [CrossRef]
  66. Liu, F.; Hewezi, T.; Lebeis, S.L.; Pantalone, V.; Grewal, P.S.; Staton, M.E. Soil indigenous microbiome and plant genotypes cooperatively modify soybean rhizosphere microbiome assembly. BMC Microbiol. 2019, 19, 1–19. [Google Scholar] [CrossRef]
  67. Cha, J.-Y.; Han, S.; Hong, H.-J.; Cho, H.; Kim, D.; Kwon, Y.; Kwon, S.-K.; Crüsemann, M.; Bok Lee, Y.; Kim, J.F.; et al. Microbial and biochemical basis of a Fusarium wilt-suppressive soil. ISME J. 2016, 10, 119–129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Hamid, M.I.; Hussain, M.; Wu, Y.; Zhang, X.; Xiang, M.; Liu, X. Successive soybean-monoculture cropping assembles rhizosphere microbial communities for the soil suppression of soybean cyst nematode. FEMS Microbiol. Ecol. 2016, 93, 1–10. [Google Scholar] [CrossRef] [Green Version]
  69. Siddiqui, Z.A.; Mahmood, I. Role of bacteria in the management of plant parasitic nematodes: A review. Bioresour. Technol. 1999, 69, 167–179. [Google Scholar] [CrossRef]
  70. Sharma, M.; Jasrotia, S.; Ohri, P.; Manhas, R.K. Nematicidal potential of Streptomyces antibioticus strain M7 against Meloidogyne incognita. AMB Express 2019, 9, 1–8. [Google Scholar] [CrossRef] [Green Version]
  71. Esnard, J.; Potter, T.L.; Zuckerman, B.M. Streptomyces costaricanus sp. nov., isolated from nematode-suppressive soil. Int. J. Syst. Evol. Microbiol. 1995, 45, 775–779. [Google Scholar] [CrossRef] [Green Version]
  72. Samac, D.A.; Kinkel, L.L. Suppression of the root-lesion nematode (Pratylenchus penetrans) in alfalfa (Medicago sativa) by Streptomyces spp. Plant Soil 2001, 235, 35–44. [Google Scholar] [CrossRef]
  73. Huang, Y.; Xu, C.; Ma, L.; Zhang, K.; Duan, C.; Mo, M. Characterisation of volatiles produced from Bacillus megaterium YFM3.25 and their nematicidal activity against Meloidogyne incognita. Eur. J. Plant Pathol. 2010, 126, 417–422. [Google Scholar] [CrossRef]
  74. Li, J.; Zou, C.; Xu, J.; Ji, X.; Niu, X.; Yang, J.; Huang, X.; Zhang, K.-Q. Molecular mechanisms of nematode-nematophagous microbe interactions: Basis for biological control of plant-parasitic nematodes. Annu. Rev. Phytopathol. 2015, 53, 67–95. [Google Scholar] [CrossRef]
  75. Lee, Y.S.; Kim, K.Y. Antagonistic potential of Bacillus pumilus L1 against root-knot nematode, Meloidogyne arenaria. J. Phytopathol. 2016, 164, 29–39. [Google Scholar] [CrossRef]
  76. Engelbrecht, G.; Jansen Van Rensburg, P.J.; Fourie, H.; Claassens, S. In vitro bioassays to determine the effect of Bacillus soli filtrates on the paralysis of Meloidogyne incognita second-stage juveniles. Nematology 2020, 22, 239–243. [Google Scholar] [CrossRef]
  77. Hu, W.; Strom, N.B.; Haarith, D.; Chen, S.; Bushley, K.E. Seasonal variation and crop sequences shape the structure of bacterial communities in cysts of soybean cyst nematode. Front. Microbiol. 2019, 10, 1–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Van der Meer, M.T.; Schouten, S.; Hanada, S.; Hopmans, E.C.; Damsté, J.S.; Ward, D.M. Alkane-1,2-diol-based glycosides and fatty glycosides and wax esters in Roseiflexus castenholzii and hot spring microbial mats. Arch. Microbiol. 2002, 178, 229–237. [Google Scholar] [CrossRef]
  79. Topalović, O.; Hussain, M.; Heuer, H. Plants and associated soil microbiota cooperatively suppress plant-parasitic nematodes. Front. Microbiol. 2020, 11, 1–15. [Google Scholar] [CrossRef] [Green Version]
  80. Amann, R.I.; Ludwig, W.; Schleifer, K.H. Phylogenetic identification and in situ detection of individual microbial cells without cultivation. Microbiol. Rev. 1995, 59, 143–169. [Google Scholar] [CrossRef]
  81. Rawat, N.; Joshi, G.K. Bacterial community structure analysis of a hot spring soil by next generation sequencing of ribosomal RNA. Genomics 2019, 111, 1053–1105. [Google Scholar] [CrossRef] [PubMed]
  82. Schisler, D.A.; Slininger, P.J.; Bothast, R.J. Effects of antagonist cell concentration and two-strain mixtures on biological control of Fusarium dry rot of potatoes. Phytopathology 1997, 87, 177–183. [Google Scholar] [CrossRef] [Green Version]
  83. Abdel-Salam, M.S.; Ameen, H.H.; Soliman, G.M.; Elkelany, U.S.; Asar, A.M. Improving the nematicidal potential of Bacillus amyloliquefaciens and Lysinibacillus sphaericus against the root-knot nematode Meloidogyne incognita using protoplast fusion technique. Egypt. J. Biol. Pest. Control. 2018, 28, 1–6. [Google Scholar] [CrossRef] [Green Version]
Microorganisms 09 01813 g001 550
Figure 1. Soybean localities, situated in the Mpumalanga province of South Africa, where rhizosphere samples were obtained for nematode and microbe analyses during flowering of the crops in the 2019 summer growing season. (Illustration: Wiltrud Durand, BFAP, GIS & Crop Modelling).
Figure 1. Soybean localities, situated in the Mpumalanga province of South Africa, where rhizosphere samples were obtained for nematode and microbe analyses during flowering of the crops in the 2019 summer growing season. (Illustration: Wiltrud Durand, BFAP, GIS & Crop Modelling).
Microorganisms 09 01813 g001
Microorganisms 09 01813 g002 550
Figure 2. Sampling strategy at each of the 15 soybean localities sampled during the 2019 growing season for nematode and microbe analyses (Illustration: Gerhard Engelbrecht, North-West University). Each field therefore had a total of 6 composite root and soil samples that were analyzed.
Figure 2. Sampling strategy at each of the 15 soybean localities sampled during the 2019 growing season for nematode and microbe analyses (Illustration: Gerhard Engelbrecht, North-West University). Each field therefore had a total of 6 composite root and soil samples that were analyzed.
Microorganisms 09 01813 g002
Microorganisms 09 01813 g003 550
Figure 3. The alpha diversities with regards to Meloidogyne infection in soybean roots from the Highveld production area (Mpumalanga province) in South Africa presented as boxplots. The data was plotted with the Chao1 (p = 0.211) and Shannon (p = 0.170) diversity indices with p < 0.05; the median as well as highest and lowest values are indicated on each boxplot.
Figure 3. The alpha diversities with regards to Meloidogyne infection in soybean roots from the Highveld production area (Mpumalanga province) in South Africa presented as boxplots. The data was plotted with the Chao1 (p = 0.211) and Shannon (p = 0.170) diversity indices with p < 0.05; the median as well as highest and lowest values are indicated on each boxplot.
Microorganisms 09 01813 g003
Microorganisms 09 01813 g004 550
Figure 4. The alpha diversities with regards to Pratylenchus infection in soybean roots from the Highveld production area (Mpumalanga province) in South Africa presented as boxplots. The data was plotted with the Chao1 (p = 0.614) and Shannon (p = 0.592) diversity indices with p < 0.05; the median as well as highest and lowest values are indicated on each boxplot.
Figure 4. The alpha diversities with regards to Pratylenchus infection in soybean roots from the Highveld production area (Mpumalanga province) in South Africa presented as boxplots. The data was plotted with the Chao1 (p = 0.614) and Shannon (p = 0.592) diversity indices with p < 0.05; the median as well as highest and lowest values are indicated on each boxplot.
Microorganisms 09 01813 g004
Microorganisms 09 01813 g005 550
Figure 5. The NMDS diagram shows the beta-diversity of microbe communities among 15 soybean fields sampled from the Highveld region, Mpumalanga province, South Africa. The statistical method used to analyze group similarities was ANOSIM (p < 0.85) and applied a Bray-Curtis dissimilarity distance distribution with the sample sites using a correction of R = −0.12262.
Figure 5. The NMDS diagram shows the beta-diversity of microbe communities among 15 soybean fields sampled from the Highveld region, Mpumalanga province, South Africa. The statistical method used to analyze group similarities was ANOSIM (p < 0.85) and applied a Bray-Curtis dissimilarity distance distribution with the sample sites using a correction of R = −0.12262.
Microorganisms 09 01813 g005
Microorganisms 09 01813 g006 550
Figure 6. Heatmap indicating the top bacterial phyla and their abundance associated with the soybean rhizosphere of the 15 fields (S1–S18) sampled from the Highveld region, Mpumalanga province, South Africa. The darkness of the blue color indicates the abundance, with darker colors being more abundant.
Figure 6. Heatmap indicating the top bacterial phyla and their abundance associated with the soybean rhizosphere of the 15 fields (S1–S18) sampled from the Highveld region, Mpumalanga province, South Africa. The darkness of the blue color indicates the abundance, with darker colors being more abundant.
Microorganisms 09 01813 g006
Microorganisms 09 01813 g007 550
Figure 7. Heatmap indicating the top 20 bacterial genera and their abundance associated with the soybean rhizosphere of the 15 fields (S1–S18). The darkness of the blue color indicates the abundance, with darker colors being more abundant.
Figure 7. Heatmap indicating the top 20 bacterial genera and their abundance associated with the soybean rhizosphere of the 15 fields (S1–S18). The darkness of the blue color indicates the abundance, with darker colors being more abundant.
Microorganisms 09 01813 g007
Microorganisms 09 01813 g008 550

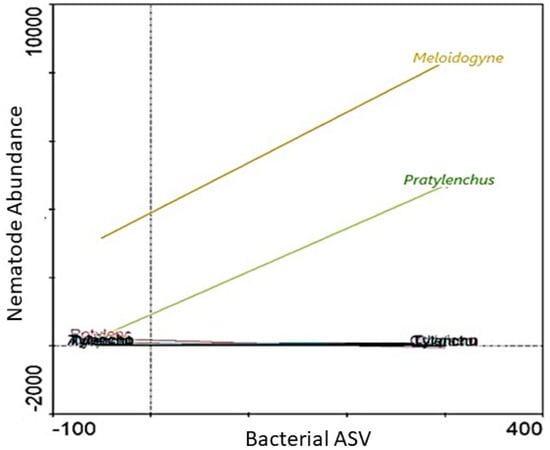

Figure 8. A functional response graph showing the correlation between the abundance (Bacterial ASV) of the genus Ambiguous_taxa16 and the abundance of Meloidogyne (orange line) and Pratylenchus (green line) that were extracted from soybean roots sampled from the Highveld production area in the Mpumalanga province, South Africa.
Figure 8. A functional response graph showing the correlation between the abundance (Bacterial ASV) of the genus Ambiguous_taxa16 and the abundance of Meloidogyne (orange line) and Pratylenchus (green line) that were extracted from soybean roots sampled from the Highveld production area in the Mpumalanga province, South Africa.
Microorganisms 09 01813 g008
Microorganisms 09 01813 g009 550
Figure 9. A functional response graph showing the correlation between the abundance (Bacterial ASV) of the genera Bacillus2 (a), Gemmata1 (b), Pirellula3 (c), Streptomyces2 (d), uncultured15 (e), uncultured30 (f) and the abundance of Meloidogyne (orange line) and Pratylenchus (green line) that were extracted from soybean roots sampled from the Highveld production area in the Mpumalanga province, South Africa.
Figure 9. A functional response graph showing the correlation between the abundance (Bacterial ASV) of the genera Bacillus2 (a), Gemmata1 (b), Pirellula3 (c), Streptomyces2 (d), uncultured15 (e), uncultured30 (f) and the abundance of Meloidogyne (orange line) and Pratylenchus (green line) that were extracted from soybean roots sampled from the Highveld production area in the Mpumalanga province, South Africa.
Microorganisms 09 01813 g009
Microorganisms 09 01813 g010 550
Figure 10. A functional response graph showing the correlation between the abundance (Bacterial ASV) of the genera Ambiguous_taxa10 (a), Roseiflexus2 (b) nematode abundance of the abundance of Meloidogyne (orange line) and Pratylenchus (green line) that were extracted from soybean roots sampled from the Highveld production area in the Mpumalanga province, South Africa.
Figure 10. A functional response graph showing the correlation between the abundance (Bacterial ASV) of the genera Ambiguous_taxa10 (a), Roseiflexus2 (b) nematode abundance of the abundance of Meloidogyne (orange line) and Pratylenchus (green line) that were extracted from soybean roots sampled from the Highveld production area in the Mpumalanga province, South Africa.
Microorganisms 09 01813 g010
Table
Table 1. The community structure and abundance of plant parasitic nematodes in 20 g soybean root samples collected during the 2018/19 growing season from 15 fields of commercial producers in the Highveld region of the Mpumalanga province of South Africa.
Table 1. The community structure and abundance of plant parasitic nematodes in 20 g soybean root samples collected during the 2018/19 growing season from 15 fields of commercial producers in the Highveld region of the Mpumalanga province of South Africa.
Genus and/or FamilyField No.
S1S2S5S6S7S8S9S11S12S13S14S15S16S17S18
Meloidogyne34425483625114124,402491349807400999509718321,7571059518394
Pratylenchus518935055078435846551826107243433127010042293357851
Helicotylenchus441322828170282488728283411083280
Scutelonema8706666101348338110417741415028
Hoplolaimus9603710589281187296346965143570
Rotylenchulus280283460461000623705541000
Tylenchorhynchus00000037140001930769
Ditylenchus0000280000000000
Rotylenchus000000390094000037
Tylenchus0000028550280000046
Tylenchida00000000280028000
Aphelenchidae2802800000028097000
Criconematidae0002800014000028055
Level of Meloidogyne infectionLowMediumHighMediumHighHighHighHighMediumHighLowHighMediumLowLow
Level of Pratylenchus infectionLowHighLowMediumHighMediumMediumLowLowHighLowMediumLowLowHigh
Table
Table 2. Prominence values, frequencies of occurrence and mean population densities of plant parasitic nematode genera occurring in 20 g soybean root samples collected during the 2018/19 growing season from 15 fields of commercial producers in the Highveld region of the Mpumalanga province of South Africa.
Table 2. Prominence values, frequencies of occurrence and mean population densities of plant parasitic nematode genera occurring in 20 g soybean root samples collected during the 2018/19 growing season from 15 fields of commercial producers in the Highveld region of the Mpumalanga province of South Africa.
Genus and/or Familyb Mean Population Density (MPD)a Frequency of Occurrence (FO)c Prominence Value (PV)
Meloidogyne52911005291
Pratylenchus21091002109
Helicotylenchus779374
Scutelonema629360
Hoplolaimus788772
Rotylenchulus13967113
Tylenchorhynchus643337
Ditylenchus2877
Rotylenchus572025
Tylenchus392720
Tylenchida281310
Aphelenchidae452723
Criconematidae312716
a FO = (Number of samples containing genus/number of samples collected) × 100. b MPD = total number of individuals of a genus present in root samples of each site/number of localities in which the genus occurred in root samples of each site. c PV = MPD × √absolute frequency)/100.
Table
Table 3. Classification of bacterial genera that were significantly more abundant in the rhizosphere of the 15 soybean fields (sampled from the Highveld region, Mpumalanga province, South Africa) used in this study according to LefSe.
Table 3. Classification of bacterial genera that were significantly more abundant in the rhizosphere of the 15 soybean fields (sampled from the Highveld region, Mpumalanga province, South Africa) used in this study according to LefSe.
PhylumClassOrderFamilyGenus
ProteobacteriaAlphaproteobacteriaRhizobialesHyphomicrobiaceaeAmbiguous_taxa10
ProteobacteriaDeltaproteobacteriaMyxococcalesSandaracinaceaeuncultured15
FirmicutesBacilliBacillalesBacillaceaeAmbiguous_taxa16
PlanctomycetesPlanctomycetaciaPlanctomycetalesPlanctomycetaceaeGemmata1
PlanctomycetesPlanctomycetaciaPlanctomycetalesPlanctomycetaceaePirellula3
ChloroflexiChloroflexiaChloroflexalesRoseiflexaceaeRoseiflexus2
FirmicutesBacilliBacillalesPlanococcaceaeuncultured30
ActinobacteriaActinobacteriaStreptomycetalesStreptomycetaceaeStreptomyces2
FirmicutesBacilliBacillalesBacillaceaeBacillus2
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Engelbrecht, G.; Claassens, S.; Mienie, C.M.S.; Fourie, H. Screening of Rhizosphere Bacteria and Nematode Populations Associated with Soybean Roots in the Mpumalanga Highveld of South Africa. Microorganisms 2021, 9, 1813. https://doi.org/10.3390/microorganisms9091813

AMA Style

Engelbrecht G, Claassens S, Mienie CMS, Fourie H. Screening of Rhizosphere Bacteria and Nematode Populations Associated with Soybean Roots in the Mpumalanga Highveld of South Africa. Microorganisms. 2021; 9(9):1813. https://doi.org/10.3390/microorganisms9091813

Chicago/Turabian Style

Engelbrecht, Gerhard, Sarina Claassens, Charlotte M. S. Mienie, and Hendrika Fourie. 2021. "Screening of Rhizosphere Bacteria and Nematode Populations Associated with Soybean Roots in the Mpumalanga Highveld of South Africa" Microorganisms 9, no. 9: 1813. https://doi.org/10.3390/microorganisms9091813

APA Style

Engelbrecht, G., Claassens, S., Mienie, C. M. S., & Fourie, H. (2021). Screening of Rhizosphere Bacteria and Nematode Populations Associated with Soybean Roots in the Mpumalanga Highveld of South Africa. Microorganisms, 9(9), 1813. https://doi.org/10.3390/microorganisms9091813

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
