Radical Depolymerization of Alginate Extracted from Moroccan Brown Seaweed Bifurcaria bifurcata

Abstract

The degradation of alginate extracted from Moroccan Bifurcaria bifurcata has not been fully established to date. In this work, we report the extraction and the characterization of alginate (ASBB) from the brown algae B. bifurcata, as well as the production of oligo-alginates (OGABs) by using a green chemistry process. The depolymerization of ASBB was carried out by controlled radical hydrolysis through our green chemistry process using a hydrogen peroxide (H₂O₂) catalyst. The molecular weight (Mw) and degree of polymerization (DP) distribution of oligo-alginates (OGABs) obtained were then characterized by HPLC size exclusion chromatography (SEC) and high-performance anion exchange chromatography with pulsed amperometric detection (HPAEC-PAD). Structural characterization revealed that after 6 h of depolymerization of ASBB, we obtained OGABs with Mw ≤ 5.5 kDa and 2 ≤ DP ≤ 24. These results highlight the effectiveness of the controlled radical hydrolysis of alginate to produce good yields of alginate fractions with controlled Mw with a known polymerization degree (DP) and without altering properties of oligo-alginates. Bifurcaria bifurcata can be a potential source of alginate and oligo-alginates given its abundance on the northwest Atlantic coast. The production and characterization of oligo-alginates promote their exploitation in the cosmetic, pharmaceutic, and agriculture fields.

1. Introduction

Among the main polysaccharides constituting brown algae, alginate represents 40% of their dry weight and it is mainly studied for its gelling properties [1]. The existence of alginate in the form of alginic acid substituted with mineral salts, notably calcium, magnesium and sodium, gives the brown algae a strong and flexible appearance [2]. At the molecular level, alginate is a linear anionic copolymer formed from two monomers—α-L-guluronic acid (G) and β-D-mannuronic acid (M)—linked together by (β-1 → 4) link and organized as homo and/or heteropolymeric blocks (F_MM/F_GG and F_MG blocks, respectively) [3]. About 30,000 tons of alginate are produced each year [4]. Therefore, alginate could be accounted as a copious resource for the development of biomaterials [5].

Due to its high viscosity, commercial applications of alginate are often limited in the food industry. Reducing the molecular weight of alginate is a good way to lower its viscosity and improve biological properties through the generation of low molecular weight (LMW) of alginate and oligo-alginates. Generally, and based on the literature, the LMW is represented by the degree of polymerization (DP) from 11 to 30, while the oligosaccharides are oligomers with a DP from 2 to 10 [6]. Several strategies have been developed to produce oligo-alginates, mainly enzymatic depolymerization by alginate-lyases [7] and acid depolymerization [8]. Numerous studies published over the past decades have described the potential applications of oligo-alginates in therapeutics and in biotechnology [9,10,11,12]. It has been proven that oligo-alginates generated by enzymatic hydrolysis increase the proportion of lactobacilli and bifidobacteria in rats fed with alginate oligosaccharides (AOS) [13]. In addition, these oligo-alginates induce the secretion of cytokines from RAW264.7 cells of mouse macrophage cell line [10]. Previous studies have mentioned the elicitor effect of oligo-alginates, by the induction of the oxidative burst in Laminaria digitata, by causing an inhibitory effect against potentially harmful microorganisms [14]. In addition, oligo-alginates produced by gamma irradiation are growth promoters on Amaranthus cruentus [15]. On that account, this present work focuses on the production of oligo-alginates from alginate of Moroccan brown seaweed Bifurcaria bifurcata which has not been studied to date. Therefore, the aim of this work is to produce in good yields, the low molecular weight of alginate (Mw ≤ 5.5 kDa) using for the first time a green chemistry process with hydrogen peroxide (H₂O₂), as well as study their structural characterization using different spectroscopic and chromatographic technics.

2. Materials and Methods

2.1. Extraction and Purification of Sodium Alginate (ASBB)

Alginate extraction from B. bifurcata R. Ross seaweed was carried out using the method of Davis et al. [16]. First, 25 g of B. bifurcata powder were delipidated then depigmented before a double treatment with HCl (pH 2) for 2 h at 60 °C. The residue was than treated with 3% (w/v) of Na₂CO₃ solution at pH 11 and at 60 °C for 2 h under stirring (450 rpm). After centrifugation (5000 rpm, 15 min) the supernatants were precipitated with ethanol (96%) (3 Volumes). The precipitate was acidified to pH 3 with HCl solution at 6 M to obtain alginic acid. This latter was neutralized with (NaOH 1 M) to pH 7.5 after resuspending in ultra-pure water. The purification of ASBB was carried out three times by precipitation with ethanol 96%. The last precipitate obtained was lyophilized to get the sodium alginate of B. bifurcata (ASBB).

2.2. Chemical Analysis of Sodium Alginate (ASBB)

Total sugars were determined according to the method of Dubois et al. [17]. Uronic acids were determined using the Blumenkrantz method [18] and D-glucuronic acid was used as the standard. The sulfuric resorcinol method [19] was performed to quantify the neutral sugars taking L-fucose and D-glucose as standards. The sulfation degree was evaluated according to the turbidimetric method (BaCl₂/gelatin) described by Dodgson and Price [20]. The protein content was quantified from a standard range of Bovine Serum Albumin (BSA) using the Bradford method [21]. According to the Folin–Ciocalteu method total phenolic compounds concentration was determined using a standard range of gallic acid [22].

2.3. ¹H NMR Spectroscopy Analysis of Sodium Alginate (ASBB)

¹H NMR spectroscopy analysis was carried out with a 400 MHz Bruker AVANCE spectrometer. Before analysis, 20 mg of ASBB was prepared three-fold in 0.5 mL of D₂O. The analysis of ASBB was performed at 60 °C. The signals obtained in ¹H NMR spectra were used to determine the distribution of mannuronic (F_M) and guluronic (F_G) fractions, as well as the frequency of heterogeneous blocks (F_MG or F_GM) and homogenous blocks (F_GG and F_MM) [23].

2.4. Production of Low Molecular Weight (LMW) of Alginate

The depolymerization of ASBB to oligo-alginates (OGABs) was carried out by controlled radical hydrolysis using hydrogen peroxide (H₂O₂). A 2% (m/v) alginate solution was prepared in distillated water; this solution was agitated at 300 rpm overnight, then heated to 70 °C. Temperature and agitation were maintained throughout the reaction. At the initial time of the reaction, 6.7 mL of H₂O₂ solution at 30% (w/w) were added to the alginate solution in order to achieve a mass ratio (alginate/H₂O₂:(m₁/m₂)) of 1:1. The study of the reaction was conducted over 10 h. Samples of 4.5 mL were taken at 30 min and then every hour, the fractions collected were inactivated for 30 min with 0.5 mL of ethanol 96%, and then lyophilized before they were analyzed by steric exclusion chromatography (CES) to determine their molar masses.

2.5. Reducing Sugars of Hydrolyzed Fractions (OGABs)

According to the Bicinchoninic Acid Assay (BCA) method [24], the reducing sugars were determined with slight modifications. Two assay solutions were prepared: solution A: in 200 mL of distilled water were dissolved 12.7 g of sodium bicarbonate (NaHCO₃), 4.84 g of sodium carbonate (Na₂CO₃), and 0.34 g of 2,2′ biquinoline; and solution B: 0.25 g of cupric sulfate (CuSO₄, 5H₂O) with 0.25 g of l-serine were dissolved in 200 mL of distilled water. Then, 0.2 mL of OGABs at 0.2 g/L was added to 0.8 mL of distilled water and to 0.5 mL of solution A + solution B. After incubation for 15 min at 100 °C, reducing sugars content was quantified at 540 nm talking D-glucose as standard.

2.6. Molecular Weight by High-Performance Size Exclusion Chromatography (HPLC-SEC)

Analysis of molecular weight of oligo-alginates (OGABs) was executed by an Agilent 1100 Series using a Refractive Index Detector (RID). The separation was realized in two columns coupled in series: TSK G5000PWXL and TSK G3000PWXL. Sodium nitrate (NaNO₃) at 0.1 M was used as eluent with a flow rate of 1 mL/min. A range of Pullulan from 1.3 to 800 kDa was used as standard. Samples and standard were injected at 10 g/L in eluent after filtration through 0.45 and 0.22 µm, respectively.

2.7. High-Performance Anion Exchange Chromatography (HPAEC) Analysis

In order to study the distribution of the degree of polymerization (DP) in the fraction (OGABs-6 h) generated after 6 h of hydrolysis of ASBB, an analysis by high-performance anion exchange chromatography with pulsed amperometric detection (HPAEC-PAD) was performed. The analysis was executed with a Dionex ICS-3000 system with version 6.5 of Chromeleon (Dionex Corp., Sunnyvale, CA, USA). The distribution of DP in the OGABs-6h fraction was carried out at 25 °C on a CarboPac PA-200 column (4 mm × 250 mm) fixed to a CarboPac PA-200 guard column (Dionex 4 mm × 50 mm). A gradient of A (NaOH at 100 mM) and B (NaOH at 100 mM and NaOAc at 250 mM) was used as eluent with a flow rate of 1 mL/min. Then, 20 µL of filtered samples at 1 g/L were injected.

3. Results

3.1. Chemical Analysis of ASBB

B. bifurcata was treated by alkaline solution of sodium carbonate (3% (w/v), pH 11.0). After drying, the extraction yield was estimated at 24% (w/w). To study the nature of the extracted polysaccharide, a biochemical characterization was carried out. The results mentioned in

Table 1. Biochemical characterization of alginate (ASBB).

Analytical Parameter	% (w/w)
Uronic acid	58.44 ± 0.55
Neutral monosaccharides	18.25 ± 0.85
Total sugar	48.61 ± 0.45
Protein	Traces *
Sulfate	1.78 ± 0.23

* Traces: % w/w ≤ 1 × 10⁻³. Each value was the mean of 3 repetitions ± standard error.

show that the extract was mainly composed of uronic acids with few neutral sugars and traces of sulfate which may be due to the coextraction of low traces of fucoidans by diluted HCl.

3.2. Structural Characterization of ASBB by ¹H NMR

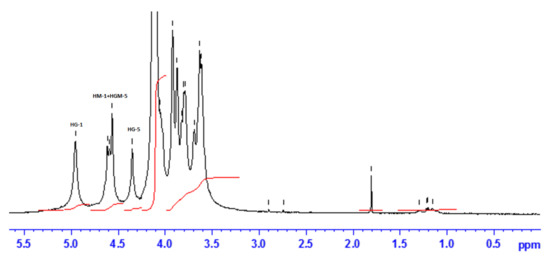

For the structural characterization of the alginate blocks, ¹H NMR spectroscopy was performed as a suitable method for the structural determination of uronic acid polymers. ¹H NMR spectrum, shown in Figure 1, indicates the signal areas of HG-1 (A₁), HM-1 + HGM-5 (A₂), and HG-5 (A₃). According to Grasdalen [23] the equations below were used to determine the characteristic blocks and sequences of ASBB.

$$F_G=\frac{A_1}{A_2+A_3}$$

$$F_M=1-F_G$$

$$\frac{M}{G}=\frac{1-F_G}{FG}=\frac{F_M}{F_G}$$

$$F_{GM}=F_{MG}=F_G-F_{GG}$$

$$F_{MM}=F_M-F_{MG}$$

$$F_{GG}=\frac{A_3}{A_2+A_1}$$

The values obtained in

Table 2. Structural characterization of B. bifurcata sodium alginate (ASBB) by ¹H NMR.

Composition	Frequencies
M/G	0.47
FG	0.68
FM	0.32
FMM	0.09
FMG a	0.23
FGG	0.45
H	0.23

^a F_MG = F_GM.

indicate that guluronic acid (F_G) was the main compound of ASBB. According to Grasdalen [23], the η parameter given by this equation (η = F_GM/[F_M + F_G]) allowed the determination of the homo or heteropolymeric block. In the case of η < 1, the homopolymeric block was abundant. ASBB was characterized by M/G ratio of 0.47 and η < 1 with abundance of homoguluronic blocks (F_GG).

3.3. Molecular Weight Determination

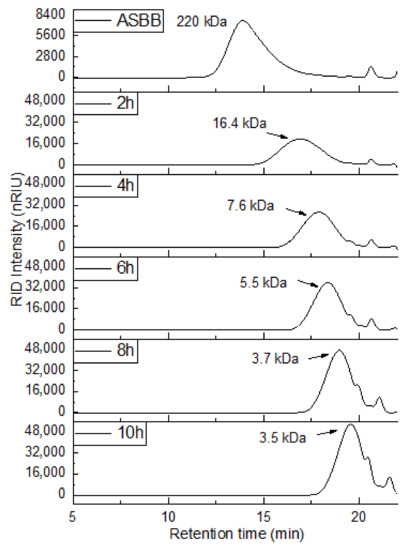

For the first time, Bifurcaria bifurcata alginate was radically degraded according to a controlled radical hydrolysis by a green chemistry process using only hydrogen peroxide (H₂O₂) to produce homogenous LMW fraction of ASBB with an Mw ≤ 5.5 kDa. For more information on the depolymerization process, a high-performance size exclusion chromatography (HPSEC) analysis was carried out on the fractions withdrawn upon kinetics after each 2 h of hydrolysis. Figure 2 represents the HPSEC spectra of ASBB. It was eluted after 14 min giving an average molecular weight (Mw) of 220,000 g/mol according to the calibration curves made with Pullulan standards. The average molecular weight profile of oligo-alginates (OGABs) (Figure 2) ranged from 220,000 to 3500 g/mol after 10 h of radical depolymerization of ASBB. These results show a very large decrease in the Mw of the native alginate ASBB (220,000 g/mol) just after 2 h of hydrolysis. For comparison, native ASBB molecular weight was 220,000 g/mol and after 6 h of hydrolysis we obtained a fraction of LMW (OGABs-6h) with an Mw of 5500 g/mol. This result demonstrates the quantitative conversion of alginate (ASBB) polymer to shorter chains (OGABs). After 8 h of hydrolysis, the developed process allowed us to generate a fraction with a level around 3700 g/mol without any post-purification of the LMW fractions.

3.4. Osidic Composition of OGABs

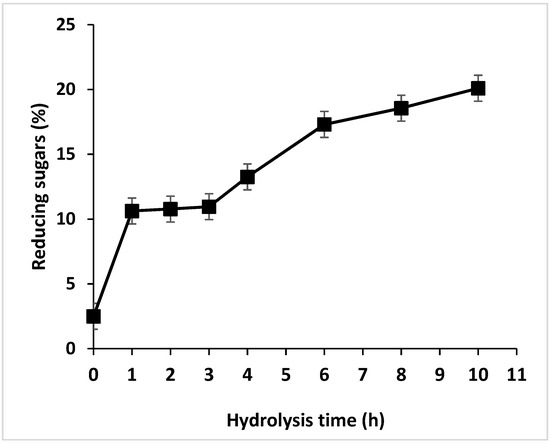

To assess the radical depolymerization reaction of the native alginate ASBB, reducing sugars in the fractions obtained after 1, 3, 6, and 10 h of hydrolysis were quantified by colorimetric assay using glucose as standard. The results obtained for the fractions are summarized in Figure 3. After 10 h of hydrolysis, the reducing sugars increased from 2.5% (w/w) in native ASBB to 20.10% (w/w) detected in the last fraction of OGABs.

3.5. Structural Characterization of OGABs by HPAEC-PAD

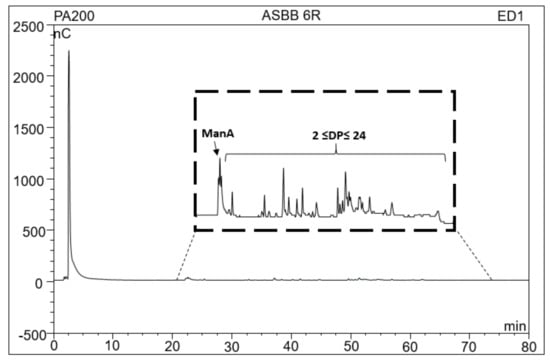

After the analysis of Mw of OGABs by HPSEC, the fraction of LMW with Mw ≤ 5.5 kDa was obtained after 6 h of hydrolysis (OGAB-6h). To get an idea of the distribution of the degree of polymerization (DP) in this fraction, an analysis by HPAEC-PAD was performed. Figure 4 shows the HPAEC-PAD spectrum of the OGABs-6h fraction. Taking into account the Mw of OGAB-6h (5500 g/mol) and the Mw of a sodium form of mannuronic acid (216 g/mol) we determined the maximum degree of polymerization (DP) in our fraction which varied from 2 to 24. The purification of the various DPs then analysis by LC-MS spectrometry are necessary to confirm the degree of polymerization of all the LMWs obtained in the fraction OGAB-6h.

4. Discussion

Over the past decade, the newly observed functions of oligosaccharides have been responsible for their regulatory properties on different organisms [9]; hence the interest in developing efficient processes for the production of oligosaccharides. Therefore, algae polysaccharides were considered as a source of diverse oligosaccharide structures to the extent that oligosaccharides have demonstrated a role in many important industrial processes, such as brewing [25] and baking [26]. Moreover, it has been largely studied that the degradation products of algae polysaccharides have prebiotic activity [9,13] and are a potential elicitor of plants’ growth and natural defenses [15,27]. It has therefore become interesting to develop a rapid process which generates with good yield, homogeneous fractions of a low molecular weight. There are many ways to achieve degradation of polysaccharides: enzymatic, physical or chemical [28]. Methods of depolymerization of algae polysaccharides include depolymerization of fucoidan by radical process [29], chemical hydrolysis of carrageenan [30], enzymatic degradation of glucuronan [31], thermal hydrolysis, and enzymatic degradation of alginate [7,32]. The water soluble alginate from Bifurcaria bifurcata was previously studied [33], and ¹H-NMR analysis of ASBB (Figure 1) reported a higher amount of guluronic acid, with abundance of homoguluronic blocks (Table 2). Compared to the alginates from other brown algae, the guluronic acid abundance in ASBB was higher than that observed in alginates of Cystoseira species [34,35,36], F. vesiculosus [37], Sargassum species [16,35,38,39,40], L. japonica and L. digitata [41,42]. Similar results are noted in alginates of C. myrica and L. hyperborea [23,35]. However some Sargassum species, notably S. polycystum and S. filipendula, were characterized by a higher amount of guluronic acid [39]. The uronic acids content and the proportions of the homoguluronic blocks determined the physicochemical properties of alginate [43]. Therefore, alginate with a M/G ratio value inferior to 1 form strong and rigid gels [44,45]. Based on these interpretations and our results (M/G < 1 and F_GG = 0.45), we can confirm that a gel can be formed using ASBB. Despite the gelling property of ASBB, it was recently applicated as an elicitor of natural defense in date palm roots with interesting results [33].

In this context, the development of a rapid and efficient process for a large production of oligo-alginates (ASBB) was the objective of this work, which consisted of the exploitation of alginate of B. bifurcata to produce oligo-alginates (OGABs) with Mw ≤ 5.5 kDa. Several physico-chemical methods of degradation of alginate were already reported, including thermal degradation [32], microwaves [27], Gamma irradiation [46] and ultrasounds [15] for physical processes, as well as enzymatic [7,46] and radical depolymerizations for (bio)chemical strategies. Among these methods, we adopted a controlled radical hydrolysis using hydrogen peroxide (H₂O₂) in small quantities. Hydrogen peroxide has been reported to cause a scission of alginate, xyloglucan, dextran, and pectin [47]. Figure 2 shows that depolymerization in presence of H₂O₂ was rapid (occurred in 2 h), and after 4 h it remained nearly constant. This was expected since the concentration of H₂O₂ was exhausted as a function of the reaction time. A similar phenomenon was observed in other reported works [48]. The decrease in molecular weight can be explained by the manifestation of radical attacks at the glycosidic bond, associated with oxidative degradation [49]. When hydrogen peroxide (H₂O₂) was added to alginate solution, H₂O₂ molecules were dissociated to form •OH active free radicals which are powerful oxidants able to break the glycosidic bonds of alginate. The mechanism of the reaction of the degradation of alginate chains by hydrogen peroxide remains unclear. It was suggested that the attack of a hydrogen atom in position C1, C4 on (1 → 4)-linked polysaccharides caused a division of the glycosidic bond [50], and consequently the formation of carbonyl groups by reducing the end of C-4 (Figure 5a) and delta-lactone groups by reducing the end of C-1 (Figure 5d). In the Figure 5, we present the most probable mechanism of the action of •OH on a polysaccharide chain.

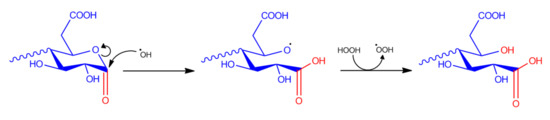

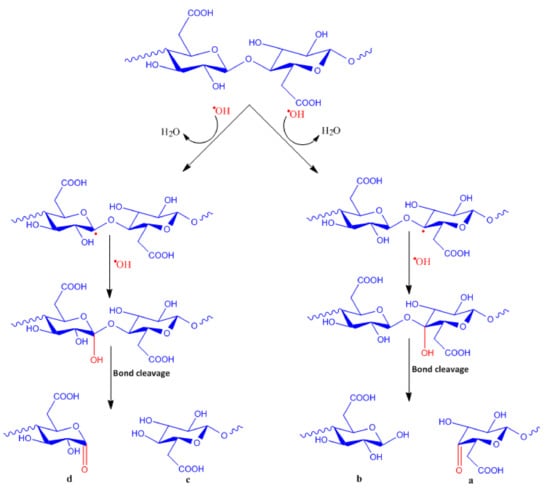

It has been reported that H₂O₂ treatment under extreme conditions can break the sugar cycle and that recombination reactions between the different radicals can occur [51]; and since the reaction system contained in the presence of excess H₂O₂, the carbonyl group of the lactones group in the new reducing end generated can be largely oxidized to a carboxyl group [52] as illustrated in Figure 6.

Nevertheless, very little degradation of the rings was observed by controlling the conditions of degradation (temperature and duration) [49]. It should be mentioned that the depolymerization reaction of ASBB after 6 h gave a fraction with Mw < 5500 g/mol, 40 times narrower than native alginate ASBB (220,000 g/mol). Chang et al. [53] reported that radical depolymerization of chitosan (383,000 g/mol) using 1.5% of H₂O₂ generated an oligo-chitosan fraction (10,400 g/mol) after 6 h of hydrolysis. Fry [47] reported that a very rapid scission occurred in the alginate when hydrogen peroxide was in the presence of ascorbate at pH 5.5. Hydrogen peroxide with Cu²⁺ and ascorbate were also adopted to produce a LMW of heparin [54]. The same mixture was applied to dermatan sulfate to generate molecular weight fractions of 25,000 to 2000 g/mol [55]. An oligo-fucoidan (32,000 g/mol) [29] was obtained after 6 h of radical hydrolysis of sulfated fucoidan (320,000 g/mol) in the presence of copper acetate II. Under the same reaction, sulfated oligo-galactans were generated with an Mw of 8500 g/mol after 3 h of depolymerization of sulfated galactans [30]. The main drawback of combining H₂O₂ and copper acetate II is the need for post-purification of the LMW fractions to remove copper and metallic catalysts. In another study, the thermal degradation of alginate was also documented [32]. Oates and Ledward [56] mentioned that the treatment of alginate at temperatures above 250 °C lead to extensive degradation. In addition, a more recent study by Holme et al. [32] showed the possibility of degradation of alginate to moderate temperatures (20 to 60 °C). However, the harsh processes (high temperature and pressure) induced simple coloration by sugar degradations or reversion reactions and generated undesirable compounds such as monosaccharides or salts implying post degradation purification [57]. Enzymatic processes have also been reported as the most used method for producing oligo-alginates. Depolymerization of alginates was principally performed by alginate lyases produced by different organisms [7]. Due to the complex structural features of alginate, these organisms usually produce different alginate lyases with various enzymatic properties for alginate utilization [58,59]. A recent study reported the effectiveness of cellulase to generate oligo-alginates. This degradation resulted in an increase of reducing sugar from 0.105 mg/mL to 0.441 mg/mL [60]. Indeed, hydrochloric acid (HCl) is also the most used chemical reagent for alginate modification; for example, sodium alginate and alginic acid were efficiently depolymerized using aqueous HCl solutions ranging from 0.1 to 1.0 M with pH 2.8 to 4.5 [61].

Despite the fact that radical depolymerization seems to be random, this was suggested with the microbial polysaccharides and carrageenan models [57]. The process used in this study was simple, easy to control reaction conditions, and most importantly, allowed us to obtain a high amount of LMW with Mw of 5500 g/mol only with H₂O₂ and in the absence of metallic catalysts. This fraction of LMW obtained could be considered for an elicitation test of natural defense mechanisms in date palm and tomato (data not published yet), insofar as the native alginate ASBB has already shown a significant elicitor effect for these mechanisms [33].

5. Conclusions

A green chemistry depolymerization process using only hydrogen peroxide (H₂O₂) was developed for alginate extracted from Bifurcaria bifurcata, a Moroccan brown seaweed. This process generated a large number of homogenous oligo-alginates with Mw of 5500 g/mol and DP ≤24 after 6 h of a radical depolymerization process.
