Thermochemical and Economic Analysis for Energy Recovery by the Gasification of WEEE Plastic Waste from the Disassembly of Large-Scale Outdoor Obsolete Luminaires by LEDs in the Alto Alentejo Region (Portugal)
Abstract
:Featured Application
Abstract
1. Introduction
Obsolete Luminaires
2. Materials and Methods
2.1. Fuel Analysis
2.1.1. Final Analysis
2.1.2. Thermogravimetric Analysis
2.1.3. Determination of the Higher Heating Value (HHV) or Gross or High Calorific Value and (LHV) Low Heating Value
2.2. Gasification Tests
2.3. Methodological Description of Economic Viability
2.3.1. Net Present Value (NPV)
2.3.2. Internal Rate of Return (IRR)
2.3.3. Payback Period—PBP
2.3.4. Index Benefit Average Cost—IBmC
3. Results
3.1. Analysis of the Syngas Produced
3.2. Energy Analysis
3.3. Results of the Technical-Economic and Financial Analysis
3.3.1. Results of the economic-financial analysis (100% olive-pellet)
3.3.2. Results Economic-Financial Analysis (90% Olive and 10% Plastic)
3.3.3. Results Economic-Financial Analysis (80% Olive and 20% Plastic)
4. Discussion
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Veksha, A.; Giannis, A.; Yuan, G.; Tng, J.; Chan, W.P.; Chang, V.W.C.; Lisak, G.; Lim, T.T. Distribution and modeling of tar compounds produced during downdraft gasification of municipal solid waste. Renew. Energy 2019, 136, 1294–1303. [Google Scholar] [CrossRef]
- Harvey, M.; Pilgrim, S. The new competition for land: Food, energy, and climate change. Food Policy 2011, 36, S40–S51. [Google Scholar] [CrossRef]
- Prasertcharoensuk, P.; Hernandez, D.A.; Bull, S.J.; Phan, A.N. Optimisation of a throat downdraft gasifier for hydrogen production. Biomass Bioenergy 2018, 116, 216–226. [Google Scholar] [CrossRef] [Green Version]
- Huda, A.S.N.; Mekhilef, S.; Ahsan, A. Biomass energy in Bangladesh: Current status and prospects. Renew. Sustain. Energy Rev. 2014, 30, 504–517. [Google Scholar] [CrossRef]
- Fogarasi, S.; Imre-Lucaci, F.; Fogarasi, M.; Imre-Lucaci, Á. Technical and environmental assessment of selective recovery of tin and lead from waste solder alloy using direct anodic oxidation. J. Clean. Prod. 2019, 213, 872–883. [Google Scholar] [CrossRef]
- Makarichi, L.; Jutidamrongphan, W.; Techato, K. The evolution of waste-to-energy incineration: A review. Renew. Sustain. Energy Rev. 2018, 91, 812–821. [Google Scholar] [CrossRef]
- Carmo-Calado, L.; Hermoso-Orzáez, M.J.; Mota-Panizio, R.; Brito, P. Co-Combustion of Waste Tires and Plastic-Rubber Wastes with Biomass Technical and Environmental Analysis. Sustainability 2020, 12, 1036. [Google Scholar] [CrossRef] [Green Version]
- Zhang, L.; Xu, C.C.; Champagne, P. Overview of recent advances in thermo-chemical conversion of biomass. Energy Convers. Manag. 2010, 51, 969–982. [Google Scholar] [CrossRef]
- Pashchenko, D. Thermodynamic equilibrium analysis of combined dry and steam reforming of propane for thermochemical waste-heat recuperation. Int. J. Hydrogen Energy 2017, 42, 14926–14935. [Google Scholar] [CrossRef]
- Kasper, A.C.; Berselli, G.B.T.; Freitas, B.D.; Tenório, J.A.S.; Bernardes, A.M.; Veit, H.M. Printed wiring boards for mobile phones: Characterization and recycling of copper. Waste Manag. 2011, 31, 2536–2545. [Google Scholar] [CrossRef]
- Aluri, S.; Syed, A.; Flick, D.W.; Muzzy, J.D.; Sievers, C.; Agrawal, P.K. Pyrolysis and gasification studies of model refuse derived fuel (RDF) using thermogravimetric analysis. Fuel Process. Technol. 2018, 179, 154–166. [Google Scholar] [CrossRef]
- Hermoso-Orzáez, M.J.; García-Alguacil, M.; Terrados-Cepeda, J. Measurement of environmental efficiency in the countries of the European Union with the enhanced data envelopment analysis method (DEA) during the period 2005–2012. Environ. Sci. Pollut. Res. 2020. [Google Scholar] [CrossRef] [PubMed]
- Hrabovsky, M. Plasma aided Gasification of Biomass, Organic Waste and Plastics. In Proceedings of the 30th International Conference on Phenomena in Ionized Gas, Belfast, UK, 28 August–2 September 2011; pp. 1–4. [Google Scholar]
- Hennebert, P.; Filella, M. WEEE plastic sorting for bromine essential to enforce EU regulation. Waste Manag. 2018, 71, 390–399. [Google Scholar] [CrossRef] [PubMed]
- Ferreira, S.; Monteiro, E.; Brito, P.; Vilarinho, C. A holistic review on biomass gasification modified equilibrium models. Energies 2019, 12, 160. [Google Scholar] [CrossRef] [Green Version]
- Basu, P.; Acharya, B.; Dutta, A. Gasification in Fluidized Beds–Present Status & Design. In Proceedings of the 20th International Conference on Fluidized Bed Combustion; Xi’an, China, 18–21 May 2009, Springer: Berlin/Heidelberg, Germany, 2009; Volume 1, pp. 1–7. [Google Scholar]
- Zhang, S.; Zhu, S.; Zhang, H.; Liu, X.; Xiong, Y. High quality H2-rich syngas production from pyrolysis-gasification of biomass and plastic wastes by Ni–Fe@Nanofibers/Porous carbon catalyst. Int. J. Hydrogen Energy 2019, 44, 26193–26203. [Google Scholar] [CrossRef]
- Williams, P.T. Hydrogen and Carbon Nanotubes from Pyrolysis-Catalysis of Waste Plastics: A Review. Waste Biomass Valorization 2020. (online). [Google Scholar] [CrossRef] [Green Version]
- Ahmed, I.I.; Nipattummakul, N.; Gupta, A.K. Characteristics of syngas from co-gasification of polyethylene and woodchips. Appl. Energy 2011, 88, 165–174. [Google Scholar] [CrossRef]
- Wang, Z.; Richter, H.; Howard, J.B.; Jordan, J.; Carlson, J.; Levendis, Y.A. Laboratory investigation of the products of the incomplete combustion of waste plastics and techniques for their minimization. Ind. Eng. Chem. Res. 2004, 43, 2873–2886. [Google Scholar] [CrossRef]
- Win, M.M.; Asari, M.; Hayakawa, R.; Hosoda, H.; Yano, J.; Sakai, S. ichi Characteristics of gas from the fluidized bed gasification of refuse paper and plastic fuel (RPF) and wood biomass. Waste Manag. 2019, 87, 173–182. [Google Scholar] [CrossRef]
- Xu, D.; Xiong, Y.; Ye, J.; Su, Y.; Dong, Q.; Zhang, S. Performances of syngas production and deposited coke regulation during co-gasification of biomass and plastic wastes over Ni/γ-Al2O3 catalyst: Role of biomass to plastic ratio in feedstock. Chem. Eng. J. 2020, 392, 123728. [Google Scholar] [CrossRef]
- Pinto, F.; Franco, C.; André, R.N.; Miranda, M.; Gulyurtlu, I.; Cabrita, I. Co-gasification study of biomass mixed with plastic wastes. Fuel 2002, 81, 291–297. [Google Scholar] [CrossRef]
- Chai, Y.; Gao, N.; Wang, M.; Wu, C. H2 production from co-pyrolysis/gasification of waste plastics and biomass under novel catalyst Ni-CaO-C. Chem. Eng. J. 2020, 382, 122947. [Google Scholar] [CrossRef]
- Basha, M.H.; Sulaiman, S.A.; Uemura, Y. Co-gasification of palm kernel shell and polystyrene plastic: Effect of different operating conditions. J. Energy Inst. 2020, 93, 1045–1052. [Google Scholar] [CrossRef]
- Ahmed, I.; Gupta, A.K. Characteristic of hydrogen and syngas evolution from gasification and pyrolysis of rubber. Int. J. Hydrogen Energy 2011, 4340–4347. [Google Scholar] [CrossRef]
- Lourinho, G.; Brito, P. Assessment of biomass energy potential in a region of Portugal (AltoAlentejo). Energy 2015, 81, 189–201. [Google Scholar] [CrossRef]
- Hermoso-Orzáez De La, M.J. Comparative analysis and justification for the change to LEDs in installations with metal halide lamps. One more step towards energy efficiency in street lighting Analisis comparativo y justificativo para el cambio a leds en instalaciones con lamparas d. Dyna 2014, 89, 165–171. [Google Scholar] [CrossRef]
- Lobão, J.A.; Devezas, T.; Catalão, J.P.S. Energy efficiency of lighting installations: Software application and experimental validation. Energy Rep. 2015, 1, 110–115. [Google Scholar] [CrossRef] [Green Version]
- Ozadowicz, A.; Grela, J. The Street Lighting Integrated System Case Study, Control Scenarios, Energy Efficiency. In Proceedings of the 19th IEEE International Conference on Emerging Technologies and Factory Automation, ETFA 2014, Barcelona, Spain, 16 September–19 September 2014; IEEE: Piscataway, NJ, USA, 2014. [Google Scholar]
- Fiaschi, D.; Bandinelli, R.; Conti, S. A case study for energy issues of public buildings and utilities in a small municipality: Investigation of possible improvements and integration with renewables. Appl. Energy 2012, 97, 101–114. [Google Scholar] [CrossRef]
- Donatello, S.; Rodriguez, R.; De Oliveira, G.C.M.N.; Wolf, O.; Van Tichelen, P.; Van Hoof, V.; Geerken, T. Revision of the EU Green Public Procurement Criteria for Road Lighting and Traffic Signals; Technical Report and Criteria Proposal; Publications Office of the European Union: Luxembourg, 2019. [Google Scholar]
- Gramatyka, P.; Nowosielski, R.; Sakiewicz, P. Recycling of waste electrical and electronic equipment. J. Achiev. Mater. Manuf. Eng. 2007, 20, 535–538. [Google Scholar]
- Hannequart, J.-P. Waste Management of Electrical and Electronic Equipment. In Recycling; The Association of Cities and Regions for (ACRR): Brussels, Bélgium, 2003. [Google Scholar]
- Hermoso-Orzáez, M.J.; Lozano-Miralles, J.A.; Lopez-Garcia, R.; Brito, P. Environmental criteria for assessing the competitiveness of public tenders with the replacement of large-scale LEDs in the outdoor lighting of cities as a key element for sustainable development: Case study applied with PROMETHEE methodology. Sustainability 2019, 11, 5982. [Google Scholar] [CrossRef] [Green Version]
- Royal Decree 110/2015, of February 20, on Waste from Electrical and Electronic Equipment. (BOE No. 45, of February 21, 2015). Spanish Legislation on Waste of Electric and Electronic Equipments (WEEE). Actual. Jurídica Ambient. 2015, 32–35. Available online: https://www.miteco.gob.es/es/calidad-y-evalu (accessed on 11 May 2020).
- Electrao. Amb3E Relatorio Anual de Actividades. Available online: https://www.electrao.pt/sobre-nos/ (accessed on 11 May 2020).
- Ellen MacArthur Foundation New economy of plastics: Catalysing action. Ergother. Und Rehabil. 2017, 52, 1–68. [CrossRef]
- Brito, P.S.D.; Rodrigues, L.F.; Calado, L.A.O. Thermal gasification of agro-industrial residues. Wit Trans. Ecol. Environ. 2012, 163, 95–102. [Google Scholar] [CrossRef] [Green Version]
- EDP- EDP Group (Energy Supply Company in Portugal). Available online: https://www.edp.pt/particulares (accessed on 11 May 2020).
- Igaa.cimaa.pt Projetos Ilupub-Alto Alentejo (Portugal). Available online: http://sigaa.cimaa.pt/projetos/ilupub.html (accessed on 11 May 2020).
- Guilhermino, A.; Lourinho, G.; Brito, P.; Almeida, N. Assessment of the Use of Forest Biomass Residues for Bioenergy in Alto Alentejo, Portugal: Logistics, Economic and Financial Perspectives. Waste Biomass Valorization 2018, 9, 739–753. [Google Scholar] [CrossRef]
- Nhuchhen, D.R.; Salam, P.A. Estimation of higher heating value of biomass from proximate analysis: A new approach. Fuel 2012, 99, 55–63. [Google Scholar] [CrossRef]
- Wang, T.; Li, Y.; Zhang, J.; Zhao, J.; Liu, Y.; Sun, L.; Liu, B.; Mao, H.; Lin, Y.; Li, W.; et al. Evaluation of the potential of pelletized biomass from different municipal solid wastes for use as solid fuel. Waste Manag. 2018, 74, 260–266. [Google Scholar] [CrossRef]
- Pashchenko, D. Thermochemical recuperation by ethanol steam reforming: Thermodynamic analysis and heat balance. Int. J. Hydrog. Energy 2019, 44, 30865–30875. [Google Scholar] [CrossRef]
- Ul Hai, I.; Sher, F.; Yaqoob, A.; Liu, H. Assessment of biomass energy potential for SRC willow woodchips in a pilot scale bubbling fluidized bed gasifier. Fuel 2019, 258, 116143. [Google Scholar] [CrossRef]
- Nyakuma, B.B.; Johari, A.; Ahmad, A.; Abdullah, T.A.T. Thermogravimetric analysis of the fuel properties of empty fruit bunch briquettes. J. Teknol. (Sci. Eng.) 2014, 67, 79–82. [Google Scholar] [CrossRef] [Green Version]
- Mallick, D.; Poddar, M.K.; Mahanta, P.; Moholkar, V.S. Discernment of synergism in pyrolysis of biomass blends using thermogravimetric analysis. Bioresour. Technol. 2018, 261, 294–305. [Google Scholar] [CrossRef]
- IKA Calorimeter System C 2000 EDVLF C 2000 FRQWURO. Available online: http://senselektro.hu/wp-content/uploads/laboreszk/kalori-anal/2_c_2000_v1_m.pdf (accessed on 11 May 2020).
- Silva, V.; Monteiro, E.; Couto, N.; Brito, P.; Rouboa, A. Analysis of syngas quality from Portuguese biomasses: An experimental and numerical study. Energy Fuels 2014, 28, 5766–5777. [Google Scholar] [CrossRef]
- Erol, M.; Haykiri-Acma, H.; Kucukbayrak, S. Calorific value estimation of biomass from their proximate analyses data. Renew. Energy 2010, 35, 170–173. [Google Scholar] [CrossRef]
- Friedl, A.; Padouvas, E.; Rotter, H.; Varmuza, K. Prediction of heating values of biomass fuel from elemental composition. Anal. Chim. Acta 2005, 544, 191–198. [Google Scholar] [CrossRef]
- Yin, C. Prediction of higher heating values of biomass from proximate and ultimate analyses. Fuel 2011, 90, 1128–1132. [Google Scholar] [CrossRef] [Green Version]
- Gillespie, G.D.; Everard, C.D.; Fagan, C.C.; Mcdonnell, K.P. Prediction of quality parameters of biomass pellets from proximate and ultimate analysis. Fuel 2013, 11, 771–777. [Google Scholar] [CrossRef]
- Ozyuguran, A.; Akturk, A.; Yaman, S. Optimal use of condensed parameters of ultimate analysis to predict the calori fi c value of biomass. Fuel 2018, 214, 640–646. [Google Scholar] [CrossRef]
- All Power Labs. 0100 Murray Street Berkeley CA 94710 All Power Labs. Available online: http://www.allpowerlabs.com/ (accessed on 11 May 2020).
- Zhang, Y.; Zhao, Y.; Gao, X.; Li, B.; Huang, J. Energy and exergy analyses of syngas produced from rice husk gasi fi cation in an entrained fl ow reactor. J. Clean. Prod. 2015, 95, 273–280. [Google Scholar] [CrossRef]
- Gas Chromatograph Model 450-GC Specification Sheet Gas Chromatograph Model Varian 450-GC. Available online: http://photos.labwrench.com/equipmentManuals/25399-8198.pdf (accessed on 11 May 2020).
- Luz, F.C.; Rocha, M.H.; Lora, E.E.S.; Venturini, O.J.; Andrade, R.V.; Leme, M.M.V.; Del Olmo, O.A. Techno-economic analysis of municipal solid waste gasification for electricity generation in Brazil. Energy Convers. Manag. 2015, 103, 321–337. [Google Scholar] [CrossRef]
- Hermoso Orzáez, M.J.; De Andrés Díaz, J.R. Comparative study of energy-efficiency and conservation systems for ceramic metal-halide discharge lamps. Energy 2013, 52, 258–264. [Google Scholar] [CrossRef]
- Cardoso, J.; Silva, V.; Eusébio, D. Techno-economic analysis of a biomass gasification power plant dealing with forestry residues blends for electricity production in Portugal. J. Clean. Prod. 2019, 212, 741–753. [Google Scholar] [CrossRef]
- Hermoso-Orzáez, M.J.; Gago-Calderón, A.; Rojas-Sola, J.I. Power quality and energy efficiency in the pre-evaluation of an outdoor lighting renewal with light-emitting diode technology: Experimental study and amortization analysis. Energies 2017, 10, 836. [Google Scholar] [CrossRef]
- Ye, C.; Wang, Q.; Zheng, Y.; Li, G.; Zhang, Z.; Luo, Z. Techno-economic analysis of methanol and electricity poly-generation system based on coal partial gasification. Energy 2019, 185, 624–632. [Google Scholar] [CrossRef]
- Freitas, C.P. Investment Project Appraisal Report; Central Ecological Forest Biomass (CTBF), Ed.; Central Ec.: Porto, Portugal, 2009. [Google Scholar]
- Zhu, Y.; Zhai, R.; Yang, Y.; Angel Reyes-Belmonte, M. Techno-economic analysis of solar tower aided coal-fired power generation system. Energies 2017, 10, 1392. [Google Scholar] [CrossRef]
- Wang, Y.; Li, G.; Liu, Z.; Cui, P.; Zhu, Z.; Yang, S. Techno-economic analysis of biomass-to-hydrogen process in comparison with coal-to-hydrogen process. Energy 2019, 185, 1063–1075. [Google Scholar] [CrossRef]
- Lajili, M.; Guizani, C.; Escudero Sanz, F.J.; Jeguirim, M. Fast Pyrolysis and Steam Gasification of Pellets Prepared from Olive Oil Mill Residues. Energy 2018, 150, 61–68. [Google Scholar] [CrossRef] [Green Version]
- Zribi, M.; Lajili, M.; Escudero-Sanz, F.J. Hydrogen enriched syngas production via gasification of biofuels pellets/powders blended from olive mill solid wastes and pine sawdust under different water steam/nitrogen atmospheres. Int. J. Hydrog. Energy 2019, 44, 11280–11288. [Google Scholar] [CrossRef]
- Sánchez, F.; San Miguel, G. Improved fuel properties of whole table olive stones via pyrolytic processing. Biomass Bioenergy 2016, 92, 1–11. [Google Scholar] [CrossRef]
- Rowhani, A.; Rainey, T.J. Scrap tyre management pathways and their use as a fuel—A review. Energies 2016, 9, 888. [Google Scholar] [CrossRef]
- Okolie, J.A.; Nanda, S.; Dalai, A.K.; Berruti, F.; Kozinski, J.A. A review on subcritical and supercritical water gasification of biogenic, polymeric and petroleum wastes to hydrogen-rich synthesis gas. Renew. Sustain. Energy Rev. 2020, 119, 109546. [Google Scholar] [CrossRef]
- Rahman, M.; Henriksen, U.B.; Ahrenfeldt, J.; Arnavat, M.P. Design, construction and operation of a low-tar biomass (LTB) gasifier for rural applications. Energy 2020, 117944. [Google Scholar] [CrossRef]
- Almeida, A.F.; Neto, M.P.; Pereira, I.M.; Ribeiro, A.M.; Pilão, R.; Vieira, M.; Neto, M.P.; Pereira, I.M.; Ribeiro, A.M.; Crispim, A.C.; et al. Effect of temperature on the gasification of olive bagasse particles. J. Energy Inst. 2019, 92, 153–160. [Google Scholar] [CrossRef] [Green Version]
- Lahijani, P.; Zainal, Z.A. Gasification of palm empty fruit bunch in a bubbling fluidized bed: A performance and agglomeration study. Bioresour. Technol. 2011, 102, 2068–2076. [Google Scholar] [CrossRef]
- Franco, C.; Pinto, F.; Gulyurtlu, I.; Cabrita, I. The study of reactions influencing the biomass steam gasification process. Fuel 2003, 82, 835–842. [Google Scholar] [CrossRef]
- Sert, M.; Selvi Gökkaya, D.; Cengiz, N.; Ballice, L.; Yüksel, M.; Sağlam, M. Hydrogen production from olive-pomace by catalytic hydrothermal gasification. J. Taiwan Inst. Chem. Eng. 2018, 83, 90–98. [Google Scholar] [CrossRef]
- Basu, P. Gasification Theory 2018; Academic Press: London, UK; San Diego, CA, USA, 2018; ISBN 9780128129920. [Google Scholar]
- Borello, D.; De Caprariis, B.; De Filippis, P.; Di Carlo, A.; Marchegiani, A.; Pantaleo, A.M.; Shah, N.; Venturini, P. Thermo-Economic Assessment of a Olive Pomace Gasifier for Cogeneration Applications. Energy Procedia 2015, 75, 252–258. [Google Scholar] [CrossRef] [Green Version]
- Vera, D.; Jurado, F.; Margaritis, N.K.; Grammelis, P. Experimental and economic study of a gasification plant fuelled with olive industry wastes. Energy Sustain. Dev. 2014, 23, 247–257. [Google Scholar] [CrossRef]
- Akay, G.; Jordan, C.A.; Mohamed, A.H. Syngas cleaning with nano-structured micro-porous ion exchange polymers in biomass gasification using a novel downdraft gasifier. J. Energy Chem. 2013, 22, 426–435. [Google Scholar] [CrossRef]
- Salavati, S.; Zhang, C.T.; Zhang, S.; Liu, Q.; Gholizadeh, M.; Hu, X. Cross-interaction during Co-gasification of wood, weed, plastic, tire and carton. J. Environ. Manag. 2019, 250, 109467. [Google Scholar] [CrossRef]
- Chang, S.; Zhang, Z.; Cao, L.; Ma, L.; You, S.; Li, W. Co-gasification of digestate and lignite in a downdraft fixed bed gasifier: Effect of temperature. Energy Convers. Manag. 2020, 213, 112798. [Google Scholar] [CrossRef]
- Wheeler, T.S. The thermal decomposition of methane. Recl. Des Trav. Chim. Des Pays-Bas 1932, 51, 342–344. [Google Scholar] [CrossRef]
- Xu, C.; Hu, S.; Xiang, J.; Zhang, L.; Sun, L.; Shuai, C.; Chen, Q.; He, L.; Edreis, E.M.A. Interaction and kinetic analysis for coal and biomass co-gasification by TG-FTIR. Bioresour. Technol. 2014, 154, 313–321. [Google Scholar] [CrossRef] [PubMed]
- Xiao, R.; Jin, B.; Zhou, H.; Zhong, Z.; Zhang, M. Air gasification of polypropylene plastic waste in fluidized bed gasifier. Energy Convers. Manag. 2007, 48, 778–786. [Google Scholar] [CrossRef]
- Kim, J.W.; Mun, T.Y.; Kim, J.O.; Kim, J.S. Air gasification of mixed plastic wastes using a two-stage gasifier for the production of producer gas with low tar and a high caloric value. Fuel 2011, 90, 2266–2272. [Google Scholar] [CrossRef]
- Cho, M.H.; Mun, T.Y.; Kim, J.S. Air gasification of mixed plastic wastes using calcined dolomite and activated carbon in a two-stage gasifier to reduce tar. Energy 2013, 53, 299–305. [Google Scholar] [CrossRef]
- He, M.; Xiao, B.; Hu, Z.; Liu, S.; Guo, X.; Luo, S. Syngas production from catalytic gasification of waste polyethylene: Influence of temperature on gas yield and composition. Int. J. Hydrog. Energy 2009, 34, 1342–1348. [Google Scholar] [CrossRef]
- Allesina, G.; Pedrazzi, S.; Allegretti, F.; Morselli, N.; Puglia, M.; Santunione, G.; Tartarini, P. Gasification of cotton crop residues for combined power and biochar production in Mozambique. Appl. Therm. Eng. 2018, 139, 387–394. [Google Scholar] [CrossRef]
- Hermoso-Orzáez, M.J.; Cámara-Martínez, J.; Rojas-Sola, J.I.; Gago-Calderon, A. Analytical and economic methodology for storage of large heavyweight equipment in industrial processes. Econ. Res.-Ekon. Istraz. 2019, 1–30. [Google Scholar] [CrossRef] [Green Version]
- Governo do Portugal, Ministerio do Ambente Ordenamento do Territorio e Energia POSEUR. Support for Energy Efficiency, Smart Energy Management and the Use of Renewable Energies in Central Government Public Infrastructures-co-Financed Through the Cohesion Fund in the SEUR OP; Governo do Portugal: Lisbon, Portugal, 2015.
- Saebea, D.; Ruengrit, P.; Arpornwichanop, A.; Patcharavorachot, Y. Gasification of plastic waste for synthesis gas production. Energy Rep. 2020, 6, 202–207. [Google Scholar] [CrossRef]
- Bridgwater, A.V.; Toft, A.J.; Brammer, J.G. A techno-economic comparison of power production by biomass fast pyrolysis with gasification and combustion. Renew. Sust. Energy Rev. 2002, 6, 181–246. [Google Scholar] [CrossRef]
- Alvarez, J.; Kumagai, S.; Wu, C.; Yoshioka, T.; Bilbao, J.; Olazar, M.; Williams, P.T. Hydrogen production from biomass and plastic mixtures by pyrolysis-gasification. Int. J. Hydrog. Energy 2014, 39, 10883–10891. [Google Scholar] [CrossRef]
- Erias, A.; Karaka, C.; Grajetzki, C.; Carton, J.; Paulos, M.; Jantunen, P.; Baral, P.; S Bex, J.; Valenzuela, M. World Energy Resources 2016; World Energy Council: London, UK, 2016; ISBN 9780946121625. [Google Scholar]
- Demirbas, A. Combustion of biomass. Energy Sources Part A 2007, 29, 549–561. [Google Scholar] [CrossRef]
- Ikhlayel, M. Environmental impacts and benefits of state-of-the-art technologies for E-waste management. Waste Manag. 2017, 68, 458–474. [Google Scholar] [CrossRef] [PubMed]
- Katzer, J.; Moniz, E.J.; Deutch, J.; Ansolabehere, S. The Future of Coal an Interdisciplinary MIT Study; MIT: Cambridge, MA, USA, 2007; ISBN 978-0-615-14092-6. [Google Scholar]
- Jenkins, B.; Baxter, L.; Miles, T.; Miles, T. Combustion properties of biomass. Fuel Process. Technol. 1998, 54, 17–46. [Google Scholar] [CrossRef]
- ONU (United Nations Organization). Meet the New 17 UN Sustainable Development Goals. Available online: https://nacoesunidas.org/conheca-os-novos-17-objetivos-de-desenvolvimento-sustentavel-da-onu/ (accessed on 11 May 2020).
- Cambero, C.; Sowlati, T. Assessment and optimization of forest biomass supply chains from economic, social and environmental perspectives—A review of literature. Renew. Sustain. Energy Rev. 2014, 36, 62–73. [Google Scholar] [CrossRef]
Municipalities Alto Alentejo | Number of Luminaires to be Replaced by LEDs | Potentially Replaceable Syntra Model Luminaires |
---|---|---|
Elvas | 6651 | 5121 |
Campo Maior | 2253 | 1757 |
Arronches | 1699 | 1172 |
Monforte | 1354 | 1029 |
Fronteira | 1414 | 1131 |
Avis | 1838 | 1562 |
Ponte do Sor | 6758 | 5339 |
Alter do Chao | 3323 | 2293 |
Gaviao | 2436 | 2192 |
Crato | 1857 | 1448 |
Nisa | 2809 | 2388 |
Castelo Vide | 1679 | 1494 |
Marvao | 2405 | 1780 |
Portalegre | 6159 | 4866 |
Sousel | 2525 | 2020 |
Total | 45,160 | 35,593 |
Designation | Technical Features Source |
---|---|
Thermo Scientific™ FLASH 2000 CHNS/O Analyzers | Instrument configurations—Fourteen; |
Detector—Thermal conductivity detector (TCD); | |
External interface—RS 232 serial line; | |
Instrument control—Eager Xperience for Windows™; | |
Power supply—230 Vac; 50/60 Hz; 1400 VA; |
Designation | Technical Features Source |
---|---|
PerkinElmer STA 6000—thermogravimetric analyzer | Balance resolution 0.1 ug; |
Balance measurement range Up to 1500 mg; | |
Temperature range 15 °C to 1000 °C Start experiments below room temperature to capture complete moisture and solvent evaporation | |
Heating rate Ambient to 1000 °C 0.1 to 100 °C/min, cooling rates from 1000 °C to 30 °C under 10 min Forced air and chiller to achieve fastest cool down for higher productivity, temperature metal standards such as Indium and Silver calibration | |
Temperature accuracy < ±0.5 °C, temperature < ±0.5 °C reproducibility, | |
Calorimetric data Accuracy/precision ±2% based on metal standards, Thermocouples PT-PT/Rh (Type R) | |
Autosampler Optional, 45-position for unattended operation 24/7 | |
Hyphenated techniques Combine with MS or IR analyzers MS or IR connectivity capabilities, allow the analysis of evolved gases |
Designation | Technical Features Source |
---|---|
IKA C 200-System—calorimeter | Max. Measuring range—40,000 J; |
Dynamic measurement mode 25 °C—yes; | |
Isoperibol 25 °C—yes; | |
Dynamic measurement time—approx. 8 min; | |
Measurement time isoperibol—approx. 17 min; | |
Dynamic Reproducibility (1 g NBS39i benzoic acid)—0.1% RSD; | |
Reproducibility Isoperibol (1 g benzoic acid NBS39i)—0.1% RSD; | |
Max. Working temperature—25 °C; |
Designation | Technical Features Source |
---|---|

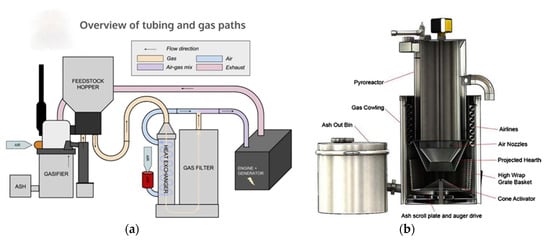

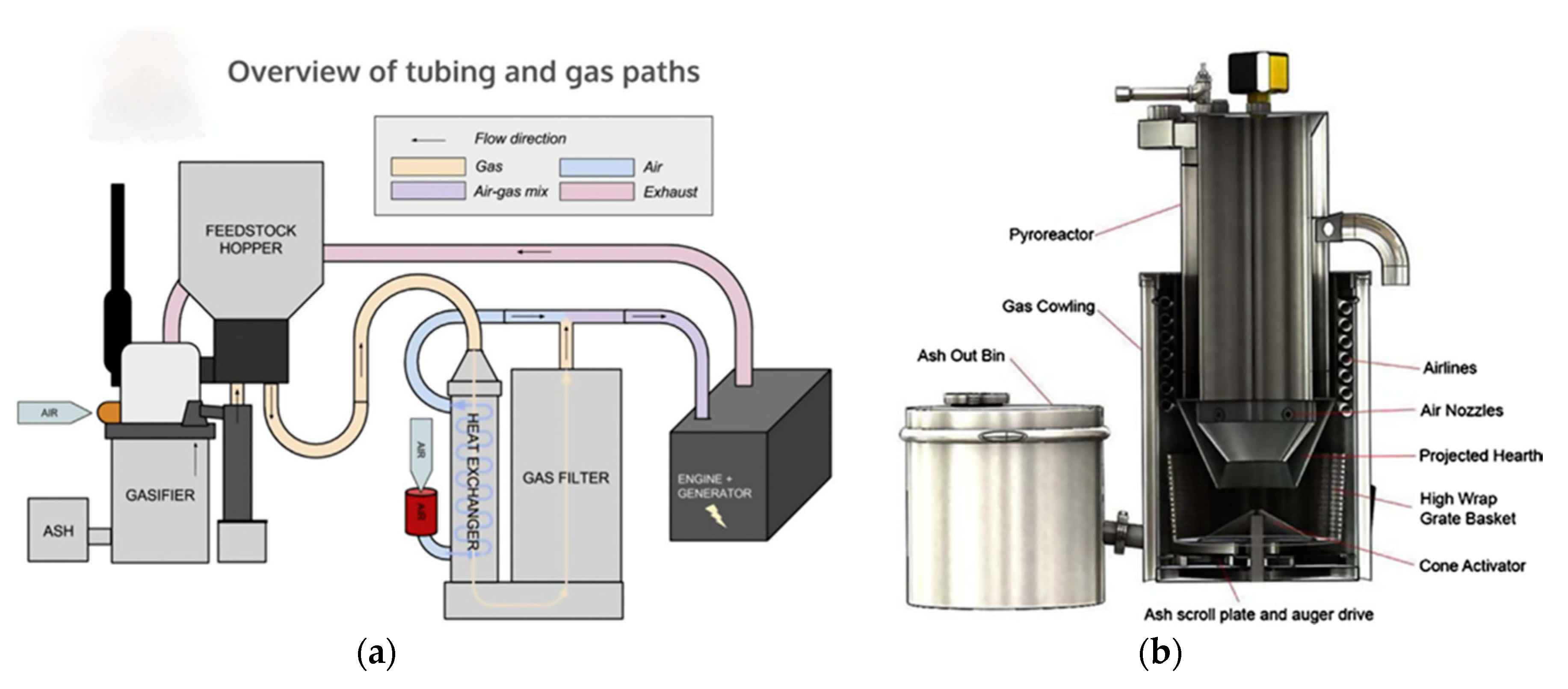

AllPowerLabs PP20 Power Pallet | Power rating (W or kW)—15 kW at 50 Hz, 18 kW at 60 Hz; |
Available energy type (mechanical, thermal, electrical) Electrical (18 kW), thermal (20 kW); | |
Description of biomass source(s)—Dense biomass such as nut shells and wood chips; | |
Biomass input requirements (kg per hour)—0.33 m3 every 3 h; | |
Combustor type—Internal combustion engine; | |
Biomass conversion efficiency (%)—Upwards of 35%; 1.2 kg of feedstock to 1 kWh of electricity; | |
Lifecycle—More than six years, with routine maintenance; | |
Performance: Continuous power rating: 15 kW@50 Hz/18 kW@60 Hz; Sound level @ 30 feet: 85 dB(A); Biomass consumption: 1.2 kg/kWh, 2.5 lbs/kWh; Run time per hopper fill (at 250 kg/m3 fuel density): 10 h at 5 kW; 5 h at 10 kW, 3 h at 15 kW Max. continuous operation: >12 h, Startup time: 10–20 min; | |
Operating Conditions: Ambient temperature: 5–40 °C (40–100 °F); Humidity: 5–95% RH, Installed footprint (without ash vessel or grid tie): 1.36 × 1.36 m (53.5 × 53.5 inches); | |
Site requirements: Well-ventilated protected from rain and direct sun | |
Additional safety handles and warnings are included on the product;Complementary technical systems: Performance of this product is improved with another technology (e.g., Cookstoves and Wind-blocking skirts); Combined heat and power (CHP) module. |
Parameters | |
---|---|
Gasifier Type | Fixed bed |
Operation time (h) | 12 |
Days per month | 25 |
Days per year | 300 |
Raw material | |
WEEE plastic waste from luminaires | |
Landfill treatment price (€/ton) | 45.00 |
The annual increase over landfill price (%) | 1.25 |
Agricultural biomass (olive) | |
Pellet price (€/ton) | 30 |
Economic parameters | |
Investment in the gasifier/engine/alternator Includes installation (€/kW) | 1200 |
Price of electricity produced (€/ kWh) | 0.20 |
Price of electricity consumed (€/ kWh) | 0.16 |
Operating costs (% of investment) | 5% |
Life time (years) | 10 |
Designation | Mass Fraction (g) | Picture |
---|---|---|
Closed Public Light | 8624.1 | |
Glass and Porcelain (difficult degradation) | 0.1654 | |
Electronics (difficult degradation) | 3906.4 | |
Metal Components (difficult degradation) | 2756.4 | |
Plastic Components (easy degradation) | 1795.9 | |

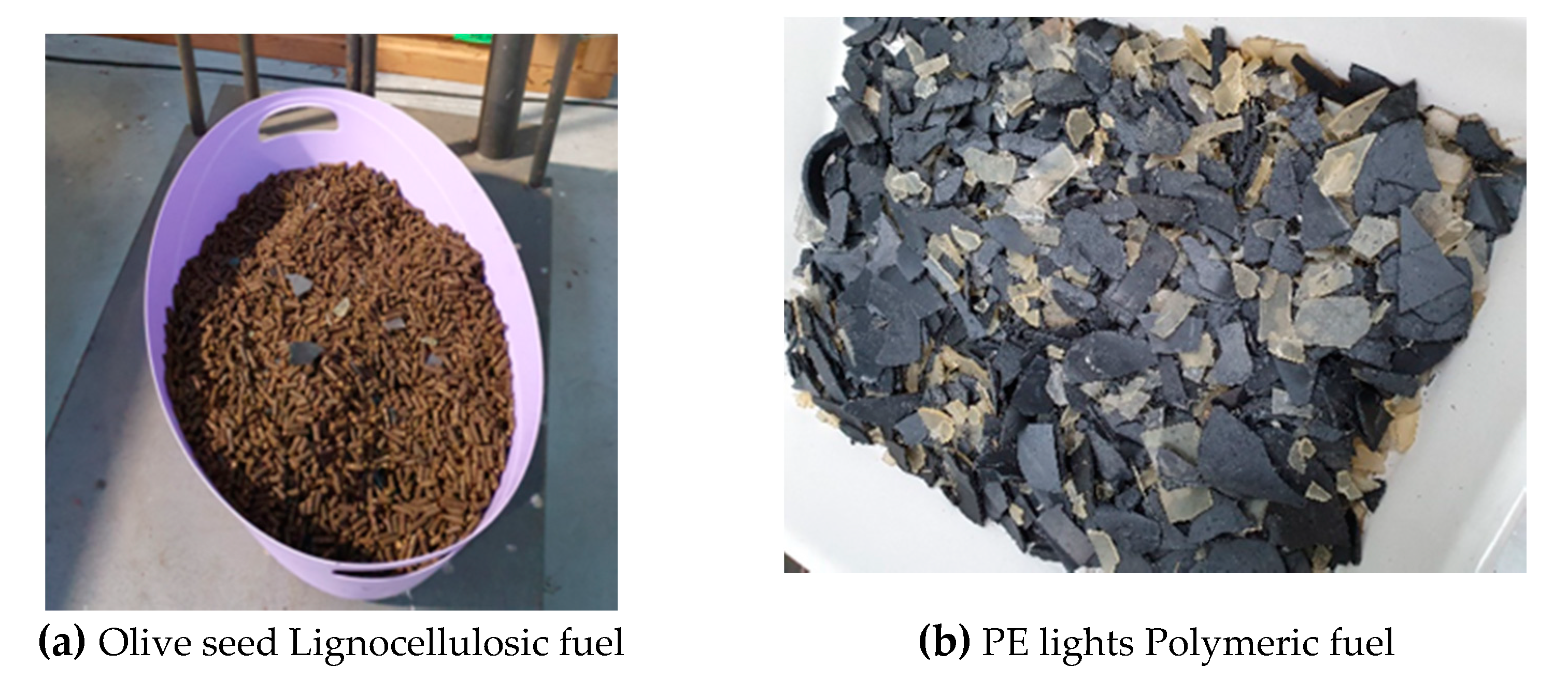

Analysis | Parameters | Units | PE lights Polymeric Fuel | Olive seed Lignocellulosic Fuel |
---|---|---|---|---|
Proximate | Moisture | % | 0.2 | 9.4 |
Volatile Matter | % | 78.3 | 66.5 | |
Fixed Carbon | % | 20.9 | 19.7 | |
Ashes | % | 0.6 | 4.4 | |
Ultimate | Nitrogen | % | 0.46 | 1.7 |
Carbon | % | 81.89 | 53.4 | |
Hydrogen | % | 12.37 | 7.5 | |
Sulphur | % | 1.92 | 0.1 | |
Oxygen | % | 2.76 | 32.9 | |
LHV (Low Heating Value) | MJ/kg | 41.8 | 20.5 |
Parameters | Units | Tests | ||
---|---|---|---|---|
100% Olive | 10% Plastic & 90% Olive | 20% Plastic & 80% Olive | ||
Olive | % | 100 | 90 | 80 |
Plastic | % | 0 | 10 | 20 |
Tmax oxi | oC | 720 | 708 | 758 |
Tmax red | oC | 515 | 547 | 526 |
Fuel Feeding | Kg/h | 5.2 | 6.9 | 5.0 |
Air Inlet | m3/h | 11.21 | 14.17 | 12.04 |
ER | - | 0.27 | 0.26 | 0.28 |
VTars | ml/h | 146.8 | 127.96 | 11.54 |
Chars | Kg/h | 0.161 | 0.123 | 0.133 |
CO2 | % | 9.914 | 9.775 | 10.839 |
C2H4 | % | 0.479 | 0.618 | 0.427 |
C2H6 | % | 0.122 | 0.138 | 0.042 |
N2 | % | 55.99 | 56.97 | 58.749 |
CH4 | % | 2.073 | 2.556 | 1.799 |
CO | % | 18.480 | 17.744 | 18.852 |
H2 | % | 13.369 | 12.711 | 13.045 |
Experimen time | s | 4.940 | 5.708 | 5.610 |
VSyngas | m3/h | 15.73 | 19.10 | 14.51 |
Q Biomas | Kg/h | 5.20 | 6.90 | 5.00 |
LHV | MJ/m3 | 5.280 | 5.422 | 5.225 |
Units | Results | Olive (100%) | |
---|---|---|---|
LHVbio | MJ/kg | 20.50 | 20.50 |
LHVsyngas | MJ/m3 | 5.280 | |
Vsyngas | m3/h | 15.73 | |
ηgas | % | 0.78 | |
ηeng | % | 0.30 | |
ηgen | % | 0.80 | |
ηtot | % | 0.29 | |
biomass | kg/h | 5.20 | 5.2 |
Total ton/month | 1.56 | ||
Total ton/year | 18.72 |
Years | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
---|---|---|---|---|---|---|---|---|---|---|
Ct | 2697 | 2697 | 2697 | 2697 | 2697 | 2697 | 2697 | 2697 | 2697 | 2697 |
1.050 | 1.103 | 1.158 | 1.216 | 1.276 | 1.340 | 1.407 | 1.477 | 1.551 | 1.629 | |
2569 | 2447 | 2330 | 2219 | 2114 | 2013 | 1917 | 1826 | 1739 | 1656 | |
−9431 | −6984 | −4654 | −2435 | −321 | 1.691 | 3.608 | 5.434 | 7.173 | 8.829 | |
K Investment (€) | 12,000 | |||||||||
NPV (5 years) (€) | −321 | |||||||||
NPV(10 years) (€) | 8829 | |||||||||
IRR (%) | 18.29 | |||||||||
IBmC | 0.19 | |||||||||
PBP (year) | 6 |
Units | Results | Fuels | ||
---|---|---|---|---|
Olive (90%) | Plastic-WEEE (10%) | |||
LHVfuel | MJ/kg | 22.63 | 20.5 | 41.8 |
LHVsyngas | MJ/m3 | 5.422 | ||
Vsyngas | m3/h | 19.10 | ||
ηgas | % | 0.66 | ||
ηeng | % | 0.30 | ||
ηgen | % | 0.80 | ||
ηtot | % | 0.25 | ||
Fuel Consumption | kg/h | 6.90 | 6.21 | 0.69 |
Total ton/month | 1.86 | 0.21 | ||
Total ton/year | 22.36 | 2.48 |
Years | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
---|---|---|---|---|---|---|---|---|---|---|
Ct | 4342 | 4342 | 4342 | 4342 | 4342 | 4342 | 4342 | 4342 | 4342 | 4342 |
1.050 | 1.103 | 1.158 | 1.216 | 1.276 | 1.340 | 1.407 | 1.477 | 1.551 | 1.629 | |
4135 | 3938 | 3750 | 3572 | 3402 | 3240 | 3085 | 2939 | 2799 | 2665 | |
−13,865 | −9927 | −6177 | −2.05 | 797 | 4036 | 7122 | 10,060 | 12,859 | 15,524 | |
KInvestment (€) | 18,000 | |||||||||
NPV (5 years) (€) | 797 | |||||||||
NPV (10 years) (€) | 15,524 | |||||||||
IRR (%) | 20.33 | |||||||||
IbmC | 0.21 | |||||||||
PBP (year) | 5 |
Units | Results | Fuel | ||
---|---|---|---|---|
Olive (80%) | Plastic-WEEE (20%) | |||
LHVfuel | MJ/kg | 24.76 | 20.5 | 41.8 |
LHVsyngas | MJ/m3 | 5.225 | ||
Vsyngas | m3/h | 14.51 | ||
ηgas | % | 0.61 | ||
ηeng | % | 0.30 | ||
ηgen | % | 0.80 | ||
ηtot | % | 0.23 | ||
FuelConsumption | kg/h | 5.00 | 6.21 | 0.69 |
Total ton/month | 1.20 | 0.30 | ||
Total ton/year | 14.40 | 3.60 |
Años | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
---|---|---|---|---|---|---|---|---|---|---|
Ct | 2466 | 2466 | 2466 | 2466 | 2466 | 2466 | 2466 | 2466 | 2466 | 2466 |
1.050 | 1.103 | 1.158 | 1.216 | 1.276 | 1.340 | 1.407 | 1.477 | 1.551 | 1.629 | |
2348 | 2236 | 2130 | 2028 | 1932 | 1840 | 1752 | 1669 | 1589 | 1514 | |
−9652 | −7416 | −5286 | −3257 | −1325 | 514 | 2267 | 3935 | 5525 | 7038 | |
Kinvestment (€) | 12,000 | |||||||||
NPV (5 years) (€) | −1325 | |||||||||
NPV (10 years) (€) | 7038 | |||||||||
IRR (%) | 15.81 | |||||||||
IbmC | 0.18 | |||||||||
PBP (year) | 6 |
100% Biomass Olive Test 1 | 10% WEEE-plastic/90% Olive Test 2 | 20% WEEE-plastic/80% Olive Test 3 | |
---|---|---|---|
K Investment (€) | 12,000 | 18,000 | 12,000 |
NPV (5 years) (€) | −321 | 797 | −1.325 |
NPV(10 years) (€) | 8829 | 15,524 | 7038 |
IRR (%) | 18.29 | 20.33 | 15.81 |
IBmC | 0.19 | 0.21 | 0.18 |
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Hermoso-Orzáez, M.J.; Mota-Panizio, R.; Carmo-Calado, L.; Brito, P. Thermochemical and Economic Analysis for Energy Recovery by the Gasification of WEEE Plastic Waste from the Disassembly of Large-Scale Outdoor Obsolete Luminaires by LEDs in the Alto Alentejo Region (Portugal). Appl. Sci. 2020, 10, 4601. https://doi.org/10.3390/app10134601
Hermoso-Orzáez MJ, Mota-Panizio R, Carmo-Calado L, Brito P. Thermochemical and Economic Analysis for Energy Recovery by the Gasification of WEEE Plastic Waste from the Disassembly of Large-Scale Outdoor Obsolete Luminaires by LEDs in the Alto Alentejo Region (Portugal). Applied Sciences. 2020; 10(13):4601. https://doi.org/10.3390/app10134601
Chicago/Turabian StyleHermoso-Orzáez, Manuel Jesús, Roberta Mota-Panizio, Luis Carmo-Calado, and Paulo Brito. 2020. "Thermochemical and Economic Analysis for Energy Recovery by the Gasification of WEEE Plastic Waste from the Disassembly of Large-Scale Outdoor Obsolete Luminaires by LEDs in the Alto Alentejo Region (Portugal)" Applied Sciences 10, no. 13: 4601. https://doi.org/10.3390/app10134601
