Communication

Discrimination between Breast Cancer Cells and White Blood Cells by Non-Invasive Measurements: Implications for a Novel In Vitro-Based Circulating Tumor Cell Model Using Digital Holographic Cytometry

by
Zahra El-Schich
1,2,*,
Birgit Janicke
3,
Kersti Alm
3,
Nishtman Dizeyi
4,
Jenny L. Persson
1,2,5 and
Anette Gjörloff Wingren
1,2
1
Department of Biomedical Sciences, Faculty of Health and Society, Malmö University, 205 06 Malmö, Sweden
2
Biofilms-Research Center for Biointerfaces, Malmö University, 205 06 Malmö, Sweden
3
Phase Holographic Imaging AB, 223 63 Lund, Sweden
4
Department of Translational Medicine, Lund University, 205 06 Malmö, Sweden
5
Department of Molecular Biology, Umeå University, 901 87 Umeå, Sweden
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(14), 4854; https://doi.org/10.3390/app10144854
Submission received: 29 May 2020 / Revised: 13 July 2020 / Accepted: 13 July 2020 / Published: 15 July 2020
(This article belongs to the Special Issue Applications of Digital Holography in Biomedical Engineering)
Browse Figures
Review Reports Versions Notes

Abstract

:
Breast cancer is the second most common cancer worldwide. Metastasis is the main reason for death in breast cancer, and today, there is a lack of methods to detect and isolate circulating tumor cells (CTCs), mainly due to their heterogeneity and rarity. There are some systems that are designed to detect rare epithelial cancer cells in whole blood based on the most common marker used today, the epithelial cell adhesion molecule (EpCAM). It has been shown that aggressive breast cancer metastases are of non-epithelial origin and are therefore not always detected using EpCAM as a marker. In the present study, we used an in vitro-based circulating tumor cell model comprising a collection of six breast cancer cell lines and white blood cell lines. We used digital holographic cytometry (DHC) to characterize and distinguish between the different cell types by area, volume and thickness. Here, we present significant differences in cell size-related parameters observed when comparing white blood cells and breast cancer cells by using DHC. In conclusion, DHC can be a powerful diagnostic tool for the characterization of CTCs in the blood.

Graphical Abstract

1. Introduction

Breast cancer is the leading cause of cancer deaths among women worldwide [1]. Breast cancer metastasis accounts for the majority of deaths from breast cancer. The detection of metastases at the earliest stage is important for the management and estimation of breast cancer progression [2]. Breast cancer treatments today are based on the absence or presence of the hormone estrogen receptor (ER), the progesterone receptor (PR) and the expression of human epidermal growth factor receptor 2 (HER2) [3,4]. A tumor with the absence of all of these three receptors, also called triple negative breast cancer, is an aggressive form of breast cancer with a high risk of relapse and metastasis, and is associated with a poor clinical outcome [5,6,7].
Epithelial cells may undergo epithelial-to-mesenchymal transition (EMT), allowing the cells to gain new abilities to cross the extracellular matrix, migrate and become circulating cells [8,9]. The presence of circulating tumor cells (CTC) in patients with metastatic breast cancer is indicative of poor prognosis [10]. The survival rate of women with breast cancer is highly dependent on the absence of metastatic cells and the tumor grade [2].
The most common marker for CTCs that is used today is the epithelial cell adhesion molecule (EpCAM), but for some malignancies such as aggressive breast cancer metastases that are often of non-epithelial origin or have transitioned through EMT, the EpCAM detection method is not useful [11]. This highlights the need for more reliable CTC markers. The adhesion receptor CD44 and EpCAM function together in preparing the pre-metastatic niche [12], while CD45 is a leukocyte marker that is exclusively expressed on all nucleated cells of the hematopoietic system. The absence of CD45 on epithelial cells emphasizes the fact that it is an appropriate cell surface marker for distinguishing between CTCs and hematopoietic cells [13].
CTCs are known to have morphological properties that distinguish them from other circulating cells, such as a larger size than leukocytes and different nuclear morphology [14]. CTCs have been isolated by size, using different methods such as density gradient centrifugation and micropore filtration [15,16,17,18,19]. A more cell-friendly and speedy method of investigating morphological differences would facilitate CTC research. Digital holographic cytometry (DHC) is a powerful tool for label-free cell observations and the evaluation of cell morphological and dynamical parameters in vitro [20,21,22,23,24,25,26]. Studies using DHC include different cell types, from protozoa, bacteria and plant cells to mammalian cells such as nerve cells, stem cells and tumor cells [23]. DHC has also become popular in the diagnostic field such as for the screening of malaria-infected red blood cells and cervical cancer [21,27,28,29].
The aim of the present study was to use DHC to investigate the morphological differences between a collection of breast cancer cell lines and white blood cell (WBC) cancer cell lines. The flow cytometry analysis of the cell markers EpCAM and CD45 was used to characterize the cell lines. We show that cell types lacking CD45 expression have significantly larger cell area, volume and thickness than CD45+ cells without EpCAM expression. In conclusion, DHC is a powerful technique for discriminating cancer cells from WBCs by performing non-invasive measurements of cell area, volume and thickness.

2. Materials and Methods

2.1. Cell Culture

The human breast cancer cell lines Hs-578T, MDA-MB-231, MDA-MB-468, T-47D, Cama-1 and MCF7 and WBC cell lines human leukemic lymphocyte Jurkat and human leukemic monocyte THP-1 were obtained from the American Type Culture Collection (ATCC/LGC Standards, Teddington, UK). Hs-578T cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM, Invitrogen, San Diego, CA, USA) supplemented with 10% fetal bovine serum (FBS, Invitrogen) 1% penicillin–streptomycin and 10 µg/mL of insulin (Sigma-Aldrich, St. Louise, MO, USA). MDA-MB-231 and MDA-MB-468 cells were cultured in DMEM supplemented with 10% FBS. T-47D, MCF7, Jurkat and THP-1 cells were cultured in Roswell Park Memorial Institute (RPMI-1640, Invitrogen) medium supplemented with 10% FBS and 50 µg/mL of gentamycin (Invitrogen). Cama-1 cells were cultured in RPMI-1640 medium supplemented with 10% FBS, 1% pyruvate sodium (Invitrogen) and 1% penicillin–streptomycin (Invitrogen). The cell lines were incubated at 37 °C with 5% CO2 and 95% humidity.

2.2. Flow Cytometry Analysis

EpCAM staining: 1 × 106 cells/sample were stained with anti-EpCAM-PE (Miltenyi Biotec GmBH, Bergisch Gladbach, Germany) or left unstained as a control. The cells were washed twice with 2 mL of phosphate buffered saline (PBS, Invitrogen). A volume of 100 µL of anti-EpCAM-PE (10 ng/mL in PBS) was added to the cells, and 100 µL of PBS was used as a negative control. The cells were incubated with EpCAM-PE for 30 min at 4 °C in the dark. After incubation, the cells were washed three times with 2 mL of PBS and analyzed using flow cytometry (BD Accuri C6, NJ, USA).
CD45 staining: 1 × 106 cells/sample were stained with human anti-CD45-FITC antibody (BD Biosciences, San Jose, CA, USA) or left unstained as a control. The cells were washed twice with 2 mL of PBS, and thereafter, 100 µL of anti-CD45-FITC (10 µg/mL in PBS) was added. 100 µL of PBS was used as a negative control. The cells were then incubated for 30 min at 4 °C in the dark. After incubation, the cells were washed twice with 2 mL of PBS and analyzed using flow cytometry (BD Accuri C6).

2.3. DHC and Computer Software

Cell morphology was detected and analyzed using DHC with the HoloMonitorTM M4 (Phase Holographic Imaging AB, PHIAB, Lund, Sweden). For each analysis, 1 × 106 cells in suspension were washed twice with PBS and then 1 × 104 cells in 10 µL were added to a CountessTM cell counting chamber slide (ThermoFisher Scientific, Waltham, MA, USA). The chamber slide was placed on a HoloMonitorTM M4 inside a cell incubator to ensure stable conditions for the cells, 37 °C with 5% CO2 and 95% humidity for 10 min, during the analysis. For each cell line, more than 10 images at different positions were acquired automatically all over the chamber (Figure 1). The image analysis was performed with the proprietary AppSuite software (Phase Holographic Imaging AB). The HoloMonitorTM M4 was equipped with a 635 nm diode laser, which illuminated the cells at 0.2 mW/cm2 to prevent phototoxic effects on the cells.

2.4. Statistical Analysis

The cell morphology was analyzed by calculating the mean of at least 10 images of the cell mean volume, mean area and mean thickness with a cell number average of 242 ± 58 cells in each image. Experiments were repeated on separate days, at least 3 times. The analyzed data of at least 10 images per sample for DHC are presented as mean ± standard deviation (STDEV). Statistical significance was determined by two-tailed unpaired Student’s t-tests, with P values ≤0.05 considered significant.

3. Results

3.1. There Is Low or No Expression of EpCAM in Triple Negative Breast Cancer Cell Lines

EpCAM expression is limited to normal and malignant epithelial cells. EpCAM has been used as a diagnostic marker for the detection of carcinoma cells in mesenchymal organs such as the blood, bone marrow or lymph nodes [30]. In this study, all the cell lines were first classified by analyzing EpCAM and CD45 expression. The three triple negative breast cancer cell lines;Hs-578T, MDA-MB-231 and MDA-MB-468, expressed no or little EpCAM protein, while the three non-metastatic cell lines, T-47D, Cama-1 and MCF7, expressed high levels of EpCAM (Table 1). THP-1 and Jurkat showed no EpCAM expression but expressed high levels of CD45. All the breast cancer cell lines were negative for CD45 (Table 1).

3.2. WBC Lines and Breast Cancer Cell Lines Presented in 2D Holograms with DHC

The two WBC lines THP-1 and Jurkat, and the six different breast cancer cell lines were analyzed for cell mean volume, mean area and mean thickness with DHC (Figure 2 and Figure 3). As shown here, the WBC cell lines THP-1 and Jurkat were consistently smaller than the six breast cancer cell lines.

3.3. The Morphology Parameters Analyzed with DHC Clearly Discriminate between Breast Cancer Cells and WBC Lines

As measured by DHC, the WBC lines Jurkat and THP-1 cells have smaller cell areas, cell volumes and cell thicknesses than the six breast cancer cell lines. Indeed, there were significant differences in the cell area, cell volume and cell thickness when comparing the WBC lines and breast cancer cell lines, as calculated by two-tailed unpaired Student’s t-tests (Figure 3a–c).

4. Discussion

In 2004, the CellSearch system was approved for the detection of CTCs in humans by the Food and Drug Administration (FDA). This system is based on magnetic cell sorting, the expression of EpCAM and cytokeratin (CK) [31]. The system is reliable and has radically improved the detection of CTCs. However, one drawback is the inability to detect CTCs with downregulated EpCAM expression. The level of EpCAM varies in different tumor types and is known to be downregulated to increase invasiveness and metastatic potential [11,32]. The CellSearch system may miss EpCAM-negative tumor cells due to the loss of EpCAM expression. Several sorting methods exist based on other cell characteristics, such as physical properties (size, elasticity and surface charge). CTCs are usually larger in size, in contrast to leukocytes, and therefore, many CTCs isolation methods are mainly based on size differences [14,33,34]. A microcavity array (MCA) system based on a polycarbonate filter for the isolation by size of epithelial tumor cells has been developed [35,36]. The MCA system showed a significantly higher degree of CTCs isolation in advanced lung cancer patients than the CellSearch system [35]. Ribeiro-Samy et al. developed a microfluidic chip (CROSS) for the label-free isolation of CTCs, which showed higher sensitivity than CellSearch when isolating CTCs from metastatic colorectal cancer patients [36].
As the morphological parameters including the area, thickness and volume of WBCs are distinctly different from epithelial cancer cell morphology, a CTC detection system based on cell morphology would detect even EpCAM-negative cancer cells. DHC is label-free and provides convenient quantitative imaging analyses of cell morphology for both single cells and cell populations. DHC applications have previously been used to discriminate between the maturity levels of red blood cells, perform cell death studies and analyze drug responses [23,37,38,39]. Cell optical area, thickness and volume are useful parameters, particularly for discrimination between different cell types [39,40,41,42,43,44].
Recent developments in microfluidic methods have allowed a number of new investigations related to CTCs; however, the low frequency of CTCs in the circulation remains a challenge for the application of CTC-based technologies in the clinical setting [45]. DHC could, in combination with machine-learning algorithms, distinguish between normal skin cells and melanoma cells, and between primary and metastatic melanoma cell lines with high significance [46]. Machine-learning algorithms and computational tools are now provided methods for optimizing DHC for kinetic single adherent cell classification [47]. Singh et al. optimized high-throughput holographic screening for detecting tumor cells in blood through a microchannel system and making it a promising tool for the label-free analysis of liquid biopsy samples [48]. Khan et al. merged two technologies to perform the continuous high-resolution fluorescence imaging of cellular suspensions in a deep microfluidics chamber [49]. Here, a microfluidics chamber could be one option for continuing this project and extending the analysis to a large number of WBCs.
In this study, we have shown that epithelial breast cancer cells can be discriminated from WBCs by measuring the cellular thickness, volume and area using DHC. The investigated parameters showed significant differences between epithelial cells and blood cells. Future applications will include peripheral blood cells and extended collections of epithelial cancer cells.

5. Conclusions

Non-invasive DHC is a powerful technique to use for the discrimination of epithelial cancer cells and WBCs. Upon determining the cell area, volume and thickness, the investigated cell types with CD45 expression, the WBCs, were shown to have significantly smaller cell areas, volumes and thicknesses than CD45− epithelial cells either with or without EpCAM expression. We conclude that DHC is a convenient technique with many possibilities for analyzing either suspension or adherent cells, here used in a model for the in vitro analysis of CTCs.

Author Contributions

Methodology, software and data curation, Z.E.-S., K.A. and A.G.W.; writing—original draft preparation, Z.E.-S. and A.G.W.; writing—review and editing, K.A., B.J., N.D. and J.L.P.; supervision, A.G.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Swedish Knowledge Foundation, the European Union´s Horizon 2020 research and innovation program under the Marie Sklodowska-Curie grant agreement grant number 721297, Biofilms Research Center for Biointerfaces and Malmö University.

Acknowledgments

We thank Bo Holmqvist and Anders Brinte at ImaGene-iT, Lund, Sweden; Karin von Wachenfeldt at Truly Translational AB, Sweden; and Börje Sellergren at the Department of Biomedical Sciences, Faculty of Health and Society, Biofilms-Research Center for Biointerfaces, Malmö University, Malmö, Sweden.

Conflicts of Interest

The authors declare no conflict of interest. Kersti Alm and Birgit Janicke are employed by Phase Holographic Imaging, who manufacture HoloMonitor M4.

References

  1. Youlden, D.R.; Cramb, S.; Dunn, N.A.M.; Muller, J.M.; Pyke, C.; Baade, P. The descriptive epidemiology of female breast cancer: An international comparison of screening, incidence, survival and mortality. Cancer Epidemiol. 2012, 36, 237–248. [Google Scholar] [CrossRef] [Green Version]
  2. Weigelt, B.; Peterse, J.L.; Veer, L.J.V. Breast cancer metastasis: Markers and models. Nat. Rev. Cancer 2005, 5, 591–602. [Google Scholar] [CrossRef] [PubMed]
  3. Cardiff, R.D.; Borowsky, A.D. At last: Classification of human mammary cells elucidates breast cancer origins. J. Clin. Investig. 2014, 124, 478–480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Giulianelli, S.; Molinolo, A.; Lanari, C. Targeting Progesterone Receptors in Breast Cancer. Nitric Oxide 2013, 93, 161–184. [Google Scholar] [CrossRef]
  5. Reis-Filho, J.S.; Tutt, A.N.J. Triple negative tumours: A critical review. Histopathology 2007, 52, 108–118. [Google Scholar] [CrossRef] [PubMed]
  6. Gu, G.; Dustin, D.; Fuqua, S.A. Targeted therapy for breast cancer and molecular mechanisms of resistance to treatment. Curr. Opin. Pharmacol. 2016, 31, 97–103. [Google Scholar] [CrossRef]
  7. Yang, F.; Wang, Y.; Li, Q.; Cao, L.; Sun, Z.; Jin, J.; Fang, H.; Zhu, A.; Li, Y.; Zhang, W.; et al. Intratumor heterogeneity predicts metastasis of triple-negative breast cancer. Carcinogenesis 2017, 38, 900–909. [Google Scholar] [CrossRef] [PubMed]
  8. Puisieux, A.; Pommier, R.M.; Morel, A.P.; Lavial, F. Cellular pliancy and the multistep process of tumorigenesis. Cancer Cell 2018, 33, 164–172. [Google Scholar] [CrossRef] [Green Version]
  9. Pastushenko, I.; Blanpain, C. EMT Transition states during tumor progression and metastasis. Trends Cell Biol. 2019, 29, 212–226. [Google Scholar] [CrossRef] [Green Version]
  10. Cristofanilli, M.; Budd, G.T.; Ellis, M.J.; Stopeck, A.; Matera, J.; Miller, M.C.; Reuben, J.M.; Doyle, G.V.; Allard, W.J.; Terstappen, L.W.; et al. Circulating tumor cells, disease progression, and survival in metastatic breast cancer. N. Engl. J. Med. 2004, 351, 781–791. [Google Scholar] [CrossRef] [Green Version]
  11. Imrich, S.; Hachmeister, M.; Gires, O. EpCAM and its potential role in tumor-initiating cells. Cell Adhes. Migr. 2012, 6, 30–38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Marhaba, R.; Klingbeil, P.; Nuebel, T.; Nazarenko, I.; Buechler, M.W.; Zoeller, M. CD44 and EpCAM: Cancer-initiating cell markers. Curr. Mol. Med. 2008, 8, 784–804. [Google Scholar] [CrossRef] [PubMed]
  13. Coumans, F.; Doggen, C.J.M.; Attard, G.; De Bono, J.; Terstappen, L.W.M.M. All circulating EpCAM+ CK+ CD45− objects predict overall survival in castration-resistant prostate cancer. Ann. Oncol. 2010, 21, 1851–1857. [Google Scholar] [CrossRef]
  14. Fehm, T.; Solomayer, E.; Meng, S.; Tucker, T.; Lane, N.; Wang, J.; Gebauer, G. Methods for isolating circulating epithelial cells and criteria for their classification as carcinoma cells. Cytotherapy 2005, 7, 171–185. [Google Scholar] [CrossRef]
  15. Rosenberg, R.; Gertler, R.; Friederichs, J.; Fuehrer, K.; Dahm, M.; Phelps, R.; Thorban, S.; Nekarda, H.; Siewert, J.R. Comparison of two density gradient centrifugation systems for the enrichment of disseminated tumor cells in blood. Cytometry 2002, 49, 150–158. [Google Scholar] [CrossRef] [PubMed]
  16. Vona, G.; Sabile, A.; Louha, M.; Sitruk, V.; Romana, S.P.; Schütze, K.; Capron, F.; Franco, D.; Pazzagli, M.; Vekemans, M.; et al. Isolation by size of epithelial tumor cells. Am. J. Pathol. 2000, 156, 57–63. [Google Scholar] [CrossRef]
  17. Coumans, F.A.W.; Van Dalum, G.; Beck, M.; Terstappen, L.W.M.M. Filter Characteristics influencing circulating tumor cell enrichment from whole blood. PLoS ONE 2013, 8, e61770. [Google Scholar] [CrossRef] [Green Version]
  18. Zheng, S.Y.; Lin, H.K.; Lu, B.; Williams, A.; Datar, R.; Cote, R.J.; Tai, Y.C. 3D microfilter device for viable circulating tumor cell (CTC) enrichment from blood. Biomed. Microdevices 2011, 13, 203–213. [Google Scholar] [CrossRef] [Green Version]
  19. Jin, C.; Mcfaul, S.M.; Duffy, S.P.; Deng, X.; Tavassoli, P.; Black, P.C.; Ma, H. Technologies for label-free separation of circulating tumor cells: From historical foundations to recent developments. Lab Chip 2014, 14, 32–44. [Google Scholar] [CrossRef]
  20. Yu, X.; Hong, J.; Liu, C.; Cross, M.; Haynie, D.T.; Kim, M.K. Four-dimensional motility tracking of biological cells by digital holographic microscopy. J. Biomed. Opt. 2014, 19, 045001. [Google Scholar] [CrossRef] [Green Version]
  21. Marquet, P.; Depeursinge, C.; Magistretti, P.J. Review of quantitative phase-digital holographic microscopy: Promising novel imaging technique to resolve neuronal network activity and identify cellular biomarkers of psychiatric disorders. Neurophotonics 2014, 1, 020901. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Kemper, B.; Wibbeling, J.; Kastl, L.; Schnekenburger, J.; Ketelhut, S. Multimodal label-free growth and morphology characterization of different cell types in a single culture with quantitative digital holographic phase microscopy. In Proceedings of the 1st Conference on Quantitative Phase Imaging (QPI), San Francisco, CA, USA, 7–10 February 2014. [Google Scholar]
  23. Alm, K.; El-Schich, Z.; Falck, M.; Wingren, A.G.; Janicke, B.; Oredsso, S. Cells and Holograms-Holograms and Digital Holographic Microscopy as a Tool to Study the Morphology of Living Cells. In Holography-Basic Principles and Contemporary Applications; Mihaylova, E., Ed.; IntechOpen: London, UK, 2013. [Google Scholar]
  24. Majeed, H.; Sridharan, S.; Mir, M.; Ma, L.; Min, E.; Jung, W.; Popescu, G. Quantitative phase imaging for medical diagnosis. J. Biophotonics 2016, 10, 177–205. [Google Scholar] [CrossRef]
  25. Wingren, A.G. Moving into a new dimension: Tracking migrating cells with digital holographic cytometry in 3D. Cytom. Part A 2018, 95, 144–146. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, Y.; Judson, R.L. Evaluation of holographic imaging cytometer holomonitor M4® motility applications. Cytom. Part A 2018, 93, 1125–1131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Bettenworth, D.; Bokemeyer, A.; Poremba, C.; Ding, N.S.; Ketelhut, S.; Lenz, P.; Kemper, B. Quantitative phase microscopy for evaluation of intestinal inflammation and wound healing utilizing label-free biophysical markers. Histol. Histopathol. 2017, 33, 417–432. [Google Scholar] [PubMed]
  28. Anand, A.; Chhaniwal, V.K.; Patel, N.R.; Javidi, B. Automatic identification of malaria-infected RBC with digital holographic microscopy using correlation algorithms. IEEE Photonics J. 2012, 4, 1456–1464. [Google Scholar] [CrossRef]
  29. Benzerdjeb, N.; Garbar, C.; Camparo, P.; Sevestre, H. Digital holographic microscopy as screening tool for cervical cancer preliminary study. Cancer Cytopathol. 2016, 124, 573–580. [Google Scholar] [CrossRef]
  30. Keller, L.; Werner, S.; Pantel, K. Biology and clinical relevance of EpCAM. Cell Stress 2019, 3, 165–180. [Google Scholar] [CrossRef] [Green Version]
  31. Allard, W.J. Tumor cells circulate in the peripheral blood of all major carcinomas but not in healthy subjects or patients with nonmalignant diseases. Clin. Cancer Res. 2004, 10, 6897–6904. [Google Scholar] [CrossRef] [Green Version]
  32. Lecharpentier, A.; Vielh, P.; Perez-Moreno, P.; Planchard, D.; Soria, J.C.; Farace, F. Detection of circulating tumour cells with a hybrid (epithelial/mesenchymal) phenotype in patients with metastatic non-small cell lung cancer. Br. J. Cancer 2011, 105, 1338–1341. [Google Scholar] [CrossRef] [Green Version]
  33. DeSitter, I.; Guerrouahen, B.S.; Benali-Furet, N.; Wechsler, J.; Jänne, P.A.; Kuang, Y.; Yanagita, M.; Wang, L.; Berkowitz, J.A.; Distel, R.J.; et al. A new device for rapid isolation by size and characterization of rare circulating tumor cells. Anticancer. Res. 2011, 31, 427–441. [Google Scholar]
  34. Zabaglo, L.; Ormerod, M.G.; Parton, M.; Ring, A.E.; Smith, I.E.; Dowsett, M. Cell filtration-laser scanning cytometry for the characterisation of circulating breast cancer cells. Cytom. Part A 2003, 55, 102–108. [Google Scholar] [CrossRef] [PubMed]
  35. Ribeiro-Samy, S.; Oliveira, M.I.; Pereira-Veiga, T.; Muinelo-Romay, L.; Carvalho, S.; Gaspar, J.; Freitas, P.P.; López-López, R.; Costa, C.; Diéguez, L. Fast and efficient microfluidic cell filter for isolation of circulating tumor cells from unprocessed whole blood of colorectal cancer patients. Sci. Rep. 2019, 9, 1–12. [Google Scholar] [CrossRef] [PubMed]
  36. Hosokawa, M.; Kenmotsu, H.; Koh, Y.; Yoshino, T.; Yoshikawa, T.; Naito, T.; Takahashi, T.; Murakami, H.; Nakamura, Y.; Tsuya, A.; et al. Size-based isolation of circulating tumor cells in lung cancer patients using a microcavity array system. PLoS ONE 2013, 8, e67466. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Mihailescu, M.; Scarlat, M.; Gheorghiu, A.; Costescu, J.; Kusko, M.; Paun, I.A.; Scarlat, E. Automated imaging, identification, and counting of similar cells from digital hologram reconstructions. Appl. Opt. 2011, 50, 3589–3597. [Google Scholar] [CrossRef]
  38. Kemmler, M.; Fratz, M.; Saum, N.; Giel, D.; Brandenburg, A.; Hoffmann, C. Noninvasive time-dependent cytometry monitoring by digital holography. J. Biomed. Opt. 2007, 12, 064002. [Google Scholar] [CrossRef]
  39. El-Schich, Z.; Molder, A.; Tassidis, H.; Härkönen, P.; Miniotis, M.F.; Wingren, A.G. Induction of morphological changes in death-induced cancer cells monitored by holographic microscopy. J. Struct. Biol. 2015, 189, 207–212. [Google Scholar] [CrossRef]
  40. El-Schich, Z.; Kamlund, S.; Janicke, B.; Wingren, A.G. Holography: The Usefulness of Digital Holographic Microscopy for Clinical Diagnostics; IntechOpen: London, UK, 2017; pp. 319–333. [Google Scholar]
  41. El-Schich, Z.; Nilsson, E.; Gerdtsson, A.S.; Wingren, C.; Wingren, A.G. Interfacing antibody-based microarrays and digital holography enables label-free detection for loss of cell volume. Future Sci. OA 2015, 1, 1–11. [Google Scholar] [CrossRef]
  42. El-Schich, Z.; Mölder, A.L.; Wingren, A.G. Quantitative phase imaging for label-free analysis of cancer cells—Focus on digital holographic microscopy. Appl. Sci. 2018, 8, 1027. [Google Scholar] [CrossRef] [Green Version]
  43. Luther, E.; Mendes, L.P.; Pan, J.; Costa, D.F.; Torchilin, V.P. Applications of label-free, quantitative phase holographic imaging cytometry to the development of multi-specific nanoscale pharmaceutical formulations. Cytom. Part A 2017, 91, 412–423. [Google Scholar] [CrossRef] [Green Version]
  44. Patel, M.; Feith, M.; Janicke, B.; Alm, K.; El-Schich, Z. Evaluation of the impact of imprinted polymer particles on morphology and motility of breast cancer cells by using digital holographic cytometry. Appl. Sci. 2020, 10, 750. [Google Scholar] [CrossRef] [Green Version]
  45. Castro-Giner, F.; Aceto, N. Tracking cancer progression: From circulating tumor cells to metastasis. Genome Med. 2020, 12, 1–12. [Google Scholar] [CrossRef] [Green Version]
  46. Roitshtain, D.; Wolbromsky, L.; Bal, E.; Greenspan, H.; Satterwhite, L.L.; Shaked, N.T. Quantitative phase microscopy spatial signatures of cancer cells. Cytom. Part A 2017, 91, 482–493. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Hejna, M.; Jorapur, A.; Song, J.S.; Judson-Torres, R. High accuracy label-free classification of single-cell kinetic states from holographic cytometry of human melanoma cells. Sci. Rep. 2017, 7, 11943. [Google Scholar] [CrossRef]
  48. Singh, D.K.; Ahrens, C.; Li, W.; Vanapalli, S.A. Label-free, high-throughput holographic screening and enumeration of tumor cells in blood. Lab Chip 2017, 17, 2920–2932. [Google Scholar] [CrossRef]
  49. Khan, F.Z.; Hutcheson, J.; Hunter, C.J.; Powless, A.J.; Benson, D.M.; Fritsch, I.; Muldoon, T.J. Redox-magnetohydrodynamically controlled fluid flow with poly(3,4-ethylenedioxythiophene) coupled to an epitaxial light sheet confocal microscope for image cytometry applications. Anal. Chem. 2018, 90, 7862–7870. [Google Scholar] [CrossRef]
Applsci 10 04854 g001 550

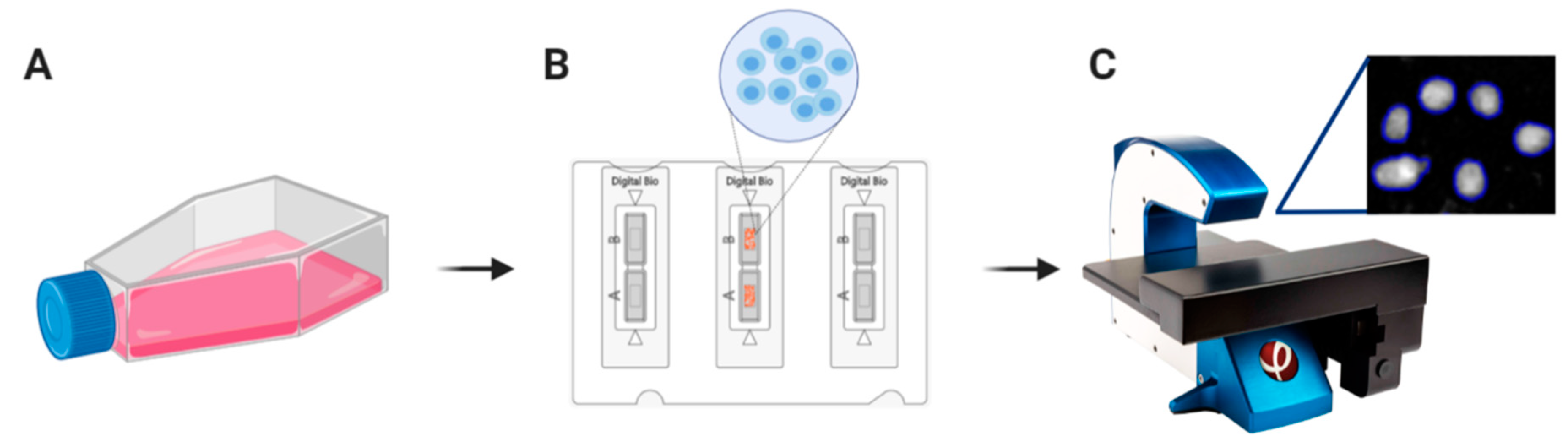

Figure 1. A schematic flow of the experimental system that consisted of the cultured cells (A), the detached cells in the cell counting chamber slides (B) and the HoloMonitorTM M4 analysis set-up (C).
Figure 1. A schematic flow of the experimental system that consisted of the cultured cells (A), the detached cells in the cell counting chamber slides (B) and the HoloMonitorTM M4 analysis set-up (C).
Applsci 10 04854 g001
Applsci 10 04854 g002 550

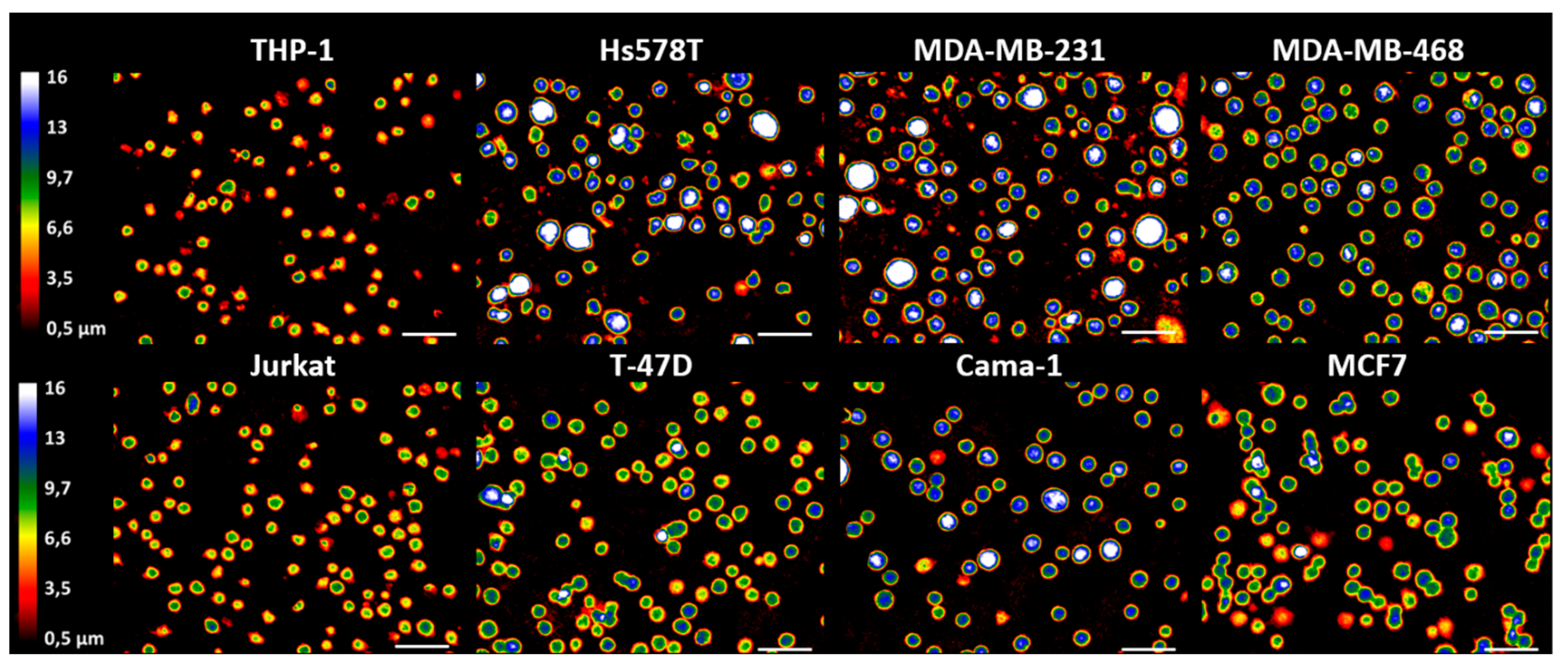

Figure 2. DHC holographic phase image in 2D. Two white blood cell lines (THP-1 and Jurkat) and six different breast cancer cell lines were analyzed with DHC. The color scale bars represent the thickness of the cells in µm, and the scale bars represent 10 µm.
Figure 2. DHC holographic phase image in 2D. Two white blood cell lines (THP-1 and Jurkat) and six different breast cancer cell lines were analyzed with DHC. The color scale bars represent the thickness of the cells in µm, and the scale bars represent 10 µm.
Applsci 10 04854 g002
Applsci 10 04854 g003 550
Figure 3. Diagrams presenting the average cell area (A), average optical volume (B) and average cell thickness (C) for Jurkat, THP-1 and six breast cancer cell lines. The calculations were based on at least 10 images/sample. All results comparing THP-1 and Jurkat with the breast cancer cells were significant with p < 0.005.
Figure 3. Diagrams presenting the average cell area (A), average optical volume (B) and average cell thickness (C) for Jurkat, THP-1 and six breast cancer cell lines. The calculations were based on at least 10 images/sample. All results comparing THP-1 and Jurkat with the breast cancer cells were significant with p < 0.005.
Applsci 10 04854 g003
Table
Table 1. EpCAM and CD45 expression on different cancer cell lines were analyzed with flow cytometry. The results are from one representative experiment out of three, and the results are presented as % positive cells.
Table 1. EpCAM and CD45 expression on different cancer cell lines were analyzed with flow cytometry. The results are from one representative experiment out of three, and the results are presented as % positive cells.
JurkatTHP-1Hs-578TMDA-MB-231MDA-MB-468T-47DCama-1MCF7
EpCAM %0.20.10.10.311.748.679.991.4
CD45 %1001000.10.40.11.21.20.9
